sinks + faucets 2007 price guide

SHL-2

price guide

Effective July 2, 2007

2222 Camden Court

Oak Brook, Illinois 60523

Customer Service (630) 572-3192

elkayusa.com

Discover the professional’s choice.

™

| page 4

sinks

mystic

avado

asana

custom/sink tops

elite gourmet

undermounts

gourmet

lustertone

elumina

specialty

collection

| page 44

faucets

arezzo

ferrara

moda

allure

victoria

lavatory

| page 64

accessories

rinsing baskets

bottom grids

cutting boards

colanders

soap/lotion

dispensers

strainers

water dispensers

| page 70

bath

bath accessories

|page 72

index

by model

number

2| contents

Enduring quality. Superior craftsmanship. Timeless style !Sinks and faucets designed to last the test of

time !Precision crafted with outstanding materials to give your home the finishing touch you desire !

With the choices and options you need to spark your imagination and beautifully complement your décor.

pricing

Prices and product specifications are subject to change without notice.

Faucets, waste fittings, bubblers, glass fillers and accessories may be

combined with Elkay sinks to earn shipping weight benefits. Standard

terms are 2% 10th prox. All Federal, State or Local Taxes, when applica-

ble, will be added.

electronic data interchange (EDI)

Elkay supports EDI transactions. Please contact Elkay’s EDI Coordinator

at (630) 574-8484 to discuss the list of current transaction set versions

and your implementation requirements.

limited lifetime sink warranty

Elkay warrants to the original purchaser of an Elkay stainless steel sink

that Elkay will, at its option, replace or repair, without charge, such

product if it fails due to a manufacturing defect for a lifetime of normal

residential use. Product replacement does not include transportation

cost or labor installation cost. This warranty covers only stainless steel

self-rimming drop-in sinks installed in a conventional countertop sur-

face and stainless steel undermount sinks installed in a conventional

solid surface countertop and applies to residential installations only.

Elkay reserves the right to examine product in question and its installa-

tion prior to replacement.

limited lifetime functional and finish warranty

Elkay warrants to the original consumer purchaser that the Elkay faucet

purchased will be free from defects in material and workmanship for

as long as the original consumer purchaser owns the faucet. Elkay will,

at its option, supply replacement parts (or if no longer available a

comparable product) if the faucet fails due to a defect in material or

workmanship. This warranty does not apply in the event of product

surface damage caused by abuse, misuse or improper care and main-

tenance. this warranty excludes damage caused by harsh abrasive

cleaners and/or materials. This warranty excludes

all industrial, commercial and business use, whose purchasers are

hereby extended a limited lifetime on mechanical parts and 5 years on

finish. Product replacement does not include transportation cost or

labor installation cost. Elkay reserves the right to examine product in

question and its installation prior to replacement. Waste fittings and

accessories are not warranted on sinks.

waste fittings and accessories are not warranted

other warranty conditions on sinks

This warranty applies to sinks purchased after March 1st 2001 as

shown on the purchaser’s dated receipt. For sinks purchased prior to

March 1st 2001, the applicable warranty at that time will be in effect.

Our warranty does not cover product failure or damage caused by

abusive treatment, misuse, environmental factors, normal wear includ-

ing dents and scratches, improper care and cleaning, use of aggres-

sive and abrasive cleaners, damage due to handling or failure to fol-

low the recommended procedures for installation, care and mainte-

nance as detailed in the installation and care guide provided with

every sink. This warranty is extended only to the original consumer

purchaser of the product. This warranty does not cover shipping costs,

labor costs, or any other charges for such items as installation or

replacement of the sink, diagnosis or replacement of any faucet or

component part, or any other expense or loss.

All incidental or consequential damages are specifically excluded. No

additional warranties, express or implied are given, including but not

limited to, any implied warranty of merchantability or fitness for a par-

ticular purpose.

Some states do not allow the exclusion or limitation of incidental or

consequential damages or limitations on how long an implied warranty

lasts, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have

other rights which vary from state to state.

TO OBTAIN SERVICE UNDER WARRANTY

1. Write to: Elkay Manufacturing Company, Attention: Consumer

Services, 2222 Camden Court, Oak Brook, IL 60523

2. Include a letter containing the following information:

a. Date of purchase and installation

b. Proof of Purchase (copy of original dated invoice)

c. Description of nature of defect

d. Model number or description of model and/or component

part if possible.

overpack

For a nominal charge, the sink will be repackaged to assist in reducing

damage that occurs during shipment. It is available for all sinks with

an overall dimension of 43 x 22 or less and must be requested when

an order is submitted.

Above all else, our word is our bond. We

honor our commitments with integrity to

our customers, employees, suppliers and

the communities in which we live and work.

1980

Today with more than 4,000 employees

worldwide, we are the largest manufacturer

of stainless steel sinks, as well as a name

well known for high quality faucets, water

coolers and drinking fountains.

The same goals that began three genera-

tions ago continue today. As a family

owned company, we’re dedicated to your

complete satisfaction.

“From our family to yours,

thank you for choosing

the quality of Elkay.”

Ron Katz

Elkay Chairman and CEO

3| introduction

formed for function

Our sinks are designed for life – and for your

lifestyle. Through impressive engineering, our

sinks have extra deep bowls and straight side

walls with tight radius corners. This will not only

allow larger pots and pans to sit flat for easier

filling and cleaning, but also allows even more

capacity in the same amount of space for more

dishes and glasses.

noticeably quiet, noticeably different

Compare our sinks to any other brand and

you’ll hear the difference. Exclusive Sound

Guard® protection combines a sprayed-on

undercoating and sound deadening pads

to absorb sound, reduce condensation

and help retain the desired sink water

temperature.

In keeping with our policy of continuing product

improvement, Elkay reserves the right to change

product specifications without notice.

Elkay Competitor

the elkay difference

We are the leader in stainless steel sinks

for many reasons !Beyond beautiful

styling and unique features, our sinks

are designed, formed, finished and

protected with uncompromising quality !

We invite you to compare and discover

for yourself the Elkay difference !Visit

us at elkayusa.com

beauty for a lifetime

The beauty you see is more than just skin

deep. We begin with ultra-thick 14, 16

or 18 gauge stainless steel to resist

cracking, chipping and denting. Each sink

is then polished by hand to achieve the

soft, lustrous shine of our trademark

Lustertone® finish. Unlike “shiny” sinks

that eventually show scratches with normal

use and cleaning, an Elkay sink is

designed with an appearance that actually

looks even better over time.

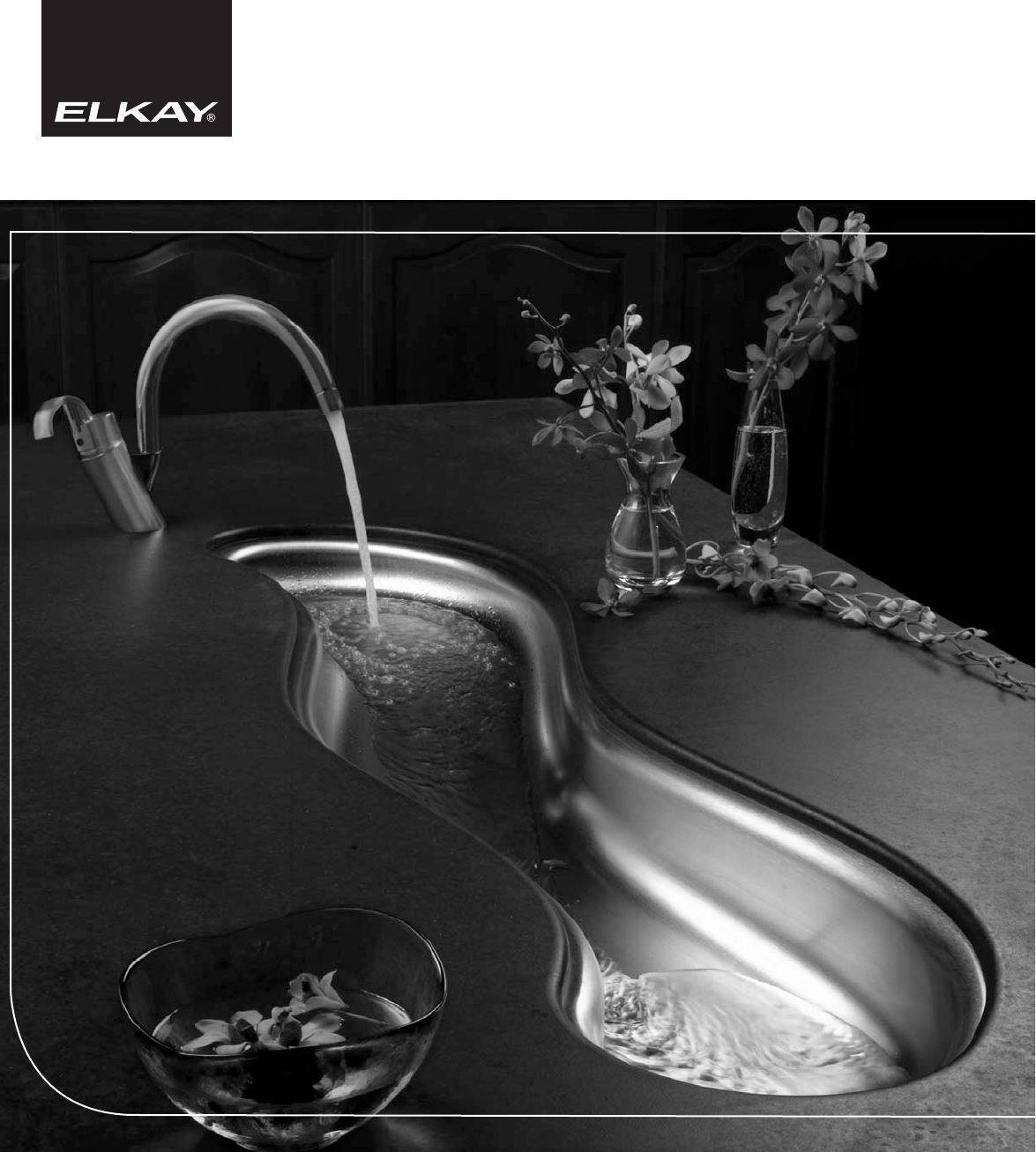

mystic®

Gently flowing design makes a dramatic statement – ideal for entertaining or as a family prep-work area

!Offers 48 or 25 flowing inches of innovative style and convenience !Made from 16 gauge, Type 304

stainless steel !Lustertone® hand-crafted satin finish maintains its beautiful luster after years of use !

Fully undercoated for superior sound dampening !Undermount installation

5| mystic

The first model number in black indicates the model shown

7-5/8"

13-15/16"

51"

8-3/8"

7-1/2"

6-3/8"

12-1/2"

28"

MYSTIC2812C: Discontinued

MYSTIC2812: $1,363.00

Bowl Depth: slopes 25⁄8" to 41⁄2"

MYSTIC2812 comes complete with LK8 grid strainer

MYSTIC5014C: $2,734.00

MYSTIC5014: $2,247.00

Bowl Depth: slopes 21⁄8" to 41⁄2"

MYSTIC5014 comes complete with LK99 strainer

MYSTIC5014C comes complete with

LK7122NK faucet and LK99 strainer

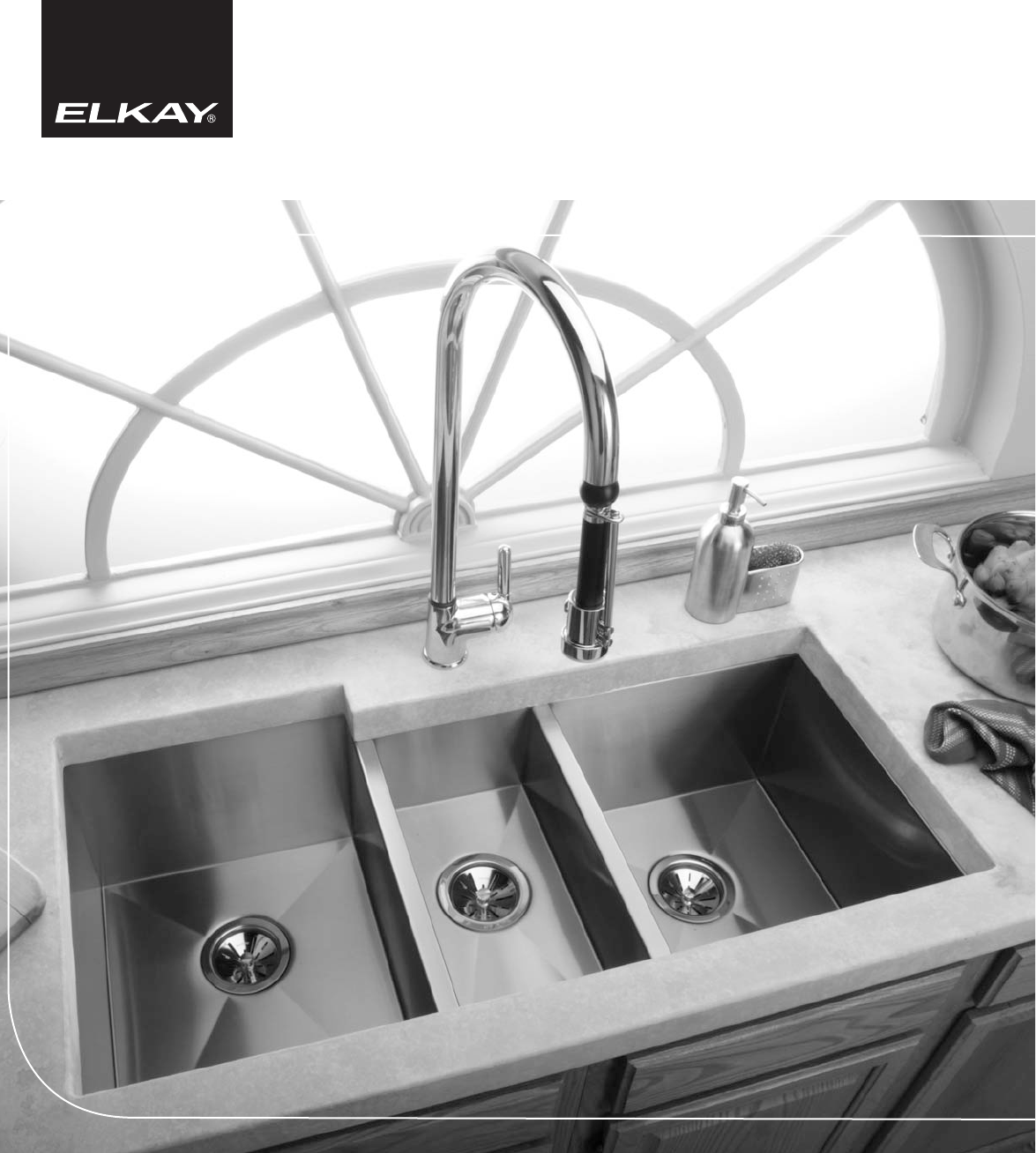

avado™

Features a modern design with clean edges and deep basins !Triple, double and single bowl

undermount designs !Formed from 16 gauge, Type 304 nickel-bearing stainless steel !Bright satin

finish maintains its beautiful luster after years of use !Underside of sink is fully protected by heavy duty

Sound Guard® undercoating

7| avado

EFU402010: $2,510.00

Bowl Depth: L 10", C 6", R 10"

16"

18-1/2"

18"

20-1/2"

40"

14" 13-1/2"

7-1/2"

43-1/2"

21" 20"

15-3/4"

18-1/4"

EFU411510DB: $1,327.00

Bowl Depth: 10"

Reversible design allows the sink to

be rotated so work area is on the left

Avado collection is exclusive to Elkay Marquis Showrooms

Strainers sold separately, see pages 68-69 for pricing

LKWRB1418SS (left bowl)

$149.00

LKWRB715SS (center bowl)

$117.00

LKWRB1316SS (right bowl)

$149.00

LKWOBG1418SS (left bowl)

$110.00

LKWOBG1316SS (right bowl)

$106.00

accessories

LKWRB2115SS

$160.00

LKWBG2115SS

$120.00

accessories

avado™

15-3/4"

18-1/4"

32-1/4"

7-1/2"

21"

16"

18-1/2

18"

20-1/2"

31-1/4"

14" 13-1/2"

16"

18-1/2"

30-3/4"

13-1/2" 13-1/2"

EFU312010R: $1,711.00

Bowl Depth: 10"

EFU311810: $1,671.00

Bowl Depth: 10"

EFU321910: $1,603.00

Bowl Depth: Lg 10", Sm 6"

Reversible design allows the

sink to be rotated so small

bowl is on the right

LKWRB2115SS

(lg bowl)

$160.00

LKWRB715SS

(sm bowl)

$117.00

LKWBG2115SS

(lg bowl)

$120.00

accessories

LKWRB1316SS

$149.00

LKWOBG1316SS

$106.00

accessories

LKWRB1418SS

(lg bowl)

$149.00

LKWRB1316SS

(sm bowl)

$149.00

LKWOBG1418SS

(lg bowl)

$110.00

LKWOBG1316SS

(sm bowl)

$106.00

accessories

9| avado

EFU131610: $808.00

Bowl Depth: 10"

16"

13-1/2"

16"

18-1/2"

16-1/2"

14"

18"

20-1/2"

23-1/2"

21"

15-3/4"

18-1/4"

18-1/2"

30-1/2"

28"

EFU141810: $943.00

Bowl Depth: 10"

EFU211510: $1,016.00

Bowl Depth: 10"

EFU281610:

$1,440.00

Bowl Depth: 10"

Avado collection is exclusive to Elkay Marquis Showrooms

Strainers sold separately, see pages 68-69 for pricing

LKWRB1316SS

$149.00 LKWOBG1316SS

$106.00

accessories

LKWRB1418SS

$149.00 LKWOBG1418SS

$110.00

accessories

LKWRB2115SS

$160.00 LKWOBG2115SS

$120.00

accessories

LKWRB2816SS

$181.00 LKWOBG2816SS

$154.00

accessories

asana™

Choose from square and rectangular semi-recessed or round vessel sinks !Vessels available with mirror or

satin finish ledge !Fabricated from 18 gauge, Type 304 nickel-bearing stainless steel !Hand-crafted finish

maintains its beautiful luster after years of use !Drop-in versions have a matte satin finish

10 |

20"

17"

12"

EFL2012: $1,150.00

Bowl Depth: 61⁄2"

11 | asana

EFL1616: $1,416.00

Bowl Depth: 6"

EFL1515: $1,129.00

Bowl Depth: 6"

16"

13"

16"

13"

16"

15-1/2"

12"

Asana collection is exclusive to Elkay Marquis Showrooms

Strainers sold separately, see pages 68-69 for pricing

VESSEL16SSS*: $739.00

VESSEL16SMS*: $801.00

Bowl Depth: 6"

*SSS = Satin Outside / Satin Ledge / Satin Inside

*SMS = Satin Outside /Mirror Ledge / Satin Inside

Bring creativity home with Elkay’s custom kitchen and bath excellence !One of a kind countertops and

sink tops !Make your dream a reality – all designs fabricated to your specifications !Seamlessly formed

from 14, 16 or 18 gauge, Type 304 stainless steel !Available in either satin or matte finish

custom countertops

+ sink tops

12 |

18"

12"

13 | countertops + sink tops

Put 86 years of experience fabricating custom

stainless steel products to work for you.

Drainboards, sink bowls and backsplash welded

and ground and polished smooth to a one-piece

seamless appearance !Entire underside of sink

top and bowl sound deadened to assure quieter

kitchens !Superior surface finish hand

polished by master craftsmen.

4826EGTB: $3,747.00

4826EGTS: $3,747.00

Bowl Depth: L 71⁄2", C 5", R 71⁄2"

Shown: Optional backsplash, towel bar, cabinet and faucet

accessories

Professional-grade sink system designed to enhance the culinary experience !Triple, double and single

bowl designs !Seamlessly formed from 16 or 18 gauge, Type 304 stainless steel !Lustertone® hand-

crafted satin finish maintains its beautiful luster after years of use !Underside of sink is fully protected

by heavy duty Sound Guard® undercoating !Contact a showroom consultant for more information

16"

48"

7-1/2"

16"

17-1/2" 26"

15-3/4"

14 |

elite gourmet™

CBS715

(sm bowl)

$64.00

CB1713

(lg bowl)

$95.00

LKWRB1617SS

(lg bowl)

$160.00

LKWRB715SS

(sm bowl)

$117.00

LKWOBG1617SS

(lg bowl)

$134.00

4826EGDWSR: $3,747.00

4826EGDWBR: $3,747.00

4826EGDWSL: $3,747.00

4826EGDWBL: $3,747.00

Bowl Depth: Lg 91⁄2", Sm 6"

Shown: Optional backsplash, towel bar, cabinet and faucet

21-3/4"

18" 26"

48"

16"

3626EGDS: $2,936.00

3626EGDB: $2,936.00

4826EGDS∆: $3,747.00

4826EGDB∆: $3,747.00

Bowl Depth: 10" / Lengths: 36" or 48"

Shown: Optional backsplash, towel bar, front panel and faucet

26"

16"

13-1/2"

36"

13-1/2"

15 | elite gourmet

3626EGDF*: $4,077.00

Bowl Depth: 10"

Shown: Optional backsplash and faucet

*Not compatible with Elite Gourmet cabinet

26"

16"

13-1/2"

36"

13-1/2"

∆ - Refer to spec sheet for schematic drawings and accessories / Strainers included

CB1713

(lg bowl)

$95.00

CBP1116

(work area)

$164.00

LKWOBG1618SS

(lg bowl)

$134.00

accessories

CBS1316

$91.00 LKWRB1316SS

$149.00

LKWOBG1316SS

$106.00

accessories

CBS1316

$91.00 LKWRB1316SS

$149.00

LKWOBG1316SS

$106.00

LKWRB1618SS

(lg bowl)

$160.00

3626EGSB: $2,936.00

3626EGSS: $2,936.00

Bowl Depth: 10"

Shown: Optional backsplash, towel bar, cabinet and faucet

26"

16"

36"

28"

26"

16"

36"

28"

3626EGSF: $4,077.00

not compatible with Elite Gourmet cabinet

Bowl Depth: 10"

Shown: Optional backsplash and faucet

Choice of dual handle faucet bodies, supply inlets and spout assemblies !Available in chrome or chrome

with gold accent !See your dealer for all available options

LK531: $678.00

SPGN10AE3: $234.00

LK566/LKSS: $678.00

SPGN10AE3: $234.00

top: LK566D/LKGD: $678.00

SPL9AE3: $234.00

bottom: LK530: $678.00

SPL9AE3: $234.00

top: LK566D/LKGD: $678.00

SPDJ13AE3: $234.00

bottom: LK531: $678.00

SPL9AE3: $234.00

16 |

elite gourmet™

LKWRB2816SS

$181.00

LKWOBG2816SS

$154.00

accessories

CB1713

$95.00

LKWRB2816SS

$181.00

LKWOBG2816SS

$154.00

accessories

CB1713

$95.00

Cabinet

Shown: Optional sink and towel bar

Composite construction with stainless steel clad

doors, front panel and kick plate !Front panel

includes tilt-out bin !36" cabinet has triple hinged

doors !48" cabinet has quadruple hinged doors !

Chrome or chrome with gold accent handles

36" cabinet: $2,606.00

48" cabinet: $3,181.00

Front Panel

Mounts directly to existing kitchen cabinet !

Stainless steel cladding !With tilt-out bin !Choose

with or without towel bar mounting holes

36"L: $1,063.00

48"L: $1,386.00

Towel Bar

Chrome or chrome with gold accents

36"L: $391.00

48"L: $549.00

17 | elite gourmet

Rectangular Backsplash

Shown: Optional faucet

5" or 6" height !3⁄4" or 2" thickness

36"L: $1,299.00

48"L: $1,465.00

Bullnose Backsplash

Shown: Optional faucet

5" or 6" height !3⁄4" or 2" thickness

36"L: $1,299.00

48"L: $1,465.00

Arched Profile Backsplash

Shown: Optional sink and faucet

6" or 7" height !3⁄4" or 2" thickness

36"L: $1,299.00

48"L: $1,465.00

Mounts under any solid surface countertop to create an integrated look !Triple, double and single bowl

designs !Seamlessly formed from 14 or 18 gauge, Type 304 stainless steel !Lustertone® hand-crafted

satin finish maintains its beautiful luster after years of use !Underside of select sinks are fully protected

by heavy duty Sound Guard® undercoating

undermounts

18 |

ISLAND3828C: $3,445.00

ISLAND3828: $2,811.00

Bowl Depth:

61⁄2"sloping to 71⁄2"

ISLAND3828 comes complete

with LK99 strainer

ISLAND3828C comes complete

with LK7420NK faucet and

LK99 strainer

accessories

LKWERBSS

$134.00

40-1/2"

38"

28"

30-1/2"

ELUHF3320: $1,307.00

Bowl Depth: 77⁄8"

16"

20-1/2"

13-1/2" 13-1/2"

33"

ELUHF2520: $981.00

Bowl Depth: 77⁄8"

15-3/4"

20-1/2"

25"

21"

ELUHFS2816: $1,350.00

Bowl Depth: 77⁄8"

16"

20-1/2"

33"

28"

19 | undermounts

Strainers sold separately, see pages 68-69 for pricing

LKWRB2115SS

$160.00

LKWOBG2115SS

$120.00

accessories

CB1516

$71.00

LKWRB2816SS

$181.00

LKWOBG2816SS

$154.00

accessories

CB1713

$95.00

LKWRB1316SS

$149.00

LKWOBG1316SS

$106.00

accessories

CBS1316

$91.00

ELUH3232: $1,380.00

Bowl Depth: 77⁄8"

ELUH3920: $1,467.00

Bowl Depth: L 10", C 59⁄16", R 71⁄2"

17-1/2"

15"

11-1/2"

16"

20"

17-1/2"

39-1/2"

14-1/8"

undermounts

20 |

ELUH4020: $1,513.00

Bowl Depth: L 97⁄8", C 5", R 77⁄8"

20-1/2"

7-1/2" 13-1/2"

18-1/2"

16"

18"

14"

40"

15-3/4"

The first model number in black indicates the model shown / Strainers sold separately, see pages 68-69 for pricing

CB1713

(left bowl) $95.00 LKWRB1617SS

(left bowl) $160.00

LKWRB1115SS

(right bowl) $149.00

LKWRB715SS

(cntr. bowl) $117.00

LKWOBG1617SS

(left bowl) $134.00

LKWOBG1115SS

(right bowl) $106.00

CB1613

$91.00 LKWRB1316SS

$149.00

accessories

CBS1418

(left bowl) $115.00

CBS715

(cntr. bowl) $64.00

CBS1316

(right bowl) $91.00

LKWRB1418SS

(left bowl) $149.00

LKWRB1316SS

(right bowl) $149.00

LKWRB715SS

(cntr. bowl) $117.00

LKWOBG1418SS

(left bowl) $110.00

LKWOBG1316SS

(right bowl) $106.00

accessories

16"

13-1/2"

22-5/8"

13-1/2"

16"

13-1/2" 18 -1/2"

32"

18-1/2"

30-3/4"

16"

13-1/2"13-1/2"

ELUH3520L: $1,213.00

ELUH3520R: $1,213.00

Bowl Depth: Lg 97⁄8", Sm 77⁄8"

16"

18-1/2"

35-1/4"

20"

11-1/2"

18"

20-1/2"

ELUH3119L: $1,030.00

ELUH3119R: $1,030.00

ELUH311910L: $1,078.00

ELUH311910R: $1,078.00

Bowl Depth: ELUH3119L/R 71⁄2",

ELUH311910L/R Lg 10", Sm 71⁄2"

17-1/2"

20"

15"

17-1/2"

31-1/4"

11-1/2" 16"

21 | undermounts

Strainers sold separately, see pages 68-69 for pricing

ELUH3116: $866.00

Bowl Depth: 71⁄2"

16-1/2"

14"

31-3/4"

ELUH3118: $924.00

ELUH311810: $967.00

ELUH311810L: $945.00

ELUH311810R: $945.00

Bowl Depth: ELUH3118 77⁄8", ELUH311810 10",

ELUH311810L/R Lg 10”, Sm 77⁄8"

accessories

CBS1418

(lg bowl)

$115.00

CB1613

$91.00

CBR1418

$130.00

LKWRB2018SS

(lg bowl)

$171.00

LKWRB1116SS

(sm bowl)

$149.00

CBR1316

$115.00 LKWRB1316SS

$149.00

LKWOBG1316SS

$106.00

accessories

LKWRB1414SS

$149.00

LKWBG1414SS

$99.00

LKWOBG2018SS

(lg bowl) $145.00

LKWOBG1116SS

(sm bowl) $106.00

accessories

CB1713

(lg bowl)

$95.00

LKWRB1617SS

(lg bowl)

$160.00

LKWRB1115SS

(sm bowl)

$149.00

LKWOBG1617SS

(lg bowl)

$134.00

LKWOBG1115SS

(sm bowl)

$106.00

accessories

ELUH3219: $907.00

Bowl Depth: Lg 73⁄4", Sm 5"

Reversible design can be rotated

so small bowl is on the right

7-1/2" 21"

32-1/4"

15-3/4"

18-1/4"

ELUH3120L: $1,062.00

ELUH3120R: $1,062.00

Bowl Depth: Lg 97⁄8", Sm 77⁄8"

31-1/4"

13-1/2"

20-1/2"

18"

16"

14"

18-1/2"

ELUH3621R: $1,019.00

ELUH3621L: $1,019.00

ELUH362110R: $1,124.00

ELUH362110L: $1,124.00

Bowl Depth:

ELUH3621L/R Lg 71⁄2", Sm 6"

ELUH362110L/R Lg 10", Sm 6"

15-3/4"

13-1/4"

11-3/4"

36-1/4"

18-5/8"

21-1/8"

21"

ELUH4221R: $1,632.00

ELUH4221L: $1,632.00

Bowl Depth: Large 91⁄2", Small 6"

Includes cutting board CBP1319

20-1/2"

18"

12-7/8"

41-1/2"

21-3/4" 16"

7-1/2"

undermounts

22 |

CB1516

(lg bowl)

$71.00

CBS715

(sm bowl)

$64.00

LKWRB2115SS

(lg bowl)

$160.00

LKWRB715SS

(sm bowl)

$117.00

LKWBG2115SS

(lg bowl)

$120.00

accessories

CBR1418

(lg bowl)

$130.00

CB1613

(sm bowl)

$91.00

LKWRB1418SS

(lg bowl)

$149.00

LKWRB1316SS

(sm bowl)

$149.00

LKWOBG1418SS

(lg bowl)

$110.00

LKWOBG1316SS

(sm bowl)

$106.00

accessories

CB2213

(lg bowl)

$166.00

LKWRB2118SS

(lg bowl)

$171.00

LKWRB1113SS

(sm bowl)

$128.00

LKWOBG2118SS

(lg bowl)

$139.00

LKWOBG1113SS

(sm bowl)

$99.00

accessories

LC1412

(sm bowl)

$94.00

accessories

LKWRB1618SS

(lg bowl)

$160.00

LKWOBG1618SS

(lg bowl)

$134.00

ELUH3221L: $913.00

ELUH3221R: $913.00

ELUH322110L: $1,026.00

ELUH322110R: $1,026.00

Bowl Depth:

ELUH3221L/R Lg 71⁄2", Sm 59⁄16"

ELUH322110L/R Lg 10", Sm 59⁄16"

14-1/8"

16-5/8" 18-5/8"

21-1/8"

31-1/2"

21"

ELU12FB: $354.00 / ELUH12FB: $361.00

ELU16FB: $489.00 / ELUH16FB: $499.00

Bowl Depth:

ELU(H)12 6", ELU(H)16 8"

12"

14-3/8"

16"

18-3/8"

23 | undermounts

ELUH129†: $366.00

ELU129: $356.00

Bowl Depth: 7"

9-1/4"

10-3/4"

12"

13-1/2"

The difference

between ELU and

ELUH series sinks

† - Increase overall length/width by 1" / (H) - Indicates reveal / (LV) - Indicates overflow assembly / Strainers sold separately, see pages 68-69 for pricing

ELU(H)12FB ELU(H)16FB

ELUH9: $258.00 / ELU9: $253.00

ELU12: $291.00 / ELUH12: $298.00

ELU12LV: $300.00 / ELUH12LV: $307.00

ELU16: $411.00 / ELUH16: $419.00

ELU16LV: $444.00 / ELUH16LV: $455.00

Bowl Depth: ELU(H)9 43⁄4", ELU(H)12(LV) 6",

ELU(H)16(LV) 8"

11-3/8"

12"

14-3/8"

16"

18-3/8"

ELU(H)9 ELU(H)12(LV) ELU(H)16(LV)

ELUH

with reveal ELU

without reveal

LKWRB715SS

(sm bowl)

$117.00

LKWRB2118SS

(lg bowl)

$171.00

CB2213

(lg bowl)

$166.00

LKWRB1209SS

$117.00

LKWRB12SS

(for ELU(H)12FB only)

$128.00

LKWRBG12SS

(for ELU(H)12FB only)

$106.00

LKWRBG16SS

(for ELU(H)16FB only)

$134.00

LKWOBG2118SS

(lg bowl)

$139.00

LKWBG1209SS

$99.00

accessories

SC1407

(sm bowl)

$94.00

ELU714: $367.00

ELUH714†: $375.00

ELU715: $367.00

ELUH715†: $375.00

Bowl Depth:

ELU(H)714 59⁄16",

ELU(H)715 5"

15-5/8"

14-1/8"

8-1/2"

17-1/4"

15-3/4"

7-1/2"

ELU714 ELU715

ELU1113: $375.00

ELUH1113†: $382.00

Bowl Depth: 515⁄16"

accessories

14-3/4"

13-1/4"

11-3/4"

ELU1111: $612.00

ELUH1111†: $624.00

Bowl Depth: 63⁄8"

13"

11-1/2"

13"

11-1/2"

ELU1316: $482.00

ELUH1316†: $492.00

Bowl Depth: 77⁄8"

16"

17-1/2"

15"

13-1/2"

undermounts

24 |

LKWRB715SS

$117.00

accessories

LKWRB1111SS

$117.00

accessories

LKWRB1113SS

$128.00

LKWOBG1113SS

$99.00

LKWOBG1111SS

$99.00

LC1412

$94.00

LKWRB1316SS

$149.00 LKWOBG1316SS

$106.00

accessories

ELU1317: $506.00

ELUH1317†: $516.00

Bowl Depth: 71⁄2"

13"

15"

11-1/2"

16-1/2"

ELUH1418†: $520.00

ELU1418: $510.00

ELU141810: $572.00

ELUH141810†: $582.00

Bowl Depth:

ELU(H)1418 77⁄8",

ELU(H)141810 10"

Shown: ELUH1418 left

combined with

ELUH1316 right

15-1/2"

19-1/2"

14"

18"

25 | undermounts

ELU1511: $636.00

ELUH1511†: $648.00

Bowl Depth: 6"

17"

15-1/2"

11-3/8"

13"

ELUH1812: $672.00

Bowl Depth: 515⁄16"

15"

12-1/2"

18-9/16"

21"

† - Increase overall length/width by 1" / (H) - Indicates reveal / Strainers sold separately, see pages 68-69 for pricing

LKWRB1418SS

$149.00

LKWOBG1418SS

$110.00

accessories

LKWRB1115SS

$149.00

LKWOBG1115SS

$106.00

accessories

ELU2115: $561.00

ELUH2115†: $571.00

ELU211510: $616.00

ELUH211510†: $628.00

Bowl Depth: ELU(H)2115 71⁄2", ELU(H)211510 10"

22-1/2"

17-1/4"

21"

15-3/4"

ELU1716: $743.00

ELUH1716†: $758.00

Bowl Depth: 71⁄2"

17-1/2"

19"

16"

ELU1618: $743.00

ELUH1618†: $758.00

Bowl Depth: 91⁄2"

19-1/2"

18"

16"

17-1/2"

undermounts

26 |

LKWRB1617SS

$160.00 LKWOBG1617SS

$134.00

accessories

LKWRB1618SS

$160.00 LKWOBG1618SS

$134.00

accessories

LKWRB2115SS

$160.00 LKWOBG2115SS

$120.00

ELU2118: $504.00

ELUH2118†: $513.00

ELU211810: $648.00

ELUH211810†: $662.00

Bowl Depth: ELU(H)2118 71⁄2", ELU(H)211810 10"

22-1/2"

18-5/8"

21"

20-1/8"

ELUH2421R†: $1,015.00 / ELUH2421L†: $1,015.00

ELU2421R: $997.00 / ELU2421L: $997.00

Bowl Depth: 6"

Includes cutting board CBP1319

12-7/8"

18-15/32"

21-3/4"

24-1/4"

18"

20-1/2"

7-1/2"

12-7/8"

27 | undermounts

ELU2816: $794.00 / ELUH2816: $808.00

ELU281610: $872.00 / ELUH281610: $890.00

ELU281612: $912.00 / ELUH281612: $930.00

Bowl Depth: ELU(H)2816 71⁄2", ELU(H)281610 10"

ELU(H)281612 111⁄2"

16"

28"

17-1/2"

29-1/2"

† - Increase overall length/width by 1" / (H) - Indicates reveal / Strainers sold separately, see pages 68-69 for pricing

accessories

LKWRB2118SS

$171.00

LKWOBG2118SS

$139.00

LKWOBG2816SS

$154.00

accessories

LKWRB2816SS

$181.00

ILCGR4822L: $2,129.00

ILCGR4822R: $2,129.00

Bowl Depth: Lg 8", Sm 61⁄16"

accessories

Triple, double and single bowl designs !Seamlessly formed from 18 gauge, Type 304 stainless steel !

Lustertone® hand-crafted satin finish maintains its beautiful luster after years of use !Underside of sink is

fully protected by heavy duty Sound Guard® undercoating !Bowls and ribbed area are recessed 1⁄2" below

outside edge of sink

14-1/8"18-5/8"

21"7"

22"

16-15/16"

48"

gourmet

28 |

CB2213

(lg bowl)

$166.00

LKWRB2118SS

(lg bowl)

$171.00

LKWRB715SS

(sm bowl)

$117.00

LKWOBG2118SS

(lg bowl)

$139.00

SC1407

(sm bowl)

$94.00

DLCGR402210: $2,009.00

Bowl Depth: L 101⁄8", C 511⁄16", R 75⁄8"

11-1/2"

22"

15"

14-1/8"

16"

40"

17-1/2"

ILCGR5322L: $2,240.00

ILCGR5322R: $2,240.00

Bowl Depth: Lg 8", Sm 67⁄16"

29 | gourmet

LCGR3822L: $1,387.00

LCGR3822R: $1,387.00

DLCGR382210L: $1,894.00

DLCGR382210R: $1,894.00

Bowl Depth:

LCGR3822L/R Lg 8", Sm 67⁄16",

DLCGR382210L/R Lg 101⁄2", Sm 67⁄16"

22"

13-1/4"

11-3/4" 21"

38"

18-5/8"

Strainers sold separately, see pages 68-69 for pricing

CB2213

(lg bowl) $166.00

LKWRB2118SS

(lg bowl) $171.00

LKWRB1113SS

(sm bowl) $128.00

LKWOBG2118SS

(lg bowl) $139.00

LKWOBG1113SS

(sm bowl) $99.00

LC1412

(sm bowl) $94.00

CB2213

(lg bowl) $166.00

LKWRB2118SS

(lg bowl) $171.00

LKWRB1113SS

(sm bowl) $128.00

LKWOBG2118SS

(lg bowl) $139.00

LKWOBG1113SS

(sm bowl) $99.00

accessories

LC1412

(sm bowl) $94.00

CB1713

(left bowl) $95.00

LKWRB1617SS

(left bowl) $160.00

LKWRB715SS

(cntr. bowl) $117.00

LKWRB1115SS

(right bowl) $149.00

LKWOBG1617SS

(left bowl) $134.00

LKWOBG1115SS

(right bowl) $106.00

accessories

21"

11-3/4" 17-1/8"

13-

1/4"

22"

53"

18-5/8"

accessories

21"

33"

14-1/8" 18-5/8"

22"

BLGR1515: $597.00

Bowl Depth: 61⁄2"

LCGR2522: $773.00

DLCGR252210: $1,055.00

Bowl Depth: 8" or 101⁄2"

BILGR2115L: $768.00

BILGR2115R: $768.00

Bowl Depth: 61⁄2"

21"

25"

22"

18-5/8"

LCGR3322L: $1,215.00

LCGR3322R: $1,215.00

DLCGR332210L: $1,659.00

DLCGR332210R: $1,659.00

Bowl Depth: LCGR3322L/R Lg 8", Sm 61⁄16"

DLCGR332210L/R Lg 101⁄2", Sm 61⁄16"

gourmet

30 |

7-3/4"

11-1/2

accessories

CB2213

(lg bowl)

$166.00

LKWRB2118SS

(lg bowl)

$171.00

LKWRB715SS

(sm bowl)

$117.00

LKWOBG2118SS

(lg bowl)

$139.00

SC1407

(sm bowl)

$94.00

CB2213

$166.00 LKWRB2118SS

$171.00

LKWRB1111SS

$117.00

LKWOBG2118SS

$139.00

LKWOBG1111SS

$99.00

accessories

LKWRB1111SS

$117.00 LKWOBG1111SS

$99.00

accessories

ILCGR4022L: $1,696.00

ILCGR4022R: $1,696.00

Bowl Depth: 8"

22"

17"21"

40"

18-5/8"

EGPI4322L: $2,467.00

EGPI4322R: $2,467.00

Bowl Depth: Lg 10", Sm 61⁄2"

Includes cutting board CBP1116

43"

18"

22"

16" 21-3/4"

7-1/2" 12-7/8"

18"

12-7/8"

ILGR6022L: $3,062.00

ILGR6022R: $3,062.00

Bowl Depth:

ILGR6022L L 10", C 51⁄8", R 8"

ILGR6022R L 8", C 51⁄8", R 10"

14" 7-1/2" 19-3/4"

60"

18"

16"

22"

13-1/2"

15-3/4"

31 | gourmet

LGR4322: $2,174.00

Bowl Depth:

L 10", C 51⁄8", R 8"

14" 7-1/2" 13-1/2"

43"

16"

18"

22"

15-3/4"

Strainers sold separately, see pages 68-69 for pricing

CB2213

$166.00 LKWRB2118SS

$171.00

LKWOBG2118SS

$139.00

accessories

LKWRB1618SS

(lg bowl) $160.00

LKWOBG1618SS

(lg bowl) $134.00

accessories

CBR1418

(lg bowl)

$130.00

CB1613

(med bowl)

$91.00

CBS715

(sm bowl)

$64.00

LKWRB1418SS

(lg bowl)

$149.00

LKWRB1316SS

(med bowl)

$149.00

LKWRB715SS

(sm bowl)

$117.00

LKWOBG1418SS

(lg bowl) $110.00

LKWOBG1316SS

(med bowl) $106.00

accessories

CBR1418

(lg bowl)

$130.00

CB1613

(med bowl)

$91.00

CBS715

(sm bowl)

$64.00

LKWRB1418SS

(lg bowl)

$149.00

LKWRB1316SS

(med bowl)

$149.00

LKWRB715SS

(sm bowl)

$117.00

LKWOBG1418SS

(lg bowl) $110.00

LKWOBG1316SS

(med bowl) $106.00

accessories

20" 11-1/2" 19-3/4"

54"

22"

18" 16"

ILFGR4822L: $2,206.00

ILFGR4822R: $2,206.00

Bowl Depth: Lg 10", Sm 8"

19"

16"

48"

22"

11-1/2" 17-1/2"

16"

ILFGR5422L: $2,401.00

ILFGR5422R: $2,401.00

Bowl Depth: Lg 10", Sm 8"

16" 19-7/8"

14"

54"

18"

22" 16"

gourmet

32 |

ILGR5422L: $2,341.00

ILGR5422R: $2,341.00

Bowl Depth: Lg 10", Sm 8"

LKWRB2018SS

(lg bowl)

$171.00

LKWRB1116SS

(sm bowl)

$149.00

accessories

CBR1418

(lg bowl)

$130.00

CB1713

(sm bowl)

$95.00

CBS1418

(lg bowl)

$115.00

LKWRB1418SS

(lg bowl)

$149.00

LKWRB1116SS

(sm bowl)

$149.00

accessories

CB1713

(lg bowl)

$95.00

LKWRB1418SS

(lg bowl)

$149.00

LKWRB1316SS

(sm bowl)

$149.00

LKWOBG1418SS

(lg bowl)

$110.00

LKWOBG1616SS

(sm bowl)

$128.00

LKWOBG2018SS

(lg bowl)

$145.00

LKWOBG1116SS

(sm bowl)

$106.00

LKWOBG1116SS

(sm bowl)

$106.00

accessories

ILGR4822L: $2,153.00

ILGR4822R: $2,153.00

Bowl Depth: Lg 10", Sm 8"

13-1/2" 17-1/8"

14"

48"

18"

22" 16"

LFGR3722: $1,510.00

Bowl Depth: Lg 10", Sm 8"

LGR3722: $1,470.00

Bowl Depth: Lg 10", Sm 8"

16"

37"

20" 11-1/2"

18"

22"

33 | gourmet

16"14"

37"

18"

22" 16"

Strainers sold separately, see pages 68-69 for pricing

CBS1418

(lg bowl)

$115.00

CB1613

(sm bowl)

$91.00

CBS1418

(lg bowl)

$115.00

LKWRB1418SS

(lg bowl)

$149.00

LKWRB1316SS

(sm bowl)

$149.00

LKWOBG1418SS

(lg bowl)

$110.00

LKWOBG1316SS

(sm bowl)

$106.00

LKWRB2018SS

(lg bowl)

$171.00

LKWRB1116SS

(sm bowl)

$149.00

accessories

CBR1418

(lg bowl)

$130.00

CB1713

(sm bowl)

$95.00

LKWRB1418SS

(lg bowl)

$149.00

LKWRB1316SS

(sm bowl)

$149.00

LKWOBG1418SS

(lg bowl)

$110.00

LKWOBG1616SS

(sm bowl)

$128.00

LKWOBG2018SS

(lg bowl)

$145.00

LKWOBG1116SS

(sm bowl)

$106.00

accessories

LFGR3322: $1,308.00

Bowl Depth: Lg 10", Sm 8"

16"

33"

16" 11-1/2"

19"

22"

ILGR4322L: $1,713.00

ILGR4322R: $1,713.00

Bowl Depth: 10"

21" 20"

15-3/4"

22"

43"

LGR3322: $1,273.00

Bowl Depth: Large 10", Small 8"

14" 13-1/2"

33"

16"

18"

22"

gourmet

34 |

Strainers sold separately, see pages 68-69 for pricing

CB1713

(lg bowl)

$95.00

CB1516

$71.00

LKWRB1418SS

(lg bowl)

$149.00

LKWRB1116SS

(sm bowl)

$149.00

accessories

LKWRB2115SS

$160.00

LKWOBG2115SS

$120.00

accessories

CBS1418

(lg bowl)

$115.00

CBS1316

(sm bowl)

$91.00

LKWRB1418SS

(lg bowl)

$149.00

LKWRB1316SS

(sm bowl)

$149.00

LKWOBG1418SS

(lg bowl)

$110.00

LKWOBG1316SS

(sm bowl)

$106.00

LKWOBG1116SS

(sm bowl)

$106.00

Triple, double and single bowl designs !Seamlessly formed from 18 gauge, Type 304 stainless steel !

Lustertone® hand-crafted satin finish maintains its beautiful luster after years of use !Underside of sink

is fully undercoated for superior sound dampening

35 | lustertone

LR250: $980.00

Bowl Depth: 77⁄8"

accessories

14" 13-1/2"

33"

16" 22"

18"

lustertone

CBS1418 (lg bowl)

$115.00

CBS1316 (sm bowl)

$91.00

LKWRB1418SS (lg bowl)

$149.00

LKWRB1316SS (sm bowl)

$149.00

LKWBG1316SS

(sm bowl)

$106.00

LCCR3232: $1,652.00

Bowl Depth: 8"

15"

19-1/2"

16"

13-1/2"

25-7/16"

13-1/2"

15"

16"

13-1/2" 19-1/2"

accessories

LLVR2017: $749.00

Bowl Depth: 6"

15-3/4"

22"

7-1/2"

33"

21"

LCR4322: $2,089.00

Bowl Depth:

L 77⁄8", C 61⁄8", R 77⁄8"

accesories

LMR3322: $1,064.00

Bowl Depth:

Lg 77⁄8", Sm 51⁄8"

lustertone

36 |

accessories

14"

9-1/4"

14"

43"

22"

18"

LKWRB1316SS

$149.00

CB1613

$91.00

CB1516

(lg bowl)

$71.00

CBS715

(sm bowl)

$64.00

LKWRB2115SS

(lg bowl)

$160.00

LKWRB715SS

(sm bowl)

$117.00

CBR1418

(lg bowls)

$130.00

CB912

(sm bowl)

$86.00

LKWRB1418SS

(lg bowls)

$149.00

LKWRB1209SS

(sm bowl)

$117.00

LKWBG2115SS

(lg bowl)

$120.00

20-7/8"

18-9/16"

16-15/16"

12-1/2"

BLR150C: $1,059.00

BLR15: $476.00

Bowl Depth: 7"

Sink package includes BLR15 sink,

LKD2223 deluxe two-handle faucet,

97⁄8" traditional swing spout and

LK36 small basket strainer

DLRS332210: $1,024.00

LRS3322: $853.00

Bowl Depth:

DLRS332210 101⁄8",

LRS3322 75⁄8"

LR2522: $586.00

Bowl Depth: 81⁄8"

accessories

25"

21"

15-3/4"

22"

accessories

28"

16"

22"

33"

9-1/4"

15"

12"

15"

37 | lustertone

RLR9: $314.00

RLR12: $362.00

RLR16: $481.00

RLLVR12: $377.00

RLLVR16: $554.00

Bowl Depth: RLR9 43⁄4", RLR12 and RLLVR12 6",

RLR16 and RLLVR16 8"

11-3/8"

12"

16"

14-3/8" 18-3/8"

(LV) - Indicates overflow assembly / Strainers sold separately, see pages 68-69 for pricing

RLR9 RLR12 / RLLVR12 RLR16 / RLLVR16

LKWRB2115SS

$160.00

LKWBG2115SS

$120.00

LKWRB2816SS

$181.00

LKWBG2816SS

$154.00

LKWBG1209SS

$99.00

CB912

$86.00

LKWRB1209SS

$117.00

CB1713

$95.00

CB1516

$71.00

Soft satin finish for a more reflective bowl appearance !Double and single bowl designs !Seamlessly

formed from 18 gauge, Type 304 stainless steel !Double bowls have an aqueduct (recessed partition)

to allow water to overflow from one bowl to the other

17-1/2"

20" 15"

17-1/2"

31-1/4"

11-1/2"

16"

elumina™

38 |

EGUH3119R: $830.00

EGUH3119L: $830.00

EGUH311910R: $933.00

EGUH311910L: $933.00

Bowl Depth: EGUH3119L/R 8",

EGUH311910L/R Lg 10", Sm 8"

accessories

LKWRB1617SS (lg bowl)

$160.00

LKWRB1115SS (sm bowl)

$149.00

LKWOBG1617SS (lg bowl)

$134.00

LKWOBG1115SS (sm bowl)

$106.00

CB1713

(lg bowl)

$95.00

EGUH3118: $672.00

Bowl Depth: 8"

EGUH3120L: $723.00 / EGUH3120R: $723.00

EGUH312010L: $808.00 / EGUH312010R: $808.00

Bowl Depth: EGUH3120L/R 8",

EGUH312010L/R Lg 10", Sm 8"

18-1/4"

15-3/4"

14" 13-1/2"

31-1/4"

18"

20-1/2"

EGUH2118: $492.00

EGUH211810: $627.00

Bowl Depth: EGUH2118 8", EGUH211810 10"

23-1/2"

18-5/8"

21"

21-1/8"

39 | elumina

EGUH2115: $473.00

Bowl Depth: 8"

23-1/2"

18-1/4"

21"

15-3/4"

Strainers sold separately, see pages 68-69 for pricing

accessories

18-1/4"

31-3/4"

15-3/4"

14"14"

LKWRB1316SS

$149.00

accessories

LKWRB1318SS (lg bowl)

$149.00

LKWRB1316SS (sm bowl)

$149.00

LKWOBG1318SS

(lg bowl)

$110.00

LKWOBG1415SS

(sm bowl)

$106.00

LKWOBG1415SS

$106.00

LKWRB2118SS

$171.00

LKWOBG2118SS

$139.00

LKWOBG2115SS

$120.00

LKWRB2115SS

$160.00

CB1516

$71.00

CB2213

$166.00

CBR1316

(lg bowl)

$115.00

CB1516

(sm bowl)

$71.00

accessories

CB1516

$71.00

ECG3322L: $850.00

ECG3322R: $850.00

ECG332210L: $989.00

ECG332210R: $989.00

Bowl Depth: ECG3322L/R 83⁄8",

ECG332210L/R Lg103⁄8", Sm 83⁄8"

15"

11-1/2"

17-1/2"

16"

33"

22"

EG3322: $633.00

Bowl Depth: 83⁄8"

33"

14"14"

15-3/4"

22"

40 |

accessories

EG250L: $699.00

EG250R: $699.00

EG25010L: $785.00

EG25010R: $785.00

Bowl Depth: EG250L/R 83⁄8",

EG25010L/R Lg 103⁄8", Sm 83⁄8"

33"

15-3/4" 18"

14" 13-1/2"

22"

accessories

elumina™

LKWRB1617SS

(lg bowl)

$160.00

LKWRB1115SS

(sm bowl)

$149.00

LKWOBG1617SS

(lg bowl)

$134.00

LKWOBG1115SS

(sm bowl)

$106.00

CB1516

$71.00

LKWRB1316SS

$149.00

LKWOBG1415SS

$106.00

CB1516

(sm bowl)

$71.00

CB1713

(lg bowl)

$95.00

LKWRB1318SS (lg bowl)

$149.00

LKWRB1316SS (sm bowl)

$149.00

LKWOBG1318SS

(lg bowl)

$110.00

LKWOBG1415SS

(sm bowl)

$106.00

41 | elumina

ECG2522: $592.00

ECG252210: $721.00

Bowl Depth: ECG2522 83⁄8", ECG252210 103⁄8"

21"

25"

22"

18-5/8"

EG2522: $434.00

Bowl Depth: 83⁄8"

22"

25"

21"

15-3/4"

Strainers sold separately, see pages 68-69 for pricing

accessories

CB2213

$166.00 LKWRB2118SS

$171.00

LKWOBG2118SS

$139.00

CB1516

$71.00

LKWOBG2115SS

$120.00

LKWRB2115SS

$160.00

SCF1611SH: $787.00

SCF1611CH: $787.00

SCF1611CM: $655.00

SCF1611CS: $546.00

SCF1611SM: $655.00

SCF1611SR: $655.00

Bowl Depth: 61⁄2"

May be installed as

undermount or self-rimming

Choose from round, square or oval single bowl hospitality and lavatory sinks !Collection includes both

drop-in and undermount choices !Select copper or stainless steel !Available in mirror, satin,

hammered mirror or rugged satin finish

9-1/2"

11-1/2"

14-1/2"

16-1/2"

specialty collection™

42 |

SCF16CS: $576.00

SCF16CH: $827.00

SCF16CM: $690.00

SCF16SH: $827.00

SCF16SM: $690.00

SCF16SR: $690.00

Bowl Depth: 7"

May be installed as undermount or self-rimming

14"

16-1/4"

SCF16FBSM: $562.00

SCF16FBCH: $672.00

SCF16FBCM: $562.00

SCF16FBCS: $467.00

SCF16FBSH: $672.00

SCF16FBSR: $562.00

Bowl Depth: 7"

May be installed as undermount

or self-rimming

Copper models furnished with

matching drain

14"

16-1/4"

43 | specialty collection

SCUH1012SH Undermount: $724.00

SCUH1012CH: $724.00

SCUH1012CM: $604.00

SCUH1012CS: $504.00

SCUH1012SM: $604.00

Bowl Depth: 61⁄2"

Copper models furnished

with matching drain

10"

12"

14"

12"

SCUH1212SM Undermount: $638.00

SCUH1212CH: $766.00

SCUH1212CM: $638.00

SCUH1212CS: $532.00

SCUH1212SH: $766.00

Bowl Depth: 61⁄2"

Copper models furnished

with matching drain

12-1/2"

14-1/2"

12-1/2"

SCUH1416CH Undermount: $807.00

SCUH1416CM: $672.00

SCUH1416CS: $562.00

SCUH1416SH: $807.00

SCUH1416SM: $672.00

Bowl Depth: 71⁄2"

Copper models furnished

with matching drain

14"

16"

18"

16"

Strainers sold separately, see pages 68-69 for pricing

accessories

LKWERBSS

$134.00

accessories

LKWRBG14SS

$128.00

LK7420CR: $466.00

LK7420NK: $652.00

LK7420BC: $652.00

Overall Height: 181⁄16"

Spout Height

(deck to aerator): 55⁄8"

Spout Reach: 65⁄8"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

(BC) Brushed Chrome

A single source of inspiration, the bold design of Arezzo beautifully complements any setting with

enhanced style and convenience. Smooth gliding spray head options and one touch from mist to stream

makes Arezzo a gourmet choice.

LK7228SS: $937.00

Overall Height: 71⁄2"

Spout Height

(deck to aerator): 61⁄2"

Spout Reach: 81⁄8"

Finishes:

(SS) Stainless Steel

arezzo™

44 |

!Top mount, single-lever

!Heavy brass construction

!Ceramic disc cartridge

!One faucet hole required

LK7224CR: $359.00

LK7224NK: $501.00

LK7224BC: $501.00

LK7224SS: $937.00

Overall Height: 613⁄16"

Spout Height

(deck to aerator): 53⁄4"

Spout Reach: 9"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

(BC) Brushed Chrome

(SS) Stainless Steel

LK7422CR: $299.00

LK7422NK: $418.00

LK7422BC: $418.00

Overall Height: 133⁄16"

Spout Height

(deck to aerator): 8"

Spout Reach: 65⁄8"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

(BC) Brushed Chrome

LK7220CR: $506.00

LK7220NK: $710.00

LK7220BC: $710.00

Overall Height: 85⁄8"

Spout Height

(deck to aerator): 515⁄16"

Spout Reach: 81⁄2"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

(BC) Brushed Chrome

LK7226CR: $332.00

LK7226NK: $464.00

LK7226BC: $464.00

Overall Height: 85⁄8"

Spout Height

(deck to aerator): 53⁄4"

Spout Reach: 77⁄8"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

(BC) Brushed Chrome

45 | arezzo

LK7128CR: $379.00

LK7128NK: $530.00

LK7128BC: $530.00

Overall Height: 73⁄4"

Spout Height

(deck to aerator): 71⁄8"

Spout Reach: 85⁄8"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

(BC) Brushed Chrome

Style now flows with the soft turn of a handle and the dramatic lines that characterize our Ferrara collection.

A center of conversation, each model is designed to draw attention while thankfully complementing your

own unique surroundings.

LK7120CR: $506.00

LK7120NK: $710.00

LK7120BC: $710.00

Overall Height: 79⁄16"

Spout Height

(deck to aerator): 61⁄2"

Spout Reach: 83⁄16"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

(BC) Brushed Chrome

LK7122CR: $359.00

LK7122NK: $501.00

LK7122BC: $501.00

Overall Height: 91⁄8"

Spout Height

(deck to aerator): 53⁄4"

Spout Reach: 81⁄8"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

(BC) Brushed Chrome

ferrara™

46 |

!Top mount, single-lever

!Heavy brass construction

!Ceramic disc cartridge

LK7126CR: $379.00

LK7126NK: $530.00

LK7126BC: $530.00

Overall Height: 83⁄8"

Spout Height

(deck to aerator): 71⁄8"

Spout Reach: 85⁄8"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

(BC) Brushed Chrome

LK7620CR: $406.00

LK7620NK: $568.00

LK7620BC: $568.00

Overall Height: 77⁄8"

Spout Height

(deck to aerator): 5"

Spout Reach: 91⁄2"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

(BC) Brushed Chrome

LK7124CR: $359.00

LK7124NK: $501.00

LK7124BC: $501.00

Overall Height: 67⁄8"

Spout Height

(deck to aerator): 53⁄4"

Spout Reach: 91⁄8"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

(BC) Brushed Chrome

LK7622CR: $332.00

LK7622NK: $464.00

LK7622BC: $464.00

Overall Height: 77⁄8"

Spout Height

(deck to aerator): 515⁄16"

Spout Reach: 811⁄16"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

(BC) Brushed Chrome

47 | ferrara

LK7522BC: $455.00

LK7522CR: $324.00

LK7522NK: $455.00

Overall Height: 121⁄4"

Spout Height

(deck to aerator): 813⁄16"

Spout Reach: 71⁄4"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

(BC) Brushed Chrome

The soft arch of contemporary design with a style inspired by Italian artistry. Moda brings a hint of

modernism to any room, along with the touch of convenience through unique, professional features

including a restaurant-style pull down sprayer.

moda™

48 |

!Top mount, single-lever

!Heavy brass construction

!Ceramic disc cartridge

LK7524CR: $459.00

LK7524NK: $644.00

LK7524BC: $644.00

Overall Height: 121⁄4"

Spout Height

(deck to aerator): 813⁄16"

Spout Reach: 83⁄8"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

(BC) Brushed Chrome

LK7322CR: $399.00

LK7322NK: $559.00

LK7322BC: $559.00

Overall Height: 15"

Spout Height

(deck to aerator): 85⁄16"

Spout Reach: 75⁄8"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

(BC) Brushed Chrome

LK7320CR: $777.00

LK7320NK: $1,087.00

LK7320BC: $1,087.00

Overall Height: 215⁄8"

Spout Height

(deck to aerator): 51⁄8"

Spout Reach: 10"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

(BC) Brushed Chrome

49 | moda

LK7324CR: $277.00

LK7324NK: $387.00

LK7324BC: $387.00

Overall Height: 121⁄4"

Spout Height

(deck to aerator): 95⁄8"

Spout Reach: 81⁄4"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

(BC) Brushed Chrome

Bold and inviting, Vivo rises above with outward beauty and sophistication. The elegance of different

handle and spout options provides many choices to easily work into any design. All with a style of

refined simplicity.

vivo™

50 |

LKS6225NK

LKS6225CR

Overall Height: 73⁄5"

Spout Height

(deck to aerator): 515⁄16"

Spout Reach: 415⁄16"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

LKX6225NK

LKX6225CR

Overall Height: 73⁄5"

Spout Height

(deck to aerator): 515⁄16"

Spout Reach: 415⁄16"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

!Top mount

!Heavy brass construction

!Ceramic disc cartridge

DISCONTINUED

LKS6475NK

LKS6475CR

Overall Height: 81⁄4"

Spout Height

(deck to aerator): 51⁄4"

Spout Reach: 77⁄8"

Finishes:

(CR) Chrome,

(NK) Brushed Nickel

LKS6425NK

LKS6425CR

Overall Height: 511⁄16"

Spout Height

(deck to aerator): 4"

Spout Reach: 415⁄16"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

51 | vivo

LKX6425CR

LKX6425NK

Overall Height: 511⁄16"

Spout Height

(deck to aerator): 4"

Spout Reach: 415⁄16"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

LKX6475CR

LKX6475NK

Overall Height: 81⁄4"

Spout Height

(deck to aerator): 51⁄4"

Spout Reach: 77⁄8"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

vivo™

52 |

LKS6275CR

LKS6275NK

Overall Height: 101⁄8"

Spout Height

(deck to aerator): 71⁄8"

Spout Reach: 77⁄8"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

LKX6275NK

LKX6275CR

Overall Height: 101⁄8"

Spout Height

(deck to aerator): 71⁄8"

Spout Reach: 77⁄8"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

DISCONTINUED

LKX6265CR

LKX6265NK

Overall Height: 93⁄4"

Spout Height

(deck to aerator): 71⁄8"

Spout Reach: 77⁄16"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

LKX6465NK

LKX6465CR

Overall Height: 95⁄16"

Spout Height

(deck to aerator): 51⁄4"

Spout Reach: 77⁄16"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

53 | vivo

LKS6465CR

LKS6465NK

Overall Height: 95⁄16"

Spout Height

(deck to aerator): 51⁄4"

Spout Reach: 77⁄16"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

LKS6265CR

LKS6265NK

Overall Height: 93⁄4"

Spout Height

(deck to aerator): 71⁄8"

Spout Reach: 77⁄16"

Finishes:

(CR) Chrome,

(NK) Brushed Nickel

LK6158CR: $778.00

LK6158NK: $1,245.00

Spout Reach: 201⁄2"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

Two faucet holes required

allure®

54 |

The distinctive silhouettes of Allure blend seamlessly with today’s exciting interiors, while maintaining

their own individuality. Created with soft sculpted lines and sleek finishes. Allure transforms basic

plumbing into a work of art.

!Single handles

!Heavy brass construction

!Ceramic disc cartridge

LK6140NK: $1,209.00

LK6140CR: $896.00

Overall Height: 95⁄8"

Spout Height

(deck to aerator): 81⁄4"

Spout Reach: 91⁄8"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

55 | allure

LK6165CR: $549.00

LK6165NK: $742.00

Overall Height: 141⁄2"

Spout Height

(deck to aerator): 10"

Spout Reach: 9"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

LK6175CR: $549.00

LK6175NK: $742.00

Overall Height: 141⁄2"

Spout Height

(deck to aerator): 10"

Spout Reach: 9"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

allure®

56 |

LK6510NK: $229.00

LK6510BK: $229.00

LK6510CR: $168.00

Overall Height: 10"

Spout Height

(deck to aerator): 9"

Spout Reach: 6"

Finishes:

(BK) Black

(CR) Chrome

(NK) Brushed Nickel

LK6520CR: $184.00

LK6520BK: $229.00

LK6520NK: $245.00

Overall Height: 107⁄8"

Spout Height

(deck to aerator): 8"

Spout Reach: 73⁄4"

Finishes:

(BK) Black

(CR) Chrome

(NK) Brushed Nickel

LK2725CR: $69.00

LK2725AL: $87.00

LK2725BC: $69.00

LK2725BK: $87.00

LK2725NK: $69.00

LK2725WH: $87.00

Finishes:

(AL) Almond

(BC) Brushed Chrome

(BK) Black

(CR) Chrome

(NK) Brushed Nickel

(WH) White

57 | allure

LK6365NK: $393.00

LK6365BK: $393.00

LK6365CR: $363.00

LK6365WH: DISCONTINUED

Overall Height: 101⁄4"

Spout Height

(deck to aerator): 9"

Spout Reach: 85⁄8"

Finishes:

(BK) Black

(CR) Chrome

(NK) Brushed Nickel

LK6360CR: $393.00

LK6360BK: $528.00

LK6360NK: $528.00

LK6360WH: DISCONTINUED

Overall Height: 123⁄16"

Spout Height

(deck to aerator): 91⁄4"

Spout Reach: 9"

Finishes:

(BK) Black

(CR) Chrome

(NK) Brushed Nickel

LK6366CR

LK6366BK

LK6366NK

LK6366WH

Overall Height: 101⁄4"

Spout Height

(deck to aerator): 9"

Spout Reach: 85⁄8"

Finishes:

(BK) Black

(CR) Chrome

(NK) Brushed Nickel

(WH) White

DISCONTINUED

LK2444RB: $611.00

LK2444AB: $611.00

LK2444AC: $611.00

LK2444CR: $501.00

LK2444MC: $611.00

LK2444NK: $611.00

Overall Height: 113⁄8"

Spout Height

(deck to aerator): 81⁄2"

Spout Reach: 93⁄4"

Finishes:

(AB) Antique Bronze

(AC) Antique Copper

(CR) Chrome

(MC) Mirrored Copper

(NK) Brushed Nickel

(RB) Oil Rubbed Bronze

Influenced by the flair of the Victorian age, the beauty of Victoria comes to life. High reaching

faucets for filling tall vases and large pots, along with charming styles and elegant finishes to

elevate both classic and traditional décors.

victoria™

58 |

!Top mount

!Metal stem cartridge

LK2546AB: $662.00

LK2546AC: $662.00

LK2546CR: $543.00

LK2546MC: $662.00

LK2546RB: $662.00

Overall Height: 113⁄8"

Spout Height(deck to aerator): 81⁄2"

Spout Reach: 11"

Finishes:

(AB) Antique Bronze, (AC) Antique Copper

(CR) Chrome, (MC) Mirrored Copper

(NK) Brushed Nickel

(RB) Oil Rubbed Bronze

LK2544CR: $502.00

LK2544AB: $612.00

LK2544AC: $612.00

LK2544MC: $612.00

LK2544NK: $612.00

LK2544RB: $612.00

Overall Height: 113⁄8"

Spout Height (deck to aerator): 81⁄2"

Spout Reach: 93⁄4"

Finishes:

(AB) Antique Bronze, (AC) Antique Copper

(CR) Chrome, (MC) Mirrored Copper

(NK) Brushed Nickel, (RB) Oil Rubbed Bronze

59 | victoria

LK7127CR: $487.00

Overall Height: 67⁄8"

Spout Height

(deck to aerator): 2"

Spout Reach: 43⁄8"

Finish:

(CR) Chrome

Adorn your lavatory sink with the style and craftsmanship of a new faucet. Outward beauty and

sophistication are mirrored by inner quality via precision design and engineering. Choose from an

array of styles and finishes.

lavatory

60 |

LK7125CR: $487.00

Overall Height: 57⁄8"

Spout Height

(deck to aerator): 2"

Spout Reach: 4"

Finish:

(CR) Chrome

!Top and wall mount

!Heavy brass construction

!Ceramic disc cartridge

LK7225CR: $487.00

Overall Height: 71⁄2"

Spout Height

(deck to aerator): 11⁄2"

Spout Reach: 41⁄8"

Finish:

(CR) Chrome

61 | lavatory

LK2464MC: DISCONTINUED

LK2464AC: $410.00

LK2464CR: $336.00

Overall Height: 71⁄4"

Spout Height

(deck to aerator): 43⁄4"

Spout Reach: 61⁄8"

Finishes:

(AC) Antique Copper

(CR) Chrome

lavatory

62 |

LK6820CR: $420.00

LKP6820CR: $436.00

Overall Height: 513⁄16"

Spout Height

(deck to aerator): 25⁄8"

Spout Reach: 5"

LKP6820 with white porcelain

and chrome lever handles

Includes metal pop-up drain

assembly for 15⁄8" drain opening

Finishes:

(CR) Chrome

LK6155NK: $682.00

LK6155CR: $505.00

Overall Height: 511⁄16"

Spout Height

(deck to aerator): 27⁄16"

Spout Reach: 43⁄4"

Includes metal pop-up drain assembly

Finishes:

(CR) Chrome

(NK) Brushed Nickel

LK6156NK: $1,073.00

LK6156CR: $795.00

Spout Reach: 77⁄8"

Finishes:

(CR) Chrome

(NK) Brushed Nickel

LK6719CR: $245.00

LK6719BK: $329.00

LK6719NK: $329.00

LK6719WH: Discontinued

Overall Height: 61⁄2"

Spout Height (deck to aerator): 215⁄16"

Spout Reach: 57⁄16"

Includes metal pop-up drain assembly

for 15⁄8" drain opening

Finishes:

(BK) Black

(CR) Chrome

(NK) Brushed Nickel

(WH) White

LK7625CR: $451.00

Overall Height: 61⁄2"

Spout Height

(deck to aerator): 21⁄2"

Spout Reach: 41⁄2"

Includes three handles:

chrome, blue and speckled

Finishes:

(CR) Chrome

63 | lavatory

accessories

64 |

Details really do make a difference – especially when it comes to simplifying your lifestyle.

That’s why our accessories are always such a great addition. They not only blend easily with

your sense of style, they also appeal to your need for convenience.

LKWRB1418SS: $149.00

Fits Bowl Sizes: 14" x 18",16" x 19"

LKWRB1116SS: $149.00

Fits Bowl Size: 111⁄2" x 16"

LKWRB1316SS: $149.00

Fits Bowl Sizes: 131⁄2" x 16",

14" x 153⁄4", 16" x 16"

LKWRB1318SS: $149.00

Fits Bowl Size: 131⁄2" x 18"

LKWRB1414SS: $149.00

Fits Bowl Size: 14" x 14"

LKWRB2018SS: $171.00

Fits Bowl Size: 20" x 18"

LKWRB2115SS: $160.00

Fits Bowl Size: 21" x 153⁄4"

LKWRB2816SS: $181.00

Fits Bowl Size: 28" x 16"

LKWRB1618SS : $160.00

Fits Bowl Size: 16" x 18"

LKWRB715SS: $117.00

Fits Bowl Sizes: 71⁄2" x 141⁄8",

71⁄2" x 153⁄4", 71⁄2" x 16"

Includes

removable

dish rack

!Rinsing Baskets are custom

designed to fit Elkay sinks

!Wavy wire formed from

stainless steel

!Bright polished finish

!Black vinyl feet Includes

removable

dish rack

65 | accessories

LKWRB1111SS: $117.00

Fits Bowl Size: 111⁄2" x 111⁄2"

LKWRB1113SS: $128.00

Fits Bowl Size: 113⁄4" x 131⁄4"

LKWRB1209SS: $117.00

Fits Bowl Sizes: 12" x 91⁄4",

12" x 12", 14" x 10"

LKWERBSS: $134.00

Expandable, fits bowl sizes from

131⁄2" x 15" to 20" x 18"

LKWRB1115SS: $149.00

Fits Bowl Size: 111⁄2" x 15"

LKWRB1617SS: $160.00

Fits Bowl Size: 16" x 171⁄2"

LKWRB2118SS: $171.00

Fits Bowl Size: 21" x 185⁄8"

LKWRB12SS: $128.00

Fits Bowl Size: 12" dia.

LKWUCSS Utensil Caddy

$85.00

Fits all rinsing baskets

Includes

removable

dish rack

accessories

66 |

LKWBG1414SS: $99.00

Fits Bowl Size: 14" x 14"

LKWBG1116SS: $106.00

Fits Bowl Size: 111⁄2" x 16"

LKWBG1209SS: $99.00

Fits Bowl Size: 12" x 91⁄4"

with 2" drain opening

LKWBG1316SS: $106.00

Fits Bowl Size: 131⁄2" x 16"

LKWBG1415SS: $106.00

Fits Bowl Size: 14" x 153⁄4"

LKWBG2115SS: $120.00

Fits Bowl Size: 21" x 153⁄4"

LKWBG2816SS: $154.00

Fits Bowl Size: 28" x 16"

LKWRBG12SS: $106.00

Fits Bowl Size: 12" dia.

LKWRBG14SS: $128.00

Fits Bowl Size: 14" dia.

LKWRBG16SS: $134.00

Fits Bowl Size: 16" dia.

LKWOBG1618SS: $134.00

Fits Bowl Size: 16" x 18"

LKWOBG1111SS: $99.00

Fits Bowl Size: 111⁄2" x 111⁄2"

with 2" drain opening

!Bottom Grids are custom

designed to fit Elkay sinks

!Wavy wire formed from

stainless steel

!Bright polished finish

!Black vinyl feet

LKWOBG1316SS: $106.00

Fits Bowl Size: 131⁄2" x 16"

LKWOBG1116SS: $106.00

Fits Bowl Size: 111⁄2" x 16"

LKWOBG1318SS: $110.00

Fits Bowl Size: 131⁄2" x 18"

LKWOBG1415SS: $106.00

Fits Bowl Size: 14" x 153⁄4"

LKWOBG1418SS: $110.00

Fits Bowl Size: 14" x 18"

LKWOBG1616SS: $128.00

Fits Bowl Size: 16" x 16"

LKWOBG2018SS: $145.00

Fits Bowl Size: 20" x 18"

LKWOBG2115SS: $120.00

Fits Bowl Size: 21" x 153⁄4"

LKWOBG2816SS: $154.00

Fits Bowl Size: 28" x 16"

67 | accessories

CB1516: $71.00

Overall Size: 15" x 163⁄4" x 3⁄4"

Fits Bowl Sizes: 14" x 153⁄4",

19" x 153⁄4", 21" x 153⁄4"

and 28" x 153⁄4"

CB1613 / CB1713 / CB1716

CB1613: $91.00

Overall Size: 131⁄2" x 163⁄4" x 1"

Fits Bowl Size: 131⁄2" x 16" and 14" x 14"

CB1713: $95.00

Overall Size: 131⁄2" x 17" x 1"

Fits Bowl Sizes: 131⁄2" x 16",

16" x 16", 16" x 171⁄2", 16" x 18",

16" x 19", 16" x 22", 16" x 28"

CB1716: $121.00

Overall Size: 16" x 173⁄4" x 7⁄8"

Universal design rests on counter or

any bowl 16" and smaller. Not designed

to sit on the sink flange.

CB912: $86.00

Overall Size: 127⁄8" x 101⁄8" x 1"

Fits Bowl Size: 12" x 91⁄4"

CB2213: $166.00

Overall Size:

2113⁄16" x 191⁄4" x 3⁄4"

Fits Bowl Size: 21" x 185⁄8"

CB816: $59.00

Overall Size: 81⁄2" x 163⁄4" x 3⁄4"

Fits Bowl Size: 71⁄2" x 153⁄4"

LKWOBG1115SS: $106.00

Fits Bowl Size: 111⁄2" x 15"

LKWOBG1113SS: $99.00

Fits Bowl Size: 113⁄4" x 131⁄4"

LKWOBG1617SS: $134.00

Fits Bowl Size: 16" x 171⁄2"

LKWOBG2118SS: $139.00

Fits Bowl Size: 21" x 185⁄8"

68 |

accessories

CBR1316 / CBR1418

Reversible – hardwood on

one side with high impact

polymer on the other

CBR1316: $115.00

Overall Size: 111⁄4" x 141⁄2" x 1"

Fits Bowl Size: 131⁄2" x 16"

and 131⁄2" x 18"

CBR1418: $130.00

Overall Size: 111⁄4" x 15" x 1"

Fits Bowl Size: 14" x 14"

and 14" x 18"

CBP1116 / CBP1319L/R

Polymer

CBP1116: $164.00

Overall Size: 11" x 161⁄2" x 1⁄2"

CBP1319L: $232.00

CBP1319R: $232.00

Overall Size: 131⁄8" x 19" x 1⁄2"

Fits Left or Right Ribbed Area:

127⁄8" x 18"

SC1407W: $94.00

Fits Bowl Size: 7" x 141⁄8"

Finish: (W) White

LC1412W: $94.00

Fits Bowl Size: 113⁄4" x 131⁄4"

Finish: (W) White

CBS715: $64.00

Overall Size: 83⁄8" x 1613⁄16" x 3⁄4"

Fits Bowl Size: 71⁄2" x 153⁄4"

Includes stainless steel mesh strainer

69 | accessories

CBS1316 / CBS1418

CBS1316: $91.00

Overall Size: 141⁄2" x 17" x 3⁄4"

Fits Bowl Size: 131⁄2" x 16",

16" x16", 16" x 18", 16" x 19",

16" x 22" and 16" x 28"

CBS1418: $115.00

Overall Size: 15" x 19" x 3⁄4"

Fits Bowl Size: 14" x 18" and

20" x 18"

Includes stainless steel mesh strainer

LK323CR: $143.00

LK323AC: $159.00

LK323MC: $159.00

Overall Height: 23⁄4"

Spout Reach: 215⁄16"

Designed to coordinate with

Victoria faucets

Deluxe plunger type dispenser

Plastic, concealed 1⁄2" liter

container fills from top

Finishes:

(AC) Antique Copper

(CR) Chrome

(MC) Mirrored Copper

LK313BK: $149.00

LK313AL: $149.00

LK313CR: $114.00

LK313NK: $149.00

LK313WH: $149.00

Overall Height: 215⁄16"

Spout Reach: 215⁄16"

Deluxe plunger type dispenser

Plastic, concealed 1⁄2" liter

container fills from top

Finishes:

(AL) Almond (BK) Black (CR) Chrome

(NK) Brushed Nickel (WH) White

LK333CR: $127.00

LK333NK: $141.00

Overall Height: 23⁄4"

Spout Reach: 31⁄4"

Designed to coordinate

with Allure faucets

Deluxe plunger

type dispenser

Plastic, concealed

1⁄2" liter container

fills from top

Finishes:

(CR) Chrome

(NK) Brushed Nickel

LK94: $237.00

Drain Opening Size: 31⁄2"

Top Diameter: 41⁄2"

Heavy gauge stainless steel

body

Stainless steel conical strainer

with remote control (lift-up)

knob and linkage complete

11⁄2" chrome plated brass

tailpiece

Maximum Countertop

Thickness: 1"

Specify extra drilling on sink ledge to

accommodate this product

70 |

accessories

LKH190WH / LKH180

The Hot Water Machine by

Elkay®

LK2156

Aqua-Chill® Dispenser

ERS1 Remote Chiller $691.00

Remote Chiller works with LK1110

Glass Filler

Chilling capacity of 1.3 gallons per

hour of chilled 50°F drinking water

Fits under sink or installed beneath

basement ceiling under sink

LK99: $82.00

Drain Opening Size: 31⁄2"

Top Diameter: 41⁄2"

Heavy gauge, stainless steel body

Stainless steel conical strainer with

push and lock metal stem and

rubber stopper

11⁄2" chrome plated brass tailpiece

LKKDT35

$47.00

Drain Opening Size: 31⁄2"

Top Diameter: 41⁄2"

Chrome plated cast brass body

Stainless steel basket

11⁄2" chrome plated brass tailpiece

LK1110 Glass Filler $177.00

Overall Height: 10"

Spout Reach: 21⁄2"

Stainless Steel

LKSB16: $15.15 each*

Stainless Butler

Sink Cleaner

16 oz. Spray

*Shipped in a counter display; Must

order in multiples of 12

DISCONTINUED

71 | bath

The decorative details to complete your vision. Our bath accessories add the beautiful sparkle of chrome

along with a style designed to complement any décor from classic to nouveau contemporary.

LKBAC225

$155.00

Bathroom Full Towel Bar

LKBAC220: $238.00

LKBAC221: $245.00

LKBAC222: $251.00

Bathroom Towel Bar

Length: LKBAC220 17"

LKBAC221 227⁄8"

LKBAC222 281⁄4"

LKBAC210

$179.00

Bathroom Soap Holder

LKBAC231

$129.00

Bathroom Toilet Paper Holder

LKBAC213

$179.00

Bathroom Cup Holder

LKBAC230

$167.00

Bathroom Towel Ring

bath

72 |

index

3626EGDB.....................................15

3626EGDF .....................................15

3626EGDS .....................................15

3626EGSB .....................................16

3626EGSF......................................16

3626EGSS......................................16

4826EGDB.....................................15

4826EGDS .....................................15

4826EGDWBL ................................15

4826EGDWBR................................15

4826EGDWSL ................................15

4826EGDWSR................................15

4826EGTB......................................14

4826EGTS......................................14

BILGR2115L...................................30

BILGR2115R ..................................30

BLGR1515 .....................................30

BLR15 ............................................37

BLR150C........................................37

CB1516..........................................67

CB1613..........................................67

CB1713..........................................67

CB1716..........................................67

CB2213..........................................67

CB816............................................67

CB912............................................67

CBP1116........................................68

CBP1319L ......................................68

CBP1319R......................................68

CBR1316........................................68

CBR1418........................................68

CBS1316........................................68

CBS1418........................................68

CBS715..........................................68

DLCGR252210 ...............................30

DLCGR332210L .............................30

DLCGR332210R.............................30

DLCGR382210L .............................29

DLCGR382210R.............................29

DLCGR402210 ...............................29

DLRS332210..................................37

ECG2522 .......................................41

ECG252210 ...................................41

ECG3322L .....................................40

ECG3322R .....................................40

ECG332210L .................................40

ECG332210R .................................40

EFL1515 ........................................11

EFL1616 ........................................11

EFL2012 ........................................10

EFU131610......................................9

EFU141810......................................9

EFU211510......................................9

EFU281610......................................9

EFU311810......................................8

EFU312010R....................................8

EFU321910......................................8

EFU402010......................................7

EFU411510DB .................................7

EG250L..........................................40

EG250R .........................................40

EG25010L......................................40

EG25010R .....................................40

EG2522 .........................................41

EG3322 .........................................40

EGPI4322L.....................................31

EGPI4322R ....................................31

EGUH2115.....................................39

EGUH2118.....................................39

EGUH211810.................................39

EGUH3118.....................................39

EGUH3119L...................................38

EGUH3119R ..................................38

EGUH311910L...............................38

EGUH311910R ..............................38

EGUH3120L...................................39

EGUH3120R ..................................39

EGUH312010L...............................39

EGUH312010R ..............................39

ELU1111........................................24

ELU1113........................................24

ELU12............................................23

ELU129..........................................23

ELU12FB........................................23

ELU12LV ........................................23

ELU1316........................................24

ELU1317........................................25

ELU1418........................................25

ELU141810....................................25

ELU1511........................................25

ELU16............................................23

ELU1618........................................26

ELU16FB........................................23

ELU16LV ........................................23

ELU1716........................................26

ELU1812........................................25

ELU2115........................................26

ELU211510....................................26

ELU2118........................................27

ELU211810....................................27

ELU2421L ......................................27

ELU2421R......................................27

ELU2816........................................27

ELU281610....................................27

ELU281612....................................27

ELU714..........................................24

ELU715..........................................24

ELU9..............................................23

ELUH1111 .....................................24

ELUH1113 .....................................24

ELUH12..........................................23

ELUH129........................................23

ELUH12FB .....................................23

ELUH12LV......................................23

ELUH1316 .....................................24

ELUH1317 .....................................25

ELUH1418 .....................................25

ELUH141810 .................................25

ELUH1511 .....................................25

ELUH16..........................................23

ELUH1618 .....................................26

ELUH16FB .....................................23

ELUH16LV......................................23

ELUH1716 .....................................26

ELUH1812 .....................................25

ELUH2115 .....................................26

ELUH211510 .................................26

ELUH2118 .....................................27

ELUH211810 .................................27

ELUH2421L....................................27

ELUH2421R ...................................27

ELUH2816 .....................................27

ELUH281610 .................................27

ELUH281612 .................................27

ELUH3116 .....................................21

ELUH3118 .....................................21

ELUH311810 .................................21

ELUH311810L................................21

ELUH311810R ...............................21

ELUH311910L................................21

ELUH311910R ...............................21

ELUH3119L....................................21

ELUH3119R ...................................21

ELUH3120L....................................22

ELUH3120R ...................................22

ELUH3219 .....................................22

ELUH322110L................................23

ELUH322110R ...............................23

ELUH3221L....................................23

ELUH3221R ...................................23

ELUH3232 .....................................20

ELUH3520L....................................21

ELUH3520R ...................................21

ELUH362110L................................22

ELUH362110R ...............................22

ELUH3621L....................................22

ELUH3621R ...................................22

ELUH3920 .....................................20

ELUH4020 .....................................20

ELUH4221L....................................22

ELUH4221R ...................................22

ELUH714........................................24

ELUH715........................................24

ELUH9............................................23

ELUHF2520....................................19

ELUHF3320....................................19

ELUHFS2816..................................19

ERS1 ..............................................70

ILCGR4022L...................................31

ILCGR4022R ..................................31

ILCGR4822L...................................28

ILCGR4822R ..................................28

ILCGR5322L...................................29

ILCGR5322R ..................................29

ILFGR4822L...................................32

ILFGR4822R ..................................32

ILFGR5422L...................................32

ILFGR5422R ..................................32

ILGR4322L.....................................34

ILGR4322R ....................................34

ILGR4822L.....................................33

ILGR4822R ....................................27

ILGR5422L.....................................26

ILGR5422R ....................................26

ILGR6022L..................................25

ILGR6022R .................................25

ISLAND3828 ..................................18

ISLAND3828C................................18

LC1412 ..........................................68

LCCR3232......................................36

LCGR2522 .....................................30

LCGR3322L....................................30

LCGR3322R ...................................30

LCGR3822L....................................29

LCGR3822R ...................................29

LCR4322 ........................................36

LFGR3322......................................34

LFGR3722......................................33

LGR3322........................................34

LGR3722........................................33

LGR4322........................................31

LK1110 ..........................................70

LK2156 ..........................................70

LK2444 ..........................................59

LK2454 ..........................................58

LK2455 ..........................................59

LK2464 ..........................................61

LK2544 ..........................................59

LK2546 ..........................................59

LK2725 ..........................................57

LK313 ............................................69

LK323 ............................................69

LK333 ............................................69

LK530 / SPL9AE3...........................16

LK531 / SPGN10AE3 .....................16

LK531 / SPL9AE3...........................16

LK566 / LKSS / SPGN10AE3..........16

LK566D / LKGD / SPDJ13AE3 .......16

LK566D / LKGD / SPL9AE3............16

LK6140 ..........................................55

LK6155 ..........................................62

LK6156 ..........................................62

LK6158 ..........................................54

LK6165 ..........................................55

LK6175 ..........................................55

LK6360 ..........................................57

LK6365 ..........................................57

LK6366 ..........................................57

LK6510 ..........................................56

LK6520 ..........................................56

LK6719 ..........................................63

LK6820 ..........................................62

LK7120 ..........................................47

LK7122 ..........................................46

LK7124 ..........................................47

LK7125 ..........................................61

LK7126 ..........................................47

LK7127 ..........................................60

LK7128 ..........................................46

LK7220 ..........................................45

LK7224 ..........................................45

LK7225 ..........................................61

LK7226 ..........................................45

LK7228 ..........................................45

LK7320 ..........................................49

LK7322 ..........................................49

LK7324 ..........................................49

LK7420 ..........................................44

LK7422 ..........................................45

LK7522 ..........................................48

LK7524 ..........................................49

LK7620 ..........................................47

LK7622 ..........................................47

LK7625 ..........................................63

LK94 ..............................................69

LK99 ..............................................70

LKBAC210 .....................................71

LKBAC213 .....................................71

LKBAC220 .....................................71

LKBAC221 .....................................71

LKBAC222 .....................................71

LKBAC225 .....................................71

LKBAC230 .....................................71

LKBAC231 .....................................71

LKH180..........................................70

LKH190..........................................70

LKKDT35........................................70

LKP6820 ........................................62

LKS6225 ........................................50

LKS6265 ........................................53

LKS6275 ........................................52

LKS6425 ........................................51

LKS6465 ........................................53

LKS6475 ........................................51

LKSB16 ..........................................70

LKWBG1116SS ..............................66

LKWBG1209SS ..............................66

LKWBG1316SS ..............................66

LKWBG1414SS ..............................66

LKWBG1415SS ..............................66

LKWBG2115SS ..............................66

LKWBG2816SS ..............................66

LKWERBSS.....................................65

LKWOBG1111SS ...........................66

LKWOBG1113SS ...........................67

LKWOBG1115SS ...........................67

LKWOBG1116SS ...........................66

LKWOBG1316SS ...........................66

LKWOBG1318SS ...........................66

LKWOBG1415SS ...........................66

LKWOBG1418SS ...........................66

LKWOBG1616SS ...........................66

LKWOBG1617SS ...........................67

LKWOBG1618SS ...........................66

LKWOBG2018SS ...........................66

LKWOBG2115SS ...........................66

LKWOBG2118SS ...........................67

LKWOBG2816SS ...........................66

LKWRB1111SS...............................65

LKWRB1113SS...............................65

LKWRB1115SS...............................65

LKWRB1116SS...............................64

LKWRB12SS...................................65

LKWRB1316SS...............................64

LKWRB1318SS...............................64

LKWRB1414SS...............................64

LKWRB1418SS...............................64

LKWRB1617SS...............................65

LKWRB1618SS...............................64

LKWRB2018SS...............................64

LKWRB2115SS...............................64

LKWRB2118SS...............................65

LKWRB2816SS...............................64

LKWRB715SS.................................64

LKWRBG12SS ................................66

LKWRBG14SS ................................66

LKWRBG16SS ................................66

LKWUCSS ......................................65

LKX6225 ........................................51

LKX6265 ........................................53

LKX6275 ........................................52

LKX6425 ........................................51

LKX6465 ........................................53

LKX6475 ........................................51

LLVR2017 ......................................36

LLVR2017CS ..................................36

LMR3322 .......................................36

LR250 ............................................35

LR2522 ..........................................37

LRS3322 ........................................37

MYSTIC5014 ....................................5

MYSTIC5014C ..................................5

MYSTIC2812 ....................................5

MYSTIC2812C ..................................5

RLLVR12 ........................................37

RLLVR16 ........................................37

RLR12 ............................................37

RLR16 ............................................37

RLR9 ..............................................37

SC1407..........................................68

SCF16 ............................................42

SCF1611 ........................................42

SCF16FB........................................43

SCUH1012 .....................................43

SCUH1212 .....................................43

SCUH1416 .....................................43

VESSEL16SMS ...............................11

VESSEL16SSS ................................11

73 | online specifications

online specifications

For the most up to date specifications

on Elkay’s New Products, visit our

website. It's as easy as 1-2-3!

Go to elkayusa.com and

1. Click on “Specifications & Pricing”

2. Click on “Specification Sheets”

3. Click on “Product Catagory”

4. Locate and click on “Model Number”

to download or view pdf Spec Sheet

1. Enter Model Number or keyword

into the text box and click “Search”

2. Click on “Product Thumbnail”

3. Click on “PDF” icon to download

or view Spec Sheet

It’s instant access to specification

information. Just print!

the elkay story

1940

1920

Quality. Integrity. Trust.

These words represent how we do business.

We are committed to world class customer

service, continuous improvement and employee

involvement. In fact, quality is the personal

responsibility of each of our employees. And

we continually strive to develop and enhance

their capabilities through training and education.

1950

Fortune Magazine Ad

October, 1939

The Elkay Manufacturing Company

began as a vision of Leopold Katz and his

son Louis on the north side of Chicago

back in 1920. Founded with the goals

of manufacturing the highest quality

sinks and providing the best service

possible, the company began to thrive.

As time went by, we set the pace with

new products, designs and innovations

that continue to lead the industry.

timeless
