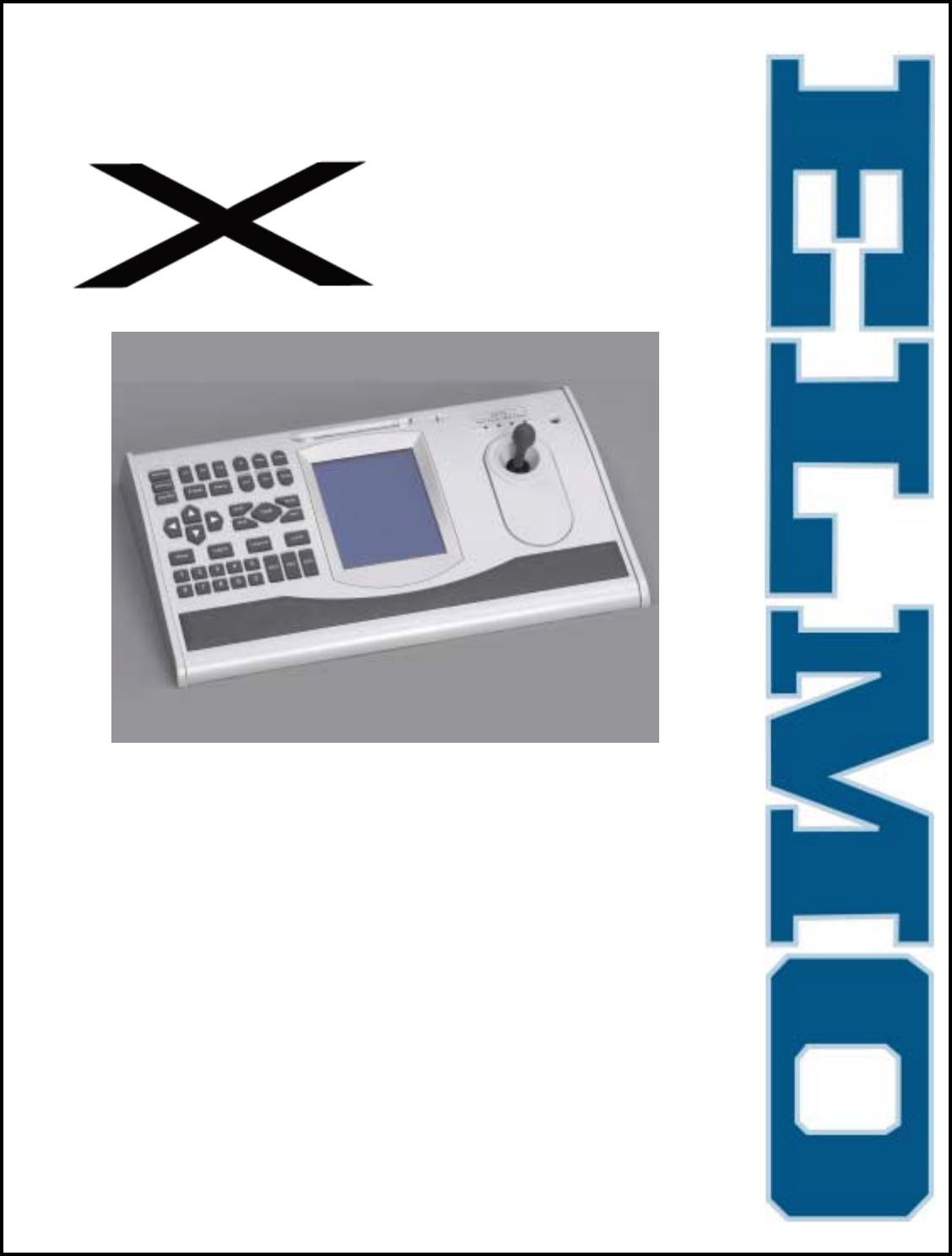

ELMO ESD-CC2X Keyboard Controller
Line
FEATURES
! With supported 2400, 4800, & 9600 RS-485 baud rate, it can
Control ELMO multiplexers & many of the most popular
manufacturers speed domes / matrix
! Alarm Buzzer
! 320 x 240 Dots LCD with touch panel control, & buzzer prompt
support user-friendly interface
! Time date display
! 3 axis Joystick control dome’s PTZ sweep speed and direction
! Password protection supported
! Preset point edit function
ELMO ECM-CC2X Keyboard Controller
ELMO Mfg. Corp. ELMO Canada Mfg. Corp.
1478 Old Country Road 44 West Drive, Brampton,
Plainview, New York, 11803 Ontario, L6T 3T6, Canada
Tel. 516.501.1400 Tel. 905-453-7880
Fax. 516.501.0429 Fax. 905-453-2391
www.elmousa.com www.elmocanada.com
Joy Sticker Multi-Speed Control .
Connector RJ11, 6 pin, Female
Communication RS232, RS485 x 2 .
Baud Rate 2400, 4800, 9600
Interface Specification 8 data bits, no parity, 1 stop bit .
LCD Display 320 x 240 Graphic LCD with touch panel
Time/ Date RTC-IC with battery .
Power Source DC 12V 1.5A
Power Consumption 600mA max .

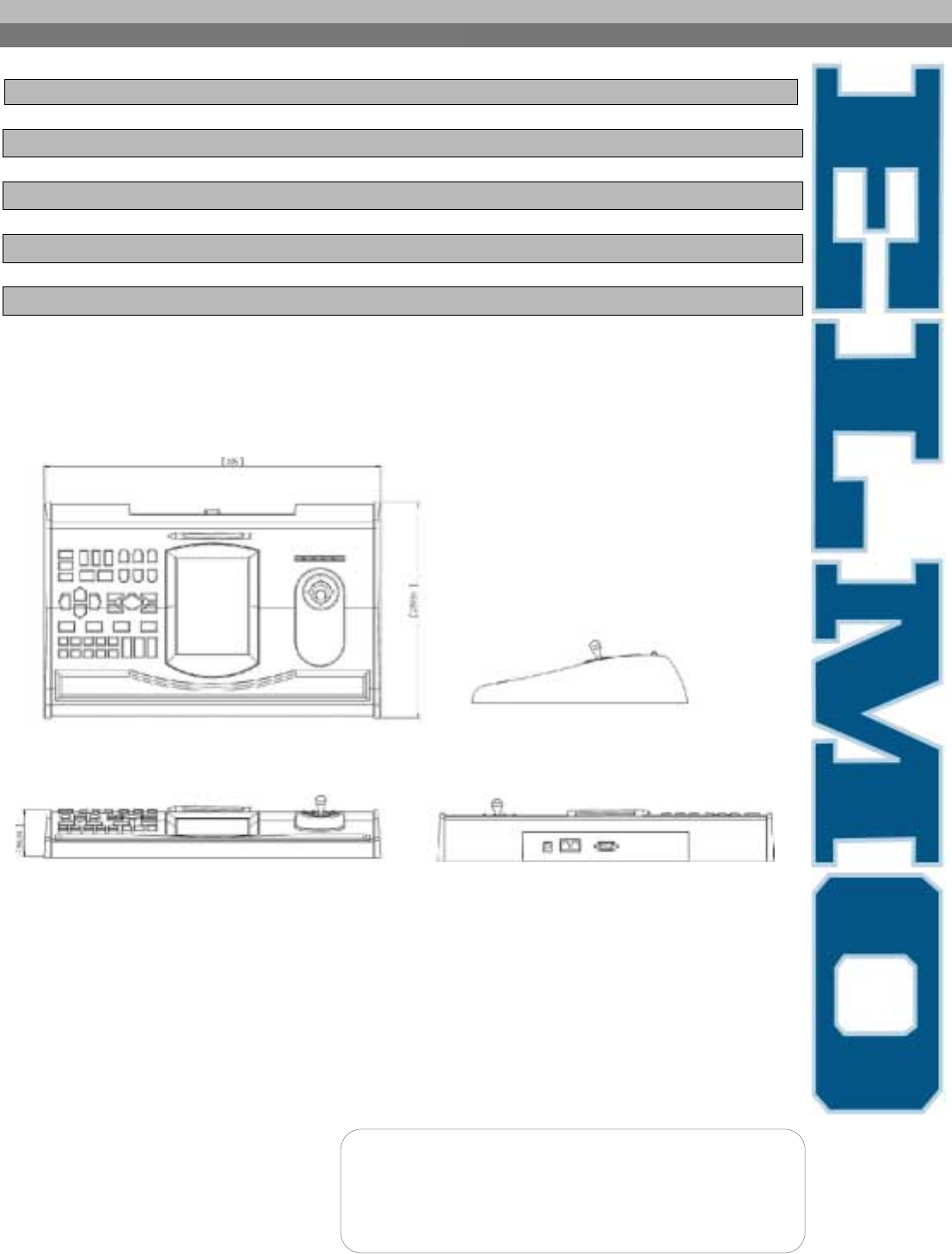

DIMENSIONS
