Elo Touch Solutions, Inc. RFID Touchmonitor User Guide
user manual
USER MANUAL
Elo Touch Solutions
RFID FOR ET1523L AND ET1723L
User Manual– 23 SERIES MONITORS RFID
Rev A, Page 1 of 3
Locate and remove the peripheral cover in the top position on the back of the monitor.
Connect the RFID peripheral to the available USB connection within the peripheral slot on the
top of the monitor.

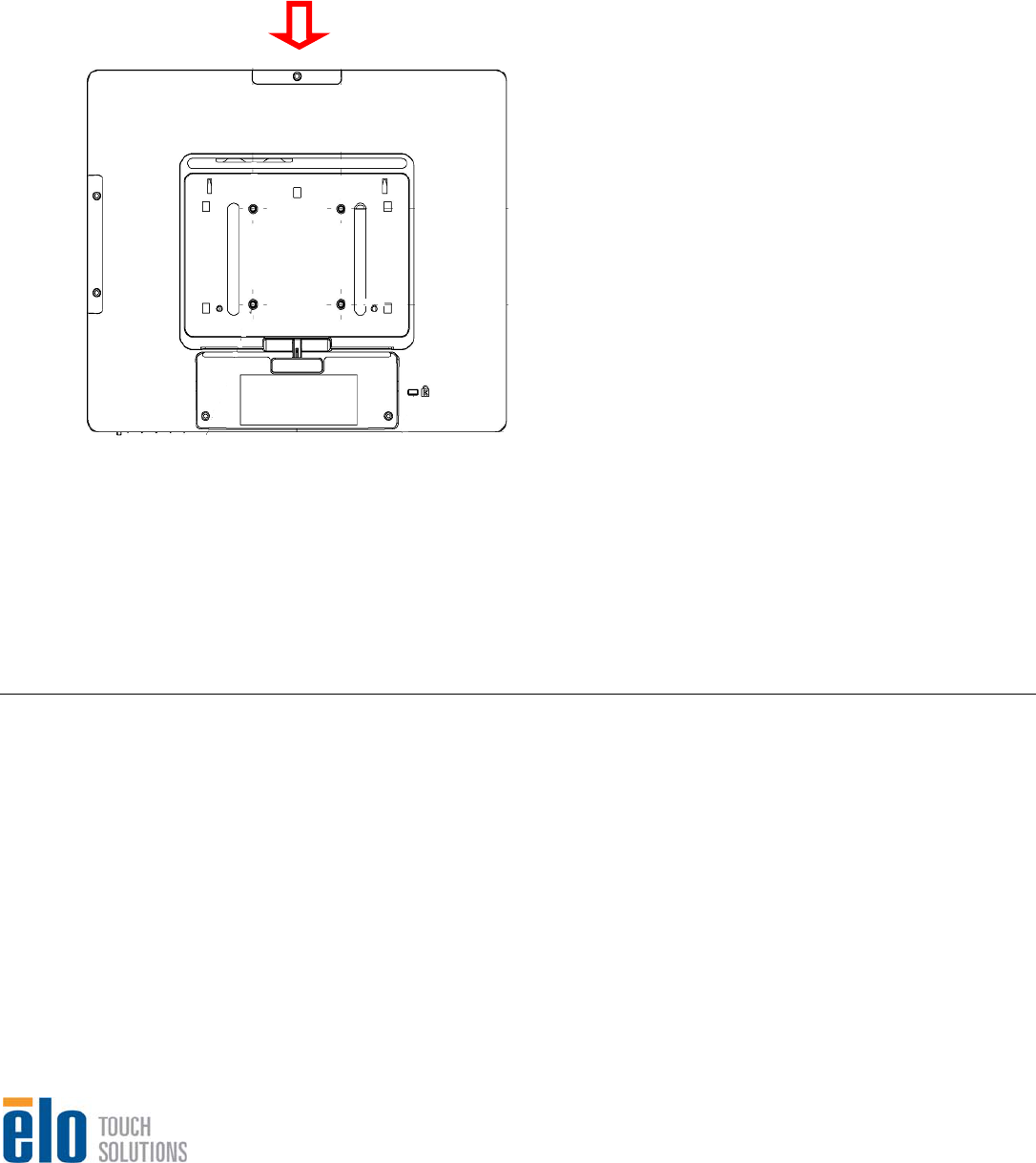

Above is a back view of the monitor where the peripheral can be mounted.
Secure the RFID reader with the provided screws.
Emissions and Immunity Information
Notice to Users in the United States: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
User Manual–23 SERIES MONITORS RFID
Rev A, Page 2 of 3
User Manual–23 SERIES MONITORS RFID
Rev A, Page 3 of 3
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.
