Elo Touch Solutions ESY19M-HID5121 Touch Computer User Manual VuPoint M Series Touchcomputer
Elo Touch Solutions, Inc. Touch Computer VuPoint M Series Touchcomputer
Users Manual
VuPoint™ M-Series Touchcomputer User Guide
VuPoint™ M-Series LCD Multi-function Touchcomputer

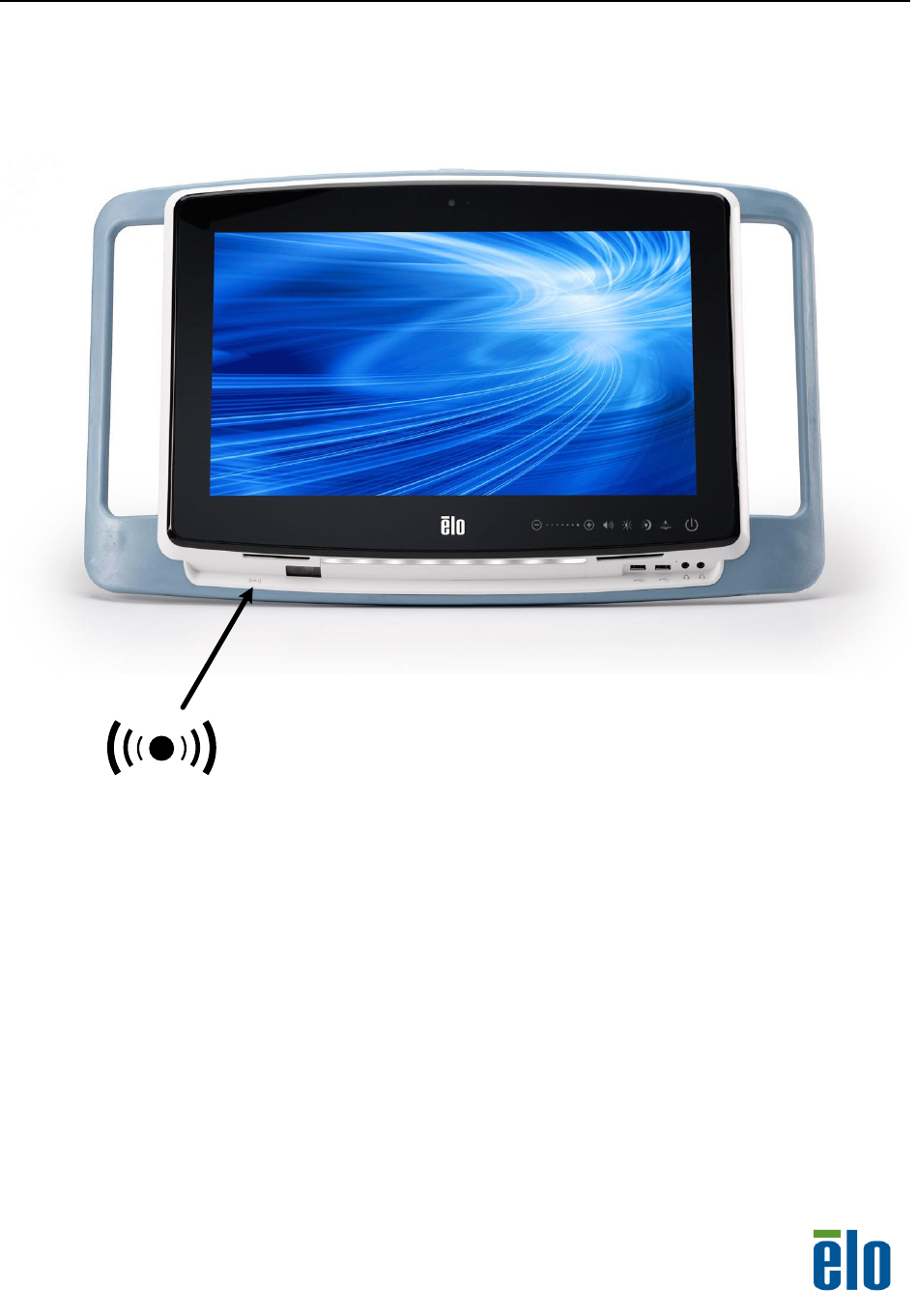

[19” model shown with optional accessories VuPoint M-Series]
VuPoint™ M-Series Touchcomputer User Guide ii
Elo Touch Solutions
VuPoint™ M-Series Touchcomputer User
Guide
Multi-function Touchcomputer
Revision B
SW200069
1-800-ELOTOUCH (1-800-356-8682)
www.elotouch.com
VuPoint™ M-Series Touchcomputer User Guide iii
Copyright © 2013 Elo Touch Solutions Inc. All Rights Reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored
in a retrieval system, or translated into any language or computer language, in
any form or by any means, including, but not limited to, electronic, magnetic,
optical, chemical, manual, or otherwise without prior written permission of Elo
Touch Solutions.
Disclaimer
The information in this document is subject to change without notice. Elo
Touch Solutions Inc. Elo Touch Solutions makes no representations or
warranties with respect to the contents herein, and specifically disclaims any
implied warranties of merchantability or fitness for a particular purpose. Elo
Touch Solutions reserves the right to revise this publication and to make
changes from time to time in the content hereof without obligation of Elo Touch
Solutions to notify any person of such revisions or changes.
Trademark Acknowledgments
AccuTouch, Elo TouchSystems, Elo TouchSystems (logo), Elo, IntelliTouch,
iTouch, Elo Touch Solutions Inc., Elo Touch Solutions, and Elo Touch
Solutions (logo) are trademarks. Windows is a trademark of Microsoft
Corporation. Other product names mentioned herein may be trademarks or
registered trademarks of their respective companies. Elo Touch Solutions
claims no interest in trademarks other than its own.
VuPoint™ M-Series Touchcomputer User Guide iv
Warnings and Cautions
Warning
• Danger - Explosion hazard. Do not use in the presence of flammable
anesthetics, and other flammable materials.
• To prevent fire or shock hazards, do not immerse the unit in water or expose
it to rain or moisture.
• Do not use the unit with an extension cord receptacle or other outlets unless the
prongs of the power cord can be fully inserted.
• RISK OF ELECTRICAL SHOCK - DO NOT OPEN. To reduce the risk of
electrical shock, DO NOT remove the back of the equipment or open the
enclosure. No user-serviceable parts are inside. Refer servicing to qualified
field service engineers only.
• Uninsulated voltage within the unit may have sufficient magnitude to cause
electrical shock.
Avoid contact with any part inside the unit.
• This device complies with the electromagnetic emission and immunity
standards and is limited to the standards that are listed on pages 41 and 45.
Other devices which are not designed to withstand emission levels as
specified in the medical device standards may be susceptible to interference
from this device. Subjecting the device to conditions beyond the rated
performance capabilities may result in emissions in excess of the standard. If
it is determined that this device produces electromagnetic or other
interference it must be disconnected from power until the cause of the problem
has been determined and resolved. If it is determined that this device is
functioning improperly due to electromagnetic and other interference it must be
disconnected from power until the cause of the problem has been determined
and resolved.
• Elo Touch Solutions recommends that after its useful life (or after sustaining
unrepairable damage), customers dispose of the touchcomputer and its power
supply in an environmentally sound manner. Acceptable methods include the
reuse of parts or whole products and the recycling of products, components,
and materials. Please consult and obey national state, and local laws and
ordinances governing the safe disposal of electronic equipment.
• Do not modify this equipment without authorization of the manufacturer.
This product consists of devices that may contain mercury, which must be recycled
or disposed of in accordance with local, state, or federal laws.
VuPoint™ M-Series Touchcomputer User Guide v
Caution
Power cord is used as a disconnection device. To de-energize
equipment, disconnect the power cord.
This unit must follow the national requirement and local state laws to
dispose unit.
Before connecting the cables to your Elo touchcomputer, make
sure all components are powered OFF.
Only approved components complying with IEC 60601-1 series can be
connected to 15MX/19MX Touchcomputer for Healthcare Applications in
Patient Environment. The use of ACCESSORY equipment not complying
with the equivalent safety requirements of this equipment may lead to a
reduced safety of the resulting system. Consideration relating to the
choices of accessory equipment should include: Use of accessory in the
patient environment.· Evidence that the safety certification of the
accessory has been performed in accordance to the appropriate IEC
60601-1 and/or IEC 60601-1-1 harmonized national standard.
For continued safety
This unit only complies to the above standards if used with a
medical grade power cord.
A medical grade power supply, such as the one specified, is
required for use in a medical application.
Please do not touch the patient and the touchcomputer output
connecter at the same time.
The touchmonitor is to be used with following adaptor:
1. XP Power / AHM85PS12
or
2. Elo Touch Solutions / FSP110-RAAM
Disposing of your old product
Within the European Union
EU-wide legislation, as implemented in each Member State, requires that
waste electrical and electronic products carrying the mark (left) must be
disposed of separately from normal household waste. This includes monitors
and electrical accessories, such as signal cables or power cords. When you
need to dispose of your display products, please follow the guidance of your
local authority, or ask the shop where you purchased the product, or if
applicable, follow any agreements made between yourself and the supplier of
this product.
The mark on electrical and electronic products only applies to the current
European Union Member States.
Elo Touch Solutions recommends that after its useful life (or after sustaining
unrepairable damage), customers dispose of the touchcomputer and its power
supply in an environmentally sound manner. Acceptable methods include the
reuse of parts or whole products and the recycling of products, components,
and materials. Please consult and obey national, state, and local laws and
ordinances governing the safe disposal of electronic equipment.
VuPoint™ M-Series Touchcomputer User Guide vi
!
Explanation of Symbols:
• This symbol alerts the user to important information concerning the operation and
maintenance of this unit, which should be read carefully to avoid problems.
• This symbol means DC Current.
• This symbol means ON/OFF stand-by switch.
• Consult instructions for use.
Medical and Healthcare Application Disclaimer:
It is the sole responsibility of any person intending to commercialize, market or
use any of Elo Touch Solutions, Inc. products for medical or healthcare
applications to ensure that such product is adequate and appropriate for
the person's intended use and complies with all applicable laws, regulations,
codes and standards including but not limited to the European Union Medical
Device Directive, United States Federal Food, Drug, and Cosmetic Act,
regulations of the United States Food and Drug Administration (FDA), and for
obtaining and maintaining any required regulatory approvals including but not
limited to any required market clearances. Elo has not sought nor received any
rulings from the FDA or any other federal, state, or local government agency or
notified body as to the safety, effectiveness or appropriateness of its product
for such applications. Persons intending to evaluate or use Elo's product for
medical or healthcare purposes must rely on their own medical and legal
judgment without any representation on the part of Elo.
VuPoint™ M-Series Touchcomputer User Guide vii
Classification
With respect to electrical shock, fire in accordance with ANSI/AAMI ES60601-1 and
CAN/CSA- C22.2 No. 60601-1
E354528
07EG This touchcomputer is a Class I (GROUNDED) DEVICE.
This touchcomputer is classified NO APPLIED PARTS EQUIPMENT.
Protection against harmful ingress of water:
INGRESS PROTECTION (IP21)
This touchcomputer shall be classified as ORDINARY EQUIPMENT, not
intended or evaluated for use in the presence of flammable anesthetic mixture
with air, oxygen, or nitrous oxide.
Mode of Operation: CONTINUOUS OPERATION.
Environmental conditions for transport and storage
Temp.
Operating
0°C to 35°C
Storage / Transportation
-30°C to 60°C
Humidity (non-condensing)
Operating
20% to 80%
Storage / Transportation
5% to 95%
Altitude
Operating
0 to 2,000m
Storage / Transportation
0 to 12,192m
15MX/19MX Touchcomputer for Healthcare Applications is intended for general use in
hospital environment for data collection and display for reference. It shall not be used with
life-supporting system
For full Product Specifications refer to Appendix C
VuPoint™ M-Series Touchcomputer User Guide viii
European Standards and Classifications
Standards: EN 60601-1-2: 2007
The EMC limits and test methods are referred to the following standards:
Emission:
Immunity
CISPR 11: 2009+A1:2010
IEC 61000-4-2: 2008
EN55011: 2009+A1: 2010
(Group 1, Class A)
IEC 61000-4-3: 2006+A1:2007+A2:2010
IEC 61000-3-2:
2005+A1:2008+A2:2009
IEC 61000-4-4: 2011
IEC 61000-3-3; 2008
IEC 61000-4-5: 2005
IEC 61000-4-6: 2008
IEC 61000-4-8: 2009
IEC 61000-4-11: 2004
VuPoint™ M-Series Touchcomputer User Guide ix
Guidance and manufacturer’s declaration-electromagnetic
immunity for all EQUIPMENT AND SYSTEMS
Guidance and manufacturer’s declaration-electromagnetic
emissions
The 15MX/19MX Touchcomputer for Healthcare Applications is intended for use in the
electromagnetic environment specified below. The customer or the user of the 15MX/19MX
Touchcomputer for Healthcare Applications should assure that it is used in such an
environment.
Emissions test
Compliance
Electromagnetic environment-guidelines
RF emissions
CISPR 11
Group 1
The 15MX/19MX Touchcomputer for Healthcare
Applications uses RF energy only for its internal
function. Therefore, its RF emissions are very
low and are not likely to cause any interference
in nearby electronic equipment.
RF emissions
CISPR 11
Class A
The 15MX/19MX Touchcomputer for Healthcare
Applications is suitable for use in all establishments
other than domestic and those directly connected
to a low voltage power supply network which
supplies buildings used for domestic purposes.
Harmonics emissions
IEC 61000-3-2
Not applicable
Voltage fluctuations/
flicker emissions
IEC 61000-3-3
Complies
VuPoint™ M-Series Touchcomputer User Guide x
Guidance and manufacturer’s declaration-electromagnetic
immunity for all EQUIPMENT AND SYSTEMS
Guidance and manufacturer’s declaration-electromagnetic immunity
The 15MX/19MX Touchcomputer for Healthcare Applications is intended for use in the electromagnetic
environment specified below. The customer, or the user of the 15MX/19MX Touchcomputer for Healthcare
Applications, should assure that it is used in such an environment.
Immunity Test
IEC 60601
Compliance Level
Electromagnetic Environment-
Guidelines
Electrostatic Discharge
(ESD)
IEC 61000-4-2
± 6 kV contact
± 8 kV air
± 6 kV contact
± 8 kV air
Floors should be wood,
concrete or ceramic tile. If floors
are covered with synthetic
material, the relative humidity
should be at least 30%.
Electrical Fast
Transient/Burst
IEC 61000-4-4
± 2 kV for power
supply lines
± 1 kV for input/output
lines
2 kV for power supply
lines
± 1 kV for input/output
lines
Mains power quality should be
that of a typical commercial or
hospital environment.
Surge
IEC 61000-4-5
± 1 kV line(s) to
line(s)
± 2 kV line(s) to earth
± 1 kV line(s) to
line(s)
± 2 kV line(s) to earth
Mains power quality should be
that of a typical commercial or
hospital environment.
Voltage Dips, Short
Interruption and Voltage
Variations on Power
Supply Input Lines
IEC 61000-4-11
<5% UT
(>95% dip in UT)
for 0.5 cycle
40% UT
(60% dip in UT)
for 5 cycles
70% UT
(30% dip in UT)
for 25 cycles
<5% UT
(>95% dip in UT)
for 250 cycles
<5% UT
(>95% dip in UT)
for 0.5 cycle
40% UT
(60 % dip in UT)
for 5 cycles
70% UT
(30% dip in UT)
for 25 cycles
<5% UT
(>95% dip in UT)
for 250 cycles
Mains power quality should be
that of a typical commercial or
hospital environment. If the user
of the 15MX/19MX Touchcomputer
for Healthcare Applications
requires continued operation
during power mains interruptions,
It is recommended that the
15MX/19MX Touchcomputer for
Healthcare Applications be
powered from an uninterruptible
power supply or a battery.
Power Frequency
(50/60 Hz) Magnetic
Field
IEC 61000-4-8
3 A/m
3 A/m
Power frequency magnetic
fields should be at levels
characteristic of a typical
location in a typical commercial
or hospital environment.
NOTE UT is the A.C. mains voltage prior to application of the test level.
VuPoint™ M-Series Touchcomputer User Guide xi
Guidance and manufacturer’s declaration-electromagnetic immunity
for all EQUIPMENT AND SYSTEMS that are not LIFE-SUPPORTING
Guidance and manufacturer’s declaration-electromagnetic immunity
The 15MX/19MX Touchcomputer for Healthcare Applications is intended for use in
the electromagnetic environment
specified
below. The user of the 15MX/19MX
Touchcomputer for Healthcare Applications should assure that it is used in such an
environment.
Immunity Test
IEC 60601
Compliance
Level
Electromagnetic
Environment-Guidelines
Conducted RF
Radiated RF
IEC 61000-4-3
3 Vrms
3 V/m
80 MHz to 2.5
GHz
3 Vrms
3 Vrms
Portable and mobile RF
communications equipment should be
used no closer to any part of the
15MX/19MX Touchcomputer for
Healthcare Applications and should
assure that it is used in such an
environment, including cables, than the
recommended separation distance
calculated from the equation applicable
to the frequency of the transmitter.
Recommended separation distance
80MHz to 800 MHz
800 NHz to 2.5GHz
where P is the maximum output
power rating of the transmitter in
watts (W) according to the transmitter
manufacturer and d is the
recommended separation distance
in metres(m)
Field strengths from
fixed
RF
transmitters, as determined by an
electromagnetic site survey1, should
be less than the compliance level in
each frequency range2.
Interference may occur in the
vicinity of equipment marked with
the following symbol:
VuPoint™ M-Series Touchcomputer User Guide xii
NOTE 1: At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is
affected by absorption and
reflection
from structures, objects and people.
3. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless)
telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV
broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic
environment due to fixed RF transmitters, an electromagnetic site survey should be
considered. If the measured field strength in the location in which the 15MX/19MX
Touchcomputer for Healthcare Applications is used exceeds the applicable RF compliance
level above, the 15MX/19MX Touchcomputer for Healthcare Applications should be
observed to verify normal operation. If abnormal performance is observed, additional
measures may be necessary, such as reorienting or relocating the 15MX/19MX
Touchcomputer for Healthcare Applications.
4. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 Vrms.
VuPoint™ M-Series Touchcomputer User Guide xiii
Recommended separation distances between portable and mobile RF
communications equipment and the 15MX/19MX Touchcomputer for Healthcare
Applications for all EQUIPTMENT AND SYSTEMS that are not
LIFE-SUPPORTING
The 15MX/19MX Touchcomputer for Healthcare Applications is intended for use in an electromagnetic
environment in which radiated RF disturbances are controlled. The customer or the user of the
15MX/19MX Touchcomputer for Healthcare Applications can help prevent electromagnetic interference
by maintaining a minimum distance between portable and mobile RF communications (equipment)
and the 15MX/19MX Touchcomputer for Healthcare Applications as recommended below according to
the maximum output power of the communications equipment.
Rated Maximum
Output Power of
Transmitter
(W)
Separation Distance According to Frequency of Transmitter
150 kHz to 80 MHz
80MHz to 800 MHz
800 MHz to 2.5 GHz
0.0
1
0.1
2
0.1
2
0.23
0.
1
0.3
7
0.3
7
0.74
1
1.
2
1.
2
2.3
1
0
3.
7
3.
7
7.4
10
0
1
2
1
2
23
For transmitters rated at a maximum output power not listed above, the recommended separation
distanced in metres (m) can be estimated using the equation applicable to the frequency of the
transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to
the transmitter manufacturer.
NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection from structures, objects and people.
VuPoint™ M-Series Touchcomputer User Guide xiv
中国 RoHS
根据中国法律（电子信息产品污染控制管理办法），以下部分列出了该产品可能包含的
有毒和/或危险物质的名称和含量。
成分
名称
有毒或危险物质和元素
铅 (Pb)
汞 (Hg)
镉 (Cd)
六价
铬
(Cr6+)
多溴
苯酚
(PBB)
多溴
二苯
醚 (PBDE)
塑料零件
O
O
O
O
O
O
金属零件
X
O
O
O
O
O
线缆和
电缆
组件
X
O
O
O
O
O
LCD 面板
X
O
O
O
O
O
触摸
屏
面板
X
O
O
O
O
O
PCBA
X
O
O
O
O
O
软件
（CD 等）
O
O
O
O
O
O
O：指示该组件的所有同质材料中所含的这种有毒或危险物质的含量低于 SJ/T11363-2006
中的限制要求。
X：指示用于该组件的至少一种同质材料中所含的这种有毒或危险物质的含量高于
SJ/T11363-2006 中的限制要求。对于标有 X 的项目，已根据 EU RoHS 采取了豁免。
标记的解释
(1). 根据 SJ/T11364-2006 要求，电子信息产品标有以下污染控制徽标。该产品的环保使用期为
10 年。该产品在下列正常工作条件下不会泄漏或变异，因此该电子信息产品的使用不会导致任
何严重的环境污染、然后身体伤害或对任何资产造成破坏。
工作温度：0-40/湿度：20%-80%（无冷凝）。
存放温度：-20~60/湿度：10%~90%（无冷凝）。
(2). 鼓励和建议按照当地法律回收并重用该产品。不应随意丢弃该产品。
VuPoint™ M-Series Touchcomputer User Guide xv
Table of Contents
Chapter 1: Setup ..................................................................................... 1
Unpacking Your Touchcomputer ....................................................................................................1
Calibrating the Touchscreen ..........................................................................................................17
Accessing the Hard Disk ................................................................................................................18
Securing the M-Series AIO to a Mounting Bracket.......................................................................19
Chapter 2: Operation ............................................................................ 20
User Buttons...................................................................................................................................21
Using the Input/Output Panel.........................................................................................................24
Chapter 3: Options and Upgrades....................................................... 25
Peripherals and Accessories ...........................................................................................................25
Magnetic Stripe Reader (MSR) .....................................................................................................26
Wireless Card .................................................................................................................................27
Solid State Drive ............................................................................................................................27
Webcam .........................................................................................................................................27
Barcode Scanner ............................................................................................................................28
Smart Card Reader .........................................................................................................................28
RFID Reader ..................................................................................................................................29
USB Handset ..................................................................................................................................30
TV Tuner ........................................................................................................................................30
3 Meter DC extension cable ...........................................................................................................30
AC Cable ........................................................................................................................................31
Chapter 4: Safety and Maintenance .................................................... 32
Safety .............................................................................................................................................32
Care and Handling .........................................................................................................................33
Chapter 5: Technical Support .............................................................. 34
Touchcomputer Specifications.......................................................................................................34
Technical Assistance ......................................................................................................................34
VuPoint™ M-Series Touchcomputer User Guide xvi
Regulatory Information .......................................................................... 35
Warranty .................................................................................................. 43
VuPoint™ M-Series Touchcomputer User Guide 1
C H A P T E R
1
SETUP
This chapter discusses how to set up and test your touchcomputer. For information
on peripheral options, refer to Chapter 3, “Options and Upgrades.”

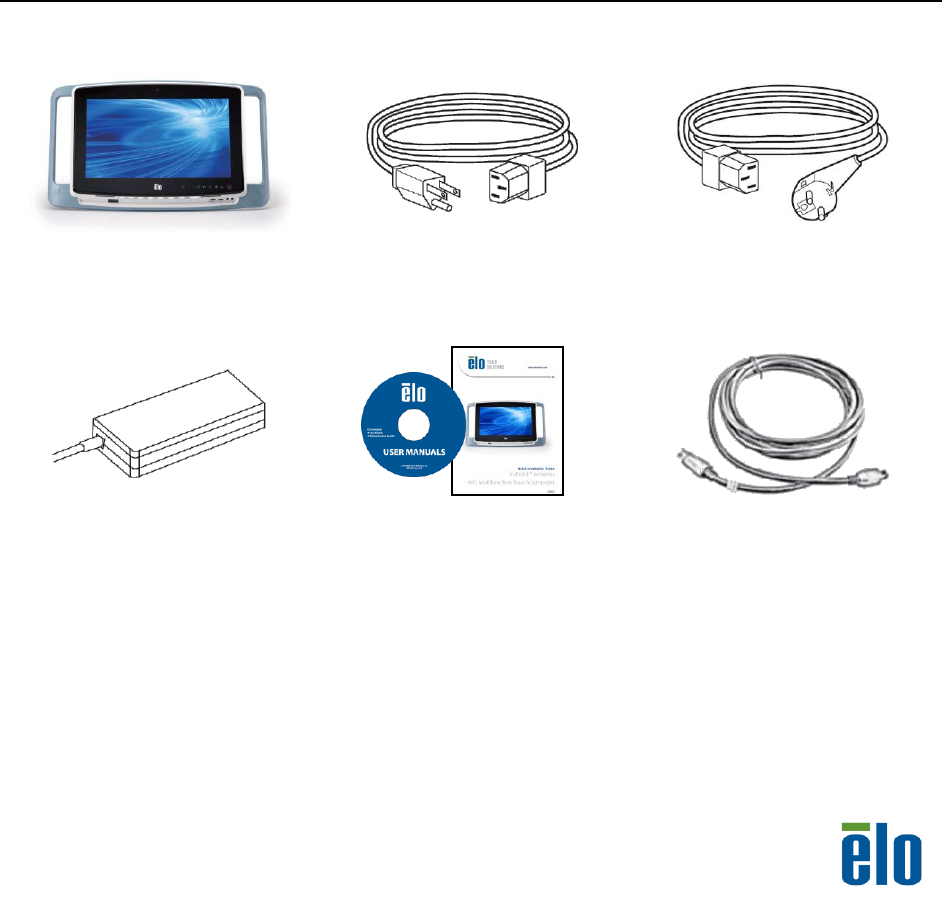

Unpacking Your Touchcomputer
Check that the following items are present and in good condition:
VuPoint™ M-Series
TouchComputer
North America
AC Power Cable
European
AC Power Cable
12V DC Medical
External Power Adapter
Multi-Language Document CD
and Quick Install Guide
5 Meter
DC Power Cable
VuPoint™ M-Series Touchcomputer User Guide 2
Windows® XP Operating System

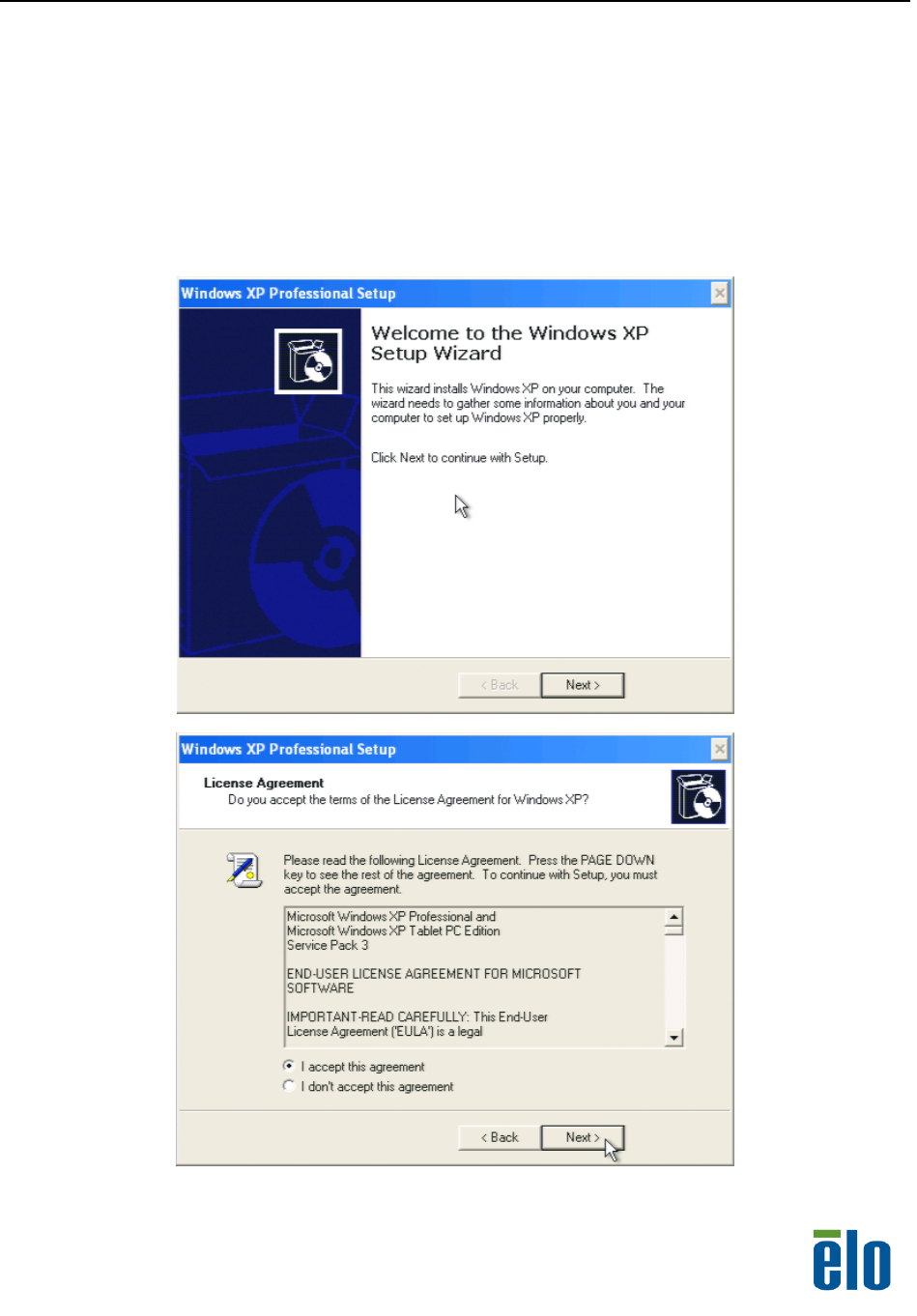

Setting up Microsoft® Windows XP
If configured with an operating system, the initial setup of the operating system
takes approximately 5-10 minutes.
To set up the Microsoft Windows XP Operating System for the touchcomputer,
connect a mouse and keyboard, turn on the touchcomputer by pressing the power
button, and then follow the instructions on the screen.
VuPoint™ M-Series Touchcomputer User Guide 3
Selecting the Language
Windows uses English as the default language in menus and dialog boxes. You
can change this language to suit your preferences at the screen below.
Click Customize. The Regional and Language Options window appears. Select
the Languages tab. The window shown below will appear.
Select the desired language in the drop-down list labeled Language used in
menus and dialogs.
VuPoint™ M-Series Touchcomputer User Guide 4

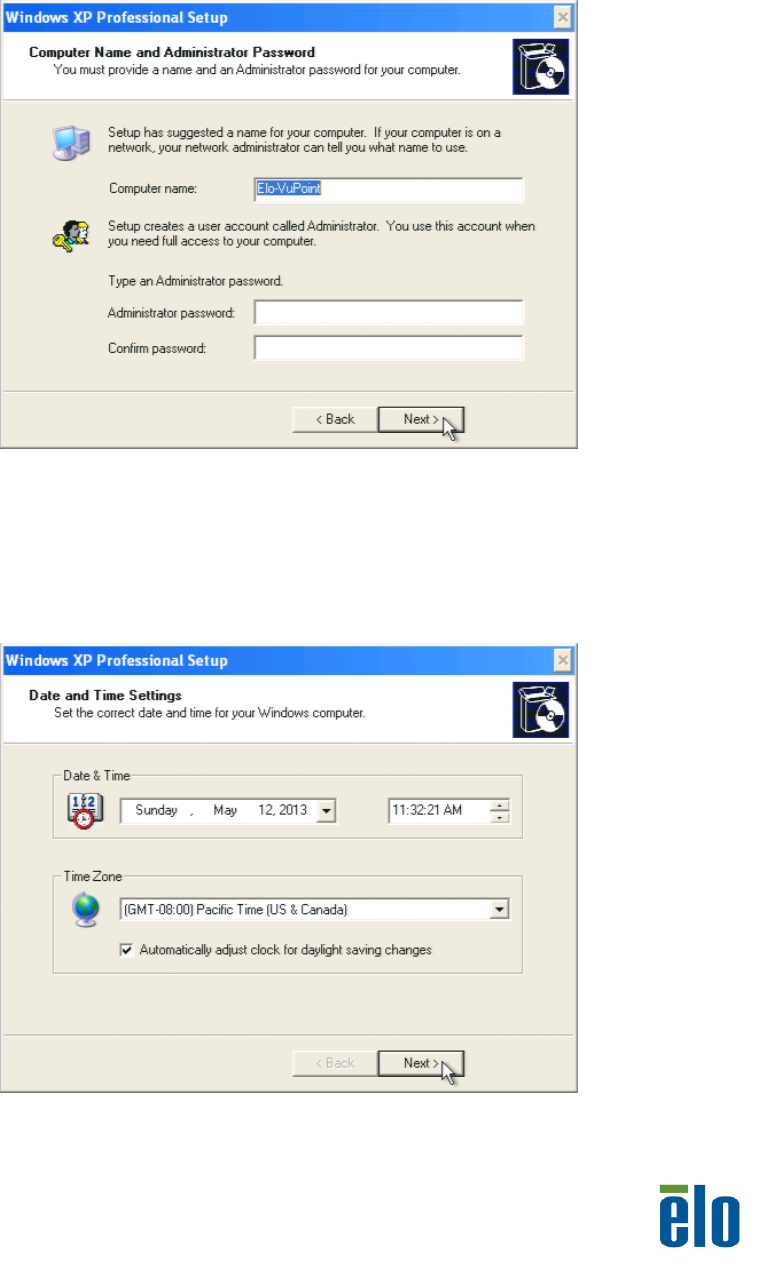

Setting up the Computer Name and Password
When the following window appears, you can change the Computer name and set
an Administrator Password.
Selecting the Time Zone
When the following window appears, you can change the time zone, date, and time
of the touchcomputer.
VuPoint™ M-Series Touchcomputer User Guide 5

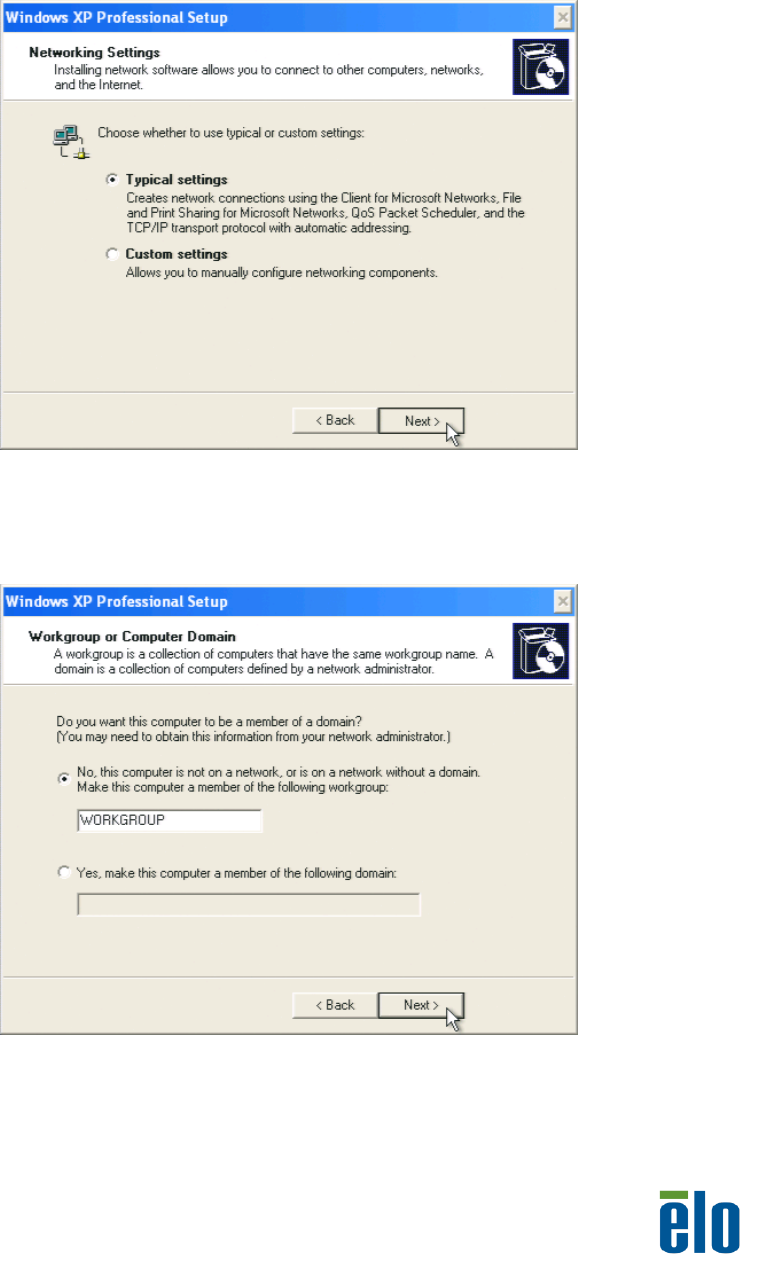

Network Settings
Choose network setup as needed.
Workgroup or Domain Setup
Set a workgroup or join a domain.
Select Next to finish. Windows setup completes the installation of the touchcomputer.
VuPoint™ M-Series Touchcomputer User Guide 6

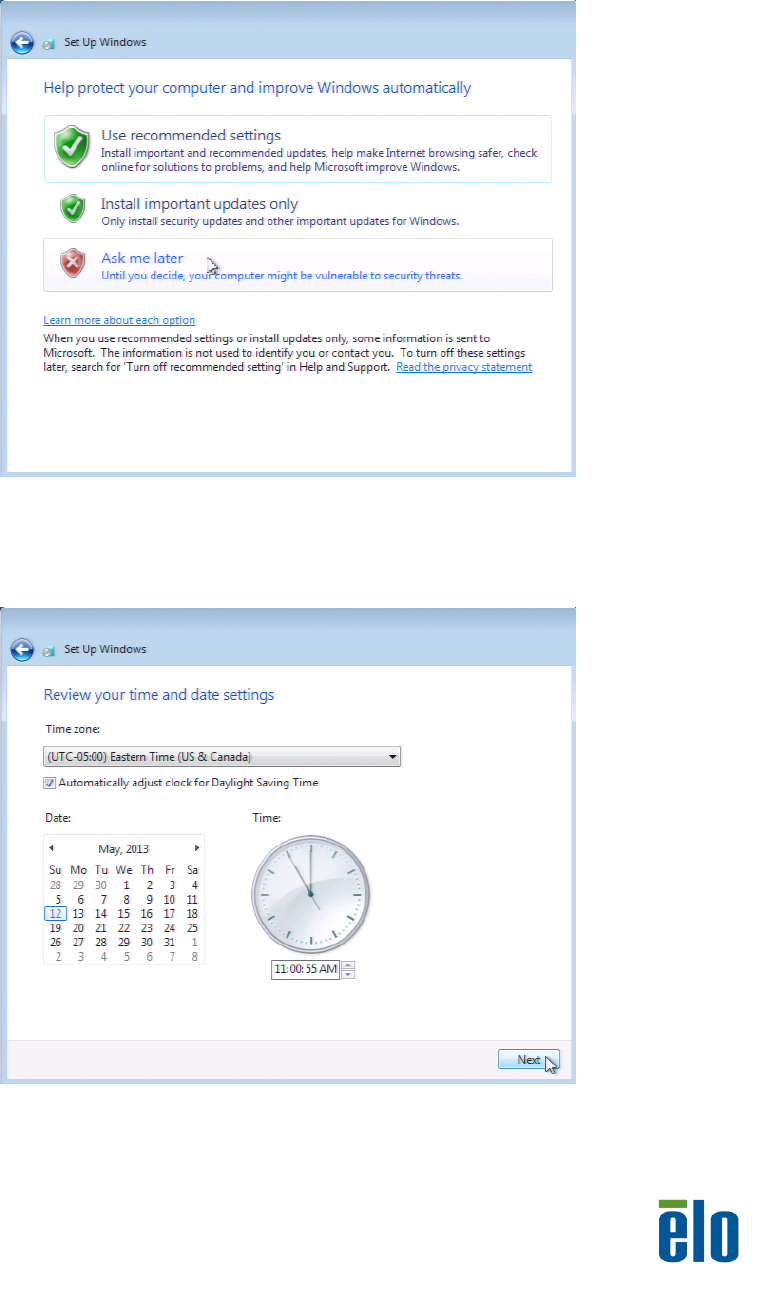

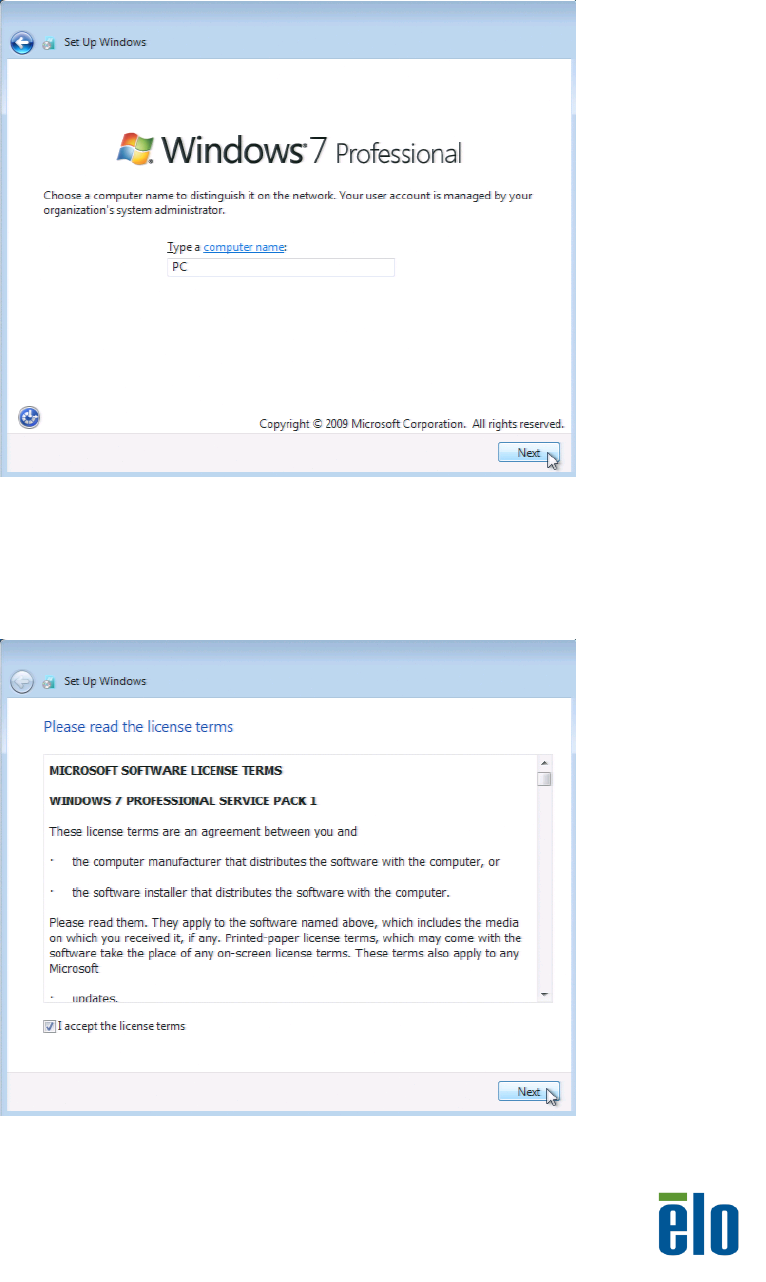

Windows 7 Operating System
Setting up Microsoft Windows 7
If configured with an operating system, the initial setup of the operating system
takes approximately 5-10 minutes.
To set up the Microsoft Windows 7 Operating System for the touchcomputer,
connect a mouse and keyboard, turn on the touchcomputer by pressing the power
button, and then follow the instructions on the screen.
Regional Settings
Make regional settings on the first screen.
VuPoint™ M-Series Touchcomputer User Guide 7
Computer Name
You can enter a new computer name if desired at this step.
Microsoft License Terms
If you agree with the license agreement, select “I accept the license terms” and
select next. You cannot proceed without accepting.
VuPoint™ M-Series Touchcomputer User Guide 8
Set up Automatic Updates
Select your Windows Updates setting preference.
Date and Time Settings
Set your date, time, and time zone settings and select next.
VuPoint™ M-Series Touchcomputer User Guide 9
Join a Wireless Network
If wireless networking hardware is installed, you may join a wireless network at this
time, select the wireless network you would like to connect to or select skip.
Changing the Default Language of Windows 7
The method to load different languages in Windows 7 is as follows:
1. Connect a mouse and keyboard, and power up the system.

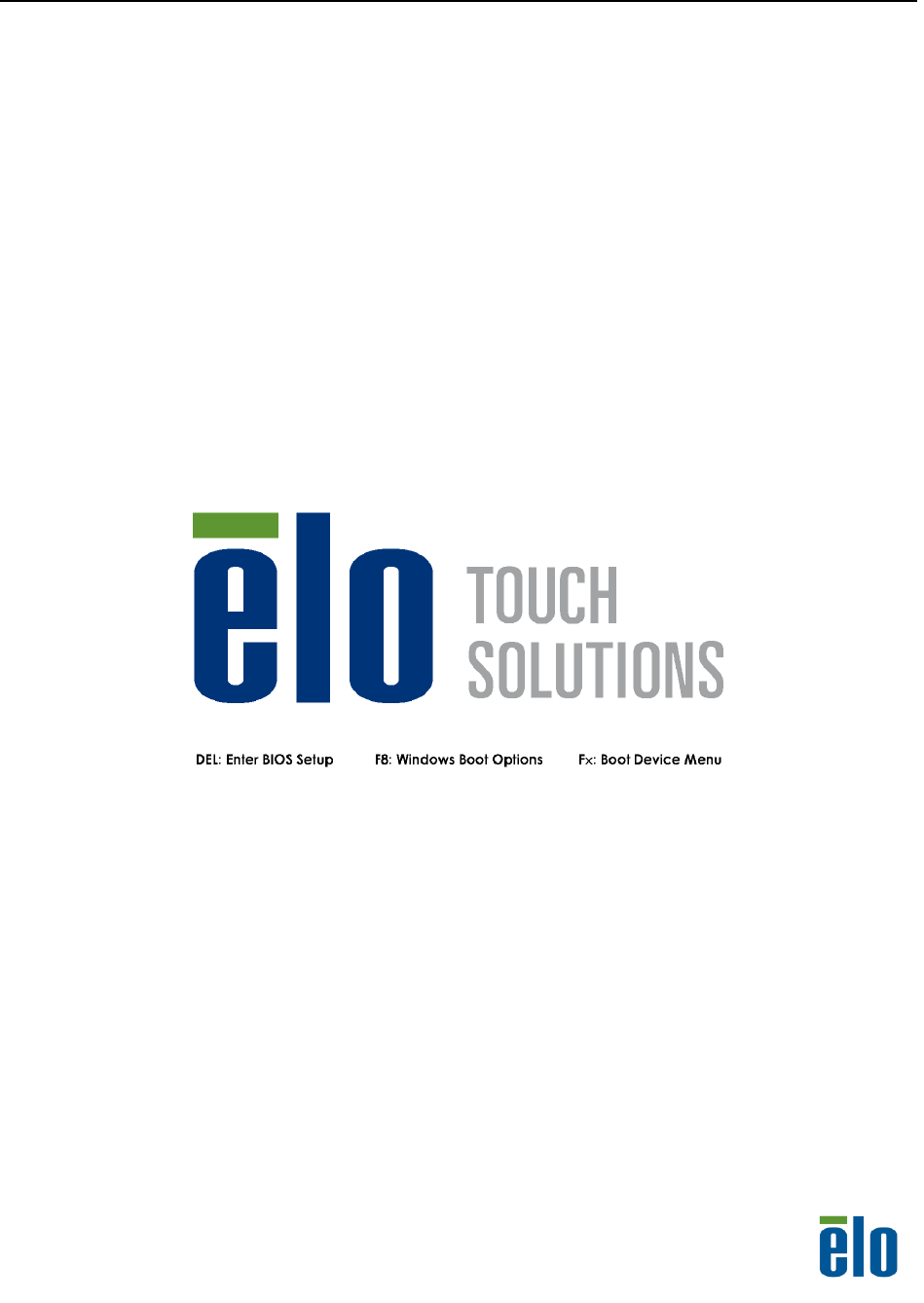

2. As the Elo boot logo displays (shown below), press F8 repeatedly to enter
the boot options menu.
VuPoint™ M-Series Touchcomputer User Guide 10

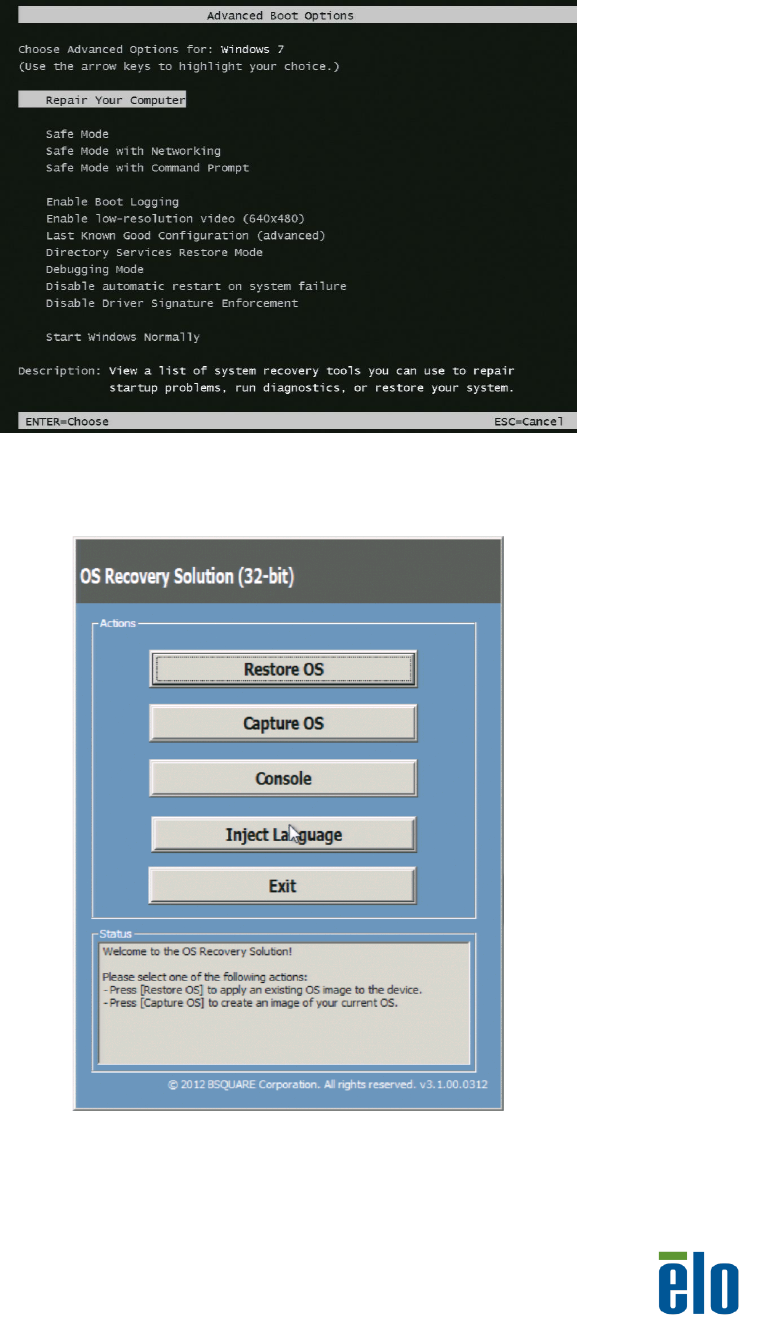

3. Select Repair Your Computer.
4. The following menu will display after system loads, select Inject
Language.
VuPoint™ M-Series Touchcomputer User Guide 11
5. Choose a language from the drop-down menu and click Inject Selected
Language.
6. The below window will open, the process takes several minutes. When
finished you will see confirmation of successful operation, press a key to
exit.
7. Click Cancel to exit the Inject Language menu.
8. Click Exit to exit Language Injection and restart.
9. Windows will restart in the language selected.
VuPoint™ M-Series Touchcomputer User Guide 12
Recovering the Operating System
If for any reason the touchcomputer’s operating system needs to be recovered to
factory settings, you can apply a fresh install of your Windows operating system.
PLEASE NOTE THAT ALL SETTINGS AND DATA WILL BE LOST DURING
THIS PROCESS. Please be sure to completely backup all of your data, before
proceeding, this process will format the Windows partition on the hard drive and
replace the Operating System and all user content on the hard drive.
I) To Recover Operating System
1. Power off your system completely.
2. Connect a mouse and keyboard, and power on your system.
3. As the Elo boot logo displays (shown below), press F8 repeatedly to
enter the boot options menu
VuPoint™ M-Series Touchcomputer User Guide 13

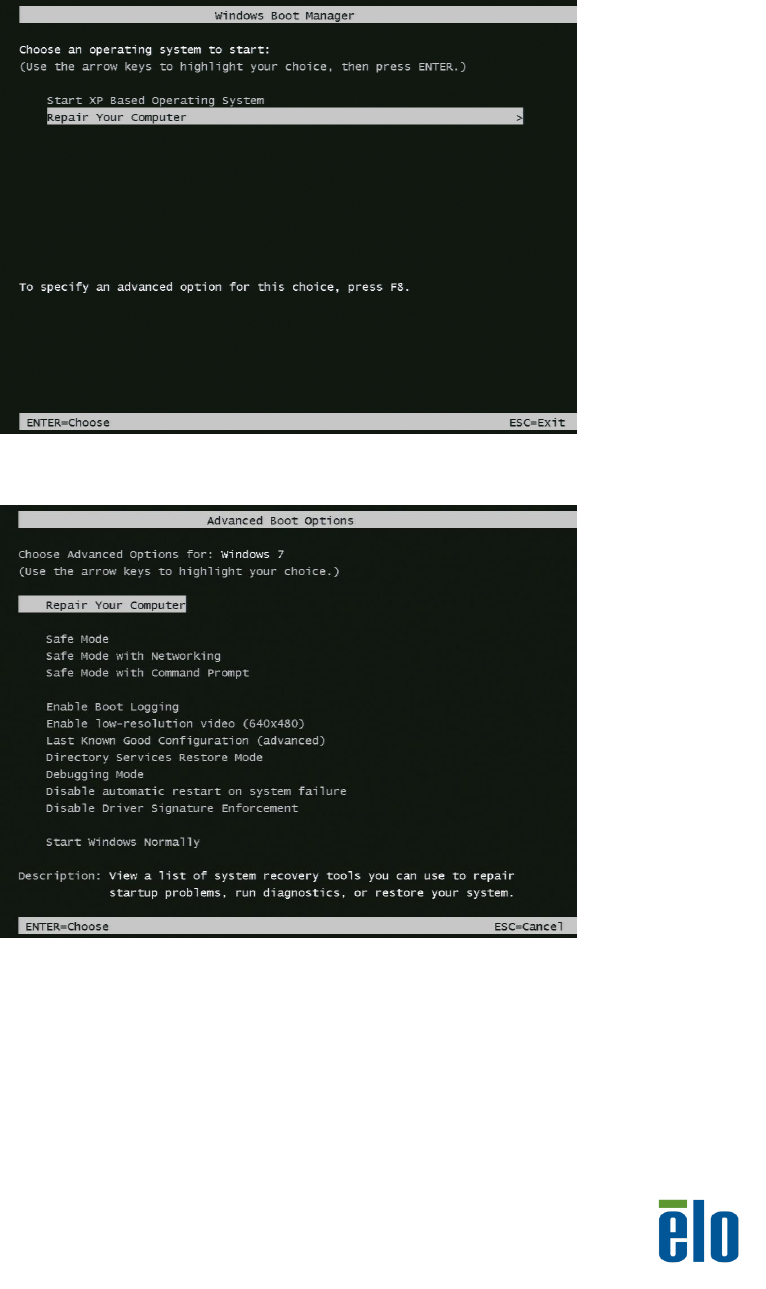

4. Select Repair Your Computer
Windows XP Menu:
Windows 7 Menu:
VuPoint™ M-Series Touchcomputer User Guide 14

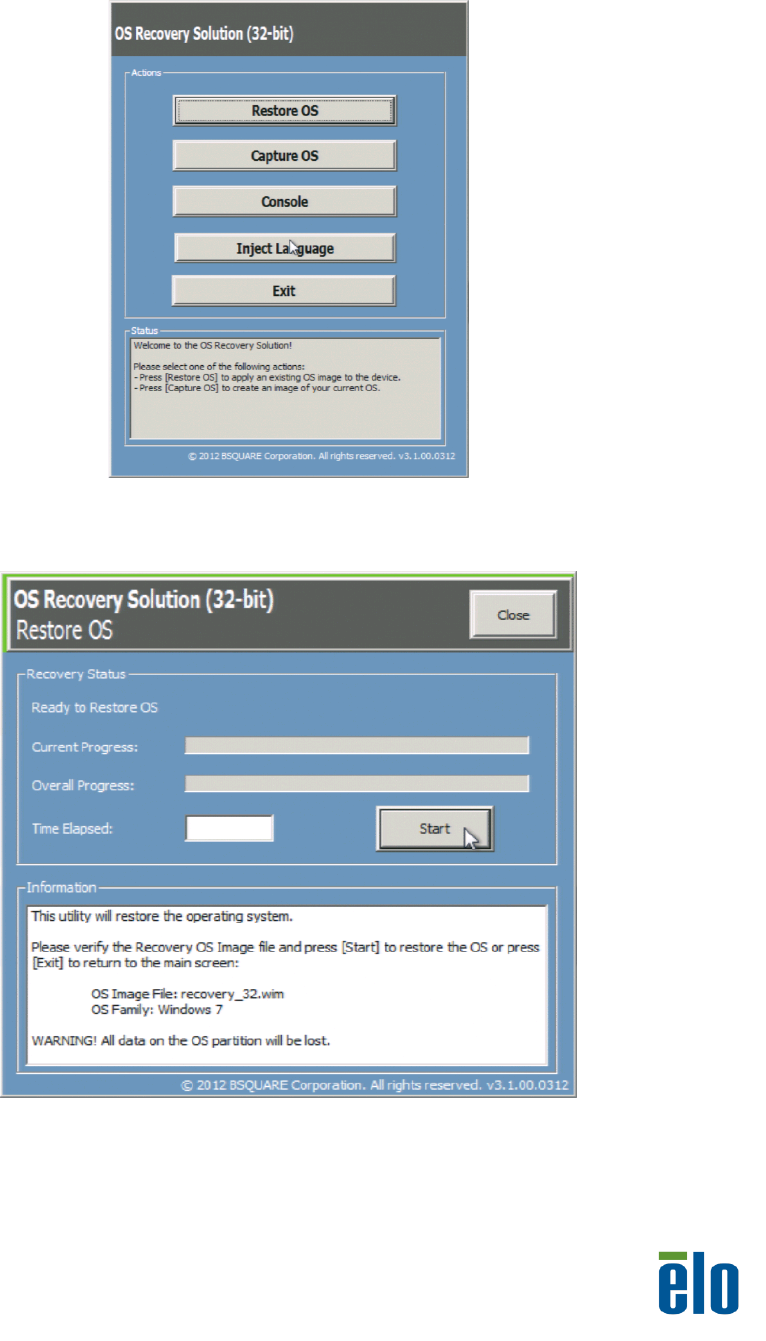

5. The following menu will display after system loads recovery utility.
6. Select Restore OS. Click Start button to recover your operating
system.
VuPoint™ M-Series Touchcomputer User Guide 15

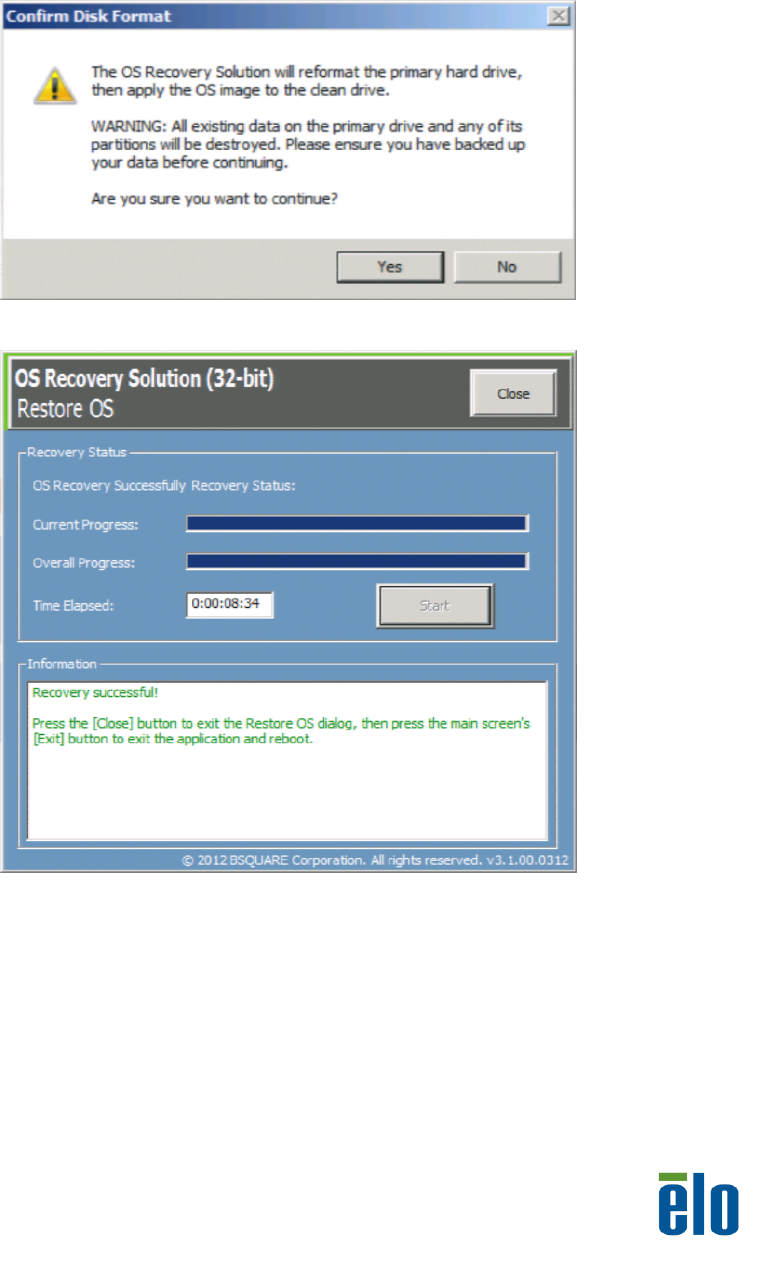

7. The following process will re-format the primary hard drive. Please
back up your data before performing the recovery process.
Confirm the warning message to continue.
8. Once completed, click the Close button.
VuPoint™ M-Series Touchcomputer User Guide 16

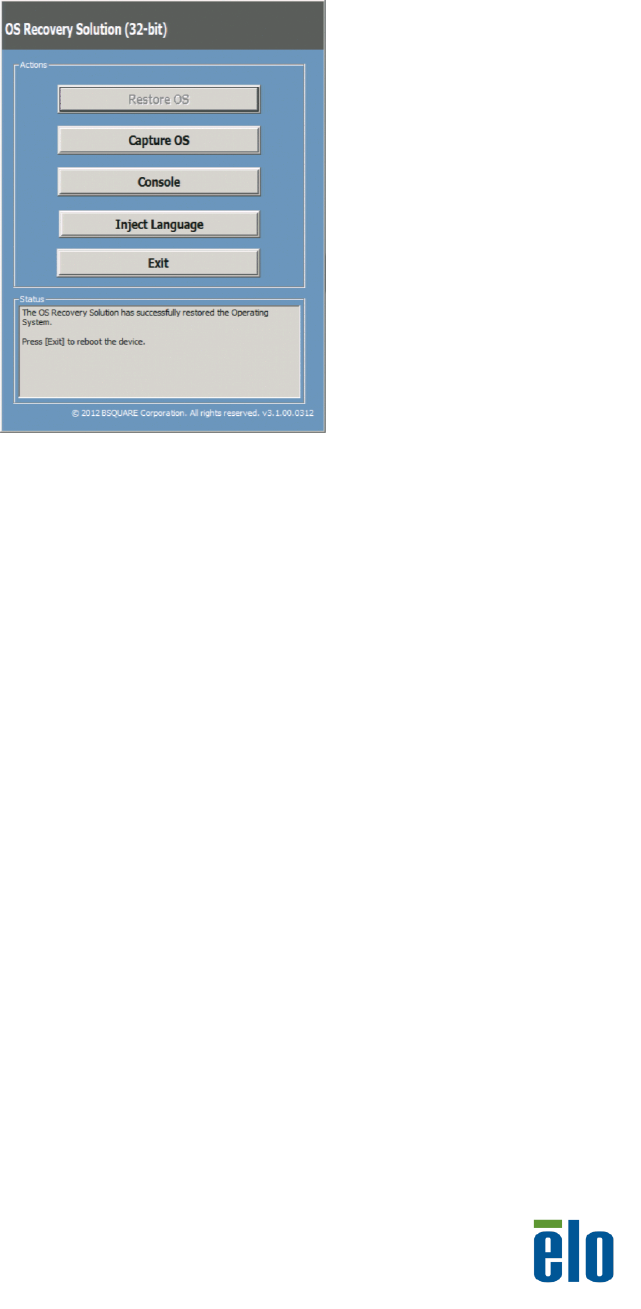

9. The system will return to the main menu of the Elo Recovery Solution.
Click the Exit button to restart your system.
10. The system will restart to Windows Setup, please refer to “Setting up
Microsoft® Windows XP” for Windows XP and “Setting up Microsoft
Windows 7” for Windows 7.
11. When Windows 7 Setup is completed you will be presented the desktop,
drivers for Projected Capacitive touchscreens are already installed, if
your unit has an AccuTouch touchscreen you must install drivers with
the “Install AccuTouch” shortcut on the desktop for touch to work
properly.
VuPoint™ M-Series Touchcomputer User Guide 17

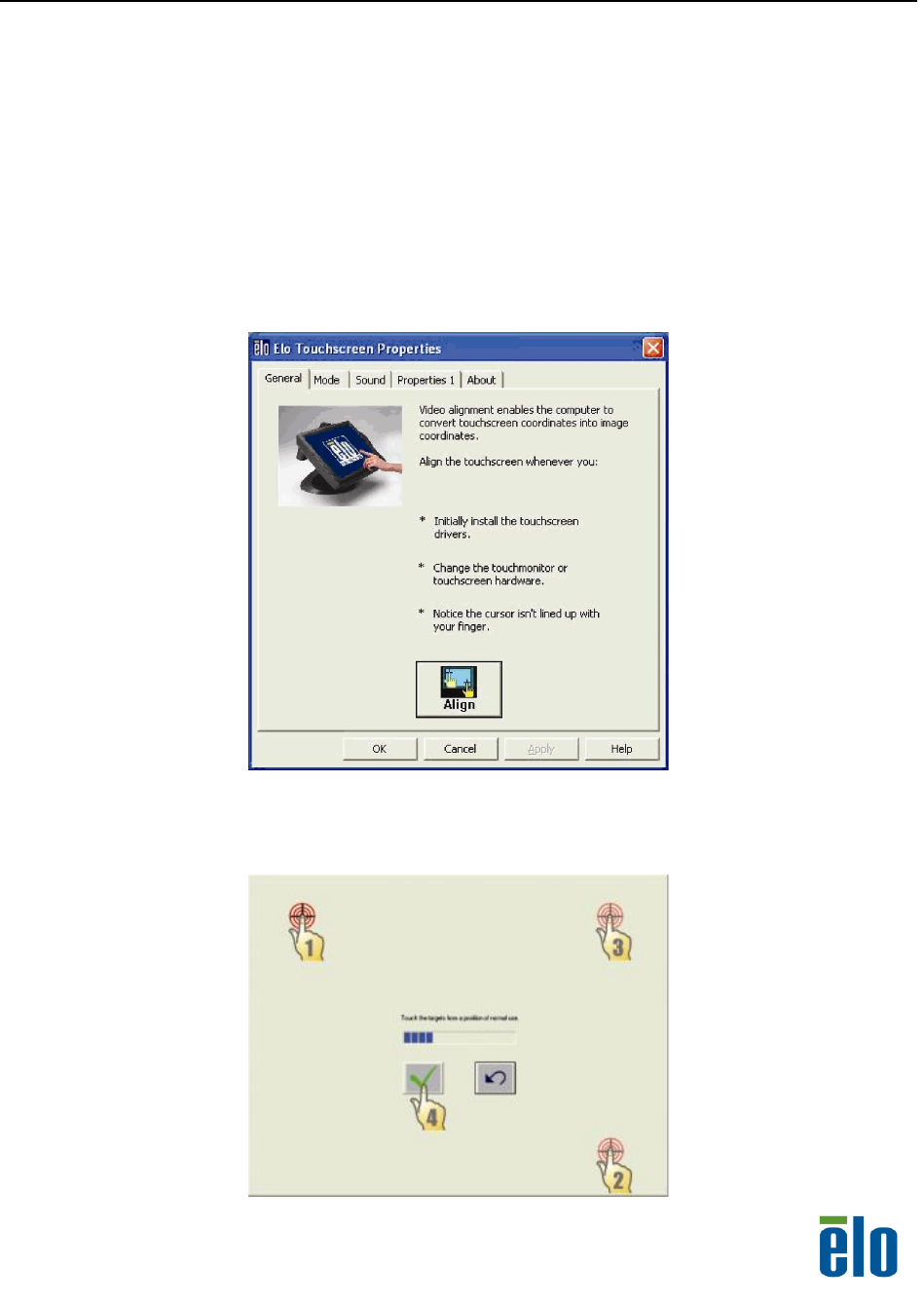

Calibrating the Touchscreen
The touchscreen is pre-calibrated for accurate touch response.
If for any reason the touchscreen needs to be recalibrated, right-click the Elo icon
in the Taskbar and then click “Properties.” The following window opens.
NOTE: Calibration is not applicable on projective capacitive touchscreen
models.
NOTE: OS and touchscreen drivers must be installed for Elo icon to appear in
the Taskbar
Click the Align button. This launches the calibration program. The window shown
below opens. Follow the instructions to calibrate the touchscreen.
VuPoint™ M-Series Touchcomputer User Guide 18

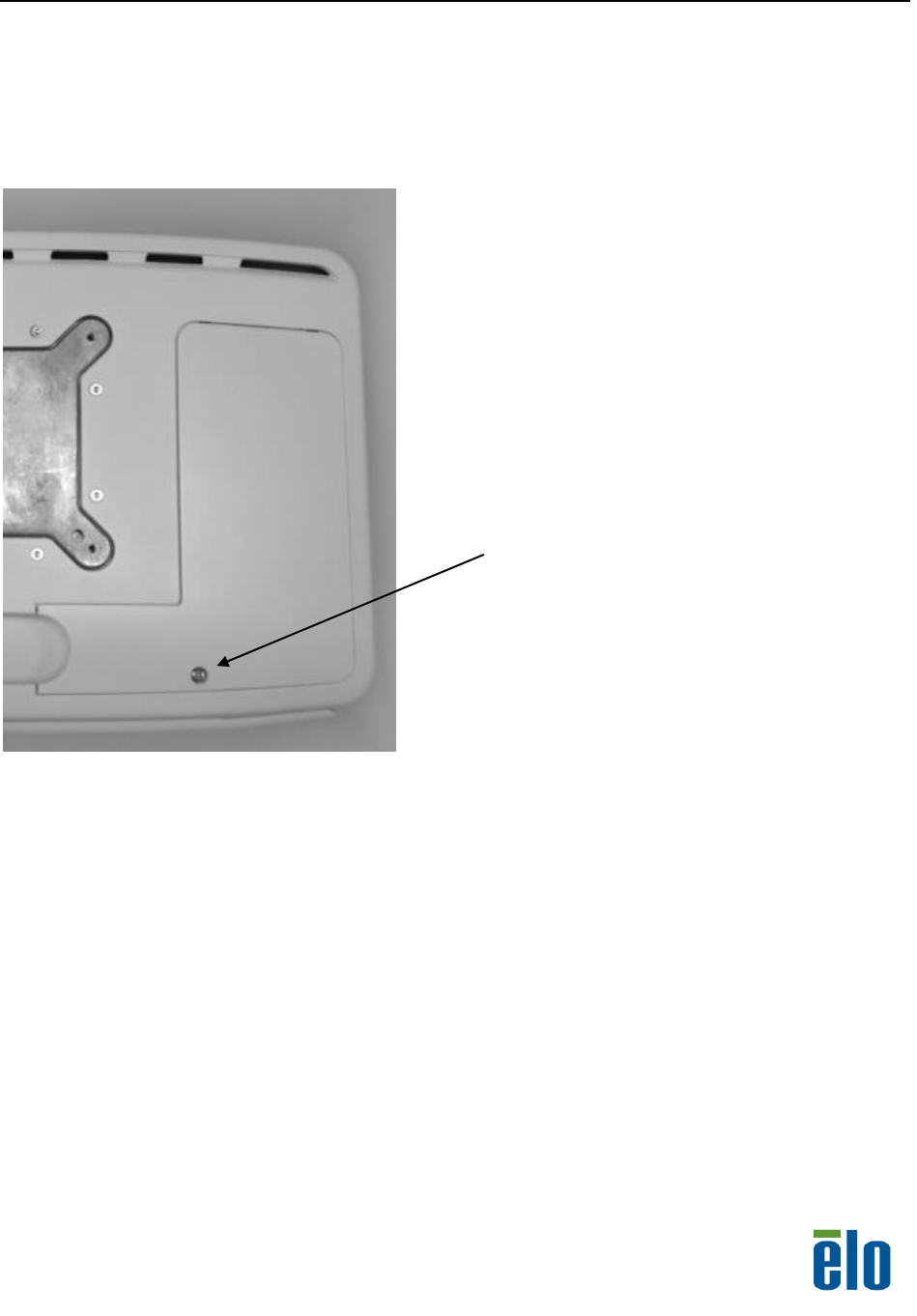

Accessing the Hard Disk
The hard disk is factory installed and located under the hard disk cover on the back
of the unit. To access the hard drive remove the one screw holding the cover in
place and remove the hard drive bracket to access the hard drive if necessary.
Remove this screw to gain access to
the hard disk.
VuPoint™ M-Series Touchcomputer User Guide 19
Securing the M-Series AIO to a Mounting Bracket
Use the four pre-tapped holes to secure the touchcomputer to the mounting
bracket. The holes are designed to work with ISO metric M4 screws. Mounting
screws are not included. Select the length screw that will provide adequate thread
engagement to provide a reliable connection to the mounting bracket. The correct
length screw for your application should be commonly available at a hardware
store. Refer to the figure below for the location of the 4 holes.
Mounting Diagram
VuPoint™ M-Series Touchcomputer User Guide 20
C H A P T E R
2
OPERATION
This chapter describes the user button functions and I/O panel.
All adjustments made to the user buttons are reset upon a power cycle to the
touchcomputer.
VuPoint™ M-Series Touchcomputer User Guide 21

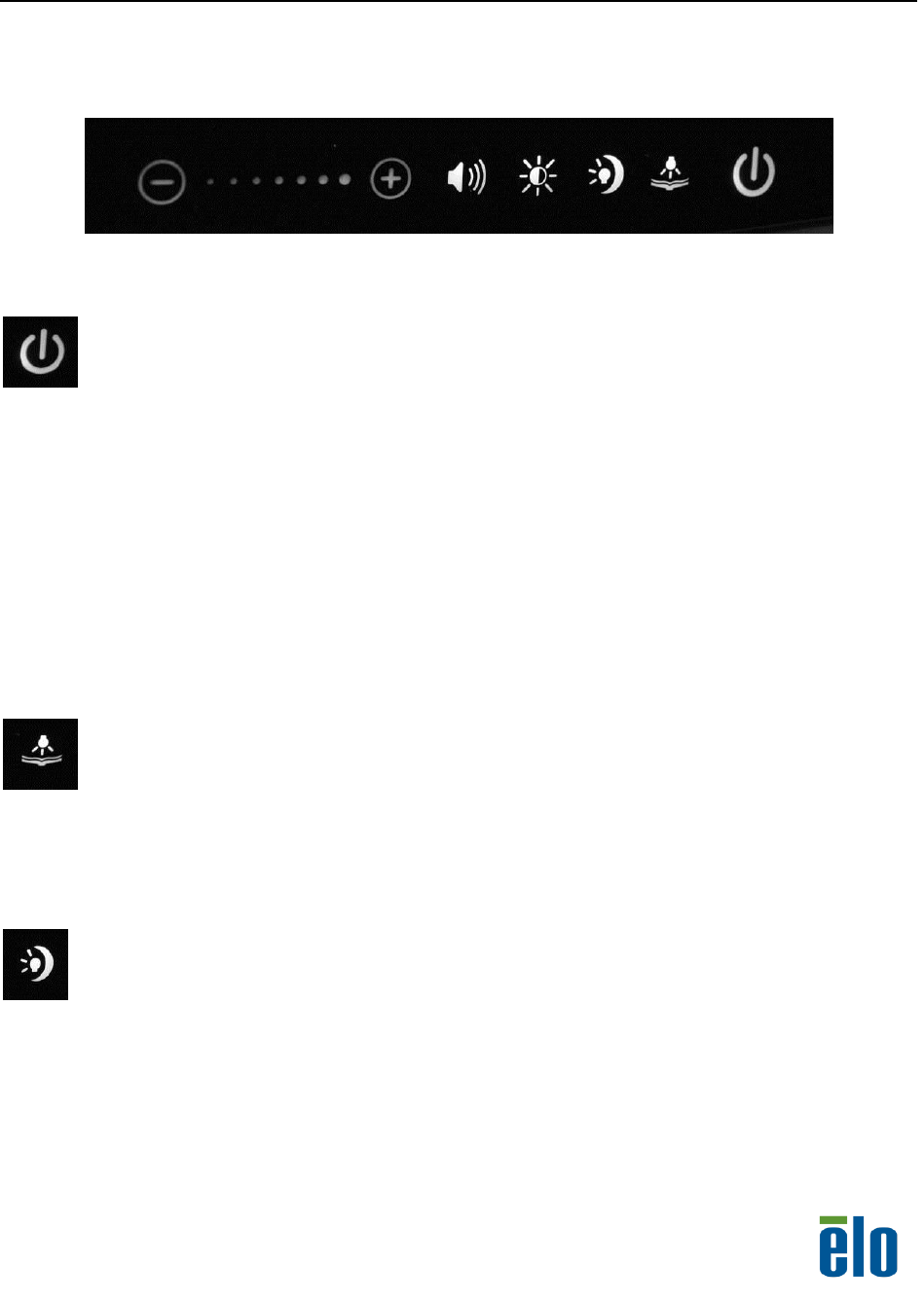

User Buttons
User buttons are capacitive buttons. Use of finger or appropriate stylus is required for proper
function.
Power Button
The power button function is different depending on the state of the touchcomputer.
When the touchcomputer is booted into an operating system the power button will turn off
and on the display backlight
When the touchcomputer is in a sleep state such as hibernate the power button will wake
up the system
After an operating system shutdown event occurs and power is still applied to the
touchcomputer the power button will boot the computer.
Reading Light Function
Touch the reading light icon and use the +/- function adjustment icons to adjust the intensity.
Current setting is displayed between +/- icons.
Night Light Function
Touch the night light icon and use the +/- function adjustment icons to adjust the intensity. Current
setting is displayed between +/- icons.
VuPoint™ M-Series Touchcomputer User Guide 22

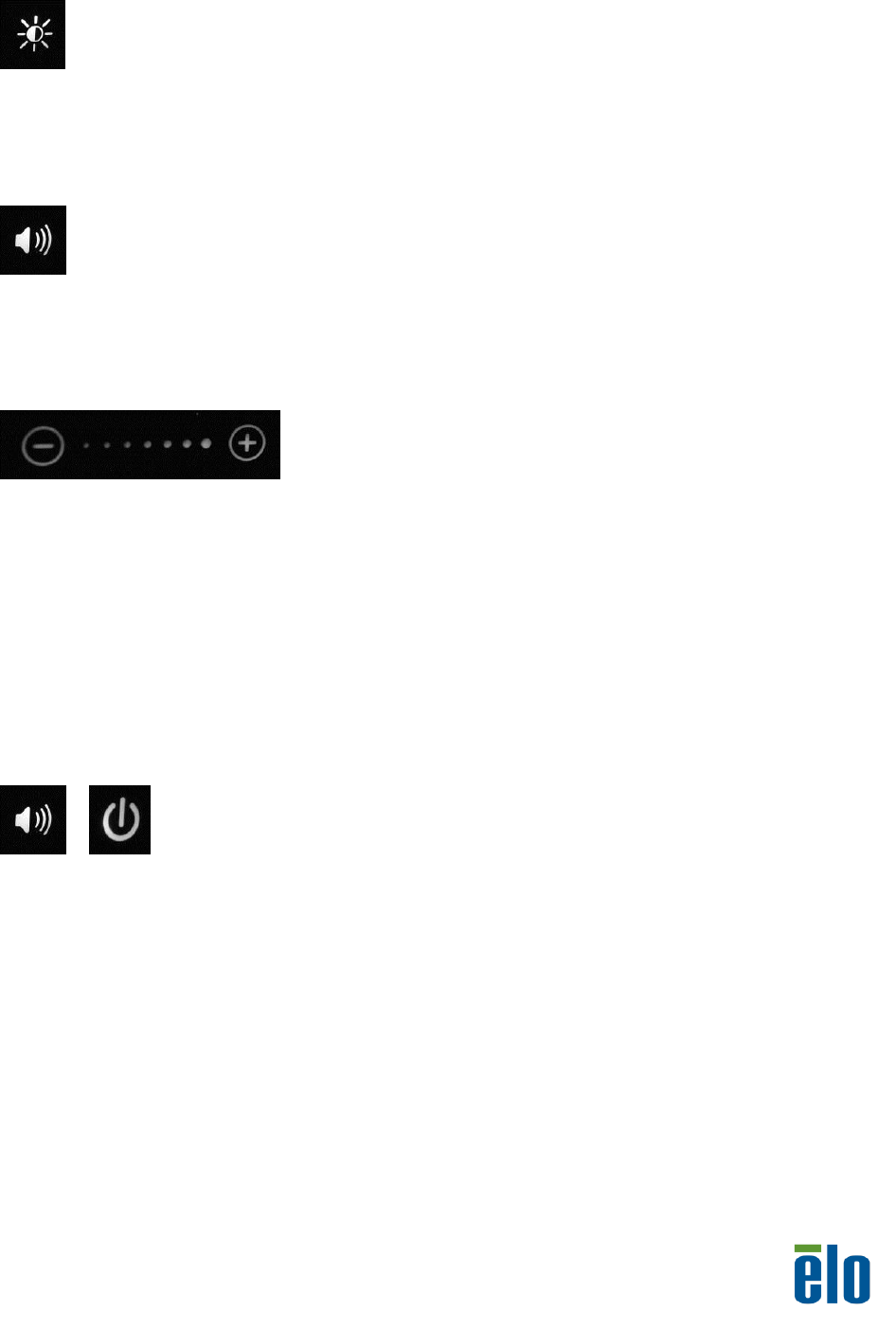

Screen Brightness Function
Touch the screen brightness icon and use the +/- function adjustment icons to adjust the intensity.
Current setting is displayed in-between +/- icons.
Audio Volume Function
Touch the audio volume icon and use the +/- function adjustment icons to adjust the intensity.
Current setting is displayed in-between +/- icons.
Function Adjustment
The function adjustment icons are illuminated when enabled. Touching one of the function icons
will enable the function adjustment symbols and display the current setting on the dots between
the +/- symbols.
Use the “-“ symbol to decrease the intensity of the function and use the “+” symbol to increase the
intensity of the function. The current setting will be immediately updated and saved.
After a short time the selected function will become deselected. Other functions can be selected
before the current function is deselected.
+ Computer Shutdown
Press and hold the volume icon and the power button icon for 3 seconds to hard shutdown the
computer.
The power button can be used to turn the computer back on.
VuPoint™ M-Series Touchcomputer User Guide 23
+ Function Lock Out
Press and hold the night light icon and the plus adjustment icon for 3 seconds to lock out the
function buttons. The icons will blink to confirm.
When function lock out is enabled the function button illumination will disable, the function buttons
will not respond in this state.
Function lock out setting will be retained through power cycles.
Press and hold the night light icon and the plus adjustment icon for 3 seconds to unlock the
function buttons. The icons will blink to confirm.
+ Power Button Lock Out
Press and hold the night light icon and the minus adjustment icon for 3 seconds to lock out the
power button. The power button icon will blink to confirm.
When power button lock out is enabled the power button function will change such that the power
button will retain the functionality to start the system, but the power button off functionality will be
disabled.
Power button lock out setting will be retained through power cycles.
Press and hold the night light icon and the minus adjustment icon for 3 seconds to unlock the
power button. The power button icon will blink to confirm.
VuPoint™ M-Series Touchcomputer User Guide 24
Using the Input/Output Panel
To access the input/output (I/O) ports, remove the cable cover on left side of the
back of the unit.
Install the I/O cables in the respective ports and use plastic cable ties to fasten the
cables to the cable restraints shown below.

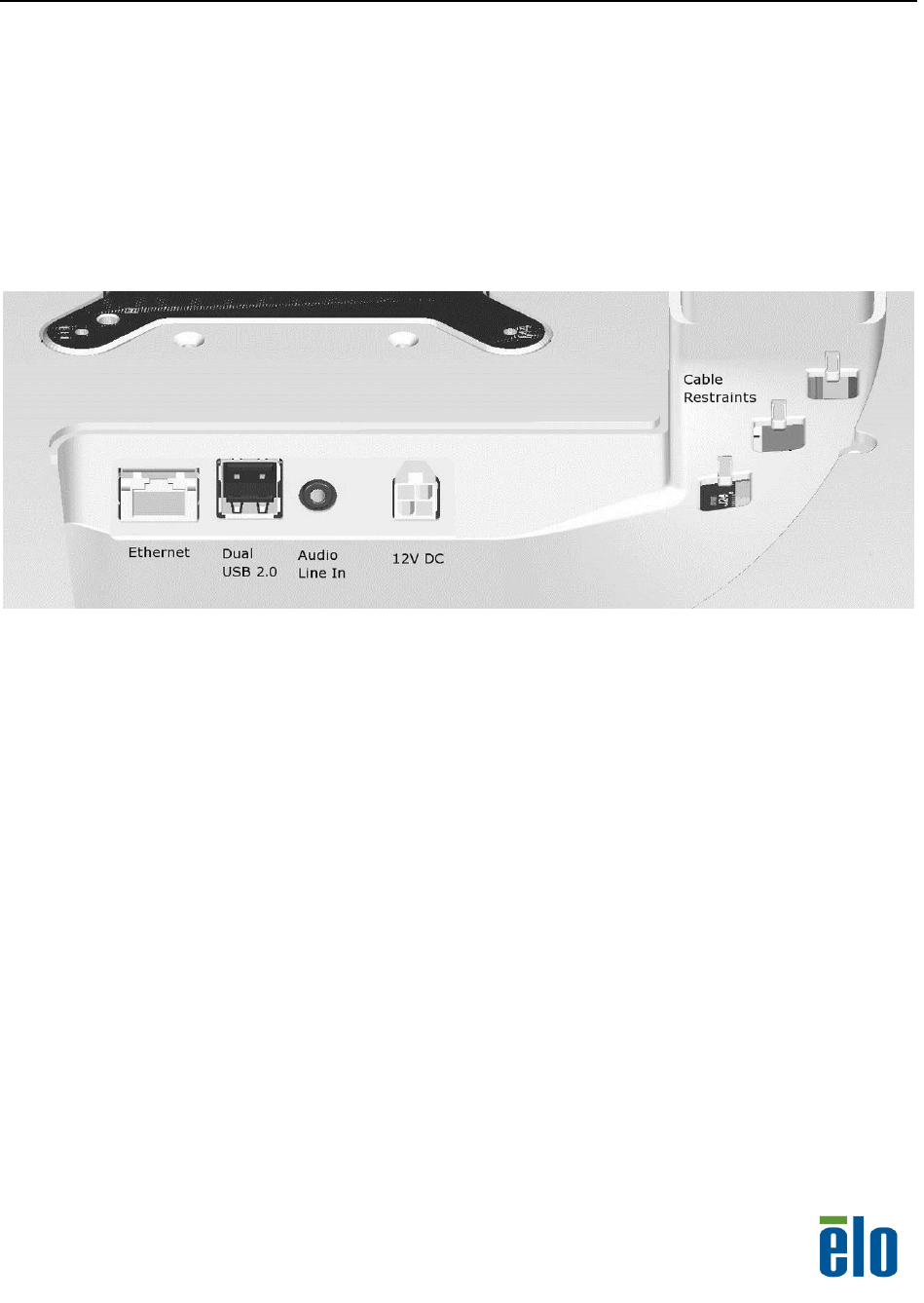

Below are the I/O descriptions and location of the cable restraints:
Note: As a safety precaution, always leave the cable cover attached when the system is
powered on.
VuPoint™ M-Series Touchcomputer User Guide 25
C H A P T E R
3
OPTIONS AND UPGRADES
Peripherals and Accessories
The following peripherals and accessories are available for the M-Series
touchcomputers.
Magnetic stripe reader (MSR)*
Wireless adapter
Solid State Drive (SSD)*
Webcam
Barcode Scanner (2D area array)*
Smart Card Reader*
RFID Reader*
USB Handset*
TV Tuner*
3 Meter DC extension cable*
AC Cable*
* Optional Accessory
Note: Software drivers and applications for all peripherals are available upon request
VuPoint™ M-Series Touchcomputer User Guide 26
Magnetic Stripe Reader (MSR)
A magnetic stripe reader (MSR) is an optional M-Series touchcomputer peripheral.
Software application and drivers can be found on the web at:
www.elotouch.com
The MSR is a USB 2.0 device that reads all three data stripes on standard credit
cards or driver’s licenses conforming to ISO/ANSI standards. The MSR has foreign
language capability. The card is read by sliding it through the guide with the
magnetic stripe facing up when placed in the guide in the front of the M-Series
product.
The MSR features are:
Reads up to 3 tracks of information
Bi-directional swipe reading
Superior reading of high jitter, scratched, and worn MagStripe cards
Reliable for over 1,000,000 card swipes
Reads ISO7811, AAMVA, and most other card data formats
PC software makes configuration changes easy
Swipe speeds from 3 to 60 inches per second
Interfaces: USB-KB and USB-HID
Fully supports USB 2.0
VuPoint™ M-Series Touchcomputer User Guide 27
Wireless Card
A wireless adapter is a standard peripheral in the M-Series touchcomputer.
Typical specifications for the wireless card are:
Mini PCI-E module
IEEE 802.11 a/b/g/n compliant
Solid State Drive
A solid state drive can be used to replace the original hard disk drive. This addition
provides additional performance and is more mechanically reliable in harsh
environments.
Access to the original hard disk drive is through the right side cover on the back of
the M-Series touchcomputer.
Part number: E520117
Webcam
An integrated webcam is included in every M-Series touchcomputer. The Webcam
module is a USB-powered device that includes a 2.0 megapixel camera. This
webcam is capable of 2.0MP video at 5fps. This webcam can run on the drivers
that are already preset in many popular operating systems.
Webcam module specifications are shown in the table below:
Feature
Description
2.0MP Webcam w/2 x Digital
Microphone
2 Million Pixel Webcam Module
USB Type
1.0, 1.1 or 2.0
Video Resolution
1600x1200, 1280x1024, 640x480, 352x388,
320x240, 176x144, 160x120
VuPoint™ M-Series Touchcomputer User Guide 28
Auto Frame Rate
5fps max @ 2.0 megapixels (1600x1200);
24fps max @ VGA mode (640x480)
Field Of View (FOV)
66°
Focus Range
40cm ~ Infinity
Barcode Scanner
A 2D area array barcode scanner is an optional M-Series touchcomputer
peripheral. The barcode scanner has integrated illumination and is compatible
with many barcode symbologies.
The barcode scanner supports a typical reading range shown in the table below.
Symbology / X-Dim
Typical Range*
100% U.P.C.
46 mm to 419 mm (1.8˝ to 16.5˝)
5 mil Code 39
64 mm - 163 mm (2.5˝ - 6.4˝)
10 mil Code 39
28 mm - 338 mm (1.1˝ - 13.3˝)
6.7 mil PDF417
46 mm - 185 mm (1.8˝ - 7.3˝)
10 mil Data Matrix
53 mm - 203 mm (2.1˝ - 8.0˝)
Resolution, linear bar codes: 0.127 mm (5.0 mil)
Resolution, 2D matrix codes: 0.169 mm (6.7 mil)
* Performance may be impacted by bar code quality and environmental conditions
Smart Card Reader
A contact smart card reader is an optional M-Series touchcomputer peripheral.
The smart card reader supports ISO 7816 microprocessor or memory cards.
VuPoint™ M-Series Touchcomputer User Guide 29
RFID Reader
An RFID reader is an optional M-Series touchcomputer peripheral.
If installed, the RFID reader is capable of reading tags presented within a few
centimeters of the symbol shown below on the front of M-Series touchcomputer.
Compatible RFID standards are shown below:
14443A Mifare Classic
14443A Mifare Desfire
15693 ICODE
VuPoint™ M-Series Touchcomputer User Guide 30
USB Handset
A USB Handset is an optional M-Series touchcomputer peripheral. Included in the
kit is a bracket and handset cradle that is required for correct function.
Part number: E709063
TV Tuner
A USB TV Tuner kit is available as an optional accessory. There are three options
available. All options include a 1.2 meter USB extension cable that can be plugged
into the I/O area under the cable cover so that the TV Tuner can be installed
outside of the M-Series device.
Japan TV Tuner Kit that supports the ISDB standard
Part number: E421980
Europe TV Tuner Kit that supports the DVB standard
Part number: E378259
United States TV Tuner Kit that supports the ATSC standard
Part number: E177386
3 Meter DC extension cable
A 3 Meter DC extension cable can be used to replace the original 5 Meter DC
extension cable.
Part number: E175539
VuPoint™ M-Series Touchcomputer User Guide 31
AC Cable
A country specific AC cable can be used to replace the original AC Cable. There
are two options.
UK-HK 1.8 Meter AC cable
Part number: E010063
Japan 1.8 Meter AC cable
Part number: E520117
VuPoint™ M-Series Touchcomputer User Guide 32
C H A P T E R
4
SAFETY AND MAINTENANCE
Safety
Important information regarding the proper setup and maintenance of your touchcomputer:
To reduce the risk of electric shock, follow all safety notices and never open the
touchcomputer case.
Turn off the product before cleaning (refer to “Care and Handling” on page 17 for
proper cleaning methods).
Your touchcomputer is equipped with a 3-wire, grounding power cord. The power cord
plug only fits into a grounded outlet. Do not attempt to fit the plug into an outlet that has
not been configured for this purpose. Do not use a damaged power cord. Only use the
power cord that comes with your Elo Touch Solutions touchcomputer. Use of an
unauthorized power cord might invalidate your warranty.
The slots located on the sides and top of the touchcomputer case are for ventilation.
Do not block or insert anything inside the ventilation slots.
It is important that your touchcomputer remains dry. Do not pour liquid into or onto your
touchcomputer. If your touchcomputer becomes wet, do not attempt to repair it
yourself. Contact Elo Touch Solutions Customer Service for instructions.
Guidance and manufacturer’s declaration-electromagnetic immunity for all
EQUIPMENT AND SYSTEMS reports are available upon request.
VuPoint™ M-Series Touchcomputer User Guide 33
Care and Handling
The following tips help keep your touchcomputer functioning at the optimal level.
Power down the unit and disconnect from the electrical mains prior to engaging in
any cleaning activities.
Take care to ensure no leakage of solution into the system. IF ANY FLUID
INGRESS INTO THE UNIT DURING CLEANING IS SUSPECTED, DO NOT
POWER ON THE UNIT. Call the manufacturer at the contact numbers listed
below to have your unit inspected by a qualified technician prior to powering on.
Careful application of dilute aqueous cleaning solutions (non-ammonia based)
according to directions is recommended. Do not spray cleaning solution directly
onto touchscreen; always use a cloth or towel that has been lightly pre-moistened
with cleaning solution.
Do not use organic solvents (e.g., turpentine, varsol, and benzene), abrasive
cleansers or compressed air to clean touchscreen displays or touchcomputer.
For disinfection, careful application of alcohol-based disinfectants or branded
commercially available quaternary ammonium compounds (e.g.,, PRO-SANTM
brand, TB QuatTM brand, etc.) is recommended. Use as little as practicable to
reduce the risk of fluid ingress into the unit.
Warning
This product consists of devices that might contain mercury, which must be
recycled or disposed of in accordance with local, state, or federal laws. (Within this
system, the backlight lamps in the touchcomputer display contain mercury.)
VuPoint™ M-Series Touchcomputer User Guide 34
C H A P T E R
5
TECHNICAL SUPPORT
Touchcomputer Specifications
For touch computer specifications go to www.elotouch.com
NOTE: Not all operating systems or options are supported in all regions. Please
contact your local Elo TouchSystems representative for details.
Technical Assistance
There are two methods to obtain contact information for technical assistance on
the touchcomputer:
The web
The phone
Using the Web
For technical support, go to www.elotouch.com/go/contactsupport.
For current Elo news, product updates, and announcements, or to register to
receive our Touchcomputer newsletter, go to www.elotouch.com/go/news.
Using the Phone
For technical support, see the table at the end of the user guide for contact
information.
VuPoint™ M-Series Touchcomputer User Guide 35
REGULATORY INFORMATION
I. Electrical Safety Information
A) Compliance is required with respect to the voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a different
power source than those specified herein may result in improper operation,
damage to the equipment, invalidation of warranty, or a fire hazard if the
requirements are not followed.
B) There are no operator-serviceable parts inside this equipment. There are
hazardous voltages generated by this equipment which constitute a safety hazard.
Service should be provided only by a qualified service technician.
C) This equipment is provided with a detachable power cord which has an integral
safety ground wire intended for connection to a grounded safety outlet.
1) Do not substitute the cord with other than the provided approved type. Under
no circumstances should an adapter plug be used to connect to a 2-wire outlet
as this will defeat the continuity of the grounding wire.
2) The equipment requires the use of the ground wire as a part of the safety
certification. Modification or misuse can provide a shock hazard that can result
in serious injury or death.
3) Contact a qualified electrician or the manufacturer if there are questions
about the installation prior to connecting the equipment to main power.
II. Emissions and Immunity Information
A) Notice to Users in the United States: This equipment has been tested and
found to comply with the limits for a Class A digital device, pursuant to Part
15 of FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy, and if not installed
and used in accordance with the instructions, may cause harmful
interference to radio communications.
B) Notice to Users in Canada: This equipment complies with the Class A
limits for radio noise emissions from digital apparatus as established by
the Radio Interference Regulations of Industry Canada.
C) Notice to Users in the European Union: Use only the provided power cords
and interconnecting cabling provided with the equipment. Substitution of
VuPoint™ M-Series Touchcomputer User Guide 36
provided cords and cabling may compromise electrical safety or CE Mark
Certification for emissions or immunity as required by the following
standards:
This Electronic Equipment is required to have a CE Mark on the
manufacturer’s label which means that the equipment has been tested to
the following Directives and Standards: This equipment has been tested
to the requirements for the CE Mark as required by EMC 2004/108/EC
and LVD 2006/95/EC indicated in European Standards EN55022,
EN55024, and EN60950-1, as well as these standards for medical
electrical equipment. EN 60601-1 and EN60601-1-2 (including EN55011
Class A).
D) General Information to all Users: This equipment generates, uses and can
radiate radio frequency energy. If not installed and used according to this
manual the equipment may cause interference with radio and television
communications. There is, however, no guarantee that interference will
not occur in any particular installation due to site-specific factors.
1) In order to meet emission and immunity requirements, the user must
observe the following:
a) Use only the provided I/O cables to connect this digital device
with any computer.
b) To ensure compliance, use only the provided manufacturer’s
approved line cord.
c) The user is cautioned that changes or modifications to the
equipment not expressly approved by the party responsible for
compliance could void the user’s authority to operate the
equipment.
2) If this equipment appears to cause interference with radio or television
reception, or any other device:
a) Verify as an emission source by turning the equipment off and on.
b) If you determine that this equipment is causing the interference, try
to correct the interference by using one or more of the following
measures:
i) Move the digital device away from the affected receiver.
ii) Reposition (turn) the digital device with respect to the affected
receiver. iii) Plug the digital device into a different AC outlet so
the digital device and the receiver are on different branch
circuits.
iv) Disconnect and remove any I/O cables that the digital device
does not use. (Unterminated I/O cables are a potential
source of high RF emission levels.)
v) Plug the digital device into only a grounded outlet receptacle.
Do not use AC adapter plugs. (Removing or cutting the line
VuPoint™ M-Series Touchcomputer User Guide 37
cord ground may increase RF emission levels and may also
present a lethal shock hazard to the user.)
If you need additional help, consult your dealer, manufacturer, or an experienced
radio or television technician.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
VuPoint™ M-Series Touchcomputer User Guide 38
Exposure to radio frequency radiation
The radiated output power of this device is far below the FCC radio frequency
exposure limits. Nevertheless, the device shall be used in such a manner that the
potential for human contact during normal operation is minimized.
In order to avoid the possibility of exceeding the FCC radio frequency exposure
limits, human proximity to the antenna shall not be less than 20 cm (8 inches)
during normal operation.
Industry Canada statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This Class A digital apparatus complies with Canadian ICES-003.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux
appareils radio exempts de licence. Son fonctionnement est sujet aux deux
conditions suivantes: (1) le dispositif ne doit pas produire de brouillage
préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un
brouillage susceptible de provoquer un fonctionnement indésirable.
Déclaration d'exposition aux radiations
Cet équipement est conforme aux limites d'exposition aux rayonnements IC
établies pour un environnement non contrôlé. Cet équipement doit être installé et
utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et
votre corps.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du
Canada.
Europe – EU Declaration of Conformity
VuPoint™ M-Series Touchcomputer User Guide 39
This device complies with the essential requirements of the R&TTE Directive
1999/5/EC. The following test methods have been applied in order to prove
presumption of conformity with the essential requirements of the R&TTE Directive
1999/5/EC:
EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011
Safety of Information Technology Equipment
EN 50364: 2010
Limitation of human exposure to electromagnetic fields from devices operating in
the frequency range 0 Hz to 300 GHz, used in Electronic Article Surveillance (EAS),
Radio Frequency Identification (RFID) and similar applications
EN 62479: 2010
Assessment of the compliance of low power electronic and electrical equipment
with the basic restrictions related to human exposure to electromagnetic fields (10
MHz to 300 GHz)
EN 300 328 V1.7.1: 2006
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband
Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM
band and using spread spectrum modulation techniques; Harmonized EN covering
essential requirements under article 3.2 of the R&TTE Directive
EN 302 291-1 V1.1.1: 2005
Electromagnetic compatibility and Radio spectrum Matters (ERM) - Short Range
Devices (SRD) - Close Range Inductive Data Communication equipment
operating at 13,56 MHz - Part 1: Technical characteristics and test methods
(Endorsement of the English version EN 302291-1 V1.1.1 (2005-07) as German
standard)
EN 302 291-2 V1.1.1: 2005
Electromagnetic compatibility and Radio spectrum Matters (ERM) - Short
Range Devices (SRD) - Close Range Inductive Data Communication equipment
operating at 13,56 MHz - Part 2: Harmonized EN under article 3.2 of the R&TTE
Directive (Endorsement of the English version EN 302291-2 V1.1.1(2005-07) as
German standard)
EN 301 489-1 V1.8.1: 2008
Electromagnetic compatibility and Radio Spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services;
Part 1: Common technical requirements
EN 301 489-3 V1.4.1: 2002
Electromagnetic compatibility and Radio Spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services;
Part 3: Specific conditions for Short-Range Devices (SRD) operating on
frequencies between 9 kHz and 40 GHz
EN 301 489-17 V2.1.1 2009
Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and
VuPoint™ M-Series Touchcomputer User Guide 40
services; Part 17: Specific conditions for 2,4 GHz wideband transmission
systems and 5 GHz high performance RLAN equipment
This device is a wideband transmission system (transceiver), intended for use in all
EU member states and EFTA countries, except in France and Italy where
restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities
in order to obtain authorization to use the device for setting up outdoor radio links
and/or for supplying public access to telecommunications and/or network services.
Česky
[Czech]
Elo Touch Solutions, Inc. tímto prohlašuje, že tento 15MX/19MX
Touchcomputer je ve shodě se základními požadavky a dalšími
příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede Elo Touch Solutions, Inc. erklærer herved, at følgende
udstyr 15MX/19MX Touchcomputer overholder de væsentlige krav og
øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt Elo Touch Solutions, Inc., dass sich das Gerät
15MX/19MX Touchcomputer in Übereinstimmung mit den
grundlegenden Anforderungen und den übrigen einschlägigen
Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab Elo Touch Solutions, Inc. seadme 15MX/19MX
Touchcomputer vastavust direktiivi 1999/5/EÜ põhinõuetele ja
nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English
Hereby, Elo Touch Solutions, Inc., declares that this 15MX/19MX
Touchcomputer is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente Elo Touch Solutions, Inc. declara que el
15MX/19MX Touchcomputer cumple con los requisitos esenciales y
cualesquiera otras disposiciones aplicables o exigibles de la Directiva
1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Elo Touch Solutions, Inc. ΔΗΛΩΝΕΙ ΟΤΙ
15MX/19MX Touchcomputer ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ
ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente Elo Touch Solutions, Inc. déclare que l'appareil
15MX/19MX Touchcomputer est conforme aux exigences essentielles
et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano
[Italian]
Con la presente Elo Touch Solutions, Inc. dichiara che questo
15MX/19MX Touchcomputer è conforme ai requisiti essenziali ed alle
altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo Elo Touch Solutions, Inc. deklarē, ka 15MX/19MX
Touchcomputer atbilst Direktīvas 1999/5/EK būtiskajām prasībām un
citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo Elo Touch Solutions, Inc. deklaruoja, kad šis 15MX/19MX
Touchcomputer atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
VuPoint™ M-Series Touchcomputer User Guide 41
Nederlands
[Dutch]
Hierbij verklaart Elo Touch Solutions, Inc. dat het toestel 15MX/19MX
Touchcomputer in overeenstemming is met de essentiële eisen en de
andere relevante bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, Elo Touch Solutions, Inc., jiddikjara li dan 15MX/19MX
Touchcomputer jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti
oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, Elo Touch Solutions, Inc. nyilatkozom, hogy a 15MX/19MX
Touchcomputer megfelel a vonatkozó alapvetõ követelményeknek és
az 1999/5/EC irányelv egyéb elõírásainak.
Polski
[Polish]
Niniejszym Elo Touch Solutions, Inc. oświadcza, że 15MX/19MX
Touchcomputer jest zgodny z zasadniczymi wymogami oraz
pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
Elo Touch Solutions, Inc. declara que este 15MX/19MX
Touchcomputer está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
Elo Touch Solutions, Inc. izjavlja, da je ta 15MX/19MX Touchcomputer
v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili
direktive 1999/5/ES.
Slovensky
[Slovak]
Elo Touch Solutions, Inc. týmto vyhlasuje, že 15MX/19MX
Touchcomputer spĺňa základné požiadavky a všetky príslušné
ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
Elo Touch Solutions, Inc. vakuuttaa täten että 15MX/19MX
Touchcomputer tyyppinen laite on direktiivin 1999/5/EY oleellisten
vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar Elo Touch Solutions, Inc. att denna 15MX/19MX
Touchcomputer står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av
direktiv 1999/5/EG.
III. Agency Certifications
The following certifications have been issued for the touchcomputer:
Canada cUL
Canada IC
Europe TUV, CE
Japan VCCI
FCC
United States UL
Russia GOST-R
VuPoint™ M-Series Touchcomputer User Guide 42
IV. Ingress Protection
The 15MX/19MX Touchcomputer is designed to have an ingress protection rating of IP21 over
the range of angles shown in the diagram below.

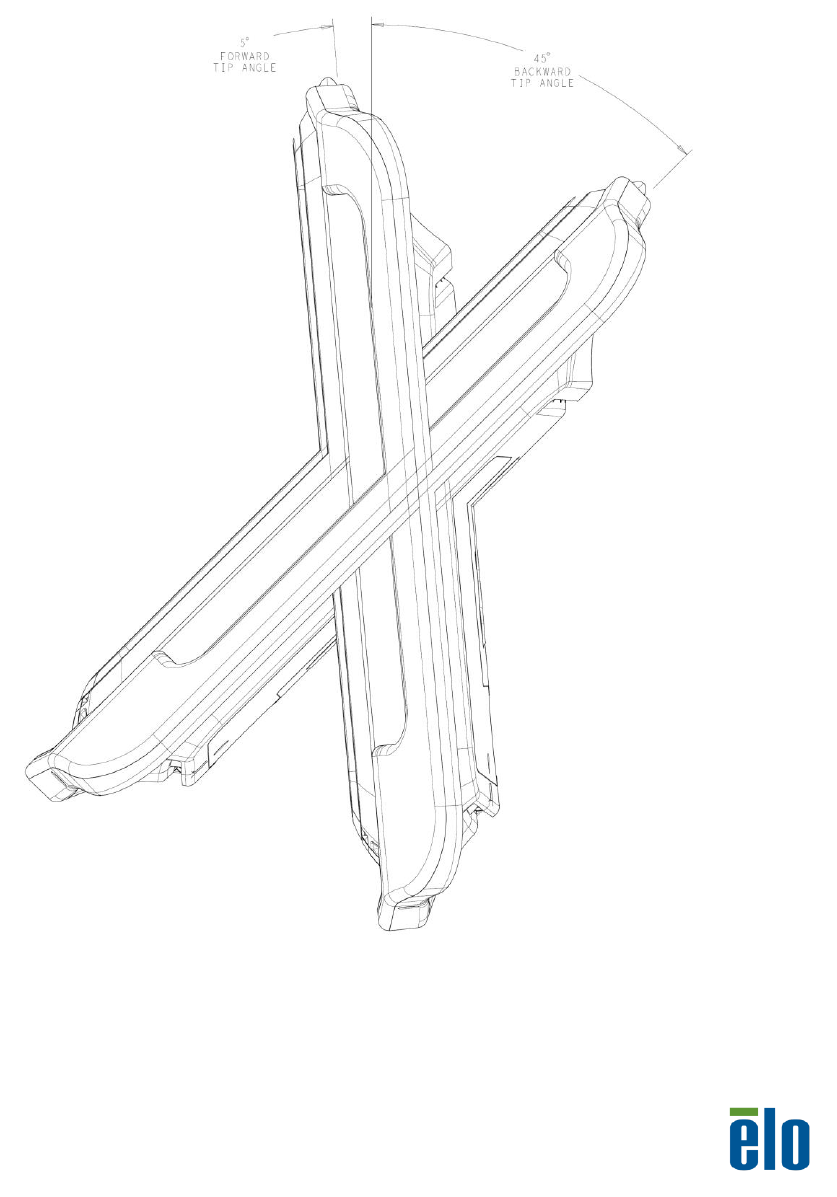

VuPoint™ M-Series Touchcomputer User Guide 43
WARRANTY
Except as otherwise stated herein or in an order acknowledgment delivered to
Buyer, Seller warrants to Buyer that the Product shall be free of defects in
materials and workmanship. With the exception of the negotiated warranty
periods; the warranty for the touchcomputer and components of the product is 3
years.
Seller makes no warranty regarding the model life of components. Seller’s
suppliers may at any time and from time to time make changes in the components
delivered as Products or components. Buyer shall notify Seller in writing promptly
(and in no case later than thirty (30) days after discovery) of the failure of any
Product to conform to the warranty set forth above; shall describe in commercially
reasonable detail in such notice the symptoms associated with such failure; and
shall provide to Seller the opportunity to inspect such Products as installed, if
possible. The notice must be received by Seller during the Warranty Period for
such product, unless otherwise directed in writing by the Seller. Within thirty (30)
days after submitting such notice, Buyer shall package the allegedly defective
Product in its original shipping carton(s) or a functional equivalent and shall ship to
Seller at Buyer’s expense and risk.
Within a reasonable time after receipt of the allegedly defective Product and
verification by Seller that the Product fails to meet the warranty set forth above,
Seller shall correct such failure by, at Seller’s options, either (i) modifying or
repairing the Product or (ii) replacing the Product. Such modification, repair, or
replacement and the return shipment of the Product with minimum insurance to
Buyer shall be at Seller’s expense. Buyer shall bear the risk of loss or damage in
transit, and may insure the Product. Buyer shall reimburse Seller for transportation
cost incurred for Product returned but not found by Seller to be defective.
Modification or repair, of Products may, at Seller’s option, take place either at
Seller’s facilities or at Buyer’s premises. If Seller is unable to modify, repair, or
replace a Product to conform to the warranty set forth above, then Seller shall, at
Seller’s option, either refund to Buyer or credit to Buyer’s account the purchase
price of the Product less depreciation calculated on a straight-line basis over
Seller’s stated Warranty Period.
VuPoint™ M-Series Touchcomputer User Guide 44
THESE REMEDIES SHALL BE THE BUYER’S EXCLUSIVE REMEDIES FOR
BREACH OF WARRANTY. EXCEPT FOR THE EXPRESS WARRANTY SET
FORTH ABOVE, SELLER GRANTS NO OTHER WARRANTIES, EXPRESS OR
IMPLIED BY STATUTE OR OTHERWISE, REGARDING THE PRODUCTS,
THEIR FITNESS FOR ANY PURPOSE, THEIR QUALITY, THEIR
MERCHANTABILITY, THEIR NONINFRINGEMENT, OR OTHERWISE. NO
EMPLOYEE OF SELLER OR ANY OTHER PARTY IS AUTHORIZED TO MAKE
ANY WARRANTY FOR THE GOODS OTHER THAN THE WARRANTY SET
FORTH HEREIN. SELLER’S LIABILITY UNDER THE WARRANTY SHALL BE
LIMITED TO A REFUND OF THE PURCHASE PRICE OF THE PRODUCT. IN NO
EVENT SHALL SELLER BE LIABLE FOR THE COST OF PROCUREMENT OR
INSTALLATION OF SUBSTITUTE GOODS BY BUYER OR FOR ANY SPECIAL,
CONSEQUENTIAL, INDIRECT, OR INCIDENTAL DAMAGES.
Buyer assumes the risk and agrees to indemnify Seller against and hold Seller
harmless from all liability relating to (i) assessing the suitability for Buyer’s intended
use of the Products and of any system design or drawing and (ii) determining the
compliance of Buyer’s use of the Products with applicable laws, regulations, codes,
and standards. Buyer retains and accepts full responsibility for all warranty and
other claims relating to or arising from Buyer’s products, which include or
incorporate Products or components manufactured or supplied by Seller. Buyer is
solely responsible for any and all representations and warranties regarding the
Products made or authorized by Buyer. Buyer will indemnify Seller and hold Seller
harmless from any liability, claims, loss, cost, or expenses (including reasonable
attorney’s fees) attributable to Buyer’s products or representations or warranties
concerning same.
VuPoint™ M-Series Touchcomputer User Guide 45
Index
address, Elo TouchSystems, 46
base, securing, 19
box contents, 1
cables
included, 1
calibration, 17
certifications, 41, 42
Changing Language of Windows 7, 9
Select a Language, 11
contact information, 34
controls, location diagram, 20
customer support, 34
email, Elo TouchSystems, 46
enabling or disabling function buttons, 23
enabling or disabling power button, 23
input/output (I/O) panel
accessing, 24
LEDs
location diagram, 20
magnetic stripe reader (MSR)
overview, 26, 28
specifications, 26
maintenance
care and handling, 32
mounting options, 19
Operating System
Recovery, 12
Operating System Setup
Automatic Updates, 8
Date and Time Setitngs, 8
Join a Wireless Network, 9
Microsoft License Agreement, 7
Windows 7, 6
Computer Name, 7
Regional Setup, 6
Windows XP
Computer Name and Password, 4
Network Settings, 5
Time Zone Selection, 4
Workgroup or Domain Setup, 5
Operating System Setup
Windows XP, 2
Language Selection, 3
operation, 20
options, adding, 25
peripherals
adding, 25
phone number, Elo TouchSystems, 34, 46
ports
accessing, 24
regulatory information, 35
safety, 32
setup
mounting options, 19
touchscreen calibration, 17
unpacking, 1
specifications
magnetic stripe reader", 26
technical, 34
wireless card, 27
Table of Contents, xv
technical specifications, 34
technical support, 34
touchscreen
calibrating, 17
care and handling, 33
upgrades, adding, 25
warranty, 43
website, Elo TouchSystems, 34, 46
wireless card
overview, 27
specifications, 27
VuPoint™ M-Series Touchcomputer User Guide 46
www.elotouch.com
Get the latest...
Product information
Specifications
News on upcoming events
Press release
Software drivers
Touchcomputer Newsletter
Getting in Touch with Elo
To find out more about the extensive range of Elo touch solutions, visit www.elotouch.com or simply call the
office nearest you:
North America
Elo Touch Solutions Inc.
1033 McCarthy Blvd
Milpitas, CA 95035
USA
(800) ELO-TOUCH
(800) 356-8682
Tel 408-597-8000
Fax 408-597-8001
customerservice@elotouch.com
Europe
Elo Touch Solutions Inc.
Diestsesteenweg 692
B-3010 Kessel-Lo
Belgium
Tel +32(0)(16)35 21 00
Fax +32(0)(16)35 21 01
elosales@elotouch.com
Asia-Pacific
Sun Hamada Bldg. 2F
1-19-20 ShinYokohama
Kanagawa 222-0033
Japan
Tel.: +86(21) 3329 1385
Fax: +86(21) 3329 1400
www.elotouch.com
© 2013 Elo Touch Solutions Inc.
