1229L 12" LCD Multifunction Touchmonitor

The 1229L 12" LCD multifunction touchmonitor is a con-

tinuation of Elo’s commitment toincreased value in new

products. Elo has taken its industry leading monitor

design, which is unbeatable in performance, reliability,

and durability, and accessorized it. The new 1229L

includes options for an magnetic stripe reader (MSR), a

rear-facing customer display, and a biometric fingerprint

recognition device. The three-track magnetic stripe reader

is the perfect choicefor applications that require the use

of loyalty cards, ID cards and credit-card transactions.

The rear-facing display gives the customer immediate visual

confirmation of the transaction. And the biometric fingerprint-

recognition device provides unparalleled security for

employee log-in and all types of system access.

Elo’s design has reduced the number of power and com-

munication cables and power bricks byincorporating the

connectivity inside the monitor. The 1229L touchmonitor

is fully configurable for a variety of applications where its

compact design saves valuable work space.

Features

■Higher brightness, better contrast, and wider viewing

angle than most12" LCDs

■"Designed for touch" features such as a stable tilt base

■Available with AccuTouch Five-Wire Resistive Technology

(activated with fingernails, gloves, credit cards, or any

stylus) or, for the ultimate in optics, IntelliTouch

Surface-Wave Technology, Surface Capacitive

Technology or CarrollTouch Infrared Technology

■Optional ergonomic 3 stripe MSR available in three

versions: USB with keyboard emulation; USB with

human interfacedevice(HID)class specification 1.1;

and serial, which supports OPOS. OPOS is only

supported in serial version

■Optional rear-facing customer display

■Optional biometric fingerprint recognition device

■Integrated USB hub with two available USB connections.

Also allows a single USB cable to carry the touch signal,

MSR and fingerprint data, and output tothe customer

display. The serial version has cables/external connectors

to carry the touch and MSR data.

■Single power supply for all optional devices

■Built-in speakers located in display head

■Multilingual on-screen display (OSD) with extras

including speaker volume, treble, bass, and balance

■Mounting holes on base bottom for tabletop security

■Controls on the side rather than the front, plus lockout

function for public use

■Sealed touchscreen; CarrollTouch version features a

seamless watertight seal due to its unique co-molded

construction

■Diagnostic LEDs for touch and video

Applications

■Retail

■Hospitality

■Medical

■Gaming

TOUCHMONITOR

Case/bezel Color Dark gray

Display Size: 12.1" diagonal

Type: Active matrix TFT LCD

Aspect ratio: 4 x 3

Useful screen area Horizontal: 9.69" (246 mm)

Vertical: 7.27" (184.5 mm)

Monitor dimensions Width: 13.9" (353 mm)

Height (inc. base): 11.6" (295 mm)

Depth (inc. base): 11.8" (300 mm)

Dimensions vary with stand position and options selected

Optimal (native) resolution 800 x 600

Other supported resolutions 800 x 600 at 56, 60, 72 or 75 Hz; 720 x 400 at 70 Hz;

640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

Colors 16.2 million with dithering

Brightness LCD panel: 350 cd/m2(typical)

with AccuTouch: 287 cd/m2(typical)

with CarrollTouch: 322 cd/m2(typical)

with IntelliTouch: 322 cd/m2(typical)

with surface capacitive: 294 cd/m2(typical)

Response time 45 msec (typical)

Viewing angle Horizontal (left/right): ±65° or 130° total

(typical, fromcenter) Vertical (up/down): 50°/45° or 95° total

Contrast ratio 450:1

Input video format RGB analog

Input video signal connector Mini D-Sub 15-Pin VGA type

Input frequency Horizontal: 31.5-48 kHz

Vertical: 56.3-75 Hz

Power drawn Monitor: 20 W typical, 25 W max.

VFD customer display: 3 W typical, 6 W max.

USB fingerprint reader: 0.5 W typical, 1 W max.

USB magnetic stripe reader: 0.5 W typical, 1 W max.

2USB external ports power when loaded: 5 W typical, 7 W max.

Total with all possible accessories: 29 W typical, 40 W max.

Power supply Type: External brick

Input (line) voltage: 100-240 VAC, 50-60 Hz

Output voltage/current: 12 VDC at 4.0 amps max.

Temperature Operating: 0°C to 40°C

Storage: -20°C to 60°C

Humidity Operating: 20-80%

Storage: 5-95%

noncondensing

Weight Actual: 11.9 lb (5.4 kg)

(approx., with all options) Shipping: 19.8 lb (9 kg)

Warranty Monitor: 3 years

Backlight lamp life: min 50,000 hours to half brightness

MTBF: 50,000 hours demonstrated

Agency approvals UL/cUL (*recognized component), FCC, TÜV-GS, CE, VCCI, C-Tick

Speakers Two watt/channel speakers located in display head

On-screen display (OSD) OSD lockouts for power and user controls

User's controls OSD control menu: menu, up, down, select, power

OSD controls: contrast, brightness, V-position, H-position, recall defaults RGB,

volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto

adjust, OSD language (English, French, German, Spanish, Japanese), resolution

OSD disable/enable: power, OSD menu

Mounting options 75 mm VESA mount

Removable base

Optional stability plate

Other features Energy save mode (less than 2 watts); 2 stage DPMS; VESA DDC Plug and Play;

Security lock receptacle; T

ouchscreen sealed to bezel; Touchscreen sealed to LCD

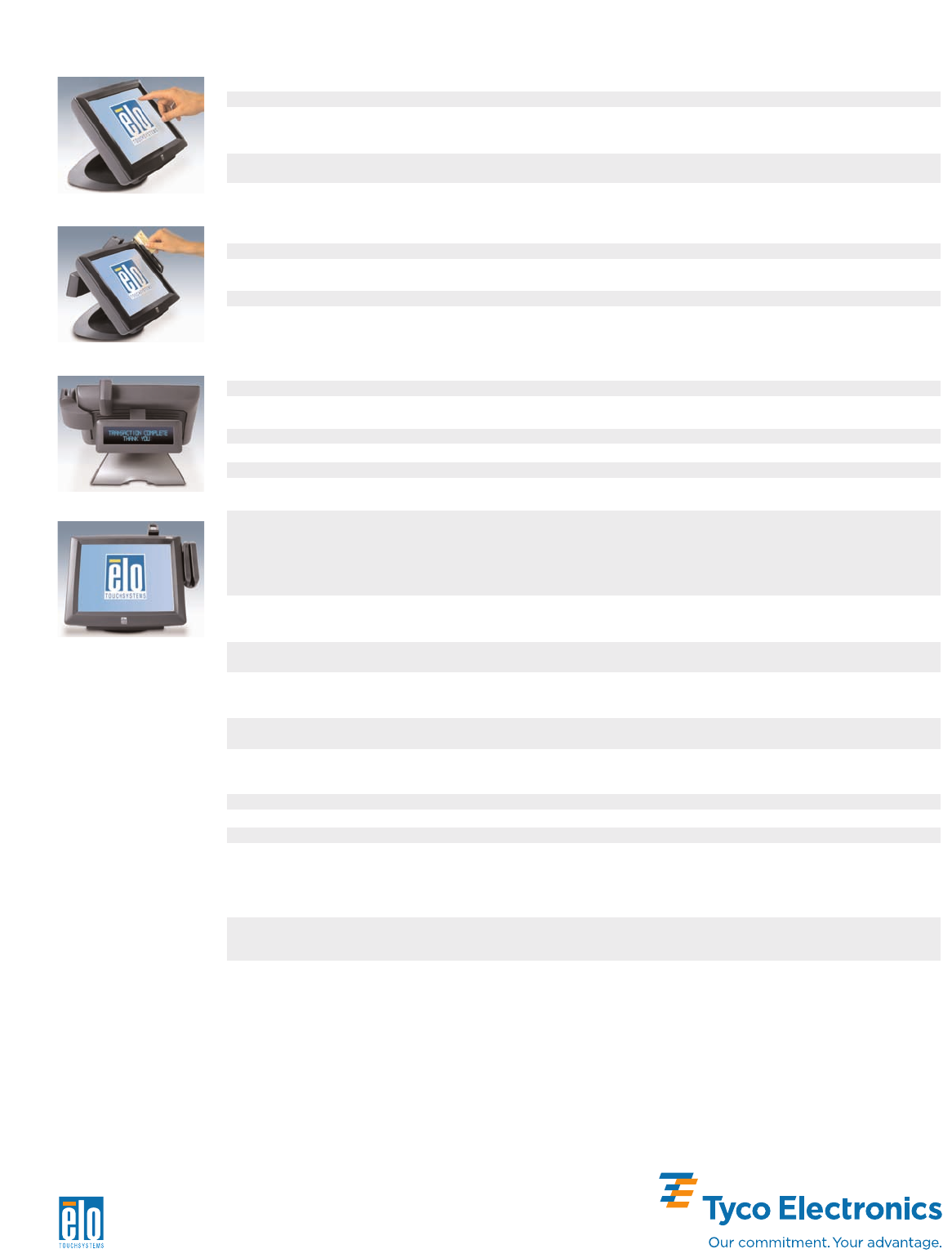

1229L 12" LCD Multifunction Touchmonitor Specifications

Elo TouchSystems reserves the right to change or update, without notice, any information contained herein;

to change, without notice, the design, construction, materials, processing or specifications of any products;

and to discontinue or limit production or distribution of any products.

AccuTouch, Elo TouchSystems, IntelliTouch, TE Logo, and Tyco Electronics are trademarks.

Copyright 2007 Tyco Electronics Corporation ELO-151 11/07
