Elpas Solutions 3-63290 Desk-top reader with USB interface User Manual 1

Elpas Solutions Ltd. Desk-top reader with USB interface 1

Users Manual

www.elpas.com
Page 1 of 2
DE6329_V3_09/13
VisAccess RDR-PXT (USB)
Reader for Proximity Key Enrollment
Installation Guide
1. INTRODUCTION
The RDR-PXT is a proximity reader designed for batch
enrollment of proximity keys in the PC. It allows easy
inclusion of non-contact ID key reading into AXSAlert
software. The reader transmits the key data 4 times
(every 100 ms) when key is presented to reader. Key
data is accompanied by checksum error detection code
for higher reliability. The RDR-PXT connects to the PC
using a USB port.
2. TECHNICAL SPECIFICATIONS
Technology: RF/ID (Passive RF transponder)
Frequency: 125 kHz
ID codes: 1012 unique combinations (1 trillion)
Read range: 40-60 mm (2 - 3 in.)
Reading time: 100 ms
Size (H x W x H): 115 x 73 x 29 mm (4-1/5 x 2-7/8 x 1-1/8 in)
Weight: 120 gr (4.2 oz)
Cable length: 1.5 m (5 ft)
Connector: USB
Interface to host: USB
Current drain: 30mA
Temperature range: 0C - 50C (32F - 130F) - indoor use only
3. INSTALL THE SOFTWARE
Insert the AXSalert CD in to the CD-ROM drive; wait a few seconds. The installation setup will start automatically.
If the setup does not start automatically, click Start and select Run. In the field that appears, enter D:\Install.exe
(where D is the letter of your CR-ROM drive).
Follow the instructions that appear on the PC screen.
After installation is completed, connect the RDR-PXT to a USB port on your computer.
34. START THE SOFTWARE
Double click on the AXSalert icon on the desktop
A prompt will appear to insert username and password. Type "admin" (password is not needed) in the user name
field and click on "Login" button.
4. ENROLL NEW CARDS (USERS)

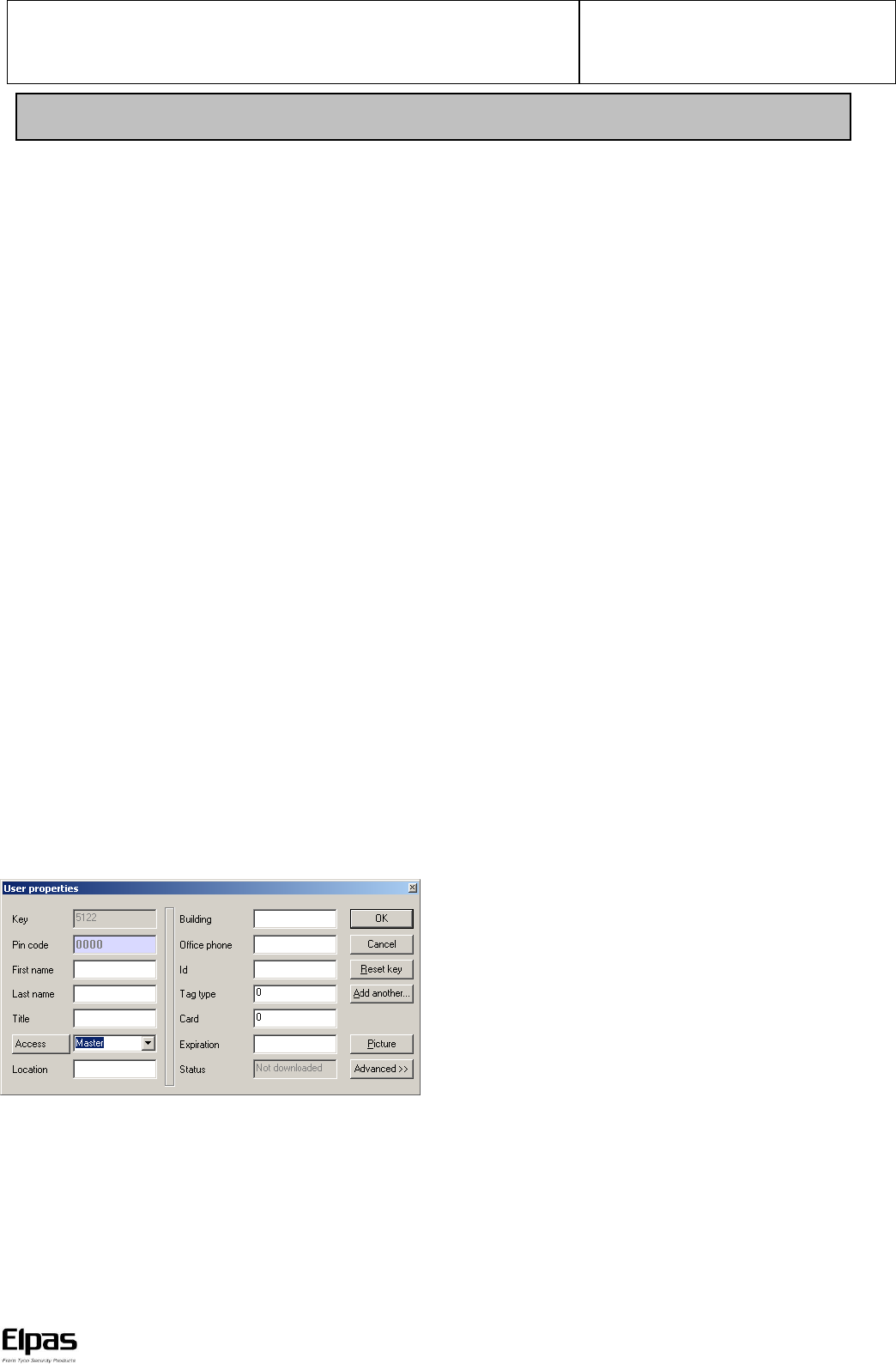

Press on the "users" button: On the "Users" screen select the "+" sign. The "User Properties" screen will appear:
Present the Tag / Cards to the RDR-PXT, the "PIN Code" field will change to a four figure number, if it
doesn’t, retry.
Type the "First name / Last name" of the cardholder
Select "OK"
The cardholder can now use his Tag / Card.
NOTE: To enroll another Tag / Card, repeat the above step
s.
Attention: Do not connect the RDR-PXT before installing the software
Page 2 of 2
DE6329_V3_09/13
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it.
If you are discarding this product and not returning it for repair then you must ensure that it is returned as identified by your supplier.
This product is not to be thrown away with everyday waste - Directive 2002/96/EC Waste Electrical and Electronic Equipment.
5. Regulatory
5.1 EU Declaration of Conformity
This equipment is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
5.2 Compliance FCC Compliance
These devices (FCC #:04X3-63290) complies with FCC Rules
Part 15.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, or that
may cause undesired operation.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interface in a residential installation.
This equipment generates; uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment not expressly approved
by the party responsible for compliance (Elpas Solutions Ltd.) could
void the user’s authority to operate the equipment.
5.3 Company Contact
Elpas, Inc.
Westford, Massachusetts (USA) -Tel: 1-800-223-0020
6. PRODUCT WARRANTY
Elpas Solutions Ltd. (Elpas or the Company), and its affiliates, warrants its products (hereinafter referred to as "the Product”) to be free of defects in materials and
workmanship under normal operating conditions and use for a period of one year from the date of shipment by Elpas. The Company’s obligations shall be limited within
the warranty period, at its option, to repair or to replace the defective Product or any defective component or part thereof. To exercise this warranty, the product must be
returned to the manufacturer freight prepaid and insured.
This warranty does not apply to repairs or replacement caused by improper installation, Product misuse, failure to follow installation or operating instructions, alteration,
abuse, accident, tampering, repair by anyone other than Elpas, external causes, and failure to perform required preventive maintenance. This warranty also does not
apply to any products, accessories, or attachments used in conjunction with the Product, including batteries, which shall be covered solely by their own warranties, if any.
Elpas shall not be liable for any damage or loss whatsoever, whether directly, indirectly, incidentally, consequentially or otherwise, resulting from a malfunction of the
Product due to products, accessories, or attachments of others, including batteries, used in conjunction with the Product.
Elpas MAKES NO EXPRESS WARRANTIES EXCEPT THOSE STATED IN THIS STATEMENT. ELPAS DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. ELPAS’S SOLE
RESPONSIBILITY FOR WARRANTY CLAIMS IS LIMITED TO REPAIR OR TO REPLACE AS SET FORTH IN THIS STATEMENT.
Elpas shall have no liability for any death, personal injury, property damage, or other loss whether direct, indirect, incidental, consequential, or otherwise, based on a
claim that the Product failed to function. However, if Elpas is held liable, whether directly or indirectly, for any loss or damage arising under this limited warranty or
otherwise, regardless of cause or origin, the company's maximum liability shall be limited to the purchase price of the Product, which shall be fixed as liquidated
damages and not as a penalty, and shall be the complete and exclusive liability of Elpas.
Elpas shall not, under any circumstances whatsoever, be liable for any inaccuracy, error of judgment, default, or negligence of Elpas, its employees, officers, agents, or
any other party, or of the purchaser or user, arising from any assistance or communication of any kind regarding the configuration, design, installation, or creation of
security system involving the Product, that being the responsibility of the purchaser or user.
If Elpas is unable to make such repair or replacement, the company’s entire liability shall be limited to the cost of a reasonable substitute product. Elpas shall not be
responsible for any dismantling, installation, reinstallation, purchasing, shipping, insurance, or any similar charges Elpas shall have no liability for any damages,
including without limitation, any direct, indirect, incidental, special, or consequential damages, expenses, costs, profits, lost savings or earnings, or other damages
arising out of the use of the Product or the removal, installation, reinstallation, repair or replacement of the Product or any related events. In the event that there is any
liability against Elpas, such liability shall be limited to the purchase price of the Product which amount shall be fixed as liquidated damages.
The purchaser and user understand that this Product may be compromised or circumvented by intentional acts; that the Product will not in all cases prevent death,
personal injury, property damage, or other loss resulting from burglary, robbery, fire or other causes; and that the Product will not in all cases provide adequate warning
or protection. The purchaser and user also understand that a properly installed and maintained alarm may reduce the risk of events such as burglary, robbery, and fire
without warning, but it is not insurance or a guarantee that such events will not occur or that there will be no death, personal injury, property damage, or other loss as a
result of such events.
By purchasing the Product, the purchaser and user shall defend, indemnify and hold Elpas, its officers, directors, affiliates, subsidiaries, agents, servants, employees,
and authorized representatives harmless from and against any and all claims, suits, costs, damages, and judgments incurred, claimed, or sustained whether for death,
personal injury, property damage, or otherwise, because of or in any way related to the configuration, design, installation, or creation of a security system involving the
Product, and the use, sale, distribution, and installation of the Product, including payment of any and all attorney’s fees, costs, and expenses incurred as a result of any
such events.
The purchaser or user should follow the Product installation and operation instructions and test the Product and the entire system at least once each week. For various
reasons, including but not limited to changes in environmental conditions, electric, electronic, or electromagnetic disruptions, and tampering, the Product may not
perform as expected. The purchaser and user are advised to take all necessary precautions for the protection and safety of persons and property.
This statement provides certain legal rights. Other rights may vary by state or country. Under certain circumstances, some states or countries may not allow exclusion or
limitation of incidental or consequential damages or implied warranties, so the above exclusions may not apply under those circumstances and in those states or
countries.
Elpas reserves the right to modify this statement at any time, in its sole discretion without notice to any purchaser or user. However, this statement shall not be modified
or varied except by Elpas in writing, and Elpas does not authorize any single individual to act on its behalf to modify or vary this statement.
Any questions about this statement should be directed to Elpas.
