Elpas Solutions Ltd. Lone Worker Active RFID Tag

User manual

Elpas Lone Worker Transmitter
P/N: 5-LW241020-0, 5-LW241037-0, 5-LW240020-0, 5-LW240057-0
User Guide
www.elpas.com
Page 1 of 6
V1/March 2015
Introduction
This User Guide provides basic instructions for the successful usage of the Lone Worker Transmitter.
CAUTION! Reasonable effort was made to ensure that the specifications and other information in this guide are accurate and complete at the time of its
publication. Nonetheless, all information contained in this document is subject to change at any time without prior notice. Any modifications to this equipment
without prior written consent of Elpas Solutions Ltd. will void all warranties including the pertinent regulatory certifications and as such revoke your authority
to operate this product. Furthermore, unauthorized modifications may also result in damage to this device and may cause a safety hazard to the users.
Product Description
The Elpas Lone Worker Transmitter is a personal duress button device with optional
pull cord and fall detection capabilities. The LWT is designed for real-time monitoring
and tracking of staff members and visitors. The LoneWorker Fall Detect Transmitter is
designed both for seniors in assisted living facilities or work place staff members that
may be subject to attack or injury in high-risk environments.

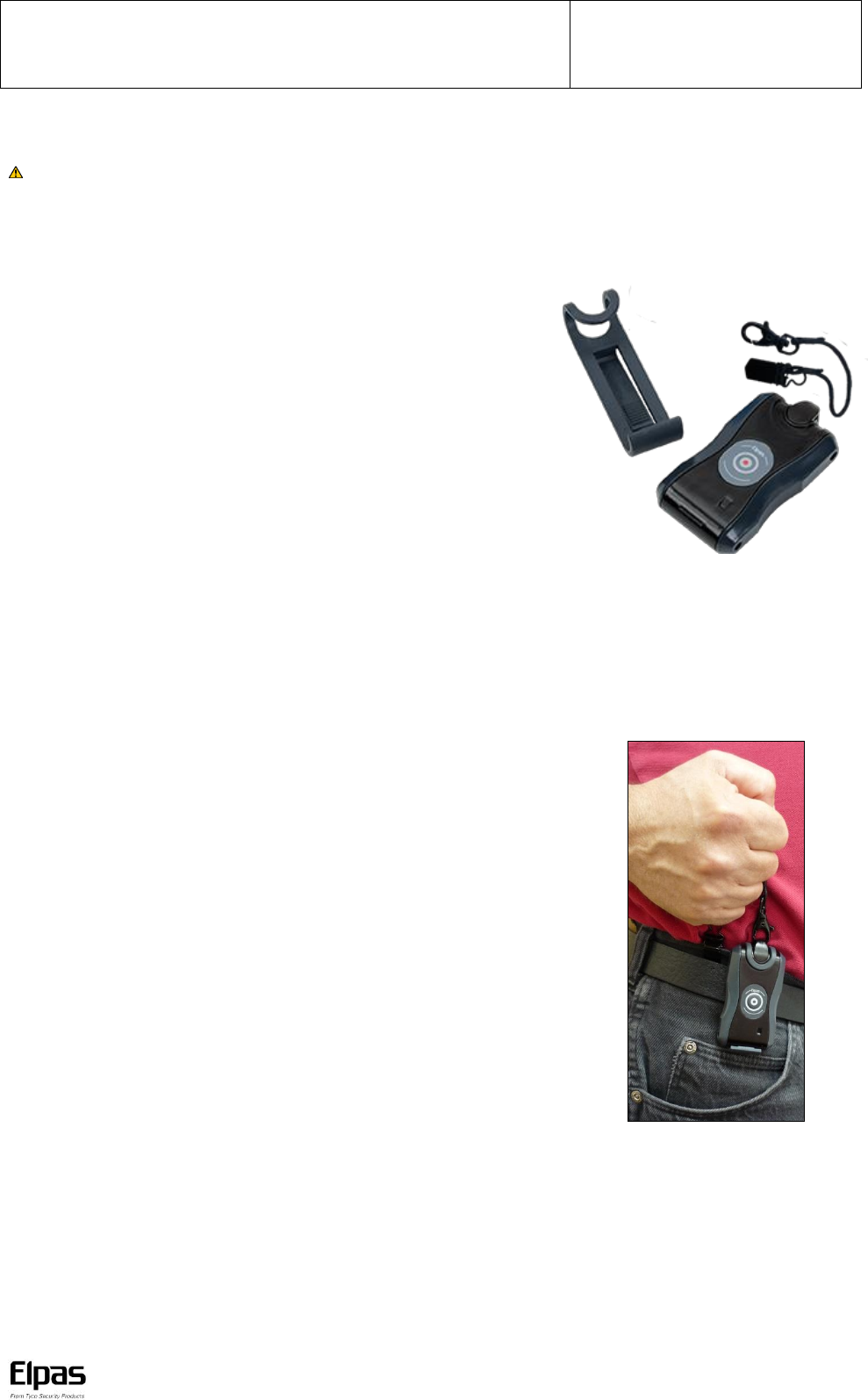

Alarms may be triggered either by squeezing the two side buttons. In the Fall Detect
version, when worn on a belt, a short rip cord may be attached to a belt loop so that
an alarm is transmitted when the device is pulled off the belt.
Note: Users can also wear the LoneWorker Transmitter as a pendant using a lanyard. If you
choose to do so, make sure you use a lanyard for which, the force required to unlatch the tether
switch is less than the force required to open the clasp.
The pull mechanism is particularly useful for seniors with arthritis who have difficulties
pressing buttons.
The LoneWorker Fall Detect Transmitter also detects falls and alarms when tilted
horizontally. To prevent false alarms, the device indicates a pre-alarm by giving the
wearer a chance to cancel the alarm before it is transmitted by pressing on the front
cancel button.
(Actual product may vary from photo)
Elpas Lone Worker Transmitter – User Guide
www.elpas.com
Page 2 of 6
V1/March 2015
Emergency Call Button Events
Factory Default: B1=0 (Button Up)
Activation/Emergency Call (LoneWorker Panic event): Pressing both buttons, simultaneously, for at least 1 second or pulling the cord
(in the Fall Detect version) is - B1=1 (Button Down) and last LF location, 6 RF messages, 3 for B1 Down and 3 for last LF, are transmitted
(each @ 4ms in duration), 312.5ms apart.
Upon button release, B1=0 (Button Up), 3 RF messages are transmitted (each @ 4ms in duration), 312.5ms apart.
Alert Testing (LoneWorker Test event): Pressing either button alone, B1=1 (Button Down), 3 RF messages are transmitted (each @ 4ms
in duration), 312.5ms apart.
Upon button release, B1=0 (Button Up) 3 RF messages are transmitted (each @ 4ms in duration), 312.5ms apart.
Product Specifications
RTLS Technologies
IR (800nm) RF (433MHz) LF (125KHz)
RF (Motion/Stationary)
Supervision messages every 30secs /60secs
IR (Motion/Stationary)
Supervision messages every 5secs /60secs
RF under LF
6 RF transmissions (each transmission
@ 4ms in duration), 312.5ms apart
IR under LF
Does not transmit
Event Messages
Button Press/Release
Low Battery
3 RF transmissions (each transmission
@4ms in duration), 312.5ms apart
Power Source
CR2450 Lithium Battery
Battery Life
18 to 36 months, depending on usage
LED Status Indicator
Button Press/Release, Motion/Stationary
Entering/Exiting LF Field, Low Battery
Badge ID
Unique, factory-programmed ID
Construction
Nylon Plastic (IP65)
Dimensions (H x W x D)
8.3 x 4.4 x 1.7 cm (3.3 x 1.7 x 0.7 inches)
Weight
40 grams (1.4 ounces)
Mounting
Belt worn
Operating
Environment
Temp: -30°C to 70°C (25°F to 159°F)
Humidity: 95% non-condensing
Management Software
Eiris V4.8 or higher
Regulatory
IC, FCC & CE compliant
Warranty
1 year limited (excluding battery)
Product offerings and specifications are subject to change without notice.
Ordering Information
5-LW240020-0
LoneWorker Transmitter, RF/LF
5-LW240057-0
LoneWorker Fall Detect Transmitter, RF/LF
5-LW241020-0
LoneWorker Transmitter, IR/RF/LF
5-LW241037-0
LoneWorker Fall Detect Transmitter, IR/RF/LF
Accessories
5-PBA90003
CR2450 Lithium Battery (tray of 25pcs)
5-LW009800-0
Belt Clip – 5 units
5-LW009700-0
LoneWorker Pull Cord – 5 units
5-LWA90002
LW Enclosure Replacement Kit (set of 5)
Elpas Lone Worker Transmitter – User Guide
www.elpas.com
Page 3 of 6
V1/March 2015

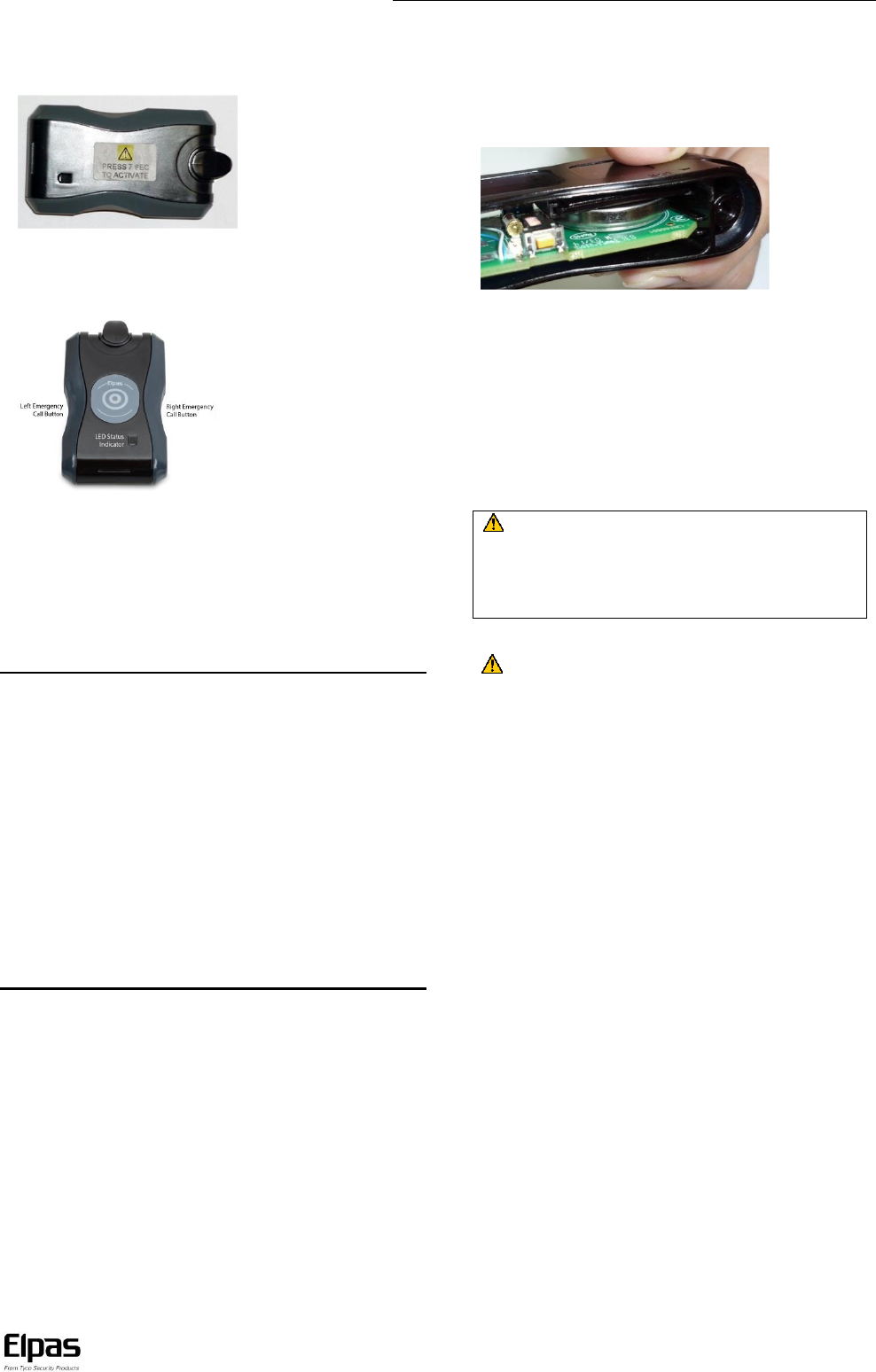

Initial Activation & Software Enrollment
The Lone Worker Transmitter is shipped from the factory in
Sleep Mode to conserve battery power during transit.
1. Prior to initial usage, remove the Activation Label and then
press, simultaneously, both of the emergency call push buttons
for at least 7 seconds.
This action Awakens the Transmitter from Sleep Mode and also
enrolls its unique factory installed ID Number (a six-digital
hexadecimal value) into the Host RTLS Application.
If the Enrollment process is successful, the Red LED
Status Indicator of the transmitter lights up for 3 seconds.
(Refer to your Eiris Configuration Guides for additional details.)
Battery Replacement
1. Temporarily suspend usage of the Transmitter in the host
RTLS application.
2. Place the transmitter on its right side. Remove the 2 screws
that hold the battery cover to the body of the Transmitter
3. First time replacement: Utilize the pull tab (find it with the
Bat▼ mark engraved on the back) to slide the battery out of
the Transmitter.
Future replacements: In the absence of the pull tab,
remove the cover from the other side, and use a plastic
instrument to slide the battery out.
Dispose of the used battery in accordance with local
regulations.
CAUTION! After removing the battery please wait at
least 30 seconds before installing the replacement battery
so as to not cause damage to the tag or to negatively affect
the tag’s operational performance.
4. Slide the new battery into the transmitter.
IMPORTANT! Ensure that the positive (+) side of the
battery faces up.
5. Close the side-cover(s) such that the screw holes are
correctly aligned. Tighten the 2 screws snugly into place. Do
not over-tighten as this may strip the case threads.
6. Reactivate the Transmitter in the Host RTLS Application.
Safety Issues
It is the responsibility of the system installer to ensure that the
appropriate staff members are suitably trained in the usage and
maintenance of the Lone Worker Transmitter.
Additionally, Supervisory Alerts should be configured in the Host
RTLS Application to notify staff members that the detection
Transmitter is:
In a low battery condition, or
Not properly transmitting location and status data.
Note: The above configured Supervisory Alerts should be triggered
periodically to ensure system integrity.
Alert Testing
When you press either the left or the right emergency call push-
button individually, you trigger the Lone Worker Transmitter to emit
a Test Alert Message for the host RTLS application to confirm that
the unit is functioning properly.
Elpas Lone Worker Transmitter – User Guide
www.elpas.com
Page 4 of 6
V1/March 2015
RF Transmissions in LF Fields
For Moving Transmitter
LF Response Time: Onboard LF receiver polls every 250ms to check if the Transmitter is in an LF zone
Transmission Rate: 3 RF event transmissions (each transmission about 2ms in duration), at 0.4 second intervals.
If the Transmitter stays in an LF zone, then repeated at 2 seconds intervals.
Transmitted Message Type: RF Data Message includes ID code of LF Beacon. Motion bit, M=1.
For Motionless Transmitters
LF Response Time: Onboard LF receiver polls every 250ms to check if the Transmitter is in an LF zone
Transmission Rate: 3 RF supervision transmissions (each transmission about 2ms in duration), 0.4 seconds apart:
If the Transmitter stays in a LF zone for more than 10 minutes, then repeated at 15 second intervals.
Transmitted Message Type: RF Data Message includes ID code of LF Beacon. Motion bit, M=0
Cleaning & Disinfection Procedures
Use an appropriate antibacterial disinfectant such as Dispatch® Hospital Cleaner Disinfectant with Bleach from Caltech Industries
(http://www.caltechind.com) to clean the Lone Worker Transmitter.
Since ‘Cleaning Procedures’ may vary according to facility guidelines, thus the procedures given below are for illustrative purposes only:
Option 1 – Using Dispatch Disinfectant Spray
1. Lightly wet a disposable towel with Dispatch spray.
Do not saturate the towel
2. Wipe the outer surfaces of the sensor
3. Wipe the sensor with a dry disposable towel
4. Allow the sensor to air dry
5. Return the clean sensor to inventory or usage
6. Dispose of used towels per facility policies
Option 2 – Using Dispatch Disinfectant Towels
1. Open a new Dispatch pre-moistened towel
2. Wipe the outer surfaces of the sensor
3. Wipe the sensor with a dry disposable towel
4. Allow the sensor to air dry
5. Return the clean sensor to inventory or usage
6. Dispose of used towels per facility policies
Pull Switch Cleaning: Frequent use of the pull switch may result in a buildup of dust on the mechanism. Dust buildup causes friction
which requires added force to pull and restore the switch. Should this occur, clean the switch using a compressed air duster. Gently
spray on the pull switch, and use a brush (often included in the canister).
Alert Event Configuration in Eiris
There are nine alert events relevant to the Lone Worker tag.
LoneWorker Fall Alarm (Fall Detect version only): When the
tag tilts and the Pre Alarm event is not cancelled within 15
seconds, the tag transmits the LoneWorker Fall Alarm which
indicates that the user has fallen and unable to function.
LoneWorker Front Button Press: In regular version, B2
down. In Fall Detect version, to cancel an alert event, the
user can press the button in the front of the tag. To cancel a
Pre Alarm event, the user can place the tag in the up-right
position. If the tag is repositioned, it transmits the Cancel
(cancel the Pre Alarm) alert event.
LoneWorker Panic: When under duress, the user can press
both of the side buttons, simultaneously, or pull the cord to
transmit a LoneWorker Panic event.
LoneWorker Pre Alarm: When the tag tilts, it transmits a
Pre Alarm event and starts to vibrate. The pre Alarm and
vibration last for 15 seconds during which, the user can
cancel it.
LoneWorker Pull Cord Restore: When the user inserts
the cord back into place, the tag transmits a cancellation
for the Pre Alarm event.
LoneWorker Single Side Button: To test the alerts, the
user can press either of the side buttons to transmit a
LoneWorker Single Side Button event.
Low Battery: When the battery of the tag runs low, it
transmits a Low Battery event.
Motion: When the tag is in motion, it transmits a Motion
event.
Stationary: When the tag is stationary, it transmits a
Stationary event.
Elpas Lone Worker Transmitter – User Guide
www.elpas.com
Page 5 of 6
V1/March 2015
Users can configure all or some of these alert events in one alert object, the Elpas Badge Alert object.
Note: This document includes only the LoneWorker Transmitter alert event specific instructions. For further information regarding alert configuration, see Eiris
Configuration Guide, section 5.
To configure LoneWorker alerts:
1. In the EV2 setup mode, Right-click the Alerts branch and select Add by Type. The alerts Add Object window opens.
2. Select Elpas Badge Alert and click Add. A new Elpas Badge Alert object is created and opens in its General tab.
3. In the Name field, enter the name you choose (one that includes LoneWorker is recommended since the object is also used for
other badges).
4. Open the Inputs tab.
5. Under the Events pane, from the Filter drop-down list, select LoneWorker. The LoneWorker related events appear in the
Events pane.
6. Select the check-boxes of the events for which you want the alerts.
Elpas Personal Safety Bracelet – User Guide
Page 6 of 6
V1/March 2015
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it.
If you are discarding this product and not returning it for repair then you must ensure that it is returned as identified by your supplier.
This product is not to be thrown away with everyday waste - Directive 2002/96/EC Waste Electrical and Electronic Equipment.
Compliance with Standards
This dev ice c om pl ies wi t h F CC Rule s Part 15 a nd wi t h Indust ry C anada license
ex em pt RSS stand ar d( s). O pe rati on i s su bj ec t to t wo conditions:
(1) Th is d ev i ce m ay not ca use harm f ul i nt er fere nc e
(2) Thi s dev ice m ust acce pt any interferenc e that m ay be r eceiv ed or t hat may
cause un de si re d op er at ion.
Le pr ésent a pp ar ei l e st conf orme au x C NR d 'Indu strie Can ad a appl ic ables a ux
ap pa reil s r adio ex em pts de licence. L'exploit atio n e st autorisée aux d eux c on di tions
suiv antes :
(1) l' ap pareil n e doit pas produire d e br ouil lage, et
(2) l' util isat eur de l 'apparei l d oi t acce pt er t out brouill age radioélectri que su bi ,
même si le b roui llage est susce ptible d'en compromettre l e fonc ti onnement .
NOTE: This e quipment has been tested a nd foun d t o comply wi th the lim its f or a
Cl as s B digital devic e, pursuant to Pa rt 15 of t he F CC Rules. T he se l imi ts are
de si gn ed t o provide reasonabl e prot ecti on agai nst harm ful interf erence in a
re side nt ial install at ion. This equipment ge nerat e s, uses a nd can ra di at e r adio
freq uenc y energy and, if no t i nstall ed an d u sed i n acco rd an ce wi th th e inst ruc ti on s,
may cause harmf ul inte rf er ence t o radi o c om municat io ns. Howev er, there i s no
gu ar antee t hat interferenc e wi ll not oc cur i n a p arti cula r i nstall at io n. If t his
eq ui pm ent doe s caus e harmf ul interf erence to rad io or tel ev i si on r ec ep ti on, which
can be d eterm i ned by tu rnin g the equipment off and o n, th e us er is encourage d to
tr y to c or rect t he interf erence by one or m ore of the f ol lowi ng m ea sures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Cet é quip em ent a été te st é et j ug é c o n f or m e a ux l i m i t es s ’a pp l i qu an t à un ap pa reil
numériqu e d e cla ss e B, co nf or m ém ent à la Partie 1 5 d es r ég lem ent ati ons d e l a
FCC. Ce s lim ites ont été él aborées po ur off rir une protectio n r ai s onnable c on tr e
les inte rf er ences nu isible s dans une i n st al la ti on r ésidenti lle.
Cet éq ui pement g én èr e, uti li ze et p eu t ém et t r e d e l ’ énergie de f réqu ence r adio et, s ’i l
n’ e s t p as i n s t a ll é et ut ili ze c on form ément aux i nstr uction s du fabric ant, p eut
prov oquer d es i nt erférences d ange reuses po ur l es communicat ion s r ad io. T o utef oi s,
r i en n e g ar an ti t l ’a bs en ce d ’i nt er f ére nc es dans u ne i nstallation pa rt icul i é re. Si cet
éq ui pe ment prov oque des inte rf érence s nui sibles au ni v ea u de la r éce pt io n radi o ou
television , ce qui peut é tre det ermi ne par l a mis e h or s, pui s s ous tensio n de
l’équipment, v ous ét es in v it e à ess ay er de corri ger le s interf er ences en pr eg na nt l e s
mesures su iv antes:
Réori ent ez ou d ép l a c e s l ’a nt en ne r é ce pt ri ce .
Augmente z la dista nc e qui s ép ar e l ’ équi pem ent et le récept eur.
B r a n c h ez l ’ équip em en t à u n e p ri s e d ’u n c i rc u i t di f f e re nt d e c el ui a uq ue l e st
branché le r écepteur.
Co ns ul tez l e rev endeur o u un t ec hnicia n r adi o/t elev isio n exp ériment é pour
ob t e ni r d e l ’ a i de.
Warning!
Ch an ges or m odif icat ions t o thi s e quipment not ex pressl y a pp roved by t he p arty
r e s p o n si bl e f or com p l i an ce ( El p as S ol ut io n s Lt d. ) c o u l d v o i d t h e us er ’s au t h o r i t y t o
op er ate th e equi pm ent.
Eu rope
This e qui pme nt c om pl ie s wit h the R TT E requi rement s - Di rectiv e 19 99/5/E C of the
European P arli am ent and of the c ounc il of 9 March 1 99 9.
EN 3 00220, E N 30 14 89 , EN 5 01 30 - 4, E N 61000- 6-3, E N 60950-1.
Product Warranty
El pa s Soluti ons, Lt d. (Elpas o r t he C o m p a n y ), an d i t s af f i l ia te s , w ar ra nt s i t s p r o d u ct s ( he r e in af t er r ef er re d t o a s "t h e Pr od uc t ” ) t o b e f ree of de f e ct s i n materi als and wo rkmanshi p
un de r n ormal o pera ti ng co nditi ons and use f or a pe ri od of one ye ar from t he date of s hipm ent by Elp as. T he C o m p a n y ’ s ob li g a t io ns sha l l b e l i m i t ed wi t h in th e w ar ra nt y p er io d, at
its option, t o repai r or to replace t he d ef ec tive P ro du ct o r any defe ctiv e com po nent or par t thereof . To ex erci se t hi s war ran ty, th e pro du ct m ust be ret urned t o th e manufact ur er
freigh t pr epai d and insured.
This warranty do es not apply to r ep ai rs or repla ceme nt cau sed by imp ro pe r inst al lation, Product misu se, f ailure to foll ow ins tal l at ion or oper ating instructions, a lt erat i on, abu se,
accide nt , t am pering, rep ai r by an yone ot her t ha n El pas, ext ernal causes, a nd f ai lure t o perf orm r eq ui red pr ev entiv e m aintenanc e. T hi s w ar rant y al so d oe s not a ppl y to any
prod ucts, ac cessor ies, o r at tachm ent s used in c onju nc ti on with the Product , includi n g batt eries, which shal l be c ov er ed sol el y by th ei r own war ra nt ie s, if any. El pas sha ll not be
liab le fo r any damage or lo ss what so ev er, whether di rect ly , i ndir ectly, incid entall y, co ns eq ue ntiall y o r oth er wi se, res ul ti ng from a m al func ti on of th e P ro du ct du e t o p roduct s,
acce ss orie s, or at tachme nt s of othe r s, incl uding batteri es , used i n conj unct i on wi th th e Pr oduc t.
ELPAS M AK ES NO E XPRE SS W ARRANTI ES EXCEPT T HOSE ST AT ED IN T HIS S TA TEMENT . ELP AS DI SC LA IM S ALL O TH ER W AR RANTI ES , EXP RESS OR I MP LI ED, I N CL UDING
WIT HOUT LI MI TA TI ON I MPLIED W ARRANTIES O F MERC HANT ABI LI T Y A N D F I T N E S S F O R A P A R TI CU LA R PU RP OS E. E LP AS ’S S O L E RE S P ON SI BI LI TY F OR W A RR A NT Y
CLAIMS IS LI MI TE D TO R EPAIR OR TO RE PLACE AS SET F ORTH I N THIS STATEME NT.
El pa s s ha ll ha v e n o l iabi li ty f or an y de at h, pe rson al injury , pr operty damage, or ot he r loss wh et h er dire ct, i ndirect, i nciden tal, consequential, o r otherwi se, ba sed o n a clai m th at
the Pr od uc t f ai led to functi on. Howev er , if El pa s is held l iabl e, wh ether di rect ly or in di rectly, f or a ny lo ss o r damage aris i ng un der thi s li mi ted wa rranty or otherwi se, r e gard les s of
cause or origi n, the c om pa ny's maxi mum liabi lity shal l be li mi ted t o t he purchase pr i ce of the Product, which shall be f ixed a s l iqui date d dam ages and no t a s a penalt y, an d shall
be t he c om pl et e an d ex cl usiv e l iabi lity of El pa s.
El pa s shal l not, under any c ir cumstances wh at soev er , be li able f or any inac cu racy, err or of j udgment , default, or n egli ge nc e of Elpas, its em pl oy ees, officers, agen ts, or any other
part y, or o f the p ur chaser or user, ar isin g from any a ssi st ance o r com m unication of a ny k ind r egar ding the conf igur at ion, d esig n, install ation, or c re at ion of s ec urit y sy st em
inv olvi ng the Product, that being t he r esponsibility of th e pu rc ha ser or user. I f E lpas i s un ab le t o make suc h repair or r epl ac em en t , t he c om pa ny ’ s e nt ir e l i a b i l i ty s h a l l be limi ted to
the co st o f a re ason able subst it ute product . El pa s sh al l not be responsible f or any di sm antl ing, i nstallation, rein st al lati on , p urch asin g, shi pping, i nsurance, or any simi lar charge s.
El pa s sh al l hav e no liabili ty f or any damage s, includi ng without lim itation, any direct, indi rect , inci dental, speci al, or c onse quent ial dama ge s, exp en se s, cost s, prof i ts, lo st sav i n gs
or earnings, or ot h er damages ari si ng o ut of th e use of the P ro du ct or t he remov al , in stallati on, reinst allatio n, repa ir o r r e pl ac em ent of th e Pr od uct or any related ev ents. In t he
ev ent that t he re i s any liabili ty a gain st E lp as, such liabi lit y sh al l be l im ited t o the pur chase pric e of t he P roduct whi ch a m ount shall be f ixed as li quid at ed dam ages.
The pu rc ha ser and user underst and that t his Product may be compromi se d or circu mv ente d by i nt enti onal acts; th at t he P roduct will n ot i n all cas es prevent d ea t h, p er so nal injury ,
prop erty damage, or ot he r lo ss result ing f ro m bur gl ar y, robbery, f i re or ot her ca uses; and th at t he Pr oduc t wi l l n ot in a ll c ases prov i de adeq uate warning or prot ec tion. Th e
purcha ser a nd user al so underst and t h at a properly inst all ed and maintai ne d alarm m ay redu ce th e risk of ev ents such as bur gl ary, ro bb er y, an d f ir e wi t hout warning, but i t i s not
insura nce or a gu ar antee that s uc h ev ents wil l not occu r or that there wil l be n o deat h, per sona l inj ury, property damage, or other lo ss a s a re sult of su ch ev ents.
By p ur ch asing t he P roduct , t he purc hase r and u ser s hall d ef end, i ndem ni f y and hold El pas, its of ficer s, d ir ec to r s, af f il iates, subsi diari es, a ge nt s, serv ant s, em pl oy ee s, an d
authoriz ed represent atives ha rm less f rom and agai nst any a nd al l c laim s, sui t s, costs, damages, an d j udgm ent s i nc urre d, claim ed, or sustained wh et her for d eath , per so na l i nj ury,
prop erty dam ag e, or ot herwise, bec ause of or in any way relate d to the configuratio n, desig n, install ation, or c reat ion of a security sy stem involv ing the Pr od uct, and the use ,
sale, di st ri buti on, and i nstal lation of the Pro du ct, in cl uding payment of any an d all a t t orn ey ’ s f e e s , co st s, a nd e x p en se s i n c u rr ed a s a re su lt o f a ny s uc h ev en t s .
The p ur chaser or u ser s houl d follo w t he Prod uc t i n st al lati on and ope rati on instr uction s a nd test t he Pr od uc t and th e entire s ystem at leas t o nc e eac h we ek. F or v arious reas ons,
includi ng but not lim ited t o ch an ge s in envi ro nm ental cond it ion s, elect ri c, elect roni c, or elect romagnetic di sr upti ons, and t am per i ng, the Pr od uct may not p erform as ex pec ted. T he
purcha ser an d us er are adv i sed to tak e all nec e ssary prec auti on s for th e prot e c ti on and saf ety of pers ons and pr op erty .
This state ment prov ides certain l egal r ight s. O ther rights m ay v a ry by stat e or c ou nt ry. Under cert ain c ir cumsta nc es, some st at es or countr i es m ay not all ow e xclusi on or limi ta ti on
of incidental or c onsequen ti al da mages or im pl ied war ranties, so t he above exclusi on s may not appl y unde r tho se circumstances and in thos e st ates o r co untr ie s .
El pa s re se rv es t he right to m odif y t hi s st at em en t at any ti me, in it s sole d iscr et ion wi t hout notic e to any purc hase r or use r . Ho wev er, this sta tement sha ll not be m odif i ed or vari ed
ex cept by El pa s in writing, a nd Elpa s d oes not author iz e a ny si ng le in dividual to ac t o n i ts be half to modi fy or vary this st at ement. A ny questi ons
ab out this statement should be di rect ed t o El pa s.

Navigation menu
