Elpas Solutions 5-MAG00433 DOOR MAGNET (MAGNETIC CONTACT TRANSMITTER) User Manual
Elpas Solutions Ltd. DOOR MAGNET (MAGNETIC CONTACT TRANSMITTER)
User Manual
Elpas Wireless Magnetic Contact
P/N: 5-MAG00433
Install Guide
www.elpas.com
Page 1 of 4
V3/April 2013

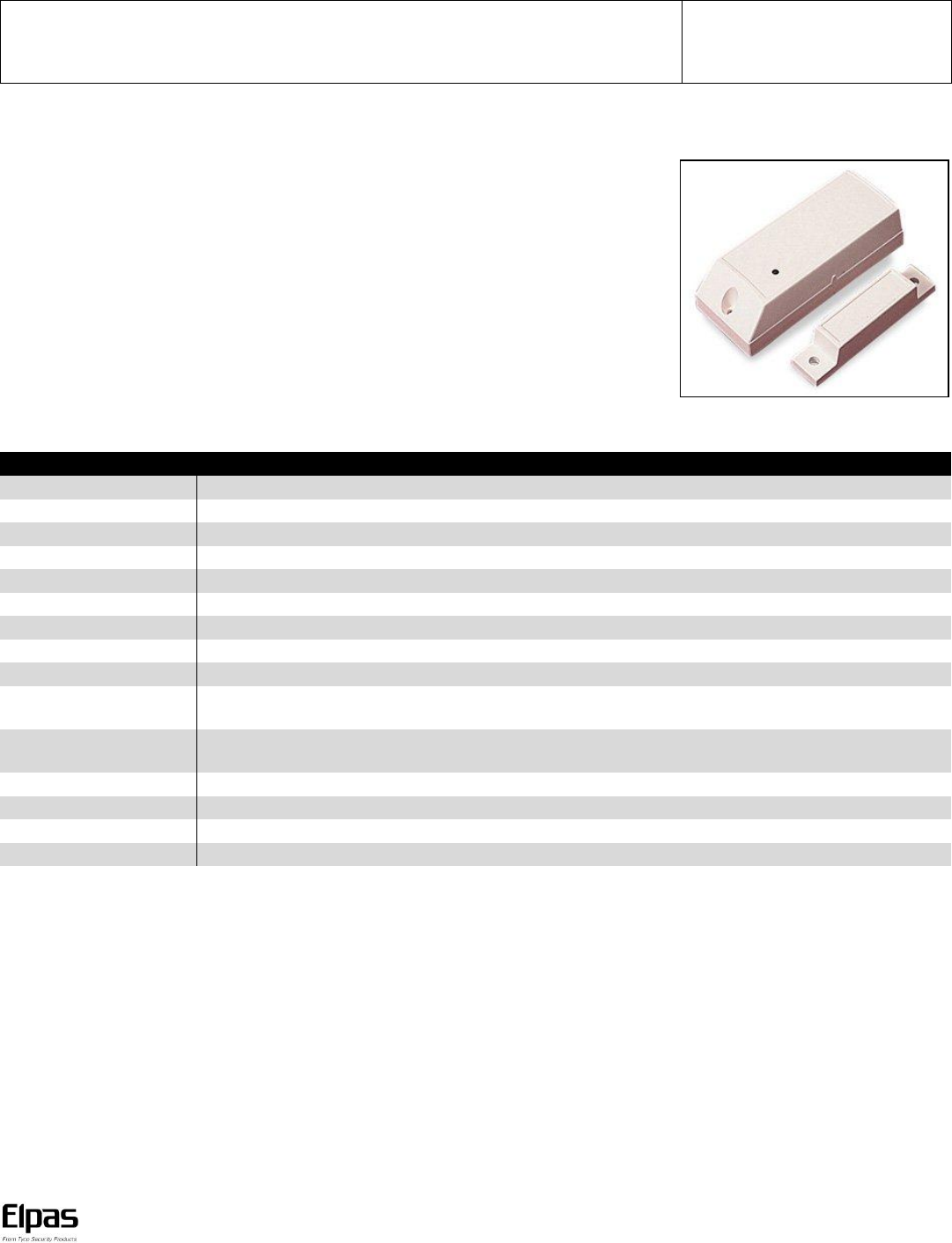

Description
The Elpas Magnetic Contact is a battery operated; wireless universal door contact designed for use in
Elpas Safety, Security and Visibility solutions. The device can be mounted anywhere to secure door and
window openings. The transmitter emits EMI safe 433MHz RF messages that enables the reporting a
monitoring of ‘State’ changes from one dry contact input to be sent via the Elpas Ethernet RTLS
infrastructure to a host Elpas RTLS application or to other management monitoring solutions.
The Magnetic Contact provides a single zone of protection, and installs easily on doors or windows with
the included mounting hardware or double-sided The contact has three unique input loops (zones )The
first loop (primary loop) is supervised and typically used for high-priority alarm reporting such as
commercial fire or burglary. The second loop is the built-in, normally closed reed switch used in
conjunction with magnet; the third loop is another normally closed household burglary loop.
Product Specifications
Signaling Technologies
RF (433MHz)
Transmission Rate
Every 120 seconds
Alarm Inputs
1 magnetic reed switch, 1 auxiliary input
Supervised Events
Low Battery, Tamper
Power Source
3.6V/1.2Ah Lithium Battery (Type LiSOCl2)
Average Battery Life
3 years
LED Indicator
TBD
Tag ID
Unique, factory-programmed ID
Construction
White Nylon Plastic
Dimensions (H x W x D)
Transmitter: 81 x 30 x 23 mm (3-3/16 x 1-3/16 x 15/16 in.)
Magnet: 63x13x13 mm (2-1/2 x 1/2 x 1/2 in.)
Weight
Transmitter: 34 grams (1.2 ounces)
Magnet: 13 grams (0.45 ounces)
Operating Environment
Temp: -20°C to 70°C (-4°F to 159°F) Humidity: 90% non-condensing
Remote Management
Eiris 4.8 (or higher) Elpas Configurator 4.8 (or higher) ELC Programmer V2.0
Standards
IC, FCC & CE compliant
Warranty
1 year limited (excluding battery)
Product offerings and specifications are subject to change without notice.
Preliminary
Elpas Wireless Magnetic Contact – Installation Guide
www.elpas.com
Page 2 of 4
V3/April 2013
Aux Inputs Interface
The Magnetic Contact contains aux input terminals for
connecting two analog alert monitoring inputs.
Tamper Switch
The Magnetic Contact contains a spring loaded tamper switch
that when pressed, generates a ‘State’ message that is useful for
registering the monitoring point in the host application
Once registered, the tamper switch can also be used as an input
trigger for a device supervision tamper alert indicating non-
authorized attempts to remove the device’s cover.
Power
The Magnetic Contact derives its power from one CR2430 type
lithium battery (factory supplied) or alternatively from a single
1/2AA battery.
IMPORTANT: The Wireless Input Module as well as all the input devices
to be monitored should be powered down when wiring in order to prevent
accidental shorts/spikes to cause damage to any of the devices.
Supported Event Transmissions
The Magnetic Contact can transmit state changes from up to two dry
contact inputs (as a button press event message) to the host RTLS server.
Input 1 – Button 1 Event
Input 2 – Button 2 Event
The Magnetic Contact can also transmit a state change from the tamper
switch (as a motion event message) indicating a non-authorized attempt to
remove the module’s cover.
Tamper Switch – Motion Event
Note: Whenever a state change is detected the input module
automatically transmits 4 RF event messages 400ms apart with each
transmission about 2ms in duration).
Status Indicator
The Magnetic Contact has a Red Status LED that flashes
once/second signaling either a low voltage condition or that the
device is transmitting.
Lithium Battery Installation (supplied with device)
Before inserting the CR2430 type lithium battery into the
module’s battery holder, confirm that the holes of the battery
Isolator are aligned with the contact pins. Then ensure that the
positive (+) side of the battery faces the PCB.
IMPORTANT: Inserting the 3.6V/1.2Ah battery improperly into
the battery clip may cause damage to the Magnetic Contact.

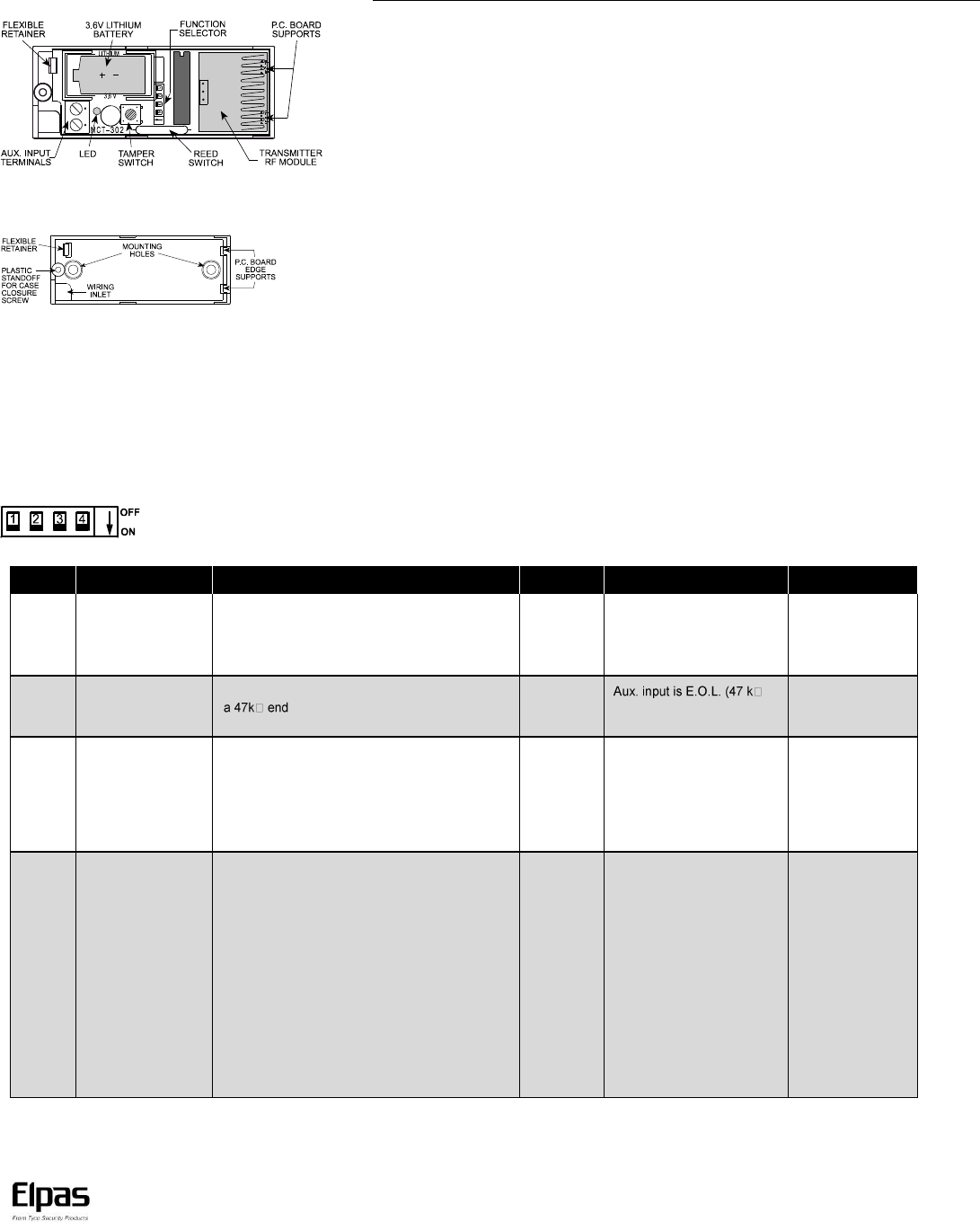

Installation Mounting
Attach the Magnetic Contact to the fixed frame and the magnet to
the movable part (door or window), as shown below. Make sure
that the magnet is located not more than 6mm (0.25 in) from the
transmitter’s marked side .
Step 1: Remove the case closure screw
Step 2: Remove the unit’s cover
Step 3: Flex out the circuit board retainer and detach the circuit board
from the base.
Preliminary
Elpas Wireless Magnetic Contact – Installation Guide
www.elpas.com
Page 3 of 4
V3/April 2013
Step 4: Hold the base against the mounting surface and mark the
drilling points through the mounting holes
Step 5: Drill the holes and fix the base to the wall using the 2 screws
with countersunk heads supplied in the package.
Step 6: Mount the magnet near the marked side of reed switch.
Step 7: Insert the edge of the circuit board with the RF module into the
edge supports and press the other edge against the flexible retainer until it
snaps home with a click
Preparation for Use
The Magnetic Contact is equipped with a 4-position DIP switch Each switch lever enables selecting 1 of 2 options.
B. Setting the Switches
Set the function switches as desired prior to applying power.
Use a ball point pen or another pointed object to shift the switch levers. The ON position is indicated by the arrow on the switch body .
Table 1. Getting acquainted with the function selector
Switch
Function
Selector
Selected Option
Default
SW1
Reed switch input
Determines whether the reed switch input will be
active or inactive
Note: With SW-1 set to OFF, the auxiliary input will
not initiate periodic supervision transmissions.
ON
Reed switch input is enabled
ON
Off
Reed switch input is disabled
SW2
Aux. input
type selector
Determines whether the auxiliary input will behave as
-of-line (E.O.L.) input or as a normally
closed (N.C.) input.
ON
OFF
OFF
Aux. input is N.C.
SW3
Restore reports
Determines whether the transmitter will report a
restore event when an input restores from an alarm
condition.
Selecting the ON position enables you to find out
whether the door or window under surveillance are
open or closed.
ON
Restore events reported
ON
OFF
Restore events not reported
SW4
Transmit Mode
In non-supervised systems, it is sometimes
required to report an alarm repeatedly at short
intervals, until the disturbed input reverts to its
normal (undisturbed) state. SW-4 is used to select
between repetitive and one-shot transmission.
Note: Transmissions initiated by “tamper” events
will be repeated once every 3 minutes, regardless
of SW-4 setting.When done, Install the battery as
directed in Para. 4.2.
ON
Reports alarms every 3 min.
OFF
OFF
Reports alarms only once
Preliminary
Elpas Wireless Magnetic Contact – Installation Guide
Page 4 of 4
V3/April 2013
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it.
If you are discarding this product and not returning it for repair then you must ensure that it is returned as identified by your supplier.
This product is not to be thrown away with everyday waste - Directive 2002/96/EC Waste Electrical and Electronic Equipment.
EU Declaration of Conformity
This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC
FCC & IC Compliance Standards
This device (FCC ID#: O4X5-MAG00433 and IC ID#: 1467G- 5MAG00433)
complies with FCC Rules Part 15 and with Industry Canada license -
exempt RSS standard(s). Operation is subject to two conditions: ( 1) This
device may not cause harmful interference, and (2) this device mu st
accept any interference that may be received or that may cause undesired
operation.
For Industry Canada: Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil
ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Note: This equipment has been tested and found to comply with the li mi ts
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential install ation. This equipment generates; uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving anten na.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
Changes or modifications to this equipment not expressly approved by the
par t y res p o n s i b l e fo r co m p l i a n c e (El pas Sol u ti o n s L t d .) co ul d vo i d th e user ’ s
authority to operate the equipment.
This equipment complies wi th FCC and IC RF radiation exposure limits set
forth for an uncontrolled environment.
Company Contact
Elpas, Inc.
Westford, Massachusetts (USA)
Tel: 1-800-223-0020
Product Warranty
E l p a s S o l u t i o n s , L t d . ( t h e C o m p a n y ) , a nd i t s a f f i l i a t e s , wa r r a n t s i t s p r o d u c t s (h e r e i n a f t e r r e f er r e d t o a s "t h e P r od u c t ” ) t o be f ree of defects i n m ate rial s an d wo rkmanship u nder norm al
op e r a t i n g c o n d i t i o n s an d u s e f o r a pe r i o d of one y e ar f r o m t h e dat e of sh i p m e n t b y E l p a s. T he C o m p a n y ’ s o b l i g a t i o n s s h a l l b e l imi ted wi thin th e warrant y period, at it s opti on, to r epai r o r t o
replac e t he d ef ectiv e Product o r any def ec tiv e com ponent or part th ereof . To ex erci se thi s war rant y, t he prod uct m ust be ret urn ed t o th e m a nuf actu rer f rei ght pr epaid and i nsure d.
This warr anty doe s not apply to repai rs or repl acem ent cause d by improper instal lation, Pr o duct mi suse, fail ure to follo w i nstallat ion or oper atin g instructio ns, alt erati on, abu se, acci dent,
tamperi ng, re pair by any one ot her than El pa s, ex ter nal causes, and fail ure to perf orm req uire d prev ent iv e mai ntena nce. Thi s w ar rant y al so does not apply to any products, acce ssorie s, or
attac hment s use d in co nju nctio n wit h the Product, including batt eries, which shal l be cov ere d sol ely by their own war ranti es, if any. El pas shall not be li able for any dam age or l oss
what soev er, whet her dir ectl y, i ndir ectl y, i ncid ental ly, conse que ntial ly or ot herwi se, re sul ti ng f rom a malf uncti on of the Product due to pr oduct s, acc essori es, or attac hme nts of ot her s,
includi ng batt eri es, use d in conj unction wit h t he Product.
ELPAS MAKES NO EXPRESS WARRANTI ES EXCEPT THO SE ST ATE D IN THIS ST ATEMENT. ELPAS DISCLAIMS AL L OTHE R W ARRANTIE S, EXPRESS OR IMP LIED, INC LUDING WITHOUT
LI M I T A T I O N I M P L I E D W A R RA N T I E S OF M E R C H A N T A B I L I T Y A N D F I T N E S S F O R A P A R T I C U L A R P U R P O S E . ELP A S ’ S SO L E R E S P O NS I B I L I T Y FO R W A RRAN TY CLAIMS IS LI MITE D TO
REPAI R OR T O REPLA CE A S SET FO RTH IN THI S STATEMENT.
Elpas shal l hav e no li abili ty for any de ath, personal inju ry, pro perty dam age, or ot her lo ss whet her dir ect, i ndi rect, i ncid e nt al, cons eque ntial, or oth erwi se, base d on a cl aim that the P rodu ct
fai led to functi on. Howev er, if Elpas is hel d li able, whethe r dir ectl y or indir ectly, for any loss or damag e ari sing under this lim ited warr ant y o r otherwi se, regardl ess of cau se or ori gi n, th e
compa ny's max im um liabil ity shal l be lim ited to t he purc hase pr ice of the Pro duct , w hich shal l be fix ed as li quidate d d amag es an d not as a pen alty , and shall b e t he c om plete and ex clu siv e
liabi li ty of Elpas.
Elpas shal l not , under a ny circ umst anc es what soev er, be li able f or any in accuracy, error of judgm ent, def ault, or n eglig ence o f Elpas, its em ploy ees, of fi cers, agent s, or any othe r party , or of
the purcha ser or user, ari sin g fr om any assi sta nce or comm unicat i on of any ki nd regar ding the conf igurat i on, design, in st al la ti on, or creat ion of sec uri ty system inv olv ing the Pr oduct, that
bein g th e r e s p o n s i b i l i t y o f th e pu r c h a s e r o r u s e r . I f El pa s i s u n a b l e t o ma k e su c h r e p a i r or r e p l a c e m e n t , t h e c o m p a n y ’ s ent i r e l iabilit y sh all be li mi ted to the co st of a r ea sonabl e sub st itut e
product. Elpa s sh all not be resp onsi ble f or any di sm antl ing, insta ll atio n, r ein stallati on, purc hasi ng, shi pping, insuranc e, or any sim il ar ch arge s.
Elpas shall hav e no li abil ity for any d amag es, i nclu ding wi t hout li mitation, an y di rect, i ndirect, incident al, spe cial , or c o nsequ ential d amages, ex penses, co sts, profi ts, lo st sav ings or
earnin gs, or other dam ages arising out of the use of the Pr oduct or t he remov al, inst all ation, rei nstallati on, repair or re pl acem ent of the Pr oduct or any r elat ed ev ents. I n the ev ent that t here
is any li abil it y agai nst Elpas, such lia bil ity shall be li mi ted to the pur cha se pr ice of the Product whic h amo unt shal l be fix ed as l iquid at ed dam age s.
The p urchaser a nd user und erstand that t hi s Product m ay be c ompromi sed or cir cumv ent ed by int enti on al act s; t hat the Pr od uct wil l not in all ca ses prev ent deat h, per sonal i njury, prop erty
damage, or oth er l oss resul ti ng from bur glary, rob bery, f ire or ot her cau ses; and that the Product wi ll not in al l case s prov i de adeq uate warni ng or pr otection. The purc haser and use r al so
under stan d t hat a pr operl y i ns tall ed and m aint ained alarm may red uce the ri sk of ev ents such as bur glar y, robbery, and fi re wi tho ut warni ng, but it is n ot insur ance or a guar antee th at such
events will n ot occur or that t here will be no d eath, perso nal i nj ury, prop erty damage, or ot h er lo ss a s a r esult of such ev ents.
By purc hasi ng th e Product, the pu rcha ser and user shal l def end, i ndemnify and h old Elpas, its of f icers, directo rs, af filiat es , subsidi ari es, agent s, serv ants, empl oyee s, and authori zed
representat iv es harm less from and against any and all cl aim s, suit s, co sts, dam ages, and judgm ent s incurr ed, cl aim ed, or sust aine d wheth er for de ath, per sonal inj ury, pro pert y dama ge, or
other wi se, beca use of or i n any way r elate d to th e c onf igur atio n, de sign, i nstallat ion, or creati on of a securi ty sy stem i nv olvi ng the Product, an d the u se, sal e, di stri buti on, an d inst all atio n of
t h e P r o d u c t , i n c l u d i n g p a y m e nt o f a n y a n d a l l a t t o r n e y ’ s f e e s, c o s t s , a nd e x p e n s e s i n c u r r e d a s a r e s u l t o f a n y s u c h e v e n t s .
The p urc haser o r user should f oll ow th e Product instal lati on and oper atio n i nstr ucti ons and test t he Pro duct a nd t he enti re sy stem at l east once each wee k. For v ar ious re ason s, i ncl udi ng but
not li mi ted t o cha nge s in env ironm ental co nditi on s, el ectri c, electr oni c, or el ectroma gneti c di sru ption s, a nd t amperi ng, the Pro duct m ay not perf orm as ex pecte d. T he p urch aser and user are
advised to take al l neces sary pr ecaution s for th e pr otection and saf ety of per sons and pro pert y.
This stateme nt prov ide s certai n legal rights. Other right s may v ary by st ate or c ount ry. U nder certai n circum st anc es, som e st ates or count rie s m ay not al lo w excl usion or l im itation of
incide nt al or co nseq uenti al d amag es or im pli ed warra ntie s, s o t he a bov e exclusi on s m ay not apply u nder th ose circ umst ance s an d i n t hose stat es o r cou ntrie s.
Elpas r eserv es the right to modif y thi s statem ent at any t im e, i n it s sole di scretio n wi thout noti ce t o any purc hase r or u ser . Howev er, this st atem ent sh all not b e modif ied or v aried ex cept by
Elpas i n writi ng, and El pa s doe s not authorize a ny si ngle indiv idual to act on it s be half t o modif y or v ary t his st atement. Any que sti on s about t hi s statement
should be dir ecte d t o Elpas.
Preliminary
