Elpas Solutions 5-WTG411210 Quad Technology Wrist Tag User Manual

Elpas Solutions Ltd. Quad Technology Wrist Tag Users Manual

Users Manual

Elpas3 Personal Safety Bracelet
5-WTG41100-0, 5-WTG41120-0 (Mother Tag), 5-WTG41102-0 (Security Band)
Installation Guide
www.elpas.com
Page 1 of 4
V1/July 2015
Introduction

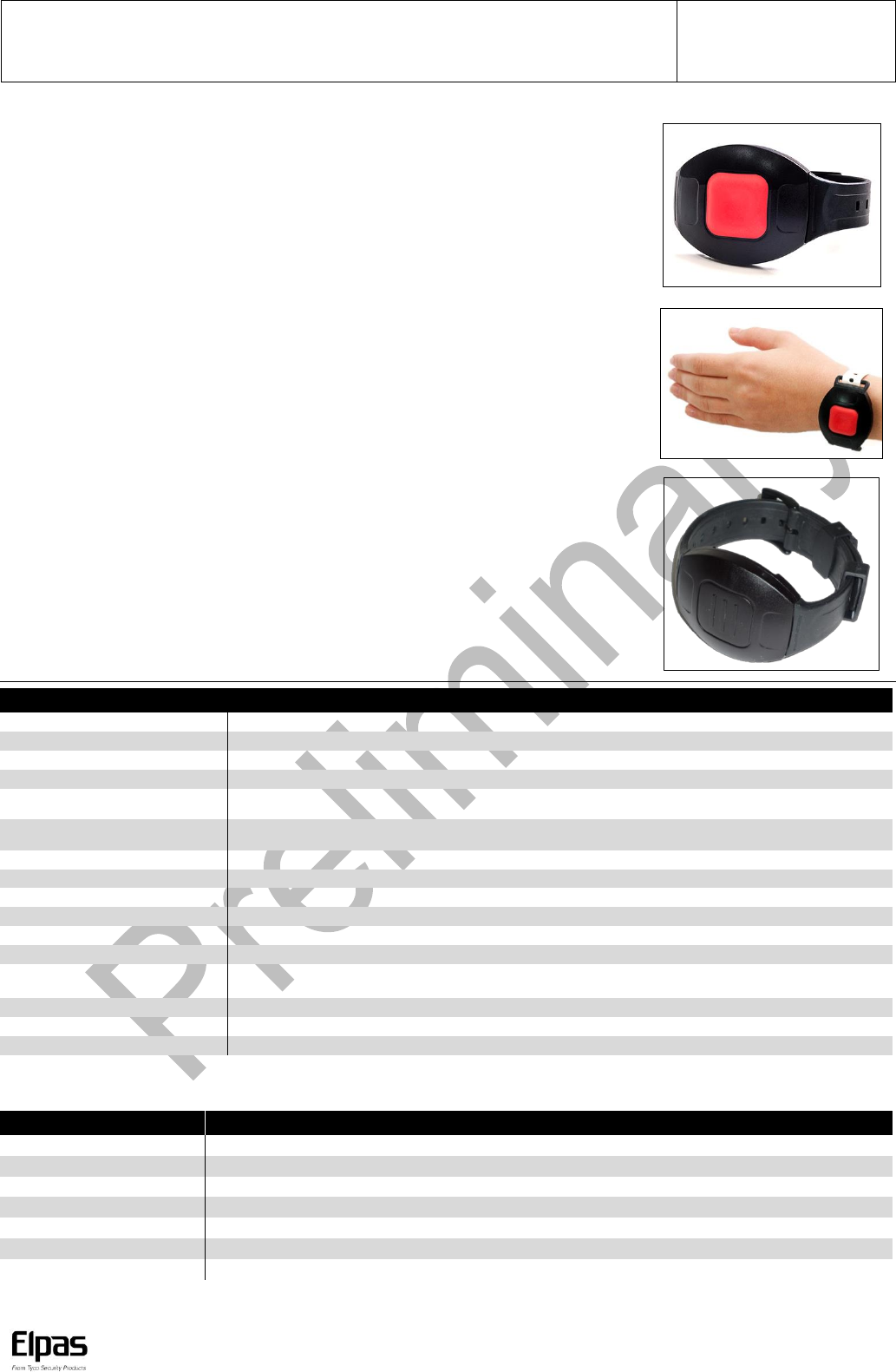

The Elpas3 Personal Safety Bracelet is an attractive bracelet that provides around-the-clock
monitoring of medical patients and assisted living care residents who require added safety.
The bracelet bundles tri-tech (in Mother Bracelet – quad-tech, includes LF transmission) Real-Time
Location System (RTLS) technologies to deliver precise real-time positioning data so that a host RTLS
safety application or an integrated physical security platform can track the whereabouts of the
individual anywhere within the facility.
Note: IR is optional. If irrelevant, users can deactivate IR functionality to conserve battery.
Elpas3 Personal safety Bracelet includes RF reception as well as transmission to allow two-way communication with
Eiris. Eiris can acknowledge when it receives an RF message.
The bracelet features a large duress call button designed especially for senior citizens. Pressing the
button causes the tag to transmit positioning data that identifies the person requiring assistance and
the precise building location of the involving medical or safety incident for speedier and more effective
response efforts.
Note: It is optional to replace the button cover of the tag with a standard plastic cover.
The Mother version also pairs with an Elpas Infant Protection Charm. With the press of the bracelet
button, the infant charm flashes a color, indicating the two are paired. When a user presses the button
again, the bracelet transmits an LF signal that tests if it matches with the Infant Protection Charm.
Once the pairing is made, only the wearer of the Mother Bracelet can exit designated areas with the
baby who wears the Infant Protection Charm with which it is paired.
The bracelet enables immediate near-exit location awareness for administering patient/staff escort
procedures and for preventing unauthorized transfers into or out of protected building areas.
Product Specifications
RF Reception and Transmission (433MHz); IR Reception (125KHz) ; LF Reception (125KHz) ; LF Transmission (in Mother Bracelet)
Supervision messages every 10 seconds / 60 seconds
Supervision messages every 10 seconds / 60 seconds
LF Entry/Exit: Button Press/Release, Motion/Stationary, Low Battery
Entry into LF: 3 transmissions (each @ 2ms in duration), 0.5secs apart; every 2 seconds.
After 10 minutes under LF: Returns to 10 seconds while in motion
3.0V/560mAH lithium battery, CR 2450
12-36 months depending upon usage
Low Battery (flashes every ten sec when below 2.6 Volts), Button Press (flashes three times), LF Field (flashes three times)
Factory-Programmed
IP65, Nylon Plastic
41.1 grams (1.45 ounces)
46.9 x 41.0 x16.8mm (1.84 x 1.61 x 0.65 inches)
Temp: -30°C to 70° C (-22°F to 158°F)
Humidity: 100% non-condensing
Eiris
CE, FCC, IC compliant and certified
1 year limited warranty
Product offerings and specifications are subject to change without notice.
Not all products include all features.
Accessories
Part Number
Description
5-BTE00433-1
Elpas Infant Protection Charm
5-PB063011
Disposable Secure Hospital ID Band (set of 50)
5-WTA90007
Canvas Wristband with Lock Pin (set of 5)
5-500130
Lock Pin Removal Magnet
5-WTD09012
Security Band (set of 5). To insert, remove band adapters
5-WTD09009
Band Lock Key (set of 5)
5-WTD09017
WTD No Button Cover (set of 5 with 20 screws)
Elpas Personal Safety Bracelet – User Guide
www.elpas.com
Page 2 of 4
V1/July 2015
Initial Activation

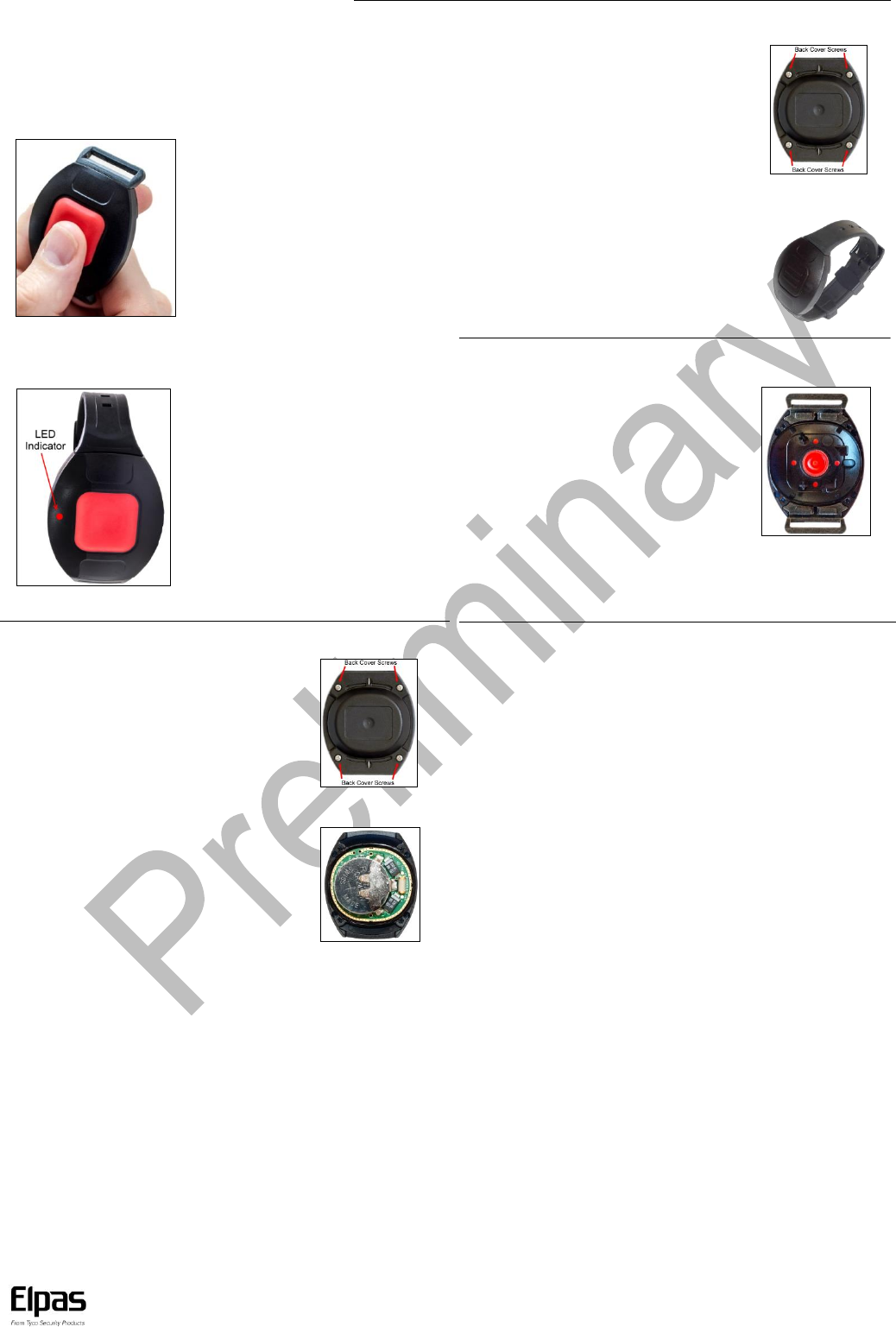

The bracelet is shipped from the factory in Sleep Mode to
conserve battery power during shipping.
To activate the bracelet from sleep mode:
Button Press
Orient the tag front-cover side up.
Next press & hold down the call
button for at least 5 seconds.
If the wake-up process is successful the LED Indicator on the
front of the bracelet will illuminate for 3 seconds.
Tag Cover Replacement
Place the bracelet back cover side up. Then
Unscrew the 4 screws, flip the badge back
side down, and remove the front cover.
If the PCB is removed from the back cover
in the process, replace it. Make sure both
pins inserted inserted in their respective
hole from the bottom of the PCB.
Close the front cover so that the screw holes
are aligned. Tighten the 4 screws snugly into
place. Do not over-tighten as this may strip
the case threads.
Attaching the Hospital Band Adapters
Place the bracelet back cover side up. Then
Unscrew the 4 screws and remove the back
cover.
Position the bracelet front cover side down.
Next insert the two hospital band adapters
into the grooved slots which are located on
either side of the front cover.
Close the back cover such that the screw
holes are correctly aligned. Tighten the 4 screws snugly into place.
Do not over-tighten as this may strip the case threads
Battery Replacement
Change the bracelet’s status in the host
RTLS application to ‘Inactive’.
Place the bracelet back cover side up.
Then Unscrew the 4 screws and remove the
back cover.
Slide the battery out from under the battery
holder. Dispose of used battery in accordance
with local regulations.
Replace the battery ensuring that the positive
(+) side of the battery faces up.
Close the back cover such that the screw holes are correctly
aligned. Tighten the 4 screws snugly into place. Do not over-tighten
as this may strip the case threads.
Change the bracelet’s status in the host RTLS application back to
‘Active’.
Disabling IR
By default, IR functionality is on.
1. Press button B1 (the large one) for five seconds. The LED
Flashes five times.
A single flash means IR is now on.
A double flash means IR is now off.
2. While the LED flashes, press the button again, three short
presses, to change from the current state. The LED flashes
again, as before, to indicate the new state.
Note: If you do not press three times in five seconds (while the LED flashes),
the tag remains in the original state.
www.elpas.com
Page 3 of 4
V1/July 2015
Mother-Baby Local Pairing
When bracelets with mother infant pairing capabilities (P/N 5-WTD41120-0) are used, then the pairing with an Elpas Charm (P/N 5-
BTE00433-1) may be performed as follows:
1. Make sure the Mother Bracelet is within a 15cm Range of the charm.
2. Connect the Charm band.
3. When the Charm red LED flashes, press the button of the Mother Bracelet and hold it until the Charm green LED flashes. The LF
IDs of both charms are paired.
4. For a match test, press the button of the Mother Bracelet and hold it until the Charm green LED flashes.
Note: To pair the The mother Bracelet and Infant Charm through EV2, see Eiris Configuration Guide, section 9.3.2.
Note: In case of a duplicate ID Trouble Alert, submit a support ticket with Elpas at www.elpas.com

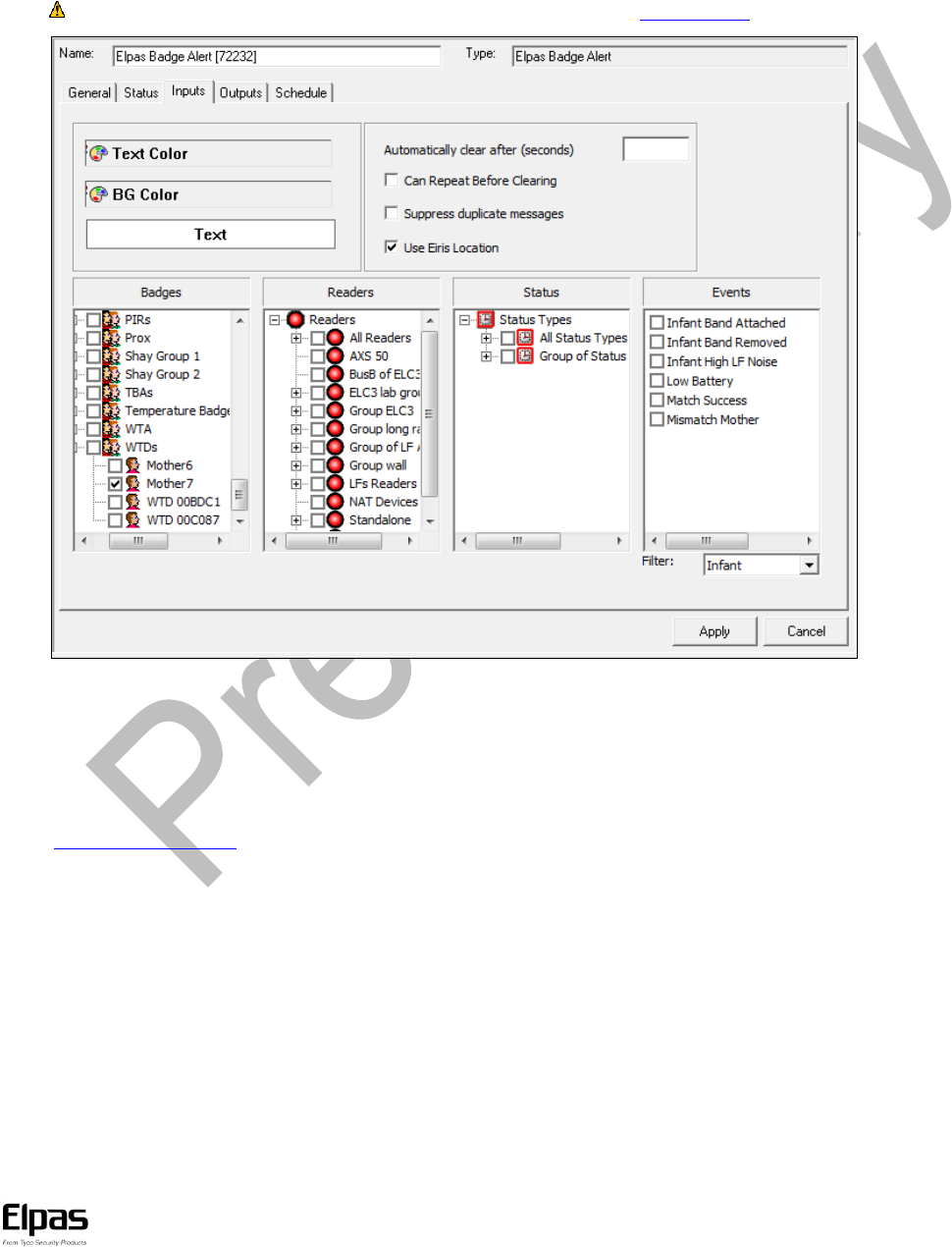

Note: To configure an Elpas Badge Alert for the Infant Protection Charm, see Eiris Configuration Guide, section 5.15
False Tamper Alerts
If you use a Security Band and it produces false Tamper alerts, clean the band thoroughly as dirt can act as a buffer between the
contacts. If false Tamper alerts persist, replace the band.
Cleaning & Disinfection Procedures
Use an appropriate antibacterial disinfectant such as Dispatch® Hospital Cleaner Disinfectant with Bleach from Caltech Industries, Inc
(http://www.caltechind.com) to clean the Bracelet.
Since ‘Cleaning Procedures’ may vary according to facility guidelines, thus the procedures given below are for illustrative purposes only:
Option 1 – Using Dispatch Disinfectant Spray
1. Lightly wet a disposable towel with Dispatch spray
2. Do not saturate the towel
3. Wipe the outer surfaces of the bracelet
4. Next wipe the bracelet with a dry disposable towel
5. Allow the bracelet to air dry
6. Return the clean bracelet to inventory or usage
7. Dispose of used towels per facility policies
Option 2 – Using Dispatch Disinfectant Towels
1. Open a new Dispatch pre-moistened towel
2. Wipe the outer surfaces of the bracelet
3. Next wipe the bracelet with a dry disposable towel
4. Allow the bracelet to air dry
5. Return the clean bracelet to inventory or usage
6. Dispose of used towels per facility policies
Elpas Personal Safety Bracelet – User Guide
Page 4 of 4
V1/July 2015
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it.
If you are discarding this product and not returning it for repair then you must ensure that it is returned as identified by your supplier.
This product is not to be thrown away with everyday waste - Directive 2002/96/EC Waste Electrical and Electronic Equipment.
