New User Manual

Alert Tag Instruction Manual and Spec-Sheet
FCC Compliance
The FCC Wants You to Know
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by tuning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment
and receiver.
c) Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
d) Consult the dealer or an experienced radio/TV
technician.
FCC Warning
Modifications not expressly approved by manufacturer could void
the user authority to operate the equipment under FCC rules.
15.9 (a) Labeling Requirements
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions. (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
IR and RF Alert Tag
P/N: ALB00001 (433.92 MHz)
IR/RF Alert Tag
Description

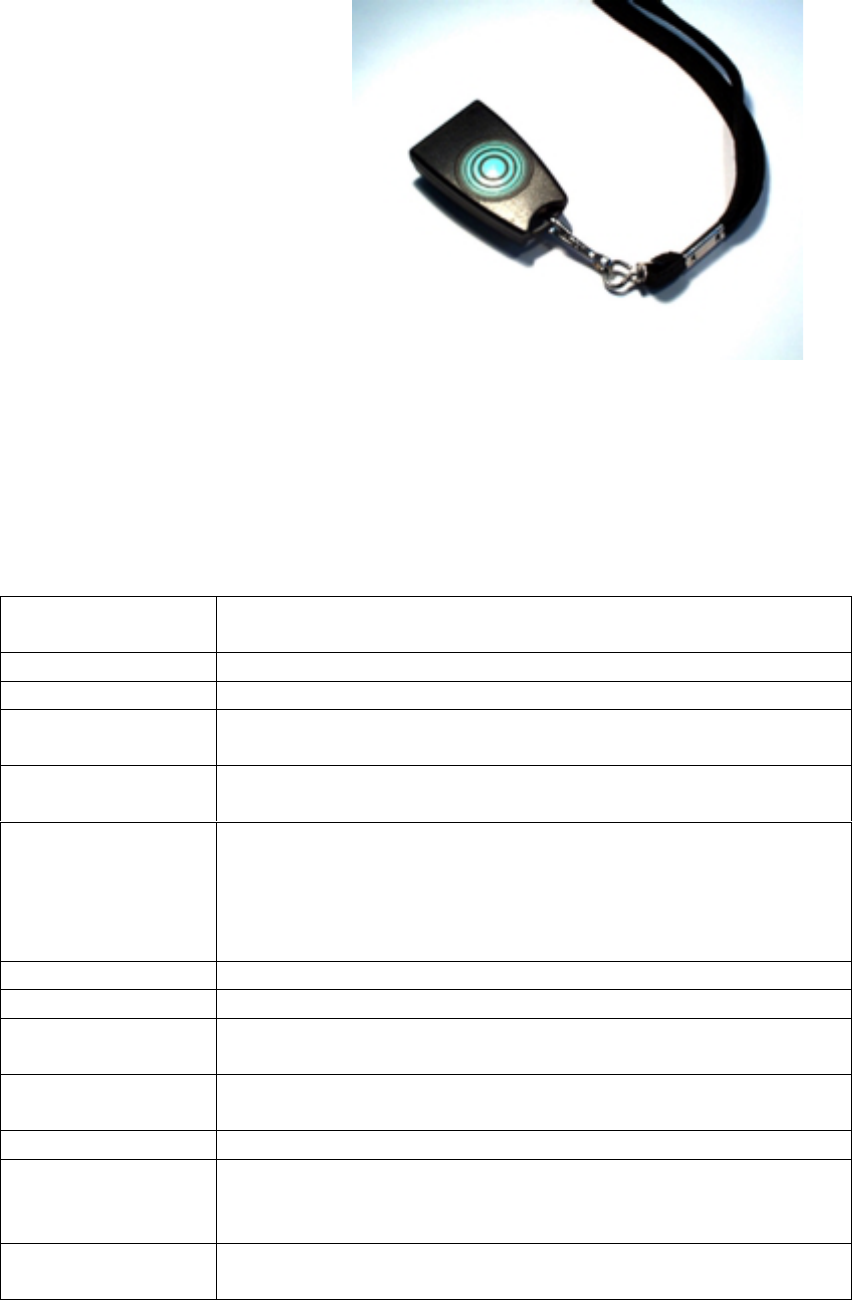

A small light-weight, oval badge. The tag sends Infra Red signals, and in addition
sends RF signals in the frequency of 433.92 MHz. Designed especially for the
convenience of the elderly or persons in stressful situations (alert, panic, etc.).
General
Electrical power
source One 3-Volt lithium battery
Data rate 19,200 bits per second
Modulation ASK (Amplitude Shift Keying of IR or RF carrier)
Message
protocol 4 bytes proprietary format
Message
duration 2.08 ms
Button on badge Location dependent function. Twelve identical button
messages are transmitted 0.4 sec apart on every button
press. Button press transmitted with IR and RF message.
Button press decoded by IR and RF Readers or Central
PC.
Battery type CR 2032 Renata
Battery life One year, assuming movement 12 hr / day
Battery status
indication Battery status transmitted with every RF and IR message
Badge ID Unique factory programmed (ID code, transmit rate,
motion sensor activation and deactivation, etc.)
Dimensions Pendant shape 55 x 35 x 18 mm
Weight
(including
battery)
25 gram
Temperature:
Operating -10 to 70°C
Temperature:
Storage -20 to 60°C
Humidity:
Operating Operating – 5 to 95% RH @ 70°C
Humidity :
Storage Non Operating (12 Hours) – 5 to 95% RH @ 85°C
Accessories Neck strap (included)
IR Transmission
Peak optical
transmitted
power
500mW
Peak
transmission
wavelength
880nm
Peak radiant
intensity 120 mW/Sr
Frequency of
transmission Carrier at 455 KHz
Transmission
rate During human movement – every 3 to 5 sec message.
During rest (no movement) – every 60 sec
Transmission
angle 360° badge plane. ±60° to badge perpendicular axis
EMC
compliance Refer to Appendix A and B
RF Transmission
433.92 MHz RF
Modulation ASK (Amplitude Shift Keying of 433.92 MHz carrier)
Average
effective
radiated power
In motion: less than –35 dbm. Motionless: less than –45
dbm
Stability +/- 20ppm
Peak ERP -15 dbm (max)
Transmission
pattern Omnidirectional
Using the Alert Tag
The following is a set of procedures to ensure proper use of the Alert Tag.
To use the Alert Tag:
1. For general use, place the strap of the Alert Tag around the person’s neck.
2. In case of emergency press the large press button.
Battery Replacement
The battery is located inside the Alert Tag. In order to replace the battery, you need
to open the back side of the Alert Tag with a Phillips screwdriver (preferably an
electric one) with point size "0". For example, the APEX #4910. A new battery can
then be inserted, after which the screw must be replaced.
