A3 ALPHA® meter with
wireless cellular communication option
General
The A3 ALPHA meter may be ordered with a wireless cellular communication option: the Wireless WAN Interface Card.
The Wireless WIC is available in CDMA 1xRTT and GSM GPRS versions, providing a high speed cellular
communication channel.
This leaflet provides general information for the Wireless WIC that is installed within an A3 ALPHA meter.
■For information on installing the A3 ALPHA meter, see the “ALPHA Meter Installation Instructions” (IL42-
4001Q or later)
WARNING
!
Use authorized utility procedures to install and service metering equipment. Dangerous voltages are present.
Equipment damage, personal injury, or death can result if safety precautions are not followed.
Use circuit closing devices on current transformer secondaries (3S, 4S, 5S, 5A, 6S, 6A, 8S, 9S, 10S, 10A, 26S,
29S, 35S, 36S, and 36A meters). Equipment damage, personal injury, or death can result if circuit closing
secondaries are not used.
Location of antennas
See Figure 1 for the location of the Wireless WIC antenna. If the A3 ALPHA meter is serving as an EA_Gatekeeper,
then the A3 ALPHA meter has 2 antennas: the Wireless WIC antenna is in the upper position and the EA_LAN antenna
is in the lower position.
The Wireless WIC antenna and the EA_LAN antenna (if present) are fix-mounted to the periphery of the A3 ALPHA
meter’s electronic housing. The Wireless WIC antenna and the EA_LAN antenna (if present) are not adjustable or
removable.
Preliminary
IL42-4036A January 2010
2

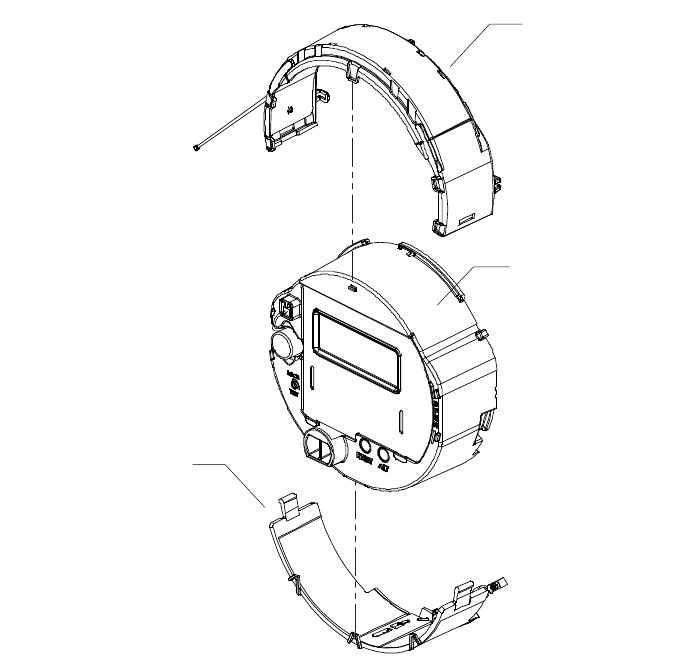

Figure 1. Location of the internal antennas
Wireless WIC internal
antenna
Internal antenna for
connection to the EA_LAN
Electronic housing of
the A3 ALPHA meter
(Present only when serving
as an EA_Gatekeeper)
Preliminary
January 2010 IL42-4036A
3
Placing the A3 ALPHA meter with Wireless WIC into service
See IL42-4001Q or later for the A3 ALPHA meter installation instructions. When planning the meter installation,
consider the following additional guidelines:
■Since the Wireless WIC and EA_LAN (if present) are high frequency communication devices, site the meter so
that the front of the meter has the best possible view of the surrounding terrain.
■Do not place metal structures (other than the meter socket and related cabling) within 20 cm of the meter.
After the A3 ALPHA meter is installed and powered as instructed in IL42-4001Q or later, the installation is complete. If
on-site verification of the Wireless WIC operation is desired, the following steps may be taken:
To verify that the Wireless WIC is operational:
1. After installing and powering the A3 ALPHA meter, wait approximately 5 minutes for the Wireless WIC to
connect to the cellular network and initialize.
2. Using Metercat and an optical probe connection, perform a diagnostic read. For information on using
Metercat and performing diagnostic reads, see the Metercat software documentation or online Help.
3. Once the diagnostic read is performed, select the Special Option Board section. Several operational
parameters are provided, including the following:
Item Expected status
WAN Wireless Status
Status Connected means the Wireless WIC is registered
to the cellular network
Received Signal Strength
Indication (RSSI)
The RSSI may vary between 0 and 31, with 31
indicating the best possible signal strength. An
RSSI value of 99 indicates an unknown or non-
detectable signal.
WAN IP address The IP address provided by the cellular network.
Preliminary
IL42-4036A January 2010
