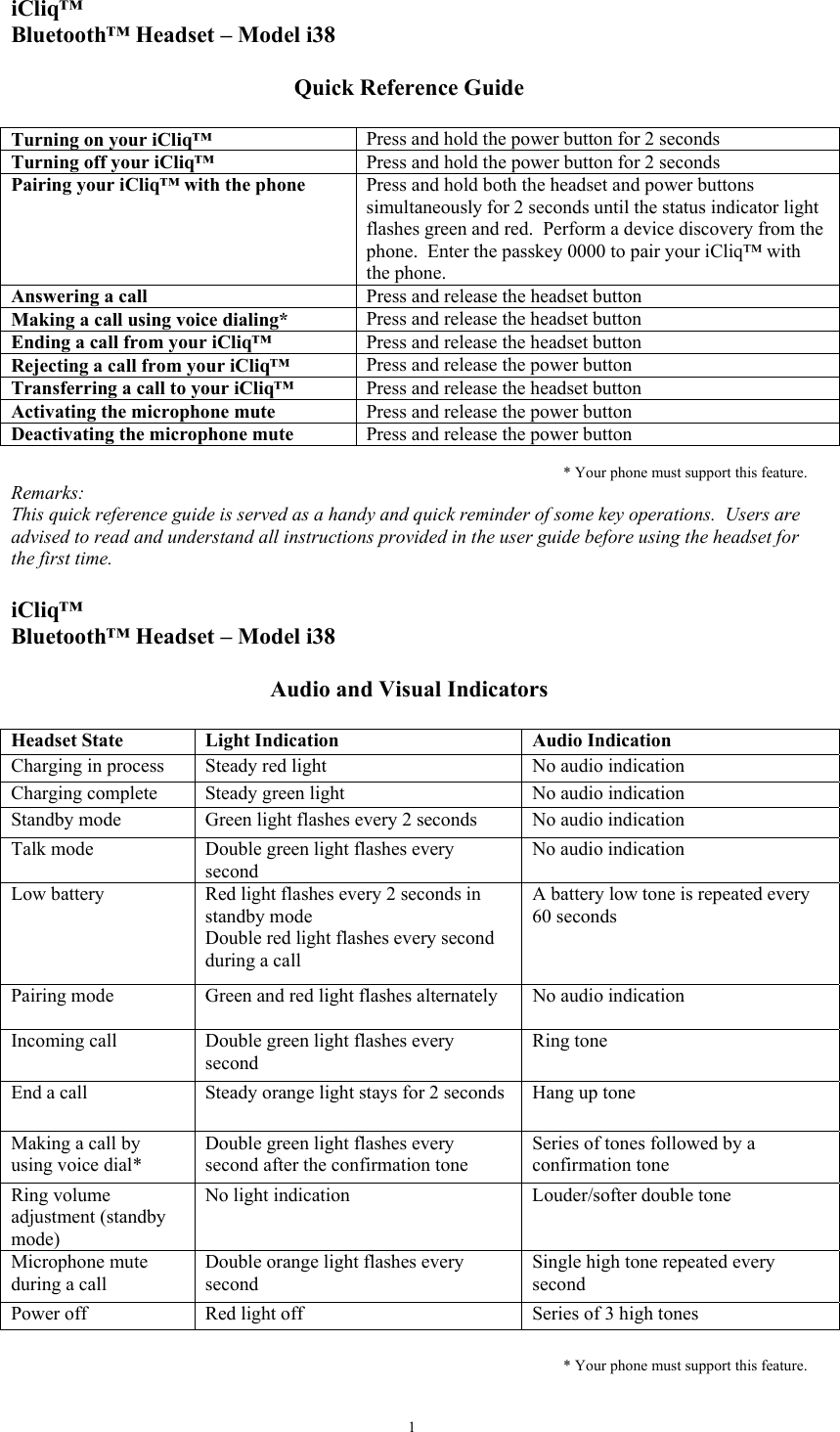

  1iCliq™ Bluetooth™ Headset – Model i38  Quick Reference Guide  Turning on your iCliq™  Press and hold the power button for 2 seconds Turning off your iCliq™  Press and hold the power button for 2 seconds Pairing your iCliq™ with the phone  Press and hold both the headset and power buttons simultaneously for 2 seconds until the status indicator light flashes green and red.  Perform a device discovery from the phone.  Enter the passkey 0000 to pair your iCliq™ with the phone. Answering a call  Press and release the headset button Making a call using voice dialing*  Press and release the headset button Ending a call from your iCliq™  Press and release the headset button Rejecting a call from your iCliq™  Press and release the power button Transferring a call to your iCliq™  Press and release the headset button Activating the microphone mute  Press and release the power button Deactivating the microphone mute  Press and release the power button  * Your phone must support this feature. Remarks: This quick reference guide is served as a handy and quick reminder of some key operations.  Users are advised to read and understand all instructions provided in the user guide before using the headset for the first time.  iCliq™ Bluetooth™ Headset – Model i38  Audio and Visual Indicators  Headset State  Light Indication   Audio Indication Charging in process  Steady red light   No audio indication Charging complete  Steady green light  No audio indication Standby mode  Green light flashes every 2 seconds   No audio indication Talk mode  Double green light flashes every second  No audio indication Low battery  Red light flashes every 2 seconds in standby mode Double red light flashes every second during a call A battery low tone is repeated every 60 seconds Pairing mode  Green and red light flashes alternately  No audio indication Incoming call  Double green light flashes every second Ring tone End a call  Steady orange light stays for 2 seconds  Hang up tone Making a call by using voice dial* Double green light flashes every second after the confirmation tone Series of tones followed by a confirmation tone Ring volume adjustment (standby mode) No light indication  Louder/softer double tone Microphone mute during a call Double orange light flashes every second Single high tone repeated every second Power off   Red light off   Series of 3 high tones   * Your phone must support this feature.

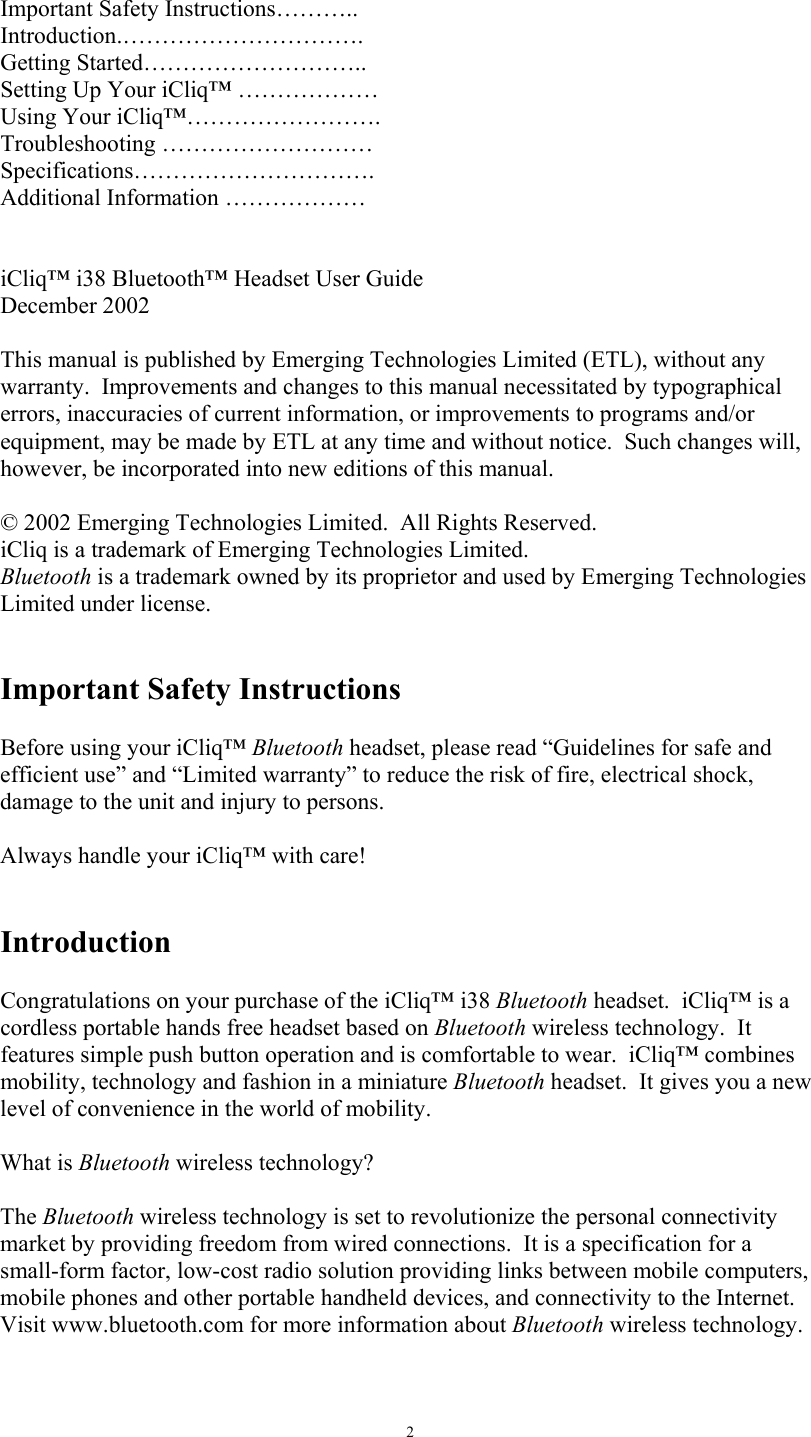

  2 Important Safety Instructions……….. Introduction.…………………………. Getting Started……………………….. Setting Up Your iCliq™ ……………… Using Your iCliq™……………………. Troubleshooting ……………………… Specifications…………………………. Additional Information ………………   iCliq™ i38 Bluetooth™ Headset User Guide December 2002  This manual is published by Emerging Technologies Limited (ETL), without any warranty.  Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by ETL at any time and without notice.  Such changes will, however, be incorporated into new editions of this manual.  © 2002 Emerging Technologies Limited.  All Rights Reserved. iCliq is a trademark of Emerging Technologies Limited. Bluetooth is a trademark owned by its proprietor and used by Emerging Technologies Limited under license.   Important Safety Instructions  Before using your iCliq™ Bluetooth headset, please read “Guidelines for safe and efficient use” and “Limited warranty” to reduce the risk of fire, electrical shock, damage to the unit and injury to persons.  Always handle your iCliq™ with care!   Introduction  Congratulations on your purchase of the iCliq™ i38 Bluetooth headset.  iCliq™ is a cordless portable hands free headset based on Bluetooth wireless technology.  It features simple push button operation and is comfortable to wear.  iCliq™ combines mobility, technology and fashion in a miniature Bluetooth headset.  It gives you a new level of convenience in the world of mobility.  What is Bluetooth wireless technology?  The Bluetooth wireless technology is set to revolutionize the personal connectivity market by providing freedom from wired connections.  It is a specification for a small-form factor, low-cost radio solution providing links between mobile computers, mobile phones and other portable handheld devices, and connectivity to the Internet.  Visit www.bluetooth.com for more information about Bluetooth wireless technology.

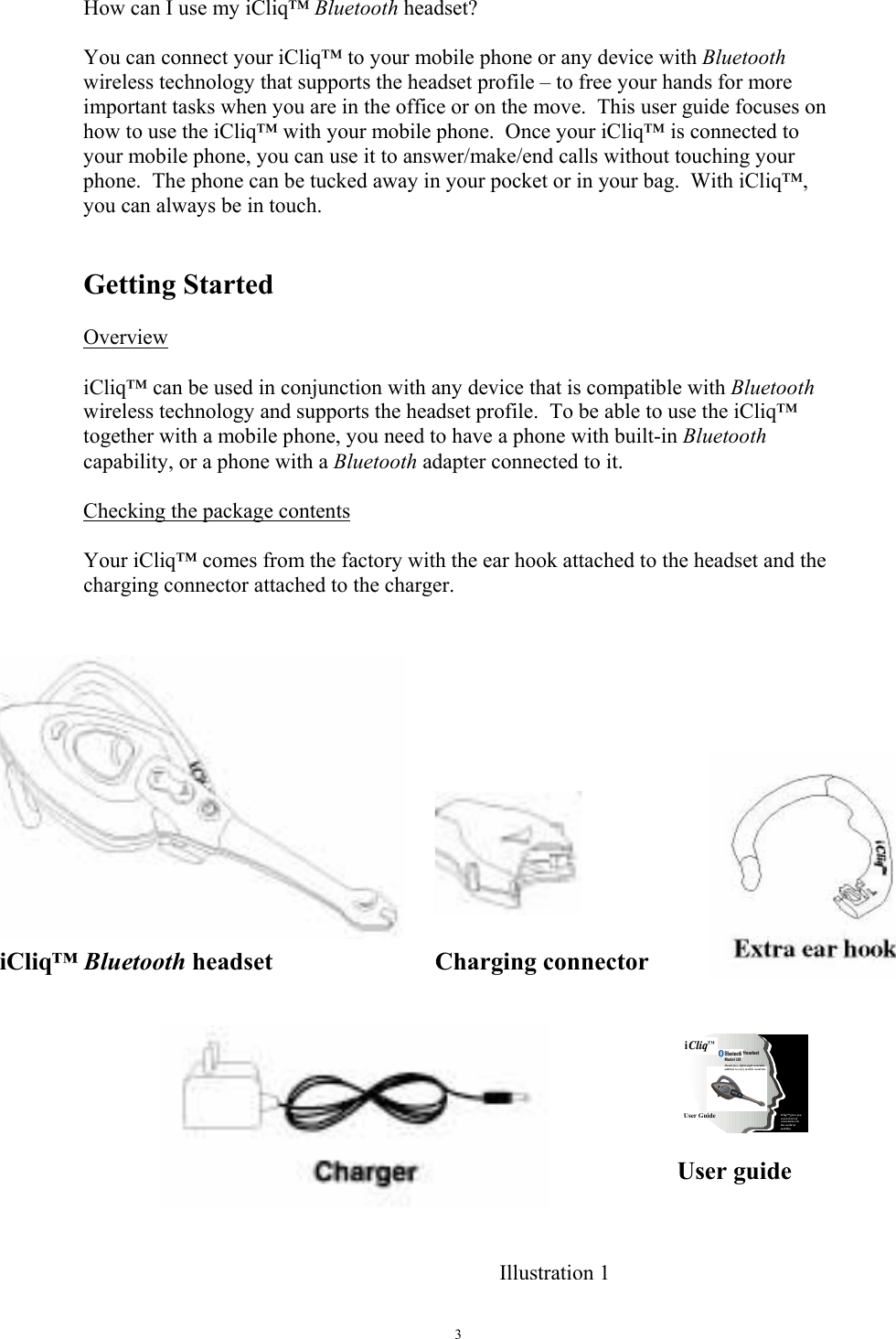

  3How can I use my iCliq™ Bluetooth headset?  You can connect your iCliq™ to your mobile phone or any device with Bluetooth wireless technology that supports the headset profile – to free your hands for more important tasks when you are in the office or on the move.  This user guide focuses on how to use the iCliq™ with your mobile phone.  Once your iCliq™ is connected to your mobile phone, you can use it to answer/make/end calls without touching your phone.  The phone can be tucked away in your pocket or in your bag.  With iCliq™, you can always be in touch.   Getting Started   Overview  iCliq™ can be used in conjunction with any device that is compatible with Bluetooth wireless technology and supports the headset profile.  To be able to use the iCliq™ together with a mobile phone, you need to have a phone with built-in Bluetooth capability, or a phone with a Bluetooth adapter connected to it.  Checking the package contents   Your iCliq™ comes from the factory with the ear hook attached to the headset and the charging connector attached to the charger.   Illustration 1iCliq™ Bluetooth headset  Charging connector User guide Headset iCliq™ gives you a new level of convenience in the world of mobility.Model i38Hands free, lightweight wearable addition to every mobile wardrobe. User Guide

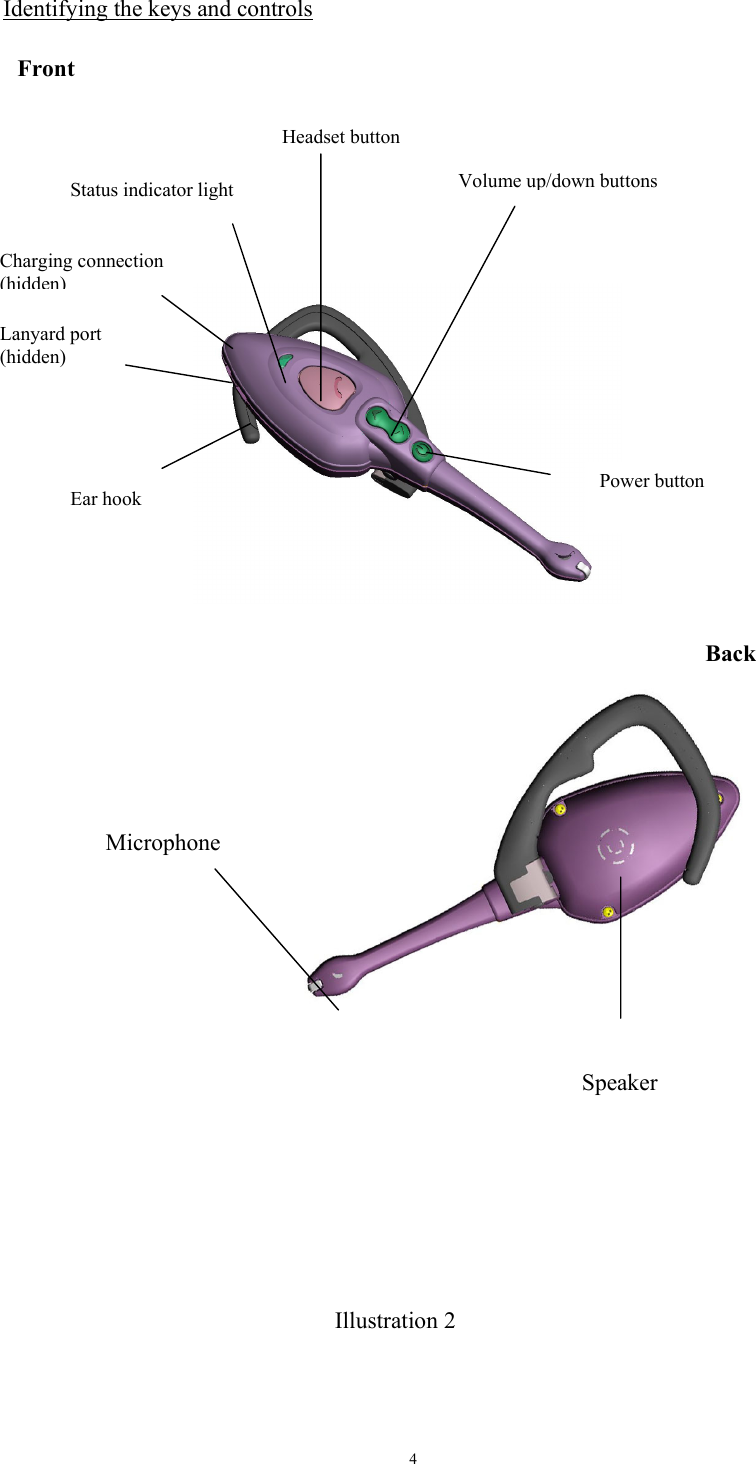

  4Identifying the keys and controls                                                   Front Back Headset buttonVolume up/down buttonsPower button Ear hook Status indicator light Microphone Speaker Illustration 2Charging connection (hidden)Lanyard port (hidden)

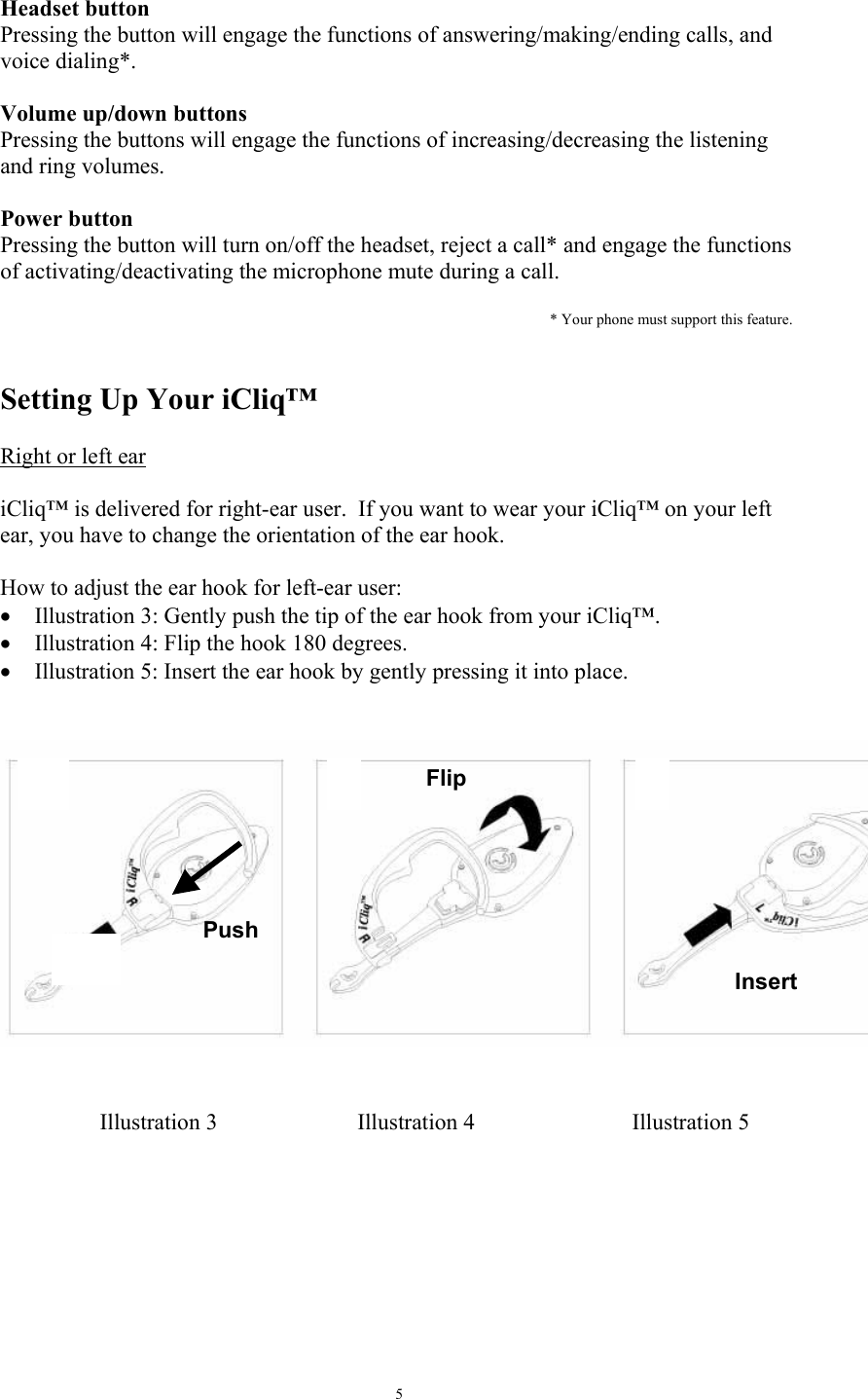

  5 Headset button Pressing the button will engage the functions of answering/making/ending calls, and voice dialing*.    Volume up/down buttons  Pressing the buttons will engage the functions of increasing/decreasing the listening and ring volumes.  Power button Pressing the button will turn on/off the headset, reject a call* and engage the functions of activating/deactivating the microphone mute during a call.  * Your phone must support this feature.   Setting Up Your iCliq™  Right or left ear   iCliq™ is delivered for right-ear user.  If you want to wear your iCliq™ on your left ear, you have to change the orientation of the ear hook.  How to adjust the ear hook for left-ear user: •  Illustration 3: Gently push the tip of the ear hook from your iCliq™.   •  Illustration 4: Flip the hook 180 degrees. •  Illustration 5: Insert the ear hook by gently pressing it into place.               Illustration 3  Illustration 4  Illustration 5 PushFlip Insert Illustration3Illustration 4Illustration 5

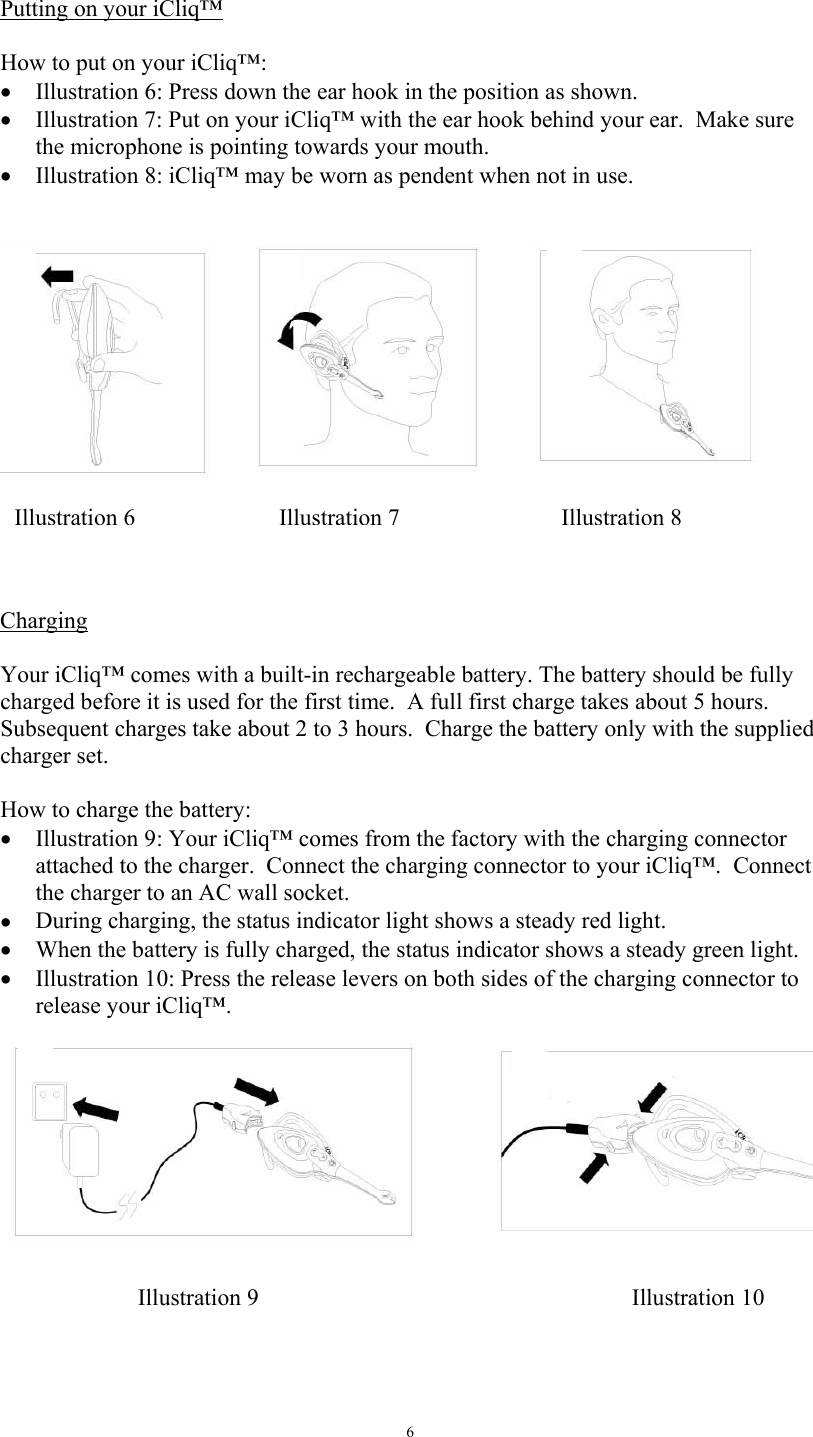

  6 Putting on your iCliq™  How to put on your iCliq™: •  Illustration 6: Press down the ear hook in the position as shown. •  Illustration 7: Put on your iCliq™ with the ear hook behind your ear.  Make sure the microphone is pointing towards your mouth.  •  Illustration 8: iCliq™ may be worn as pendent when not in use.      Charging  Your iCliq™ comes with a built-in rechargeable battery. The battery should be fully charged before it is used for the first time.  A full first charge takes about 5 hours.  Subsequent charges take about 2 to 3 hours.  Charge the battery only with the supplied charger set.  How to charge the battery: •  Illustration 9: Your iCliq™ comes from the factory with the charging connector attached to the charger.  Connect the charging connector to your iCliq™.  Connect the charger to an AC wall socket.  •  During charging, the status indicator light shows a steady red light. •  When the battery is fully charged, the status indicator shows a steady green light. •  Illustration 10: Press the release levers on both sides of the charging connector to release your iCliq™.    Illustration 9  Illustration 10 Illustration 6Illustration 7Illustration 8

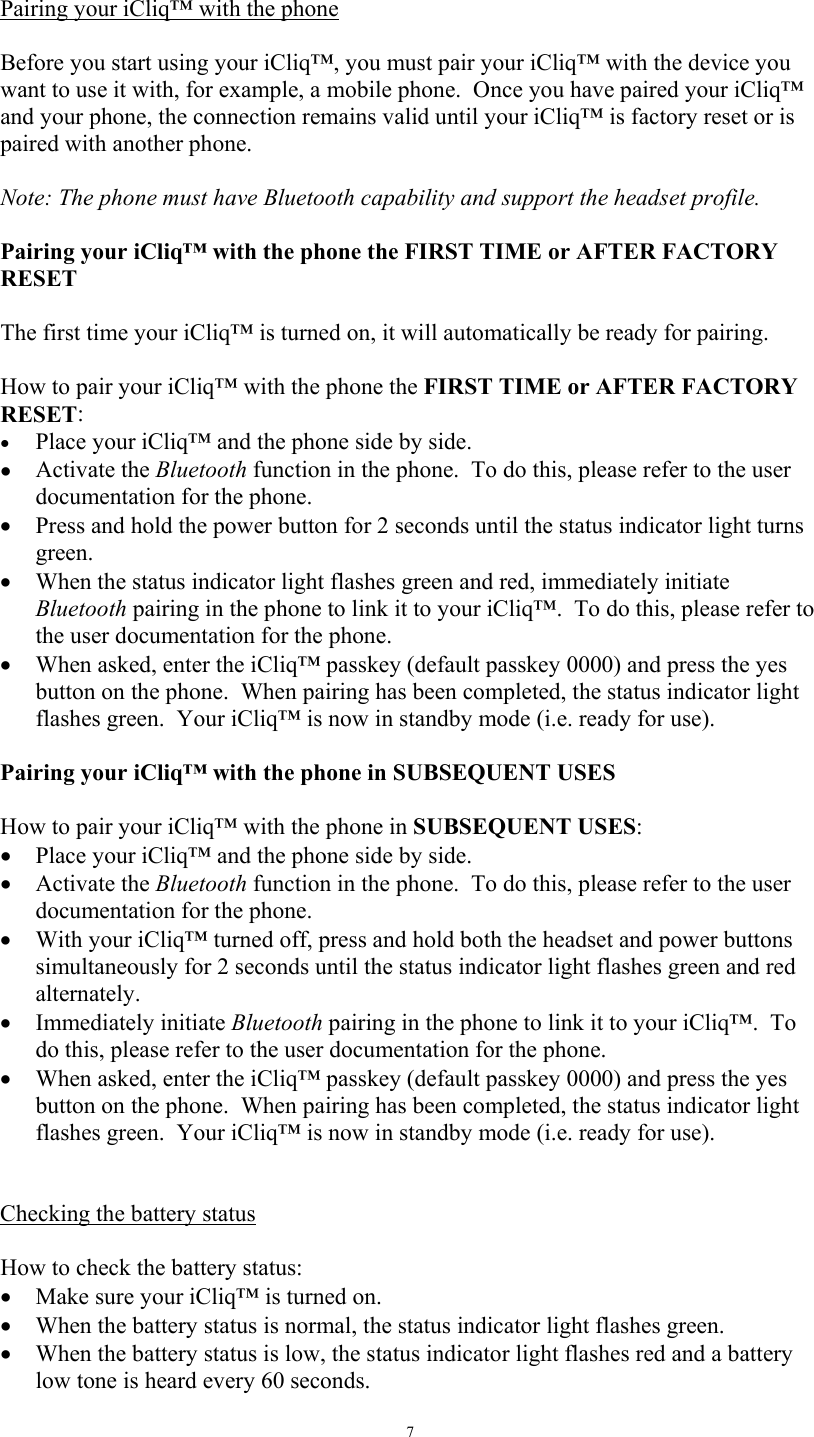

  7 Pairing your iCliq™ with the phone     Before you start using your iCliq™, you must pair your iCliq™ with the device you want to use it with, for example, a mobile phone.  Once you have paired your iCliq™ and your phone, the connection remains valid until your iCliq™ is factory reset or is paired with another phone.    Note: The phone must have Bluetooth capability and support the headset profile.  Pairing your iCliq™ with the phone the FIRST TIME or AFTER FACTORY RESET  The first time your iCliq™ is turned on, it will automatically be ready for pairing.   How to pair your iCliq™ with the phone the FIRST TIME or AFTER FACTORY RESET: •  Place your iCliq™ and the phone side by side. •  Activate the Bluetooth function in the phone.  To do this, please refer to the user documentation for the phone. •  Press and hold the power button for 2 seconds until the status indicator light turns green.   •  When the status indicator light flashes green and red, immediately initiate Bluetooth pairing in the phone to link it to your iCliq™.  To do this, please refer to the user documentation for the phone. •  When asked, enter the iCliq™ passkey (default passkey 0000) and press the yes button on the phone.  When pairing has been completed, the status indicator light flashes green.  Your iCliq™ is now in standby mode (i.e. ready for use).  Pairing your iCliq™ with the phone in SUBSEQUENT USES     How to pair your iCliq™ with the phone in SUBSEQUENT USES: •  Place your iCliq™ and the phone side by side. •  Activate the Bluetooth function in the phone.  To do this, please refer to the user documentation for the phone. •  With your iCliq™ turned off, press and hold both the headset and power buttons simultaneously for 2 seconds until the status indicator light flashes green and red alternately.   •  Immediately initiate Bluetooth pairing in the phone to link it to your iCliq™.  To do this, please refer to the user documentation for the phone. •  When asked, enter the iCliq™ passkey (default passkey 0000) and press the yes button on the phone.  When pairing has been completed, the status indicator light flashes green.  Your iCliq™ is now in standby mode (i.e. ready for use).   Checking the battery status   How to check the battery status: •  Make sure your iCliq™ is turned on. •  When the battery status is normal, the status indicator light flashes green.  •  When the battery status is low, the status indicator light flashes red and a battery low tone is heard every 60 seconds.

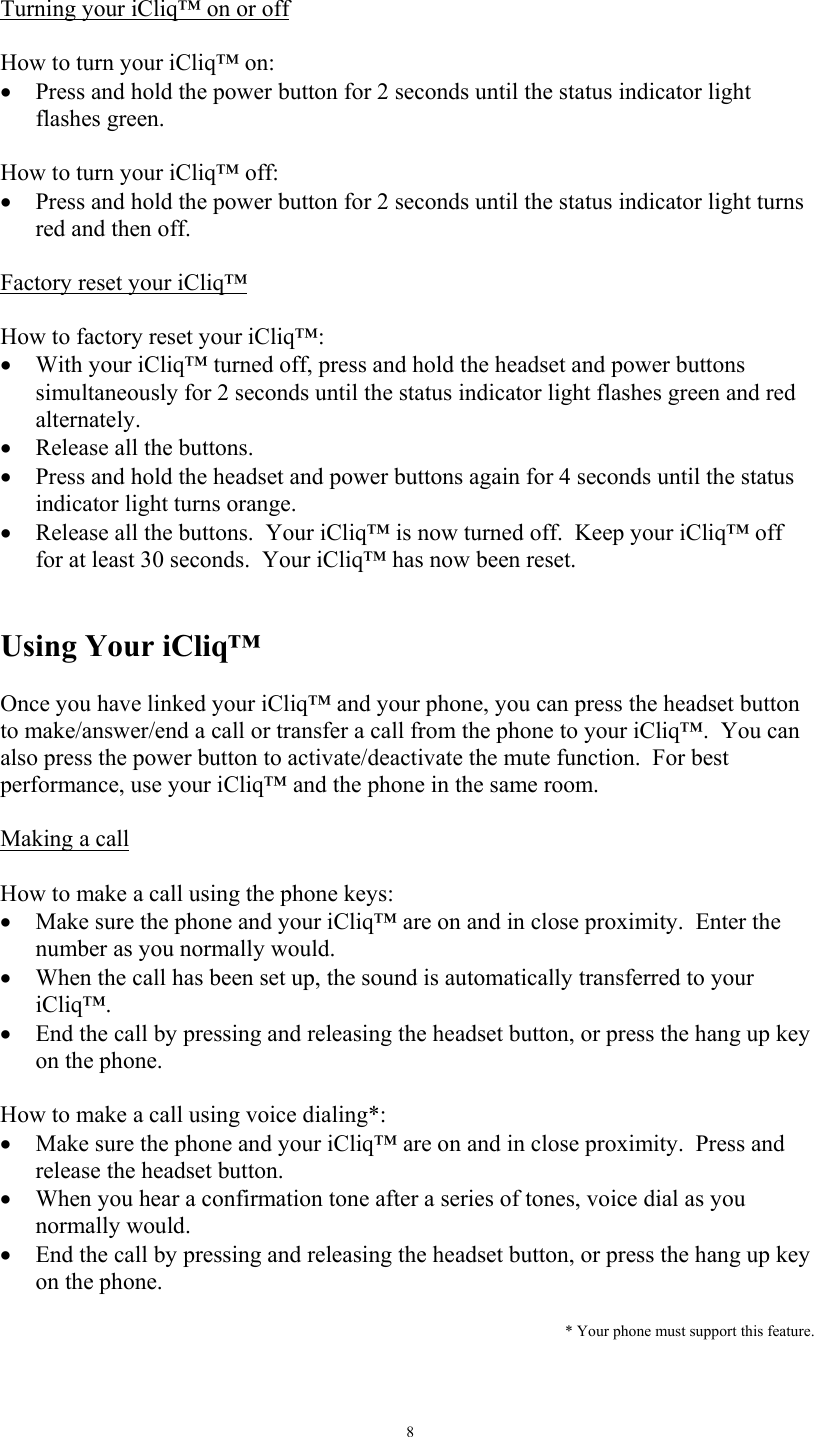

  8 Turning your iCliq™ on or off   How to turn your iCliq™ on: •  Press and hold the power button for 2 seconds until the status indicator light flashes green.  How to turn your iCliq™ off: •  Press and hold the power button for 2 seconds until the status indicator light turns red and then off.  Factory reset your iCliq™  How to factory reset your iCliq™: •  With your iCliq™ turned off, press and hold the headset and power buttons simultaneously for 2 seconds until the status indicator light flashes green and red alternately. •  Release all the buttons. •  Press and hold the headset and power buttons again for 4 seconds until the status indicator light turns orange. •  Release all the buttons.  Your iCliq™ is now turned off.  Keep your iCliq™ off for at least 30 seconds.  Your iCliq™ has now been reset.     Using Your iCliq™  Once you have linked your iCliq™ and your phone, you can press the headset button to make/answer/end a call or transfer a call from the phone to your iCliq™.  You can also press the power button to activate/deactivate the mute function.  For best performance, use your iCliq™ and the phone in the same room.  Making a call   How to make a call using the phone keys: •  Make sure the phone and your iCliq™ are on and in close proximity.  Enter the number as you normally would. •  When the call has been set up, the sound is automatically transferred to your iCliq™. •  End the call by pressing and releasing the headset button, or press the hang up key on the phone.    How to make a call using voice dialing*: •  Make sure the phone and your iCliq™ are on and in close proximity.  Press and release the headset button.   •  When you hear a confirmation tone after a series of tones, voice dial as you normally would. •  End the call by pressing and releasing the headset button, or press the hang up key on the phone.    * Your phone must support this feature.

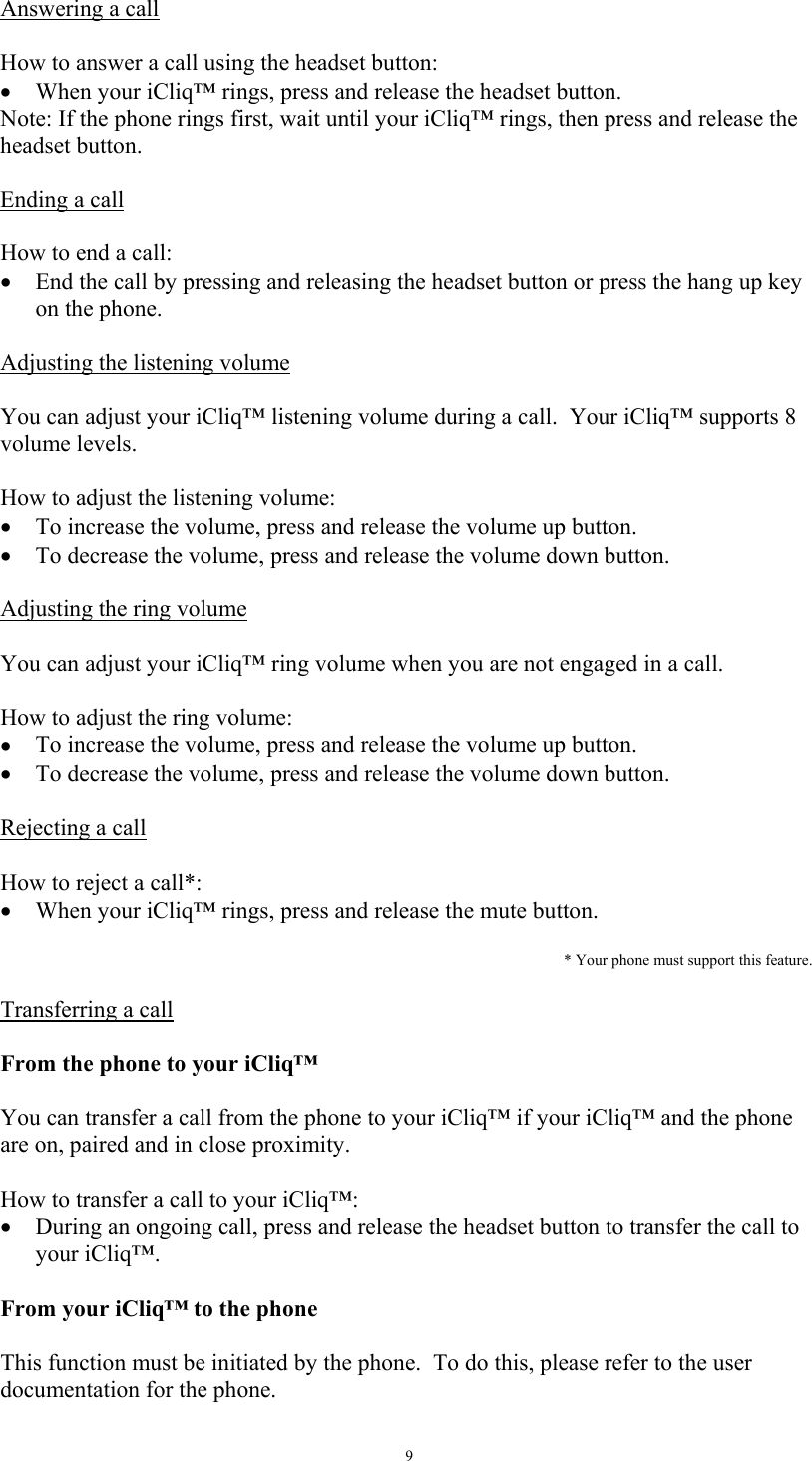

  9Answering a call   How to answer a call using the headset button: •  When your iCliq™ rings, press and release the headset button. Note: If the phone rings first, wait until your iCliq™ rings, then press and release the headset button.  Ending a call   How to end a call: •  End the call by pressing and releasing the headset button or press the hang up key on the phone.    Adjusting the listening volume   You can adjust your iCliq™ listening volume during a call.  Your iCliq™ supports 8 volume levels.  How to adjust the listening volume: •  To increase the volume, press and release the volume up button. •  To decrease the volume, press and release the volume down button.  Adjusting the ring volume   You can adjust your iCliq™ ring volume when you are not engaged in a call.  How to adjust the ring volume:  •  To increase the volume, press and release the volume up button. •  To decrease the volume, press and release the volume down button.  Rejecting a call  How to reject a call*: •  When your iCliq™ rings, press and release the mute button.  * Your phone must support this feature.   Transferring a call  From the phone to your iCliq™  You can transfer a call from the phone to your iCliq™ if your iCliq™ and the phone are on, paired and in close proximity.  How to transfer a call to your iCliq™: •  During an ongoing call, press and release the headset button to transfer the call to your iCliq™.  From your iCliq™ to the phone  This function must be initiated by the phone.  To do this, please refer to the user documentation for the phone.

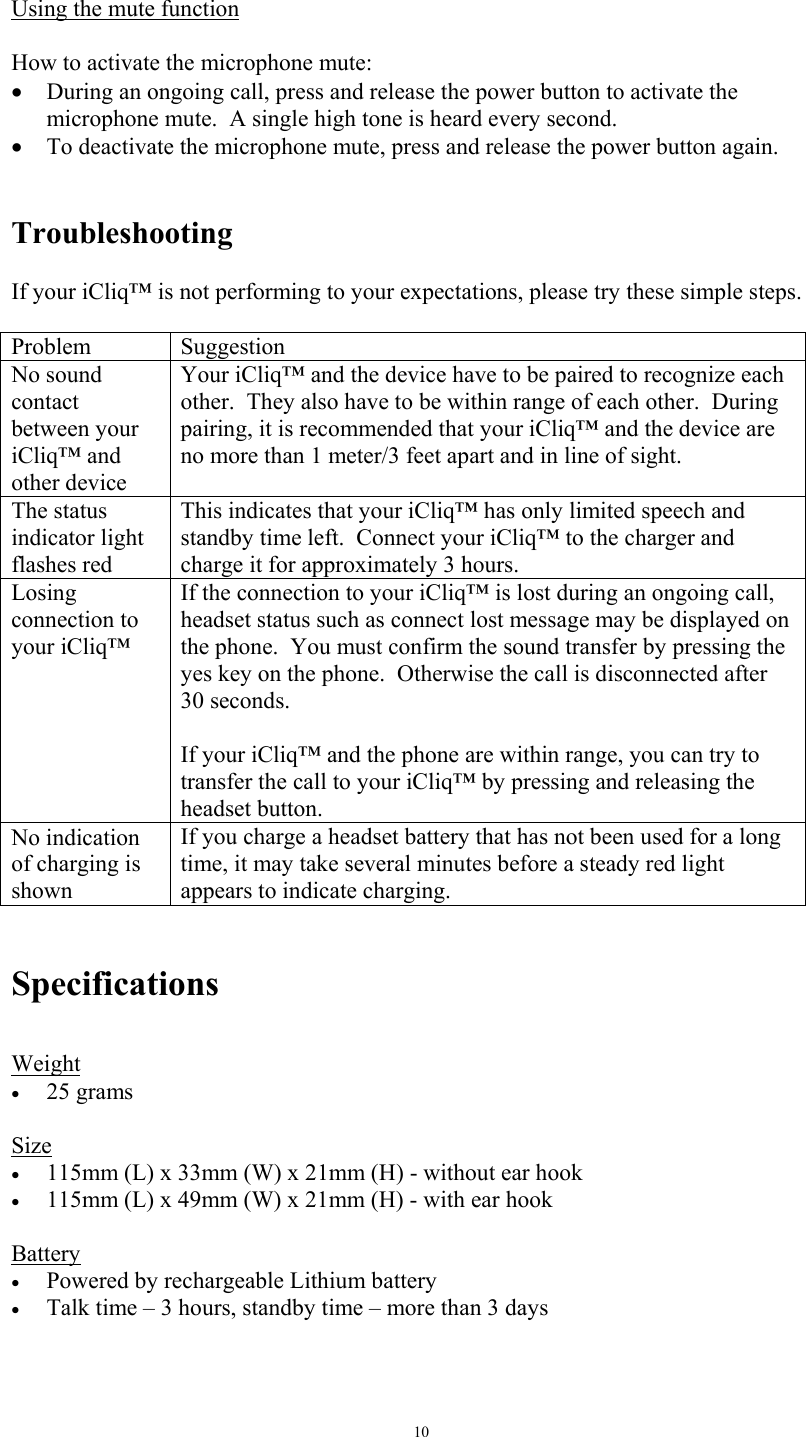

  10 Using the mute function   How to activate the microphone mute: •  During an ongoing call, press and release the power button to activate the microphone mute.  A single high tone is heard every second. •  To deactivate the microphone mute, press and release the power button again.     Troubleshooting  If your iCliq™ is not performing to your expectations, please try these simple steps.  Problem Suggestion No sound contact between your iCliq™ and other device Your iCliq™ and the device have to be paired to recognize each other.  They also have to be within range of each other.  During pairing, it is recommended that your iCliq™ and the device are no more than 1 meter/3 feet apart and in line of sight.  The status indicator light flashes red This indicates that your iCliq™ has only limited speech and standby time left.  Connect your iCliq™ to the charger and charge it for approximately 3 hours. Losing connection to your iCliq™ If the connection to your iCliq™ is lost during an ongoing call, headset status such as connect lost message may be displayed on the phone.  You must confirm the sound transfer by pressing the yes key on the phone.  Otherwise the call is disconnected after 30 seconds.  If your iCliq™ and the phone are within range, you can try to transfer the call to your iCliq™ by pressing and releasing the headset button. No indication of charging is shown If you charge a headset battery that has not been used for a long time, it may take several minutes before a steady red light appears to indicate charging.   Specifications  Weight •  25 grams  Size •  115mm (L) x 33mm (W) x 21mm (H) - without ear hook •  115mm (L) x 49mm (W) x 21mm (H) - with ear hook  Battery •  Powered by rechargeable Lithium battery •  Talk time – 3 hours, standby time – more than 3 days

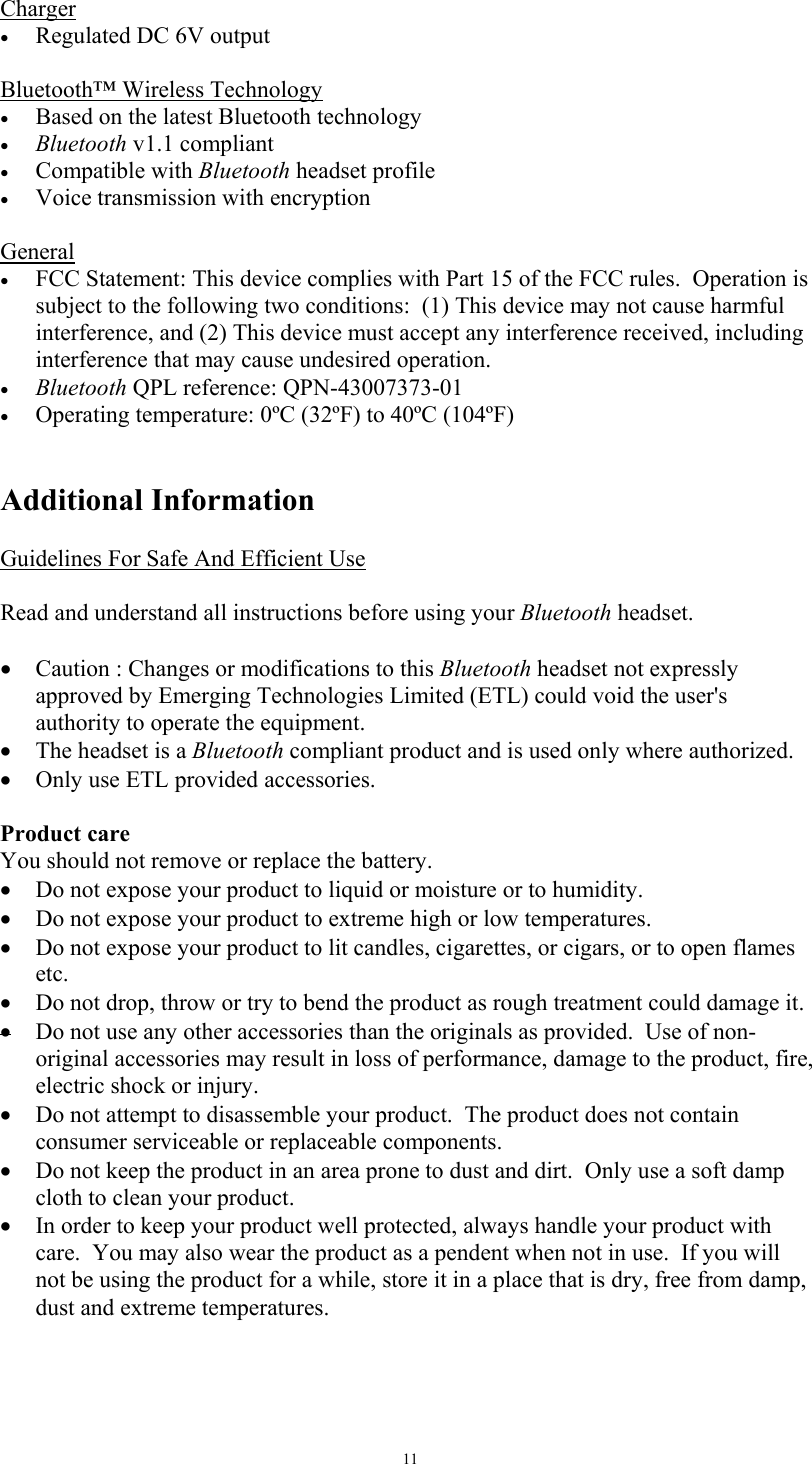

  11Charger •  Regulated DC 6V output  Bluetooth™ Wireless Technology •  Based on the latest Bluetooth technology  •  Bluetooth v1.1 compliant •  Compatible with Bluetooth headset profile •  Voice transmission with encryption  General •  FCC Statement: This device complies with Part 15 of the FCC rules.  Operation is subject to the following two conditions:  (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. •  Bluetooth QPL reference: QPN-43007373-01 •  Operating temperature: 0ºC (32ºF) to 40ºC (104ºF)   Additional Information  Guidelines For Safe And Efficient Use  Read and understand all instructions before using your Bluetooth headset.  •  Caution : Changes or modifications to this Bluetooth headset not expressly approved by Emerging Technologies Limited (ETL) could void the user's authority to operate the equipment. •  The headset is a Bluetooth compliant product and is used only where authorized.  •  Only use ETL provided accessories.  Product care You should not remove or replace the battery. •  Do not expose your product to liquid or moisture or to humidity. •  Do not expose your product to extreme high or low temperatures. •  Do not expose your product to lit candles, cigarettes, or cigars, or to open flames etc. •  Do not drop, throw or try to bend the product as rough treatment could damage it. • Do not use any other accessories than the originals as provided.  Use of non-original accessories may result in loss of performance, damage to the product, fire, electric shock or injury.   •  Do not attempt to disassemble your product.  The product does not contain consumer serviceable or replaceable components.   •  Do not keep the product in an area prone to dust and dirt.  Only use a soft damp cloth to clean your product. •  In order to keep your product well protected, always handle your product with care.  You may also wear the product as a pendent when not in use.  If you will not be using the product for a while, store it in a place that is dry, free from damp, dust and extreme temperatures.

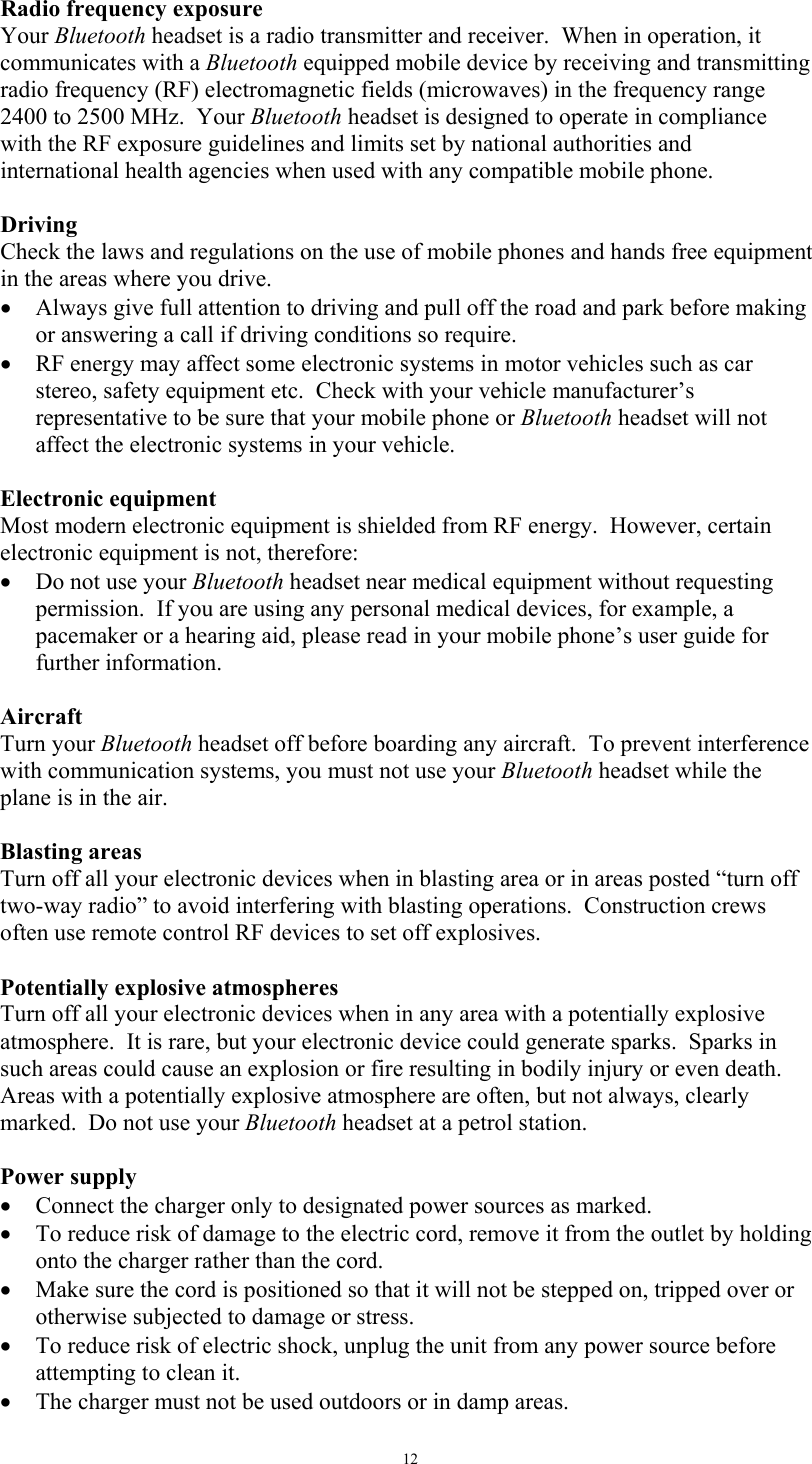

  12Radio frequency exposure Your Bluetooth headset is a radio transmitter and receiver.  When in operation, it communicates with a Bluetooth equipped mobile device by receiving and transmitting radio frequency (RF) electromagnetic fields (microwaves) in the frequency range 2400 to 2500 MHz.  Your Bluetooth headset is designed to operate in compliance with the RF exposure guidelines and limits set by national authorities and international health agencies when used with any compatible mobile phone.  Driving Check the laws and regulations on the use of mobile phones and hands free equipment in the areas where you drive. •  Always give full attention to driving and pull off the road and park before making or answering a call if driving conditions so require. •  RF energy may affect some electronic systems in motor vehicles such as car stereo, safety equipment etc.  Check with your vehicle manufacturer’s representative to be sure that your mobile phone or Bluetooth headset will not affect the electronic systems in your vehicle.  Electronic equipment Most modern electronic equipment is shielded from RF energy.  However, certain electronic equipment is not, therefore: •  Do not use your Bluetooth headset near medical equipment without requesting permission.  If you are using any personal medical devices, for example, a pacemaker or a hearing aid, please read in your mobile phone’s user guide for further information.  Aircraft Turn your Bluetooth headset off before boarding any aircraft.  To prevent interference with communication systems, you must not use your Bluetooth headset while the plane is in the air.  Blasting areas Turn off all your electronic devices when in blasting area or in areas posted “turn off two-way radio” to avoid interfering with blasting operations.  Construction crews often use remote control RF devices to set off explosives.  Potentially explosive atmospheres Turn off all your electronic devices when in any area with a potentially explosive atmosphere.  It is rare, but your electronic device could generate sparks.  Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but not always, clearly marked.  Do not use your Bluetooth headset at a petrol station.  Power supply •  Connect the charger only to designated power sources as marked. •  To reduce risk of damage to the electric cord, remove it from the outlet by holding onto the charger rather than the cord. •  Make sure the cord is positioned so that it will not be stepped on, tripped over or otherwise subjected to damage or stress. •  To reduce risk of electric shock, unplug the unit from any power source before attempting to clean it. •  The charger must not be used outdoors or in damp areas.

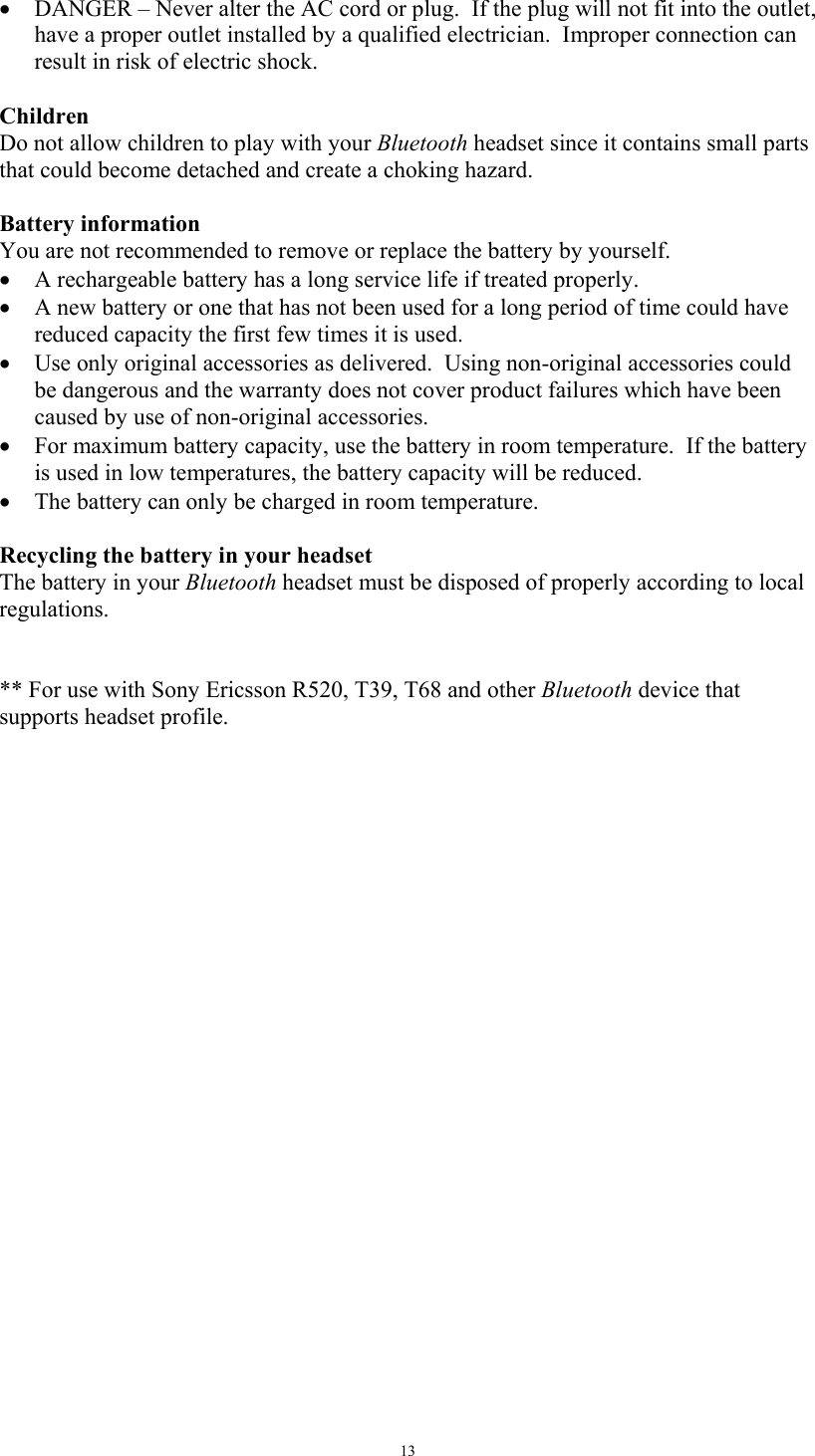

  13•  DANGER – Never alter the AC cord or plug.  If the plug will not fit into the outlet, have a proper outlet installed by a qualified electrician.  Improper connection can result in risk of electric shock.  Children Do not allow children to play with your Bluetooth headset since it contains small parts that could become detached and create a choking hazard.  Battery information You are not recommended to remove or replace the battery by yourself. •  A rechargeable battery has a long service life if treated properly. •  A new battery or one that has not been used for a long period of time could have reduced capacity the first few times it is used. •  Use only original accessories as delivered.  Using non-original accessories could be dangerous and the warranty does not cover product failures which have been caused by use of non-original accessories. •  For maximum battery capacity, use the battery in room temperature.  If the battery is used in low temperatures, the battery capacity will be reduced. •  The battery can only be charged in room temperature.  Recycling the battery in your headset The battery in your Bluetooth headset must be disposed of properly according to local regulations.    ** For use with Sony Ericsson R520, T39, T68 and other Bluetooth device that supports headset profile.
