-First make sure that your MarCELL unit is registered, installed and is operating properly. If
there are any questions on this step, refer to the MarCELL Quick Start Guide or visit
www.sensoredlife.com/support.
-Registering the SPuck connects it to your account and a specific MarCELL unit. To
register your SPuck, do the following:
-Go to www.sensoredlife.com
-login to your account
-select “My Devices” then on the dashboard screen select SPucks icon of the
MarCELL which you want to link your SPuck to.
-select “Add SPuck” and follow the instructions on the screen
-After completing the SPuck registration process online, the new SPuck information will
be wirelessly sent to your MarCELL unit. You can tell this is happening by watching the
“power” LED on the MarCELL which will begin to blink. The process should complete
in about 1 minute when the “power” LED turns solid green.
-NOTE: If your MarCELL was not plugged in when registering your SPuck, the new
SPuck information will be automatically updated when your MarCELL unit is plugged in.
To ensure that a SPuck can communicate properly with the MarCELL unit, perform the
following test first by standing a few feet from the MarCELL unit (to make sure your
SPuck is paired properly with your MarCELL) and then from the location where the
SPuck will be placed: (Please read this step completely before proceeding).
-Flip SPuck over then press and release the test button. Note that a blue LED will light for a
second or two then flash and turn off.
3
START HERE
Select a location and test
The SEN-100 (SPuck) is a CR3032 coin cell battery powered, remote water sensor
for commercial & individual consumer applications that transmits data to the HS-500
(MarCELL) receiver. The SPuck is a transmitter only and is not a receiver. When
the presence of water is detected (via the metal contacts on the bottom of the
SPuck, the SPuck transmits a signal to the MarCELL. The MarCELL unit then sends
a cellular signal to a nearby cell tower which relays it to our servers. Whatever
notifications you have set up on the website are then immediately carried out.
Wait for SPuck info to upload to MarCELL
4
Place into service
-The SPuck will send a wireless signal to the MarCELL unit. If the MarCELL successfully
receives this message, within seconds it will start to blink for 30 seconds. Immediately go to
your MarCELL device and check for blinking green/Power LED. You now know that your
SPuck is correctly registered and communicating with your MarCELL unit.
-If the MarCELL green / Power LED is not blinking do the following:
-make sure you completed registration and linking process (steps 1 & 2 above)
-try moving the MarCELL unit to a different location (closer to the SPuck location
and away from large metal structures).
-repeat the test sequence.
-Place the SPuck so that the metal “feet” are on a flat surface. If water comes in contact with
any pair of the metal feet, The SPuck will send a wireless signal to the MarCELL base unit.
When transmitting, the SPuck’s LED will flash quickly for about 1 to 2 seconds.
IMPORTANT: Once a Water SPuck unit detects the presence of Water and sends
a signal, it will be deactivated to preserve battery life. You must take action to
reactive the SPuck to detect water again. To reactivate the unit, simply flip it over,
make sure the feet are dry and press and release the test button. If the blue LED
blinks, your Water SPuck is now back in service and ready to detect water.

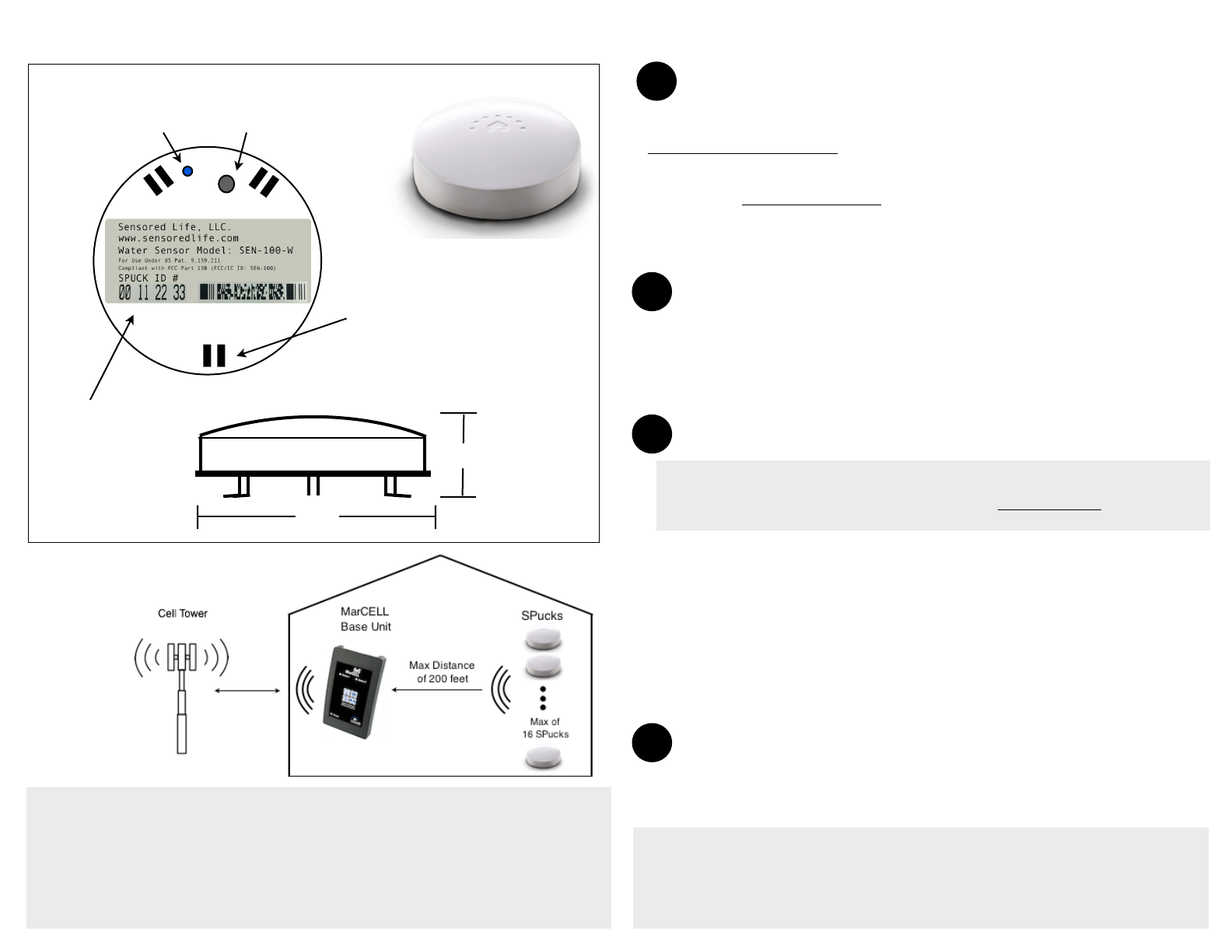

Meet Your Water SPuck®
Installation
Register Your SPuck
Bottom View
Water detector “feet”
3 pairs total
Status
LED
Test Button
Serial # /
SPuck ID
Location
Side View
2.40”
0.75”
Operational Description
Sensored Life, LLC
www.sensoredlife.com
Copyright 2017 Sensored Life, LLC
Water SPuckTM
SPECIFICATIONS
Dimensions
0.75” Tall x 2.40” in diameter
Model Number
SEN-100-W
Weight
1 ounce
Battery Type
CR2032 Lithium Coin Cell
Battery Life
Typically 5+ years
Operating Range
Up to 200 feet (61 meters)
Wireless Technology
Radio Frequency (RF)
Communication Frequency
917 MHZ
Status Indicator
1 blue LED
Number of Water Detection points
3 pairs of “feet”
Number of reports per detection
1 report communicated to MarCELL
Certification Info
FCC ID: X6U-SEN-100 IC ID: 5469A-SEN-100
Congratulations!
The Water SPuck is the easiest and most
versatile water-sensing system on the market
today. SPucks (short for Sensor Pucks) are small
but extremely powerful wireless sensor modules
which communicate with the MarCELL cellular-
connected home monitoring system (sold
separately).
Your Water SPuck:
-detects the presence of water & immediately
relays this information wirelessly to your
MarCELL device (up to 200 feet away)
-operates for years on a single coin cell battery
-constantly monitors battery life and will report
when it is getting low
-is fully self-contained and ready to go to work
Up to 16 SPucks can communicate with one
MarCELL. Put one near every toilet, sink, water
heater, washer and dishwasher in your house.
LIMITED WARRANTY
Sensored Life, LLC hereby warrants that it will repair or replace, at its
option,
any part of the SPuck wireless sensor puck, which proves defective by
reason of improper workmanship or material, free of charge for parts and
labor, for a period of one year from the date of original purchase by the
buyer. This warranty does not apply if, in the sole opinion of Sensored Life,
LLC, the SPuck has been intentionally damaged due to misuse, neglect,
improper packing, shipping, modification or servicing by other than
Sensored Life, LLC, or personnel authorized by Sensored Life, LLC. For
information on how to obtain service under this warranty, contact the
dealer where your SPuck was purchased, or contact Sensored Life, LLC via
our website at: www.sensoredlife.com.
LIABILITY DISCLAIMER STATEMENT
Sensored Life, LLC., (hereafter known as Sensored Life) makes no
warranty, representation, or guarantee regarding the suitability of its
products for any particular purpose, nor does Sensored Life assume any
liability arising out of the application or use of any product, and specifically
disclaims any and all liability, including without limitation, consequential or
incidental damages. Sensored Life products are not designed, intended, or
authorized for use as components in life support systems, or for any other
application in which the failure of the Sensored Life product could create a
situation where personal injury or death or significant financial loss may
occur.
Should any person or persons purchase or use Sensored Life products for
any such unintended or unauthorized application, that person or persons
shall indemnify and hold Sensored Life, and its officers, employees,
affiliates, and distributors harmless against all claims, costs, damages,
expenses, and reasonable attorney fees arising out of, directly or indirectly,
any claim of property damage, personal injury, death or financial loss
associated with such unintended or unauthorized use, even if such claim
alleges that Sensored Life was negligent regarding the design or
manufacture of the product in question.
Write SPuck ID (Serial Number) Here:
_ _ _ _ _ _ _ _
Water SPuck
Wireless Water Detecting
Sensor Puck for use with
MarCELL® Cellular System
Quick Start Guide
Note: Before registering, locating or using your
SPuck for the first time, please read the important
legal, safety & operational information in this guide.
FCC 15.19 Warning Statement
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC
RULES. OPERATION IS SUBJECT TO THE FOLLOWING
TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE
HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST
ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
FCC 15.21 Warning Statement
NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY
CHANGES OR MODIFICATIONS NOT EXPRESSLY
APPROVED BY THE PARTY RESPONSIBLE FOR
COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE
USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
For instructional videos on adding a Water
SPuck and other topics, visit our website at:
www.sensoredlife.com and select Support /
Instructional Videos.
PN: 70002260B
Model: SEN-100-W
Troubleshooting
Problem
ACTIONS
Blue LED does not light when pressing
Test Button
-make sure battery is properly installed
-make sure battery indicator on SPuck page is green
-install new battery, wait 30 seconds and try again
SPuck not communicating with
MarCELL unit
-make sure MarCELL unit registered and operational
-make sure SPuck registered to the correct MarCELL unit
-make sure blue LED flashes when pressing Test button
-there are too many dense objects in the way. Move
MarCELL unit closer to the location of the SPucks.
SPuck not detecting Water
-press test button to make sure SPuck is reset
-make sure SPuck is on smooth, relatively level surface and
that both feet in the pair will come in contact with the
water.
For additional help in solving operational issues go to:
www.SensoredLife.com/support
