Bristol® ControlWave® XFC

Explosion-proof Flow Computer Integrates

Automation and Measurement

www.EmersonProcess.com/Remote

Remote Automation Solutions

Features

For users who expect more from their ow comput-

ers than simply chart replacement functionality,

Bristol® ControlWave® XFC, from Emerson Process

Management, comes through with synergy of automa-

tion and measurement. Now, you can install a single

instrument without the hassles you face when you try

to use separate equipment for automation and mea-

surement operations at remote sites.

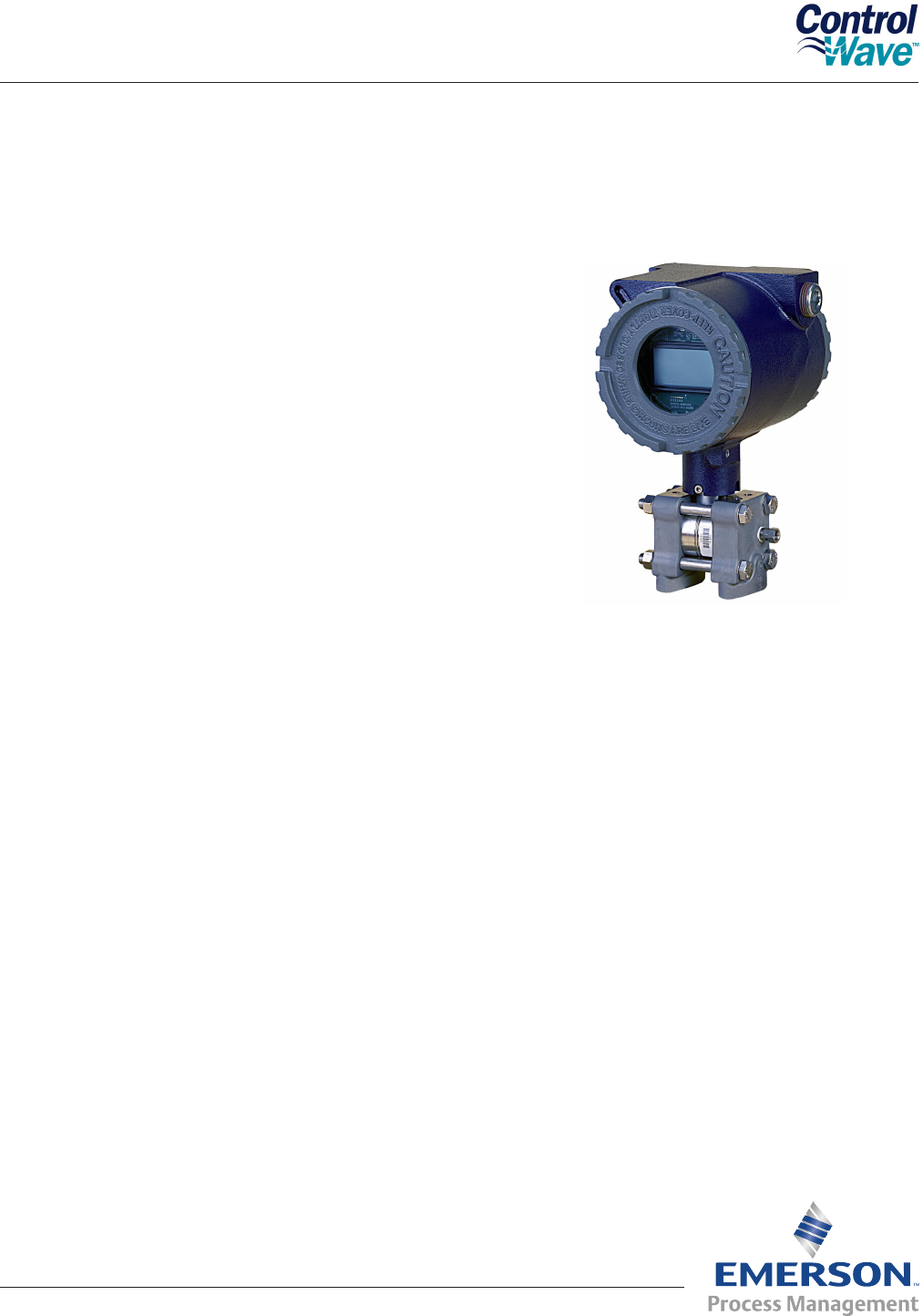

The ControlWave XFC package features the following:

ControlWave family platform that is pre-pro-

grammed to meet API 21.1 requirements for a

two-run metering and regulating station

High performance, smart multivariable transducer

assembly is a separate component that can be re-

moved and replaced independently of the electron-

ics platform

Optional, pre-installed RTD assembly

Extremely low power consumption keeps power

systems costs under control

Open communication with 3 serial ports stan-

dard—includes modem/radio control and RS 485

BSAP/Modbus for external, single- or multi-variable

transmitters such as the Bristol Babcock 3808 MVT

I/O complements with up to 3 AI, 1 AO, 2 DI, 2

High-speed Counter Inputs and 4 DO interface with

external, process equipment

Unlike a ow computer, ControlWave XFC employs

a hardware/rmware platform that readily handles

automation tasks:

Ample processing horsepower and memory

subsystem means that users need not worry about

running out of resources for demanding applica-

tions.

•

•

•

•

•

•

•

ControlWave XFC provides automation and ow

computing in a compact, transmitter-style hous-

ing that is quickly installed and started-up.

Multitasking kernel securely manages multiple

automation, communication and measurement

operations.

For users wishing to write their own programs, or

modify ours, we offer a complete, IEC 61131-3

programming environment and full support from

Emerson Process management is available, every

step of the way.

After more than 90 years in process control and 115

years in measurement, Emerson remains committed to

delivering superior life cycle economics to automation

and measurement systems, today and tomorrow. We

are proud to offer ControlWave XFC, a product that

stands up to the tradition.

•

•

Product Overview

225ov3b

June 26, 2007 - Page 2 Bristol ControlWave XFC

Emerson Process Management

Remote Automation Solutions

Watertown, CT 06795 USA T 1 (860) 945-2200

Mississauga, ON 06795 Canada T 1 (905) 362-0880

Worcester WR3 8YB UK T 44 (1) 905-856950

Website: www.EmersonProcess.com/Remote

© 2007 Remote Automation Solutions, division of Emerson Process Management. All rights reserved.

Bristol, Inc., Bristol Babcock Ltd, Bristol Canada, BBI SA de CV and the Flow Computer Division , are wholly owned subsidiaries of Emerson Electric Co. doing business as Remote Automation

Solutions (“RAS”), a division of Emerson Process Management. FloBoss, ROCLINK, Bristol, Bristol Babcock, ControlWave, TeleFlow and Helicoid are trademarks of RAS. AMS, PlantWeb and the

PlantWeb logo are marks of Emerson Electric Co. The Emerson logo is a trademark and service mark of the Emerson Electric Co. All other marks are property of their respective owners.

The contents of this publication are presented for informational purposes only. While every effort has been made to ensure informational accuracy, they are not to be construed as warranties or

guarantees, express or implied, regarding the products or services described herein or their use or applicability. RAS reserves the right to modify or improve the designs or specications of such

products at any time without notice. All sales are governed by RAS’ terms and conditions which are available upon request. RAS does not assume responsibility for the selection, use or mainte-

nance of any product. Responsibility for proper selection, use and maintenance of any RAS product remains solely with the purchaser and end-user.

ControlWave XFC at a Glance

Base Configuration:

Integral electronics assembly with the following

major components:

32-bit, ARM9 CPU platform

Choice of 3 I/O selections (see next column)

RS 232 Serial Local Port

RS 232 Serial Network Port with Full Modem

Control—Features DTR control of sleep modes

in external radios to minimize system power

consumption

Third serial port, RS 485, normally used to inter-

face with external transmitters

DC/DC section accepts nominal 6 Vdc, 12 Vdc

or 24 Vdc input power

Two-line LCD

Dedicated interface for smart, smart sensor

assembly

Three-wire RTD interface

Pre-loaded application program for a 2-meter run

M&R station

Explosion-proof, transmitter-style enclosure

Hazardous area approval: Class I, Division 1 Explo-

sion-proof and Class I, Division 2 Non-incendive

•

•

•

•

•

•

•

•

•

•

•

•

•

Selection Options:

I/O selections:

No I/O

2 DI, 2 High-speed counter inputs, 4 DO

2 DI, 2 High-speed counter inputs, 4 DO plus 3

AI, 1 AO

Emerson’s Bristol MVT smart sensor assembly,

which provides measurement of either gauge pres-

sure or differential pressure plus static pressure in

a variety of ranges. Please refer to 1660ds7, the

detailed data document for the ControlWave XFC

Gas Flow Computer.

Wetted parts material, 316 Stainless Steel or Has-

telloy C

With or without Manifold Adapters

With or without Mounting Bracket

Bendable RTD assembly, pre-wired, available with

cable length of 6 feet, 15 feet or 25 feet—please

note that this RTD assembly is available only for

Class I, Division 2 installations

•

•

•

•

•

•

•

•

•
