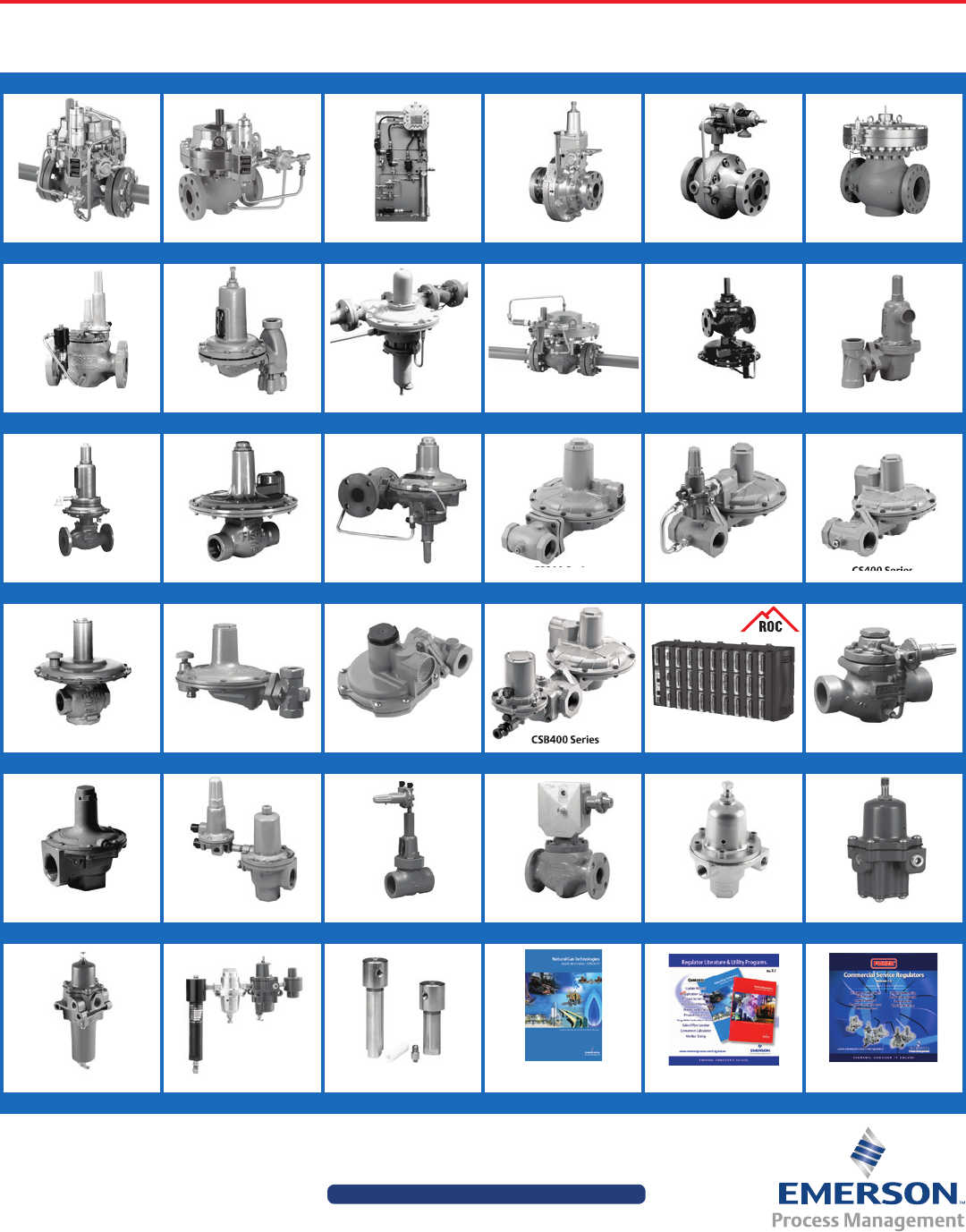

Natural Gas Technologies

Comprehensive Solutions for the Natural Gas Industry

EZH Series Type Dosaodor-D FL Series Type 310A Type 971

EZR Series

CSB400 Series

630 Series 99 Series EZL Series 1098-EGR Series 627 Series

Type 133HP 133 Series 299H Series CS800 Series CP400 Series CS400 Series

66 Series Y600A Series Type HSR

EZHSO Series

ROC800 Series 63EG Series

289 Series Type 289P Type 1805P and 1805 Series Type OSE

Regulator Application Guide

726 pages

67D Series Type 1367 Type 252 Filter Literature DVD Commercial Service DVD

www.emersonprocess.com/regulators

67C Series

CS400 Series

FISHER

TM

1301 Series

CSB400 Series

CS800 Series

Natural Gas Technologies Selection Table

OUTLET OR RELIEF

PRESSURE RANGE(1),

psig / bar

TYPICAL APPLICATIONS

TYPE OR

SERIES OPERATION BODY SIZE

MAXIMUM

INLET

PRESSURE(1),

psig / bar

MAXIMUM CAPACITY,

SCFH / Nm3/h

REFERENCE

Product

Bulletin(2)

Transmission

Distribution

Commercial/Industrial

Residential/Utilization

Fixed Factor Billing/ PFM

Instrument /Pilot Supply

Odorizing Systems

Farm Tap/ Field

Electronic Flow and

Pressure Measurement

Overpressure Protection

14.5 to 1160 / 1.00 to 80.0 X X X X FL Series Pilot

NPS 1, 1 x 4, 2, 2 x 6, 3, 3 x 10, 4, 4 x 10, 6,

6 x 12, 8, and 10 / DN 25, 25 x 100, 50,

50 x 150, 80, 80 x 250, 100, 100 x 250, 150,

150 x 300, 200, and 250

1480 / 102 100,535,000 / 2,694,338 71.2:FL

14.5 to 1160 / 1.00 to 80.0 X X Type 971 Pilot NPS 10 / DN 250 1450 / 100 61,407,000 / 1,645,708 71.2:971

6-inches w.c. to 1000 /

15 mbar to 68.9 X X X X EZR Series Pilot

NPS 1, 1-1/4, 2, 2 x 1, 3, 4, 6,

6 x 4, 8, 8 x 4, 8 x 6, 12 x 6 / DN 25, 32, 50,

50 x 25, 80, 100, 150, 150 x 100, 200,

200 x 100, 200 x 150, 300 x 150

1050 / 72.4 26,138,000 / 700,498 71.2:EZR

10 to 700 / 0.69 to 48.3 X X X 310A Series Pilot NPS 1, 2, 3, 4, 4 x 6 / DN 25, 50, 80, 100,

100 x 150 1500 / 103 21,170,000 / 567,356 71.2:310A

14.5 to 1160 / 1.00 to 80.0 X X X EZH Series Pilot NPS 1, 2, 3, 4 / DN 25, 50, 80, 100 1500 / 103 13,883,000 / 372,064 71.2:EZH-EZHSO

14.5 to 1160 / 1.00 to 80.0 X X X EZHSO Series Pilot NPS 1, 2, 3, 4 / DN 25, 50, 80, 100 1500 / 103 13,883,000 / 372,064 71.2:EZH-EZHSO

4-inches w.c. to 1470 /

10 mbar to 101 XType OSE - - - - NPS 1, 2, 3, 4, 6, 8, 10 /

DN 25, 50, 80, 100, 150, 200, 250 1470 / 101 12,916,000 / 346,149 71.6:OSE

10 to 400 / 0.69 to 27.6 X63EG Series Pilot NPS 1, 2, 3, 4, 6, 6 x 8 /

DN 25, 50, 80, 100, 150, 150 x 200 400 / 27.6 8,795,000 / 235,706 71.4:63EG

4-inches w.c. to 300 /10 mbar to 20.7 X X X 1098-EGR Series Pilot NPS 1, 2, 3, 4, 6, 8 x 6, 12 x 6 / DN 25, 50, 80,

100, 150, 200 x 150, 300 x 150 400 / 27.6 6,901,000 / 184,947 71.2:1098-EGR

7-inches w.c. to 300 /17 mbar to 20.7 X X X Type EZL Pilot NPS 2, 3, and 4 / DN 50, 80, and 100 290 / 20.0 2,534,000 / 67,911 71.2:EZL

2-inches w.c. to 100 / 5 mbar to 6.9 X X X Type 99 Pilot NPS 2 / DN 50 1000 / 69.0 265,000 / 7102 71.2:99

5 to 500 / 0.35 to 34.5 X X X 627 Series Direct NPS 3/4, 1, 2 / DN 20, 25, 50 2000 / 138 179,000 / 4800 71.1:627

2-inches w.c. to 60 / 5 mbar to 4.1 X X 133 Series Direct NPS 2 / DN 50 150 / 10.3 170,000 / 4556 71.1:133

5 to 125 / 0.35 to 8.6 XType 1805 and

1805P Series

Direct and/or

Pilot NPS 3/4, 1, 1-1/2, 2 / DN 20, 25, 40, 50 150 / 10.3 136,000 / 3645 71.4:1805

71.4:1805P

3 to 500 / 0.21 to 34.5 X X 630 Series Direct NPS 1, 2 / DN 25, 50 1500 / 103 130,000 / 3480 71.1:630

14-inches w.c. to 100 /

35 mbar to 6.9 XType 289P Pilot NPS 1, 2 / DN 25, 50 110 / 7.6 110,000 / 2948 71.4:289P

3.5-inches w.c. to 60 / 9 mbar to 4.1 X X X X 299H Series Pilot NPS 1-1/4, 1-1/2, 2 / DN 32, 40, 50 175 / 12.1 108,120 / 2898 71.2:299H

5-inches w.c. to 75 / 12 mbar to 5.2 X289 Series Direct NPS 1/4, 3/4, 1, 2 / DN 20, 25,50 100 / 6.9 100,000 / 2680 71.4:289

4-inches w.c. to 5 /

10 mbar to 0.35 X66 Series Direct NPS 2, 3, 4 / DN 50, 80, 100 25 / 1.7 77,500 / 2077 71.1:66

5 to 100 / 0.34 to 6.9 X X X Type 627F Pilot NPS 3/4, 1, 2 / DN 20, 25, 50 100 / 6.9 37,600 / 1008 71.2:627F

3.5-inches w.c. to 10 /9 mbar to 0.69 X X X CS800 Series Direct NPS 1-1/4, 1-1/2, 2 / DN 32, 40, 50 125 / 8.6 36,270 / 972 71.1:CS800

7-inches w.c. to 43.5 /17 mbar to 3.0 X X X CSB400 Series Direct NPS 1, 1 x 1-1/4, 1-1/4, 1-1/2 /

DN 25, 32, 40, 50 232 / 16.0 36,197 / 970 71.1:CSB400

0 to 150 / 0 to 10.3 X X 67D Series Direct NPS 1/2 / DN 15 400 / 27.6 26,000 / 697 71.1:67D

1 to 20 / 69 mbar to 1.4 X X X CP400 Series Pilot NPS 1-1/4, 1-1/2, 2 / DN 32, 40, 50 125 / 8.6 17,600 / 472 71.1:CP400

3.5-inches w.c. to 5.5 /

9 mbar to 0.38 X X X CS400 Series Direct NPS 1-1/4, 1-1/2, 2 / DN 32, 40, 50 125 / 8.6 11,200 / 300 71.1:CS400

1 to 20 / 0.07 to 1.4 X X X CP200 Series Pilot NPS 3/4, 3/4 x 1, 3/4 x 1-1/4, 1, 1 x 1-1/4,

1-1/4 / DN 20, 20 x 25, 20 x 32, 25, 25 x 32, 32 125 / 8.6 8800 / 236 71.1:CP200

4-inches w.c. to 7 / 10 mbar to 0.48 X X X Y600A Series Direct NPS 3/4, 1 / DN 20, 25 150 / 10.3 6660 / 178 71.1:Y600A

3.5-inches w.c. to 5.5 /9 mbar to 0.38 X X X CS200 Series Direct NPS 3/4, 3/4 x 1, 3/4 x 1-1/4, 1, 1 x 1-1/4,

1-1/4 / DN 20, 20 x 25, 20 x 32, 25, 25 x 32, 32 125 / 8.6 6550 / 176 71.1:CS200

10 to 500 / 0.69 to 34.5 X X 1301 Series Direct NPS 1/4 6000 / 414 5808 / 156 71.1:1301

0 to 150 / 0 to 10.3 X X 67C Series Direct NPS 1/4 400 / 27.6 5612 / 150 71.1:67C

4-inches w.c. to 2.2 / 10 mbar to 0.15 X X X Type HSR Direct NPS 3/4, 3/4 x 1, 1 / DN 20, 20 x 25, 25 125 / 8.6 4800 / 129 71.1:HSR

5 to 35 / 0.35 to 2.4 X X Type 1367 Direct NPS 1/4 2000 / 138 1419 / 38 71.1:1367

- - - - XType 252 Filter - - - - NPS 1/4 2750 / 190 - - - - 90.1:252

- - - - XType Dosaodor-D - - - - N/A 1450 / 100 - - - - 75.2:Dosaodor-D

- - - - X ROC800 Series - - - - N/A - - - - - - - - ROC800 Specication

Sheet, D301231X012

Note 1: Outlet or Relief Pressure Ranges and Maximum Inlet Pressures are expressed in psig / bar unless otherwise indicated.

Note 2: Please contact your local Sales Ofce for a copy of the Regulator Literature DVD.
