Outside Plant for

Business-Critical Continuity™

1

Description

The 3 and 6-pair terminal blocks provide drop wire terminal points in ready-access and

pedestal closures. They are available with or without leads for tying into the cable. These

blocks are also available with discharge washer overvoltage protection. The stainless steel

washers provide protection in a range of 5000 volts DC and approximately 10KV or less on

a surge front of 5KV/msec.

The blocks are made of a solid injection-molded Red plastic material that has a low mois-

ture absorption rate. The terminal posts are brass and are raised to provide high surface

insulation.

On those terminals provided with double leads, the wires are 24-gauge color-coded PVC,

30-in. (762.7mm) long. Single-lead blocks have 20-1/2-in. (520mm) leads.

Terminal blocks without leads are available with a variety of binding post configurations.

Application

The Emerson Network Power 3 and 6-pair terminal blocks provide protected or unpro-

tected drop-wire terminal points in ready-access and pedestal closures.

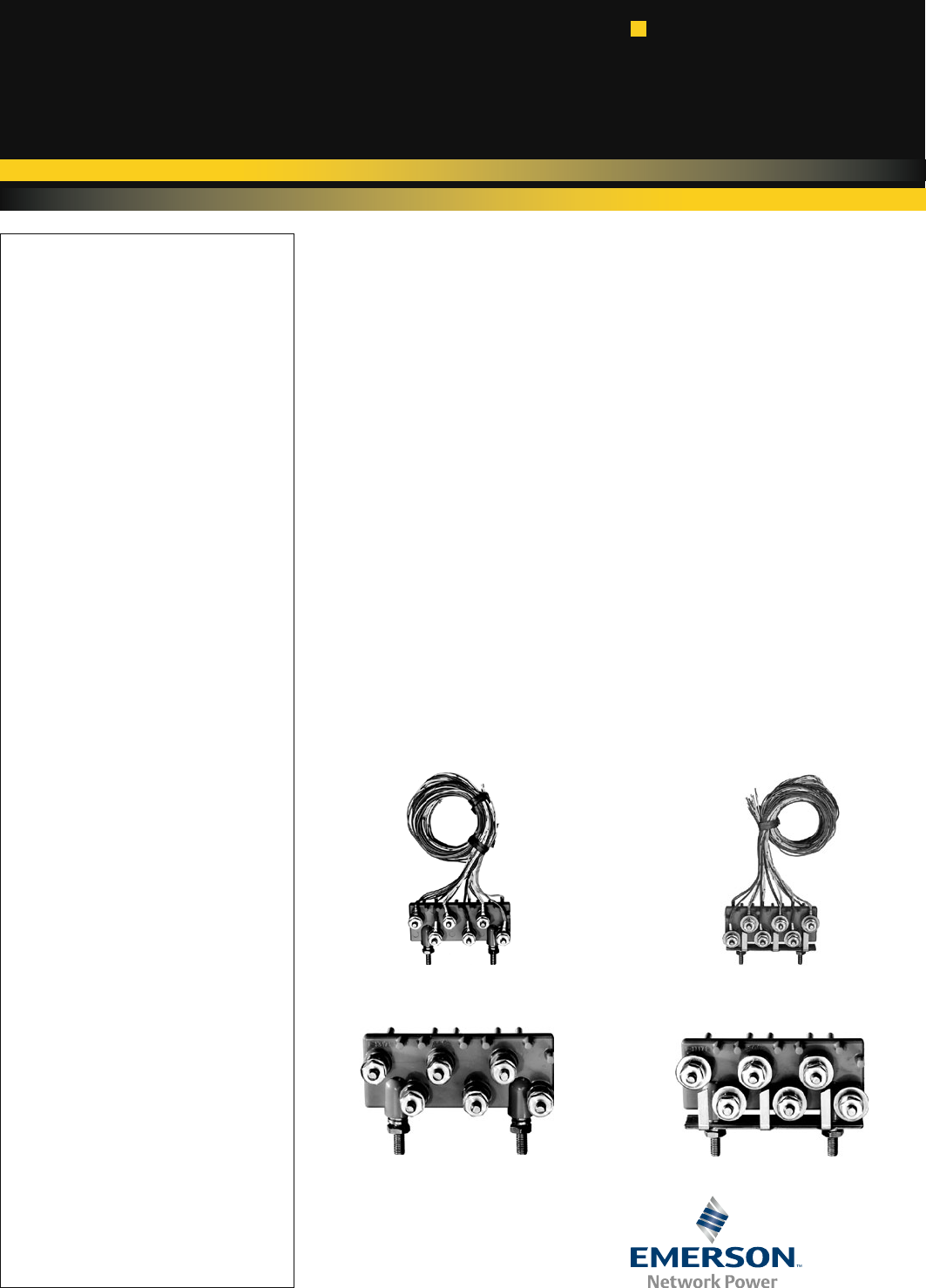

145 145P

1645 16645P

3 and 6-Pair

Terminal Blocks

Key Features

• Variety of binding post

configurations provide flexibility to

meet most termination

requirements

• Solid injection-molded plastic

material provides a low moisture

absorption rate

• Discharge washer overvoltage

protection is available for

protection on a range of 5000

volts DC and approximately 10KV

or less on a surge front of 5KV/

µsec

• Raised terminal posts offer high

surface insulation

OSPDS-061900 / 1109

© 2009 Emerson Network Power Energy Systems,

North America, Inc. All rights reserved.

Emerson®, Emerson Network Power™, Business-Critical Continuity™,

NetReach™, NetSpan™ and NetXtend™ are trademarks of

Emerson Electric Co. and/or one of its subsidiaries.

Printed in USA

Emerson Network Power

Energy Systems

4350 Weaver Parkway, Warrenville, IL 60555

Toll Free: 800-800-1280 (USA and Canada)

Telephone: 440-246-6999 Fax: 440-246-4876

Web: EmersonNetworkPower.com/OSP

2

Emerson Network Power.

The global leader in enabling

Business-Critical Continuity™.

AC Power

Connectivity

DC Power

Embedded Computing

Embedded Power

Infrastructure Management & Monitoring

Outside Plant

Power Switching & Controls

Precision Cooling

Racks & Integrated Cabinets

Services

Surge Protection

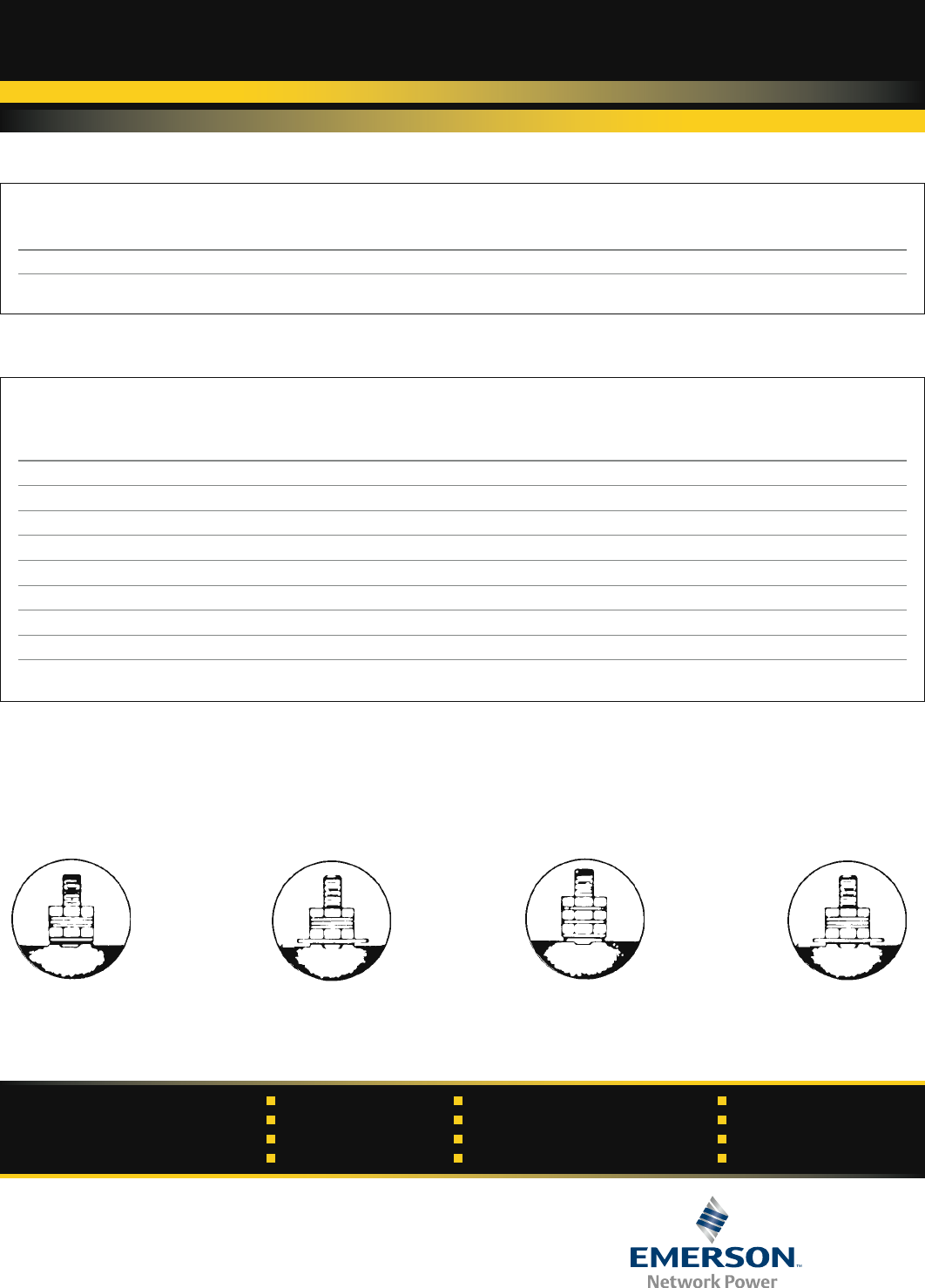

Dimensions

Catalog Series H W D

145* 1.687-in. (22.85mm) 3.25-in. (82.55mm) 0.6875-in. (17.50mm)

1640* 1.687-in. (22.85mm) 3.25-in. (82.55mm) 0.6875-in. (17.50mm)

Ordering Information

Catalog Part

Number Number Description

145 F005015 6-pair unprotected/double leads, 4 ft. long

1453 F005017 3-pair unprotected/double leads, 4 ft. long

145B F005020 6-pair unprotected/single leads, 1.7 ft. long

145P F005027 6-pair protected/double leads, 4 ft. long

145BP F005023 6-pair protected/single leads, 1.7 ft. long

1645 F005816 6-pair unprotected/without leads

1645P F005823 6-pair protected/without leads

1648 F005819 6-pair unprotected/without leads

1648P F005825 6-pair protected/without leads

NOTE: For testing equipment, tools, etc. see the Accessories section of this catalog.

1645 1645P 1648 1648P

Binding Post Configurations

* The mounting stud measures .6875" (17.50mm) long.

OSPDS-061900 / 1109

3 and 6-Pair Terminal Blocks
