Albér CELLCORDER®CRT-400 Cell Resistance Tester

Technology That Lets You Trust Your Batteries

2

CELLCORDER®CRT-400 Cell Resistance Tester

The CELLCORDER®CRT-400 Cell Resistance Tester was

specially designed to strictly comply with IEEE standards

for testing batteries online. When a battery is tested

online, the test is subjected to ripple from the charger,

which makes ohmic measurement tests complicated.

The well-proven Alber DC resistance test method

completely eliminates these distorting factors. The

Cellcorder outstrips competitive testing instruments by

producing very high repeatability in testing. The

Cellcorder comes with easy keyboard entry, hard shell

carrying case, AC charger, data trending and analysis

software and a user-friendly manual. An optional IR

printer is available.

The New CELLCORDER®at a glance.

Lightweight, stylish, rugged and durable.

Special features include new user friendly

operation, Bluetooth, modem, graphical

transreflective LCD display for better contrast,

and new cables and clamps.

Advantages and Features

Patented Internal Resistance testing eliminates

inaccuracy

New graphical display makes menu navigation easy

Measures cell voltage and internal battery resistance

as well as intercell resistance

Flash drive can be used to transfer data to your PC

Battery Analysis PC software lets you identify bad cells,

create reports and archive data

IrDa allows wireless communication with a variety of

peripheral equipment including compatible

DMA-35N-CRT Hydrometer

Tests batteries from 0-16V

Includes new battery test clamps with

interchangeable jaws

Ventilation: Temperature controlled colling fan.

Test Lead Connector: Molded test cables and

optimized battery clamps.

Bluetooth® Capable: audible voice status during

testing and data transfer to your PC.

Shoulder Strap: (not shown) Adjustable shoulder

strap for safe and efficient testing.

Keypad: Combination keypad for alphanumeric

data entry. Shift key for quick function keys.

Test Key: Initiates the test sequence.

Transreflective LCD: Backlit graphical LCD display

with excellent contrast. Improved contrast in direct

sunlight.

AC Power Indicator: Illuminated when connected

to AC power.

Battery Charge Indicator: Indicates battery

charging progress.

Multi Function Menu Buttons: Interactive buttons

that correlate to relevant menu alternatives on

screen.

Power On/Off: Press for start-up. Press and hold

for shut down.

Navigation Key: Easily navigate and select choice

in menus.

Infrared Port: (not shown) Wireless IrDA

communication to printer, PDA, DMA-35N-CRT

Hydrometer or laptop.

Beeper: Alerts valid entry or faulty test results.

D

H

G

F

E

D

C

B

A

A

K

A

J

A

L

A

M

A

N

A

I

A

B

C

E

F

G

H

K

L

N

M

I

J

3

The Battery Analysis Software helps you identify bad

cells, generate descriptive reports and archive data.

Measurements are stored and presented to allow

trending and make it possible to detect early

performance degradation in individual battery cells.

Print on site

using non-

impact printer.

Communicate with laptops

or headsets.

Download data

from the

Hydrometer.

The new graphical display

makes it easier to navigate

through the menus.

The test screen show the cell

number, internal resistance, voltage

and four intercell connections.

IrDA

Infrared

Bluetooth

(option)

IrDA

Infrared

The Flash Drive holds the

measurements and can be

used to transfer data to a PC.

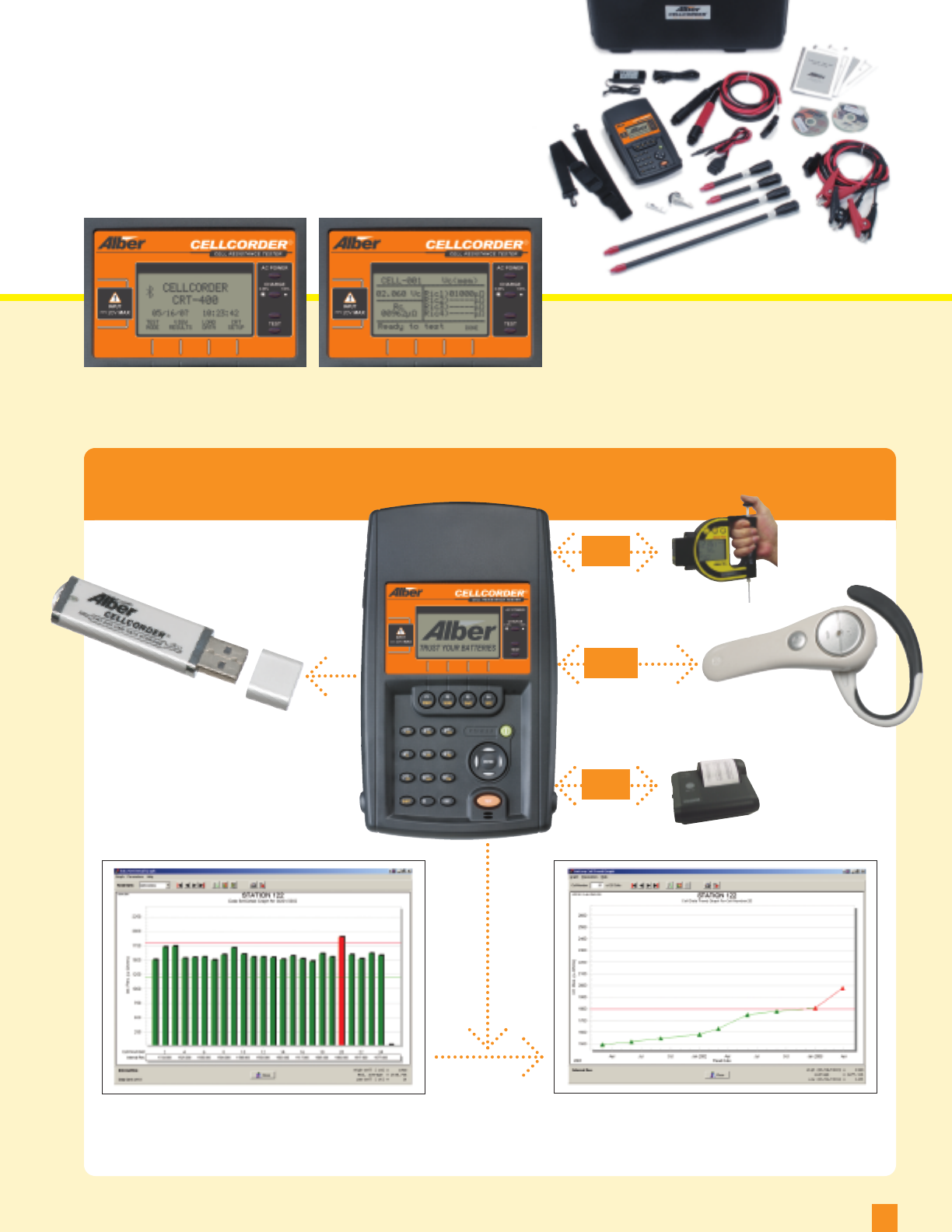

Using The CELLCORDER.A World Of Possibilities…

(Shown with optional accessories)

Emerson Network Power.

The global leader in enabling Business-Critical Continuity™.

EmersonNetworkPower.com

AC Power

Connectivity

DC Power

Embedded Computing

Embedded Power

Monitoring

Outside Plant

Power Switching & Controls

Racks & Integrated Cabinets

Services

Precision Cooling Surge Protection

Liebert Corporation

1050 Dearborn Drive

P.O. Box 29186

Columbus, Ohio 43229

800 877 9222 Phone (U.S. &

Canada Only)

614 888 0246 Phone (Outside U.S.)

614 841 6022 FAX

Via Leonardo Da Vinci 8

Zona Industriale Tognana

35028 Piove Di Sacco (PD)

Italy

39 049 9719 111 Phone

39 049 5841 257 FAX

Emerson Network Power Asia Pacific

7/F., Dah Sing Financial Centre

108 Gloucester Rd, Wanchai

Hong Kong

852 25722201 Phone

852 28029250 FAX

liebert.com

24 x 7 Tech Support

800 222 5877 Phone

614 841 6755 (outside U.S.)

Business-Critical Continuity, Emerson Network Power and the Emerson Network Power logo are trademarks and service marks of Emerson Electric Co.

©2007 Emerson Electric Co.

While every precaution has been taken to ensure accuracy and

completeness in this literature, Liebert Corporation assumes no

responsibility, and disclaims all liability for damages resulting

from use of this information or for any errors or omissions.

© 2007 Liebert Corporation. All rights reserved throughout

the world. Specifications subject to change without notice.

All names referred to are trademarks or registered trademarks

of their respective owners.

® Liebert and the Liebert logo are registered trademarks

of the Liebert Corporation.

SL-29204 (R06/07) Printed in USA

Ensuring The High Availability Of

Mission-Critical Data And Applications.

Albér CELLCORDER®CRT-400 Specifications

Physical

Dimensions H 305mm (12”) x W 178mm (7”) x D 76mm (3”)

Weight 1.5Kg (3.4lb)

Keypad Rubber keys with polyurethane coating

Display

Type LCD - STN Reflective

Viewing Area 2.619” x 1.309”

Resolution Graphics LCD 128 x 64

Viewing Angle 40˚

Backlight White LED

Memory

Type USB Flash Drive

Storage Capability 1 MB per 71 strings with 256 cells

Data retention 10 years

Communication

Infrared PC Interface for data transfer

Physical IrDA compliant for printer interface

Bluetooth PC interface for data transfer

(option) Earpiece interface for voice test status

Battery

Type 4 cell - 8800 mAh lithium ion

Voltage 4.2V

Charge Time 8 hrs

AC Adapter

Input Voltage 90 - 264 VAC

Output Voltage 5 VDC

Output Current 4.0 Amps

Frequency 47 - 63 HZ

Environmental

Temperature Range:

Operating 0˚ - 40˚C (32˚ — 104˚F)

Storage -20˚ - 60˚C (-20˚ — 140˚F)

For extended periods <25˚ (<77˚F)

Humidity Range

0% to 80% RH (non-condensing) at 0˚- 31˚C

0% to 50% RH (non-condensing) at 32˚- 40˚C

Insulating Category II

Pollution Degree 2

Altitude 0 to 2000 meters above sea level

Test Resistance Resolution Voltage Intercell

Input Current ±0.1% of reading Resolution Range/Resolution

2V 50A ±5µ 0.1% - ± 1mV 2m ± 2µ

4-6V 25-30A ±25µ 0.1% - ± 3mV 3.3m ± 5µ

8-12V 30-35A ±75µ 0.1% - ± 6mV 5m ± 10µ

16V 5A ±400µ 0.1%- ± 10mV 20m ± 20µ

Warranty

1-year limited warranty

Ordering Information

1000-056 Cellcorder including software, carrying case, USB Flash drive, battery charger, cables, test and voltage leads.

Optional Accessories

1000-056BT CRT with Bluetooth option

2025-036 Bluetooth wireless headset

2025-124 Printer with IRDA interface

Various Spike probe options

2030-004 USB Flash Drive

*Specifications subject to change without notice Made in U.S.A.
