ASCO 175 Remote Control Switch
ASCO 175 Remote Control Switch
Features and Benefits
• All-purpose double-throw switch from 30 to 1200 amps
• Used for all types of loads 120 to 480 VAC with full rating
• Designed for motor and high inrush
• Current thermal capacity is 20 times full load rating
• Prevents the two loads from being simultaneously
connected to a single power source
• Interrupts 600 percent of rated current at 480V 60Hz 0.4
to 0.5 power factor
• Suitable for ballast lighting, heating, and motor loads to
480 VAC open or closed
• Maintains 100 percent tungsten load rated at 250 Volts AC
• Ideal as a panic switch control
• Power driven contacts lock in place
• Mountable in any position
• Flexible control from multiple locations
• No continuous control power consumption, reliable
single solenoid operator The ASCO 175 Remote Control Switch
All-Purpose Remote Control Switch Designed For Double-Throw Capability And Load Control

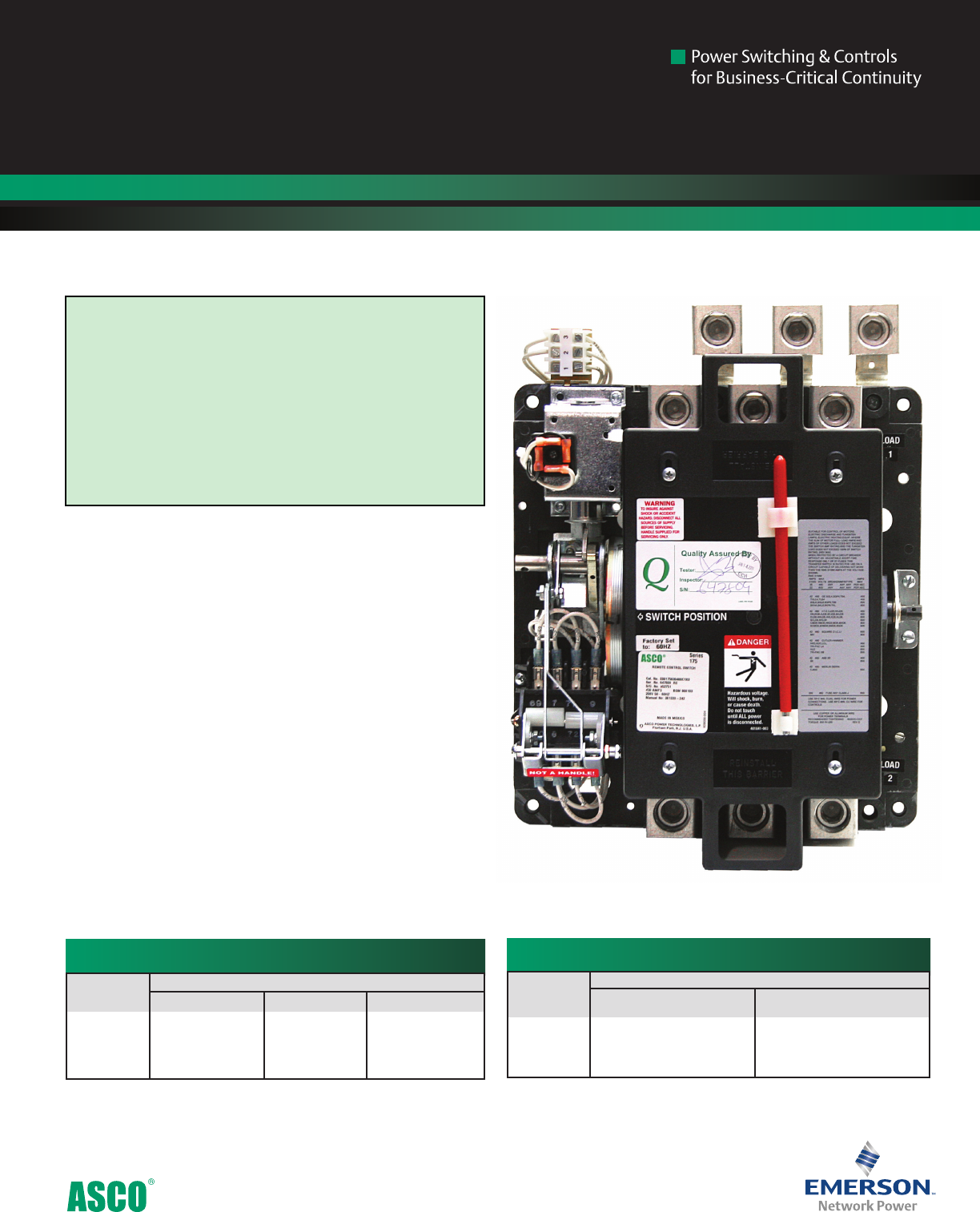

The ASCO 175 Remote Control Switch is a double-throw,
mechanically held remote control switch that is used in
applications requiring one or another load to be supplied
from a common source.
Its true, double-throw nature prevents both loads from be-
ing simultaneously connected to the single power source.
Each switch is available for single phase or 3 phase applica-
tions in sizes from 30 to 1200 amps.
ASCO 175 Withstand Current Rating
ASCO 175 Dimensions
30-150
260-400
600-1000
1200
Switch Rating
Amps
Dimensions in Inches
Open Frame Type 1 Enclosure Type 3R, 12, 4X
10.25H, 10.25W, 5.5D
18.5H, 12W, 6.87D
31H, 27W, 12.7D
31H, 27W, 12.7D
31H, 17.5W, 11.6D
48H, 18W, 13D
72H, 34W, 20D
87H, 38W, 23D
33.75H, 17.5W, 11.6D
49.25H, 18W, 13D
72H, 34W, 20D
87H, 38W, 23D
Note: Refer to Manual 381333-242 for Dimensional Detail.
Switch Rating
(Amps)
When Used with Circuit Breakers
WCR with Specific
Circuit Breaker
22,000
42,000
65,000
85,000
10,000
35,000
50,000
65,000
30-150
260-400
600-1000
1200
WCR with Any
Circuit Breaker
The 175 Remote Control Switch Ordering Information
ASCO 175 Optional
Accessories:
• 47 – 2 –Wire control
auxiliary control relay
• 48 – 3 – Wire control
auxiliary control relay
• 49 – Form 3-control
auxiliary control relay
• 52A – Control Line
fuse for grounded
control voltage
• 52B – Control line fuse
for ungrounded
control voltage
(to-300V)
• 52C – Control line
fuse for ungrounded
control voltage
(310-600V)
• 53B - Hoa 3-Position
selector switch with
center off position
• 53A – Momentary
toggle switch with
center off position for
3 wire control
• 9A/B – (2) indicating
lights open/closed
Note: All accessories
are mounted on front
of enclosure except for
control fuses.
800-800-ASCO www.ascopower.com 50 Hanover Rd, Florham Park, New Jersey 07932 U.S.A.
. .
Publication 3237 ©February, 2011 Printed in the U.S.A.
For more information on the
ASCO 175 Remote
Control Switch:
• Call 800-800-ASCO (2726)
• Email
customercare@asco.com
• Visit ascopower.com
• Visit ascoapu.com
ASCO 175 Remote Control Switch Ordering Information
ASCO 175 Wire Size for Service and Control Connectionson
ASCO 175 Inrush Current Values
and Control Line Run Distance
ASCO 175 Shipping Weights
175 Remote Control Switch Catalog
E 175 2 260 3 1 C
Prefix Product # of Poles Amps Voltage Sub-Panel Enclosures
Note: 115-120VAC Coils not available on H design switches 600-1200A.
D = 30-150A
E = 260-400A
H = 600-1200A
175
02
03
30
70
100
150
260
400
600
800
1000
1200
A = 115V
B = 120V
C = 208V
D = 220V
F = 240V
G = 277V
L = 440V
N = 480V
1 = Group1
Control
Panel
C = Type 1
F = Type 3R
L = Type 12
H = Type 4X
Switch Rating
(Amps
)
Range or AL-CU Wire Sizes
(Line and Load)
(1) #14 to 4/0 AWG
(2) #1/0 AWG to 250MCM or
(1) #4 AWG to 600MCM
(2) #2 to 600MCM
(4) 1/0 to 750MCM
30-150
260-400
600
800-1200
Switch Rating
(Amps)
Note: Maximum distance between RCS Switch and remote control stations.
Based on 90% line voltage and minimum operating voltage of 75%.
30-150A
260-400A
600-1200A
Control Voltage Inrush Current Control Line Run (Distance in Feet)
#14 AWG #12 AWG #10 AWG
120V 60Hz
240V 60Hz
120V 60Hz
240V 60Hz
208-240V 60Hz
13 Amps
9 Amps
36 Amps
17 Amps
18 Amps
300
800
100
425
320
460
1250
156
660
510
750
2000
250
1060
810
Switch Rating
(Amps)
Note: All Shipping weights are listed on Outline Drawings
30-150
260-400
600-800
1000-1200
2 Pole 3 Pole
Approximate Shipping Weights in LBS.
2 Pole 3 Pole
17
30
119
131
2 Pole 3 Pole
20
38
142
160
59
107
418
431
62
115
442
611
74
122
469
631
77
130
482
660
Open Frame Type 1 Enclosure Type 3R, 12, 4X
Note: All Range of Lugs are listed on Outline
