Integrated Cabinet Solutions
For Business-Critical Continuity™
DCM™ Modular Rack System
Advanced Features and Customizable Options For Unique Data Center Needs
2
It All Starts With The DCM™ Rack
A Global Cabinet For Your Universe
The DCM modular rack platform from Emerson
Network Power allows facility managers and
IT professionals manage server, switch, and
termination applications.
DCM Modular Rack was designed as the base element for
all of Emerson Network Power’s row and rack solutions and
is compatible with all rack- and row-based Liebert® Power
and Liebert Precision Cooling products.
The DCM rack offers all the advanced features and innovative
exibility required to accommodate today’s dense and
complex IT systems and network gear.
The DCM rack simplies equipment installation, improves
cable management, and increases visibility and control of
equipment inside the rack. The rack easily integrates power,
cooling, and monitoring systems to provide a complete
support system.
Standardization For The
Entire Data Center: It Starts With
The DCM Modular Rack
The DCM rack is the basic building block for all of
the Emerson Network Power row- and rack-based
solutions. It is also compatible with every rack- and
row-based Liebert power, cooling, monitoring and
cable management product.
Liebert XDR™ rear door cooling module, part of
the Liebert XD system, attaches easily to the
DCM rack — an extremely efcient high density
cooling solution.
Liebert MB Modular Bus Power distribution mounts
directly to the top cover of the DCM rack. This
mounting style not only brings high capacity
power distribution directly to the rack and row
level, but also saves signicant amounts of labor
time and cost.

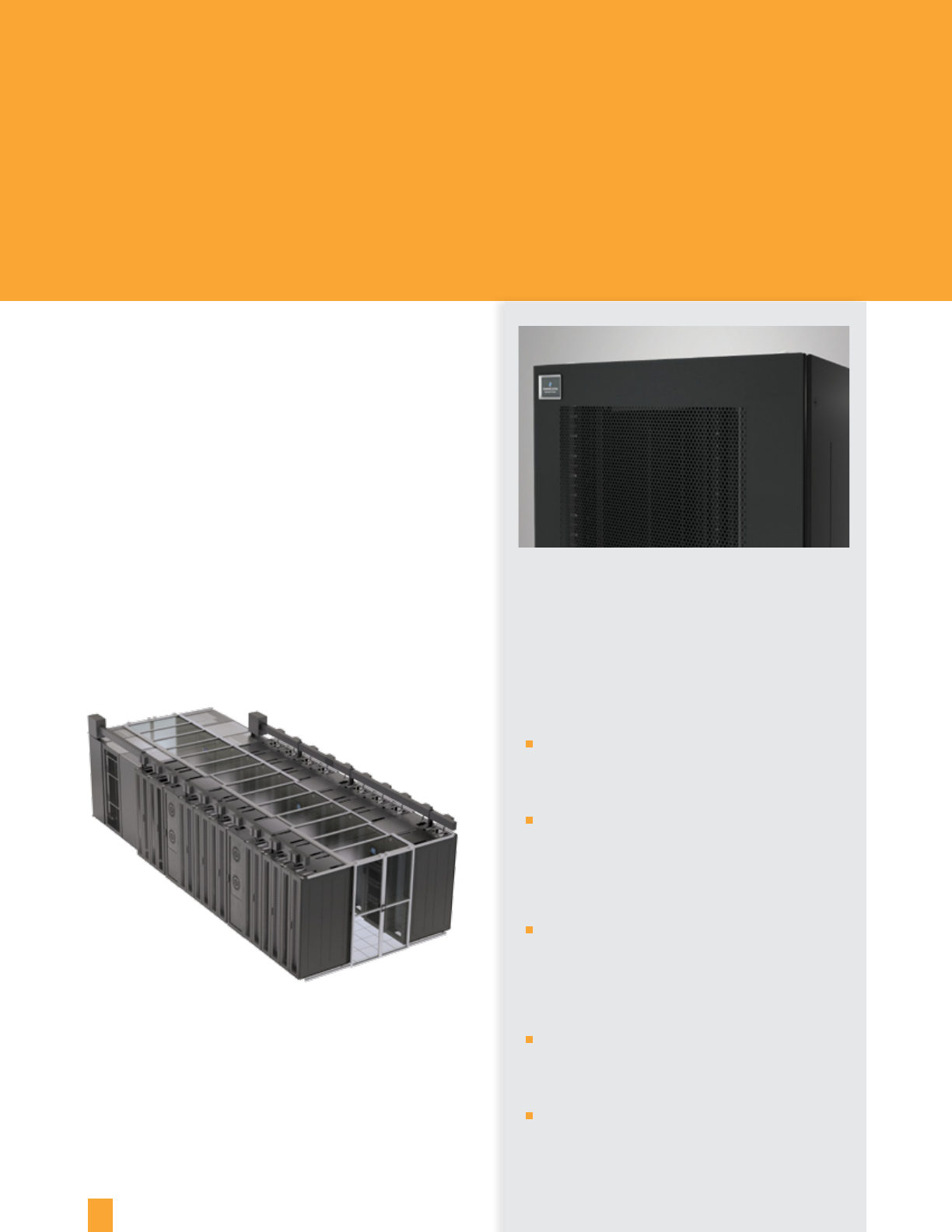

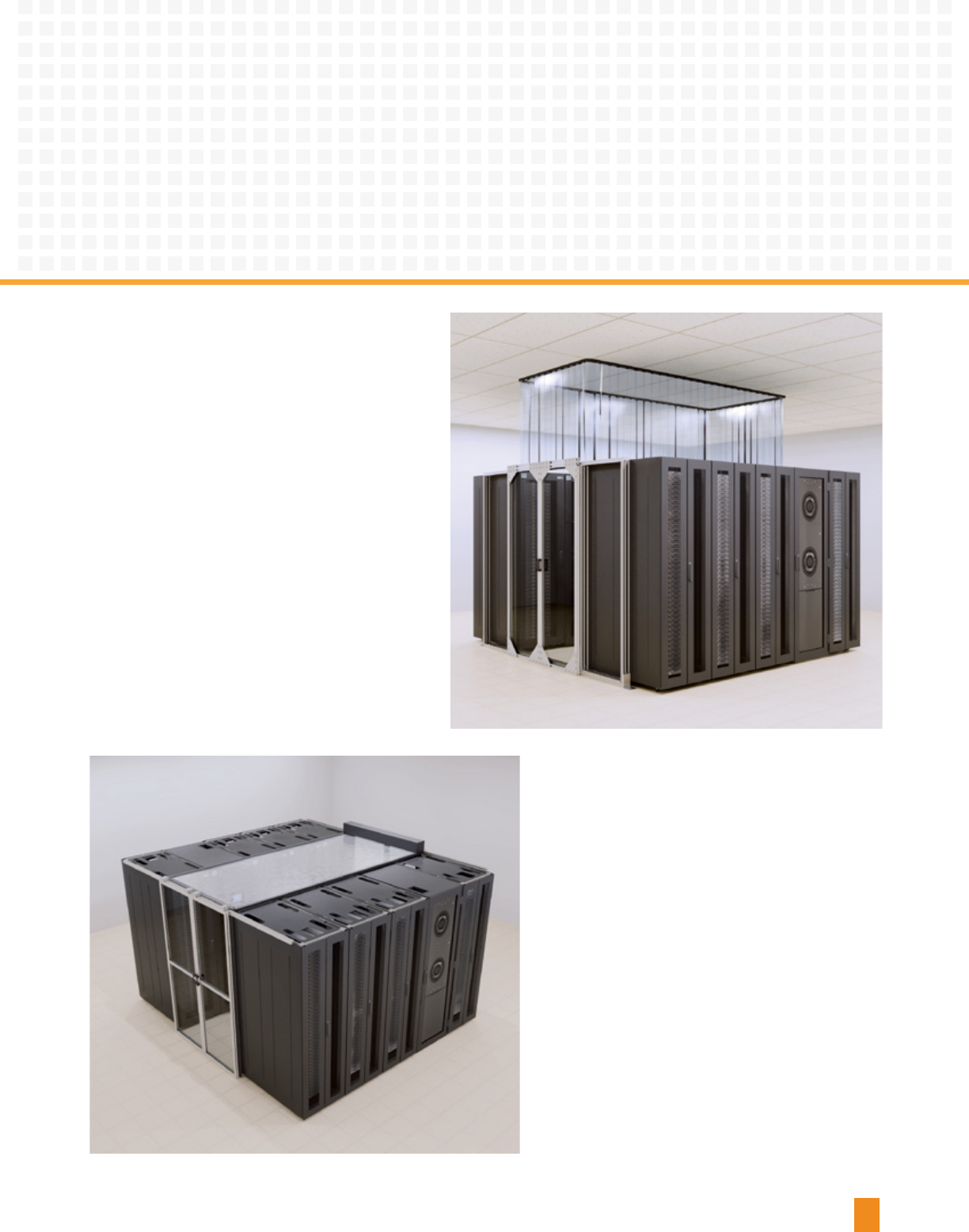

Emerson Network Power offers several methods of
Aisle Containment, with styles that either mount
directly to the cabinet or to the ceiling in the
data center. Containment is an effective means
to increase capacity and efciency of the room
cooling system.

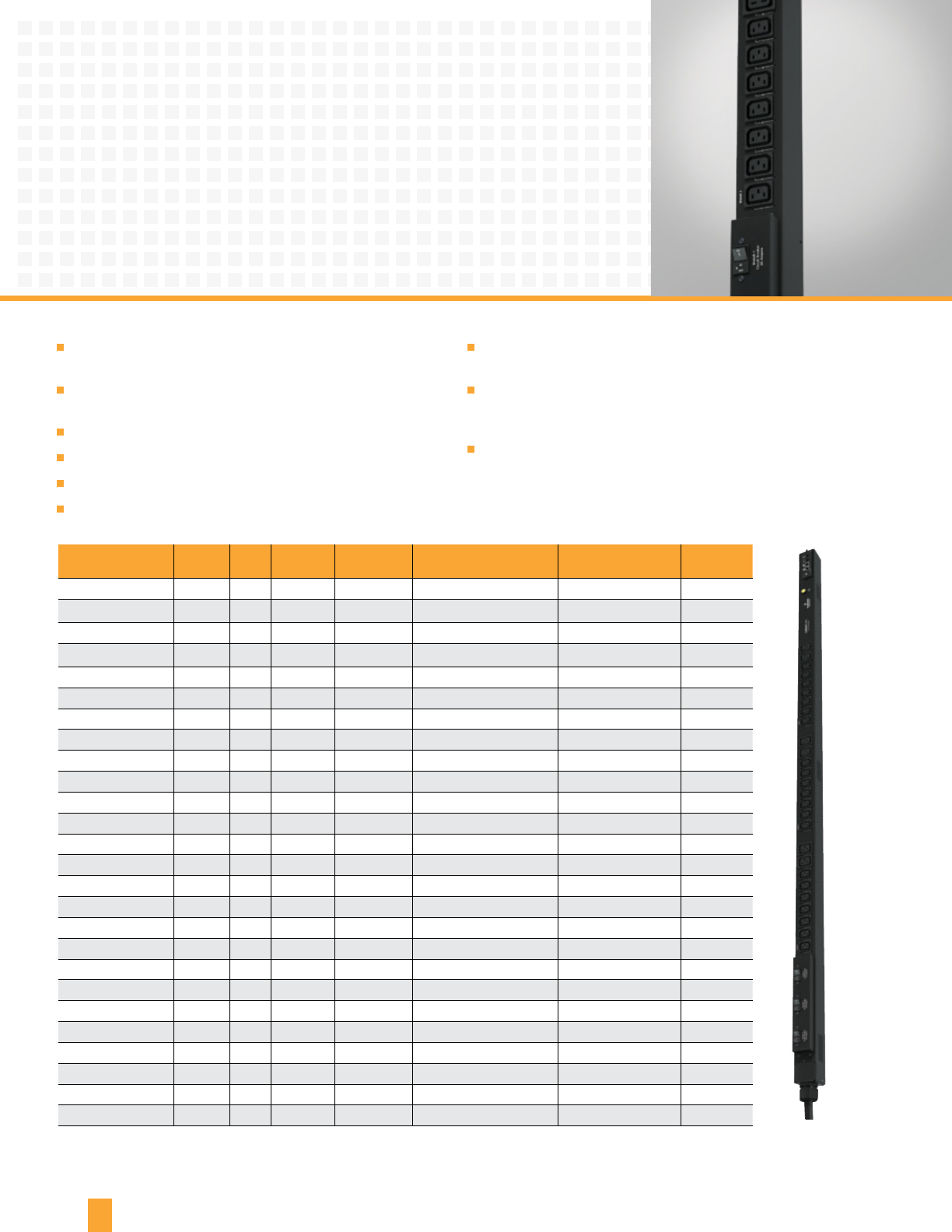

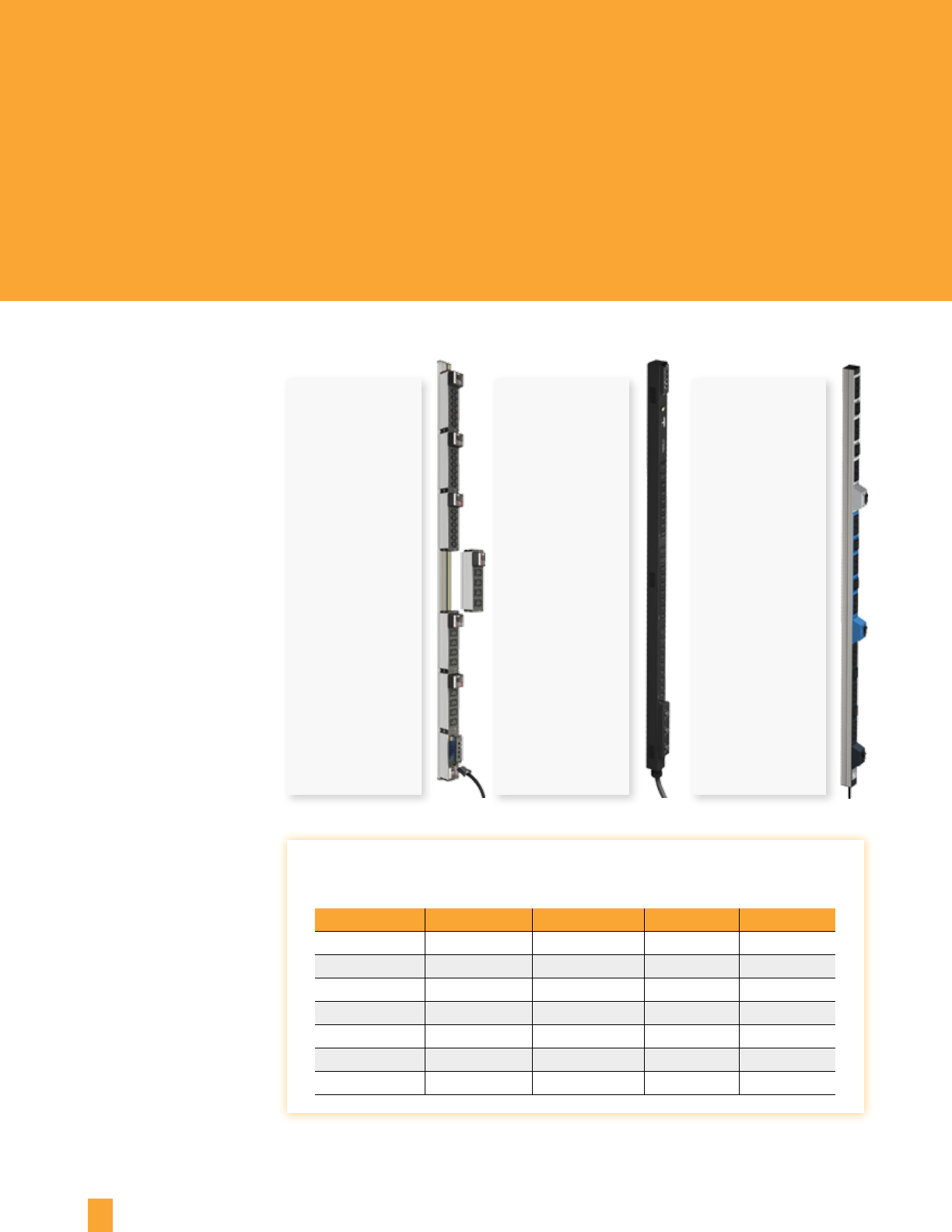

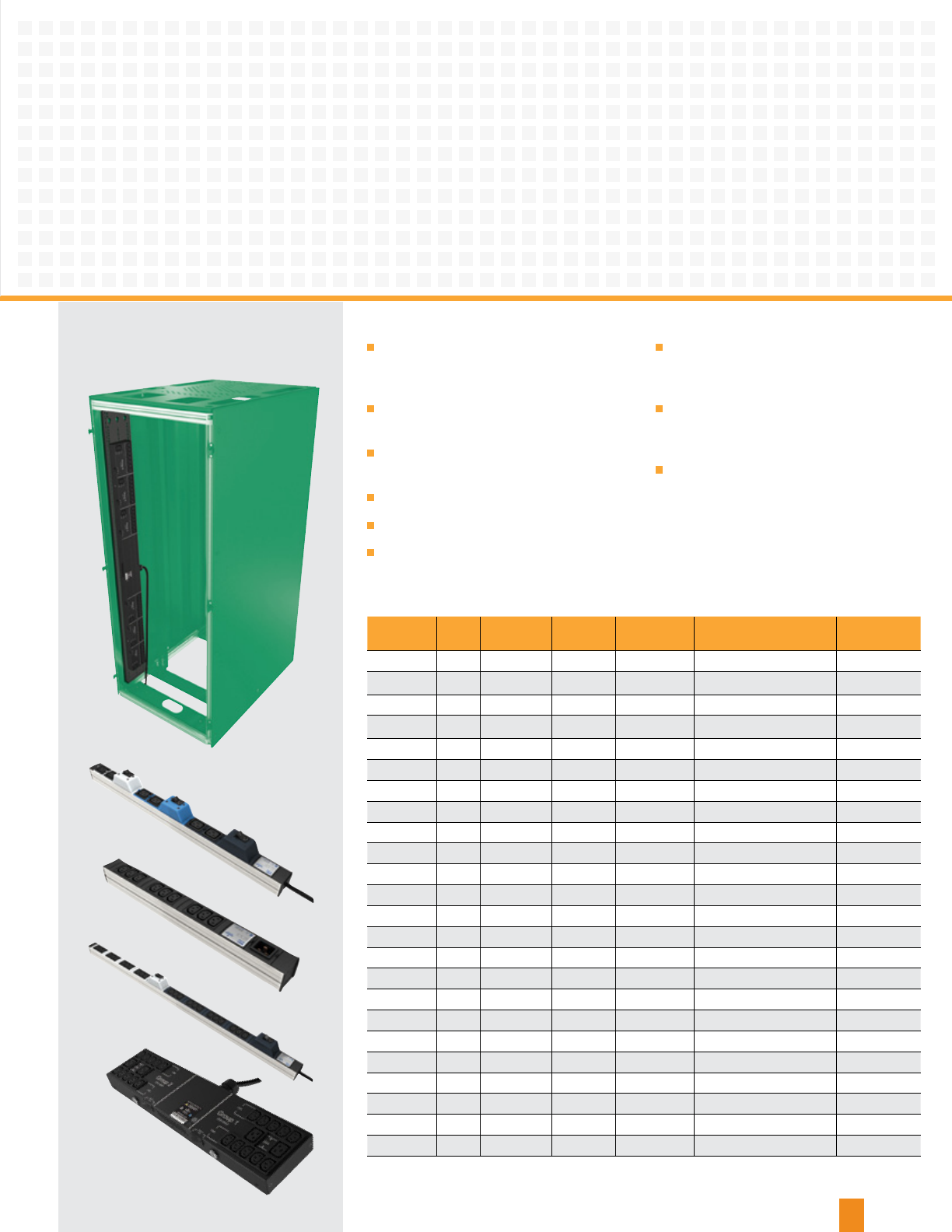

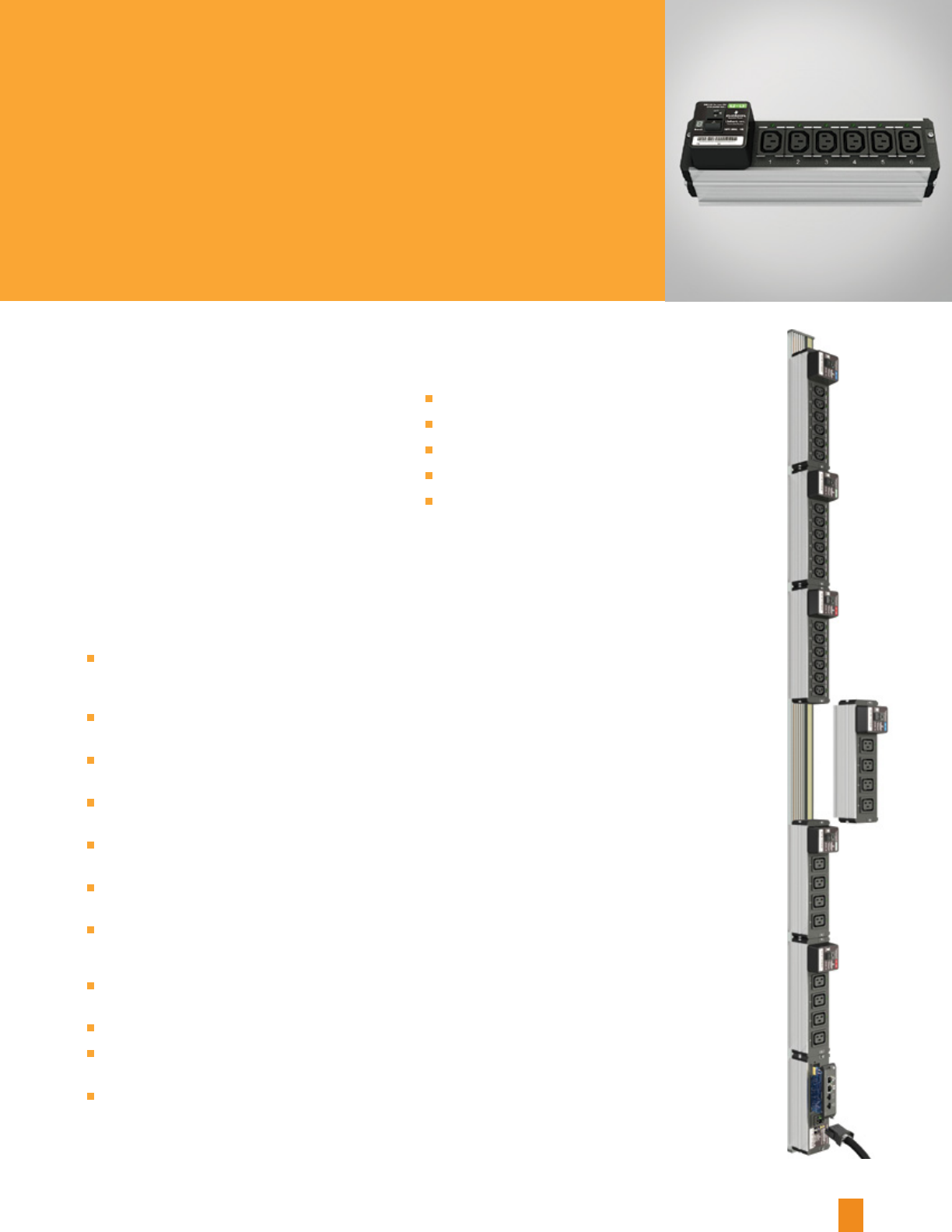

Emerson Network Power family of rack PDUs
effectively distribute power to the rack level. These
PDUs are designed to easily mount in the
DCM rack platform.
The cabinet of the Liebert CRV™ row-based
precision cooling system is based on the DCM rack
frame — a perfect physical match that provides
efcient, effective rack cooling.

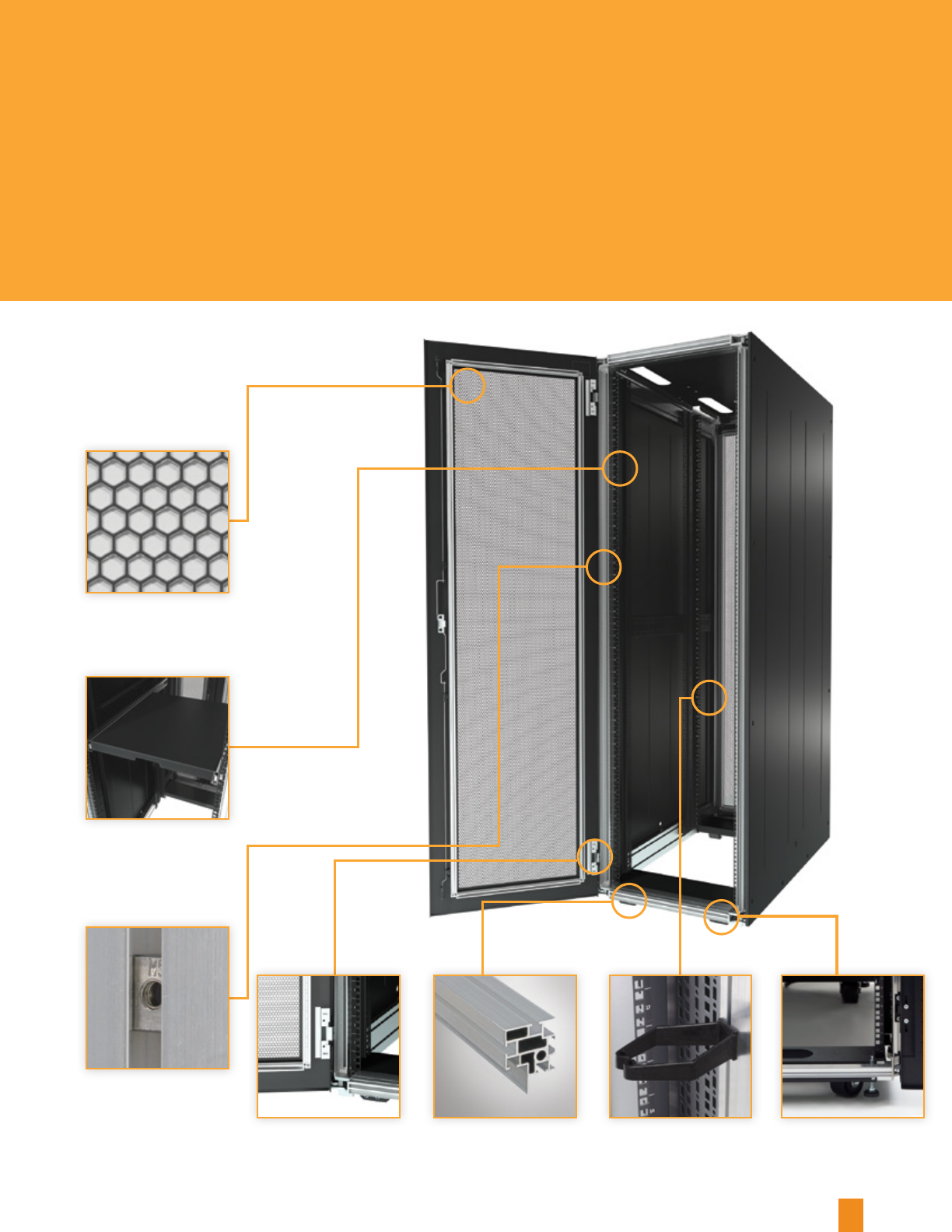

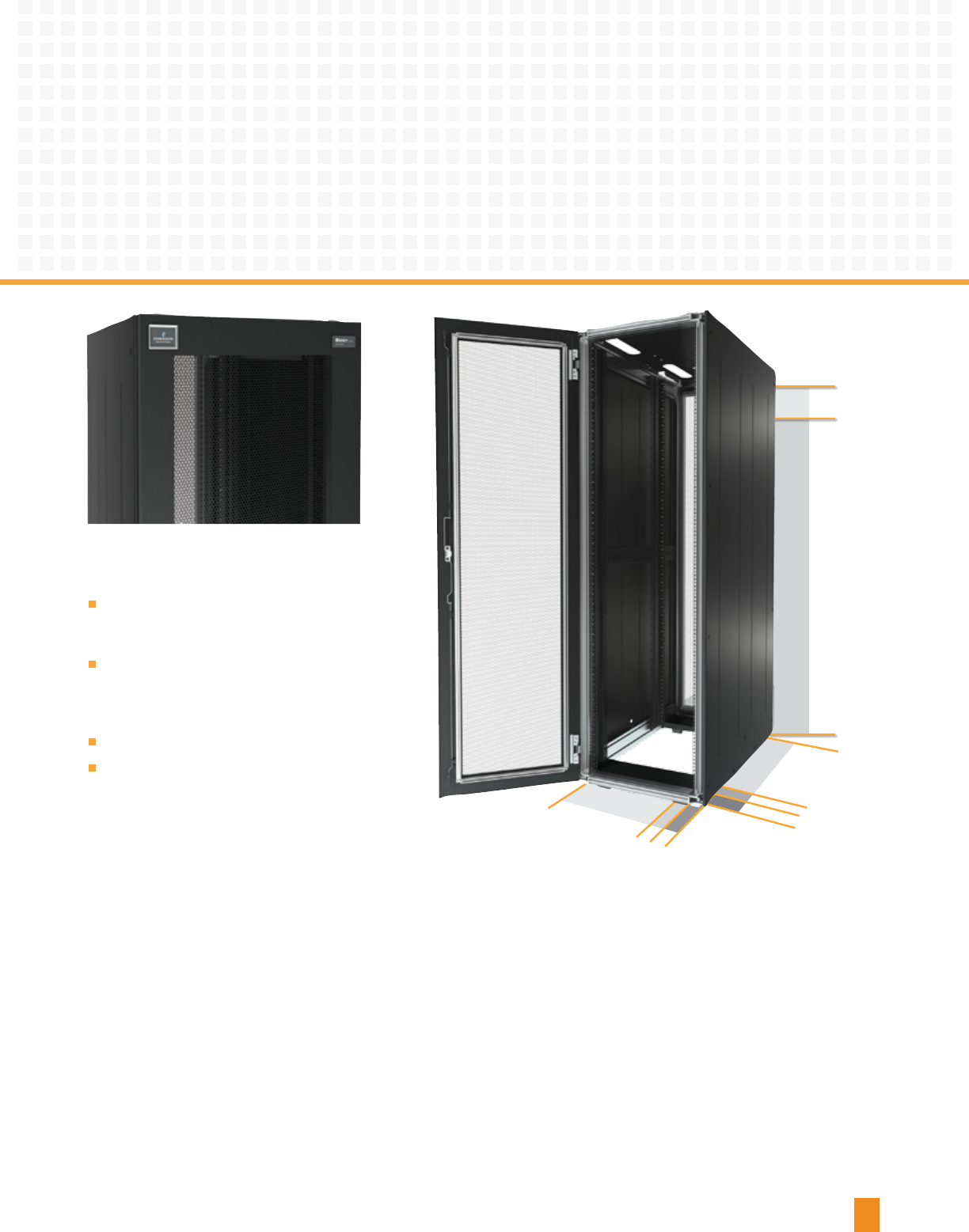

Features
Lightweight
Aluminium Frame
Makes The Cabinet Easier
For A Single Person To Move
Low Profile Casters
Allows 42U Cabinet To
Roll Through Standard
Doorway
83+% Open Area
For Improved Airow,
Highest In The Industry

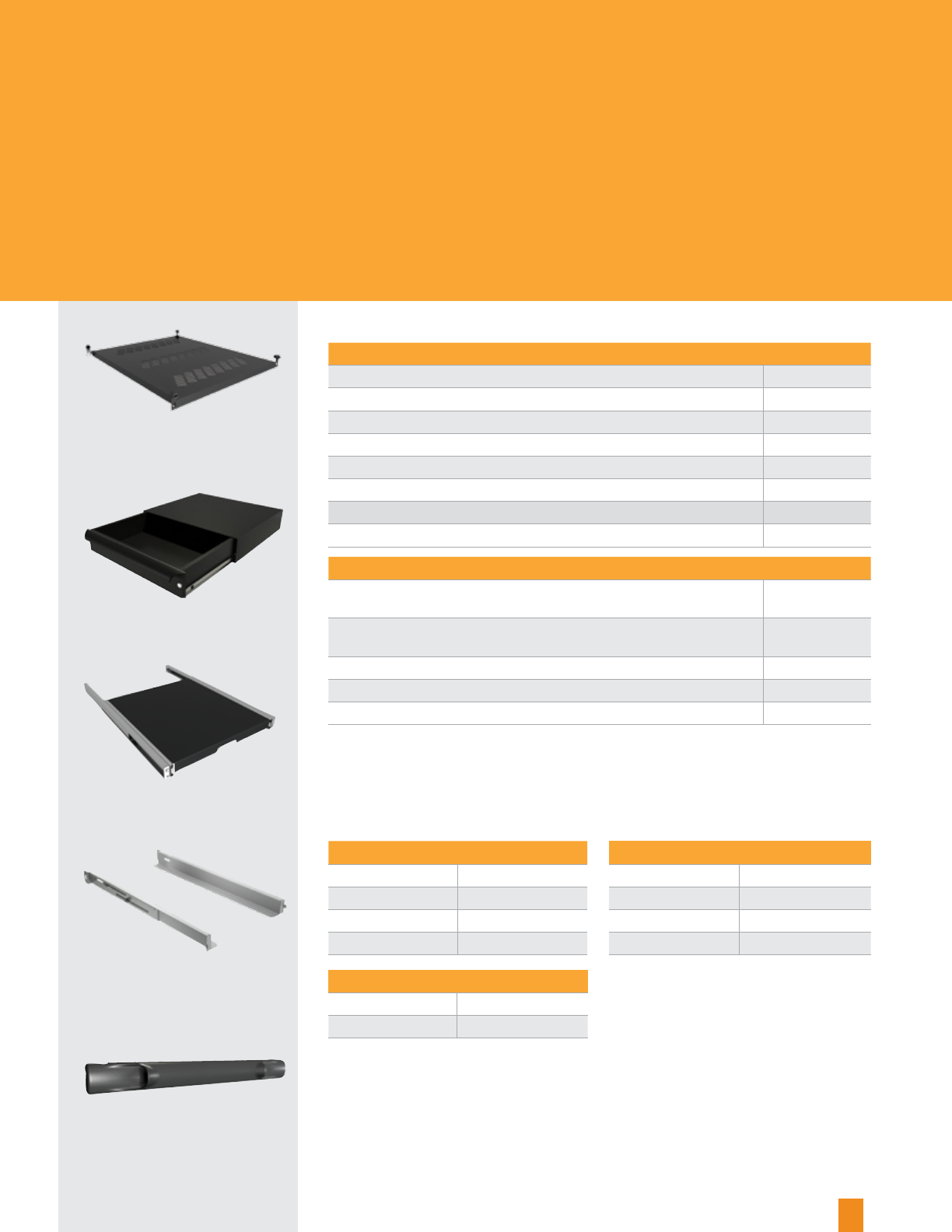

Tool-Less Shelf
Mounts In Square
Holes On 19” Rails In
Seconds
Spring Nut In T-Slot
Allows Component
Mounting Anywhere In
Cabinet Frame Doors Open to 135˚
Lift-Off Tool-Less Internal
Hinges Allow For Easy Door
Removal And Greater Security
Tool-Less Cable
Management on Frame
Insert And 1/4 Turn, Installs
In A Second
3
DCM™ Network Rack for Cisco 7000 Series Switches
4
Components
Model Number Part Description Vertical
Filler Panel Baffle Cabling Fingers
D42CIS7010 42U DCM Rack 800W X 1200D w/sides
Supports up to 7010 Cisco chassis
Installed in
Front of rack N/A 36U installed on front right
and left vertical rail
D45CIS7010 45U DCM Rack 800W X 1200D w/sides
Supports up to two 7010 Cisco chassis
Installed in
Front of rack N/A 36U installed on front right
and left vertical rail
D42CIS7010SP
42U DCM Rack 800W X 1200D w/1 side
& 1 partition panel
Supports up to 7010 Cisco chassis
Installed in
Front of rack N/A 36U installed on front right
and left vertical rail
D45CIS7010SP
45U DCM Rack 800W X 1200D w/1 sides
& 1 partition panel
Supports up to two 7010 Cisco chassis
Installed in
Front of rack N/A 36U installed on front right
and left vertical rail
D42CIS7010P2
42U DCM Rack 800W X 1200D w/2
partition panels
Supports up to 7010 Cisco chassis
Installed in
Front of rack N/A 36U installed on front right
and left vertical rail
D45CIS7010P2
45U DCM Rack 800W X 1200D w/2
partition panels
Supports up to two 7010 Cisco chassis
Installed in
Front of rack N/A 36U installed on front right
and left vertical rail
D42CIS7018 42U DCM Rack 1000W X 1200D w/sides
Supports one 7018 Cisco chassis
Installed in
front left and
right rear
Viewing from front
Installed in upper
left of rack
36U installed on front right
and left vertical rail
D45CIS7018 45U DCM Rack 1000W X 1200D w/sides
Supports one 7018 Cisco chassis
Installed in front
left and rear
right
Viewing from front
Installed in upper
left of rack
36U installed on front right
and left vertical rail
D52CIS7018 52U DCM Rack 1000W X 1200D w/sides
Supports one 7018 Cisco chassis
Installed in front
left and rear
right
Viewing from front
Installed in upper
left of rack
36U installed on front right
and left vertical rail
5
Components
Model Number Part Description Vertical
Filler Panel Baffle Cabling Fingers
D52CIS70182 52U DCM™ Rack 1000W X 1200D w/sides
Supports two 7018 Cisco chassis
Installed in front
left and rear right N/A* 36U installed on front
right and left vertical rail
D42CIS7018SP
42U DCM Rack 1000W X 1200D
w/1 side & 1 partition panel
Supports one 7018 Cisco chassis
Installed in front
left and rear right
Viewing from front
Installed in upper
left of rack
36U installed on front
right and left vertical rail
D45CIS7018SP
45U DCM Rack 1000W X 1200D w/1 side
& 1 partition panel
Supports one 7018 Cisco chassis
Installed in front
left and rear right
Viewing from front
Installed in upper
left of rack
36U installed on front
right and left vertical rail
D52CIS7018SP
52U DCM Rack 1000W X 1200D w/1 side
& 1 partition panel
Supports one 7018 Cisco chassis
Installed in front
left and rear right
Viewing from front
Installed in upper
left of rack
36U installed on front
right and left vertical rail
D52CIS70182SP
52U DCM Rack 1000W X 1200D w/1 side
& 1 partition panel
Supports two 7018 Cisco chassis
Installed in front
left and rear right N/A* 36U installed on front
right and left vertical rail
D42CIS7018P2
42U DCM Rack 1000W X 1200D w/2
partition panels
Supports one 7018 Cisco chassis
Installed in front
left and rear right
Viewing from front
Installed in upper
left of rack
36U installed on front
right and left vertical rail
D45CIS7018P2
45U DCM Rack 1000W X 1200D w/2
partition panels
Supports one 7018 Cisco chassis
Installed in front
left and rear right
Viewing from front
Installed in upper
left of rack
36U installed on front
right and left vertical rail
D52CIS7018P2
52U DCM Rack 1000W X 1200D w/2
partition panels
Supports one 7018 Cisco chassis
Installed in front
left and rear right
Viewing from front
Installed in upper
left of rack
36U installed on front
right and left vertical rail
D52CIS70182P2
52U DCM Rack 1000W X 1200D w/2
partition panels
Supports two 7018 Cisco chassis
Installed in front
left and rear right N/A* 36U installed on front
right and left vertical rail
*This rack the bafe is intentially left out so it can support two 7018 chassis’s
Cabinet Part Numbering Description
Use The Matrix To Create Your Part Number.
Choose, in order, the: height, width, depth, front door type, rear
door type, and side panel number and type.
Sample Part Number:
This part number indicates a DCM cabinet with 78” height
frame, 23.6” width with sides, 43.3” depth with doors, single
perforated front door, split perforated doors, two side panels,
black paint and two sets of 19” rails.
Multiple Sizes to Fit
Your Needs
The table to the right shows
the measurements for the
different height, width and
depth options available in the
DCM rack.
Part Part Number Description
H Height
Frame Leveling Feet Casters
IN MM IN MM IN MM
K77.5 1968 78.1 1986 78.6 1999
L 82.8 2103 83.4 2121 83.9 2134
W Width
No Sides With Sides
IN MM IN MM
623.3 591 23.6 600
7 27.2 691 27.6 700
8 31.1 791 31.5 800
DDepth
No Doors With Doors
IN MM IN MM
A38.8 986 39.4 1000
B 42.8 1086 43.3 1100
C46.7 1186 47.2 1200
Product Height Width Depth Front
Doors Rear Doors Side Panel Reserved Reserved
Factory
Installed
Accesories
Factory
Installed PDUs
D=DCM K=2000mm
(42U)
6=600mm
(23.6”)
A=1000mm
(39.4”)
0=No door 0=No door 0=None
~ ~
0=No
Factory
Installed
Accesories
0=No Factory
Installed PDUs
L=2100mm
(45U)
7=700mm
(27.6”)
B=1100mm
(43.3”)
1=Single
perforated
door
1=Single
perforated
door
1=1 Side
panel
1=Yes
Factory
Installed
Accesories
1=1 Factory
Installed PDU
8=800mm
(31.5”)
C=1200mm
(47.3”)
2=Split
perforated
doors
2=Split
perforated
doors
2=2 Side
panels
2=2 Factory
Installed PDUs
3=1 Partition 3=3 Factory
Installed PDUs
5=1 Side
panel and
1 partition
panel
4=4 Factory
Installed PDUs
6
D K 6 B 1 2 2 0 0
1 Factory
installed
accessories
2 Factory
Installed
PDU’s
Product Height Width Depth Front Doors Rear Doors Side Panel Reserved Reserved
DCM™ Rack Dimensions
Dimensions That
Meet Your Requirements
The DCM cabinet is Emerson Network
Power’s global rack, available in all corners
of the world for data center consistency.
The 42U x 44” (1100mm) deep rack is the
global standard for all of Emerson Network
Power’s row based Power and Cooling
products, ensuring data center consistency.
Metric footprint for global applications.
OSHPD rated version available.
7
Height
45U 2100mm
42U 2000mm
39.4 in 1000mm
23.6 in 600mm
43.3 in 1100mm
27.6 in 700mm
47.2 in 1200mm
31.5in 800mm Depth
Width

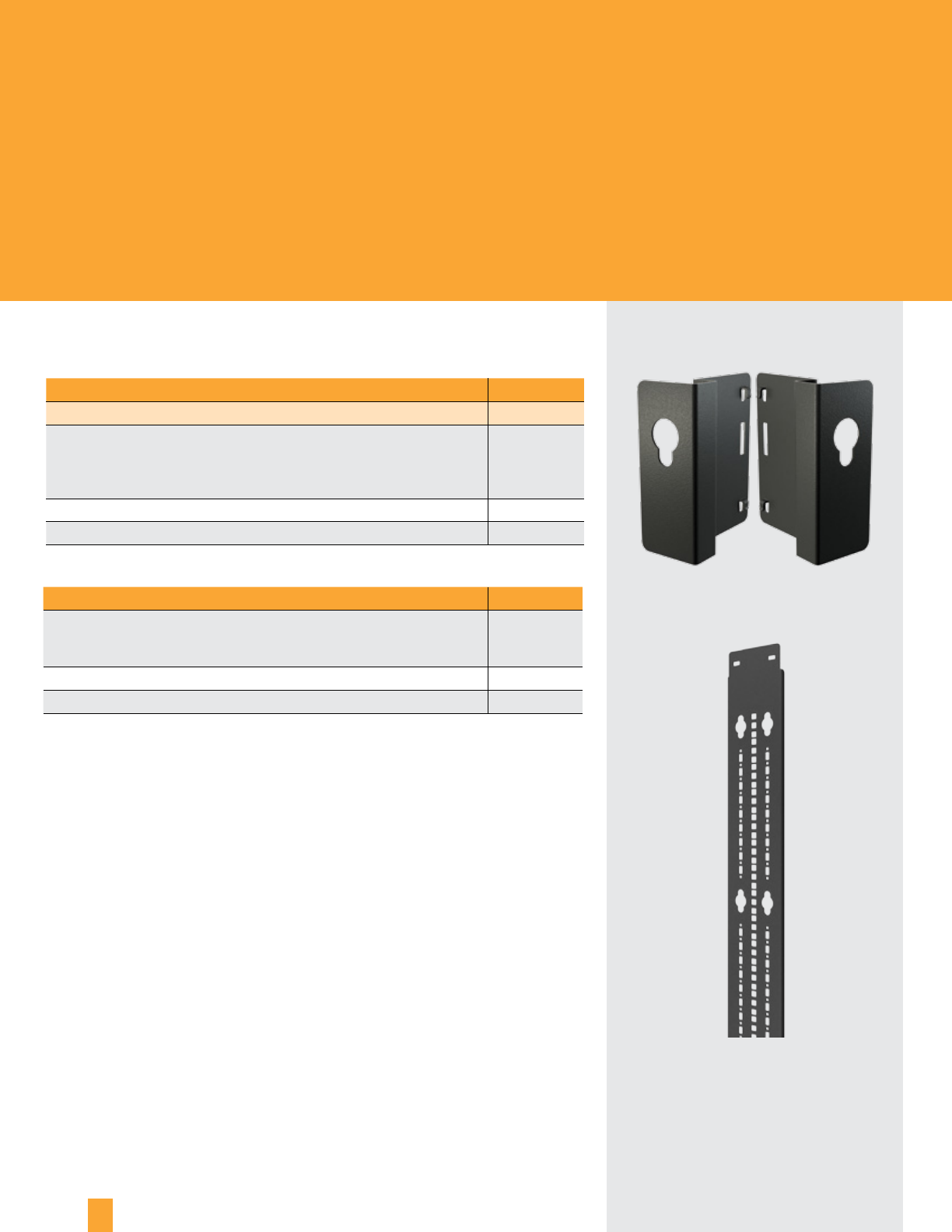

Cable Management
Description Part Number
Kit of (2) 18U ngers with 1U center spacing, mounts tool lessly on 19” rails 010200078
Description Part Number
Individual Cable Management
Velcro strap, tool-less, pack of 10 002185060
Velcro strap, tool-less, pack of 100 002185080
Lobster Claw, tool-less, pack of 10 002185050
Lobster Claw, tool-less, pack of 100 002185070
Horizontal Cable Management 19” mount
1U 19” mount cable routing panel with D Rings 011171448
19” horizontal cable support trough 050400558
1U Horizontal Cable Manager 548784P1
2U Horizontal Cable Manager 548785P1
Full height PDU bracket, that doubles as a cable
management rail, available as an option.
Two ¼ turn tool-less cable management
pieces offer the ultimate in exibility in cable
management. These can be installed in any
internal frame surface, on the outside edge of
the 19” rail or on the PDU/Cable
Management rail.

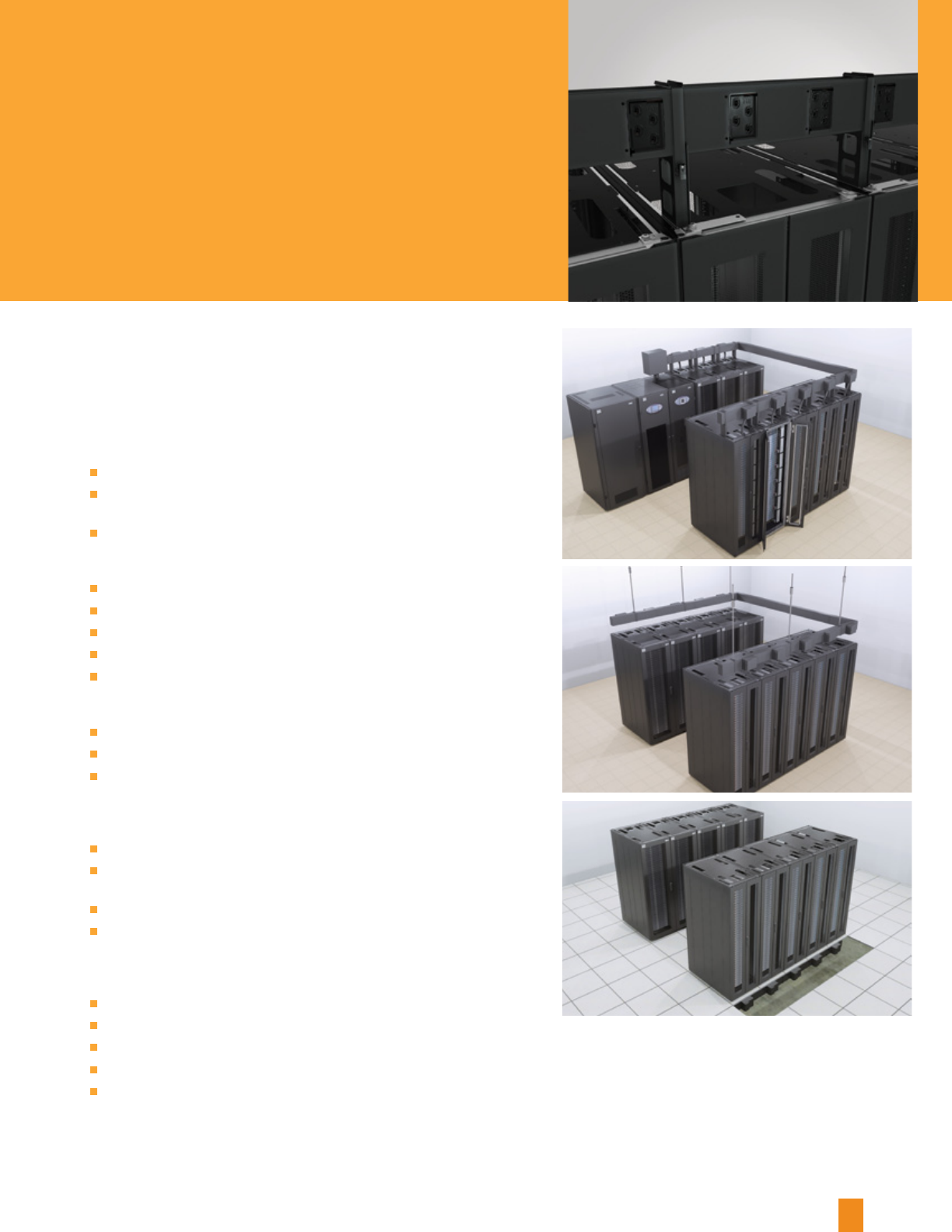

The DCM rack top cover and horizontal cable
routing system easily directs cables along the
top of the row of racks.
Kit of (2) CBL Cov 600-700 18U 542970P1
Kit of (2) CBL Cov 6-8 & 7-7 18U 542971P1
Kit of (2) CBL Cov 700 to 800 18U 542972P1
Kit of (2) CBL Cov 800 to 800 18U 542973P1
Kit of (2) BCKPL 600 to 700 18U 542974P1
Kit of (2) BCKPL 6-8 & 7-7 18U 542975P1
Kit of (2) BCKPL 700-800 18U 542976P1
Kit of (2) BCKPL 800-800 18U 542977P1
Description Part Number
Top Cover based Horizontal cable routing system, 1 kit includes front and rear trim piece
and center trough for 600mm (24") wide DCM cabinets. Mounts tool-lessly on top cover. 537876G1
Top Cover based Horizontal cable routing system, 1 kit includes front and rear trim piece and
center trough 700mm (28") wide DCM cabinets. Mounts tool-lessly on top cover. 537887G1
Top Cover based Horizontal cable routing system, 1 kit includes front and rear trim piece
and center trough 800mm (32") wide DCM cabinets. Mounts tool-lessly on top cover. 537877G1
Top cover based horizontal cable routing system, 1 kit includes front and rear trim piece
and center trough for 1000mm (40”) wide DCM cabinet. Mounts tool lessly on top cover. 548583G1
Kit of 2 front to back trim pieces for DCM cabinets. 1 each for end of aisle.
For 1000mm (40") deep DCM cabinets. Mounts tool-lessly on top cover. 537878G1
Kit of 2 front to back trim pieces for DCM cabinets. 1 each for end of aisle.
For 1100mm (44") deep DCM cabinets. Mounts tool-lessly on top cover. 537879G1
Kit of 2 front to back trim pieces for DCM cabinets. 1 each for end of aisle.
For 1200mm (48") deep DCM cabinets. Mounts tool-lessly on top cover. 537880G1
Horizontal Cable Manager
Mounts on the EIA rails to easily
manager cables.
Available in 1U and 2U.
8
Velcro strap, tool-less
Lobster Claw , tool-less
Top Cover Horizontal Cable
Routing System and Front To
Back Trim Pieces
Cable Management
Vertical Cable Management
1U & 2U horizontal cable manager
Air Flow Management, Shelves and Brackets
Vertical Blanking Panels
Full height vertical blanking panels that mount to outside edge of 19” rail and extend to the
plane of the side panel. The vertical panels for the DCM rail utilize 2 half height panels per side.
Each kit is enough for 1 cabinet. Each panel has three 1U vertical cutouts that may be used for
cable pass through or mounting, or may be covered with the included metal blanking panels.
Dimension Part Number
42U x700mm (28") 539952G2L
42U x 800mm (32") 539957G2L
45U x700mm (28") 539961G2L
45U x 800mm (32") 539962G2L
Description Part Number
Fixed tool-less shelf, 275 lb rating 002185000
2U fully enclosable and lockable drawer, mounts on 19” rails 30lb load rating 011139278L
Tool-less telescopic shelf, 110 lb rating 535809G1
“L” shaped depth support rails, 2 pieces 542777G1L
600mm W XDV mounting bracket 543548G1
700mm W XDV mounting bracket 543551G1
800mm W XDV mounting bracket 543552G1
1000mm W XDV mounting bracket 548515G1
Air Diverter for IT Switches
4U 540785G1L
12U 540785G2L
15 U 540785G3L
21U 540785G4L
Set of (2) 19” Rails
42U 539814G1
45U 539818G1
Description Part Number
1U tool less blanking panel that mounts in 19” rails with square holes.
Qty: Box of 10 010200087
2U tool less blanking panel that mounts in 19” rails with square holes.
Qty: Box of 5 010200088
RPCBDM Bracket mounts to extrusion 538619G1L
RPCBDM Bracket mounts to T-slot 541100G1L
1U metal blanking panel with Brush 542190G1L
9
19” Fixed tool-less shelf
19” Tool-less Telescopic Shelf
“L” Shaped Depth Support Rail
Tool-less Blanking Panel
2U Drawer, mounts on 19” rails
Shelves, Blanking Panels and Drawers
Doors come standard with push
button lock insert. Cabinet can be
left unlocked or locked for
greater security.
Additional locking systems,
including unique lock inserts or
electronic locks available
as options.
The 42U x 24” (600mm) wide
product readily accepts the Liebert
XDR rear door high density cooling
system. This system provides
20kW of passive cooling, essentially
rendering the cabinet “heat neutral”
up to the rated heat load.
Open base for cable entrance.
Leveling feet are standard with
casters an easy add option.
All panels (tops, side panels and 19”
rails) are electrically grounded to the
frame. A grounding plug is provided,
making it easy to install your ground
wire to electrically ground the
cabinet to building earth.
Side panels have optional locking
system and are easily released.

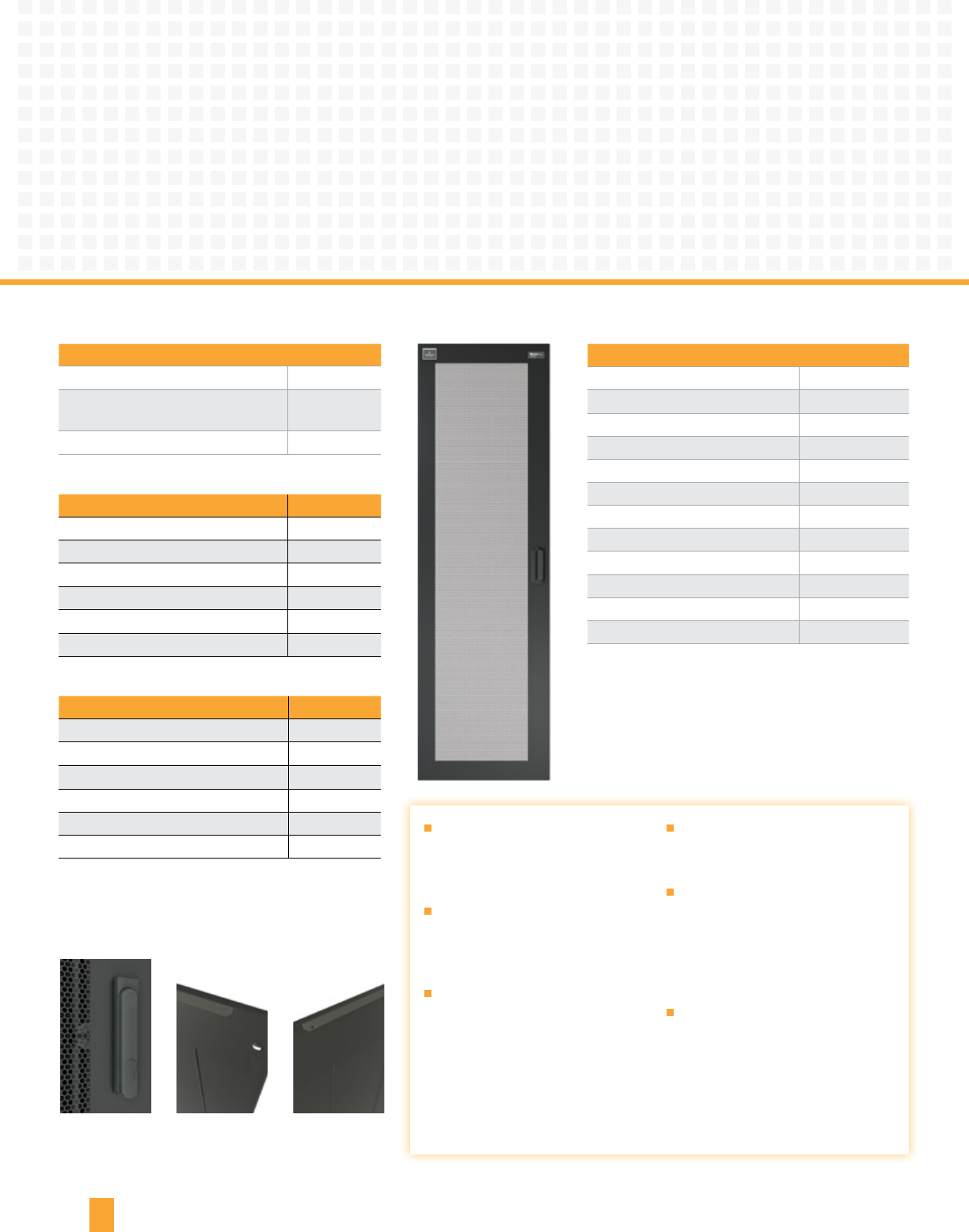

Side Panels, Partition Panels, and Doors
Side Panels Part Number
42U x 40" (2000x1000) 538521G4L
42U x 44" (2000x1100) 538521G5L
42u x 48" (2000x1200) 538521G6L
45U x 40" (2100x1000) 538521G7L
45U x 44" (2100x1100) 538521G8L
45U x 48" (2100x1200) 538521G9L
Partition Panels Part Number
42U x 40" (2000x1000) 539920G1L
42U x 44" (2000x1100) 539920G3L
42u x 48" (2000x1200) 539920G5L
45U x 40" (2100x1000) 539920G7L
45U x 44" (2100x1100) 539920G9L
45U x 48" (2100x1200) 539920G11L
Handles and Lock Accesories Part Number
Handle for DCM Rack 000784649
Lock Insert kit for DCM Handle, 1
insert and 2 keys
540275G1L
Side panel insert and 2 keys 011399067L
Doors Part Number
42U x 24" (2000x600) single door 538444G4L
42U x 28" (2000x700) single door 538444G5L
42U x 32" (2000x800) single door 538444G6L
42U x 24" (2000x600) split door 539273G4L
42U x 28" (2000x700) split door 539273G5L
42U x 32" (2000x800) split door 539273G6L
45U x 24" (2100x600) single door 538444G7L
45U x 28" (2100x700) single door 538444G8L
45U x 32""(2100x800) single door 538444G9L
45U x 24" (2100x600) split door 539273G7L
45U x 28" (2100x700) split door 539273G8L
45U x 32" (2100x800) split door 539273G9L
DCM Rack Side Panels
DCM Rack Doors
Partition Panels
Handles And Lock Accessories
10
Side Panel
Partition Panel
42u x 48”
Handle for
DCM rack

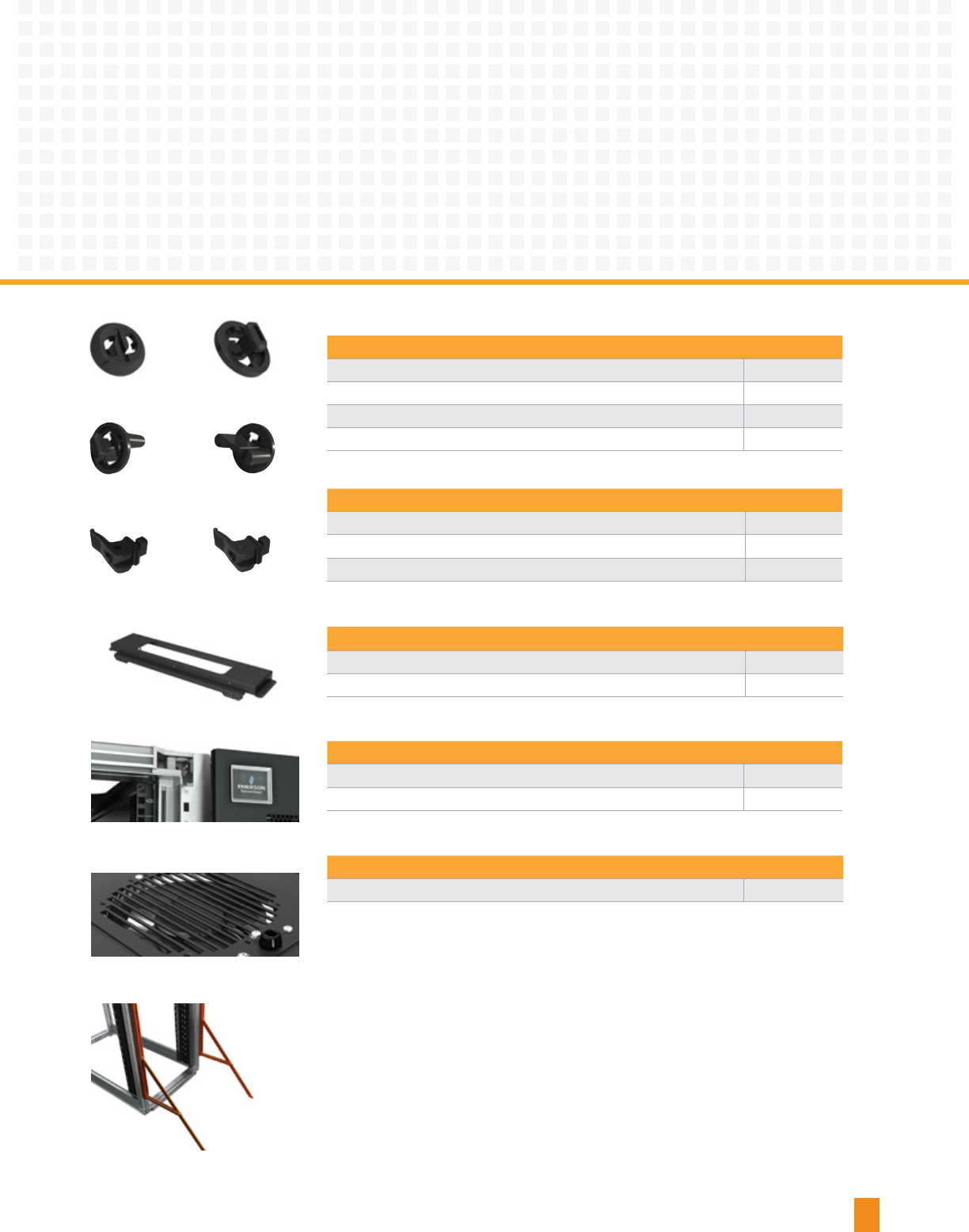

Hardware and Accessories
Hardware And Other Rack Accessories
Description Part Number
M6 cage nuts, screws and washers, bag of 50 each 546189G1
Low prole, 1/4 turn plastic mechanical fastener, bag of 10 010200085
High prole, 1/4 turn plastic mechanical fastener, bag of 10 010200086
1/4 turn metal mechanical fastener, bag of 10 536650G1
Caster Kits
Description Part Number
Set of 2 for 600mm (24") wide DCM rack 539994G1
Set of 2 for 700mm (28") wide DCM rack 539996G1
Set of 2 for 800mm (32") wide DCM rack 539997G1
Baying / Cluster Kits
Description Part Number
42U Tool less baying/cluster kit, 1 set to cluster 2 cabinets 539608G2
45U Tool less baying/cluster kit, 1 set to cluster 2 cabinets 539608G3
Fans For Top Cover
Description Part Number
1000L Low noise 163796G1L
1000H high ambient 163796G3L
Anti Tip System
Description Part Number
Anti Tip System 540254G1L
Low prole1/4 turn fastener
High prole1/4 turn fastener
1/4 Turn Metal Fastener
Horizontal Caster Bracket
Tool-less Baying/Cluster Kit
Fan For Top Cover
Anti Tip System
11
Rack PDU (Power Distribution Units)
12
It is rare to have a rack discussion
without also talking about the rack
PDU. According to Data Center Users’
Group™ ndings, the average power
consumption in the Enterprise Data
Center is now approximately 8kW
per rack, with projections to grow to
10kW per rack by 2012. In the Small
to Medium Business space, (SMB)
the average today is 6kW per rack.
Couple this increased power density
with various monitoring and control
needs, and the issue of proper
PDU selection becomes critical
to effective Data Center
infrastructure deployment.
The Emerson Network Power family
of rack PDU features varying levels of
monitoring and control. These PDUs
offer choices of input phase, input/
output ampacity and input/output
voltage to provide you with the best
solution for the application you are
facing today, or foresee in the future.
Highest Standard
Operating Temperature
in the Industry:
Each rack PDU is rated for operation
up to 55C/131F, delivering reliable
performance in hostile back-of-the-
rack environments.
Broadest Offering
of Rack PDU:
Basic to adaptive solutions to t any
rack distribution needs.
Rugged Construction:
Engineered to be reliable and
long lasting.
Note: For more information on
conguring a rack PDU to meet
specic site needs, consult Emerson
Network Power Rack PDU Systems
Product Selection Guide (SL-20828)
Input Phase Input Amps Input Voltage kW Output # PDUs
115 120 1.4 6
120 120 1.9 5
130 120 2.9 3
115 208 2.5 4
130 208 5.0 2
330 208 8.6 1
360 208 17.3 1
Number of Rack PDU’s required to supply 8kW of Output Power, based on Input Phase,
Input Amps and Supply.
Liebert
MPH™:
The Managed
Rack PDU offers
several levels
of metering
in addition
to control
capabilities
with connected
equipment. This
family offers
products ranging
from 1.9kW to
8.6kW.
Knurr
DI-STRIP®:
For Data Centers
with basic
distribution
needs, the
Basic Rack PDU
delivers simple
and expandable
distribution in a
robust package.
The basic offering
from Knurr,
is available
in a family of
products ranging
from 1.4-24.4kW
of output.
Liebert®
MPX™:
This Adaptive
Rack PDU offers
breakthrough,
congurable/
modular power
and management
technology for
the dynamic
Data Center,
where change
in receptacle
type and/or
voltage may be
foreseen over
the upcoming
years. This family
offers products
ranging from
1.9kW-14.4kw of
output.
Liebert® MPX™ — Adaptive Rack PDU
Now you can meet the challenge of future
connected power requirements with Liebert
MPX, the most responsive and adaptive rack
PDU available. Thanks to Liebert MPX adaptive
technology, you can economically increase the
availability of critical systems by leveraging hot-
swappable modular power — and manage it all
the way to the receptacle level.
Reconfigurable Power Capacity
And Distribution
Liebert MPX is the perfect choice to respond to the
needs of a growing data center. Relocate or add IT
equipment to support changing needs, by easily
reconguring the power input and distribution.
Liebert MPX Features:
Industry leading operating temperature — up to
55˚C /131˚F to support hot Internal
rack environments.
Accurate power metering of +/-1% voltage &
current for assured oversight.
Energy and power metering down to the
individual receptacle.
Comprehensive alarming including notication of
overloaded branch circuits.
Environmental sensing with threshold and
alarm set-points.
Notication on the loss or removal of individual
rack equipment loads.
IP consolidation via Rack PDU Array™.
Liebert MPX Benefits:
Adaptive capacity, distribution, monitoring,
control and management of critical devices.
Flexibility to respond to constant change.
Buy only what you need and build on
your investment.
Secure communication.
Liebert Power Monitoring Capabilities
The operation of Liebert MPX can be monitored using:
Liebert RPC™ Rack PDU Card
Liebert Nform™ Monitoring System
Liebert SiteScan® Web Centralized Monitoring System
Secure Web/SNMP Interfaces
Liebert RPC-BDM Local Display Module
Scalable Design Allows Onsite
Configuration To Fit Immediate IT
Equipment Needs
The Liebert MPX Adaptive Rack PDU features essential
characteristics to support fast-paced, growing data
centers. Hot swappable output power deploys easily to
get IT equipment online quickly.
To congure your Liebert MPX, simply follow these
easy steps:
1.Select a Power Rail Chassis — distributes power and
communications to all of the support modules
2.Select a Power Entry Module — connects input power
to power rail chassis. May be recongured to support
changing power needs, single and three phase input.
Can be positioned for top or bottom rack entrance.
3.Select an Input Power Cord — allows easy power
reconguration to change input power to meet
changing requirements.
4.Select the Rack PDU Card (Liebert RPC) — provides
upgradable network communications, sensor and
local display interface.
5.Select the Rack PDU Display — displays power
parameters and alarms for up to four Liebert MPX
systems. Display orients for horizontal or vertical
installation and reading.
6.Select Branch Receptacle Modules — provide
hot swappable output power connectivity and
communications management. May be remotely
controlled and metered, providing operator exibility
and allowing increased site security.
13
Liebert® MPH™
Part Number Voltage Amps Input
Phase
Input Plug Output Receptacles Branch Monitored /
Receptacle Controlled
Form Factor
MPH-NBR09AXXC30 120 20 1PH L5-20P (9) Nema 5-20R Branch Monitored Rackmount
MPH-NBR09AXXD30 120 30 1PH L5-30P (9) Nema 5-20R Branch Monitored Rackmount
MPH-NBR09NXXE30 200-240 20 1PH L6-20P (9) C-13 Branch Monitored Rackmount
MPH-NBR09NXXF30 200-240 30 1PH L6-30P (9) C-13 Branch Monitored Rackmount
MPH-NBV27AXXC30 120 20 1PH L5-20P (27) Nema 5-20R Branch Monitored Vertical
MPH-NBV27AXXD30 120 30 1PH L5-30P (27) Nema 5-20R Branch Monitored Vertical
MPH-NBV27NXXE30 200-240 20 1PH L6-20P (27) C-13 Branch Monitored Vertical
MPH-NBV27NXXF30 200-240 30 1PH L6-30P (27) C-13 Branch Monitored Vertical
MPH-NBV27NOXF30 200-240 30 1PH L6-30P (21) C-13 & (6) C-19 Branch Monitored Vertical
MPH-NBV27AXXH30 120/208 30 3PH L21-30P (27) Nema 5-20R Branch Monitored Vertical
MPH-NBV27NXXH30 120/208 30 3PH L21-30P (27) C-13 Branch Monitored Vertical
MPH-NBV27ANXH30 120/208 30 3PH L21-30P (21) C-13 & (6) 5-20R Branch Monitored Vertical
MPH-NBV27NOXH30 120/208 30 3PH L21-30P (21) C-13 & (6) C-19 Branch Monitored Vertical
MPH-NCR09AXXC30 120 20 1PH L5-20P (9) Nema 5-20R Receptacle Controlled Rackmount
MPH-NCR09AXXD30 120 30 1PH L5-30P (9) Nema 5-20R Receptacle Controlled Rackmount
MPH-NCR09NXXE30 200-240 20 1PH L6-20P (9) C-13 Receptacle Controlled Rackmount
MPH-NCR09NXXF30 200-240 30 1PH L6-30P (9) C-13 Receptacle Controlled Rackmount
MPH-NCV27AXXC30 120 20 1PH L5-20P (27) Nema 5-20R Receptacle Controlled Vertical
MPH-NCV27AXXD30 120 30 1PH L5-30P (27) Nema 5-20R Receptacle Controlled Vertical
MPH-NCV27NXXE30 200-240 20 1PH L6-20P (27) C-13 Receptacle Controlled Vertical
MPH-NCV27NXXF30 200-240 30 1PH L6-30P (27) C-13 Receptacle Controlled Vertical
MPH-NCV27NOXF30 200-240 30 1PH L6-30P (21) C-13 & (6) C-19 Receptacle Controlled Vertical
MPH-NCV27AXXH30 120/208 30 3PH L21-30P (27) Nema 5-20R Receptacle Controlled Vertical
MPH-NCV27NXXH30 120/208 30 3PH L21-30P (27) C-13 Receptacle Controlled Vertical
MPH-NCV27ANXH30 120/208 30 3PH L21-30P (21) C-13 & (6) 5-20R T-Slots Receptacle Controlled Vertical
MPH-NCV27NOXH30 120/208 30 3PH L21-30P (21) C-13 & (6) C-19 Receptacle Controlled Vertical
14
Monitors electrical and environmental parameters with set
threshold and alarm tools.
Industry leading operating temperature—up to 55˚C/131˚F to
support hot internal rack environments.
Controls and manages individual receptacles.
Predicts overcurrent conditions before they become critical.
Remote monitoring at strip and branch.
Card-based communications. Local displays are easily located to
suit a crowded and changing rack environment.
Supports mounting in 19” EIA, 42U rack environments—offered
in vertical, zero U and rackmount form factors.
Allows you to predict failing conditions before they occur and
proactively manage connected equipment for
maximum uptime.
Flexible power cord mount is user adjustable for horizontal or
vertical orientations.
Liebert MPH Features:
Knurr™ DI-STRIP™
P/N Amps Input Phase Voltage Input Plug Output Receptacles Mounting
Configuration
035351011 15A 1PH 120V 5-15P (9) 5-15R Vertical
035351041 20A 1PH 120V L5-20P (9) 5-20R Vertical
035351021 15A 1PH 120V 5-15P (12) 5-15R Vertical
035351031 15A 1PH 120V 5-15P (18) 5-15R Vertical
035351051 20A 1PH 120V 5-20P (12) 5-20R Vertical
035351061 20A 1PH 120V L5-20P (12) 5-20R Vertical
035351071 20A 1PH 120V IEC-C20 (12) 5-20R Vertical
035351081 30A 1PH 120V L5-30P (24) 5-20R Vertical
035352011 20A 1PH 208-240V L6-20P (9) IEC-C13 Rack Mount
035352021 20A 1PH 208-240V IEC-C20 Inlet (9) IEC-C13 Rack Mount
035352041 20A 1PH 208-240V IEC-C20 (9) IEC-C13 Rack Mount
035352051 30A 1PH 208-240V L6-30P (4) IEC-C14 Rack Mount
035352031 20A 1PH 208-240V L6-20P (12) IEC-C13 Vertical
035352041 20A 1PH 208-240V IEC-C20 Inlet (12) IEC-C13 Vertical
035352061 30A 1PH 208-240V L6-30P (24) IEC-C13 Vertical
035352078 30A 1PH 208-240V L6-30P (20) IEC-C13 and (4) IEC-C19 Vertical
035353011 30A 3PH 120/208V L21-20P (6) IEC-C19 Vertical
035353021 20A 3PH 120/208V L21-20P (18) IEC-C13 and (6) IEC-C19 Vertical
035353031 20A 3PH 120/208V L21-20P (27) IEC-C13 and (6) IEC-C19 Vertical
035353041 20A 3PH 120/208V L21-20P (27) 5-20R Vertical
035353051 30A 3PH 120/208V L21-30P (18) IEC-C13 and (6) IEC-C19 Vertical
035353061 30A 3PH 120/208V L21-30P (27) IEC-C13 and (6) IEC-C19 Vertical
035353078 60A 3PH 120/208V IEC60309 (42) IEC-C13 and (6) IEC-C19 Vertical
035353088 50A 3PH 120/208V 2 X IEC60309 (42) IEC-C13 and (6) IEC-C19 Vertical
Knurr DI-STRIP Basic
15
Multiple congurations and input
power options available, including
international compatibility.
The addition of the Basic Rack PDU
Expansion Unit allows for growth.
10ft. (3m) power supply cable offers
room for movement.
Reliable and robust solution.
Worldwide approvals and certication.
Full-length brass busbar on Standard
models enhances operational reliability.
Standard system extruded casing and
a HighPower system heavy duty casing
provide durability.
Industry leading operating temperature —
up to 55˚C/131˚F to support hot internal
rack environments.
Simple and quick installation on the rack’s
extrusion requires minimal space and
reduces installation time.
Knurr DI-STRIP Features:
Rack PDU Mounting Brackets For DCM™ Rack
Description Part Number
2PC Tool Less PDU mounting Brackets for DCM Rails
2 piece PDU mounting bracket system for 700mm (28”) and 800mm
(32”) wide cabinets with DCM Rack rail system. Holds (1) 2” wide max
PDU with quick mount system. All Knurr DI-STRIP and Liebert MPH in
catalog *EXCEPT* 03535302078, 0353532088
For right hand rail 539917G1L
For left hand rail 539918G1L
Description Part Number
Full height PDU mounting bracket, 4” wide. Holds (2) 2” wide max PDU’s
with Quick Mount button system (all Knurr DI-STRIP and Liebert MPH
listed in catalog) *EXCEPT* 035352078, 0353532088
42U cabinets 539486G1L
45U cabinets 539487G1L
All Liebert and Knurr Rack PDUs easily integrate
into the DCM Rack.
16
PDU Mounting Bracket
Full Height PDU Mounting Brackets (4”)
Liebert® MB™ Modular Busway
Liebert MB Busway provides high density power distribution to
the rack while eliminating cable clutter that can reduce airflow.
System Compatibility
Liebert MB is compatible with the DCM™ rack and the entire family of
Liebert power products—rack and room PDUs, UPS systems and surge
protective devices—providing power distribution and protection.
Rackmount Liebert MB installs on top of DCM rack.
Works with Liebert MPX™, Liebert MPH™ and Knurr
DI-STRIP® rack PDUs.
Works with row-based UPS and distribution.
Flexibility
Easy to change bus plugs.
Available in 100, 225 & 400A ratings.
Increases space efciency and improves airow.
Integrates easily into new or existing datacenter layouts.
Provides dual bus or single bus congurations.
Higher Availability
Fully rated design.
Certied to UL 857 & CSA 22.2.
Hot swappable bus plugs keep systems up and running
even during changes.
Lowest Total Cost Of Ownership.
Requires fewer and less expensive power cables.
Installs with 15-30% less time and cost compared to
cables and conduit.
Installs with tool-less mounting to DCM rack.
Plug-n-play bus plugs to rack PDU’s can be installed by anyone—no
electrician needed.
Ideal Applications
Data centers of any size.
Raised and non-raised oors.
Single or Dual bus congurations.
Low or high-density power distribution.
Data centers with frequent conguration changes.
17
Aisle Containment
Emerson Network Power offers three
types of Aisle Containment systems
and flexible door options.
Modular System
This door, ceiling or combined system is
designed for DCM™ and DCF™ cabinets
with 4’ or 6’ aisles, and requires a
uniform row.
The Modular system is physically attached
to the rack, and features sliding doors
with Lexan (polycarbonate) windows.
It has aluminum prole roof panels that
span the width of the aisle. Individual
panels are removable for servicing
and cleaning.
Vertical System
This door, ceiling or combined solution
uses a vertical vinyl strip design to
accommodate non-uniform rack heights
and nonuniform rows. While it is the most
exible solution to deploy, it does require
a drop ceiling. The design is a simple one
that incorporates current re detection
and suppression.
Retractable System
This ceiling system that is designed
exclusively for a 4’ and 6’ aisle and
requires a uniform row. If that uniformity
is present, this is the simplest ceiling to
implement. It can be used in conjunction
with the RS Universal Door to make it a
combined solution.
Door Options
Sliding lexan doors or curtain doors
can be chosen for the ends of the aisle.
In the event of an emergency, the aisle
can be quickly exited be simply sliding
the doors open, or moving the curtain
out of the way. The doors are tted
with Lexan windows.
Modular System
The Modular System is a door, ceiling or combined solution
designed for DCM and DCF cabinets.
The roof panels are transparent Lexan allowing the room lighting
to be used. The panels are easy to remove for servicing. Since it
attaches directly to the rack, it is essential that the two rows of
racks have uniform heights along the total length of the aisle. This
solution requires a continuous run, so there cannot be gaps, such
as missing cabinets in the line-up or obstructions, such as columns
or pillars in the row.
18
Vertical System
The Vertical System is a door, ceiling or combined
solution that uses a curtain design to accommodate
non-uniform rows and rack heights, and third party
racks. The Vertical System requires a drop ceiling. If a
drop ceiling is present, this is the simplest combined
solution to deploy.
Most curtain system products require hardware to be
installed. The Vertical System is completely tool-less. It
starts with a small clip that mounts on the drop ceiling
runner. This clip has a small, round ball at the end that
slides into a track on the aluminum extrusion that holds
the vinyl material. Since the ball turns freely in the slot,
the extrusion can be installed at any angle on the drop
ceiling. It is not dependent on running parallel to either
the long or the short runner in a drop ceiling, it can
run at an angle.
For re protection purposes there is a fusible link in the
clip that mounts on the runner. When the aisle heats up
to 135°F, the fusible link releases, and the vinyl along
with the aluminum extrusion drops to the oor allowing
the suppression system tooperate fully.
Retractable System
The Retractable System, exclusively for a 4’ or 6’ aisle
ceiling, is a truly unique and easily deployed solution.
The Retractable System requires a uniform height of rack
heights and two uniform rows of racks to work. It will
work with virtually any rack manufacturer’s products.
This is the easiest ceiling solution to deploy. It can be used
in conjunction with the RS Universal door or Vertical door
types to make it a combined solution.
The Retractable System consists of an aluminum canister
that straddles the aisle with a 20’ or 30’ length of the
same vinyl lm used in the Vertical System. It pulls out
the length of the aisle and is held in place on the edges by
a sheet metal guide.
For re protection purposes, the Retractable System also
uses fusible links. The fusible links release at 135°F. When
the temperature reaches 135°F, the link is broken and
the lm safely retracts into the re resistant aluminum
canister. Guidesensure that the lm retracts smoothly
when the fusible links are separated.
19
Emerson Network Power, a business of Emerson (NYSE:EMR), delivers software, hardware and
services that maximize availability, capacity and efficiency for data centers, healthcare and
industrial facilities. A trusted industry leader in smart infrastructure technologies, Emerson
Network Power provides innovative data center infrastructure management solutions that
bridge the gap between IT and facility management and deliver efficiency and uncompromised
availability regardless of capacity demands. Our solutions are supported globally by local
Emerson Network Power service technicians. Learn more about Emerson Network Power
products and services at www.EmersonNetworkPower.com
Business-Critical Continuity, Emerson Network Power and the Emerson Network Power logo are trademarks and service marks of Emerson Electric Co.
©2013 Emerson Electric Co.
The global leader in enabling Business-Critical Continuity™.
Emerson Network Power.
EmersonNetworkPower.com
Emerson Network Power
Liebert Corporation World Headquarters
1050 Dearborn Drive
P.O. Box 29186
Columbus, Ohio 43229
United States Of America
800 877 9222 Phone (U.S. & Canada Only)
614 888 0246 Phone (Outside U.S.)
614 841 6022 FAX
Contact@EmersonNetworkPower.com
Emerson Network Power
Caribbean and Latin America
Ofce – United States of America
+1-954-984-3452 Phone
Ask.Cala@Emerson.com
Emerson Network Power
European Headquarters
Ofce – Italy
+39 049 9719 111 Phone
+39 049 5841 257 FAX
Marketing.EMEA@EmersonNetworkPower.com
Emerson Network Power
Asia Pacific
Ofce – Phillipines
+63 2 687 6615
+63 2 730 9572 FAX
Marketing.AP@Emerson.com
liebert.com
24 x 7 Tech Support
800 222 5877 Phone
614 841 6755 (outside U.S.)
AC Power Embedded Computing Infrastructure Management & Monitoring Precision Cooling
Connectivity Embedded Power Outside Plant Racks & Integrated Cabinets
DC Power Industrial Power Power Switching & Controls Services
While every precaution has been taken to ensure accuracy and
completeness in this literature, Liebert Corporation assumes no
responsibility, and disclaims all liability for damages resulting
from use of this information or for any errors or omissions.
© 2013 Liebert Corporation. All rights reserved throughout
the world. Specifications subject to change without notice.
All names referred to are trademarks or registered trademarks
of their respective owners.
® Liebert is a registered trademark of the Liebert Corporation.
SL-11388 (R04/13) Printed in USA
