Owner’s Manual

Please read before using this equipment.

DVD/CD Player with Video Cassette Recorder

EWD2004 INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

Precautions

DVD Functions

Setup

VCR Functions

InformationEspañol

EMERSON AND THE G-CLEF LOGO ARE

REGISTERED TRADEMARKS OF

EMERSON RADIO CORP., PARSIPPANY,

NEW JERSEY, U.S.A.

• Audio/Video cables

(WPZ0102TM015 or

WPZ0102LTE01)

Supplied Accessory

Owner's Manual

ANT-OUT

ANT-IN

Connect

Conexiones

RF Cable (supplied)

Cable RF (incluíd)

(Back of

DVD/VCR)

(Parte posterior

del reproductor

DVD/VCR)

(Back of TV)

(

Parte posterior

de una TV

)

(Back of TV)

(

Parte posterior

de una TV

)

AC outlets

Toma de CA

Plug in

Enchufe

From TV

De la TV

From DVD/VCR

De la DVD/VCR

Please refer to "Connections" on page 5.

Cable

Signal

Señal

de Cable or

Cable

Signal

Señal

de Cable

Disconnect

Desconecte

Antenna

Antena

Connect

Conexiones

Antenna

Antena

Basic TV Connection / Conexión básica del televisor

If you need additional operating assistance after

reading this owner’s manual or to order replace-

ment accessories, please call

TOLL FREE : 1-800-256-2487

or visit our web site at http://www.funai-corp.com

Precautions

Laser Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Avoid the Hazards of Electrical Shock and Fire . . . . . . . . . . . . . . . 4

Moisture Condensation Warning . . . . . . . . . . . . . . . . . . . . . . . . . . 4

About Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Symbol Used in This Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Setup

■ About the Video Cassettes and Discs . . . . . . . . . . . . . . . . . . . . 5

Playable Video Cassettes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Unplayable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

■ Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

RF Output Channel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Hint for Cable Box or Satellite Box. . . . . . . . . . . . . . . . . . . . . . . . . 6

Connection to an Audio System . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Connection to a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Front & Rear Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ About the Remote Control and Front Panel . . . . . . . . . . . . . . . . 8

■ VCR/DVD Switching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

■ Preset for Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Turn on the unit for the first time . . . . . . . . . . . . . . . . . . . . . . . . . 10

Clock Set Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

VCR Functions

■ Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

■ Recording & OTR (One Touch Recording) . . . . . . . . . . . . . . . . 11

■ Other Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

■ On-Screen Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

■ Recording Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Hint for Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Copying a Video Tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

■ Special Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Time Search / Index Search / Auto Repeat . . . . . . . . . . . . . . . . . 14

DVD Functions

■ Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

■ The On-Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

■ Search Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Track Search / Title/Chapter Search / Time Search . . . . . . . . . . 17

■ Marker Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

■ Repeat / Random / Programmed Playback . . . . . . . . . . . . . . . . 18

Repeat Playback / Repeat A-B Playback /

Random Playback / Programmed Playback . . . . . . . . . . . . . . . . . 18

■ Special Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Subtitle Language / Audio Language / Camera Angle /

Black Level Setting / Stereo Sound mode / Virtual Surround . . . . 19

■ DVD Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

LANGUAGE Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

DISPLAY Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

AUDIO Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

PARENTAL Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

To return the All Selections of SET UP

(except for PARENTAL) to the Default Setting . . . . . . . . . . . . . . . 22

Information

■ Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

■ Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

■ Language List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

■ Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Quick Use Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Table of Contents

• RF cable

(WPZ0901TM002)

• Owner’s Manual

(1VMN20189)

• Remote control

(NB100UD or NB150UD)

with two AA batteries

–2–EN

Precautions

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible

eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECI-

FIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO

BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated “dangerous voltage” within the

product’s enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to

this equipment may cause harmful interference unless the modifications are expressly approved in the

instruction manual. The user could lose the authority to operate this equipment if an unauthorized change

or modification is made.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA

FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your

local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning

chemical wastes.

Precautions

Laser Safety

For Customer Use:

Read carefully the information located at the back of this unit and enter below the Serial No.Retain this information for future

reference.

Model No. _____________________

Serial No. _____________________

Make your contribution to the environment!!!

• Used up batteries do not belong in the dust bin.

• You can dispose of them at a collection point for used up batteries or special waste.

Contact your council for details.

–3–EN

Precautions

1. Read Instructions - All the safety and operating instructions

should be read before the appliance is operated.

2. Retain Instructions- The safety and operating instructions

should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the

operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should

be followed.

5. Cleaning - Unplug this video product from the wall outlet

before cleaning. Do not use liquid cleaners or aerosol clean-

ers. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted ser-

vice and, that for some specific reason, such as the possibili-

ty of the loss of an authorization code for a CATV converter,

is not intended to be unplugged by the user for cleaning or

any other purpose, may exclude the reference to unplugging

the appliance in the cleaning description otherwise required

in item 5.

6. Attachments - Do not use attachments not recommended by the

video product manufacturer as they may cause hazards.

7. Water and Moisture- Do not use this video product near water,

for example, near a bath tub, wash bowl, kitchen sink, or laundry

tub, in a wet basement, or near a swimming pool, and the like.

8. Accessories - Do not place this video product on an unstable

cart, stand, tripod, bracket, or table.The video product may fall,

causing serious injury to a child or adult, and serious damage

to the appliance. Use only with a cart, stand, tripod, bracket, or

table recommended by the manufacturer, or sold with the

video product. Any mounting of the appliance

should follow the manufacturer's instructions

and should use a mounting accessory rec-

ommended by the manufacturer.

An appliance and cart combination should be

moved with care. Quick stops, excessive

force, and uneven surfaces may cause the

appliance and cart combination to overturn.

MEUBLES - Ne pas installer cet appareil sur un meuble, un socle,

un support, un trépied ou une table instables. L'appareil pourrait

tomber, provoquant des blessures graves à un enfant ou un adulte,

et être sérieusement endommagé. Utiliser uniquement un chariot,

un support, un trépied ou une table recommandés par le fabricant,

ou bien vendus avec l'appareil. Suivre les directives du fabricant

pour le montage de l'appareil et n'utiliser que les accessoires de

montage recommandés par ce dernier. Si on l'installe sur un meu-

ble à roulettes, déplacer les deux ensemble avec précaution. Un

arrêt brusque, l'utilisation d'une force excessive et des surfaces

irrégulières risquent de déstabiliser l'ensemble et de le renverser.

9. Ventilation - Slots and openings in the cabinet are provided for

ventilation and to ensure reliable operation of the video prod-

uct and to protect it from overheating, and these openings

must not be blocked or covered.The openings should never be

blocked by placing the video product on a bed, sofa, rug, or

other similar surface. This video product should not be placed

in a built-in installation such as a bookcase or rack unless

proper ventilation is provided or the manufacturer's instruc-

tions have been adhered to.

10. Power Sources - This video product should be operated only

from the type of power source indicated on the marking label.

If you are not sure of the type of power supply to your home,

consult your appliance dealer or local power company. For

products intended to operate from battery power, or other

sources, refer to the operating instructions.

11. Grounding or Polarization - This video product is equipped with

a polarized alternating-current line plug (a plug having one

blade wider than the other).This plug will fit into the power out-

let only one way. This is a safety feature. If you are unable to

insert the plug fully into the outlet, try reversing the plug. If the

plug should still fail to fit, contact your electrician to replace

your obsolete outlet. Do not defeat the safety purpose of the

polarized plug.

12. Power Cord Protection - Power supply cords should be routed

so that they are not likely to be walked on or pinched by items

placed upon or against them, paying particular attention to

cords at plugs, convenience receptacles, and the point where

they exit from the appliance.

13. Outdoor Antenna Grounding - If an outside antenna or cable sys-

tem is connected to the video product, be sure the antenna or

cable system is grounded so as to provide some protection

against voltage surges and built-up static charges. Article 810 of

the National Electrical Code, ANSI/NFPA No. 70, provides infor-

mation with regard to proper grounding of the mast and support-

ing structure, grounding of the lead-in wire to an antenna dis-

charge unit, size of grounding conductors, location of antenna-dis-

charge unit, connection to grounding electrodes, and require-

ments for the grounding electrode. (Fig. A)

14. Lightning - For added protection for this video product during a

lightning storm, or when it is left unattended and unused for

long periods of time, unplug it from the wall outlet and discon-

nect the antenna or cable system.This will prevent damage to

the video product due to lightning and power-line surges.

15. Power Lines - An outside antenna system should not be located

in the vicinity of overhead power lines or other electric light or

power circuits, or where it can fall into such power lines or circuits.

When installing an outside antenna system, extreme care should

be taken to keep from touching such power lines or circuits as

contact with them might be fatal.

16. Overloading - Do not overload wall outlets and extension cords

as this can result in a risk of fire or electric shock.

17. Object and Liquid Entry - Never push objects of any kind into

this video product through any openings as they may touch

dangerous voltage points or short-out parts that could result in

a fire or electric shock. Never spill liquid of any kind on the

video product.

18. Servicing - Do not attempt to service this video product your-

self as opening or removing covers may expose you to dan-

gerous voltage or other hazards. Refer all servicing to qualified

service personnel.

19. Damage Requiring Service - Unplug this video product from

the wall outlet and refer servicing to qualified service person-

nel under the following conditions:

a. When the power-supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the video

product.

c. If the video product has been exposed to rain or water.

d. If the video product does not operate normally by following the

operating instructions. Adjust only those controls that are cov-

ered by the operating instructions as an improper adjustment

of other controls may result in damage and will often require

extensive work by a qualified technician to restore the video

product to its normal operation.

e. If the video product has been dropped or damaged in any way.

f. When the video product exhibits a distinct change in perfor-

mance this indicates a need for service.

20. Replacement Parts - When replacement parts are required, be

sure the service technician has used replacement parts speci-

fied by the manufacturer or have the same characteristics as the

original part. Unauthorized substitutions may result in fire, elec-

tric shock or other hazards.

21. Safety Check - Upon completion of any service or repairs to

this video product, ask the service technician to perform safe-

ty checks to determine that the video product is in proper oper-

ating condition.

22. Heat - This video product should be situated away from heat

sources such as radiators, heat registers, stoves, or other

products (including amplifiers) that produce heat.

FIGURE A

EXAMPLE OF ANTENNA GROUNDING

AS PER NATIONAL ELECTRICAL CODE

ANTENNA

LEAD

WIRE

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND

CLAMP

GROUND CLAMP

ELECTRIC

SERVICE

EQUIPMENT

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

NEC – NATIONAL ELECTRICAL CODE

S2898A

Important Safeguards

–4–EN

Precautions

Unauthorized copying, broadcasting, public perfor-

mance and lending of discs are prohibited.

This product incorporates copyright protection tech-

nology that is protected by method claims of certain

U.S. patents and other intellectual property rights

owned by Macrovision Corporation and other rights

owners. Use of this copyright protection technology

must be authorized by Macrovision Corporation, and

is intended for home and other limited viewing uses

only unless otherwise authorized by Macrovision

Corporation. Reverse engineering or disassembly is

prohibited.

The following symbols appear in some head-

ings and notes in this manual.

:Description refers to playback or recording of video

cassette tapes.

:Description refers to playback of DVD-Video discs.

:Description refers to playback of Audio CDs.

DVD-V

VCR

For safety and optimum performance of this unit:

• Install the unit in a horizontal and stable position. Do

not place anything directly on top of the unit. Do not

place the unit directly on top of the TV.

• Shield it from direct sunlight and keep it away from

sources of intense heat. Avoid dusty or humid

places. Avoid places with insufficient ventilation for

proper heat dissipation. Do not block the ventilation

holes on the sides of the unit. Avoid locations sub-

ject to strong vibration or strong magnetic fields.

Note to CATV system installer

This reminder is provided to call the CATV system

installer’s attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in par-

ticular, specifies that the cable ground should be

connected to the grounding system of the building,

as close to the point of cable entry as practical.

Installation Location

Avoid the Hazards of Electrical Shock and Fire

Moisture Condensation Warning

About Copyright

Symbol Used in This Manual

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trade-

marks of Dolby Laboratories.

SERVICING

¡Please refer to relevant topics on the Troubleshooting

Guide on page 23 before return the product.

¡When this unit become inoperative, do not try to cor-

rect the problem by yourself. There are no user-ser-

viceable parts inside. Turn off, unplug the power plug,

and please call our help line mentioned on the front

page to locate an Authorized Service Center.

CLEANING THE CABINET

¡Use a soft cloth slightly moistened with a mild deter-

gent solution. Do not use a solution containing alco-

hol, spirits, ammonia or abrasive.

CLEANING DISCS

¡When a disc becomes dirty, clean it with a cleaning

cloth. Wipe the disc from the center out. Do not wipe

in a circular motion.

Do not use solvents such as benzine, thinner, commercial-

ly available cleaners, detergent, abrasive cleaning agents

or antistatic spray intended for analogue records.

CLEANING THE DISC LENS

¡If this unit still does not perform properly although

you refer to the relevant sections and to “TROU-

BLESHOOTING GUIDE” in this Owner’s Manual, the

laser optical pickup unit may be dirty. Consult your

dealer or an Authorized Service Center for inspection

and cleaning of the laser optical pickup unit.

DISC HANDLING

¡Handle the discs so that fingerprints and dust do not

adhere to the surfaces of the discs.

¡Always store the disc in its protective case when it is

not used.

AUTO HEAD CLEANING

¡Automatically cleans video heads as you insert or

remove a cassette, so you can see a clear picture.

¡Playback picture may become blurred or interrupted

while the TV program reception is clear. Dirt accu-

mulated on the video heads after a long period of

use, or the usage of rental or worn tapes can cause

this problem. If a streaky or snowy picture appears

during playback, the video heads in your DVD/VCR

may need to be cleaned.

1. Please visit your local Audio/Video store and pur-

chase a good quality VHS Video Head Cleaner.

2. If a Video Head Cleaner does not solve the problem,

please call our help line mentioned on the front page

to locate an Authorized Service Center.

NOTES:

¡Remember to read the instructions along with the

video head cleaner before use.

¡Clean video heads only when problems occur.

Maintenance

• Do not handle the power cord with wet hands.

• Do not pull on the power cord when disconnecting it

from AC wall outlet. Grasp it by the plug.

• If, by accident, water is spilled on this unit, unplug

the power cord immediately and take the unit to our

Authorized Service Center for servicing.

• Do not put your fingers or objects into the DVD/VCR

cassette holder.

Moisture condensation may occur inside the unit

when it is moved from a cold place to a warm place,

or after heating a cold room or under conditions of

high humidity. Do not use this unit at least for 2 hours

until its inside gets dry.

Setup

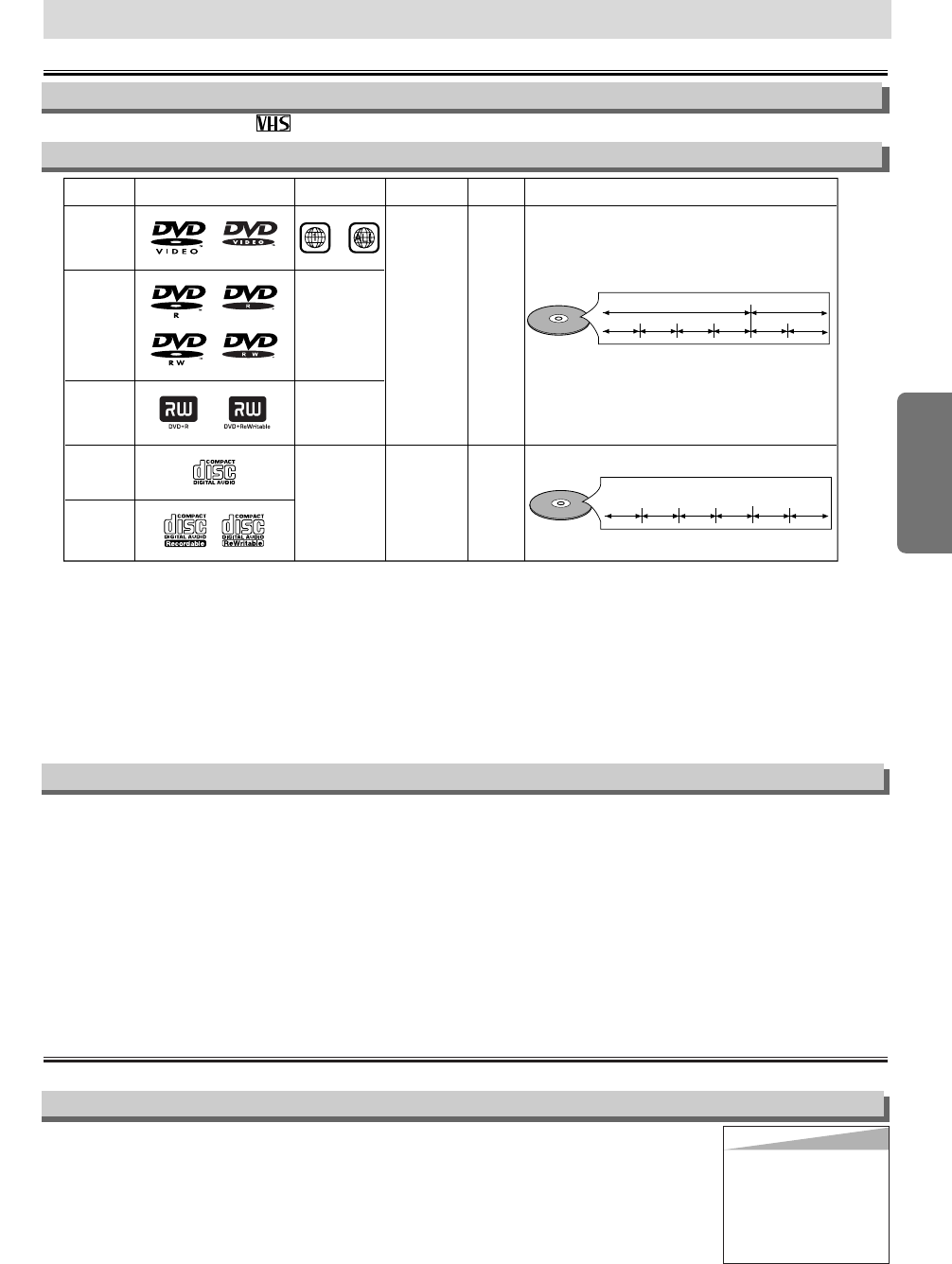

If you cannot play back a disc which bears one of the marks above, check the following notes.

*1: This unit conforms to the NTSC color system. Discs recorded in other color systems such as PAL cannot be played back.

*2:

Certain DVD-Video discs do not operate as described in this manual due to the intentions of the disc’s producers.

*3: Only the discs which have been recorded in the video format and finalized can be played back.

Discs unfinalized or recorded in the video recording format cannot be played back.

Depending on the recording status of a disc, the disc may not be played back at all or normally

(the picture or sound may be not be smooth, etc.).

*4: Scratched or stained discs may not be played back.

*5: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special

properties of discs.

*6: You can play back discs which bear the marks above. If you use nonstandardized discs, this unit may not play them back.

Even if they are played back, the sound or video quality will be compromised.

Unplayable Discs

¡On the following discs, only the sound can be heard (picture cannot be viewed).

CDV CD-G

¡NEVER play back the following discs. Otherwise, malfunction may result!

DVD-RAM CD-I Photo CD

Video CD DTS-CD MP3

DVD with region codes other than 1 or ALL

DVD-ROM for personal computers

CD-ROM for personal computers

¡On the following disc, the sound MAY NOT be heard.

Super Audio CD

Note: Only the sound recorded on the normal CD layer can be delivered.

The sound recorded on the high density Super Audio CD layer cannot be delivered.

¡Any other discs without compatibility indications.

If channel 3 is already occupied for broadcasting,

1) Set your TV to channel 4.

2) Insert a pre-recorded tape into this unit.

3) Press the OUTPUT button on the DVD/VCR so that the VCR OUTPUT light is lit.

• If noise appears on the TV screen

, press the VCR/TV button on the remote control.

4) Press the PLAY button once.

5) After a few seconds, press the PLAY button on the DVD/VCR for 3 seconds.

•

The RF output channel will change to channel 4 from channel 3 and you will see a playback picture.

• When a picture does not appear on the TV screen, repeat step [4].

6) Press the STOP button to stop playback.

RF Output Channel

Connections

Please refer to “Basic TV Connection” on the front page before you use this unit.

–5–EN

Hint

• The RF output channel may

not change when you adjust

tracking during playback. In

this case, stop the playback

and start the playback again.

After that, press the PLAY

button on the DVD/VCR for 3

seconds again.

DVD-Video

* 1,2,4,6

* 1,2,3,4,5,6

* 4,6

* 4,5,6

DVD-R

DVD-RW

DVD+R

DVD+RW

Audio CD

CD-R

CD-RW

Digital video

(MPEG2)

-Digital audio

Region code

Mark (logo)

Playable

discs Recorded

signals Disc size Disc types

12 cm

8cm

12 cm

8cm

Example Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1 Chapter 2

Chapter 3 Chapter 4

Example

Trac k 1 Trac k 2 Trac k 5 Trac k 6

Trac k 3 Tra ck 4

Digital audio

About the Video Cassettes and Discs

Playable Discs

Use only cassettes marked with this unit.

Playable Video Cassettes

–6–EN

Setup

Select this connection when you want to view or record a scram-

bled channel. With this connection, channels cannot be changed

on the DVD/VCR. You can view or record ONLY the channels you

have selected on the cable box or the satellite box.

• While you are recording, only the recorded channel can be

viewed.

To select channels of the cable box or satellite box

1) Turn on the DVD/VCR by pressing the POWER button, and

then, press the VCR/TV button.The “POWER” light on the front

panel will appear. Then, press the CHANNEL buttons to select

channel 3 or 4 (the same channel as the output channel of the

cable box or satellite box).

• If you use the channel 4, you need to change the DVD/VCR’s

RF output to channel 4. Refer to “RF Output Channel”.

2) At the TV, select channel 3 or 4 (the same channel as you

have selected at step 1).

3) At the cable box or satellite box, select the channel you want to

view or record.

Select this connection when you want to change channels on the

DVD/VCR. With this connection, you may watch one channel

while recording another.

• You may not view or record a scrambled channel.

To select channels of the cable box or satellite box

1) At the cable box or satellite box, select channel 3 or 4 (the

same channel as the DVD/VCR’s RF output channel.)

• Refer to “RF Output Channel”.

2) At the TV, select the same channel as the output channel (3 or

4) of the cable box or satellite box.

3) Turn on the DVD/VCR by pressing the POWER button, and

then, press the VCR/TV button. The “POWER” light on the front

panel will appear. Then, select the channel you want to view or

record.

To play back a tape

Follow the steps 1) to 2) above. Then, play back a tape.

• Refer to “Playback” on page 11.

To view one channel while recording another

While you are recording on the DVD/VCR, press the VCR/TV but-

ton.

At the cable box or satellite box, select the channel you want to view.

ANT-OUT

ANT-IN

RF Cable

(supplied)

(Back of DVD/VCR)

IN OUT

(Back of TV)

Cable

Signal

Connection A

(Cable box or

Satellite box)

ANT-OUT

ANT-IN

RF Cable (supplied) RF Cable (Back of TV)

IN OUT

(Cable box or

Satellite box)

Cable

Signal

Connection B

(Back of DVD/VCR)

Hint for Cable Box or Satellite Box

VCRDVD/VCR

AUDIO IN

VIDEO IN

AUDIO OUT

VIDEO OUT

DIGITAL

AUDIO OUT

COAXIAL

AUDIO

OUT

DVD

S-VIDEO

OUT

COMPONENT

VIDEO OUT

Stereo system

DIGITAL

AUDIO OUT

COAXIAL

AUDIO

OUT

DVD

S-VIDEO

OUT

COMPONENT

VIDEO OUT

COAXIAL

AUDIO

DVD/VCR

Method 1

Analog audio

input jacks

Digital audio

input jack

(Analog)

AUDIO OUT

DIGITAL

AUDIO OUT

Method 2

Connection to an Audio System

Audio cable

(supplied)

Audio Coaxial

Digital cable

(commercially

available)

Note

• If output is Dolby Digital encoded audio, connect to a Dolby

Digital decoder, and set “DOLBY DIGITAL” to “ON” in the

AUDIO menu. (Refer to pages 20-21.)

• The audio source on a disc in a Dolby Digital 5.1 channel

surround format cannot be recorded as digital sound by an

MD or DAT deck.

• Unless connected to a Dolby Digital decoder, set “DOLBY

DIGITAL” to “OFF” in the AUDIO menu. Playing a DVD

using incorrect settings may generate noise distortion, and

may also damage the speakers. (Refer to pages 20-21.)

• Set “DOLBY DIGITAL” to “OFF” in the AUDIO menu for con-

necting to an MD deck or DAT deck. (Refer to pages 20-

21.)

• By hooking this unit up to a Multi-channel Dolby Digital

decoder, you can enjoy high-quality 5.1ch Dolby Digital

surround sound as heard in the movie theaters.

Dolby Digital decoder,

MD deck or DAT deck

–7–EN

Setup

DIGITAL

AUDIO OUT

COAXIAL

ANT-OUT

ANT-IN

ANT-OUT

ANT-IN

AUDIO

OUT

DVD VCR

DVD/VCR

S-VIDEO

OUT

COMPONENT

VIDEO OUT

AUDIO IN

VIDEO IN

AUDIO OUT

VIDEO OUT

DIGITAL

AUDIO OUT

COAXIAL

AUDIO

OUT

DVD DVD/VCR VCR

S-VIDEO

OUT

COMPONENT

VIDEO OUT

AUDIO OUT

VIDEO OUT

AUDIO IN

VIDEO IN

AUDIO IN jack

Connect audio cable coming

from the audio out jack of a

camcorder, another VCR, or an

audio source here.

DVD ANALOG AUDIO OUT

jacks

Connect the supplied audio

cables here through the Audio

In jacks of a television or other

audio equipment. (DVD only)

DVD/VCR AUDIO OUT jacks

Connect the supplied audio

cables here through the audio

In jacks of a television or other

audio equipment.

ANT IN jack

Connect your antenna

or cable box here.

ANT OUT jack

Connect the

supplied RF

cable to the

antenna input

jack on your TV.

DVD/VCR VIDEO OUT jack

Connect the supplied yellow

video cable here through

the TV’s video in jack.

COAXIAL jack

Connect an optional coaxial

digital audio cable here

through the coaxial digital

audio in jack of a decoder or

audio receiver. (DVD only)

VIDEO IN jack

Connect a cable com-

ing from the video out

jack of a camcorder,

another VCR, or an

audio-visual source

(laser disc player, video

disc player, etc.) here.

S-VIDEO OUT jack

Connect an optional

S-Video cable here

through the S-video

in jack of a televi-

sion. (DVD only)

COMPONENT VIDEO

OUT jacks

Connect optional component

video cables here through

the component video in

jacks of a television.

(DVD only)

Front & Rear Terminals

DIGITAL

AUDIO OUT

COAXIAL

ANT-OUT

ANT-IN

AUDIO

OUT

DVD VCR

DVD/VCR

S-VIDEO

OUT

COMPONENT

VIDEO OUT

AUDIO IN

VIDEO IN

AUDIO OUT

VIDEO OUT

AUDIO IN

VCRDVD/VCR

AUDIO IN

VIDEO IN

AUDIO OUT

VIDEO OUT

DIGITAL

AUDIO OUT

COAXIAL

AUDIO

OUT

DVD

S-VIDEO

OUT

COMPONEN

VIDEO OUT

VIDEO IN

VCRDVD/VCR

AUDIO IN

VIDEO IN

AUDIO OUT

VIDEO OUT

S-VIDEO IN

DIGITAL

AUDIO OUT

COAXIAL

AUDIO

OUT

DVD

S-VIDEO

OUT

COMPONENT

VIDEO OUT

DIGITAL

AUDIO OUT

COMPONENT

VIDEO IN

COAXIAL

AUDIO

OUT

DVD

S-VIDEO

OUT

COMPONENT

VIDEO OUT

(Analog) AUDIO OUT

VIDEO OUT

Method 1

Good pictureBasic Audio

Method 2 Method 3

Better picture Best picture

S-VIDEO OUT

COMPONENT VIDEO OUT

Video

cable

(supplied)

Audio cable

(supplied)

S-Video

cable

(commercially

available) Component

Video cables

(commercially

available)

Note

•

Connect this unit directly to the TV. If the A/V cables are connected to a VCR, pictures may be distorted due to the copy protection system.

DVD/VCR

Connection to a TV

SF. F W DREWPOWER

VIDEO AUDIO

[Back of DVD/VCR]

[Front of

DVD/VCR]

•

The COAXIAL,

DVD AUDIO OUT,

S-VIDEO OUT and COMPONENT VIDEO OUT jacks are only useful in DVD mode.

Setup

–8–EN

About the Remote Control and Front PanelAbout the Remote Control and Front Panel

• To turn the unit on or off. • To turn the unit on or off. • To turn the unit on or off.

• To display the current disc

mode. • To display the current disc

mode. •To display the current time,

tape counter, and channel.

• To open or close the disc

tray. • To open or close the disc

tray. • To eject the video cassette

from the VCR.

•

To select chapter or title directly.

• To select track directly.

• To select camera angles on

a disc.

• To select subtitles on a disc. •To put the VCR into standby

mode for a timer recording.

• To select audio languages on

a disc. • To select STEREO,

L-CH or R-CH.

• To repeat between your

chosen point A and B. • To repeat between your

chosen point A and B.

• To play a chapter or title

repeatedly. • To play a track or disc

repeatedly.

• To set black level on/off. • To arrange the playing

order or play randomly.

• To set virtual surround on/off. • To set virtual surround on/off.

• To call up the Menu

on a disc. • To call up the VCR Menu.

• To call up the Top Menu

on a disc.

• To return to the previous

operation on the DVD setup

menu.

• To return to the previous

operation on the DVD setup

menu.

•

To search chapter, title or time.

• To rapidly return to

a location of disc.

• Search the markers.

• To search track.

• To search time.

• To rapidly return to

a location of disc.

• Search the markers.

• To select the recording speed.

• To select channel.

• The +10 button has no effect

in VCR mode.

• To clear the markers. • To clear the markers.

• To remove status No.

in program input.

• To clear the numbers

entered incorrectly. • To clear the numbers

entered incorrectly.

• To exit the VCR Menu.

• To reset the tape counter.

• To search forward/backward

through a disc.

•

To begin slow forward/reverse

playback during the pause mode.

• To search forward/backward

through a disc. • To forward/backward a tape.

• To advance playback

one frame at a time. • To advance playback

one frame at a time.

• To pause disc playback.

• To pause tape playback or

recording.

• To stop playback. • To stop playback. • To stop playback or recording.

• To skip chapters. • To skip tracks. • To change channels.

•

To adjust the tracking manually

during playback.

• To begin disc playback. • To begin disc playback. • To begin tape playback.

• To call up the DVD setup

menu.

• To call up the index or time

search menu.

• To call up the DVD setup

menu.

• To activate the remote control

in DVD mode.

• To select the DVD output

mode. •

To activate the remote control

in DVD mode.

• To select the DVD output

mode.

• To view the tape

in slow motion.

• To select the VCR output

mode.

• To activate the remote control

in VCR mode.

• To start a recording.

• To move the cursor and

determine its position. • To move the cursor and

determine its position.

• To select an item

on the VCR Menu.

• To advance to the next

VCR Menu.

•

To go back one step during

clock and timer setting.

VCR mode

DVD mode

• To select VCR position or

TV position.

• To select CD position or TV

position.

• To select DVD position or

TV position.

POWER

TOP MENU

MODE

SUBTITLE

T-SET

ANGLE

REPEAT

A-B

123

456

789

+1 0

V.SURR.

SPEED

VCR

PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP

ENTER

DVD-V

DVD-V CD

CD VCR

VCR

Button

(Alphabetical order)

Disc/Tape

OPEN/CLOSE

/EJECT

CLEAR/

C. RESET

MODE

DVD

RETURN

AUDIO

DISPLAY

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP TOP MENU

MODE V.SURR.

SUBTITLE

T-SET

ANGLE

ENTER

RETURN

MODE

REPEAT A-B

OPEN/CLOSE

/EJECT

SPEED AUDIO

CLEAR/

C. RESET

123

456

789

+1 0

Installing the Batteries

for the Remote Control

Install two AA batteries

(supplied) matching the polarity indi-

cated inside battery compartment of

the remote control.

Remote Control

Remote

control

Within about

23 feet (7m)

Keep in mind the following when using

the remote control:

• Make sure that there is no obsta-

cle between the remote and the

remote sensor on the unit.

• Use within the operating range

and angle, as shown.

–9–EN

Setup

Because this product is a combination of a VCR and a DVD player, you must select first which

component you wish to operate with the OUTPUT button.

OPEN/CLOSE

STOP/EJECT PLAY REC /OTR

TIMER REC

F.FWDREWPOWER CHANNEL

OUTPUT

PLAY FWD/SKIPSTOPSKIP/REV

DVDVCR DISC IN

VIDEO AUDIO

OUTPUT

SKI

DVDVCR

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP TOP MENU

MODE

SUBTITLE

T-SET

ANGLE

ENTER

RETURN

MODE

REPEAT A-B

OPEN/CLOSE

/EJECT

SPEED AUDIO

CLEAR/

C. RESET

123

456

789

+1 0

V.SURR.

OUTPUT button

DVD OUTPUT

light

VCR OUTPUT

light

DVD button

VCR button

Press the VCR button on the remote control.

(Verify that the VCR OUTPUT light is lit.)

VCR MODE

Note

• Pressing only the OUTPUT button on the

front panel DOES NOT switch the mode of

the remote control.You MUST select the

correct mode on the remote control.

Press the DVD button on the remote control.

(Verify that the DVD OUTPUT light is lit.)

DVD MODE

OPEN/CLOSE

STOP/EJECT PLAY REC /OTR

TIMER REC

F.F W DREWPOWER CHANNEL

OUTPUT

PLAY FWD/SKIPSTOPSKIP/REV

DVDVCR DISC IN

VIDEO AUDIO

VCR/DVD Switching

Front Panel Display

Lights up when power is on.

Lights up when the inserted

disc is being played back.

Flashes when an unaccept-

able disc is installed.

Lights up when the timer recording

or an OTR recording has been set.

Lights up during a recording.

Flashes when a recording is paused.

Lights up when the disc is inserted.

Hint

• To go back one step, press the sbutton

(during the steps [2] to [7].)

•

Your clock setting will be lost if either there

is a power failure or this unit has been

unplugged for more than 30 seconds.

Hint

• If you accidentally select Spanish or

French and need English: Press the

MENU button and choose SELEC.

IDIOMA, or SELECTION LANGUE. Press

the Bbutton, and select ENGLISH. Finally,

press the CLEAR/C.RESET button.

–10 –EN

Setup

LANGUAGE SELECT

BENGLISH [ON]

FRANCAIS

ESPAÑOL

Hint

• Repeat these steps only if either there

was a power failure or this unit has been

unplugged for more than 30 seconds.

Turn on the TV and set it

to channel 3.

•If channel 3 is already occupied for broadcasting,

see“RF Output Channel” section.

POWER

3CH 01

AUTO SET UP

To Preset the Channel Again

1) Press the MENU button until the main

menu appears.

2) Select "CHANNEL SET UP" by pressing

the Kor Lbutton. Then, press the Bbut-

ton.

3) Select "AUTO SET UP" by pressing the

Kor Lbutton. Then, press the Bbutton.

After scanning, the tuner stops on the low-

est memorized channel.

To Change the On-Screen Language

1) Press the MENU button until the main

menu appears.

2) Select "LANGUAGE SELECT" by press-

ing the Kor Lbutton. Then, press the B

button.

3) Select "ENGLISH" , "FRANCAIS" or

"ESPAÑOL" by pressing the Kor Lbut-

ton. Then, press the CLEAR/C.RESET

button.

Please wait for a few minutes.

After scanning...

• The tuner stops on the lowest memorized

channel.

•You can select only the channels memo-

rized in this unit by using the CHANNEL

buttons.

•If "AUTO SET UP" appears on the TV

screen again, check the cable connections.

Then press the Bbutton once again.

Yes

es Press the MENU

button to exit

• Refer to “Hint for Cable Box

or Satellite Box” section on

page 6.

Do you connect the cable from the cable box or

the satellite box to the DVD/VCR’s ANT IN jack?

YES

Turn on the unit for the first

time

TV ScreenRemote Control

Clock Set Up

To Select a Channel

You can select a channel by directly

entering channel using the Number but-

tons on the remote control.

Notes for using the Number buttons:

• When selecting cable channels which

are higher than 99, enter channel

numbers as a three-digit number. (For

example: 117, press 1,1,7)

• You must precede single-digit channel

numbers with a zero (For example:

02, 03, 04 and so on).

VCR

Preset for Use

4CLOCK SET

MONTH DAY YEAR

0 3 / 1 5 2 0 0 4

HOUR MINUTE AM/PM

– – : – – – –

CLOCK SET

MONTH DAY YEAR

0 3 / 1 5 MON 2 0 0 4

HOUR MINUTE AM/PM

0 5 : – – – –

6CLOCK SET

MONTH DAY YEAR

0 3 / 1 5 MON 2 0 0 4

HOUR MINUTE AM/PM

0 5 : 4 0 – –

7CLOCK SET

MONTH DAY YEAR

0 3 / 1 5 MON 2 0 0 4

HOUR MINUTE AM/PM

0 5 : 4 0 P M AM

BPM

Select the current year

Select “AM” or “PM”

8 To exit the CLOCK SET

screen.

Select the current hour

Select the current minute

VCR

1-MENU-

TIMER PROGRAMMING

AUTO REPEAT [OFF]

CHANNEL SET UP

BCLOCK SET

LANGUAGE SELECT

2CLOCK SET

MONTH DAY YEAR

0 3 / – – – – – –

HOUR MINUTE AM/PM

– – : – – – –

3CLOCK SET

MONTH DAY YEAR

0 3 / 1 5 – – – –

HOUR MINUTE AM/PM

– – : – – – –

Select the current month

Select the current day

• If the clock is not set, the

CLOCK SET screen

appears when you press

the MENU button. In this

case, go to step [2].

VCR

Hint

• When a tape with-

out record tab is

inserted, the

DVD/VCR will start

playback automati-

cally.

• Tracking will be

automatically

adjusted upon play-

back. To adjust the

tracking manually,

press the CHAN-

NEL buttons.

–11 –EN

VCR Functions

Recording & OTR (One Touch Recording)

Playback

OPEN/CLOSE

STOP/EJECT PLAY REC /OTR

TIMER REC

F.FWDREWPOWER CHANNEL

VIDEO AUDIO

PLAYB

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

OPEN/CLOSE

/EJECT

SPEED AUDIO

123

456

789

+1 0

Before:

Turn on the TV and set it to

channel 3.

•If channel 3 is already occupied for broad-

casting, see “RF Output Channel” section.

STOP EJECT A

TV ScreenRemote Control

PLAY

STOP

OPEN/CLOSE

/EJECT

Accidental erasure prevention

To prevent accidental recording on a record-

ed cassette, remove its record tab. To record

on it later, cover the hole with cellophane

tape.

Record tab

•Select the

desired channel

with tab

•Select the desired tape

speed

REC

Type of tape T60 T120 T160

SP mode 1hour 2hours 2-2/3hours

SLP mode 3hour 6hour 8hour

Tape Speed Recording/Playback Time

CH12

TV ScreenRemote Control

123

456

789

SPEED

REC/OTR

REC OTR(0:30) OTR(1:00).....

(Normal recording)

OTR

(

8:00

)

OTR

(

7:30

)

STOP

OPEN/CLOSE

/EJECT

Before:

Turn on the TV and set it to

channel 3.

•If channel 3 is already occupied for

broadcasting, see “RF Output Channel” section.

OPEN/CLO

STOP/EJECT PLAY REC /OTR

TIMER REC

F.FWDREWPOWER CHANNEL

VIDEO AUDIO

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP TOP MENU

ENTER

RETURN

OPEN/CLOSE

/EJECT

SPEED AUDIO

123

456

789

+1 0

Hint

•To view one chan-

nel while recording

another

1) While you are

recording on the

DVD/VCR, press

the VCR/TV button.

2) At the cable box

or satellite box,

select the channel

you want to view.

•If you have connect-

ed the DVD/VCR to

a cable box or satel-

lite box, refer to

“Hint for Cable Box

or Satellite Box”

section on page 6.

STOP EJECT A

You can select a fixed recording time by press-

ing the REC/OTR button repeatedly.

To cue or review picture during playback

(Picture Search)

Press the F.FWD or REW button.

• Press it again and the DVD/VCR will search in

super high speed. (in the LP/SLP modes only)

To freeze the picture on TV screen during play-

back (Still mode)

Press the PAUSE/STILL button.Each time you

press the button, the picture will be forwarded by

one frame.

• If the picture begins to vibrate vertically during the

still mode, stabilize the picture by pressing the

CHANNEL buttons.

• If the picture is distorted or rolling vertically, adjust

the vertical hold control on your TV, if equipped.

Counter Reset

Press the CLEAR/C.RESET button.

To play back in slow motion

Press the SLOW button during playback or the still

mode.

• If the noise bars appear on the TV screen, you can

reduce it by pressing the CHANNEL buttons.

Auto Rewind

When a tape reaches its end during playback, fast-for-

ward, or recording (except timer recording and One

Touch Recording), the tape will automatically rewind

to the beginning. After rewinding finishes, the

DVD/VCR will eject the tape.

Other Operations

Hint

•

Still/Slow/Pause

mode will be

automatically

cancelled after 5

minutes to pre-

vent damage to

the tape and the

video head.

• To return to

playback from

the Picture

Search/Still/

Slow mode,

press the PLAY

button.

VCR Functions

SKIP/CH.

VCR

You CAN NOT copy a DVD to a videotape.

To stop recording temporarily (Pause mode)

Press the PAUSE/STILL button.

• During the rec-pause mode, five

marks appear on the TV

screen. Each

mark represents one minute.

• Press it again to resume recording.

VCR

Hint

• To go back one step, press the

button (during

the steps [3] to [9].)

–12 –EN

VCR Functions

On-Screen Operations

1 To call up the main menu

4 To exit the menu

-MENU-

BTIMER PROGRAMMING

AUTO REPEAT [OFF]

CHANNEL SET UP

CLOCK SET

LANGUAGE SELECT

2 To select an item

-MENU-

TIMER PROGRAMMING

AUTO REPEAT [OFF]

BCHANNEL SET UP

CLOCK SET

LANGUAGE SELECT

3 To decide

CHANNEL SET UP

AUTO SET UP

BMANUAL SET UP

CLEAR/

C. RESET

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP TOP MENU

MODE V.SURR.

SUBTITLE

T-S E T

ANGLE

ENTER

RETURN

MODE

REPEAT A-B

CLEAR/

C. RESET

123

456

789

+1 0

OR 4

Recording Features

•Insert a tape with its record tab into the DVD/VCR.

8ONE TIME PROGRAM

PROGRAM NUMBER 4

DATE 0 5 / 0 3 MON

START TIME 0 7 : 3 0 PM

END TIME 0 8 : 3 0 PM

CHANNEL 1 6

REC SPEED – –

2PROGRAM NUMBER 4

DATE – – / – –

START TIME – – : – – – –

END TIME – – : – – – –

CHANNEL – –

REC SPEED – –

3PROGRAM NUMBER 4

BONCE

DAILY

WEEKLY

4 Select the desired month

Select the desired day

ONE TIME PROGRAM

PROGRAM NUMBER 4

DATE 0 5 / 0 3 MON

START TIME – – : – – – –

END TIME – – : – – – –

CHANNEL – –

REC SPEED – –

1-MENU-

BTIMER PROGRAMMING

AUTO REPEAT [OFF]

CHANNEL SET UP

CLOCK SET

LANGUAGE SELECT

Select an empty program

number

Select “ONCE”, “DAILY”

(Mon-Fri), or “WEEKLY”

5 Select the desired start time

(hour)

Select the minute

ONE TIME PROGRAM

PROGRAM NUMBER 4

DATE 0 5 / 0 3 MON

START TIME 0 7 : 3 0 – –

END TIME – – : – – – –

CHANNEL – –

REC SPEED – –

6ONE TIME PROGRAM

PROGRAM NUMBER 4

DATE 0 5 / 0 3 MON

START TIME 0 7 : 3 0 PM

END TIME – – : – – – –

CHANNEL – –

REC SPEED – – AM

BPM

Select “AM” or “PM”

Repeat the procedure in steps 5

and 6 to set the end time.

Select the desired channel

Timer Recording

•

If you have connected the DVD/VCR to a

cable box or satellite box as the

Connection A on page 6, select the VCR

to channel 3 or 4 (the RF output channel

of the VCR). Then select the desired chan-

nel at the cable box or satellite box. Leave

the cable box or satellite box on for timer

recording.

• You can program one

year in advance.

9ONE TIME PROGRAM

PROGRAM NUMBER 4

DATE 0 5 / 0 3 MON

START TIME 0 7 : 3 0 PM

END TIME 0 8 : 3 0 PM

CHANNEL 1 6

REC SPEED SP BSP

SLP

Select the desired recording speed

• TIMER REC light on the front panel appears.

The DVD/VCR will change to the DVD mode.

CLEAR/

C. RESET

SUBTITLE

T-SET

1) Press the SUBTITLE/T-SET button

then the VCR button on the remote

control.

2) Select main menu by pressing the

MENU button.

3) Select "TIMER PROGRAMMING"

by pressing the Kor Lbutton. Then

press the Bbutton.

4) Select the program number which

you want to check by pressing the K

or Lbutton. The details of the pro-

gram you selected will appear on

the TV screen.

• Go to the digit you want to change

by pressing the Bor sbutton. Then

enter correct numbers by pressing

the Kor Lbutton.

• You may cancel the entire program

by pressing the sbutton while the

program number flashes.

5) Press the CLEAR/C.RESET button

to exit.

6) Press the SUBTITLE/T-SET button

to return to timer stand-by mode.

Press the STOP/EJECT button on

the DVD/VCR.

To cancel a Timer Recording in

progress

To Check, Correct, or Cancel a

Timer Program

VCR

• To set another program after step [9], press the

button. Then continue with step [2].

VCR Functions

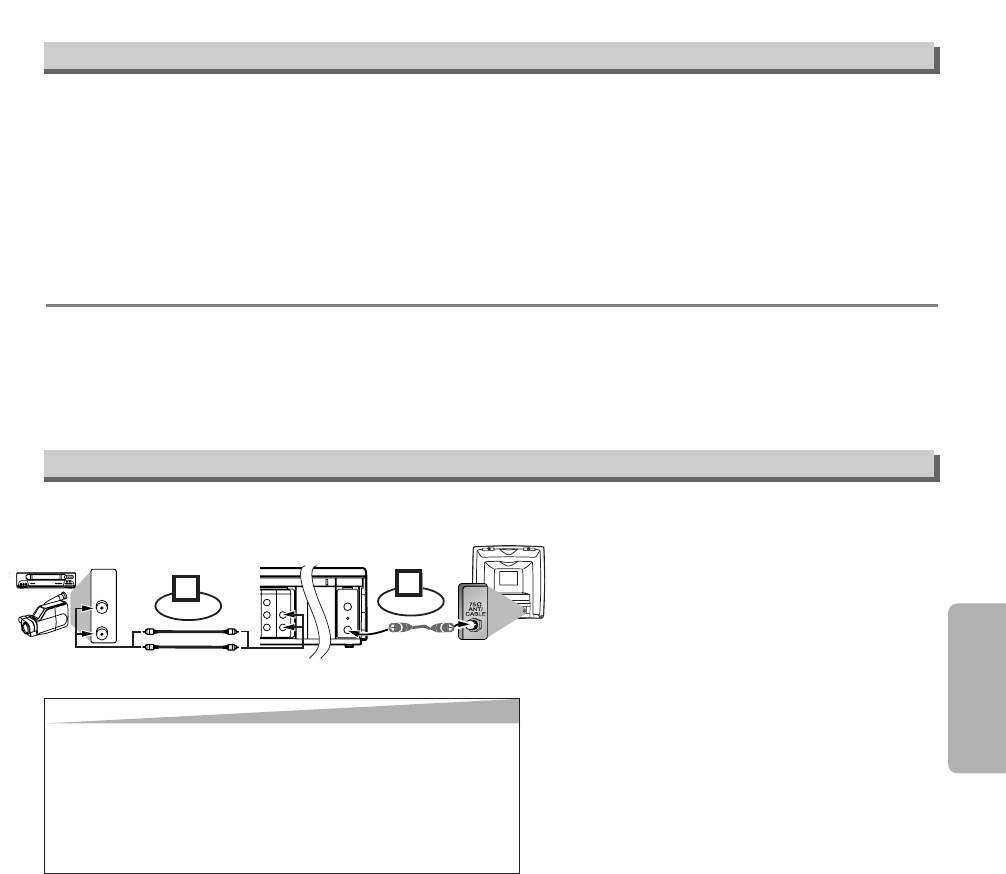

Warning: Unauthorized recordings of copyrighted video tapes may be an infringement of copyright laws.

DIGITAL

AUDIO OUT

COAXIAL

ANT-OUT

ANT-IN

AUDIO

OUT

DVD DVD/VCR VCR

S-VIDEO

OUT

COMPONENT

VIDEO OUT AUDIO OUT

VIDEO OUT

AUDIO IN

VIDEO IN

ANT-OUT

ANT-IN

VCRDVD/VCR

COMPONENT

VIDEO OUT

AUDIO IN

VIDEO IN

AUDIO OUT

VIDEO OUT

AUDIO OUT

VIDEO OUT

Connect

Audio/Video cables

(not supplied)

RF cable

(supplied)

(Back of TV)

(Back of Recording DVD/VCR*)

(Back of another source)

or 2

Connect

*Front input jacks are also available

1) Insert a pre-recorded tape into the playing VCR.

2) Insert a tape with its record tab into the recording

DVD/VCR.

3) Press the SPEED button on the remote control

of the recording DVD/VCR to select the desired

recording speed (SP/SLP).

4) Select the "L1" or "L2" position on the recording

DVD/VCR.

• To use the input jacks on the back of this unit,

select "L1" position by pressing [0], [0], [1] on

the remote control or the CHANNEL buttons.

• To use the input jacks on the front of this unit,

select "L2" position by pressing [0], [0], [2] on

the remote control or the CHANNEL buttons.

5) Press the REC/OTR button on the recording

DVD/VCR.

6) Begin playback of the tape in another source.

7) To stop recording, press the STOP/EJECT button

on the recording DVD/VCR, then stop playback of

the tape in another source.

Hint

• For best results during dubbing, use the front panel controls whenever

possible. The remote control might affect another source’s operation.

• Always use video-quality shielded cables with RCA-type connectors.

Standard audio cables are not recommended.

• You can use a video disc player, satellite receiver or other audio/video

component with A/V outputs.

• “L1” or “L2” is found before the lowest memorized channel. (Example:

CH02)

• “L2” input jacks are on the front of this DVD/VCR.

Copying a Video Tape

–13 –

• If there is a power failure or the DVD/VCR has been unplugged for more than 30 seconds, the clock setting

and all timer settings will be lost.

• If a tape is not in the DVD/VCR or does not have the record tab, the TIMER REC light flashes and timer

recording cannot be performed. Please insert a recordable tape.

• If a tape ends during timer recording, the VCR will stop, eject the tape and switch to the DVD mode automati-

cally as the TIMER REC light flashes. (If the DVD power is off, the VCR will become STANDBY status.)

• When all timer recordings are finished, the TIMER REC light will flash.

• When timer recordings are set, the TIMER REC light will appear. To use the VCR as usual until the time

for the recording, press the SUBTITLE/T-SET button so that the TIMER REC light disappears. Press the

VCR/TV button to choose the VCR position. Select either VCR or DVD mode, then continue with the

other features as described in this manual.

If you want to use the DVD player during a VCR timer recording or while the TIMER REC light is on or

flashes.

• You can use the DVD player while the TIMER REC light is on or flashes, or during a timer recording. Press

the POWER button to turn on the DVD. Press the DVD button on the remote control to choose DVD mode,

then continue with the other DVD features as described in this manual. You don’t have to set the TIMER off to

use the DVD only.

Hint for Timer Recording

–14 –EN

VCR Functions

Special Features

You can specify the number of pro-

grams to be skipped.

• Insert a tape into this unit.

VCR

1TIME SEARCH

– : – –

MODE

2 Select the desired length of

time for fast forwarding or

rewinding

TIME SEARCH

2 : 5 0

Hint f

Hint for

or Timer Sear

Timer Searc

ch & Inde

h & Index Sear

x Searc

• These functions are not available during recording.

• Press the STOP button to stop the search.

• If the end of the tape is reached during a Search, this unit will cancel the search and rewind the tape.

1INDEX SEARCH

– –

2INDEX SEARCH

0 3

1-MENU-

TIMER PROGRAMMING

BAUTO REPEAT [OFF]

CHANNEL SET UP

CLOCK SET

LANGUAGE SELECT

2-MENU-

TIMER PROGRAMMING

BAUTO REPEAT [ON]

CHANNEL SET UP

CLOCK SET

LANGUAGE SELECT

Hint

• To cancel Auto Repeat, follow steps [1]-[2] above.

Then press the

button, so that [OFF] appears

beside AUTO REPEAT. Press the

CLEAR/C.RESET button to exit.

• If menu remains on the TV screen at step [3],

press the CLEAR/C.RESET button to exit.

You can repeat playback of a

whole tape automatically.

• Insert a tape into this unit.

VCR

Pro.1 Pro.2 Pro.3 Pro.4 Pro.5

02 01 01 02 03

Beginning

of tape

End

of tape

CURRENT PROGRAM

INDEX MARK

Time Search Index Search Auto Repeat

x2 (Twice)

MODE

x1 (Once)

0:01~ 9:59

(1 minute~9 hours

and 59 minutes)

01 ~ 20

To rewind To fast forward

After searching,

PLAYB

3To rewind To fast forward

After searching,

3 AUTO REPEAT B

PLAYB

Hint

• This unit stores index mark at the beginning of

the recording. There should be time gap between

two index marks for the Index Search.

You can specify the time for fast

forwarding or rewinding.

• Insert a tape into this unit.

VCR

–15 –EN

DVD Functions

Fast Forward/Reverse Search

Press the ggor hhbutton repeatedly dur-

ing playback to select the required forward or

reverse speed.

To contin

o continue pla

ue playbac

yback,

k, press the PLA

press the PLAY

button.

utton.

•For DVDs, fast forward or reverse search speed is different

depending on the disc. Approximate speed is 1 (x2), 2 (x8),

3 (x50), 4 (x100).

•For Audio CDs, approximate speed is x16.

Slow Forward/Slow Reverse

Press the ggor hhbutton repeatedly dur-

ing the pause mode to select the required for-

ward or reverse speed.

To contin

o continue pla

ue playbac

yback,

k, press the PLA

press the PLAY

button.

utton.

•Slow forward or reverse speed is different depending on

the disc. Approximate speed is 1 (1/16), 2 (1/8), 3 (1/2).

DVD-V

Playback

OPEN/CLOSE

STOP/EJECT PLAY REC /OTR

TIMER REC

F.F W DREWPOWER CHANNEL

OUTPUT

PLAY FWD/SKIPSTOPSKIP/REV

DVDVCR DISC IN

AUDIO

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

OPEN/CLOSE

/EJECT

SPEED AUDIO

123

456

789

+1 0

TV ScreenRemote Control

PLAY

DVD Functions

STOP

OPEN/CLOSE

/EJECT

POWER

OPEN/CLOSE

/EJECT

DVD menu

DVDs may contain menus to access special features. Press

appropriate Number buttons or use the arrow (K/L/s /B)

buttons to highlight your selection on the DVD main menu

and press the ENTER button to confirm.

Calling up a Menu Screen during Playback

•Press the MENU button to call up the DVD menu.

•Press the TOP MENU button to call up the title menu.

Note

•Menu operations may vary depending on the disc. Refer to

the manual accompanying the disc for details.

Resume

Press the STOP button.Resume message will appear on

the TV screen.

Press the PLAY button, play-

back will resume from the

point at which playback was

stopped.

•To cancel resume, press the

STOP button one more time

during the Stop mode.

Paused and Step-by-Step Playback

Press the PAUSE button during playback.

To contin

o continue pla

ue playbac

yback,

k, press the PLA

press the PLAY

button.

utton.

The disc goes forward by one frame each time the PAUSE

button is pressed during the pause mode.

To contin

o continue pla

ue playbac

yback,

k, press the PLA

press the PLAY b

Y button.

utton.

DVD-V

Press 'PLAY' to play from here.

To play the beginning,

press 'STOP' first and then 'PLAY'.

E 1

DVD

DVD-V

Hint

•A “prohibited

icon” may

appear at the

top-right on

the TV screen when the

operation is prohibited

by the disc or this unit.

•Some DVDs may be

played from title 2 or 3

due to specific pro-

grams.

•During the playback of a

two-layered disc, pic-

tures may stop for a

moment. This happens

while the 1st layer is

being switched to the

2nd layer. This is not a

malfunction.

Hint

•Set “STILL MODE” to “FIELD” in the Display menu if pictures in the pause

mode are blurred. (Refer to pages 20-21.)

Hint

•Set “STILL MODE” to “FIELD” in the Display menu if pictures in the slow play-

back mode are blurred. (Refer to pages 20-21.)

Before:

Turn on the TV, amplifier and any other components which

are connected to this unit. Make sure the TV and audio receiver

(commercially available) are set to the correct channel.

To use the SKIP/REV, FWD/SKIP buttons on the

Main Unit

Press once to skip chapters or tracks to a desired point.

Press and hold to change forward or reverse playback

speed.

DVD-V

–16 –EN

DVD Functions

The On-Screen Display

You can check the information about the current disc by pressing the DISPLAY button on the remote control.

DVD

DVD-V

DVD

4/12 0:03:21 - 0:02:15 T

4/12 0:13:45 - 0:45:40 T

CH(Chapter):

Current chapter number / Total chapters

TT(Title):

Current title number / Total titles

Current repeat setting appears only when

the repeat setting is active

C: Chapter repeat / T: Title repeat /

AB:A-B repeat

TR(Track):

Current track number / Total tracks

Current repeat setting appears only when

the repeat setting is active

T: Track repeat

A: All Tracks repeat

AB:A-B repeat

DISPLAY

11/16 0:00:00 - 0:03:30

1/3 0:00:00 - 1:23:45

TL1

DISPLAY

BIT RATE: The amount of audio and video

data currently being read

ALL:

Current track number / Total tracks

Elapsed time of the current chapter

Remaining time of the current chapter

Elapsed time of the current title

Remaining time of the current title

Layer numbers, appears only when playing

a two-layered Disc

L0: Layer 0 is playing

L1: Layer 1 is playing

DISPLAY

Elapsed time of the current track

Remaining time of the current track

Elapsed time of the current audio CD

Remaining time of the current audio CD

Current playback status

Search Function

–17 –EN

DVD Functions

Time Search

DVD

DVD-V

Within 30 seconds

1:29:00

TOTAL

MODE

PLAY

123

456

789

Notes

¡Opening the disc tray or turning off the

power will erase all markers.

¡Selecting “AC” at step [2] in the sec-

tion “To set a marker” will also erase

all markers.

¡To clear a marker, select the marker to

be cleared at step [2] and then press

the CLEAR/C.RESET button.

Marker Setup

This feature allows you to assign a specific

point on a disc to be called back later.

To set a marker

o set a marker

DVD

DVD-V

MODE

Press repeatedly until

this screen appears

ENTERENTER

To return to the marker

o return to the marker

later

MODE

PLAY

Press repeatedly until

this screen appears

ENTERENTERENTER

at the desired marker

•Playback will restart from the specific point

which you set.

To e

o exit the marker screen

xit the marker screen

RETURN

PLAY

Press repeatedly until

this screen appears

•For single digit tracks (1-9), press a

single number (eg. track 3, press 3).

•To play track 26, press +10, 2, 6 of the

Number buttons.

Using the SEARCH

Using the SEARCH MODE

MODE b

button

utton

Track Search

Using the n

Using the number b

umber buttons

uttons

DVD

Within 30 seconds

Title / Chapter Search

Using the SEARCH

Using the SEARCH MODE

MODE b

button

utton

DVD

DVD-V

Within 30 seconds

/12

Press once for the chapter search

Press twice for the title search

123

456

789

+1 0

MODE

123

456

789

+1 0

123

456

789

+1 0

PLAY

TR 1 TR 2 TR 3 TR 4

Current Track

(TR)

SKIP SKIP

Using the SKIP

buttons

uttons

SKIP/CH.

PLAY

CH 1 CH 2 CH 3 CH 4

Current Chapter

(CH)

SKIP SKIP

Using the SKIP

buttons

uttons

SKIP/CH.

• For Time Search, “0” appears automat-

ically when there is no need to enter a

number. For example, “0:0_:__”

appears in the Time Search screen if

the total time of the disc is less than 10

minutes.

Note

¡Depending on the disc being played,

this function can also be performed by

directly entering the desired chapter

number with the number buttons.

Refer to the manual accompanying

the disc.

1:29:00

TOTAL

ENTERENTERENTERENTERENTERENTER

–18 –EN

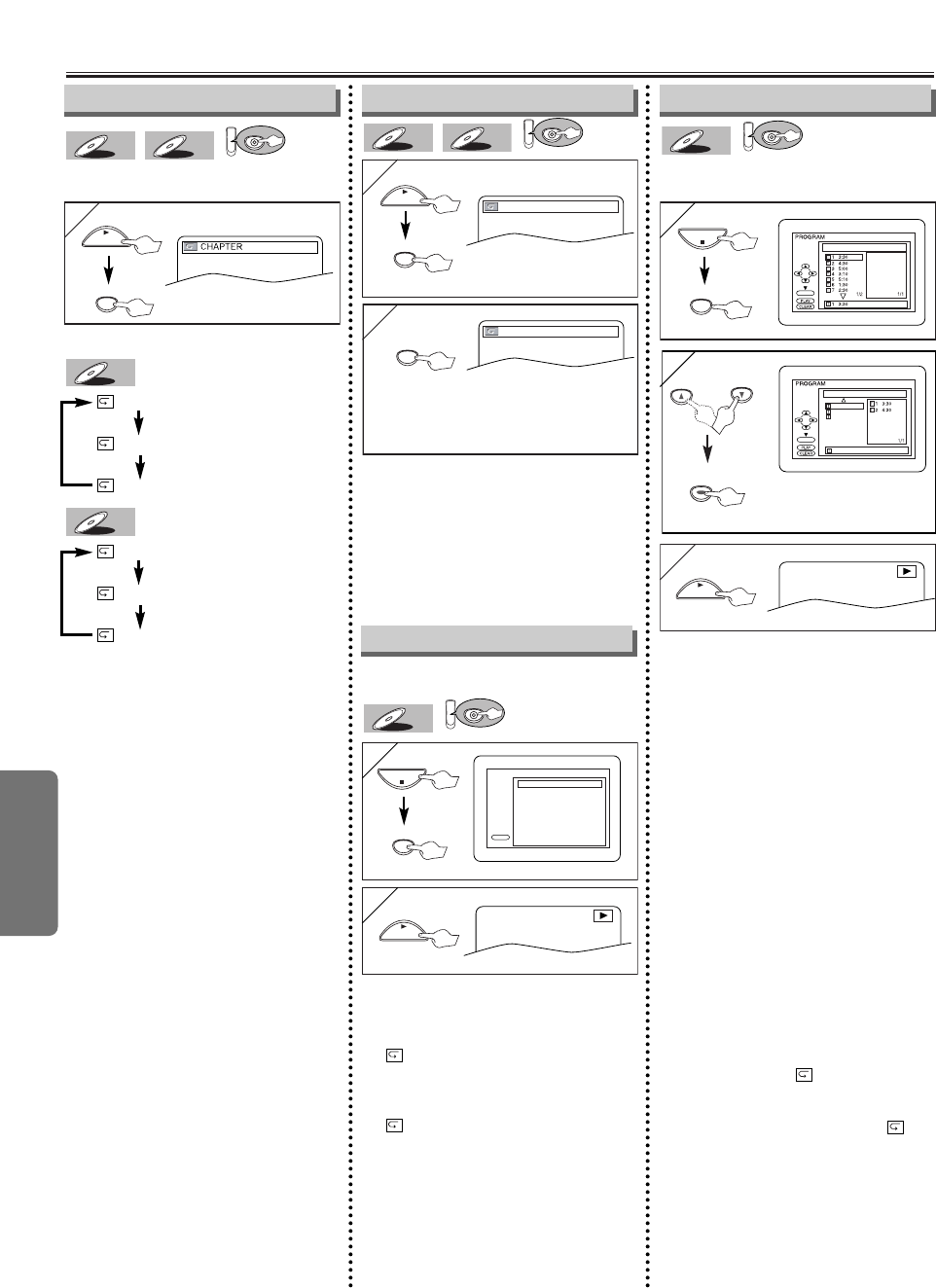

DVD Functions

Repeat / Random / Programmed Playback

CHAPTER

TITLE

OFF

(current chapter repeat)

(current title repeat)

(repeat off)

Each time the REPEAT button is pressed...

DVD-V

Repeat function is available only during playback.

DVD

DVD-V

¡Repeat setting will be cleared when

moving to another title, chapter, or

track.

¡Repeat playback are not available

with all discs or during repeat A-B

playback.

¡To exit the sequence, press the A-B

button.

¡To cancel Point A, press the

CLEAR/C.RESET button.

¡This function does not work in the

other repeat modes.

at your desired starting point (A).

DVD

DVD-V

Notes

¡Press the CLEAR/C.RESET button at

step [2] to erase the most recently

entered program.

¡To erase all tracks in the program at

once, select “ALL CLEAR’’ and press

the ENTER button at step [2].

¡While a program is being played back,

the STOP button works as follows;

⇒Press the STOP button and the

PLAY button next, so that the pro-

grammed playback restarts. (CD

playback restarts from the current

point.)

⇒Press the STOP button twice and

the PLAY button next, so that play-

back restarts from the first track in

the original order. However, your

programmed playback can be

restarted when you follow the

above steps. (Your program is still

stored until either the disc tray is

open or power is turned off.)

¡To repeat the current track in the pro-

gram, press the REPEAT button

repeatedly until “ TRACK’’ appears

during playback.

To repeat the entire program press the

REPEAT button repeatedly until “ ALL’’

appears during playback.

You may determine the order in which

tracks will play.

DVD

REPEAT

PLAY

TRACK

ALL

OFF

(current track repeat)

(entire disc repeat)

(repeat off)

Repeat Playback Programmed PlaybackRepeat A-B Playback

A-B

PLAY

Random Playback

A-

at your desired end point (B).

A-B

MODE

STOP

PLAY

Note

¡If you want to repeat the current

track in the random selections, press

the REPEAT button repeatedly until

“TRACK’’ appears during play-

back. If you want to repeat the entire

random selections, press the

REPEAT button repeatedly until

“ALL’’

appears during playback.

PLAY

CD-DA TOTAL 0:45:55

RANDOM PROGRAM

--no indication--

RANDOM

This shuffles the playing order of tracks

instead of playback in the sequence.

DVD

MODE

STOP

PLAY

x2 (Press twice)

Press once

CD-DA TOTAL 0:00:00

ENTER

CD-DA TOTAL 0:08:00

ENTER

ALL CLEAR

8 3:30

3:30

8 3:30

3:30

9 2:30

10 1:30

2/2

¡Point B should be in the same title

or track as point A is.

Up to 99 tracks can be

stored.

–19 –EN

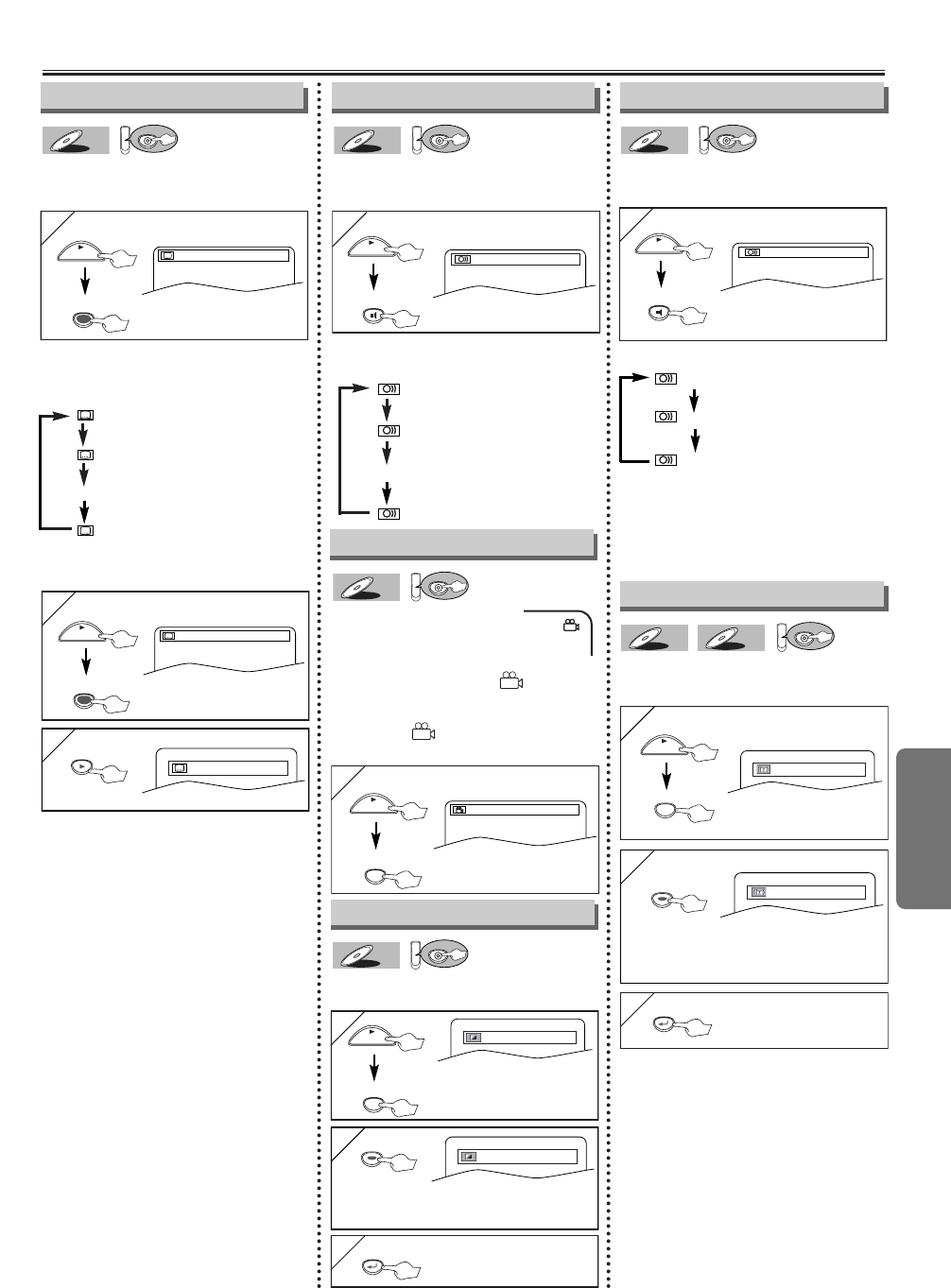

DVD Functions

Note

¡If the Virtual Surround setting is “1’’ or

“2’’, the sound mode will be fixed to

STEREO, and can not be changed.

Notes

¡If your language is not shown after

pressing the AUDIO or SUBTITLE/T-

SET button several times, the disc

may not have that language. However,

some discs allow audio language or

subtitle language setting on the disc

menu. (Operation varies depending

on the discs, so refer to the manual

along with the disc.)

¡When “NOT AVAILABLE” appears on

the TV screen, it means no subtitle is

recorded on the scene.

¡If you choose a language that has a 3

letter language code, the code will be

displayed every time you change the

subtitle language setting. If you choose

any other languages, ‘---’ will be dis-

played instead. (Refer to page 24.)

Special Settings

Audio Language

This unit allows you to select an audio

language (if multiple languages are

available) during DVD playback.

DVD

DVD-V

1.ENG Dolby D 3/2.1ch 48k/3

AUDIO

PLAY

ENG

SPA

FRE

(English audio)

(Spanish audio)

(French audio)

Each time you press the AUDIO button;

For example

STEREO

L-CH

R-CH

(right and left channels

are active)

(left channel is active)

(right channel is active)

This unit allows you to select a sound

mode during CD playback.

DVD

STEREO

AUDIO

PLAY

Each time you press the AUDIO button;

Stereo Sound mode

Camera Angle

This unit allows you to select a subtitle

language (if available) during DVD play-

back.

DVD

DVD-V

1.ENG/6

SUBTITLE

T-SET

PLAY

ENG

FRE

OFF

(English subtitles)

(French subtitles)

(no subtitles)

Each time you press the SUBTITLE/T-

SET button, subtitle languages change.

For example

Subtitle Language

Some DVD discs may con-

tain scenes which have

been shot simultaneously

from various angles.You can change

the camera angle if the ( ) icon

appears on the screen. If the “ANGLE

ICON” setting is “OFF” in the Display

menu, the ( ) icon will not appear.

(Refer to pages 20-21.)

DVD

DVD-V

1 / 8

ANGLE

PLAY

Note (for CD play back only)

¡Virtual Surround will not be effective if

the sound mode is set to something

other than STEREO.

OFF

Black Level Setting

Adjust the Black Level Setting to make

the dark areas of the TV picture brighter.

DVD

DVD-V

Virtual Surround

You can enjoy surround-sound effect

over two speakers of your own.

DVD

DVD-V

MODE

PLAY

OFF

ENTERENTERENTER

ON: Makes the dark areas brighter.

OFF: Shows the original picture as recorded.

RETURN

V.S URR.

PLAY

ENTERENTERENTER

1: Natural effect

2: Emphasized effect

OFF: No effects (original sound)

RETURN

...

To set subtitle ON/OFF

1.ENG/6

PLAY

OFF

SUBTITLE

T-SET

or or

DVD Functions

–20 –EN

SETUP CUSTOM

LANGUAGE

DISPLAY

AUDIO

PARENTAL

Select CUSTOM

SETUP

QUICK

CUSTOM

INITIALIZE

To select the desired item

ENTERENTER

CUST

CUSTOM Men

OM Menu

ENTERENTER

SETUP

STOP

ENTERENTER

Hint

∗1

• Language options are not available with

some discs.

• If OTHER is selected on the AUDIO, SUBTI-

TLE or DISC MENU screen, press four-digit

number to enter the code for the desired lan-

guage. (Refer to the language code list on

page 24.)

• Only the languages supported by the disc

can be selected.

∗2

• Language Setting for Audio and Subtitle is

not available with some discs. Then use the

AUDIO and the SUBTITLE/T-SET button.

Details are on page 19.

LANGUAGE Setting

Follow the step 1) to 3) in the “CUSTOM Menu” section above.

Select the desired item 6

6 To exit the menu

AUDIO ∗∗1 ∗∗2

(Default: ORIGINAL)

Sets the audio language.

SUBTITLE: ∗∗1 ∗∗2

(Default: OFF)

Sets the subtitle language.

DISC MENU: ∗∗1

(Default: ENGLISH)

Sets the language for DVD

menu.

PLAYER MENU:

(Default: ENGLISH)

Sets the language for the

On-screen display.

QUICK

ENTERENTER

SETUP

SETUP PARENTAL

PASSWORD

Please enter a 4-digit password.

SETUP AUDIO

DRC

DOWN SAMPLING

DOLBY DIGITAL

SETUP DISPLAY

TV ASPECT

STILL MODE

ANGLE ICON

AUTO POWER OFF

4:3 LETTER BOX

AUTO

SETUP LANGUAGE

AUDIO

SUBTITLE

DISC MENU

PLAYER MENU

ORIGINAL

OFF

ENGLISH

Select the desired item

SETUP

QUICK

CUSTOM

INITIALIZE

SETUP

STOP

SETUP QUICK

PLAYER MENU

TV ASPECT

DOLBY DIGITAL

ENGLISH

4:3 LETTER BOX

QUICK SETUP Men

UICK SETUP Menu

•Refer to the sections “PLAYER

MENU”, “TV ASPECT”, or “DOLBY

DIGITAL” section on page 20 or 21.

You can change the DVD player’s settings.

Confirm that QUICK is selected

You can select the “PLAYER MENU”, “TV ASPECT”, or “DOLBY DIGITAL” from the QUICK SETUP menu quickly.

ENTERENTER

LANGUAGE menu AUDIO menuDISPLAY menu PARENTAL menu

Select the desired language

AUDIO

ORIGINAL

ENGLISH

FRENCH

SUBTITLE

OFF

ENGLISH

FRENCH

DISC MENU

ENGLISH

FRENCH

SPANISH

PLAYER MENU

ENGLISH

FRANÇAIS

ESPAÑOL

LANGUAGE menu

DVD Set Up

DVD

P20 (Step 5)

P21 (Step 5)

page 20

page 21

page 22

to decide

SETUP

QUICK

CUSTOM

INITIALIZE

SETUP LANGUAGE

AUDIO

SUBTITLE

DISC MENU

PLAYER MENU

ORIGINAL

OFF

ENGLISH

ENTERENTER

SETUP AUDIO

DRC

DOWN SAMPLING

DOLBY DIGITAL

DVD Functions

–21 –EN

Hint

TV ASPECT:

• Select “4:3 LETTER BOX”, so

that black bars appear on the

top and bottom of the screen.

• Select “4:3 PAN & SCAN” for

a full height picture with both

sides trimmed.

• Select “16:9 WIDE” if a wide-

screen TV is connected to this

unit.

STILL MODE:

• Select “AUTO” usually.

• If you select “FIELD”, the pic-

ture in the still mode will be

stabilized.

• If you select “FRAME”, the

picture in the still mode will be

highly defined.

DISPLAY Setting

You can change the display functions. Follow the step 1) to 3) in the “CUSTOM Menu” section on page 20.

Select the desired item

DISPLAY menu

AUDIO Setting

Choose the appropriate audio settings for your equipment. It only affects during the playback of DVD discs. Follow the step 1)

to 3) in the “CUSTOM Menu” section on page 20.

Select the desired item

AUDIO menu

6 To exit the menu

SETUP

TV ASPECT:

(Default: 4:3 LETTER BOX)

See Hint to the right.

QUICK

ANGLE ICON:

(Default: ON)

Set to “ON” to show the angle icon when multiple camera

angles are available during DVD playback.

AUTO POWER OFF:

(Default: ON)

Set to “ON” to turn this unit off automatically after

35 minutes of no use.

TV ASPECT

4:3

LETTER BOX

4:3

PAN & SCAN

16:9

WIDE

TV ASPECT

4:3 LETTER BOX

STILL MODE

AUTO

ANGLE ICON ON

AUTO POWER OFF

TV ASPECT

4:3 LETTER BOX

STILL MODE

AUTO

ANGLE ICON ON

AUTO POWER OFF

4:3 LETTER BOX

AUTO

OFF

TV ASPECT

4:3 LETTER BOX

STILL MODE

AUTO

ANGLE ICON ON

AUTO POWER OFF

4:3 LETTER BOX

AUTO

OFF

Select the

desired

setting

ENTERENTER

STILL MODE:

(Default: AUTO)

See Hint to the right.

TV ASPECT

4:3 LETTER BOX

STILL MODE

AUTO

ANGLE ICON ON

AUTO POWER OFF

STILL MODE

AUTO

FIELD

FRAME

Select the

desired

setting

ENTERENTER

6 To exit the menu

SETUP

DRC (Dynamic Range Control):

(Default: ON)

Set to “ON” to compress the range between soft and loud sounds.

DOLBY DIGITAL:

(Default: ON)

Set to “ON” when the unit is connected to a Dolby Digital receiver.

• ON: Outputs a Dolby Digital Signals

• OFF: Convert the Dolby Digital into PCM (2 channel)

QUICK

DRC ON

DOWN SAMPLING ON

DOLBY DIGITAL ON

OFF

ENTERENTER

DOWN SAMPLING:

(Default: ON)

Set to “ON” when outputting in 48 kHz.

Set to “OFF” when outputting the original sound.

DRC ON

DOWN SAMPLING ON

DOLBY DIGITAL ON

OFF

ENTERENTER

DRC ON

DOWN SAMPLING ON

DOLBY DIGITAL ON

OFF

ENTERENTER

Hint

DRC:

• This function is available only

on the discs which are record-

ed in the Dolby Digital format.

DOWN SAMPLING:

• When playing disc with copy-

right Protection, the sound will

be down sampled at 48kHz,

even if you set to OFF.

• This function is available only

on digital outputting of a disc

recorded in 96kHz.

SETUP DISPLAY

TV ASPECT

STILL MODE

ANGLE ICON

AUTO POWER OFF

4:3 LETTER BOX

AUTO

–22 –EN

DVD Functions

SETUP PARENTAL

PASSWORD

Enter current password.

Hint

• Record the password in

case you forget it.

• If you forget the password,

press 4, 7, 3, 7 at step 4,

then enter your new pass-

word.

• Password will be cleared

and parental levels will be

set to ALL.

SETUP PARENTAL

PASSWORD

Please enter a 4-digit password.

PARENTAL Setting

Parental Control limits the disc viewing that exceed your settings. (an incorrect password will not play.)

This feature prevents your children from viewing inappropriate materials.

Parental

arental Le

Levels

vels

Parental Level allows you to set the rating levels of your DVD discs. Playback will stop if the ratings exceed the levels you set.

Follow the steps 1) to 3) in the “CUSTOM Menu” section on page 20.

To Chang

o Change the P

e the Pass

assw

wor

ord f

d for P

or Parental Contr

arental Controls

ols

You can change your password for parental controls. Follow the steps 1) to 3) in the “CUSTOM Menu” section on page 20.

ENTERENTER

Hint

CONTROL LEVELS

• ALL: All parental locks are cancelled.

• Level 8: DVD softwares of any grades (adult/general/children)

can be played back.

• Levels 7 to 2: Only DVD softwares intended for general use and chil-

dren can be played back.

• Level 1: Only DVD softwares intended for children can be played

back, with those intended for adult and general use pro-

hibited.

Select “PARENTAL

LEVEL”

Enter your desired four-

digit password (except

for 4737)

PARENTAL menu

123

456

789

CHANGE

PARENTAL LEVEL ALL

SETUP

ENTERENTER

Select the

desired levels

PARENTAL LEVEL

ALL

7 [NC-17]

6 [R]

ENTERENTER

To exit

the menu

Select “CHANGE”

CHANGE

PARENTAL LEVEL ALL

SETUP

ENTERENTER

Enter your new

four-digit password

(except for 4737)

ENTERENTER

To exit

the menu

SETUP PARENTAL

PASSWORD

Enter current password.

If you have set a password already,

enter the current four-digit

password.

Enter your desired four-

digit password (except

for 4737)

To return the All Selections of SET UP (except for PARENTAL) to the Default Setting

Select INITIALIZE

SETUP

QUICK

CUSTOM

INITIALIZE

Select “YES”

STOP

SETUP INITIALIZE

Initialize?

YES

SETUP

To exit

the menu

(twice) Hint

Hint

• When you cancel

to initialize at step

3,select “NO”.

SETUP

ENTERENTER

SETUP PARENTAL

PASSWORD

Please enter a 4-digit password.

SETUP

QUICK

CUSTOM

INITIALIZE

123

456

789

123

456

789

PARENTAL menu

Troubleshooting Guide

–23 –EN

Information

If this unit does not perform properly when operated as instructed in this Owner's Manual, check this unit consulting the follow-

ing checklist.

PROBLEM CORRECTIVE ACTION

No power. • Make sure the power plug is connected to an AC outlet.

• Make sure the power is turned on.

This unit does not respond to • Check if the power plug is connected to an AC outlet.

the remote control. • Check the batteries in the remote control.

• Aim the remote control directly at the remote sensor. If necessary, remove all the

obstacles between the sensor and the remote.

• You have to be within 23 feet of this unit.

• Check if the right mode is selected. If it’s not in the right mode, press the DVD or

VCR buttons, whichever you need, on the remote control.

• Check if a cassette tape is in this unit.

• Tune your radio to an empty AM station so that you hear a lot of noises. Turn the vol-

ume up, then. If you hear some signal sound from the radio in response to your

pressing buttons on the remote, the remote control is working.

Timer recording is impossible. • Make sure the timer recording is set correctly.

• Make sure the TIMER REC light appears on the DVD/VCR. If not, press the SUBTI-

TLE/T-SET button.

• Make sure the VCR clock is set correctly.

Cannot go into Record mode. • Make sure the tape has a safety tab. If needed, cover the hole with cellophane tape.

•Activate this unit in VCR mode. Press the VCR button on the remote control so that the

green VCR OUTPUT light is lit.

Playback picture is partially noisy.

•Adjust tracking control for a better picture by pressing the CHANNEL (K /L) buttons

on the DVD/VCR or the SKIP/CH.(K /L) buttons on the remote control.

Cannot view a tape but the • Head cleaning may be necessary. Refer to “AUTO HEAD CLEANING” .

audio is OK. • Make sure the VCR is not in the Menu mode.

No, or poor, playback picture. • Change the RF output channel to CH4. Then select the same channel on the TV.

• Fine tune your TV.

TV programs cannot be seen • Re-check the ANT. IN and ANT. OUT connections. See the front page and page 6.

normally. • Press the VCR/TV button.

•

Press the VCR button on the remote control to activate it in the VCR mode. Check if the green

VCR OUTPUT light is lit. Then, set it to the TV position by pressing the VCR/TV button.

Video or color fades in and out when

•

You cannot copy a copyrighted video tape. You are experiencing copy guard protection.

making a copy of a video tape.

Cannot remove the tape. • Check if this unit is in the VCR mode. If not, press the VCR button on the remote control

to switch the mode.

No picture. • Connect the video cables firmly.

•Insert a correct video disc that plays on this unit.

• Press the DVD button on the remote control. Check if the DVD OUTPUT light is lit. Then

try other DVD features.

Disc cannot be played.•Insert the disc.

•Clean the disc.

• Place the disc correctly with the label side up.

• Cancel the parental lock or change the control levels.

• Handle a disc with special care so that it does not have fingerprints, scratches, or

dusts on its surface.

No sound.•Connect the audio cables firmly.

•Turn the power of the audio component on.

• Correct the audio output settings.

• Correct the input settings on the audio component.

No DTS audio is output.•This unit does not support DTS audio. This is not a malfunction.

Distorted picture.•Connect this unit directly to the TV.

•

There are some cases where pictures may be slightly distorted, and those are not a sign of a malfunction.

• Although pictures may stop for a moment, this is not a malfunction.

Audio or subtitle language •

The selected language is not available for audio or subtitles on the DVD.

does not match the set up.

This is not a malfunction.

The camera angle cannot be •

The DVD does not

contain sequences recorded from different camera angles.

changed.

This is not a malfunction.

Audio or subtitle language • The DVD does not contain audio source or subtitles in the selected language.

cannot be changed.

This is not a malfunction.

“Prohibited icon” appears on the • That operation is prohibited by this unit or the disc.

screen, prohibiting an operation

This is not a malfunction.

•Some functions are not available in specific modes, but this is not a malfunction. Read the description in this Owner’s Manual

for details on correct operations.

•Playback from a desired track and random playback are not available during program playback.

•Some functions are prohibited on some discs.

Information

Language List

–24 –EN

Information

Specifications

A-B

Abkhazian 4748

Afar 4747

Afrikaans 4752

Albanian 6563

Amharic 4759

Arabic 4764

Armenian 5471

Assamese 4765

Aymara 4771

Azerbaijani 4772

Bashkir 4847

Basque 5167

Bengali;Bangla 4860

Bhutani 5072

Bihari 4854

Bislama 4855

Breton 4864

Bulgarian 4853

Burmese 5971

Byelorussian 4851

C-E

Cambodian 5759

Catalan 4947

Chinese [CHI] 7254

Corsican 4961

Croatian 5464

Czech 4965

Danish [DAN] 5047

Dutch [DUT] 6058

English [ENG] 5160

Esperanto 5161

Estonian 5166

F-H

Faroese 5261

Fiji 5256

Finnish [FIN] 5255

French [FRE] 5264

Frisian 5271

Galician 5358

Georgian 5747

German [GER] 5051

Greek [GRE] 5158

Greenlandic 5758

Guarani 5360

Gujarati 5367

Hausa 5447

Hebrew 5569

Hindi 5455

Hungarian [HUN] 5467

I-K

Icelandic [ICE] 5565

Indonesian 5560

Interlingua 5547

Interlingue 5551

Inupiak 5557

Irish [IRI] 5347

Italian [ITA] 5566

Japanese [JPN] 5647

Javanese 5669

Kannada 5760

Kashmiri 5765

Kazakh 5757

Kinyarwanda 6469

Kirghiz 5771

Kirundi 6460

Korean [KOR] 5761

Kurdish 5767

L-N

Laothian 5861

Latin 5847

Latvian;Lettish 5868

Lingala 5860

Lithuanian 5866

Macedonian 5957

Malagasy 5953

Malay 5965

Malayalam 5958

Maltese 5966

Maori 5955

Marathi 5964

Moldavian 5961

Mongolian 5960

Nauru 6047

Nepali 6051

Norwegian [NOR] 6061

O-R

Occitan 6149

Oriya 6164

Oromo(Afan) 6159

Panjabi 6247

Pashto;Pushto 6265

Persian 5247

Polish 6258

Portuguese [POR] 6266

Quechua 6367

Rhaeto-Romance 6459

Romanian [RUM] 6461

Russian [RUS] 6467

Samoan 6559

Sangho 6553

Sanskrit 6547

Scots Gaelic 5350

Serbian 6564

Serbo-Croatian 6554

Sesotho 6566

Setswana 6660

Shona 6560

Sindhi 6550

Singhalese 6555

Siswat 6565

Slovak 6557

Slovenian 6558

Somali 6561

Spanish [SPA] 5165

Sundanese 6567

Swahili 6569

Swedish [SWE] 6568

Tagalog 6658

Tajik 6653

Tamil 6647

Tatar 6666

Telugu 6651

Thai 6654

Tibetan 4861

Tigrinya 6655

Tonga 6661

Tsonga 6665

Turkish [TUR] 6664

Turkmen 6657

Twi 6669

U-Z

Ukrainian 6757

Urdu 6764

Uzbek 6772

Vietnamese 6855

Volapuk 6861

Welsh 4971

Wolof 6961

Xhosa 7054

Yiddish 5655

Yo r uba 7161

Zulu 7267

Language Code Language Code Language Code Language Code

If you choose a Language that has a 3 letter language code, the code will be displayed every time you change the Audio or Subtitle language setting on page 19. If

you choose any other languages, ‘---’ will be displayed instead. (3 letter language code is written in bracket.)

Video Heads :

Four Heads

Output signal format :

NTSC color

Power source :

120 V AC +/- 10%, 60 Hz +/- 0.5%

Power consumption :

21 W (standby: 3.6W)

Operating temperature :

41°F (5°C) to 104°F (40°C)

Dimensions :

W:17 3/16”(435mm)

H:3 3/4” (94mm)

D:9 3/16” (233mm)

Weight :

Approx 6lbs (2.7kg)

• Designs and specifications are subject

to change without notice.

• If there is a discrepancy between lan-

guages, the default language will be

English.

FUNAI CORP. will repair this Emerson product, free of charge in the USA in

the event of defect in materials or workmanship as follows:

DURATION:

PARTS: FUNAI CORP. will provide parts to replace defective parts

without charge for one (1) year from the date of original retail

purchase. Two (2) years for Picture Tube. Certain parts are

excluded from this warranty.

LABOR: FUNAI CORP. will provide the labor without charge for a peri-

od of ninety (90) days from the date of original retail pur-

chase.

LIMITS AND EXCLUSIONS:

THIS WARRANTY IS EXTENDED ONLY TO THE ORIGINAL RETAIL PUR-

CHASER. A PURCHASE RECEIPT OR OTHER PROOF OF ORIGINAL

RETAIL PURCHASE WILL BE REQUIRED TOGETHER WITH THE PROD-

UCT TO OBTAIN SERVICE UNDER THIS WARRANTY.

This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are

altered, replaced, defaced, missing or if service was attempted by an unau-

thorized service center.This Emerson Limited warranty does not apply to any

product not purchased and used in the United States.

This warranty only covers failures due to defects in material or workmanship

which occurs during normal use. It does not cover damage which occurs in

shipment, or failures which are caused by repairs, alterations or product not

supplied by FUNAI CORP., or damage which results from accident, misuse,

abuse, mishandling, misapplication, alteration, faulty installation, improper

maintenance, commercial use such as hotel, rental or office use of this

product or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY

ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC

PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO

EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUEN-

TIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF

OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE

IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF

ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WAR-

RANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY, AND

FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED

BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES.

ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED

BY A FUNAI AUTHORIZED SERVICE CENTER. THIS WARRANTY IS

VALID WHEN THE UNIT IS CARRIED-IN TO FUNAI AUTHORIZED SER-

VICE FACILITY.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU

MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE, IF, AT

ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO

OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE

CONTACT FUNAI CORP.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF

THIS PRODUCT WITHOUT PRIOR NOTICE.

To locate your nearest Emerson Authorized Service Center or for gen-

eral service procedure, please call 1-800-256-2487 or write to the fol-

lowing:

FUNAI CORPORATION, INC.

SERVICE CENTER

19900 Van Ness Avenue, Torrance, CA 90501

Tel :1-800-256-2487

http://www.funai-corp.com

Head Office: 100 North Street, Teterboro, NJ 07608

PLEASE DO NOT SHIP YOUR UNIT TO THE TETERBORO ADDRESS.

Limited Warranty

–25 –ES

Español

✄

Español

Conexiones

1Ajuste del reloj

Conmutación VCR/DVD

Instalación de las pilas

del mando a distancia

Activación de la unidad

por primera vez

OPEN/CLOSE

STOP/EJECT PLAY REC /OTR

TIMER REC

F.FWDREWPOWER CHANNEL

OUTPUT

PLAY FWD/SKIPSTOPSKIP/REV

DVDVCR DISC IN

VIDEO AUDIO

OUTPUT

SKI

DVDVCR

Botón OUTPUT

Luz

DVD OUTPUT

Luz

VCR OUTPUT

Botón DVD

Botón VCR

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP TOP MENU

MODE

SUBTITLE

T-SET

ANGLE

ENTER

RETURN

MODE

REPEAT A-B

OPEN/CLOSE

/EJECT

SPEED AUDIO

CLEAR/

C. RESET

123

456

789

+1 0

V.SURR.

Pulse el botón VCR en el mando a dis-

tancia.

(Compruebe que está encendida la luz

VCR OUTPUT.)

MODO VCR

Nota

• Si pulsa sólo el botón OUTPUT en el

panel frontal NO conmuta el modo del

mando a distancia. DEBE seleccionar

también el modo correcto en el

mando a distancia.

Pulse el botón DVD en el mando a dis-

tancia

(Compruebe que está encendida la luz

DVD OUTPUT.)

MODO DVD

SELEC. IDIOMA

ENGLISH

FRANCAIS

BESPAÑOL [ON]

Encienda el televisor y sin-

tonice al canal 3.

•Si el canal 3 se está utilizando para una trans-

misión, vea la sección "RF Output Channel".

POWER

3CA 01

AJUSTE AUTO

Espere unos minutos.

Después del escaneo

• El sintonizador se detiene en el canal

memorizado más abajo.

•Puede seleccionar sólo los canales memo-

rizados en esta unidad con los botones

CHANNEL.

Si Pulse el botón

MENU para salir.

Conecta el cable de la caja de canales de cable o la

caja de satélite en la toma ANT IN de DVD/VCR?

Pantalla del televisor

Mando a distancia

VCR

1-MENU-

PROGRAMAR

AUTOREPETIR [OFF]

AJUSTE CANAL

BAJUSTE DE RELOJ

SELEC. IDIOMA

AJUSTE DE RELOJ

MES DIA AÑO

0 3 / – – – – – –

HORA MINUTO AM/PM

– – : – – – –

AJUSTE DE RELOJ

MES DIA AÑO

0 3 / 1 5 – – – –

HORA MINUTO AM/PM

– – : – – – –

Seleccione el mes actual

Seleccione el día actual

•

Si no se ha ajustado el reloj,

aparece la pantalla AJUSTE

DE RELOJ cuando pulse el

botón MENU. En este caso,

vaya al paso (2).

VCR

AJUSTE DE RELOJ

MES DIA AÑO

0 3 / 1 5 2 0 0 4

HORA MINUTO AM/PM

– – : – – – –

AJUSTE DE RELOJ

MES DIA AÑO

0 3 / 1 5 LUN 2 0 0 4

HORA MINUTO AM/PM

0 5 : – – – –

AJUSTE DE RELOJ

MES DIA AÑO

0 3 / 1 5 LUN 2 0 0 4

HORA MINUTO AM/PM

0 5 : 4 0 – –

AJUSTE DE RELOJ

MES DIA AÑO

0 3 / 1 5 LUN 2 0 0 4

HORA MINUTO AM/PM

0 5 : 4 0 P M AM

BPM

Seleccione el año actual

Seleccione "AM" o "PM".

Para salir de la pantalla AJUSTE DE

RELOJ.

Seleccione la hora actual

Seleccione los minutos actuales

Consulte la "Conexión básica del

televisor" en la página delantera

antes de utilizar esta unidad.

Canal de salida RF

Si el canal 3 se está utilizando para

una transmisión.

1)Programe su televisor al canal 4.

2)Inserte una cinta pregrabada en esta

unidad.

3)Pulse el botón OUTPUT en el

DVD/VCR para que se encienda la

luz VCR OUTPUT.

• Si aparecen ruidos en la pantalla del

televisor,pulse el botón VCR/TV en

el mando a distancia.

4)Pulse una vez el botón PLAY.

5)Después de unos segundos, pulse el

botón PLAY en el DVD/VCR durante

3 segundos.

• El canal de salida RF cambiará del

canal 3 al canal 4 y podrá ver una

imagen reproducida.

• Cuando no aparezca una imagen en

la pantalla del televisor, repita el

paso (4).

6)Pulse el botón STOP para parar la

reproducción.

–26 –ES

Español

✄

Español

Reproducción de la grabadora de vídeo

6Reproducción de DVD/CD

Mando a distancia

REPRODUCIR

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

OPEN/CLOSE

/EJECT

SPEED AUDIO

123

456

789

+1 0

Antes: Encienda el televisor y cambie al canal 3.

•Si el canal 3 se está utilizando para una transmisión, vea la

sección "RF Output Channel".

PARAR

EXPULSAR

Pantalla del televisor

Mando a distancia

PLAY

STOP

OPEN/CLOSE

/EJECT

VCR

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

OPEN/CLOSE

/EJECT

SPEED AUDIO

123

456

789

+1 0

Antes: Encienda el televisor, amplificador y otros equipos que puedan estar

conectados a esta unidad. Asegúrese que el televisor y el sintoamplificador de

audio (de venta en los comercios) están en el canal correcto.

Pantalla del televisor

Mando a distancia

PLAY

STOP

OPEN/CLOSE

/EJECT

POWER

OPEN/CLOSE

/EJECT

DVD

DVD-V

• Para activar o desactivar la

unidad. • Para activar o desactivar la

unidad.

• Para activar o desactivar la

unidad.

• Para indicar el modo de

disco actual. • Para indicar el modo de

disco actual. •Para indicar la hora actual,

contador de cinta y canal.

• Para abrir o cerrar la bandeja

del disco. • Para abrir o cerrar la bandeja

del disco. • Para expulsar el videocasete

de la grabadora de vídeo.

•

Para seleccionar directamente

el capítulo o el título.

•

Para seleccionar directamente

la canción.

• Para seleccionar los ángulos

de la cámara en un disco.

• Para seleccionar subtítulos

en un disco.

•

Para poner la grabadora de

vídeo en el modo de espera

para una grabación con temporizador.

• Para seleccionar el idioma de

audio en un disco. •

Para seleccionar ESTÉREO,

L-CH o R-CH.

• Para repetir entre los puntos

A y B elegidos •

Para repetir entre los puntos A

y B elegidos.

•

Para reproducir repetidamente

un capítulo o título.

•

Para reproducir repetidamente una

canción o disco.

• Para activar/desactivar el

nivel del negro.

• Para disponer el orden de

reproducción o la

reproducción aleatoria.

• Para llamar el menú de la

grabadora de vídeo.

• Para llamar el menú superior

en un disco.

• Para volver a la operación

previa en el menú de

programación de DVD.

• Para volver a la operación

previa en el menú de

programación de DVD.

•

Para buscar un capítulo, título u hora.

•

Para volver rápidamente a un

lugar o disco.

•

Buscar los marcadores.

•

Para buscar una canción.

•

Para buscar la hora.

•

Para volver rápidamente a un lugar

o disco.

•

Buscar los marcadores.

• Para seleccionar la velocidad

de grabación.

•

El botón +10 no tiene efecto

en el modo de grabadora de

vídeo.

• Para borrar los marcadores. • Para borrar los marcadores.

• Para retirar el Nº de estado

en la entrada de programa.

• Para borrar los números

entrados incorrectamente. • Para borrar los números

entrados incorrectamente.

• Para salir del menú de la

grabadora de vídeo.

• Para reponer el contador de

cinta.

•

Para buscar en avance/retroceso

en un disco.

•

Para empezar la reproducción en avance/

retroceso lento durante el modo de pausa.

• Para buscar en avance/

retroceso en un disco. • Para el avance/retroceso

de una cinta.

• Para avanzar la reproducción

un cuadro a la vez. •

Para avanzar la reproducción

un cuadro a la vez.

• Para hacer una pausa de

reproducción del disco. • Para hacer una pausa en la

reproducción del disco.

•

Para hacer una pausa de la

reproducción o grabación de la cinta.

• Para parar la grabación. • Para parar la grabación. • Para parar la reproducción o

grabación.

• Para saltar capítulos • Para saltar canciones. •

Para cambiar de canal.

•

Para ajustar manualmente el

seguimiento durante la reproducción.

•

Para empezar la reproducción

del disco.

•

Para empezar la reproducción

del disco.

•

Para empezar la reproducción

de la cinta.

• Para llamar el menú de

programación de DVD.

• Para llamar el menú de

búsqueda de índice u hora.

• Para llamar el menú de

programación de DVD.

• Para activar el mando a

distancia en el modo DVD.

• Para seleccionar el modo

de salida de DVD. •

Para activar el mando a

distancia en el modo DVD

• Para seleccionar el modo de

salida de DVD

•

Para seleccionar la posición de la

grabadora de vídeo o posición del televisor.

•

Para seleccionar la posición de

CD o la posición del televisor.

•

Para seleccionar la posición

de DVD o posición del televisor.

• Para ver la cinta en cámara

lenta.

•

Para seleccionar el modo de

salida de la grabadora de vídeo.

•

Para activar el mando a distancia

en el modo de la grabadora de vídeo.

• Para empezar una grabaciòn.

• Para mover el cursor y

determinar su posición. • Para mover el curso y

determinar su posición.

•

Para seleccionar un ítem

en el menú de la grabadora

de vídeo.

•

Para avanzar al siguiente

menú de la grabadora de

vídeo.

•

Para volver un paso

durante el ajuste del reloj y

temporizador.

Modo de grabadora de vídeo

Modo DVD

• Para seleccionar el canal.

• Para llamar el menu en un

disco.

• Para activar/desactivar el

envolvente virtual. • Para activar/desactivar el

envolvente virtual.

POWER

TOP MENU

MODE

SUBTITLE

T-SET

ANGLE

REPEAT

A-B

123

456

789

+1 0

SPEED

VCR

PAUSE

SLOW

VCR/TV

V.SURR.

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP

ENTER

Botón

(Orden alfabético)

Disco/cinta

OPEN/CLOSE

/EJECT

CLEAR/

C. RESET

MODE

DVD

RETURN

AUDIO

DISPLAY

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP TOP MENU

MODE V.SURR.

SUBTITLE

T-SET

ANGLE

ENTER

RETURN

MODE

REPEAT A-B

OPEN/CLOSE

/EJECT

SPEED AUDIO

CLEAR/

C. RESET

123

456

789

+1 0

–27 –EN

Quick Use Guide

✄

Please refer to “Basic TV

Connection” on the front page

before you use this unit.

RF Output Channel

If channel 3 is already occupied for

broadcasting,

1)Set your TV to channel 4.

2)Insert a pre-recorded tape into this

unit.

3)Press the OUTPUT button on the

DVD/VCR so that the VCR OUTPUT

light is lit.

• If noise appears on the TV screen

press the VCR/TV button on the

remote control.

4)Press the PLAY button once.

5)After a few seconds, press the PLAY

button on the DVD/VCR for 3 sec-

onds.

• The RF output channel will change

to channel 4 from channel 3 and you

will see a playback picture.

• When a picture does not appear on

the TV screen, repeat step [4].

6)Press the STOP button to stop play-

back.

Connections

1Clock Set Up

VCR/DVD Switching

Installing the Batteries

for the Remote Control

Turn on the unit for the

first time

OPEN/CLOSE

STOP/EJECT PLAY REC /OTR

TIMER REC

F.FWDREWPOWER CHANNEL

OUTPUT

PLAY FWD/SKIPSTOPSKIP/REV

DVDVCR DISC IN

VIDEO AUDIO

OUTPUT

SKI

DVDVCR

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP TOP MENU

MODE

SUBTITLE

T-S ET

ANGLE

ENTER

RETURN

MODE

REPEAT A-B

OPEN/CLOSE

/EJECT

SPEED AUDIO

CLEAR/

C. RESET

123

456

789

+1 0

V.SURR.

OUTPUT button

DVD OUTPUT

light

VCR OUTPUT

light

DVD button

VCR button

Press the VCR button on the remote

control.

(Verify that the VCR OUTPUT light is lit.)

VCR MODE

Note

• Pressing only the OUTPUT button on

the front panel DOES NOT switch the

mode of the remote control. You

MUST select the correct mode on the

remote control.

Press the DVD button on the remote

control.

(Verify that the DVD OUTPUT light is lit.)

DVD MODE

LANGUAGE SELECT

BENGLISH [ON]

FRANCAIS

ESPAÑOL

Turn on the TV and set it

to channel 3.

•If channel 3 is already occupied for broadcasting,

see“RF Output Channel” section.

POWER

3CH 01

AUTO SET UP

Please wait for a few minutes.

After scanning...

• The tuner stops on the lowest memorized

channel.

•You can select only the channels memo-

rized in this unit by using the CHANNEL

buttons.

Yes

es Press the MENU

button to exit

Do you connect the cable from the cable box or

the satellite box to the DVD/VCR’s ANT IN jack?

TV ScreenRemote Control

VCR

1-MENU-

TIMER PROGRAMMING

AUTO REPEAT [OFF]

CHANNEL SET UP

BCLOCK SET

LANGUAGE SELECT

CLOCK SET

MONTH DAY YEAR

0 3 / – – – – – –

HOUR MINUTE AM/PM

– – : – – – –

CLOCK SET

MONTH DAY YEAR

0 3 / 1 5 – – – –

HOUR MINUTE AM/PM

– – : – – – –

Select the current month

Select the current day

• If the clock is not set, the

CLOCK SET screen

appears when you press

the MENU button. In this

case, go to step [2].

VCR

CLOCK SET

MONTH DAY YEAR

0 3 / 1 5 2 0 0 4

HOUR MINUTE AM/PM

– – : – – – –

CLOCK SET

MONTH DAY YEAR

0 3 / 1 5 MON 2 0 0 4

HOUR MINUTE AM/PM

0 5 : – – – –

CLOCK SET

MONTH DAY YEAR

0 3 / 1 5 MON 2 0 0 4

HOUR MINUTE AM/PM

0 5 : 4 0 – –

CLOCK SET

MONTH DAY YEAR

0 3 / 1 5 MON 2 0 0 4

HOUR MINUTE AM/PM

0 5 : 4 0 P M AM

BPM

Select the current year

Select “AM” or “PM”

8 To exit the CLOCK SET

screen.

Select the current hour

Select the current minute

YES

1VMN20189 / H9612UD ★★★★★

Printed in China

✄

VCR Playback

6DVD/CD Playback

Remote Control

PLAYB

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

OPEN/CLOSE

/EJECT

SPEED AUDIO

123

456

789

+1 0

Before: Turn on the TV and set it to channel 3.

•If channel 3 is already occupied for broadcasting, see “RF

Output Channel” section.

STOP EJECT A

TV ScreenRemote Control

PLAY

STOP

OPEN/CLOSE

/EJECT

VCR

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

OPEN/CLOSE

/EJECT

SPEED AUDIO

123

456

789

+1 0

Before: Turn on the TV, amplifier and any other components which are con-

nected to this unit. Make sure the TV and audio receiver (commercially avail-

able) are set to the correct channel.

TV ScreenRemote Control

PLAY

STOP

OPEN/CLOSE

/EJECT

POWER

OPEN/CLOSE

/EJECT

DVD

DVD-V

• To turn the unit on or off. • To turn the unit on or off. • To turn the unit on or off.

• To display the current disc

mode. • To display the current disc

mode. •To display the current time,

tape counter, and channel.

• To open or close the disc

tray. • To open or close the disc

tray. • To eject the video cassette

from the VCR.

•

To select chapter or title directly.

• To select track directly.

• To select camera angles on

a disc.

• To select subtitles on a disc. •To put the VCR into standby

mode for a timer recording.

• To select audio languages on

a disc. • To select STEREO,

L-CH or R-CH.

• To repeat between your

chosen point A and B. • To repeat between your

chosen point A and B.

• To play a chapter or title

repeatedly. • To play a track or disc

repeatedly.

• To set black level on/off. • To arrange the playing

order or play randomly.

• To set virtual surround on/off. • To set virtual surround on/off.

• To call up the Menu

on a disc. • To call up the VCR Menu.

• To call up the Top Menu

on a disc.

• To return to the previous

operation on the DVD setup

menu.

• To return to the previous

operation on the DVD setup

menu.

•

To search chapter, title or time.

• To rapidly return to

a location of disc.

• Search the markers.

• To search track.

• To search time.

• To rapidly return to

a location of disc.

• Search the markers.

• To select the recording speed.

• To select channel.

• The +10 button has no effect

in VCR mode.

• To clear the markers. • To clear the markers.

• To remove status No.

in program input.

• To clear the numbers

entered incorrectly. • To clear the numbers

entered incorrectly.

• To exit the VCR Menu.

• To reset the tape counter.

• To search forward/backward

through a disc.

•

To begin slow forward/reverse

playback during the pause mode.

• To search forward/backward

through a disc. • To forward/backward a tape.

• To advance playback

one frame at a time. • To advance playback

one frame at a time.

• To pause disc playback.

• To pause tape playback or

recording.

• To stop playback. • To stop playback. • To stop playback or recording.

• To skip chapters. • To skip tracks. • To change channels.

•

To adjust the tracking manually

during playback.

• To begin disc playback. • To begin disc playback. • To begin tape playback.

• To call up the DVD setup

menu.

• To call up the index or time

search menu.

• To call up the DVD setup

menu.

• To activate the remote control

in DVD mode.

• To select the DVD output

mode. •

To activate the remote control

in DVD mode.

• To select the DVD output

mode.

• To view the tape

in slow motion.

• To select the VCR output

mode.

• To activate the remote control

in VCR mode.

• To start a recording.

• To move the cursor and

determine its position. • To move the cursor and

determine its position.

• To select an item

on the VCR Menu.

• To advance to the next

VCR Menu.

•

To go back one step during

clock and timer setting.

VCR mode

DVD mode

• To select VCR position or

TV position.

• To select CD position or TV

position.

• To select DVD position or

TV position.

POWER

TOP MENU

MODE

SUBTITLE

T-SET

ANGLE

REPEAT

A-B

123

456

789

+1 0

V.SURR.

SPEED

VCR

PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP

ENTER

DVD-V

DVD-V CD

CD VCR

VCR

Button

(Alphabetical order)

Disc/Tape

OPEN/CLOSE

/EJECT

CLEAR/

C. RESET

MODE

DVD

RETURN

AUDIO

DISPLAY

Quick Use Guide

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP TOP MENU

MODE V.SURR.

SUBTITLE

T-SET

ANGLE

ENTER

RETURN

MODE

REPEAT A-B

OPEN/CLOSE

/EJECT

SPEED AUDIO

CLEAR/

C. RESET

123

456

789

+1 0

Emerson Ewd2004 Owners Manual H9612UD.qx3

Navigation menu

Versions of this User Manual:

Views

Navigation
