January 2015 Type EZH

E0873

TYPE SA/2

TYPE PRX

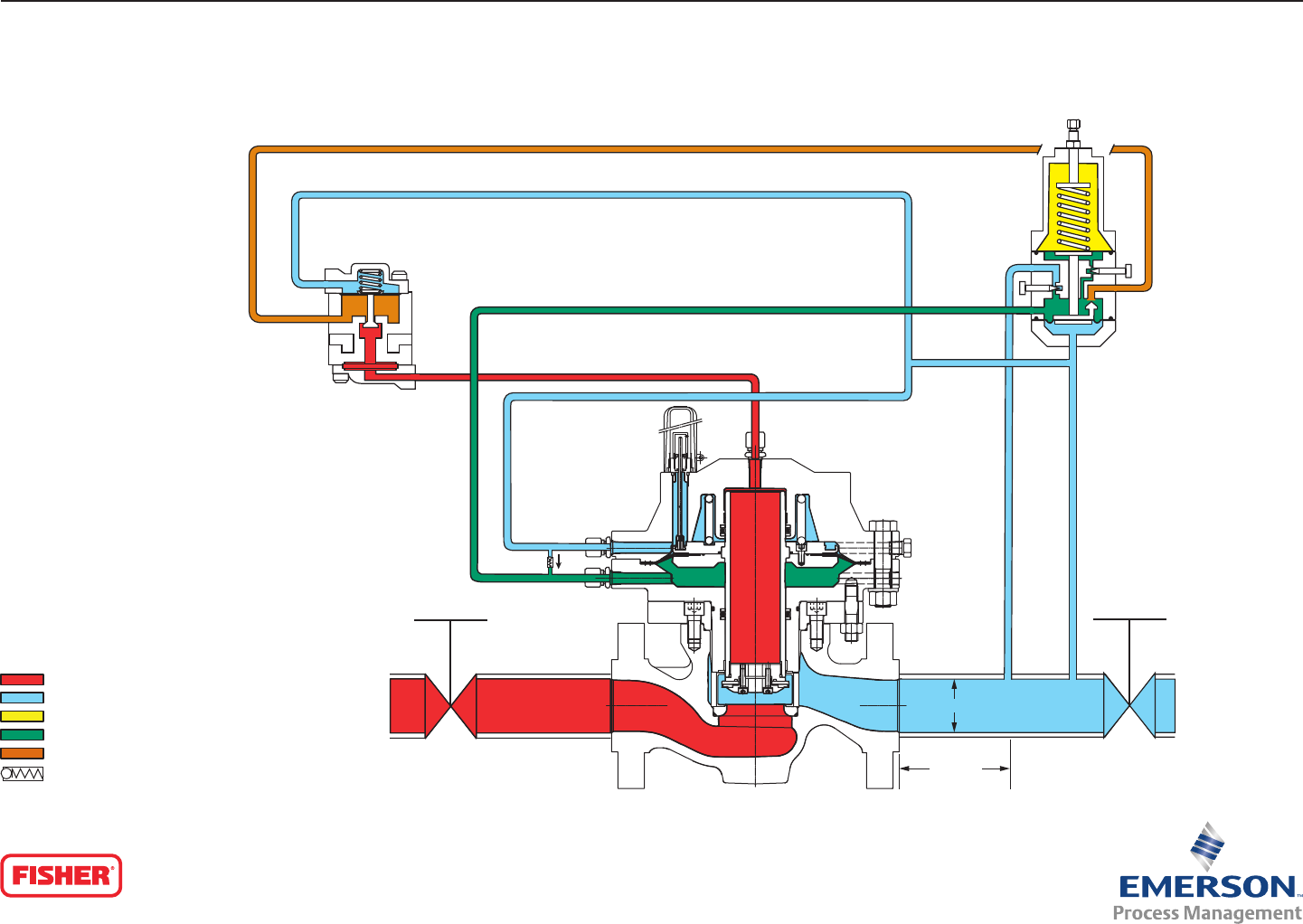

Type EZH* with PRX Series Pilot and a Type SA/2

Pilot Supply Filter Regulator

S

V

R

M

B

L

A

DN / NPS

TYPE PRX:

S - BLEED PORT

B - SUPPLY PORT

L - LOADING PORT

A - SENSING PORT

TYPE SA/2:

V - SENSING PORT

R - PILOT SUPPLY PORT

M - INLET PORT

INLET PRESSURE

OUTLET PRESSURE

ATMOSPHERIC PRESSURE

PILOT SUPPLY PRESSURE

CHECK VALVE

LOADING PRESSURE

*NOTE: For Europe, Middle East and Africa markets, the check valve is only applicable for Type EZH with DN 100 / NPS 4 body size.

DN / NPS

8 TO 10 X
