Baumann™ 24000CVF Carbon & 24000SVF
Stainless Steel Flanged Control Valves
The Baumann 24000CVF and 24000SVF line of control
valves can be utilized for the control of pressure,
temperature, level, and flow. These valves are available
with ASME CL150 RF, CL300 RF, or PN 10-40 flanged
end connections. The high performance 24000CVF
and SVF designs feature low deadband and hysteresis,
high flow capacity, superb control characteristics, tight
shutoff and advanced packing systems to meet
demanding service conditions. Compact and light
weight make them ideal for installation in high density
piping systems where space is a premium.
Features
Compactandlightweightdesign reduces installed
piping costs
ASME and EN end connection options to meet your
piping standards
Full lift post-guided contoured plug allows flushing
of debris through valve body
S31600 austenitic stainless steel trim material is
standard; S41600 stainless steel trim is available
Multiple trim options are available to meet changing
process requirements
Epoxy powder-coated actuator with stainless steel
fasteners provides corrosion resistance
Multi-spring field-reversible actuator with reduced
deadband permits direct operation from remote
signal devices
FisherrFIELDVUEtdigital valve controller available
for remote calibration and diagnostics in facilities
utilizing the PlantWebtarchitecture

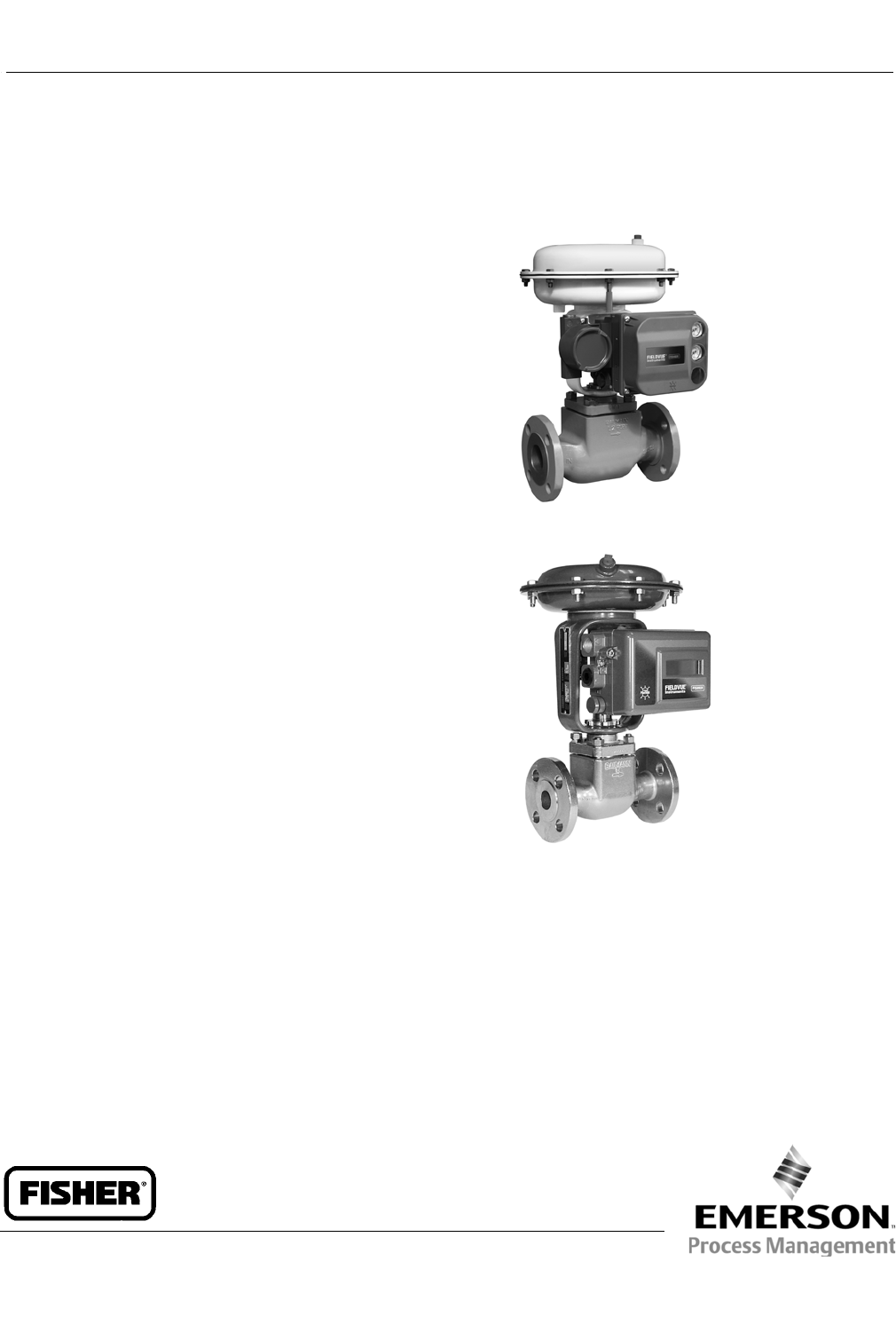

W9745-1
Baumann 24000CVF Control Valve with
FIELDVUE DVC6200 Digital Valve Controller
W9746
Baumann 24000SVF Control Valve with
FIELDVUE DVC2000 Digital Valve Controller
ENVIRO-SEALtpacking available for increased
packing life and integrity
NOLEEK bellows bonnet suitable for a wide range of
operating temperatures
Extension bonnets in multiple lengths available for
elevated temperature and cryogenic application
service
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
2

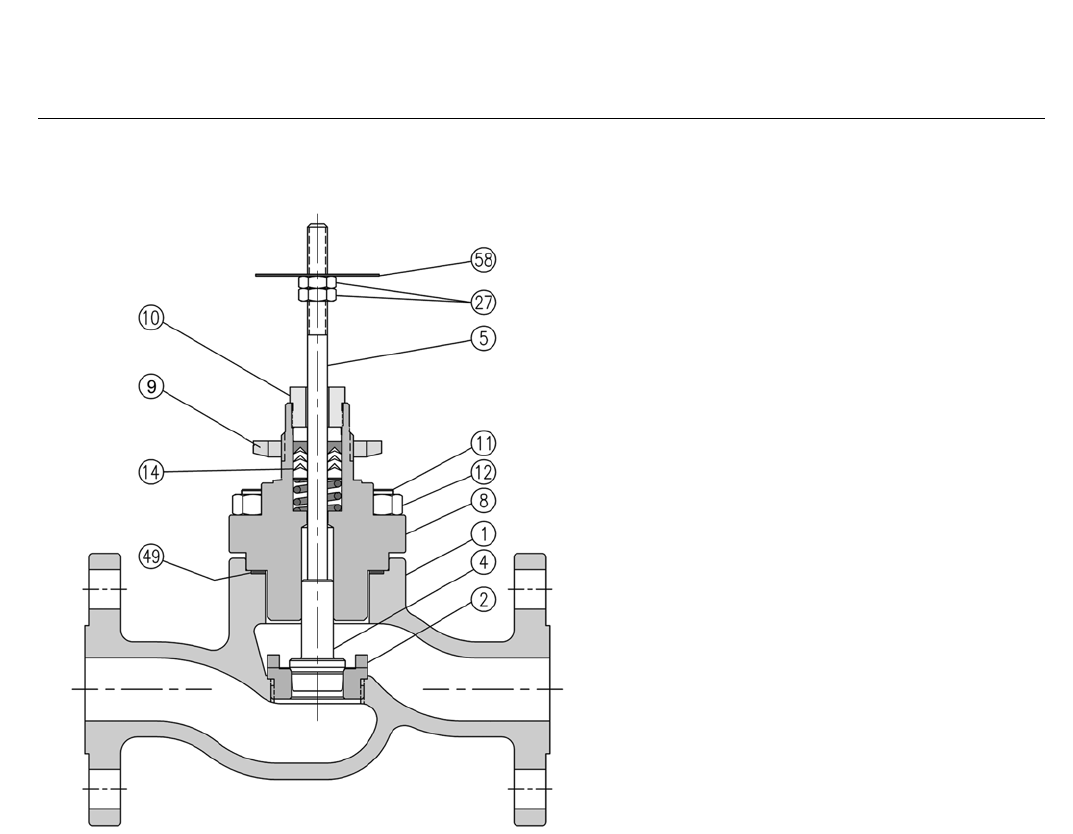

Figure 1. Baumann 24000CVF / SVF Control Valve Subassembly
E1245
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
3
Table 1. Materials of Construction
Key
No. Description Material
1Valve Body, Carbon Steel Cast Carbon Steel (ASME SA216 WCC and EN10213 1.0619 Dual Certified)
Valve Body, Stainless Steel ASME SA351 CF3M
2Seat Ring (For Low Flow Trim, Refer
to tables 2 & 3)
Standard ASTM A276 S31600/ S31603 Dual Certified /
Optional ASTM A582 S41600 Condition T
4
Plug (Metal Seat) Cv < 2.5 ASME SA479 S21800 (standard) / ASTM A582 S41600 Condition T (optional)
Plug (Metal Seat) Cv > 4.0 ASTM A276 S31600/ S31603(standard) / ASTM A582 S41600 Condition T (optional)
Plug (Soft Seat) ASTM A276 S31600/ S31603 with PTFE (Polytetrafluoroethylene) insert
5Stem ASTM A276 S31600
8
Bonnet, Carbon Steel (Std) Cast Carbon Steel (ASME SA216 WCC and EN10213 1.0619 Dual Certified)
Bonnet, Stainless Steel (Std) ASME SA351 CF3M
Bonnet (extended)(1) ASME SA351 CF3M
Bonnet (NOLEEK)(1) ASME SA351 CF3M & ASTM A479 S31600/S31603, Annealed
8a Bonnet Bushing(2) ASTM A276 S44004, HT 56-60 HRC
9Drive Nut (Yoke) S30400
10 Packing Follower ASTM A276 S31600/S31603 Dual Certified
11 Stud ASME SA193 Grade B8, Class 1
12 Nut ASME SA194 Grade 8
14 V-Ring Packing (standard) Refer to figure 4, table 4
Packing (optional) Refer to figures 5 & 6, tables 5 & 6
27 Locknuts Stainless Steel (18-8 SST)
49 Body Gasket Graphite Grade GHR with S31600 Insert
58 Travel Indicator ASME SA240 S30400
1. Extension bonnets and NOLEEK bellows bonnets are available with 24000SVF stainless steel valves only.
2. Guide bushing is applicable to 24000CVF carbon steel valve assembly only.
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
4
Figure 2. Optional 151 Low Flow Trim Assembly
E1246
151LowFlowTrim
Assembly
The PTFE seat surrounds the valve plug (key 4) to
eliminate clearance flow typical of lapped-in
metal-to-metal close clearance micro trims. Flow is
directed over the valve plugandforcedthrougha
single V-notch path as the plug moves above the PTFE
seat providing precise and predictable control over its
entire travel range. When the V-notch moves below
the PTFE seat, CLVI primary shutoff is achieved.
A live-loaded metal collar fully retains the PTFE seat.
The valve plug (key 4) seats against the metal collar
providing CL IV secondary shutoff. In addition, the fluid
process pressure combines with the actuator seating
force to form a hydraulic seal within the fully retained
PTFE seat. Therefore, the higher the process pressure
thetightertheshutoff.
Figure 3. Optional 177 Low Flow Trim Assembly
E1247
Table 2. 151 Low Flow Trim
Key No. Description Material
2(1) Seat Ring ASTM A276 S31600/ S31603
4(1) Plug ASME SA479 S21800
Seat Subassembly
51(1)
Cage ASTM A276 S31600/ S31603
Seat PTFE
Collar ASTM A276 S31600/ S31603
Washer ASTM A276 S31600 Cond B
Insert ASTM A276 S31600/ S31603
1. For optional trim materials, consult your Emerson Process Management sales office
for price and delivery.
Table 3. 177 Low Flow Trim
Key No. Description Material
2(1) Seat Ring ASTM A276 S31600/ S31603
Seat Subassembly
2a(1)
23 Gland ASTM A276 S31600/ S31603
24 Retainer Nut ASTM A276 S31600/ S31603
25 Insert Reinforced PTFE
26 Housing ASTM A276 S31600/ S31603
4(1) Plug ASME SA479 S21800
1. For optional trim materials, consult your Emerson Process Management sales office
for price and delivery. Baumann 32 actuator requires duel-stops with 177 trim series.
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
5
Figure 4. Standard Spring-Loaded PTFE V-Ring
Packing Kit
E1240
Table 4. Standard Spring-Loaded PTFE V-Ring
Packing Kit
Key No. Description Material
6Spring ASTM A313 S30200
14 Packing Set PTFE (Polytetrafluoroethylene) / PTFE,
25% carbon filled
16 Washer ASME SA240 S31600
20 Spacer J-2000
(filled-Polytetrafluoroethylene)
Figure 5. Molded Graphite (Flexible Graphite)
Packing Kit (Optional)
E1241
Table 5. Molded Graphite (Flexible Graphite) Packing
Kit (Optional)
Key No. Description Material
13 Bushings Carbon - Graphite
14A Packing Rings Graphite
14B Packing Ring Graphite
Figure 6. ENVIRO-SEAL Packing Kit (Optional)
E1248
Table 6. ENVIRO-SEAL Packing Kit (Optional)
Key No. Description Material
13 Bushings Carbon Graphite
14 Packing Set PTFE (Polytetrafluoroethylene) / PTFE,
25% carbon filled
17 Belleville Spring N06600 Nickel Alloy (ASTM B637
N07718, 40 HRC max)
18 Bushing PEEK (Polyetheretherketone)
19 Washer Modified PTFE
Special ENVIRO-SEAL
Packing Note
The ENVIRO-SEAL PTFE packing system is suitable for
100 ppm environmental applications on services up to
51.7 barg (750 psig) and process temperatures
ranging from -46 to 232_C(-50to450_F).
For non-environmental applications, this packing
system offers excellent performance at the same
temperature range up to the maximum valve working
pressure.
Temperature limits apply to packing arrangements
only. Complete valve assembly temperature limits may
differ. Refer to appropriate pressure/ temperature
ratings.
Reference Fisher Packing Selection Guidelines for
Sliding-Stem Valves, bulletin 59.1:062, D101986X012.
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
6
WARNING
The Baumann NOLEEK valve bonnet assembly is not
intended for use in lethal service applications.
The NOLEEK Bellows Bonnet Assembly is reliable and
user-friendly. Typical service life is in excess of 250,000
full cycles under 100 psi pressure. The bonnet adds
only approximately 5 inches to the height of a
standard valve. Operating temperature range is -195
to 399_C(-320to750_F).
ONLY AVAILABLE WITH 24000SVF STAINLESS STEEL
VALVES.

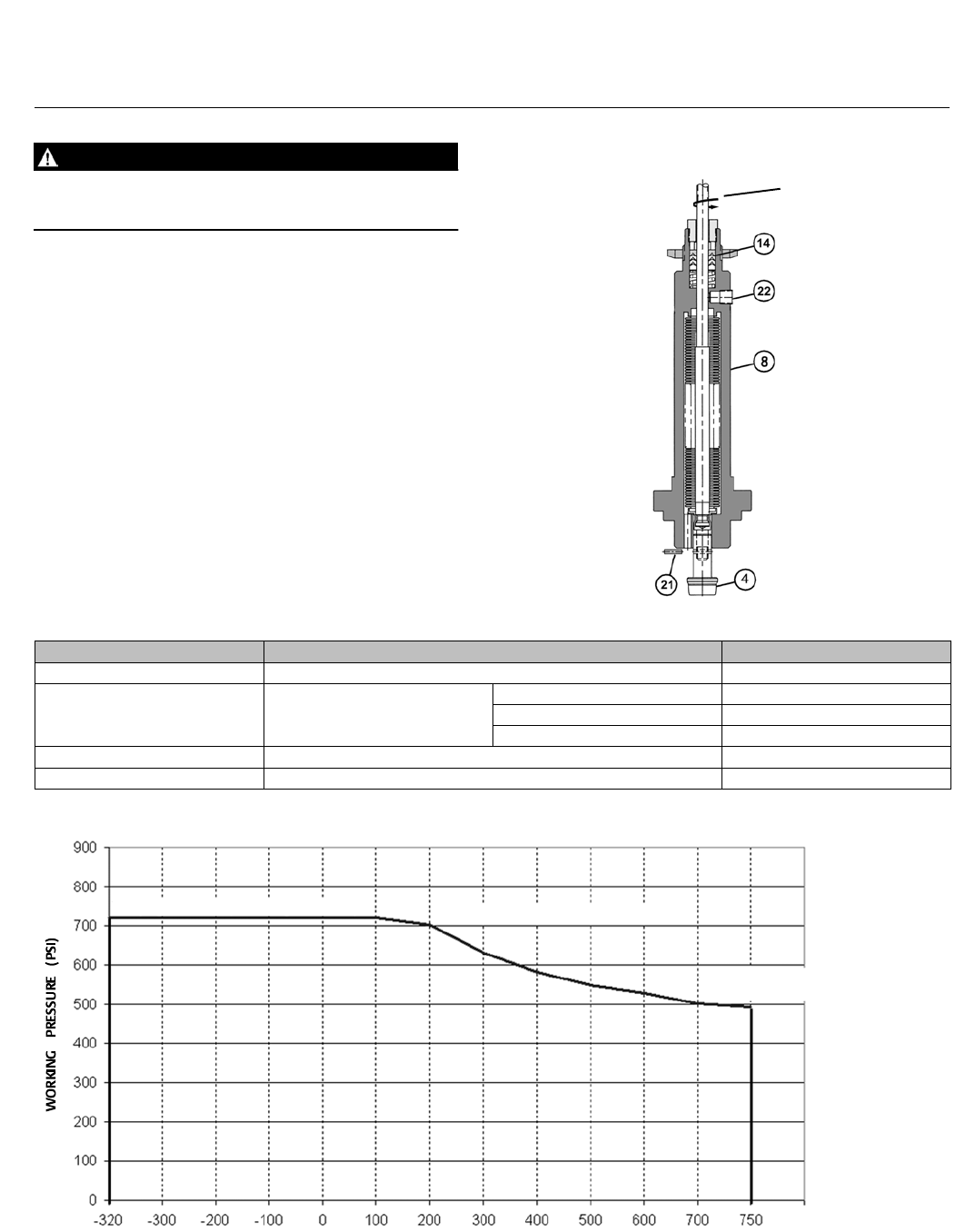

Figure 7. Baumann NOLEEK Bellow Bonnet Assembly
E1249
TIME PROVEN
DOUBLE WALLED
BELLOW MADE
FROM S31600,
RATED FOR UP TO
49.7 BAR (720 PSI)
PRESSURE
UNLIMITED STEM
ROTATION WITHOUT
TWISTING BELLOWS
BACKUP PACKING
SYSTEM (SEE PACKING
DETAIL ON PAGE 5)
TELL-TALE
CONNECTION
(1/8 NPT)
BELLOWS HOUSING
Full extension provides
heat dissipation, ideal
for heat transfer fluids.
Table 7. Baumann NOLEEK Bellow Bonnet Assembly
Key Number Description Material
4Plug Refer to table 1
8Bellows Bonnet Sub-Assembly
Housing S31600/S31603
Bellows S31603/1.4571 SST
Bonnet CF3M
21 Plug Retaining Pin S30300
22 HexSocketPipePlug,1/8NPT S30400
Figure 8. Bellows Pressure / Temperature Curve
TEMPERATURE (_F)
49.7 barg @ -195_C (720 psig @ -320_F) 48.5 barg @ 93_C (703.25 psig @ 200_F)
33.9 barg @ 398_C
(491.6 psig @ 750_F)
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
7
Table 8. Cv Values at 100% Plug Opening (Kv = 0.86 x Cv)
VALVE SIZE ORIFICE
DIAMETER
PLUG
TRAVEL
PLUG SERIES
102 151 177 577 548 / 588 677 648 / 688
NPS inch inch Cv Cv Cv Cv Cv Cv Cv
1/2
3/4
1
0.156 0.50 ---
0.00013
0.00025
0.0005
0.001
0.002
0.004
0.008
0.015
0.03
0.06
0.10
0.20
0.45
--- --- --- --- ---
0.25 0.50 0.02, 0.05
0.10, 0.20 --- --- --- 0.22, 0.61
1.0 --- 0.5
1.0
0.3125 0.50 --- ---
0.0005
0.001, 0.002
0.005, 0.01
0.02, 0.05
--- --- --- ---
0.375 0.50 --- --- --- 1.0, 1.5 2.5 1.5 2.5 0.1, 0.2, 0.5
1.0, 2.5
1.5
2.5
1/2 0.8125 0.50 --- --- --- 4, 6 4.7, 6.7 54, 6
3/4 0.8125 0.50 --- --- --- 4, 7.5 4.7, 10 54, 8
10.8125 0.50 --- --- --- 4, 8.5 4.7, 10 54, 9
1.0625 0.50 --- --- --- 13 15.5 --- 13
1-1/2 1.25 0.75 --- --- --- 20 10, 20 20 10, 20
1.5 0.75 --- --- --- 10, 17, 28 10, 17, 32.7 10, 17 10, 17, 28
21.5 0.75 --- --- --- 10, 17, 28 10, 17, 32.7 10, 17 10, 17, 28
2.0 0.75 --- --- --- 30 53.7 30, 50 30, 50

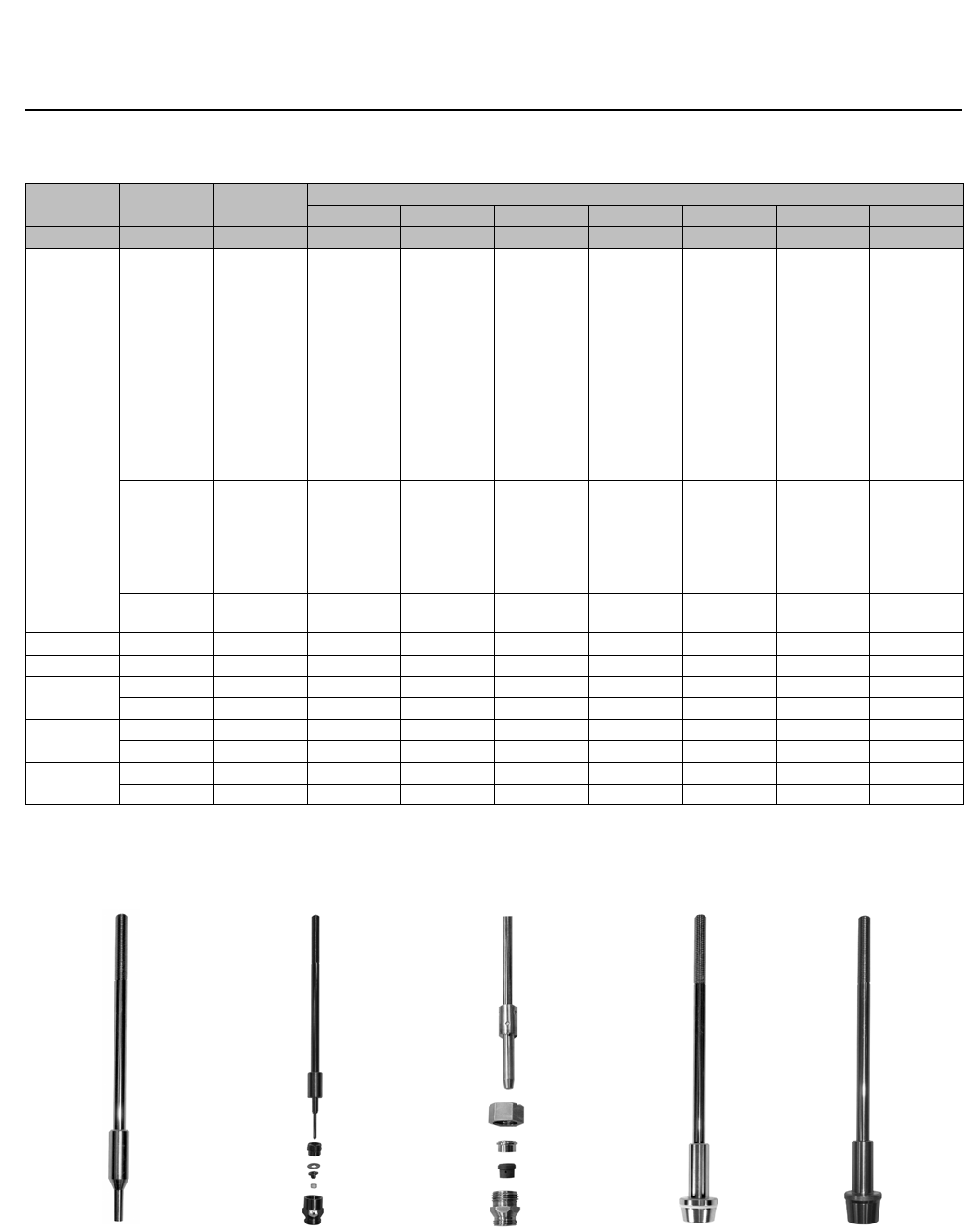

Figure 9. Baumann 24000CVF / SVF Trims
W9747 W9751 W9748 W9749 W9750
102 Linear
LowFlowTrim
151 Modified Equal %
LowFlowTrim
177 Modified Equal %
LowFlowTrim
548 / 577 / 588
Equal % Trim
648 / 677 / 688
Linear Trim
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
8
Table 9. ISA Sizing Coefficients
Series Cv Rating FL Fd XT KC
102
0.02
0.05
0.10
0.20
0.95
0.06
0.09
0.013
0.18
0.76 0.86
151
0.00013
0.00025
0.0005
0.001
0.002
0.004
0.008
0.015
0.03
0.06
0.10
0.20
0.45
0.98
0.35
0.04
0.05
0.06
0.075
0.1
0.11
0.15
0.18
0.22
0.25
0.3
0.4
0.81 0.94
177
0.0005
0.001
0.002
0.005
0.01
0.02
0.05
0.95 0.7 0.76 0.86
577
1
1.5
2.5
4
6
7.5
8.5
10
13
17
20
28
30
0.9
0.40
0.33
0.42
0.68 0.73
0.46
548/588
0.22
0.61
1
1.5
2.5
4.7
6.7
10
15.5
20
17
32.7
53.7
0.98 0.28 0.81 0.94
0.9
0.4
0.33
0.46
0.68 0.73
0.46
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
9
Table 9. ISA Sizing Coefficients (continued)
Series Cv Rating FL Fd XT KC
677
0.1
0.2
0.5
1
2.5
5
10
17
20
30
50
0.9
0.08
0.12
0.19
0.27
0.68 0.73
0.46
648/688
0.5
1
1.5
2.5
4
6
8
9
10
13
20
28
30
50
0.9
0.4
0.33
0.42
0.68 0.73
0.46
Table 10. Technical Specifications
VALVE TYPE EN ASME
NOMINAL PIPE SIZE DN 15, 20, 25, 40, & 50 NPS1/2,3/4,1,1-1/2,&2
END CONNECTIONS PN 10-40 Flanges per EN 1092-1 CL150 RF or CL300 RF Flanges per
ASME B16.5
PRESSURE RATING PN 40 per EN 1092-1 CL150 or CL300 per ASME B16.34
FACE-TO-FACE DIMENSIONS Consistent with EN 558-1 Consistent with EN 588-2 (ISA S75.03)
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
10
Table 11. Temperature Ratings for Packing and Seat Material(1)
SEATING MATERIAL
PTFE Soft Seat 151 Trim -29 to 177_C(-20to350_F)
577 & 677 Trim -73 to 232_C (-100 to 450_F)
Reinforced PTFE 177 Trim -73 to 232_C (-100 to 450_F)
Metal Seat 102, 548, 588, 648, 688 Trim -195 to 537_C (-320 to 1000_F)
PACKING AND BONNET
COMBINATIONS
BONNET STYLE PACKING TEMPERATURE LIMIT
Standard Bonnet
Spring Loaded PTFE -73 to 232_C (-100 to 450_F)
ENVIRO-SEAL -46 to 232_C(-50to450_F)
Graphite -73 to 232_C (-100 to 450_F)
Extension Bonnet(2, 3)
Spring Loaded PTFE -195 to 232_C (-320 to 450_F)
ENVIRO-SEAL -46 to 232_C(-50to450_F)
Graphite -195 to 537_C (-320 to 1000_F)
Bellows(2) NOLEEK Bellows -195 to 399_C (-320 to 750_F)
CHARACTERISTIC Equal Percentage or Linear
1. Temperature limits apply to seating or packing arrangements only. Complete valve assembly temperature limits may differ, refer to appropriate pressure/temperature ratings. For
more information on packing selection, reference Fisher Packing Selection Guidelines for Sliding-Stem Valves, Bulletin 59.1:062 (D101986X012).
2. Extension bonnets and NOLEEK bellows bonnets are applicable for the 24000SVF stainless steel body assembly ONLY.
3. PTFE packing can be used in cryogenic service but becomes stiff.
Table 12. Actuator Specifications
TYPE 32, 54, 70 Multi-Spring Diaphragm (Single Acting)
DIAPHRAGM AREA 210, 350, 450 cm2/ 32, 54, 70 in2
AIR FAILURE 32 and 54 Fails Open or Closed (Field Reversible) / 70 Fails Closed ONLY
TRAVEL 12.7 or 19.1 mm / 0.50 or 0.75 inches
AMBIENT TEMPERATURE RANGE -29_Cto71_C/-20_F to 160_F
MAXIMUM AIR PRESSURE 2.4 barg / 35 psig
DIAPHRAGM MATERIAL(1) NBR (Nitrile) / TPES (Polyester Thermoplastic)
SPRING CASES Steel, Powder Epoxy-Coated with Stainless Steel Fasteners
YOKE Ductile Iron, Powder Epoxy-Coated
1. Optional reinforced VMQ (Silicone) diaphragm with FKM (Fluorocarbon) O-ring actuator stem seal for high temperature conditions (-29_Cto121_C/-20_F to 250_F) is available with
Baumann 32 and 54 actuators ONLY.
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
11

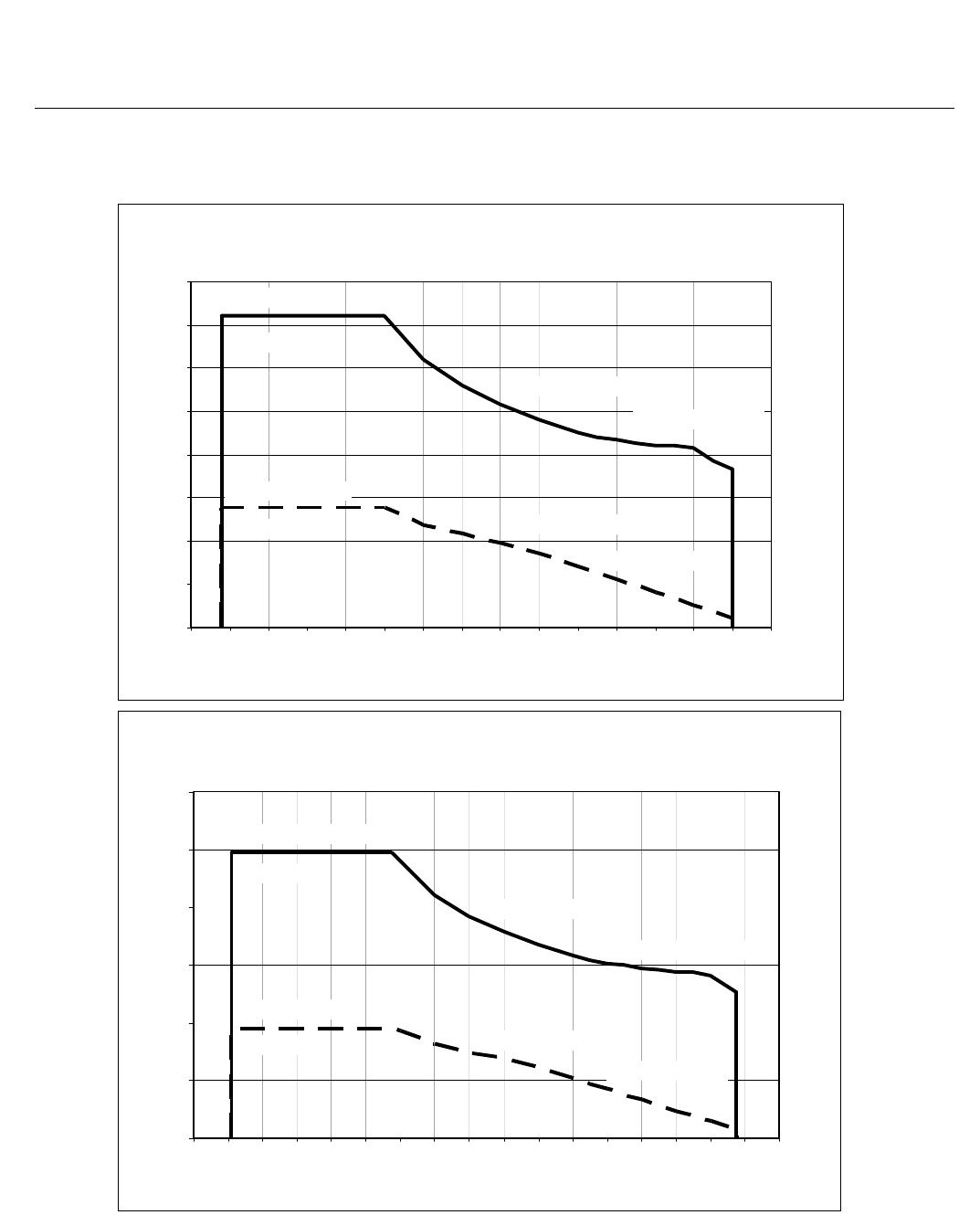

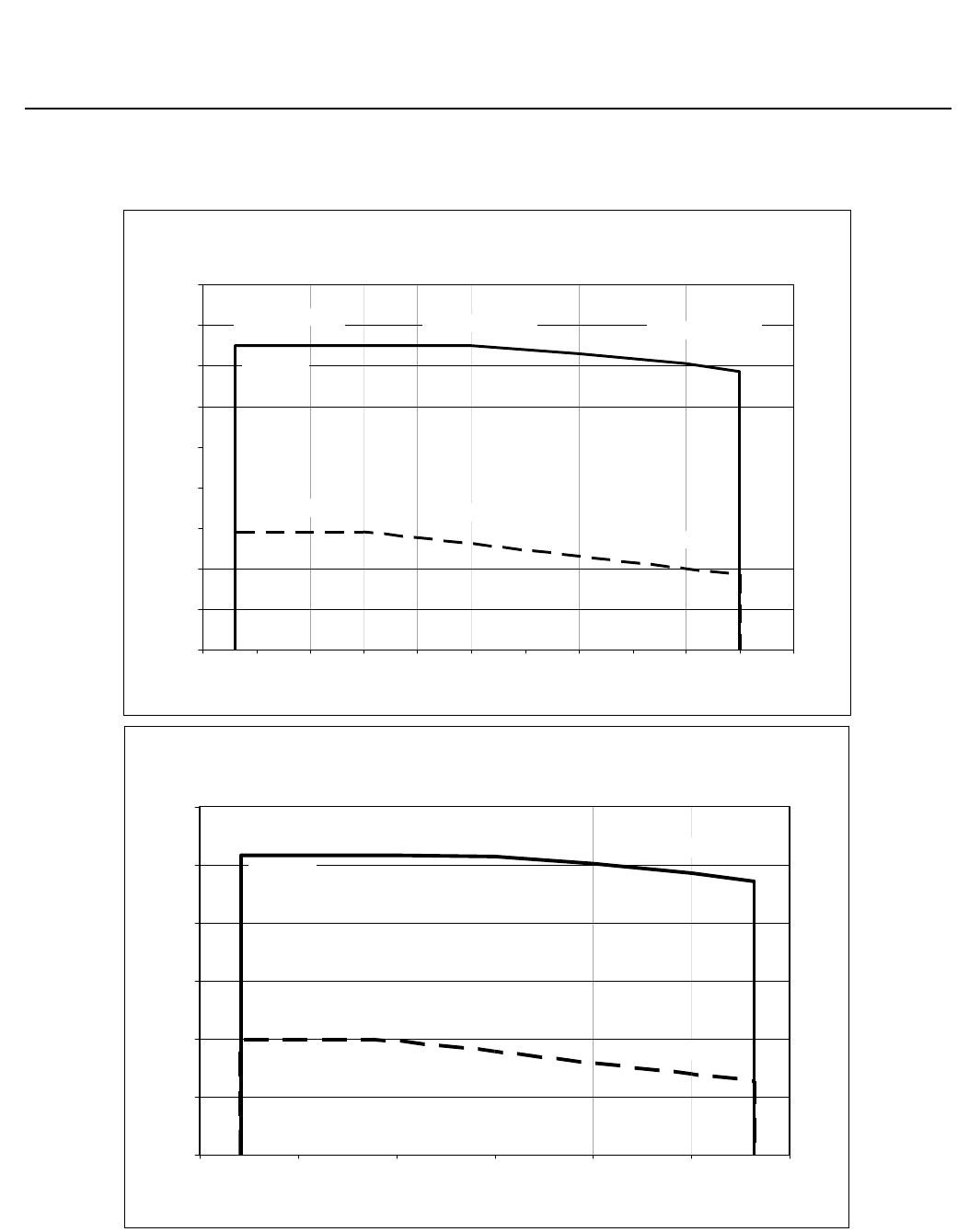

Figure 10. Baumann 24000CVF Carbon Steel Flanges, Pressure-Temperature Ratings
E1251-1
E1252-1
ASME B16.34 A216 WCC
Class 150
260 psig @ 200°F
750 psig @ 200°F
750 psig @ -20°F
Class 300
685 psig @ 450°F
290 psig @ -20°F
185 psig @ 450°F
0
100
200
300
400
500
600
700
800
900
-50 0 50 100 150 200 250 300 350 400 450 500
Temperature (°F)
Pressure (psig)
ASME B16.34 A216 WCC
Cla ss 150
17.7 barg @ 100°C
51.5 barg @ 100°C
51.7 barg @ -29°C
Class 300
47.1 barg @ 232°C
19.8 barg @ -29°C
12.7 barg @ 232°C
0
10
20
30
40
50
60
-50 0 50 100 150 200 250
Temperature (°C)
Pressure (barg)
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
12

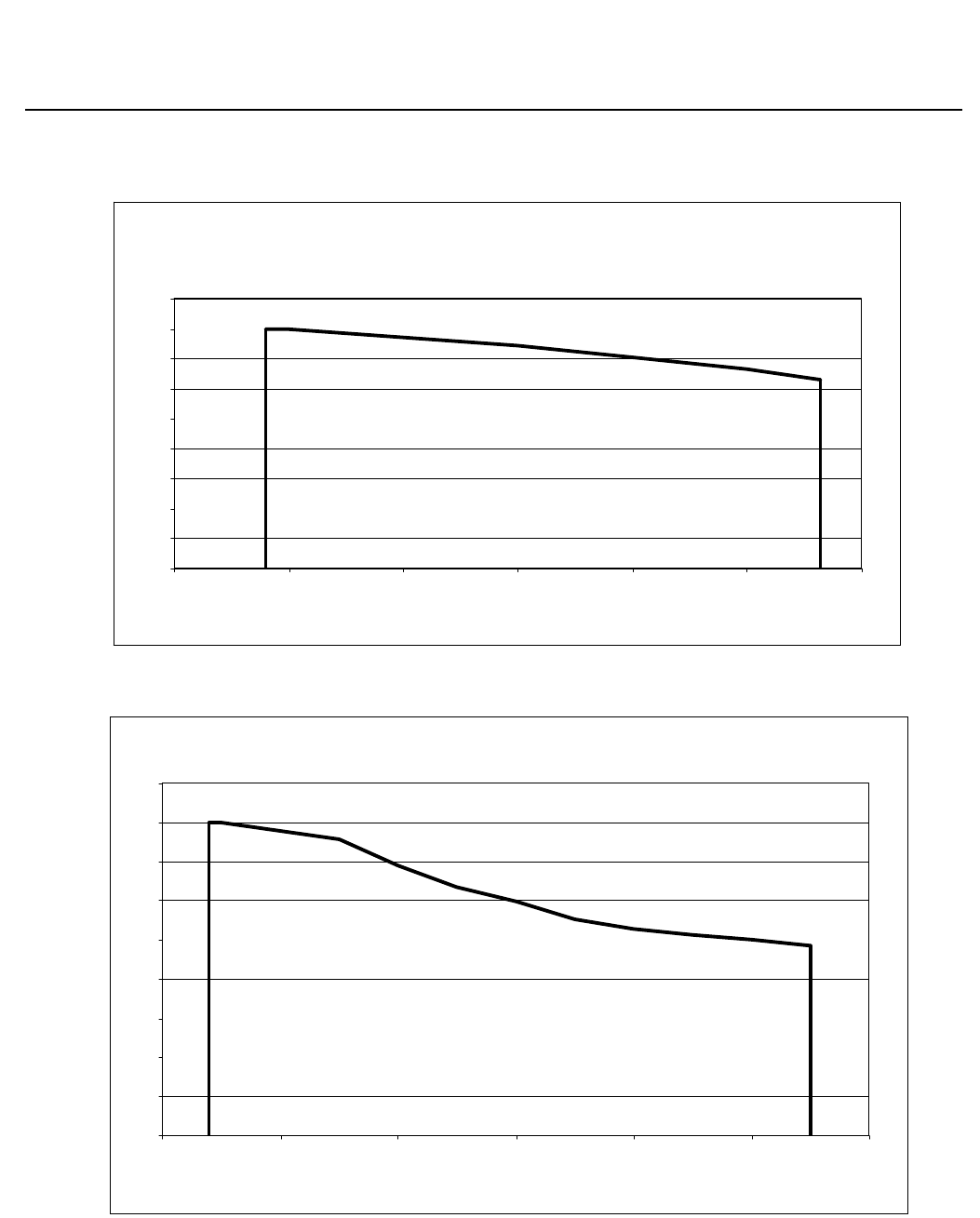

Figure 11. Baumann 24000SVF Stainless Steel Flanges, Pressure-Temperature Ratings
E1254-1
E1255-1
ASME B16.34 A351 CF3M
Class 150
275 psig @ -320 F
140 psig @ 600 F
20 psig @ 1000 F
Class 300
720 psig @ -320°F
450 psig @ 600°F
365 psig @ 1000°F
0
100
200
300
400
500
600
700
800
-400 -300 -200 -100 0 100 200 300 400 500 600 700 800 900 1000 1100
Temperature (°F)
Pressure (psig)
ASME B16.34 A351 Gr. CF3M
19 barg @ -195°C
25.2 barg @ 538°C
1.4 barg @ 538°C
10.2 barg @ 300°C
Cla ss 300
Cla ss 150
49.6 barg @ -195°C
31.6 barg @ 300°C
0
10
20
30
40
50
60
-250 -200 -150 -100 -50 0 50 100 150 200 250 300 350 400 450 500 550 600
Temperature (°C)
Pressure (barg)
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
13
Figure 12. Baumann 24000CVF and 24000SVF Pressure-Temperature Ratings for EN 1092-1
E1256-1
E1253-1
24000SVF
24000CVF
EN1092-1 ASTM A216 WCC
40 barg @ 0°C
PN 40
0
5
10
15
20
25
30
35
40
45
-50 0 50 100 150 200 250
Temperature (°C)
Working Pressure (barg)
31.4 barg @ 232°C
EN 1092-1 ASTM A351 CF3M
24.3 barg @ 500°C
PN 40
40 barg @ 0°C
0
5
10
15
20
25
30
35
40
45
-50 50 150 250 350 450 550
Temperature (°C)
Working Pressure (barg)
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
14
Table 13. Allowable Pressure Drops (bar). Do not exceed valve body temperature pressure ratings.
ORIFICE
DIA.
(mm)
PLUG
TRAVEL
(mm)
ACT
TYPE
AIR-TO-OPEN ACTION AIR-TO-CLOSE ACTION
BENCH
RANGE
(barg)
0.2-1.0 barg SIGNAL
TO ACTUATOR
WITH POSITIONER
1.38 barg AIR
SUPPLY BENCH
RANGE
(barg)
0.2-1.0 barg SIGNAL
TO ACTUATOR
WITH POSITIONER
1.38 barg AIR
SUPPLY
Max CL
IV
Shutoff
Press.
Max CL
VI
Shutoff
Press.
Max CL
IV
Shutoff
Press.
Max CL
VI
Shutoff
Press.
Max CL
IV
Shutoff
Press.
Max CL
VI
Shutoff
Press.
Max CL
IV
Shutoff
Press.
Max CL
VI
Shutoff
Press.
4.0 12.7 32 0.3-1.0 51.7 --- 51.7(1) --- 0.2-0.9 51.7 --- 51.7(1,2) ---
6.3 12.7 32 0.3-1.0 51.7 --- 51.7(1) --- 0.2-0.9 51.7 --- 51.7(1,2) ---
7.9 12.7 32 0.3-1.0 --- 28.8 --- 51.7(1,2) 0.2-0.9 --- 28.8 --- 51.7(1,2)
9.5 12.7 32 0.3-1.0 31.2 19.2 51.7(1) 50.3 0.2-0.9 31.2 19.2 51.7(1,2) 51.7(1)
20.6 12.7
32 0.3-1.0 7.79 1.31 15.6 9.10 0.2-0.9 7.79 1.31 27.3 20.8
32 0.5-1.0 15.6 9.10 23.4 16.9 0.2-0.7 19.5 13.0 39.0 32.5
54 0.3-1.0 5.93 --- 17.7 11.2 0.2-0.9 11.8 5.30 41.4 34.8
54 0.5-1.0 23.6 17.0 35.4 28.9 0.2-0.7 29.5 23.0 51.7(1) 51.7(1)
54 0.6-1.0 35.4 28.9 47.2 40.7 --- --- --- --- ---
27.0 12.7
32 0.3-1.0 4.19 --- 9.45 4.27 0.2-0.9 4.69 --- 16.5 11.4
32 0.5-1.0 9.45 4.27 14.1 8.96 0.2-0.7 11.8 6.62 23.6 18.4
54 0.3-1.0 3.59 --- 10.7 12.5 0.2-0.9 7.17 2.0 25.0 19.9
54 0.5-1.0 14.3 9.10 21.4 16.3 0.2-0.7 17.9 12.7 35.7 30.5
54 0.6-1.0 21.4 16.3 28.5 23.4 --- --- --- --- ---
31.8 19.1
32 0.3-1.0 3.45 --- 6.96 2.48 0.2-0.9 3.45 --- 12.1 7.65
32 --- --- --- --- --- 0.2-0.7 8.69 4.20 17.3 12.9
54 0.3-1.0 5.24 --- 10.5 6.07 0.2-0.9 5.24 --- 18.3 13.9
54 0.5-0.9 10.9 6.07 15.7 11.3 0.2-0.7 13.1 8.69 26.3 21.8
54 0.7-1.0 18.3 13.9 23.6 19.2 --- --- --- --- ---
70 0.7-1.0 24.9 20.5 32.1 27.6 --- --- --- --- ---
38.1 19.1
32 0.3-1.0 2.14 --- 4.89 1.10 0.2-0.9 2.41 --- 8.55 4.76
32 --- --- --- --- --- 0.2-0.7 6.13 2.34 12.2 8.48
54 0.3-1.0 3.72 --- 7.38 3.65 0.2-0.9 3.72 --- 19.9 9.17
54 0.5-0.9 7.38 3.65 11.1 7.31 0.2-0.7 9.24 5.52 18.5 14.8
54 0.7-1.0 12.9 9.17 16.7 12.9 --- --- --- --- ---
70 0.7-1.0 17.7 13.9 22.7 18.9 --- --- --- --- ---
70 0.8-1.2 --- --- 27.7 23.9 --- --- --- --- ---
50.8 19.1
32 0.3-1.0 1.38 --- 2.83 --- 0.2-0.9 1.38 --- 4.89 2.0
32 --- --- --- --- --- 0.2-0.7 3.52 --- 7.03 4.14
54 0.3-1.0 2.14 --- 4.27 1.38 0.2-0.9 2.14 --- 7.44 4.55
54 0.5-0.9 4.27 1.38 6.34 3.52 0.2-0.7 5.31 2.41 10.6 7.72
54 0.7-1.0 7.45 4.55 9.58 6.69 --- --- --- --- ---
70 0.7-1.0 10.1 7.24 13.0 8.07 --- --- --- --- ---
70 0.8-1.2 --- --- 15.9 13.0 --- --- --- --- ---
1. The maximum shutoff pressure when using ENVIRO-SEAL packing is defined by: nP = Table Value - [1112/(Port Diameter)2]. These table values should not be modified by this formula and
the maximum nP of 51.7 bar should be used for ENVIRO-SEAL packing.
2. The maximum shutoff pressure when using Flexible Graphite packing is defined by: nP = Table Value - [5337/(Port Diameter)2]. These table values should not be modified by this formula
and the maximum nP of 51.7 bar should be used for Flexible Graphite packing.
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
15
Table 14. Allowable Pressure Drops (psi). Do not exceed valve body temperature pressure ratings.
ORIFICE
DIA. (in)
PLUG
TRAVEL
(in)
ACT
TYPE
AIR-TO-OPEN ACTION AIR-TO-CLOSE ACTION
BENCH
RANGE
(psig)
3-15 psig SIGNAL TO
ACTUATOR
WITH POSITIONER
20 psig AIR SUPPLY BENCH
RANGE
(psig)
3-15 psig SIGNAL TO
ACTUATOR
WITH POSITIONER
20 psig AIR SUPPLY
Max CL
IV
Shutoff
Press.
Max CL
VI
Shutoff
Press.
Max CL
IV
Shutoff
Press.
Max CL
VI
Shutoff
Press.
Max CL
IV
Shutoff
Press.
Max CL
VI
Shutoff
Press.
Max CL
IV
Shutoff
Press.
Max CL
VI
Shutoff
Press.
0.156 0.50 32 5-15 750 --- 750(1) --- 3-13 750 --- 750(1,2) ---
0.25 0.50 32 5-15 750 --- 750(1) --- 3-13 750 --- 750(1,2) ---
0.3125 0.50 32 5-15 --- 418 --- 750(1,2) 3-13 --- 418 --- 750(1,2)
0.375 0.50 32 5-15 452 278 750(1) 730 3-13 452 278 750(1,2) 750(1)
0.8125 0.50
32 5-15 113 19 226 132 3-13 113 19 396 301
32 7-15 226 132 339 245 3-10 283 188 565 471
54 4-15 86 --- 257 162 3-13 171 77 600 505
54 7-15 343 248 514 419 3-10 428 334 750(1) 750(1)
54 9-15 514 419 685 591 --- --- --- --- ---
1.0625 0.50
32 5-15 68 --- 137 62 3-13 68 --- 239 165
32 7-15 137 62 205 130 3-10 171 96 342 267
54 4-15 52 --- 155 81 3-13 104 29 363 288
54 7-15 207 132 311 236 3-10 259 184 518 443
54 9-15 311 236 414 340 --- --- --- --- ---
1.25 0.75
32 5-15 50 --- 101 36 3-13 50 --- 176 111
32 --- --- --- --- --- 3-10 126 61 251 187
54 5-15 76 --- 152 88 3-13 76 --- 266 202
54 7-13 152 88 228 164 3-10 190 126 381 316
54 10-14 266 202 343 278 --- --- --- --- ---
70 10-15 362 297 466 401 --- --- --- --- ---
1.5 0.75
32 5-15 35 --- 71 16 3-13 35 --- 124 69
32 --- --- --- --- --- 3-10 89 34 177 123
54 5-15 54 --- 107 53 3-13 54 --- 188 133
54 7-13 107 53 161 106 3-10 134 80 269 214
54 10-14 188 133 242 187 --- --- --- --- ---
70 10-15 256 201 329 274 --- --- --- --- ---
70 12-18 --- --- 402 347 --- --- --- --- ---
2.0 0.75
32 5-15 20 --- 41 --- 3-13 20 --- 71 29
32 --- --- --- --- --- 3-10 51 --- 102 60
54 5-15 31 --- 62 20 3-13 31 --- 108 66
54 7-13 62 20 92 51 3-10 77 35 154 112
54 10-14 108 66 139 97 --- --- --- --- ---
70 10-15 147 105 189 147 --- --- --- --- ---
70 12-18 --- --- 230 189 --- --- --- --- ---
1. The maximum shutoff pressure when using ENVIRO-SEAL packing is defined by: nP = Table Value - [25/(Port Diameter)2]. These table values should not be modified by this formula and the
maximum nP of 750 psi should be used for ENVIRO-SEAL packing.
2. The maximum shutoff pressure when using Flexible Graphite packing is defined by: nP = Table Value - [120/(Port Diameter)2]. These table values should not be modified by this formula and
the maximum nP of 750 psi should be used for Flexible Graphite packing.
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
16

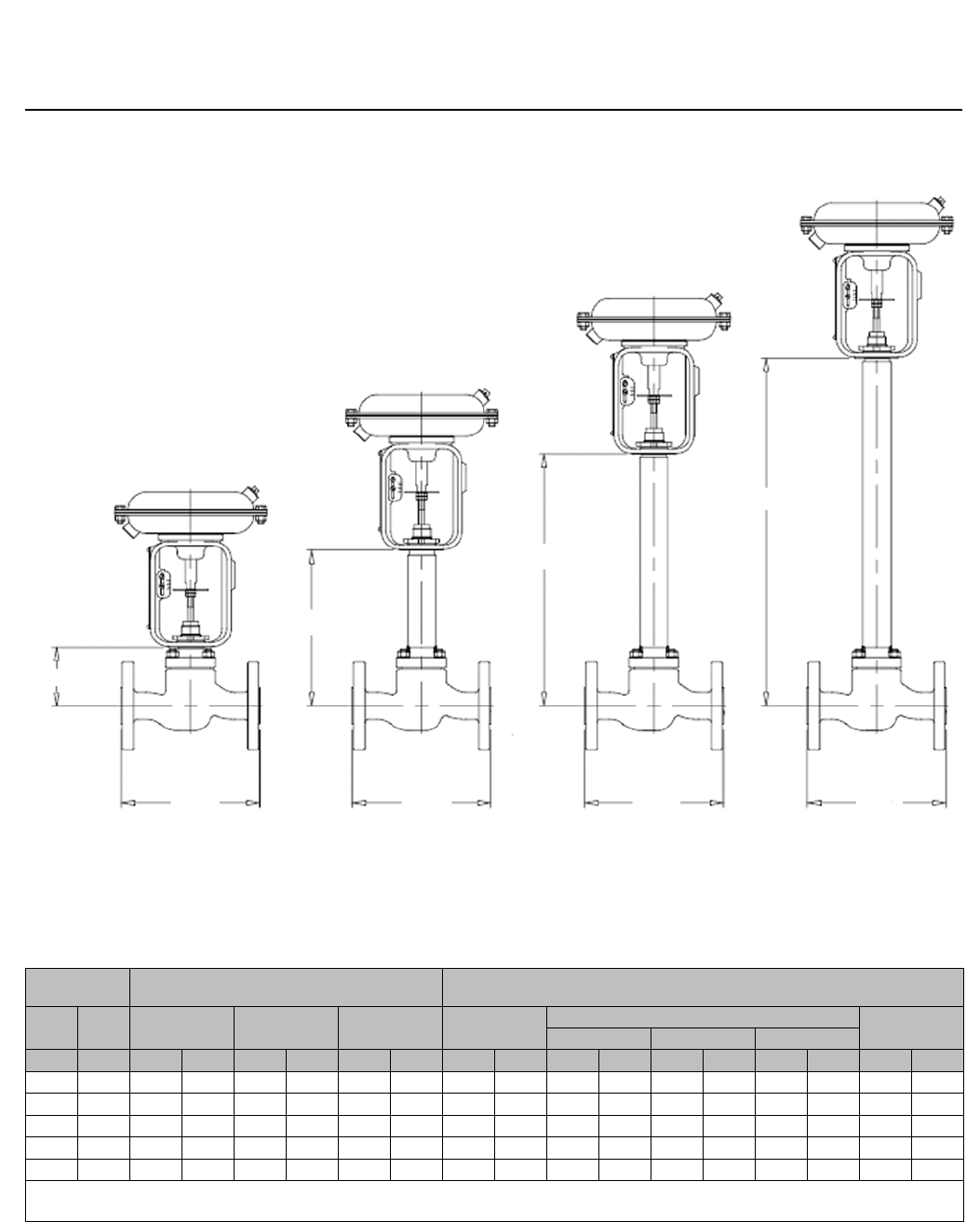

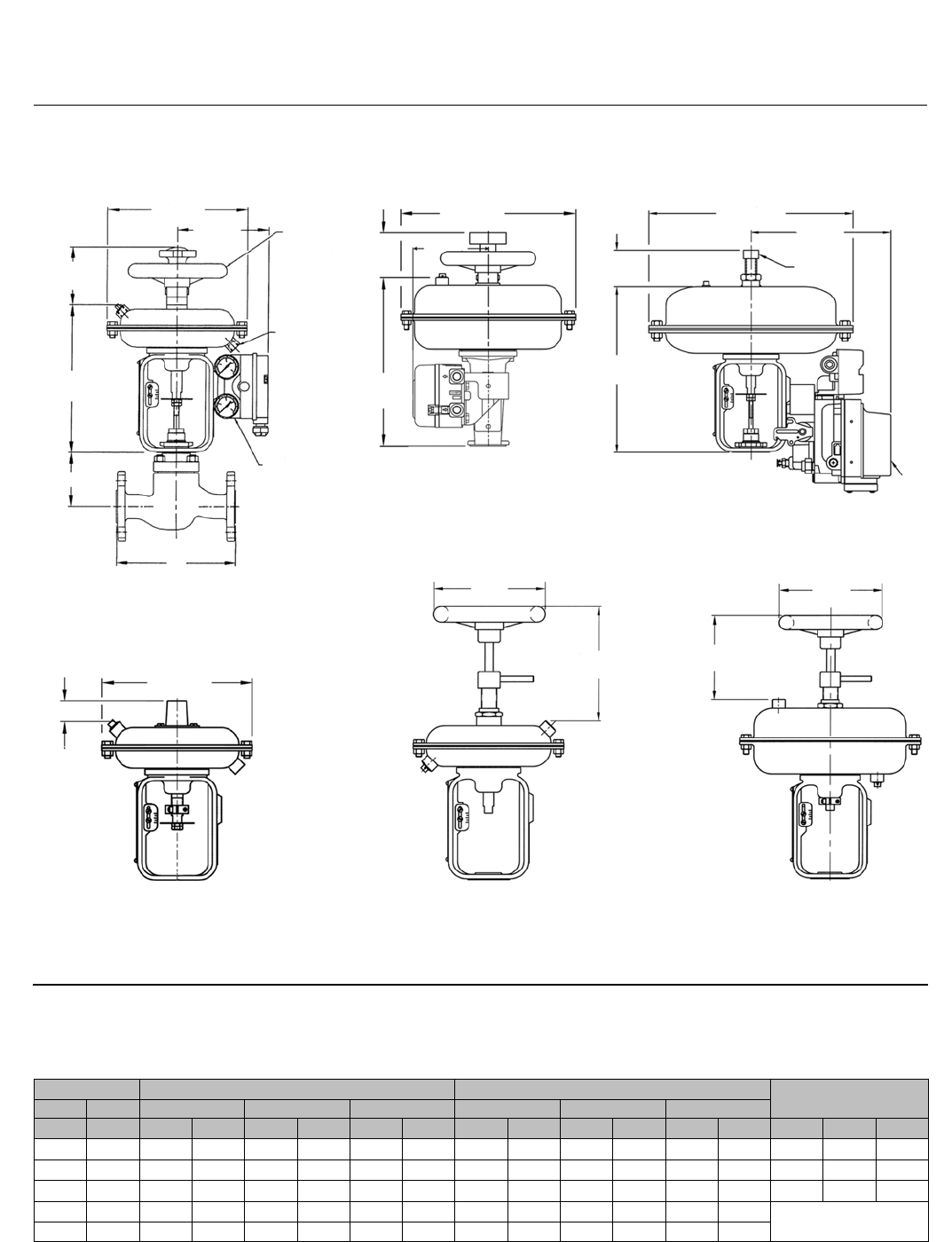

Figure 13. Dimensional Drawings
Note: Actuator removal requires 115 mm (4.5 inches) vertical clearance.
216
(48.5)
279
(411.0)
333
(413.1)
216
(48.50)
160
(46.3)
160
(46.3)
94
(3.7)
141
(5.5) 127 (5.0)
276
(10.9)
60
(2.4)
271
(10.7)
229
(9.0)
3/4 INCH
SQUARE
31 (1.24)
163 (6.4)
MAX
130
(5.1) MAX
E1257
227
(8.9)
72
(2.8)
24000CVF/SVF FLANGED
WITH BAUMANN 32 ATO
ACTUATOR WITH
HANDWHEEL
BAUMANN 54 ATO ACTUATOR
WITH HANDWHEEL AND DVC2000
BAUMANN 70 ATO
ACTUATOR WITH OPTIONAL
FIELDVUE DIGITAL VALVE
CONTROLLER
BAUMANN 32 ACTUATOR
WITH ADJUSTABLE
OPEN / CLOSE DUAL TRAVEL
STOPS
BAUMANN 32 ATC / FAIL
OPEN ACTUATOR WITH
HANDWHEEL
BAUMANN 54 ATC / FAIL
OPEN ACTUATOR WITH
HANDWHEEL
mm
(inch)
B
A
3660/3661
POSITIONER
(OPTIONAL)
TOP-MOUNTED
HANDWHEEL
(OPTIONAL)
1/4 NPT
Table 15. Valve Assembly Weights
VALVE SIZE 24000CVF WEIGHTS 24000SVF WEIGHTS ACTUATOR WEIGHTS
EN ASME CL150 CL300 EN 10-40 CL150 CL300 EN 10-40
DN NPS kg lb kg lb kg lb kg lb kg lb kg lb TYPE kg lb
15 1/2 3.1 6.8 3.3 8.3 3.8 7.7 3.7 7.2 3.5 8.2 3.5 7.8 32 4.5 10
20 3/4 3.3 7.3 3.4 10 4.5 9.2 4.7 7.4 4.2 10.3 4.3 9.4 54 11.3 25
25 14.8 10.6 5.1 13.8 6.3 12.6 6.4 11.2 5.7 14 5.9 13 70 15.4 34
40 1-1/2 8.3 18.2 8.3 24.8 11.3 21.2 11.4 18.3 9.6 25.2 9.8 21.7
50 214.1 31 13.8 35.3 16 33.4 16.1 30.4 15.2 35.4 15.2 33.4
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
17
Figure 14. Baumann 24000SVF Stainless Steel Control Valves with Extension Bonnets Dimensional Drawing
E1258
STANDARD BONNET NOLEEK BELLOWS BONNET
OR SINGLE EXTENSION
BONNET
DOUBLE
EXTENSION BONNET
TRIPLE
EXTENSION BONNET
AAAA
B
B
B
B
Table 16. Dimensions(1, 2)
VALVE SIZE A
FACE-TO-FACE
B
BONNET
EN ASME CL150 CL300 EN 10-40 Standard Extension(3) NOLEEK
Bellows(3)
Single Double Triple
DN NPS mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
15 1/2 184 7.25 190 7.5 130 5.11 79 3.1 216 8.5 352 13.9 488 19.2 226 8.9
20 3/4 184 7.25 194 7.62 150 5.90 79 3.1 216 8.5 352 13.9 488 19.2 226 8.9
25 1184 7.25 197 7.75 160 6.30 84 3.3 221 8.7 356 14.0 493 19.4 229 9.0
40 1-1/2 222 8.75 235 9.25 200 7.87 96 3.8 234 9.2 370 14.6 505 19.9 229 9.0
50 2254 10.0 267 10.5 230 9.06 107 4.2 244 9.6 381 15.0 516 20.3 234 9.2
1. Actuator requires 115 mm (4.5 inches) vertical clearance.
2. Face-to-face dimension per EN 558-1 and ISA S75.03.
3. Extension and NOLEEK bellows bonnets are available with 24000SVF stainless steel body ONLY.
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
18
Table 17. Model Numbering System
24
Actuator
Type Valve Body Plug Series Characteristic Seat
Leakage Valve Body Material Bonnet Style
32(1) 102 Linear / Metal Seat IV CVF Carbon Omit Standard
54 151 Modified Equal % / PTFE Seat VI SVF Stainless
Steel EExtended(3)
70 177 Modified Equal % / Reinforced PTFE VI EB Bellows(3)
MV1020(2) 548 Equal % / Metal Seat (S41600) IV
VA1020(2) 577 Equal % / PTFE Seat VI
588 Equal % / Metal Seat (S31600) IV
648 Linear / Metal Seat (S41600) IV
677 Linear / PTFE Seat VI
688 Linear / Metal Seat (S31600) IV
1. Baumann 32 actuator requires dual stops with 177 trim series.
2. Refer to bulletin 52.1:ECV, Baumann Electronic Modulating Actuators, D103347X012, for details on these electronic actuators.
3. Only available with 24000SVF stainless steel valve bodies.
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
19
24000CVF and 24000SVF Valves
D103333X012
Product Bulletin
52.1:24CVF_SVF
March 2013
20
Emerson Process Management
Marshalltown, Iowa 50158 USA
Sorocaba, 18087 Brazil
Chatham, Kent ME4 4QZ UK
Dubai, United Arab Emirates
Singapore 128461 Singapore
www.Fisher.com
The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they arenot
to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are
governed by our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such
products at any time without notice.
E2009, 2013 Fisher Controls International LLC. All rights reserved.
Baumann, Fisher, FIELDVUE, PlantWeb, and ENVIRO-SEAL are marks owned by one of the companies in the Emerson Process Management business unit of
Emerson Electric Co. Emerson Process Management, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other
marks are the property of their respective owners.
Neither Emerson, Emerson Process Management, nor any of their affiliated entities assumes responsibility for the selection, use or maintenance
of any product. Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user.

Navigation menu
