Baumannt24000S Stainless Steel

Control Valve

The Baumann 24000S versatile, pneumatic, control

valve may be used for the control of pressure,

temperature, level, and flow. NPS 1/2 through 2 valves

are available with NPT end connections. NPS 3 is

available as wafer style only. The CF8M stainless steel

valve body will withstand mildly corrosive fluids, yet is

economical enough to use in applications where

carbon steel is normally specified.

Features

Compactandlightweightdesign reduces installed

piping costs.

End connection options are available to meet your

piping standards.

Dual stem and plug guiding provides increased

stability during plug travel.

High-quality S31600 stainless steel trim materials;

S41600 stainless steel trim available.

Multiple trim capacity reductions available to meet

changing processrequirements.

Epoxy powder-coated actuator with stainless steel

fasteners for corrosion resistance.

Multi-spring field-reversible actuator with reduced

deadband permits direct operation from remote

signal devices.

Actuator and yoke can be removed from the valve

assembly while maintaining packing integrity.

W9759

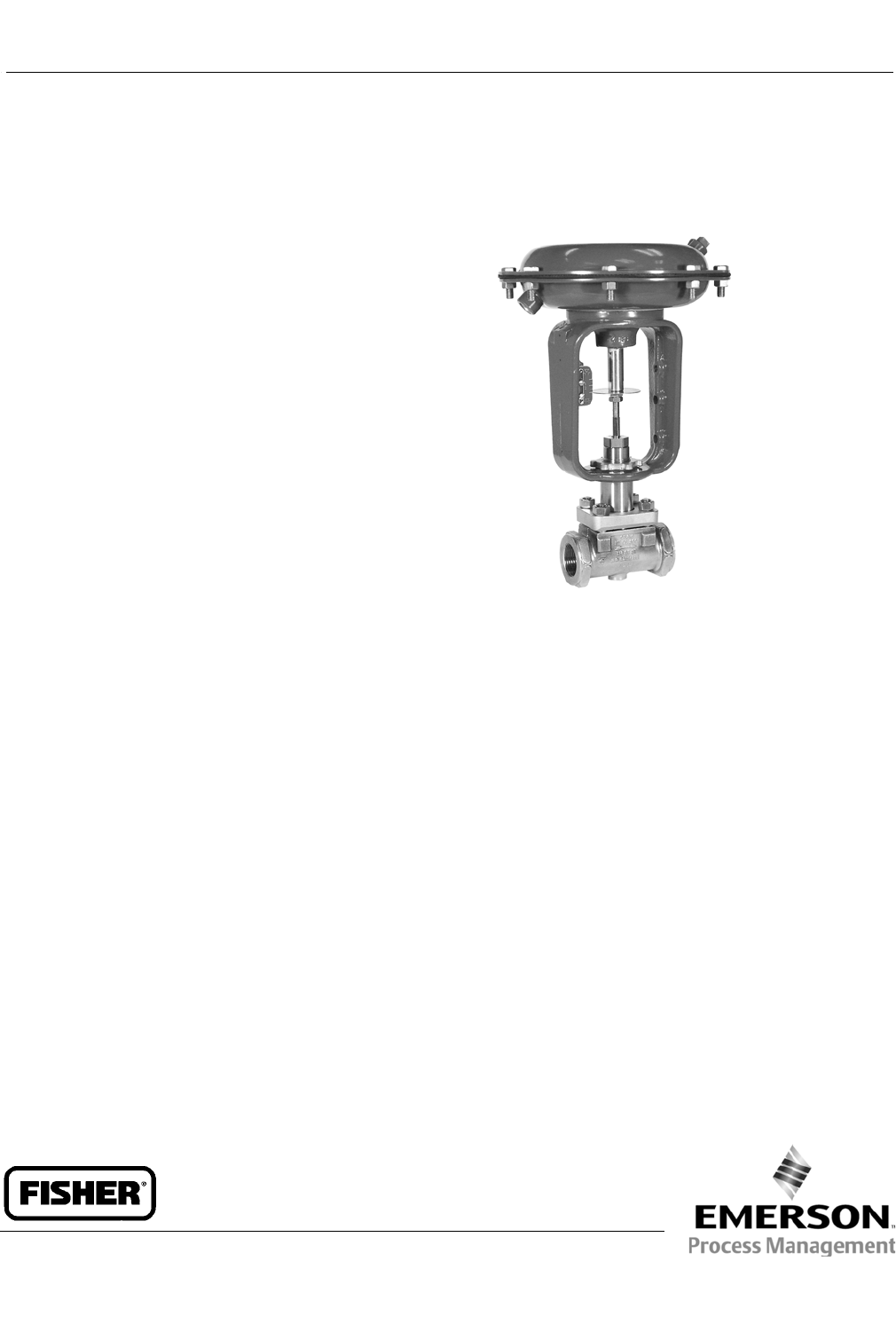

Baumann 24000S NPT Control Valve

FisherrFIELDVUE™ digital valve controllers available

for remote calibration and diagnostics in facilities

utilizing the PlantWebtarchitecture.

The FIELDVUE DVC2000 digital valve controller has a

local user interface that includes a liquid crystal

display and four push buttons for menu navigation.

NOLEEK bellows bonnet and single through triple

extension bonnets are available.

24000S Valve

D103331X012

Product Bulletin

52.1:24SS

March 2013

24000S Valve

D103331X012

Product Bulletin

52.1:24SS

March 2013

2

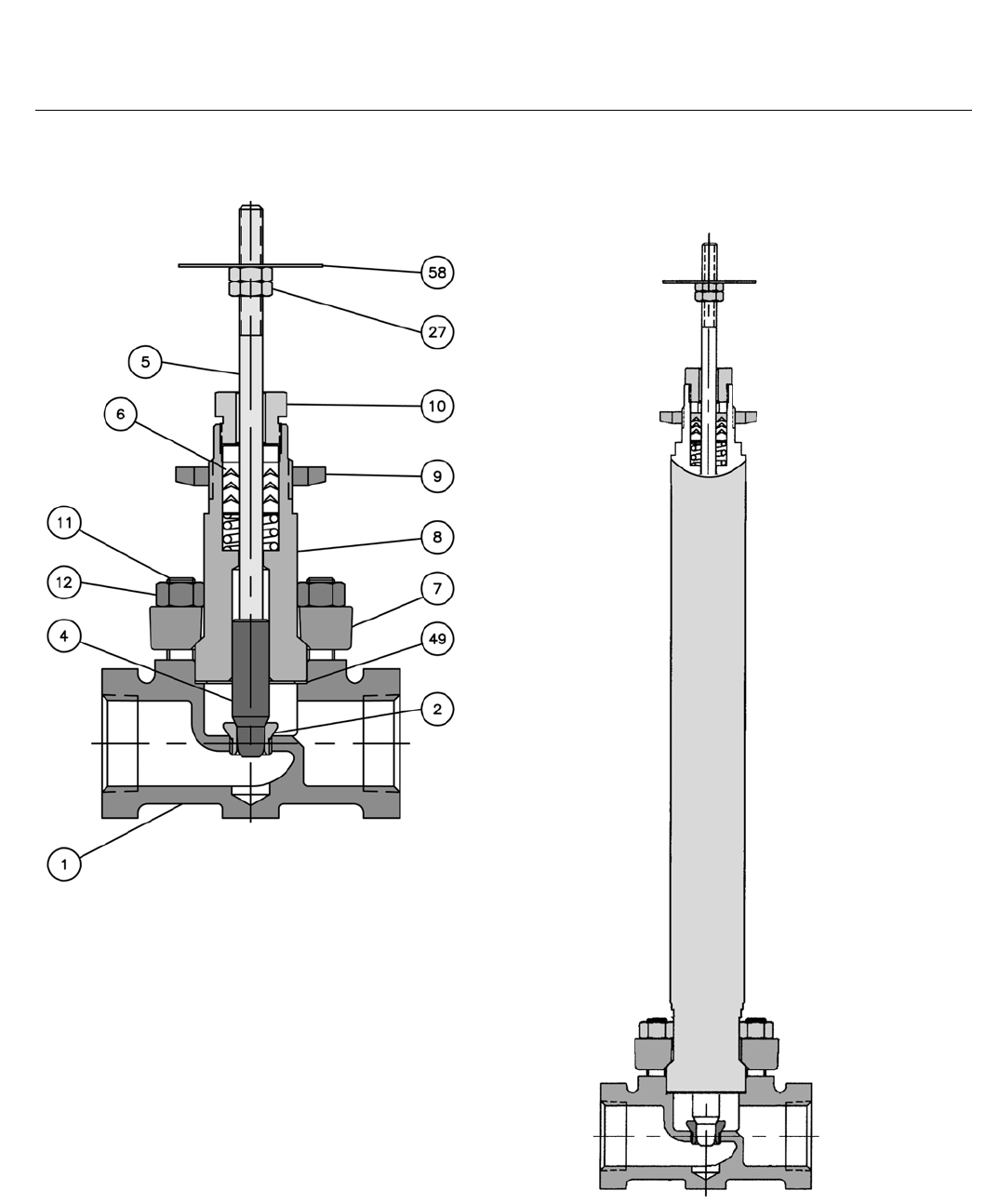

Figure 1. Baumann 24000S Valve Body Assembly

E1266

Figure 2. Baumann 24000S Valve with Extension

Bonnet, available in Single and Double Extension

Lengths

E1267

24000S Valve

D103331X012

Product Bulletin

52.1:24SS

March 2013

3

Table 1. Materials of Construction

Key

No. Description Material

1Valve Body ASME SA351 CF8M

2Seat Ring ASTM A276 S31600 / S31603 Dual Certified

(used for 6.3 mm and 9.5 mm [1/4 inch and 3/8 inch] orifice diameters only)

4

Plug (Metal Seat) Cv < 2.5 Standard ASME SA479 S21800 Annealed

Optional ASTM A582 S41600 Condition T

Plug (Metal Seat) Cv > 4.0 Standard ASTM A276 S31600 / S31603 Dual Certified

Optional ASTM A582 S41600 Condition T

Plug (Soft Seat) ASTM A276 S31600 / S31603 Dual Certified

with PTFE (Polytetrafluoroethylene) Insert

5Stem ASTM A276 S31600 Condition A

6Packing Set (Refer to page 5)

7Bonnet Flange 1/2 to 2 inch ASME SA351 CF8M

3inch ASME SA240 S31600 / S31603 Dual Certified

8Bonnet

Standard ASME SA479 S31600 / S31603 Dual Certified

Extension ASME SA479 S31600 / S31603 Dual Certified

NOLEEK ASME SA479 S31600 / S31603 Dual Certified

9Drive Nut (Yoke) S30400

10 Packing Follower ASTM A276 S31600 / S31603 Dual Certified

11 Bonnet Studs (Bolt) ASME SA193 Grade B8 Class 1

12 Bonnet Nuts ASME SA194 Grade B8

27 Locknuts Stainless Steel (18-8 Stainless Steel)

49 Body Gasket Graphite Grade GHR with S31600 Insert

58 Travel Indicator ASME SA240 S30400

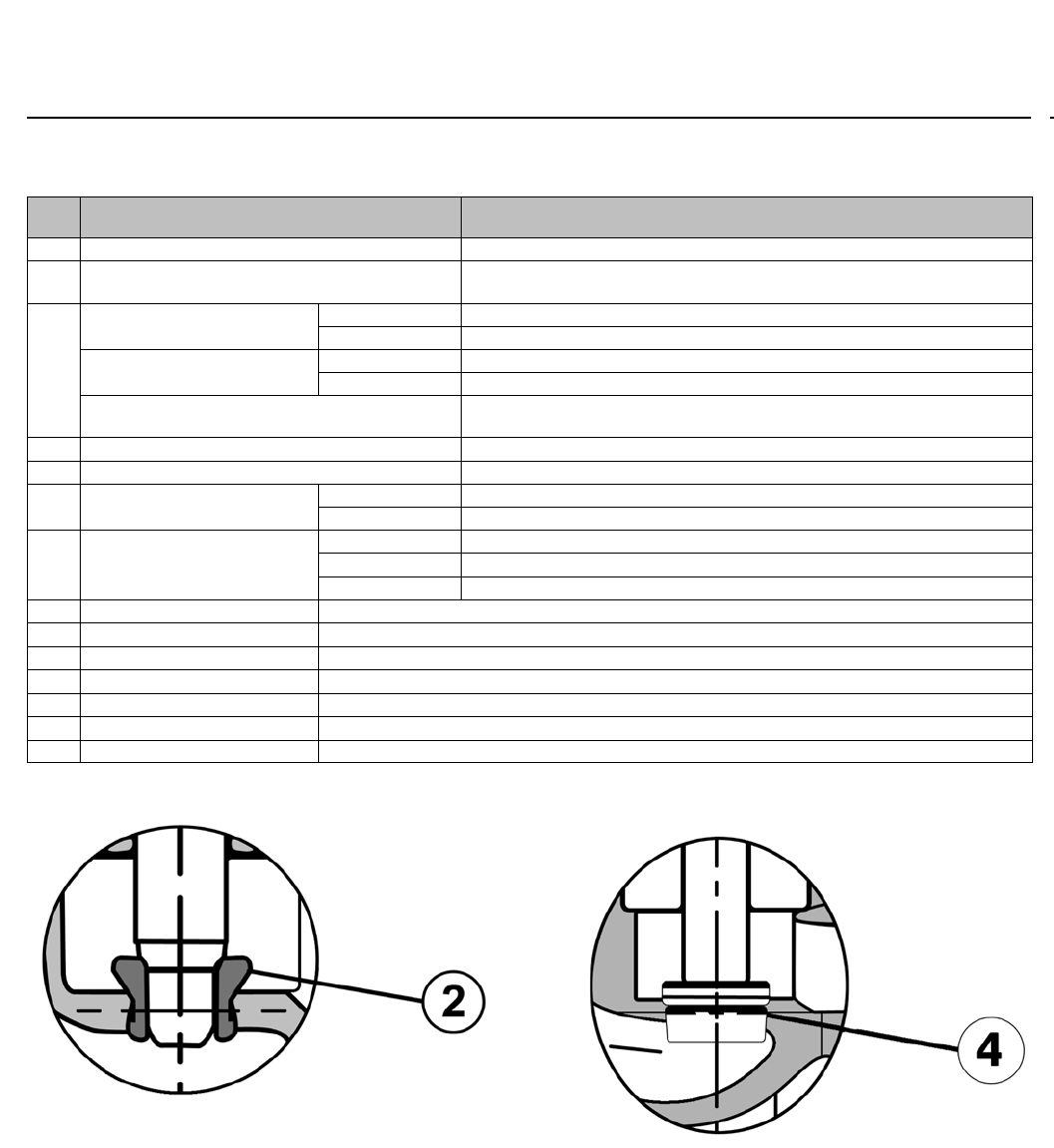

Figure 3. Screwed Seat

E1268

Figure 4. Integral Seat

E1269

24000S Valve

D103331X012

Product Bulletin

52.1:24SS

March 2013

4

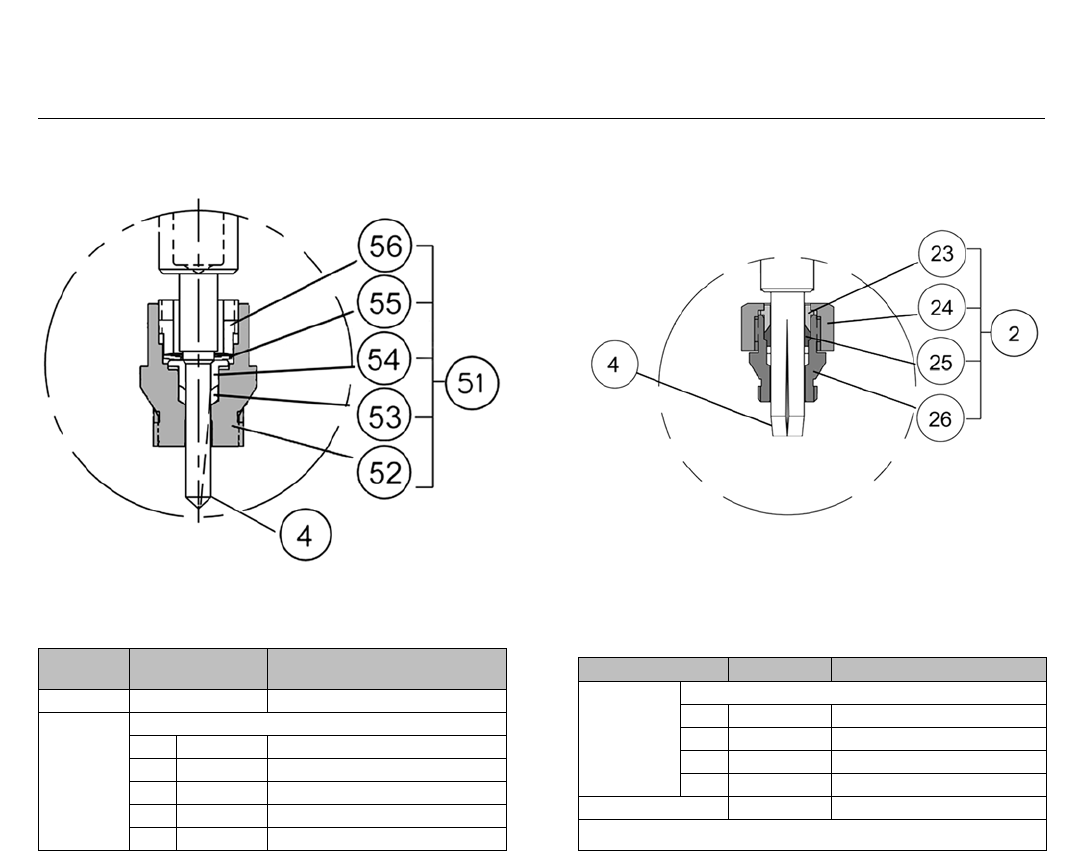

Figure 5. 24151S Low Flow Trim

E1270

Table 2. 24151S Low Flow Trim

Key

Number Description Material

4Plug ASME SA479 S21800

51

Seat Sub-Assembly

52 Cage ASTM A276 S31600 / S31603

53 Seat PTFE

54 Collar ASTM A276 S31600/ S31603

55 Washer ASTM A276 S31600 Cond B

56 Insert ASTM A276 S31600/ S31603

Figure 6. 24177S Low Flow Trim

E1271

Table 3. 24177S Low Flow Trim(1)

Key Number Description Material

2

Seat Sub-Assembly

23 Gland ASTM A276 S31600/ S31603

24 Retainer Nut ASTM A276 S31600/ S31603

25 Insert Reinforced PTFE

26 Housing ASTM A276 S31600/ S31603

4Plug ASME SA479 S21800

1. For optional trim materials, consult your Emerson Process Management sales office

for price and delivery. Baumann 32 actuator requiresdual-stopswith177trimseries.

24000S Valve

D103331X012

Product Bulletin

52.1:24SS

March 2013

5

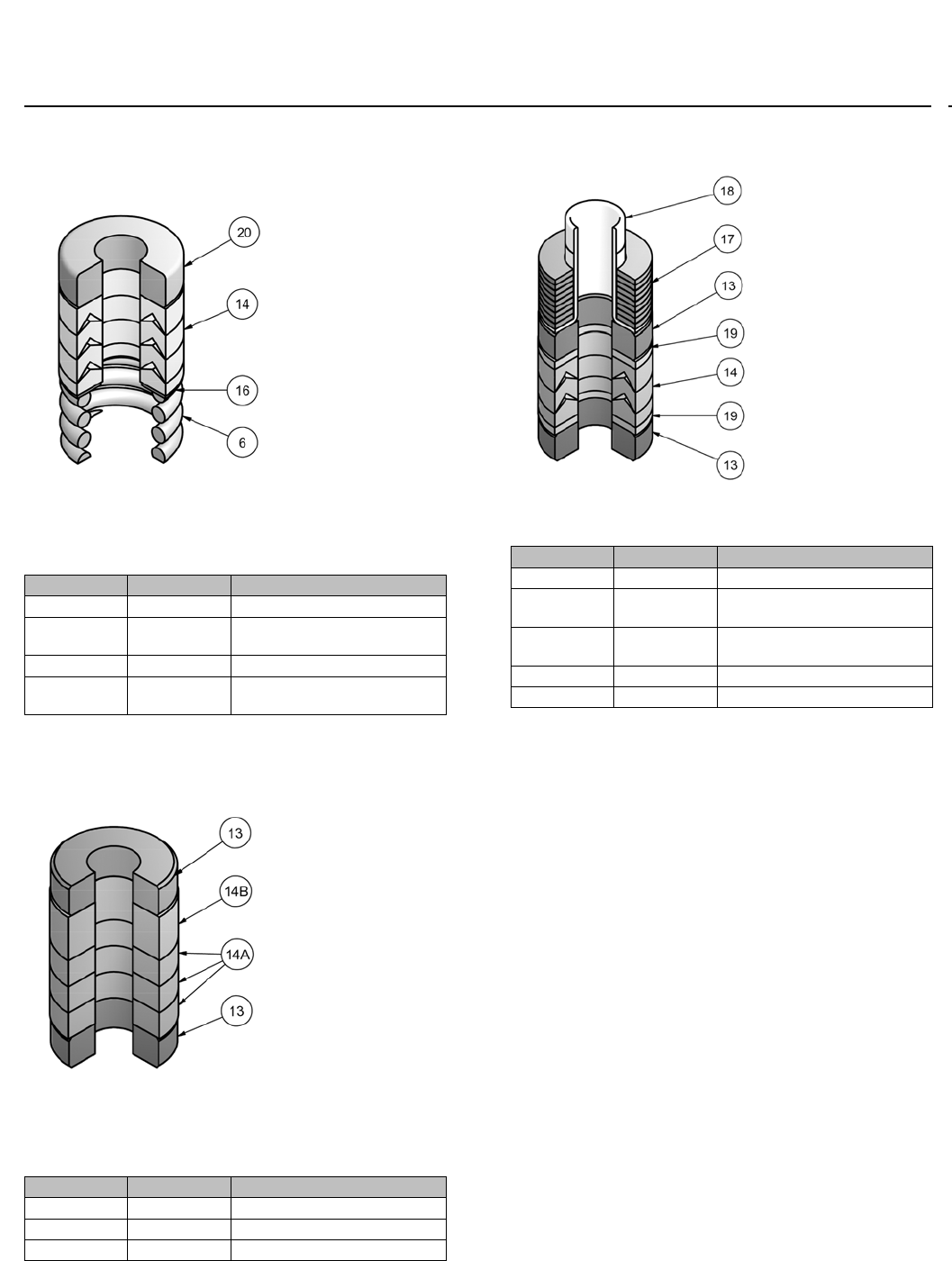

Figure 7. Standard Spring-Loaded PTFE V-Ring

Packing Kit

E1240

Table 4. Standard Spring-Loaded PTFE V-Ring

Packing Kit

Key Number Description Material

6Spring ASTM A313 S30200

14 Packing Set PTFE (Polytetrafluoroethylene) /

PTFE, 25% carbon filled

16 Washer ASME SA240 S31600

20 Spacer J-2000

(filled-Polytetrafluoroethylene)

Figure 8. Molded Graphite (Flexible Graphite)

Packing Kit (Optional)

E1241

Table 5. Molded Graphite (Flexible Graphite)

Packing Kit (Optional)

Key Number Description Material

13 Bushings Carbon-Graphite

14A Packing Rings Graphite

14B Packing Ring Graphite

Figure 9. ENVIRO-SEAL™ Packing Kit (Optional)

E1248

Table 6. ENVIRO-SEAL Packing Kit (Optional)

Key Number Description Material

13 Bushings Carbon-Graphite

14 Packing Rings PTFE (Polytetrafluoroethylene) /

PTFE, 25% carbon filled

17 Belleville

Spring

N06600 Nickel Alloy (ASTM B637

N07718, 40 HRC max)

18 Bushing PEEK (polyetheretherketone)

19 Washers Modified PTFE

Special ENVIRO-SEAL

Packing Note

The ENVIRO-SEAL PTFE packing system is suitable for

100 ppm environmental applications on services up to

51.7 barg (750 psig) and process temperatures

ranging from -46 to 232_C(-50to450_F).

For non-environmental applications, this packing

system offers excellent performance at the same

temperature range up to the maximum valve working

pressure.

Temperature limits apply to packing arrangements

only. Complete valve assembly temperature limits may

differ, refer to appropriate pressure/temperature

ratings.

(Reference Fisher Packing Selection Guidelines for

Sliding-Stem Valves,Bulletin 59.1:062,

D101986X012).

24000S Valve

D103331X012

Product Bulletin

52.1:24SS

March 2013

6

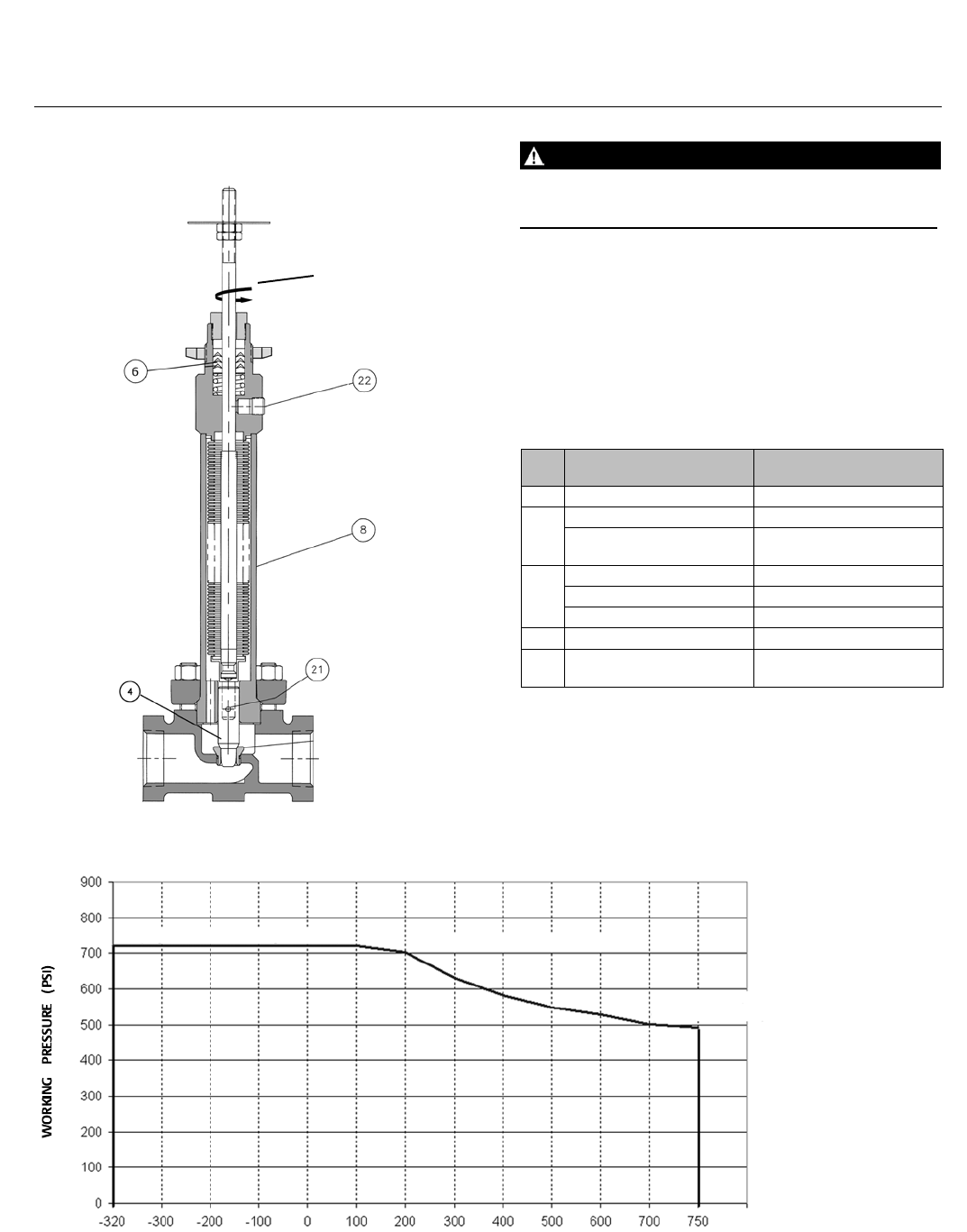

Figure 10. NOLEEK Bellows Bonnet Assembly

E1272

UNLIMITED STEM

ROTATION WITHOUT

TWISTING BELLOWS

TELL-TALE

CONNECTION

(1/8 NPT)

FULL EXTENSION

PROVIDES HEAT

DISSIPATION, IDEAL

FOR HEAT TRANSFER

FLUIDS

BACKUP PACKING

SYSTEM (SEE

PACKING DETAIL ON

PAGE 5)

TIME PROVEN DOUBLE

WALLED BELLOW

MADE FROM S31600,

RATED FOR UP TO 49.7

BAR (720 PSI)

PRESSURE

WARNING

The Baumann NOLEEK valve bonnet assembly is not

intended for use in lethal service applications.

The NOLEEK Bellows Bonnet Assembly is reliable and

user-friendly. Typical service life is in excess of 250,000

full cycles under 100 psi pressure. The bonnet adds

only approximately 5 inches to the height of a

standard valve. Operating temperature range is -195

to 399_C(-320to750_F).

Table 7. Baumann NOLEEK Bellow Bonnet Assembly

Key

No. Description Material

4Plug See table 1

6

V-Ring Packing Kit (Standard) See table 4

ENVIRO-SEAL Packing Kit

(Optional) See table 6

8

Housing S31600/S31603

Bellows S31603/1.4571 SST

Bonnet CF8M

21 Plug Retaining Pin S30300

22 HexSocketPipePlug,

1/8 NPT S30400

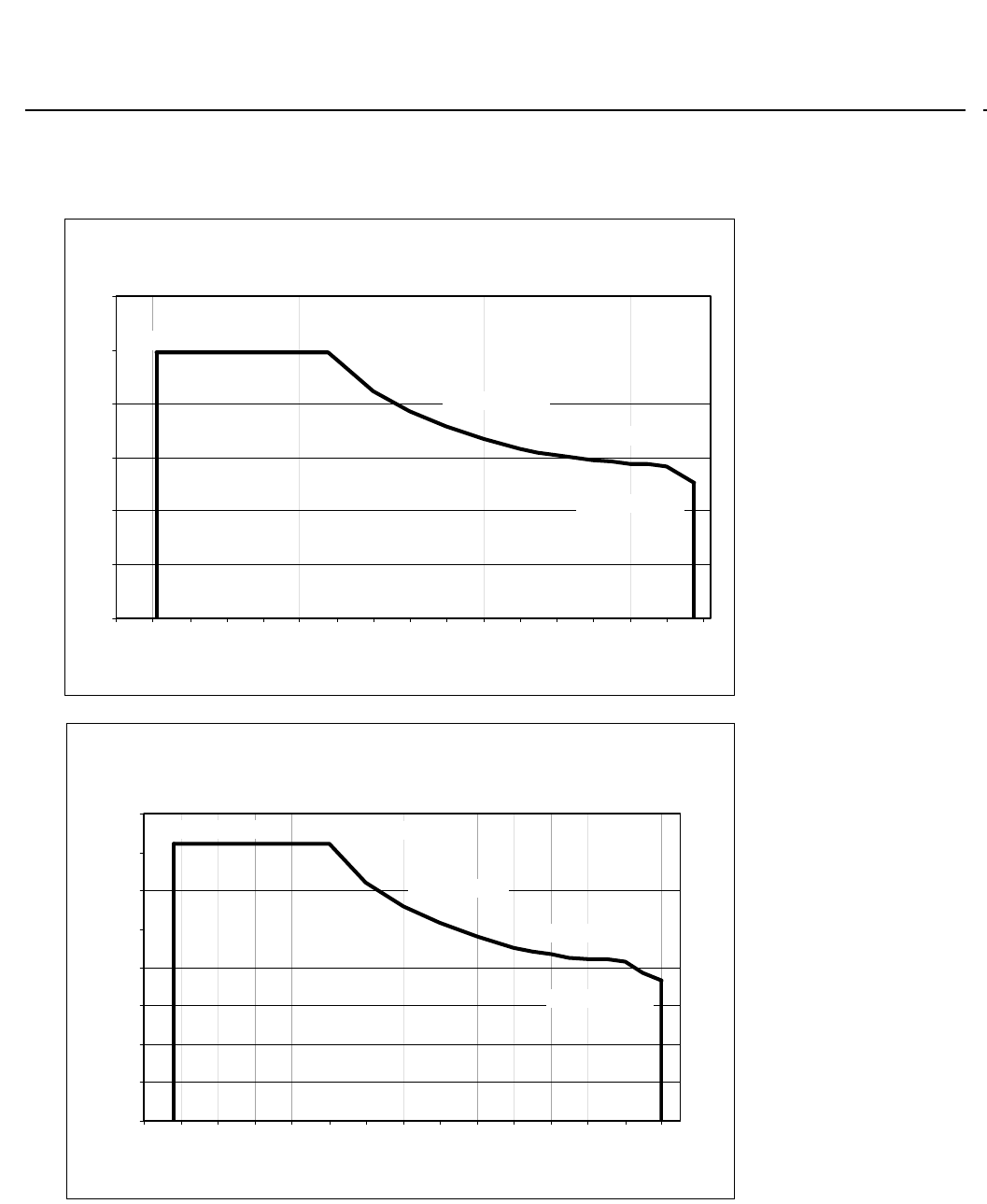

Figure 11. Bellows Pressure Temperature Curve

E1250 TEMPERATURE (_F)

49.7 barg @ -195_C (720 psig @ -320_F) 48.5 barg @ 93_C (703.25 psig @ 200_F)

33.9 barg @ 398_C

(491.6 psig @ 750F)

24000S Valve

D103331X012

Product Bulletin

52.1:24SS

March 2013

7

Table 8. Cv Values at 100% Plug Opening (Kv = 0.86 x Cv)

VALVE SIZE ORIFICE DIAMETER PLUG TRAVEL PLUG SERIES

102 151 177 577 548 / 588 677 648 / 688

DN NPS mm inch mm inch Cv Cv Cv Cv Cv Cv Cv

15

25

1/2

1

3.97 0.156 12.7 0.50 ---

0.00013

0.00025

0.0005

0.001

0.002

0.004

0.008

0.015

0.03

0.06

0.10

0.20

0.45

--- --- --- --- ---

6.3 0.25 12.7 0.50

0.02

0.05

0.10

0.20

--- --- ---

0.22

0.61

1.0

--- 0.5

1.0

7.9 0.3125 12.7 0.50 --- ---

0.0005

0.001,

0.002

0.005,

0.01 0.02,

0.05

--- --- --- ---

9.5 0.375 12.7 0.50 --- --- --- 1.0, 1.5

2.0 1.5, 2.5

0.1, 0.2,

0.5 1.0,

2.0

1.5

2.0

20 120.6 0.8125 12.7 0.50 --- --- --- 4, 8.5 4.7, 9.5 44, 9.5

40 1-1/2 31.8 1.25 19.1 0.75 --- --- --- 17.5 9, 17.5 17.5 17.5

50 238.1 1.5 19.1 0.75 --- --- --- 10, 18,

30.5

10, 17.5,

30.5 10, 17.5 10, 17.5,

30.5

80 350.8 2.0 19.1 0.75 --- --- --- 35 35, 52.3 35, 61 35, 61

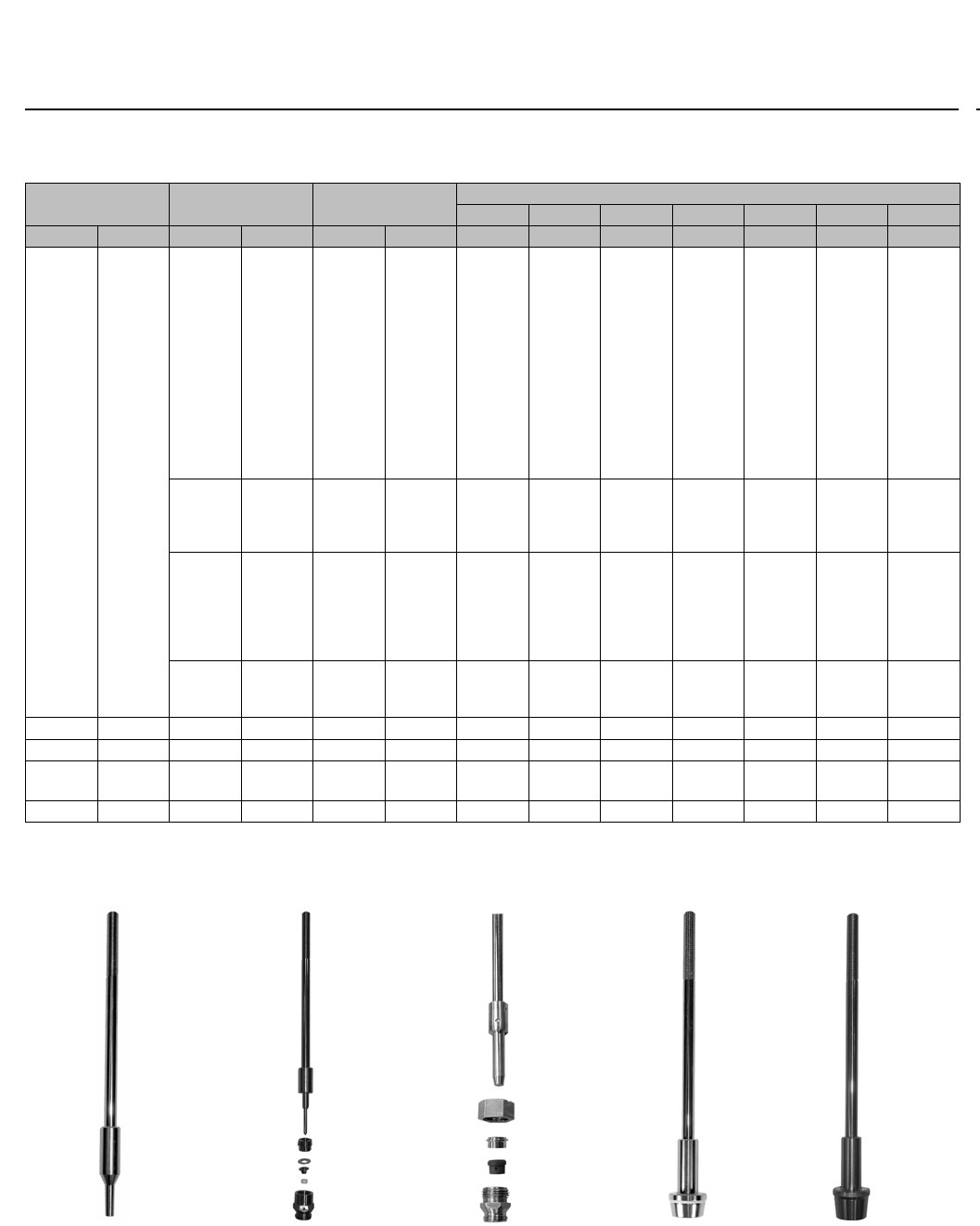

Figure 12. Baumann 24000S Trims

W9747 W9751 W9748 W9749 W9750

102 Linear

LowFlowTrim

151 Modified Equal %

Low Flow Trim

177 Modified Equal %

Low Flow Trim

548 / 577 / 588

Equal % Trim

648 / 677 / 688

Linear Trim

24000S Valve

D103331X012

Product Bulletin

52.1:24SS

March 2013

8

Table 9. ISA Sizing Coefficients

Series Cv Rating FL Fd XT KC

102

0.02

0.05

0.10

0.20

0.95

0.06

0.09

0.013

0.18

0.76 0.86

151

0.00013

0.00025

0.0005

0.001

0.002

0.004

0.008

0.015

0.03

0.06

0.10

0.20

0.45

0.98

0.35

0.04

0.05

0.06

0.075

0.10

0.11

0.15

0.18

0.22

0.25

0.30

0.40

0.81 0.94

177

0.0005

0.001

0.002

0.005

0.01

0.02

0.05

0.95 0.70 0.76 0.76

548/588

0.22

0.61 0.98 0.28 0.81 0.94

1

1.5

2.5

4.7

9

0.90

0.40

0.33

0.42

0.68 0.73

9.5

10

17.5

30.5

35

52.3

0.90 0.46 0.68 0.73

577

1

1.5

2.5

4.0

8.5

0.90

0.40

0.33

0.42

0.68 0.73

10

17.5

18

30.5

35

0.90 0.46 0.68 0.73

677

0.1

0.2

0.5

1

2

4

0.90

0.08

0.12

0.19

0.27

0.68 0.73

10

17.5

35

61

0.90 0.46 0.68 0.73

-continued-

24000S Valve

D103331X012

Product Bulletin

52.1:24SS

March 2013

9

Table 9. ISA Sizing Coefficients (continued)

Series Cv Rating FL Fd XT KC

648/688

0.5

1

1.5

2

4

0.90

0.40

0.33

0.42 0.68 0.73

9.5

17.5

30.5

35

61

0.90 0.46 0.68 0.73

Table 10. Technical Specifications

NOMINAL PIPE SIZE DN 15, 25, 40, 50, and 80 NPS1/2,1,1-1/2,2,and3

END CONNECTIONS Screwed NPT (except for NPS 3, wafer style only) Wafer / Buttweld

PRESSURE RATING CL300 (CL150 for NPS 3 per ASME B16.34)

VALVE BODY MATERIAL CF8M ASTM A351

CHARACTERISTIC Equal Percentage or Linear

Table 11. Temperature Ratings for Packing and Seat Material(1)

SEATING MATERIAL

PTFE Soft Seat 151 Trim -29 to 177_C(-20to350_F)

577 & 677 Trim -73 to 232_C (-100 to 450_F)

Reinforced PTFE 177 Trim -73 to 232_C (-100 to 450_F)

Metal Seat 102, 548, 588, 648, 688 Trim -195 to 537_C (-320 to 1000_F)

PACKING AND BONNET

COMBINATIONS

BONNET STYLE PACKING TEMPERATURE LIMIT

Standard Bonnet

Spring Loaded PTFE -73 to 232_C (-100 to 450_F)

ENVIRO-SEAL -45 to 232_C(-50to450_F)

Graphite -73 to 232_C (-100 to 450_F)

Extension Bonnet

Spring Loaded PTFE -195 to 232_C (-320 to 450_F)

ENVIRO-SEAL -45 to 232_C(-50to450_F)

Graphite -195 to 537_C (-320 to 1000_F)

Bellows NOLEEK Bellows -195 to 399_C (-320 to 750_F)

1. Temperature limits apply to seating or packing arrangements only. Complete valve assembly temperature limits may differ, refer to appropriate pressure/temperature ratings. For more

information on packing selection, reference Fisher Packing Selection Guidelines for Sliding-Stem Valves, Bulletin 59.1:062, D101986X012.

Table 12. Actuator Specifications

TYPE 32, 54, 70 Multi-Spring Diaphragm (Single Acting)

DIAPHRAGM AREA 210, 350, 450 cm2/ 32, 54, 70 in2

AIR FAILURE 32 and 54 Fails Open or Closed (Field Reversible) / 70 Fails Closed ONLY

TRAVEL(1) 12.7 or 19.1 mm / 0.50 or 0.75 inches

AMBIENT TEMPERATURE RANGE -29_Cto71_C/-20_F to 160_F

MAXIMUM AIR PRESSURE 2.4 barg / 35 psig

DIAPHRAGM MATERIAL(2) NBR (Nitrile) / TPES (Polyester Thermoplastic) Fabric

SPRING CASES Steel, Powder Epoxy-Coated with Stainless Steel Fasteners

YOKE Ductile Iron, Powder Epoxy-Coated

1. Dual travel stops are available on Baumann 32 and 54 actuators ONLY. These are not field reversible.

2. Optional reinforced VMQ (Silicone) diaphragm with FKM (Fluorocarbon) O-ring actuator stem seal for high temperature conditions (-29_Cto121_C/-20_F to 250_F) is available with

Baumann 32 and 54 actuators ONLY.

24000S Valve

D103331X012

Product Bulletin

52.1:24SS

March 2013

10

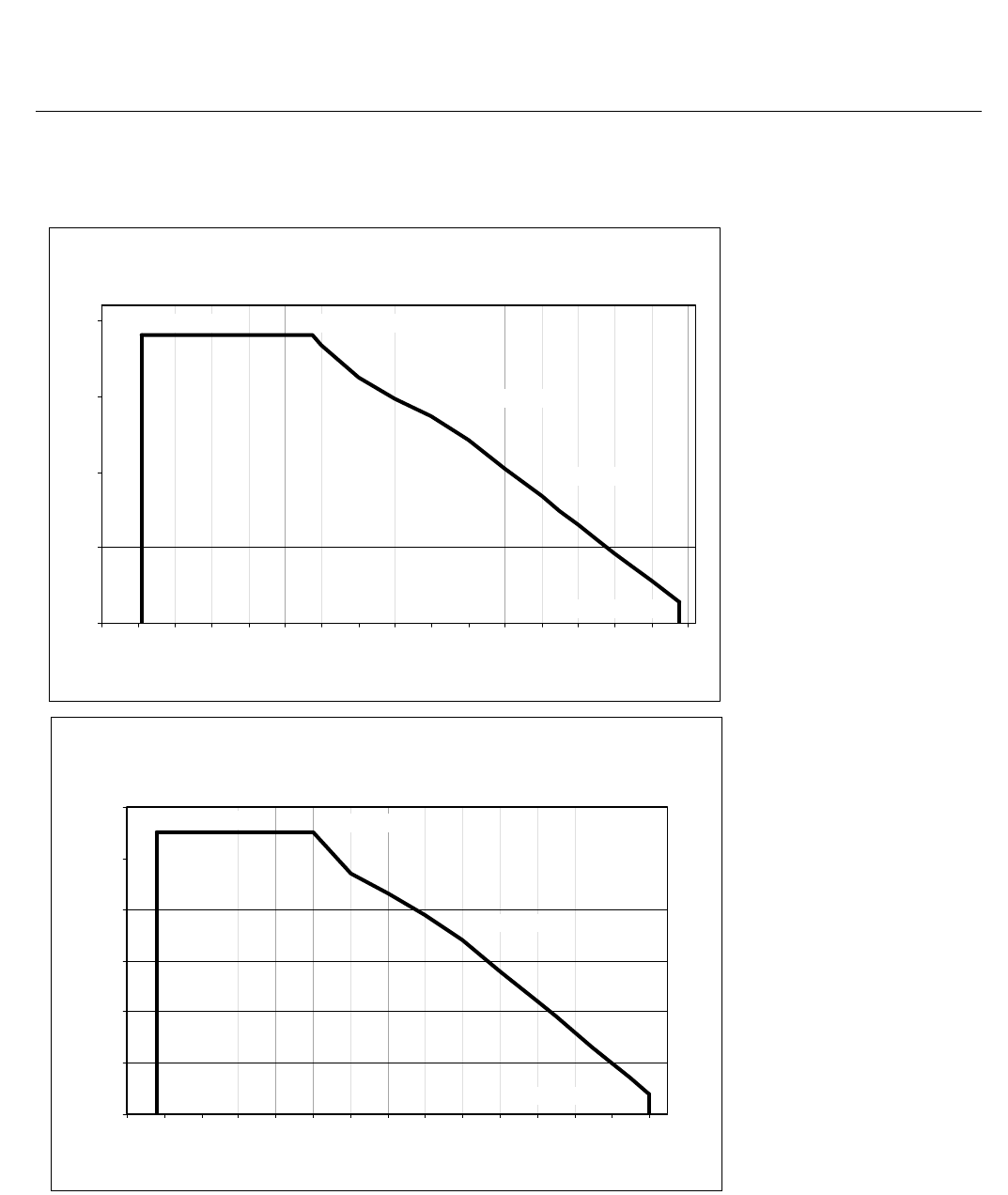

Figure 13. Valve Body Pressure / Temperature Ratings ASME CL150 Valves (Source: ASME B16.34)

E1426

ASME B16.34 A351 CF8M

Class 150

20 psi @ 1000°F

170 psi @ 500°F

275 psi @ -320°F 275 psi @ 100°F

0

50

100

150

200

250

300

-400 -300 -200 -100 0 100 200 300 400 500 600 700 800 900 1000

Operating Temperature (°F)

Valve Body Pressure (psig

)

ASME B16.34 A351 CF8M

Class 150

1.4 bar @ 538°C

19 bar @ 38°C19 bar @ -195°C

13.7 bar @ 200°C

8.4 bar @ 350°C

0

5

10

15

20

-250 -200 -150 -100 -50 0 50 100 150 200 250 300 350 400 450 500 550

Operating Temperature (°C)

Valve Body Pressure (barg)

24000S Valve

D103331X012

Product Bulletin

52.1:24SS

March 2013

11

Figure 14. Valve Body Pressure / Temperature Ratings ASME CL300 Valves (Source: ASME B16.34)

(Does not apply to 24000S NPS 3 valves)

ASME B16.34 A351 CF8M

Class 300

30.3 bar @ 350°C

35.7 bar @ 200°C

49.6 bar @ -195°C 49.6 bar @ 38°C

25.2 bar @ 538°C

0

10

20

30

40

50

60

-250 -200 -150 -100 -50 0 50 100 150 200 250 300 350 400 450 500 550

Operating Temperature (°C)

Valve Body Pressure (barg)

E1427

ASME B16.34 A351 CF8M

Class 300

365 psi @ 1000°F

435 psi @ 700°F

560 psi @ 300°F

720 psi @ 100°F

720 psi @ -320°F

0

100

200

300

400

500

600

700

800

-400 -300 -200 -100 0 100 200 300 400 500 600 700 800 900 1000

Operating Temperature (°F)

Valve Body Pressure (psig)

24000S Valve

D103331X012

Product Bulletin

52.1:24SS

March 2013

12

Table13.AllowablePressureDrops(bar)

(1)

ORIFICE

DIA.

(mm)

PLUG

TRAVEL

(mm)

ACT

TYPE

AIR-TO-OPEN ACTION AIR-TO-CLOSE ACTION

BENCH

RANGE

(barg)

0.2-1.0 barg SIGNAL

TO ACTUATOR

WITH POSITIONER

1.38 barg AIR

SUPPLY BENCH

RANGE

(barg)

0.2-1.0 barg SIGNAL

TO ACTUATOR

WITH POSITIONER

1.38 barg AIR

SUPPLY

Max CL

IV

Shutoff

Press.

Max CL

VI

Shutoff

Press.

Max CL

IV

Shutoff

Press.

Max CL

VI

Shutoff

Press.

Max CL

IV

Shutoff

Press.

Max CL

VI

Shutoff

Press.

Max CL

IV

Shutoff

Press.

Max CL

VI

Shutoff

Press.

6.3 12.7 32 0.3-1.0 49.6 --- 49.6 --- 0.2-0.9 49.6 --- 49.6 ---

7.9 12.7 32 0.3-1.0 --- 28.8 --- 49.6 0.2-0.9 --- 28.8 --- 49.6

9.5 12.7 32 0.3-1.0 31.2 19.2 49.6 49.6 0.2-0.9 31.2 19.2 49.6 49.6

20.6 12.7

32 0.3-1.0 7.79 1.31 15.6 9.10 0.2-0.9 7.79 1.31 27.3 20.8

32 0.5-1.0 15.6 9.10 23.4 16.9 0.2-0.7 19.5 13.0 39.0 32.5

54 0.3-1.0 5.93 --- 17.7 11.2 0.2-0.9 11.8 5.30 41.4 34.8

54 0.5-1.0 23.6 17.0 35.4 28.9 0.2-0.7 29.5 23.0 49.6 49.6

54 0.6-1.0 35.4 28.9 47.2 40.7 --- --- --- --- ---

27.0 12.7

32 0.3-1.0 4.19 --- 9.45 4.27 0.2-0.9 4.69 --- 16.5 11.4

32 0.5-1.0 9.45 4.27 14.1 8.96 0.2-0.7 11.8 6.62 23.6 18.4

54 0.3-1.0 3.59 --- 10.7 12.5 0.2-0.9 7.17 2.0 25.0 19.9

54 0.5-1.0 14.3 9.10 21.4 16.3 0.2-0.7 17.9 12.7 35.7 30.5

54 0.6-1.0 21.4 16.3 28.5 23.4 --- --- --- --- ---

31.8 19.1

32 0.3-1.0 3.45 --- 6.96 2.48 0.2-0.9 3.45 --- 12.1 7.65

32 --- --- --- --- --- 0.2-0.7 8.69 4.20 17.3 12.9

54 0.3-1.0 5.24 --- 10.5 6.07 0.2-0.9 5.24 --- 18.3 13.9

54 0.5-0.9 10.9 6.07 15.7 11.3 0.2-0.7 13.1 8.69 26.3 21.8

54 0.7-1.0 18.3 13.9 23.6 19.2 --- --- --- --- ---

70 0.7-1.0 24.9 20.5 32.1 27.6 --- --- --- --- ---

38.1 19.1

32 0.3-1.0 2.14 --- 4.89 1.10 0.2-0.9 2.41 --- 8.55 4.76

32 --- --- --- --- --- 0.2-0.7 6.13 2.34 12.2 8.48

54 0.3-1.0 3.72 --- 7.38 3.65 0.2-0.9 3.72 --- 19.9 9.17

54 0.5-0.9 7.38 3.65 11.1 7.31 0.2-0.7 9.24 5.52 18.5 14.8

54 0.7-1.0 12.9 9.17 16.7 12.9 --- --- --- --- ---

70 0.7-1.0 17.7 13.9 22.7 18.9 --- --- --- --- ---

70 0.8-1.2 --- --- 27.7 23.9 --- --- --- --- ---

50.8 19.1

32 0.3-1.0 1.38 --- 2.83 --- 0.2-0.9 1.38 --- 4.89 2.0

32 --- --- --- --- --- 0.2-0.7 3.52 --- 7.03 4.14

54 0.3-1.0 2.14 --- 4.27 1.38 0.2-0.9 2.14 --- 7.44 4.55

54 0.5-0.9 4.27 1.38 6.34 3.52 0.2-0.7 5.31 2.41 10.6 7.72

54 0.7-1.0 7.45 4.55 9.58 6.69 --- --- --- --- ---

70 0.7-1.0 10.1 7.24 13.0 8.07 --- --- --- --- ---

70 0.8-1.2 --- --- 15.9 13.0 --- --- --- --- ---

1. Do not exceed valve body temperature pressure ratings.

24000S Valve

D103331X012

Product Bulletin

52.1:24SS

March 2013

13

Table14.AllowablePressureDrops(psi)

(1)

ORIFICE

DIA. (in)

PLUG

TRAVEL

(in)

ACT

TYPE

AIR-TO-OPEN ACTION AIR-TO-CLOSE ACTION

BENCH

RANGE

(psig)

3-15 psig SIGNAL TO

ACTUATOR

WITH POSITIONER

20 psig AIR SUPPLY BENCH

RANGE

(psig)

3-15 psig SIGNAL TO

ACTUATOR

WITH POSITIONER

20 psig AIR SUPPLY

Max CL

IV

Shutoff

Press.

Max CL

VI

Shutoff

Press.

Max CL

IV

Shutoff

Press.

Max CL

VI

Shutoff

Press.

Max CL

IV

Shutoff

Press.

Max CL

VI

Shutoff

Press.

Max CL

IV

Shutoff

Press.

Max CL

VI

Shutoff

Press.

0.25 0.50 32 5-15 720 --- 720 --- 3-13 720 --- 720 ---

0.3125 0.50 32 5-15 --- 418 --- 720 3-13 --- 418 --- 720

0.375 0.50 32 5-15 452 278 720 720 3-13 452 278 720 720

0.8125 0.50

32 5-15 113 19 226 132 3-13 113 10 396 301

32 7-15 226 132 339 245 3-10 283 188 565 471

54 4-15 86 --- 257 162 3-13 171 77 600 505

54 7-15 343 248 514 419 3-10 428 334 720 720

54 9-15 514 419 685 591 --- --- --- --- ---

1.0625 0.50

32 5-15 68 --- 137 62 3-13 68 --- 239 165

32 7-15 137 62 205 130 3-10 171 96 342 267

54 4-15 52 --- 155 81 3-13 104 29 363 288

54 7-15 207 132 311 236 3-10 259 184 518 443

54 9-15 311 236 414 340 --- --- --- --- ---

1.25 0.75

32 5-15 50 --- 101 36 3-13 50 --- 176 111

32 --- --- --- --- --- 3-10 126 61 251 187

54 5-15 76 --- 152 88 3-13 76 --- 266 202

54 7-13 152 88 228 164 3-10 190 126 381 316

54 10-14 266 202 343 278 --- --- --- --- ---

70 10-15 362 297 466 401 --- --- --- --- ---

1.5 0.75

32 5-15 35 --- 71 16 3-13 35 --- 124 69

32 --- --- --- --- --- 3-10 89 34 177 123

54 5-15 54 --- 107 53 3-13 54 --- 188 133

54 7-13 107 53 161 106 3-10 134 80 269 214

54 10-14 188 133 242 187 --- --- --- --- ---

70 10-15 256 201 329 274 --- --- --- --- ---

70 12-18 --- --- 402 347 --- --- --- --- ---

2.0 0.75

32 5-15 20 --- 41 --- 3-13 20 --- 71 29

32 --- --- --- --- --- 3-10 51 --- 102 60

54 5-15 31 --- 62 20 3-13 31 --- 108 66

54 7-13 62 20 92 51 3-10 77 35 154 112

54 10-14 108 66 139 97 --- --- --- --- ---

70 10-15 147 105 189 147 --- --- --- --- ---

70 12-18 --- --- 230 189 --- --- --- --- ---

1. Do not exceed valve body temperature pressure ratings.

24000S Valve

D103331X012

Product Bulletin

52.1:24SS

March 2013

14

Table15.ValveDimensions

VALVE SIZE ASME

CLASS

A B

NPT Wafer Standard Extension Bonnet NOLEEK Bellows

Single Double

DN NPS mm Inch mm Inch mm Inch mm Inch mm Inch mm Inch

15 1/2 300 7.9 3.1 N/A N/A 78.7 3.1 213.4 8.4 351 13.8 227.8 8.97

25 1300 102 4.0 102 4.0 78.7 3.1 215.9 8.5 351 13.8 227.8 8.97

40 1-1/2 300 114 4.5 114 4.5 88.9 3.5 226 8.9 363 14.3 235.7 9.28

50 2300 124 4.9 124 4.9 83.8 3.3 221 8.7 356 14 234.4 9.23

80 3150 N/A N/A 165 6.5 96.5 3.8 234 9.2 371 14.6 235.7 9.28

Table 16. Valve Assembly Weights

VALVE SIZE WEIGHT

DN NPS kg lb

15 1/2 2.3 5

25 12.7 6

40 1-1/2 4.1 9

50 25.0 11

80 39.1 20

Table 17. Actuator Weights

ACTUATOR TYPE WEIGHTS

kg lb

32 4.5 10

54 11.3 25

70 15.4 34

MV1020(1) 10 22

VA1020(1) 14 30

NV24-MFT (non spring return)(1) 1.5 3.3

NVF24-MFT or NVF24-MFT-E

(spring return)(1) 1.8 4

1. Electric actuators, reference Baumann bulletin 52.1:NVACT, D103326X012.

Table 18. Baumann 24000S Wafer Style(1)

Valve Size DN 15 / NPS 1/2 DN 25 / NPS 1 DN 40 / NPS 1-1/2 DN 50 / NPS 2 DN 80 / NPS 3

ASME Flange None CL150 CL150 CL150 CL150

DN Flange None PN 16 PN 16 PN 16 PN 16

NPT Yes Yes Yes Yes None

1. The Baumann 24000S valve is available as NPT and wafer style (fits between RF line flanges). Not all sizes are available as wafer. This table outlines available constructions.

24000S Valve

D103331X012

Product Bulletin

52.1:24SS

March 2013

15

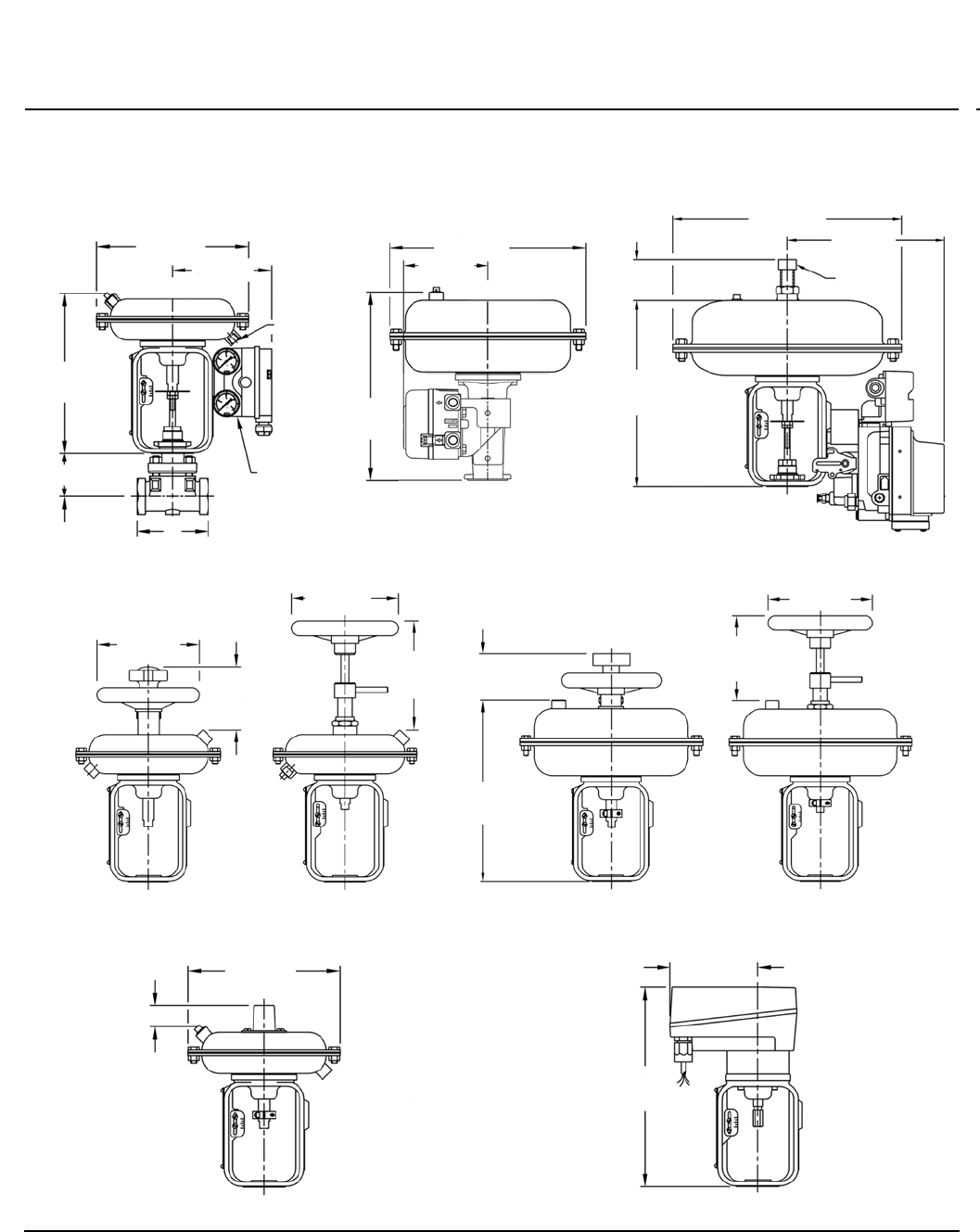

Figure 15. Dimensional Drawings

Note: Actuator removal requires 115 mm (4.5 inches) vertical clearance.

Note: Electric actuators are available. Contact your Emerson Process Management sales office for details.

216

(48.5)

279

(411.0)

333

(413.1)

141

(5.5)

127 (5.0)

276

(10.9)

60

(2.4)

271

(10.7)

229

(9.0)

276

(10.9)

E1277

229

(9.0)

24000S w/ BAUMANN 32 ATO ACTUATOR

BAUMANN 54 ATO ACTUATOR w/

FIELDVUE DVC2000 DIGITAL VALVE

CONTROLLER BAUMANN 70 ATO ACTUATOR w/ FIELDVUE

DVC6000 DIGITAL VALVE CONTROLLER

BAUMANN 32 ATC/

FAIL OPEN ACTUATOR

WITH HANDWHEEL

BAUMANN 54 ATC /

FAIL OPEN ACTUATOR

WITH HANDWHEEL

160

(46.3)

31 (1.24)

163 (6.4)

MAX

BAUMANN 32 ATO/FAIL CLOSE

ACTUATOR WITH HANDWHEEL

216

(48.5)

160

(46.3)

130 (5.1)

MAX

71 (2.8)

MAX

94 (3.7)

MAX

152

(46.0)

125 (4.9)

284

(11.2)

NV ELECTRIC ACTUATOR mm

(inch)

BAUMANN 54 ATO/FAIL CLOSE

ACTUATOR WITH HANDWHEEL

BAUMANN 32 ACTUATOR WITH ADJUSTABLE

OPEN/CLOSE DUAL TRAVEL STOPS

3/4 INCH

SQUARE

1/4 NPT

3660/3661

B

A

24000S Valve

D103331X012

Product Bulletin

52.1:24SS

March 2013

16

Table 19. Pneumatic Actuators

Actuator Type

32(1)

54

70

1. Baumann 32 actuator requires dual-stops with 177 trim series.

Table 20. Electric Actuators(1)

Actuator Type Travel

MV1020 N/A

VA1020 N/A

NV(2) 50

NVF(3) 75

NVFE(4)

1. Refer to Baumann bulletin 52.1:NVACT, D103326X012.

2. NV24-MFT = Non spring return.

3. NVF24-MFT = Spring return - fail open.

4. NVF24-MFT-E - Spring return - fail closed.

Table 21. Model Numbering System

24 S

Actuator

Type(1)

Valve Body

Series Plug Series Characteristic Seat Leakage Valve Body

Material Bonnet Style

102 Linear / Metal Seat IV SNPT Omit Standard

151 Modified Equal % / PTFE Seat VI EExtension

177 Modified Equal % / Reinforced PTFE VI EB NOLEEK

577 Equal % / PTFE Seat VI

548 Equal % / Metal Seat (S41600) IV

588 Equal % / Metal Seat (S31600) IV

648 Linear / Metal Seat (S41600) IV

677 Linear / PTFE Seat VI

688 Linear / Metal Seat IV

1. Choose from tables 19 and 20.

Emerson Process Management

Marshalltown, Iowa 50158 USA

Sorocaba, 18087 Brazil

Chatham, Kent ME4 4QZ UK

Dubai, United Arab Emirates

Singapore 128461 Singapore

www.Fisher.com

The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they arenot

to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are

governed by our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such

products at any time without notice.

E2009, 2013 Fisher Controls International LLC. All rights reserved.

Baumann, Fisher, FIELDVUE, PlantWeb, and ENVIRO-SEAL are marks owned by one of the companies in the Emerson Process Management business unit of

Emerson Electric Co. Emerson Process Management, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other

marks are the property of their respective owners.

Neither Emerson, Emerson Process Management, nor any of their affiliated entities assumes responsibility for the selection, use or maintenance

of any product. Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user.
