www.Fisher.com

INMETRO Hazardous Area Approvals

for

Fisherr i2P-100 Electro-PneumaticTransducer

Instruction Manual (D103198X012)

This supplement provides INMETRO Hazardous Area Approval information for the i2P-100 electro‐pneumatic

transducer instruction manual. Use this in conjunction with information provided in the instruction manual

(D103198X012).

INMETRO—National Institute of Metrology, Quality and Technology. INMETRO approval is accepted in Brazil.

Certain nameplates may carry more than one approval, and each approval may have unique installation/wiring

requirements and/or conditions of “safe use”. These special instructions for “safe use” are in addition to, and may

override, the standard installation procedures. Refer to the instruction manual for all other information regarding

i2P-100 electro‐pneumatic transducers.

Note

This information supplements the nameplate markings affixed to the product.

Always refer to the nameplate itself to identify the appropriate certification.

WARNING

Failure to follow these conditions of “safe use” could result in personal injury or property damage from fire or explosion,

and area re‐classification.

Certificate Number: 10IEx0006X

Standards Used for Certification: ABNT NBR IEC 60079-0:2013; ABNT NBR IEC 60079-1:2009;

ABNT NBR IEC 60079-11:2013

Conditions of Safe Use (X):

 For applications of intrinsically safe version in Zone 0 (EPL Ga), considering that the equipment enclosure is

aluminum, precautions must be taken to prevent ignitions caused by impact or friction.

Refer to table 1 for additional approval information and figure 1 for a typical INMETRO approval nameplate.

Instruction Manual Supplement

D103633X012

i2P-100 Transducers

December 2014

Instruction Manual Supplement

D103633X012

i2P-100 Transducers

December 2014

2

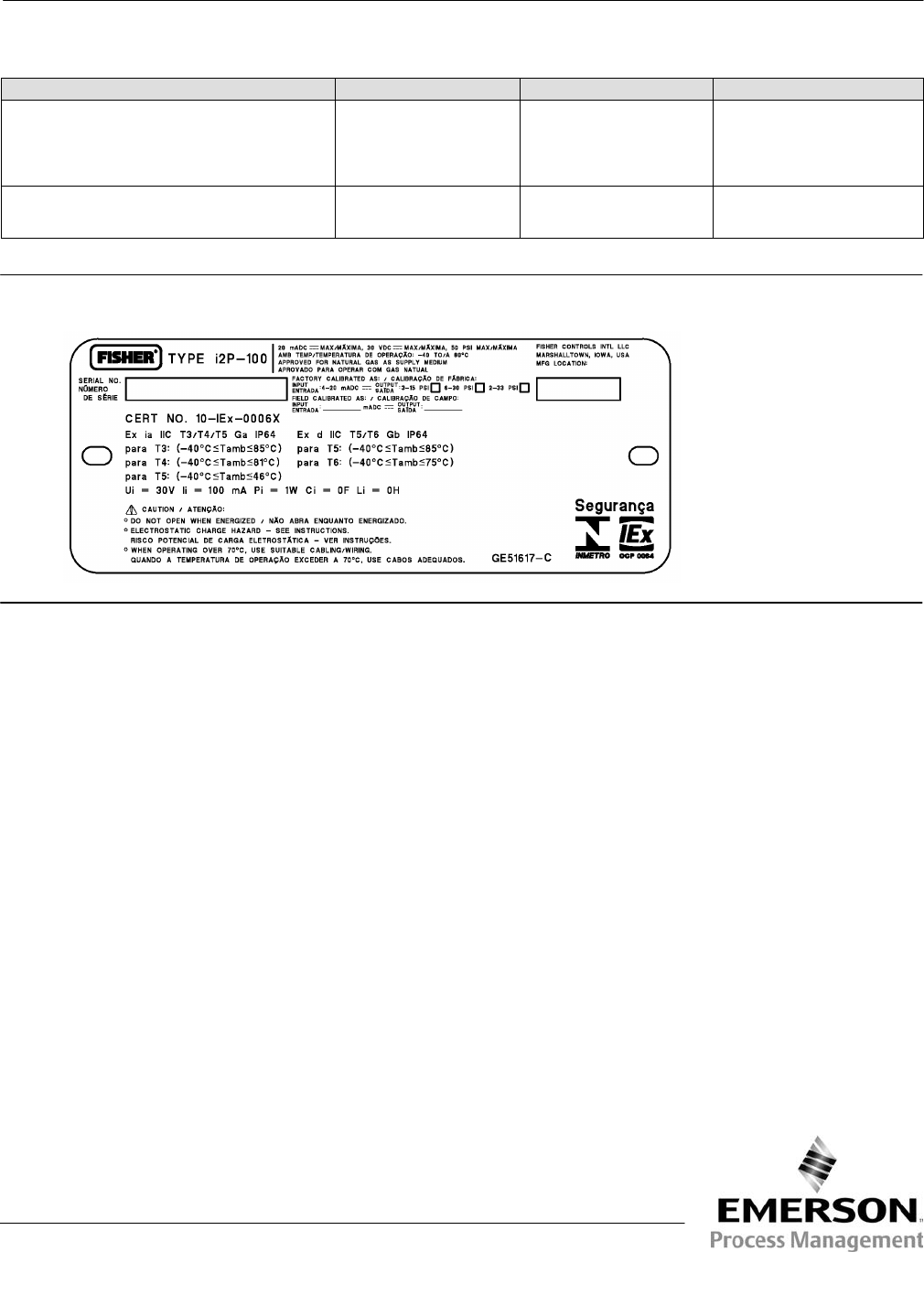

Table 1. Hazardous Area Classifications

Certification Obtained Entity Rating Temperature Code Enclosure Rating

Intrinsically Safe

Gas

Ex ia IIC T3/T4/T5 Ga

Ui ≤ 30 VDC

Ii ≤ 100 mA

Pi ≤ 1.0 W

Ci = 0 uF

Li = 0 uH

T3 (Tamb ≤ 85°C)

T4 (Tamb ≤ 81°C)

T5 (Tamb ≤ 46°C)

IP64

Flameproof

Gas

Ex d IIC T5/T6 Gb

- - - T5 (Tamb ≤ 85°C)

T6 (Tamb ≤ 75°C) IP64

Figure 1. Typical INMETRO Approval Nameplate

Emerson Process Management

Marshalltown, Iowa 50158 USA

Sorocaba, 18087 Brazil

Chatham, Kent ME4 4QZ UK

Dubai, United Arab Emirates

Singapore 128461 Singapore

www.Fisher.com
