ValveLinkt Software

ValveLinkt Solo

AMS ValveLinkt SNAP‐ONt

ValveLinkt DTM

ValveLinkt PLUG‐IN for PRMr

H Communicate with both HARTr and

FOUNDATIONt fieldbus FIELDVUEt digital valve

controllers

H Configure, calibrate, and diagnose FIELDVUE

instruments from one location

H Use the Performance Tuner to easily optimize

tuning

H Performance Diagnostics provide in‐service

diagnostics for monitoring the health of the

valve assembly without disturbing the process

H Diagnostics provide validation of assembly

rebuild and detailed insight into the physical

condition of the valve/actuator assembly

H Setup and test FIELDVUE instruments for Safety

Instrumented System (SIS) Solutions

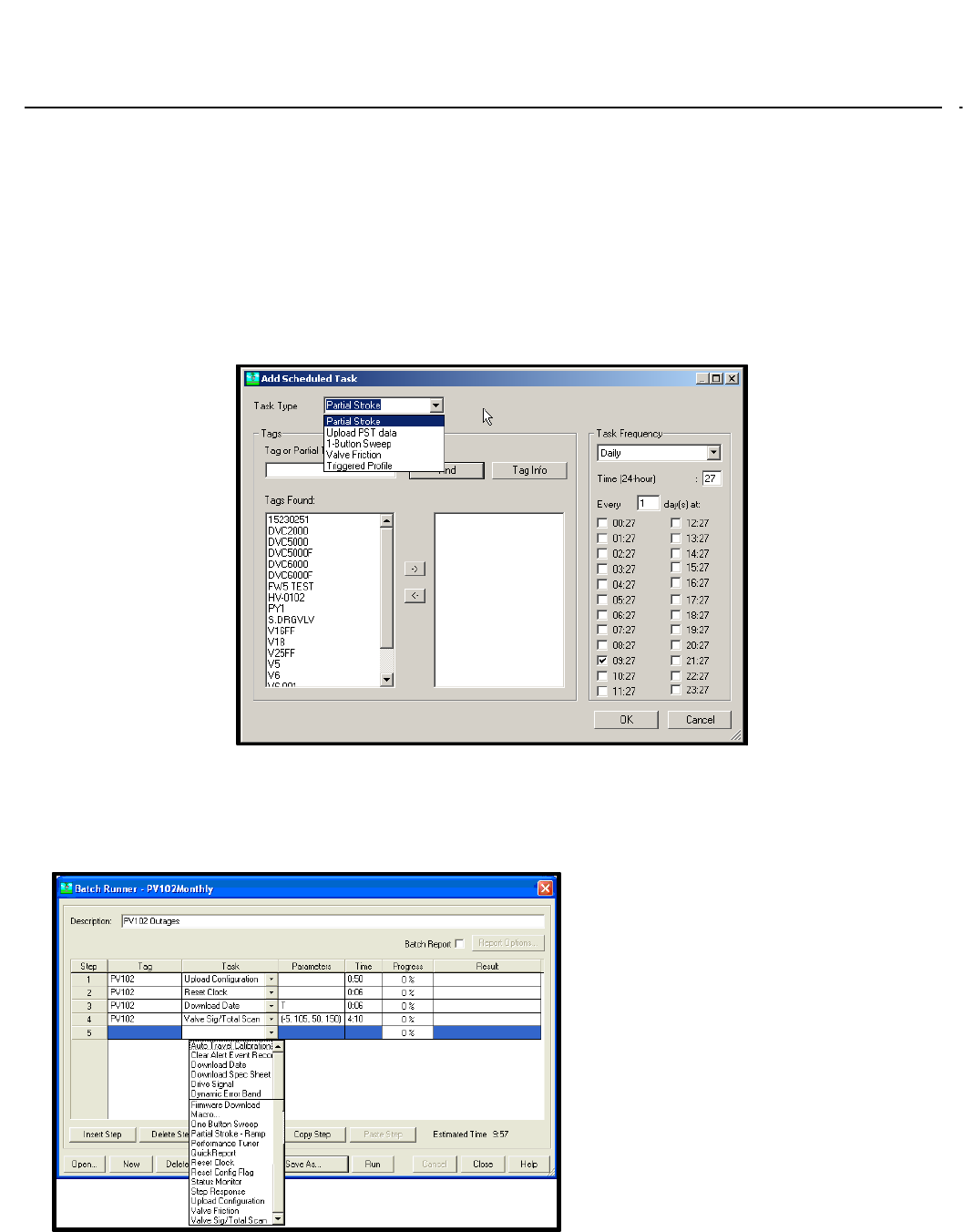

H Scheduler allows you to specify a time and date

to automatically run tasks on a regular basis

H Save time by preconfiguring calibration and

diagnostics in the shop with Batch Runner

ValveLink Software

D102227X012

Product Bulletin

62.1:ValveLink Software

October 2012

ValveLink Software

D102227X012

Product Bulletin

62.1:ValveLink Software

October 2012

2

ValveLink Software Product Suite

ValveLink software is available in a variety of configurations to allow you to realize the full benefit of FIELDVUE digital

valve controllers.

ValveLink Solo

ValveLink Solo permits users to perform configuration, calibration, and

diagnostics on HART and FOUNDATION Fieldbus FIELDVUE digital valve controllers.

Integrate ValveLink software into AMS Suite: Intelligent Device Manager

AMS ValveLink SNAP‐ON provides integration with AMS Suite: Intelligent Device

Manager to perform configuration, calibration, and diagnostics. Integration with

AMS Device Manager provides the ability to communicate with FIELDVUE digital

valve controllers via DeltaVt, Ovationt, PROVOXt, HART multiplexers, and

HART modems. Non‐Emerson host integration, including Invensys and Honeywell

(HART only) systems, can be provided through HSI (Host System Integration).

Integrate ValveLink DTM into Field Device Tool - FDT

ValveLink DTM provides integration into a Field Device Tool frame application to

perform configuration, calibration, and diagnostics on FIELDVUE digital valve

controllers. The ValveLink DTM is certified with the FDT group.

Integrate AMS ValveLink Software into the Yokogawa Plant Resource

Manager (PRM)

ValveLink PLUG‐IN for PRM provides integration with the Yokogawa Plant

Resource Manager (PRM). This integration provides PRM users with the ability to

launch the ValveLink PLUG‐IN for PRM directly from PRM and to communicate

with HART and FOUNDATION fieldbus FIELDVUE digital valve controllers through

PRM and the Yokogawa CENTUM CS 3000 R3 and CENTRUM VP.

ValveLink software is a core component of the proven PlantWebt digital plant architecture. ValveLink

software powers PlantWeb through predictive and proactive control valve maintenance using

intelligent digital valve controllers to improve availability and performance.

TREND VALVE TRAVEL AND PRESSURE

ValveLink Software

D102227X012

Product Bulletin

62.1:ValveLink Software

October 2012

3

Communicate with both HART and FOUNDATION fieldbus

FIELDVUE digital valve controllers

ValveLink software remotely communicates with HART FIELDVUE instruments over the existing 4‐20 mA signal

wiring using the HART communication standard. The same software also can communicate with FOUNDATION

fieldbus FIELDVUE instruments over the fieldbus H1 segment. Information is presented in a consistent,

easy‐to‐interpret interface that provides the capability to configure, calibrate, and diagnose FIELDVUE

instruments from one location:

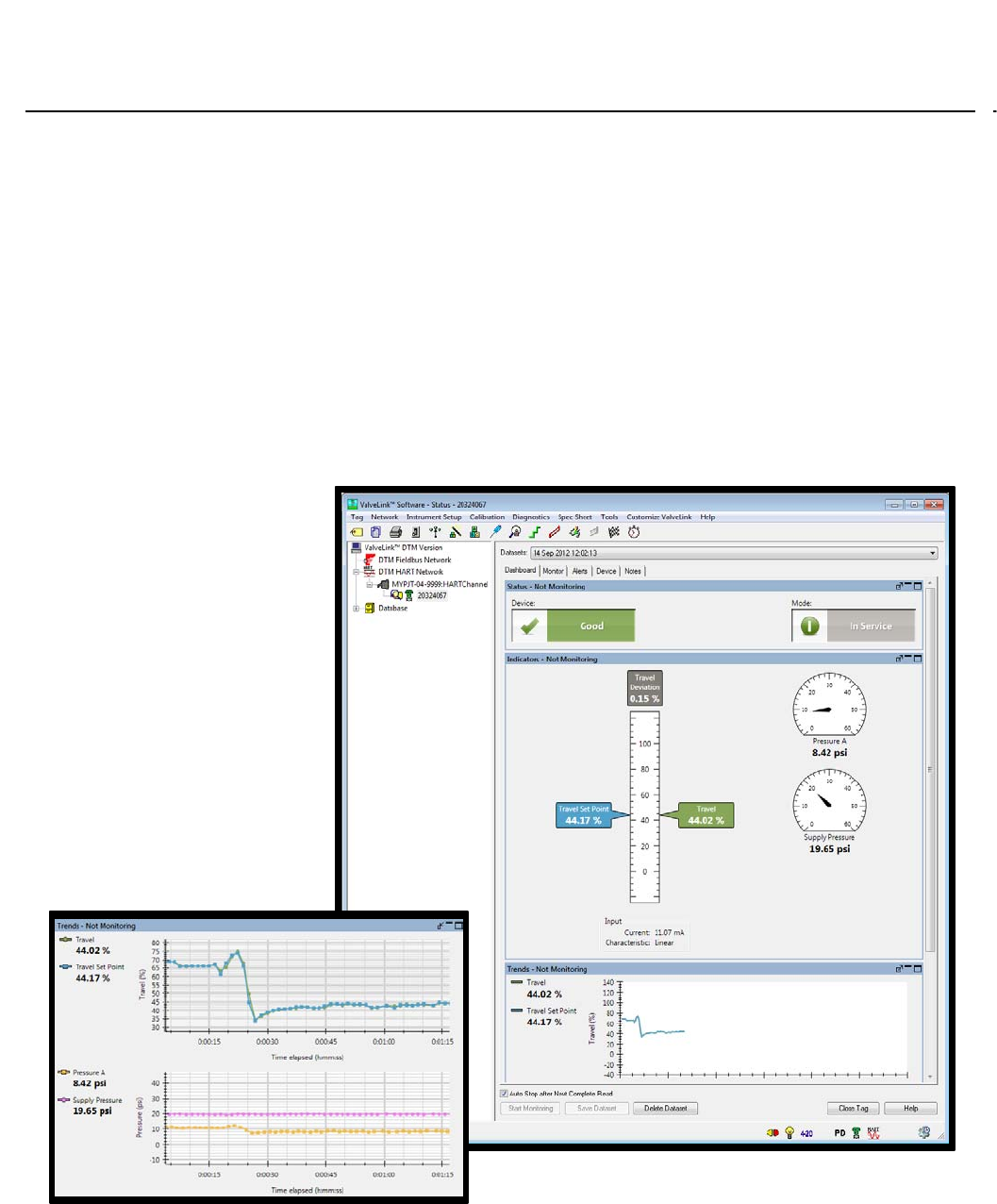

H Dashboard of critical instrument information

H A device connection view of all connected instruments

H Monitoring of instrument operational

parameters and alerts

H Review and comparison of

diagnostic graphs

H Instrument setup and

calibration

H Data import and export

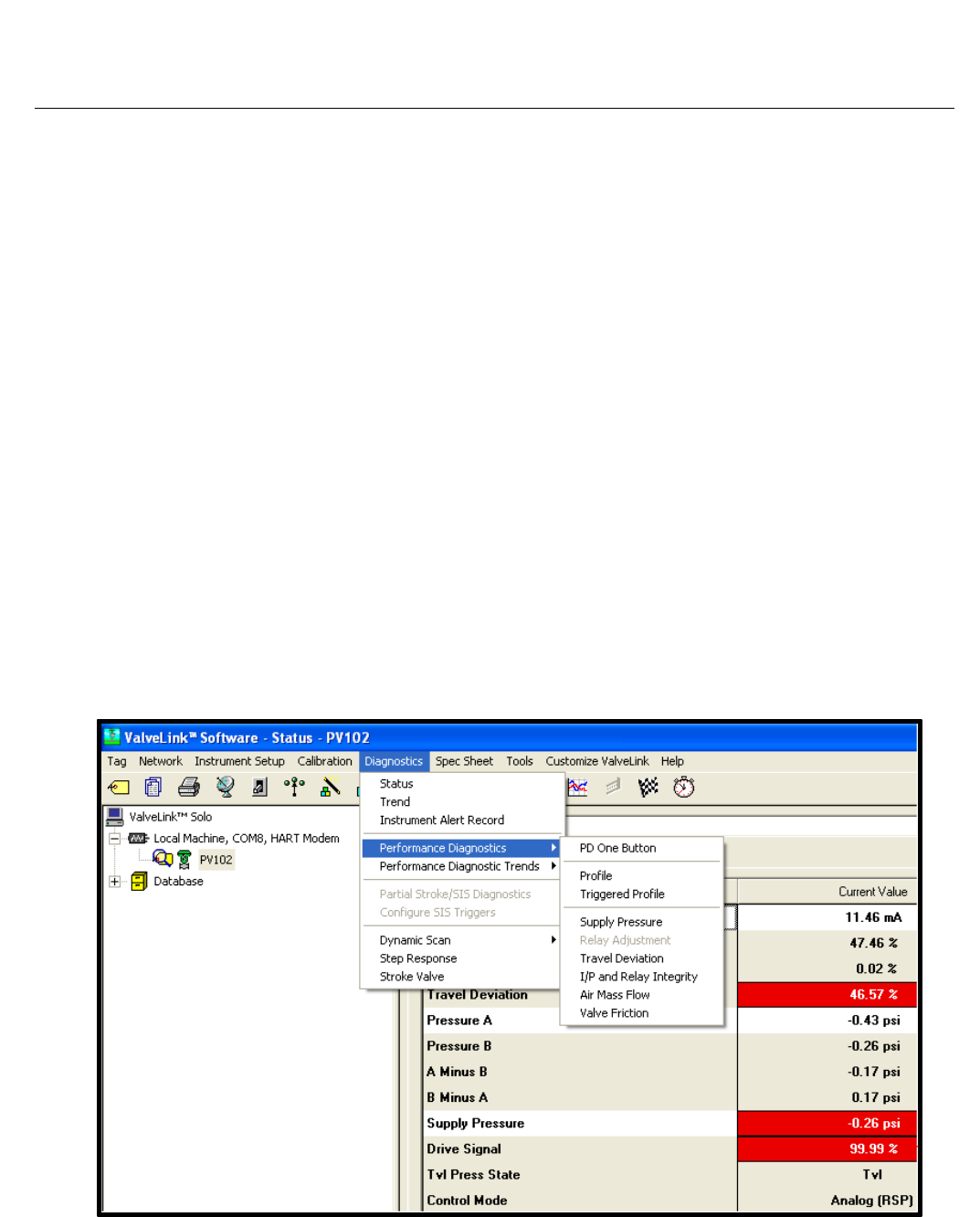

Performance Diagnostics tests are available upon user request or a pre‐selected daily, weekly,

monthly, or yearly schedule without user intervention

ValveLink Software

D102227X012

Product Bulletin

62.1:ValveLink Software

October 2012

4

Use the Performance Tuner to easily optimize tuning

The Performance Tuner lets you easily adjust a FIELDVUE digital valve controller for optimum performance. When

mounting a FIELDVUE digital valve controller, to either a Fisher or a non‐Fisher valve, the Performance Tuner can

optimize valve performance for you.

Performance Diagnostics provide in‐service diagnostics for

monitoring the health of the valve assembly without

disturbing the process

Performance Diagnostics (PD) provides predictive in‐service diagnostics for monitoring the health of the valve

assembly and customized diagnostics for advanced troubleshooting. Performance Diagnostics continuously analyze

the valve assembly and passively gather data without disturbing or interrupting the control valve while it is in the

process.

PD may be used to help detect problems with air leakage, valve assembly friction and deadband, instrument air

quality, loose connections, supply pressure restriction, and valve assembly calibration. When a problem is identified,

the diagnostic provides a description and severity of the problem, a probable cause, and recommended action.

In‐service diagnostics for troubleshooting allow custom diagnostics to be set up to collect data at a high‐frequency

collection rate and present the data in a graphical format.

Performance Diagnostics provide on‐line/in‐service

predictive diagnostics to identify faults and list possible

causes and recommended corrective actions for each fault

ValveLink Software

D102227X012

Product Bulletin

62.1:ValveLink Software

October 2012

5

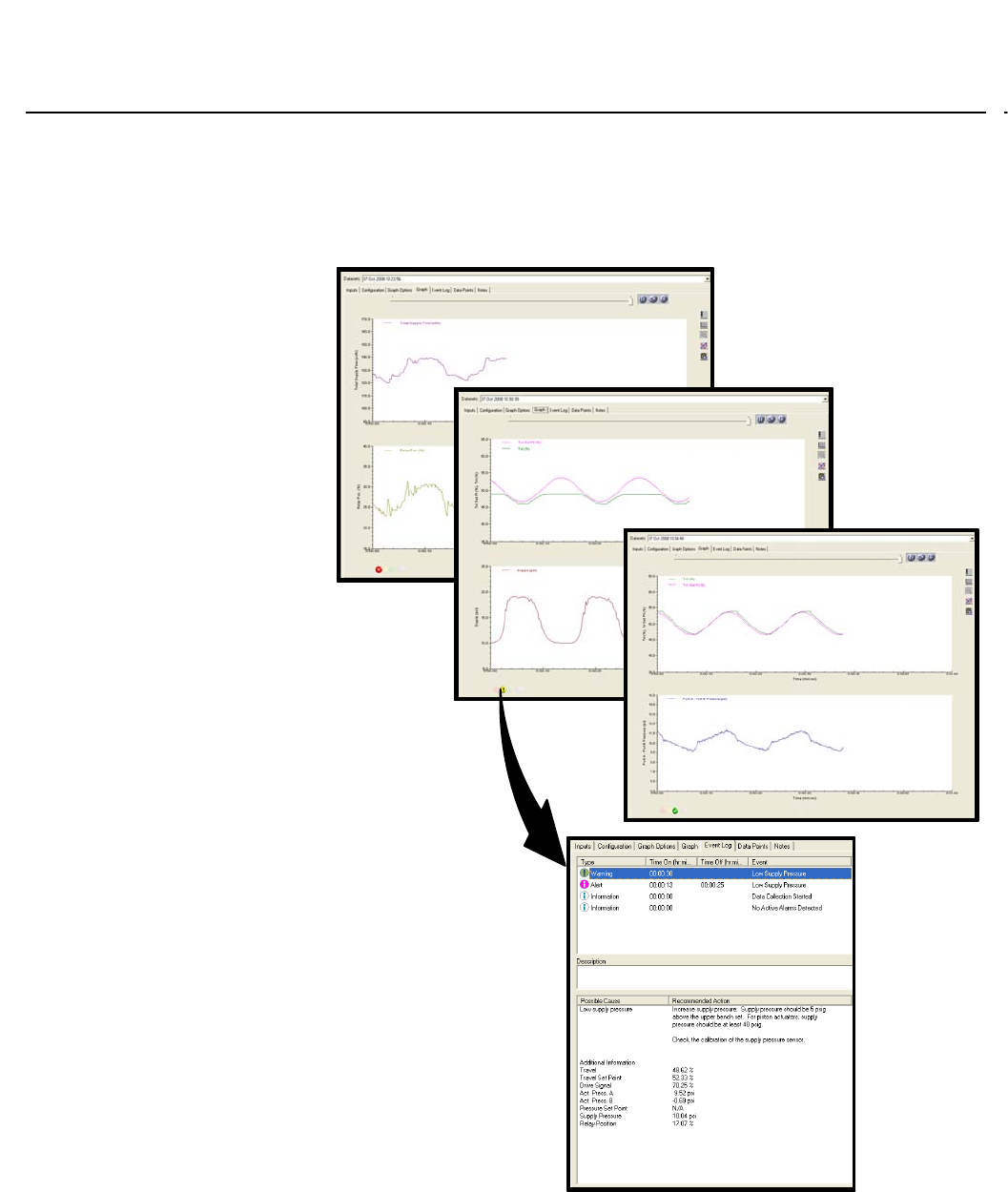

Provide Real‐Time Notification of Current and Potential

Valve and Instrument Problems using Performance

Diagnostics

Performance Diagnostics

enables the use of

diagnostics while the valve is

in‐service and operating.

Tests can be performed to

identify problems with the

entire control valve

assembly, such as:

H Red/Yellow/Green condition

indicator - provides a quick

visual indication of the

following:

G the physical condition of

the FIELDVUE instrument

I/P and relay components

G instrument air supply pressure

and volume

G relay adjustment on double acting

piston actuators

G the total air received and used by

the instrument, and

G why a valve assembly is deviating

from the set point

H PD One Button is a sweep of the above tests.

When the sweep is complete, ValveLink software

will show any errors, possible causes, and

recommended actions to resolve the error(s).

H Friction and Deadband Trending

Performance Diagnostics are available upon user

request or may be scheduled to automatically run

on a daily, weekly, or monthly basis.

Diagnostic tests, such as the Valve Signature Diagnostic

example shown here, help you detect emerging valve

repair requirements before they impact performance

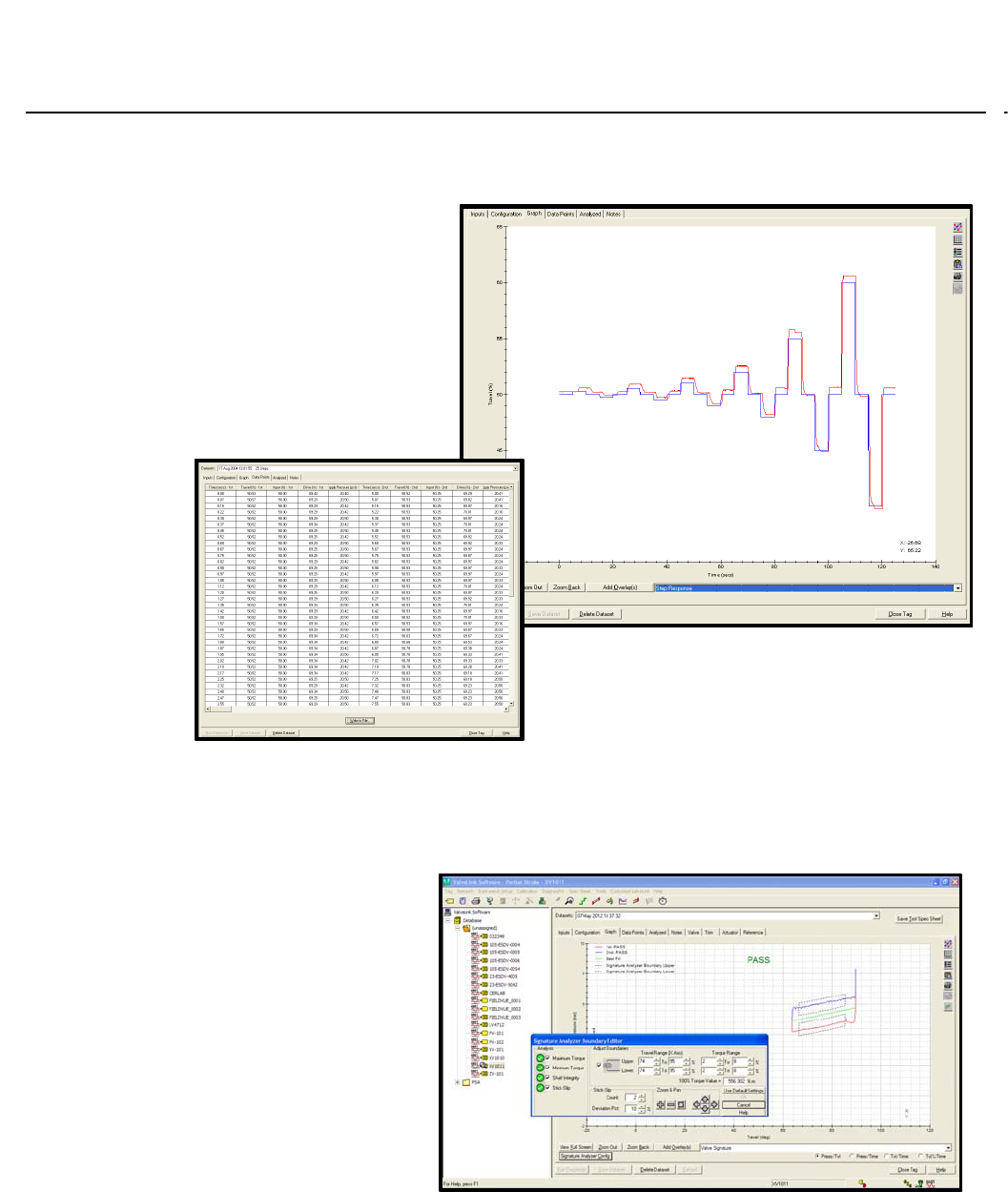

ValveLink software enables simultaneous

multiple overlay of tests (up to ten). This

allows you to trend valve history.

ORIGINAL

TEST

NEW

TEST

Zoom in to examine valve

movement and other details

Signature Analyzer Boundary Editor allows you to use

default or customized test criteria

/ RESULT

BOUNDARY RESULTS

ValveLink Software

D102227X012

Product Bulletin

62.1:ValveLink Software

October 2012

6

Provide validation of assembly rebuild and detailed insight

into the physical condition of the valve/actuator assembly

Performance Diagnostics vary the digital valve controller set point and plot valve operation to provide insight into the

dynamic performance of the valve/actuator assembly. Out‐of‐service diagnostics such as valve signature, dynamic

error band, and step response assist in the identification of emerging valve problems quickly and accurately.

Out‐of‐service diagnostics are optimally run as part of a plant shutdown.

The Valve Signature diagnostic is used to:

H Evaluate valve friction, deadband, and

shutoff capability.

H Calculate actuator spring rate and

bench set.

H Identify potential packing problems.

H Compare current condition to previous

baseline condition.

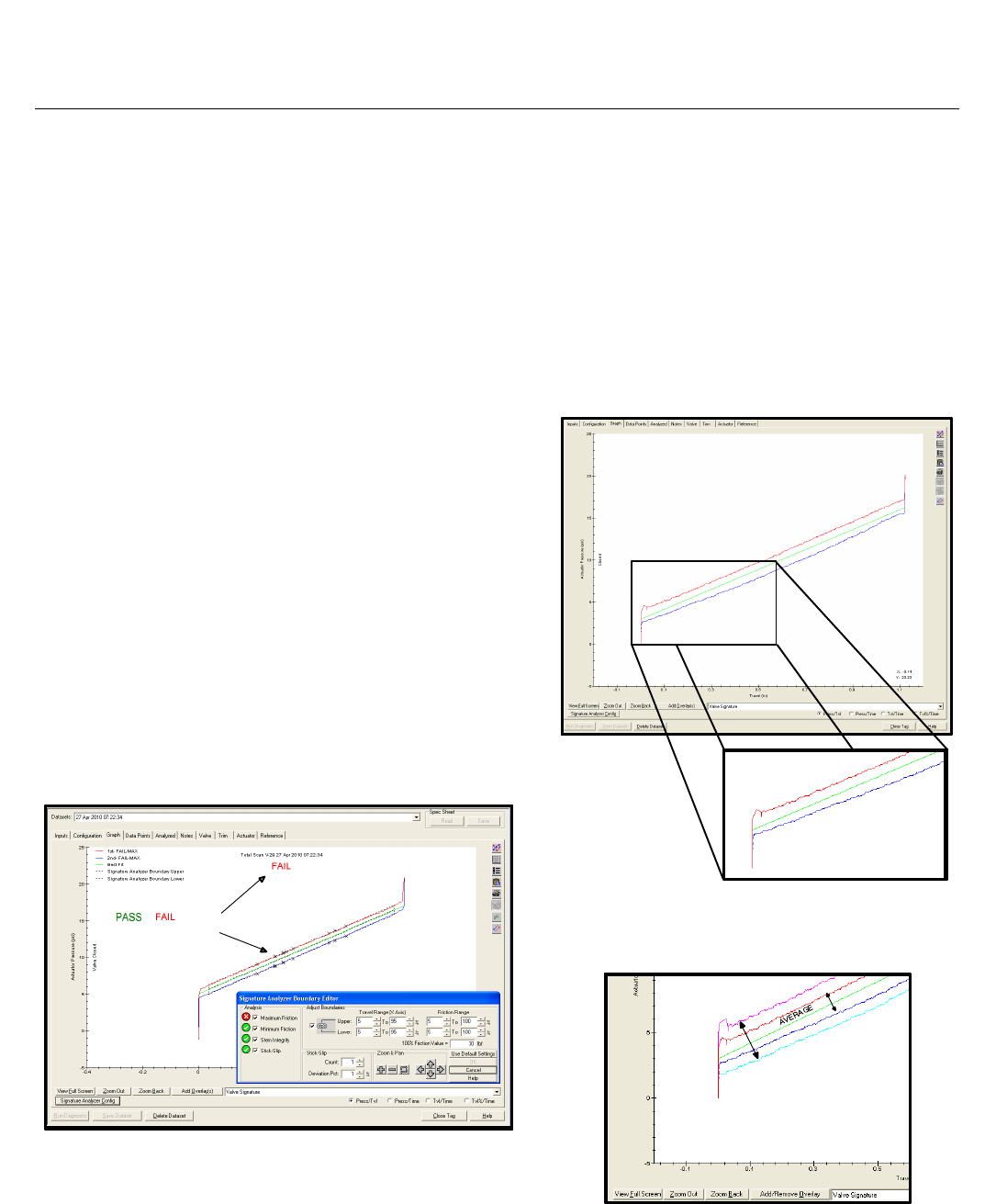

H Signature Analyzer enables rapid analysis of the Valve

Signature to more efficiently manage your plant assets. Based

on default or user defined settings, Signature Analyzer provides

pass/fail results for Maximum Friction, Minimum Friction,

Stem Integrity, and Stick Slip, enabling better documentation

for required maintenance or validation of valve repairs.

The Dynamic Error Band diagnostic is used to

analyze hysteresis, deadband, and dynamic error.

Use the step response test to verify instrument

tuning and valve response to signal changes

A performance step test provides a predefined

sequence of 25 steps. This test allows the user to

quickly evaluate valve and actuator response to

signal change and determine maximum

deadband.

At the same time the instrument performs the partial

stroke test, ValveLink software also gathers diagnostic

data. Use this data to evaluate valve performance and

determine if maintenance is required.

(Setup and test FIELDVUE instruments for Safety

Instrumented System (SIS) Solutions continued on next page)

ValveLink Software

D102227X012

Product Bulletin

62.1:ValveLink Software

October 2012

7

The Step Response diagnostic allows you to evaluate how well the valve tracks an input change. By minimizing dead

time, deadband, and overshoot, process control is greatly enhanced. With the Step Response test you can:

H Validate tuning parameters.

H Obtain a numerical analysis for overshoot,

hysteresis, dead time, t63, and t86.

H Define up to 30 steps.

Setup and test FIELDVUE instruments for Safety

Instrumented System (SIS) Solutions

Use ValveLink software to set up and test

the final control element in safety instrumented

system applications. ValveLink software for

DVC6000 SIS digital valve controllers provides:

H A Setup Wizard to set up the digital valve

controller for use in a Safety Instrumented

System. ValveLink software provides a

pneumatic hookup representation to help

ensure tubing is correctly connected.

H The capability to initiate a partial stroke test

of the final control element without requiring a

process shutdown. You can run a partial stroke

test to prove the valve will respond on demand.

Store partial stroke test results for future comparison

and study. You can also initiate the test by shorting

the AUX Terminal in the field with a push button

located at the device, or remotely from the valve.

A Trigger event, based on one of eight process

variables, documents a “Safety Demand” event

when used in a safety instrumented system

ValveLink Software

D102227X012

Product Bulletin

62.1:ValveLink Software

October 2012

8

H A Signature Analyzer to automate diagnostics results

of Valve Signature and Partial Stroke diagnostic data.

The Signature Analyzer uses a set of user configurable

limits to help determine possible issues with the valve

assembly, such as a broken shaft or stem.

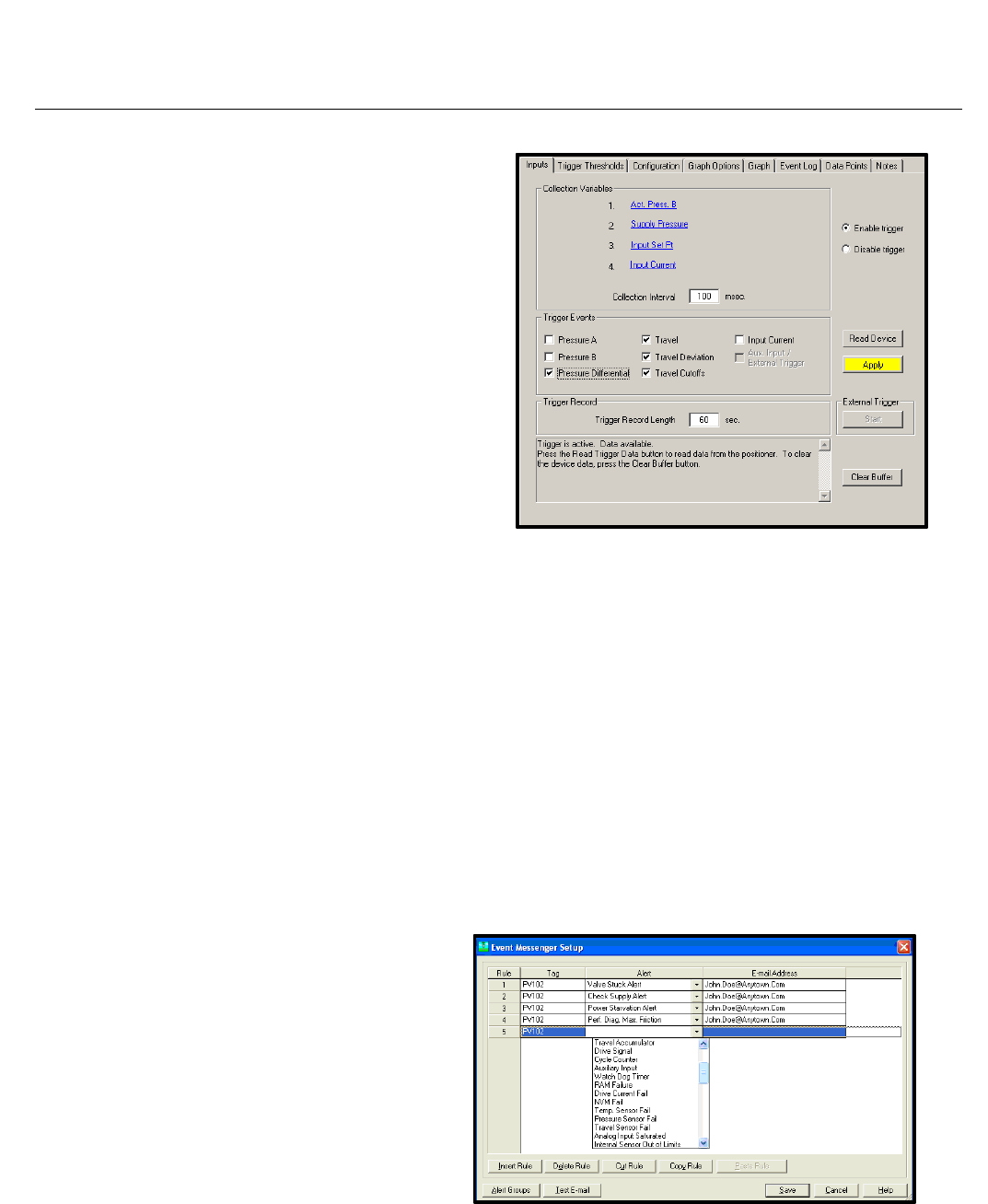

H A Trigger event that allows you to log the “Safety

Demand” event while storing pre‐event and post‐event

data. Trip event data can be accessed for an audit and

presented to regulatory or insurance authorities.

The Trigger functionality allows data to be collected and

stored in the microprocessor memory of the digital valve

controller. Trip event data can be accessed for an audit

and presented to a regulatory or insurance authority. The

trigger will initiate on‐board data collection based on a

change in actuator pressure, valve travel, input current,

pressure differential, travel deviation, or travel cutoff.

The data is stored on board the device for later retrieval,

and is retained in the event of a power loss.

Every event performed with ValveLink software is

logged with a time and date stamp to document that

tests were run and how the valve assembly responded.

H Diagnostic information to allow predictive maintenance of the final control element. No need to unnecessarily

shutdown the process to perform maintenance on the safety shutdown valve.

H The capability to monitor the health of a solenoid valve downstream of the digital valve controller. This can improve

safety reliability and provide assurance that the solenoid valve is not stuck in the open position.

H ValveLink Solo Event Messenger capability

to send notification via email, pager, or cell phone

if a specific alert, or set of alerts, occurs on

a predefined set of safety shutdown valves.

Use Batch Runner to automate diagnostic tests and other repetitive activities

With Batch Runner you can setup

ValveLink software to automatically run

diagnostic tests, calibrate, or upload

configuration data from multiple valves

with a user specified routine. During a

turnaround or production change, you

can download firmware, upload

configurations, run the Performance

Tuner to optimize tuning, or even reset

the instrument clock without any

interaction by personnel.

Batch Runner increases efficiency by

allowing you to set up a batch once, and

repeatedly run that set of actions on

different groups of valve assemblies.

ValveLink Software

D102227X012

Product Bulletin

62.1:ValveLink Software

October 2012

9

Scheduler allows you to specify a time and date to

automatically run tasks on a regular basis

With Scheduler, you can schedule tasks, such as in‐service Performance Diagnostics and SIS Partial Stroke

diagnostics to run on a recurring daily, weekly, monthly, or yearly schedule that you specify. A summary of the

outcome of scheduled tasks is available from within Scheduler and for complete details you can view the resulting

diagnostic graphs and analyses.

Save time by preconfiguring calibration and diagnostics in

the shop with Batch Runner

ValveLink Software

D102227X012

Product Bulletin

62.1:ValveLink Software

October 2012

10

Specifications

(1)

Available Configurations

See table 1

Recommended Minimum Hardware Requirements

800 MHz processor (WindowsR XP and Windows

ServerR 2003), or

1 GHz processor (Windows VistaR, Windows 7,

and Windows Server 2008)

256 MB RAM (Windows XP and Windows Server

2003, or

1 GB RAM (Windows Vista, Windows 7, and

Windows Server 2008)

Video: 1024x768, 256 color VGA

CD‐ROM drive

USB Port

Optional Hardware

HART Modem(2)

Standard RS‐232, requires a dedicated interrupt

MACTekR VIATORR USB HART Modem, requires

a USB port

MACTek VIATOR BluetoothR HART Interface,

requires Windows Bluetooth Serial Port

Profile (SPP)

ProComSol Bluetooth HART Interface, requires

Windows Bluetooth SPP

HART Multiplexer

Standard RS‐232 port, requires RS‐485 converter

Fieldbus H1 (NI)

NI PCMCIA‐FBUS Series 2

NI PCMCIA‐FBUS/2 Series 2

NI PCI‐FBUS/2

NI USB‐8486

Supported Operating Systems(3)

ValveLink Solo

Windows XP (32 bit)

Windows Vista (32 bit)

Windows 7 operating systems (32/64 bit)

Windows Server 2003 (32 bit)

Windows Server 2008 (32/64 bit)

AMS ValveLink SNAP‐ON

Operating Systems supported by AMS Suite:

Intelligent Device Manager v8.0, v9.0, v10.1,

v10.5.1, v11.0, v11.1.1, v11.5 and newer

ValveLink DTM

FDT frame applications using:

Window XP (32 bit)

Windows Vista (32 bit)

Windows 7 operating systems (32/64 bit)

Windows Server 2003 (32 bit)

Windows Server 2008 (32/64 bit)

ValveLink PLUG‐IN for PRM

Operating Systems supported by Yokogawa Plant

Resource Manager (PRM) v3.02 and newer

Modbus Interface

Modbus Protocol:

RTU or ASCII

Function codes 1, 2, 3, 4, and 8 (subfunction 0)

Slave address 1 to 255 (user selectable)

Communication Rate: 300 to 19.2 kbaud

Data Types:

Function codes 1 & 2—Alert Status

Function Codes 3 & 4—Analog Values

IEEE double precision floating point

Signed integer

Scaled integer

Electrical Connection to Control System:

RS‐232 or RS‐485

1. Specifications do not apply to AMS ValveLink SNAP‐ON.

2. ValveLink Solo 64 bit HART modem not supported.

3. ValveLink software is not supported on Windows NT, Windows 95, Windows ME, or Windows 2000.

ValveLink Software

D102227X012

Product Bulletin

62.1:ValveLink Software

October 2012

11

Table 1. ValveLink Software Capability

CAPABILITY

PRODUCT TYPE

ValveLink Solo AMS ValveLink

SNAP‐ON

ValveLink

DTM

ValveLink

PLUG‐IN

for PRM

HART Modem F F F F F(1) F(1)

HART Multiplexer F F F(1) F(1)

WirelessHARTr Communications F(1) F(1)

FOUNDATION Fieldbus PC Card F F F F

FOUNDATION USB Interface F F F F

Valve Signature(2) fFfF F F F F F

Dynamic Error Band(2) fFfF F F F F F

Drive Signal Test(2) fFfF F F F F F

Step Response(2) fFfF F F F F F

Step Response Analysis fFfF F fF F F

Performance Step Test(2) fffF F fF F F

Graph Overlay fF F F F F

Stroke Valve F F F F F F F

I/P & Relay Integrity fF F F F F F F F

Travel Deviation fF F F F F F F F

Supply Pressure(3) fF F F F F F F F

Relay Adjustment(3) fF F F F F F F F

Air Mass Flow(3) fF F F F F F F F

PD One Button fF F F F F F F F

Valve Friction / Deadband

Estimation fF F F F F F F F

Valve Friction / Deadband Trend fF F F F F F F F

Profiler fF F F F F F F F

Triggered Profile fF F F F F F F F

Status Monitor fF F F F F F F F

Network Scan(4) F F F F

Trending(4) fF F F F

Event Messenger(4) F F F F

Modbus(4) F F F F

Batch Runner F F F F F F(5) F

Scheduler F F F F F F F(5) F

DataSync F F F F F F F

Firmware Download(3) F F F F F F F F

Temporary Tiering(3) F F F F F F F F

Instrument Level StepUp F F F F F F F F

Initial Tag Limit Unlimited 5 125 125 32 or 125 25 100 Unlimited Unlimited

Max Tag Limit Unlimited 75 Unlimited Unlimited Unlimited ---(1) ---(1) Unlimited Unlimited

F Indicates capability available

f Indicates diagnostics can be reviewed but not run

1. AMS based capability. AMS ValveLink SNAP‐ON does not control or limit this functionality.

2. Diagnostic can only be run when the instrument is out of service.

3. DVC6200, DVC6200f, DVC6000, DVC6000f, and DVC2000 only.

4. HART only.

5. Limited to Host DDT Frame connected devices.

ValveLink Software

D102227X012

Product Bulletin

62.1:ValveLink Software

October 2012

12

Emerson Process Management

Marshalltown, Iowa 50158 USA

Sorocaba, 18087 Brazil

Chatham, Kent ME4 4QZ UK

Dubai, United Arab Emirates

Singapore 128461 Singapore

www.Fisher.com

The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not

to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are

governed by our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such

products at any time without notice.

E 1995, 2012 Fisher Controls International LLC. All rights reserved.

Fisher, FIELDVUE, ValveLink, SNAP-ON, DeltaV, Ovation, PROVOX, and PlantWeb are marks owned by one of the companies in the Emerson Process

Management business unit of Emerson Electric Co. Emerson Process Management, Emerson, and the Emerson logo are trademarks and service marks of

Emerson Electric Co. HART and WirelessHART are marks owned by the HART Communication Foundation. FOUNDATION is a mark owned by the Fieldbus

Foundation. Windows, Windows Server, and Windows Vista are registered trademarks of Microsoft Corporation in the United States and other countries. All

other marks are the property of their respective owners.

Neither Emerson, Emerson Process Management, nor any of their affiliated entities assumes responsibility for the selection, use or maintenance

of any product. Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user.
