50” LCD TV LC501EM3

39” LCD TV LC391EM3

EN Owner's Manual

ES Manual del Propietario

FR Manuel du Propriétaire

EMERSON AND THE G-CLEF LOGO ARE REGISTERED TRADEMARKS

OF EMERSON RADIO CORP., MOONACHIE, NEW JERSEY, U.S.A.

EN Need help?

Please call toll free or visit our web site below

ES ¿Necesita ayuda?

Llame por favor sin costo ó visite nuestro sitio web en

FR Besoin d’aide?

Appelez notre numéro gratuit ou visitez notre site web à l’adresse





1 866 309 8819



www.emersonaudiovideo.com

English

Contents

1 Notice 5

2 Important 6

Positioning the TV 6

Regulatory notices 6

Environmental care 6

3 Get started 7

Features 7

Supplied accessories 7

Symbols used in this Owner’s Manual 7

Stand assembly 8

Attaching the base 8

Mounting the unit on your furniture 8

Managing cables 9

Installing the remote control batteries 9

Remote control 10

Control panel 11

Terminals 11

Connecting the antenna or the cable 12

Plugging in the AC power cord 12

Initial setup 13

4 Use your TV 14

Switching on your TV and putting it in standby mode 14

Adjusting volume 14

Switching channels 14

Watching channels from an external device 15

Using auto mode 15

Sleep timer 15

Freeze mode 15

Switching audio mode 16

Changing picture format 16

TV screen information 17

5 Use more of your TV 18

Displaying the main menu 18

Picture 19

Sound 20

Setup 20

Autoprogram 20

Channel list 21

Add channels 21

Antenna conrmation 21

Features 22

Caption settings 22

Child and ratings lock 23

PC settings 25

fun-Link (HDMI CEC) 26

Setting your location to home 27

E-sticker 27

Language 27

USB 28

6 Upgrade your TV software 29

Checking your current software version 29

Upgrading the software 29

7 Connecting devices 30

Selecting your connection quality 30

Connecting your devices 30

8 Useful tips 33

FAQ 33

Troubleshooting 33

9 Information 35

Glossary 35

Maintenance 35

10 Specications 36

11 Warranty 37

English

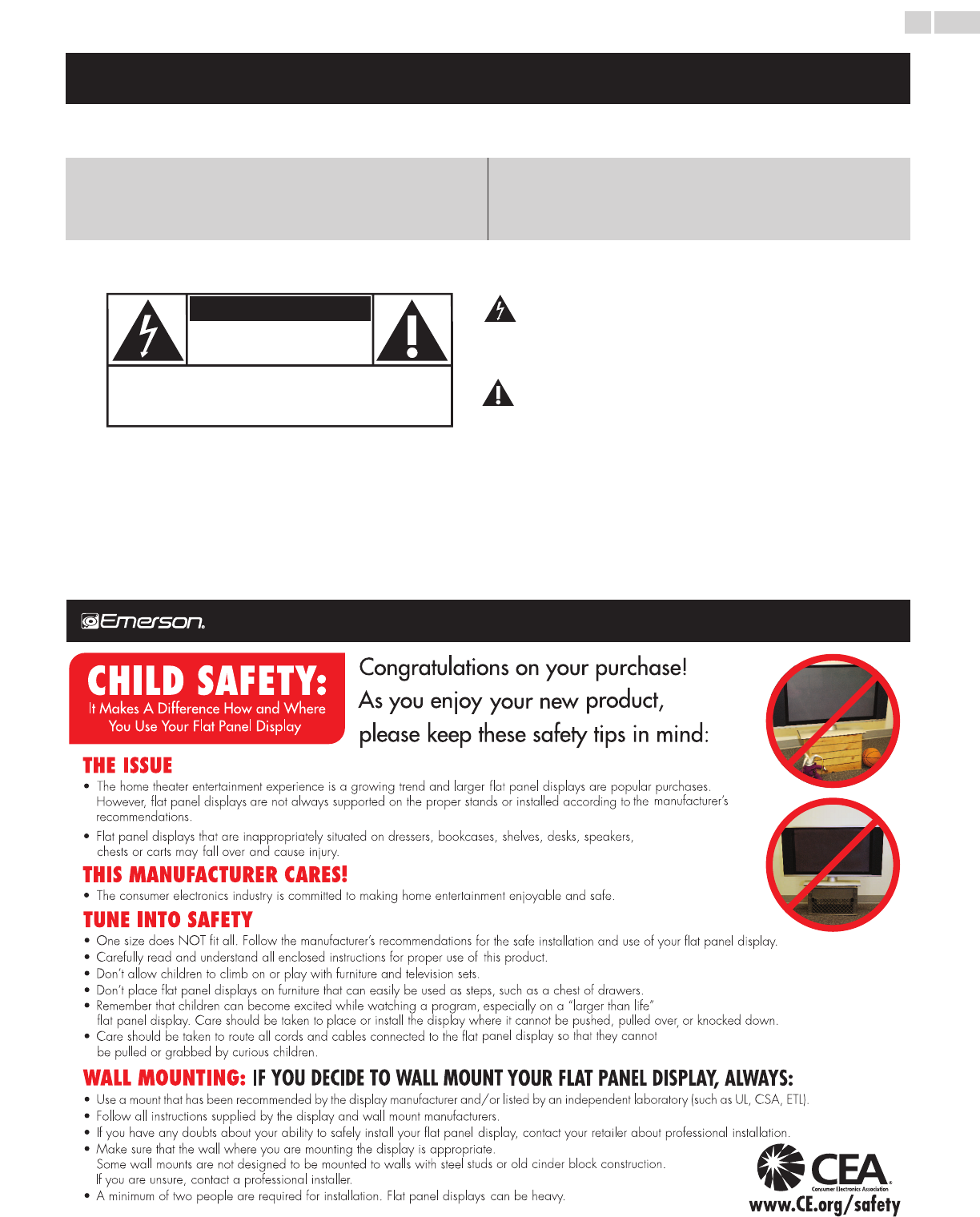

Know these safety symbols The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of

uninsulated “dangerous voltage” within the apparatus’s enclosure

that may be of sufficient magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature accompanying

the apparatus.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Apparatus shall

not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the

apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION

: Pour éviter les choc électriques,introduire la lame la plus large de la fiche dans la borne correspondante de la

prise et pousser jusqu’au fond.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The caution marking is located on the rear or bottom of the cabinet.

CAUTION

*Product Safety Notification *Additional Benefits

By registering your product, you'll receive notification -

directly from the manufacturer - in the rare case of a

product recall or safety defect.

Registering your product guarantees that you'll receive

all of the privileges to which you're entitled, including

special money-saving offers.

Registering your model with Emerson makes you eligible for all of the valuable benefits listed below, so don't miss out.

Complete and return your Product Registration Card at once or visit at www.emersonaudiovideo.com to ensure:

Visit our World Wide Web Site at www.emersonaudiovideo.com

Return your Product Registration Card or visit at

www.emersonaudiovideo.com today to get the very most from your purchase.

www.CE.org/safety

English

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than the

other. A grounding type plug has two blades and a third grounding

prong. The wide blade or the third prong are provided for your

safety. If the provided plug does not t into your outlet, consult an

electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point where

they exit from the apparatus.

11. Only use attachments / accessories specied by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or

table specied by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when

moving the cart / apparatus combination to avoid injury

from tip-over.

13. Unplug this apparatus during lightning storms or when unused for

long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is

required when the apparatus has been damaged in any way, such

as power-supply cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has

been dropped.

Note to the CATV system installer:

This reminder is provided to call the CATV system installer’s

attention to Article 820-40 of the NEC that provides guidelines for

proper grounding and, in particular, species that the cable ground

shall be connected to the grounding system of the building, as close

to the point of cable entry as practical.

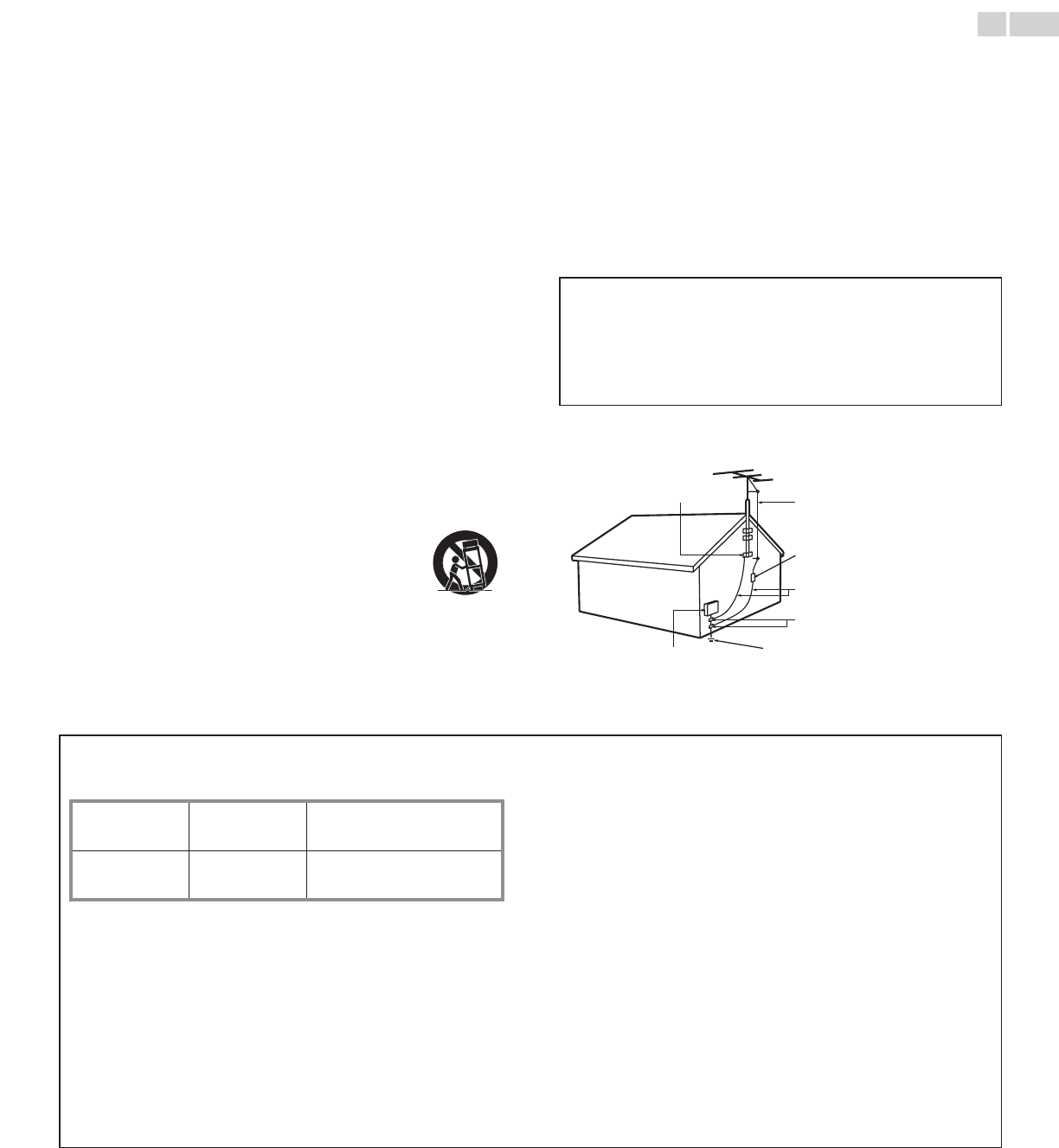

Example of Antenna Grounding as per NEC − National

Electric Code

ANTENNA DISCHARGE

UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

ANTENNA LEAD IN WIRE

GROUND CLAMPS

ELECTRIC SERVICE

EQUIPMENT

GROUND CLAMP

Wall Mount Bracket Kit

Brand: SANUS

Model # Screw dimension

LC501EM3 F55 M6 x 0.787” (20mm)

LC391EM3 SAN25b M4 x 0.472” (12mm)

• The recommended Wall Mount Bracket Kit (sold separately)

allows the mounting of the TV on the wall.

• For detailed information on installing the wall mount, refer to the

Wall Mount Instruction Book.

• Funai is not responsible for any damage to the product or injury

to yourself or others if you elect to install the TV Wall Mount

Bracket or mount the TV onto the Bracket on your own.

• The Wall Mount Bracket must be installed by experts.

Funai is not liable for these types of accidents or injury noted below.

• Install the Wall Mount Bracket on a sturdy vertical wall.

• If installed onto a ceiling or slanted wall, the TV and Wall Mount

Bracket may fall which could result in a severe injury.

• Do not use screws that are longer or shorter than their specied

length. If screws too long are used this may cause mechanical or

electrical damage inside the TV set. If screws too short are used

this may cause the TV set to fall.

• Do not fasten the screws by excessive force. This may damage

the product or cause the product to fall, leading to an injury.

• For safety reasons use 2 people to mount the TV onto a Wall

Mounting Bracket.

• Do not mount the TV onto the Wall Mounting Bracket while

your TV is plugged in or Turned On. It may result in an electrical

shock injury.

When installing the unit on the wall, allow this much space.

Top: 11.8 inches (30cm)

Left and right side: 5.9 inches (15cm)

Bottom: 3.9 inches (10cm)

English

1 Notice

EMERSON and the G-CLEF logo are registered trademarks of Emerson

Radio Corp. in the U.S. and Canada, used under license by Funai Electric

Co., Ltd. and Funai Corporation, Inc.

Funai reserves the right to change products at any time without being

obliged to adjust earlier supplies accordingly.

The material in this Owner’s Manual is believed adequate for the

intended use of the system. If the product or its individual modules or

procedures are used for purposes other than those specied herein,

conrmation of their validity and suitability must be obtained. Funai

warrants that the material itself does not infringe any United States

patents. No further warranty is expressed or implied.

Funai cannot be held responsible neither for any errors in the content

of this document nor for any problems as a result of the content in this

document. Errors reported to Funai will be adapted and published on

the Funai support website as soon as possible.

Pixel characteristics

This LCD product has a high number of color pixels. Although it has

effective pixels of 99.999% or more, black dots or bright points of light

(red, green or blue) may appear constantly on the screen. This is a

structural property of the display (within common industry standards)

and is not a malfunction.

Warranty

No components are user serviceable. Do not open or remove covers

to the inside of the product. Repairs may only be done by Service

Centers and ofcial repair shops. Failure to do so shall void any

warranty, stated or implied.

Any operation expressly prohibited in this Owner’s Manual, any

adjustments or assembly procedures not recommended or authorized

in this Owner’s Manual shall void the warranty.

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits

for a Class B Digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one

or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio or television technician

for help.

Declaration of Conformity

Trade Name : Emerson

Responsible Party : FUNAI CORPORATION, Inc.

Model : LC501EM3, LC391EM3

Address : 19900 Van Ness Avenue, Torrance, CA

90501 U.S.A.

Telephone Number : 1 866 309 8819

Modications

This apparatus may generate or use radio frequency energy. Changes

or modications to this apparatus may cause harmful interference

unless the modications are expressly approved in the Owner’s Manual.

The user could lose the authority to operate this apparatus if an

unauthorized change or modication is made.

Cables

Connections to this device must be made with shielded cables with

metallic RFI / EMI connector hoods to maintain compliance with FCC

Rules and Regulations.

Canadian notice

This Class B Digital apparatus complies with Canadian ICES-003.

Standard Television Receiving Apparatus, Canada BETS-7 / NTMR-7.

All other registered and unregistered trademarks are the property of

their respective owners.

The terms HDMI and HDMI High-Denition

Multimedia Interface, and the HDMI Logo are

trademarks or registered trademarks of HDMI

Licensing LLC in the United States and other

countries.

Manufactured under license from Dolby

Laboratories. Dolby and the double-D symbol

are trademarks of Dolby Laboratories.

is a trademark of SRS Labs, Inc. SRS

SOUND technology is incorporated under

license from SRS Labs, Inc.

SRS Sound delivers a rich and immersive

surround sound experience.

(www.freetype.org).

The American Academy of Pediatrics discourages television viewing

for children younger than two years of age.

No part of this Owner’s Manual may be reproduced, copied,

transmitted, disseminated, transcribed, downloaded or stored in any

storage medium, in any form or for any purpose without the express

prior written consent of Funai. Furthermore, any unauthorized

commercial distribution of this Owner’s Manual or any revision hereto is

strictly prohibited.

English

2 Important

Positioning the TV

• Large screen TVs are heavy. 2 people are required to carry and

handle a large screen TV.

• Make sure to hold the upper and bottom

frames of the unit rmly as illustrated.

• Install the unit in a horizontal and stable

position.

• Do not install the unit in direct sunlight

or in a place subject to dust or strong

vibration.

• Depending on the environment, the temperature of this unit may

increase slightly. This is not a malfunction.

• Avoid a place with drastic temperature changes.

• Do not place anything directly on top or bottom of the unit.

• Depending on your external devices, noise or disturbance of the

picture and / or sound may be generated if the unit is placed too

close to them. In this case, please ensure enough space between

the external devices and the unit.

• Do not insert the AC power cord into the power socket outlet

before all the connections are made.

• Ensure that you always have easy access to the AC power cord or

plug to disconnect the TV from the power.

• Before you move the TV, disconnect attached cables to prevent

damage to connectors.

• Be sure to unplug the AC power cord from the AC outlet before

moving or carrying the unit.

Regulatory notices

Do not place the unit on the furniture that is capable of being tilted

by a child and an adult leaning, pulling, standing or climbing on it.

A falling unit can cause serious injury or even death.

This apparatus should not be placed in a built-in installation such as a

bookcase or rack unless proper ventilation is provided.

Make sure to leave a space of 4 inches (10cm) or more around this

apparatus.

Press to turn the unit on and go into standby mode.

To completely turn Off the unit, you must unplug the AC power cord.

Disconnect the AC plug to shut the unit off when trouble is found or

not in use. The AC plug shall remain readily available.

Never use a gas duster on this TV.

The gas trapped inside of this unit may cause ignition and explosion.

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

WARNING: Batteries (battery pack or battery installed) shall not be

exposed to excessive heat such as sunshine, re or the

like.

WARNING: To prevent injury, this apparatus must be securely

attached to the furniture / wall in accordance with the

instructions. Tipping, shaking, or rocking the unit may

cause injury / death.

Environmental care

The packaging of this product is intended to be recycled.

Contact your local authorities for information about how to recycle the

packaging.

For product recycling information, please visit -

www.emersonaudiovideo.com

End of life directives

This LCD TV contains a lamp with Mercury, please dispose of according

to all local, state and federal laws.

Emerson pays a lot of attention to produce environment-friendly

products in green focal areas. Your new TV contains materials which can

be recycled and reused. At the end of its life, specialized companies can

dismantle the discarded TV to concentrate the reusable materials and to

minimize the amount of materials to be disposed of. Please ensure you

dispose of your old TV according to local regulations.

Disposal of used batteries

The batteries supplied do not contain the heavy metals mercury and

cadmium. Nevertheless, in many areas batteries may not be disposed

of with your household waste. Please ensure you dispose of batteries

according to local regulations.

English

3 Get started

Features

• DTV / Analog TV / CATV

You can use your remote control to select channels which are broadcast in

Digital format and conventional Analog format. Also, cable subscribers can

access their cable TV channels.

• Information display

You can display the title, contents (DTV only) and other information of the

current program on the TV screen.

• Autoprogram

This unit automatically scans and memorizes channels available in your area,

eliminating difcult setup procedures.

• Child lock

This feature allows you to block children’s access to inappropriate

programs.

• Closed Caption decoder

Built-in Closed Caption decoder displays text for Closed Caption

supported programs.

• MTS / SAP tuner

Audio can be selected from the remote control.

• Auto Standby

If there is no Input signal and no operation for 15 minutes, the unit will go

into Standby mode automatically.

• Sleep timer

You can set the unit to go into Standby mode after a specic amount of

time.

• Choices for on-screen language

Select your on-screen language: English, Spanish or French.

• Stereo sound function

• PLL frequency synthesized tuning

Provides free and easy channel selection and lets you tune directly to any

channel using the number and decimal point “•” buttons on the remote

control.

• Various adjustment for picture and sound

Customizes image quality suitable for your room and sets your sound

preference.

• fun-Link via HDMI link

fun-Link allows your other HDMI link devices to be controlled by the HDMI

cable connected to your TV.

• HDMI Input

• HDMI-DVI Input

If your video device has DVI Output jack, use an HDMI-DVI conversion

cable to connect the unit.

• Component Video Input

• PC Input

• AV Input

• USB terminal

The picture (JPEG) and video (Motion JPEG) les stored on a USB Memory

Stick can be played back on this unit.

• Digital Audio Output

• Headphone Audio Output

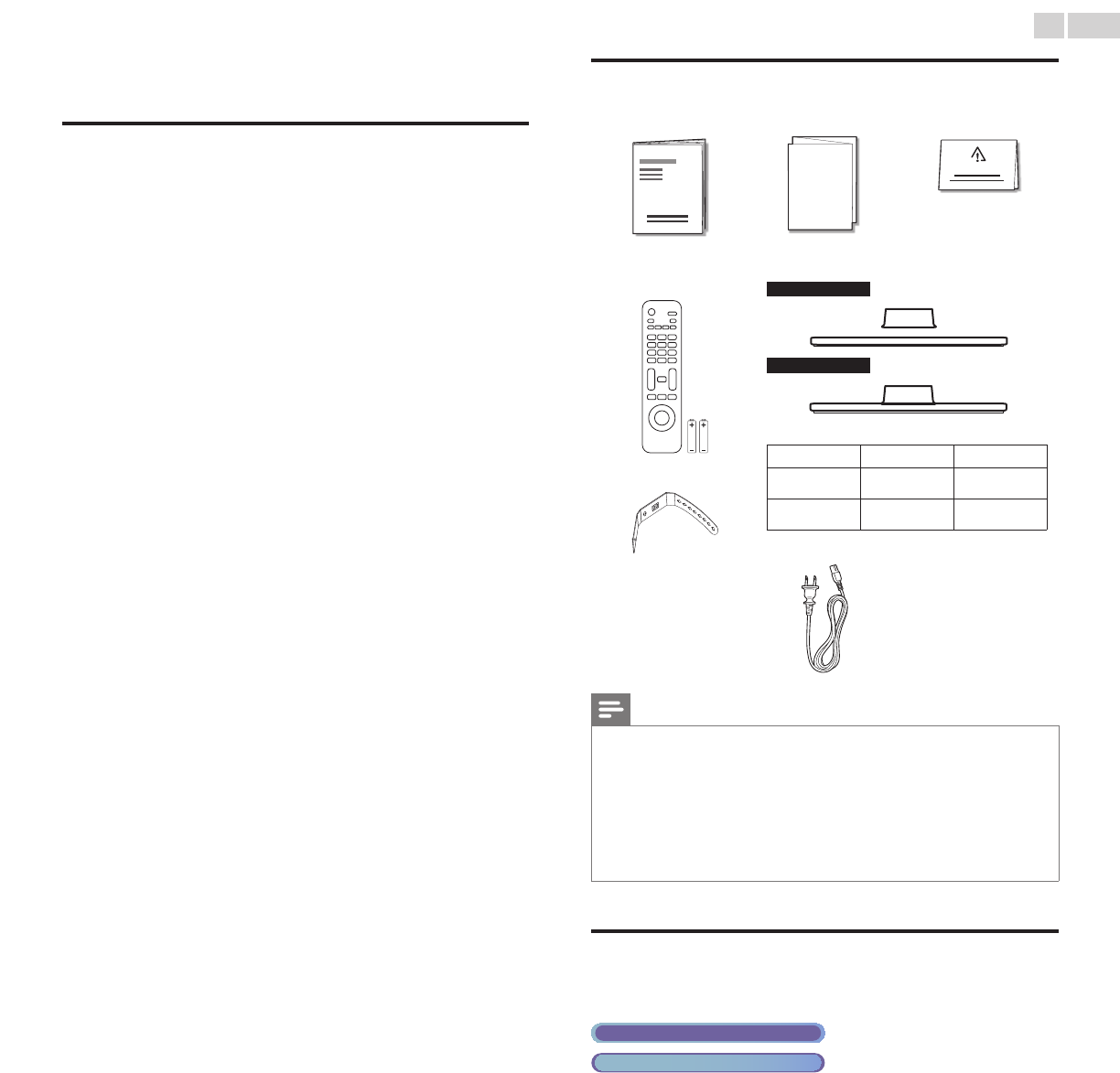

Supplied accessories

Owner’s Manual Quick Start guide

Quick

Start

Registration card

IMPORTANT

Remote Control and

batteries (AAA, 1.5V x 2)

AAA

TV base and screws

50 inch TVs

39 inch TVs

Screws packed with this unit:

Model Quantity Size

LC501EM3 8 M4 x 12

LC391EM3 3 M4 x 20

AC power cord (50 inch TVs only)

Cable management tie

Note

• If you lose the screws, please purchase the above-mentioned Phillips head screws at

your local store.

• If you need to replace these accessories, please refer to the part name or No. with

the illustrations and call our toll free customer support line found on the cover of this

Owner’s Manual.

When using a universal remote control to operate this unit.

• Make sure the component code on your universal remote control is set to our brand.

Refer to the instruction book accompanying your remote control for more details.

• We do not guarantee 100% interoperability with all universal remote controls.

Symbols used in this Owner’s Manual

The following is the description for the symbols used in this

Owner’s Manual. Description refers to:

Digital TV operation

Analog/Cable TV operation

• If neither symbol appears, the operation is applicable to both.

English

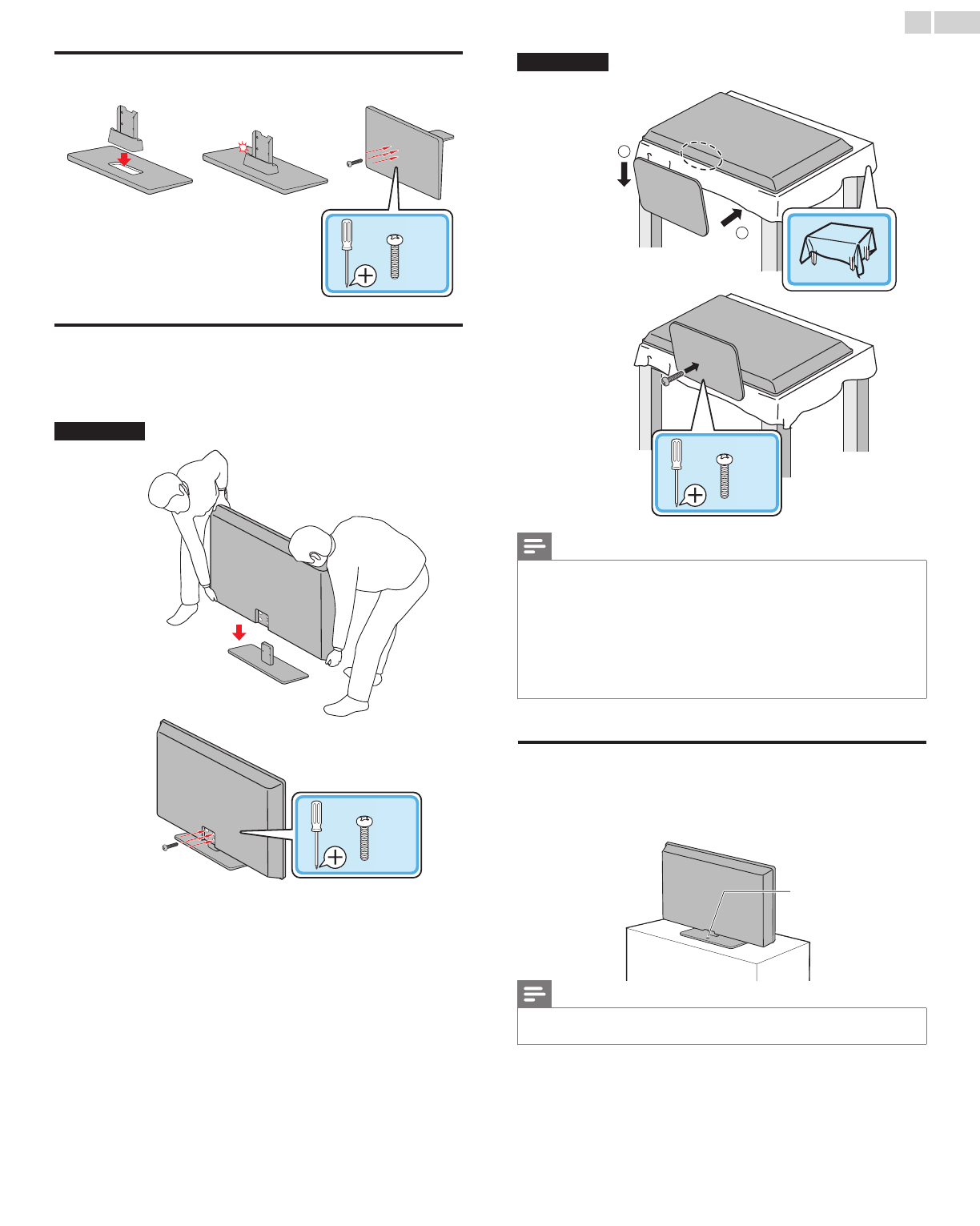

Stand assembly

(50 inch TVs only)

x 4

Attaching the base

You must attach the base to the unit to have it as a table top unit.

Be sure the front and rear of the base match the proper direction.

For large screen TVs, at least 2 people are required for these steps.

50 inch TVs

4 5

x 4

39 inch TVs

x 3

Note

• Make sure to use a table which can support the weight of this unit and is larger than

this unit.

• Make sure the table is in a stable location.

• When attaching the base, ensure that “FRONT” with “arrow” written on the bottom of

the base is downward. If it’s not downward, the 2 hooks don’t t into the base.

• When attaching the base, ensure that all screws are tightly fastened. If the base is not

properly attached, it could cause the unit to fall, resulting in injuries as well as damage

to the unit.

• To remove the base from this unit, unscrew the Phillips head screws in step 2.

Be careful not to drop the base when you remove it.

Mounting the unit on your furniture

(39 inch TVs only)

Screw this unit on your furniture tightly using wood screw (not supplied)

in the hole at the back of the base as shown.

• Recommended screw dimension : 3/16 x 3/4 inches (5.1 x 20 mm)

screw hole

rear of this unit

Note

• When you remove this unit make sure to unscrew the wood screw from your Wood

Stand, Furniture and other wood item.

English

Managing cables

Route your antenna cable and all other cables through the cable

management tie at the back of the TV.

The holder helps keep your cables tidy and easily manageable.

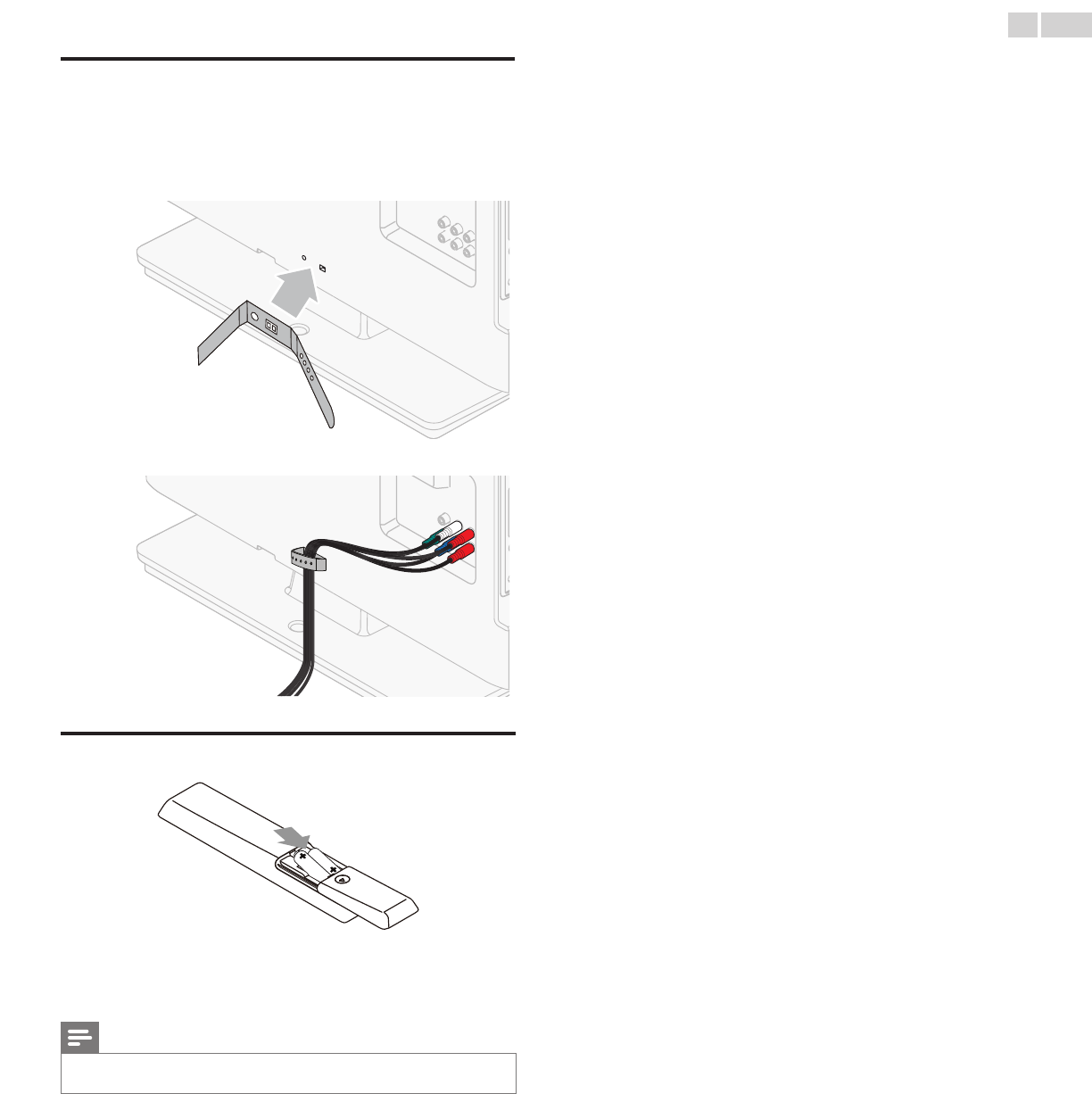

1 Attach the cable management tie as illustrated below.

2 Pass cables through the cable management tie to avoid tangles.

Installing the remote control batteries

1 Slide the battery cover off the back of the remote control.

2 Insert the 2 supplied batteries (AAA, 1.5V). Be sure the + and −

ends of the batteries line up with the markings inside the case.

3 Slide the cover back into position.

Note

• Remove the batteries if not using the remote control for an extended period of time.

English

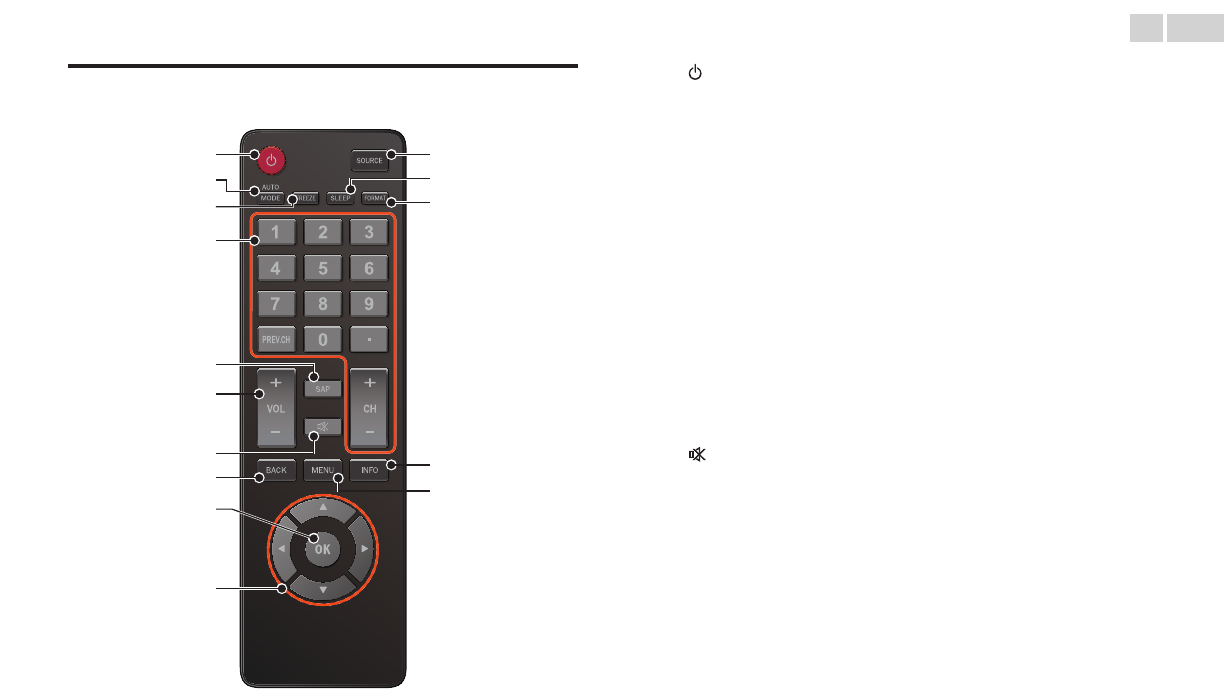

Remote control

a k

a (POWER-ON / STANDBY-ON)

Press to Turn the unit On and go into Standby mode. To completely

Turn Off the unit, you must unplug the AC power cord.

b AUTO MODE

Cycles through preset picture and sound settings.

c FREEZE

Press to freeze screen image.

d 0 − 9 (NUMBER buttons)

Press to select channels.

• (DOT) Press to shift the subchannel from the main channel.

PREV.CH Press to return to the previously viewed channel.

CH + / − Press to select channels.

e SAP

Digital Mode (DTV) : Press to select the Audio language.

Analog Mode (Analog TV) : Press to select the Audio mode.

f VOL + / −

Press to adjust the volume.

g (MUTE)

Press to turn the sound On and Off.

h BACK

Press to return to the previous menu operation.

i OK

Press to decide the command of setting when the main menu is

displayed.

j ▲▼◄► (NAVIGATION buttons)

Press to move left / right / up / down through the items.

k SOURCE

Toggle to select the connected devices.

l SLEEP

Press to activate the sleep timer.

m FORMAT

Selects a picture format.

n INFO

Displays information about the TV channel or accessory device.

o MENU

Press to display the main menu.

English

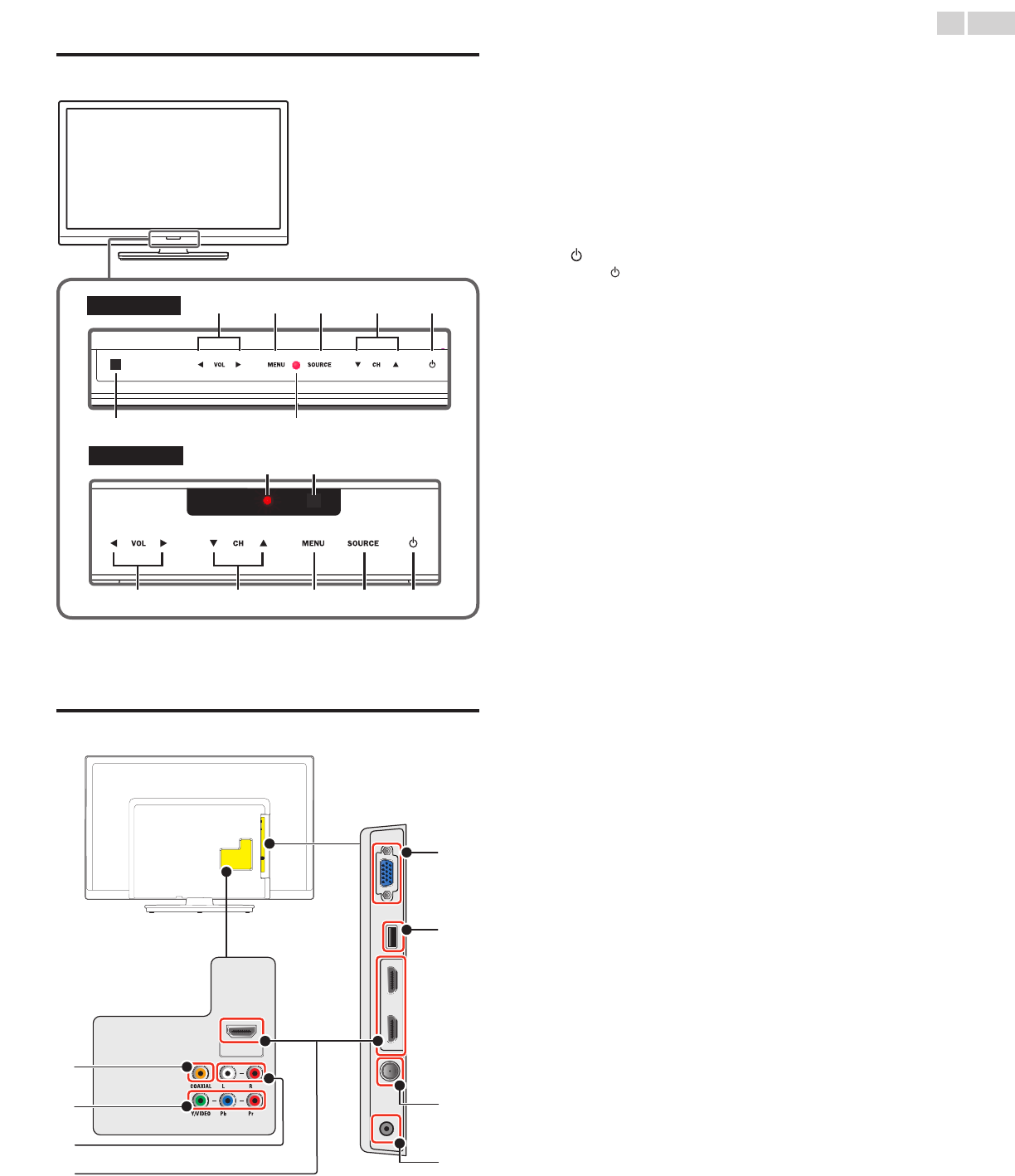

Control panel a VOL ◄/►

Touch to adjust volume down (◄) / up (►) or to move

left (◄) / right (►) when selecting menu items.

b CH ▲/▼

Touch to select channels or to move up (▲) / down (▼) when

selecting menu items.

c MENU

Touch to display the main menu.

d SOURCE

Touch to select the connected devices.

e (POWER-ON / STANDBY-ON)

Touch to Turn the unit On and go into Standby mode.

To completely Turn Off the unit, you must unplug the AC power

cord.

f Power On indicator

Lights up red when the unit is in Standby mode and ashes while

the unit is Turning On.

gInfrared sensor

Receives IR signals from remote control.

a db c e

50 inch TVs 4 23

a b c d e

f g

39 inch TVs

Terminals h Digital Audio Output jack

Digital Audio (S/PDIF) Output to home theaters and other Digital

Audio systems.

i Component (Y/Pb/Pr) / Composite Video (VIDEO) Input jacks for

VIDEO

Composite Video Input (VIDEO) jack is shared jack with

Component Video Input (Y) jack.

j Analog Audio (L/R) Input jacks

Connect Analog Audio signals from;

- HDMI-DVI / Analog Audio (L/R) jacks signal

- Component Video / Analog Audio (L/R) jacks signal

- Composite Video / Analog Audio (L/R) jacks signal

- PC Connection / Analog Audio (L/R) jacks signal with Stereo

mini 3.5mm plug Audio cable on PC

k HDMI Input jack(s)

Digital audio and video Input from high denition Digital devices

such as Blu-ray disc players, cable boxes and satellite set-top

boxes.

l PC Input jack

VGA cable connection for PC.

m USB terminal

Data Input from USB Memory Stick only.

Do not connect any device to this terminal such as; Digital

camera, keyboard, mouse, etc.

n 75 ohm Cable / Antenna connection

Signal Input from an antenna, cable or satellite.

o Headphone Audio Output jack

Headphone 3.5mm stereo jack for personal listening.

English

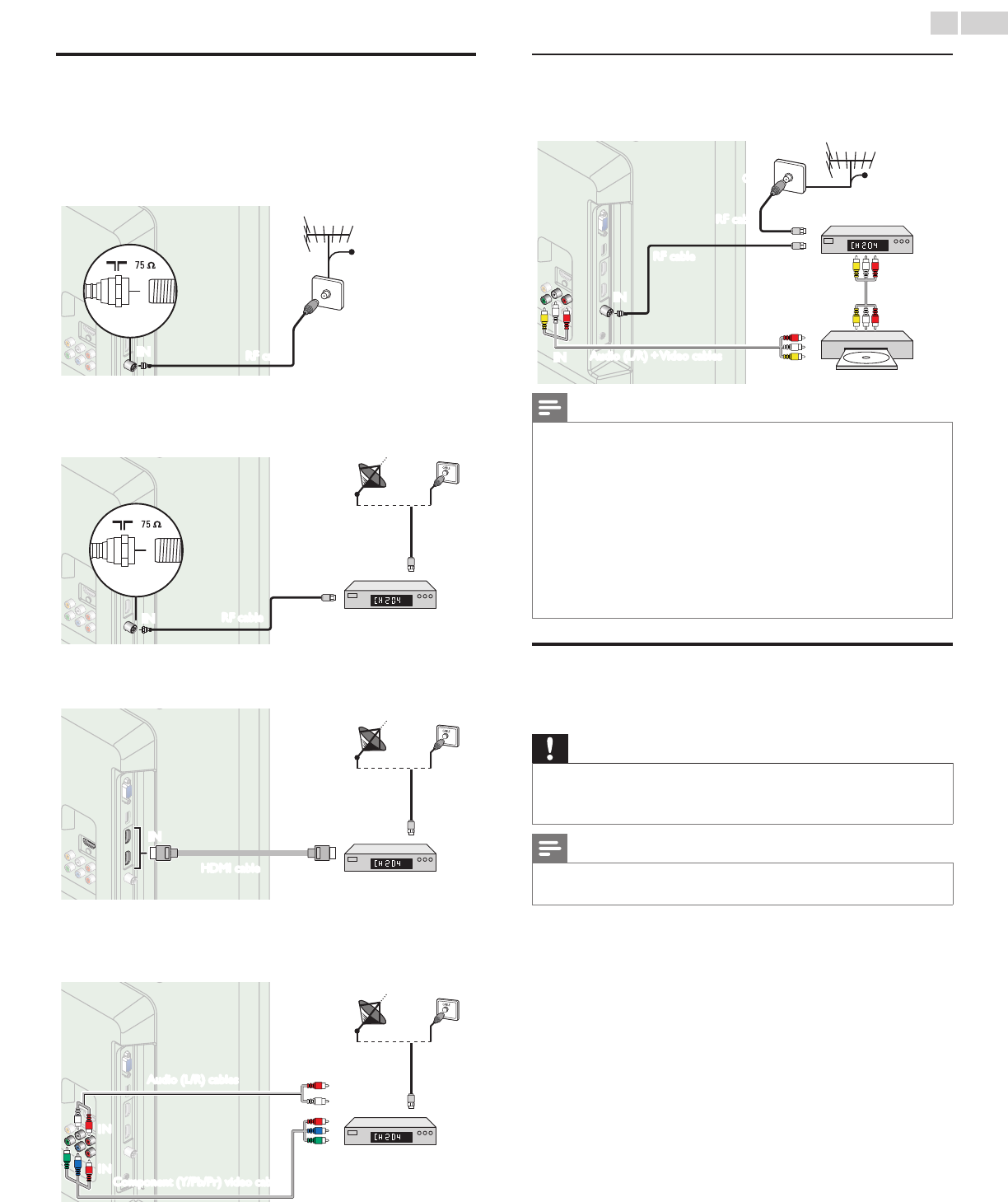

Connecting the antenna or the cable

Be sure your antenna or other device is connected properly before

plugging in the AC power cord.

If you connect to an antenna through RF cable

Any DTV programs that are broadcasted in your area can be received

for free through an antenna connection.

ININ

OUT

antenna

RF cable

cable

If you connect a set-top box through RF cable

If the TV is connected to a cable box or satellite set-top box via a

coaxial connection, set the TV to channel 3, 4 or the channel specied

by the service provider.

ININ

OUT

set-top box

RF cable

antenna

RF cable

If you connect a set-top box through HDMI

If the TV is connected to a cable box or satellite set-top box via HDMI,

make sure you select the correct Source by using SOURCE.

ININ OUT

set-top box

HDMI cable

RF cable

If you connect a set-top box through Component Video Input

If the TV is connected to a cable box or satellite set-top box via

Component Video Input, make sure you select the correct Component

Video Source by using SOURCE.

OUTOUT

OUT

set-top box

RF cable

Audio (L/R) cables

Component (Y/Pb/Pr) video cables

Connecting a set-top box, Blu-ray disc / DVD recorder

via composite connectors and Analog Audio

Do not place your recorder too close to the screen because some

recorders can be susceptible to signals.

ININ

OUT

RF cable

cable

set-top box

Blu-ray disc/DVD recorder

Audio (L/R) + Video cables

Audio (L/R) +

Video cables

Note

• If you have any question about the DTV’s antenna, visit www.antennaweb.org for further

information.

• Depending on your antenna system, you may need different types of combiners

(mixers) or separators (splitters) for HDTV signal. The minimum RF bandpass on these

devices is 2,000MHz or 2GHz.

• For your safety and to avoid damage to this unit, please unplug the RF coaxial cable

from the antenna Input jack before moving the unit.

• If you did use an antenna to receive Analog TV, it should also work for DTV reception.

Outdoor or attic antennas will be more effective than a set-top box or inside antenna.

• To Turn On your reception source easily between antenna and cable, install an antenna

selector.

• If you are not receiving a signal from your cable service, contact the Cable provider.

• Only the left loudspeaker reproduces sound for mono equipment. Use a mono to

stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.

Plugging in the AC power cord

Make sure that the AC power cord must be plugged to an AC outlet

after all the necessary connections are made.

Caution

• Do not connect the AC power cord to a power supply outside the indicated voltage of

this unit (AC 120V).

• Connecting the AC power cord to a power supply outside of this range may result in

re or electrical shocks.

Note

• Each time you plug in the AC power cord, no operations will be performed for a few

seconds. This is not a malfunction.

English

These operations are accessible by remote control.

Some may also be accessible by control panel on the main unit.

Initial setup

This section will guide you through the unit’s initial setting which

includes selecting a language for your on-screen menu and autoprogram,

which automatically scans and memorizes viewable channels.

Before you begin:

Make sure the unit is connected to antenna or cable.

1 After making all the necessary connections, press to Turn On the

unit.

• It may take a few moments to Turn On the unit for the rst time.

• Initial setup menu appears automatically after the unit is Turned

On.

2 Use ▲▼ to select the on-screen language from the choices

(English / Español / Français) on the right side of the TV screen, then

press OK.

3 Use ▲▼ to select Antenna for TV channels or Cable for CATV

channels, then press OK.

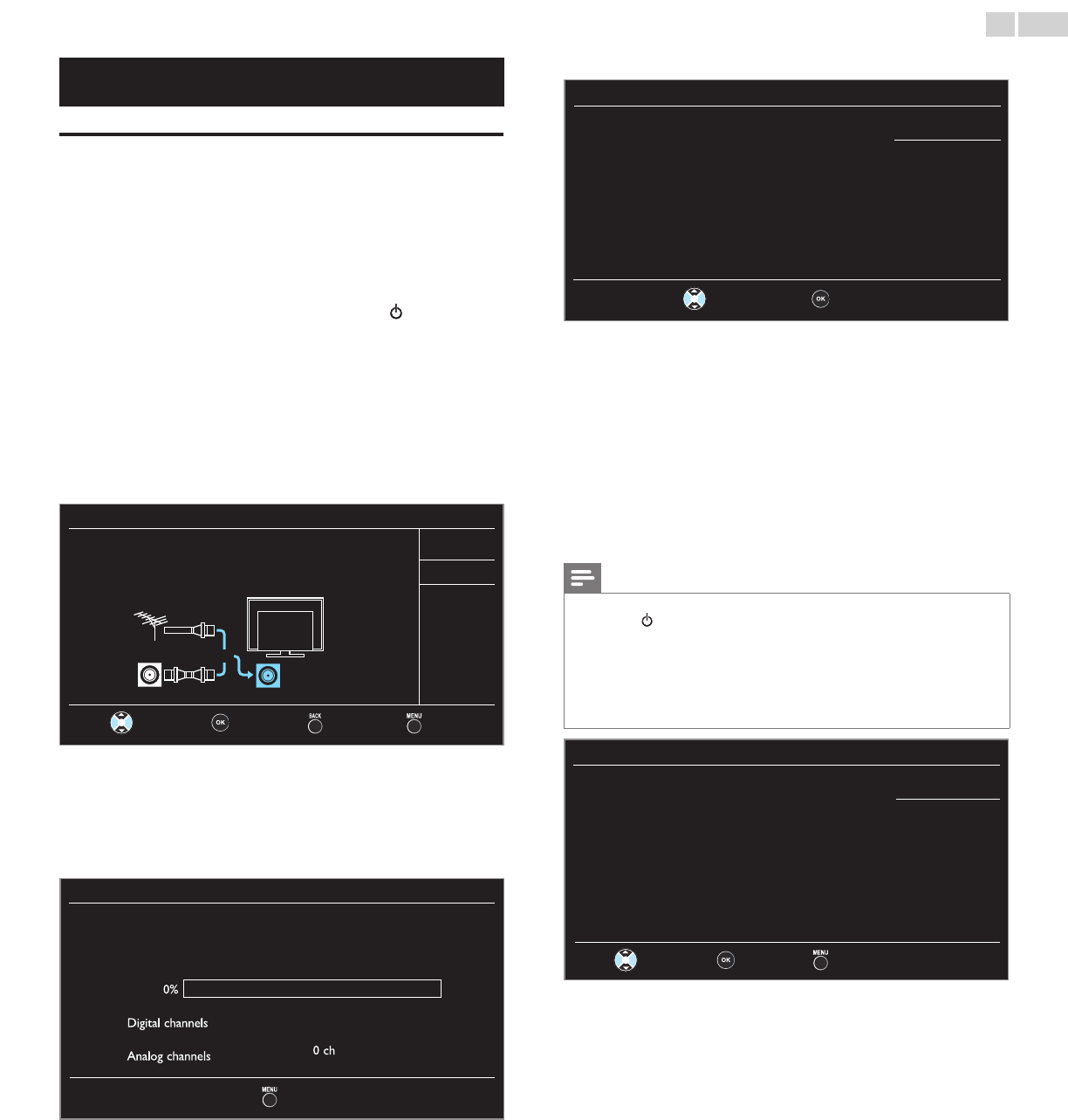

Initial setup

Make sure the antenna is connected to ‘’ANTENNA IN’’ jack.

Select your signal source. Antenna

Cable

Antenna

Cable Or

ANTENNA IN

Skip

Select OK Back Skip

– When Antenna is selected, the TV detects antenna signals. It

searches for DTV and Analog TV channels available in your area.

– When Cable is selected, the TV detects signals supplied by cable. It

searches for DTV, Analog TV and Cable channels available in your

area.

• Autoprogram will begin.

Initial setup

Please wait while the system is scanning for channels.

Auto programming may take more than 20 minutes to

complete.

Digital channels 0 ch

Analog channels 0 ch

Skip

4 Use ▲▼ to select the desired location setting, then press OK.

Initial setup

Location Home is recommended for normal home use.

In the Retail Store mode, all settings are fixed.

Retail

Home

Select OK

• Select Retail, the unit will be set up with predened setting for

retail displays.

• Select Home, the unit is set to maximize the energy efciency

for home setting and it can be adjusted through a choice of

picture and sound quality according to your preference. Use this

setting to remove the E-sticker if visible from the display. ➠ p. 27

• When the initial setup is completed, the lowest memorized

channel with the conrmation message of the location setting

will be displayed on the TV screen.

• You must set Home in step 4. Otherwise, Picture and Sound

settings you adjusted will not be memorized after the unit goes

into Standby mode.

Note

• If you are not receiving a signal from your cable service, contact the Cable provider.

• If you press or MENU during autoprogram, this setup of TV channels will be

canceled.

• The initial autoprogram function can be executed for either Antenna or Cable only

once. When you change the connection (Antenna / Cable), set Autoprogram again.

➠ p. 20

• If there is no signal Input from the antenna terminal and no operation for several

seconds after you Turn On the unit, helpful hints appears. Follow the instructions listed

on the TV screen.

Initial setup

No channel is registered.

Try Autoprogram again?

Verify that you have a cable connected to the “ANTENNA IN” jack

on the back of the TV, the channel installation process

searches this connection. If you are using a cable or satellite

box, please confirm the input which you have connected to

the box and press “SOURCE” key on the remote control to

select the appropriate source input.

Retry

Later

Select OK Skip

After an initial setup is completed...

• If you want to scan the channels automatically again.

Autoprogram ➠ p. 20

• You can add the desired cable and Analog channels

unmemorized by autoprogram.

Add channels ➠ p. 21

• If you want to change to another language.

Language ➠ p. 27

• If you want to change the location setting.

Location ➠ p. 27

English

4 Use your TV

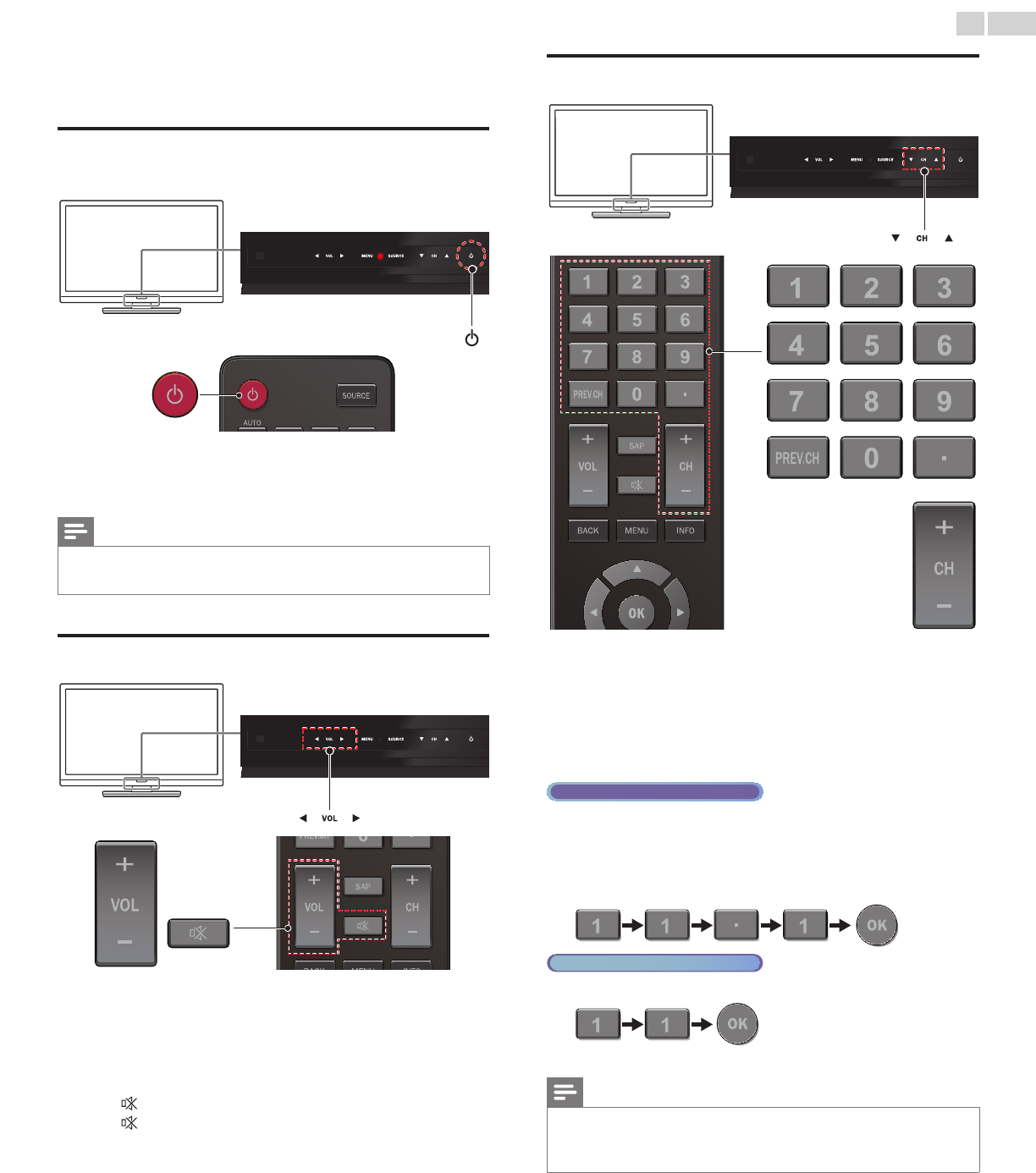

Switching on your TV and putting it in standby

mode

• The above image is an example for 50 inch screen size TVs.

It may differ depending on what product you purchased.

To Turn Power On or to Turn Standby On

• Touch or press . on the front panel or the remote control.

Note

• Energy consumption contributes to air and water pollution. When the AC power

cord is plugged in, your TV consumes energy. Your TV has very low standby power

consumption.

Adjusting volume

• The above image is an example for 50 inch screen size TVs.

It may differ depending on what product you purchased.

To increase or decrease volume

• Touch VOL ◄(down) / ►(up) on the front panel or press

VOL + / − on the remote control.

To mute or unmute sound

• Press on the remote control to mute the sound.

• Press again or VOL + / − to recover the original sound.

Switching channels

• The above image is an example for 50 inch screen size TVs.

It may differ depending on what product you purchased.

To select Channels by using CH ▲/▼ or CH + / −

• Touch CH ▲(up) / ▼(down) on the front panel or press CH + / −

on the remote control.

To select Channels by using the NUMBER buttons

Digital TV operation

• For Digital channels, press a number followed by a dot “•” and the

corresponding sub channel number.

– When selecting Digital channel 11.1

Be sure to press • before entering the subchannel number.

Analog/Cable TV operation

– When selecting cable or Analog channel 11

Press PREV.CH to return to the previously viewed channel.

Note

• To select the non-memorized channels, use the NUMBER buttons.

• No Signal will appear on the TV screen after the subchannel broadcast is over.

• Audio only program message will appear on the TV screen, when you receive only

sound signal.

English

Watching channels from an external device

Switching Each Input Mode can easily switch with the remote control

between TV (DTV or Analog TV) and external devices when they are

connected to the unit.

1 Turn On a set-top box or the connected device.

• The picture from your set-top box or the connected device

might appear automatically on the TV screen.

 Ifthepicturedoesnotappear

Press SOURCE repeatedly to select the set-top box or the

connected device and wait a few seconds till the picture appears.

e.g.)

Source

HDMI1

HDMI2

HDMI3

Video

11.1 HDMI1 HDMI2

DTV / AnalogTV

channel

Video

Component

PC HDMI3

• Pressing ▲ reverses the direction of the Input modes.

2 Use the remote control of the set-top box or the connected device

to select channels.

Using auto mode

1 Press AUTO MODE to set your TV to a predened picture and

sound setting.

2 Use ▲▼to select one of the following settings :

Auto picture Auto sound Description

Personal The customized settings you dened using

the Picture and Sound menu

Standard For normal TV viewing

Vivid Enhanced picture contrast, sharpness and

sound for viewing in a well-lit room

Sports Brilliant picture settings and clear sound for

high action

Movie Deep picture and powerful sound settings

for a cinematic experience

Game - Optimized for PCs and game consoles

Eco - Eco TV settings for low power

consumption

- Music Optimized for music playback

- News Controls picture tone and set the anchor's

voice at a comfortable volume

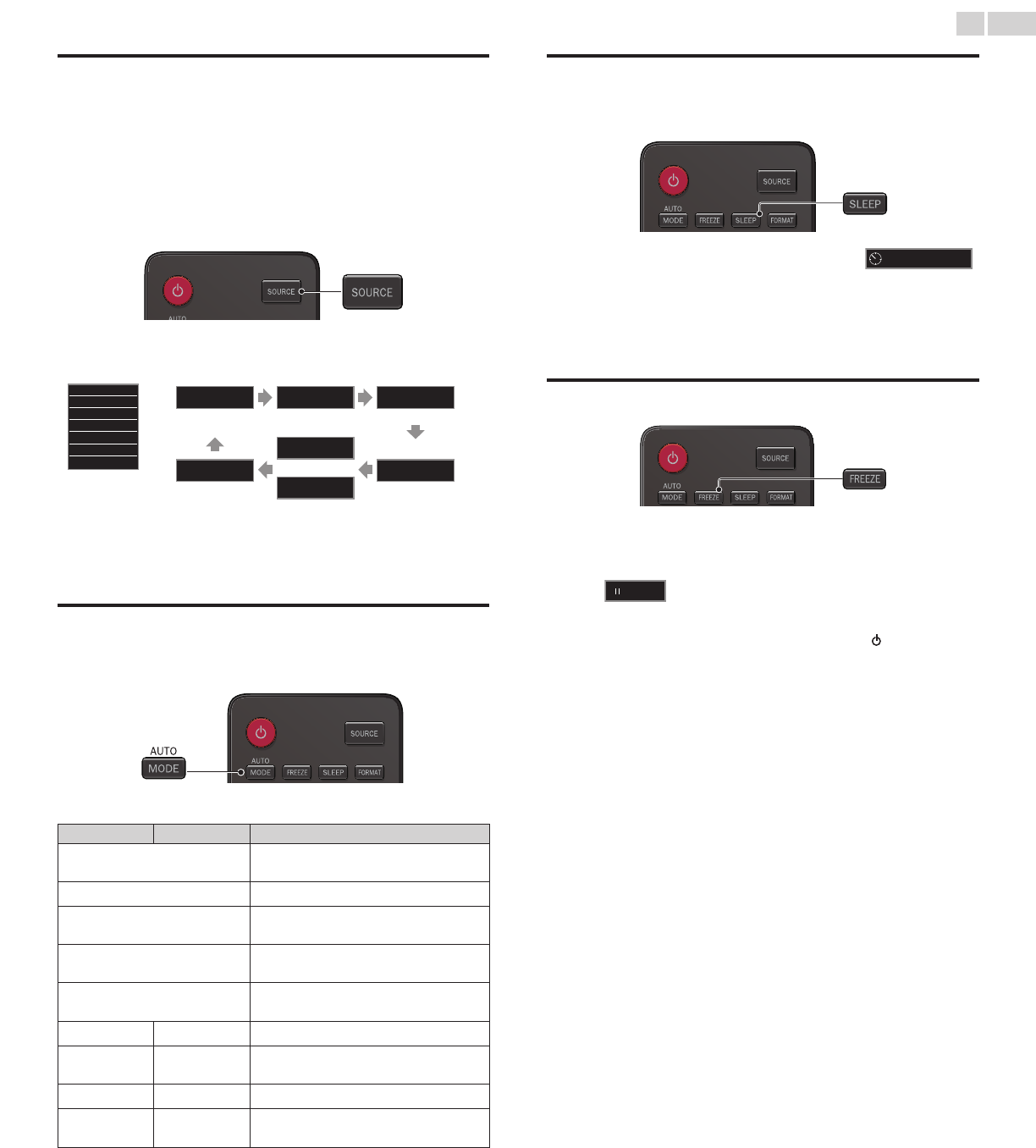

Sleep timer

Sleep Timer can set the unit to go into Standby mode after an

incremental period of time.

Press SLEEP repeatedly to change the amount of

time (increases the time by 30 minutes up to 120

minutes).

Sleep 120min.

Press SLEEP once to call up the display for checking the remaining time.

• To cancel sleep timer, press SLEEP repeatedly until Off is displayed.

Freeze mode

Freeze Mode can freeze the image shown on the TV screen for 5

minutes.

Press FREEZE to freeze the image.

Freeze

• The sound Output will not be paused.

• To cancel freeze mode, press any buttons except .

English

Switching audio mode

Digital TV operation

1 Press SAP to display the currently selected

language and the number of available languages.

11.1

English 1/3

2 Press SAP repeatedly to cycle through the available audio languages.

Note

• Available languages differ depending on the broadcast.

• Other is displayed when the audio language cannot be acquired or the acquired

languages are other than English, French or Spanish.

Analog/Cable TV operation

1 Press SAP to display the currently selected audio mode.

2 While receiving an MTS broadcast, press

repeatedly to cycle through the available audio

channels.

SAP / STEREO

e.g.) When all audio are available

SAP / STEREO SAP / MONO SAP / STEREO

STEREO : Outputs stereo-audio

SAP : Outputs second audio program

MONO : Outputs mono-audio

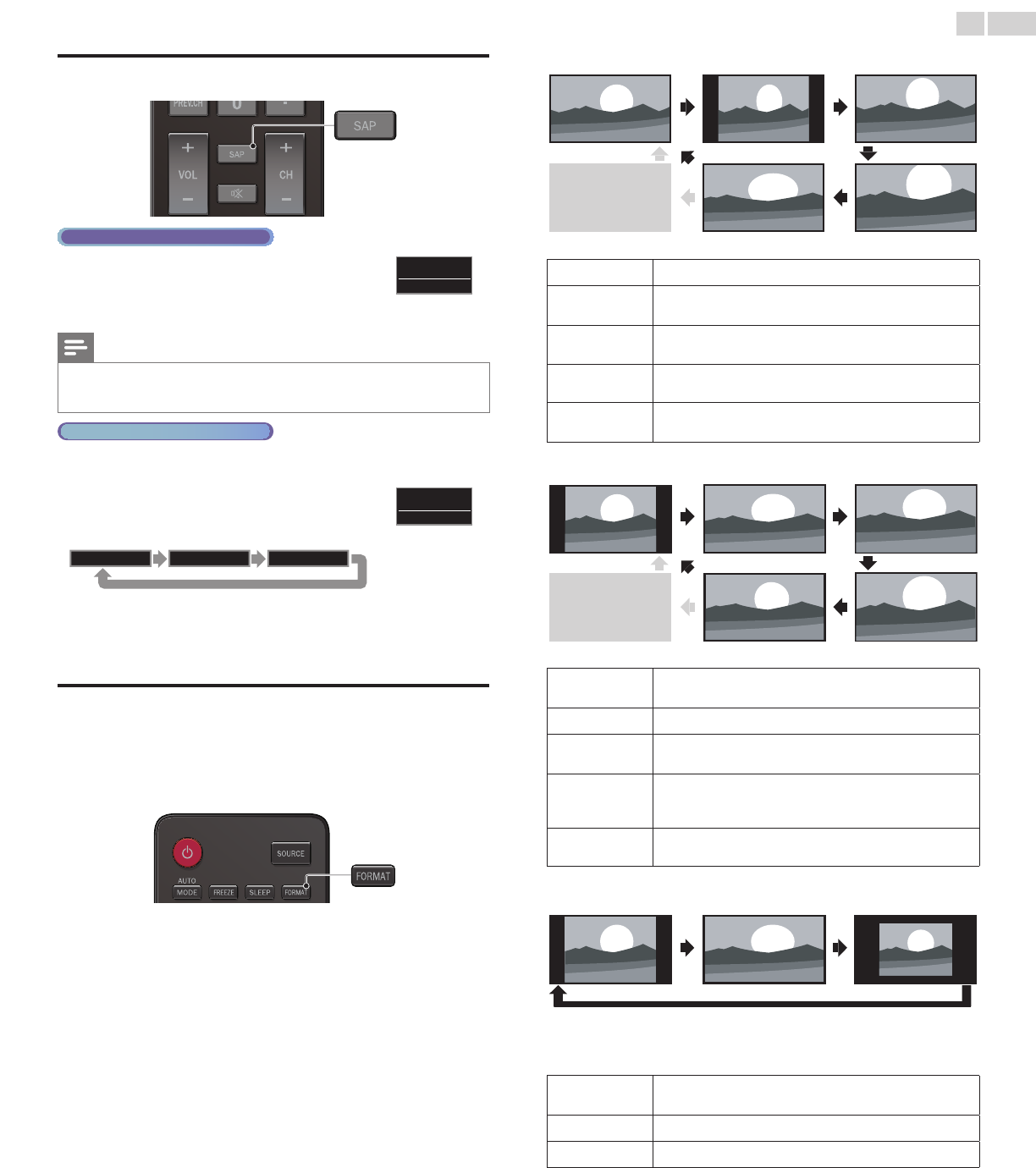

Changing picture format

Display modes can be selected when your TV receives a 16:9 or 4:3

video signal.

Three types of display modes can be selected for a PC Input signal.

Press FORMAT repeatedly to switch the TV aspect ratio.

For 16:9 video signal

Normal Movie expand4:3

Wide Zoom

Full can also be selected

after Wide if an HDMI

device is selected. This

picture format similarly

displays like Normal.

Full (HDMI device only)

Normal Original size.

4:3 Shortened horizontally.

Sidebars appear on both edges of the screen.

Movie expand Vertically stretched to ll the screen.

This only crops out the top of the picture.

Zoom Maximum size without changing its horizontal and vertical

ratio.

Wide Horizontally stretched picture.

This crops out the left and right sides of the picture.

For 4:3 video signal

Full (HDMI device only)

Normal Movie expand

16:9

Wide Zoom

Full can also be selected

after Wide if an HDMI

device is selected. This

picture format similarly

displays like 16:9.

Normal Original size.

Sidebars appear on both edges of the screen.

16:9 Stretched horizontally to ll the screen.

Movie expand Stretched more vertically at the top of the screen.

This crops out the top of the picture.

Zoom

Maximum size that is more vertically stretched to ll the

screen.

This crops out the top and bottom of the picture.

Wide Original size and the edges stretched horizontally to ll the

screen.

For PC Input signal

Normal Unscaled

Full

• This unit can also be connected to your PC that has a DVI terminal. Use an HDMI-DVI

conversion cable for this Video connection and it requires Stereo mini 3.5mm plug Audio

cable for Analog Audio signal as well.

• Refer to 16:9 video signal on this page if PC has HDMI Output.

Normal Proportionately stretched picture.

Sidebars appear on both edges of the screen.

Full Stretched out of proportion to ll the screen.

Unscaled Original size.

English

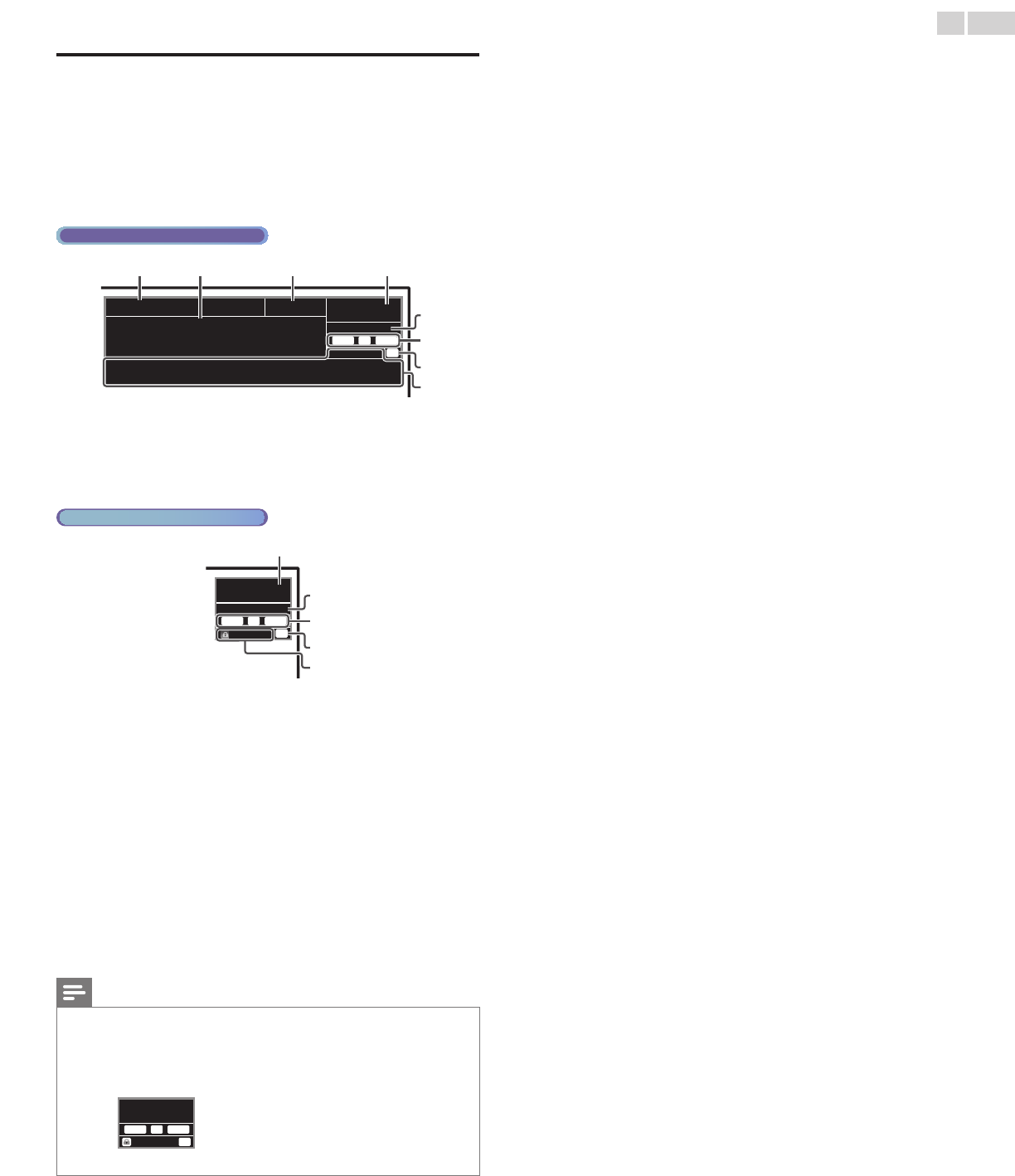

TV screen information

You can display the currently selected channel or other information

such as the aspect ratio on the TV screen.

In the Digital mode, the detailed broadcasting information for the

current off the air channel such as program title and program guides are

displayed.

1 Press INFO.

Digital TV operation

11.1

TV: TV-14

1080i 16:9HD

KABC

a b c d

A Day of Memories

A quarter-century ago,which may now qualify as the

good old days of newspapering,run-of-paper sales

accounted for 80 percent of the industry's advertising

revenues. Department stores and supermarket were

English 1/2

Rating

a program title

b program guide

(The program guide added to broadcasting information is

displayed to a maximum of 4 lines.)

c broadcast station

Analog/Cable TV operation

480i 4:3SD

TV-PG DLSV

SAP / STEREO

d channel number

Switching channels ➠ p. 14

e audio language (DTV) / audio mode (Analog TV)

Switching audio mode ➠ p. 16

f program’s image aspect ratio

Changing picture format ➠ p. 16

g CC (not available if Closed Caption is set to Off)

Caption settings ➠ p. 22

h child lock rating

Child and ratings lock ➠ p. 23

2 Press INFO to hide the information.

Note

• When the program guide consists of more than 4 lines, use ▲▼ to scroll to the

next / previous lines.

• No description provided. is displayed when the program guide is not provided.

• While the program guide is displayed, the Closed Caption function is interrupted.

• In external Input mode, the following screen is displayed;

e.g.) When an external device is connected to Video Input jack.

TV-PG DLSV

480i 4:3SD

Video

• The information display will automatically disappear in 5 seconds.

English

5 Use more of your TV

This section describes the overview of the main menu displayed when

you press MENU.

The main menu consists of the function setting items below.

Displaying the main menu

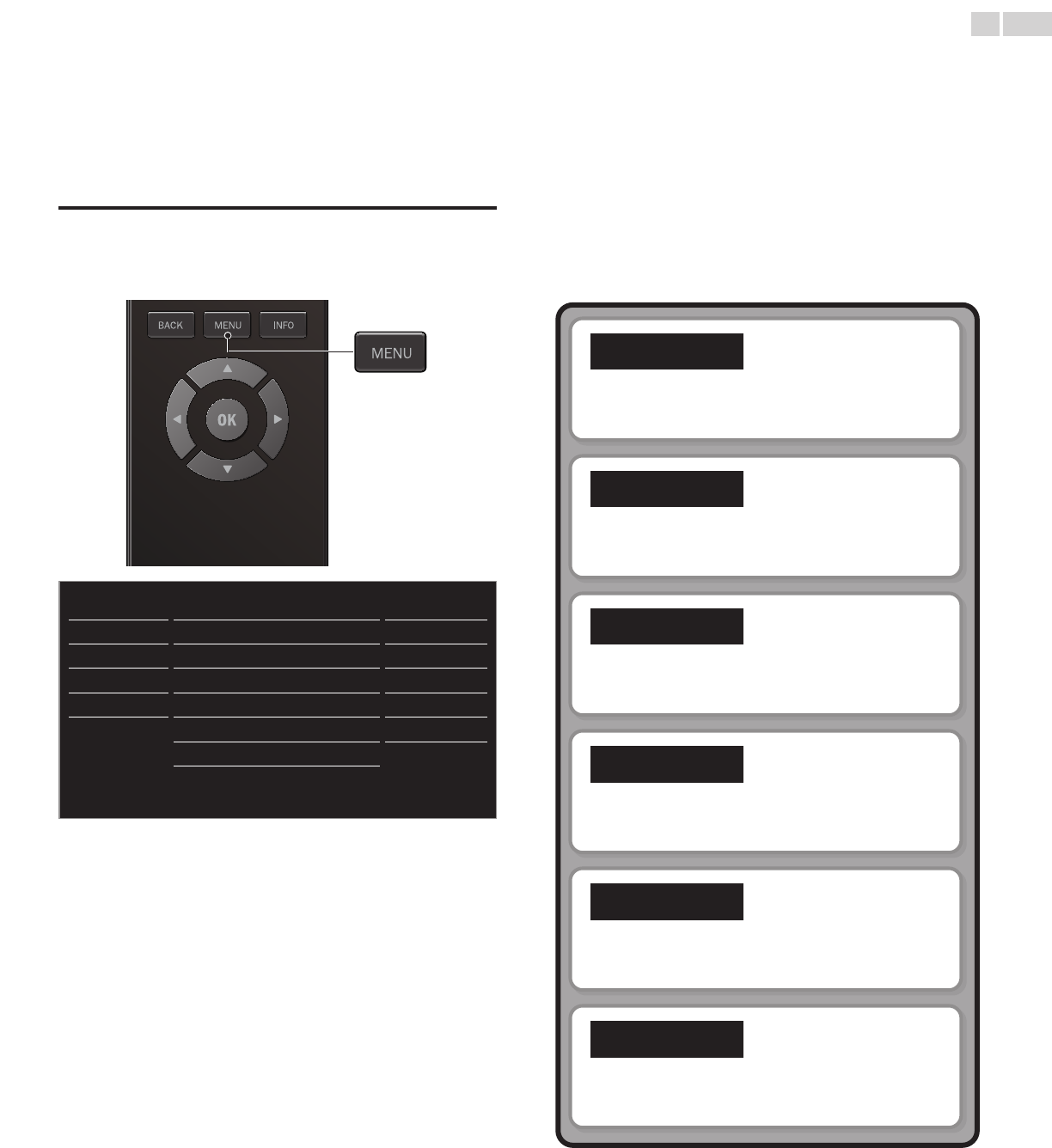

1 Press MENU to display the main menu. 2 Use ▲▼ to select the desired menu and an item, then press OK

or use ▲▼◄► to determine the setting.

Picture Auto picture

Backlight

Contrast

Brightness

Color

Tint

Sharpness

Advanced settings

Personal

Sound

Setup

Features

Language

USB

Picture ➠ p. 19

Adjusting the picture mode or customize the picture

quality as your preference.

Sound ➠ p. 20

Adjusting the sound mode, equalizer and some other

sound functions.

Setup ➠ p. 20

Scanning the channels available in your area and see what

the antenna levels are.

Features ➠ p. 22

Adjusting the Closed Caption, parental guide and some

other useful functions.

Language ➠ p. 27

You can choose English, Spanish or French as your

on-screen language.p

USB ➠ p. 28

You can view picture (JPEG) and video (Motion JPEG) les

stored on a USB Memory Stick.

3 When the setting is completed, press MENU or BACK to exit.

English


Before you begin:

You must set Home in Location. ➠ p. 27

Otherwise, personalized picture and sound settings will not be

memorized after the unit goes into Standby mode.

1 Press MENU and use ▲▼ to select Picture then press OK.

Picture Auto picture

Backlight

Contrast

Brightness

Color

Tint

Sharpness

Advanced settings

Personal

Sound

Setup

Features

Language

USB

2 Use ▲▼◄► to select the item you want to adjust, then press

OK.

Auto picture

to select the desired setting, then press OK

(Personal, Standard, Vivid, Sports, Movie, Game and Eco)

When you adjust the following settings, Personal will

be set automatically.

Cursor ◄Cursor ►

Backlight to reduce power

consumption

to set the backlight

brighter

Contrast to decrease contrast to increase contrast

Brightness to decrease brightness to increase brightness

Color to decrease color

intensity to increase color intensity

Tint to add red to add green

Sharpness to soften to sharpen

* Advanced settings

to select the desired setting, then press OK

(Color alignment, Noise reduction, *Dynamic backlight,

Black stretch, Dynamic contrast and Gamma)

*Dynamic backlight will only display for 50 inch TVs.

*You can set a particular about picture quality in Advanced settings.

Picture Color alignment

Noise reduction

Dynamic backlight

Black stretch

Dynamic contrast

Gamma

Normal

Gamma 2

Sound

Setup

Features

Language

USB

Color

alignment

Color

temperature

mode

to set the color temperature to Personal,

Cool, Normal and Warm

When you adjust the following settings,

Personal will be set automatically.

Cursor ◄Cursor ►

Red gain to decrease contrast

with red

to increase contrast

with red

Green gain to decrease contrast

with green

to increase contrast

with green

Blue gain to decrease contrast

with blue

to increase contrast

with blue

Red offset to decrease

brightness with red

to increase brightness

with red

Green offset to decrease

brightness with green

to increase brightness

with green

Blue offset to decrease

brightness with blue

to increase brightness

with blue

Noise

reduction

Off to set noise reduction to Off

On to reduce noise in an image

*Dynamic

backlight

Off to set dynamic backlight to Off

On to adjust backlight for best picture quality

based on the incoming video signal

Black

stretch

Off to set black stretch to Off

On to enhance black color

Dynamic

contrast

Off to set dynamic contrast to Off

On to enhance contrast in an image automatically

Gamma

Gamma 1

to change the gamma setting

Gamma 2

Gamma 3

English

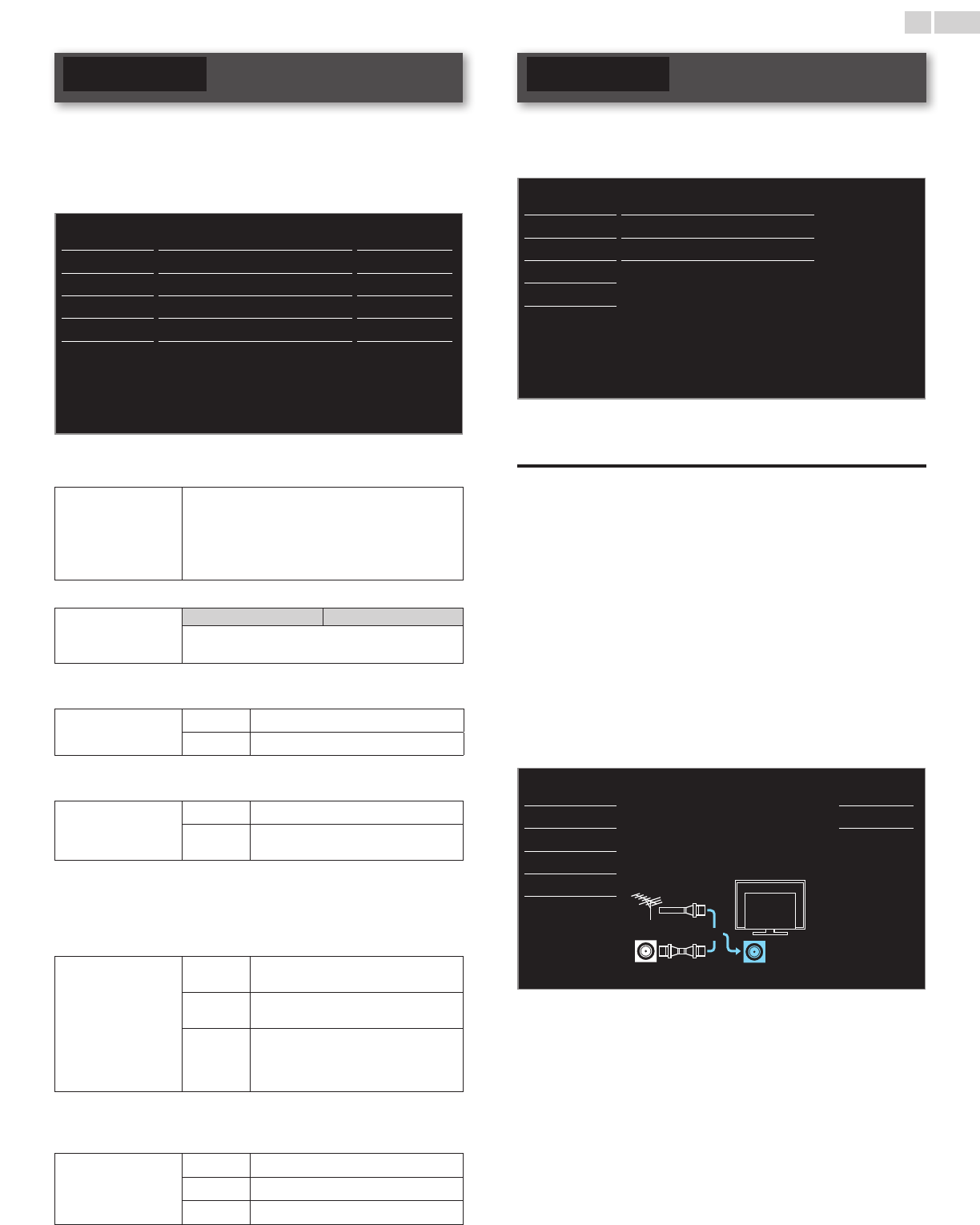

Sound

Before you begin:

You must set Home in Location. ➠ p. 27

Otherwise, personalized picture and sound settings will not be

memorized after the unit goes into Standby mode.

1 Press MENU and use ▲▼ to select Sound, then press OK.

Picture Auto sound Standard

Sound Equalizer

Setup SRS Sound On

Features Auto volume leveling Off

Language TV speakers On

USB Primary MTS Stereo

2 Use ▲▼◄► to select the item you want to adjust, then press

OK.

Auto sound

to select the desired setting, then press OK.

(Personal, Standard, Vivid, Sports, Movie, Music and

News)

When you adjust the following settings (Equalizer,

SRS Sound and Auto volume leveling), Personal will

be set automatically.

Adjust the tonal quality for each frequency.

Equalizer

Cursor ◄Cursor ►

to adjust the each level of tonal quality

Press BACK to go back to the previous menu.

This selects sound modes for more spatial or surround sound

reproduction.

SRS Sound Off to set SRS Sound to Off

On to set SRS Sound to On

This function keeps a constant loudness differential between the TV

commercials and the programs.

Auto volume

leveling

Off to remove the auto volume leveling

On to reduce volume differences between

the TV commercials and the programs

You can select the Audio Output from the unit’s speakers or not. If your

amplier is HDMI link function compatible and connected by an HDMI

cable to this unit, some sound operations such as volume up can be

changed by using this unit’s remote control. Make sure fun-Link control

is set to On. ➠ p. 26

TV speakers

On to output sound from the unit’s

speakers

Off not to output sound from the unit’s

speakers

CEC Link

to control Audio Output from your

connected fun-Link Compliant Devices

with VOL + / − by using this unit's

remote control.

You can set the output mode as a default for the sound mode (Analog TV only).

This setting is not interlocked when you change the output mode by

pressing SAP. Refer to Switching audio mode. ➠ p. 16

Primary MTS

Stereo to output stereo-audio

Mono to output mono-audio

SAP to output second audio program

Setup

Before you begin:

Make sure the unit is connected to antenna or cable.

1 Press MENU and use ▲▼ to select Setup, then press OK.

Picture Autoprogram

Sound Channel list

Setup Add channels

Features Antenna

Language

USB

2 Adjust the following items.

Autoprogram

Be sure the RF cable is correctly connected to this unit and you are

registered with your cable TV provider when you install Cable channels.

1 Use ▲▼ to select Autoprogram, then press OK.

• If you run Autoprogram when you have locked channels, a

message appears asking to enter your PIN . Enter your PIN in

order to complete the installation. You need to set the channel

lock again after the installation.

2 Use ▲▼ to select an appropriate option, then press OK.

– When Antenna is selected, the TV detects antenna signals.

It searches for DTV and Analog TV channels available in your

area.

– When Cable is selected, the TV detects signals supplied by cable. It

searches for DTV, Analog TV and Cable channels available in your

area.

Picture Autoprogram will rescan all channels.

Auto programming may take more than 20

minutes to complete.

Select your signal source.

Back

Sound Antenna

Setup Cable

Features

Language Antenna

Cable Or

ANTENNA IN

USB

Continued on next page.

English

• When the scanning and memorizing are completed, the lowest

memorized channel will be displayed.

Autoprogram

Please wait while the system is scanning for channels.

Auto programming may take more than 20 minutes to

complete.

75%

Digital channels 10 ch

Analog channels 6 ch

Exit

Note

• After setting Autoprogram, using CH + / − skips unavailable programs automatically.

• If you are not receiving a signal from your cable service, contact the Cable provider.

• If you press or MENU during autoprogram, the setup of TV channels will be

canceled.

• Even if Autoprogram is completed, the channel setting will be lost if the AC power

cord is unplugged before the unit goes into Standby mode by pressing .

• The PIN Code will be required once you set a PIN code in the Child and ratings lock.

➠ p. 23

• If you want to change your PIN code, follow the instruction of Change PIN. ➠ p. 25

Channel list

The channels selected here can be skipped when selecting the channels

using CH + / −.

Those channels can still be selected with the NUMBER buttons.

1 Use ▲▼ to select Channel list, then press OK.

2 Use ▲▼ to select the channel you want to remove, then press

OK.

Picture DTV 11.1

Sound Highlight channels for

Ch Up / Down key selection. DTV 11.2

Setup DTV 11.3

Features

Language

USB

Ch Select Watch / Skip Back

• The channel display for the removed channel darkens. You will

not be able to select the channel again using CH + / −.

• To reactivate a removed channel, use ▲▼ and press OK. The

registered channels are highlighted.

• When you remove a main channel, its subchannels are removed

as well.

Note

• The channel with DTV indicated on the display is ATSC. Otherwise the channel is

Analog TV.

Add channels

This function lets you add the off the air Analog TV or Analog Cable

channels that were not added by the autoprogram due to reception

conditions during the initial setting.

1 Use ▲▼ to select Add channels, then press OK.

2 Use the NUMBER buttons to enter the number of the channel you

want to add, then press OK.

Picture Add channels

Sound For analog channels, select a

channel to be added using

number keys.

For digital channels, you must

perform Autoprogram function.

Setup

Features

Language

USB

Ch Change Back

Note

• If setup completes successfully, Added to the channel list. is displayed.

• If external Input is used, it is not possible to register the channel and Unavailable will be

displayed on the TV screen.

• Some channels cannot be selected by CH + / −. Use the NUMBER buttons to select

the memorised channels.

Antenna conrmation

Digital TV operation

This function lets you check the Digital signal strength of each channel.

1 Use ▲▼ to select Antenna, then press OK.

2 Use the NUMBER buttons or CH + / − to select the channel for

which you want to check the Digital signal strength.

Picture Back

Sound

Setup

Current 50 Max 50

Features

Language

USB

Ch Change

Note

• If the channel is set to Analog channel or external Input, you cannot conrm the

antenna condition.

English

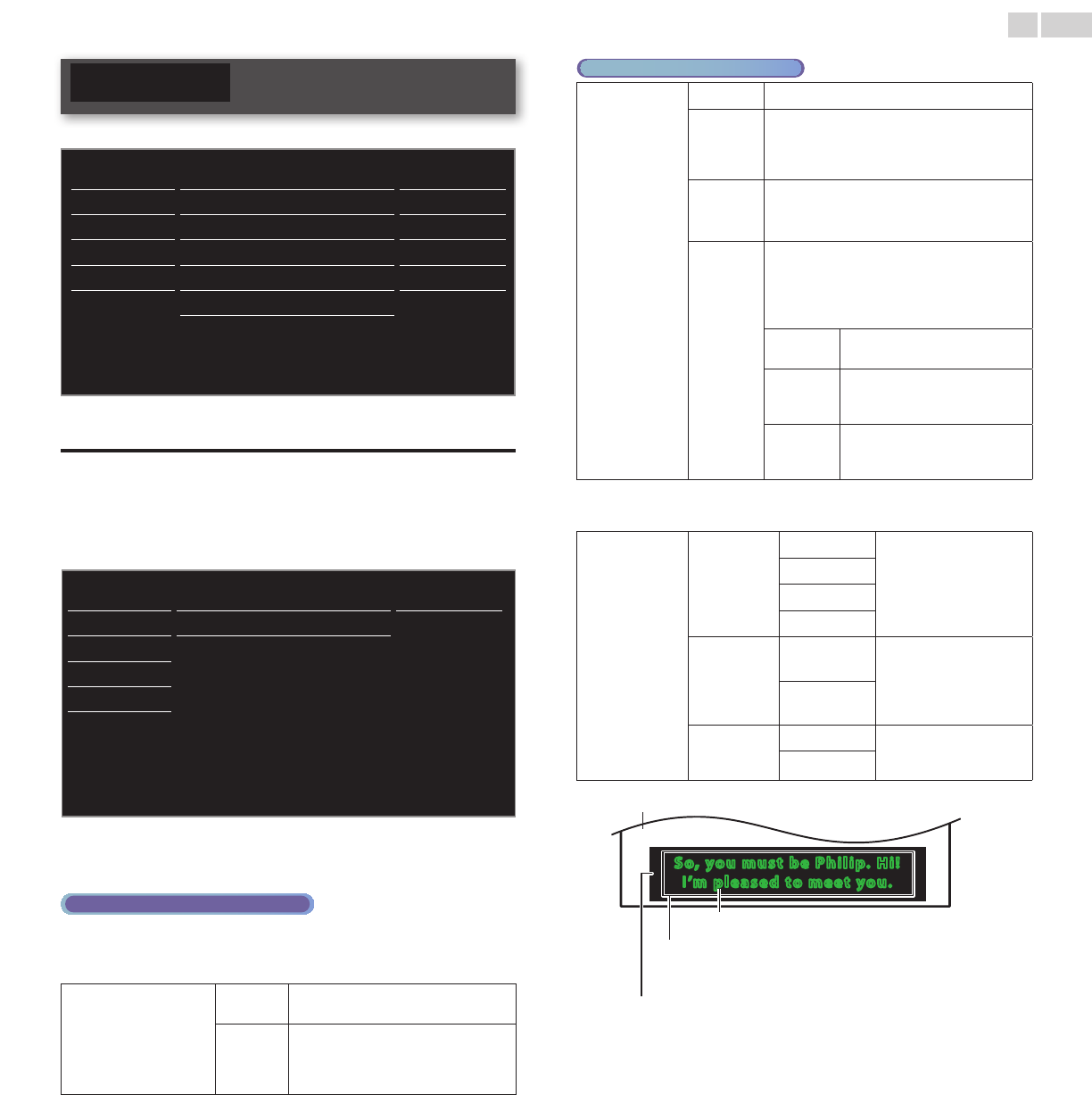

Features

1 PressMENUanduse▲▼toselectFeatures,thenpressOK.

Picture Captionsettings

Sound Childlock

Setup PCsettings

Features fun-Link(HDMICEC)

Language Location Home

USB E-sticker --

Softwareupgrade

2 Adjustthefollowingitems.

Caption settings

ClosedCaptioningdisplaystheaudioportionofprogrammingastext

superimposedoverthevideo.

1 Use▲▼toselectCaption settings,thenpressOK.

Picture Captionservice Off

Sound Digitalcaptionservice Off

Setup Captionstyle

Features

Language

USB

2 Use▲▼◄►toselecttheitemyouwanttoadjust,thenpress

OK.

Digital TV operation

InadditiontothebasicClosedCaption,DTVhasitsownClosed

CaptioncalledDigitalcaptionservice.Usethismenutochangethe

settingsforDigitalcaptionservice.

Digital caption service

Off SelectsifyoudonotwantDigital

captionservice.

CS-1to

CS-6

Selectsoneofthesebeforechanging

anyotheriteminCaption settings

menu.ChooseCS-1undernormal

circumstances.

Analog/Cable TV operation

Caption service

Off Selectifyoudonotwantcaptionservice.

CC-1

and

T-1

Theprimarycaptionandtextservices.The

captioningortextisdisplayedinthesame

languageastheprogram’sdialog(upto4

linesofscriptontheTVscreen).

CC-3

and

T-3

Serveasthepreferreddatachannels.

Thecaptioningortextisoftenasecondary

language.

CC-2,

CC-4,

T-2

and

T-4

Rarelyavailableandbroadcastersusethem

onlyinspecialconditions,suchaswhenCC-1

andCC-3orT-1andT-3arenotavailable.

•Thereare3displaymodesaccordingto

programs:

Paint-on DisplaysInputcharactersonthe

TVscreenimmediately.

Pop-on

Oncecharactersarestoredin

memory,theyaredisplayedall

atonce.

Roll-up

Displaysthecharacters

continuouslybyscrolling(max.

4lines).

Youcanchoosethesize,font,color,backgroundandother

characteristicsofthecaptiontext.

Caption style

Font

Font style

ClosedCaptioningfont

style,size,colorand

transparencycanbe

changed.

Font size

Font color

Font opacity

Background

color Backgroundcolorand

transparencyofthe

displayedcaptioncanbe

switched.

Background

opacity

Edge Edge color Edgecolorandtypeof

thedisplayedcaptioncan

beswitched.

Edge type

So, you must be Philip. Hi!

I’m pleased to meet you.

So, you must be Philip. Hi!

I’m pleased to meet you.

Background

( Background color and Background opacity)

Picture display

Font

( Font style, Font size, Font color and Font opacity)

Edge

(Edge color and Edge type)

• Reviewyoursettingchoicemadebelowbylookingintheupper

rightcornerofthedisplayedsettingbox(notallselectionsshow

thedifferencesselected).

Continued on next page.

English

Note

• Digital caption service that you can switch differs depending on the broadcast

description.

• Caption style will not effect if the User setting is set to Off.

• Closed Captioning service may not be controlled by this unit’s menu options if you are

watching television through an external cable or satellite set-top box. In which case

you will need to use the menu options on the external set-top box to control Closed

Captioning.

• The captions do not always use correct spelling and grammar.

• Not all TV programs and product commercials include Closed Caption information.

Refer to your area TV program listings for the TV channels and times of Closed Caption

shows. The captioned programs are usually noted in the TV listings with service marks

such as CC.

• Not all captioning services are used by a TV channel during the transmission of a

Closed Caption program.

• Closed Caption will NOT be displayed when you are using an HDMI connection.

• To show the Closed Caption on your TV screen, broadcast signal must contain the

Closed Caption data.

• Not all TV programs and commercials have the Closed Caption or all types of the

Closed Caption.

• Captions and texts may not exactly match the TV voice.

• Changing channels may delay the Closed Caption for a few seconds.

• Adjusting or muting the volume may delay the Closed Caption for a few seconds.

• Abbreviations, symbols and other grammatical shortcuts may be used in order to keep

pace with the on-screen action. This is not a malfunction.

• The caption or text characters will not be displayed while the main menu or functions

display is shown.

• If a black box appears on the TV screen, this means that the Closed Caption is set to

the text mode. To clear the box, select CC-1, CC-2, CC-3, CC-4 or Off.

• If the unit receives poor quality television signals, the captions may contain errors or

there might be no captions at all. Some possible causes of poor quality signals are:

- Automobile ignition noise

- Electric motor noise

- Weak signal reception

- Multiplex signal reception (ghosts or screen ﬂ utter)

- Data dropout and Pixelation (for DTV only)

• The unit retains the Closed Caption setting if the power fails.

• When the unit receives special effects playback signal (e.g. Search, Slow and Still) from a

VCR’s video Output channel (ch3 or ch4), the unit may not display the correct caption

or text.

• The EUT setting that satisﬁ es § 79.102 (e) is as follows:

Font: Mono-font

Character size: Large

Child and ratings lock

You can prevent your children from watching certain programs or

certain channels by locking the TV controls and by using ratings.

1 Use ▲▼ to select Child lock, then press OK.

Picture Caption settings

Sound Child lock

Setup PC settings

Features fun-Link (HDMI CEC)

Language Location Home

USB E-sticker --

Software upgrade

2 Use the NUMBER buttons to enter the 4-digit numbers for your

PIN code.

• When you have not set up your PIN code, enter 0, 0, 0, 0.

• When the PIN code is correct, Child lock menu is displayed.

See the following description for setting each item.

Picture Channel lock

US movie ratings lock

US TV ratings lock

Canadian English rating

Canadian French rating

Region ratings lock

Clear region ratings lock

Change PIN

Sound

Setup

Features

Language

USB

Note

• When you select a rating and set it to or , the higher ratings will be blocked

automatically. The lower ratings will be available for viewing.

• When you set the highest rating to , all ratings turn to automatically.

• To block any inappropriate programs, set your limits in US movie ratings lock,

US TV ratings lock and Region ratings lock.

• The child lock setting will be retained after a power failure or after the power is

removed for longer than 10 seconds (except the PIN code reverts to 0000).

Child and ratings lock ➠ p. 23

• Region ratings lock and Clear region ratings lock will be available when the unit

receives a Digital broadcast using the new rating system.

• For the United States, the unit may download the Region Ratings Lock Table, if required.

• The Canadian rating systems on this unit are based on CEA-766-A and CRTC policy.

Channel lock

Particular channels or external Input modes can be invisible in this

function.

3 Use ▲▼ to select Channel lock, then press OK.

4 Use ▲▼ to select the particular channels or external Input, then

press OK repeatedly to switch between view and block.

• indicates that the channel or Input Source is locked.

• indicates that the channel or Input Source is not locked.

Picture HDMI1

HDMI2

HDMI3

Video

40.1 DTV

40.2 DTV

Sound

Setup

Features

Language

USB

English

Setting US movie and TV ratings

US movie ratings lock is the rating system created by MPAA.

US TV ratings lock has controlled access to individual programs based

on their age ratings and content rating.

3 Use ▲▼ to select US movie ratings lock or US TV ratings lock,

then press OK.

4 Use ▲▼ to select the desired rating, then press OK repeatedly to

switch between view and block.

• For US TV ratings, you can further set the sub ratings to block

specic elements of programming.

• or indicates that the rating is locked.

• indicates that the rating is not locked.

US movie ratings lock

Picture All

PG-13

NC-17

Sound

Setup

Features

Language

USB

US TV ratings lock

Picture All

None

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

Sound

Setup

Features

Language

USB

US movie

ratings US TV ratings Description

All All ratings locked including no rating

NR None No rating

− TV-Y Appropriate for all children

− TV-Y7 Appropriate for all children 7 and older

G TV-G General audience

PG TV-PG Parental guidance suggested

PG-13 − Unsuitable for children under 13

− TV-14 Unsuitable for children under 14

R − Restricted under 17 requires accompanying

parent or adult guardian

NC-17 − No one under 17 admitted

X TV-MA Mature audience only

To set the sub ratings

As for TV-Y7, TV-PG, TV-14 or TV-MA, you can further set the sub

ratings to block specic elements of programming. To set the sub ratings,

follow the step below.

Use ▲▼ ◄► to select the desired rating, then press OK repeatedly

to switch between and .

Picture All

None

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

(FV) Fantasy Violence

Sound

Setup

Features

Language

USB

US TV ratings Sub Rating

TV-Y7 (FV) Fantasy Violence

TV-PG (D) Dialog

(L) Language

(S) Sex

(V) Violence

TV-14

TV-MA

(L) Language

(S) Sex

(V) Violence

Note

• Blocked sub rating will appear beside the main rating category in US TV ratings lock

menu.

• You cannot block a sub rating if the main rating is set to .

• Changing the category to or automatically changes all its sub ratings to the same

( or ).

English

Canadian English or Canadian French ratings

You can select the rating for Canadian English or Canadian French

broadcasting.

3 Use ▲▼ to select Canadian English rating or

Canadian French rating, then press OK.

4 Use ▲▼ to select the desired rating, then press OK repeatedly to

switch between view and block.

• indicates that the rating is locked.

• indicates that the rating is not locked.

Canadian

English rating

Canadian

French rating Description

All Locked all ratings

EExempt program

C − For all children

C8+ − For children over 8

GGeneral audience

− 8ans+ Unsuitable for ages under 8

PG − Parental guidance suggested

− 13ans+ Unsuitable for ages under 13

14+ − Unsuitable for ages under 14

− 16ans+ Unsuitable for ages under 16

18+ 18ans+ Adult audience only

Note

• The V-Chip can block non rated programs as per “CEA-608-E sec. L.3”. If the option to

block NR, None or E programs is used in US movie ratings lock, US TV ratings lock,

Canadian English rating or Canadian French rating accordingly “unusual results

may occur and the unit may not receive emergency bulletins or other types of

programming:” / Emergency Bulletins (Such as EAS messages, weather warnings

and others) / Locally originated programming / News / Political / Public Service

Announcements / Religious / Sports / Weather.

Change PIN

Although the default PIN code (0000) is supplied with the unit, you can

set your own PIN code.

3 Use ▲▼ to select Change PIN, then press OK.

4 Press the NUMBER buttons to enter the new 4-digit PIN code.

• Enter PIN code again in Conrm PIN. entry eld.


Enter PIN.

----

Confirm PIN.

----

Sound

Setup

Features

Language

USB

PIN Code Back

Note

• Make sure new PIN code and conrm PIN code must be exactly the same. If they are

different, the space is cleared for reentering.

• Your PIN code will be erased and returns to the default PIN code (0000) when a

power failure occurs.

• If you forget the PIN code, unplug the AC power cord then wait for 10 seconds to plug

the AC power cord in again.

The unit will restore the PIN code to 0000 as the factory default.

PC settings

This function lets you adjust the PC screen position, clock and phase

during PC Input.

Use ◄► to adjust Clock setting to stabilize the PC screen and Phase

setting to improve the clarity of the PC screen.

1 Use ▲▼ to select PC settings, then press OK.

Picture Auto adjustment

Sound

Setup Horizontal position 0

Features Vertical position 0

Language Clock 0

USB Phase 0

2 Use ▲▼ to select the item you want to adjust, then press OK.

• The horizontal/vertical position, clock and phase of the PC

screen are automatically adjusted.

Auto adjustment Select if you want to adjust automatically.

Cursor ◄Cursor ►

Horizontal position to move PC screen left to move PC screen right

Vertical position to move PC screen down to move PC screen up

Clock to decrease setting value to increase setting value

Phase

Note

• You may not obtain an appropriate screen with Auto adjustment for some signals. In

this case, adjust the settings manually.

• Adjust Phase setting after Clock setting has been properly adjusted.

English

fun-Link (HDMI CEC)

This function allows you to operate the linked functions between our

brand devices with a fun-Link feature and this unit connecting through

an HDMI cable. You must connect this unit to our brand fun-Link

devices and be sure its fun-Link (HDMI CEC) setting is also set to On.

1 Use ▲▼ to select fun-Link (HDMI CEC), then press OK.

Picture fun-Link control

Auto device off

Auto TV on

Device list

Sound

Setup

Features

Language

USB

2 Use ▲▼◄► to select the item you want to adjust, then press

OK.

Set the fun-Link control On or Off. The following additional settings will

be grayed out when you set to Off.

fun-Link control

Off Disables all fun-Link.

Selects if you have connected an

external device that is compatible with

the fun-Link function.

You can set your device to Turn Off by interlocking from this unit’s

power.

Auto device off

Off Your connected fun-Link device stays on

even if the unit goes into Standby mode.

Your connected fun-Link device Turns

Off automatically when the unit goes

into Standby mode.

This unit will Turn On when the Power On signal is sent from your

connected fun-Link device.

Auto TV on

Off

This unit stays in Standby mode even if

you Turn On your connected fun-Link

device.

This unit Turns on automatically when

you Turn On your connected fun-Link

device.

Device list

This function lets you see the product model number or name of

connected devices.

Use ▲▼ to select the desired fun-Link devices listed on the TV screen,

then press OK.

Your connected fun-Link device will be Turned On if the device is in

Stand by mode.


Sound HDMI1 DVD recorder

HDMI2 Blu-ray disc player

HDMI3 Home theater system

Setup

Features

Language

USB

Input Change Refresh Back

English

Setting your location to home

You can set the location of your TV to Home or Retail. Choosing Home

gives you full exibility to change predened settings for picture and sound.

1 Use ▲▼ to select Location, then press OK.

Picture Caption settings

Sound Child lock

Setup PC settings

Features fun-Link (HDMI CEC)

Language Location Home

USB E-sticker --

Software upgrade

2 Use ▲▼ to select Home or Retail, then press OK.

Retail The unit will be set up with predened settings for retail

displays. In this setting, you can set the backlight brighter.

Home

The unit is set to maximize the energy efciency for home

setting and it can be adjusted through a choice of picture

and sound quality according to your preference.

Note

• You must set Home. Otherwise, personalized picture and sound settings will not be

memorized after the unit goes into Standby mode.

E-sticker

When you set Location to Retail store, E-sticker (Electronic Sticker) is

displayed. E-sticker can be Turned Off using procedure below.

1 Use ▲▼ to select E-sticker, then press OK.

2 Use ▲▼ to select Off, then press OK.

Off You can Turn Off E-sticker.

Top E-sticker is displayed on top of the TV screen.

Bottom E-sticker is displayed on bottom of the TV screen.

Note

• If you select Home, E-sticker will not be displayed.

Language

1 Press MENU and use ▲▼ to select Language, then press OK.


Sound Select your menu language. English

Setup

Features Seleccione el idioma para el menú. Español

Language

USB Sélectionnez la langue du menu. Français

2 Use ▲▼ to select English, Español or Français, then press OK.

Note

• If you need the English menu instead of the Spanish or French menu’s, press MENU.

Use ▲▼ to select Idioma or Langue, then press OK.

Use ▲▼ to select English then press OK.

Press MENU to exit the main menu.

English

USB

Your TV is tted with a USB connection that enables you to view

photos or watch Motion JPEG les stored on a USB Memory Stick.

1 Connect the USB Memory Stick to the USB terminal on the side of

your TV.

2 Press MENU and use ▲▼ to select USB, then press OK.

• The highlighted text will move to the name of your USB

Memory Stick, then press OK again.

Picture Your USB

Sound This menu allows you to enjoy

your pictures and videos via

your USB device.

Setup

Features

Language

USB

3 Use ▲▼ to select the Picture or Video, then press OK.

• The les recorded under the following specications are

required.

Picture (JPEG) Upper limit 24Mpixel

Video

(Motion JPEG)

Size 320 x 240 (QVGA)

Frame rate 30fps

Audio type LPCM

Sampling frequency

(32 kHz, 44.1 kHz or 48 kHz)

Quantization bit rate (16 bit)

Note

• Up to 2GB (FAT16) or 8GB (FAT32) capacity can be supported.

• Up to 10,000 les or 1,000 folders with 19 hierarchies can be recognized.

• Up to 255 English characters can be recognized.

• This unit does not support MTP(Media Transfer Protocol).

• This unit supports FAT16 and FAT32 le systems.

• If the le is not supported, an error message appears.

• When the USB Memory Stick is not recognized, try reconnecting it again.

• We cannot be held responsible if your USB Memory Stick is not supported, nor will we

accept any liability for damage or loss of stored data.

• A le name exceeding 128 characters or contains a dot character is not supported on

this TV.

• Progressive JPEG les are not supported.

• Only a Motion JPEG le with an “.avi” extension is supported. An extension “.mov” is

not supported.

• During Motion JPEG playback, “Pause”, “Forward” and “Reverse” do not work on this

unit.

Picture (JPEG)

1 Use ▲▼ to select the desired le, then press OK.

Your USB Picture Picture

Picture Image1.jpg







1200:900

2009:04:02 17:42:06

1 2 Thumbnails 3 4

Press “OK” key to play/pause

• To toggle between List and Thumbnails press

the NUMBER 2 button each time.

• The unit goes to the Slide show automatically.

To pause / play the Slide show, press OK.

• Use the NUMBER buttons (1 through 4) to see the le detail

( 1 ) or change the following settings ( 2 ~ 4 ).

See the description on the top of the next column.

Item Detail

More Detail

Press 1 to display le details below.

Name, Album, Date, Size and Next.

Press 1 again to remove le details.

Start show

Press 4 or OK to start the Slide show.

While the Slide show is on, the following 2 settings will be

displayed.

Transitions

Press 2, then use ▲▼ to select the transition mode

choosing from;

None, Dissolve, Wipe right, Wipe left, Wipe up,

Wipe down, Box in and Box out.

Slide time

Press 3, then use ▲▼ to change the display time

choosing from; Short, Medium and Long.

Stop show

Press 4 or OK to stop the Slide show.

While the Slide show is Off, the following 2 settings will be

displayed.

Rotate

Every press on 2 will turn the picture clockwise by 90

degrees.

Zoom

Press 3, then use ▲▼ to select the zoom factor (1x, 2x

or 4x). Press OK to set the zoom factor.

Video (Motion JPEG)

1 Use ▲▼ to select the desired le, then press OK.

Your USB Video Video

Video MOVIE1.avi

MOVIE1.avi

MOVIE2.avi

MOVIE3.avi

MOVIE4.avi

MOVIE5.avi

Title: MOVIE1.avi

Director:

Date: 2009/04/02

Duration: 00:06:37

1 2 3 4

Supported format: motion jpeg, 320 x 240, 30FPS

• To stop playback and return to the le list, press

BACK, OK or CH +.

• Press CH − to play back from the beginning.

Item Detail

More Detail

Press 1 to display le details below.

Title, Director, Date and Duration.

Press 1 again to remove le details.

English

6 Upgrade your TV software

Emerson continuously tries to improve its products and we strongly

recommend that you upgrade the TV software when upgrades are

available.

New software can be downloaded from our website at

http://emersonaudiovideo.com/support/download.php

using the model number of your TV to nd information.

Checking your current software version

1 Press MENU and use ▲▼ to select Features, then press OK.

2 Use ▲▼ to select Software upgrade, then press OK.

Picture Current software info

Sound Upgrade

Setup

Features

Language

USB

3 Use ▲▼ to select Current software info, then press OK.

• The version and a description of the current software is

displayed.

Picture Back

Sound

Release Version:

XXXXXXX_XX_XX_XXXX_XX

Setup

Features

Language

USB

Upgrading the software

You can upgrade the software by using USB Memory Stick.

Preparing for the software upgrade

You require the following equipment :

• A PC with web browsing capability.

• An archive utility that supports the ZIP-format

(e.g. WinZip for Windows or StuffIt for Mac OS).

• An empty clean formatted USB Memory Stick.

Note

• Only FAT / DOS-formatted portable memory is supported.

• Use only software upgrades that can be found on the Emerson web site.

Warning

• When the software upgrade is running, don’t press any buttons.

• Do not remove the USB Memory Stick during the software upgrade.

• If an error occurs during the upgrade, retry the procedure or for further assistance,

please contact Call Center.

Downloading the software

Find information and software related to your TV and download the

latest software upgrade le to your PC.

1 On your PC, open a web browser and go to

http://emersonaudiovideo.com/support/download.php

2 Enter the model number in the “Type the Model Number...” eld.

3 Click the desired software to be downloaded.

• Decompress the ZIP-le.

4 Copy the upgrade le to the root directory of the USB Memory

Stick.

Starting the software upgrade

1 Connect your USB Memory Stick with the upgrade le to the USB

terminal on the side of your TV.

2 Press MENU and use ▲▼ to select Features, then press OK.

3 Use ▲▼ to select Software upgrade, then press OK.

4 Use ▲▼ to select Upgrade, then press OK.

5 Read the on-screen instructions and conrm that you want to

continue with the installation.


Would you like to upgrade the

software?

Start now

Sound

Setup

Features

Language

USB

6 When the software upgrade is completed, press to set the unit

to go into Standby mode, then remove the USB Memory Stick and

then press again to Turn the unit On.

• The TV starts up with the new software.

For further assistance, please contact Call Center.

English

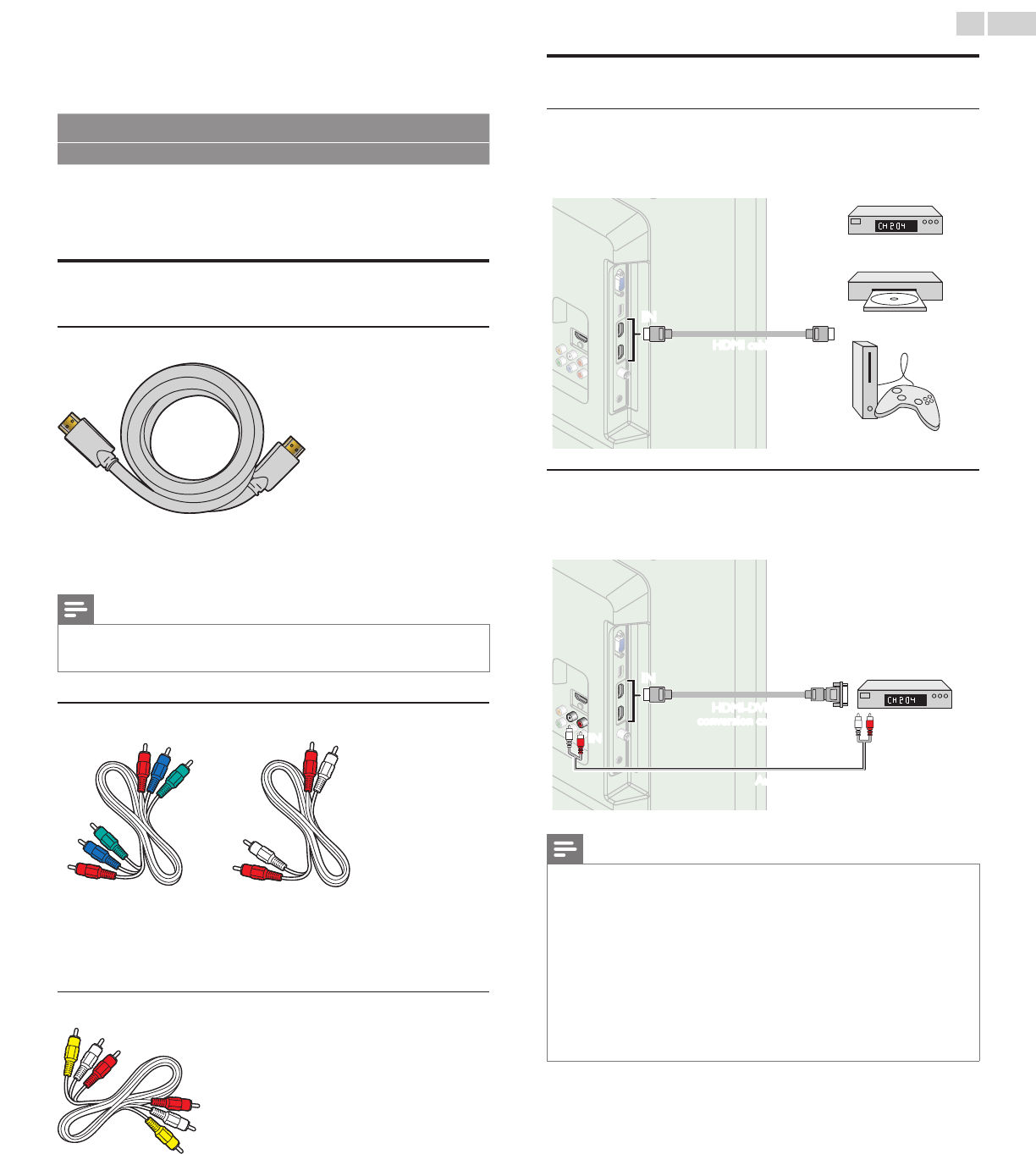

7 Connecting devices

No supplied cables are used with these connections:

• Please purchase the necessary cables at your local store.

Before you connect AC power cord:

Be sure other devices are connected properly before plugging in the AC

power cord.

Selecting your connection quality

HDMI - Highest quality

Supports high-denition Digital signals and gives highest picture and

sound quality. Video and audio signals are combined in one cable.

You must use HDMI for full high-denition video and to enable

fun-Link (HDMI CEC).

Note

• Emerson HDMI supports HDCP (High-bandwidth Digital Contents Protection). HDCP

is a form of Digital Rights Management that protects high denition content in Blu-ray

discs or DVDs.

Component (Y Pb Pr) - High quality

Supports high-denition Analog signals but gives lower picture quality than

HDMI. Component (Y/Pb/Pr) Video cables combine red / green / blue

video cables with red / white audio (L/R) cables. Match the cable colors

when you connect to the TV.

Composite - Basic quality

For analog connections. Composite Video / Audio Analog cable usually

combine a yellow video cable with red / white audio (L/R) cables. With

this unit, yellow cable must be connected to Y (green) of Component

Video Input jacks.

Connecting your devices

HDMI Digital connection

HDMI connection offers the highest picture quality.

HDMI (High-Denition Multimedia Interface) transports high denition

Digital video and multi-channel Digital Audio through a single cable.

ININ OUT

set-top box

Blu-ray disc player

HD game console

HDMI cable

HDMI-DVI connection

This unit can be connected to your device that has a DVI terminal.

Use an HDMI-DVI conversion cable for this connection and it requires

audio cable for Analog Audio signal as well.

ININ OUT

OUT

HDMI-DVI

conversion cable

Audio (L/R) cables

cable receiver or

satellite box with the

DVI Output jack

Note

• Use an HDMI cable with the HDMI logo (a certied HDMI cable). High Speed HDMI

cable is recommended for the better compatibility.

For HDMI connection

• The unit accepts 480i / 480p / 720p / 1080i, 1080p 24/30/60Hz of video signals, 32kHz

/ 44.1kHz and 48kHz of audio signals.

• This unit accepts 5.1 channel audio signal (Dolby Digital) and 2 channel audio signal

(LPCM).

• This unit accepts only signals in compliance with EIA861.

For HDMI-DVI connection

• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.

• HDMI-DVI connection requires separate audio connections as well and the audio

signals are output as Analog (L/R) Audio.

• DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.

English

Component Analog Video Connection

Component Analog Video connection offers better picture quality for

video devices connected to the unit.

If you connect to the unit’s Component Video (Y/Pb/Pr) Input jacks,

connect Analog Audio cables to the Analog Audio (L/R) Input jacks.

OUTOUT

OUT

Component (Y/Pb/Pr) Video cables

Audio (L/R) cables set-top box

Blu-ray disc/DVD recorder

Note

• The unit accepts 480i / 480p / 720p and 1080i of video signals for this connection.

Composite Analog Video Connection

Composite Analog Video connection offers standard picture quality for

video devices connected to the unit.

If you connect to the unit’s Composite Video (Y/VIDEO) Input jack,

connect audio cables to the Audio (L/R) Input jacks. When the Audio is

monaural, then only connect to the Audio L Input jack.

OUTOUT

DVD player

Audio (L/R) + Video cables

Note

• With this unit, yellow cable must be connected to Y (green) of Component Video Input

jacks.

• Whenever you connect to the Composite Video Input jack (Y/VIDEO), you must

disconnect the Component Video Input jacks (Pb and Pr). If you leave those jacks

connected, it may cause of unstable picture.

• Only the left loudspeaker reproduces sound for mono equipment. Use a mono to

stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.

Digital Audio Output Connection

If you connect this unit to an external Digital Audio device, you can

enjoy multi-channel audio like 5.1ch Digital broadcasting sound.

Use a Digital Audio coaxial cable to connect the unit to external Digital

Audio devices.

ININ

OUT

OUT Digital home theater

amplier

Digital Audio coaxial cable

English

PC connection

HDMI connection

This unit can be connected to your PC that has a HDMI terminal. Use

an HDMI cable for this Digital connection.

ININ OUT

HDMI cable

HDMI-DVI connection

This unit can be connected to your PC that has a DVI terminal. Use

an HDMI-DVI conversion cable for this Video Digital connection and it

requires Stereo mini 3.5mm plug Audio cable for Analog Audio signal as

well.

OUT

IN OUT

ININ

Stereo mini 3.5 mm plug Audio cable

HDMI-DVI

conversion cable

VGA connection

This unit is equipped with a PC Input jack. If you connect this unit to

your PC, you can use this unit as a PC monitor.

Use a VGA cable for this Video connection and it requires a Stereo mini

3.5mm plug Audio cable for Analog Audio signal as well.

OUTIN

IN OUT

VGA cable

Stereo mini 3.5 mm plug Audio cable

The following video signals can be displayed:

Format Resolution Refresh rate

VGA 640 x 480

SVGA 800 x 600

XGA 1,024 x 768

WXGA 1,280 x 768

1,360 x 768

FHD 1,920 x 1,080

60Hz

Other formats or non-standard signals will not be displayed correctly.

Note

• Please purchase the VGA cable or HDMI-DVI conversion cable that has a ferrite core.

• The following operations may reduce noise.

- Attach a ferrite core to the AC power cord of your PC.

- Unplug the AC power cord and use the built-in battery of your PC.

• Use an HDMI cable with the HDMI logo (a certied HDMI cable). High Speed HDMI

cable is recommended for the better compatibility.

• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.

• HDMI-DVI connection requires separate audio connections as well and the audio

signals are output as Analog (L/R) Audio.

• DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.

USB Memory Stick

This unit offers easy playback of picture (JPEG) and video

(Motion JPEG) les.

Insert the USB Memory Stick into the USB terminal shown below.

USB ➠ p. 28

Note

• The unit recognizes only a USB Memory Stick.

• Do not use a USB hub or an extension cable to connect an external hard disk drive to

the unit. (Not supported.)

• A USB Memory Stick is always inserted to this unit directly.

• A USB Memory Stick is not supplied with this unit.

• We do not guarantee that all USB Memory Sticks can be supported by this unit.

• Be sure to keep a backup copy of the original les on your device before you play them

back on this unit. We have no responsibilities for damage or loss of your stored data.

• To protect your USB Memory Stick les from being erased place the write protect

sliding tab in the protect position.

• When you are ready to remove a USB Memory Stick, set the unit to go into Standby

mode to avoid any damage to your data and the unit.

• A USB Memory Stick that requires its own driver or the device with a special system

such as ngerprint recognition are not supported.

• This unit is not allowed to use the USB Memory Stick which requires an external

power supply (500mA or more).

English

8 Useful tips

FAQ

Question Answer

My remote control does not

work.

What should I do?

• Check the antenna or cable connection to the main unit.

• Check the batteries of the remote control.

• Check if there is an obstacle between the infrared sensor window and the remote control.

• Test the signal Output use IR Signal Check. ➠ p. 35

If okay, then possible infrared sensor trouble.

• Aim the remote control directly at the infrared sensor window on the front of the unit.

• Reduce the distance to the unit.

• Re-insert the batteries with their polarities (+/– ) as indicated.

• When there is an infrared-equipped device such as PC near this unit, it may interrupt the remote control signal of this unit. Move

the infrared-equipped device away from this unit, change the angle of the infrared sensor or Turn Off the infrared communication

function.

How come the Initial setup

appears every time I Turn On

this unit?

• Connect the RF coaxial cable to the unit directly and run the initial setup.

• Make sure to complete the initial setup before the unit goes into Standby mode.

Why can I not watch some RF

signal TV programs.

• Autoprogram must be completed when you set up the unit for the rst time or move it to a location where previously unavailable

channels are broadcast.

• Make sure Autoprogram has been completed. ➠ p. 20

• The selected channel may not be broadcasting.

• When Autoprogram is interrupted and not completed, some channels will not be received. Make sure to complete the

Autoprogram. ➠ p. 20

• The selected channel cannot be viewed by the Child and ratings lock setting. ➠ p. 23

• The unit requires some kind of antenna Input. An indoor antenna (Digital or VHF / UHF), an external antenna (Digital or VHF / UHF)

or an RF coaxial cable from your wall cable/satellite box needs to be plugged into the unit.

How come there is no image

from the connected external

devices?

• Check if the correct Input mode is selected by pressing SOURCE or using CH + / −. Refer to Watching channels from an external

device. ➠ p. 15

• Check the antenna, cable or other Input connection to the unit.

• When using the Component Video connection check that the Green (Y), Blue (Pb/Cb) and Red (Pr/Cr) connectors are connected

to their corresponding colored jacks on the unit.

When I enter a channel number,

it changes automatically.

• Many Digital channels have alternate channel numbers. The unit changes the numbers automatically to the ones signifying the

broadcasting station channel number. These basic numbers used for previous Analog broadcasts. (e.g., Input ch# 30 automatically

changes to ch# 6.1)

Why are captions not displayed

entirely? Or, captions are

delayed behind the dialog.

• Captions that are delayed a few seconds behind the actual dialog are common for live broadcasts. Most captioning production

companies can display a dialog to maximum of 220 words per minute. If a dialog exceeds that rate, selective editing is used to

insure that the captions remain up-to date with the current TV screen dialog.

How can I set the clock ? • There is no clock function on this unit.

I cannot change the Child lock

setting because my PIN code no

longer works.

• If a Power failure occurs for longer than 10 seconds the child lock setting is retained, but the PIN code is reset to the default code

0000. Refer to Child and ratings lock. ➠ p. 23

Troubleshooting

If the unit does not perform properly when operated as instructed in this Owner’s Manual,

check the following chart and all connections once before calling for service.

Symptom Remedy

No power • Make sure the AC power cord is plugged in.

• Make sure that the AC outlet supplies the proper voltage, plug another electrical appliance into the AC outlet to ensure that the AC

outlet operates normally.

• If a power failure occurs, unplug the AC power cord for 1 minute to allow the unit to reset itself.

Control buttons do not work. • Press only one button at a time. Do NOT press more than one button at the same time.

• Ensure that no buttons on the remote control are depressed and move freely.

Continued on next page.

English

Symptom Remedy

Power is ON but no screen

image.

• Check whether the connection of the antenna, cable receiver or satellite box is connected correctly.

• Check whether all the cables to the unit are connected to the correct Output jack of your device like Blu-ray disc / DVD recorder.

• Make sure that the selected Input mode is connected to the working Input jack.

• Check if your computer is NOT in sleep mode when the Input mode of this unit is in PC mode. Tap any key on the keyboard to

wake up your computer.

No picture or sound • Check if the Power is on.

• Check whether all the cables to the unit are connected to the correct Output jack of your device like Blu-ray / DVD recorder.

• View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.

• Unplug the AC power cord and wait for about 1 minute, then plug the AC power cord and Turn On the unit again.

• Check whether the connection of the antenna, cable receiver or satellite box is connected correctly.

• Make sure that the selected Input mode is connected to the working Input jack.

• Check if your computer is NOT in sleep mode when the Input mode of this unit is in PC mode. Tap any key on the keyboard to

wake up your computer.

• Make sure that the sound is not muted. Press so that the volume bar and current volume level will appear on the TV screen.

• Make sure that the volume is NOT set to 0 or . If so, use VOL + / − to adjust to the desired volume.

No color • View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.

• Adjust Color in Picture settings. ➠ p. 19

No sound, distorted sound or

incorrect Audio Sound is heard

when using the HDMI-DVI

connections.

• Make sure that the Analog Audio signals from the HDMI-DVI device are connected to the Analog Audio (L/R) Input jacks.

• When using Component Analog Video, Composite Analog Video or PC VGA Video make sure that the Analog Audio (L/R)

connectors are mounted into the Audio (L/R) Input jacks.

Adjusted Picture or Sound

settings are not effective every

time the unit is Turned On.

• You must set Home in Location. ➠ p. 27

Otherwise, the settings you adjusted will not be memorized after the unit goes into Standby mode.

Sound OK, picture poor • Electrical interference from nearby appliances may affect picture quality.

• Adjust Contrast and Brightness in Picture settings. ➠ p. 19

• View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.

• For the best picture quality, watch High Denition wide screen programs.

If the HD content is not available, watch Standard Denition programs instead.

Picture OK, sound poor • View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.

• Check if the audio cable is connected into the unit correctly.

You see a distorted picture or

hear an unusual sound.

• You may be getting interference from electrical appliances, automobiles, motorcycles or uorescent lights.

• Try moving the unit to another location to see if this is the cause of the problem.

Ghosts, lines or streaks in picture • Electrical interference from nearby appliances may affect picture quality.

• View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.

You see noise or trash on the

screen.

• When the capabilities of the unit exceed the capabilities of the Digital broadcasting, the signal will be increased to match the

capabilities of the display of the unit. This may cause noise or trash.

Different color marks on the TV

screen

• View other TV channels. The problem might be limited to the broadcasting station, missing data or pixelation.

You switch to a different Input

and the volume changes.

• This unit will memorize the volume level from the last time you adjusted it.

• If the volume of the sound from another device is higher or lower, then the loudness will change.

• Make sure Auto volume leveling is set to On. ➠ p. 20

You switch to a different Input

and the screen size changes.

• This unit will memorize the viewing mode from the last time you used the particular Input modes.

The display image does not

cover the entire screen.

• If you are using the unit as a PC monitor, make sure that Horizontal position and Vertical position in PC settings are set correctly.

• If you are watching TV or using the Composite Video, Component Video or HDMI with 480i Input, press FORMAT repeatedly to

switch various screen modes.

Captions are displayed as a white

box. No caption is displayed in

the Closed Caption-supported

program.

• Interference from buildings or weather conditions may cause captioning to be incomplete if watching Analog TV signals.

• Broadcasting station may shorten the program to insert advertisements.

• The Closed Caption decoder cannot read the information of the shortened program.

Black box is displayed on the TV

screen.

• The text mode is Selected. For caption, select CC-1, CC-2, CC-3, CC-4 or Off.

Note

• The LCD screen is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a xed point of blue, green or red.

This is not to be considered a defect in the LCD screen.

• Some functions are not available in specic modes, but this is not a malfunction. Read the description in this Owner’s Manual for more details on correct operations.

English

9 Information

Glossary

Analog TV (NTSC)

Acronym that stands for National Television Systems Committee and the name

of Analog broadcasting standards.

Off the air Analog TV signals are no longer being sent by major broadcasting

stations in the USA.

Aspect ratio

The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other

words, the TV screen is almost square); widescreen models are 16:9 (the TV

screen is almost twice as wide as its height).

CEC (Consumer Electronics Control)

This allows you to operate the linked functions between our brand devices with

CEC feature and this unit. We do not guarantee 100% interoperability with other

brands of CEC compliant devices.

Component Video

This is a video signal format that conveys each of 3 principal colors of light

(red, blue and green) through different signal lines. This allows the viewers to

experience picture colors as original as it is. There are several signal formats,

including Y / Pb / Pr and Y / Cb / Cr.

Dolby Digital

The system developed by Dolby Laboratories to compress Digital sound. It offers

stereo sound (2ch) or multi-channel audio.

DTV (ATSC)

Initialism that stands for Advanced Television Systems Committee and the name

of the Digital broadcasting standards.

E-sticker

E-sticker is showing set features, technical information, etc on this TV set

that is displayed on the TV screen mainly used by TV retailers. Previously the

information was on a printed sticker that was put on the display.

HDMI (High-Denition Multimedia Interface)

Interface that supports all uncompressed, Digital Audio / Video formats including

set-top box, Blu-ray / DVD recorder or Digital television, over a single cable.

HDTV (High Denition TV)

Ultimate Digital format that produces high resolution and high picture quality.

PIN code

A stored 4-digit number that allows access to parental control features.

SAP (Secondary Audio Program)

Second-audio channel delivered separately from main-audio channel. This audio

channel is used as an alternate in bilingual broadcasting.

SDTV (Standard Denition TV)

Standard Digital format that is similar to the Analog TV picture quality.

SRS Sound

Delivers a rich and immersive surround sound experience.

Maintenance

Cabinet Cleaning

• Wipe the front panel and other exterior surfaces of the unit with

a soft cloth.

• Never use a solvent or alcohol. Do not spray insecticide liquid near

the unit. Such chemicals may cause damage and discoloration to

the exposed surfaces.

Panel Cleaning

Wipe the panel of the unit with a soft cloth. Before cleaning the panel,

disconnect the AC power cord.

Servicing

Should your unit become inoperative, do not try to correct the

problem yourself. There are no user serviceable parts inside. Call

our toll free customer support line found on the cover of this

Owner’s Manual to locate an authorized service center.

IR Signal Check

If the remote control is not working properly, you can use a Digital

camera (including a cellular phone with built-in camera) to see if it is

sending out an infrared signal.

With a Digital camera

(including built-in cell phone cameras):

Point the Digital Camera towards the remote control

infrared diode at the front of the remote control.

Press any button on the remote control and look

through the camera display. If the infrared pulsating

light appears through the camera, the remote control

is sending out an IR signal.

English

10 Specifications

Model # LC501EM3 / LC391EM3


Type FHD (1920 x 1080 pixels 60Hz)

Aspect ratio 16:9

Viewing angles 176° (V) by 176° (H)

Built-in Digital tuner ATSC / NTSC

Sound

Mono / Stereo Mono, Stereo, SRS Sound

Power Output (RMS watts) 10 W x 2

Equalizer 5 band

Ease of use

Picture format

SD (4:3 Source) :

HD (16:9 Source) :

HDMI AV (4:3 Source) :

HDMI AV (16:9 Source) :

PC Source :

Normal / 16:9 / Movie expand / Zoom / Wide

Normal / 4:3 / Movie expand / Zoom / Wide

Normal / 16:9 / Movie expand / Zoom / Wide / Full

Normal / 4:3 / Movie expand / Zoom / Wide / Full

Normal / Full / Unscaled

(Refer to HDMI AV (16:9 Source) above if PC has HDMI Output.)

Photo Slide show JPEG ﬁ les only

Video playback Motion JPEG 320 x 240, 30fps and ﬁ le extension “.avi” only

Channel

Channel coverage

Terrestrial DTV (ATSC) VHF :

UHF :

2~13

14~51 (each channel has e.g. 2.1~2.9, 3.1~3.9, etc.)

Terrestrial Analog (NTSC) VHF :

UHF :

2~13

14~69

CATV 2~13, A~W,

W+1~W+94 (analog W+1~W+84), A-5~A-1, 5A

Tuning system Channel frequency synthesized tuning system

Channel access Direct access keyboard,

Programmable scan, and up / down

Connectivity

Component Video Input (Y/Pb/Pr) 1

supporting video signals : 480i/p, 720p, 1080i 60Hz

Composite Video Input

(shared terminal with Y of components) 1

HDMI Input

supporting video signals : 480i/p, 720p, 1080i/p, 24Hz-60Hz

PC-Input signal up to FHD (1920 x 1080)

Audio L/R Input 1

PC Input via VGA, HDMI and HDMI-DVI + Analog Audio L/R

USB 1

Digital Audio Output 1

supporting Dolby Digital

Headphone Output 1

1/8 inches (3.5mm)

Power

Power requirements 120V~ AC +/− 10%, 60Hz +/− 0.5%

Temperature

Operating temperature 41 °F (5 °C) to 104 °F (40 °C)

• Speciﬁ cations are subject to change without prior notice.

English

11 Warranty

WARRANTY COVERAGE:

This warranty obligation is limited to the terms as set forth

below.

WHO IS COVERED:

This product warranty is issued to the original purchaser or the

person receiving the product as a gift against defects in materials

and workmanship as based on the date of original purchase

(“Warranty Period”) from an Authorized Dealer. The original

sales receipt showing the product name and the purchase date

from an authorized retailer is considered such proof.

WHAT IS COVERED:

This warranty covers new products if a defect in material or

workmanship occurs and a valid claim is received within the

Warranty Period. At its option, the company will either (1)

repair the product at no charge, using new or refurbished

replacement parts, or (2) exchange the product with a product

that is new or which has been manufactured from new, or ser-

viceable used parts and is at least functionally equivalent or most

comparable to the original product in current inventory, or (3)

refund the original purchase price of the product.

Replacement products or parts provided under this warranty are

covered against defects in materials and workmanship from the

date of the replacement or repair for ninety (90) days or for the

remaining portion of the original product’s warranty, whichever

provides longer coverage for you. When a product or part is

exchanged, any replacement item becomes your property and the

replaced item becomes company property. When a refund is

given, your product becomes company property.

Note: Any product sold and identified as refurbished or

renewed carries a ninety (90) day limited warranty.

Replacement product can only be sent if all warranty

requirements are met. Failure to follow all requirements

can result in delay.

WHAT IS NOT COVERED - EXCLUSIONS AND LIMI-

TATIONS:

This Limited Warranty applies only to new company manufac-

tured products that can be identified by the trademark, trade

name, or logo affixed to it. This Limited Warranty does not apply

to any hardware product or any software, even if packaged or

sold with the product, as manufacturers, suppliers, or publishers

may provide a separate warranty for their own products pack-

aged with the bundled product.

The company is not liable for any damage to or loss of any pro-

grams, data, or other information stored on any media contained

within the product, or other additional product or part not cov-

ered by this warranty. Recovery or reinstallation of programs,

data or other information is not covered under this Limited

Warranty.

This warranty does not apply (a) to damage caused by accident,

abuse, misuse, neglect, misapplication, or non-supplied product,

(b) to damage caused by service performed by anyone other than

company approved Authorized Service Location, (c) to a product

or a part that has been modified without written company per-

mission, or (d) if any serial number has been removed or defaced,

or (e) product, accessories or consumables sold “AS IS” without

warranty of any kind by including refurbished product sold “AS

IS” by some retailers.

This Limited Warranty does not cover:

•Shipping charges to return defective product.

•Labor charges for installation or setup of the product, adjust-

ment of customer controls on the product, and installation or

repair of antenna/signal source systems outside of the product.

•Product repair and/or part replacement because of improper

installation or maintenance, connections to improper voltage

supply, power line surge, lightning damage, retained images or

screen markings resulting from viewing fixed stationary con-

tent for extended periods, product cosmetic appearance items

due to normal wear and tear, unauthorized repair or other

cause not within the control of the company.

•Damage or claims for products not being available for use, or

for lost data or lost software.

•Damage from mishandled shipments or transit accidents when

returning product.

•A product that requires modification or adaptation to enable

it to operate in any country other than the country for which

it was designed, manufactured, approved and/or authorized, or

repair of products damaged by these modifications.

•A product used for commercial or institutional purposes

(including but not limited to rental purposes).

•Product lost in shipment and no signature verification receipt

can be provided.

•Failure to operate per Owner’s Manual.

TO OBTAIN ASSISTANCE…

Contact the Customer Care Center at:

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS

WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CON-

SUMER, WITH THE ISSUING COMPANY NOT LIABLE FOR

ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR

BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON

THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY

APPLICABLE LAW, ANY IMPLIED WARRANTY OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE

ON THIS PRODUCT IS LIMITED IN DURATION TO THE

DURATION OF THIS WARRANTY.

Some states do not allow the exclusions or limitation of inciden-

tal or consequential damages, or allow limitations on how long an

implied warranty lasts, so the above limitations or exclusions may

not apply to you.

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

LIMITED WARRANTY

NINETY (90) DAY LABOR / ONE (1) YEAR PARTS

FUNAI CORPORATION, Inc. 19900 Van Ness Avenue, Torrance, CA 90501

1 866 309 8819

A21UFUH /A21UCUH /A21U1UD /A21T1UH

FUNAI CORPORATION, Inc.

19900 Van Ness Avenue, Torrance, CA 90501

EMERSON AND THE G-CLEF LOGO ARE REGISTERED TRADEMARKS

OF EMERSON RADIO CORP., MOONACHIE, NEW JERSEY, U.S.A.

Emerson Lc391Em3 Owners Manual ManualsLib Makes It Easy To Find Manuals Online!

Navigation menu

Versions of this User Manual:

Views

Navigation
