AC Power Systems

For Business-Critical Continuity™

When a computer system cannot be without power — even for maintenance —

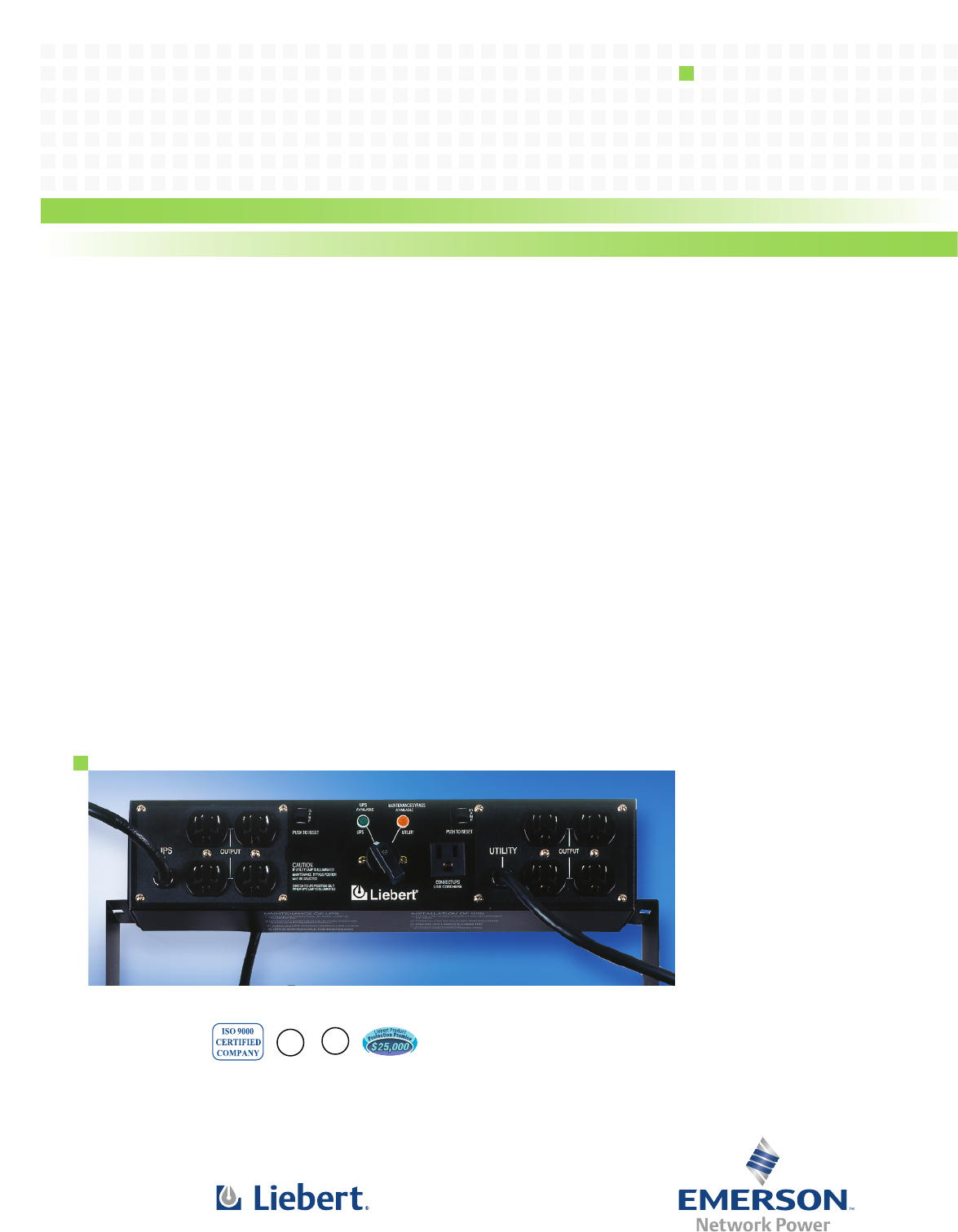

a Liebert MicroPOD™ensures continuous uptime. The Liebert MicroPOD

provides maintenance bypass capability and power output distribution for

Liebert GXT and Liebert PSI UPS models 3 kVA and below, as well as other

brands of UPS systems. It allows removal of the UPS without powering down

the connected equipment.

The Liebert MicroPOD maintenance bypass and power output

distribution switch allows you to manually transfer the connected

equipment to utility power via a maintenance bypass switch,

permitting scheduled maintenance or UPS replacement without

discontinuing power to the critical load. Transferring back to UPS

power is just as easy — simply turn the switch to the indicated

position and the load is protected by the UPS. Available in plug-and-

play or hardwired options at 120V or 208V rating, units include

brackets for rack mounting in any direction.

Key Benefits:

Higher Availability

■Provides utility power to attached

equipment when switched to

maintenance bypass mode.

■Allows UPS maintenance or

replacement of the UPS without

discontinuing power to critical

equipment.

Flexibility

■Easily installed — the UPS and utility

power are both connected to the

MicroPOD with the supplied cords.

■Allows scheduled UPS maintenance

to ensure continuous uptime without

having to shut down protected

equipment.

■Rotary switch with indicators make

the unit simple to operate.

■Plug-and-play connectability for both

input and output.

■Compatible with any brand of UPS

system.

Lowest Total Cost Of Ownership

■Assures system uptime during

maintenance activities.

■Extreme affordability.

■Two-year, no-hassle replacement

warranty eliminates the cost of

replacement during the warranty

period.

Liebert MicroPOD™

Wrap-Around Maintenance Bypass With Output Distribution

UL

®

UL

®

c

Configuration

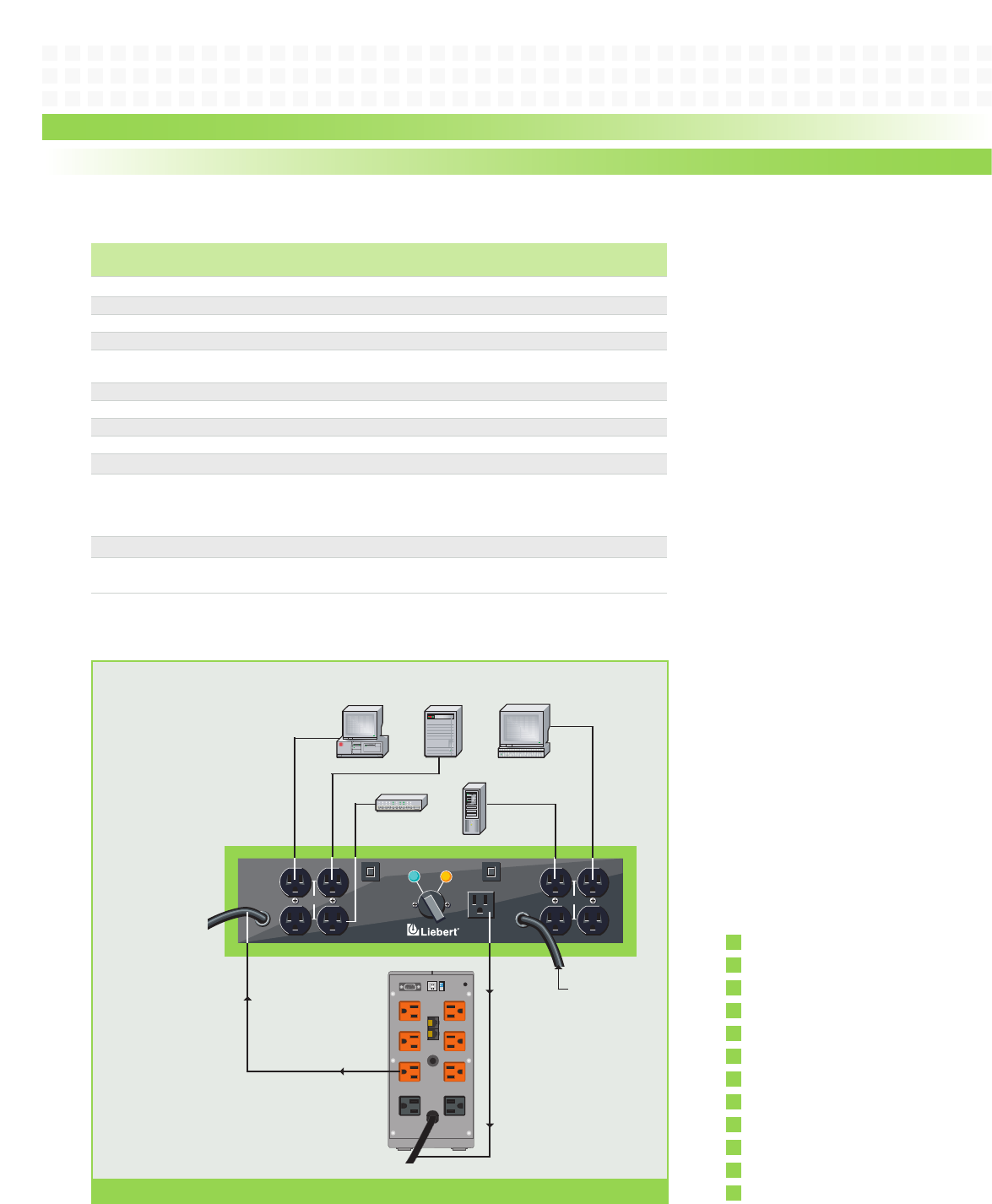

The MicroPOD plugs into the utility

and UPS, and the UPS is plugged

into the MicroPOD. All protected

devices are connected to the

MicroPOD, allowing maintenance

bypass for the UPS.

MicroPOD™Specifications

Receptacle to Plug to MicroPOD

Part Number Plug to Utility UPS Input UPS Output Output Receptacles

120V UL Listed MicroPODs

MP2-115A 5-15P 5-15R 5-15P (8)5-15R

MP2-120C 5-20P 5-20R 5-20P (8)5-20R (T-Slot)

MP2-130C L5-30P L5-30R L5-30P (8)5-20R (T-Slot)

MP2-130E L5-30P L5-30R L5-30P (2)5-15R, (4) 5-20R (T-Slot)

(1) L5-30R

MP2-130P L5-30P L5-30R L5-30P (4) 5-15R, (2) L5-20R

MP2-115HW Hardwired 5-15R 5-15P Hardwired

MP2-120HW Hardwired 5-20R 5-20P Hardwired

MP2-130HW Hardwired 5-30R 5-30P Hardwired

208V UL Listed MicroPOD

L6-20P OR (2) L6-20R, (2) L6-15R,

Hardwire Connection OR Hardwire Connections

MP2-220N (plug is removable for L6-20R L6-20P (receptacles are removable

hardwire applications) for hardwire applications)

230V CE Marked MicroPODs

MP2-210K EN60320/C14 EN60320/C13 EN60320/C14 (4) EN60320/C13

MP2-220L EN60320/C20 EN60320/C19 EN60320/C20 (4) EN60320/C13, (1)EN60320/C19

OUTPUT

UPS

PUSH TO RESET

UPS

AVAILABLE

UPS UTILITY

MAINTENANCE BYPASS

AVAILABLE

CONNECT UPS

LINE CORD HERE

PUSH TO RESET

IF UTILITY LAMP IS ILLUMINATED

MAINTENANCE BYPASS POSITION

MAY BE SELECTED

SWITCH TO UPS POSITION ONLY

WHEN UPS LAMP IS ILLUMINATED

CAUTION

OUTPUT

UTILITY

15

A

M

P

15

A

M

P

From Utility

Protected

Devices

MicroPOD

plugs into

UPS outlet

UPS plugs into

MicroPOD
