AC Power
For Business-Critical Continuity™
Liebert® NX™
UPS For Small And Medium Business
As you upgrade and expand your business, do you find small UPS
proliferating throughout your racks? Do you lose track of how old each
UPS is and when the batteries should be replaced? Are dropped loads
your first indication that the UPS has a problem?
If this situation sounds familiar, then a data center UPS like the Liebert
NX can simplify your life by eliminating multiple points of failure, and
consolidating your power equipment into one professionally serviced
system. If your power requirements are changing faster than your UPS
can, there is a Liebert NX model that is perfect for your application.
Emerson Network Power Has A UPS
That Matches Your Growth Plans
2
Changing data centers, rapid and unpredictable
growth, plus a myriad of other power-related
challenges are making it increasingly difficult to
protect critical network equipment and other
electronic components.
Liebert NX: The Right Combination Of
Features And Flexibility For Growing
Data Centers
Liebert NX is a true on-line, double conversion, three-
phase UPS system that delivers complete, centralized
power protection for mission-critical systems.
Designed to meet the high availability power needs of
a wide variety of IT applications, this power solution
delivers advanced operating features and low cost of
ownership.
There Is A Liebert NX UPS System
That Is Ideally Suited To Power
Electronic Equipment In Your Small
To Medium Business:
n Small to mid-size data centers
n Server rooms
n Production
n Labs and testing
n Telecommunications
n Process control
n Point-of-sale
n And other sensitive electronics
3
Liebert NX
40, 60, 80, 100 & 120 kVA
Liebert NX
10, 15, 20 & 30 kVA
Liebert NX
160 & 200 kVA
Liebert NX 10-30 kVA UPS
n Increases growth flexibility by handling
larger loads, plus the ability to parallel
20 and 30 kVA modules for increased
capacity and redundancy.
n Achieves higher availability by reducing
the number of UPS units required to
power your room.
n Reduces total cost of ownership
through the use of longer life batteries
and simplified preventive maintenance.

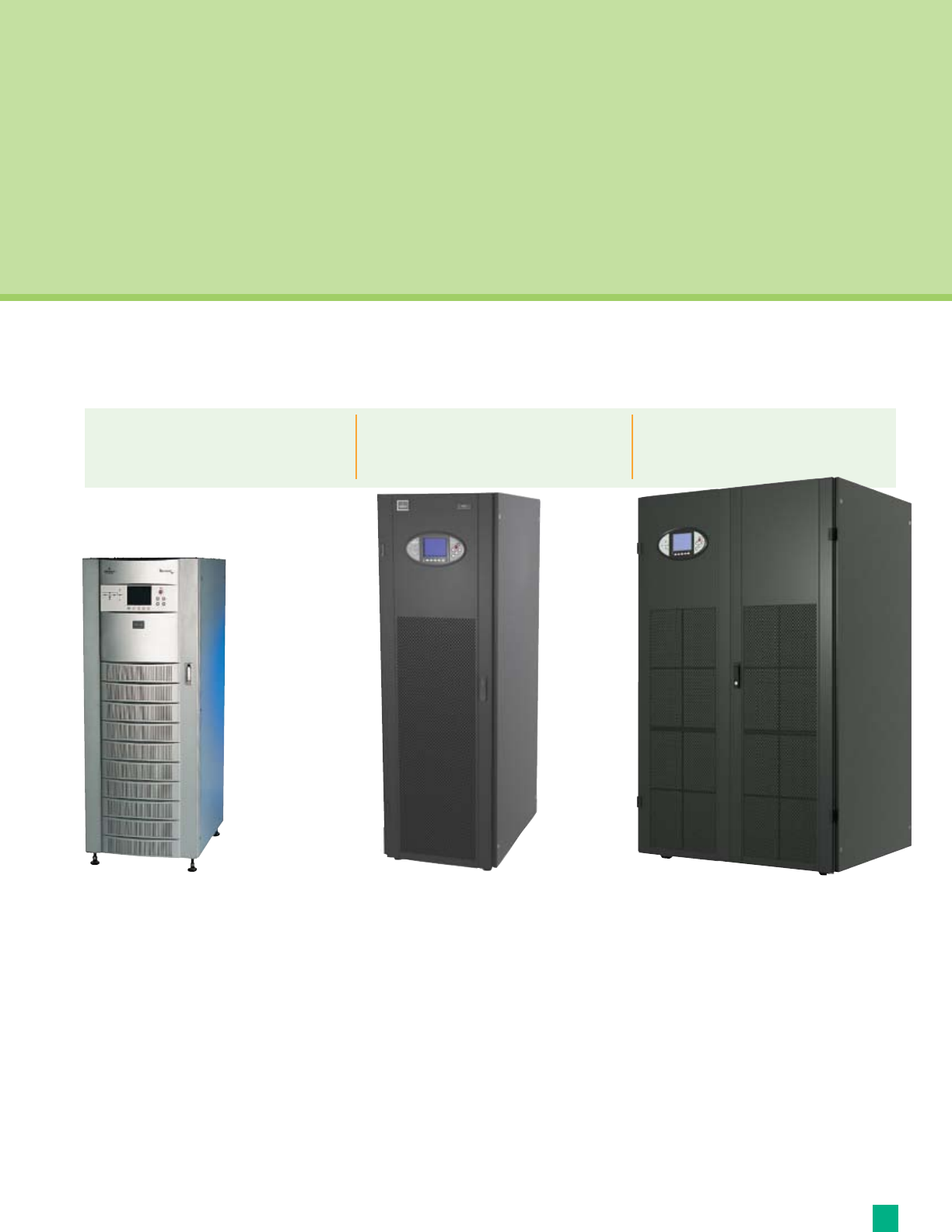

A Power Solution For Every Level Of Need
The full line of Liebert NX power systems covers a range of UPS capacities to meet the needs of small and medium data centers:
Liebert NX 40-200 kVA UPS
n Softscale™ technology provides flexibility to increase UPS capacity by 20 or 40 kVA
without changes in your infrastructure.
n Parallel UPS modules for capacity and redundancy and eliminate the batteries as a
single point of failure because each UPS has its own isolated battery.
n Softscale™ technology, paralleling capabilities and Eco-mode™, all contribute to
lower initial, incremental and operating costs.

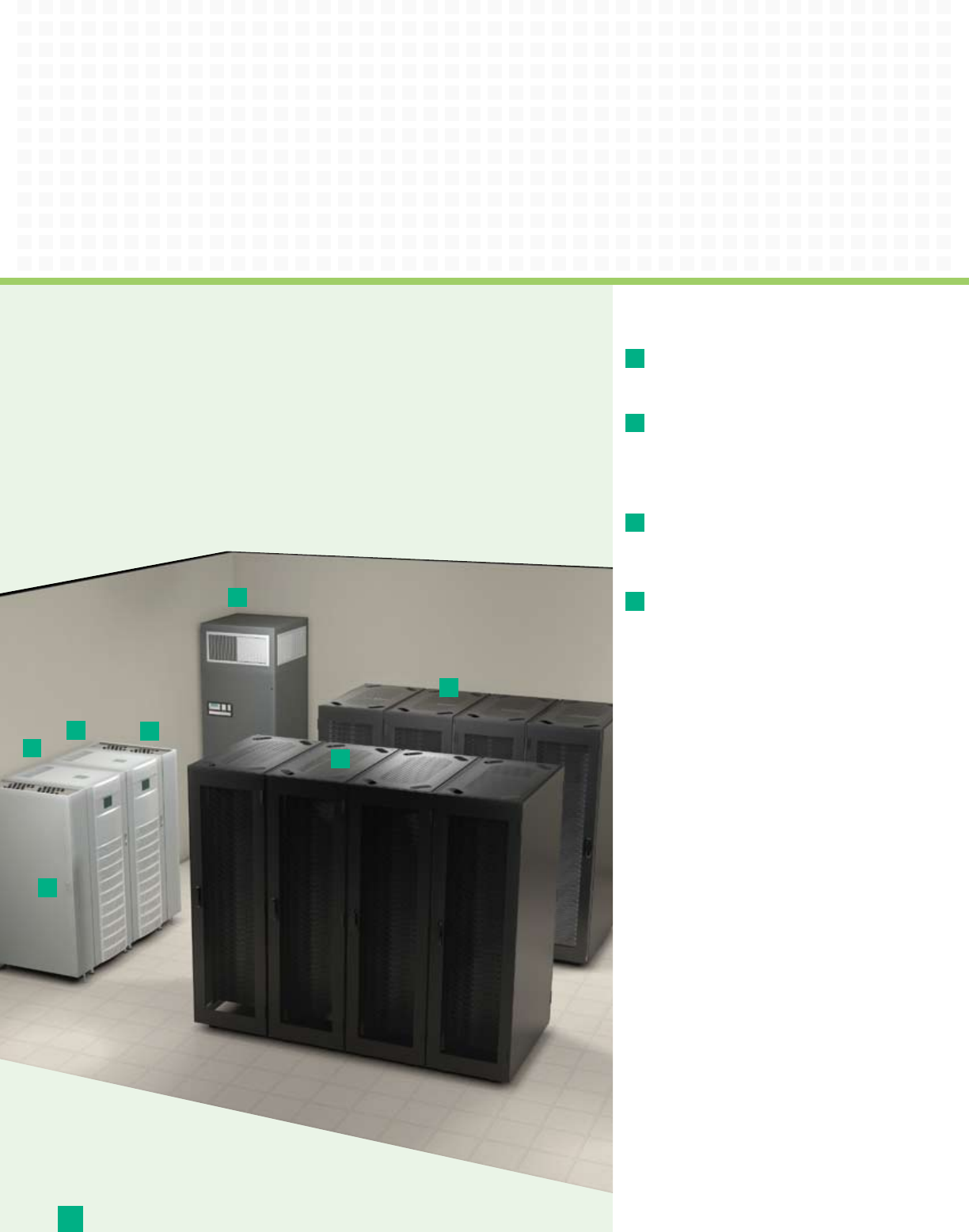

Small Data Centers with up to 10 Racks:
Liebert NX 10-30 kVA UPS
Small Data Centers with 10-30 Racks
Liebert NX 40-120 kVA UPS with Softscale™
Medium Data Centers with up to
200 Racks
Liebert NX 160-200 kVA UPS with
Softscale

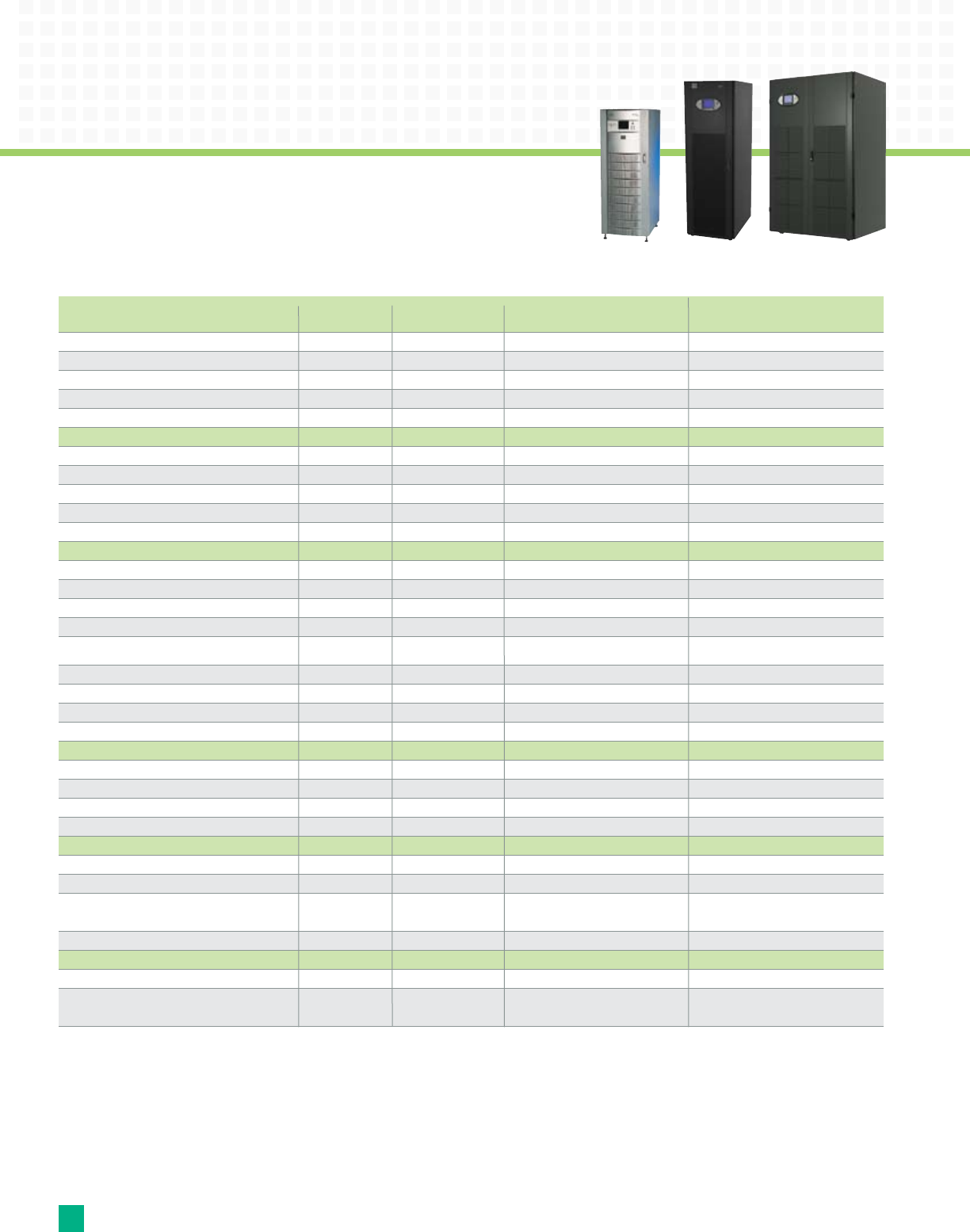

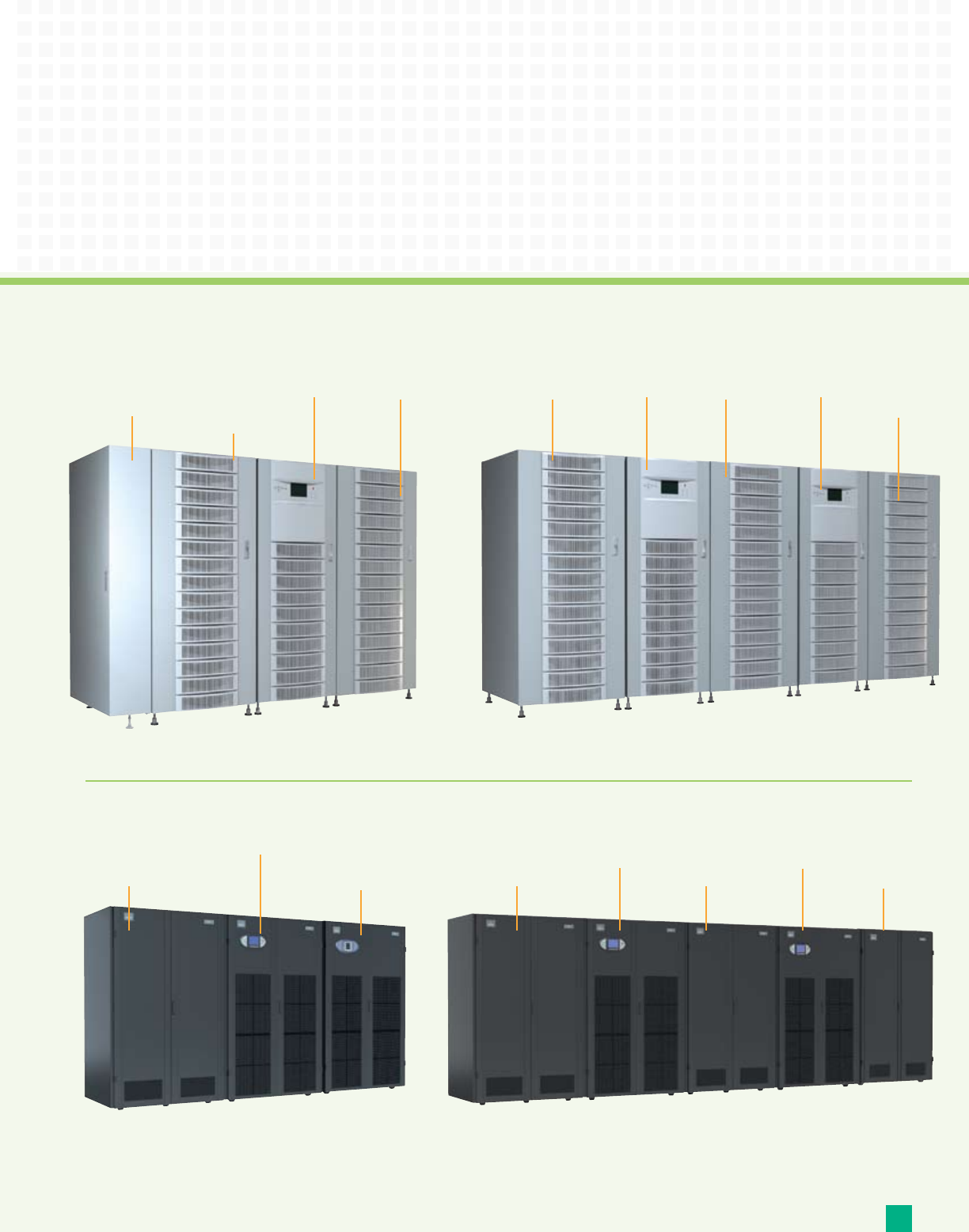

NX Features Overview
Select The Liebert NX Model That’s
Right For Current And Future Needs
4
The versatile Liebert NX is available in capacities and
configurations to meet the current and future power needs
of many small to mid-size applications.
*Note: Contact factory for switchgear options when paralleling more than
four UPS modules or when paralleling 160-200kVA UPS modules.
10, 15 kVA 20, 30 kVA 40, 60, 80, 100, 120, 160, 200 kVA 40, 60, 80, 100, 120, 160, 200 kVA
Capacity Growth Single Module Multi Module Single Module Multi Module
Parallel for capacity up to 3 modules up to 3 modules*
Parallel for redundancy up to 4 modules up to 4 modules*
Parallel unlike capacities n
Optional paralleling cabinet n n
Softscale™ technology n n
Advanced Electronics
Digital signal processor controls n n n n
True on-line double conversion n n n n
Optimized efficiency using soft-switching technology n n
IGBT-based input power factor corrected rectifier n n n n
Dual bus synchronization Optional Optional Integrated Integrated
Performance
Eco-Mode™ high efficiency configuration n n
Wider input voltage and frequency tolerances n n n n
High overload protection n n n n
Built-in automatic bypass n n n n
Optional Matching Bypass distribution cabinet n Paralleling Cabinet Used n Paralleling Cabinet Used
for 2+ Modules for 2+ Modules
Optional battery cabinet interconnect cables n n n n
Optional internal batteries n n
Optional external battery cabinets n n n n
Triple-mode battery charger for fast battery recharge n n n n
Physical Characteristics
In-The-Row form factor n n
Front access service n n n n
Front access installation n n
Compact footprint n n n n
Communications
Liebert IntelliSlot® communications compatibility n n n n
Multi-language LCD display n n n n
1 year Free Ntegrated Reporting n
n
with Virtual Ntegrity Gateway purchase
UPS Service with Ntegrated Monitoring Optional Optional n
n
Warranty/Service
One Year Warranty n n n n
Optional start-up: extends one year warranty n n n n
to include cost of travel and labor
Liebert NX Features
5
The Liebert NX family of UPS systems offers a variety of
operating features to meet a wide range of requirements:
Capacity Growth
n Parallel for capacity — Up to 3 UPS modules may
be used in a parallel configuration to provided
added capacity as needs grow.
n Parallel for redundancy — Up to 4 UPS modules
may be used in a parallel configuration to provide
redundancy for added reliability. Contact factory
for switchgear options when paralleling more than
4 UPS modules.
n Parallel unlike capacities — The Softscale
technology of the Liebert NX allows you to change
your growth increment without having to obsolete
your existing UPS. For example, a Softscale UPS
rated 80kVA can be paralleled with another
Softscale UPS rated 120kVA for a combined output
capacity of 200kVA.
n Optional paralleling cabinets — These cabinets
include various switchgear configurations to
parallel NX modules rated 20kVA or 30 kVA, or
Softscale models rated 40kVA – 200kVA, for
additional capacity and redundancy.
n Softscale™ technology — The Liebert NX UPS
Softscale capability provides fast software
scalability. Purchase the capacity you need
today, then when your power needs grow you
simply purchase a software key and an Emerson
Customer Engineer will visit your site to increase
the UPS capacity. Softscale models are available in
the range of 40kVA to 80kVA; 80kVA to 120kVA,
and 160 & 200 kVA.
Advanced Electronics
n Digital signal processor controls — The
advanced topology of the Liebert NX features
a digital signal processor (DSP) controlled IGBT
rectifier and IGBT inverter. Digital controls provide
the fastest possible power management to
enhance reliability, accuracy and efficiency while
reducing component count.
n True on-line double conversion — Output power
is regenerated inside the UPS, providing protection
from the full range of power irregularities.
n Optimized Efficiency using
Soft-switching technology — This design
technique improves system efficiency and
maintains high efficiency performance from 40%
to 100% utilization.
n IGBT-based input power factor corrected
rectifier — Enables the Liebert NX to achieve its
impressive THD and PF performance.
n Dual bus synchronization — Provides the
capability to synchronize the outputs of two
independent UPS when they are configured
as a redundant system feeding independent
distribution paths.
Performance
n Eco-Mode high efficiency configuration —
Operating mode that switches the UPS to static
bypass during normal operation. When power
problems are detected the UPS automatically
switches back to double conversion mode.
n High overload protection — The system’s static
switch overload rating makes it capable of clearing
a 20 A branch circuit breaker. Handles 125% for
10 minutes, 150% for one minute and a 1000%
overload for 10 milliseconds.
n Built-in automatic bypass — Transfers the load
to bypass in the unlikely event that a fault occurs
in the UPS.
n Optional maintenance bypass
distribution cabinet — Provides complete
wrap-around maintenance bypass allowing UPS
to be powered down or taken out of service
without disconnecting power to the load.
n Optional internal batteries — Batteries can be
housed within the UPS itself in Liebert NX 10, 15,
20 and 30 kVA sizes.
n Optional external battery cabinets — Provide
added back-up capacity for extended runtimes.
n Triple-mode battery charger for fast battery
recharge — Three charging modes ensure
maximum battery availability:
•Constant current charging provides maximum
rated current to the battery until the voltage rises
to a pre-determined limit.
•Constant voltage charging allows the batteries
to recover the final percentage of recharge
capacity. A boost voltage is provided for a short
term to reduce the battery recharge interval.
•Float charging maintains the battery at the
recommend voltage.

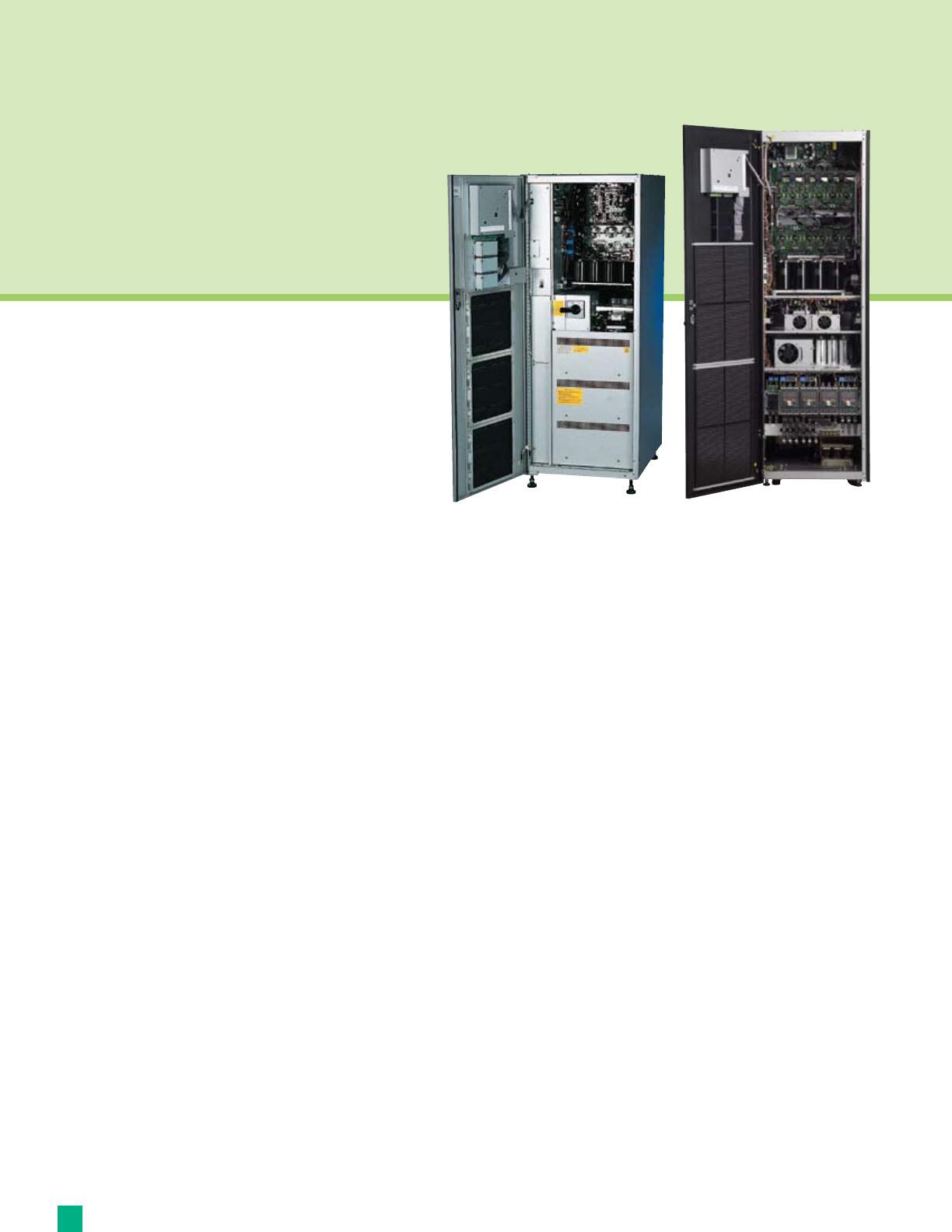

Physical Characteristics
n In-The-Row form factor — Liebert NX 40-200 kVA
models are housed in IT rack style cabinets for easy
integration within equipment rows.
n Front access service — Allows easy servicing of
critical internal components.
n Front access installation — No need for side
access when installing UPS.
n Compact footprint — Requires less floor space,
leaving you with more room for other equipment.
Communications
n Liebert IntelliSlot® communications
compatibility — Power communications available
through Liebert IntelliSlot Web Card LB and Liebert
MultiLink™ shutdown software.
n Multi-language LCD display — Large and
user-friendly LCD display provides operating
information in twelve languages.
n Liebert NX Softscale Service with Ntegrated
Monitoring — Advanced monitoring and network
security capabilities from the service business of
Emerson Network Power provide an integrated
approach to alarm management, predictive
maintenance and emergency service response.
Utilizes remote monitoring capabilities to
provide periodic equipment condition reports,
alarm retrieval and warehousing, escalation
management, and 7 x 24 emergency
service response.
n UPS Service with Ntegrated Monitoring —
Advanced monitoring and network security
capabilities from the service business of Emerson
Network Power provide an integrated approach to
alarm management, predictive maintenance and
emergency service response.
Warranty/Service
n One year warranty — Standard warranty provides
full coverage for one year.
n Optional start-up of UPS — factory trained
service personnel ensure proper start-up of the
UPS. This option extends the one year warranty
to include labor and travel.
Flexibility:
n Parallel units that are the
same or different capacities for
greater flexibility in managing
power growth.
n Generator compatible.
n Power communications available
through Liebert IntelliSlot® Web
Card LB and Liebert MultiLink™
shutdown software.
n Large and user-friendly LCD display
provides operating information in
twelve languages.
n Internal automatic bypass
transfers load to bypass in the
unlikely event that a fault occurs
in the UPS. Optional wrap-around
maintenance bypass allows
the UPS to be powered down
or taken out of service without
disconnecting power to the load.
n Easy servicing due to front
accessibility of critical
components, self-diagnostics and
various monitoring options.
n Optional Bypass
Distribution Cabinets.
Higher Availability:
n Wider input voltage window
and frequency tolerances help
to minimize transfer to battery,
reducing the number of charging
and discharging cycles.
n High overload rating capable of
clearing a 20 A branch circuit
breaker.
n True on-line double conversion
technology protects and
conditions against the full range
of power irregularities, requiring
fewer transfers to battery.
n Advanced inverter control
technology provides the highest
output power quality to maximize
efficiency and operating life of
connected equipment.
n Load Bus Synchronization provides
the capability to synchronize the
outputs of two independent UPS
modules when they are configured
as a redundant system feeding
independent distribution paths.
n An intelligent battery
management algorithm monitors
the battery to detect any
premature battery failure.
Lowest Total Cost Of
Ownership:
n Soft-switching technology
optimizes operation with the same
high efficiency at 40% utilization as
at 100% utilization.
n Adaptive input voltage window
results in fewer hits on the battery.
n The unit’s compact footprint
requires less floor space,
leaving you with more room for
other equipment.
n Temperature-compensated
battery charging extends
battery life.
n Softscale technology allows you
to purchase the capacity you need
now and economically upgrade in
the future without the expense of
additional cabinets or floorspace.
6
Liebert NX: Flexible, Reliable
And Economical
The Liebert NX family of UPS systems combines
numerous technology advances and innovations
to create a power system that combines high
performance, compact size, reliability and cost-
efficiency. Liebert NX models are available with
characteristics to fit the flexibility and availability
needs of different sites.
7
UPS Monitoring And Service:
A Critical Part Of The Uptime Solution
Liebert Services from Emerson Network Power will
help you maximize the availability of your protected
equipment, and increase the life of your Liebert NX
UPS, with a full range of monitoring and scheduled
preventive maintenance offerings.
Liebert NX Softscale Service With
Ntegrated Monitoring™
When purchasing startup of a Liebert NX 40-200 kVA UPS and an
optional Virtual Ntegrity Gateway, you will receive one free year
of Ntegrated Monitoring and Reporting. After the first year,
you may continue your service by renewing it for as long as you
like. A maintenance contract is required to continue the same
level of monitoring service.
Ntegrated Monitoring from Liebert Services incorporates
advanced monitoring, and leading network security, to provide
an integrated approach to alarm management, equipment
maintenance and emergency service response.
How It Works
Ntegrated Monitoring links your critical resources (power, UPS,
environmental equipment) to the Liebert High Availability
Response Center for 24x7x365 monitoring. Redundant system
hardware and separate connections in two countries maintain a
continuous connection at all times. Your system is safe, secure
and always working.
Ntegrated Monitoring includes:
Alarm Reporting — All alarm and service activity is summarized
for you in a monthly status report. The critical information
in these reports is used to pinpoint trouble spots, anticipate
maintenance, and highlight any issues that may cause your
Liebert NX to operate at less than peak performance.
Escalation Plan — With Ntegrated Monitoring’s continuous
communication, your equipment can operate unmanned,
saving you costly maintenance hours. You simply need to select
the recipients for notification in a predetermined escalation
plan.
Trending and Analysis — Vital information on your system
status is recorded, stored and reported, so you can easily
analyze it for patterns and areas of concern. Whenever an
alarm is generated at your site, it is recorded and entered in our
database along with the action that was taken. These reports
are used to pinpoint any trouble spots and help to resolve any
issues that may have your system running at less than peak
performance.
The Real Value Of Preventive Maintenance
Another way end-users can further minimize unit-related
failures is to institute a comprehensive preventive maintenance
program that is implemented by OEM trained and certified
technicians such as those with Liebert Services from Emerson
Network Power.
Liebert Customer Engineers (CE) are continuously trained
in order to be up-to-date with new procedures, equipment,
designs and updates that have been made.
Factory Trained Resources Available 24X7
Liebert Services from Emerson Network Power has the
industry’s largest coverage with over 2000 Certified Factory
Trained Engineers. Our Liebert High Availability Response
Center supports you 24x7 with a staff of knowledgeable
people who understand the technology and your equipment.
And to make sure the job gets done when it needs to, we
have factory-certified parts — availible for shipment when
you need them.
8
Accessories To Extend The Capabilities
Of Your Liebert NX System
Benefits Of Using 208 or 480V Systems
Operating the UPS at an input voltage of 480V eliminates the need to run
a neutral conductor and requires smaller gauge wire vs. operation at
208V. Utilizing a BDC or FPC on the output of the UPS creates a separately
derived source of 208/120V providing computer grade power isolation and
reduced short circuit fault currents while creating a solid neutral to ground
bond located close to your protected loads.
This Means:
n Lower installation costs due to 20% less copper wiring.
n More reliable system by establishing neutral to ground bond close to the
protected load.
n Easier installation of fewer wires of smaller size.
Depending on your site needs, input and output power
requirements can affect your efficiency and ROI.
In general, when site application needs are 60kVA and
lower, 208V power will typically be available at the
room entrance. Matching your UPS to this voltage is
a more efficient method of delivering power to your
connected equipment and maximizing existing the
infrastructure. When power requirements reach 40kVA
and above, operating your UPS at 480V can result in
significantly reduced installation costs while improving
the quality of power provided to your loads.
Liebert NX BDC Bypass
and Distribution Cabinet
The Liebert NX 40-200 kVA, 480VAC UPS can be
paired with a Liebert NX Bypass and Distribution
Cabinet, available with various input and output
voltage combinations and distribution options. These
matching cabinets bolt directly to right side of the
UPS and include all internal power and control inter-
connect wiring.
Liebert NX BDC Cabinets are available in capacities of
75kW, 125kW and 200kW covering the Liebert NX
UPS range of 40-200kVA.
Liebert NX 10-30 kVA UPS SlimLine Power
Distribution Cabinet is designed to bolt directly to
the Liebert NX 10-30kVA UPS and provides a 42-pole
panelboard for power distribution. Load cabling
can be routed through the top or bottom of the
SlimLine cabinet.
Liebert FPC™ Power Conditioning
And Distribution Cabinet
The rack-size Liebert FPC power
conditioning and distribution
cabinet provides higher quality,
more flexible power distribution
for high-density data centers.
It is engineered to combine the
convenience and cost savings of a
pre-packaged, factory-tested unit
with the flexibility of a custom-
tailored power system. This self-
contained system provides power
isolation, power distribution to the
individual racks, IT equipment-grade
grounding and power monitoring.
The Liebert FPC is designed to fit
at the end of, or within, a row of
racks, as well as in a standalone
configuration.
Liebert NX Battery Cabinet
Valve Regulated Lead Acid (VRLA)
batteries provide mission critical
back up. High reliability features
include 10-year design life batteries
with flame retardant cases, factory
installed battery circuit breaker
protection, and optional Albér
battery monitoring for early warning
detection of battery problems.
Liebert NX UPS Paralleling
Cabinet
Increase UPS capacity or add
redundancy with the addition of the
NX Paralleling Cabinet. Parallel up to
three UPS modules for capacity, and
add a fourth for redundancy.
9
40-200 KVA Liebert NX Single Module
20-30 KVA Liebert NX Multi-Module
40-200 KVA Liebert NX Multi-Module
Liebert Bypass
and Distribution
Cabinet
Liebert NX UPSLiebert
Battery
Cabinet
Liebert NX
UPS
Liebert Battery
Cabinet
Liebert NX
UPS
Liebert
Paralleling
Cabinet
Liebert Battery
Cabinet
Liebert
Battery
Cabinet
Liebert NX
UPS
Liebert NX
UPS
Liebert
Battery
Cabinet
Liebert
Paralleling
Cabinet
10-30 KVA Liebert NX Single Module
Liebert Slimline
Distribution
Cabinet
Liebert NX
UPS
Liebert
Maintenance
Bypass
Cabinet
Liebert Battery
Cabinet
Products:
Liebert NX — 10kVA to 30kVA. Can also
be paralled to 90 kVA redundant to meet
room power needs.
Liebert Slimline Distribution Cabinet
— provides a space-saving 42-pole
panelboard for load distribution from the
UPS output. Each panelboard includes a
main circuit breaker.
Knurr Miracel® Racks — Lightweight,
easy to assemble, stable racks that
offer 83% ventilation and simple
add-on options.
Liebert Challenger 3000 — A self-
contained environmental control system
that produces 3-5 tons of precision
cooling in less than 7 square feet.
Provides temperature control, humidity
control and air filtration 24 hours a day,
365 days a year.
Liebert MultiLink Shutdown
Software — Monitors battery status
and warns users of impending power
loss, and automatically shuts down
systems in a safe and orderly manner.
10

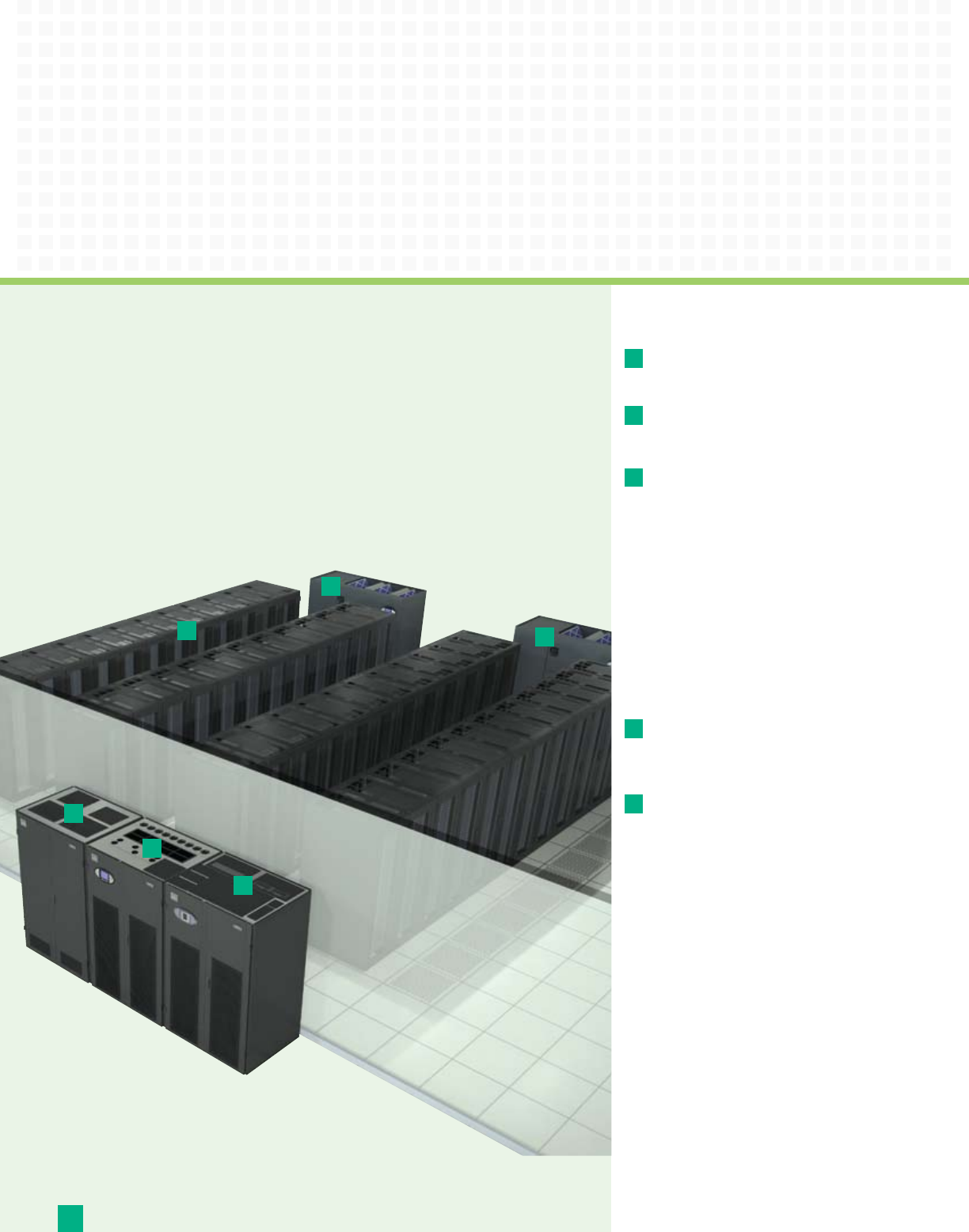

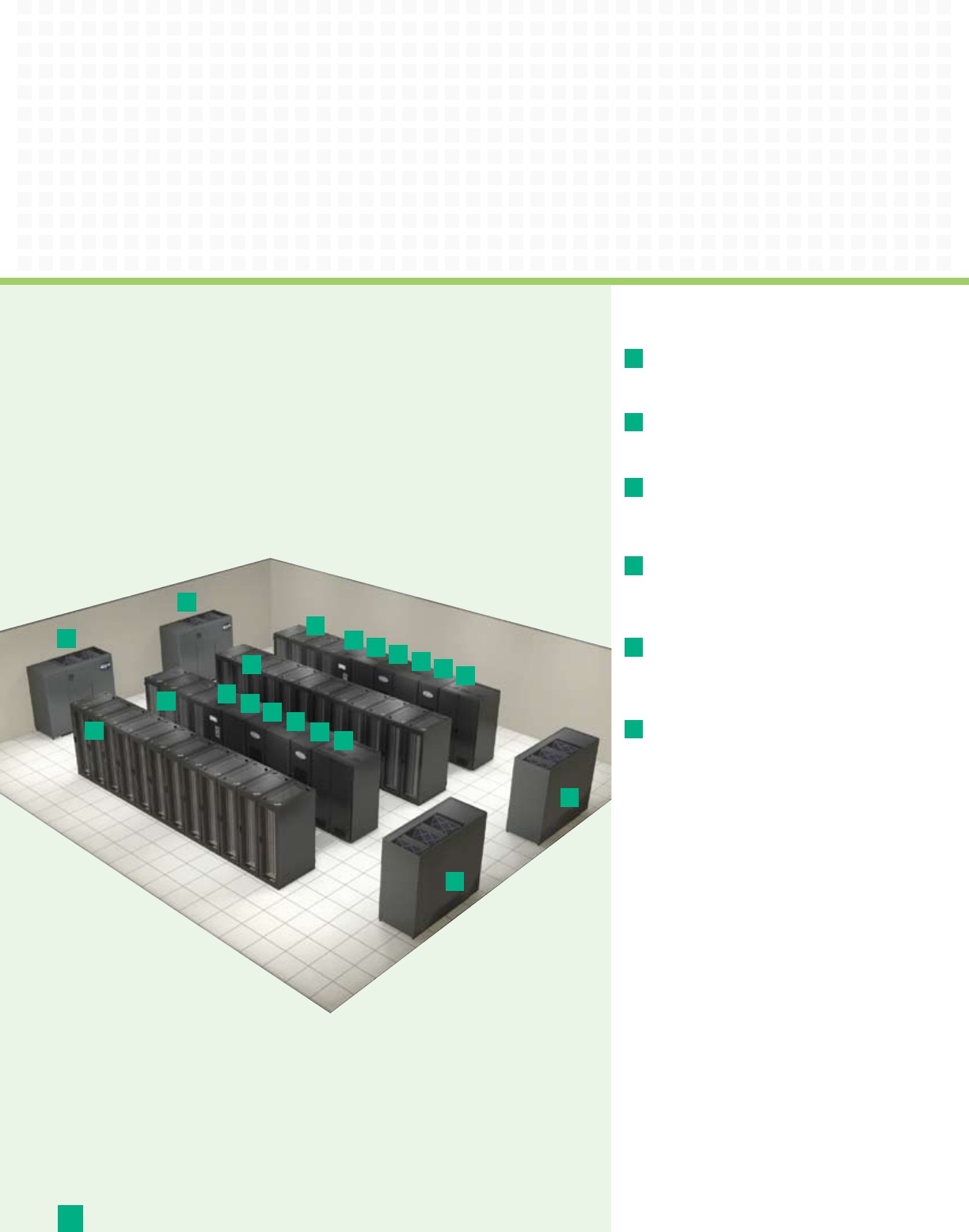

Up To 10 Racks — Small Data Center
Three Phase
Solution:
For the server room or small data center consisting of 2-10
racks, this innovative and reliable Liebert solution might be
the fit for your network protection needs. When information
is highly critical, and downtime inexcusable, this Solution
has the reliability you demand. Racks, air, power, service and
monitoring — installed and pre-engineered to work together
and to never stop working.
Liebert NX: Part Of A Total IT System
Protection Solution 1
2
3
4
3
3
4
12
1
2
11

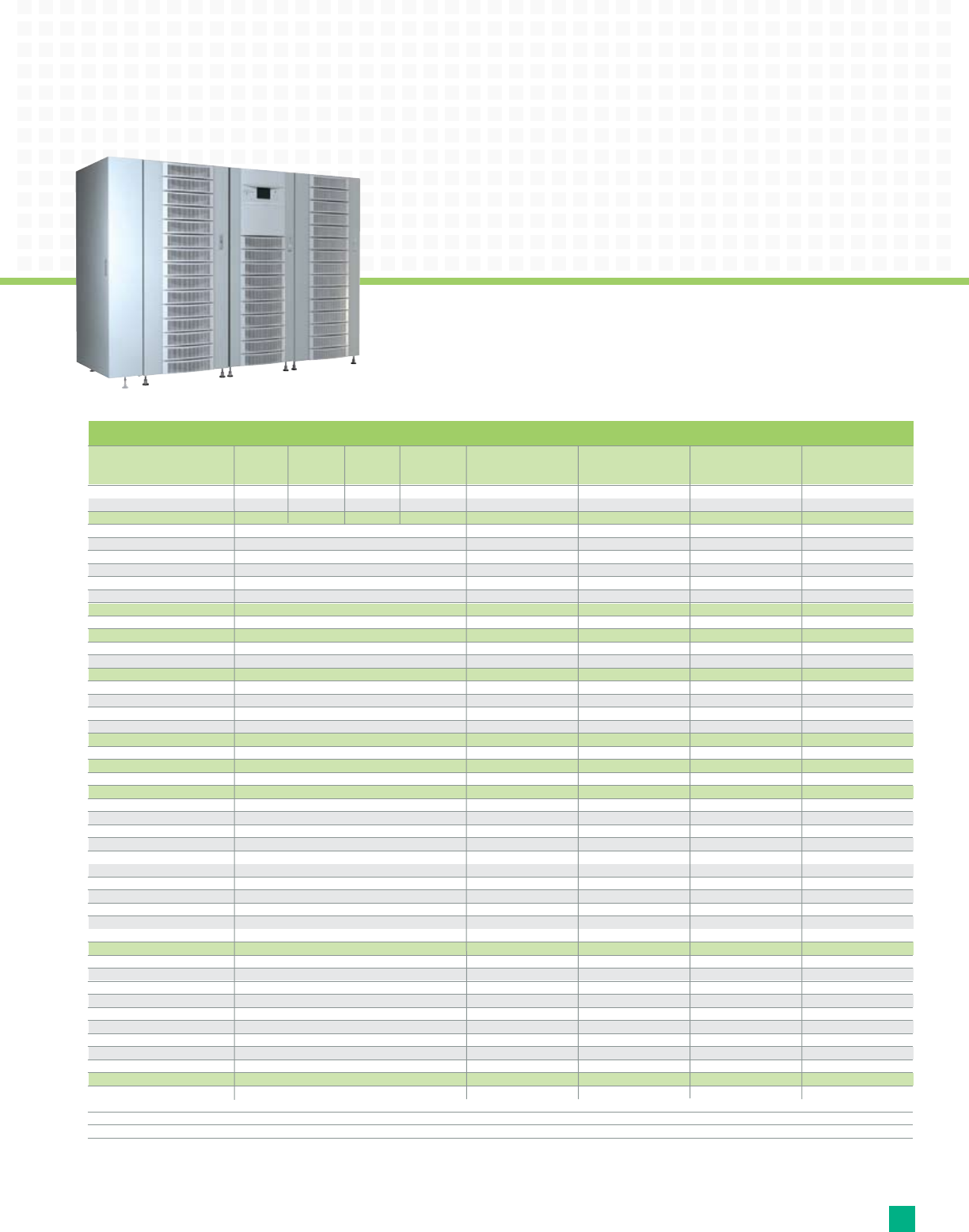

Specifications
NX Maintenance NX Parallel NX Slimline
NX Battery Cabinet Bypass Cabinet Cabinet Distribution Cabinet
Models
NX 10 kVA NX 15 kVA NX 20 kVA NX 30 kVA 10kVA-30kVA 10-30 kVA 20-30 kVA 10kVA-30kVA
Power Rating - kVA 10 15 20 30 N/A 10, 15, 20, 30 20 to 90 kVA N/A
Power Rating - kW 8 12 16 24 N/A 8, 12, 16, 24 16 to 72 N/A
Input AC Specifications
Phase 3 N/A 3 3 3
Power Factor 0.99 N/A N/A N/A N/A
Frequency - Hz 50 or 60 N/A 60 60 60
Frequency Range - Hz +/- 5 Hz N/A N/A N/A N/A
Input Voltage 120/208 N/A 120/208, 220, 480, 600 208,480, 600 208/120
Input Voltage Range +10,-20 N/A N/A N/A N/A
General Specifications
UPS Technology On-Line, Double Conversion N/A N/A N/A N/A
Battery Specifications
Battery Test Type On-Line N/A N/A N/A N/A
Battery Technology VRLA, Wet Cells VRLA N/A N/A N/A
Output AC Specifications
Nominal Voltage 120/208 288 VDC 120/208 120/208 120/208
Frequency - Hz 50 or 60 60 60 60 60
Output Waveform Sinewave Sinewave Sinewave Sinewave Sinewave
Distribution N/A N/A N/A N/A 1 Panelboard (42 poles)
User Interface
LCD Display Yes N/A N/A N/A N/A
Communications
Communications Options Intellislot, SNMP, Relay Card, MultiLink N/A N/A N/A N/A
Physical Data
Form Factor Stand Alone Stand Alone Stand Alone Stand Alone Stand Alone
Unit Height - inches (mm) 63 (1,600) 63 (1,600) 63 (1,600) 63 (1,600) 63 (1,600)
Unit Width - inches (mm) 24 (600) 27 (686) 27 (686) 27 (686) 11 (279)
Unit Depth - inches (mm) 32.5 (825) 32.5 (825) 32.5 (825) 32.5 (825) 32.5 (825)
Unit Weight - lbs. (kg) 450 (205) to 1250 (567) w/ internal batteries 1350 (612) to 3740 (1697) 620(281) to 1400 (635) 904 (410) to 1912 (867)
250 (115)
Shipping Height - inches (mm) 69 (1,753) 69 (1,753) 69 (1,753) 69 (1,753) 69 (1,753)
Shipping Width - inches (mm) 32 (813) 35 (889) 35 (889) 35 (889) 35 (889)
Shipping Depth - inches (mm) 40 (1,016) 40 (1,016) 40 (1,016) 40 (1,016) 40 (1,016)
Shipping Weight - lbs. (kg) 600 (273) to 1400 (635) w/ internal batteries 1,500 (680) to 3940 (1787) 770 (349) to 1550 (703) 1104 (500) to 2112 (958)
400 (182)
Environmental
Operating Temperature, Min., °F (°C) 32 (0) 32 (0) 32 (0) 32 (0) 32 (0)
Operating Temperature, Max., °F (°C) 104 (40) 104 (40) 104 (40) 104 (40) 104 (40)
Storage Temperature, Min., °F (°C) -4 (-20) -4 (-20) -4 (-20) -4 (-20) -4 (-20)
Storage Temperature, Max., °F (°C) 158 (70) 158 (70) 158 (70) 158 (70) 158 (70)
Relative Humidity 0% to 95%, Non Condensing
0% to 95%, Non Condensing 0% to 95%, Non Condensing 0% to 95%, Non Condensing 0% to 95%, Non Condensing
Operating Elevation - ft. (m) to 3,300 (1000) to 3,300 (1000) to 3,300 (1000) to 3,300 (1000) to 3,300 (1000)
Storage Elevation - ft. (m) to 40,000 (12,200) to 40,000 (12,200) to 40,000 (12,200) to 40,000 (12,200) to 40,000 (12,200)
Sound Emission/Audible Noise <54 dBA, at 1meter N/A N/A N/A N/A
Cooling Fan Cooled Convection Cooled Convection Cooled Convection Cooled Convection Cooled
Agency/Certification/Conformance
Agency Approval
UL 1778, c-UL, FCC Class A
UL 1778, c-UL, FCC Class A UL 1778, c-UL, FCC Class A
UL 1778, c-UL, FCC Class A UL 1778, c-UL, FCC Class A
Warranty
Standard 1 Year 1 Year 1 Year 1 Year 1 Year
10-30 KVA Liebert NX
12
Products:
Liebert NX — 40-120 kVA with Softscale
technology, can be paralleled up to 360
kVA redundant.
Liebert NX Battery Cabinet — provides
battery back up. Add cabinets to meet
back up needs.
Liebert NX Paralleling Cabinet —
provides the necessary componentry
for parallel operation of multiple
Liebert NX modules.
Liebert NX Bypass Distribution
Cabinet — Packaged power distribution
for today’s rack-based data centers and
IT facilities, withplug-and-play flexibility.
Knurr Miracel® Racks — Lightweight,
easy to assemble, stable racks that
offer 83% ventilation and simple
add-on options.
Liebert DS — Provides precision control
of the room environment, including
temperature, humidity, filtration
and airflow. Available in 28-105kW
(8-30 tons).
Liebert MultiLink Shutdown
Software — Monitors battery status and
warns users of impending power loss,
and automatically shuts down systems in
a safe and orderly manner.
Liebert Nform™ IT Network Monitoring
Software — Cost-effective monitoring
and communications software solution
combines full-scale monitoring with cost-
effective deployment through the use of
the existing network infrastructure.
Liebert IntelliSlot® Web Card LB
— Communications interface card
compatible with Liebert NX UPS, delivers
SNMP, Telnet and web-management
capability for enhanced communications
and control.
Solution:
As your rack-mount systems grow more complex and critical,
Liebert has the solution for you. Designed for a 10-30 rack data
center, this example combines racks, UPS, precision cooling,
service, monitoring, installation and the highly important power
distribution equipment — pre-engineered to work together.
Use this suggested scenario to begin framing the protection to
suit your needs.
10-30 Racks — Small Data Center
Three Phase
1
2
3
4
5
6
5
5
5
5
4
1
12
2
1
12
2
4
3
3
6
6
6
6
Liebert NX: Sized To Fit The IT Space
40-120 KVA Liebert NX
13

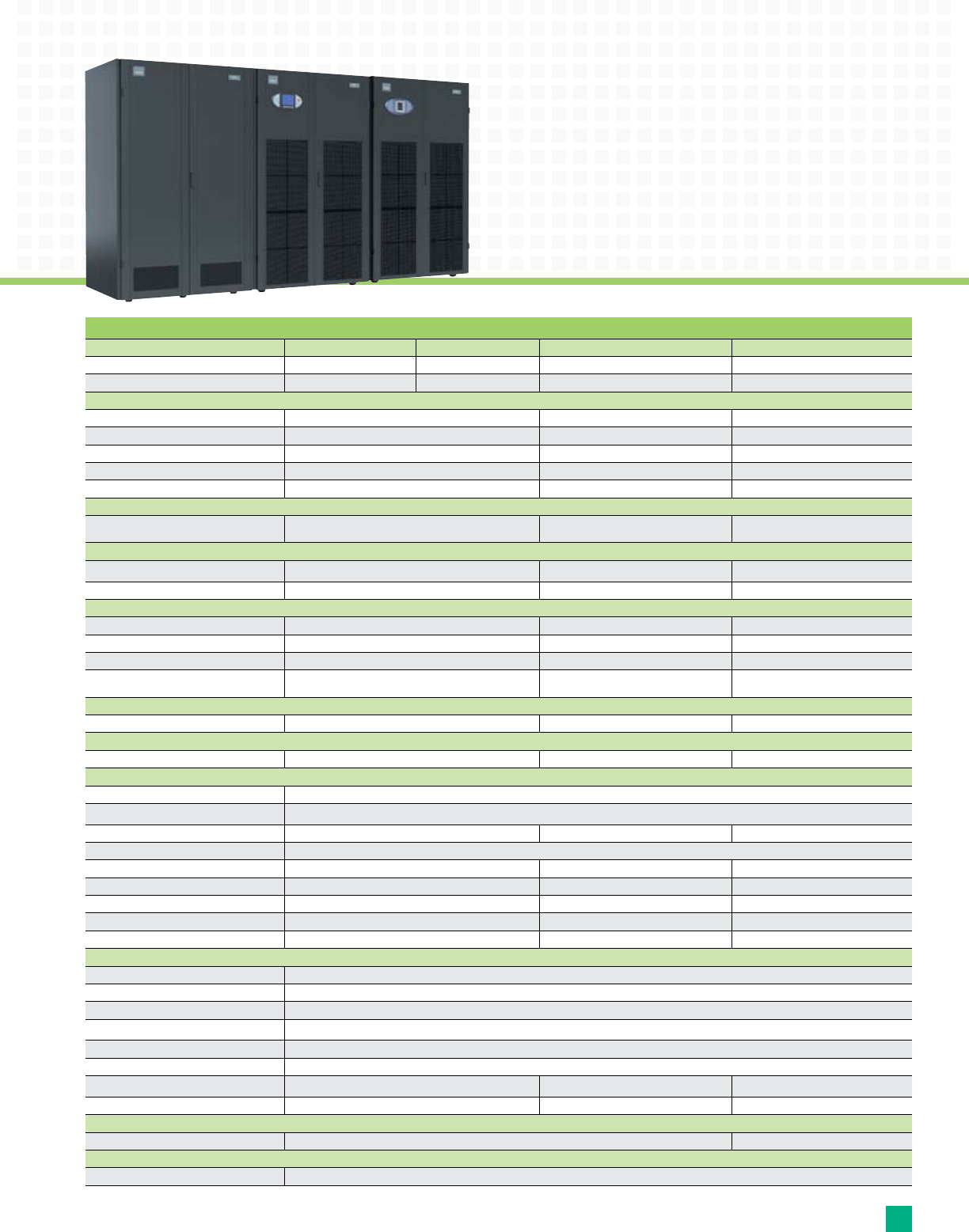

Specifications
Models
NX 40 kVA
UPS NX 60 kVA
UPS NX 80 kVA
UPS NX 80 kVA
UPS NX 100 kVA
UPS NX 120 kVA
UPS 31” Battery
Cabinet 54” Battery
Cabinet BDC
Power Rating - kVA
40 60 80 80 100 120 80 120 75, 125
Power Rating - kW
36 54 72 72 90 108 72 108 75, 125
Input AC Specifications
Phase
3 N/A 3
Power Factor
> 0.99 at full load; >0.98 at half load N/A 1
Frequency - Hz
50 or 60Hz. N/A 60hZ
Input Voltage
480, 3 Wire + Ground N/A 208, 220, 240, 480, 600
Input Voltage Range
+15, -20 N/A +15-20
General Specifications
Technology
On-Line, double conversion UPS VRLA Battery Cabinet Optional Maintenance
Bypass & Distribution
Battery Specifications
Battery Test Type
On-Line Optional Alber Battery Monitoring N/A
Battery Technology
VRLA, Wet Cells, Nicad Valve Regulated Lead Acid (VRLA) N/A
Output AC Specifications
Nominal Voltage
480 VAC, 3 wire plus ground 480 VDC 208/120, 220/127, 480. 600
Frequency - Hz
60 (50 Hz in frequency converter mode) N/A 60 Hz.
Output Waveform
Sinewave N/A Sinewave
Distribution
N/A N/A Optional subfeeds,
panelboards or terminals
User Interface
LCD Display
Yes N/A LCD Display
Communications
Communications Options
Intellislot, SNMP, Relay Card, MultiLink Optional Alber Battery Monitoring Local V & I, Optional ModBUS
Physical Data
Form Factor
Rack
Unit Height - inches (mm)
78.7 (2000)
Unit Width - inches (mm)
25.5 (648) 41 (1040)
25.5 (648) when used with BDC 33.5 (850) 48.8 (1240) 24-71 (609-1803)
Unit Depth - inches (mm)
39.0 (990)
Unit Weight - lbs. (kg)
1290 (585) 1422 (645) 1750 - 2620
(794 - 1188) 3438 - 5502
(1560 - 2496) varies by configuration
Shipping Height - inches (mm)
86 (2185) 86 (2185) 86 (2185) 86 (2185) varies by configuration
Shipping Width - inches (mm)
48.0 (1200) 48.0 (1200) 48 (1220) 48 (1220) varies by configuration
Shipping Depth - inches (mm)
48.0 (1200) 60.0 (1524) 48 (1220) 65 (1651) varies by configuration
Shipping Weight - lbs. (kg)
1440 (653) 1572 (713) 1900 - 2770
(885 - 1280) 3638 - 5702
(1650 - 2586) varies by configuration
Environmental
Operating Temperature, Min., °F (°C)
32 (0)
Operating Temperature, Max., °F (°C)
104 (40)
Storage Temperature, Min., °F (°C)
-4 (-20)
Storage Temperature, Max., °F (°C)
158 (70) Note: Batteries should not be stored above 86 (30)
Relative Humidity
0% to 95%, Non Condensing
Operating Elevation - ft. (m)2²
3,300 (1000) per IEC 62040/3
Sound Emission/Audible Noise
61 63 N/A 55
Cooling
Fan Cooled convection convection
Agency/Certification/Conformance
Agency Approval
UL 1778, c-UL, FCC Class A UL 60950, c-UL, FCC Class A
Warranty
Standard
1 Year
31 To 200 Racks — Large Data Center
Three Phase
1
2
3
4
5
5
5
4
1
2
3
14
Products:
Liebert NX UPS— 160-200 kVA with
Softscale technology, can be paralleled
up to 600 kVA redundant.
Liebert NX Battery Cabinet — provides
battery back up. Add cabinets to meet
back up needs.
Liebert NX BDC Bypass Distribution
Cabinet — available with various input
and output voltage combinations and
distribution options. Includes all internal
power and control interconnect wiring.
Liebert NX UPS Multi-Module
Systems — Parallel modules for
increased capacity or redundancy.
Contact factory applications for
switchgear options.
Liebert FPC — Packaged power
distribution for today’s rack-based data
centers and IT facilities, with plug-and-
play flexibility.
Knurr Miracel® Racks — Lightweight,
easy to assemble, stable racks that
offer 83% ventilation and simple
add-on options.
Liebert DS — Provides precision
control of the room environment,
including temperature, humidity,
filtration and airflow. Available in
28-105kW (8-30 tons).
Liebert MultiLink Shutdown
Software — Monitors battery status and
warns users of impending power loss,
and automatically shuts down systems in
a safe and orderly manner.
Liebert Nform™ IT Network Monitoring
Software — Cost-effective monitoring
and communications software solution
combines full-scale monitoring with
costeffective deployment through
the use of the existing network
infrastructure.
Liebert IntelliSlot® Web Card LB
— Communications interface card
compatible with Liebert NX UPS, delivers
SNMP, Telnet and web management
capability for enhanced communications
and control.
Solution:
The flexible design of Liebert NX 160-200kVA UPS is perfect for
mid-size and large data centers anticipating growth. Designed for
data centers with up to 200 racks, this example combines racks,
UPS, precision cooling, service, monitoring, installation and the
highly important power distribution equipment — pre-engineered
to work together. The UPS lineup may be installed inside or
outside of the data center. Use this suggested scenario to begin
framing the protection to suit your needs.
Liebert NX: Flexibility To Support IT Growth
160-200 KVA Liebert NX
15

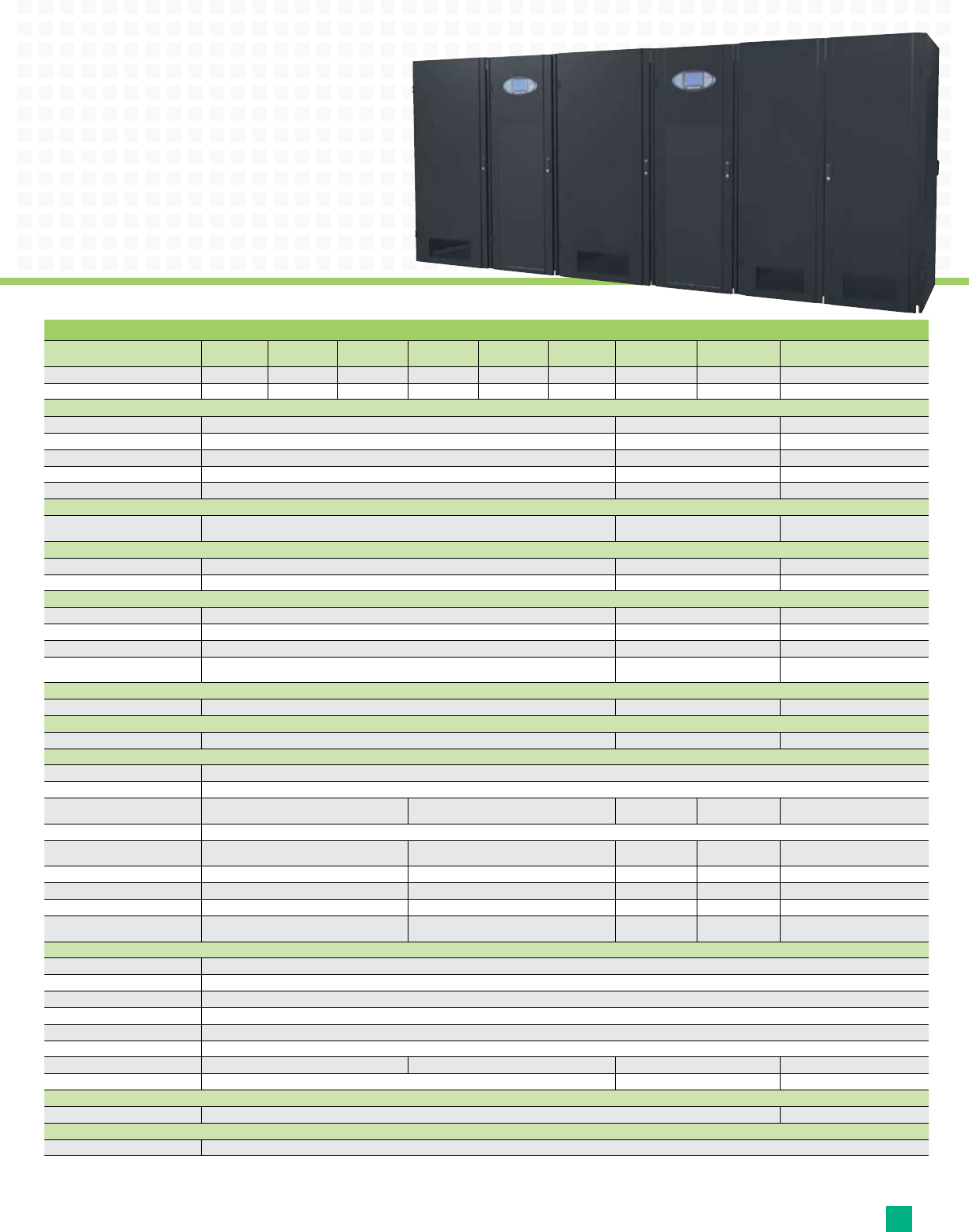

Specifications
Models NX 160 kVA NX 200 kVA NX Battery Cabinet 160-200 kVA NX BDC
Power Rating - kVA 160 200 200 225
Power Rating - kW 144 180 180 225
Input AC Specifications
Phase 3 N/A 3
Power Factor > 0.99 at full load; >0.98 at half load N/A 1
Frequency - Hz 50 or 60Hz N/A 60hZ
Input Voltage 480, 3 Wire + Ground N/A 208, 220, 240, 480, 600
Input Voltage Range +15, -20 N/A +15-20
General Specifications
Technology On-Line, double conversion VRLA Battery Cabinet Optional Maintenance Bypass &
Distribution
Battery Specifications
Battery Test Type On-Line Optional Alber Battery Monitoring N/A
Battery Technology VRLA, Wet Cells, Nicad Valve Regulated Lead Acid (VRLA) N/A
Output Specifications
Nominal Voltage 480VAC, 3 wire plus ground 480 VDC 208/120, 220/127, 480. 600
Frequency - Hz 60 (50 Hz in frequency converter mode) N/A 60 Hz
Output Waveform Sinewave N/A Sinewave
Distribution N/A N/A Optional subfeeds, panelboards or
terminals
User Interface
LCD Display Yes N/A Yes
Communications
Communications Options Intellislot, SNMP, Relay Card, MultiLink Optional Alber Battery Monitoring Local V & I, Optional ModBUS
Physical Data
Form Factor Rack
Unit Height - inches (mm) 78.7 (2000)
Unit Width - inches (mm) 64.4 (1636) 48.8 (1240) 47 - 94 (1194 - 2388)
Unit Depth - inches (mm) 39 (990)
Unit Weight - lbs. (kg) 2201 (1000) 3438 - 5502 (1560 - 2496) varies by configuration
Shipping Height - inches (mm) 86 (2185) 86 (2185) varies by configuration
Shipping Width - inches (mm) 48 (1220) 48 (1220) varies by configuration
Shipping Depth - inches (mm) 48 (1220) 65 (1651) varies by configuration
Shipping Weight - lbs. (kg) 2500 (1134) 3638 - 5702 (1650 - 2586) varies by configuration
Environmental
Operating Temperature, Min., °F (°C)
32 (0)
Operating Temperature, Max., °F (°C)
104 (40)
Storage Temperature, Min., °F (°C)
-4 (-20)
Storage Temperature, Max., °F (°C)
158 (70) Note: Batteries should not be stored above 86 (30)
Relative Humidity
0% to 95%, Non Condensing
Operating Elevation - ft. (m)2²
3,300 (1000) per IEC 62040/3
Sound Emission/Audible Noise
68.5 N/A 55
Cooling
Fan Cooled convection convection
Agency/Certification/Conformance
Agency Approval UL 1778, c-UL, FCC Class A UL 1778, c-UL, FCC Class A UL 60950, c-UL, FCC Class A
Warranty
Standard 1 Year
Emerson Network Power.
The global leader in enabling Business-Critical Continuity™.
EmersonNetworkPower.com
AC Power
Connectivity
DC Power
Embedded Computing
Embedded Power
Infrastructure Management & Monitoring
Outside Plant
Power Switching & Controls
Racks & Integrated Cabinets
Services
Precision Cooling Surge Protection
Emerson Network Power
Liebert Corporation
World Headquarters
1050 Dearborn Drive
P.O. Box 29186
Columbus, Ohio 43229
United States Of America
800 877 9222 Phone (U.S. & Canada Only)
614 888 0246 Phone (Outside U.S.)
614 841 6022 FAX
Emerson Network Power
European Headquarters
Via Leonardo Da Vinci 8
Zona Industriale Tognana
35028 Piove Di Sacco (PD)
Italy
39 049 9719 111 Phone
39 049 5841 257 FAX
Emerson Network Power Asia Pacific
29/F, The Orient Square Building
F. Ortigas Jr. Road, Ortigas Center
Pasig City 1605
Philippines
+63 2 687 6615
+63 2 730 9572 FAX
liebert.com
24 x 7 Tech Support
800 222 5877 Phone
614 841 6755 (outside U.S.)
Ensuring The High Availability Of
Mission-Critical Data And Applications.
While every precaution has been taken to ensure accuracy and
completeness in this literature, Liebert Corporation assumes no
responsibility, and disclaims all liability for damages resulting
from use of this information or for any errors or omissions.
© 2010 Liebert Corporation. All rights reserved throughout
the world. Specifications subject to change without notice.
All names referred to are trademarks or registered trademarks
of their respective owners.
® Liebert is a registered trademark of the Liebert Corporation.
SL-25200 (R05/10) Printed in USA
Business-Critical Continuity, Emerson Network Power and the Emerson Network Power logo are trademarks and service marks of Emerson Electric Co.
©2010 Emerson Electric Co.
Emerson Network Power, a business of Emerson (NYSE:EMR), is the global leader
in enabling Business-Critical Continuity™ from grid to chip for telecommunication
networks, data centers, health care and industrial facilities. Emerson Network Power
provides innovative solutions and expertise in areas including AC and DC power
and precision cooling systems, embedded computing and power, integrated racks
and enclosures, power switching and controls, infrastructure management, and
connectivity. All solutions are supported globally by local Emerson Network Power
service technicians. Liebert AC power, precision cooling and monitoring products
and services from Emerson Network Power deliver Efficiency Without Compromise™
by helping customers optimize their data center infrastructure to reduce costs
and deliver high availability.

Navigation menu
