Liebert® PSI
User Manual–1000/1500/2200/3000, 120VAC
i
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
GLOSSARY OF SYMBOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1.0 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2.0 WHATS INCLUDED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
3.0 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3.1 Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2 Tower UPS Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.3 Rack-Mount UPS Conversion and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.4 Orient Display for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.5 Charge Batteries and Perform Battery Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.6 Connect Input Power and Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.7 Connect Network Surge protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.8 Connect Communication Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.9 Set Up Liebert MultiLink software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.10 EPO Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.0 CONTROLS AND INDICATORS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4.1 Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.1.1 On/Alarm Silence/Manual Self-Diagnostic Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.1.2 Off Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.2 Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.2.1 Status Change Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.2.2 Load Level Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.2.3 Battery Level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.2.4 UPS Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.0 OPERATIONAL MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
5.1 Normal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.2 Buck/Boost Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.3 Battery Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.4 Battery Recharge Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
ii
6.0 COMMUNICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
6.1 DB-9 Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.2 Remote Shutdown Via the DB-9 Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.2.1 Any Mode Shutdown Via Pins 5 & 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.2.2 Battery Mode Shutdown Via Pins 4 & 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.3 Network Surge Protection Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.4 UPS Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.5 UPS Inverter/Transfer Voltage Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7.0 BATTERY MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
7.1 Battery Charging, Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7.2 Internal Battery Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
8.0 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
9.0 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
FIGURES
Figure 1 Front view of UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Figure 2 1000 and 1500—rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Figure 3 2200—rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Figure 4 3000—rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

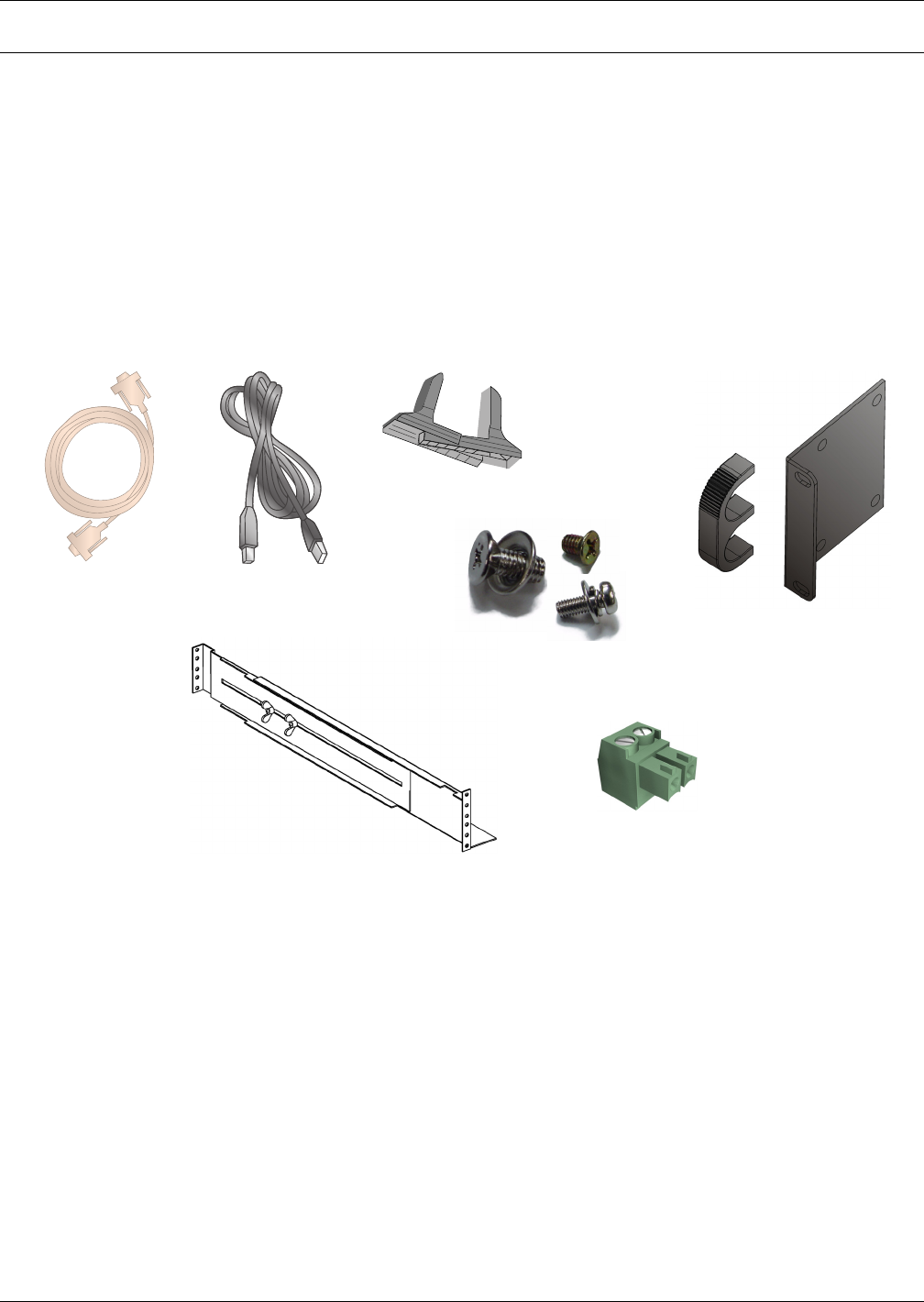

Figure 5 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Figure 6 Placing the Liebert PSI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

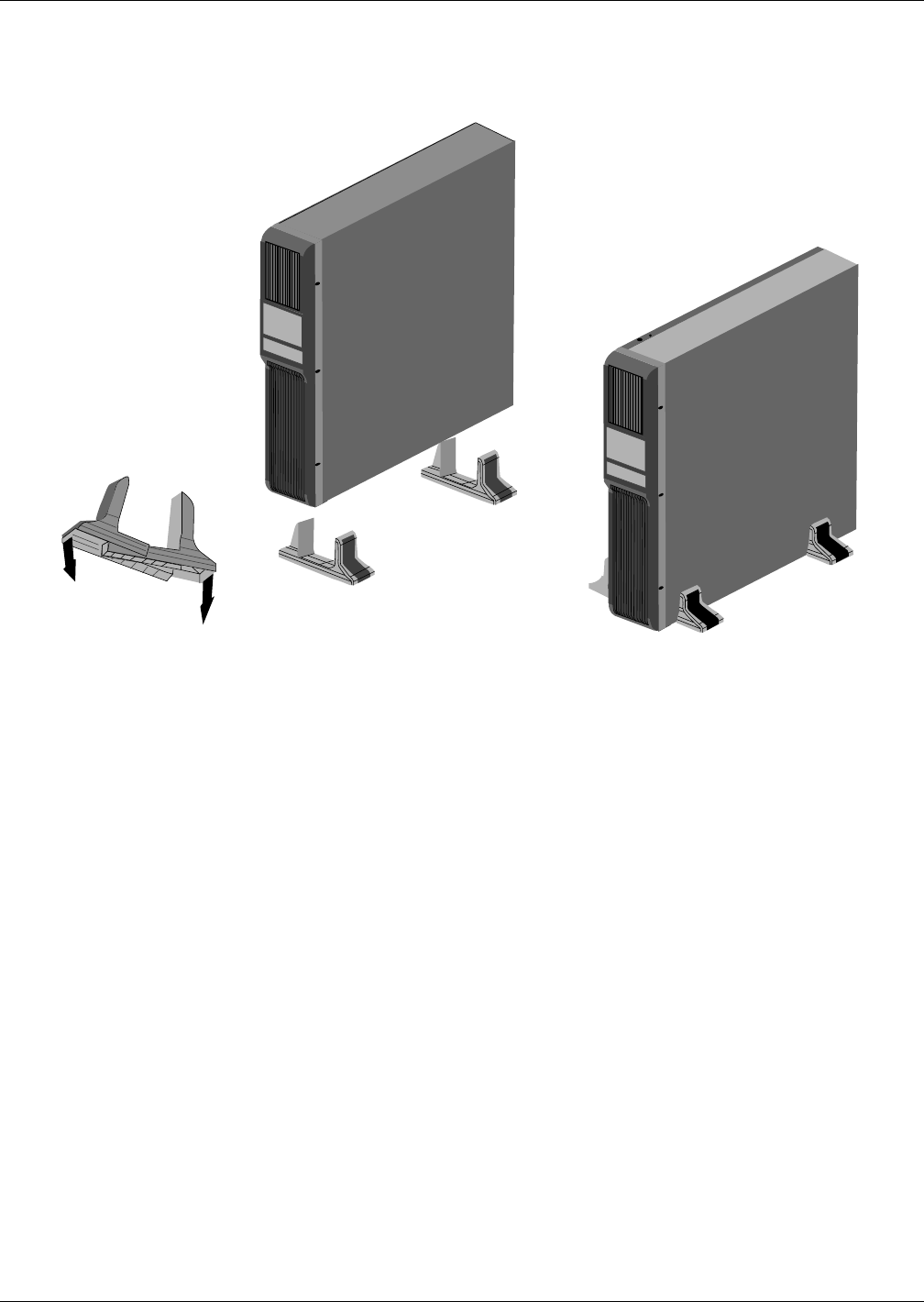

Figure 7 Tower configuration—attach Tower Stands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 8 Convert the Liebert PSI for rack installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

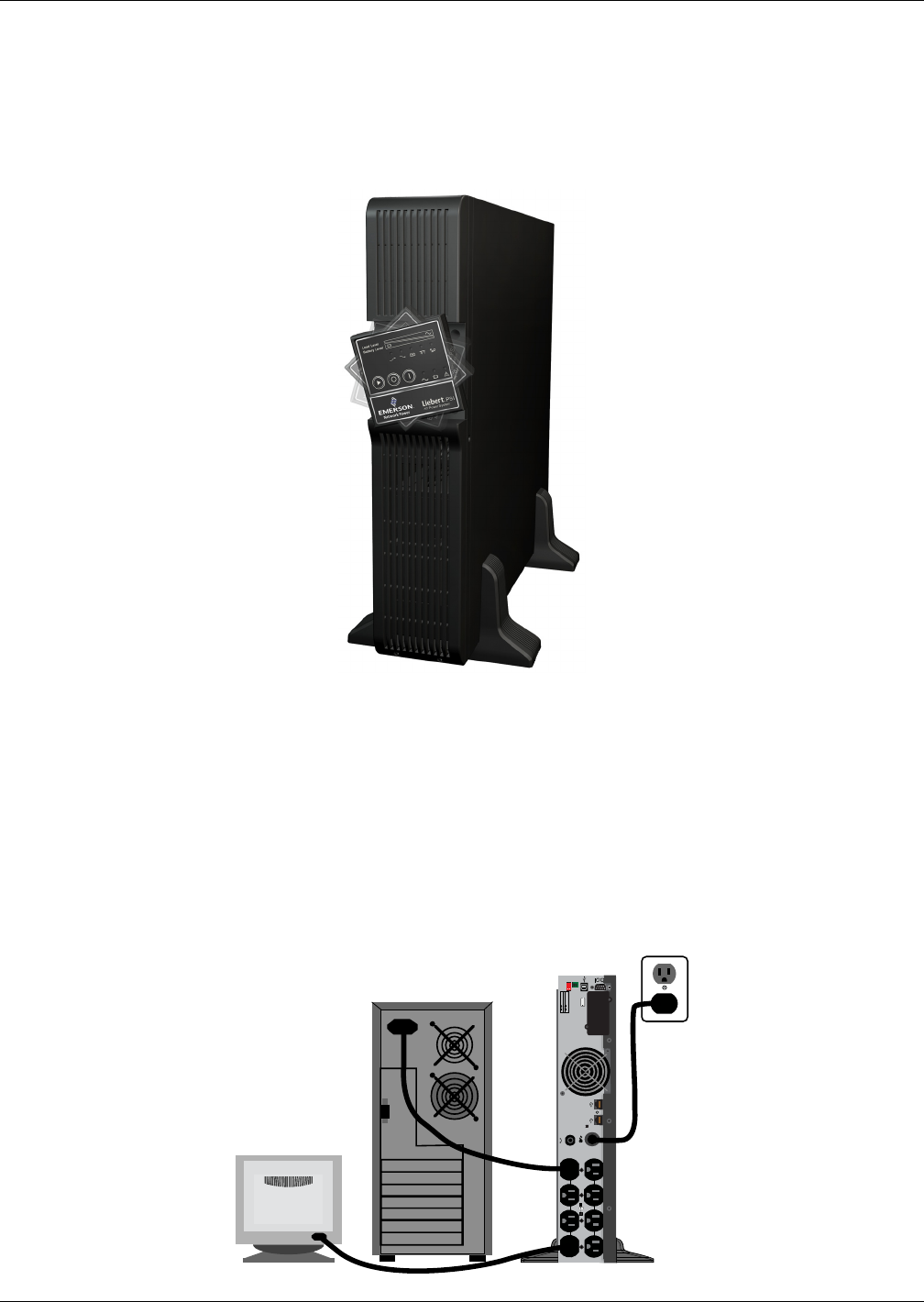

Figure 9 Orienting the UPS display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Figure 10 Connect input power and load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

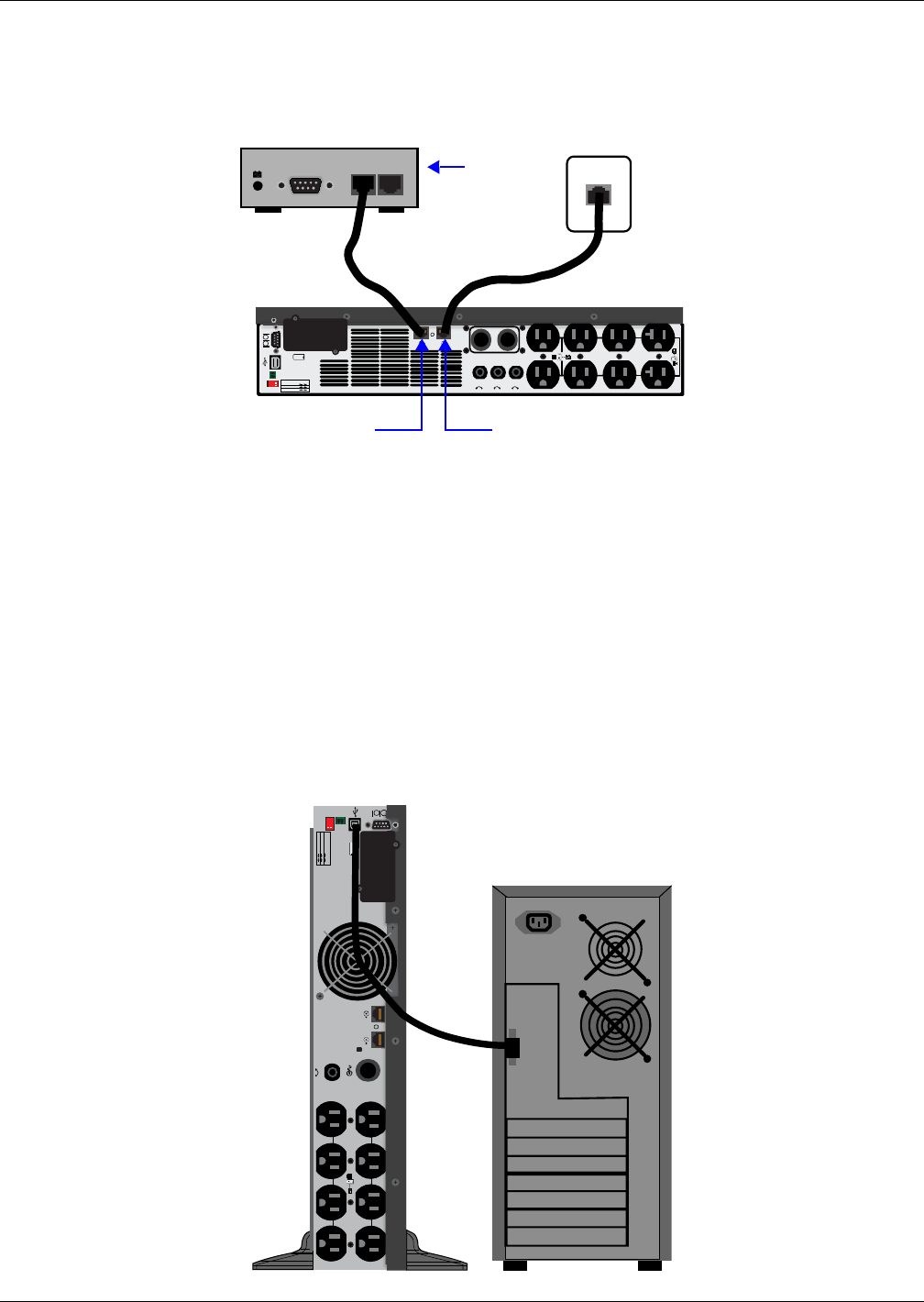

Figure 11 Connect network surge protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Figure 12 Connect communication interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Figure 13 EPO connection for normally open operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

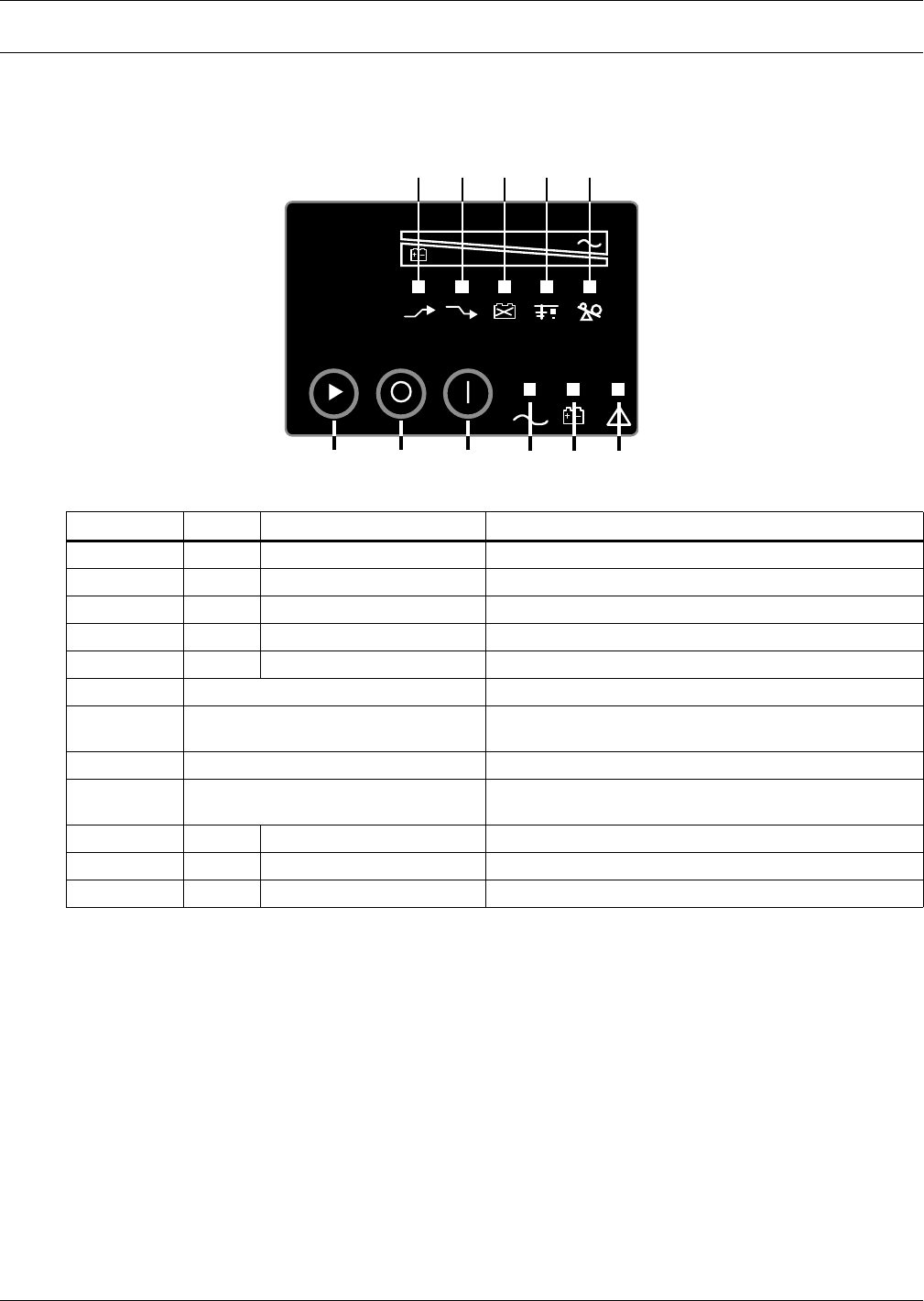

Figure 14 Display and status indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 15 DIP switch settings for 120V system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Figure 16 Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
TABLES
Table 1 Display and status indicators function, legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Table 2 Status indicators—color, illumination mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

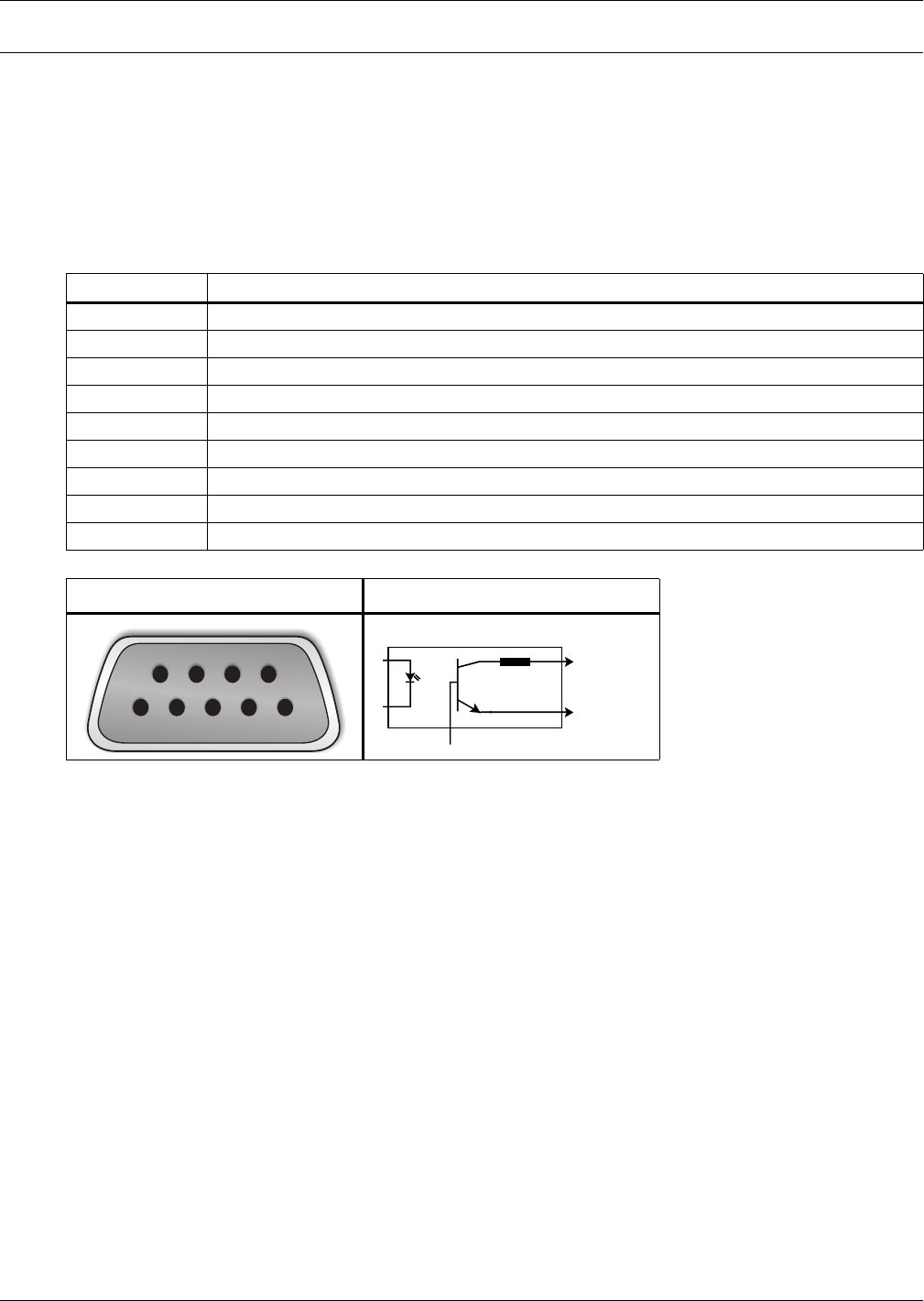

Table 3 DB-9 pin assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Table 4 Voltage configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Table 5 Liebert PSI specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Table 6 Liebert PSI 1000-3000 battery run times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Table 7 Troubleshooting—problems, causes and solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
1
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important instructions that should be followed during installation and mainte-
nance of the UPS.
Intended for installation in a temperature-controlled, indoor area free of conductive
contaminants.
Maximum ambient temperature 104°F (40°C).
Read this manual thoroughly before attempting to install or operate this UPS.
The equipment can be installed and operated by individuals without previous training.
Size of Branch Circuit Overcurrent Protection
Battery Handling Precautions
!
CAUTION
To reduce the risk of fire, connect PS3000RT3-120 models only to a circuit provided with
30 amperes maximum branch circuit overcurrent protection in accordance with the National
Electric Code, ANSI/NFPA 70. Other Liebert PSI models must be connected to a circuit with
20 amperes maximum branch circuit overcurrent protection.
!
WARNING
Operate the UPS only from a properly grounded (earthed) 110-127VAC, 50Hz or 60Hz AC
supply.
Some components are live, even when AC power is disconnected. For service, contact a
properly trained and qualified technician. Do not remove the cover; the UPS has no
user-serviceable parts inside except the internal battery pack.
!
WARNING
Although the UPS has been designed and manufactured to ensure personal safety, improper
use can result in electrical shock or fire. To ensure safety, observe the following rules:
Turn Off and unplug the UPS before cleaning it. Clean the UPS with a dry cloth. Do not use
liquid or aerosol cleaners.
Do not install or operate the UPS in or near water.
Never block or insert any objects into the ventilation holes or other openings of the UPS.
Keep all vents free of dust accumulation that could restrict air flow.
Do not place UPS power cord anywhere it might be damaged.
!
WARNING
Batteries should be replaced only by properly trained and qualified personnel knowledgeable
of batteries and required precautions.
A battery can present a risk of electrical shock and high short-circuit current. The following
precautions must be observed when working on batteries:
Remove watches, rings and other metal objects.
Use tools with insulated handles.
Do not dispose of the battery or batteries in a fire. The battery may explode.
Do not open or mutilate the battery or batteries. Released electrolyte is toxic. It may cause
injury to the skin and eyes.
When replacing the battery, use the same type of battery as is listed in Table 5.
Handle, transport and recycle batteries in accordance with local regulations.
2
CONDITIONS OF USE—The input supply outlet must be within 6 ft. (1.8m) of the UPS and be eas-
ily accessed.
This UPS provides conditioned power to connected equipment. It is not intended for use with life-sup-
port and other designated “critical” devices. Maximum load must not exceed that shown on the UPS
rating label. If uncertain, consult your local dealer, local Emerson Network Power representative or
Channel Support Applications.
When installing the UPS or making input and output connections, comply with all relevant safety
codes and standards (e.g., UL 1778).
Placing magnetic storage media on top of the UPS may result in data corruption.
ELECTROMAGNETIC COMPATIBILITY—The Liebert PSI complies with part 15 of the FCC
Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause unde-
sired operation.
This equipment uses, generates and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference with radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, the user is encouraged to
try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the UPS and the receiver.
Connect the UPS to an outlet on a circuit different from the one the receiver is connected to.
NOTICE
Do not connect equipment that could overload the UPS or demand half-wave rectification
from the UPS, such as electric drills, vacuum cleaners, laserjet printers and hair dryers.
3

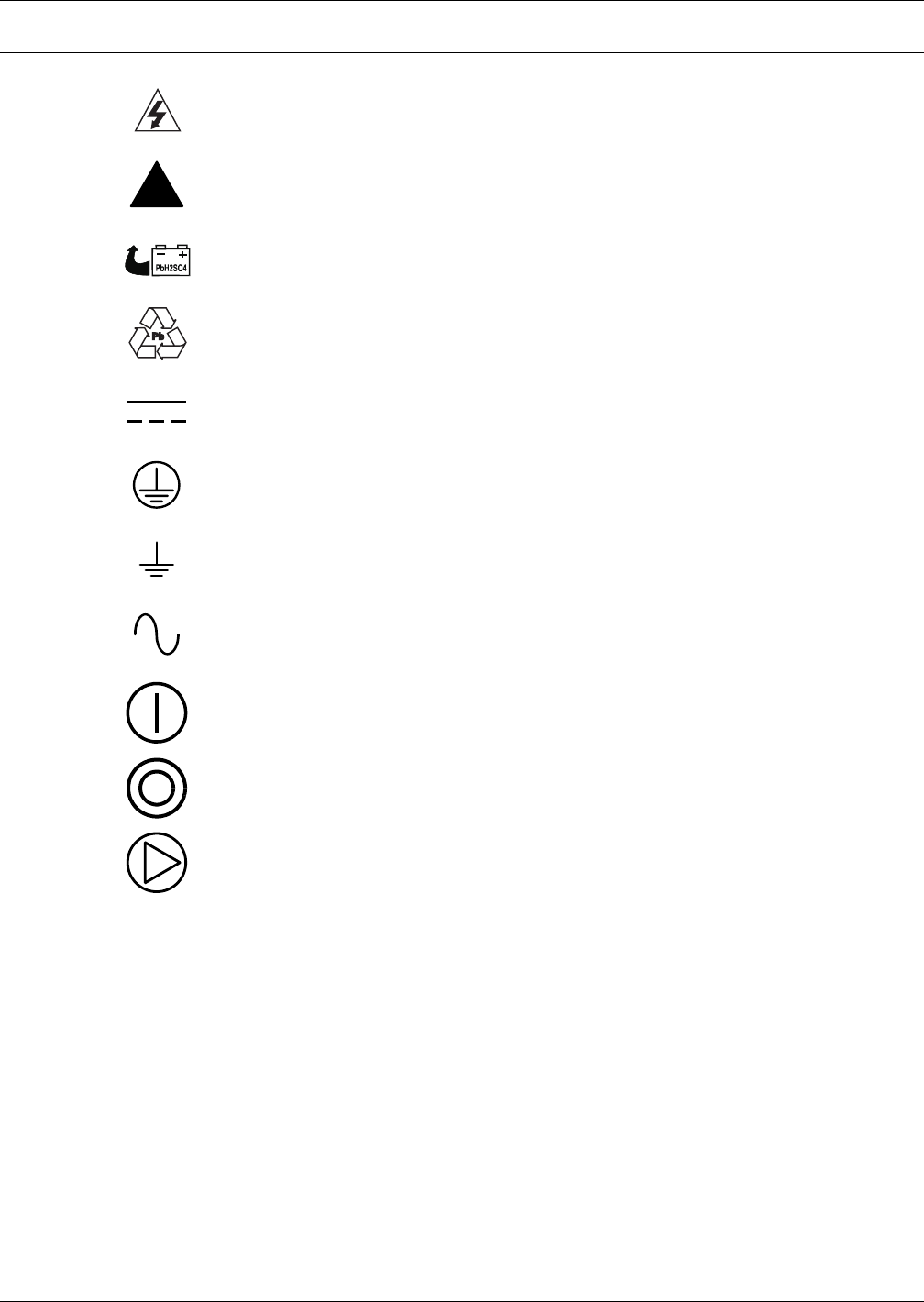

GLOSSARY OF SYMBOLS
Risk of electrical shock
Indicates caution followed by important instructions
Indicates the unit contains a valve-regulated, lead-acid battery
Recycle
DC voltage
Equipment grounding conductor
Bonded to ground
AC voltage
ON/Alarm Silence/Manual Self-Diagnostic Test
OFF
Status Change Button
!
Introduction
4
1.0 INTRODUCTION
The Liebert PSI is a 2U, line-interactive UPS that may be installed in a rack or used as a tower UPS.
Status indicators on the front of the Liebert PSI display load level, battery level, buck/boost, site-wir-
ing fault, overload, battery status and UPS operation. Controls include a combination On/Alarm
Silence/Manual Self-Diagnostic Test button, an Off button and a Status Change button.
The Liebert PSI has USB, DB-9 (contact closure) and Liebert IntelliSlot® ports. The DB-9 and USB
ports provide detailed operating information including voltages, currents, and alarm status to the
host system when used in conjunction with Liebert MultiLink software.
The Liebert PSI is compliant with the Restriction of Hazardous Substances Directive (ROHS), prohib-
iting use of six hazardous materials manufacturing of electronics, including lead-free solder.

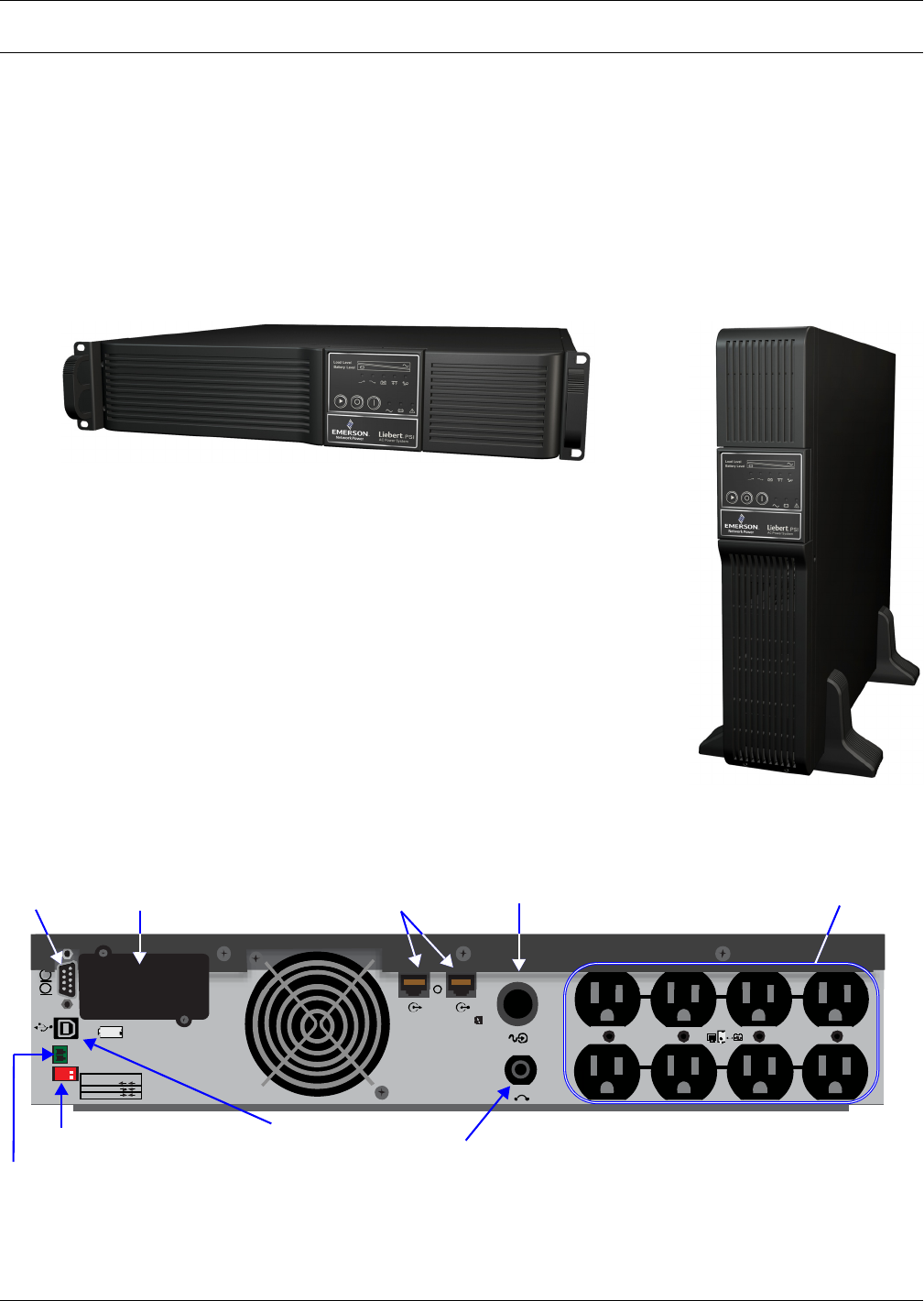

Figure 1 Front view of UPS
Figure 2 1000 and 1500—rear view
Liebert PSI
rack-mount configuration
Display rotates for use as tower
Liebert PSI
tower configuration
Display rotates for use in rack
EPO
VOLTAGE=220V
VOLTAGE=230V
VOLTAGE=240V
2 1
FU N CTI ON
INPUT
USB Port
DB-9 Port
(Contact
Closure)
EPO
Voltage Configuration
DIP Switch Input Circuit Breaker
(12A for 1000;
15A for 1500)
Receptacles
NEMA 5-15R
Liebert
IntelliSlot Port
Network Surge
Protection
Power Cord; 5-15P
(not shown for clarity)
Introduction
5

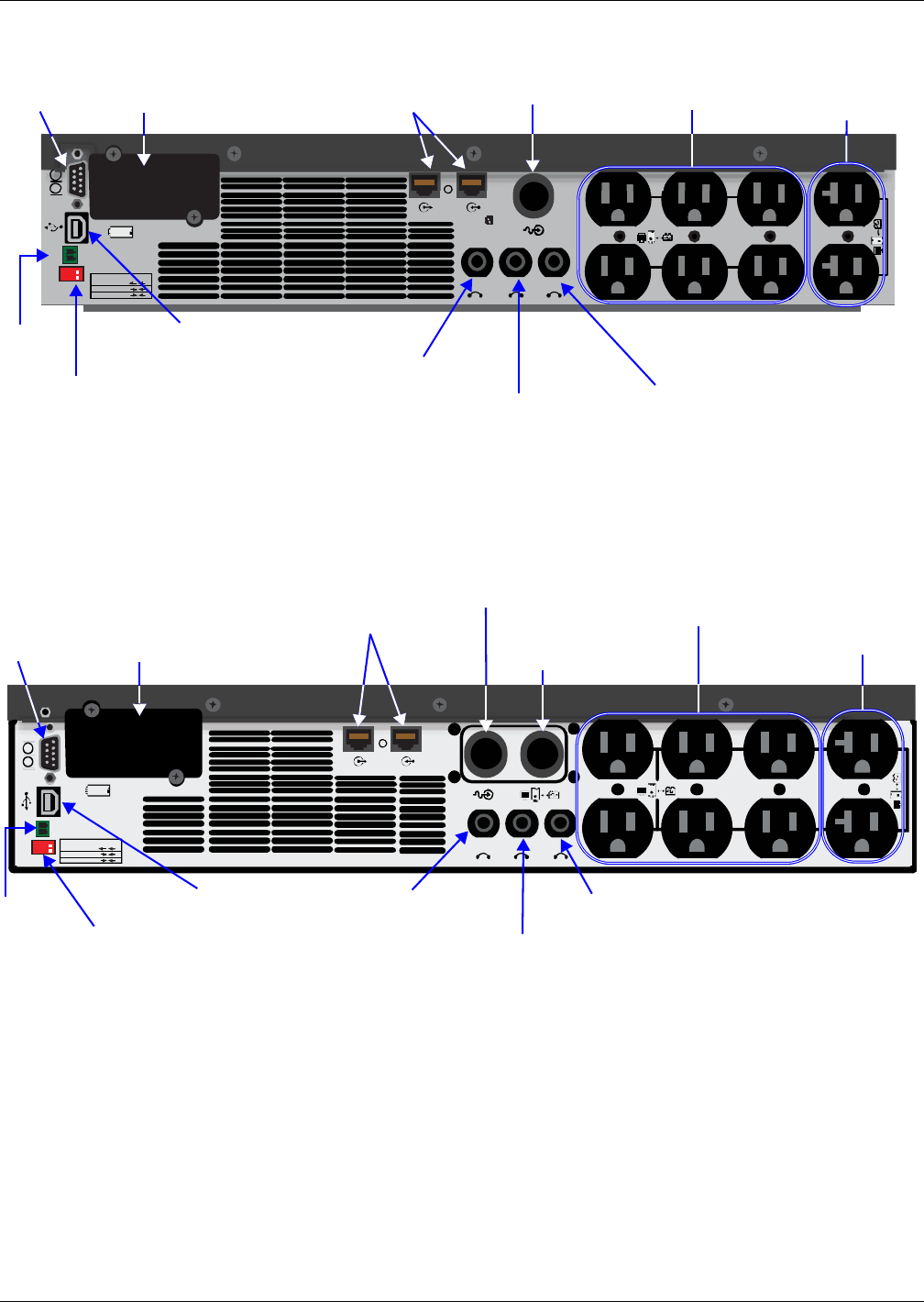

Figure 3 2200—rear view
Figure 4 3000—rear view
EPO
VOLTAGE=220V
VOLTAGE=230V
VOLTAGE=240V
2 1
FU N CTI ON
INPUT OUTPUT OUTPUT
USB Port
EPO
Voltage Configuration
DIP Switch 20A Output Circuit Breaker
for Receptacles #7-8
15A Output Circuit Breaker
for Receptacles #1-6
20A Input Circuit Breaker
Receptacles #7-8,
NEMA 5-20R T-Slot
Receptacles #1-6,
NEMA 5-15R
Power Cord; 5-20P
(not shown for clarity)
DB-9 Port
(Contact
Closure) Liebert
IntelliSlot Port
Network
Surge Protection
V OLTAGE =220V
V OLTAGE =230V
V OLTAGE =240V
2 1
FU N C TIO N INPUT OUTPUT OUTPUT
EPO
INTERFACE CH B
NEMA L5-30R
Receptacle (not
shown for clarity)
Network
Surge Protection
USB Port
Power Cord; L5-30P
(not shown for clarity)
EPO
Voltage Configuration
DIP Switch 15A Output Circuit Breaker
for Receptacles #1-6
20A Output Circuit Breaker
for Receptacles #7-8
30A Input Circuit
Breaker
DB-9 Port
(Contact
Closure) Liebert
IntelliSlot Port
Receptacles #1-6,
NEMA 5-15R Receptacles #7-8,
NEMA 5-20R T-Slot
What’s Included
6
2.0 WHATS INCLUDED
The Liebert PSI is shipped with the following items:
Multi-Language User Manual on CD
Liebert MultiLink Software and User Manual, downloadable at multilink.liebert.com
Contact Closure (ML9P9S) Cable
USB Cable
Tower Stands
Mounting Hardware
Rack-Mount Handles
Fixed Mounting Rails
•EPO Connector
Figure 5 Accessories
USB cable
6 ft (1.8m)
Rack-Mount
Handles
Mounting Hardware
(Screws and Washers)
Fixed
Mounting Rails
Tower Stands
Contact Closure
(ML9P9S) Cable
6 ft (1.8m)
EPO
Connector
Installation
7
3.0 INSTALLATION
3.1 Preparation
The Liebert PSI may be installed in either a tower or rack configuration. Determine the method that
suits the application and proceed.
Decide where to install the Liebert PSI. The UPS must be installed indoors in a controlled environ-
ment. Place it in an area with unrestricted airflow around the unit, away from water, flammable liq-
uids, gases, corrosives and conductive contaminants (see Figure 6).
Maintain a minimum clearance of 12 inches (305mm) in the front and rear of the UPS. Maintain an
ambient temperature range of 32°F to 104°F (0°C to 40°C).

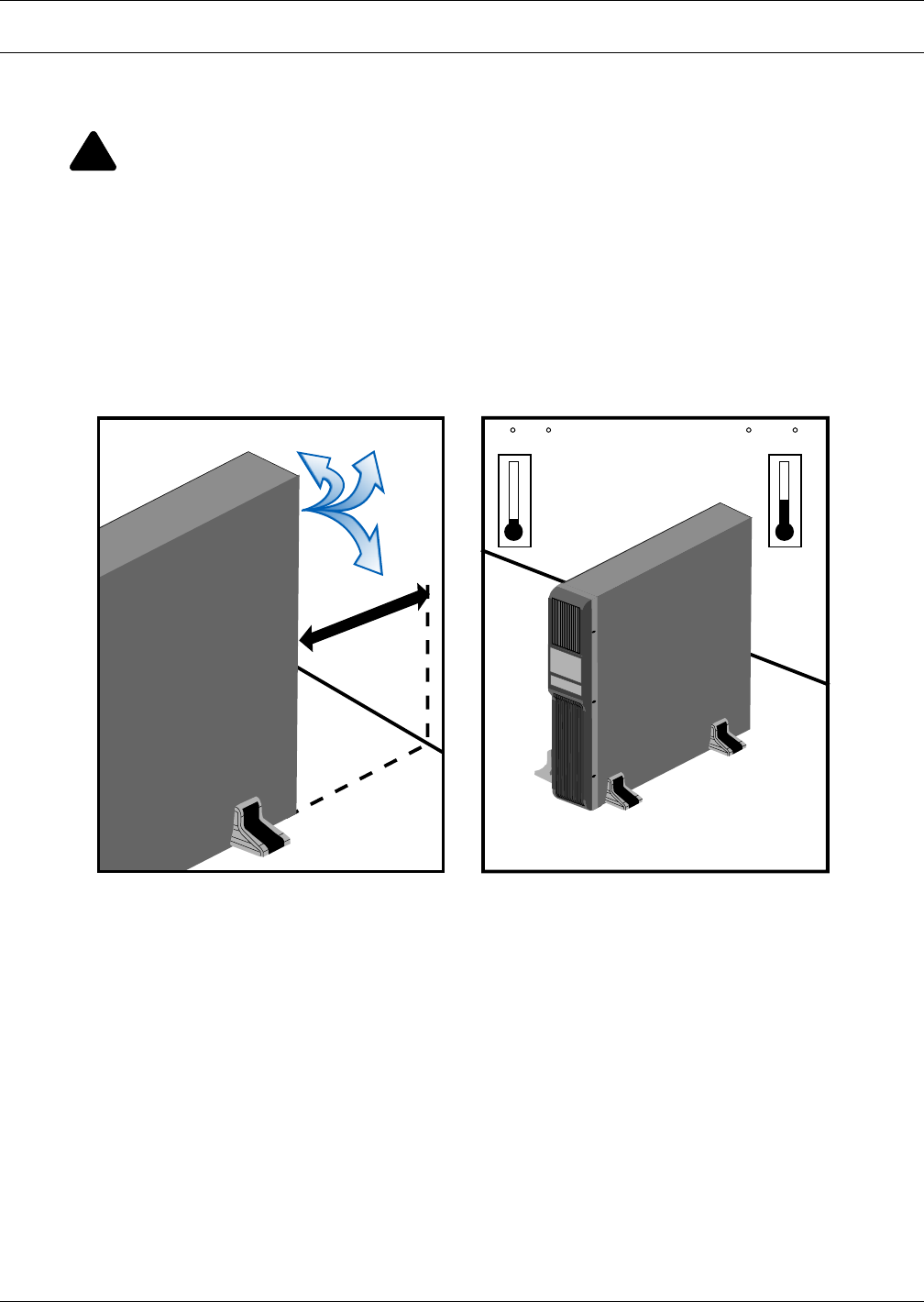

Figure 6 Placing the Liebert PSI
!
CAUTION
The UPS is heavy (see Table 5). Take proper precautions when lifting or moving it.
32 F (0 C)
Relative humidity
(non-condensing)
104 F (40 C)
0% ~ 90%
12 in./305mm
AIR
AIR
AIR
Installation
8
3.2 Tower UPS Installation
See Figure 7 when using the Liebert PSI in a tower configuration.
Figure 7 Tower configuration—attach Tower Stands
Step 1
Step 2
Installation
9

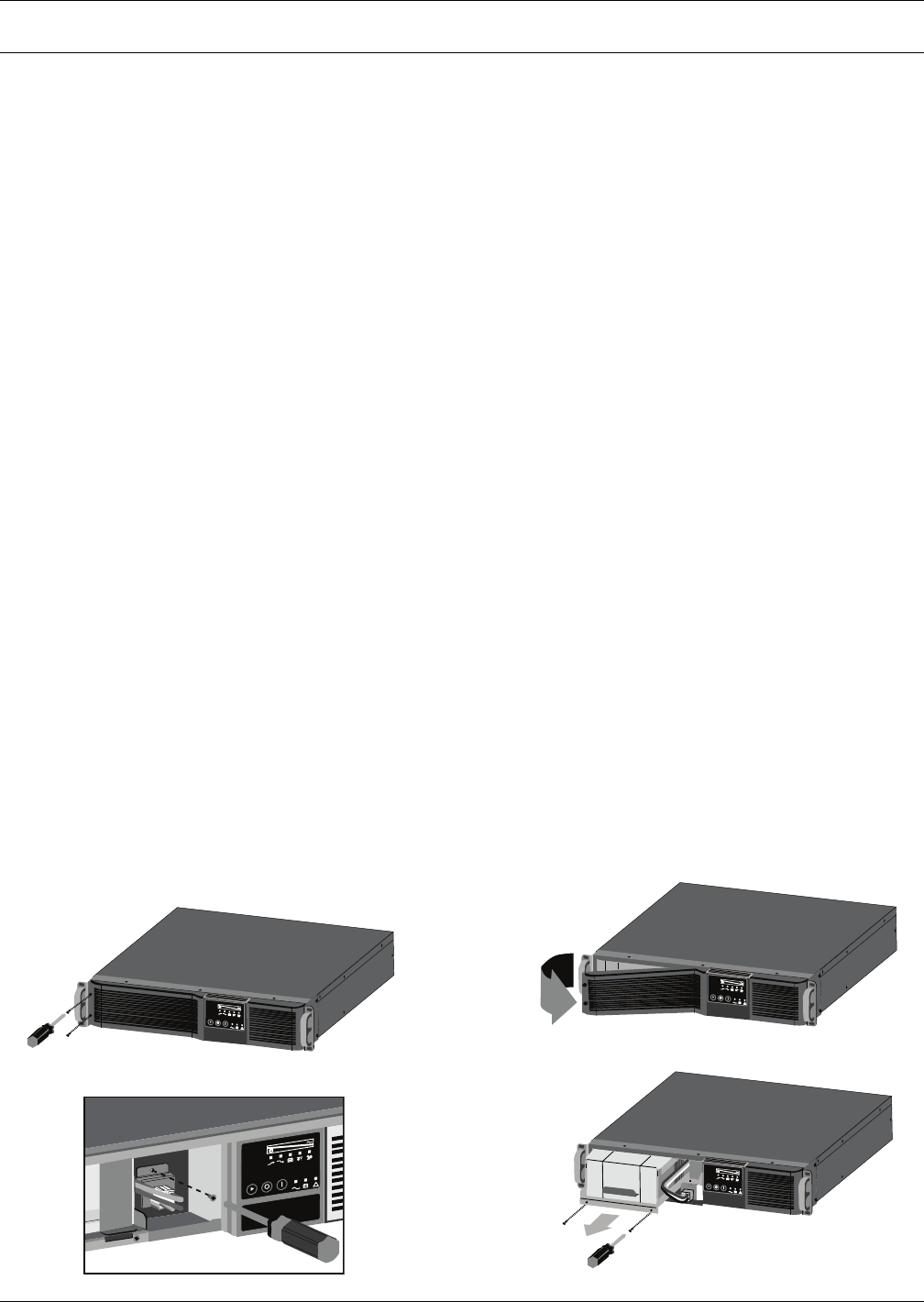

3.3 Rack-Mount UPS Conversion and Installation
See Figure 8 when installing the Liebert PSI in a rack.

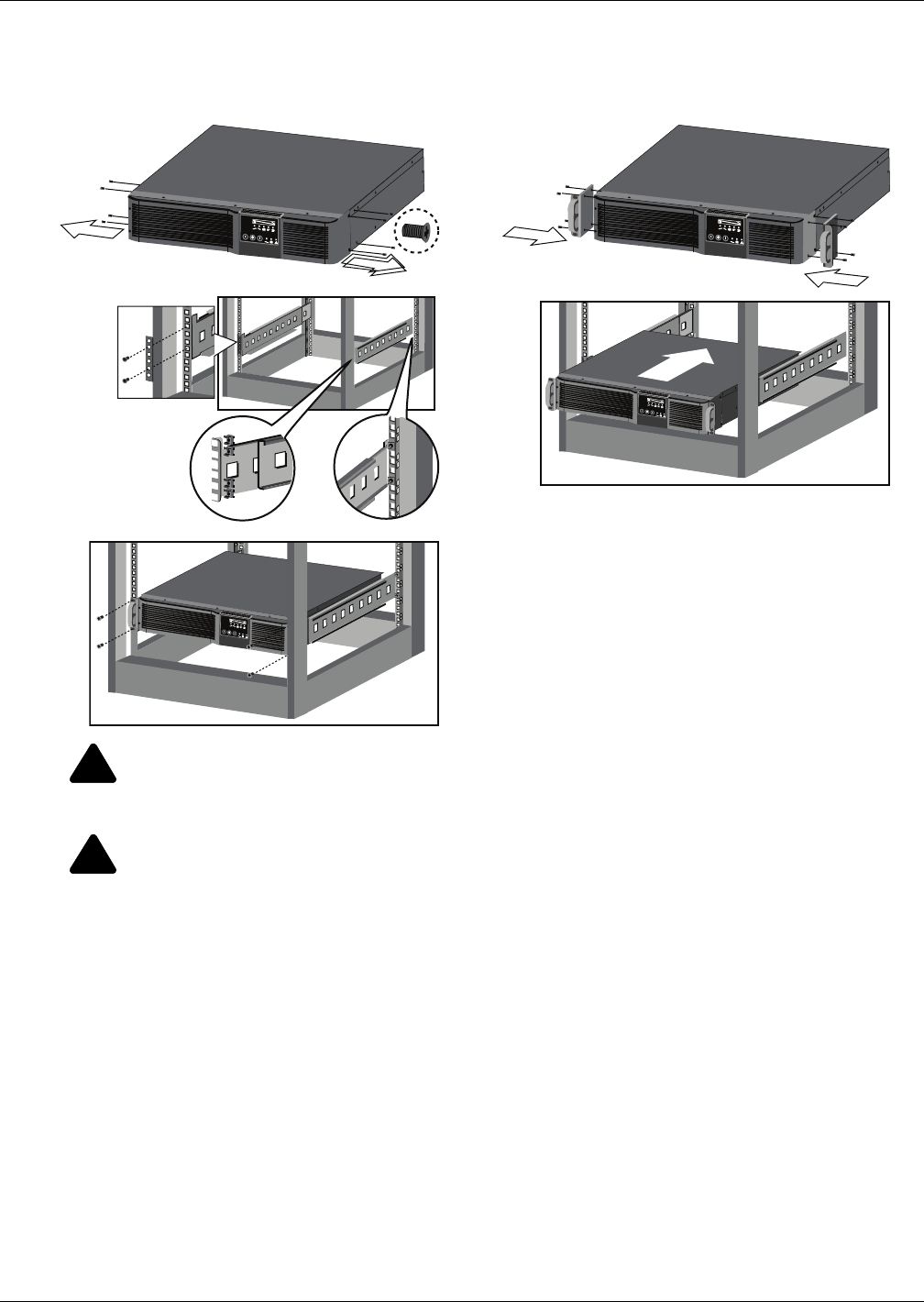

Figure 8 Convert the Liebert PSI for rack installation
NOTICE
When rack-mounted, the UPS must be supported by a shelf, slide rails, brackets or fixed rails
on each side. The rack-mount handles WILL NOT support the weight of the UPS. They are
used to move the UPS into and out of the rack.
!
WARNING
Placing heavy equipment near the top of a rack may increase the risk of tipping. Place the
UPS in the bottom of the rack.
!
CAUTION
Lifting equipment into rack may be a two-person job, depending on weight of equipment.
Load Level
Battery Level
Load Level
Battery Level
Load Level
Battery Level
Load Level
Battery Level
Step 1 Step 2
Step 3 Step 4
Step 5
Installation
10
3.4 Orient Display for Installation
The Liebert PSI features a rotating display that may be oriented for either tower or rack
installations.
To set the display for your installation, pull out on the display and rotate it until it is oriented
correctly, then press it into the UPS until it is seated.
Figure 9 Orienting the UPS display
3.5 Charge Batteries and Perform Battery Startup
Before connecting input power or connecting the load, Emerson recommends these steps:
Charge the battery for at least 8 hours.
Start the UPS on battery to ensure the battery is fully functional and charged.
Turn the unit Off and proceed to 3.6 - Connect Input Power and Load.
3.6 Connect Input Power and Load
Connect input power to the UPS, then plug the equipment into the outlets on the rear of the UPS.
These UPS outlets provide battery backup and surge protection to the equipment when utility power
fails, spikes or sags (see Figure 10).
Figure 10 Connect input power and load
EPO
VOLTAGE=220V
VOLTAGE=230V
VOLTAGE=240V
2 1FUNCTION
INPUT
Installation
11
3.7 Connect Network Surge protection
Connect a 10 base-T/100 network cable to the network surge protection IN jack on the rear of the
UPS. Connect from the OUT jack with network cabling to network equipment (see Figure 11).
Figure 11 Connect network surge protection
3.8 Connect Communication Interface
Determine what type of communication connection to use to manage the UPS. The Liebert PSI can be
monitored with any of these communication methods:
Contact closure
•USB
SNMP (requires optional IS-WEBRT3 card)
Connect the appropriate, factory-supplied cable to the interface port on the rear of the UPS and to the
computer interface port.
See 3.9 - Set Up Liebert MultiLink software for details and installation information. Also refer to
6.4 - UPS Communications.
Figure 12 Connect communication interface
Network surge
protection IN Jack
Network surge
protection OUT jack
VOLTAGE=220V
VOLTAGE=230V
VOLTAGE=240V
2 1
FUNCTION
INPU T INPUT IN PUT
EPO
Network
Equipment
EPO
VO LTA GE =220V
VO LTA GE =230V
VO LTA GE =240V
2 1FUNCTION
INPUT
Installation
12
3.9 Set Up Liebert MultiLink software
To start using Liebert MultiLink (software and user manual available at multilink.liebert.com):
Install the software.
See the Liebert MultiLink quick-start guide or user manual for installation instructions.
Connect one end of the USB cable (supplied) to the USB port on the rear of the UPS. Connect the
other end to a USB port on the computer.
See the Liebert MultiLink user manual for operating instructions.
3.10 EPO Switch
The Liebert PSI is equipped with an Emergency Power Off (EPO) switch. The user must supply a
means of interfacing with the EPO circuit to allow disconnecting the UPS input feeder breaker to
interrupt all sources of power to the UPS and connected equipment to comply with national and local
wiring codes and regulations.

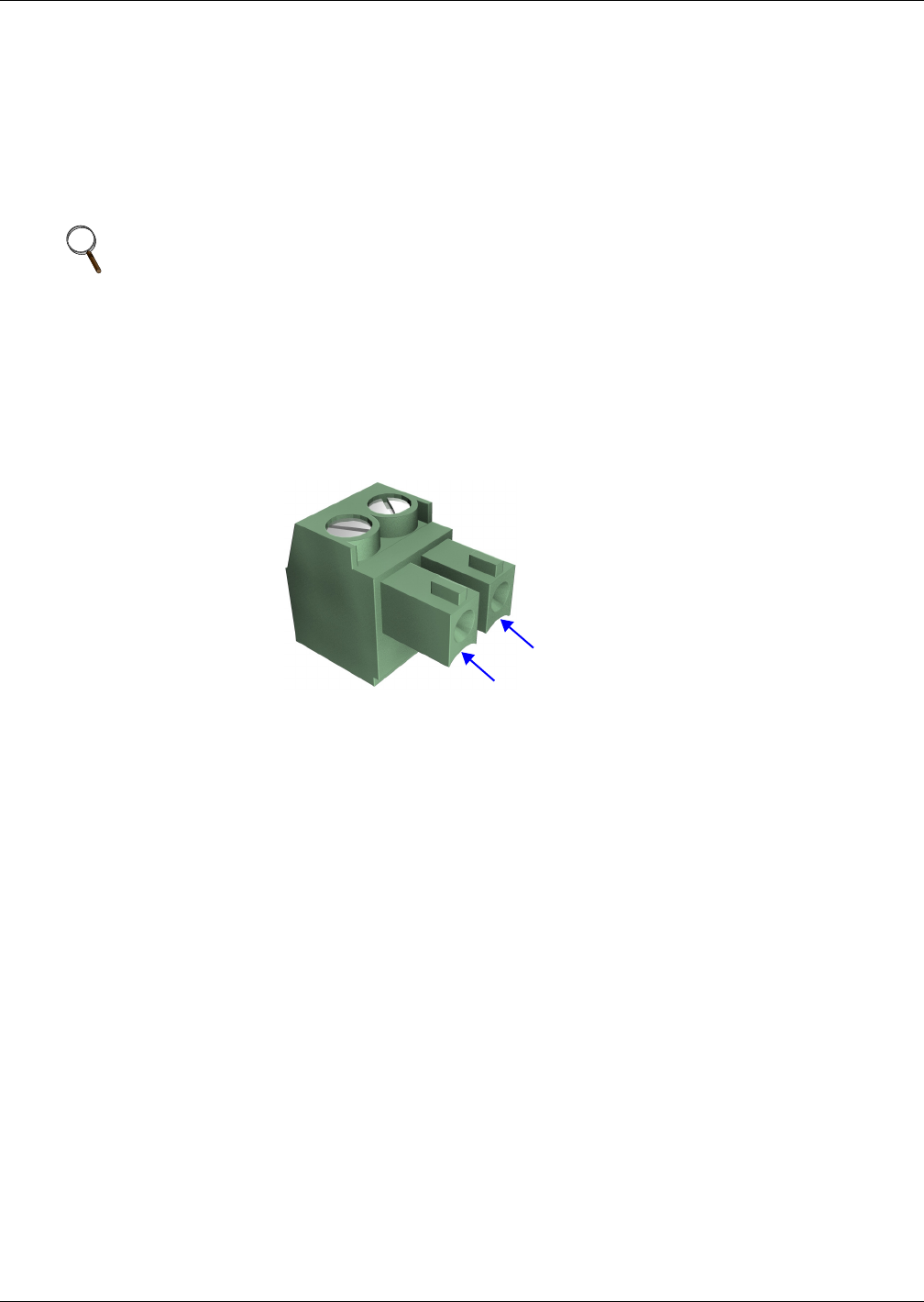

Figure 13 EPO connection for normally open operation
NOTE
Emerson recommends connecting the USB cable directly to the computer WITHOUT using a
USB hub.
1 = EPO+
2 = Ground
Short Pin 1 and Pin 2 to
enable the EPO function
Controls and Indicators
13
4.0 CONTROLS AND INDICATORS
Buttons on the front panel display control the Liebert PSI. Eight LEDs indicate the UPS’s status.
Refer to Figure 14 and Table 1.
Figure 14 Display and status indicators
Table 1 Display and status indicators function, legend
Item Name Status Indicators Description
1 LED 1 AVR Boost UPS Operation in AVR Boost Mode
2 LED 2 AVR Buck UPS Operation in AVR Buck Mode
3 LED 3 Battery Condition Battery Fault/Weak
4 LED 4 Grounding/Site Wiring Fault UPS Grounding/Site Wiring Fault
5 LED 5 Overload UPS Overload
1 to 5 Load/Battery Level Indicate Load/Battery Level
6 Status Change Button Switches Display from Load Level Indicators
to Battery Level Indicators
7 OFF Button UPS Off
8ON Button Turn on UPS, Manual Self-Diagnostic (Normal Mode),
Silence Alarm (Battery Mode)
9 LED 9 Normal Mode UPS Operation in Normal Mode
10 LED 10 Battery Mode UPS Operation in Battery Mode
11 LED 11 UPS Fault UPS Fault
Load Level
Battery Level
12345
67891011
Controls and Indicators
14
4.1 Control Buttons
4.1.1 On/Alarm Silence/Manual Self-Diagnostic Test
This button controls output power to connected load(s). It has three functions:
•On
•Alarm Silence
Manual Self-Diagnostic Test
ON—Start the UPS by pressing this button for more than 3 seconds, then releasing the button (an
alarm will sound briefly). If the ON button is pressed and utility is outside input parameters, the UPS
will start on battery (dark start).
Alarm Silence—Silence a battery mode audible alarm by pressing this button for longer than one
second, then releasing it.
Manual Self-Diagnostic Test—To initiate a Manual Self-Diagnostic, press this button for at least
three (3) seconds while operating from utility power. UPS will switch to Battery Mode to detect bat-
tery voltage and whether the UPS is operating normally.
If LED indicates the battery is weak: Allow the UPS to recharge the batteries for 8 hours.
Retest the battery after recharge.
If LED still indicates the battery is weak after the battery has been retested, contact your
local dealer, local Emerson representative or Channel Support Applications.
If LED indicates a Battery Fault: Contact your local dealer, local Emerson representative or
Channel Support Applications.
If LED indicates a UPS Fault: Remove the load, retest the self diagnostic test, if LED indicated
UPS Fault, Contact your local dealer, local Emerson representative or Channel Support Applica-
tions.
4.1.2 Off Button
When the UPS is operating in either Normal Mode or Battery Mode, pressing the Off button for more
than three seconds will shut down the UPS.
4.2 Status Indicators
4.2.1 Status Change Button
The Status Change button determines the information displayed by the five LEDs on the front panel.
The default information shown by the LEDs is the load level on the UPS. Pressing the Status Change
button while the UPS is On prompts the LED display to show battery capacity for 5 seconds. This
function assists in assessing the meaning of status indicators as described in 4.2.4 - UPS Status
Indicators. See Figure 14 and Table 1 for the Status Change button’s location.
4.2.2 Load Level Indicator
The five LEDs at the top of the front panel illuminate with a steady glow to indicate the load level on
the output of the UPS. The LEDs show the load level as a range, ± 5%. The LEDs’ load level meanings
and colors are:
NOTE
Refer to Figure 14 and Table 1 for details about the LEDs’ meaning.
LED 1 LED 2 LED 3 LED 4 LED 5
10-24% — Green 25-49% — Green 50-74% — Yellow 75-99% — Yellow 100% or greater — Red
Controls and Indicators
15
4.2.3 Battery Level Indicator
The five LEDs illuminate with a steady glow to indicate battery capacity. Battery capacity is shown
for five seconds after the Status Change button is pressed. The LEDs show the battery capacity as a
range, ± 5% The LEDs’ battery level meanings and colors are:
4.2.4 UPS Status Indicators
LEDs on the display panel illuminate with a steady glow or flash to indicate the UPS’s status:
Normal Mode—The Normal Mode indicator illuminates (LED 9) with a steady glow when utility
power is available and within the input specifications.
Battery Mode—The Battery Indicator illuminates (LED 10) with a steady glow when the UPS is
operating on battery.
AVR Boost, AVR Buck—When the UPS is in AVR Boost/Buck Mode, the LED display will indicate
the relative load level on the output of the UPS and will flash LED 1 (boost) or LED 2 (buck) to indi-
cate which mode the UPS is in.
Weak Battery—When the UPS battery voltage is low, the LED display will indicate the relative load
level on the output of the UPS and LED 3 will flash as a warning.
Site-Wiring Fault—In case of a site-wiring fault, the LED display will indicate the relative load
level on the output of the UPS and LED 4 will flash as a warning.
Overload—When UPS operates in overload status, the LED display will indicate the relative load
level on the output of the UPS and LED 5 will flash as a warning.
LED 1LED 2LED 3LED 4LED 5
100-76% — Green 75-51% — Green 50-26% — Yellow 25-11% — Yellow 10% or less — Red
Table 2 Status indicators—color, illumination mode
Status LED 1 LED 2 LED 3 LED 4 LED 5 LED 9 LED 10 LED 11
Normal Mode Green
Steady
AVR Boost Green
Flashes
Green
Steady
AVR Buck Green
Flashes
Green
Steady
Battery Mode
(dark start)
Yellow
Steady
Weak Battery Yellow
Flashes
Site-Wiring Fault Yellow
Flashes
Overload Red
Flashes
Battery Fault
Shutdown
Yellow
Steady
Red
Steady
Overload
Shutdown
Red
Steady
Red
Steady
UPS Output
Abnormal
Shutdown
Yellow
Steady
Red
Steady
Operational Modes
16
5.0 OPERATIONAL MODES
5.1 Normal Mode
When the UPS is in Normal Mode, the Normal Mode Indicator illuminates green.
5.2 Buck/Boost Mode
The Automatic Voltage Regulator (AVR) circuitry compensates for fluctuations in utility power, such
as voltage surges and sags. When the Liebert PSI detects an abnormality, it raises the undervoltage
(boost) or lowers the overvoltage (buck) as needed. The AVR operates automatically and maintains
the output voltage to the connected equipment, without utilizing the batteries.
LED 1 flashes green and LED 9 illuminates steady green when the UPS is in Boost Mode. LED 2
flashes green and LED 9 illuminates steady green when the UPS is in Buck Mode (see 9.0 - Trouble-
shooting for details).
5.3 Battery Mode
The UPS switches to Battery Mode in the event of an extreme input voltage/frequency condition or
utility failure.
When the UPS is in Battery Mode, the Battery Indicator illuminates amber and an alarm sounds at
two-second intervals. As capacity decreases, fewer indicators remain illuminated.
When a Low Battery condition occurs, the Battery Indicator flashes amber and an alarm sounds at
one-second intervals. Refer to Table 6 for approximate battery run times.
5.4 Battery Recharge Operation
Once utility power is restored, the UPS resumes normal operation and the Battery Charger begins
recharging the batteries.
Communication
17
6.0 COMMUNICATION
6.1 DB-9 Connector
The UPS has a DB-9 (9 pin female) connector on the rear to allow UPS status communications with a
computer running Liebert MultiLink software in contact closure mode. The connection provides On
Battery and Low Battery notification.
When power is interrupted and battery power is low, Liebert MultiLink software can signal the host
computer to gracefully shut down the operating system.
6.2 Remote Shutdown Via the DB-9 Connector
The Liebert PSI can be shut down remotely by shorting Pins 5 and 6 or via Pins 4 and 5 of the DB-9
connector.
6.2.1 Any Mode Shutdown Via Pins 5 & 6
When Pin 6 is shorted to Pin 5, the UPS output is shut Off no matter what mode the UPS is operating
in. The UPS cannot be started as long as the pins are shorted. When the short is removed, the UPS
output can be enabled by pressing the ON/Alarm Silence/Manual Self-Diagnostic Test button.
6.2.2 Battery Mode Shutdown Via Pins 4 & 5
While the UPS is operating on battery, a 5-12VDC signal for 2 seconds or longer is required to signal
a shutdown. Signals for less than 2 seconds are ignored.
After Pin 4 receives the shutdown signal, a 2-minute shutdown timer begins a countdown. The shut-
down timer cannot be stopped: If utility power returns during the 2-minute countdown, the shutdown
timer continues until the end of 2 minutes and the UPS turns Off. The UPS will restart 10 seconds
after utility power returns.
6.3 Network Surge Protection Connectors
Network (in and out) connectors on the rear of the UPS provide transient voltage surge suppression
(TVSS) for network devices.
Table 3 DB-9 pin assignment
DB-9 Pin Assignment Description
1 Low Battery (open collector)
2 UPS TxD (not used)
3 UPS RxD (not used)
4 Remote Shutdown (5-12V); on-battery operation
5 Common
6 Output Off, (short to Pin 5, non-latching); any mode operation
7 Low Battery (open emitter)
8 Utility Fail (open emitter)
9 Utility Fail (open collector)
Pin Assignment Collector to Emitter*
54321
6789
(-)
(+)
330 Ohms
Open
Collecto
r
Open
Emitter
Communication
18
6.4 UPS Communications
The Liebert PSI is equipped with a Liebert IntelliSlot port to provide advanced communication and
monitoring options.
Liebert MultiLink software continually monitors the UPS and can shut down your computer or server
via USB, contact closure and SNMP (via IS-WEBRT3 card) in the event of an extended power failure.
The Liebert IS-WEBRT3 provides SNMP and Web-based monitoring and control of the UPS across
the network.
6.5 UPS Inverter/Transfer Voltage Configurations
A two-pin DIP switch on the rear of the PSI permits setting the UPS to operate at nominal voltages of
110V, 120V or 127V. This feature will change the high and low points at which the UPS switches to
battery power. It also changes the UPS’ output voltage when the UPS is operating in battery mode.
The factory default setting is 120 VAC.
Turn Off the UPS before making any changes to the voltage configuration.

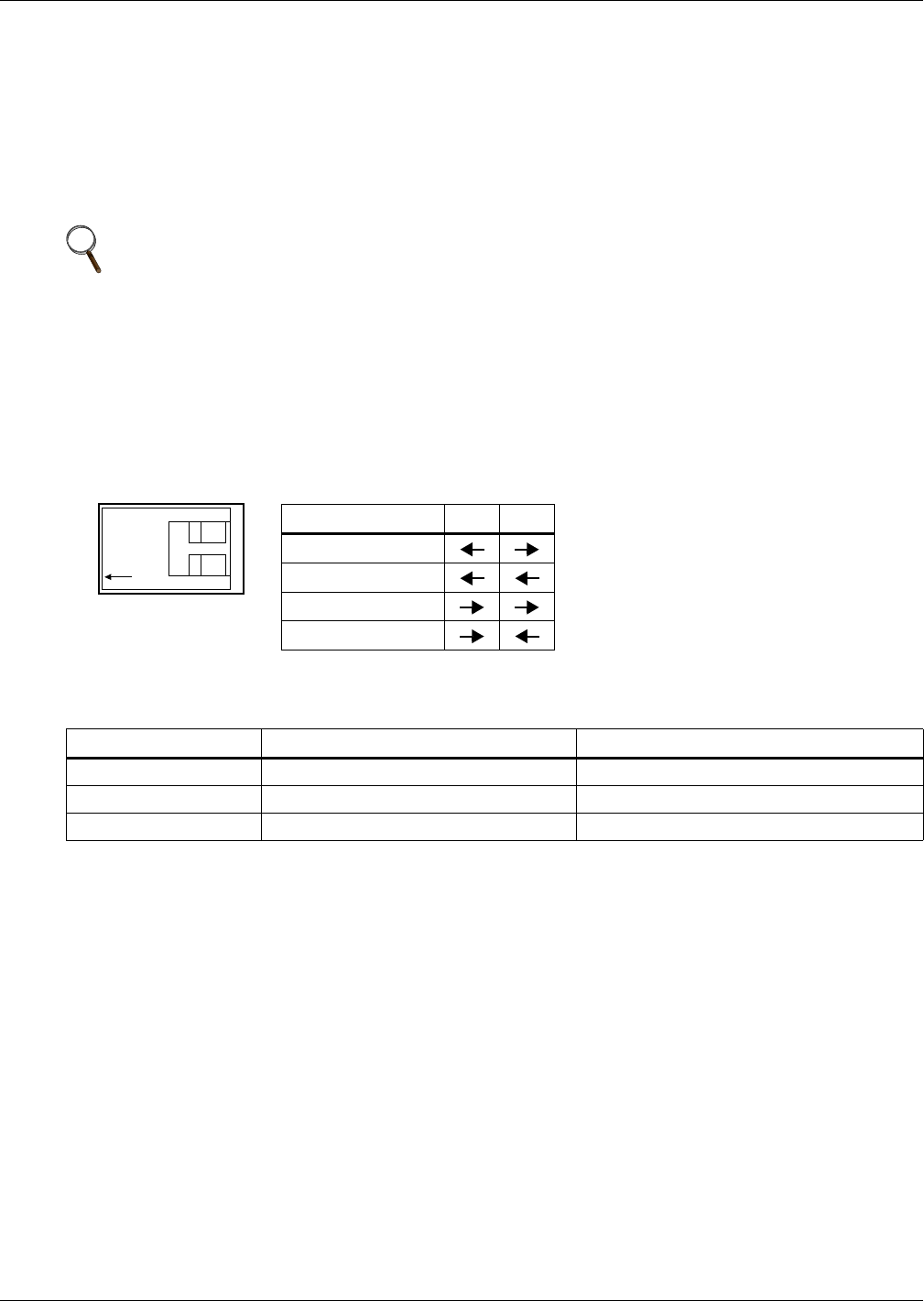

Figure 15 DIP switch settings for 120V system
NOTE
The USB, SNMP and contact closure communications can operate in parallel.
Table 4 Voltage configurations
Setting Input Voltage Range Output Voltage (Battery Mode)
110 83~138 110VAC
120 90~150 120VAC
127 96~159 127VAC
12
ON
FUNCTION 2 1
Voltage = 110V
Voltage = 120V
Voltage = 120V
Voltage = 127V
Battery Maintenance
19
7.0 BATTERY MAINTENANCE
7.1 Battery Charging, Storage
The batteries are valve-regulated, nonspillable, lead acid and must be kept charged to retain their
design life. The Liebert PSI continuously charges the batteries when connected to the utility supply,
even while the UPS is switched Off.
If the Liebert PSI will be stored for an extended period, Emerson recommends connecting the UPS to
input power for at least 8 hours every four to six months to keep the batteries charged.
Emerson recommends performing a monthly manual self-diagnostic test via the Web card or the front
panel display.
7.2 Internal Battery Replacement Procedure
NOTICE
This UPS is equipped with internal batteries that the user can replace without shutting down
the UPS or connected loads (hot swappable). Caution must be exercised when replacing the
batteries because the load is unprotected from power fluctuations and power failures.
To replace the batteries:
1. Remove the two screws on the left side of the front bezel.
2. Pull the front bezel off the UPS.
3. Remove the screw on the battery connector holder.
4. Remove the two screws on the battery bracket.
5. Disconnect the two slotted, red/gray and black battery connectors.
6. Grasp the battery pack assembly by the handle and pull it out of the front of the UPS.
7. Unpack the new battery assembly, taking care not to destroy the packing.
8. Compare the new and old battery assemblies to make sure they are the same. If so, proceed with
replacement. If they are different, STOP and contact your local dealer, local Emerson
representative or Channel Support Applications.
9. Slide the new battery pack into the UPS.
10. Reattach the battery bracket with the two screws.
11. Reconnect the slotted, red/gray and black battery connectors.
12. Reinsert the screw on the battery connector holder.
13. Reattach the front bezel.
Figure 16 Battery replacement
Load Level
Battery Level
Load Level
Battery Level
Load Level
Battery Level
Load Level
Battery Level
Step 1 Step 2
Step 3 Step 4
Specifications
20
8.0 SPECIFICATIONS
Table 5 Liebert PSI specifications
Model Number
PS1000RT3-120
PS3000RT3-120W
PS1500RT3-120
PS1500RT3-120W
PS2200RT3-120
PS2200RT3-120W
PS3000RT3-120
PS3000RT3-120W
Power Rating, VA/W 1000VA/900W 1500VA/1350W 1920VA/1920W 3000VA/2700W
Dimensions, W x D x H, in (mm)
Unit 17.3 x 16.2 x 3.5
(440 x 412 x 88)
17.3 x 25.9 x 3.5
(440 x 657 x 88)
Shipping 22 x 23.4 x 9
(560 x 595 x 228)
22 x 33 x 9
(560 x 839 x 228)
Weight, lb (kg)
Unit 43 (20) 47 (21) 76 (35) 84 (38)
Shipping 51 (23) 54 (25) 84 (38) 93 (42)
Input AC Parameters
Surge Protection 570J
Voltage Range
Without Battery Operation 83~159 VAC, Configurable
Frequency Range 45~65Hz, (±0.5Hz)
Input Power Cord
10ft (3m) Attached NEMA 5-15P Plug NEMA 5-20P Plug NEMA L5-30P Plug
Output Receptacles (8) NEMA 5-15R
(6) NEMA 5-15R
(2) NEMA 5-20R,
accepts15A Plug
(6) NEMA 5-15R
(2) NEMA 5-20R,
accepts15A Plug
(1) NEMA L5-30R
Voltage (Normal mode) 110 / 120 / 127 VAC (configurable) ±10%
Voltage (Battery Mode) 110 / 120 / 127 VAC, configurable
±5% Before Low Battery Warning
Transfer Time 4-6 ms, Typical
Waveform Sinewave
Frequency, Normal Mode 45~65Hz, (±0.5Hz)
Frequency, Battery Mode 50/60Hz, (±0.5Hz), Auto Sensing
Overload Warning
Normal Mode
>100% - 109% Continuous Overload Alarm and Power to the Load
>110% - 120% Shut down after 10 minutes
>120% Shut down UPS immediately
Battery Mode
>100% - 119% Continuous Overload Alarm Till End of Battery Discharge
>120% - 130% Shut down after 10 seconds
>130% Shut down UPS immediately
Battery Parameters
Type Valve-Regulated, Nonspillable, Lead Acid
Quantity x Voltage x Ah 3 x 12 x 7.2 3 x 12 x 9 6 x 12 x 7.2 6 x 12 x 9
Backup Time See Table 6
Recharge Time 5 Hours to 90% of Rated Capacity, After Full Discharge Into Resistive Load
* NEC limits the input current rating of the PS2200RT3-120 and PS2200RT3120W models to 80% of the input plug's rating.
Up to 2200VA/1980W is available by contacting a certified electrician to change the input plug to 30A plug.
Emerson Network Power assumes no liability for damage caused by miswiring or misapplication of the input plug.
Specifications
21
Environmental
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature 5°F to 104°F (-15°C to 40°C)
Relative Humidity 0% to 90%, non-condensing
Operating Altitude Up to 10,000 ft. (3000m) at 95°F (35°C) without derating
Audible Noise <45 dBA
Agency
Safety UL 1778, c-UL Listed
Surge ANSI C62.41 CatA Lev3 (surges)
IEC61000-4-5
ESD IEC61000-4-2
Susceptibility IEC61000-4-3
Electrical Fast Transient IEC61000-4-4
Emissions FCC Part 15, Class A
Conducted Immunity IEC61000-4-6
Harmonics IEC61000-3-2
Network surge UL 497 B
Transportation ISTA Procedure 1A Certification
Environmental
ROHS compliant
Table 6 Liebert PSI 1000-3000 battery run times
Load % 1000 1500 2200 3000
Internal
Battery
10 93 76 82 76
20 47 32 44 32
30 26 17 19 17
40 15 12 14 12
50129119
609797
707575
806454
905343
100 4 3 3 3
Note: All run times are in minutes, assume fully charged batteries and are typical at 77°F (25°C) with resistive loads.
Table 5 Liebert PSI specifications (continued)
Model Number
PS1000RT3-120
PS3000RT3-120W
PS1500RT3-120
PS1500RT3-120W
PS2200RT3-120
PS2200RT3-120W
PS3000RT3-120
PS3000RT3-120W
Power Rating, VA/W 1000VA/900W 1500VA/1350W 1920VA/1920W 3000VA/2700W
Troubleshooting
22
9.0 TROUBLESHOOTING
The information below indicates various symptoms a user may encounter if the Liebert PSI experi-
ences a problem. See Table 7 for suggested solutions.
1. An alarm sounds, alerting that the UPS requires attention. The alarm can be silenced except for
low battery, overload warning and fault.
2. One or more additional indicators will be illuminated to provide a diagnostic aid to the operator,
as described below:
If the UPS fails to operate properly, turn Off the unit and repeat the steps in 3.0 - Installation. If the
problem persists, refer to Table 7.
Table 7 Troubleshooting—problems, causes and solutions
Problem Cause Solution
UPS will not start
Short circuit
Check the circuit breaker on the rear of the
UPS.
If it is tripped, reset it and restart the UPS.
For help, contact your local dealer, local
Emerson representative or Channel
Support Applications.
Battery is disconnected or
completely discharged
Check for proper connection of battery or
batteries.
UPS starts on battery, but will not
switch to AC (dark start)
UPS not plugged in Plug in the power cord securely.
Circuit breaker tripped Reset the circuit breaker and restart the
UPS.
AC overvoltage
Wait until voltage drops to an appropriate
level or have the utility power checked by a
properly trained and qualified electrician.
UPS shuts down
Short circuit or UPS output is
abnormal; LED 10 and LED 11
illuminate and sound audible
alarm
Remove the load and turn on the UPS
again. For help, contact your local dealer,
local Emerson representative or Channel
Support Applications.
Overload; LED 5 and LED 11
illuminate and sound audible
alarm
Check load level display and remove
nonessential loads. Recalculate the load
and reduce equipment connected to UPS -
the total wattage must not exceed the
capacity of the UPS.
LED 3 and LED 11 illuminate
and sound audible alarm
Recharge the battery for 8 hours, then turn
ON the UPS.
Liebert MultiLink software Consult the Liebert MultiLink user manual
or contact your LAN administrator.
Site Wiring Fault LED (LED 4)
flashing
Site Wiring Fault, UPS
detected a line-to-neutral
reversal or a loss of proper
grounding.
Have the utility checked by a properly
trained and qualified electrician.
Battery weak LED (LED 3) flashing Batteries weak Recharge batteries.
Batteries need to be replaced Replace batteries.
NOTE
The PS2200RT3-120 UPS will sound an Overload alarm under certain Low Line conditions
when it is fully loaded and it exceeds the input current rating. Unless the load is reduced, the
condition will trip the branch circuit breaker.
EmersonNetworkPower.com
Ensuring The High Availability
Of Mission-Critical Data And Applications.
Emerson Network Power, the global leader in enabling business-critical
continuity, ensures network resiliency and adaptability through
a family of technologies—including Liebert power and cooling
technologies—that protect and support business-critical systems.
Liebert solutions employ an adaptive architecture that responds
to changes in criticality, density and capacity. Enterprises benefit
from greater IT system availability, operational flexibility and
reduced capital equipment and operating costs.
While every precaution has been taken to ensure the accuracy
and completeness of this literature, Liebert Corporation assumes no
responsibility and disclaims all liability for damages resulting from use of
this information or for any errors or omissions.
© 2009 Liebert Corporation
All rights reserved throughout the world. Specifications subject to change
without notice.
® Liebert is a registered trademark of Liebert Corporation.
All names referred to are trademarks
or registered trademarks of their respective owners.
Technical Support / Service
Web Site
www.liebert.com
Monitoring
800-222-5877
Liebert.monitoring@emerson.com
Outside the US: 614-841-6755
Single-Phase UPS
800-222-5877
upstech@emersonnetworkpower.com
Outside the US: 614-841-6755
Three-Phase UPS
800-543-2378
powertech@emersonnetworkpower.com
Environmental Systems
800-543-2778
Outside the United States
614-888-0246
Locations
United States
1050 Dearborn Drive
P.O. Box 29186
Columbus, OH 43229
Europe
Via Leonardo Da Vinci 8
Zona Industriale Tognana
35028 Piove Di Sacco (PD) Italy
+39 049 9719 111
Fax: +39 049 5841 257
Asia
7/F Dah Sing Financial Centre
108 Gloucester Road
Wanchai
Hong Kong
852 2572 2201
Fax: 852 2519 9210
Emerson Network Power.
The global leader in enabling Business-Critical Continuity.
Business-Critical Continuity, Emerson Network Power and the Emerson Network Power logo are trademarks and service marks of Emerson Electric Co.
©2009 Emerson Electric Co.
Monitoring
AC Power
Connectivity
DC Power
Embedded Computing
Embedded Power Power Switching & Controls
Precision Cooling
Services
Racks & Integrated Cabinets
Outside Plant
Surge Protection
SL-23319_REV01_07-09

Navigation menu
