8. Attach the cover/light fitter(5)(6) to the switch

assembly housing(1) using the two

screws(2) that were removed in Step 2)

(Figure 4.)

9. Proceed to “Installation of Glass Bowl”

section.

LIMITED WARRANTY

What The Warranty Covers:

All products covered by this Owner’s Manual are warranted against all defects in workmanship and materials. You must be the original purchaser or

user of the product to be covered.

What The Period Of Coverage Is:

All components are covered by this warranty for one year from the date you purchased your light fixture. ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, MADE WITH RESPECT TO COMPONENTS AND ACCESSORIES IS ALSO LIMITED

TO ONE YEAR.

What Will Emerson Electric Co. Do To Correct Problems:

Emerson Electric Co. will replace a defective Emerson Light Fixture at no charge to you. WE WILL SHIP THE REPAIRED PRODUCT OR

REPLACEMENT TO YOU AT NO CHARGE, BUT YOU ARE RESPONSIBLE FOR ALL COSTS OF REMOVAL, REINSTALLATION AND SHIPPING OF THE

PRODUCT TO EMERSON ELECTRIC CO.

How Can You Get Service:

YOU MUST HAVE PROOF OF YOUR PURCHASE OF THE LIGHT FIXTURE TO OBTAIN LIMITED WARRANTY SERVICE. KEEP YOUR RECEIPT OR

OTHER PROOF OF PURCHASE. You can return the product to our factory or to your nearest authorized service center.

• To return the product to the factory, obtain a return authorization and service identification tag by writing to Air Comfort Products, Division of

Emerson Electric Co., 8100 W. Florissant Ave., St. Louis, MO 63136. Include all model numbers shown on the product with your request.

• To return the product to an authorized service center, call 1-800-654-3545 for the address of the nearest authorized service center.

You will be responsible for all insurance, freight or other transportation charges to our factory or authorized service center. Your Emerson Light

Fixture should be properly packed to avoid damage in transit since we will not be responsible for any such damage.

What Is Not Covered:

This warranty also does not cover any defects, malfunctions or failures caused by:

• Repairs by persons not authorized by Emerson Electric Co.,

• Use of parts or accessories not authorized by Emerson Electric Co.,

• Mishandling, improper installation, modifications or damage to your light fixture while in your possession, or

• Unreasonable use, misuse, abuse, including failing to do reasonable and necessary maintenance, and normal wear and tear.

Additionally, this warranty and any implied warranty of merchantability or fitness for a particular purpose are voided when:

• The original purchaser or user ceases to own the product, or

• The ceiling fan is moved from its original point of installation.

This warranty is only valid within the 50 states of the United States and the District of Columbia. No other written or oral warranties apply, and no

employee, agent, dealer or other person is authorized to give any warranties on behalf of Emerson Electric Co.

REPAIR, REPLACEMENT OR A REFUND ARE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS WARRANTY AND EMERSON IS NOT

RESPONSIBLE FOR DAMAGES OF ANY KIND, INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGES. Incidental damages include but are not

limited to such damages as loss of time and loss of use. Consequential damages include but are not limited to the cost of repairing or replacing

other property which was damaged if this product does not work properly.

How State Law Relates To The Warranty:

Some states do not allow the exclusion or limitation of incidental or consequential damages so the above exclusion or limitation may not apply to

you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

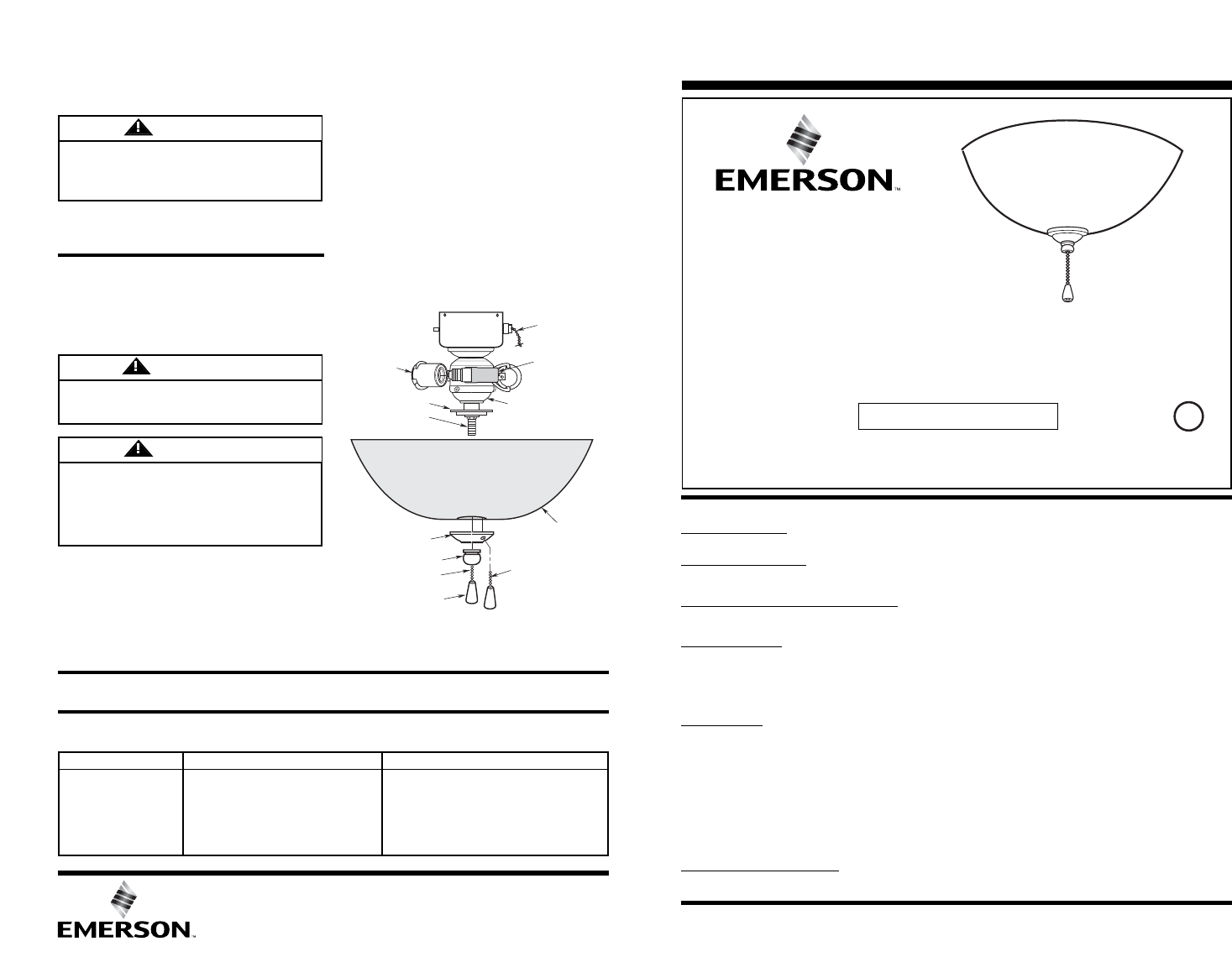

Ceiling Fan Light Fixture Owner's Manual

Form No. F40BP74140000 Part No. BP7414

U.L. Model No.: LK130

READ AND SAVE THESE INSTRUCTIONS

Net Weight: 1.8 Lbs.

Suitable for Damp

Locations

U

L

®

Includes: Two 50-Watt Mini-Candelabra Base Halogen Bulbs

Trouble Shooting

TROUBLE PROBABLE CAUSE SUGGESTED REMEDY

1. Both Lamps Will 1. Wiring not complete. 1. Check all wiring connections to light kit.

Not Illuminate. 2. Light bulbs do not light. 2. Check and replace light bulbs.

2. The 1.25A fuse may have blown. 3. Replace fuse.

Includes 3 finials and 3 outer bowl caps in the following finishes:

Oil Rubbed Bronze, Brushed Steel & Appliance White

Form No. BP7414

Part No. F40BP74140000

Printed in China 03/10

To avoid fire hazard, do not exceed

wattage indicated on the fixture.

FAN SWITCH

CHAIN

LIGHT FITTER

THREADED

NIPPLE

(1) GLASS

BOWL

50-WATT

MINI-CANDELABRA

BASE HALOGEN

BULBS (2)

FITTER

SOCKET (2)

OUTER BOWL CAP

(3) FINIAL

LIGHT SWITCH

CHAIN

PENDANTS (2)

FAN SPEED CONTROL

SWTICH CHAIN

(WHERE APPLICABLE)

BOWL CAP

WARNING

Over lamping the light kit will result in

the lamps being automatically shut off.

Use only 50-watt maximum mini-

candelabra base halogen lamps. Turn off

electricity before replacing the lamps.

WARNING

Air Comfort Products

DIVISION OF EMERSON ELECTRIC CO.

8100 W. Florissant • St. Louis, MO 63136

Figure 6

For repair parts, phone: 1-800-654-3545

4. Install the light switch chain through the

center of the finial nut(3). Screw the finial nut

finger tight onto the fitters threaded nipple.

CAUTION

Be sure that the fan switch chain does not

make contact with the light bulbs. If

necessary reposition the light fitter to avoid

the fan switch chain from touching the light

bulbs.

5. Install pendants(2) onto light fixture chain

and fan switch chain.

NOTE: It is advisable to periodically check

the tightness of the finial.

6. Installation is complete. Turn on electricity at

main fuse or circuit breaker box.

To avoid fire or electrical shock, be

careful not to pinch wires between the

switch housing assembly and the cover.

WARNING

Installation of Glass Bowl

1. Install two 50-watt (maximum) mini-

candelabra base halogen bulbs (included)

into the fitter sockets.

2. Place the glass bowl(1) onto the light fitter

by inserting the threaded nipple through the

bottom hole of the bowl.

3. Where applicable, insert the fan speed

control switch chain through the offset hole

in the bowl cap, glass bowl and then the

offset hole in the outer bowl cap.

Model Number:

LK130

Parts Included: 1 Glass Bowl, 1 Light Fitter,

3 Outer Bowl Caps, 3 Finial Nuts, 2 50-Watt

Mini-Candelabra Base Halogen Bulbs, 2 Wire

Connectors, 2 Pendants, 1 Lockwasher, 1 Hex

Nut and 2 Pull Chains.

7. Insert the black and white wires through the

lockwasher(8) and hex nut(9) supplied.

Firmly tighten the hex nut to secure the light

kit fitter to the switch cup.

8. Connect the white wire from the switch cup to

the white wire of the light fitter (Figure 2).

Connect the blue wire from the switch cup to

the black wire of the light fitter. Use the wire

connectors provided with the light kit to make

the electrical connections (Figures 2 and 3).

9. Carefully tuck all wires and splices into the

switch cup(1). (Figure 2.)

10. Connect the motor connector(4) to the

switch cup connector(5).

11. Position the switch cup(1) and fitter

assembly(7) on the cover plate(2) and

install the three screws(3) that were

previously removed in Step 2 and tighten

securely.

12. Proceed to “Installation of Glass Bowl”

section.

23

WARNING

!

Assembly and Installation

4. Remove the center screw(6) from the switch

cup (Figure 1).

5. Carefully locate the white and blue wires

(labeled either "L" or "LIGHT") in the switch

cup and remove the wire connectors from

the wires.

6. Insert the black and white wires from the

light fitter(7) through the center hole in the

switch cup (Figure 2) and thread the switch

cup onto the light fitter. Hold wires taut while

installing switch cup to prevent the wires

from twisting.

Do not install or use the light fixture if any

part is missing or damaged. Call toll-free:

1-800-654-3545

To avoid possible electrical shock, be

sure electricity is turned off at the main

fuse or circuit breaker box before wiring.

(3) SCREWS

(6) CENTER SCREW

(1) SWITCH

CUP

(4) MOTOR

CONNECTOR

(2) COVER PLATE

(5) SWITCH CUP

CONNECTOR

Figure 1

Installation on Emerson Fans

Having a Modular Switch Cup

with Center Screw

1. Remove all parts and parts packages from

the carton.

2. Remove the switch cup(1) from the cover

plate(2) by removing the three screws(3)

around the side of the switch cup (Figure 1).

WARNING

WARNING

3. Disconnect the motor connector(4) from the

switch cup connector(5) (Figure 1).

(3) SCREWS

(1) SWITCH

CUP

(4) MOTOR

CONNECTOR (5) SWITCH CUP

CONNECTOR

(8) LOCKWASHER

WHITE WIRES

(2) COVER PLATE

(6) WIRE

CONNECTOR

(9) HEX NUT

BLACK WIRE

BLUE WIRE

OUTER BOWL

CAP

FAN SWITCH

CHAIN

FAN SWITCH CHAIN

(WHERE APPLICABLE)

BOWL CAP

(7) LIGHT FITTER

Figure 2

To avoid possible fire or electric shock,

be careful not to pinch wires between

switch cup and the cover plate.

WARNING

Installation on Emerson Fans

Having Two-Piece Die-Cast

Switch Housings

1. Remove all parts and parts packages from

carton.

2. Remove the cover(5) from the fan switch

housing(1) by removing the two outer

screws(2). (See Figure 4).

3. Remove the center screw(4) from the

cover(5). Insert the black and white wires

from the light kit fitter(6) through the hole

and thread the switch housing cover tightly

onto the light kit fitter.

4. Insert the black and white wires through the

lockwasher(8) and hex nut(9) supplied.

Firmly tighten the hex nut to secure the light

kit fitter to the switch housing cover(5).

5. Carefully locate the white and blue wires

(labeled either “L” or “LIGHT”) in the switch

housing and remove the wire connectors(3)

from the wires.

6. Connect the white wire from the ceiling fan

to the white wire of the light kit fitter(6).

Connect the blue wire from the ceiling fan to

the black wire of the light kit fitter. Use the

wire connectors provided with the light kit to

make the electrical connections (Figures 4

and 5.)

7. Carefully tuck all wires and splices into the

switch housing(1).

8. Attach the cover/light fitter(5)(6) to the switch

(3) WIRE

CONNECTORS

WHITE WIRE

WHITE WIRE

BLUE WIRE

BLACK WIRE

(8) LOCKWASHER

(9) HEX NUT

(2) SCREWS

(5) COVER

(4) CENTER

SCREW

(7) BOWL CAP

(6) LIGHT FITTER

FAN SWITCH

CHAIN

(1) SWITCH

HOUSING ASSEMBLY

Figure 4

Figure 5

To avoid possible fire or electrical shock,

make certain no bare wire strands are

exposed outside wire connectors.

WARNING

Figure 3

To avoid possible fire or electrical shock,

make certain no bare wire strands are

exposed outside wire connectors.

WARNING

Safety Instructions

To avoid fire, shock, and serious personal injury, follow all instructions carefully.

1. Read your Owner's Manual carefully before installing the light fixture. Retain Owner's Manual for

future reference.

2. Be careful of the fan and blades when cleaning, painting, or working near the fan. Before

installing or servicing the light fixture or ceiling fan, switch power off at service panel and lock

service panel disconnecting means to prevent power from being switched on accidentally. When

the service disconnecting means cannot be locked, securely fasten a warning device, such as a

tag, to the service panel.

3. Do not exceed the wattage indicated on fixture (Two 50-watt mini-candelabra base halogen bulbs).

ADDITIONAL SAFETY INSTRUCTIONS FOR INSTALLATION

1. To avoid possible electrical shock be sure electricity is turned off at the main fuse or circuit

breaker box before wiring.

2. The installation is to be in accordance with the National Electrical Code, ANSI/NFPA 70-2008 and

Local Codes. Use the National Electrical Code if Local Codes do not exist. The ceiling fan must be

grounded as a precaution against possible electrical shock. Electrical installation should be made

or approved by a licensed electrician.

3. Make certain no bare wires are exposed outside the wire connectors.

4. All wiring must conform to national and local electrical codes.

5. Follow the recommended instructions for the proper method of wiring your new light fixture. If

you feel you do not have enough electrical wiring knowledge or experience, have your light

fixture installed by a licensed electrician. Any electrical work not described in this manual should

be performed by a licensed electrician.

WARNING: To reduce the risk of possible fire and electrical shock, install only on Emerson Model

CF130.
