MR95 Series

D103587X012

Instruction Manual

February 2015

www.fisherregulators.com

MR95 Series Pressure Regulators

Figure 1. Typical MR95 Series Pressure Regulators

PRESSURE REDUCING REGULATORS

TYPE MR95L

TYPE MR95H

P1757

P1753

MR95 Series

2

Specications

This section lists the specications for the MR95 Series regulators. Factory specication such as type, maximum

inlet pressure, maximum temperature, maximum outlet pressure, spring range, orice size and seat material are

stamped on the nameplate fastened on the regulator at the factory.

Available Constructions

Type MR95L: Low pressure regulator for 2 to

30 psig / 0.14 to 2.1 bar outlet pressures

Type MR95H: High pressure regulator for 5 to

150 psig / 0.34 to 10.3 bar outlet pressures

Type MR95HP: High pressure regulator for

15 to 400 psig / 1.0 to 27.6 bar outlet pressures

(soft-seated)

Type MR95HT: High pressure/high temperature

regulator for 15 to 300 psig / 1.0 to 20.7 bar outlet

pressures (metal seat) and up to 650°F / 343°C

Type MR95LD: Low pressure differential

regulator for 2 to 30 psi / 0.14 to 2.1 bar

differential pressures

Type MR95HD: High pressure differential

regulator for 5 to 150 psi / 0.34 to 10.3 bar

differential pressures

Body and Orice Sizes

1/4 NPT body: 0.284 in. / 7.22 mm orice

1/2 in. / DN 15 body: 0.416 in. / 10.56 mm orice

3/4 and 1 in. / DN 20 and 25 Body Sizes:

0.631 in. / 16.02 mm orice

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

(not available for Types MR95L and MR95LD):

1.142 in. / 29 mm orice

End Connection Styles

NPT, SWE and Welded and Integral CL150 RF,

CL300 RF, CL600 RF and PN 16/25/40 RF;

all sizes are fabricated with slip-on anges

(for welded end connections) and are 14 in.

face- to- face (EN anged-356 mm face-to-face)

See Tables 1 and 2

Maximum Cold Working Pressures of Body Size

and Materials(1)

See Table 4

Outlet and Differential Pressure Ranges(1)

See Table 3

Pressure Registration

Internal or External

Shutoff Classication Per ANSI/FCI 70-3-2004

Metal Seats: Class IV

Elastomer Seats: Class VI or better

PTFE: Class IV

Flow and Sizing Coefcients

See Table 5

1. The pressure/temperature limits in this Instruction Manual and any applicable standard or code limitation should not be exceeded.

2. Pressure and/or the body end connection may decrease these maximum temperatures.

3. Fluorocarbon (FKM) is limited to 200°F / 93°C hot water.

4. Meets API 614 requirements (with Stainless steel trim).

Maximum Temperature Ranges of Diaphragm and

Seat Materials(1)(2)

MATERIAL TEMPERATURE RANGE

Nitrile (NBR)

Neoprene (CR)

Fluorocarbon (FKM)(3)

Ethylenepropylene (EPDM)

Peruoroelastomer (FFKM)

Polytetrauoroethylene (PTFE)

Stainless steel (SST)

-40 to 180°F / -40 to 82°C

-40 to 180°F / -40 to 82°C

0 to 300°F / -18 to 149°C

20 to 275°F / -7 to 135°C

0 to 425°F / -18 to 218°C

-40 to 400°F / -40 to 204°C

-40 to 650°F / -40 to 343°C

Maximum Temperature Ranges of Body Materials(1)(2)

BODY AND SPRING CASE MATERIAL TEMPERATURE RANGE

Gray Cast Iron

WCC Steel(4)

LCC Steel(4)

Stainless steel(4)

Monel®

Hastelloy® C

Aluminum-Bronze

-20 to 406°F / -29 to 208°C

-20 to 650°F / -29 to 343°C

-40 to 650°F / -40 to 343°C

-40 to 550°F / -40 to 288°C

-40 to 550°F / -40 to 288°C

-40 to 550°F / -40 to 288°C

-40 to 500°F / -40 to 260°C

Relief Sizing Coefcients for MR95 Series

Regulators with Reduced Flow Orices

See Table 6

Pressure Setting Adjustment

Adjusting screw:

Standard for Types MR95L, MR95H, MR95HP

and MR95HT only

Handwheel:

Standard for Types MR95LD and MR95HD

Optional for 1/2 in. / DN 15 body size of

Types MR95L, MR95H, MR95HP and MR95HT

Tee handle:

Optional for other body sizes (except 1/2 in. /

DN 15) of Types MR95L, MR95H, MR95HP

and MR95HT

Approximate Weights

MR95H Series:

1/4 NPT body: 5 lbs / 2.3 kg

1/2 in. / DN 15 body: 10 lbs / 4.5 kg

3/4 and 1 in. / DN 20 and 25 Body Sizes:

22 lbs / 10 kg

1-1/2 and 2 in. / DN 40 and 50 Body Sizes:

55 lbs / 25 kg

MR95L Series:

1/4 NPT body: 7 lbs / 3.2 kg

1/2 in. / DN 15 body: 15 lbs / 6.8 kg

3/4 and 1 in. / DN 20 and 25 Body Sizes:

35 lbs / 16 kg

Monel® is a mark owned by Special Metals Corporation.

Hastelloy® C is a mark owned by Haynes International, Inc.

MR95 Series

3

WARNING

!

Failure to follow these instructions or

to properly install and maintain this

equipment could result in an explosion,

re and/or chemical contamination

causing property damage and personal

injury or death.

Fisher® regulators must be installed,

operated and maintained in accordance

with federal, state and local codes, rules

and regulations and Emerson Process

Management Regulator Technologies,

Inc. (Emerson™) instructions.

If the regulator vents gas or a leak

develops in the system, service to

the unit may be required. Failure

to correct trouble could result in a

hazardous condition.

Installation, operation and maintenance

procedures performed by unqualied

personnel may result in improper

adjustment and unsafe operation. Either

condition may result in equipment

damage or personal injury. Only a

qualied person shall install or service

the MR95 Series regulator.

Introduction

Scope of the Manual

This manual provides instructions for the installation,

adjustment, maintenance and parts ordering for

MR95 Series pressure regulators. These regulators

are usually shipped separately for line or panel

mounting or installed on other equipment. Instructions

and parts lists for other equipment are found in

separate manuals.

Product Description

MR95 Series regulators are suitable for steam, air,

gas, water, oil and similar uids. Types MR95L,

MR95H, MR95HP and MR95HT are direct-operated

pressure reducing regulators for pressure control

requiring constant outlet pressures between

2 and 400 psig / 0.14 and 27.6 bar. Types MR95LD

and MR95HD are small-size, large-capacity,

differential pressure regulators. The differential

pressure range is from 2 to 150 psi / 0.14 to 10.3 bar.

Typical MR95 Series regulators are shown in Figure 1.

Pressure Reducing Regulators

Type MR95L—Pressure reducing regulator suitable

for controlling many gases and liquids. Gray Cast Iron,

Steel, Stainless steel, Hastelloy® C and Monel® bodies

are available. Outlet pressure range is from 2 to

30 psig / 0.14 to 2.1 bar with three different springs

available. Body sizes are available from 1/4 NPT and

1/2 through 1 in. / DN 15 through 25 with a variety

of end connections. The standard orice sizes are

0.284, 0.416 and 0.631 in. / 7.22, 10.56 and 16.02 mm

diameter, dependent on body sizes.

Type MR95H—Basically the same as Type MR95L,

but permits higher outlet pressure ranges from

15 to 150 psig / 1.0 to 10.3 bar for the 1/4 NPT and

1/2, 3/4 and 1 in. / DN 15, 20 and 25 sizes. Also

available in 1-1/2 and 2 in. / DN 40 and 50 sizes with a

1.142 in. / 29 mm orice to give outlet pressure ranges

from 5 to 150 psig / 0.34 to 10.3 bar.

Type MR95HP—Basically the same as Type MR95H,

but permits even higher outlet pressure ranges from

15 to 400 psig / 1.0 to 27.6 bar.

Type MR95HT—Basically the same as Type MR95H,

but permits higher outlet pressures at higher

temperatures. Outlet pressure ranges are available

from 15 to 300 psig / 1.0 to 20.7 bar and temperatures

up to 650°F / 343°C.

Differential Pressure Regulators

Type MR95LD—Small-size, large-capacity, differential

pressure regulators. Typical applications include use

on testing xtures, wash tanks, sterilizers, steam

tables, fuel lines and plant air supplies. Gray Cast

Iron, Steel, Stainless steel, Hastelloy® C and Monel®

bodies are available. Differential pressure range is

from 2 to 30 psi / 0.14 to 2.1 bar with three different

spring ranges.

Type MR95HD—Basically the same as Type MR95LD,

but permits higher differential pressure ranges from

5 to 150 psi / 0.34 to 10.3 bar with seven different

spring ranges.

Monel® is a mark owned by Special Metals Corporation.

Hastelloy® C is a mark owned by Haynes International, Inc.

MR95 Series

4

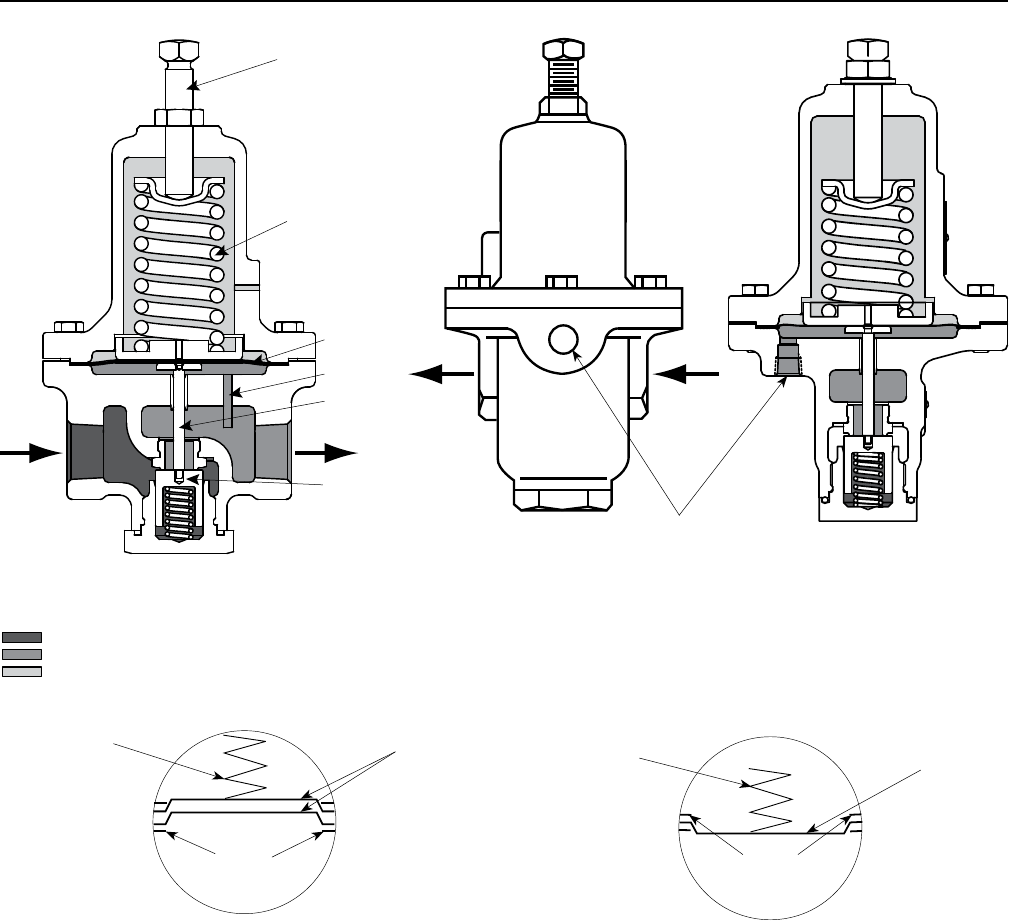

Figure 2. MR95 Series Operational Schematics

INLET PRESSURE

OUTLET PRESSURE

ATMOSPHERIC PRESSURE

SPRING

GASKET

METAL DIAPHRAGMS

TYPE MR95H WITH 2 METAL DIAPHRAGMS (ALSO TYPICAL OF

TYPES MR95HT AND MR95L EXCEPT FOR TYPE MR95L WITH 1/4 NPT

BODY SIZE, 2 to 6 psi / 0.14 to 0.41 bar RANGE)

SPRING

GASKET

METAL DIAPHRAGM

TYPE MR95L (1/4 NPT, 2 to 6 psi / 0.14 to 0.41 bar RANGE)

WITH METAL DIAPHRAGM

CONTROL LINE TAP

FRONT AND INTERNAL VIEW OF

TYPE MR95H WITH INTERNAL

PRESSURE REGISTRATION

BACK VIEW OF

1/2 IN. / DN 15 TYPE MR95H

WITH EXTERNAL

PRESSURE REGISTRATION

SIDE AND INTERNAL VIEW OF

3/4 TO 2 IN. / DN 20 TO 50

TYPE MR95H WITH EXTERNAL

PRESSURE REGISTRATION

(ALSO TYPICAL OF TYPE MR95L,

1/2 TO 2 IN. / DN 15 TO 50 BODY SIZES)

Principle of Operation

For Types MR95H, MR95L,

MR95HP and MR95HT

Pressure Reducing Regulators

Types MR95L, MR95H, MR95HP and MR95HT

(see Figure 2) are direct-operated regulators

and use spring force to regulate outlet pressure.

Downstream pressure is registered either internally

through the body or externally through a control

line to the under side of the diaphragm. When the

downstream pressure is at or above the set pressure,

the disk is held against the orice and restricting

ow through the regulator. When demand increases,

downstream pressure drops slightly allowing the spring

to extend, moving the stem down and the disk away

from the orice. This allows uid ow through the body

to the downstream system.

ADJUSTING SCREW

CONTROL SPRING

DIAPHRAGM

PITOT TUBE

VALVE PLUG

STEM

MR95 Series

5

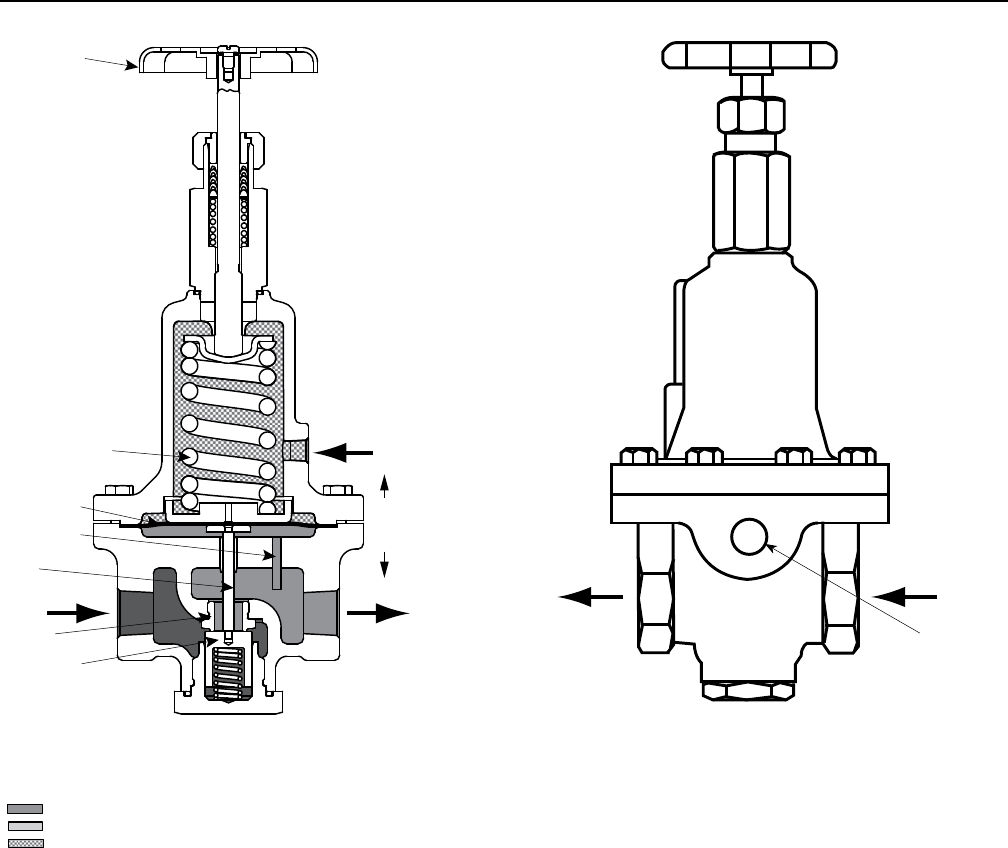

Figure 2. MR95 Series Operational Schematics (continued)

CONTROL LINE TAP

*PRESSURE A MAY BE SUPPLIED BY ANOTHER PRESSURE SYSTEM OR A MANUAL LOADING REGULATOR.

FRONT AND INTERNAL VIEW OF

TYPE MR95HD WITH INTERNAL PRESSURE REGISTRATION

BACK VIEW OF

TYPE MR95HD WITH EXTERNAL PRESSURE REGISTRATION

Type 95HD Differential Pressure Reducing Regulator

M1006

October 2006 Type 95HD

LOADING PRESSURE

INLET PRESSURE

OUTLET PRESSURE

For Types MR95LD and MR95HD

Differential Pressure Regulators

Types MR95LD and MR95HD regulators maintain

a differential pressure between the loading supply

pressure and the downstream pressure of the regulator.

See Figure 2. The design of the regulator isolates the

diaphragm and pressure response chamber from the

main ow stream. The downstream pressure (outlet

pressure) is registered under the diaphragm through

the pitot tube or registration hole. If the downstream

pressure increases, pressure under the diaphragm

also increases. This force overcomes the spring

compression and loading supply pressure, allowing

the stem to rise. The valve plug spring forces the valve

plug closer to the orice. Flow through the regulator

is reduced so that downstream pressure returns to

the desired differential level. When the downstream

pressure decreases, the opposite action takes place.

Pressure under the diaphragm decreases. The valve

stem pushes the valve plug downward, opening the

ow stream and increasing the uid ow through the

regulator. Downstream pressure rises back to the

desired differential level.

HANDWHEEL

CONTROL SPRING

PRESSURE A*

(SPRING CASE

LOADING

PRESSURE)

PRESSURE B

(OUTLET

PRESSURE)

PRESSURE A*

SPRING SETTING =

PRESSURE B

DIAPHRAGM

PITOT TUBE

STEM

ORIFICE

VALVE PLUG

MR95 Series

6

BODY SIZE BODY CONSTRUCTION END CONNECTION

BODY MATERIAL

Gray Cast Iron

LCC or WCC Steel

CF8M Stainless Steel

CF3M Stainless Steel

Monel® or Hastelloy® C

1/4 NPT Without Control Line and Gauge Port NPT

1/2 in. / DN 15

Without Control Line and Gauge Port

NPT

SWE

Welded CL150 RF

Welded CL300 RF

Welded PN 16/25/40 RF

With Control Line but Without Gauge Port

NPT

Welded CL150 RF

Welded CL300 RF

Welded PN 16/25/40 RF

3/4 in. / DN 20

Without Control Line and Gauge Port

NPT

SWE

Welded CL150 RF

Welded CL300 RF

Welded PN 16/25/40 RF

With Control Line but Without Gauge Port

NPT

Welded CL150 RF

Welded CL300 RF

Welded PN 16/25/40 RF

With Gauge Port but Without Control Line

NPT

Welded CL150 RF

Welded CL300 RF

Welded PN 16/25/40 RF

1 in. / DN 25

Without Control Line and Gauge Port

NPT

SWE

Welded CL150 RF

Welded CL300 RF

Welded PN 16/25/40 RF

With Control Line but Without Gauge Port

NPT

Welded CL150 RF

Welded CL300 RF

Welded PN 16/25/40 RF

With Gauge Port but Without Control Line

NPT

Welded CL150 RF

Welded CL300 RF

Welded PN 16/25/40 RF

- Shaded areas indicate that the construction is available.

- Blank areas indicate that you need to contact your local Sales Ofce for the availability of the constructions.

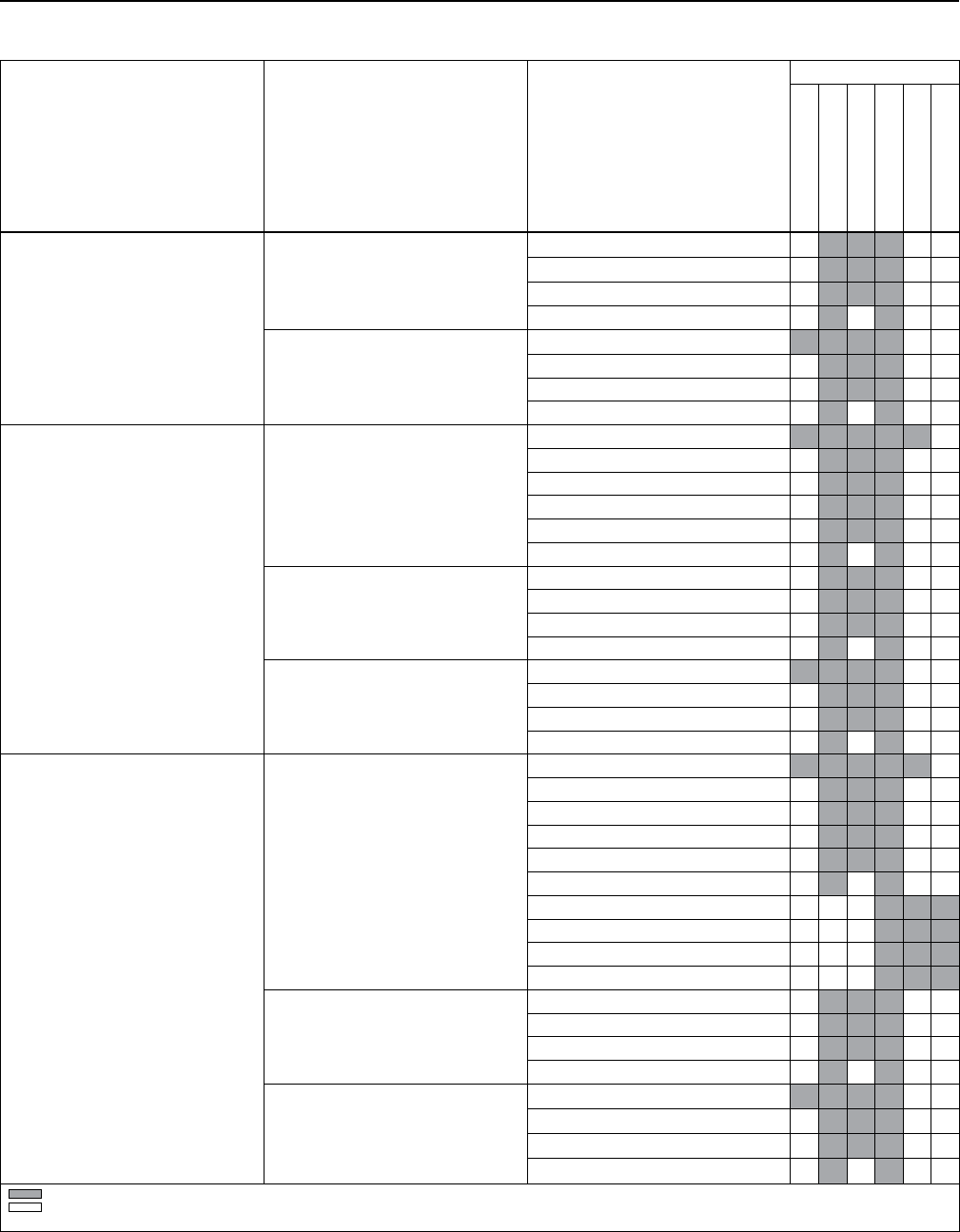

Table 1. Types MR95L and MR95LD Regulators Body Constructions

Monel® is a mark owned by Special Metals Corporation.

Hastelloy® C is a mark owned by Haynes International, Inc.

MR95 Series

7

BODY SIZE BODY CONSTRUCTION END CONNECTION

BODY MATERIAL

Gray Cast Iron(1)

LCC or WCC Steel

CF8M Stainless Steel

CF3M Stainless Steel

Monel® or Hastelloy® C

Aluminum-Bronze

1/4 NPT Without Gauge Port and Control Line NPT

1/2 in. / DN 15

Without Control Line and Gauge Port

NPT

SWE

Welded CL150 RF

Welded CL300 RF

Welded CL600 RF

Welded PN 16/25/40 RF

Integral CL150 RF

Integral CL300 RF

Integral CL600 RF

Integral PN 16/25/40 RF

With Control Line but Without Gauge Port

NPT

Welded CL150 RF

Welded CL300 RF

Welded CL600 RF

Welded PN 16/25/40 RF

3/4 in. / DN 20

Without Gauge Port and Control Line

NPT

SWE

Welded CL150 RF

Welded CL300 RF

Welded CL600 RF

Welded PN 16/25/40 RF

With Control Line but Without Gauge Port

NPT

Welded CL150 RF

Welded CL300 RF

Welded PN 16/25/40 RF

With Gauge Port but Without Control Line

NPT

Welded CL150 RF

Welded CL300 RF

Welded PN 16/25/40 RF

1 in. / DN 25 Without Gauge Port and Control Line

NPT

SWE

Welded CL150 RF

Welded CL300 RF

Welded CL600 RF

Welded PN 16/25/40 RF

Integral CL150 RF

Integral CL300 RF

Integral CL600 RF

Integral PN 16/25/40 RF

- Shaded areas indicate that the construction is available.

- Blank areas indicate that you need to contact your local Sales Ofce for the availability of the constructions.

1. Gray cast iron body material is available for Types MR95H and MR95HD only.

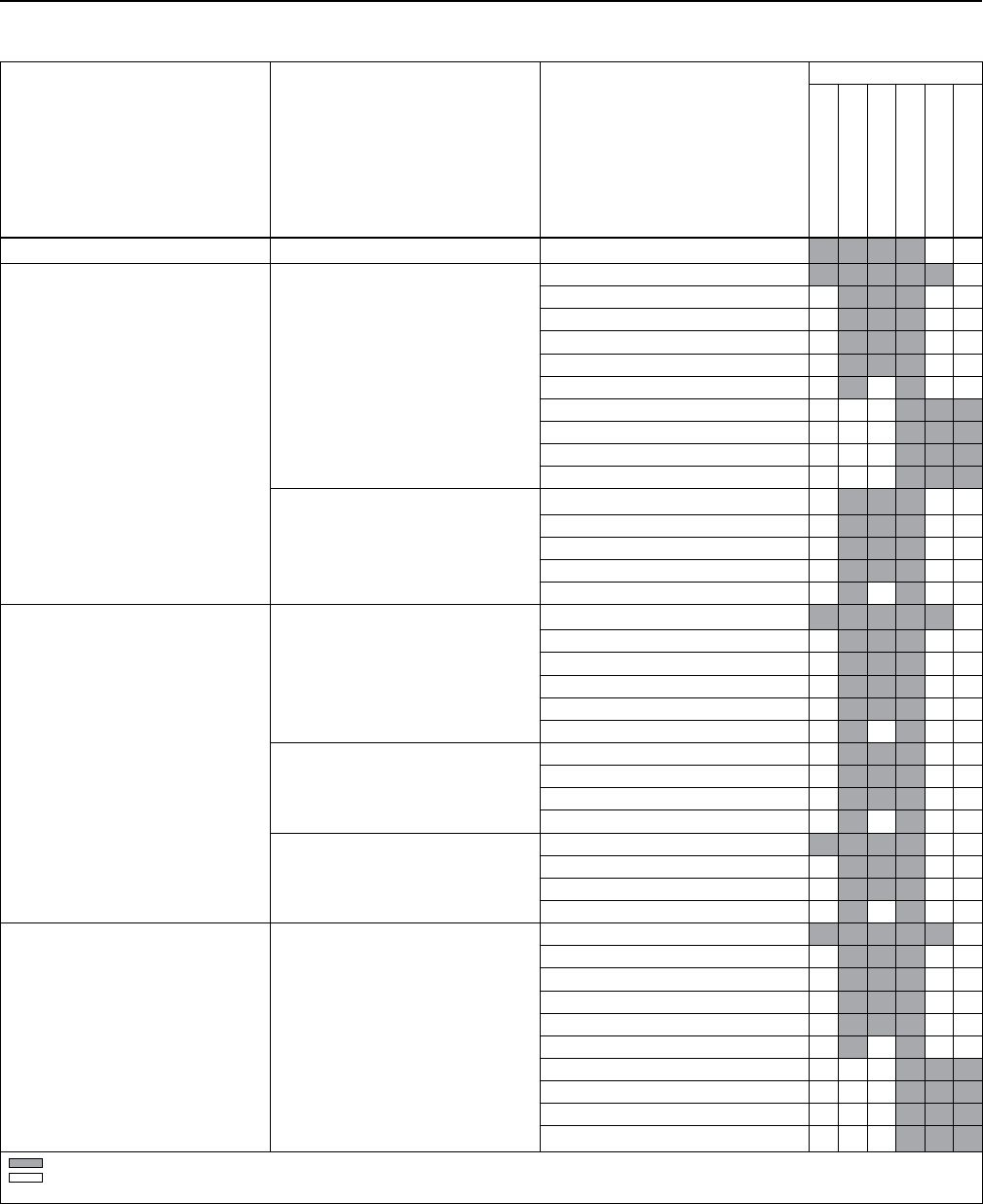

Table 2. Types MR95H, MR95HD, MR95HT and MR95HP Regulators Body Constructions

- continued -

Monel® is a mark owned by Special Metals Corporation.

Hastelloy® C is a mark owned by Haynes International, Inc.

MR95 Series

8

BODY SIZE BODY CONSTRUCTION END CONNECTION

BODY MATERIAL

Gray Cast Iron(1)

LCC or WCC Steel

CF8M Stainless Steel

CF3M Stainless Steel

Monel® or Hastelloy® C

Aluminum-Bronze

1 in. / DN 25

With Control Line but Without Gauge Port

NPT

Welded CL150 RF

Welded CL300 RF

Welded PN 16/25/40 RF

With Gauge Port but Without Control Line

NPT

Welded CL150 RF

Welded CL300 RF

Welded PN 16/25/40 RF

1-1/2 in. / DN 40

Without Gauge Port and Control Line

NPT

SWE

Welded CL150 RF

Welded CL300 RF

Welded CL600 RF

Welded PN 16/25/40 RF

With Control line but Without Gauge Port

NPT

Welded CL150 RF

Welded CL300 RF

Welded PN 16/25/40 RF

With Gauge Port but Without Control Line

NPT

Welded CL150 RF

Welded CL300 RF

Welded PN 16/25/40 RF

2 in. / DN 50

Without Gauge Port and Control Line

NPT

SWE

Welded CL150 RF

Welded CL300 RF

Welded CL600 RF

Welded PN 16/25/40 RF

Integral CL150 RF

Integral CL300 RF

Integral CL600 RF

Integral PN 16/25/40 RF

With Control Line but Without Gauge Port

NPT

Welded CL150 RF

Welded CL300 RF

Welded PN 16/25/40 RF

With Gauge Port but Without Control Line

NPT

Welded CL150 RF

Welded CL300 RF

Welded PN 16/25/40 RF

- Shaded areas indicate that the construction is available.

- Blank areas indicate that you need to contact your local Sales Ofce for the availability of the constructions.

1. Gray cast iron body material is available for Types MR95H and MR95HD only.

Table 2. Types MR95H, MR95HD, MR95HT and MR95HP Regulators Body Constructions (continued)

Monel® is a mark owned by Special Metals Corporation.

Hastelloy® C is a mark owned by Haynes International, Inc.

MR95 Series

9

Table 3. MR95 Series Outlet and Differential Pressure Ranges and Spring Information

TYPE

BODY SIZE OUTLET OR DIFFERENTIAL

PRESSURE RANGE(1)

SPRING WIRE

DIAMETER

SPRING FREE

LENGTH SPRING

MATERIAL(2)

SPRING PART

NUMBER

SPRING

COLOR

In. DN psi/psig bar In. mm In. mm

MR95L

and

MR95LD

1/4 - - - -

2 to 6 0.14 to 0.41 0.148 3.76 2.00 50.8 Zinc-plated steel 1E392527022 Yellow

5 to 15 0.34 to 1.0 0.170 4.32 2.00 50.8 Zinc-plated steel ERAA01888A0 Green

13 to 30 0.90 to 2.1 0.207 5.26 1.94 49.2 Powder-coated steel ERAA01889A0 Red

1/2 15

2 to 6 0.14 to 0.41 0.207 5.26 2.50 63.5 Powder-coated steel ERCA04288A0 Yellow

5 to 15 0.34 to 1.0 0.234 5.94 2.60 65.9 Powder-coated steel ERAA01910A0 Green

13 to 30 0.90 to 2.1 0.283 7.19 2.44 62.0 Powder-coated steel ERAA01911A0 Red

3/4

and 1

20

and 25

2 to 6 0.14 to 0.41 0.306 7.77 4.00 102 Powder-coated steel 1E398927022 Yellow

5 to 15 0.34 to 1.0 0.343 8.71 4.00 102 Powder-coated steel 1E399027142 Green

13 to 30 0.90 to 2.1 0.406 10.31 4.00 102 Powder-coated steel 1E399127162 Red

3/4

and 1

20

and 25

2 to 6 0.14 to 0.41 0.306 7.77 4.00 102 Powder-coated Stainless steel 1E3989X0052 Yellow

5 to 15 0.34 to 1.0 0.375 9.53 3.88 98.6 Stainless steel 1K762537022 Unpainted

13 to 30 0.90 to 2.1 0.437 11.1 4.00 102 Stainless steel 11A8269X012 Unpainted

MR95H

and

MR95HD

1/4 - - - -

15 to 30 1.0 to 2.1 0.148 3.76 2.00 50.8 Zinc-plated steel 1E392527022 Yellow

25 to 75 1.7 to 5.2 0.170 4.32 2.00 50.8 Zinc-plated steel ERAA01888A0 Green

70 to 150 4.8 to 10.3 0.207 5.26 1.94 49.2 Powder-coated steel ERAA01889A0 Red

1/2 15

15 to 30 1.0 to 2.1 0.207 5.26 2.50 63.5 Powder-coated steel ERCA04288A0 Yellow

25 to 75 1.7 to 5.2 0.234 5.94 2.60 65.9 Powder-coated steel ERAA01910A0 Green

70 to 150 4.8 to 10.3 0.283 7.19 2.44 62.0 Powder-coated steel ERAA01911A0 Red

3/4

and 1

20

and 25

15 to 30 1.0 to 2.1 0.306 7.77 4.00 102 Powder-coated steel 1E398927022 Yellow

25 to 75 1.7 to 5.2 0.343 8.71 4.00 102 Powder-coated steel 1E399027142 Green

70 to 150 4.8 to 10.3 0.406 10.31 4.00 102 Powder-coated steel 1E399127162 Red

3/4

and 1

20

and 25

15 to 30 1.0 to 2.1 0.306 7.77 4.00 102 Powder-coated Stainless steel 1E3989X0052 Yellow

25 to 75 1.7 to 5.2 0.375 9.53 3.88 98.6 Stainless steel 1K762537022 Unpainted

70 to 150 4.8 to 10.3 0.437 11.1 4.00 102 Stainless steel 11A8269X012 Unpainted

1-1/2

and 2

40

and 50

5 to 80 0.34 to 5.5 0.500 12.7 6.50 165 Powder-coated steel ERCA04290A0 Black with

Light Blue Stripe

60 to 120 4.1 to 8.3 0.562 14.3 6.56 167 Powder-coated steel ERAA01893A0 Light Gray

100 to 140 6.9 to 9.7 0.594 15.1 6.56 167 Enamel-coated steel ERAA01894A0 Yellow

120 to 150 8.3 to 10.3 0.625 15.9 6.57 167 Powder-coated steel 1P7888X0022 Black

MR95HT

1/4 - - - -

15 to 100 1.0 to 6.9 0.192 4.88 2.00 50.8 Inconel®ERCA04292A0 Unpainted

80 to 300 5.5 to 20.7 0.281 7.14 2.00 50.8 Inconel®ERCA04291A0 Unpainted

1/2 15

15 to 100 1.0 to 6.9 0.281 7.14 2.50 63.5 Inconel®ERCA04294A0 Unpainted

80 to 300 5.5 to 20.7 0.375 9.53 2.60 66.0 Inconel®ERCA04293A0 Unpainted

3/4

and 1

20

and 25

15 to 100 1.0 to 6.9 0.437 11.1 4.08 104 17-4 PH Stainless steel ERCA04295A0 Unpainted

80 to 300 5.5 to 20.7 0.562 14.3 4.08 104 17-4 PH Stainless steel ERCA04296A0 Unpainted

1-1/2

and 2

40

and 50

15 to 100 1.0 to 6.9 0.625 15.9 6.70 170 17-4 PH Stainless steel ERCA04297A0 Unpainted

60 to 260 4.1 to 17.9 0.812 20.6 6.70 170 17-4 PH Stainless steel ERCA04298A0 Unpainted

MR95HP

1/4 - - - -

15 to 100 1.0 to 6.9 0.192 4.88 2.00 50.8 Inconel®ERCA04292A0 Unpainted

80 to 400 5.5 to 27.6 0.281 7.14 2.00 50.8 Inconel®ERCA04291A0 Unpainted

1/2 15

15 to 100 1.0 to 6.9 0.281 7.14 2.50 63.5 Inconel®ERCA04294A0 Unpainted

80 to 400 5.5 to 27.6 0.375 9.53 2.60 66.0 Inconel®ERCA04293A0 Unpainted

3/4

and 1

20

and 25

15 to 100 1.0 to 6.9 0.437 11.1 4.08 104 17-4 PH Stainless steel ERCA04295A0 Unpainted

80 to 400 5.5 to 27.6 0.562 14.3 4.08 104 17-4 PH Stainless steel ERCA04296A0 Unpainted

1-1/2

and 2

40

and 50

15 to 100 1.0 to 6.9 0.625 15.9 6.70 170 17-4 PH Stainless steel ERCA04297A0 Unpainted

60 to 300 4.1 to 20.7 0.812 20.6 6.70 170 17-4 PH Stainless steel ERCA04298A0 Unpainted

1. For Types MR95LD and MR95HD regulators, the pressure ranges indicate the differential pressure that can be obtained with the indicated spring. The differential pressure

(spring setting) is added to the spring case loading pressure to determine the actual outlet pressure.

2. Springs meet NACE MR0175-2002 and NACE MR0103 requirements only for applications in which the spring is not exposed to the sour gas

Inconel® is a mark owned by Special Metals Corporation.

MR95 Series

10

Table 4. Maximum Cold Working Pressures of Body Size and Material(1)(2)

Table 5. Types MR95LD and MR95HD Flow and Sizing Coefficient

BODY SIZE WIDE-OPEN COEFFICIENT

(FOR RELIEF SIZING) C1Km

IEC SIZING COEFFICIENT

In. DN CvCgCsXTFDFL

1/4 - - - - 1.1 37 1.85 33.6 0.74 0.715 0.62 0.86

1/2 15 2.9 103 5.15 35.5 0.79 0.797 0.70 0.89

3/4 and 1 20 and 25 6.0 221 11.05 36.8 0.88 0.857 0.68 0.94

1-1/2 and 2 40 and 50 18.1 700 35.00 38.7 0.88 0.945 0.65 0.94

Km = FL2

TYPE BODY SIZE BODY MATERIAL

MAXIMUM INLET

PRESSURE

MAXIMUM OUTLET

PRESSURE

MAXIMUM SPRING CASE

PRESSURE

psig bar psig bar psig bar

MR95L and

MR95LD

All available

sizes(3)

Gray cast iron 250 17.2 50 3.4 50 3.4

WCC Steel 300 20.7 125 8.6 125 8.6

LCC Steel 300 20.7 125 8.6 125 8.6

CF8M Stainless steel 300 20.7 125 8.6 125 8.6

CF3M Stainless steel 300 20.7 125 8.6 125 8.6

Monel®(4) 300 20.7 125 8.6 125 8.6

Hastelloy® C(4) 300 20.7 125 8.6 125 8.6

MR95H and

MR95HD

All available

sizes(3)

Gray cast iron 250 17.2 250 17.2 250 17.2

WCC Steel 300 20.7 300 20.7 300 20.7

LCC Steel 300 20.7 300 20.7 300 20.7

CF8M Stainless steel 300 20.7 300 20.7 300 20.7

CF3M Stainless steel 300 20.7 300 20.7 300 20.7

Monel®(4) 300 20.7 300 20.7 300 20.7

Hastelloy® C(4) 300 20.7 300 20.7 300 20.7

Aluminum-Bronze(4) 300 20.7 300 20.7 300 20.7

MR95HP All available

sizes(3)

WCC Steel 1000 68.9 600 41.4 300 20.7

LCC Steel 1000 68.9 600 41.4 300 20.7

CF8M Stainless steel 1000 68.9 550 37.9 300 20.7

CF3M Stainless steel 1000 68.9 550 37.9 300 20.7

Monel®(4) 1000 68.9 550 37.9 300 20.7

Hastelloy® C(4) 1000 68.9 550 37.9 300 20.7

Aluminum-Bronze(4) 1000 68.9 550 37.9 300 20.7

MR95HT

1/4 NPT and

1/2 to 1 in. /

DN 15 to 25

WCC Steel 600 41.4 600 41.4 300 20.7

LCC Steel 600 41.4 600 41.4 300 20.7

CF8M Stainless steel 600 41.4 550 37.9 300 20.7

CF3M Stainless steel 600 41.4 550 37.9 300 20.7

Monel®(4) 600 41.4 550 37.9 300 20.7

Hastelloy® C(4) 600 41.4 550 37.9 300 20.7

Aluminum-Bronze(4) 600 41.4 550 37.9 300 20.7

1-1/2 and 2 in. /

DN 40 and 50

WCC Steel 600 41.4 450 31.0 300 20.7

LCC Steel 600 41.4 450 31.0 300 20.7

CF8M Stainless steel 600 41.4 450 31.0 300 20.7

CF3M Stainless steel 600 41.4 450 31.0 300 20.7

Monel®600 41.4 450 31.0 300 20.7

Hastelloy® C 600 41.4 450 31.0 300 20.7

Aluminum-Bronze 600 41.4 450 31.0 300 20.7

1. The pressure/temperature limits in this Instruction Manual and any applicable standard or code limitation should not be exceeded.

2. The pressure limits given are based on the body size and body materials only. Actual pressure limits of the assembled regulator may decrease and vary depending on the temperature,

body end connection, diaphragm, seat and/or trim material of the regulator.

3. See Tables 1 and 2 for all available body sizes.

4. Not available for 1/4 NPT body size.

Monel® is a mark owned by Special Metals Corporation.

Hastelloy® C is a mark owned by Haynes International, Inc.

Table 6. Relief Sizing Coefficients for MR95 Series Regulators with Reduced Flow Orifices(1)

BODY SIZE WIDE-OPEN COEFFICIENT FOR

MR95 SERIES REDUCED FLOW OPTION

WIDE-OPEN COEFFICIENT FOR

LEGACY 95 SERIES

In. DN CgCg

1/4 - - - - 28 28

1/2 15 70 67

3/4 and 1 20 and 25 156 156

1-1/2 and 2 40 and 50 482 475

1. The reduced ow orice option offers similar ow capacity as the equivalent 95 Series conguration.

MR95 Series

11

TYPE MR95LD REGULATOR (ALSO TYPICAL OF TYPE MR95HD)

Figure 3. Differential Pressure Regulator Installation Schematics

Installation

WARNING

!

Personal injury or system damage

may result if this regulator is installed,

without appropriate overpressure

protection, where service conditions

could exceed the limits given in the

Speci cations section and/or regulator

nameplate. Refer to Overpressure

Protection section for recommendations

on how to prevent service conditions

from exceeding those limits.

Additionally, physical damage to the

regulator may result in personal injury

or property damage due to escaping of

accumulated gas. To avoid such injury

and damage, install the regulator in a

safe location.

Under enclosed conditions or indoors,

escaping gas may accumulate and be an

explosion hazard. In this case, the vent

should be piped outdoors.

For regulator constructions with a

spring case vent, the vent should be

kept open to permit free  ow of gas

to the atmosphere. Protect openings

against entrance of rain, snow, insects

or any other foreign material that may

plug the spring case vent or vent line.

Before installing the regulator:

• Unpack the regulator and remove the protective

shipping plugs from the end connections of

the body and the pressure connection in the

spring case.

• Check the regulator and make sure it has not

been damaged or collected foreign material

during shipping.

• Remove any debris or dirt in the tubing and

the pipeline.

• Apply pipe compound to the external pipe thread

for NPT bodies or use appropriate gaskets for

 anged bodies.

• Make sure gas  ow through the regulator is in the

same direction as the arrow on the body.

On 1-1/2 or 2 in. / DN 40 or 50 Types MR95H, MR95HP

and MR95HT regulators, the spring case vent is tapped

so a vent line can be connected to provide venting to a

remote location. On 1/4 NPT, 1/2, 3/4 and 1 in. / DN 15,

20 and 25 Types MR95H, MR95HP and MR95HT body

sizes, the tapped vent option is available on request.

Protect the exposed end of the vent pipe with a weather

and insect resistant vent assembly. Periodically check

all vents and remote vent lines to ensure that they

are unobstructed.

On Types MR95LD and MR95HD regulators, the

loading pressure is connected to the 1/4 NPT

connection in the spring case.

ATMOSPHERE

BLOCK

VALVE

(INLET) VENT (OUTLET) VENT

TYPE 67CFR REGULATOR

PLANT AIR

MR95 Series

12

Overpressure Protection

WARNING

!

Personal injury, equipment damage or

leakage due to escaping accumulated gas

or bursting of pressure-containing parts

may result if this regulator is:

• Overpressured

• Installed where service conditions

could exceed the limits given in the

Specications section and on the

appropriate nameplate

• Where conditions exceed any ratings of

adjacent piping or piping connections

To avoid such injury or damage, provide

pressure-relieving or pressure-limiting

devices to prevent service conditions from

exceeding those limits.

The Types MR95H and MR95HD regulators have an

outlet pressure rating equal to the inlet pressure rating.

The Types MR95L, MR95LD, MR95HP and MR95HT

regulators have an outlet pressure rating lower than

the inlet pressure rating.

The recommended pressure limitations are

stamped on the regulator nameplate. Some type of

overpressure protection is needed if the actual inlet

pressure exceeds the maximum operating outlet

pressure rating. Provide external overpressure

protection if the regulator inlet pressure is greater than

the safe working pressure of downstream equipment.

Common methods of external overpressure protection

include relief valves, monitoring regulators, shutoff

devices and series regulation.

Regulator operation below the maximum pressure

limitations does not preclude the possibility of damage

from external sources or from debris in the pipeline. If

the regulator is exposed to an overpressure condition,

inspect it for any damage that may have occurred.

Startup

Note

The Specications section and Tables 3

and 4 show the maximum inlet, the

differential and the outlet pressures for

specic constructions. Use pressure

gauges to monitor inlet pressure, outlet

pressure and any loading pressure

during startup.

1. Check that proper installation is completed

and downstream equipment has been

properly adjusted.

2. Make sure all block and vent valves are closed.

3. Decompress the control spring by turning the

adjusting screw (for Types MR95L, MR95H,

MR95HP and MR95HT) or handwheel (for

Types MR95LD and MR95HD) counterclockwise.

4. Slowly open the valves in the following order:

a. Loading supply and control line valve(s), if used

b. Inlet block valve

c. Outlet block valve

5. Set the regulator to the desired outlet (control)

pressure according to the Adjustment procedure.

Adjustment

WARNING

!

To avoid personal injury, property

damage or equipment damage caused

by bursting of pressure containing parts

or explosion of accumulated gas, never

adjust the control spring to produce an

outlet pressure higher than the upper

limit of the outlet pressure range for that

particular spring. If the desired outlet

pressure is not within the range of the

control spring, install a spring of the

proper range.

The factory setting of the regulator can be varied

within the pressure range stamped on the nameplate.

Follow the following procedures for the proper

adjustment of the outlet (control) spring. If the spring

range was changed, be sure to change the stamped

spring range on the nameplate.

All MR95 Series regulator springs can be backed off

to provide zero outlet. Recommended outlet pressure

ranges available, maximum inlet pressures and color

codes of the respective springs are shown in Tables 3

and 4.

MR95 Series

13

Types MR95L, MR95H, MR95HP

and MR95HT

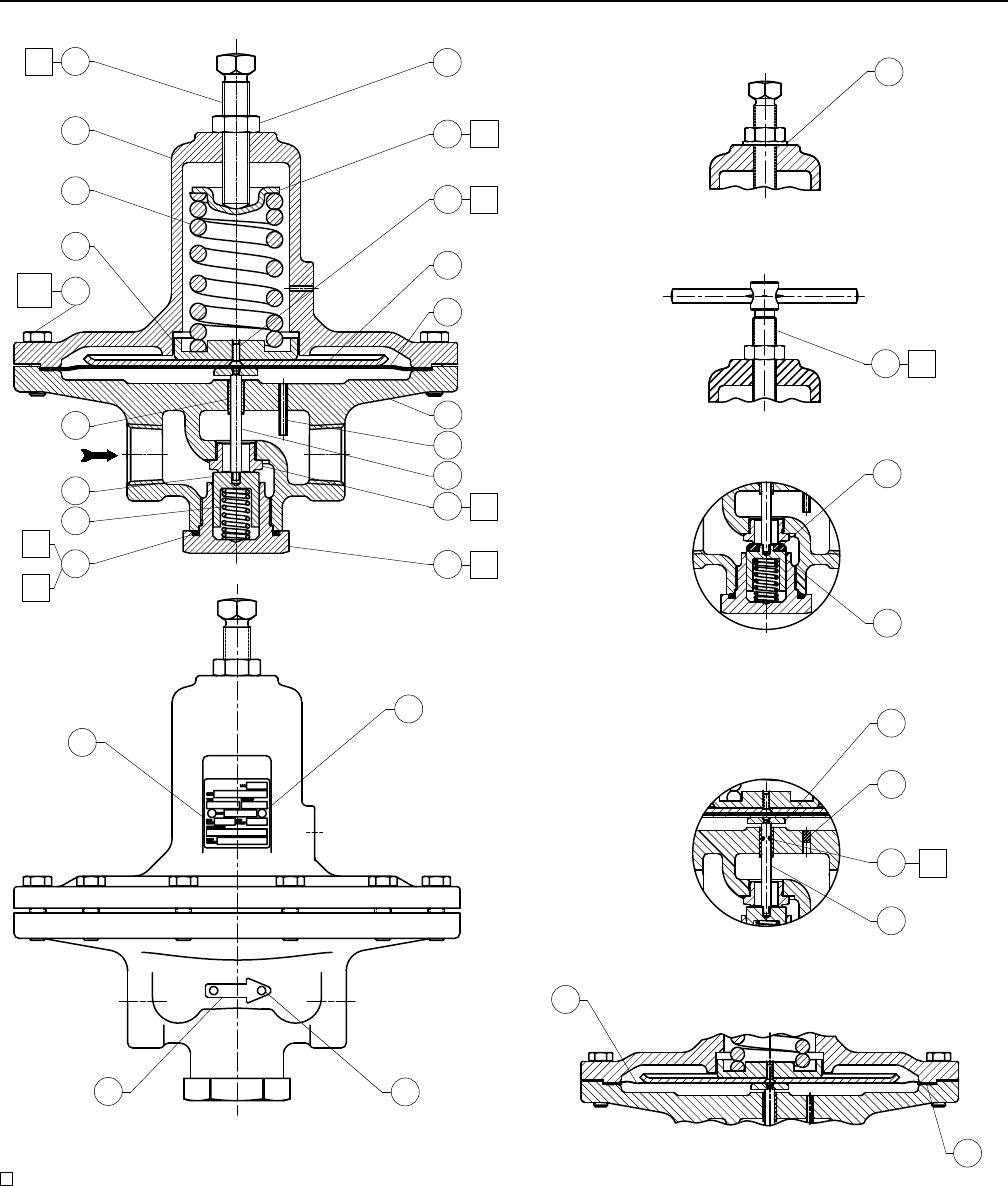

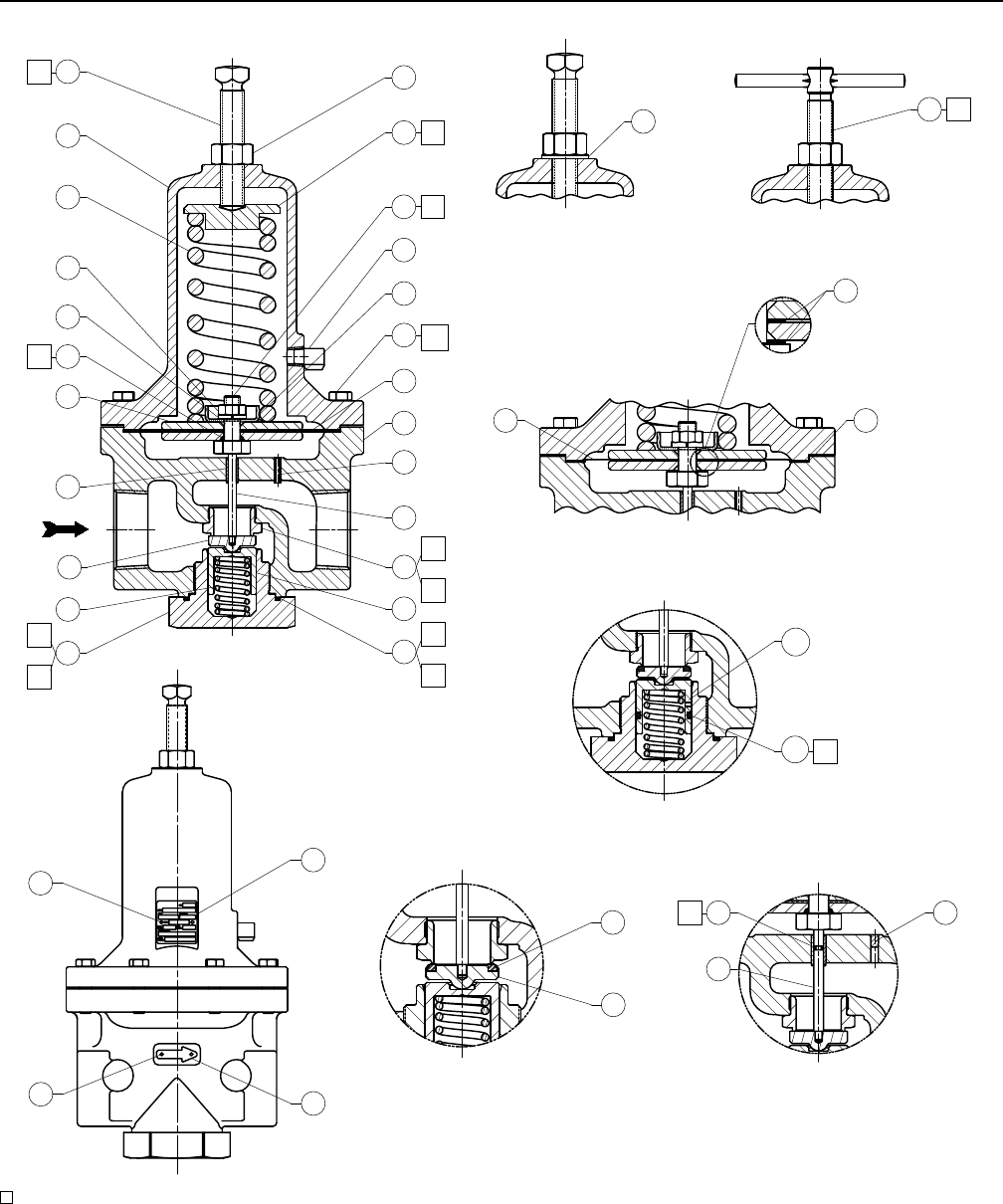

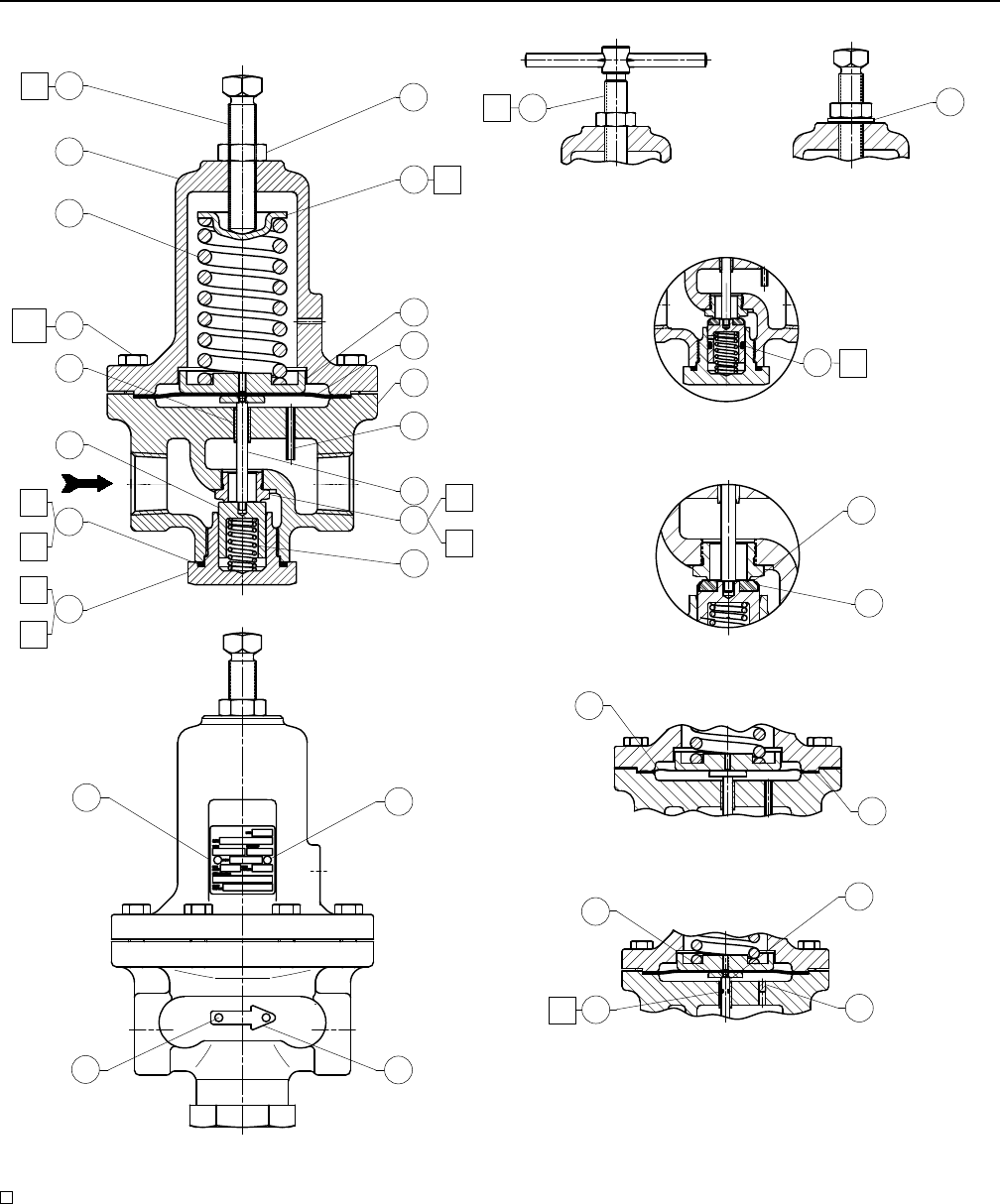

Key numbers are referenced in Figure 6, 8 or 9.

1. Loosen the jam nut (key 17).

2. Turn the adjusting screw (key 15) clockwise to

increase outlet pressure or counterclockwise to

decrease it.

3. Monitor the outlet pressure with a test gauge

during the adjustment.

4. Tighten the jam nut (key 17) to maintain the

desired setting.

Types MR95LD and MR95HD

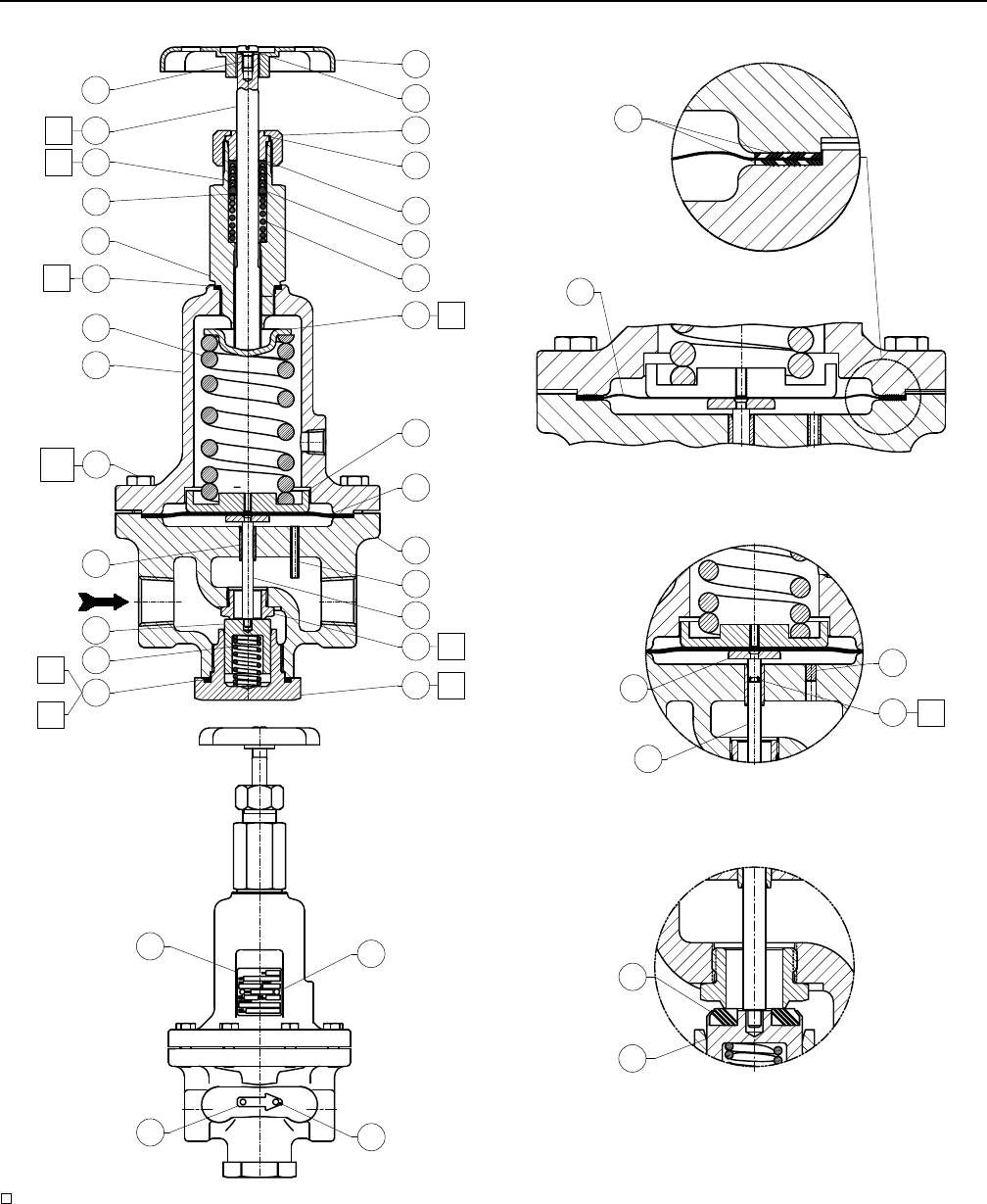

Key numbers are referenced in Figure 7 or 10.

1. Turn handwheel (key 38) clockwise to increase

outlet pressure or counterclockwise to decrease it.

2. Monitor the outlet pressure with a test gauge

during the adjustment.

Shutdown

1. Close the upstream block valve to the regulator inlet.

2. Close the downstream block valve to the

regulator outlet.

3. Vent the downstream pressure by slowly opening

the bleed valve between the regulator and the

downstream shutoff valve. Without changing

regulator spring adjustment, all pressure between

the upstream and downstream shutoff valves

will be released through the bleed valve, since

the Type MR95L, MR95H, MR95HP or MR95HT

regulator opens in response to the decreased outlet

pressure. For Types MR95L, MR95H, MR95HP

and MR95HT regulators, skip steps 4, 5 and 6. For

Types MR95LD and MR95HD continue steps 4

through 6.

4. Close the block valve to the loading pressure.

5. Vent loading pressure slowly to release pressure

in the spring case.

6. Vent inlet pressure slowly (through the bleed

valve) to release all remaining pressure in

the regulator.

Maintenance

WARNING

!

To avoid personal injury, property damage

or equipment damage caused by sudden

release of pressure or explosion of

accumulated gas, do not attempt any

maintenance or disassembly without

rst isolating the regulator from system

pressure and relieving all internal

pressure from the regulator.

To avoid possible personal injury from

spring or pressure-loaded actuator, make

certain the adjusting screw is completely

backed off and the spring case pressure

is vented prior to disassembly. Otherwise,

the spring load or loading pressure could

forcefully eject the spring case.

Regulators that have been disassembled

for repair must be tested for proper

operation before being returned to

service. Only parts manufactured by

Emerson™ should be used for repairing

Fisher® regulators.

Due to normal wear or damage that may

occur from external sources, this regulator

should be inspected and maintained

periodically. The frequency of inspection

and replacement of parts depends upon

the severity of service conditions or the

requirement of local, state and federal

rules and regulations.

Due to normal wear that may occur, inspect the

parts periodically and replace if necessary. The

frequency of inspection depends on the severity of

service conditions or the requirements of state and

federal laws.

Replace parts such as the O-rings, gaskets, diaphragm

and packing as necessary. Always apply lubricants as

the regulator is being reassembled. Suitable lubricants

are shown in the assembly drawings.

The regulator does not have to be taken out of the

pipeline to be disassembled. All key numbers are

referenced in Figures 4 to 10.

MR95 Series

14

Replacement or Maintenance of Orice

and Valve Plug

If it appears that the valve does not shut off tightly, the

orice and valve plug could be worn out or damaged.

Proceed as follows to check and/or replace them.

1. Shut down the regulator. Refer to Shutdown section

for the proper procedure.

2. Unscrew the valve plug guide (key 5) from the

body (key 1). The valve plug spring (key 26) and

the valve plug (key 4) will normally come out of the

body along with the valve plug guide. On 1-1/2 or

2 in. / DN 40 or 50 body size regulators, the stem

(key 6) will also come out of the regulator body.

3. Inspect the seating surface of the valve plug (key 4),

make sure that the elastomer, PTFE or polished

metal surface of the valve plug is not damaged. Also

inspect the external O-ring (key 4c) on the valve

plug of Type MR95HP. Replace the valve plug

assembly if damage is noted.

4. Inspect the seating edge of the orice (key 3).

If damage is noted, unscrew the orice from

the body (key 1) and replace it with a new part.

Reference Table 8 for proper torque values.

5. Reassemble the regulator in the reverse order of

the above steps. When installing the valve plug

guide (key 5), coat the threads and sealing surface

with sealant to ensure an adequate metal-to-metal

seal. Reference Table 8 for proper torque values.

Flange Cap Screw Torque Inspection

Retorquing of spring case cap screws may be

necessary for some MR95 Series regulators after a

period of use. Retorque the cap screws as follows:

1. Shut down the regulator. Refer to Shutdown

section for the proper procedure.

2. Retighten the cap screws (key 16) in a crisscross

pattern. See Table 8 for proper torque values.

3. Follow the Startup section to repressurize

the regulator.

4. Refer to the Replacement of Diaphragm section

as needed.

Replacement of Diaphragm

When the regulator does not respond to differential or

downstream pressure changes, if uid leaks or vents

to the spring case (pressure reducing regulators) or

the loading pressure seems to leak to the downstream

piping (differential pressure regulators), the diaphragm

could be worn out or ruptured. Inspect/replace the

diaphragm as follows:

CAUTION

Metal diaphragms have thin sharp

edges. To avoid hand cuts, be careful

when handling the diaphragm and

particularly the diaphragm edge.

1. Shut down the regulator. Refer to “Shutdown”

section for the proper procedure.

2. For Types MR95L, MR95H, MR95HP and

MR95HT—loosen the jam nut (key 17) and turn

the adjusting screw (key 15) counterclockwise to

remove all spring compression.

For Types MR95LD and MR95HD—turn the

handwheel (key 38) counterclockwise to remove

all spring compression.

CAUTION

Provide adequate support to the spring

case when disassembling MR95 Series

regulator installed in a vertical

installation or other application where

the spring case is not oriented upward.

Without adequate support, the spring

case may fall and cause physical injury

when the cap screws are loosened.

3. Remove the cap screws (key 16) from the

diaphragm casing. Lift the entire spring case

(key 2) off of the body (key 1).

4. Remove the upper spring seat (key 9) and

regulator spring (key 11). For Types MR95H,

MR95HP and MR95HT with body sizes 1-1/2 and

2 in. / DN 40 and 50 skip steps 5 and 6.

5. For Type MR95HD and 1/4 NPT to 1 in. /

DN 25 body sizes of Types MR95H, MR95HP

and MR95HT—remove the lower spring seat (key 8).

For Types MR95L and MR95LD—remove the

diaphragm head assembly (key 21, lower spring

seat and diaphragm head threaded together).

6. Remove the diaphragm(s) (key 12) and examine

for damage. Replace if damage is noted. See

Table 7 for the required number of diaphragm(s).

Proceed to step 9.

7. For body sizes 1-1/2 and 2 in. / DN 40 and 50,

remove the diaphragm and diaphragm head. The

diaphragm head can only be disassembled for the

MR95 Series

15

DIAPHRAGM (KEY 12)

GASKET (KEY 19)

GASKET (KEY 19)

PUSHER POST (KEY 10)

LOCKNUT (KEY 31)

LOCK WASHER (KEY 28)

LOWER SPRING SEAT (KEY 8)

DIAPHRAGM HEAD (KEY 21)

DIAPHRAGM (KEY 12)

GASKET (KEY 45)

PUSHER POST (KEY 10)

LOCKNUT (KEY 31)

LOCK WASHER (KEY 28)

LOWER SPRING SEAT (KEY 8)

DIAPHRAGM HEAD (KEY 21)

DIAPHRAGM (KEY 12)

GASKET (KEY 29)

BODY SIZE TYPE SPRING RANGE DIAPHRAGM MATERIAL NUMBER OF DIAPHRAGM

1/4 NPT

MR95L and

MR95LD

All ranges

Ethylyne Propylene Diene (EPDM) 1

Neoprene (CR) 1

Fluorocarbon (FKM) 1

All ranges except 2 to 6 psig / 0.14 to 0.41 bar Metal 2

2 to 6 psig / 0.14 to 0.41 bar Metal 1

MR95H,

MR95HD

and MR95HP

All ranges

Metal 2

Ethylyne Propylene Diene (EPDM) 1

Fluorocarbon (FKM) 1

Neoprene (CR) 1

1/2 to 2 in. /

DN 15 to 50 All types All ranges

Metal 2

Ethylyne Propylene Diene (EPDM) 2

Fluorocarbon (FKM) 2

Neoprene (CR) 1

1-1/2 and 2 in. / DN 40 and 50 sizes. Disassemble

it for inspection of the diaphragm (key 12) and

two small diaphragm gaskets (key 29) or O-ring

(key 45). Remove the locknut (key 31) from the

pusher post (key 10) and separate the assembly.

An O-ring is used to seal around the pusher post if

an elastomer diaphragm is used and the gaskets

are used with stainless steel diaphragm(s).

8. Remove the stem assembly (key 6) except for

regulator with 1/4 NPT body size. Inspect the

O-ring (not shown) from wear or damage. Replace

stem assembly if damage is noted.

9. With diaphragm(s) (key 12) removed, ensure

the pressure registration hole (pitot tube, key 20,

in 3/4 in. / DN 20 and larger body sizes) is

completely open and free of all obstructions.

Table 7. Number of Diaphragms Required

Figure 5. Diaphragm Assembly for MR95 Series with 1-1/2 and 2 in. / DN 40 and 50 Body Sizes

Figure 4. Diaphragm Assembly for MR95 Series with 1/4 NPT and 1/2 to 1 in. / DN 15 to 25 Body Sizes

TYPES MR95L AND MR95H METAL DIAPHRAGM

COMPOSITION DIAPHRAGM METAL DIAPHRAGM

TYPES MR95LD AND MR95HD METAL DIAPHRAGM

DIAPHRAGM HEAD (KEY 21) DIAPHRAGM HEAD (KEY 21)

GASKET (KEY 29)

DIAPHRAGM (KEY 12)

GASKET (KEY 19)

MR95 Series

16

Table 8. Torque Specifications

BODY SIZE SPRING CASE BOLT(1) ORIFICE PLUG GUIDE

In. DN FT-LBS N•m FT-LBS N•m FT-LBS N•m

1/4

1/2

3/4 and 1

1-1/2 and 2

- - - -

15

20 and 25

40 and 50

6 to 8

10 to 13

24 to 30

40 to 50

8 to 11

13 to 18

33 to 41

54 to 68

6 to 8

34 to 38

50 to 60

180 to 200

8 to 11

46 to 51

68 to 81

244 to 271

50 to 58

75 to 90

100 to 125

170 to 200

68 to 79

102 to 122

136 to 169

230 to 271

1. Reduce spring case bolt’s torque by 30% when using Ethylenepropylene (EPDM) diaphragms.

10. If the unit has metal diaphragms (see Figures 4

and 5):

a. (Applicable only for the lower diaphragm head

of Types MR95H, MR95HT and MR95HD, 1-1/2

and 2 in. / DN 40 and 50.) Find the pusher

post (key 10) and place on a surface with the

larger at surface down and the thread stem up

(metal diaphragm pusher post has a recessed

diameter in the bottom surface). Then, nd

one smaller composition gasket (key 29) and

t it over the threaded end of the pusher post.

Find and take one of the diaphragm heads and

slip it over the threaded end of the pusher post

with the chamfered side of the diaphragm head

toward the gasket. Take a second gasket and

place it over the threaded end of the pusher

post on top of the diaphragm head.

b. Replace one of the two large diaphragm gaskets

(key 19) on the surface of the body (key 1) that

will support the diaphragms (key 12). There will

be two diaphragms used per regulator, except

for Types MR95L and MR95LD, 1/4 NPT with

2 to 6 psi / 0.14 to 0.41 bar spring range setting

which use only one metal diaphragm (the

metal diaphragm is in between two diaphragm

gaskets). Another diaphragm gasket will be

placed on top of the second metal diaphragm.

The raised surfaces of the metal diaphragms

should be placed in the unit so that they are

facing toward the assembler (toward the spring)

except only when one metal diaphragm is

being used then the raised surface should be

facing down (towards the body). See Figure 2

as reference.

11. Reassemble in the reverse of the above

procedures. Lubricate the upper spring seat

(key 9) and the exposed threads of the adjusting

screw (key 15) with anti-seize lubricant. Install the

cap screws (key 16) in a crisscross pattern and

tighten to nger tight only.

12. To ensure proper slack in the diaphragm, install

the adjusting screw (key 15, for Types MR95L,

MR95H, MR95HP and MR95HT) or handwheel

(key 38, Types MR95LD and MR95HD), if

completely removed and turn it clockwise. This

allows proper positioning of the diaphragm

(key 12) to permit full travel of the valve plug

(key 4). Finish tightening the cap screws (key 16).

See Table 8 for proper torque values.

13. Complete reassembly procedures and turn the

adjusting screw (key 15) or handwheel (key 38)

to produce the desired outlet pressure. For

Types MR95L, MR95H, MR95HP and MR95HT,

tighten the jam nut (key 17) to maintain the

desired setting.

Replacement of Packing

(Types MR95LD and MR95HD only)

Leakage around the adjusting screw may indicate

worn packing material. Follow the instructions below to

replace the packing rings.

1. Shut down the regulator. Refer to “Shutdown”

section for the proper procedure.

2. Take out the machine screw (key 41) and lift off

the washer (key 44) and handwheel (key 38).

3. Unscrew the packing box (key 32). Unscrew the

packing nut (key 35) and the packing follower

(key 34) off of the adjusting screw (key 33).

4. Unscrew and pull the adjusting screw (key 33) out

through the bottom of the packing box (key 32).

5. Pull out the old packing (key 36) and replace it with

three new packing rings. Replace the packing box

gasket (key 37). Lubricate packing box gasket with

general purpose Polytetrauoroethylene (PTFE) or

lithium grease.

6. Reassemble the stufng box unit by returning

the adjusting screw (key 33) to the inside of the

stufng/packing box (key 32). Slip the packing

follower (key 34) onto the adjusting screw and

into the packing box. Screw on the packing nut

(key 35).

7. Put the stufng/packing box (key 32) back onto the

spring case (key 2). Set the handwheel (key 38) and

washer (key 44) on the adjusting screw (key 33) and

screw in the machine screw (key 41).

MR95 Series

17

Key Description Part Number

Parts Ordering

When corresponding with your local Sales Ofce about

this equipment, always reference the equipment serial

number or FS number that can be found on

the nameplate.

When ordering replacement parts, reference the key

number of each needed part as found in the following

parts list. Separate kits containing all recommended

spare parts are available.

Note

In this parts list, parts marked NACE

are intended for corrosion-resistant

service as detailed in the NACE

International Standard MR0175-2002

and/or MR0103.

Optional materials are available to meet

ANSI/NACE MR0175/ISO 15156, please

contact your local Sales Ofce for

special ordering instructions.

Parts List

Key Description Part Number

Parts Kit (included are keys 3, 4, 12, 19, 29,

45 and 63; not all parts are used for all types)

Types MR95H and MR95HP

Stainless steel diaphragm and plug

1/4 NPT Body RMR95HX0012

1/2 in. / DN 15 Body RMR95HX0042

3/4 and 1 in. / DN 20 and 25 Body Sizes RMR95HX0072

1-1/2 and 2 in. / DN 40 and 50 Body Sizes RMR95HX0102

Neoprene (CR) diaphragm and

Nitrile (NBR)/Brass Disk

1/4 NPT Body RMR95HX0022

1/2 in. / DN 15 Body RMR95HX0052

3/4 and 1 in. / DN 20 and 25 Body Sizes RMR95HX0082

1-1/2 and 2 in. / DN 40 and 50 Body Sizes RMR95HX0112

Neoprene (CR) diaphragm and

Nitrile (NBR)/416 Stainless steel Disk

1/4 NPT Body RMR95HX0032

1/2 in. / DN 15 Body RMR95HX0062

3/4 and 1 in. / DN 20 and 25 Body Sizes RMR95HX0092

1-1/2 and 2 in. / DN 40 and 50 Body Sizes RMR95HX0122

Type MR95L

Stainless steel diaphragm and plug

1/4 NPT Body RMR95LX0012

1/2 in. / DN 15 Body RMR95LX0042

3/4 and 1 in. / DN 20 and 25 Body Sizes RMR95LX0072

Neoprene (CR) diaphragm and

Nitrile (NBR)/Brass Disk

1/4 NPT Body RMR95LX0022

1/2 in. / DN 15 Body RMR95LX0052

3/4 and 1 in. / DN 20 and 25 Body Sizes RMR95LX0082

Neoprene (CR) diaphragm and

Nitrile (NBR)/416 Stainless steel Disk

1/4 NPT Body RMR95LX0032

1/2 in. / DN 15 Body RMR95LX0062

3/4 and 1 in. / DN 20 and 25 Body Sizes RMR95LX0092

Parts Kit (included are keys 3, 4, 12, 19, 29,

45 and 63; not all parts are used for

all types) (continued)

Type MR95HT, Stainless Diaphragm and Plug

1/4 NPT Body RMR95HTX012

1/2 in. / DN 15 Body RMR95HTX022

3/4 and 1 in. / DN 20 and 25 Body Sizes RMR95HTX032

1-1/2 and 2 in. / DN 40 and 50 Body Sizes RMR95HTX042

1 Body See Following Tables

2 Spring Case See Following Tables

3* Orice(2)

Metal-to-metal seat

Types MR95L, MR95LD, MR95H and MR95HD

1/4 NPT Body Size

416 Stainless steel GF04856X022

316 Stainless steel GF04856X032

Hastelloy® C GF04856X052

Monel® GF04856X042

1/2 in. / DN 15 Body Size

416 Stainless steel GF04841X022

316 Stainless steel GF04841X032

Alloy 6 GF04841X062

Hastelloy® C GF04841X052

Monel® GF04841X042

3/4 and 1 in. / DN 20 and 25 Body Sizes

416 Stainless steel GF04821X022

316 Stainless steel GF04821X032

Alloy 6 GF04821X062

Hastelloy® C GF04821X052

Monel® GF04821X042

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

416 Stainless steel GF04896X022

316 Stainless steel GF04896X032

Alloy 6 GF04896X062

Hastelloy® C GF04896X052

Monel® GF04896X042

Type MR95HT

1/4 NPT Body Size

416 Stainless steel GF04856X022

316 Stainless steel GF04856X032

1/2 in. / DN 15 Body Size

416 Stainless steel GF04841X022

316 Stainless steel GF04841X032

Alloy 6 GF04841X062

3/4 and 1 in. / DN 20 and 25 Body Sizes

416 Stainless steel GF04821X022

316 Stainless steel GF04821X032

Alloy 6 GF04821X062

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

416 Stainless steel GF04896X022

316 Stainless steel GF04896X032

Alloy 6 GF04896X062

Composition seat

Types MR95L, MR95LD, MR95H and MR95HD

1/4 NPT Body Size

Brass, Oxygen Service GF05038X012

316 Stainless steel, NACE(1) GF05038X032

416 Stainless steel GF05038X022

Monel® GF05038X042

1/2 in. / DN 15 Body Size

Brass, Oxygen Service GF05327X012

316 Stainless steel, NACE(1) GF05327X032

416 Stainless steel GF05327X022

Monel® GF05327X042

3/4 and 1 in. / DN 20 and 25 Body Sizes

Brass, Oxygen Service GF04822X012

316 Stainless steel, NACE(1) GF04822X032

416 Stainless steel GF04822X022

Monel® GF04822X042

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

(Types MR95H and MR95HD only)

Brass, Oxygen Service GF05521X012

316 Stainless steel, NACE(1) GF05521X032

416 Stainless steel GF05521X022

Monel® GF05521X042

*Recommended spare part

1. NACE MR0175-2002 and MR0103.

2. See Type MR95 Reduced Orice Part Numbers table on page 30 for reduced orices

that change Type MR95 Cv values to equivalent Type 95 Cv values.

Hastelloy® C is a mark owned by Haynes International, Inc.

Monel® is a mark owned by Special Metals Corporation.

MR95 Series

18

3* Orice (continued)(3)

Composition seat (continued)

Type MR95HP

1/4 NPT Body Size

316 Stainless steel, NACE(1) GF05038X032

416 Stainless steel GF05038X022

1/2 in. / DN 15 Body Size

316 Stainless steel, NACE(2) GF05327X032

416 Stainless steel GF05327X022

3/4 and 1 in. / DN 20 and 25 Body Sizes

316 Stainless steel, NACE(1) GF04822X032

416 Stainless steel GF04822X022

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

316 Stainless steel, NACE(1) GF05521X032

416 Stainless steel GF05521X022

4* Valve Plug, Metal seat See Following Table

4* Disk Holder Assembly, Composition seat See Following Table

4a Disk Holder - - - - - - - - - - -

4b Disk - - - - - - - - - - -

4c O-ring (Type MR95HP only) - - - - - - - - - - -

5 Valve Plug Guide

Types MR95L, MR95LD, MR95H and MR95HD

1/4 NPT Body Size

Brass, Oxygen Service GF05490X012

416 Stainless steel GF05490X022

316 Stainless steel, NACE(1) GF05490X032

Hastelloy® C GF05490X052

Monel® GF05490X042

1/2 in. / DN 15 Body Size

Brass, Oxygen Service GF05519X012

416 Stainless steel GF05519X022

316 Stainless steel, NACE(1) GF05519X032

Hastelloy® C GF05519X052

Monel® GF05519X042

3/4 and 1 in. / DN 20 and 25 Body Sizes

Brass, Oxygen Service GF04830X012

416 Stainless steel GF04830X022

316 Stainless steel, NACE(1) GF04830X032

Hastelloy® C GF04830X052

Monel® GF04830X042

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

416 Stainless steel, Oxygen Service GF05510X022

316 Stainless steel, NACE(1) GF05510X032

Hastelloy® C GF05510X052

Monel® GF05510X042

Types MR95HP and MR95HT

1/4 NPT Body Size

416 Stainless steel GF05490X022

316 Stainless steel, NACE(1) GF05490X032

1/2 in. / DN 15 Body Size

416 Stainless steel GF05519X022

316 Stainless steel, NACE(2) GF05519X032

3/4 and 1 in. / DN 20 and 25 Body Sizes

416 Stainless steel GF04830X022

316 Stainless steel, NACE(1) GF04830X032

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

416 Stainless steel GF05510X022

316 Stainless steel, NACE(1) GF05510X032

6 Stem/Stem Assembly

Types MR95L, MR95LD, MR95H and MR95HD

1/4 NPT Body Size

416 Stainless steel, Oxygen Service ERCA00638A0

316 Stainless steel

Standard ERCA00638A4

NACE(1), Types MR95L and MR95H only ERCA00638A1

Hastelloy® C ERCA00638A3

Monel® ERCA00638A2

1/2 in. / DN 15 Body Size

416 Stainless steel

Without control line, Oxygen service ERCA00639A0

With control line ERAA01904A0

6 Stem/Stem Assembly (continued)

Types MR95L, MR95LD, MR95H and MR95HD (continued)

1/2 in. / DN 15 Body Size (continued)

316 Stainless steel

Standard ERCA00639A4

NACE

(1)

Without control line ERCA00639A1

With control line

Nitrile (NBR) seat ERAA01904A1

Fluorocarbon (FKM) seat ERAA01904A2

Hastelloy® C ERCA00639A3

Monel® ERCA00639A2

3/4 and 1 in. / DN 20 and 25 Body Sizes

416 Stainless steel

Without control line, Oxygen service ERCA00640A0

With control line ERAA01896A0

316 Stainless steel

Standard ERCA00640A4

NACE

(1)

Without control line ERCA00640A1

With control line

Nitrile (NBR) seat ERAA01896A1

Fluorocarbon (FKM) seat ERAA01896A2

Hastelloy® C ERCA00640A3

Monel® ERCA00640A2

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

416 Stainless steel

Without control line, Oxygen service GF05507X022

With control line ERAA01906A0

316 Stainless steel

Standard GF05507X062

NACE

(1)

Without control line GF05507X032

With control line

Nitrile (NBR) seat ERAA01906A2

Fluorocarbon (FKM) seat ERAA01906A3

Hastelloy® C GF05507X052

Monel® GF05507X042

Type MR95HT

1/4 NPT Body Size

416 Stainless steel ERCA00638A0

316 Stainless steel ERCA00638A4

1/2 in. / DN 15 Body Size

416 Stainless steel ERCA00639A0

316 Stainless steel ERCA00639A4

3/4 and 1 in. / DN 20 and 25 Body Sizes

416 Stainless steel ERCA00640A0

316 Stainless steel ERCA00640A4

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

416 Stainless steel, Oxygen Service GF05507X022

316 Stainless steel, Standard GF05507X062

Type MR95HP

1/4 NPT Body Size

416 Stainless steel ERCA00638A0

316 Stainless steel, NACE(1) ERCA00638A1

1/2 in. / DN 15 Body Size

416 Stainless steel

Without control line ERCA00639A0

With control line ERAA01904A0

316 Stainless steel, NACE(1)

Without control line ERCA00639A1

With control line

Nitrile (NBR) seat ERAA01904A1

Fluorocarbon (FKM) seat ERAA01904A2

3/4 and 1 in. / DN 20 and 25 Body Sizes

416 Stainless steel

Without control line ERCA00640A0

With control line ERAA01896A0

316 Stainless steel, NACE(1)

Without control line ERCA00640A1

With control line

Nitrile (NBR) seat ERAA01896A1

Fluorocarbon (FKM) seat ERAA01896A2

Key Description Part Number Key Description Part Number

*Recommended spare part

1. NACE MR0175-2002 and MR0103.

2. NACE MR0175-2002.

3. See Type MR95 Reduced Orice Part Numbers table on page 30 for reduced orices

that change Type MR95 Cv values to equivalent Type 95 Cv values.

Hastelloy® C is a mark owned by Haynes International, Inc.

Monel® is a mark owned by Special Metals Corporation.

MR95 Series

19

*Recommended spare part

1. NACE MR0175-2002 and MR0103.

2. Part meets NACE requirements only for applications in which the part is not exposed to sour gas.

Hastelloy® C is a mark owned by Haynes International, Inc.

Monel® is a mark owned by Special Metals Corporation.

6 Stem/Stem Assembly (continued)

Type MR95HP (continued)

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

416 Stainless steel, Oxygen Service

Without control line GF05507X022

With control line ERAA01906A0

316 Stainless steel, NACE(1)

Without control line GF05507X032

With control line

Nitrile (NBR) seat ERAA01906A2

Fluorocarbon (FKM) seat ERAA01906A3

6a Stem - - - - - - - - - - -

6b Pusher Plate (1/4 NPT and 1/2 to 1 in. /

DN 15 to 25 Body Sizes only) - - - - - - - - - - -

6b O-ring (1-1/2 and 2 in. /

DN 40 and 50 Body Sizes only) - - - - - - - - - - -

6c O-ring (1/2 to 1 in. / DN 15 to 25 Body Sizes only) - - - - - - - - - - -

7 Stem Guide Bushing

1/4 NPT Body Size

416 Stainless steel, Oxygen Service ERCA03695A0

316 Stainless steel, NACE(1) ERCA03695A1

Hastelloy® C ERCA03695A3

Monel® ERCA03695A2

1/2 in. / DN 15 Body Size

416 Stainless steel, Oxygen Service ERCA03694A0

316 Stainless steel, NACE(1) ERCA03694A1

Hastelloy® C ERCA03694A3

Monel® ERCA03694A2

3/4 to 2 in. / DN 20 to 50 Body Sizes

416 Stainless steel, Oxygen Service ERCA03668A0

316 Stainless steel, NACE(1) ERCA03668A1

Hastelloy® C ERCA03668A3

Monel® ERCA03668A2

8 Lower Spring Seat, NACE(1)

Types MR95L, MR95LD, MR95H and MR95HD

1/4 NPT Body Size

Aluminum(2) 1E392309012

Stainless steel 1E3923X0012

1/2 in. / DN 15 Body Size

Aluminum(2) 1E395408012

Stainless steel 1E3954X0042

3/4 and 1 in. / DN 20 and 25 Body Sizes

Aluminum(2) 1E398608012

Stainless steel 1E3986X0042

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

Steel(2) 1P787724152

Stainless steel 1P7877X0012

Types MR95HP and MR95HT

1/4 NPT Body Size

Steel(2) ERCA00453A0

Stainless steel ERCA00453A1

1/2 in. / DN 15 Body Size

Steel(2) ERCA00436A0

Stainless steel ERCA00436A1

3/4 and 1 in. / DN 20 and 25 Body Sizes

Steel(2) 17B8733X012

Stainless steel 17B8733X022

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

Steel(2) 1P787724152

Stainless steel 1P7877X0012

9 Upper Spring Seat, NACE(1)

Types MR95L, MR95LD, MR95H and MR95HD

1/4 NPT Body Size

Steel(2) ERCA00383A0

Stainless steel ERCA00383A1

1/2 in. / DN 15 Body Size

Steel(2) ERCA00823A0

Stainless steel ERCA00823A1

3/4 and 1 in. / DN 20 and 25 Body Sizes

Steel(2) 1E398725072

Stainless steel 1E3987X0012

9 Upper Spring Seat, NACE(1) (continued)

Types MR95L, MR95LD, MR95H and MR95HD (continued)

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

Steel(2) 1P787624092

Stainless steel 1P7876X0012

Types MR95HP and MR95HT

1/4 NPT Body Size

Steel(2) 14B9950X012

Stainless steel 14B9950X022

1/2 in. / DN 15 Body Size

Steel(2) ERCA00382A0

Stainless steel ERCA00382A1

3/4 and 1 in. / DN 20 and 25 Body Sizes

Steel(2) ERCA00138A0

Stainless steel ERCA00138A1

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

Steel(2) 1P787624092

Stainless steel 1P7876X0012

10 Pusher Post, 1-1/2 and 2 in. / DN 40 and

50 Body Sizes only

Metal-to-metal seat

416 Stainless steel, Types MR95H,

MR95HD and MR95HT only GF05509X022

316 Stainless steel, Types MR95H,

MR95HD and MR95HT only GF05509X032

Hastelloy® C, Types MR95H and

MR95HD only GF05509X052

Monel®, Types MR95H and

MR95HD only GF05509X042

Composition seat

416 Stainless steel, Oxygen Service

Types MR95H, MR95HD and MR95HP only GF05549X022

316 Stainless steel, NACE(1)

Types MR95H, MR95HD and MR95HP only GF05549X032

Monel®, Types MR95H and MR95HD only GF05549X042

11 Control Spring, NACE(1)(2) See Table 3

12* Diaphragm See Following Table

13 Nameplate - - - - - - - - - - -

14* Diaphragm Protector, PTFE, NACE(1)

Types MR95L and MR95LD

1/4 NPT Body Size 11A5126X012

1/2 in. / DN 15 Body Size 11A5127X012

3/4 and 1 in. / DN 20 and 25 Body Sizes 11A5128X012

Types MR95H, MR95HP and MR95HD

1/4 NPT Body Size 11A5129X012

1/2 in. / DN 15 Body Size 11A5130X012

3/4 and 1 in. / DN 20 and 25 Body Sizes 11A5131X012

1-1/2 and 2 in. / DN 40 and 50 Body Sizes 11A5527X012

15 Adjusting Screw, NACE(1)(2)

Square Head Adjustment

1/4 NPT Body Size GF05533X012

1/2 in. / DN 15 Body Size GF05553X012

3/4 and 1 in. / DN 20 and 25 Body Sizes GF05543X012

1-1/2 and 2 in. / DN 40 and 50 Body Sizes GF05522X012

Stainless steel Square Head Adjustment

1/4 NPT Body Size GF05533X022

1/2 in. / DN 15 Body Size GF05553X022

3/4 and 1 in. / DN 20 and 25 Body Sizes GF05543X022

1-1/2 and 2 in. / DN 40 and 50 Body Sizes GF05522X022

Sealed Square Head Adjustment

1/2 in. / DN 15 Body Size GF05553X012

3/4 and 1 in. / DN 20 and 25 Body Sizes GF05543X012

1-1/2 and 2 in. / DN 40 and 50 Body Sizes GF05522X012

Handwheel Adjustment

1/2 in. / DN 15 Body Size ERAA02331A0

16 Cap Screw, NACE(1)(2)

Types MR95L and MR95LD

1/4 NPT Body Size

Steel (10 required) ERCA00651A0

Stainless steel (10 required) ERCA00651A1

1/2 in. / DN 15 Body Size

Steel (10 required) ERCA00100A0

Stainless steel (10 required) ERCA00100A1

Key Description Part Number Key Description Part Number

MR95 Series

20

16 Cap Screw, NACE(1)(2) (continued)

Types MR95L and MR95LD (continued)

3/4 and 1 in. / DN 20 and 25 Body Sizes

Steel (12 required) GF05446X012

Stainless steel (12 required) GF05446X022

Types MR95H and MR95HD

1/4 NPT Body Size

Steel (6 required) ERCA04149A0

Stainless steel (6 required) ERCA04149A1

1/2 in. / DN 15 Body Size

Steel (8 required) ERCA00100A0

Stainless steel (8 required) ERCA00100A1

3/4 and 1 in. / DN 20 and 25 Body Sizes

Steel (8 required) GF05446X012

Stainless steel (8 required) GF05446X022

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

Steel (8 required) ERCA00601A0

Stainless steel (8 required) ERCA00601A3

Types MR95HP and MR95HT

1/4 NPT Body Size

Steel (6 required) ERCA04149A2

Stainless steel (6 required) ERCA04149A3

1/2 in. / DN 15 Body Size

Steel (8 required) ERCA00100A2

Stainless steel (8 required) ERCA00100A3

3/4 and 1 in. / DN 20 and 25 Body Sizes

Steel (8 required) GF05446X032

Stainless steel (8 required) GF05446X042

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

Steel (8 required) ERCA00601A2

Stainless steel (8 required) ERCA00601A3

17 Jam Nut, NACE(1)(2)

Square Head Adjustment

1/4 NPT Body Size ERCA00652A0

1/2 in. / DN 15 Body Size ERCA00380A0

3/4 and 1 in. / DN 20 and 25 Body Sizes GF05453X012

1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERCA00633A0

Stainless steel Square Head Adjustment

1/4 NPT Body Size ERCA00652A1

1/2 in. / DN 15 Body Size ERCA00380A1

3/4 and 1 in. / DN 20 and 25 Body Sizes GF05453X022

1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERCA00633A1

Sealed Square Head Adjustment

1/2 in. / DN 15 Body Size ERCA00380A0

3/4 and 1 in. / DN 20 and 25 Body Sizes GF05453X012

1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERCA00633A0

Tee Handle Adjustment

1/4 NPT Body Size ERCA00652A0

3/4 and 1 in. / DN 20 and 25 Body Sizes GF05453X012

1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERCA00633A0

Handwheel Adjustment

1/2 in. / DN 15 Body Size ERCA00380A0

18 Nameplate Drive Screw, Stainless steel

(4 required) ERAA01884A0

19* Diaphragm Gasket

(2 required for pressure loaded spring case)

For 302 Stainless steel Diaphragm

Types MR95L and MR95LD

1/4 NPT Body Size ERCA00655A0

1/2 in. / DN 15 Body Size ERCA00491A0

3/4 and 1 in. / DN 20 and 25 Body Sizes ERCA00556A0

Types MR95H and MR95HD

1/4 NPT Body Size 1E393104022

1/2 in. / DN 15 Body Size ERCA00485A0

3/4 and 1 in. / DN 20 and 25 Body Sizes ERCA00510A0

1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERCA00526A0

19* Diaphragm Gasket (continued)

(2 required for pressure loaded spring case) (continued)

For 302 Stainless steel Steam Service, Monel®

and Hastelloy® C Diaphragms (continued)

Types MR95L and MR95LD

1/4 NPT Body Size ERCA00655A1

1/2 in. / DN 15 Body Size ERCA00491A1

3/4 and 1 in. / DN 20 and 25 Body Sizes ERCA00556A1

Types MR95H, MR95HT and MR95HD

1/4 NPT Body Size 1E3931X0012

1/2 in. / DN 15 Body Size ERCA00485A1

3/4 and 1 in. / DN 20 and 25 Body Sizes ERCA00510A1

1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERCA00526A1

For Stainless steel Oxygen Service Diaphragm

Type MR95L

1/4 NPT Body Size ERCA00655A2

1/2 in. / DN 15 Body Size ERCA00491A2

3/4 and 1 in. / DN 20 and 25 Body Sizes ERCA00556A2

Type MR95H

1/4 NPT Body Size 1E3931X0022

1/2 in. / DN 15 Body Size ERCA00485A2

3/4 and 1 in. / DN 20 and 25 Body Sizes ERCA00510A2

1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERCA00526A2

20 Pitot Tube (for constructions without control line)

1/4 NPT Body Size

Copper, Oxygen Service ERCA04393A0

304 Stainless steel ERCA04393A1

316 Stainless steel, NACE(1) ERCA04393A2

Hastelloy® C ERCA04393A4

Monel® ERCA04393A3

1/2 in. / DN 15 Body Size

Copper, Oxygen Service ERCA04277A0

304 Stainless steel ERCA04277A1

316 Stainless steel, NACE(1) ERCA04277A2

Hastelloy® C ERCA04277A4

Monel® ERCA04277A3

3/4 and 1 in. / DN 20 and 25 Body Sizes

Copper, Oxygen Service GF05550X012

304 Stainless steel GF05550X022

316 Stainless steel, NACE(1) GF05550X032

Hastelloy® C GF05550X052

Monel® GF05550X042

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

Copper, Oxygen Service ERCA00381A0

304 Stainless steel ERCA00381A1

316 Stainless steel, NACE(1) ERCA00381A2

Hastelloy® C ERCA00381A4

Monel® ERCA00381A3

21 Diaphragm Head Assembly, NACE(1)

(Types MR95L and MR95LD only)

1/4 NPT Body Size

Aluminum/Steel(2) ERCA00641A0

Stainless steel ERCA00641A1

1/2 in. / DN 15 Body Size

Aluminum/Steel(2) ERCA00642A0

Stainless steel ERCA00642A1

3/4 and 1 in. / DN 20 and 25 Body Sizes

Aluminum/Steel(2) ERCA00643A0

Stainless steel ERCA00643A1

21a Diaphragm Head - - - - - - - - - - -

21b Lower Spring Seat - - - - - - - - - - -

21c Screw - - - - - - - - - - -

21 Diaphragm Head, 1-1/2 and 2 in. /

DN 40 and 50 Sizes (2 required)

Plated Steel ERCA00578A0

316 Stainless steel, NACE(1) and

Oxygen Service ERCA00578A1

Hastelloy®

C, Types MR95H and MR95HD only ERCA00578A3

Monel®, Types MR95H and MR95HD only ERCA00578A2

Key Description Part Number Key Description Part Number

*Recommended spare part

1. NACE MR0175-2002 and MR0103.

2. Part meets NACE requirements only for applications in which the part is not exposed to sour gas.

Hastelloy® C is a mark owned by Haynes International, Inc.

Monel® is a mark owned by Special Metals Corporation.

MR95 Series

21

*Recommended spare part

1. NACE MR0175-2002 and MR0103.

2. Part meets NACE requirements only for applications in which the part is not exposed to sour gas.

Hastelloy® C is a mark owned by Haynes International, Inc.

Inconel® is a mark owned by Special Metals Corporation.

Monel® is a mark owned by Special Metals Corporation.

Key Description Part Number Key Description Part Number

22 Adjusting Screw Assembly

Tee Handle Adjustment

1/4 NPT Body Size, NACE(1)(2) ERAA01707A0

3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA01716A0

1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERAA01694A0

23 Handwheel ERAA02088A0

26 Inner Valve Spring

1/4 NPT Body Size

302 Stainless steel, Oxygen Service ERCA04280A0

Inconel®, NACE(1) ERCA04281A0

1/2 in. / DN 15 Body Size

302 Stainless steel, Oxygen Service ERCA04282A0

Inconel®, NACE(1) ERCA04283A0

3/4 and 1 in. / DN 20 and 25 Body Sizes

302 Stainless steel, Oxygen Service ERCA04284A0

Inconel®, NACE(1) ERCA04285A0

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

302 Stainless steel, Oxygen Service ERCA04286A0

Inconel®, NACE(1) ERCA04287A0

27 Inner Valve Base, 1-1/2 to 2 in. / DN 40 to 50

416 Stainless steel ERCA00376A1

316 Stainless steel, NACE(1) ERCA00376A2

Hastelloy® C ERCA00376A4

Monel® ERCA00376A3

Brass, Oxygen Service ERCA00376A0

27 Inner Valve Base Assembly, 1-1/2 and 2 in. /

DN 40 and 50, Type MR95HP only

Nitrile (NBR) Seat

416 Stainless steel ERAA01909A0

316 Stainless steel, NACE(1) ERAA01909A1

Fluorocarbon (FKM) Disk

416 Stainless steel ERAA01909A3

316 Stainless steel, NACE(1) ERAA01909A2

29* Gasket (2 required)

For 1-1/2 and 2 in. / DN 40 and 50 only

302 Stainless steel Diaphragm

Types MR95H and MR95HD ERCA00579A0

302 Stainless steel Diaphragm, Oxygen Service

Type MR95H ERCA00579A2

302 Stainless steel Steam Service,

Monel® and Hastelloy® C Diaphragm

Types MR95H, MR95HT and MR95HD ERCA00579A1

31 Locknut, Steel, 1-1/2 to 2 in. / DN 40 to 50 only 1P788724122

32 Stufng Box

Handwheel Adjustment (standard)

1/4 NPT Body Size ERAA02699A0

1/2 to 1 in. / DN 15 to 25 Body Sizes ERAA01655A0

1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERAA01662A0

Handwheel Adjustment with Stainless steel Trim

1/4 NPT Body Size ERAA02699A1

1/2 to 1 in. / DN 15 to 25 Body Sizes ERAA01655A1

1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERAA01662A1

33 Adjusting Screw

1/4 NPT Body Size ERAA01631A0

1/2 in. / DN 15 Body Size ERAA02333A0

3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA01673A0

1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERAA01677A0

34 Packing Follower

Handwheel Adjustment (standard)

1/4 NPT Body Size ERAA01632A0

1/2 to 2 in. / DN 15 to 50 Body Sizes 1K884924092

Handwheel Adjustment with Stainless steel Trim

1/4 NPT Body Size ERAA01632A0

1/2 to 2 in. / DN 15 to 50 Body Sizes 1K8849X0012

35 Stufng Box Nut

Handwheel Adjustment ERAA01633A0

Handwheel Adjustment with Stainless steel Trim ERAA01633A1

36 Packing (3 required)

1/4 NPT Body Size ERAA01634A0

1/2 to 2 in. / DN 15 to 50 Body Sizes ERAA01657A0

37* Stuff Box Gasket

1/4 NPT Body Size ERAA01635A0

1/2 to 2 in. / DN 15 to 50 Body Sizes 1P494106242

38 Handwheel/Handle

Handwheel Adjustment

1/4 NPT Body Size ERAA01636A0

1/2 to 1 in. / DN 15 to 25 Body Sizes ERAA01669A0

1-1/2 and 2 in. / DN 40 and 50 Body Sizes 1J410819042

Handwheel Adjustment with Stainless steel Trim

1/4 NPT Body Size ERAA02956A1

1/2 to 1 in. / DN 15 to 25 Body Sizes ERAA02957A1

1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERAA02959A1

39 Internal Adaptor

1/4 NPT Body Size ERAA01637A0

1/2 to 2 in. / DN 15 to 50 Body Sizes ERAA01666A0

40 External Adaptor

1/4 NPT Body Size ERAA01638A0

1/2 to 2 in. / DN 15 to 50 Body Sizes ERAA01667A0

41 Machine Screw

Handwheel Adjustment

1/4 NPT Body Size ERAA01639A0

1/2 to 1 in. / DN 15 to 25 Body Sizes ERAA01670A0

Handwheel Adjustment with Stainless steel Trim

1/4 NPT Body Size ERAA01639A1

1/2 to 1 in. / DN 15 to 25 Body Sizes ERAA01670A1

41 Jam Nut (Type MR95HD, 1-1/2 and

2 in. / DN 40 and 50 Body Sizes only)

Handwheel Adjustment ERAA01688A0

Handwheel Adjustment with Stainless steel Trim ERAA01688A1

42 Spring, Stainless steel ERAA01640A0

43 Washer

1/4 NPT Body Size ERAA01641A0

1/2 to 2 in. / DN 15 to 50 Body Sizes ERAA01660A0

44 Washer

Handwheel Adjustment

1/4 NPT Body Size ERAA01642A0

1/2 to 1 in. / DN 15 to 25 Body Sizes ERAA01671A0

1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERAA01689A0

Handwheel Adjustment with Stainless steel Trim

1/4 NPT Body Size ERAA01642A1

1/2 to 1 in. / DN 15 to 25 Body Sizes ERAA01671A1

1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERAA01689A1

45* O-ring (2 required for Type MR95HD only)

For 1-1/2 and 2 in. / DN 40 and 50 only

Neoprene (CR) Diaphragm ERCA00664A0

Fluorocarbon (FKM) Diaphragm ERCA00664A1

Ethylenepropylene (EPDM) Diaphragm ERCA00664A2

47 NACE Tag - - - - - - - - - - -

48 Tag Wire - - - - - - - - - - -

49 Lockwasher (for 1-1/2 and 2 in. /

DN 40 and 50 Body Sizes only)

Steel ERCA00379A0

Stainless steel ERCA00379A1

50* Sealing Washer

Sealed Square Head Adjustment

1/2 in. / DN 15 Body Size 1V205699012

3/4 and 1 in. / DN 20 and 25 Body Sizes 11A9681X012

1-1/2 and 2 in. / DN 40 and 50 Body Sizes 1V424699012

51 Vent, Type Y602-12

1-1/2 and 2 in. / DN 40 and 50 Body Sizes only ERAA02123A0

52 Plug, Stainless steel ERAA01942A0

62 Adaptor, Stainless steel,

3/4 to 1 in. / DN 20 to 25 Body Sizes,

Types MR95L and MR95LD:

2 gauges - 2 required ERAA01930A0

1 gauge - 1 required ERAA01930A0

63* Bottom Plug Seal

1/4 NPT Body Size

Nitrile (NBR) ERCA03017A0

Peruoroelastomer (FFKM) ERCA03017A3

Fluorocarbon (FKM) ERCA03017A1

Ethylenepropylene (EPDM) ERCA03017A2

Graphite ERCA02976A0

MR95 Series

22

BODY SIZE END

CONNECTION

BODY MATERIAL

Gray Cast Iron WCC Steel LCC Steel CF8M

Stainless steel(1)

CF3M

Stainless steel(1) Monel®(1) Hastelloy® C(1)

1/4 in. NPT ERCA01629A0 GF04880X022 GF04880X062 GF04880X052 GF04880X042 - - - - - - - - - - - - - - - - - - - - - -

1/2 in. / DN 15

Without

Control Line

NPT ERCA01658A0 GF04890X022 GF04890X082 GF04890X052 GF04890X042 GF04890X062 GF04890X072

SWE - - - - - - - - - - - GF05405X022 GF05405X062 GF05405X052 GF05405X042 - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERCA00572A0 ERCA00572A3 ERCA00572A2 ERCA00572A1 - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERCA00574A0 ERCA00574A3 ERCA00574A2 ERCA00574A1 - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERCA00576A0 ERCA00576A2 - - - - - - - - - - - ERCA00576A1 - - - - - - - - - - - - - - - - - - - - - -

1/2 in. / DN 15

With

Control Line

NPT - - - - - - - - - - - ERAA02167A1 ERAA02167A4 ERAA02167A3 ERAA02167A2 - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERAA02495A0 ERAA02495A3 ERAA02495A2 ERAA02495A1 - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERAA02497A0 ERAA02497A3 ERAA02497A2 ERAA02497A1 - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERAA02500A0 ERAA02500A2 - - - - - - - - - - - ERAA02500A1 - - - - - - - - - - - - - - - - - - - - - -

3/4 in. / DN 20

Without Gauge Port

and Control Line

NPT ERCA01572A0 GF04818X022 GF04818X082 GF04818X052 GF04818X042 GF04818X062 GF04818X072

SWE - - - - - - - - - - - GF05372X022 GF05372X062 GF05372X052 GF05372X042 - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERCA00580A0 ERCA00580A3 ERCA00580A2 ERCA00580A1 - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERCA00584A0 ERCA00584A3 ERCA00584A2 ERCA00584A1 - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERCA00588A0 ERCA00588A2 - - - - - - - - - - - ERCA00588A1 - - - - - - - - - - - - - - - - - - - - - -

3/4 in. / DN 20

Without Gauge Port

but With Control Line

NPT - - - - - - - - - - - ERAA02132A1 ERAA02132A4 ERAA02132A3 ERAA02132A2 - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERAA02133A0 ERAA02133A3 ERAA02133A2 ERAA02133A1 - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERAA02134A0 ERAA02134A3 ERAA02134A2 ERAA02134A1 - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERAA02135A0 ERAA02135A2 - - - - - - - - - - - ERAA02135A1 - - - - - - - - - - - - - - - - - - - - - -

3/4 in. / DN 20

With Gauge Port but

Without Control Line

NPT ERAA02136A0 ERAA02136A1 ERAA02136A4 ERAA02136A3 ERAA02136A2 - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERAA02137A0 ERAA02137A3 ERAA02137A2 ERAA02137A1 - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERAA02138A0 ERAA02138A3 ERAA02138A2 ERAA02138A1 - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERAA02139A0 ERAA02139A2 - - - - - - - - - - - ERAA02139A1 - - - - - - - - - - - - - - - - - - - - - -

1 in. / DN 25

Without Gauge Port

and Control Line

NPT ERCA01564A0 GF05370X022 GF05370X082 GF05370X052 GF05370X042 GF05370X062 GF05370X072

SWE - - - - - - - - - - - GF05371X022 GF05371X062 GF05371X052 GF05371X042 - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERCA00592A0 ERCA00592A3 ERCA00592A2 ERCA00592A1 - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERCA00596A0 ERCA00596A3 ERCA00596A2 ERCA00596A1 - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERCA03686A0 ERCA03686A2 - - - - - - - - - - - ERCA03686A1 - - - - - - - - - - - - - - - - - - - - - -

1 in. / DN 25

Without Gauge Port

but With Control Line

NPT - - - - - - - - - - - ERAA02140A1 ERAA02140A4 ERAA02140A3 ERAA02140A2 - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERAA02141A0 ERAA02141A3 ERAA02141A2 ERAA02141A1 - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERAA02142A0 ERAA02142A3 ERAA02142A2 ERAA02142A1 - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERAA02143A0 ERAA02143A2 - - - - - - - - - - - ERAA02143A1 - - - - - - - - - - - - - - - - - - - - - -

1 in. / DN 25

With Gauge Port but

Without Control Line

NPT ERAA02144A0 ERAA02144A1 ERAA02144A4 ERAA02144A3 ERAA02144A2 - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERAA02145A0 ERAA02145A3 ERAA02145A2 ERAA02145A1 - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERAA02146A0 ERAA02146A3 ERAA02146A2 ERAA02146A1 - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERAA02147A0 ERAA02147A2 - - - - - - - - - - - ERAA02147A1 - - - - - - - - - - - - - - - - - - - - - -

1. Meets the chemical and physical requirements of NACE MR0175-2002 and NACE MR0103.

NOTE: Optional material options are available to meet ANSI/NACE MR0175/ISO 15156, please contact your local Sales Ofce for special ordering instructions.

Other end connections may be available, please contact your local Sales Ofce.

Key 1, Types MR95L and MR95LD Regulator Body Part Numbers

- continued -

63* Bottom Plug Seal (continued)

1/2 in. / DN 15 Body Size

Nitrile (NBR) ERCA03016A0

Fluorocarbon (FKM) ERCA03016A1

Ethylenepropylene (EPDM) ERCA03016A2

Graphite ERCA02978A0

3/4 and 1 in. / DN 20 and 25 Body Sizes

Nitrile (NBR) ERCA00628A0

Peruoroelastomer (FFKM) ERCA00628A3

Fluorocarbon (FKM) ERCA00628A1

Ethylenepropylene (EPDM) ERCA00628A2

Graphite ERCA00517A0

1-1/2 and 2 in. / DN 40 and 50 Body Sizes

Nitrile (NBR) ERCA00630A0

Peruoroelastomer (FFKM) ERCA00630A3

Fluorocarbon (FKM) ERCA00630A1

Ethylenepropylene (EPDM) ERCA00630A2

Graphite ERCA01407A0

64 Flow Arrow - - - - - - - - - - -

65 Pipe Plug, (3/4 to 2 in. / DN 20 to 50 Body Sizes),

(Type MR95HT, 2 required) (Other Types with

1 gauge, 1 required)

Steel ERAA03130A0

Stainless steel ERAA03131A0

66 Inlet Pressure Gauge

(3/4 to 2 in. / DN 20 to 50 Body Sizes)

0 to 160 psi / 0 to 11 bar

Brass 11B8579X042

Stainless steel ERAA03132A3

0 to 300 psi / 0 to 20 bar

Brass 11B8579X052

Stainless steel ERAA03132A4

0 to 600 psi / 0 to 40 bar

Brass 11B8579X102

Stainless steel ERAA03132A5

0 to 1000 psi / 0 to 68 bar

Brass 11B8579X112

Stainless steel ERAA03132A6

Key Description Part Number Key Description Part Number

*Recommended spare part

Monel® is a mark owned by Special Metals Corporation.

Hastelloy® C is a mark owned by Haynes International, Inc.

MR95 Series

23

BODY SIZE END

CONNECTION

BODY MATERIAL

Gray Cast Iron WCC Steel LCC Steel

CF8M

Stainless

steel(1)

CF3M

Stainless

steel(1)

Monel®(1) Hastelloy® C(1) Aluminum-

Bronze(1)

1/4 in. NPT ERCA01628A0(2) GF04858X022 GF04858X062 GF04858X052 GF04858X042 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

1/2 in. / DN 15

Without

Control Line

NPT ERCA01657A0(2) GF04837X022 GF04837X082 GF04837X052 GF04837X042 GF04837X062 GF04837X072 - - - - - - - - - - -

SWE - - - - - - - - - - - GF05408X022 GF05408X062 GF05408X052 GF05408X042 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERCA00573A0 ERCA00573A3 ERCA00573A2 ERCA00573A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERCA00575A0 ERCA00575A3 ERCA00575A2 ERCA00575A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL600 RF - - - - - - - - - - - ERAA01758A0 ERAA01758A3 ERAA01758A2 ERAA01758A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERCA00577A0 ERCA00577A2 - - - - - - - - - - - ERCA00577A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Integral CL150 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERAA02397A3 ERAA02397A4 ERAA02397A5 ERAA02397A6

Integral CL300 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERAA02398A3 ERAA02398A4 ERAA02398A5 ERAA02398A6

Integral CL600 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERAA02399A3 ERAA02399A4 ERAA02399A5 ERAA02399A6

Integral PN 16/25/40 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERAA02408A3 ERAA02408A4 ERAA02408A5 ERAA02408A6

1/2 in. / DN 15

With

Control Line

NPT - - - - - - - - - - - ERCA00528A1(3) ERCA00528A5(3) ERCA00528A4(3) ERCA00528A3(3) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERAA02496A0(3) ERAA02496A3(3) ERAA02496A2(3) ERAA02496A1(3) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERAA02498A0(3) ERAA02498A3(3) ERAA02498A2(3) ERAA02498A1(3) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL600 RF - - - - - - - - - - - ERAA02499A0(3) ERAA02499A3(3) ERAA02499A2(3) ERAA02499A1(3) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERAA02501A0(3) ERAA02501A2(3) - - - - - - - - - - - ERAA02501A1(3) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

3/4 in. / DN 20

Without Gauge

Port and Control

Line

NPT ERCA01571A0(2) GF04817X022 GF04817X082 GF04817X052 GF04817X042 GF04817X062 GF04817X072 - - - - - - - - - - -

SWE - - - - - - - - - - - GF05368X022 GF05368X062 GF05368X052 GF05368X042 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERCA00581A0 ERCA00581A3 ERCA00581A2 ERCA00581A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERCA00585A0 ERCA00585A3 ERCA00585A2 ERCA00585A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL600 RF - - - - - - - - - - - ERAA01749A0 ERAA01749A3 ERAA01749A2 ERAA01749A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERCA00589A0 ERCA00589A2 - - - - - - - - - - - ERCA00589A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

3/4 in. / DN 20

Without Gauge

Port but With

Control Line

NPT - - - - - - - - - - - ERCA00536A1 ERCA00536A5 ERCA00536A4 ERCA00536A3 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERCA00582A0 ERCA00582A3 ERCA00582A2 ERCA00582A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERCA00586A0 ERCA00586A3 ERCA00586A2 ERCA00586A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERCA00590A0 ERCA00590A2 - - - - - - - - - - - ERCA00590A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

3/4 in. / DN 20

With Gauge

Port but Without

Control Line

NPT ERCA00537A0(2) ERCA00537A1 ERCA00537A5 ERCA00537A4 ERCA00537A3 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERCA00583A0 ERCA00583A3 ERCA00583A2 ERCA00583A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERCA00587A0 ERCA00587A3 ERCA00587A2 ERCA00587A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERCA00591A0 ERCA00591A2 - - - - - - - - - - - ERCA00591A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

1. Meets the chemical and physical requirements of NACE MR0175-2002 and NACE MR0103.

2. For Types MR95H and MR95HD only.

3. Not available for Type MR95HT.

NOTE: Optional material options are available to meet ANSI/NACE MR0175/ISO 15156, please contact your local Sales Ofce for special ordering instructions.

Other end connections may be available, please contact your local Sales Ofce.

Key 1, Types MR95H, MR95HD, MR95HP and MR95HT Regulator Body Part Numbers

- continued -

Key Description Part Number Key Description Part Number

67 Outlet Pressure Gauge

(3/4 to 2 in. / DN 20 to 50 Body Sizes)

0 to 15 psi / 0 to 1 bar

Brass 11B8579X012

Stainless steel ERAA03132A0

0 to 30 psi / 0 to 2 bar

Brass 11B8579X022

Stainless steel ERAA03132A1

0 to 60 psi / 0 to 4 bar

Brass 11B8579X032

Stainless steel ERAA03132A2

67 Outlet Pressure Gauge (continued)

(3/4 to 2 in. / DN 20 to 50 Body Sizes) (continued)

0 to 160 psi / 0 to 11 bar

Brass 11B8579X042

Stainless steel ERAA03132A3

0 to 300 psi / 0 to 20 bar

Brass 11B8579X052

Stainless steel ERAA03132A4

0 to 600 psi / 0 to 40 bar

Brass 11B8579X102

Stainless steel ERAA03132A5

69 ATEX Tag - - - - - - - - - - -

70 PED Tag - - - - - - - - - - -

Monel® is a mark owned by Special Metals Corporation.

Hastelloy® C is a mark owned by Haynes International, Inc.

MR95 Series

24

Key 1, Types MR95H, MR95HD, MR95HP and MR95HT Regulator Body Part Numbers

- continued -

BODY SIZE END

CONNECTION

BODY MATERIAL

Gray Cast Iron WCC Steel LCC Steel

CF8M

Stainless

Steel(1)

CF3M

Stainless

steel(1)

Monel®(1) Hastelloy® C(1) Aluminum-

Bronze(1)

1 in. / DN 25

Without Gauge

Port and

Control Line

NPT ERCA01563A0(2) GF05235X022 GF05235X082 GF05235X052 GF05235X042 GF05235X062 GF05235X072 - - - - - - - - - - -

SWE - - - - - - - - - - - GF05367X022 GF05367X062 GF05367X052 GF05367X042 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERCA00593A0 ERCA00593A3 ERCA00593A2 ERCA00593A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERCA00597A0 ERCA00597A3 ERCA00597A2 ERCA00597A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL600 RF - - - - - - - - - - - ERAA01750A0 ERAA01750A3 ERAA01750A2 ERAA01750A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERAA01790A0 ERAA01790A2 - - - - - - - - - - - ERCA01790A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Integral CL150 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERCA00551A2 ERCA00551A4 ERCA00551A5 ERCA00551A6

Integral CL300 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERCA00552A2 ERCA00552A4 ERCA00552A5 ERCA00552A6

Integral CL600 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERAA01752A2 ERAA01752A4 ERAA01752A5 ERAA01752A6

Integral PN 16/25/40 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERCA00555A2 ERCA00555A4 ERCA00555A5 ERCA00555A6

1 in. / DN 25

Without

Gauge Port

but with

Control Line

NPT - - - - - - - - - - - ERCA00546A1 ERCA00546A5 ERCA00546A4 ERCA00546A3 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERCA00594A0 ERCA00594A3 ERCA00594A2 ERCA00594A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERAA02148A0 ERAA02148A3 ERAA02148A2 ERAA02148A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERAA02149A0 ERAA02149A2 - - - - - - - - - - - ERAA02149A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

1 in. / DN 25

With

Gauge Port

but Without

Control Line

NPT ERCA00547A0(2) ERCA00547A1 ERCA00547A5 ERCA00547A4 ERCA00547A3 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERCA00595A0 ERCA00595A3 ERCA00595A2 ERCA00595A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERAA02150A0 ERAA02150A3 ERAA02150A2 ERAA02150A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERAA02151A0 ERAA02151A2 - - - - - - - - - - - ERAA02151A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

1-1/2 in. /

DN 40

Without

Gauge Port and

Control Line

NPT ERCA01591A0(2) GF05411X022 GF05411X082 GF05411X052 GF05411X042 GF05411X062 GF05411X072 - - - - - - - - - - -

SWE - - - - - - - - - - - GF05413X022 GF05413X062 GF05413X052 GF05413X042 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERAA01760A0 ERAA01760A3 ERAA01760A2 ERAA01760A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERAA01761A0 ERAA01761A3 ERAA01761A2 ERAA01761A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL600 RF - - - - - - - - - - - ERAA01783A0 ERAA01784A3 ERAA01783A2 ERAA01783A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERAA01762A0 ERAA01762A2 - - - - - - - - - - - ERAA01762A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

1-1/2 in. /

DN 40

Without

Gauge Port

but With

Control Line

NPT - - - - - - - - - - - ERCA00559A1(3) ERCA00559A5(3) ERCA00559A4(3) ERCA00559A3(3) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERAA02368A0(3) ERAA02368A3(3) ERAA02368A2(3) ERAA02368A1(3) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERAA02369A0(3) ERAA02369A3(3) ERAA02369A2(3) ERAA02369A1(3) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERAA02370A0(3) ERAA02370A2(3) - - - - - - - - - - - ERAA02370A1(3) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

1-1/2 in. /

DN 40

With

Gauge Port

but Without

Control Line

NPT ERCA00560A0(2) ERCA00560A1 ERCA00560A5 ERCA00560A4 ERCA00560A3 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERAA02374A0 ERAA02374A3 ERAA02374A2 ERAA02374A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERAA02375A0 ERAA02375A3 ERAA02375A2 ERAA02375A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERAA02376A0 ERAA02376A2 - - - - - - - - - - - ERAA02376A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

1. Meets the chemical and physical requirements of NACE MR0175-2002 and NACE MR0103.

2. For Types MR95H and MR95HD only.

3. Not available for Type MR95HT.

NOTE: Optional material options are available to meet ANSI/NACE MR0175/ISO 15156, please contact your local Sales Ofce for special ordering instructions.

Other end connections may be available, please contact your local Sales Ofce.

Monel® is a mark owned by Special Metals Corporation.

Hastelloy® C is a mark owned by Haynes International, Inc.

MR95 Series

25

Figure 6. Type MR95L, 1/4 NPT and 1/2 to 1 in. / DN 15 to 25 Body Sizes Assembly

APPLY LUBRICANT OR SEALANT(1):

T = THREAD LOCKER

L1 = GENERAL PURPOSE PTFE OR LITHIUM GREASE

L2 = ANTI-SEIZE COMPOUND

L4 = GRAPHITE SEALANT

GF04915

1. Lubricants and sealants must be selected such that they meet the temperature requirements.

2. Apply L2 (anti-seize compound) on key 16 for stainless steel bolts.

3. Apply L4 (graphite sealant) instead of L1 (general purpose PTFE or lithium grease) on key 63 for graphite ring.

SEALED ADJUSTING SCREW OPTION

TEE-HANDLE OPTION

COMPOSITE SEAT OPTION

CONTROL LINE OPTION

METAL DIAPHRAGM OPTION

50

22

4B

4A

6B

52

6C

6A

12

18

18

13

64

19

L2

17

12

1

20

6

9L2

15

2

11

16

7

4

26

63

L2

L2(2)

L1

L4

21C

21A

21B

T

3L2

5L2

L1

OR(3)

MR95 Series

26

Figure 7. Type MR95LD, 1/4 NPT and 1/2 to 1 in. / DN 15 to 25 Body Sizes Assembly

APPLY LUBRICANT OR SEALANT(1):

T = THREAD LOCKER

L1 = GENERAL PURPOSE PTFE OR LITHIUM GREASE

L2 = ANTI-SEIZE COMPOUND

L3 = SILICONE GREASE

L4 = GRAPHITE SEALANT

GF04919

1. Lubricants and sealants must be selected such that they meet the temperature requirements.

2. Apply L2 (anti-seize compound) on key 16 for stainless steel bolts.

3. Apply L4 (graphite sealant) instead of L1 (general purpose PTFE or lithium grease) on key 63 for graphite ring.

CONTROL LINE OPTION

COMPOSITE SEAT OPTION

METAL DIAPHRAGM OPTION

L3

L1

L2

L1

21B

16

7

6

4

26

5

44 41

35

39

43

37

L2

33

L2

9

L2

L1

L4

3

11

21A

12

1

63

20

38

34

36

40

42

32

2

21C

6C

52

4B

19

18

13

64 18

19

12

19

19

4A

T

OR(3)

L2(2)

MR95 Series

27

APPLY LUBRICANT OR SEALANT(1):

L1 = GENERAL PURPOSE PTFE OR LITHIUM GREASE

L2 = ANTI-SEIZE COMPOUND

L4 = GRAPHITE SEALANT

GF04914

Figure 8. Types MR95H, MR9HP and MR9HT, 1/4 NPT and 1/2 to 1 in. / DN 15 to 25 Body Sizes Assembly

1. Lubricants and sealant must be selected such that they meet the temperature requirements.

2. Apply L2 (anti-seize compound) on key 16 for stainless steel bolts.

3. Apply L4 (graphite sealant) instead of L1 (general purpose PTFE or lithium grease) on key 63 for graphite ring.

4. Apply L4 (graphite sealant) instead of L2 (anti-seize compound) on keys 3 and 5 for Type MR95HT.

SEALED ADJUSTING SCREW OPTION

METAL DIAPHRAGM OPTION

CONTROL LINE OPTION

COMPOSITE SEAT OPTION

TEE-HANDLE OPTION

HP OPTION

L1

L4

L1

L1

L2 50

12

4C

22

L2

L2

15 17

8

12

1

20

6

3

26

9

2

11

16

7

4

5

63

19

6A

52

18

64

13

18

6B

6C

4B

4A

OR(3)

L2

L4

OR(4)

L2(2)

L2

L4

OR(4)

MR95 Series

28

APPLY LUBRICANT OR SEALANT(1):

L1 = GENERAL PURPOSE PTFE OR LITHIUM GREASE

L2 = ANTI-SEIZE COMPOUND

L4 = GRAPHITE SEALANT

GF04500

Figure 9. Types MR95H, MR9HP and MR9HT, 1-1/2 to 2 in. / DN 40 and 50 Body Sizes Assembly

1. Lubricants and sealants must be selected such that they meet the temperature requirements.

2. Apply L2 (anti-seize compound) on key 16 for stainless steel bolts.

3. Apply L4 (graphite sealant) instead of L1 (general purpose PTFE or lithium grease) on key 63 for graphite ring.

4. Apply L4 (graphite sealant) instead of L2 (anti-seize compound) on keys 3 and 5 for Type MR95HT.

15L2

45L1

5

2

17

13

64

18

18

10

51

8

16

12

1

20

6

27

11

31

28

21

7

4

26

3

L2

L2(2)

9 L2

63

L1

L4

29

19

12

METAL DIAPHRAGM OPTION

6B

L1

6A

52

CONTROL LINE OPTION

4B

4A

COMPOSITION SEAT OPTION

27A

27B L1

HP OPTION

50

SEALED ADJUSTING

SCREW OPTION

22 L2

TEE-HANDLE

OPTION

OR(3)

L2

L4

OR(4)

L2

L4

OR(4)

MR95 Series

29

Figure 10. Type MR95HD, 1/4 NPT and 1/2 to 2 in. / DN 15 to 50 Body Sizes Assembly

APPLY LUBRICANT OR SEALANT(1):

L1 = GENERAL PURPOSE PTFE OR LITHIUM GREASE

L2 = ANTI-SEIZE COMPOUND

L4 = GRAPHITE SEALANT

GF04918

1. Lubricants and sealants must be selected such that they meet the temperature requirements.

2. Apply L2 (anti-seize compound) on key 16 for stainless steel bolts.

3. Apply L4 (graphite sealant) instead of L1 (general purpose PTFE or lithium grease) on key 63 for graphite ring.

L2

L2

L1

19

41

33

L3 36

L1 37

11

2

16

7

4

26

63

L2

L1

L4

3

L2

5

43

32

38

44

35

34

39

40

42

9

8

12

1

20

6

12

52

6C

6A

6B

4B

4A

18

18

64

13

METAL DIAPHRAGM OPTION

CONTROL LINE OPTION

COMPOSITION SEAT OPTION

OR(3)

L2(2)

MR95 Series

30

BODY SIZE END

CONNECTION

BODY MATERIAL

Gray Cast Iron WCC Steel LCC Steel CF8M Stainless

steel(1)

CF3M Stainless

steel(1) Monel®(1) Hastelloy® C(1) Aluminum-

Bronze(1)

2 in. / DN 50

Without

Gauge Port

and

Control Line

NPT ERCA01590A0(2) GF05290X022 GF05290X082 GF05290X052 GF05290X042 GF05290X062 GF05290X072 - - - - - - - - - - -

SWE - - - - - - - - - - - GF05412X022 GF05412X062 GF05412X052 GF05412X042 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERAA01766A0 ERAA01766A3 ERAA01766A2 ERAA01766A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERAA01767A0 ERAA01767A3 ERAA01767A2 ERAA01767A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL600 RF - - - - - - - - - - - ERAA01784A0 ERAA01784A3 ERAA01784A2 ERAA01784A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERAA01768A0 ERAA01768A2 - - - - - - - - - - - ERAA01768A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Integral CL150 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERCA00567A2 ERCA00567A4 ERCA00567A5 ERCA00567A6

Integral CL300 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERCA00568A2 ERCA00568A4 ERCA00568A5 ERCA00568A6

Integral CL600 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERAA01764A2 ERAA01764A4 ERAA01764A5 ERAA01764A6

Integral PN 16/25/40 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERCA00569A2 ERCA00569A4 ERCA00569A5 ERCA00569A6

2 in. / DN 50

Without Gauge

Port but With

Control Line

NPT - - - - - - - - - - - ERCA00565A1(3) ERCA00565A5(3) ERCA00565A4(3) ERCA00565A3(3) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERAA02371A0(3) ERAA02371A3(3) ERAA02371A2(3) ERAA02371A1(3) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERAA02372A0(3) ERAA02372A3(3) ERAA02372A2(3) ERAA02372A1(3) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERAA02373A0(3) ERAA02373A2(3) - - - - - - - - - - - ERAA02373A1(3) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

2 in. / DN 50

With

Gauge Port

but Without

Control Line

NPT ERCA00566A0(2) ERCA00566A1 ERCA00566A5 ERCA00566A4 ERCA00566A3 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL150 RF - - - - - - - - - - - ERAA02377A0 ERAA02377A3 ERAA02377A2 ERAA02377A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded CL300 RF - - - - - - - - - - - ERAA02378A0 ERAA02378A3 ERAA02378A2 ERAA02378A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Welded PN 16/25/40 RF - - - - - - - - - - - ERAA02379A0 ERAA01768A2 - - - - - - - - - - - ERAA02379A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

1. Meets the chemical and physical requirements of NACE MR0175-2002 and NACE MR0103.

2. For Types MR95H and MR95HD only.

3. Not available for Type MR95HT.

NOTE: Optional material options are available to meet ANSI/NACE MR0175/ISO 15156, please contact your local Sales Ofce for special ordering instructions.

Other end connections may be available, please contact your local Sales Ofce.

Key 1, Types MR95H, MR95HD, MR95HP and MR95HT Regulator Body Part Numbers

TYPE

BODY SIZE

STYLE

SPRING CASE MATERIAL

In. DN Gray Cast Iron WCC Steel LCC Steel CF8M

Stainless steel Monel®Hastelloy® C

MR95L

1/4 NPT - - - - Drilled Hole (standard) ERCA03546A0 ERCA02874A0(2) ERCA02874A3(2) ERCA02874A2(1) - - - - - - - - - - - - - - - - - - - - - -

1/4 NPT Vent ERCA00609A1 ERAA01872A2(2) ERAA01872A4(2) ERAA01872A3(1) - - - - - - - - - - - - - - - - - - - - - -

1/2 15 Drilled Hole (standard) ERCA03564A0 ERCA02883A0(2) ERCA02883A3(2) ERCA02883A2(1) - - - - - - - - - - - - - - - - - - - - - -

1/4 NPT Vent ERCA00615A0 ERAA01885A0(2) ERAA01885A4(2) ERAA01885A1(1) ERAA01885A2(1) ERAA01885A3(1)

3/4 and 1 20 and 25 Drilled Hole (standard) ERCA03497A0 ERCA02908A0(2) ERCA02908A3(2) ERCA02908A2(1) - - - - - - - - - - - - - - - - - - - - - -

1/4 NPT Vent ERCA00623A0 ERCA00621A2(2) ERCA00621A6(2) ERCA00621A3(1) ERCA00621A4(1) ERCA00621A5(1)

MR95LD

1/4 NPT - - - - 1/4 NPT Vent (standard) - - - - - - - - - - - ERCA03517A0 ERCA03517A3 ERCA03517A2 - - - - - - - - - - - - - - - - - - - - - -

1/2 15 1/4 NPT Vent (standard) - - - - - - - - - - - ERCA03531A0 ERCA03531A3 ERCA03531A2 - - - - - - - - - - - - - - - - - - - - - -

3/4 and 1 20 and 25 1/4 NPT Vent (standard) - - - - - - - - - - - ERCA04405A0 ERCA04405A2 ERCA04405A1 - - - - - - - - - - - - - - - - - - - - - -

MR95H,

MR95HP

and

MR95HT

1/4 NPT - - - - Drilled Hole (standard) ERCA03544A0(3) ERCA02872A0(2) ERCA02872A3(2) ERCA02872A2(1) - - - - - - - - - - - - - - - - - - - - - -

1/4 NPT Vent ERCA00610A1(3) ERAA01873A2(2) ERAA01873A4(2) ERAA01873A3(1) - - - - - - - - - - - - - - - - - - - - - -

1/2 15 Drilled Hole (standard) ERCA03562A0(3) ERCA02881A0(2) ERCA02881A3(2) ERCA02881A2(1) - - - - - - - - - - - - - - - - - - - - - -

1/4 NPT Vent ERCA00616A0(3) ERAA01886A0(2) ERAA01886A4(2) ERAA01886A1(1) ERAA01886A2(1) ERAA01886A3(1)

3/4 and 1 20 and 25 Drilled Hole (standard) ERCA03496A0(3) ERCA02907A0(2) ERCA02907A3(2) ERCA02907A2(1) - - - - - - - - - - - - - - - - - - - - - -

1/4 NPT Vent ERCA00624A0(3) ERCA00622A2(2) ERCA00622A6(2) ERCA00622A3(1) ERCA00622A4(1) ERCA00622A5(1)

1-1/2 and 2 40 and 50 1/4 NPT Vent ERCA03641A0(3) ERCA02900A0(2) ERCA02900A5(2) ERCA02900A2(1) ERCA02900A3(1) ERCA02900A4(1)

MR95HD

1/4 NPT - - - - 1/4 NPT Vent (standard) - - - - - - - - - - - ERCA03515A0 ERCA03515A3 ERCA03515A2 - - - - - - - - - - - - - - - - - - - - - -

1/2 15 1/4 NPT Vent (standard) - - - - - - - - - - - ERCA03529A0 ERCA03529A3 ERCA03529A2 - - - - - - - - - - - - - - - - - - - - - -

3/4 and 1 20 and 25 1/4 NPT Vent (standard) - - - - - - - - - - - ERCA03499A0 ERCA03499A3 ERCA03499A2 - - - - - - - - - - - - - - - - - - - - - -

1-1/2 and 2 40 and 50 1/4 NPT Vent (standard) - - - - - - - - - - - ERCA03691A0 ERCA03691A3 ERCA03691A2 - - - - - - - - - - - - - - - - - - - - - -

1. Meets the chemical and physical requirements of NACE MR0175-2002 and NACE MR0103.

2. WCC and LCC spring cases meet NACE MR0175-2002 and NACE MR0103 requirements only for applications in which the spring case is not exposed to the sour gas.

3. Available for Type MR95H only.

NOTE: Optional material options are available to meet ANSI/NACE MR0175/ISO 15156, please contact your local Sales Ofce for special ordering instructions.

Key 2, Spring Case Part Numbers

BODY SIZE

SEAT TYPE

ORIFICE MATERIAL

In. DN Brass 416 Stainless

steel

316 Stainless

steel(1) Monel®(1) Hastelloy® C(1)

1/4

Composition seat

ERAA07702A0 ERAA07702A1 ERAA07702A2 ERAA07702A3 ERAA07702A4

1/2 15 ERAA07695A0 ERAA07695A1 ERAA07695A2 ERAA07695A3 ERAA07695A4

3/4 to 1 20 to 25 ERAA07700A0 ERAA07700A1 ERAA07700A2 ERAA07700A3 ERAA07700A4

1-1/2 to 2 40 to 50 ERAA07698A0 ERAA07698A1 ERAA07698A2 ERAA07698A3 ERAA07698A4

1/4

Metal-to-metal seat

- - - - - - - - - - - ERAA07701A0 ERAA07701A1 ERAA07701A2 ERAA07701A3

1/2 15 - - - - - - - - - - - ERAA07694A0 ERAA07694A1 ERAA07694A2 ERAA07694A3

3/4 to 1 20 to 25 - - - - - - - - - - - ERAA07699A0 ERAA07699A1 ERAA07699A2 ERAA07699A3

1-1/2 to 2 40 to 50 - - - - - - - - - - - ERAA07697A0 ERAA07697A1 ERAA07697A2 ERAA07697A3

1. Meets the chemical and physical requirements of NACE MR0175-2002 and NACE MR0103.

NOTE: Optional material options are available to meet ANSI/NACE MR0175/ISO 15156, please contact your local Sales Ofce for special ordering instructions.

Other end connections may be available, please contact your local Sales Ofce.

Key 3, Reduced Orifice Part Numbers

Monel® is a mark owned by Special Metals Corporation.

Hastelloy® C is a mark owned by Haynes International, Inc.

MR95 Series

31

Key 4, Valve Plug, Metal Seat

TYPE MATERIAL(1)

BODY SIZE, IN. / DN

1/4 NPT 1/2 / 15 3/4 and 1 / 20 and 25 1-1/2 and 2 / 40 and 50(2)

MR95L, MR95LD, MR95H,

MR95HD and MR95HT

416 Stainless steel ERCA00360A0 ERCA00287A0 GF05476X022 ERCA00375A0

316 Stainless steel ERCA00360A1 ERCA00287A1 GF05476X032 ERCA00375A1

Hastelloy® C ERCA00360A3 ERCA00287A3 GF05476X052 ERCA00375A3

Monel®ERCA00360A2 ERCA00287A2 GF05476X042 ERCA00375A2

Alloy 6 - - - - - - - - - - - ERCA00287A4 GF05476X062 ERCA00375A4

1. Hastelloy® C and Monel® are not available for Type MR95HT.

2. For Types MR95H, MR95HD and MR95HT only.

Key 4, Disk Holder Assembly, Composition Seat

TYPE MATERIAL

BODY SIZE, IN. / DN

1/4 NPT 1/2 / 15 3/4 and 1 / 20 and 25 1-1/2 and 2 / 40 and 50(4)

Nitrile (NBR) Seat

MR95L,MR95LD, MR95H

and MR95HD

Brass - - - - - - - - - - - ERCA00635A3 ERCA00636A3 ERCA00637A3

316 Stainless steel ERCA00634A5(1) ERCA00635A5(1) ERCA00636A5(1) ERCA00637A5(1)

416 Stainless steel ERCA00634A4 ERCA00635A4 ERCA00636A4 ERCA00637A4

MR95HP

316 Stainless steel ERAA01901A1(1) ERAA01905A1(2) ERAA01892A1(1) ERCA00637A5(1)

416 Stainless steel ERAA01901A0 ERAA01905A0 ERAA01892A0 ERCA00637A4

Fluorocarbon (FKM) Seat

MR95L, MR95LD, MR95H

and MR95HD

Brass - - - - - - - - - - - ERCA00635A9(3) ERCA00636A9(3) ERCA00637A9(3)

316 Stainless steel ERCA00634B1(1)(3) ERCA00635B1(1) ERCA00636B1(1) ERCA00637B1(1)

416 Stainless steel ERCA00634B0 ERCA00635B0 ERCA00636B0 ERCA00637B0

Monel®ERCA00634B2 ERCA00635B2 ERCA00636B2 ERCA00637B2

MR95HP

316 Stainless steel ERAA01901A2(1) ERAA01905A2(2) ERAA01892A2(1) ERCA00637B1(1)

416 Stainless steel ERAA01901A3 ERAA01905A3 ERAA01892A3 ERCA00637B0

Peruoroelastomer (FFKM) Seat

MR95L, MR95LD, MR95H

and MR95HD 316 Stainless steel ERCA00634B9 ERCA00635B9 ERCA00636B9 ERCA00637B9

Polytetrauoroethylene (PTFE) Seat

MR95L, MR95LD, MR95H

and MR95HD

Brass - - - - - - - - - - - ERCA00635B4 ERCA00636B4 ERCA00637B4

316 Stainless steel ERCA00634B6 ERCA00635B6 ERCA00636B6 ERCA00637B6

416 Stainless steel ERCA00634B5 ERCA00635B5 ERCA00636B5 ERCA00637B5

Ethylenepropylene (EPDM) Seat

MR95L, MR95LD, MR95H

and MR95HD 416 Stainless steel ERCA00634A7 ERCA00635A7 ERCA00636A7 ERCA00637A7

1. NACE MR0175-2002 and MR0103.

2. NACE MR0175-2002.

3. Oxygen Service

4. Not available for Types MR95L and MR95LD.

NOTE: Optional material options are available to meet ANSI/NACE MR0175/ISO 15156, please contact your local Sales Ofce for special ordering instructions.

TYPE

BODY SIZE DIAPHRAGM MATERIAL

In. DN Neoprene (CR) Fluorocarbon (FKM)

(2 required)

Ethylenepropylene (EPDM)

(2 required)

MR95L and MR95LD

1/4 NPT - - - - ERCA00675A0 ERCA00675A1(1) ERCA00675A2(1)

1/2 15 ERCA00509A0 ERCA00509A1 ERCA00509A2

3/4 and 1 20 and 25 ERCA00599A0 ERCA00599A1 ERCA00599A2

MR95H, MR95HD

and MR95HP

1/4 NPT - - - - ERCA00672A0 ERCA00672A1(1) ERCA00672A2(1)

1/2 15 ERCA00507A0 ERCA00507A1 ERCA00507A2

3/4 and 1 20 and 25 ERCA00515A0 ERCA00515A1 ERCA00515A2

1-1/2 and 2 40 and 50 ERCA00661A0 ERCA00661A1 ERCA00661A2

1. Only one diaphragm is needed for regulators with 1/4 NPT body size. See Table 7.

*Recommended spare part.

NOTE: Optional material options are available to meet ANSI/NACE MR0175/ISO 15156, please contact your local Sales Ofce for special ordering instructions.

Key 12*, Composition Diaphragm, NACE MR0175-2002 and NACE MR0103

Monel® is a mark owned by Special Metals Corporation.

Hastelloy® C is a mark owned by Haynes International, Inc.

MR95 Series

TYPE

BODY SIZE DIAPHRAGM MATERIAL (2 REQUIRED)

In. DN 302 Stainless steel 302 Stainless steel

(Oxygen Service) Monel®Hastelloy® C

MR95L

1/4 NPT - - - - ERCA00654A0(1) ERCA00654A1(1) ERCA00654A2(1) ERCA00654A3(1)

1/2 15 ERCA00490A0 ERCA00490A1 ERCA00490A2 ERCA00490A3

3/4 and 1 20 and 25 ERCA00557A0 ERCA00557A1 ERCA00557A2 ERCA00557A3

MR95H

1/4 NPT - - - - ERCA00647A0 ERCA00647A1 ERCA00647A2 ERCA00647A3

1/2 15 ERCA00459A0 ERCA00459A1 ERCA00459A2 ERCA00459A3

3/4 and 1 20 and 25 ERCA00511A0 ERCA00511A1 ERCA00511A2 ERCA00511A3

1-1/2 and 2 40 and 50 ERCA00527A0 ERCA00527A1 ERCA00527A2 ERCA00527A3

MR95LD

1/4 NPT - - - - ERCA00654A0(1) - - - - - - - - - - - ERCA00654A2(1) ERCA00654A3(1)

1/2 15 ERCA00490A0 - - - - - - - - - - - ERCA00490A2 ERCA00490A3

3/4 and 1 20 and 25 ERCA00557A0 - - - - - - - - - - - ERCA00557A2 ERCA00557A3

MR95HD and MR95HT

1/4 NPT - - - - ERCA00647A0 - - - - - - - - - - - ERCA00647A2 ERCA00647A3

1/2 15 ERCA00459A0 - - - - - - - - - - - ERCA00459A2 ERCA00459A3

3/4 and 1 20 and 25 ERCA00511A0 - - - - - - - - - - - ERCA00511A2 ERCA00511A3

1-1/2 and 2 40 and 50 ERCA00527A0 - - - - - - - - - - - ERCA00527A2 ERCA00527A3

1. Only one metal diaphragm is needed for Types MR95L and MR95LD with 1/4 NPT body size and 2 to 6 psi / 0.14 to 0.41 bar spring range. See Table 7.

*Recommended spare part.

Key 12* Metal Diaphragm

Monel® is a mark owned by Special Metals Corporation.

Hastelloy® C is a mark owned by Haynes International, Inc.

©Emerson Process Management Regulator Technologies, Inc., 2013, 2015; All Rights Reserved

The Emerson logo is a trademark and service mark of Emerson Electric Co. All other marks are the property of their prospective owners. Fisher is a mark owned by Fisher Controls International LLC,

a business of Emerson Process Management.

The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not to be construed as warranties or

guarantees, express or implied, regarding the products or services described herein or their use or applicability. We reserve the right to modify or improve the designs or specifi cations of such

products at any time without notice.

Emerson Process Management Regulator Technologies, Inc. does not assume responsibility for the selection, use or maintenance of any product. Responsibility for proper selection, use and

maintenance of any Emerson Process Management Regulator Technologies, Inc. product remains solely with the purchaser.

Industrial Regulators

Emerson Process Management

Regulator Technologies, Inc.

USA - Headquarters

McKinney, Texas 75070 USA

Tel: +1 800 558 5853

Outside U.S. +1 972 548 3574

Asia-Paci c

Shanghai 201206, China

Tel: +86 21 2892 9000

Europe

Bologna 40013, Italy

Tel: +39 051 419 0611

Middle East and Africa

Dubai, United Arab Emirates

Tel: +971 4811 8100

Natural Gas Technologies

Emerson Process Management

Regulator Technologies, Inc.

USA - Headquarters

McKinney, Texas 75070 USA

Tel: +1 800 558 5853

Outside U.S. +1 972 548 3574

Asia-Paci c

Singapore 128461, Singapore

Tel: +65 6770 8337

Europe

Bologna 40013, Italy

Tel: +39 051 419 0611

Chartres 28008, France

Tel: +33 2 37 33 47 00

Middle East and Africa

Dubai, United Arab Emirates

Tel: +971 4811 8100

TESCOM

Emerson Process Management

Tescom Corporation

USA - Headquarters

Elk River, Minnesota 55330-2445, USA

Tels: +1 763 241 3238

+1 800 447 1250

Europe

Selmsdorf 23923, Germany

Tel: +49 38823 31 287

Asia-Paci c

Shanghai 201206, China

Tel: +86 21 2892 9499

For further information visit www.fisherregulators.com

The distinctive diamond shape cast into every

spring case uniquely identifies the regulator

as part of the Fisher® brand and assures you

of the highest-quality engineering, durability,

performance, and support.
