MR98 Series
D103588X012
Instruction Manual
January 2015
www.fisherregulators.com
MR98 Series Backpressure Regulators, Relief
and Differential Relief Valves
Figure 1. Typical MR98 Series Backpressure Regulators, Relief and Differential Relief Valves
TYPE MR98L
TYPE MR98H
TYPE MR98L
TYPE MR98L
TYPE MR98L
TYPE MR98L
P1757
P1753
MR98 Series
2
This section lists the specications for the MR98 Series regulators. Factory specication such as type, maximum
inlet pressure, maximum temperature, maximum outlet pressure, spring range, orice size and seat material are
stamped on the nameplate fastened on the regulator at the factory.
Available Constructions
Type MR98L: Direct-operated low pressure
backpressure regulator/relief valve with 2 to
38 psig / 0.14 to 2.6 bar set pressure range
Type MR98H: Direct-operated high pressure
backpressure regulator/relief valve with 5 to
200 psig / 0.34 to 13.8 bar set pressure range
Type MR98HH: Direct-operated high pressure
backpressure/relief valve with 150 to 375 psig /
10.3 to 25.9 bar set pressure range
Type MR98LD: Pressure-loaded low pressure
differential pressure relief valve with 2 to 38 psi /
0.14 to 2.6 bar set pressure range
Type MR98HD: Pressure-loaded high pressure
differential pressure relief valve with 5 to 200 psi /
0.34 to 13.8 bar set pressure range
Type MR98HHD: Pressure-operated high
pressure backpressure/relief valve with 150
to 375 psi / 10.3 to 25.9 bar differential set
pressure range
1/4 NPT: 0.284 in. / 7.22 mm
1/2 in. / DN 15: 0.416 in. / 10.56 mm
3/4 and 1 in. / DN 20 and 25:
0.631 in. / 16.02 mm
1-1/2 and 2 in. / DN 40 and 50:
1.142 in. / 29 mm
Maximum Spring Case Loading Pressure for
Types MR98LD, MR98HD and MR98HHD
(Spring Setting Plus Loading Pressure)(1)(2)
Type MR98LD Spring Case
Gray Cast Iron: 50 psig / 3.4 bar
Steel or Stainless steel: 125 psig / 8.6 bar
Type MR98HD Spring Case
Gray Cast Iron: 250 psig / 17.2 bar
Steel or Stainless steel: 300 psig / 20.7 bar
Type MR98HHD Spring Case
Steel or Stainless steel: 300 psig / 20.7 bar
Maximum Inlet and Outlet Pressure Rating
See Table 4
See Tables 1 and 2
and Materials(1)(2)
See Table 4
BODY SIZE CvCgC1
In. DN
1/4 NPT - - - - 1.4 48 34.3
1/2 15 3.4 120 35.3
3/4 and 1 20 and 25 6.5 250 38.5
1-1/2 and 2 40 and 50 20.0 780 39.0
BODY SIZE XTFdFLKm
In. DN
1/4 NPT - - - - 0.743 0.74 0.95 0.90
1/2 15 0.787 0.78 0.94 0.88
3/4 and 1 20 and 25 0.935 0.70 0.91 0.83
1-1/2 and 2 40 and 50 0.961 0.69 0.94 0.88
Set Pressure Ranges
See Table 3
Pressure Registration
Internal or External
Metal Seats: Class IV
Class IV
Elastomer Seats: Class VI or better
Temperature Capabilities for Elastomer Parts(1)(3)
See Table 5
Temperature Capabilities for Metal Parts(1)(3)
See Table 5
Approximate Weights
MR98H Series:
1/4 NPT: 5 lbs / 2.3 kg
1/2 in. / DN 15: 10 lbs / 4.5 kg
3/4 and 1 in. / DN 20 and 25: 22 lbs / 10 kg
1-1/2 and 2 in. / DN 40 and 50: 55 lbs / 25 kg
MR98L Series:
1/4 NPT: 7 lbs / 3.2 kg
1/2 in. / DN 15: 15 lbs / 6.8 kg
3/4 and 1 in. / DN 20 and 25: 35 lbs / 16 kg
1. The pressure/temperature limits in this Instruction Manual and any applicable standard limitation should not be exceeded.
2. Temperature and/or the body end connection may decrease these maximum pressures.
3. Pressure and/or the body end connection may decrease these maximum temperatures.
MR98 Series
3
WARNING
!
Failure to follow these instructions or
to properly install and maintain this
equipment could result in an explosion,
causing property damage and personal
injury or death.
Fisher® backpressure regulators, relief
and differential relief valves must be
installed, operated and maintained
in accordance with federal, state and
local codes, rules and regulations
and Emerson Process Management
Regulator Technologies, Inc.
(Emerson™) instructions.
If a leak develops or if the outlet
continually vents gas, service to the
unit may be required. Failure to correct
install or service the unit.
Installation, operation and maintenance
person may result in improper adjustment
and unsafe operation. Either condition
may result in equipment damage or
when installing, operating and maintaining
the MR98 Series backpressure regulators,
relief and differential relief valves.
Introduction
Scope of the Manual
This manual provides instructions for the installation,
adjustment, maintenance and parts ordering
information of MR98 Series backpressure regulators,
relief and differential relief valves. Instructions and
parts lists for other equipment mentioned in this
Instruction Manual are found in separate manuals.
Product Description
The MR98 Series backpressure regulator, relief and
differential relieve valve are suitable for liquid, gas, air
and steam service. Typical applications include use in
wash tanks, small heaters, fuel and oil lines, air supply
systems, test xtures and sterilizers.
Type MR98L—Direct-operated, backpressure
regulator or relief valve with relief set pressure range
from 2 to 38 psig / 0.14 to 2.6 bar in four ranges. Body
sizes are available from 1/4 NPT to 1 in. / DN 25.
Type MR98H—Basically the same as the Type MR98L
but permits higher relief set pressure ranges from 5 to
200 psig / 0.34 to 13.8 bar, in four ranges. Body sizes
are available from 1/4 NPT to 2 in. / DN 50.
Type MR98HH—Provides relief with higher set
pressure range from 150 to 375 psig / 10.3 to
25.9 bar. Body sizes are available in 1/4 NPT to 1 in. /
DN 25 sizes.
Type MR98LD—Differential pressure relief valve with
set pressure range from 2 to 38 psig / 0.14 to 2.6 bar.
Body sizes are available from 1/4 NPT to 1 in. / DN 25.
Type MR98HD—Basically the same as Type MR98LD
but permits higher differential relief set pressure from
5 to 200 psig / 0.34 to 13.8 bar. Body sizes are
available from 1/4 NPT to 2 in. / DN 50.
Type MR98HHD—Differential pressure relief valve
with higher set pressure range from 150 to 375 psi /
10.3 to 25.9 bar. Bodies are available in 1/4 NPT to
1 in. / DN 25 sizes.
MR98 Series
4
SPRING
SPRING
METAL DIAPHRAGMS METAL DIAPHRAGM
GASKET GASKET
FOR TYPE MR98H WITH TWO METAL DIAPHRAGMS
(ALSO TYPICAL OF TYPES MR98HH AND MR98L EXCEPT FOR
psi / 0.1 TO 0.48 bar RANGE)
psi / 0.14 TO 0.48 bar RANGE)
WITH ONE METAL DIAPHRAGM
Figure 2. MR98 Series Operational Schematics
CONTROL SPRING
DIAPHRAGM
ORIFICE
VALVE PLUG
VENT
ADJUSTING SCREW
CONTROL LINE TAP
TYPE MR98H WITH INTERNAL
PRESSURE REGISTRATION
BACK VIEW OF
1/2 IN. / DN 15 TYPE MR98H
WITH EXTERNAL
PRESSURE REGISTRATION
SIDE AND INTERNAL VIEW OF
3/4 TO 2 IN. / DN 20 TO 50
TYPE MR98H WITH EXTERNAL
PRESSURE REGISTRATION
(ALSO TYPICAL OF TYPE MR98L,
1/2 TO 2 IN. / DN 15 TO 50 BODIES)
INLET PRESSURE
OUTLET PRESSURE
ATMOSPHERIC PRESSURE
MR98 Series
5
The differential relief valve responds to both controlled
pressure and loading pressure and opens or closes
as these pressures change. If the loading pressure
increases, pressure on the upper side of the diaphragm
increases. The valve plug moves closer to the orice
and restricts the ow through the relief valve. When
loading pressure decreases, pressure on the upper
side of the diaphragm decreases. This allows the valve
plug to move away from the orice and allow more ow
through the differential relief valve (to atmosphere or
back into the system). The differential relief valve opens
and closes in response to changes in the controlled
pressure. In this way, the differential pressure between
the controlled and uncontrolled pressures is maintained.
Principle of Operation
Relief or backpressure valves respond to changes in
upstream pressure. Pressure changes register under
the diaphragm (see Figure 2) through a registration hole
in the valve body or through an external control line.
When the pressure increases above the spring setting,
the pressure underneath the diaphragm overcomes the
spring compression. This causes the valve plug to move
away from the orice. The ow path through the valve
is open and excess pressure is vented. When upstream
pressure drops below setpoint, the valve closes.
Differential relief valves are used to maintain a
differential pressure between the controlled pressure
and loading pressure of a system. The spring setting
determines the differential.
FOR TYPES MR98HD, MR98HHD AND MR98LD WITH TWO METAL
DIAPHRAGMS, ASSEMBLE DIAPHRAGM GASKETS UNDER AND
ABOVE THE METAL DIAPHRAGMS AS SHOWN ABOVE
SPRING METAL DIAPHRAGMS
GASKET
Figure 2. MR98 Series Operational Schematics (continued)
CONTROL SPRING
DIAPHRAGM
ORIFICE
VALVE PLUG
LOADING PRESSURE
INLET TAP
HANDWHEEL
OUTLET PRESSURE
INLET PRESSURE
LOADING PRESSURE
CONTROL LINE TAP
TYPE MR98HD WITH INTERNAL PRESSURE REGISTRATION TYPE MR98HD WITH EXTERNAL PRESSURE REGISTRATION
MR98 Series
6
BODY SIZE BODY CONSTRUCTION END CONNECTION STYLE
BODY MATERIAL
Gray Cast Iron
WCC or LCC Steel
CF8M Stainless Steel(1)
CF3M Stainless Steel(1)
Monel® or Hastelloy® C(1)
1/4 in. Without Control Line and Gauge Port NPT
1/2 in. / DN 15 Without Control Line and Gauge Port
NPT
SWE
Welded CL150 RF
Welded CL300 RF
Welded PN 16/25/40 RF
With Control Line but Without Gauge Port NPT
3/4 in. / DN 20
Without Control Line and Gauge Port
NPT
SWE
Welded CL150 RF
Welded CL300 RF
Welded PN 16/25/40 RF
With Control Line but Without Gauge Port NPT
With Gauge Port but Without Control Line
NPT
Welded CL150 RF
Welded CL300 RF
Welded PN 16/25/40 RF
1 in. / DN 25
Without Control Line and Gauge Port
NPT
SWE
Welded CL150 RF
Welded CL300 RF
Welded PN 16/25/40 RF
With Control Line but Without Gauge Port NPT
With Gauge Port but Without Control Line
NPT
Welded CL150 RF
Welded CL300 RF
Welded PN 16/25/40 RF
- Shaded areas indicate that the construction is available.
- Blank areas indicate that you need to contact your local Sales Ofce for the availability of the constructions.
1. Meets the chemical and physical requirements of NACE MR0175-2002 and NACE MR0103.
Table 1. Types MR98L and MR98LD Regulators Body Constructions
Monel® is a mark owned by Special Metals Corporation.
Hastelloy® C is a mark owned by Haynes International, Inc.
MR98 Series
7
Table 2. Types MR98H, MR98HD, MR98HH and MR98HHD Regulators Body Constructions
BODY SIZE BODY CONSTRUCTION END CONNECTION STYLE
BODY MATERIAL
Gray Cast Iron(2)
WCC or LCC Steel
CF8M Stainless Steel(1)
CF3MStainless Steel(1)
Monel® or Hastelloy® C(1)
1/4 in. Without Control Line and Gauge Port NPT
1/2 in. / DN 15
Without Control Line and Gauge Port
NPT
SWE
Welded CL150 RF
Welded CL300 RF
Welded PN 16/25/40 RF
Integral CL150 RF
Integral CL300 RF
Integral PN 16/25/40 RF
With Control Line but Without Gauge Port
NPT
Welded CL150RF
Welded CL300RF
3/4 in. / DN 20
Without Control Line and Gauge Port
NPT
SWE
Welded CL150 RF
Welded CL300 RF
Welded PN 16/25/40 RF
With Control Line but Without Gauge Port
NPT
Welded CL150 RF
Welded CL300 RF
With Gauge Port but Without Control Line
NPT
Welded CL150 RF
Welded CL300 RF
Welded PN 16/25/40 RF
1 in. / DN 25
Without Control Line and Gauge Port
NPT
SWE
Welded CL150 RF
Welded CL300 RF
Welded PN 16/25/40 RF
Integral CL150 RF
Integral CL300 RF
Integral PN 16/25/40 RF
With Control Line but Without Gauge Port
NPT
Welded CL150 RF
Welded CL300 RF
With Gauge Port but Without Control Line
NPT
Welded CL150 RF
Welded CL300 RF
Welded PN 16/25/40 RF
- Shaded areas indicate that the construction is available.
- Blank areas indicate that you need to contact your local Sales Ofce for the availability of the constructions.
1. Meets the chemical and physical requirements of NACE MR0175-2002 and NACE MR0103.
2. Available for Types MR98H and MR98HD only.
- continued -
Monel® is a mark owned by Special Metals Corporation.
Hastelloy® C is a mark owned by Haynes International, Inc.
MR98 Series
8
Table 2. Types MR98H, MR98HD, MR98HH and MR98HHD Regulators Body Constructions (continued)
BODY SIZE BODY CONSTRUCTION END CONNECTION STYLE
BODY MATERIAL
Gray Cast Iron
WCC or LCC Steel
CF8M Stainless Steel(1)
CF3M Stainless Steel(1)
Monel® or Hastelloy® C(1)
1-1/2 in. / DN 40
Types MR98H and MR98HD only
Without Control Line and Gauge Port
NPT
SWE
Welded CL150 RF
Welded CL300 RF
Welded PN 16/25/40 RF
With Control Line but Without Gauge Port
NPT
Welded CL150 RF
Welded CL300 RF
With Gauge Port but Without Control Line
NPT
Welded CL150 RF
Welded CL300 RF
Welded PN 16/25/40 RF
2 in. / DN 50
Types MR98H and MR98HD only
Without Control Line and Gauge Port
NPT
SWE
Welded CL150RF
Welded CL300RF
Welded PN 16/25/40 RF
Integral CL150 RF
Integral CL300 RF
Integral PN 16/25/40 RF
With Control Line but Without Gauge Port
NPT
Welded CL150 RF
Welded CL300 RF
With Gauge Port but Without Control Line
NPT
Welded CL150 RF
Welded CL300 RF
Welded PN 16/25/40 RF
- Shaded areas indicate that the construction is available.
- Blank areas indicate that you need to contact your local Sales Ofce for the availability of the constructions.
1. Meets the chemical and physical requirements of NACE MR0175-2002 and NACE MR0103.
Monel® is a mark owned by Special Metals Corporation.
Hastelloy® C is a mark owned by Haynes International, Inc.
MR98 Series
9
Table 3. MR98 Series Body Sizes, Pressure Ranges and Spring Information
TYPE
BODY SIZE CONTROL
PRESSURE RANGE(1)
SPRING WIRE
DIAMETER
SPRING FREE
LENGTH SPRING MATERIAL SPRING PART
NUMBER SPRING COLOR
In. DN psig bar In. mm In. mm
MR98L
and
MR98LD
1/4 - - - -
2 to 7 0.14 to 0.48 0.148 3.76 2.00 50.8 Zinc-plated steel 1E392527022 Yellow
6 to 14 0.41 to 0.97 0.170 4.32 2.00 50.8 Zinc-plated steel ERAA01888A0 Green
12 to 25 0.83 to 1.7 0.207 5.26 1.938 49.2 Powder-coated steel ERAA01889A0 Red
20 to 38 1.4 to 2.6 0.225 5.72 2.086 53.0 Powder-coated steel ERAA01929A0 Blue
1/2 15
2 to 7 0.14 to 0.48 0.207 5.26 2.50 63.5 Powder-coated steel ERCA04288A0 Yellow
6 to 14 0.41 to 0.97 0.234 5.94 2.595 65.9 Powder-coated steel ERAA01910A0 Green
12 to 25 0.83 to 1.7 0.283 7.19 2.44 62.0 Powder-coated steel ERAA01911A0 Red
20 to 38 1.4 to 2.6 0.331 8.41 2.250 57.2 Powder-coated steel ERAA02889A0 Blue
3/4
and 1
20 and
25
2 to 7 0.14 to 0.48 0.306 7.77 4.00 102 Powder-coated steel 1E398927022 Yellow
6 to 14 0.41 to 0.97 0.343 8.71 4.00 102 Powder-coated steel 1E399027142 Green
12 to 25 0.83 to 1.7 0.406 10.3 4.00 102 Powder-coated steel 1E399127162 Red
20 to 38 1.4 to 2.6 0.468 11.9 3.75 95.3 Powder-coated steel 1L380127082 Blue
3/4
and 1
20 and
25
2 to 7 0.14 to 0.48 0.306 7.77 4.00 102 Powder-coated stainless steel 1E3989X0052 Yellow
6 to 14 0.41 to 0.97 0.375 9.53 3.88 98.6 Stainless steel 1K762537022 Unpainted
12 to 25 0.83 to 1.7 0.437 11.1 4.00 102 Stainless steel 11A8269X012 Unpainted
MR98H
and
MR98HD
1/4 - - - -
15 to 35 1.0 to 2.4 0.148 3.76 2.00 50.8 Zinc-plated steel 1E392527022 Yellow
25 to 75 1.7 to 5.2 0.170 4.32 2.00 50.8 Zinc-plated steel ERAA01888A0 Green
70 to 140 4.8 to 9.7 0.207 5.26 1.938 49.2 Powder-coated steel ERAA01889A0 Red
130 to 200 9.0 to 13.8 0.225 5.72 2.086 53.0 Powder-coated steel ERAA01929A0 Blue
1/2 15
15 to 35 1.0 to 2.4 0.207 5.26 2.50 63.5 Powder-coated steel ERCA04288A0 Yellow
25 to 75 1.7 to 5.2 0.234 5.94 2.595 65.9 Powder-coated steel ERAA01910A0 Green
70 to 140 4.8 to 9.7 0.283 7.19 2.44 62.0 Powder-coated steel ERAA01911A0 Red
130 to 200 9.0 to 13.8 0.331 8.41 2.250 57.2 Powder-coated steel ERAA02889A0 Blue
3/4
and 1
20 and
25
15 to 35 1.0 to 2.4 0.306 7.77 4.00 102 Powder-coated steel 1E398927022 Yellow
25 to 75 1.7 to 5.2 0.343 8.71 4.00 102 Powder-coated steel 1E399027142 Green
70 to 140 4.8 to 9.7 0.406 10.3 4.00 102 Powder-coated steel 1E399127162 Red
130 to 200 9.0 to 13.8 0.468 11.9 3.75 95.3 Powder-coated steel 1L380127082 Blue
3/4
and 1
20 and
25
15 to 35 1.0 to 2.4 0.306 7.77 4.00 102 Powder-coated stainless steel 1E3989X0052 Yellow
25 to 75 1.7 to 5.2 0.375 9.53 3.88 98.6 Stainless steel 1K762537022 Unpainted
70 to 140 4.8 to 9.7 0.437 11.1 4.00 102 Stainless steel 11A8269X012 Unpainted
1-1/2
and 2
40
and 50
5 to 35 0.34 to 2.4 0.468 11.9 6.562 167 Powder-coated steel 1E792327092 Dark gray
20 to 65 1.4 to 4.5 0.500 12.7 6.50 165 Powder-coated steel ERCA04290A0 Black with light blue stripe
50 to 100 3.4 to 6.9 0.562 14.3 6.562 167 Powder-coated steel ERAA01893A0 Light gray
75 to 170 5.2 to 11.7 0.625 15.9 6.565 167 Powder-coated steel 1P7888X0022 Black
MR98HH
and
MR98HHD
1/4 - - - - 150 to 375 10.3 to 25.9 0.281 7.14 4.125 105 Powder-coated steel 1N942227142 Unpainted
1/2 15 150 to 375 10.3 to 25.9 0.394 10.0 5.063 129 Powder-coated steel 1N943427142 Unpainted
3/4
and 1
20
and 25 150 to 375 10.3 to 25.9 0.593 15.1 6.380 162 Chromium-silicon steel 1N9441X0022 Light gray
1. All springs may be backed off to 0 psig / 0 bar. However, highest capacities and best performances are obtained by using these springs in their recommended ranges.
MR98 Series
10
Figure 3. Installation Schematics for Types MR98LD and MR98HD Relief Valves
RELIEF OUTLET AND OPTIONAL
PIPING TO SYSTEM
LOADING PRESSURE
UNCONTROLLED LOW PRESSURE
PUMP
HIGH PRESSURE
CONTROLLED HIGH PRESSURE
TYPE MR98HD
TYPE MR98LD
LOW PRESSURE (FOR LOADING)
CONTROLLED HIGH PRESSURE
MR98 Series
11
Installation
WARNING
!
Personal injury or system damage may
result if this backpressure regulator,
relief or differential relief valve is
installed where service conditions
could exceed the limits given on
regulator nameplate.
Additionally, physical damage to the
backpressure regulator or relief valve
may result in personal injury or property
damage due to escaping of accumulated
gas. To avoid such injury and damage,
install the backpressure regulator or
relief valve in a safe location.
Under enclosed conditions or indoors,
escaping gas may accumulate and be an
should be piped outdoors.
For regulator constructions with a
spring case vent, the vent should be
to the atmosphere. Protect openings
against entrance of rain, snow, insects
or any other foreign material that may
plug the spring case vent or vent line.
Before installing the regulator:
• Unpack the backpressure regulator or relief valve
and remove the protective shipping plugs from
the end connections of the body and the pressure
connection in the spring case.
• Check the backpressure regulator or relief valve
and make sure it has not been damaged or
collected foreign material during shipping.
• Remove any debris or dirt in the tubing and
the pipeline.
• Apply pipe compound to the external pipe thread
for NPT bodies or use appropriate gaskets for
anged bodies.
• Make sure gas ow through the backpressure
regulator or relief valve is in the same direction as
the arrow on the body.
• For a differential relief valve, the design of the
valve isolates the diaphragm and pressure
loading spring case from the main flow stream.
The higher pressure is measured inside the body
through a registration hole on the inlet side of
the body or through the external control line. If
loading pressure is required, connect the loading
pressure line to the 1/4 NPT connection in the
spring case. If loading pressure is not required,
vent this connection to the atmosphere.
Overpressure Protection
WARNING
!
Overpressuring any portion of this
equipment may result in equipment
damage, leaks in the relief valve/
backpressure regulator or personal
injury due to bursting of pressure-
containing parts.
Relief, differential relief or backpressure ranges
are from 2 to 375 psig / 0.14 to 25.9 bar. The
individual spring range of your valve is stamped on
the nameplate.
Maximum inlet pressure depend upon body materials
and temperatures. See Specications section or
the maximum inlet pressure of the valve and the
maximum spring case loading pressures stamped
on the nameplate of Types MR98LD, MR98HD and
MR98HHD. The valve should be inspected for damage
after any overpressure condition.
Vents and Relief Valve Outlet
WARNING
!
If using an MR98 Series backpressure
regulator, relief or differential relief valve
personal injury and property damage
vented gas that may have accumulated.
To prevent such injury or damage,
provide piping or tubing to vent the
gas to a safe, well-ventilated area. All
vents should be kept open to permit free
openings against entrance of rain, snow,
insects or any other foreign material that
may plug the vent or vent line.
MR98 Series
12
BODY SIZE SPRING CASE BOLTS(1) ORIFICE VALVE PLUG GUIDE BOTTOM PLUG
In. DN Ft-Lbs Ft-Lbs Ft-Lbs Ft-Lbs
1/4
1/2
3/4 and 1
1-1/2 and 2
- - - -
15
20 and 25
40 and 50
6 to 8
10 to 13
24 to 30
40 to 50
8 to 11
13 to 18
33 to 41
54 to 68
6 to 8
34 to 38
50 to 60
180 to 200
8 to 11
46 to 51
68 to 81
244 to 271
40 to 50
70 to 90
85 to 100
125 to 150
53 to 68
94 to 122
115 to 136
169 to 203
50 to 58
75 to 90
100 to 125
170 to 200
68 to 79
102 to 122
136 to 169
230 to 271
1. Reduce spring case bolt’s torque by 30% when using Ethylenepropylene (EPDM) diaphragms.
Table 6. Torque Specifications
Table 4. Maximum Cold Working Pressures of Body Size and Materials(1)(2)
REGULATOR
TYPE BODY SIZE
BODY AND
SPRING CASE
MATERIALS
MAXIMUM
INLET PRESSURE(3)
MAXIMUM
OUTLET PRESSURE
MAXIMUM
SPRING CASE PRESSURE
psig bar psig bar psig bar
MR98L All Sizes
Gray Cast Iron
Steel
Stainless steel
Monel®
Hastelloy® C
60
150
150
150
150
4.14
10.3
10.3
10.3
10.3
60
150
150
150
150
4.14
10.3
10.3
10.3
10.3
50
125
125
125
125
3.44
8.61
8.61
8.61
8.61
MR98LD All Sizes
Gray Cast Iron
Steel
Stainless steel
Monel®
Hastelloy® C
60
150
150
150
150
4.14
10.3
10.3
10.3
10.3
60
150
150
150
150
4.14
10.3
10.3
10.3
10.3
50
125
125
125
125
3.44
8.61
8.61
8.61
8.61
MR98H All Sizes
Gray Cast Iron
Steel
Stainless steel
Monel®
Hastelloy® C
Aluminum-Bronze
300
300
300
300
300
300
20.7
20.7
20.7
20.7
20.7
20.7
300
300
300
300
300
300
20.7
20.7
20.7
20.7
20.7
20.7
250
300
300
300
300
300
17.2
20.7
20.7
20.7
20.7
20.7
MR98HD All Sizes
Gray Cast Iron
Steel
Stainless steel
Monel®
Hastelloy® C
Aluminum-Bronze
300
300
300
300
300
300
20.7
20.7
20.7
20.7
20.7
20.7
300
300
300
300
300
300
20.7
20.7
20.7
20.7
20.7
20.7
250
300
300
300
300
300
17.2
20.7
20.7
20.7
20.7
20.7
MR98HH All Sizes
Steel
Stainless steel
Monel®
Hastelloy® C
Aluminum-Bronze
400
400
400
400
400
27.6
27.6
27.6
27.6
27.6
400
400
400
400
400
27.6
27.6
27.6
27.6
27.6
300
300
300
300
300
20.7
20.7
20.7
20.7
20.7
MR98HHD All Sizes
Steel
Stainless steel
Monel®
Hastelloy® C
Aluminum-Bronze
400
400
400
400
400
27.6
27.6
27.6
27.6
27.6
400
400
400
400
400
27.6
27.6
27.6
27.6
27.6
300
300
300
300
300
20.7
20.7
20.7
20.7
20.7
1. The pressure/temperature limits in this Instruction Manual and any applicable standard limitation should not be exceeded.
2. Temperature, trim material and/or the body end connection may decrease these maximum pressures.
3. Maximum inlet pressure equals set pressure plus build-up.
MATERIAL TEMPERATURE RANGE
Elastomer Part
Nitrile (NBR) -40 to 180°F / -40 to 82°C
Neoprene (CR) -40 to 180°F / -40 to 82°C
Fluorocarbon (FKM) 0 to 300°F / -18 to 149°C, Limited to 200°F / 93°C for hot water
Ethylenepropylene (EPDM) 20 to 275°F / -7 to 135°C
Peruoroelastomer (FFKM) 0 to 425°F / -18 to 218°C
PTFE Diaphragm protector -40 to 400°F / -40 to 204°C
Body Material
Gray Cast iron -20 to 406°F / -29 to 208°C
WCC Steel(3) -20 to 450°F / -29 to 232°C
LCC Steel(3) -40 to 450°F / -40 to 232°C
Stainless steel(3), Monel® or Hastelloy® C -40 to 450°F / -40 to 232°C
1. The pressure/temperature limits in this Instruction Manual and any applicable standard limitation should not be exceeded.
2. Pressure and/or the body end connection may decrease these maximum temperatures.
3. Meets API 614 requirements (with stainless steel trim).
Table 5. Temperature Capabilities(1)(2)
Hastelloy® C is a mark owned by Haynes International, Inc.
Monel® is a mark owned by Special Metals Corporation.
MR98 Series
13
Types MR98L, MR98H and MR98HH
1. Loosen the jam nut (key 17, Figures 4, 6, 7 and 10).
2. To increase the set pressure or pressure setting,
turn the adjusting screw (key 15) clockwise. Turn
the adjusting screw counterclockwise to decrease
the set pressure or pressure setting.
3. Tighten the jam nut (key 17).
Types MR98LD, MR98HD and MR98HHD
Turn the handwheel (key 38, Figures 5, 8 and 9)
clockwise to increase differential pressure setting.
Turn the handwheel counterclockwise to decrease the
differential pressure setting.
Shutdown
Relief Valve
1. Close the upstream shutoff valve to the
regulator inlet.
2. Close the downstream shutoff valve to the
regulator outlet.
3. Slowly open the downstream vent valve to vent
downstream pressure.
4. Leave the downstream vent valve open to vent
inlet pressure and to release all remaining
pressure in the regulator by opening the upstream
vent valve or by turning the adjusting screw
fully counterclockwise.
Differential Valve
(Pressure-Loaded System)
1. Close the upstream shutoff valve to the
regulator inlet.
2. Close the downstream shutoff valve to the
regulator outlet.
WARNING
!
To avoid damage of internal parts from a
pressure-loaded actuator, carefully vent
the regulator spring case pressure prior
to inlet pressure.
3. Vent the loading pressure slowly to release
pressure in the spring case.
If remote venting is necessary, an optional tapped vent
in the spring case is available. Install remote vent lines
in the spring case and outlet openings. The vent lines
must have the largest practical diameter and be as short
as possible with a minimum number of bends or elbows.
Install the vent line according to applicable federal, state
and local codes and regulations.
Startup
Note
show the maximum inlet and the
constructions. Use pressure gauges
to monitor inlet pressure, outlet
pressure and any loading pressure
during startup.

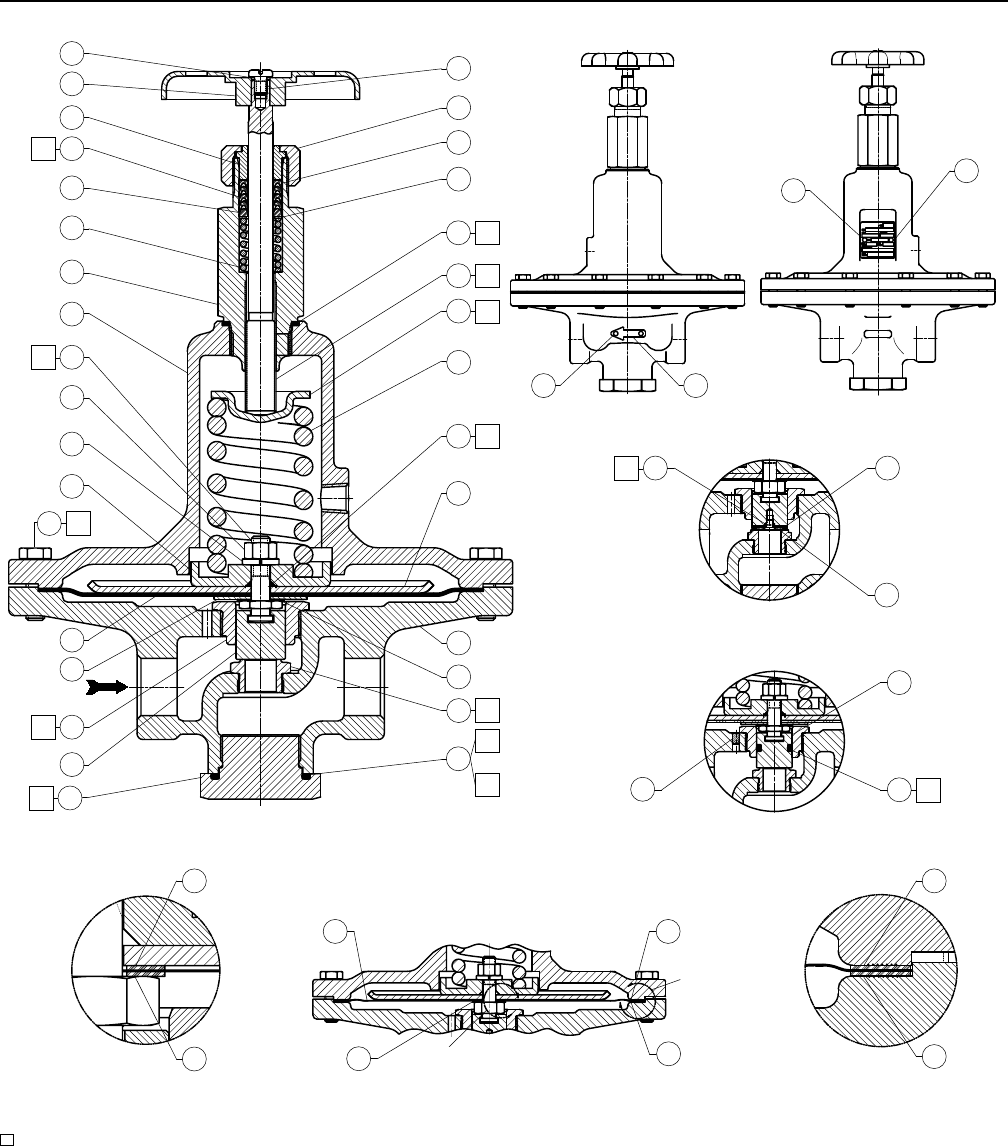

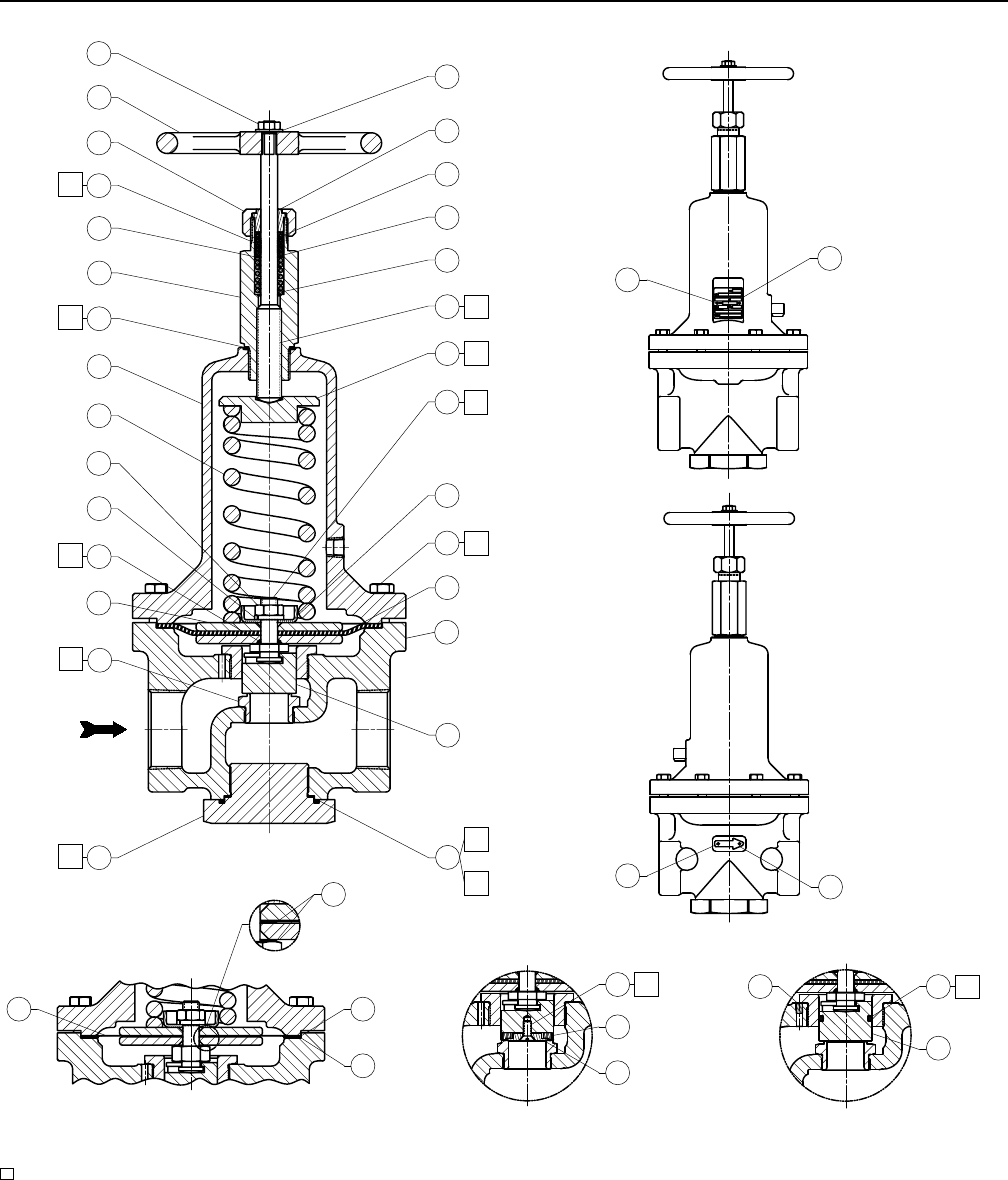

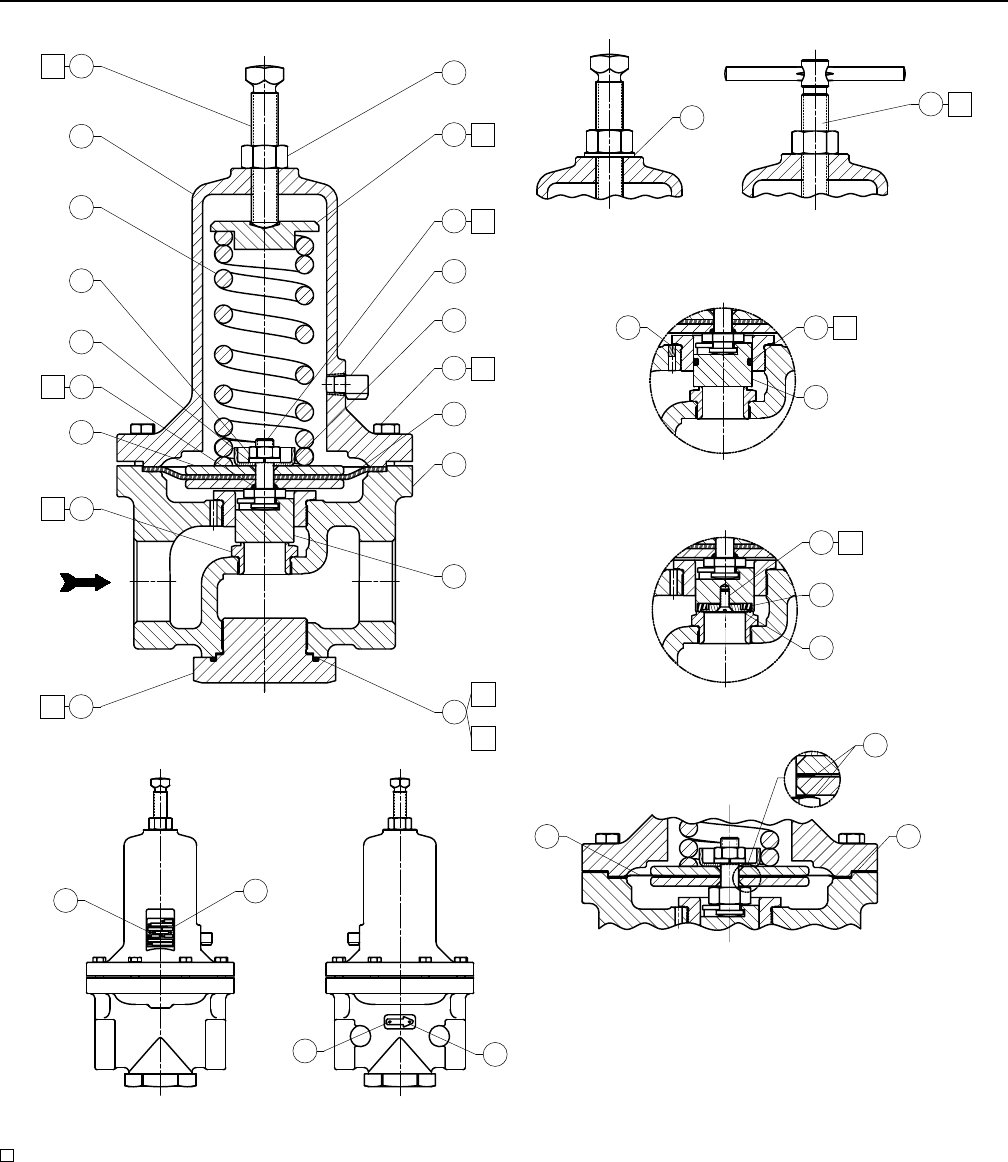

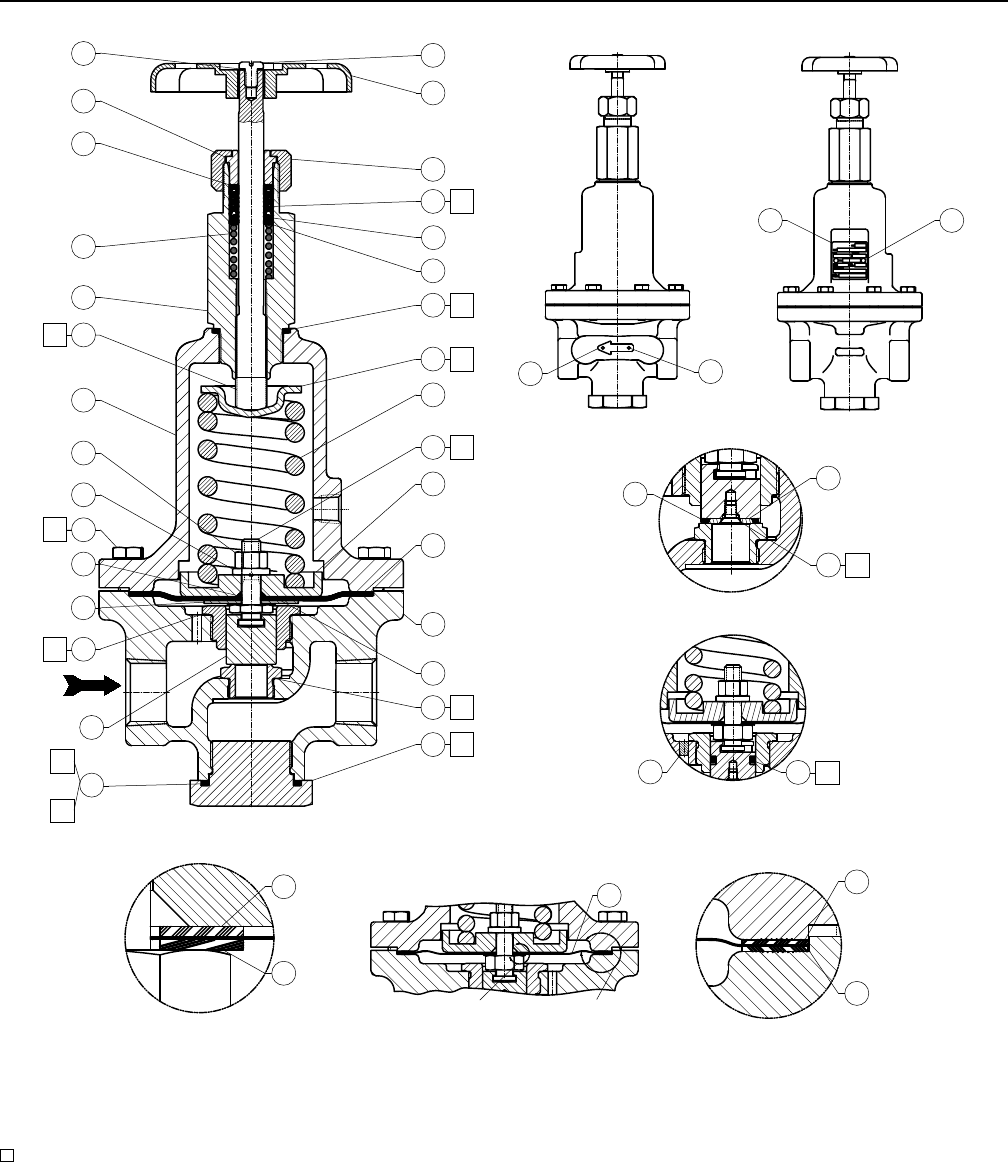

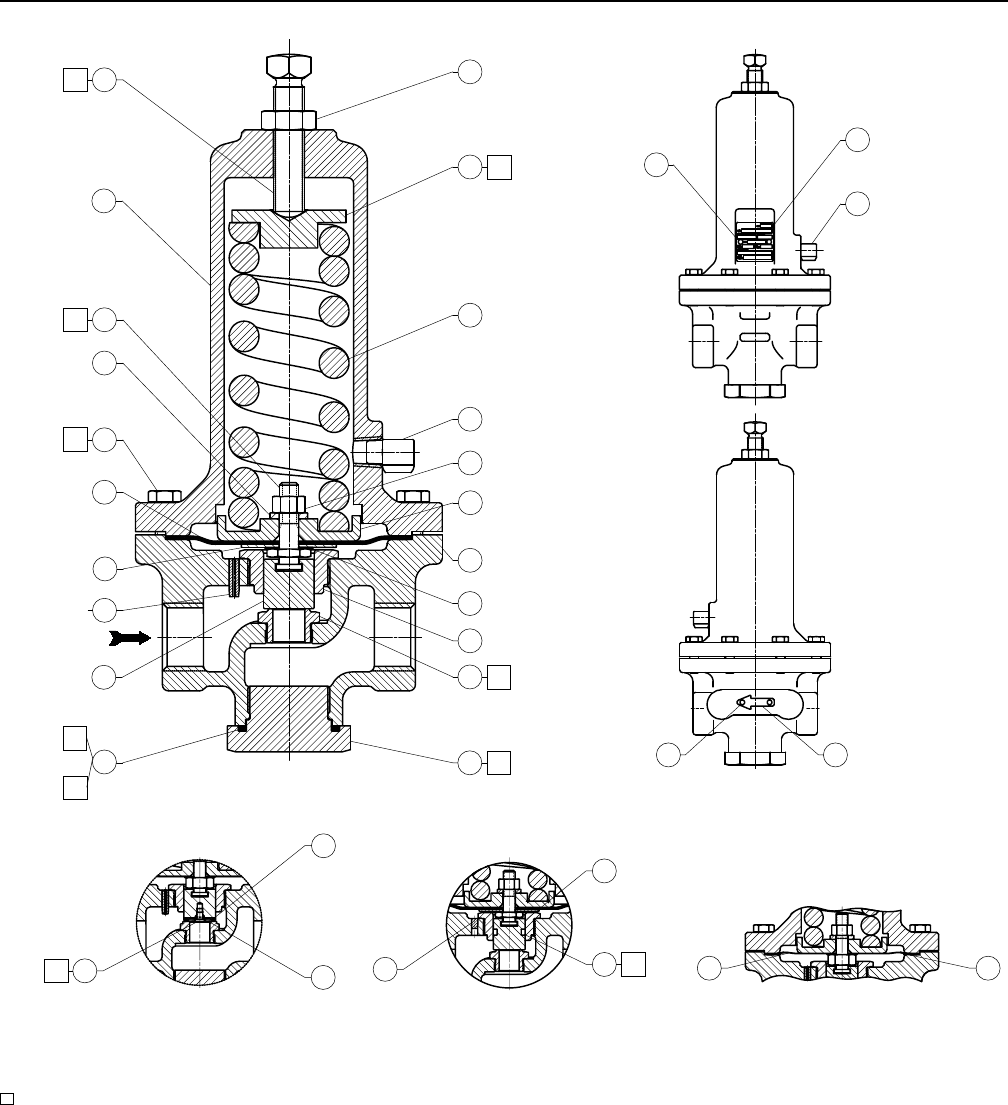

Key numbers are shown in Figures 4 through 10.
1. Check that proper installation is completed and
downstream equipment has been properly adjusted.
2. Make sure all block and vent valves are closed.
3. Decompress the control spring by turning the
adjusting screw (for Types MR98L, MR98H and
MR98HH) or handwheel (for Types MR98LD,
MR98HD and MR98HHD) counterclockwise.
4. Slowly open the valves in the following order:
a. Loading supply and control line valve(s), if used
b. Inlet block valve
c. Outlet block valve
5. Set the regulator to the desired set pressure
according to the Adjustment procedure.
Adjustment
Each unit is factory set for the pressure setting
specied on the order or at the mid-point of the spring
range. The allowable spring range is stamped on the
nameplate. If a pressure setting beyond the indicated
range is required, replace with the appropriate spring.
Be sure to label the regulator/valve to indicate the new
pressure range.
Always use a pressure gauge to monitor pressure
when making adjustments.
All MR98 Series regulator springs can be backed off
to zero pressure. Recommended set pressure ranges
available, maximum inlet pressures and temperatures
and color codes of the respective springs are shown in
the Specications section and Table 3.
MR98 Series
14
4. Slowly open the downstream vent valve to vent
downstream pressure.
5. Leave the downstream vent valve open to vent
inlet pressure and to release all remaining
pressure in the regulator by opening the upstream
vent valve or by turning the adjusting screw
fully counterclockwise.
Backpressure Regulator
1. Close the upstream shutoff valve to the
regulator inlet.
2. Close the downstream shutoff valve to the
regulator outlet.
3. To avoid internal damage due to reverse
pressurization of main valve components, bleed
backpressure regulator inlet pressure rst before
bleeding outlet pressure.
Maintenance
WARNING
!
To avoid personal injury, property
damage or equipment damage caused
by sudden release of pressure or
explosion of accumulated gas, do not
attempt any maintenance or disassembly
or regulator from system pressure and
relieving all internal pressure from the
relief valve or regulator.
To avoid possible personal injury from
spring or pressure-loaded actuator,
make sure that the adjusting screw is
completely backed off or the spring case
pressure is vented prior to disassembly.
Otherwise, the spring load or loading
pressure could forcefully eject the
spring case.
Relief valves or regulators that have
been disassembled for repair must
be tested for proper operation before
being returned to service. Only parts
manufactured by Emerson™ should be
used for repairing Fisher® relief valves
and regulators.
Due to normal wear or damage that
may occur from external sources, this
relief valve or backpressure regulator
should be inspected and maintained
periodically. The frequency of inspection
and replacement of parts depends upon
the severity of service conditions or the
requirement of local, state and federal
rules and regulations.
Due to normal wear and damage that may occur from
external sources, relief valve parts such as the O-rings,
gaskets, diaphragm, orice and valve plug should be
inspected periodically and replaced as necessary. The
frequency of inspection and replacement depends upon
the severity of service conditions or the requirements of
state and federal laws.
Instructions are given below for disassembly of
the MR98 Series. These valves do not have to be
removed from the pipeline to inspect internal parts.
Suitable lubricants are indicated on the assembly
drawings. Apply the recommended lubricants as the
relief valve is being reassembled. Refer to Figures 4 to
10 while servicing the relief valve.
Flange Cap Screw Torque Inspection
Retorquing of spring case cap screws may be
necessary for some MR98 Series regulators after a
period of use. Retorque the cap screws as follows:
BODY SIZE TYPE SPRING RANGE DIAPHRAGM MATERIAL NUMBER OF DIAPHRAGM
1/4 NPT
MR98L and MR98LD
All
Neoprene (CR) 1
Fluorocarbon (FKM) 2
Ethylenepropylene (EPDM) 2
2 to 7 psi / 0.1 to 0.5 bar Metal 1
All except 2 to 7 psi / 0.1 to 0.5 bar Metal 2
MR98H, MR98HH,
MR98HD and
MR98HHD
All
Neoprene (CR) 1
Fluorocarbon (FKM) 2
Ethylenepropylene (EPDM) 2
Metal 2
1/2 to 2 in. /
DN 15 to 50 All All
Neoprene (CR) 1
Fluorocarbon (FKM) 2
Ethylenepropylene (EPDM) 2
Metal 2
Table 7. Number of Diaphragms Required
MR98 Series
15
1. Shut down the relief valve or backpressure
regulator. Refer to Shutdown section for the
proper procedure.
2. Retighten the cap screws (key 16) in a crisscross
pattern. See Table 6 for proper torque values.
3. Follow the Startup section to repressurize the relief
valve or backpressure regulator.
4. Refer to the Disassembly to Replace Diaphragm
and Seats section as needed.
Disassembly to Replace Diaphragm
and Seats
CAUTION
Metal diaphragms have thin sharp
edges. To avoid hand cuts, be careful
when handling the diaphragm,
particularly the diaphragm edge.
If the relief valve is leaking, the diaphragm may be
ruptured or the seating surfaces nicked or scratched.
Proceed as follows to inspect or replace the
diaphragm, orice and valve plug.
1. Shut down the backpressure regulator or
relief valve. Refer to Shutdown section for the
proper procedure.
2. For Types MR98LD, MR98HD and MR98HHD:
Release all spring compression by turning the
adjusting screw or handwheel (key 33 or 38)
counterclockwise until it turns freely without
resistance from the spring.
For Types MR98L, MR98H and MR98HH:
Relieve the spring tension by loosening the jam
nut (key 17) and turning the adjusting screw
(key 15) counterclockwise.
3. Remove cap screws (key 16) and lift off the spring
case (key 2), upper spring seat (key 9) and relief
valve spring (key 11). Lift out the diaphragm unit
which includes the lock nut (key 31), lock washer
(key 28), pusher post (key 10), gasket (key 29), lower
spring seat (key 8), diaphragm (key 12), diaphragm
head (key 21 for Types MR98L and MR98LD, all
body sizes and for Types MR98H and MR98HD,
1-1/2 and 2 in. / DN 40 and 50 body sizes), valve
plug (key 4) and Type MR98HD has another washer
(key 58) and an O-ring (key 45).
4. Check the orice (key 3) for wear or damage. If it
needs to be replaced, unscrew the valve plug guide
(key 7) and then the orice. The valve plug (key 4)
can be removed by sliding it off of the pusher post
(key 10).
5. Place a small amount of sealant on the threads
of the orice (key 3) and valve plug guide (key 7)
and reinstall these to the body (key 1). See
Table 6 for torque specications.
6. To replace the valve plug O-ring (key 53), remove
the machine screw (key 24) and O-ring retainer
(key 25) from the plug. Remove and replace
the O-ring.
7. Separate the remainder of the diaphragm unit
parts. Take the lock nut (key 31) off of the pusher
post (key 10). Slide off the lock washer (key 28),
lower spring seat (key 8), diaphragm head
(key 21) for Types MR98L and MR98LD, all body
sizes and for Types MR98H and MR98HD, 1-1/2
and 2 in. / DN 40 and 50 body sizes), diaphragm
(key 12), washer (key 58) and gasket (key 29).
8. Slip the valve plug (key 4) onto the pusher post
(key 10). Place a gasket (key 29) on the shaft
of the pusher post over the threaded portion
until it rests on the base of the post. If elastomer
diaphragm (key 12) is used, place a metal washer
(key 58) on top of the gasket. For Type MR98H,
1-1/2 to 2 in. / DN 40 to 50 with metal diaphragm,
place another gasket on the shaft of the pusher
post until it rests on the bottom diaphragm head
(key 21), see Figure 7.
Note
If a metal diaphragm is to be replaced by
an elastomer diaphragm or an elastomer
diaphragm by a metal diaphragm, a new
pusher post is required. Each diaphragm
material requires a different pusher post
length and make sure the proper number
of metal or elastomer diaphragm that will
be used is followed. Refer to the Parts
number of diaphragm to be used.
9. See Figures 4 to 10. For the metal diaphragms
(key 12), replace the large diaphragm gasket (key 19)
on the surface of the body (key 1) that will support
the diaphragms. There will be two diaphragms used
per regulator, except for 1/4 NPT Types MR98L and
MR98LD with 2 to 7 psi / 0.1 to 0.5 bar spring range,
which use only one metal diaphragm. The raised
surfaces of the metal diaphragms should be placed in
the unit so that they are facing toward the assembler
(toward the spring) except only when one diaphragm
is being used then the raised surface should be
facing down (towards the body) (see Figure 2). For
elastomer diaphragms, the printed side should be
facing upwards when installed.
MR98 Series
16
10. Slip the lower spring seat (key 8) and lock washer
(key 28) back onto the pusher post (key 10).
Lubricate the threads of the pusher post and
tighten the pusher post lock nut (key 31) until
the lock washer is at and then turn the nut an
additional 1/8 to 1/4 turn. Return the diaphragm
(key 12), spring seat and pusher post assembly to
the body (key 1).
11. Set the relief valve spring (key 11) in the lower
spring seat and place the upper spring seat
(key 9) on the spring.
12. Put the spring case (key 2) over the spring
(key 11) and onto the body (key 1). Tighten the
cap screws (key 16) nger tight only.
13. To ensure proper slack in the diaphragm (key 12),
apply some spring compression by turning the
adjusting screw (key 15) or handwheel (key 38)
clockwise. Finish tightening the cap screws.
See Table 6 for recommended torque values.
Replacement or Maintenance of Bottom
Plug O-ring
If there is any external leakage from the bottom plug
the bottom plug O-ring could be worn out or damaged.
Proceed as follows to check and/or replace it.
1. Shut down the regulator. Refer to Shutdown
section for the proper procedure.
2. Unscrew the bottom plug (key 5) from the body
(key 1). Inspect the bottom plug seal (key 63)
for damage. Replace the bottom plug seal if
damage is noted. Lightly lubricate the bottom plug
O-ring or graphite ring before installing it onto the
bottom plug.
3. Reassemble the regulator in the reverse order
of the above steps. When installing the bottom
plug (key 5), coat the threads and sealing surface
with anti-seize compound to ensure an adequate
metal-to-metal seal. Reference Table 6 for proper
torque values.
Disassembly to Replace Packing
(For Types MR98LD, MR98HD
and MR98HHD)
Leakage around the adjusting screw may be caused
by worn packing in the stufng box. To check the
packing, perform the following procedures.
1. Before returning the upper spring case (key 2) to
the body (key 1), replace the packing (key 36) in
the packing/stufng box (key 32).
2. Take out the machine screw (key 41) and lift off
the washer (key 44) and handwheel (key 38).
3. Unscrew the packing/stufng box (key 32).
Unscrew the packing/stufng box nut (key 35) and
take it and the packing follower (key 34) off of the
adjusting screw (key 33).
4. Unscrew and pull the adjusting screw (key 33)
out through the bottom of the packing/stufng box
(key 32).
5. Pull out the packing (key 36) and replace it.
Replace the packing/stufng box gasket (key 37).
6. Reassemble the packing/stufng box (key 32) unit
by returning the adjusting screw (key 33) to the
inside of the stufng box. Slip the packing follower
(key 34) onto the adjusting screw and into the
stufng box. Screw on the packing nut (key 35).
See Table 6 for torque specications.
7. Put the packing/stufng box (key 32) onto the
spring case (key 2). Set the handwheel (key 38)
and washer (key 44) on the adjusting screw
(key 33) and screw in the machine screw (key 41).
8. Set the spring (key 11) and upper spring seat
(key 9) over the lower spring seat (key 8). Place
the spring case (key 2) on the body (key 1),
tightening the cap screws (key 16) nger-tight only.
9. To ensure proper slack in the diaphragm (key 12),
apply some spring compression by turning the
adjusting screw (key 15) or handwheel (key 38)
clockwise. Tighten the cap screws (key 16).
Parts Ordering
When corresponding with your local Sales Ofce about
this equipment, always reference the equipment serial
number stamped on the nameplate.
When ordering replacement parts, specify the
complete 11-character part number of each required
part as found in the following parts list. Separate kits
containing all recommended spare parts are available.
Note
In this parts list, parts marked NACE are
intended for corrosion-resistant service
as detailed in the NACE International
Optional materials are available to
please contact your local Sales Office
for special ordering instructions.
MR98 Series
17
Parts List
Key Description Part Number
Parts Kit (included are keys 3, 4, 12, 29, 59 and 63)
Types MR98H, MR98HH and MR98HD
With Stainless steel diaphragm and trim
1/4 NPT Body Size RMR98HX0042
1/2 in. / DN 15 Body Size RMR98HX0052
3/4 and 1 in. / DN 20 and 25 Body Sizes RMR98HX0062
1-1/2 and 2 in. / DN 40 and 50 Body Sizes RMR98HX0082
With Neoprene (CR) diaphragm and
Nitrile (NBR)/416 Stainless steel trim
1/4 NPT Body Size RMR98HX0012
1/2 in. / DN 15 Body Size RMR98HX0022
3/4 and 1 in. / DN 20 and 25 Body Sizes RMR98HX0032
1-1/2 and 2 in. / DN 40 and 50 Body Sizes RMR98HX0072
Types MR98L and MR98LD
With Stainless steel diaphragm and plug
1/4 NPT Body Size RMR98LX0042
1/2 in. / DN 15 Body Size RMR98LX0052
3/4 and 1 in. / DN 20 and 25 Body Sizes RMR98LX0062
With Neoprene (CR) and
Nitrile (NBR)/Brass Disk
1/4 NPT Body Size RMR98LX0012
1/2 in. / DN 15 Body Size RMR98LX0022
3/4 and 1 in. / DN 20 and 25 Body Sizes RMR98LX0032
1 Body See Following Tables
2 Spring Case See Following Tables
3* Orice
Metal-to-metal seat
1/4 NPT Body Size
416 Stainless steel GF04856X022
316 Stainless steel, NACE GF04856X032
Hastelloy® C, NACE GF04856X052
Monel®, NACE GF04856X042
1/2 in. / DN 15 Body Size
416 Stainless steel GF04841X022
316 Stainless steel, NACE GF04841X032
Alloy 6, NACE GF04841X062
Hastelloy® C, NACE GF04841X052
Monel®, NACE GF04841X042
3/4 and 1 in. / DN 20 and 25 Body Sizes
416 Stainless steel GF04821X022
316 Stainless steel, NACE GF04821X032
Alloy 6, NACE GF04821X062
Hastelloy® C, NACE GF04821X052
Monel®, NACE GF04821X042
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
416 Stainless steel GF04896X022
316 Stainless steel, NACE GF04896X032
Alloy 6, NACE GF04896X062
Hastelloy® C, NACE GF04896X052
Monel®, NACE GF04896X042
*Recommended Spare Part
Monel® is a mark owned by Special Metals Corporation.
Hastelloy® C is a mark owned by Haynes International, Inc.
Key Description Part Number
3* Orice (continued)
Composition seat
1/4 NPT Body Size
416 Stainless steel GF05036X022
316 Stainless steel, NACE, Oxygen Service GF05036X032
1/2 in. / DN 15 Body Size
416 Stainless steel GF05552X022
316 Stainless steel, NACE, Oxygen Service GF05552X032
Hastelloy® C, NACE GF05552X052
3/4 and 1 in. / DN 20 and 25 Body Sizes
416 Stainless steel GF04824X022
316 Stainless steel, NACE, Oxygen Service GF04824X032
Hastelloy® C, NACE GF04824X052
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
416 Stainless steel GF05513X022
316 Stainless steel, NACE, Oxygen Service GF05513X032
Hastelloy® C, NACE GF05513X052
4* Valve Plug See Following Tables
5 Bottom Plug
1/4 NPT Body Size
416 Stainless steel GF05500X022
316 Stainless steel, NACE, Oxygen Service GF05500X032
Hastelloy® C, NACE GF05500X052
Monel®, NACE GF05500X042
1/2 in. / DN 15 Body Size
416 Stainless steel GF05532X022
316 Stainless steel, NACE, Oxygen Service GF05532X032
Hastelloy® C, NACE GF05532X052
Monel®, NACE GF05532X042
3/4 and 1 in. / DN 20 and 25 Body Sizes
416 Stainless steel GF05496X022
316 Stainless steel, NACE, Oxygen Service GF05496X032
Hastelloy® C, NACE GF05496X052
Monel®, NACE GF05496X042
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
416 Stainless steel GF05511X022
316 Stainless steel, NACE, Oxygen Service GF05511X032
Hastelloy® C, NACE GF05511X052
Monel®, NACE GF05511X042
7 Valve Plug Guide
1/4 NPT Body Size
416 Stainless steel GF04882X022
316 Stainless steel, NACE, Oxygen Service GF04882X032
Hastelloy® C, NACE GF04882X052
Monel®, NACE GF04882X042
1/2 in. / DN 15 Body Size
416 Stainless steel GF05534X022
316 Stainless steel, NACE, Oxygen Service GF05534X032
Hastelloy® C, NACE GF05534X052
Monel®, NACE GF05534X042
3/4 and 1 in. / DN 20 and 25 Body Sizes
416 Stainless steel GF05529X022
316 Stainless steel, NACE, Oxygen Service GF05529X032
Hastelloy® C, NACE GF05529X052
Monel®, NACE GF05529X042
MR98 Series
18
Key Description Part Number
7 Valve Plug Guide (continued)
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
416 Stainless steel GF05539X022
316 Stainless steel, NACE, Oxygen Service GF05539X032
Hastelloy® C, NACE GF05539X052
Monel®, NACE GF05539X042
8 Lower Spring Seat, NACE
Types MR98L, MR98LD, MR98H and MR98HD
1/4 NPT Body Size
Aluminum(1) 1L344609012
Stainless steel 1L3446X0012
1/2 in. / DN 15 Body Size
Aluminum(1) 1L339708012
Stainless steel 1L3397X0012
3/4 and 1 in. / DN 20 and 25 Body Sizes
Aluminum(1) 1L342708012
Stainless steel 1L3427X0012
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
Steel(1) 1P787724152
Stainless steel 1P7877X0012
Types MR98HH and MR98HHD
1/4 NPT Body Size
Aluminum(1) 1N942009012
Stainless steel 1N9420X0012
1/2 in. / DN 15 Body Size
Aluminum(1) 1N943024272
Stainless steel 1N9430X0012
3/4 and 1 in. / DN 20 and 25 Body Sizes
Steel(1) 1N943824272
Stainless steel 1N9438X0012
9 Upper Spring Seat, NACE
Types MR98L, MR98LD, MR98H and MR98HD
1/4 NPT Body Size
Steel(1) ERCA00383A0
Stainless steel ERCA00383A1
1/2 in. / DN 15 Body Size
Steel(1) ERCA00823A0
Stainless steel ERCA00823A1
3/4 and 1 in. / DN 20 and 25 Body Sizes
Steel(1) 1E398725072
Stainless steel 1E3987X0012
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
Steel(1) 1P787624092
Stainless steel 1P7876X0012
Types MR98HH and MR98HHD
1/4 NPT Body Size
Steel(1) 1N942124092
Stainless steel 1N9421X0012
1/2 in. / DN 15 Body Size
Steel(1) ERCA00430A0
Stainless steel ERCA00430A1
3/4 and 1 in. / DN 20 and 25 Body Sizes
Steel(1) 1N943924092
Stainless steel 1N9439X0012
*Recommended Spare Part
1. Part meets NACE requirements only for applications in which the part is not exposed to sour gas.
Monel® is a mark owned by Special Metals Corporation.
Hastelloy® C is a mark owned by Haynes International, Inc.
Key Description Part Number
10 Pusher Post
Composition Diaphragm
1/4 NPT Body Size
416 Stainless steel 1L345635132
316 Stainless steel, NACE, Oxygen Service 1L345635072
Hastelloy® C, NACE 1L3456X0032
Monel®, NACE 1L3456X0022
1/2 in. / DN 15 Body Size
416 Stainless steel ERCA01344A0
316 Stainless steel, NACE, Oxygen Service ERCA01344A1
Hastelloy® C, NACE ERCA01344A3
Monel®, NACE ERCA01344A2
3/4 and 1 in. / DN 20 and 25 Body Sizes
416 Stainless steel 1L343835132
316 Stainless steel, NACE, Oxygen Service 1L343835072
Hastelloy® C, NACE 1L3438X0012
Monel®, NACE 1L3438X0022
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
416 Stainless steel 1P788435132
316 Stainless steel, NACE, Oxygen Service 1P788435072
Hastelloy® C, NACE 1P7884X0012
Monel®, NACE 1P7884X0022
Metal Diaphragm
1/4 NPT Body Size
416 Stainless steel GF04910X022
316 Stainless steel, NACE, Oxygen Service GF04910X032
Hastelloy® C, NACE GF04910X052
Monel®, NACE GF04910X042
1/2 in. / DN 15 Body Size
416 Stainless steel ERCA01343A0
316 Stainless steel, NACE, Oxygen Service ERCA01343A1
Hastelloy® C, NACE ERCA01343A3
Monel®, NACE ERCA01343A2
3/4 and 1 in. / DN 20 and 25 Body Sizes
416 Stainless steel 1L343935132
316 Stainless steel, NACE, Oxygen Service 1L343935072
Hastelloy® C, NACE 1L343940152
Monel®, NACE 1L343940032
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
416 Stainless steel 1P788335132
316 Stainless steel, NACE, Oxygen Service 1P788335072
Hastelloy® C, NACE 1P7883X0012
Monel®, NACE 1P7883X00A2
11 Control Spring, NACE(1) See Table 3
12* Diaphragm See Following Tables
13 Nameplate - - - - - - - - - - -
14 Diaphragm Protector, PTFE, NACE
Types MR98L and MR98LD
1/4 NPT Body Size 11A5132X012
1/2 in. / DN 15 Body Size 11A5133X012
3/4 and 1 in. / DN 20 and 25 Body Sizes 11A5137X012
Types MR98H, MR98HD, MR98HH and MR98HHD
1/4 NPT Body Size 11A5135X012
1/2 in. / DN 15 Body Size 11A5136X012
3/4 and 1 in. / DN 20 and 25 Body Sizes 11A5134X012
1-1/2 and 2 in. / DN 40 and 50 Body Sizes 11A5527X012
MR98 Series
19
Key Description Part Number
15 Adjusting Screw, NACE(1)
Square Head Adjustment
1/4 NPT Body Size GF05533X012
1/2 in. / DN 15 Body Size
Types MR98L and MR98H GF05553X012
Type MR98HH ERAA02340A0
3/4 and 1 in. / DN 20 and 25 Body Sizes
Types MR98L and MR98H GF05543X012
Type MR98HH ERCA01483A0
1-1/2 and 2 in. / DN 40 and 50 Body Sizes GF05522X012
Sealed Square Head Adjustment
1/2 in. / DN 15 Body Size GF05553X012
3/4 and 1 in. / DN 20 and 25 Body Sizes GF05543X012
1-1/2 and 2 in. / DN 40 and 50 Body Sizes GF05522X012
Stainless steel Square Head Adjustment
1/4 NPT Body Size GF05533X022
1/2 in. / DN 15 Body Size
Types MR98L and MR98H GF05553X022
Type MR98HH ERAA02340A1
3/4 and 1 in. / DN 20 and 25 Body Sizes
Types MR98L and MR98H GF05543X022
Type MR98HH ERCA01483A1
1-1/2 and 2 in. / DN 40 and 50 Body Sizes GF05522X022
Handwheel
1/2 in. / DN 15 Body Size ERAA02331A0
16 Cap Screws, NACE(1)
Types MR98L and MR98LD
1/4 NPT Body Size
Steel (10 required) ERCA00651A0
Stainless steel (10 required) ERCA00651A1
1/2 in. / DN 15 Body Size
Steel (10 required) ERCA00100A0
Stainless steel (10 required) ERCA00100A1
3/4 and 1 in. / DN 20 and 25 Body Sizes
Steel (12 required) GF05446X012
Stainless steel (12 required) GF05446X022
Types MR98H, MR98HD, MR98HH and MR98HHD
1/4 NPT Body Size
Steel (6 required) ERCA04149A0
Stainless steel (6 required) ERCA04149A1
B8M Class 2 Stainless steel (6 required) ERCA04149A3
1/2 in. / DN 15 Body Size
Steel (8 required) ERCA00100A0
Stainless steel (8 required) ERCA00100A1
3/4 and 1 in. / DN 20 and 25 Body Sizes
Steel (8 required) GF05446X012
Stainless steel (8 required) GF05446X022
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
Steel (8 required) ERCA00601A0
Stainless steel (8 required) ERCA00601A3
17 Jam Nut, NACE(1)
Square Head Adjustment
1/4 NPT Body Size ERCA00652A0
1/2 in. / DN 15 Body Size ERCA00380A0
3/4 and 1 in. / DN 20 and 25 Body Sizes GF05453X012
1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERCA00633A0
*Recommended Spare Part
1. Part meets NACE requirements only for applications in which the part is not exposed to sour gas.
Monel® is a mark owned by Special Metals Corporation.
Hastelloy® C is a mark owned by Haynes International, Inc.
17 Jam Nut, NACE(1) (continued)
Stainless steel Square Head Adjustment
1/4 NPT Body Size ERCA00652A1
1/2 in. / DN 15 Body Size ERCA00380A1
3/4 and 1 in. / DN 20 and 25 Body Sizes GF05453X022
1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERCA00633A1
Sealed Square Head Adjustment
1/2 in. / DN 15 Body Size ERCA00380A0
3/4 and 1 in. / DN 20 and 25 Body Sizes GF05453X012
1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERCA00633A0
Tee Handle Adjustment
1/4 NPT Body Size ERCA00652A0
3/4 and 1 in. / DN 20 and 25 Body Sizes GF05453X012
1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERCA00633A0
Handwheel Adjustment
1/2 in. / DN 15 Body Size ERCA00380A0
18 Drive Screw (4 required), NACE ERAA01884A0
19* Diaphragm Gasket (2 required for pressure
loaded spring case)
302 Stainless steel diaphragm
Types MR98L and MR98LD
1/4 NPT Body Size ERCA00655A0
1/2 in. / DN 15 Body Size ERCA00491A0
3/4 and 1 in. / DN 20 and 25 Body Sizes ERCA00556A0
Types MR98H, MR98HD, MR98HH
and MR98HHD
1/4 NPT Body Size 1E393104022
1/2 in. / DN 15 Body Size ERCA00485A0
3/4 and 1 in. / DN 20 and 25 Body Sizes ERCA00510A0
1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERCA00526A0
302 Stainless steel - Oxygen Service diaphragm
Type MR98L
1/4 NPT Body Size ERCA00655A2
1/2 in. / DN 15 Body Size ERCA00491A2
3/4 and 1 in. / DN 20 and 25 Body Sizes ERCA00556A2
Types MR98H and MR98HH
1/4 NPT Body Size 1E3931X0022
1/2 in. / DN 15 Body Size ERCA00485A2
3/4 and 1 in. / DN 20 and 25 Body Sizes ERCA00510A2
1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERCA00526A2
302 Stainless steel - Steam Service, Monel®
and Hastelloy® C Diaphragms
Types MR98L and MR98LD
1/4 NPT Body Size ERCA00655A1
1/2 in. / DN 15 Body Size ERCA00491A1
3/4 and 1 in. / DN 20 and 25 Body Sizes ERCA00556A1
Types MR98H, MR98HD, MR98HH
and MR98HHD
1/4 NPT Body Size 1E3931X0012
1/2 in. / DN 15 Body Size ERCA00485A1
3/4 and 1 in. / DN 20 and 25 Body Sizes ERCA00510A1
1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERCA00526A1
21 Diaphragm Head
1/4 NPT Body Size
Steel, NACE(1) 1L345525072
Stainless steel, NACE 1L3455X0012
Key Description Part Number
MR98 Series
20
21 Diaphragm Head (continued)
1/2 in. / DN 15 Body Size
Steel, NACE(1) 1L339625072
Stainless steel, NACE 1L3396X0012
3/4 and 1 in. / DN 20 and 25 Body Sizes
Steel, NACE(1) 1L342125072
Stainless steel, NACE 1L3421X0012
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
(2 required)
416 Stainless steel ERCA00578A0
316 Stainless steel, NACE, Oxygen Service ERCA00578A1
Hastelloy® C, NACE ERCA00578A3
Monel®, NACE ERCA00578A2
22 Adjusting Screw Assembly, NACE
Tee Handle Adjustment
1/4 NPT Body Size ERAA01707A0
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA01716A0
1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERAA01694A0
23 Handwheel, NACE, (1/2 in. / DN 15 Body) ERAA02088A0
24 Machine Screw
1/4 NPT Body Size
416 Stainless steel GF05033X012
316 Stainless steel, NACE, Oxygen Service GF05033X022
1/2 in. / DN 15 Body Size
416 Stainless steel 1J4159X0012
316 Stainless steel, NACE, Oxygen Service 1J4159X0012
Hastelloy® C, NACE 1J4159X0062
3/4 and 1 in. / DN 20 and 25 Body Sizes
416 Stainless steel 1L343538992
316 Stainless steel, NACE, Oxygen service 1L3435X0012
Hastelloy® C, NACE 1L3435X0052
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
416 Stainless steel 1P788638992
316 Stainless steel, NACE, Oxygen Service 1P788638992
Hastelloy® C, NACE 1P7886X0022
25 O-ring Retainer
1/4 NPT Body Size
416 Stainless steel GF05031X022
316 Stainless steel, NACE, Oxygen Service GF05031X032
1/2 in. / DN 15 Body Size
416 Stainless steel GF05078X022
316 Stainless steel, NACE, Oxygen Service GF05078X032
Hastelloy® C, NACE GF05078X052
3/4 and 1 in. / DN 20 and 25 Body Sizes
416 Stainless steel 1L343035132
316 Stainless steel, NACE, Oxygen Service 1L343035072
Hastelloy® C, NACE 1L3430X0022
25 Seat Retainer
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
416 Stainless steel ERCA00377A0
316 Stainless steel, NACE, Oxygen Service ERCA00377A1
Hastelloy® C, NACE ERCA00377A3
Key Description Part Number
*Recommended Spare Part
1. Part meets NACE requirements only for applications in which the part is not exposed to sour gas.
Monel® is a mark owned by Special Metals Corporation.
Hastelloy® C is a mark owned by Haynes International, Inc.
28 Lockwasher, NACE(1)
1/4 NPT and 1/2 in. / DN 15 Body Sizes
Steel ERAA01919A0
Stainless steel ERAA01919A1
3/4 and 1 in. / DN 20 and 25 Body Sizes
Steel 1H624328992
Stainless Steel 1H6243X0012
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
Steel ERCA00379A0
Stainless steel ERCA00379A1
29* Gasket, NACE
Composition Diaphragm
1/4 NPT Body Size GF04913X012
1/2 in. / DN 15 Body Size
Not pressure loaded spring case GF04913X012
Pressure loaded spring case ERAA02651A0
3/4 and 1 in. / DN 20 and 25 Body Sizes ERCA00502A0
Metal Diaphragm
1/4 NPT Body Size (2 required for pressure
loaded spring case)
302 Stainless steel GF04913X012
302 Stainless steel - Oxygen Service GF04913X032
302 Stainless steel - Steam Service, Monel®
and Hastelloy® C GF04913X022
1/2 in. / DN 15 Body Size (2 required for
pressure loaded spring case)
302 Stainless steel ERAA02651A0
302 Stainless steel - Oxygen Service ERAA02651A2
302 Stainless steel - Steam Service, Monel®
and Hastelloy® C ERAA02651A1
3/4 and 1 in. / DN 20 and 25 Body Sizes
(2 required for pressure loaded spring case)
302 Stainless steel ERCA00502A0
302 Stainless steel - Oxygen Service ERCA00502A2
302 Stainless steel - Steam Service, Monel®
and Hastelloy® C ERCA00502A1
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
(2 required)
302 Stainless steel ERCA00579A0
302 Stainless steel - Oxygen Service ERCA00579A2
302 Stainless steel - Steam Service, Monel®
and Hastelloy® C ERCA00579A1
31 Locknut, NACE(1)
1/4 NPT and 1/2 in. / DN 15 Body Sizes ERCA00663A0
3/4 and 1 in. / DN 20 and 25 Body Sizes 1L872224122
1-1/2 and 2 in. / DN 40 and 50 Body Sizes 1P788724122
32 Stufng Box
Handwheel adjustment
Types MR98LD and MR98HD
1/4 NPT Body Size ERAA02699A0
1/2 in. / DN 15 Body Size ERAA01655A0
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA01655A0
1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERAA01662A0
Key Description Part Number
MR98 Series
21
32 Stufng Box (continued)
Handwheel adjustment (continued)
Type MR98HHD
1/4 NPT Body Size ERAA02699A0
1/2 in. / DN 15 Body Size ERAA02700A0
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA02696A0
Handwheel adjustment with Stainless steel Trim
Types MR98LD and MR98HD
1/4 NPT Body Size ERAA02699A1
1/2 in. / DN 15 Body Size ERAA01655A1
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA01655A1
1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERAA01662A1
Type MR98HHD
1/4 NPT Body Size ERAA02699A1
1/2 in. / DN 15 Body Size ERAA02700A1
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA02696A1
33 Adjusting Screw
Types MR98LD and MR98HD
1/4 NPT Body Size ERAA01631A0
1/2 in. / DN 15 Body Size ERAA02333A0
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA01673A0
1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERAA01677A0
Type MR98HHD
1/4 NPT Body Size ERAA01631A0
1/2 in. / DN 15 Body Size ERAA01874A0
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA02107A0
34 Packing Follower
Handwheel adjustment
Types MR98LD and MR98HD
1/4 NPT Body Size ERAA01632A0
1/2 to 2 in. / DN 15 to 50 Body Sizes 1K884924092
Type MR98HHD
1/4 NPT and 1/2 in. / DN 15 Body Sizes ERAA01632A0
3/4 and 1 in. / DN 20 and 25 Body Sizes 1P144024092
Handwheel adjustment with Stainless steel trim
Types MR98LD and MR98HD
1/4 NPT Body Size ERAA01632A0
1/2 to 2 in. / DN 15 to 50 Body Sizes 1K8849X0012
Type MR98HHD
1/4 NPT and 1/2 in. / DN 15 Body Sizes ERAA01632A0
3/4 and 1 in. / DN 20 and 25 Body Sizes 1P1440X0012
35 Stufng Box Nut
Handwheel adjustment
Types MR98LD and MR98HD ERAA01633A0
Type MR98HHD
1/4 NPT and 1/2 in. / DN 15 Body Sizes ERAA01633A0
3/4 and 1 in. / DN 20 and 25 Body Sizes 1P144124092
Handwheel adjustment with Stainless steel trim
Types MR98LD and MR98HD ERAA01633A1
Type MR98HHD
1/4 NPT and 1/2 in. / DN 15 Body Sizes ERAA01633A1
3/4 and 1 in. / DN 20 and 25 Body Sizes 1P1441X0012
Key Description Part Number
36 Packing V-Ring (3 required)
Types MR98LD and MR98HD
1/4 NPT Body Size ERAA01634A0
1/2 to 2 in. / DN 15 to 50 Body Sizes ERAA01657A0
Type MR98HHD
1/4 NPT Body Size ERAA01634A0
1/2 in. / DN 15 Body Size ERAA01657A0
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA02108A0
37* Stuff Box Gasket
1/4 NPT Body Size ERAA01635A0
1/2 to 2 in. / DN 15 to 50 Body Sizes 1P494106242
38 Handwheel / Handle
Handwheel adjustment
Types MR98LD and MR98HD
1/4 NPT Body Size ERAA01636A0
1/2 in. / DN 15 Body Size ERAA01669A0
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA01669A0
1-1/2 and 2 in. / DN 40 and 50 Body Sizes 1J410819042
Type MR98HHD
1/4 NPT Body Size ERAA01636A0
1/2 in. / DN 15 Body Size ERAA01669A0
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA02109A0
Handwheel adjustment with Stainless steel Trim
Types MR98LD and MR98HD
1/4 NPT Body Size ERAA02956A1
1/2 in. / DN 15 Body Size ERAA02957A1
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA02957A1
1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERAA02959A1
Type MR98HHD
1/4 NPT Body Size ERAA02956A1
1/2 in. / DN 15 Body Size ERAA02957A1
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA02958A1
39 Internal Adaptor
Types MR98LD and MR98HD
1/4 NPT Body Size ERAA01637A0
1/2 to 2 in. / DN 15 to 50 Body Sizes ERAA01666A0
Type MR98HHD
1/4 NPT Body Size ERAA01637A0
1/2 in. / DN 15 Body Size ERAA01666A0
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA02111A0
40 External Adaptor
Types MR98LD and MR98HD
1/4 NPT Body Size ERAA01638A0
1/2 to 2 in. / DN 15 to 50 Body Sizes ERAA01667A0
Type MR98HHD
1/4 NPT Body Size ERAA01638A0
1/2 in. / DN 15 Body Size ERAA01667A0
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA02112A0
41 Machine Screw
Handwheel adjustment
1/4 NPT Body Size ERAA01639A0
1/2 in. / DN 15 Body Size ERAA01670A0
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA01670A0
Key Description Part Number
*Recommended Spare Part
MR98 Series
22
41 Machine Screw (continued)
Handwheel adjustment with Stainless steel Trim
1/4 NPT Body Size ERAA01639A1
1/2 in. / DN 15 Body Size ERAA01670A1
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA01670A1
41 Jam Nut
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
Handwheel ERAA01688A0
Handwheel adjustment with Stainless steel Trim ERAA01688A1
42 Spring
Types MR98LD and MR98HD ERAA01640A0
Type MR98HHD
1/4 NPT and 1/2 in. / DN 15 Body Sizes ERAA01640A0
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA02110A0
43 Washer
Types MR98LD and MR98HD
1/4 NPT Body Size ERAA01641A0
1/2 to 2 in. / DN 15 to 50 Body Sizes ERAA01660A0
Type MR98HHD
1/4 NPT Body Size ERAA01641A0
1/2 in. / DN 15 Body Size ERAA01660A0
3/4 and 1 in. / DN 20 and 25 Body Sizes 1H941736042
44 Washer
Handwheel adjustment
1/4 NPT Body Size ERAA01642A0
1/2 in. / DN 15 Body Size ERAA01671A0
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA01671A0
1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERAA01689A0
Handwheel adjustment with Stainless steel Trim
1/4 NPT Body Size ERAA01642A1
1/2 in. / DN 15 Body Size ERAA01671A1
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA01671A1
1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERAA01689A1
45* O-ring
1/4 NPT Body Size
Nitrile (NBR) ERAA01672A0
Fluorocarbon (FKM) ERAA01672A1
Ethylene Propylene (EPDM) ERAA01672A2
1/2 in. / DN 15 Body Size
Nitrile (NBR) ERAA01672A0
Fluorocarbon (FKM) ERAA01672A1
Ethylene Propylene (EPDM) ERAA01672A2
3/4 and 1 in. / DN 20 and 25 Body Sizes
Nitrile (NBR) ERAA02070A0
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
Nitrile (NBR) ERCA00664A0
Fluorocarbon (FKM) ERCA00664A1
Ethylene Propylene (EPDM) ERCA00664A2
Key Description Part Number
*Recommended Spare Part
Monel® is a mark owned by Special Metals Corporation.
Hastelloy® C is a mark owned by Haynes International, Inc.
47 NACE Tag - - - - - - - - - - -
48 Tag Wire - - - - - - - - - - -
49 Lockwasher, For Type MR98HHD,
3/4 and 1 in. / DN 20 and 25 Body Sizes
Steel ERCA00379A0
Stainless steel ERCA00379A1
50* Sealing Washer
1/2 in. / DN 15 Body Size 1V205699012
3/4 and 1 in. / DN 20 and 25 Body Sizes 11A9681X012
1-1/2 and 2 in. / DN 40 and 50 Body Sizes 1V424699012
51 Vent
Type MR98HH
1/4 NPT Body 0L078343062
1/2 to 1 in. / DN 15 to 25 Body Sizes ERAA02123A0
Type MR98H
1-1/2 and 2 in. / DN 40 and 50 Body Sizes ERAA02123A0
52 Plug, 1/2 to 2 in. / DN 15 to 50 Body Sizes ERAA01942A0
53* Valve Plug O-ring
1/2 in. / DN 15 Body Size
Ethylene Propylene (EPDM) ERCA02968A2
Fluorocarbon (FKM) ERCA02968A1
Peruoroelastomer (FFKM) ERCA02968A3
Nitrile (NBR) ERCA02968A0
3/4 and 1 in. / DN 20 and 25 Body Sizes
Ethylene Propylene (EPDM) ERCA00973A2
Fluorocarbon (FKM) ERCA00973A1
Peruoroelastomer (FFKM) ERCA00973A3
Nitrile (NBR) ERCA00973A0
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
Ethylene Propylene (EPDM) ERCA01406A2
Fluorocarbon (FKM) ERCA01406A1
Peruoroelastomer (FFKM) ERCA01406A3
Nitrile (NBR) ERCA01406A0
57 Jam Nut, Type MR98HHD,
3/4 and 1 in. / DN 20 and 25 Body Sizes
Handwheel adjustment ERCA00380A0
Handwheel adjustment with Stainless steel Trim ERCA00380A1
58 Washer
1/4 NPT Body Size
416 Stainless steel GF05050X012
316 Stainless steel, NACE, Oxygen Service GF05050X022
Hastelloy® C, NACE GF05050X032
Monel®, NACE GF05050X042
1/2 in. / DN 15 Body Size
416 Stainless steel GF05050X012
316 Stainless steel, NACE, Oxygen Service GF05050X022
Hastelloy® C, NACE GF05050X042
Monel®, NACE GF05050X032
Key Description Part Number
MR98 Series
23
*Recommended Spare Part
Monel® is a mark owned by Special Metals Corporation.
Hastelloy® C is a mark owned by Haynes International, Inc.
Key Description Part Number
58 Washer (continued)
3/4 and 1 in. / DN 20 and 25 Body Sizes
416 Stainless steel GF05525X012
316 Stainless steel, NACE, Oxygen Service GF05525X022
Hastelloy® C, NACE GF05525X042
Monel®, NACE GF05525X032
59* O-ring
1/4 NPT Body Size
Nitrile (NBR) seat ERCA02967A0
Fluorocarbon (FKM) seat ERCA02967A1
Ethylene Propylene (EPDM) seat ERCA02967A2
1/2 in. / DN 15 Body Size
Nitrile (NBR) seat ERCA02974A0
Fluorocarbon (FKM) seat ERCA02974A1
Ethylene Propylene (EPDM) seat ERCA02974A2
Peruoroelastomer (FFKM) seat ERCA02974A3
3/4 and 1 in. / DN 20 and 25 Body Sizes
Nitrile (NBR) seat ERCA00974A0
Fluorocarbon (FKM) seat ERCA00974A1
Ethylene Propylene (EPDM) seat ERCA00974A2
Peruoroelastomer (FFKM) seat ERCA00974A3
59* L-ring
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
Nitrile (NBR) seat ERCA00668A1
Fluorocarbon (FKM) seat ERCA00668A2
Ethylene Propylene (EPDM) seat ERCA00668A3
Peruoroelastomer (FFKM) seat ERCA00668A5
62 Adaptor, NACE
Types MR98L and MR98LD,
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA01930A0
63* Bottom Plug Seal
1/4 NPT Body Size
Nitrile (NBR) ERCA03017A0
Peruoroelastomer (FFKM) ERCA03017A3
Fluorocarbon (FKM) ERCA03017A1
Ethylenepropylene (EPDM) ERCA03017A2
Graphite ERCA02976A0
1/2 in. / DN 15 Body Size
Nitrile (NBR) ERCA03016A0
Fluorocarbon (FKM) ERCA03016A1
Ethylenepropylene (EPDM) ERCA03016A2
Graphite ERCA02978A0
63* Bottom Plug Seal (continued)
3/4 and 1 in. / DN 20 and 25 Body Sizes
Nitrile (NBR) ERCA00628A0
Peruoroelastomer (FFKM) ERCA00628A3
Fluorocarbon (FKM) ERCA00628A1
Ethylenepropylene (EPDM) ERCA00628A2
Graphite ERCA00517A0
1-1/2 and 2 in. / DN 40 and 50 Body Sizes
Nitrile (NBR) ERCA00630A0
Fluorocarbon (FKM) ERCA00630A1
Ethylenepropylene (EPDM) ERCA00630A2
Graphite ERCA01407A0
64 Flow Arrow - - - - - - - - - - -
65 Pipe Plug
3/4 to 2 in. / DN 20 to 50 Body Sizes
Steel ERAA03130A0
Stainless steel ERAA03131A0
66 Pressure Gauge
3/4 to 2 in. / DN 20 to 50 Body Sizes
0 to 15 psig / 0 to 1.0 bar
Brass 11B8579X012
Stainless steel ERAA03132A0
0 to 30 psig / 0 to 2.1 bar
Brass 11B8579X022
Stainless steel ERAA03132A1
0 to 60 psig / 0 to 4.1 bar
Brass 11B8579X032
Stainless steel ERAA03132A2
0 to 160 psig / 0 to 11.0 bar
Brass 11B8579X042
Stainless steel ERAA03132A3
0 to 300 psig / 0 to 20.7 bar
Brass 11B8579X052
Stainless steel ERAA03132A4
0 to 1000 psig / 0 to 68.9 bar
Brass 11B8579X102
Stainless steel ERAA03132A5
68 Restriction, NACE
Types MR98HH and MR98HHD,
3/4 and 1 in. / DN 20 and 25 Body Sizes ERAA03257A0
69 ATEX Tag - - - - - - - - - - -
70 PED Tag - - - - - - - - - - -
Key Description Part Number
MR98 Series
24
BODY SIZE END CONNECTION
STYLE
BODY MATERIAL
Gray Cast Iron WCC Steel LCC Steel
CF8M
Stainless
Steel(1)
CF3M
Stainless
Steel(1)
Monel®(1) Hastelloy® C(1)
1/4 in. NPT ERCA03713A0 ERCA03713A1 ERCA03713A7 ERCA03713A4 ERCA03713A3 - - - - - - - - - - - - - - - - - - - - - -
1/2 in. / DN 15
Without Control Line
NPT ERCA03819A0 ERCA03819A1 ERCA03819A7 ERCA03819A4 ERCA03819A3 ERCA03819A9 ERCA03819B1
SWE - - - - - - - - - - - ERAA01848A0 ERAA01848A4 ERAA01848A2 ERAA01848A1 - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA01830A0 ERAA01830A3 ERAA01830A2 ERAA01830A1 - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA01832A0 ERAA01832A3 ERAA01832A2 ERAA01832A1 - - - - - - - - - - - - - - - - - - - - - -
Welded PN 16/25/40 RF - - - - - - - - - - - ERAA01834A0 ERAA01834A2 - - - - - - - - - - - ERAA01834A1 - - - - - - - - - - - - - - - - - - - - - -
1/2 in. / DN 15
With Control Line
NPT - - - - - - - - - - - ERAA01932A1 ERAA01932A4 ERAA01932A3 ERAA01932A2 - - - - - - - - - - - - - - - - - - - - - -
3/4 in. / DN 20
Without Gauge Port
and Control Line
NPT ERCA01384A0 ERCA01384A1 ERCA01384A7 ERCA01384A4 ERCA01384A3 ERCA01384A9 ERCA01384B1
SWE - - - - - - - - - - - ERAA01785A1 ERAA01785A6 ERAA01785A4 ERAA01785A3 - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA01797A0 ERAA01797A3 ERAA01797A2 ERAA01797A1 - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA01799A0 ERAA01799A3 ERAA01799A2 ERAA01799A1 - - - - - - - - - - - - - - - - - - - - - -
Welded PN 16/25/40 RF - - - - - - - - - - - ERAA01801A0 ERAA01801A2 - - - - - - - - - - - ERAA01801A1 - - - - - - - - - - - - - - - - - - - - - -
3/4 in. / DN 20
With Control Line but
Without Gauge Port
NPT - - - - - - - - - - - ERAA02175A1 ERAA02175A4 ERAA02175A3 ERAA02175A2 - - - - - - - - - - - - - - - - - - - - - -
3/4 in. / DN 20
With Gauge Port but
Without Control Line
NPT ERAA02176A0 ERAA02176A1 ERAA02176A4 ERAA02176A3 ERAA02176A2 - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA02177A1 ERAA02177A4 ERAA02177A3 ERAA02177A2 - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA02178A1 ERAA02178A4 ERAA02178A3 ERAA02178A2 - - - - - - - - - - - - - - - - - - - - - -
Welded PN 16/25/40 RF - - - - - - - - - - - ERAA02179A1 ERAA02179A3 - - - - - - - - - - - ERAA02179A2 - - - - - - - - - - - - - - - - - - - - - -
1 in. / DN 25
Without Gauge Port
and Control Line
NPT ERCA03676A0 ERCA03676A1 ERCA03676A7 ERCA03676A4 ERCA03676A3 ERCA03676A9 ERCA03676B1
SWE - - - - - - - - - - - ERAA01787A1 ERAA01787A6 ERAA01787A4 ERAA01787A3 - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA01803A0 ERAA01803A3 ERAA01803A2 ERAA01803A1 - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA01805A0 ERAA01805A3 ERAA01805A2 ERAA01805A1 - - - - - - - - - - - - - - - - - - - - - -
Welded PN 16/25/40 RF - - - - - - - - - - - ERCA00553A0 ERCA00553A2 - - - - - - - - - - - ERCA00553A1 - - - - - - - - - - - - - - - - - - - - - -
1 in. / DN 25
With Control Line but
Without Gauge Port
NPT - - - - - - - - - - - ERAA02218A1 ERAA02218A4 ERAA02218A3 ERAA02218A2 - - - - - - - - - - - - - - - - - - - - - -
1 in. / DN 25
With Gauge Port but
Without Control Line
NPT ERAA02219A0 ERAA02219A1 ERAA02219A4 ERAA02219A3 ERAA02219A2 - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA02220A1 ERAA02220A4 ERAA02220A3 ERAA02220A2 - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA02221A1 ERAA02221A4 ERAA02221A3 ERAA02221A2 - - - - - - - - - - - - - - - - - - - - - -
Welded PN 16/25/40 RF - - - - - - - - - - - ERAA02222A1 ERAA02222A3 - - - - - - - - - - - ERAA02222A2 - - - - - - - - - - - - - - - - - - - - - -
1. Meets the chemical and physical requirements of NACE MR0175-2002 and NACE MR0103.
NOTE: Contact your local Sales Ofce if additional gauge and control line options are needed.
Key 1, Types MR98L and MR98LD Body Part Numbers
- continued -
Monel® is a mark owned by Special Metals Corporation.
Hastelloy® C is a mark owned by Haynes International, Inc.
MR98 Series
25
Key 1, Types MR98H, MR98HD, MR98HH and MR98HHD Body Part Numbers (continued)
BODY SIZE
END
CONNECTION
STYLE
BODY MATERIAL
Gray Cast
Iron(2) WCC Steel LCC Steel
CF8M
Stainless
Steel(1)
CF3M
Stainless
Steel(1)
Monel®(1) Hastelloy® C(1) Aluminum-
1/4 in. NPT ERCA03697A0 ERCA03697A1 ERCA03697A7 ERCA03697A4 ERCA03697A3 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
1/2 in. / DN 15
Without
Control Line
NPT ERCA03818A0 ERCA03818A1 ERCA03818A7 ERCA03818A4 ERCA03818A3 ERCA03818A9 ERCA03818B1 - - - - - - - - - - -
SWE - - - - - - - - - - - ERAA01829A0 ERAA01829A4 ERAA01829A2 ERAA01829A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA01831A0 ERAA01831A3 ERAA01831A2 ERAA01831A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA01833A0 ERAA01833A3 ERAA01833A2 ERAA01833A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded
PN 16/25/40 RF - - - - - - - - - - - ERAA01835A0 ERAA01835A2 - - - - - - - - - - - ERAA01835A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Integral CL150 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERAA02400A0 ERAA02400A1 ERAA02400A2 ERAA02400A3
Integral CL300 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERAA02401A0 ERAA02401A1 ERAA02401A2 ERAA02401A3
Integral
PN 16/25/40 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERAA02419A0 ERAA02419A1 ERAA02419A2 ERAA02419A3
1/2 in. / DN 15
With Control Line
NPT - - - - - - - - - - - ERAA01934A1 ERAA01934A4 ERAA01934A3 ERAA01934A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA01936A0 ERAA01936A3 ERAA01936A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA01937A0 ERAA01937A3 ERAA01937A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
3/4 in. / DN 20
Without Gauge
Port and
Control Line
NPT ERCA01383A0 ERCA01383A1 ERCA01383A7 ERCA01383A4 ERCA01383A3 ERCA01383A9 ERCA01383B1 - - - - - - - - - - -
SWE - - - - - - - - - - - ERAA01786A1 ERAA01786A6 ERAA01786A4 ERCA01786A3 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA01798A0 ERAA01798A3 ERAA01798A2 ERAA01798A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA01800A0 ERAA01800A3 ERAA01800A2 ERAA01800A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded
PN 16/25/40 RF - - - - - - - - - - - ERAA01802A0 ERAA01802A2 - - - - - - - - - - - ERAA01802A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
3/4 in. / DN 20
With Control
Line but Without
Gauge Port
NPT - - - - - - - - - - - ERAA02211A1 ERAA02211A4 ERAA02211A3 ERAA02211A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA02477A0 ERAA02477A3 ERAA02477A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA02478A0 ERAA02478A3 ERAA02478A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
3/4 in. / DN 20
With Gauge
Port but Without
Control Line
NPT ERAA02212A0 ERAA02212A1 ERAA02212A4 ERAA02212A3 ERAA02212A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA02215A1 ERAA02215A4 ERAA02215A3 ERAA02215A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA02216A1 ERAA02216A4 ERAA02216A3 ERAA02216A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded
PN 16/25/40 RF - - - - - - - - - - - ERAA02217A1 ERAA02217A3 - - - - - - - - - - - ERAA02217A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
1 in. / DN 25
Without Gauge
Port and
Control Line
NPT ERCA03673A0 ERCA03673A1 ERCA03673A7 ERCA03673A4 ERCA03673A3 ERCA03673A9 ERCA03673B1 - - - - - - - - - - -
SWE - - - - - - - - - - - ERAA01788A1 ERAA01788A6 ERAA01788A4 ERAA01788A3 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA01804A0 ERAA01804A3 ERAA01804A2 ERAA01804A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA01806A0 ERAA01806A3 ERAA01806A2 ERAA01806A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded
PN 16/25/40 RF - - - - - - - - - - - ERAA01793A0 ERAA01793A2 - - - - - - - - - - - ERAA01793A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Integral CL150 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERAA01792A0 ERAA01792A4 ERAA01792A5 ERAA01792A6
Integral CL300 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERCA04332A2 ERCA04332A4 ERCA04332A5 ERCA04332A6
Integral
PN 16/25/40 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERAA01794A2 ERAA01794A4 ERAA01794A5 ERAA01794A6
1 in. / DN 25
With Control
Line but Without
Gauge Port
NPT - - - - - - - - - - - ERAA02214A1 ERAA02214A4 ERAA02214A3 ERAA02214A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA02479A0 ERAA02479A3 ERAA02479A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA02480A0 ERAA02480A3 ERAA02480A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
1 in. / DN 25
With Gauge
Port but Without
Control Line
NPT ERAA02213A0 ERAA02213A1 ERAA02213A4 ERAA02213A3 ERAA02213A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA02223A1 ERAA02223A4 ERAA02223A3 ERAA02223A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA02224A1 ERAA02224A4 ERAA02224A3 ERAA02224A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded
PN 16/25/40 RF - - - - - - - - - - - ERAA02225A1 ERAA02225A3 - - - - - - - - - - - ERAA02225A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
1. Meets the chemical and physical requirements of NACE MR0175-2002 and NACE MR0103.
2. Available for Types MR98H and MR98HD only.
NOTE: Contact your local Sales Ofce if additional gauge and control line options are needed.
- continued -
Monel® is a mark owned by Special Metals Corporation.
Hastelloy® C is a mark owned by Haynes International, Inc.
MR98 Series
26
BODY SIZE
END
CONNECTION
STYLE
BODY MATERIAL
Gray Cast
Iron WCC Steel LCC Steel
CF8M
Stainless
Steel(1)
CF3M
Stainless
Steel(1)
Monel®(1) Hastelloy® C(1) Aluminum-
1-1/2 in. / DN 40
Without Gauge
Port and
Control Line
NPT ERCA01385A0 ERCA01385A1 ERCA01385A7 ERCA01385A3 ERCA01385A2 ERCA01385A4 ERCA01385A9 - - - - - - - - - - -
SWE - - - - - - - - - - - ERAA01795A0 ERAA01795A4 ERAA01795A2 ERAA01795A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA01770A0 ERAA01770A3 ERAA01770A2 ERAA01770A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA01771A0 ERAA01771A3 ERAA01771A2 ERAA01771A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded
PN16/25/40 RF - - - - - - - - - - - ERAA01772A0 ERAA01772A2 - - - - - - - - - - - ERAA01772A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
1-1/2 in. / DN 40
With Control Line
but Without
Gauge Port
NPT - - - - - - - - - - - ERAA01944A1 ERAA01944A4 ERAA01944A3 ERAA01944A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA01948A0 ERAA01948A3 ERAA01948A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA01949A0 ERAA01949A3 ERAA01949A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
1-1/2 in. / DN 40
With Gauge Port
but Without
Control Line
NPT ERAA02511A0 ERAA02511A1 ERAA02511A4 ERAA02511A3 ERAA02511A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA02502A0 ERAA02502A3 ERAA02502A2 ERAA02502A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA02503A0 ERAA02503A3 ERAA02503A2 ERAA02503A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded
PN 16/25/40 RF - - - - - - - - - - - ERAA02504A0 ERAA02504A2 - - - - - - - - - - - ERAA02504A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
2 in. / DN 50
Without Gauge
Port and
Control Line
NPT ERCA03767A0 ERCA03767A1 ERCA03767A7 ERCA03767A4 ERCA03767A3 ERCA03767A9 ERCA03767B1 - - - - - - - - - - -
SWE - - - - - - - - - - - ERAA01796A0 ERAA01796A4 ERAA01796A2 ERAA01796A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA01773A0 ERAA01773A3 ERAA01773A2 ERAA01773A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA01774A0 ERAA01774A3 ERAA01774A2 ERAA01774A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded
PN 16/25/40 RF - - - - - - - - - - - ERAA01775A0 ERAA01775A2 - - - - - - - - - - - ERAA01775A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Integral CL150 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERAA01781A0 ERAA01781A1 ERAA01781A2 ERAA01781A3
Integral CL300 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERCA04258A0 ERCA04258A1 ERCA04258A2 ERCA04258A3
Integral
PN 16/25/40 RF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ERAA01782A0 ERAA01782A1 ERAA01782A2 ERAA01782A3
2 in. / DN 50
With Control Line
but Without
Gauge Port
NPT - - - - - - - - - - - ERAA01945A1 ERAA01945A4 ERAA01945A3 ERAA01945A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA01951A0 ERAA01951A3 ERAA01951A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA01952A0 ERAA01952A3 ERAA01952A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
2 in. / DN 50
With Gauge Port
but Without
Control Line
NPT ERAA02512A0 ERAA02512A1 ERAA02512A4 ERAA02512A3 ERAA02512A2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL150 RF - - - - - - - - - - - ERAA02505A0 ERAA02505A3 ERAA02505A2 ERAA02505A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded CL300 RF - - - - - - - - - - - ERAA02506A0 ERAA02506A3 ERAA02506A2 ERAA02506A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Welded
PN 16/25/40 RF - - - - - - - - - - - ERAA02507A0 ERAA02507A2 - - - - - - - - - - - ERAA02507A1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
1. Meets the chemical and physical requirements of NACE MR0175-2002 and NACE MR0103.
NOTE: Contact your local Sales Ofce if additional gauge and control line options are needed.
Key 1, Types MR98H and MR98HD Body Part Numbers (continued)
Monel® is a mark owned by Special Metals Corporation.
Hastelloy® C is a mark owned by Haynes International, Inc.
MR98 Series
27
Key 4*, Valve Plug, Metal Seat
BODY SIZE
BODY STYLE
VALVE PLUG MATERIAL
In. DN (1) (1) Hastelloy® C(1) Monel®(1)
1/4 NPT - - - - Without control line GF04909X022 GF04909X032 - - - - - - - - - - - GF04909X052 GF04909X042
1/2 15
Without control line ERCA01337A0 ERCA01337A1 ERCA01337A4 ERCA01337A3 ERCA01337A2
With control line ERCA01305A0 ERCA01305A1 - - - - - - - - - - - ERCA01305A3 ERCA01305A2
3/4 and 1 20 and 25
Without control line GF04828X022 GF04828X032 GF04828X062 GF04828X052 GF04828X042
With control line GF05479X022 GF05479X032 - - - - - - - - - - - GF05479X052 GF05479X042
1-1/2
and 2
40
and 50
Without control line GF04899X022 GF04899X032 GF04899X062 GF04899X052 GF04899X042
With control line and
with composition diaphragm GF05514X022 GF05514X032 - - - - - - - - - - - GF05514X052 GF05514X042
With control line and
with metal diaphragm GF05514X022 GF05514X032 - - - - - - - - - - - GF05518X052 GF05518X042
1. NACE MR0175-2002 and NACE MR0103
*Recommended Spare Part
TYPE
BODY SIZE
STYLE
SPRING CASE MATERIAL
In. DN Gray Cast Iron WCC Steel LCC Steel CF8M
Stainless Steel Monel®Hastelloy® C
MR98L
1/4 NPT - - - -
Drilled Hole (Standard) ERCA03546A0 ERCA02874A0(1) ERCA02874A3(1) ERCA02874A2(1) - - - - - - - - - - - - - - - - - - - - - -
1/4 NPT Vent ERCA00609A1 ERAA01872A2(1) ERAA01872A3(1) ERAA01872A3(1) - - - - - - - - - - - - - - - - - - - - - -
1/2 15
Drilled Hole (Standard) ERCA03564A0 ERCA02883A0(1) ERCA02883A3(1) ERCA02883A2(1) - - - - - - - - - - - - - - - - - - - - - -
1/4 NPT Vent ERCA00615A0 ERAA01885A0(1) ERAA01885A4(1) ERAA01885A1(1) ERAA01885A2(1) ERAA01885A3(1)
3/4 and 1 20 and 25
Drilled Hole (Standard) ERCA03497A0 ERCA02908A0(1) ERCA02908A3(1) ERCA02908A2(1) - - - - - - - - - - - - - - - - - - - - - -
1/4 NPT Vent ERCA00623A0 ERCA00621A2(1) ERCA00621A6(1) ERCA00621A3(1) ERCA00621A4(1) ERCA00621A5(1)
MR98LD
1/4 NPT - - - - 1/4 NPT Vent (Standard) - - - - - - - - - - - ERCA03517A0 ERCA03517A3 ERCA03517A2 - - - - - - - - - - - - - - - - - - - - - -
1/2 15 1/4 NPT Vent (Standard) - - - - - - - - - - - ERCA03531A0 ERCA03531A3 ERCA03531A2 - - - - - - - - - - - - - - - - - - - - - -
3/4 and 1 20 and 25 1/4 NPT Vent (Standard) - - - - - - - - - - - ERCA04405A0 ERCA04405A2 ERCA04405A1 - - - - - - - - - - - - - - - - - - - - - -
MR98H
1/4 NPT - - - -
Drilled Hole (Standard) ERCA03544A0 ERCA02872A0(1) ERCA02872A3(1) ERCA02872A2(1) - - - - - - - - - - - - - - - - - - - - - -
1/4 NPT Vent ERCA00610A1 ERAA01873A2(1) ERAA01873A4(1) ERAA01873A3(1) - - - - - - - - - - - - - - - - - - - - - -
1/2 15
Drilled Hole (Standard) ERCA03562A0 ERCA02881A0(1) ERCA02881A3(1) ERCA02881A2(1) - - - - - - - - - - - - - - - - - - - - - -
1/4 NPT Vent ERCA00616A0 ERAA01886A0(1) ERAA01886A4(1) ERAA01886A1(1) ERAA01886A2(1) ERAA01886A3(1)
3/4 and 1 20 and 25
Drilled Hole (Standard) ERCA03496A0 ERCA02907A0(1) ERCA02907A3(1) ERCA02907A2(1) - - - - - - - - - - - - - - - - - - - - - -
1/4 NPT Vent ERCA00624A0 ERCA00622A2(1) ERCA00622A6(1) ERCA00622A3(1) ERCA00622A4(1) ERCA00622A5(1)
1-1/2 and 2 40 and 50 1/4 NPT Vent ERCA03641A0 ERCA02900A0(1) ERCA02900A5(1) ERCA02900A2(1) ERCA02900A3(1) ERCA02900A4(1)
MR98HD
1/4 NPT - - - - 1/4 NPT Vent (Standard) - - - - - - - - - - - ERCA03515A0 ERCA03515A3 ERCA03515A2 - - - - - - - - - - - - - - - - - - - - - -
1/2 15 1/4 NPT Vent (Standard) - - - - - - - - - - - ERCA03529A0 ERCA03529A3 ERCA03529A2 - - - - - - - - - - - - - - - - - - - - - -
3/4 and 1 20 and 25 1/4 NPT Vent (Standard) - - - - - - - - - - - ERCA03499A0 ERCA03499A3 ERCA03499A2 - - - - - - - - - - - - - - - - - - - - - -
1-1/2 and 2 40 and 50 1/4 NPT Vent (Standard) - - - - - - - - - - - ERCA03691A0 ERCA03691A3 ERCA03691A2 - - - - - - - - - - - - - - - - - - - - - -
MR98HH
1/4 NPT - - - - 1/4 NPT Vent - - - - - - - - - - - ERCA01262A0(1) ERCA01262A3(1) ERCA01262A2(1) - - - - - - - - - - - - - - - - - - - - - -
1/2 15 1/4 NPT Vent - - - - - - - - - - - ERCA00619A0(1) ERCA00619A3(1) ERCA00619A2(1) - - - - - - - - - - - - - - - - - - - - - -
3/4 and 1 20 and 25 1/4 NPT Vent - - - - - - - - - - - ERCA03279A0(1) ERCA03279A3(1) ERCA03279A2(1) - - - - - - - - - - - - - - - - - - - - - -
MR98HHD
1/4 NPT - - - - 1/4 NPT Vent (Standard) - - - - - - - - - - - ERCA01358A0 ERCA01358A3 ERCA01358A2 - - - - - - - - - - - - - - - - - - - - - -
1/2 15 1/4 NPT Vent (Standard) - - - - - - - - - - - ERCA01381A0 ERCA01381A3 ERCA01381A2 - - - - - - - - - - - - - - - - - - - - - -
3/4 and 1 20 and 25 1/4 NPT Vent (Standard) - - - - - - - - - - - ERCA01360A0 ERCA01360A3 ERCA01360A2 - - - - - - - - - - - - - - - - - - - - - -
1. Meets the chemical and physical requirements of NACE MR0175-2002 and NACE MR0103.
Key 2, Spring Case Part Numbers
Monel® is a mark owned by Special Metals Corporation.
Hastelloy® C is a mark owned by Haynes International, Inc.
MR98 Series
28
Key 4*, Valve Plug, Composition Seat
BODY SIZE
BODY STYLE
VALVE PLUG MATERIAL
In. DN (1)(2) Hastelloy® C(1)
1/4 NPT - - - - Without control line GF05032X022 GF05032X032 - - - - - - - - - - -
1/2 15
Without control line ERCA01338A0 ERCA01338A1 - - - - - - - - - - -
With control line ERCA01333A0 ERCA01333A1 ERCA01333A3
3/4 and 1 20 and 25
Without control line GF04829X022 GF04829X032 - - - - - - - - - - -
With control line GF05547X022 GF05547X032 GF05547X052
1-1/2 and 2 40 and 50
Without control line GF05520X022 GF05520X032 - - - - - - - - - - -
With control line GF05518X022 GF05518X032 GF05518X052
*Recommended Spare Part
1. NACE MR0175-2002 and NACE MR0103
2. Oxygen Service
TYPE
BODY SIZE DIAPHRAGM MATERIAL
In. DN Neoprene (CR) Fluorocarbon (FKM)
(2 required)
EPDM
(2 required)
MR98L and MR98LD
1/4 NPT - - - - GF05051X012 GF05051X022 GF05051X032
1/2 15 ERCA00514A0 ERCA00514A1 ERCA00514A2
3/4 and 1 20 and 25 ERCA00603A0 ERCA00603A1 ERCA00603A2
MR98H, MR98HH MR98HD
and MR98HHD
1/4 NPT - - - - GF05045X012 GF05045X022 GF05045X032
1/2 15 ERCA00512A0 ERCA00512A1 ERCA00512A2
3/4 and 1 20 and 25 ERCA00518A0 ERCA00518A1 ERCA00518A2
1-1/2 and 2 40 and 50 ERCA00661A0 ERCA00661A1 ERCA00661A2
*Recommended Spare Part
Key 12* Composition Diaphragm, NACE
TYPE
BODY SIZE BODY MATERIAL (2 REQUIRED)
In. DN 302 Stainless Steel 302 Stainless Steel
(Oxygen Service) Monel®Hastelloy® C
MR98L
1/4 NPT - - - - GF05030X012(1) GF05030X022(1) GF05030X032(1) GF05030X042(1)
1/2 15 ERCA00506A0 ERCA00506A1 ERCA00506A2 ERCA00506A3
3/4 and 1 20 and 25 ERCA00112A0 ERCA00112A1 ERCA00112A2 ERCA00112A3
MR98H
1/4 NPT - - - - GF04912X012 GF04912X022 GF04912X032 GF04912X042
1/2 15 ERCA00496A0 ERCA00496A1 ERCA00496A2 ERCA00496A3
3/4 and 1 20 and 25 GF05737X022 GF05737X032 GF05737X042 GF05737X052
1-1/2 and 2 40 and 50 ERCA00527A0 ERCA00527A1 ERCA00527A2 ERCA00527A3
MR98LD
1/4 NPT - - - - GF05030X012(1) - - - - - - - - - - - GF05030X032(1) GF05030X042(1)
1/2 15 ERCA00506A0 - - - - - - - - - - - ERCA00506A2 ERCA00506A3
3/4 and 1 20 and 25 ERCA00112A0 - - - - - - - - - - - ERCA00112A2 ERCA00112A3
MR98HD
1/4 NPT - - - - GF04912X012 - - - - - - - - - - - GF04912X032 GF04912X042
1/2 15 ERCA00496A0 - - - - - - - - - - - ERCA00496A2 ERCA00496A3
3/4 and 1 20 and 25 GF05737X022 - - - - - - - - - - - GF05737X042 GF05737X052
1-1/2 and 2 40 and 50 ERCA00527A0 - - - - - - - - - - - ERCA00527A2 ERCA00527A3
MR98HH
1/4 NPT - - - - GF04912X012 GF04912X022 GF04912X032 GF04912X042
1/2 15 ERCA00496A0 ERCA00496A1 ERCA00496A2 ERCA00496A3
3/4 and 1 20 and 25 GF05737X022 GF05737X032 GF05737X042 GF05737X052
MR98HHD
1/4 NPT - - - - GF04912X012 - - - - - - - - - - - GF04912X032 GF04912X042
1/2 15 ERCA00496A0 - - - - - - - - - - - ERCA00496A2 ERCA00496A3
3/4 and 1 20 and 25 GF05737X022 - - - - - - - - - - - GF05737X042 GF05737X052
*Recommended Spare Part
1. Only one metal diaphragm is needed for Types MR98L and MR98LD with 1/4 NPT body size and 2 to 7 psi / 0.14 to 0.48 bar spring range.
Key 12* Metal Diaphragm
Monel® is a mark owned by Special Metals Corporation.
Hastelloy® C is a mark owned by Haynes International, Inc.
MR98 Series
29
Figure 4. Type MR98L Assembly
2
17
11
50
28
8
58
4
31
21
12
29
1
13 18
64 18
15L2
7L2
5L2
22L2
24 T
3 L2
9 L2
63
L1
L4
59
25
COMPOSITE SEAT OPTION
SEALED ADJUSTING SCREW OPTION TEE-HANDLE OPTION
52 53
CONTROL LINE OPTION
10L2
16
L2(2)
OR(3)
19
METAL DIAPHRAGM OPTION
APPLY(1):
T = THREAD LOCKER
L1 = GENERAL PURPOSE PTFE OR LITHIUM GREASE FOR O-RINGS
L2 = ANTI - SEIZE COMPOUND
L4 = GRAPHITE SEALANT FOR GRAPHITE RING
GF04917
1. Lubricants and sealants must be selected such that they meet the temperature requirements.
2. Apply L2 (anti-seize compound) on key 16 for stainless steel bolts.
3. Apply L4 (graphite sealant) instead of L1 (general purpose PTFE or lithium grease) on key 63 for graphite ring.
MR98 Series
30
Figure 5. Type MR98LD Assembly
18
18 64
13
44
38
34
40
42
32
2
31
28
8
12
58
4
36L3
7L2
5L2
41
35
39
43
11
21
1
29
9L2
37 L1
45 L1
33 L2
3 L2
59
25
24T
COMPOSITE SEAT OPTION
4
52 53 L1
CONTROL LINE OPTION
METAL DIAPHRAGM OPTION
29
29
DETAIL B
19
19
DETAIL A
12
29
19
19
SEE
DETAIL A
SEE DETAIL B
10L2
16 L2(2)
63
L1
L4
OR(3)
APPLY(1):
T = THREAD LOCKER
L1 = GENERAL PURPOSE PTFE OR LITHIUM GREASE FOR O-RINGS
L2 = ANTI - SEIZE COMPOUND
L3 = SILICONE GREASE
L4 = GRAPHITE SEALANT FOR GRAPHITE RING
GF04921
1. Lubricants and sealants must be selected such that they meet the temperature requirements.
2. Apply L2 (anti-seize compound) on key 16 for stainless steel bolts.
3. Apply L4 (graphite sealant) instead of L1 (general purpose PTFE or lithium grease) on key 63 for graphite ring.
MR98 Series
31
Figure 6. Type MR98H Assembly with 1/4 NPT to 1 in. / DN 25 Body Sizes
2
17 50
19
12
1318
64
18
11
31
8
1
29
28
12
58
4
15L2
22L2
59
25
24T
9 L2
7 L2
3 L2
5 L2
63
L1
L4
SEALED ADJUSTING
SCREW OPTION
TEE-HANDLE OPTION
CONTROL LINE OPTION
COMPOSITE SEAT OPTION
METAL DIAPHRAGM OPTION
52
4
53 L1
10L2
16
L2(2)
OR(3)
APPLY(1):
T = THREAD LOCKER
L1 = GENERAL PURPOSE PTFE OR LITHIUM GREASE FOR O-RINGS
L2 = ANTI - SEIZE COMPOUND
L4 = GRAPHITE SEALANT FOR GRAPHITE RING
GF04916
1. Lubricants and sealants must be selected such that they meet the temperature requirements.
2. Apply L2 (anti-seize compound) on key 16 for stainless steel bolts.
3. Apply L4 (graphite sealant) instead of L1 (general purpose PTFE or lithium grease) on key 63 for graphite ring.
MR98 Series
32
Figure 7. Type MR98H Assembly with 1-1/2 to 2 in. / DN 40 to 50 Body Sizes
APPLY(1):
T = THREAD LOCKER
L1 = GENERAL PURPOSE PTFE OR LITHIUM GREASE FOR O-RINGS
L2 = ANTI - SEIZE COMPOUND
L4 = GRAPHITE SEALANT FOR GRAPHITE RING
ERAA03248
5L2
3L2
45L1
15L2
4
1
12
16
8
51
10
17
2
11
31
28
21
9 L2
L2
64
18
13
18
50
SEALED ADJUSTING
SCREW OPTION
22 L2
TEE - HANDLE OPTION
52
4
53 L1
CONTROL LINE OPTION
24
59
25
T
COMPOSITE SEAT OPTION
29
19
12
METAL DIAPHRAGM OPTION
L2(2)
63
L1
L4
OR(3)
1. Lubricants and sealants must be selected such that they meet the temperature requirements.
2. Apply L2 (anti-seize compound) on key 16 for stainless steel bolts.
3. Apply L4 (graphite sealant) instead of L1 (general purpose PTFE or lithium grease) on key 63 for graphite ring.
MR98 Series
33
Figure 8. Type MR98HD Assembly with 1/4 NPT to 1 in. / DN 25 Body Sizes
APPLY(1):
T = THREAD LOCKER
L1 = GENERAL PURPOSE PTFE OR LITHIUM GREASE FOR O-RINGS
L2 = ANTI - SEIZE COMPOUND
L3 = SILICONE GREASE
L4 = GRAPHITE SEALANT FOR GRAPHITE RING
GF04920
DETAIL B DETAIL A
SEE DETAIL B SEE DETAIL A
METAL DIAPHRAGM OPTION
COMPOSITE SEAT OPTION
CONTROL LINE OPTION
44 41
64 18
13 18
25
59
52
29
29
19
19
12
53
38
35
40
43
11
10
8
12
1
29
34
39
42
32
2
31
28
16
45
58
4
7L2
33L2
37 L1
24 T
36 L3
9
L2
3 L2
5 L2
L1
63
L1
L4
L2(2)
OR(3)
L2
1. Lubricants and sealants must be selected such that they meet the temperature requirements.
2. Apply L2 (anti-seize compound) on key 16 for stainless steel bolts.
3. Apply L4 (graphite sealant) instead of L1 (general purpose PTFE or lithium grease) on key 63 for graphite ring.
MR98 Series
34
52
4
53 L1
CONTROL LINE OPTION
59
25
24 T
COMPOSITE SEAT OPTION
29
19
19
12
METAL DIAPHRAGM OPTION
13
18
18
64
4
1
12
8
10
21
28
31
11
2
32
43
35
38
41
44
34
39
40
42
9 L2
L2
33 L2
5
L2
3
L2
45
L1
37
L1
36
L3
63
L1
L4
OR(3)
16 L2(2)
Figure 9. Type MR98HD Assembly with 1-1/2 to 2 in. / DN 40 to 50 Body Sizes
APPLY(1):
T = THREAD LOCKER
L1 = GENERAL PURPOSE PTFE OR LITHIUM GREASE FOR O-RINGS
L3 = SILICONE GREASE
L2 = ANTI - SEIZE COMPOUND
L4 = GRAPHITE SEALANT FOR GRAPHITE RING
ERAA03271
1. Lubricants and sealants must be selected such that they meet the temperature requirements.
2. Apply L2 (anti-seize compound) on key 16 only for stainless steel bolts.
3. Apply L4 (graphite sealant) instead of L1 (general purpose PTFE or lithium grease) on key 63 for graphite ring.
MR98 Series
35
Figure 10. Type MR98HH Assembly with 1/4 NPT to 1 in. / DN 25 Body Sizes
APPLY(1):
T = THREAD LOCKER
L1 = GENERAL PURPOSE PTFE OR LITHIUM GREASE FOR O-RINGS
L2 = ANTI - SEIZE COMPOUND
L4 = GRAPHITE SEALANT FOR GRAPHITE RING
ERCA00605
24
59
25 52
4
12 19
T53 L1
CONTROL LINE OPTIONCOMPOSITE SEAT OPTION METAL DIAPHRAGM OPTION
17
2
10
28
11
51
31
8
1
29
16
12
58
68
4
7
9 L2
3 L2
5 L2
15L2
L2
18
51
13
18 64
L2(2)
63
L1
L4
OR(3)
SEE NOTE 4
1. Lubricants and sealants must be selected such that they meet the temperature requirements.
2. Apply L2 (anti-seize compound) on key 16 only for stainless steel bolts.
3. Apply L4 (graphite sealant) instead of L1 (general purpose PTFE or lithium grease) on key 63 for graphite ring.
4. Key 68 is available for Type MR98HH with 3/4 and 1 in. / DN 20 and 25 bodies only.
MR98 Series
©Emerson Process Management Regulator Technologies, Inc., 2013, 2015; All Rights Reserved
The Emerson logo is a trademark and service mark of Emerson Electric Co. All other marks are the property of their prospective owners. Fisher is a mark owned by Fisher Controls International LLC,
a business of Emerson Process Management.
The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not to be construed as warranties or
guarantees, express or implied, regarding the products or services described herein or their use or applicability. We reserve the right to modify or improve the designs or specifi cations of such
products at any time without notice.
Emerson Process Management Regulator Technologies, Inc. does not assume responsibility for the selection, use or maintenance of any product. Responsibility for proper selection, use and
maintenance of any Emerson Process Management Regulator Technologies, Inc. product remains solely with the purchaser.
Industrial Regulators
Emerson Process Management
Regulator Technologies, Inc.
USA - Headquarters
McKinney, Texas 75070 USA
Tel: +1 800 558 5853
Outside U.S. +1 972 548 3574
Asia-Paci c
Shanghai 201206, China
Tel: +86 21 2892 9000
Europe
Bologna 40013, Italy
Tel: +39 051 419 0611
Middle East and Africa
Dubai, United Arab Emirates
Tel: +971 4811 8100
Natural Gas Technologies
Emerson Process Management
Regulator Technologies, Inc.
USA - Headquarters
McKinney, Texas 75070 USA
Tel: +1 800 558 5853
Outside U.S. +1 972 548 3574
Asia-Paci c
Singapore 128461, Singapore
Tel: +65 6770 8337
Europe
Bologna 40013, Italy
Tel: +39 051 419 0611
Chartres 28008, France
Tel: +33 2 37 33 47 00
Middle East and Africa
Dubai, United Arab Emirates
Tel: +971 4811 8100
TESCOM
Emerson Process Management
Tescom Corporation
USA - Headquarters
Elk River, Minnesota 55330-2445, USA
Tels: +1 763 241 3238
+1 800 447 1250
Europe
Selmsdorf 23923, Germany
Tel: +49 38823 31 287
Asia-Paci c
Shanghai 201206, China
Tel: +86 21 2892 9499
For further information visit www.fisherregulators.com
The distinctive diamond shape cast into every spring
case uniquely identifies the regulator as part of the
Fisher® brand and assures you of the highest-quality
engineering, durability, performance, and support.
