Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
Integral Mount or Remote Mount Magnetic
Flowmeter System with Profibus-PA
Reference Manual
00809-0100-4665, Rev AA
August 2010 Rosemount 8732
www.rosemount.com
Integral Mount or Remote Mount
Magnetic Flowmeter System with
Profibus-PA
NOTICE
Read this manual before working with the product. For personal and system safety, and for
optimum product performance, make sure you thoroughly understand the contents before
installing, using, or maintaining this product.
Rosemount Inc. has two toll-free assistance numbers:
Customer Central
Technical support, quoting, and order-related questions.
United States - 1-800-999-9307 (7:00 am to 7:00 pm CST)
Asia Pacific- 65 777 8211
Europe/ Middle East/ Africa - 49 (8153) 9390
North American Response Center
Equipment service needs.
1-800-654-7768 (24 hours—includes Canada)
Outside of these areas, contact your local Emerson Process Management representative.
The products described in this document are NOT designed for nuclear-qualified
applications. Using non-nuclear qualified products in applications that require
nuclear-qualified hardware or products may cause inaccurate readings.
For information on Rosemount nuclear-qualified products, contact your local Emerson
Process Management Sales Representative.
Reference Manual
00809-0100-4655, Rev AA
August 2010
TOC-1
Rosemount 8732
SECTION 1
Introduction System Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Service Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
SECTION 2
Installation Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Transmitter Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Pre-Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Mechanical Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Environmental Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Sensor Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
SECTION 3
Configuration Quick Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Assigning Device Tag and Node Address . . . . . . . . . . . . . . . . . . . . . 3-2
Basic Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Transducer Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
PV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Basic Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
SECTION 4
Operation Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Local Operator Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Advanced Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Detailed Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
SECTION 5
Sensor Installation Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Sensor Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Sensor Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Installation (Flanged Sensor) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
Installation (Wafer Sensor) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Installation (Sanitary Sensor) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
Process Leak Protection (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . 5-16
SECTION 6
Maintenance and
Troubleshooting
Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Installation Check and Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Diagnostic Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Transmitter Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Quick Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
APPENDIX A
Reference Data Functional Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
E-Series Advanced Diagnostics Capabilities . . . . . . . . . . . . . . . . . . . A-4
Output Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4
Profibus PA fieldbus Digital Output Specifications . . . . . . . . . . . . . . . A-4
Performance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6
Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-8
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-9
Table of Contents
Reference Manual
00809-0100-4655, Rev AA
August 2010
Rosemount 8732
TOC-2
APPENDIX B
Approval Information Product Certifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-1
Sensor Approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-5
APPENDIX C
Diagnostics Diagnostic Availability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-1
Licensing and Enabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-2
Tunable Empty Pipe Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-2
Ground/Wiring Fault Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-4
High Process Noise Detection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-5
8714i Meter Verification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-8
Rosemount Magnetic Flowmeter Calibration Verification Report . . .C-14
APPENDIX D
Digital Signal Processing Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-1
Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-2
APPENDIX E
Universal Sensor Wiring
Diagrams
Rosemount Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-3
Brooks Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-6
Endress And Hauser Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-8
Fischer And Porter Sensors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-9
Foxboro Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-15
Kent Veriflux VTC Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-19
Kent Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-20
Krohne Sensors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-21
Taylor Sensors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-22
Yamatake Honeywell Sensors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-24
Yokogawa Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-25
Generic Manufacturer Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-26
APPENDIX F
Physical Block Physical Block Parameter Attribute Definitions . . . . . . . . . . . . . . . . . . F-1
I&M Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F-4
APPENDIX G
Transducer Block Transducer Block Parameter Attribute Definitions. . . . . . . . . . . . . . . .G-1
APPENDIX H
GSD File for Rosemount
8732E Magnetic Flow
Transmitter
Profibus DP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .H-1
Basic DP Slave Related Keywords . . . . . . . . . . . . . . . . . . . . . . . . . . .H-1
Module Related Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .H-2
Description of extended DP features. . . . . . . . . . . . . . . . . . . . . . . . . .H-2
Description of physical interface for async. and sync. transmission . .H-2
Description of device related diagnosis . . . . . . . . . . . . . . . . . . . . . . . .H-2
Extended Diagnostic Bytes - Manufacturer Specific . . . . . . . . . . . . . .H-3
Module Details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .H-3
Description of the module assignment. . . . . . . . . . . . . . . . . . . . . . . . .H-4
Valid Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .H-4
Reference Manual
00809-0100-4665, Rev AA
August 2010 Rosemount 8732
www.rosemount.com
Section 1 Introduction
System Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-1
Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-2
Service Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-2
SYSTEM DESCRIPTION The Rosemount® 8700 Series Magnetic Flowmeter System consists of a
sensor and transmitter, and measures volumetric flow rate by detecting the
velocity of a conductive liquid that passes through a magnetic field.
There are four Rosemount magnetic flowmeter sensors:
Flanged Rosemount 8705
Flanged High-Signal Rosemount 8707
Wafer-Style Rosemount 8711
Sanitary Rosemount 8721
There are two Rosemount magnetic flowmeter transmitters:
Rosemount 8712
Rosemount 8732
The sensor is installed in-line with process piping — either vertically or
horizontally. Coils located on opposite sides of the sensor create a magnetic
field. Electrodes located perpendicular to the coils make contact with the
process fluid. A conductive liquid moving through the magnetic field
generates a voltage at the two electrodes that is proportional to the flow
velocity.
The transmitter drives the coils to generate a magnetic field, and electronically
conditions the voltage detected by the electrodes to provide a flow signal. The
transmitter can be integrally or remotely mounted from the sensor.
This manual is designed to assist in the installation and operation of the
Rosemount 8732 Magnetic Flowmeter Transmitter and the Rosemount 8700
Series Magnetic Flowmeter Sensors.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
1-2
SAFETY MESSAGES Procedures and instructions in this manual may require special precautions to
ensure the safety of the personnel performing the operations. Refer to the
safety messages listed at the beginning of each section before performing
any operations.
SERVICE SUPPORT To expedite the return process outside the United States, contact the nearest
Emerson Process Management representative.
Within the United States and Canada, call the North American Response
Center using the 800-654-RSMT (7768) toll-free number. The Response
Center, available 24 hours a day, will assist you with any needed information
or materials.
The center will ask for product model and serial numbers, and will provide a
Return Material Authorization (RMA) number. The center will also ask for the
name of the process material to which the product was last exposed.
Mishandling products exposed to a hazardous substance may result in death
or serious injury. If the product being returned was exposed to a hazardous
substance as defined by OSHA, a copy of the required Material Safety Data
Sheet (MSDS) for each hazardous substance identified must be included with
the returned goods.
The North American Response Center will detail the additional information
and procedures necessary to return goods exposed to hazardous
substances.
Attempting to install and operate the Rosemount 8705, 8707 High-Signal, 8711 or 8721
Magnetic Sensors with the Rosemount 8712 or 8732 Magnetic Flowmeter Transmitter
without reviewing the instructions contained in this manual could result in personal injury or
equipment damage.
See “Safety Messages” on page D-1 for complete warning information.
Reference Manual
00809-0100-4665, Rev AA
August 2010 Rosemount 8732
www.rosemount.com
Section 2 Installation
Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-1
Transmitter Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-2
Pre-Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-2
Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-3
Sensor Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-10
This section covers the steps required to physically install the magnetic
flowmeter. Instructions and procedures in this section may require special
precautions to ensure the safety of the personnel performing the operations.
Please refer to the following safety messages before performing any
operation in this section.
SAFETY MESSAGES This symbol is used throughout this manual to indicate that special attention
to warning information is required.
Failure to follow these installation guidelines could result in death or serious injury:
Installation and servicing instructions are for use by qualified personnel only. Do not perform
any servicing other than that contained in the operating instructions, unless qualified. Verify
that the operating environment of the sensor and transmitter is consistent with the
appropriate hazardous area approval.
Do not connect a Rosemount 8732 to a non-Rosemount sensor that is located in an
explosive atmosphere.
Explosions could result in death or serious injury:
Installation of this transmitter in an explosive environment must be in accordance with the
appropriate local, national, and international standards, codes, and practices. Please review
the approvals section of the 8732 reference manual for any restrictions associated with a
safe installation.
Before connecting a handheld communicator in an explosive atmosphere, make sure the
instruments in the loop are installed in accordance with intrinsically safe or non-incendive
field wiring practices.
Electrical shock can result in death or serious injury
Avoid contact with the leads and terminals. High voltage that may be present on leads can
cause electrical shock.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
2-2
TRANSMITTER
SYMBOLS Caution symbol — check product documentation for details
Protective conductor (grounding) terminal
PRE-INSTALLATION Before installing the Rosemount 8732 Magnetic Flowmeter Transmitter, there
are several pre-installation steps that should be completed to make the
installation process easier:
Identify the options and configurations that apply to your application
Set the hardware switches if necessary
Consider mechanical, electrical, and environmental requirements
MECHANICAL
CONSIDERATIONS The mounting site for the 8732 transmitter should provide enough room for
secure mounting, easy access to conduit ports, full opening of the transmitter
covers, and easy readability of the LOI screen (see Figure 2-1). The
transmitter should be mounted in a manner that prevents moisture in conduit
from collecting in the transmitter.
If the 8732 is mounted remotely from the sensor, it is not subject to limitations
that might apply to the sensor.
The sensor liner is vulnerable to handling damage. Never place anything through the sensor
for the purpose of lifting or gaining leverage. Liner damage can render the sensor useless.
To avoid possible damage to the sensor liner ends, do not use metallic or spiral-wound
gaskets. If frequent removal is anticipated, take precautions to protect the liner ends. Short
spool pieces attached to the sensor ends are often used for protection.
Correct flange bolt tightening is crucial for proper sensor operation and life. All bolts must be
tightened in the proper sequence to the specified torque limits. Failure to observe these
instructions could result in severe damage to the sensor lining and possible sensor
replacement.
Emerson Process Management can supply lining protectors to prevent liner damage during
removal, installation, and excessive bolt torquing.
Reference Manual
00809-0100-4665, Rev AA
August 2010
2-3
Rosemount 8732

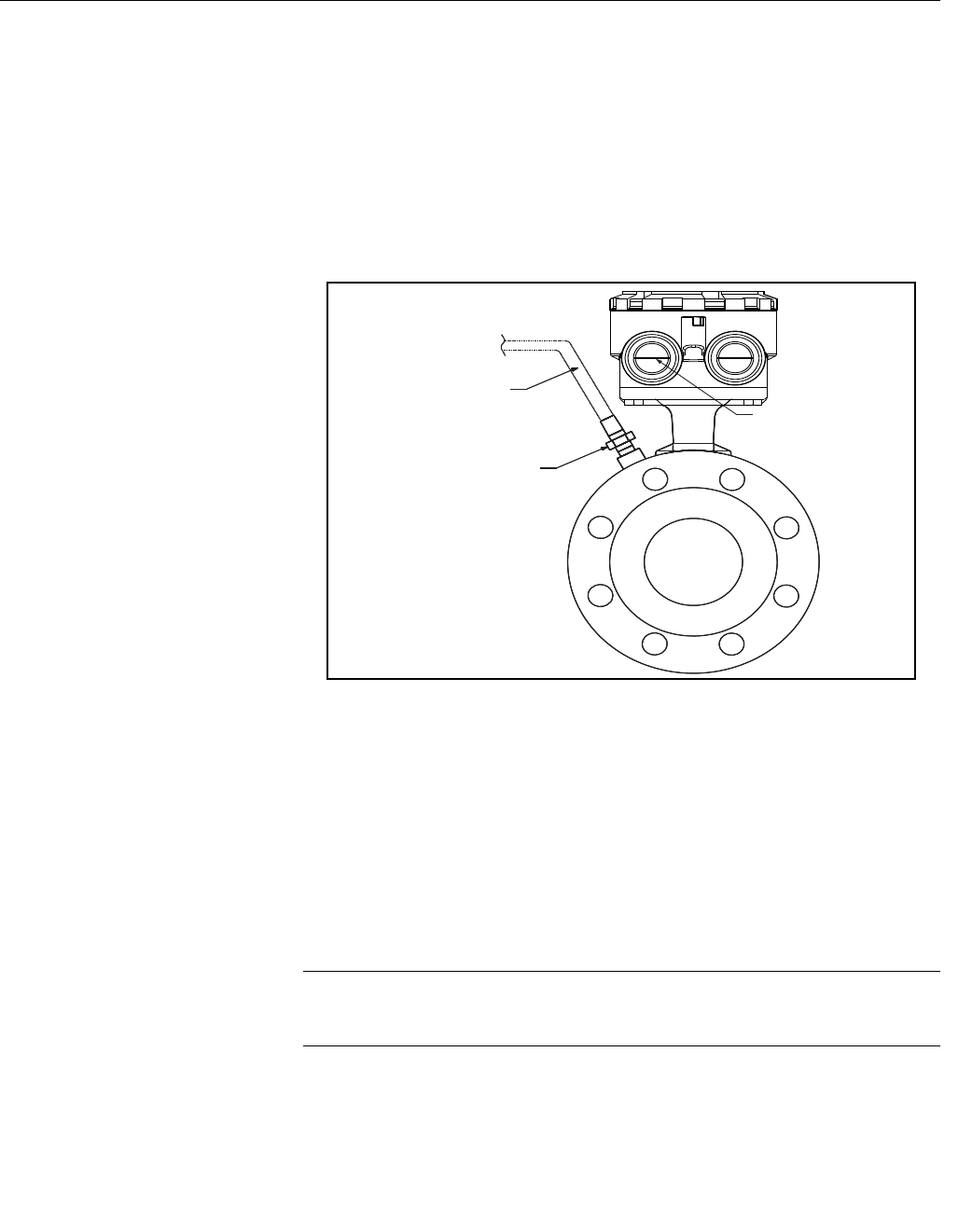

Figure 2-1. Rosemount 8732 Dimensional Drawing
ENVIRONMENTAL
CONSIDERATIONS To ensure maximum transmitter life, avoid temperature extremes and
vibration. Typical problem areas include:
high-vibration lines with integrally mounted transmitters
warm-climate installations in direct sunlight
outdoor installations in cold climates.
Remote-mounted transmitters may be installed in the control room to protect
the electronics from a harsh environment and provides easy access for
configuration or service.
Rosemount 8732 transmitters require external power so there must be access
to a suitable power source.
INSTALLATION
PROCEDURES Rosemount 8732 installation includes both detailed mechanical and electrical
installation procedures.
Mount the Transmitter Remote-mounted transmitters may be mounted on a pipe up to two inches in
diameter or against a flat surface.
Pipe Mounting
To mount the transmitter on a pipe:
1. Attach the mounting bracket to the pipe using the mounting hardware.
2. Attach the 8732 to the mounting bracket using the mounting screws.
5.82
(148)
6.48 (165)
7.49 (190)
LOI Cover
4.97
(126)
8.81
(224)
3.00
(76)
3.07
(78)
4.97
(126)
1/2”-14 NPT Electrical
Conduit Connections
(2 places with a 3rd
optional)
1/2”-14 NPT Remote Junction
Box Conduit Connections (2
places)
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
2-4
Hardware
Jumpers/Switches The 8732 Profibus PA electronics board is equipped with two user-selectable
hardware switches. These switches do not have any functionality and should
be left in the default positions as listed below:
Changing the switch position will have no effect on the functionality of the
electronics.
Conduit Ports and
Connections Both the sensor and transmitter junction boxes have ports for 1/2-inch NPT
conduit connections, with optional CM20 and PG 13.5 adapter connections
available. These connections should be made in accordance with national,
local or plant electrical codes. Unused ports should be sealed with metal
plugs and PTFE tape or other thread sealant. Connections should also be
made in accordance with area approval requirements, see examples below
for details. Proper electrical installation is necessary to prevent errors due to
electrical noise and interference. Separate conduits are not necessary for the
coil drive and signal cables connecting the transmitter to the sensor, but a
dedicated conduit line between each transmitter and sensor is required. A
shielded cable must be used.
Example 1: Installing flanged sensors into an IP68 area. Sensors must be
installed with IP68 cable glands and cable to maintain IP68 rating. Unused
conduit connections must be properly sealed to prevent water ingress. For
added protection, dielectric gel can be used to pot the sensor terminal block.
Consult technical document 00840-0100-4750 when installing meters into an
IP68 installation.
Example 2: Installing flowmeters into explosion proof/flameproof areas.
Conduit connections and conduit must be rated for use in the hazardous area
to maintain flowmeter approval rating. Consult Appendix B: of this manual for
installation requirements for hazardous areas.
Conduit Cables Run the appropriate size cable through the conduit connections in your
magnetic flowmeter system. Run the power cable from the power source to
the transmitter. Do not run power cables and output signal cables in the same
conduit. For remote mount installations, run the coil drive and electrode
cables between the flowmeter and transmitter. Refer to Electrical
Considerations for wire type. Prepare the ends of the coil drive and electrode
cables as shown in Figure 2-2. Limit the unshielded wire length to 1-in. on
both the electrode and coil drive cables. Excessive lead length or failure to
connect cable shields can create electrical noise resulting in unstable meter
readings.
Simulate Enable OFF
Transmitter Security OFF
Reference Manual
00809-0100-4665, Rev AA
August 2010
2-5
Rosemount 8732

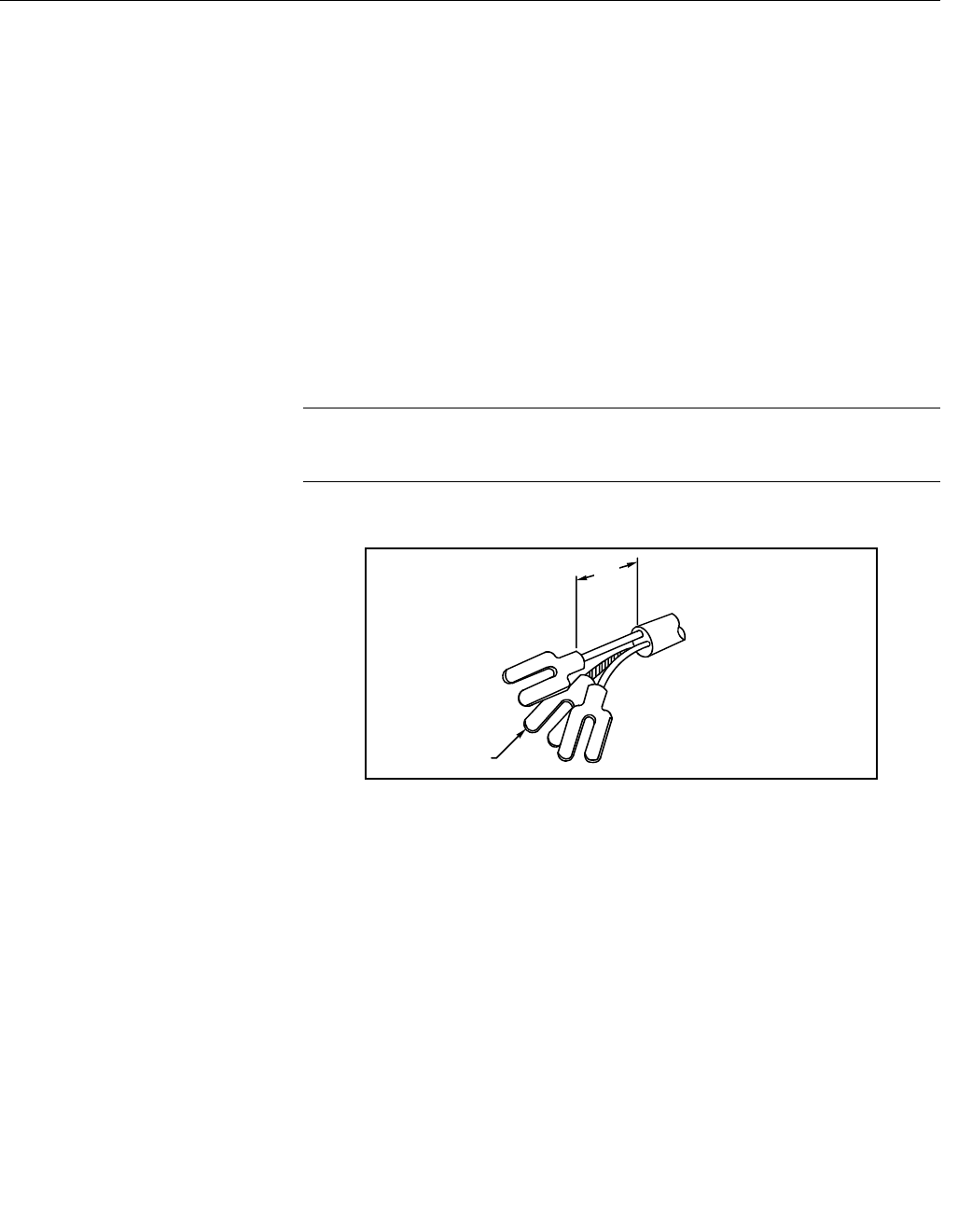

Figure 2-2. Cable Preparation
Detail
Electrical Considerations Before making any electrical connections to the Rosemount 8732, consider
the following standards and be sure to have the proper power supply, conduit,
and other accessories. When preparing all wire connections, remove only the
insulation required to fit the wire completely under the terminal connection.
Removal of excessive insulation may result in an unwanted electrical short to
the transmitter housing or other wire connections.
Transmitter Input Power
The 8732 transmitter is designed to be powered by 90-250 V AC, 50–60 Hz or
12–42 V DC. The eighth digit in the transmitter model number designates the
appropriate power supply requirement.
Supply Wire Temperature Rating
Use 14 to 18 AWG wire rated for the proper temperature of the application.
For connections in ambient temperatures above 140 °F (60 °C), use a wire
rated for 176 °F (80 °C). For ambients greater than 176 °F (80 °C), use a
wire rated for 230 °F (110 °C). For DC powered transmitters with extended
power cable lengths, verify that there is a minimum of 12 Vdc at the
terminals of the transmitter.
Disconnects
Connect the device through an external disconnect or circuit breaker.
Clearly label the disconnect or circuit breaker and locate it near the
transmitter.
Requirements for 90-250 V AC Power Supply
Wire the transmitter according to national, local, and plant electrical
requirements for the supply voltage. In addition, follow the supply wire and
disconnect requirements on page 2-6.
Requirements for 12-42 V DC Power Supply
Units powered with 12-42 V DC may draw up to 1 amp of current. As a result,
the input power wire must meet certain gauge requirements.
NOTE
Dimensions are in
inches
(millimeters).
1.00
(26)
Cable Shield
Model Number Power Supply Requirement
190-250 V AC
212-42 V DC
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
2-6

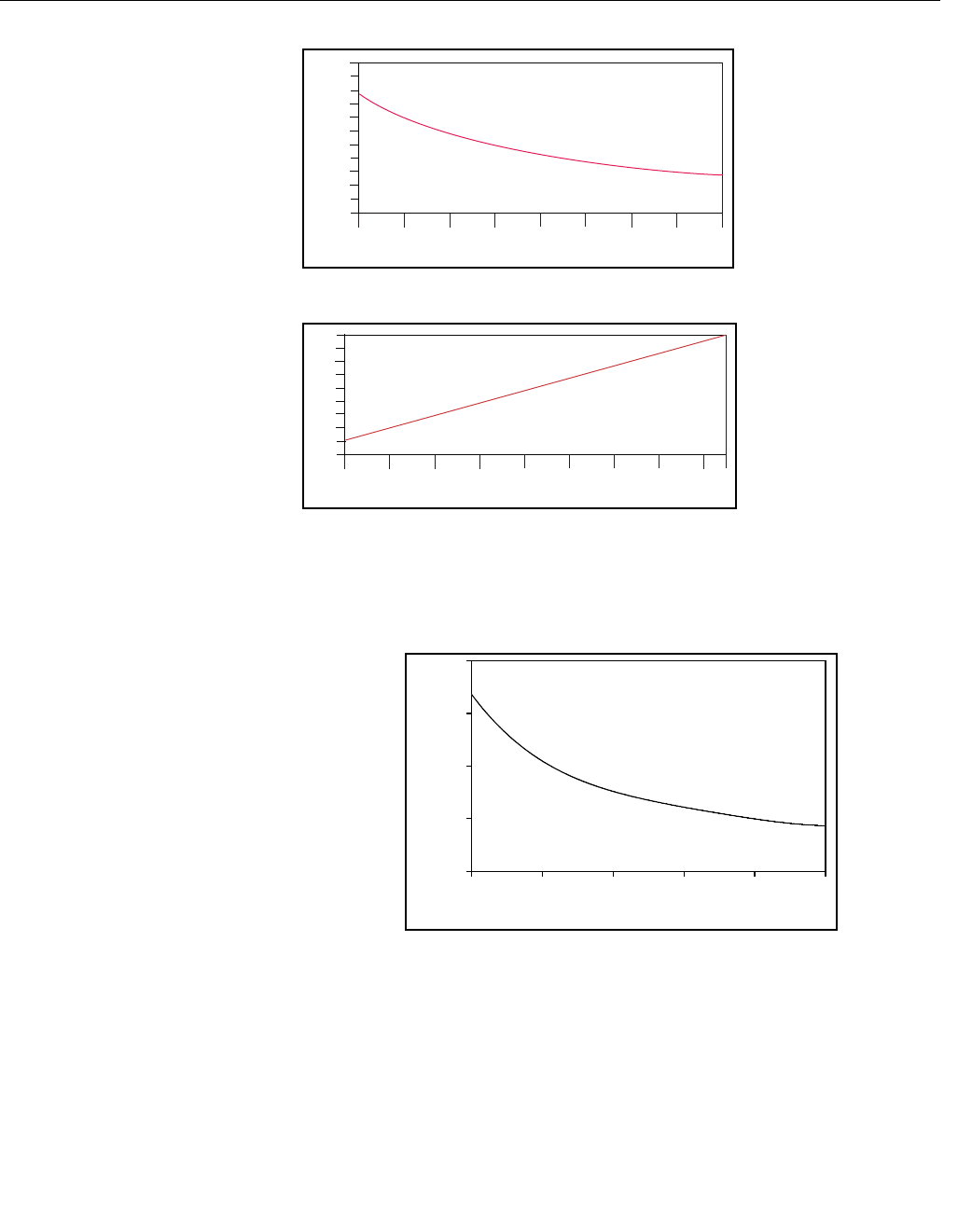

Figure 2-3 shows the supply current for each corresponding supply voltage.
For combinations not shown, you can calculate the maximum distance given
the supply current, the voltage of the source, and the minimum start-up
voltage of the transmitter, 12 V DC, using the following equation:

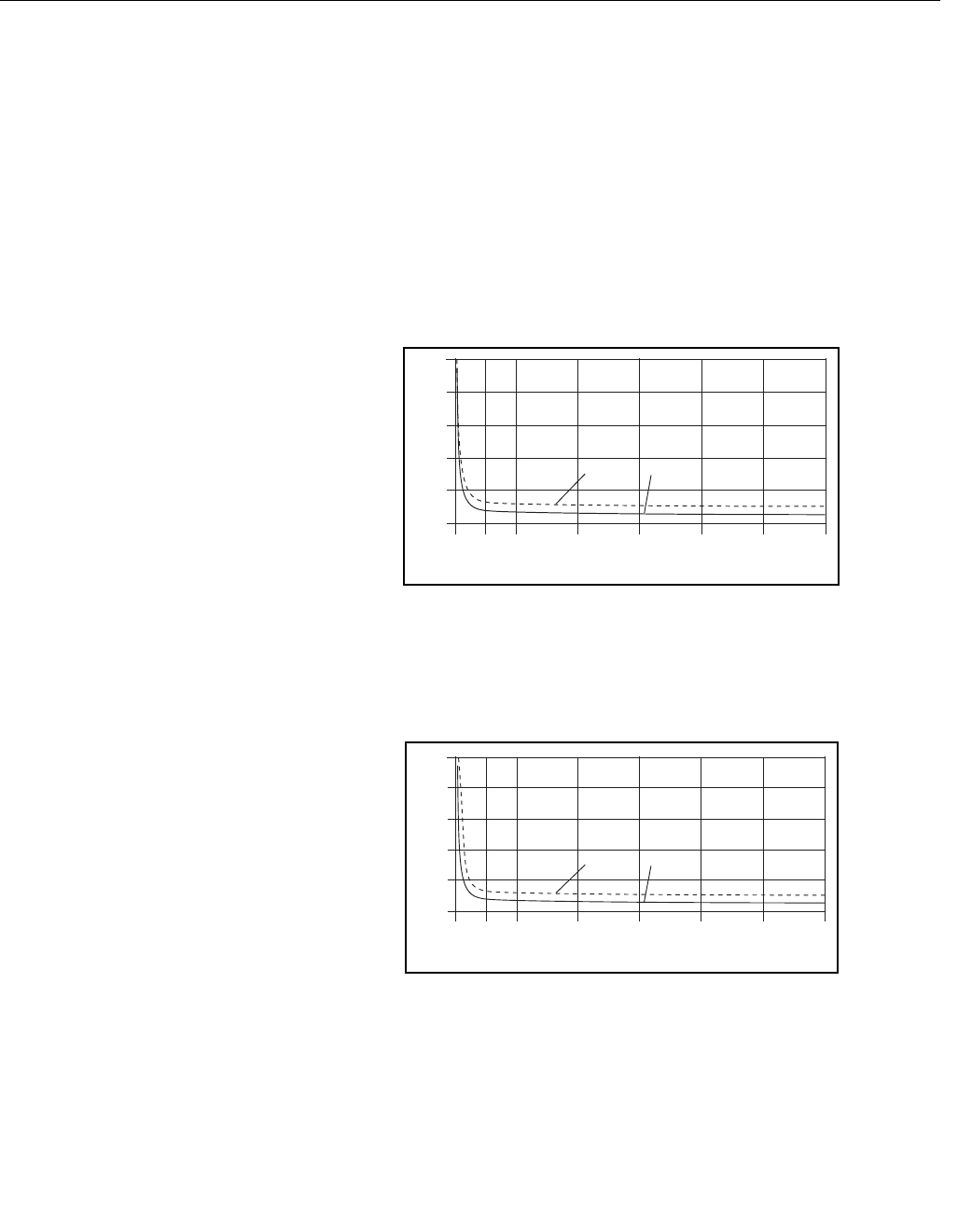

Figure 2-3. Supply Current
versus Input Voltage
Installation Category The installation category for the Rosemount 8732 is (overvoltage) Category II.
Overcurrent Protection The Rosemount 8732 Flowmeter Transmitter requires overcurrent protection
of the supply lines. Maximum ratings of overcurrent devices are as follows:
Connect Transmitter
Power To connect power to the transmitter, complete the following steps.
1. Ensure that the power source and connecting cable meet the
requirements outlined on page 2-7.
2. Turn off the power source.
3. Open the power terminal cover.
4. Run the power cable through the conduit to the transmitter.
5. Connect the power cable leads as shown in Figure 2-4.
a. Connect AC Neutral or DC- to terminal 9.
b. Connect AC Line or DC+ to terminal 10.
c. Connect AC Ground or DC Ground to the ground screw mounted
inside the transmitter enclosure.
MaximumResis cetan SupplyVoltage 12VDC
1amp
--------------------------------------------------------------------=
Power Supply (Volts)
I = 10/V
I = Supply current requirement (Amps)
V = Power supply voltage (Volts)
Supply Current (Amps)
12 18 24 30 36 42
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
Power System Fuse Rating Manufacturer
95-250 Vac 250 V; 2 Amp, Quick Acting Bussman AGCI or Equivalent
42 Vdc 50 V, 3 Amp, Quick Acting Bussman AGCI or Equivalent
Reference Manual
00809-0100-4665, Rev AA
August 2010
2-7
Rosemount 8732

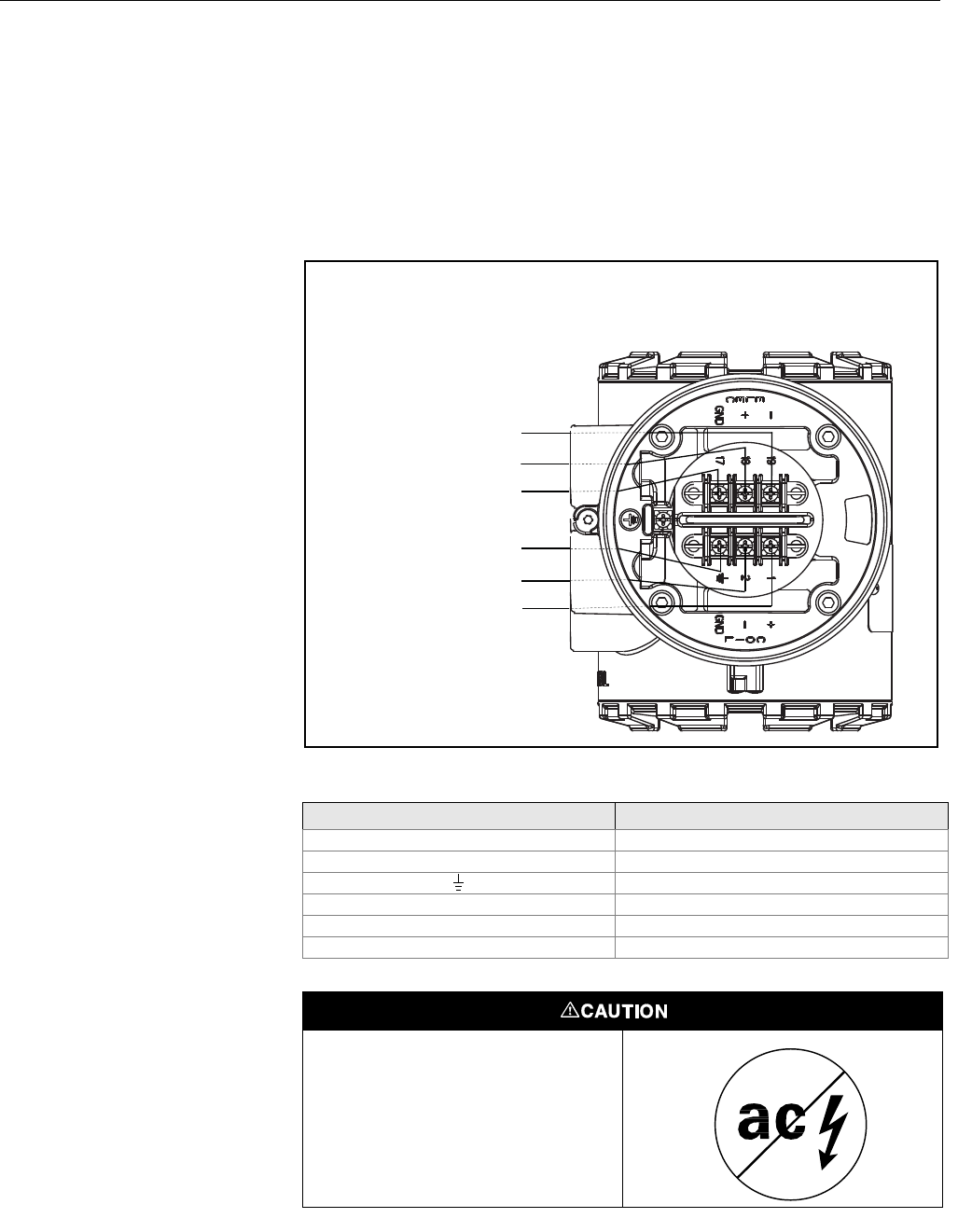

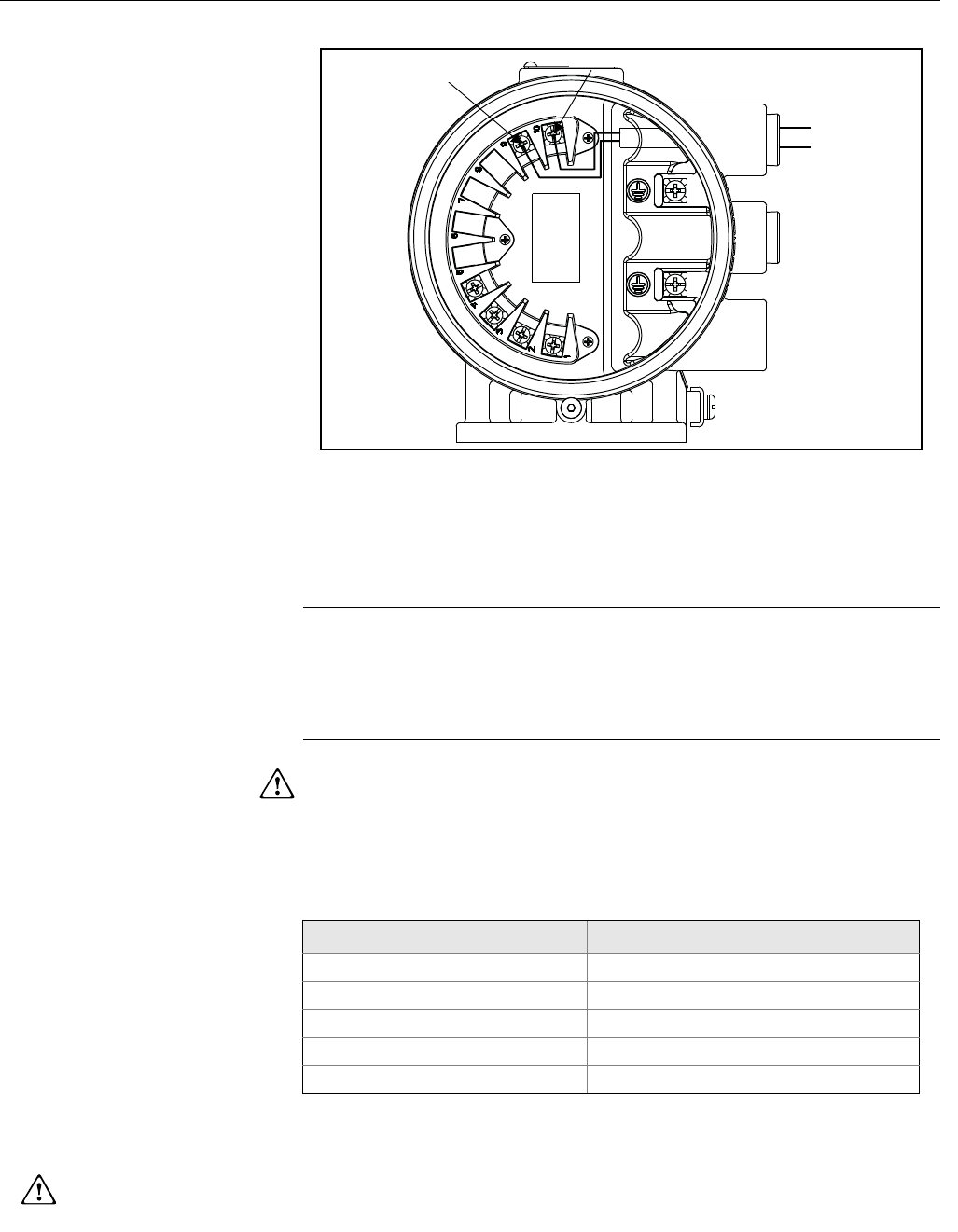

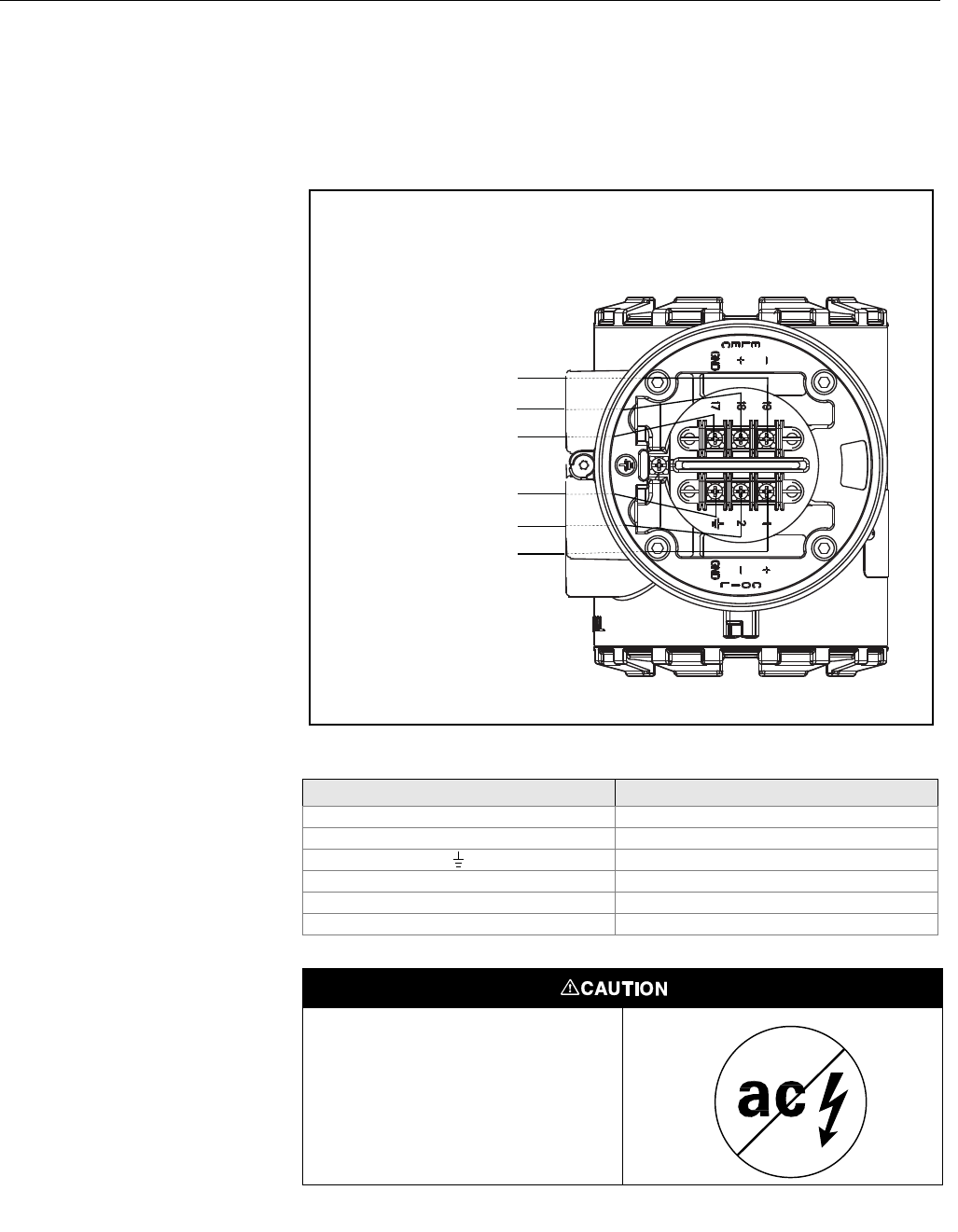

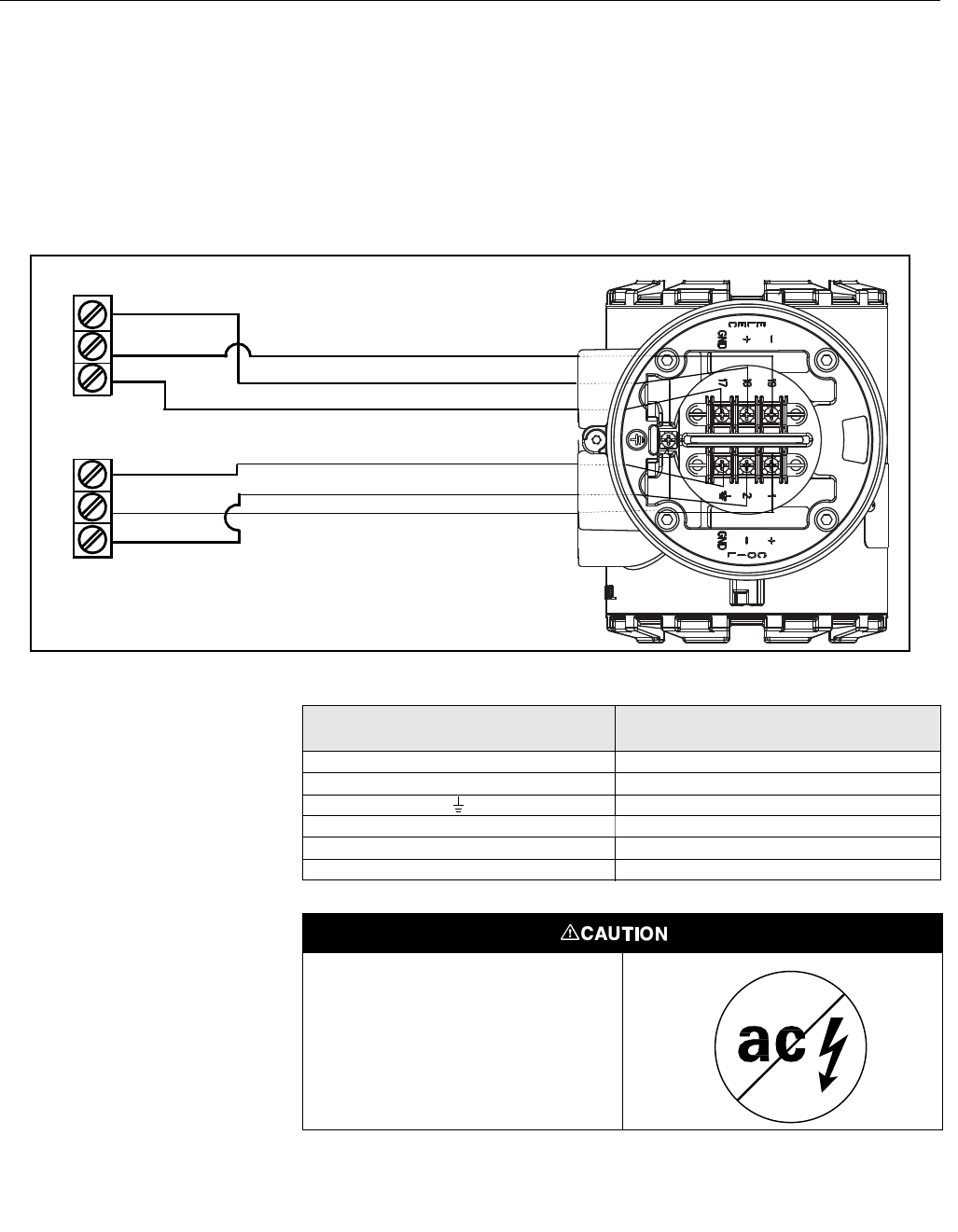

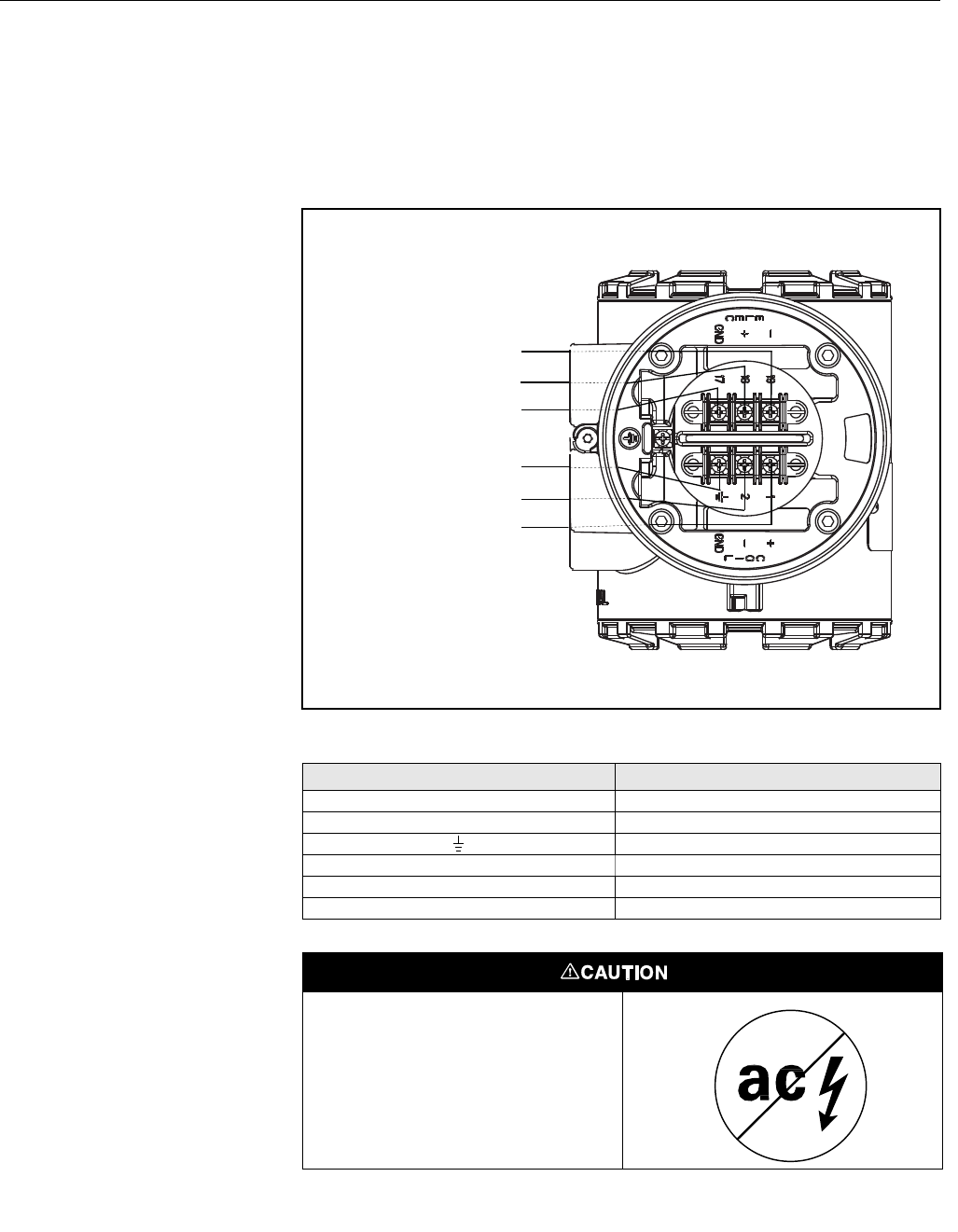

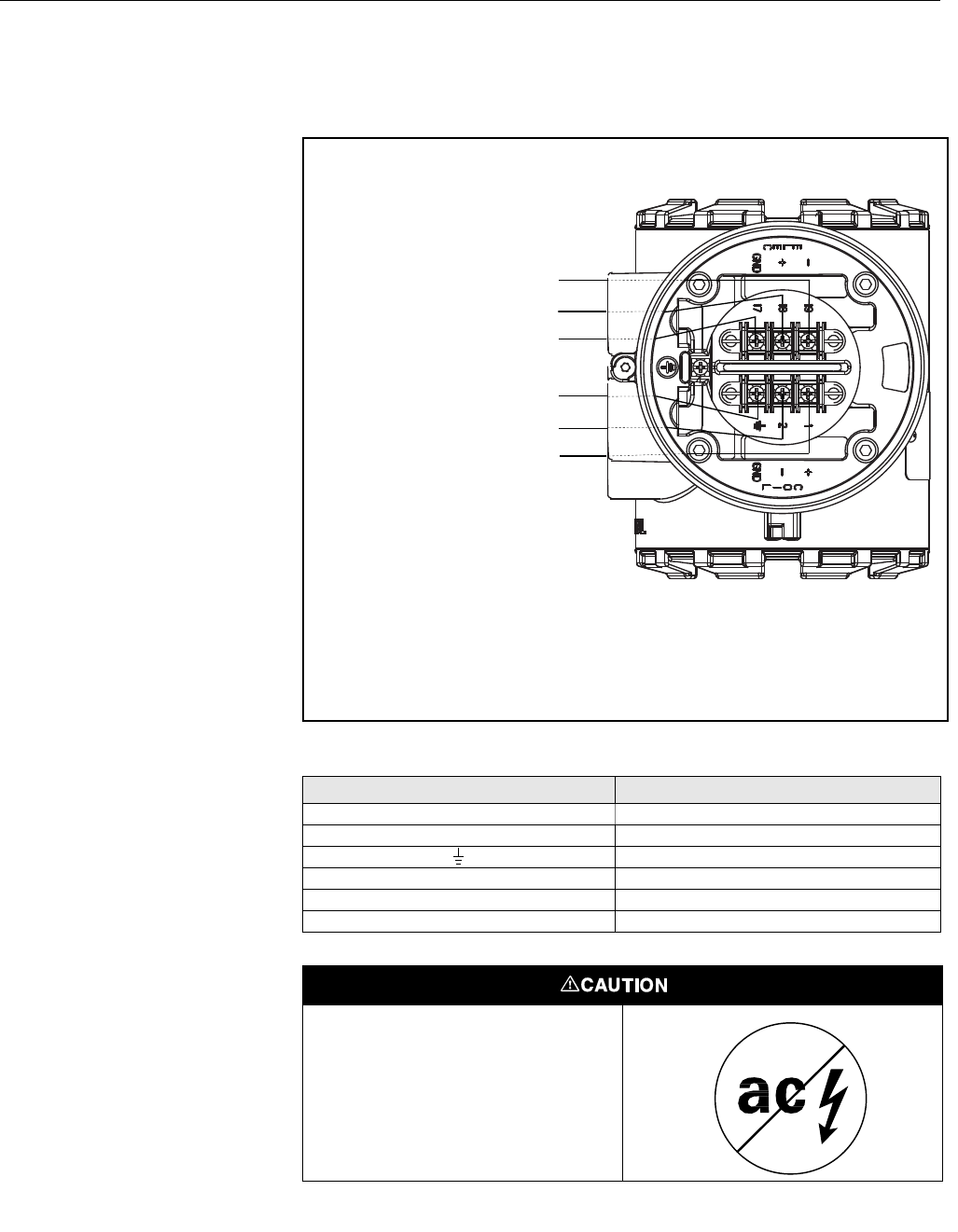

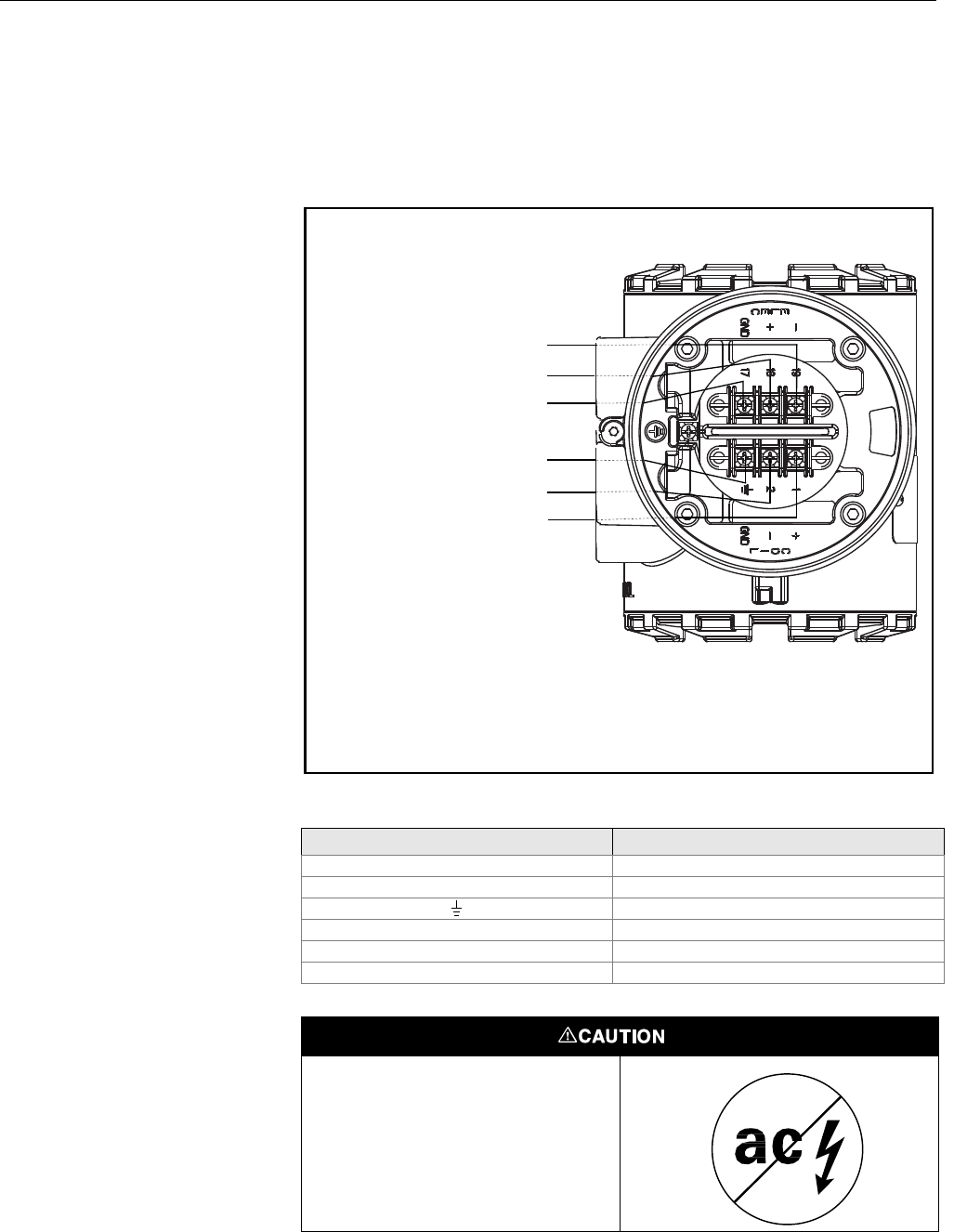

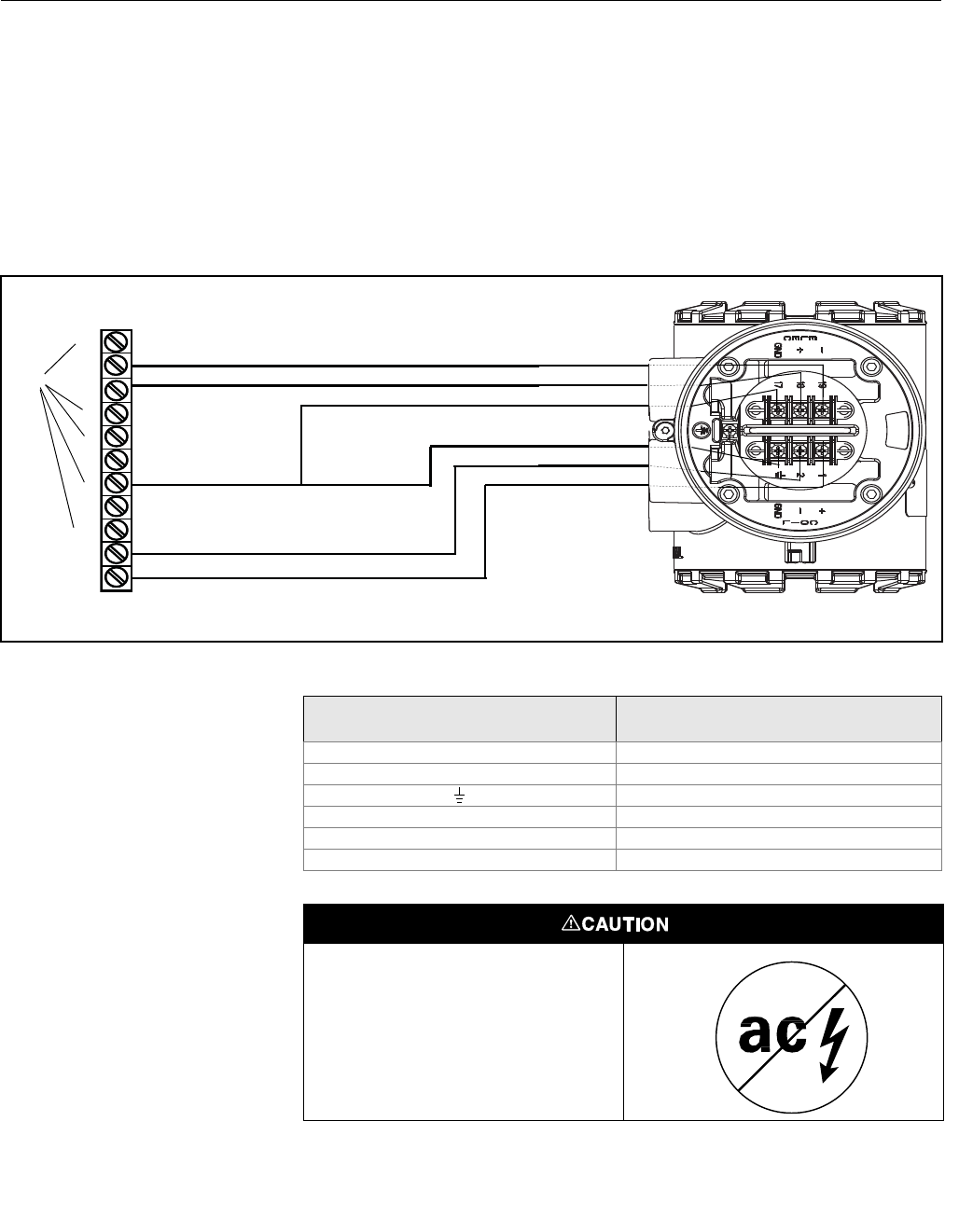

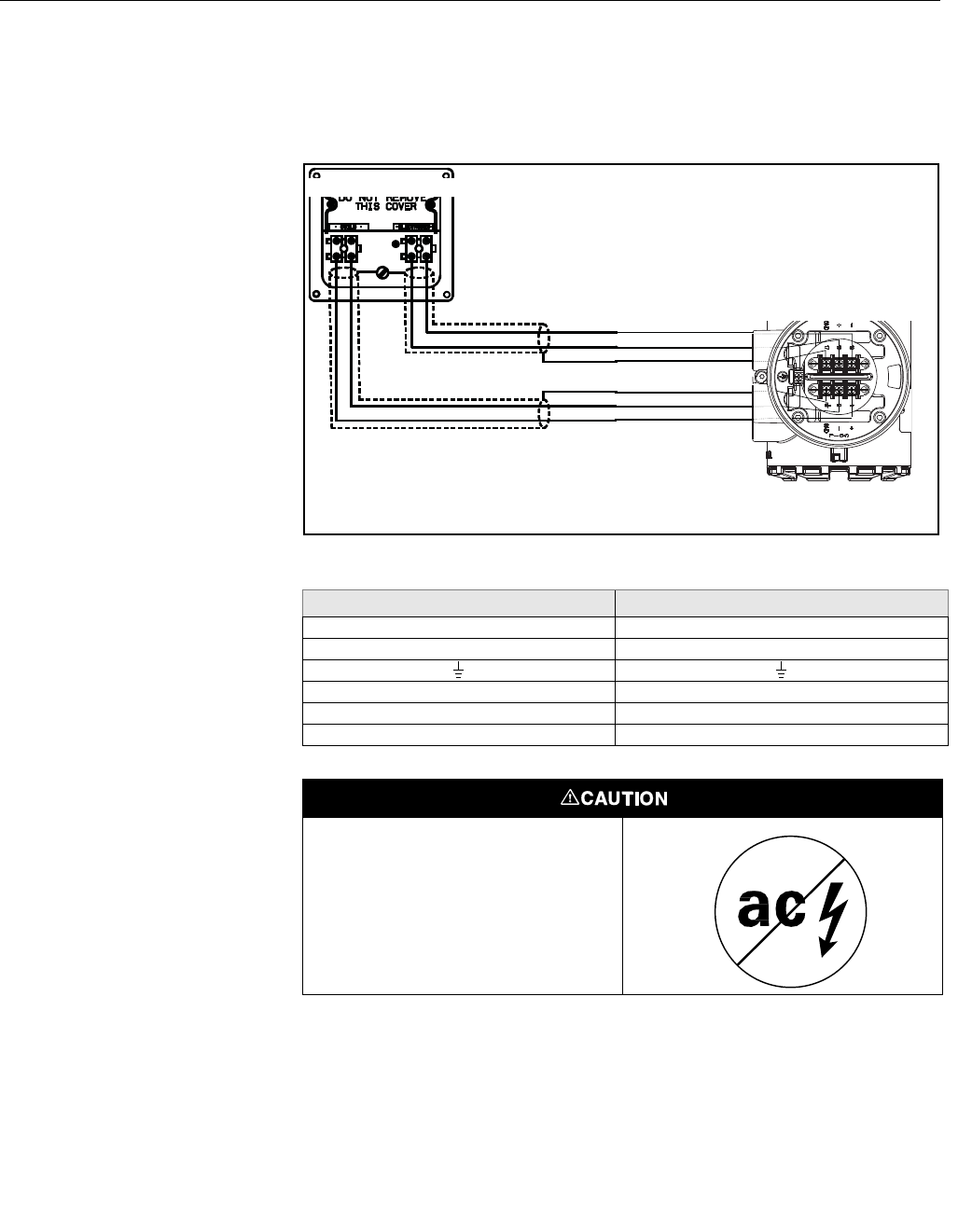

Figure 2-4. AC Transmitter
Power Connections
Connect Profibus PA
Wiring The Profibus PA signal provides the output information from the transmitter.
Transmitter
Communication Input The Profibus PA communication requires a minimum of
9 V dc and a maximum of 32 V dc at the transmitter communication terminals.
NOTES
Do not exceed 32 V dc at the transmitter communication terminals.
Do not apply ac line voltage to the transmitter
communication terminals.
Improper supply voltage can damage the transmitter.
Field Wiring Power independent of the coil power supply must be supplied for Profibus PA
communications. Use shielded, twisted pair for best results. For new
installations or to get maximum performance, twisted pair cable designed
especially for Profibus should be used. Table 2-1 details cable characteristics
and ideal specifications.
Table 2-1.
Ideal Cable Specifications for
Profibus Wiring
See “Safety Messages” on page 2-1 for complete warning information.
Characteristic Ideal Specification
Impedance 135 to 165 (150 Nominal)
Wire Size 22 AWG (0,34 mm2)
Shield Coverage 90%
Loop Resistance < 110 /km
Capacitance < 30 pF/km
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
2-8
NOTE
The number of devices on a Profibus segment is limited by the power supply
voltage, the resistance of the cable, and the amount of current drawn by
each device.
Transmitter Wiring
Connection To connect the 8732 to the Profibus PA segment, complete the following
steps.
1. Ensure that the power source and connecting cable meet the
requirements outlined above and in “Field Wiring” on page 2-7.
2. Turn off the transmitter and power sources.
3. Run the Profibus PA cable into the transmitter.
4. Connect PA to Terminal 1.
5. Connect PA to Terminal 2.
NOTE
Profibus PA signal wiring for the 8732 is not polarity sensitive.
Refer to Figure 2-5 on page 2-8.

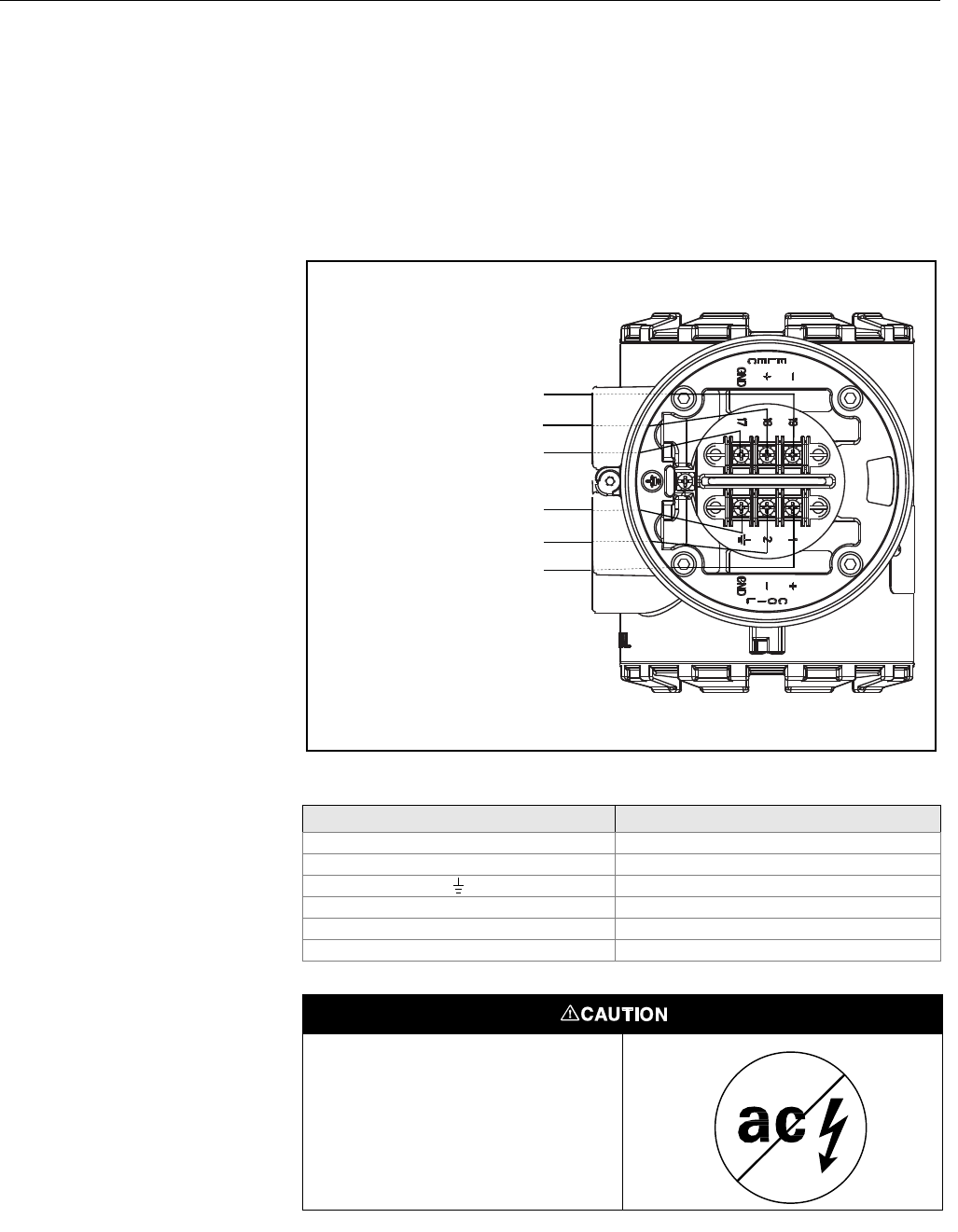

Figure 2-5. Profibus PA Signal
Connections
PA signal
PA signal
Reference Manual
00809-0100-4665, Rev AA
August 2010
2-9
Rosemount 8732

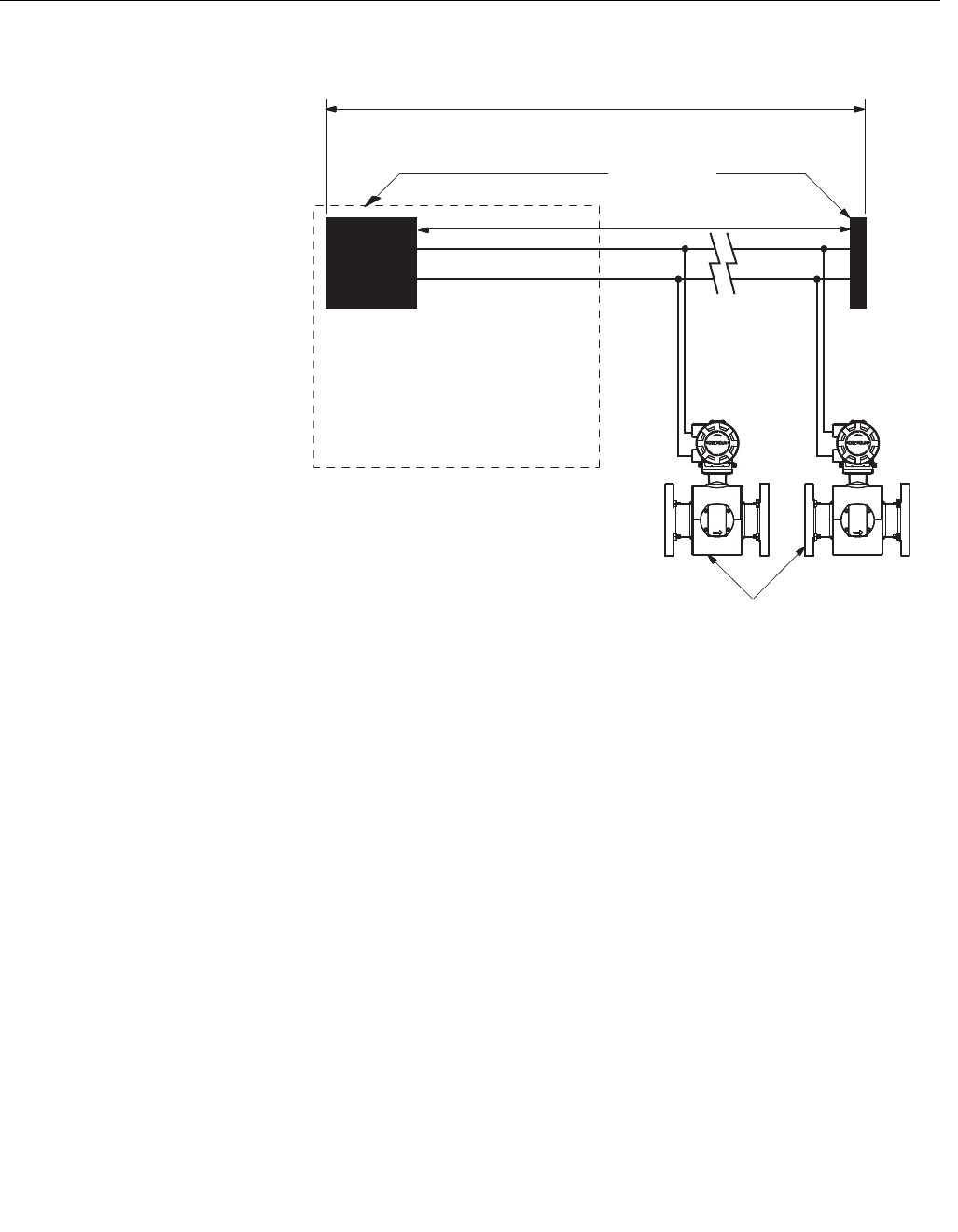

Figure 2-6. Rosemount 8732
Transmitter Field Wiring
(Trunk)
(Spur)
Terminators
(The power supply,
filter, first terminator,
and configuration tool
are typically located in
the control room.)
Devices 1 through 11*
*Intrinsically safe installations may
allow fewer devices per I.S. barrier.
Profibus DP
to Profibus
PA Convertor
(Spur)
6234 ft (1900 m) max
(depending upon cable characteristics)
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
2-10
SENSOR CONNECTIONS This section covers the steps required to physically install the transmitter
including wiring and calibration.
Rosemount Sensors To connect the transmitter to a non-Rosemount sensor, refer to the
appropriate wiring diagram in “Universal Sensor Wiring Diagrams” on
page E-1. The calibration procedure listed is not required for use with
Rosemount sensors.
Transmitter to Sensor
Wiring Flanged and wafer sensors have two conduit ports as shown in Figure 2-7.
Either one may be used for both the coil drive and electrode cables. Use the
stainless steel plug that is provided to seal the unused conduit port. Use
PTFE tape or thread sealant appropriate for the installation when sealing the
conduit.
A single dedicated conduit run for the coil drive and electrode cables is
needed between a sensor and a remote transmitter. Bundled cables in a
single conduit are likely to create interference and noise problems in your
system. Use one set of cables per conduit run. See Figure 2-7 for proper
conduit installation diagram and Table 2-2 for recommended cable. For
integral and remote wiring diagrams refer to Figure 2-9.

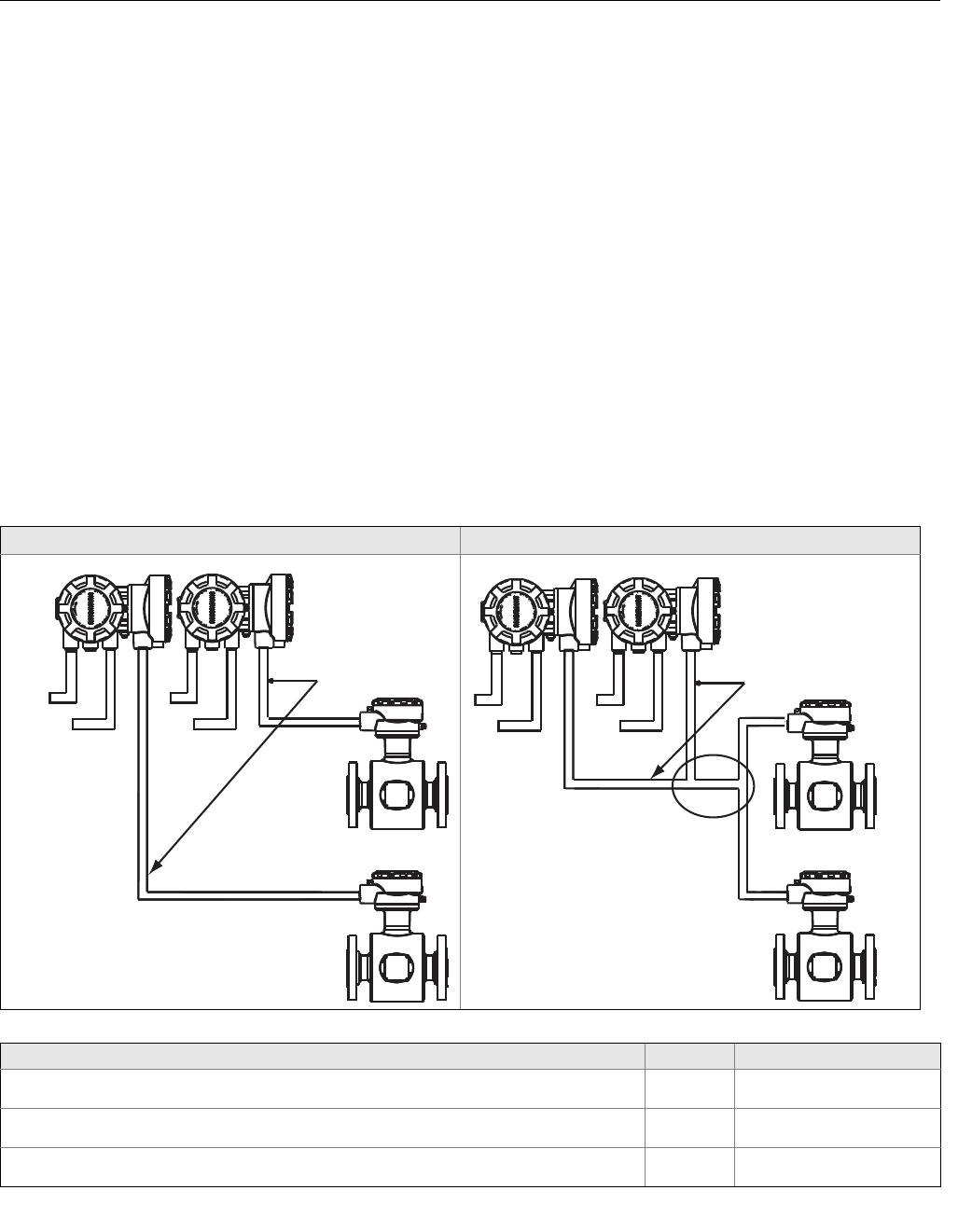

Figure 2-7. Conduit Preparation
Correct Incorrect
Table 2-2. Cable Requirements
Description Units Part Number
Signal Cable (20 AWG) Belden 8762, Alpha 2411 equivalent ft
m
08712-0061-0001
08712-0061-2003
Coil Drive Cable (14 AWG) Belden 8720, Alpha 2442 equivalent ft
m
08712-0060-0001
08712-0060-2003
Combination Signal and Coil Drive Cable (18 AWG)(1)
(1) Combination signal and coil drive cable is not recommended for high-signal magmeter system. For remote mount installations, combination signal and coil
drive cable should be limited to less than 330 ft. (100 m).
ft
m
08712-0752-0001
08712-0752-2003
Coil Drive
and
Electrode
Cables
Power Power
Outputs
Outputs
Coil Drive
and
Electrode
Cables
Power
Outputs
Power
Outputs
Reference Manual
00809-0100-4665, Rev AA
August 2010
2-11
Rosemount 8732
Rosemount recommends using the combination signal and coil drive for N5,
E5 approved sensors for optimum performance.
Remote transmitter installations require equal lengths of signal and coil drive
cables. Integrally mounted transmitters are factory wired and do not require
interconnecting cables.
Lengths from 5 to 1,000 feet (1.5 to 300 meters) may be specified, and will be
shipped with the sensor.
Conduit Cables Run the appropriate size cable through the conduit connections in your
magnetic flowmeter system. Run the power cable from the power source to
the transmitter. Run the coil drive and electrode cables between the sensor
and transmitter.
Prepare the ends of the coil drive and electrode cables as shown in Figure
2-8. Limit the unshielded wire length to 1-inch on both the electrode and coil
drive cables.
NOTE
Excessive lead length or failure to connect cable shields can create electrical
noise resulting in unstable meter readings.
Figure 2-8. Cable Preparation
Detail
1.00
(26)
NOTE
Dimensions are in
inches (millimeters).
Cable Shield
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
2-12

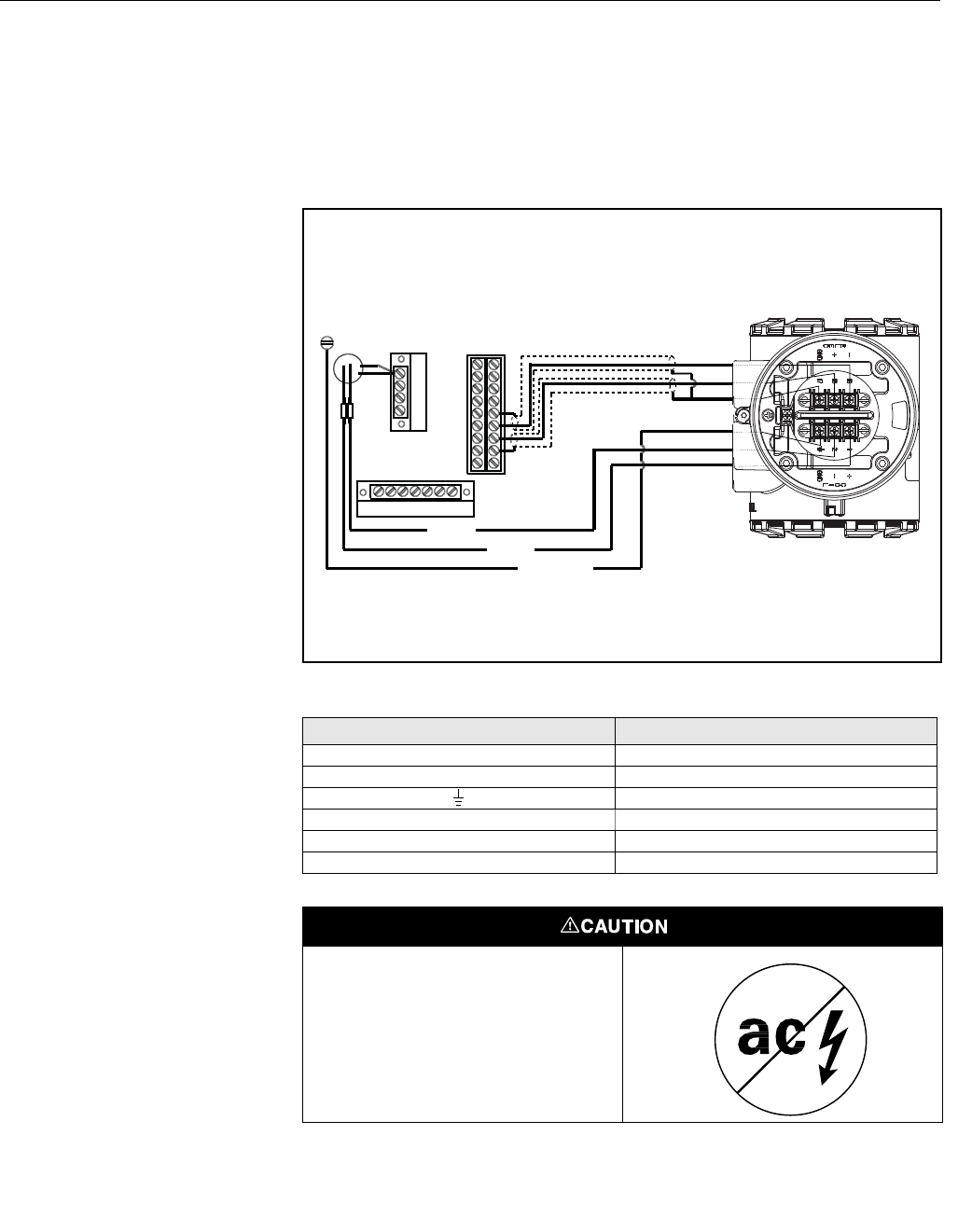

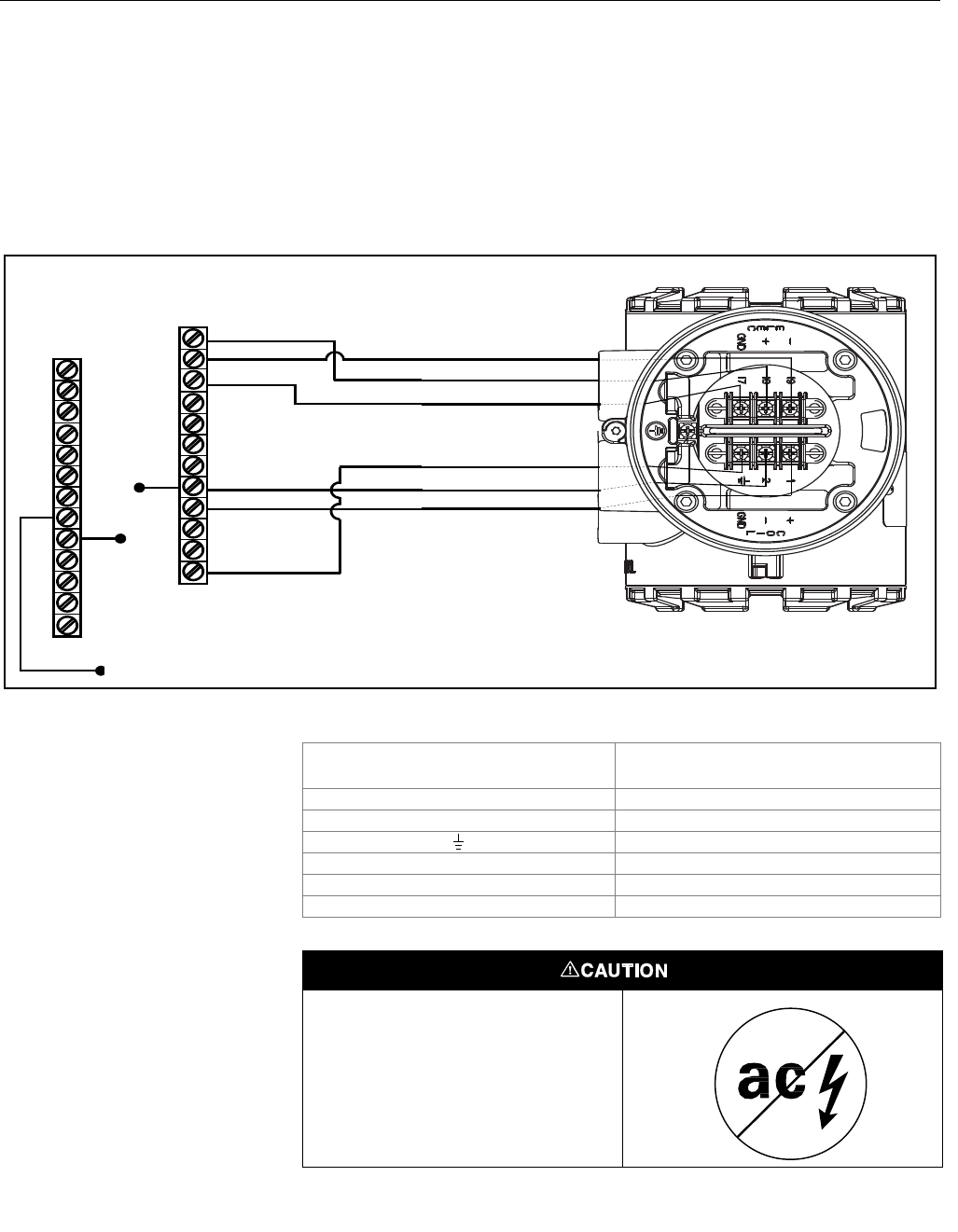

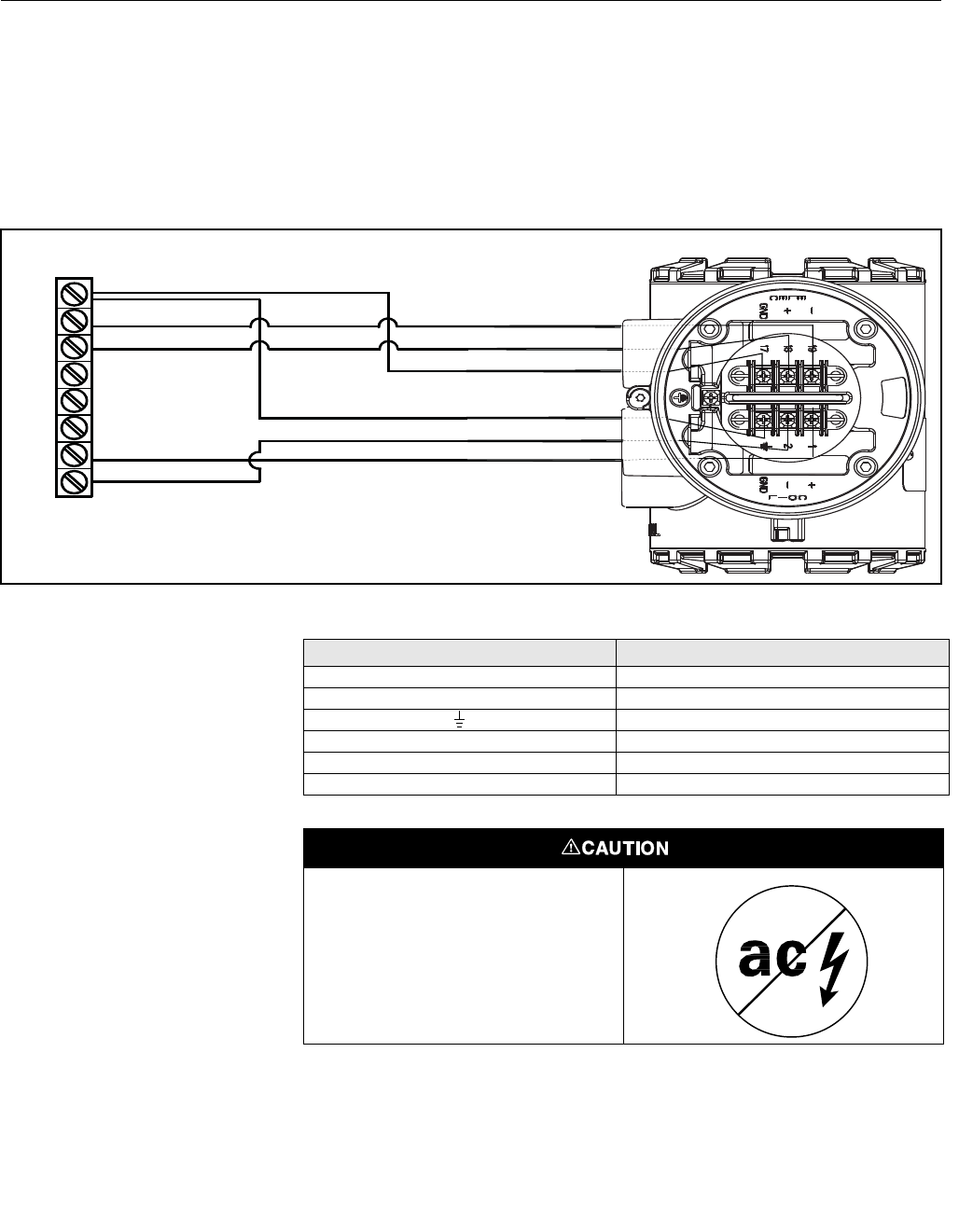

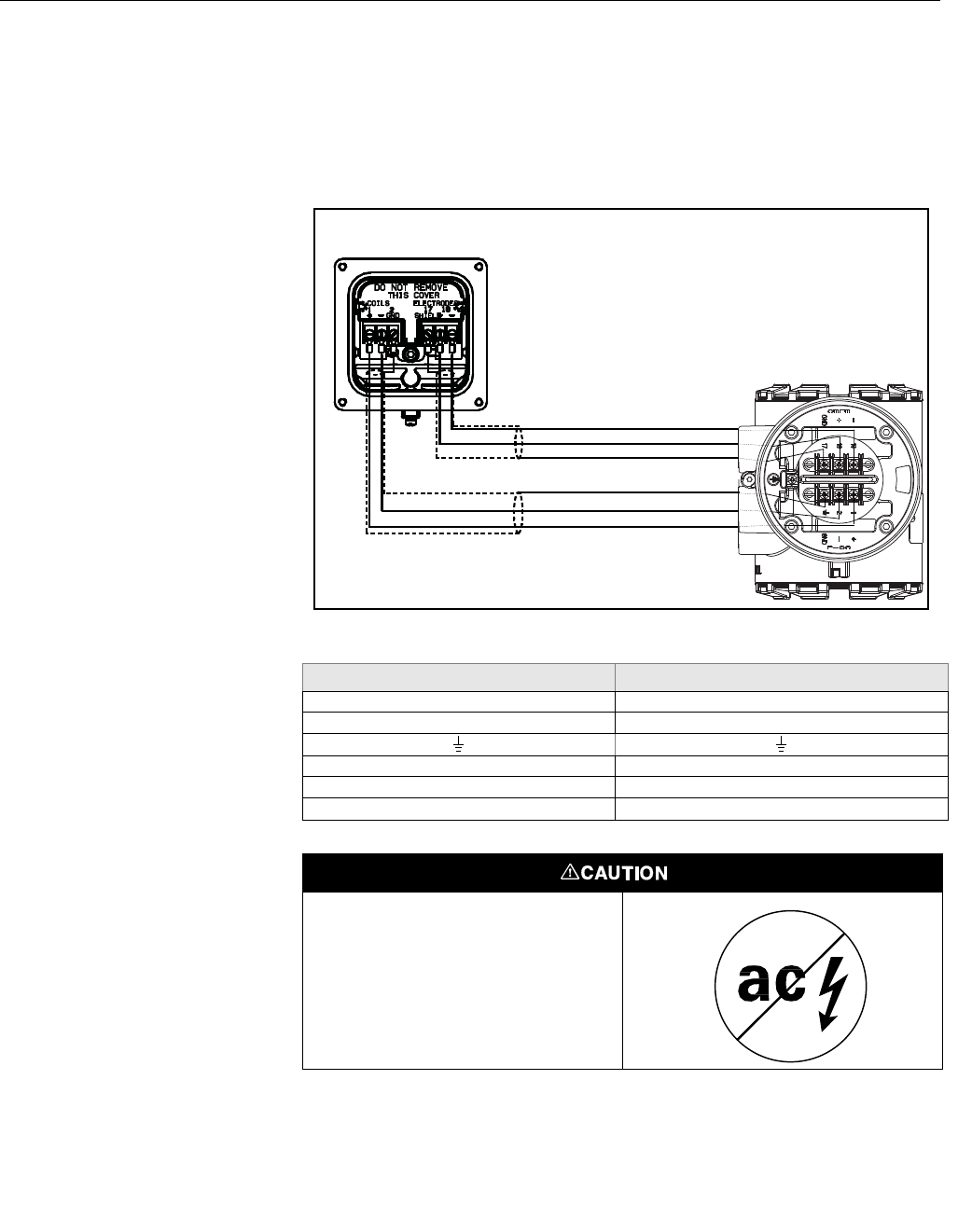

Figure 2-9. Wiring Diagram
Transmitter
Terminal Sensor Terminal Wire Gauge Wire Color
1 1 14 Clear or Red
2 2 14 Black
14 Shield
17 17 20 Shield
18 18 20 Black
19 19 20 Clear or Red
Reference Manual
00809-0100-4665, Rev AA
August 2010 Rosemount 8732
www.rosemount.com
Section 3 Configuration
Quick Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-1
Assigning Device Tag and Node Address . . . . . . . . . . . . page 3-2
Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-2
This section covers basic operation, software functionality, and basic
configuration procedures for the Rosemount 8732E Magnetic Flowmeter
Transmitter with Profibus PA. For more information about the Profibus PA
technology and the function blocks used in the transmitter, refer to
Appendix F: Physical Block and Appendix G.
Calibration Rosemount sensors are wet calibrated at the factory. They do not need
further calibration during installation.
Each Profibus PA configuration tool or host device has a different way of
displaying and performing configurations. Some will use Device Descriptions
(DD) and DD Methods to make configuring and displaying data consistent
across host platforms. There is no requirement that a configuration tool or
host support these features. This section describes how to reconfigure the
device manually.
QUICK START-UP Once the magnetic flowmeter system is installed and communication is
established, configuration of the transmitter must be completed. The standard
transmitter configuration, without Option Code C1, Custom Configuration, is
shipped with the following parameters:
Sensor
Calibration Number A unique sensor calibration number, imprinted on the sensor tag, enables any
Rosemount sensor to be used with any Rosemount transmitter without further
calibration. Rosemount flow lab tests determine individual sensor output
characteristics. The characteristics are identified by a 16-digit calibration
number. In a Profibus PA environment, the 8732E can be configured using an
8732E Profibus PA LOI or a Simatic PDM. Please see Section 4 for 8732E PA
LOI and PDM information.
Engineering Units: ft/s
Sensor Size: 3-in.
Sensor Calibration Number: 100000501000000
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
3-2
The calibration number is more than a correction factor, or K- factor, for the
sensor. The first five digits represent the low frequency gain. The ninth
through thirteenth digits represent the high frequency gain. Both numbers are
normalized from an ideal number of 10000. Standard configurations use the
low frequency gain, but in noisy applications it may be worthwhile to switch to
the higher frequency. An additional transmitter procedure, called Auto Zero, is
recommended to perform at the higher coil drive frequency. The seventh and
eighth digits represent the zero offset at both frequencies where the nominal
value is 50. Empty pipe functionality is a transmitter feature that is controlled
by a parameter in the transducer block. To turn off this feature, see
Appendix C.
ASSIGNING DEVICE TAG
AND NODE ADDRESS The 8732E Magnetic Flowmeter Transmitter is shipped with a blank tag. The
device is shipped with a default address of 126.
If the tag or address needs to be changed, use the features of the
configuration tool. The tools do the following:
Change the tag to a new value.
Change the address to a new address.
BASIC SETUP
AI Block The Analog Input (AI) function block processes field device measurements
and makes them available to the master. The output value from the AI block is
in engineering units and contains a status indicating the quality of the
measurement. The measuring device may have several measurements or
derived values available in different channels. Use the channel number to
define the variable that the AI block processes. The 8732E transmitter only
supports “Flow” as AI Block variable.
Reference Manual
00809-0100-4665, Rev AA
August 2010
3-3
Rosemount 8732
AI Block Parameter
Attribute Definitions The following table describes the parameters that are available in the analog
input function block. Each line item in the table defines the element and
specifies the requirements for each element.
Absolute
Index Parameter Description
Profibus PA Specific Block
Header
16 BLOCK_OBJECT This object contains the characteristics of the
blocks.
17 ST_REV The modification of at least one static parameter in
a block has to be incremented by the according
ST_REV at least by one.
18 TAG_DESC Every block can be assigned a textual TAG
description. The TAG_DESC must be unambiguous
and unique in the fieldbus system.
19 STRATEGY Grouping of Function Block. The STRATEGY field
can be used to group blocks.
20 ALERT_KEY This parameter contains the identification number
of the plant unit. It helps to
identify the location (plant unit) of an event.
21 TARGET_MODE The TARGET_MODE parameter contains desired
mode normally set by a control application or an
operator. The modes are valid alternatively only,
i.e. only one mode can be set at one time. A write
access to this parameter with more then one mode
is out of the range of the parameter and have to be
refused.
22 MODE_BLK This parameter contains the current mode, the
permitted and normal mode of the block.
23 ALARM_SUM This parameter contains the current states of the
block alarms.
24 BATCH This parameter is intended to be used in Batch
applications. Not implemented in 8732E device.
25 RESERVED by PNO
26 OUT The Function Block parameter OUT contains the
current measurement value in a vendor specific or
configuration adjusted engineering unit and the
belonging state in AUTO MODE. The Function
Block parameter OUT contains the value and status
set by an operator in MAN MODE.
27 PV_SCALE Conversion of the Process Variable into percent
using the high and low scale values. The
engineering unit of PV_SCALE high and low scale
values are directly.
28 OUT_SCALE Related to the PV_UNIT of the configured
Transducer Block (configured via Channel
parameter). The PV_SCALE high and low scale
values follow the mapped to last 16 characters of
DEVICE_ID_STRING parameter in Mfg. Block.
29 LIN_TYPE Type of linearization. The 8732E only supports “No
linearization”.
30 CHANNEL Reference to the active Transducer Block which
provides the measurement value
to the Function Block.
31 RESERVED
32 PV_FTIME Filter time of the Process Variable.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
3-4
33 FSAFE_ TYPE Defines the reaction of device, if a fault is detected.
The calculated ACTUAL MODE remains in AUTO.
0: value FSAFE_VALUE is used as OUT
Status - UNCERTAIN_Substitute Value,
1: use last stored valid OUT value
Status - UNCERTAIN_LastUsableValue
if there is no valid value available, then
UNCERTAINInital_Value, OUT value is = Initial
value
2: OUT has the wrong calculated value and status
Status - BAD_* (* as calculated)
34 FSAFE_VALUE Default value for the OUT parameter, if a sensor or
sensor electronic fault is detected. The unit of this
parameter is the same as the OUT parameter.
35 ALARM_HYS Within the scope of the PROFIBUS-PA specification
for transmitters there are functions for the
monitoring of limit violation (off-limit conditions) of
adjustable limits. Maybe the value of one process
variable is just the same as the value of a limit and
the variable fluctuates around the limit it will occur a
lot of limit violations. That triggers a lot of
messages; so it must be possible to trigger
messages only after crossing an adjustable
hysteresis. The sensitivity of triggering of the alarm
messages is adjustable. The value of the hysteresis
is fixed in ALARM_HYS and is the same for the
parameters HI_HI_LIM, HI_LIM, LO_LIM and
LO_LO_LIM. The hysteresis is expressed as value
below high limit and above low limit in the
engineering unit of xx_LIM.
36 RESERVED
37 HI_HI_LIM Value for upper limit of alarms
38 RESERVED
39 HI_LIM Value for upper limit of warnings
40 RESERVED
41 LO_LIM Value for lower limit of warnings
42 RESERVED
43 LO_LO_LIM Value for the lower limit of alarms
44 RESERVED
45 RESERVED
46 RESERVED
47 RESERVED
48 RESERVED
49 RESERVED
50 SIMULATE For commissioning and test purposes the input
value from the Transducer Block in the Analog Input
Function Block AI-FB can be modified. That means
that the Transducer and AI-FB will be disconnected.
51-60 RESERVED BY PNO
61 VIEW_1_AI
Absolute
Index Parameter Description
Reference Manual
00809-0100-4665, Rev AA
August 2010
3-5
Rosemount 8732
Totalizer Block Totalizer 1 is Slot 2
Totalizer 2 is Slot 3
Totalizer 3 is Slot 4
The 8732E transmitter has three independent totalizer blocks. These blocks
can be used to totalize independently over different time ranges or using
different units of measure.
Totalize Block Parameter
Attribute Definitions The following table describes the parameters that are available in the totalizer
(INTEG) block. Each line item in the table defines the element and specifies
the requirements for each element.
Index Parameter Description
Profibus PA Specific Block
Header
16 BLOCK_OBJECT This object contains the characteristics of the
blocks.
17 ST_REV The modification of at least one static parameter
in a block has to be incremented by the
according ST_REV at least by one.
18 TAG_DESC Every block can be assigned a textual TAG
description. The TAG_DESC must be
unambiguous and unique in the fieldbus
system.
19 STRATEGY Grouping of Function Block. The STRATEGY
field can be used to group blocks.
20 ALERT_KEY This parameter contains the identification
number of the plant unit. It helps to
identify the location (plant unit) of an event.
21 TARGET_MODE The TARGET_MODE parameter contains
desired mode normally set by a control
application or an operator. The modes are valid
alternatively only, i.e. only one mode can be set
at one time. A write access to this parameter
with more then one mode is out of the range of
the parameter and have to be refused.
22 MODE_BLK This parameter contains the current mode, the
permitted and normal mode of the block.
23 ALARM_SUM This parameter contains the current states of
the block alarms.
24 BATCH This parameter is intended to be used in Batch
applications. Not implemented in 8732E device.
25 RESERVED
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
3-6
Profibus PA specific
Parameters
26 TOTAL The Function Block parameter TOTAL contains
the integrated quantity of the rate parameter
provided by CHANNEL and the associated
status.
27 UNIT_TOT Unit of the totalized quantity.
28 CHANNEL Reference to the active Transducer Block,
which provides the measurement value to the
Function Block.
29 SET_TOT The following selections of this Function Block
parameter are possible:
0: TOTALIZE; “normal“ operation of the Totalizer
1: RESET; assign value “0“ to Totalizer
2: PRESET; assign value of PRESET_TOT to
Totalizer
30 MODE_TOT 0: BALANCED; true arithmetic integration of the
incoming rate values.
1: POS_ONLY; totalization of positive incoming
rate values only.
2: NEG_ONLY; totalization of negative incoming
rate values only.
3: HOLD; totalization stopped
31 FAIL_TOT 0: RUN; totalization is continued using the input
values despite the BAD status.
The status is ignored.
1: HOLD; totalization is stopped during
occurrence of BAD status of incoming
values.
2: MEMORY; totalization is continued based on
the last incoming value
with GOOD status before the first occurrence of
BAD status.
32 PRESET_TOT This value is used as a preset for the internal
value of the FB algorithm. The value is effective
if using the SET_TOT function.
33 ALARM_HYS Within the scope of the PROFIBUS-PA
specification for transmitters there are
functions for the monitoring of limit violation
(off-limit conditions) of adjustable limits.
Maybe the value of one process variable is just
the same as the value of a limit and the variable
fluctuates around the limit it will occur a lot of
limit violations. That triggers a lot of messages;
so it must be possible to trigger messages only
after crossing an adjustable hysteresis. The
sensitivity of triggering of the alarm messages is
adjustable. The value of the hysteresis is fixed
in ALARM_HYS and is the same for the
parameters HI_HI_LIM, HI_LIM, LO_LIM and
LO_LO_LIM. The hysteresis is expressed as
value below high limit and above low limit in the
engineering unit of xx_LIM.
34 HI_HI_LIM Value for upper limit of alarms
35 HI_LIM Value for upper limit of warnings
36 LO_LIM Value for lower limit of warnings
37 LO_LO_LIM Value for the lower limit of alarms
38 - 51 RESERVED BY PNO
52 VIEW_1_TOT
Reference Manual
00809-0100-4665, Rev AA
August 2010
3-7
Rosemount 8732
TRANSDUCER BLOCK
PV The process variables (PV) measure flow in several ways that reflect your
needs and the configuration of your flowmeter. When commissioning a
flowmeter, review each process variable, its function and output, and take
corrective action if necessary before using the flowmeter in a
process application
PV Value – The actual measured flow rate in the line. Use the Process
Variable Units function to select the units for your application.
PV Status – The status of the process variable. This indicates whether the
reported flow rate is “good”, “uncertain”, or “bad”.
PV Value The PV Value shows the current measured flow rate.
PV Status The PV Status shows the health of the PV Value.
Good - The PV Value is valid and the flowmeter system is operating normally.
Uncertain - The PV Value is being reported, but a condition exists that is
potentially compromising the measurement. This condition could be caused
by a problem with the flowmeter or the process.
Bad - A problem exists with the flowmeter system that has resulted in a
potentially faulty flow measurement. Consult status and diagnostic
information to identify the problem.
BASIC SETUP The basic configuration functions of the Rosemount 8732 must be set for all
applications of the transmitter in a magnetic flowmeter system. If your
application requires the advanced functionality features of the Rosemount
8732, see Section 4 of this manual.
Flow Units Flow Units set the output units for the Primary Variable. This parameter is
configured in the Transducer Block.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
3-8
Options for Flow Rate Units
Line Size The line size (sensor size) must be set to match the actual sensor connected
to the transmitter. The size must be specified in inches according to the
available sizes listed below. If a value is entered from a control system that
does not match one of these figures, the value will go to the next highest
option. This parameter is configured in the Transducer Block.
The line size (inches) options are as follows:
• ft/s bbl/s (1 Barrel = 42 gallons)
ft/m bbl/min (1 Barrel = 42 gallons)
• ft/h bbl/h (1 Barrel = 42 gallons)
•m/s bbl/d (1 Barrel = 42gallons)
•m/h •cm
3/s
• gal/s •cm
3/min
•GPM •cm
3/h
• gal/h •cm
3/d
• gal/d •lb/s
•L/s •lb/min
•L/min •lb/h
•L/h •lb/d
•L/d •kg/s
•CFS •kg/min
•CFM •kg/h
•CFH •kg/d
•ft
3/d • STon/s
•m
3/s • STon/min
•m
3/min • STon/h
•m
3/h • STon/d
•m
3/d • t/s
•IGAL/s • t/min
•IGAL/min • t/h
•IGAL/h • t/d
•IGAL/d BBL/s (1 Barrel = 31 gallons)
BBL/m (1 Barrel = 31 gallons)
BBL/h (1 Barrel = 31 gallons)
BBL/d (1 Barrel = 31 gallons)
0.1, 0.15, 0.25, 0.30, 0.50, 0.75, 1, 1.5, 2, 2.5, 3, 4, 6, 8, 10, 12, 14,
16, 18, 20, 24, 28, 30, 32, 36, 40, 42, 44, 48, 54, 56, 60, 64, 72, 80
Reference Manual
00809-0100-4665, Rev AA
August 2010
3-9
Rosemount 8732

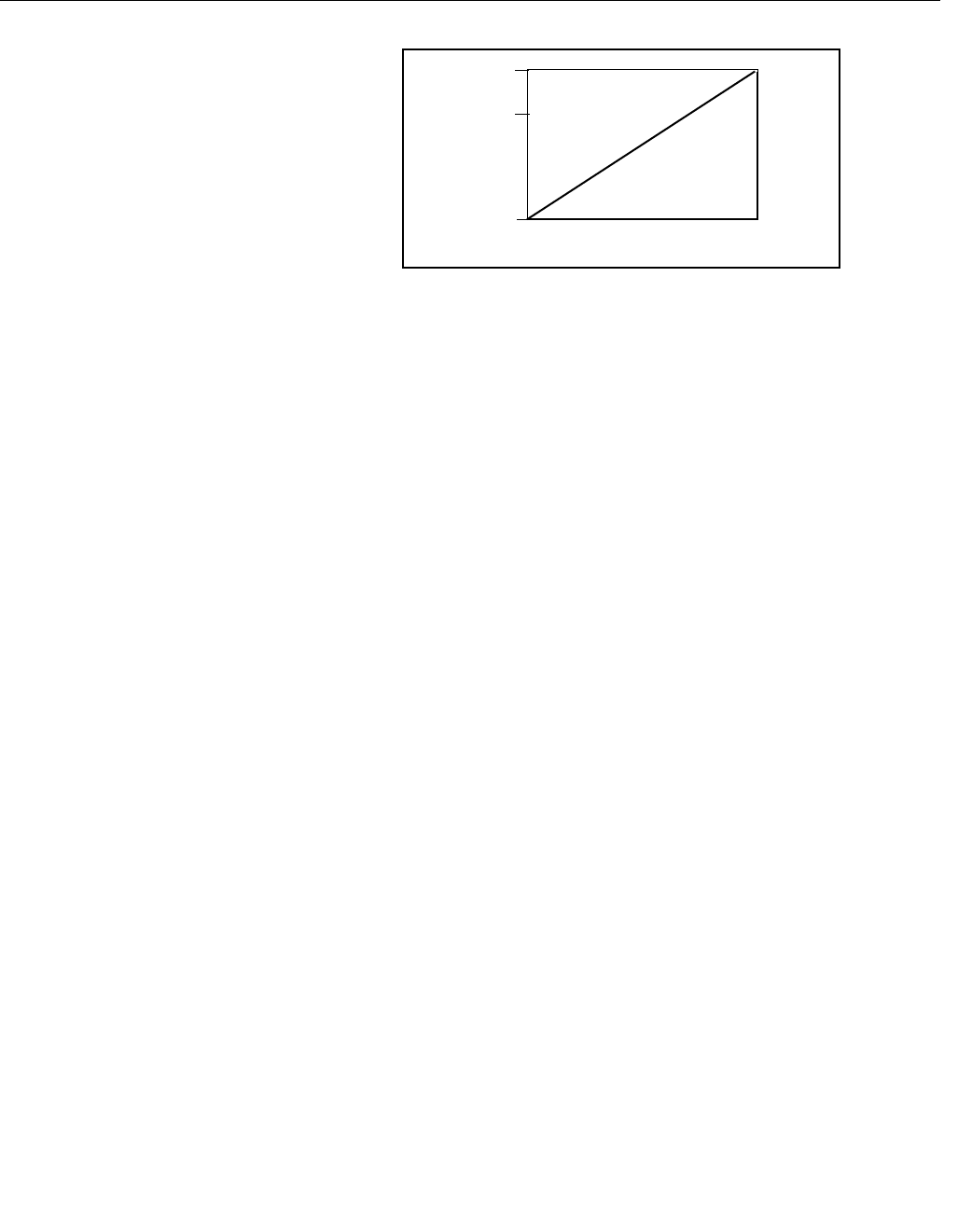

Upper Range Value This parameter set the flow rate in engineering units that corresponds to
100% flow. This parameter is configured in the Transducer Block.
The Upper Range Value can be set for both forward or reverse flow rates.
Flow in the forward direction is represented by positive values and flow in the
reverse direction is represented by negative values. The URV can be any
value from –43.3 ft/s to +43.3 ft/s (-13.2 m/s to +13.2 m/s), as long as it is at
least 1 ft/s (0.3 m/s) from the lower range value (LRV). The URV can be set to
a value less than the lower range value.
NOTE
Line size and density must be selected prior to configuration of URV and LRV.
Lower Range Value This parameter sets the flow rate in engineering units that corresponds to 0%
flow. This parameter is configured in the Transducer Block.
Set the lower range value (LRV) to change the size of the range (or span)
between the URV and LRV. Under normal circumstances, the LRV should be
set to a value near the minimum expected flow rate to maximize resolution.
The LRV must be between –43.3 ft/s to +43.3 ft/s (-13.2 m/s to +13.2 m/s).
NOTE
Line size and density must be selected prior to configuration of URV and LRV.
The minimum allowable span between the URV and LRV is 1 ft/s (0.3 m/s).
Do not set the LRV within 1 ft/s (0.3 m/s) of the URV. For example, if the URV
is set to 15.67 ft/s (4.8 m/s) and if the desired URV is greater than the LRV,
then the highest allowable LRV setting would be 14.67 ft/s (4.5 m/s). If the
desired URV is less than the LRV, then the lowest allowable LRV would be
16.67 ft/s (5.1 m/s).
Calibration Number The sensor calibration number is a 16-digit number used to identify sensors
calibrated at the Rosemount factory. The calibration number is also printed
inside the sensor terminal block or on the sensor name plate. The number
provides detailed calibration information to the Rosemount 8732. To function
properly within accuracy specifications, the number stored in the transmitter
must match the calibration number on the sensor exactly. This parameter is
configured in the Transducer Block.
NOTE
Sensors from manufacturers other than Rosemount Inc. can also be
calibrated at the Rosemount factory. Check the sensor for Rosemount
calibration tags to determine if a 16-digit sensor calibration number exists for
your sensor.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
3-10
NOTE
Be sure the calibration number reflects a calibration to a Rosemount
reference transmitter. If the calibration number was generated by a means
other than a certified Rosemount flow lab, accuracy of the system may be
compromised.
If your sensor is not a Rosemount sensor and was not calibrated at the
Rosemount factory, contact your Rosemount representative for assistance.
If your sensor is imprinted with an eight-digit number or a k-factor, check in
the sensor wiring compartment for the sixteen-digit calibration number. If
there is no serial number, contact the factory for a proper conversion.
Damping Adjustable between 0.0 and 256 seconds. This parameter is configured in the
Transducer Block.
Damping allows selection of a response time, in seconds, to a step change in
flow rate. It is most often used to smooth fluctuations in output.
Reference Manual
00809-0100-4665, Rev AA
August 2010 Rosemount 8732
www.rosemount.com
Section 4 Operation
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-1
Local Operator Interface . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-1
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-3
Advanced Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-12
Detailed Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-12
INTRODUCTION This section contains information for advanced configuration parameters and
diagnostics.
The software configuration settings for the Rosemount 8732 can be accessed
through an 8732 LOI or by using a Class 2 Master. Before operating the
Rosemount 8732 in an actual installation, you should review all of the factory
set configuration data to ensure that they reflect the current application.
LOCAL OPERATOR
INTERFACE The optional Local Operator Interface (LOI) provides an operator
communications centre for the 8732. By using the LOI, the operator can
access some of the transmitter function - totalizer, basic set-up, or other
functions under the detailed set-up. The LOI is integral to the transmitter
electronics. If you need the added functionality, or if your transmitter does not
have an LOI, you must use a configuration tool such as the Simatic PDM tool.
Basic Features

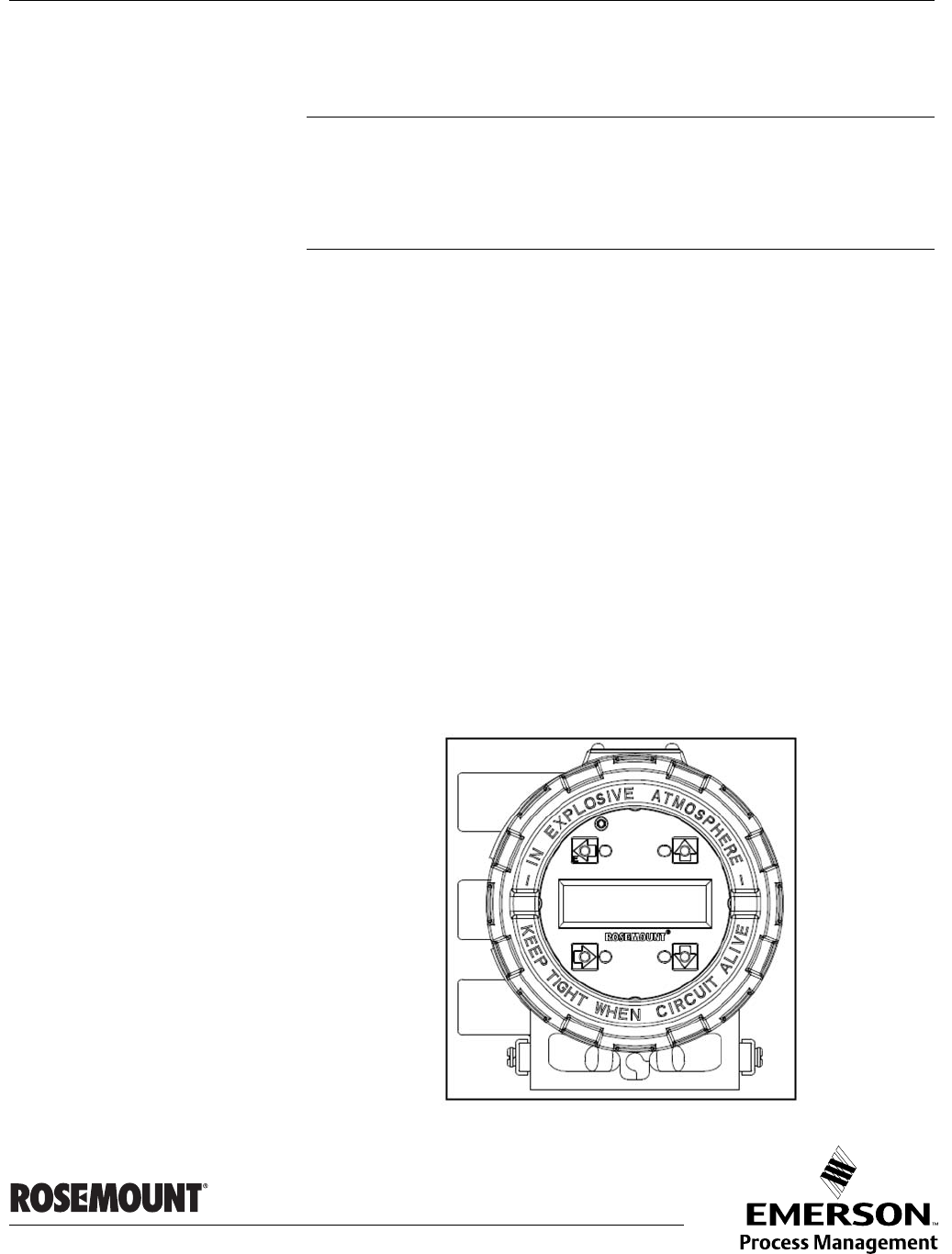

The basic features of the LOI include 4 navigational arrow keys which are
optical switches that are used to access the menu structure. See Figure
below:
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
4-2
Data Entry
The LOI keypad does not have numerical keys. Numerical data is entered by
the following procedure.
1. Access the appropriate function.
2. Use the RIGHT ARROW key to move to the value to change.
3. Use the UP and DOWN ARROWS to change the highlighted value.
For numerical data, toggle through the digits 0–9, decimal point, and
dash. For alphabetical data, toggle through the letters of the alphabet
A–Z, digits 0–9, and the symbols _,&, +, -, *, /, $, @,%, and the blank
space.
4. Use the RIGHT ARROWS to highlight other digits you want to change
and change them.
5. Press “E” (the left arrow key) when all changes are complete to save
the entered values.
LOI Language
This allows you to configure the language shown on the display. There are
five options available:
• English
• Spanish
• Portuguese
•German
•French

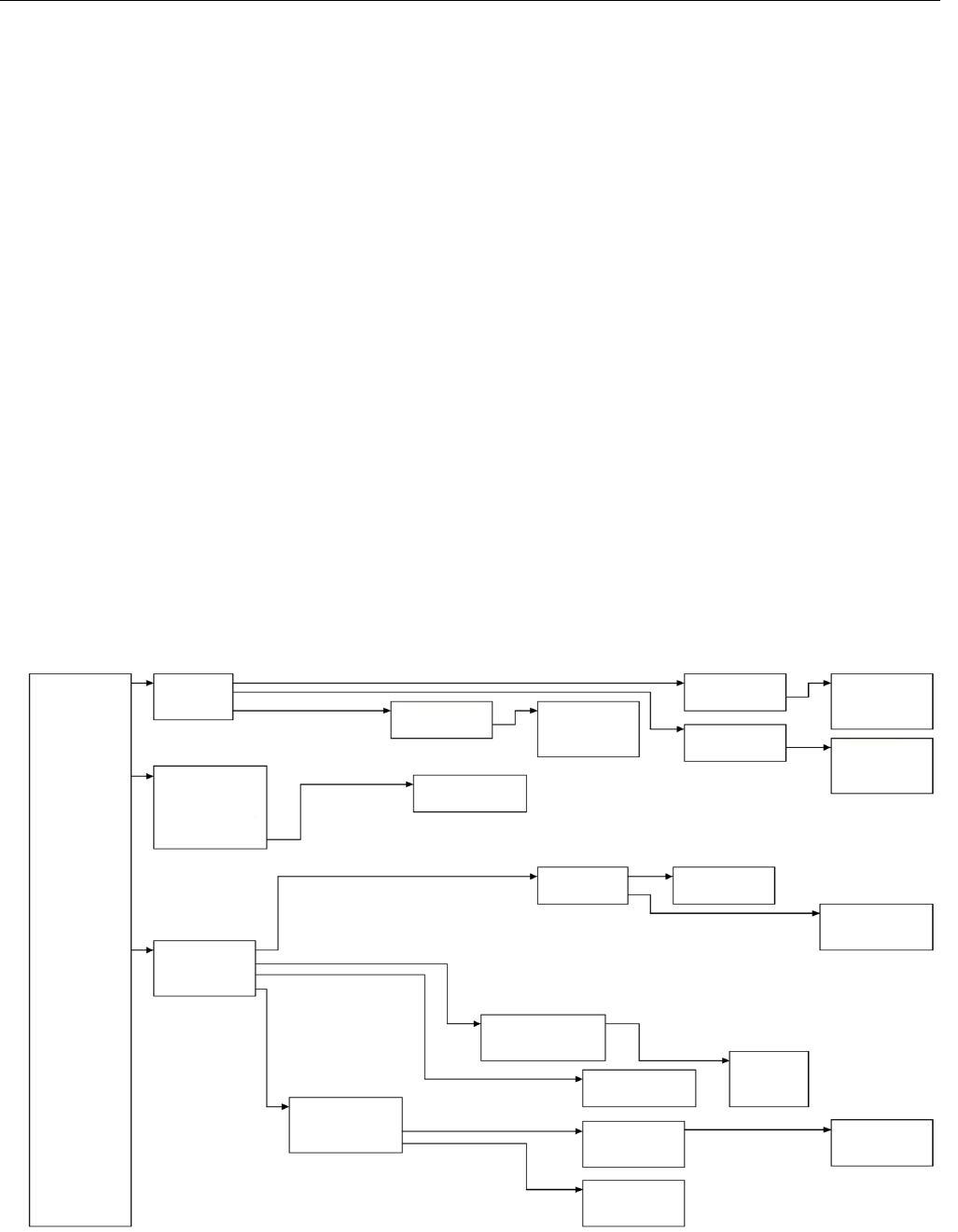

LOI Menu Tree
Totalizers
Basic Setup
Detailed Setup
Totalizer 1
Totalizer 2
Totalizer 3
Flow Units
Sensor Size
Cal Number
Damping
Coil Frequency
Profibus
AI Block Conf
LOI Config
Trims
8714i
Device Address
Ident Selector
Total 3 Value
Total 3 Config
Run 8714i
View Results
TubeSignature
Measurements
Total 3 Set
Total 3 Mode
Total 3 Units
Total 3 Preset
Total 1Value
Total 1 Config
Total 2 Value
Total 2 Config
Total 1 Set
Total 1 Mode
Total 1 Units
Total 1 Preset
Total 2 Set
Total 2 Mode
Total 2 Units
Total 2 Preset
AI PV Scale
AI Out Scale PV Scale URV
Out Scale LRV
Out Scale Unit
Out Scale URV
Out Scale LRV
Display Timing
Language
Write Lock
Auto Zero Trim
Universal Trim
Values
Re-signature
Recall Values
Coil Resist
Coil Signature
Electrode Res
PV
Totalizer 1
Totalizer 2
Totalizer 3
Coil Resist
Coil Signature
Electrode Res
Reference Manual
00809-0100-4665, Rev AA
August 2010
4-3
Rosemount 8732
Class 2 Masters There are a number of available PROFIBUS configuration tools. These Class
2 Masters are manufacturer-independent tools for the operation,
configuration, maintenance, and diagnosis of intelligent field devices. Device
descriptor based Class 2 Masters allow 100% configuration capability on the
8732E Profibus PA transmitter.
Class 2 Masters always need to be connected to the DP segment. They
cannot be directly connected to a PA segment.
DIAGNOSTICS Diagnostics are used to verify that the transmitter is functioning properly, to
assist in troubleshooting, to identify potential causes of error messages, and
to verify the health of the transmitter and sensor. All the diagnostic test can be
initiated through the use of a Class 2 Master. Some diagnostics can be
accessed using the LOI.
Rosemount offers several different diagnostic suites providing various
functionality.
Standard diagnostics included with every Rosemount 8732 transmitter are
Empty Pipe detection, Electronics Temperature monitoring, Coil Fault
detection, and various loop and transmitter tests.
Advanced diagnostics suite option one (D01 option) contains advanced
diagnostics for High Process Noise detection and Grounding and Wiring fault
detection.
Advanced diagnostics suite option two (D02 option) contains advanced
diagnostics for the 8714i Meter Verification. This diagnostic is used to verify
the accuracy and performance of the magnetic flow meter installation.
Empty Pipe Detection
Turn the empty pipe diagnostic on or off as required by the application. For
more details on the empty pipe diagnostic, see Appendix C: Diagnostics.
Electronics Temperature Out of Range
Turn the electronics temperature diagnostic on or off as required by the
application. For more details on the electronics temperature diagnostic, see
Appendix C: Diagnostics.
High Process Noise Detection
Turn the high process noise diagnostic on or off as required by the
application. For more details on the high process noise diagnostic, see
Appendix C: Diagnostics.
Grounding / Wiring Fault Detection
Turn the grounding / wiring diagnostic on or off as required by the application.
For more details on the grounding / wiring diagnostic, see Appendix C:
Diagnostics.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
4-4
Basic Diagnostics The basic diagnostics menu contains all of the standard diagnostics and tests
that are available in the 8732E transmitter.
Empty Pipe Limits
Empty Pipe allows you to view the current value and configure the diagnostic
parameters. For more detail on this parameter see Appendix C: Diagnostics.
EP Value
Read the current Empty Pipe Value. This number is a unitless number and is
calculated based on multiple installation and process variables. For more
detail on this parameter see Appendix C: Diagnostics.
EP Trigger Level
Limits: 3 to 2000
Configure the threshold limit that the empty pipe value must exceed before
the diagnostic alert activates. Default from the factory is set to 100. For more
detail on this parameter see Appendix C: Diagnostics.
EP Counts
Limits: 5 to 50
Configure the number of consecutive times that the empty pipe value must
exceed the empty pipe trigger level before the diagnostic alert activates.
Counts are taken at 1.5 second intervals. Default from the factory is set to 5.
For more detail on this parameter see Appendix C: Diagnostics.
Electronics Temp Value
Electronics Temperature allows you to view the current value for the
electronics temperature.
Advanced Diagnostics The advanced diagnostics menu contains information on all of the additional
diagnostics and tests that are available in the 8732 transmitter if one of the
diagnostics suite packages was ordered.
Rosemount offers two advanced diagnostic suites. Functionality under this
menu will depend on which of these suites are ordered.
Advanced diagnostics suite option one (D01 option) contains advanced
diagnostics for High Process Noise detection and Grounding and Wiring fault
detection.
Advanced diagnostics suite option two (D02 option) contains advanced
diagnostics for the 8714i Meter Verification. This diagnostic is used to verify
the accuracy and performance of the magnetic flow meter installation.
8714i Meter Verification
This diagnostic allows you to test and verify that the sensor, transmitter, or
both are working within specifications. For more details on this diagnostic, see
Appendix C: Diagnostics.
Reference Manual
00809-0100-4665, Rev AA
August 2010
4-5
Rosemount 8732
Run 8714i
Run the meter verification test to check the transmitter, sensor, or entire
installation.
Full Meter Verification
Run the internal meter verification to check the entire installation, sensor and
transmitter at the same time.
Transmitter Only
Run the internal meter verification to check the transmitter only.
Sensor Only
Run the internal meter verification to check the sensor only.
8714i Results
Review the results of the most recently performed 8714i Meter Verification
test. Information in this section details the measurements taken and if the
meter passed the verification test. For more details on these results and what
they mean, see Appendix C: Diagnostics.
Test Condition
Displays the conditions that the 8714i Meter Verification test was performed
under. For more details on this parameter see Appendix C: Diagnostics.
Test Criteria
Displays the criteria that the 8714i Meter Verification test was performed
against. For more details on this parameter see Appendix C: Diagnostics.
8714i Result
Displays the results of the 8714i Meter Verification test as pass or fail. For
more details on this parameter see Appendix C: Diagnostics.
Simulated Velocity
Displays the test velocity used to verify transmitter calibration. For more
details on this parameter see Appendix C: Diagnostics.
Actual Velocity
Displays the velocity measured by the transmitter during the transmitter
calibration verification test. For more details on this parameter see
Appendix C: Diagnostics.
Velocity Deviation
Displays the deviation of the transmitter calibration verification test. For more
details on this parameter see Appendix C: Diagnostics.
Transmitter Calibration Result
Displays the result of the transmitter calibration verification test as pass or fail.
For more details on this parameter see Appendix C: Diagnostics.
Sensor Calibration Deviation
Displays the deviation of the sensor calibration verification test. For more
details on this parameter see Appendix C: Diagnostics.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
4-6
Sensor Calibration Result
Displays the result of the sensor calibration verification test as pass or fail. For
more details on this parameter see Appendix C: Diagnostics.
Coil Circuit Result
Displays the result of the coil circuit test as pass or fail. For more details on
this parameter see Appendix C: Diagnostics.
Electrode Circuit Result
Displays the result of the electrode circuit test as pass or fail. For more details
on this parameter see Appendix C: Diagnostics.
Sensor Signature
The sensor signature describes the sensor characteristics to the transmitter
and is an integral part of the sensor meter verification test. From this menu
you can view the current stored signature, have the transmitter take and store
the sensor signature, and re-call the last saved good values for the sensor
signature. For more details on this parameter see Appendix C: Diagnostics.
Signature Values
Review the current values stored for the sensor signature. For more details on
this parameter see Appendix C: Diagnostics.
Coil Resistance
View the reference value for the coil resistance taken during the sensor
signature process.
Coil Signature
View the reference value for the coil signature taken during the sensor
signature process.
Electrode Resistance
View the reference value for the electrode resistance taken during the sensor
signature process.
Re-Signature Meter
Have the transmitter measure and store the sensor signature values. These
values will then be used as the baseline for the meter verification test. Use
this when connecting to older Rosemount or competitors’ sensors or installing
the magnetic flowmeter system for the first time. For more details on this
parameter see Appendix C: Diagnostics.
Recall Last Saved Values
Recalls the last saved “good” values for the sensor signature.
Reference Manual
00809-0100-4665, Rev AA
August 2010
4-7
Rosemount 8732
Set Pass/Fail Criteria
Set the maximum allowable deviation percentage test criteria for the 8714i
Meter Verification test. There are three tests that this criteria can be set for:
Full Pipe; No Flow (Best test condition) – Default is 2%
Full Pipe; Flowing – Default is 3%
Empty Pipe – Default is 5%
NOTE
If the 8714i Meter Verification test is done with an empty pipe, the electrode
circuit will NOT be tested.
No Flow Limit
Limits: 1 to 10 percent
Set the pass/fail test criteria for the 8714i Meter Verification test at Full Pipe,
No Flow conditions.
Flowing Limit
Limits: 1 to 10 percent
Set the pass/fail test criteria for the 8714i Meter Verification test at Full Pipe,
Flowing conditions.
Empty Pipe Limit
Limits: 1 to 10 percent
Set the pass/fail test criteria for the 8714i Meter Verification test at Empty Pipe
conditions.
Measurements
View the measured values taken during the meter verification process. These
values are compared to the signature values to determine if the test passes or
fails. Values are shown for the Coil Resistance, Coil Signature, and Electrode
Resistance.
Coil Resistance
View the measured value for the coil resistance taken during the meter
verification test.
Coil Signature
View the measured value for the coil signature taken during the meter
verification test.
Electrode Resistance
View the measured value for the electrode resistance taken during the meter
verification test.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
4-8
Licensing
If a diagnostic suite was not ordered initially, advanced diagnostics can be
licensed in the field. Access the licensing information from this menu. For
more details on licensing, see Appendix C: Diagnostics.
License Status
Determine if a diagnostics suite has been licensed, and if so, which
diagnostics are available for activation.
License Key
A license key is required to activate diagnostics in the field if the diagnostic
suite was not initially ordered. This menu allows for gathering of necessary
data to generate a license key and also the ability to enter the license key
once it has been received.
Device ID
This function displays the Device ID and Software Revision for the transmitter.
Both of these pieces of information are required to generate a license key.
License Key
Allows you to enter a license key to activate a diagnostic suite.
Diagnostic Variables From this menu, all of the diagnostic variable values can be reviewed. This
information can be used to get more information about the transmitter, sensor,
and process, or to get more detail about an alert that may have activated.
Empty Pipe Value
Read the current value of the Empty Pipe parameter. This value will read zero
if Empty Pipe is turned off.
Electronics Temperature
Read the current value of the Electronics Temperature.
Line Noise
Read the current value of the amplitude of AC line noise measured on the
transmitter’s electrode inputs. This value is used in the grounding / wiring
diagnostic.
5Hz SNR
Read the current value of the signal to noise ratio at 5 Hz. For optimum
performance, a value greater than 100 is preferred. Values less than 25 will
cause the High Process Noise alert to activate.
37Hz SNR
Read the current value of the signal to noise ratio at 37.5 Hz. For optimum
performance, a value greater than 100 is preferred. Values less than 25 will
cause the High Process Noise alert to activate.
Signal Power
Read the current value of the velocity of the fluid through the sensor. Higher
velocities result in greater signal power.
Reference Manual
00809-0100-4665, Rev AA
August 2010
4-9
Rosemount 8732
8714i Results
Review the results of the 8714i Meter Verification tests. For more details on
these results and what they mean, see Appendix C: Diagnostics.
Test Condition
Displays the conditions that the 8714i Meter Verification test was performed
under. For more details on this parameter see Appendix C: Diagnostics.
Test Criteria
Displays the criteria that the 8714i Meter Verification test was performed
against. For more details on this parameter see Appendix C: Diagnostics.
8714i Result
Displays the results of the 8714i Meter Verification test as pass or fail. For
more details on this parameter see Appendix C: Diagnostics.
Simulated Velocity
Displays the test velocity used to verify transmitter calibration. For more
details on this parameter see Appendix C: Diagnostics.
Actual Velocity
Displays the velocity measured by the transmitter during the transmitter
calibration verification test. For more details on this parameter see
Appendix C: Diagnostics.
Velocity Deviation
Displays the deviation of the transmitter calibration verification test. For more
details on this parameter see Appendix C: Diagnostics.
Transmitter Calibration Result
Displays the result of the transmitter calibration verification test as pass or fail.
For more details on this parameter see Appendix C: Diagnostics.
Sensor Calibration Deviation
Displays the deviation of the sensor calibration verification test. For more
details on this parameter see Appendix C: Diagnostics.
Sensor Calibration Result
Displays the result of the sensor calibration verification test as pass or fail. For
more details on this parameter see Appendix C: Diagnostics.
Coil Circuit Result
Displays the result of the coil circuit test as pass or fail. For more details on
this parameter see Appendix C: Diagnostics.
Electrode Circuit Result
Displays the result of the electrode circuit test as pass or fail. For more details
on this parameter see Appendix C: Diagnostics.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
4-10
Trims Trims are used to calibrate the transmitter, re-zero the transmitter, and
calibrate the transmitter with another manufacturer’s sensor. Proceed with
caution whenever performing a trim function.
Electronics Trim
Electronics trim is the function by which the factory calibrates the transmitter.
This procedure is rarely needed by customers. It is only necessary if you
suspect the Rosemount 8732E is no longer accurate. A Rosemount 8714
Calibration Standard is required to complete an Electronics trim. Attempting
an Electronics trim without a Rosemount 8714 Calibration Standard may
result in an inaccurate transmitter or an error message. Electronics trim must
be performed only with the coil drive mode set to 5 Hz and with a nominal
sensor calibration number stored in the memory.
NOTE
Attempting an Electronics trim without a Rosemount 8714 may result in an
inaccurate transmitter, or an “ELECTRONICS TRIM FAILURE” message may
appear. If this message occurs, no values were changed in the transmitter.
Simply power down the Rosemount 8732E to clear the message.
To simulate a nominal sensor with the Rosemount 8714, you must change the
following parameters in the Rosemount 8732E:
1. Sensor Calibration Number—1000015010000000
2. Units—ft/s
3. Coil Drive Frequency - 5 Hz
The instructions for changing the Sensor Calibration Number and Units are
located in “Flow Units” on page 3-7. Instructions for changing the Coil Drive
Frequency can be found on page 4-14 in this section.
Set the loop to manual, if necessary, before you begin. Complete the following
steps:
1. Power down the transmitter.
2. Connect the transmitter to a Rosemount 8714 Calibration Standard.
3. Power up the transmitter with the Rosemount 8714 connected and
read the flow rate. The electronics need about a 5-minute warm-up
time to stabilize.
4. Set the 8714 calibrator to the 30 ft/s setting.
5. The flow rate reading after warm-up should be between 29.97 and
30.03 ft/s.
6. If the reading is within the range, return the transmitter to the original
configuration parameters.
7. If the reading is not within this range, initiate an Electronics trim with
the Profibus PA configuration tool. The Electronics trim takes about
90 seconds to complete. No transmitter adjustments are required.
Reference Manual
00809-0100-4665, Rev AA
August 2010
4-11
Rosemount 8732
Universal Trim
The Universal Trim function enables the Rosemount 8732E to calibrate
sensors that were not calibrated at the Rosemount factory. The function is
activated as one step in a procedure known as in-process calibration. If your
Rosemount sensor has a 16-digit calibration number, in-process calibration is
not required. If it does not, or if your sensor is made by another manufacturer,
complete the following steps for in-process calibration.
1. Determine the flow rate of the process fluid in the sensor.
NOTE
The flow rate in the line can be determined by using another sensor in the
line, by counting the revolutions of a centrifugal pump, or by performing a
bucket test to determine how fast a given volume is filled by the process fluid.
2. Complete the Universal Trim function.
3. When the routine is completed, the sensor is ready for use.
Auto Zero
The Auto Zero function initializes the transmitter for use with the 37 Hz coil
drive mode only. Run this function only with the transmitter and sensor
installed in the process. The sensor must be filled with process fluid at zero
flow. Before running the Auto Zero function, be sure the coil drive mode is set
to 37 Hz (Auto Zero will not run with the coil drive frequency set at 5 Hz).
Set the loop to manual if necessary and begin the Auto Zero procedure. The
transmitter completes the procedure automatically in about 90 seconds. A
symbol appears in the lower right-hand corner of the display to indicate that
the procedure is running.
Master Reset
The master reset is a function that the user can execute to reset the device
configuration to the default setting.
There are three types of Master Reset:
Cold Start - Reset the device to a default configuration. The device address is
not changed.
Warm Start - Restart the device. This reset function acts just like a power
cycle. None of the configuration parameters are changed.
Reset Address - This reset changes the bus address of the device to the
default address of 126. This change happens immediately regardless of the
state of data exchange the transmitter is in.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
4-12
ADVANCED
CONFIGURATION In addition to the basic configuration options and the diagnostic information
and controls, the 8732 has many advanced functions that can also be
configured as required by the application.
DETAILED SETUP The detailed setup function provides access to other parameters within the
transmitter that can be configured such as coil drive frequency, output
parameters, local display configuration, and other general information about
the device.
Additional Parameters The additional parameters menu provides a means to configure optional
parameters within the 8732E transmitter.
Density Value
The density value is used to convert from a volumetric flow rate to a mass flow
rate using the following equation:
Qm = Qv
Where:
Qm is the mass flow rate
Qv is the volumetric flow rate, and
is the fluid density
NOTE
A density value is required to configure the flow units for mass flow rate
measurement.
Sensor Range: High
This parameter is the maximum value that the PV Range value can be set to.
This is the upper measuring limit of the transmitter and sensor.
Sensor Range: Low
This parameter is the minimum value that the PV Range value can be set to.
This is the lower measuring limit of the transmitter and sensor.
Measurement Mode
Enable or disable the transmitter’s ability to read reverse flow.
Measurement Mode allows the transmitter to read negative flow. This may
occur when flow in the pipe is going the negative direction, or when either
electrode wires or coil wires are reversed. This also enables the totalizer to
count in the reverse direction.
Reference Manual
00809-0100-4665, Rev AA
August 2010
4-13
Rosemount 8732
Signal Processing The 8732E contains several advanced functions that can be used to stabilize
erratic outputs caused by process noise. The signal processing menu
contains this functionality. Below is sample PDM screen shot of Signal
Processing.
Operating Mode (Operation)
The Operating Mode should be used only when the signal is noisy and gives
an unstable output. Filter mode automatically uses 37 Hz coil drive mode and
activates signal processing at the factory set default values. When using filter
mode, perform an auto zero with no flow and a full sensor. Either of the
parameters, coil drive mode or signal processing, may still be changed
individually. Turning Signal Processing off or changing the coil drive frequency
to 5 Hz will automatically change the Operating Mode from filter mode to
normal mode.

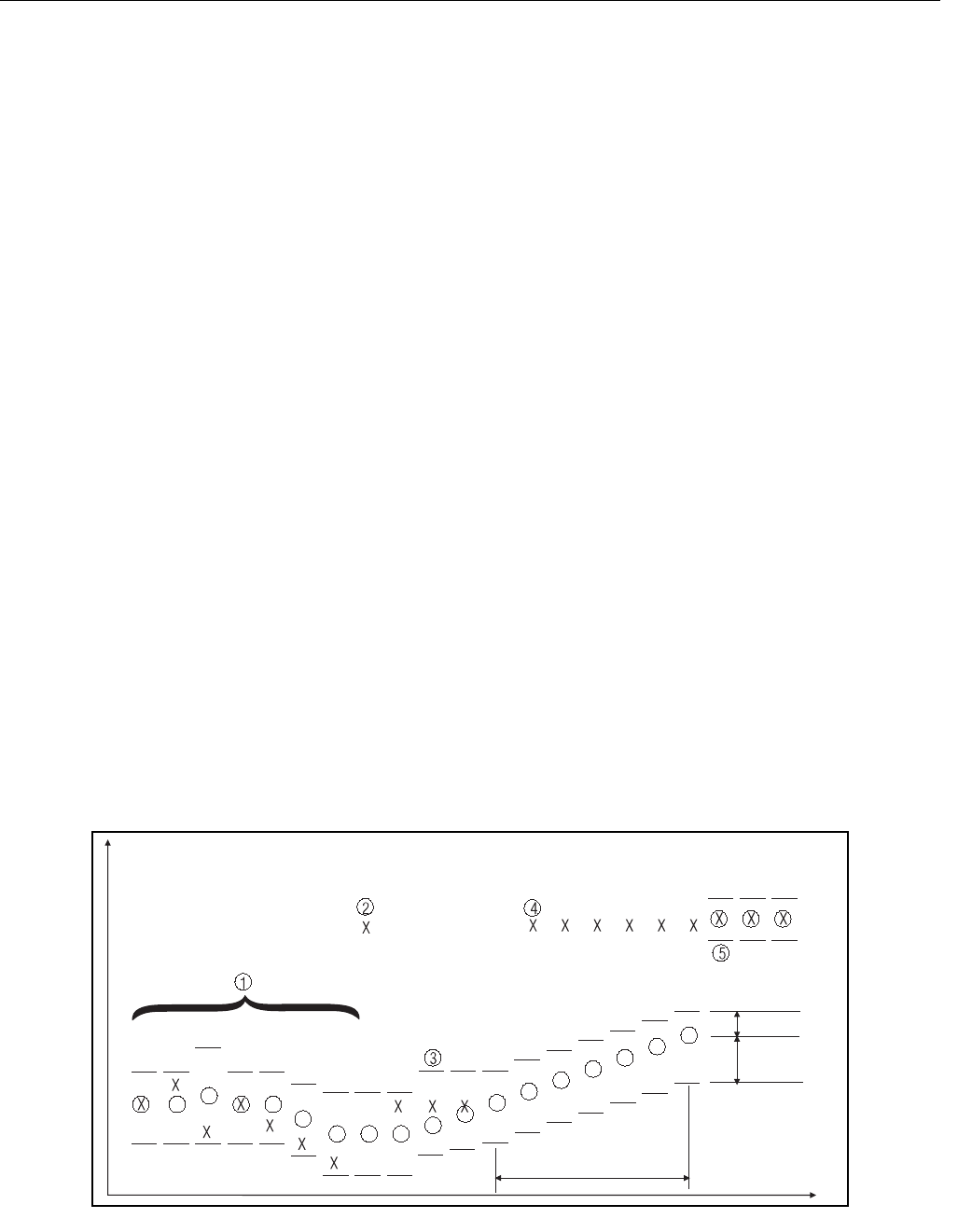

SP Control
When ON is selected, the Rosemount 8732E output is derived using a
running average of the individual flow inputs. Signal processing is a software
algorithm that examines the quality of the electrode signal against
user-specified tolerances. This average is updated at the rate of 10 samples
per second with a coil drive frequency of 5 Hz, and 75 samples per second
with a coil drive frequency of 37 Hz. The three parameters that make up
signal processing (number of samples, maximum percent limit, and time limit)
are described below.
Number of Samples
0 to 125 Samples
The number of samples function sets the amount of time that inputs are
collected and used to calculate the average value. Each second is divided
into tenths (1/10) with the number of samples equaling the number of 1/10
second increments used to calculate the average.
For example, a value of:
1 averages the inputs over the past 1/10 second
100 averages the inputs over the past 10 seconds
Percent of Rate
0 to 100 Percent
The maximum percent limit is a tolerance band set up on either side of the
running average. The percentage value refers to deviation from the running
average. For example, if the running average is 100 gal/min, and a 2 percent
maximum limit is selected, then the acceptable range is from 98 to 102
gal/min.
Values within the limit are accepted while values outside the limit are analyzed
to determine if they are a noise spike or an actual flow change.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
4-14
Time Limit
0 to 256 Seconds
The time limit parameter forces the output and running average values to the
new value of an actual flow rate change that is outside the percent limit
boundaries. It thereby limits response time to flow changes to the time limit
value rather than the length of the running average.
For example, if the number of samples selected is 100, then the response
time of the system is 10 seconds. In some cases this may be unacceptable.
By setting the time limit, you can force the 8732E to clear the value of the
running average and re-establish the output and average at the new flow rate
once the time limit has elapsed. This parameter limits the response time
added to the loop. A suggested time limit value of two seconds is a good
starting point for most applicable process fluids. The selected signal
processing configuration may be turned ON or OFF to suit your needs.
Coil Drive Frequency
Coil drive frequency allows pulse-rate selection of the sensor coils.
5 Hz
The standard coil drive frequency is 5 Hz, which is sufficient for nearly all
applications.
37 Hz
If the process fluid causes a noisy or unstable output, increase the coil drive
frequency to 37 Hz. If the 37 Hz mode is selected, perform the auto zero
function with no flow and a full sensor.
Low Flow Cutoff
Low flow cutoff allows you to specify the flow rate, between 0.01 and 38.37
feet per second, below which the outputs are driven to zero flow. The units
format for low flow cutoff cannot be changed. It is always displayed as feet per
second regardless of the format selected. The low flow cutoff value applies to
both forward and reverse flows.
Device Info Information variables are used for identification of flowmeters in the field and
to store information that may be useful in service situations. Information
variables have no effect on flowmeter output or process variables.
Device ID
This function displays the Device ID of the transmitter. This is one piece of
information required to generate a license code to enable diagnostics in the
field.
PV Sensor S/N
The PV sensor serial number is the serial number of the sensor connected to
the transmitter and can be stored in the transmitter configuration for future
reference. The number provides easy identification if the sensor needs
servicing or for other purposes.
Sensor Tag
Sensor tag is the quickest and shortest way of identifying and distinguishing
between sensors. Sensors can be tagged according to the requirements of
your application. The tag may be up to eight characters long.
Reference Manual
00809-0100-4665, Rev AA
August 2010
4-15
Rosemount 8732
DSP Software Rev
This function displays the software revision number of the transmitter.
Construction Materials
Construction materials contain information about the sensor that is connected
to the transmitter. This information is configured into the transmitter for later
reference. This information can be helpful when calling the factory for support.
Flange Type
Flange type enables you to select the flange type for your magnetic
transmitter system. This variable only needs to be changed if you have
changed your sensor. Options for this value are:
Flange Material
Flange material enables you to select the flange material for your magnetic
transmitter system. This variable only needs to be changed if you have
changed your sensor. Options for this value are:
Carbon Steel
304L Stainless Steel
316L Stainless Steel
• Wafer
•Other
Electrode Type
Electrode type enables you to select the electrode type for your magnetic
transmitter system. This variable only needs to be changed if you have
replaced electrodes or if you have replaced your sensor. Options for this value
are:
• Standard
Std & Ground
• Bullet
•Other
ANSI 150 •PN 10
ANSI 300 •PN 16
ANSI 600 •PN 25
ANSI 900 •PN 40
ANSI 1500 •PN 64
ANSI 2500 • Other
•Wafer
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
4-16
Electrode Material
Electrode Material enables you to select the electrode material for your
magnetic transmitter system. This variable only needs to be changed if you
have replaced electrodes or if you have replaced your sensor. Options for this
value are:
316L SST
Nickel Alloy 276 (UNS N10276)
•Tantalum
Titanium
80% Platinum – 20% Iridium
Alloy 20
•Other
Liner Material
Liner material enables you to select the liner material for the attached sensor.
This variable only needs to be changed if you have replaced your sensor.
Options for this value are:
• PTFE
• ETFE
•PFA
• Polyurethane
• Linatex
Natural Rubber
• Neoprene
•Other
Reference Manual
00809-0100-4665, Rev AA
August 2010 Rosemount 8732
www.rosemount.com
Section 5 Sensor Installation
Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5-1
Sensor Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5-3
Sensor Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5-4
Installation (Flanged Sensor) . . . . . . . . . . . . . . . . . . . . . . page 5-7
Installation (Wafer Sensor) . . . . . . . . . . . . . . . . . . . . . . . . page 5-10
Installation (Sanitary Sensor) . . . . . . . . . . . . . . . . . . . . . . page 5-12
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5-12
Process Leak Protection (Optional) . . . . . . . . . . . . . . . . . page 5-16
This section covers the steps required to physically install the magnetic
sensor. For electrical connections and cabling see Section 2: "Installation".
Instructions and procedures in this section may require special precautions to
ensure the safety of the personnel performing the operations. Please refer to
the following safety messages before performing any operation in this section.
SAFETY MESSAGES This symbol is used throughout this manual to indicate that special attention
to warning information is required.
Failure to follow these installation guidelines could result in death or serious injury:
Installation and servicing instructions are for use by qualified personnel only. Do not perform
any servicing other than that contained in the operating instructions, unless qualified. Verify
that the operating environment of the sensor and transmitter is consistent with the
appropriate hazardous area approval.
Do not connect a Rosemount 8732 to a non-Rosemount sensor that is located in an
explosive atmosphere.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
5-2
Explosions could result in death or serious injury:
Installation of this transmitter in an explosive environment must be in accordance with the
appropriate local, national, and international standards, codes, and practices. Please review
the approvals section of the 8732 reference manual for any restrictions associated with a
safe installation.
Electrical shock can result in death or serious injury
Avoid contact with the leads and terminals. High voltage that may be present on leads can
cause electrical shock.
The sensor liner is vulnerable to handling damage. Never place anything through the sensor
for the purpose of lifting or gaining leverage. Liner damage can render the sensor useless.
To avoid possible damage to the sensor liner ends, do not use metallic or spiral-wound
gaskets. If frequent removal is anticipated, take precautions to protect the liner ends. Short
spool pieces attached to the sensor ends are often used for protection.
Correct flange bolt tightening is crucial for proper sensor operation and life. All bolts must be
tightened in the proper sequence to the specified torque limits. Failure to observe these
instructions could result in severe damage to the sensor lining and possible sensor
replacement.
Emerson Process Management can supply lining protectors to prevent liner damage during
removal, installation, and excessive bolt torquing.
Reference Manual
00809-0100-4665, Rev AA
August 2010
5-3
Rosemount 8732
SENSOR HANDLING Handle all parts carefully to prevent damage. Whenever possible, transport
the system to the installation site in the original shipping containers.
PTFE-lined sensors are shipped with end covers that protect it from both
mechanical damage and normal unrestrained distortion. Remove the end
covers just before installation.
Flanged sensors with a lifting lug on each flange make the sensor easier to
handle when it is transported and lowered into place at the installation site.
Flanged sensors that do not have lugs must be supported with a lifting sling
on each side of the housing.
Figure 5-1 shows sensors correctly supported for handling and installation.
Notice the plywood end pieces are still in place to protect the sensor liner
during transportation.

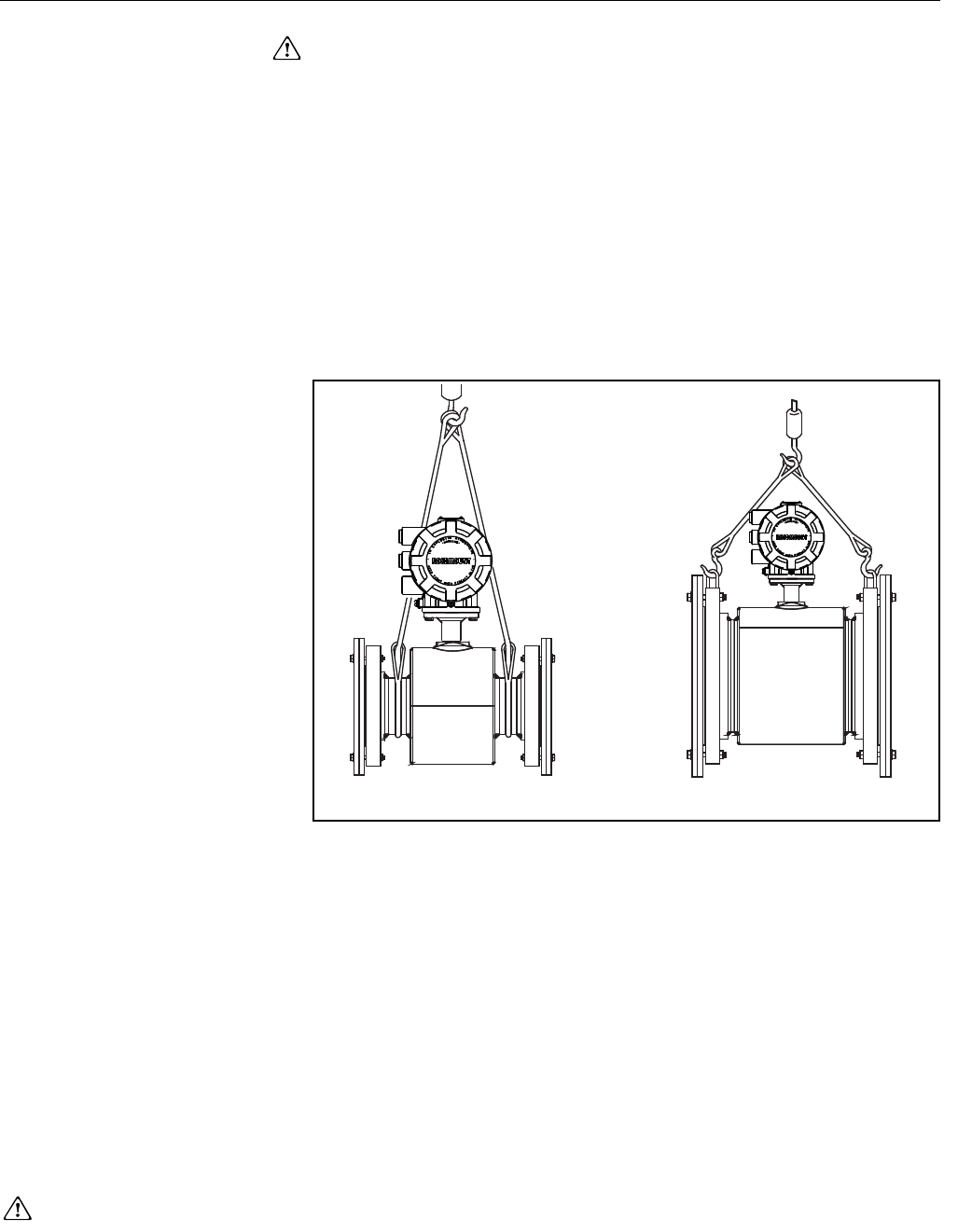

Figure 5-1. Rosemount 8705
Sensor Support for Handling
See ”Safety Messages” on pages 5-1 and 5-2 for complete warning information.
Without Lifting Lugs With Lifting Lugs
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
5-4
SENSOR MOUNTING Physical mounting of a sensor is similar to installing a typical section of pipe.
Conventional tools, equipment, and accessories (bolts, gaskets, and
grounding hardware) are required.
Upstream/Downstream
Piping To ensure specification accuracy over widely varying process conditions,
install the sensor a minimum of five straight pipe diameters upstream and two
pipe diameters downstream from the electrode plane (see Figure 5-2).

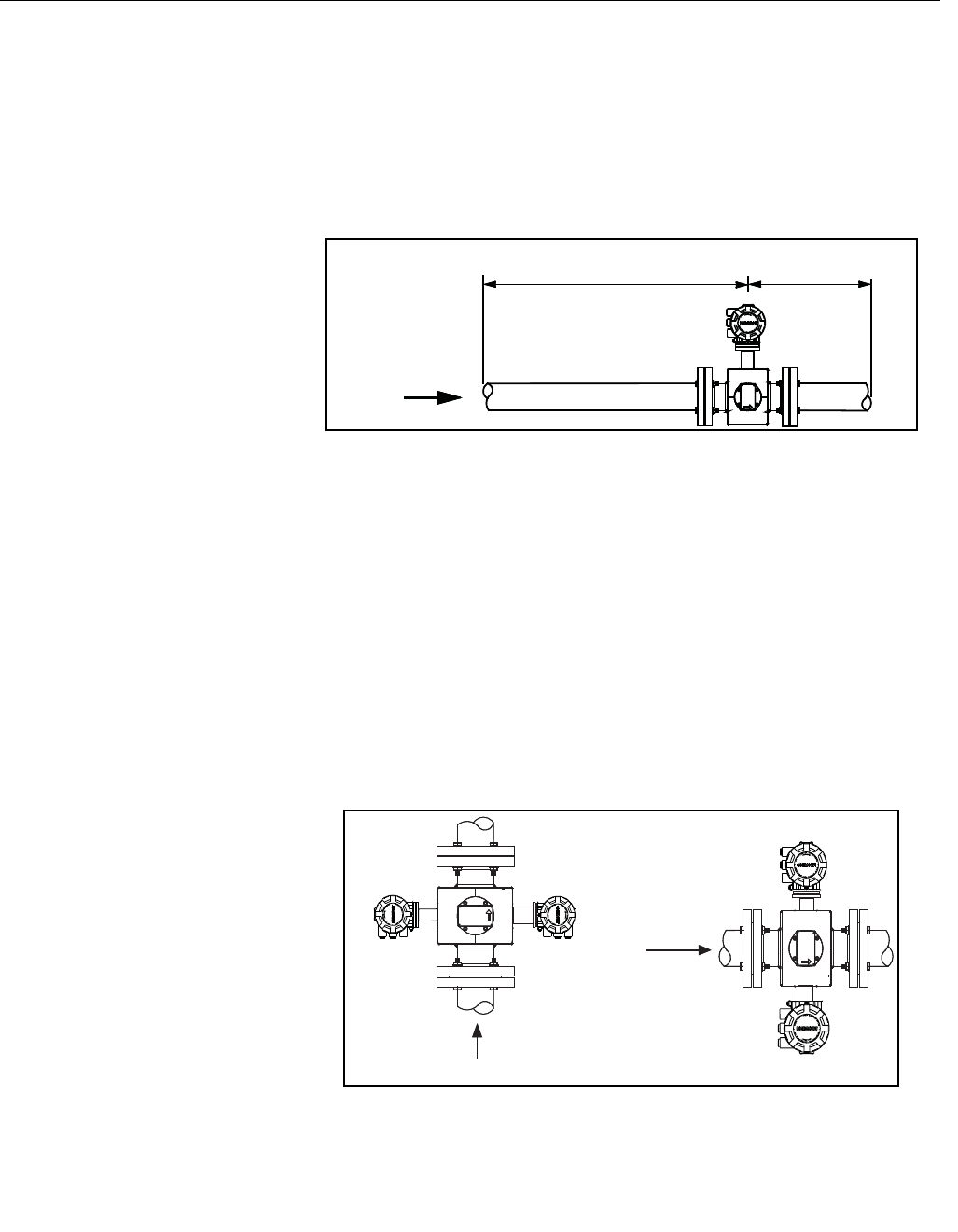

Figure 5-2. Upstream and
Downstream
Straight Pipe Diameters
Sensor Orientation The sensor should be installed in a position that ensures the sensor remains
full during operation. Figures 5-3, 5-4, and 5-5 show the proper sensor
orientation for the most common installations. The following orientations
ensure that the electrodes are in the optimum plane to minimize the effects of
entrapped gas.
Vertical installation allows upward process fluid flow and is generally
preferred. Upward flow keeps the cross-sectional area full, regardless
of flow rate. Orientation of the electrode plane is unimportant in vertical
installations. As illustrated in Figures 5-3 and 5-4, avoid downward flows
where back pressure does not ensure that the sensor remains full at all times.
Installations with reduced straight runs from 0 to five pipe diameters are
possible. In reduced straight pipe run installations, performance will shift to as
much as 0.5% of rate. Reported flow rates will still be highly repeatable.
Figure 5-3. Vertical Sensor
Orientation
FLOW
5 Pipe Diameters 2 Pipe Diameters
FLOW
FLOW
Reference Manual
00809-0100-4665, Rev AA
August 2010
5-5
Rosemount 8732

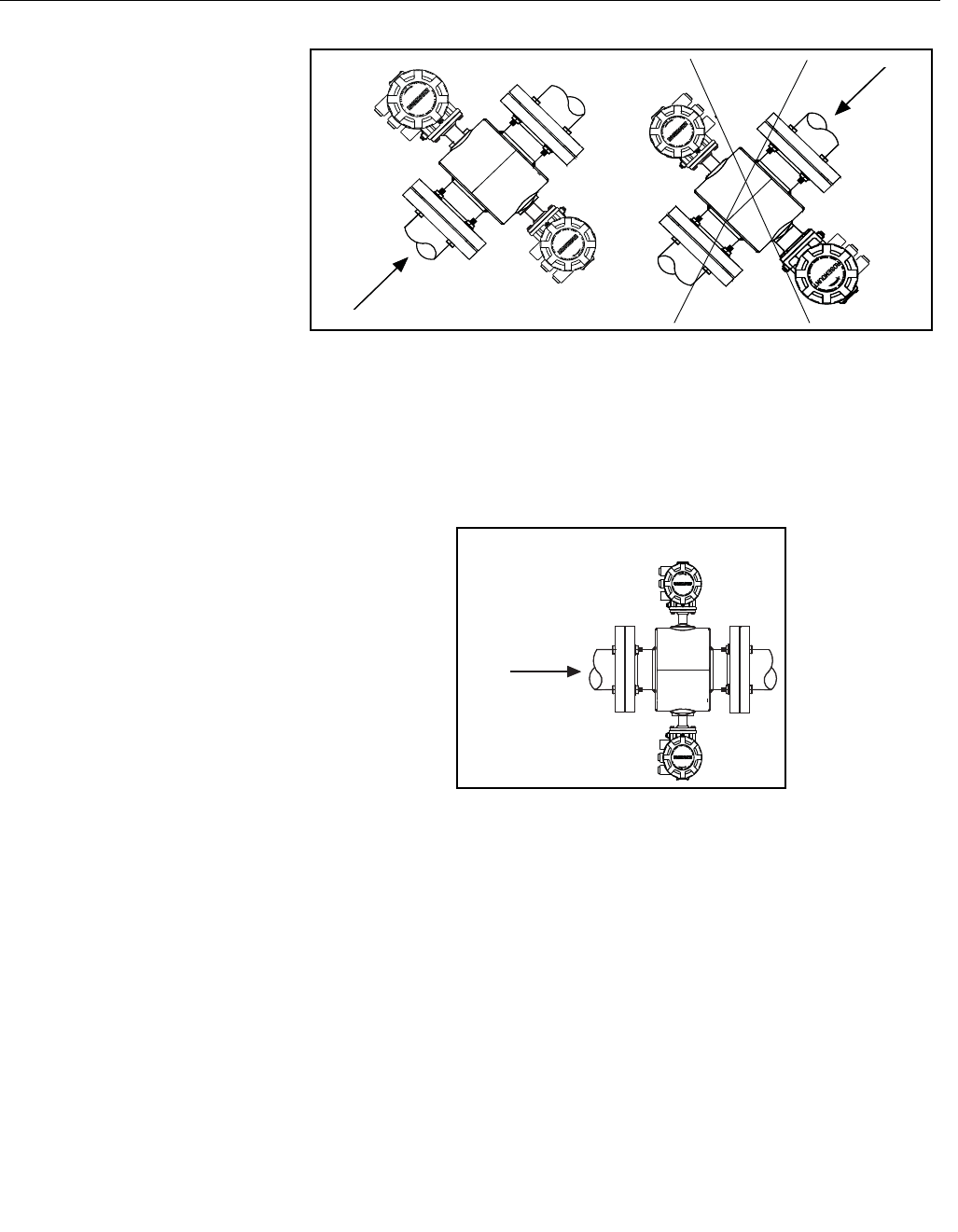

Figure 5-4. Incline or Decline
Orientation
Horizontal installation should be restricted to low piping sections that are
normally full. Orient the electrode plane to within 45 degrees of horizontal in
horizontal installations. A deviation of more than 45 degrees of horizontal
would place an electrode at or near the top of the sensor thereby making it
more susceptible to insulation by air or entrapped gas at the top of the
sensor.
Figure 5-5. Horizontal Sensor
Orientation
FLOW
FLOW
FLOW
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
5-6
The electrodes in the Rosemount 8711 are properly oriented when the top of
the sensor is either vertical or horizontal, as shown in Figure 5-6. Avoid any
mounting orientation that positions the top of the sensor at 45 degrees from
the vertical or horizontal position.
Figure 5-6. Rosemount 8711
Mounting Position
Flow Direction The sensor should be mounted so that the FORWARD end of the flow arrow,
shown on the sensor identification tag, points in the direction of flow through
the sensor (see Figure 5-7).
Figure 5-7. Flow Direction
45° Electrode Plane
45° Electrode Plane
FLOW
Reference Manual
00809-0100-4665, Rev AA
August 2010
5-7
Rosemount 8732
INSTALLATION
(FLANGED SENSOR) The following section should be used as a guide in the installation of the
flange-type Rosemount 8705 and Rosemount 8707 High-Signal Sensors.
Refer to page 5-10 for installation of the wafer-type Rosemount 8711 Sensor.
Gaskets The sensor requires a gasket at each of its connections to adjacent devices or
piping. The gasket material selected must be compatible with the process fluid and
operating conditions. Metallic or spiral-wound gaskets can damage the
liner. If the gaskets will be removed frequently, protect the liner ends. All other
applications (including sensors with lining protectors or a grounding electrode)
require only one gasket on each end connection, as shown in Figure 5-8. If
grounding rings are used, gaskets are required on each side of the grounding
ring, as shown in Figure 5-9.

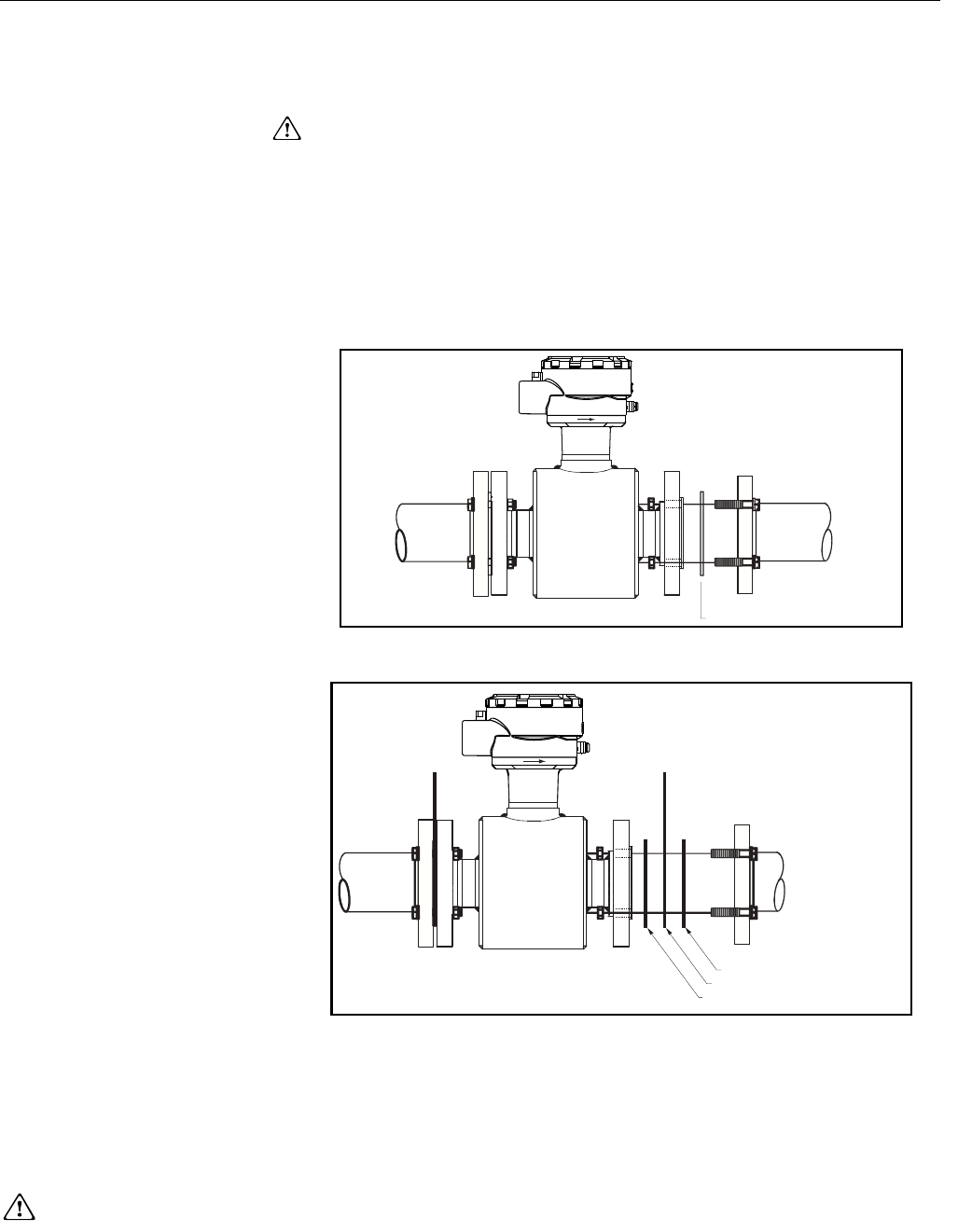

Figure 5-8. Gasket Placement
Figure 5-9. Gasket Placement
with Non-attached Grounding
Rings
Flange Bolts Suggested torque values by sensor line size and liner type are listed in Table
5-1 on page 5-8 for ASME B16.5 (ANSI) flanges and Table 5-2 and Table 5-3
for DIN flanges. Consult the factory for other flange ratings. Tighten flange
bolts in the incremental sequence as shown in Figure 5-10. See Table 5-1 and
Table 5-2 for bolt sizes and hole diameters.
See ”Safety Messages” on pages 5-1 and 5-2 for complete warning information.
Gasket (Supplied by user)
Gasket (Supplied by user)
Grounding Ring
Gasket (Supplied by user)
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
5-8
NOTE
Do not bolt one side at a time. Tighten each side simultaneously. Example:
1. Snug left
2. Snug right
3. Tighten left
4. Tighten right
Do not snug and tighten the upstream side and then snug and tighten the
downstream side. Failure to alternate between the upstream and downstream
flanges when tightening bolts may result in liner damage.
Always check for leaks at the flanges after tightening the flange bolts. Failure
to use the correct flange bolt tightening methods can result in severe damage.
All sensors require a second torquing 24 hours after initial flange bolt
tightening.
For sensors with ANSI 600# full rated, 900#, 1500#, and 2500# flanges, the
liner is protected from over-compression by the flange design. Standard
flange torque specifications as determined by ANSI and ASME should be
followed. No special precaution is required to prevent liner damage caused by
over torquing. Bolt tightening procedures laid out in this Quick Installation
Guide must still be followed.
To prevent liner damage on any magnetic flowmeter, a flat gasket must be
used. For optimum results on meters with high pressure flanges (ANSI 600#
or above), it is recommended that a flat full face gasket be used.
Under NO circumstances should a spiral wound or flexitallic gasket be used
as this will damage the liner sealing surface.
Table 5-1. Flange Bolt Torque Specifications for Rosemount 8705 and 8707
High-Signal Sensors
PTFE/ETFE liner Polyurethane liner
Size
Code Line Size Class 150
(pound-feet) Class 300
(pound-feet)
Class 600(1)
(Derated to
1000 psi)
(1) Derated available with PTFE lining only.
Class 150
(pound-feet) Class 300
(pound-feet)
005 0.5-in. (15 mm) 8 8 8 8 -
010 1- in. (25 mm) 812 13 13 -
015 1.5-in. (40 mm) 13 25 29 29 7
020 2-in. (50 mm) 19 17 20 20 14
030 3-in. (80 mm) 34 35 41 41 23
040 4-in. (100 mm) 26 50 68 68 17
060 6-in. (150mm) 45 50 77 77 30
080 8-in. (200 mm) 60 82 121 121 42
100 10-in. (250 mm) 55 80 129 129 40
120 12-in. (300 mm) 65 125 146 146 55
140 14-in. (350 mm) 85 110 194 194 70
160 16-in. (400 mm) 85 160 274 274 65
180 18-in. (450 mm) 120 170 432 432 95
200 20-in. (500 mm) 110 175 444 444 90
240 24-in. (600 mm) 165 280 731 731 140
300 30-in. (750 mm) 195 375 - - 165
360 36-in. (900 mm) 280 575 - - 245
See ”Safety Messages” on pages 5-1 and 5-2 for complete warning information.
Reference Manual
00809-0100-4665, Rev AA
August 2010
5-9
Rosemount 8732

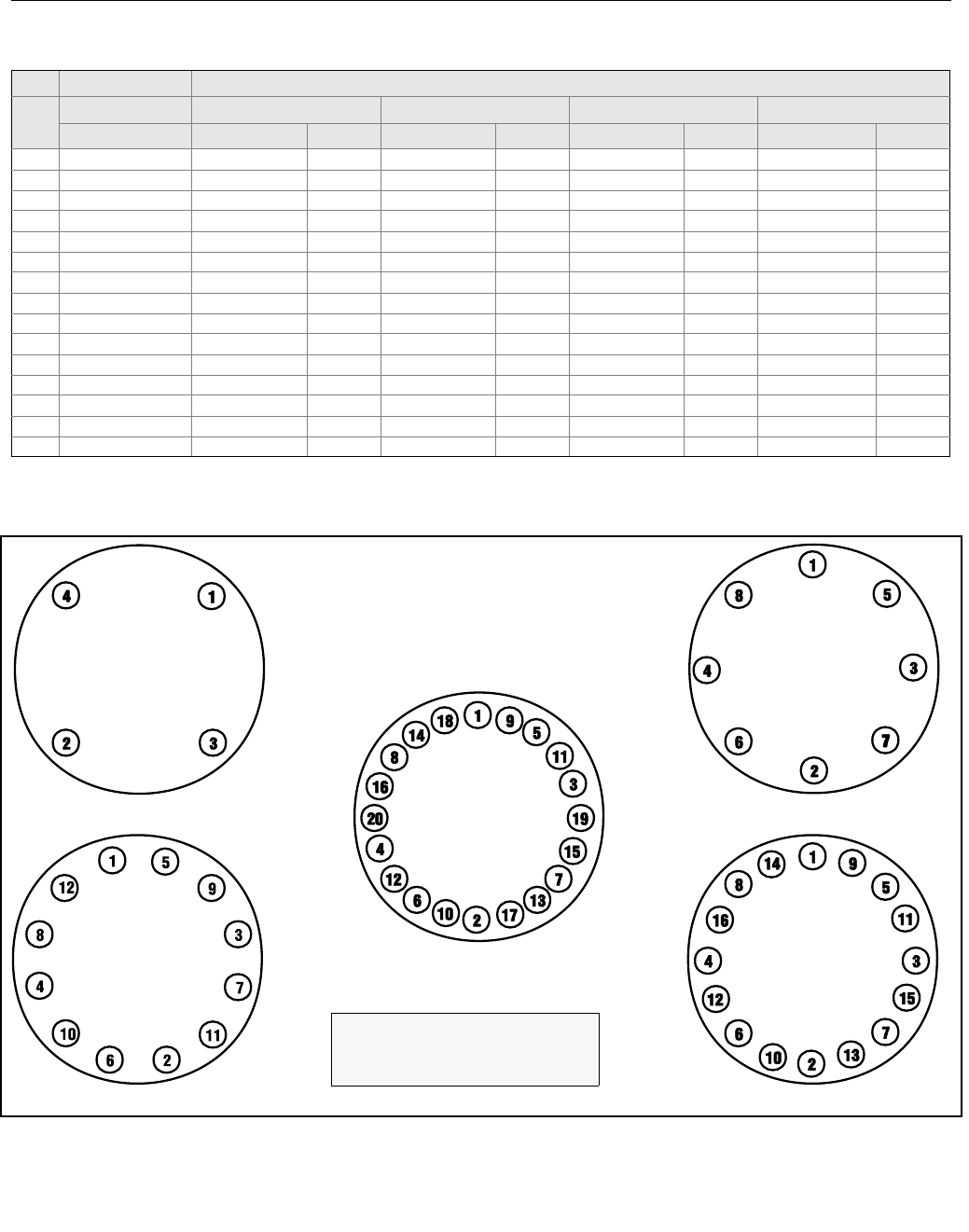

Figure 5-10. Flange Bolt
Torquing Sequence
Table 5-2. Flange Bolt Torque and Bolt Load Specifications for Rosemount 8705
PTFE/ETFE liner
Size
Code
PN10 PN 16 PN 25 PN 40
Line Size (Newton-meter) (Newton) (Newton-meter) (Newton) (Newton-meter) (Newton) (Newton-meter) (Newton)
005 1/2-inch (15 mm) 73209 73809 73809 74173
010 1 inch (25 mm) 13 6983 13 6983 13 6983 13 8816
015 11/2 inch (40 mm) 24 9983 24 9983 24 9983 24 13010
020 2 inch (50 mm) 25 10420 25 10420 25 10420 25 14457
030 3 inch (80 mm) 14 5935 14 5935 18 7612 18 12264
040 4 inch (100 mm) 17 7038 17 7038 30 9944 30 16021
060 6 inch (150mm) 23 7522 32 10587 60 16571 60 26698
080 8 inch (200 mm) 35 11516 35 11694 66 18304 66 36263
100 10 inch (250 mm) 31 10406 59 16506 105 25835 105 48041
120 12 inch (300 mm) 43 14439 82 22903 109 26886 109 51614
140 14 inch (350 mm) 42 13927 80 22091 156 34578 156 73825
160 16 inch (400 mm) 65 18189 117 28851 224 45158 224 99501
180 18 inch (450 mm) 56 15431 99 24477 67953
200 20 inch (500 mm) 66 18342 131 29094 225 45538 225 73367
240 24 inch (600 mm) 104 25754 202 40850 345 63940 345 103014
4-Bolt 8-Bolt
12-Bolt 14-Bolt
20-Bolt
Torque the flange bolts
in increments according to
the above numerical sequence.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
5-10
INSTALLATION
(WAFER SENSOR) The following section should be used as a guide in the installation of the
Rosemount 8711 Sensor. Refer to page 5-7 for installation of the flange-type
Rosemount 8705 and 8707 High-Signal sensor.
Gaskets The sensor requires a gasket at each of its connections to adjacent devices or
piping. The gasket material selected must be compatible with the process
fluid and operating conditions. Metallic or spiral-wound gaskets can
damage the liner. If the gaskets will be removed frequently, protect the
liner ends. If grounding rings are used, a gasket is required on each side of
the grounding ring.
Alignment and Bolting 1. On 11/2 - through 8-inch (40 through 200 mm) line sizes, place
centering rings over each end of the sensor. The smaller line sizes,
0.15- through 1-inch (4 through 25 mm), do not require centering
rings.
2. Insert studs for the bottom side of the sensor between the pipe
flanges. Stud specifications are listed in Table 5-4. Using carbon
steel bolts on smaller line sizes, 0.15- through 1-inch
(4 through 25 mm), rather than the required stainless steel bolts,
will degrade performance.
Table 5-3. Flange Bolt Torque and Bolt Load Specifications for Rosemount 8705
Size
Code Line Size
Polyurethane Liner
PN 10 PN 16 PN 25 PN 40
(Newton-meter) (Newton) (Newton-meter) (Newton) (Newton-meter) (Newton) (Newton-meter) (Newton)
005 1/2-inch (15 mm) 1521 1826 21293 63333
010 1 inch (25 mm) 21191 31890 52958 10 5555
015 11/2 inch (40 mm) 51960 73109 12 4867 20 8332
020 2 inch (50 mm) 62535 10 4021 15 6294 26 10831
030 3 inch (80 mm) 52246 93563 13 5577 24 19998
040 4 inch (100 mm) 73033 12 4812 23 7531 35 11665
060 6 inch (150mm) 16 5311 25 8425 47 13186 75 20829
080 8 inch (200 mm) 27 8971 28 9487 53 14849 100 24687
100 10 inch (250 mm) 26 8637 49 13700 87 21443 155 34547
120 12 inch (300 mm) 36 12117 69 19220 91 22563 165 36660
140 14 inch (350 mm) 35 11693 67 18547 131 29030 235 47466
160 16 inch (400 mm) 55 15393 99 24417 189 38218 335 62026
200 20 inch (500 mm) 58 15989 114 25361 197 39696 375 64091
240 24 inch (600 mm) 92 22699 178 36006 304 56357 615 91094
Reference Manual
00809-0100-4665, Rev AA
August 2010
5-11
Rosemount 8732
3. Place the sensor between the flanges. Make sure that the centering
rings are properly placed in the studs. The studs should be aligned
with the markings on the rings that correspond to the flange you are
using.
4. Insert the remaining studs, washers, and nuts.
5. Tighten to the torque specifications shown in Table 5-5. Do not
overtighten the bolts or the liner may be damaged.
NOTE
On the 4- and 6- inch PN 10-16, insert the sensor with rings first and then
insert the studs. The slots on this ring scenario are located on the inside of the
ring.

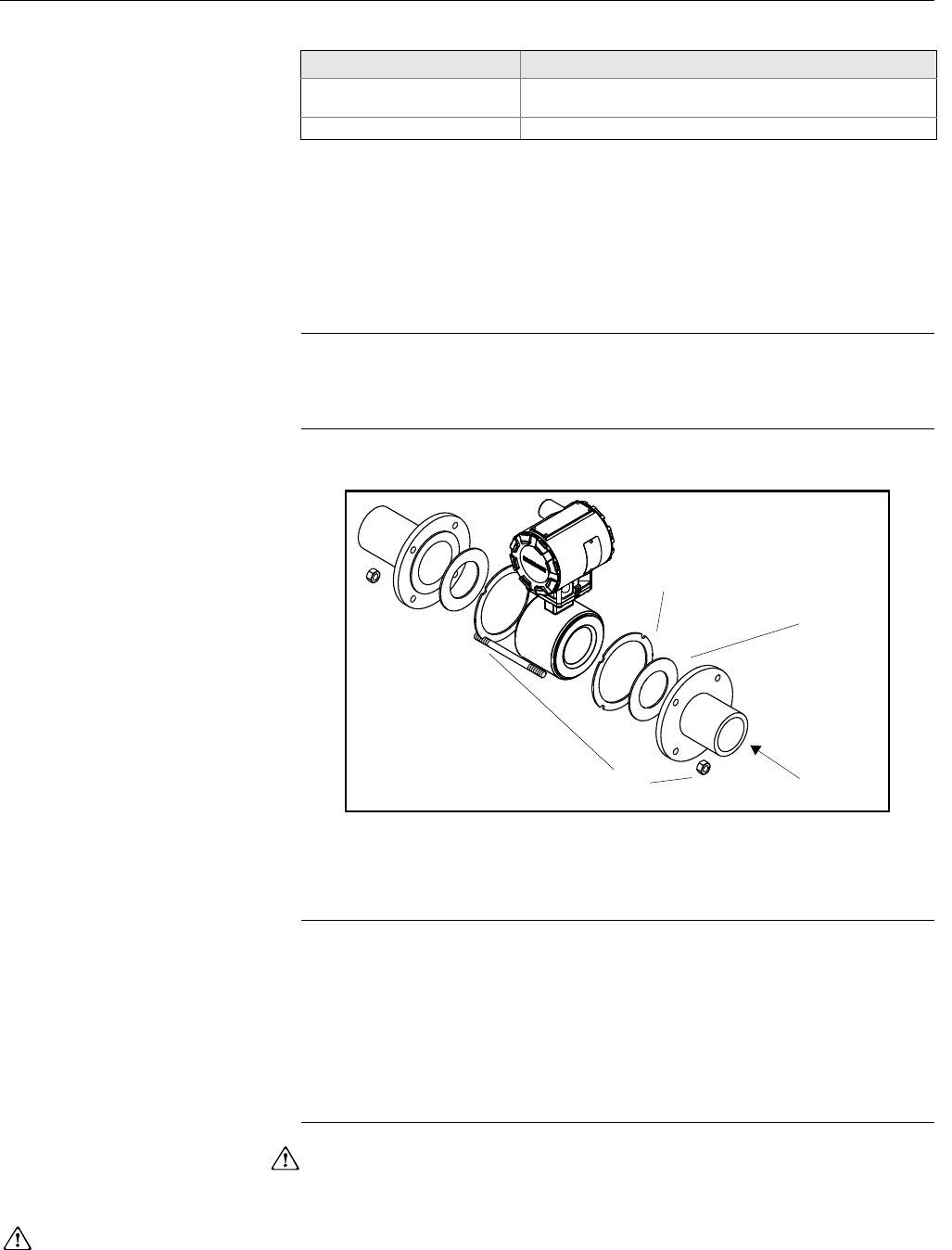

Figure 5-11. Gasket Placement
with Centering Rings
Flange Bolts Sensor sizes and torque values for both Class 150 and Class 300 flanges are
listed in Table 5-5. Tighten flange bolts in the incremental sequence, shown in
Figure 5-10.
NOTE
Do not bolt one side at a time. Tighten each side simultaneously. Example:
1. Snug left
2. Snug right
3. Tighten left
4. Tighten right
Do not snug and tighten the upstream side and then snug and tighten the
downstream side. Failure to alternate between the upstream and downstream
flanges when tightening bolts may result in liner damage.
Always check for leaks at the flanges after tightening the flange
bolts. All sensors require a second torquing 24 hours after initial flange bolt
tightening.
Table 5-4. Stud Specifications
Nominal Sensor Size Stud Specifications
0.15 – 1 inch (4 – 25 mm) 316 SST ASTM A193, Grade B8M
Class 1 threaded mounted studs
11/2 – 8 inch (40 – 200 mm) CS, ASTM A193, Grade B7, threaded mounting studs
Customer-supplied
Gasket
FLOW
Installation, Studs
Nuts and Washers
Centering Rings
See ”Safety Messages” on pages 5-1 and 5-2 for complete warning information.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
5-12
INSTALLATION
(SANITARY SENSOR)
Gaskets The sensor requires a gasket at each of its connections to adjacent devices or
piping. The gasket material selected must be compatible with the process
fluid and operating conditions. Gaskets are supplied with all Rosemount 8721
Sanitary sensors except when the process connection is an IDF sanitary
screw type.
Alignment and Bolting Standard plant practices should be followed when installing a magmeter with
sanitary fittings. Unique torque values and bolting techniques are not
required.

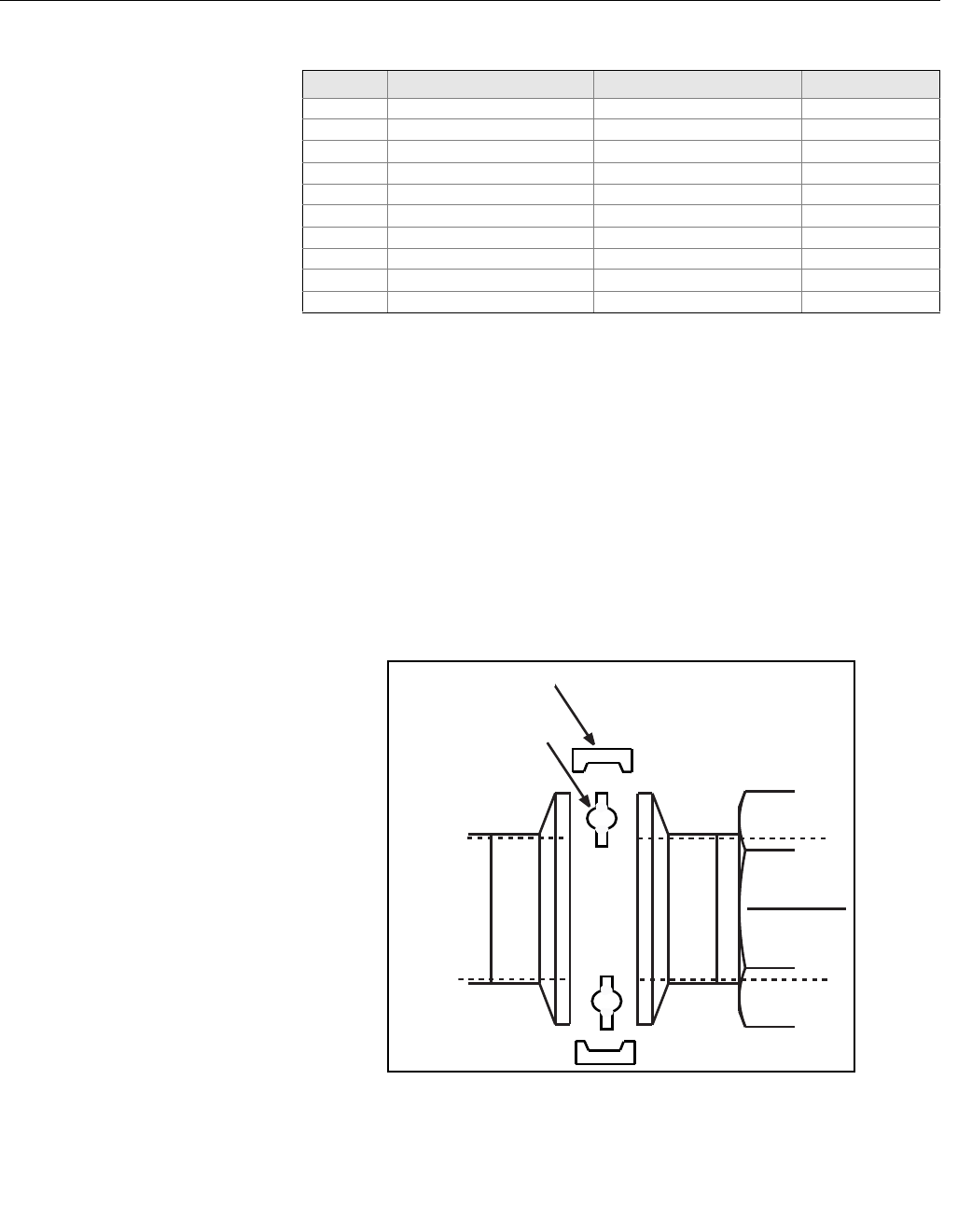

Figure 5-12. Rosemount 8721
Sanitary Installation
GROUNDING Process grounding the sensor is one of the most important details of sensor
installation. Proper process grounding ensures that the transmitter amplifier is
referenced to the process. This creates the lowest noise environment for the
transmitter to make a stable reading. Use Table 5-6 to determine which
grounding option to follow for proper installation.
Table 5-5. Flange bolt Torque Specifications of Rosemount 8711 Sensors
Size Code Line Size Pound-feet Newton-meter
15F 0.15 inch (4 mm) 56.8
30F 0.30 inch (8 mm) 56.8
005 1/2-inch (15 mm) 56.8
010 1 inch (25 mm) 10 13.6
015 11/2 inch (40 mm) 15 20.5
020 2 inch (50 mm) 25 34.1
030 3 inch (80 mm) 40 54.6
040 4 inch (100 mm) 30 40.1
060 6 inch (150 mm) 50 68.2
080 8 inch (200 mm) 70 81.9
User supplied clamp
User supplied gasket
Reference Manual
00809-0100-4665, Rev AA
August 2010
5-13
Rosemount 8732
NOTE
Consult factory for installations requiring cathodic protection or situations
where there are high currents or high potential in the process.
The sensor case should always be earth grounded in accordance with
national and local electrical codes. Failure to do so may impair the protection
provided by the equipment. The most effective grounding method is direct
connection from the sensor to earth ground with minimal impedance.
The Internal Ground Connection (Protective Ground Connection) located in
side the junction box is the Internal Ground Connection screw. This screw is
identified by the ground symbol:

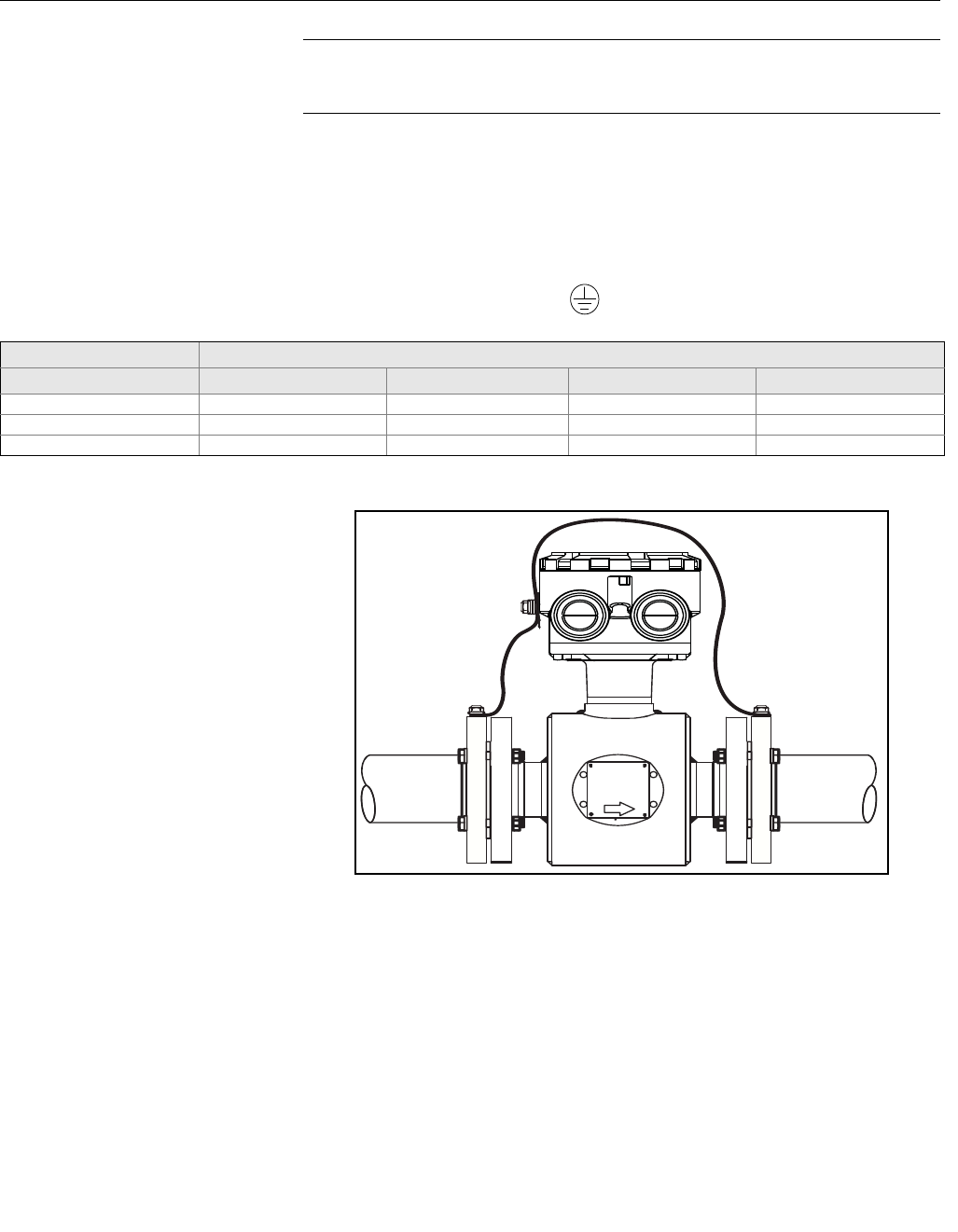

Figure 5-13. No Grounding
Options or Grounding Electrode
in Lined Pipe
Table 5-6. Grounding Installation
Grounding Options
Type of Pipe No Grounding Options Grounding Rings Grounding Electrodes Lining Protectors
Conductive Unlined Pipe See Figure 5-13 Not Required Not Required See Figure 5-14
Conductive Lined Pipe Insufficient Grounding See Figure 5-14 See Figure 5-13 See Figure 5-14
Non-Conductive Pipe Insufficient Grounding See Figure 5-15 See Figure 5-16 See Figure 5-15
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
5-14

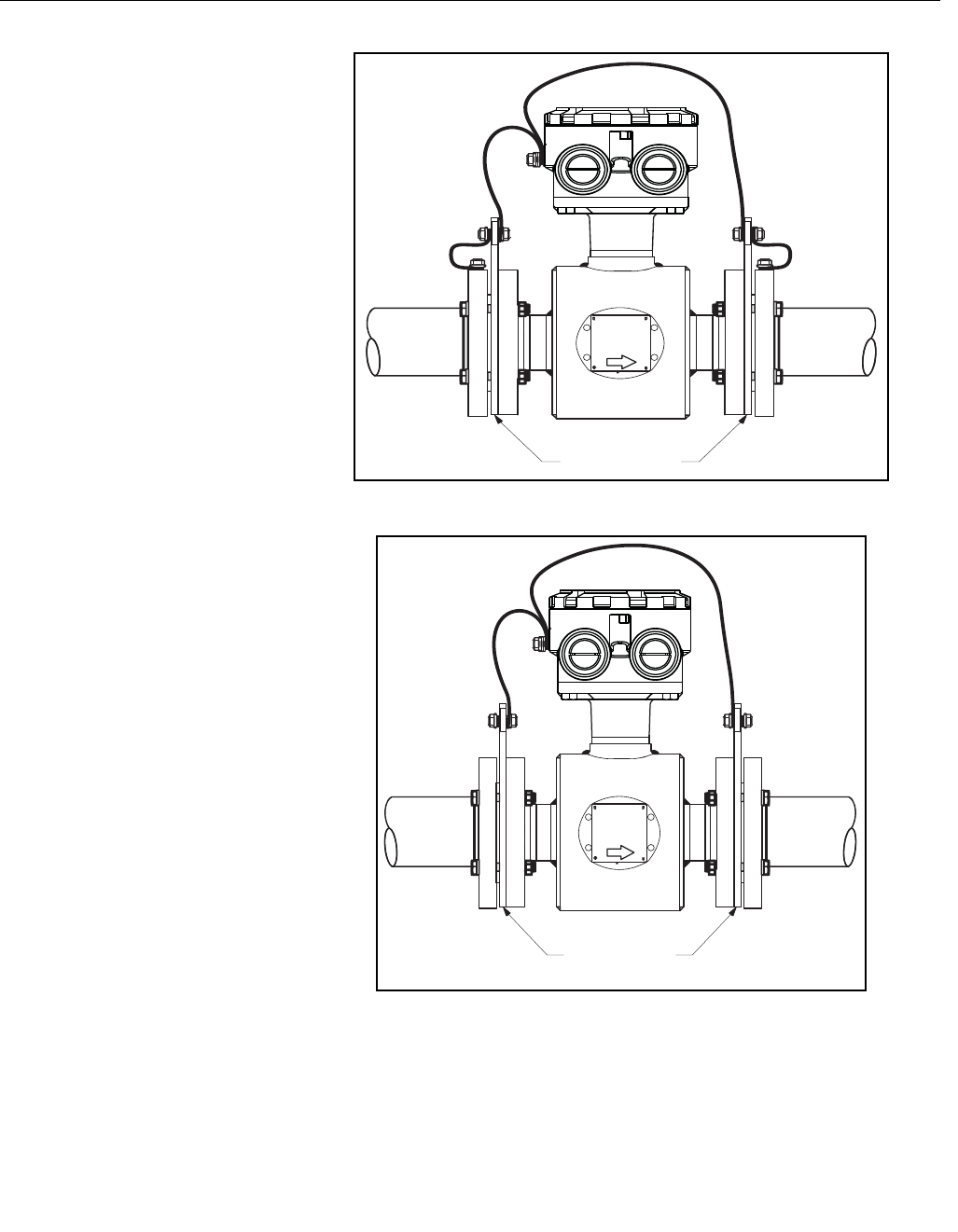

Figure 5-14. Grounding with
Grounding Rings or Lining
Protectors
Figure 5-15. Grounding with
Grounding Rings or Lining
Protectors
Grounding Rings or
Lining Protectors
Grounding Rings or
Lining Protectors
Reference Manual
00809-0100-4665, Rev AA
August 2010
5-15
Rosemount 8732
Figure 5-16. Grounding with
Grounding Electrodes
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
5-16
PROCESS LEAK
PROTECTION
(OPTIONAL)
The Rosemount 8705 and 8707 High-Signal Sensor housing is fabricated
from carbon steel to perform two separate functions. First, it provides
shielding for the sensor magnetics so that external disturbances cannot
interfere with the magnetic field and thus affect the flow measurement.
Second, it provides the physical protection to the coils and other internal
components from contamination and physical damage that might occur in an
industrial environment. The housing is completely welded and gasket-free.
The three housing configurations are identified by the W0, W1, or W3 in the
model number option code when ordering. Below are brief descriptions of
each housing configuration, which are followed by a more detailed overview.
Code W0 — sealed, welded coil housing (standard configuration)
Code W1 — sealed, welded coil housing with a relief valve capable of
venting fugitive emissions to a safe location (additional plumbing from
the sensor to a safe area, installed by the user, is required to vent
properly)
Code W3 — sealed, welded coil housing with separate electrode
compartments capable of venting fugitive emissions (additional
plumbing from the sensor to a safe area, installed by the user, is
required to vent properly)
Standard Housing
Configuration The standard housing configuration is identified by a code W0 in the model
number. This configuration does not provide separate electrode
compartments with external electrode access. In the event of a process leak,
these models will not protect the coils or other sensitive areas around the
sensor from exposure to the pressure fluid (Figure 5-17).
Figure 5-17. Standard Housing
Configuration — Sealed Welded
Housing (Option Code W0)
1/2–14 NPT Conduit
Connection
(no relief valve)
Reference Manual
00809-0100-4665, Rev AA
August 2010
5-17
Rosemount 8732
Relief Valves The first optional configuration, identified by the W1 in the model number
option code, uses a completely welded coil housing. This configuration does
not provide separate electrode compartments with external electrode access.
This optional housing configuration provides a relief valve in the housing to
prevent possible overpressuring caused by damage to the lining or other
situations that might allow process pressure to enter the housing. The relief
valve will vent when the pressure inside the sensor housing exceeds 5 psi.
Additional piping (provided by the user) may be connected to this relief valve
to drain any process leakage to safe containment (see Figure 5-18).
Figure 5-18. Coil-Housing
Configuration — Standard
Welded Housing With Relief
Valve (Option Code W1)
Process Leak
Containment The second optional configuration, identified as option code W3 in the model
number, divides the coil housing into three compartments: one for each
electrode and one for the coils. Should a damaged liner or electrode fault
allow process fluid to migrate behind the electrode seals, the fluid is contained
in the electrode compartment. The sealed electrode compartment prevents
the process fluid from entering the coil compartment where it would damage
the coils and other internal components.
The electrode compartments are designed to contain the process fluid at full
line pressure. An o-ring sealed cover provides access to each of the electrode
compartments from outside the sensor; drainports are provided in each cover
for the removal of fluid.
NOTE
The electrode compartment could contain full line pressure and it must be
depressurized before the cover is removed.
Optional:
Use drain port to
plumb to a safe area
(Supplied by user) 1/2 – 14 NPT Conduit
Connection
¼'' NPT – 5 psi
Pressure Relief Valve
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
5-18

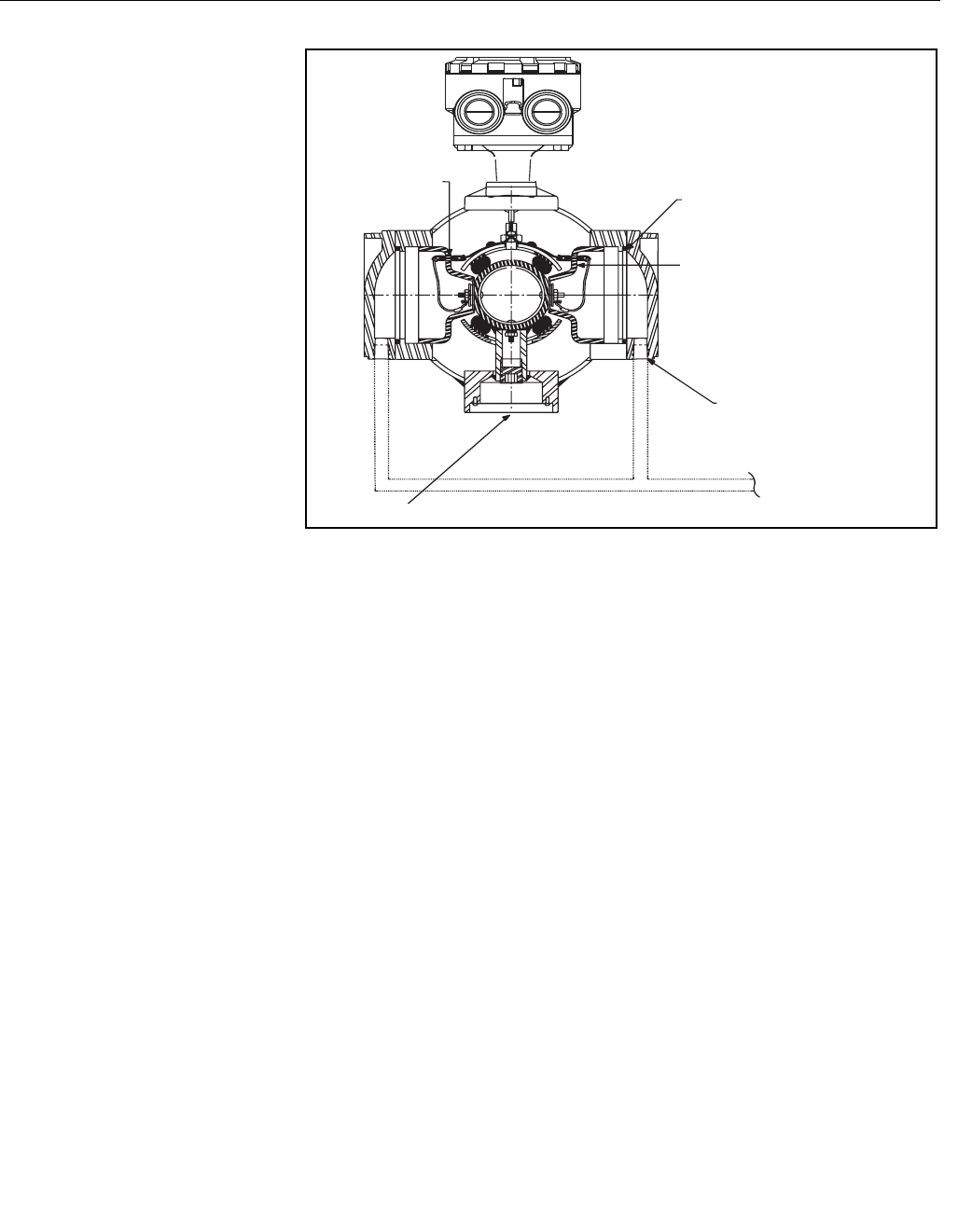

Figure 5-19. Housing
Configuration — Sealed
Electrode Compartment (Option
Code W3)
If necessary, capture any process fluid leakage, connect the appropriate
piping to the drainports, and provide for proper disposal (see Figure 5-19).
Fused Glass Seal
Sealed Electrode Compartment
1/2 - 27 NPT
O-Ring Seal
Optional:
Use drain port to
plumb to a safe area
(Supplied by user)
Grounding Electrode Port
Reference Manual
00809-0100-4665, Rev AA
August 2010 Rosemount 8732
www.rosemount.com
Section 6 Maintenance and
Troubleshooting
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6-1
Installation Check and Guide . . . . . . . . . . . . . . . . . . . . . . page 6-2
Diagnostic Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6-3
Transmitter Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . page 6-5
Quick Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6-7
This section covers basic transmitter and sensor troubleshooting. Problems in
the magnetic flowmeter system are usually indicated by incorrect output
readings from the system, error messages, or failed tests. Consider all
sources when identifying a problem in your system. If the problem persists,
consult your local Rosemount representative to determine if the material
should be returned to the factory. Emerson Process Management offers
several diagnostics that aid in the troubleshooting process.
Instructions and procedures in this section may require special precautions to
ensure the safety of the personnel performing the operations. Please read the
following safety messages before performing any operation described in this
section. Refer to these warnings when appropriate throughout this section.
SAFETY INFORMATION
The 8732 performs self diagnostics on the entire magnetic flowmeter system:
the transmitter, the sensor, and the interconnecting wiring. By sequentially
troubleshooting each individual piece of the magmeter system, it becomes
easier to pin point the problem and make the appropriate adjustments.
If there are problems with a new magmeter installation, see “Installation
Check and Guide” on page 6-2 for a quick guide to solve the most common
installation problems. For existing magmeter installations, Table 6-4 lists the
most common magmeter problems and corrective actions.
Failure to follow these installation guidelines could result in death or serious injury:
Installation and servicing instructions are for use by qualified personnel only. Do not perform
any servicing other than that contained in the operating instructions, unless qualified. Verify
that the operating environment of the sensor and transmitter is consistent with the
appropriate FM or CSA approval.
Do not connect a Rosemount 8732 to a non-Rosemount sensor that is located in an
explosive atmosphere.
Mishandling products exposed to a hazardous substance may result in death or serious
injury. If the product being returned was exposed to a hazardous substance as defined by
OSHA, a copy of the required Material Safety Data Sheet (MSDS) for each hazardous
substance identified must be included with the returned goods.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
6-2
INSTALLATION CHECK
AND GUIDE Use this guide to check new installations of Rosemount magnetic flowmeter
systems that appear to malfunction.
Before You Begin
Transmitter
Apply power to your system before making the following transmitter checks.
1. Verify that the correct sensor calibration number is entered in the
transmitter. The calibration number is listed on the sensor nameplate.
2. Verify that the correct sensor line size is entered in the transmitter.
The line size value is listed on the sensor nameplate.
3. Verify that the function blocks are not in Out of Service mode.
4. Verify that the transmitter is functioning correctly by using the 8714i
Meter Verification diagnostic or the 8714D Calibration Reference
Standard.
Sensor
Be sure that power to your system is removed before beginning sensor
checks.
1. For horizontal flow installations, ensure that the electrodes remain
covered by process fluid.
For vertical or inclined installations, ensure that the process fluid
is flowing up into the sensor to keep the electrodes covered by
process fluid.
2. Ensure that the grounding straps on the sensor are connected to
grounding rings, lining protectors, or the adjacent pipe flanges.
Improper grounding will cause erratic operation of the system.
Wiring for Remote Configurations
1. The signal wire and coil drive wire must be twisted shielded cable.
Emerson Process Management, Rosemount division. recommends
20 AWG twisted shielded cable for the electrodes and 14 AWG
twisted shielded cable for the coils.
2. The cable shield must be connected at both ends of the electrode and
coil drive cables. Connection of the signal wire shield at both ends is
necessary for proper operation. It is recommended that the coil drive
wire shield also be connected at both ends for maximum flowmeter
performance
3. The signal and coil drive wires must be separate cables, unless
Emerson Process Management specified combo cable is used. See
Table 2-2 on page 2-11.
4. The single conduit that houses both the signal and coil drive cables
should not contain any other wires.
Process Fluid
1. The process fluid conductivity should be 5 microsiemens
(5 micro mhos) per centimeter minimum.
2. The process fluid must be free of air and gasses.
3. The sensor should be full of process fluid.
Reference Manual
00809-0100-4665, Rev AA
August 2010
6-3
Rosemount 8732
DIAGNOSTIC
MESSAGES Problems in the magnetic flowmeter system are usually indicated by incorrect
output readings from the system, error messages, or failed tests. Consider all
sources in identifying a problem in your system.
Table 6-1. Rosemount 8732 Basic Diagnostic Messages
Message Local Display Error
Message (English) Potential Cause Corrective Action
“Profibus Not
Communicating”
Profibus Not
Communicating
Profibus segment is disconnected Connect the Profibus segment
Profibus segment power missing Verify the segment Profibus voltage
Electronics failure Replace electronics
“Sensor Processor Not
Communicating”
Sensor Comm Err Transmitter input power (AC/DC) is not
connected
Connect the input power. If the LCD displays a message,
the input power is applied
Electronics failure Replace electronics
“Empty Pipe Detected” Empty Pipe Empty Pipe None - message will clear when pipe is full
Wiring Error Check that wiring matches appropriate wiring diagrams -
see Appendix E: Universal Sensor Wiring Diagrams
Electrode Error Perform sensor tests C and D (see Table 6-5 on page 6-8)
Conductivity less than 5 microsiemens
per cm
Increase Conductivity to greater than or equal to 5
microsiemens per cm
Intermittent Diagnostic Adjust tuning of Empty Pipe parameters
“Coil Drive Open
Circuit”
Coil Open Ckt Improper wiring Check coil drive wiring and sensor coils
Perform sensor test A - Sensor Coil
Other manufacturer’s sensor Change coil current to 75 mA
Perform a Universal Auto Trim to select the proper coil
current
Circuit Board Failure Replace Rosemount 8732 Electronics
Coil Circuit OPEN Fuse Return to factory for fuse replacement
“Auto Zero Failure
(Cycle power to clear
messages, no changes
were made)”
Auto Zero Fail Flow is not set to zero Force flow to zero, perform autozero
Unshielded cable in use Change wire to shielded cable
Moisture problems See moisture problems in “Accuracy Section”
Empty pipe is present Fill sensor with process fluid
“Universal Trim Failure” Univ Trim Fail No flow in pipe while performing
Universal Auto Trim
Establish a known flow in sensor, and perform Universal
Auto-Trim calibration
Wiring error Check that wiring matches appropriate wiring diagrams -
see “Universal Sensor Wiring Diagrams” on page E-1
Flow rate is changing in pipe while
performing Universal Auto-Trim routine
Establish a constant flow in sensor, and perform Universal
Auto-Trim calibration
Flow rate through sensor is
significantly different than value
entered during Universal Auto-Trim
routine
Verify flow in sensor and perform Universal Auto-Trim
calibration
Incorrect calibration number entered
into transmitter for Universal Auto-Trim
routine
Replace sensor calibration number with
1000005010000001
Wrong sensor size selected Correct sensor size setting - See “Line Size” on page 3-9
Sensor failure Perform sensor tests C and D (see Table 6-5 on page 6-8)
“Electronics Failure” Electronics Fail Electronics self check failure Replace Electronics
“Electronics
Temperature Out of
Range”
Temp Out of Rng Ambient temperature exceeded the
electronics temperature limits
Move transmitter to a location with an ambient
temperature range of -40 to 165 °F (-40 to 74 °C)
“Reverse Flow
Detected”
Reverse Flow Electrode or coil wires reverse Verify wiring between sensor and transmitter
Flow is reverse Turn ON Reverse Flow Enable to read flow
Sensor installed backwards Re-install sensor correctly, or switch either the electrode
wires (18 and 19) or the coil wires (1 and 2)
“Sensor Hi Limit
Exceeded”
Flow >Sens limit Flow rate is greater than 43 ft/sec Lower flow velocity, increase pipe diameter
Improper wiring Check coil drive wiring and sensor coils
Perform sensor test A - Sensor Coil (see Table 6-5 on
page 6-8)
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
6-4
Table 6-2. Rosemount 8732 Advanced Diagnostic Messages (Suite 1 - Option Code D01)
Table 6-3. Rosemount 8732 Advanced Diagnostic Messages (Suite 2 - Option Code D02)
“DSP Hardware not
compatible with
software”
Incompatible SW DSP Software Revision is not equal to
Hornet’s Expectations.
Install software revision equal to Hornet's Expectation
Message Local Display Error
Message (English) Potential Cause Corrective Action
Grounding/Wiring
Fault
Grnd/Wire Fault Improper installation of wiring See “Sensor Connections” on page 2-11
Coil/Electrode shield not connected See “Sensor Connections” on page 2-11
Improper process grounding See “Grounding” on page 5-12
Faulty ground connection Check wiring for corrosion, moisture in the terminal block,
and refer to “Grounding” on page 5-12
Sensor not full Verify sensor is full and empty pipe diagnostic is on
High Process Noise Hi Process Noise Slurry flows - mining/pulp stock Decrease the flow rate below 10 ft/s (3 m/s)
Complete the possible solutions listed under “Step 2:
Process Noise” on page 6-7
Chemical additives upstream of the
sensor
Move injection point downstream of the sensor, or move
the sensor
Complete the possible solutions listed under “Step 2:
Process Noise” on page 6-7
Electrode not compatible with the
process fluid
Refer to the Rosemount Magnetic Flowmeter Material
Selection Guide (00816-0100-3033)
Air in line Move the sensor to another location in the process line to
ensure that it is full under all conditions
Electrode coating Use bulletnose electrodes
Downsize sensor to increases flowrate above 3 ft/s (1 m/s)
Periodically clean sensor
Styrofoam or other insulating particles Complete the possible solutions listed under “Step 2:
Process Noise” on page 6-7
Consult factory
Low conductivity fluids
(below 10 microsiemens/cm)
Trim electrode and coil wires - refer to “Installation” on
page 2-1
Message Potential Cause Corrective Action
8714i Failed
Transmitter Calibration Verification
test failed
Verify pass/fail criteria
Rerun 8714i Meter Verification under no flow conditions
Verify calibration using 8714D Calibration Standard
Perform digital trim
Replace electronics board
Sensor Calibration test failed Verify pass/fail criteria
Perform sensor test - see Table 6-5 on page 6-8
Sensor Coil Circuit test failed Verify pass/fail criteria
Perform sensor test - see Table 6-5 on page 6-8
Sensor Electrode Circuit test failed Verify pass/fail criteria
Perform sensor test - see Table 6-5 on page 6-8
Table 6-1. Rosemount 8732 Basic Diagnostic Messages
Message Local Display Error
Message (English) Potential Cause Corrective Action
Reference Manual
00809-0100-4665, Rev AA
August 2010
6-5
Rosemount 8732
TRANSMITTER
TROUBLESHOOTING
Table 6-4. Advanced Troubleshooting–Rosemount 8732
Symptom Potential Cause Corrective Action
Does not appear to be within
rated accuracy
Transmitter, control system, or other
receiving device not configured
properly
Check all configuration variables for the transmitter, sensor,
communicator, and/or control system
Check these other transmitter settings:
•Sensor calibration number
•Units
•Line size
Electrode Coating Use bulletnose electrodes;
Downsize sensor to increase flow rate above 3 ft/s;
Periodically clean sensor
Air in line Move the sensor to another location in the process line to
ensure that it is full under all conditions.
Moisture problem Perform the sensor Tests A, B, C, and D
(see Table 6-5 on page 6-8)
Improper wiring If electrode shield and signal wires are switched, flow indication
will be about half of what is expected. Check wiring diagrams for
your application.
Flow rate is below 1 ft/s
(specification issue)
See accuracy specification for specific transmitter and sensor
Auto zero was not performed when the
coil drive frequency was changed from
5 Hz to 37 Hz
Set the coil drive frequency to 37 Hz, verify the sensor is full,
verify there is no flow, and perform the auto zero function.
Sensor failure–Shorted electrode Perform the sensor Tests C and D
(see Table 6-5 on page 6-8)
Sensor failure–Shorted or open coil Perform the sensor Tests A and B
(see Table 6-5 on page 6-8)
Transmitter failure Verify transmitter operation with an 8714 Calibration Standard or
replace the electronic board
Noisy Process Chemical additives upstream of
magnetic flowmeter
Complete the Noisy Process Basic procedure. Move injection
point downstream of magnetic flowmeter, or move magnetic
flowmeter.
Sludge flows–Mining/Coal/
Sand/Slurries (other slurries with
hard particles)
Decrease flow rate below 10 ft/s
Styrofoam or other insulating particles
in process
Complete the Noisy Process Basic procedure;
Consult factory
Electrode coating Use replaceable electrodes in Rosemount 8705.
Use a smaller sensor to increase flow rate above 3 ft/s.
Periodically clean sensor.
Air in line Move the sensor to another location in the process line to
ensure that it is full under all conditions.
Low conductivity fluids (below 10
microsiemens/cm) Trim electrode and coil wires – see “Conduit Cables” on
page 2-6
Keep flow rate below 3 FPS
Integral mount transmitter
Use 8712-0752-1,3 cable
Use N0 approval sensor
Advanced Troubleshooting continued on next page
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
6-6
Meter output is unstable Medium to low conductivity fluids (10–
25 microsiemens/cm) combined with
cable vibration or 60 Hz interference
Eliminate cable vibration:
Integral mount
Move cable to lower vibration run
Tie down cable mechanically
Trim electrode and coil wires
See “Conduit Cables” on page 2-6
Route cable line away from other equipment
powered by 60 Hz
Use 8712-0752-1,3 cable
Electrode incompatibility Check the Technical Data Sheet, Magnetic Flowmeter Material
Selection Guide (document number 00816-0100-3033), for
chemical compatibility with electrode material.
Improper grounding Check ground wiring – see “Mount the Transmitter” on page 2-3
for wiring and grounding procedures
High local magnetic or electric fields Move magnetic flowmeter (20–25 ft away is usually acceptable)
Control loop improperly tuned Check control loop tuning
Sticky valve (look for periodic
oscillation of meter output)
Service valve
Sensor failure Perform the sensor Tests A, B, C, and D
(See Table 6-5 on page 6-8)
Reading does not appear to be
within rated accuracy
Transmitter, control system, or other
receiving device not configured
properly
Check all configuration variables for the transmitter, sensor,
communicator, and/or control system
Check these other transmitter settings:
Sensor calibration number
Units
Line size
Electrode coating Use bulletnose electrodes in the Rosemount 8705 Sensor.
Downsize the sensor to increase the flow rate above 3 ft/s.
Periodically clean the sensor
Air in line Move the sensor to another location in the process line to
ensure that it is full under all conditions
Flow rate is below 1 ft/s
(specification issue)
See the accuracy specification for specific transmitter and
sensor
Insufficient upstream/downstream
pipe diameter
Move sensor to location where 5 pipe diameters upstream and 2
pipe diameters downstream is possible
Cables for multiple magmeters run
through same conduit
Run only one conduit cable between each sensor and
transmitter
Auto zero was not performed when the
coil drive frequency was changed from
5 Hz to 37.5 Hz
Perform the auto zero function with full pipe and no flow
Sensor failure—shorted electrode See Table 6-5 on page 6-8
Sensor failure—shorted or open coil See Table 6-5 on page 6-8
Transmitter failure Replace the electronics board
Transmitter wired to correct sensor Check wiring
Table 6-4. Advanced Troubleshooting–Rosemount 8732
Symptom Potential Cause Corrective Action
Reference Manual
00809-0100-4665, Rev AA
August 2010
6-7
Rosemount 8732
QUICK
TROUBLESHOOTING
Step 1: Wiring Errors The most common magmeter problem is wiring between the sensor and the
transmitter in remote mount installations. The signal wire and coil drive wire
must be twisted shielded cable: 20 AWG twisted shielded cable for the
electrodes and 14 AWG twisted shielded cable for the coils. Ensure that the
cable shield is connected at both ends of the electrode and coil drive cables.
Signal and coil drive wires must have their own cables. The single conduit that
houses both the signal and coil drive cables should not contain any other
wires. For more information on proper wiring practices, refer to “Transmitter to
Sensor Wiring” on page 2-11.
Step 2: Process Noise In some circumstances, process conditions rather than the magmeter can
cause the meter output to be unstable. Possible solutions for addressing a
noisy process situation are given below. When the output attains the desired
stability, no further steps are required.
Use the Auto Zero function to initialize the transmitter for use with the 37.5 Hz
coil drive mode only. Run this function only with the transmitter and sensor
installed in the process. The sensor must be filled with process fluid with zero
flow rate. Before running the auto zero function, be sure the coil drive mode is
set to 37.5 Hz.
Set the loop to manual if necessary and begin the auto zero procedure. The
transmitter completes the procedure automatically in about 90 seconds. A
symbol appears in the lower right-hand corner of the display to indicate that
the procedure is running.
1. Change the coil drive to 37.5 Hz. Complete the Auto Zero function, if
possible (see “Coil Drive Frequency” on page 4-13).
2. Turn on Digital Signal Processing (see “Signal Processing” on
page 4-25)
3. Increase the damping (see “Damping” on page 3-17).
If the preceding steps fail to resolve the process noise symptoms, consult
your Rosemount sales representative about using a high-signal magnetic
flowmeter system.
Step 3: Installed Sensor
Tests If a problem with an installed sensor is identified, Table 6-5 can assist in
troubleshooting the sensor. Before performing any of the sensor tests,
disconnect or turn off power to the transmitter. To interpret the results, the
hazardous location certification for the sensor must be known. Applicable
codes for the Rosemount 8705 are N0, N5, and KD. Applicable codes for the
Rosemount 8707 are N0 and N5. Applicable codes for the Rosemount 8711
are N0, N5, E5, and KD. Always check the operation of test equipment before
each test.
If possible, take all readings from inside the sensor junction box. If the sensor
junction box is inaccessible, take measurements as close as possible.
Readings taken at the terminals of remote-mount transmitters that are more
than 100 feet away from the sensor may provide incorrect or inconclusive
information and should be avoided. A sensor circuit diagram is provided in
Figure 6-1 on page 6-9.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
6-8
To test the sensor, a multimeter capable of measuring conductance in
nanosiemens is preferred. Nanosiemens is the reciprocal of resistance.
or
Table 6-5. Sensor Test
Test Sensor
Location Required
Equipment Measuring at
Connections Expected Value Potential Cause Corrective Action
A. Sensor
Coil
Installed or
Uninstalled
Multimeter 1 and 2 = R Open or
Shorted Coil
Remove and
replace sensor
B. Shields to
Case
Installed or
Uninstalled
Multimeter 17 and
and case
ground
17 and case
ground
Moisture in
terminal block
Leaky electrode
Process behind
liner
Clean terminal
block
Remove sensor
C. Coil Shield
to Coil
Installed or
Uninstalled
Multimeter 1 and
2 and
(< 1nS)
(< 1nS) Process behind
liner
Leaky electrode
Moisture in
terminal block
Remove sensor
and dry
Clean terminal
block
Confirm with
sensor coil test
D. Electrode
Shield to
Electrode
Installed LCR (Set to
Resistance
and 120 Hz)
18 and 17 = R1
19 and 17 = R2
R1 and R2 should be stable
NO:
N5, E5, CD,
ED:
Unstable R1 or
R2 values
confirm coated
electrode
Shorted
electrode
Electrode not in
contact with
process
Empty Pipe
Low conductivity
Leaky electrode
Remove coating
from sensor wall
Use bulletnose
electrodes
Repeat
measurement
Pull sensor,
complete test in
Table 6-6 and
Table 6-7 on
page 6-10 out of
line.
2R18
0.2


R1R2300
R1R21500
1nanosiemens 1
1gigaohm
----------------------------=
1nanosiemens 1
110
9ohm
-------------------------------=
Reference Manual
00809-0100-4665, Rev AA
August 2010
6-9
Rosemount 8732
Figure 6-1. Sensor Circuit
Diagram
Step 4: Uninstalled
Sensor Tests An uninstalled sensor can also be used for sensor troubleshooting. To
interpret the results, the hazardous location certification for the sensor must
be known. Applicable codes for the Rosemount 8705 are N0, N5, and KD.
Applicable codes for the Rosemount 8707 are N0 and N5. Applicable codes
for the Rosemount 8711 are N0, N5, E5, and KD.
A sensor circuit diagram is provided in Figure 6-1. Take measurements from
the terminal block and on the electrode head inside the sensor. The
measurement electrodes, 18 and 19, are on opposite sides in the inside
diameter. If applicable, the third grounding electrode is in between the other
two electrodes. On Rosemount 8711 sensors, electrode 18 is near the sensor
junction box and electrode 19 is near the bottom of the sensor (Figure 6-2).
The different sensor models will have slightly different resistance readings.
Flanged sensor resistance readings are in Table 6-6 while wafer sensor
resistance readings are in Table 6-7.
68.1k(not applicable for
sensors with N0 hazardous
certification approval option
code)
Sensor Housing
68.1k
See “Safety Information” on page 6-1 for complete warning information.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
6-10

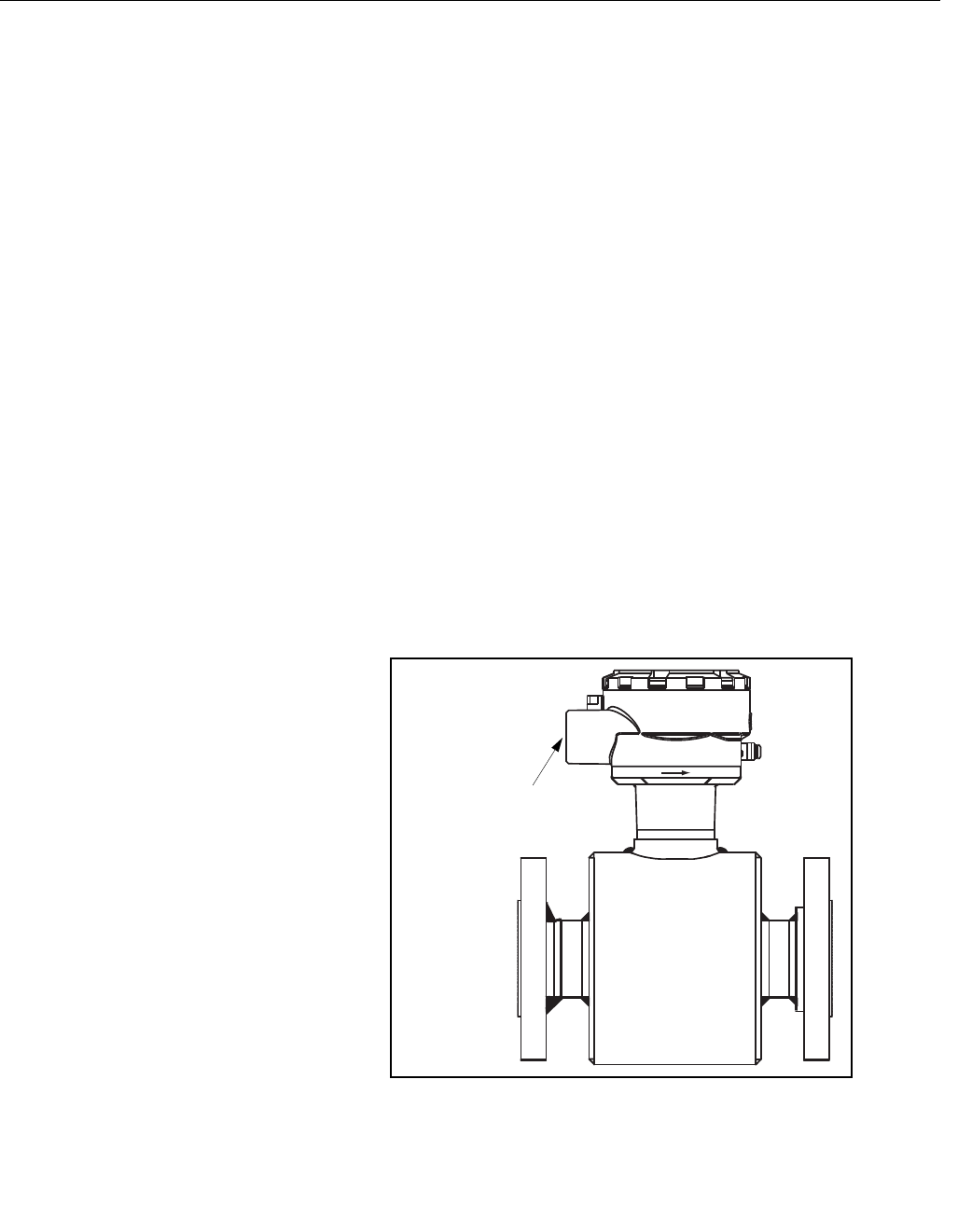

Figure 6-2. 45° Electrode Plane
To insure accuracy of resistance readings, zero out multimeter by shorting
and touching the leads together.
Table 6-6. Uninstalled Rosemount 8705 / 8707
Flanged Sensor Tests
Measuring at Connections
Hazardous Location Certifications
N0 N5, KD
18 and Electrode(1)
(1) It is difficult to tell from visual inspection alone which electrode is wired to which number terminal in
the terminal block. Measure both electrodes. One electrode should result in an open reading, while
the other electrode should be less than 275 .
19 and Electrode(1)
17 and Grounding Electrode
17 and Ground Symbol
17 and 18 Open Open
17 and 19 Open Open
17 and 1 Open Open
Table 6-7. Uninstalled Rosemount 8711 Wafer Sensor Tests
Measuring at Connections
Hazardous Location Certification
N0 N5, E5, CD
18 and Electrode(1)
(1) Measure the electrode closest to the junction box
19 and Electrode(2)
(2) Measure the electrode farthest away from the junction box.
17 and Grounding Electrode
17 and Grounding Symbol
17 and 18 Open Open
17 and 19 Open Open
17 and 1 Open Open
275
61kR75k 
275
61kR75k 
0.3
0.3
0.3
0.3
0.3
61kR75k 
275
61kR75k 
0.3
0.3
0.3
0.3
Reference Manual
00809-0100-4665, Rev AA
August 2010 Rosemount 8732
www.rosemount.com
Appendix A Reference Data
Functional Specifications . . . . . . . . . . . . . . . . . . . . . . . . . page A-1
E-Series Advanced Diagnostics Capabilities . . . . . . . . . . page A-4
Output Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page A-4
Profibus PA fieldbus Digital Output Specifications . . . . . page A-4
Performance Specifications . . . . . . . . . . . . . . . . . . . . . . . page A-6
Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . page A-8
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page A-9
FUNCTIONAL
SPECIFICATIONS Sensor Compatibility
Compatible with Rosemount 8705, 8711, 8721, and 570TM sensors.
Compatible with Rosemount 8707 sensor with D2 Dual calibration option.
Compatible with AC and DC powered sensors of other manufacturers.
Sensor Coil Resistance
350 maximum
Transmitter Coil Drive Current
500 mA
Flow Rate Range
Capable of processing signals from fluids that are traveling between 0.04 and
39 ft./s (0.01 to 12 m/s) for both forward and reverse flow in all sensor sizes.
Full scale continuously adjustable between –39 and 39 ft./s (–12 to 12 m/s).
Conductivity Limits
Process liquid must have a conductivity of 5 microsiemens/cm (5
micromhos/cm) or greater. Excludes the effect of interconnecting cable length
in remote mount transmitter installations.
Power Supply
90 -250 V AC, 50–60 Hz or 12-42 V DC
AC Power Supply Requirements
Units powered by 90-250 V AC have the following power requirements.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
A-2
Figure A-1. AC Current
Requirements
Figure A-2. Apparent Power
DC Supply Current Requirements
Units powered by 12-42 V DC power supply may draw up to 1 amp of current
steady state.
Figure A-3. DC Current
Requirements
DC Load Limitations (Analog Output)
Maximum loop resistance is determined by the voltage level of the external
power supply, as described by:
Supply Current (Amps)
0.100
0.120
0.140
0.180
0.200
0.220
0.240
0.260
0.280
0.300
0.320
0.160
80 100 120 140 160 180 200 220 240
Power Supply Voltage (AC RMS)
80 100 120 140 160 180 200 220 240
Power Supply Voltage (AC RMS)
20
22
24
26
28
30
32
34
36
38
Apparent Power (VA)
250
0
0.25
0.5
0.75
1
12 18 24 30 36 42
Power Supply (Volts)
Supply Current (Amps)
Reference Manual
00809-0100-4665, Rev AA
August 2010
A-3
Rosemount 8732
Figure A-4. 8732E DC Load
Limitations
Power Consumption
10 watts maximum
Switch-on current
AC: Maximum 26 A (< 5 ms) at 250 V AC
DC: Maximum 30 A (< 5 ms) at 42 V DC
Ambient Temperature Limits
Operating
–58 to 165 °F (–50 to 74 °C) without local operator interface
13 to 149 °F (–25 to 65 °C) with local operator interface
Storage
–40 to 185 °F (–40 to 85 °C)
–22 to 176 °F (–30 to 80 °C) with local operator interface
Humidity Limits
0–100% RH to 150 °F (65 °C)
Enclosure Rating
Type 4X, IEC 60529, IP66 (transmitter)
Transient Protection Rating
The 8732E has built in transient protection that conforms to EN 61000-4-4 for
burst currents and 61000-4-5 for surge currents. For CE testing the
transmitter is compliant with IEC 611185-2.2000 Class 3 which is up to 2 kV
and up to 2 kA protection.
Turn-on Time
5 minutes to rated accuracy from power up; 5 seconds from power
interruption
Start-up Time
50 ms from zero flow
Rmax = 31.25 (Vps – 10.8)
Vps = Power Supply Voltage (Volts)
Rmax = Maximum Loop Resistance (Ohms)
Power Supply (Volts)
Load (Ohms)
Operating
Region
600
500
010.8 30
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
A-4
Low Flow Cutoff
Adjustable between 0.01 and 38.37 ft./s (0.003 and 11.7 m/s). Below selected
value, output is driven to the zero flow rate signal level.
Overrange Capability
Signal output will remain linear until 110% of upper range value or 44 ft./s (13
m/s). The signal output will remain constant above these values. Out of range
message displayed on LOI and the Field Communicator.
Damping
Adjustable between 0 and 256 seconds
E-SERIES ADVANCED
DIAGNOSTICS
CAPABILITIES
Basic
Self test
Transmitter faults
Analog output test
Pulse output test
Tunable empty pipe
Reverse flow
Coil circuit fault
Electronics temperature
Process Diagnostics (D01)
Ground/wiring fault
High process noise
SMART Meter Verification (D02)
Smart Meter Verification
OUTPUT SIGNALS 8732 LOI Lockout
All optical switches on the display can be locked locally from the display
layout configuration screen by holding the upper right optical switch for 10
seconds. The display can be reactivated holding the same switch for 10
seconds.
PROFIBUS PA FIELDBUS
DIGITAL OUTPUT
SPECIFICATIONS
Output Signal
Manchester-encoded digital signal that conforms to IEC 1158-2 and ISA
50.02.
Profile Version
3.01
Identification Number
Generic: 0x9740
Manufacturer Specific: 0x0C15
Reference Manual
00809-0100-4665, Rev AA
August 2010
A-5
Rosemount 8732
Profibus PA Function
Blocks Physical Block - Slot 0
The Physical Block contains physical transmitter information, including
available memory, manufacturer identification, device type, software tag, and
unique identification.
Transducer Block - Slot 5
The transducer block calculates flow from the measured induced voltage and
provides the flowrate input to the AI Block. The calculation includes
information related to the calibration number, line size, and diagnostics.
Analog Input Block - Slot 1
The AI function block processes the measurement and makes it available to
the Host system. The AI function block also allows filtering, alarming, and
engineering unit changes. The 8732E Transmitter with Profibus PA digital
fieldbus comes standard with one AI function block which is dedicated to flow.
Totalizer Block (3 blocks) - Slots, 2, 3, 4
The Totalizer function block allows for totalization of the flow signal. The
8732E Transmitter with Profibus PA digital fieldbus comes with 3 independent
totalizer blocks. Each totalized value can be displayed on the Local Operator
Interface of the device in addition to the Primary Variable.
Sensor Compensation
Rosemount sensors are flow-calibrated and assigned a calibration factor at
the factory. The calibration factor is entered into the transmitter, enabling
interchangeability of sensors without calculations or a compromise in
standard accuracy.
8732E transmitters and other manufacturers’ sensors can be calibrated at
known process conditions or at the Rosemount NIST-Traceable Flow Facility.
Transmitters calibrated on site require a two-step procedure to match a
known flow rate. This procedure can be found in the Operations Manual:
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
A-6
PERFORMANCE
SPECIFICATIONS (System specifications are given using the frequency output and with the unit
at reference conditions.)
Accuracy
Includes the combined effects of linearity, hysteresis, repeatability, and
calibration uncertainty.
Rosemount E Series with 8705/8707 Sensor:
Standard system accuracy is ±0.25% of rate ±1.0 mm/sec from 0.04 to 6
ft./s (0.01 to 2 m/s); above 6 ft./s (2 m/s), the system has an accuracy of
±0.25% of rate ±1.5 mm/sec.
Optional high accuracy is ±0.15% of rate ±1.0 mm/sec from 0.04 to 13 ft./s
(0.01 to 4 m/s); above 13 ft./s (4 m/s), the system has an accuracy of
±0.18% of rate.(1)
Rosemount E-Series with 8711 Sensor:
Standard system accuracy is ±0.25% of rate ±2.0 mm/sec from 0.04 to 39
ft./s (0.01 to 12 m/s).
Optional high accuracy is ±0.15% of rate ±1.0 mm/sec from 0.04 to 13 ft./s
(0.01 to 4 m/s); above 13 ft./s (4 m/s), the system has an accuracy of
±0.18% of rate.
Rosemount E-Series with 8721 Sensor:
Standard system accuracy is ±0.5% of rate from 1 to 39 ft./s (0.3 to 12
m/s); between 0.04 and 1.0 ft./s (0.01 and 0.3 m/s), the system has an
accuracy of ±0.005 ft./s (0.0015 m/s).
(1) For Sensor sizes greater than 12 in. (300 mm) the high accuracy is ±0.25% of rate from 3 to
39 ft./sec (1 to 12 m/sec).
0
0.50.5
1.01.0
1.51.5
2.02.0
2.52.5
0 3 3
(1)(1)
6 6
(2)(2)
13 13
(4)(4)
20 20
(6)(6)
27 27
(8)(8)
33 33
(10)(10)
40 40
(12)(12)
Velocity in ft/s (m/s)Velocity in ft/s (m/s)
% of Rate
0.25%0.25% 0.15%0.15%
0
0.50.5
1.01.0
1.51.5
2.02.0
2.52.5
0 3 3
(1)(1)
6 6
(2)(2)
13 13
(4)(4)
20 20
(6)(6)
27 27
(8)(8)
33 33
(10)(10)
40 40
(12)(12)
Velocity in ft/s (m/s)Velocity in ft/s (m/s)
% of Rate% of Rate
0.25%0.25% 0.15%0.15%
Reference Manual
00809-0100-4665, Rev AA
August 2010
A-7
Rosemount 8732
Optional high accuracy is ±0.25% of rate from 3 to 39 ft./s (1 to 12 m/s).
Rosemount E-Series with Legacy 8705/8707 Sensors:
Standard system accuracy is ±0.5% of rate from 1 to 39 ft./s (0.3 to 12
m/s); between 0.04 and 1.0 ft./s (0.01 and 0.3 m/s), the system has an
accuracy of ±0.005 ft./s (0.0015 m/s).
Rosemount E-Series with Legacy 8711 Sensors:
Standard system accuracy is ±0.5% of rate from 3 to 39 ft./s (1 to 12 m/s);
between 0.04 and 3.0 ft./s (0.01 and 1 m/s), the system has an accuracy of
±0.015 ft./s (0.005 m/s).
Rosemount E-Series with Other Manufacturers’ Sensors:
When calibrated in the Rosemount Flow Facility, system accuracies as
good as 0.5% of rate can be attained.
There is no accuracy specification for other manufacturers’ sensors
calibrated in the process line.
Vibration Effect
IEC 60770-1
Repeatability
±0.1% of reading
Response Time
50 ms maximum response time to step change in input
Stability
±0.1% of rate over six months
Ambient Temperature Effect
±0.25% change over operating temperature range
EMC Compliance
EN61326-1: 2006 (Industrial) electromagnetic compatibility (EMC) for process
and laboratory apparatus.
0
0.50.5
1.01.0
1.51.5
2.02.0
2.52.5
0 3 3
(1)(1)
6 6
(2)(2)
13 13
(4)(4)
20 20
(6)(6)
27 27
(8)(8)
33 33
(10)(10)
40 40
(12)(12)
Velocity in ft/s (m/s)Velocity in ft/s (m/s)
% of Rate% of Rate
0.5%0.5% 0.25%0.25%
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
A-8
PHYSICAL
SPECIFICATIONS
Materials of Construction Housing
Low copper aluminum, Type 4X and IEC 60529 IP66
Paint
Polyurethane
Cover Gasket
Rubber
Electrical Connections
Two 1/2–14 NPT connections provided on the transmitter housing (optional
third connection available). PG13.5 and CM20 adapters are available. Screw
terminals provided for all connections. Power wiring connected to transmitter
only. Integrally mounted transmitters are factory wired to the sensor.
Transmitter Weight
Approximately 7 pounds (3.2 kg). Add 1 pound (0.5 kg) for Option Code M4.
Reference Manual
00809-0100-4665, Rev AA
August 2010
A-9
Rosemount 8732
ORDERING
INFORMATION
Table A-1. Rosemount 8732E/ Profibus PA Ordering Information
Model Product Description 8732E
8732E Magnetic Flowmeter Transmitter
Transmitter Style
Standard Standard
SStandard
Transmitter Mount
Standard Standard
TIntegral Mount
RRemote Mount for 2 in. pipe or panel (includes CS mounting bolts and 304 SST bracket)
Transmitter Power Supply
Standard Standard
1AC Power Supply (90 to 250 V AC, 50-60Hz)
2DC Power Supply (12 to 42 V DC)
Outputs
Standard Standard
PProfibus PA fieldbus digital electronics with FISCO Intrinsically Safe Output
8732E
Expanded
UProfibus PA fieldbus digital electronics (Available with approval code NA only)
Conduit Entry
8732E - 2 Conduits
Standard Standard
11/2 - 14 NPT
Expanded
2CM20(1)
3PG 13.5(1)
3 Conduits
Standard Standard
41/2 - 14 NPT
Expanded
5CM20(1)
6PG 13.5(1)
Safety Approvals(2)
Standard Standard
NA CE Marking, no hazardous location approval
FM & CSA
Standard Standard
N0 FM Class 1 Div 2 for non-flammable: CSA Class 1 Div 2
N5 FM Class 1 Div 2 for flammable fluids
E5 FM Class 1 Div 1, explosion-proof
ATEX
Standard Standard
ED ATEX flameproof Ex de IIB T6, and ATEX Dust Approval; Ex de [ia] IIB T6 with IS Output
ND ATEX Dust Ex tD A20 IP66 T100 °C
Expanded
E1 ATEX flameproof Ex de IIC T6, and ATEX Dust Approval; Ex de [ia] IIC T6 with IS Output
N1 ATEX Type Ex nA nL IIC T4 or Ex nA nL [ia] IIC T4
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
A-10
IECEx
Standard Standard
EF IECEx flameproof Ex de IIB T6 Gb and IECEx Dust Approval; Ex de [ia IIC Ga] IIB T6 Gb with IS
Output
NF Ex tD A20 IP66 T100 °C or Ex tD A20 IP66 T100 °C [Ex ia Ga] IIC
Expanded
E7 IECEx flameproof Ex de IIC T6 Gb and IECEx Dust Approval; Exde [ia Ga] IIC T6 Gb with IS Output
N7 Ex nA nL IIC T4 and IECEx Dust; Ex nA nL [ia] IIC T4 with FISCO/FNICO outputs
NEPSI and CMC (China)
Standard Standard
EP NEPSI flameproof Ex de IIB T6; Ex de [ia] IIB T6 with IS output
Expanded
E3 NEPSI flameproof Ex de IIC T6; Ex de [ia] IIC T6 with IS output
InMetro (Brazil)
Standard Standard
EB InMetro flameproof BR-Ex de IIB T6; BR- Ex de [ia] IIB T6 with IS outputs
Expanded
E2 InMetro flameproof BR-Ex de IIC T6; BR- Ex de [ia] IIC T6 with IS outputs
GOST (Russia) 8732E
Standard Standard
EM GOST flameproof EX de IIB T6; Ex de [ia] IIB T6 with IS outputs
Expanded
E8 GOST flameproof Ex de IIC T6; Ex de [ia] IIC T6 with IS outputs
KOSHA (Korea)
Standard Standard
EK KOSHA flameproof EX de IIB T6; Ex de [ia] IIB T6 with IS outputs
Expanded
E9 KOSHA flameproof Ex de IIC T6; Ex de [ia] IIC T6 with IS outputs
Options (Include with selected model number)
PlantWeb Product/Process Diagnostics
Standard Standard
D01 Magmeter digital fieldbus Diagnostic Suite 1: High Process Noise and Ground/Wiring Fault Detection
D02 Magmeter digital fieldbus Diagnostic Suite 2: SMART Meter Verification
Other Options
Standard Standard
M4 Local Operator Interface
Expanded
C1 Custom Configuration (CDS Required)
D1 High Accuracy Calibration (0.15% of rate for matched sensor and transmitter)(3)
DT Heavy Duty Tagging
B6 316L Stainless Steel 4-bolt Kit for 2-in. Remote Pipe Mount
GE M12, 4-Pin, Male Connector (Eurofast)
GM A Size Mini, 4-Pin, Male Connector (Minifast)
GT A Size, Spade Terminal Mini, 5-pin, Male Connector (Minifast)
Q4 Inspection certificate; calibration data, ISO10474 3.1B
QIG Language 8732E
Expanded
YA Danish
YB Hungarian
YC Czech
YD Dutch
YE Bulgarian •
YF French
Table A-1. Rosemount 8732E/ Profibus PA Ordering Information
Reference Manual
00809-0100-4665, Rev AA
August 2010
A-11
Rosemount 8732
YG German
YH Finnish
YI Italian
YJ Japanese
YL Polish
YM Mandarin
YN Norwegian
YP Portuguese
YS Spanish
YR Russian
YW Swedish
Typical Model Number: 8732E S T 1 A 1 N0 DA1 DA2 M4
(1) Adapters are used for this conduit entry type
(2) All product, ordered with or without Safety approvals, is compliant with local CE Marking and C-tick requirements unless specifically noted as a special
(3) D1 Option Code must be ordered with sensor and transmitter
Table A-1. Rosemount 8732E/ Profibus PA Ordering Information
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
A-12
Reference Manual
00809-0100-4665, Rev AA
August 2010 Rosemount 8732
www.rosemount.com
Appendix B Approval Information
Product Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . page B-1
Approved Manufacturing Locations . . . . . . . . . . . . . . . . . page B-1
European Directive Information . . . . . . . . . . . . . . . . . . . . page B-1
Sensor Approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page B-5
PRODUCT
CERTIFICATIONS
Approved Manufacturing
Locations Rosemount Inc. — Eden Prairie, Minnesota, USA
Fisher-Rosemount Technologias de Flujo, S.A. de C.V. —
Chihuahua Mexico
Emerson Process Management Flow — Ede, The Netherlands
Asia Flow Technologies Center — Nanjing, China
European Directive
Information The EC declaration of conformity can be found on page B-1. The most recent
revision can be found at www.rosemount.com.
Type n protection type in accordance with EN50021
The installation of external connections and the plugging of any unused
entries must be carried out using appropriate Ex e or Ex n cable glands
and blanking plugs, component certified by an approved Certification
Body.
CE Marking
Complies with EN 61326-1: 2006
For Rosemount 8732E transmitters:
Complies with Essential Health and Safety Requirements:
EN 60079-0: 2006
EN 60079-1: 2007
EN 60079-7: 2007
EN 60079-11: 2007
EN 60079-15: 2005
EN 61241-0: 2004
EN 61241-1: 2006
International Certificates
C-Tick Marking
Rosemount Inc. complies with the following IEC Requirements.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
B-2
For Rosemount 8732E transmitters:
IEC 60079-0: 2004
IEC 60079-0: 2007
IEC 60079-1: 2007
IEC 60079-7: 2006
IEC 60079-11: 2006
IEC 60079-15: 2005
IEC 61241-0: 2004
IEC 61241-1: 2004
NOTE
For intrinsically safe (IS) outputs on the 8732E output option code B, F, or P
must be selected.
IS outputs for Class I, Division 1, Groups A, B, C, D. Temp Code – T4 at 60°C
IS outputs for Ex de [ia] IIB or IIC T6
NOTE
For the 8732E transmitters with a local operator interface (LOI), the lower
ambient temperature limit is -20 °C.
North American Certifications
FM Approvals
N0 Non-incendive for Class I, Division 2, Groups A, B, C, and D
non-flammable fluids (T4 at 60 °C: -50 °C Ta 60 °C), and Dust-ignition
proof Class 2/III, Division 1, Groups E, F, and G (T5 at 60 °C) Hazardous
locations; Enclosure Type 4X
N5 Non-incendive for Class I, Division 2, Groups A, B, C, and D flammable
fluids (T4 at 60 °C: -50 °C Ta 60 °C), and Dust-ignition proof Class
2/III, Division 1, Groups E, F, and G (T5 at 60 °C) Hazardous locations;
Enclosure Type 4X
Requires sensors with N5 Approval
E5 Explosion-proof for Class I, Division 1, Groups C and D (T6 at 60 °C),
and Dust-ignition proof Class 2/III, Division 1, Groups E, F, and G (T5 at
60 °C), Non-incendive for Class I, Division 2, Groups A, B, C, and D
flammable fluids (T4 at 60 °C: -50 °C Ta 60 °C) Hazardous locations;
Enclosure Type 4X
Canadian Standards Association (CSA)
N0 Non-incendive for Class I, Division 2, Groups A, B, C, and D
non-flammable fluids (T4 at 60 °C: -50 °C Ta 60 °C), and Dust-ignition
proof Class 2/III, Division 1, Groups E, F, and G (T5 at 60 °C) Hazardous
locations; Enclosure Type 4X
Reference Manual
00809-0100-4665, Rev AA
August 2010
B-3
Rosemount 8732
European Certifications
E1 ATEX Flameproof
Certificate No.: KEMA 07ATEX0073 X II 2G
Ex de IIC or Ex de [ia] IIC T6 (-50°C Ta +60 °C)
with LOI (-20°C Ta +60 °C)
Vmax = 250 V AC or 42 V DC
0575
ED ATEX Flameproof
Certificate No.: KEMA 07ATEX0073 X II 2G
Ex de IIB or Ex de [ia] IIB T6 (-50°C Ta +60 °C)
with LOI (-20°C Ta +60 °C)
Vmax = 250 V AC or 42 V DC
0575
Special conditions for safe use
(KEMA 07ATEX0073 X):
Contact Rosemount Inc. for information on the dimensions of the flameproof
joints. The property class of the security screws which attach the flowtube or
junction box to the transmitter is SST A2-70, or SST A4-70.
Installation Instructions:
The cable and conduit entry devices and blanking elements shall be of a
certified flameproof or increased safety type, suitable for the conditions of use
and correctly installed. With the use of conduit, a certified stopping box shall
be provided immediately to the entrance of the enclosure.
N1 ATEX Type n Certificate No: BASEEFA 07ATEX0203X
II 3(1)G
Ex nA nL [ia] IIC T4 (-50 °C Ta 60 °C)
with LOI: (-20 °C Ta 60 °C)
Vmax = 42 V DC
0575
Special conditions for safe use (x)
The apparatus is not capable of withstanding the 500V insulation test required
by Clause 6.8.1 of EN 60079-15: 2005. This must be taken into account when
installing the apparatus.
ND(1)
(1) Max surface temperature is 40 °C above the ambient temperature
conditions. Tmax = 100 °C
ATEX Dust Certificate No.: KEMA 06ATEX0006
II 1D
Ex tD A20 IP66 T 100 °C
with I.S.: [Ex ia] IIC II (1)G
Amb. Temp. Limits: (-20 °C Ta + 65 °C)
Vmax = 250 V AC or 42 V DC
IP 66
0575
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
B-4
International Certifications
IECEx
E7 IECEx Flameproof Certificate No.: KEM 07.0038X
Ex de IIC T6 Gb or Ex de [ia Ga] IIC T6 Gb (-50 °C Ta +60 °C)
with LOI (-20°C Ta +60 °C)
Vmax = 250 V AC or 42 V DC
EF IECEx Flameproof Certificate No.: KEM 07.0038X
Ex de IIB T6 Gb or Ex de [ia IIC Ga] IIB T6 Gb (-50 °C Ta +60 °C)
with LOI (-20°C Ta +60 °C)
Vmax = 250 V AC or 42 V DC
NF IECEx Dust Certificate No.: KEM 07.0038X
Ex tD A20 IP66 T 100 °C
with I.S.: Ex tD A20 IP66 T 100 °C [Ex ia Ga] IIC
T6 (-50 °C Ta +60 °C)
with LOI (-20°C Ta +60 °C)
Vmax = 250 V AC or 42 V DC
Special conditions for safe use
(KEM 07.0038X):
Contact Rosemount Inc. for information on the dimensions of the flameproof
joints. The property class of the security screws which attach the flowtube or
junction box to the transmitter is SST A2-70, or SST A4-70.
Installation Instructions:
The cable and conduit entry devices and blanking elements shall be of a
certified flameproof or increased safety type, suitable for the conditions of use
and correctly installed. With the use of conduit, a certified stopping box shall
be provided immediately to the entrance of the enclosure.
N7 IECEx Type n Certificate No: IECEx BAS 07.0062X
Ex nA nL [ia] IIC T4 (-50 °C Ta +60 °C)
with LOI: (-20 °C Ta +60 °C)
Vmax = 42 V DC
Special conditions for safe use (x)
The apparatus is not capable of withstanding the 500V insulation test required
by Clause 6.8.1 of IEC 60079-15: 2005. This must be taken into account
when installing the apparatus.
NEPSI - China
E3 NEPSI Flameproof Certificate No.: GYJ071438X
Ex de IIC or Ex de [ia] IIC T6 (-50 °C Ta +60 °C)
with LOI (-20°C Ta +60 °C)
Vmax = 250 V AC or 42 V DC
EP NEPSI Flameproof Certificate No.: GYJ071438X
Ex de IIB or Ex de [ia] IIB T6 (-50 °C Ta +60 °C)
with LOI (-20°C Ta +60 °C)
Vmax = 250 V AC or 42 V DC
Reference Manual
00809-0100-4665, Rev AA
August 2010
B-5
Rosemount 8732
InMetro - Brazil
E2 InMetro Flameproof Certificate No.: NCC 5030/08
BR-Ex de IIC or BR-Ex de [ia] IIC T6 (-50 °C Ta +60 °C)
with LOI (-20°C Ta +60 °C)
Vmax = 250 V AC or 42 V DC
EB InMetro Flameproof Certificate No.: NCC 5030/08
BR-Ex de IIB or BR-Ex de [ia] IIB T6 (-50 °C Ta +60 °C)
with LOI (-20°C Ta +60 °C)
Vmax = 250 V AC or 42 V DC
KOSHA - Korea
E9 KOSHA Flameproof Certificate No.: 2008-2094-Q1X
Ex de IIC or Ex de [ia] IIC T6 (-50 °C Ta +60 °C)
with LOI (-20°C Ta +60 °C)
Vmax = 250 V AC or 42 V DC
EK KOSHA Flameproof Certificate No.: 2008-2094-Q1X
Ex de IIB or Ex de [ia] IIB T6 (-50 °C Ta +60 °C)
with LOI (-20°C Ta +60 °C)
Vmax = 250 V AC or 42 V DC
SENSOR APPROVAL
Table B-1. Sensor Option Codes(1)
(1) CE Marking is standard on Rosemount 8705, 8711, and 8721.
Approval
Codes
Rosemount 8705
Sensor Rosemount 8707
Sensor Rosemount 8711
Sensor
Rosemount
8721
Sensors
For Non-
flammable
Fluids
For
Flammable
Fluids
For Non-
flammable
Fluids
For
Flammable
Fluids
For Non-
flammable
Fluids
For
Flammable
Fluids
For Non-
flammable
Fluids
NA • •
N0 •••
ND •••••• •
N1 • • • •
N5 ••••••
N7 • • • •
ND • • • •
NF • • • •
E1 • • • •
E2 • • • •
E3 • • • •
E5(2)
(2) Available in line sizes up to 8 in. (200 mm) only.
• • • •
E8 • • • •
E9 • • • •
EB • • • •
EK • • • •
EM • • • •
EP • • • •
KD • • • •
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
B-6

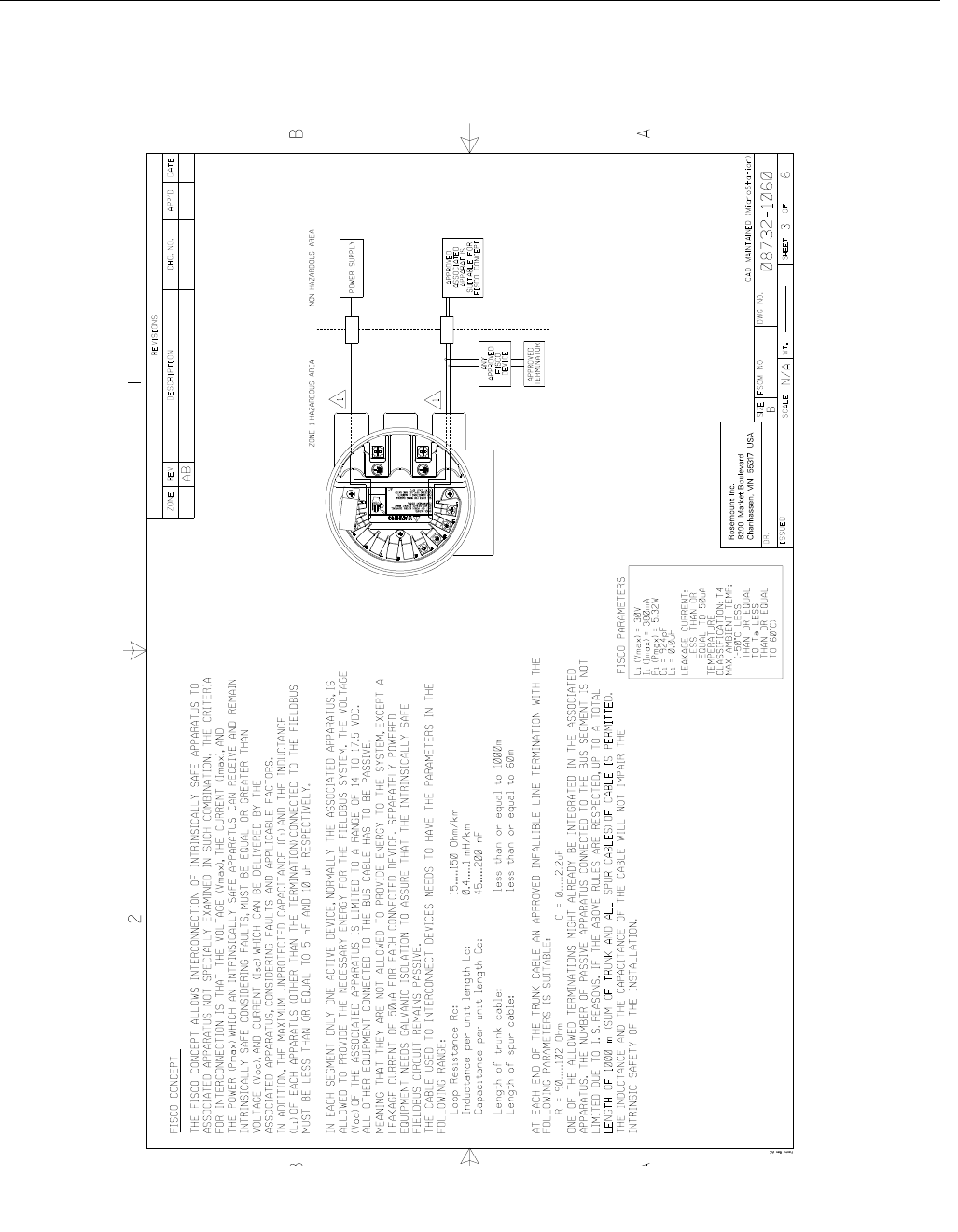

Figure B-1. ATEX Installation
Drawings
ECO PENDING
Electronic Master – PRINTED COPIES ARE UNCONTROLLED – Rosemount Proprietary
Reference Manual
00809-0100-4665, Rev AA
August 2010
B-7
Rosemount 8732

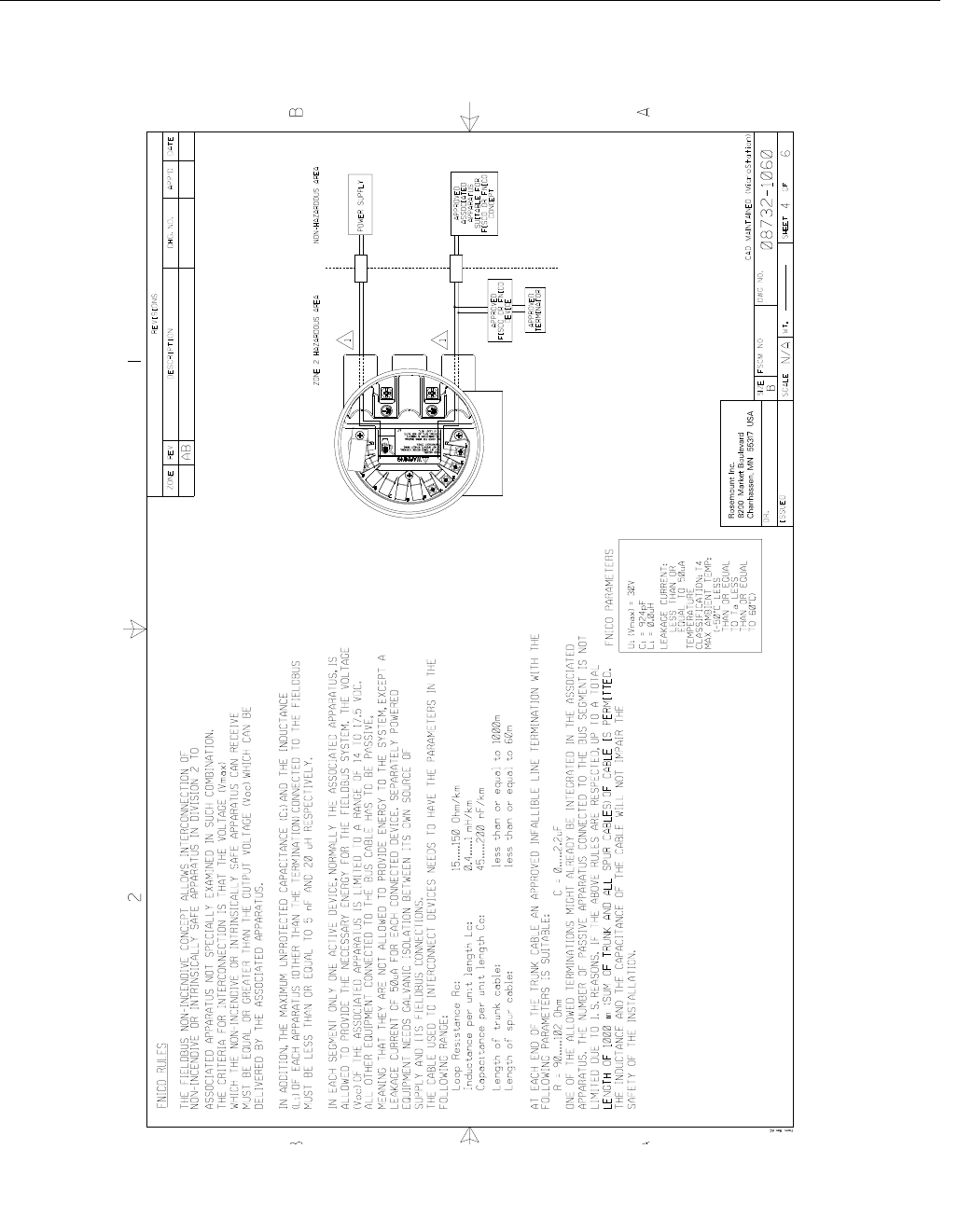

Figure B-2. ATEX Installation
Drawings (Cont.)
ECO PENDING
Electronic Master – PRINTED COPIES ARE UNCONTROLLED – Rosemount Proprietary
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
B-8
Figure B-3. ATEX Installation
Drawings (Cont.)
ECO PENDING
Electronic Master – PRINTED COPIES ARE UNCONTROLLED – Rosemount Proprietary
Reference Manual
00809-0100-4665, Rev AA
August 2010
B-9
Rosemount 8732
Figure B-4. ATEX Installation
Drawings (Cont.)
ECO PENDING
Electronic Master – PRINTED COPIES ARE UNCONTROLLED – Rosemount Proprietary
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
B-10
Figure B-5. ATEX Installation
Drawings (Cont.)
ECO PENDING
Electronic Master – PRINTED COPIES ARE UNCONTROLLED – Rosemount Proprietary
Reference Manual
00809-0100-4665, Rev AA
August 2010
B-11
Rosemount 8732
Figure B-6. ATEX Installation
Drawings (Cont.)
ECO PENDING
Electronic Master – PRINTED COPIES ARE UNCONTROLLED – Rosemount Proprietary
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
B-12

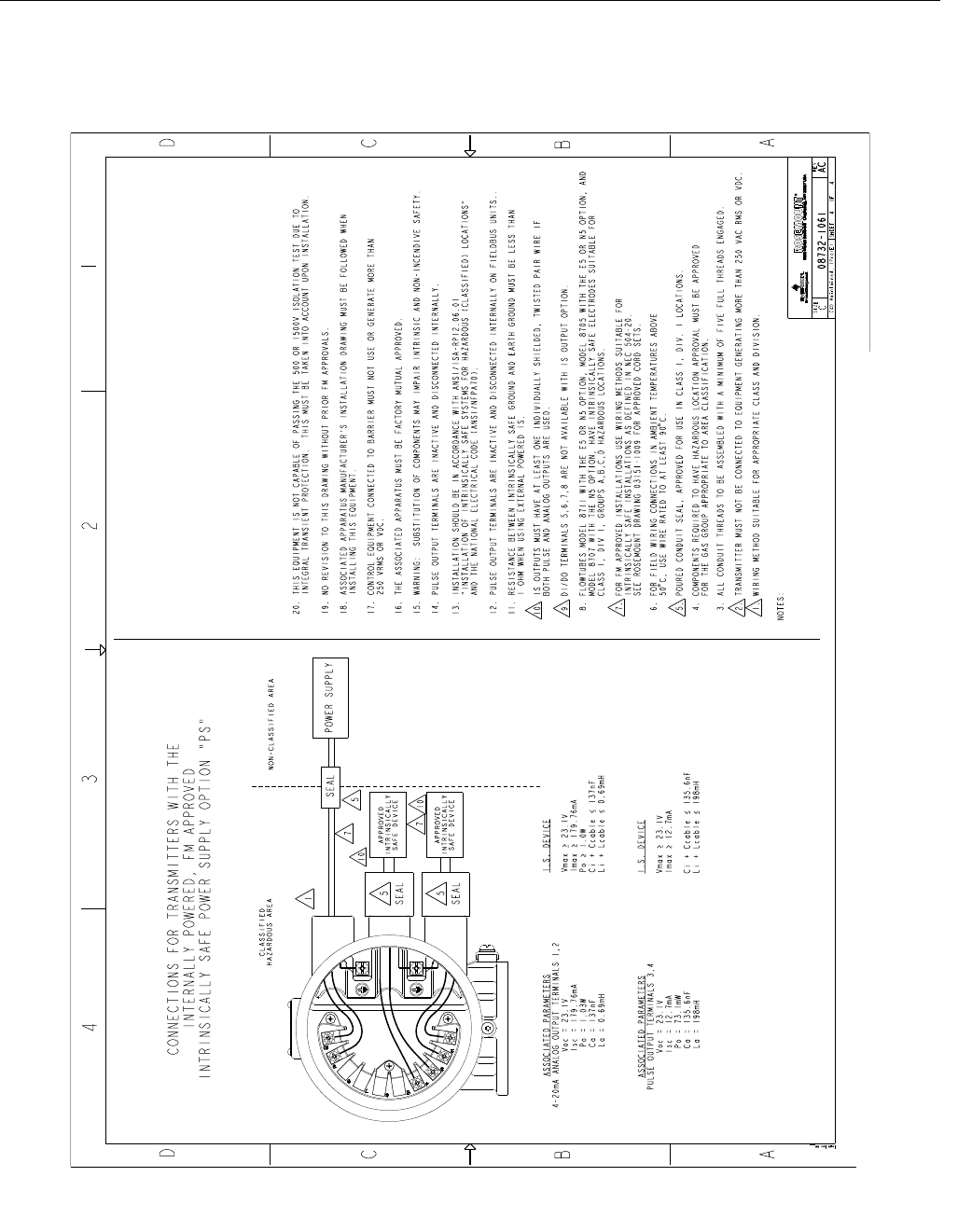

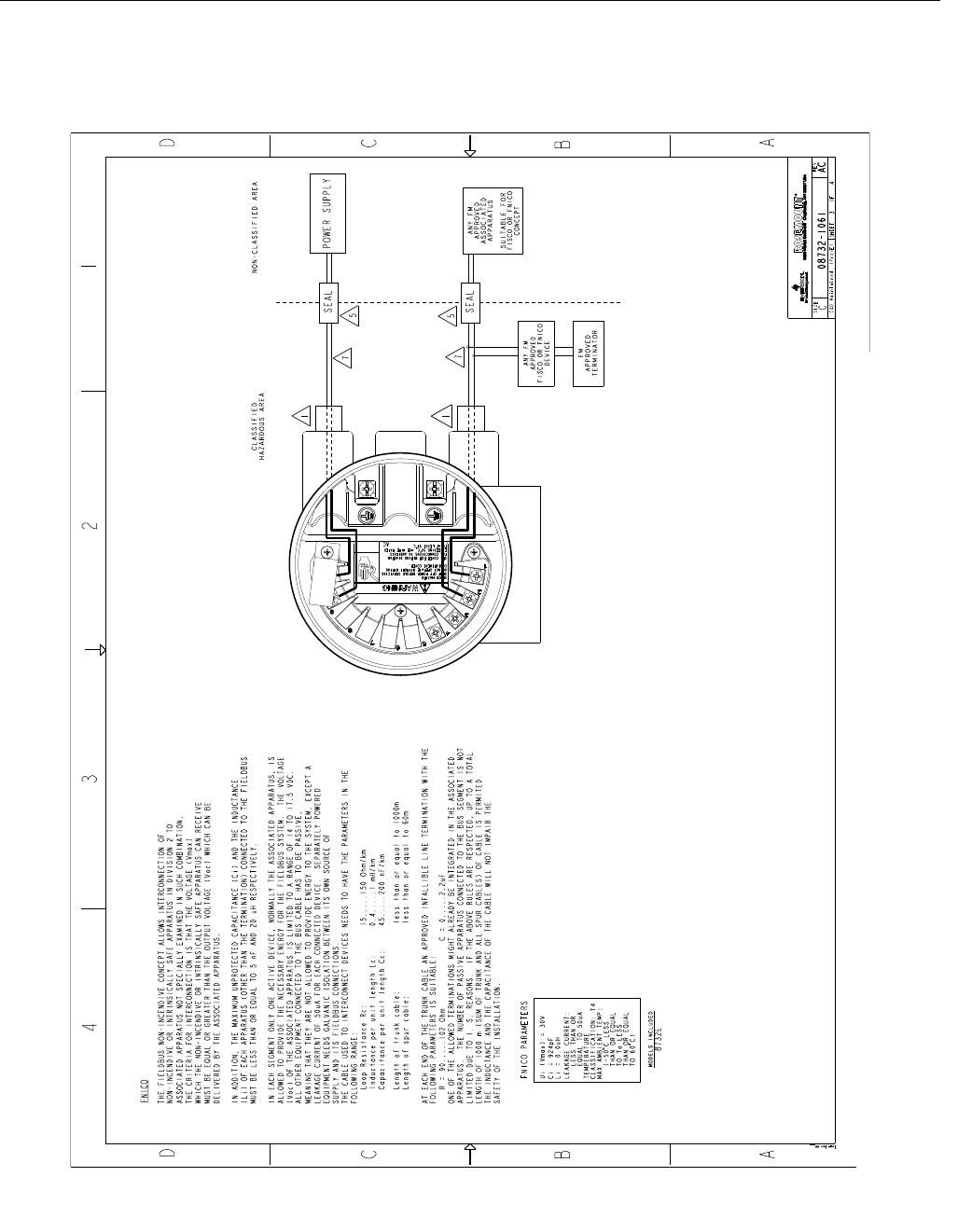

Figure B-7. Installation Drawings
with FM Certified I.S. Output
Electronic Master – PRINTED COPIES ARE UNCONTROLLED – Rosemount Proprietary
Reference Manual
00809-0100-4665, Rev AA
August 2010
B-13
Rosemount 8732

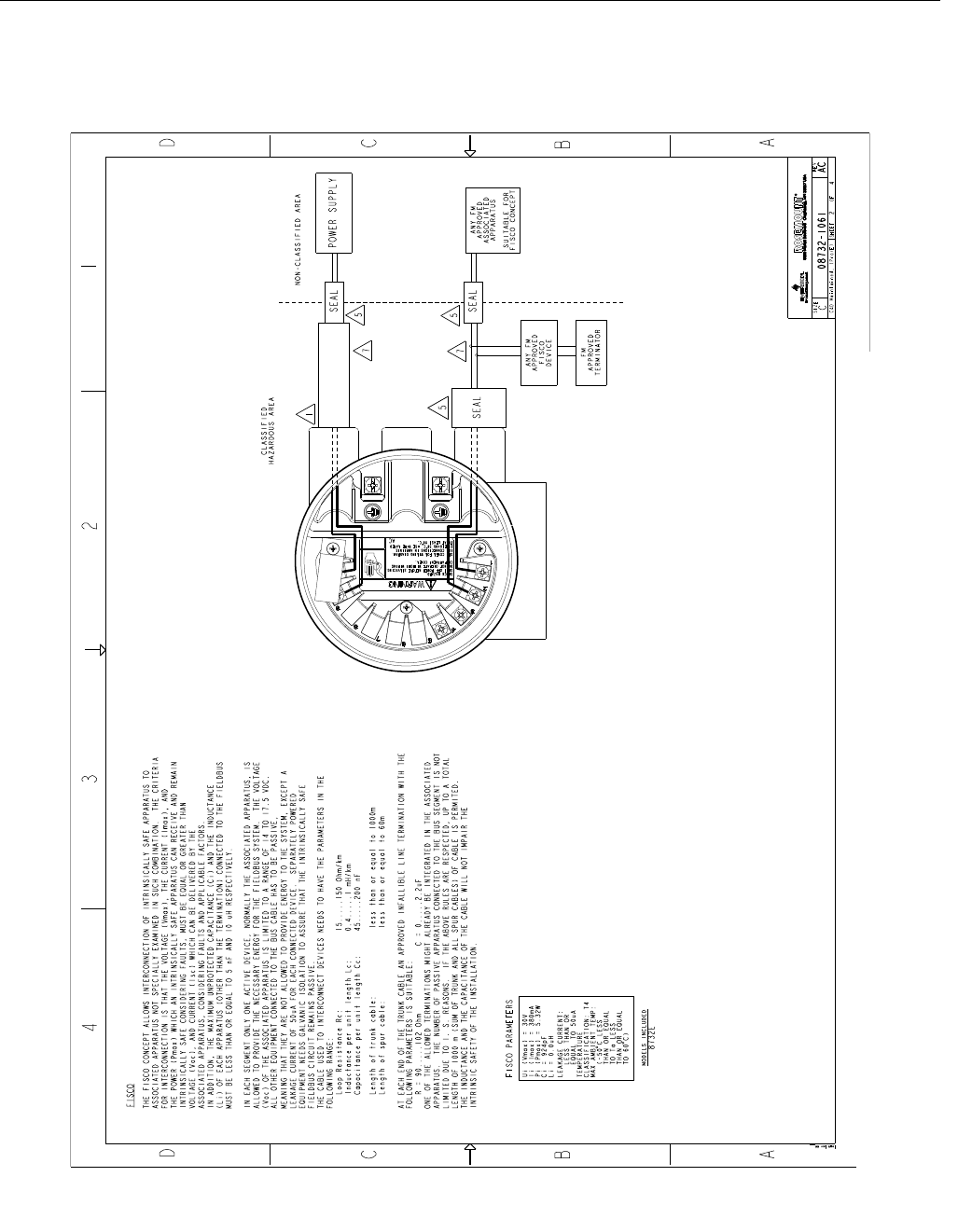

Figure B-8. Installation Drawings
with FM Certified I.S. Output
(Cont.)
Electronic Master – PRINTED COPIES ARE UNCONTROLLED – Rosemount Proprietary
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
B-14

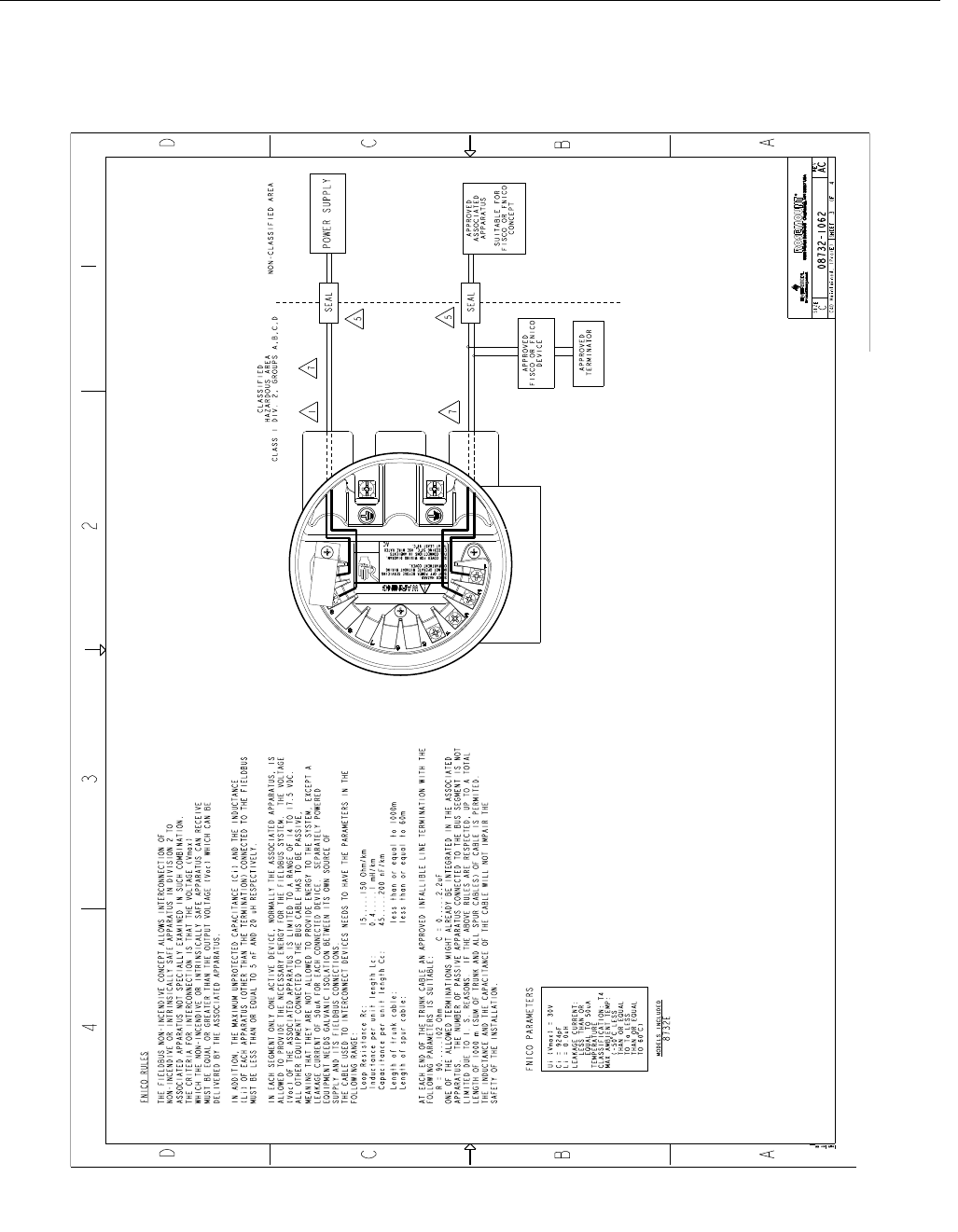

Figure B-9. Installation Drawings
with FM Certified I.S. Output
(Cont.)
Electronic Master – PRINTED COPIES ARE UNCONTROLLED – Rosemount Proprietary
Reference Manual
00809-0100-4665, Rev AA
August 2010
B-15
Rosemount 8732
Figure B-10. Installation
Drawings with FM Certified I.S.
Output (Cont.)
Electronic Master – PRINTED COPIES ARE UNCONTROLLED – Rosemount Proprietary
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
B-16

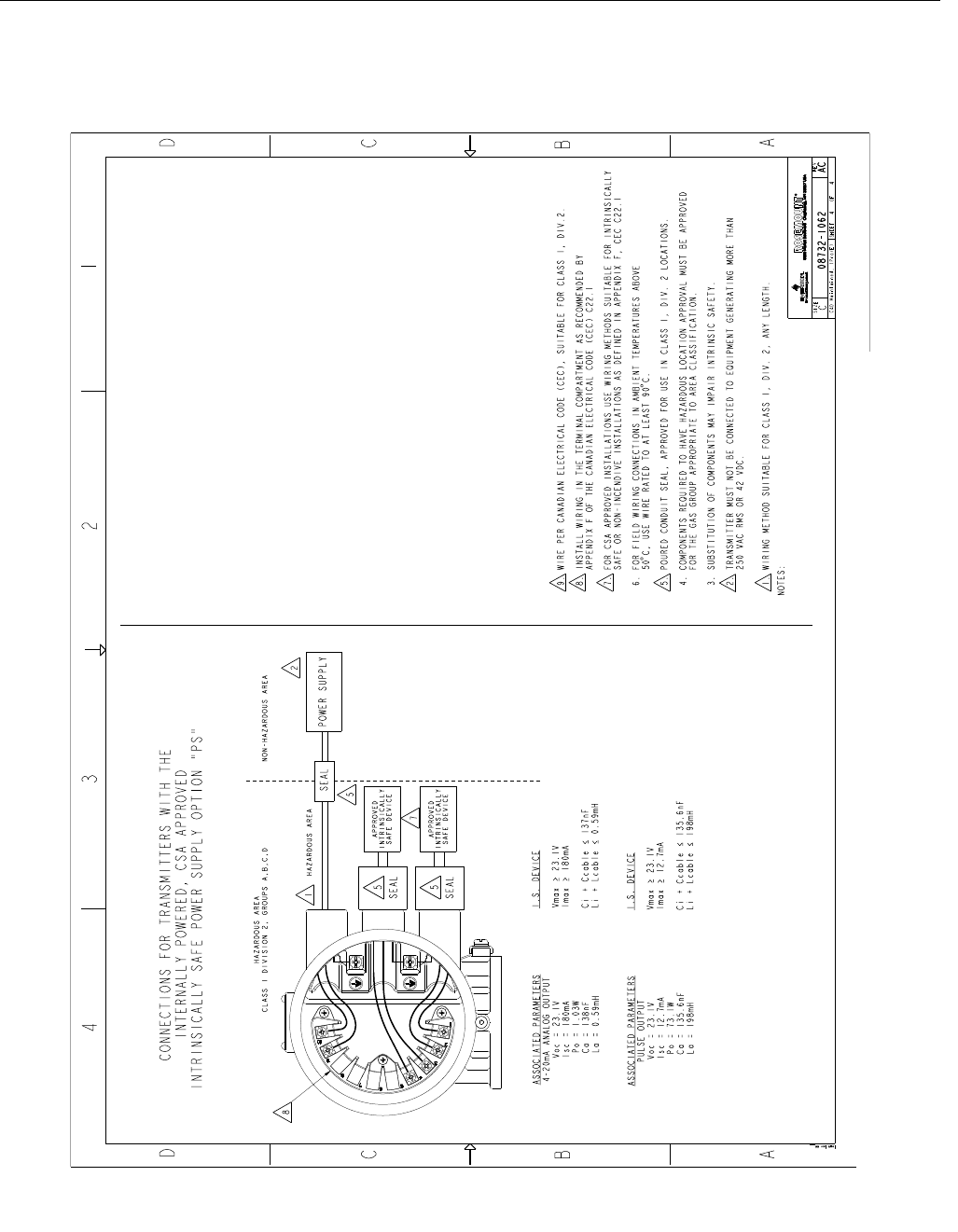

Figure B-11. Installation
Drawings with CSA Certified I.S.
Output
Electronic Master – PRINTED COPIES ARE UNCONTROLLED – Rosemount Proprietary
Reference Manual
00809-0100-4665, Rev AA
August 2010
B-17
Rosemount 8732

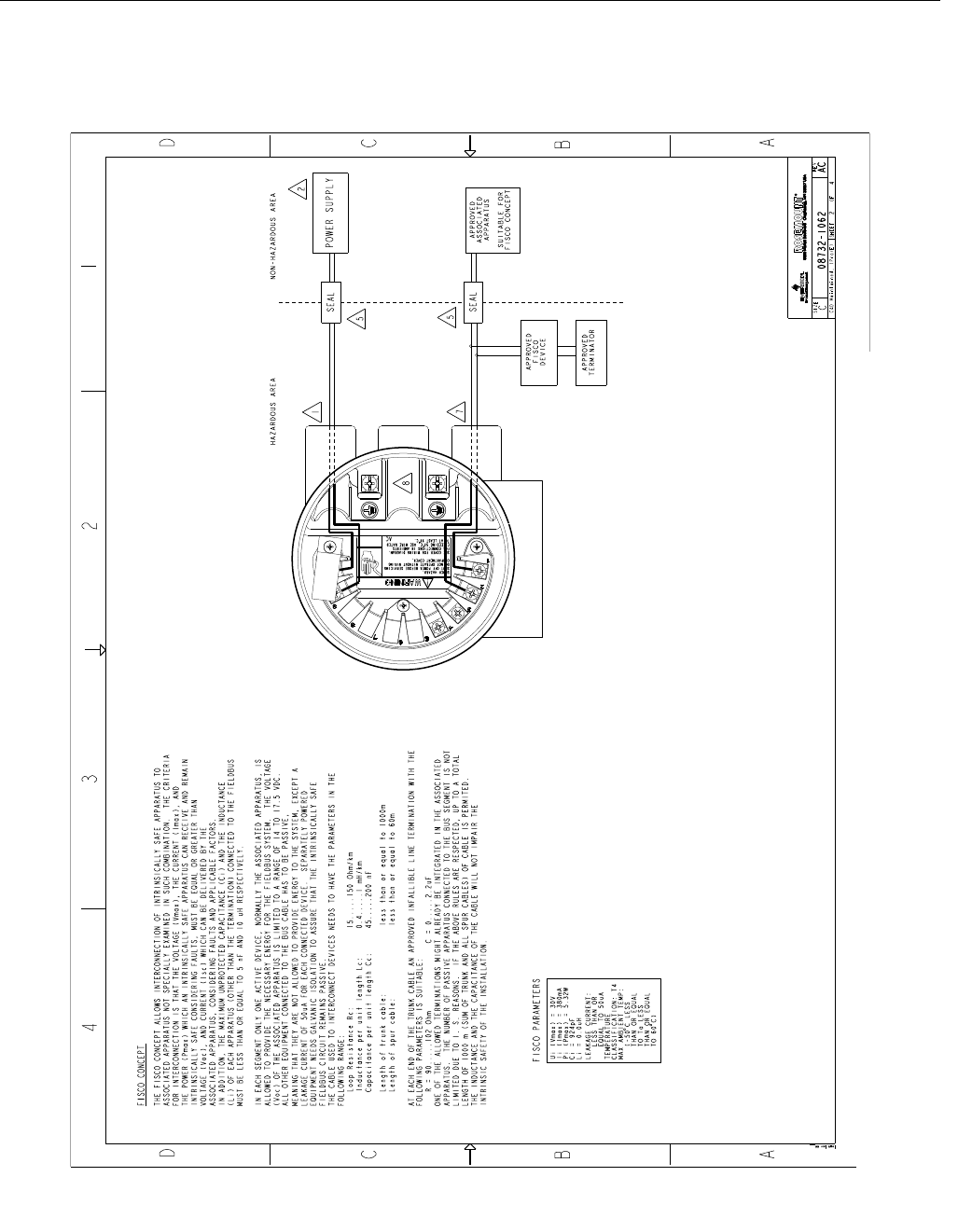

Figure B-12. Installation
Drawings with CSA Certified I.S.
Output (Cont.)
Electronic Master – PRINTED COPIES ARE UNCONTROLLED – Rosemount Proprietary
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
B-18
Figure B-13. Installation
Drawings with CSA Certified I.S.
Output (Cont.)
Electronic Master – PRINTED COPIES ARE UNCONTROLLED – Rosemount Proprietary
Reference Manual
00809-0100-4665, Rev AA
August 2010
B-19
Rosemount 8732
Figure B-14. Installation
Drawings with CSA Certified I.S.
Output (Cont.)
Electronic Master – PRINTED COPIES ARE UNCONTROLLED – Rosemount Proprietary
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
B-20

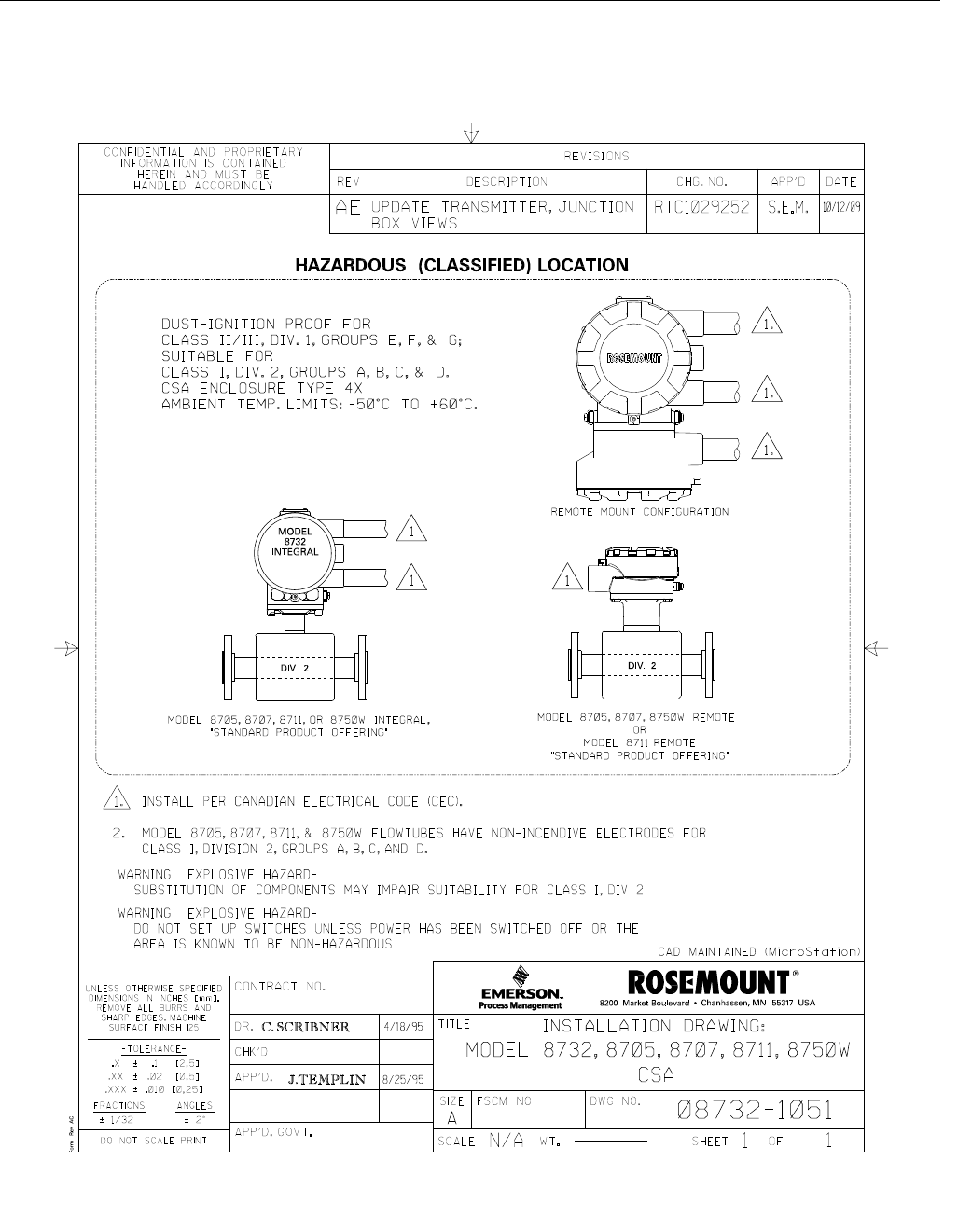

Figure B-15. Installation
Drawings Hazardous (Classified
Location)
Electronic Master – PRINTED COPIES ARE UNCONTROLLED – Rosemount Proprietary
Reference Manual
00809-0100-4665, Rev AA
August 2010
B-21
Rosemount 8732

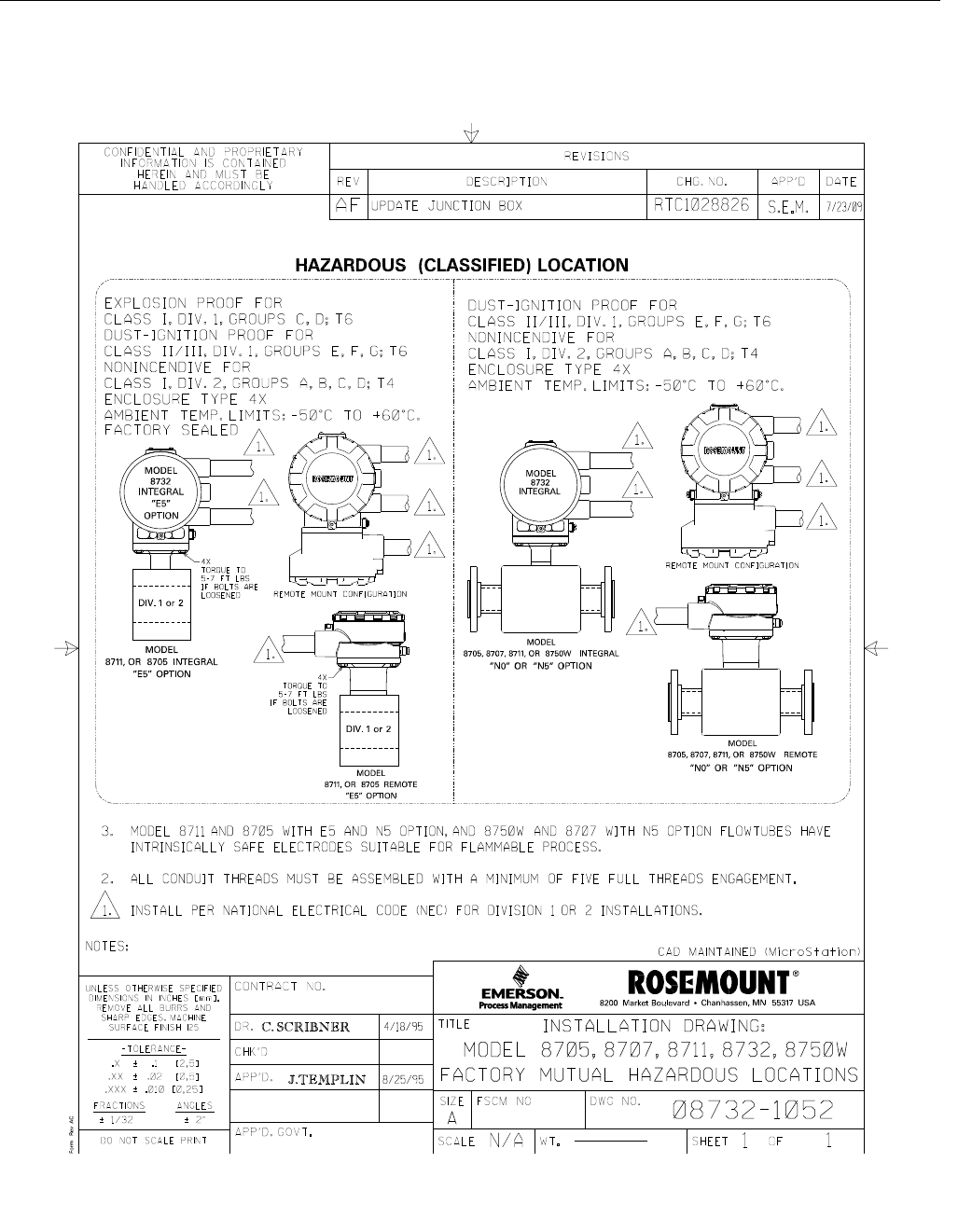

Figure B-16. Installation
Drawings Factory Mutual
Hazardous Location
Electronic Master – PRINTED COPIES ARE UNCONTROLLED – Rosemount Proprietary
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
B-22
Reference Manual
00809-0100-4665, Rev AA
August 2010 Rosemount 8732
www.rosemount.com
Appendix C Diagnostics
Diagnostic Availability . . . . . . . . . . . . . . . . . . . . . . . . . . . . page C-1
Licensing and Enabling . . . . . . . . . . . . . . . . . . . . . . . . . . . page C-2
Tunable Empty Pipe Detection . . . . . . . . . . . . . . . . . . . . . page C-2
Ground/Wiring Fault Detection . . . . . . . . . . . . . . . . . . . . . page C-4
High Process Noise Detection . . . . . . . . . . . . . . . . . . . . . . page C-5
8714i Meter Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . page C-8
Rosemount Magnetic Flowmeter
Calibration Verification Report . . . . . . . . . . . . . . . . . . . . . page C-14
DIAGNOSTIC
AVAILABILITY With Rosemount Magmeter diagnostics enabled, users can change their
practices to improve plant availability and output, and reduce costs through
simplified installation, maintenance and troubleshooting.
Table C-1. Rosemount
Magmeter Diagnostics
Options for Accessing Diagnostics
All the diagnostic test can be initiated through the use of a class II master.
Some diagnostics can be accessed using the LOI.
Diagnostics Mag User Practice 8732
PA
Basic
Empty Pipe Process Management
Electronics Temperature Maintenance
Coil Fault Maintenance
Transmitter Faults Maintenance
Reverse Flow Process Management
Advanced (Suite 1) D01 Option
High Process Noise Process Management
Grounding/Wiring Fault Installation
Advanced (Suite 2) D02 Option
8714i Meter Verification Meter Verification
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
C-2
LICENSING AND
ENABLING All non-basic diagnostics must be licensed by ordering option code D01, D02,
or both. In the event that a diagnostic option is not ordered, advanced
diagnostics can be licensed in the field through the use of a license key. To
obtain a license key, contact your local Rosemount Representative. Each
transmitter has a unique license key specific to the diagnostic option code.
See the detailed procedures below for entering the license key and enabling
the advanced diagnostics.
Licensing the 8732
Diagnostics For licensing the advanced diagnostics, follow the steps below.
1. Power-up the 8732 transmitter
2. Verify that you have 1.01.001 software or later
3. Determine the Device ID
4. Obtain a License Key from your local Rosemount Representative.
5. Enter License Key
6. Enable Advanced Diagnostics
TUNABLE EMPTY PIPE
DETECTION The Tunable Empty Pipe detection provides a means of minimizing issues
and false readings when the pipe is empty. This is most important in batching
applications where the pipe may run empty with some regularity.
If the pipe is empty, this diagnostic will activate, set the flow rate to 0, and
deliver a PlantWeb alert.
Turning Empty Pipe On/Of
The Empty Pipe diagnostic can be turned on or off as required by the
application. If the advanced diagnostics suite 1 (D01 Option) was ordered,
then the Empty Pipe diagnostic will be turned on. If D01 was not ordered, the
default setting is off.
Tunable Empty Pipe
Parameters The Tunable Empty Pipe diagnostic has one read-only parameter, and two
parameters that can be custom configured to optimize the diagnostic
performance.
Empty Pipe Value
Reads the current Empty Pipe Value. This is a read-only value. This number
is a unitless number and is calculated based on multiple installation and
process variables such as sensor type, line size, process fluid properties, and
wiring. If the Empty Pipe Value exceeds the Empty Pipe Trigger Level for a
specified number of updates, then the Empty Pipe diagnostic alert will
activate.
Reference Manual
00809-0100-4665, Rev AA
August 2010
C-3
Rosemount 8732
Empty Pipe Trigger Level
Limits: 3 to 2000
This value configures the threshold limit that the Empty Pipe Value must
exceed before the Empty Pipe diagnostic alert activates. The default setting
from the factory is 100.
Empty Pipe Trigger Count
Limits: 5 to 50
This value configures the number of consecutive updates that the Empty Pipe
Value must exceed the Empty Pipe Trigger Level before the Empty Pipe
diagnostic alert activates. The default setting from the factory is 5.
Optimizing Tunable
Empty Pipe The Tunable Empty Pipe diagnostic is set at the factory to properly diagnose
most applications. If this diagnostic unexpectedly activates, the following
procedure can be followed to optimize the Empty Pipe diagnostic for the
application.
1. Record the Empty Pipe Value with a full pipe condition.
Example
Full reading = 0.2
2. Record the Empty Pipe Value with an empty pipe condition.
Example
Empty reading = 80.0
3. Set the Empty Pipe Trigger Level to a value between the full and
empty readings. For increased sensitivity to empty pipe conditions,
set the trigger level to a value closer to the full pipe value.
Example
Set the trigger level to 25.0
4. Set the Empty Pipe Counts to a value corresponding to the desired
sensitivity level for the diagnostic. For applications with entrained air
or potential air slugs, less sensitivity may be desired.
Example
Set the counts to 10
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
C-4
Troubleshooting Empty
Pipe The following actions can be taken if Empty Pipe detection is unexpected.
1. Verify the sensor is full.
2. Verify that the sensor has not been installed with a measurement
electrode at the top of the pipe.
3. Decrease the sensitivity by setting the Empty Pipe Trigger Level to a
value above the Empty Pipe Value read with a full pipe.
4. Decrease the sensitivity by increasing the Empty Pipe Counts to
compensate for process noise. The Empty Pipe Counts is the number
of consecutive Empty Pipe Value readings above the Empty Pipe
Trigger Level required to activate the Empty Pipe alert. The count
range is 5-50, with factory default set at 5.
5. Increase process fluid conductivity above 50 microsiemens/cm.
6. Properly connect the wiring between the sensor and the transmitter.
Corresponding terminal block numbers in the sensor and transmitter
must be connected.
7. Perform the sensor electrical resistance tests. Confirm the resistance
reading between coil ground (ground symbol) and coil (1 and 2) is
infinity, or open. Confirm the resistance reading between electrode
ground (17) and an electrode (18 or 19) is greater than 2 kohms and
rises. For more detailed information, consult Table 6-5 on page 6-8.
GROUND/WIRING FAULT
DETECTION The Ground/Wiring Fault Detection diagnostic provides a means of verifying
installations are done correctly. If the installation is not wired or grounded
properly, this diagnostic will activate and deliver a PlantWeb alert. This
diagnostic can also detect if the grounding is lost over-time due to corrosion or
another root cause.
Turning Ground/Wiring Fault On/Of
The Ground/Wiring Fault diagnostic can be turned on or off as required by the
application. If the advanced diagnostics suite 1 (D01 Option) was ordered,
then the Ground/Wiring Fault diagnostic will be turned on. If D01 was not
ordered or licensed, this diagnostic is not available.
Ground/Wiring Fault
Parameters The Ground/Wiring Fault diagnostic has one read-only parameter. It does not
have any configurable parameters.
Line Noise
Reads the current amplitude of the Line Noise. This is a read-only value. This
number is a measure of the signal strength at 50/60 Hz. If the Line Noise
value exceeds 5 mV, then the Ground/Wiring Fault diagnostic alert will
activate.
Reference Manual
00809-0100-4665, Rev AA
August 2010
C-5
Rosemount 8732
Troubleshooting
Ground/Wiring Fault The transmitter detected high levels of 50/60 Hz noise caused by improper
wiring or poor process grounding.
1. Verify that the transmitter is earth grounded.
2. Connect ground rings, grounding electrode, lining protector, or
grounding straps. Grounding diagrams can be found in “Grounding”
on page 5-12.
3. Verify sensor is full.
4. Verify wiring between sensor and transmitter is prepared properly.
Shielding should be stripped back less than 1 in. (25 mm).
5. Use separate shielded twisted pairs for wiring between sensor and
transmitter.
6. Properly connect the wiring between the sensor and the transmitter.
Corresponding terminal block numbers in the sensor and transmitter
must be connected.
Ground/Wiring Fault
Functionality The transmitter continuously monitors signal amplitudes over a wide range of
frequencies. For the Ground/Wiring Fault diagnostic, the transmitter
specifically looks at the signal amplitude at frequencies of 50 Hz and 60 Hz
which are the common AC cycle frequencies found throughout the world. If
the amplitude of the signal at either of these frequencies exceeds 5 mV, that is
an indication that there is a ground or wiring issue and that stray electrical
signals are getting into the transmitter. The diagnostic alert will activate
indicating that the ground and wiring of the installation should be carefully
reviewed.
HIGH PROCESS NOISE
DETECTION The High Process Noise diagnostic detects if there is a process condition
causing unstable or noisy readings, but the noise is not real flow variation.
One common cause of high process noise is slurry flow, like pulp stock or
mining slurries. Other conditions that cause this diagnostic to activate are high
levels of chemical reaction or entrained gas in the liquid. If unusual noise or
variation is seen, this diagnostic will activate and deliver a PlantWeb alert. If
this situation exists and is left without remedy, it will add additional uncertainty
and noise to the flow reading.
Turning High Process Noise On/Off
The High Process Noise diagnostic can be turned on or off as required by the
application. If the advanced diagnostics suite 1 (D01 Option) was ordered,
then the High Process Noise diagnostic will be turned on. If D01 was not
ordered or licensed, this diagnostic is not available.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
C-6
High Process Noise
Parameters The High Process Noise diagnostic has two read-only parameters. It does not
have any configurable parameters. This diagnostic requires that flow be
present in the pipe and the velocity be > 1 ft/s.
5 Hz Signal to Noise Ratio
Reads the current value of the signal to noise ratio at the coil drive frequency
of 5 Hz. This is a read-only value. This number is a measure of the signal
strength at 5 Hz relative to the amount of process noise. If the transmitter is
operating in 5 Hz mode, and the signal to noise ratio remains below 25 for
approximately one minute, then the High Process Noise diagnostic alert will
activate.
37 Hz Signal to Noise Ratio
Reads the current value of the signal to noise ratio at the coil drive frequency
of 37 Hz. This is a read-only value. This number is a measure of the signal
strength at 37 Hz relative to the amount of process noise. If the transmitter is
operating in 37 Hz mode, and the signal to noise ratio remains below 25 for
approximately one minute, then the High Process Noise diagnostic alert will
activate.
Troubleshooting High
Process Noise The transmitter detected high levels of process noise. If the signal to noise
ratio is less than 25 while operating in 5 Hz mode, proceed with the following
steps:
1. Increase transmitter coil drive frequency to 37 Hz (refer to “Coil Drive
Frequency” on page 4-13) and, if possible, perform Auto Zero
function (refer to “Auto Zero” on page 4-12).
2. Verify sensor is electrically connected to the process with grounding
electrode, grounding rings with grounding straps, or lining protector
with grounding straps.
3. If possible, redirect chemical additions downstream of the magmeter.
4. Verify process fluid conductivity is above 10 microsiemens/cm.
If the signal to noise ratio is less than 25 while operating in 37 Hz mode,
proceed with the following steps:
1. Turn on the Digital Signal Processing (DSP) technology and follow
the setup procedure (refer to Appendix D: Digital Signal Processing).
This will minimize the level of damping in the flow measurement and
control loop while also stabilizing the reading to minimize valve
actuation.
2. Increase damping to stabilize the signal (refer to “PV Damping” on
page 3-11). This will add dead-time to the control loop.
3. Move to a Rosemount High-Signal flowmeter system. This flowmeter
will deliver a stable signal by increasing the amplitude of the flow
signal by ten times to increase the signal to noise ratio. For example if
the signal to noise ratio (SNR) of a standard magmeter is 5, the
High-Signal would have a SNR of 50 in the same application. The
Rosemount High-Signal system is comprised of the 8707 sensor
which has modified coils and magnetics and the 8712H High-Signal
transmitter.
Reference Manual
00809-0100-4665, Rev AA
August 2010
C-7
Rosemount 8732
NOTE
In applications where very high levels of noise are a concern, it is
recommended that a dual-calibrated Rosemount High-Signal 8707 sensor be
used. These sensors can be calibrated to run at lower coil drive current
supplied by the standard Rosemount transmitters, but can also be upgraded
by changing to the 8712H High-Signal transmitter.
High Process Noise
Functionality The High Process Noise diagnostic is useful for detecting situations where the
process fluid may be causing electrical noise resulting in a poor measurement
from the magnetic flowmeter. There are three basic types of process noise
that can affect the performance of the magnetic flowmeter system.
1/f Noise
This type of noise has higher amplitudes at lower frequencies, but generally
degrades over increasing frequencies. Potential sources of 1/f noise include
chemical mixing and the general background noise of the plant.
Spike Noise
This type of noise generally results in a high amplitude signal at specific
frequencies which can vary depending on the source of the noise. Common
sources of spike noise include chemical injections directly upstream of the
flowmeter, hydraulic pumps, and slurry flows with low concentrations of
particles in the stream. The particles bounce off of the electrode generating a
“spike” in the electrode signal. An example of this type of flow stream would
be a recycle flow in a paper mill.
White Noise
This type of noise results in a high amplitude signal that is relatively constant
over the frequency range. Common sources of white noise include chemical
reactions or mixing that occurs as the fluid passes through the flowmeter and
high concentration slurry flows where the particulates are constantly passing
over the electrode head. An example of this type of flow stream would be a
high consistency pulp stock stream (>10%) in a paper mill.
The transmitter continuously monitors signal amplitudes over a wide range of
frequencies. For the high process noise diagnostic, the transmitter specifically
looks at the signal amplitude at frequencies of 2.5 Hz, 7.5 Hz, 32.5 Hz, and
42.5 Hz. The transmitter uses the values from 2.5 and 7.5 Hz and calculates
an average noise level. This average is compared to the amplitude of the
signal at 5 Hz. If the signal amplitude is not 25 times greater than the noise
level, and the coil drive frequency is set at 5 Hz, the High Process Noise alert
will activate indicating that the flow signal may be compromised. The
transmitter performs the same analysis around the 37.5 Hz coil drive
frequency using the 32.5 Hz and 42.5 Hz values to establish a noise level.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
C-8
8714I METER
VERIFICATION The 8714i Meter Verification diagnostic provides a means of verifying the
flowmeter is within calibration without removing the sensor from the process.
This is a manually initiated diagnostic test that provides a review of the
transmitter and sensors critical parameters as a means to document
verification of calibration. The results of running this diagnostic provide the
deviation amount from expected values and a pass/fail summary against
user-defined criteria for the application and conditions.
Initiating 8714i Meter Verification
The 8714i Meter Verification diagnostic can be initiated as required by the
application. If the advanced diagnostic suite (D02) was ordered, then the
8714i Meter Verification diagnostic will be available. If D02 was not ordered or
licensed, this diagnostic will not be available.
Sensor Signature
Parameters The sensor signature describes the magnetic behavior of the sensor. Based
on Faraday’s law, the induced voltage measured on the electrodes is
proportional to the magnetic field strength. Thus, any changes in the magnetic
field will result in a calibration shift of the sensor.
Establishing the baseline sensor signature
The first step in running the 8714i Meter Verification test is establishing the
reference signature that the test will use as the baseline for comparison. This
is accomplished by having the transmitter take a signature of the sensor.
Having the transmitter take an initial sensor signature when first installed will
provide the baseline for the verification tests that are done in the future. The
sensor signature should be taken during the start-up process when the
transmitter is first connected to the sensor, with a full line, and ideally with no
flow in the line. Running the sensor signature procedure when there is flow in
the line is permissible, but this may introduce some noise into the signature
measurements. If an empty pipe condition exists, then the sensor signature
should only be run for the coils.
Once the sensor signature process is complete, the measurements taken
during this procedure are stored in non-volatile memory to prevent loss in the
event of a power interruption to the meter.
8714i Meter Verification
Test Scope The 8714i Meter Verification can be used to verify the entire flowmeter
installation, or individual parts such as the transmitter or sensor. This
parameter is set at the time that the 8714i Meter Verification test is initiated.
All
Run the 8714i Meter Verification test and verify the entire flowmeter
installation. This parameter results in the verification test performing the
transmitter calibration verification, sensor calibration verification, coil health
check, and electrode health check. Transmitter calibration and sensor
calibration are verified to the percentage associated with the test condition
selected when the test was initiated.
Flowtube Sensor
Run the 8714i Meter Verification test on the sensor only. This results in the
verification test checking the sensor calibration to the limits of the test criteria
selected when the 8714i Meter Verification test was initiated, verifying the coil
circuit health, and the electrode circuit health.
Reference Manual
00809-0100-4665, Rev AA
August 2010
C-9
Rosemount 8732
Transmitter
Run the 8714i Meter Verification test on the transmitter only. This results in
the verification test only checking the transmitter calibration to the limits of the
test criteria selected when the 8714i Meter Verification test was initiated.
8714i Meter Verification
Test Parameters The 8714i has a multitude of parameters that set the test criteria, test
conditions, and scope of the calibration verification test.
Test Conditions for the 8714i Meter Verification
There are three possible test conditions that the 8714i Meter Verification test
can be initiated under. This parameter is set at the time that the Sensor
Signature or 8714i Meter Verification test is initiated.
No Flow, Full Pipe
Run the 8714i Meter Verification test with a full pipe and no flow in the line.
Running the 8714i Meter Verification test under this condition provides the
most accurate results and the best indication of magnetic flowmeter health.
Flowing, Full Pipe
Run the 8714i Meter Verification test with a full pipe and flow in the line.
Running the 8714i Meter Verification test under this condition provides the
ability to verify the magnetic flowmeter health without shutting down the
process flow in applications where a shutdown is not possible. Running the
calibration verification under flowing conditions can cause false fails if the flow
rate is not at a steady flow, or if there is process noise present.
Empty Pipe
Run the 8714i Meter Verification test with an empty pipe. Running the 8714i
Meter Verification test under this condition provides the ability to verify the
magnetic flowmeter health with an empty pipe. Running the calibration
verification under empty pipe conditions will not check the electrode circuit
health.
8714i Meter Verification Test Criteria
The 8714i Meter Verification diagnostic provides the ability for the user to
define the test criteria that the verification must test to. The test criteria can be
set for each of the flow conditions discussed above.
No Flow, Full Pipe
Set the test criteria for the No Flow condition. The factory default for this value
is set to two percent with limits configurable between one and ten percent.
Flowing, Full Pipe
Set the test criteria for the Flowing, Full condition. The factory default for this
value is set to three percent with limits configurable between one and ten
percent
Empty Pipe
Set the test criteria for the Empty Pipe condition. The factory default for this
value is set to three percent with limits configurable between one and ten
percent
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
C-10
8714i Meter Verification
Test Results Parameters Once the 8714i Meter Verification test is initiated, the transmitter will make
several measurements to verify the transmitter calibration, sensor calibration,
coil circuit health, and electrode circuit health. The results of these tests can
be reviewed and recorded on the calibration verification report found on
page C-14. This report can be used to validate that the meter is within the
required calibration limits to comply with governmental regulatory agencies
such as the Environmental Protection Agency or Food and Drug
Administration.
Viewing the 8714i Meter Verification Results
Depending on the method used to view the results, they will be displayed in
either a menu structure, as a method, or in the report format. When using the
375 Field Communicator, each individual component can be viewed as a
menu item. In AMS, the calibration report is populated with the necessary
data eliminating the need to manually complete the report found on
page C-14.
The results are displayed in the following order:
Test Condition
Review the test condition that the 8714i Meter Verification test was performed
under.
Test Criteria
Review the test criteria used to determine the results of the 8714i Meter
Verification tests.
8714i Result
Displays the overall result of the 8714i Meter Verification test as either a Pass
or Fail.
Simulated Velocity
Displays the simulated velocity used to verify the transmitter calibration
Actual Velocity
Displays the velocity measured by the transmitter during the transmitter
calibration verification process
Velocity Deviation
Displays the deviation in the actual velocity compared to the simulated
velocity in terms of a percentage. This percentage is then compared to the
test criteria to determine if the transmitter is within calibration limits.
Transmitter Calibration Verification
Displays the results of the transmitter calibration verification test as either a
Pass or Fail
Sensor Calibration Deviation
Displays the deviation in the sensor calibration. This value tells how much the
sensor calibration has shifted from the original baseline signature. This
percentage is compared to the test criteria to determine if the sensor is within
calibration limits.
Reference Manual
00809-0100-4665, Rev AA
August 2010
C-11
Rosemount 8732
Sensor Calibration Verification
Displays the results of the sensor calibration verification test as either a Pass
or Fail.
Coil Circuit Verification
Displays the results of the coil circuit health check as either a Pass or Fail
Electrode Circuit Verification
Displays the results of the electrode circuit health check as either a Pass or
Fail.
Optimizing the 8714i
Meter Verification The 8714i Meter Verification diagnostic can be optimized by setting the test
criteria to the desired levels necessary to meet the compliance requirements
of the application. The following examples below will provide some guidance
on how to set these levels.
Example
An effluent meter must be certified every year to comply with Environmental
Protection Agency and Pollution Control Agency standards. These
governmental agencies require that the meter be certified to five percent
accuracy.
Since this is an effluent meter, shutting down the process may not be viable.
In this instance the 8714i Meter Verification test will be performed under
flowing conditions. Set the test criteria for Flowing, Full to five percent to meet
the requirements of the governmental agencies.
Example
A pharmaceutical company requires semi-annual verification of meter
calibration on a critical feed line for one of their products. This is an internal
standard, but plant requirements require a calibration record be kept on-hand.
Meter calibration on this process must meet one percent. The process is a
batch process so it is possible to perform the calibration verification with the
line full and with no flow.
Since the 8714i Meter Verification test can be run under no flow conditions,
set the test criteria for No Flow to one percent to comply with the necessary
plant standards.
Example
A food and beverage company requires an annual verification of a meter on a
product line. The plant standard calls for the accuracy to be three percent or
better. They manufacture this product in batches, and the measurement
cannot be interrupted when a batch is in process. When the batch is
complete, the line goes empty.
Since there is no means of performing the 8714i Meter Verification test while
there is product in the line, the test must be performed under empty pipe
conditions. The test criteria for Empty Pipe should be set to three percent, and
it should be noted that the electrode circuit health cannot be verified.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
C-12
Troubleshooting the
8714i Meter Verification
Test
In the event that the 8714i Meter Verification test fails, the following steps can
be used to determine the appropriate course of action. Begin by reviewing the
8714i results to determine the specific test that failed.
Figure C-1. Troubleshooting the
8714i Meter Verification Test
Table
8714i Meter Verification
Functionality The 8714i Meter Verification diagnostic functions by taking a baseline sensor
signature and then comparing measurements taken during the verification
test to these baseline results.
Sensor Signature Values
The sensor signature describes the magnetic behavior of the sensor. Based
on Faraday’s law, the induced voltage measured on the electrodes is
proportional to the magnetic field strength. Thus, any changes in the magnetic
field will result in a calibration shift of the sensor. Having the transmitter take
an initial sensor signature when first installed will provide the baseline for the
verification tests that are done in the future. There are three specific
measurements that are stored in the transmitter’s non-volatile memory that
are used when performing the calibration verification.
Coil Circuit Resistance
The Coil Circuit Resistance is a measurement of the coil circuit health. This
value is used as a baseline to determine if the coil circuit is still operating
correctly when the 8714i Meter Verification diagnostic is initiated.
Coil Signature
The Coil Signature is a measurement of the magnetic field strength. This
value is used as a baseline to determine if a sensor calibration shift has
occurred when the 8714i Meter Verification diagnostic is initiated
Electrode Circuit Resistance
The Electrode Circuit Resistance is a measurement of the electrode circuit
health. This value is used as a baseline to determine if the electrode circuit is
still operating correctly when the 8714i Meter Verification diagnostic is
initiated.
Test Potential Causes of Failure Steps to Correct
Transmitter Verification Test
Failed Unstable flow rate during
the verification test
Noise in the process
Transmitter drift
Faulty electronics
Perform the test with no
flow in the pipe
Check calibration with an
external standard like the
8714D
Perform a digital trim
Replace the electronics
Sensor Verification Failed Moisture in the terminal
block of the sensor
Calibration shift caused by
heat cycling or vibration
Remove the sensor and
send back for recalibration.
Coil Circuit Health Failed Moisture in the terminal
block of the sensor
Shorted Coil
Perform the sensor checks
detailed on page 6-8.
Electrode Circuit Health
Failed Moisture in the terminal
block of the sensor
Coated Electrodes
Shorted Electrodes
Perform the sensor checks
detailed on page 6-8.
Reference Manual
00809-0100-4665, Rev AA
August 2010
C-13
Rosemount 8732
8714i Meter Verification Measurements
The 8714i Meter Verification test will make measurements of the coil
resistance, coil signature, and electrode resistance and compare these values
to the values taken during the sensor signature process to determine the
sensor calibration deviation, the coil circuit health, and the electrode circuit
health. In addition, the measurements taken by this test can provide additional
information when troubleshooting the meter.
Coil Circuit Resistance
The Coil Circuit Resistance is a measurement of the coil circuit health. This
value is compared to the coil circuit resistance baseline measurement taken
during the sensor signature process to determine coil circuit health.
Coil Signature
The Coil Signature is a measurement of the magnetic field strength. This
value is compared to the coil signature baseline measurement taken during
the sensor signature process to determine sensor calibration deviation.
Electrode Circuit Resistance
The Electrode Circuit Resistance is a measurement of the electrode circuit
health. This value is compared to the electrode circuit resistance baseline
measurement taken during the sensor signature process to determine
electrode circuit health.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
C-14
ROSEMOUNT MAGNETIC FLOWMETER CALIBRATION VERIFICATION REPORT
Calibration Verification Report Parameters
User Name: _____________________________________________
Calibration Conditions: Internal External
Tag #:__________________________________________________
Test Conditions: Flowing No Flow, Full Pipe Empty Pipe
Flowmeter Information and Configuration
Software Tag:____________________________________________ PV URV (20 mA scale):____________________________________
Calibration Number:_______________________________________ PV LRV (4 mA scale):_____________________________________
Line Size:_______________________________________________ PV Damping:____________________________________________
Transmitter Calibration Verification Results Sensor Calibration Verification Results
Simulated Velocity:_______________________________________ Sensor Deviation %:_____________________________________
Actual Velocity:__________________________________________ Sensor: PASS / FAIL / NOT TESTED
Deviation %:____________________________________________ Coil Circuit Test: PASS / FAIL / NOT TESTED
Transmitter: PASS / FAIL / NOT TESTED Electrode Circuit Test: PASS / FAIL / NOT TESTED
Summary of Calibration Verification Results
Verification Results: The result of the flowmeter verification test is: PASSED / FAILED
Verification Criteria: This meter was verified to be functioning within _____________ % of deviation from the original test parameters.
Signature:______________________________________________ Date:__________________________________________________
Reference Manual
00809-0100-4665, Rev AA
August 2010 Rosemount 8732
www.rosemount.com
Appendix D Digital Signal Processing
Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page D-1
Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page D-2
SAFETY MESSAGES Instructions and procedures in this section may require special precautions to
ensure the safety of the personnel performing the operations. Please read the
following safety messages before performing any operation described in this
section.
Warnings
Explosions could result in death or serious injury:
Verify that the operating atmosphere of the sensor and transmitter is consistent
with the appropriate hazardous locations certifications.
Do not remove the transmitter cover in explosive atmospheres when the circuit is
alive.
Before connecting a Field Communicator in an explosive atmosphere, make sure
the instruments in the loop are installed in accordance with intrinsically safe or
non-incendive field wiring practices.
Both transmitter covers must be fully engaged to meet explosion-proof
requirements.
Failure to follow safe installation and servicing guidelines could result in death or
serious injury:
Make sure only qualified personnel perform the installation.
Do not perform any service other than those contained in this manual unless
qualified.
Process leaks could result in death or serious injury:
The electrode compartment may contain line pressure; it must be depressurized
before the cover is removed.
High voltage that may be present on leads could cause electrical shock:
Avoid contact with leads and terminals.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
D-2
PROCEDURES If the output of your Rosemount 8732 is unstable, first check the wiring and
grounding associated with the magnetic flowmeter system. Ensure that the
following conditions are met:
Ground straps are attached to the adjacent flange or ground ring?
Grounding rings, lining protectors, or grounding electrodes are being
used in lined or nonconductive piping?
Both of the shields are attached at both ends?
The causes of unstable transmitter output can usually be traced to extraneous
voltages on the measuring electrodes. This “process noise” can arise from
several causes including electrochemical reactions between the fluid and the
electrode, chemical reactions in the process itself, free ion activity in the fluid,
or some other disturbance of the fluid/electrode capacitive layer. In such noisy
applications, an analysis of the frequency spectrum reveals process noise
that typically becomes significant below 15 Hz.
In some cases, the effects of process noise may be sharply reduced by
elevating the coil drive frequency above the 15 Hz region. The Rosemount
8732 coil drive mode is selectable between the standard 5 Hz and the
noise-reducing 37 Hz. See “Coil Drive Frequency” on page 4-26 for
instructions on how to change the coil drive mode to 37 Hz.
Auto Zero To ensure optimum accuracy when using 37 Hz coil drive mode, there is an
auto zero function that must be initiated during start-up. The auto zero
operation is also discussed in the start-up and configuration sections. When
using 37 Hz coil drive mode it is important to zero the system for the specific
application and installation.
The auto zero procedure should be performed only under
the following conditions:
With the transmitter and sensor installed in their final positions. This
procedure is not applicable on the bench.
With the transmitter in 37 Hz coil drive mode. Never attempt this
procedure with the transmitter in 5 Hz coil drive mode.
With the sensor full of process fluid at zero flow.
These conditions should cause an output equivalent to zero flow.
Signal Processing If the 37 Hz coil drive mode has been set, and the output is still unstable, the
damping and signal processing function should be used. It is important to set
the coil drive mode to 37 Hz first, so the loop response time is not increased.
The 8732 provides for a very easy and straightforward start-up, and also
incorporates the capability to deal with difficult applications that have
previously manifested themselves in a noisy output signal. In addition to
selecting a higher coil drive frequency (37 Hz vs. 5 Hz) to isolate the flow
signal from the process noise, the 8732 microprocessor can actually
scrutinize each input based on three user-defined parameters to reject the
noise specific to the application.
Reference Manual
00809-0100-4665, Rev AA
August 2010
D-3
Rosemount 8732
This software technique, known as signal processing, “qualifies” individual
flow signals based on historic flow information and three user-definable
parameters, plus an on/off control. These parameters are:
1. Number of samples: The number of samples function sets the amount
of time that inputs are collected and used to calculate the average
value. Each second is divided into tenths (1/10 ) with the number of
samples equaling the number of 1/10 second increments used to
calculate the average. Factory Preset Value = 90 samples.
For example, a value of:
1 averages the inputs over the past 1/10 second
10 averages the inputs over the past 1 second
100 averages the inputs over the past 10 seconds
125 averages the inputs over the past 12.5 seconds
2. Maximum Percent Limit: The tolerance band set up on either side of
the running average, referring to percent deviation from the average.
Values within the limit are accepted while value outside the limit are
scrutinized to determine if they are a noise spike or an actual flow
change. Factory Preset Value = 2 percent.
3. Time Limit: Forces the output and running average values to the new
value of an actual flow rate change that is outside the percent limit
boundaries, thereby limiting response time to real flow changes to the
time limit value rather than the length of the running average. Factory
Preset Value = 2 seconds.
How Does It Really Work?
The best way to explain this is with the help of an example, plotting flow rate
versus time
Figure D-1. Signal Processing .
Flow
Rate
Max
%
Limit
Time Limit
12 Samples = 1
Second Time
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
D-4
x: Input flow signal from sensor.
o: Average flow signals and transmitter output, determined by the “number
of samples” parameter.
Tolerance band, determined by the “percent limit” parameter.
– Upper value = average flow + [(percent limit/100) average flow]
– Lower value = average flow – [(percent limit/100) average flow]
1. This scenario is that of a typical non-noisy flow. The input flow signal
is within the percent limit tolerance band, therefore qualifying itself as
a good input. In this case the new input is added directly into the
running average and is passed on as a part of the average value to
the output.
2. This signal is outside the tolerance band and therefore is held in
memory until the next input can be evaluated. The running average is
provided as the output.
3. The previous signal currently held in memory is simply rejected as a
noise spike since the next flow input signal is back within the
tolerance band. This results in complete rejection of noise spikes
rather than allowing them to be “averaged” with the good signals as
occurs in the typical analog damping circuits.
4. As in number 2 above, the input is outside the tolerance band. This
first signal is held in memory and compared to the next signal. The
next signal is also outside the tolerance band (in the same direction),
so the stored value is added to the running average as the next input
and the running average begins to slowly approach the new input
level.
5. To avoid waiting for the slowly incrementing average value to catch
up to the new level input, a shortcut is provided. This is the “time limit”
parameter. The user can set this parameter to eliminate the slow
ramping of the output toward the new input level.
When Should Signal Processing Be Used?
The Rosemount 8732 offers three separate functions that can be used in
series for improving a noisy output. The first step is to toggle the coil drive to
the 37 Hz mode and initialize with an auto zero. If the output is still noisy at
this stage, signal processing should be actuated and, if necessary, tuned to
match the specific application. Finally, if the signal is still too unstable, the
traditional damping function can be used.
NOTE
Failure to complete an Auto Zero will result in a small (<1%) error in the
output. While the output level will be offset by the error, the repeatability will
not be affected.
Reference Manual
00809-0100-4665, Rev AA
August 2010 Rosemount 8732
www.rosemount.com
Appendix E Universal Sensor Wiring
Diagrams
Rosemount Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page E-3
Brooks Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page E-6
Perform the Universal Auto Trim function. . . . . . . . . . . . page E-5
Fischer And Porter Sensors . . . . . . . . . . . . . . . . . . . . . . . page E-9
Foxboro Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page E-15
Kent Veriflux VTC Sensor . . . . . . . . . . . . . . . . . . . . . . . . . page E-19
Kent Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page E-20
Krohne Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page E-21
Taylor Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page E-22
Yamatake Honeywell Sensors . . . . . . . . . . . . . . . . . . . . . . page E-24
Yokogawa Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page E-25
Generic Manufacturer Sensors . . . . . . . . . . . . . . . . . . . . . page E-26
The wiring diagrams in this section illustrate the proper connections between
the Rosemount 8732 and most sensors currently on the market. Specific
diagrams are included for most models, and where information for a particular
model of a manufacturer is not available, a generic drawing pertaining to that
manufacturers’ sensors is provided. If the manufacturer for your sensor is not
included, see the drawing for generic connections.
Any trademarks used herein regarding sensors not manufactured by
Rosemount are owned by the particular manufacturer of the sensor.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
E-2
Table E-1. Sensor Cross
References Rosemount Transmitter Sensor Manufacturer Page Number
Rosemount
Rosemount 8732 Rosemount 8705, 8707, 8711 page E-3
Rosemount 8732 Rosemount 8701 page E-4
Brooks
Rosemount 8732 Model 5000 page E-6
Rosemount 8732 Model 7400 page E-7
Endress and Hauser page E-5
Rosemount 8732 Generic Wiring for Sensor page E-8
Fischer and Porter page E-9
Rosemount 8732 Model 10D1418 page E-9
Rosemount 8732 Model 10D1419 page E-10
Rosemount 8732 Model 10D1430 (Remote) page E-11
Rosemount 8732 Model 10D1430 page E-12
Rosemount 8732 Model 10D1465, 10D1475 (Integral) page E-13
Rosemount 8732 Generic Wiring for Sensors page E-14
Foxboro
Rosemount 8732 Series 1800 page E-15
Rosemount 8732 Series 1800 (Version 2) page E-16
Rosemount 8732 Series 2800 page E-17
Rosemount 8732 Generic Wiring for Sensors page E-18
Kent
Rosemount 8732 Veriflux VTC page E-19
Rosemount 8732 Generic Wiring for Sensors page E-20
Krohne
Rosemount 8732 Generic Wiring for Sensors page E-21
Taylor
Rosemount 8732 Series 1100 page E-23
Rosemount 8732 Generic Wiring for Sensors page E-23
Yamatake Honeywell
Rosemount 8732 Generic Wiring for Sensors page E-24
Yokogawa
Rosemount 8732 Generic Wiring for Sensors page E-25
Generic Manufacturer Wiring page E-26
Rosemount 8732 Generic Wiring for Sensors page E-26
Reference Manual
00809-0100-4665, Rev AA
August 2010
E-3
Rosemount 8732
ROSEMOUNT SENSORS
Rosemount
8705/8707/8711/8721
Sensors to Rosemount
8732 Transmitter
Connect coil drive and electrode cables as shown in Figure .
Figure E-1. Wiring Diagram to a
Rosemount 8732 Transmitter
Table E-2. Rosemount
8705/8707/8711/8721 Sensor
Wiring Connections Rosemount 8732 Transmitters Rosemount 8705/8707/8711/8721 Sensors
11
22
17 17
18 18
19 19
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
E-4
Rosemount 8701 Sensor
to Rosemount 8732
Transmitter
Connect coil drive and electrode cables as shown in Figure E-2 on page E-4.
Figure E-2. Wiring Diagram for
Rosemount 8701 Sensor and
Rosemount 8732 Transmitter
Table E-3. Rosemount 8701
Sensor Wiring Connections
2
1
19
18
17
ROSEMOUNT 8701
SENSOR ROSEMOUNT 8732
TRANSMITTER
Rosemount 8732 Rosemount 8701 Sensors
1 1
2 2
17 17
18 18
19 19
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
E-5
Rosemount 8732
Connecting Sensors of
Other Manufacturers Before connecting another manufacturer’s sensor to the Rosemount 8732
transmitter, it is necessary to perform the following functions.
1. Turn off the AC power to the sensor and transmitter. Failure to do so
could result in electrical shock or damage to the transmitter.
2. Verify that the coil drive cables between the sensor and the
transmitter are not connected to any other equipment.
3. Label the coil drive cables and electrode cables for connection to the
transmitter.
4. Disconnect the wires from the existing transmitter.
5. Remove the existing transmitter. Mount the new transmitter. See
“Mount the Transmitter” on page 2-3.
6. Verify that the sensor coil is configured for series connection. Other
manufacturers sensors may be wired in either a series or parallel
circuit. All Rosemount magnetic sensors are wired in a series circuit.
(Other manufacturers AC sensors (AC coils) wired for 220V operation
are typically wired in parallel and must be rewired in series.)
7. Verify that the sensor is in good working condition. Use the
manufacturer’s recommended test procedure for verification of
sensor condition. Perform the basic checks:
a. Check the coils for shorts or open circuits.
b. Check the sensor liner for wear or damage.
c. Check the electrodes for shorts, leaks, or damage.
8. Connect the sensor to the transmitter in accordance with reference
wiring diagrams. See Appendix E: Universal Sensor Wiring Diagrams
for specific drawings.
9. Connect and verify all connections between the sensor and the
transmitter, then apply power to the transmitter.
10. Perform the Universal Auto Trim function.
This is a pulsed DC magnetic flowmeter. Do not connect
AC power to the sensor or to terminals 1 and 2 of the
transmitter, or replacement of the electronics board will be
necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
E-6
BROOKS SENSORS Connect coil drive and electrode cables as shown in Figure E-3.
Model 5000 Sensor to
Rosemount 8732
Transmitter
Figure E-3. Wiring Diagram for
Brooks Sensor Model 5000 and
Rosemount 8732
Table E-4. Brooks Model 5000
Sensor Wiring Connections
BROOKS MODEL
5000
ROSEMOUNT 8732
TRANSMITTER
Rosemount 8732 Brooks Sensors Model 5000
1 1
2 2
17 17
18 18
19 19
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
E-7
Rosemount 8732
Model 7400 Sensor to
Rosemount 8732
Transmitter
Connect coil drive and electrode cables as shown in Figure E-4.
Figure E-4. Wiring Diagram for
Brooks Sensor Model 7400 and
Rosemount 8732
Table E-5. Brooks Model 7400
Sensor Wiring Connections
BROOKS MODEL 7400
ROSEMOUNT 8732
TRANSMITTER
Rosemount 8732 Brooks Sensors Model 7400
1Coils +
2Coils –
17 Shield
18 Electrode +
19 Electrode –
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
E-8
ENDRESS AND HAUSER
SENSORS Connect coil drive and electrode cables as shown in Figure E-5.
Endress and Hauser
Sensor to
Rosemount 8732
Transmitter
Figure E-5. Wiring Diagram for
Endress and Hauser Sensors
and Rosemount 8732
Table E-6. Endress and Hauser
Sensor Wiring Connections
Coils
Electrodes
ROSEMOUNT 8732
TRANSMITTER
ENDRESS AND HAUSER
SENSORS
7
14
5
4
42
41
Rosemount 8732 Endress and Hauser Sensors
141
242
14
17 4
18 5
19 7
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
E-9
Rosemount 8732
FISCHER AND PORTER
SENSORS Connect coil drive and electrode cables as shown in Figure E-6.
Model 10D1418 Sensor
to Rosemount 8732
Transmitter
Figure E-6. Wiring Diagram for
Fischer and Porter Sensor
Model 10D1418 and
Rosemount 8732
Table E-7. Fischer and Porter
Model 10D1418 Sensor Wiring
Connections
ROSEMOUNT 8732 TRANSMITTER
Electrode Connections
U1
U2
G
8
6
7
L1
L2
5
3
2
1
Coil Connections
Rosemount 8732 Fischer and Porter Model 10D1418 Sensors
1L1
2L2
Chassis Ground
17 3
18 1
19 2
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
E-10
Model 10D1419 Sensor
to Rosemount 8732
Transmitter
Connect coil drive and electrode cables as shown in Figure E-7.
Figure E-7. Wiring Diagram for
Fischer and Porter Sensor
Model 10D1419 and Rosemount
8732
Table E-8. Fischer and Porter
Model 10D1419 Sensor Wiring
Connections
ROSEMOUNT 8732 TRANSMITTER
3
2
1
18
L1
L2
16
17
Electrode Connections
Coil Connections
Rosemount 8732 Fischer and Porter Model 10D1419 Sensors
1L1
2L2
3
17 3
18 1
19 2
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
E-11
Rosemount 8732
Model 10D1430 Sensor
(Remote) to
Rosemount 8732
Transmitter
Connect coil drive and electrode cables as shown in Figure E-8.
Figure E-8. Wiring Diagram for
Fischer and Porter Sensor
Model 10D1430 (Remote) and
Rosemount 8732
Table E-9. Fischer and Porter
Model 10D1430 (Remote)
Sensor Wiring Connections
ROSEMOUNT 8732 TRANSMITTER
1
2
3
G
L1
8
Coil Connections
Electrode Connections
Rosemount 8732 Fischer and Porter Model 10D1430 (Remote)
Sensors
1L1
2 8
G
17 3
18 1
19 2
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
E-12
Model 10D1430 Sensor
(Integral) to
Rosemount 8732
Transmitter
Connect coil drive and electrode cables as shown in Figure E-9.
Figure E-9. Wiring Diagram for
Fischer and Porter Sensor
Model 10D1430 (Integral) and
Rosemount 8732
Table E-10. Fischer and Porter
Model 10D1430 (Integral)
Sensor Wiring Connections
Electrode Connections ROSEMOUNT 8732 TRANSMITTER
To L2
1
2
3
7
6
8
L2
L1
U2
U1
1
2
3
7
6
L2
L1
U2
U1
G
TB1
TB2
Coil Connections
To Calibration Device
(Disconnect)
Rosemount 8732 Fischer and Porter Model 10D1430 (Integral)
Sensors
1L1
2L2
G
17 3
18 1
19 2
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
E-13
Rosemount 8732
Model 10D1465 and
Model 10D1475 Sensors
(Integral) to 8732
Transmitter
Connect coil drive and electrode cables as shown in Figure E-10.
Figure E-10. Wiring Diagram for
Fischer and Porter Sensor
Model 10D1465 and Model
10D1475 (Integral) and
Rosemount 8732
Table E-11. Fischer and Porter
Model 10D1465 and 10D1475
Sensor Wiring Connections
2A
2
1
5
6
16
3
CT
M2
M1
MR
Electrode
Connections
Coil Connections
ROSEMOUNT 8732 TRANSMITTER
Disconnect
Rosemount 8732 Fischer and Porter Model 10D1465 and
10D1475 Sensors
1MR
2M1
3
17 3
18 1
19 2
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
E-14
Fischer and Porter
Sensor to
Rosemount 8732
Transmitter
Connect coil drive and electrode cables as shown in Figure E-11.
Figure E-11. Generic Wiring
Diagram for Fischer and Porter
Sensors and Rosemount 8732
Table E-12. Fischer and Porter
Generic Sensor
Wiring Connections
Electrodes
2
Coils
Chassis
ROSEMOUNT 8732
TRANSMITTER
FISCHER AND PORTER
SENSORS
Fuse
1
3
M2
M1
Rosemount 8732 Fischer and Porter Sensors
1M1
2M2
Chassis Ground
17 3
18 1
19 2
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
E-15
Rosemount 8732
FOXBORO SENSORS Connect coil drive and electrode cables as shown in Figure E-12.
Series 1800 Sensor to
Rosemount 8732
Transmitter
Figure E-12. Wiring Diagram for
Foxboro Series 1800 and
Rosemount 8732
Table E-13. Foxboro Generic
Sensor Wiring Connections
ROSEMOUNT 8732
TRANSMITTER
Coil Connections
Electrode Connections
FOXBORO SERIES
1800 SENSOR
Outer Shield
White Lead
White Shield
Black Lead
Black Shield
Inner Shield
Rosemount 8732 Foxboro Series 1800 Sensors
1L1
2L2
Chassis Ground
17 Any Shield
18 Black
19 White
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
E-16
Series 1800 (Version 2)
Sensor to
Rosemount 8732
Transmitter
Connect coil drive and electrode cables as shown in Figure E-13.
Figure E-13. Wiring Diagram for
Foxboro Series 1800 (Version 2)
and Rosemount 8732
Table E-14. Foxboro Generic
Sensor Wiring Connections
FOXBORO SERIES
1800 SENSOR
(VERSION 2)
ROSEMOUNT
8732
TRANSMITTER
Coil Connections
Electrode
Connections
GND L2 L1
White
Black
Shield
Rosemount 8732 Foxboro Series 1800 Sensors
1L1
2L2
Chassis Ground
17 Any Shield
18 Black
19 White
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
E-17
Rosemount 8732
Series 2800 Sensor to
8732 Transmitter Connect coil drive and electrode cables as shown in Figure E-14.
Figure E-14. Wiring Diagram for
Foxboro Series 2800 and
Rosemount 8732
Table E-15. Foxboro Series
2800 Sensor Wiring
Connections
ROSEMOUNT 8732
TRANSMITTER
Coil Connections
Electrode Connections
FOXBORO SERIES
1800 SENSOR
Outer Shield
White Lead
White Shield
Black Lead
Black Shield
Inner Shield
White
Black
Any Shield
L2
L1
Chassis Ground
Rosemount 8732 Foxboro Series 2800 Sensors
1L1
2L2
Chassis Ground
17 Any Shield
18 Black
19 White
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
E-18
Foxboro Sensor to 8732
Transmitter Connect coil drive and electrode cables as shown in Figure E-15.
Figure E-15. Generic Wiring
Diagram for Foxboro Sensors
and Rosemount 8732
Table E-16. Foxboro Sensor
Wiring Connections
Electrodes
Coils
Ground
ROSEMOUNT 8732
TRANSMITTER
FOXBORO
SENSOR
L2
L1
White
Black
Any Shield
Fuse
Rosemount 8732 Foxboro Sensors
1L1
2L2
Chassis Ground
17 Any Shield
18 Black
19 White
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
E-19
Rosemount 8732
KENT VERIFLUX VTC
SENSOR Connect coil drive and electrode cables as shown in Figure E-16.
Veriflux VTC Sensor to
8732 Transmitter
Figure E-16. Wiring Diagram for
Kent Veriflux VTC Sensor and
Rosemount 8732
Table E-17. Kent Veriflux VTC
Sensor Wiring Connections
Electrode Connections
Coil Connections
ROSEMOUNT 8732
TRANSMITTER
KENT VERIFLUX VTC
SENSOR
1SCR OUT
3 SIG 1
4 SIG 2
2 -
5+
Fuse
6 SCR OUT
6
5
2
1
Rosemount 8732 Kent Veriflux VTC Sensors
1 2
2 1
SCR OUT
17 SCR OUT
18 SIG1
19 SIG2
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
E-20
KENT SENSORS Connect coil drive and electrode cables as shown in Figure E-17.
Kent Sensor to
Rosemount 8732
Transmitter
Figure E-17. Generic Wiring
Diagram for Kent Sensors and
Rosemount 8732
Table E-18. Kent Sensor
Wiring Connections
Coils
Electrodes
SCR OUT
ROSEMOUNT 8732
TRANSMITTER
KENT SENSORS
2
1
SIG2
SIG1
SCR OUT
Fuse
Rosemount 8732 Kent Sensors
1 1
2 2
SCR OUT
17 SCR OUT
18 SIG1
19 SIG2
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
E-21
Rosemount 8732
KROHNE SENSORS Connect coil drive and electrode cables as shown in Figure E-18.
Krohne Sensor to
Rosemount 8732
Transmitter
Figure E-18. Generic Wiring
Diagram for Krohne Sensors
and Rosemount 8732
Table E-19. Krohne Sensor
Wiring Connections
Electrodes
Coils Coil Shield
ROSEMOUNT 8732
TRANSMITTER
KROHNE
SENSORS
7
8
3
2
Electrode Shield
Fuse
Rosemount 8732 Krohne Sensors
1 8
2 7
Coil Shield
17 Electrode Shield
18 2
19 3
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
E-22
TAYLOR SENSORS Connect coil drive and electrode cables as shown in Figure E-19.
Series 1100 Sensor to
Rosemount 8732
Transmitter
Figure E-19. Wiring Diagram for
Taylor Series 1100 Sensors and
Rosemount 8732
Table E-20. Taylor Series 1100
Sensor Wiring Connections
ROSEMOUNT 8732
TRANSMITTER
Electrode Connections
Coil Connections
TAYLOR SERIES 1100
SENSOR
C
L
A
R
White
Black
Green
L N G 1 2 3 4
Rosemount 8732 Taylor Series 1100 Sensors
1Black
2White
Green
17 S1 and S2
18 E1
19 E2
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
E-23
Rosemount 8732
Taylor Sensor to
Rosemount 8732
Transmitter
Connect coil drive and electrode cables as shown in Figure E-20.
Figure E-20. Generic Wiring
Diagram for Taylor Sensors and
Rosemount 8732
Table E-21. Taylor Sensor
Wiring Connections
Electrodes
Coils
Green
ROSEMOUNT 8732
TRANSMITTER
TAYLOR
SENSORS
White
Black
E2
E1
S1 and S2
Fuse
Rosemount 8732 Taylor Sensors
1Black
2White
Green
17 S1 and S2
18 E1
19 E2
This is a pulsed DCDC magnetic
flowmeter. Do not connect AC power to
the sensor or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
E-24
YAMATAKE
HONEYWELL SENSORS Connect coil drive and electrode cables as shown in Figure E-21.
Yamatake Honeywell
Sensor to
Rosemount 8732
Transmitter
Figure E-21. Generic Wiring
Diagram for Yamatake
Honeywell Sensors and
Rosemount 8732
Table E-22. Yamatake
Honeywell Sensor Wiring
Connections
Electrodes
Coils
Chassis Ground
ROSEMOUNT 8732
TRANSMITTER
YAMATAKE
HONEYWELL
SENSORS
Y
X
A
B
C
Fuse
Rosemount 8732 Yamatake Honeywell Sensors
1 X
2 Y
Chassis Ground
17 C
18 B
19 A
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
E-25
Rosemount 8732
YOKOGAWA SENSORS Connect coil drive and electrode cables as shown in Figure E-22.
Yokogawa Sensor to
Rosemount 8732
Transmitter
Figure E-22. Generic Wiring
Diagram for Yokogawa Sensors
and Rosemount 8732
Table E-23. Yokogawa Sensor
Wiring Connections
Electrodes
Coils
Chassis Ground
ROSEMOUNT 8732
TRANSMITTER
YOKOGAWA
SENSORS
Ex 2
Ex 1
A
B
C
Fuse
Rosemount 8732 Yokogawa Sensors
1EX1
2EX2
Chassis Ground
17 C
18 B
19 A
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
E-26
GENERIC
MANUFACTURER
SENSORS
Generic Manufacturer
Sensor to
Rosemount 8732
Transmitter
Identify the Terminals First check the sensor manufacturer’s manual to identify the appropriate
terminals. Otherwise, perform the following procedure.
Identify coil and electrode terminals
1. Select a terminal and touch an ohmmeter probe to it.
2. Touch the second probe to each of the other terminals and record the
results for each terminal.
3. Repeat the process and record the results for every terminal.
Coil terminals will have a resistance of approximately 3-300 ohms.
Electrode terminals will have an open circuit.
Identify a chassis ground
1. Touch one probe of an ohmmeter to the sensor chassis.
2. Touch the other probe to the each sensor terminal and the record the
results for each terminal.
The chassis ground will have a resistance value of one ohm or less.
Wiring Connections Connect the electrode terminals to Rosemount 8732 terminals
18 and 19. The electrode shield should be connected to terminal 17.
Connect the coil terminals to Rosemount 8732 terminals 1, 2, and .
If the Rosemount 8732 Transmitter indicates a reverse flow condition, switch
the coil wires connected to terminals 1 and 2.
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
Reference Manual
00809-0100-4665, Rev AA
August 2010 Rosemount 8732
www.rosemount.com
Appendix F Physical Block
Physical Block Parameter Attribute Definitions . . . . . . . page F-1
I&M Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page F-4
PHYSICAL BLOCK
PARAMETER
ATTRIBUTE
DEFINITIONS
The following table describes the parameters that are available in the physical
block. Each line item in the table defines the element and specifies the
requirements for each element. If a column is blank for a data element, it can
be assumed that the column does not apply to that element.
Table F-1. Physical Block
Parameters Index Parameter Description
Profibus PA Specific Block
Header
16 BLOCK_OBJECT This object contains the characteristics of the
blocks.
17 ST_REV The modification of at least one static
parameter in a block has to be incremented
by the according ST_REV at least by one.
18 TAG_DESC Every block can be assigned a textual TAG
description. The TAG_DESC must be
unambiguous and unique in the fieldbus
system.
19 STRATEGY Grouping of Function Block. The STRATEGY
field can be used to group blocks.
20 ALERT_KEY This parameter contains the identification
number of the plant unit. It helps to
identify the location (plant unit) of an event.
21 TARGET_MODE The TARGET_MODE parameter contains
desired mode normally set by a control
application or an operator. The modes are
valid alternatively only, i.e. only one mode can
be set at one time. A write access to this
parameter with more then one mode is out of
the range of the parameter and have to be
refused.
22 MODE_BLK This parameter contains the current mode,
the permitted and normal mode of the block.
23 ALARM_SUM This parameter contains the current states of
the block alarms.
Profibus PA specific Parameters
24 SOFTWARE_REVISION Label of code in the device for tracking
purpose.
Please refer to D_8732EPA_SCMP.doc for
details.
25 HARDWARE_REVISION Mapped to HW_REV parameter in
Manufacturing Block
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
F-2
26 DEVICE_MAN_ID Mapped to Mfg_ID parameter in
Manufacturing Block
27 DEVICE_ID Mapped to DEV_TYPE parameter in
Manufacturing Block
28 DEVICE_SER_NUM Mapped to last 16 characters of
DEVICE_ID_STRING parameter in
Manufacturing Block
29 DIAGNOSIS Detailed information of the device, bitwize
coded. More than one message is possible at
once. If MSB of byte 4 is set to 1 than more
diagnostic information is available in the
DIAGNOSIS_EXTENSION parameter.
30 DIAGNOSIS_EXTENSION Additional manufacturer-specific information
of the device, bitwize coded. More than one
message is possible at once.
31 DIAGNOSIS_MASK Supported std diagnostics
Warmstart
Coldstart
maint requd
ident number violation
function check
failed
maint demanded
extension available
32 DIAGNOSIS_MASK_EXTENSION Definition of supported
DIAGNOSIS_EXTENSION information-bits.
33 RESERVED
34 WRITE_LOCKING Software write protection.
0: acyclic write service of all parameter are
refused, except
WRITE_LOCKING and the TAB_ENTRY
parameter of the Linearization table, i.e.
access is denied.
2457: is the default value and means all
writable parameters of a device are writable.
35 FACTORY_RESET 1: (mandatory) is the command for resetting
device for default values. The setting of the
bus address is not affected.
2506: (optional) is the command for warmstart
of the device. All parametrisation remains
unchanged.
2712: (optional) The bus address to its default
address; other parametrisation remains
unchanged. The bus address is changed
immediately regardless if the
device is in cyclic data transfer state. The
reset is not suspended up to a subsequent
power cycle/warmstart.
36 DESCRIPTOR User-definable text (a string) to describe the
device within the application.
37 DEVICE_MESSAGE User-definable MESSAGE (a string) to
describe the device within the application or
in the plant.
38 DEVICE_INSTALL_DATE Date of installation of the device.
39 LOCAL_OP_ENA Local operation enable.
0: disabled (Local operation not allowed, i.e.
change of FB MODE from host
device only)
1: enabled (Local operation is allowed).
Index Parameter Description
Reference Manual
00809-0100-4665, Rev AA
August 2010
F-3
Rosemount 8732
40 IDENT_NUMBER_SELECTOR 0: profile specific Ident_Number V3.0
(mandatory)
1: manufacturer specific Ident_Number V3.0
(optional)
41 HW_WRITE_PROTECTION Not supported in the device
42 FEATURE Supported: Expanded diag, condensed status
Enabled: Expanded diag,condensed status
43 COND_STATUS_DIAG Indicates the mode of a device that can be
configured for status and diagnostic behavior.
0: Conventional Status and Diagnosis is
provided.
1: Condensed Status and Diagnosis
information is provided.
44 DIAG_EVENT_SWITCH Optional parameter not supported in the
device
45-48 RESERVED by PNO
Manufacturer Specific
Parameters
49 DEVICE_ADDRESS Device address on the profibus network
50 MFG_BOARD_NUM Mapped to mfg block board number
parameter
51 STACK_LIB_VERSION Library revision of Stack for tracking purpose
52 VIEW_1_PB Std View_1 object of Physical block
Index Parameter Description
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
F-4
I&M PARAMETERS
Table F-2. I&M Parameters Index - The I&M block index
Sub Index - IM_INDEX values
Element - The sub parameter index within the I&M parameter
Parameter Mnemonic - Usage identifier for the I&M parameter
Parameter Name - This simply gives a name to the data element. This name
should be consistent across documentation.
Initial Value - If the data element is reset, this is the value that will be used.
The behavior of the different storage types is define below.
Index Sub
Index Element Parameter
Mnemonic Parameter Name Initial Value
255 65000 0I&M0 Header 0x20(Blank)
1MANUFACTURER_ID PB.DEVICE_MAN_ID
2ORDER_ID
3SERIAL_NUMBER PB.DEVICE_SER_NUM
4HARDWARE_REVISION 0xFFFF
5SOFTWARE_REVISION V, 0xFF, 0xFF, 0xFF
6REV_COUNTER 0
7PROFILE_ID 0x9700
8PROFILE_SPECIFIC_T
YPE
1,1
9 IM_VERSION 0x01,0x01
10 IM_SUPPORTED 0x07
65001 0I&M1 Header Blank
1TAG_FUNCTION PB.TAG_DESC
2TAG_LOCATION Blank
65002 0I&M2 Header Blank
1DATE PB.DEVICE_INSTALL_
DATE
2reserved Blank
650016 0PA_IM_0 Header Blank
1PA_IM_VERSION 1,0
2HARDWARE_REVISION PB.
HARDWARE_REVISION
3SOFTWARE_REVISION PB.
SOFTWARE_REVISION
4reserved Blank
6PA_IM_SUPPORTED 0x00,0x00
Reference Manual
00809-0100-4665, Rev AA
August 2010 Rosemount 8732
www.rosemount.com
Appendix G Transducer Block
Transducer Block Parameter Attribute Definitions . . . . . page G-1
TRANSDUCER BLOCK
PARAMETER
ATTRIBUTE
DEFINITIONS
The following table describes the parameters that are available in the
transducer block. Each line item in the table defines the element and specifies
the requirements for each element. If a column is blank for a data element, it
can be assumed that the column does not apply to that element.
Table G-1. Transducer Block
Parameters Index Parameter Name Description
Profibus PA Specific Block Header
Information
16 BLOCK_OBJECT This object contains the characteristics of the
blocks.
17 ST_REV The modification of at least one static
parameter in a block has to be incremented
by the according ST_REV at least by one.
18 TAG_DESC Every block can be assigned a textual TAG
description. The TAG_DESC must be
unambiguous and unique in the fieldbus
system.
19 STRATEGY Grouping of Function Block. The STRATEGY
field can be used to group blocks.
20 ALERT_KEY This parameter contains the identification
number of the plant unit. It helps to
identify the location (plant unit) of an event.
21 TARGET_MODE The TARGET_MODE parameter contains
desired mode normally set by a control
application or an operator. The modes are
valid alternatively only, i.e. only one
mode can be set at one time. A write access
to this parameter with more then one mode is
out of the range of the parameter and have to
be refused.
22 MODE_BLK This parameter contains the current mode,
the permitted and normal mode of the block.
23 ALARM_SUM This parameter contains the current states of
the block alarms.
Magnetic Flow Meter Specific
Parameters
24 CALIBR_FACTOR This parameter is standard PA magnetic flow
parameter. Not used within 8732E device.
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
G-2
25 LOW_FLOW_CUTOFF When flow rate is less than this entered value,
flow rate output will be set to 0.0 flow.
See section Engineering Units for supported
unit codes.
26 MEASUREMENT_MODE Mode of flow measurement, either
unidirectional or bidirectional measurement.
27 FLOW_DIRECTION Please refer Profibus specifications.
28 ZERO_POINT This parameter is standard PA magnetic flow
parameter. Not used within 8732E device.
29 ZERO_POINT_ADJUST This parameter is standard PA magnetic flow
parameter. Not used within 8732E device.
30 ZERO_POINT_UNIT This parameter is standard PA magnetic flow
parameter. Not used within 8732E device.
31 NOMINAL_SIZE Pleases refer to Profibus specifications
Note: The value of the NOMINAL_SIZE
parameter is determined from the value of the
TUBE_SIZE parameter.
32 NOMINAL_SIZE_UNITS Selects the unit for nominal size parameter.
33 VOLUME_FLOW Please refer to Profibus specifications
34 VOLUME_FLOW_UNITS Selected unit code for VOLUME_FLOW,
VOLUME_FLOW_LO_LIMIT and
VOLUME_FLOW_HI_LIMIT parameters.
35 VOLUME_FLOW_LO_LIMIT Absolute value of the lower range value
(volume flow) of the sensor. – Not referred in
8732E device for any status calculation. Used
for setting up the range for the dial on PDM
screen
VOLUME_FLOW_HI_LIMIT parameters.
36 VOLUME_FLOW_HI_LIMIT Absolute value of the upper range value
(volume flow) of the sensor.- Not referred in
8732E device for any status calculation. Used
for setting up the range for the dial on PDM
screen.
37-56 RESERVED Flow transducer block parameters listed in
profile specification which are not applicable
for mag flow meter.
57 SAMPLING_FREQ Pls refer Profibus specifications
Note: The value of the SAMPLING_FREQ
parameter is determined from the value of the
COIL_DRIVE_FREQ parameter.
58 SAMPLING_FREQ_UNITS Selected unit code for SAMPLING_FREQ
parameter.
59-68 Reserved by PNO Please refer to Profibus specifications.
Manufacture Specific Parameters
69 DAMPING Damping filter value in seconds.
70 DENSITY_UNIT See section Engineering Units for supported
unit codes.
71 DENSITY_VALUE User entered density value to be used when
calculating flow in mass flow units.
72 SENSOR_CAL_NO Sensor Calibration Number.
73 SENSOR_SIZE Sensor Line Size.
74 COIL_DRIVE_FREQ Coil Drive Frequency
Note: Enumerated value of this parameter
determines the floating point value of the
SAMPLING_FREQ parameter.
75 DIAG_SIG_POWER Signal power at current coil drive frequency.
76 RESERVED DETAILED_STATUS marked as RESERVED
for PA device.
77 LOI_LANG Selects the language to be used on the local
display for status and diagnostics messages.
Index Parameter Name Description
Reference Manual
00809-0100-4665, Rev AA
August 2010
G-3
Rosemount 8732
78 EP_TRIG_COUNTS Number of EP measurements that must be
above the trigger level to set empty pipe.
79 EP_TRIG_LEVEL Empty Pipe Trigger Level.
80 EP_VALUE Value of the Empty Pipe measurement.
(Same scale as EP_TRIG_LEVEL).
81 ELECT_TEMP Compensated electronics temperature with
status.
82 TEMPERATURE_UNITS See section Engineering Units for supported
unit codes.
83 DSP_SOFTWARE_REV_NUM DSP software Rev Number - major, minor,
build.
84 PERFORM_AUTO_ZERO Perform auto zero calibration routine
Note1: Writing anything but a 2 has no effect.
Reads will always return a 1 or a 2.
85 PERFORM_ELECTRONICS_TRIM Perform input trim calibration routine
Note1: Writing anything but a 2 has no effect.
Reads will always return a 1 or a 2.
86 FLOW_TUBE_TAG Text string identifier of sensor.
87 FLOW_TUBE_SERIAL NUMBER Sensor serial number from physical tag on
sensor.
88 LINER_MATERIAL Enumerated string indicating liner material of
installed sensor.
89 ELECTRODE_MATERIAL Enumerated string indicating electrode
material of installed sensor.
90 ELECTRODE_TYPE Enumerated string indicating electrode type of
installed sensor.
91 FLANGE_TYPE Enumerated string indicating flange type of
installed sensor.
92 FLANGE_MATERIAL Enumerated string indicating flange material
of installed sensor.
93 Reserved Reserved.
94 DIAG_SNR_5HZ Signal to Noise ratio at 5 Hz.
95 DIAG_SNR_37HZ Signal to Noise ratio at 37.5 Hz.
96 Reserved Reserved.
97 LINE_NOISE 50/60 Hz line noise
98 DIAGNOSTIC_HANDLING On/off handling for diagnostics.
99-108 Reserved Reserved.
109 SP_CONTROL Signal Processing Control Code.
110 SP_NOISE_MODE Noise Mode.
111 SP_NUM_SAMPS Signal Processing Number of Samples.
112 SP_PERCENT_LIMIT Signal Processing Percent Limit
113 SP_TIME_LIMIT Signal Processing Time Limit
114 LICENSE_KEY Key/password to enable diagnostic features.
Any changes to the licensing will be shown in
the LICENSE_STATUS parameter.
115 LICENSE_STATUS Bit mask that shows which diagnostics are
licensed.
116 METER_VERIF_TEST_SCOPE Scope of the Flowmeter Verification Test.
Note: This parameter needs to be configured
before the Meter Verification is started via the
PERFORM_METER_VERIFY parameter.
Index Parameter Name Description
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
G-4
117 METER_VERIF_TEST_COND_IN Incoming Test Condition of the Flowmeter
Verification Test
Note: This parameter needs to be configured
before the Meter Verification is started via the
PERFORM_METER_VERIFY parameter.
118 METER_VERIF_TEST_COND_OUT Actual Test Condition of the Flowmeter
Verification Test.
119 METER_VERIF_CRITERIA Test limits that the Flowmeter Verification Test
was ran against.
120 METER_VERIF_RESULT Flowmeter Verification Test summary result.
121 COIL_RESIST_RESULT Coil Resistance Test Result, part of the
Flowmeter Verification Test.
122 COIL_INDUCT_RESULT Coil Inductance Test Result, part of the
Flowmeter Verification Test.
123 ELECT_RESIST_RESULT Electrode Resistance Test Result, part of the
Flowmeter Verification Test.
124 INT_SIM_RESULT Internal Simulator Test Result, part of the
Flowmeter Verification Test.
125 Reserved Reserved.
126 COIL_INDUCT_VALUE Coil Inductance value.
127 COIL_INDUCT_DEVIATION Coil Inductance Deviation.
128 COIL_INDUCT_FINGERPRINT Coil Inductance Fingerprint.
Note: These values should be made Read
Only in the DD. Only reset by the factory
parameter NV_RESET, not by the RESTART
w/ defaults.
129 COIL_RESIST_VALUE Coil Resistance value
130 COIL_RESIST_FINGERPRINT Coil Resistance Fingerprint
Note: These values should be made Read
Only in the DD. Only reset by the factory
parameter NV_RESET, not by the RESTART
w/ defaults.
131 ELECT_RESIST_VALUE Electrode Resistance value
132 ELECT_RESIST_FINGERPRINT Electrode Resistance Fingerprint
133 INT_SIM_DEVIATION The internal flow simulator reading as a
percent deviation from the reference value.
134 INT_SIM_REF_VALUE Internal Flow Simulator Reference Value
135 INT_SIM_VALUE The internal flow simulator reading.
136 METER_VERIF_EP_LIM Flowmeter Verification Limit – Empty Pipe
condition.
137 METER_VERIF_FLOWING_LIM Flowmeter Verification Limit – Flowing
condition.
138 METER_VERIF_NO_FLOW_LIM Flowmeter Verification Limit – No Flow
condition.
139 RECALL_FINGERPRINT_VALUES Perform a recall of the previous fingerprint
values.
140 PERFORM_REFINGERPRINT_FLO
WTUBE
Perform the re-fingerprint command.
Note: The parameter
FINGERPRINT_SELECT needs to be
configured before the Refingerprint operation
is started.
141 PERFORM_METER_VERIFY Perform the meter verification command.
Note: The parameter
METER_VERIF_TEST_SCOPE and
METER_VERIF_TEST_COND_IN needs to
be configured before the Refingerprint
operation is started.
Index Parameter Name Description
Reference Manual
00809-0100-4665, Rev AA
August 2010
G-5
Rosemount 8732
142 FINGERPRINT_SELECT Components to re-fingerprint.
Note: This parameter needs to be configured
before the Refingerprint operation is started
via the
PERFORM_REFINGERPRINT_FLOWTUBE
parameter.
143 SENSOR_RANGE_LO Sensor range parameter used to calculate if
the PV value is falling outside the sensor
limits to generate diagnosis indication to Host.
144 SENSOR_RANGE_HI Sensor range parameter used to calculate if
the PV value is falling outside the sensor
limits to generate diagnosis indication to Host.
145 SENSOR_RANGE_GAP The gap in ft./s that need be the their between
the parameters SENSOR_RANGE_LO &
SENSOR_RANGE_HI.
146 PV_LOI_TIME Time in seconds for which the LOI should
show the value of volume flow. 0 indicates
that the volume flow shall not be displayed on
the LOI. If all the totalizer display timings are
also 0 then the LOI shall default to show the
volume flow value.
147 T1_LOI_TIME Time in seconds for which the LOI should
show the value of totalizer-1. 0 indicates that
the totalizer-1 value shall not be displayed on
the LOI.
148 T2_LOI_TIME Time in seconds for which the LOI should
show the value of totalizer-2. 0 indicates that
the totalizer-2 value shall not be displayed on
the LOI.
149 T3_LOI_TIME Time in seconds for which the LOI should
show the value of totalizer-3. 0 indicates that
the totalizer-3 value shall not be displayed on
the LOI.
150 VIEW_1_TB View object 1 of the transducer block.
Index Parameter Name Description
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
G-6
Reference Manual
00809-0100-4665, Rev AA
August 2010 Rosemount 8732
www.rosemount.com
Appendix H GSD File for Rosemount 8732E
Magnetic Flow Transmitter
Profibus DP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page H-1
Module Related Information . . . . . . . . . . . . . . . . . . . . . . . page H-2
Extended Diagnostic Bytes - Manufacturer Specific . . . . page H-3
Description of the module assignment . . . . . . . . . . . . . . page H-4
PROFIBUS DP
BASIC DP SLAVE
RELATED KEYWORDS
GSD Revision 1
Vendor Name Rosemount
Model Name Rosemount Flow 8732E
Revision V1.00
Ident Number 0x0C15
Protocol Ident 0; 0 = Profibus-DP
Station Type 0 = DP-Slave
FMS supp 0; 0 = Only DP Slave
Hardware Release V1.0
Bitmap Device V1.0
31.25 supp RFD0C15
45.45 supp 1
93.75 supp 1
MaxTsdr 31.25 1
MaxTsdr 45.45 100
MaxTsdr 93.75 250
Redundancy 1000
Repeater Ctrl_Sig 0; No Redundancy supported
24V Pins Not Connected
Implementation Type Custom SW/HW
Freeze Mode supp 0
Sync Mode supp 0
Auto Baud supp 0
Set Slave Add supp 1
Min Slave Intervall 250; in 100 us
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
H-2
MODULE RELATED
INFORMATION
DESCRIPTION OF
EXTENDED DP
FEATURES
DESCRIPTION OF
PHYSICAL INTERFACE
FOR ASYNC. AND SYNC.
TRANSMISSION
DESCRIPTION OF
DEVICE RELATED
DIAGNOSIS
Modular Station 1; 1: Modular Device
MaxModule 4 ;No. of(AI + Totalizer): 1-AI, 3-Totalizer
Max Input Len 20 ; Max Module x 5 Bytes - 5 * (1 AI + 3 TOT)
Max Output Len 6 ; No. of TOT x 2 Bytes - 2 * (3 TOT)
Max Data Len 6 ; Max_Input_Length + Max Output Length
Slave Family 12 ;Definition for Profibus PA
Profile(independent\;of used Physicsl layer)
Max Diag Data Len
20 ;6 bytes (Standard Diagnostics) + 1
Byte\;(Ext.Diag. Header) + 7 Bytes (Ext.
Diag.\;Std.) + 2 Bytes (Ext. Diag.
Manufacturer)
Ext User Prm Data Const(0) 3
Ext User Prm Data Const(0) 0x00, 0x00, 0x00
DPV1_Slave 1;Device conforms to DP-V1
C2 Read Write supp 1
C2 Max Data Len 128
C2 Read Write required 1
C2 Max Count Channels 1
Max Initiate PDU Length 52 ; 48(Data) + 4(Header)
C2 Response Timeout 4000
DPV1 Data Types 0
REVIEW Rosemount Device is PA device
Physical_Interface 0 ; RS-485 Standard Copper
Transmission Delay 45.45 0
Reaction Delay 45.4 0
Transmission Delay 93.75 0
Reaction Delay 93.75 0
End Physical Interface
Physical Interface 1 ; IEC61158-2 - MBP
Transmission Delay 31.25 0
Reaction Delay 31.25 0
End Physical Interface
Unit Diag Bit(16) Error appears
Unit Diag Bit(17) Error disappears
Unit Diag Bit(24) Hardware failure electronics
Unit Diag Bit(25) Hardware failure mechanics
Unit Diag Bit(26) Motor temperature too high
Unit Diag Bit(27) Electronic temperature too high
Unit Diag Bit(28) Memory error
Unit Diag Bit(29) Measurement failure
Unit Diag Bit(30) Device not initialized
Unit Diag Bit(31) Device initialization failed
Unit Diag Bit(32) Zero point error
Unit Diag Bit(33) Power supply failed
Reference Manual
00809-0100-4665, Rev AA
August 2010
H-3
Rosemount 8732
EXTENDED DIAGNOSTIC
BYTES -
MANUFACTURER
SPECIFIC
MODULE DETAILS
Unit Diag Bit(34) Configuration invalid
Unit Diag Bit(35) Restart
Unit Diag Bit(36) Coldstart
Unit Diag Bit(37) Maintenance required
Unit Diag Bit(38) Characteristics invalid
Unit Diag Bit(39) Ident_Number violation
Unit Diag Bit(40) reserved (40)
Unit Diag Bit(41) reserved (41)
Unit Diag Bit(42) reserved (42)
Unit Diag Bit(43) reserved (43)
Unit Diag Bit(44) reserved (44)
Unit Diag Bit(45) reserved (45)
Unit Diag Bit(46) reserved (46)
Unit Diag Bit(47) reserved (47)
Unit Diag Bit(48) reserved (48)
Unit Diag Bit(49) reserved (49)
Unit Diag Bit(50) reserved (50)
Unit Diag Bit51) reserved (51)
Unit Diag Bit52) reserved (52
Unit Diag Bit(53) reserved (53
Unit Diag Bit(54) reserved (54)
Unit Diag Bit(55) Extension Available
Unit Diag Bit(16) Error appears
Unit Diag Bit(56) E01:DSP HW not cmptbl with SW
Unit Diag Bit(57) E02:Electronics Failure
Unit Diag Bit(58) E03:Coil Drive Open Circuit
Unit Diag Bit(59) E04:Empty Pipe Detected
Unit Diag Bit(60) E05:Electronics Trim Failure
Unit Diag Bit(61 E06:Auto Zero Failure
Unit Diag Bit(62) E07:Sensor Hi Limit Exceeded
Unit Diag Bit(63) E08:Sensor Processor Not Commn
Unit Diag Bit(64) E09:Universal Trim Failure
Unit Diag Bit(65) E10:Reverse Flow Detected
Unit Diag Bit(66) E11:Elex. Temp. Out of Range
Unit Diag Bit(67) E12:High Process Noise
Unit Diag Bit(68) E13:Grounding/Wiring Fault
Empty module Module EMPTY_MODULE 0x00 1EndModule
Modules for flow meter Module AI 0x94 2EndModule
Module TOTAL 0x41,0x84,0x85 3EndModule
Module SETTOT_TOTAL"
0xC1,0x80,0x84,0x85
4EndModule
Module SETTOT_MODETOT_TOTAL"
0xC1,0x81,0x84,0x85
5EndModule
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
H-4
DESCRIPTION OF THE
MODULE ASSIGNMENT The numbers corresponding against a particular slot indicates which module
is default for this slot. The module references seperated by commas that
follow next indicate which modules are allowed to be inserted into the relevant
slot.
VALID
CONFIGURATIONS
Slot1 & Slot2
Configuration data
SlotDefinition
Slot(1) AI Flow" 2 1,2
Slot(2) Totalizer" 3 1,3,4,5
Slot(3) Totalizer" 3 1,3,4,5
Slot(4) Totalizer" 3 1,3,4,5
AI Total 0x94, 0x41, 0x84, 0x85
AI Total+SetTotal 0x94, 0xC1, 0x80, 0x84, 0x85
AI Total+SetTotal+ModeTotal 0x94, 0xC1, 0x81, 0x84, 0x85
AI Empty 0x94, 0x00
Empty Total 0x00, 0x41, 0x84, 0x85
Empty Total 0x00, 0x41, 0x84, 0x85
Empty Total+SetTotal 0x00, 0xC1, 0x80, 0x84, 0x85v
Empty Total+SetTotal+ModeTotal 0x00, 0xC1, 0x81, 0x84, 0x85
Reference Manual
00809-0100-4665, Rev AA
August 2010
Index-1
Rosemount 8732
A
Action Keys
Handheld Communicator .H-1
AI Block
Configuration . . . . . . . . . 3-2
Assigning Device Tag and Node
Address . . . . . . . . . . . . . . . . 3-2
Auto Zero . . . . . . . . . . . . . . .D-2
B
Block Configuration
AI Block
Flow-specific Block
Configuration 3-2
Bolts
Flanged . . . . . . . . . . . . . 5-7
C
Cables
Conduit . . . . . . . . 2-4, 2-11
Calibration . . . . . . . . . . . . . . . 3-1
Conduit Connections
Installation . . . . . . 2-4, 2-11
Conduit Ports and Connections
Wiring . . . . . . . . . . . . . . 2-4
D
Dedicated Conduit . . . . . . . . 2-10
Diagnostic Messages . . . . . . . 6-3
Digital Signal Processing . . . .D-1
Direction . . . . . . . . . . . . . . . . 5-5
Downstream/Upstream Piping . 5-4
E
Electrical
Considerations . . . . . . . . 2-5
Electrical Considerations . . . . 2-5
Environmental Considerations . 2-3
F
FEATURES, FEATURES_SEL 3-5
Flange Bolts . . . . . . . . . . . . . 5-7
Flanges
Class 150 . . . . . . . . . . . 5-11
Class 300 . . . . . . . . . . . 5-11
Flow Direction . . . . . . . . 5-5, 5-6
Flowtube
Connections . . . . . . . . . 2-10
Orientation . . . . . . . . . . . 5-4
Test . . . . . . . . . . . . . . . . 6-8
Flowtube Calibration Number . 3-1
Flowtubes
Brooks Model 5000 . . . . . E-6
Endress and Hauser Models E-5
Fischer and Porter Model 10D1418
. . . . . . . . . . . . . E-9
Foxboro Series 1800 . . . E-15
Generic Flowtube . . . . . E-26
Kent Flowtubes . . . . . . . E-20
Kent Veriflux VTC . . . . . E-19
Krohne Flowtubes . . . . . E-21
Rosemount Model
8705/8707/8711 . E-3
Taylor Series 1100 . . . . E-22
Yamatake Honeywell Flowtubes
E-24
Yokogawa Flowtubes . . E-25
G
Gaskets . . . . . . . . . . . . . . . . 5-7
Installation
Wafer Flowtube . . . 5-10
Ground Connection
Internal . . . . . . . . . . . . 5-13
Protective . . . . . . . . . . . 5-13
Grounding . . . . . . . . . . . . . 5-12
Grounding Electrodes . . 5-13
Grounding Rings . . . . . . 5-13
Lining Protectors . . . . . . 5-13
Process Grounding . . . . 5-12
H
Handheld Communicator
Action Keys . . . . . . . . . . H-1
I
Installation
Category . . . . . . . . . . . . .2-6
Conduit Connections 2-4, 2-11
Connect 4-20 mA Loop External
Power Source . . .2-7
Considerations . . . . . . . . .2-6
Diagram
Cable Preparation . . 2-11
Field Wiring . . . . . . . .2-9
Electrical . . . . . . . . . . . . .2-7
Environmental Considerations 2-3
Flowtube Connections . .2-10
Mechanical Considerations 2-2
Mounting . . . . . . . . . . . . .2-3
Options . . . . . . . . . . . . . .2-6
Procedures . . . . . . . . . . .2-3
Process Leak
Containment . . . . . .5-17
Relief Valves . . . . . . . . .5-17
Safety Messages . . . 2-1, 5-1
Wafer Flowtube . . 5-10, 5-12
Alignment and Bolting 5-10
Flange Bolts . . . . . . 5-11
Gaskets . . . . . . . . .5-10
Wiring . . . . . . . . . . . . . . .2-7
Installation Category . . . . . . . .2-6
Internal
Ground Connection . . . .5-13
L
Lining Protectors
Grounding . . . . . . . . . . .5-13
M
Mechanical Considerations 2-2, 2-5
Messages
Safety . . . . . . . . . . . . . . .1-2
Mounting . . . . . . . . . . . . . . . .2-3
N
North American Response Center 1-2
O
Operation . . . . . . . . . . . . . . . .3-1
Orientation
Flowtube . . . . . . . . . . . . .5-4
Output Signals . . . . . . . . . . . A-4
Overcurrent Protection . . . . . .2-6
Index
Reference Manual
00809-0100-4665, Rev AA
August 2010
Rosemount 8732
Index-2
P
Piping . . . . . . . . . . . . . . . . . . 5-4
Power Supply Load Limitations A-3
Process Grounding . . . . . . . 5-12
Process Leak
Containment . . . . . . . . . 5-17
Protection
Overcurrent . . . . . . . . . . 2-6
Protective
Ground Connection . . . . 5-13
R
Relief Valves . . . . . . . . . . . . 5-17
Resource Block
FEATURES, FEATURES_SEL
3-5
Parameters . . . . . . . . . . . F-1
S
Safety Messages . . . . . . . . . . 1-2
Signal Processing . . . . . . . . .D-2
Specifications and Reference Data
Functional Specifications
Output Signals . . . . . A-4
Switches . . . . . . . . . . . . . . . . 2-4
T
Transducer Block
Parameters . . . . . . . . . . .G-1
Transmitter Output Instability
Auto Zero . . . . . . . . . . . .D-2
Procedures . . . . . . . . . . .D-2
Signal Processing . . . . . .D-2
Transporting System . . . . . . . 5-3
Troubleshooting
Advanced (Transmitter) . . 6-5
Installed Flowtube Tests . . 6-7
Process Noise . . . . . . . . . 6-7
Uninstalled Flowtube Tests 6-9
Wiring Errors . . . . . . . . . . 6-7
U
Upstream/Downstream Piping . 5-4
Accuracy
Ensuring . . . . . . . . . 5-4
W
Wiring
Conduit Ports and Connections
2-4
Dedicated Conduit . . . . . 2-10
Installation Category . . . . 2-6
Wiring Diagrams
Brooks Model 5000 . . . . . E-6
Endress and Hauser Models E-5
Fisher and Porter Model 10D1418
E-9
Foxboro Series 1800 . . . E-15
Generic Flowtube . . . . . E-26
Kent Flowtubes . . . . . . . E-20
Kent Verifulx VTC . . . . . E-19
Krohne Flowtubes . . . . . E-21
Rosemount Model
8705/8707/8711 . E-3
Taylor Series 1100 . . . . E-22
Yamatake Honeywell Flowtubes
E-24
Yokogawa Flowtubes . . E-25
Emerson Process Management
The Emerson logo is a trade mark and service mark of Emerson Electric Co.
Rosemount and the Rosemount logotype are registered trademarks of Rosemount Inc.
PlantWeb is a registered trademark of one of the Emerson Process Management group of companies.
All other marks are the property of their respective owners.
Standard Terms and Conditions of Sale can be found at www.rosemount.com/terms_of_sale
Reference Manual
00809-0100-4665, Rev AA
August 2010
Emerson Process Management
Flow
Neonstraat 1
6718 WX Ede
The Netherlands
T +31 (0)318 495555
F +31(0) 318 495556
Emerson Process Management Asia
Pacific Private Limited
1 Pandan Crescent
Singapore 128461
T (65) 6777 8211
F (65) 6777 0947
Enquiries@AP.EmersonProcess.com
Rosemount Divison
8200 Market Boulevard
Chanhassen, MN 55317 USA
T (U.S.) 1-800-999-9307
T (International) (952) 906-8888
F (952) 949-7001
www.rosemount.com
Emerson FZE
P.O. Box 17033
Jebel Ali Free Zone
Dubai UAE
Tel +971 4 883 5235
Fax +971 4 883 5312
00809-0100-4665 Rev AA, 8/10

Navigation menu
