Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

Oxygen/Combustibles Transmitter

Hazardous Area OCX 8800 Oxygen/Combustibles Transmitter

with Integral Electronics and Local Operator Interface

HIGHLIGHTS OF CHANGES

Effective January, 2007 Rev 1.0

Page Summary

Page 2-19 Revised Figure 2-11.

Page 3-2 Revised the text for SW1 and SW2 to read internally powered.

Page 3-3 Revised Figure 3-1. Updated the paragraph Initial Power Up.

Page A-2 thru A-23 Added note 11 to the safety data section. Added additional pages/languages.

Page C-1 Updated the return of materials address.

Back cover Updated the address blocks.

Instruction Manual

IM-106-880, Rev 1.0

January 2007 OCX 8800

http://www.raihome.com

Table of Contents

Essential Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ii

Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ii

Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ii

SECTION 1

Description and

Specifications

Component Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

System Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

SECTION 2

Installation

Mechanical

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

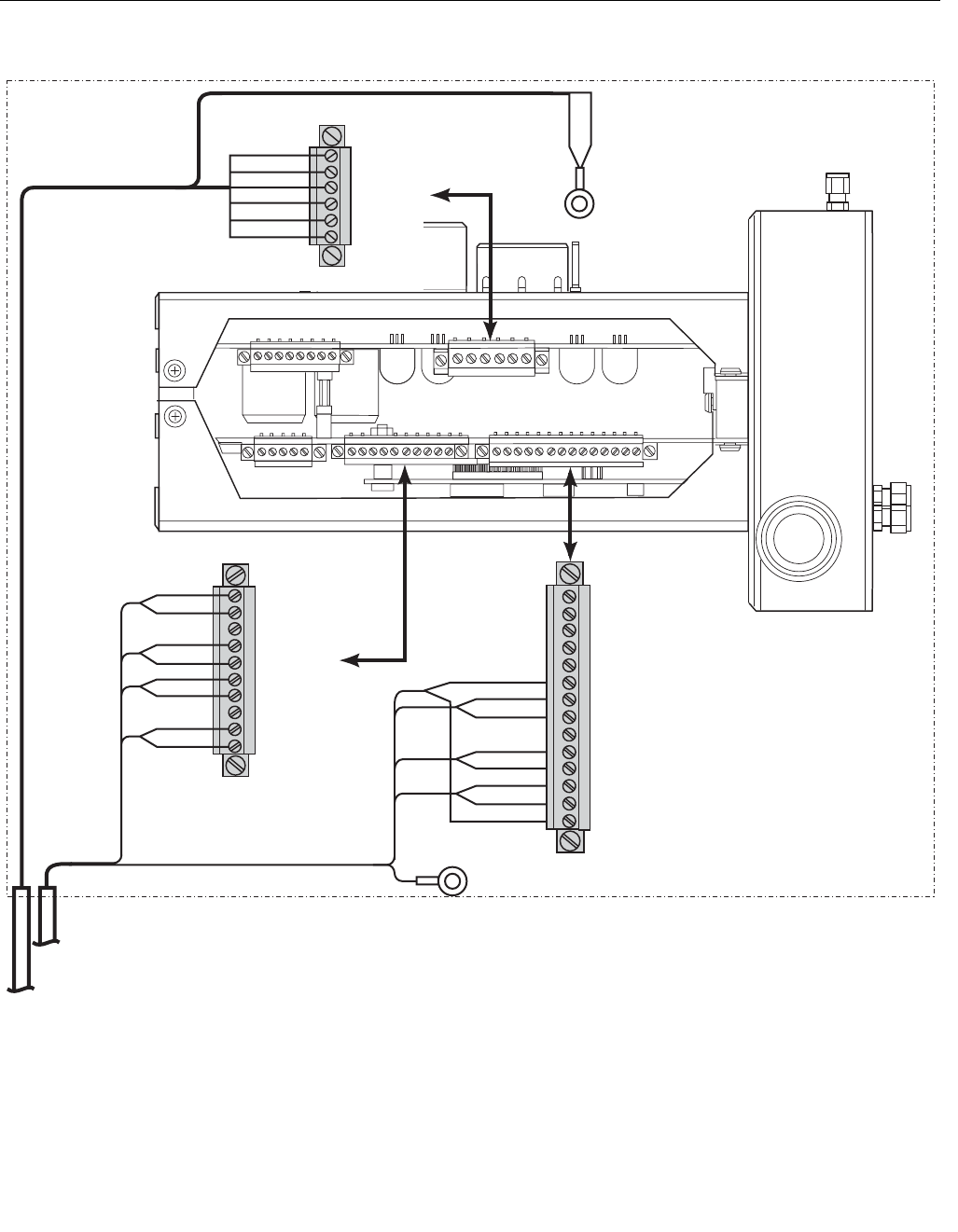

Electrical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Pneumatic Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Initial Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

SECTION 3

Configuration and

Startup

Verify Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Initial Power Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Set Test Gas Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

OCX 8800 Reset Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

SECTION 4

Using the LOI

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Display Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

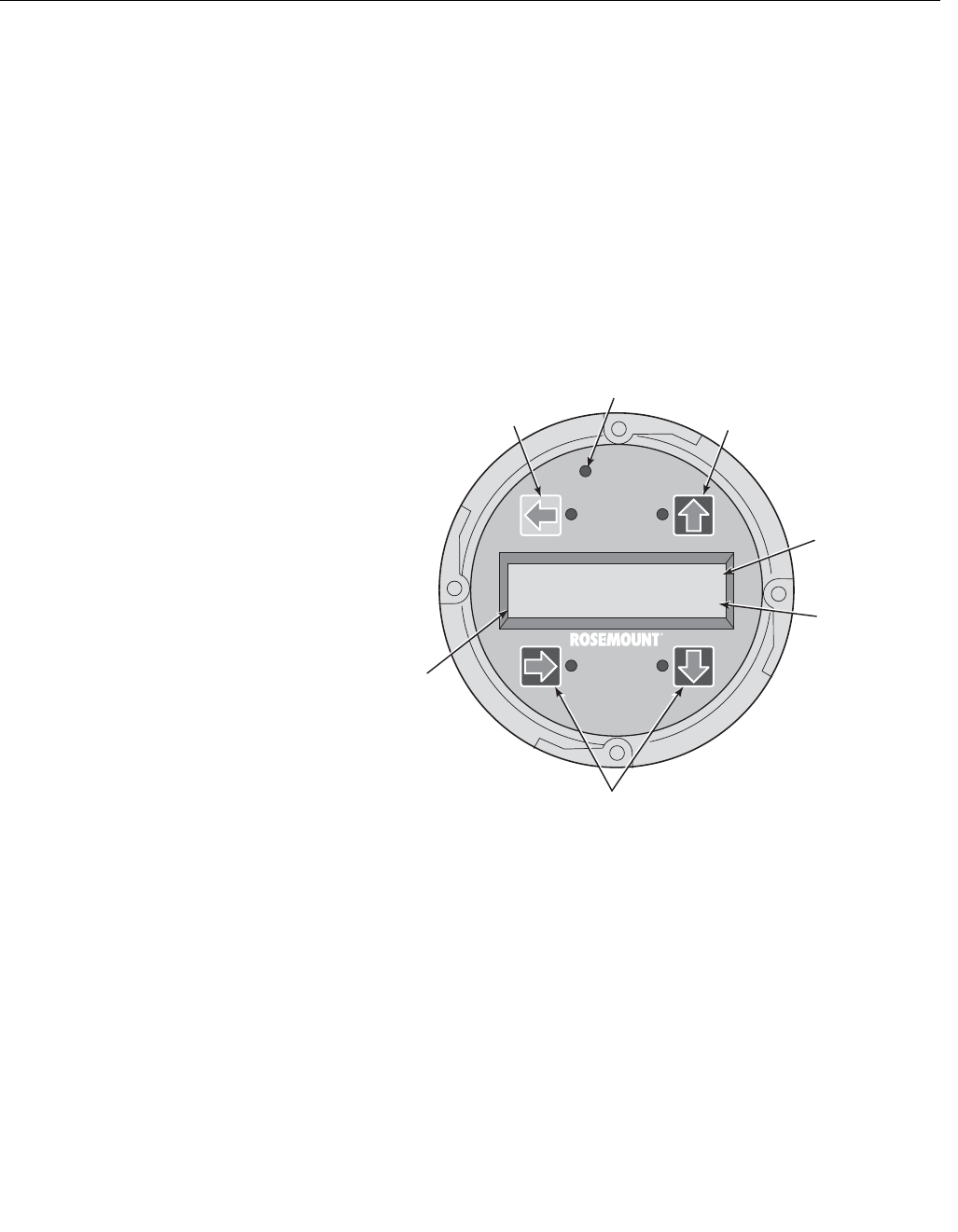

LOI Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

LOI Key Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

LOI Status Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

LOI Menu Tree. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

D/A Trim Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

SECTION 5

Using HART

Communications

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

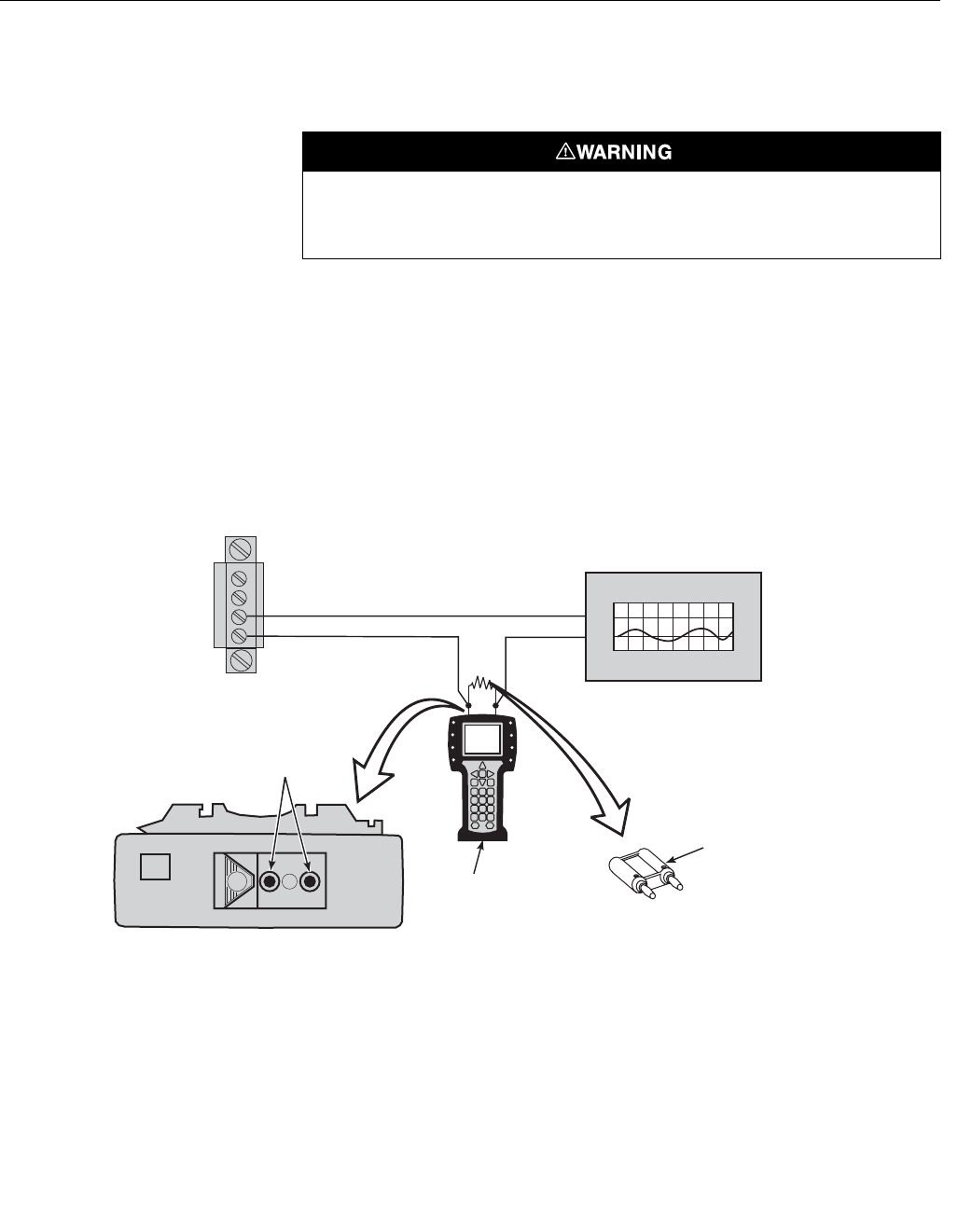

HART Communicator Signal Connections. . . . . . . . . . . . . . . . . . . . . . 5-1

HART Communicator PC Connections . . . . . . . . . . . . . . . . . . . . . . . . 5-4

HART Menu Tree. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

D/A Trim Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

SECTION 6

Calibration

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Fully Automatic Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Operator - Initiated Autocalibration . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Manual Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

TOC-2

SECTION 7

Maintenance and Service

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

OCX 8800 Removal

and Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

OCX with

Integral Electronics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

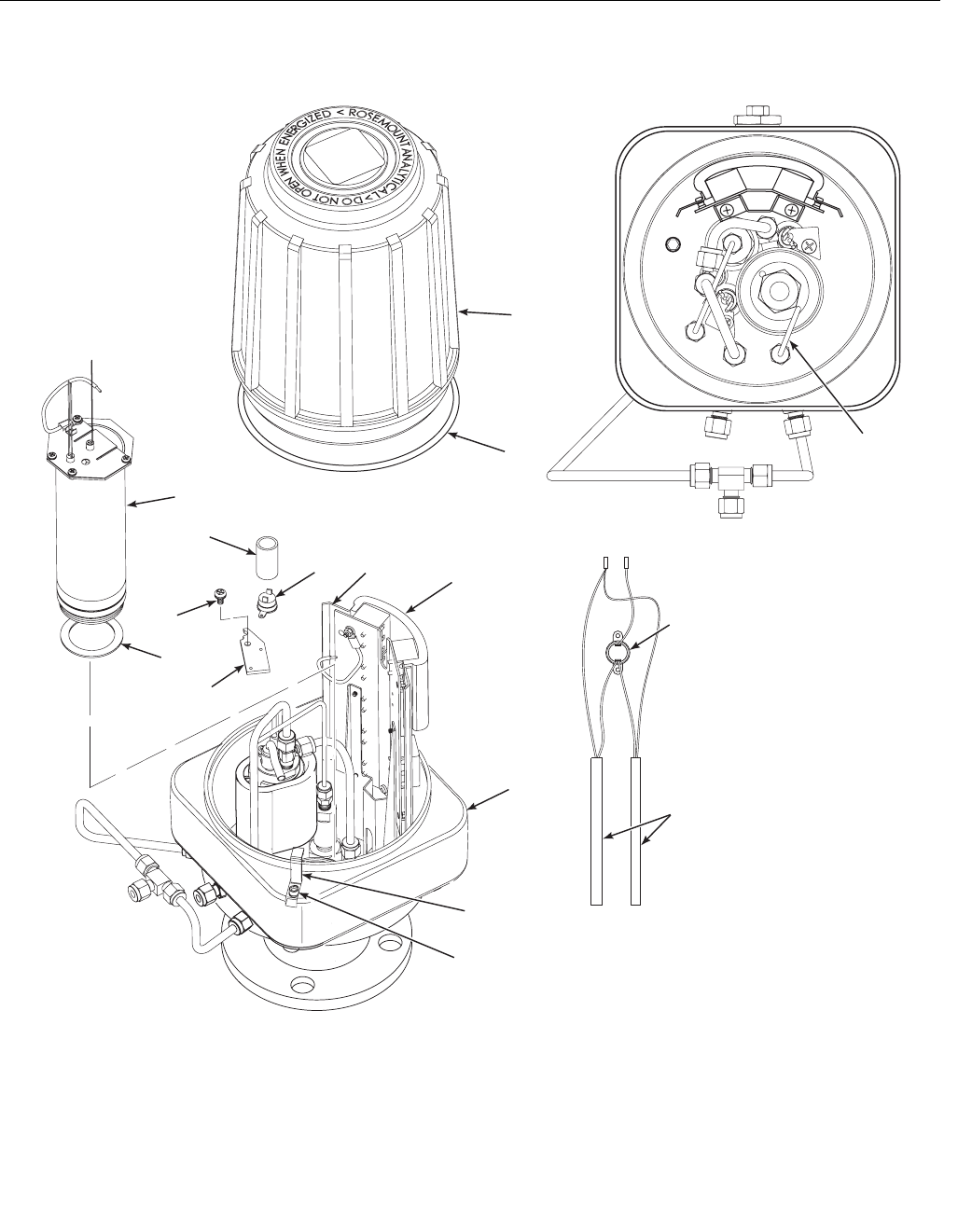

Repair Sensor Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5

Sensor Housing Disassembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5

Sensor Housing Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15

Repair Electronics Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-25

Electronics Housing Disassembly . . . . . . . . . . . . . . . . . . . . . . . . 7-25

Electronics Housing Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-28

Replace Tube Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-31

Remove Tube Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-31

Install Tube Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32

SECTION 8

Troubleshooting

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Grounding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Electrical Noise. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Electrostatic Discharge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Total Power Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

Diagnostic Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

Fault Isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3

Alarm Relay Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11

SECTION 9

Replacement Parts

Sensor Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2

Electronics Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6

O2 Cell and Heater Strut Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . 9-9

APPENDIX A

Safety Data

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Safety Data Sheet for Ceramic Fiber Products . . . . . . . . . . . . . . . . . A-24

High Pressure Gas Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-29

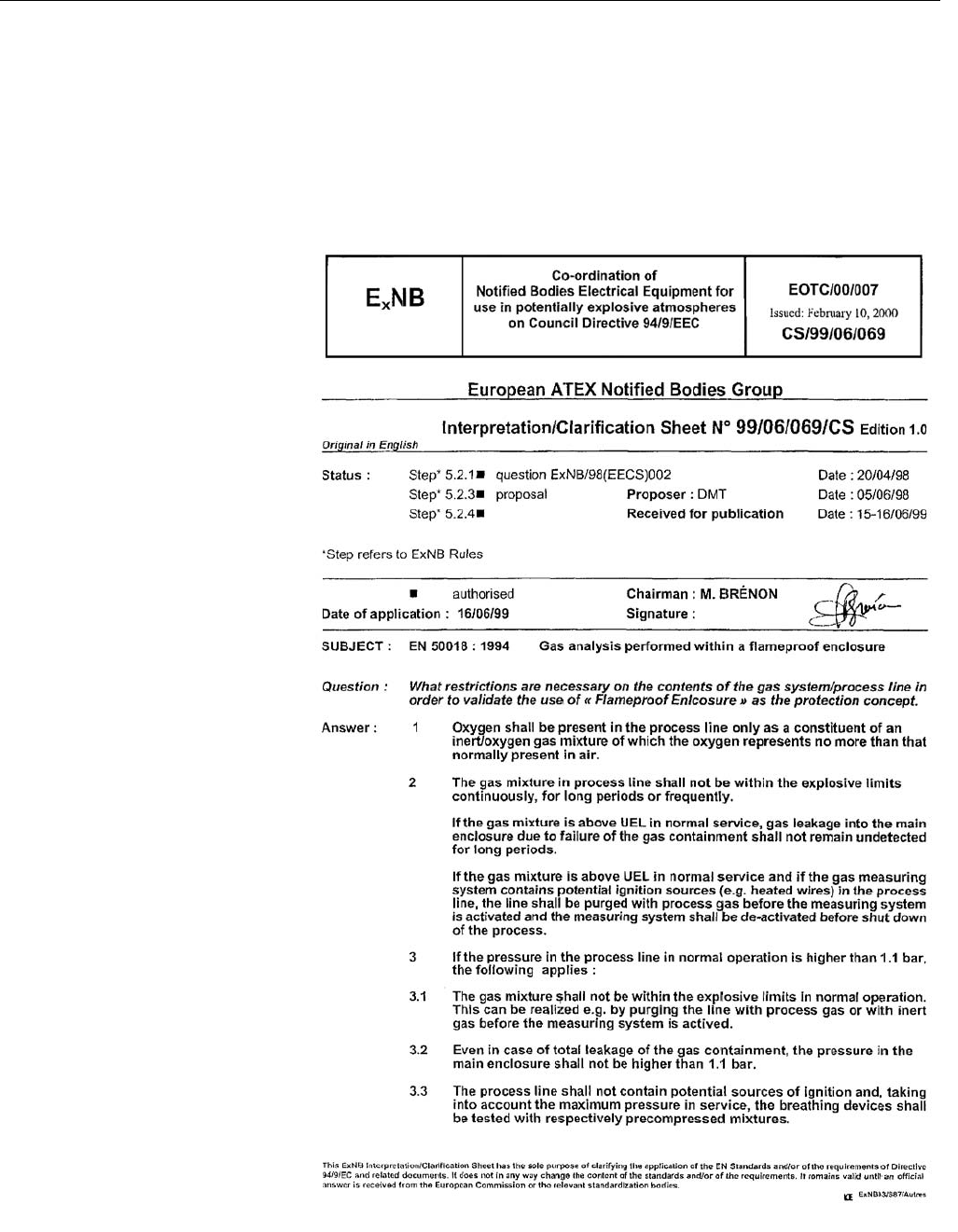

Atex Clarification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-31

APPENDIX B

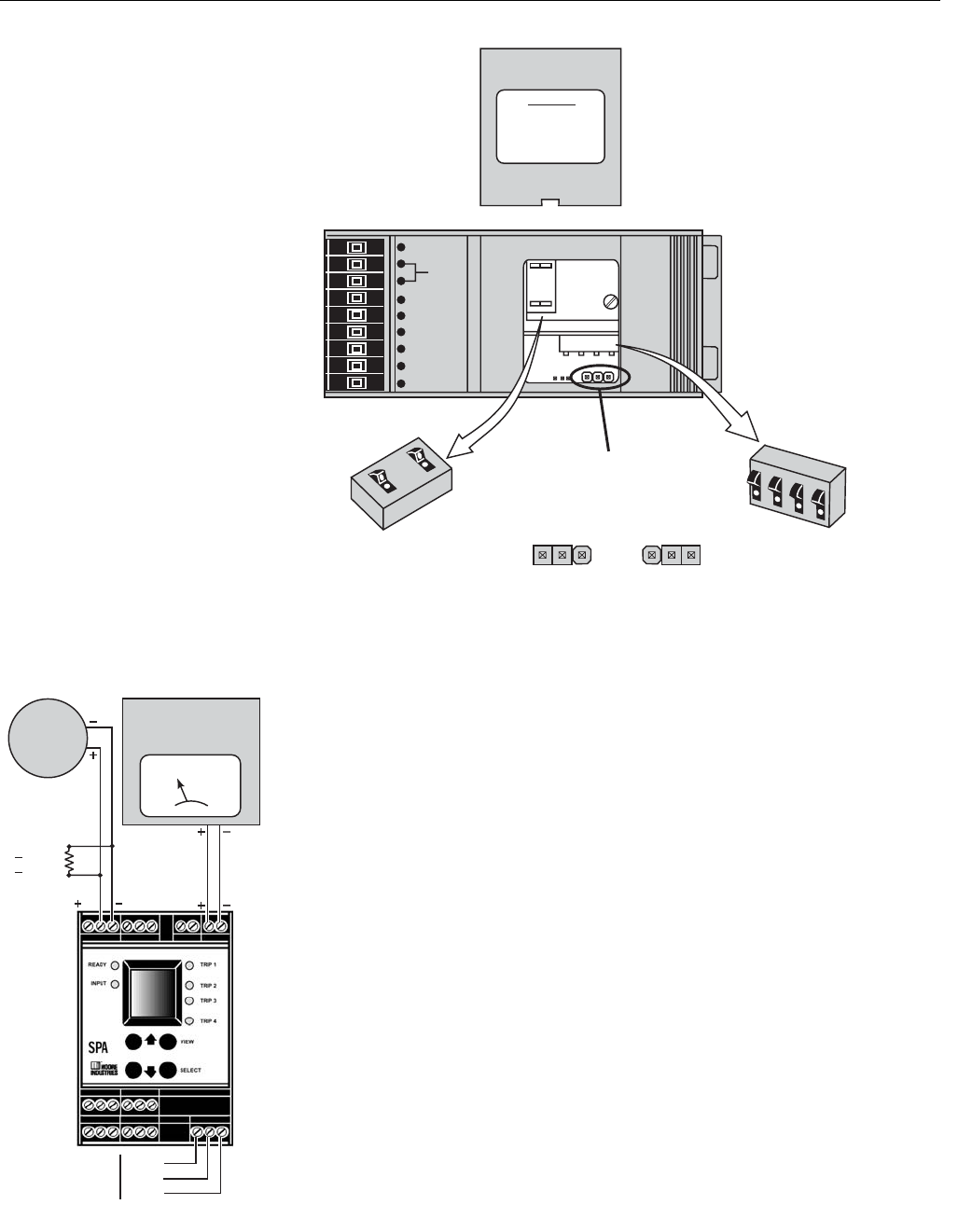

SPA with HART Alarm

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-2

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-2

APPENDIX C

Return of Materials

Returning Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-1

Instruction Manual

IM-106-880, Rev 1.0

January 2007 OCX 8800

http://www.raihome.com

OCX 8800

Oxygen/Combustibles Transmitter

ESSENTIAL

INSTRUCTIONS

READ THIS PAGE BEFORE PROCEEDING!

Emerson Process Management designs, manufactures and tests its products

to meet many national and international standards. Because these

instruments are sophisticated technical products, you MUST properly install,

use, and maintain them to ensure they continue to operate within their

normal specifications. The following instructions MUST be adhered to and

integrated into your safety program when installing, using, and maintaining

Emerson’s Rosemount Analytical products. Failure to follow the proper

instructions may cause any one of the following situations to occur: Loss of

life; personal injury; property damage; damage to this instrument; and

warranty invalidation.

•Read all instructions prior to installing, operating, and servicing the

product.

• If you do not understand any of the instructions, contact your

Emerson Process Management representative for clarification.

•Follow all warnings, cautions, and instructions marked on and

supplied with the product.

•Inform and educate your personnel in the proper installation,

operation, and maintenance of the product.

•Install your equipment as specified in the Installation Instructions

of the appropriate Instruction Manual and per applicable local and

national codes. Connect all products to the proper electrical and

pressure sources.

• To ensure proper performance, use qualified personnel to install,

operate, update, program, and maintain the product.

• When replacement parts are required, ensure that qualified people use

replacement parts specified by Emerson Process Management.

Unauthorized parts and procedures can affect the product's

performance, place the safe operation of your process at risk, and

VOID YOUR WARRANTY. Look-alike substitutions may result in fire,

electrical hazards, or improper operation.

• Ensure that all equipment doors are closed and protective covers

are in place, except when maintenance is being performed by

qualified persons, to prevent electrical shock and personal injury.

The information contained in this document is subject to change without

notice.

If a Model 275/375 Universal HART® Communicator is used with this unit, the software

within the Model 275/375 may require modification. If a software modification is required,

please contact your local Emerson Process Management Service Group or National

Response Center at 1-800-654-7768.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

PREFACE The purpose of this manual is to provide a comprehensive understanding of

the OCX 8800 components, functions, installation, and maintenance.

We recommend that you thoroughly familiarize yourself with the Introduction

and Installation sections before installing your transmitter.

The introduction presents the basic principles of the transmitter along with its

performance characteristics and components. The remaining sections contain

detailed procedures and information necessary to install and service the

transmitter.

Before contacting Emerson Process Management concerning any questions,

first consult this manual. It describes most situations encountered in your

equipment's operation and details necessary action.

DEFINITIONS The following definitions apply to WARNINGS, CAUTIONS, and NOTES

found throughout this publication.

NOTE

Highlights an essential operating procedure, condition, or statement.

SYMBOLS

NOTE TO USERS

The number in the lower right corner of each illustration in this publication is a

manual illustration number. It is not a part number, and is not related to the

illustration in any technical manner.

Highlights an operation or maintenance procedure, practice, condition, statement, etc. If not

strictly observed, could result in injury, death, or long-term health hazards of personnel.

Highlights an operation or maintenance procedure, practice, condition, statement, etc. If not

strictly observed, could result in damage to or destruction of equipment, or loss of

effectiveness.

: EARTH (GROUND) TERMINAL

: PROTECTIVE CONDUCTOR TERMINAL

: RISK OF ELECTRICAL SHOCK

: WARNING: REFER TO INSTRUCTION BULLETI

Instruction Manual

IM-106-880, Rev 1.0

January 2007 OCX 8800

http://www..raihome.com

Section 1 Description and Specifications

Component Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-1

System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-1

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-9

COMPONENT

CHECKLIST

A typical OCX 8800 Oxygen/Combustibles Transmitter package should

contain the items shown in Figure 1-1.

Use the product matrix in Table 1-1 at the end of this section to verify your

order number. The first part of the matrix defines the model. The last part

defines the various options and features of the OCX 8800. Check the model

number against the transmitter features and options, making sure options

specified by this number are on or included with the unit. Use this complete

model number for any correspondence with Emerson Process Management.

A list of accessories for use with the OCX 8800 is provided in Table 1-2.

SYSTEM OVERVIEW Scope

This Instruction Manual supplies details needed to install, startup, operate,

and maintain the OCX 8800. Signal conditioning electronics outputs separate

4-20 mA signals representing oxygen (O2) and combustibles (COe) values.

This information, plus additional details, can be accessed with the HART

Model 275/375 handheld communicator or Rosemount Analytical AMS

software. The local operator interface (LOI) also provides a communications

interface with the electronics.

System Description

The OCX 8800 is designed to measure oxygen and combustible

concentrations in flue gas temperatures up to 2600°F (1427°C). Electrical

connections, power and communications are made through two 3/4 NPT ports

in the flameproof electronics enclosure using fittings and cables provided by

the customer. Cable installation must meet NEC, IEC and/or other applicable

national or local codes for Class I, Zone 1, Group IIB +H2 T3/T6 permanently

mounted equipment. The transmitter is close coupled to the process and

requires minimal sample conditioning requirements.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

1-2

Figure 1-1. Typical System Package

1. Instruction Manual

2. HART®Communicator Package (optional)

3. Adapter Plate with Mounting Hardware and Gasket

4. Reference Air and Calibration Set

5. Blowback Hardware (optional)

6. OCX 8800 with Integral Electronics

37390006

HART Communicator

FISHER-ROSEMOUNT

MAN 4275A00

English

October 1994

Analytica

Instruction Manual

IM-106-880, Rev 1.0

January 2007

1-3

OCX 8800

The equipment measures oxygen percentage by reading the voltage

developed across a heated electrochemical cell, which consists of a small

yttria-stabilized, zirconia disc. Both sides of the disc are coated with porous

metal electrodes. When operated at the proper temperature, the millivolt

output of the cell is given by the following Nernst equation:

EMF = KT log10 (P1/P2) + C

Where:

1. P2 is the partial pressure of the oxygen in the measured gas on one side

of the cell.

2. P1 is the partial pressure of the oxygen in the reference air on the

opposite side of the cell.

3. T is the absolute temperature.

4. C is the cell constant.

5. K is an arithmetic constant.

NOTE

For best results, use clean, dry instrument air (20.95% oxygen) as the

reference air.

When the cell is at operating temperature and there are unequal oxygen

concentrations across the cell, oxygen ions will travel from the high oxygen

partial pressure side to the low oxygen partial pressure side of the cell. The

resulting logarithmic output voltage is approximately 50 mV per decade. The

output is proportional to the inverse logarithm of the oxygen concentration.

Therefore, the output signal increases as the oxygen concentration of the

sample gas decreases. This characteristic enables the OCX 8800 to provide

exceptional sensitivity at low oxygen concentrations.

The OCX 8800 measures net oxygen concentration in the presence of all the

products of combustion, including water vapor. Therefore, it may be

considered an analysis on a "wet" basis. In comparison with older methods,

such as the portable apparatus, which provides an analysis on a "dry" gas

basis, the "wet" analysis will, in general, indicate a lower percentage of

oxygen. The difference will be proportional to the water content of the

sampled gas stream.

The OCX 8800 combustibles sensor is a catalytic sensor consisting of two

Resistance Devices (RTD). One RTD is the reference element covered with

an inert coating. The other RTD element is active, coated with a catalyst. As

the sample gases flow by the sensor, the combustible gases oxidize on the

surface of the active element. The oxidation that occurs produces heat and a

temperature rise in the active element. The temperature difference produces

a resistance relationship between the two elements that is directly

proportional to the concentration of combustibles in the sample gases.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

1-4

The catalyst is specifically designed to detect carbon monoxide (CO), but the

sensor responds to other combustible gases. The sensor is calibrated using

CO, thus the output should be expressed in terms of CO. However, since the

sensor detects other combustible gases, the output cannot just be labeled

CO. The response of the sensor to other combustible gases gives an output

that is equivalent to the sensor detecting CO. The term COe is used in this

manual to describe the sensor output. This term indicates that the sensor is

calibrated in terms of CO, and that the sensor output is equivalent to CO but

not specific to CO.

Dilution air is provided to the COe sensor to ensure there is adequate oxygen

to fully oxidize any combustible gases regardless of the concentration of

oxygen in the process.

System Configuration

Transmitters are available in four lengths, giving the user the flexibility to use

a penetration appropriate to the size of the stack or duct. The length options

are 18 in. (457 mm), 3 ft (0.91 m), 6 ft (1.83 m), or 9 ft (2.7 m). Probes are

available in three material options, 316L stainless steel, inconel 600, and

ceramic to accommodate higher temperatures.

The electronics are contained in a separate housing from the sensors. The

electronics and sensor housings are integrally mounted.

The electronics control both sensor temperatures and provide individual 4-20

mA isolated outputs that are proportional to the measured oxygen and

combustibles concentrations. The power supply can accept voltages of 100 to

240 VAC and 50 to 60 Hz. The electronics accepts millivolt signals generated

by the sensors and produces the outputs to be used by remotely connected

devices. The outputs are isolated 4-20 mA linearized currents. Refer to

Section 3, Configuration and Startup for specific instructions upon initial

power up.

System Features

1. The O2 cell output voltage and sensitivity increase as the oxygen

concentration decreases.

2. HART communication is standard. To use the HART capability, you

must have either:

a. HART Model 275/375 Communicator.

b. AMS software for the PC.

3. Oxygen cell and heater/thermocouple assembly are field replaceable.

4. Electronics are automatically configured for line voltages from 100 to

240 VAC.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

1-5

OCX 8800

5. An operator can calibrate and diagnostically troubleshoot the OCX 8800

in one of two ways:

a. LOI. The LOI is mounted to the end of the electronics module and

allows local communications with the electronics. Refer to Section 4,

Using the LOI, for more information.

b. Optional HART Interface. Each of the OCX 8800's 4-20 mA output

lines transmit an analog signal proportional to oxygen or combustible

levels detected. The HART output is superimposed on the oxygen

4-20 mA output line only. This information can be accessed through

the following:

• Model 275/375 Handheld Communicator - The handheld

communicator requires Device Description (DD) software specific

to the OCX 8800. The DD software will be supplied with many

Model 275/375 units, but can also be programmed into existing

units at most Emerson Process Management service offices.

Refer to Section 5, Using HART Communications, for additional

information.

• Personal Computer (PC) - The use of a personal computer

requires AMS software available from Emerson Process

Management.

• Selected Distributed Control Systems - The use of distributed

control systems requires input/output (I/O) hardware and AMS

software which permit HART communications.

6. Optional Blowback System. The blowback system periodically blows

instrument air back through the sample line filter and out the sample

tube. This clears out particulate and keeps the sample line filter from

clogging.

System Operation

Figure 1-2 shows the relationship between the components of the OCX 8800.

The sensors and the electronics are contained in separate housings. The

sensor housing and probe mounts to a duct or process wall so that the probe

protrudes into the flue gas stream. An air powered eductor continuously pulls

samples of the process flue gas through the probe to a chamber in front of the

sensor housing where the sample passes the O2 sensor and continues on to

the COe sensor. Dilution air is provided to the COe sensor and reference air

to the O2 sensor. After the gas sample flows past the O2 sensor and through

the COe sensor, it is drawn through the eductor where it mixes with the

eductor air and exits through exhaust back into the system. The electronics

housing contains the CPU and HART boards which convert the sensor inputs

into 4-20 mA analog output signals. The CPU can also initiate and perform

calibrations. Three test gasses and instrument air can be turned on and off by

solenoids. Test gas flow to the sensors is regulated by a flow meter between

the electronics and sensor housings. Instrument air is separated into eductor

air, reference air, and dilution air. The instrument air solenoid does not allow

air flow until the heaters are up to temperature. This minimizes the amount of

sampled process flue gas being pulled into cold sensors causing

condensation.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

1-6

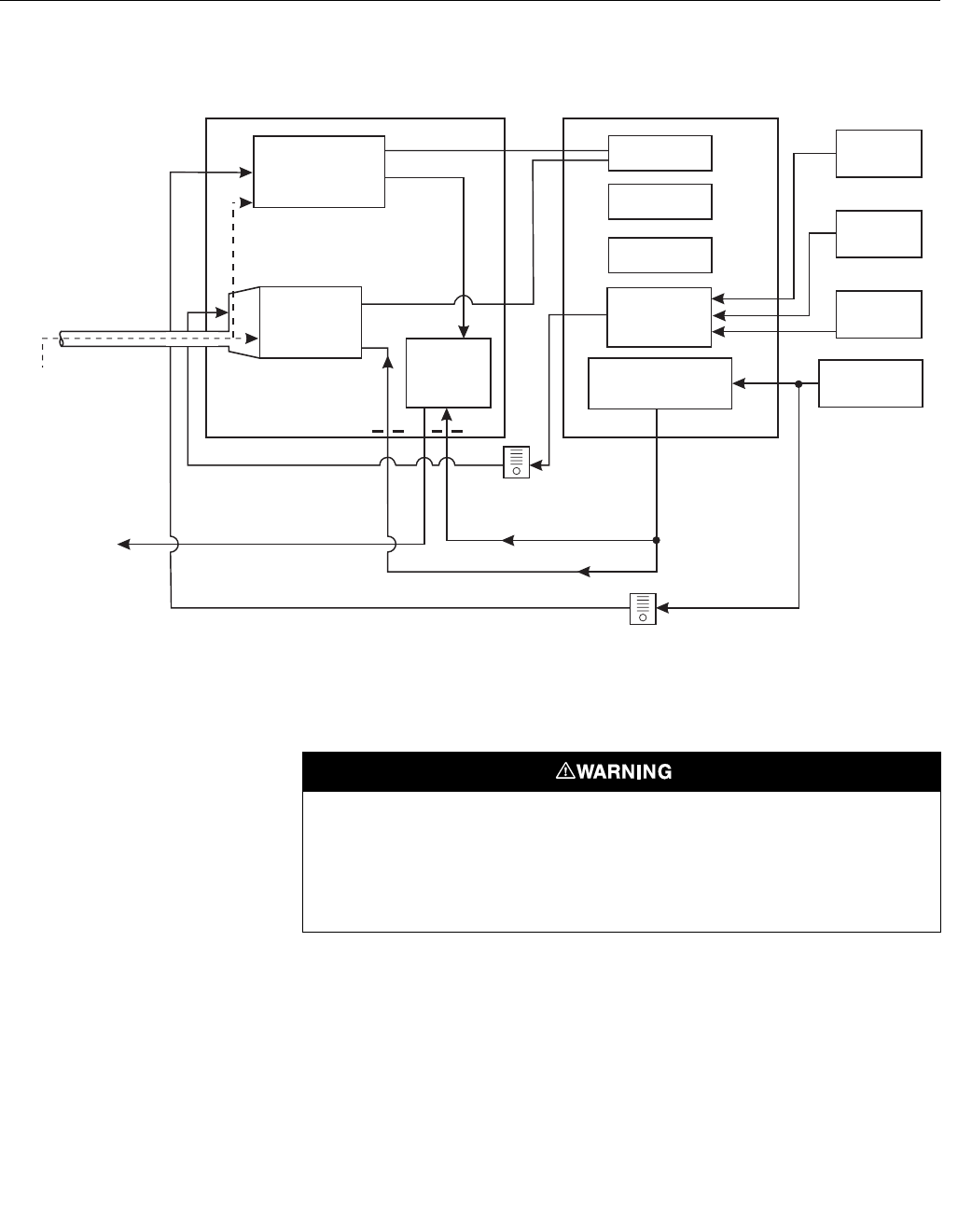

Figure 1-2. System Operation Diagram

Handling the OCX 8800

System Considerations

Prior to installing your OCX 8800, make sure you have all the components

necessary to make the system installation. Ensure all the components are

properly integrated to make the system functional.

Low O

Test Gas

COe

Combustibles

Sensor

Eductor

Probe

Exhaust

CPU

HART

Board

Optional

Test Gas

Solenoids

Instrument Air

Solenoid

High O

Test Gas

Instrument

Air

Dilution Air

Reference Air

Eductor Air

Flow Meter

50 cc/min.

(

0.1 scfh

)

SENSOR

HOUSING

ELECTRONICS

HOUSING

Flow Meter

7 scfh

37390001

Sample

Gas

Power

Supply

It is important that printed circuit boards and integrated circuits are handled only when

adequate antistatic precautions have been taken to prevent possible equipment damage.

The OCX 8800 is designed for industrial application. Treat each component of the system

with care to avoid physical damage. The probe may contain components made from

ceramics, which are susceptible to shock when mishandled.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

1-7

OCX 8800

After verifying that you have all the components, select mounting locations

and determine how each component will be placed in terms of available line

voltage, ambient temperatures, environmental considerations, convenience,

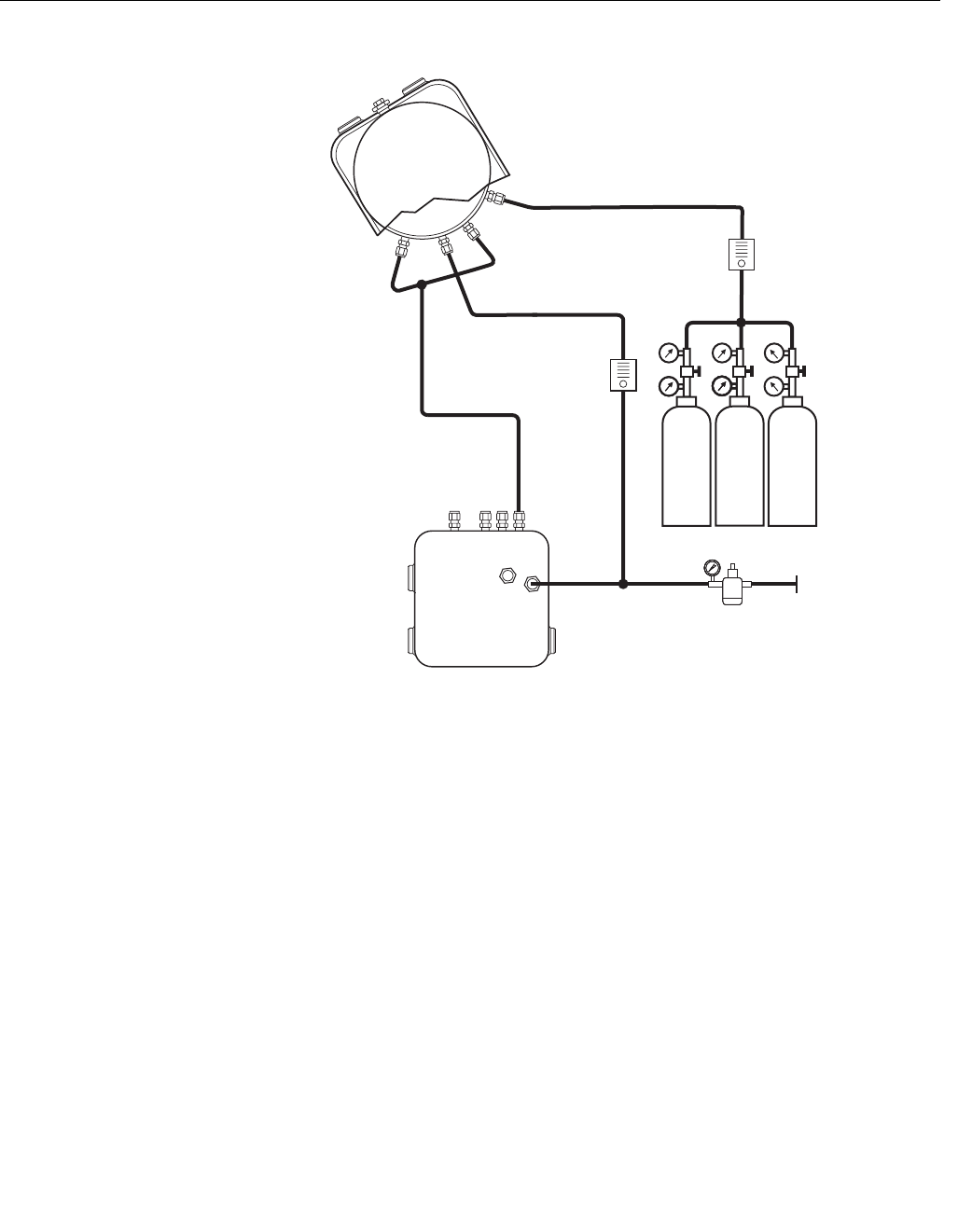

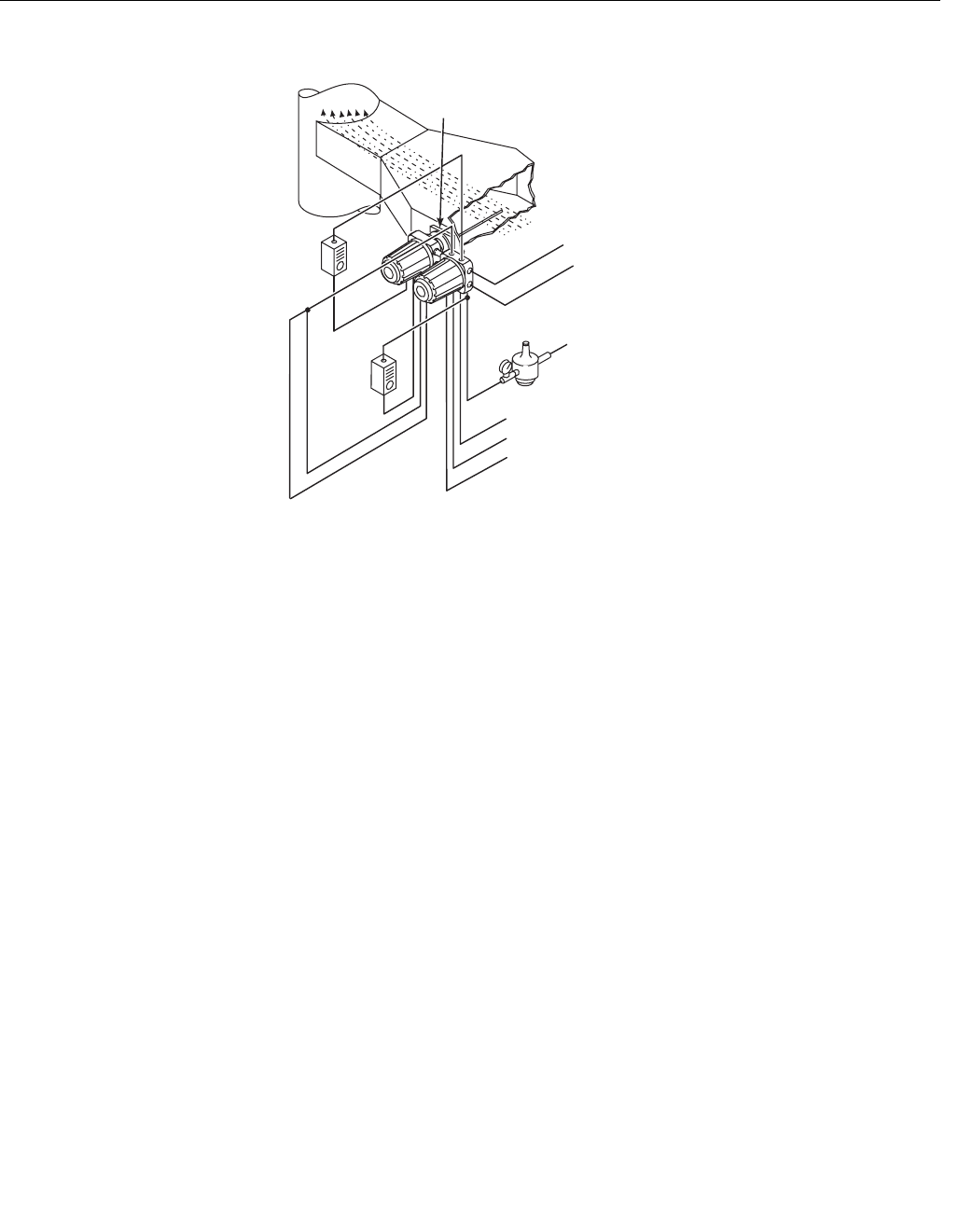

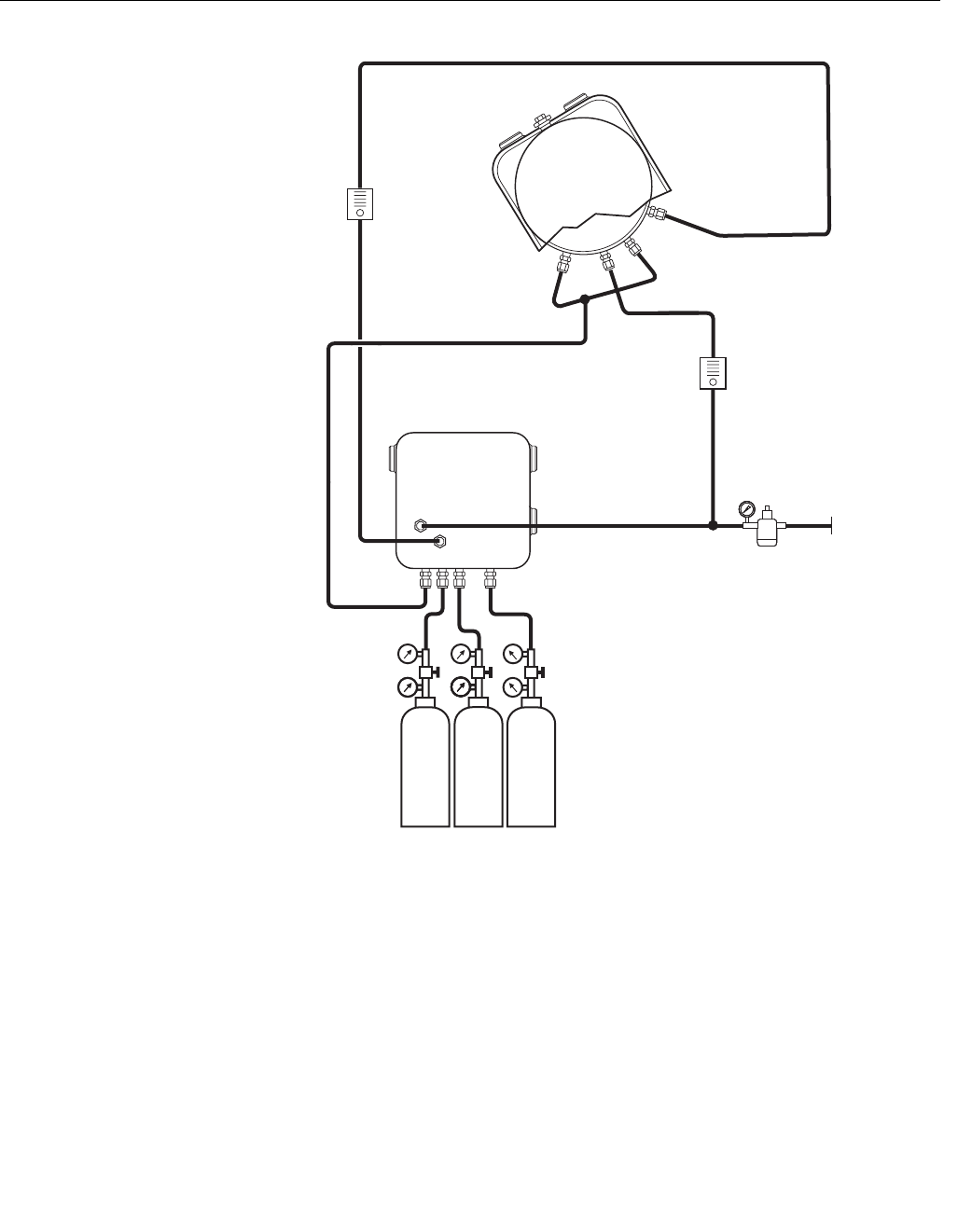

and serviceability. Figure 1-3 shows a typical system wiring. Simplified

installations for the OCX 8800 are shown in Figure 1-4.

A source of instrument air is required at the OCX 8800 for reference air,

dilution air, and eductor air. Since the OCX 8800 is equipped with an in-place

calibration feature, provision should be made for connecting test gas tanks to

the OCX 8800 when it is to be calibrated.

NOTE

The electronics module is designed to meet NEMA 4 (IP66) and the electronic

components are rated to temperatures up to 185°F (85°C).

Retain packaging in which the unit arrived from the factory in case any

components are to be shipped to another site. This packaging has been

designed to protect the product.

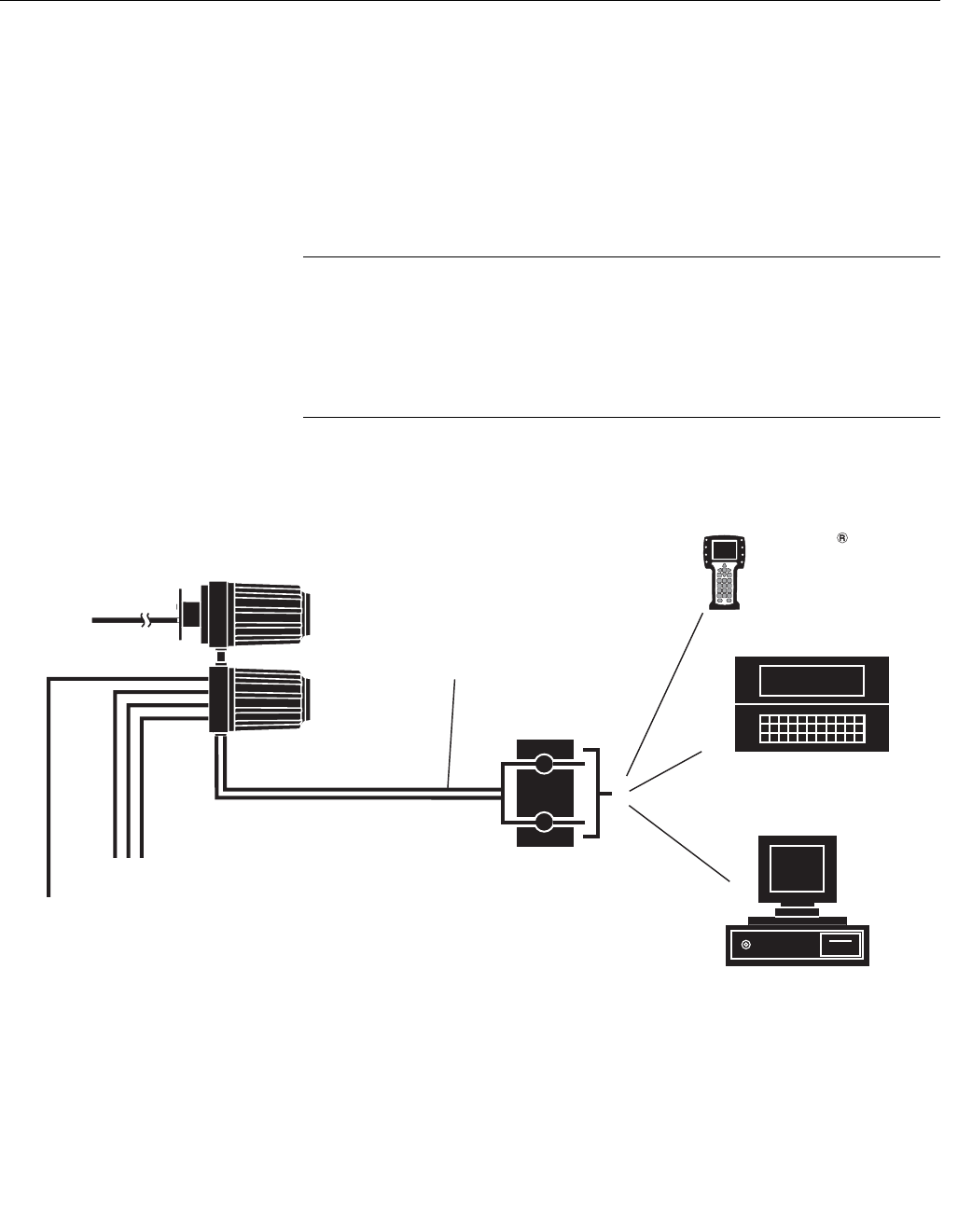

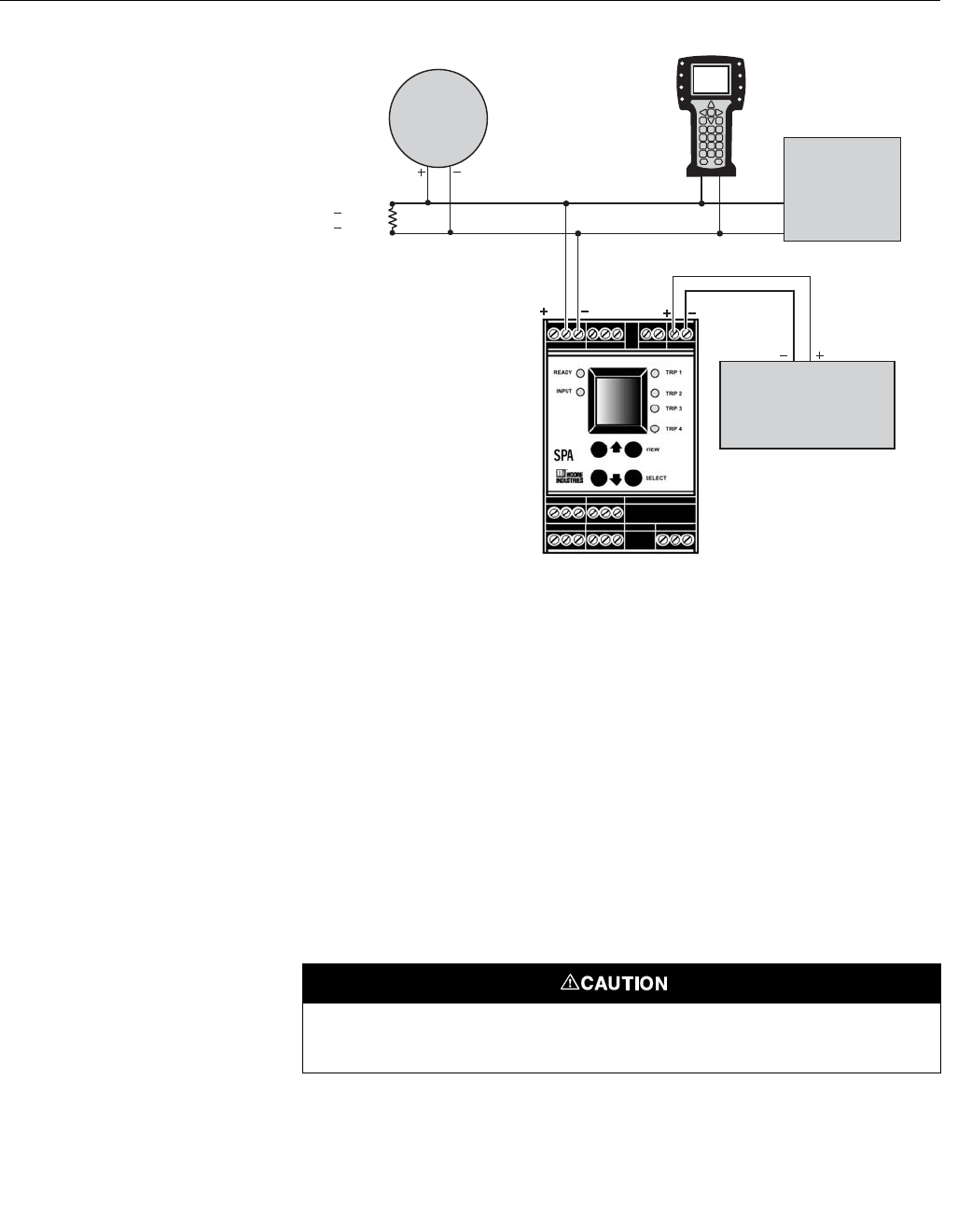

Figure 1-3. OCX 8800 HART

Connections and AMS Application

37390002

4-20 mA Output

(Twisted Pairs)

Instrument

Air

3 calibration

gas lines by

customer

[300 ft (91 m) max.)

OCX 8800 with

Integral Electronics

HART

Model 275/375

Handheld

Communicator

Customer’s Laptop

with AMS

Termination in

Control Room

AMS

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

1-8

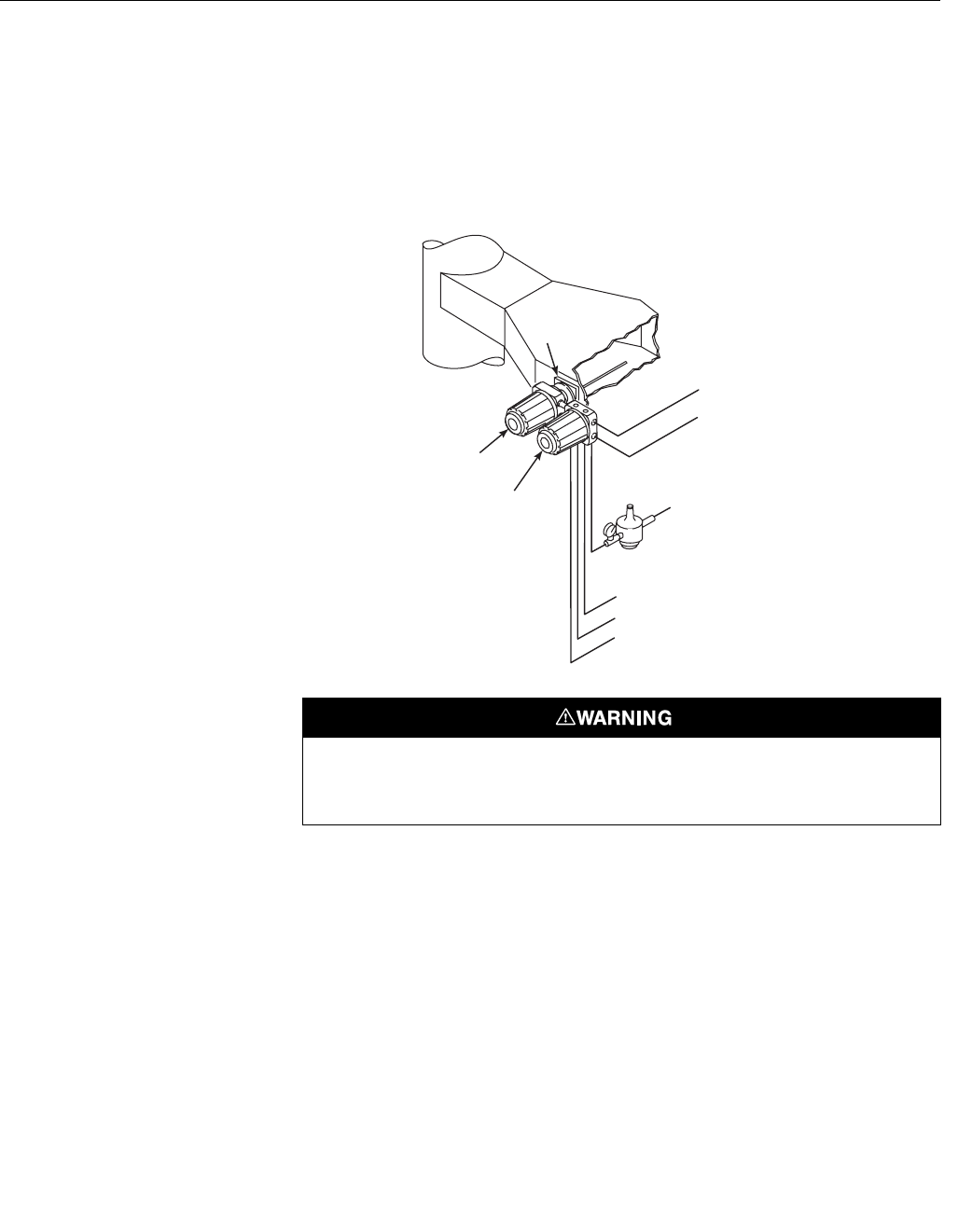

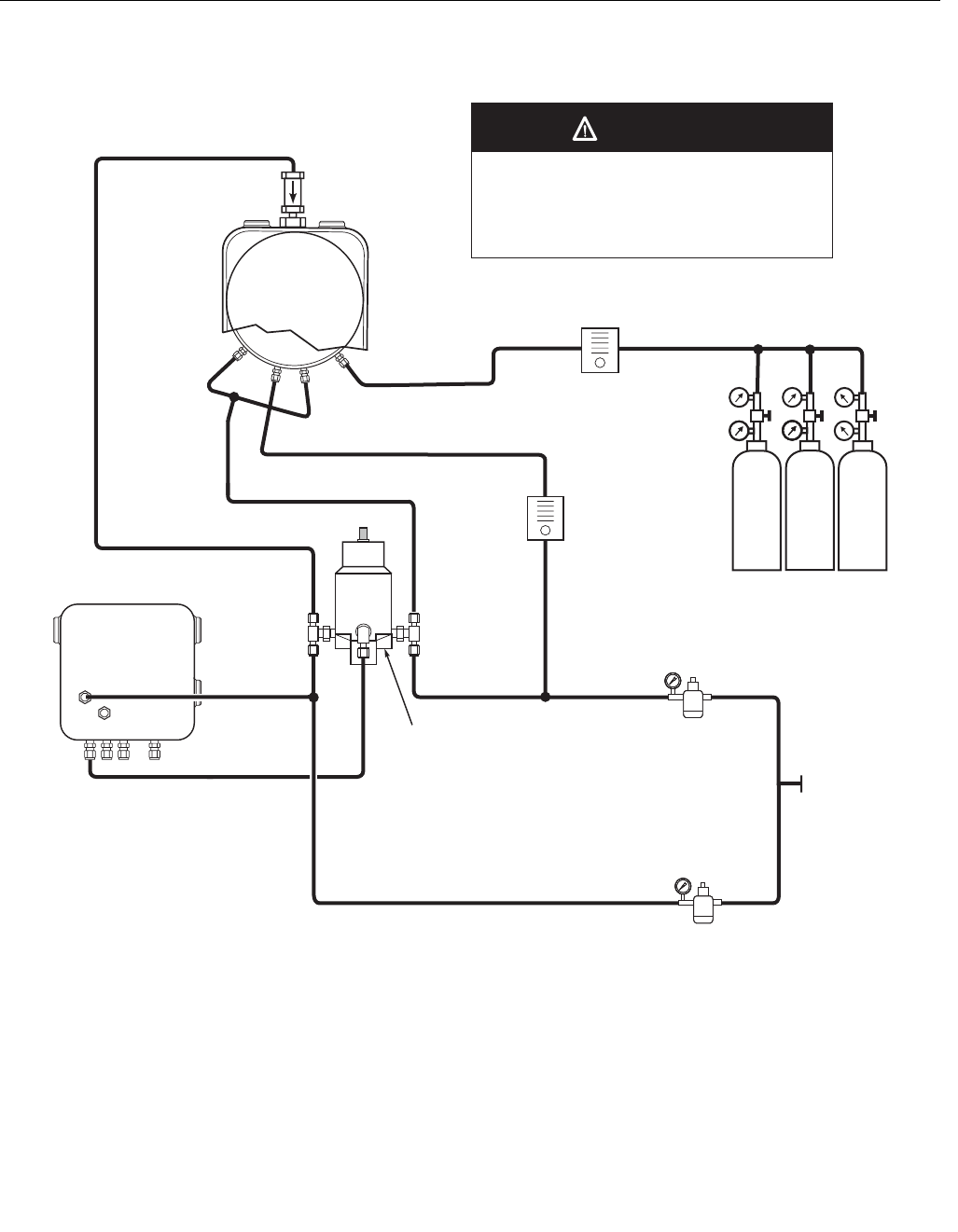

Figure 1-4. Typical System

Installation

4-20 mA Outputs

(2 Twisted Pairs)

Stack

OCX 8800 with

INTEGRAL

ELECTRONICS

Duct

Gases

Line Voltage

Adapter

Plate

Pressure

Regulator

37390063

Test Gas

Flow Meter

Low O Test Gas

High O Test Gas

Dilution

Air

Flow

Meter

CO Test Gas

Instrument Air

Supply

(Reference Gas)

Instruction Manual

IM-106-880, Rev 1.0

January 2007

1-9

OCX 8800

SPECIFICATIONS Hazardous Area OCX

Specifications

Net O2 Range 0-1% to 0-40% O2, fully field selectable

Combustibles 0-1000 ppm to 0-5%, fully field selectable

Accuracy

Oxygen ± 0.75% of reading or 0.05% O2 (whichever is greater)

Combustibles ± 2% range

System Response to

Test Gas

Oxygen 10 sec T90

Combustibles 25 sec T90

Temperature Limits

Process 32° to 2600°F (0° to 1427°C)

Sensors Housing -40° to 212°F (-40° to 100°C), ambient

Electronics Housing -40° to 149°F (-40° to 65°C), ambient

-40° to 185°F (-40° to 85°C), internal - operating temperature of

electronics inside instrument housing, as measured by a HART

communicator or AMS software

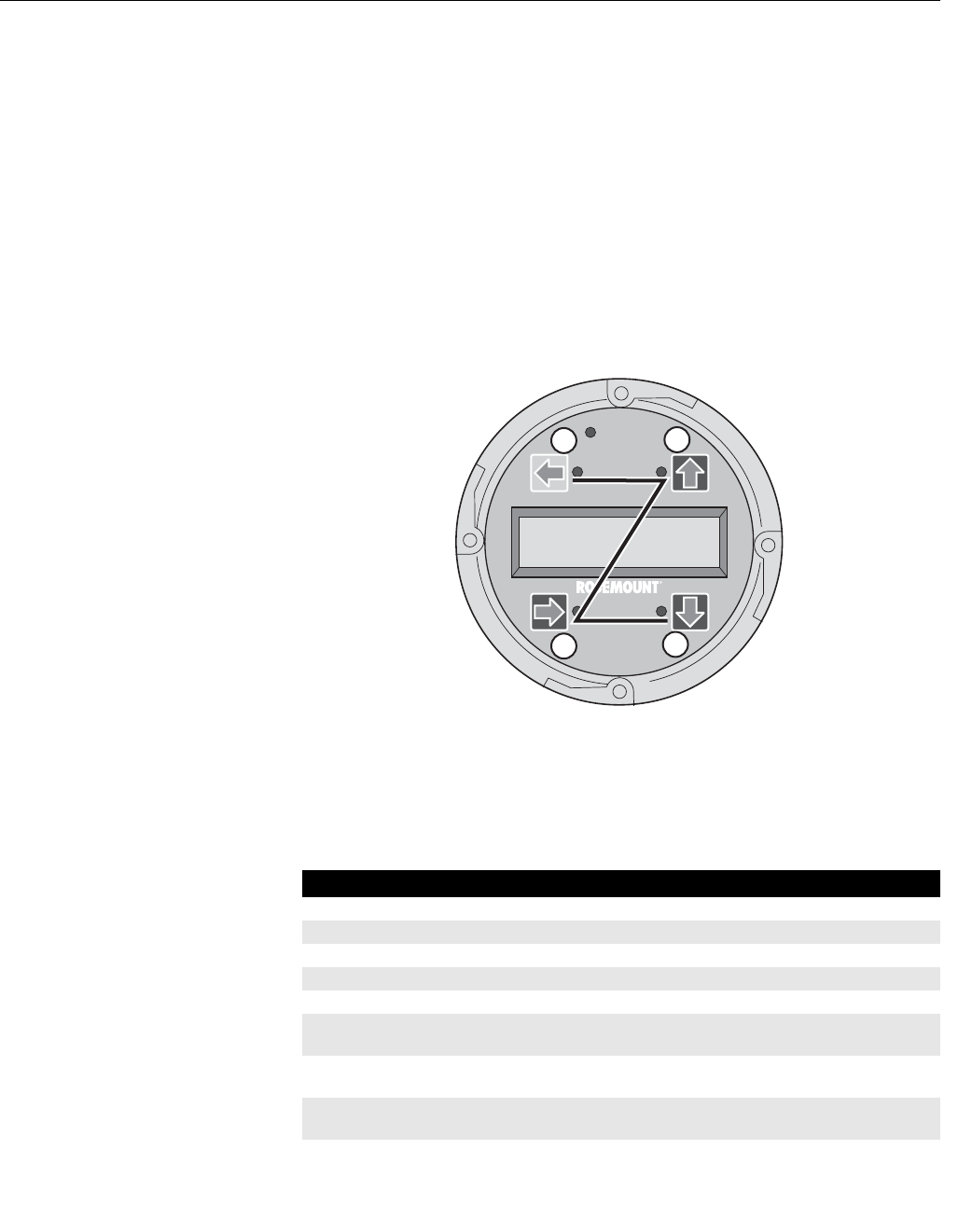

Local Operator

Interface

-40° to 158°F (-40° to 70°C), ambient

[At temperatures above 158°F (70°C) inside instrument housing,

the infrared keypad will cease to function, but the OCX 8800 will

continue to operate properly.]

Nominal and Approximate

Shipping Weights

18 in. (457 mm)

probe package

54 lbs (20 kg)

3 ft (0.91 m) probe

package

55 lbs (20.5 kg)

6 ft (1.83 m) probe

package

57 lbs (21 kg)

9 ft (2.74 m) probe

package

59 lbs (22 kg)

Housings Mounting Flange

Materials

Probes 316L stainless steel - 1300°F (704°C)

Inconel 600 - 1832°F (1000°C)

Ceramic - 2600°F (1427°C)

Enclosures Low-copper aluminum

Calibration Semi-automatic or automatic

Calibration Gas Mixtures

Recommended

(Ref. test gas bottles

kit #1A99119G04)

0.4% O2, Balance N2

8% O2, Balance N2

1000 ppm CO, Balance Air

Calibration Gas Flow 7 scfh (3.3 l/m)

Reference Air 2 scfh (1 l/m), clean, dry instrument-quality air (20.95% O2),

regulated to 45 psi (310 kPa)

Eductor Air 5 scfh (2.5 l/m), clean, dry, instrument-quality air 20.95% O2),

regulated to 45 psi (310 kPa)

Dilution Air 0.1 scfh (0.5 l/m), clean, dry, instrument-quality air (20.95% O2)

regulated to 45 psi (310 kPa)

Blowback Air (optional) Clean, dry, instrument-quality air (20.95% O2), regulated to 55 psi

(379 kPa)

Table continued on next page

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

1-10

NOTE

All static performance characteristics are with operating variables constant. Specifications subject to change

without notice.

Sensors Housing NEMA 4, IP66 with fitting and pipe on reference exhaust port to

clean, dry atmosphere, two 3/4-14 NPT conduit ports

Electronics Housing NEMA 4, IP66 with fitting and pipe on reference exhaust port to

clean, dry atmosphere, two 3/4-14 NPT conduit ports

Electrical Noise EN 61326-1, Class A

Certifications Sensor Housing

Electronics Housing

Line Voltage Universal 100 to 240 VAC ±10%, 50 to 60 Hz, no switches or

jumpers required, 3/4-14 NPT conduit port

Pollution Degree 2

Over Voltage Category II

Relative Humidity 5 to 95% (non-condensing)

Isolated Output

Oxygen 4-20 mAdc, 950 ohm maximum, with HART capability

Combustibles 4-20 mAdc, 950 ohm maximum

Alarm Alarm output relay - dry contact, form C, 30 mA, 30VDC capacity

Power Consumption 750 W maximum

Specifications

KEMA 04 ATEX 2308

EEx d IIB+H2 T3

0344 II 2 G

2005.1602514

CLASS 1, ZONE 1

Ex d IIB+H2 T3

AEx D IIB+H2 T3

TYPE 4 / IP66

APPROVED

CLASS 1, ZONE 1

AEx D IIB+H2 T3

TYPE 4 / IP66

CUS

2005.1602514

CLASS 1, ZONE 1

Ex d IIB+H2 T6

AEx D IIB+H2 T6

TYPE 4 / IP66

KEMA 04 ATEX 2308

EEx d IIB+H2 T6 IP66

0344 II 2 G

CLASS 1, ZONE 1

AEx D IIB+H2 T3

TYPE 4 / IP66

APPROVED

CUS

Instruction Manual

IM-106-880, Rev 1.0

January 2007

1-11

OCX 8800

Table 1-1. Product Matrix - Hazardous Area OCX 8800

OCX88C O2/Combustibles Transmitter - Flameproof

Code Probe Length and Material

00 No Probe or Exhaust Tube

11 18 in. (457 mm) 316 SST up to 1300°F (704°C)

21 18 in. (457 mm) Inconel 600 up to 2600°F (1427°C)

31 18 in. (457 mm) Ceramic up to 2600°F (1427°C)

12 3 ft (0.91 m) 316 SST up to 1300°F (704°C)

22 3 ft (0.91 m) Inconel 600 up to 1832°F (1000°C)

32 3 ft (0.91 m) Ceramic up to 2600°F (1427°C)

13 6 ft (1.83 m) 316 SST up to 1300°F (704°C)

23 6 ft (1.83 m) Inconel 600 up to 1832°F (1000°C)

14 9 ft (2.7 m) 316 SST up to 1300°F (704°C)

24 9 ft (2.7 m) Inconel 600 up to 1832°F (1000°C)

Code Probe Mounting Assembly

10 (ANSI 2 in. 150 lb) 6" dia. flange, 4.75" BC with 4 x 0.75" dia. holes

20 (DIN) 185 mm dia. flange, 145 mm BC with 4 x 18 mm dia. holes

Code Mounting Hardware - Stack Side

0 No Adapter Plate (“0” must be chosen under “Mounting Adapter - Probe Side” below)

1 New Installation - Square weld plate with studs

2 Model 218/240 Mounting Plate (with Model 218/240 Shield Removed)

3 Existing Model 218/240 Support Shield

4 Special Mounting (1)

5 Model 132 Adapter Plate

Code Mounting Hardware - Probe Side

0 No Adapter Plate

1 Probe Only (ANSI)

2 Probe Only (DIN)

Code Electronics Housing - Communications

H1 HART Communications(2)

H2 HART Communications with LOI

H3 HART Communications with Calibration Solenoids(2)

H4 HART Communications with LOI and Calibration Solenoids

Code Electronics Mounting

02 Remote Electronics and no cable

Code Accessories

00 None

01 Flow meters & Ref. Air Set

02 In-Situ Filter (Stainless Steel only)

03 In-Situ Filter (SST), Flow meters & Ref. Air Set

11 Flow meters, and Ref. Air Set with Blowback

12 In-Situ Filter (SST) with Blowback

13 In-Situ Filter (SST), Flow meters & Ref. Air Set with Blowback

OCX88C 11 10 1 1 H2 02 02 Example

NOTES:

(1) Provide details of the existing mounting plate as follows:

Plate with studs Bolt circle diameter, number, and arrangement of studs, stud thread, stud height above mounting plate.

Plate without studs Bolt circle diameter, number, and arrangement of holes, thread, depth of stud mounting plate with accessories.

(2) If the LOI is not implemented, remote access and functionality available via HART Communications (Model 275/375 Handheld Communicator)

with Oxygen/Combustibles Device Description (DD) required.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

1-12

Table 1-2. Accessories

PART NUMBER DESCRIPTION

1A99119H01 Oxygen test gas bottle; 0.4% O2, balance N2

1A99119H02 Oxygen test gas bottle; 8.0% O2, balance N2

1A 99119H07 CO test gas bottle; 1000 ppm CO, balance air

1A99120H02 Regulator for Oxygen (may need 2)

1A99120H03 Regulator for CO test gas

1A99119G06 Wall mount bracket for test gas bottles

1A99119G05 Test gas regulators kit

1A99119G04 Test gas bottles kit

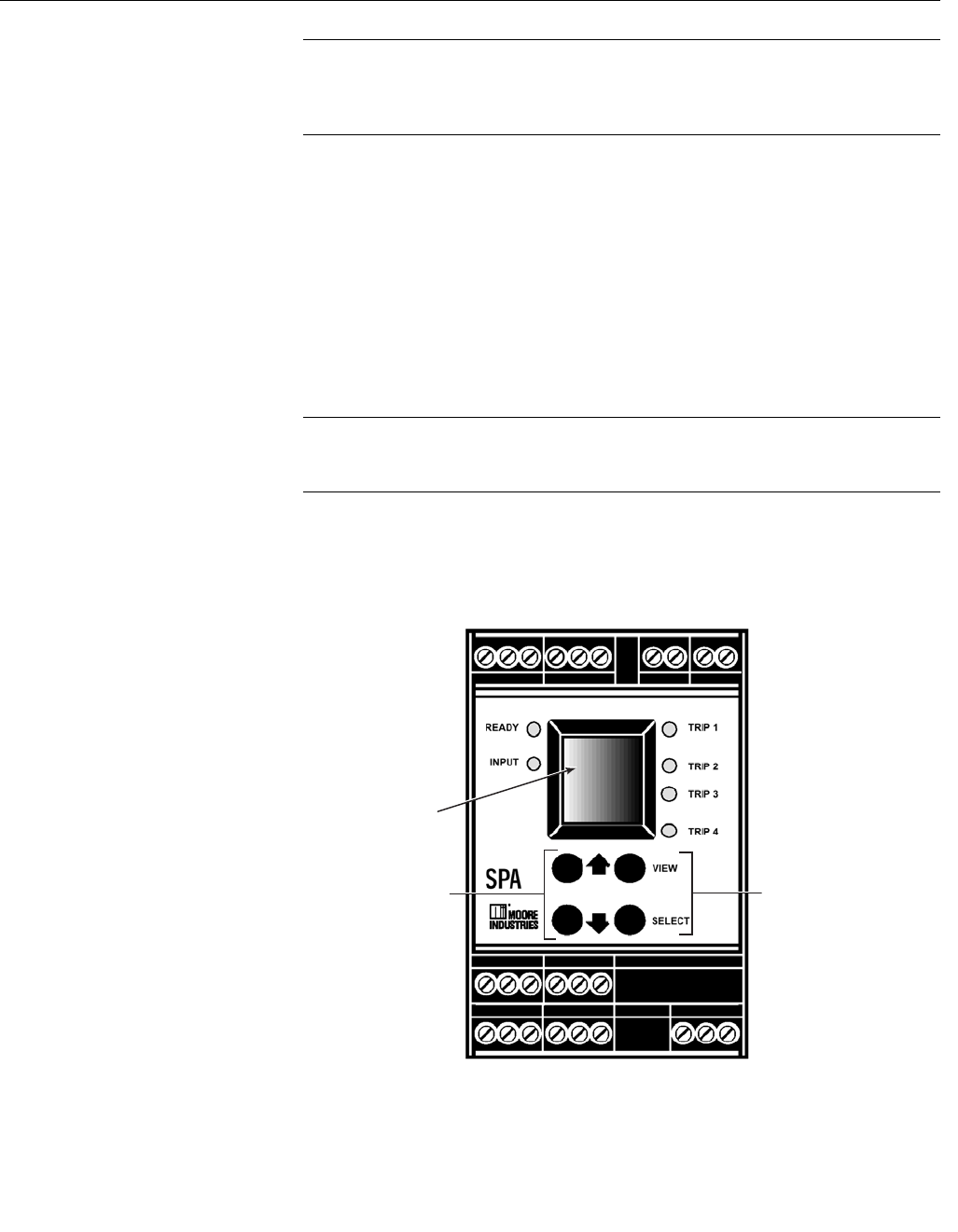

1A99292H01 Moore Industries SPA for Low O2 Alarm, High COe Alarm,

Calibration Status, and Unit Fail

1A99339H03 Blowback valve, air operated

4851B40G01 Wall or Pipe Mounting Kit

1A99784H02 375 HART Communicator with 12 Megabyte buffer,

model no. 375HR1EKLU

6A00171G01 Power line filter kit

Instruction Manual

IM-106-880, Rev 1.0

January 2007 OCX 8800

http://www..raihome.com

Section 2 Installation

Mechanical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-2

Electrical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-7

Pneumatic Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-10

Initial Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-16

Before installing this equipment, read the "Safety instructions for the wiring and installation

of this apparatus" in Appendix A: Safety Data. Failure to follow the safety instructions could

result in serious injury or death.

To maintain explosion-proof protection of the OCX 8800 in hazardous areas, all cable entry

devices and blanking elements for unused apertures must be certified flameproof, suitable

for the conditions of use and properly installed.

To maintain explosion-proof protection of the OCX88C in hazardous areas, the sensor

housing must not be mounted to any surface or flange that exceeds 200ºC (392ºF).

To maintain explosion-proof protection of the OCX88C in hazardous areas, the sample

entering the sensor housing must not exceed 200ºC (392ºF).

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

2-2

MECHANICAL

INSTALLATION

Selecting Location

1. The location of the OCX 8800 in the stack or flue is most important for

maximum accuracy in the oxygen analyzing process. The probe must

be positioned so the gas it measures is representative of the process.

Best results are normally obtained if the transmitter is positioned near

the center of the duct (40-60% insertion). Longer ducts may require

several transmitters since the oxygen and combustibles can vary due to

stratification. A point too near the wall of the duct or the inside radius of

a bend, may not provide a representative sample because of the very

low flow conditions. The sensing point should be selected so the

process gas temperature falls within the range of probe material used.

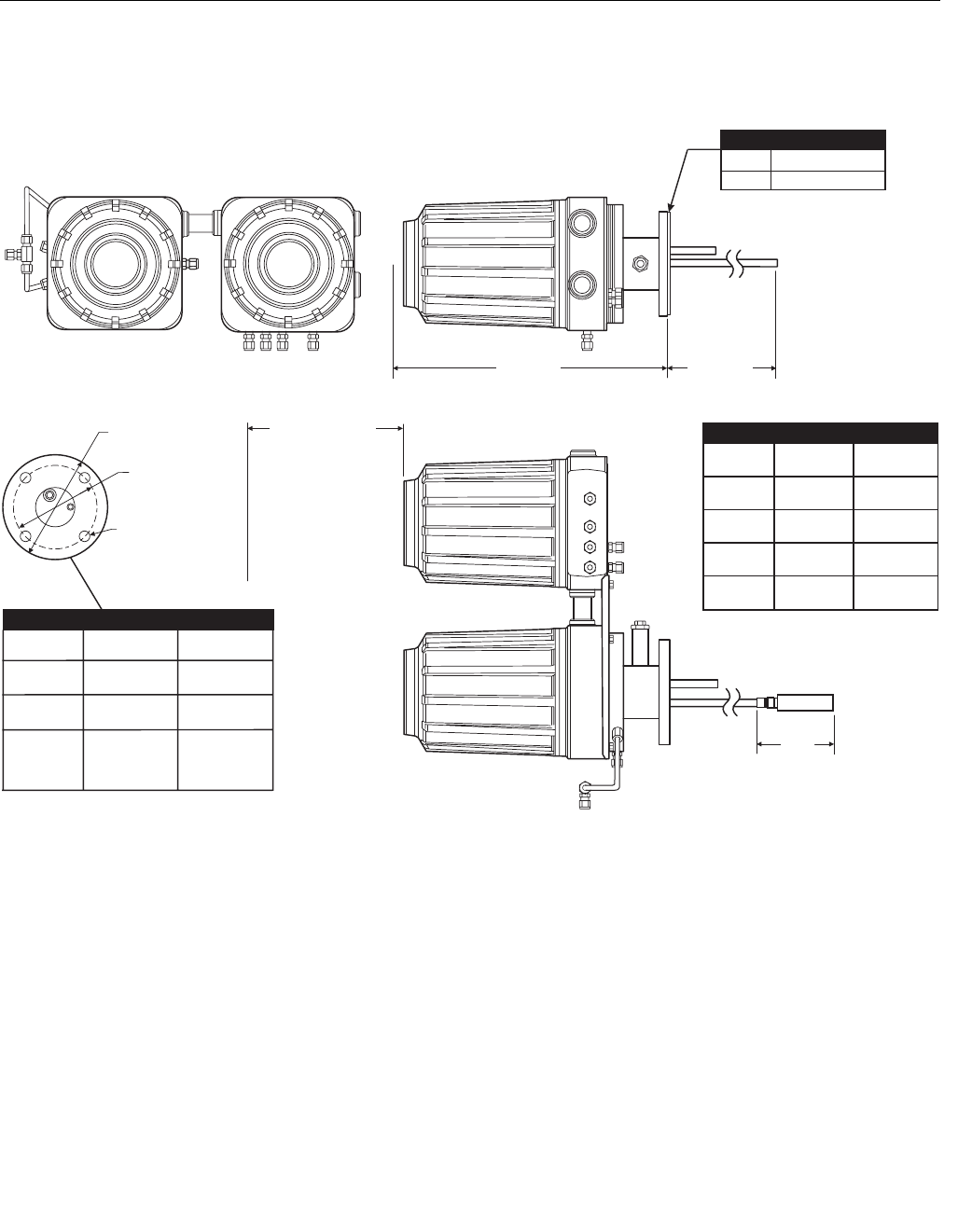

Figure 2-1 through Figure 2-3 provide mechanical installation

references. The ambient temperature inside the electronics housing

must not exceed 185°F (85°C).

2. Check the flue or stack for holes and air leakage. The presence of this

condition will substantially affect the accuracy of the oxygen and

combustibles readings. Therefore, either make the necessary repairs or

install the transmitter up stream of any leakage.

3. Ensure the area is clear of internal and external obstructions that will

interfere with installation and maintenance access to the unit. Allow

adequate clearance for the removal of the OCX 8800.

Installation

1. Ensure all components are available to install the OCX 8800.

2. The OCX 8800 may be installed intact as it is received.

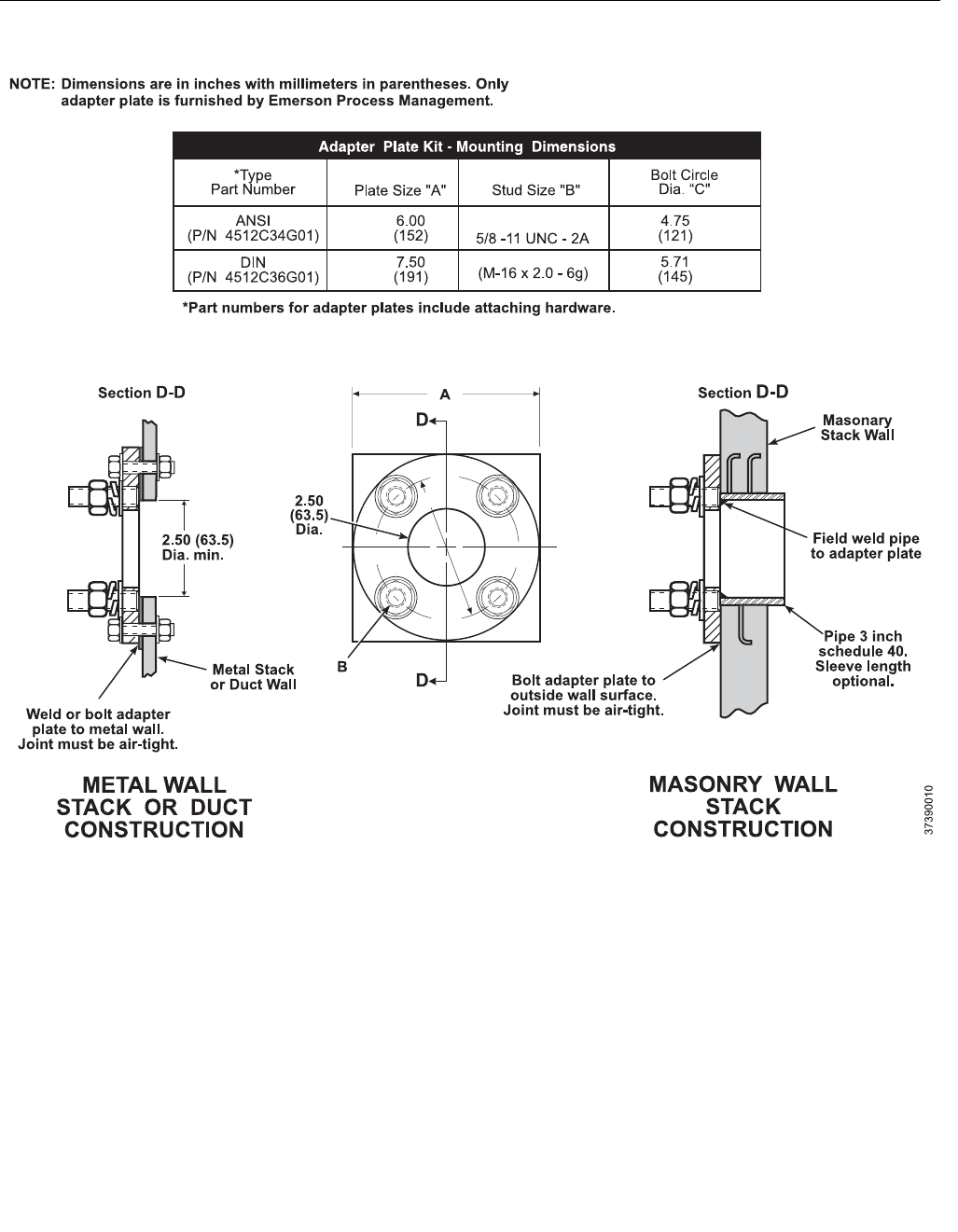

3. Weld or bolt adapter plate (Figure 2-2) onto the duct.

Do not allow the temperature of the electronics housing to exceed 185°F (85°C) or damage

to the electronics may result.

Whenever a positive stack pressure exists at the installation site, be sure to connect all

pneumatic lines prior to installing the OCX 8800 in the stack or ductwork. Failure to connect

the pneumatic lines can allow the flow of contaminants into the OCX 8800 ports.

Before installing the OCX 8800 into a hot stack or ductwork, make sure that the OCX 8800

is turned on and at normal operating temperature. Exposing a cold OCX transmitter to hot

process gases can cause permanent damage to the equipment.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

2-3

OCX 8800

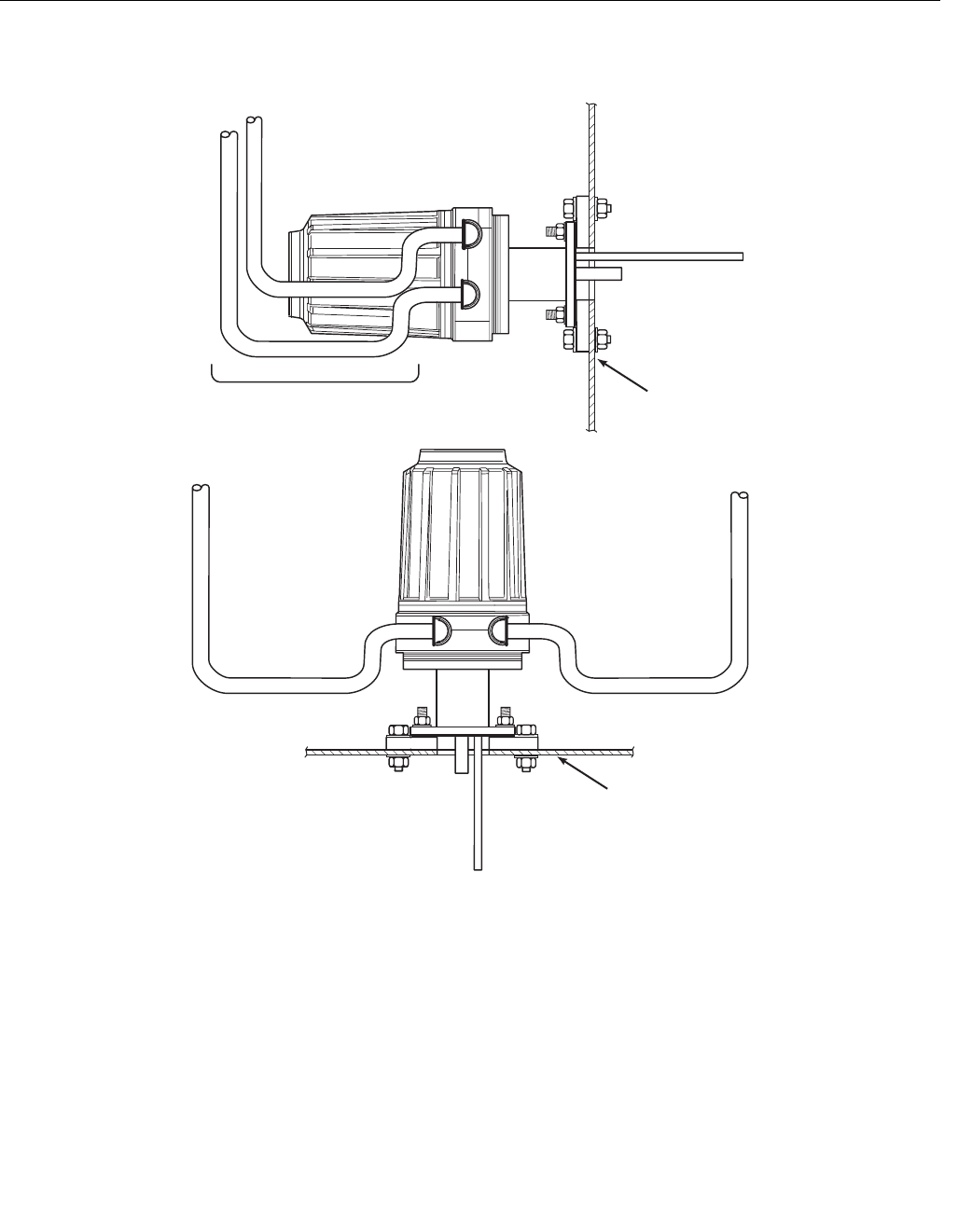

4. Ensure the conduits drop vertically from the OCX 8800 and the conduit

is routed below the level of the conduit ports on the housing to form a

drip loop. Drip loops minimize the possibility that moisture will damage

the electronics (Figure 2-3).

5. Where a positive stack pressure exists at the installation site, connect all

pneumatic lines prior to installing the OCX 8800 in the stack or

ductwork.

NOTE

If process temperatures will exceed 392°F (200°C), use anti-seize compound

on stud threads to ease future removal of the OCX 8800.

6. Insert sample and exhaust tubes through the opening in the mounting

flange and bolt the unit to the flange.

7. If insulation is removed to access the duct for OCX 8800 mounting,

make sure to replace insulation afterward.

Enclosures

The OCX 8800 enclosures are designed to meet ingress conditions of IP66.

Each enclosure cover is threaded to its base and sealed with an o-ring that

isolates the threads from external contaminants.

Each cover is secured by a clip attached to the base that engages the cover

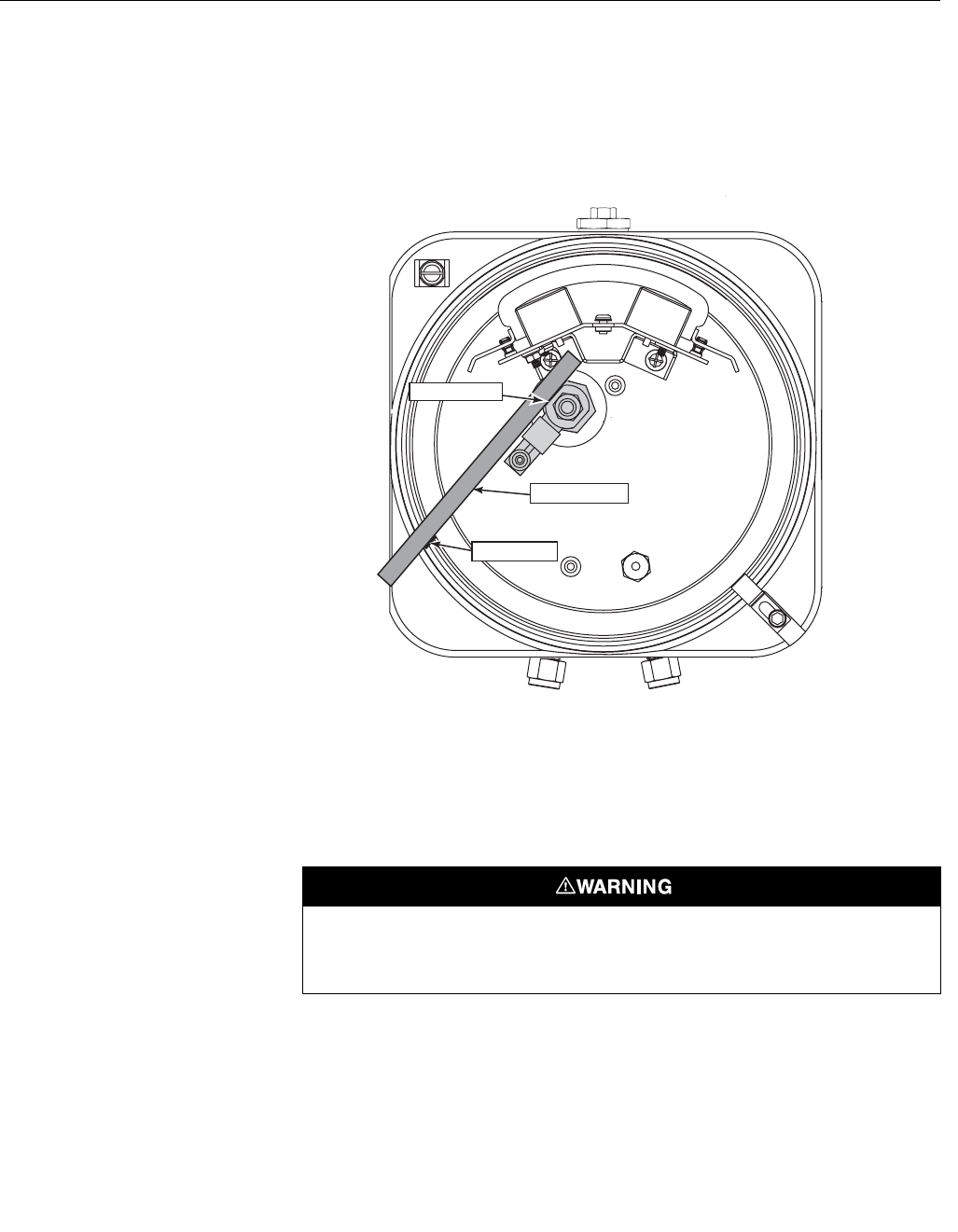

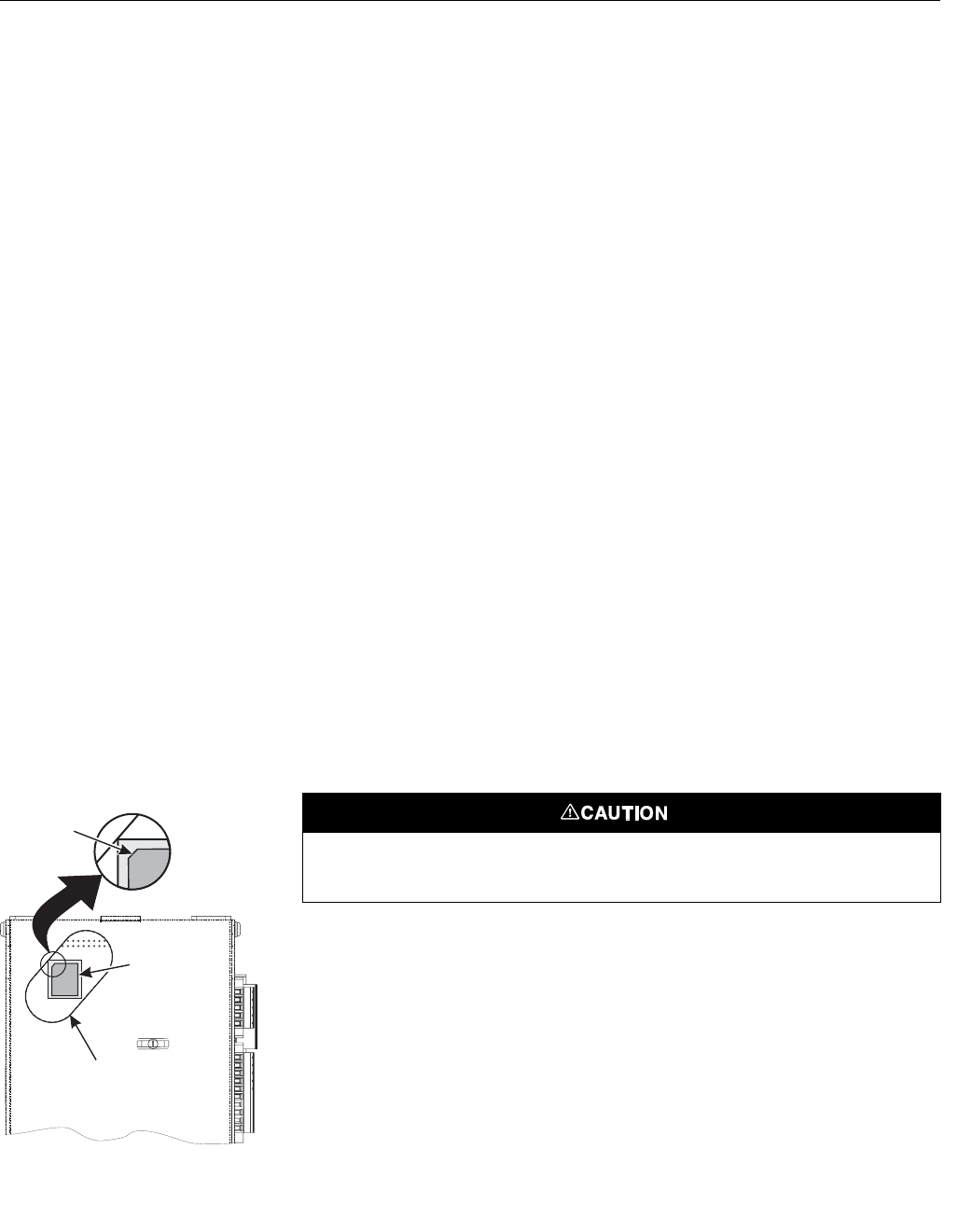

between the ribs of the cover sidewall. The clip is held in place by an Allen

head cap screw and lockwasher mounted in a recess. Cover removal and

installation requires an Allen wrench to loosen and tighten the screw.

Uninsulated stacks or ducts may cause ambient temperatures in the electronics housing to

exceed 185°F (85°C) and damage the electronics.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

2-4

Figure 2-1. Installation, OCX 8800

Dim “B”

3 ft

9 ft

6 ft

Probe

18 in.

Dim “A”

(2235)

(3150)

124

(2743)

108

(1829)

(914)

36 (1321)

(864)

(457)

Flange

Dia.

DIN

ANSI 5R10244H025R10244H01

6.00

(152)

BOTTOM VIEW

B.C. Dia.

Dim “B”

Removal Envelope

37390008

Dim “A”

Insertion Depth

Flange Dia.

Hole Dia.

8.3

(211)

Allow 9 in.

(229 mm) for

Cover Removal

Table 2. Installation/Removal

Optional

In Situ Filter

Table 1. Mounting Flange

Hole

Dia.

(4) Holes

equally

spaced on

B.C. dia

7.28

(185)

0.75

(19)

0.71

(18)

4.75

(121)

5.71

(145)

3535B18H02

3535B45H01

DIN

ANSI

0.06 In. Thick Gasket

Insulate if exposed to adverse weather or extreme temperature changes,

install a protective housing and/or insulation around the unit.

All dimensions are in inches with millimeters in parentheses.

NOTE

Instruction Manual

IM-106-880, Rev 1.0

January 2007

2-5

OCX 8800

Figure 2-2. Adapter Plate Installation

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

2-6

Figure 2-3. Installation

with Drip Loops

37020004

Conduit Drip Loops Duct Wall

Conduit Drip Loop Conduit Drip Loop

Duct Wall

Instruction Manual

IM-106-880, Rev 1.0

January 2007

2-7

OCX 8800

ELECTRICAL

INSTALLATION

All wiring must conform to local and national codes. For reference, factory

wired solenoid power connections are shown in Figure 2-4.

Disconnect and lock out power before connecting the unit to the power supply. Failure to

lock out power could result in serious injury or death.

Install all protective equipment covers and safety ground leads after installation. Failure to

install covers and ground leads could result in serious injury or death.

To meet the Safety Requirements of IEC 1010 (EC requirement), and ensure safe operation

of this equipment, connection to the main electrical power supply must be made through a

circuit breaker (min 10 A) in close proximity and marked for this equipment which will

disconnect all current-carrying conductors during a fault situation. This circuit breaker

should also include a mechanically operated isolating switch. If not, then another external

means of disconnecting the supply from the equipment should be located close by. Circuit

breakers or switches must comply with a recognized standard such as IEC 947.

To maintain explosion-proof protection of the OCX 8800 in hazardous areas, all cable entry

devices and blanking elements for unused apertures must be certified flameproof, suitable

for the conditions of use and properly installed.

To maintain explosion-proof protection of the OCX88C in hazardous areas, the sensor

housing must not be mounted to any surface or flange that exceeds 200ºC (392ºF).

To maintain explosion-proof protection of the OCX88C in hazardous areas, the sample

entering the sensor housing must not exceed 200ºC (392ºF).

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

2-8

NOTE

To maintain proper earth grounding, ensure a positive connection exists

between the sensor housing, the electronics housing, and earth. The

connecting ground wire must be 14 AWG minimum. Refer to Figure 2-4.

NOTE

Line voltage, signal, and relay wiring must be rated for at least 105ºC (221ºF).

Electrical Connections

Electrical connections, power and communications are made to the electronic

enclosure. The connections are made through two 3/4 NPT ports in the

enclosure using fittings and cables provided by the customer. Cable

installation must meet NEC, IEC and/or other applicable national or local

codes for Class I, Zone 1, IIB +H2 T3/T6 permanently mounted equipment.

Connect Line Voltage

The OCX 8800 operates on 100 to 240 VAC line voltage at 50 to 60 Hz. The

power supply requires no setup. Connect the line (L wire) to the L terminal,

and the neutral (N wire) to the N terminal on the AC power input terminal

block in the electronics housing. Connect the ground (G wire) to the ground

stud in the electronics housing as shown in Figure 2-4.

Connect 4-20 mA Signals

Connect the 4-20 mA current loop to the 4-20 mA signal output terminals in

the electronics housing as shown in Figure 2-4. Use individual shielded

twisted wire pairs. Terminate the shield at the electronics housing.

O2 4-20 mA Signal

One 4-20 mA signal represents the O2 value. Superimposed on the O2

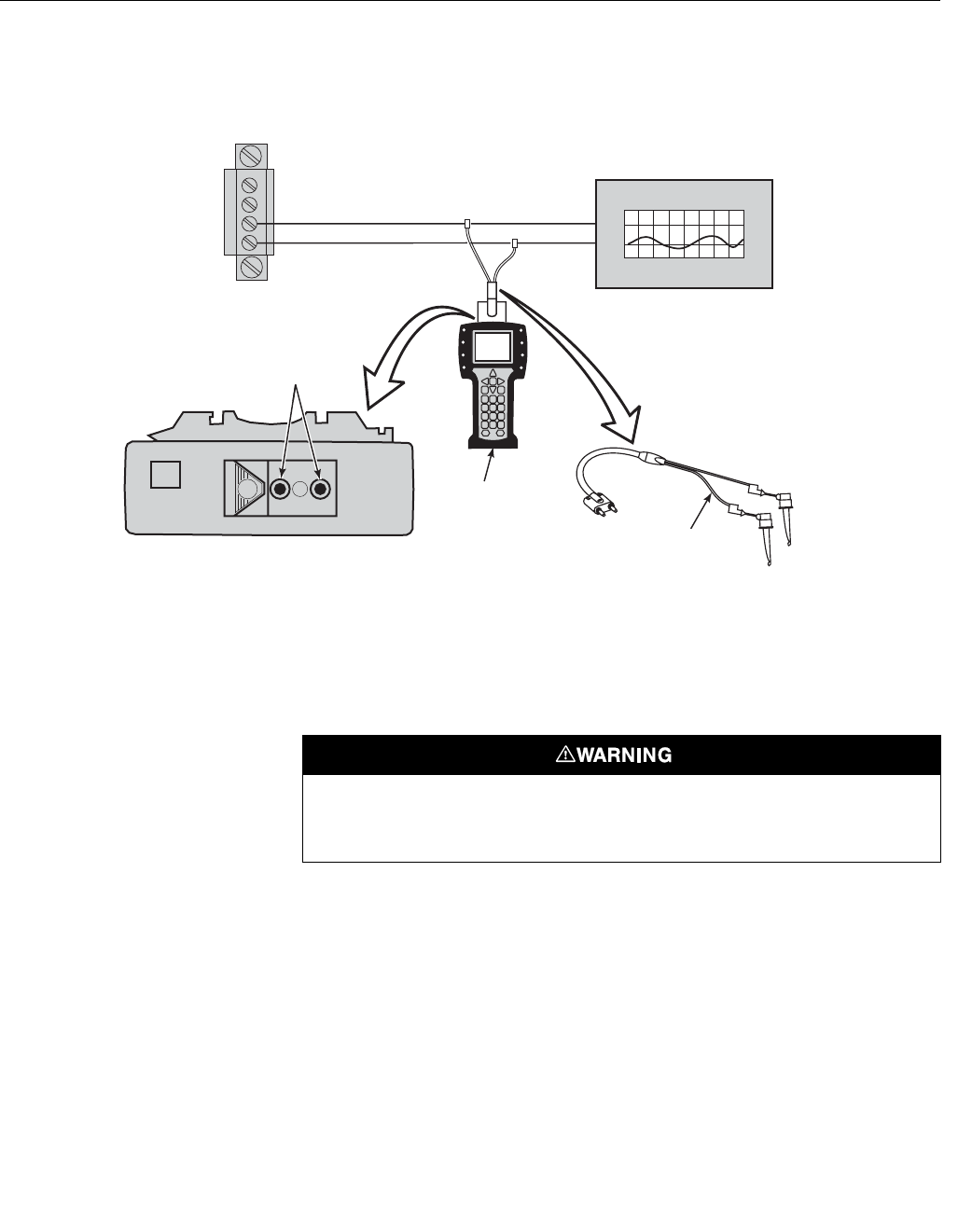

signal is the HART information accessible through a Model 275/375

Handheld Communicator or AMS software. The O2 signal is at the AOUT 1

terminals.

COe 4-20 mA Signal

Another 4-20 mA signal at the AOUT 2 terminals represents the COe

value. HART information is not available on the COe signal.

Alarm Output Relay

Connect any customer-supplied relay input to the alarm output relay terminal.

Use shielded wire and terminate the shield at the electronics housing. The

alarm output relay terminal is a set of dry, no. 2, form C, contacts with 30 mA,

30 VDC capacity.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

2-9

OCX 8800

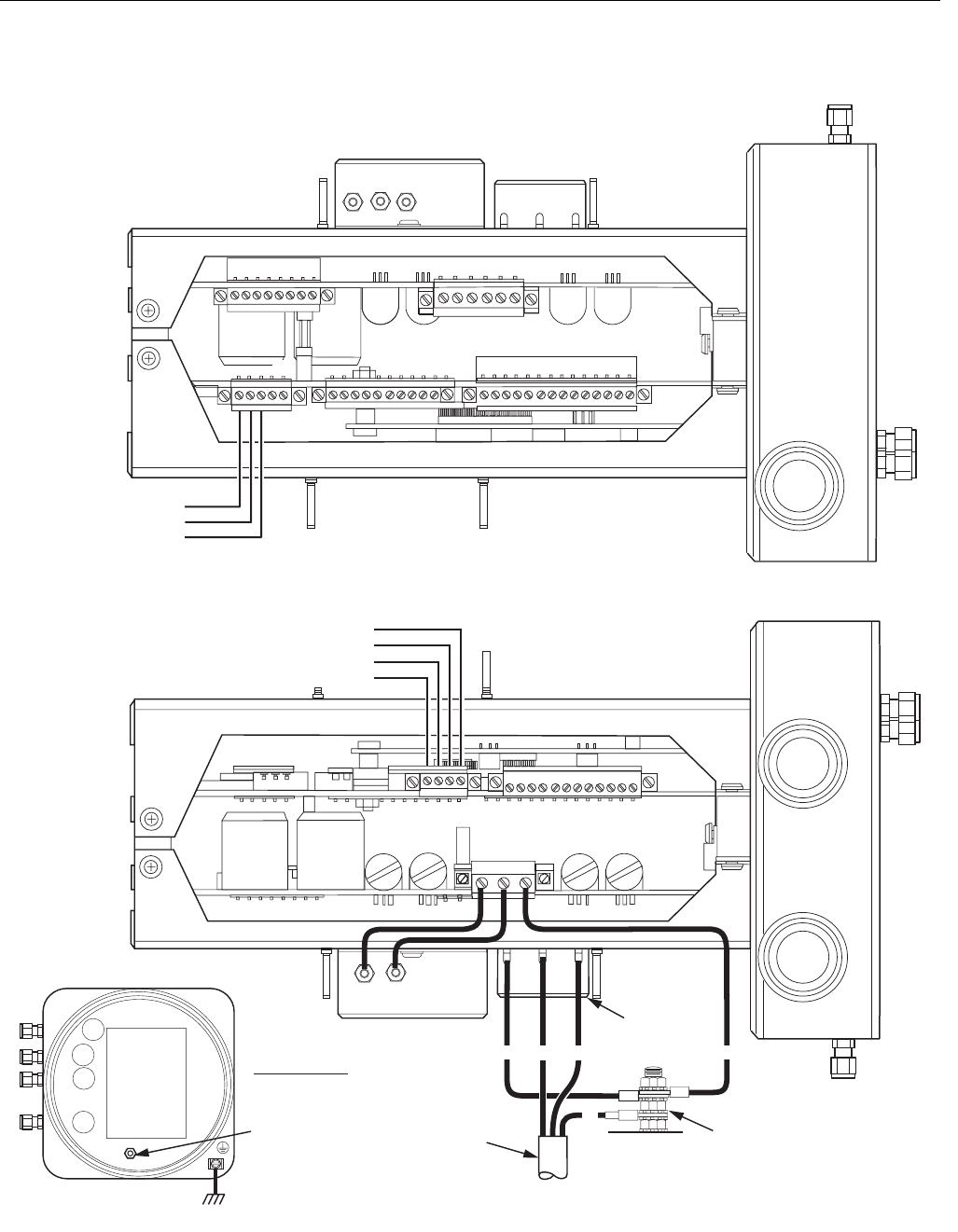

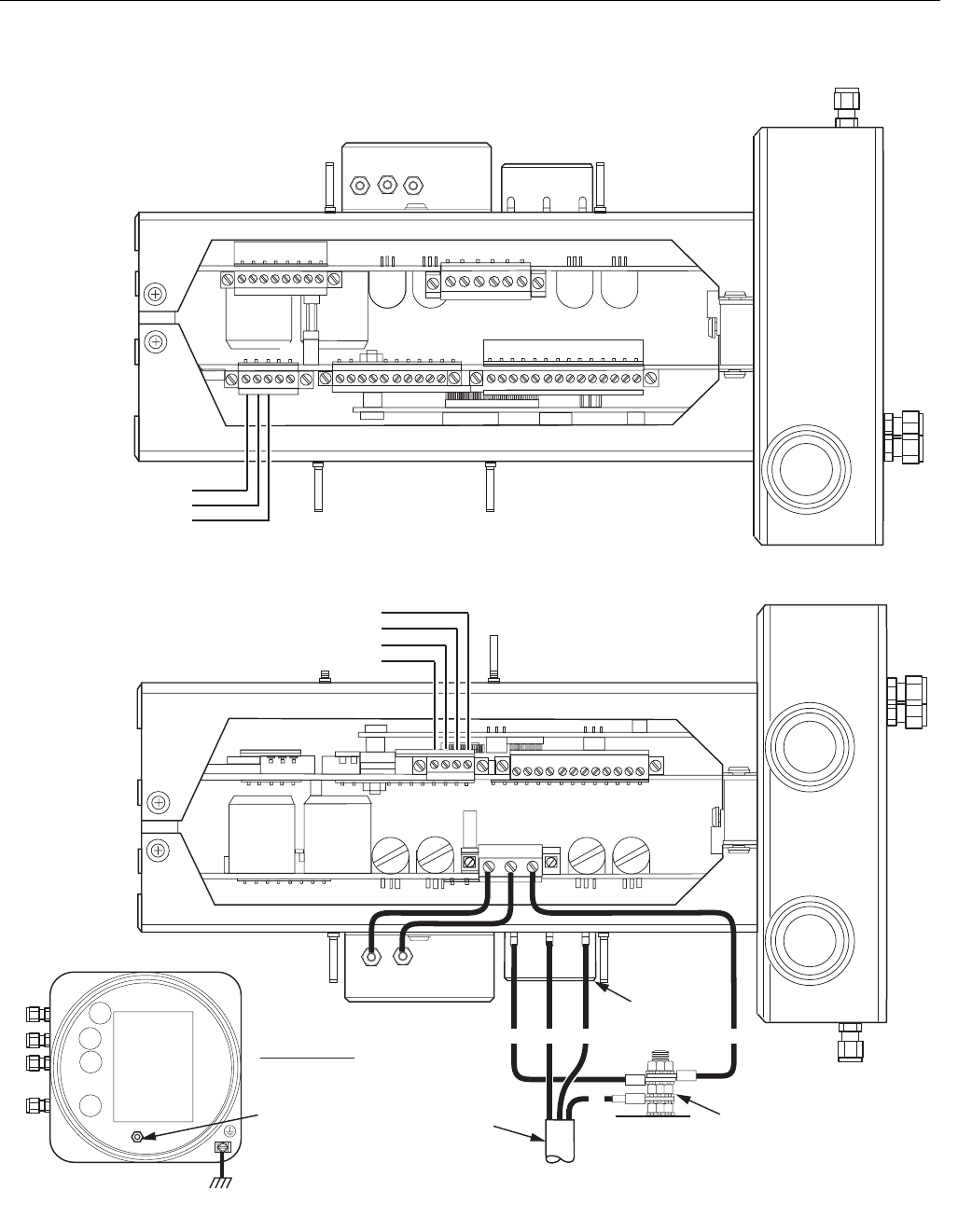

Figure 2-4. Line Voltage, Earth,

and 4-20 mA Connections

37390013

TOP VIEW

(1/2 SIZE)

Ground Stud

Earth Ground

Typical for Electronics and

Sensor Housing

COM

Alarm Output Relay

Terminal Block

AOUT2+

AOUT2 -

AOUT1 -

AOUT1+

O Signal

COe Signal

{

Ground

Stud

4-20 mA Signal Output

Terminal Block

Power Port

3/4 NPT

Signal Port

3/4 NPT

External Tooth

Lockwasher

Terminal

Block

EMI Filter

Customer

Wiring

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

2-10

PNEUMATIC

INSTALLATION

Pneumatic system connections depend on whether reference air set,

calibration solenoids, and/or blowback equipment options are equipped on

your transmitter. Refer to the following paragraphs and select the option that

applies to your transmitter configuration.

Reference Air Set Option (only)

When no options or only the reference air set option is equipped, use the

following procedure to install the pneumatic system components.

1. Refer to Figure 2-5. Connect the reference air set (regulator/filter and

pressure gage) to the instrument air inlet on the electronics housing and

to the inlet side of the dilution air flow meter.

2. Connect the dilution air flow meter output to the dilution air inlet fitting on

the sensor housing.

3. Install an air line between the instrument air outlet fitting on the

electronics housing and the tee fitting on the sensor housing.

4. One CO gas and two O2 gases are used to calibrate the OCX 8800:

CO - 1000 ppm or 4%

O2 low gas - 0.4%

O2 high gas - 8%

Connect the output of the test gas sources to the inlet port of the CAL

GAS flow meter. Install an air line between the flow meter outlet port and

the CAL GAS inlet fitting on the sensor housing.

Do not use 100% nitrogen as an O2 low gas. It is suggested that O2 low gas be between

0.4% and 2.0% O2. Do not use gases with hydrocarbon concentrations of more than 40

parts per million. Failure to use proper gases will result in erroneous readings.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

2-11

OCX 8800

Figure 2-5. Pneumatic

Installation, OCX with Reference

Air Set (without Autocalibration)

37390011

Electronics

Housing

Eductor

Air In

Sensor

Housing

Dilution Air In

Reference Air In

CAL Gas In

CAL Gas

Flow Meter

7 scfh, 20-30 psig

Recommended

Dilution Air

Flow Meter

0.1 scfh

Instrument

Air Supply

Pressure Reguator/Filter

35 psig - General Purpose

45 psig - Hazardous Area

(

2-Stage

Regulators

HI O

LO O

Instrument

Air Out

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

2-12

Figure 2-6. Pneumatic

Installation, OCX with Reference

Air Set and Solenoids (with

Autocalibration)

Reference Air Set and Solenoids Option

When the reference air set and test gas solenoids are included with your

OCX 8800, use the following procedure to install the pneumatic system

components.

1. Install the reference air set according to the instructions in Reference Air

Set Option, steps 1 through 3.

2. Refer to Figure 2-6. Connect the O2 low gas source to the CAL GAS LO

O2 inlet fitting on the electronics housing. Install a shutoff valve and

pressure regulator with gage in the O2 low supply line, as shown.

3. Connect the O2 high gas source to the CAL GAS HI O2 inlet fitting.

Install a shutoff valve and pressure regulator with gage in the O2 high

supply line.

Electronics

Housing

Dilution

Air In

Reference

Air In

CAL Gas In

CAL Gas

Flow Meter

7 scfh, 20-30 psig

Recommended

Dilution Air

Flow Meter

0.1 scfh

Instrument

Air Supply

Pressure Regulator/Filter

35 psig - General Purpose

45 psig - Hazardous Area

2-Stage

Regulators

HI O

LO O

CAL Gas Out

Eductor

Air In

Sensor

Housing

Instrument Air Out

(

37390012

Instruction Manual

IM-106-880, Rev 1.0

January 2007

2-13

OCX 8800

4. Connect the CO high gas to the CAL GAS HI COe inlet fitting. Install a

shutoff valve and pressure regulator with gage in the CO high supply

line.

5. Connect the CAL GAS outlet fitting of the electronics housing to the inlet

port of the CAL GAS flow meter. Install an air line between the flow

meter outlet port and the CAL GAS inlet fitting on the sensor housing.

Reference Air Set, Solenoids, and Blowback Option

The blowback system blows instrument air back through the blowback filter

and out the sample tube of the transmitter. This removes built up dirt and

particulate from the filter and sample line. The blowback option is normally

used in systems that have a dirty process stream.

Installing an OCX 8800 with the blowback option requires the addition of air

operated blowback valve, regulator and gage, and check valve.

Figure 2-7 shows the piping arrangement for the OCX 8800 with the blowback

and autocalibration options. Figure 2-8 shows the piping arrangement for the

OCX 8800 with the blowback option, but without autocalibration (without test

gas solenoids).

When the reference air set, calibration gas solenoids, and blowback options

are included with your transmitter, use the following procedure to install the

pneumatic system components.

1. Connect the calibration gas sources according to the instructions in the

previous paragraph “Reference Air Set and Solenoids Option”, steps 2

through 5.

2. Connect a clean, dry, instrument-quality supply of air (20.95% O2) to the

35/45 psig and 55 psig pressure regulators. The inlet to the 35/45 psig

regulator accepts a 1/8" NPT fitting. The inlet to the 55 psig regulator

accepts a 1/4" NPT fitting.

3. See the upper leg of the instrument air supply. Connect the output of the

35/45 psi regulator/filter to one port of the normally-closed air-operated

solenoid valve, and to the inlet side of the dilution air flow meter.

4. Connect the dilution air flow meter output to the DILUTION AIR inlet

fitting on the sensor housing.

5. Install an instrument air line between the open port of the normally-open

air-operated solenoid valve and the tee fitting on the sensor housing.

6. Connect the output of the 55 psi regulator/filter to one port of the

normally-open air-operated solenoid valve, and to the instrument air

inlet on the back of the electronics housing.

7. Install an air line between the open port of the normally-closed

air-operated solenoid valve and the check valve inlet fitting on the

sensor housing.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

2-14

Figure 2-7. Piping Arrangement,

Blowback with Autocalibration

38850004

Pressure regulator with 1/8” inlet port is factory

set for 35 or 45 psig. Regulator with 1/4” inlet port

is factory set for 55 psig. If regulators are not

installed in correct locations, the OCX 8800 will

not work.

Check Valve

Blowback Valve,

Air Operated

*Normally

Closed

Solenoid

Valve

Electronics

Housing

Eductor Air In

Sensor

Housing

Dilution Air In

Reference

Air In

Cal Gas Flow Meter

7 scfh, 20-30 psig

Recommended

Dilution

Air Flow Meter

0.1 scfh

Instrument

Air Supply

Pressure Regulator/Filter

35 psig - General Purpose

45 psig - Hazardous Area

(

CAL Gas Out

Instrument Air

Pressure

Regulator/Filter

55 psig

*Normally

Open

Solenoid

Valve

2-Stage

Regulators

HI O

LO O

CAUTION

NOTE: Wall mount the air-operated blowback

valve on a suitable mounting plate.

*NOTE: During blowback operation, states of

both solenoid valves change.

Check

Valve

Tee - (3 x 1/4 in.

Tube Unions)

Vacuum

Gage

Instruction Manual

IM-106-880, Rev 1.0

January 2007

2-15

OCX 8800

Figure 2-8. Piping Arrangement,

Blowback without Autocalibration

37390005

Check Valve

Blowback Valve,

Air Operated

*Normally

Closed

Solenoid

Valve

*NOTE: During blowback operation, states of

both solenoid valves change.

Electronics

Housing

Eductor Air In

Sensor

Housing

Dilution Air In

Reference Air In

CAL Gas In

Cal Gas Flow Meter

7 scfh, 20-30 psig

Recommended

Dilution

Air Flow Meter

0.1 scfh

Instrument

Air Supply

Pressure Regulator/Filter

35 psig - General Purpose

45 psig - Hazardous Area

(

2-Stage

Regulators

HI O

LO O

Instrument Air

Pressure

Regulator/Filter

55 psig

*Normally

Open

Solenoid

Valve

Pressure regulator with 1/8” inlet port is factory

set for 35 or 45 psig. Regulator with 1/4” inlet port

is factory set for 55 psig. If regulators are not

installed in correct locations, the OCX 8800 will

not work.

(

NOTE: Wall mount the air-operated blowback

valve on a suitable mounting plate.

CAUTION

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

2-16

8. Install an air line between the instrument air outlet fitting on the

electronics housing and the control air inlet fitting on the air-operated

solenoid valve.

9. There are three settings that need to be specified to set up the blowback

option. These are the blowback interval, duration, and purge time.

Interval - Length of time between blowback events.

(60 minutes recommended.)

Duration - Length of time blowback air is activated.

(5 seconds recommended.)

Purge - Length of time after blowback is complete before

oxygen/combustibles readings are considered valid.

(Set as required by the application.)

These settings are available through HART from the DEVICE SETUP >

DETAILED SETUP > OUTPUT CONDITIONS > BLOWBACK menu.

Using the LOI, these settings are accessible from the SYSTEM >

INPUT/OUTPUT > BLOWBACK menu.

INITIAL STARTUP Observe the following Caution and Note. Refer to Section 3: Configuration

and Startup, for OCX 8800 startup information.

NOTE

During outages, and whenever possible, leave OCX 8800 units running to

prevent condensation and premature aging from thermal cycling.

Upon completing installation, make sure that the OCX 8800 is turned on and operating prior

to firing up the combustion process. Damage can result from having a cold OCX 8800

exposed to the process gases.

If ducts will be washed down during outages, make sure to power down the OCX 8800 units

and remove them from the wash area.

Instruction Manual

IM-106-880, Rev 1.0

January 2007 OCX 8800

http://www..raihome.com

Section 3 Configuration and Startup

Verify Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-1

Initial Power Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-3

Set Test Gas Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-4

OCX 8800 Reset Procedure . . . . . . . . . . . . . . . . . . . . . . . . page 3-4

VERIFY INSTALLATION Ensure the OCX 8800 is installed correctly. Vertify mechanical installation and

all electrical and pneumatic connections. Refer to Section 2, Installation.

NOTE

During outages, and whenever possible, leave all OCX 8800 units running to

prevent condensation and premature aging from thermal cycling.

Install all protective equipment covers and safety ground leads after installation. Failure to

install covers and ground leads could result in serious injury or death.

Make sure that the OCX 8800 is turned on and operating prior to firing up the combustion

process. Damage can result from having a cold OCX 8800 exposed to the process gases.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

3-2

Verify Configuration

There are three switches on the microprocessor board which are user

configurable for the OCX 8800 (Figure 3-1). SW1 determines if the O2 4-20

mA signal is internally or externally powered. SW2 determines if the COe 4-20

mA signal is internally or externally powered. SW3 sets the rail limits for the

O2 and COe 4-20 mA signals and configures the sample line heater control

circuit. All switches are accessible through holes in the electronics box.

Verify that the following switch settings are correct for your OCX 8800

installation:

SW1 The two settings are internally or externally powering the O2 4-20

mA signal. The factory setting is for the O2 4-20 mA signal to be internally

powered.

SW2 The two settings are internally or externally powering the COe 4-20

mA signal. The factory setting is for the COe 4-20 mA signal to be

internally powered.

SW3 The factory sets this switch as follows:

• Position 1 determines the O2 4-20 mA signal rail limit. The settings are

high, 21.1 mA, or low, 3.5 mA. The factory setting is low, 3.5 mA.

• Position 2 determines the COe 4-20 mA signal rail limit. The settings

are high, 21.1 mA, or low, 3.5 mA. The factory setting is high, 21.1 mA.

• Positions 3 and 4 must be set as shown for proper software control of

the device heaters.

Remove power from the OCX 8800 before changing defaults. If defaults are changed under

power, damage to the electronics may occur.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

3-3

OCX 8800

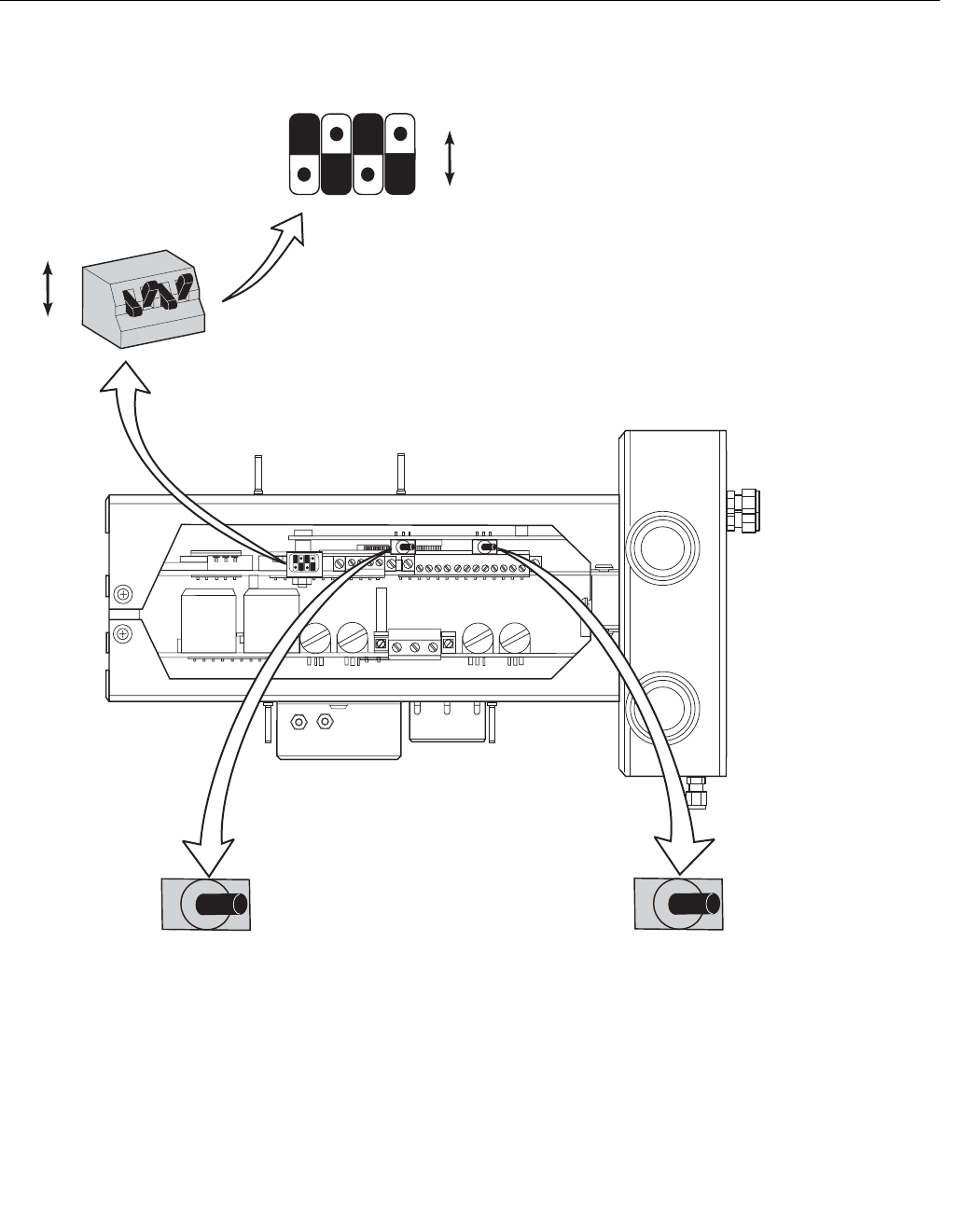

Figure 3-1. OCX 8800 Defaults

INITIAL POWER UP Allow adequate time (approximately 60 minutes) for the heaters to begin

operation and for the OCX 8800 to reach normal operating temperature on

power up. Normal operating temperature for the O2 cell is 736°C. Normal

operating temperature for the combustibles cell is 300°C. The normal sample

line temperature is 170°C. During this time the eductor air solenoid will remain

closed so no sample is pulled through the analyzer. When the OCX reaches

operating temperature the solenoid will energize, eductor air will begin to flow,

and the unit will begin normal operation.

1234

Internal:

O 4-20 mA

is Internally

Powered

External:

O 4-20 mA

Requires an External

Power Supply

(Default)

O 21.1 mA/3.5 mA:

2O 4-20 mA Signal

Rail Limits:

High - 21.1 mA

Low - 3.5 mA

COe 4-20 mA Signal

Rail Limits:

High- 21.1 mA

Low - 3.5 mA

COe 21.1 mA/3.5 mA:

SW3

3.5 mA

Switch

Default Postions

Shown

COe

SW1

SW2

37390026

21.1 mA

Closed

External:

COe 4-20 mA

Requires an External

Power Supply

(Default)

Internal:

COe 4-20 mA

is Internally

Powered

Open

Closed

Open

Closed

Open

Closed

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

3-4

SET TEST GAS VALUES Use HART/AMS or the optional LOI to set test gas values for calibration.

Refer to Section 4, Using the LOI or Section 5, Using HART Communications

for more information.

Setting Test Gas Values with HART

1. Use the HART communicator or AMS software to access the HART

menu.

2. From the DETAILED SETUP menu, select O2 CALIB PARAMS.

3. From O2 CALIB PARAMS, select O2 High Gas. Enter the percent O2

used for the high O2 test gas.

4. From O2 CALIB PARAMS, select Low TG. Enter the percent O2 used

for the low O2 test gas.

5. From the DETAILED SETUP menu, select COe CALIB PARAMS.

6. From COe CALIB PARAMS, select COe Test Gas. Enter the CO

concentration (ppm) used for COe test gas.

Setting Test Gas Values with the LOI

1. Use the "Z" pattern to enter the LOI menu tree.

2. From the SYSTEM menu, select Calib Setup.

3. From Calib Setup, select O2 High Gas %. Enter the percent O2 used

for the high O2 test gas.

4. Select the down arrow and the next selection will be O2 Low Gas %.

Enter the percent O2 used for the low O2 test gas.

5. Select the down arrow several times to display COe Test Gas. Enter the

CO concentration (ppm) used for COe test gas.

OCX 8800 RESET

PROCEDURE

Whenever you correct an equipment alarm or fault condition, the OCX 8800

will either revert to normal operation or continue to indicate an alarm status

condition. If the equipment does not revert to normal operation when a fault

condition is cleared, or if instructed to do so in Section 8, Troubleshooting,

use the following procedure to reset the OCX 8800.

OCX Reset with the LOI

1. Use the "Z" pattern to enter the LOI menu tree. (Refer to Section 4,

Using the LOI).

2. Select the SYSTEM submenu.

3. From the SYSTEM submenu, select the Status submenu.

4. From the Status submenu, select Reset Device. The OCX 8800 will

reset and the LOI will revert to the normal operation display.

OCX Reset with HART

Remove the OCX 8800 from the process loop and recycle power.

Instruction Manual

IM-106-880, Rev 1.0

January 2007 OCX 8800

http://www..raihome.com

Section 4 Using the LOI

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-1

Display Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-1

LOI Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-2

LOI Menu Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-4

D/A Trim Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-8

OVERVIEW This section describes the installation and operation of the LOI module in the

OCX 8800.

DISPLAY ORIENTATION The LOI module mounts to a connector on the LOI board. The board is

installed on the end of the electronics stack in the electronics housing,

Figure 4-1. There are four mating connectors on the back of the LOI module

that allow the LOI to be oriented as desired by the user.

Figure 4-1. LOI Components

Mounting Electronics Housing

(Cover Removed)

LOI Connector

LOI Board

LOI Module

Electronics Stack

37390027

Analytical

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

4-2

LOI CONTROLS

Overview The LOI, shown in Figure 4-2, utilizes a bright blue gas-fluorescent display.

Intensity is adjustable. There is an Infrared LED source and a detector for

each key. The detectors can detect a finger placed above the button through

the glass window. There is no need to open the instrument in bad weather or

in hazardous areas in order to access the electronics.

It should be noted that the Hazardous Area OCX 8800 also utilizes HART

communications, permitting access to all instrument functionality anywhere

the 4-20 mA signal terminates via a HART model 275/375 handheld

communicator.

Figure 4-2. LOI Assembly

LOI Key Functions The gray (top left) key will move one level higher in the menu structure. When

entering parameter values (numbers), this key moves the cursor to the left.

The left-pointing key also doubles as an Enter key, used after the digits of a

parameter value are entered, and the cursor is moved to its left-most position.

When the Enter key is touched, the new parameter value, if accepted, will

appear in the top line of the display.

The blue (bottom left) key acts as a selector when choosing from among

several menu items. This right-pointing key also will move the cursor to the

right when entering the digits of a new parameter value.

The up and down-pointing keys are used to increment up and down when

selecting from a vertical list of menu items. These keys are also used for

incrementing values up and down for new data input.

37390042

Display

Window

Selection

Arrows

Selection

Arrow

Selection

Arrow

(Enter key)

Touch

Confirmation

LED

Analytical

Lockout

Notation

Status

Code

Instruction Manual

IM-106-880, Rev 1.0

January 2007

4-3

OCX 8800

Lockout

The LOI has a lockout feature that prevents nuisance actuation by someone

brushing against the glass window, raindrops, dirt, insects, etc. This lockout

mode is automatically established when no buttons are pushed for 30

seconds (default). This countdown to lockout is configurable.

In order to unlock the display, input a "Z" pattern (Figure 4-3). First, touch the

top left (gray) Enter key. Next, touch the top right key, followed by the bottom

left key and the bottom right key. The LK notation in the upper right corner of

the display will disappear. Touch the Enter key once more to enter into the

menu structure. Whenever a key is touched additional time to lockout is

provided, so that the lockout feature does not become a nuisance. This

additional revert time is one hour (default) and is also user configurable.

Figure 4-3. ‘Z’ Pattern Entry

LOI Status Codes The LOI display shows a status code in the lower right hand corner of the

display. There are nine status codes to indicate the existing status of the

device during operation. The status code descriptions are shown in Table 4-1.

Table 4-1. LOI Status Codes

37390057

Analytical

CODE DESCRIPTION

AL Alarm - The device is in a recoverable alarm state.

BL Bloback - A blowback cycle is active.

CA Calibration - A calibration cycle is active.

CV Calibration Verify - A calibration verify task is in progress.

NM Normal - The device is in a normal operating mode.

PO Power On - A system level initialization sequence is active. This will

continue for several seconds.

SF System Fault - The device is in a non-recoverable alarm condition. The unit

must be reset or power must be cycled off and on to resume operation.

ST Stabilize - The device heater control is stabilizing (after warm up). Sensors

are warming up to operating temperature.

WU Warm Up - The device heaters are ramping up to operating temperature.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

4-4

LOI MENU TREE This section consists of a menu tree for the LOI on the OCX 8800, Figure 4-4.

This menu is specific to the OCX 8800.

First Column Submenus

From the operating display (O2% and COe ppm), the left-pointing Enter key is

the only option to move into the first column submenus of the LOI menu tree.

The first column contains three submenus: SENSOR DATA, Figure 4-4 sheet

1 of 4, CALIBRATION, sheet 2 of 4, and SYSTEM, sheets 3 and 4 of 4. From

the operating display, SENSOR DATA is displayed when the right-pointing

key is selected. Use the up or down-pointing key to move to the other first

column submenus.

Second Column Submenus

From the first column submenus, selecting the right-pointing key moves the

display into the second column submenus. The up and down-pointing keys

allow the display to move to the second column submenus of the first column

submenu selected. The left-pointing key moves the display back to the first

column submenu.

Third and Fourth Column Submenus

From the second column submenus, selecting the right-pointing key moves

the display into the third column submenus. The third column submenu may

be another menu or a list of parameters. The up- and down-pointing keys

allow the display to move to the different parameters or menus. The third or

fourth column submenu may be a parameter list. When a parameter list is

displayed, the cursor will blink. The up- and down-pointing keys select the

value for the parameter displayed.

Figure 4-4. LOI Menu Tree

(Sheet 1 of 4)

O2 Temp _____dgC

O2 Temp-MAX _____dgC

COe Temp _____dgC

COe Temp-MAX _____dgC

SB Temp _____dgC

SB Temp-MAX _____dgC

Board Temp _____dgC

Board Temp-MAX _____dgC

CJC Temp _____dgC

CJC Temp-MAX _____dgC

Temperatures

SENSOR DATA

Raw Values

O2 Output % _____%

O2 Current ____mA

COe Output % _____%

COe Current ____mA

Analog Outputs

O2 X.XX%

Comb XXX ppm

37390007

(CONTINUED ON

SHEET 2)

O2 Sensor _____ mV

O2 Sensor R ____ ohm

O2 T/C _____ mV

COe Delta V _____ mV

RTD Current _____ mA

Board Temp IC

CJC Temp Signal _____ mV

____ ohm

_____ mV

____ ohm

_____ mV

COe Delta R

COe Reference V

COe Reference R

COe T/C

SB T/C _____ mV

_____ mV

Instruction Manual

IM-106-880, Rev 1.0

January 2007

4-5

OCX 8800

Figure 4-4. LOI Menu Tree

(Sheet 2 of 4)

NOTE: “Hit E when ready” is displayed during

semi-automatic calibration only (when

Calib Setup value Use Solenoids = n).

(CONTINUED FROM

SHEET 1)

CALIBRATION

(CONTINUED ON

SHEET 3)

Cal

Control

Cal

Constants

Cal

Status

Cal

Verify

Abort Cal

Start Cal

COe

Start Cal

Both

Current

Calib

Falied

Calib

Calib Result

Calib Step

Calib Time

Next O2 Cal

Next COe Cal

Flow High Gas

Flow Low Gas

Flow COe Gas

Purge

Status

Apply Lo O2 Gas

Flow O2 Lo _____s

______% _____mV

Read O2 Lo _____s

______% _____mV

Apply Hi O2 Gas

Flow O2 Hi _____s

______% _____mV

Read O2 Hi _____s

______% _____mV

Purge _____s

Hit E when ready

Apply Lo COe Gas

Flow COe Lo _____s

______% _____mV

Read COe Lo _____s

______% _____mV

Hit E when ready

Apply Hi COe Gas

Flow COe Hi _____s

______% _____mV

Read COe Hi _____s

______% _____mV

Purge _____s

Hit E when ready

Apply Lo O2 Gas

Flow O2 Lo _____s

______% _____mV

Read O2 Lo _____s

______% _____mV

Apply Hi O2 Gas

Flow O2 Hi _____s

______% _____mV

Read O2 Hi _____s

______% _____mV

Hit E when ready

Purge _____s

Flow COe Hi _____s

______% _____mV

Read COe Hi _____s

______% _____mV

Purge _____s

Hit E when ready

O2 Slope _____mV/D

O2 Constant _____mV

O2 Sensor R _____ohm

COe Slope _____ppm/mV

COe Constant _____mV

Pre O2 Slope _____mV/D

Pre O2 Const _____mV

Pre O2 Sensor R _____ohm

Pre COe Slope _____ppm/mV

Pre COe Const _____mV

Bad O2 Slope _____mV/D

Bad O2 Const _____mV

Bad COe Slope _____ppm/mV

Bad COe Const _____mV

37390015

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

4-6

Figure 4-4. LOI Menu Tree

(Sheet 3 of 4)

SYSTEM

O2 High Gas %

O2 Low Gas %

O2 Reset Vals Yes/No

O2 Out Tracks Yes/No

O2 Cal Interval Hrs

O2 Next Cal Hrs

COe Test Gas %

COe Reset Vals Yes/No

COe Out Tracks Yes/No

COe Cal Interval Hrs

COe Next Cal Hrs

COe Slope Warn %

Use Solenoids Yes/No

Gas Time Seconds

Purge Time Seconds

Trigger 1 Event

Trigger 2 Event

Trigger 3 Event

All

COe Temp

Sample Pr Sen

Sample Ln Temp

Unit Fail

Hi Elect Temp

Calib Fail

O2 Cell Bad

O2 Htr Open

O2 Cell Temp

In Calibrtn

Off

Calib Setup

Blowback

Alarm Relay

Analog

37390017

O2 Type 20-4 mA

COe Type 20-4 mA

COe Range HI ___ppm

Trim COe Out (procedure)

O2 Range Hi ___%

O2 Range Lo ___%

O2 AlarM Level ___mA

Trim O2 Out (procedure)

COe Range Lo ___ppm

COe Alarm Lvl ___mA

(CONTINUED ON

SHEET 4)

Input/Output

Blow Bk Enable __Yes/No

Blow Bk Intrvl ___Minutes

Blow Bk Period ___Seconds

Blow Bk Purge ___Seconds

Blow Bk Status

(

NTINUED FR

SHEET 2)

Instruction Manual

IM-106-880, Rev 1.0

January 2007

4-7

OCX 8800

Figure 4-4. LOI Menu Tree

(Sheet 4 of 4)

SYSTEM

O2 Slope ___ mV/D

O2 Constant ___ mV

O2 T90 Time ___ seconds

COe Constant ___ ohm

COe T90 Time ___ seconds

COe Slope ___ ppm/ohm

Version

Checksum

Build Number

Build Date

Parameters

Software

37390056

(CONTINUED FROM

SHEET 3)

Restart Count

SW Err File

SW Err Line

SW Err Number

Revert Time ___ minutes

O2 T90 Time ___ seconds

Luminance ___ %

PCDC Enable ___ Y/N

Lockout Time ___ seconds

PCNC Enable ___ Y/N

Alarms

CPLD Registers

Line Frequency

Line Voltage

Status

PCD Counter

Sensor Housing

Serial Number

PCN Counter

Reset Device

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

4-8

D/A TRIM PROCEDURES O2 D/A trim procedure using the LOI

Use the following procedure to perform the O2 D/A trim procedure at the LOI.

Refer to the LOI menu tree in Figure 4-4.

1. From the operating display use the left-pointing key to select the first

column submenu. Use the down-pointing key to select SYSTEM.

2. From the SYSTEM menu, use the down-pointing key to select

Input/Output. Use the right-pointing key to select the Analog

parameters list.

3. Scroll down to the item Trim O2 Out. Touch the right-pointing key to

start the O2 trim procedure.

NOTE

If you wish to exit D/A Trim with no changes, step through the procedure using

yes responses, and enter no meter readings.

4. Remove the electronics housing cover.

5. Refer to Figure 2-4. Connect a digital multimeter to read the milliamp

output from the O2 D/A converter circuit. Connect the positive lead to

the AOUT1+ terminal and connect the negative lead to the AOUT1-

terminal. Then, touch the Enter key at the LOI.

6. The LOI displays 4 mA........Meter. The trim program inputs the

design-equivalent signal for a 4.00 mA output. Read the O2 millamp

output at the digital multimeter. Use the right-pointing key to select each

digit and use the up- and down-pointing keys to change the value. When

the correct value is displayed, use the Enter key to input the value.

7. The LOI displays 20 mA........Meter. The trim program inputs the

design-equivalent signal for a 20.00 mA output. Read the O2 millamp

output at the digital multimeter. Use the right-pointing key to select each

digit and use the up- and down-pointing keys to change the value. When

the correct value is displayed, use the Enter key to input the value.

8. The LOI displays a Meter at 4 mA prompt. Use the right-pointing key to

select the letter yes or no. Use the up- or down-pointing key to change

the letter. Then use the Enter key to input the reponse. If no, the

process repeats from step 7.

9. The LOI displays a Meter at 20 mA prompt. Use the right-pointing key

to select the letter yes or no. Use the up- or down-pointing key to

change the letter. Then use the Enter key to input the reponse. If no, the

process repeats from step 8.

10. When the reponses in steps 9 and 10 are yes, the trim procedure is

complete. Exit the LOI menu and return the control loop to automatic

control.

To avoid a potentially dangerous operating condition, the OCX 8800 must be removed from

the automatic combustion control loop before you start the D/A trim procedure.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

4-9

OCX 8800

COe D/A trim procedure using the LOI

Use the following procedure to perform the COe D/A trim procedure at the

LOI. Refer to the LOI menu tree in Figure 4-4.

1. From the operating display use the left-pointing key to select the first

column submenu. Use the down-pointing key to select SYSTEM.

2. From the SYSTEM menu, use the down-pointing key to select

Input/Output. Use the right-pointing key to select the Analog

parameters list.

3. Scroll down to the item Trim COe Out. Touch the right-pointing key to

start the COe trim procedure.

NOTE

If you wish to exit D/A Trim with no changes, step through the procedure using

yes responses, and enter no meter readings.

4. Remove the electronics housing cover.

5. Refer to Figure 2-4. Connect a digital multimeter to read the milliamp

output from the COe D/A converter circuit. Connect the positive lead to

the AOUT2+ terminal and connect the negative lead to the AOUT2-

terminal. Then, touch the Enter key at the LOI.

6. The LOI displays 4 mA........Meter. The trim program inputs the

design-equivalent signal for a 4.00 mA output. Read the COe millamp

output at the digital multimeter. Use the right-pointing key to select each

digit and use the up- and down-pointing keys to change the value. When

the correct value is displayed, use the Enter key to input the value.

7. The LOI displays 20 mA........Meter. The trim program inputs the

design-equivalent signal for a 20.00 mA output. Read the COe millamp

output at the digital multimeter. Use the right-pointing key to select each

digit and use the up- and down-pointing keys to change the value. When

the correct value is displayed, use the Enter key to input the value.

8. The LOI displays a Meter at 4 mA prompt (question). Use the

right-pointing key to select the letter yes or no. Use the up- or

down-pointing key to change the letter. Then use the Enter key to input

the reponse. If no, the process repeats from step 7.

9. The LOI displays a Meter at 20 mA prompt (question). Use the

right-pointing key to select the letter yes or no. Use the up- or

down-pointing key to change the letter. Then use the Enter key to input

the reponse. If no, the process repeats from step 8.

10. When the reponses in steps 9 and 10 are yes, the trim procedure is

complete. Exit the LOI menu and return the control loop to automatic

control.

To avoid a potentially dangerous operating condition, the OCX 8800 must be removed from

the automatic combustion control loop before you start the D/A trim procedure.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

4-10

Instruction Manual

IM-106-880, Rev 1.0

January 2007 OCX 8800

http://www..raihome.com

Section 5 Using HART Communications

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5-1

HART Communicator Signal Connections . . . . . . . . . . . . page 5-1

HART Communicator PC Connections . . . . . . . . . . . . . . . page 5-4

HART Menu Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5-5

D/A Trim Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5-9

OVERVIEW The HART communicator is a handheld communications interface device. It

provides a common communications link to all microprocessor-based

instruments that are HART compatible. The handheld communicator contains

an 8 x 21 character liquid crystal display (LCD) and 25 keys. A pocket-sized

manual, included with the HART communicator, details the specific functions

of all the keys.

To interface with the OCX 8800, the HART communicator requires a

termination point along the O2 4-20 mA current loop and a minimum load

resistance of 250 ohms between the communicator and the power supply.

The HART communicator accomplishes its task using a Frequency Shift

Keying (FSK) technique. With the use of FSK, high-frequency digital

communication signals are superimposed on the 4-20 mA oxygen output

signal. The communicator does not disturb the 4-20 mA signal since no net

energy is added to the loop. HART information is not available on the COe

output signal.

The HART communicator may be interfaced with a personal computer (PC),

providing special software has been installed. To connect the HART

communicator to a PC, an interface adapter is required. Refer to the proper

HART communicator documentation in regard to the PC interface option.

HART COMMUNICATOR

SIGNAL CONNECTIONS

The HART communicator can connect to the OCX 8800 oxygen analog output

signal line at any wiring termination in the O2 4-20 mA current loop. There are

two methods of connecting the HART communicator to the signal line. For

applications in which the signal line has a load resistance of 250 ohms or

more, refer to method 1. For applications in which the signal line load

resistance is less than 250 ohms, refer to method 2.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

5-2

Figure 5-1. Signal Line Connections,

≥ 250 Ohms Load Resistance

Method 1, for Load Resistance ≥ 250 Ohms

Refer to Figure 5-1 and the following steps to connect the HART

communicator to a signal line 250 ohms or more of load resistance.

Using the supplied lead set, connect the HART communicator in parallel to

the OCX 8800. Use any wiring termination points in the oxygen analog output

4-20 mA signal line.

Loop

Connectors

O 4-20 mA Signal Line

HART

Communicator

Model 275/375

RL 250Ω

Analog Output Device

HART Communicator

Rear Panel

Lead Set

37390023

4-20 mA Terminal Block in

Electronics Housing

≥

A OUT 1 -

A OUT 1 +

Do not make connections to the HART communicator's serial port, 4-20 mA signal lines, or

NiCad recharger jack in an explosive atmosphere. Explosions can result in death or serious

injury.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

5-3

OCX 8800

Method 2, for Load Resistance < 250 Ohms

Refer to Figure 5-2 and the following steps to connect the HART

communicator to a signal line with less than 250 ohms load resistance.

1. At a convenient point, break the oxygen analog output 4-20 mA signal

line and install the optional 250 ohm load resistor.

2. Plug the load resistor into the loop connectors (located on the rear panel

of the HART communicator).

Figure 5-2. Signal Line Connections,

< 250 Ohms Load Resistance

Do not make connections to the HART communicator's serial port, 4-20 mA signal lines, or

NiCad recharger jack in an explosive atmosphere. Explosions can result in death or serious

injury.

250 OHM

Load Resistor

(See Note)

37390021

The signal loop must be broken to insert

the optional 250 ohm load resistor.

NOTE:

Loop

Connectors

O 4-20 mA Signal Line

HART

Communicator

Model 275/375

RL <250Ω

Analog Output Device

HART Communicator

Rear Panel

4-20 mA Terminal Block in

Electronics Housing

A OUT 1 -

A OUT 1 +

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

5-4

HART COMMUNICATOR

PC CONNECTIONS

There is an option to interface the HART communicator with a personal

computer. Load the designated AMS software into the PC. Then link the

HART communicator to the PC using the interface PC adapter that connects

to the serial port (on the communicator rear panel). Refer to the proper HART

communicator documentation in regard to the PC interface option.

Off-line and On-line Operations

The HART communicator can be operated both off-line and on-line.

Off-line operations are those in which the communicator is not connected to

the OCX 8800. Off-line operations can include interfacing the HART

communicator with a PC. (Refer to applicable HART documentation regarding

HART/PC applications.)

In the on-line mode, the communicator is connected to the oxygen 4-20 mA

analog output signal line. The communicator is connected in parallel to the

OCX 8800 or in parallel to the 250 ohm load resistor.

The opening menu displayed on the LCD is different for on-line and off-line

operations. When powering up a disconnected (off-line) communicator, the

LCD will display the Main Menu. When powering up a connected (on-line)

communicator, the LCD will display the On-line Menu. Refer to the HART

communicator manual for detailed menu information.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

5-5

OCX 8800

HART MENU TREE This section consists of a menu tree for the HART communicator. This menu

is specific to OCX 8800 applications.

Figure 5-3. HART Menu Tree

(Sheet 1 of 4)

COe

O2 Temp

COe Temp

SB Temp

Brd Temp

CJC Temp

VIEW DEV VARS

PROCESS

VARIABLES

VIEW DEV

RAW VAL

DEVICE SETUP

O2 AO

COe

COe AO

(CONTINUED ON

SHEET 2)

37390038

SV is

COe

COe AO

COe AO %

VIEW OUTPUT

VARS

VIEW O2 RAW VAL

VIEW COE RAW VAL

VIEW DEV RAW VAL SB T/C

Brd Temp IC

CJC Temp S

O2 Snsr

O2 T/C

O2 Snsr R

O2 Snsr RS

COe DeltV

COe RefV

COe DeltaR

Coe RefR

COe T/C

RTD Curr

PV-AOUT

PV is

O2 AO

O2 AO %

TV is

O2 Temp

4V is

COe Temp

VIEW DEV

LIMITS

SB TEMP

BOARD TEMP

COE

O2 USL

O2 LSL

SB Temp

SB TC USL

SB TC LSL

O2 TEMP

O2 Temp

O2 T/C USL

O2 T/C LSL

COE

COe

COe USL

COe LSL

COE TEMP

COe Temp

COe T/C USL

COe T/C LSL

Brd Temp

Brd TC USL

Brd TC LSL

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

5-6

Figure 5-3. HART Menu Tree (Sheet 2 of 4)

DIAG/SERVICE

BCSR0 BCSR3

BCSR1 BCSR4

BCSR2 BCSR5

STATUS

CPLD REGS

D/A TRIM

CAL METHODS

O2OutTracks

COeOutTracks

Cal Step

Cal Time

COe

PERFORM

CAL

CALIBRATE

Cal Step

Cal Time

CAL

STATUS

FAILED CAL

VALUES

Reset O2 CalConsts

Reset COe CalConsts

RESET CAL

CONST

O2 Calibration

COe Calibration

O2 and COe Calib

(CONTINUED FROM

SHEET 1 )

(CONTINUED ON

SHEET 3)

Snsr Housing

Model Number

O2 AO Saturated

COe AO Saturated

O2 AO Fixed

COe AO Fixed

AO fixed

AO saturated

Status group 4

Status group 3

Status group 2

Operate Mode

Status group 6

Status group 5

HW STATUS

Status group 1

LOOP TEST O2 Loop Test

COe Loop Test

O2 D/A Trim

COe D/A Trim

O2 Slope

O2 Const

O2 Snsr R

COe Slope

COe Const

CAL VALUES

Bad O2 Slope

Bad O2 Const

Bad COe Slope

Bad COe Const

PREV CAL

VALUES

Prev O2 Slope

O2 Const

O2 Snsr R

COe Slope

COe Const

VERIFY CALIB

Verify Calibration

Status

TimeRemain

COe

BlBk State

Blowback

BLOWBACK

MAX TEMP

O2TempMax

COeTempMax

SBTempMax

BrdTempMax

CJCTempMax

O2 Prop

O2 Int

O2 DutyCyc

O2 SetPt

O2 Temp

HEATER PID

O2 PID

COE PID

SB PID

COe Prop

Int

DutyCyc

SetPt

Temp

COe

SB Prop

SB Int

SB DutyCyc

SB SetPt

SB Temp

37390039

Line Freq

Line Volt

PCN Counter

PCD Counter

Status group 4

RTD Current Err

COe Temp Low

COe Temp Hi

COe Temp Very Hi

COe T/C Open

COe T/C Shorted

COe T/C Reversed

SB T/C Reversed

Status group 3

Cal Failed

Cal Warning

SB T/C Open

SB T/C Shorted

SB Temp Low

SB Temp Hi

SB Temp Very Hi

ADC Ref Error

Status group 2

O2 Temp Low

O2 Temp Hi

O2 Snsr Open

O2 Snsr R Hi

EEPRM Chksm Fail

O2 Htr Ramp Rate

COe Htr Ramp Rate

SB Htr Ramp Rate

Status group 6

O2 Slope Error

O2 Constant Error

O2 Cal Failed

COe Slope Error

COe Constant Error

COe Cal Failed

Status group 5

COe Htr Failure

SB Htr Failure

Line Voltage Low

Line Voltage Hi

Htr Relay Failed

Output Board Failure

Status group 1

O2 T/C Open

O2 T/C Shorted

O2 T/C Reversed

ADC Failure

Line Freq Error

O2 Htr Failure

O2 Temp Very Hi

Board Temp Hi

(procedures)

Instruction Manual

IM-106-880, Rev 1.0

January 2007

5-7

OCX 8800

Figure 5-3. HART Menu Tree

(Sheet 3 of 4)

BASIC SETUP

DEVICE

INFORMATION

DETAILED

SETUP

(CONTINUED FROM

SHEET 2)

37390040

(CONTINUED ON

SHEET 4)

Ta g

Poll addr

Dev id

Num req preams

Fld dev rev

OUTPUT

CONDITION

Trig 1 Event

Trig 2 Event

Trig 3 Event

Alarm State

O2 AO Type

O2 URV

O2 LRV

O2 Alarm Level

COe CALIB

PARAMS

BlBk Enabled

BlBk Intrvl

BlBk Period

BlBk PurgeTm

BlBk State

ANALOG

OUTPUT

ALARM

RELAY

DEVICE

PARAMS

LOI

PARAMS

O2 CALIB

PARAMS

BLOWBACK

COe AO Type

COe URV

COe LRV

COe Alarm Level

O2 ANALOG

OUTPUT

COe ANALOG

OUTPUT

O2OutTracks

O2 High Gas

O2 Low Gas

Gas Time

Purge Time

Solenoids

O2 CalIntv

O2NxtCalTm

COeOutTracks

COe Test Gas

Gas Time

Purge Time

Solenoids

COe CalIntv

COeNxtCalTm

COe Slope Warn

O2 Slope

O2 Const

O2 T90

COe Slope

COe Const

COe T90

PCNC Enable

PCDC Enable

User Intface

Luminance

Lockout Time

Revert Time

Date

Descriptor

Message

Final asmbly num

O2 Sensor s/n

COe Sensor s/n

HART

INFORMATION

S/W VERSION

INFO

Version

Chksum

Bld Num

Bld Date

Restart Cntr

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

5-8

Figure 5-3. HART Menu Tree

(Sheet 4 of 4)

O2 Slope

O2 Const

O2 T90

COe Slope

COe Const

COe T90

O2 CALIB

O2 DEVICE

CONFIG

REVIEW DEVICE

INFORMATION

HART

INFORMATION

CAL INFO

OUTPUTS

CONFIG

Manufacturer

Model

Date

Descriptor

Message

Final asmbly num

O2 Sensor s/n

COe Sensor s/n

Hardware rev

Software rev

(CONTINUED FROM

SHEET 3)

37390041

Ta g

Poll addr

Dev id

Num req preams

Fld dev rev

Universal rev

DEVICE

CONFIG

COE CALIB

O2OutTracks

O2 High Gas

O2 Low Gas

Gas Time

Purge Time

Solenoids

O2 CalIntv

O2NxtCalTm

COeOutTracks

COe Test Gas

Gas Time

Purge Time

Solenoids

COe CalIntv

COeNxtCalTm

COe Slope Warn

COE DEVICE

CONFIG

DEVICE CONFIG

Trig 1 Event

Trig 2 Event

Trig 3 Event

BlBk Enabled

BlBk Intrvl

BlBk Period

BlBk PurgeTm

PCNC Enable

PCDC Enable

Luminance

Lockout Time

Revert Time

O2 URV

O2 LRV

COe URV

COe LRV

O2 AO Type

COe AO Type

O2 Alarm Level

COe Alarm Level

Instruction Manual

IM-106-880, Rev 1.0

January 2007

5-9

OCX 8800

D/A TRIM PROCEDURES O2 D/A trim procedure using HART/AMS

Use the following procedure to perform the O2 D/A trim procedure using the

HART communicator or AMS. Refer to the HART menu tree, Figure 5-3.

NOTE

To select a menu item, either use the up and down arrow keys to scroll to the

menu item and press the right arrow key or use the number keypad to select

the menu item number.

To return to a preceding menu, press the left arrow key.

1. From the DIAG/SERVICE menu, select D/A TRIM. The HART

communicator displays O2 D/A Trim.

2. Press the right arrow key to start the procedure. (If you wish to exit D/A

Trim with no changes, select ABORT.)

3. The HART communicator displays WARNING: Loop should be

removed from automatic control. Remove the OCX 8800 from any

automatic control loops to avoid a potentially dangerous operating

condition and press OK.

4. Remove the electronics housing cover.

5. Refer to Figure 2-4. Connect a digital multimeter to read the milliamp

output from the O2 D/A coverter circuit. Connect the positive lead to the

AOUT1+ terminal and connect the negative lead to the AOUT1-

terminal. Then, press OK at the HART communicator.

6. The HART communicator displays Setting Fld dev output to 4 mA.

Press OK. Read the O2 millamp output at the digital multimeter. Enter

the reading at the HART communicator and press ENTER. (Select

ABORT to exit without changes).

7. The HART communicator displays Setting Fld dev output to 20 mA.

Press OK. Read the O2 millamp output at the digital multimeter. Enter

the reading at the HART communicator and press ENTER. (Select

ABORT to exit without changes).

8. The HART communicator displays Setting Fld dev output to 4 mA.

Press OK.

9. The HART communicator displays Fld dev output 4.00 mA equal to

reference meter? Using the up or down arrow, select 1 Yes or 2 No

and Press ENTER. If No, the process repeats from step 6.

10. The HART communicator displays Setting Fld dev output to 20 mA.

Press OK.

11. The HART communicator displays Fld dev output 20.00 mA equal to

reference meter? Using the up or down arrow, select 1 Yes or 2 No

and Press ENTER. If No, the process repeats from step 7.

12. The HART communicator displays NOTE: Loop may be returned to

automatic control.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

5-10

COe D/A trim procedure using HART/AMS

Use the following procedure to perform the COe D/A trim procedure using the

HART communicator or AMS. Refer to the HART menu tree, Figure 5-3.

NOTE

To select a menu item, either use the up and down arrow keys to scroll to the

menu item and press the right arrow key or use the number keypad to select

the menu item number.

To return to a preceding menu, press the left arrow key.

1. From the DIAG/SERVICE menu, select D/A TRIM. The HART

communicator displays O2 D/A Trim. Press the up or down arrow to

select COe D/A Trim.

2. Press the right arrow key to start the procedure. (If you wish to exit D/A

Trim with no changes, select ABORT.)

3. The HART communicator displays WARNING: Loop should be

removed from automatic control. Remove the OCX 8800 from any

automatic control loops to avoid a potentially dangerous operating

condition and press OK.

4. Remove the electronics housing cover.

5. Refer to Figure 2-4. Connect a digital multimeter to read the milliamp

output from the COe D/A coverter circuit. Connect the positive lead to

the AOUT2+ terminal and connect the negative lead to the AOUT2-

terminal. Then, press OK at the HART communicator.

6. The HART communicator displays Setting Fld dev output to 4 mA.

Press OK. Read the COe millamp output at the digital multimeter. Enter

the reading at the HART communicator and press ENTER. (Select

ABORT to exit without changes).

7. The HART communicator displays Setting Fld dev output to 20 mA.

Press OK. Read the COe millamp output at the digital multimeter. Enter

the reading at the HART communicator and press ENTER. (Select

ABORT to exit without changes).

8. The HART communicator displays Setting Fld dev output to 4 mA.

Press OK.

9. The HART communicator displays Fld dev output 4.00 mA equal to

reference meter? Using the up or down arrow, select 1 Yes or 2 No

and Press ENTER. If No, the process repeats from step 6.

10. The HART communicator displays Setting Fld dev output to 20 mA.

Press OK.

11. The HART communicator displays Fld dev output 20.00 mA equal to

reference meter? Using the up or down arrow, select 1 Yes or 2 No

and Press ENTER. If No, the process repeats from step 7.

12. The HART communicator displays NOTE: Loop may be returned to

automatic control.

Instruction Manual

IM-106-880, Rev 1.0

January 2007 OCX 8800

http://www..raihome.com

Section 6 Calibration

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6-1

Fully Automatic Calibration . . . . . . . . . . . . . . . . . . . . . . . . page 6-1

Operator - Initiated Autocalibration . . . . . . . . . . . . . . . . . page 6-4

Manual Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6-4

OVERVIEW During a calibration, two calibration gases with known O2 concentrations and

one calibration gas with a known COe concentration are applied to the OCX

8800. Slope and constant values are calculated to determine if the OCX 8800

is correctly measuring net concentrations of O2 and combustibles in the

industrial process.

Before calibrating the OCX 8800, verify that the calibration gas parameters

are correct by setting the test gas values used when calibrating the unit. Refer

to Section 3, Configuration and Startup.

There are three calibration methods available to the OCX 8800; automatic,

operator-initiated automatic, and manual. Calibration commands and menus

can be accessed by HART/AMS or by the LOI.

FULLY AUTOMATIC

CALIBRATION

If the OCX 8800 is equipped with calibration solenoids, the unit can be

programmed to automatically calibrate without any operator action. Refer to

the following paragraphs for using the LOI or HART/AMS to set up the OCX

8800 for fully automatic calibration.

Autocalibration Setup using the LOI

Use the following procedure to set up the OCX 8800 for automatic calibration.

If necessary, use the LOI menu tree in Figure 4-4 for reference. The unit must

be equipped with calibration solenoids to use automatic calibration.

NOTE

Automatic calibration is only available on units equipped with calibration

solenoids.

1. From the operating display use the right-pointing key to select SYSTEM

first column submenu.

2. From the SYSTEM first column submenu, use the right-pointing key to

select the Calib Setup second column submenu.

3. From the Calib Setup second column submenu, use the right-pointing

key to select the third column parameter list.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

6-2

4. Scroll down to the last item Use Solenoids. If the unit is equipped with

calibration solenoids and timed automatic calibration is desired, select

Yes.

5. Use the up-pointing key to select the item O2 Out Tracks. Select Yes or

No to determine if updates to the O2 lock value will take place.

6. Use the down-pointing key to select the item COe Out Tracks. Select

Yes or No to define if updates to the COe lock value will take place.

7. Use the down-pointing key to select the item O2 Cal Interval. Enter the

amount of time in days and hours that is desired between automatic

calibrations.

8. Use the down-pointing key to select the next item O2 Next Cal. Enter

the amount of time in hours until the next automatic calibration. Select

the left-pointing key three times to move back to the LOI operating

display.

Autocalibration Setup using HART

NOTE

Automatic calibration is only available on units equipped with calibration

solenoids.

Use the following procedure to specify a time interval (in hours) at which the

OCX 8800 will automatically calibrate.

1. From the DEVICE SETUP screen, select DETAILED SETUP.

2. From the DETAILED SETUP screen, select O2 CALIB PARAMS or

COE CALIB PARAMS.

3. If the unit is equipped with calibration solenoids and timed automatic

calibrations are desired, select Solenoids, then select Yes. Selct No to

disable the calibration solenoids.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

6-3

OCX 8800

4. Select O2 CalIntrvl (O2 calibration interval) and enter the desired time

in hours between automatic O2 calibrations. Select COE Callintrvl and

enter the desired time between automatic COe calibrations. To disable

automatic calibration for O2 and COe, enter 0 for both CalIntrvl

parameters.

5. If desired, the O2NxtCalTm and the COeNxtCalTm (next calibration

time) parameters can be changed to synchronize a calibration at a

specific day or time.

NOTE

To select a menu item, either use the up and down arrow keys to scroll to the

menu item and press the right arrow key or use the number keypad to select

the menu item number.

To return to a preceding menu, press the left arrow key.

6. From the O2 CALIB PARAMS screen, select CalIntrvl.

7. At the prompt, input a time interval (in hours) at which an automatic O2

calibration will occur and press ENTER.

8. From the DETAILED SETUP screen, select COE CALIB PARAMS.

9. From the COE CALIB PARAMS menu, select CalIntrvl.

10. At the prompt, input a time interval (in hours) at which an automatic COe

calibration will occur and press ENTER.

When setting automatic calibration times, CalIntrvl and NxtCalTm should be set so that O2

and COe are NOT calibrated simultaneously.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

6-4

OPERATOR - INITIATED

AUTOCALIBRATION

An operator can initiate an automatic calibration at any time provided that the

unit is equipped with calibration solenoids.

Autocalibration using the LOI

To initiate a calibration using the LOI, perform the following steps on the LOI

menu tree. Refer to Section 4, Using the LOI, for the LOI menu tree.

1. From the CALIBRATION menu, use the right-pointing arrow to select

the Cal Control menu.

2. Select Start Cal-O2, Start Cal COe, or Start Cal Both to start the

calibration. Select Cal Verify to access the calibration window.

3. At the prompt, use the right-pointing arrow to initiate automatic

calibration.

Autocalibration using HART

To initiate an automatic calibration using HART/AMS, perform the following

steps on the HART menu tree. Refer to Section 5, Using HART

Communications, for the HART menu tree.

1. Select DIAG/SERVICE from DEVICE SETUP menu.

2. Select CALIBRATE from the DIAG/SERVICE menu.

3. Select PERFORM CAL from the CALIBRATE menu.

4. Select CAL METHODS from the PERFORM CAL menu.

5. From the CAL METHODS menu, select the type of calibration desired:

O2 Calibration, COe Calibration, or O2 and COe Calibration.

MANUAL CALIBRATION If a unit is not equipped with calibration solenoids, a calibration must be

performed by an operator following prompts from the unit. Refer to the

following paragraphs for manual calibration.

Manual Calibration using the LOI

Use the following procedure to perform a manual calibration with the LOI. If

necessary, refer to the menu tree in Section 4, Using the LOI. Once the

manual calibration procedure is initiated at the LOI, a series of prompts will

appear giving instructions to the operator.

1. Use the right-pointing key to select the CALIBRATION first column

submenu.

2. From the CALIBRATION submenu use the right-pointing key to select

the Cal Control second column submenu.

3. From the Cal Control submenu use the right-pointing key to select the

third column Start Cal O2 option.

4. Remain at the Start Cal O2 option or use the down-pointing key to

select the Start Cal COe option or Start Cal Both option. (The following

sequence applies when Start Cal Both is selected.)

5. Use the right-pointing key to start the calibration. Turn on the low O2 test

gas, when prompted by the Flow Low Gas message.

6. Press the right-pointing key when the low O2 test gas is applied. The

calibration data changes as the calibration proceeds.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

6-5

OCX 8800

7. Press the right-pointing key when the low O2 reading is stable. Turn off

the low O2 test gas and turn on the high O2 test gas as prompted by the

Flow High Gas message.

8. Press the right-pointing key when the high O2 test gas is applied. The

calibration data changes as the calibration proceeds.

9. Press the right-pointing key when the high O2 reading is stable. Turn off

the high O2 test gas. Press the right-pointing key to start the high O2 gas

purge.

10. When the purge period expires, the LOI display reverts to the normal

operation display. If the calibration failed, the display will indicate an

alarm condition.

11. Press the right-pointing key to start combustibles calibration. Turn on

the CO test gas when prompted.

12. Press the right-pointing key when the CO test gas is applied. The

calibration data changes as the calibration proceeds.

13. Press the right-pointing key when the CO reading is stable.

14. Turn off the CO test gas and press the right-pointing key to start the CO

gas purge.

15. When the purge period expires, the LOI display reverts to the normal

operation display. If the calibration failed, the display will indicate an

alarm condition.

Manual O2 Calibration using HART

To perform a manual O2 calibration using the HART communicator or AMS,

use the following procedure. If necessary, refer to Section 5, Using HART

Communications, for the HART menu tree.

NOTE

To select a menu item, either use the up and down arrow keys to scroll to the

menu item and press the right arrow key or use the number keypad to select

the menu item number.

To return to a preceding menu, press the left arrow key.

1. From the DIAG/SERVICE menu, select CALIBRATION. From the

CALIBRATION menu, select PERFORM CAL.

2. From the PERFORM CAL menu, select CAL METHODS. Select O2

CALIBRATION to start O2 calibration.

3. In the first O2 Calibration screen, a Loop should be removed from

automatic control warning appears. Remove the OCX 8800 from any

automatic control loops to avoid a potentially dangerous operating

condition and press OK.

4. The main Calibration screen should look like the following. Press OK to

continue.

OCX: TAG NAME

STATUS: Idle

TIME REMAIN: 0s

O2: 0.4 %, 85.95mV

OK/NEXT to Select

ABORT/CANCEL to Exit

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

6-6

5. From the SELECT ACTION screen, select START/NEXT CALSTEP to

continue calibration, select ABORT CAL to abort calibration or EXIT

CAL to exit calibration. Select one item from the list and press ENTER.

OCX: TAG NAME

SELECT ACTION

1. START/NEXT CALSTEP

2. ABORT CAL

3. EXIT CAL

6. When the Calibration Status is at the AppO2Low step, switch on O2

Low Gas. Verify the O2 concentration measured matches the O2 LOW

GAS parameter in the Setup. Press OK when ready.

7. Select Start/Next Cal Step to start applying the O2 Low Gas. The time

to apply the test gas is specified by the Gas Time.

8. The Calibration Status should be automatically changed to FlowO2Low

and then ReadO2Low for a period of time. During this period, if an

attempt is made to go to the next calibration step by pressing OK and

selecting Start/Next Cal Step, you will be prompted with Operator step

command is not accepted at this time. The Next Cal Step command

is not accepted at this time.

9. When ready, Calibration Status will stop at the AppO2Hi. Switch off the

O2 Low Gas and switch on the O2 High Gas. Verify the O2 concentration

measured matches the O2 HIGH GAS parameter in the Setup. Press

OK when ready.

10. Select Start/Next Cal Step to start applying the O2 High Gas. The time

to apply the test gas is specified by the Gas Time.

11. The Calibration Status should be automatically changed to FlowO2Hi

and then ReadO2Hi for a period of time. During this period, if an attempt

is made to go the next calibration step by pressing OK and selecting

Start/Next Cal Step, you will be prompted with Operator step

command is not accepted at this time. The Next Cal Step command

is not accepted at this time.

12. When ready, Calibration Status will stop at STOP GAS. Switch off the

O2 High Gas. Press OK when ready. Select Start/Next Cal Step to start

purging gas. The time to purge gas is specified by the Purge Time.

13. When the Purge step is complete, the Calibration Status will be at IDLE

if the calibration is successful or CAL RECOMMENDED if the

calibration has failed. A Calibration Failed alarm will be set if the

calibration has failed.

14. When calibration is complete. Select Exit Cal to exit the calibration

method.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

6-7

OCX 8800

Manual COe Calibration using HART

To perform a manual COe calibration using the HART communicator or AMS,

use the following procedure. If necessary, refer to Section 5, Using HART

Communications, for the HART menu tree.

NOTE

To select a menu item, either use the up and down arrow keys to scroll to the

menu item and press the right arrow key or use the number keypad to select

the menu item number.

To return to a preceding menu, press the left arrow key.

1. From the DIAG/SERVICE menu, select CALIBRATION. From the

CALIBRATION menu, select PERFORM CAL.

2. From the PERFORM CAL menu, select CAL METHODS. Select COe

CALIBRATION to start COe calibration.

3. In the first COe Calibration screen, a Loop should be removed from

automatic control warning appears. Remove the OCX 8800 from any

automatic control loops to avoid a potentially dangerous operating

condition and press OK.

4. The main Calibration screen should look like the following. Press OK to

continue.

OCX: TAG NAME

STATUS: Idle

TIME REMAIN: 0s

COe: 0.20 ppm, 0.00 mV

OK/NEXT to Select

ABORT/CANCEL to Exit

5. From the SELECT ACTION screen, select START/NEXT CALSTEP to

continue calibration, select ABORT CAL to abort calibration or EXIT

CAL to exit calibration. Select one item from the list and press ENTER.

OCX: TAG NAME

SELECT ACTION

1. START/NEXT CALSTEP

2. ABORT CAL

3. EXIT CAL

6. The unit samples reference air as the COe Low Gas. The Calibration

Status should automatically change to ReadCOLow for a period of time.

During this period, if an attempt is made to go to the next calibration

step by pressing OK and selecting Start/Next Cal Step, you will be

prompted with Operator step command is not accepted at this time.

The Next Cal Step command is not accepted at this time.

7. When ready, Calibration Status will stop at the AppCOeHi. Switch on

the COe High Gas. Verify the COe concentration measured matches the

COe HIGH GAS parameter in the Setup. Press OK when ready.

8. Select Start/Next Cal Step to start applying the COe High Gas. The

time to apply the test gas is specified by the Gas Time.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

6-8

9. The Calibration Status should be automatically changed to FlowCOeHi

and then ReadCOeHi for a period of time. During this period, if an

attempt is made to go the next calibration step by pressing OK and

selecting Start/Next Cal Step, you will be prompted with Operator step

command is not accepted at this time. The Next Cal Step command

is not accepted at this time.

10. When ready, Calibration Status will stop at STOP GAS. Switch off the

COe High Gas. Press OK when ready. Select Start/Next Cal Step to

start purging gas. The time to purge gas is specified by the Purge Time.

11. When the Purge step is complete, the Calibration Status will be at IDLE

if the calibration is successful or CAL RECOMMENDED if the

calibration has failed. A Calibration Failed alarm will be set if the

calibration has failed.

12. When calibration is complete. Select Exit Cal to exit the calibration

method.

Manual O2 and COe Calibration using HART

To perform a manual O2 and COe calibration using the HART communicator

or AMS, use the following procedure. If necessary, refer to Section 5, Using

HART Communications, for the HART menu tree.

NOTE

To select a menu item, either use the up and down arrow keys to scroll to the

menu item and press the right arrow key or use the number keypad to select

the menu item number.

To return to a preceding menu, press the left arrow key.

1. From the DIAG/SERVICE menu, select CALIBRATION. From the

CALIBRATION menu, select PERFORM CAL.

2. From the PERFORM CAL menu, select CAL METHODS. Select 02 &

COe CALIBRATION to start O2 and COe calibration.

3. In the first Calibration screen, a Loop should be removed from

automatic control warning appears. Remove the OCX 8800 from any

automatic control loops to avoid a potentially dangerous operating

condition and press OK.

4. The main Calibration screen should look like the following. Press OK to

continue.

OCX: TAG NAME

STATUS: Idle

TIME REMAIN: 0s

O2: 0.4 %, 85.95mV

COe: 0.20 ppm, 0.00 mV

OK/NEXT to Select

ABORT/CANCEL to Exit

Instruction Manual

IM-106-880, Rev 1.0

January 2007

6-9

OCX 8800

5. From the SELECT ACTION screen, select START/NEXT CALSTEP to

continue calibration, select ABORT CAL to abort calibration or EXIT

CAL to exit calibration. Select one from the list and press ENTER.

OCX: TAG NAME

SELECT ACTION

1. START/NEXT CALSTEP

2. ABORT CAL

3. EXIT CAL

6. When the Calibration Status is at the AppO2Low step, switch on O2

Low Gas. Verify the O2 concentration measured matches the O2 LOW

GAS parameter in Setup. Press OK when ready.

7. Select Start/Next Cal Step to start applying the O2 Low Gas. The time

to apply the test gas is specified by the Gas Time.

8. The Calibration Status should automatically change to FIowO2Low and

then ReadO2Low for a period of time. During this period, if an attempt

is made to go to the next calibration step by pressing OK and selecting

Start/Next Cal Step, you will be prompted with Operator step

command is not accepted at this time. The Next Cal Step command

is not accepted at this time.

9. When ready, Calibration Status will stop at AppO2Hi. Switch off the O2

Low Gas and switch on the O2 High Gas. Verify the O2 concentration

measured matches the O2 HIGH GAS parameter in Setup. Press OK

when ready.

10. Select Start/Next Cal Step to apply the O2 High Gas. The time to apply

the test gas is specified by the Gas Time.

11. The Calibration Status should automatically change to FlowO2Hi, then

ReadO2Hi, and then ReadCOeLo for a period of time. During this

period, if an attempt is made to go the next calibration step by pressing

OK and selecting Start/Next Cal Step, you will be prompted with

Operator step command is not accepted at this time. The Next Cal

Step command is not accepted at this time.

12. When ready, Calibration Status will stop at AppCOeHi. Switch off the O2

High Gas and switch on the COe Gas. Verify the COe concentration

measured matches the COe TEST GAS parameter in the Setup. Press

OK when ready.

13. Select Start/Next Cal Step to start applying the COe Gas. The time to

apply the test gas is specified by the Gas Time.

14. The Calibration Status should automatically change to FlowCOeHi and

then ReadCOeHi for a period of time. During this period, if an attempt is

made to go the next calibration step by pressing OK and selecting

Start/Next Cal Step, you will be prompted with Operator step

command is not accepted at this time. The Next Cal Step command

is not accepted at this time.

15. When ready, Calibration Status will stop at STOP GAS. Switch off the

COe gas. Press OK when ready. Select Start/Next Cal Step to start

purging gas. The time to purge gas is specified by Purge Time.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

6-10

Instruction Manual

IM-106-880, Rev 1.0

January 2007 OCX 8800

http://www..raihome.com

Section 7 Maintenance and Service

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7-1

OCX 8800 Removal and Installation . . . . . . . . . . . . . . . . . page 7-1

Repair Sensor Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7-5

Repair Electronics Housing . . . . . . . . . . . . . . . . . . . . . . . . page 7-25

Replace Tube Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7-31

OVERVIEW This section contains the procedures to maintain and service the OCX 8800.

OCX 8800 REMOVAL

AND INSTALLATION

Use the following procedures to remove or install the OCX 8800.

Install all protective equipment covers and safety ground leads after equipment repair or

service. Failure to install covers and ground leads could result in serious injury or death.

It is recommended that the OCX 8800 be removed from the stack for all service activities.

The unit should be allowed to cool and be taken to a clean work area. Failure to comply may

cause severe burns.

Disconnect and lock out power before working on any electrical components. There may be

voltage up to 264 VAC.

Observe housing classification guidelines prior to removing cover. Failure to observe

classification guidelines may result in serious injury or death.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

7-2

OCX with

Integral Electronics

Remove OCX 8800

1. Turn off power to the system.

2. Shut off the test gases at the cylinders and shut off the instrument air.

3. Disconnect the test gas and instrument air lines from the electronics

housing, Figure 7-1.

Figure 7-1. OCX with

Integral Electronics

4. Remove the cover from the electronics housing to expose the

electronics housing terminal blocks, Figure 7-2.

5. Disconnect and remove the power leads from the AC power input

terminal block and remove the ground lead from the ground stud.

6. Disconnect and remove the O2 and COe signal leads from the 4-20 mA

signal output terminal block.

7. If used, disconnect and remove the external relay leads from the alarm

output relay terminal block.

8. Disconnect and remove customer power and signal wire conduits and

wiring from the electronics housing.

9. Remove insulation to access the sensor housing mounting bolts. Unbolt

the OCX 8800 from the stack and take it to a clean work area.

10. Allow the unit to cool to a comfortable working temperature.

Low O Test Gas

High O Test Gas

CO Test Gas

Instrument Air

(Reference Gas)

Duct

Stack

AC Power Input

O and COe

4-20 mA Outputs

(2 Twisted Pairs)

Adapter

Plate

37390043

Electronics

Housing

Sensor

Housing

Explosion hazard! Before removing cover from sensor or electronics housing, allow at least

45 minutes to pass after power is disconnected. Failure to allow adequate time for all

internal electrical charges to dissipate can result in serious injury or death.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

7-3

OCX 8800

Figure 7-2. Electronics Housing

Terminal Blocks

37390013

TOP VIEW

(1/2 SIZE)

Ground Stud

Earth Ground

Typical for Electronics and

Sensor Housing

COM

Alarm Output Relay

Terminal Block

AOUT2+

AOUT2 -

AOUT1 -

AOUT1+

O Signal

COe Signal

{

Ground

Stud

4-20 mA Signal Output

Terminal Block

Power Port

3/4 NPT

Signal Port

3/4 NPT

External Tooth

Lockwasher

Terminal

Block

EMI Filter

Customer

Wiring

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

7-4

Install OCX 8800

Observe the following cautions when installing the OCX 8800 in a hot process

stack. If the process is shut down and cooled, the transmitter can be installed

in the stack prior to connecting the pneumatics and wiring.

1. Connect the test gas lines and the instrument air lines to the electronics

housing.

2. Remove the electronics housing cover.

3. Install customer power and signal conduits and wiring at the electronics

housing.

4. If used, connect external relay leads to the alarm output relay terminal

block, Figure 7-2.

5. Connect the O2 and COe signal leads to the 4-20 mA signal output

terminal block.

6. Connect the line (L1 wire) to the L1 terminal, and the neutral (N wire) to

the N terminal on the AC power input terminal block.

7. Connect the ground lead to the ground stud. Secure the connection with

two nuts. Attach a separate ground lead (G wire) from the ground stud

to the G terminal on the power input terminal block.

8. Install the cover on the electronics housing.

9. Restore power to the system. Allow OCX to reach normal operating

temperature before installing in a hot process stack.

10. Bolt the OCX 8800 to the stack and install insulation. Refer to Figure 7-1

and make sure all test gas lines and electrical connections are

complete.

11. Turn on the test gasses at the cylinders and open the instrument air

supply valve.

Before installing the OCX 8800 into a hot stack or ductwork, make sure that the OCX 8800

is turned on and at normal operating temperature. Exposing a cold OCX transmitter to hot

process gases can cause permanent damage to the equipment.

Whenever a positive stack pressure exists at the installation site, be sure to connect all

pneumatic lines prior to installing the OCX 8800 in the stack or ductwork. Failure to connect

the pneumatic lines can allow the flow of contaminants into the OCX 8800 ports.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

7-5

OCX 8800

REPAIR SENSOR

HOUSING

Use the following procedures to remove damaged components from the OCX

8800 sensor housing and to install new replacement parts. Disassemble the

unit only as needed to replace damaged components. Use the assembly

procedures that apply to install replacement parts and reassemble the unit.

Sensor Housing

Disassembly

Remove Cover and Terminals Insulator

1. Loosen screw (1, Figure 7-3) and slide locking clip (2) away from cover.

Retighten screw (1).

2. With two hands or strap wrench, turn cover (3) counterclockwise to

loosen. Unthread and remove cover.

3. Inspect cover o-ring (4) for wear or damage. Replace cover o-ring if

damaged.

4. Unsnap terminal marking plates (5) and remove terminal insulator (6).

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

7-6

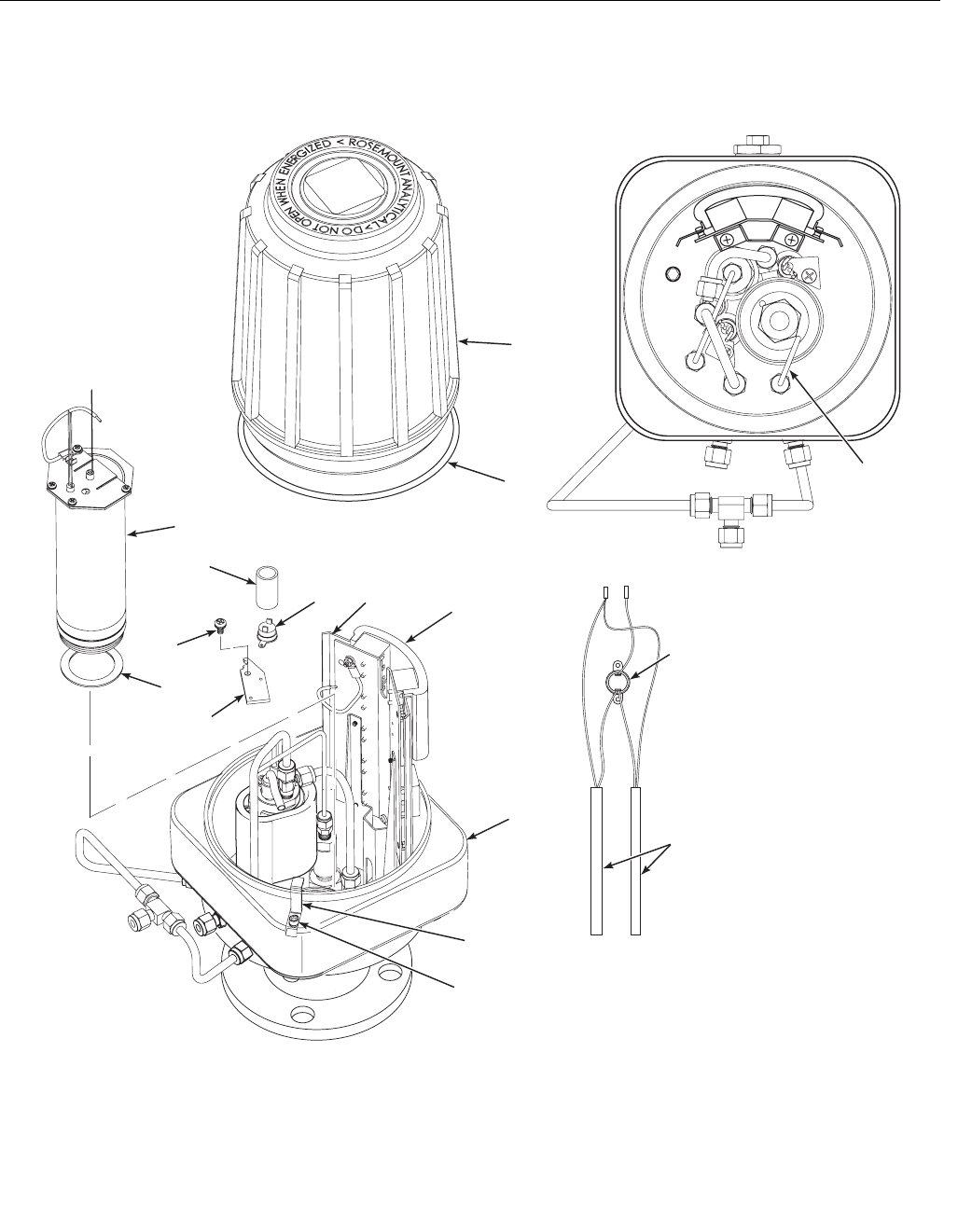

Figure 7-3. Removal of O2 Cell

and Heater Strut Assembly

390066

1. Screw

2. Locking Clip

3. Cover

4. O-ring

5. Marking Plate

6. Terminal Insulator

7. Reference Air Tube

8. Sensor Housing

9. Heater Strut Assembly

10. Gasket

11. Screw

12. Heater Clamp

13. Heater Rod

14. Insulator

15. Thermal Switch

Instruction Manual

IM-106-880, Rev 1.0

January 2007

7-7

OCX 8800

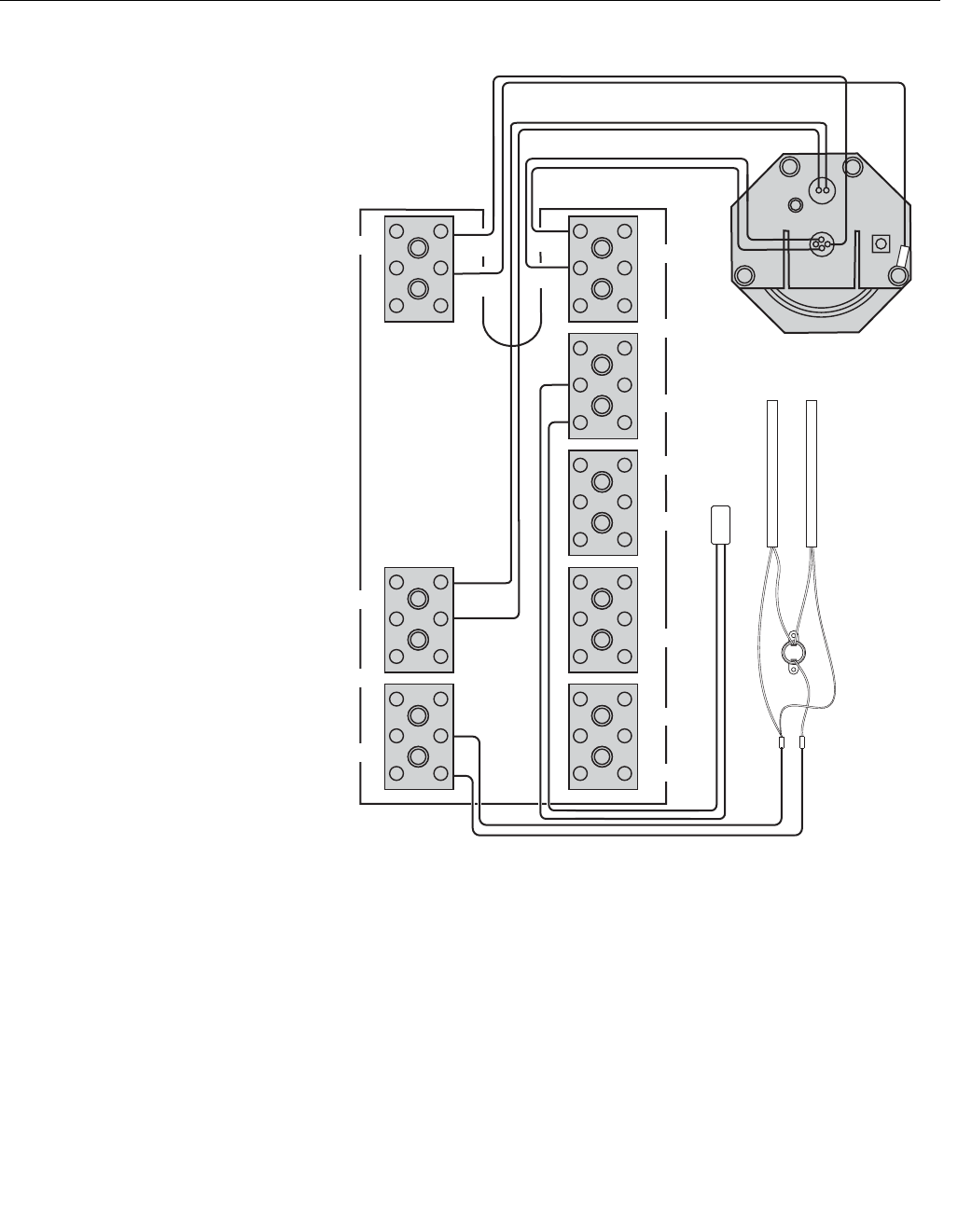

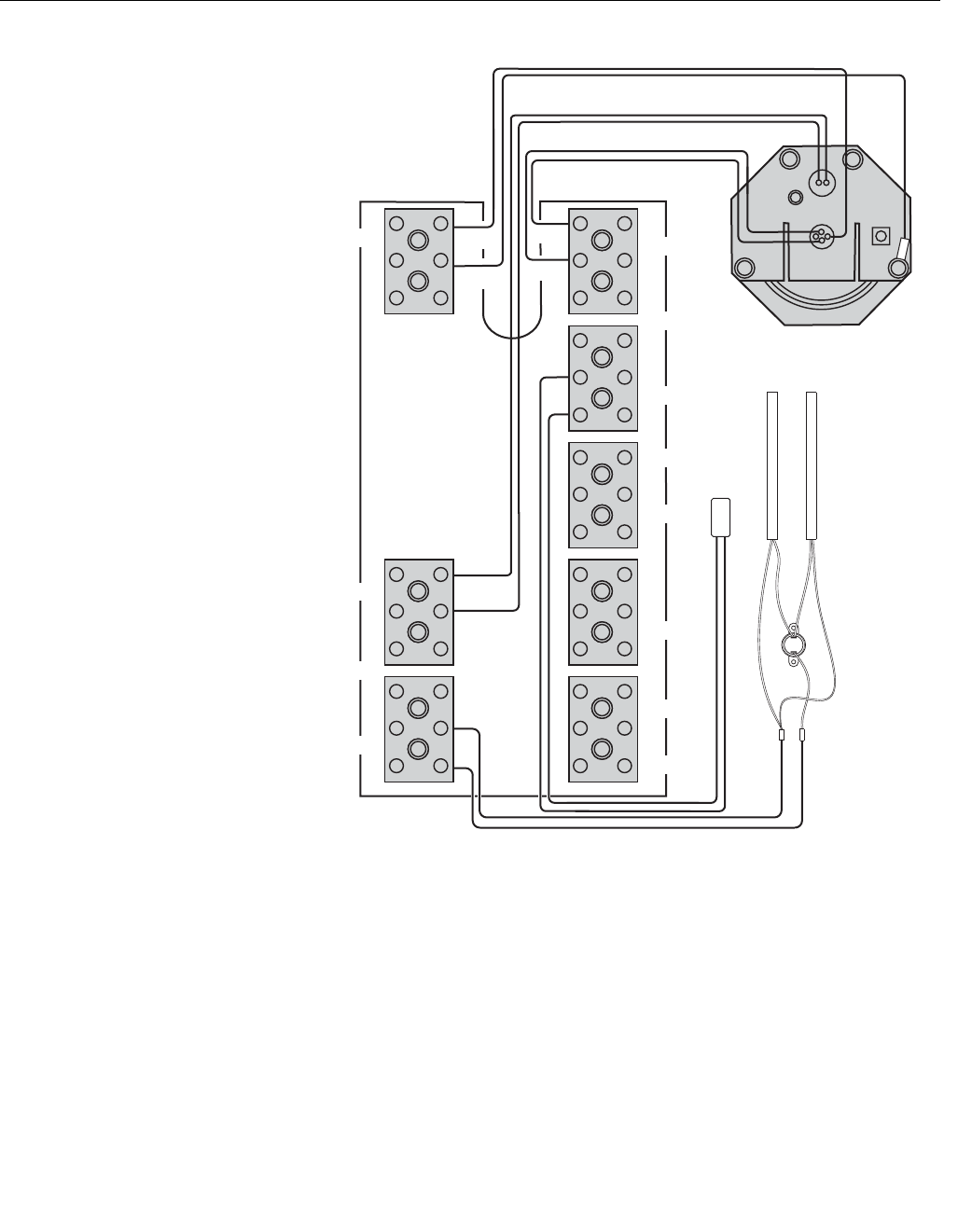

Figure 7-4. O2 Cell,

Thermocouple, and

Heater Connections

Remove O2 Cell and Heater Strut Assembly

1. Remove reference air tube (7, Figure 7-3) from sensor housing (8).

2. See Figure 7-4. Disconnect and tag O2 heater wires, O2 cell and return

wires, and thermocouple wires at the sensor housing terminals.

3. Remove the O2 cell and heater strut assembly (9, Figure 7-3) from

sensor housing (8). Remove and discard gasket (10).

Remove Sample Block Heater Rods

1. Disconnect sample block heater rod wires from terminal block. Refer to

Figure 7-4.

+ +

Thermocouple Wires

ORG

RED

T/C O2

T/C CO

T/C SB

EXC

CJC

O Cell Wires

O Heater Wires

Return Wire

O Cell and Heater Strut

Assembly

CO REF

CO ACT

Sensor Housing Terminals

HTR 02

HTR SB

GRN

YEL

37390069

HTR 02

Sample Block

Heater Rods

Thermal

Switch

HTR CO

EXC

Sample

Block

Thermo-

couple

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

7-8

2. Loosen screws (11, Figure 7-3) and rotate heater clamps (12) to release

heater rods (13). One heater clamp secures each heater rod.

3. Slide sample block heater rods (13) out of housing (8).

4. To replace thermal switch (15), remove insulator (14). Disconnect

heater wires. Unscrew and remove thermal switch.

Remove COe Sensor Assembly

1. Disconnect COe heater, thermocouple, and sensor wires from terminal

blocks. Refer to Figure 7-5.

2. Remove insulator (1, Figure 7-6).

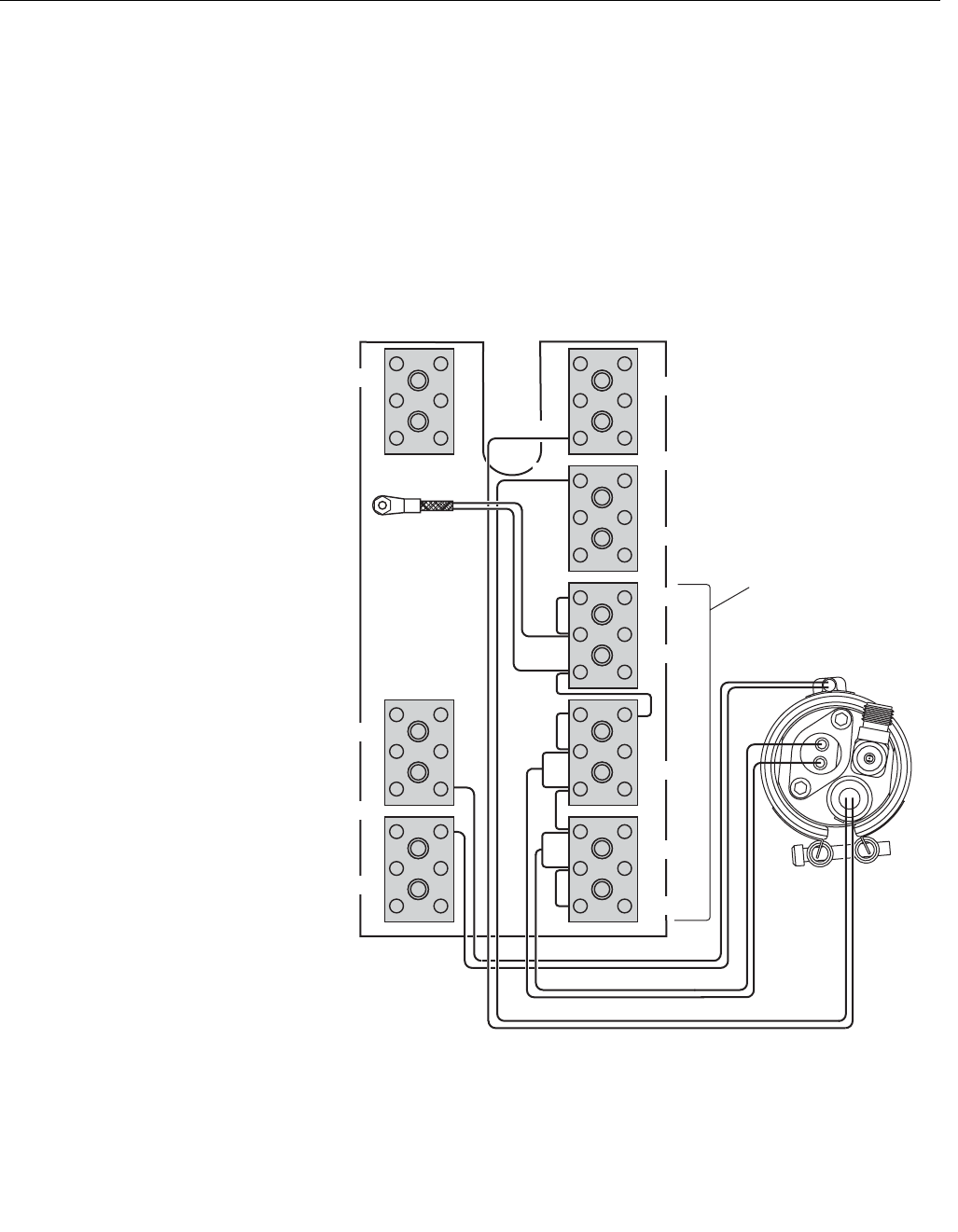

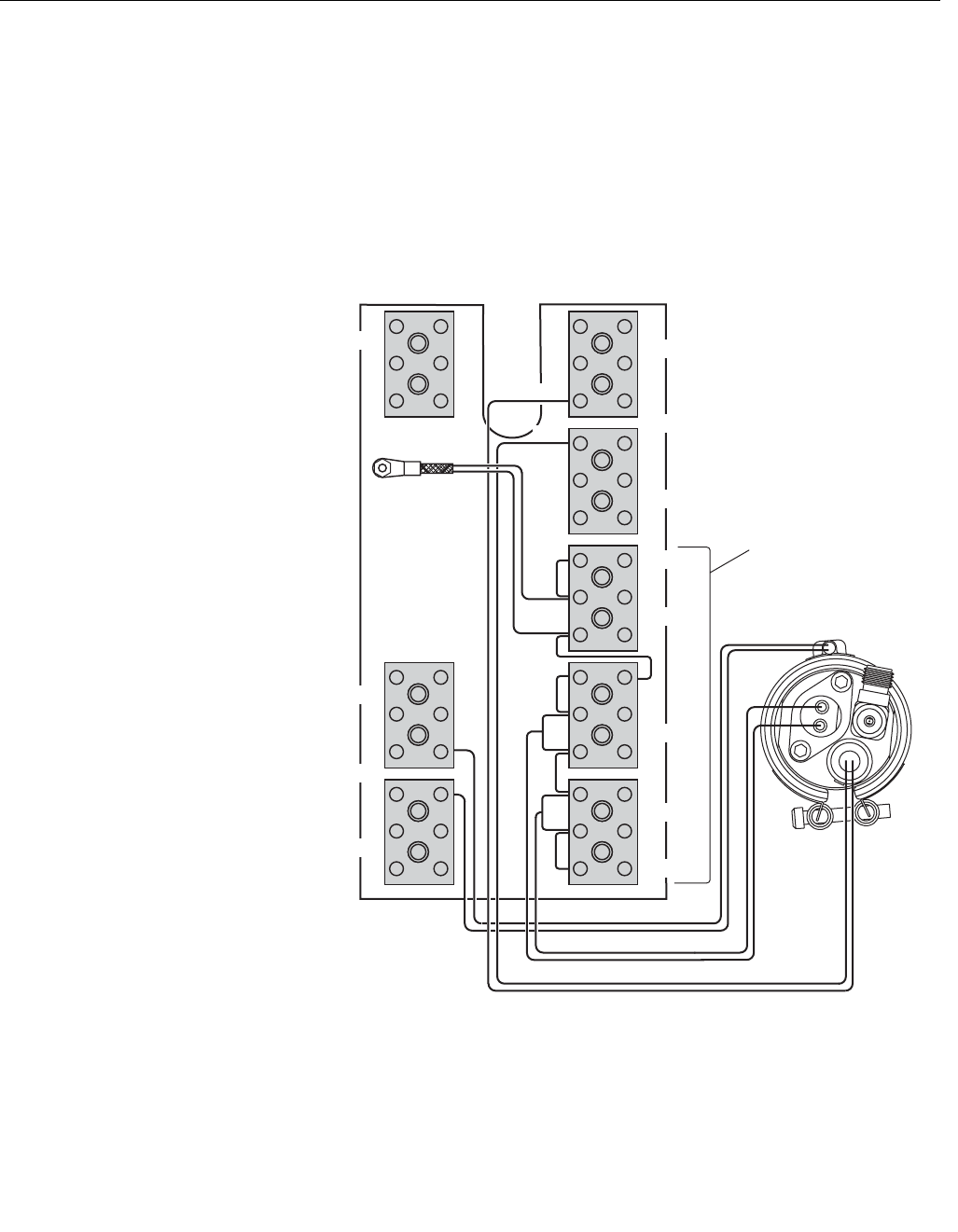

Figure 7-5. COe Sensor,

Thermocouple, and Heater

Connections

RED

T/C O2

T/C CO

T/C SB

EXC

CJC

COe Sensor Wires

COe Heater Wires

COe Sensor

Assembly

CO REF

CO ACT

Sensor Housing Terminals

HTR 02

HTR SB

YEL

37390018

HTR 02

HTR CO

WHT BLU

RED

RED WHT

COe Thermocouple Wires

-EXC

RED BLU

CJC Sensor NOTE: All wires

at these terminals

are in the CJC

current loop.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

7-9

OCX 8800

NOTE

For easier access, you may remove two screws from base of terminal block

mounting (13) and move terminal block assembly out of the way.

3. Remove tubes (2, 3, and 4) from COe sensor assembly (5), eductor

fittings (12 and 15), and sensor housing (7).

4. Unfasten bayonet connector of COe thermocouple (8) and remove

thermocouple.

5. Loosen clamp screw of COe band heater (9) until heater rotaters freely

on sensor holder (11).

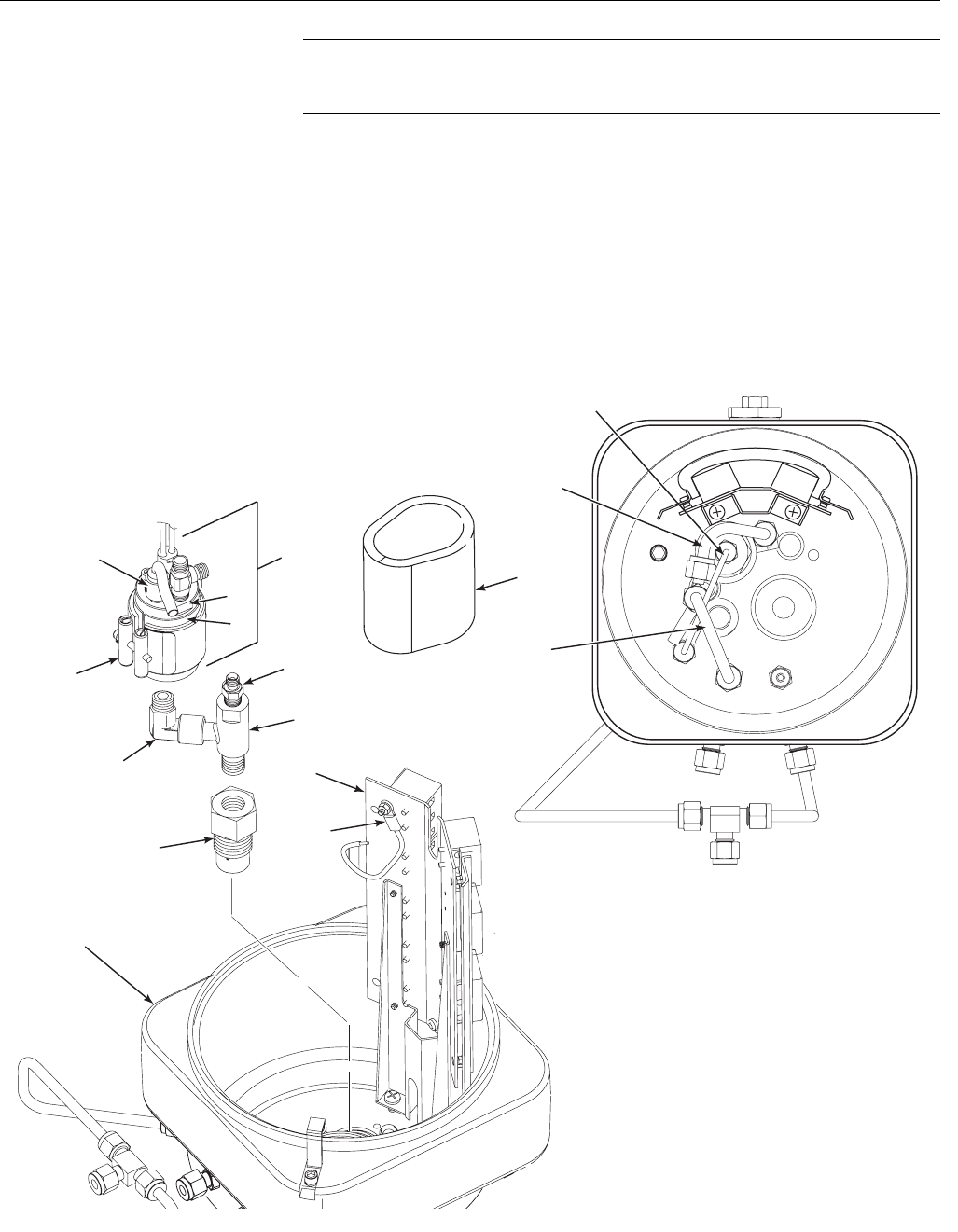

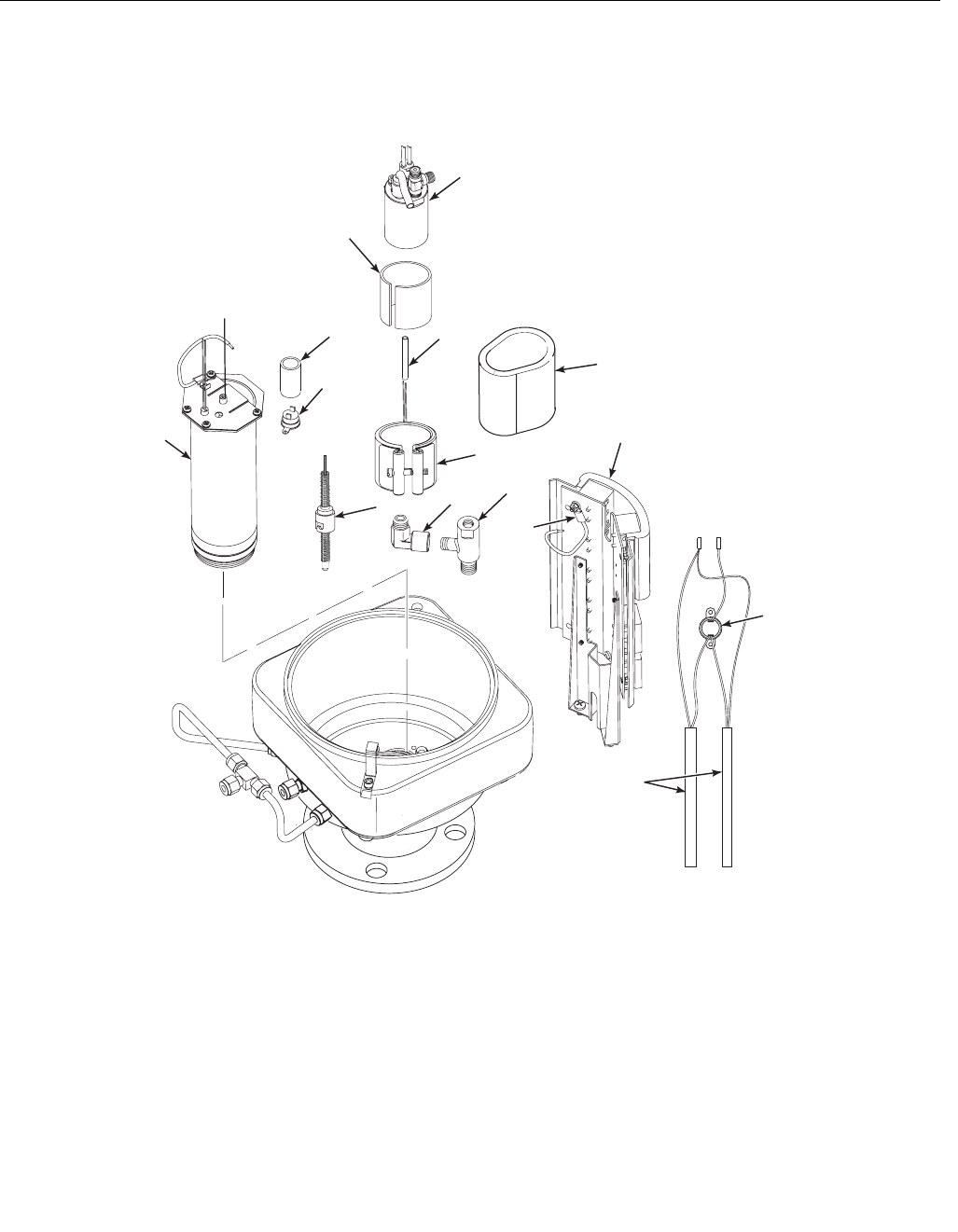

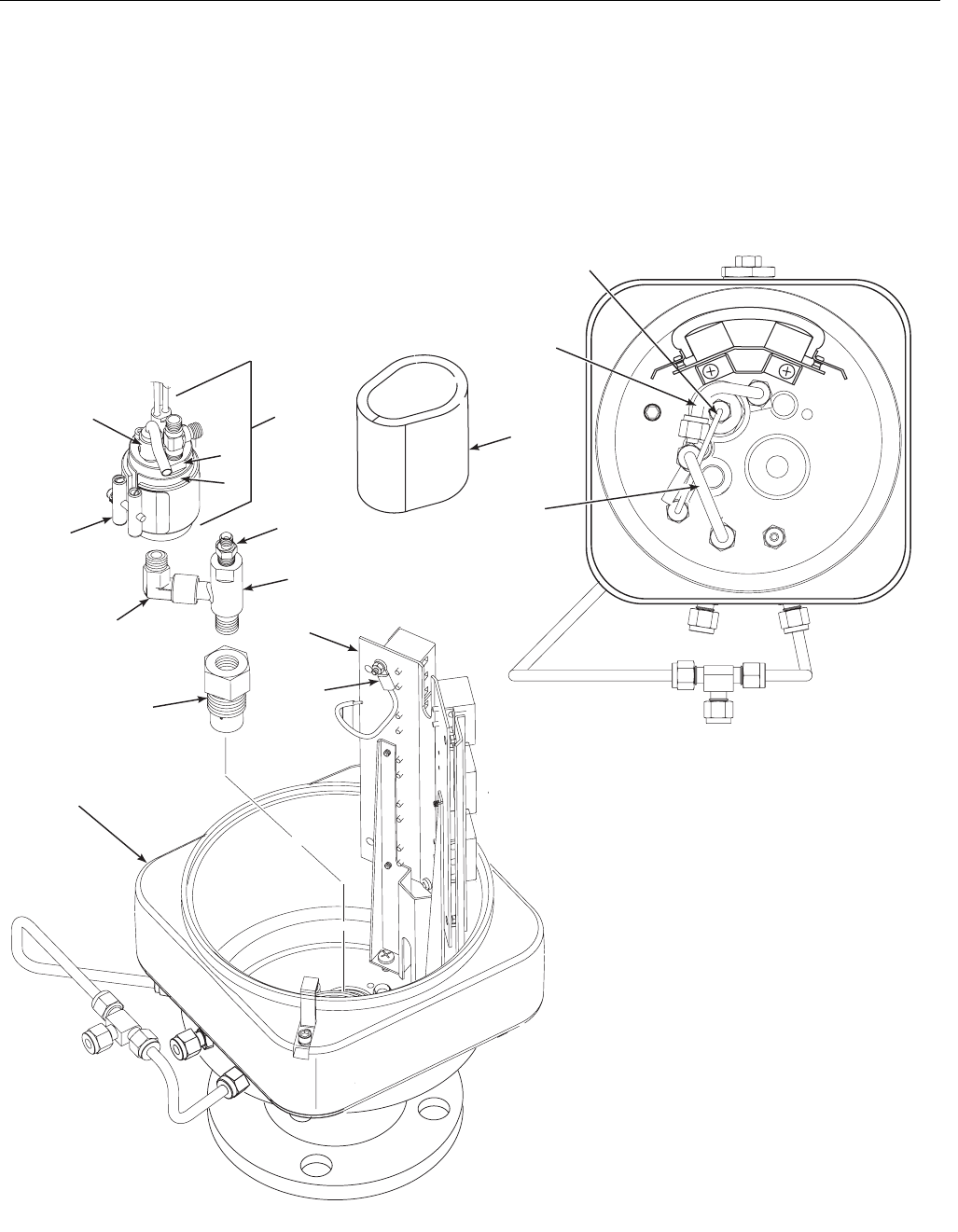

Figure 7-6. Removal of

COe Sensor Assembly

12 13

1. Insulator

2. Dilution Air Tube

3. COe Extractive Tube

4. Eductor Air Tube

5. COe Sensor Assembly

6. Eductor

7. Sensor Housing

8. COe Thermocouple

9. Heater Insulator

10. COe Band Heater

11. Sensor Holder

12. Eductor Elbow

13. Terminal Block Mounting

14. Eductor Holder

15. Tube Fitting

16. CJC Sensor

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

7-10

6. See Figure 7-7. Using straightedge on the sensor holder flat, as shown,

matchmark upper flange of sensor housing to show correct alignment of

sensor holder.

7. With one wrench holding eductor elbow (12, Figure 7-6), and one

wrench on flats of sensor holder (11), unthread and remove COe sensor

assembly (5). Do not allow eductor elbow to turn.

8. Slide band heater (10) and heater insulator (9) from sensor holder (11).

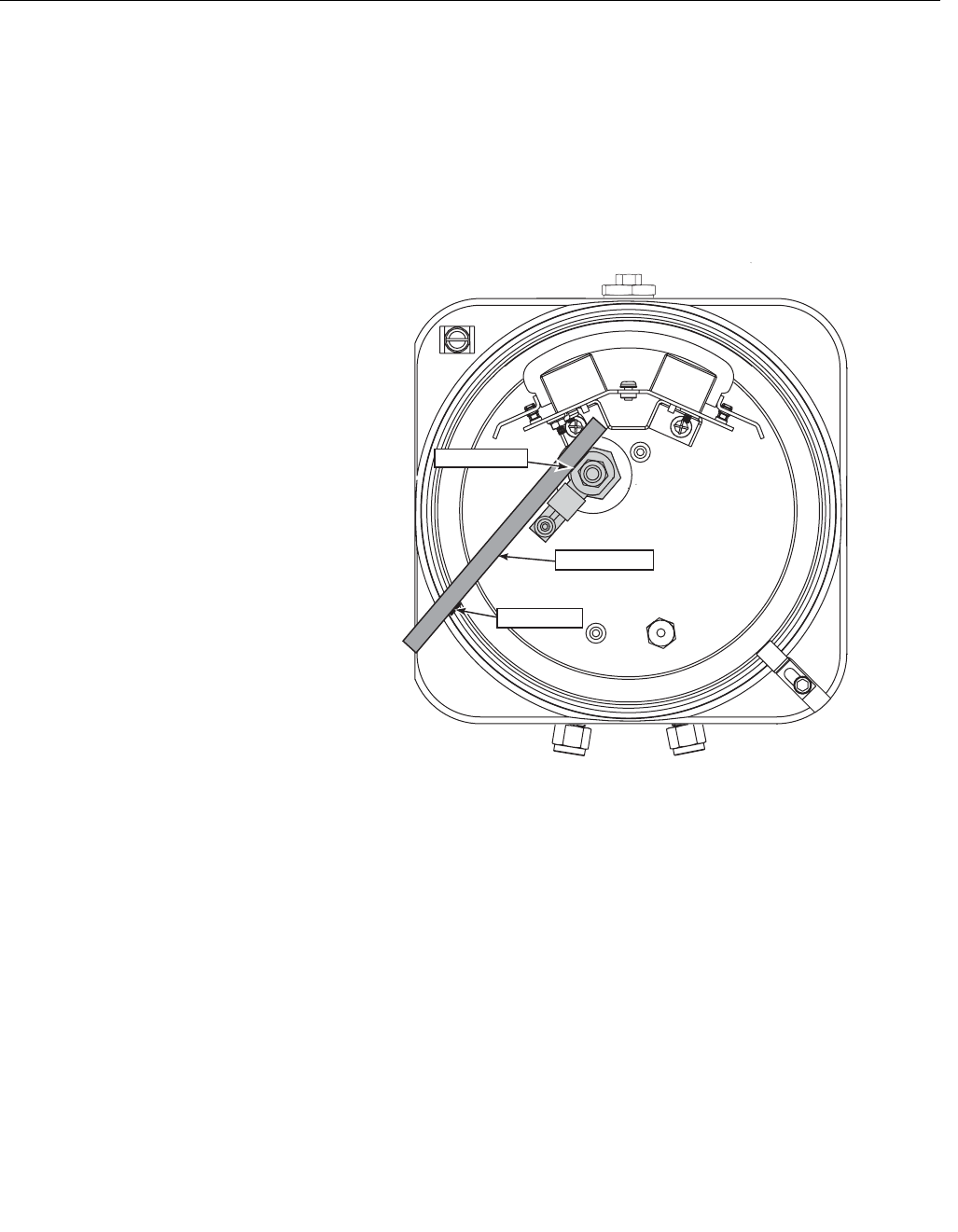

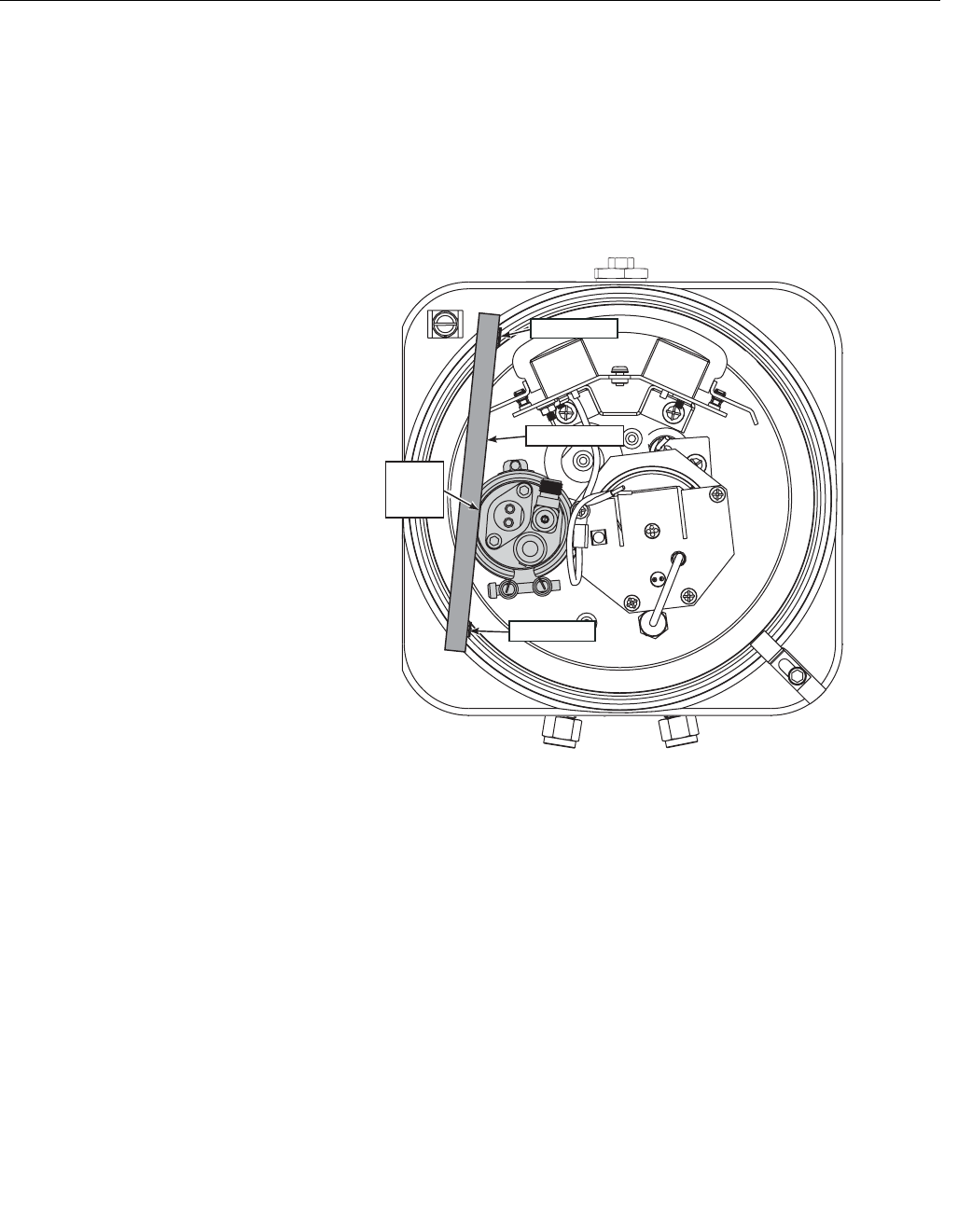

Figure 7-7. Alignment of

COe Sensor Assembly

37390035

Sensor

Holder

Flat

Matchmark

Straightedge

Matchmark

Instruction Manual

IM-106-880, Rev 1.0

January 2007

7-11

OCX 8800

Remove Eductor

The O2 cell and heater strut assembly (9, Figure 7-3) and the COe sensor

assembly (5, Figure 7-6) must be removed before you start this procedure.

1. Use straightedge to matchmark alignment of eductor flat and elbow, as

shown in Figure 7-8.

Figure 7-8. Eductor Alignment

Matchmarks

2. Unscrew terminal block mounting (13, Figure 7-6). Move terminal block

mounting away from eductor (6).

3. Unscrew eductor holder (14) with eductor (6) and fittings (12 and 15)

from sensor housing (7).

4. Clamp flats of eductor (6) in jaws of bench vise.

5. Use a propane torch to heat the eductor (6) to 450°F (232°C), minimum.

Apply the heat near the screw threads.

6. While heating the eductor (6), use wrench to apply removal torque to

elbow (12), eductor holder (14), or tube fitting (15) until the thread

sealant softens. Remove mating parts (12, 14, and 15).

7. Use MEK or methylene chloride solvent to clean thread sealant residue

from the pipe threads of the mating parts. Refer to applicable MSDS

sheet for solvent handling precautions.

37390036

Eductor Flat

Matchmark

Straightedge

Use heat resistant gloves when removing mating parts from the eductor. The mating parts

are bonded with a thread sealing compound. The compound softens at 450°F (232°C). The

heated parts can cause severe burns.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

7-12

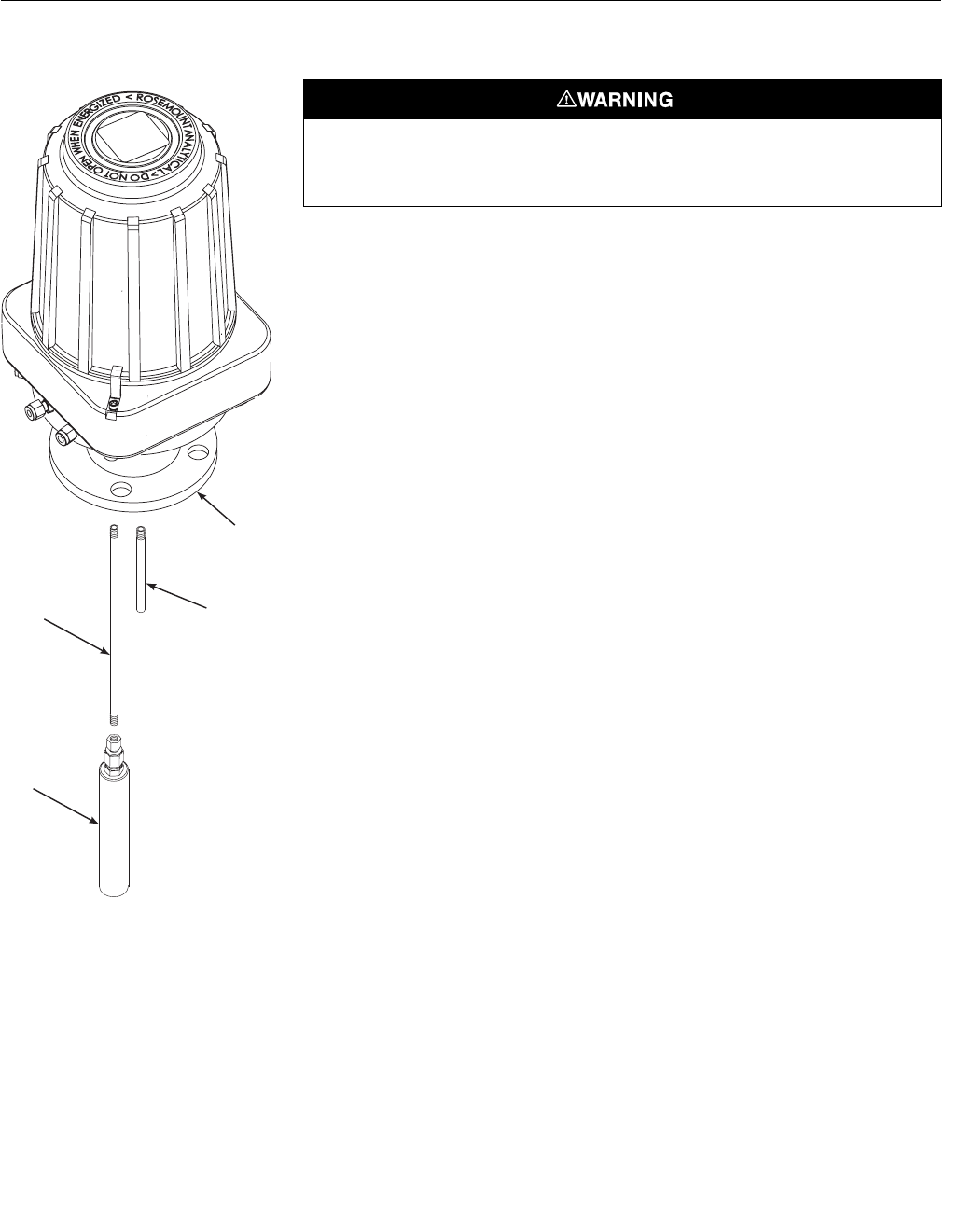

Figure 7-9. Removal of Sample

and Exhaust Tubes Remove Sample and Exhaust Tubes

1. Secure the sensor housing (1, Figure 7-9) in soft (plastic, wood, or

brass) vice jaws.

2. Use a propane torch to heat the sample tube (2) or exhaust tube (3) to

450°F (232°C), minimum. Apply the heat near the threaded end of the

tube.

3. While heating the tube, use a pipe wrench to apply removal torque to

part being removed. Apply torque until the pipe thread sealant softens.

Remove and discard the used sample tube (2), exhaust tube (3), or

in-situ filter (4).

4. Use MEK or methylene chloride solvent to clean thread sealant residue

from the internal pipe threads in the housing. Refer to applicable MSDS

sheet for solvent handling precautions.

37390048

1. Sensor Housing

2. Sample Tube

3. Exhaust Tube

4. In Situ Filter

Use heat resistant gloves when removing the probe tube or exhaust tube. The tubes are

bonded with a thread sealing compound. The compound softens at 450°F (232°C). The

heated parts can cause severe burns.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

7-13

OCX 8800

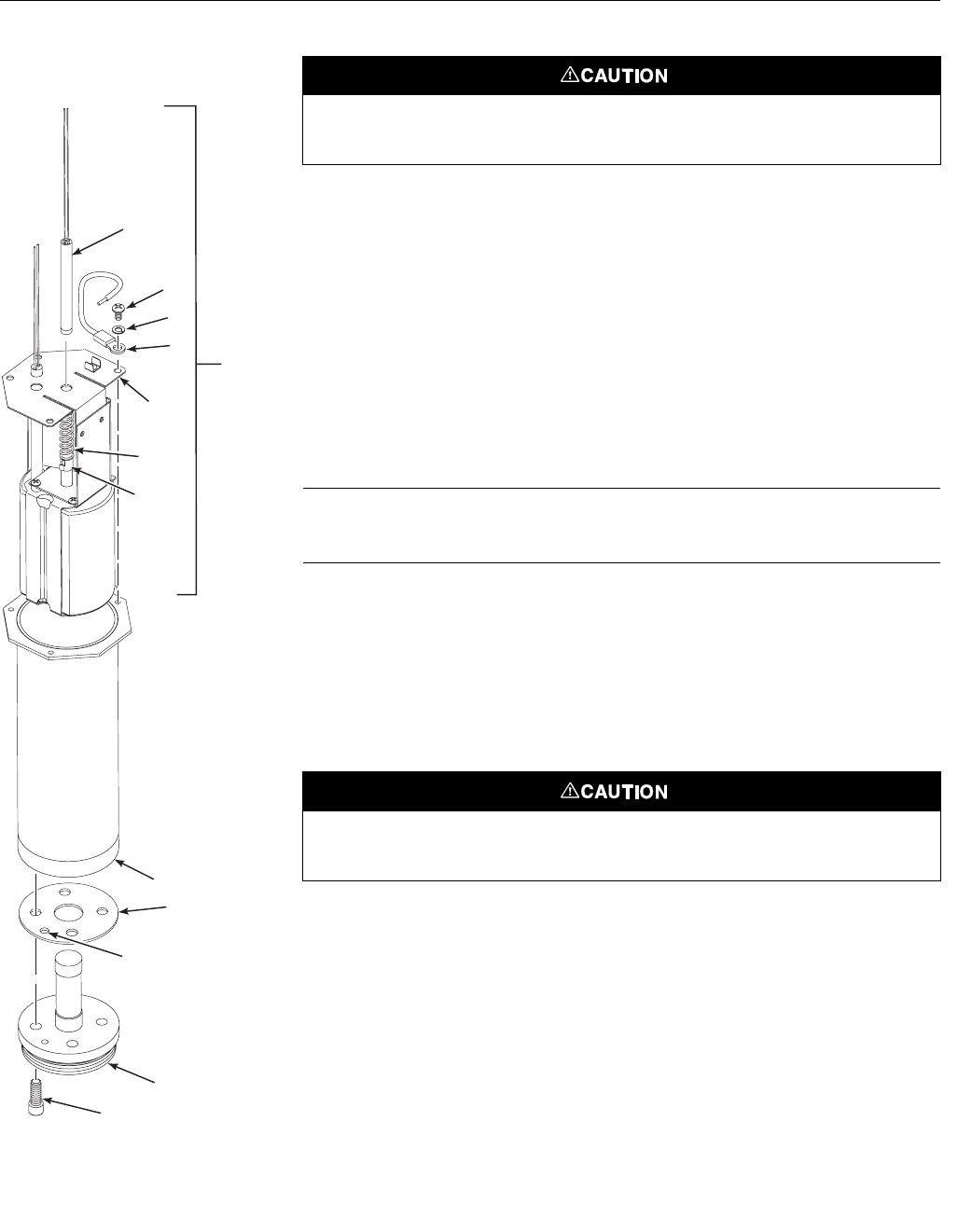

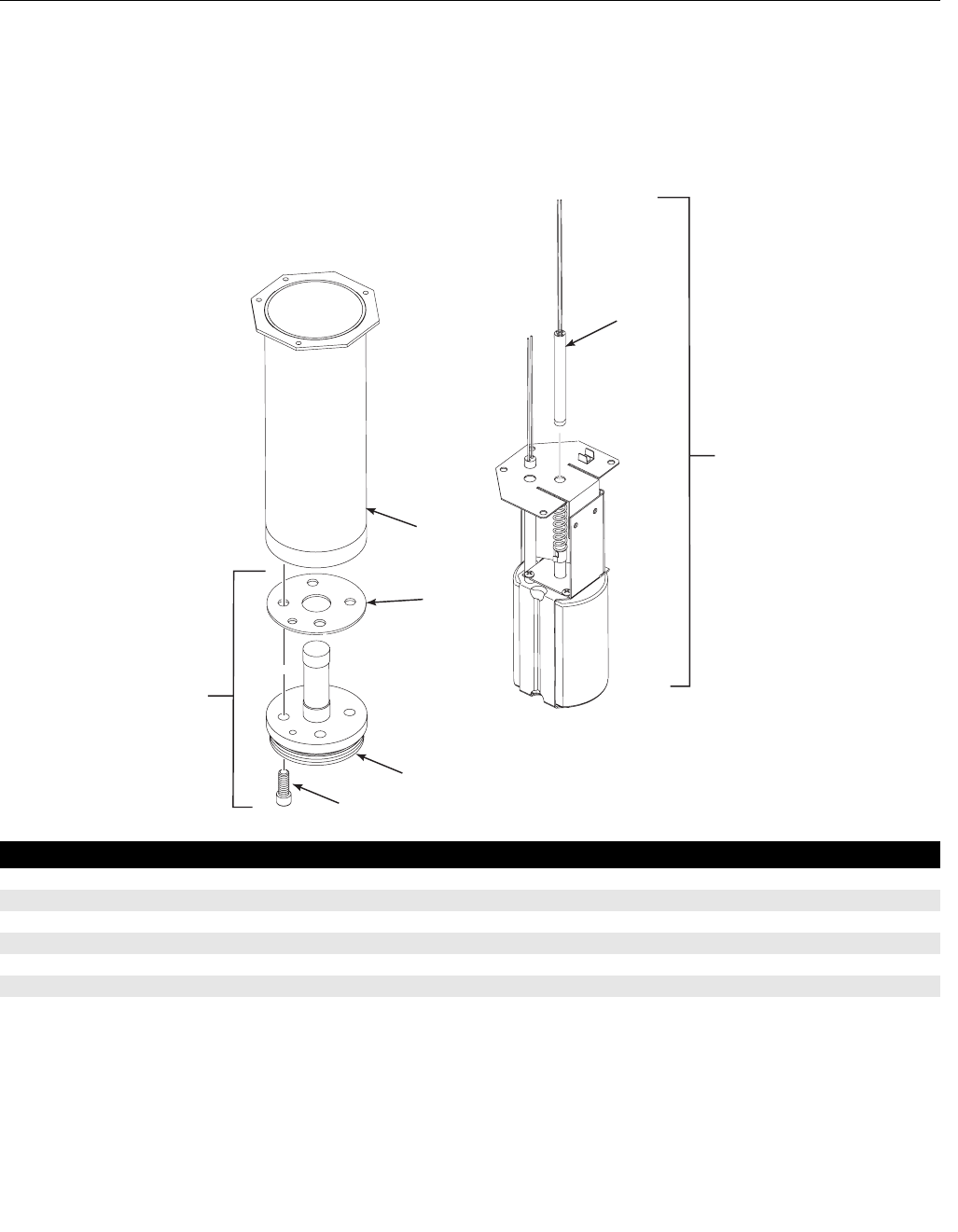

Figure 7-10. O2 Cell, Heater,

and Thermocouple, Exploded

View

Disassemble O2 Cell and Heater Strut Assembly

Do not attempt to replace the O2 cell until all other possibilities for poor

performance have been considered. If cell replacement is needed, order the

O2 cell replacement kit (Refer to Section 9, Replacement Parts).

The O2 cell replacement kit contains an O2 cell and flange assembly, gaskets,

socket head cap screws, and anti-seize compound. The items are carefully

packaged to preserve precise surface finishes.

Do not remove items from the package until they are ready to be used.

1. Remove the four allen cap screws (1, Figure 7-10) from the O2 cell (2).

Remove the O2 cell. The cell flange has a notch that may be used to

gently pry the flange away from heater tube (3).

NOTE

The pad on the end of contact/thermocouple assembly (4) will sometimes

fuse to the O2 cell (2).

2. If the O2 cell is fused to the contact pad, push the O2 cell back into the

heater tube (against spring pressure) and quickly twist the O2 cell. The

cell and contact pad should separate. If the contact pad stays fused to

the cell, a new contact/thermocouple assembly (4) must be installed.

3. Remove and discard gasket (5). Clean the mating surface of heater

tube (3). Remove burrs and raised surfaces with a block of wood and

crocus cloth.

4. Remove screws (6), lockwashers (7), return wire (8), and heater strut

assembly (9).

5. If replacing contact and thermocouple assembly (4), use a pencil to

mark location of spring clip (10) before removing. Squeeze tabs on

spring clip to remove. Retain spring clip and spring (11); replace if

damaged.

6. While carefully handling new contact and thermocouple assembly (4)

lay old assembly next to new one. Transfer match marks to new

assembly.

7. Carefully guide new contact and thermocouple assembly (4) through

strut bracket (12), spring (11), and spring clip (10) until spring clip

reaches pencil mark.

37390032

1. Screw

2. O Cell

3. Heater Tube

4. Contact/

Thermocouple

Assembly

5. Gasket

6. Screw

7. Lockwasher

8. Return Wire

9. Heater Strut

Assembly

10. Spring Clip

11. Spring

12. Strut Bracket

Test Gas

Passage

Holes

Do not remove the O2 cell unless you are certain it needs to be replaced. Removal may

damage the cell and platinum pad. Remove the O2 cell for cell replacement only.

Use care when handling contact and thermocouple assembly. The ceramic rod in this

assembly is fragile.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

7-14

Disassemble COe Sensor Assembly

1. Carefully remove screws (1, Figure 7-11), lockwashers (2), and COe

sensor (3) from sensor holder (4). Remove and discard gasket (5).

2. If damaged, use the following procedure to remove thermocouple

adaptor (6) from sensor holder (4):

a. Use a propane torch to heat the thermocouple adaptor to 450°F

(232°C), minimum.

b. While heating, use a flat-head screwdriver to apply removal torque.

Apply torque until the pipe thread sealant softens. Remove and

discard the thermocouple adaptor.

c. Use MEK or methylene chloride solvent to clean thread sealant

residue from the internal pipe threads in the sensor holder. Refer to

applicable MSDS sheet for solvent handling precautions.

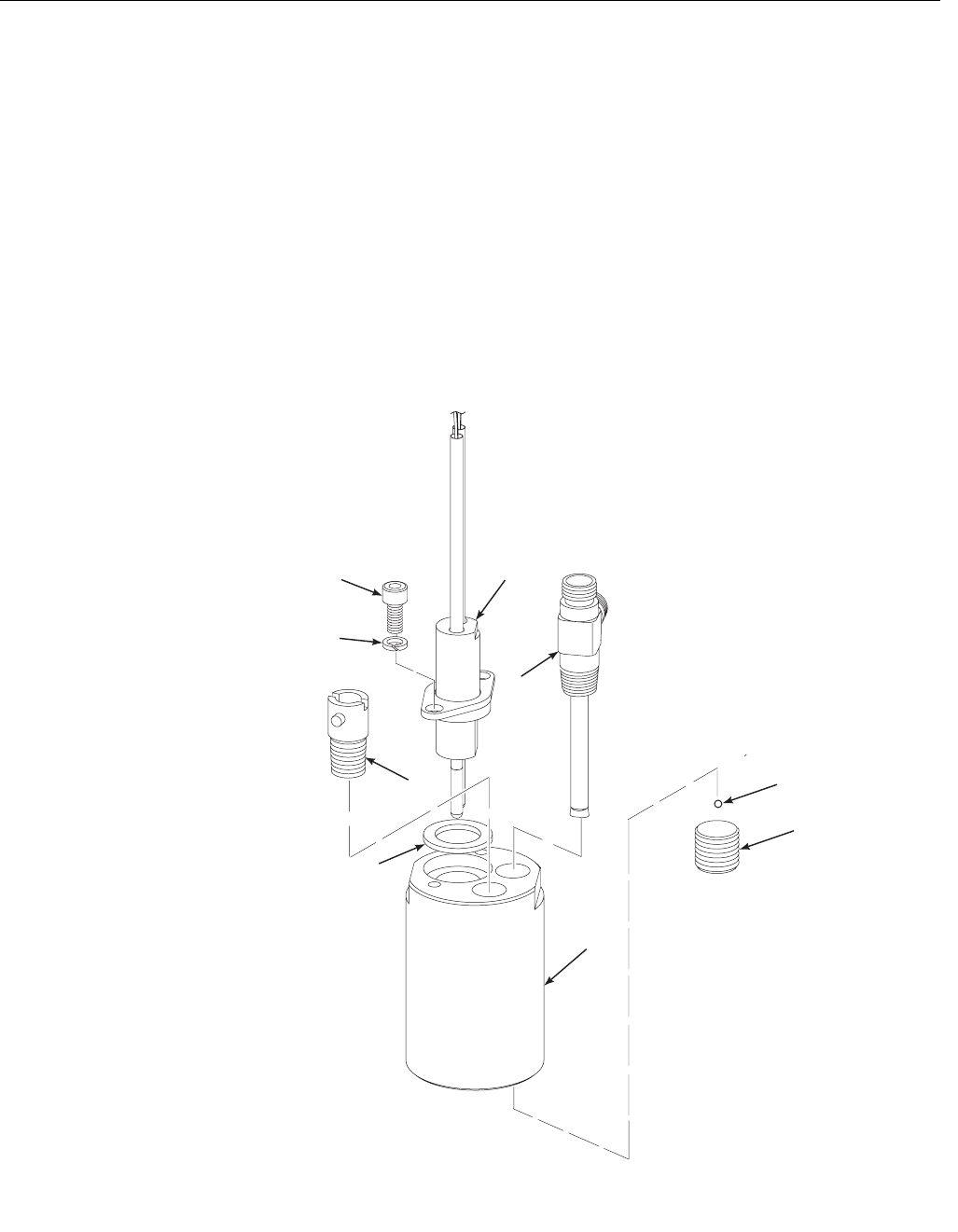

Figure 7-11. COe Sensor,

Exploded View

37390030

1. Screw

2. Lockwasher

3. COe Sensor

4. Sensor Holder

5. Gasket

6. Thermocouple Adapter

7. Pre-Heater

8. Plug

9. Stainless Steel Balls

Instruction Manual

IM-106-880, Rev 1.0

January 2007

7-15

OCX 8800

3. If pre-heater (7) is to be removed, clamp flats of sensor holder (4) in vise

jaws with plug (8) pointing up. Remove plug. Unclamp sensor holder

and pour stainless steel balls (9) into a container.

NOTE

Pre-heater should only be removed when pre-heater or sensor holder is

damaged. If removal is not required, leave the pre-heater installed in the

sensor holder.

4. Unthread and remove pre-heater (7).

5. Use a cleaning solvent to thoroughly clean stainless steel balls (9) and

pre-heater chamber in sensor housing (4). Refer to applicable MSDS

sheet for solvent handling precautions.

Sensor Housing

Assembly

Assemble COe Sensor Assembly

1. If pre-heater (7, Figure 7-11) was removed, apply pipe thread sealant

(Loctite #567) to the external pipe threads of pre-heater (7) and plug (8).

Do not apply sealant to the first turn of the pipe threads.

2. Clamp flats of sensor holder (4) in vise jaws with pre-heater port

pointing up.

3. Install and tighten pre-heater (7). Align pre-heater to flat of sensor

holder (4) as shown in Figure 7-12.

4. Invert sensor holder (4, Figure 7-11) in vise and pour stainless steel

balls (9) into plug port. Press down on stainless steel balls and tap

sensor holder with plastic hammer to compact balls in pre-heater

chamber.

5. Install and tighten plug (8).

6. Lubricate and install COe sensor gasket (5). Apply anti-seize compound

to threads of screws (1).

Always remove the stainless steel balls (approximately 200) from sensor holder before

removing or installing pre-heater. Turning pre-heater in the sensor holder with the stainless

steel balls in place will cause permanent damage to the pre-heater.

Always remove the stainless steel balls (approximately 200) from sensor holder before

removing or installing pre-heater. Turning pre-heater in the sensor holder with the stainless

steel balls in place will cause permanent damage to the pre-heater.

Use care when installing the combustibles (COe) sensor. The RTD elements are fragile and

correct alignment in sensor holder is required for proper OCX operation.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

7-16

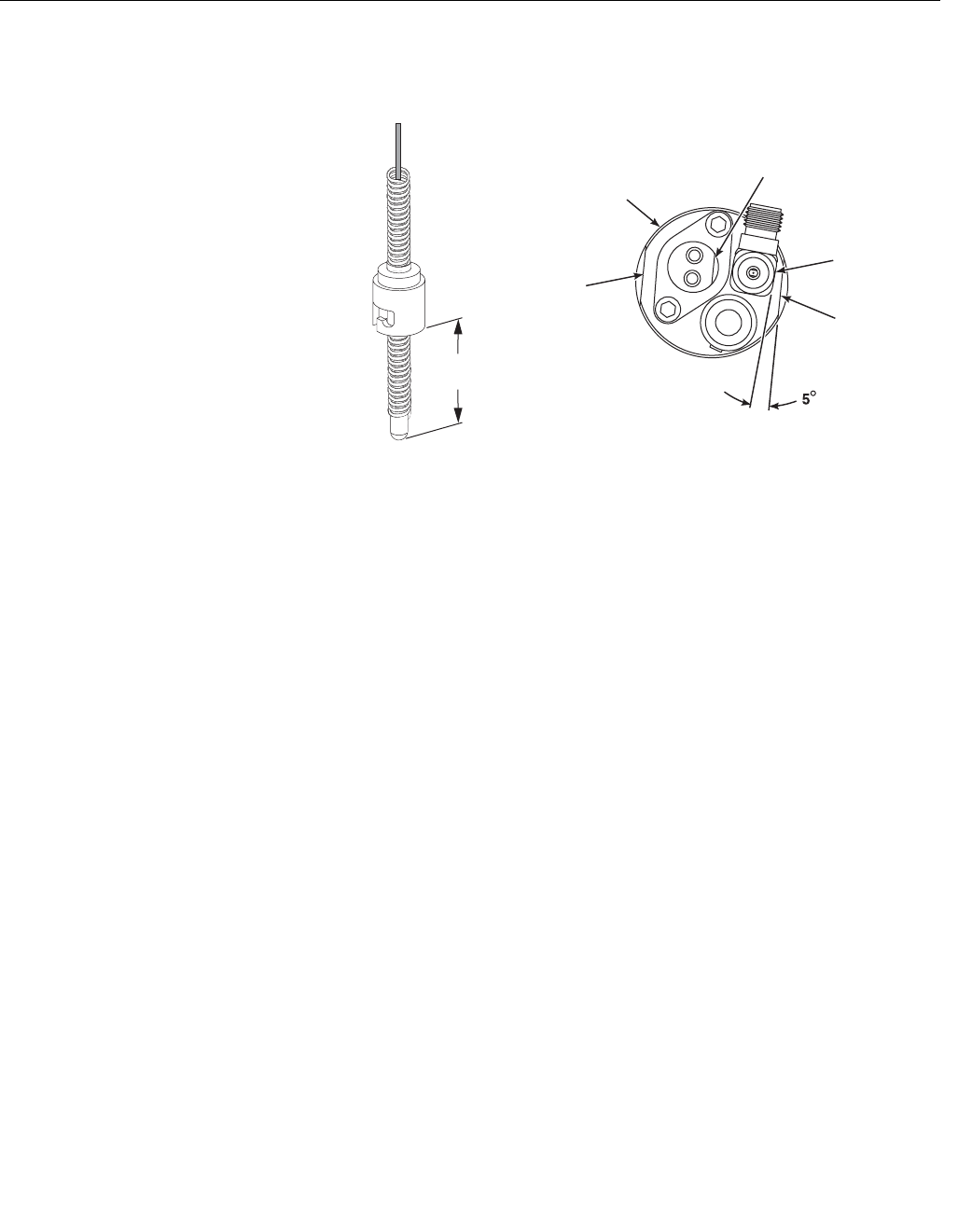

Figure 7-12. COe Sensor and

Pre-Heater Alignment

7. Install COe sensor (3), lockwashers (2), and screws (1). Rotate flat of

COe sensor (3) to center of sensor holder (4).

8. Align COe sensor flat parallel to sensor holder flat, as shown in

Figure 7-12. Tighten screws (1, Figure 7-11).

9. If replacing thermocouple adaptor (6), apply anti-seize to the pipe

threads. Install and tighten thermocouple adaptor.

Assemble O2 Sensor and Heater Strut Assembly

1. See Figure 7-10. Assemble O2 cell (2), gasket (5), and heater tube (3).

Make sure the test gas passage holes line up with each other in all

components.

2. Apply a small amount of anti-seize compound to the screw threads and

use screws (1) to secure assembly. Torque to 35 in-lbs (4 N·m).

3. Carefully slide O2 heater strut assembly (9) into heater tube (3).

4. Press down on the back plate of strut bracket (12) to ensure spring (11)

tension is present to hold contact pad against O2 cell (2).

5. Secure strut bracket (12) and return wire (8) with four screws (6) and

lockwashers (7). Make sure return wire (8) is tightly fastened. This is the

ground side connection for the O2 cell.

Install Sample and Exhaust Tubes

1. See Figure 7-9. Apply pipe thread sealant (Loctite #567) to the

replacement sample tube (2) or exhaust tube (3) pipe threads. Do not

apply sealant to the first turn of the pipe threads.

2. Thread the sample tube (2) or exhaust tube (3) into the housing (1). Use

a pipe wrench to tighten the tube.

3. If used, install and tighten in-situ filter (4).

37390034

Pre-Heater

Flat

COe

SENSOR ASSEMBLY

TOP VIEW

Sensor

Holder

Flat

COe Sensor

Flat

Sensor

Holder

Flat

Sensor

Holder

2 to 2-1/4 in.

(51 to 57 mm)

THERMOCOUPLE

Instruction Manual

IM-106-880, Rev 1.0

January 2007

7-17

OCX 8800

Install Eductor

If installed, the O2 cell and heater strut assembly (9, Figure 7-3) must be

removed from sensor housing (8), before you install the eductor.

1. Apply pipe thread sealant (Loctite #567) to the external pipe threads of

eductor (6, Figure 7-13). Do not apply sealant to the first turn of the pipe

threads.

Figure 7-13. Installation of

Eductor and COe Sensor

37390047

12 13

1. Insulator

2. Dilution Air Tube

3. COe Extractive Tube

4. Eductor Air Tube

5. COe Sensor Assembly

6. Eductor

7. Sensor Housing

8. COe Thermocouple

9. Heater Insulator

10. COe Band Heater

11. Sensor Holder

12. Eductor Elbow

13. Terminal Block Mounting

14. Eductor Holder

15. Tube Fitting

16. CJC Sensor

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

7-18

2. Install and tighten eductor (6) in eductor holder (14).

3. Install and tighten elbow (12) on eductor (6). Male port of elbow must

point up and be in line with long axis of eductor.

4. Apply anti-seize compound to the external pipe threads of eductor

holder (14).

5. Install and tighten eductor holder (14) in sensor housing (7). Align

eductor with matchmarks, as shown in Figure 7-14.

Figure 7-14. COe Sensor

Parts Alignment

37390036

Eductor Flat

Matchmark

Straightedge

Instruction Manual

IM-106-880, Rev 1.0

January 2007

7-19

OCX 8800

Install COe Sensor Assembly

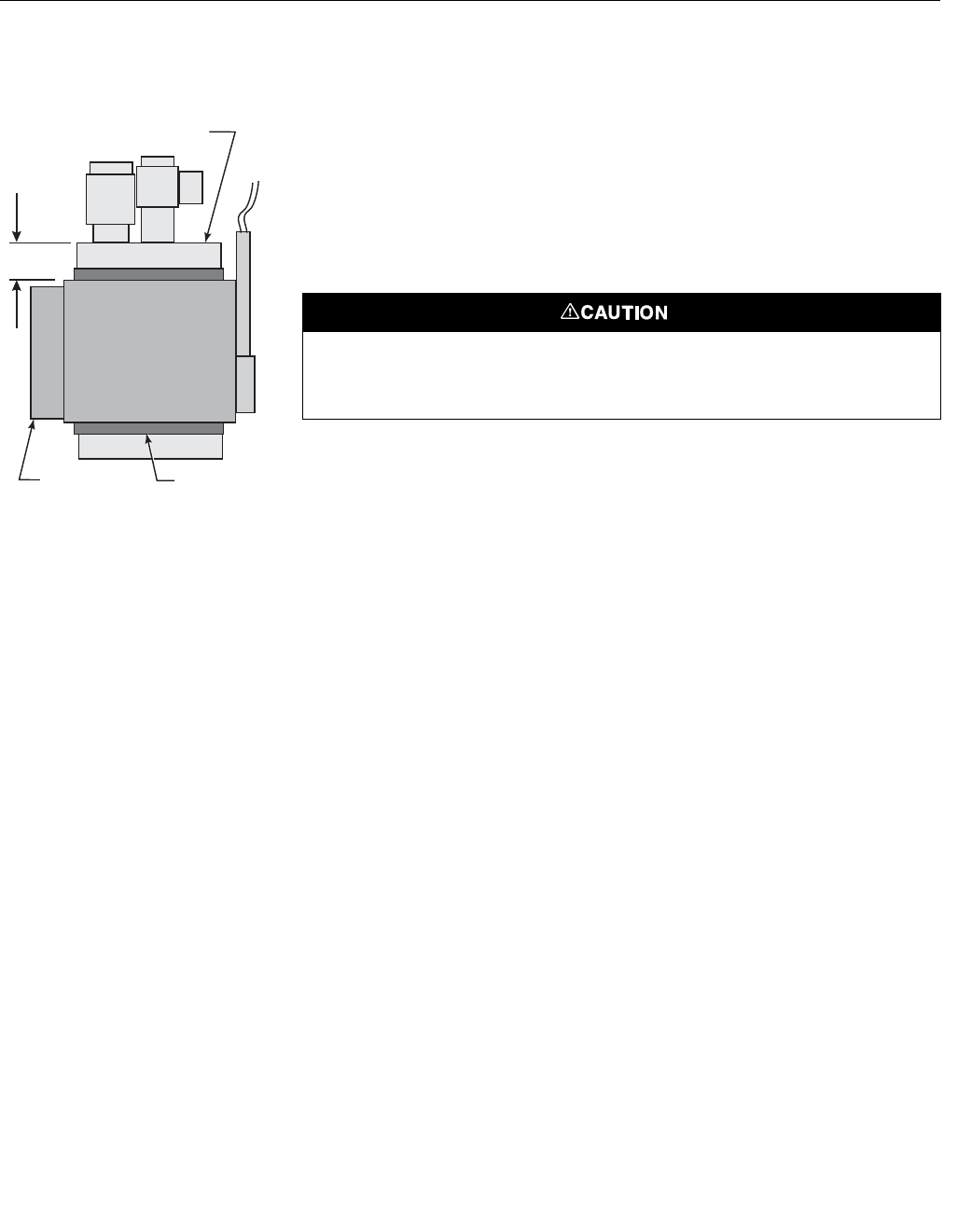

Figure 7-15. Band Heater Height 1. Apply pipe thread sealant (Loctite #567) to the exposed pipe threads

of eductor elbow (12, Figure 7-13). Do not apply sealant to the first turn

of the pipe threads.

2. Screw sensor holder (11) onto eductor elbow (12).

3. With wrenches on eductor elbow (12) and on flats of sensor holder (11),

tighten sensor holder. Do not allow eductor elbow to turn.

4. Tighten sensor holder (11) to align outside flat with matchmark on

sensor housing flange, as shown in Figure 7-16.

5. Wrap heater insulator (9) around sensor holder (11). Make sure the

insulator joint lines up with the band gap of the COe band heater (10).

6. Slide COe band heater (10, Figure 7-13) up onto sensor holder (11). Do

not tighten the band heater at this time. Heater must rotate freely around

sensor holder.

7. Check for proper height of COe heater thermocouple (Figure 7-12).

Thread bayonet connector up or down to adjust height.

8. Install and fasten thermocouple (8, Figure 7-13).

9. Position band heater as shown in Figure 7-15 and Figure 7-16 and

tighten band heater clamp screw. The heater insulator (9) end joint must

line up with the band gap of the COe band heater (10).

37390058

0.37 in.

(9,4 mm)

COe Sensor

Band Heater Insulator

The heater insulator prevents current leakage between the band heater and the sensor

holder. Failure to properly install the insulator may cause the device to trip a ground fault

interrupt circuit.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

7-20

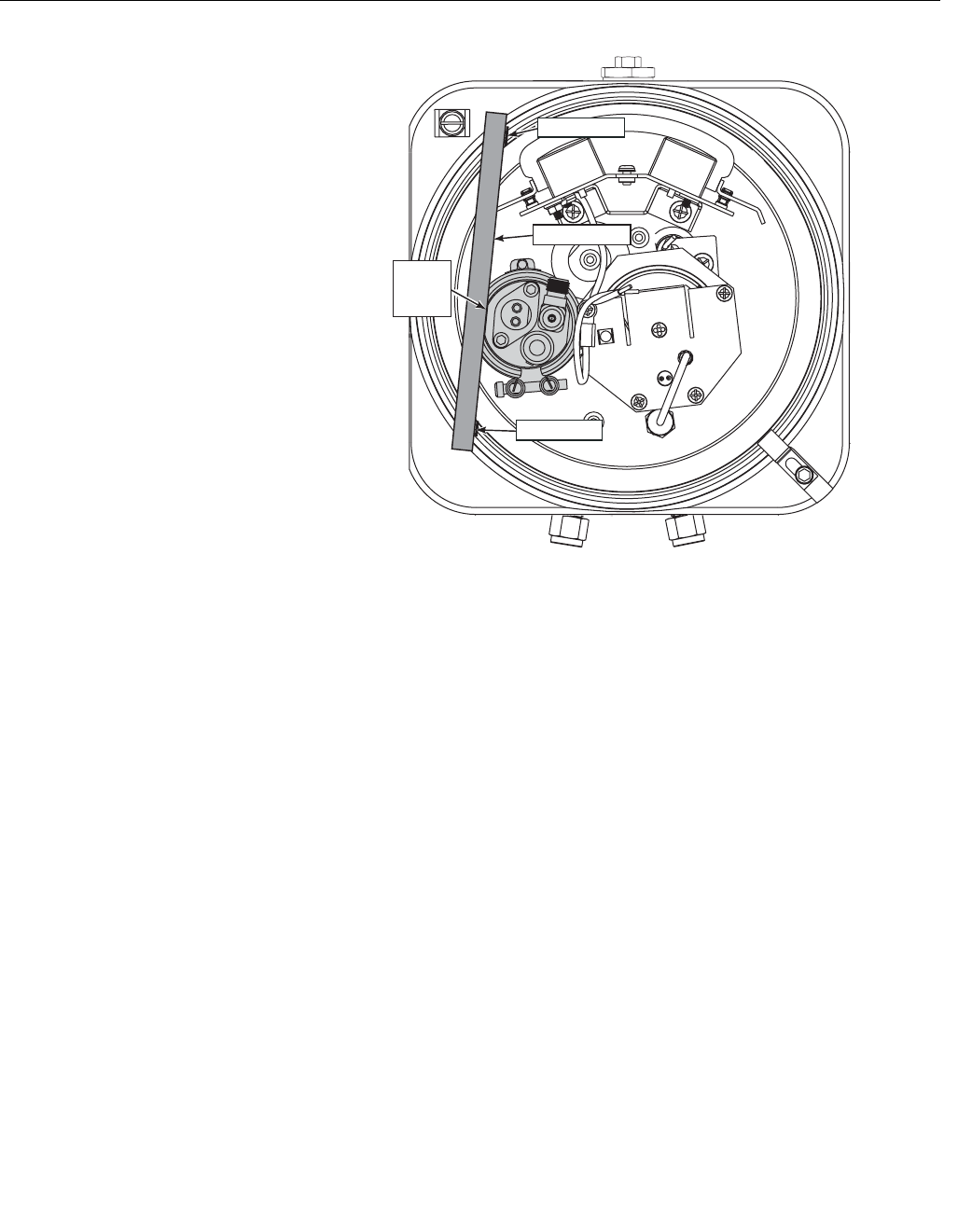

Figure 7-16. COe Sensor

Holder Alignment

37390035

Sensor

Holder

Flat

Matchmark

Straightedge

Matchmark

Instruction Manual

IM-106-880, Rev 1.0

January 2007

7-21

OCX 8800

10. Reconnect the COe sensor, thermocouple, and heater wires at the

sensor housing terminal blocks. Refer to Figure 7-17.

11. Install and fasten the COe insulator (1, Figure 7-13) around COe sensor

assembly (5). All wiring must remain outside of the insulator.

12. If terminal block mounting (13, Figure 7-13) was moved, reinstall with

two base mounting screws.

Figure 7-17. COe Sensor,

Thermocouple, and Heater

Connections

RED

T/C O2

T/C CO

T/C SB

EXC

CJC

COe Sensor Wires

COe Heater Wires

COe Sensor

Assembly

CO REF

CO ACT

Sensor Housing Terminals

HTR 02

HTR SB

YEL

37390018

HTR 02

HTR CO

WHT BLU

RED

RED WHT

COe Thermocouple Wires

-EXC

RED BLU

CJC Sensor NOTE: All wires

at these terminals

are in the CJC

current loop.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

7-22

Figure 7-18. Installation of O2 Cell

and Heater Strut Assembly

Install Sample Block Heater Rods

1. Before installing sample block heater rods (13, Figure 7-18), evenly coat

the heater rods with Watlube heater release agent.

390066

1. Screw

2. Locking Clip

3. Cover

4. O-ring

5. Marking Plate

6. Terminal Insulator

7. Reference Air Tube

8. Sensor Housing

9. Heater Strut Assembly

10. Gasket

11. Screw

12. Heater Clamp

13. Heater Rod

14. Insulator

15. Thermal Switch

Instruction Manual

IM-106-880, Rev 1.0

January 2007

7-23

OCX 8800

Figure 7-19. O2 Cell,

Thermocouple, and

Heater Connections

2. If thermal switch (15) was removed, install thermal switch on mating

heater clamp (12), connect wires of heater rods (13), and install

insulator (14).

3. Install the heater rods (13), heater clamps (12), and screws (11).

4. Reconnect the heater rod leads at the sensor housing terminal blocks,

(Figure 7-19).

+ +

Thermocouple Wires

ORG

RED

T/C O2

T/C CO

T/C SB

EXC

CJC

ell Wires

O Heater Wires

Return Wire

O Cell and Heater Strut

Assembly

CO REF

CO ACT

Sensor Housing Terminals

HTR 02

HTR SB

GRN

YEL

37390069

HTR 02

Sample Block

Heater Rods

Thermal

Switch

HTR CO

EXC

Sample

Block

Thermo-

couple

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

7-24

Install O2 Cell and Heater Strut Assembly

1. Rub a small amount of anti-seize compound on both sides of new

gasket (10, Figure 7-18).

2. Apply anti-seize compound to threads of O2 cell and heater strut

assembly (9) and sensor housing (8).

3. Install O2 cell and heater strut assembly (9) in sensor housing (8). Snug

up, but do not over-tighten the assembly.

4. Reconnect the lead wires from O2 cell, heater, and thermocouple to the

sensor housing terminal blocks. Refer to Figure 7-19.

5. Install reference air tube (7, Figure 7-18) in sensor housing (8). Make

sure that the open end of reference air tube extends into heater tube of

O2 cell and heater strut assembly (9).

Install Terminals Insulator and Cover

1. Install insulator (6, Figure 7-18) over uppermost terminal blocks.

Position one side of insulator against terminal blocks and snap terminal

marking plate (5) to mating stand-off.

2. Position opposite side of insulator (6) and secure with related marking

plate (5).

3. If removed, install cover gasket (4). Screw cover (3) onto sensor

housing (8). Tighten cover firmly.

4. To comply with explosion-proof requirements, the cover gasket (4) must

be compressed. For hazardous area applications, verify that the cover

gasket is compressed.

5. Align locking clip (2) with gap between cover ribs.

6. Loosen screw (1) and slide locking clip (2) fully into gap between cover

ribs. Retighten screw (1).

Sensor Housing Leak Test

1. Install 1/4 NPT cap on dilution air inlet fitting. Install a 1/4 NPT cap on

sample tube (2, Figure 7-9) or plug 1/4 NPT sample inlet port. Capped

or plugged ports must be air tight.

2. If not in place, install exhaust tube (3, Figure 7-9) in exhaust port

according to the instructions provided.

3. Connect a calibrated manometer to the CAL GAS inlet port.

4. Connect and apply clean instrument air at 35 psig (241 kPa gage) to the

instrument air inlet fitting.

5. Observe the manometer reading. The reading should be from 10 to 13

inches, Water Column. Locate and correct leaks if the reading is less

than 10 inches WC.

Stripped threads on the O2 cell and heater strut assembly can allow gas leakage. Gas

leakage can affect the O2 measurements and calibration. Avoid over-tightening the O2 cell

and heater strut assembly .

Instruction Manual

IM-106-880, Rev 1.0

January 2007

7-25

OCX 8800

REPAIR ELECTRONICS

HOUSING

Use the following procedures to remove damaged components from the OCX

8800 electronics housing and to install new replacement parts. Disassemble

the unit only as needed to replace damaged components. Use the assembly

procedures that apply to install replacement parts and reassemble the unit.

Electronics Housing

Disassembly

Remove Cover

1. See Figure 7-20. Loosen screw (1) and slide locking clip (2) away from

cover (3). Retighten screw (1).

2. With two hands or strap wrench, turn cover (3) counterclockwise to

loosen. Unthread and remove cover.

3. Inspect cover gasket (4) for wear or damage. Replace cover gasket if

damaged.

Remove Flash PROM

1. Locate Flash PROM access port in electronics stack (5, Figure 7-20).

2. Use suitable IC removal tool to remove Flash PROM (6).

Remove LOI Module and Board

1. Remove three screws (7, Figure 7-20).

2. Carefully lift LOI module (8) from LOI board (9). Note the location of LOI

connector (10).

3. Remove two screws (11) and lockwashers (12). Remove LOI board (9).

Electrostatic discharge (ESD) protection is required to avoid damage to the electronic

circuits.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

7-26

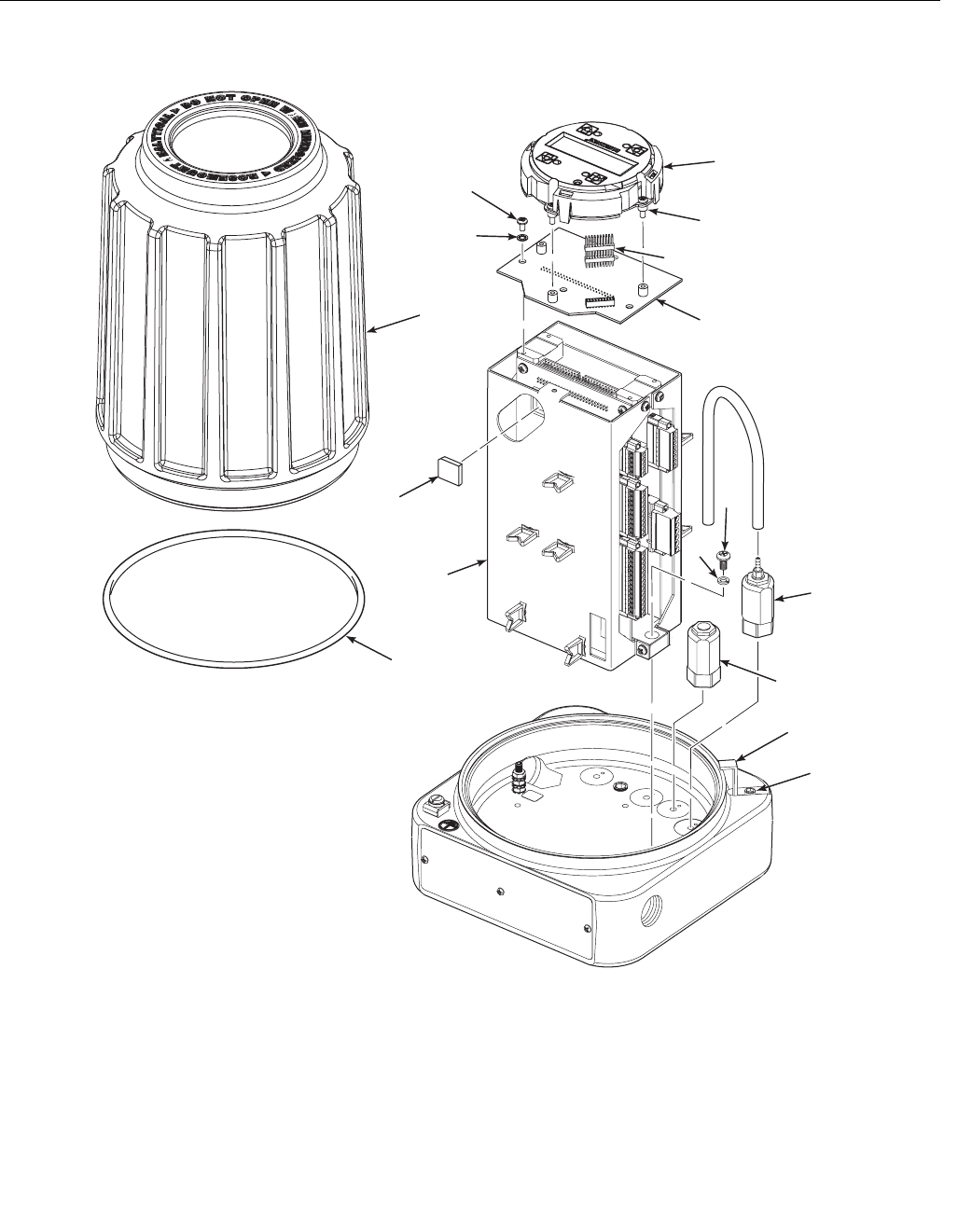

Figure 7-20. Removal/Installation of

Electronics Housing Components

Remove Electronics Stack

1. Unplug power cable, signal cable, and solenoid lead connectors from

terminals of electronics stack (5, Figure 7-20).

2. Remove two screws (13) and lockwashers (14).

3. Remove electronics stack (5).

37390037

1. Screw

2. Locking Clip

3. Cover

4. O-ring

5. Electronics Stack

6. Flash PROM

7. Screw

8. LOI Module

9. LOI Board

10. LOI Connector

11. Screw

12. Lockwasher

13. Screw

14. Lockwasher

15. Solenoid Valve (3 way)

16. Solenoid Valve

Analytical

Instruction Manual

IM-106-880, Rev 1.0

January 2007

7-27

OCX 8800

Remove Solenoid Valves

1. Disconnect solenoid leads from mating terminal connector.

2. Remove top nut of solenoid valve (15 or 16, Figure 7-20).

3. Remove the solenoid coil assembly and washer.

4. Unthread and remove solenoid valve base.

Remove EMI Filter and Terminal Block

1. Disconnect EMI filter wiring (Figure 7-21) at terminal block (3).

2. Disconnect EMI filter wiring at AC power input terminal block on

electronic stack.

3. Unbolt and remove EMI filter (1) from electronic stack.

4. Remove ground wire (2) from terminal block (3).

5. Unbolt and remove terminal block (3) from electronic stack.

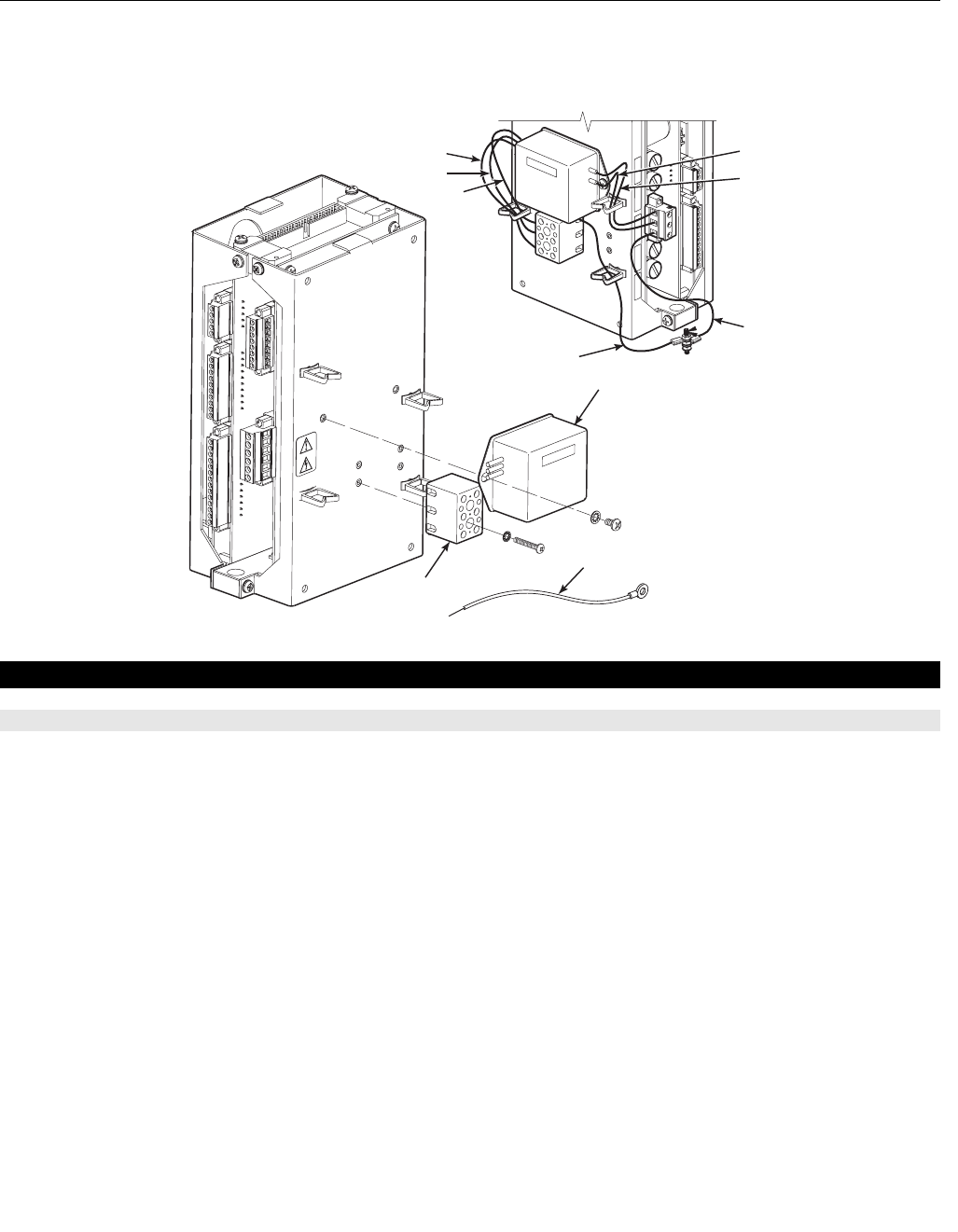

Figure 7-21. Removal/

Installation of EMI Filter

37390081

Brown

Blue

Green

Brown

Blue

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

7-28

Electronics Housing

Assembly

Install EMI Filter and Terminal Block

1. Install replacement EMI filter (1, Figure 7-21) and/or terminal block (3)

on electronic stack.

2. Refer to wiring details in Figure 7-21. Connect EMI filter wiring and

ground wire (2) at terminal block (3).

3. Connect EMI filter wiring at AC power input terminal block on electronic

stack.

Install Solenoid Valves

1. Disassemble replacement solenoid valve (15 or 16, Figure 7-20).

2. Install new solenoid valve base. Be careful not to overtighten.

3. Install new washer and solenoid coil assembly and secure with nut.

4. Connect the solenoid leads to the proper terminations on the solenoid

power terminal block (Figure 7-24).

Install Electronics Stack

1. Install electronics stack (5, Figure 7-20) and secure with lockwashers

(14) and screws (13).

2. See Figure 7-23 and Figure 7-24. Reconnect power cable, signal cable,

and solenoid lead connectors to electronics stack terminals.

Install LOI Module and Board

1. Install LOI board (9, Figure 7-20) and secure with two screws (11) and

lockwashers (12).

2. Note the location of the LOI connector (10). Plug LOI module (8) and

connector into one of the four mating receptacles provided.

3. Install three screws (7) to secure the LOI module.

Figure 7-22. Flash PROM

Alignment

Install Flash PROM

1. Locate Flash PROM access port in electronics stack (5, Figure 7-20).

2. See Figure 7-22. Align Flash PROM (6, Figure 7-20) with mating

receptacle in access port of electronics stack as shown. Flash PROM

corner bevel must be in upper left corner of receptacle.

3. Install Flash PROM (6).

37390060

Flash

PROM

Access

Port

Corner

Bevel

Electrostatic discharge (ESD) protection is required to avoid damage to the electronic

circuits.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

7-29

OCX 8800

Figure 7-23. Electronics Housing

Cable Connections

37390016

RED

BLK

WHT

GRN

BLK

BLU

BLK

YEL

BRN

RED

BLK

ORG

BLK

WHT

T/C CO+

T/C CO-

T/C SB+

T/C SB-

T/C O2+

T/C O2-

O2 CELL+

O2 CELL-

SHIELD

Ground

Screw

GRN

ELECTRONICS HOUSING

O2 Cell

& Thermocouple

Connector (J5)

COe Sensor

& CJC

Connector (J4)

EXC+

CO ACT+

CO ACT-

CO REF+

CO REF-

CJC+

CJC-

EXC-

Heater

Power Cable

Signal Cable

NOTE: Wire colors shown are for cables supplied

by Emerson Process Management.

#1 #1

To Ground

Screw

SHLD

Heater Power

Connector (J3)

2HTR SB

1HTR O2

1HTR SB

2HTR CO

1HTR CO

2HTR O2

WHT

ORG

BLU

BLK

YEL

RED

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

7-30

Figure 7-24. Solenoid

Power Terminals

Install Cover

1. If removed, install cover gasket (4, Figure 7-20). Screw cover (3) onto

electronics housing. Tighten cover firmly. Align locking clip (2) with gap

between cover ribs.

2. To comply with explosion-proof requirements, cover gasket (4) must be

compressed. For hazardous area applications, verify that the cover

gasket is compressed.

3. Loosen screw (1) and slide locking clip (2) fully into gap between cover

ribs. Retighten screw (1).

37390033

Instrument Air

SOL 1

CO Test Gas

High O Test Gas

Low O Test Gas

SOL 4

SOL 3

SOL 2

TOP VIEW

SOL 4

SOL 3

SOL 2

SOL 1

SOL 3

Instruction Manual

IM-106-880, Rev 1.0

January 2007

7-31

OCX 8800

REPLACE TUBE

FITTINGS

The OCX transmitter housings have special tube fittings that, if clogged or

damaged, must be replaced with the same type of fitting. The special tube

fittings have alpha or numeric codes etched on the fitting. Unetched tube

fittings are standard 1/4 inch, stainless steel fittings.

‘F’ Type Fitting

The ‘F’ type fitting is a flame arrestor fitting used in all OCX 8800

hazardous area housings. The flame arrestor fitting prohibits spark or

flame conduction from the housing. It requires a thread sealing compound

(Loctite 567) and at least five threads engagement.

‘13’ Type Fitting

This fitting is an eductor drive air fitting for the OCX 8800 hazardous area

housing. This is a 1/8 inch tube fitting with a built-in 0.013 inch restrictor

orifice. It seats in a threaded base port inside the housing.

‘R’ Type Fitting

The ‘R’ type fitting is a reference air line fitting for the general purpose and

hazardous area sensor housings. This is a 1/4 inch tube fitting with a

built-in 0.007 inch restrictor orifice.

Remove Tube Fittings The OCX construction includes pipe thread sealant to seal fittings in all ports

that pass through to an outer wall of the instrument housing base. Use the

following instructions to loosen and remove tube fittings that are secured with

pipe thread sealant.

1. Secure sensor housing (1, Figure 7-25) or electronics housing (2) in soft

(plastic, wood, or brass) vice jaws.

2. To soften the pipe thread sealant, use a propane torch to heat the tube

fitting (3, 4, 5, or 6) to 450°F (232°C), minimum.

3. While heating the tube fitting, use a wrench to apply removal torque until

the pipe thread sealant softens. Remove and discard the used fitting.

4. Use MEK or methylene chloride solvent to clean thread sealant residue

from the internal pipe threads in the housing. Refer to applicable MSDS

sheet for solvent handling precautions.

Use heat resistant gloves when removing a damaged tube fitting. The pipe threads are

bonded with a pipe thread sealant. The thread sealant softens at 450°F (232°C). The

heated parts can cause severe burns.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

7-32

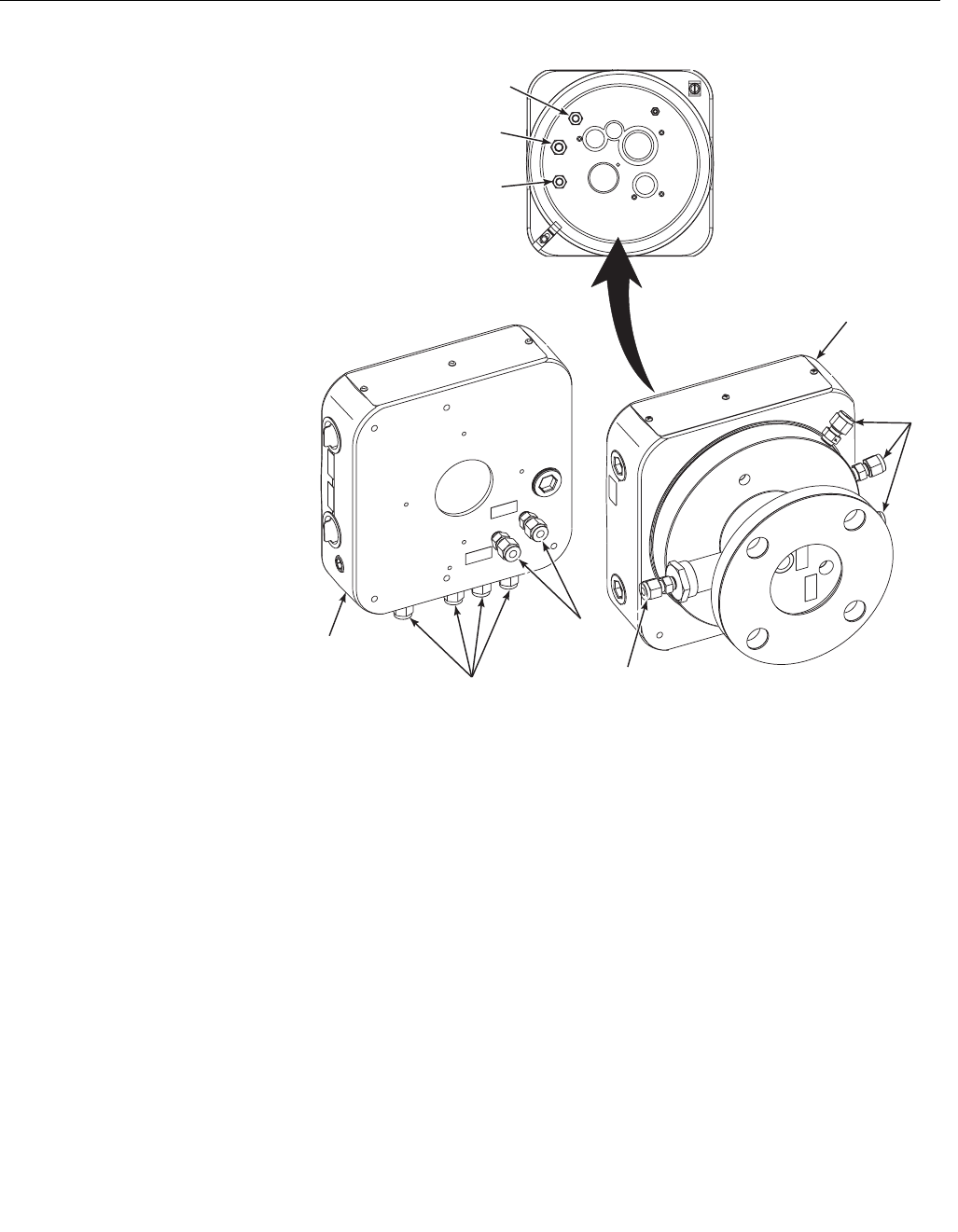

Figure 7-25. Removal

of Tube Fittings

Install Tube Fittings 1. Verify that the replacement tube fitting is identical to the item removed.

Special fittings are etched with code markings.

2. Apply pipe thread sealant (Loctite #567) to the mating threads of the

tube fitting. Do not apply sealant to the first turn of the external pipe

threads.

3. Install and tighten the tube fitting in the mating port of sensor or

electronics housing.

37390071

1. Sensor Housing

2. Electronics Housing

3. Tube Fitting

. Tube Fitting (Type 13)

6. Tube Fitting (Type F)

. Tube Fitting (Type R)

Instruction Manual

IM-106-880, Rev 1.0

January 2007 OCX 8800

http://www..raihome.com

Section 8 Troubleshooting

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8-1

Diagnostic Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8-2

Fault Isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8-3

Alarm Relay Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8-11

OVERVIEW The troubleshooting section describes how to identify and isolate faults that

may develop in the OCX 8800. When troubleshooting the OCX 8800,

reference the following information.

Grounding It is essential that adequate grounding precautions are taken when installing

the system. Thoroughly check both the probe and electronics to ensure the

grounding quality has not degraded during fault finding. The system provides

facilities for 100% effective grounding and total elimination of ground loops.

Electrical Noise The OCX 8800 has been designed to operate in the type of environment

normally found in a boiler room or control room. Noise suppression circuits

are employed on all field terminations and main inputs. When fault finding,

evaluate the electrical noise being generated in the immediate circuitry of a

faulty system. Ensure all cable shields are connected to earth.

Electrostatic Discharge Electrostatic discharge can damage ICs in the electronics. Before removing or

handling the processor board or the ICs, ensure you are at ground potential.

Install all protective equipment covers and safety ground leads after troubleshooting.

Failure to install covers and ground leads could result in serious injury or death.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

8-2

Total Power Loss In the event that the OCX 8800 will not power up at all, check the incoming

power supply to make sure power is being delivered to the OCX 8800. If the

incoming power supply is good, then check fuses F1 and F6 in the electronics

housing. Refer to Figure 8-1 for fuse locations.

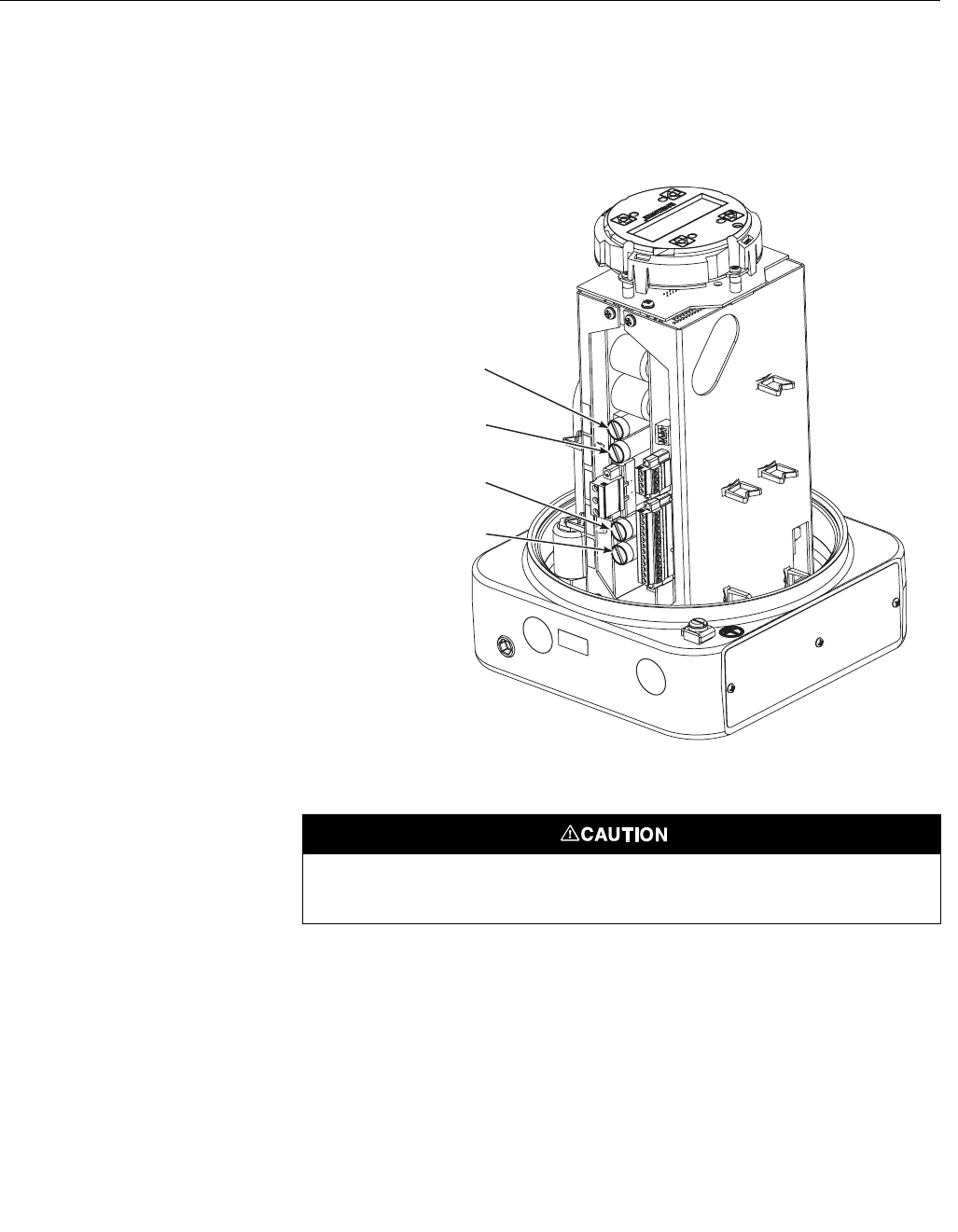

Figure 8-1. Fuse Locations

DIAGNOSTIC ALARMS

The OCX 8800 is equipped with a set of alarm relay contacts on the

microprocessor board in the electronics housing. This set of dry contacts can

be connected to any customer supplied relay device, 30 VDC, 30 mA

maximum. A blocking diode is required on the customers relay coil.

Any fault condition in the OCX 8800 will trip the alarm relay. The optional SPA

with HART programmable alarm indicates LOW O2, HIGH COe, Calibration

Status, and Unit Failure. For more information refer to Appendix B - SPA with

HART Alarm.

Neutral (N)

10 Amp, 250 VAC

Line (L1)

10 Amp, 250 VAC

O2 and COe Heater

4 Amp, 250 VAC

Sample Block Heater

8 Amp, 250 VAC

37390050

Always install a blocking diode on the customers relay coil. Failure to install a blocking diode

may create noise spikes and cause faults in the OCX electronics.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

8-3

OCX 8800

FAULT ISOLATION Faults in the OCX 8800 Transmitter are indicated by messages displayed on

the HART communicator or LOI. Fault indications that can appear are listed in

Table 8-1, Troubleshooting.

If a fault is indicated on the HART communicator or LOI, locate the fault

indication in Table 8-1. For each fault listed, there are related Probable

Causes and Recommended Corrective Actions. The Probable Causes are

listed in the order of most probable to least probable. Starting with the most

probable cause, inspect and test the unit to isolate the actual cause, then use

the Recommended Corrective Action listed to correct the problem.

Table 8-1. Troubleshooting

O2 Sensor R High (Oxygen sensor resistance high, > 5000 Ohms)

O2 Sensor Open (Oxygen sensor disconnected)

Probable Cause Recommended Corrective Action

Loose or open O2 cell circuit connection Check O2 cell circuit wires for breaks or loose connections. Repair lead wire break or

loose connections.

O2 cell degraded or failed Check O2 cell impedance by reading the O2 Cell Imped value via the LOI (see

Figure 4-4, sheet 2), or the O2 Snsr R value via HART (see Figure 5-3, sheet 2). If cell

impedance is zero, replace O2 cell with cell replacement kit. If cell impedance is less

than 5000 ohms, check for cell housing ground fault. Repair ground fault. If cell

impedance is greater than 5000 ohms and no ground fault is indicated, replace O2 cell

with cell replacement kit.

Ref Current Err (RTD excitation current error)

Probable Cause Recommended Corrective Action

Loose or open lead or circuit wire connection for

COe sensor or CJC sensor current loop

Check all COe and CJC sensor current loop wiring per Figure 8-3 and Figure 7-5.

Correct wiring faults.

COe sensor grounded Check resistance of COe sensor leads to ground per Figure 7-5. Replace COe sensor if

resistance is less than 10M Ohms.

COe sensor failed Check resistance of both COe sensor elements per Figure 7-5. Replace COe sensor if

resistance of sensor element is not between 100 and 250 Ohms.

CJC sensor grounded Check resistance of CJC sensor to ground per Figure 7-5. Replace CJC sensor if

resistance is less than 10M Ohms.

CJC sensor failed Check resistance of CJC sensor per Figure 7-5. Replace CJC sensor if resistance of

sensor is not between 100 and 150 Ohms.

O2 Temp Hi (Oxygen sensor heater temperature high, > 750ºC)

Probable Cause Recommended Corrective Action

High noise in OCX power supply Check power supply for line noise or voltage fluctuations. Install power line filter kit

(PN 6A00171G01) or high quality line filter for input power.

COe Temp Hi (Combustion sensor heater temperature high, 310ºC)

Probable Cause Recommended Corrective Action

High noise in OCX power supply Check power supply for line noise or voltage fluctuations. Install power line filter kit

(PN 6A00171G01) or high quality line filter for input power.

Table continued on next page

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

8-4

SB Temp Hi (Sample block heater temperature high, > 190ºC)

Probable Cause Recommended Corrective Action

High noise in OCX power supply Check power supply for line noise or voltage fluctuations. Install power line filter kit

(PN 6A00171G01) or high quality line filter for input power.

O2 Temp Very Hi (Oxygen sensor heater over maximum temperature, > 820ºC)

O2 Htr Rmp Rate (Oxygen sensor heater over maximum temperature ramp rate)

Probable Cause Recommended Corrective Action

Incorrect O2 heater wiring Check O2 heater wiring per Figure 8-3 and Figure 7-4. Check the wiring at the heater

and inside the electronics housing. Correct wiring fault. Perform Reset procedure in

Section 3, Configuration and Startup to continue operation.

Incorrect O2 thermocouple wiring Check O2 thermocouple wiring per Figure 8-3 and Figure 7-4. Check the wiring at the

thermocouple and inside the electronics housing. Correct wiring fault. Perform Reset

procedure in Section 3, Configuration and Startup to continue operation.

Electronics package failure Replace electronics package.

COe Temp Very Hi (Combustion sensor heater over maximum temperature, > 400ºC)

COe Htr Rmp Rate (Combustibles sensor heater over maximum temperature ramp rate)

Probable Cause Recommended Corrective Action

Incorrect COe heater wiring Check COe heater wiring per Figure 8-3 and Figure 7-5. Check the wiring at the heater

and inside the electronics housing. Correct wiring fault. Perform Reset procedure in

Section 3, Configuration and Startup to continue operation.

Incorrect COe thermocouple wiring Check COe thermocouple wiring per Figure 8-3 and Figure 7-5. Check the wiring at the

thermocouple and inside the electronics housing. Correct wiring fault. Perform Reset

procedure in Section 3, Configuration and Startup to continue operation.

Electronics package failure Replace electronics package.

SB Temp Very Hi (Sample block heater over maximum temperature, > 260ºC)

SB Htr Rmp Rate (Sample block heater over maximum temperature ramp rate)

Probable Cause Recommended Corrective Action

Incorrect sample block heater wiring Check sample block heater wiring per Figure 8-3 and Figure 7-4. Check the wiring at

the heater and inside the electronics housing. Correct wiring fault. Perform Reset

procedure in Section 3, Configuration and Startup to continue operation.

Incorrect sample block thermocouple wiring Check sample block thermocouple wiring per Figure 8-3 and Figure 7-4. Check the

wiring at the thermocouple and inside the electronics housing. Correct wiring fault.

Perform Reset procedure in Section 3, Configuration and Startup to continue operation.

Electronics package failure Replace electronics package.

O2 TC Open (Oxygen sensor heater thermocouple open)

Probable Cause Recommended Corrective Action

O2 thermocouple or thermocouple circuit open Check O2 thermocouple and circuit wires for breaks or loose connections per Figure 8-3

and Figure 7-4. Repair breaks or loose connections or replace failed thermocouple.

Perform Reset procedure in Section 3, Configuration and Startup to continue operation.

COe TC Open (Combustibles sensor heater thermocouple open)

Probable Cause Recommended Corrective Action

Combustibles sensor thermocouple open Check thermocouple resistance (lead to ground) of reference and active thermocouples

per Figure 8-3 and Figure 7-5. If either thermocouple is open or shorted to ground,

replace combustibles sensor.

Table continued on next page

Instruction Manual

IM-106-880, Rev 1.0

January 2007

8-5

OCX 8800

SB TC Open (Sample block heater thermocouple open)

Probable Cause Recommended Corrective Action

Sample block thermocouple or thermocouple

circuit open

Check sample block thermocouple and circuit wires for breaks or loose connections per

Figure 8-3 and Figure 7-4. Repair breaks or loose connections or replace failed

thermocouple. Perform Reset procedure in Section 3, Configuration and Startup to

continue operation.

O2 TC Shorted (Oxygen sensor heater thermocouple shorted)

Probable Cause Recommended Corrective Action

O2 thermocouple or thermocouple circuit shorted Check O2 thermocouple and circuit wires for short circuit condition per Figure 8-3 and

Figure 7-4. Repair shorted wiring or replace failed thermocouple. Perform Reset

procedure in Section 3, Configuration and Startup to continue operation.

Slow heatup during cold start Perform Reset procedure in Section 3, Configuration and Startup to continue operation.

If alarm persists, refer to the O2 Htr Failure alarm procedure.

COe TC Shorted (Combustibles sensor heater thermocouple shorted)

Probable Cause Recommended Corrective Action

Combustibles sensor thermocouple shorted Check thermocouple resistance (lead to ground) of reference and active thermocouples

per Figure 8-3 and Figure 7-5. If either thermocouple is open or shorted to ground,

replace combustibles sensor.

Slow heatup during cold start Perform Reset procedure in Section 3, Configuration and Startup to continue operation.

If alarm persists, refer to the COe Htr Failure alarm procedure.

SB TC Shorted (Sample block heater thermocouple shorted)

Probable Cause Recommended Corrective Action

Sample block thermocouple or thermocouple

circuit shorted

Check sample block thermocouple and circuit wires for short circuit condition per

Figure 8-3 and Figure 7-4. Repair shorted wiring or replace failed thermocouple.

Perform Reset procedure in Section 3, Configuration and Startup to continue operation.

Slow heatup during cold start Perform Reset procedure in Section 3, Configuration and Startup to continue operation.

If alarm persists, refer to the SB Htr Failure alarm procedure.

O2 TC Reversed (Oxygen sensor heater thermocouple reversed)

Probable Cause Recommended Corrective Action

O2 thermocouple wires reversed Check O2 thermocouple wiring per Figure 8-3 and Figure 7-4. Check the wiring at the

sensor and inside the electronics housing. Correct reversed-wires fault. Perform Reset

procedure in Section 3, Configuration and Startup to continue operation.

COe TC Reversed (Combustibles sensor block heater thermocouple reversed)

Probable Cause Recommended Corrective Action

Combustibles thermocouple wires reversed Check combustibles thermocouple wiring per Figure 8-3 and Figure 7-5. Check the

wiring at the sensor and inside the electronics housing. Correct reversed-wires fault.

Perform Reset procedure in Section 3, Configuration and Startup to continue operation.

SB TC Reversed (Sample block heater thermocouple reversed)

Probable Cause Recommended Corrective Action

Sample block thermocouple wires reversed Check sample block thermocouple wiring per Figure 8-3 and Figure 7-4. Check the

wiring at the sensor and inside the electronics housing. Correct reversed-wires fault.

Perform Reset procedure in Section 3, Configuration and Startup to continue operation.

Table continued on next page

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

8-6

ADC Failure (Voltage to digital conversion could not complete)

ADC Ref Error (Voltage to digital conversion not accurate)

Probable Cause Recommended Corrective Action

Incorrect wiring between electronics and sensor

housings

Check all wiring between the electronics and sensor housings per Figure 8-3. Correct

wiring faults.

Electronics package failure Replace electronics package.

O2 Htr Failure (Oxygen sensor heater could not reach final temperature)

Probable Cause Recommended Corrective Action

O2 heater circuit wiring open Check O2 cell heater circuit for broken wire or loose connection per Figure 8-3 and

Figure 7-4. Repair broken wire or loose connection.

O2 heater open Check resistance of O2 heater per Figure 7-4. Normal O2 heater resistance is 62.5

Ohms. Replace O2 heater if heater is open or has a large resistance.

Heater electronics failure Check heater fuse F3 in electronics housing per Figure 8-1. If open, locate and correct

cause of overload. If F3 is not open, or if cause of overload cannot be found, replace

electronics package.

COe Htr Failure (Combustibles sensor heater could not reach final temperature)

Probable Cause Recommended Corrective Action

COe heater circuit wiring open Check COe heater circuit for broken wire or loose connection per Figure 8-3 and

Figure 7-5. Repair broken wire or loose connection.

COe heater open Check resistance of COe heater per Figure 7-5. Normal COe heater resistance is 97.7

Ohms. Replace COe heater if heater is open or has a large resistance.

Heater electronics failure Check heater fuse F3 in electronics housing per Figure 8-1. If open, locate and correct

cause of overload. If F3 is not open, or if cause of overload cannot be found, replace

electronics package.

SB Htr Failure (Sample block heater could not reach final temperature)

Probable Cause Recommended Corrective Action

Sample block heater circuit wiring open Check sample block heater circuit for broken wire or loose connection per Figure 8-3

and Figure 7-4. Repair broken wire or loose connection.

Sample block heater open Check resistance of sample block heater per Figure 7-4. Normal sample block heater

resistance is 36.4 Ohms each (18.2 Ohms with both heaters in parallel). Replace

sample block heater if heater is open or has a large resistance.

Heater electronics failure Check heater fuse F4 in electronics housing per Figure 8-1. If open, locate and correct

cause of overload. If F4 is not open, or if cause of overload cannot be found, replace

electronics package.

Sensor housing exposed to high wind and/or

extreme cold temperatures

If above probable causes are not causing the SB heater failure, install flange insulator

(PN 6P00162H01).

Table continued on next page

Instruction Manual

IM-106-880, Rev 1.0

January 2007

8-7

OCX 8800

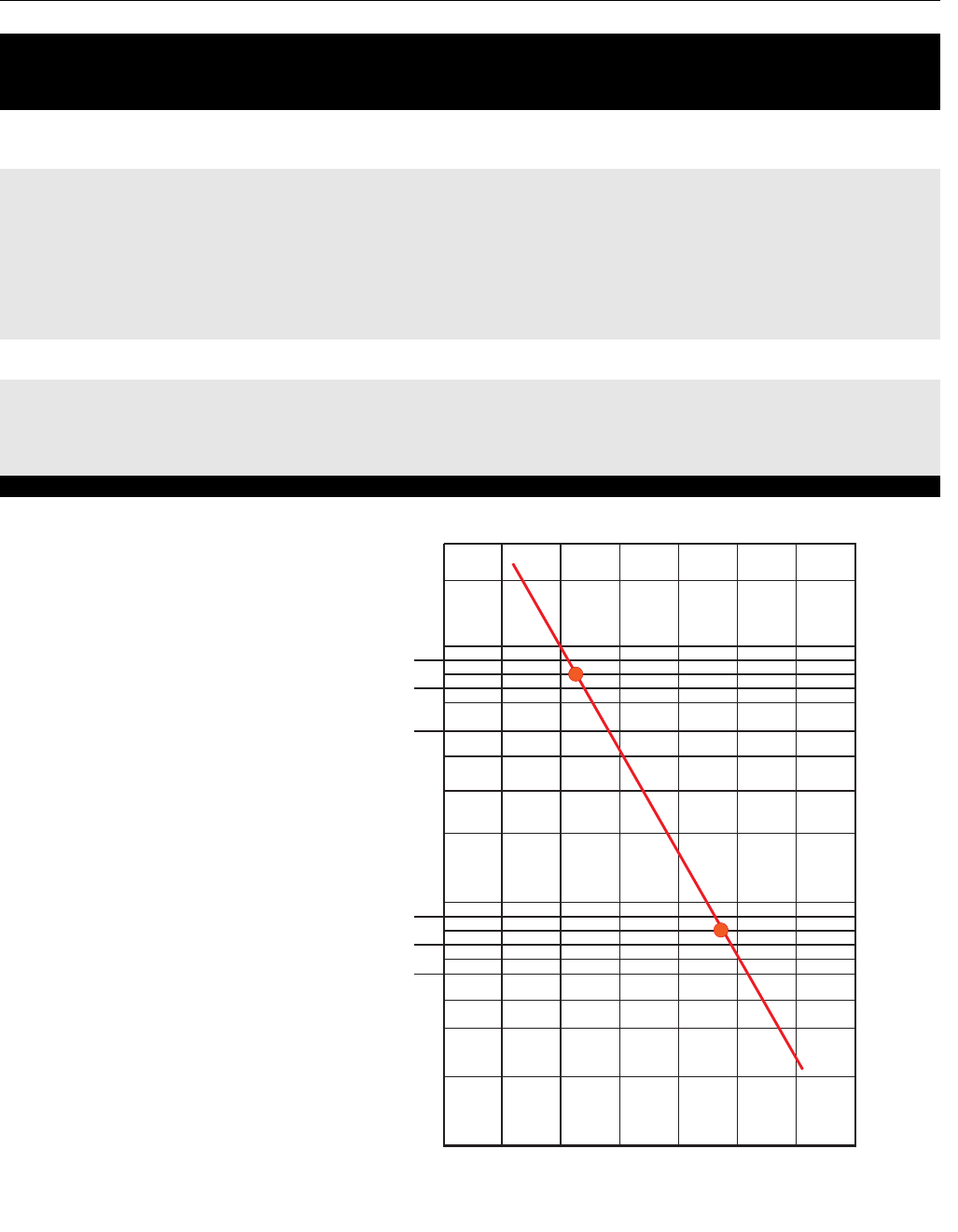

Figure 8-2. Oxygen and Cell

Output

Cal Warning (Calibration warning)

Cal Failed (Calibration failed)

Probable Cause Recommended Corrective Action

Calibration gas supply low or gas connection

leaking

Check calibration gas supplies and connections. Adjust gas pressure and flow.

Replenish low calibration gas supplies and tighten or repair loose or leaking

connections. When calibration gas supplies are adequate, recalibrate.

O2 cell degraded or failed Check O2 cell impedance by reading the O2 Cell Imped value via the LOI (see

Figure 4-4, sheet 2), or the O2 Snsr R value via HART (see Figure 5-3, sheet 2). If cell

impedance is zero, replace O2 cell. If cell impedance is less than 5000 ohms, check for

cell housing ground fault. Repair ground fault. If cell impedance is greater than 5000

ohms and no ground fault is indicated, replace O2 cell.

Flow calibration gas to the O2 cell. Read the cell millivolt output. Plot the cell millivolt

output and the calibration gas O2 concentration on the chart shown in Figure 8-2. If the

plotted values do not fall on the slope line shown in Figure 8-2, replace the O2 cell.

COe sensor degraded Replace COe sensor or increase warning level (SYSTEM, CALIB SETUP, COe Slope

Warn via HART.)

Low sample gas flow in sensor housing due to

flow path plugging

Check the following portions of the flow path for plugging:

• blowback filter

• in-situ filter

• eductor outlet path

Table continued on next page

0.8

0.9

0.7

0.5 0.6

0.4

0.3

0.2

0.1

-20 0 20 40 60 80 100 120

ANALYZER OUTPUT

(

MILLIVOLT

)

(23)

(73)

37390051

OXYGEN CONCENTRATION (%)

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

8-8

Board Temp Hi (Electronics temperature maximum exceeded, > 85ºC)

Probable Cause Recommended Corrective Action

Electronics housing exposed to high ambient

temperature

Insulate housing from source of high temperature and/or install cooling fan to remove

heat from housing. Perform Reset procedure in Section 3, Configuration and Startup to

continue operation.

EEPRM Chksm Fail (Non-volatile parameter storage corrupted)

Probable Cause Recommended Corrective Action

Unit powered down during calibration parameter

storage

Perform Reset procedure in Section 3, Configuration and Startup. Recalibrate the OCX

and check/trim analog outputs.

Flash PROM failure Replace electronics package.

O2 Temp Low (Oxygen sensor heater temperature low, < 710ºC)

Probable Cause Recommended Corrective Action

Sensor housing exposed to high wind and/or

extreme cold temperatures

Install sensor housing flange insulator (PN 6P00162H01).

High noise or voltage fluctuations in power

supply

Check power supply for line noise or voltage fluctuations. Install filter power line kit

(PN 6A00171G01) or high quality line filter for input power.

COe Temp Low (Combustion sensor heater temperature low, < 290ºC)

Probable Cause Recommended Corrective Action

Sensor housing exposed to high wind and/or

extreme cold temperatures

Install sensor housing flange insulator (PN 6P00162H01).

High noise or voltage fluctuations in power

supply

Check power supply for line noise or voltage fluctuations. Install power line filter kit

(PN 6A00171G01) or high quality line filter for input power.

SB Temp Low (Sample block heater temperature low, < 150ºC)

Probable Cause Recommended Corrective Action

Sensor housing exposed to high wind and/or

extreme cold temperatures

Install sensor housing flange insulator (PN 6P00162H01).

High noise or voltage fluctuations in power

supply

Check power supply for line noise or voltage fluctuations. Install power line filter kit

(PN 6A00171G01) or high quality line filter for input power.

Line Freq Error (AC power line frequency out of usable range, < 45 Hz or > 66 Hz)

Probable Cause Recommended Corrective Action

High noise or voltage fluctuations in power

supply

Check power supply for line noise or voltage fluctuations. Install power line filter kit

(PN 6A00171G01) or high quality line filter for input power.

AC power line frequency is outside the usable

range of the OCX universal power supply

Correct power supply frequency. AC power line frequency must be between 50 and

60 Hz.

Electronics package failure Check power supply frequency with a calibrated oscilloscope or frequency meter and

compare with line frequency. Replace electronics package if they do not agree within

1 Hz.

Line Voltage Low (AC power line voltage below minimum, < 85 VAC)

Probable Cause Recommended Corrective Action

High noise or voltage fluctuations in power

supply

Check power supply for line noise or voltage fluctuations. Install power line filter kit

(PN 6A00171G01) or high quality line filter for input power.

Electronics package failure Check power supply voltage and compare with line voltage. Replace electronics

package if they do not agree within 5%.

Table continued on next page

Instruction Manual

IM-106-880, Rev 1.0

January 2007

8-9

OCX 8800

Line Voltage High (AC power line voltage above maximum, > 278 VAC)

Probable Cause Recommended Corrective Action

High noise or voltage fluctuations in power

supply

Check power supply for line noise or voltage fluctuations. Install power line filter kit

(PN 6A00171G01) or high quality line filter for input power.

Electronics package failure Check power supply voltage and compare with line voltage. Replace electronics

package if they do not agree within 5%.

Htr Relay Failed (Heater relay failure)

Probable Cause Recommended Corrective Action

High noise or voltage fluctuations in power

supply

Check power supply for line noise or voltage fluctuations. Install power line filter kit

(PN 6A00171G01) or high quality line filter for input power.

Electronics package failure Replace electronics package.

Out Brd Failure (Output board failure)

Probable Cause Recommended Corrective Action

Electronics package failure Replace electronics package.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

8-10

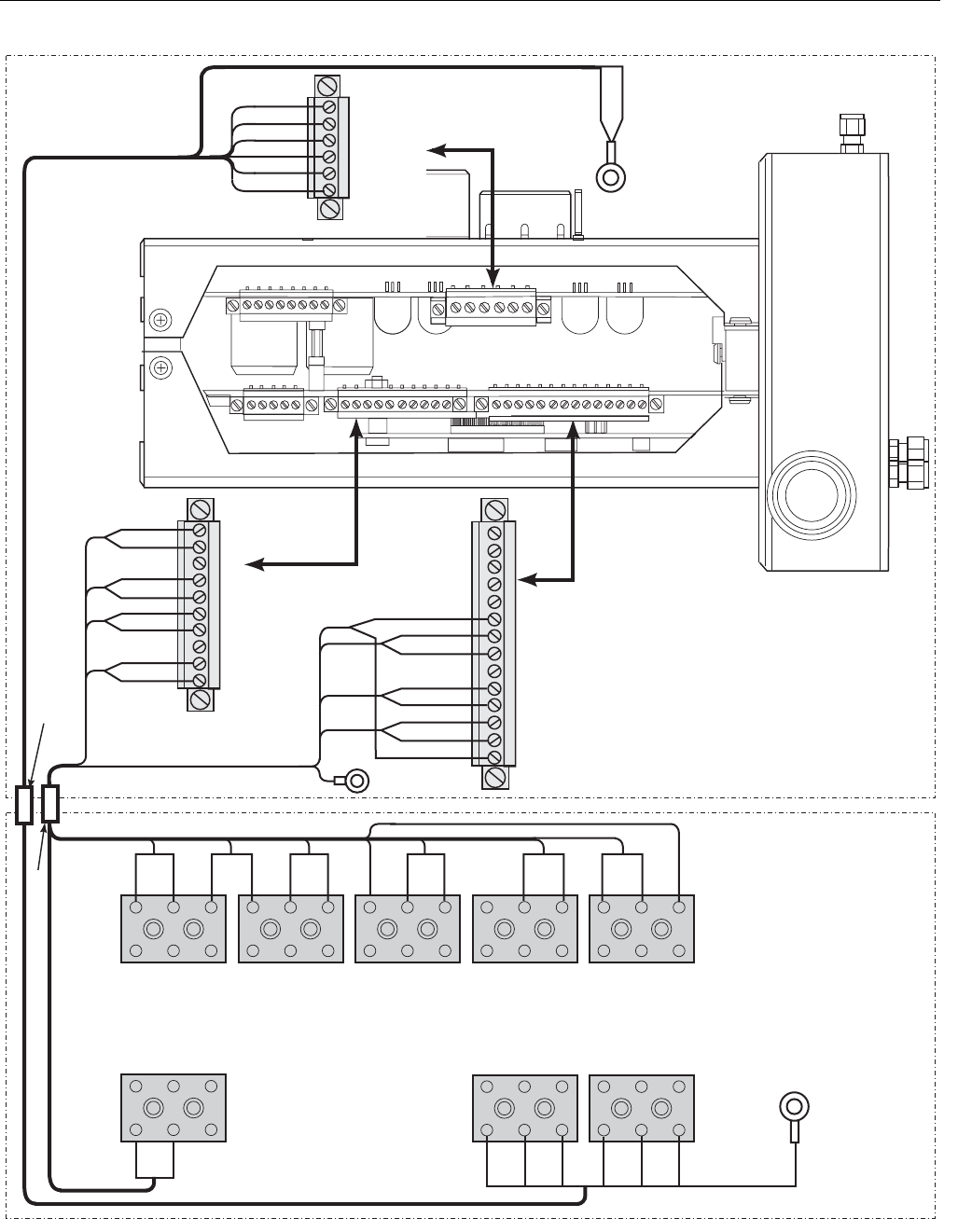

Figure 8-3. Electrical Connections Between Electronics and Sensor Housing

37390014

RED

BLK

WHT

GRN

BLK

BLU

BLK

YEL

BRN

RED

BLK

ORG

BLK

WHT

T/C CO+

T/C CO-

T/C SB+

T/C SB-

T/C O2+

T/C O2-

O2 CELL+

O2 CELL-

EXC

EXC-

BLU

ORG

YEL

RED

SHIELD

ground

screw

GRN

BLK

WHT

BLK

YEL

RED

BLU

WHT

BLK

GRN

BLK

ORG WHT

RED

BLK

BRN

To ground screw

GRN

ELECTRONICS HOUSING

SENSOR HOUSING

Heater Power Cable

Signal Cable

O Sensor and

Thermocouple

Connector (J5)

COe Sensor

and

Cold Junction

Connector (J4)

EXC+

CO ACT+

CO ACT-

CO REF+

CO REF-

CJC+

CJC-

EXC-

HTR

REF

ACT

CJC

T/C SB

T/C CO

T/C O2

#1 #1

To ground

screw

SHLD

WHT

ORG

BLU

BLK

YEL

RED

Heater Power

Connector (J3)

2HTR SB

1HTR O2

1HTR SB

2HTR CO

1HTR CO

2HTR O2

Instruction Manual

IM-106-880, Rev 1.0

January 2007

8-11

OCX 8800

ALARM RELAY EVENTS The OCX 8800 contains an alarm relay that can be configured to activate on

one of twelve different groups of events. These event groups, and the

conditions that trigger them, are listed in Table 8-2, Alarm Relay Event

Groups.

Table 8-2. Alarm Relay

Event Groups

Alarm Relay Event Alarms/Conditions

In Calibration Calibration in progress

O2 Temperature Error

Oxygen sensor heater temperature low (O2 Temp Low)

Oxygen sensor heater temperature high (O2 Temp Hi,

O2 Temp Very Hi)

RTD excitation current error (Ref Curr Err)

Heater Failure

Oxygen sensor heater could not reach final temperature

(O2 HTR Failure)

Combustibles sensor heater could not reach final temperature

(COe Htr Failure)

Sample Block sensor heater could not reach final temperature

(SB Htr Failure)

O2 Sensor Error Oxygen sensor resistance high (O2 Sensor R High)

Oxygen sensor disconnected (O2 Sensor Open)

Calibration Failure Calibration failed (Cal Failed)

Calibration Warning Calibration warning (Cal Warning)

Board Temperature High Electronics temperature maximum exceeded (Board Temp Hi)

Unit Failure

Any non-recoverable or heater relay off alarm (O2 Temp Hi,

O2 Temp Very Hi, COe Temp Hi, COE Temp Very Hi,

SB Temp Hi, SB Temp Very Hi, O2 Htr Ramp Rate,

COe Htr Rmp Rate, SB Htr Ramp Rate, O2 TC Shorted,

O2 TC Reversed, COe TC Shorted, COe TC Reversed,

SB TC Shorted, SB TC Reversed, ADC Failure,

ADC Ref Error, Board Temp Hi, EEPRM Chksm Fail,

Line Freq Error, Line Voltage Low, Line Voltage Hi,

Htr Relay Failed, Out Brd Fail)

Sample Block

Temperature Error

Sample block heater temperature low (SB Temp Low)

Sample block heater temperature high (SB Temp Hi,

SB Temp Very Hi)

RTD excitation current error (Ref Curr Err)

COe Sensor

Temperature Error

Combustibles sensor heater temperature low (COe Temp Low)

Combustibles sensor heater temperature high (COe Temp Hi,

COe Temp Very Hi)

RTD excitation current error (Ref Curr Err)

Power Input Error

AC power line frequency out of usable range (Line Freq Err)

AC power line voltage below minimum (Line Voltage Low)

AC power line voltage above maximum (Line Voltage Hi)

All Alarms Any alarm

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

8-12

Instruction Manual

IM-106-880, Rev 1.0

January 2007 OCX 8800

http://www..raihome.com

Section 9 Replacement Parts

Sensor Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9-2

Electronics Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9-6

O2 Cell and Heater Strut Assembly . . . . . . . . . . . . . . . . . . . . . . . page 9-9

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

9-2

SENSOR HOUSING

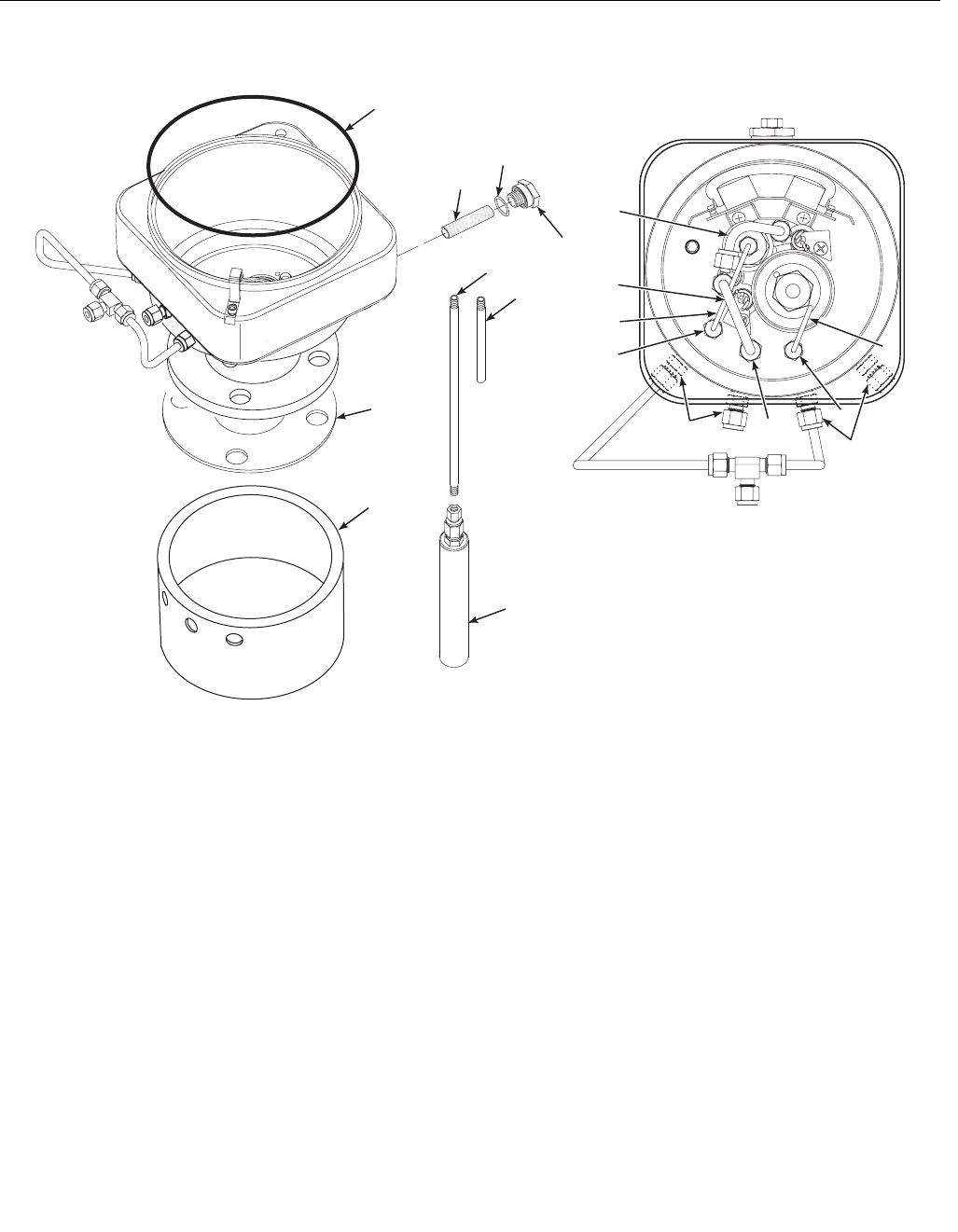

Figure 9-1. Sensor Housing

Components

37390073

(Requires

item 13 for

assembly)

Instruction Manual

IM-106-880, Rev 1.0

January 2007

9-3

OCX 8800

Index No. Part Number Description

1 5R10190G02 O2 Cell and Heater Assembly

26P00177H01 Heater Insulator, Mica

3 4851B46G03 Combustibles Sensor Replacement Kit

41A99786H01 Heater Leads Insulator, 11 inches long

5 6P00163H01 COe Insulator

61A99746H02 Band Heater

7 1A99749H01 Thermocouple

81A99747H01 Elbow

9 5R10200H01 Eductor

10 6A00123G01 CJC Sensor (RTD assembly, ring type)

11 6P00155H02 Insulator

12 1A98765H02 Heater Rod

13 1A99520H01 Watlube Heater Release Agent

14 9886A15H01 Thermal Switch Insulator

15 5R10268H02 Thermal Switch

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

9-4

Figure 9-2. Sensor Housing

Components

37390088

Instruction Manual

IM-106-880, Rev 1.0

January 2007

9-5

OCX 8800

Index No. Part Number Description

1 1A99089H02 Cover Gasket (O-ring)

25R10246H02 Blowback Filter

31A98448H02 O-ring

45R10247H01 Adaptor

5 5R10183H02 Tube, Sample, 18 in. (457 mm) 316 Stainless steel

5R10183H06 Tube, Sample, 18 in. (457 mm) Inconel 600

5R10227G01 Tube, Sample, 18 in. (457 mm) Ceramic

5R10183H03 Tube, Sample, 3 ft. (0.91 m) 316 Stainless steel

5R10183H07 Tube, Sample, 3 ft. (0.91 m) Inconel 600

5R10227G02 Tube, Sample, 3 ft. (0.91 m) Ceramic

5R10183H04 Tube, Sample, 6 ft. (1.83 m) 316 Stainless steel

5R10183H08 Tube, Sample, 6 ft. (1.83 m) Inconel 600

5R10183H05 Tube, Sample, 9 ft. (2.7 m) 316 Stainless steel

5R10183H09 Tube, Sample, 9 ft. (2.7 m) Inconel 600

6 5R10183H01 Tube, Exhaust

71A68017H02 COe Extractive

8 5R10185H08 Dilution Air Tube

95R10185H03 Eductor Drive Air Tube

10 5R10185H04 Reference Air Tube

11 Not Used

12 6A00144G01 In Situ Filter Kit

13 6P00162H01 Flange Insulator (optional)

14 3535B18H02 Flange Gasket, ANSI

3535B45H01 Flange Gasket, DIN

15 5R10279G01 Tube Fitting, Type "R"

16 771B870H04 Tube Fitting, Standard

18 5R10279G03 Tube Fitting, Type "13"

19 5R10267G01 Tube Fitting, Flame Arrestor, Type “F”

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

9-6

ELECTRONICS

HOUSING

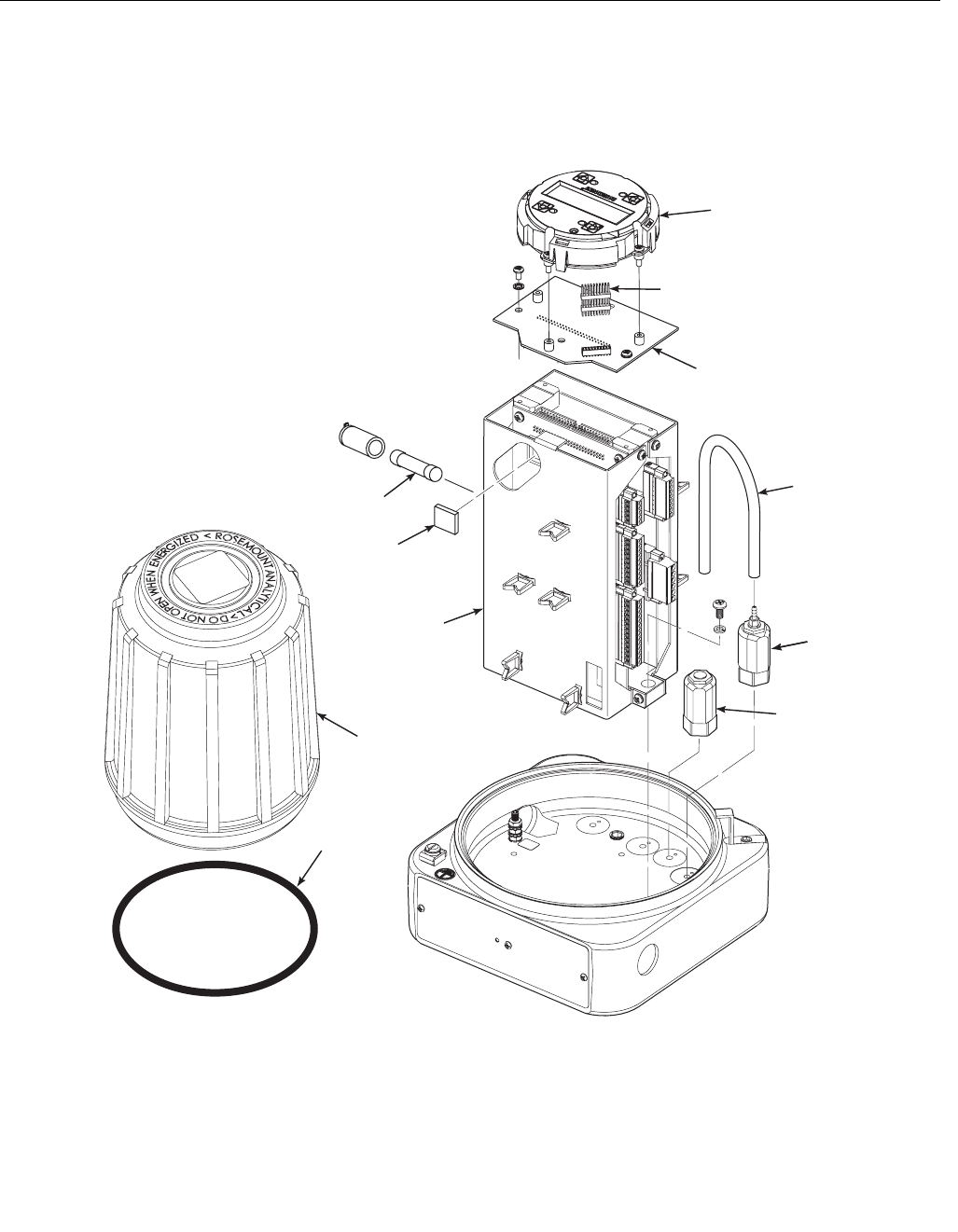

Figure 9-3. Electronics Housing

Components

37390054

Instruction Manual

IM-106-880, Rev 1.0

January 2007

9-7

OCX 8800

Index No. Part Number Description

1 1A97902H01 Hose

21A97905H02 Solenoid Valve, 3-Way

3 1A97905H01 Solenoid Valve, Test Gas

46A00132G01 Electronics Stack, HART

5 Special Order Flash PROM, Programmed

61A97913H06 Fuse (F1 and F6), 10 Amp, 250 VAC

1A99766H01 Fuse (F3), 4 Amp, 250 VAC

1A99766H02 Fuse (F4), 8 Amp, 250 VAC

7 1A99089H02 Cover Gasket (O-ring)

85R10219G01 Cover, Blind

8A 5R10199G01 Cover, Window

96A00115G02 LOI Module

10 1A99112H05 LOI Connector

11 5R10235G01 LOI Board

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

9-8

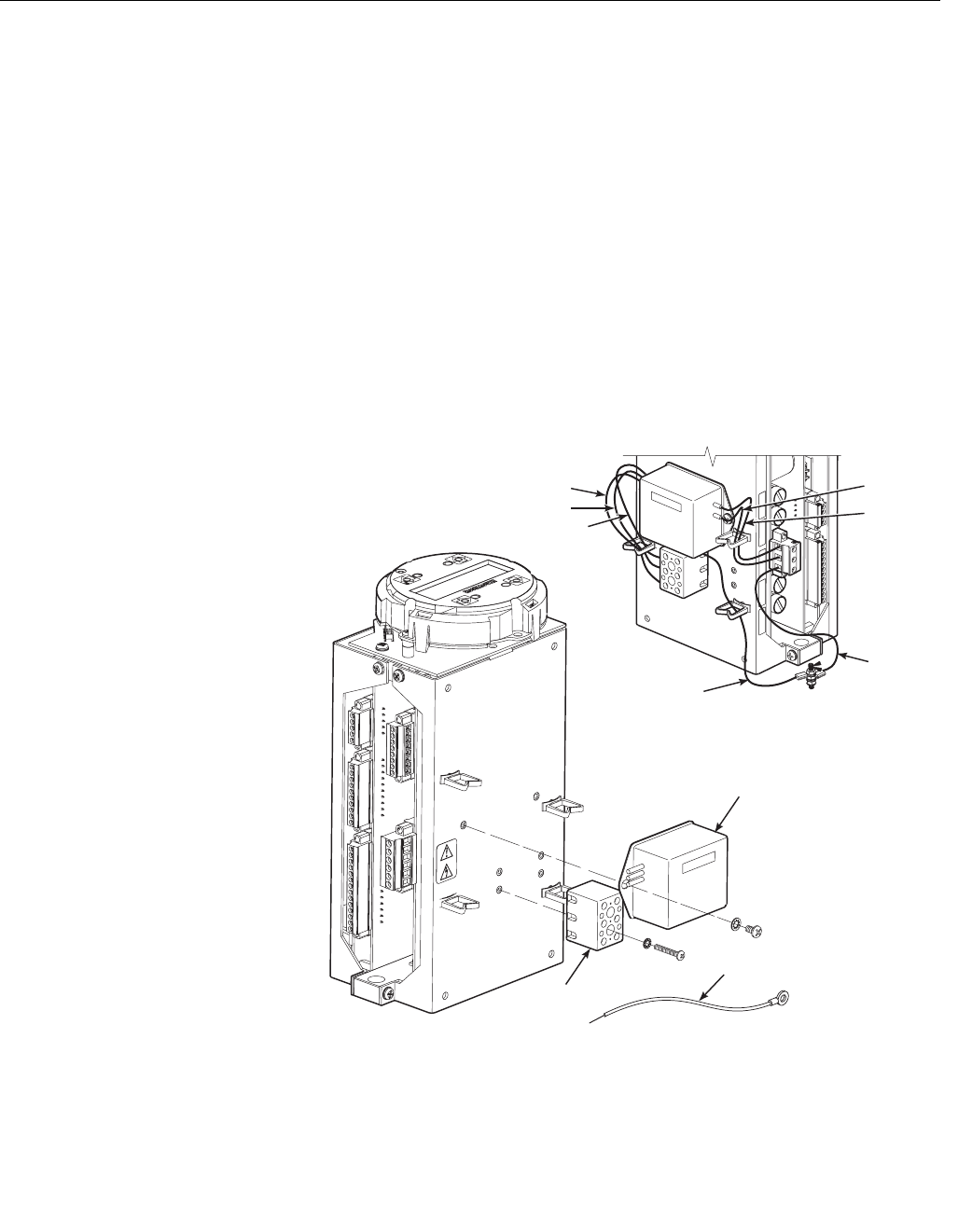

Figure 9-4. EMI Filter

and Terminal Block

37390083

Brown

Blue

Green

Brown

Blue

Index No. Part Number Description

1 1A98467H01 Filter, EMI

25R10238G01 Ground Wire

3 1A99714H01 Terminal Block

Instruction Manual

IM-106-880, Rev 1.0

January 2007

9-9

OCX 8800

O2 CELL AND HEATER

STRUT ASSEMBLY

Figure 9-5. O2 Cell and

Heater Strut Assembly

37390055

Index No. Part Number Description

1 4851B44G01 Contact and Thermocouple Assembly

25R10211G02 Heater Strut Assembly

3 5R10188G01 Heater Tube

4Ref Gasket (part of O2 Cell Replacement Kit, item 7)

5Ref O

2 Cell (part of O2 Cell Replacement Kit, item 7)

6Ref Screw (part of O2 Cell Replacement Kit, item 7)

7 4851B45G01 O2 Cell Replacement Kit

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

9-10

Instruction Manual

IM-106-880, Rev 1.0

January 2007 OCX 8800

http://www..raihome.com

Appendix A Safety Data

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page A-2

Safety Data Sheet for Ceramic Fiber Products . . . . . . . . . . . . . page A-24

High Pressure Gas Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . page A-29

Atex Clarification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page A-31

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

A-2

SAFETY INSTRUCTIONS IMPORTANT

SAFETY INSTRUCTIONS FOR THE WIRING

AND INSTALLATION OF THIS APPARATUS

The following safety instructions apply specifically to all EU member

states. They should be strictly adhered to in order to assure compliance

with the Low Voltage Directive. Non-EU states should also comply with

the following unless superseded by local or National Standards.

1. Adequate earth connections should be made to all earthing points,

internal and external, where provided.

2. After installation or troubleshooting, all safety covers and safety grounds

must be replaced. The integrity of all earth terminals must be maintained

at all times.

3. Mains supply cords should comply with the requirements of IEC227 or

IEC245.

4. All wiring shall be suitable for use in an ambient temperature of greater

than 75°C.

5. All cable glands used should be of such internal dimensions as to

provide adequate cable anchorage.

6. To ensure safe operation of this equipment, connection to the mains

supply should only be made through a circuit breaker which will

disconnect all circuits carrying conductors during a fault situation. The

circuit breaker may also include a mechanically operated isolating

switch. If not, then another means of disconnecting the equipment from

the supply must be provided and clearly marked as such. Circuit

breakers or switches must comply with a recognized standard such as

IEC947. All wiring must conform with any local standards.

7. Where equipment or covers are marked with the symbol

to the right, hazardous voltages are likely to be present

beneath. These covers should only be removed when

power is removed from the equipment - and then only

by trained service personnel.

8. Where equipment or covers are marked with the symbol

to the right, there is a danger from hot surfaces beneath.

These covers should only be removed by trained

service personnel when power is removed from the

equipment. Certain surfaces may remain hot to the

touch.

9. Where equipment or covers are marked with the symbol

to the right, refer to the Operator Manual for instructions.

10. All graphical symbols used in this product are from one

or more of the following standards: EN61010-1, IEC417,

and ISO3864.

11. Where equipment or labels are marked "Do Not Open While Energized"

or similar, there is a danger of ignition in areas where an explosive

atmosphere is present. This equipment should only be opened when

power is removed and adequate time as specified on the label or in the

instruction manual has been allowed for the equipment to cool down -

and then only by trained service personnel.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

A-3

OCX 8800

DŮLEŽITÉ

Bezpečnostní pokyny pro zapojení a instalaci zařízení

Následující bezpečnostní pokyny se speciálně vztahují na všechny

členské státy EU. Pokyny by měly být přísně dodržovány, aby se

zajistilo splnění Směrnice o nízkém napětí. Pokud nejsou pokyny

nahrazeny místními či národními normami, měly by je dodržovat i

nečlenské státy EU.

1. U všech zemnicích bodů, interních a externích, by mělo být vytvořeno

odpovídající uzemnění.

2. Po instalaci nebo odstranění problémů musí být vyměněny všechny

bezpečnostní kryty a uzemnění. Vždy musí být zajištěna integrita všech

zemnicích svorek.

3. Sí˙ové kabely by měly odpovídat požadavkům normy IEC227 nebo

IEC245.

4. Všechna zapojení by měla být vhodná pro použití při vnějších teplotách

nad 75 °C.

5. Všechna použitá kabelová hrdla by měla mít takové vnitřní rozměry, aby

zajistila odpovídající zakotvení kabelu.

6. Správnou činnost zařízení zajistíte, vytvoříte-li připojení k napájecímu

zdroji pouze přes jistič, který v případě poruchy odpojí všechny obvody

s konduktory. Jistič může také obsahovat mechanický odpojovač.

Pokud ho neobsahuje, musí být zajištěn a jasně označen jiný způsob

odpojení zařízení od zdroje. Jističe nebo přepínače musí odpovídat

uznávaným normám, např. IEC947. Všechna zapojení musí odpovídat

místním normám.

7. Je-li zařízení nebo kryt označen symbolem na pravé

straně, pravděpodobně se uvnitř nachází nebezpečné

napětí. Tyto kryty by měly být sejmuty pouze po

odpojení zařízení od zdroje - a to pouze kvalifikovaným

zaměstnancem.

8. Je-li zařízení nebo kryt označen symbolem na pravé

straně, povrch zařízení může být velmi horký. Tyto kryty

by měly být sejmuty pouze kvalifikovaným

zaměstnancem po odpojení zařízení od zdroje. Některé

povrchy mohou být stále horké.

9. Je-li zařízení nebo kryt označen symbolem na pravé

straně, přečtěte si nejprve instrukce v návodu k obsluze.

10. Všechny grafické symboly používané u výrobku

pocházejí z následujících norem: EN61010-1, IEC417 a

ISO3864.

11. Pokud je zařízení nebo štítky označeno varováním „Je-li zařízení pod

napětím, neotvírejte jej“ či podobným, může dojít ve výbušném prostředí

ke vznícení. Zařízení lze otevřít pouze po jeho odpojení od zdroje a

ponechání dostatečného času na vychladnutí, jak je uvedeno na štítku

nebo v návodu k obsluze - a to pouze kvalifikovaným zaměstnancem.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

A-4

VIGTIGT

Sikkerhedsinstruktion for tilslutning og installering af dette udstyr.

Følgende sikkerhedsinstruktioner gælder specifikt i alle

EU-medlemslande. Instruktionerne skal nøje følges for overholdelse af

Lavsspændingsdirektivet og bør også følges i ikke EU-lande medmindre

andet er specificeret af lokale eller nationale standarder.

1. Passende jordforbindelser skal tilsluttes alle jordklemmer, interne og

eksterne, hvor disse forefindes.

2. Efter installation eller fejlfinding skal alle sikkerhedsdæksler og

jordforbindelser reetableres.

3. Forsyningskabler skal opfylde krav specificeret i IEC227 eller IEC245.

4. Alle ledningstilslutninger skal være konstrueret til omgivelsestemperatur

højere end 75°C.

5. Alle benyttede kabelforskruninger skal have en intern dimension, så

passende kabelaflastning kan etableres.

6. For opnåelse af sikker drift og betjening skal der skabes beskyttelse

mod indirekte berøring gennem afbryder (min. 10A), som vil afbryde alle

kredsløb med elektriske ledere i fejlsitua-tion. Afbryderen skal indholde

en mekanisk betjent kontakt. Hvis ikke skal anden form for afbryder

mellem forsyning og udstyr benyttes og mærkes som sådan. Afbrydere

eller kontakter skal overholde en kendt standard som IEC947.

7. Hvor udstyr eller dæksler er mærket med dette symbol,

er farlige spændinger normalt forekom-mende bagved.

Disse dæksler bør kun afmonteres, når

forsyningsspændingen er frakoblet - og da kun af

instrueret servicepersonale.

8. Hvor udstyr eller dæksler er mærket med dette symbol,

forefindes meget varme overflader bagved. Disse

dæksler bør kun afmonteres af instrueret

servicepersonale, når forsyningsspænding er frakoblet.

Visse overflader vil stadig være for varme at berøre i op

til 45 minutter efter frakobling.

9. Hvor udstyr eller dæksler er mærket med dette symbol,

se da i betjeningsmanual for instruktion.

10. Alle benyttede grafiske symboler i dette udstyr findes i

én eller flere af følgende standarder:- EN61010-1,

IEC417 & ISO3864.

11. Når udstyr eller etiketter er mærket "Må ikke åbnes, mens udstyret

tilføres strøm” eller lignende, er der fare for antændelse i områder, hvor

der er en eksplosiv atmosfære. Dette udstyr må kun åbnes, når

strømkilden er fjernet, og der er gået tilstrækkelig tid til, at udstyret er

kølet ned. Den nødvendige tid hertil er angivet på etiketten eller i

brugervejledningen. Udstyret må kun åbnes af en faglært person.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

A-5

OCX 8800

BELANGRIJK

Veiligheidsvoorschriften voor de aansluiting en installatie van dit toestel.

De hierna volgende veiligheidsvoorschriften zijn vooral bedoeld voor de

EU lidstaten. Hier moet aan gehouden worden om de onderworpenheid

aan de Laag Spannings Richtlijn (Low Voltage Directive) te verzekeren.

Niet EU staten zouden deze richtlijnen moeten volgen tenzij zij reeds

achterhaald zouden zijn door plaatselijke of nationale voorschriften.

1. Degelijke aardingsaansluitingen moeten gemaakt worden naar alle

voorziene aardpunten, intern en extern.

2. Na installatie of controle moeten alle veiligheidsdeksels en -aardingen

terug geplaatst worden. Ten alle tijde moet de betrouwbaarheid van de

aarding behouden blijven.

3. Voedingskabels moeten onderworpen zijn aan de IEC227 of de IEC245

voorschriften.

4. Alle bekabeling moet geschikt zijn voor het gebruik in

omgevingstemperaturen, hoger dan 75°C.

5. Alle wartels moeten zo gedimensioneerd zijn dat een degelijke kabel

bevestiging verzekerd is.

6. Om de veilige werking van dit toestel te verzekeren, moet de voeding

door een stroomonderbreker gevoerd worden (min 10A) welke alle

draden van de voeding moet onderbreken. De stroomonderbreker mag

een mechanische schakelaar bevatten. Zoniet moet een andere

mogelijkheid bestaan om de voedingsspanning van het toestel te halen

en ook duidelijk zo zijn aangegeven. Stroomonderbrekers of

schakelaars moeten onderworpen zijn aan een erkende standaard

zoals IEC947.

7. Waar toestellen of deksels aangegeven staan met het

symbool is er meestal hoogspanning aanwezig. Deze

deksels mogen enkel verwijderd worden nadat de

voedingsspanning werd afgelegd en enkel door getraind

onderhoudspersoneel.

8. Waar toestellen of deksels aangegeven staan met het

symbool is er gevaar voor hete oppervlakken. Deze

deksels mogen enkel verwijderd worden door getraind

onderhoudspersoneel nadat de voedingsspanning

verwijderd werd. Sommige oppper-vlakken kunnen 45

minuten later nog steeds heet aanvoelen.

9. Waar toestellen of deksels aangegeven staan met het

symbool gelieve het handboek te raadplegen.

10. Alle grafische symbolen gebruikt in dit produkt, zijn

afkomstig uit een of meer van devolgende standaards:

EN61010-1, IEC417 en ISO3864.

11. Op plaatsen waar uitrusting of etiketten zijn voorzien van een melding

als "Niet openen bij aanwezigheid van spanning" bestaat er

brandgevaar in omgevingen waar een explosieve atmosfeer aanwezig

is. Deze uitrusting mag uitsluitend worden geopend wanneer het niet

meer onder spanning staat en de uitrusting gedurende de

voorgeschreven tijd op het etiket of in de handleiding is afgekoeld - en

dan uitsluitend door voldoende opgeleid onderhoudspersoneel.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

A-6

BELANGRIJK

Veiligheidsinstructies voor de bedrading en installatie van dit apparaat.

Voor alle EU lidstaten zijn de volgende veiligheidsinstructies van

toepassing. Om aan de geldende richtlijnen voor laagspanning te

voldoen dient men zich hieraan strikt te houden. Ook niet EU lidstaten

dienen zich aan het volgende te houden, tenzij de lokale wetgeving

anders voorschrijft.

1. Alle voorziene interne- en externe aardaansluitingen dienen op

adequate wijze aangesloten te worden.

2. Na installatie, onderhouds- of reparatie werkzaamheden dienen alle

beschermdeksels /kappen en aardingen om reden van veiligheid weer

aangebracht te worden.

3. Voedingskabels dienen te voldoen aan de vereisten van de normen

IEC 227 of IEC 245.

4. Alle bedrading dient geschikt te zijn voor gebruik bij een omgevings

temperatuur boven 75°C.

5. Alle gebruikte kabelwartels dienen dusdanige inwendige afmetingen te

hebben dat een adequate verankering van de kabel wordt verkregen.

6. Om een veilige werking van de apparatuur te waarborgen dient de

voeding uitsluitend plaats te vinden via een meerpolige automatische

zekering (min.10A) die alle spanningvoerende geleiders verbreekt

indien een foutconditie optreedt. Deze automatische zekering mag ook

voorzien zijn van een mechanisch bediende schakelaar. Bij het

ontbreken van deze voorziening dient een andere als zodanig duidelijk

aangegeven mogelijkheid aanwezig te zijn om de spanning van de

apparatuur af te schakelen. Zekeringen en schakelaars dienen te

voldoen aan een erkende standaard zoals IEC 947.

7. Waar de apparatuur of de beschermdeksels/kappen

gemarkeerd zijn met het volgende symbool, kunnen

zich hieronder spanning voerende delen bevinden die

gevaar op kunnen leveren. Deze beschermdeksels/

kappen mogen uitsluitend verwijderd worden door

getraind personeel als de spanning is afgeschakeld.

8. Waar de apparatuur of de beschermdeksels/kappen

gemarkeerd zijn met het volgende symbool, kunnen

zich hieronder hete oppervlakken of onderdelen

bevinden. Bepaalde delen kunnen mogelijk na 45 min.

nog te heet zijn om aan te raken.

9. Waar de apparatuur of de beschermdeksels/kappen

gemarkeerd zijn met het volgende symbool, dient men

de bedieningshandleiding te raadplegen.

10. Alle grafische symbolen gebruikt bij dit produkt zijn

volgens een of meer van de volgende standaarden:

EN 61010-1, IEC 417 & ISO 3864.

11. Op plaatsen waar uitrusting of etiketten zijn voorzien van een melding als

"Niet openen bij aanwezigheid van spanning" bestaat er brandgevaar in

omgevingen waar een explosieve atmosfeer aanwezig is. Deze uitrusting

mag uitsluitend worden geopend wanneer het niet meer onder spanning

staat en de uitrusting gedurende de voorgeschreven tijd op het etiket of in

de handleiding is afgekoeld - en dan uitsluitend door voldoende opgeleid

onderhoudspersoneel.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

A-7

OCX 8800

WICHTIG

Sicherheitshinweise für den Anschluß und die Installation dieser Geräte.

Die folgenden Sicherheitshinweise sind in allen Mitgliederstaaten der

europäischen Gemeinschaft gültig. Sie müssen strickt eingehalten

werden, um der Niederspannungsrichtlinie zu genügen.

Nichtmitgliedsstaaten der europäischen Gemeinschaft sollten die

national gültigen Normen und Richtlinien einhalten.

1. Alle intern und extern vorgesehenen Erdungen der Geräte müssen

ausgeführt werden.

2. Nach Installation, Reparatur oder sonstigen Eingriffen in das Gerät müssen

alle Sicherheitsabdeckungen und Erdungen wieder installiert werden. Die

Funktion aller Erdverbindungen darf zu keinem Zeitpunkt gestört sein.

3. Die Netzspannungsversorgung muß den Anforderungen der IEC227

oder IEC245 genügen.

4. Alle Verdrahtungen sollten mindestens bis 75°C ihre Funktion dauerhaft

erfüllen.

5. Alle Kabeldurchführungen und Kabelverschraubungen sollten in Ihrer

Dimensionierung so gewählt werden, daß diese eine sichere

Verkabelung des Gerätes ermöglichen.

6. Um eine sichere Funktion des Gerätes zu gewährleisten, muß die

Spannungsversorgung über mindestens 10 A abgesichert sein. Im

Fehlerfall muß dadurch gewährleistet sein, daß die

Spannungsversorgung zum Gerät bzw. zu den Geräten unterbrochen

wird. Ein mechanischer Schutzschalter kann in dieses System integriert

werden. Falls eine derartige Vorrichtung nicht vorhanden ist, muß eine

andere Möglichkeit zur Unterbrechung der Spannungszufuhr

gewährleistet werden mit Hinweisen deutlich gekennzeichnet werden.

Ein solcher Mechanismus zur Spannungsunterbrechung muß mit den

Normen und Richtlinien für die allgemeine Installation von

Elektrogeräten, wie zum Beispiel der IEC947, übereinstimmen.

7. Mit dem Symbol sind Geräte oder Abdeckungen gekennzeichnet, die eine

gefährliche (Netzspannung) Spannung führen. Die Abdeckungen dürfen

nur entfernt werden, wenn die Versorgungsspannung unterbrochen wurde.

Nur geschultes Personal darf an diesen Geräten Arbeiten ausführen.

8. Mit dem Symbol sind Geräte oder Abdeckungen gekennzeichnet, in

bzw. unter denen heiße Teile vorhanden sind. Die Abdeckungen dürfen

nur entfernt werden, wenn die Versorgungsspannung unterbrochen

wurde. Nur geschultes Personal darf an diesen Geräten Arbeiten

ausführen. Bis 45 Minuten nach dem Unterbrechen der Netzzufuhr

können derartig Teile noch über eine erhöhte Temperatur verfügen.

9. Mit dem Symbol sind Geräte oder Abdeckungen gekennzeichnet, bei

denen vor dem Eingriff die entsprechenden Kapitel im Handbuch

sorgfältig durchgelesen werden müssen.

10. Alle in diesem Gerät verwendeten graphischen Symbole entspringen

einem oder mehreren der nachfolgend aufgeführten Standards:

EN61010-1, IEC417 & ISO3864.

11. Wenn Geräte oder Etiketten mit dem Hinweis "Nicht unter Spannung

öffnen" oder ähnlichen Hinweisen versehen sind, besteht in

explosionsgefährdeten Umgebungen Entzündungsgefahr. Das Gerät

darf nur geöffnet werden, wenn es nicht ans Stromnetz angeschlossen

und entsprechend der Zeitangaben auf dem Etikett bzw. in der

Betriebsanleitung ausreichend abgekühlt ist. Das Gerät darf nur von

geschultem Service-Personal geöffnet werden.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

A-8

ΣΗΜΑΝΤΙΚΟ

Οδηγιεσ ασφαλειασ για την καλωδιωση και εγκατασταση τησ συσκευησ

Οι ακόλουθες οδηγίες ασφαλείας εφαρµόζονται ειδικά για όλες τις χώρες

µέλη της Ευρωπαϊκής Κοινότητας. Θα πρέπει να ακολουθούνται αυστηρά

ώστε να εξασφαλιστεί η συµβατότητα µε τις οδηγίες για τη Χαµηλή Τάση.

Χώρες που δεν είναι µέλη της Ευρωπαϊκής Κοινότητας θα πρέπει επίσης

να ακολουθούν τις οδηγίες, εκτός εάν αυτές αντικαθίστανται από τα

Τοπικά ή Εθνικά πρότυπα.

1. Επαρκείς συνδέσεις γείωσης θα πρέπει να γίνονται σε όλα τα σηµεία

γείωσης, εσωτερικά και εξωτερικά, όπου υπάρχουν.

2. Μετά την εγκατάσταση ή την αντιµετώπιση σφαλµάτων, όλα τα καλύµµατα

ασφαλείας και οι γειώσεις ασφαλείας πρέπει να επανεγκαθίστανται. Η καλή

κατάσταση όλων των ακροδεκτών γείωσης πρέπει να συντηρείται διαρκώς.

3. Τα καλώδια τροφοδοσίας πρέπει να πληρούν τις απαιτήσεις των IEC227

ή IEC245.

4. Όλες οι καλωδιώσεις θα πρέπει να είναι κατάλληλες για χρήση σε

θερµοκρασία χώρου υψηλότερη από 75°C.

5. Όλοι οι στυπιοθλίπτες θα πρέπει να είναι τέτοιων εσωτερικών

διαστάσεων, ώστε να παρέχουν επαρκή στερέωση των καλωδίων.

6. Για τη διασφάλιση ασφαλούς λειτουργίας αυτής της συσκευής, η σύνδεση

τροφοδοσίας θα πρέπει να γίνεται µόνο µέσω ασφαλειοδιακόπτη, ο

οποίος θα αποσυνδέει όλους τους ηλεκτροφόρους αγωγούς των

κυκλωµάτων, στη διάρκεια κατάστασης σφάλµατος. Ο ασφαλειοδιακόπτης

µπορεί επίσης να περιλαµβάνει µηχανικό διακόπτη αποµόνωσης. Εάν δεν

περιλαµβάνει, τότε άλλα µέσα αποσύνδεσης της συσκευής από την

τροφοδοσία πρέπει να παροχηθούν και να σηµανθούν σαφώς ως τέτοια.

Οι ασφαλειοδιακόπτες ή διακόπτες πρέπει να συµµορφώνονται µε

αναγνωρισµένα πρότυπα όπως το IEC947. Όλες οι καλωδιώσεις πρέπει

να συµµορφώνονται µε τα τοπικά πρότυπα.

7. Όπου συσκευές ή καλύµµατα είναι σηµασµένα µε το

σύµβολο που εικονίζεται δεξιά, επικίνδυνες τάσεις

ενυπάρχουν κάτω από αυτά. Αυτά τα καλύµµατα θα

πρέπει να αφαιρούνται µόνο όταν έχει αφαιρεθεί η

τροφοδοσία από τη συσκευή - και στην περίπτωση αυτή,

µόνο από ειδικευµένο τεχνικό προσωπικό.

8. Όπου συσκευές ή καλύµµατα είναι σηµασµένα µε το

σύµβολο που εικονίζεται δεξιά, υπάρχει κίνδυνος από

καυτές επιφάνειες κάτω από αυτά. Τέτοια καλύµµατα θα

πρέπει να αφαιρούνται µόνο από ειδικευµένο τεχνικό

προσωπικό, όταν έχει αφαιρεθεί η τροφοδοσία από τη

συσκευή. Κάποιες επιφάνειες µπορούν να παραµένουν ζεστές στην αφή.

9. Όπου συσκευές ή καλύµµατα είναι σηµασµένα µε το

σύµβολο που εικονίζεται δεξιά, ανατρέξτε στις οδηγίες

χρήσης της συσκευής.

10. Όλα τα γραφικά σύµβολα που χρησιµοποιούνται σε αυτό

το προϊόν είναι από ένα ή περισσότερα από τα εξής

πρότυπα: EN61010-1, IEC417 και ISO3864.

11. Όπου συσκευή ή ετικέτα είναι σηµασµένη µε την ένδειξη "Μην ανοίγετε ενώ

βρίσκεται σε λειτουργία" ή άλλη παρόµοια, υπάρχει κίνδυνος ανάφλεξης σε

περιοχές µε εκρηκτική ατµόσφαιρα. Ο παρών εξοπλισµός πρέπει να

ανοίγεται µόνο όταν είναι εκτός ρεύµατος και αφού παρέλθει ο κατάλληλος

χρόνος που αναγράφεται στην ετικέτα ή στο εγχειρίδιο οδηγιών ώστε να

ψυχθεί και µόνο από εκπαιδευµένο προσωπικό συντήρησης.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

A-9

OCX 8800

OLULINE TEAVE

Juhtmestiku ja seadme paigaldamisega seotud ohutusjuhised

Alljärgnevad ohutusjuhised rakenduvad eriti kõigi Euroopa Liidu

liikmesriikide suhtes. Antud juhiseid tuleb täpselt järgida, et kindlustada

vastavus madalpinge direktiiviga. Euroopa Liitu mittekuuluvad riigid

peavad samuti alljärgnevaid juhiseid järgima, va juhul, kui on olemas

vastavad kohalikud riiklikud standardid.

1. Ettenähtud maanduspunktide, nii sisemiste kui väliste jaoks tuleb

tagada nõuetekohased maaühendused.

2. Pärast paigaldamist või rikketuvastust tuleb kõik turvaümbrised ja

turvamaandused uuesti oma kohale seada. Kõigis olukordades tuleb

säilitada kõigi maandusklemmide terviklikkus.

3. Toitejuhtmed peavad vastama IEC227 või IEC245 nõuetele.

4. Kogu juhtmestik peab sobima kasutamiseks üle 75°C õhutemperatuuri

juures.

5. Kõik juhtmetihendid peavad sisemõõtmete poolest tagama

nõuetekohased kaabliühendused.

6. Seadme ohutu töötamise tagamiseks peab ühendus toiteallikaga

toimuma vaid läbi automaatkorgi, mis veaolukorras lülitab välja kõik

voolukandjad. Automaatkorgil võib olla ka mehhaaniliselt reguleeritav

lahklüliti. Vastasel juhul peab seadme toiteallikast lahtiühendamiseks

olema teine ja selgelt osutatud moodus. Automaatkorgid või -lülitid

peavad vastama tunnustatud standarditele nagu nt IEC947. Kogu

juhtmestik peab vastama kohalikele standarditele.

7. Seadmel või ümbristel asuv paremale osutav sümbol

tähistab selle all leiduvat ohtlikku pinget. Selliste

sümbolitega ümbriseid võib eemaldada vaid juhul, kui

seade on toiteallikast lahti ühendatud ning ka siis ainult

vastavate oskustega spetsialisti poolt.

8. Seadmele või ümbristele märgitud paremale osutava

sümboli all valitseb kuumadest pindadest tulenev oht.

Nimetatud sümbolitega ümbriseid võib eemaldada vaid

vastavate oskustega spetsialist, kui seade on

toiteallikast lahti ühendatud. Teatud pinnad võivad

puudutamise jaoks liiga kuumad olla.

9. Seadmel või ümbristel leiduva paremale osutava

sümboli korral vt juhiste jaoks Toimimisjuhendit.

10. Kõik selle toote juures kasutatavad graafilised sümbolid

lähtuvad ühest või enamast järgmistest standarditest:

EN61010-1, IEC417 ja ISO3864.

11. Kui seadmele või siltidele on kirjutatud "Ärge avage voolutarbimine

korral" vms, valitseb plahvatusohtlikus keskkonnas süttimise oht.

Seadet võib avada ainult siis, kui toide on lahti ühendatud ning seadmel

on võimaldatud sildil või kasutusjuhendis osutatud aja jooksul maha

jahtuda -- ning ka sellisel juhul ainult vastavate oskustega spetsialisti

poolt.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

A-10

TÄRKEÄÄ

Turvallisuusohje, jota on noudatettava tämän laitteen asentamisessa ja

kaapeloinnissa.

Seuraavat ohjeet pätevät erityisesti EU:n jäsenvaltioissa. Niitä täytyy

ehdottomasti noudattaa jotta täytettäisiin EU:n matalajännitedirektiivin

(Low Voltage Directive) yhteensopivuus. Myös EU:hun kuulumattomien

valtioiden tulee nou-dattaa tätä ohjetta, elleivät kansalliset standardit

estä sitä.

1. Riittävät maadoituskytkennät on tehtävä kaikkiin maadoituspisteisiin,

sisäisiin ja ulkoisiin.

2. Asennuksen ja vianetsinnän jälkeen on kaikki suojat ja suojamaat

asennettava takaisin pai-koilleen. Maadoitusliittimen kunnollinen

toiminta täytyy aina ylläpitää.

3. Jännitesyöttöjohtimien täytyy täyttää IEC227 ja IEC245 vaatimukset.

4. Kaikkien johdotuksien tulee toimia >75°C lämpötiloissa.

5. Kaikkien läpivientiholkkien sisähalkaisijan täytyy olla sellainen että

kaapeli lukkiutuu kun-nolla kiinni.

6. Turvallisen toiminnan varmistamiseksi täytyy jännitesyöttö varustaa

turvakytkimellä (min 10A), joka kytkee irti kaikki jännitesyöttöjohtimet

vikatilanteessa. Suojaan täytyy myös sisältyä mekaaninen erotuskytkin.

Jos ei, niin jännitesyöttö on pystyttävä katkaisemaan muilla keinoilla ja

merkittävä siten että se tunnistetaan sellaiseksi. Turvakytkimien tai

kat-kaisimien täytyy täyttää IEC947 standardin vaatimukset

näkyvyydestä.

7. Mikäli laite tai kosketussuoja on merkitty tällä merkillä

on merkinnän takana tai alla hengenvaarallisen

suuruinen jännite. Suojaa ei saa poistaa jänniteen

ollessa kytkettynä laitteeseen ja poistamisen saa

suorittaa vain alan asian-tuntija.

8. Mikäli laite tai kosketussuoja on merkitty tällä merkillä

on merkinnän takana tai alla kuuma pinta. Suojan saa

poistaa vain alan asiantuntija kun jännite-syöttö on

katkaistu. Tällainen pinta voi säilyä kosketuskuumana

jopa 45 mi-nuuttia.

9. Mikäli laite tai kosketussuoja on merkitty tällä merkillä

katso lisäohjeita käyt-töohjekirjasta.

10. Kaikki tässä tuotteessa käytetyt graafiset symbolit ovat

yhdestä tai useammasta seuraavis-ta standardeista:

EN61010-1, IEC417 & ISO3864.

11. Jos laitteessa tai tarrassa on merkintä "Älä avaa, kun virta on kytketty"

tai vastaava, räjähdysvaarallisissa tiloissa on syttymisen vaara. Nämä

laitteet voidaan avata vain silloin, kun virta ei ole kytkettynä ja laitteen

on annettu jäähtyä tarrassa tai oppaassa määritetyn ajan. Tällöinkin

laitteet saa avata vain koulutettu huoltohenkilökunta.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

A-11

OCX 8800

IMPORTANT

Consignes de sécurité concernant le raccordement et l'installation de

cet appareil.

Les consignes de sécurité ci-dessous s'adressent particulièrement à

tous les états membres de la communauté européenne. Elles doivent

être strictement appliquées afin de satisfaire aux directives concernant

la basse tension. Les états non membres de la communauté européenne

doivent également appliquer ces consignes sauf si elles sont en

contradiction avec les standards locaux ou nationaux.

1. Un raccordement adéquat à la terre doit être effectuée à chaque borne

de mise à la terre, interne et externe.

2. Après installation ou dépannage, tous les capots de protection et toutes

les prises de terre doivent être remis en place, toutes les prises de terre

doivent être respectées en permanence.

3. Les câbles d'alimentation électrique doivent être conformes aux normes

IEC227 ou IEC245.

4. Tous les raccordements doivent pouvoir supporter une température

ambiante supérieure à 75°C.

5. Tous les presse-étoupes utilisés doivent avoir un diamètre interne en

rapport avec les câbles afin d'assurer un serrage correct sur ces derniers.

6. Afin de garantir la sécurité du fonctionnement de cet appareil, le

raccordement à l'alimentation électrique doit être réalisé exclusivement

au travers d'un disjoncteur (minimum 10A.) isolant tous les conducteurs

en cas d'anomalie. Ce disjoncteur doit également pouvoir être actionné

manuellement, de façon mécanique. Dans le cas contraire, un autre

système doit être mis en place afin de pouvoir isoler l'appareil et doit

être signalisé comme tel. Disjoncteurs et interrupteurs doivent être

conformes à une norme reconnue telle IEC947.

7. Lorsque les équipements ou les capots affichent le

symbole suivant, cela signifie que des tensions

dangereuses sont présentes. Ces capots ne doivent

être démontés que lorsque l'alimentation est coupée, et

uniquement par un personnel compétent.

8. Lorsque les équipements ou les capots affichent le

symbole suivant, cela signifie que des surfaces

dangereusement chaudes sont présentes. Ces capots ne

doivent être démontés que lorsque l'alimentation est

coupée, et uniquement par un personnel compétent.

Certaines surfaces peuvent rester chaudes jusqu'à

45 mn.

9. Lorsque les équipements ou les capots affichent le

symbole suivant, se reporter au manuel d'instructions.

10. Tous les symboles graphiques utilisés dans ce produit

sont conformes à un ou plusieurs des standards

suivants: EN61010-1, IEC417 & ISO3864.

11. Les équipements comportant une étiquette avec la mention " Ne pas

ouvrir sous tension " ou toute autre mention similaire peuvent créer un

risque d'incendie dans les environnements explosifs. Ces équipements

ne doivent être ouverts que lorsqu'ils sont hors tension et que la durée de

refroidissement requise indiquée sur l'étiquette ou dans le manuel

d'instructions s'est écoulée. En outre ils ne doivent être ouverts que par

un personnel qualifié.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

A-12

FONTOS

Biztonsági előírások a készülék vezetékeléséhez és üzembeállításához

A következő biztonsági előírások kifejezetten vonatkoznak az összes

EU-tagállamra. Ezeket szigorúan be kell tartani a Kisfeszültségű

irányelvnek való megfelelés biztosításához. A nem EU-tagállamok

szintén tartsák be a következőket, kivéve ha a helyi és nemzeti

szabványok azt másként nem írják elő.

1. A megfelelő földelést biztosítani kell az összes rendelkezésre álló

földelési ponton, legyen az belső vagy külső.

2. Az üzembeállítás vagy hibaelhárítás után az összes biztonsági

burkolatot és biztonsági földvezetéket ki kell cserélni. A földelőkapcsok

sértetlenségét mindig biztosítani kell.

3. A tápvezetékeknek eleget kell tenniük az IEC227 vagy IEC245

szabványokban megfogalmazott követelményeknek.

4. Az összes vezetéknek alkalmasnak kell lennie a 75 °C-nál magasabb

környezeti hőmérséklet melletti használatra.

5. Az összes használt kábelvezető tömszelencének olyan belső

méretűnek kell lennie, hogy biztosítsák a kábelek megfelelő lekötését.

6. A berendezés biztonságos működésének biztosításához az elektromos

hálózathoz való csatlakozást csak megszakítón keresztül szabad

megvalósítani, amely az összes áramot szállító vezetéket bontja

hibahelyzet esetén. A megszakító magában foglalhat egy mechanikusan

működtethető áramtalanító kapcsolót is. Ellenkező esetben biztosítani kell

a berendezés elektromos hálózatról történő lekapcsolásának más módját,

és ezt világosan jelezni kell. A megszakítóknak vagy kapcsolóknak meg

kell felelniük egy elismert szabványnak, például az IEC947 szabványnak.

Az összes vezetéknek meg kell felelnie az összes helyi szabványnak.

7. Ha a berendezés vagy a burkolata a jobb oldalon

látható szimbólummal jelzett, alatta valószínűleg

veszélyes feszültség van jelen. Az ilyen burkolat csak a

berendezés áramtalanítása után távolítható el - és csak

képzett szervizszakember végezheti el.

8. Ha a berendezés vagy a burkolata a jobb oldalon

látható szimbólummal jelzett, fenn áll a veszélye, hogy

alatta forró felületek találhatóak. Az ilyen burkolatot

csak képzett szervizszakember távolíthatja el a

berendezés áramtalanítása után. Bizonyos felületek

érintésre forróak maradhatnak.

9. Ha a berendezés vagy a burkolata a jobb oldalon

látható szimbólummal jelzett, tekintse meg az

Üzemeltetési útmutató arra vonatkozó utasításait.

10. A terméken használt grafikus szimbólumok a következő

szabványok legalább egyikéből származnak:

EN61010-1, IEC417 és ISO3864.

11. Ha a berendezésen vagy a címkéken a „Ne nyissa ki bekapcsolt

állapotban” vagy hasonló felhívás szerepel, robbanásveszélyes

környezetben fennáll a gyulladás veszélye. Ez a berendezés csak

áramtalanítás után nyitható ki, a címkén vagy a kezelési útmutatóban

szereplő, a berendezés lehűlését biztosító megfelelő idői ráhagyás után -

és csak képzett szervizszakember végezheti el.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

A-13

OCX 8800

IMPORTANTE

Norme di sicurezza per il cablaggio e l'installazione dello strumento.

Le seguenti norme di sicurezza si applicano specificatamente agli stati

membri dell'Unione Europea, la cui stretta osservanza è richiesta per

garantire conformità alla Direttiva del Basso Voltaggio. Esse si

applicano anche agli stati non appartenenti all'Unione Europea, salvo

quanto disposto dalle vigenti normative locali o nazionali.

1. Collegamenti di terra idonei devono essere eseguiti per tutti i punti di

messa a terra interni ed esterni, dove previsti.

2. Dopo l'installazione o la localizzazione dei guasti, assicurarsi che tutti i

coperchi di protezione siano stati collocati e le messa a terra siano

collegate. L'integrità di ciscun morsetto di terra deve essere

costantemente garantita.

3. I cavi di alimentazione della rete devono essere secondo disposizioni

IEC227 o IEC245.

4. L'intero impianto elettrico deve essere adatto per uso in ambiente con

temperature superiore a 75°C.

5. Le dimensioni di tutti i connettori dei cavi utilizzati devono essere tali da

consentire un adeguato ancoraggio al cavo.

6. Per garantire un sicuro funzionamento dello strumento il collegamento alla

rete di alimentazione principale dovrà essere eseguita tramite interruttore

automatico (min.10A), in grado di disattivare tutti i conduttori di circuito in

caso di guasto. Tale interruttore dovrà inoltre prevedere un sezionatore

manuale o altro dispositivo di interruzione dell'alimentazione, chiaramente

identificabile. Gli interruttori dovranno essere conformi agli standard

riconosciuti, quali IEC947.

7. Il simbolo riportato sullo strumento o sui coperchi di

protezione indica probabile presenza di elevati voltaggi.

Tali coperchi di protezione devono essere rimossi

esclusivamente da personale qualificato, dopo aver

tolto alimentazione allo strumento.

8. Il simbolo riportato sullo strumento o sui coperchi di

protezione indica rischio di contatto con superfici ad alta

temperatura. Tali coperchi di protezione devono essere

rimossi esclusivamente da personale qualificato, dopo

aver tolto alimentazione allo strumento. Alcune superfici

possono mantenere temperature elevate per oltre 45 minuti.

9. Se lo strumento o il coperchio di protezione riportano il

simbolo, fare riferimento alle istruzioni del manuale

Operatore.

10. Tutti i simboli grafici utilizzati in questo prodotto sono

previsti da uno o più dei seguenti standard: EN61010-1,

IEC417 e ISO3864.

11. L'indicazione "Non aprire sotto tensione" o simili sull'apparecchiatura o

sulle etichette segnala il pericolo di accensione nelle aree in cui è

presente un'atmosfera esplosiva. L'apparecchiatura può essere aperta

solo quando l'alimentazione è scollegata ed è trascorso il tempo

indicato sull'etichetta o nel manuale delle istruzioni per consentirne il

raffreddamento. L'operazione può essere effettuata esclusivamente da

personale dell'assistenza qualificato.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

A-14

SVARBU

šio prietaiso laidų prijungimo ir instaliacijos saugos instrukcijos

Toliau išvardinti saugumo reikalavimai taikomi konkrečiai visoms ES

šalims narėms. Jų turi būti griežtai paisoma, kad būtų užtikrintai

laikomasi Žemos įtampos direktyvos. Ne ES narės taip pat turi laikytis

toliau pateikiamų reikalavimų nebent juos pakeičia vietiniai ar

Nacionaliniai standartai.

1. Turi būti atliktas tinkamas įžeminimas visuose įžeminimo taškuose,

vidiniuose ir išoriniuose, kur numatyta.

2. Visos apsauginės dangos ir įžemikliai po instaliacijos ar remonto turi

būti pakeisti. Visų įžeminimo terminalų vientisumo priežiūra turi būti

atliekama nuolat.

3. Matinimo tinklo laidai turi atitikti IEC227 ar IEC245 reikalavimus.

4. Visi laidai turi būti tinkami naudojimui aplinkos temperatūtoje,

aukštesnėje nei 75°C.

5. Visi naudojamų kabelių riebokšliai turi būti tokių vidinių matmenų, kad

būtų galimas tinkamas kabelio pritvirtinimas.

6. Saugaus šio prietaiso veikimo užtikrinimui, prijungimas prie maitinimo

tinklo turi būti atliekamas tik per automatinį pertraukiklį, kuris atjungs

visas grandines nešančius konduktorius linijos gedimo metu.

Automatinis pertraukiklis taip pat gali turėti mechaniškai veikiantį

įzoliavimo jungiklį. Jeigu ne, tuomet turi būti nurodytos kitos įrenginio

atjungimo priemonės, ir aiškai pažymėtos, kad jos tokios yra.

Automatiniai perjungikliai ar jungikliai turi atitikti pripažintus standartus,

tokius kaip IEC947. Visi laidai turi atitikti visus vietinius standartus.

7. Kur įrenginys ar dangos yra pažymėti simboliu dešinėje,

žemiau turi būti pavojinga įtampa. Šios dangos turi būti

nuimamos tik tada, kai srovė yra pašalinta iš įrenginio -

ir tik tuomet tai turi atlikti apmokytas personalas.

8. Ten kur įrenginys ar dangos yra pažymėti simboliu

dešinėje, ten yra pavojus nuo karštų paviršių apačioje.

Šios dangos gali būti nuimamos tik apmokyto

personalo, kai srovė yra pašalinta iš įrenginio. Tam tikri

paviršiai gali išlikti karšti liečiant.

9. Ten kur įrenginys ar dangos yra pažymėti simboliu

dėšinėje, žr. nurodymus Valdymo instrukcijose.

10. Visi grafiniai simboliai naudojami šiam produktui yra iš

vieno ar daugiau toliau išvardintų standartų:

EN61010-1, IEC417, ir ISO3864.

11. Ten, kur įrenginys ar etiketės yra pažymėti "Neatidaryti esant srovės

tiekimui" ar panašiai, yra užsidegimo pavojus tose vietose, kur yra

sprogstamoji atmosfera. Šis įrenginys gali būti atidarytas tuomet, kai yra

pašalinta srovė, ir praėjęs atitinkamas laikas, nurodytas etiketėje ar

valdymo instrukcijoje, pakankamas įrenginio ataušimui - ir tai tik

apmokyto personalo.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

A-15

OCX 8800

SVARĪGI

Drošības norādījumi šīs iekārtas pievienošanai un uzstādīšanai

Turpmākie drošības norādījumi attiecas uz visām ES dalībvalstīm. Tie ir

stingri jāievēro, lai nodrošinātu atbilstību Zemsprieguma direktīvai.

Turpmāk norādītais jāievēro arī valstīs, kas nav ES dalībvalstis, ja vien

šos norādījumus neaizstāj vietējie vai valsts standarti.

1. Visi pieejamie iekšējie un ārējie zemējuma punkti ir atbilstoši jāiezemē.

2. Pēc uzstādīšanas vai problēmu risināšanas visi drošības pārsegi un

drošības zemējuma savienojumi ir jāpievieno atpakaļ. Visiem zemējuma

savienojumiem vienmēr jābūt iezemētiem.

3. Elektropadeves vadiem jāatbilst IEC227 vai IEC245 prasībām.

4. Visai elektroinstalācijai jābūt piemērotai lietošanai apkārtējā

temperatūrā, kas pārsniedz 75°C.

5. Visu izmantoto kabeļu blīvju iekšējiem izmēriem jābūt tādiem, lai

atbilstoši nostiprinātu kabeli.

6. Lai nodrošinātu šīs iekārtas drošu darbību, savienojums ar

elektropadeves tīklu jāizveido, izmantojot slēdzi, kas kļūmes gadījumā

atvienos visas ķēdes, kurās ir vadītāji. Slēdzī var būt iestrādāts arī

mehānisks pārtraucējslēdzis. Ja tāda nav, tad ir jāuzstāda cita veida

ierīce iekārtas atvienošanai no strāvas padeves un tā atbilstoši un skaidri

jāmarķē. Slēdžiem jāatbilst kādam vispāratzītam standartam, piemēram,

IEC947. Visai elektroinstalācijai jāatbilst vietējiem standartiem.

7. Vietās, kur iekārta vai tās pārsegi ir marķēti ar labajā

pusē norādīto simbolu, visticamāk, zem tiem ir bīstams

spriegums. Šos pārsegus drīkst noņemt tikai tad, ja

iekārta ir atvienota no strāvas padeves, – un šos darbus

drīkst veikt tikai atbilstoši apmācīti remontdarbu

darbinieki.

8. Vietās, kur iekārta vai tās pārsegi ir marķēti ar labajā

pusē norādīto simbolu, apdraudējumu izraisa zem tiem

esošās karstās virsmas. Šos pārsegus drīkst noņemt tikai

atbilstoši apmācīti remontdarbu darbinieki, kad iekārta ir

atvienota no strāvas padeves. Iespējams, dažas virsmas

arī pēc iekārtas atvienošanas paliks karstas.

9. Ja iekārta vai pārsegi ir marķēti ar labajā pusē esošo

simbolu, skatiet operatora rokasgrāmatā ietvertos

norādījumus.

10. Visi šajā izstrādājumā izmantotie grafiskie simboli atbilst

vienam vai vairākiem no šiem standartiem: EN61010-1,

IEC417 un ISO3864.

11. Ja iekārtai vai uzlīmēm ir marķējums "Neatvērt, kamēr pieslēgta strāvai"

vai tamlīdzīga norāde, tas nozīmē, ka sprādzienbīstamā vidē ir

uzliesmošanas bīstamība. Šo iekārtu drīkst atvērt tikai tad, ja ir atvienota

strāva un ir nogaidīts iekārtas atdzišanai nepieciešamais laiks, kas

norādīts uzlīmē vai ekspluatācijas rokasgrāmatā, – un šos darbus drīkst

veikt tikai atbilstoši apmācīti remontdarbu darbinieki.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

A-16

1. Konnessjonijiet adegwati ta' l-ert għandhom isiru għall-punti kollha ta'

l-ert, interni u esterni, fejn ikun ipprovdut.

2. Wara l-installazzjoni jew meta tipprova ssolvi xi problema, l-għatjien

kollha tas-sigurtà u l-erts tas-sigurtà għandhom jitpoġġew lura f'posthom.

L-integrità tat-terminali kollha ta' l-ert għandha tinżamm f'kull ħin.

3. Il-wajers tal-provvista tad-dawl għandhom ikunu konformi ml-ħtiġijiet ta'

IEC227 jew IEC245.

4. Il-wiring kollu għandu jkun adattat għall-użu f'temperatura ta' l-ambjent ta'

iktar minn 75°C.

5. Il-glands tal-kejbils kollha li jintużw iridu jkunu ta' daqs intern tali li

jipprovdu ankoraġġ adegwat lill-kejbil.

6. Biex tiżgura t-tħaddim sigur ta' dan it-tagħmir, il-konnessjoni mal-provvista

tad-dawl għandha ssir biss permezz ta' circuit breaker li jiskonnetta

l-kondutturi kollha li jkunu jġorru ċ-ċirkuwiti f'sitwazzjoni meta jkun hemm

il-ħsara. Is-circuit breaker jista wkoll jinkludi swiċċ li jiżola li jaħdem b'mod

mekkaniku. Jekk dan ma jkunx il-każ, mezz ieħor ta' kif it-tagħmir jiġi

skonnettjat minn mal-provvista tad-dawl għandu jkun ipprovdut, u jkun

immrkat b'mod ċar li hu hekk. Is-circuit breakers jew swiċċijiet iridu jkunu

konformi ma' standard rikonoxxut bħal IEC947. Il-wiring kollu jrid ikun

konformi ma' l-istandards lokali, jekk ikun hemm.

7. Meta t-tagħmir jew l-għatjien ikunu mmarkati bis-simbolu fuq il-lemin,

x'aktarx li jkun hemm vultaġġi perikolużi taħthom. Dawn l-għatjien

għandhom jitneħħew biss meta titneħħa l-provvista tad-dawl

mit-tagħmir - u minn ħaddiema tal-manutenzjoni mħarrġa biss.

8. Meta t-tagħmir jew l-għatjien ikunu mmarkati bis-simbolu fuq il-lemin,

ikun hemm periklu mill-uċuħ jaħarqu li jkun hemm taħthom. Dawn

l-għatjien għandhom jitneħħew biss minn ħaddiema tal-manutenzjoni

mħarrġa meta titneħħa l-provvista tad-dawl mit-tagħmir. Ċerti wċuħ

jistgħu jibqgħu jaħarqu meta tmisshom.

9. Meta t-tagħmir jew l-għatjien ikunu mmarkati bis-simbolu fuq il-lemin,

irreferi għall-Manwal ta' l-Operatur għall-istruzzjonijiet.

10. Is-simboli grafiċi kollha użati f'dan il-prodott huma minn wieħed jew

iktar mill-istandards li ġejjin: EN61010-1, IEC417, u ISO3864.

11. Fejn it-tagħmir u t-tikketti huma mmarkati bil-kliem “Tiftaħx Meta

Jkun Enerġizzat” jew kliem simili, hemm periklu ta' nar f'żoni fejn

atmosfera esplossiva hi preżenti. It-tagħmir għandu jinfetaħ biss meta

l-provvista tad-dawl tkun mitfija u jkun għadda ħin biżżejjed, kif speċifikat

fuq it-tikketta jew fil-manwal ta' l-istruzzjonijiet, biex it-tagħmir ikun kesaħ

– u t-tagħmir għandu jinfetaħ biss minn staff li jkun imħarreġ.

L-istruzzjonijiet tas-sigurtà japplikaw speċifikament għall-Istati Membri ta'

l-UE. Dawn għandhom jiġu osservati b'mod strett biex tkun żgurata l-

konformità mad-Direttiva dwar il-Vultaġġ Baxx. Stati li mhumiex membri ta'

l-UE għandhom ukoll ikunu konformi ma' dan li ġej ħlief jekk dawn ikunu

sostituti mill-Istandards lokali jew Nazzjonali.

STRUZZJONIJIET TAS-SIGURTÀ GĦALL-WIRING U

L-INSTALLAZZJONI TAT-TAGĦMIR

IMPORTANTI

Instruction Manual

IM-106-880, Rev 1.0

January 2007

A-17

OCX 8800

VIKTIG

Sikkerhetsinstruks for tilkobling og installasjon av dette utstyret.

Følgende sikkerhetsinstruksjoner gjelder spesifikt alle EU medlemsland

og land med i EØS-avtalen. Instruksjonene skal følges nøye slik at

installasjonen blir i henhold til lavspenningsdirektivet. Den bør også

følges i andre land, med mindre annet er spesifisert av lokale- eller

nasjonale standarder.

1. Passende jordforbindelser må tilkobles alle jordingspunkter, interne og

eksterne hvor disse forefinnes.

2. Etter installasjon eller feilsøking skal alle sikkerhetsdeksler og

jordforbindelser reetableres. Jordingsforbindelsene må alltid holdes i

god stand.

3. Kabler fra spenningsforsyning skal oppfylle kravene spesifisert i IEC227

eller IEC245.

4. Alle ledningsforbindelser skal være konstruert for en

omgivelsestemperatur høyere en 750°C.

5. Alle kabelforskruvninger som benyttes skal ha en indre dimensjon slik at

tilstrekkelig avlastning oppnåes.

6. For å oppnå sikker drift og betjening skal forbindelsen til

spenningsforsyningen bare skje gjennom en strømbryter (minimum 10A)

som vil bryte spenningsforsyningen til alle elektriske kretser ved en

feilsituasjon. Strømbryteren kan også inneholde en mekanisk operert

bryter for å isolere instrumentet fra spenningsforsyningen. Dersom det

ikke er en mekanisk operert bryter installert, må det være en annen måte

å isolere utstyret fra spenningsforsyningen, og denne måten må være

tydelig merket. Kretsbrytere eller kontakter skal oppfylle kravene i en

annerkjent standard av typen IEC947 eller tilsvarende.

7. Der hvor utstyr eller deksler er merket med symbol for

farlig spenning, er det sannsynlig at disse er tilstede bak

dekslet. Disse dekslene må bare fjærnes når

spenningsforsyning er frakoblet utstyret, og da bare av

trenet servicepersonell.

8. Der hvor utstyr eller deksler er merket med symbol for

meget varm overflate, er det sannsynlig at disse er

tilstede bak dekslet. Disse dekslene må bare fjærnes

når spenningsforsyning er frakoblet utstyret, og da bare

av trenet servicepersonell. Noen overflater kan være for

varme til å berøres i opp til 45 minutter etter

spenningsforsyning frakoblet.

9. Der hvor utstyret eller deksler er merket med symbol,

vennligst referer til instruksjonsmanualen for instrukser.

10. Alle grafiske symboler brukt i dette produktet er fra en

eller flere av følgende standarder: EN61010-1, IEC417

& ISO3864.

11. Når utstyr eller merkelapper bærer advarselen "Må ikke åpnes under

spenning" eller lignende, innbærer det fare for eksplosjon i områder

med en eksplosiv atmosfære. Utstyret skal bare åpnes når det ikke er

noen strømtilførsel, og etter at det har hatt tilstrekkelig tid til å kjøle ned,

som spesifisert på merkelappen eller i håndboken. Selv da skal utstyret

bare åpnes av erfarne serviceteknikere.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

A-18

WAŻNE!

Zalecenia dotyczące bezpieczeństwa w zakresie podłączania i instalacji

tego urządzenia

Następujące zalecenia dotyczą zwłaszcza stosowania urządzenia we

wszystkich krajach Unii Europejskiej. Należy się ściśle do nich

stosować w celu zapewnienia zgodności z dyrektywą niskonapięciową.

W przypadku instalacji urządzenia w krajach nienależących do Unii

Europejskiej należy również przestrzegać poniższych zaleceń, chyba że

są one zastąpione lokalnymi lub ogólnokrajowymi standardami.

1. Urządzenie należy podłączyć kablem uziemiającym do wszystkich

punktów uziemienia (wewnętrznych i zewnętrznych).

2. Po instalacji lub czynnościach serwisowych należy zamknąć wszystkie

pokrywy zabezpieczające i ponownie podłączyć uziemienie. Należy

pilnować, by nie doszło do przerwania uziemienia.

3. Przewody zasilające powinny być zgodne z wymaganiami normy

IEC227 lub IEC245.

4. Wszystkie przewody powinny być odpowiednie do użytku w środowisku

o temperaturze wyższej niż 75°C.

5. Wszystkie dławnice powinny mieć wymiary wewnętrzne zapewniające

pewne umocowanie przewodów.

6. W celu zapewnienia bezpiecznej pracy urządzenie należy podłączyć do

sieci tylko za pośrednictwem wyłącznika automatycznego, który w razie

awarii odłączy wszystkie obwody, w których przepływa prąd. Wyłącznik

automatyczny może być również wyposażony w mechaniczny odłącznik

napięcia. W przeciwnym razie należy zapewnić i jasno oznaczyć inną

możliwość odłączenia urządzenia od zasilania. Wyłączniki automatyczne

oraz odłączniki powinny być zgodne z uznawanymi standardami, takimi

jak norma IEC947. Wszystkie przewody muszą być zgodne z lokalnymi

przepisami.

7. Pod pokrywami lub elementami urządzenia oznaczonymi

symbolem pokazanym na rysunku po prawej stronie

może występować niebezpieczne napięcie elektryczne.

Te pokrywy mogą być zdejmowane tylko po odłączeniu

zasilania, wyłącznie przez odpowiednio przeszkolonych

pracowników serwisu.

8. Pod pokrywami lub elementami urządzenia

oznaczonymi symbolem pokazanym na rysunku po

prawej stronie znajdują się gorące powierzchnie. Te

pokrywy mogą być zdejmowane tylko po odłączeniu

zasilania, wyłącznie przez odpowiednio przeszkolonych

pracowników serwisu. Niektóre powierzchnie mogą

pozostać nagrzane przez pewien czas po odłączeniu zasilania.

9. W przypadku sprzętu oraz pokryw oznaczonych

symbolem pokazanym na rysunku po prawej stronie

należy zapoznać się ze wskazówkami w Instrukcji

operatora i stosować się do nich.

10. Wszystkie symbole graficzne zastosowane do

oznaczenia produktu pochodzą z następujących norm: EN61010-1,

IEC417 lub ISO3864.

11. Oznaczenie „Nie otwierać, gdy urządzenie jest pod napięciem” lub

podobne oznaczenia informują o ryzyku zapłonu w miejscach, gdzie

występuje zagrożenie wybuchem. Urządzenie należy otwierać tylko po

odłączeniu zasilania i po upływie czasu na ostygnięcie urządzenia

oznaczonego na etykiecie lub w instrukcji obsługi. Urządzenie mogą

otwierać wyłącznie odpowiednio przeszkoleni pracownicy serwisu.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

A-19

OCX 8800

IMPORTANTE

Instruções de segurança para ligação e instalação deste aparelho.

As seguintes instruções de segurança aplicam-se especificamente a

todos os estados membros da UE. Devem ser observadas rigidamente

por forma a garantir o cumprimento da Directiva sobre Baixa Tensão.

Relativamente aos estados que não pertençam à UE, deverão cumprir

igualmente a referida directiva, exceptuando os casos em que a

legislação local a tiver substituído.

1. Devem ser feitas ligações de terra apropriadas a todos os pontos de

terra, internos ou externos.

2. Após a instalação ou eventual reparação, devem ser recolocadas todas

as tampas de segurança e terras de protecção. Deve manter-se sempre

a integridade de todos os terminais de terra.

3. Os cabos de alimentação eléctrica devem obedecer às exigências das

normas IEC227 ou IEC245.

4. Os cabos e fios utilizados nas ligações eléctricas devem ser adequados

para utilização a uma temperatura ambiente até 75ºC.

5. As dimensões internas dos bucins dos cabos devem ser adequadas a

uma boa fixação dos cabos.

6. Para assegurar um funcionamento seguro deste equipamento, a

ligação ao cabo de alimentação eléctrica deve ser feita através de um

disjuntor (min. 10A) que desligará todos os condutores de circuitos

durante uma avaria. O disjuntor poderá também conter um interruptor

de isolamento accionado manualmente. Caso contrário, deverá ser

instalado qualquer outro meio para desligar o equipamento da energia

eléctrica, devendo ser assinalado convenientemente. Os disjuntores ou

interruptores devem obedecer a uma norma reconhecida, tipo IEC947.

7. Sempre que o equipamento ou as tampas contiverem o

símbolo, é provável a existência de tensões perigosas.

Estas tampas só devem ser retiradas quando a energia

eléctrica tiver sido desligada e por Pessoal da

Assistência devidamente treinado.

8. Sempre que o equipamento ou as tampas contiverem o

símbolo, há perigo de existência de superfícies quentes.

Estas tampas só devem ser retiradas por Pessoal da

Assistência devidamente treinado e depois de a energia

eléctrica ter sido desligada. Algumas superfícies

permanecem quentes até 45 minutos depois.

9. Sempre que o equipamento ou as tampas contiverem o

símbolo, o Manual de Funcionamento deve ser

consultado para obtenção das necessárias instruções.

10. Todos os símbolos gráficos utilizados neste produto

baseiam-se em uma ou mais das seguintes normas:

EN61010-1, IEC417 e ISO3864.

11. Sempre que o equipamento ou as etiquetas apresentarem o aviso "Não

abrir quando ligado à corrente" ou semelhante, existe um risco de ignição

em atmosferas explosivas. Este equipamento só deve ser aberto depois

de desligado da corrente eléctrica e o tempo de arrefecimento adequado

especificado na etiqueta ou no manual de instruções ter decorrido.

O equipamento só pode ser aberto por técnicos qualificados.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

A-20

DÔLEŽITÉ

Bezpečnostné pokyny pre zapojenie káblov a inštaláciu tohto prístroja

Nasledovné bezpečnostné pokyny sa vzt’ahujú konkrétne na všetky

členské štáty EÚ. Musia byt’ striktne dodržané, aby sa zaistila zhoda so

Smernicou o nízkom napätí. Štáty, ktoré nie sú členskými štátmi EÚ by

mali nasledovné pokyny taktiež dodržiavat’, pokiaľ nie sú nahradené

miestnymi alebo národnými normami.

1. Adekvátne uzemnenia musia byt’ vykonané na všetkých bodoch

uzemnenia, interných aj externých, tam, kde sú poskytnuté.

2. Po inštalácii alebo riešení problémov musia byt’ všetky bezpečnostné

kryty a bezpečnostné uzemnenia vymenené. Integrita všetkých

uzemňovacích terminálov musí byt’ vždy zachovaná.

3. Káble siet’ového napájania musia byt’ v zhode s požiadavkami IEC227

alebo IEC245.

4. Všetky káblové pripojenia by mali byt’ vhodné pre používanie v teplote

okolia vyššej, ako 75°C.

5. Všetky použité káblové priechodky musia mat’ také vnútorné rozmery,

aby poskytovali adekvátne uchopenie kábla.

6. Pre zaistenie bezpečnej prevádzky tohto zariadenia musí byt’ pripojenie

k siet’ovému napájaniu zapojené len cez prerušovač obvodu, ktorý

počas poruchovej situácie odpojí všetky obvody elektrických vodičov.

Prerušovač obvodu by mal obsahovat’ aj mechanicky ovládaný úsekový

vypínač. Ak nie, musí byt’ poskytnutý iný spôsob odpojenia zariadenia

od siet’ového napájania a tento spôsob musí byt’ zreteľne označený.

Prerušovače obvodu alebo spínače musia byt’ v zhode s uznanou

normou, ako napr. IEC947. Všetky káblové pripojenia musia vyhovovat’

akýmkoľvek miestnym normám.

7. Tam, kde je zariadenie alebo kryty označené symbolom

na pravej strane, sa pravdepodobne nachádza

nebezpečné napätie. Tieto kryty by sa mali odoberat’

len vtedy, keď je zariadenie odpojené od elektrickej

energie a len vyškoleným servisným personálom.

8. Tam, kde je zariadenie alebo kryty označené symbolom

na pravej strane, existuje nebezpečenstvo horúcich

povrchov. Tieto kryty by mali byt’ odstraňované len

vyškoleným servisným personálom, pričom je

zariadenie odpojené od elektrickej energie. Určité

povrchy môžu ostat’ horúce na dotyk.

9. V miestach, kde je zariadenie alebo kryty označené

symbolom na pravej strane, si kvôli pokynom pozrite

Operátorskú príručku.

10. Všetky obrázkové symboly použité pri tomto produkte

zodpovedajú jednej alebo viacerým nasledujúcim

normám: EN61010-1, IEC417 a ISO3864.

11. V miestach, kde je zariadenie alebo značky označené nápisom

"Neotvárat’ pod elektrickým prúdom" alebo podobné, existuje

nebezpečenstvo vznietenia v oblastiach s prítomnost’ou výbušného

ovzdušia. Toto zariadenie sa smie otvárat’ len v prípade odpojenia od

elektrického napájania a ponechania zariadenia vychladnút’ po dobu

uplynutia dostatočného času tak, ako je to uvedené na štítku alebo

v návode na použitie - a len vyškoleným servisným personálom.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

A-21

OCX 8800

POMEMBNO

Varnostna navodila za povezavo in vgradnjo naprave

Naslednja varnostna navodila veljajo za vse države članice EU. Zaradi

zagotovitve skladnosti z nizkonapetostno direktivo morate navodila

strogo upoštevati. V državah, ki niso članice EU, je treba upoštevati tudi

naslednje smernice, razen če jih ne zamenjujejo lokalni ali nacionalnimi

standardi.

1. Do vseh ozemljitvenih točk, notranjih in zunanjih, ki so na voljo, morajo

biti speljane ustrezne ozemljitvene povezave.

2. Po vgradnji ali odpravljanju težav je treba namestiti vse varnostne

pokrove in zaščitne ozemljitve. Brezhibnost vseh ozemljitvenih

priključkov je treba nenehno preverjati.

3. Omrežni napajalni kabli morajo biti skladni z zahtevami standarda

IEC227 ali IEC245.

4. Vsa napeljava mora biti primerna za uporabi pri temperaturi okolja, višji

od 75 °C.

5. Notranje dimenzije kabelskih tesnilk morajo zagotavljati ustrezno

pritrditev kablov.

6. Za zagotovitev varnega delovanja opreme mora biti povezava z omrežnim

napajanjem vzpostavljena prek odklopnega stikala, ki v primeru napake

izklopi vse tokokroge s prevodniki. Odklopno stikalo lahko vključuje tudi

mehansko izolacijsko stikalo. V nasprotnem primeru morajo biti

zagotovljeni in jasno označeni drugi načini za izklop opreme iz napajanja.

Odklopna in druga stikala morajo biti skladna z uveljavljenimi standardi,

kot je IEC947. Vsa napeljava mora biti skladna z lokalnimi standardi.

7. V opremi ali pod pokrovi, ki so označeni s simbolom na

desni, je prisotna nevarna napetost. Te pokrove je

dovoljeno odstraniti samo, če je napajanje opreme

izklopljeno. To lahko izvaja samo usposobljeno servisno

osebje.

8. Pri opremi ali pod pokrovi, ki so označeni s simbolom na

desni, so prisotne nevarne vroče površine. Te pokrove

lahko odstranjuje samo usposobljeno servisno osebje.

Napajanje opreme mora biti izklopljeno. Določene

površine so lahko vroče.

9. Pri opremi ali pokrovih, ki so označeni s simbolom na

desni, si za navodila oglejte priročnik za upravljanje.

10. Vsi uporabljeni grafični simboli so iz enega ali več

naslednjih standardov: EN61010-1, IEC417 in ISO3864.

11. Če je na opremi ali oznakah navedeno "Ne odpirajte, če je pod

napetostjo" ali podobno opozorilo, je na območjih z eksplozivnim

ozračjem prisotna nevarnost vžiga. To opremo je dovoljeno odpirati

samo, če je napajanje izklopljeno in je poteklo dovolj časa, da se

oprema ohladi, kot je navedeno na oznaki ali v priročniku z navodili.

Opremo lahko odpira samo usposobljeno servisno osebje.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

A-22

IMPORTANTE

Instrucciones de seguridad para el montaje y cableado de este aparato.

Las siguientes instrucciones de seguridad, son de aplicacion especifica

a todos los miembros de la UE y se adjuntaran para cumplir la normativa

europea de baja tension.

1. Se deben preveer conexiones a tierra del equipo, tanto externa como

internamente, en aquellos terminales previstos al efecto.

2. Una vez finalizada las operaciones de mantenimiento del equipo, se

deben volver a colocar las cubiertas de seguridad aasi como los

terminales de tierra. Se debe comprobar la integridad de cada terminal.

3. Los cables de alimentacion electrica cumpliran con las normas IEC 227

o IEC 245.

4. Todo el cableado sera adecuado para una temperatura ambiental de

75ºC.

5. Todos los prensaestopas seran adecuados para una fijacion adecuada

de los cables.

6. Para un manejo seguro del equipo, la alimentacion electrica se realizara

a traves de un interruptor magnetotermico ( min 10 A ), el cual

desconectara la alimentacion electrica al equipo en todas sus fases

durante un fallo. Los interruptores estaran de acuerdo a la norma IEC

947 u otra de reconocido prestigio.

7. Cuando las tapas o el equipo lleve impreso el simbolo

de tension electrica peligrosa, dicho alojamiento

solamente se abrira una vez que se haya interrumpido

la alimentacion electrica al equipo asimismo la

intervencion sera llevada a cabo por personal

entrenado para estas labores.

8. Cuando las tapas o el equipo lleve impreso el simbolo,

hay superficies con alta temperatura, por tanto se abrira

una vez que se haya interrumpido la alimentacion

electrica al equipo por personal entrenado para estas

labores, y al menos se esperara unos 45 minutos para

enfriar las superficies calientes.

9. Cuando el equipo o la tapa lleve impreso el simbolo, se

consultara el manual de instrucciones.

10. Todos los simbolos graficos usados en esta hoja, estan

de acuerdo a las siguientes normas EN61010-1,

IEC417 & ISO 3864.

11. Cuando el equipo o las etiquetas tienen la indicación " No abrir mientras

reciba energía" u otra similar, existe el peligro de ignición en zonas

donde haya un ambiente explosivo. Este equipo sólo debe ser abierto

por personal de servicio cualificado después de apagarlo y dejar pasar

el intervalo de tiempo correspondiente indicado en la etiqueta o el

manual de instrucciones para que el equipo se enfríe.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

A-23

OCX 8800

VIKTIGT

Säkerhetsföreskrifter för kablage och installation av denna apparat.

Följande säkerhetsföreskrifter är tillämpliga för samtliga

EU-medlemsländer. De skall följas i varje avseende för att

överensstämma med Lågspännings direktivet. Icke EU medlemsländer

skall också följa nedanstående punkter, såvida de inte övergrips av

lokala eller nationella föreskrifter.

1. Tillämplig jordkontakt skall utföras till alla jordade punkter, såväl internt

som externt där så erfordras.

2. Efter installation eller felsökning skall samtliga säkerhetshöljen och

säkerhetsjord återplaceras. Samtliga jordterminaler måste hållas

obrutna hela tiden.

3. Matningsspänningens kabel måste överensstämma med föreskrifterna i

IEC227 eller IEC245.

4. Allt kablage skall vara lämpligt för användning i en

omgivningstemperatur högre än 75ºC.

5. Alla kabelförskruvningar som används skall ha inre dimensioner som

motsvarar adekvat kabelförankring.

6. För att säkerställa säker drift av denna utrustning skall anslutning till

huvudströmmen endast göras genom en säkring (min 10A) som skall

frånkoppla alla strömförande kretsar när något fel uppstår. Säkringen

kan även ha en mekanisk frånskiljare. Om så inte är fallet, måste ett

annat förfarande för att frånskilja utrustningen från strömförsörjning

tillhandahållas och klart framgå genom markering. Säkring eller

omkopplare måste överensstämma med en gällande standard såsom t

ex IEC947.

7. Där utrustning eller hölje är markerad med vidstående

symbol föreliggerisk för livsfarlig spänning i närheten.

Dessa höljen får endast avlägsnas när strömmen ej är

ansluten till utrustningen - och då endast av utbildad

servicepersonal.

8. När utrustning eller hölje är markerad med vidstående

symbol föreligger risk för brännskada vid kontakt med

uppvärmd yta. Dessa höljen får endast avlägsnas av

utbildad servicepersonal, när strömmen kopplats från

utrustningen. Vissa ytor kan vara mycket varma att

vidröra även upp till 45 minuter efter avstängning av

strömmen.

9. När utrustning eller hölje markerats med vidstående

symbol bör instruktionsmanualen studeras för

information.

10. Samtliga grafiska symboler som förekommer i denna

produkt finns angivna i en eller flera av följande

föreskrifter:- EN61010-1, IEC417 & ISO3864.

11. För utrustning som markerats med föreskrifter som "Öppna inte när

strömmen är på", eller liknande, råder explosionsrisk när det

förekommer explosiva ångor. Utrustningen får endast öppnas efter att

strömmen stängts av och efter att utrustningen fått svalna under så lång

tid som anges i instruktionsboken. Öppnandet får endast utföras av

utbildad servicepersonal.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

A-24

SAFETY DATA SHEET

FOR CERAMIC FIBER

PRODUCTS

JULY 1, 1996

SECTION I. IDENTIFICATION

PRODUCT NAME

Ceramic Fiber Heaters, Molded Insulation Modules and Ceramic Fiber

Radiant Heater Panels.

CHEMICAL FAMILY

Vitreous Aluminosilicate Fibers with Silicon Dioxide.

CHEMICAL NAME

N.A.

CHEMICAL FORMULA

N.A.

MANUFACTURER'S NAME AND ADDRESS

Watlow Columbia

2101 Pennsylvania Drive

Columbia, MO 65202

573-814-1300, ext. 5170

573-474-9402

HEALTH HAZARD SUMMARY WARNING

• Possible cancer hazard based on tests with laboratory animals.

• May be irritating to skin, eyes and respiratory tract.

• May be harmful if inhaled.

• Cristobalite (crystalline silica) formed at high temperatures (above

1800ºF) can cause severe respiratory disease.

SECTION II. PHYSICAL DATA

APPEARANCE AND ODOR

Cream to white colored fiber shapes. With or without optional white to

gray granular surface coating and/or optional black surface coating.

SPECIFIC WEIGHT: 12-25 LB./CUBIC FOOT

BOILING POINT: N.A.

VOLATILES (% BY WT.): N.A.

WATER SOLUBILITY: N.A.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

A-25

OCX 8800

SECTION III. HAZARDOUS INGREDIENTS

MATERIAL, QUANTITY, AND THRESHOLD/EXPOSURE LIMIT VALUES

Aluminosilicate (vitreous) 99+ % 1 fiber/cc TWA

CAS. No. 142844-00-0610 fibers/cc CL

Zirconium Silicate0-10% 5 mg/cubic meter (TLV)

Black Surface Coating**0 - 1% 5 mg/cubic meter (TLV)

Armorphous Silica/Silicon Dioxide0-10% 20 mppcf (6 mg/cubic meter)

PEL (OSHA 1978) 3 gm cubic meter

(Respirable dust): 10 mg/cubic meter,

Intended TLV (ACGIH 1984-85)

**Composition is a trade secret.

SECTION IV. FIRE AND EXPLOSION DATA

FLASH POINT: None

FLAMMABILITY LIMITS: N.A.

EXTINGUISHING MEDIA

Use extinguishing agent suitable for type of surrounding fire.

UNUSUAL FIRE AND EXPLOSION HAZARDS / SPECIAL FIRE

FIGHTING PROCEDURES

N.A.

SECTION V. HEALTH HAZARD DATA

THRESHOLD LIMIT VALUE

(See Section III)

EFFECTS OF OVER EXPOSURE

• EYE - Avoid contact with eyes. Slightly to moderately irritating.

Abrasive action may cause damage to outer surface of eye.

• INHALATION - May cause respiratory tract irritation. Repeated or

prolonged breathing of particles of respirable size may cause

inflammation of the lung leading to chest pain, difficult breathing,

coughing and possible fibrotic change in the lung (Pneumoconiosis).

Pre-existing medical conditions may be aggravated by exposure:

specifically, bronchial hyper-reactivity and chronic bronchial or lung

disease.

• INGESTION - May cause gastrointestinal disturbances. Symptoms

may include irritation and nausea, vomiting and diarrhea.

• SKIN - Slightly to moderate irritating. May cause irritation and

inflammation due to mechanical reaction to sharp, broken ends of

fibers.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

A-26

EXPOSURE TO USED CERAMIC FIBER PRODUCT

Product which has been in service at elevated temperatures (greater

than 1800ºF/982ºC) may undergo partial conversion to cristobalite, a

form of crystalline silica which can cause severe respiratory disease

(Pneumoconiosis). The amount of cristobalite present will depend on

the temperature and length of time in service. (See Section IX for

permissible exposure levels).

SPECIAL TOXIC EFFECTS

The existing toxicology and epidemiology data bases for RCF's are still

preliminary. Information will be updated as studies are completed and

reviewed. The following is a review of the results to date:

EPIDEMIOLOGY

At this time there are no known published reports demonstrating

negative health outcomes of workers exposed to refractory ceramic

fiber (RCF). Epidemiologic investigations of RCF production workers

are ongoing.

1. There is no evidence of any fibrotic lung disease (interstitial fibrosis)

whatsoever on x-ray.

2. There is no evidence of any lung disease among those employees

exposed to RCF that had never smoked.

3. A statistical "trend" was observed in the exposed population between

the duration of exposure to RCF and a decrease in some measures

of pulmonary function. These observations are clinically insignificant.

In other words, if these observations were made on an individual

employee, the results would be interpreted as being within the

normal range.

4. Pleural plaques (thickening along the chest wall) have been

observed in a small number of employees who had a long duration of

employment. There are several occupational and non-occupational

causes for pleural plaque. It should be noted that plaques are not

"pre-cancer" nor are they associated with any measurable effect on

lung function.

TOXICOLOGY

A number of studies on the health effects of inhalation exposure of rats

and hamsters are available. Rats were exposed to RCF in a series of

life-time nose-only inhalation studies. The animals were exposed to 30,

16, 9, and 3 mg/m3, which corresponds with approximately 200, 150,

75, and 25 fibers/cc.

Animals exposed to 30 and 16 mg/m3 were observed to have

developed a pleural and parenchymal fibroses; animals exposed to 9

mg/m3 had developed a mild parenchymal fibrosis; animals exposed to

the lowest dose were found to have the response typically observed any

time a material is inhaled into the deep lung. While a statistically

significant increase in lung tumors was observed following exposure to

the highest dose, there was no excess lung cancers at the other doses.

Two rats exposed to 30 mg/m3 and one rat exposed to 9 mg/m3

developed masotheliomas.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

A-27

OCX 8800

The International Agency for Research on Cancer (IARC) reviewed the

carcinogenicity data on man-made vitreous fibers (including ceramic

fiber, glasswool, rockwool, and slagwool) in 1987. IARC classified

ceramic fiber, fibrous glasswool and mineral wool (rockwool and

slagwool) as possible human carcinogens (Group 2B).

EMERGENCY FIRST AID PROCEDURES

• EYE CONTACT - Flush eyes immediately with large amounts of

water for approximately 15 minutes. Eye lids should be held away

from the eyeball to insure thorough rinsing. Do not rub eyes. Get

medical attention if irritation persists.

• INHALATION - Remove person from source of exposure and move

to fresh air. Some people may be sensitive to fiber induced irritation

of the respiratory tract. If symptoms such as shortness of breath,

coughing, wheezing or chest pain develop, seek medical attention. If

person experiences continued breathing difficulties, administer

oxygen until medical assistance can be rendered.

• INGESTION - Do not induce vomiting. Get medical attention if

irritation persists.

• SKIN CONTACT - Do not rub or scratch exposed skin. Wash area of

contact thoroughly with soap and water. Using a skin cream or lotion

after washing may be helpful. Get medical attention if irritation

persists.

SECTION VI. REACTIVITY DATA

STABILITY/CONDITIONS TO AVOID

Stable under normal conditions of use.

HAZARDOUS POLYMERIZATION/CONDITIONS TO AVOID

N.A.

INCOMPATIBILITY/MATERIALS TO AVOID

Incompatible with hydrofluoric acid and concentrated alkali.

HAZARDOUS DECOMPOSITION PRODUCTS

N.A.

SECTION VII. SPILL OR LEAK PROCEDURES

STEPS TO BE TAKEN IF MATERIAL IS RELEASED OR SPILLED

Where possible, use vacuum suction with HEPA filters to clean up

spilled material. Use dust suppressant where sweeping if necessary.

Avoid clean up procedure which may result in water pollution. (Observe

Special Protection Information Section VIII.)

WASTE DISPOSAL METHODS

The transportation, treatment, and disposal of this waste material must

be conducted in compliance with all applicable Federal, State, and Local

regulations.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

A-28

SECTION VIII. SPECIAL PROTECTION INFORMATION

RESPIRATORY PROTECTION

Use NIOSH or MSHA approved equipment when airborne exposure

limits may be exceeded. NIOSH/MSHA approved breathing equipment

may be required for non-routine and emergency use. (See Section IX

for suitable equipment).

Pending the results of long term health effects studies, engineering

control of airborne fibers to the lowest levels attainable is advised.

VENTILATION

Ventilation should be used whenever possible to control or reduce

airborne concentrations of fiber and dust. Carbon monoxide, carbon

dioxide, oxides of nitrogen, reactive hydrocarbons and a small amount

of formaldehyde may accompany binder burn off during first heat. Use

adequate ventilation or other precautions to eliminate vapors resulting

from binder burn off. Exposure to burn off fumes may cause respiratory

tract irritation, bronchial hyper-reactivity and asthmatic response.

SKIN PROTECTION

Wear gloves, hats and full body clothing to prevent skin contact. Use

separate lockers for work clothes to prevent fiber transfer to street

clothes. Wash work clothes separately from other clothing and rinse

washing machine thoroughly after use.

EYE PROTECTION

Wear safety glasses or chemical worker's goggles to prevent eye

contact. Do not wear contact lenses when working with this substance.

Have eye baths readily available where eye contact can occur.

SECTION IX. SPECIAL PRECAUTIONS

PRECAUTIONS TO BE TAKEN IN HANDLING AND STORING

General cleanliness should be followed.

The Toxicology data indicate that ceramic fiber should be handled with

caution. The handling practices described in this MSDS must be strictly

followed. In particular, when handling refractory ceramic fiber in any

application, special caution should be taken to avoid unnecessary

cutting and tearing of the material to minimize generation of airborne

dust.

It is recommended that full body clothing be worn to reduce the potential

for skin irritation. Washable or disposable clothing may be used. Do not

take unwashed work clothing home. Work clothes should be washed

separately from other clothing. Rinse washing machine thoroughly after

use. If clothing is to be laundered by someone else, inform launderer of

proper procedure. Work clothes and street clothes should be kept

separate to prevent contamination.

Product which has been in service at elevated temperatures (greater

than 1800°F/982°C) may undergo partial conversion to cristobalite, a

form of crystalline silica. This reaction occurs at the furnace lining hot

face. As a consequence, this material becomes more friable; special

caution must be taken to minimize generation of air-borne dust. The

amount of cristobalite present will depend on the temperature and

length in service.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

A-29

OCX 8800

IARC has recently reviewed the animal, human, and other relevant

experimental data on silica in order to critically evaluate and classify the

cancer causing potential. Based on its review, IARC classified

crystalline silica as a group 2A carcinogen (probable human

carcinogen).

The OSHA permissible exposure limit (PEL for cristobalite is 0.05

mg/m3 (respirable dust). The ACGIH threshold limit value (TLV) for

cristobalite is 0.05 mg/m3 (respirable dust) (ACGIH 1991-92). Use

NIOSH or MSHA approved equipment when airborne exposure limits

may be exceeded. The minimum respiratory protection recommended

for given airborne fiber or cristobalite concentrations are:

CONCENTRATION

If airborne fiber or cristobalite concentrations are not known, as

minimum protection, use NIOSH/MSHA approved half face, air purifying

respirator with HEPA filter cartridges.

Insulation surface should be lightly sprayed with water before removal to

suppress airborne dust. As water evaporates during removal, additional

water should be sprayed on surfaces as needed. Only enough water

should be sprayed to suppress dust so that water does not run onto the

floor of the work area. To aid the wetting process, a surfactant can be

used.

After RCF removal is completed, dust suppressing cleaning methods,

such as wet sweeping or vacuuming, should be used to clean the work

area. If dry vacuuming is used, the vacuum must be equipped with

HEPA filter. Air blowing or dry sweeping should not be used. Dust

suppressing components can be used to clean up light dust.

Product packaging may contain product residue. Do not reuse except to

reship or return Ceramic Fiber products to the factory.

HIGH PRESSURE GAS

CYLINDERS

GENERAL PRECAUTIONS FOR HANDLING AND STORING HIGH

PRESSURE GAS CYLINDERS

• Edited from selected paragraphs of the Compressed

Gas Association's "Handbook of Compressed Gases"

published in 1981

Compressed Gas Association

1235 Jefferson Davis Highway

Arlington, Virginia 22202

Used by Permission

1. Never drop cylinders or permit them to strike each other violently.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

A-30

2. Cylinders may be stored in the open, but in such cases, should be

protected against extremes of weather and, to prevent rusting, from

the dampness of the ground. Cylinders should be stored in the

shade when located in areas where extreme temperatures are

prevalent.

3. The valve protection cap should be left on each cylinder until it has

been secured against a wall or bench, or placed in a cylinder stand,

and is ready to be used.

4. Avoid dragging, rolling, or sliding cylinders, even for short distance;

they should be moved by using a suitable handtruck.

5. Never tamper with safety devices in valves or cylinders.

6. Do not store full and empty cylinders together. Serious suckback can

occur when an empty cylinder is attached to a pressurized system.

7. No part of cylinder should be subjected to a temperature higher than

52°C (125°F). A flame should never be permitted to come in contact

with any part of a compressed gas cylinder.

8. Do not place cylinders where they may become part of an electric

circuit. When electric arc welding, precautions must be taken to

prevent striking an arc against the cylinder.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

A-31

OCX 8800

ATEX CLARIFICATION ATEX COMPLIANT GAS ANALYSIS PERFORMED WITHIN A

FLAMEPROOF ENCLOSURE

Special conditions apply to using a flameproof enclosure analyzer under the

scope of the “European Directive for Equipment used in Explosive

Atmosphere” (Directive 94/9/EEC; ATEX). To stay compliant to the directive

please consider the following clarification sheet released by the European

ATEX Notified Body Group:

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

A-32

Instruction Manual

IM-106-880, Rev 1.0

January 2007 OCX 8800

http://www..raihome.com

Appendix B SPA with HART Alarm

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page B-1

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page B-1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page B-2

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page B-2

OVERVIEW This section describes the SPA with HART Alarm option for the OCX 8800.

DESCRIPTION The Moore Industries SPA with HART Alarm, Figure B-1, is a 4-wire (line or

mains powered), site-programmable, digital process alarm. It connects to a

standard HART field device, and provides up to four, fully configurable,

contact-closure outputs based on readings of the HART digital data. The four

OCX 8800 alarm outputs recognized by the SPA are Low O2, High COe,

Calibration Status, and OCX Unit Failure.

Figure B-1. SPA with

HART Alarm

37020018

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

B-2

Figure B-2. OCX 8800 and

SPA Interface Connections

INSTALLATION Refer to Figure B-2 for the typical interface connections for the OCX 8800 and

the SPA with HART alarm. Refer to the Moore Industries SPA user's manual

for additional information concerning SPA installation, setup, and operation.

SETUP Setup of the SPA for communication with the OCX 8800 includes setting

internal jumpers and dip switches and configuring the SPA operating

parameters via a menu-driven selection and calibration procedure.

Jumper and Switch Settings

SPA jumper and switch settings are shown in Figure B-3. If the SPA with

HART was factory-configured by Emerson Process Management for

operation with your OCX 8800, jumper and switch setting adjustments are not

required. However, you may use the following procedure to verify that the

jumper and switch settings are correct. Adjust or verify jumper and switch

settings as follows:

1. Refer to Figure B-3. Turn the SPA over and slide the access cover out.

Before changing any jumper or switch position, take adequate

precautions to avoid an electrostatic discharge.

HART

Model 275/375

Handheld

Communicator

Analog Output

IN IN 4-20 mA

0-24 vdc

4-20 mA O Signal Loop

37390022

250

950

RΩ

Ω

OCX 8800

Customers

DCS, PLC,

PC with AMS

Software

Event Recorder,

Audible Alarm,

or other

Analog Device

Electrostatic discharge (ESD) protection is required to avoid damage to the SPA electronic

circuits.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

B-3

OCX 8800

IN IN

Fluke Model 87

Multimeter

or equivalent

Optional

AC or DC

Power Input

ACC

GND

37390024

250Ω

950Ω

OCX

8800

Figure B-3. SPA Jumper

and Dip Switch Settings

Figure B-4. SPA Setup for

Calibration 2. Verify that the Password Jumper is set to the OFF position. If the jumper

is in the ON position, reposition the jumper.

3. Check the position of the Failsafe Dip Switches. Position the dip

switches as shown in Figure B-3.

4. Check the position of the Source Current Dip Switches. Position the dip

switches as shown in Figure B-3.

5. Reinstall the SPA access cover.

Configuration/Calibration

Prior to operation, the SPA operating parameters must be configured via a

menu-driven setup procedure. At the end of the configuration procedure, the

SPA analog output signal is calibrated to insure valid communications.

1. See Figure B-4. Connect a calibrated ammeter (Fluke Model 87 or

equivalent, accurate to ±0.025%) to the SPA analog output terminals.

Observe polarity.

2. Connect a 90 to 260 VAC or 22 to 300 VDC power source to the SPA

power terminals. When connecting an AC power source, use the AC

and ACC (AC Common) terminals. For a DC source, use the AC and

Ground terminals.

3. If desired, you can connect the 4 to 20 mA O2 signal wires from the

OCX 8800 analog output terminal block to the SPA Input terminals. (The

OCX must be operational to transmit the O2 signal. Observe polarity.)

Access Cover

37020022

Password

OFF

Password

Jumper Pins

Failsafe Dip Switches

(shown in correct position)

Source Current Dip Switches

SPA - Bottom View

NOTICE

REMOVE THIS PANEL

FOR SERVICE ACCESS.

STATIC SENSITIVE.

USE CAUTION WHEN

CHANGING JUMPERS

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

B-4

NOTE

The O2 signal connection is not required for SPA configuration or calibration.

The OCX interface will allow you to observe the O2 signal level when the SPA

configuration procedure is completed.

4. Observe the front panel of the SPA, Figure B-5:

a. A process value display in the SPA display window indicates that the

SPA is operational. Four pushbuttons are located below the display

window.

b. Pressing a left-hand pushbutton scrolls up () or down () through

the SPA command menu, a submenu, or parameter values list.

c. Pressing the VIEW pushbutton displays rail limits and alarm relay

configurations. There are five sequential displays in the VIEW mode.

While in the VIEW mode, the up (), down (), and SELECT

pushbuttons are disabled.

NOTE

In the VIEW mode, you can scroll through and display the output zero and full

scale settings and the alarm relay trip points and configurations.

d. Pressing the SELECT pushbutton selects the displayed menu or

submenu command or selects a displayed parameter variable.

Figure B-5. SPA Front Panel

37020017

SPA

Display

Window

Left-Hand

Pushbuttons

Right-Hand

Pushbuttons

Instruction Manual

IM-106-880, Rev 1.0

January 2007

B-5

OCX 8800

5. Figure B-6 shows the SPA menu, submenus, and parameter values that

must be selected to configure the SPA for use with the OCX 8800. Use

the following instructions and selections shown to properly configure the

SPA.

a. Press the SELECT pushbutton. Observe the display window on the

SPA front panel. The display window should read SET HART.

b. See the SET HART command in Figure B-6. To the right of the

command window is the SET HART submenu and related parameter

values that must be selected via the front panel pushbuttons on the

SPA.

c. In the submenu views shown:

 means press the down pushbutton.



means press the up pushbutton.



means press the SELECT pushbutton one time.

 means press the  or  pushbutton until the desired parameter

value is shown in the SPA window.

d. Proceed through the SPA menu, selecting the menu commands and

parameter values indicated. After completing the sequence in the

first column, go to the top of the second column and continue.

e. To exit the menu, repeatedly press SELECT to display any main

menu command. Then, press  or  until CONF EXIT is displayed.

Select CONF EXIT.

f. Detailed instructions concerning the configuration menu and the

submenu structure for each main command are provided in the SPA

user's manual.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

B-6

Figure B-6. SPA Configuration Menu

for OCX 8800 Communication

37390003

TRIM

OUT

ÜSET MSTR ÜôPRIM

ÜSET FUCT ÜôNRML

ÜNUM VARS Üô02

ÜNUM TRYS Üô03

ÜEXIT HART ÜSGNL SRCE

ÜAOUT SRCE ÜôSV

ÜAL2 SRCE ÜôPV

ÜAL3 SRCE ÜôPV

ÜAL4 SRCE ÜôPV

ÜEXIT SRCE ÜFLT SRCE

êCONF OPTS

ÜSET LINR ÜôLINR OFF

ÜPV SCLE ÜôAUTO

ÜDSPL EGU ÜôCSTM ÜôPPM

(select P, select P, select M)

ÜDSPL SRCE ÜôSV

ÜAL2 SEL ÜAL2 FLT

êSET FAIL ÜFAIL LOW

êEXIT OPTS ÜSET EGU

ÜPV EGU ÜôPCT

ÜSV EGU ÜôCSTM ÜôPPM

(select P, select P, select M)

ÜEXIT EGU ÜSCLE INPT

ÜPV SCLE ÜPV ZERO ô0000 PCT

ÜPV FULL ô25 PCT

ÜSCLE SV ÜSET ZERO ô0000 PPM

ÜSET FULL ô1000 PPM

ÜEXIT SCLE ÜSCLE DSPL

ÜPV DSPL

ÜSET ZERO Üô0000 PCT

ÜSET FULL Üô25 PCT

ÜSV DSPL

ÜSET ZERO Üô0000 PPM

ÜSET FULL Üô1000 PPM

ÜEXIT DSPL ÜSCLE OUT

ÜSET ZERO Üô4.000 MA

ÜSET FULL Üô20.00 MA

ÜEXIT Z/FS

ÜTRIM OUT

ÜTRIM ZERO Üô4.000 MA

ÜTRIM FULL Üô20.00 MA

ÜEXIT TRIM ÜCONF ALRM

SGNL

SRCE

FLT

SRCE

CONF

OPTS

SET

EGU

SCLE

INPT

SET

HART

SCLE

DSPL

SCLE

OUT

CONF

ALRM

SCLE INPT

SCLE DSPL

Refer to

SPA manual

for settings or

êPASS WORD

CONF

EXIT

PASS

WORD

êCONF EXIT

ÜSPA setup complete;

observe process value display.

Instruction Manual

IM-106-880, Rev 1.0

January 2007 OCX 8800

http://www..raihome.com

Appendix C Return of Materials

RETURNING MATERIAL If factory repair of defective equipment is required, proceed as follows:

1. Secure a return authorization number from an Emerson Process

Management sales office or representative before returning the

equipment. Equipment must be returned with complete identification in

accordance with Emerson Process Management instructions or it will

not be accepted.

In no event will Emerson Process Management be responsible for

equipment returned without proper authorization and identification.

2. Carefully pack defective unit in a sturdy box with sufficient shock

absorbing material to ensure that no additional damage will occur during

shipping.

3. In a cover letter, describe completely:

a. The symptoms from which it was determined that the equipment is

faulty.

b. The environment in which the equipment has been operating

(housing, weather, vibration, dust, etc.).

c. Site from which equipment was removed.

d. Whether warranty or nonwarranty service is requested.

e. Complete shipping instructions for return of equipment.

f. Reference the return authorization number.

4. Enclose a cover letter and purchase order and ship the defective

equipment according to instructions provided in Emerson Process

Management Return Authorization, prepaid, to:

Emerson Process Management

RMR Department

Daniel Headquarters

11100 Britmore Park Drive

Houston, TX 77041

If warranty service is requested, the defective unit will be carefully inspected

and tested at the factory. If failure was due to conditions listed in the standard

Rosemount Analytical warranty, the defective unit will be repaired or replaced

at Emerson Process Management's option, and an operating unit will be

returned to the customer in accordance with shipping instructions furnished in

the cover letter.

For equipment no longer under warranty, the equipment will be repaired at the

factory and returned as directed by the purchase order and shipping

instructions.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

C-2

Instruction Manual

IM-106-880, Rev 1.0

January 2007 OCX 8800

http://www.raihome.com

Index

Symbols

"Z" pattern . . . . . . . . . . . . . . . . . 4-3

Accessories . . . . . . . . . . . . . . 1-12

Alarm Relay Events . . . . . . . . 8-11

Assemble O2 Sensor . . . . . . . 7-16

Autocalibration Setup, HART . . 6-2

Autocalibration Setup, LOI . . . . 6-1

Autocalibration, HART . . . . . . . 6-4

Autocalibration, LOI . . . . . . . . . 6-4

Band Heater Height . . . . . . . . 7-19

Blowback System . . . . . . 1-5, 2-13

Blowback with Autocalibration 2-14

Blowback without Autocalibration 2-15

Cell Output . . . . . . . . . . . . . . . . 8-7

COe Band Heater . . . . . . . . . . 7-11

COe Sensor Assembly 7-8, 7-14, 7-15,

. . . . . . . . . . . . . . . . . . . . . . . 7-19

COe Sensor Holder Alignment 7-20

COe Sensor Parts . . . . . . . . . . 7-18

COe Sensor, Thermocouple, and Heat-

er Connections . . . . . . . . . . . 7-21

Combustibles Sensor . . . . . . . . 1-3

Component Checklist . . . . . . . . 1-1

Configuration . . . . . . . . . . . . . . 3-2

D/A Trim Procedure . . . . . . . . 6-10

Defaults . . . . . . . . . . . . . . . . . . . 3-3

Diagnostic Alarms . . . . . . . . . . . 8-2

Display Orientation . . . . . . . . . . 4-1

Eductor . . . . . . . . . . . . . .7-11, 7-17

Eductor Holder . . . . . . . . . . . . 7-11

Electrical Noise . . . . . . . . . . . . . 8-1

Electronics Housing Components 9-6

Electronics Housing Disassembly 7-25

Electronics Housing Terminal Blocks

7-3

Electrostatic Discharge . . . . . . . 8-1

Essential Instructions . . . . . . . . . . i

Factory Repair . . . . . . . . . . . . . .C-1

Fault Indications . . . . . . . . . . . . 8-3

Fault Isolation . . . . . . . . . . . . . . 8-3

Fitting, ‘F’ Type . . . . . . . . . . . . 7-31

Fitting, ‘R’ Type . . . . . . . . . . . . 7-31

Fittng, ‘13’ Type . . . . . . . . . . . . 7-31

Fuse Locations . . . . . . . . . . . . . 8-2

Grounding . . . . . . . . . . . . . . . . . 8-1

Handling . . . . . . . . . . . . . . . . . . 1-6

HART Communicator . . . . . . . . 5-1

HART Connections . . . . . . . . . . 1-7

HART PC Connections . . . . . . . 5-4

HART Signal Connections . . . . . 5-1

HART Signal Line Connections 5-2,

5-3

Hazardous Area OCX 8800 1-11, 4-2

Heater Strut Assembly . . . . . . 7-16

Install Eductor . . . . . . . . . . . . . 7-17

Install Electronics Stack . . . . . . 7-28

Install Flash PROM . . . . . . . . . 7-28

Install Integral OCX 8800 . . . . . 7-4

Install LOI Module . . . . . . . . . . 7-28

Install Solenoid Valves . . . . . . 7-28

Install Tube Fittings . . . . . . . . . 7-32

Instrument Air . . . . . . . . . . . . . . 1-7

LK Notation . . . . . . . . . . . . . . . . 4-3

LOI board . . . . . . . . . . . . . . . . . 4-1

LOI Components . . . . . . . . . . . . 4-1

LOI Menu . . . . . . . . . . . . . . . . . 4-4

LOI Menu Tree . . . . . . . . . . . . . 4-4

Manual Calibration, HART 6-5, 6-7, 6-8

Manual Calibration, LOI . . . . . . .6-4

Material Safety Data Sheet . . A-24

Nernst Equation . . . . . . . . . . . . .1-3

O2 Cell and Heater Strut 7-22, 7-24

O2 Cell and Heater Strut Assembly

7-6, . . . . . . . . . . . . 7-7, 7-13, 9-9

O2 Cell Output Voltage . . . . . . .1-4

O2 Cell Replacement Kit . . . . .7-13

O2 Cell, Heater, and Thermocouple

7-13

O2 Cell, Thermocouple, and Heater

Connections . . . . . . . . . 7-7, 7-23

OCX with Integral Electronics . .7-2

Operation Diagram . . . . . . . . . .1-6

Oxygen and Cell Output . . . . . .8-7

Personal Computer (PC) . . . . . .1-5

Power Up . . . . . . . . . . . . . . . . . .3-3

Pre-Heater . . . . . . . . . . . . . . . .7-15

Pre-Heater Alignment . . . . . . .7-16

Product Matrix . . . . . . . . . . . . . 1-11

Reference Air Tube . . . . . . . . . .7-7

Removal and Installation . . . . . .7-1

Remove Eductor . . . . . . . . . . . 7-11

Remove EEprom . . . . . . . . . . .7-25

Remove Electronics Stack . . . .7-26

Remove Flash PROM . . . . . . .7-25

Remove LOI Module and Board 7-25

Remove OCX 8800 . . . . . . . . . .7-2

Remove Solenoid Valves 7-27, 7-28

Remove Tube Fittings . . . . . . .7-31

Repair Sensor Housing . . . . . . .7-5

Replace Tube Fittings . . . . . . .7-31

Reset Procedure . . . . . . . . . . . .3-4

Resistance Devices (RTD) . . . .1-3

Returning Material . . . . . . . . . . C-1

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

Index-2

RTD . . . . . . . . . . . . . . . . . . . . . . 1-3

Sample and Exhaust Tubes 7-12, 7-16

Sample Block Heater Rods 7-7, 7-22

Selected Distributed Control Systems

1-5

Sensor Housing Components 9-2, 9-4

Sensor Housing Disassembly . . 7-5

Sensor Housing Leak Test . . . 7-24

Solenoid Power Terminals . . . 7-30

SPA Configuration Menu . . . . . . B-6

SPA Front Panel . . . . . . . . . . . . B-4

SPA Interface Connections . . . . B-2

SPA Setup for Calibration . . . . . B-3

SPA with HART Alarm . . . . . . . B-1

Specifications . . . . . . . . . . . . . . 1-9

SW1 . . . . . . . . . . . . . . . . . . . . . 3-2

SW2 . . . . . . . . . . . . . . . . . . . . . 3-2

SW3 . . . . . . . . . . . . . . . . . . . . . 3-2

System Configuration . . . . . . . . 1-4

System Description . . . . . . . . . . 1-1

System Features . . . . . . . . . . . . 1-4

System Operation . . . . . . . . . . . 1-5

System Overview . . . . . . . . . . . 1-1

System Package . . . . . . . . . . . . 1-2

Terminals Insulator . . . . . . . . . 7-24

Test Gas Values . . . . . . . . . . . . 3-4

Thermal Switch . . . . . . . . . . . . . 7-8

Total Power Loss . . . . . . . . . . . . 8-2

Transmitter Package . . . . . . . . . 1-1

Typical System Installation . . . . 1-8

Typical System Package . . . . . . 1-2

Warranty Service . . . . . . . . . . . C-1

WARRANTY

Rosemount Analytical warrants that the equipment manufactured and sold by it

will, upon shipment, be free of defects in workmanship or material. Should any

failure to conform to this warranty become apparent during a period of one year

after the date of shipment, Rosemount Analytical shall, upon prompt written notice

from the purchaser, correct such nonconformity by repair or replacement, F.O.B.

factory of the defective part or parts. Correction in the manner provided above

shall constitute a fulfillment of all liabilities of Rosemount Analytical with respect to

the quality of the equipment.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER

WARRANTIES OF QUALITY WHETHER WRITTEN, ORAL, OR IMPLIED

(INCLUDING ANY WARRANTY OF MERCHANTABILITY OF FITNESS FOR

PURPOSE).

The remedy(ies) provided above shall be purchaser's sole remedy(ies) for any

failure of Rosemount Analytical to comply with the warranty provisions, whether

claims by the purchaser are based in contract or in tort (including negligence).

Rosemount Analytical does not warrant equipment against normal deterioration

due to environment. Factors such as corrosive gases and solid particulates can

be detrimental and can create the need for repair or replacement as part of normal

wear and tear during the warranty period.

Equipment supplied by Rosemount Analytical Inc. but not manufactured by it will

be subject to the same warranty as is extended to Rosemount Analytical by the

original manufacturer.

At the time of installation it is important that the required services are supplied to

the system and that the electronic controller is set up at least to the point where it

is controlling the sensor heater. This will ensure, that should there be a delay

between installation and full commissioning that the sensor being supplied with ac

power and reference air will not be subjected to component deterioration.

3885

1/07

Rosemount Analytical and the Rosemount Analytical logotype are registered trademarks of Rosemount Analytical Inc.

HART is a registered trademark of the HART Communications Foundation.

All other marks are the property of their respective owners.

Instruction Manual

IM-106-880, Rev 1.0

January 2007

OCX 8800

GAS CHROMATOGRAPHY

CENTER AND LATIN AMERICA

Emerson Process Management

Rosemount Analytical Inc.

11100 Brittmoore Park Drive

Houston, TX 77041

T 713 467 6000

F 713 827 3329

ASIA-PACIFIC

Emerson Process Management

Asia Pacific Private Limited

1 Pandan Crescent

Singapore 128461

Republic of Singapore

T 65 6 777 8211

F 65 6 777 0947

E analytical@

ap.emersonprocess.com

ROSEMOUNT ANALYTICAL EUROPE

Emerson Process Management

Gmbh & co. OHG

Industriestrasse 1

63594 Hasselroth

Germany

T 49 6055 884 0

F 49 6055 884 209

WORLD HEADQUARTERS

Emerson Process Management

Rosemount Analytical Inc.

6565P Davis Industrial Parkway

Solon, OH 44139

T 440 914 1261

T 800 433 6076

F 440 914 1262

E gas.csc@emersonprocess.com

EUROPE, MIDDLE EAST, AFRICA

Emerson Process Management

Shared Services Limited

Heath Place

Bognor Regis

West Sussex PO22 9SH

England

T 44 1243 863121

F 44 1243 845354

http://www.raihome.com

Emerson Rosemount Ocx 8800 Users Manual IM 106 880 LOI INT

ocx8800 b2a9d821-5d56-472d-bc9d-14d38c7cd876 Emerson Oxygen Equipment OCX 8800 User Guide |

Navigation menu

Versions of this User Manual:

Views

Navigation
