“MAXIMIZE PROTECTION”
DIN RAIL MOUNTED ACTIVE TRACKING® FILTERS WITH SURGE PROTECTION
STFE ELITE SERIES ACTIVE TRACKING® FILTER
WITH SURGE PROTECTION
Features
• Series connected DIN Rail mounted filter
• Patented durable metal mounting clip
UL Listed Surge current capacity – 45,000 Amps
• Transient protection in all modes
(L-N, L-G, and N-G)
• Single Phase applications up to 20 Amp
• Operating Temperature from -40°C to +50°C
• Screw Terminal Connections
– Reliable and convenient screw clamp connec-
tions
– Accept 10-16 AWG wire
– Meet IP20 specifications for ingress protection
• LED status indication
• Form C contact for remote monitoring
• UL 1449, UL 1283, cUL
recognized component, CE
• 5 Year Limited Warranty
Versatile applications
• Control Panels
• Factory Automation Installations
• Point of Use Industrial Equipment
• Programmable Logic Controllers
• Dedicated Industrial and Machine
Tools Equipment
aDVantaGes
e SolaHD STFE Elite DIN Rail Mount Series combines Active Tracking® technology with UL Listed surge
protection against the full spectrum of voltage transients and surges. It continuously tracks the input AC power
line responding instantly into action upon detecting extraneous high frequency noise and high voltage tran-
sients caused by everyday events such as turning on machinery, motors, or equipment. ey are designed for
years of trouble free operation and require little or no operator intervention after installation.

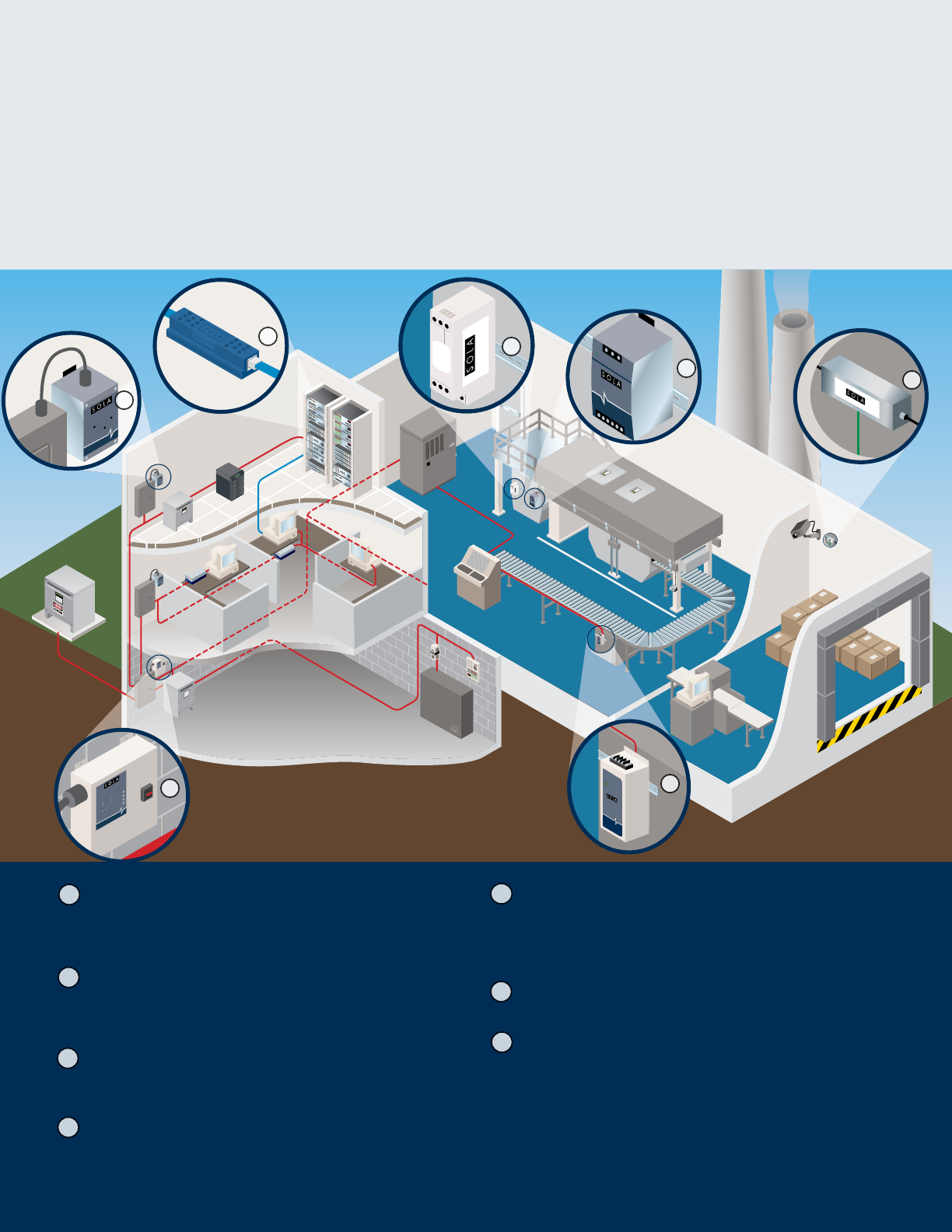

HOW DO YOU PROTECT YOUR POWER?
Employing an entire facility protection strategy will safeguard the electrical system against most transients. Multi-stage
protection involves clamping the initial high-energy surge, filtering any remaining noise or transients to the protected
sensitive equipment and finally, protecting the data/signal lines entering or leaving the control panel or the factory floor.
This coordination of devices provides the lowest possible let through voltage to the equipment.
Surge Suppressor
STV100k Series
LINE
1
LINE
2
SERVICE
Surge Suppressor
STV100k Series
LINE
1
LINE
2
SERVICE
Surge Suppressor
STV100k Series
LINE
1
LINE
2
SERVICE
STV 100K
Surge Suppressor
Device (SPD)
K-Factor
Harmonic
Transformer
STV 100K
Surge Protective
Device (SPD) SDU Off-Line UPS
LVGP
Transformer
S5K Modular UPS
MCR Series
Constant Voltage
Power Conditioner
Distribution
Transformer
Solatron Plus
Three Phase
Power Conditioner
L
N
G
L1
L2
G
LOAD
LINE
L
N
G
L1
L2
G
Active Tracking Filter
STFV Plus Series
Status OK
STFV Plus Series
Surge Protection and
Active Tracking Filter
STC-CCTV-751
E
Q
U
I
P
C
A
B
L
E
STC-CCTV
Surge Protective
Device For Coaxial
Active Tracking Filter
STF Elite Series
OK
Active Tracking Filter
STF Elite Series
OK
LINE
LINE
SHIELD
STS-DRS-060
1
2
3
4
5
6
LINE
LINE
SHIELD
STS-DRS-060
1
2
3
4
5
6
STC-DRS
DIN mounted
Surge Protective
Device For Data
Signals
STF Elite
Active Tracking
Filter With
Surge Protection
STC-PoE
Ethernet Surge
Protective Device
(located behind server)
Surge Protective Device
STV200/400K Series
REDUCED
PROTECTION
FULL
PROTECTION
MODULE
1
MODULE
2
ALARM
DISABLED
TEST
STV 200/400K
Service Entrance
Surge Protective Device
B
CD
E
F
G
ASTV200/400K: Surge protective devices capable of handling the
high-impulse, potentially damaging transients commonly found
at the service entrance, distribution panels, and placement in the
most severe exposure locations.
STV100K: Surge protective devices designed to protect sensitive
equipment and microprocessor-based systems from transients on
distribution and sub-distribution panels, or any medium exposure
locations.
B
STC-POE: Surge protective devices designed to work on
Power-over-Ethernet Category 5 PoE transmission lines as well as
Category 6 applications.
C
STC-DRS: DIN Rail mountable, single pair, low voltage data,
surge protective devices. e hybrid design of these data/signal line
suppressors allows them to respond quickly.
D
STFE Elite: DIN Rail Mountable high-frequency noise lter/
surge suppressors that oers the original active tracking technol-
ogy with UL approved transient protection to guard against
commonly occurring, but very damaging transients, plus provides
excellent noise reduction.
E
STC-CCTV: Surge protective devices tailored to protect
CCTV, data, audio and cable applications.
F
STFV: High-frequency noise lter/surge suppressors that oers
the original active tracking technology with transient protection
to guard against commonly high voltage transients, plus provides
excellent noise reduction.
G
A
For a full listing of SolaHD’s Filters and Surge Suppressors,
visit our website at www.solahd.com or consult our full line catalog.
Selection Table
Selection Table
Catalog
Number Input Voltage Amps Min Wire Size*
(AWG Suggested)
Fuse/Circuit Breaker Ampacity
Suggest Max
STFE030-10N 120 V Single Phase 2 Wire + Ground 3.0 24 3A 3.75A
STFE050-10N 120 V Single Phase 2 Wire + Ground 5.0 22 5A 6.25A
STFE100-10N 120 V Single Phase 2 Wire + Ground 10.0 20 10A 12.5A
STFE200-10N 120 V Single Phase 2 Wire + Ground 20.0 12 20A 25A
STFE030-24L 240 V Single Phase 2 Wire + Ground 3.0 24 3A 3.75A
STFE050-24L 240 V Single Phase 2 Wire + Ground 5.0 22 5A 6.25A
STFE100-24L 240 V Single Phase 2 Wire + Ground 10.0 20 10A 12.5A
STFE200-24L 240 V Single Phase 2 Wire + Ground 20.0 12 20A 25A
Internal View
of Components
MOV Array
provides high-energy
all mode protection
Series Blocking Inductor
blocks voltage, smooths current
Silicone Avalanche Diodes
fast responding surge suppressor
Screw Terminal Connections
Green LED Unit Status Indicator
Pulse Capacitor
high-frequency noise absorption
Form C Relay Contacts
DC OK signal
Rear View
DIN Connector
Strong all metal for
horizontal or vertical
mounting
Internal Diagram
STFE ELITE SERIES
Rear View Internal View of Components
* 16 AWG wire or larger may be required by code dependent upon application.
Technical Specications
DESCRIPTION
CATALOG NUMBER
STFEXXX-10N STFEXXX-24L
INPUT
Input Voltage 120 V 0150 VRMS 240 V (0-275 VRMS)
Line Frequency 47-63 Hz
Response Time < .5 ns normal mode, <5 ns common mode
PHYSICAL
Enclosure Fully Enclosed Metal Housing
Fusing Reference Fuse/Circuit Breaker Chart
Status Indication Green LED “OK”/Form C Contact/
10 Amps@ 250 Vac or 5 Amps@ 100 Vdc
Connection/Mounting Type DIN Rail Mount
Weight (Kg) 1.7 lbs (0.7kg)
Dimensions in (mm)
H x W x D
4.88 x 2.56 x 4.56
(124 x 65 x 116)
ENVIRONMENT
Operating Temperature -40°C to +50°C at full load
Derate Linearly to 60% at +70ºC
Operating Humidity 0% to 95% Non-condensing
SURGE PROTECTION
Peak Surge Current
Capability
Per Phase 30,000 Amps
Line to Neutral 20,000 Amps
Line to Ground 10,000 Amps
Neutral to Ground 10,000 Amps
Load Surge Current Rating
10m Sec 5 x Nominal
1 sec 3 x Nominal
10 sec 2 x Nominal
ACTIVE TRACKING PROTECTION
Frequency Response
Normal Mode
(Forward-Reverse) 100 kHz to 50 MHz 90 dB Max
Common Mode
(Forward-Reverse) 5 MHz to 50 MHz 60 dB Max
Transient Reduction
(IEEE C62.41)
Typical Category A Ringwave
(6 kV, 200A, 100 kHz) <60 V Peak
Typical Category B Ringwave
(6 kV, 500A, 100 kHz) <100 V Peak UL 1449
UL 1449 (2nd EDITION) SUPPRESSOR CLASSIFICATION
120 V, 3-5A Models 120 V, 10-20A Models 240 V, 3-5A Models 240 V, 10-20A Models
L-N 330 V 330 V N/A N/A
L-L N/A N/A 600 V 600 V
L-G 500 V 400 V 1000 V 900 V
N-G 400 V 400 V N/A N/A
GENERAL
Safety UL 1449, UL1283, cUL Recognized Component, CE
Warranty 5 Year Limited Warranty
