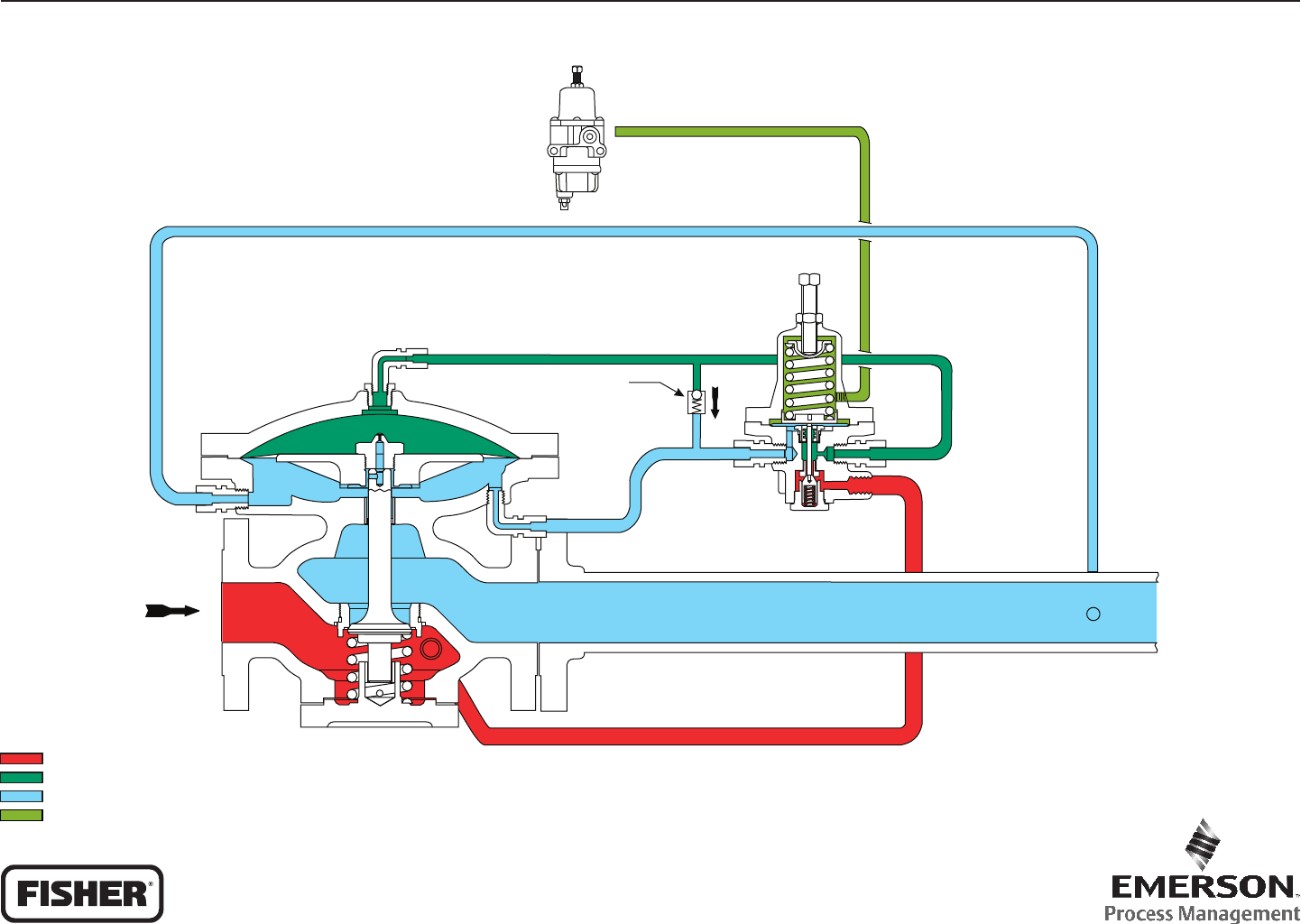

Type 92B Regulator with Pressure Loaded Pilot
M1014
INLET PRESSURE
OUTLET PRESSURE
PILOT LOADING PRESSURE
MAIN VALVE LOADING PRESSURE
May 2007 Type 92B
INLET PRESSURE
LOADING PRESSURE
OUTLET PRESSURE
PRESSURE LOADING
CHECK VALVE
(INTERNAL TO
TYPE 92B PILOT)
LOADING PRESSURE LINE
TYPE
67CFR
