Visit our web site at www.emersonscott.com
HOME AUDIO SYSTEM
with 5 CD CHANGER
and TURNTABLE
SM51TR
OWNER'S MANUAL
SM51TR.p65 2001/7/3, PM 02:2527
1
For future reference, record the serial number in the space provided.
Serial Number :
BEFORE WE BEGIN
Thank you………………
for purchasing this H.H. SCOTT audio product. The H.H. SCOTT brand is your assurance of quality, performance
and value.
Our engineers have included many useful and convenient features in this product. Please be sure to read this
Owner’s Manual completely to make sure you are getting the maximum benefit from each feature.
This product was manufactured using the highest quality components and standards of workmanship. It was
tested by H.H. SCOTT inspectors and found to be in perfect working order before it left our factory. However,
there is always the chance that some problem may occur because of rough handling during shipment to the
retail store or to the final consumer.
If, after reading this Manual, you experience any problems with the operation of this product, please refer to the
instructions for obtaining service at the end of this Manual. H.H. SCOTT and H.H. SCOTT retailers are committed
to your satisfaction.
Once again, thanks for purchasing this H.H. SCOTT audio product.

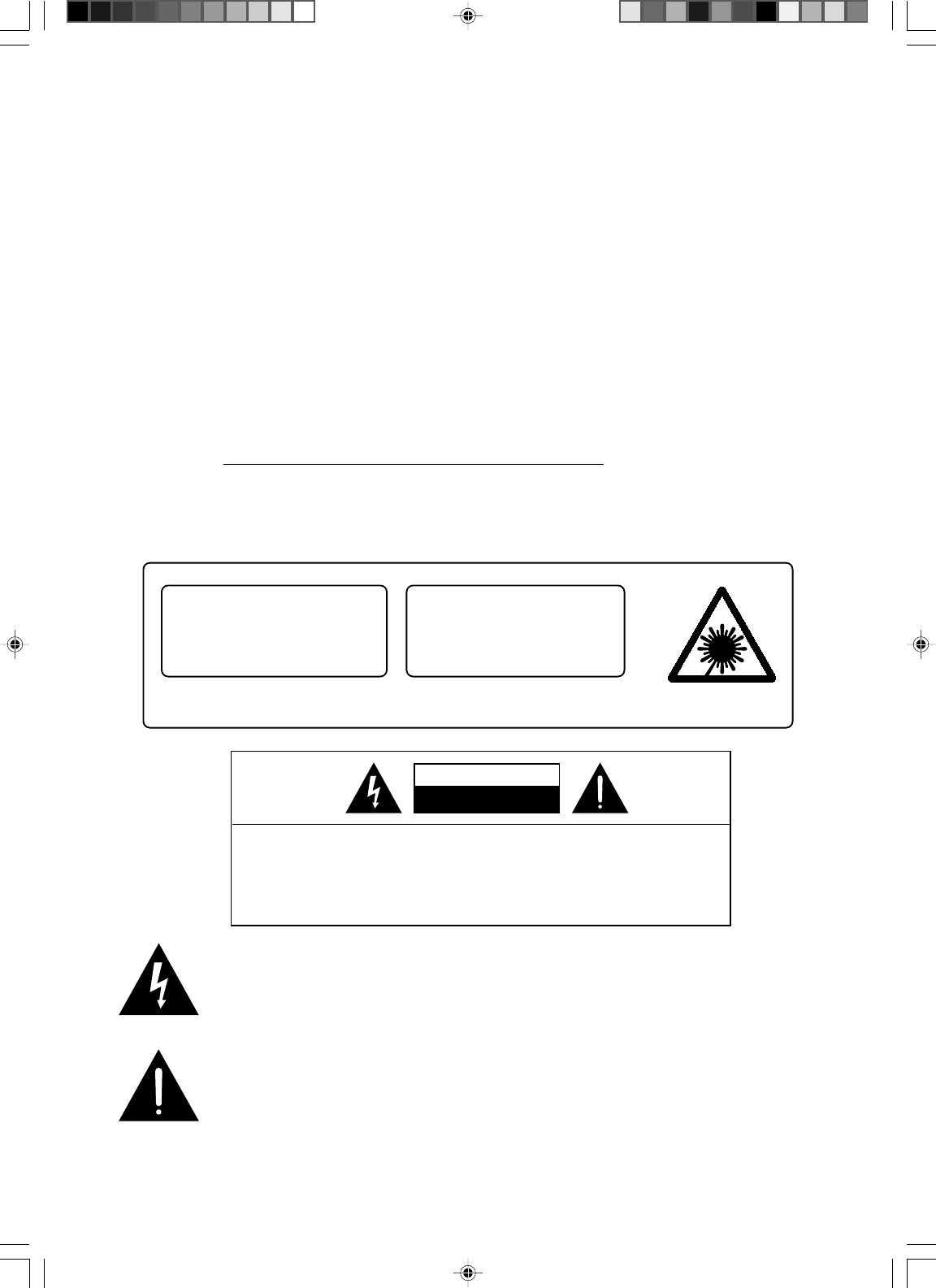

DANGEROUS VOLTAGE
Uninsulated Dangerous Voltage, that may be of sufficient magnitude to constitute a risk
of electric shock to persons is present within this product's enclosure.
ATTENTION
The Owner's Manual contains important operating and maintenance instructions.
For your safety, it is necessary to refer to the manual.
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
APPAREIL Á LASER DE CLASSE 1
PRODUCTO LASER DE CLASE 1
CAUTION
INVISIBLE LASER RADIATION
WHEN OPEN AND INTERLOCKS
DEFEATED.
AVOID EXPOSURE TO BEAM
This product contains a low power Laser Device.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
SM51TR.p65 2001/7/3, PM 02:211
2
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
• Operate controls and switches as described in
the manual.
• Before turning on the power, make certain that
the connecting cords, if any, and power cord
areproperly installed.
• Store your CDs and cassette tapes in a cool
area to avoid damage from heat.
• When moving the set, be sure to first
disconnect the power cord and remove cords
connected to other equipment.
• Avoid installing this unit in places exposed to
direct sunlight or close to heat radiating
appliances such as electric heaters, on top of
other stereo equipment that radiates too much
heat, places lacking ventilation or dusty areas,
places subject to constant vibration and/or
humid or moist areas.
• Do not attempt to clean this unit with chemical
solvents as this might damage the finish. Use
a clean dry cloth.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
IMPORTANT NOTES
SM51TR.p65 2001/7/3, PM 02:212
3
UNPACKING AND SET-UP
• Carefully remove the unit from the carton and remove all packing material from the unit.
• Remove any labels or stickers which may be on the front or top of the set, but do not
remove any labels from the back or bottom.
• We suggest that you retain the original carton and packing materials in case it ever becomes
necessary to return your unit for service. This is the only sure way to protect the unit from
damage in transit.
• If you do dispose of the carton and packing materials, please do so properly.

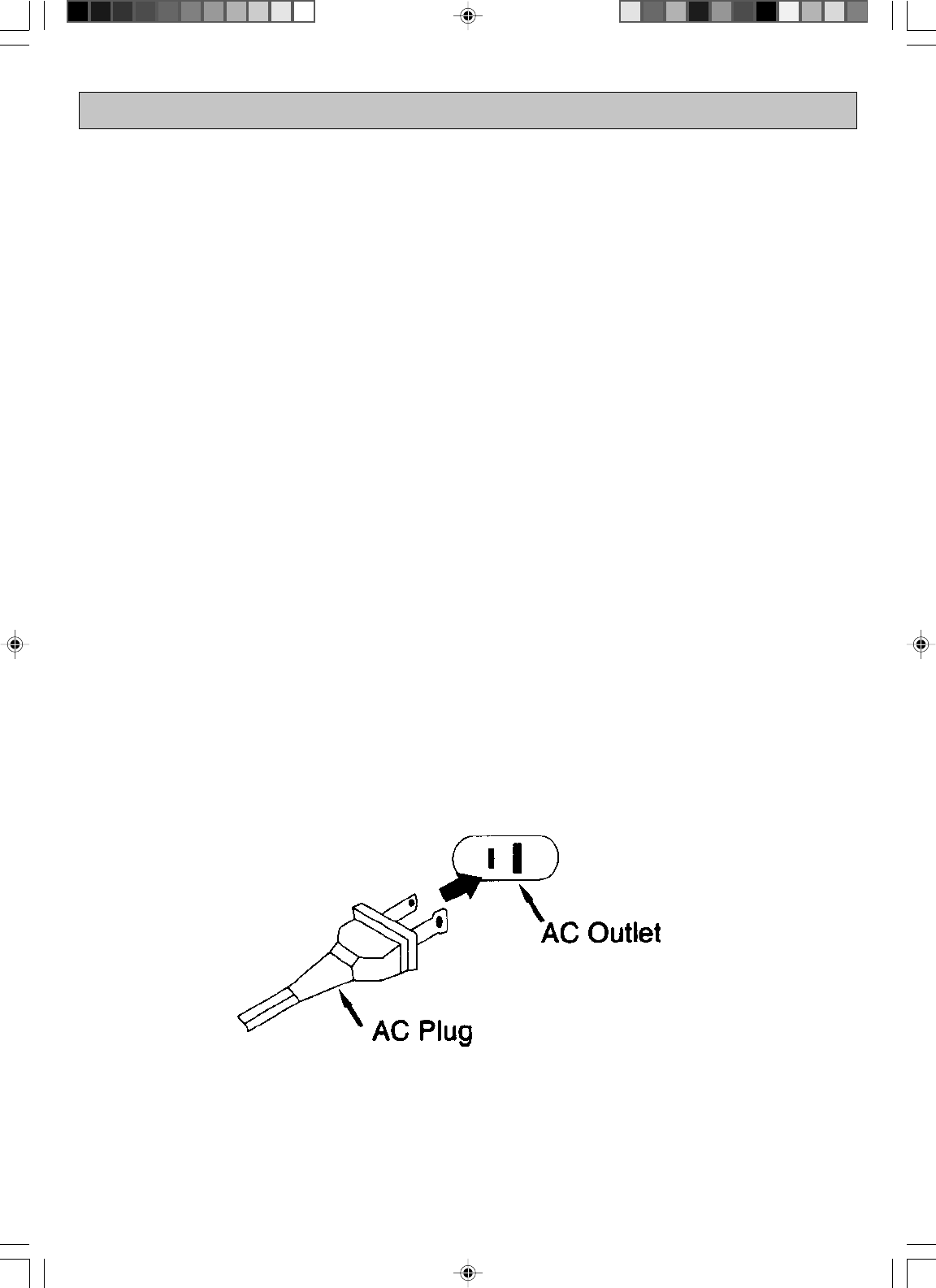

POWER SOURCE
This system is designed to operate on 120V 60Hz AC house current. Connecting this system
to any other power supply could result in damage to the unit which is not covered by your
warranty.You will note that this system is equipped with a polarized AC power plug having
one blade wider than the other. This is a safety feature. If this plug does not fit into your
existing AC outlet, do not try to defeat this safety feature by filing the wide blade to make it
fit into your outlet. If this plug will not fit into your outlet, you probably have an out-dated
non-polarized AC outlet. You should have your outlet changed by a qualified licensed
electrician.
PREPARATION FOR USE
SM51TR.p65 2001/7/3, PM 02:213
4
Place the unit on stable, level surface, out of direct
sunlight and away from sources of excessive dust,
dirt, heat, water, moisture, vibration and strong
magnetic fields.
Do not connect the unit to the AC power supply until
all other connections have been made and the AC
voltage (indicated on the rating plate on the back
cover) has been checked.
When positioning the unit, bear in mind that every
receiver produces heat which must be able to dissipate
freely. For this reason do not cover any vents and
make sure that there is sufficient ventilation around
the unit.
Always remove all CDs from the changer before
moving the system.

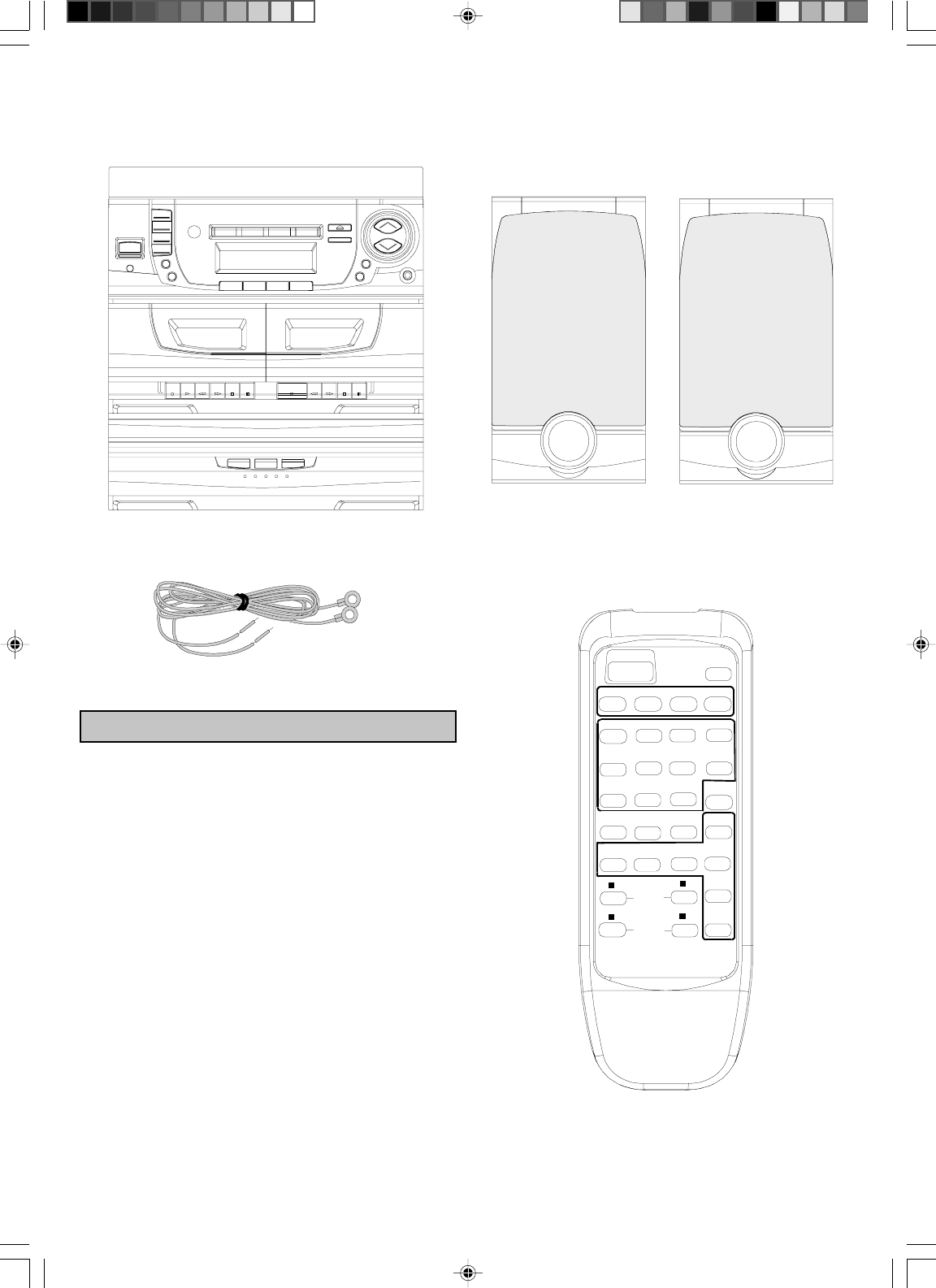

MAIN UNIT
FM ANTENNA
SPEAKERS

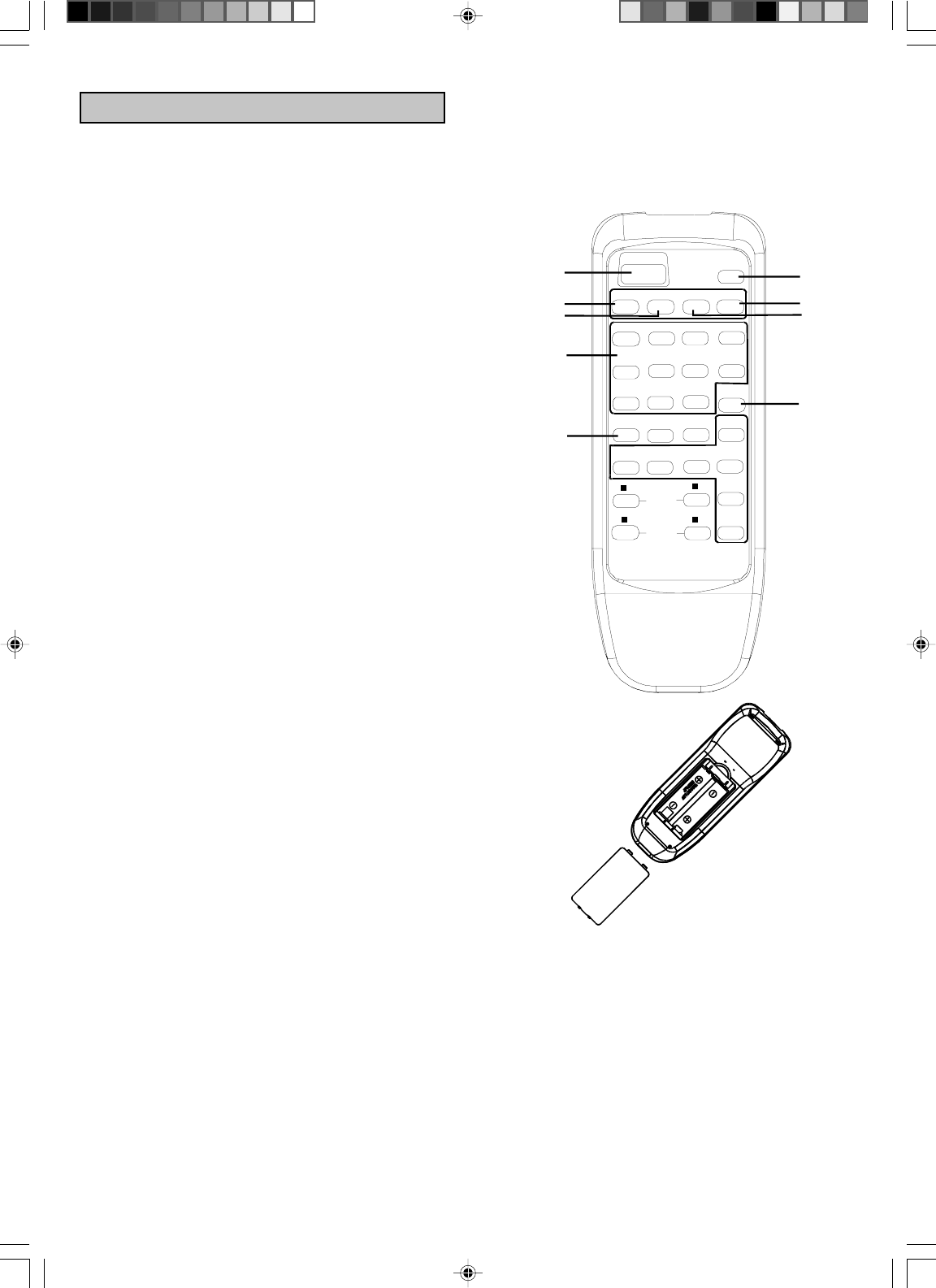

REMOTE CONTROL
++
++
_
_
MUTE
1
9
RANDOM
SKIP
TI M ER
TUNING
SEARCH
VOLUME
DISC- SKIP
EQ
+10
INTRO
M- DOWN/
STOP
M- UP/
REPEAT
OPEN/
CLOSE
PLA Y/
PAUSE
5
0
678
43
AUX
TAP E
TUNER/BAND
CD
2
POWER
+
_
SLEEP
MEMO/
C.ADJ
MODE/
REMAIN
POSITIONING YOUR MAIN UNIT
SM51TR.p65 2001/7/3, PM 02:214
5
1. FM ANTENNA (FM 300 ohm)
For connecting the 300 ohm supplied antenna .
2. AUX IN (L/R)
For connecting external audio equipment.
3. FRONT SPEAKERS (4 OHM)
Connect supplied left and right front speakers.
4. AC POWER CORD
Plug into a standard 120V/60Hz household wall
outlet.
NOTE: Press and hold speaker terminal tab down to
insert wire. Release tab to lock wire in terminal. Make
sure the insulation is completely removed from the
ends of the antenna and speaker wires at all
connection points.
REAR PANEL CONNECTIONS
1
23
4
ANTENNA OR SPEAKER WIRE CONNECTION
TO TERMINALS
SM51TR.p65 2001/7/3, PM 02:215
6

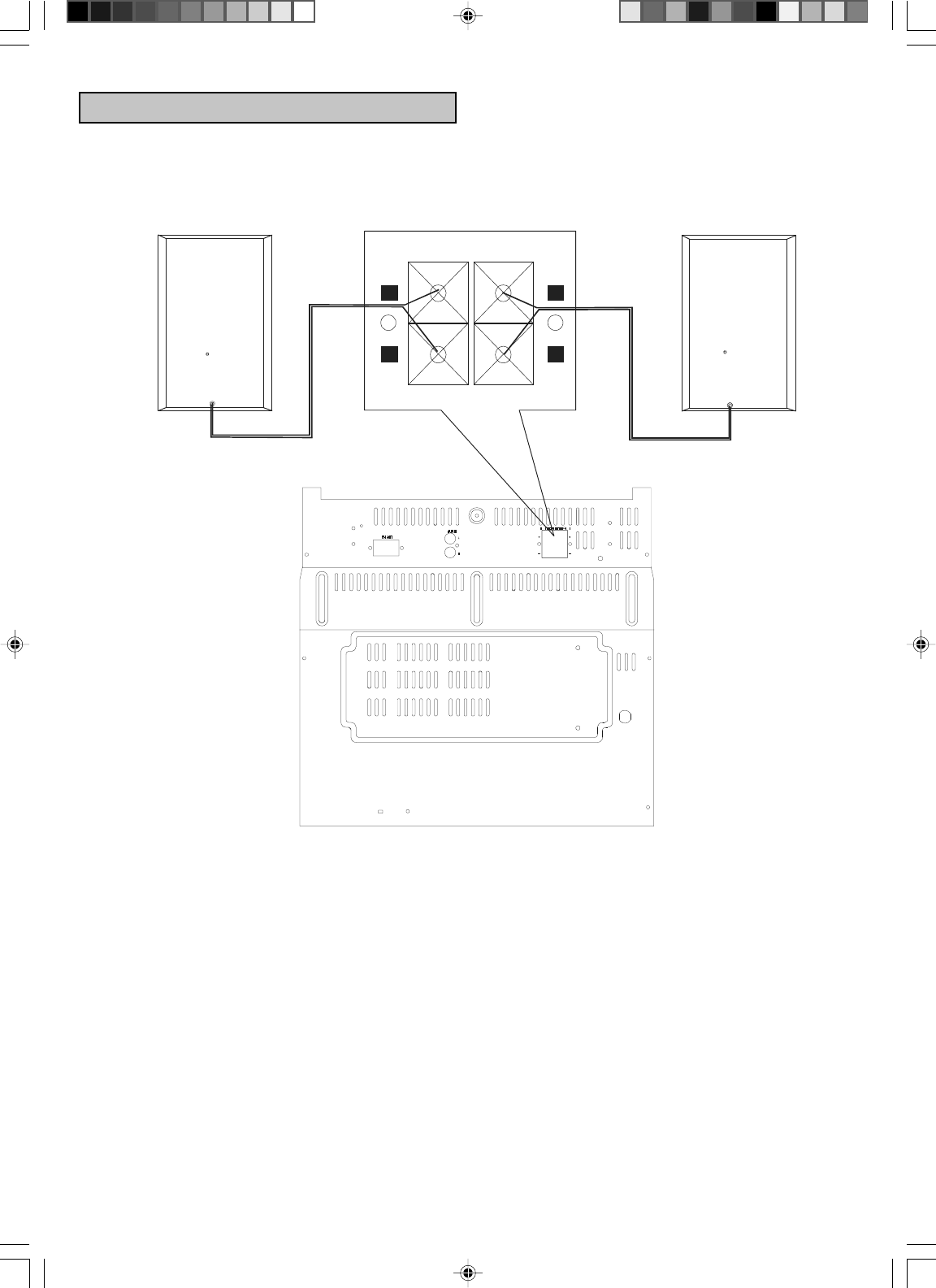

Connect the right speaker to the speaker “ R” terminals on the back of the main unit, and the left speaker to
the speaker “ L” terminals.
Make sure the (+) red and (–) black cables are connected to the correct speaker terminals.
LL
R SPEAKERS L
+
-
+
-
RIGHT LEFT
CONNECTING THE SPEAKERS
SM51TR.p65 2001/7/3, PM 02:216
7

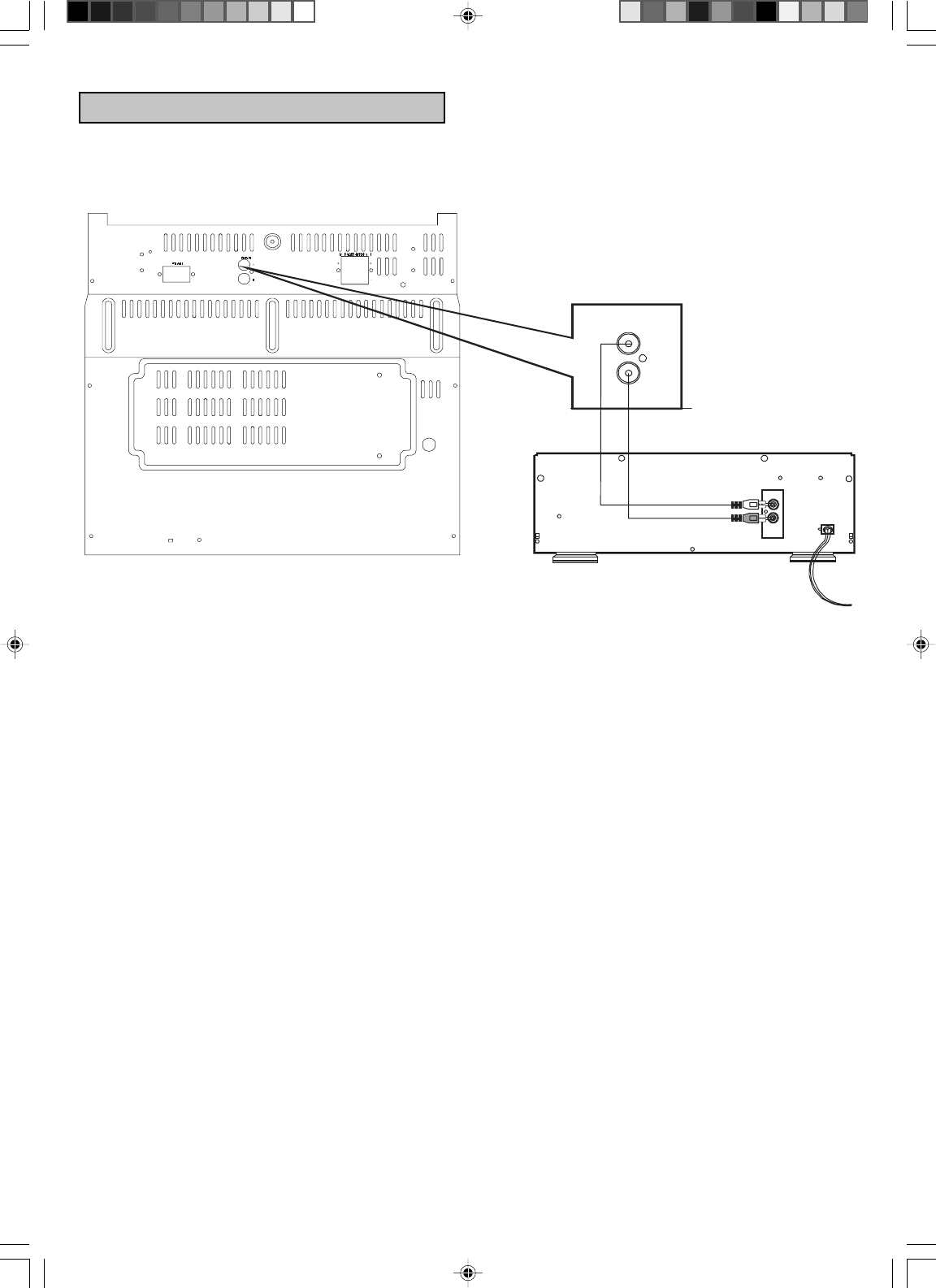

Connect the “ L” and “ R” Audio output terminals of your A/V system to the “ L” and “ R” AUX IN terminals of
the main unit.
AUX IN
L
R
R
L
OUT
Audio output of external A/V equipment
CONNECTING TO EXTERNAL EQUIPMENT
SM51TR.p65 2001/7/3, PM 02:227
8
MODE/
REMAIN
DISC SKIP
MEMO/
C-ADJ.
INTRO. PLAY/PAUSE RANDOM
FLAT
TUNER/BAND CD TAPE PHONO/AUX
SLEEP
OPEN/CLOSE
VOLUME
PHONES
RECORD/PLAY BACK
A
PLAY BACK
B
6
78
910
11
12 13 14 15 16 17
18
19
21
22 23
20
25
45
1
2
3
24
27 28
26

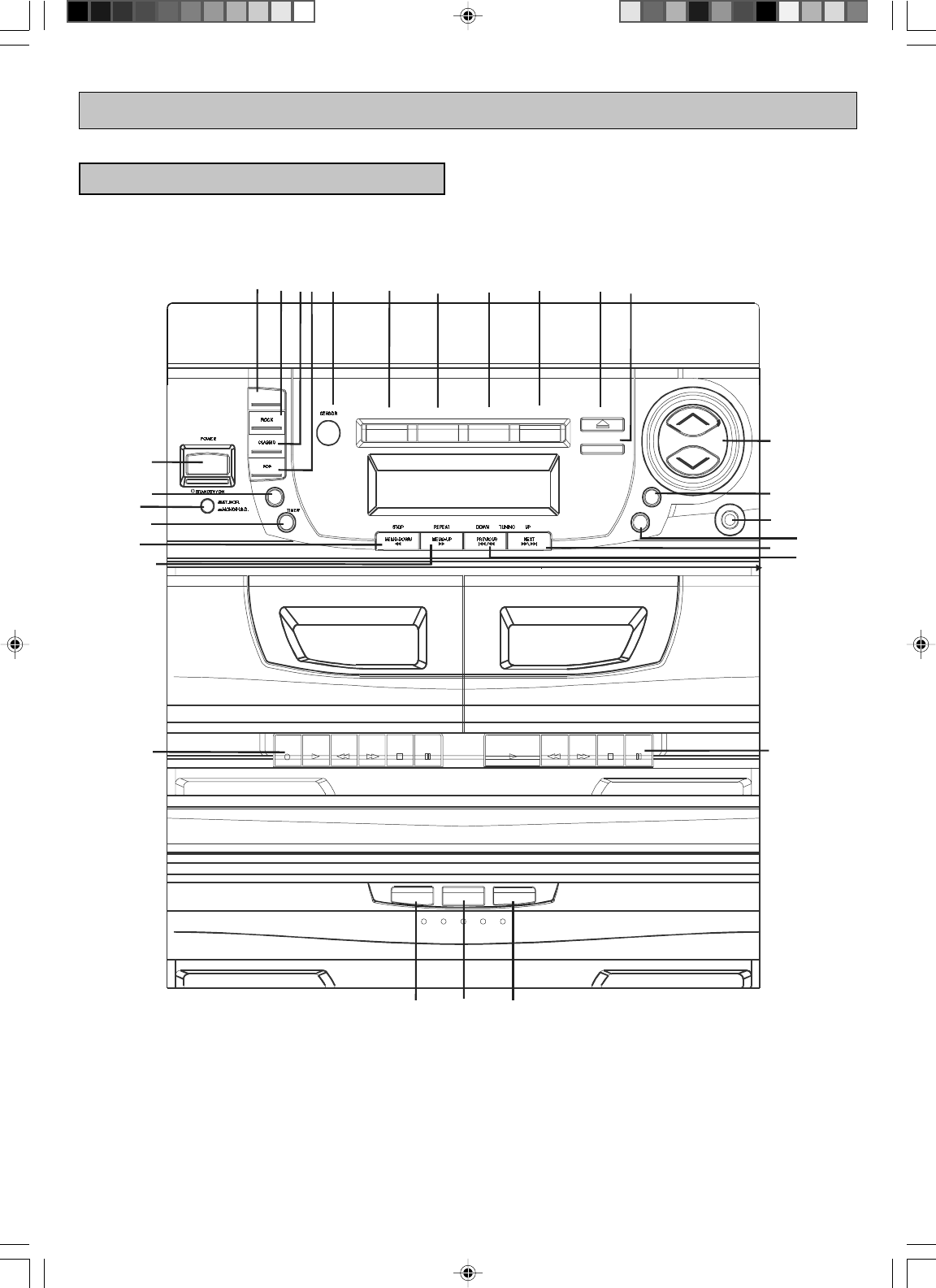

LOCATION OF CONROLS
FRONT PANEL
SM51TR.p65 2001/7/3, PM 02:228
9
1. REPEAT / MEMO-UP Button.
• In CD mode, press to change the following repeat
play modes : All disc, Repeat all disc, Repeat
one disc, Repeat one track.
• In TUNER mode, press to display the preset
memory in ascending order.
2. STOP / MEMO-DOWN Button.
• In CD mode, press to stop CD playing and exit
CD memory registration mode. When CD is
stopped, press this key to clear CD memory.
• In TUNER mode, press to display the preset
memory in descending order.
3. TIMER Button.
Press to set timer ‘On’ or ‘Off’. When timer is ‘On’,
will illuminate.
4. ST. / NOR & MONO / H.S.D. Button.
• In TAPE RECORD mode, press to select normal
recording mode or high speed recording mode.
• In FM mode, press to select either STEREO
sound or MONO sound.

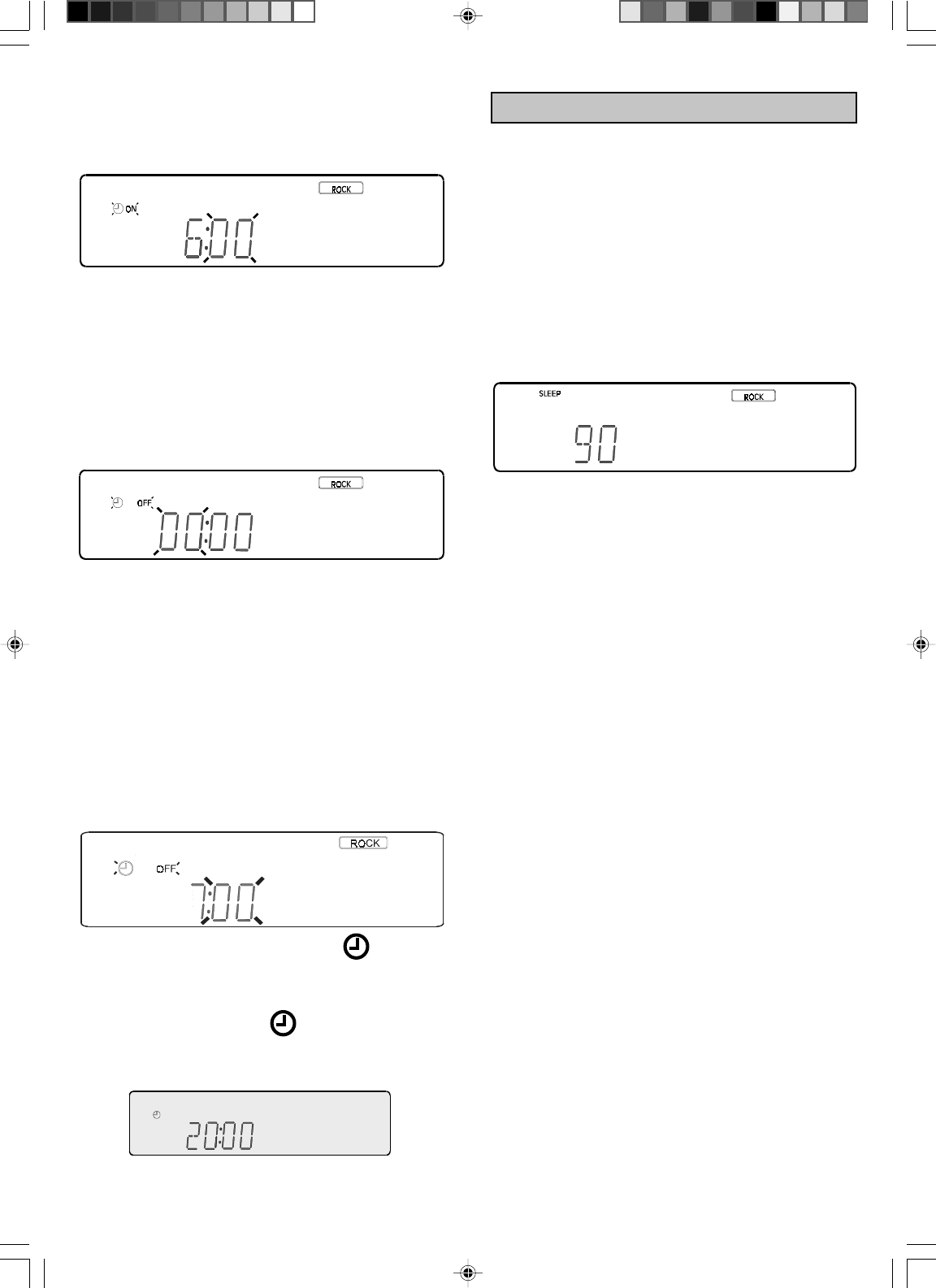

5. SLEEP Button.
Press to select the SLEEP timer ‘On’ or ‘Off’. Keep
pressing this key to set the sleep timer from 90 to
10 minutes in 10 minute step.
6. POWER Button.
Press the POWER button to switch the main unit
to ON or STANDBY.
7. FLAT Button.
Press to select EQ to FLAT mode.
8. ROCK Button.
Press to select EQ to ROCK mode.
9. CLASSIC Button.
Press to select EQ to CLASSIC mode.
10. POP Button.
Press to select EQ to POP mode.
11. SENSOR Button.
Infrared rays sensor, to receive the information
transmitted from the remote handset.
12. TUNER / BAND Button.
• Press to select TUNER mode.
• In TUNER mode, press to select FM or AM band.
13. CD Button.
• Press to select CD mode.
• In CD mode, it has the same function as DISC
SKIP. Press to set or skip to next valid disc in
ascending order.

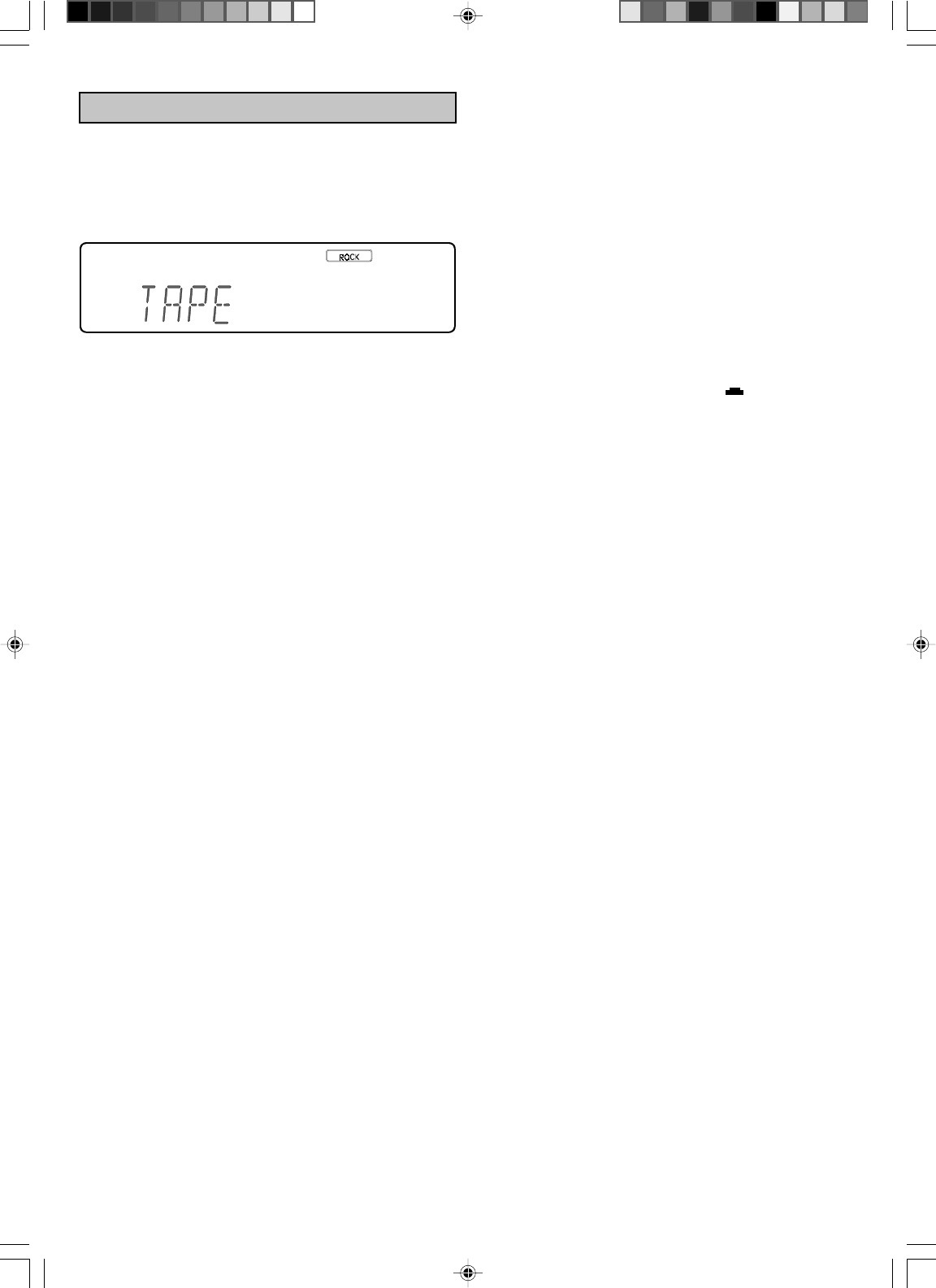

14. TAPE Button.
Press to select the TAPE function.

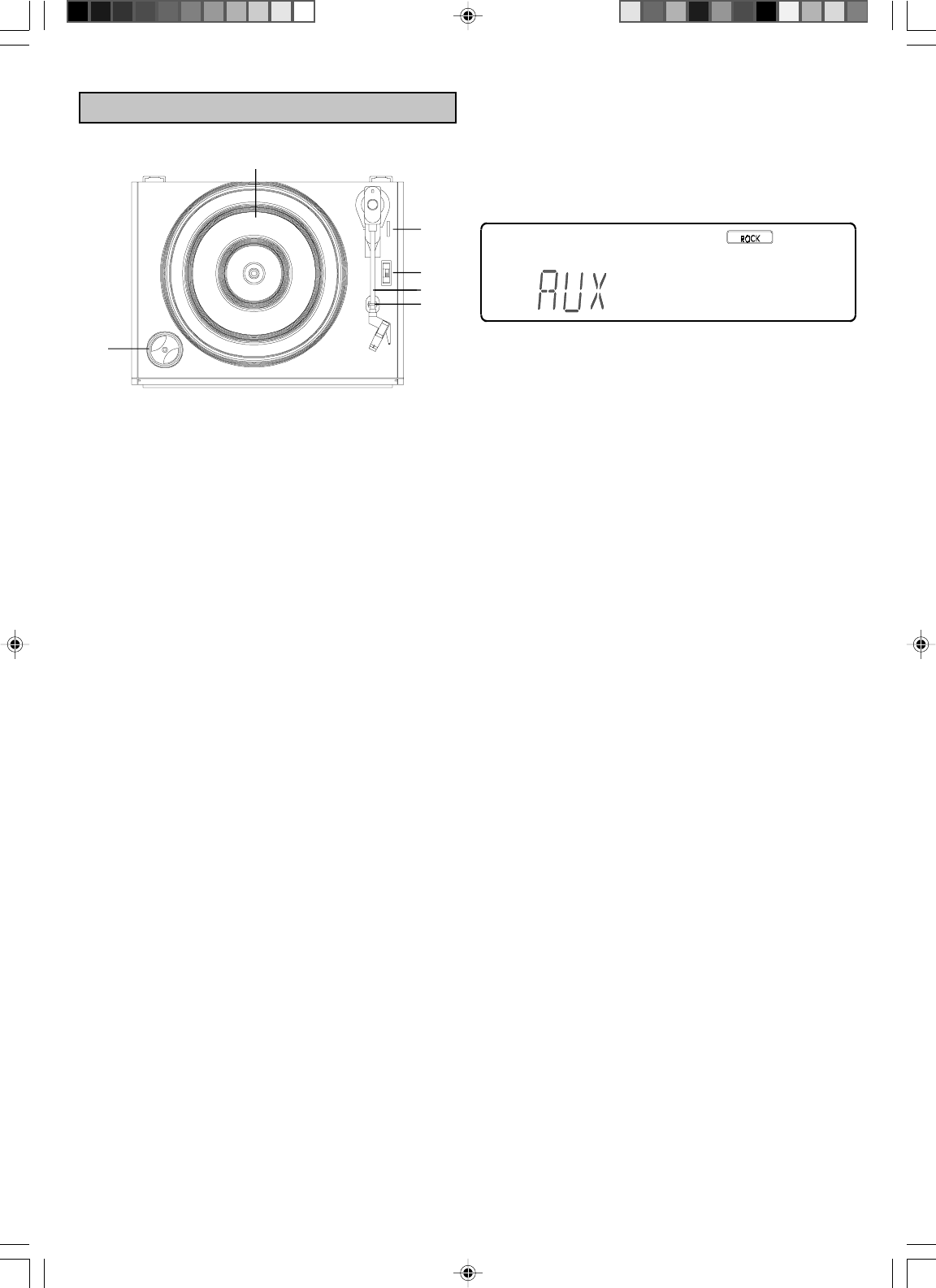

15. PHONO / AUX Button.
Press to select playing Turntable or from AUX IN
source.
16. OPEN / CLOSE Button.
Press to open or close the CD tray.
17. DISC SKIP Button.
• In CD memory set mode, press to set to next
valid disc number in ascending order.
• In CD normal play or stop mode,press to skip to
next valid disc in ascending order.
• Not in CD mode, press to skip to next valid disc
in ascending order when the CD tray is opened.
18. VOLUME Up / Down Buttons.
Press the VOLUME button to adjust the volume
level up or down.

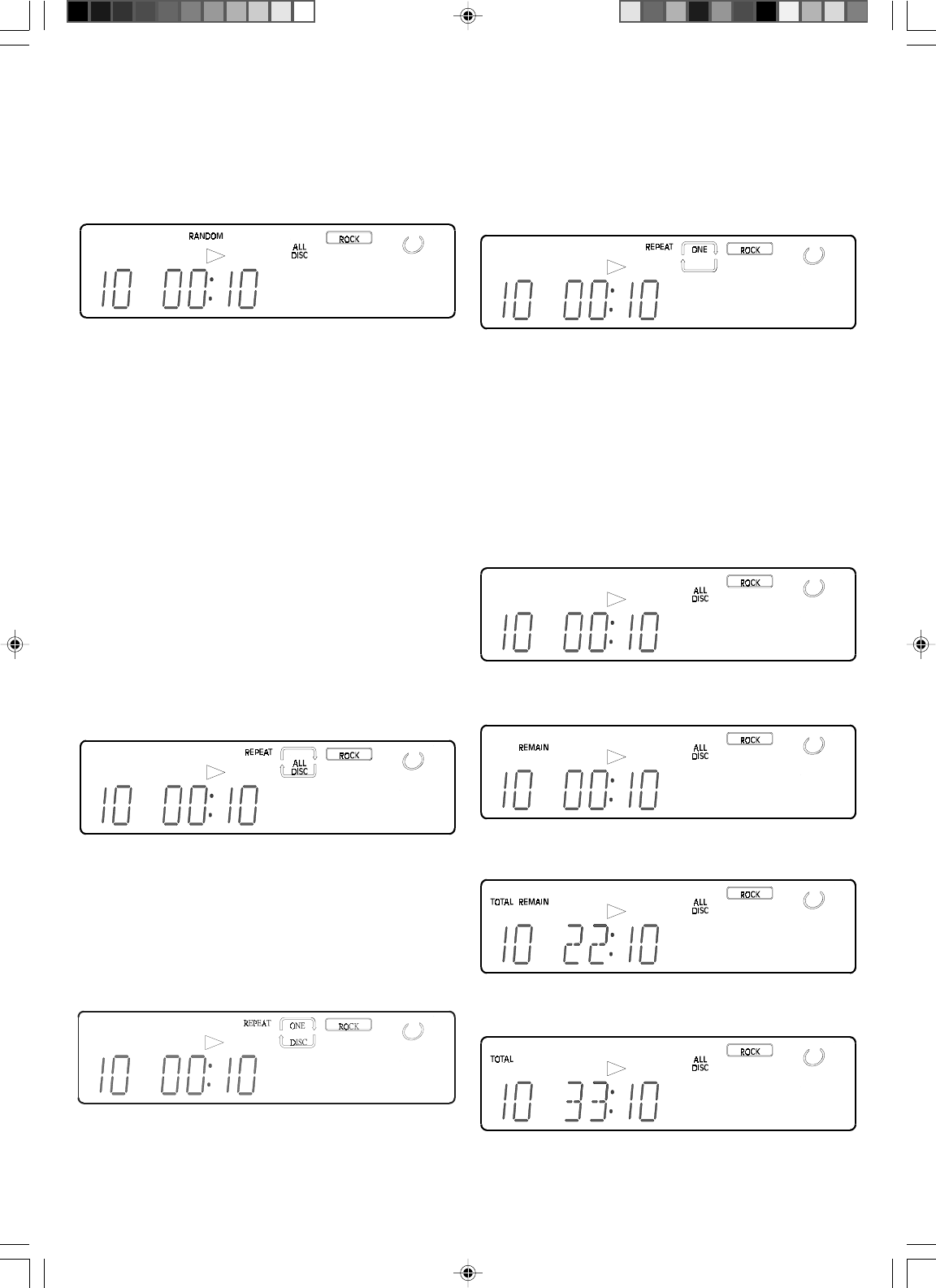

19. MODE / REMAIN Button.
• In TUNER mode, press to change the following
display : Band and Frequency, Time display.
• In CD normal play mode, press to change the
following display : Playing time, Remaining time,
Total remaining time, Total playing time, Time
display.
• In CD random play mode, press to change the
following display : Playing time, Remaining time,
Time display.
• In CD memory play mode, press to change the
following display : Playing time, Remaining time,
Program number, Time display.
• In CD stop mode, press to change the following
display : All time display, Time display.
• In TAPE or PHONE/AUX mode, press to change
the following display : AUX or TAPE, Time
display.
NOTE:
The above Time display includes: Clock display,
Timer ON, Timer OFF.
SM51TR.p65 2001/7/3, PM 02:229
10
20. PHONES Jack.
Plug stereo headphones into this jack. Speakers
are cut off.
21. MEMO / C-ADJ. Button.
• In TUNER mode, press to store AM/FM stations
in the memory locations.
• In CD mode, press to program CD tracks in
memory locations.

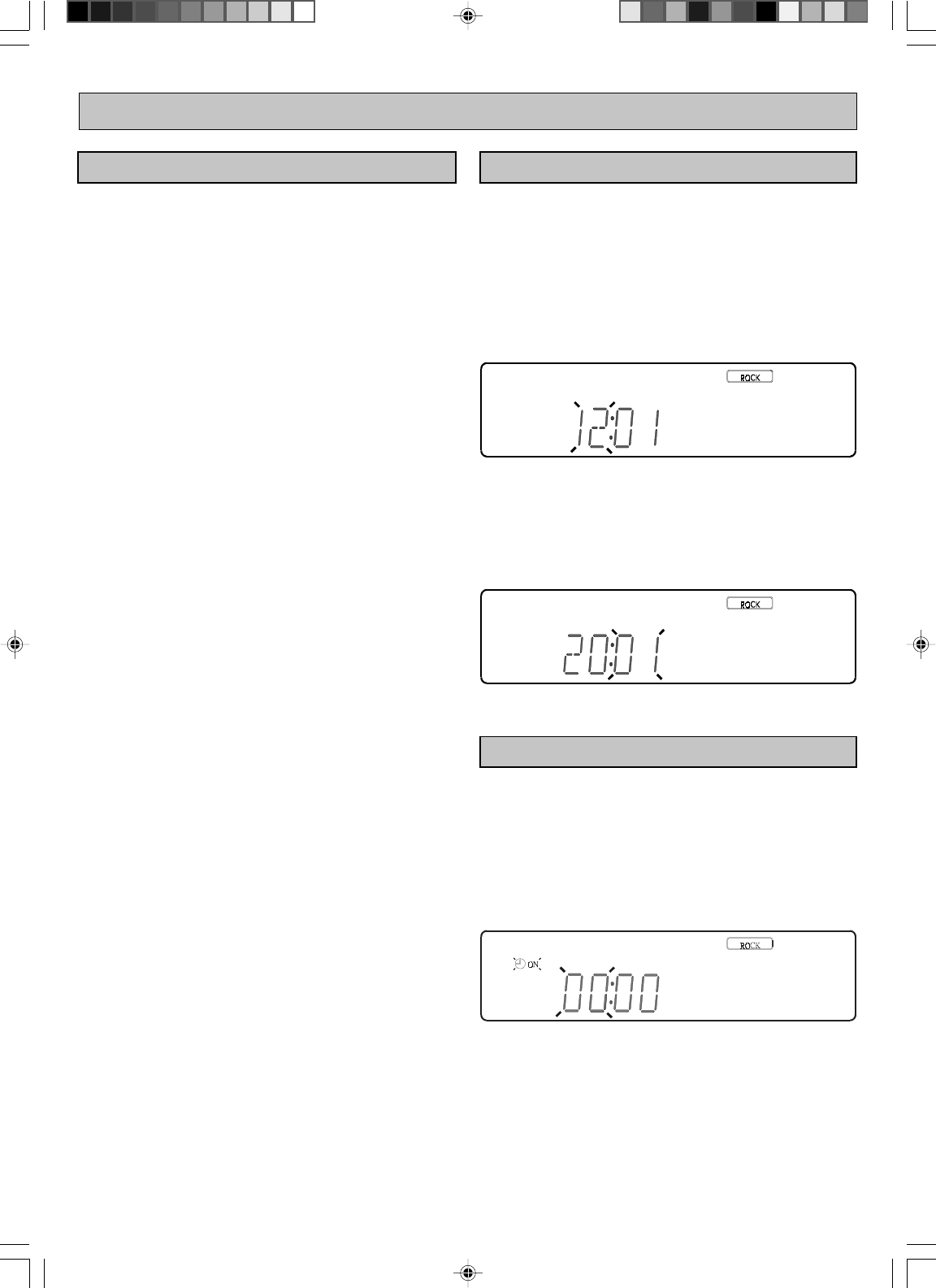

• In clock adjust mode, press to set clock or timer
time.
22. TUNING UP / NEXT Button.
• In TUNER mode, press less than 0.5 second to
do manual tuning in ascending order.
• In TUNER mode, press longer than 0.5 second
to do auto tuning in ascending order.
• In CD mode, press less than 0.5 second to move
track in ascending order.
• In CD mode, when CD is playing, press longer
than 0.5 second to search in ascending order.
• In clock or timer adjusting mode, press to adjust
clock time in ascending order.
23. TUNING DOWN / PREVIOUS Button.
• In TUNER mode, press less than 0.5 second to
do manual tuning in descending order.
• In TUNER mode, press longer than 0.5 second
to do auto tuning in descending order.
• In CD mode, press less than 0.5 second to move
track in descending order.
• In CD mode, when CD is playing, press longer
than 0.5 second to search in descending order.
• In clock or timer adjusting mode, press to adjust
clock time in descending order.
24. DECK A Control Keys.
RECORD — Press to activate cassette
recording.
PLAY — Press to activate cassette playback.
REWIND — Press to activate fast rewind.
F. FWD — Press to activate fast forward.
STOP / EJECT — Press to stop at play, rewind
or fast forward modes. Press a second time to
eject the cassette.
PAUSE — Press to pause playback.
25. DECK B Control Keys.
PLAY — Press to activate cassette playback.
REWIND — Press to activate fast rewind.
F. FWD — Press to activate fast forward.
STOP / EJECT — Press to stop at playback,
rewind or fast forward modes. Press a second
time to eject the cassette tape.
PAUSE — Press to pause playback.
26. INTRO Button.
Press to activate Intro scan play in CD mode. Press
again to cancel.
27. PLAY / PAUSE Button.
Press to begin playback of the CD and press again
to pause CD playback.
28. RANDOM Button.
Press to toggle CD random play mode. The
RANDOM indicator appears on the display and
tracks on all discs are played in random order.
When the last track of the last disc is played, the
system will automatically stop, unless you have
selected REPEAT mode.
SM51TR.p65 2001/7/3, PM 02:2210
11
13. CLASSIC
Illuminates if the CLASSIC EQ mode is selected.
14. DISC Numbers
Illuminates if the corresponding tray has disc in CD
mode.
15. FLAT
IIIuminates if the FLAT EQ mode is selected.
16. REC CD SYNC
Illuminates if the CD-SYNC tape recording function
has been selected.
17. MHz/KHz
Illuminates while the FM or AM station has been
selected in TUNER mode.
18. INTRO
Illuminates if you select the INTRO play function in
CD mode.
19. ON / OFF
will illuminate if the Timer is ‘On’ by pressing
the TIMER button on main unit.
ON will flash if Timer ON function is selected
by pressing the MODE / REMAIN button repeatedly.
OFF will flash if Timer OFF function is selected
by pressing the MODE / REMAIN button repeatedly.

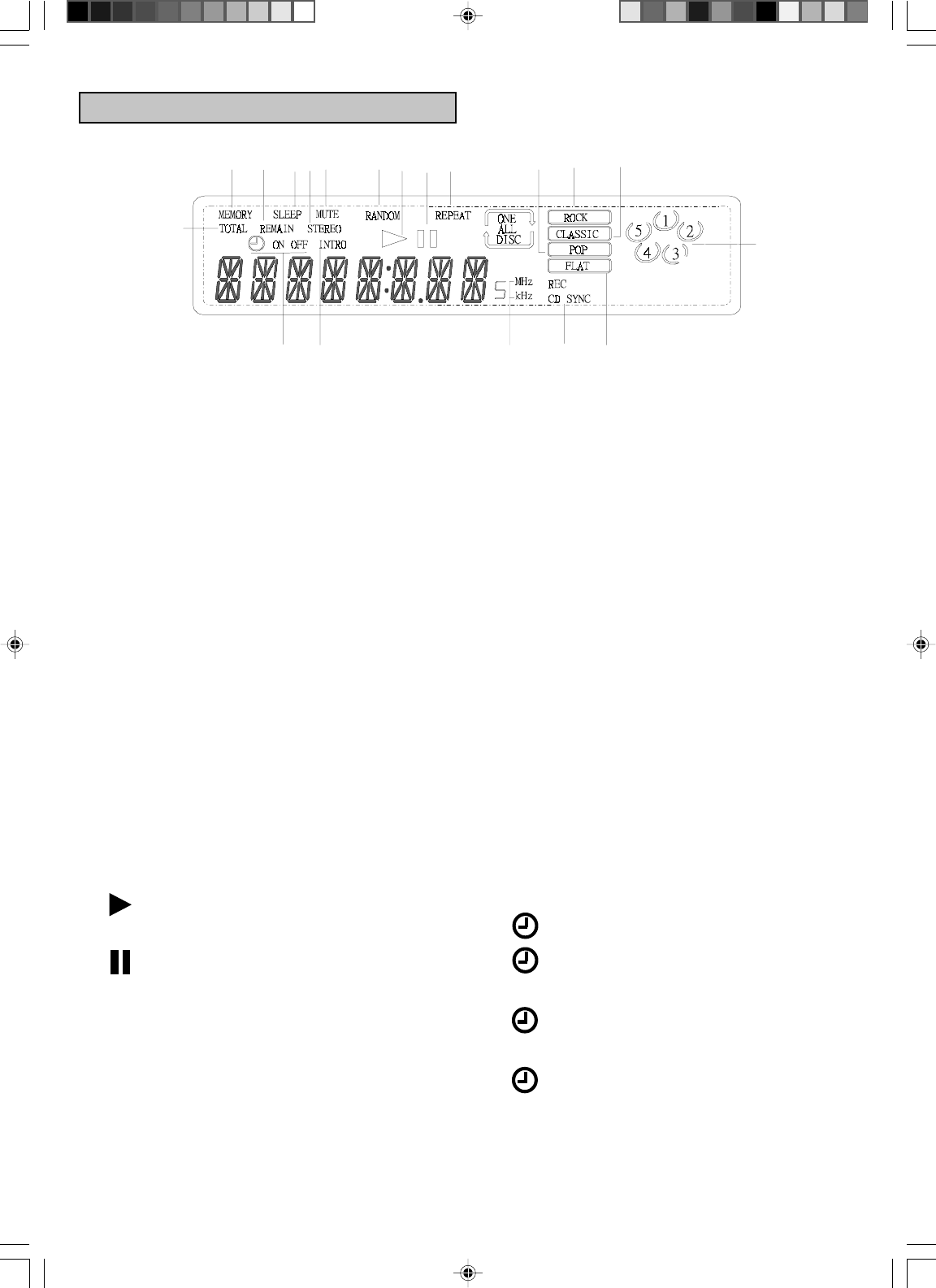

LCD DISPLAY
1. TOTAL
Illuminates if you select the total remain time or
total time in CD normal play mode.
2. MEMORY
Illuminates if any track or station has been stored
to a CD program or tuner memory in CD mode or
TUNER mode.
3. REMAIN
Illuminates if you select the each remain time or
total remain time in CD play mode.
4. SLEEP
Illuminates if you select the SLEEP function.
5. STEREO
Illuminates if FM stereo singal is received in FM
Stereo mode.
6. MUTE
Illuminates if you select the MUTE function.
7. RANDOM
Illuminates if you select the random play function
in CD mode.
8.
Illuminates during CD playback mode.
9.
Illuminates when CD playback has been paused.
10. REPEAT
Illuminates if you select the repeat play function in
CD mode.
24
56 7 8 9 10 11 12 13
1516171819
1
14
3
11. POP
Illuminates if the POP EQ mode is selected.
12. ROCK
Illuminates if the ROCK EQ mode is selected.
SM51TR.p65 2001/7/3, PM 02:2311
12

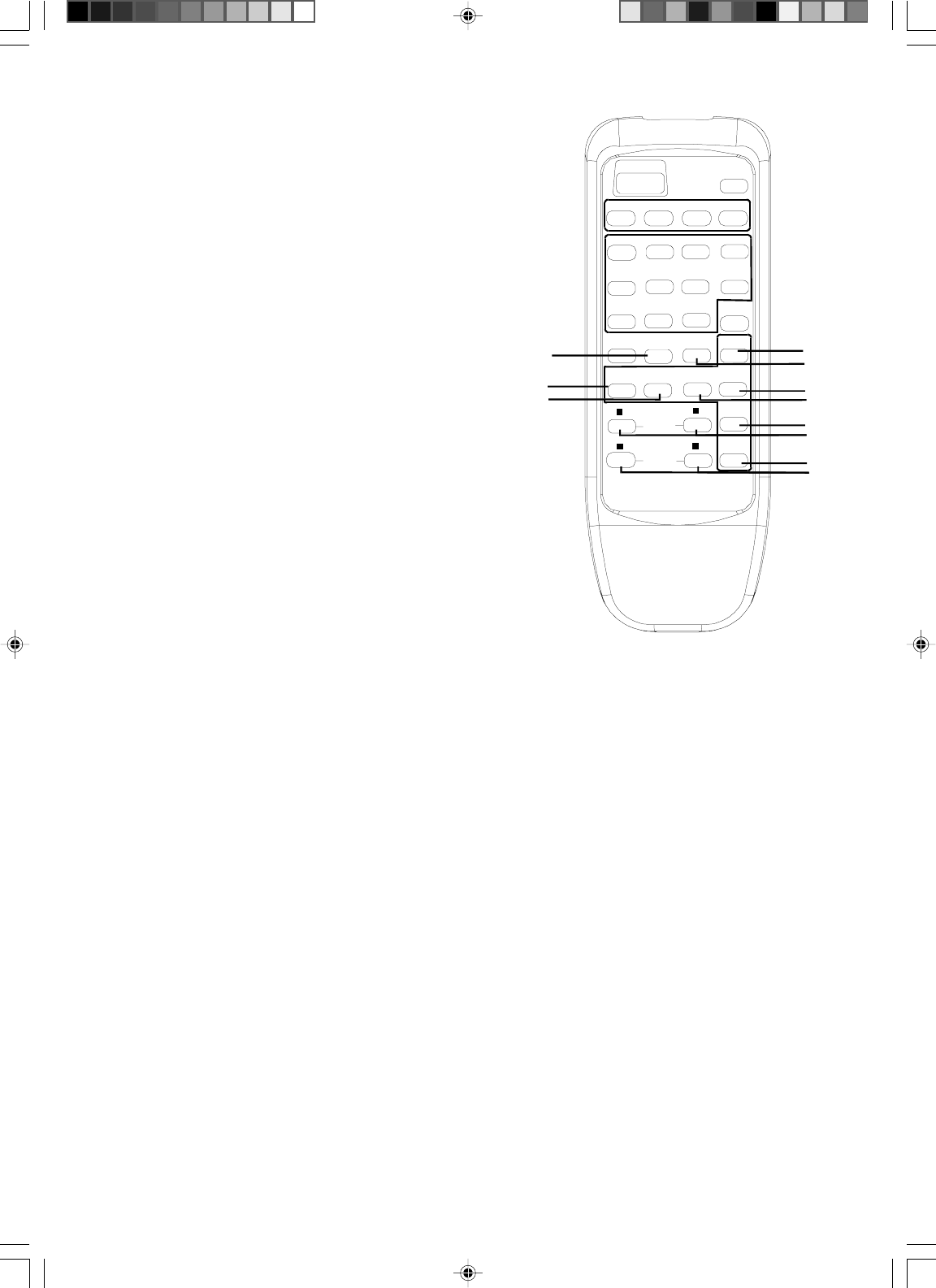

REMOTE CONTROL
1. POWER Button.
Press the POWER button to turn the unit ON or
STANDBY.
2. CD Button.
• Press to select CD mode.
• In CD mode, it has the same function as the DISC
SKIP button. Press to skip to next valid disc in
ascending order.
3. TUNER/BAND Button.
• Press to select TUNER mode.
• In TUNER mode, press select FM or AM band.
4. 0–9 / +10 Buttons.
• In CD mode, press to select desired track.
• In TUNER mode,press to select desired preset
station.
5. MODE / REMAIN Button.
• In TUNER mode, press to change the following
display : Band and Frequency, Time display.
• In CD normal play mode, press to change the
following display : Playing time, Remaining time,
Total remaining time, Total playing time, Time
display.
• In CD random play mode, press to change the
following display : Playing time, Remaining time,
Time display.
• In CD memory play mode, press to change the
following display: Playing time, Remaining time,
Program number, Time display.
• In CD stop mode, press to change the following
display : All time display, Time display.
• In TAPE or AUX mode, press to change the
following display : TAP or EAUX , Time display.
6. MUTE Button.
Press to mute the sound. Press again to resume
to its previous level. The MUTE indicator will
illuminate when the MUTE function is ‘On’.
7. PH. / AUX Button.
Press to select playing Turntable or from AUX IN
source.
8. TAPE Button.
Press to select TAPE function .
9. EQ Button.
Press the button repeatedly to select ROCK,
CLASSIC, POP or FLAT EQ setting and the
corresponding indicator will illuminate.
INSTALLING BATTERIES:
1. Remove the battery cover from the back of the
remote.
2. Insert 2 “AA” batteries into the remote, observe the
polarity diagram (+ / –) inside the battery
compartment.
3. Replace the battery cover.
++
++
_
_
MUTE
1
9
RANDOM
SKIP
TI M ER
TUNING
SEARCH
VOLUME
DISC- SKIP
EQ
+10
INTRO
M- DOWN/
STOP
M- UP/
REPEAT
OPEN/
CLOSE
PLA Y/
PAUSE
5
0
678
43
AUX
TAP E
TUNER/BAND
CD
2
POWER
+
_
SLEEP
MEMO/
C.ADJ
1
2
3
4
5
6
7
8
9
MODE/
REMAIN
NOTE: Time display includes: Clock display, Timer
ON, Timer OFF.
SM51TR.p65 2001/7/3, PM 02:2312
13
10. MEMO / C-ADJ. Button.
• In TUNER mode, press to store AM/FM stations
in the memory locations.
• In CD mode, press to program CD tracks in
memory locations.
• In clock adjust mode, press to set clock or timer
adjustment.
11. OPEN / CLOSE Button.
Press to open or close the CD tray.
12. RANDOM Button.
Press to toggle CD random play mode. The
RANDOM indicator appears on the display and
tracks on all discs will play in random order. When
the last track of the last disc is played, the system
will automatically stop, unless you have selected
REPEAT mode.
13. INTRO Button.
Press to select Intro scan play in CD mode. Press
again to cancel.
14. SLEEP Button.
Press to select the SLEEP timer ‘On’ or ‘Off’. Keep
pressing this key to set the sleep time from 90 to
10 minutes in 10 minute step.
15. M-UP / REPEAT Button.
• In CD mode, press to change the following repeat
play mode: Repeat all disc, Repeat one disc,
Repeat one track.
• In TUNER mode, press to recall the preset
memory in ascending order..
16. DISC SKIP Button.
• In CD memory set mode, press to set to next
valid disc number in ascending order.
• In CD normal play or stop mode, press to skip to
next valid disc in ascending order.
• Not in CD mode, press to skip to next valid disc
in ascending order when the door is open.
17. M-DOWN / STOP Button.
• In CD mode, press to stop CD playing and exit
CD memory registration mode. When CD is
stoped, press this key to clear CD memory.
• In TUNER mode, press to display the preset
memory in descending order.
++
++
_
_
MUTE
1
9
RANDOM
SKIP
TIMER
TUNI NG
SEARCH
VOLUME
DISC- SKIP
EQ
+10
INTRO
M- DOWN/
STOP
M- UP/
REPEAT
OPEN/
CLOSE
PLAY/
PAUSE
5
0
678
43
AUX
TAP E
TUNER /BA ND
CD
2
POWER
+
_
SLEEP
MEMO/
C.ADJ
11
12
10 13
14
15
17
18
19
20
16
MODE/
REMAIN
18. TUNING; CD SEARCH SKIP – / + Buttons.
• In TUNER mode, press less than 0.5 second to
do manual tuning.
• In TUNER mode, press longer than 0.5 second
to do auto tuning.
• In CD mode, press less than 0.5 second to skip
track up or down.
• In CD mode, when CD is playing, press longer
than 0.5 second to search up or down.
• In clock or timer setting mode, press to adjust
clock time.
19. PLAY/PAUSE Button.
Press to begin CD playback and press again to
pause CD playback.
20. VOLUME – / + Buttons.
Press (+) or (-) button to adjust the sound level up
or down.
SM51TR.p65 2001/7/3, PM 02:2313
14
1. Press the POWER button to turn the system ‘On’.
2. Select the source by pressing the desired source
selector button:
• Press TUNER button to listen to a radio station.
• Press TAPE button to play cassette.
• Press CD button to listen to a compact disc.
• Press PHONO / AUX button to select turntable
function or listen to audio source of laser disc
player, camcorder or VCR etc.
3. Press the VOLUME button on the front panel or on
the remote control to adjust the volume level up or
down.
4. Press the EQ button repeatedly to select a preset
equalizer mode: ROCK , CLASSIC, POP or FLAT.
NOTE:
The Graphic Equalizer separates and adjusts the bass,
midrange and treble levels. These preset selections
adjust the sound to simulate and enhance the
acoustical effects of ROCK, CLASSIC, POP or FLAT.
5. Press the MUTE button to mute the sound. The
MUTE indicator will illuminate. Press again to return
to original sound level.
1. Turn the system on and press the MODE / REMAIN
button until the clock appears in the display.
2. Press the MEMO / C-ADJ button one time and hour
digit will flash .Then press the TUNING DOWN /
PREVIOUS or TUNING UP / NEXT button to adjust
the correct hour time. Observe AM or PM hour.
3. Press the MEMO / C-ADJ button again and minute
digit will flash. Then press the TUNING DOWN /
PREVIOUS or TUNING UP / NEXT button to adjust
the correct minutes.
TIMER ON SETTING
1. Turn the system ‘On and press the MODE / REMAIN
button twice until the Time ON appears.
2. Press the MEMO / C-ADJ button one time and hour
digit will flash. Then press the TUNING DOWN /
PREVIOUS or TUNING UP / NEXT button until the
correct hour is set. Observe AM or PM hour.
The system can automatically turn itself ‘On’ or ‘Off’
when the ON or OFF time arrives.
OPERATING INSTRUCTIONS
CLOCK SETTING
TIMER ON / OFF SETTING
GENERAL
SM51TR.p65 2001/7/3, PM 02:2314
15
3. Press the MEMO / C-ADJ button again and minute
digit will flash. Then press the TUNING DOWN /
PREVIOUS or TUNING UP / NEXT button until the
correct minute is set.
TIMER OFF SETTING
1. Press the MODE / REMAIN button until the Time
OFF appears.
2. Press the MEMO / C-ADJ button one time and hour
digit will flash. Then press the TUNING DOWN /
PREVIOUS or TUNING UP / NEXT button until the
correct hour is set. Observe AM or PM hour.
NOTE:
Make sure Timer indicator appears in the top left
corner. If Timer indicator does not appear on LCD
display, press MODE/REMAIN button and follow
steps above to set. To cancel Timer ON/OFF setting,
press MODE/REMAIN button until the Timer indicator
disappears from LCD display.
The system can automatically turn itself off after 10
to 90 minutes. Choose the period that you wish system
to stay on, and when the “SLEEP” time arrives, the
system will turn itself off automatically.
1. Turn the system on and press SLEEP button. The
“SLEEP” indicator will illuminate.
2. Press the SLEEP button continuously to set the
sleep time between 90 minutes to 10 minutes in
10 minutes step as desired.
3. Press the MEMO / C-ADJ button again and minute
digit will flash. Then press the TUNING DOWN /
PREVIOUS or TUNING UP / NEXT button until the
correct minute is set.
4. Press the TIMER button until the appears,
then press the POWER button to turn the system
to STANDBY mode.
NOTE: Make sure the is displayed. The
system will automatically turn on/off itself when set
time arrives.
SLEEP TIMER
SM51TR.p65 2001/7/3, PM 02:2415
16
1. Press POWER button to switch on the system.
Press TUNER / BAND button to select TUNER
function.
2. Press the TUNER / BAND button repeatedly to
select FM or AM band.
3. For manual tuning, quickly press and release the
TUNING DOWN / PREVIOUS or TUNING UP /
NEXT button to select the desired radio station.
4. For auto tuning, press and hold the TUNING
DOWN / PREVIOUS or TUNING UP / NEXT button
for 1 second. The system will search until a strong
radio station is found. If the station is not the desired
one, press and hold the TUNING DOWN /
PREVIOUS or TUNING UP / NEXT button again
to search for the next station. Weak stations are
skipped during automatic tuning.
NOTE:
When tuning, the sound will be muted to eliminate
interfering background noises. When a station is found,
the audio signal will come back on. “STEREO”
indicator appears on the display when an FM stereo
signal is received. With weak FM stereo signals, you
may hear static or background noise. These noises
can be suppressed by switching to Mono mode by
pressing the ST./NOR. button to MONO /H.S.D.
position. “STEREO” indicator will disappear from
the display.

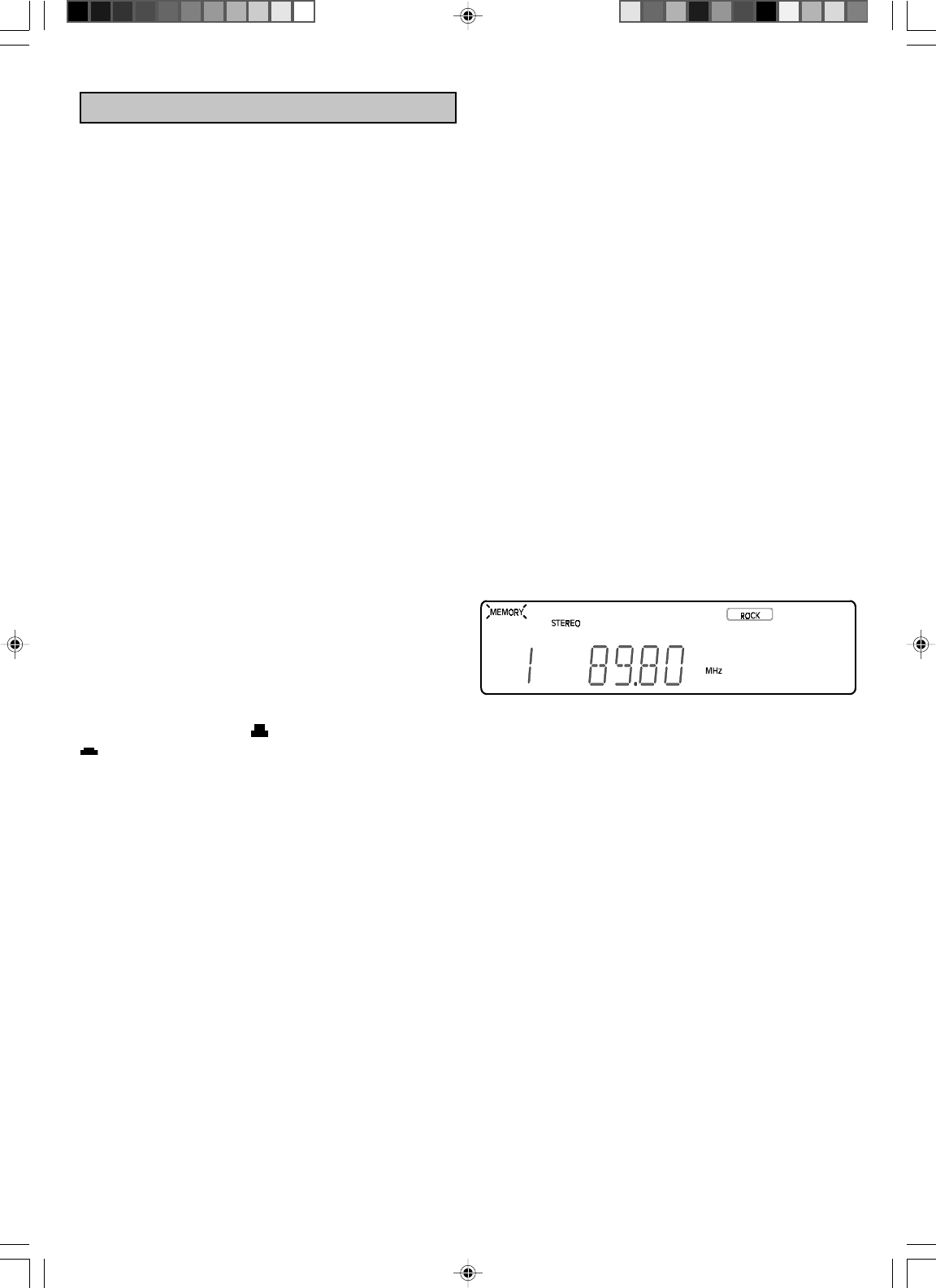

PRESET STATIONS INTO MEMORY
Storing Preset Stations.
You can store stations in the TUNER′s memory.
(20 FM and 20 AM).
1. Press TUNER / BAND button to select TUNER
function and FM or AM band.
2. Press the TUNING DOWN / PREVIOUS or
TUNING UP / NEXT button to select the radio
station you wish to store.
3. Press MEMO / C-ADJ button, the “MEMORY”
indicator will flash, then press REPEAT / MEMO-
UP or STOP / MEMO-DOWN or 0-9/+10 button on
remote control to select the desired location
number to store.
4. Press MEMO / C-ADJ button again to store the
station into the designated location.
5. To preset additional stations, follow steps 2 to 4 up
to 20 presets for each FM and AM band.
Recalling Preset Stations.
1. Select the TUNER function and FM or AM band
with the TUNER / BAND button.
2. Press the REPEAT / MEMO-UP or STOP / MEMO
-DOWN button until the desired preset memory
number appears. Or press the 0-9/+10 digit buttons
on the remote control to select the preset stations
directly.
AUTO ( automatic ) / MANUAL TUNING
LISTENING TO TUNER
SM51TR.p65 2001/7/3, PM 02:2416
17
CONTROLS AND FEATURES
1. 45 rpm Adapter.
2. Turntable platter.
3. Cueing lever.
4. Speed (33 rpm / 45 rpm) selector.
5. Tone arm.
6. Tone arm rest.
PLAYING PHONO RECORDS:
1. Press POWER button to turn the system ‘On’.
2. Remove the stylus (needle) cover.
3. Unlock the tone arm using the tone arm lock.
4. Press PHONO / AUX button to select PHONO
function. AUX indicator appears on display.
5. Set the speed selector to either 33 rpm or 45 rpm
according to the record to be played. Place the 45
rpm adapter on center of spindle to play 45 rpm
records.
6. Place a record on the turntable. Use the cueing
lever to raise the tone arm. Move the tone arm
outwards, away from the turntable platter. The
turntable platter will start to rotate.
7. Move the tone arm over the record and release
gently. The stylus will lower onto the record and
start to play.
8. Adjust the VOLUME control to obtain desired
listening level.
33
45
3
2
4
5
6
1
TURNTABLE (PHONO Input)
9. Adjust the EQ control to suit your listening pleasure.
10. During play you may move the tone arm towards
the center of the turntable platter, to switch the
turntable ‘Off’. Be sure the tone arm is replaced
and locked correctly using the tone arm lock. This
will avoid damage to the stylus when the turntable
is not in use.
11. When the record has finished playing, the turntable
platter will switch off automatically. Secure tone arm
using the tone arm lock.
NOTE:
• When Turntable is playing, AUX IN signal will be
muted.
• In order to listen to AUX IN sound, the Turntable
must be switched ‘Off’.
SM51TR.p65 2001/7/3, PM 02:2417
18

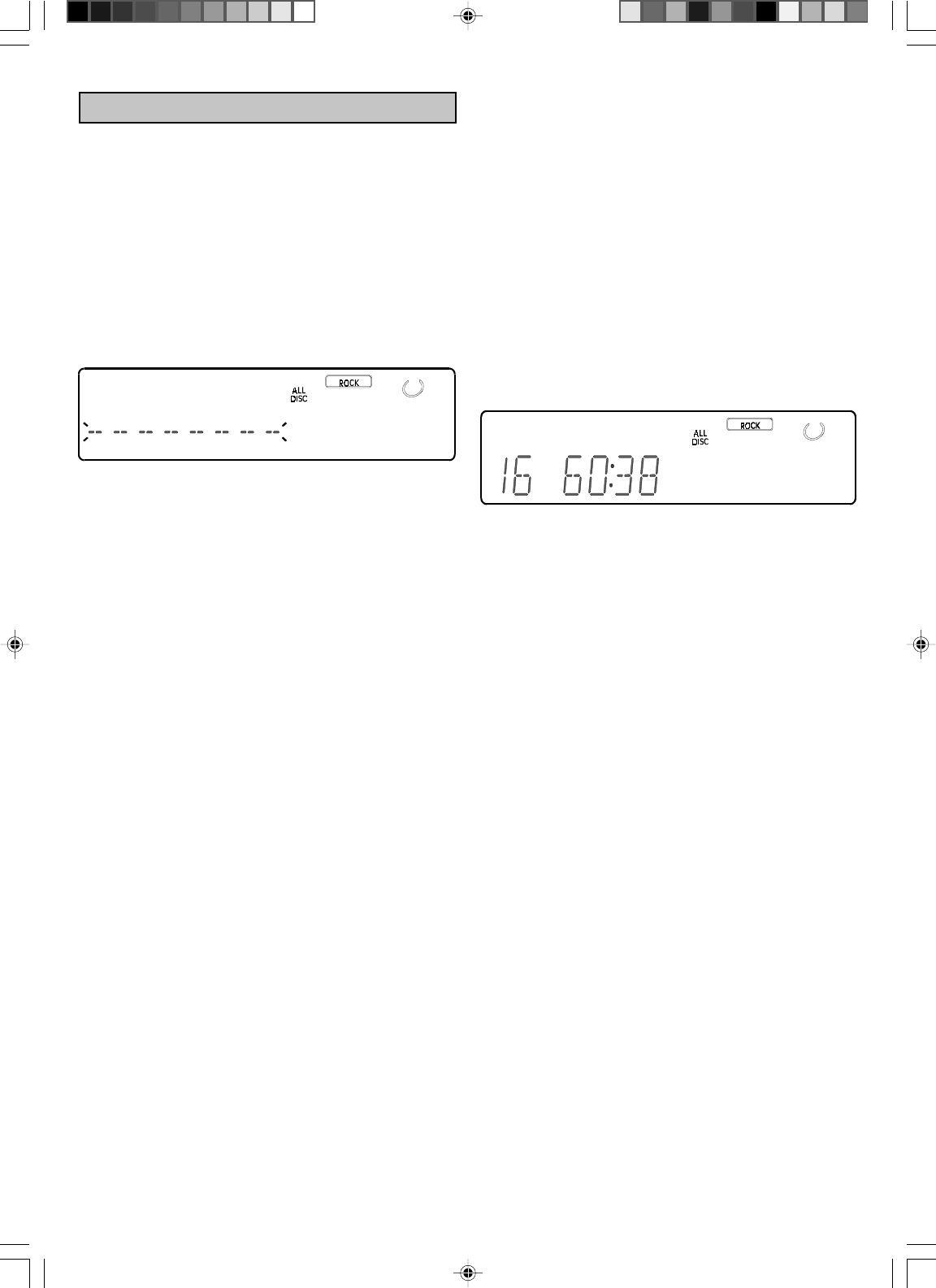

NORMAL CD PLAYBACK
DISC STATUS
To check the disc status, first press the PLAY / PAUSE
button to start playback, then press the DISC SKIP
button once for each disc.
1. When the particular disc tray is being checked by
the playback sensor, the total tracks number and
total time will be read and displayed.
2. If there is no disc in the selected tray, the disc
number indicator light goes out.
1. Press the PLAY / PAUSE button to start playback.
Press repeatly to start or pause the CD playback.
2. The playback sensor will search the disc trays.
3. If the first disc tray is empty, the disc number
indicator for that disc will disappear. Then the
playback sensor will detect the next disc and the
semi-circle indicator for the next disc will illuminate.
4. When the first disc is found, it will immediately begin
to read and display the total tracks number and
total time of this disc. Press the PLAY / PAUSE
button to begin playback from track 1.
5. Press the TUNING DOWN / PREVIOUS or
TUNING UP / NEXT button briefly to select the
desired track.
6. Press and hold the TUNING UP / NEXT button to
move forward.
7. Press and hold the TUNING DOWN / PREVIOUS
button to move backward.
8. Press the STOP / MEMO-DOWN button to stop CD
playback.
9. You can pause CD playback by pressing PLAY /
PAUSE button. Press the same key again to
resume playback.
10. To select another disc, simply press the DISC SKIP
or CD button repeatedly until the desired disc is
selected.
1. Press the POWER button to turn the system ‘On’.
2. Press the CD button on the front panel or remote
control.
3. The disc indicator corresponding to the currently
selected disc will be surrounded by an illuminating
semi-circle at all times.
4. Press the OPEN / CLOSE button to open the CD
tray.
5. Insert only one disc into one CD tray.
6. Press the DISC SKIP or CD button to rotate and
you may load maximum 5 discs as desired.
7. Press the OPEN / CLOSE button again to close
the CD tray.
1
2
34
5
5
1
2
34
LOADING A DISC INTO THE CD TRAY
PLAYING COMPACT DISC
SM51TR.p65 2001/7/3, PM 02:2418
19
1. Press RANDOM button before or during play.
2. The RANDOM indicator illuminates and tracks are
now played in a random order.
CD RANDOM PLAYBACK
3. Each time you press the TUNING UP / NEXT
button the next randomly selected track will play.
4. Press the TUNING DOWN / PREVIOUS button to
return to the beginning of current track.
5. Press the RANDOM button again to return to
normal play.
3. Press the REPEAT / MEMO-UP button three times
before or during playback to select the REPEAT
ONE mode. When this mode is selected, the
selected track will play repeatedly.
4. To cancel the Repeat Playback function, press the
REPEAT / MEMO-UP button repeatedly until
REPEAT indicator disappears
1. Press the REPEAT / MEMO-UP button once before
or during playback to select the REPEAT ALL DISC
mode, and the “REPEAT ALL DISC” indicator will
illuminate. When this mode is selected, the tracks
on all discs will be played repeatedly.
CD REPEAT PLAYBACK
2. Press the REPEAT / MEMO-UP button twice before
or during playback to select the REPEAT ONE
DISC mode, and the “REPEAT ONE DISC”
indicator will illuminate. When this mode is selected,
all tracks on the selected disc will play repeatedly.
DISPLAYING TIME INFORMATION
1. In CD normal play mode, press MODE / REMAIN
button to change the following display :
• Playing time of current track.
• Remaining time of current track.
1
2
34
5
1
2
34
5
1
2
34
5
1
2
34
5
1
2
34
5
1
2
34
5
• Total remaining time of current disc
• Total playing time of current disc.
1
2
34
5
1
2
34
5
SM51TR.p65 2001/7/3, PM 02:2419
20
PROGRAMMING CD TRACKS
Storing a Program
1. In CD stop mode, press the MEMO / C-ADJ button
to select the CD program function.
2. The track number, program number and
“MEMORY” indicators will flash.
3. Select the disc number by pressing the DISC SKIP
button, and press the TUNING UP / NEXT or
TUNING DOWN / PREVIOUS button until the
desired track number that you wish to program
appears on the display.
4. Press the MEMO / C-ADJ. button to store the track
number you selected into the CD program, and the
CD program number will skip one step forward to
wait for you to select and store another track
number.
5. Select another track number and store the track
into the CD program following step 3 and step 4.
6. Up to 40 CD tracks can be programmed. When 40
tracks have been stored, “FULL” indicator flashes
on the display.
Playing Programmed Tracks
1. Press the PLAY / PAUSE button to start the CD
program from the first track you stored. “MEMORY”
indicator appears on the display.
2. Also you can press the TUNING DOWN /
PREVIOUS or TUNING UP / NEXT button to select
a particular programmed track to play.
3. Programmed tracks will remain stored in the
memory (even if the system is switched off) until
they are erased.
1
2
34
5
Checking Programmed Tracks
1. In CD PLAYBACK mode, press the TUNING
DOWN / PREVIOUS or TUNING UP / NEXT button
to check the CD programmed tracks stored.
2. Each time the TUNING DOWN / PREVIOUS or
TUNING UP / NEXT button is pressed, the CD
program number appears together with the
corresponding disc and track number.
Erasing Programmed Tracks
In CD stop mode, press the STOP / MEMO-DOWN
button to erase the CD program. The MEMORY
indicator goes out and the program tracks are erased.
NOTE:
When the CD program has been done, you can only
play the memory tracks. Unless you erase the CD
program, the CD normal playing cannot be resumed .
1
2
34
5
SM51TR.p65 2001/7/3, PM 02:2520
21

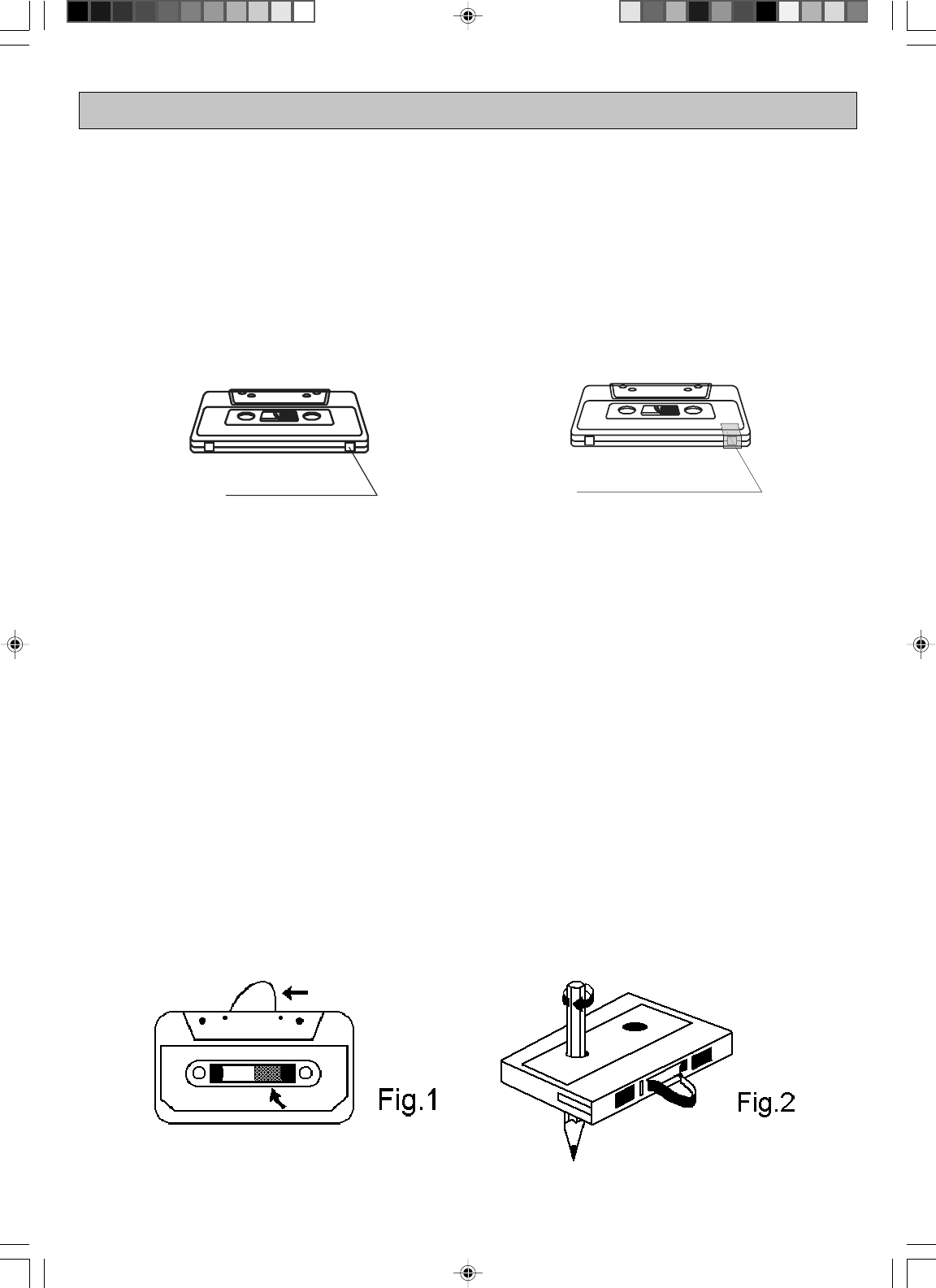

TAPE RECORDING
Tape Dubbing
1. Insert blank cassette tape into DECK A.
2. Insert pre-recorded cassette tape into DECK B.
3. Press the PAUSE button and PLAY button on DECK
B. Then press the RECORD button on DECK A.
Release PAUSE button on DECK A to start tape
dubbing.
NOTE:
To activate High Speed Dubbing, depress the ST./
NOR; MONO./H.S.D. button to MONO/H.S.D.
position.
6. To stop recording, press the STOP / EJECT button
on DECK A.
Recording from CD
1. Press CD button to select CD function and place
disc in the CD tray.
2. Insert blank cassette tape into DECK A.
3. Press the RECORD button on DECK A to start
recording from CD. The ”REC CD SYNC” indicator
appears on the display and the CD starts playback
at the same time.
4. To stop recording , press the STOP / EJECT button
on DECK A , the CD will change to Pause mode. If
you press the RECORD button again, CD playback
continues automatically.
Recording from TUNER
1. Press TUNER/BAND button to select TUNER
function.
2. Tune to the radio station as described in
LISTENING TO TUNER section that you want to
make recording.
3. Insert blank cassette tape into DECK A.
4. Press the RECORD button on DECK A to start
recording.
NOTE:
High Speed Dubbing does not function during CD or
TUNER recordings.
PLAYING CASSETTE TAPES
3. Depress the STOP / EJECT button of either DECK
A or DECK B to open the cassette door.
4. Insert pre-recorded tape into either DECK A or
DECK B.
5. Push the door back to close.
1. Press POWER button to switch on the system.
2. Pressing TAPE button to select Tape function.
TAPE indicator appears on the display.
NORMAL PLAYBACK ON DECK A or DECK B
1. Press the PLAY button to start playback.
2. Depress the REW button to rewind the tape. Press
STOP / EJECT button to stop at the desired point.
3. Depress the F. FWD button to start fast forward.
Press STOP / EJECT button to stop at the desired
point.
4. Depress the STOP / EJECT button to stop tape
playback. Depress the STOP / EJECT button again
to open the cassette door.
5. You can pause tape playback by pressing the
PAUSE button. Press the same button again to
resume playback.
CONTINUOUS TAPE PLAYBACK
1. Insert pre-recorded tapes into DECK A and DECK
B.
2. Press the PLAY button on DECK B to begin
playback.
3. Press the PAUSE button and then PLAY button on
DECK A.
4. When the tape in DECK B reaches the end. The
PAUSE button on DECK A will release
automatically and playback will begin.
SM51TR.p65 2001/7/3, PM 02:2521
22
CARE AND MAINTENANCE
ABOUT CASSETTE TAPES
Whenever you record on a cassette any previously recorded material is erased as the new material is recorded.
To prevent you from accidentally erasing material which you wish to save, blank cassettes are equipped with
erase prevention tabs for each side of the tape. If the erase prevention tab for side A is removed, you cannot
accidentally record on side A. The record key cannot be depressed if the erase prevention tab on the cassette
has been removed.
To prevent accidental erasing on side A of a cassette use a small screw driver or similar tool to break off the
erase prevention tab for side A. This prevents the record key from locking.
If later you do wish to record on side A of the cassette, cover the tab opening with a piece of cellophane tape. This
will allow the record key to function again.
CASSETTE CARE
Two common causes of trouble experienced when using cassettes are:
1.) Tape jamming — Leading to uneven speed in playback, and
2.) Tape tangling — Where the tape wraps itself around vital parts of themechanism.
To reduce the likelihood of these problems occurring, the following precautions should be observed:
• Check that there are no loose layers of tape visible through the cassette center window (see Fig. 1).
Take up any loose layers, using a pencil or hexagonal barrelled ballpoint pen, before inserting the cassette into the
machine (see Fig. 2).
• If the cassette feels “tight” while performing operation shown (see Fig. 2), the tape may be jamming due to “ridges”
formed in the winding of the tape (visible through the center window). These may be removed, in most cases, by
fast winding of the cassette from one end to the other and back again.
• Use only well-known brands of tape. Avoid use of C-120 cassettes.
Furthermore, do not expose cassettes to direct sunlight, dust or oil, and do not touch the tape surfaces.
A
COVER OPENING WITH TAPE
IN ORDER TO RECORD AGAIN.
A
TAB FOR SIDE A.
SM51TR.p65 2001/7/3, PM 02:2522
23

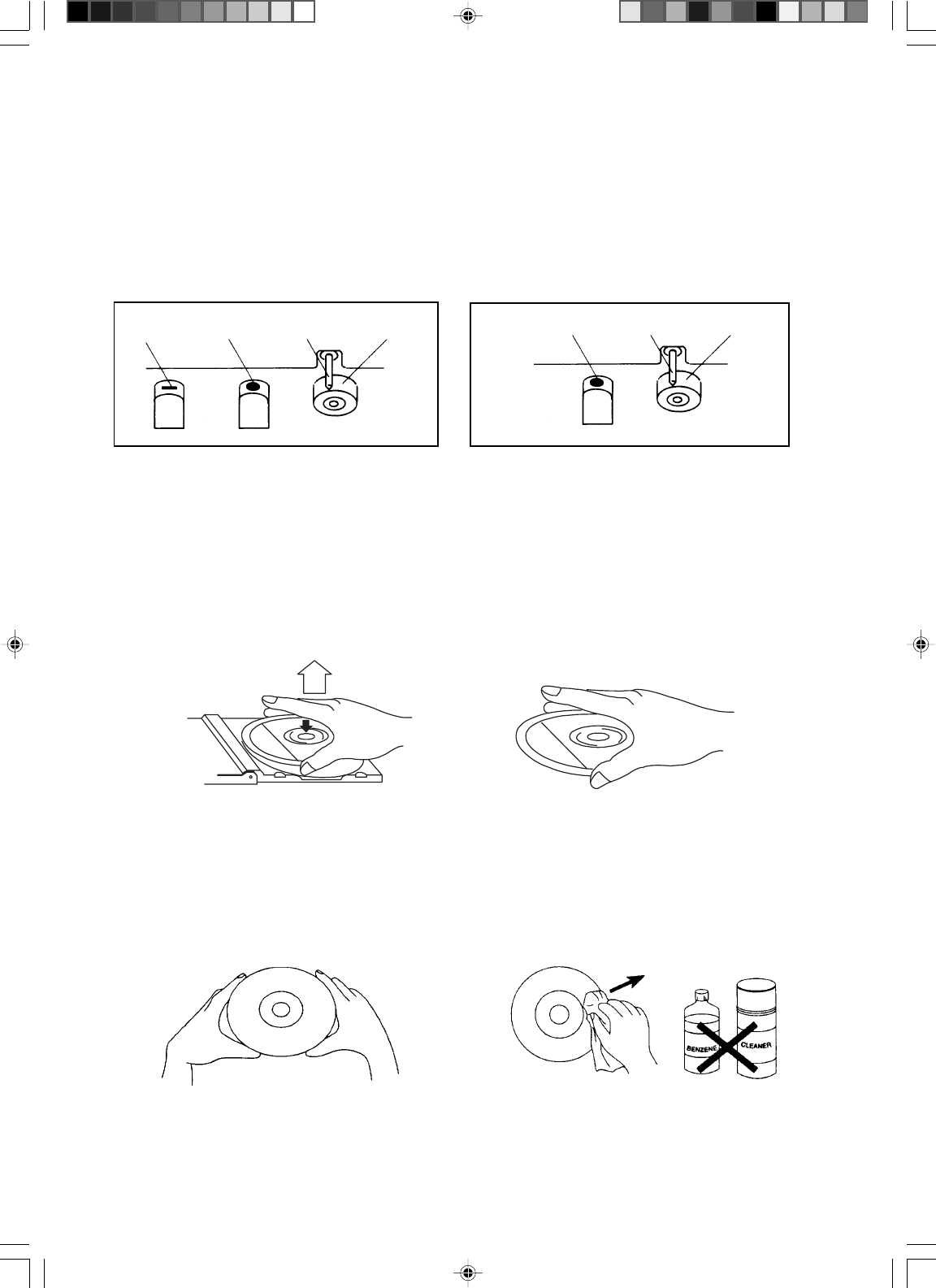

HEAD CLEANING
The tape heads, pinch roller and capstan require periodic cleaning. This removes particles of the metal oxide coating
that wear off the tape and accumulate on these parts and impair performance. Switch off the power, press the STOP/
EJECT key to open the cassette door, and press the PLAY key. Clean the tape heads, pinch roller and capstan with
a soft cloth or cotton pad dampened in isopropyl alcohol or special tape head cleaner.
COMPACT DISC CARE
• To remove a disc from its storage case, press down on the center of the case and lift the disc out, holding it
carefully by the edges.
• Fingerprints and dust should be carefully wiped off the disc’s recorded surface with a soft cloth.Unlike
conventional records, compact discs have no grooves to collect dust and microscopic debris, so gently wiping
with a soft cloth should remove most particles. Wipe in a straight line from the inside to the outside of the disc.
Small dust particles and light stains will have absolutely no effect on reproduction quality.
Record /
Erase head Play Head Capstan Pinch Roller
DECK A
Play Head Capstan Pinch Roller
DECK B
SM51TR.p65 2001/7/3, PM 02:2523
24
Please make these simple checks before calling for service. These tips can save you time and money.
NO POWER • Make sure the power cord is inserted fully into AC 120V/60Hz outlet.
• Check to be sure that the outlet is not controlled by a wall switch.
• Unplug the power cord, wait 1 minute, then reinsert the plug and press the POWER
button.
NO VOLUME • Check the VOLUME control setting.
• Make sure the correct function is selected (for instance, CD should be selected when
playing a CD ).
• Make sure the speakers are properly connected.
• Make sure the speaker wires are not shorted together.
• If headphones are plugged in, disconnect them.
REMOTE CONTROL • Check and if necessary, replace the batteries.
DOESN'T WORK • Make sure the remote is pointing directly to the Music Center.
• Make sure the Music Center is plugged into an operating wall outlet.
• The remote may be too far away from Music Center.
CAN'T TUNE IN • Repeat channel selection.
RADIO STATION • Make sure the antennas are properly connected and placed for best reception.
NOTE:
If operation of the unit or display is not normal, you should reset the unit by disconnecting it from the wall AC
outlet for 1 minute and then reinserting the plug.
WARNING:
IF YOU ARE UNABLE TO REMEDY A PROBLEM BY FOLLOWING THESE HINTS, CONSULT YOUR DEALER
OR AN AUTHORIZED SERVICE CENTER. UNDER NO CIRCUMSTANCES SHOULD YOU TRY TO REPAIR
THE SYSTEM YOURSELF, AS THIS WILL INVALIDATE YOUR WARRANTY.
FOR CUSTOMER SERVICE, PLEASE WRITE TO:
H.H. SCOTT, INC.
Consumer Affairs Dept.
1901 Diplomat Drive, Farmers Branch, TX 75234.
FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE
PLEASE CALL:
1-972-884-2380
(9 AM to 4 PM Central Time)
TROUBLE SHOOTING
SM51TR.p65 2001/7/3, PM 02:2524
25
H.H. SCOTT, INC.
LIMITED WARRANTY
What does this warranty cover? Any manufacturing defects in original material, including original parts and
workmanship, under normal use and conditions.
For how long? For a period of one (1) year from the date of original purchase in the U.S.
What will we do?If you need service under this warranty, and you provide us with the dated proof of purchase, we will
provide repair service at no charge for labor and parts at an authorized Depot Repair Facility, or replace the product in
our discretion.
How do you make your warranty claim? If it becomes necessary to repair your unit, you can obtain the name and
mailing location of a Depot Repair Facility by dialing 1-888-837-8370. You should pack your unit in a well-padded
heavy corrugated box, enclose your check or money order payable to the Depot Repair Facility in the amount of $15.00
to cover the return shipping and handling costs, and enclose a copy of your proof of purchase (warranty service will not
be provided without a dated proof of purchase). Finally, you should ship the unit prepaid via UPS or parcel post (insured).
What does your warranty not cover? Your warranty does not cover the following:
• Damage from negligence, misuse, abuse, accident, or failure to follow operating instructions.
• Use of product in a commercial application or rentals.
• Changes or repairs by anyone other than an authorized Depot Repair Facility.
• Damage because your unit is improperly connected to the equipment of other manufacturers.
• Units on which the serial number has been defaced, modified or removed.
• Damage to equipment not properly connected to the product.
• Cost incurred in shipping your unit to and from an authorized Depot Repair Facility.
• Ordinary adjustments which you can perform as outlined in the owner’s manual.
• Signal reception problems caused by external antenna or cable systems.
• Products purchased, used, serviced or damaged outside of the United States.
What other limitations apply to your warranty?
THIS WARRANTY IS NON-TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER AND
DOES NOT EXTEND TO SUBSEQUENT OWNERS OF THE PRODUCT. THIS WARRANTY IS VALID ONLY IN
THE UNITED STATES OF AMERICA. ANY APPLICABLE IMPLIED WARRANTIES, INCLUDING THE
WARRANTY OF MERCHANTABILITY, ARE LIMITED IN DURATION TO A PERIOD OF THE EXPRESSED
WARRANTY AS PROVIDED ABOVE BEGINNING WITH THE DATE OF ORIGINAL PURCHASE AT RETAIL
AND NO WARRANTIES, WHETHER EXPRESSED OR IMPLIED, SHALL APPLY TO THE PRODUCT
THEREAFTER. WE MAKE NO WARRANTY AS TO THE FITNESS OF THE PRODUCT FOR ANY PARTICULAR
PURPOSE OR USE.
THE EXTENT OF OUR LIABILITY UNDER THIS LIMITED WARRANTY IS THE REPAIR OR REPLACEMENT
PROVIDED ABOVE AND IN NO EVENT WILL OUR LIABILITY EXCEED THE PURCHASE PRICE PAID BY
THE PURCHASER OF THE PRODUCT. UNDER NO CIRCUMSTANCES WILL WE BE LIABLE FOR ANY LOSS,
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGE ARISING OUT OF OR IN
CONNECTION WITH THE USE OF THIS PRODUCT.
How does state law apply to your warranty?
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, BUT YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE. SOME STATES DO NOT ALLOW LIMITATIONS ON IMPLIED
WARRANTIES OR EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGE, SO THESE
RESTRICTIONS MAY NOT APPLY TO YOU.
HH111N
SM51TR.p65 2001/7/3, PM 02:2525
H.H. SCOTT, INC.
Part No.: 100-5099
106-01 Printed in China
H.H. SCOTT, INC.
SM51TR.p65 2001/7/3, PM 02:2526
