Mw gtolw#

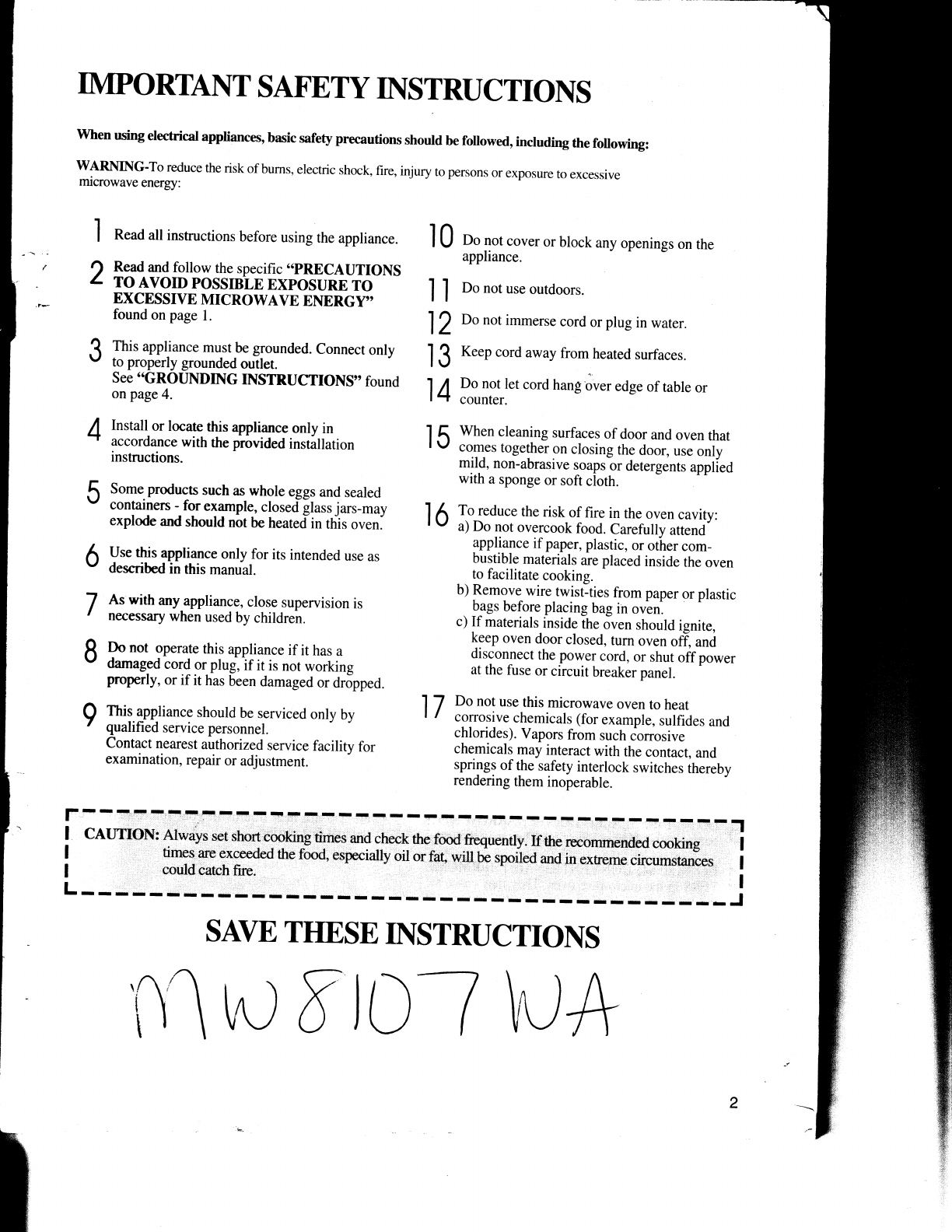

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

WARITIING-To reduce the risk of bums, electric shock, fire, injury to persons or exposure to excessive

microwave energy:

I Read all instructions before using the appliance.

) Bead and follow the specific '?RECAUTIONS

1- TO AVOID POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE EhIERGY''

found on page 1.

3 This appliance must be grounded. connect only

v to properly grounded outlet.

see "GROUI{DING INSTRUCTIONS" found

on page 4.

A Install or locate this appliance only in

r accordance with the provided installation

instructions.

5 Some. producs such as whole eggs and sealed

v containers - for example, closed[lasr jars-may

explode and should not be heated in this oven.

6 use this appliance only for its intended use as

v described in this manual.

7 As with any appliance, close supervision is

t necessary when used by childre;.

R Do not operate this appliance if it has a

v damaged cord 91nluS, if it is not working

properly, or if it has been damaged or dr6pped.

I This. appliance should be serviced only by

' qualified service personnel.

contact nearest authorrzed service facility for

examination, repair or adjustment.

1 0 Do not cover or block any openings on the

appliance.

I I Do not use ourdoors.

Do not immerse cord or plug in water.

Keep cord away from heated surfaces.

Do not let cord hang over edge of table or

counter.

when cleaning surfaces of door and oven that

co.nes together on closing the door, use only

mild, non-abrasive soapsbr detergents applied

with a sponge or soft cloth.

To reduce the risk of fire in the oven cavity:

a) Do not overcook food. Carefully attend

appliance if paper, plastic, or other com-

bustible materials are placed inside the oven

to facilitate cooking.

b) Remove wire twist-ties from paper or plastic

. _b-aSs before placing bag in ovbn.

c) If materials inside ihe oven should ignite,

\9.p oven door closed, turn oven ofl and

disconnect the power cord, or shut off power

at the fuse or circuit breaker panel.

17 Do not use this microwave oven to heat

t I corrosive chemicals (for example, sulfides and

chlorides). vapors from such corrosive

chemicals may interact with the contact, and

springs of the safety interlock switches thereby

rendering them inoperable.

12

13

14

r5

16

l- -- - . 1,*'-.e!,ftS1f;,,?1,,.!i| p;!i,;lr*:P. = ..F !l-- - - l ,? ,T:r?;?t!. - ,E = .F F, r.,,r,,F r- r .- e , -

I CAUIIION: {lways mt stnrt "UA"g tr*s ard ctreck t}p food ftequentlv. ff m recumnrnoea *** ,-

I utrEs ae exffi he food' especially oil m fat, will be spqilqd atd in exheme circo,nrtu#r, i

SAYE TTIESE NSTRUCTIOI\S

ill u riDl \uh

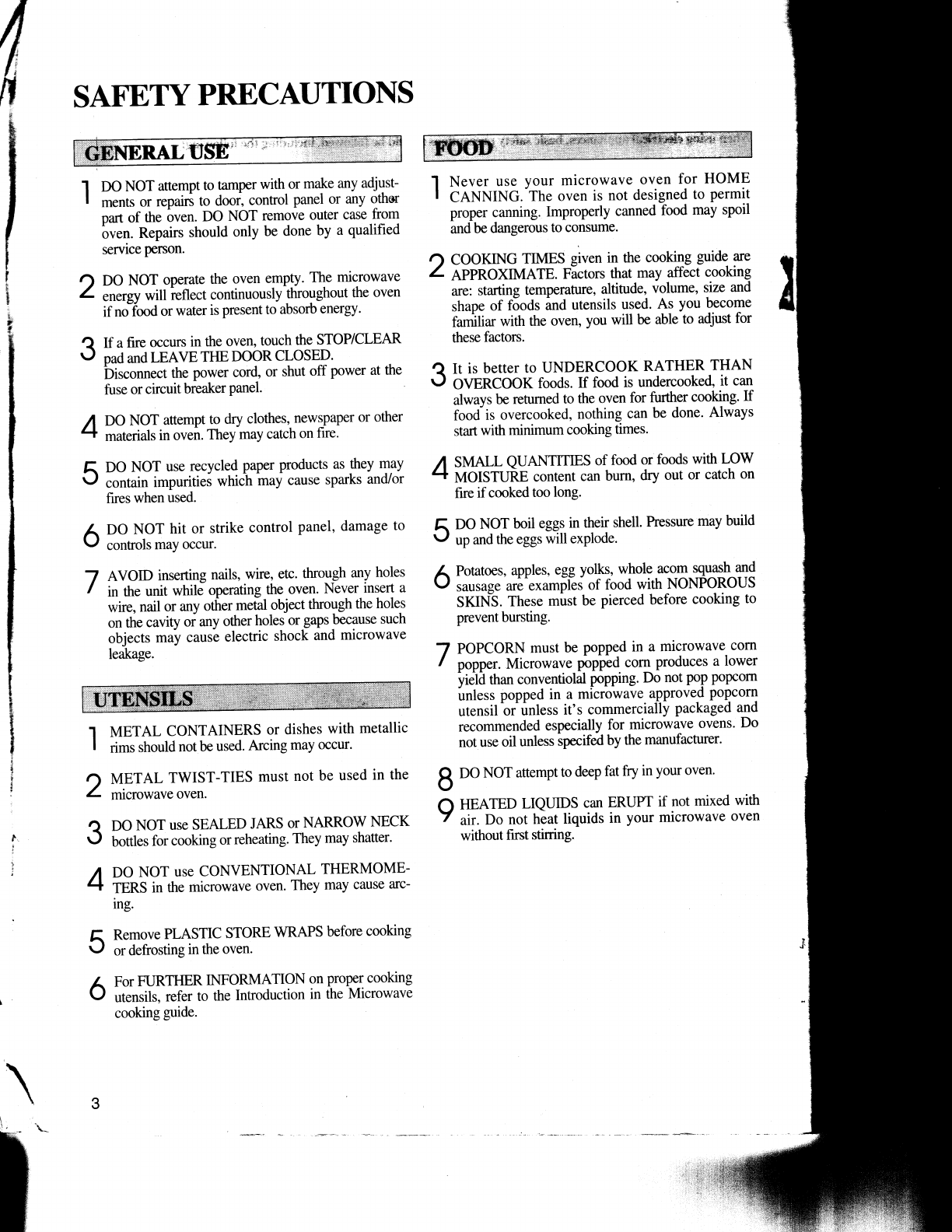

SAFETY PRECAUTIONS

1 DO NOT attempt to tamper with or make any adjust-

I *.ns ot repain to dooi, control panel or any gther

part of ttre bven. DO NOT remove outer case from

bu.n. Repairs should only be done by a qualified

service person.

DO NOT operate the oven empty. The microwave

energy will ieflect continuously _throyshout the oven

if no-food or water is present to absorb energy'

If a fire occurs in the oven, touch the STOP/CLEAR

pad and LEAVE Tfm DOOR CLOSED.

bir.o*tct the power cord, or shut off power at the

fuse or circuit breaker Panel.

A DO NOT attempt to dry clothes, newspaper or other

I materials in oven. They may catch on fire'

tr DO NOT use recycled paper products as -*tty may

U contain impuritiei which may cause sparks and/or

fires when used.

A DO NOT hit or strike control panel, damage to

\., conffols may occur.

-7 AVOID inserting nails, wire, etc. through any holes

I in the unit whilJ operating the oven. Never insert a

wire, nail or any other metal object through the holes

on the cavity oi any other holes or gaps -bequse such

objects may cause electric shock and microwave

leakage.

METAL CONTAINERS or dishes with metallic

rims should not be used. fucing may occur.

METAL TWIST-TIES must not be used in the

microwave oven.

DO NOT USE SEALED JARS OT NARROW NECK

bottles for cooking or reheating. They may shaffer.

DO NOT use CONVENTIONAL THERMOME-

TERS in the microwave oven. They may cause arc-

ing.

tr Remove PLASTIC STORE WRAPS before cooking

U or defrosting in the oven.

L For FURTFIER INFORMATION on proper cooking

() utensils, refer to the Introduction in the Microwave

cooking guide.

2

3

1 Never use your microwave oven for HOME

I CANNING. -The oven is not designed to permit

proper canning. Improperly canned food may spoil

and be dangerous to consume.

O COOKING TIMES given in the cooking guide are

Z APPROXIMATE. Factors that may affect cooking

are: starting temperatute, altitude, volume, size and

shape of foods and utensils used. 4l you become

famitiar with the oven, you will be able to adjust for

these factors.

E It is better to UNDERCOOK RATHER THAN

\) OVERCOOK foods. If food is undercooke4 it can

always be returned to the oven for furttrer cooking. If

food is overcooked, nothing can be done. Always

start with minimum cooking times.

A SMALL QUANTITIES of food or foods with LOW

tl UOISTURE content can burn, dry out or catch on

fire if cooked too long.

tr DO NOT boil eggs in their shel|. Pressure may build

*,i' up and the eggs will explode.

A Potatoes, apples, egg yolks, whole acom squash and

(J sausage'ari^e^amfiFi of food with NONPOROUS

SKINS. These must be pierced before cooking to

prevent bursting.

-1 POPCORN must be popped in a microwave corn

I popper. Microwave popped cory produces a lower

yietd than conventiolal popping. Do not pop popcorn

unless popped in a microwave a,pproved popcorn

utensilbiunless it's commercially packaged and

recommended especially for microwave ovens. Do

not use oil unless specifed by the manufacturer.

2

3

4

B

9

DO NOT attempt to deep fat fry in your oven.

tmATED LIQUIDS can ERUPT if not mixed with

air. Do not heat tiquids in your microwave oven

without fimt stining.

f

,

t

!

,

lr

1

t

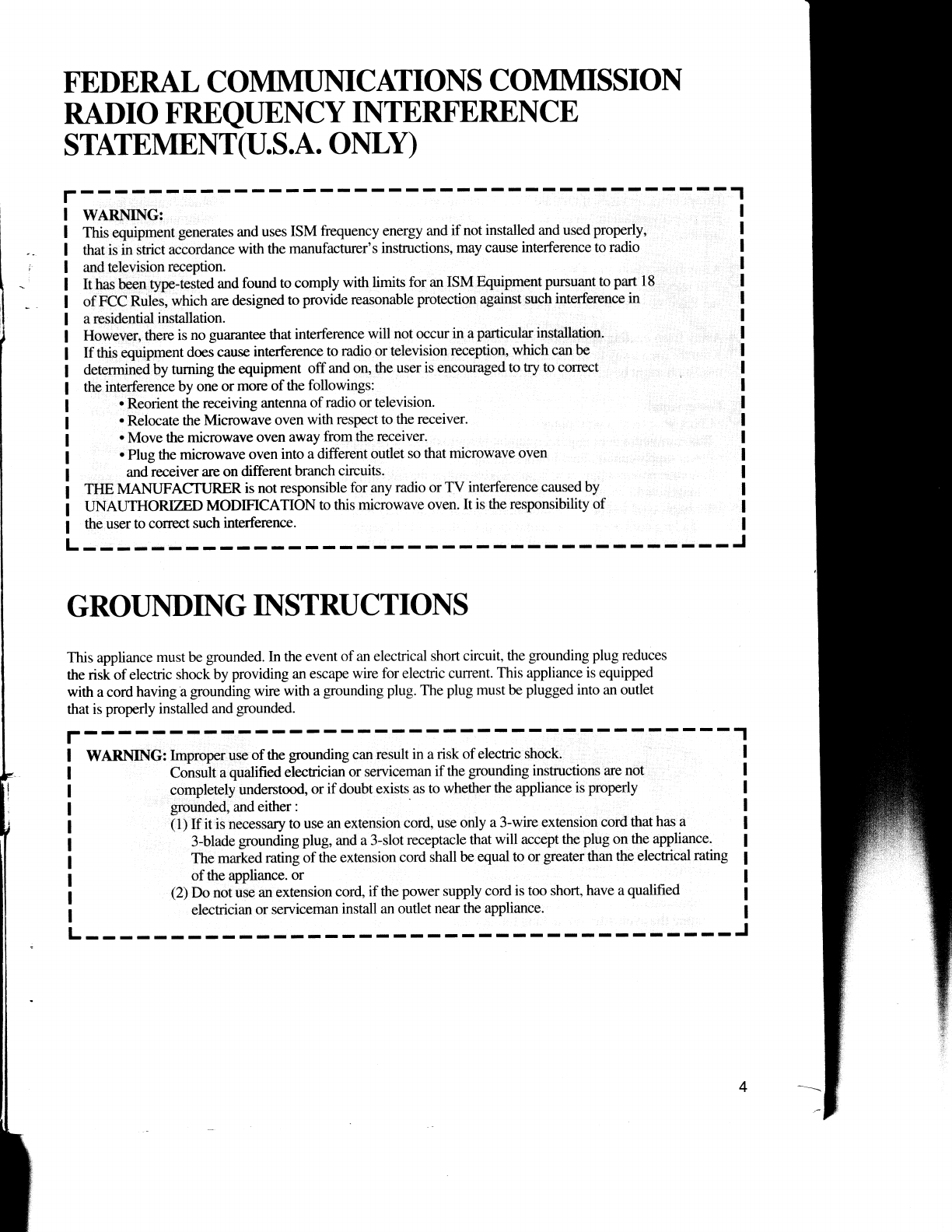

FEDERAL COMMT]I\ICATIONS COMMISSION

RADIO FREQT]ENCY NTERFERENCE

STNTEMEI\T(U.S.A. ONLY)

WARITIING:

This,qquipment Ser&ratps and uses ISM frequency energy and if not installed and used properly,

that isin strict accordance with the manufacturer's instuctioris, lnay cause interference to radio

and television reception.

It,has ,h,,,p9,iertd and found to comply with limits for an iSM Eg{pm-q4 pursuant to par-t 18

ofFCC,Rulss, *hich are designed to provide reasonable pmtectipg against such in ,tn

Howe:6q, tlrere is no guarantee that interference will not occur in a prticldar,iq$talla{fum; ',11,,; .

f&i*g$ripmentdoescauseinterferencetoradioortelerrisip,arecgptio{twiichcan,be,ri. '

Oeki ty tuming the equipment off and on the usex is encoumged to try to goleqt

the intg-rfsrence by one or more of the followiags:

' . Reorient the receiving antenna of radio or television.

..Relocate the Microwave oven with respectto the receiver.

. Move the microwave oven away from-the receiver.

,, ' . Plug ttre microwave oven into a different outlet so drat microilavebven ,

and receiver are on different branch circuis.

nlgtueNurncnnm. is not responsible forany radio orTV interference causedby

LJNAUTI{ORZED MODIFICAION to this micrcwave oven. It is the responsibility of

the user to correct such interfererrce. J

L

GROUNDING NSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, the grounding plug reduces

the risk of elecric shock by providing an escape wire for electric current. This appliance is equipped

with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet

that is properly installed and grounded.

l----r!----F- ---

WARNING:krregigofthegroundingcanresultinariskofelectrieshoclt.',,',,r "','',

6oltsultiar{ualified elecuician or servieeman if the grounding instrtlcdon$ axe no!',,"

cor4pletely undentood, or if doubt exists as to wlrther *re appliance is prcpedy ,

grounded, and either:

IU If it is necessary to use an extension cond, use ordy a 3-wirc extension cogl Srat has a

3-blade grounding plug, and a 3-slot receptacle that will acc@ ttre plug on the appliance.

ttre mart<eO rating bf ttt" extension cord strall be equal to or greater than the electrical rating

ofthe appliance. or

(2) Do not irse an extension cord; if the power supply cor,il is too short" have a qualified

elecfician m servieman install an outlet near the appliance.

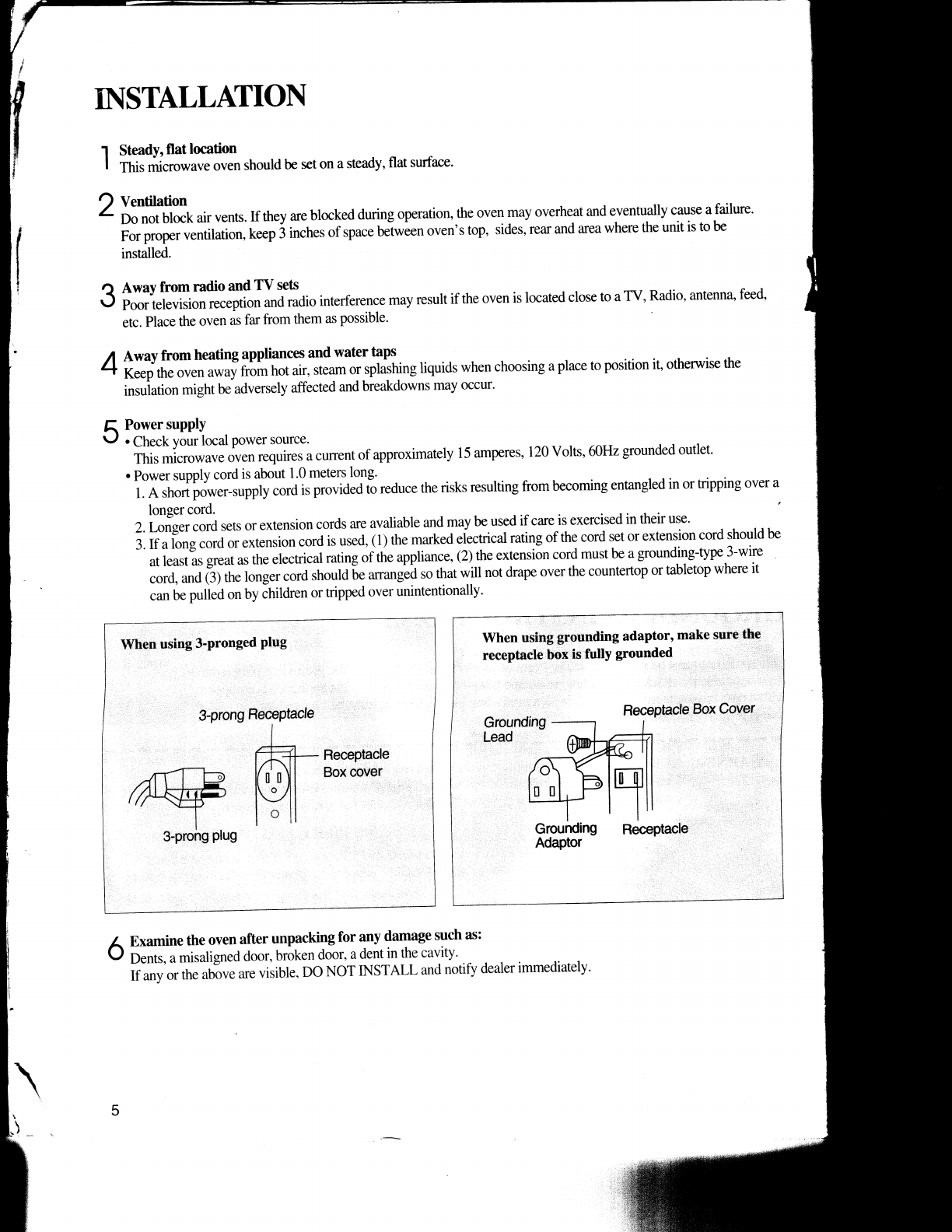

NSTALLATION

Steady, flat location

This microwave oven should be set on a steady, flat surface.

O Ventilation

Z ;;;ffi;;k air vents. If ttrey are blocked during operation, the ovel pay overheat and eventually cause a failure'

F- pnop". u"ntifution, nop 1 in tt t of tp*" bJn"i"n ou"n's top, sides, rear and area where the unit is to be

installed.

2 Away fr,om radio and TV sets

J ;;;l""trt"" r.""po* and radio interference may result if the oven is located close to a TV, Radio, antenna feed'

erc. Place ttre oven as fm from them as possible'

/ Away from heating appliances and water taps

4 'i;;ilrr;;;;*";d; h"t air, steam or splashing liquids when choosing a place to position it, otlrcrwise *rc

insrilation might beadversely affected and breakdowns may occur'

f. PowersupPlY

U . Check your local Power source'

This microwav" ou"n t"qGt a current of approximately 15 amper€s, 120 Volts, 60Hz gounded outlet'

. power supply cord is about 1.0 meters long. . , , __--:__ ^..e^-^r^r :- ^_ + .

1. A short pow".-ruppty "ora is provided Io reduce the risks resulting from becoming entangled in or tipping over a

longer cord.

Z.'rttig*-""td sets orextension cords are avalpble qdT*.vbe.ut:d T"*"t::1T:1t:9.i1".1-T:

1ilii?,"*"""ri;;#ffi;;ffi;;r"a,iri*,, -rr"o "]*r"" ry"c "f ft? ""'d::l:.:11'li,':1::1:T*l*

;i,#.##;il;;i;;J'"d"s;itft apgliange,(2)theextension"o.9*o't,Tl{"TgTiJT,::,":

.iil]# f?itrr" r";il"".d J""rJu" *ung"b so that will not drape over the countertop or tabletop where it

can be pulled on by .hildr.n or tripped over unintentionally.

When using'grounding adaptor, make sure:th€

receptacle box is fullY groundd

Grounding

Lead

Grounding Receptacle

Adaptor ,

Examine the oven after unpacking for any damage such as:

Dents, a misaligned door, broken door, a dent in the cavity'

If any or the uU-ou. are visible, DO NOT INSTALL and notify dealer immediately'

When using $-Pronged Plug

HeCeptacle

A-

l/n'n\l I

[t u^u fl

t\7il

l_lt

| ('] ll

S-prong

Receptacle

Box cover

3-prong Plug

6

\

6

I

2

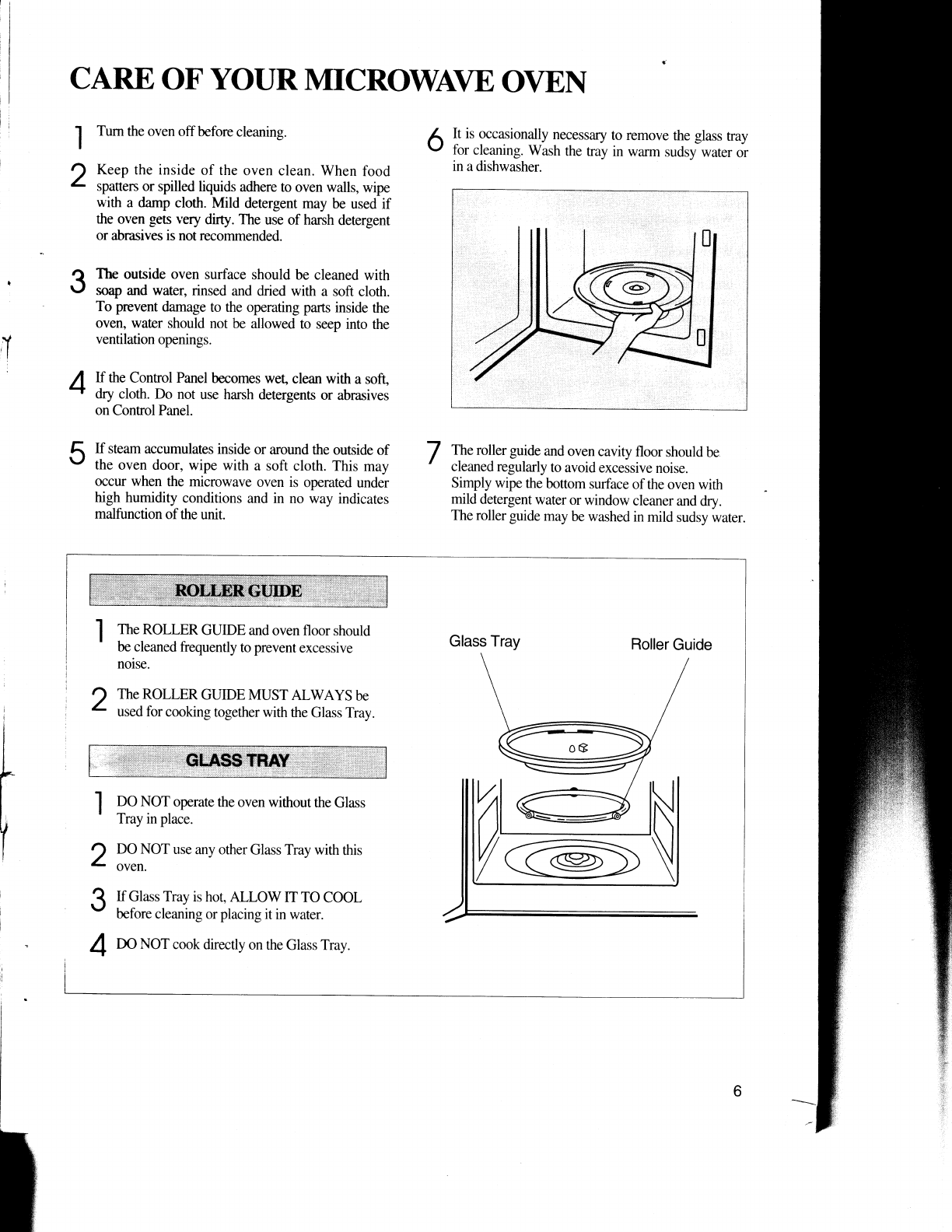

CARE OF YOURMICROWAVE OVEN

Turn the oven off before cleaning.

Keep the inside of the oven clean. When food

spatters or spilled liquids adhere to oven walls, wipe

with a damp cloth. Mild detergent may be used if

the oven gets very difiy. The use of harsh detergent

or abrasives is not recommended.

The outside oven surface should be cleaned with

soap and water, rinsed and dried with a soft cloth.

To prevent damage to the operating parts inside the

oven, water should not be allowed to seep into the

ventilation openings.

If the Control Panel becomes we! clean with a soft,

dry cloth. Do not use harsh detergents or abrasives

on Control Panel.

If steam accumulates inside or around the outside of

the oven door, wipe with a soft cloth. This may

occur when the microwave oven is operated under

high humidity conditions and in no way indicates

malfunction of the unit.

It is occasionally necessary to remove the glass tray

for cleaning. wash the tray in warm sudsy water or

in a dishwaiher.

The roller guide and oven cavity floor should be

cleaned regularly to avoid excessive noise.

Simply wipe the bottom surface of the oven with

mild detergent water or window cleaner and dry.

The roller guide may be washed in mild sudsy water.

Glass Tray Roller Guide

3

,T

7

4

5

2

The ROLLER GUIDE and oven floor should

be cleaned frequently to prevent excessive

noise.

The ROLLER GUIDE MUST ALWAYS be

used for cooking together with the Glass Tray.

,,,.,;,.'i.'..'i. .' i...l'....,i.t..i..',...,'... .ffi...#.m**,i .,.,''"=t''=fil

DO NOT operate the oven wittrout the Glass

Tray in place.

3:J"T use any other Glass Tray with this

If Glass Tray is hot, ALLOW IT TO COOL

before cleaning or placing it in water.

DO NOT cook directly on the Glass Tray.

i

i

I

I

t

l

T2

3

4

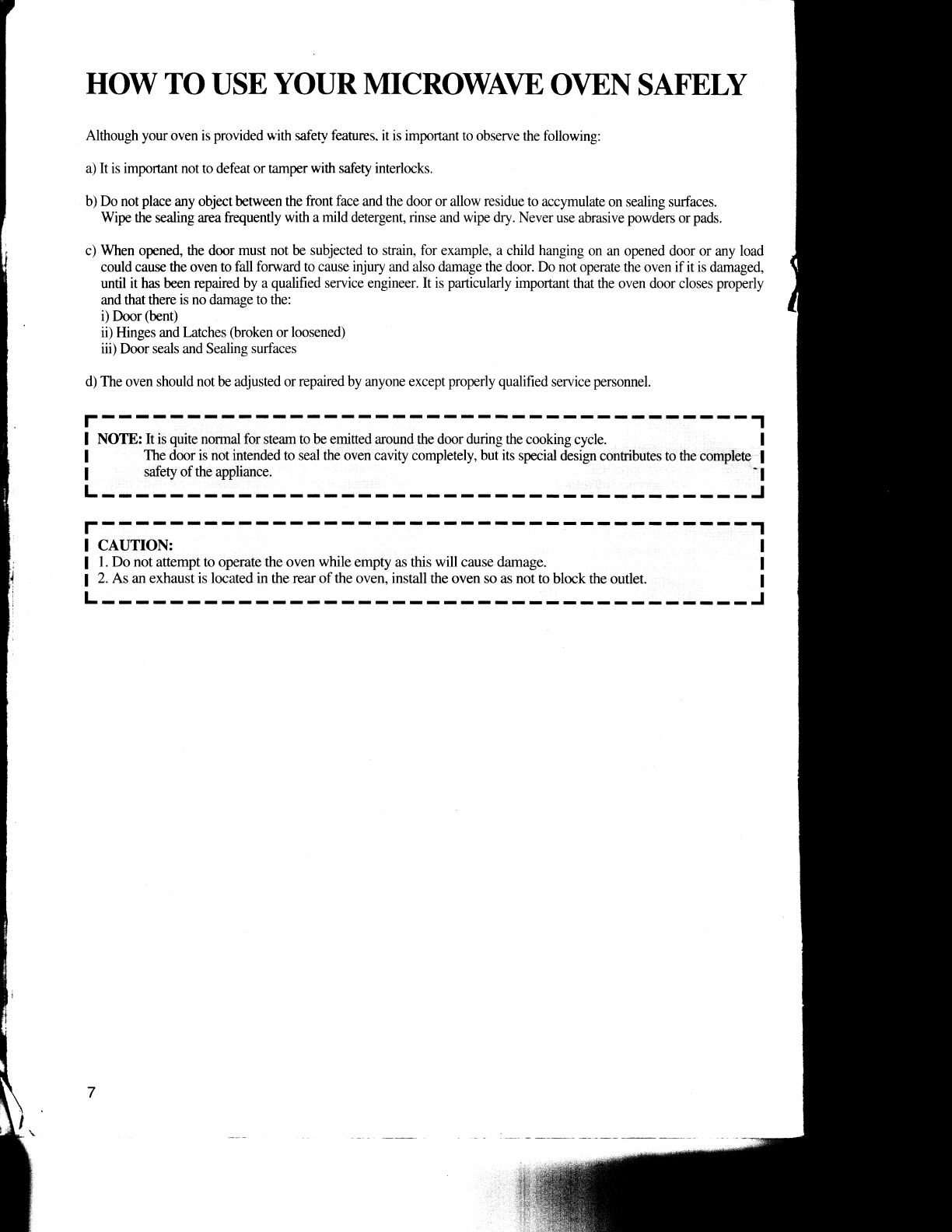

HOW TO USE YOUR MICROWAVE OVEN SAFELY

Although your oven is provided with safety features. it is important to observe the following:

a) It is important not to defeat or tamper with safety interlocks.

b) Do not place any object benreen the front face and the door or allow residue to accymulate on sealing surfaces.

Wipe the sealing area fuquently with a mild detergent, rinse and wipe dry. Never use abrasive powden or pads.

c) When opene4 the door must not be subjected to strain, for example, a child hanging on an opened door or any load

could cause the oven to fall forward to cause injury and also damage the door. Do not operate the oven if it is damaged,

until it has been repaired by a qualified service engineer. It is particularly important that the oven door closes properly

and that there is no damage to the:

i) Door (ben|

ii) Hinges and Latches (broken or loosened)

iii) Door seals and Sealing surfaces

d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

NOIT: ft ia qui& n foi stearn to be emitted around fte door during the cooking cycle.

ft door iC not intended to seal the oven cavity completely, but its special desigr conttibutes tol&e

safety of trre appliance.

T

Err

CAUTION:

i'il nniurL*ptto operatethe oven whileempty as this will cause damage.

2. As an exhaust is located in the rear ofthe oven, install the oven so as not to block the outlet.

-T

I

I

J

I

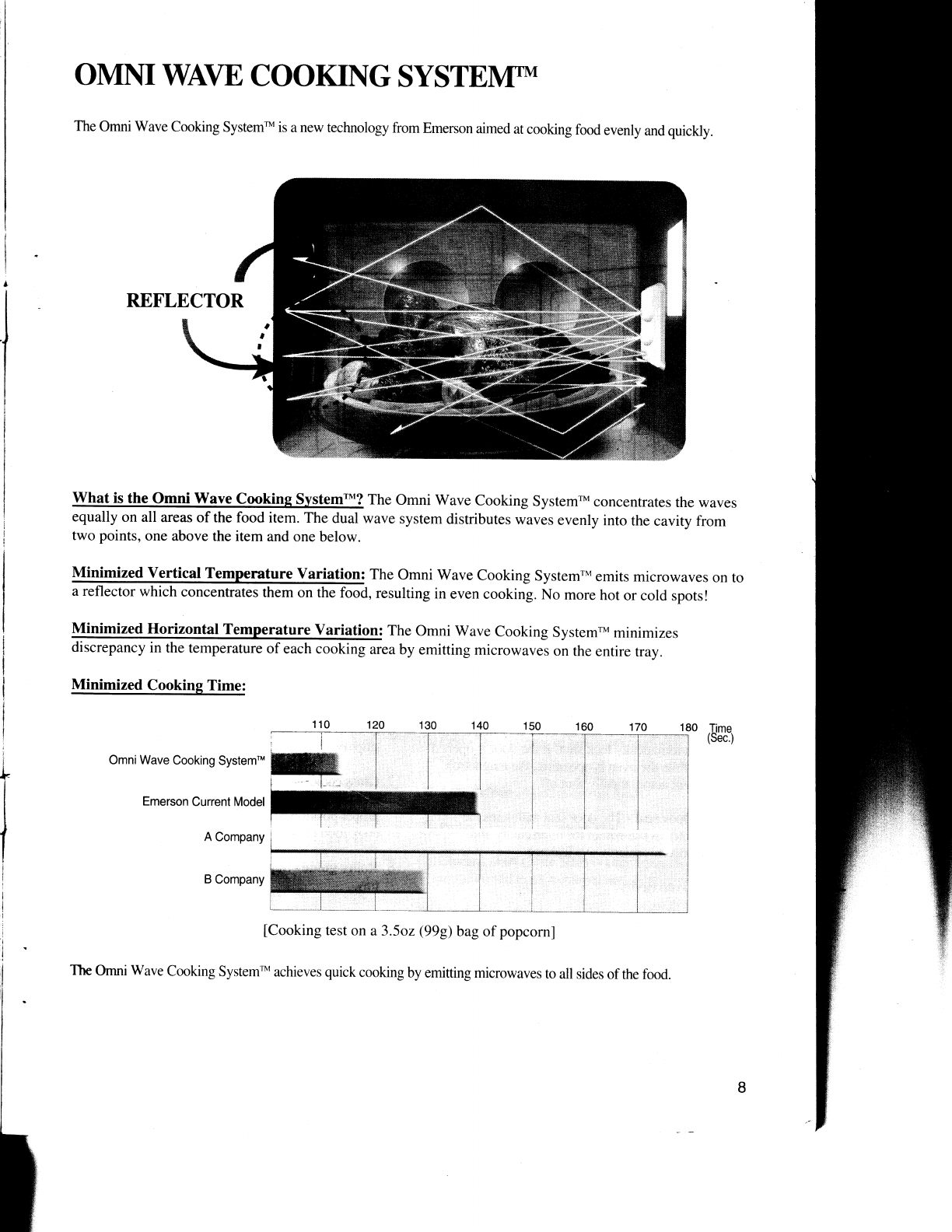

OMNI W COOKING SYSTEVTM

The Omni Wave Cooking SystemN is a new technology from Emerson aimed at cooking food evenly and quickly.

What is the Omni Wave Cooking SystemrM? The Omni Wave Cooking Systemru concentrates the waves

equally on all areas of the food item. The dual wave system distributes waves evenly into the cavity from

two points, one above the item and one below.

Minimized Vertical T"gp""atu*J""iationt The Omni Wave Cooking Systemr" emits microwaves on to

,resultinginevencooking.Nomorehotorcoldspots!

Minimized Horizontal Temperature Variation: The Omni Wave Cooking SystemrM minimizes

discrepancy in the temperature of each cooking area by emitting microwaves on the entire tray.

Minimized Cooking Time:

Time

(Sec.)

Omni Wave Cooking Systemru

Emerson Current Model

A Company

B Company

[Cooking test on a 3.5o2 (99g) bag of popcorn]

The Omni Wave Cooking SystemrM achieves quick cooking by emitting microwaves to all sides of the food.

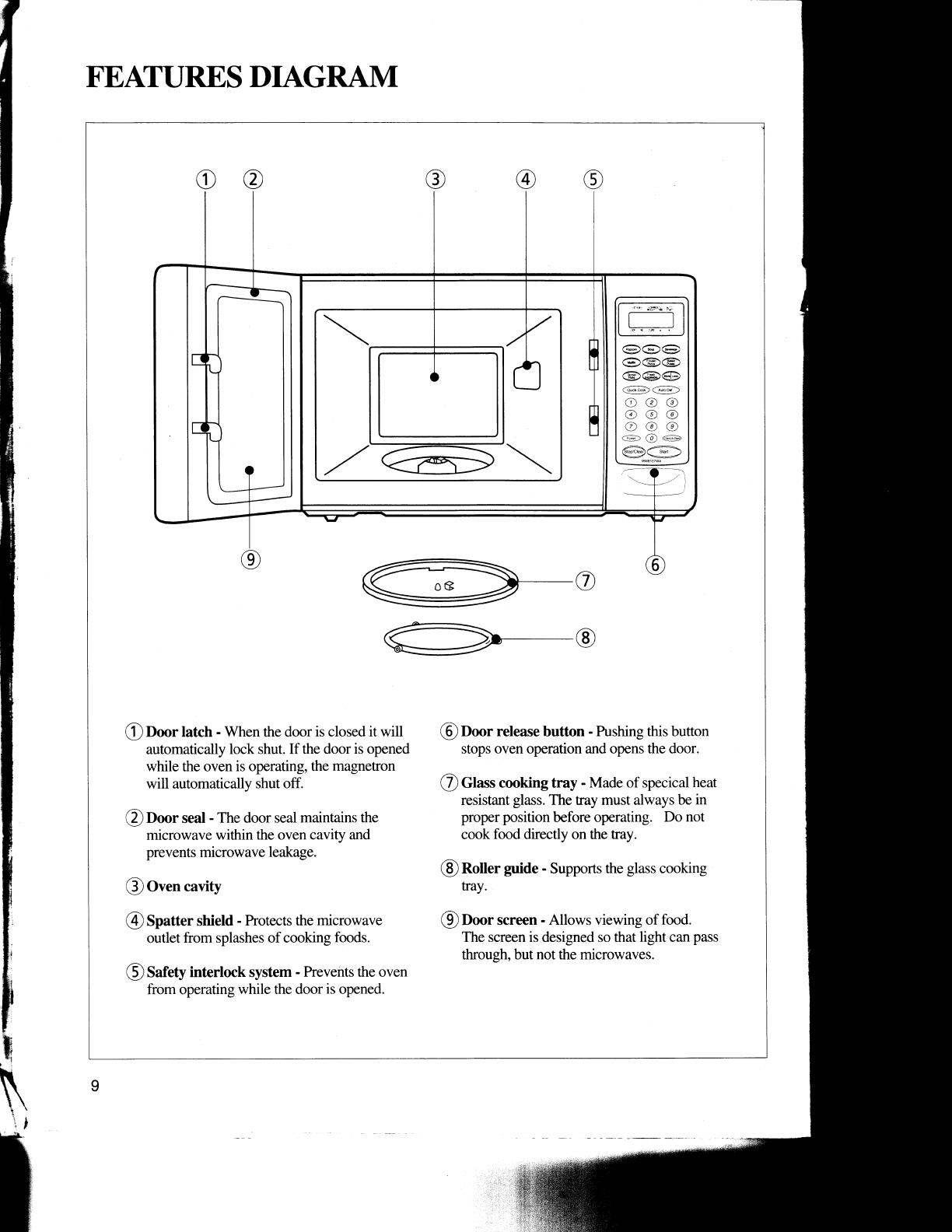

FEATURESDIAGRAM

e

O n-r htch - When the door is closed it will

automatically lock shut. If the door is opened

while the oven is operating, the magnetron

will automatically shut off.

@ noor seal - The door seal maintains the

microwave within the oven cavity and

prevents microwave leakage.

@ Oven cavity

@ Sputter shield - Protects the microwave

outlet from splashes of cooking foods.

@ Safety interlock system - Prevents the oven

from operating while the door is opened.

@ n*r release button - Pushing this button

stops oven operation and opens the door.

@ Ctass cooking tray - Made of specical heat

resistant glass. The tray must always be in

proper position before operating. Do not

cook food directly on the tray.

@ noner guide - Supports the glass cooking

tray.

@ n-r screen - Allows viewing of food.

The screen is designed so that light can pass

through, but not the microwaves.

FEATURESDIAGRAM

@ Nornber pads - Used to set the cooking time

and the present time.

@ nisptay - Cooking time, power level, indicators

and present time are displayed.

@ q"ick Cook - Touch ro set the desired reheat

time.

@ One touch - Used to cook or reheat specific

quantities of food. See pages 15-17.

@ Vtore - Used to add time to one touch cooking.

@

@

@

@

@

@

@

@ I.,ess - Used to remove time from one touch

cooking.

@ Auto defrost - Used to defrost foods.

@ nower - Used to set power level.

@ ctock/A.start (Auto start) - Used to set clock

and also used to set a delayed auto start.

@ stop/clear - used to stop the oven operation or

to delete the cooking data.

@ Sturt - Used to start the oven.

/ffiffi

vywry

r STAGET TDEFBOST] AUTO

I 2 WEIGHT TIME START

o@@

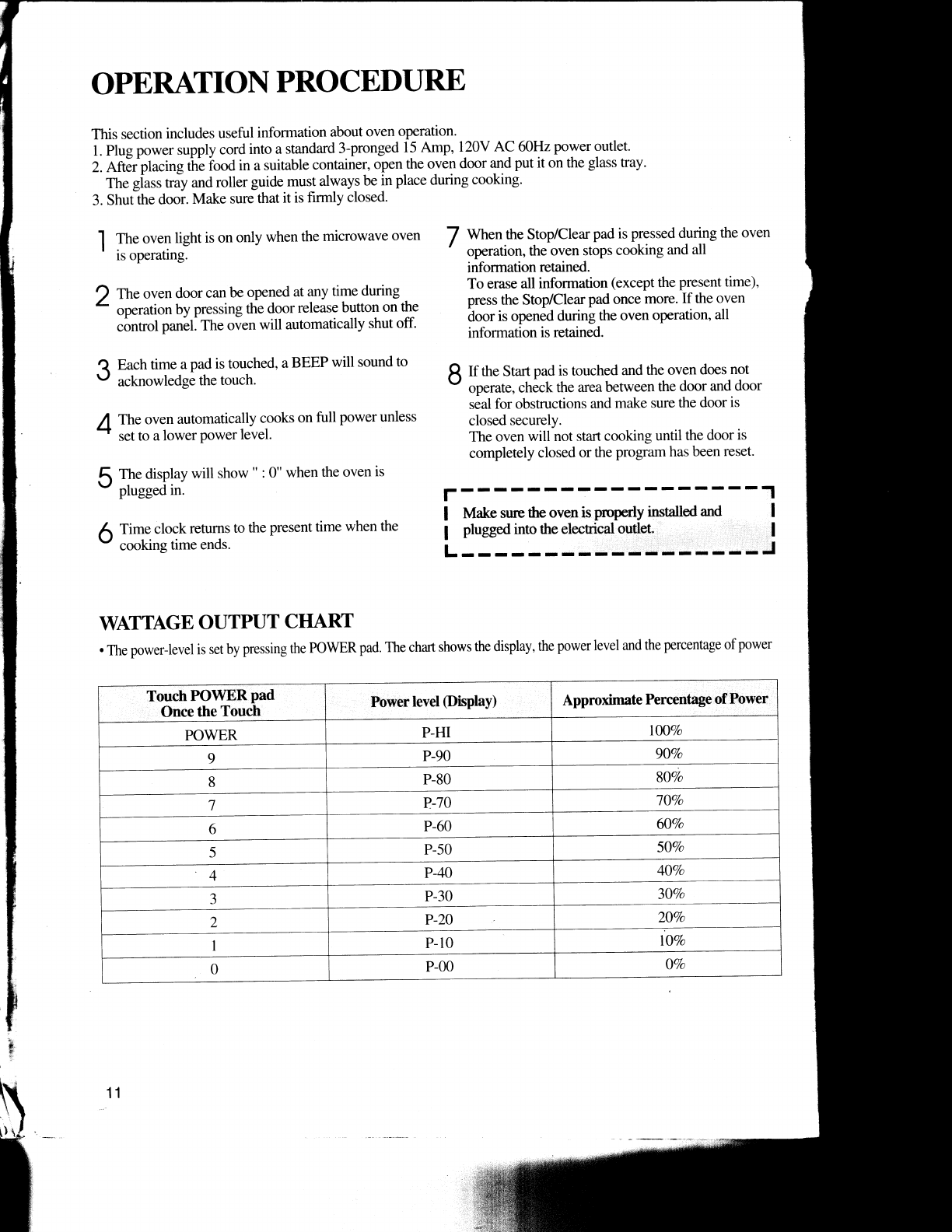

OPERATION PROCEDURE

This section includes useful information about oven operation.

1. Plug power supply cord into a standard 3-pronged 15 Amp, 1?0V Aq 60Hz power outlet.

2. Aft6r placing lfie iood in a suitable container, open the oven door and put it on the glass tray.

The giass tray and roller guide must alwayg be in place during cooking'

3. Shuithe door. Make sure that it is firmly closed.

I 1'n" oven light is on only when the microwave oven / When the Stop/Clear pad is pressed during the oven

I i, op"rutingl oqeratiol, the oven stops cooking and all

information retained.

2 *"oven door can be opened at any time durino To erase all information (except the present time)'

operauon Dy pressmg G door release button orithe ry:t,*i^t:p/clear pad once more' If the oven

"6.t or p*4. rrr" oi"o*itt automaticallv th* #: fl?"H#fiffiS* oven operation' all

? Each time a pad is touched, a BEEP will sound to

\" acknowledge the touch.

A The oven automatically cooks on full power unless

'+ set to a lower Power level.

6 The display will show " : 0" when the oven is

\'r' plugged in.

A Time clock returns to the present time when the

rv' cooking time ends.

R If the Start pad is touched and the oven does not

v operate, check the area between the door and door

seal for obstructions and make sure the door is

closed securely.

The oven will not start cooking until the door is

completely closed or the program has been reset.

r - r r r r r r - - r - r r - - r r - -l

I Make sure the oven is properly insElled and I

I du8ged into the electrrcal optlql'

L--rrrr rr-- ;;'il. ;;-;! J

WATTAGE OUTPUT CHART

. The power-level is set by pressing the POWER pad. The chart shows the display, the power level and the percentage of power

TouchPIOWERpad

Once the Touch Power level (Display) Approximate Percentage of Power

POWER P-HI lNTo

9P-90 90%o

8P-80 807o

1P-70 l07o

6P-60 607o

5P-50 507o

4P-40 4O7o

3P-30 307o

2P-20 20Vo

IP-10 l07o

0P-00 }Vo

11

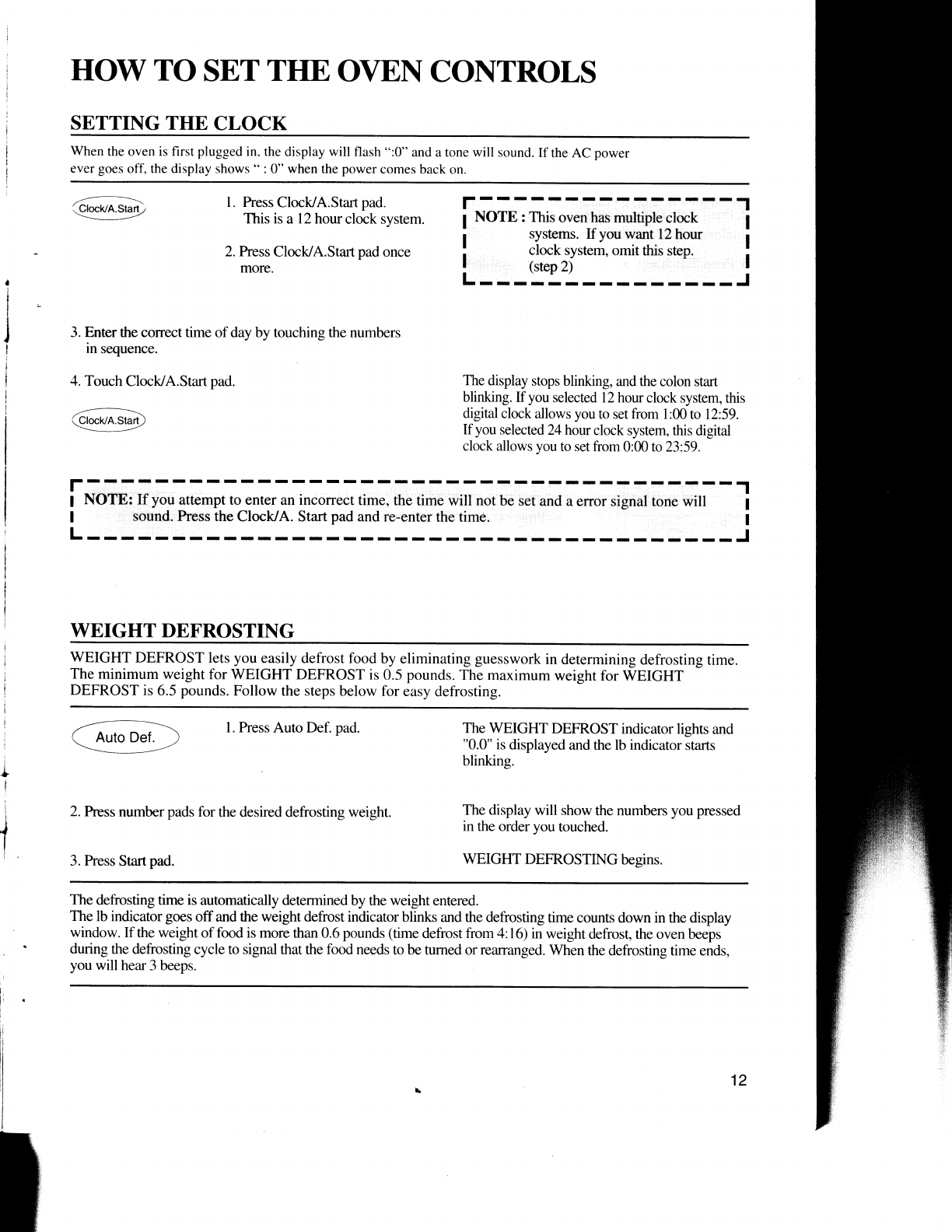

HOW TO SET TIIE OVEN CONTROLS

SETTING THE CLOCK

When the oven is first plugged in. the display will flash ":0" and a tone will sound. If the AC power

ever goes off, the display shows " : 0" when the power comes back on.

1. Press Clock/A.Start pad.

This is a 12 hour clock system.

2. Press Clock/A.Start pad once

more.

r - r - r - - I- - - - ?. - - - - rI

3. Enter the correct time of day by touchitrg the numbers

in sequence.

4. Touch ClocklA.Start pad.

--,--.-----------

*l*YAJ99

I{OTE : This oven has rnultiple clock

systems. If you want 12 hour

clock system, omit this step.

(step 2) I

I N I I I I I I

-

I I I I T

-

J

The display stops blinking, and the colon start

blinking. If you selected 12 hour clock system, this

digital clock allows you to set from I :00 to 12:59.

If you selected Z4hour clock system, this digital

clock allows you to set from 0:00 to 23:59.

L

tI

(

;

i

ri

I

t

1

I

t- l-::': -- -

t N0{Ut tr ydu'attempt to enter an incorrect time; flre tifrrg- viill not be sef and a error si$alririne will i

| ' :,l:, scntrtd;:,hexs the Clock/A. Start pad and re:enter the tirne;.,,, - l

t-

E-ri--t---rr --- --- --;---J

WEIGHT DEFROSTING

WEIGHT DEFROST lets you easily defrost food by eliminating guesswork in determining defrosting time.

The minimum weight for WEIGHT DEFROST is 0.5 pounds. The maximum weight for WEIGHT

DEFROST is 6.5 pounds. Follow the steps below for easy defrosting.

1. Press Auto Def. pad. The WEIGHT DEFROST indicator lights and

"0.0" is displayed and the lb indicator starts

blinking.

The display will show the numbers you pressed

in the order you touched.

WEIGHT DEFROSTING begins.

The defrosting time is automatically determined by the weight entered.

The lb indicator goes off and the weight defrost indicator blinks and the defrosting time counts down in *re display

window. If the weight of food is more than 0.6 pounds (time defrost from 4: 16) in weight defros! the oven beeps

during the defrosting cycle to signal that the food needs to be tumed or rearranged. When the defrosting time ends,

you will hear 3 beeps.

2. hess numhr pads for the desired defrosting weight.

3. Press Start pad.

12

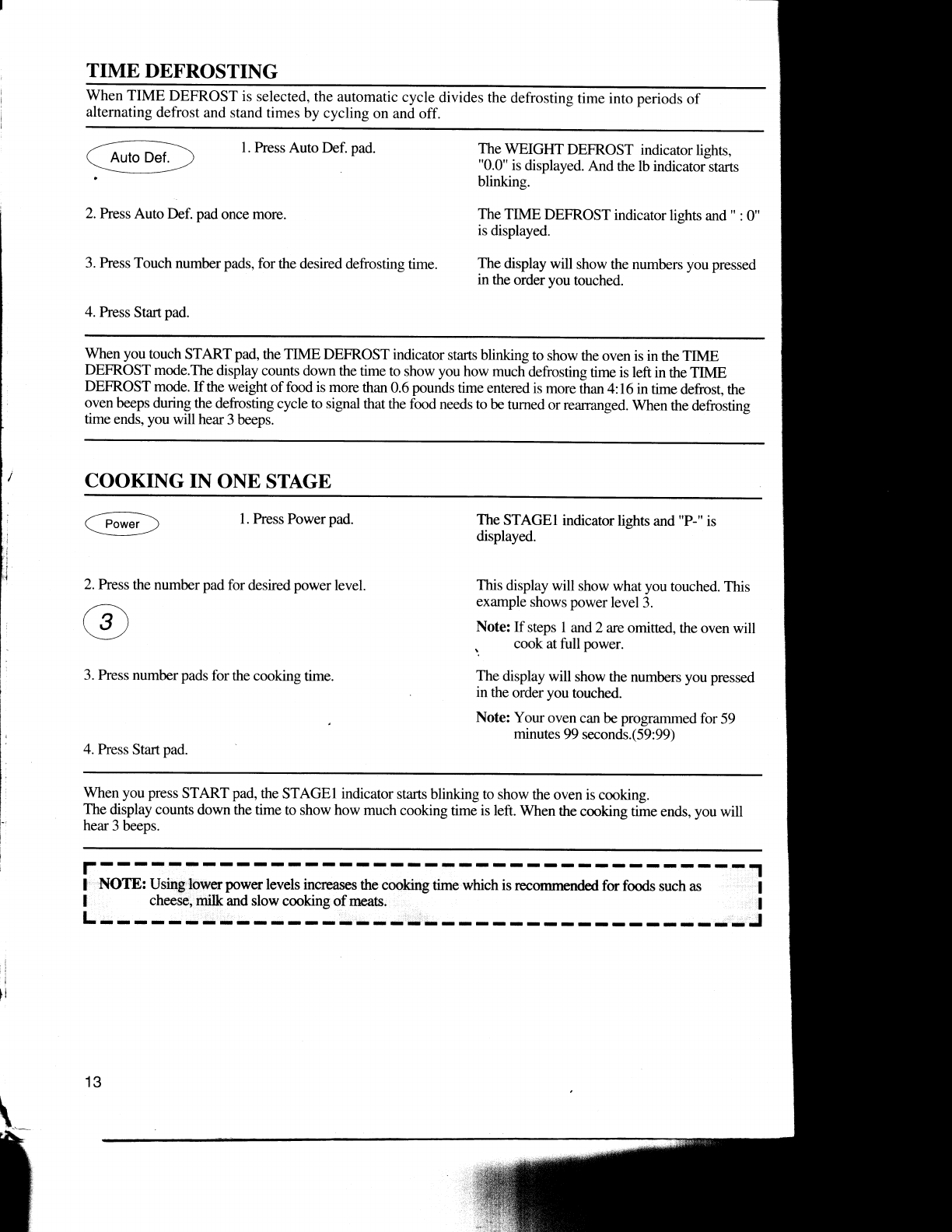

TIME DEFROSTING

When TIME DEFROST is selected, the automatic cycle divides the defrosting time into periods of

alternating defrost and stand times by cycling on and off.

l. Press Auto Def. pad.

2. Press Auto Def. pad once more.

3. Press Touch numbr pads, for the desired defrosting time.

4. Press Start pad.

When you touch START pad, the TIME DEFROST indicator starts blinking to show the oven is in the TIME

DEFROST mode.The display counts down the time to show you how much defrosting time is left in ttre TIME

DEFROST mode. If tlre weight of food is more than 0.6 pounds time entered is more than 4: 16 in time defrost, the

oven beeps duringthe defrosting cycle to signal that the food needs to be turned or rearranged. When the defrosting

time ends, you will hear 3 beeps.

COOKING IN ONE STAGE

The WEIGHT DEFROST indicaror lighrs,

"0.0" is displayed. And the lb indicator starts

blinking.

The TIME DEFROST indicator lights and " : 0"

is displayed.

The display will show the numbers you pressed

in the order you touched.

2. Press

@

l. Press Power pad. The STAGE1 indicator lights and "P-" is

displayed.

This display will show what you touched. This

example shows power level 3.

Note: If steps 1 and 2 are omitted, the oven will

.. cook at full power.

The display will show the numbers you pressed

in the order you touched.

Note: Your oven can be programmed for 59

minutes 99 seconds.(59:99)

the number pad for desired power level.

3. Press numbr pads for the cooking time.

4. Press Start pad.

When you press START pad, the STAGE1 indicator starts blinking to show the oven is cooking.

The display counts down the time to show how much cooking time is left. When the cooking time ends, you will

hear 3 beeps.

J- - - - -.- - - r - - - - - - - - -: - -: - - - - - - r - - -:,F: lI

I',I|OTE: Us$:ltr*rer power levels inereoses t}re eoc&ing timp.which is recunnrendod fm foods such as i

cheese, nUIk and slow cooking of meats. I

[,_

n

13

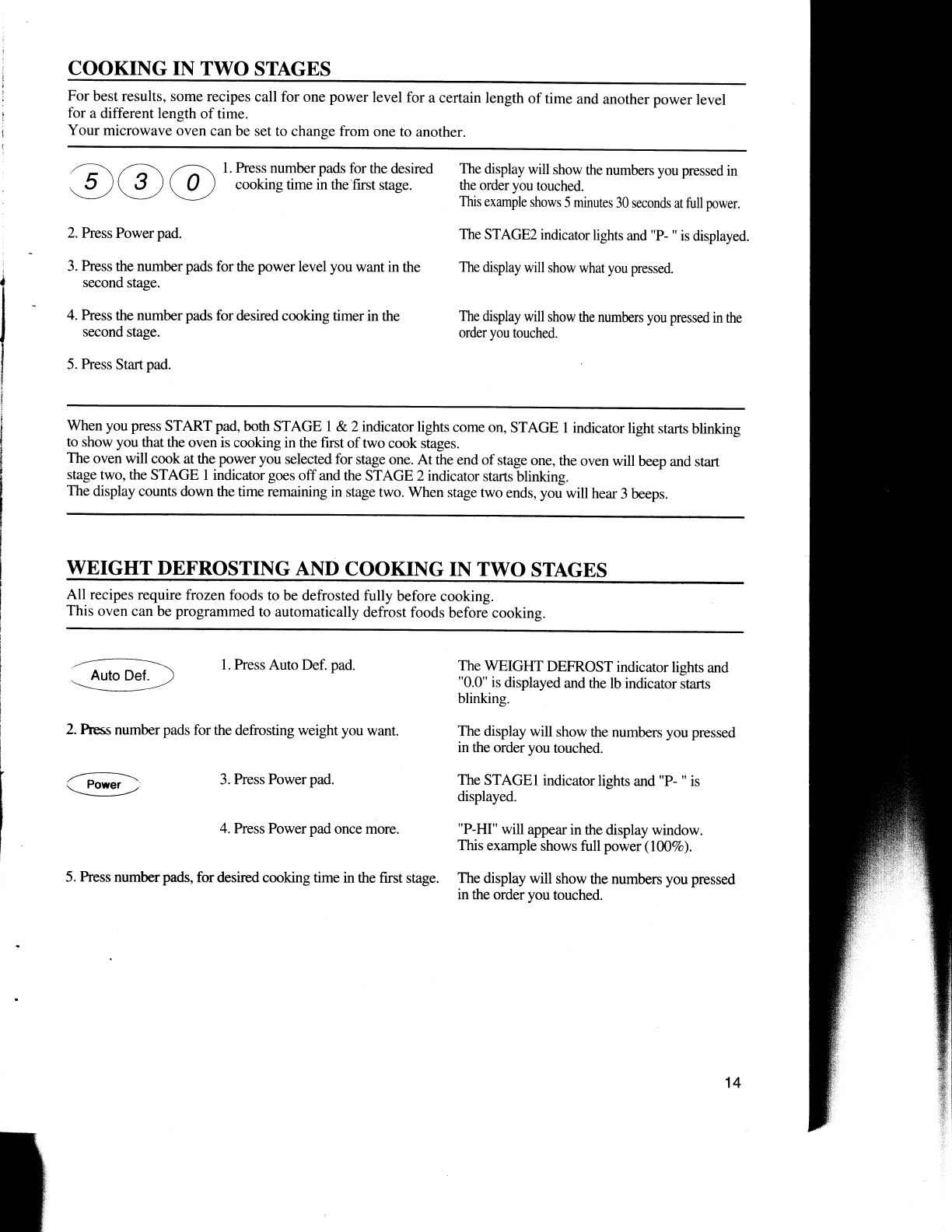

COOKING IN TWO STAGES

For best results, some recipes call for one power level for a certain length of time and another power level

for a different length of time.

Your microwave oven can be set to change from one to another.

€) @ @ 1 Press,U?Hfl*'ff f;ffi"".

2. Press Power pad.

3. Press the number pads for the power level you want in the

second stage.

4. Press the number pads for desired cooking timer in the

second stage.

5. Press Start pad.

The display will show the numbers you pressed in

the order you touched.

This example shows 5 minutes 30 seconds at full power.

The STAGEZ rndrcator lights and 'rP- I' is displayed.

The display will show what you pressed.

The display will show the numbers you pressed in the

order you touched.

Whgn you pryss START pad, both STAGE I & 2 indicator lights come on, STAGE I indicator light starts blinking

to show you that the oven is cooking in the fint offivo cook stages.

The oven will cook at the power you selected for stage one. At the end of stage one, the oven will beep and start

stage two, the STAGE I indicator goes off and the STAGE 2 indicator starts blinking

The display counts down the time remaining in stage two. When stage two ends, you will hear 3 beeps.

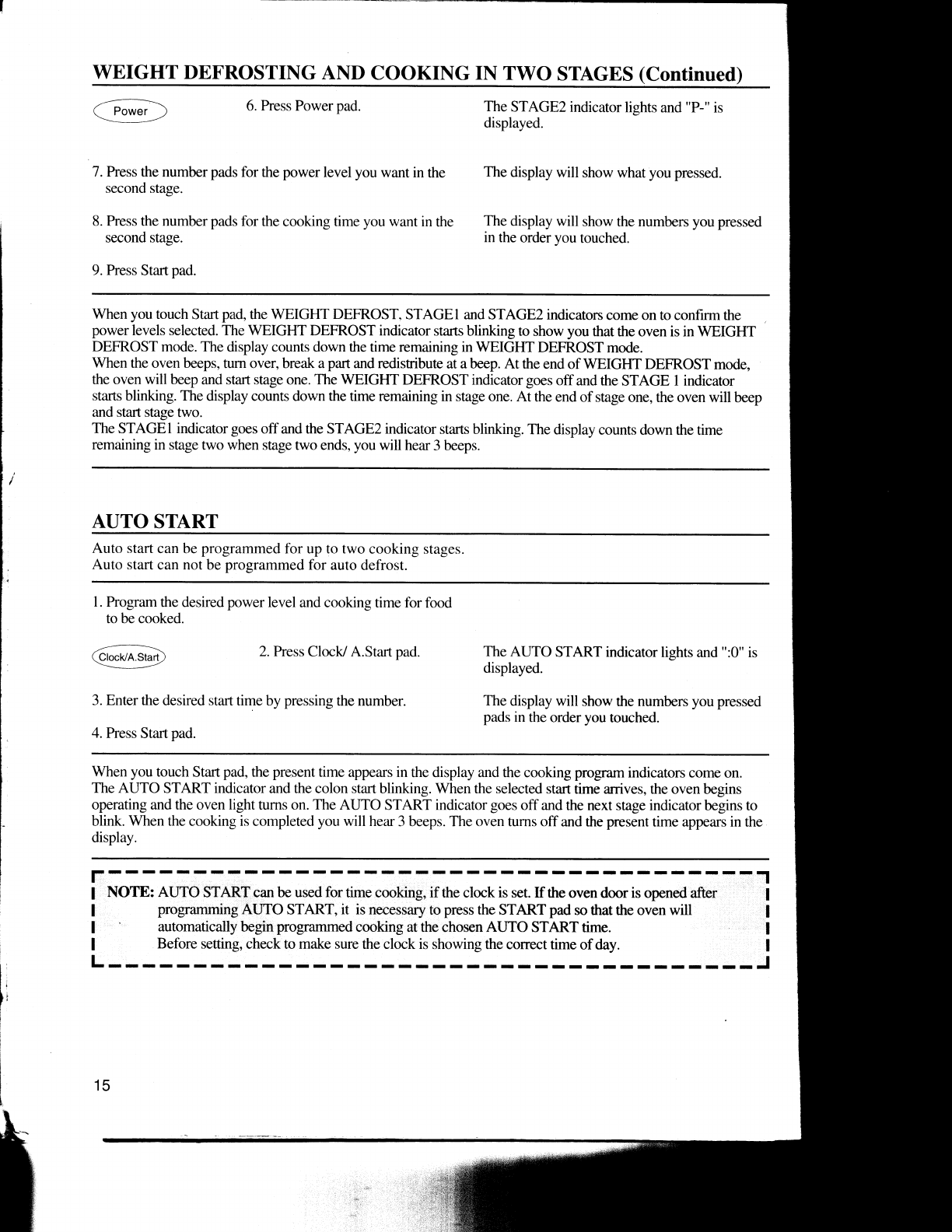

WEIGHT DEFROSTING AND COOKING IN TWO STAGES

All recipes require frozen foods to be defrosted fully before cooking.

This oven can be programmed to automatically defrost foods before cooking.

Auto Def. 1. Press Auto Def. pad.

2. Press numbr pads for the defrosting weight you want.

3. Press Power pad.

4. Press Power pad once more.

5. Press numbr pads, for desired cooking time in the first stage.

The WEIGHT DEFROST indicator lights and

"0.0" is displayed and the lb indicator starts

blinking.

The display will show the numbers you pressed

in the order you touched.

The STAGEI indicator lights and "P- " is

displayed.

"P-HI" will appear in the display window.

This example shows full power (lNVo).

The display will show the numbers you pressed

in the order you touched.

14

WEIGHT DEFROSTING AND COOKING IN TWO STAGES (Continued)

6. Press Power pad.

7. Press the number pads for the power level you want in the

second stage.

8. Press the number pads for the cooking time you want in the

second stage.

9. Press Start pad.

The STAGE2 indicator lights and "P-" is

displayed.

The display will show what you pressed.

The display will show the numbers you pressed

in the order you touched.

When you touch Start pad, the WEIGHT DEFROST. STAGEI and STAGE2 indicators mme on to confirm the

power levels selected. The WEIGHT DEFROST indicator starts blinking to show you that the oven is in WEIGHT

DEFROST mode. The display counts down the time remaining in WEIGIIT DEFROST mode.

When the oven beeps, tum over, break a part and redisnibute at a beep. At the end of WEIGHT DEFROST mode,

the oven will beep and start stage one. The WEIGHT DEFROST indicator goes off and the STAGE I indicator

starts blinking. The display counts down the time remaining in stage one. At the end of stage one, the oven will beep

and start stage two.

The STAGE1 indicator goes off and the STAGE2 indicator starts blinking. The display counts down the time

remaining in stage two when stage two ends, you will hear 3 beeps.

AUTO START

Auto start can be programmed for up to two cooking stages.

Auto start can not be programmed for auto defrost.

l. Program the desired power level and cooking time for food

to be cooked.

2. Press Clock/ A.Start pad.

3. Enter the desired start time by pressing the number.

4. Press Start pad.

The AUTO START indicator lights and ":0" is

displayed.

The display will show the numbers you pressed

pads in the order you touched.

When you touch Start pad, the present time appears in ttre display and the cooking program indicators come on.

The AUTO START indicator and the colon start blinking. When the selected start time arrives, the oven begins

operating and the oven light tums on. The AUTO START indicator goes off and the next stage indicator begins to

blink. When the cooking is completed you will hear 3 beeps. The oven tums offand the present time appears in the

display.

I\KIIE: AtIfo STAffican be used fortime coo$t1g, if dre clock is set. If the oven door is opend after

programming AUTO START, it is necessary to press the START pad so that the oven will

' automatically begin programmed cooking at ttre chosen AUTO START time.

Before sefiing, check to make sure the clock is showing the correct time of day.

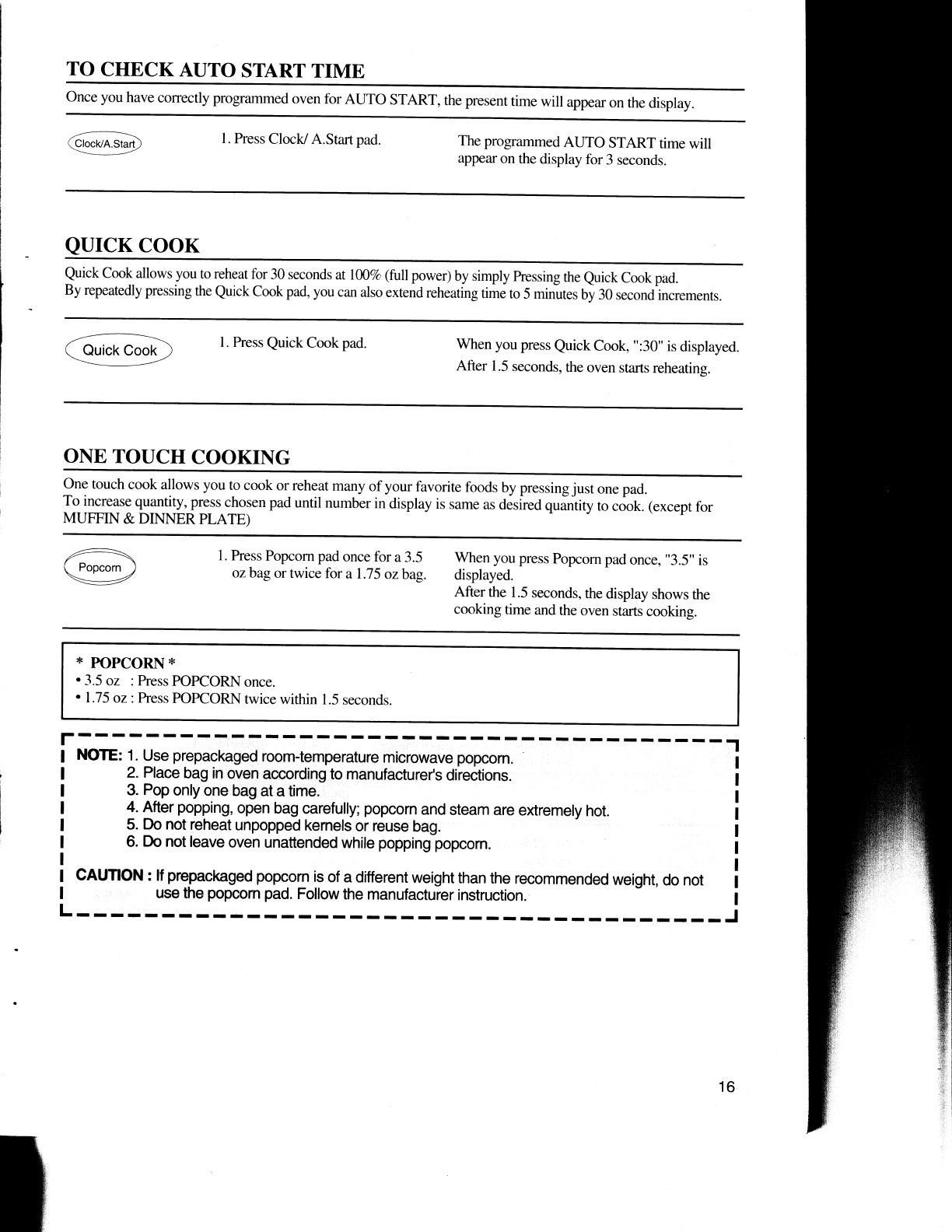

TO CHECK AUTO START TIME

Once you have correctly programmed oven for AUTO START, the present time will appear on the display.

1. Press Clock/ A.Start pad. The programmed AUTO START rime will

appear on the display for 3 seconds.

QUrCK COOK

Quick Cook allows you to reheat for 30 seconds at lNVo (full power) by simply Pressing the euick Cook pad.

By repeatedly pressing the Quick Cook pad, you can also extend reheating time to 5 minutes by 30 second increments.

l. Press Quick Cook pad. When you press Quick Cook, ":30" is displayed.

After 1.5 seconds, the oven stafis reheating.

ONE TOUCH COOKING

pn9 touch cook allows you to cook or reheat many of your favorite foods by pressing just one pad.

To_increase quantity, press chosen pad until number in display is same as desired quiotlty to colk. (except for

MUFFIN & DINNER PLATE)

1. Press Popcorn pad once for a 3.5

ozbag or twice for a I.75 ozbag. When you press Popcorn pad once, "3.5" is

displayed.

After the 1.5 seconds, the display shows the

cooking time and the oven starts cooking.

* POPCORN 8

. 3.5 oz : Press POPCORN once.

' 1.75 oz : Press POPCORN twice within 1.5 seconds.

L

IIOTE: 1. lse prepackagd ioom-ternperafure mbrowave popcom.

2. Plac,e bag in,,uren amordir8 to maruItaclurefs directions.

3. Pop only orre bag at a tine.

!. ffter popping, open bag carefully; popom and steam are extremely hot.

5. Do not reheat unpopped kemels or rcuse bag.

6. Do not leave oven unattended wtrile popping porcorn.

CAIIflON : lf prepackaged popcom is of a different weight than the recommended weight, do not

use the ppcom pad. Fdloru the manufacturer instruction.

rrrrrrr--J

16

OI\E TOUCH COOKING (continued)

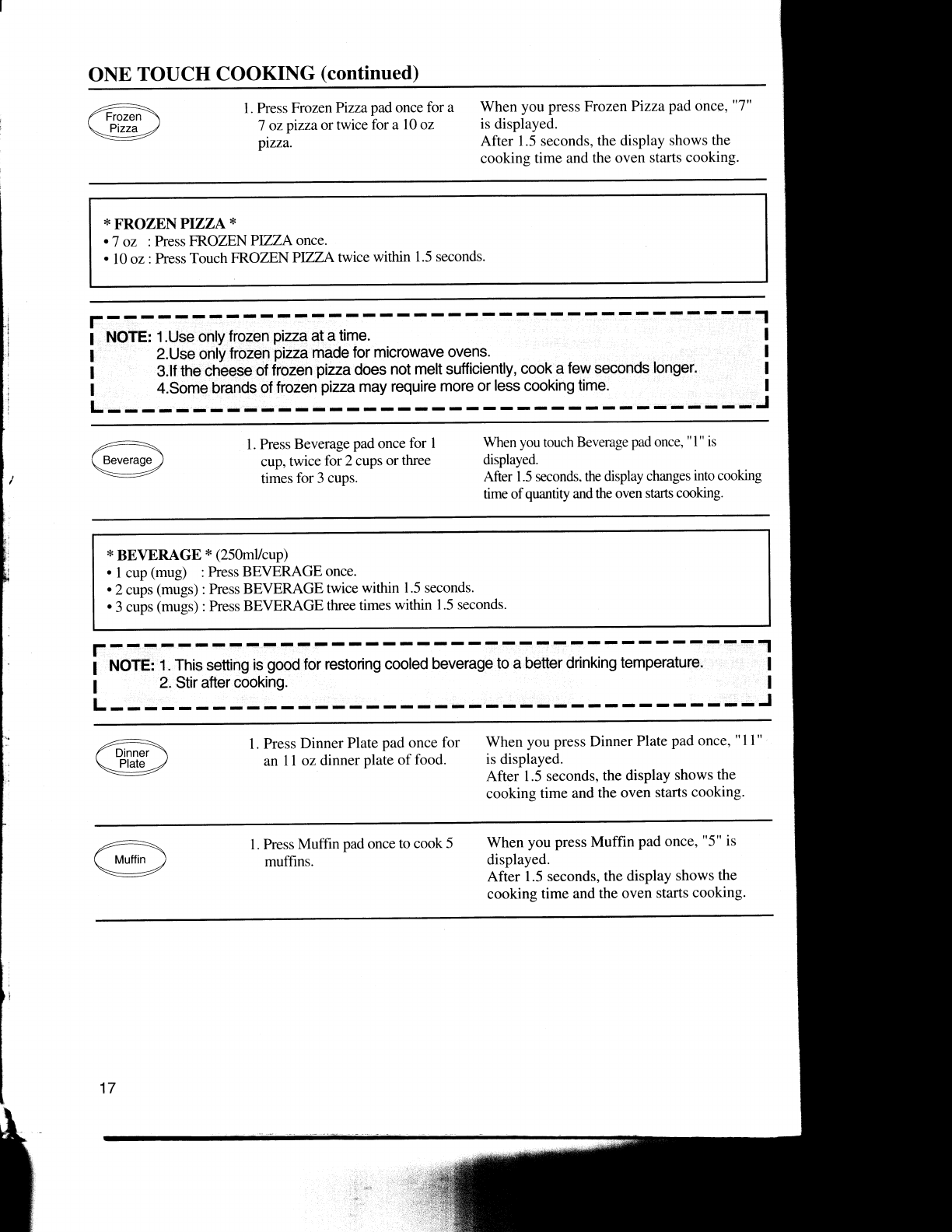

1. Press Frozen Ptzzapad once for a

J oz przza or twice for a l0 oz

ptzza.

When you press Frozen Ptzza pad once, "7"

is displayed.

After 1.5 seconds, the display shows the

cooking time and the oven starts cooking.

* FROZEN PIZZA*

. J oz : Press FROZENPVZA once.

. 10 oz: Press Touch FROZENPIZZA twice within 1.5 seconds.

1: ----'I

NOTE: 1 .Use only frozen piza ala time.

2.Use only frozen pizza made for microwave ovens.

, ' e.lf &*,qheape,of f,rozen pizza does not meft sufficiently, cook a few gqcqM,ilorEqrl

. +.SOnre UanAs olirozeipvzamay require more or less cooking time.

I

h I r -

r it t

-

i I il

-

I

-

I

- -I

1. Press Beverage pad once for I

cup, twice for 2 cups or three

times for 3 cups.

When you touch Beverage pad once, " 1" ls

displayed.

After 1.5 seconds. the display changes into cooking

time of quantity and the oven starts cooking.

* BEVERAGE * (250mVcup)

. I cup (mug) : Press BEVERAGE once.

.2 cups (mugs) : Press BEVERAGE twice within 1.5 seconds.

. 3 cups (mugs) : Press BEVERAGE three times within 1.5 seconds.

NOTE:i1. This setting is good tor restoring cooled beverage to a better drinking temperauJre;

2. Stir after cooking. l

I

J

l-

I

I

L

1. Press Dinner Plate pad once for

an 1 I oz dinner plate of food.

When you press Dinner Plate pad once, " 1 1"

is displayed.

After 1.5 seconds, the display shows the

cooking time and the oven starts cooking.

1. Press Muffin pad once to cook 5

muffins.

When you press Muffin pad once, "5" is

displayed.

After 1.5 seconds, the display shows the

cooking time and the oven starts cooking.

:,- . I '+':,ril

ONE TOUCH COOKING (continued)

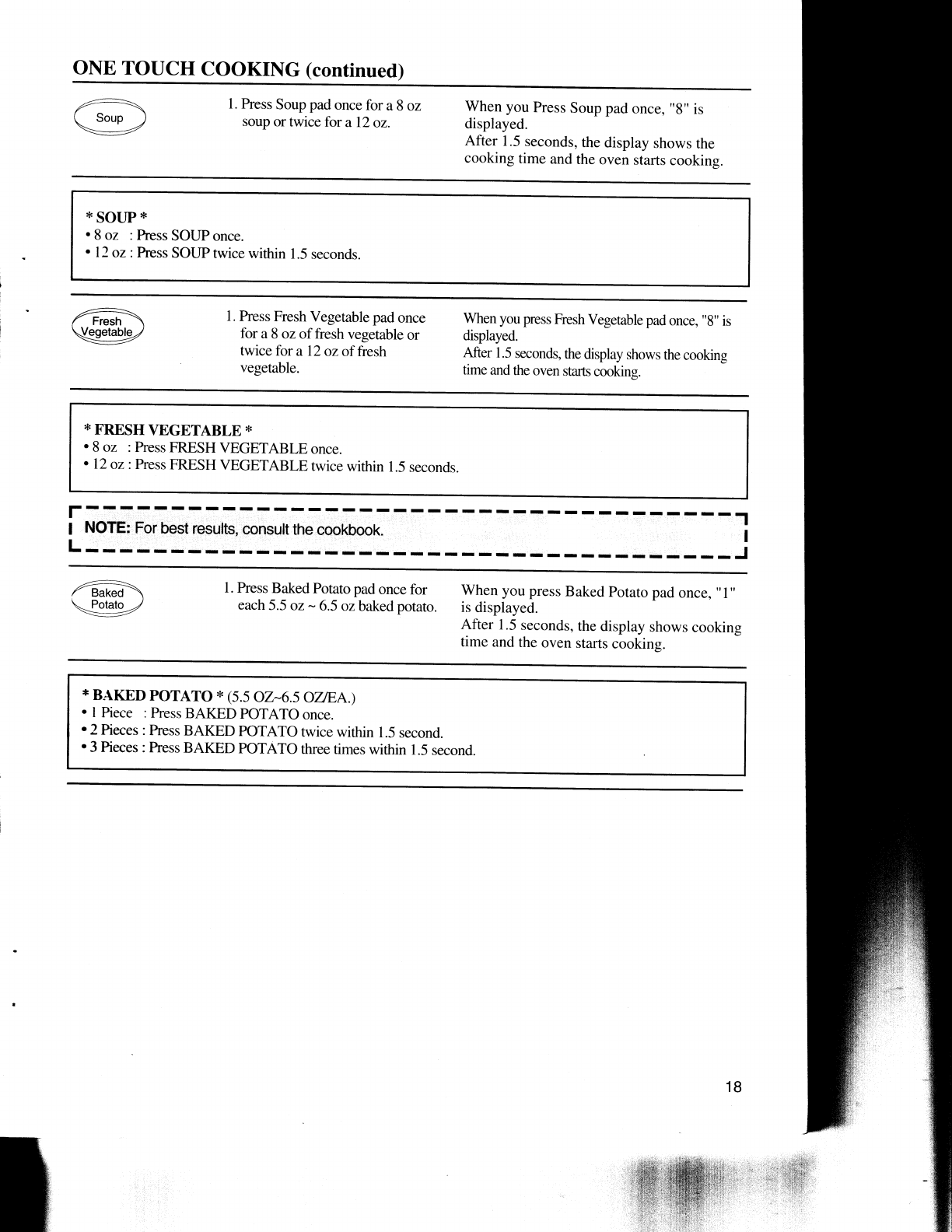

1. Press Soup pad once for a 8 oz

soup or twice for a 12 oz.

When you Press Soup pad once, "8" is

displayed.

After 1.5 seconds, the display shows the

cooking time and the oven starts cooking.

* SOUP *

. 8 oz : hess SOUP once.

. 12 oz : hess SOUP twice within 1.5 seconds.

1. Press Fresh Vegetable pad once

for a 8 oz of fresh vegetable or

twice for a 12 oz of fresh

vegetable.

When you press Fresh Vegetable pad once, "8" is

displayed.

After 1.5 seconds, the display shows the cooking

time and the oven starts cooking.

* FRESH VEGETABLE 8

. 8 oz : Press FRESH VEGETABLE once.

' 12 oz: Press FRESH VEGETABLE twice within 1.5 seconds.

f---

I NOTE: For best results, consult the cookbook. .I

I

L- -t -r r.,-J

1. Press Baked Potato pad once for

each 5.5 oz - 6.5 oz baked potato.

When you press Baked Potato pad once, " 1"

is displayed.

After 1.5 seconds, the display shows cooking

time and the oven starts cooking.

* BAKED POTATO * (5.5 0Z-6.5 OZ,/EA.)

. I Piece : Press BAKED POTATO once.

. 2 Pieces : Press BAKED POTATO twice within 1.5 second.

'3 Pieces : Press BAKED POTATO three times within 1.5 second.

18

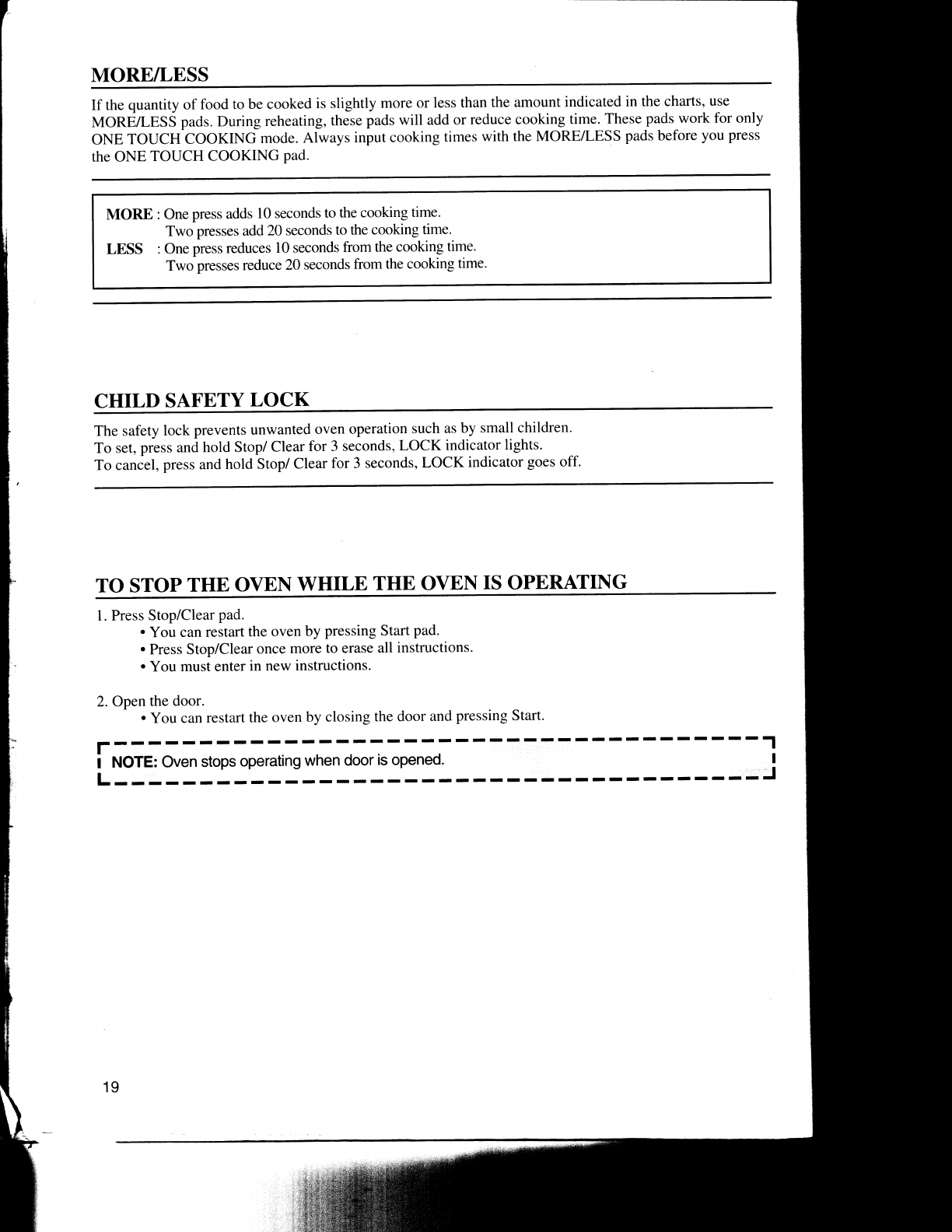

MORF,TLF,SS

If the quantity of food to be cooked is slightly more or less than the

MORE/LESS pads. During reheating, these pads will add or reduce

ONE TOUCH COOKING mode. Always input cooking times with

the ONE TOUCH COOKING Pad.

amount indicated in the charts, use

cooking time. These pads work for only

the MORE/LESS pads before you press

MORE : One press adds 10 seconds to the cooking time.

Two presses add 20 seconds to the cooking time.

LESS : One press reduces 10 seconds from the cooking time.

Two presses reduce 20 seconds from the cooking time.

CHILD SAFETY LOCK

The safety lock prevents unwanted oven operation such as by small children.

To set, press and hold Stop/ Clear for 3 seconds, LOCK indicator lights.

To canCel, press and hold Stop/ Clear for 3 seconds, LOCK indicator goes off.

TO STOP THE OVEN WHILE THE OVEN IS OPERATING

1. Press Stop/Clear pad.

. You can restart the oven by pressing Start pad.

. Press Stop/Clear once more to erase all instructions.

. You must enter in new instructions.

2. Open the door.

. You can restart the oven by closing the door and pressing Start.

r - r rr - r r - - - I - - - - n - I

i ruOfE: Oven stops operating when door is opened.

I-l

I

J

19

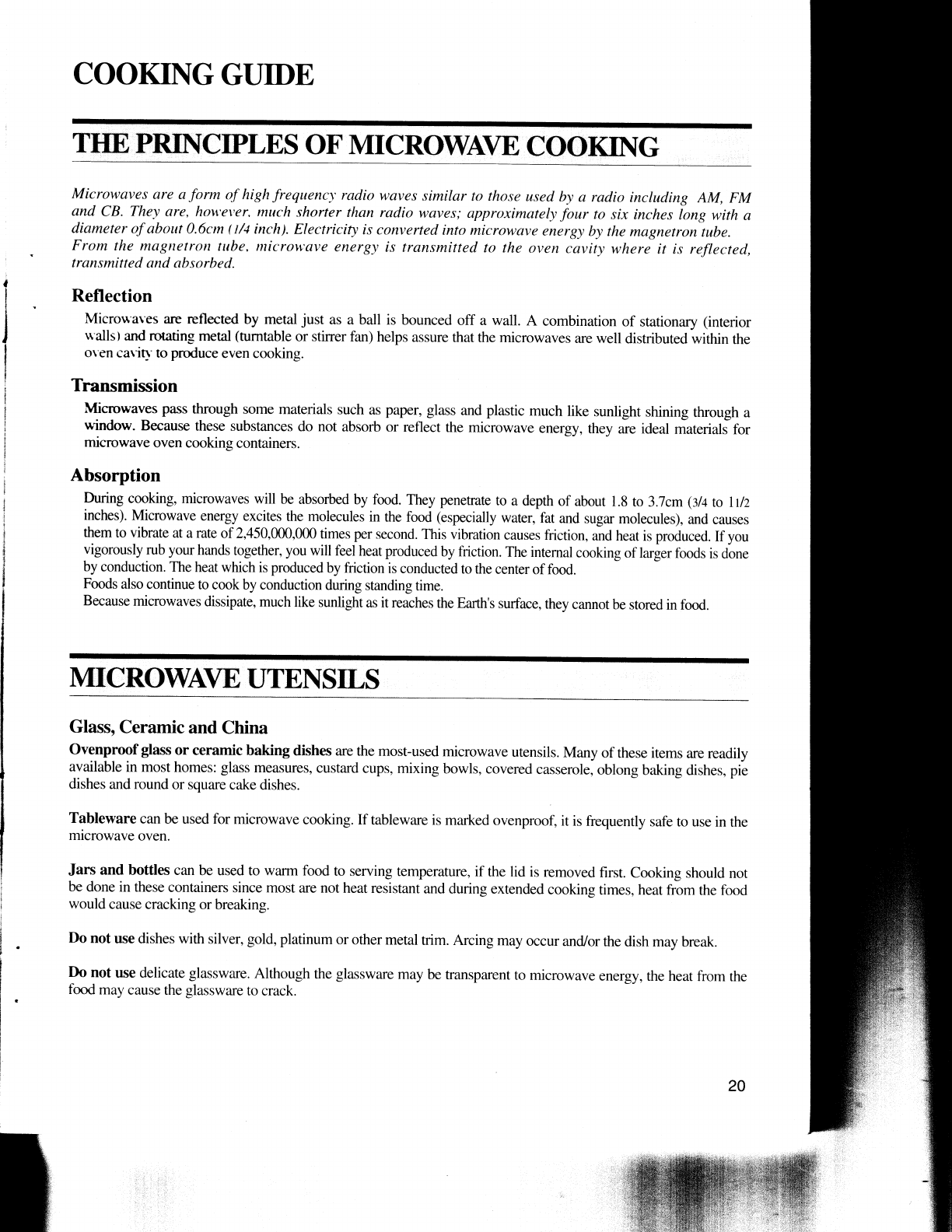

COOKINGGT]tr)E

TIIE PRINCIPLES OF MICROWAVE COOKING

Microwaves are a form of high frequency radio waves similar to those used by a radio including AM, FM

and CB. They are, hov'ever. much shorter than radio waves; approximately four to six inches iong with a

diameter of about 0.6cm ( 1/,t inch). Electricity is converted into microwave energy by the magnetron tube.

From the magnetron tube, microwave energy is transmitted to the oven cavity where it is reflected,

transmitted and absorbed.

Reflection

Microu'aves are reflected by metal just as a ball is bounced off a wall. A combination of stationary (interior

tt'alls) and ruating metal (turntable or stirrer fan) he$s assure that the microwaves are well distributed within the

oven carih'to produce even cooking.

Transmission

Microwaves pass through some materials such as paper, glass and plastic much like sunlight shining through a

window. Because these substances do not absorb or reflect the microwave energy, they are ideal materialJ for

microwave oven cooking containers.

Absorption

During cooking, microwaves will be absorbed by food. They penetrate to a depth of about 1.8 to 3.7cm Ol4 to lt/2

inches). Microwave energy excites the molecules in the food (especially water, fat and sugar molecules), and causes

them to vibrate at ante of 2,450,000,000 times per second. This vibration causes friction, and heat is produced. If you

vigorously rub your hands together, you will feel heat produced by friction. The internal cooking oflarger foods is dbne

by conduction. The heat which is produced by friction is conducted to the center offood

Foods also continue to cook by conduction during standing time.

Because microwaves dissipate, much fike sunlight as it reaches the Earth's surface, they cannot be stored in food.

MICROWAIM UTENSILS

Glass, Ceramic and China

Ovenproof glass or ceramic baking dishes are the most-used microwave utensils. Many of these items are readily

available in most homes: glass measures, custard cups, mixing bowls, covered casserole, oblong baking dishes, pie

dishes and round or square cake dishes.

Tableware can be used for microwave cooking. If tableware is marked ovenproof, it is frequently safe to use in the

microwave oven.

Jars and botfles can be used to warm food to serving temperature, if the lid is removed first. Cooking should not

be done in these containers since most are not heat resistant and during extended cooking times, heat frbm the food

would cause cracking or breaking.

Do not use dishes with silver, gold, platinum or other metal trim. Arcing may occur and/or the dish may break.

!o not use delicate glassware. Although the glassware may be transparent to microwave energy, the heat from the

food may cause the glassware to crack.

20

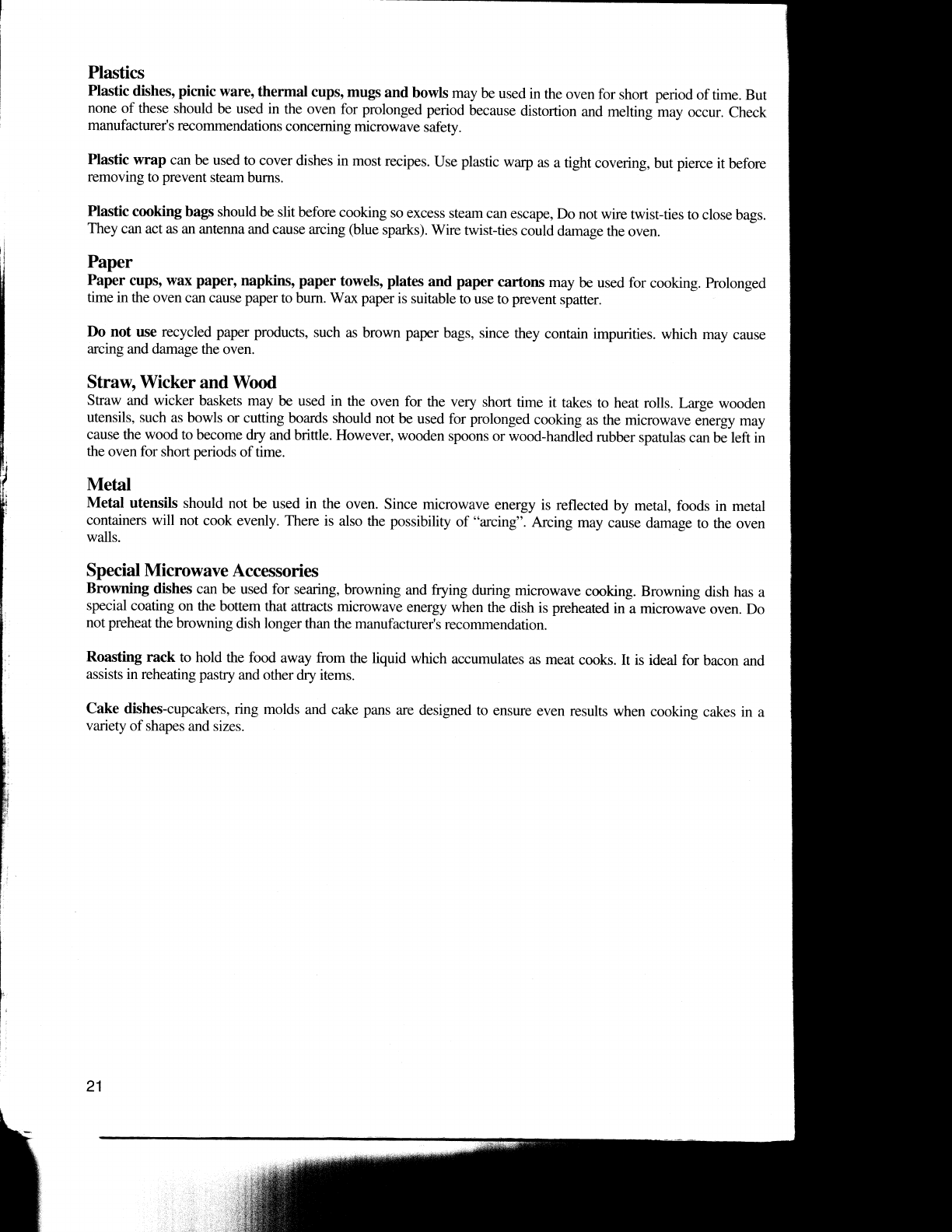

Plastics

Plastic dishes, picnic ware, thermal cups, mugs and bowls may be used in the oven for short period of time. But

none of these should be used in the oven for prolonged period because distortion and melting may occur. Check

manufacturer's recommendations conceming rnicrowave safety.

Plastic wrap can be used to cover dishes in most recipes. Use plastic warp as a tight covering, but pierce it before

removing to prevent steam bums,

Plastic cooking bags should be slit before cooking so excess steam can escape, Do not wire twist-ties to close bags.

They can act as an antenna and cause arcing (blue sparks). Wire twist-ties could damage the oven.

Paper

Paper cups, wax paper, napkins, paper towels, plates and paper cartons may be used for cooking. Prolonged

time in the oven can cause paper to burn. wax paper is suitable to use to prevent spatter.

Do not use recycled paper products, such as brown paper bags, since they contain impurities. which may cause

arcing and damage the oven.

Straw, Wicker and Wood

Straw and wicker baskets may be used

utensils, such as bowls or cuffing boards

in the oven for the very short time it takes to heat rolls. Large wooden

cause the wood to become dry and brittle.

the oven for short periods of time.

Metal

Metal utensils should not be used in the oven. Since microwave energy is reflected by metal, foods in metal

containers will not cook evenly. There is also the possibility of "arcing". Arcing may cause damage to the oven

walls.

Special Microwave Accessories

Brorvning rlishes can be used for searing, browning and frying during microwave cooking. Browning dish has a

special coating on the bottem that atffacts microwave energy when the dish is preheated in a microwave oven. Do

not preheat the browning dish longer than the manufacturer's recommendation.

Roasting rack to hold the food away from the liquid which accumulates as meat cooks. It is ideal for bacon and

assists in reheating pastry and other dry items.

Cake dishes-cupcakers, ring molds and cake pans are designed to ensure even results when cooking cakes in a

variety of shapes and sizes.

should not be used for prolonged cooking as the microwave energy may

However, wooden spoons or wood-handled rubber spatulas can be left in

1

I

I

t,

I

I'

I

I

i

i

ii

21

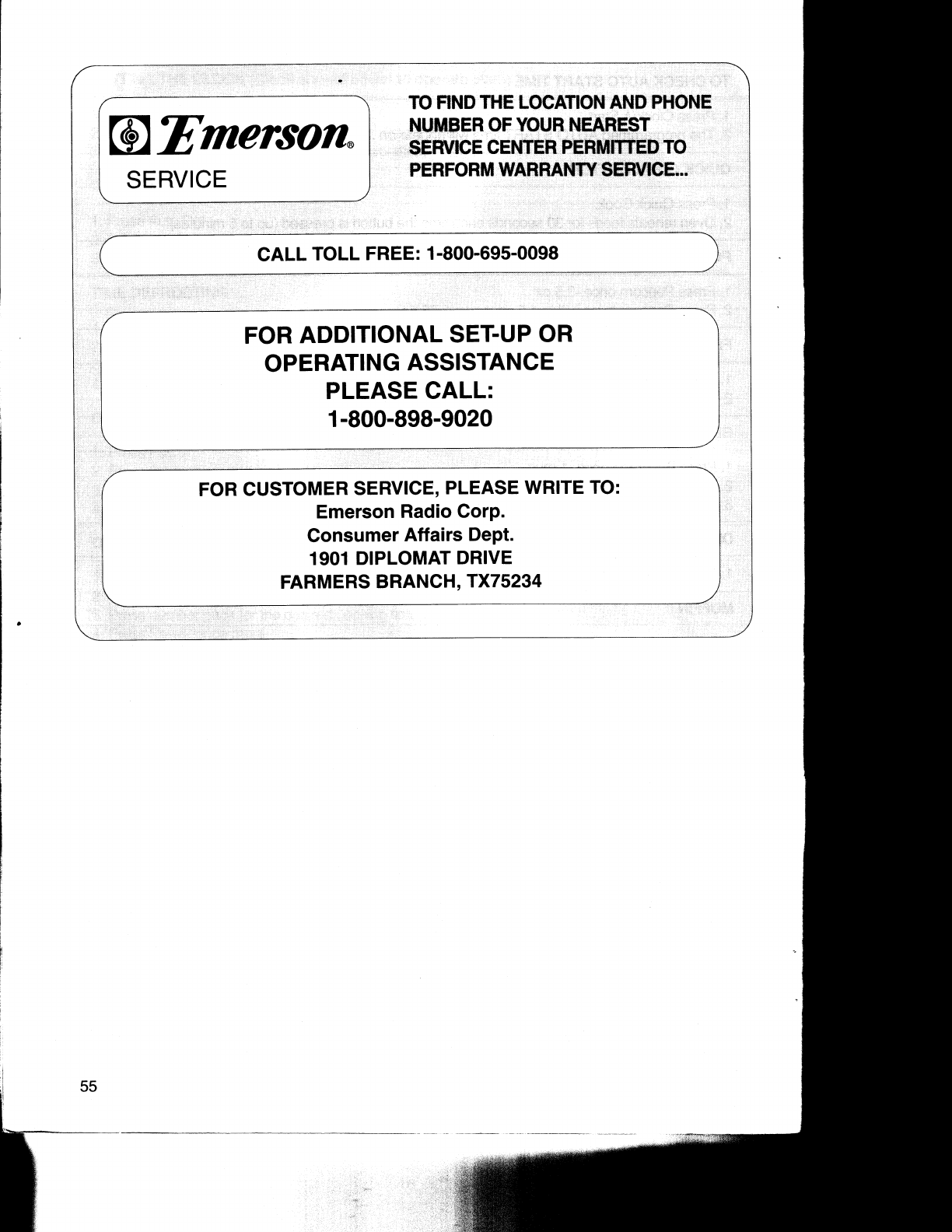

@Emerson,

SERVICE

TO FINDTHE LOCATION AND PHONE

NUMBER OFYOUR NEAREST

SEMTrcE GENTER PERMITTED TO

PERFORM WARRANTY SERVICE...

CALL TOLL FREE: 1-800'695-0098

FOR ADDITIONAL SET.UP OR

OPERATING ASSISTANCE

PLEASE CALL:

1-800-898-9020

FOR CUSTOMER SERVICE, PLEASE WRITE TO:

Emerson Radio Corp.

Consumer Affairs Dept.

1901 DIPLOMAT DRIVE

FARMERS BRANCH, TX75234

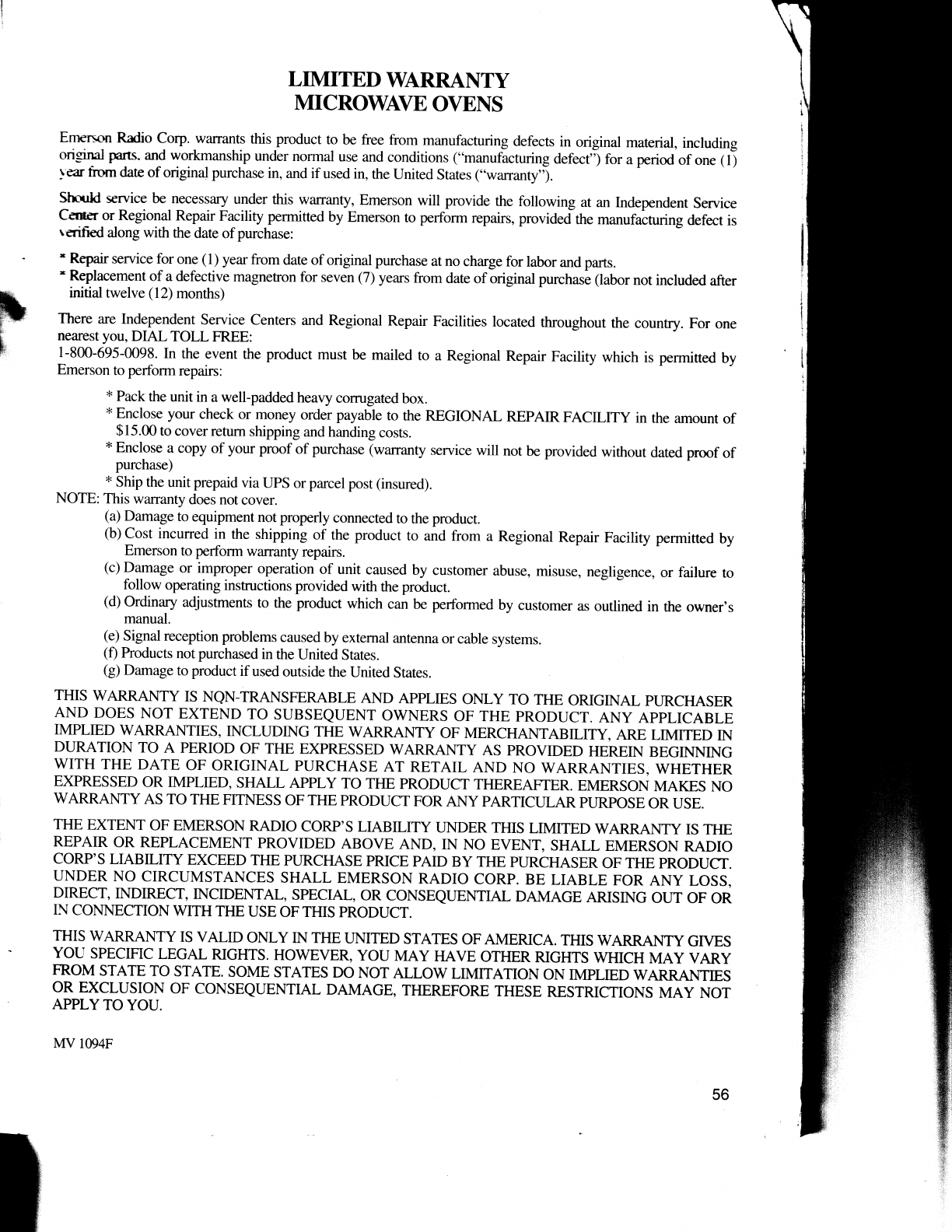

LIMIIED WARRANTY

MICROWAVE OVENS

Emerson Radio Corp. warrants this product to be free from manufacturing defects in original material, including

original parts. and workmanship under normal use and conditions ("manufacnrring defect) for a period of one ( tj

lear fiom'late of original purchase in, and if used in, the united States ("wananff').

Shilld sewice be necessary under this warranfy, Emerson will provide the following at an Independent Service

Cemeror Regrolal Repair Facility permitted by Emerson to perform repain, provided ttre manufaituring defect is

rqified along with the date of purchase:

* Repair service for one (1) year from date oforiginal purchase at no charge for labor and parts.

* R-eplacement of a defective magnetron for seven (7) years from date of original purchase (labor not included after

initial twelve (12) months)

There are Independent Service Centers and Regional Repair Facilities located throughout the counbry. For one

nearest you, DIAL TOLL FREE:

l-800-695-0098. In the event the product must be mailed to a Regional Repair Facility which is permitted by

Emerson to perform repain:

* Pack the unit in a well-padded heavy comrgated box.

x Enclose your check or money order payable to the REGIONAL REPAIRFACILITY in the amounr of

$15.00 to cover retum shipping and handing costs.

x Enclose a copy of your proof of purchase (warranty service will not be provided without dated proof of

purchase)

* Ship the unit prepaid via UPS or parcel post (insured).

NOTE: This wan:anty does not cover.

(a) Damage to equipment not properly connected to the product.

(b) Cost incurred in the shipping of the product to and from a Regional Repair Facility permitted by

Emerson to perform warranty repairs.

(c) Damage or improper operation of unit caused by customer abuse, misuse, negligence, or failure to

follow operating instuctions provided with the product.

(d) Ordinary adjustrnents to the product which can be performed by customer as outlined in the owner's

manual.

(e) signal reception problems caused by extemal antenna or cable systems.

(f1 Products not purchased in the United States.

(g) Damage to product if used outside the United States.

THIS WARRANTY IS NQN-TRANSFERABLE AND APPLIES ONLY TO TI{E ORIGINAL PURCHASER

AND DOES NOT EXTEND TO SUBSEQUENT OWNERS OF THE PRODUCT. ANY APPLICABLE

IMPLIED WARRANTIES,INCLUDING TI{E WARRANTY OF MERCHANTABILITY, ARE LIMITED IN

DURATION TO A PERIOD OF THE E)(PRESSED WARRANTY AS PROVIDED HEREIN BEGINNING

WITH THE DATE OF ORIGINAL PURCHASE AT RETAIL AND NO WARRANTIES, WHETHER

EXPRESSED OR IMPLIED, SHALL APPLY TO TI{E PRODUCT TT{EREAFTER. EMERSON MAKES NO

WARRANTY AS TO THE FITNESS OF TTIE PRODUCT FOR ANY PARTICULAR PURPOSE OR USE.

THE EXTENT OF EMERSON RADIO CORP'S LIABILITY UNDER THIS LIMITED WARRANTY IS TIIE

REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL EMERSON RADIO

CORP'S LIABILITY EXCEED TTIE PURCHASE PRICE PAID BY TFM PURCHASER OF TI{E PRODUCT.

UNDER NO CIRCUMSTANCES SHALL EMERSON RADIO CORP. BE LIABLE FOR ANY LOSS,

DIRECT, INDIRECT,INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGE ARISING OUT OF OR

L\I CONNECTION WTIH THE USE OF THIS PRODUCT.

THIS WARRANTY IS VALID ONLY INTHEUMTED STATES OFAMERICA. THIS WARRANTYGIVES

YOU SPECIFIC LEGAL RIGHTS. HOWEVER, YOU MAY HAVE OTT{ER RIGHTS WHICH MAY VARY

FROM STATE TO STATE. SOME STATES DO NOT ALLOW LMITATION ON IMPLIED WARRANTIES

OR EXCLUSION OF CONSEQUENTIAL DAMAGE, THEREFORE THESE RESTRICTIONS MAY NOT

APPLYTOYOU.

MV 1094F

56
