OWNER’S MANUAL
PD5203
Visit our web site at www.emersonradio.com
Portable CD-R/RW Player
with AM/FM Stereo Radio
PD5203_C071106.p65 11/7/2006, 11:1519
![](asset-2.png)
1
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE
OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT SAFETY INSTRUCTIONS
1.) Read these instructions. Keep these instructions. Follow all instructions. Heed all warnings.
2.) Do not use this apparatus near water.
3.) Clean only with dry cloth.
4.) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
5.) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
6.) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete outlet.
7.) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
8.) Only use attachments / accessories specified by the manufacturer.
9.) Unplug this apparatus during lightning storms or when unused for long periods of time.
10.) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
11.) This appliance shall not be exposed to dripping or splashing water and no object filled with liquids
such as vases shall be placed on the apparatus.
12.) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13.) Do not overload wall outlet. Use only power source as indicated.
14.) Use replacement parts as specified by the manufacturer.
15.) The product may be mounted to a wall only if recommended by the manufacturer.
16.) Upon completion of any service or repairs to this product, ask the service technician to perform
safety checks.
!

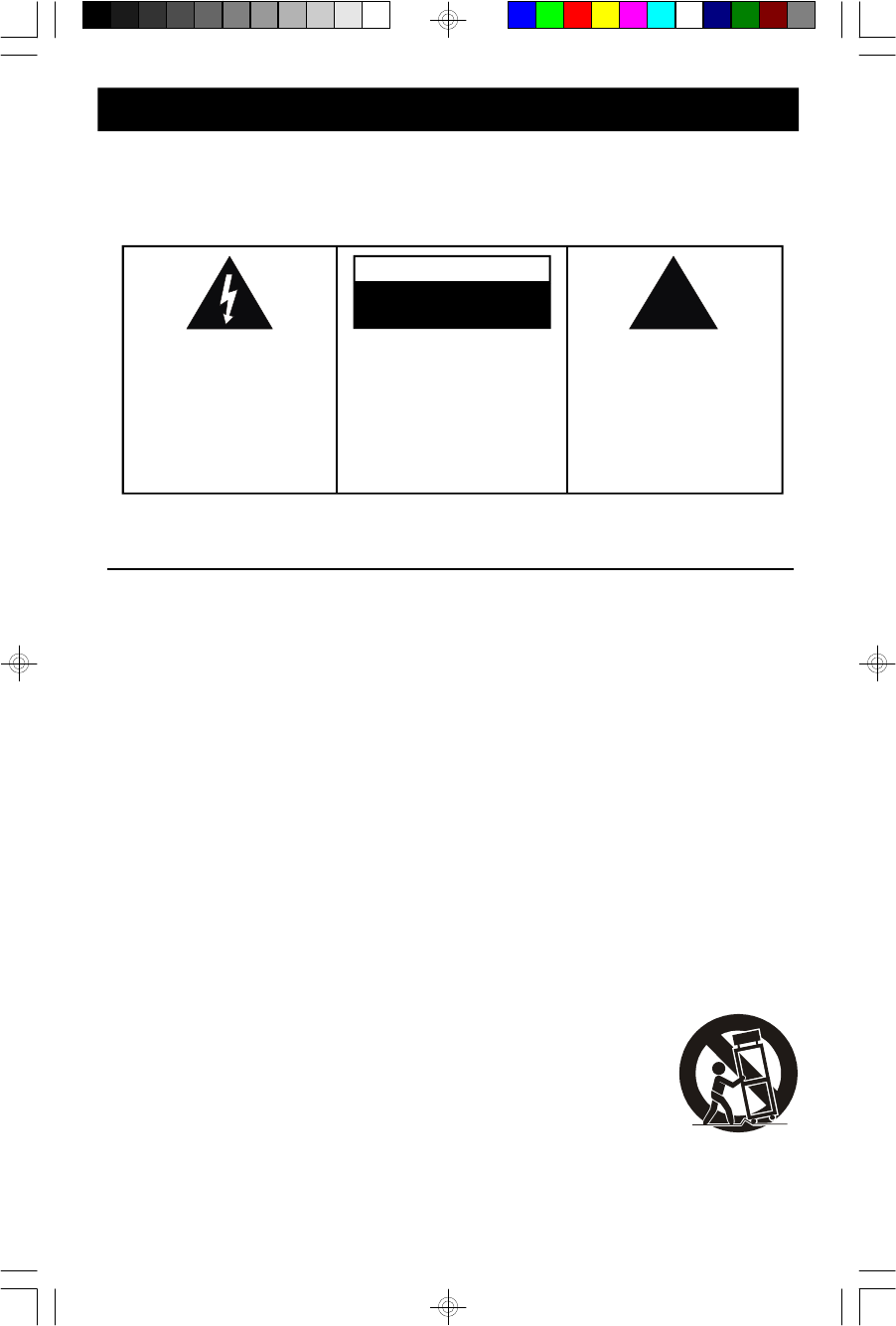

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrow-
head symbol, within an equi-
lateral triangle is intended to
alert the user to the presence
of uninsulated ‘dangerous voltage’
within the product’s enclosure
that may be of sufficient
magnitude to constitute a risk
of electric shock to persons.
The exclamation point within
an equilateral triangle is in-
tended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in
the literature accompany-
ing the appliance.
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER
(OR B A CK), NO US E R
SERVICEABLE PARTS INSIDE
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
CAUTION
The Caution Marking maybe located at the bottom enclosure of the apparatus.
PD5203_C071106.p65 11/7/2006, 11:151
![](asset-3.png)
2
Before We Begin
Thank you for purchasing this Emerson audio product. The Emerson brand
is your assurance of quality, performance and value.
Our engineers have included many useful and convenient features in this
product. Please be sure to read this Owner’s Manual completely to make
sure you are getting the maximum benefit from each feature.
This product was manufactured using the highest quality components and
standards of workmanship. It was tested by Emerson inspectors and found
to be in perfect working order before it left our factory. However, there is
always the chance that some problem may occur because of rough handling
during shipment to the retail store or to the final consumer.
If, after reading this manual, you experience any problems with the operation
of this product, please refer to the instructions for obtaining service at the
end of this manual.
Emerson and Emerson retailers are committed to your satisfaction.
Once again, thanks for purchasing this Emerson audio product.
PD5203_C071106.p65 11/7/2006, 11:152
![](asset-4.png)
3
IMPORTANT NOTES
•Avoid installing this unit in places exposed
to direct sunlight or close to heat radiating
appliances such as electric heaters, on top
of other stereo equipment that radiates too
much heat, places lacking ventilation or
dusty areas, places subject to constant
vibration and/ or humid or moist areas.
•Do not attempt to clean this unit with
chemical solvents as this might damage the
finish. Use a clean dry cloth.
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
APPAREIL Á LASER DE CLASSE 1
PRODUCTO LASER DE CLASE 1
CAUTION
INVISIBLE LASER RADIATION
WHEN OPEN AND INTERLOCKS
DEFEATED.
AVOID EXPOSURE TO BEAM
This product contains a low power Laser Device.
FCC Information
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
•Operate controls and switches as described
in the manual.
•Before turning ‘On’ the power, make certain
that power cord is properly installed.
•Store your CDs in a cool area to avoid
damage from heat.
•When moving the set, be sure to first
disconnect the power cord.
PD5203_C071106.p65 11/7/2006, 11:153
![](asset-5.png)
4
PREPARATION FOR USE
Unpacking and Set Up
•Carefully remove the unit from the carton and remove all packing materials from
the unit.
•Carefully remove any small strips of tape which may have been used to keep
the CD door closed during shipment.
•Open the CD compartment by pressing on the OPEN/CLOSE position of the
CD door and lifting upward. Inside the CD compartment you will see a ‘dummy’
CD transit card which is used to prevent the laser pick-up from moving during
shipment. Carefully remove this card and close the CD compartment door.
•Please save the carton and packing materials in the event that your unit ever
needs to be returned for service. The original carton and packing materials are
the only way to protect the unit from damage during shipment.
Protect Your Furniture
This model is equipped with non-skid rubber 'feet' to prevent the product from
moving when you operate the controls. These 'feet' are made from non-migrating
rubber material specially formulated to avoid leaving any marks or stains on your
furniture. However certain types of oil based furniture polishes, wood preservatives,
or cleaning sprays may cause the rubber 'feet' to soften, and leave marks or a
rubber residue on the furniture. To prevent any damage to your furniture we strongly
recommend that you purchase small self-adhesive felt pads, available at hardware
stores and home improvement centers everywhere, and apply these pads to the
bottom of the rubber 'feet' before you place the product on fine wooden furniture.
PD5203_C071106.p65 11/7/2006, 11:154
![](asset-6.png)
5
Power Sources
This unit is designed to operate on 6 “C” batteries, not included, or on normal 120V
60Hz AC house current. Operating this unit from any other power source may
cause damage to the unit, and such damage is not covered by your warranty.

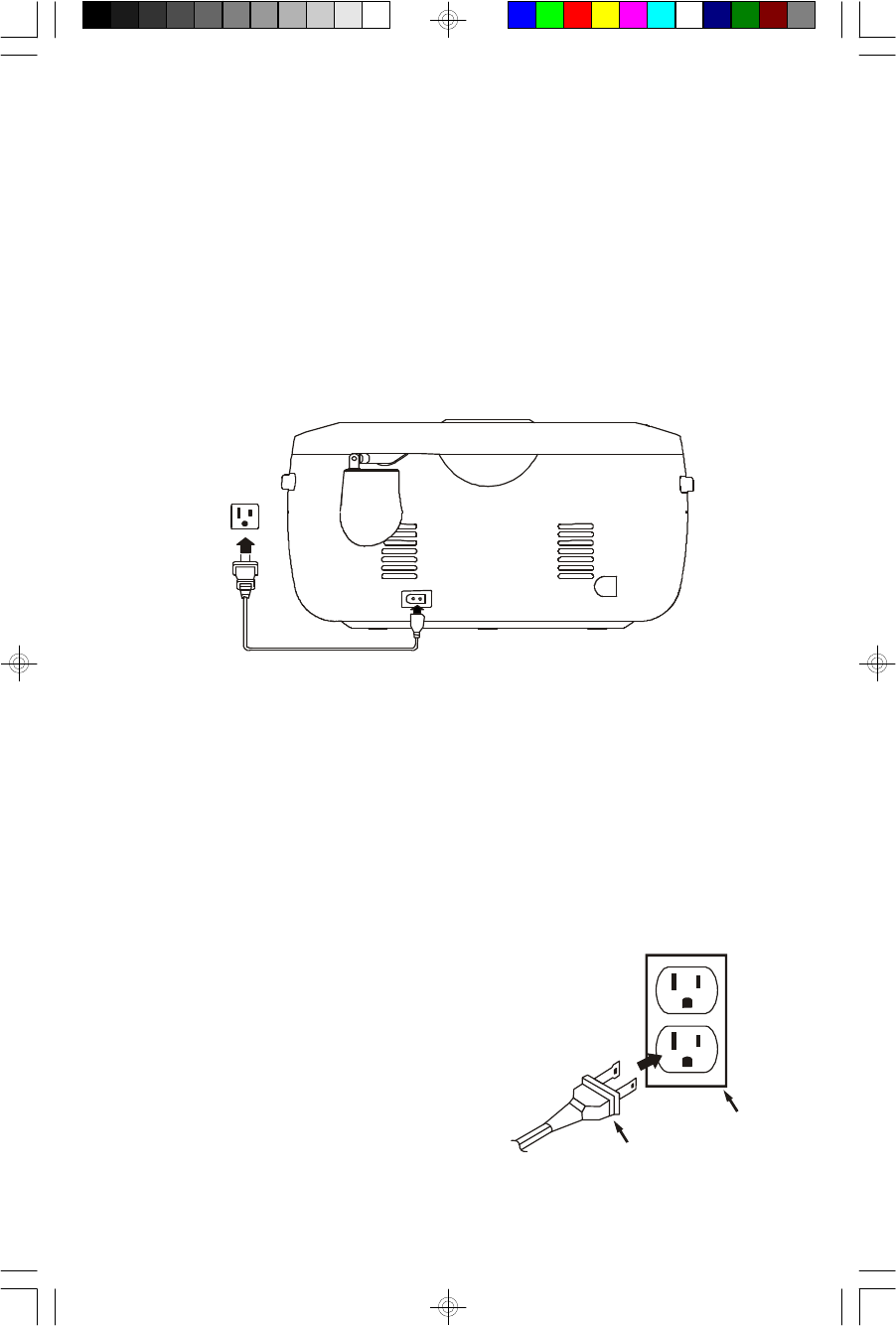

AC Operation
Connect the small end of the AC Power Cord to the AC socket on the back cabinet,
then insert the plug in any convenient household 120V 60Hz AC outlet.
Note:
This unit has a polarized AC plug with one wide blade and one narrow blade. This
plug will only fit into a matching polarized AC outlet. This is a safety feature to
reduce the possibility of electric shock.
If this plug will not fit in your AC outlet, you probably have an outdated non-polarized
outlet. You should have your outdated outlet changed by a qualified, licensed
electrician.
Do not file the wide blade on the plug, or use
an adapter to make the plug fit into your outlet.
This defeats the safety feature and could
expose you to electric shock.
AC Plug
AC Outlet
PD5203_C071106.p65 11/7/2006, 11:155
![](asset-7.png)
6

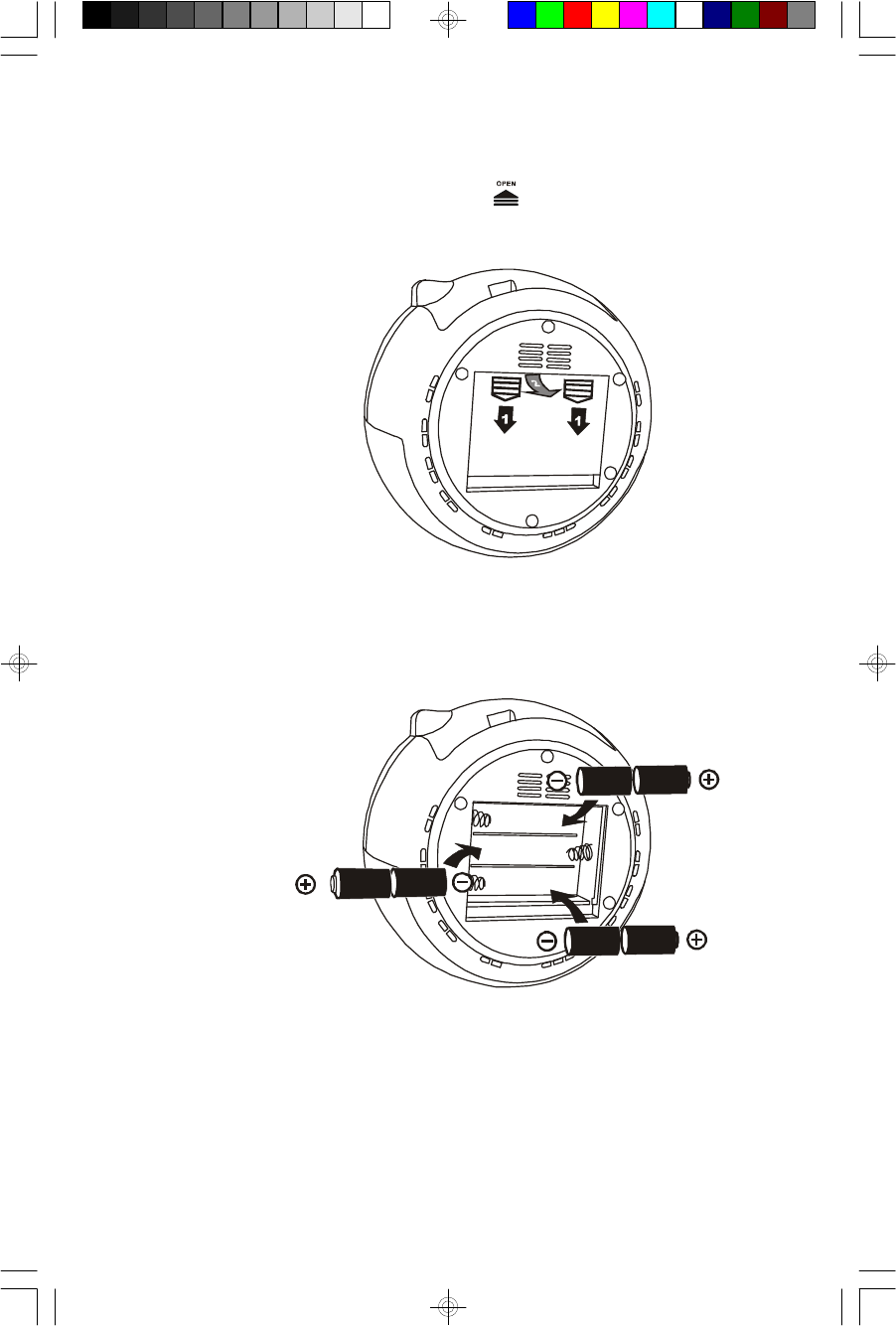

Battery Operation
1.)Remove the battery compartment door on the bottom of the cabinet by pressing
down on the two tabs directly below the “ ” marks and slide it down in the
direction of the “arrows”.
2.)Lift the door up to open.
3.)Insert 6 “C” size batteries into the battery compartment according to the polarity
diagram engraved inside the compartment. If the batteries are inserted
incorrectly the unit will not work.
3.)Replace the battery compartment door.
Note: In order to operate the unit on battery power the AC cord must be
disconnected from the AC socket on the back cabinet.
PD5203_C071106.p65 11/7/2006, 11:156
![](asset-8.png)
7
Stereo Headphone Jack
Connect a set of stereo headphones (not included) with a 3.5mm mini plug to the
PHONES jack (located at left back panel) for private listening without disturbing
others.
Before putting on the headphones reduce the VOLUME control to a low level, then
put the headphones on and gradually increase the VOLUME control to a comfortable
listening level. The built in speakers are automatically disconnected when
headphones are connected to the headphone jack.
Battery Precautions
•Replacement of batteries must be done by an adult.
•Do not mix old and new batteries.
•Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium)
batteries.
•The supply terminals are not to be short-circuited.
•Non-rechargeable batteries are not to be recharged.
•Exhausted batteries are to be removed.
•Only batteries of the equivalent type are to be used.
•Batteries are to be inserted with the correct polarity.
•Dispose of batteries properly. Do not dispose of batteries in fire. The batteries
may explode or leak.
PD5203_C071106.p65 11/7/2006, 11:157
![](asset-9.png)
8

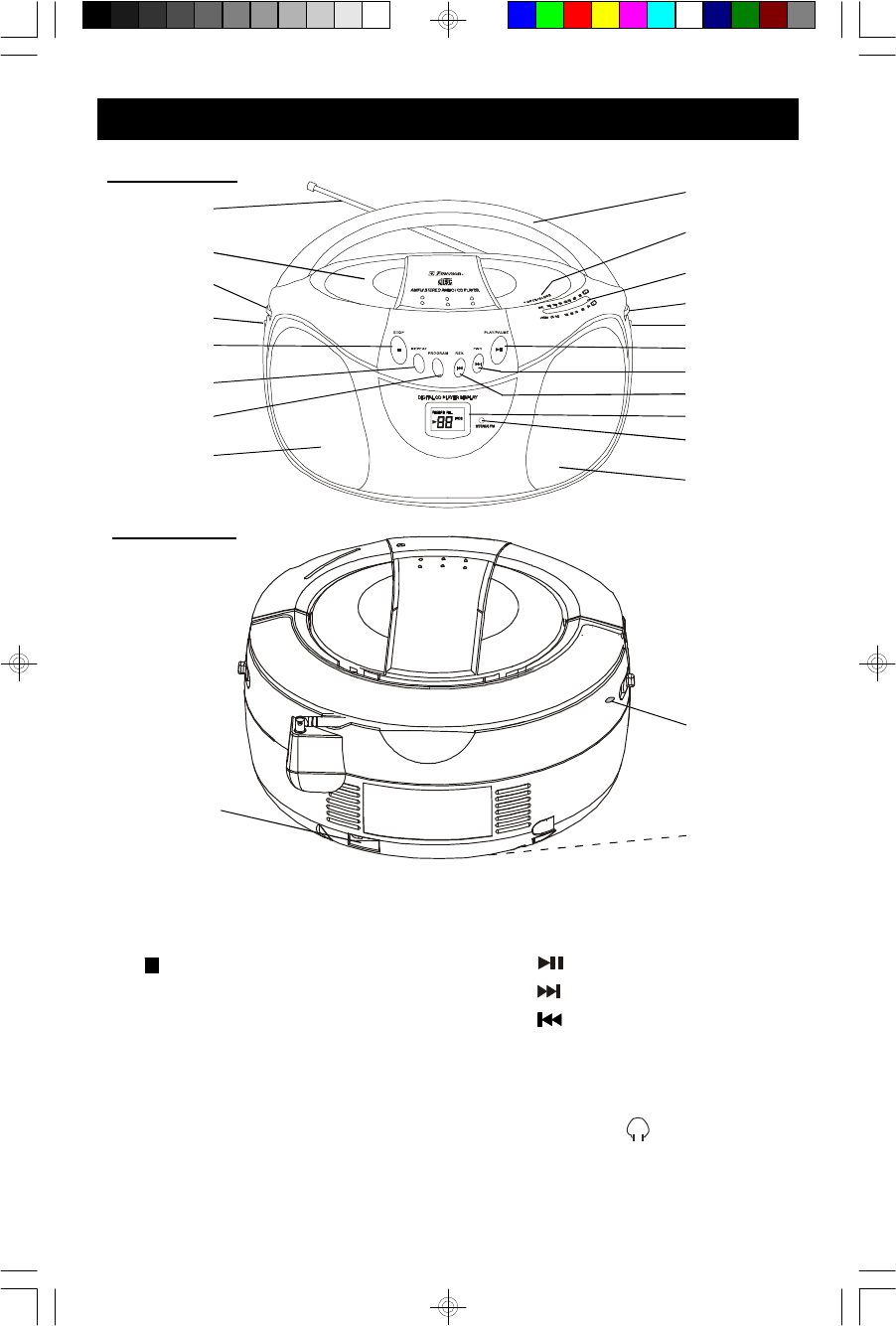

LOCATION OF CONTROLS AND INDICATORS
20
1.)Speakers.
2.)PROGRAM Button.
3.)REPEAT Button.
4.) STOP Button.
5.)FUNCTION Selector Switch.
(CD/POWER OFF/RADIO)
6.)VOLUME Control.
7.)CD Door.
8.)FM Telescopic Antenna.
9.)Carrying Handle.
10.)CD Door OPEN/CLOSE Position.
11.)Dial Scale.
12.)TUNING Control.
13.)BAND Selector Switch.
(FM STEREO/FM/AM)
14.) PLAY/PAUSE Button.
15.) FWD. Skip Button.
16.) REV. Skip Button.
17.)CD Display.
18.)STEREO FM Indicator.
19.)AC Cord Socket.
20.)PHONES Jack.
21.)Battery Compartment.
(Bottom Cabinet)
19 21
Front Panel
Back Panel
1
2
3
5
6
7
89
10
11
12
13
14
15
16
4
1
17
18
PD5203_C071106.p65 11/7/2006, 11:158
![](asset-a.png)
9
OPERATING INSTRUCTIONS
Listening To The Radio
1.) Slide the FUNCTION selector to RADIO position.
2.) Slide the BAND switch to select FM STEREO, FM or AM.
3.) Tune to your desired station with the TUNING control.
• If you slide the BAND selector to FM STEREO and tune to a FM Stereo station,
the STEREO FM indicator light will come ‘On’.
• If the reception is noisy or weak, slide the BAND selector to FM position.
The STEREO FM indicator light will go ‘Off’. The reception will normally improve
although the sound will no longer be in stereo.
4.) Adjust the VOLUME control to the desired level.
5.) When you are finished listening slide the FUNCTION selector back to the
POWER OFF position to shut the power ‘Off’ and extend the battery life.

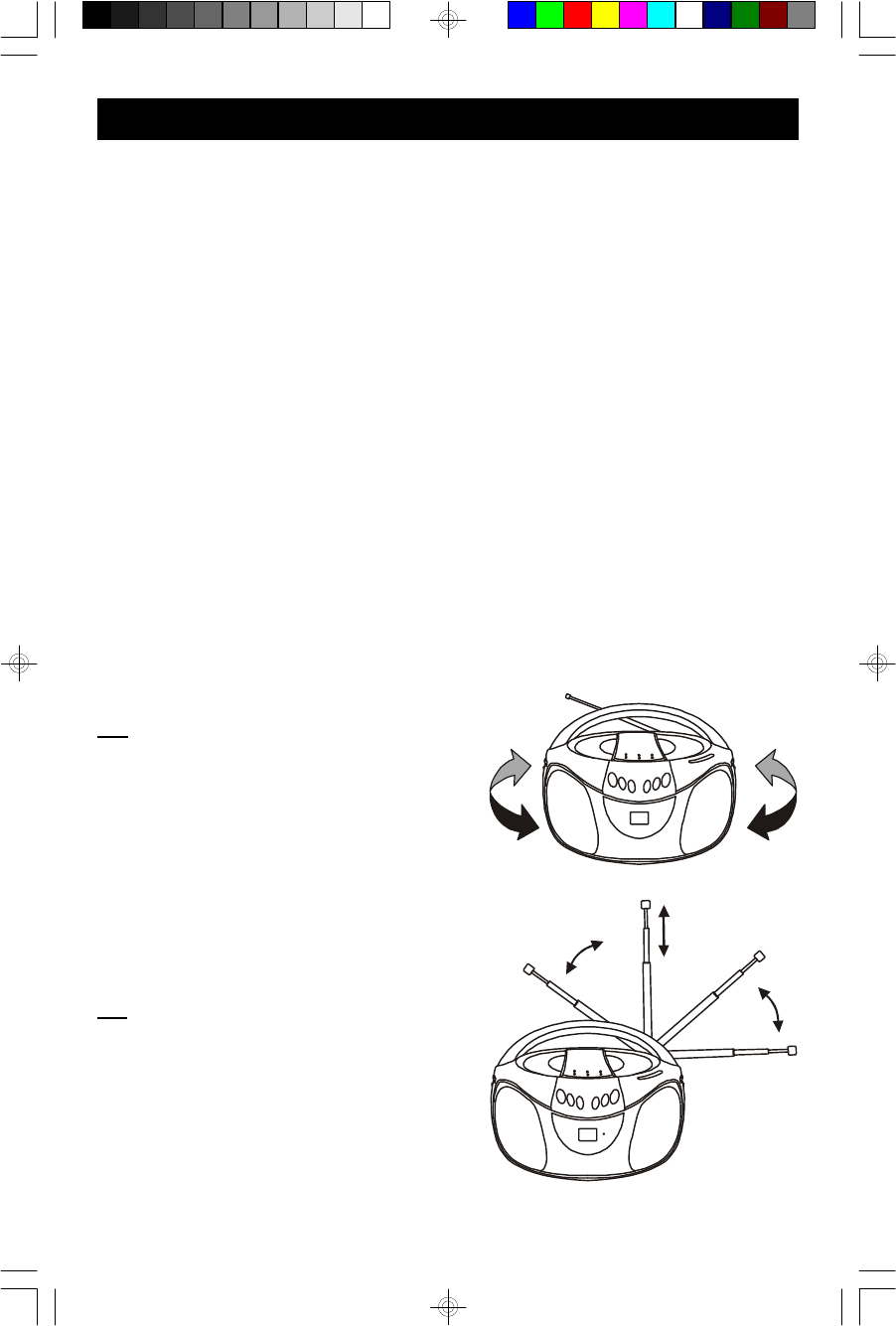

Antenna Information
AM
The AM antenna is inside the cabinet. If AM
reception is unsatisfactory try rotating the
entire unit until you find the position that
provides the best reception.
FM
Extend and vary the direction of the FM
antenna to find the position that provides
the best reception.
PD5203_C071106.p65 11/7/2006, 11:159
![](asset-b.png)
10
Playing Compact Discs
Note: Although this portable CD player can read CD-R and CD-RW discs, in addition
to normal CDs, the playability of CD-R/RW discs may be affected by the type of
software that was used to create the discs, as well as the quality and condition of
the blank media you are using. 100% playability cannot be guaranteed. This is not
an indication of a problem with the player.
Normal Playback
1.)Slide the FUNCTION selector to the CD position.
2.)Open the CD door by pressing at CD door OPEN/CLOSE position. If you have
not already removed the dummy CD transit card from the CD player, please
remove it now.

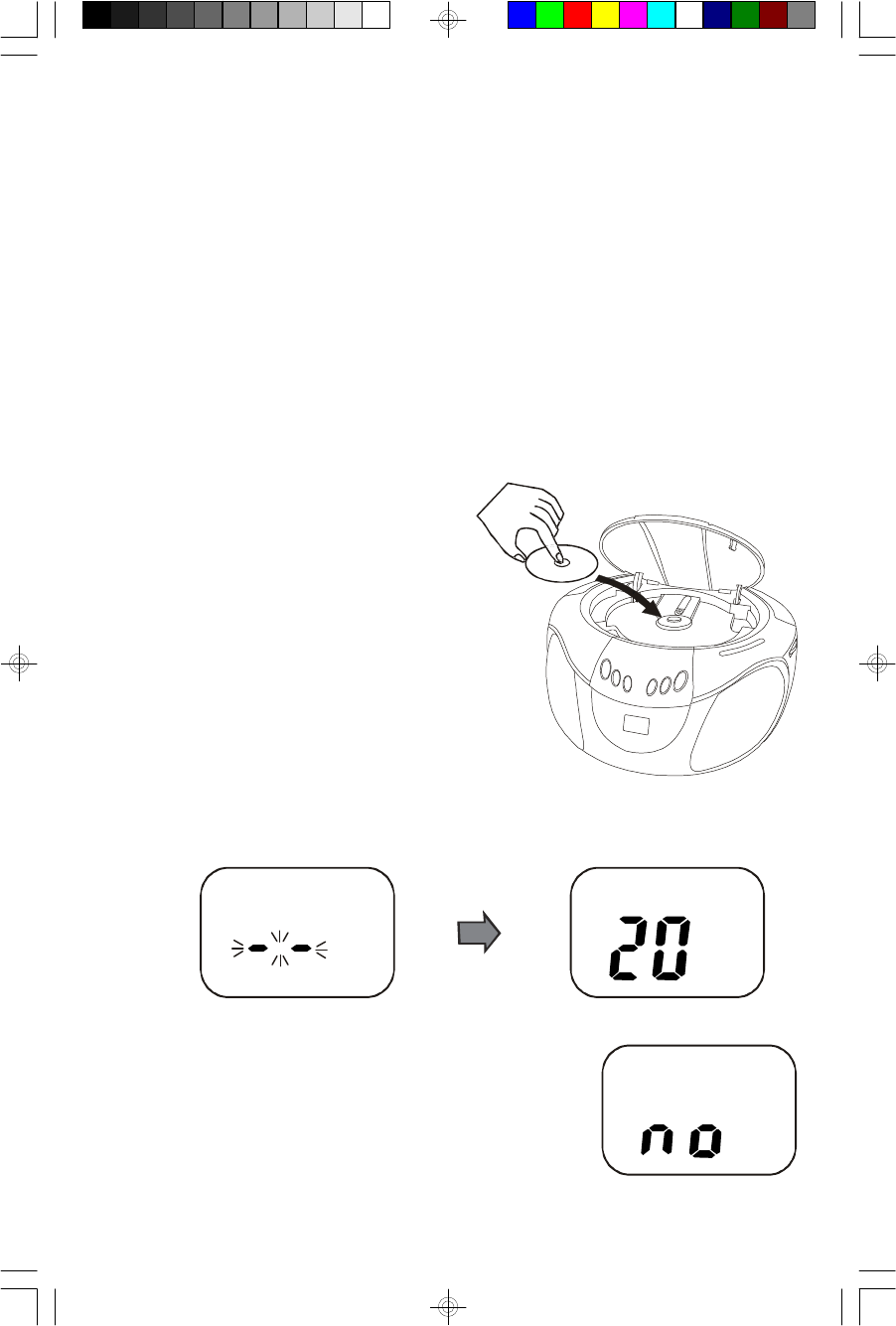

3.)Place your CD on the center spindle
with the printed label side facing up.
Press down near the center of the disc
to make sure it is firmly ‘seated’ on the
spindle, close the CD door.
The player will read the Table of Contents and the display will show the total
number of tracks on the disc.
If the disc is damaged or up side down, display will
show “no”.
Music
PD5203_C071106.p65 11/7/2006, 11:1510
![](asset-c.png)
11

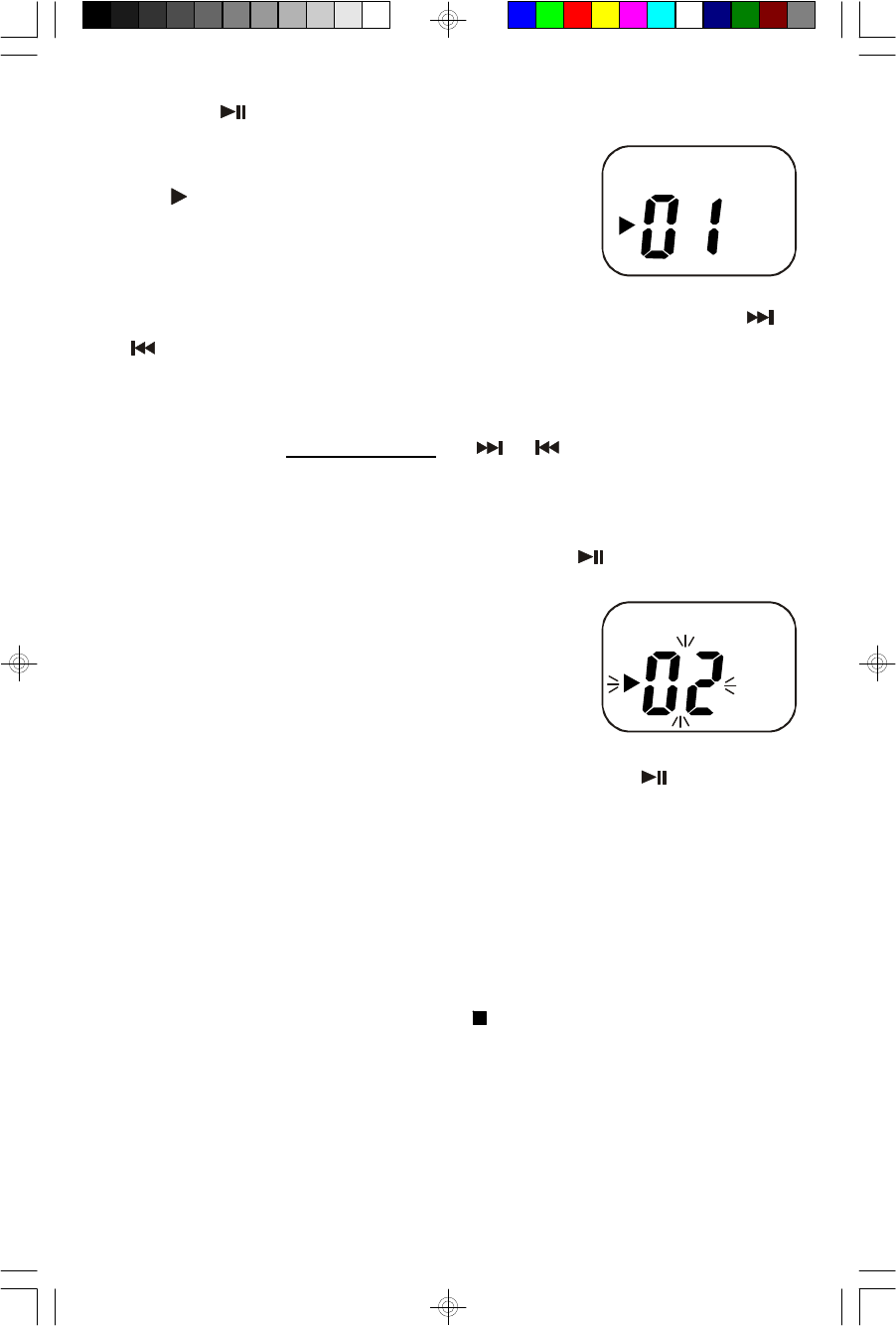

4.)Press the PLAY/PAUSE button to begin playback on Track “01”.
The Indicator appears in the display..
•To skip to higher or lower numbered tracks during playback press the or
button repeatedly until the desired track number appears in the display..
Playback will begin on the selected track.
•To search rapidly forward or backward during playback to locate a specific
portion of a track, depress and hold the or button.
The player will search rapidly forward or backward as long as the buttons are
depressed. Normal speed playback will resume when the buttons are released.
•To Pause momentarily during playback press the PLAY/PAUSE button
again.
The sound stops and the display flashes, however
the disc continues to spin.
To cancel Pause and resume normal playback press the PLAY/PAUSE
button once more. Normal playback resumes and the Track Number stops
flashing.
5.)Adjust the VOLUME control as desired.
6.)After the last track has played the disc stops automatically and the display
again shows the total number of tracks on the disc.
To Stop playback at any time press the STOP button.
7.)Open the CD door, remove your disc, and close the CD door again.
8.)Slide the FUNCTION selector to the POWER OFF position to shut the power
‘Off’.
PD5203_C071106.p65 11/7/2006, 11:1511
![](asset-d.png)
12
To Start Playback From A Specific Track
Insert your disc in the player, close the door, and wait until the display shows the
total tracks.
Press either the or button until the desired track number appears in the
display, then press the PLAY/PAUSE button to begin playback on that track.
Repeat Playback
You can program the player to repeat either a single track or all tracks on the disc
continuously. The Repeat feature can be activated while the disc is playing or
while the disc is stopped.

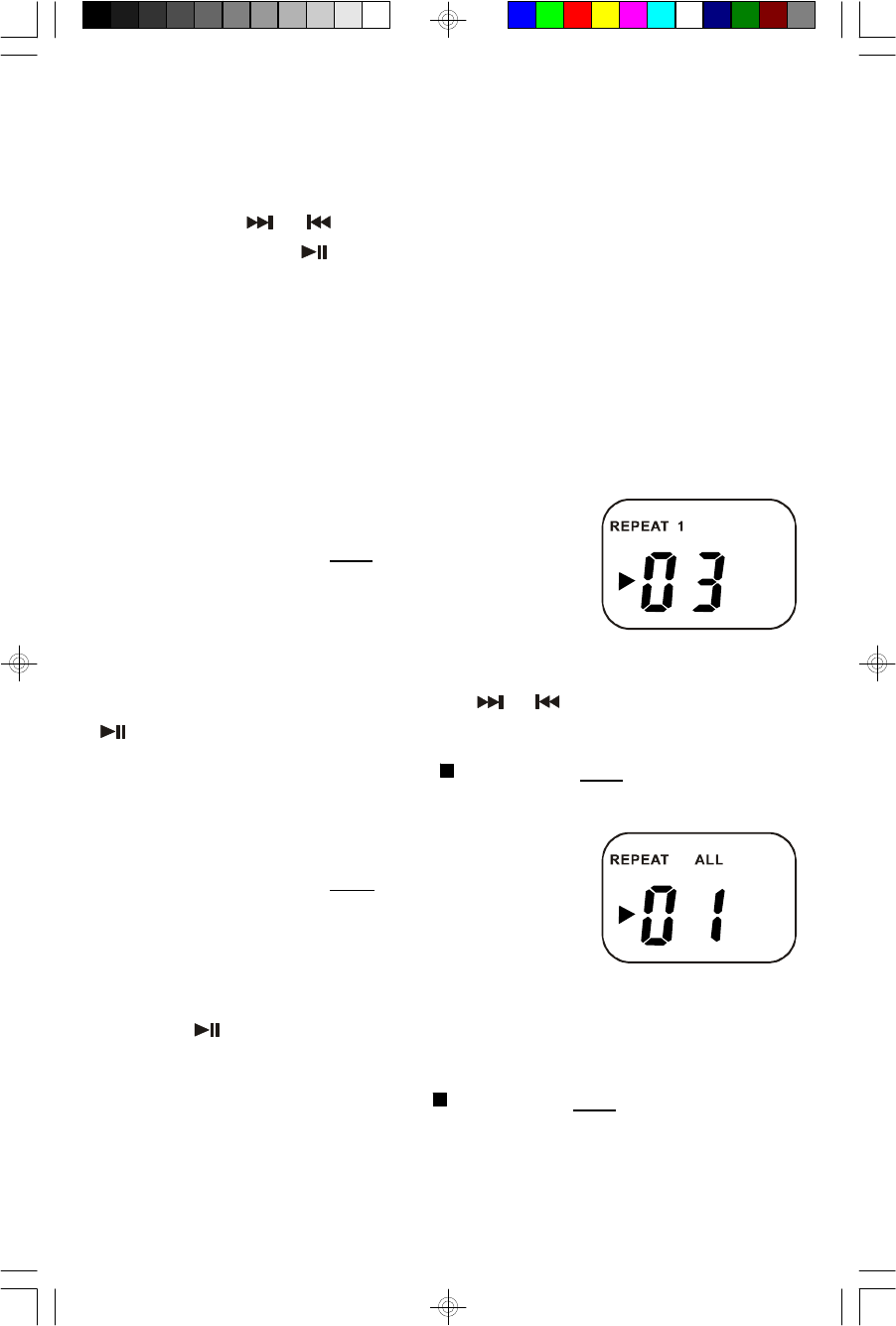

One Track Repeat
Press the REPEAT button once.
The REPEAT 1 indicator appears.
Select the track you wish to repeat with the or buttons and then press the
PLAY/PAUSE button. The selected track will be repeated continuously..
To cancel One Track Repeat press the STOP button once.
All Tracks Repeat
Press the REPEAT button twice.
The REPEAT ALL indicator appears.
Press the PLAY/PAUSE button to begin playback. The entire disc will be
repeated continuously.
To cancel All Tracks Repeat press the STOP button once.
PD5203_C071106.p65 11/7/2006, 11:1512
![](asset-e.png)
13
Programmed Playback
You can program up to 20 tracks on a disc to playback in any desired order. You
may also program a specific track to play several times within the same program.
1.) Slide the FUNCTION selector to CD, insert your disc in the player, close the
door, and wait until the total track number appears in the display.

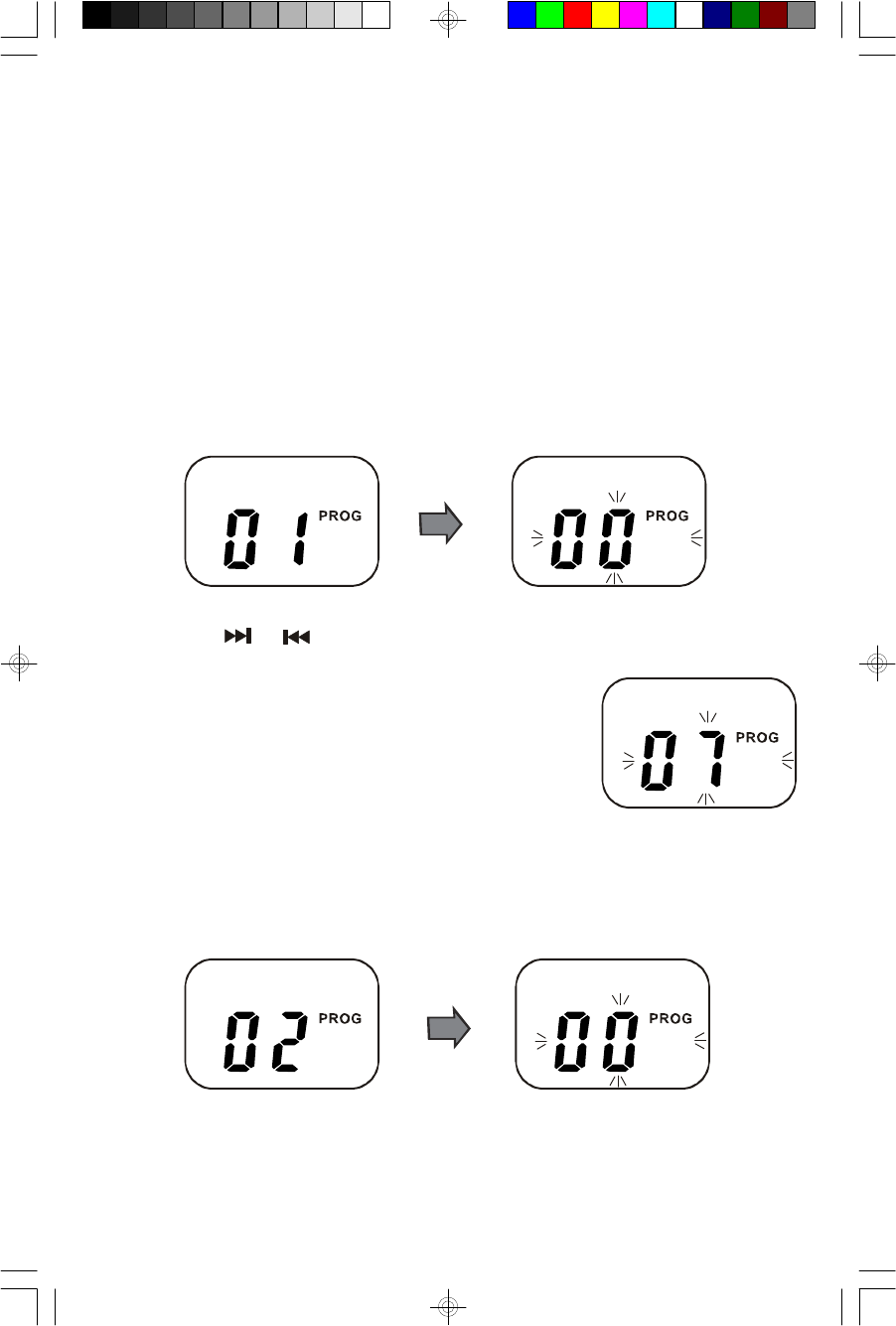

2.) Press the PROGRAM button. The display briefly shows program memory
“01 PROG” then program track “00 PROG” flashes indicating that you can
select the first track to be programmed.
3.) Press the or buttons to select the first desired track.
Example: Track 07.
4.) Press the PROGRAM button again. The selected track is entered in program
memory 01 and the display advances to “02 PROG” then “00 PROG” flashes
indicating that you can select the next track to be programmed.
5.) Repeat steps 3, 4 to program up to 20 tracks in the memory.
PD5203_C071106.p65 11/7/2006, 11:1513
![](asset-f.png)
14

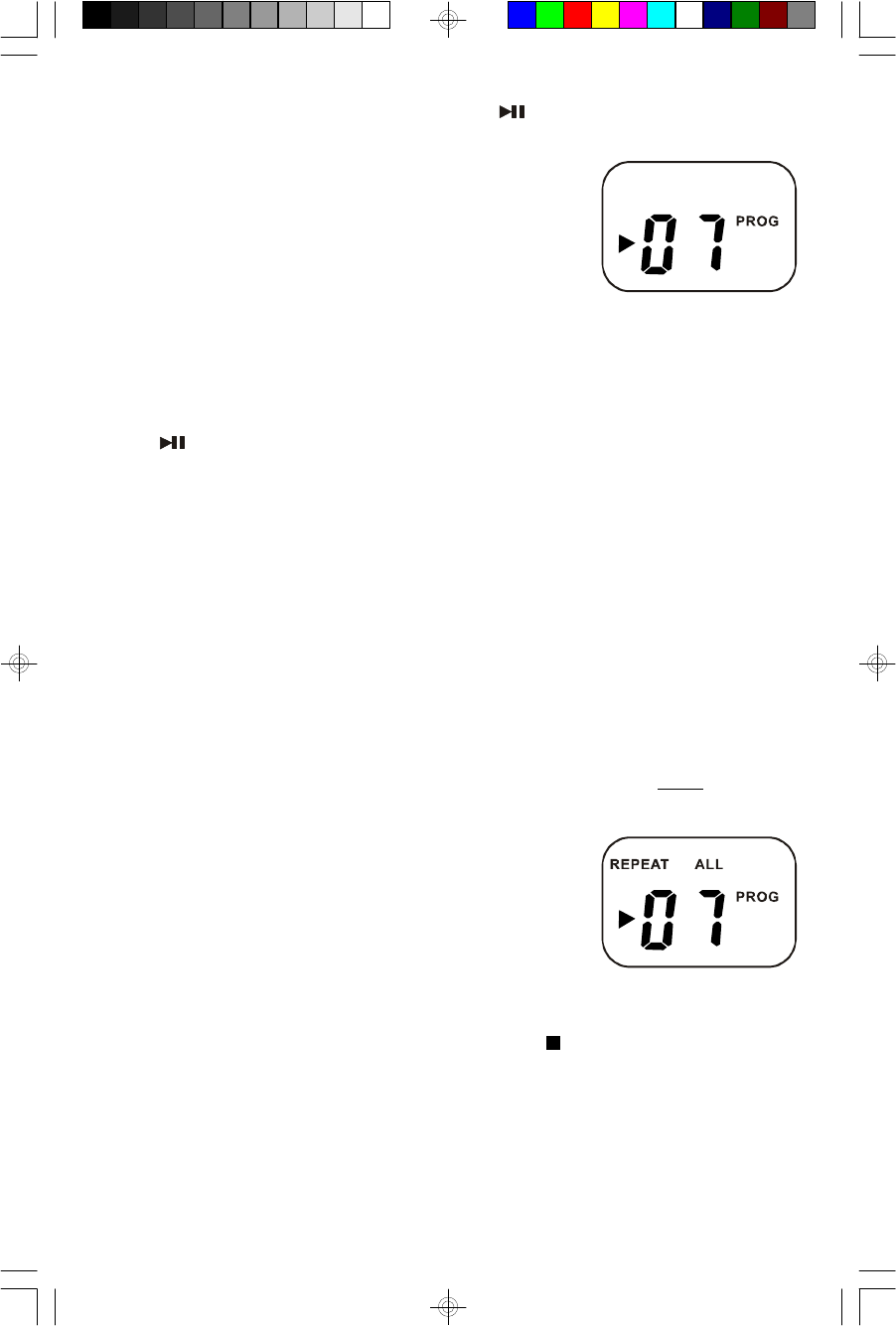

6.) To begin programmed playback press the PLAY/PAUSE button.
The LCD display will show the first programmed track
and playback will begin on that track. The PROG
indicator remains ‘On’.
After the last programmed track has played, the player stops but the programmed
tracks remain in the memory.
•To play the programmed tracks again, press the PROGRAM button and then
the PLAY/PAUSE button.
•To cancel the programmed sequence from memory, open the CD door, or move
the FUNCTION selector to the POWER OFF position.
Program Repeat Playback
You can use the Program and Repeat features together to continuously repeat a
programmed sequence of tracks.
First, program the desired tracks according to Steps 1 through 5 on page 13.
When Programmed Playback begins press the REPEAT button twice to activate
the All Tracks Repeat feature.
The REPEAT ALL indicator appears in LCD display and
all the tracks in your programmed sequence will be
repeated continuously.
To cancel Programmed Repeat Playback press the STOP button.
PD5203_C071106.p65 11/7/2006, 11:1514
![](asset-10.png)
15

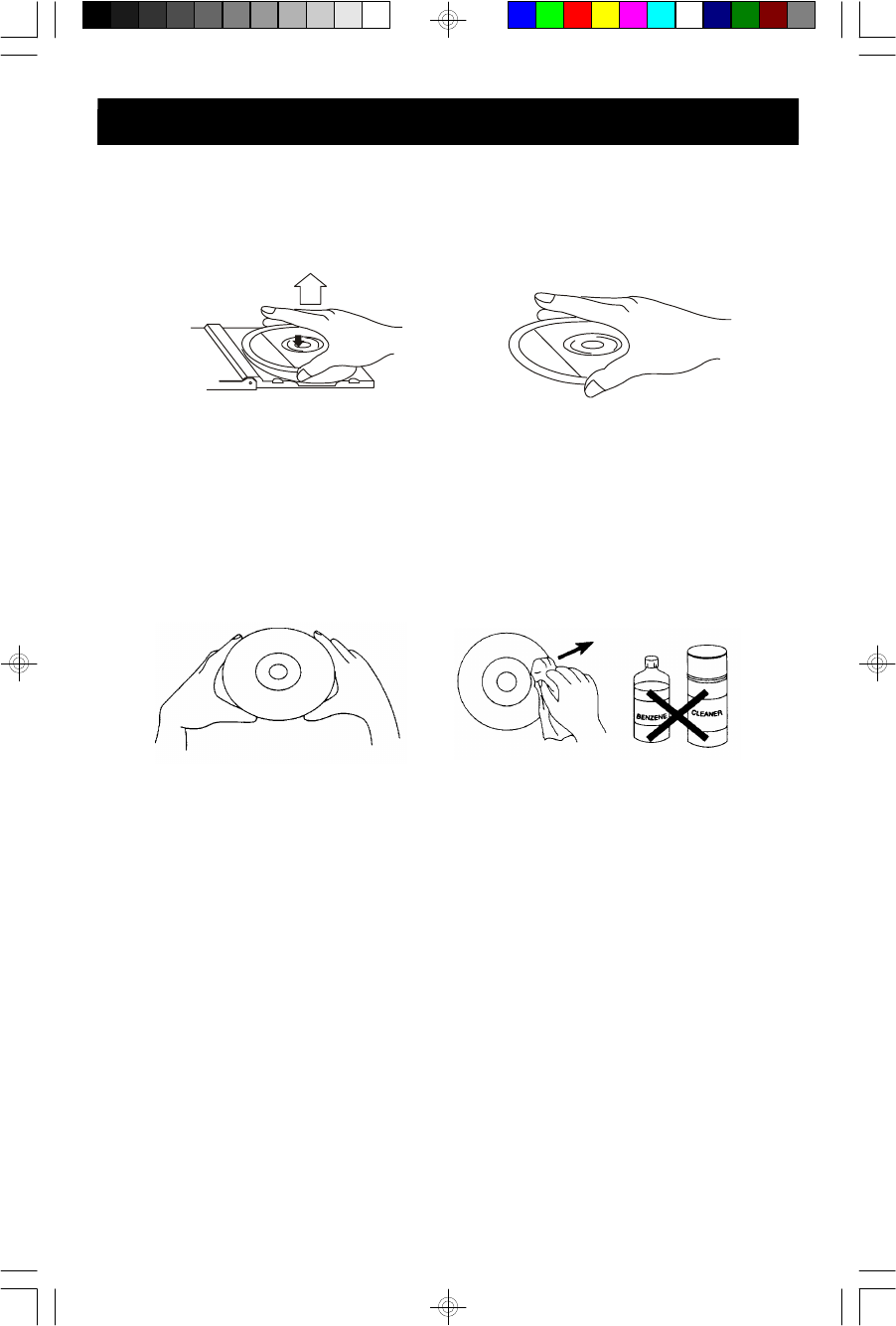

Compact Disc Care
•To remove a disc from its storage case, press down on the center of the case
and lift the disc out, holding it carefully by the edges.
•Fingerprints and dust should be carefully wiped off the disc’s recorded surface
with a soft cloth.Unlike conventional records, compact discs have no grooves
to collect dust and microscopic debris, so gently wiping with a soft cloth should
remove most particles. Wipe in a straight line from the inside to the outside of
the disc. Small dust particles and light stains will have absolutely no effect on
reproduction quality.
•Clean the disc periodically with a soft, lint-free, dry cloth. Never use detergents
or abrasive cleaners to clean the disc. If necessary, use a CD cleaning kit.
•Never write on or affix labels to the surface of compact discs.
Care Of The Cabinet
If the cabinet becomes dusty wipe it with a soft dry dust cloth. Do not use any wax,
polish sprays, or abrasive cleaners on the cabinet.
Caution
Never allow any water or other liquids to get inside the unit while cleaning.
CARE AND MAINTENANCE
PD5203_C071106.p65 11/7/2006, 11:1515
![](asset-11.png)
16
TO FIND THE LOCATION AND PHONE
NUMBER OF YOUR NEAREST SERVICE
CENTER PERMITTED TO PERFORM
WARRANTY...
CALL TOLL FREE: 1-800-695-0098
SERVICE
FOR CUSTOMER SERVICE, PLEASE WRITE TO:
Emerson Radio Corp.,
Consumer Affairs Dept.,
5101 Statesman Drive,
Irving, TX 75063.
FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE
PLEASE CALL:
1-800-898-9020
R
TROUBLESHOOTING GUIDE
Should this unit exhibit a problem, check the following before seeking service.
SymptomPossible Cause Solution
Radio
Noise or sound Station not tuned properly forRetune the AM or FM
distorted on AM or FMAM or FM.broadcast station.
broadcasts.FM: Telescopic antenna is notExtend FM Telescopic
extended.antenna.
AM: The bar antenna is notReposition the unit until
positioned correctly.best reception is obtained.
AM or FM, no sound.FUNCTION switch is not set toSet FUNCTION switch to
RADIO.RADIO position.
Volume at minimum. Increase Volume.
Compact Disc Player
CD Player will not play.FUNCTION switch is not set toSet FUNCTION switch to
CD.CD.
CD is not installed or installed Insert CD with Iabel side
incorrectly.up.
CD skips while playing.Disc is dirty or scratched.Wipe disc with cloth or use
another disc.
PD5203_C071106.p65 11/7/2006, 11:1516
![](asset-12.png)
17
LIMITED WARRANTY
Emerson Radio Corp. warrants manufacturing defects in original material, including
original parts and workmanship, under normal use and conditions, for a period of
ninety (90) days from the date of original purchase in the U.S. With your dated
proof of purchase, we will provide repair service at no charge for labor and parts at
an authorized Depot Repair Facility, or replace the product in our discretion. For
repair or replacement, pack your unit in a padded box, enclose your check or
money order payable to Emerson Radio Corp. in the amount of $9.00 (not required
by California residents) to cover shipping and handling costs, and enclose a copy
of your proof of purchase. Send your unit to:
Emerson Radio Corp.,
5101 Statesman Drive,
Irving, TX 75063.
This warranty does not cover damage from negligence, misuse, abuse, accident,
failure to follow operating instructions, commercial use, rental, repairs by an
unauthorized facility, or products purchased, used, serviced or damaged outside
of the United States.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY
ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
AU898M
The Serial Number can be found on the back cabinet. We suggest that you
record the Serial Number of your unit in the space below for future reference.
Model No: PD5203
Serial No:
PD5203_C071106.p65 11/7/2006, 11:1517
![](asset-13.png)
EMERSON
Part No. 16-2985C
607-01 Printed in China
R
PD5203_C071106.p65 11/7/2006, 11:1518
