user manual

iNSPIREiP2000/iP1000/iP500

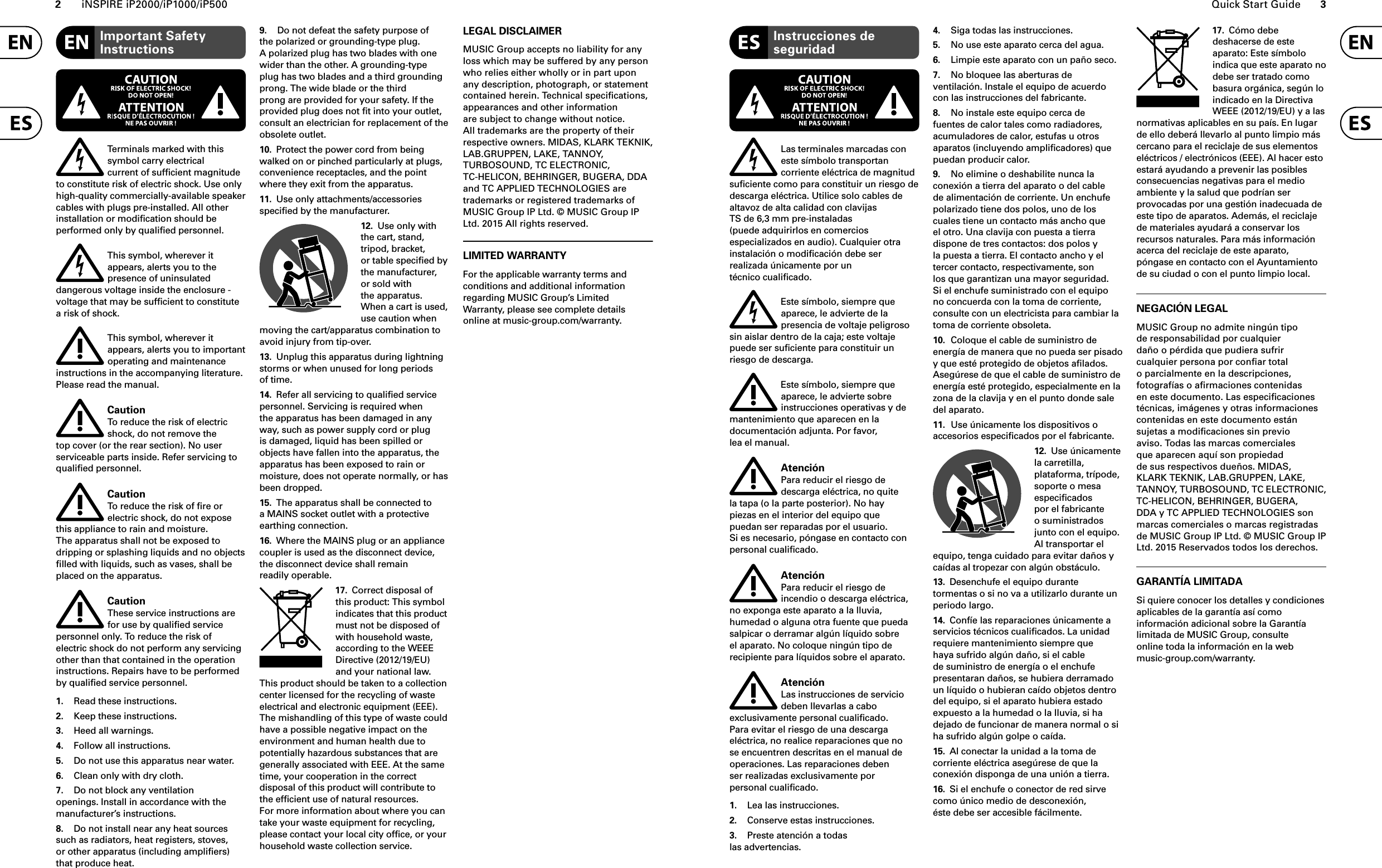

2iNSPIRE iP2000/iP1000/iP500 Quick Start Guide 3Terminals marked with this symbol carry electrical current of suffi cient magnitude to constitute risk of electric shock. Use only high-quality commercially-available speaker cables with plugs pre-installed. All other installation or modifi cation should be performed only by qualifi ed personnel.This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be suffi cient to constitute a risk of shock.This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual.CautionTo reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualifi ed personnel.CautionTo reduce the risk of fi re or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects fi lled with liquids, such as vases, shall be placed on the apparatus.CautionThese service instructions are for use by qualifi ed service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualifi ed service personnel.1. Read these instructions.2. Keep these instructions.3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water.6. Clean only with dry cloth.7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat.9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fi t into your outlet, consult an electrician for replacement of the obsolete outlet.10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11. Use only attachments/accessories specifi ed by the manufacturer.12. Use only with the cart, stand, tripod, bracket, or table specifi ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.15. The apparatus shall be connected to a MAINS socket outlet with a protective earthing connection.16. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.17. Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effi cient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city offi ce, or your household waste collection service.LEGAL DISCLAIMERMUSIC Group accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifi cations, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. MIDAS, KLARK TEKNIK,LAB.GRUPPEN, LAKE, TANNOY, TURBOSOUND, TC ELECTRONIC, TC-HELICON, BEHRINGER, BUGERA, DDA and TC APPLIED TECHNOLOGIES are trademarks or registered trademarks of MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2015 All rights reserved.LIMITED WARRANTYFor the applicable warranty terms and conditions and additional information regarding MUSIC Group’s Limited Warranty, please see complete details online at music-group.com/warranty. Important Safety Instructions Instrucciones de seguridadLas terminales marcadas con este símbolo transportan corriente eléctrica de magnitud sufi ciente como para constituir un riesgo de descarga eléctrica. Utilice solo cables de altavoz de alta calidad con clavijas TS de 6,3 mm pre-instaladas (puede adquirirlos en comercios especializados en audio). Cualquier otra instalación o modifi cación debe ser realizada únicamente por un técnico cualifi cado.Este símbolo, siempre que aparece, le advierte de la presencia de voltaje peligroso sin aislar dentro de la caja; este voltaje puede ser sufi ciente para constituir un riesgo de descarga.Este símbolo, siempre que aparece, le advierte sobre instrucciones operativas y de mantenimiento que aparecen en la documentación adjunta. Por favor, lea el manual.AtenciónPara reducir el riesgo de descarga eléctrica, no quite la tapa (o la parte posterior). No hay piezas en el interior del equipo que puedan ser reparadas por el usuario. Si es necesario, póngase en contacto con personal cualifi cado.AtenciónPara reducir el riesgo de incendio o descarga eléctrica, no exponga este aparato a la lluvia, humedad o alguna otra fuente que pueda salpicar o derramar algún líquido sobre el aparato. No coloque ningún tipo de recipiente para líquidos sobre el aparato.AtenciónLas instrucciones de servicio deben llevarlas a cabo exclusivamente personal cualifi cado. Para evitar el riesgo de una descarga eléctrica, no realice reparaciones que no se encuentren descritas en el manual de operaciones. Las reparaciones deben ser realizadas exclusivamente por personal cualifi cado.1. Lea las instrucciones.2. Conserve estas instrucciones.3. Preste atención a todas las advertencias.4. Siga todas las instrucciones.5. No use este aparato cerca del agua.6. Limpie este aparato con un paño seco.7. No bloquee las aberturas de ventilación. Instale el equipo de acuerdo con las instrucciones del fabricante.8. No instale este equipo cerca de fuentes de calor tales como radiadores, acumuladores de calor, estufas u otros aparatos (incluyendo amplifi cadores) que puedan producir calor.9. No elimine o deshabilite nunca la conexión a tierra del aparato o del cable de alimentación de corriente. Un enchufe polarizado tiene dos polos, uno de los cuales tiene un contacto más ancho que el otro. Una clavija con puesta a tierra dispone de tres contactos: dos polos y la puesta a tierra. El contacto ancho y el tercer contacto, respectivamente, son los que garantizan una mayor seguridad. Si el enchufe suministrado con el equipo no concuerda con la toma de corriente, consulte con un electricista para cambiar la toma de corriente obsoleta.10. Coloque el cable de suministro de energía de manera que no pueda ser pisado y que esté protegido de objetos afi lados. Asegúrese de que el cable de suministro de energía esté protegido, especialmente en la zona de la clavija y en el punto donde sale del aparato.11. Use únicamente los dispositivos o accesorios especifi cados por el fabricante.12. Use únicamente la carretilla, plataforma, trípode, soporte o mesa especifi cados por el fabricante o suministrados junto con el equipo. Al transportar el equipo, tenga cuidado para evitar daños y caídas al tropezar con algún obstáculo.13. Desenchufe el equipo durante tormentas o si no va a utilizarlo durante un periodo largo.14. Confíe las reparaciones únicamente a servicios técnicos cualifi cados. La unidad requiere mantenimiento siempre que haya sufrido algún daño, si el cable de suministro de energía o el enchufe presentaran daños, se hubiera derramado un líquido o hubieran caído objetos dentro del equipo, si el aparato hubiera estado expuesto a la humedad o la lluvia, si ha dejado de funcionar de manera normal o si ha sufrido algún golpe o caída.15. Al conectar la unidad a la toma de corriente eléctrica asegúrese de que la conexión disponga de una unión a tierra.16. Si el enchufe o conector de red sirve como único medio de desconexión, éste debe ser accesible fácilmente.17. Cómo debe deshacerse de este aparato: Este símbolo indica que este aparato no debe ser tratado como basura orgánica, según lo indicado en la Directiva WEEE (2012/19/EU) y a las normativas aplicables en su país. En lugar de ello deberá llevarlo al punto limpio más cercano para el reciclaje de sus elementos eléctricos / electrónicos (EEE). Al hacer esto estará ayudando a prevenir las posibles consecuencias negativas para el medio ambiente y la salud que podrían ser provocadas por una gestión inadecuada de este tipo de aparatos. Además, el reciclaje de materiales ayudará a conservar los recursos naturales. Para más información acerca del reciclaje de este aparato, póngase en contacto con el Ayuntamiento de su ciudad o con el punto limpio local.NEGACIÓN LEGALMUSIC Group no admite ningún tipo de responsabilidad por cualquier daño o pérdida que pudiera sufrir cualquier persona por confi ar total o parcialmente en la descripciones, fotografías o afi rmaciones contenidas en este documento. Las especifi caciones técnicas, imágenes y otras informaciones contenidas en este documento están sujetas a modifi caciones sin previo aviso. Todas las marcas comerciales que aparecen aquí son propiedad de sus respectivos dueños. MIDAS, KLARK TEKNIK, LAB.GRUPPEN, LAKE, TANNOY, TURBOSOUND, TC ELECTRONIC,TC-HELICON, BEHRINGER, BUGERA, DDA y TC APPLIED TECHNOLOGIES son marcas comerciales o marcas registradas de MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2015 Reservados todos los derechos. GARANTÍA LIMITADASi quiere conocer los detalles y condiciones aplicables de la garantía así como información adicional sobre la Garantía limitada de MUSIC Group, consulte online toda la información en la web music-group.com/warranty.

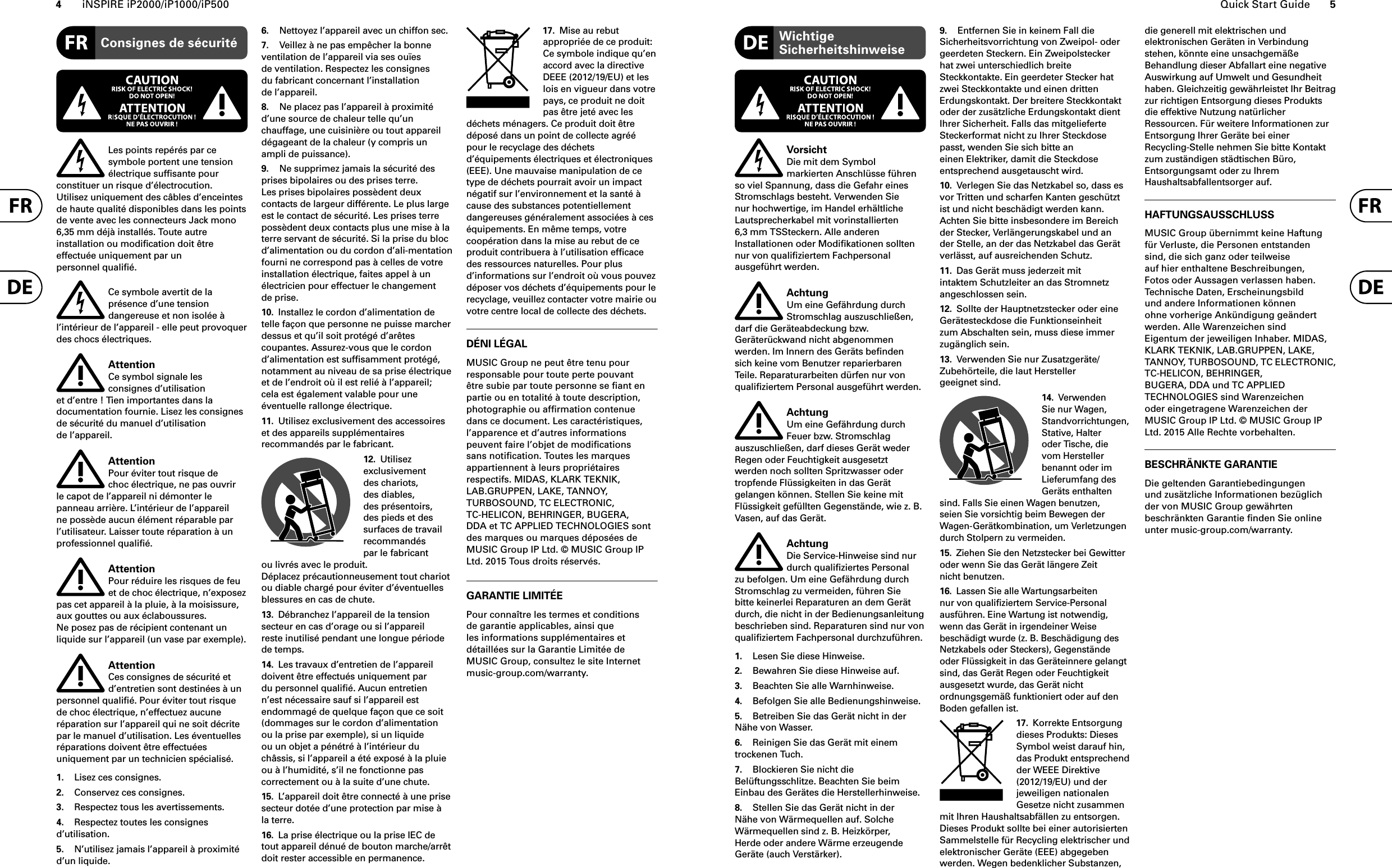

4iNSPIRE iP2000/iP1000/iP500 Quick Start Guide 5Consignes de sécuritéLes points repérés par ce symbole portent une tension électrique suffi sante pour constituer un risque d’électrocution. Utilisez uniquement des câbles d’enceintes de haute qualité disponibles dans les points de vente avec les connecteurs Jack mono 6,35 mm déjà installés. Toute autre installation ou modifi cation doit être effectuée uniquement par un personnel qualifi é.Ce symbole avertit de la présence d’une tension dangereuse et non isolée à l’intérieur de l’appareil - elle peut provoquer des chocs électriques.AttentionCe symbol signale les consignes d’utilisation et d’entre ! Tien importantes dans la documentation fournie. Lisez les consignes de sécurité du manuel d’utilisation de l’appareil.AttentionPour éviter tout risque de choc électrique, ne pas ouvrir le capot de l’appareil ni démonter le panneau arrière. L’intérieur de l’appareil ne possède aucun élément réparable par l’utilisateur. Laisser toute réparation à un professionnel qualifi é.AttentionPour réduire les risques de feu et de choc électrique, n’exposez pas cet appareil à la pluie, à la moisissure, aux gouttes ou aux éclaboussures. Ne posez pas de récipient contenant un liquide sur l’appareil (un vase par exemple).AttentionCes consignes de sécurité et d’entretien sont destinées à un personnel qualifi é. Pour éviter tout risque de choc électrique, n’effectuez aucune réparation sur l’appareil qui ne soit décrite par le manuel d’utilisation. Les éventuelles réparations doivent être effectuées uniquement par un technicien spécialisé.1. Lisez ces consignes.2. Conservez ces consignes.3. Respectez tous les avertissements.4. Respectez toutes les consignes d’utilisation.5. N’utilisez jamais l’appareil à proximité d’un liquide.6. Nettoyez l’appareil avec un chiffon sec.7. Veillez à ne pas empêcher la bonne ventilation de l’appareil via ses ouïes de ventilation. Respectez les consignes du fabricant concernant l’installation de l’appareil.8. Ne placez pas l’appareil à proximité d’une source de chaleur telle qu’un chauffage, une cuisinière ou tout appareil dégageant de la chaleur (y compris un ampli de puissance).9. Ne supprimez jamais la sécurité des prises bipolaires ou des prises terre. Les prises bipolaires possèdent deux contacts de largeur différente. Le plus large est le contact de sécurité. Les prises terre possèdent deux contacts plus une mise à la terre servant de sécurité. Si la prise du bloc d’alimentation ou du cordon d’ali-mentation fourni ne correspond pas à celles de votre installation électrique, faites appel à un électricien pour effectuer le changement de prise.10. Installez le cordon d’alimentation de telle façon que personne ne puisse marcher dessus et qu’il soit protégé d’arêtes coupantes. Assurez-vous que le cordon d’alimentation est suffisamment protégé, notamment au niveau de sa prise électrique et de l’endroit où il est relié à l’appareil; cela est également valable pour une éventuelle rallonge électrique.11. Utilisez exclusivement des accessoires et des appareils supplémentaires recommandés par le fabricant.12. Utilisez exclusivement des chariots, des diables, des présentoirs, des pieds et des surfaces de travail recommandés par le fabricant ou livrés avec le produit. Déplacez précautionneusement tout chariot ou diable chargé pour éviter d’éventuelles blessures en cas de chute.13. Débranchez l’appareil de la tension secteur en cas d’orage ou si l’appareil reste inutilisé pendant une longue période de temps. 14. Les travaux d’entretien de l’appareil doivent être effectués uniquement par du personnel qualifié. Aucun entretien n’est nécessaire sauf si l’appareil est endommagé de quelque façon que ce soit (dommages sur le cordon d’alimentation ou la prise par exemple), si un liquide ou un objet a pénétré à l’intérieur du châssis, si l’appareil a été exposé à la pluie ou à l’humidité, s’il ne fonctionne pas correctement ou à la suite d’une chute.15. L’appareil doit être connecté à une prise secteur dotée d’une protection par mise à la terre. 16. La prise électrique ou la prise IEC de tout appareil dénué de bouton marche/arrêt doit rester accessible en permanence.17. Mise au rebut appropriée de ce produit: Ce symbole indique qu’en accord avec la directive DEEE (2012/19/EU) et les lois en vigueur dans votre pays, ce produit ne doit pas être jeté avec les déchets ménagers. Ce produit doit être déposé dans un point de collecte agréé pour le recyclage des déchets d’équipements électriques et électroniques (EEE). Une mauvaise manipulation de ce type de déchets pourrait avoir un impact négatif sur l’environnement et la santé à cause des substances potentiellement dangereuses généralement associées à ces équipements. En même temps, votre coopération dans la mise au rebut de ce produit contribuera à l’utilisation effi cace des ressources naturelles. Pour plus d’informations sur l’endroit où vous pouvez déposer vos déchets d’équipements pour le recyclage, veuillez contacter votre mairie ou votre centre local de collecte des déchets.DÉNI LÉGALMUSIC Group ne peut être tenu pour responsable pour toute perte pouvant être subie par toute personne se fi ant en partie ou en totalité à toute description, photographie ou affi rmation contenue dans ce document. Les caractéristiques, l’apparence et d’autres informations peuvent faire l’objet de modifi cations sans notifi cation. Toutes les marques appartiennent à leurs propriétaires respectifs. MIDAS, KLARK TEKNIK, LAB.GRUPPEN, LAKE, TANNOY, TURBOSOUND, TC ELECTRONIC, TC-HELICON, BEHRINGER, BUGERA, DDA et TC APPLIED TECHNOLOGIES sont des marques ou marques déposées de MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2015 Tous droits réservés. GARANTIE LIMITÉEPour connaître les termes et conditions de garantie applicables, ainsi que les informations supplémentaires et détaillées sur la Garantie Limitée de MUSIC Group, consultez le site Internet music-group.com/warranty.Wichtige SicherheitshinweiseVorsichtDie mit dem Symbol markierten Anschlü sse fü hren so viel Spannung, dass die Gefahr eines Stromschlags besteht. Verwenden Sie nur hochwertige, im Handel erhältliche Lautsprecherkabel mit vorinstallierten 6,3 mm TSSteckern. Alle anderen Installationen oder Modifi kationen sollten nur von qualifi ziertem Fachpersonal ausgefü hrt werden.AchtungUm eine Gefährdung durch Stromschlag auszuschließen, darf die Geräteabdeckung bzw. Geräterückwand nicht abgenommen werden. Im Innern des Geräts befi nden sich keine vom Benutzer reparierbaren Teile. Reparaturarbeiten dürfen nur von qualifi ziertem Personal ausgeführt werden.AchtungUm eine Gefährdung durch Feuer bzw. Stromschlag auszuschließen, darf dieses Gerät weder Regen oder Feuchtigkeit ausgesetzt werden noch sollten Spritzwasser oder tropfende Flüssigkeiten in das Gerät gelangen können. Stellen Sie keine mit Flüssigkeit gefüllten Gegenstände, wie z. B. Vasen, auf das Gerät.AchtungDie Service-Hinweise sind nur durch qualifi ziertes Personal zu befolgen. Um eine Gefährdung durch Stromschlag zu vermeiden, führen Sie bitte keinerlei Reparaturen an dem Gerät durch, die nicht in der Bedienungsanleitung beschrieben sind. Reparaturen sind nur von qualifi ziertem Fachpersonal durchzuführen.1. Lesen Sie diese Hinweise.2. Bewahren Sie diese Hinweise auf.3. Beachten Sie alle Warnhinweise.4. Befolgen Sie alle Bedienungshinweise.5. Betreiben Sie das Gerät nicht in der Nähe von Wasser.6. Reinigen Sie das Gerät mit einem trockenen Tuch.7. Blockieren Sie nicht die Belüftungsschlitze. Beachten Sie beim Einbau des Gerätes die Herstellerhinweise.8. Stellen Sie das Gerät nicht in der Nähe von Wärmequellen auf. Solche Wärmequellen sind z. B. Heizkörper, Herde oder andere Wärme erzeugende Geräte (auch Verstärker).9. Entfernen Sie in keinem Fall die Sicherheitsvorrichtung von Zweipol- oder geerdeten Steckern. Ein Zweipolstecker hat zwei unterschiedlich breite Steckkontakte. Ein geerdeter Stecker hat zwei Steckkontakte und einen dritten Erdungskontakt. Der breitere Steckkontakt oder der zusätzliche Erdungskontakt dient Ihrer Sicherheit. Falls das mitgelieferte Steckerformat nicht zu Ihrer Steckdose passt, wenden Sie sich bitte an einen Elektriker, damit die Steckdose entsprechend ausgetauscht wird.10. Verlegen Sie das Netzkabel so, dass es vor Tritten und scharfen Kanten geschützt ist und nicht beschädigt werden kann. Achten Sie bitte insbesondere im Bereich der Stecker, Verlängerungskabel und an der Stelle, an der das Netzkabel das Gerät verlässt, auf ausreichenden Schutz.11. Das Gerät muss jederzeit mit intaktem Schutzleiter an das Stromnetz angeschlossen sein.12. Sollte der Hauptnetzstecker oder eine Gerätesteckdose die Funktionseinheit zum Abschalten sein, muss diese immer zugänglich sein.13. Verwenden Sie nur Zusatzgeräte/Zubehörteile, die laut Hersteller geeignet sind.14. Verwenden Sie nur Wagen, Standvorrichtungen, Stative, Halter oder Tische, die vom Hersteller benannt oder im Lieferumfang des Geräts enthalten sind. Falls Sie einen Wagen benutzen, seien Sie vorsichtig beim Bewegen der Wagen- Gerätkombination, um Verletzungen durch Stolpern zu vermeiden.15. Ziehen Sie den Netzstecker bei Gewitter oder wenn Sie das Gerät längere Zeit nicht benutzen.16. Lassen Sie alle Wartungsarbeiten nur von qualifi ziertem Service-Personal ausführen. Eine Wartung ist notwendig, wenn das Gerät in irgendeiner Weise beschädigt wurde (z. B. Beschädigung des Netzkabels oder Steckers), Gegenstände oder Flüssigkeit in das Geräteinnere gelangt sind, das Gerät Regen oder Feuchtigkeit ausgesetzt wurde, das Gerät nicht ordnungsgemäß funktioniert oder auf den Boden gefallen ist.17. Korrekte Entsorgung dieses Produkts: Dieses Symbol weist darauf hin, das Produkt entsprechend der WEEE Direktive (2012/19/EU) und der jeweiligen nationalen Gesetze nicht zusammen mit Ihren Haushaltsabfällen zu entsorgen. Dieses Produkt sollte bei einer autorisierten Sammelstelle für Recycling elektrischer und elektronischer Geräte (EEE) abgegeben werden. Wegen bedenklicher Substanzen, die generell mit elektrischen und elektronischen Geräten in Verbindung stehen, könnte eine unsachgemäße Behandlung dieser Abfallart eine negative Auswirkung auf Umwelt und Gesundheit haben. Gleichzeitig gewährleistet Ihr Beitragzur richtigen Entsorgung dieses Produkts die effektive Nutzung natürlicher Ressourcen. Für weitere Informationen zur Entsorgung Ihrer Geräte bei einer Recycling-Stelle nehmen Sie bitte Kontakt zum zuständigen städtischen Büro, Entsorgungsamt oder zu Ihrem Haushaltsabfallentsorger auf.HAFTUNGSAUSSCHLUSSMUSIC Group übernimmt keine Haftung für Verluste, die Personen entstanden sind, die sich ganz oder teilweise auf hier enthaltene Beschreibungen, Fotos oder Aussagen verlassen haben. Technische Daten, Erscheinungsbild und andere Informationen können ohne vorherige Ankündigung geändert werden. Alle Warenzeichen sind Eigentum der jeweiligen Inhaber. MIDAS, KLARK TEKNIK, LAB.GRUPPEN, LAKE, TANNOY, TURBOSOUND, TC ELECTRONIC,TC-HELICON, BEHRINGER, BUGERA, DDA und TC APPLIED TECHNOLOGIES sind Warenzeichen oder eingetragene Warenzeichen der MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2015 Alle Rechte vorbehalten.BESCHRÄNKTE GARANTIEDie geltenden Garantiebedingungen und zusätzliche Informationen bezüglich der von MUSIC Group gewährten beschränkten Garantie fi nden Sie online unter music-group.com/warranty.

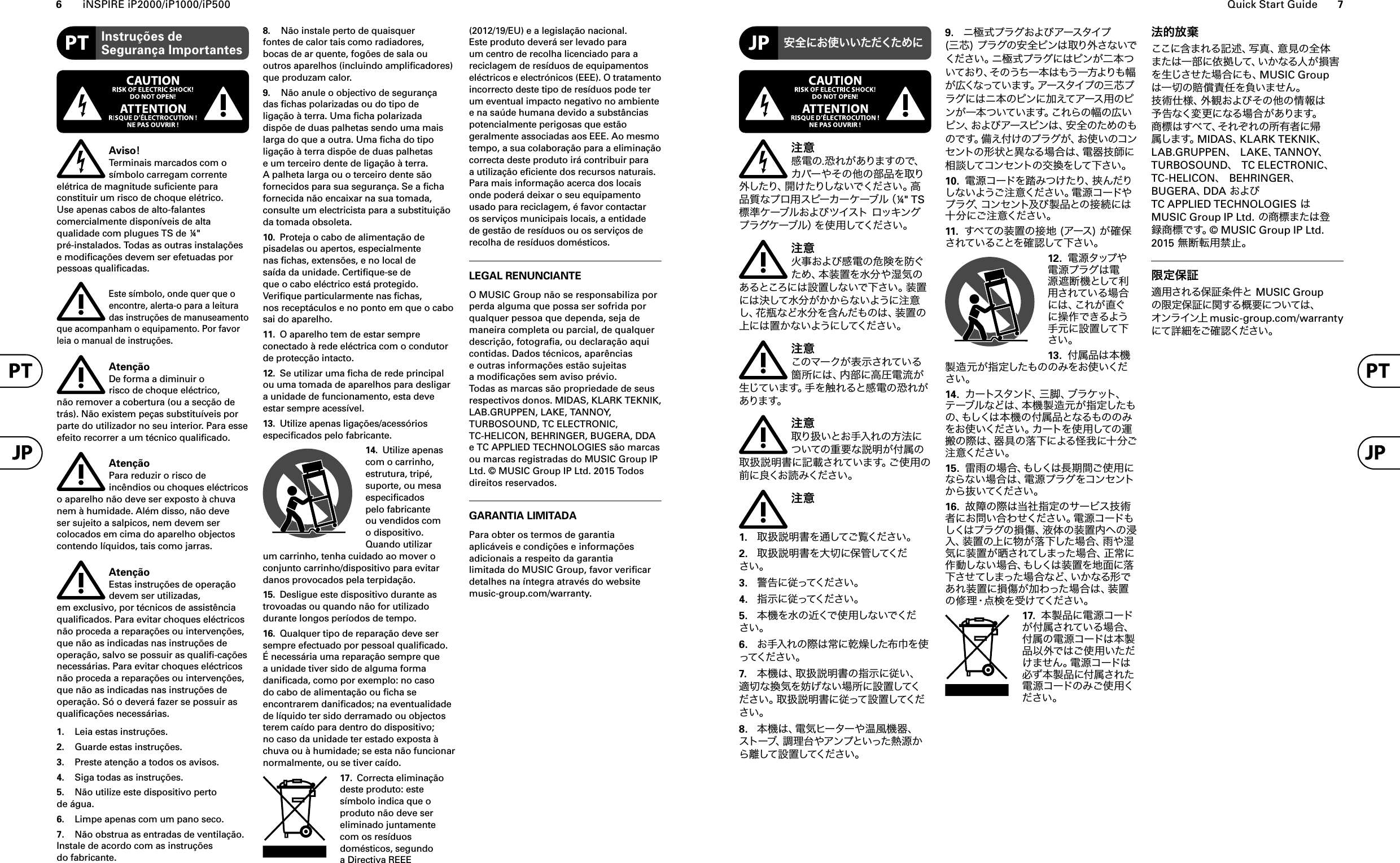

6iNSPIRE iP2000/iP1000/iP500 Quick Start Guide 7Instruções de Segurança ImportantesAviso!Terminais marcados com o símbolo carregam corrente elétrica de magnitude sufi ciente para constituir um risco de choque elétrico. Use apenas cabos de alto-falantes comercialmente disponíveis de alta qualidade com plugues TS de ¼" pré-instalados. Todas as outras instalações e modifi cações devem ser efetuadas por pessoas qualifi cadas.Este símbolo, onde quer que o encontre, alerta-o para a leitura das instruções de manuseamento que acompanham o equipamento. Por favor leia o manual de instruções.AtençãoDe forma a diminuir o risco de choque eléctrico, não remover a cobertura (ou a secção de trás). Não existem peças substituíveis por parte do utilizador no seu interior. Para esse efeito recorrer a um técnico qualifi cado.AtençãoPara reduzir o risco de incêndios ou choques eléctricos o aparelho não deve ser exposto à chuva nem à humidade. Além disso, não deve ser sujeito a salpicos, nem devem ser colocados em cima do aparelho objectos contendo líquidos, tais como jarras.AtençãoEstas instruções de operação devem ser utilizadas, em exclusivo, por técnicos de assistência qualifi cados. Para evitar choques eléctricos não proceda a reparações ou intervenções, que não as indicadas nas instruções de operação, salvo se possuir as qualifi -cações necessárias. Para evitar choques eléctricos não proceda a reparações ou intervenções, que não as indicadas nas instruções de operação. Só o deverá fazer se possuir as qualifi cações necessárias.1. Leia estas instruções.2. Guarde estas instruções.3. Preste atenção a todos os avisos.4. Siga todas as instruções.5. Não utilize este dispositivo perto de água.6. Limpe apenas com um pano seco.7. Não obstrua as entradas de ventilação. Instale de acordo com as instruções do fabricante.8. Não instale perto de quaisquer fontes de calor tais como radiadores, bocas de ar quente, fogões de sala ou outros aparelhos (incluindo amplifi cadores) que produzam calor.9. Não anule o objectivo de segurança das fi chas polarizadas ou do tipo de ligação à terra. Uma fi cha polarizada dispõe de duas palhetas sendo uma mais larga do que a outra. Uma fi cha do tipo ligação à terra dispõe de duas palhetas e um terceiro dente de ligação à terra. A palheta larga ou o terceiro dente são fornecidos para sua segurança. Se a fi cha fornecida não encaixar na sua tomada, consulte um electricista para a substituição da tomada obsoleta.10. Proteja o cabo de alimentação de pisadelas ou apertos, especialmente nas fi chas, extensões, e no local de saída da unidade. Certifi que-se de que o cabo eléctrico está protegido. Verifi que particularmente nas fi chas, nos receptáculos e no ponto em que o cabo sai do aparelho.11. O aparelho tem de estar sempre conectado à rede eléctrica com o condutor de protecção intacto.12. Se utilizar uma fi cha de rede principal ou uma tomada de aparelhos para desligar a unidade de funcionamento, esta deve estar sempre acessível.13. Utilize apenas ligações/acessórios especifi cados pelo fabricante.14. Utilize apenas com o carrinho, estrutura, tripé, suporte, ou mesa especifi cados pelo fabricante ou vendidos com o dispositivo. Quando utilizar um carrinho, tenha cuidado ao mover o conjunto carrinho/dispositivo para evitar danos provocados pela terpidação. 15. Desligue este dispositivo durante as trovoadas ou quando não for utilizado durante longos períodos de tempo.16. Qualquer tipo de reparação deve ser sempre efectuado por pessoal qualifi cado. É necessária uma reparação sempre que a unidade tiver sido de alguma forma danifi cada, como por exemplo: no caso do cabo de alimentação ou fi cha se encontrarem danifi cados; na eventualidade de líquido ter sido derramado ou objectos terem caído para dentro do dispositivo; no caso da unidade ter estado exposta à chuva ou à humidade; se esta não funcionar normalmente, ou se tiver caído.17. Correcta eliminação deste produto: este símbolo indica que o produto não deve ser eliminado juntamente com os resíduos domésticos, segundo a Directiva REEE (2012/19/EU) e a legislação nacional. Este produto deverá ser levado para um centro de recolha licenciado para a reciclagem de resíduos de equipamentos eléctricos e electrónicos (EEE). O tratamento incorrecto deste tipo de resíduos pode ter um eventual impacto negativo no ambiente e na saúde humana devido a substâncias potencialmente perigosas que estão geralmente associadas aos EEE. Ao mesmo tempo, a sua colaboração para a eliminação correcta deste produto irá contribuir para a utilização efi ciente dos recursos naturais. Para mais informação acerca dos locais onde poderá deixar o seu equipamento usado para reciclagem, é favor contactar os serviços municipais locais, a entidade de gestão de resíduos ou os serviços de recolha de resíduos domésticos.LEGAL RENUNCIANTEO MUSIC Group não se responsabiliza por perda alguma que possa ser sofrida por qualquer pessoa que dependa, seja de maneira completa ou parcial, de qualquer descrição, fotografi a, ou declaração aqui contidas. Dados técnicos, aparências e outras informações estão sujeitas a modifi cações sem aviso prévio. Todas as marcas são propriedade de seus respectivos donos. MIDAS, KLARK TEKNIK,LAB.GRUPPEN, LAKE, TANNOY, TURBOSOUND, TC ELECTRONIC, TC-HELICON, BEHRINGER, BUGERA, DDA e TC APPLIED TECHNOLOGIES são marcas ou marcas registradas do MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2015 Todos direitos reservados.GARANTIA LIMITADAPara obter os termos de garantia aplicáveis e condições e informações adicionais a respeito da garantia limitada do MUSIC Group, favor verifi car detalhes na íntegra através do website music-group.com/warranty.注意感電の.恐れがありますので、 カバーやその他の部品を取り外したり、開けたりしないでください。高品質なプロ用スピーカーケーブル（¼" TS 標準ケーブルおよびツイスト ロッキング プラグケーブル）を使用してください。注意火事および感電の危険を防ぐため、本装置を水分や湿気のあるところには設置しないで下さい。装置には決して水分がかからないように注意し、花瓶など水分を含んだものは、装置の上には置かないようにしてください。注意このマークが表示されている箇所には、内部に高圧電流が生じています。手を触れると感電の恐れがあります。注意取り扱いとお手入れの方法についての重要な説明が付属の取扱説明書に記載されています。ご使用の前に良くお読みください。注意1. 取扱説明書を通してご覧ください。2. 取扱説明書を大切に保管してください。3. 警告に従ってください。4. 指示に従ってください。5. 本機を水の近くで使用しないでください。6. お手入れの際は常に乾燥した布巾を使ってください 。7. 本機は、取扱説明書の指示に従い、適切な換気を妨げない場所に設置してください。取扱説明書に従って設置してください。8. 本機は、電気ヒーターや温風機器、ストーブ、調理台やアンプといった熱源から 離して 設 置してください 。9. ニ極式プラグおよびアースタイプ (三芯) プラグの安全ピンは取り外さないでください。ニ極式プラグにはピンが二本ついており、そのうち一本はもう一方よりも幅が広くなっています。アースタイプの三 芯プラグにはニ本のピンに加えてアース用のピンが一本ついています。これらの幅の広いピン、およびアースピンは、安全のためのものです。備え付けのプラグが、お使いのコンセントの形状と異なる場合は、電器技師に相談してコンセントの交換をして下さい。10. 電源コードを踏みつけたり、挟んだりしないようご注意ください。電源コードやプラグ、コンセント及び 製品との接続には十分にご注意ください。11. すべての装置の接地 (アース) が確保されていることを確認して下さい。12. 電源タップや電源プラグは電源遮断機として利用されている場合には、これが直ぐに操作できるよう手元に設置して下さい。13. 付属品は本機製造元が指定したもののみをお使いください。14. カートスタンド、三脚、ブラケット、テーブルなどは、本機製造元が指定したもの、もしくは本 機 の付属 品となるもの のみをお使いください。カートを使用しての運搬の際は、器具の落下による怪我に十分ご注意ください。15. 雷雨の場合、もしくは長 期 間ご使 用にならない場合は、電源プラグをコンセントから抜いてください。16. 故障の際は当社指定のサービス技術者にお問い合わせください。電源コードもしくはプラグの損 傷 、液体の装置内への浸入、装置の上に物が落下した場合、雨や湿気に装置が晒されてしまった場合、正常に作動しない場合、もしくは装置を地面に落下させてしまった場合など、いかなる形であれ装置に損傷が加わった場合は、装置の修理・点検を受けてください。17. 本製品に電源コードが付属されている場合、付属の電源コードは本製品以外ではご使用いただけません。電源コードは必ず本製品に付属された電源コードのみご使用ください。法的放棄ここに含まれる記 述、写真、意見の全体または一部に依拠して、いかなる人が損害を生じさせた場合にも、MUSIC Group は一切の賠償責任を負いません。技術仕様、外観およびその他の情報は予告なく変更になる場合があります。商標はすべて、それぞれの所有者に帰属します。MIDAS、KLARK TEKNIK、 LAB.GRUPPEN、 LAKE、TANNOY、 TURBOSOUND、 TC ELECTRONIC、 TC-HELICON、 BEHRINGER、 BUGERA、DDA および TC APPLIED TECHNOLOGIES は MUSIC Group IP Ltd. の商標または登録商標です。© MUSIC Group IP Ltd. 2015 無断転用禁止。限定保証適用される保証条件と MUSIC Group の限定保証に関する概要については、 オンライン上 music-group.com/warrantyにて詳細をご確認ください。安全にお使いいただくために

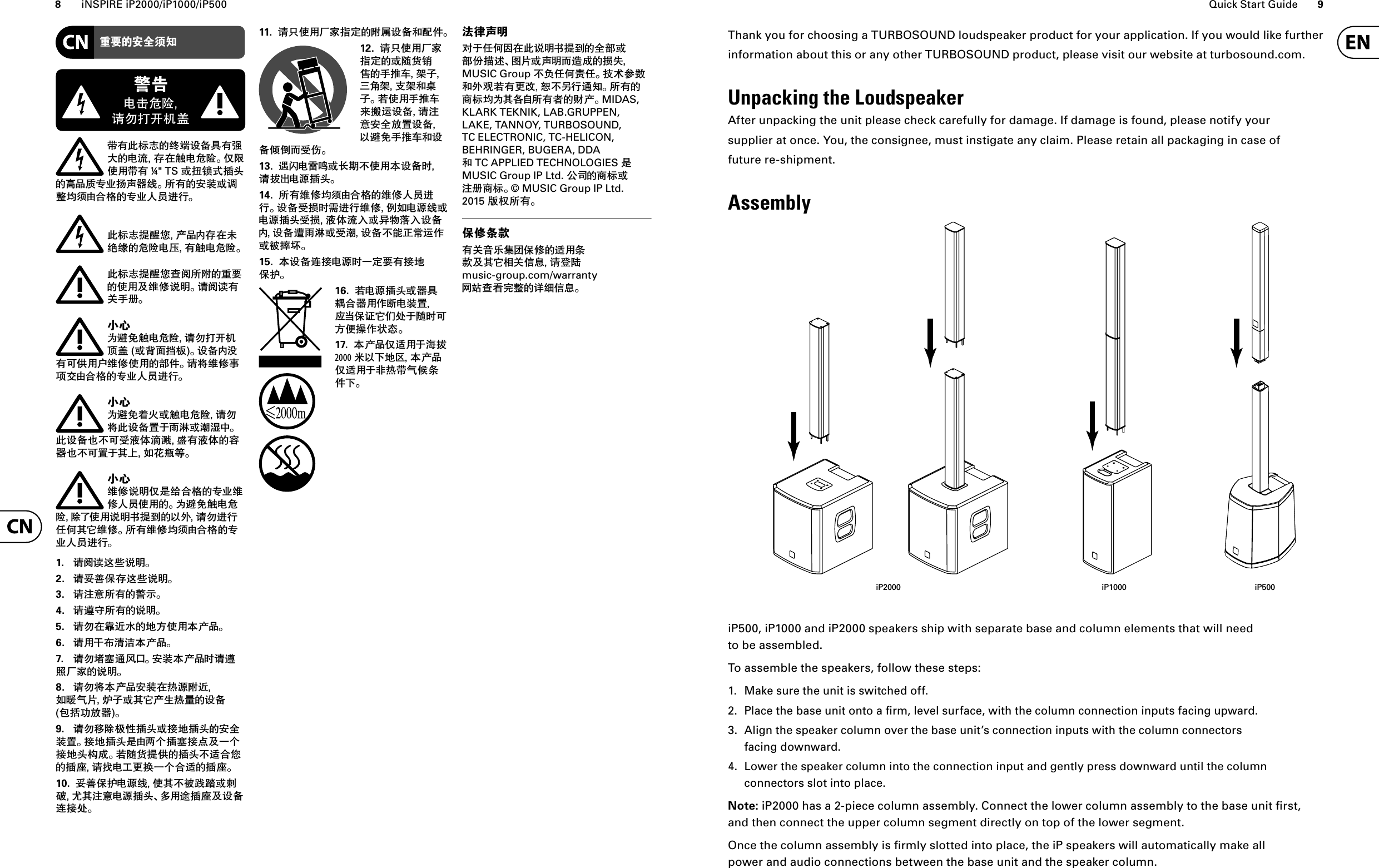

8iNSPIRE iP2000/iP1000/iP500 Quick Start Guide 9Thank you for choosing a TURBOSOUND loudspeaker product for your application. If you would like further information about this or any other TURBOSOUND product, please visit our website at turbosound.com.Unpacking the LoudspeakerAfter unpacking the unit please check carefully for damage. If damage is found, please notify your supplier at once. You, the consignee, must instigate any claim. Please retain all packaging in case of future re-shipment.AssemblyiP2000 iP1000 iP500iP500, iP1000 and iP2000 speakers ship with separate base and column elements that will need to be assembled.To assemble the speakers, follow these steps:1. Make sure the unit is switched off.2. Place the base unit onto a fi rm, level surface, with the column connection inputs facing upward.3. Align the speaker column over the base unit’s connection inputs with the column connectors facing downward.4. Lower the speaker column into the connection input and gently press downward until the column connectors slot into place.Note: iP2000 has a 2-piece column assembly. Connect the lower column assembly to the base unit fi rst, and then connect the upper column segment directly on top of the lower segment.Once the column assembly is fi rmly slotted into place, the iP speakers will automatically make all power and audio connections between the base unit and the speaker column.᧙᜷ᄋ߸Мᮍᅽࣝధ൦ಗ঄ᄋጽቬ᝻ܭЧధृܹᄋႄุߜڛᝐႄԁᬘǎ̪ᬎΏၺࣝధ ¼" TSੌ੶ᩛऱତ݁ᄋᰵַ᠐˅ˋੵܧ٩ጴǎ੟ధᄋ߸ᜊੌួ஠ڪᮍႁՍಬᄋ˅ˋ̢ցᤊᛢǎ൦ಗ঄ଣᧉ১ַ̘аߜڛఴፑᎇᄋԁᬘႄԎధᝐႄԁᬘǎ൦ಗ঄ଣᧉ১ಋ᫟੟ᬅᄋ᧙᜷ᄋΏၺԤ፦οឮ௛ǎឱ᫟឵ధУ੥гǎ࠶ॸ˟ᥙГᝐႄԁᬘឱӉ੫ऩ఼ᮈᄧੌᑁ᭨૖ౝǎ᝻ܭа෦ధԼΚၺਜ਼፦οΏၺᄋᦋ͉ǎឱ࠳፦ο̄ᮋ̕ႁՍಬᄋ˅ˋ̢ցᤊᛢǎ࠶ॸ˟ᥙГᅍ༣ੌᝐႄԁᬘឱӉ࠳൦᝻ܭᎷ̇ᭂ๹ੌ໾ິ˘ǎ൦᝻ܭ˸ˁԼԫ๰͵໠ຶᄪధ๰͵ᄋࠕ٩˸ˁԼᎷ̇Цʾݡᔊၬ኏ǎ࠶ॸ፦οឮ௛̪௨ፍՍಬᄋ˅ˋ፦ο̢ցΏၺᄋǎ˟ᥙГᝐႄԁᬘᬕ́Ώၺឮ௛˻ଣ҃ᄋ̀ܲឱӉᤊᛢ͋ͶЦ߳፦οǎ੟ధ፦οڪᮍႁՍಬᄋ˅ˋ̢ցᤊᛢǎ1. ឱ᫟឵ᤉ̐ឮ௛ǎ2. ឱݱؔεߜᤉ̐ឮ௛ǎ3. ឱญਔ੟ధᄋ᝞ᇩǎ4. ឱᥗ߷੟ధᄋឮ௛ǎ5. ឱӉڛ᭦ᤄබᄋڢஶΏၺశַ̘ǎ6. ឱၺࣱ࣌ຎพశַ̘ǎ7. ឱӉ܅܌ᤱ᮴Աǎ߸ᜊశַ̘௒ឱᥗཱིԉࠓᄋឮ௛ǎ8. ឱӉ࠳శַ̘߸ᜊڛམ຺ᬅᤄݡ఍ජྠ༰ߖੌЦ̘߳ၸམ᧛ᄋ᝻ܭӋ઻ҫ஋٩ǎ9. ឱӉሩᬕ౞মତ݁ੌ଍ڢତ݁ᄋ߸МᜊᎷǎ଍ڢତ݁௨ႁˑ˕ତ܌଍གྷԤʸ˕଍ڢ݁౟ੈǎᔫᬥ᠏ଣΚᄋତ݁ˁᤡՍ১ᄋତऑឱ੾ႄࢻట૲ʸ˕Սᤡᄋତऑǎ10. ݱؔεઑႄ຺ጴΏЦˁᜃ᡼ᢇੌ҉ᆢࡀЦญਔႄ຺ତ݁Ǎܴၺ᤮ତऑԤ᝻ܭᤍ଍ܬǎ11. ឱԷΏၺԉࠓ૊ࠁᄋᬅ࡜᝻ܭ֘ᦢ͉ǎ 12. ឱԷΏၺԉࠓ૊ࠁᄋੌᬥ᠏ᩚ׭ᄋ੥ଏᢽ౷ߖʽᝉ౷஄౷֘ಹߖǎᔫΏၺ੥ଏᢽ౐ୄᤃ᝻ܭឱญਔ߸М஋Ꮇ᝻ܭ̀ᥙГ੥ଏᢽ֘᝻ܭϛωᏬԫ͟ǎ13. ᥆᫆ႄᭈᲟੌ᫃ఱˁΏၺశ᝻ܭ௒ឱફѤႄ຺ତ݁ǎ14. ੟ధ፦οڪᮍႁՍಬᄋ፦ο̢ցᤊᛢǎ᝻ܭԫ૰௒ᭋᤊᛢ፦οΔݡႄ຺ጴੌႄ຺ତ݁ԫ૰๰͵ุЛੌफྮᗁЛ᝻ܭа᝻ܭᥔᭂ๹ੌԫ໾᝻ܭˁᑠ൥ࣣᤃͼੌᜃ୒گǎ15. శ᝻ܭᤍ଍ႄ຺௒ʸࠁ᜷ధ଍ڢεઑǎ16. ᔫႄ຺ତ݁ੌ٩ЧᏺՍ٩ၺͼளႄᜊᎷअैε᝾߳̈́ܬ̇ᬥ௒ԼஶΨ୳ͼ࿅ঘǎ17. శַ̘̪ᤡၺ̇๓ફ2000ዜ̀ʿڢӞశַ̘̪ᤡၺ̇᭥མࣝජό౏͉ʿǎฃ०ܧ௛ࠬ̇͋Ͷڃڛ൦ឮ௛˻ଣ҃ᄋМᦋੌᦋ͌ଢᤙǍڐྠੌܧ௛Ꮼᤶੈᄋ૰݀MUSIC Groupˁ᠈͋Ͷ᠋͋ǎ઀సԡஞ֘ܲ᜻ᔫధటஉিˁԴᛢᤱᅽǎ੟ధᄋ׹ಗڪ˟ЦՋᒮ੟ధᏩᄋ᠊̘ǎMIDAS, KLARK TEKNIK, LAB.GRUPPEN, LAKE, TANNOY, TURBOSOUND, TC ELECTRONIC, TC-HELICON, BEHRINGER, BUGERA, DDA֘TC APPLIED TECHNOLOGIES௨MUSIC Group IP Ltd.ОՄᄋ׹ಗੌญг׹ಗǎ© MUSIC Group IP Ltd. 2015ྡీ੟ధǎεο౏൝ధУᮄˮᬸڅεοᄋᤡၺ౏൝ԤЦ߳ᄲУθ্ឱᄇᬇmusic-group.com/warrantyᎫቤಋᄻߺ஠ᄋឡጻθ্ǎ

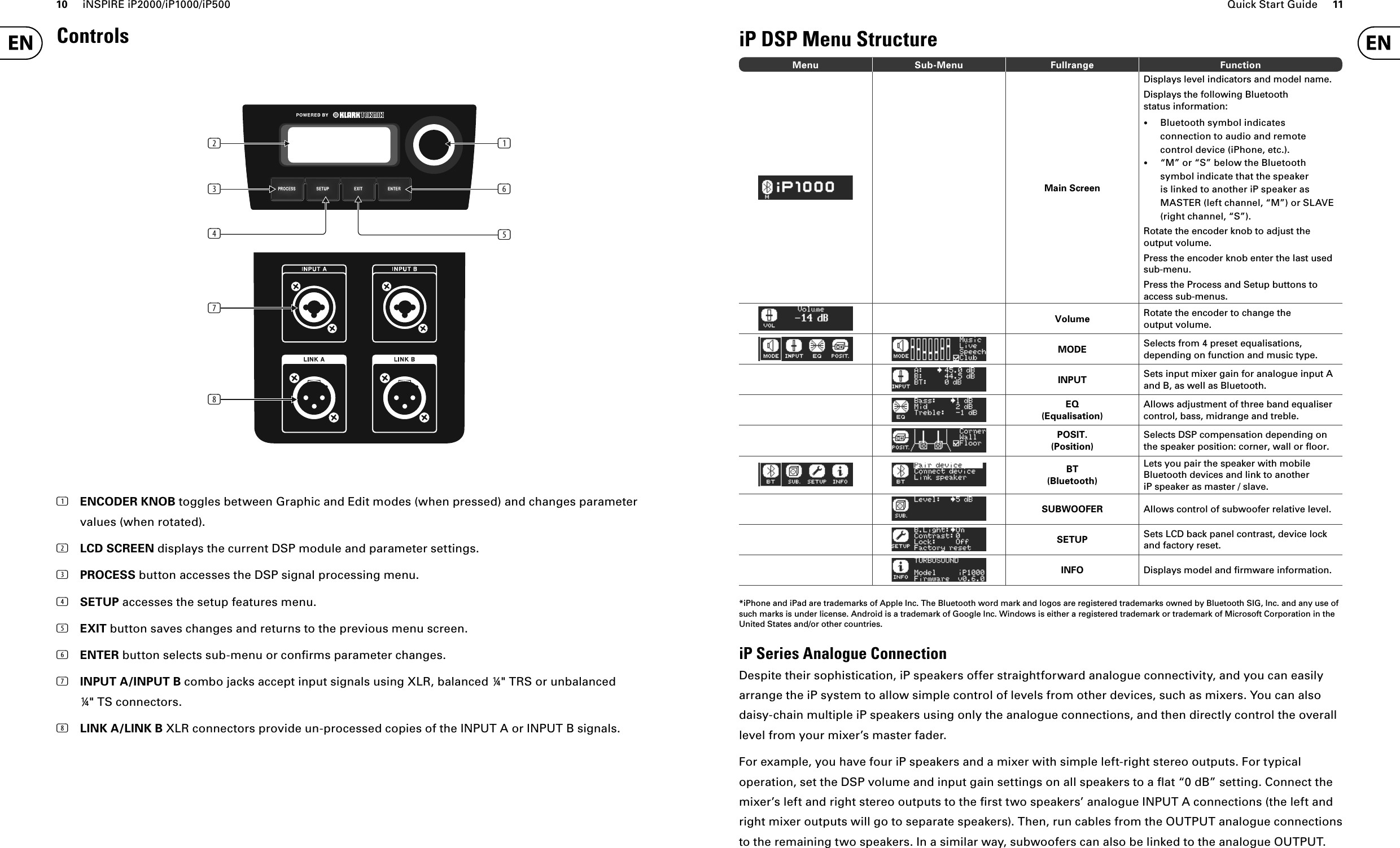

10 iNSPIRE iP2000/iP1000/iP500 Quick Start Guide 11iP DSP Menu StructureMenu Sub-Menu Fullrange FunctionMain ScreenDisplays level indicators and model name.Displays the following Bluetooth status information:•Bluetooth symbol indicates connection to audio and remote control device (iPhone, etc.).•“M” or “S” below the Bluetooth symbol indicate that the speaker is linked to another iP speaker as MASTER (left channel, “M”) or SLAVE (right channel, “S”).Rotate the encoder knob to adjust the output volume.Press the encoder knob enter the last used sub-menu.Press the Process and Setup buttons to access sub-menus.Volume Rotate the encoder to change the output volume.MODE Selects from 4 preset equalisations, depending on function and music type.INPUT Sets input mixer gain for analogue input A and B, as well as Bluetooth.EQ(Equalisation)Allows adjustment of three band equaliser control, bass, midrange and treble.POSIT.(Position)Selects DSP compensation depending on the speaker position: corner, wall or fl oor.BT(Bluetooth)Lets you pair the speaker with mobile Bluetooth devices and link to another iP speaker as master / slave.SUBWOOFER Allows control of subwoofer relative level.SETUP Sets LCD back panel contrast, device lock and factory reset.INFO Displays model and fi rmware information.*iPhone and iPad are trademarks of Apple Inc. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Android is a trademark of Google Inc. Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.iP Series Analogue ConnectionDespite their sophistication, iP speakers offer straightforward analogue connectivity, and you can easily arrange the iP system to allow simple control of levels from other devices, such as mixers. You can also daisy-chain multiple iP speakers using only the analogue connections, and then directly control the overall level from your mixer’s master fader.For example, you have four iP speakers and a mixer with simple left-right stereo outputs. For typical operation, set the DSP volume and input gain settings on all speakers to a fl at “0 dB” setting. Connect the mixer’s left and right stereo outputs to the fi rst two speakers’ analogue INPUT A connections (the left and right mixer outputs will go to separate speakers). Then, run cables from the OUTPUT analogue connections to the remaining two speakers. In a similar way, subwoofers can also be linked to the analogue OUTPUT.Controls(1) ENCODER KNOB toggles between Graphic and Edit modes (when pressed) and changes parameter values (when rotated).(2) LCD SCREEN displays the current DSP module and parameter settings.(3) PROCESS button accesses the DSP signal processing menu.(4) SETUP accesses the setup features menu.(5) EXIT button saves changes and returns to the previous menu screen.(6) ENTER button selects sub-menu or confi rms parameter changes.(7) INPUT A/INPUT B combo jacks accept input signals using XLR, balanced ¼" TRS or unbalanced ¼" TS connectors.(8) LINK A/LINK B XLR connectors provide un-processed copies of the INPUT A or INPUT B signals.(1)(2)(3)(7)(8)(4)(6)(5)

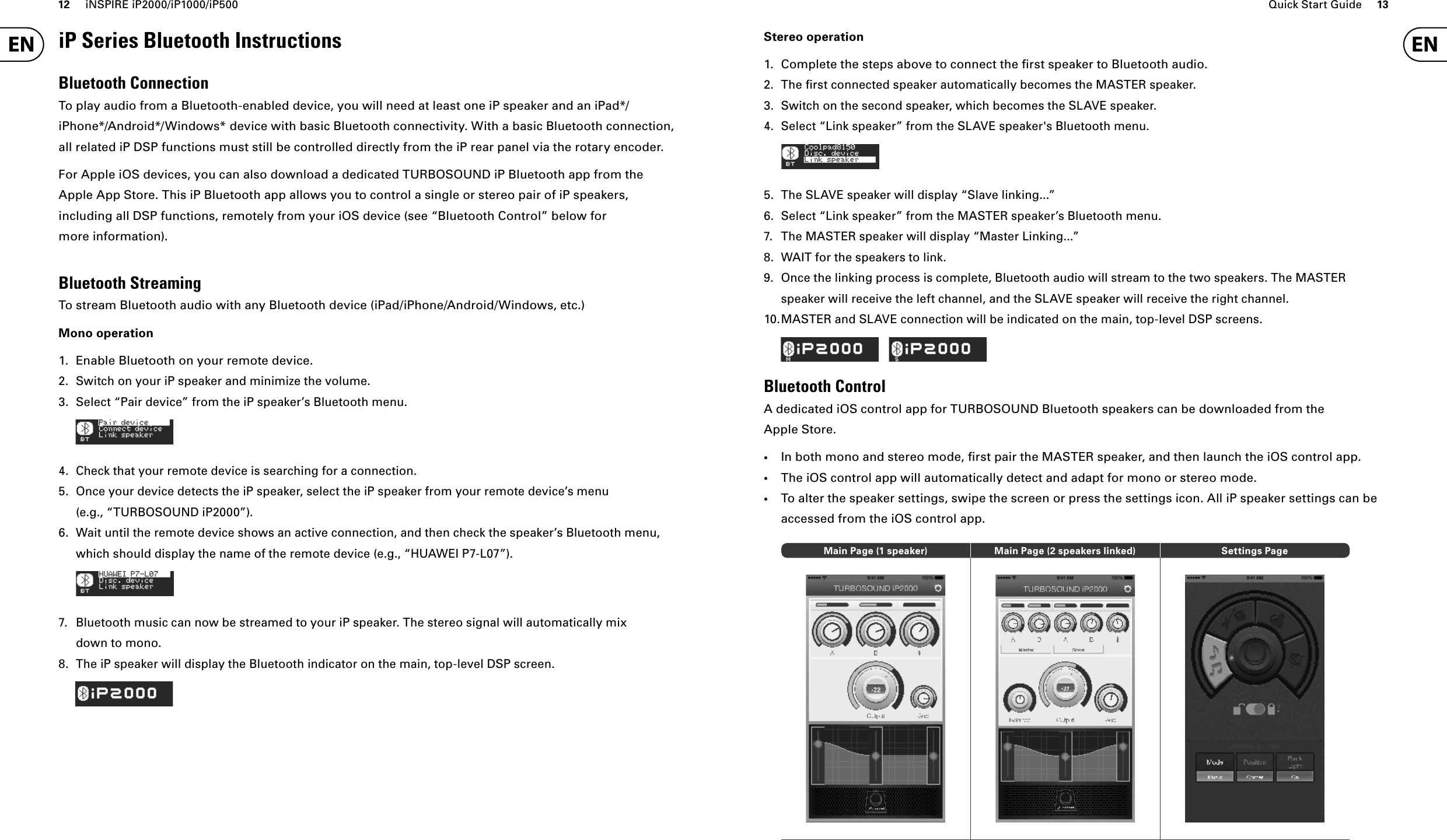

12 iNSPIRE iP2000/iP1000/iP500 Quick Start Guide 13iP Series Bluetooth InstructionsBluetooth ConnectionTo play audio from a Bluetooth-enabled device, you will need at least one iP speaker and an iPad*/iPhone*/Android*/Windows* device with basic Bluetooth connectivity. With a basic Bluetooth connection, all related iP DSP functions must still be controlled directly from the iP rear panel via the rotary encoder.For Apple iOS devices, you can also download a dedicated TURBOSOUND iP Bluetooth app from the Apple App Store. This iP Bluetooth app allows you to control a single or stereo pair of iP speakers, including all DSP functions, remotely from your iOS device (see “Bluetooth Control” below for more information).Bluetooth StreamingTo stream Bluetooth audio with any Bluetooth device (iPad/iPhone/Android/Windows, etc.)Mono operation1. Enable Bluetooth on your remote device.2. Switch on your iP speaker and minimize the volume.3. Select “Pair device” from the iP speaker’s Bluetooth menu.4. Check that your remote device is searching for a connection.5. Once your device detects the iP speaker, select the iP speaker from your remote device’s menu (e.g., “TURBOSOUND iP2000”).6. Wait until the remote device shows an active connection, and then check the speaker’s Bluetooth menu, which should display the name of the remote device (e.g., “HUAWEI P7-L07”).7. Bluetooth music can now be streamed to your iP speaker. The stereo signal will automatically mix down to mono.8. The iP speaker will display the Bluetooth indicator on the main, top-level DSP screen.Stereo operation1. Complete the steps above to connect the fi rst speaker to Bluetooth audio.2. The fi rst connected speaker automatically becomes the MASTER speaker.3. Switch on the second speaker, which becomes the SLAVE speaker.4. Select “Link speaker” from the SLAVE speaker's Bluetooth menu.5. The SLAVE speaker will display “Slave linking...”6. Select “Link speaker” from the MASTER speaker’s Bluetooth menu.7. The MASTER speaker will display “Master Linking...”8. WAIT for the speakers to link.9. Once the linking process is complete, Bluetooth audio will stream to the two speakers. The MASTER speaker will receive the left channel, and the SLAVE speaker will receive the right channel.10. MASTER and SLAVE connection will be indicated on the main, top-level DSP screens.Bluetooth ControlA dedicated iOS control app for TURBOSOUND Bluetooth speakers can be downloaded from the Apple Store.•In both mono and stereo mode, fi rst pair the MASTER speaker, and then launch the iOS control app.•The iOS control app will automatically detect and adapt for mono or stereo mode.•To alter the speaker settings, swipe the screen or press the settings icon. All iP speaker settings can be accessed from the iOS control app.Main Page (1 speaker) Main Page (2 speakers linked) Settings Page

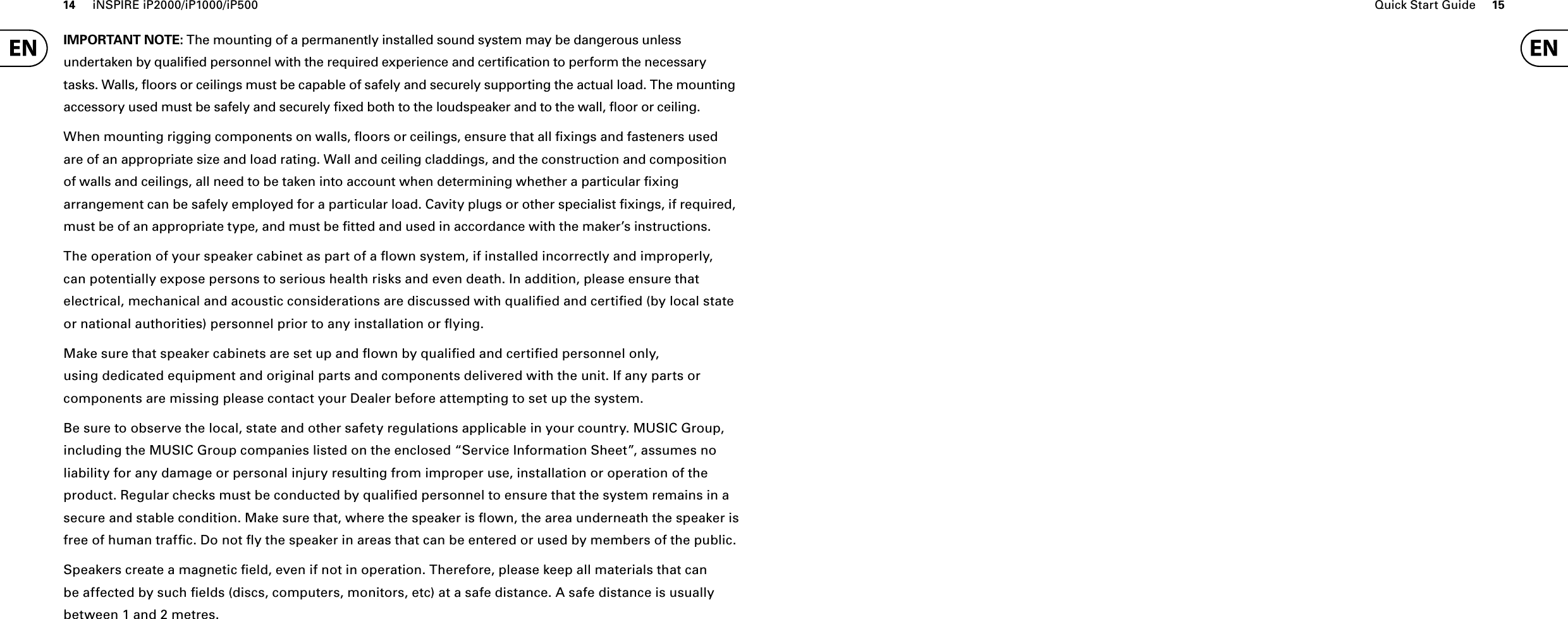

14 iNSPIRE iP2000/iP1000/iP500 Quick Start Guide 15IMPORTANT NOTE: The mounting of a permanently installed sound system may be dangerous unless undertaken by qualifi ed personnel with the required experience and certifi cation to perform the necessary tasks. Walls, fl oors or ceilings must be capable of safely and securely supporting the actual load. The mounting accessory used must be safely and securely fi xed both to the loudspeaker and to the wall, fl oor or ceiling.When mounting rigging components on walls, fl oors or ceilings, ensure that all fi xings and fasteners used are of an appropriate size and load rating. Wall and ceiling claddings, and the construction and composition of walls and ceilings, all need to be taken into account when determining whether a particular fi xing arrangement can be safely employed for a particular load. Cavity plugs or other specialist fi xings, if required, must be of an appropriate type, and must be fi tted and used in accordance with the maker’s instructions.The operation of your speaker cabinet as part of a fl own system, if installed incorrectly and improperly, can potentially expose persons to serious health risks and even death. In addition, please ensure that electrical, mechanical and acoustic considerations are discussed with qualifi ed and certifi ed (by local state or national authorities) personnel prior to any installation or fl ying.Make sure that speaker cabinets are set up and fl own by qualifi ed and certifi ed personnel only, using dedicated equipment and original parts and components delivered with the unit. If any parts or components are missing please contact your Dealer before attempting to set up the system.Be sure to observe the local, state and other safety regulations applicable in your country. MUSIC Group, including the MUSIC Group companies listed on the enclosed “Service Information Sheet”, assumes no liability for any damage or personal injury resulting from improper use, installation or operation of the product. Regular checks must be conducted by qualifi ed personnel to ensure that the system remains in a secure and stable condition. Make sure that, where the speaker is fl own, the area underneath the speaker is free of human traffi c. Do not fl y the speaker in areas that can be entered or used by members of the public.Speakers create a magnetic fi eld, even if not in operation. Therefore, please keep all materials that can be affected by such fi elds (discs, computers, monitors, etc) at a safe distance. A safe distance is usually between 1 and 2 metres.
16 iNSPIRE iP2000/iP1000/iP500 Quick Start Guide 17Technical Specifi cationsiP2000 iP1000SystemFrequency response 45 Hz – 20 kHz ±3 dB38 Hz – 20 kHz -10 dB50 Hz – 20 kHz ±3 dB43 Hz – 20 kHz -10 dBNominal dispersion 120° H @ -6 dB points 120° H @ -6 dB pointsMaximum SPL 123 dB 122 dBCrossover type 4 way, active and passive 4 way, active and passiveTransducers1 x 12" (305 mm) LF driver 16 x 2.75" (70 mm) MF drivers 1 x 1" (25 mm) HF compression driver2 x 8" (208 mm) LF drivers 8 x 2.75" (70 mm) MF drivers 1 x 1" (25 mm) HF compression driverLimiter Independent HF, LF Independent HF, LFAmplifi erMaximum output power* 1000 W 1000 WType Class-D Class-DProtection Short circuit, open circuit, thermal Short circuit, open circuit, thermalAmplifi er channels 33ConnectorsInput A / B 2 x combo jack / XLR 2 x combo jack / XLRSensitivity 4 dBu, nominal 4 dBu, nominalInput impedance 16 k1 unbalanced, 33 k1 balanced 16 k1 unbalanced, 33 k1 balancedMaximum input level +22 dBu +22 dBuLink output XLR XLRMains supply IEC mains connector with integrated power switchIEC mains connector with integrated power switchControlsHardware Rotary push-encoder Rotary push-encoderSoftware iOS interface via Bluetooth iOS interface via BluetoothUser DSP FunctionsFactory EQ presets Positioning, sound mode Positioning, sound modeDisplay LCD 128 x 32, blue, backlit LCD 128 x 32, blue, backlitEqualisation Bass, middle and treble Bass, middle and trebleProtection Lock-out function for all settings Lock-out function for all settingsBluetooth Wireless TechnologyFrequency range 2402 MHz ~ 2480 MHz 2402 MHz ~ 2480 MHzChannel number 79 79Version Bluetooth 4.0 dual mode Bluetooth 4.0 dual modeOutput 8 dBM 8 dBMCompatibility Supports A2DP 1.2 profi le Supports A2DP 1.2 profi leMaximum communication range 30 m (without interference) 30 m (without interference)Connectivity Master-slave: stereo pairing link Master-slave: stereo pairing linkiP2000 iP1000Power SupplyPower consumption 110 W @ 1/8 max power 110 W @ 1/8 max powerVoltage (fuses)USA / Canada / Japan 100-120 V~, 50/60 Hz (T 6.3 A H 250 V) 100-120 V~, 50/60 Hz (T 6.3 A H 250 V)UK / Australia / Europe 220-240 V~, 50/60 Hz (T 3.15 A H 250 V) 220-240 V~, 50/60 Hz (T 3.15 A H 250 V)Korea / China 220-240 V~, 50/60 Hz (T 3.15 A H 250 V) 220-240 V~, 50/60 Hz (T 3.15 A H 250 V)EnclosureDimensions (HWD) 2063 x 420 x 500 mm (81.2 x 16.5 x 19.7") 1955 x 262 x 370 mm (77.0 x 10.3 x 14.6")Base 485 x 420 x 500 mm (19.1 x 16.5 x 19.7") 655 x 262 x 370 mm (25.8 x 10.3 x 14.6")Tower 834 x 103 x 89 mm (32.8 x 4.0 x 3.5") 1345 x 103 x 89 mm (53.0 x 4.0 x 3.5")Net weight 30.9 kg (68.1 lbs) 24.8 kg (54.7 lbs)Construction, base 15 mm (5/8") birch plywood 15 mm (5/8") birch plywoodConstruction, tower Aluminium alloy Aluminium alloyFinish Semi matt black paint Semi matt black paintGrille Powder coated perforated steel Powder coated perforated steelAccessories––*independent of limiters and driver protection circuits†Only qualifi ed personnel are allowed to modify the AC-Main cord and to adhere to all applicable national standards.

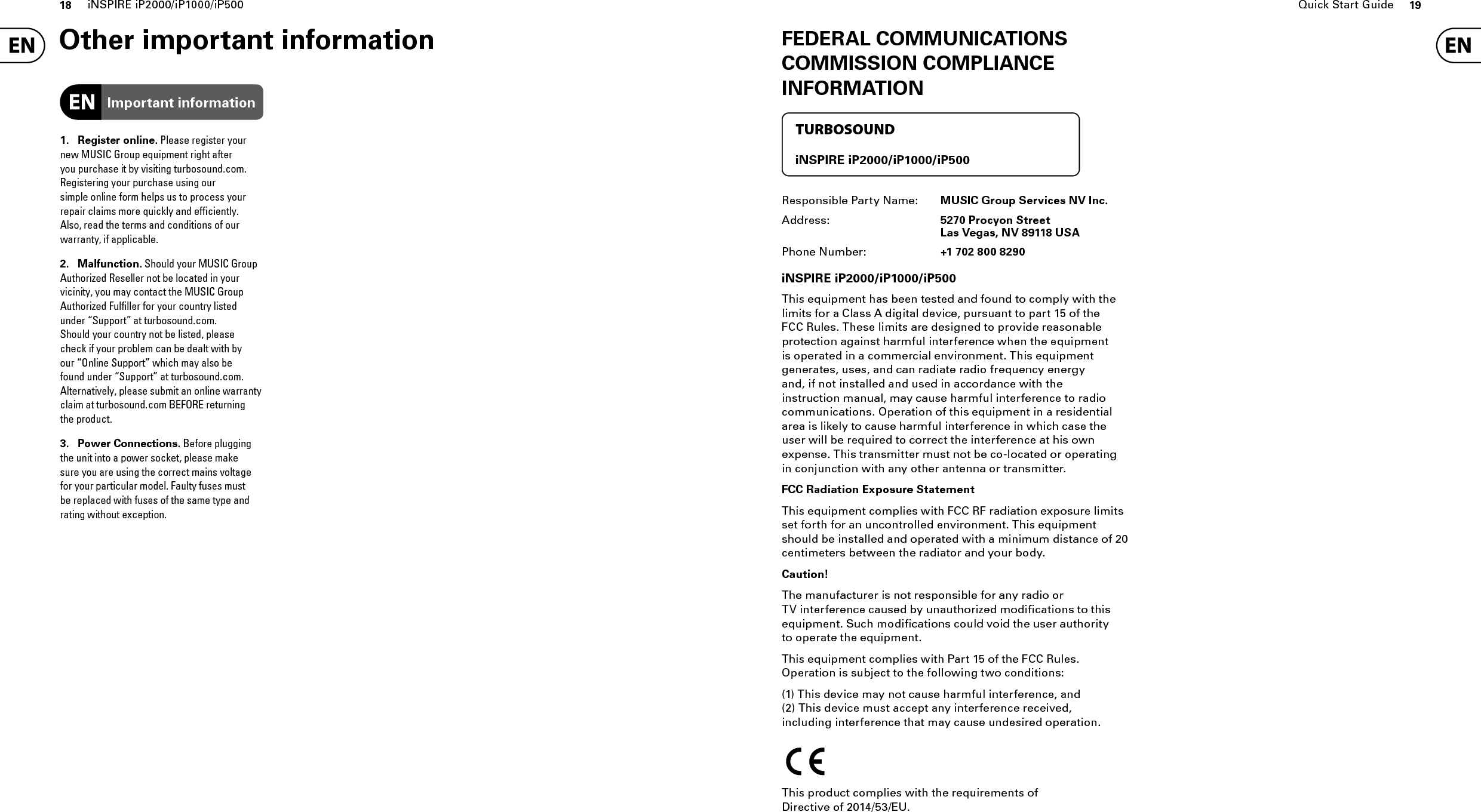

18 iNSPIRE iP2000/iP1000/iP500 Quick Start Guide 19FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATIONResponsible Party Name: MUSIC Group Services NV Inc.Address: 5270 Procyon StreetLas Vegas, NV 89118 USAPhone Number: +1 702 800 8290iNSPIRE iP2000/iP1000/iP500This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.FCC Radiation Exposure StatementThis equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.Caution!The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifi cations to this equipment. Such modifi cations could void the user authority to operate the equipment.This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation.This product complies with the requirements of Directive of 2014/53/EU.TURBOSOUNDiNSPIRE iP2000/iP1000/iP500Other important information1. Register online. Please register your new MUSIC Group equipment right after you purchase it by visiting turbosound. com. Registering your purchase using our simple online form helps us to process your repair claims more quickly and effi ciently. Also, read the terms and conditions of our warranty, if applicable.2. Malfunction. Should your MUSIC Group Authorized Reseller not be located in your vicinity, you may contact the MUSIC Group Authorized Fulfi ller for your country listed under “Support” at turbosound. com. Should your country not be listed, please check if your problem can be dealt with by our “Online Support” which may also be found under “Support” at turbosound. com. Alternatively, please submit an online warranty claim at turbosound. com BEFORE returning the product.3. Power Connections. Before plugging the unit into a power socket, please make sure you are using the correct mains voltage for your particular model. Faulty fuses must be replaced with fuses of the same type and rating without exception.Important information
