Empower Tribe Commercial FZE ULM200M Wireless Microphone User Manual ULM200USB Manual

MUSIC Group Services PH Corp Wireless Microphone ULM200USB Manual

Users Manual

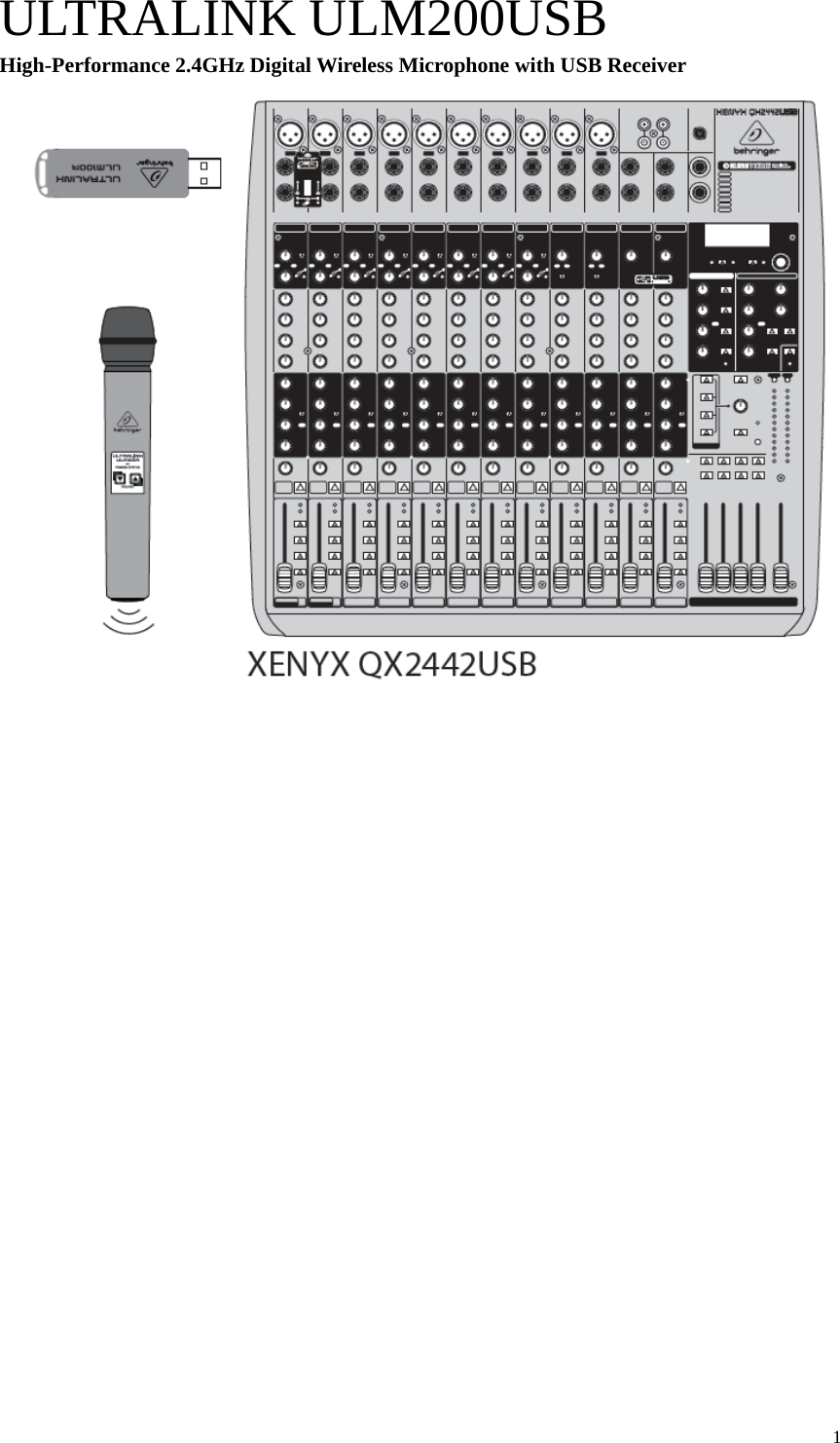

1ULTRALINK ULM200USB High-Performance 2.4GHz Digital Wireless Microphone with USB Receiver

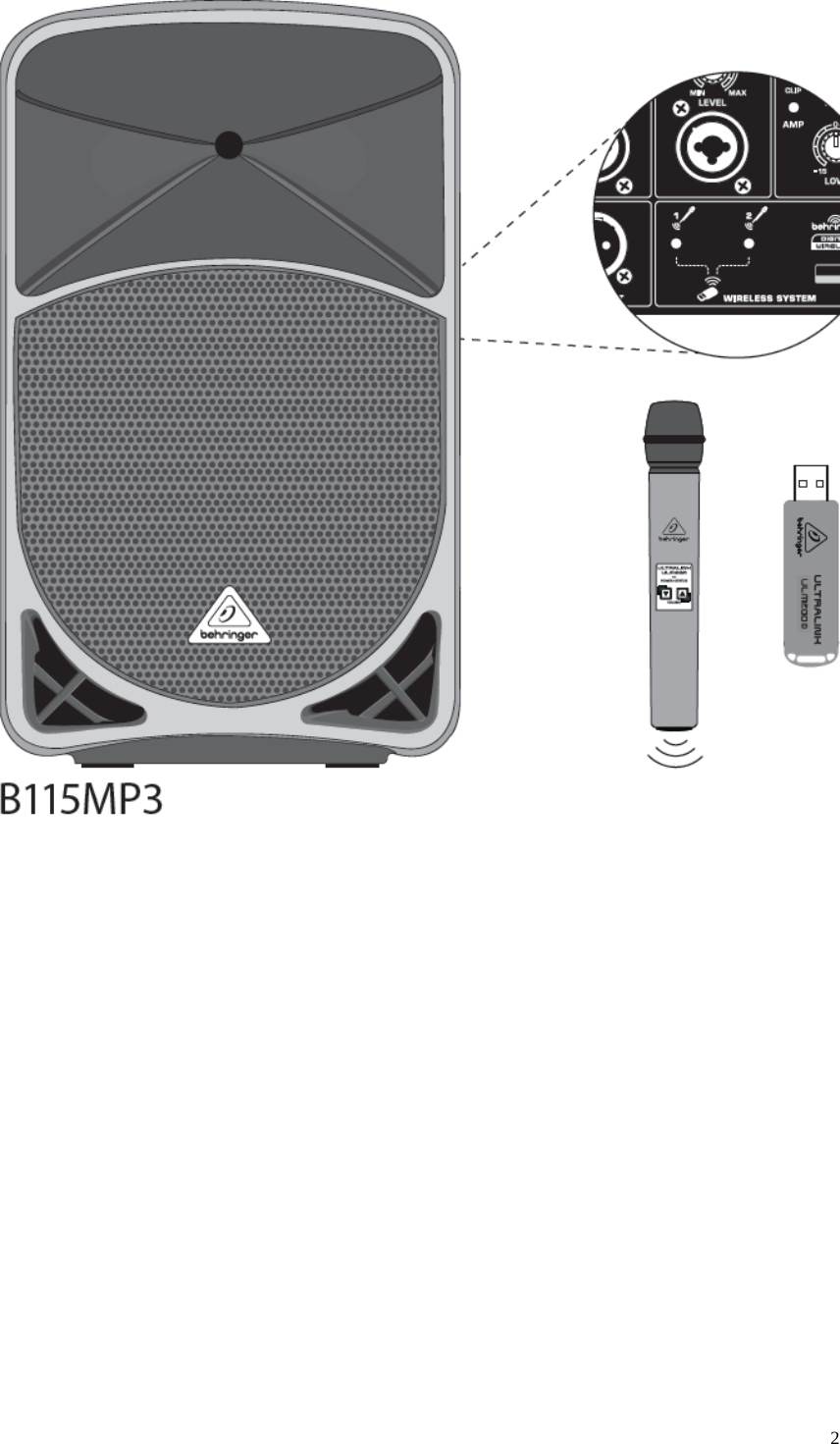

2

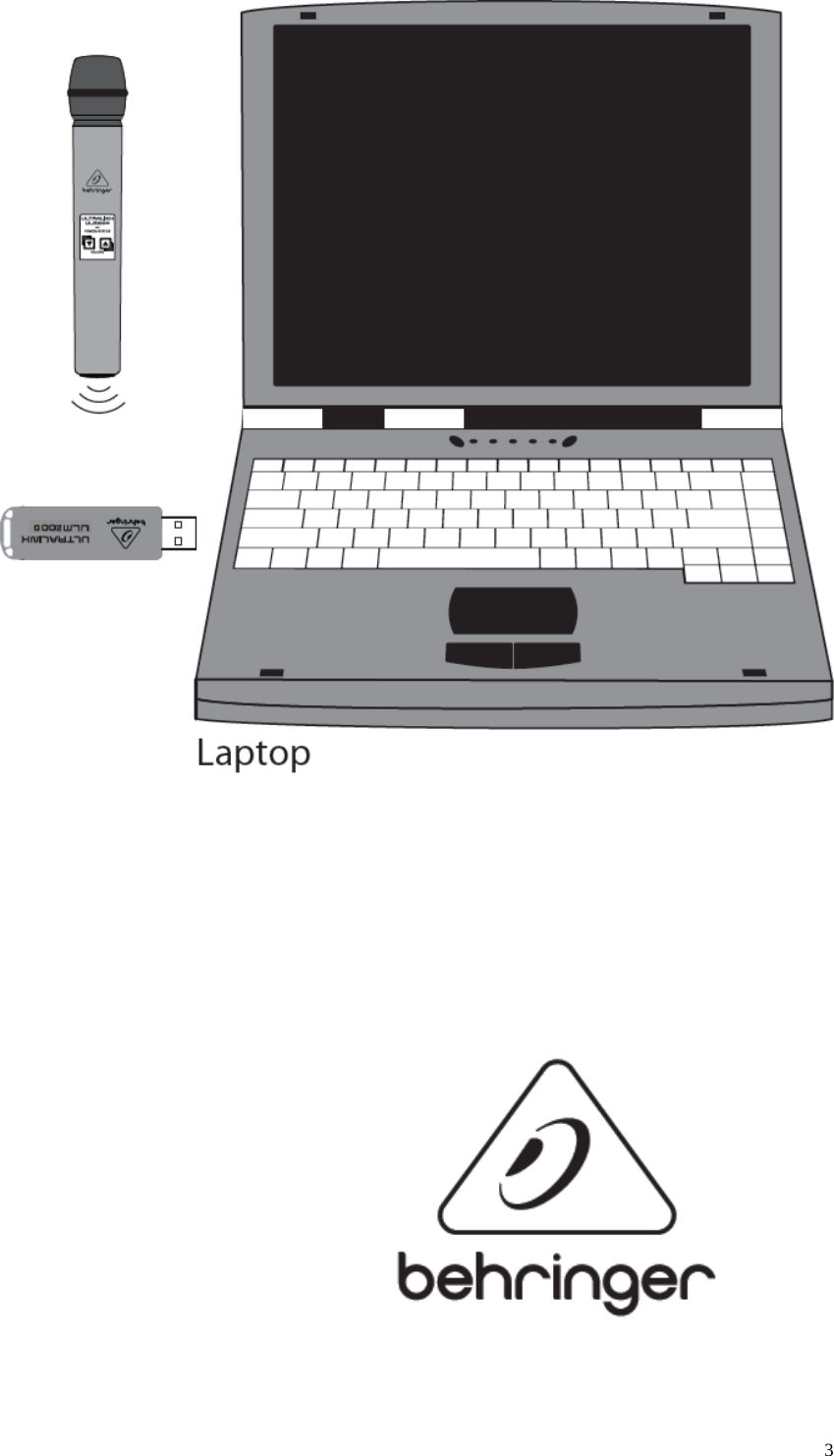

3
4 ULM200USB Controls Type of product : Wireless Microphone ULM200USB Controls 1. POWER/STATUS LED 2. VOLUME Button (Mute/volume down) 3. VOLUME Button(Power on/unmute/volume up) 4. USB connector 5. Wireless Link Status LED ULM200USB Getting Started 1. Press and hold the button to power on the ULM200M wireless microphone. 2. Connect the ULM100D wireless dongle to the wireless only USB connector on the wireless enabled device or to a USB port on a computer. The ULM200M will sync to the reveiver automatically. 3. Use the and buttons on the ULM200M wireless mic to adjust the volume. 4. Press and hold the buttons to the mute the volume of the ULM200M. 5. Press the button to un-mute the volume of the ULM200M. 6. Disconnect the ULM200D wireless dongle. The ULM200M wireless microphone will power off when no wireless signal is detected for more than 1 minute. To ensure longer battery life, unplug the ULM200D wireless dongle after use. Specification RF output +10dBm (10mW Max)

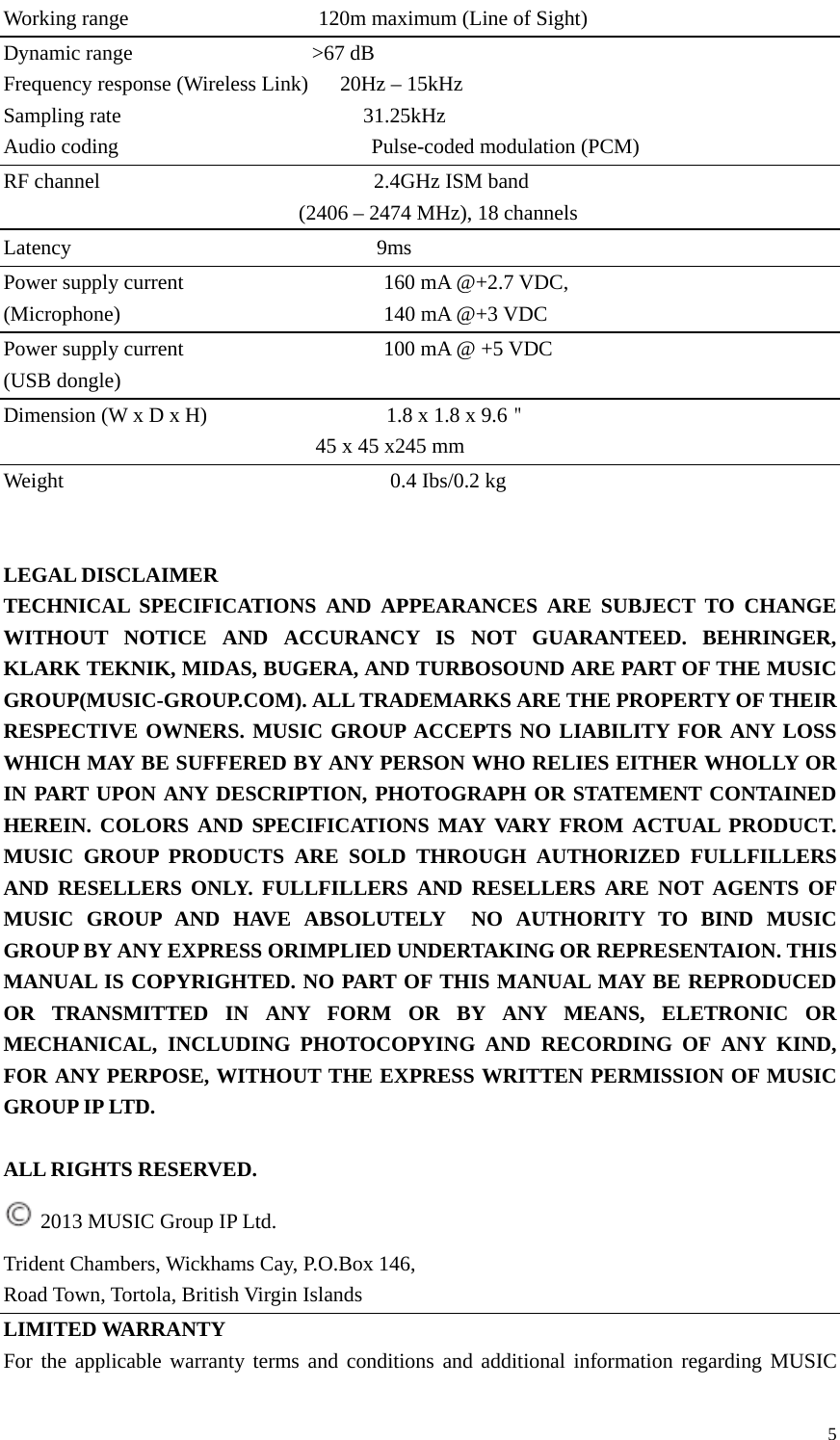

5Working range 120m maximum (Line of Sight) Dynamic range >67 dB Frequency response (Wireless Link) 20Hz – 15kHz Sampling rate 31.25kHz Audio coding Pulse-coded modulation (PCM) RF channel 2.4GHz ISM band (2406 – 2474 MHz), 18 channels Latency 9ms Power supply current 160 mA @+2.7 VDC, (Microphone) 140 mA @+3 VDC Power supply current 100 mA @ +5 VDC (USB dongle) Dimension (W x D x H) 1.8 x 1.8 x 9.6＂ 45 x 45 x245 mm Weight 0.4 Ibs/0.2 kg LEGAL DISCLAIMER TECHNICAL SPECIFICATIONS AND APPEARANCES ARE SUBJECT TO CHANGE WITHOUT NOTICE AND ACCURANCY IS NOT GUARANTEED. BEHRINGER, KLARK TEKNIK, MIDAS, BUGERA, AND TURBOSOUND ARE PART OF THE MUSIC GROUP(MUSIC-GROUP.COM). ALL TRADEMARKS ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. MUSIC GROUP ACCEPTS NO LIABILITY FOR ANY LOSS WHICH MAY BE SUFFERED BY ANY PERSON WHO RELIES EITHER WHOLLY OR IN PART UPON ANY DESCRIPTION, PHOTOGRAPH OR STATEMENT CONTAINED HEREIN. COLORS AND SPECIFICATIONS MAY VARY FROM ACTUAL PRODUCT. MUSIC GROUP PRODUCTS ARE SOLD THROUGH AUTHORIZED FULLFILLERS AND RESELLERS ONLY. FULLFILLERS AND RESELLERS ARE NOT AGENTS OF MUSIC GROUP AND HAVE ABSOLUTELY NO AUTHORITY TO BIND MUSIC GROUP BY ANY EXPRESS ORIMPLIED UNDERTAKING OR REPRESENTAION. THIS MANUAL IS COPYRIGHTED. NO PART OF THIS MANUAL MAY BE REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELETRONIC OR MECHANICAL, INCLUDING PHOTOCOPYING AND RECORDING OF ANY KIND, FOR ANY PERPOSE, WITHOUT THE EXPRESS WRITTEN PERMISSION OF MUSIC GROUP IP LTD. ALL RIGHTS RESERVED. 2013 MUSIC Group IP Ltd. Trident Chambers, Wickhams Cay, P.O.Box 146, Road Town, Tortola, British Virgin Islands LIMITED WARRANTY For the applicable warranty terms and conditions and additional information regarding MUSIC

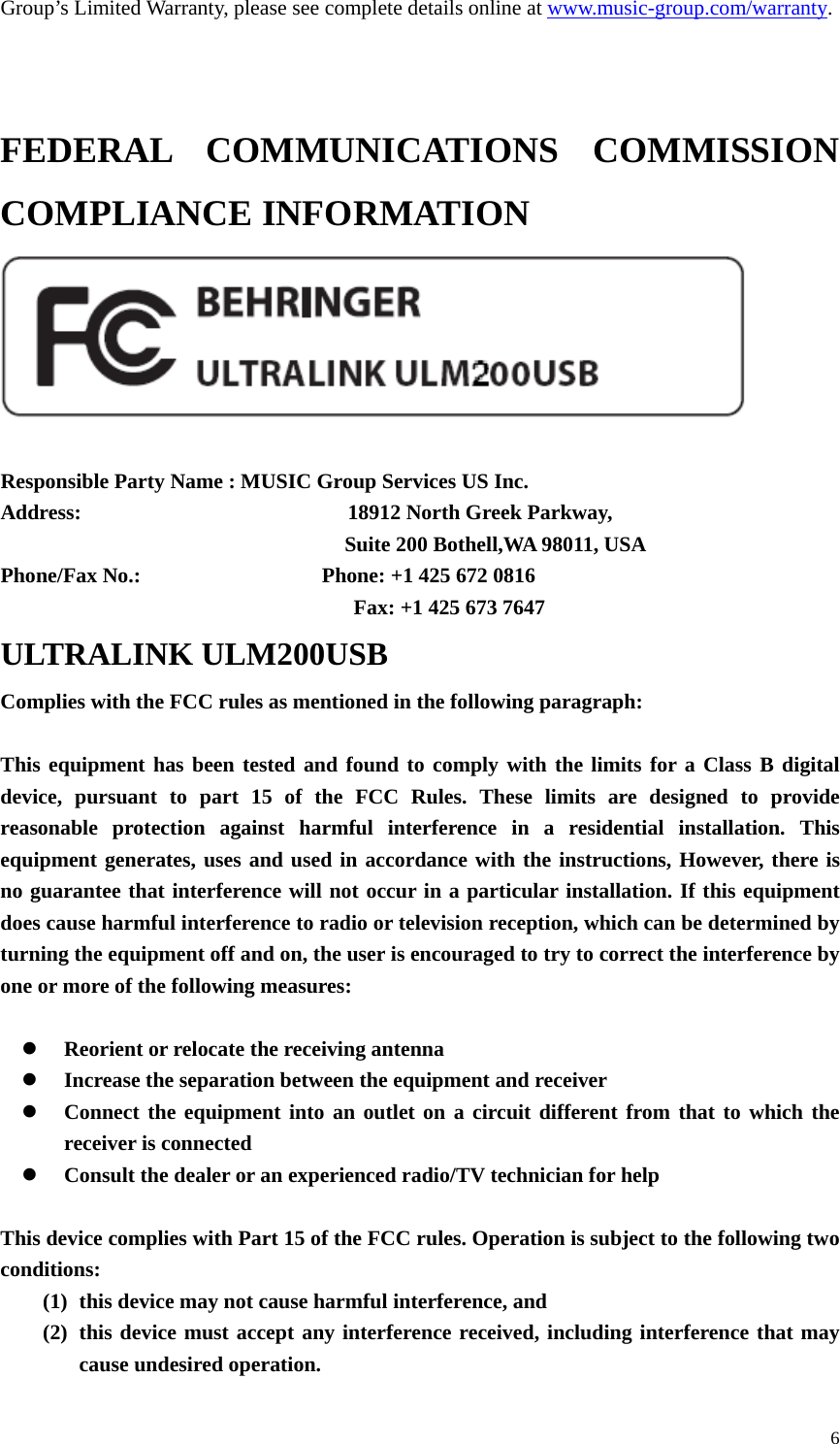

6Group’s Limited Warranty, please see complete details online at www.music-group.com/warranty. FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION Responsible Party Name : MUSIC Group Services US Inc. Address: 18912 North Greek Parkway, Suite 200 Bothell,WA 98011, USA Phone/Fax No.: Phone: +1 425 672 0816 Fax: +1 425 673 7647 ULTRALINK ULM200USB Complies with the FCC rules as mentioned in the following paragraph: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and used in accordance with the instructions, However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna  Increase the separation between the equipment and receiver  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected  Consult the dealer or an experienced radio/TV technician for help This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

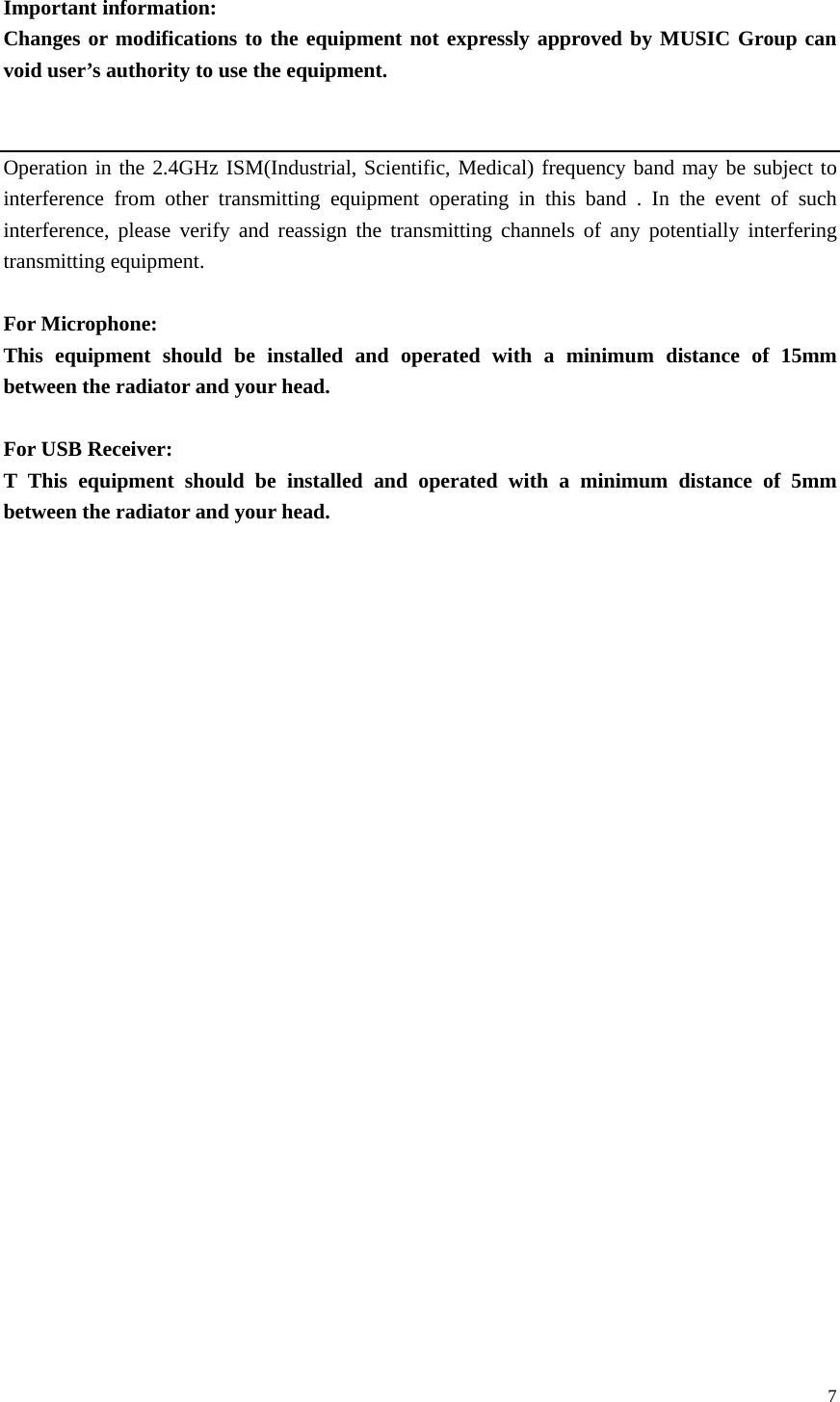

7 Important information: Changes or modifications to the equipment not expressly approved by MUSIC Group can void user’s authority to use the equipment. Operation in the 2.4GHz ISM(Industrial, Scientific, Medical) frequency band may be subject to interference from other transmitting equipment operating in this band . In the event of such interference, please verify and reassign the transmitting channels of any potentially interfering transmitting equipment. For Microphone: This equipment should be installed and operated with a minimum distance of 15mm between the radiator and your head. For USB Receiver: T This equipment should be installed and operated with a minimum distance of 5mm between the radiator and your head.
8
