Empower Tribe Commercial FZE ULM200M01 Wireless Microphone User Manual Manual

MUSIC Group Services PH Corp Wireless Microphone Manual

Contents

Manual

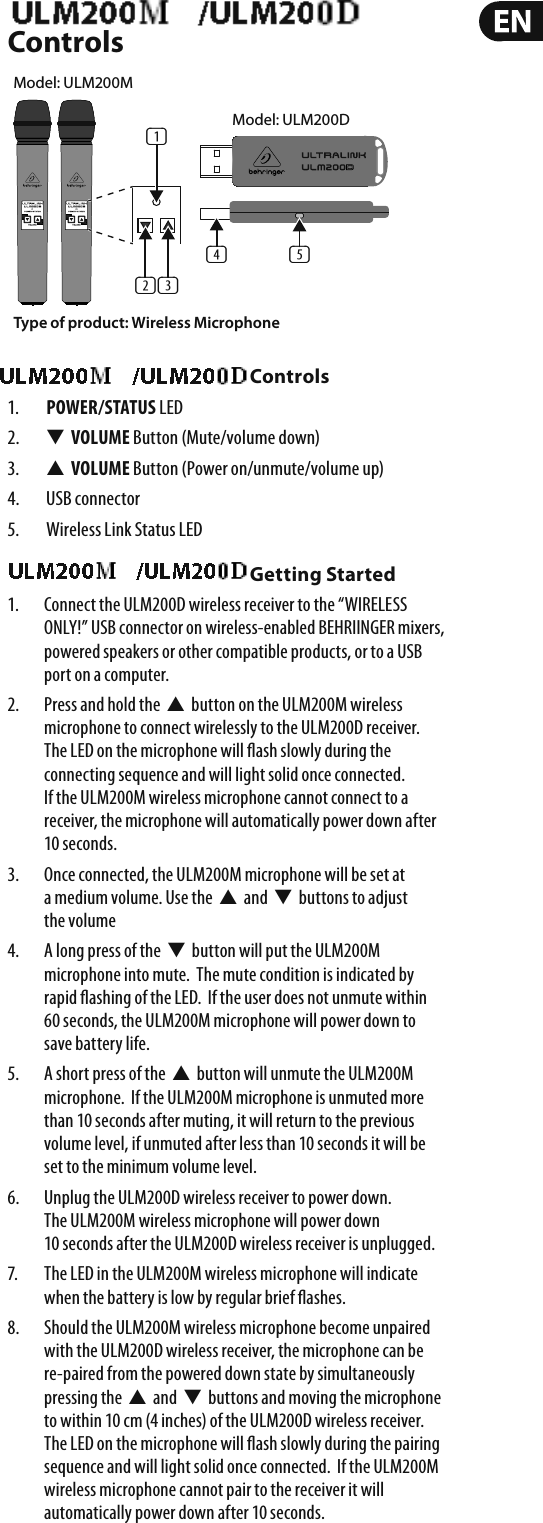

ULM200USB/ULM202USB ControlsULM200USB/ULM202USB Controls1. POWER/STATUS LED2. W VOLUME Button (Mute/volume down)3. V VOLUME Button (Power on/unmute/volume up)4. USB connector5. Wireless Link Status LEDULM200USB/ULM202USB Getting Started1. Connect the ULM200D wireless receiver to the “WIRELESS ONLY!” USB connector on wireless-enabled BEHRIINGER mixers, powered speakers or other compatible products, or to a USB port on a computer.2. Press and hold the V button on the ULM200M wireless microphone to connect wirelessly to the ULM200D receiver. The LED on the microphone will  ash slowly during the connecting sequence and will light solid once connected. If the ULM200M wireless microphone cannot connect to a receiver, the microphone will automatically power down after 10 seconds.3. Once connected, the ULM200M microphone will be set at a medium volume. Use the V and W buttons to adjust the volume4. A long press of the W button will put the ULM200M microphone into mute. The mute condition is indicated by rapid  ashing of the LED. If the user does not unmute within 60 seconds, the ULM200M microphone will power down to save battery life.5. A short press of the V button will unmute the ULM200M microphone. If the ULM200M microphone is unmuted more than 10 seconds after muting, it will return to the previous volume level, if unmuted after less than 10 seconds it will be set to the minimum volume level.6. Unplug the ULM200D wireless receiver to power down. The ULM200M wireless microphone will power down 10 seconds after the ULM200D wireless receiver is unplugged.7. The LED in the ULM200M wireless microphone will indicate when the battery is low by regular brief  ashes.8. Should the ULM200M wireless microphone become unpaired with the ULM200D wireless receiver, the microphone can be re-paired from the powered down state by simultaneously pressing the V and W buttons and moving the microphone to within 10 cm (4 inches) of the ULM200D wireless receiver. The LED on the microphone will  ash slowly during the pairing sequence and will light solid once connected. If the ULM200M wireless microphone cannot pair to the receiver it will automatically power down after 10 seconds.(1)(2) (3)(5)(4)Model: ULM200DType of product: Wireless MicrophoneModel: ULM200M

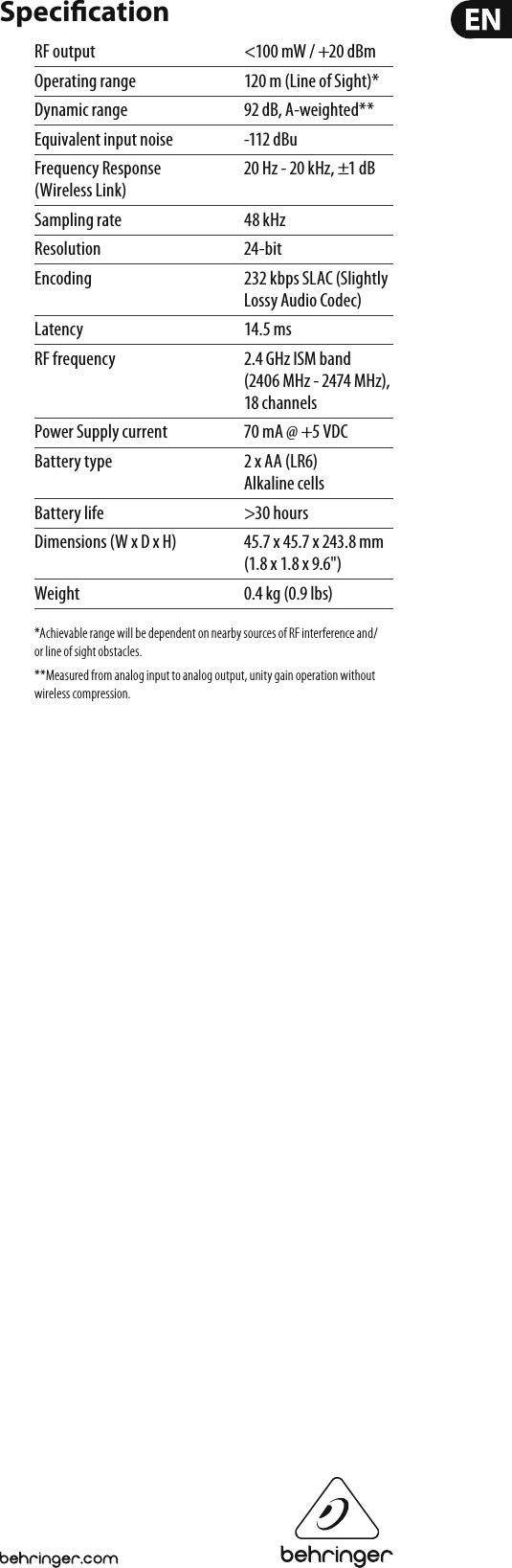

Speci cationRF output <100 mW / +20 dBmOperating range 120 m (Line of Sight)*Dynamic range 92 dB, A-weighted**Equivalent input noise -112 dBuFrequency Response 20 Hz - 20 kHz, ±1 dB(Wireless Link)Sampling rate 48 kHzResolution 24-bitEncoding 232 kbps SLAC (Slightly Lossy Audio Codec)Latency 14.5 ms RF frequency 2.4 GHz ISM band (2406 MHz - 2474 MHz), 18 channelsPower Supply current 70 mA @ +5 VDC Battery type 2 x AA (LR6) Alkaline cellsBattery life >30 hoursDimensions (W x D x H) 45.7 x 45.7 x 243.8 mm (1.8 x 1.8 x 9.6")Weight 0.4 kg (0.9 lbs)*Achievable range will be dependent on nearby sources of RF interference and/or line of sight obstacles.**Measured from analog input to analog output, unity gain operation without wireless compression.

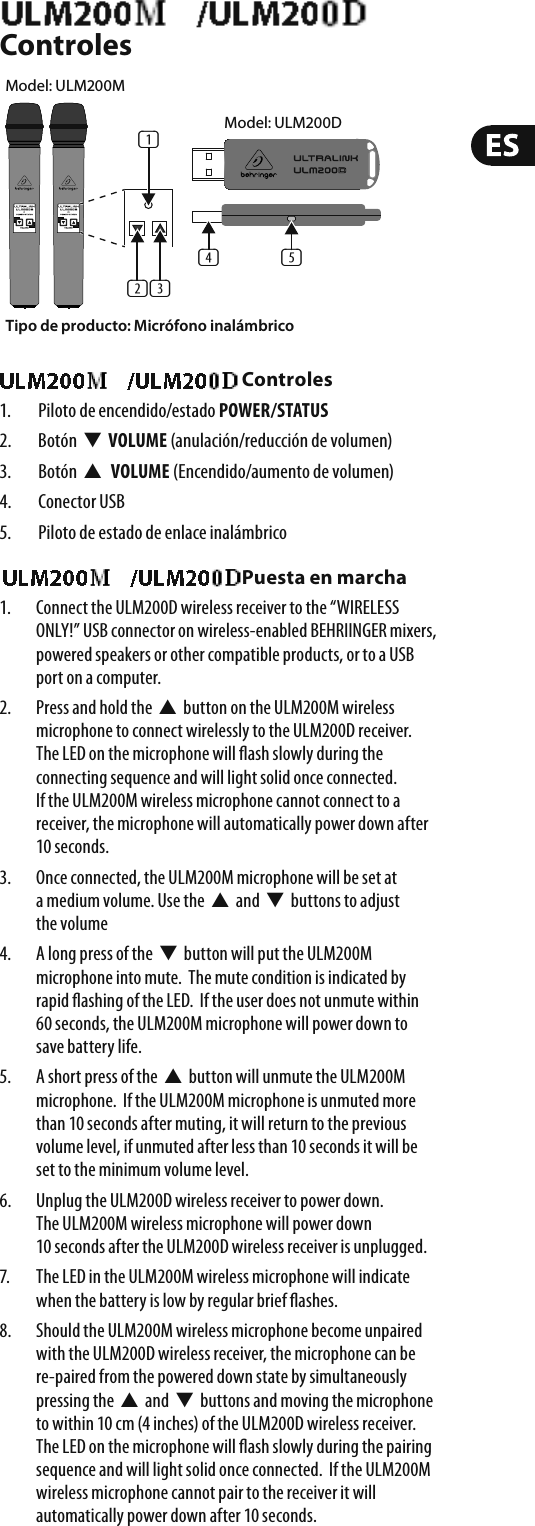

ULM200USB/ULM202USB ControlesULM200USB/ULM202USB Controles1. Piloto de encendido/estado POWER/STATUS2. Botón W VOLUME (anulación/reducción de volumen)3. Botón V VOLUME (Encendido/aumento de volumen)4. Conector USB5. Piloto de estado de enlace inalámbrico ULM200USB/ULM202USB Puesta en marcha1. Connect the ULM200D wireless receiver to the “WIRELESS ONLY!” USB connector on wireless-enabled BEHRIINGER mixers, powered speakers or other compatible products, or to a USB port on a computer.2. Press and hold the V button on the ULM200M wireless microphone to connect wirelessly to the ULM200D receiver. The LED on the microphone will  ash slowly during the connecting sequence and will light solid once connected. If the ULM200M wireless microphone cannot connect to a receiver, the microphone will automatically power down after 10 seconds.3. Once connected, the ULM200M microphone will be set at a medium volume. Use the V and W buttons to adjust the volume4. A long press of the W button will put the ULM200M microphone into mute. The mute condition is indicated by rapid  ashing of the LED. If the user does not unmute within 60 seconds, the ULM200M microphone will power down to save battery life.5. A short press of the V button will unmute the ULM200M microphone. If the ULM200M microphone is unmuted more than 10 seconds after muting, it will return to the previous volume level, if unmuted after less than 10 seconds it will be set to the minimum volume level.6. Unplug the ULM200D wireless receiver to power down. The ULM200M wireless microphone will power down 10 seconds after the ULM200D wireless receiver is unplugged.7. The LED in the ULM200M wireless microphone will indicate when the battery is low by regular brief  ashes.8. Should the ULM200M wireless microphone become unpaired with the ULM200D wireless receiver, the microphone can be re-paired from the powered down state by simultaneously pressing the V and W buttons and moving the microphone to within 10 cm (4 inches) of the ULM200D wireless receiver. The LED on the microphone will  ash slowly during the pairing sequence and will light solid once connected. If the ULM200M wireless microphone cannot pair to the receiver it will automatically power down after 10 seconds.Tipo de producto: Micrófono inalámbrico(1)(2) (3)(5)(4)Model: ULM200DModel: ULM200M

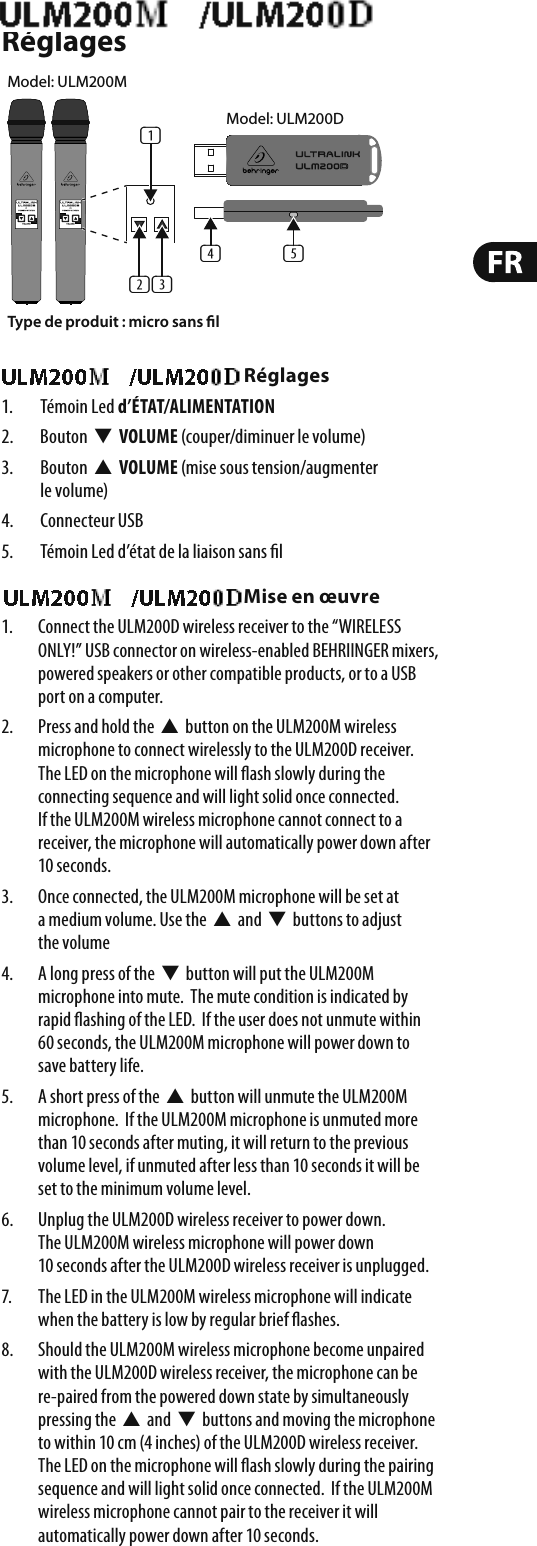

ULM200USB/ULM202USB RéglagesULM200USB/ULM202USB Réglages1. Témoin Led d’ÉTAT/ALIMENTATION2. Bouton W VOLUME (couper/diminuer le volume)3. Bouton V VOLUME (mise sous tension/augmenter levolume)4. Connecteur USB5. Témoin Led d’état de la liaison sans  lULM200USB/ULM202USB Mise en œuvre1. Connect the ULM200D wireless receiver to the “WIRELESS ONLY!” USB connector on wireless-enabled BEHRIINGER mixers, powered speakers or other compatible products, or to a USB port on a computer.2. Press and hold the V button on the ULM200M wireless microphone to connect wirelessly to the ULM200D receiver. The LED on the microphone will  ash slowly during the connecting sequence and will light solid once connected. If the ULM200M wireless microphone cannot connect to a receiver, the microphone will automatically power down after 10 seconds.3. Once connected, the ULM200M microphone will be set at a medium volume. Use the V and W buttons to adjust the volume4. A long press of the W button will put the ULM200M microphone into mute. The mute condition is indicated by rapid  ashing of the LED. If the user does not unmute within 60 seconds, the ULM200M microphone will power down to save battery life.5. A short press of the V button will unmute the ULM200M microphone. If the ULM200M microphone is unmuted more than 10 seconds after muting, it will return to the previous volume level, if unmuted after less than 10 seconds it will be set to the minimum volume level.6. Unplug the ULM200D wireless receiver to power down. The ULM200M wireless microphone will power down 10 seconds after the ULM200D wireless receiver is unplugged.7. The LED in the ULM200M wireless microphone will indicate when the battery is low by regular brief  ashes.8. Should the ULM200M wireless microphone become unpaired with the ULM200D wireless receiver, the microphone can be re-paired from the powered down state by simultaneously pressing the V and W buttons and moving the microphone to within 10 cm (4 inches) of the ULM200D wireless receiver. The LED on the microphone will  ash slowly during the pairing sequence and will light solid once connected. If the ULM200M wireless microphone cannot pair to the receiver it will automatically power down after 10 seconds.Type de produit : micro sans l(1)(2) (3)(5)(4)Model: ULM200DModel: ULM200M

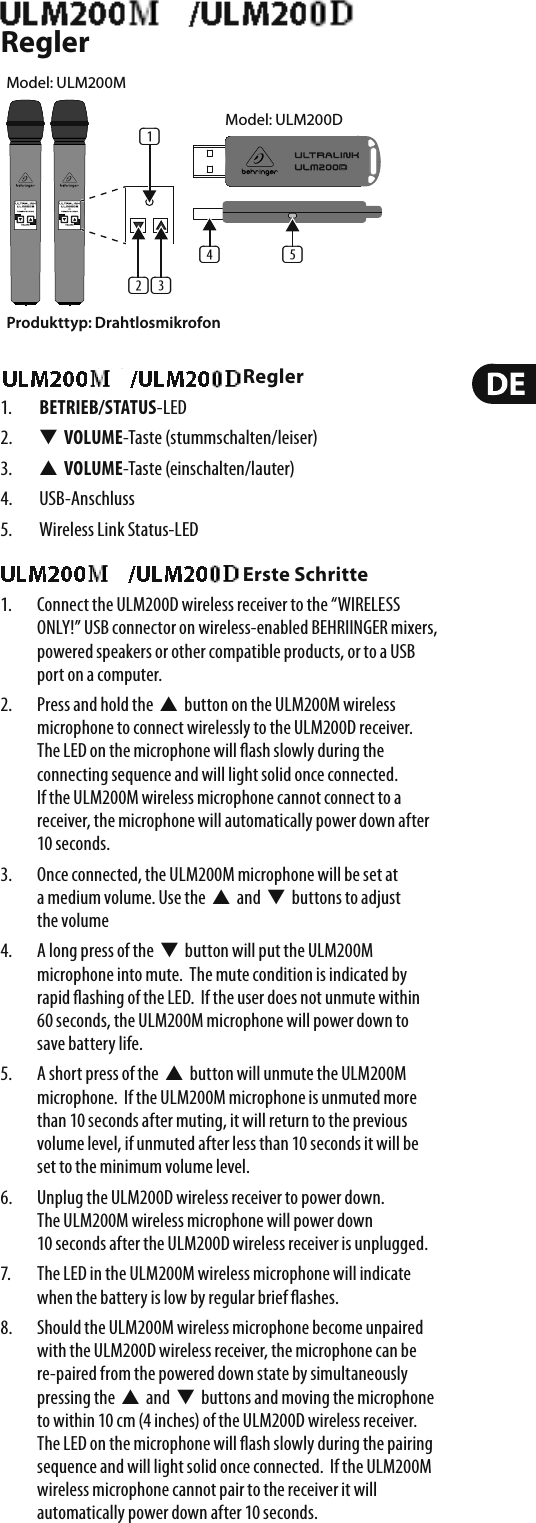

ULM200USB/ULM202USB ReglerULM200USB/ULM202USB Regler1. BETRIEB/STATUS-LED2. W VOLUME-Taste (stummschalten/leiser)3. V VOLUME-Taste (einschalten/lauter)4. USB-Anschluss5. Wireless Link Status-LEDULM200USB/ULM202USB Erste Schritte1. Connect the ULM200D wireless receiver to the “WIRELESS ONLY!” USB connector on wireless-enabled BEHRIINGER mixers, powered speakers or other compatible products, or to a USB port on a computer.2. Press and hold the V button on the ULM200M wireless microphone to connect wirelessly to the ULM200D receiver. The LED on the microphone will  ash slowly during the connecting sequence and will light solid once connected. If the ULM200M wireless microphone cannot connect to a receiver, the microphone will automatically power down after 10 seconds.3. Once connected, the ULM200M microphone will be set at a medium volume. Use the V and W buttons to adjust the volume4. A long press of the W button will put the ULM200M microphone into mute. The mute condition is indicated by rapid  ashing of the LED. If the user does not unmute within 60 seconds, the ULM200M microphone will power down to save battery life.5. A short press of the V button will unmute the ULM200M microphone. If the ULM200M microphone is unmuted more than 10 seconds after muting, it will return to the previous volume level, if unmuted after less than 10 seconds it will be set to the minimum volume level.6. Unplug the ULM200D wireless receiver to power down. The ULM200M wireless microphone will power down 10 seconds after the ULM200D wireless receiver is unplugged.7. The LED in the ULM200M wireless microphone will indicate when the battery is low by regular brief  ashes.8. Should the ULM200M wireless microphone become unpaired with the ULM200D wireless receiver, the microphone can be re-paired from the powered down state by simultaneously pressing the V and W buttons and moving the microphone to within 10 cm (4 inches) of the ULM200D wireless receiver. The LED on the microphone will  ash slowly during the pairing sequence and will light solid once connected. If the ULM200M wireless microphone cannot pair to the receiver it will automatically power down after 10 seconds.Produkttyp: Drahtlosmikrofon(1)(2) (3)(5)(4)Model: ULM200DModel: ULM200M
ULM200USB/ULM202USB ControlesULM200USB/ULM202USB Controles1. LED POWER/STATUS2. Botão de W VOLUME (Mute/abaixa o volume)3. Botão de V VOLUME (Power on/aumenta o volume)4. Conector USB 5. LED Status de Link Wireless (sem  o)Primeiros Passos ULM200USB/ULM202USB 1. Connect the ULM200D wireless receiver to the “WIRELESS ONLY!” USB connector on wireless-enabled BEHRIINGER mixers, powered speakers or other compatible products, or to a USB port on a computer.2. Press and hold the V button on the ULM200M wireless microphone to connect wirelessly to the ULM200D receiver. The LED on the microphone will  ash slowly during the connecting sequence and will light solid once connected. If the ULM200M wireless microphone cannot connect to a receiver, the microphone will automatically power down after 10 seconds.3. Once connected, the ULM200M microphone will be set at a medium volume. Use the V and W buttons to adjust the volume4. A long press of the W button will put the ULM200M microphone into mute. The mute condition is indicated by rapid  ashing of the LED. If the user does not unmute within 60 seconds, the ULM200M microphone will power down to save battery life.5. A short press of the V button will unmute the ULM200M microphone. If the ULM200M microphone is unmuted more than 10 seconds after muting, it will return to the previous volume level, if unmuted after less than 10 seconds it will be set to the minimum volume level.6. Unplug the ULM200D wireless receiver to power down. The ULM200M wireless microphone will power down 10 seconds after the ULM200D wireless receiver is unplugged.7. The LED in the ULM200M wireless microphone will indicate when the battery is low by regular brief  ashes.8. Should the ULM200M wireless microphone become unpaired with the ULM200D wireless receiver, the microphone can be re-paired from the powered down state by simultaneously pressing the V and W buttons and moving the microphone to within 10 cm (4 inches) of the ULM200D wireless receiver. The LED on the microphone will  ash slowly during the pairing sequence and will light solid once connected. If the ULM200M wireless microphone cannot pair to the receiver it will automatically power down after 10 seconds.Tipo do produto: Microfone sem o(1)(2) (3)(5)(4)Model: ULM200DModel: ULM200M

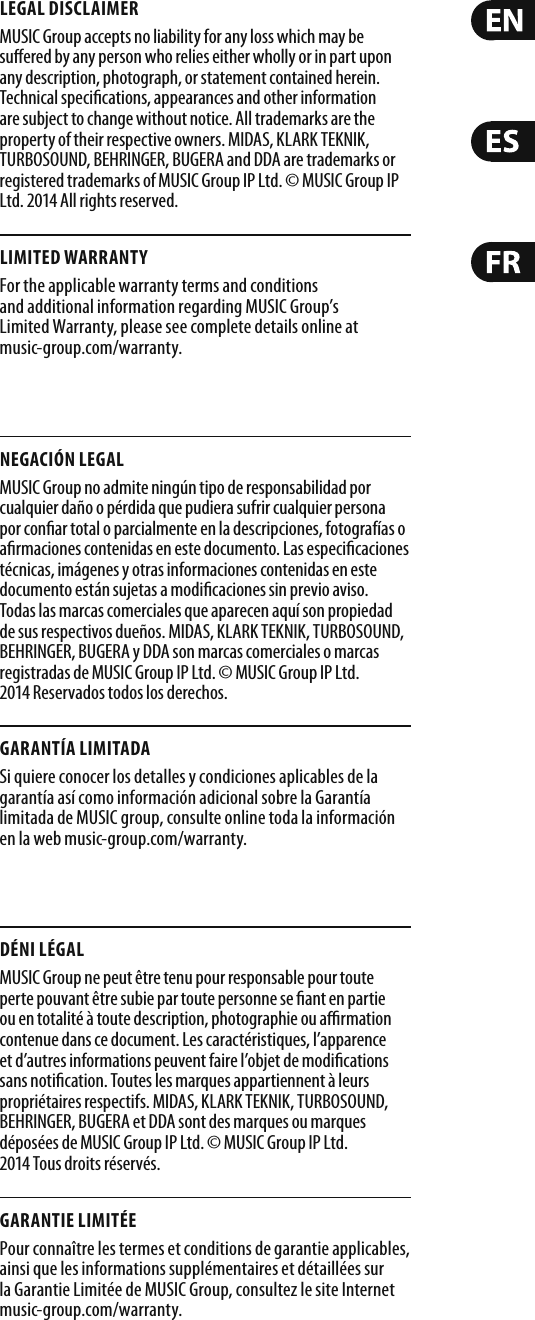

LEGAL DISCLAIMERMUSIC Group accepts no liability for any loss which may be su ered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical speci cations, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. MIDAS, KLARK TEKNIK, TURBOSOUND, BEHRINGER, BUGERA and DDA are trademarks or registered trademarks of MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2014 All rights reserved.LIMITED WARRANTYFor the applicable warranty terms and conditions and additional information regarding MUSIC Group’s Limited Warranty, please see complete details online at music-group.com/warranty. NEGACIÓN LEGALMUSIC Group no admite ningún tipo de responsabilidad por cualquier daño o pérdida que pudiera sufrir cualquier persona por con ar total o parcialmente en la descripciones, fotografías o a rmaciones contenidas en este documento. Las especi caciones técnicas, imágenes y otras informaciones contenidas en este documento están sujetas a modi caciones sin previo aviso. Todas las marcas comerciales que aparecen aquí son propiedad de sus respectivos dueños. MIDAS, KLARK TEKNIK, TURBOSOUND, BEHRINGER, BUGERA y DDA son marcas comerciales o marcas registradas de MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2014 Reservados todos los derechos. GARANTÍA LIMITADASi quiere conocer los detalles y condiciones aplicables de la garantía así como información adicional sobre la Garantía limitada de MUSIC group, consulte online toda la información en la web music-group.com/warranty.DÉNI LÉGALMUSIC Group ne peut être tenu pour responsable pour toute perte pouvant être subie par toute personne se  ant en partie ou en totalité à toute description, photographie ou a rmation contenue dans ce document. Les caractéristiques, l’apparence et d’autres informations peuvent faire l’objet de modi cations sans noti cation. Toutes les marques appartiennent à leurs propriétaires respectifs. MIDAS, KLARK TEKNIK, TURBOSOUND, BEHRINGER, BUGERA et DDA sont des marques ou marques déposées de MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2014 Tous droits réservés. GARANTIE LIMITÉEPour connaître les termes et conditions de garantie applicables, ainsi que les informations supplémentaires et détaillées sur la Garantie Limitée de MUSIC Group, consultez le site Internet music-group.com/warranty.
HAFTUNGSAUSSCHLUSSMUSIC Group übernimmt keine Haftung für Verluste, die Personen entstanden sind, die sich ganz oder teilweise auf hier enthaltene Beschreibungen, Fotos oder Aussagen verlassen haben. Technische Daten, Erscheinungsbild und andere Informationen können ohne vorherige Ankündigung geändert werden. Alle Warenzeichen sind Eigentum der jeweiligen Inhaber. MIDAS, KLARK TEKNIK, TURBOSOUND, BEHRINGER, BUGERA und DDA sind Warenzeichen oder eingetragene Warenzeichen der MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2014 Alle Rechte vorbehalten. BESCHRÄNKTE GARANTIEDie geltenden Garantiebedingungen und zusätzliche Informationen bezüglich der von MUSIC Group gewährten beschränkten Garantie  nden Sie online unter music-group.com/warranty.LEGAL RENUNCIANTEO MUSIC Group não se responsabiliza por perda alguma que possa ser sofrida por qualquer pessoa que dependa, seja de maneira completa ou parcial, de qualquer descrição, fotogra a, ou declaração aqui contidas. Dados técnicos, aparências e outras informações estão sujeitas a modi cações sem aviso prévio. Todas as marcas são propriedade de seus respectivos donos. MIDAS, KLARK TEKNIK, TURBOSOUND, BEHRINGER, BUGERA e DDA são marcas ou marcas registradas do MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2014 Todos direitos reservados. GARANTIA LIMITADAPara obter os termos de garantia aplicáveis e condições e informações adicionais a respeito da garantia limitada do MUSIC group, favor veri car detalhes na íntegra através do website music-group.com/warranty.
FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATIONResponsible Party Name: MUSIC Group Services NV Inc.Address: 5270 Procyon Street Las Vegas, NV 89118 USAPhone Number: +1 702 800 8290ULTRALINK ULM200USB/ULM202USBcomplies with the FCC rules as mentioned in the followingparagraph:This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures:• • Reorient or relocate the receiving antenna• • Increase the separation between the equipment and receiver• • Connect the equipment into an outlet on a circuit di erent from that to which the receiver is connected• • Consult the dealer or an experienced radio/TV technician forhelpThis device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Important information:Changes or modi cations to the equipment not expressly approved by MUSIC Group can void the user’s authority to use the equipment.Operation in the 2.4 GHz ISM (Industrial, Scienti c, Medical) frequency band may be subject to interference from other transmitting equipment operating in this band. In the event of such interference, please verify and reassign the transmitting channels of any potentially interfering transmitting equipment.ULTRALINK ULM200USB/ULM202USB
