User Manual

Quick Start GuideULTRALINK ULM300USBModel:ULM300M, ULM300DHigh-Performance 2.4 GHz Digital Wireless System with Handheld Microphone and Dual-Mode USB ReceiverA54-00000-00000

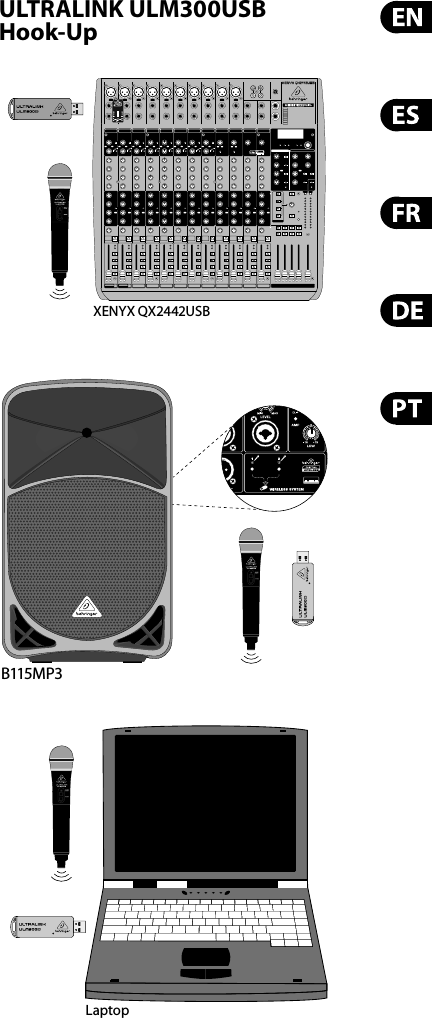

ULTRALINK ULM300USB Hook-Up XENYX QX2442USBLaptopB115MP3

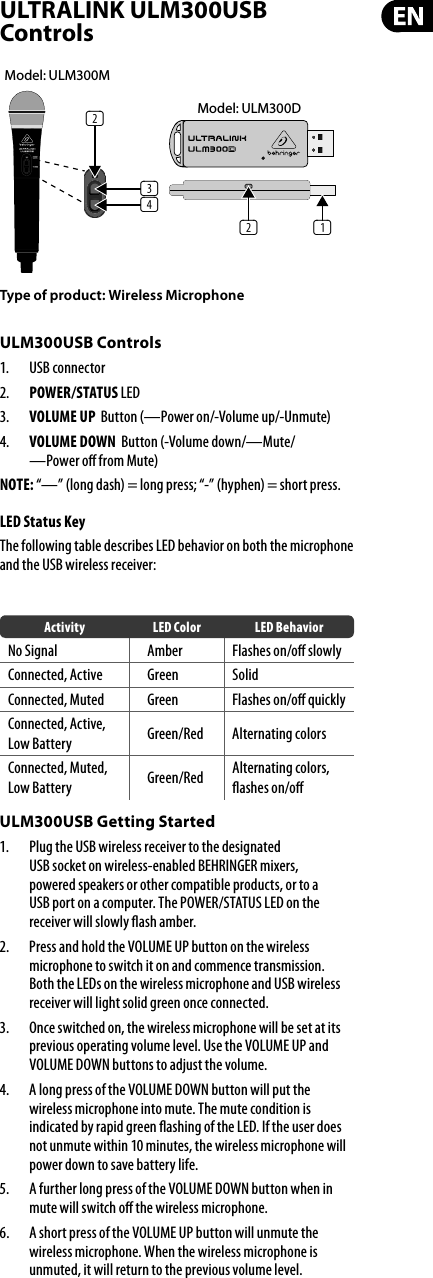

ULTRALINK ULM300USB ControlsType of product: Wireless MicrophoneULM300USB Controls1. USB connector2. POWER/STATUS LED3. VOLUME UP Button (—Power on/-Volume up/-Unmute)4. VOLUME DOWN Button (-Volume down/—Mute/—Power o from Mute)NOTE:“—” (long dash) = long press; “-” (hyphen) = short press.LED Status KeyThe following table describes LED behavior on both the microphone and the USB wireless receiver:Activity LED Color LED BehaviorNo Signal Amber Flashes on/o slowlyConnected, Active Green SolidConnected, Muted Green Flashes on/o quicklyConnected, Active, Low Battery Green/Red Alternating colorsConnected, Muted, Low Battery Green/Red Alternating colors,  a s h e s o n / o  ULM300USB Getting Started1. Plugthe USB wireless receiver to the designatedUSBsocketon wireless-enabled BEHRINGER mixers, powered speakers or other compatible products, or to a USB port on a computer.The POWER/STATUS LED on the receiverwill slowly  ash amber.2. Press and hold the VOLUME UP button on the wireless microphone to switch it on andcommence transmission. Both the LEDs on the wireless microphone and USB wireless receiver will light solid green once connected.3. Onceswitched on, the wireless microphone will be set at its previous operating volume level. Use the VOLUME UP and VOLUME DOWN buttons to adjust the volume.4. A long press of the VOLUME DOWN button will put the wireless microphone into mute. The mute condition is indicated by rapid green  ashing of the LED. If the user does not unmute within 10 minutes, the wireless microphone will power down to save battery life.5. A further long press of the VOLUME DOWN button when inmute will switch o the wireless microphone.6. A short press of the VOLUME UP button will unmute the wireless microphone. When the wireless microphone is unmuted, it will return to the previous volume level.(2)(3)(4)(2) (1)Model: ULM300DModel: ULM300M

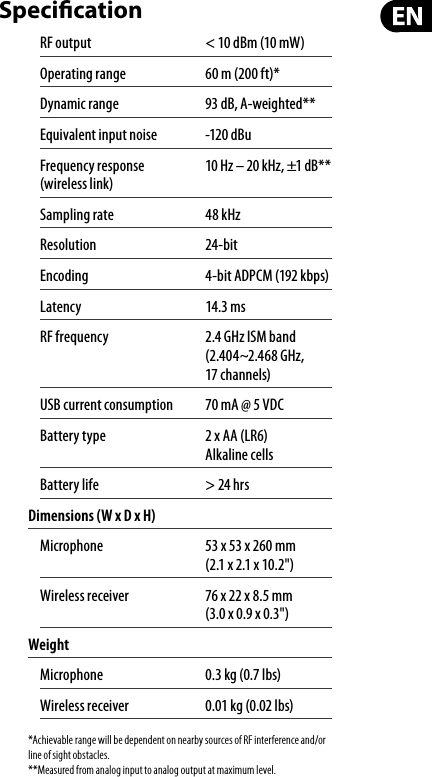

Speci cationRF output < 10 dBm (10 mW)Operating range 60 m (200 ft)* Dynamic range 93 dB, A-weighted**Equivalent input noise -120 dBuFrequency response 10 Hz – 20 kHz, ±1 dB**(wireless link)Sampling rate 48 kHzResolution 24-bitEncoding 4-bit ADPCM (192 kbps)Latency 14.3 msRF frequency 2.4 GHz ISM band (2.404~2.468 GHz, 17 channels)USB current consumption 70 mA @ 5 VDCBattery type 2 x AA (LR6) Alkaline cellsBattery life > 24 hrsDimensions (W x D x H)Microphone 53 x 53 x 260 mm (2.1 x 2.1 x 10.2")Wireless receiver 76 x 22 x 8.5 mm (3.0 x 0.9 x 0.3")WeightMicrophone 0.3 kg (0.7 lbs)Wireless receiver 0.01 kg (0.02 lbs)*Achievable range will be dependent on nearby sources of RF interference and/orline of sight obstacles.**Measured from analog input to analog output at maximum level.

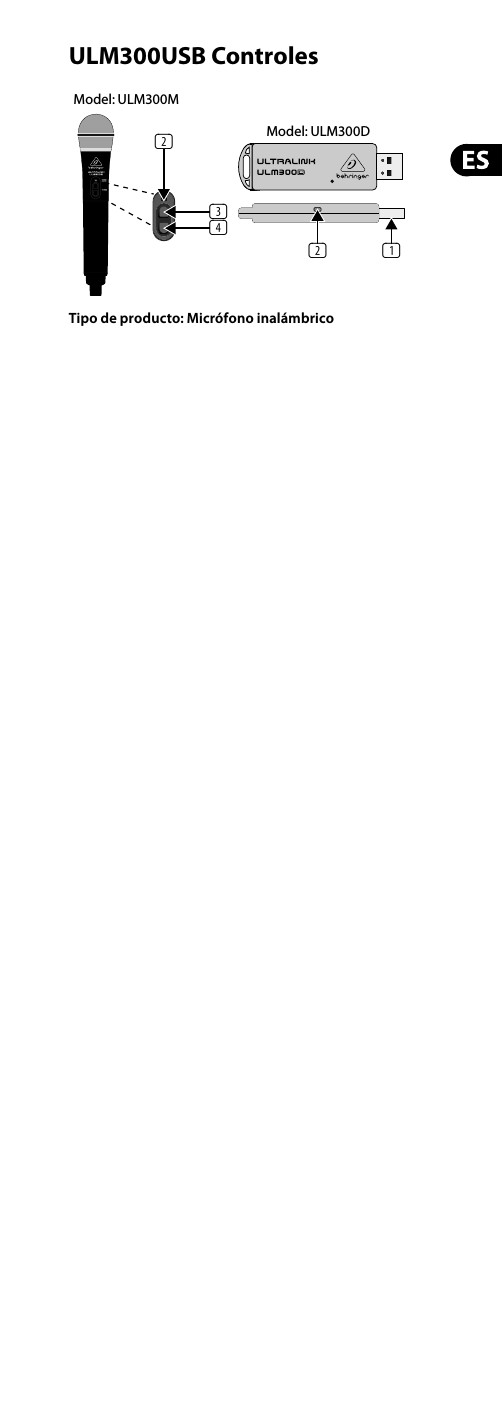

ULM300USB ControlesTipo de producto: Micrófono inalámbrico(2)(3)(4)(2) (1)Model: ULM300DModel: ULM300M

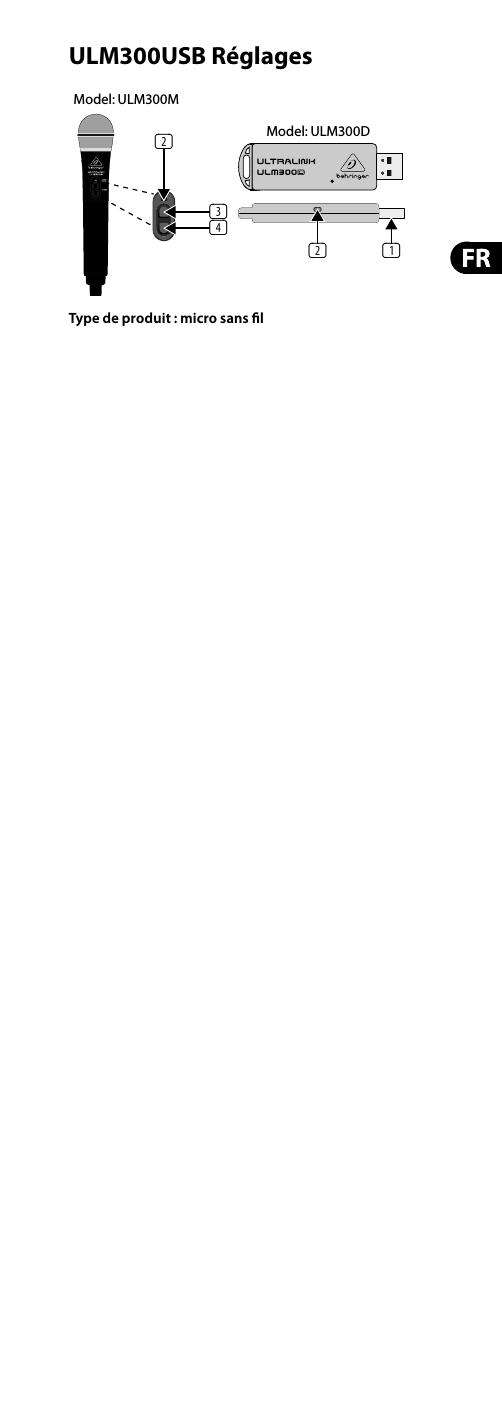

ULM300USB RéglagesType de produit : micro sans  l(2)(3)(4)(2) (1)Model: ULM300DModel: ULM300M
ULM300USB ReglerProdukttyp: Drahtlosmikrofon(2)(3)(4)(2) (1)Model: ULM300DModel: ULM300M

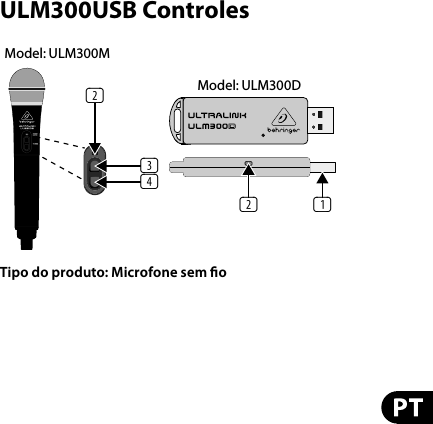

ULM300USB ControlesTipo do produto: Microfone sem  o(2)(3)(4)(2) (1)Model: ULM300DModel: ULM300M

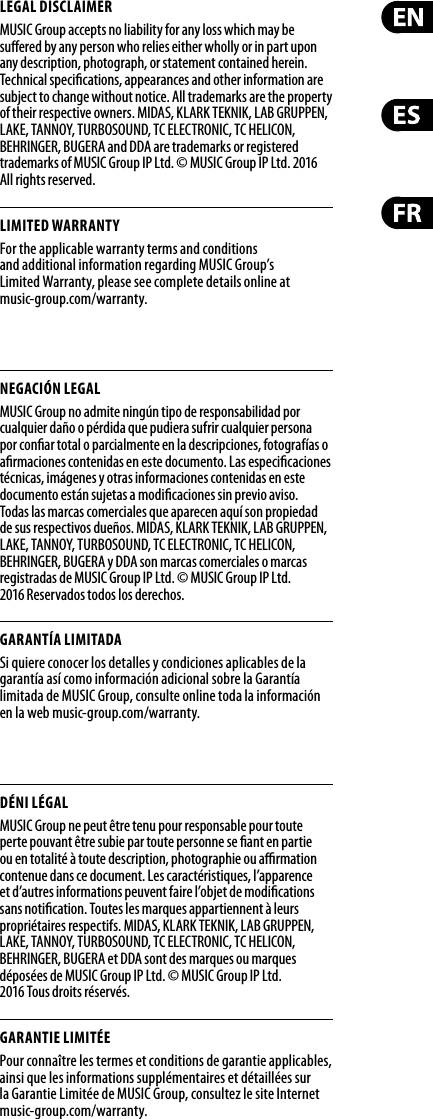

LEGAL DISCLAIMERMUSIC Group accepts no liability for any loss which may be su ered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical speci cations, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. MIDAS, KLARK TEKNIK, LAB GRUPPEN, LAKE, TANNOY, TURBOSOUND, TC ELECTRONIC, TC HELICON, BEHRINGER, BUGERA and DDA are trademarks or registered trademarks of MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2016 All rights reserved.LIMITED WARRANTYFor the applicable warranty terms and conditions and additional information regarding MUSIC Group’s Limited Warranty, please see complete details online at music-group.com/warranty. NEGACIÓN LEGALMUSIC Group no admite ningún tipo de responsabilidad por cualquier daño o pérdida que pudiera sufrir cualquier persona por con ar total o parcialmente en la descripciones, fotografías o a rmaciones contenidas en este documento. Las especi caciones técnicas, imágenes y otras informaciones contenidas en este documento están sujetas a modi caciones sin previo aviso. Todas las marcas comerciales que aparecen aquí son propiedad de sus respectivos dueños. MIDAS, KLARK TEKNIK, LAB GRUPPEN, LAKE, TANNOY, TURBOSOUND, TC ELECTRONIC, TC HELICON, BEHRINGER, BUGERA y DDA son marcas comerciales o marcas registradas de MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2016 Reservados todos los derechos. GARANTÍA LIMITADASi quiere conocer los detalles y condiciones aplicables de la garantía así como información adicional sobre la Garantía limitada de MUSIC Group, consulte online toda la información en la web music-group.com/warranty.DÉNI LÉGALMUSIC Group ne peut être tenu pour responsable pour toute perte pouvant être subie par toute personne se  ant en partie ou en totalité à toute description, photographie ou a rmation contenue dans ce document. Les caractéristiques, l’apparence et d’autres informations peuvent faire l’objet de modi cations sans noti cation. Toutes les marques appartiennent à leurs propriétaires respectifs. MIDAS, KLARK TEKNIK, LAB GRUPPEN, LAKE, TANNOY, TURBOSOUND, TC ELECTRONIC, TC HELICON, BEHRINGER, BUGERA et DDA sont des marques ou marques déposées de MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2016 Tous droits réservés. GARANTIE LIMITÉEPour connaître les termes et conditions de garantie applicables, ainsi que les informations supplémentaires et détaillées sur la Garantie Limitée de MUSIC Group, consultez le site Internet music-group.com/warranty.

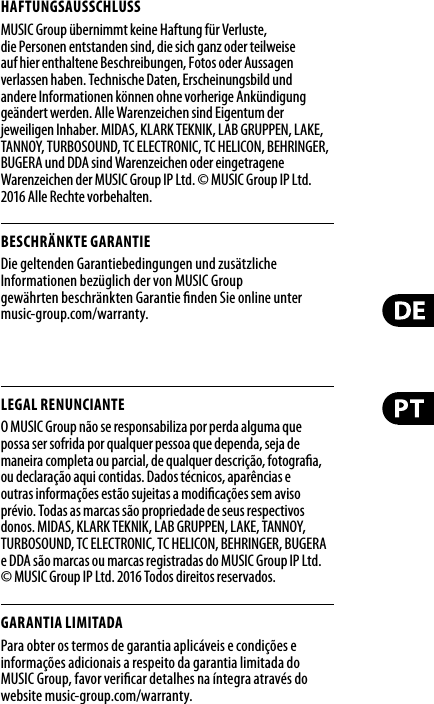

HAFTUNGSAUSSCHLUSSMUSIC Group übernimmt keine Haftung für Verluste, die Personen entstanden sind, die sich ganz oder teilweise auf hier enthaltene Beschreibungen, Fotos oder Aussagen verlassen haben. Technische Daten, Erscheinungsbild und andere Informationen können ohne vorherige Ankündigung geändert werden. Alle Warenzeichen sind Eigentum der jeweiligen Inhaber. MIDAS, KLARK TEKNIK, LAB GRUPPEN, LAKE, TANNOY, TURBOSOUND, TC ELECTRONIC, TC HELICON, BEHRINGER, BUGERA und DDA sind Warenzeichen oder eingetragene Warenzeichen der MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2016 Alle Rechte vorbehalten. BESCHRÄNKTE GARANTIEDie geltenden Garantiebedingungen und zusätzliche Informationen bezüglich der von MUSIC Group gewährten beschränkten Garantie  nden Sie online unter music-group.com/warranty.LEGAL RENUNCIANTEO MUSIC Group não se responsabiliza por perda alguma que possa ser sofrida por qualquer pessoa que dependa, seja de maneira completa ou parcial, de qualquer descrição, fotogra a, ou declaração aqui contidas. Dados técnicos, aparências e outras informações estão sujeitas a modi cações sem aviso prévio. Todas as marcas são propriedade de seus respectivos donos. MIDAS, KLARK TEKNIK, LAB GRUPPEN, LAKE, TANNOY, TURBOSOUND, TC ELECTRONIC, TC HELICON, BEHRINGER, BUGERA e DDA são marcas ou marcas registradas do MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 2016 Todos direitos reservados. GARANTIA LIMITADAPara obter os termos de garantia aplicáveis e condições e informações adicionais a respeito da garantia limitada do MUSIC Group, favor veri car detalhes na íntegra através do website music-group.com/warranty.

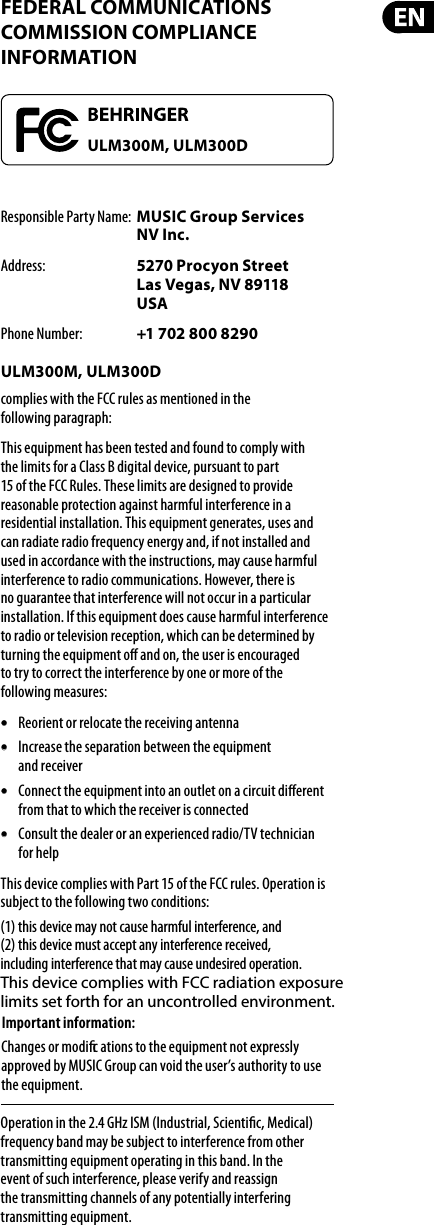

FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATIONResponsible Party Name: MUSIC Group Services NV Inc.Address: 5270 Procyon Street Las Vegas, NV 89118 USAPhone Number: +1 702 800 8290ULM300M, ULM300Dcomplies with the FCC rules as mentioned in the followingparagraph:This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to part 15 of the FCC Rules. Theselimits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Ifthis equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures:• • Reorient or relocate the receiving antenna• • Increase the separation between the equipment andreceiver• • Connect the equipment into an outlet on a circuit di erent from that to which the receiver is connected• • Consult the dealer or an experienced radio/TV technician forhelpThis device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, includinginterference that may cause undesiredoperation.This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.Important information:Changes or modi c ations to the equipment not expressly approved by MUSIC Group can void the user’s authority to use the equipment.Operation in the 2.4 GHz ISM (Industrial, Scienti c, Medical) frequencyband may be subject to interference from other transmitting equipment operating in this band. Inthe event of such interference, please verify and reassign the transmitting channels of any potentially interfering transmittingequipment.ULM300M, ULM300D

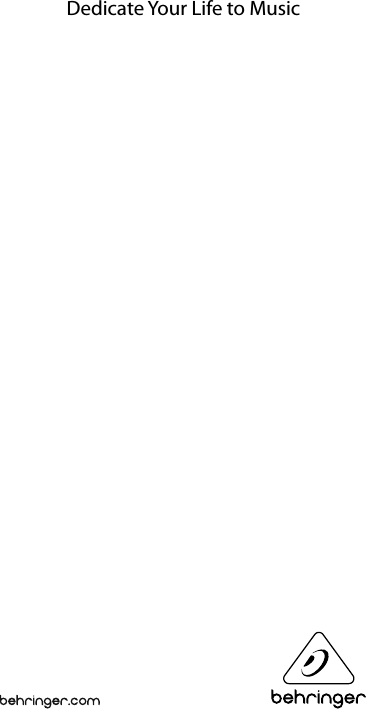

Dedicate Your Life to Music
