Table of Contents
4
Chapter 1
Product Overview
5
Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between
devices, radio interference in the operating environment, and mix of devices in the network. Features and specications subject to change without notice. Trademarks and registered
trademarks are the property of their respective owners. For United States of America: Copyright © 2013 EnGenius Technologies, Inc. All rights reserved.
Key Features
• Up to 30 dBm transmit power enabling long range connectivity
• SupportsIEEE802.11a/b/g/nwirelessstandardswithupto450
Mbps data rate on each band.
• Six internal 5 dBi omni-directional MIMO antennas
• Can be monitored after deployment with
• EnGenius EZ Controller™ software for Windows
(Free online download)
• Can be used with included power adapter or via PoE with PoE
 802.3at-capableswitchesorinjectors
• Dual Band/Three Stream
• Leader in Price/Performance
• Band Steering shifts dual band clients to 5 GHz for better
throughput performance
• Secured Guest Network

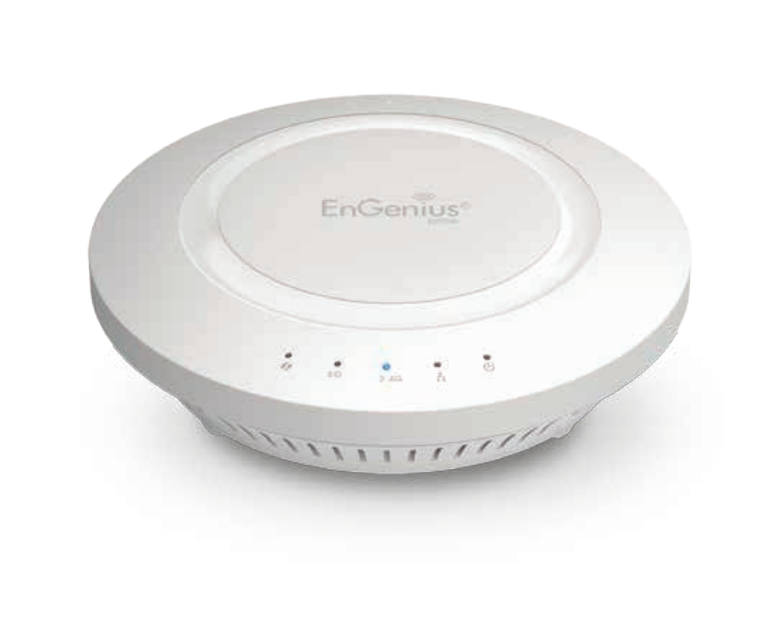

Introduction
The EAP900H is a high-powered, long-range dual-band
concurrent wireless 802.11a/b/g/n access point with
four major functional modes. The EAP900H is designed
to operate in numerous environments from large homes,
smallandmedium-sizedbusinesses,multiple-oorofces,
hotels and other venues to larger enterprise deployments.
Introduction
can be used with
802.3at
capable switches or injectors
Its high-powered, long-range characteristics make it a cost-
effective alternative to ordinary access points that don’t
have the range and reach to connect to a growing number
of wireless users who wish to connect to a large home or
business network.
6
The EAP900H supports the 2.4GHz frequency band under
802.11 b/g/n mode while at the same time providing
5GHzbandforcommunicatingortransferringlesinaless
congested network frequency band.
The EAP900H delivers up to 6x faster wireless speeds and
7xextendedcoveragethanlegacy802.11a/b/gwireless
devices. Even though the EAP900H has been designed
andengineeredfortrafcheavyanddemandingbusiness
environments it is also quite at home in larger house
scenariosbecauseitefcientlyextendsthewirelessrange
of an existing home router, especially in very architecturally-
challenging structures to provide whole home connectivity.
To protect sensitive data during wireless transmissions, the
EAP900H offers different encryption settings for wireless
transmissions including industry-standard WPA and WPA2
encryption. The EAP900H also includes MAC address
lteringtoallownetworkadministratorstooffernetwork
access only to known computers and other devices based
on their MAC addresses.
System Requirements
The following are the Minimum System Requirements in
ordercongurethedevice.
• Computer with an Ethernet interface or wireless network capability
• Windows OS (XP, Vista, 7), Mac OS, or Linux-based operating systems
• Web-Browsing Application (i.e.: Internet Explorer, Firefox, Safari, or
another similar browser application)
Package Contents
The EAP900H package contains the following items (all
items must be in package to issue a refund):
• EAP900H Access Point
• Power Adapter
• RJ-45 Ethernet Cable
• CD with User Manual
• Quick Installation Guide
• Wall Mount Screw kit
7
Applications
Wireless LAN (WLAN) products are easy to install and
highlyefcient. Thefollowing listdescribes someof the
many applications made possible through the power and
exibilityofWLANs:
• Difcult-to-Wire Environments: There are many situations where
wires cannot be installed or deployed easily or cannot be hidden
from view. Older buildings, sites with multiple buildings, and/or
areas make the installation of a Ethernet-based LAN impossible,
impractical or expensive.
• Temporary Workgroups: Create temporary workgroups/networks
in more open areas within a building – auditoriums, amphitheater
classrooms, ballrooms, arenas, exhibition centers, temporary
ofceswhereonewantseitherapermanentortemporaryWireless
LAN established.
• The Ability to Access Real-Time Information: Doctors/Nurses,
Point-of-Sale Employees, and/or Warehouse Workers can access
real-time information while dealing with patients, serving
customers, and/or processing information.
• Frequently Changing Environments: Set up networks in
environments that change frequently (i.e.: Show Rooms,
Exhibits, etc.).
• Small Ofce and Home Ofce (SOHO) Networks: SOHO users
need a cost-effective, easy and quick installation of a small
network.
• Wireless Extensions to Existing Ethernet-based Networks:
Devices like the EAP900H enable network administrators,
installers and end-users to extend the range and reach of an
existing Ethernet-based network.
• Training/Educational Facilities: Training sites at corporations or
students at universities use wireless connectivity to ease access
to information, information exchanges, and learning.
8
WDS Detail
WDS AP
WDS Bridge
Security
WEP(64/128bit)
WPA/WPA2 (TKIP/AES)
Hidden ESSID
MACaddressltering,upto50eld
L2 Isolation
802.1xAuthenticator(MD5/TLS/TTLS/PEAP)
Guest Network
QoS (Quality of Service)
WMM (Wireless Multimedia)
Physical/Environment Conditions
Operating:
Temperature: 32°F to 122°F (0°C to 50°C)
Humidity (non-condensing): 90% or less
Storage:
Temperature: -4°F to 140°F (-20°C to 60 °C)
Humidity (non-condensing): 90% or less
Standard:
IEEE802.11aon5GHz
IEEE802.11b/g/non2.4GHz
IEEE802.3at
Antenna
Six Internal 5 dBi Omni-directional Antennas
Physical Interface
1 x 10/100/1000 Gigabit Ethernet Port
1 x Reset Button
1 x Power Connector
LED Indicator
Power
WPS
WLAN (Wireless Connection)
LAN
Power Requirements
External Power Adapter
DC IN, 12V / 2A
Operation Modes
Access Point
WDS
Technical Specications
9

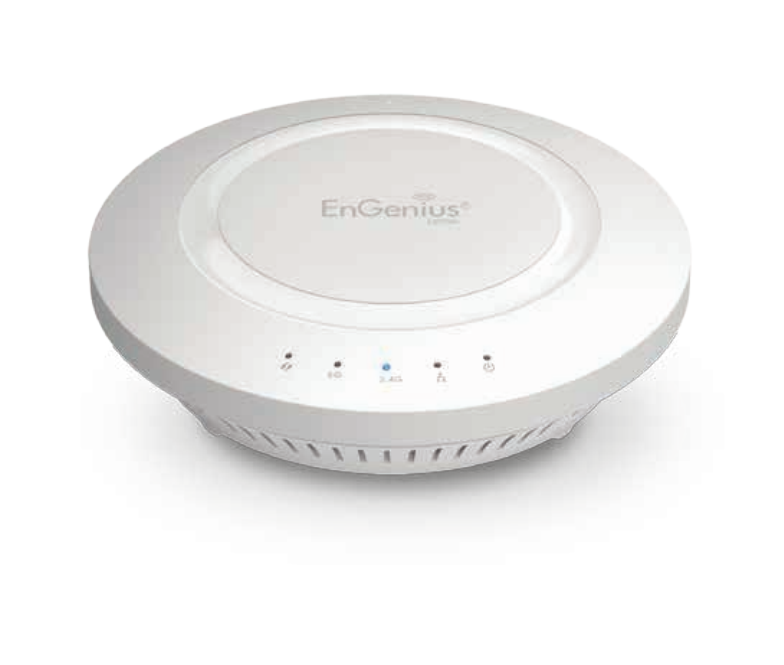

Physical Interface
Dimensions and Weights
Diameter: 6.36”
Height: 2.17”
1 Reset Button: One click for reset the device. Press over 10
seconds for reset to factory default.
2 LED Indicators: LED lights for WPS, WLAN 5G, WLAN 2.4G,
Ethernet port and Power
3 LAN Port (802.3at PoE): Ethernet port for RJ-45 cable.
4 Power Connector: DC IN for Power.
5 Ceiling (Wall) Mount Hole: Using the provided hardware, the
EAP900H can be attached to a ceiling or wall.
6 Kensington Security Slot: To protect your EAP900H, use the
Kensington security slot to attach a cable lock.
3 4
1
2
5
6
10
Chapter 2
Before you begin
11
This section will guide you through the installation
process. Placement of the EnGenius EAP900H is essential
to maximize the access point’s performance. Avoid placing
the EAP900H in an enclosed space such as a closet,
cabinet, or stairwell.
Considerations for Wireless Installation
The operating distance of all wireless devices cannot be
pre-determined due to a number of unknown obstacles
in the environment that the device is deployed in.
These could be the number, thickness, and location of
walls, ceilings, or other objects that the EAP900H’s
wireless signals must pass through. Here are some
key guidelines to allow the EAP900H to have optimal
wireless range.
• Keep the number of walls and/or ceilings between the EAP900H
and other network devices to a minimum. Each wall and/or ceiling
can reduce the signal strength, resulting in lower signal strength.
• Building materials makes a difference. A solid metal door and/or
aluminum stubs may have a signicant negative effect on the
signal strength of the EAP900H. Locate your wireless devices
carefully so the signal can pass through a drywall and/or open
doorways. Materials such as glass, steel, metal, concrete, water
(example:shtanks),mirrors,lecabinetsand/orbrickcanalso
diminish wireless signal strength.
• Interference from your other electrical devices and/or appliances
that generate RF noise can also diminish the EAP900H’s signal
strength. The most common types of devices are microwaves or
cordless phones.
Before you Begin
12
Windows XP / Windows 7
InordertousetheEAP900H,youmustrstcongurethe
TCP/IPv4 connection of your Windows OS computer system.
1. Click Start button and open Control Panel.
2a. In Windows XP, click Network Connections.
2b. In Windows 7, click View Network Status and Tasks in
the Network and Internet section, then select Change
adapter settings.
3. Right click on Local Area Connection and select Properties.
Computer Settings
Windows XP Windows 7
13

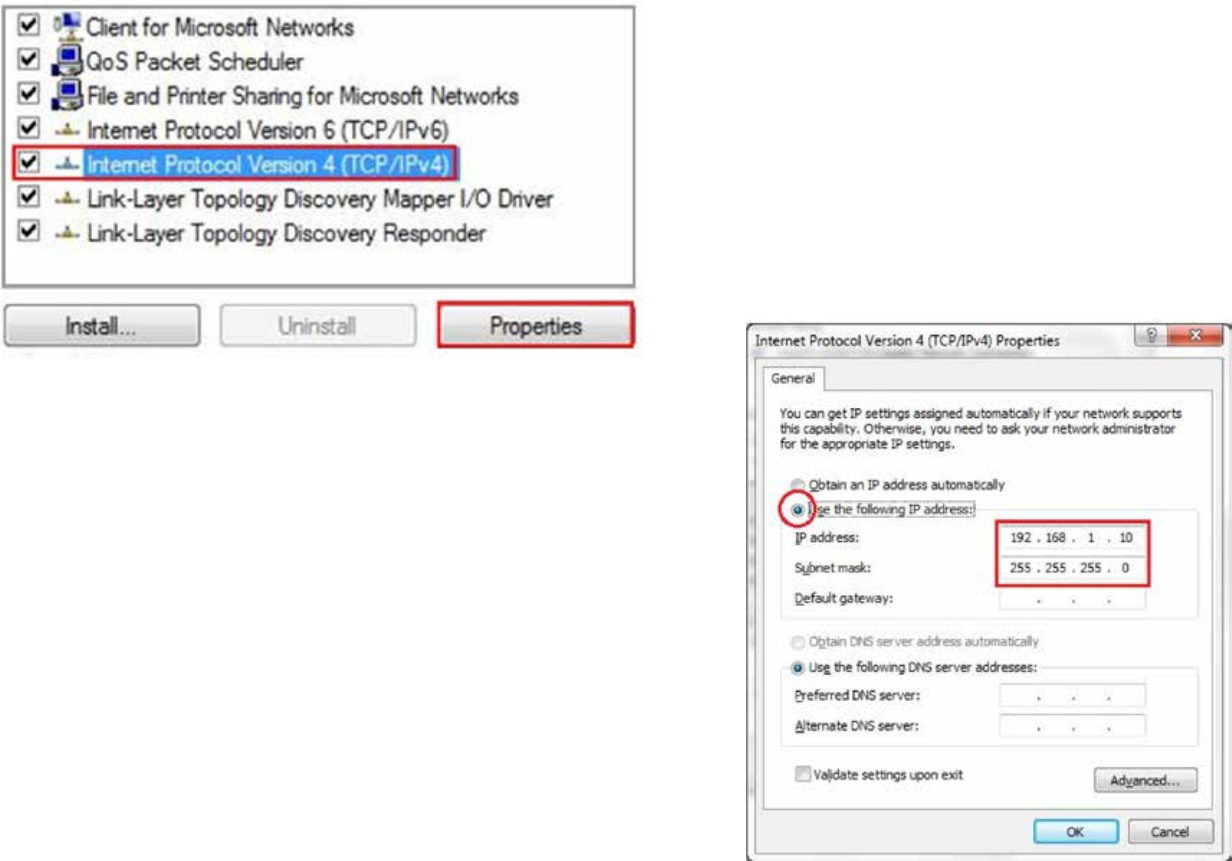

4. Select “Internet Protocol Version 4 (TCP/IPv4)” and then
select Properties.
5. Select Use the following IP address and enter an IP address
that is different from the EAP900H and subnet mask then
click OK.
Note: Ensure that the IP address and subnet mask are
on the same subnet as the device.
Forexample:EAP900HIPaddress:192.168.1.1
 PCIPaddress:192.168.1.2–192.168.1.255
PC subnet mask: 255.255.255.0
14

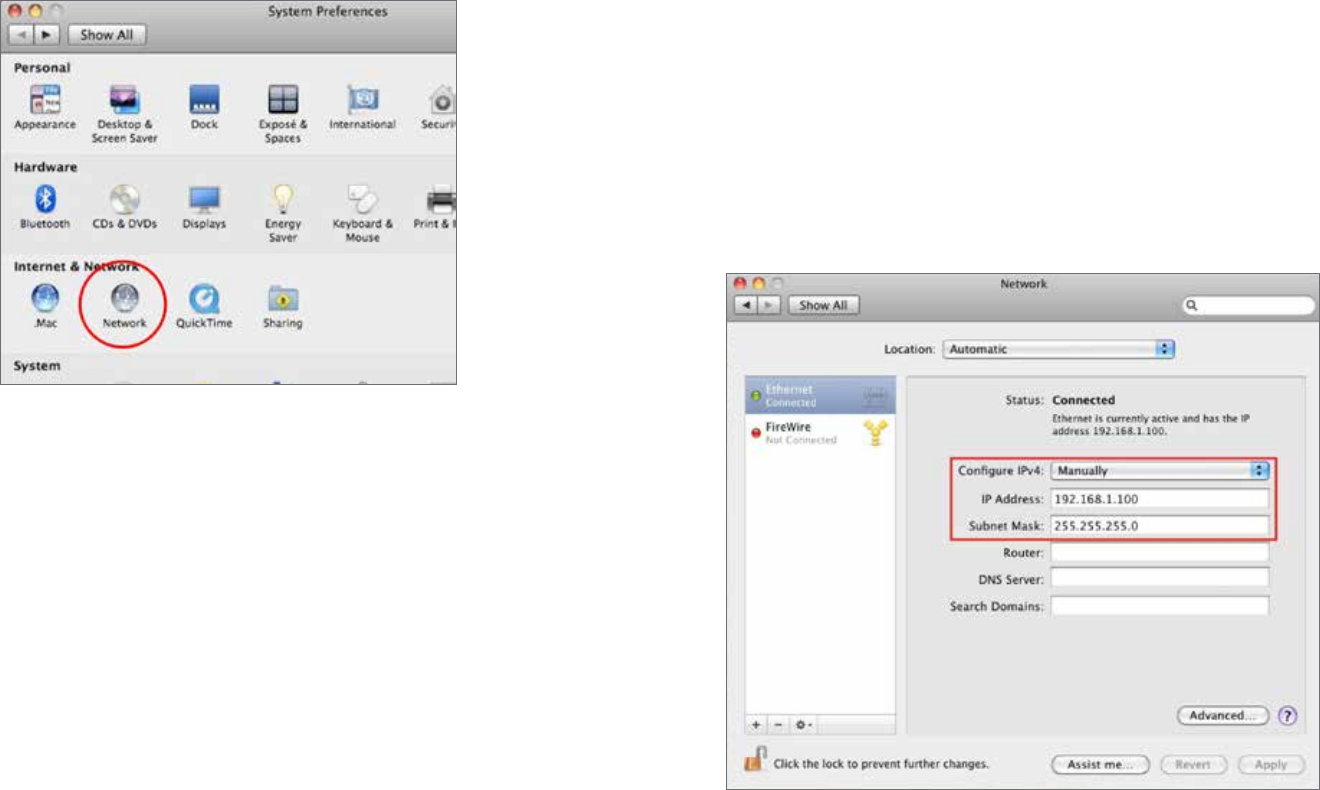

Apple Mac OS X
1. Go to System Preferences (can be opened in the
Applications folder or selecting it in the Apple Menu).
2. Select Network in the Internet & Network section.
3. Highlight Ethernet.
4. In Congure IPv4, select Manually.
5. Enter an IP address that is different from the EAP900H
and subnet mask then press OK.
Note: Ensure that the IP address and subnet mask are
on the same subnet as the device.
Forexample:EAP900HIPaddress:192.168.1.1
 PCIPaddress:192.168.1.2–192.168.1.255
PC subnet mask: 255.255.255.0
6. Click Apply when done.
15
1. Ensure that the computer in use has an Ethernet
Controller (RJ-45 Ethernet Port). For more information,
verify with your computer’s user manual.
2. Connect one end of the Category 5e Ethernet cable into
the RJ-45 port of the EAP900H and the other end to
the RJ-45 port of the computer. Ensure that the cable
is securely connected to both the EAP900H and the
computer.
3. Connect the Power Adapter DC connector to the DC-
IN port of the EAP900H and the Power Adapter to an
available electrical outlet. Once both connections are
secure, verify the following:
a) Ensure that the POWER light is on (it will be orange).
b) Ensure that the 2.4GHz/5GHz WLAN light is on (it will
be green for 5G, blue for 2.4G).
c) Ensure that the LAN (Computer/EAP900H Connection)
light is on (it will be blue).
d) Once all three lights are on, proceed to set up the
access point using the computer.
Thisdiagramdepictsthehardwareconguration.
Hardware Installation
Ethernet
PC
Power
Outlet
AC/DC
Cable
16
Using the provided hardware, the EAP900H can be attached
to a ceiling or wall.
To attach the EAP900H to a ceiling or wall using
the mounting bracket:
1. Attach the mounting bracket to the wall or ceiling using
the provided wall/ceiling mounting hardware kit.
2. Insert the provided short screws into the bottom cover
of the EAP900H.
Leave enough of the screws exposed to ensure that the
unit can be attached to the mounting bracket.
If extra space is required, use the provided spacers and long
screws from the T-Rail mounting hardware kit to increase
the space between the unit and the mounting bracket.
3. Mount the EAP900H on the mounting bracket by rotating
the unit clockwise about 90 degrees to secure it in place.
Mounting the EAP900H
Wall
Mounting Screw
Lock the EAP900H by revolving
Mounting Bracket
P2.6*12 Screw
P3.5*32 Screw
17
To attach the EAP900H to a ceiling using the
provided T-rail connectors:
1. Attach the T-rail connectors to the bottom cover of the
EAP900H using the provided short screws.
Note: Two sizes of T-rail connectors are included in the
mounting hardware kit: 15/16in (2.38cm) and 9/16in
(1.43cm). If extra space is required to accommodate drop
ceiling tiles, use the provided spacers and long screws.
2. Line up the connected T-rail connectors with an
appropriately sized rail and press the unit onto the rail
until it snaps into place.
Note: To protect your EAP900H, use the Kensington
security slot to attach a cable lock (cable lock is not
included).
P2.6*10 Screw
Clip
T-Rail
Clip Clips
Spacer
P2.6*25 Screw
18
Chapter 3
Conguring Your Access Point
19
This section will show you how to congure the device
usingtheweb-basedcongurationinterface.
Default Settings
Please use your Ethernet port or wireless network adapter to
connect the Access Point.
IP Address 192.168.1.1
Username / Password admin / admin
Web Conguration
1. Open a web browser (Internet Explorer/Firefox/Safari)
and enter the IP Address http://192.168.1.1
Note: If you have changed the default LAN IP Address of
the Access Point, ensure you enter the correct IP Address.
2. The default username and password are admin.
Once you have entered the correct username and
password, click the Login button to open the web-base
congurationpage.
3. If successful, you will be logging in and see the
EAP900H User Menu.
Conguring Your Access Point
20
Chapter 4
Building a Wireless Network
21
The EAP900H has the ability to operate in various modes. This chapter describes the operating modes of the EAP900H.

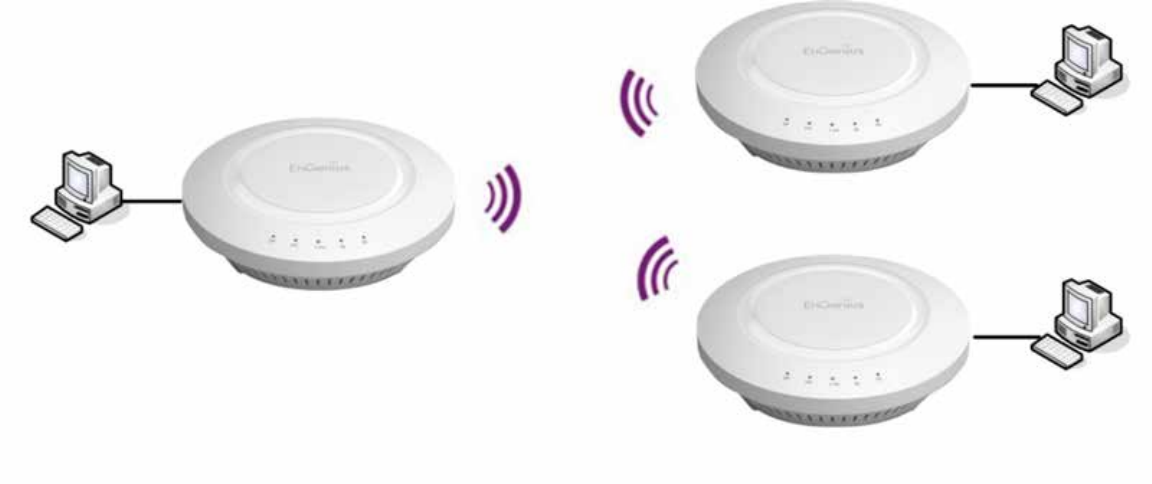

Access Point Mode
InAccessPointMode,EAP900HbehaveslikesacentralconnectionforstationsorclientsthatsupportIEEE802.11a/b/g/n
networks.ThestationsandclientsmustbeconguredtousethesameSSID(ServiceSetIdentier)andsecuritypasswordto
associate with the EAP900H. The EAP900H supports up to eight SSIDs at the same time for secure access.
EAP 900H
AP / AP
Client
Client
Client Client
Client
Client
2.4 GHz 5 GHz
22
WDS AP Mode
The EAP900H also supports WDS AP mode. This operating mode allows wireless connections to the EAP900H using WDS
technology.Inthismode,conguretheMACaddressesinbothAccessPointstoenlargethewirelessareabyenabling
WDS Link settings. WDS supports four AP MAC addresses.
EAP 900H
WDS AP
EAP 900H
WDS AP
2.4 GHz 2.4 GHz
5 GHz 5 GHz
Client
Client Client
Client
Client
Computer
Client
Computer
23
WDS Bridge Mode
InWDSBridgeMode,theEAP900HcanwirelesslyconnectdifferentLANsbyconguringtheMACaddressandsecurity
settings of each EAP900H device. Use this mode when two wired LANs located a small distance apart want to communicate
with each other. The best solution is to use the EAP900H to wirelessly connect two wired LANs, as shown in the following
gure.
WDS Bridge Mode can establish four WDS links, creating a star-like network.
Note: WDS Bridge Mode does not act as an Access Point. Access Points linked by WDS are using the same frequency
channel. More Access Points connected together may lower throughput. This conguration can be susceptible to
generate endless network loops in your network, so it is recommended to enable the Spanning Tree function to
prevent this from happening.
EAP 900H
WDS Bridge
EAP 900H
WDS Bridge
EAP 900H
WDS Bridge
Client
Computer
Client
Computer
Client
Computer
24
Chapter 5
Status
25
The Status section contains the following options:
• Main
• 2.4G/5G Wireless Client List,
• 2.4G/5G Connection Status,
• 2.4G/5G WDS Link List
• System Log.
The following sections describe these options.
Save Changes
This page lets you save and apply the settings shown under
Unsaved changes list, or cancel the unsaved changes and
revert them to the previous settings that were in effect.
Main Status
Clicking the Main Status link under the Status menu or
clicking Home at the top-right of the EAP900H Page shows
the status information about the current operating mode.
• The System Information section shows general system
information such as Device Name, MAC Address, Current
Time, Firmware Version, and Management VLAN ID
Note: VLAN ID is only applicable in Access Point or WDS
AP mode.
26

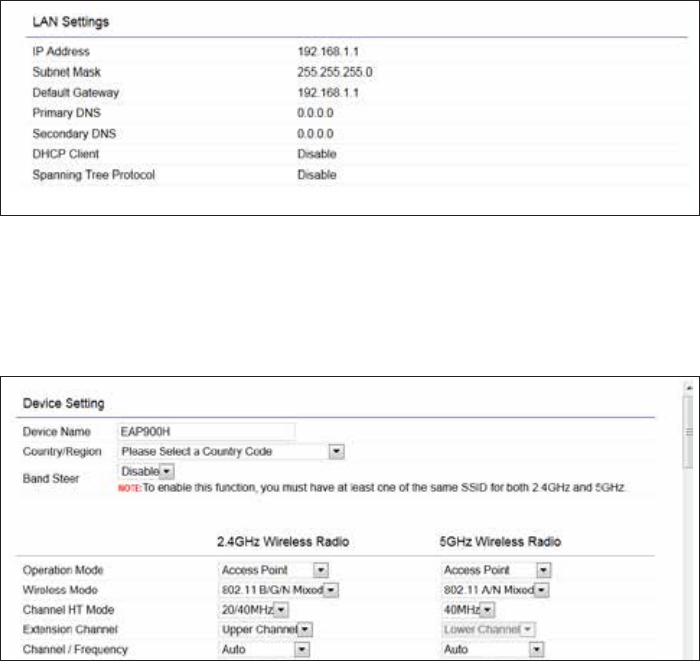

• The LAN Settings section shows the Local Area Network
settings such as the LAN IP Address, Subnet Mask, and
DNS Address.
• The Current 2.4 GHz / 5 GHz Wireless Settings section
shows wireless information such as Operating Mode,
Frequency, and Channel. Since the EAP900H supports
multiple-SSIDs, information about each SSID, the ESSID
and security settings, are displayed
Note: ProleSettingsisonlyapplicableinAccessPoint,
WDS AP.
27

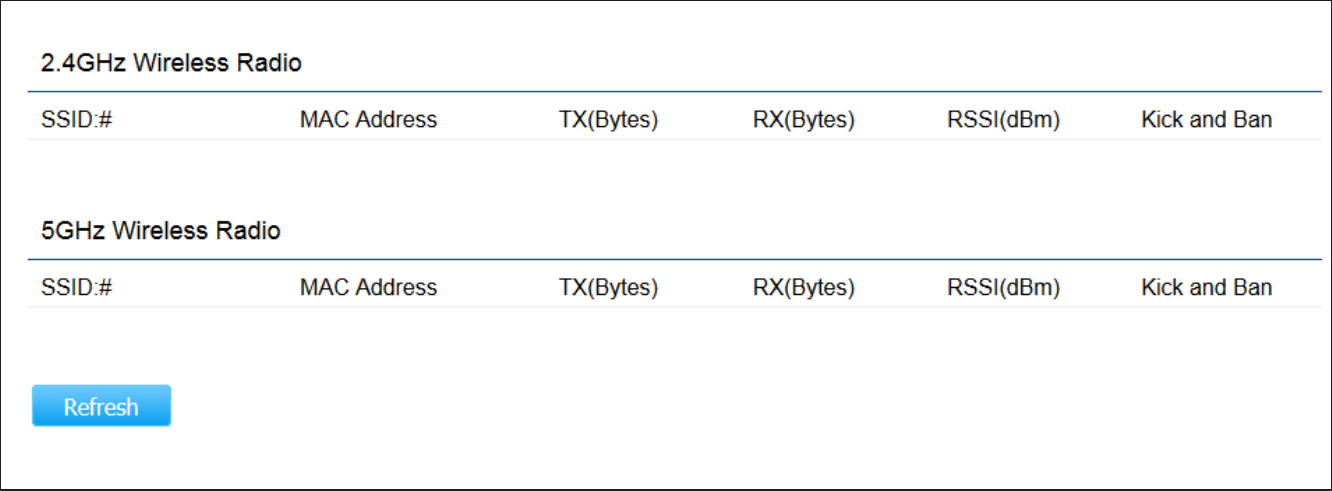

2.4 GHz / 5 GHz Wireless Client List
Clicking the 2.4 GHz /5 GHz Wireless Client List link under
the Status menu displays the list of clients associated
to the EAP900H’s 2.4 GHz / 5 GHz, along with the MAC
addresses and signal strength for each client. Clicking
Refresh updates the client list.
Note: Only applicable in Access Point and WDS AP mode.
2.4 GHz / 5 GHz WDS Link List
Click on the 2.4 GHz /5 GHz WDS Link List link under the
Status menu. This page displays the current status of the
WDS link, including WDS Link ID, MAC Address, Link Status
and RSSI.
Note: Only applicable in WDS AP and WDS Bridge mode.
28
System Log
The EAP900H automatically logs (records) events of
possible interest in its internal memory. To view the
logged information, click the System Log link under the
Status menu. If there is not enough internal memory to
log all events, older events are deleted from the log. When
powered down or rebooted, the log will be cleared.
29
Chapter 6
System
30

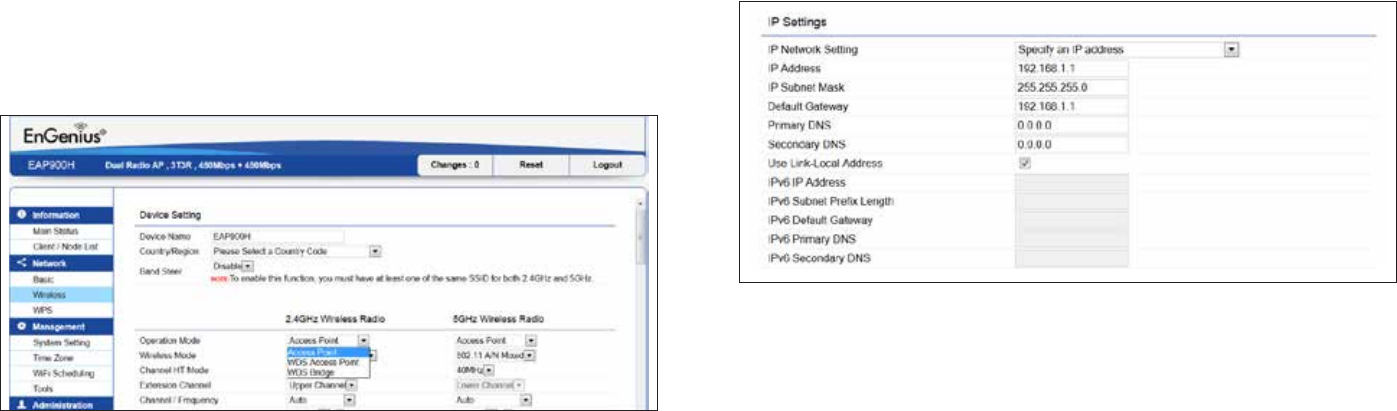

Operation Mode
The EAP900H supports three operating modes:
Access Point, WDS AP and WDS Bridge.
Device Settines
Device Name: Enter a name for the device. The name you
type appears in SNMP management. This name is not the
SSID and is not broadcast to other devices.
Country/Region: Select a Country/Region to conform to
local regulations.
Operation Mode: Use the radio button to select an
operating mode.
Accept / Cancel: Click Accept to conrm the changes or
Cancel to cancel and return previous settings.
IP Settings
This page allows you to modify the device’s IP settings.
IP Network Setting: Select whether the device IP address
willusethestaticIPaddressspeciedintheIPAddresseld
or be obtained automatically when the device connects to
a DHCP server.
IP Address: The IP Address of this device.
IP Subnet Mask: The IP Subnet Mask of this device.
Default Gateway: The Default Gateway of this device.
Leave it blank if you are unsure of this setting.
Primary / Secondary DNS: The primary / secondary DNS
address for this device.
Accept / Cancel: Click Accept to conrm the changes or
Cancel to cancel and return previous settings.
31
Spanning Tree Setting
This page allows you to modify the Spanning Tree settings.
Enabling Spanning Tree protocol will prevent network loops
in your LAN network
Spanning Tree Status: Enable or disable the Spanning
Tree function.
Bridge Hello Time: Specify Bridge Hello Time, in seconds.
This value determines how often the device sends handshake
packets to communicate information about the topology
throughout the entire Bridged Local Area Network.
Bridge Max Age: Specify Bridge Max Age, in seconds. If
another bridge in the spanning tree does not send a hello
packet for a long period of time, it is assumed to be dead.
Bridge Forward Delay: Specify Bridge Forward Delay, in
seconds. Forwarding delay time is the time spent in each of
the Listening and Learning states before the Forwarding
state is entered. This delay is provided so that when a new
bridgecomesontoabusynetwork,itanalyzesdatatrafc
before participating.
Priority: Specify the Priority Number. A smaller number has
greater priority.
Save: ClickSavetoconrmthechanges.
32
Chapter 7
2.4G / 5G Wireless
33
This page displays the current status of the Wireless
settings of the EAP900H.
Access Point / WDS AP mode:
Wireless mode: supports802.11b/g/nmixedmodein2.4G
and802.11a/nmixedmodein5G.
Channel HT Mode: The default channel bandwidth is 20 /
40MHz. The larger the channel, the better the transmission
quality and speed.
Extension Channel: Select upper or lower channel. Your
selection may affect the Auto channel function.
Channel / Frequency: Select the channel and frequency
appropriate for your country’s regulation.
Auto: Check this option to enable auto-channel selection.
AP Detection: AP Detection can select the best channel to
use by scanning nearby areas for Access Points.
Current Prole:Congure up toeightdifferent SSIDs(4
in WDS AP mode). If many client devices will be accessing
the network, you can arrange the devices into SSID groups.
Click Edittoconguretheproleandcheckwhetheryou
want to enable extra SSID.
Accept / Cancel: Click Accept to conrm the changes or
Cancel to cancel and return previous settings.
Wireless Network
34
2.4G/5G SSID Prole
SSID:SpecifytheSSIDforthecurrentprole.
Suppressed SSID: Check this option to hide the SSID from
clients. If checked, the SSID will not appear in the site survey.
Station Separation: Click the appropriate radio button to
allow or prevent communication between client devices.
Wireless Security: See the Wireless Security section.
Save / Cancel: Click Save to accept the changes or Cancel
to cancel and return previous settings.
35
The Wireless Security section lets you congure the
EAP900H’s security modes: WEP, WPA-PSK, WPA2-PSK,
WPA-PSK Mixed, WPA, WPA2, and WPA Mixed. It is strongly
recommend to use WPA2-PSK.
WEP Encryption:
Auth Type: Select Open System or Shared Key.
Input type: ASCII: Regular Text (recommended)
HEX: Hexadecimal Numbers (For advanced users)
Key Length: Select the desired option and ensure the
wirelessclientsusethesamesetting.Choicesare64,128,
152-bit password lengths.
Default Key: Select the key you wish to be default.
Transmitted data is ALWAYS encrypted using the Default
Key; the other Keys are for decryption only. You must enter
a Key Value for the Default Key.
Encryption Key #: Enter the key value or values you wish
to use. Only the Key selected as Default is required. The
others are optional.
Wireless Security
36

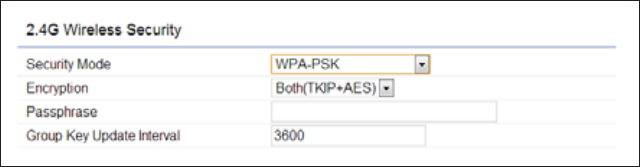

WPA-PSK (WPA Pre-Shared Key) Encryption:
Encryption: Select the WPA encryption type you would
like. Please ensure that your wireless clients use the same
settings.
Passphrase: Wireless clients must use the same key to
associate the device. If using ASCII format, the Key must
befrom8to63charactersinlength.IfusingHEXformat,
the Key must be 64 HEX characters in length.
Group Key Update Interval: Specify how often, in seconds,
the group key changes.
37
WPA Encryption: Access Point / WDS AP mode
Encryption: Select the WPA encryption type you would like.
Please ensure that your wireless clients use the same settings.
Radius Server: Enter the IP address of the Radius server.
Radius Port: Enter the port number used for connections
to the Radius server.
Radius Secret: Enter the secret required to connect to the
Radius server.
Group Key Update Interval: Specify how often, in seconds,
the group key changes.
Radius Accounting: Enable or disable accounting feature.
Radius Accounting Server Enter the IP address of the
Radius accounting server.
Radius Accounting Port Enter the port number used for
connections to the Radius accounting server.
Radius Accounting Secret Enter the secret required to
connect to the Radius accounting server.
Interim Accounting Interval Specify how often, in
seconds, the accounting data sends.
Note: 802.11n does not allow WEP/WPA-PSK TKIP/
WPA2-PSK TKIP security mode. The connection mode
willautomaticallychangefrom802.11nto802.11g.
38
Wireless MAC Filtering is used to allow or deny network
access to wireless clients (computers, tablet PCs, NAS,
smartphones, etc.) according to their MAC addresses. You
can manually add a MAC address to restrict the permission
to access EAP900H. The default setting is Disable Wireless
MAC Filter.
Note: Only applicable in Access Point and WDS AP mode.
ACL Mode: Determines whether network access is granted
or denied to clients whose MAC addresses appear in the
MAC Address table on this page. Choices are: Disabled,
Deny MAC in the list, or Allow MAC in the list.
MAC Address: Enter the MAC address of the wireless client.
Add: Click Add to add the MAC address to the MAC Address
table.
Delete: Delete the selected entries.
Apply: Click Apply to apply the changes.
Wireless MAC Filtering
39
This page allows you to congure wireless advance
settings. It is recommended that the default settings are
used unless the user has experience with more advanced
networking features.
2.4G/5G Wireless Advanced
Data Rate: Select a data rate from the drop-down list. The
data rate affects throughput of data in the EAP900H. The
lower the data rate, the throughput will be lower, but so
will the transmission distance.
Transmit Power: Set the power output of the wireless
signal.
RTS/CTS Threshold: Specify the threshold package size
for RTC/CTS. A small number causes RTS/CTS packets to
be sent more often and consumes more bandwidth.
Distance: Specify the distance between Access Points and
clients. Longer distances may drop high-speed connections.
Aggregation: Merges data packets into one packet. This
option reduces the number of packets, but increases packet
sizes.
Accept / Cancel: Click Accept to conrm the changes or
Cancel to cancel and return previous settings.
Wireless Advanced
40
Wi-Fi Protected Setup (WPS) feature complies with the
Wi-Fi Alliance WPS standard and makes it easier to quickly
add client devices to an established, security-enabled Wi-Fi
network.
WPSreducestheuserstepsrequiredtocongureanetwork
and supports two methods that are familiar to most
consumerstocongureanetworkandenablesecurity.
Note: Only applicable in Access Point and WDS AP
mode.
WPS (Wi-Fi Protected Setup)
WPS: Select to Enable or Disable the WPS feature.
WPS Current Status: Shows whether the WPS function is
Congured or unCongured. When it is Congured, the
WPS has been used to authorize connection between the
device and wireless clients.
Self Pin Code: The PIN code of this device.
SSID: The SSID (wireless network name) used when
connecting using WPS.
Authentication Mode: Shows the encryption method used
by the WPS process.
Passphrase Key: This is the passphrase key that is
randomly generated during the WPS process. It is required
if wireless clients that do not support WPS attempts to
connect to the wireless network.
WPS via Push Button: Click this button to initialize WPS
feature using the push button method.
WPS via PIN: Enter the PIN code of the wireless device
and click this button to initialize WPS feature using the PIN
method.
WPS (Wi-Fi Protected Setup)
41
Using WDS (Wireless Distribution System) will allow
a network administrator or installer to connect to
Access Points wirelessly. Doing so will extend the wired
infrastructure to locations where cabling is not possible or
inefcienttoimplement.
Note: Compatibility between different brands and
models of access points is not guaranteed. It is
recommended that the WDS network be created using
the same models for maximum compatibility.
Also note: All Access Points in the WDS network needs
to use the same Channel and Security settings.
To create a WDS network, please enter the MAC addresses
of the Access Points that you want included in the WDS.
There can be a maximum of four access points.
Note: Only applicable in WDS AP and WDS Bridge mode.
2.4G/5G WDS Link Settings
Security: Select None or AES from drop-down list.
AES Passphrase: Enter the key values you wish to use.
Other AP(s) must use the same key to establish WDS link.
MAC Address: Enter the Access Point’s MAC address to
which you want to extend the wireless area.
Mode: Select Disable or Enable from the drop-down list.
Accept / Cancel: Click Accept to conrm the changes or
Cancel to cancel and return previous settings.
WDS Link Settings
42
Chapter8
Management
43

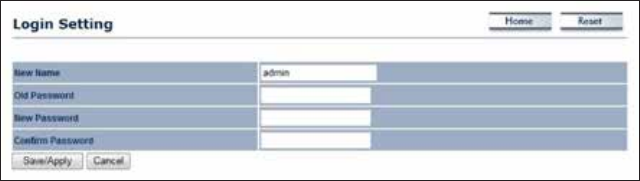

This page allows you to change the EAP900H username
and password. By default, the username is admin and the
password is: admin. The password can contain 0 to 12
alphanumeric characters and is case sensitive.
Login Setting
New Name: Enter a new username for logging in to the
New Name entry box.
Old Password: Enter the old password for logging in to the
Old Password entry box.
New Password: Enter the new password for logging in to
the New Password entry box.
Conrm Password: Re-enter the new password in the
ConrmPasswordentryboxforconrmation.
Save/Apply / Cancel: Click Save/Apply to apply the changes
or Cancel to return previous settings.
Administration
44

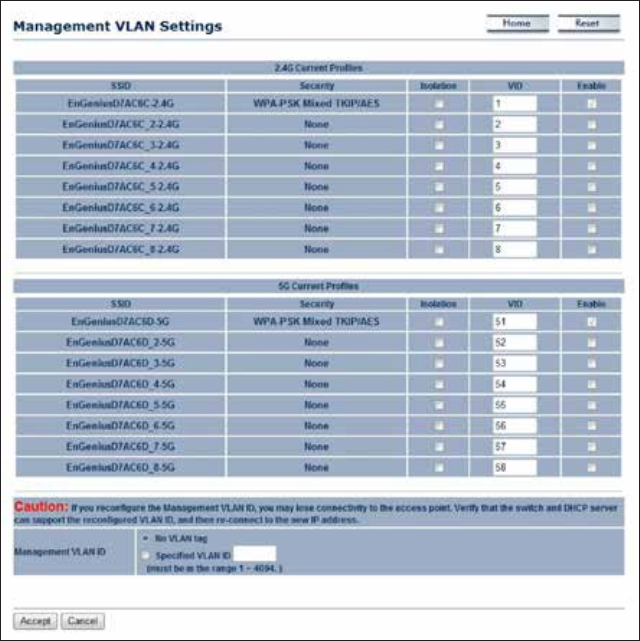

Management VLAN Settings
This page allows you to assign a VLAN tag to the packets. A
VLAN is a group of computers on a network whose software
hasbeenconguredsothattheybehaveasiftheywereon
a separate Local Area Network (LAN). Computers on VLAN
do not have to be physically located next to one another
on the LAN.
Note: Only applicable in Access Point and WDS AP mode.
Prole Isolation: Restricted client to communicate with
different VID by selecting the radio button.
VLAN ID: SpecifytheVLANtagforeachprole.
Management VLAN ID: If your network includes VLANs,
you can specify a VLAN ID for packets pass through the
Access Point with a tag. Otherwise, select No VLAN tag.
Accept / Cancel: Click Accept to conrm the changes or
Cancel to cancel and return previous settings.
Note:
1. If you recongure the Management VLAN ID, you
may lose your connection to the EAP900H. Verify that
the DHCP server supports the recongured VLAN ID
and then reconnect to the EAP900H using the new IP
address.
2. Clicking Accept does not apply the changes. To apply
them, use Status > Save/Load (see section 5.1).
45

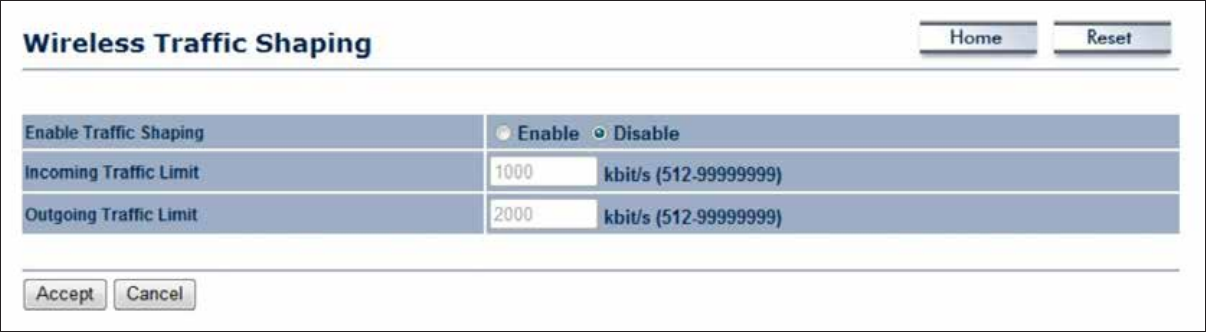

Wireless Trafc Shaping
Trafc shaping regulates the ow of packets leaving an
interface to deliver improved Quality of Service.
Enable Trafc Shaping: Check this option to enable
wirelesstrafcshaping.
Incoming Trafc Limit: Specify the wireless transmission
speed used for downloading.
Outgoing Trafc Limit: Specify the wireless transmission
speed used for uploading.
Accept / Cancel: Click Accept to conrm the changes or
Cancel to cancel and return previous settings.
46

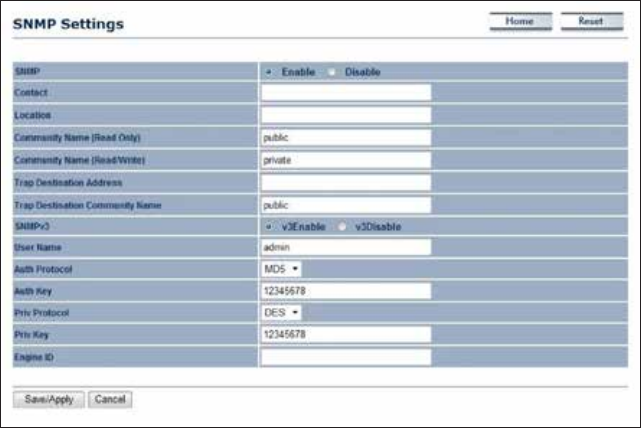

SNMP Settings
This page allows you to assign the Contact Details, Location,
Community Name, and Trap Settings for Simple Network
Management Protocol (SNMP). This is a networking
management protocol used to monitor network attached
devices. SNMP allows messages (called protocol data units) to
be sent to various parts of the network. Upon receiving these
messages, SNMP compatible devices (called agents) return
the data stored in their Management Information Bases
SNMP Enable/Disable: Enable or Disable SNMP feature.
Contact: Specify the contact details of the device
Location: Specify the location of the device.
Community Name (Read Only): Specify the password for
the SNMP community for read only access.
Community Name (Read/Write): Specify the password for
the SNMP community with read/write access.
Trap Destination Address: Specify the IP address of the
computer that will receive the SNMP traps.
Trap Destination Community Name: Specify the password
for the SNMP trap community.
SNMPv3: Enable or Disable SNMPv3 feature.
User Name: Specify the username for SNMPv3.
Auth Protocol: Select the authentication protocol type:
MDS or SHA.
Auth Key: Specify the authentication key for authentication.
Priv Protocol: Select the privacy protocol type: DES.
Priv Key: Specify the privacy key for privacy.
Engine ID: Specify the engine ID for SNMPv3.
Save/Apply / Cancel: Click Save/Apply to apply the changes
or Cancel to return previous settings.
47

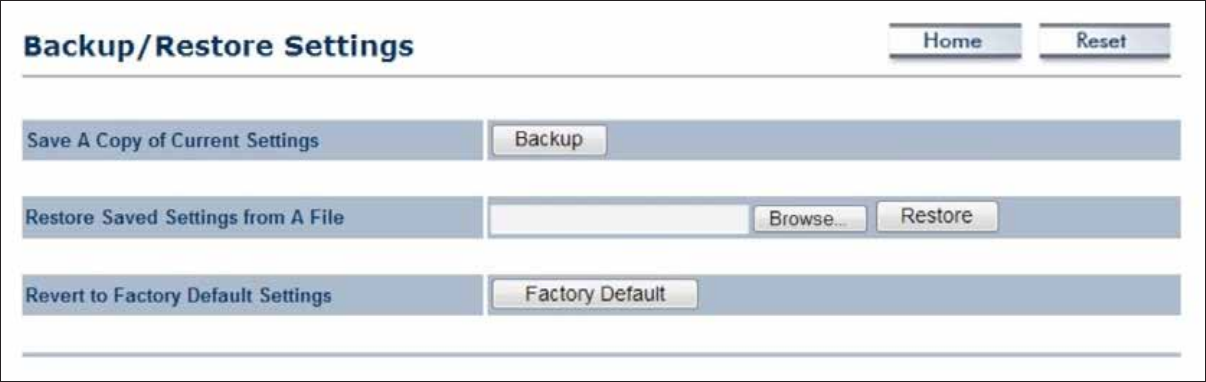

Backup/Restore
This page allows you to save the current device
configurations. When you save the configurations,
you also can reload the saved configurations into the
device through the Restore Saved Settings from A File
section. If extreme problems occur, or if you have set
the EAP900H wrongly, you can use the Factory Default
button in the Revert to Factory Default Settings section
to restore all the configurations of the EAP900H to the
original default settings.
Save A Copy of Current Settings: Click Backup to save
the current configured settings.
Restore Saved Settings from A File: To restore
settings that have been previously backed up, click
Browse, select the file, and click Restore.
Revert to Factory Default Settings: Click Factory
Default button to restore the EAP900H to its factory
default settings.
48
Auto Reboot Settings
You can specify how long to reboot the EAP900H
periodically.
Auto Reboot Setting: Enable or disable the auto reboot
function.
Frequency of Auto Reboot: To specify the time to
reboot the EAP900H by Min, Hour, Day or Week.
Save/Apply / Cancel: Click Save/Apply to apply the
changes or Cancel to return previous settings.
49
Firmware Upgrade
This page allows you to upgrade the firmware of the
EAP900H
To perform the Firmware Upgrade:
1. Click the Browse button and navigate the OS File System
tothelocationoftheupgradele.
2. Selecttheupgradele.Thenameofthelewillappear
intheUpgradeFileeld.
3. Click the Upload button to commence the rmware
upgrade.
Note: The device is unavailable during the upgrade
process and must restart when the upgrade is completed.
Any connections to or through the device will be lost.
Time Setting
This page allows you to set the internal clock of the
EAP900H.
Manually Set Date and Time: Manually specify the
date and time.
Automatically Get Date and Time: Select a time zone
from the drop-down list and check whether you want
to enter the IP address of an NTP server or use the
default NTP server to get have the internal clock set
automatically.
Enable Daylight Saving: Check whether daylight
savings applies to your area.
50

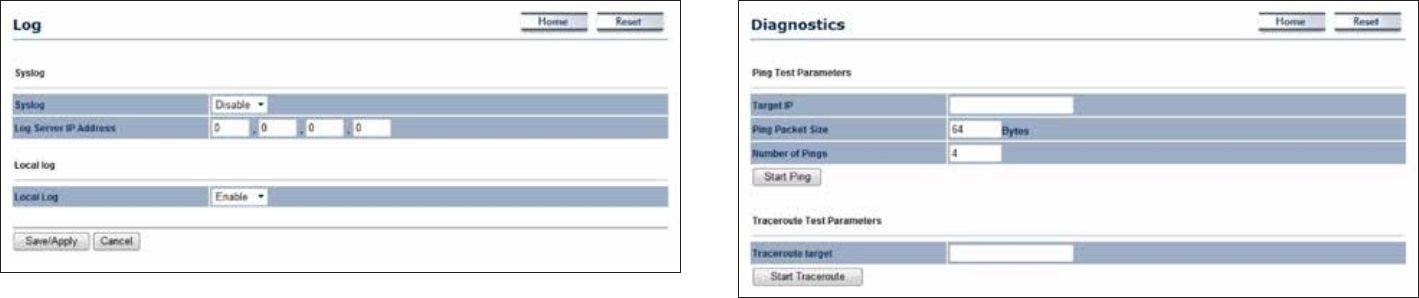

Log
This page allows you to setup Syslog and local log
functions of the EAP900H.
Syslog: Enable or disable the syslog function.
Log Server IP Address: Enter the IP address of the log
server.
Local Log: Enable or disable the local log service.
Save/Apply / Cancel: Click Save/Apply to apply the
changes or Cancel to return previous settings.
Diagnostics
This page allows you to analyze the connection quality
of the EAP900H and trace the routing table to a target
in the network.
Target IP: Enter the IP address you would like to search.
Ping Packet Size: Enter the packet size of each ping.
Number of Pings: Enter the number of times you want
to ping.
Start Ping: Click Start Ping to begin pinging target
device (via IP).
Traceroute Target: Enter an IP address or domain name
you want to trace.
Start Traceroute: Click Start Traceroute to begin the
trace route operation.
51

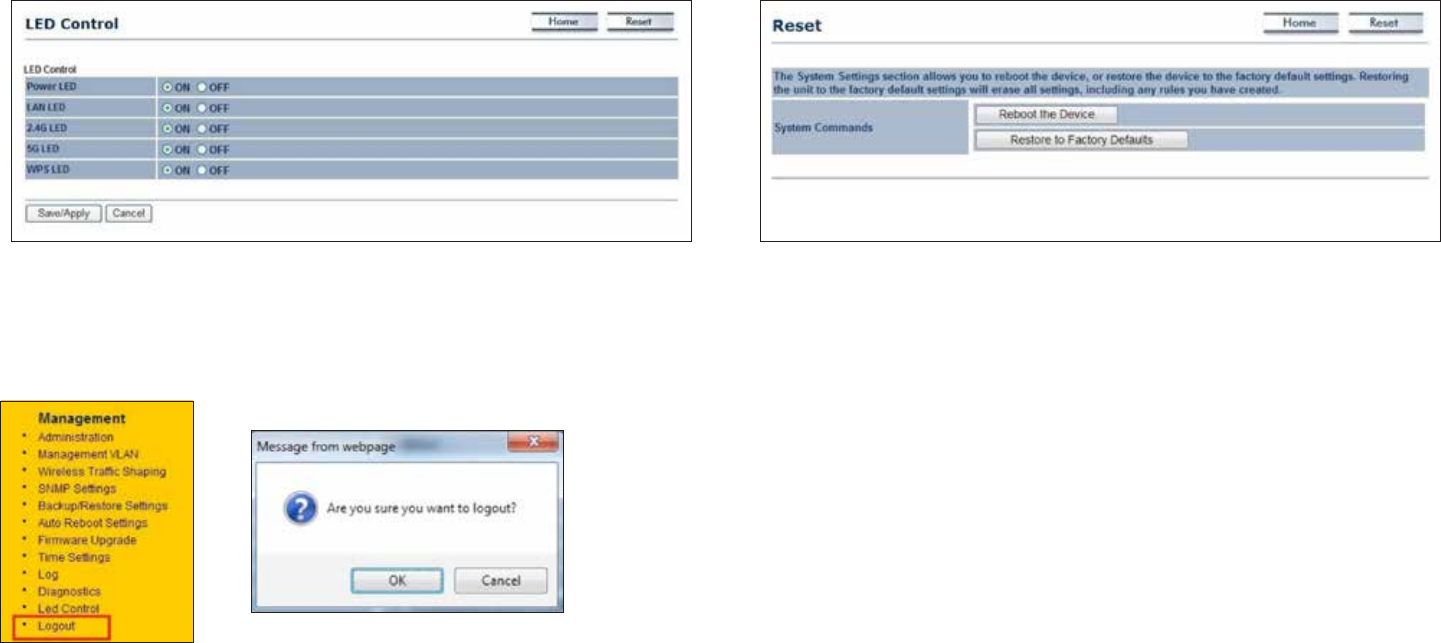

LED Control
This page allows you to control LED on/off for Power, LAN
interface, 2.4G/5G WLAN interface and WPS
Logout
Click Logout in Management menu to logout.
Reset
In some circumstances, it may be required to force the
device to reboot. Click on Reboot the Device to reboot the
EAP900H.
52
Appendix
53
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
FCC Caution:
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate
this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band
are restricted to indoor usage only.
IMPORTANT NOTE:
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
Appendix A
54
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement
est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter
tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
Caution:
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-
channel mobile satellite systems;
(ii) high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these
radars could cause interference and/or damage to LE-LAN devices.
Avertissement:
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur an de réduire
les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs
principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du
brouillage et/ou des dommages aux dispositifs LAN-EL.
Appendix B - IC Interference Statement
55
FOR MOBILE DEVICE USAGE
Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Pour l’utilisation de dispositifs mobiles)
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit
être installé et utilisé avec un minimum de 20cm de distance entre la source de rayonnement et votre corps.
56
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order
to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:
• EN60950-1
Safety of Information Technology Equipment
• EN50385
Generic standard to demonstrate the compliance of electronic and electrical apparatus with the basic restrictions related to human exposure
to electromagnetic elds (0 Hz - 300 GHz)
• EN 300 328
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating
in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article
3.2 of the R&TTE Directive
• EN 301 893
Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN covering essential requirements of article 3.2 of
the R&TTE Directive
• EN 301 489-1
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 1: Common technical requirements
• EN 301 489-17
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 17: Specic conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment
Appendix C - CE Interference Statement
57
This device is a 5GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France
and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting
up outdoor radio links and/or for supplying public access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP
in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France.
Česky [Czech] [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES.
Dansk [Danish] Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de
væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch [German] Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG bendet.
Eesti [Estonian] Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust
direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Español [Spanish] Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales
y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
58
Français [French] Par la présente [nom du fabricant] déclare que l’appareil [type d’appareil] est conforme aux exigences essentielles et aux
autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian] Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai requisiti essenziali ed alle
altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian] Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment / iekārtas tips] atbilst Direktīvas
1999/ 5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių [Lithuanian] Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Nederlands [Dutch] Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is met de essentiële eisen
en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti
oħrajn relevanti li hemm d-Dirrettiva 1999/5/EC.
Magyar [Hungarian] Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC
irányelv egyéb elõírásainak.
Polski [Polish] Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi wymogami oraz pozostałymi
stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese] [Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Slovensko [Slovenian] [Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive
1999/5/ES.
Slovensky [Slovak] [Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice
1999/5/ES.
Suomi [Finnish] [Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä] tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska [Swedish] Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de väsentliga egenskapskrav och
övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

Navigation menu
