1 Introduction
The
ECB350
is a multi-functioned 802.11b/g/n product with 8 major multi-functions. It is designed to operate in every
working environment for enterprises.
The ECB350 is a Wireless Network device that delivers up to 6x faster speeds and 7x extended coverage than 802.11b/g
devices. The ECB350 supports use in the home network with superior throughput, performance, and unparalleled wireless
range.
To protect data during wireless transmissions, the ECB350 encrypts all wireless transmissions through WEP data
encryption and supports WPA/WPA2 encryption. Its MAC address filter allows users to select stations to access the
network. The ECB350 is an ideal product to ensure network safety for both home and enterprise environments.
1.1 Features and Benefits
Features Benefits
High Speed Data Rate Up to 300Mbps Capable of handling heavy data payloads such as HD multimedia
streaming.
10/100/1000 Fast Ethernet Support up to 1000Mbps networking speed.
IEEE 802.11n draft Compliant and backward
compatible with 802.11b/g
Fully compatible with IEEE 802.11b/g/n devices.
Multi-Function Allowing users to select Access Point, Client Bridge, WDS AP,
WDS Bridge, WDS Station, Universal Repeater, Router or Client
Router mode in various applications.
Point-to-Point or Point-to-Multipoint Wireless
Connectivity
Allows transfer of data from building to building.
Support Multiple SSID (up to 4) in AP mode Allows clients to access different networks through a single
access point and assign different policies and functions for each
6
SSID through the built in software.
WPA2/WPA/ IEEE 802.1x support Powerful data security.
MAC address filtering in AP mode Ensuring secure network connection.
User isolation support (AP mode) Protecting the private network between client users.
Power-over-Ethernet (IEEE802.3af) Flexible Access Point locations and saving cost.
Save User Settings Firmware upgrade does not delete user settings.
SNMP Remote Configuration Management Allows remote connection to configure or manage the ECB350
easily.
QoS (WMM) support Enhanced user performance and density.
1.2 Package Contents
The ECB350 package contains the following items (all items must be in package to issue a refund):
ECB350
12V/1A 100V~240V Power Adapter
RJ-45 Ethernet LAN Cable
CD-ROM with User's Manual
Quick Guide
1.3 System Requirements
The following are the minimum system requirements in order configure the device.
Computer with an Ethernet interface or Wireless Network function.
Windows, Mac OS or Linux based operating systems
Web-Browsing Application (example: Internet Explorer, FireFox, Safari, or other similar software)
7
1.4 Applications
The wireless LAN products are easy to install and highly efficient. The following list describes some of the many
applications made possible through the power and flexibility of wireless LANs:
a) Difficult-to-Wire Environments
There are many situations where wires cannot be laid easily. Historic buildings, older buildings, multiple buildings,
and/or open areas make the installation of a Wired LAN impossible, impractical, and/or expensive.
b) Temporary Workgroups
Consider situations in open areas such as parks, athletic arenas, exhibition centers, temporary offices, and
construction sites where one wants a temporary Wireless LAN established and easily removed.
c) The Ability to Access Real-Time Information
Doctors/Nurses, Point-of-Sale Employees, and/or Warehouse Workers can access real-time information while
dealing with patients, serving customers, and/or processing information.
d) Frequently Changed Environments
Show rooms, meeting rooms, retail stores, and manufacturing sites where the network connection needs to
frequently be taken down.
e) Small Office and Home Office (SOHO) Networks
SOHO users need a cost-effective, easy and quick installation of a small network.
f) Wireless Extensions to Ethernet Networks
Network managers in dynamic environments can minimize the overhead caused by moves, extensions to networks,
and other changes with wireless LANs.
g) Wired LAN Backup
Network managers implement wireless LANs to provide backup for mission-critical applications running on wired
networks.
h) Training/Educational Facilities
Training sites at corporations and students at universities use wireless connectivity to ease access to information,
information exchanges, and learning.
8
2 Before you Begin
This section will guide you through the installation process. Placement of the ENGENIUS ECB350 is very important to
maximize the ECB350’s performance. Avoid placing the ECB350 in an enclosed space such as a closet, cabinet, or
wardrobe.
2.1 Considerations for Wireless Installation
The operating distance of all wireless devices cannot be pre-determined due to a number of unknown obstacles in the
environment that the device is deployed. in. These could be the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through. Here are some key guidelines to ensure that you have the most
optimal wireless range.
Keep the number of walls and/or ceilings between the ECB350 and other network devices to a minimum. Each wall
and/or ceiling can reduce the signal strength, resulting in lower signal strength.
Building materials makes a difference. A solid metal door and/or aluminum stubs may have a significant negative
effect on the signal strength of the ECB350. Locate your wireless devices carefully so the signal can pass through a
drywall and/or open doorways. Materials such as glass, steel, metal, concrete, water (example: fish tanks), mirrors,
file cabinets and/or brick can also lower your wireless signal strength.
Interferences can also come from your other electrical devices and/or appliances that generate RF noise. The most
usual types are microwaves, or cordless phones.
9
2.2 Computer Settings (Windows XP/Windows 7)
In order to use the ECB350, you must first configure the TCP/IPv4 connection of your computer system.

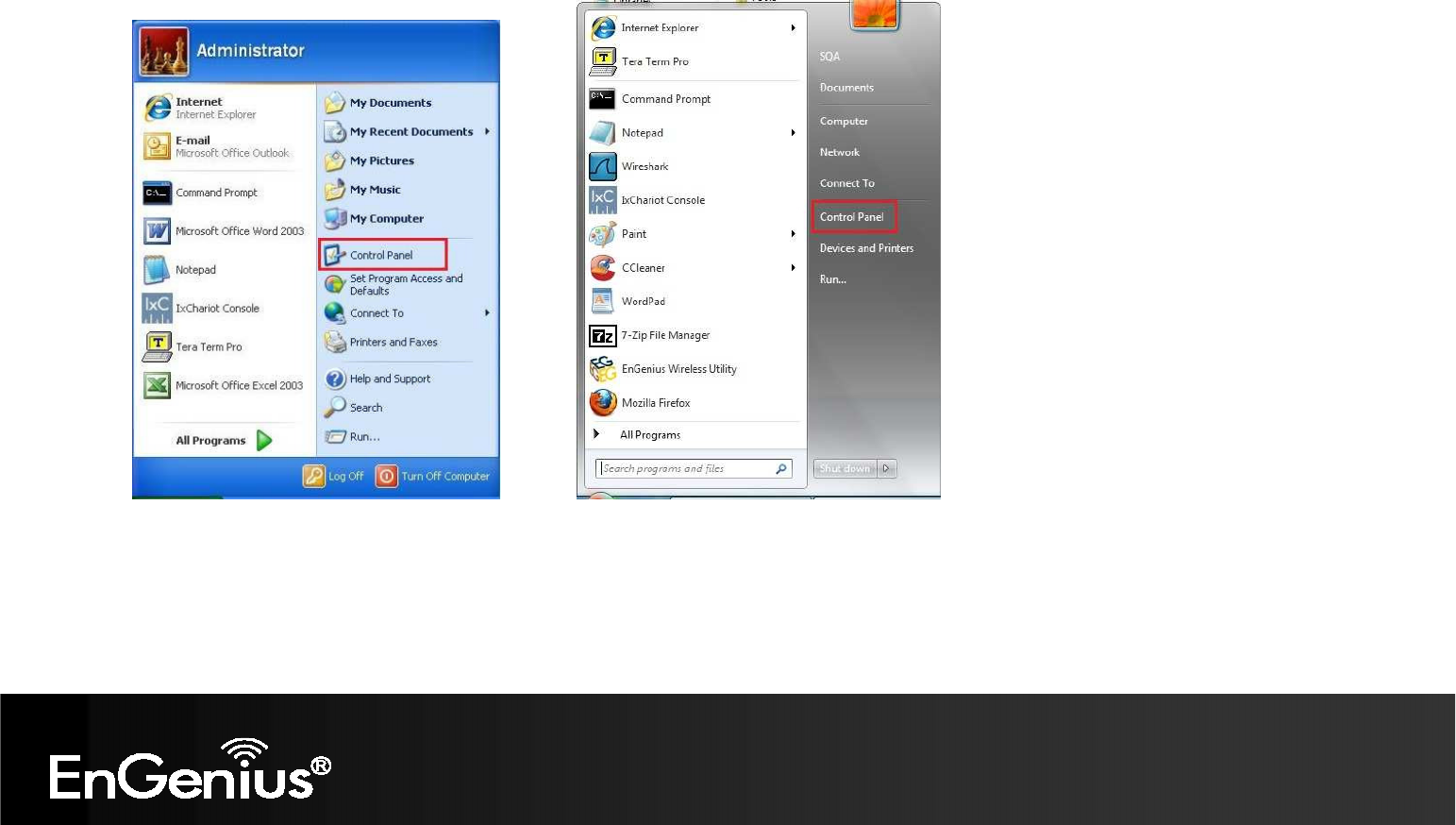

Click Start button and open Control Panel.
Windows XP Windows 7
10
In Windows XP, click Network Connections
In Windows 7, click View Network Status and Tasks in the
Network and Internet section, then select Change adapter
settings
Right click on Local Area Connection and select Properties

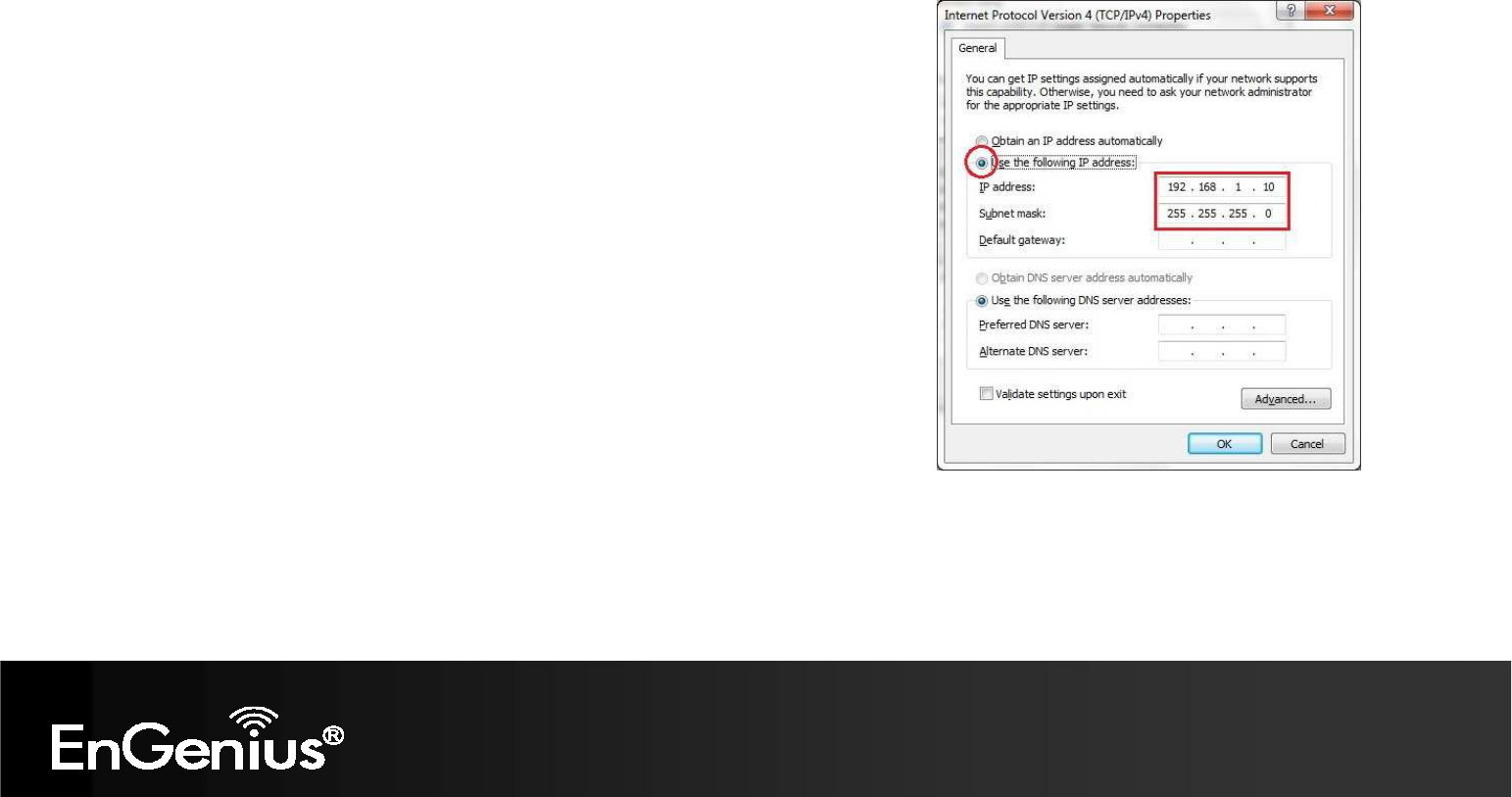

Select “Internet Protocol Version 4 (TCP/IPv4)” and select Properties
11
Select Use the following IP address and enter IP address and subnet
mask then click OK.
Note: Ensure that the IP address and subnet mask are on the same subnet
as the device.
For example: Device IP address: 192.168.1.1
PC IP address: 192.168.1.2 – 192.168.1.254
PC subnet mask: 255.255.255.0
12
2.3 Apple Mac X OS

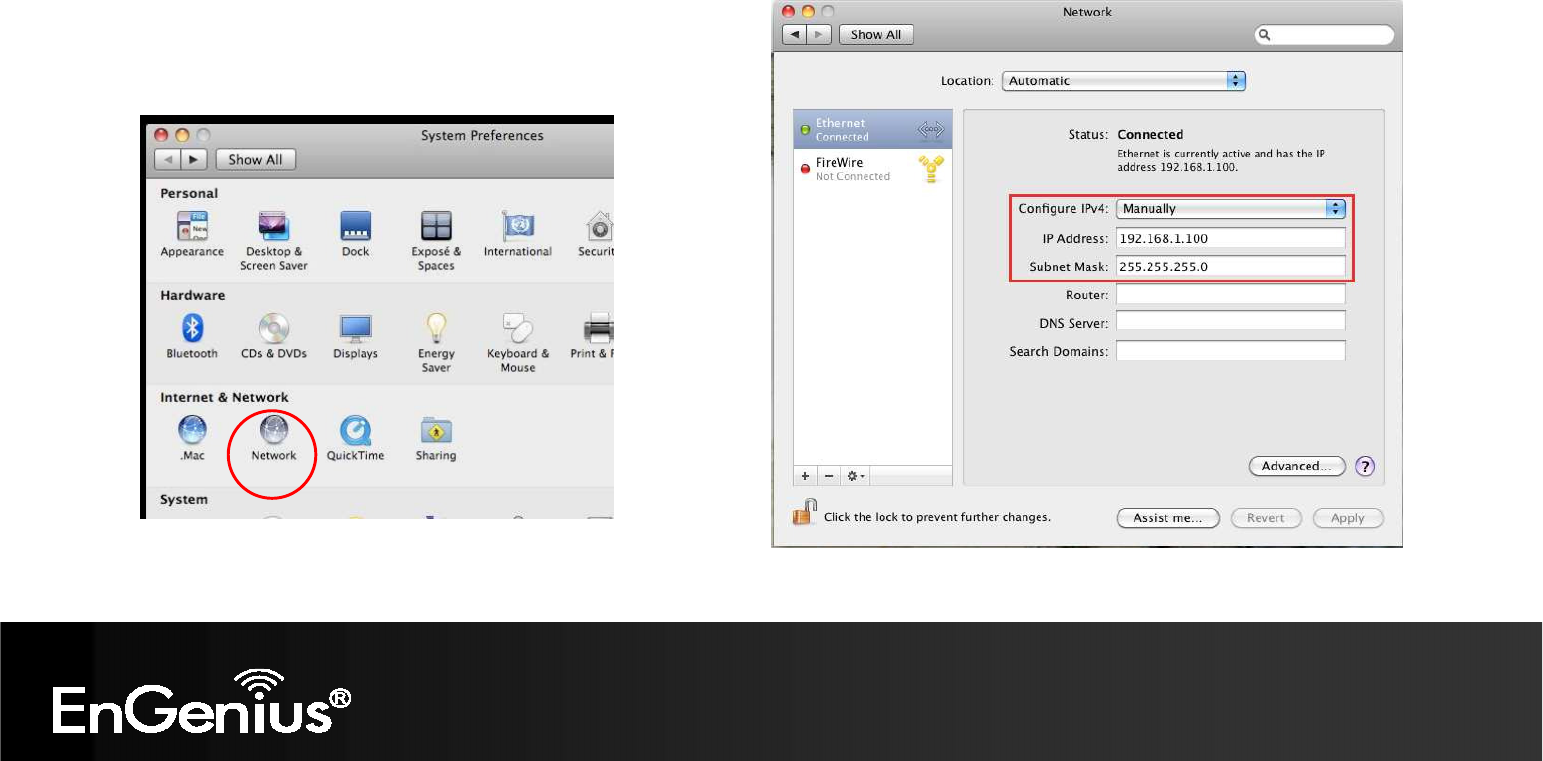

Go to System Preferences (can be opened in the Applications folder or selecting it in the Apple Menu)
Select Network in the Internet & Network section
Highlight Ethernet
In Configure IPv4, select Manually
Enter IP address and subnet mask then press OK
Note: Ensure that the IP address and subnet mask are on the same subnet as the device.
For example: Device IP address: 192.168.1.1
PC IP address: 192.168.1.2 – 192.168.1.254
PC subnet mask: 255.255.255.0
Click Apply when done.
13
2.4 Hardware Installation
1. Ensure that the computer in use has an Ethernet Card (RJ-45 Ethernet Port). For more information, verify with our
computer user manual.
2. Connect one end of the Category 5 Ethernet cable into RJ-45 port of the ECB350 and the other end to the RJ-45 port
on the computer that will use the ECB350. Ensure that the cable is securely connected to both the ECB350 and the
Computer.
3. Connect the Power Adaptor DC Inlet to the DC-IN port of the ECB350 and the Power Adaptor to the electrical out.
Once both connections are secure, verify the following:
a) Ensure that the POWER light is on (it will be green).
b) Ensure that the WLAN light is on (it will be green).
c) Ensure that the LAN (Computer/ECB350 Connection) light is on (it will be green).
d) Once all three lights are on, proceed to setting up the computer.

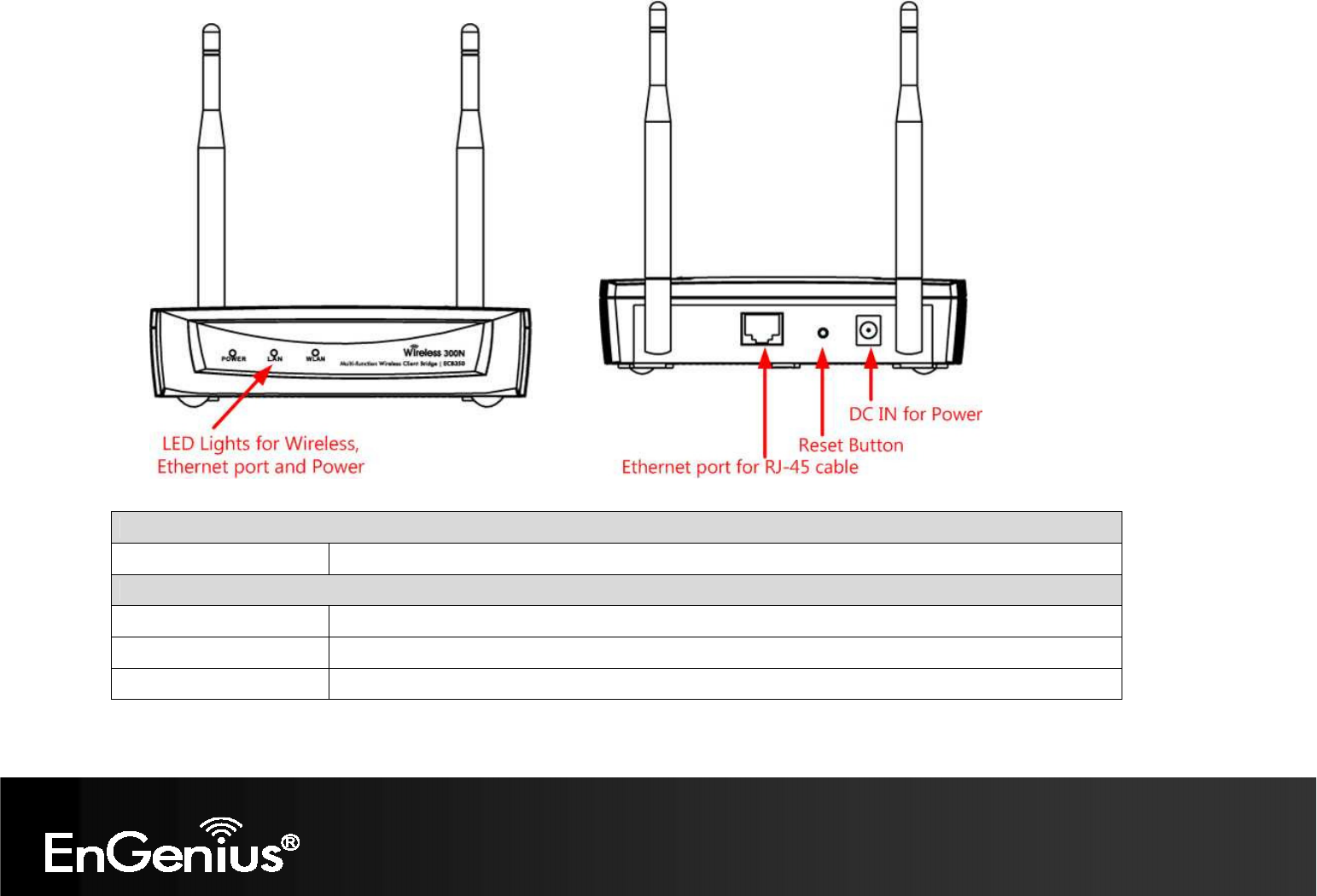

This diagram depicts the hardware configuration.
14
Front Panel Rear Panel
Front Panel
LED Lights LED lights for Wireless, Ethernet port and Power.
Rear Panel
DC IN DC IN for Power.
Reset Button One click for reset the device. Press over 10 seconds for reset to factory default.
Ethernet Port Ethernet port for RJ-45 cable.
15
3 Configuring Your Client Bridge
This section will show you how to configure the device using the web-based configuration interface.
3.1 Default Settings
Please use your Ethernet port or wireless network adapter to connect the Client Bridge.
Default Settings
IP Address 192.168.1.1
Username / Password admin / admin
Operation Mode Client Bridge
16
3.2 Web Configuration

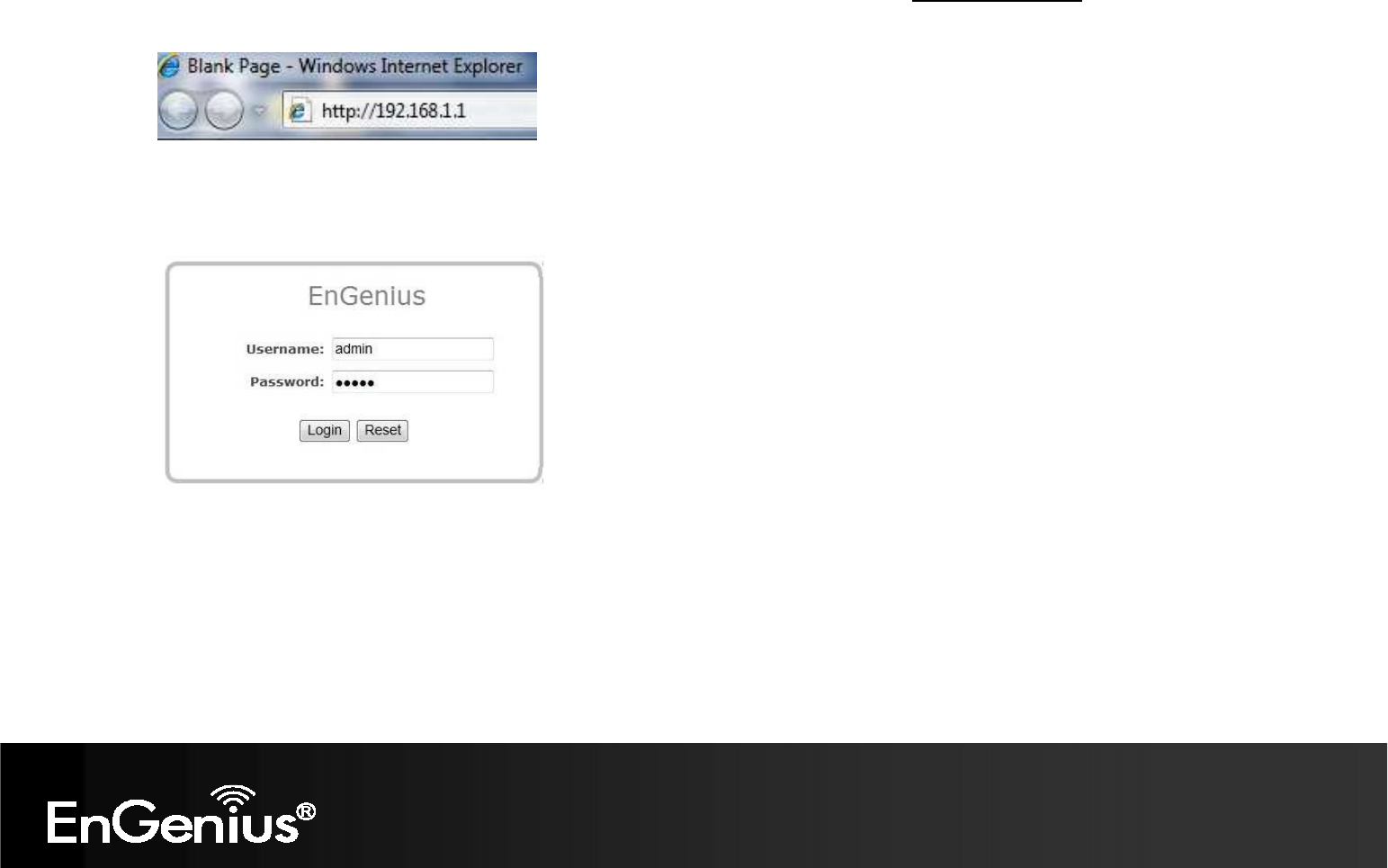

Open a web browser (Internet Explorer/Firefox/Safari) and enter the IP Address http://192.168.1.1
Note: If you have changed the default LAN IP Address of the Access Point, ensure you enter the correct IP Address.
The default username and password are admin. Once you have entered the correct username and password, click
the Login button to open the web-base configuration page.
If successful, you will see the ECB350 User Menu.
17
18
4 Status
The Status section contains the following options: Main, Wireless Client List and System Log.
The following sections describe these options.
4.1 Save/Reload
This page lets you save and apply the settings shown under Unsaved changes list, or cancel the unsaved changes and
revert to the previous settings that were in effect.
19
4.2 Main
Clicking the Main link under the Status menu or clicking Home at the top-right of the Web Configurator shows status
information about the current operating mode.

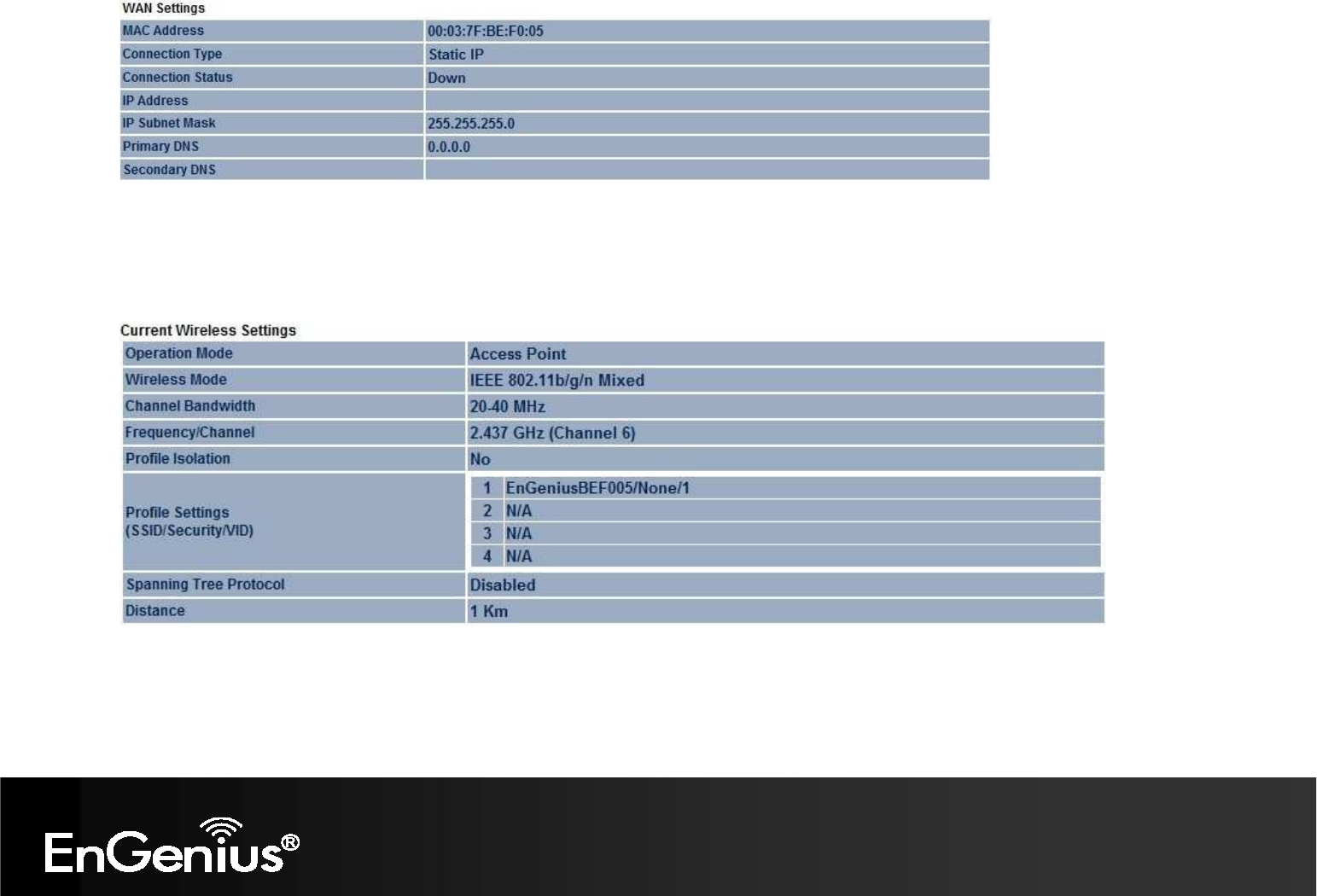

- The System Information section shows general system information such as device name, MAC address, current time,
firmware version and management VLAN ID (Note: VLAN ID is only in Access Point and WDS AP mode).
- The LAN Settings section shows Local Area Network setting such as the LAN IP address, subnet mask, and DNS
address.
- The WAN Settings section shows WAN setting such as the MAC Address, Connection Type, Connection Status, IP
Address, Subnet Mask, and DNS Address.
Note: WAN Settings is only in Client Router and Router mode.
20
- The Current Wireless Settings section shows wireless information such as operating mode, frequency and channel.
Since the ECB350 supports multiple-SSIDs, information about each SSID, such as its ESSID and security settings, are
displayed (Note: Profile Settings is only in Access Point, WDS AP and Router mode).
21
4.3 Connection Status
Click on the Connection Status link under the Status menu. This page displays the current status of the network,
including Network Type, SSID, BSSID, Connection Status, Wireless Mode, Current Channel, Security, Data Rate, Noise
Level and Signal Strength.
Note: Only in Client Bridge, Client Router, WDS Station and Repeater mode.
22

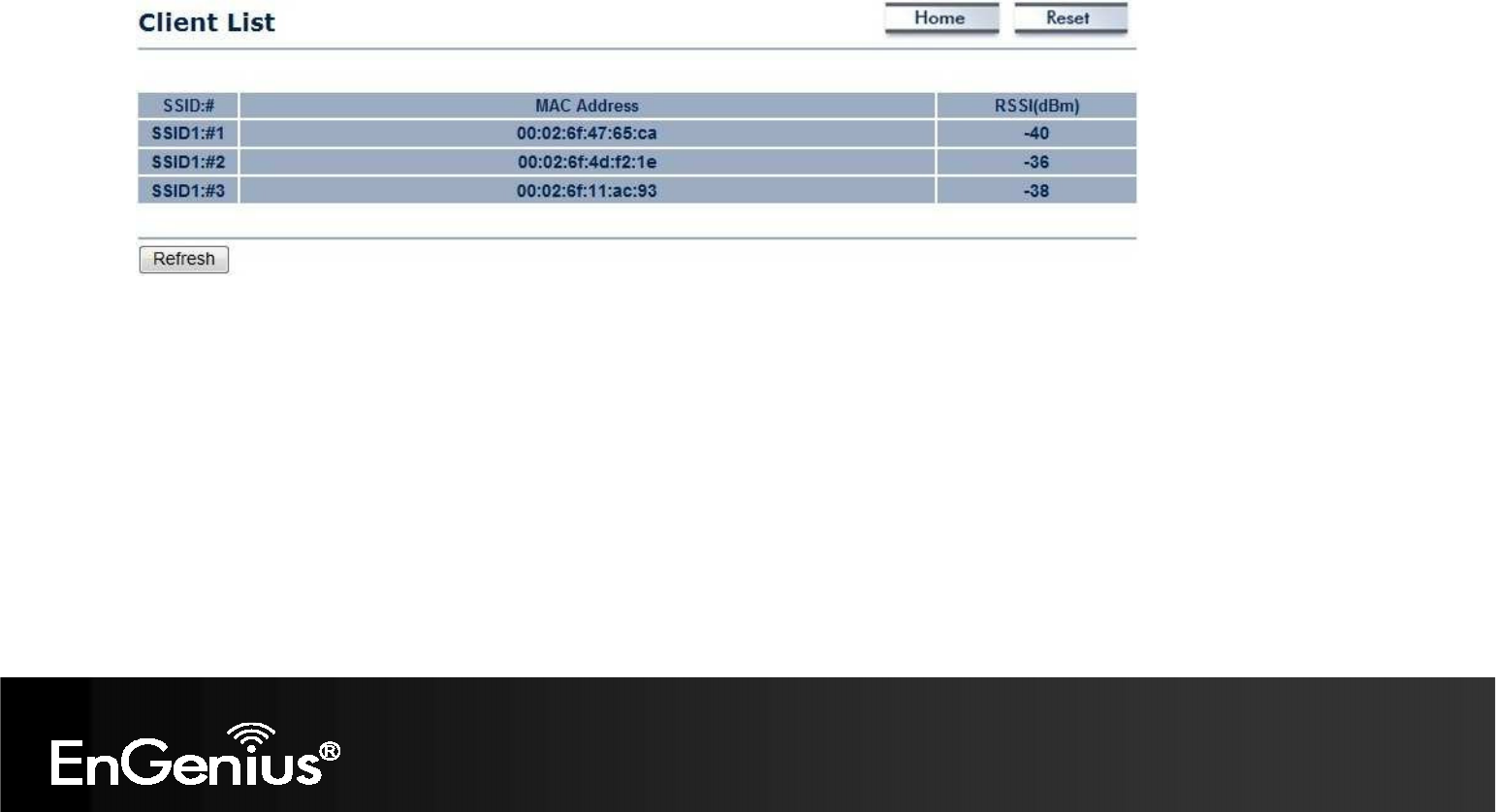

4.4 Wireless Client List
Clicking the Wireless Client List link under the Status menu displays the list of clients associated to the ECB350, along
with the MAC addresses and signal strength for each client. Clicking the [Refresh] button updates (refreshes) the client
list.
Note: Only in Access Point, WDS AP, Repeater and Router mode.
23
4.5 System Log
The ECB350 automatically logs (records) events of possible interest in its internal memory. To view the logged information,
click the System Log link under the Status menu. If there is not enough internal memory to log all events, older events
are deleted from the log. When powered down or rebooted, the log will be cleared.
System Log
Refresh Update the log.
Clear Clear the log.
24
5 System
5.1 Operation Mode
The ECB350 supports 8 operating modes: Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, Universal
Repeater, Router and Client Router.
System Properties
Device Name Enter a name for the device. The name you type appears in SNMP management. This name is
not the SSID and is not broadcast to other devices.
Operation Mode Use the radio button to select an operating mode.
Save & Apply / Cancel Click [Save & Apply] to confirm the changes or [Cancel] to cancel and return previous settings.
25

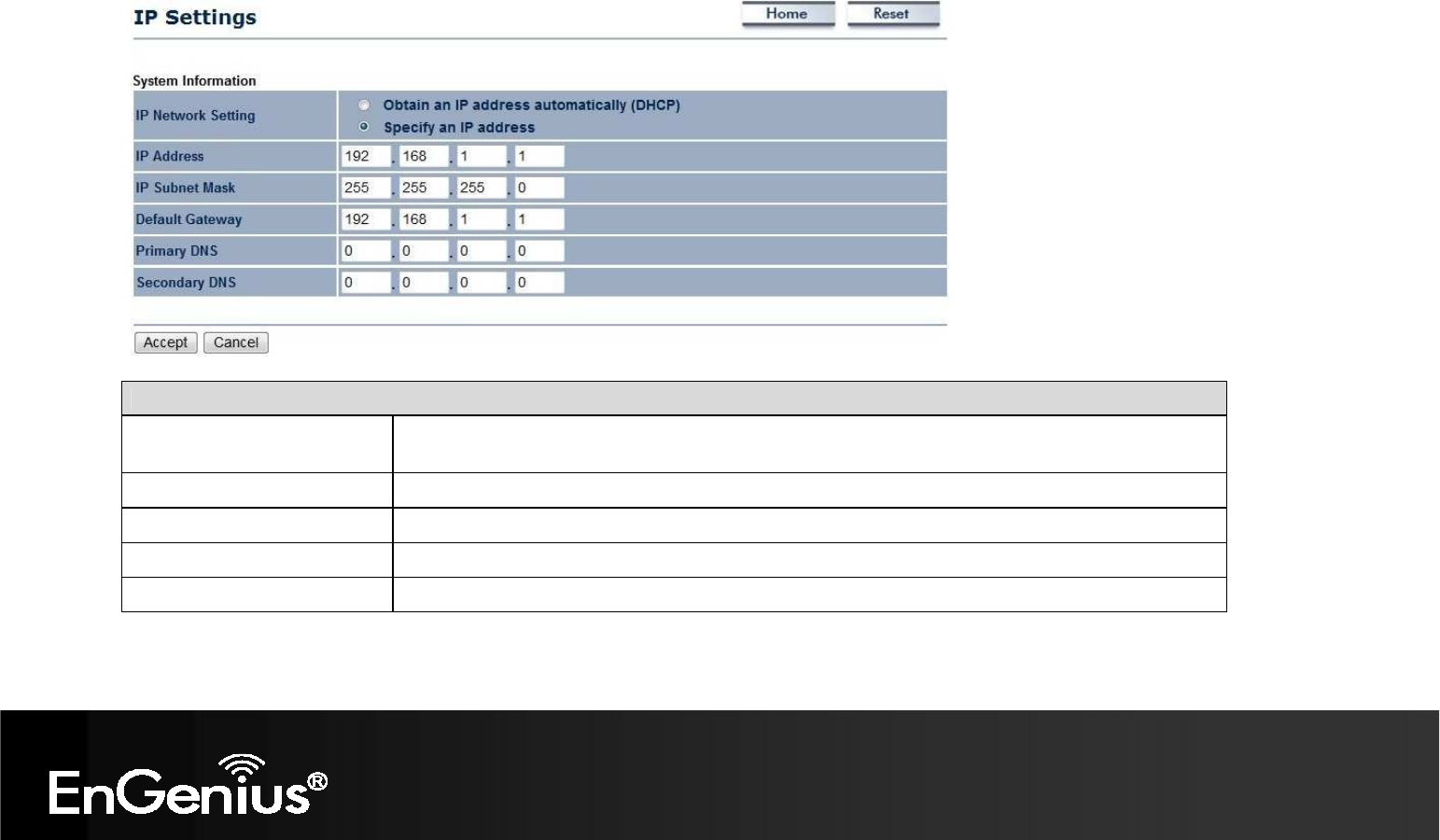

5.2 IP Settings
This page allows you to modify the device's IP settings.
Note: Only in Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station and Repeater mode.
IP Settings
IP Network Setting Select whether the device IP address will use the static IP address specified in the IP
Address field or be obtained automatically when the device connects to a DHCP server.
IP Address The IP Address of this device.
IP Subnet Mask The IP Subnet Mask of this device.
Default Gateway The Default Gateway of this device. Leave it blank if you are unsure of this setting.
Primary / Secondary DNS The primary / secondary DNS address for this device.
26
5.3 Spanning Tree Setting
This page allows you to modify the Spanning Tree settings. Enabling Spanning Tree protocol will prevent network loops in
your LAN network.
Note: Only in Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station and Repeater mode.
Spanning Tree
Spanning Tree Status Enable or disable the Spanning Tree function.
Bridge Hello Time Specify Bridge Hello Time, in seconds. This value determines how often the device sends hello
packets to communicate information about the topology throughout the entire Bridged Local
Area Network.
Bridge Max Age Specify Bridge Max Age, in seconds. If another bridge in the spanning tree does not send a
hello packet for a long period of time, it is assumed to be dead.
Bridge Forward Delay Specify Bridge Forward Delay, in seconds. Forwarding delay time is the time spent in each of
the Listening and Learning states before the Forwarding state is entered. This delay is provided
so that when a new bridge comes onto a busy network, it looks at some traffic before
participating.
27
Priority Specify the Priority number. Smaller number has greater priority.
Accept / Cancel Click [Accept] to confirm the changes or [Cancel] to cancel and return previous settings.
28
6 Router
This section is only available for AP Router Mode and Client Router Mode.
6.1 WAN Settings
There are four types of WAN connections: Static IP, DHCP, PPPoE and PPTP. Please contact your ISP to find out which
settings you should choose.
6.1.1 Static IP
If your ISP Provider has assigned you a fixed IP address, enter the assigned IP address, Subnet mask, Default Gateway
IP address, and Primary DNS and Secondary DNS (if available) of your ISP provider.
29
30

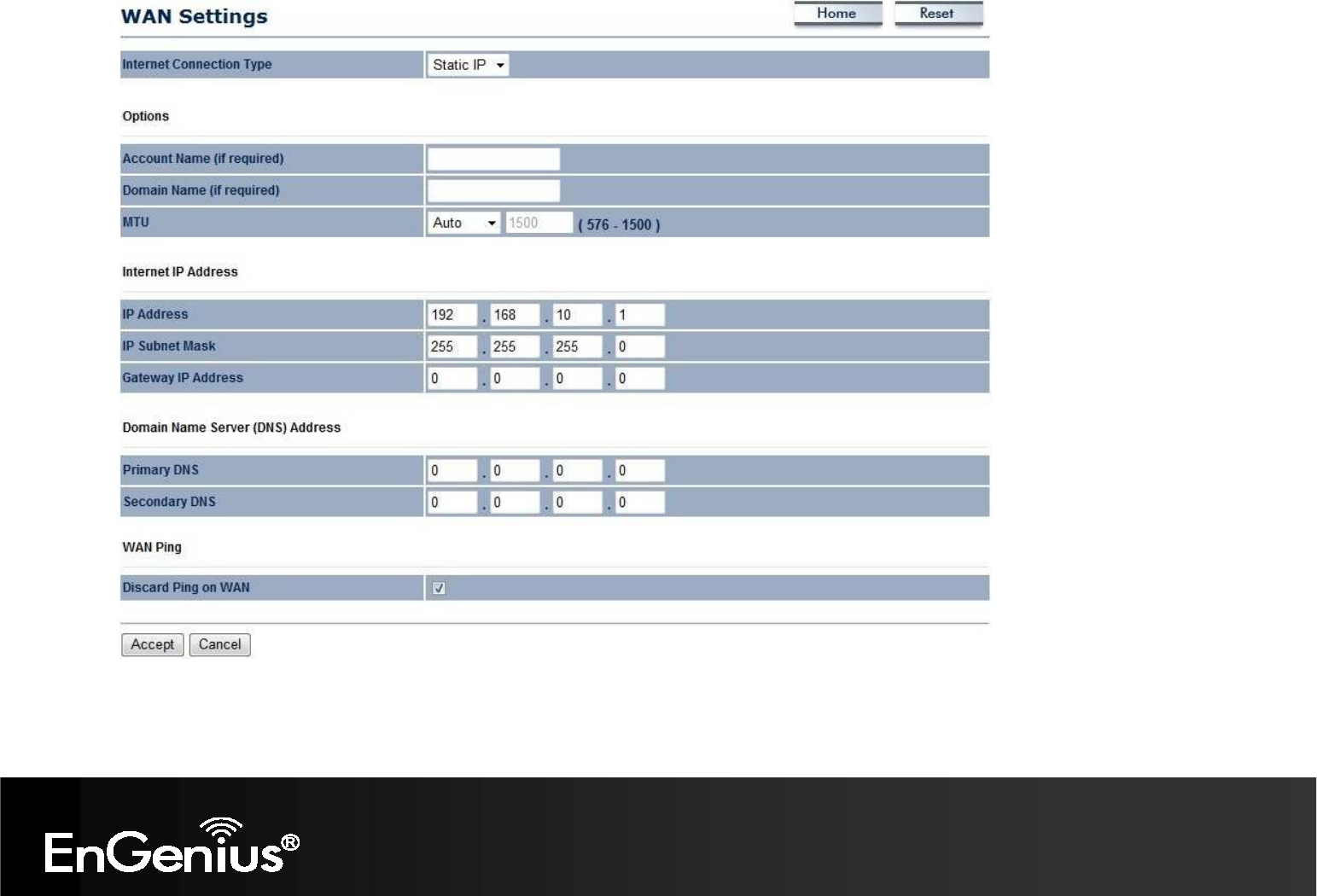

Static IP
Internet Connection Type Select Static IP to begin configuration of the Static IP connection.
Account Name Enter the account name provided by your ISP.
Domain Name Enter the domain name provided by your ISP.
MTU Specify the Maximum Transmit Unit size. It is recommended you accept the default setting of
Auto. Otherwise, packets will be fragmented downstream if the MTU is set too high or too low,
which impacts network performance. In extreme cases, an MTU setting that is too low can
prevent the ECB350 from establishing some connections.
IP Address Assign an IP address Manually.
IP Subnet Mask Specify an IP address’s subnet mask.
Gateway IP Address Specify the gateway of your network.
Primary DNS Specify the primary DNS server’s IP address.
Secondary DNS Specify the second DNS server’s IP address.
Discard Ping on WAN Check to Enable to recognize pings on the ECB350 WAN interface or Disable to block pings on
the ECB350 WAN interface. Note: Pinging IP addresses is a common method used by hackers to
test whether the IP address is valid. Blocking pings provides some extra security from hackers.
Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and return previous settings.
Note: Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see section 4.1).
31
6.1.2 DHCP
Select DHCP as your WAN connection type to obtain an IP address automatically. You will need to enter account name as
your hostname and, optionally, DNS information.
DHCP
32
Internet Connection Type Select DHCP to begin configuration of the DHCP connection.
Account Name Enter the account name provided by your ISP.
Domain Name Enter the domain name provided by your ISP.
MTU Specify the Maximum Transmit Unit size. It is recommended you accept the default setting of
Auto. Otherwise, packets will be fragmented downstream if the MTU is set too high or too low,
which impacts network performance. In extreme cases, an MTU setting that is too low can
prevent the ECB350 from establishing some connections.
Get Automatically From
ISP
Click this radio button to obtain the DNS automatically from the DHCP server.
Use These DNS Servers Click the radio button to set up the Primary DNS and Secondary DNS servers manually.
Discard Ping on WAN Check to Enable to recognize pings on the ECB350 WAN interface or Disable to block pings on
the ECB350 WAN interface. Note: Pinging IP addresses is a common method used by hackers to
test whether the IP address is valid. Blocking pings provides some extra security from hackers.
Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and return previous settings.
33
6.1.3 PPPoE
Select Point to Point Protocol over Ethernet (PPPoE) if your ISP uses a PPPoE connection. Your ISP will provide you with
a username and password. This selection is typically used for DSL services. Remove your PPPoE software from your
computer, as it is not needed and will not work with your ECB350.
PPPoE
34
Internet Connection Type Select PPPoE to begin configuration of the PPPoE connection.
MTU Specify the Maximum Transmit Unit size. It is recommended you accept the default setting of
Auto. Otherwise, packets will be fragmented downstream if the MTU is set too high or too low,
which impacts network performance. In extreme cases, an MTU setting that is too low can
prevent the ECB350 from establishing some connections.
Login Enter the Username provided by your ISP.
Password Enter the Password provided by your ISP.
Service Name Enter the Service Name provided by your ISP.
Connect on Demand Select the radio button to specify the maximum idle time. Internet connection will disconnect
when it reach the maximum idle time, but it will automatically connect when user tries to access
the network.
Keep Alive Select whether to keep the Internet connection always on, or enter a redial period once the
internet lose connection.
Get Automatically From ISP
Click this radio button to obtain the DNS automatically from the DHCP server.
Use These DNS Servers Click the radio button to set up the Primary DNS and Secondary DNS servers manually.
Discard Ping on WAN Check to Enable to recognize pings on the ECB350 WAN interface or Disable to block pings on
the ECB350 WAN interface. Note: Pinging IP addresses is a common method used by hackers
to test whether the IP address is valid. Blocking pings provides some extra security from
hackers.
Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and return previous settings.
35

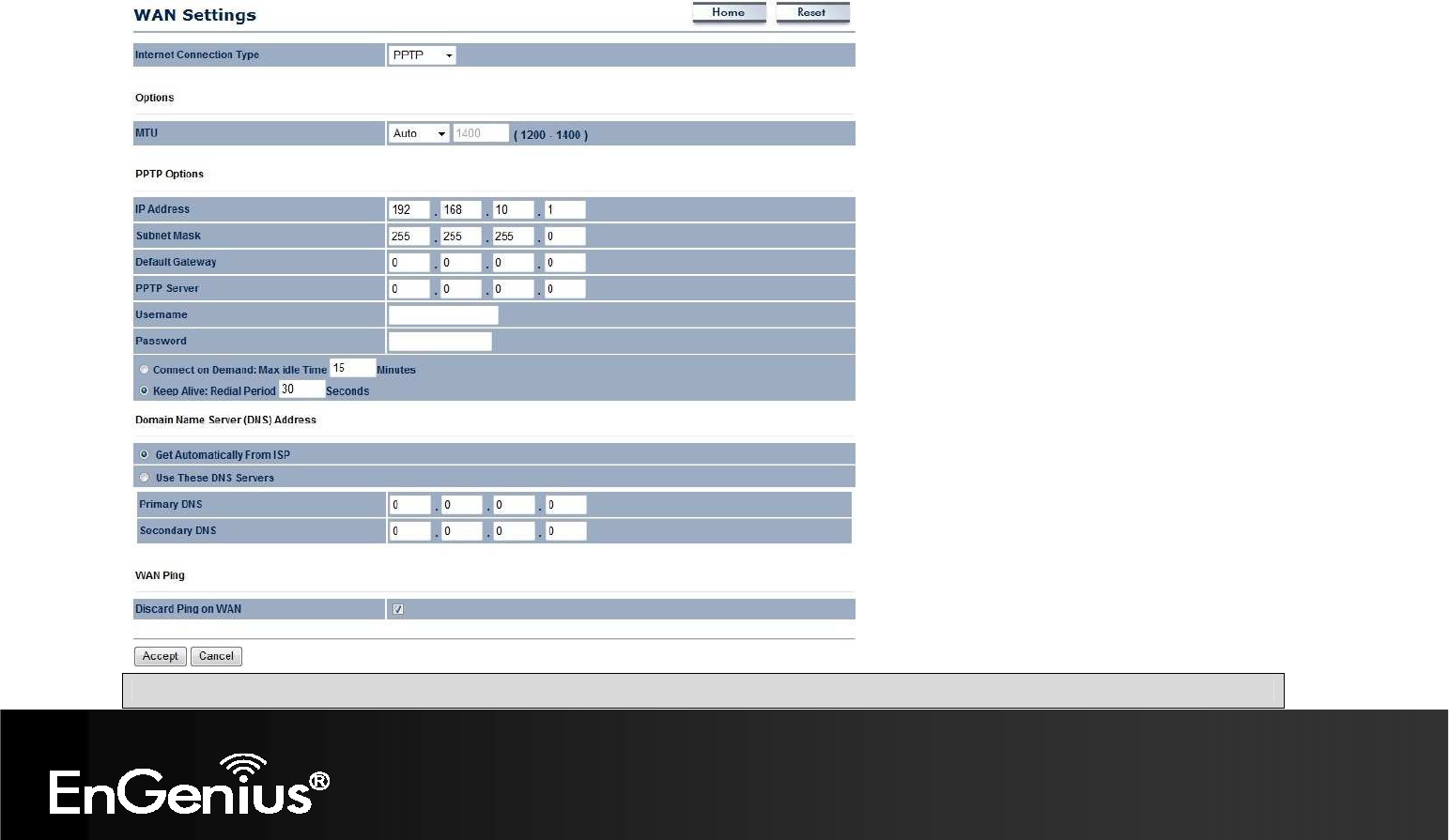

6.1.4 PPTP
Select PPTP as your WAN connection type if your ISP uses a Point-to-Point-Tunneling Protocol (PPTP) connection. You
will need to provide the IP address, subnet mask, default gateway (optional), DNS (optional), server IP, username, and
password provided by your ISP.
PPTP
36
Internet Connection Type Select PPTP to begin configuration of the PPTP connection.
MTU Specify the Maximum Transmit Unit size. It is recommended you accept the default setting of
Auto. Otherwise, packets will be fragmented downstream if the MTU is set too high or too low,
which impacts network performance. In extreme cases, an MTU setting that is too low can
prevent the ECB350 from establishing some connections.
IP Address Enter the WAN port IP address.
Subnet Mask Enter the WAN IP subnet mask.
Default Gateway Enter the WAN gateway IP address.
PPTP Server Enter the IP address of the PPTP server.
Username Enter the Username provided by your ISP.
Password Enter the Password provided by your ISP.
Service Name Enter the Service Name provided by your ISP.
Connect on Demand Select the radio button to specify the maximum idle time. Internet connection will disconnect
when it reach the maximum idle time, but it will automatically connect when user tries to access
the network.
Keep Alive Select whether to keep the Internet connection always on, or enter a redial period once the
internet lose connection.
Get Automatically From ISP
Click this radio button to obtain the DNS automatically from the DHCP server.
Use These DNS Servers Click the radio button to set up the Primary DNS and Secondary DNS servers manually.
Discard Ping on WAN Check to Enable to recognize pings on the ECB350 WAN interface or Disable to block pings on
the ECB350 WAN interface. Note: Pinging IP addresses is a common method used by hackers
to test whether the IP address is valid. Blocking pings provides some extra security from
hackers.
Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and return previous settings.
37
6.2 LAN Settings
This page allows you to modify the device's LAN settings.
LAN Settings
IP Address The LAN IP Address of this device.
IP Subnet Mask The LAN Subnet Mask of this device.
Use Router As DHCP Server
Check this option to enable the internal DHCP server.
Starting /Ending IP Address
The range of IP addresses of the DHCP server will allocate to LAN device.
WINS Server IP Enter the IP address of the WINS server.
Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and return previous settings.
38

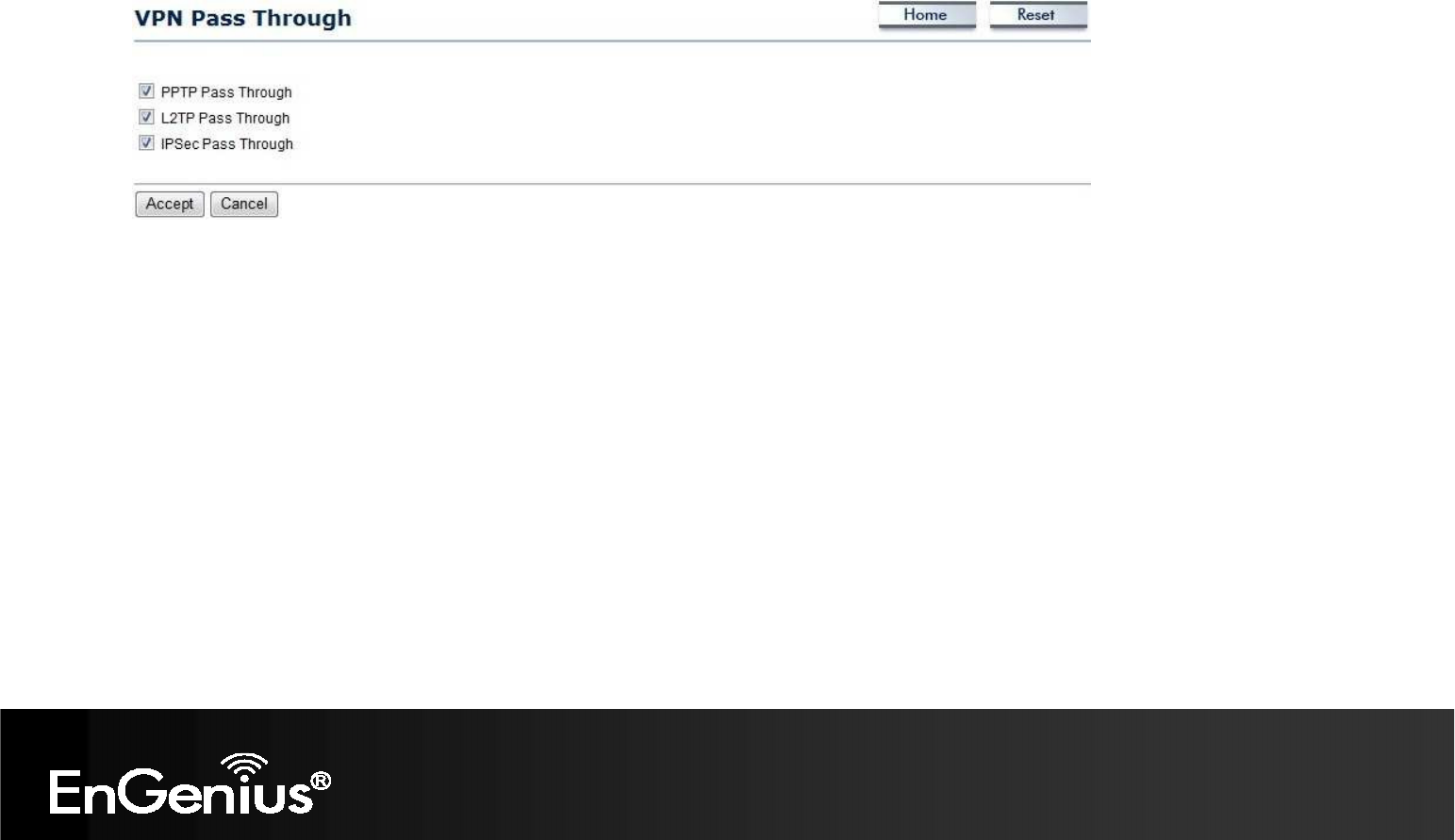

6.3 VPN Pass Through
VPN Passthrough allows a secure virtual private network (VPN) connection between two computers. Enabling the options
on this page opens a VPN port and enables connections to pass through the ECB350 without interruption.
39

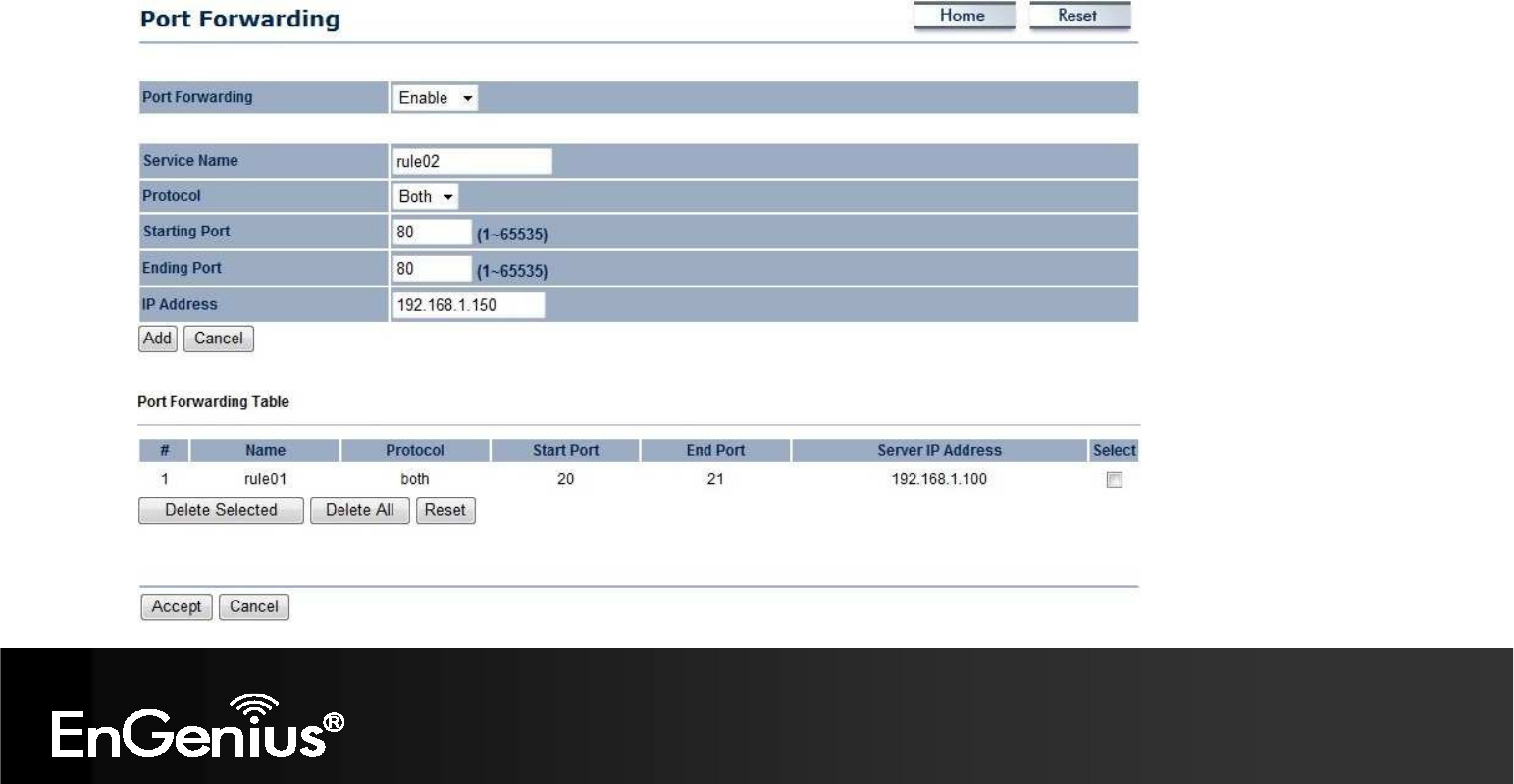

6.4 Port Forwarding
Port forwarding can be used to open a port or range of ports to a device on your network. Using port forwarding, you can
set up public services on your network. When users from the Internet make certain requests on your network, the ECB350
can forward those requests to computers equipped to handle the requests. If, for example, you set the port number 80
(HTTP) to be forwarded to IP address 192.168.1.150, all HTTP requests from outside users are forwarded to
192.168.1.150.
40
Port Forwarding
Port Forwarding Enables or disables the Port Forwarding feature.
Service Name Enter a name or description to help you identify this entry.
Protocol Select a protocol for the application. Choices are Both, TCP, and UDP.
Start / End Port The port range that the server is running on the local computer.
IP Address The local IP address of the computer the server is hosted on.
Add / Cancel Click Add to add port forwarding rule or Cancel to discard the settings
Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and return previous settings.
41
6.5 Port Triggering
If you use Internet applications which use non-standard connections or port numbers, you may find that they do not
function correctly because they are blocked by the device’s firewall. Port Triggering will be required for these applications
to work.
42
Port Triggering
Port Triggering Enables or disables the Port Triggering feature.
Service Name Enter a name or description to help you identify this entry.
Trigger Port This is the outgoing (outbound) port numbers for this application.
Trigger Type Select whether the application uses TCP, UDP or Both types of protocols for outbound transmissions.
Forwarded Port These are the inbound (incoming) ports for this application.
Public Type Select whether the application uses TCP, UDP or Both types of protocols for inbound transmissions.
Add / Cancel Click Add to add port forwarding rule or Cancel to discard the settings
Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and return previous settings.
43
6.6 DMZ
If you have a computer that cannot run Internet applications properly from behind the ECB350, you can allow the
computer to have unrestricted Internet access. Enter the IP address of that computer as a Demilitarized Zone (DMZ) host
with unrestricted Internet access. Adding a client to the DMZ may expose that computer to a variety of security risks, so
use this option as a last resort.
DMZ
DMZ Hosting Enables or disables the DMZ function.
DMZ Address Enter an IP address of the computer that will have unlimited Internet access.
Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and return previous settings.
44

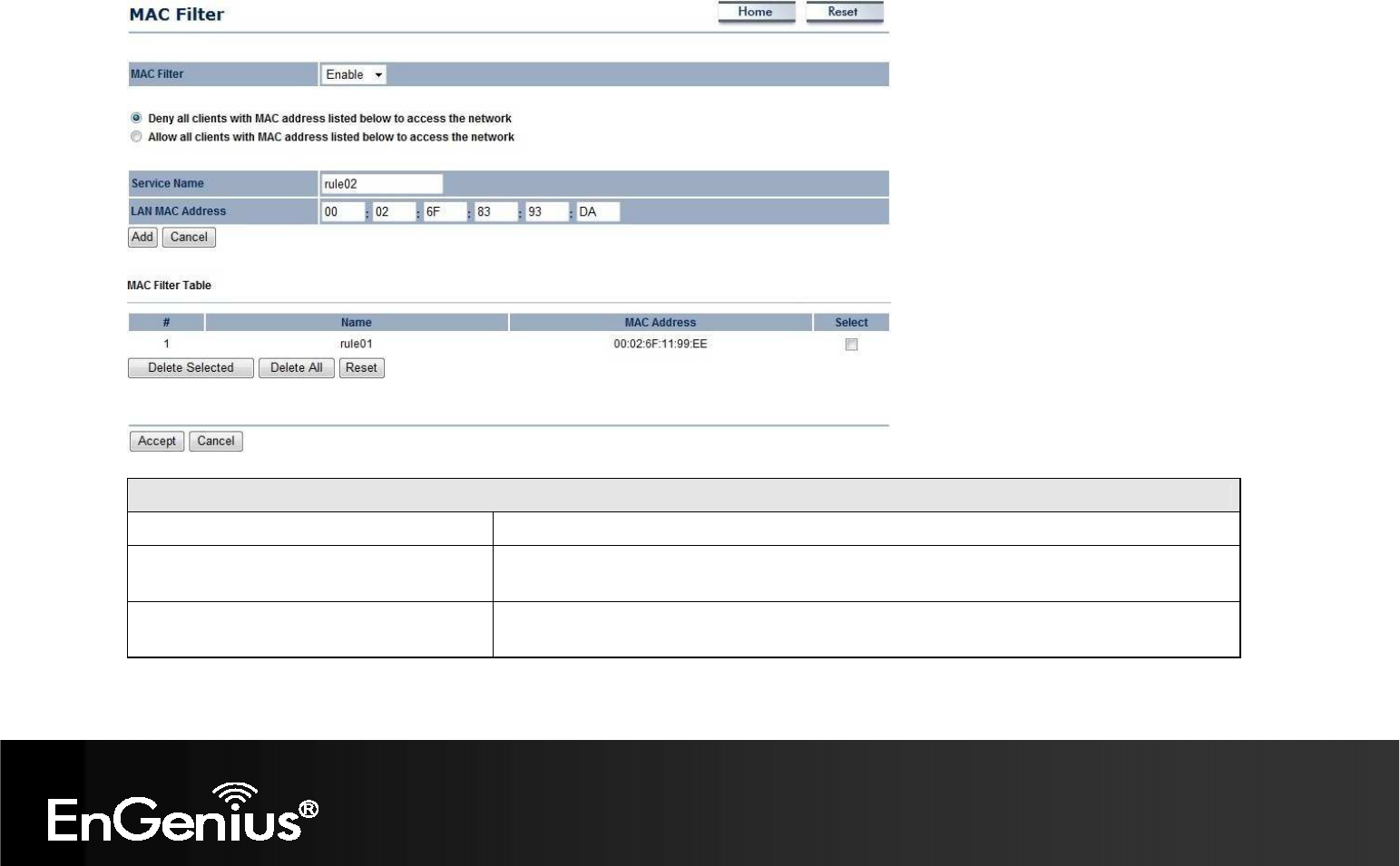

6.7 MAC Filter
You can choose whether to Deny or Allow only those devices listed in the MAC Filtering table to access the Internet.
MAC Filter
MAC Filter Enables or disables the MAC Filter function.
Deny all clients with MAC addresses
listed below to access the network
When selected, the computers listed in the MAC Filter table will be Denied to access
the Internet.
Allow all clients with MAC addresses
listed below to access the network
When selected, only the computers listed in the MAC Filter table will be Allowed to
access the Internet.
45
6.8 IP Filter
You can choose whether to Deny or Allow only devices with those IP Addresses listed on the IP Filter Table from
accessing certain ports. This can be used to control which Internet applications the computers can access.
Note: You will need to have knowledge of what Internet port numbers each application uses.
IP Filter
46
IP Filter Enables or disables the IP Filter function.
Deny all clients with IP addresses
listed below to access the network
When selected, the computers listed in the IP Filter table will be Denied to access
the Internet.
Allow all clients with IP addresses
listed below to access the network
When selected, only the computers listed in the IP Filter table will be Allowed to
access the Internet.
47
6.9 URL Filter
You can deny access to certain websites by blocking keywords in the URL web address.
For example, “gamer” has been added to the URL Filter Table. Any web address that includes “gamer” will be blocked.
48
7 Wireless
7.1 Wireless Network
This page shows the current status of the device's Wireless settings.
Access Point / WDS AP / Router mode:
49
Wireless Network (Access Point / WDS AP / Router mode)
Wireless Mode Wireless mode supports 802.11b/g/n mixed mode.
Channel HT Mode The default channel bandwidth is 20/40MHz. The larger the channel, the better the transmission
quality and speed.
Extension Channel Select upper or lower channel. Your selection may affect the Auto channel function.
Channel / Frequency Select the channel and frequency appropriate for your country’s regulation.
Auto Check this option to enable auto-channel selection.
AP Detection AP Detection can select the best channel to use by scanning nearby areas for Access Points.
Current Profile Configure up to four different SSIDs. If many client devices will be accessing the network, you
can arrange the devices into SSID groups. Click [Edit] to configure the profile and check
whether you want to enable extra SSID.
Profile Isolation Restricted client to communicate with different VID by selecting the radio button.
Accept / Cancel Click [Accept] to confirm the changes or [Cancel] to cancel and return previous settings.
SSID Profile
50
SSID Profile
SSID Specify the SSID for the current profile.
VLAN ID Specify the VLAN tag for the current profile.
Suppressed SSID Check this option to hide the SSID from clients. If checked, the SSID will not appear in the site
survey.
Station Separation Click the appropriate radio button to allow or prevent communication between client devices.
Wireless Security See the Wireless Security section.
Save / Cancel Click [Save] to accept the changes or [Cancel] to cancel and return previous settings.
Client Bridge / Client Router / WDS Station / Repeater mode:
51

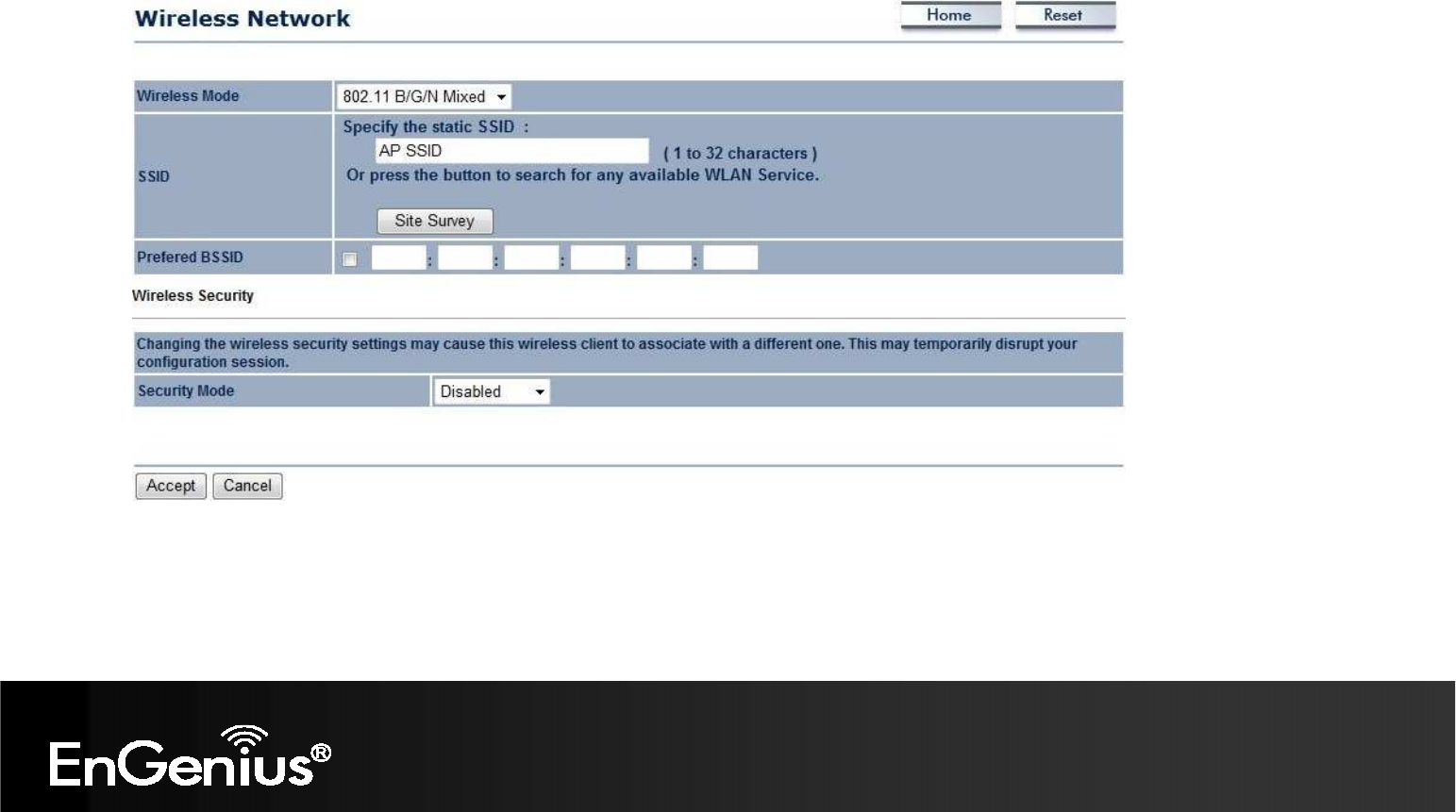

Wireless Network (Client Bridge / Client Router / WDS Station / Repeater mode)
Wireless Mode Wireless mode supports 802.11b/g/n mixed mode.
SSID The SSID is a unique named shared amongst all the points of the wireless network. The SSID
must be identical on all points of the wireless network and cannot exceed 32 characters. You
may specify an SSID or select one from the Site Survey.
Site Survey Click on Site Survey to search the existing Access Points.
Preferred BSSID Specify the BSSID (Access Point’s MAC address).
Wireless Security The encryption is using. It’s must the same as Access Point’s encryption.
Accept / Cancel Click [Accept] to confirm the changes or [Cancel] to cancel and return previous settings.
52
7.2 Wireless Security
The Wireless Security section lets you configure the ECB350's security modes: WEP, WPA-PSK, WPA2-PSK, WPA-PSK
Mixed, WPA, WPA2, and WPA Mixed. We strongly recommend you use WPA2-PSK.
WEP Encryption:
WEP Encryption
Auth Type Select Open System or Shared Key.
Input type ASCII: regular text (recommended)
HEX: for advanced users
Key Length Select the desired option, and ensure the wireless clients use the same setting.
Choices are 64, 128, 152-bit password lengths.
Default Key Select the key you wish to be the default. Transmitted data is ALWAYS encrypted using the
Default Key; the other Keys are for decryption only.
You must enter a Key Value for the Default Key.
Encryption Key # Enter the key value or values you wish to use. Only the Key selected as Default is required. The
53
others are optional.
WPA-PSK (WPA Pre-Shared Key) Encryption:
WPA-PSK (WPA Pre-Shared Key) Encryption
Encryption Select the WPA encryption you would like.
Please ensure that your wireless clients use the same settings.
Passphrase Wireless clients must use the same key to associate the device.
If using passphrase format, the Key must be from 8 to 63 characters in length.
Group Key Update Interval
Specify how often, in seconds, the group key changes.
WPA Encryption: Only in Access Point / WDS AP / Router mode
54
WPA Encryption
Encryption Select the WPA encryption you would like.
Please ensure that your wireless clients use the same settings.
Radius Server Enter the IP address of the Radius Server
Radius Port Enter the port number used for connections to the Radius server.
Radius Secret Enter the secret required to connect to the Radius server.
Group Key Update Interval
Specify how often, in seconds, the group key changes.
Note: 802.11n does not allow WEP/WPA-PSK TKIP/WPA2-PSK TKIP security mode. The connection mode will change from 802.11n to
802.11g.
55
7.3 Site Survey
Use this feature to scan nearby Access Points.
Note: Only in Client Bridge, Client Router and Repeater mode.
1. Click Site Survey.
2. Scanning the nearby Access Points
56
3. Access Point list after site survey
Site Survey (Client Bridge / Client Router / Repeater mode)
57
BSSID Access Point's wireless MAC address.
SSID SSID that the Access Point is broadcasting.
Channel Channel that the Access Point is using.
Signal Level (dBm) Signal strength from the Access Point to your station.
Type The band that the Access Point is using.
Security Encryption method that the Access Point is using to secure data over the WLAN.
Refresh Click Refresh to rescan nearby Access Point.
4. Select an Access Point and click that Access Point’s BSSID.
5. Enter the correct security setting.
58
59
7.4 Wireless MAC Filter
Wireless MAC Filters are used to allow or deny network access to wireless clients according to their MAC addresses. You
can manually add a MAC address to restrict the permission to access ECB350. The default setting is Disable Wireless
MAC Filter.
Note: Only in Access Point, WDS AP and Router mode.
Wireless Filter (Access Point / WDS AP / Router mode)
ACL Mode Determines whether network access is granted or denied to clients whose MAC addresses
appear in the MAC Address table on this page. Choices are Disable, Deny MAC in the list, or
Allow MAC in the list.
MAC Address Enter the MAC address of the wireless client.
Add Click Add to add the MAC address to the MAC Address table.
Delete Delete the selected entries.
Apply Click Apply to apply the changes.
60
7.5 Wireless Advanced
This page allows you to configure wireless advance settings. It is recommended the default settings are used unless the
user has experience with these functions.
Wireless Advanced
61
Data Rate Select a data rate from the drop-down list. The data rate affects throughput. If you select a low
data rate value, for example, the throughput is reduced but the transmission distance increases.
RTS/CTS Threshold Specify the threshold package size for RTC/CTS. A small number causes RTS/CTS packets to be
sent more often and consumes more bandwidth.
Distance Specify the distance between Access Points and clients. Longer distances may drop high-speed
connections.
Aggregation Merges data packets into one packet. This option reduces the number of packets, but increases
packet sizes.
Wireless Traffic
Shaping
Check this option to enable wireless traffic shaping. Traffic shaping regulates the flow of packets
leaving an interface to deliver improved Quality of Service.
Incoming Traffic Limit
Specify the wireless transmission speed used for downloading.
Outgoing Traffic Limit
Specify the wireless transmission speed used for uploading.
Accept / Cancel Click [Accept] to confirm the changes or [Cancel] to cancel and return previous settings.
62
7.6 WPS (Wi-Fi Protected Setup)
WPS feature is following the Wi-Fi Alliance WPS standard and it eases the set up of security-enabled Wi-Fi networks in
the home and small office environment.
It reduces the user steps required to configure a network and supports two methods that are familiar to most consumers to
configure a network and enable security.
Note: Only in Access Point, WDS AP and Router mode.
Wi-Fi Protected Setup (WPS)
63
WPS Select Enable or Disable the WPS feature.
WPS Current Status Shows whether the WPS function is Configured or unConfigured.
Configured means that WPS has been used to authorize connection between the device and
wireless clients.
Self Pin Code The PIN code of this device.
SSID The SSID (wireless network name) used when connecting using WPS.
Authentication Mode Shows the encryption method used by the WPS process.
Passphrase Key This is the passphrase key that is randomly generated during the WPS process. It is required if
wireless clients that do not support WPS attempts to connect to the wireless network.
WPS Via Push Button Click this button to initialize WPS feature using the push button method.
WPS Via PIN Enter the PIN code of the wireless device and click this button to initialize WPS feature using
the PIN method.
64
7.7 WDS Link Settings
Using WDS (Wireless Distribution System) to connect Access Point wirelessly, and in doing so extend a wired
infrastructure to locations where cabling is not possible or inefficient to implement.
Note that compatibility between different brands and models is not guaranteed. It is recommended that the WDS network
be created using the same models for maximum compatibility.
Also note that all Access Points in the WDS network needs to use the same Channel and Security settings.
To create a WDS network, please enter the MAC addresses of the Access Points that you want included in the WDS.
There can be a maximum of four access points.
Note: Only in WDS AP and WDS Bridge mode.
WDS Link Settings
MAC Address Enter the Access Point’s MAC address to which you want to extend the wireless area.
65
Mode Select Disable or Enable from the drop-down list.
Accept / Cancel Click [Accept] to confirm the changes or [Cancel] to cancel and return previous settings.
66
8 Management
8.1 Administration

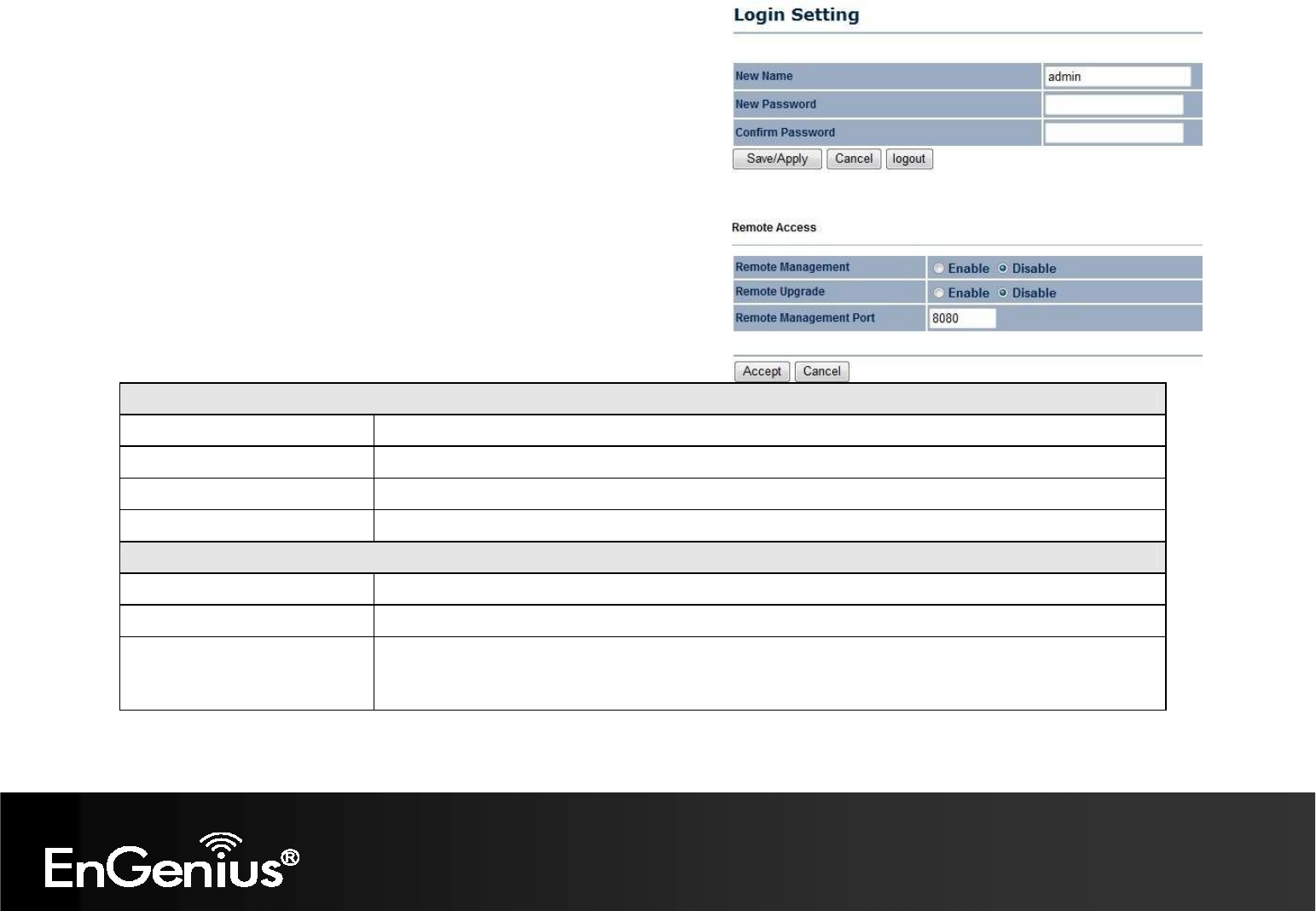

This page allows you to change the system password and to
configure remote access. By default, the user name is admin and
the password is: admin. Password can contain 0 to 12
alphanumeric characters and are case sensitive.
Note: Remote Access is only in AP Router and Client Router mode.
Change Password
Name Enter a new username for logging in to the Web Configurator.
Password Enter a new password for logging in to the Web Configurator.
Confirm Password Re-enter the new password for confirmation.
Save/Apply / Cancel Click Save/Apply to apply the changes or Cancel to return previous settings.
Remote Access (only in AP Router and Client Router mode)
Remote Management Enable or disable remote management.
Remote Upgrade Specify whether the firmware can be upgraded remotely.
Remote Management Port If remote management is enabled, enter the port number to be used for remote management.
For example: If you specify the port number 8080, enter http://<IP address>:8080 to access
the device Web Configurator.
67
8.2 Management VLAN
This page allows you to assign a VLAN tag to the packets. A VLAN is a group of computers on a network whose software
has been configured so that they behave as if they were on a separate Local Area Network (LAN). Computers on VLAN
do not have to be physically located next to one another on the LAN.
Note: Only in Access Point and WDS AP mode.
Management VLAN (Only in Access Point mode)
Management VLAN ID If your network includes VLANs and if tagged packets need to pass through the Access Point,
enter the VLAN ID. Otherwise, click No VLAN tag.
Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and return previous settings.
Note:
1. If you reconfigure the Management VLAN ID, you may lose your connection to the ECB350. Verify that the DHCP server supports the
reconfigured VLAN ID and then reconnect to the ECB350 using the new IP address.
2. Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see section 4.1).
68
8.3 SNMP Settings
This page allows you to assign the contact details, location, community name and trap settings for SNMP. This is a
networking management protocol used to monitor network-attached devices. SNMP allows messages (called protocol
data units) to be sent to various parts of a network. Upon receiving these messages, SNMP-compatible devices (called
agents) return data stored in their Management Information Bases.
SNMP
SNMP Enable/Disable Enable or disable SNMP feature.
Contact Specify the contact details of the device
Location Specify the location of the device.
Community Name (Read
Only)
Specify the password for access the SNMP community for read only access.
Community Name
(Read/Write)
Specify the password for access to the SNMP community with read/write access.
69
Trap
Trap Destination Address Specify the IP address of the computer that will receive the SNMP traps.
Trap Destination
Community Name
Specify the password for the SNMP trap community.
70
8.4 Backup/Restore
This page allows you to save the current device configurations. When you save the configurations, you also can re-load
the saved configurations into the device through the [Restore Saved Settings from A File]. If extreme problems occur you
can use the [Revert to Factory Default Settings] to set all configurations to its original default settings.
Backup/Restore
Save A Copy of Current
Settings
Click [Backup] to save the current configured settings.
Restore Saved Settings
from A File
To restore settings that have been previously backed up, click [Browse], select
the file, and click [Restore].
Revert to Factory Default
Settings
Click [Factory Default] button to restore the ECB350 to its factory default
settings.
71

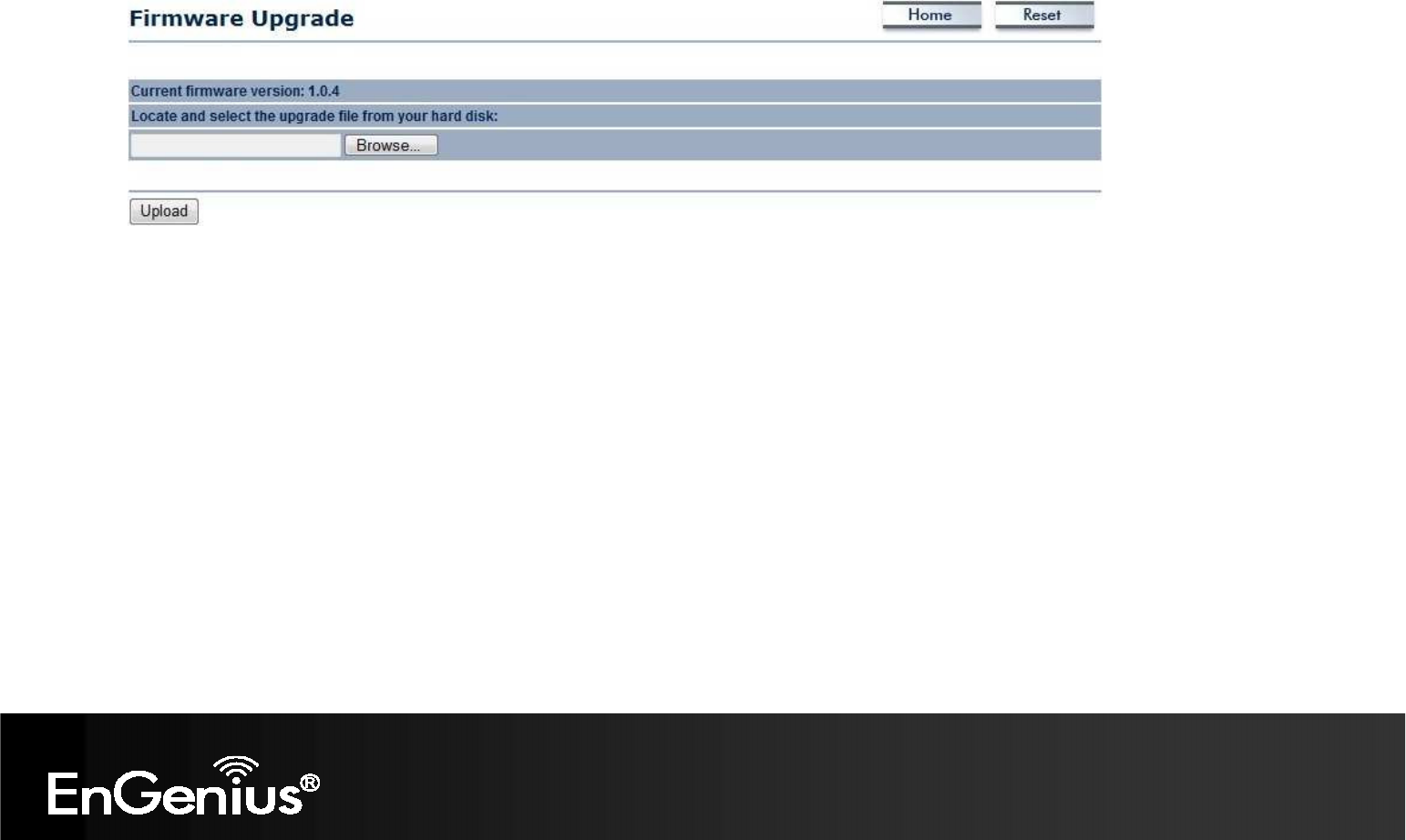

8.5 Firmware Upgrade
This page allows you to upgrade the device's firmware.
To perform the Firmware Upgrade:
1. Click the [Browse] button and navigate to the location of the upgrade file.
2. Select the upgrade file. Its name will appear in the Upgrade File field.
3. Click the [Upload] button to commence the firmware upgrade.
Note: The device is unavailable during the upgrade process, and must restart when the upgrade is completed. Any connections to or through the
device will be lost.
72
8.6 Time Setting
This page allows you to set the system time.
Time
Manually Set Date and Time Manually specify the date and time.
Automatically Get Date and
Time
Select a time zone from the drop-down list and check whether you want to
enter the IP address of an NTP server or use the default NTP server.
73
8.7 Log
This page allows you to setup Syslog and local log functions.
Log
Syslog Enable or disable the syslog function.
Log Server IP Address Enter the IP address of the log server.
Local Log Enable or disable the local log service.
Save/Apply / Cancel Click Save/Apply to apply the changes or Cancel to return previous settings.
74
8.8 Diagnosis

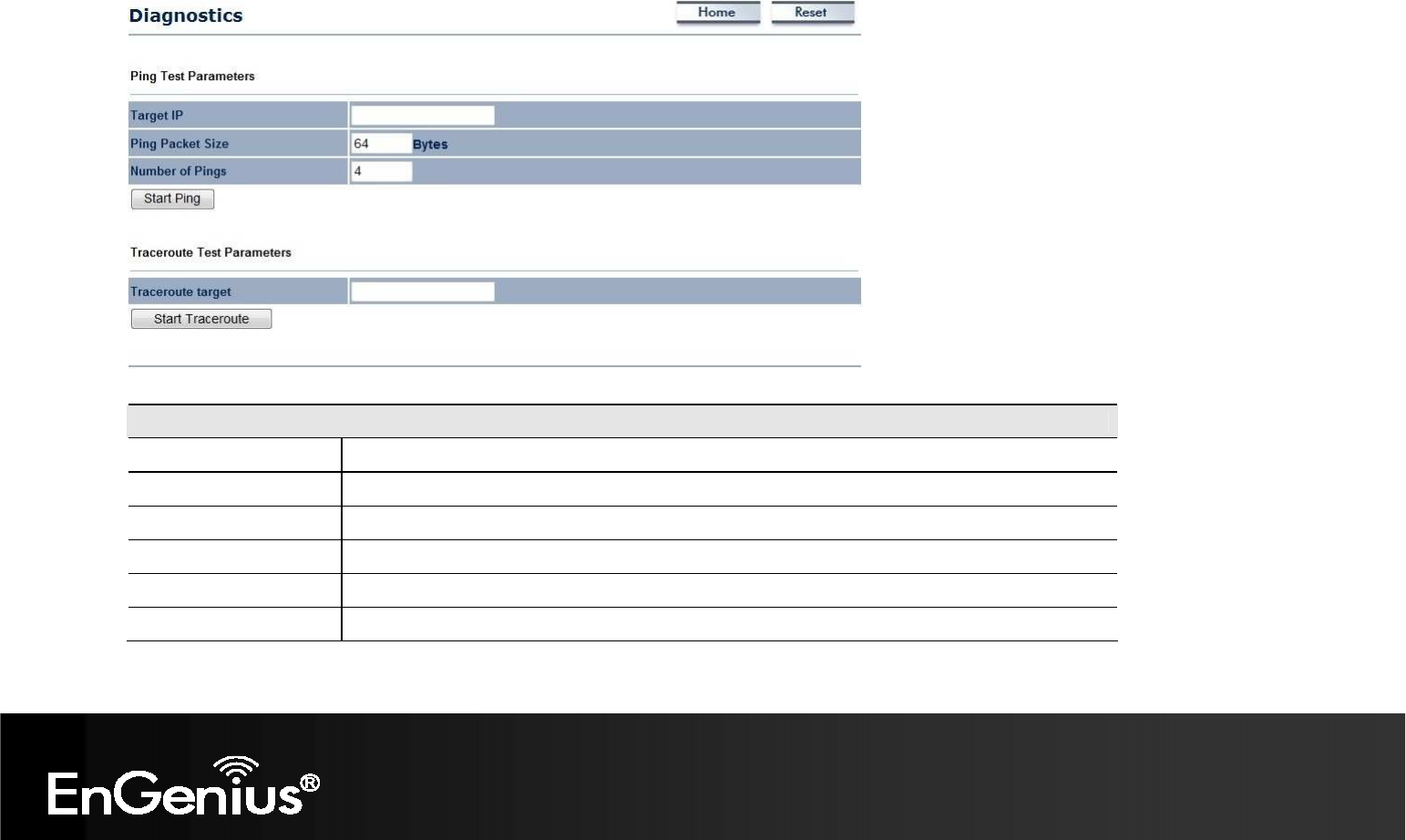

This page allows you to ascertain connection quality and trace the routing table to the target.
Diagnosis
Target IP Enter the IP address you would like to search.
Ping Packet Size Enter the packet size of each ping.
Number of Pings Enter the number of times you want to ping.
Start Ping Click [Start Ping] to begin pinging.
Traceroute Target Enter an IP address or domain name you want to trace.
Start Traceroute Click [Start Traceroute] to begin the trace route operation.
75
8.9 LED Control
This page allows you to control LED on/off for Power, LAN interface and WLAN interface.
76
8.10 Logout

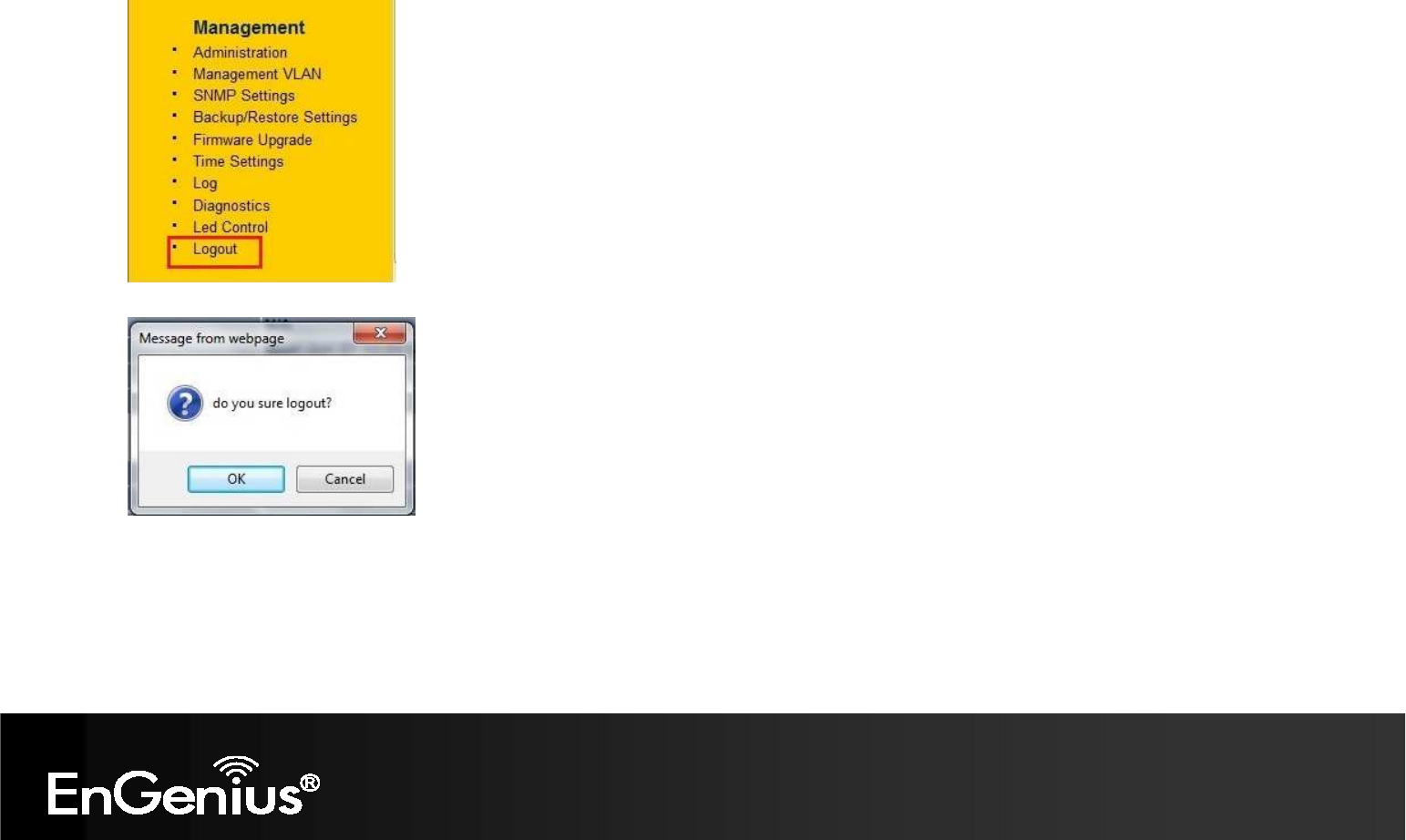

Click [Logout] in Management menu to logout.
77
8.11 Reset

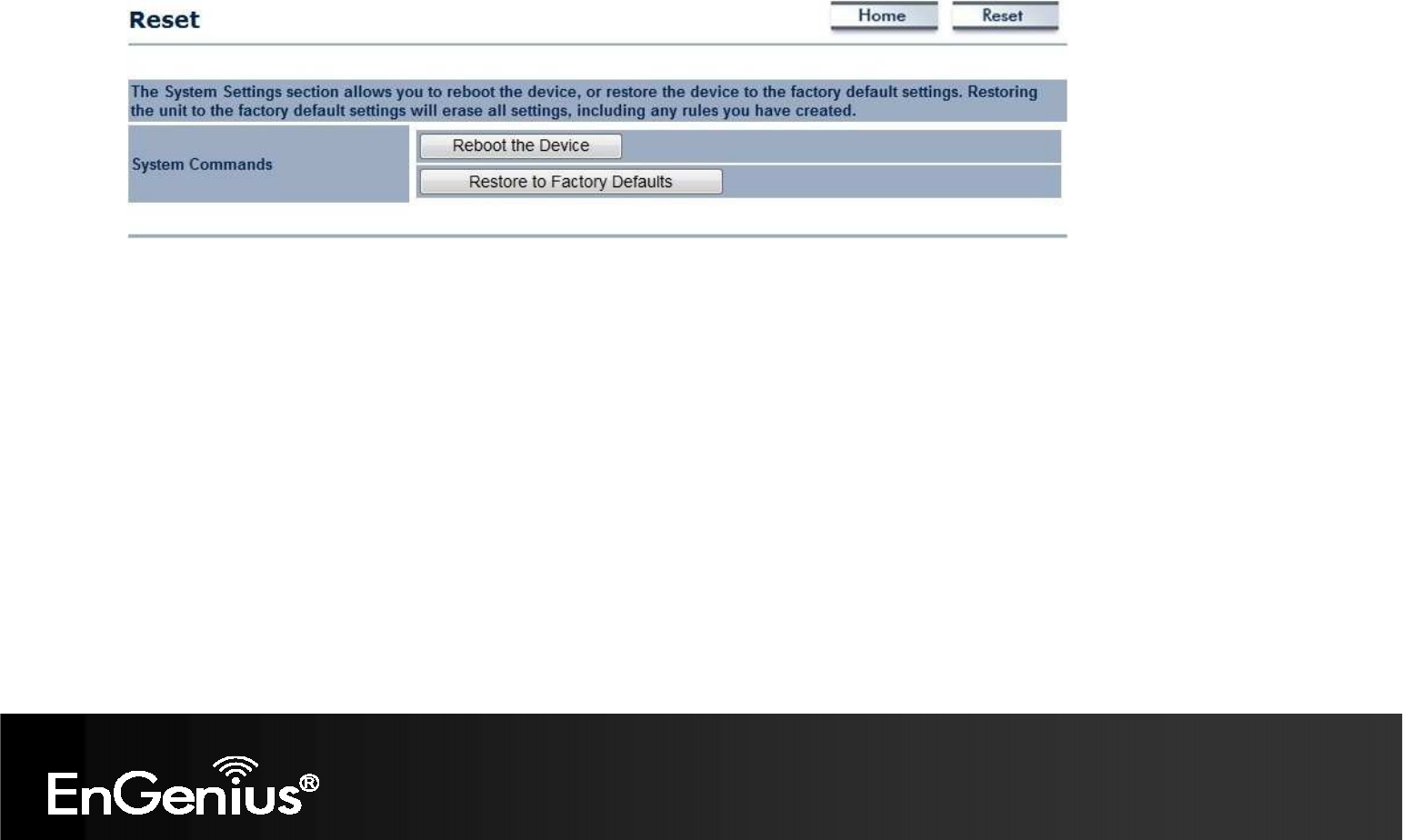

In some circumstances it may be required to force the device to reboot. Click on [Reboot the Device] to reboot.
78
9 Building a Wireless Network
With its ability to operate in various operating modes, your ECB350 is the ideal device around which you can build your
WLAN. This chapter describes how to build a WLAN around your ECB350 using this device’s operating modes.

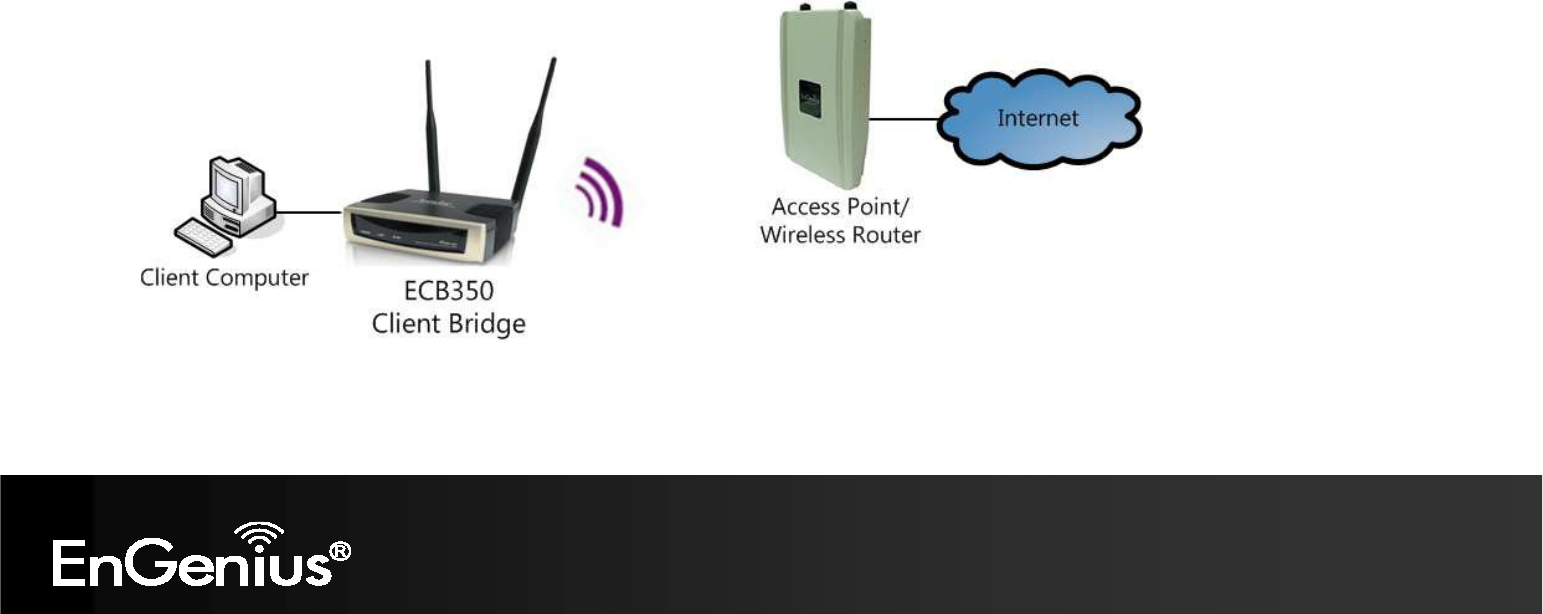

9.1 Client Bridge Mode
In Client Bridge Mode, the ECB350 acts as a wireless dongle that connects to an Access Point to gain wireless access to
the Internet. This mode requires you to connect the Ethernet port on your PC to the ECB350 LAN port.
If you use the client bridge operating mode, use the ECB350 Site Survey feature to scan for Access Points within range.
When you find an Access Point, configure the ECB350 to use the same SSID and Security Password as the Access Point
to associate with it.
9.2 Access Point Mode
In Access Point Mode, ECB350 behaves likes a central connection for stations or clients that support IEEE 802.11b/g/n
79
networks. Stations and client must be configured to use the same SSID and security password to associate with the
ECB350. The ECB350 supports four SSIDs at the same time for secure guest access.
80
9.3 Access Point Mode with WDS Function (WDS AP mode)
The ECB350 also supports WDS AP mode. This operating mode allows wireless connections to the ECB350 using WDS
technology. In this mode, configure the MAC addresses in both Access Points to enlarge the wireless area by enabling
WDS Link settings. WDS supports four AP MAC addresses.
81
9.4 WDS Bridge Mode
In WDS Bridge Mode, the ECB350 can wirelessly connect different LANs by configuring the MAC address and security
settings of each ECB350 device. Use this mode when two wired LANs located a small distance apart want to
communicate with each other. The best solution is to use the ECB350 to wirelessly connect two wired LANs, as shown in
the following figure.
WDS Bridge Mode can establish four WDS links, creating a star-like network.
Note: WDS Bridge Mode is unlike Access Point. Access Points linked by WDS are using the same frequency channel, more Access Points
connected together may lower throughput. Please be aware to avoid loop in your wireless connection, otherwise enable Spanning Tree
Function.
82
9.5 Repeater mode
Repeater is used to regenerate or replicate signals that are weakened or distorted by transmission over long distances
and through areas with high levels of electromagnetic interference (EMI).
83
Appendix A – FCC Interference Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in
US must fixed to US operation channels only.
84
Appendix B – IC Interference Statement
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est
sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage
reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
NOTE IMPORTANTE: (Pour l'utilisation de dispositifs mobiles)
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit
être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
This device has been designed to operate with a diople antenna have a maximum gain of [5] dB. Antenna having a higher gain is strictly prohibited
per regulations of Industry Canada. The required antenna impedance is 50 ohms.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for
the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter (IC: 10103A-ECB350 / Model: ECB350) has been approved by Industry Canada to operate with the antenna type, maximum
permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this user’s manual, having a
gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Ce dispositif a été conçu pour fonctionner avec une antenne ayant un gain maximal de diople antenne avec dB [5]. Une antenne à gain plus élevé
est strictement interdite par les règlements d'Industrie Canada. L'impédance d'antenne requise est de 50 ohms.
85
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peutfonctionner avec une antenne d'un type et d'un gain
maximal (ou inférieur) approuvé pourl'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectriqueà l'intention
des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que lapuissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse
pas l'intensité nécessaire àl'établissement d'une communication satisfaisante.
Le présent émetteur radio (IC: 10103A-ECB350 / Modèle: ECB350) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne
énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus
dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
86
Appendix C – CE Interference Statement
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to
prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:
- EN60950-1:2006 A11:2009+A1:2010
- Safety of Information Technology Equipment
- EN50385 : 2002
- Generic standard to demonstrate the compliance of electronic and electrical apparatus with the basic restrictions related to human exposure to
electromagnetic fields (0 Hz - 300 GHz)
- EN 300 328 V1.7.1: 2006-10
- Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating
in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article
3.2 of the R&TTE Directive
- EN 301 489-1 V1.8.1: 2008-04
- Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 1: Common technical requirements
- EN 301 489-17 V2.1.1 2009-05
- Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in
France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up
outdoor radio links and/or for supplying public access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in
the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France.
87
0560
Česky [Czech] [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními
požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk [Danish] Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets
typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv
1999/5/EF.
Deutsch [German] Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen
Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti [Estonian] Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of
equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Español [Spanish] Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple
con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de
la Directiva 1999/5/CE.
Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΗΛΝΕΙ ΟΤΙ [type of equipment]
ΣΥΜΜΟΡΦΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ
ΙΑΤΑΞΕΙΣ ΤΗΣ ΟΗΓΙΑΣ 1999/5/ΕΚ.
Français [French] Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian] Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è
conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva
1999/5/CE.
Latviski [Latvian] Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment /
iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.
Lietuvių [Lithuanian] Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius
reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
88
Nederlands [Dutch] Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van
richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-
ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar [Hungarian] Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish] Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
[Nome do fabricante] declara que este [tipo de equipamento] está conforme com os
requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko [Slovenian] [Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Slovensky [Slovak] [Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
Suomi [Finnish] [Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen
tyyppimerkintä] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen mukainen.
Svenska [Swedish] Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de
väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.
