EnGenius Technologies ENH220EXT N300 2T2R Base Station User Manual

EnGenius Technologies N300 2T2R Base Station

User Manual.pdf

User Manual
Business Solutions
Long Range 2.4GHz Wireless N300 Outdoor Access Point
ENH220EXT
version 1.0
2
IMPORTANT
To install this Access Point please refer to the
Quick Installation Guide included in the product packaging.
3
Chapter 1 Product Overview............................................... 4
Key Features/Introduction........................................................ 5
System Requirements............................................................... 6
Package Contents......................................................................... 6
 TechnicalSpecications..............................................................7
Physical Interface............................................................................ 9
Chapter 2 Before You Begin................................................. 10
Computer Settings....................................................................... 11
Hardware Installation................................................................. 14
Mounting the ENH220EXT...................................................... 15
Chapter 3 Conguring Your Access Point......................... 19
Default Settings./Web Conguration................................ 20
Chapter 4 Building a Wireless Network........................... 21
Access Point Mode...................................................................... 22
Client Bridge Mode...................................................................... 23
WDS AP Mode.............................................................................. 24
WDS Bridge Mode........................................................................ 25
WDS Station Mode....................................................................... 26
Chapter 5 Status.................................................................... 27
Main Status..................................................................................... 28
Connection...................................................................................... 30
Chapter 6 Network .............................................................. 32
Basic IP Settings............................................................................ 33
Spanning Tree Protocol Setting............................................. 34
Chapter 7 2.4 GHz Wireless.................................................. 35
Wireless Settings............................................................................ 36
 2.4GHzWirelessNetwork........................................................37
 2.4GHzSSIDProle.....................................................................39
Wireless Security.......................................................................... 40
Wireless MAC Filtering............................................................... 41
Wireless Advanced..................................................................... 42
WPS Mixed-Enterprise: AP/WDS AP Mode........................... 43
WDS Link Settings....................................................................... 44
Client Bridge Settings.............................................................. 45
Guest Network Settings............................................................ 46
Chapter 8 Management ........................................................ 47
Management VLAN Settings.................................................. 48
Advanced Settings....................................................................... 49
CLI Settings/Email Alert............................................................. 50
Time Zone........................................................................................ 52
Auto Reboot Settings................................................................ 56
Wi-Fi Scheduler............................................................................... 54
Tools.................................................................................................. 55
 Account/Firmware........................................................................57
Backup/Restore ............................................................................. 58
Log...................................................................................................... 60
Logout/Reset................................................................................. 61
Appendix................................................................................. 62
FCC Interference Statement................................................... 63
CE Interference Statement...................................................... 64
Professional Installation Instruction ................................ 67
Table of Contents
4
Chapter 1
Product Overview
5
Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between
devices, radio interference in the operating environment, and mix of devices in the network. Features and specications subject to change without notice. Trademarks and registered
trademarks are the property of their respective owners. For United States of America: Copyright © 2014 EnGenius Technologies, Inc. All rights reserved.
Key Features
• Upto27dBmtransmitpowerenablinglongrangeconnectivity
• Support IEEE 802.11 b/g/n wireless standards with up to
300Mbps data rate.
• Two detachable 5dBi 2.4GHz Omni-directional antennas.
• Can be used with included power adapter or via PoE with PoE
802.3at - capable switches or injectors
• Secured Guest Network option available
Introduction
The ENH220EXT is a high-powered, long-range 2x2
Wireless 802.11 b/g/n Outdoor Access Point with speeds
up to 300Mbps on its high-powered 2.4 GHz radios. It can
beconguredasan:AccessPoint,ClientBridgeorWDS(AP,
Station & Bridge). The ENH220EXT is designed to operate in
a variety of outdoor environments. Its high-powered, long-
range characteristics make it a cost effective alternative to
ordinary Access Points that don’t have the range and reach
to connect to a growing number of wireless users who wish
to connect to a business network. The ENH220EXT is easy to
installinvirtuallyanylocationwithitsincludedPoE(Power
over Ethernet) injector for quick outdoor installation. The
ENH220EXT enables network administrators to control its
transmit power and features settings for selecting narrow
Introduction
bandwidth and trafc shaping. The ENH220EXT also
supports wireless encryption including Wi-Fi Protected
Access(WPA-PSK/WPA2-PSK)EncryptionandIEEE802.1X
with RADIUS.)
6
System Requirements
The following are the Minimum System Requirements in
ordertocongurethedevice.
• Computer with an Ethernet interface or wireless network capability
• WindowsOS(XP,Vista,7,8),MacOS,orLinux-basedoperatingsystems
• Web-Browsing Application (i.e.: Internet Explorer, Firefox, Safari, or
another similar browser application)
Package Contents
The ENH220EXT package contains the following items:*
• ENH220EXT Access Point
• 2 detachable 5 dBi 2.4 GHz Omni-directional Antennas
• Power Adapter
•PoEInjector(EPE-48GR)
• Grounding Cable
• Pole Mount Bracket
• Wall Mount Base
• Mounting Screw Set
• Quick Installation Guide
• Technical Support Card
*(allitemsmustbeinpackagetoissuearefund):
7
Optimal Performance
DistanceControl(AckTimeout)
Multicast Supported
Band Steering
Fast Roaming
Auto Channel Selection
BSSID Support
Easily Management
VLAN Tag / VLAN Pass-through
Guest Network
QoS: Complaint with IEEE 802.11e /WMM
RADIUS Accounting
WirelessSTA(Client)connectionlist
TrafcShaping(PerSSID,Peruser)
Intuitive Tools
SNMP v1/v2c/v3 support
MIB I/II, Private MIB
SaveCongurationasDefault
CLI Support
WiFi-Scheduler/Auto Reboot
E-mail Alert
Reinforcement Security
WEP Encryption-64/128/152 bit
WPA/WPA2Enterprise(WPA-EAPusingTKIPorAES)
Hide SSID in beacons
MACaddresslteringupto32MACsperSSID
Standard:
IEEE802.11b/g/n on 2.4 GHz
IEEE802.3at
Antenna
2 x detachable 5dBi 2.4GHz Omni-directional Antennas
Physical Interface
2 x 10/100/1000 Gigabit Ethernet Port with PoE support
LAN1 Port supports IEEE802.3at PoE Input
LED Indicator
Power
LAN 1
LAN 2
2.4 GHz
Power Requirements
External Power Adapter, DC IN, 48V/0.5A
IEEE802.3at support
Operation Modes
Access Point
Client Bridge
WDS
WDS Detail
WDS AP
WDS Bridge
WDS Station
Technical Specications
8
Https Support
SSH
QoS (Quality of Service)
Complaint with IEEE 802.11e standard
Physical/Environment Conditions
Operating:
 Temperature:-4°Fto158°F(-20°Cto70°C)
 Humidity(non-condensing):90%orless
Storage:
 Temperature:-22°Fto176°F(-30°Cto80°C)
 Humidity(non-condensing):90%orless
9
Physical Interface
Dimensions and Weights
Length:280.48mm(11.22”)
Width:217.65mm(8.58”)
Depth:55.50mm(2.1”)
Weight:1.88Kg(4.17lbs)

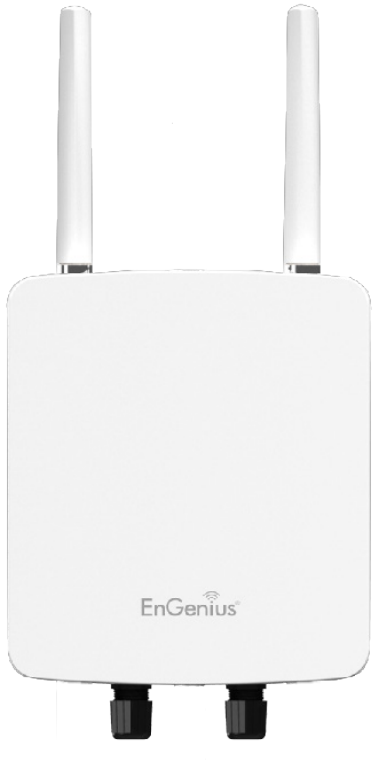

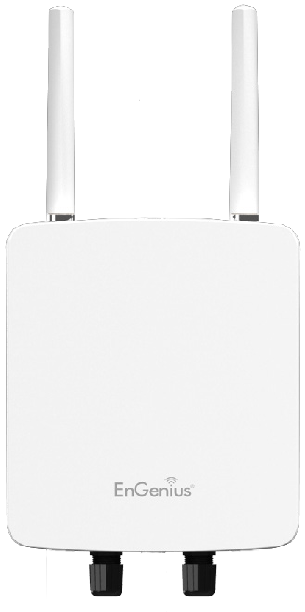

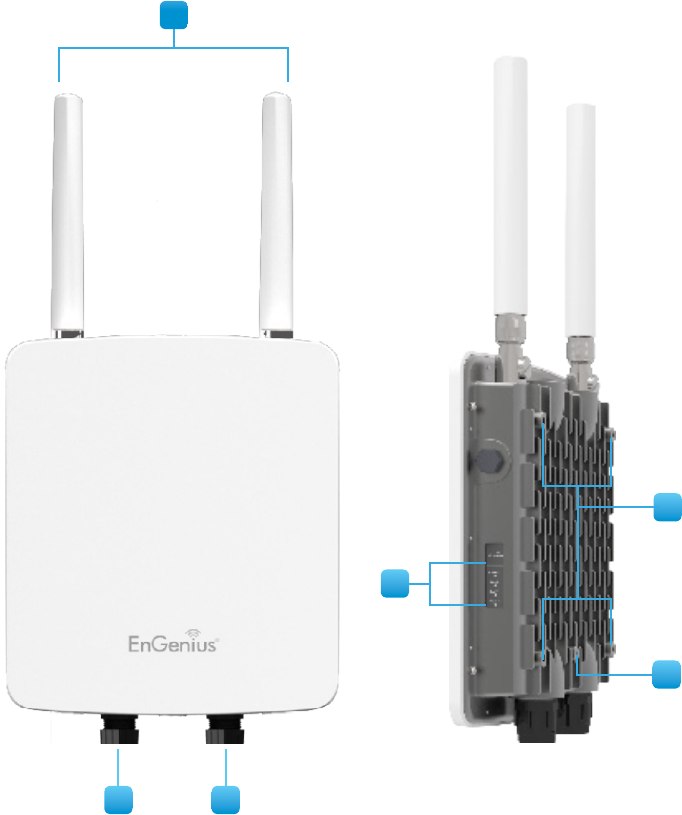

1 2.4 GHz Antennas: Detachable 5 dBi 2.4 GHz Omni-directional
2 LAN Port 1 (802.3at PoE Input): Ethernet port for RJ-45 cable.
3 LAN Port 2 : Ethernet port for RJ-45 cable.
4 LED Indicators: LED lights for Power, LAN Port1, LAN Port2 and
2.4GHz Connection.
5 Ground
6 Mounting Holes: Using the provided hardware, the ENH220EXT
can be attached to a wall or pole.
2 3
5
6
4
1
10
Chapter 2
Before You Begin
11
Windows XP/Windows 7/Windows 8
InordertousetheENH220EXT,youmustrstcongurethe
TCP/IPv4 connection of your Windows OS computer system.

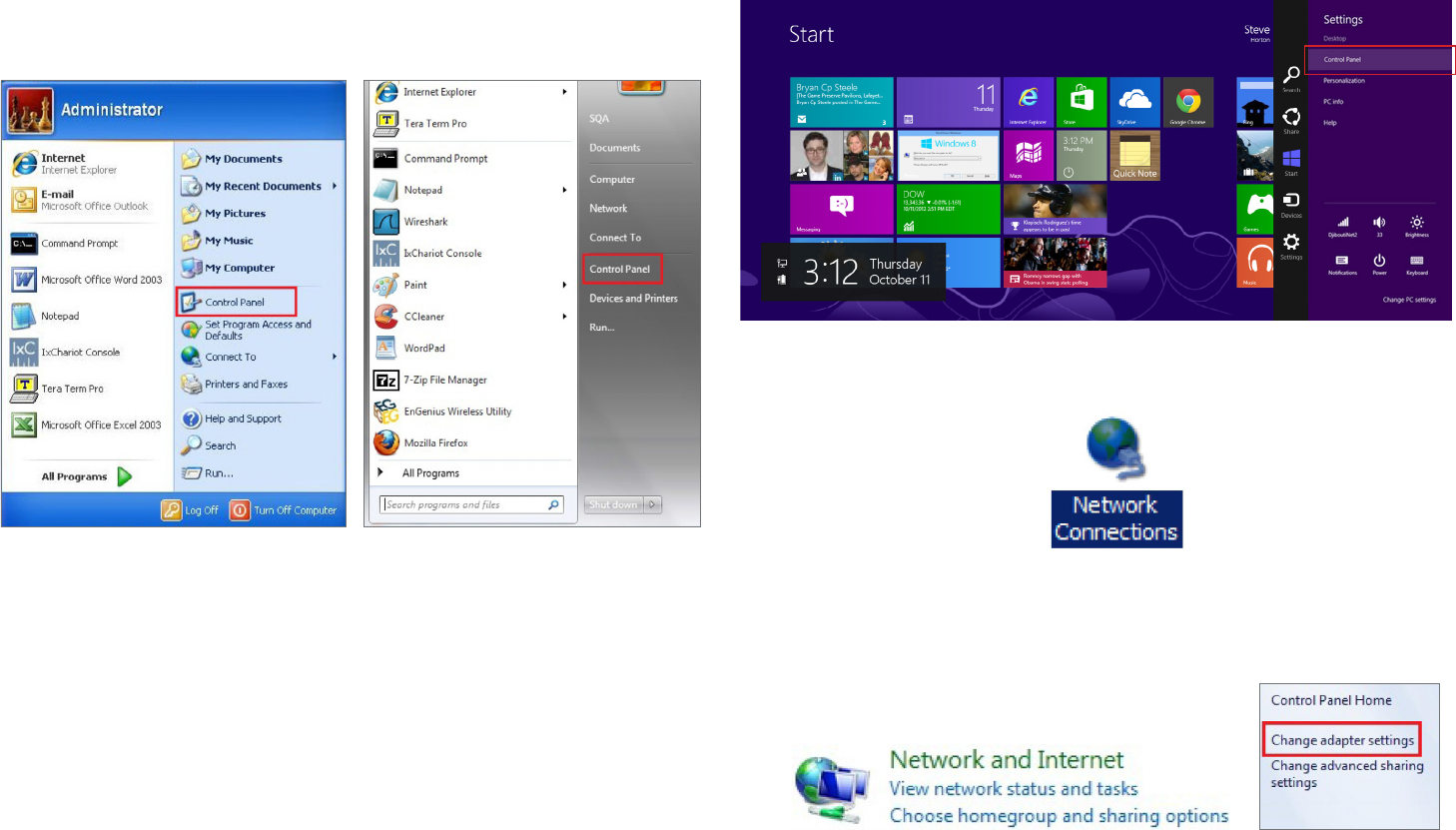

1a. Click the Start button and open the Control Panel.
1b. Move your mouse to the lower right hot corner to
display the Charms Bar and select the Control Panel in
Windows 8 OS.
2a. In Windows XP, click Network Connections.
2b. In Windows 7/Windows 8, click View Network Status
and Tasks in the Network and Internet section, then
select Change adapter settings.
Computer Settings
Windows XP Windows 7
12

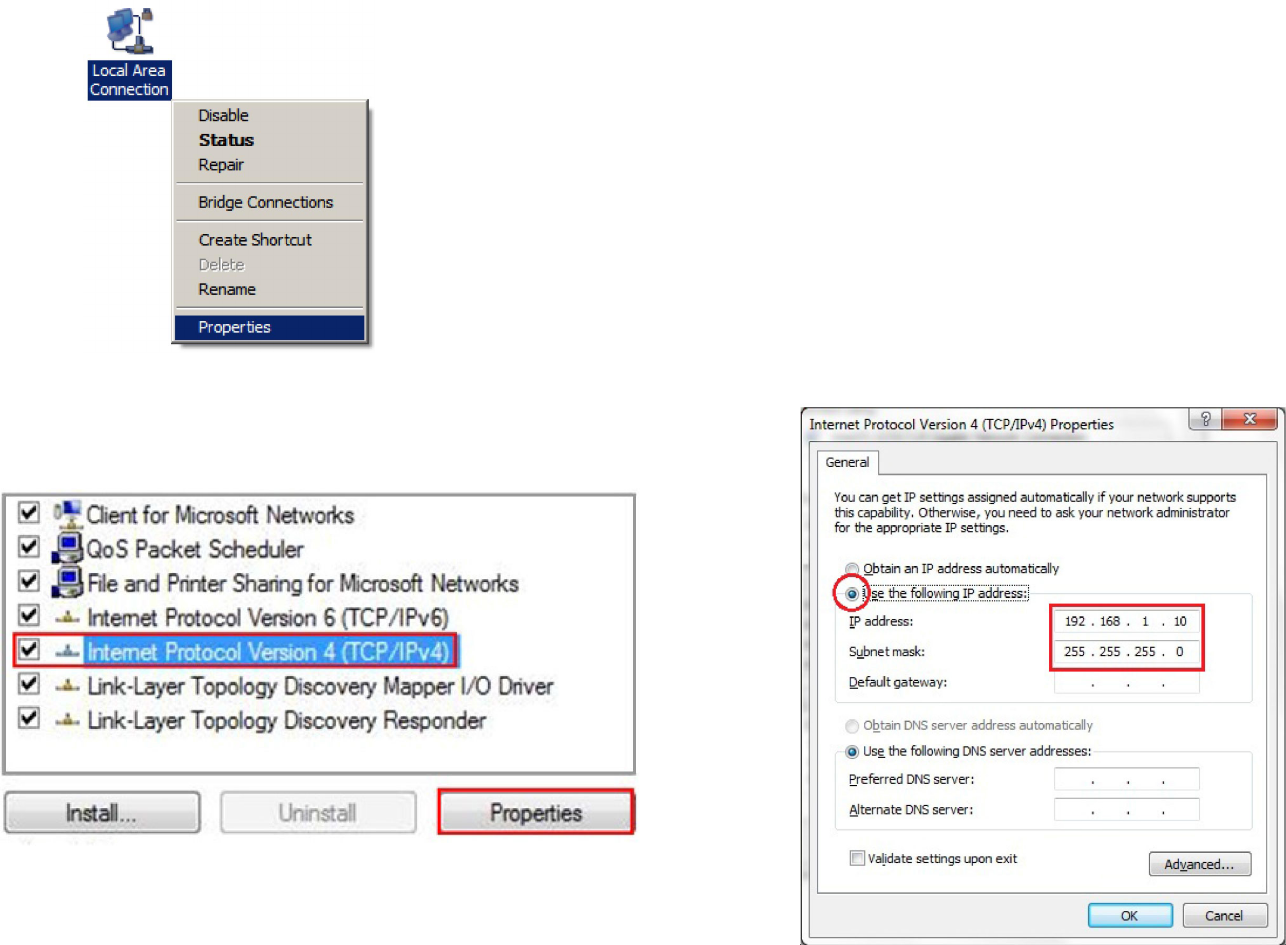

3. Right click on Local Area Connection and select Properties.
4. Select Internet Protocol Version 4 (TCP/IPv4) and then
select Properties.
5. Select Use the following IP address and enter an IP
address that is different from the ENH220EXTand Subnet
mask, then click OK.
Note: Ensure that the IP address and Subnet mask are
on the same subnet as the device.
For example: ENH220EXT IP address: 192.168.1.1
PC IP address: 192.168.1.2 – 192.168.1.255
PC Subnet mask: 255.255.255.0
13

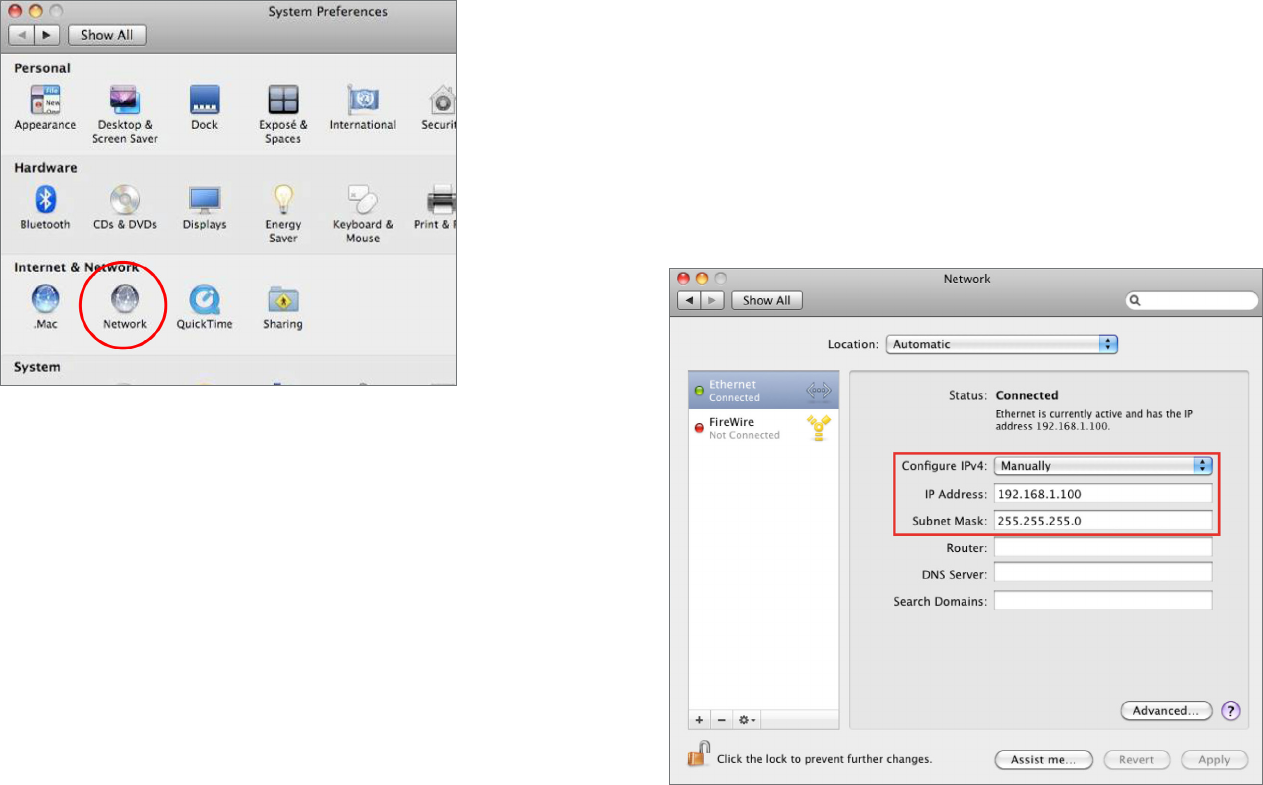

Apple Mac OS X
1. Go to System Preferences(Whichcanbeopenedinthe
Applications folder or selecting it in the Apple Menu).
2. Select Network in the Internet & Network section.
3. Highlight Ethernet.
4. In Congure IPv4, select Manually.
5. Enter an IP address that is different from the ENH220EXT
and Subnet mask then press OK.
Note: Ensure that the IP address and Subnet mask are
on the same subnet as the device.
For example: ENH220EXT IP address: 192.168.1.1
PC IP address: 192.168.1.2 – 192.168.1.255
PC Subnet mask: 255.255.255.0
6. Click Apply when done.
14
1. Connect one end of the Ethernet cable into the main
LANport(PoE)oftheAccessPointandtheotherendto
the AP Ethernet port on the PoE injector.
2. Connect the Power Adapter to the DC-IN port of the
PoE injector and plug the other end into an electrical
outlet.
3. Connect the second Ethernet cable into the LAN port of
the PoE injector and the other end to the Ethernet port
on the computer.
4. Screw on the provided antennas to the device. Once
both connections are secure, verify the following:
a) Ensure that the POWERlightison(itwillbegreen).
b) Ensure that the WLAN light is on.
 c)EnsurethattheLAN(Computer/ENH220EXT
 Connection)lightison(itwillbegreen).
d) Once all three lights are on, proceed to setup the
Access Point using the computer.

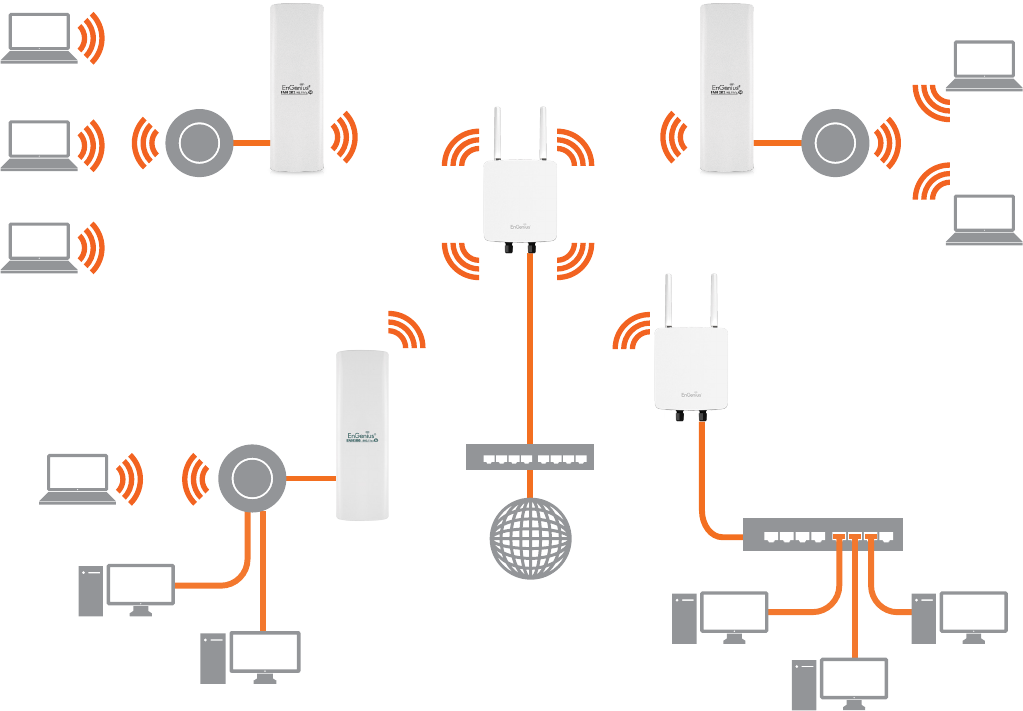

Thefollowingdiagramdepictsthehardwareconguration:
Note: The Access Point supports both IEEE 802.3at PoE
(Power over Ethernet) or the included power injector.
You may use either one as the power source. Do NOT
use both at the same time.
Hardware Installation
Ethernet
PC
Power
Outlet
PoE Injector/
PoE Swtich
15

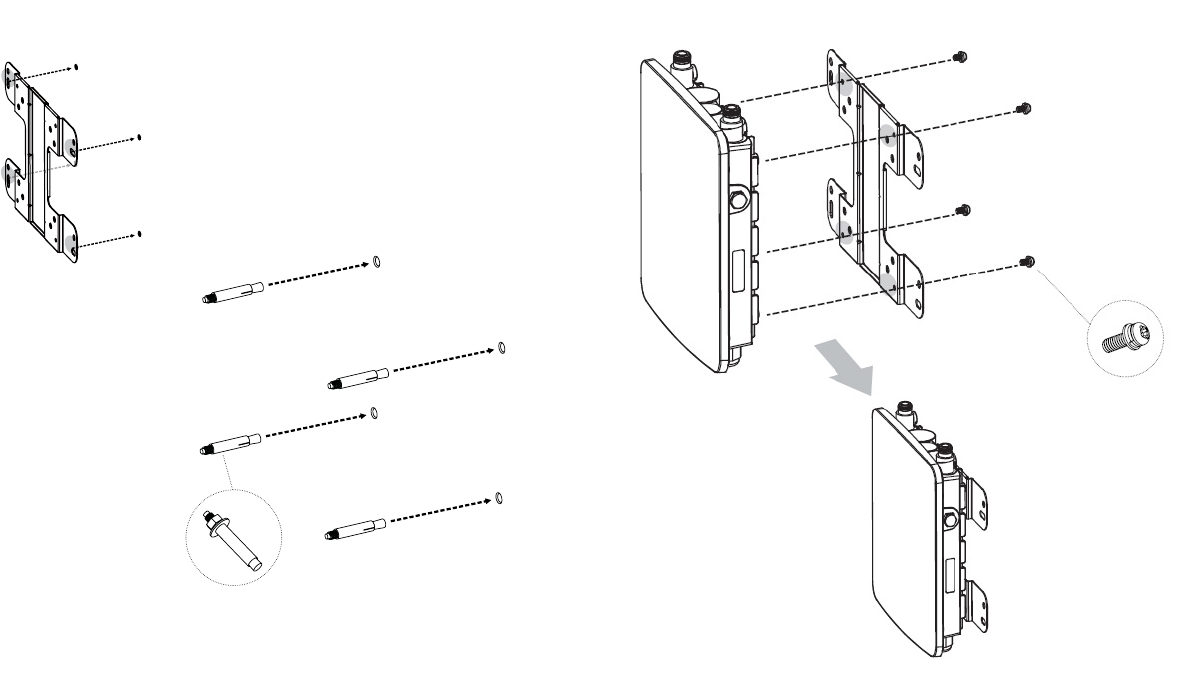

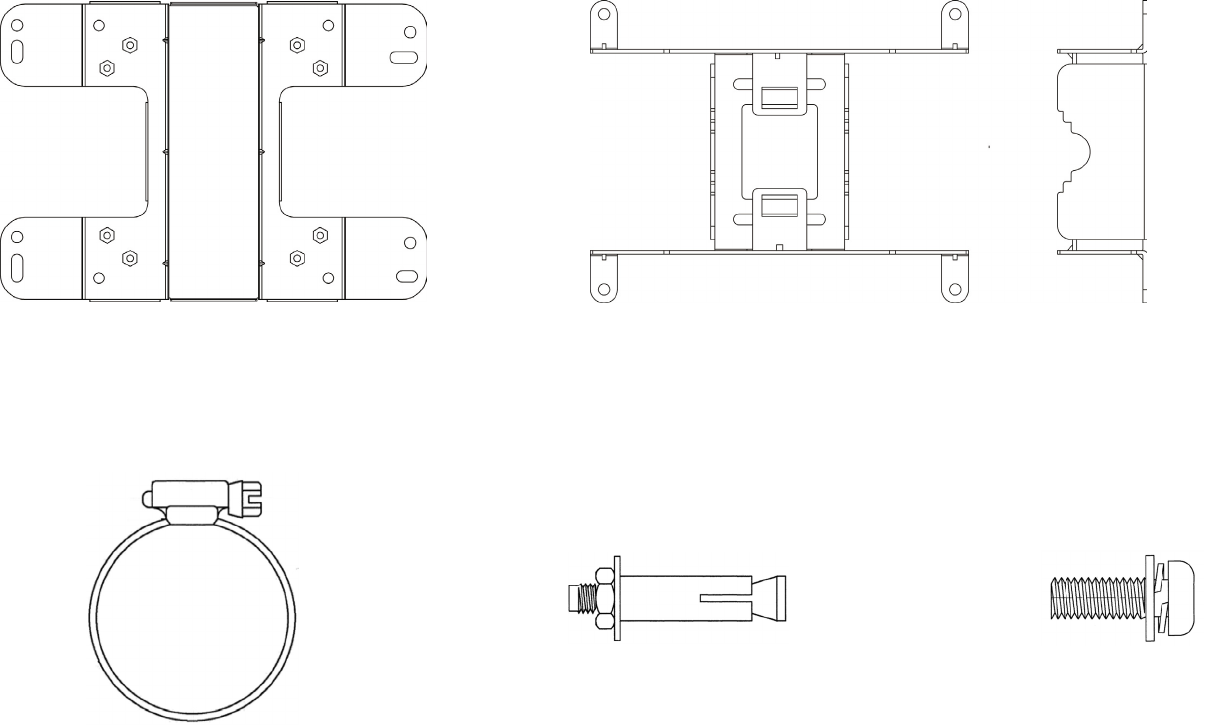

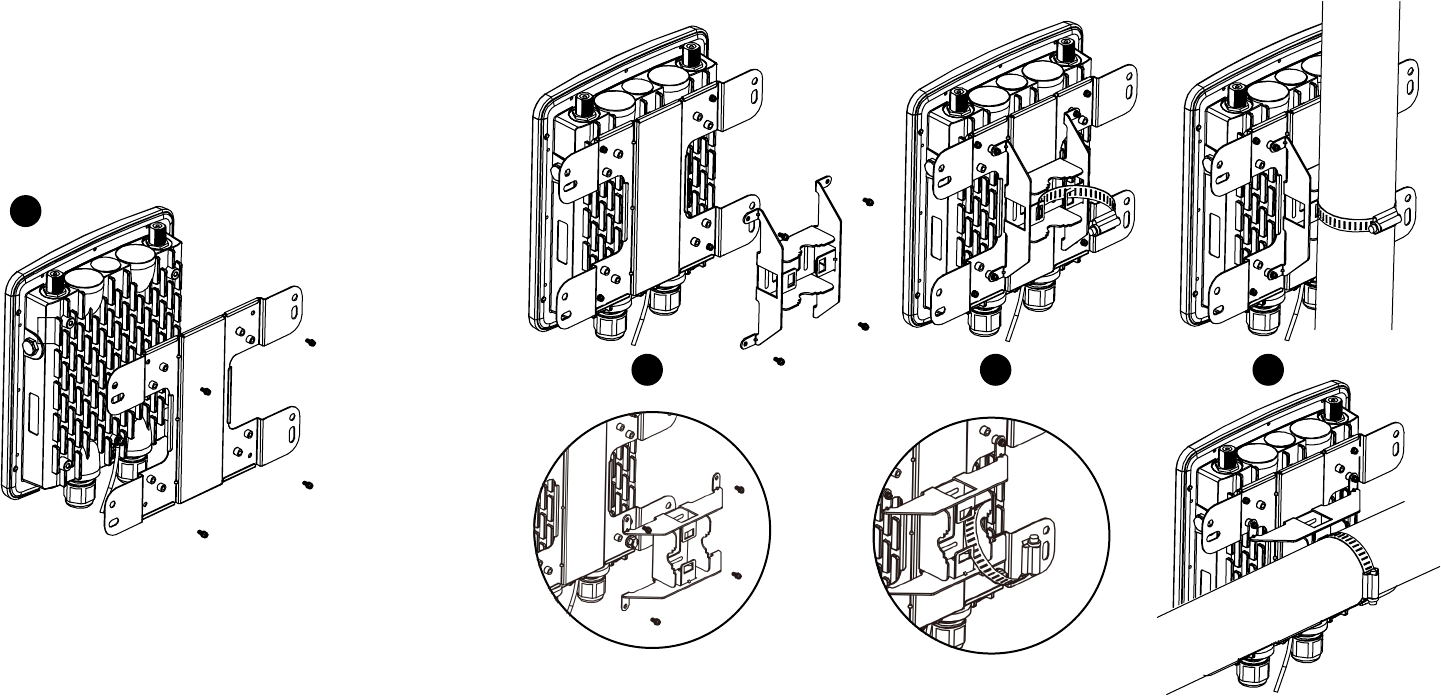

Mounting the ENH220EXT
Using the included accessories, the ENH220EXT can be attached to a wall or a pole.
1. Wall Mount Kit: 260x180x7(mm)
(10.2"x7.09"x0.28")
2. PoleMountKit140x112x33(mm)
(5.51"x4.41"x1.30")
3.Pipe63.5(D)x12.7(mm)
(2.5"(D)x0.5")
4. Tool20(D)x6(mm)
(0.79"(D)x0.24")
5. Screws:6.5(D)x9.95(mm)
0.26"(D)x0.39"
16
To attach the ENH220EXT to a wall using wall
mounting kit.
1. Mark the four locations of the mounting holes on the
atmountingsurface.
2. Drilla37mmdeep8mmholeinthemarkingsand
hammer the bolts into the openings.
3. Placethelockandatwashersonthefourhexcapscrews
and drive the screws to attach the bracket to the back of
the Access Point.
4. Tighten the at washers to secure the bracket to the
mounting surface.
2.
3.
4.
1.
17
To attach the ENH220EXT to a pole using the
provided pole mounting kit:
1. Placethelockandatwashersonthefourhexcapscrews
and drive the screws to attach the bracket to the back of
the Access Point.
2. Drive the four round head screws to attach the Pole
Mount Bracket to the bracket.
3. Thread the open end of the Pole Strap through the two
tabs on the Pole Mount Bracket .
4. Lock and tighten the Pole Strap to secure the Pole Mount
Bracket to the pole.
Note: See diagram below for vertical and horizonal
placements.
vertical placement
horizontal placement
1
2 43
18

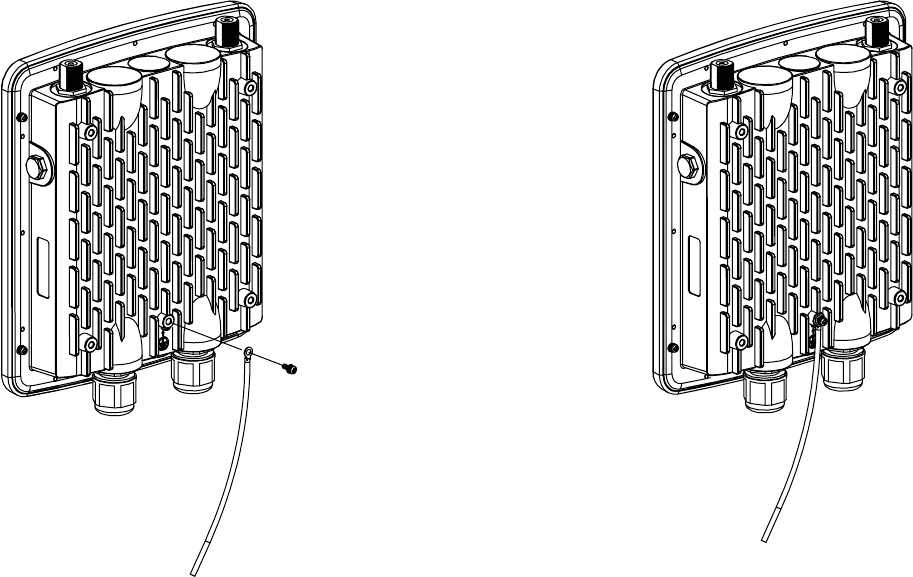

To install the ground cable on the ENH220EXT
1. Use the attached screws to pass the ground cable as
showninthegurebelow.
2. Assemble the ground cable on the device.
Length:1.8m(5.9”)
19
Chapter 3
Conguring Your
Access Point
20
This section will show you how to congure the device
usingtheweb-basedcongurationinterface.
Default Settings
Please use your Ethernet port or wireless network adapter
to connect the Access Point.
IP Address 192.168.1.1
Username / Password admin / admin
Web Conguration

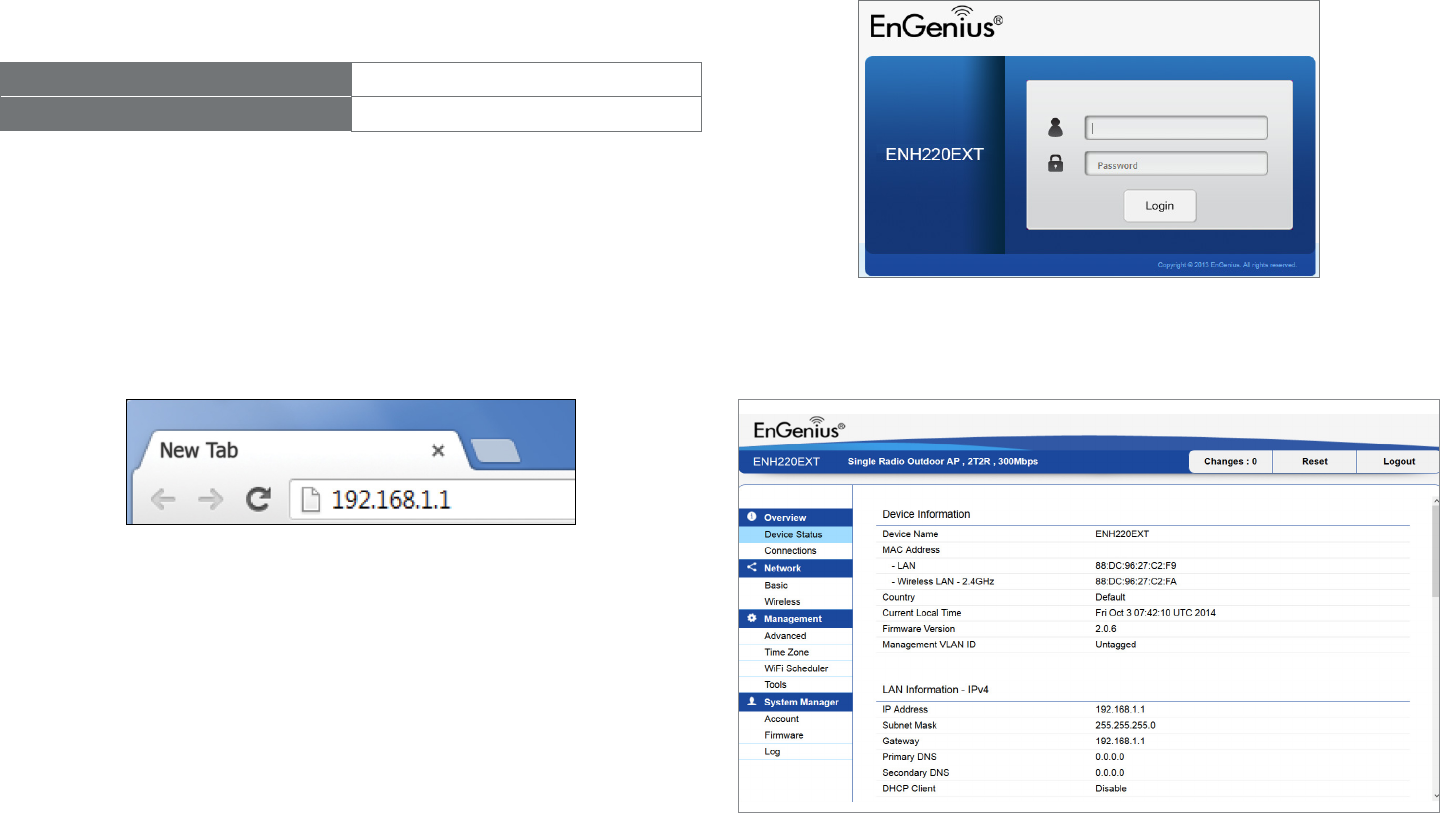

1. Openawebbrowser(InternetExplorer/Firefox/Safari/
Chrome) and enter the IP Address http://192.168.1.1
Note: If you have changed the default LAN IP Address of
the Access Point, ensure you enter the correct IP Address.
2. The default username and password are admin.
Once you have entered the correct username and
password, click the Login button to open the web-base
congurationpage.
3. If successful, you will be logged in and see the
ENH220EXT User Interface.
Conguring Your Access Point
21
Chapter 4
Building a Wireless
Network
22
The ENH220EXT has the ability to operate in various modes. This chapter describes the operating modes of the
ENH220EXT.

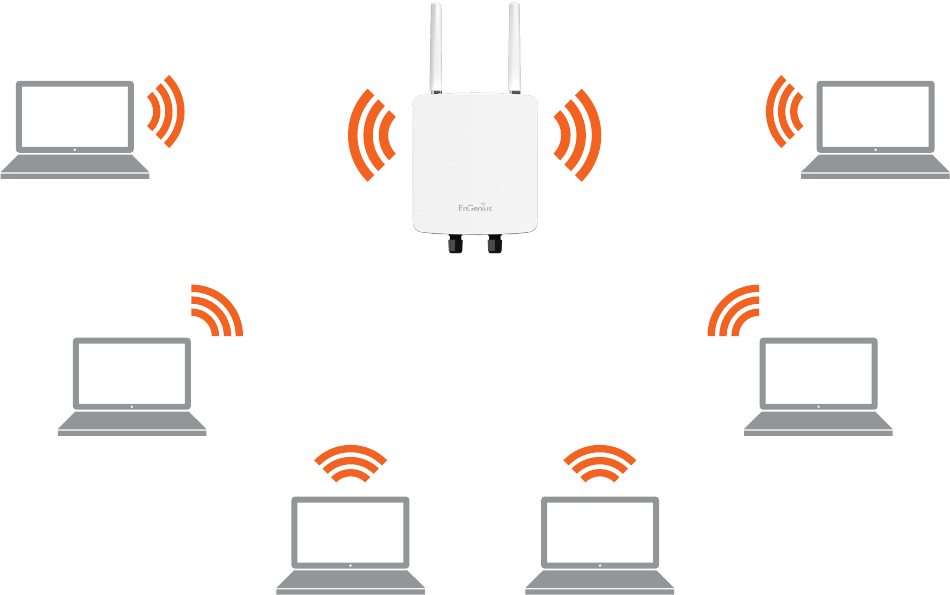

Access Point Mode
In Access Point Mode, ENH220EXT behaves likes a central connection for stations or clients that support IEEE 802.11b/g/n
networks.ThestationsandclientsmustbeconguredtousethesameSSID(ServiceSetIdentier)andsecuritypasswordto
associatewiththeENH220EXT.TheENH220EXTsupportsuptoeight(8)SSIDsatthesametimeforsecureaccess.
23

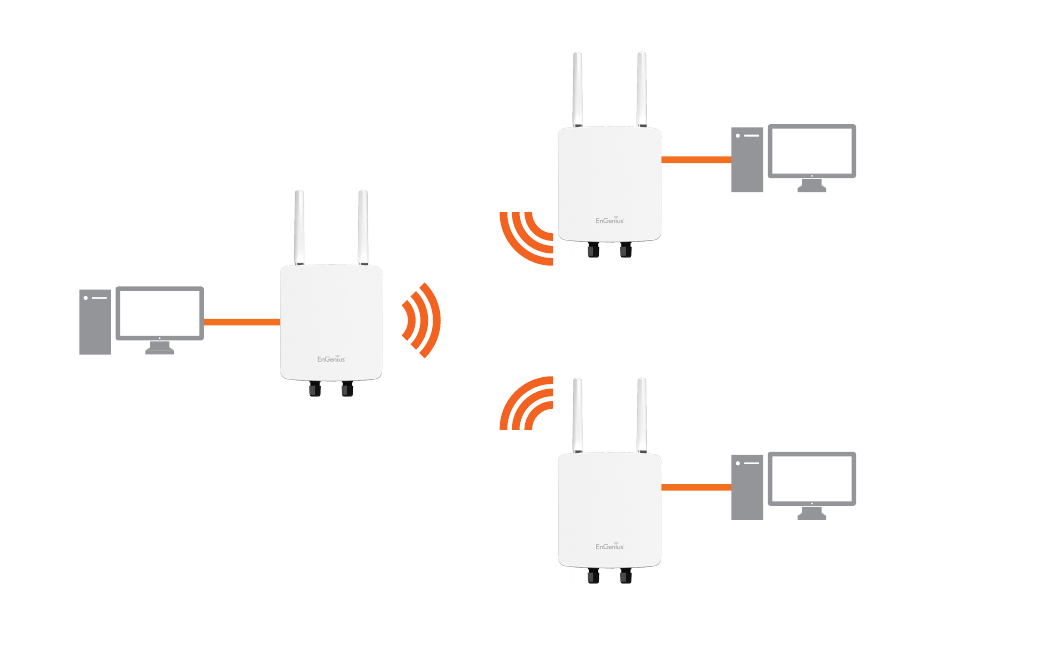

Client Bridge Mode
The ENH220EXT essentially acts as a wireless adapter that connects to an access point to allow a system of wireless
access to the network in the Client Bridge mode. Since the computers are on the same subnet, the ENH220EXT can
broadcast to reach all end-devices.
If you use the client bridge mode for the ENH220EXT, you can use the AP Detection feature to scan for Access Points
withinrange.WhenyoundanAccessPoint,conguretheENH220EXTtousethesameSSIDandSecurityPasswordas
the Access Point to associate with it.
24
WDS AP Mode

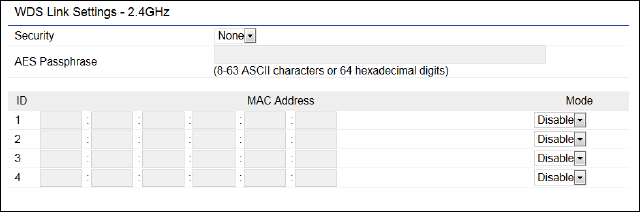

The ENH220EXT also supports WDS AP mode. This operating mode allows wireless connections to the ENH220EXT using
WDStechnology.Inthismode,conguretheMACaddressesinbothAccessPointstoenlargethewirelessareabyenabling
WDSLinksettings.WDSsupportsuptofour(4)APMACaddresses.
25
WDS Bridge Mode

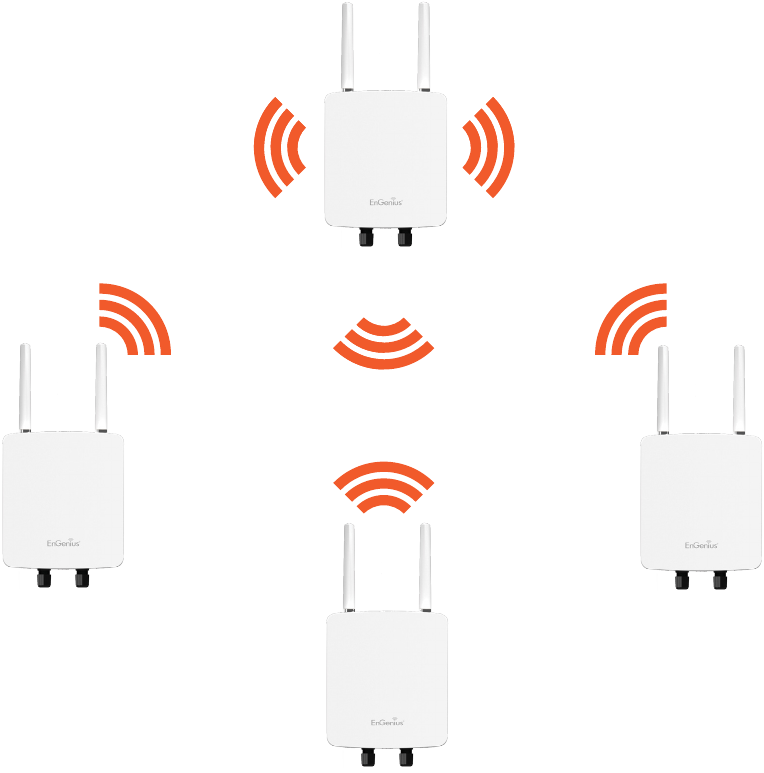

In WDS Bridge Mode, the ENH220EXT can wirelessly connect different LANs by conguring the MAC address and
security settings of each ENH220EXT device. Use this mode when two wired LANs located a small distance apart want
to communicate with each other. The best solution is to use the ENH220EXT to wirelessly connect two wired LANs, as
shown in the following diagram.
WDS Bridge Mode can establish up to four WDS links, creating a star-like network.
Note: WDS Bridge Mode does not act as an Access Point. Access Points linked by WDS are using the same frequency
channel.MoreAccessPointsconnectedtogethermaylowerthroughput.Thiscongurationcanbesusceptibletogenerate
endless network loops in your network, so it is recommended to enable the Spanning Tree function to prevent this from
happening.
26
WDS Station Mode
Station mode expands the WDS by receiving a wireless signal/service and sharing it through the Ethernet port.
27
Chapter 5
Status
28
Save Changes
This page lets you save and apply the settings shown under
Unsaved changes list, or cancel the unsaved changes and
revert to the previous settings that were in effect.
Device Status

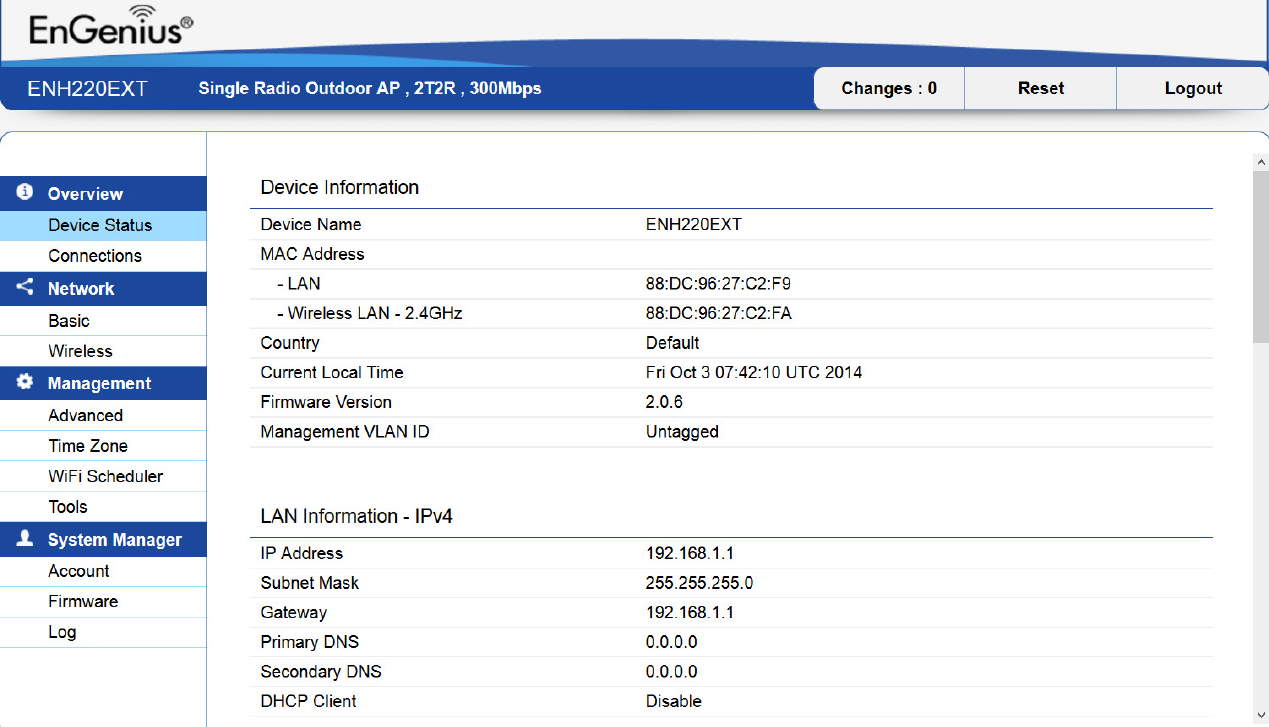

Clicking the Device Status link under the Overview menu
shows the status information about the current operating
mode.

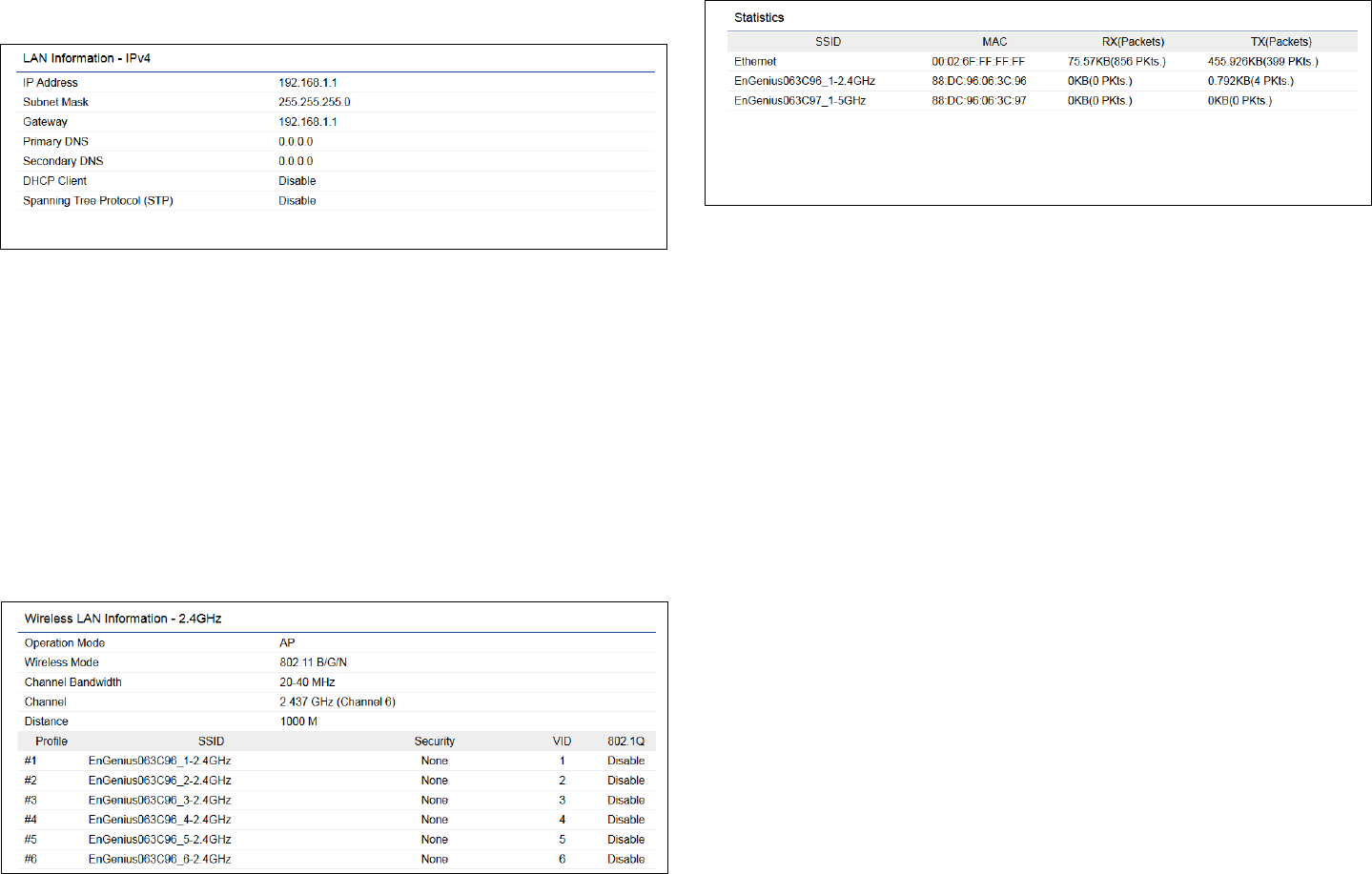

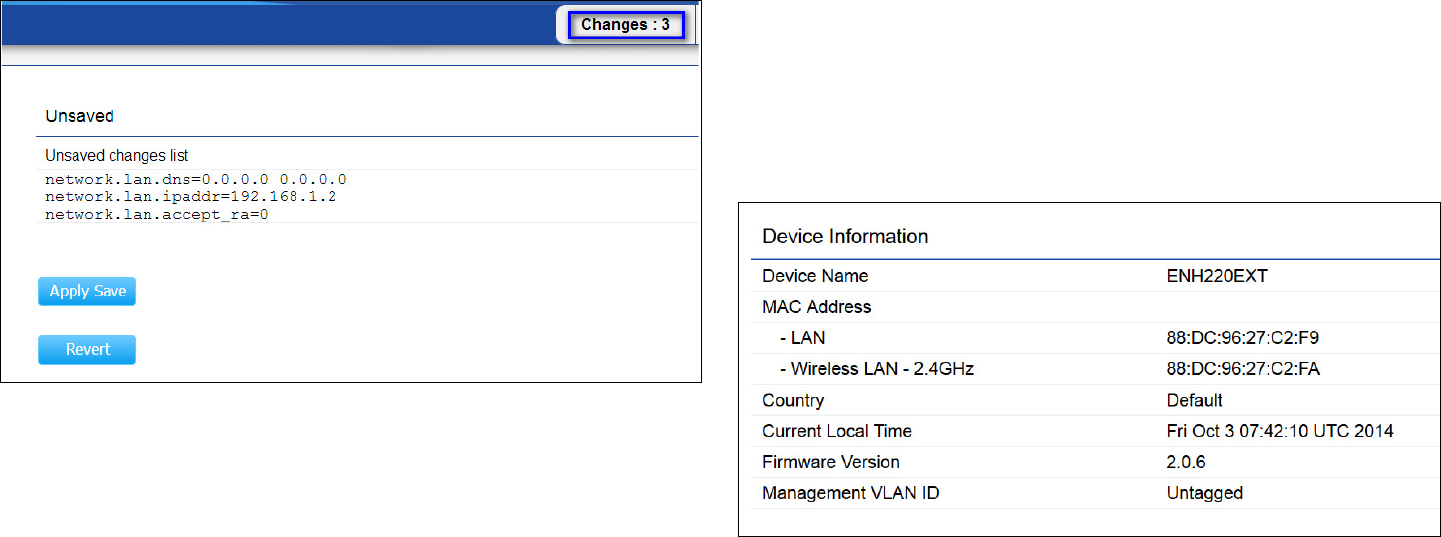

• The Device Information section shows general system
information such as Device Name, MAC Address, Current
Time, Firmware Version, and Management VLAN ID.
Note: VLAN ID information is only applicable in Access
Point or WDS AP mode.
Main Status
29
• The LAN Information section shows the Local Area
Network settings such as the LAN IP Address, Subnet
mask, and DNS Address.
• The Wireless LAN Information 2.4 GHz section shows
wireless information such as Operating Mode, Frequency,
and Channel. Since the ENH220EXT supports multiple-
SSIDs, information about each SSID, the ESSID, and
security settings, are displayed.
Note: ProleSettingsareonlyapplicableinAccessPoint
and WDS AP modes.
• The Statistics section shows Mac information such as
SSID, MAC address, RX and TX.
30

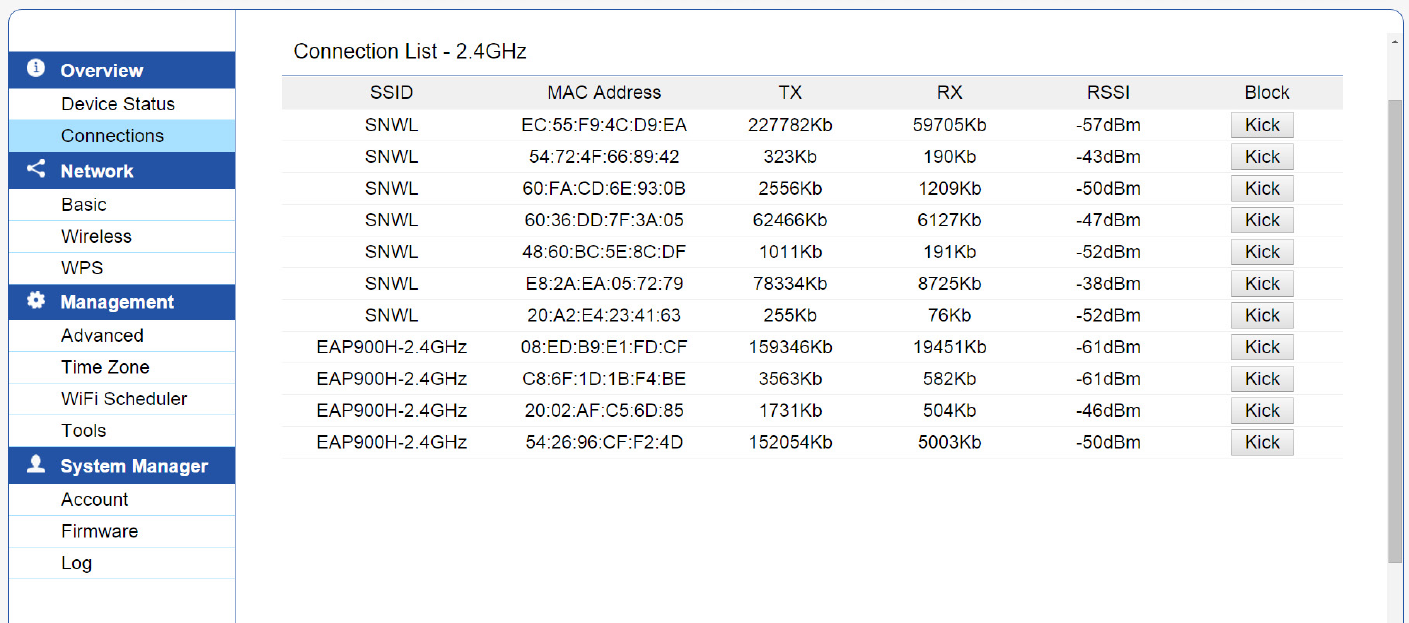

2.4 GHz Connection List
Click the connection link under the Overview menu displays
the connection list of clients associated to the ENH220EXT,
along with the MAC addresses and signal strength for each
client. Clicking Refresh updates the client list.
Note: Only applicable in Access Point and WDS AP modes.
2.4 GHz WDS Link List
Click the connection link under the Overview menu. This
page displays the current status of the WDS link, including
WDS Link ID, MAC Address, Link Status and RSSI.
Note: Only applicable in WDS AP and WDS Bridge modes.
Connection
31
Client Bridge Connection Status
Click the Connection link under the Overview menu. This
page displays the connection status between the Access
Point, including associated the SSID, BSSID, connection
status, wireless mode, current channel, security, Tx Data
Rate(Mbps),Currentnoiselevelandsignalstrength.
32
Chapter 6
Network
33

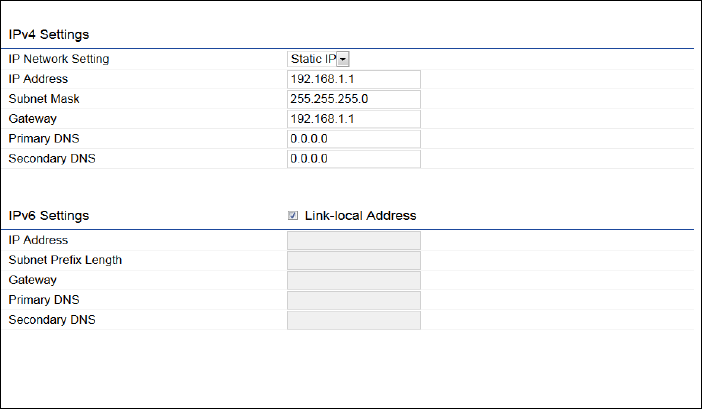

IPv4/IPv6 Settings
This page allows you to modify the device’s IP settings. IP Network Settings: Select whether the device’s IP
address will use a static IP address specied in the IP
addresseldorbeobtainedautomaticallywhenthedevice
connects to a DHCP server.
IP Address: The IP address of this device.
Subnet Mask: The IP Subnet mask of this device.
Gateway: The Default Gateway of this device. Leave it
blank if you are unsure of this setting.
Primary/Secondary DNS: The primary/secondary DNS
address for this device.
Save: Click Savetoconrmthechanges.
Basic IP Settings
34

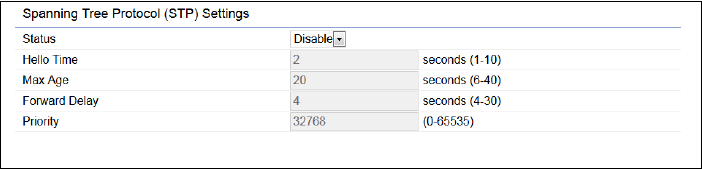

Spanning Tree Protocol (STP) Settings
This page allows you to modify the Spanning Tree settings.
Enabling the Spanning Tree protocol will prevent network
loops in your LAN network.
Spanning Tree Status: Enables or disables the Spanning
Tree function.
Hello Time: Species Bridge Hello Time in seconds. This
value determines how often the device sends handshake
packets to communicate information about the topology
throughout the entire Bridged Local Area Network.
Max Age: SpeciesBridgeMaxAgeinseconds.Ifanother
bridge in the spanning tree does not send a hello packet for
a long period of time, it is assumed to be inactive.
Forward Delay:SpeciesBridgeForwardDelayinseconds.
Forwarding delay time is the time spent in each of the
Listening and Learning states before the Forwarding state
is entered. This delay is provided so that when a new bridge
comesontoabusynetwork,itanalyzesdatatrafcbefore
participating in the network.
Priority: SpeciesthePriorityNumber.Asmallernumber
has a greater priority than a larger number.
Save: Click Savetoconrmthechanges.
35
Chapter7
2.4 GHz Wireless
36
Wireless Settings
Device Name: Enter a name for the device. The name you
type appears in SNMP management. This name is not the
SSID and is not broadcast to other devices.
Save: Click Savetoconrmthechanges.
Wireless
37
This page displays the current status of the Wireless
settings of the ENH220EXT.

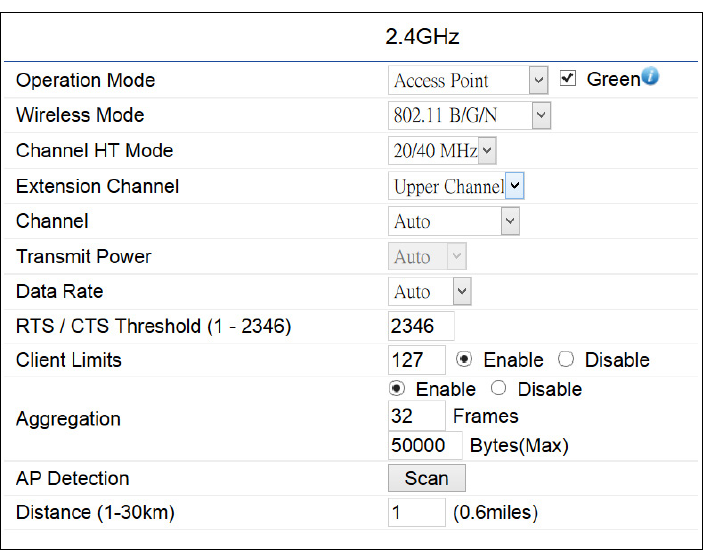

2.4 GHz Wireless Network
Operation Mode: Select Operation Mode. The ENH220EXT
supports multi-operation modes: Access Point, Client
Bridge,orWDS(WDSAP,WDSBridge,andWDSStation).).
Wireless Mode: Supports 802.11b/g/n mixed mode in 2.4
GHz.
Channel HT Mode: The default channel bandwidth is 20
MHz/ 40 MHz. The larger the channel, the greater the
transmission quality and speed.
Extension Channel: Select the upper or lower channel.
Your selection may affect the Auto channel function.
Channel: Select the approriate channel and frequency.
Select Auto to enable auto-channel selection.
Transmit Power: Sets the power output of the wireless
signal.
Data Rate: Select a data rate from the drop-down list. The
data rate affects throughput of data in the ENH220EXT.
Select the best balance for you and your network but note
that the lower the data rate, the lower the throughput,
though transmission distance is also lowered.
RTS/CTS Threshold:Speciesthethresholdpackagesize
for RTC/CTS. A small number causes RTS/CTS packets to be
sent more often and consumes more bandwidth.
Client Limits: Limits the total number of clients.
Aggregation: Merges data packets into one packet. This
38
option reduces the number of packets, but also increases
packet sizes.
AP Detection: AP Detection can select the best channel to
use by scanning nearby areas for Access Points.
Distance: Species the distance between Access Points
and clients. Note that longer distances may drop higher-
speed connections.
Save: Click SavetoconrmthechangesorCancel to cancel
and return to previous settings.
39

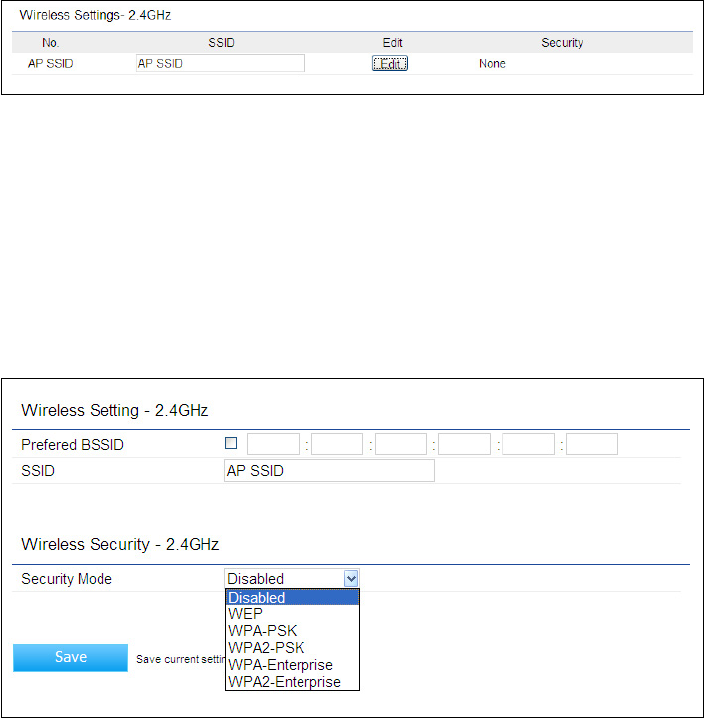

2.4 GHz SSID Prole
Current Prole:Youcancongureuptoeight(8)different
SSIDs(eight(8)perband).Ifmultipleclientdeviceswillbe
accessing the network, you can arrange the devices into
SSID groups. Click Edittoconguretheproleandcheck
whether you want to enable extra SSID.
SSID:SpeciestheSSIDforthecurrentprole.
Suppressed SSID: Check this option to hide the SSID from
clients. If checked, the SSID will not appear in the site survey.
Station Separation: Click the appropriate radio button to
allow or prevent communication between client devices.
VID:SpeciestheVLANtagforeachprole.Ifyournetowrk
includes VLANs, you can specify a VLAN ID for packets pass
through the Access Point with a tag.
Wireless Security: See the Wireless Security section.
Isolation: Restrict clients communicating with different
VIDs by selecting the radio button.
Save: Click Save to accept the changes.
40
Wireless Security

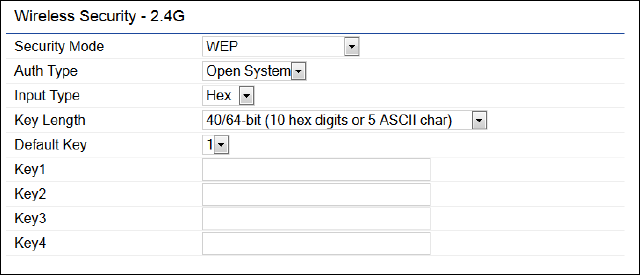

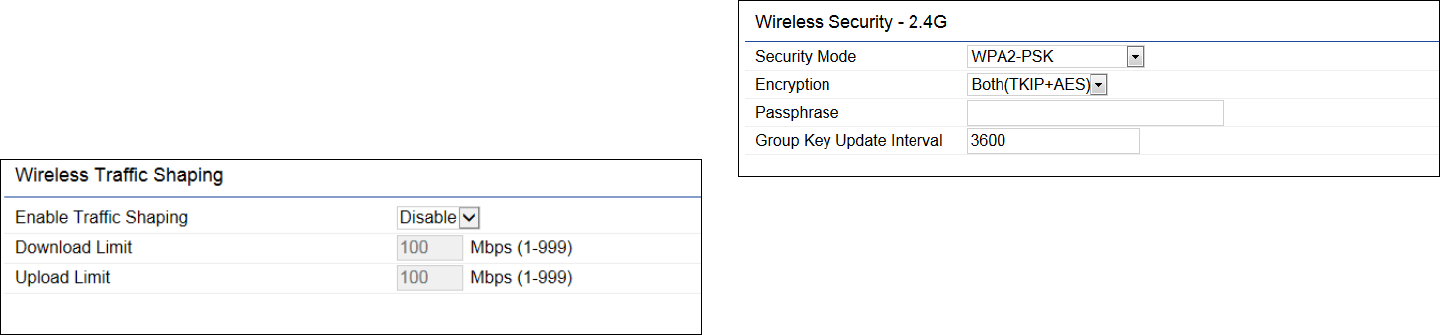

The Wireless Security section lets you congure the
ENH220EXT’s security modes: WEP, WPA-PSK, WPA2-PSK,
WPA-PSK Mixed, WPA, WPA2, and WPA Mixed. It is strongly
recommend that you use WPA2-PSK.
Auth Type: Select Open System or Shared Key.
Input Type:
 ASCII:RegularText(recommended)
 HexadecimalNumbers:(Foradvancedusers)
Key Length: Select the desired option and ensure that
wireless clients use the same setting. Your choices are 64,
128, and 152-bit password lengths.
Default Key: Select the Key you wish to be the default.
Transmitted data is ALWAYS encrypted using the Default
Key; the other Keys are for decryption only. You must enter
a Key Value for the Default Key.
Encryption Key Number: Enter the Key Value or values you
wish to use. Only the Key selected as Default is required.
The others are optional.
41

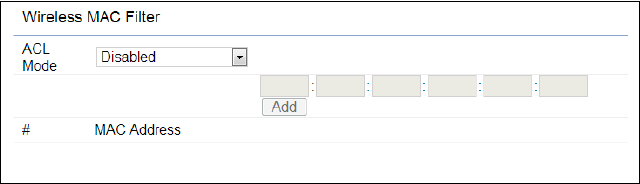

Wireless MAC Filtering
Wireless MAC Filtering is used to allow or deny network
access to wireless clients (computers, tablet PCs, NAS,
smartphones, etc.) according to their MAC addresses. You
can manually add a MAC address to restrict permission to
access the ENH220EXT. The default setting is: Disable
Wireless MAC Filter.
Note: Only applicable in Access Point and WDS AP
modes.
ACL Mode: Determines whether network access is granted
or denied to clients whose MAC addresses appear in the
MAC address table on this page. Your choices are: Disabled,
Deny MAC in the list, or Allow MAC in the list.
MAC Address: Enter the MAC address of the wireless client.
Add: Click Add to add the MAC address to the MAC address
table.
Delete: Delete the selected entries.
Save: Click Save to apply the changes.
42
Wireless Advanced
Wireless Trafc Shaping
Trafc shaping regulates the ow of packets leaving an
interface to deliver improved Quality of Service.
Enable Trafc Shaping: Check this option to enable
WirelessTrafcShaping.
Download Limit: Speciesthewirelesstransmissionspeed
used for downloading.
Upload Limit: Species the wireless transmission speed
used for uploading.
Save: Click Savetoconrmthechanges.
WPA-PSK (WPA Pre-Shared Key) Encryption:
Encryption: Select the WPA encryption type you would
like. Please ensure that your wireless clients use the same
settings.
Passphrase: Wireless clients must use the same Key to
associate the device. If using ASCII format, the Key must
be from 8 to 63 characters in length. If using HEX format,
the Key must be 64 HEX characters in length.
Group Key Update Interval: Species how often, in
seconds, the Group Key changes.
43

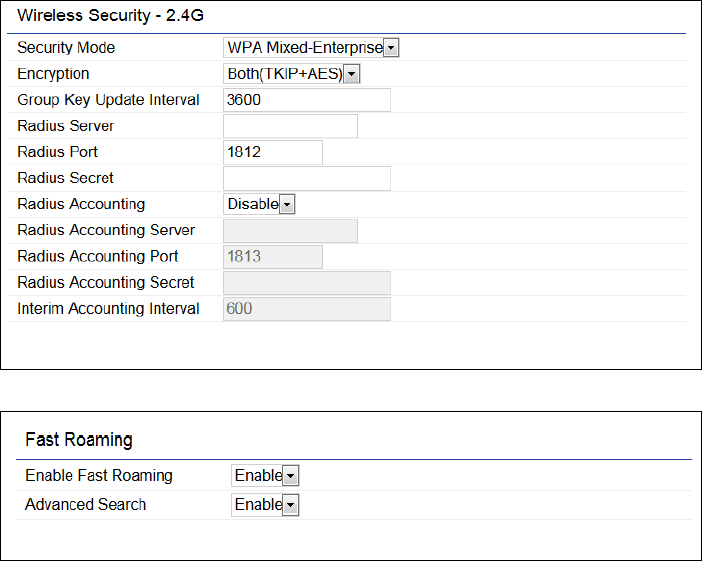

WPA Mixed-Enterprise: Access Point / WDS AP mode
Encryption: Select the WPA encryption type you would like.
Please ensure that your wireless clients use the same settings.
Radius Server: Enter the IP address of the Radius server.
Radius Port: Enter the port number used for connections
to the Radius server.
Radius Secret: Enter the secret required to connect to the
Radius server.
Group Key Update Interval: Species how often, in
seconds, the Group Key changes.
Radius Accounting: Enable or disable Radius accounting
feature.
Radius Accounting Server: Enter the IP address of the
Radius accounting server.
Radius Accounting Port Enter the port number used for
connections to the Radius accounting server.
Radius Accounting Secret: Enter the secret required to
connect to the Radius accounting server.
Interim Accounting Interval: Species how often, in
seconds, the accounting data sends.
Note: 802.11n does not allow WEP/WPA-PSK TKIP/
WPA2-PSK TKIP security mode. The connection mode
will automatically change from 802.11n to 802.11g.
Fast Roaming: Enable Fast Roaming to serve mobile client
devices that roam from Access Point to Access Point. Some
applications running on Client devices require fast re-
association when they roam to a different Access Point.
Voice application.
44
WDS Link Settings
UsingtheWDS(WirelessDistributionSystem)featurewill
allow a network administrator or installer to connect to
Access Points wirelessly. Doing so will extend the wired
infrastructure to locations where cabling is not possible or
inefcienttoimplement.
Note: Compatibility between different brands and
models of Access Points is not guaranteed. It is
recommended that the WDS network be created using
the same models for maximum compatibility.
Also note: All Access Points in the WDS network need
to use the same Channel and Security settings.
To create a WDS network, please enter the MAC addresses
of the Access Points that you want included in the WDS.
Therecanbeamaximumoffour(4)AccessPoints.
Note: Only applicable in WDS AP and WDS Bridge modes.
2.4 GHz WDS Link Settings
Security: Select None or AES from the drop-down list.
AES Passphrase: Enter the Key Values you wish to use.
Other Access Points must use the same Key to establish a
WDS link.
MAC Address: Enter the Access Point’s MAC address to
where you want to extend the wireless area.
Mode: Select to disable or enable from the drop-down list.
Save: Click Save toconrmthechanges.
45
Client Bridge Setting
No.: Display the setting value.
SSID: You can implement the AP detection to select the
proper SSID.
Edit: Click Edittoconguretheadvancedsettingsforthe
SSID.
Prefer BSSID: You can insert the prefer BSSID or enter
thespecicSSIDtobeassociatedwiththeAccessPoint.
SSID: You can implement the AP detection to select the
proper SSID.
Security Mode: Select the correct security mode and
insert the correct encryption type. Please refer the
wireless security section in page 42.
Save: Click Save to accept the changes
46

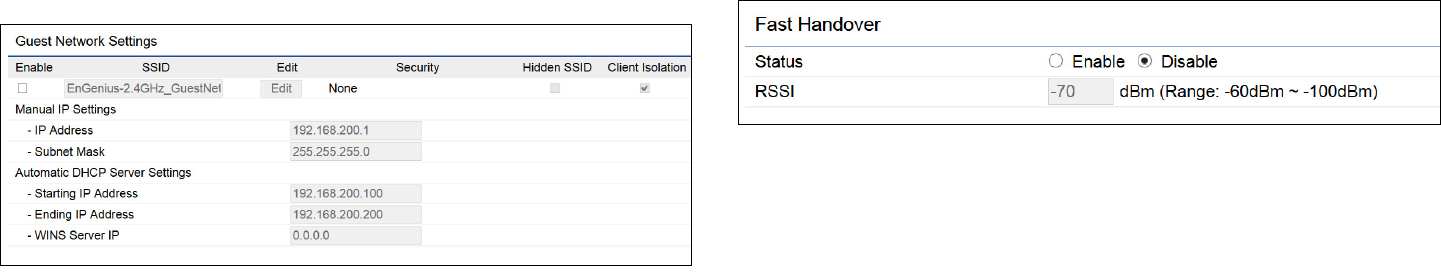

Guest Network Settings
Adding a guest network allows visitors to use the Internet
without giving out your ofce or company wireless
security key.
SSID:SpeciestheSSIDforthecurrentprole.
Suppressed SSID: Check this option to hide the SSID from
clients. If checked, the SSID will not appear in the site survey.
Station Separation: Click the appropriate radio button to
allow or prevent communication between client devices.
IP Address: The IP Address of this device.
Subnet Mask: The IP Subnet mask of this device.
Starting IP Address: TherstIPAddressintherangeof
the addresses by the DHCP server.
Ending IP Address: The last IP Address in the range of
addresses assigned by the DHCP server.
Fast Handover
Fast Handover: Enable the Fast Handover feature by
ensuring that each client is served by at least one Access
Point at any time. Access Points continuously monitor
the connectivity quality of any client in their range and
efcientlysharethisinformationwithotherAccessPoints
in the vincinity of that client to coordinate which of them
should serve the client best.
RSSI: Enter the RSSI (Received Signal Strength Index) in
order to determine the handover procedure which the
current wireless link will terminate. RSSI is an indication of
the power level being received by the antenna. Therefore,
the higher the RSSI number, the stronger the signal.
47
Chapter 8
Management
48

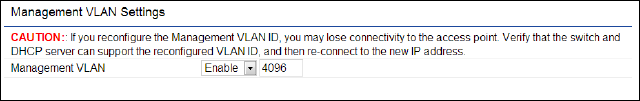

Management VLAN Settings
This page allows you to assign a VLAN tag to packets sent
over the network. A VLAN is a group of computers on a
networkwhosesoftwarehasbeenconguredsothatthey
behave as if they were on a separate Local Area Network
(LAN). Computers on VLAN do not have to be physically
located next to one another on the LAN.
Note: Only applicable in Access Point and WDS AP
modes.
Management VLAN: If your network includes VLANs, you
can enable Management VLAN ID for packets passing
through the Access Point with a tag.
Save: Click SavetoconrmthechangesorCancel to cancel
and return to previous settings.
Note: IfyoureconguretheManagementVLANID,you
may lose your connection to the ENH220EXT. Verify
thattheDHCPserversupportsthereconguredVLAN
ID and then reconnect to the ENH220EXT using the
new IP address.
49

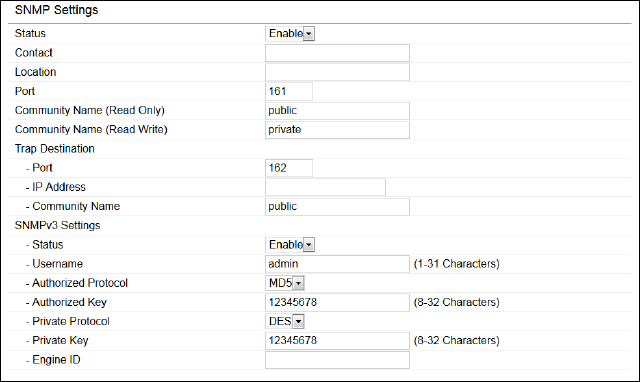

SNMP Settings
This page allows you to assign the Contact Details, Location,
Community Name, and Trap Settings for a Simple Network
Management Protocol (SNMP). SNMP is a networking
management protocol used to monitor network attached
devices.SNMPallowsmessages(calledprotocoldataunits)
to be sent to various parts of the network. Upon receiving
these messages, SNMP compatible devices (called agents)
returns the data stored in their Management Information
Bases.
SNMP Enable/Disable: Enables or disables the SNMP
feature.
Contact: Speciesthecontactdetailsofthedevice.
Location: Speciesthelocationofthedevice.
Community Name (Read Only): Speciesthepassword
for the SNMP community for read only access.
Community Name (Read/Write):Speciesthepassword
for the SNMP community with read/write access.
Trap Destination Address:SpeciestheIPaddressofthe
computer that will receive the SNMP traps.
Trap Destination Community Name: Speciesthe
password for the SNMP trap community.
SNMPv3: Enables or disables the SNMPv3 feature.
User Name:SpeciestheusernameforSNMPv3.
Auth Protocol: Selects the authentication protocol type:
MDS or SHA.
Auth Key: Speciestheauthenticationkey.
Priv Protocol: Selects the privacy protocol type: DES.
Priv Key: Speciestheprivacykeyforprivacy.
Engine ID: SpeciestheengineIDforSNMPv3.
Apply Save: Click Apply Save to apply the changes.
Advanced Settings
50

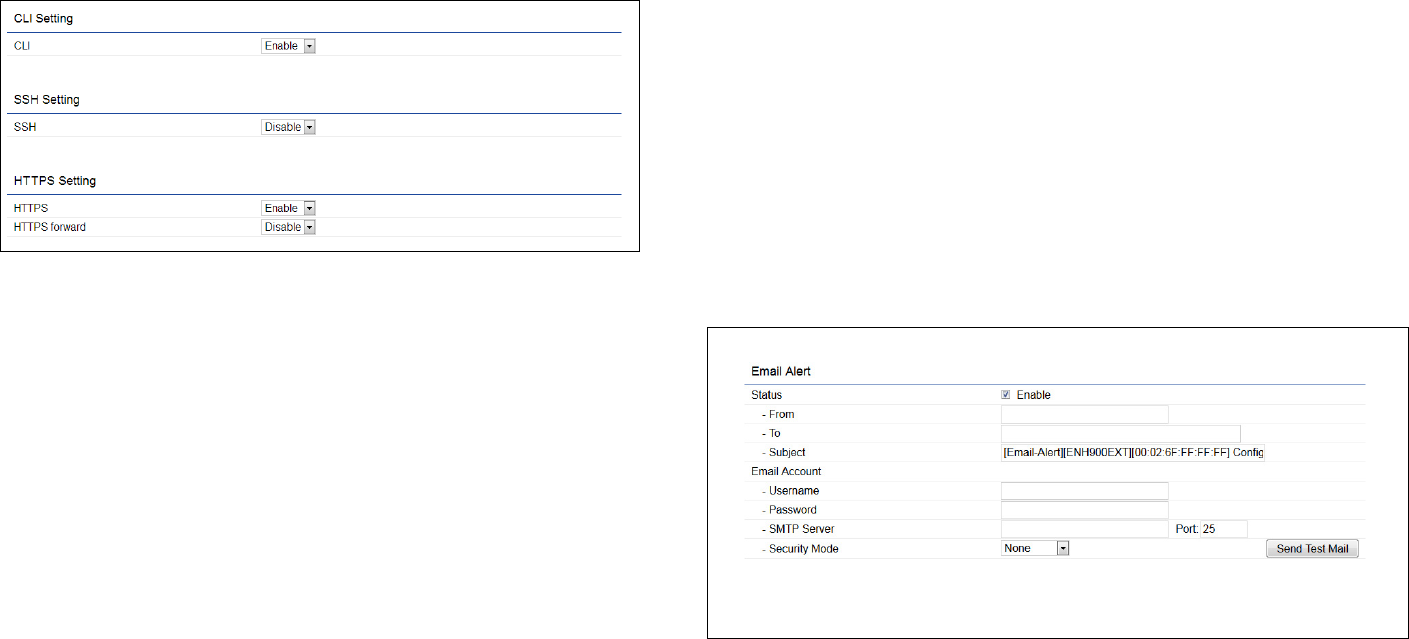

CLI Settings
CLI:TheCommandLineInterface(CLI)allowsyoutotype
commands instead of choosing them from a menu or
selecting an icon.
SSH:EnableSecureShell(SSH)tomakesecure,encrypted
connections in the network. Secure Shell is a network
protocol that allows data to be exchanged using a secure
channel between two network devices.
HTTPS: Enable HTTPS to transfer and display web content
securely.TheHypertextTransferProtocoloverSSL(Secure
Socket Layer) is a TCP/IP protocol used by web servers to
transfer and display web content securely.
Email Alert
You can use the Email Alert feature to send messages
to the congured email address when particular system
events occur.
Note: Do NOT use your personal email address as it can
unnecessarily expose your personal email login credentials.
Use a separate email account made for this feature instead
From: Enter the email address to show the sender of the
email.
To: Enter the address that you wish to send emails to.
Subject: Enter the text that you wish to appear in the
email’s subject line.
51
Username: Enter the username for the email account that
will be used to send emails.
Password: Enter the password for the email account that
will be used to send emails.
SMTP Server: Enter the IP address or hostname of the
outgoing SMTP server.
Port: Enter the SMTP port number to use for outbound
emails.
52

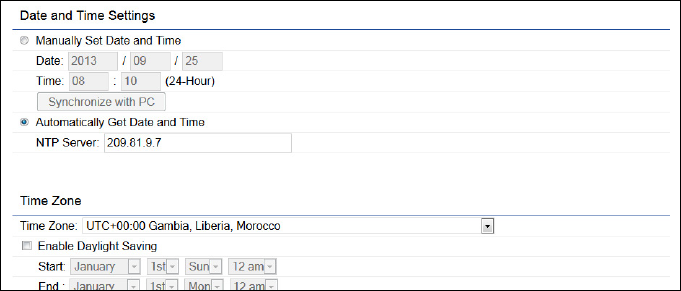

Time Setting
This page allows you to set the internal clock of the
ENH220EXT.
Manually Set Date and Time: Manually specify the
date and time.
Automatically Get Date and Time: Select
Automatically Get Date and Time and check whether
you wish to enter the IP address of an NTP server or
use the default NTP server to have the internal clock
set automatically.
Enable Daylight Saving: Check whether daylight
savings applies to your area.
Start: Select the day, month, and time when daylight
savings time starts.
End: Select the day, month, and time when daylight sav-
ings times ends.
Time Zone
53

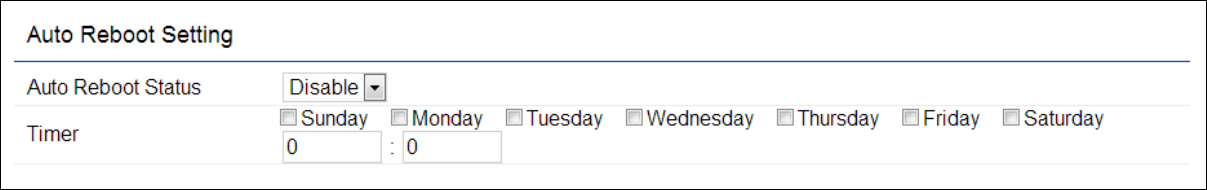

Auto Reboot Settings
You can specify how often you wish to reboot the
ENH220EXT.
Auto Reboot Setting: Enables or disables the Auto
Reboot function.
Frequency of Auto Reboot: Specifies how often you
wish to reboot the ENH220EXT by Min, Hour, Day or
Week.
Timer: Select the day and enter the time you would like
to reboot automatically.
Save: Click Save to apply the changes.
54

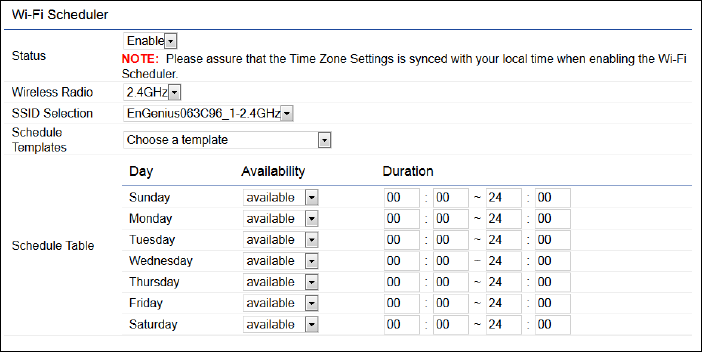

Wi-Fi Scheduler
The Wi-Fi Scheduler can be created for use in enforcing
rules. For example, if you wish to restrict web access to Mon-
Fri from 3:00 pm to 8:00 pm, you could create a schedule
selecting Mon, Tue, Wed, Thu and Fri while entering a Start
time of 3:00 pm and End Time of 8:00 pm to limit access to
these times.
Status: Enables or disables the Wi-Fi scheduler function.
SSID Selection: Select a SSID from the drop-down list.
Schedule Templates: Select a schedule template from the
drop-down list.
Day(s): Place a checkmark in the boxes for the desired days
or select the All Week radio button to select all seven days
of the week.
Duration:TheStartTimeisenteredintwoelds.Therst
box is for hours and the second box is for minutes. The End
Time is entered in the same format as the Start time.
55

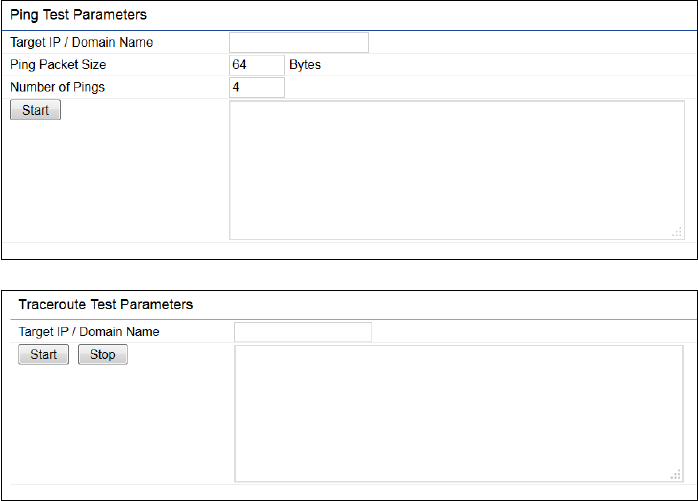

Ping Test Parameters
This page allows you to analyze the connection quality of
the ENH220EXT and trace the routing table to a target in
the network.
Target IP: Enter the IP address you would like to search.
Ping Packet Size: Enter the packet size of each ping.
Number of Pings: Enter the number of times you wish to
ping.
Start Ping: Click Start Ping to begin pinging the target
device(viaIP).
Traceroute Target: Enter the IP address or domain name
you wish to trace.
Start Traceroute: Click Start Traceroute to begin the trace
route operation.
Tools
56

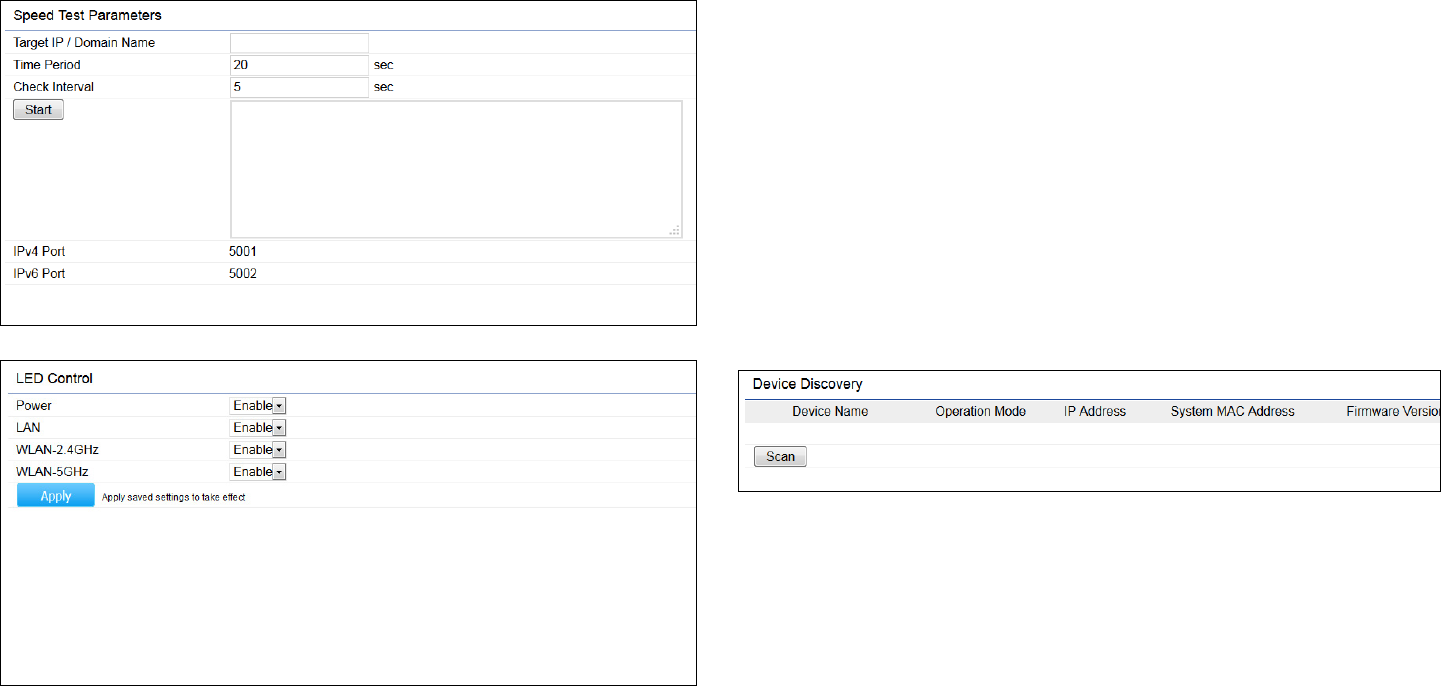

Speed Test Parameters / LED Control
This page allows you to control LED on/off for Power, LAN
interface, or 2.4 GHz WLAN interface.
LED Control
Power: Enables or disables the Power LED indicator.
LAN: Enables or disables the LAN LED indicator.
WLAN-2.4 GHz: Enables or disables the WLAN-2.4 GHz LED
indicator.
Device Discovery
This page allows you to discover devices from network
for Operation Mode, IP Address, System MAC Address and
Firmware version.
57
This page allows you to change the ENH220EXT username
and password. By default, the username is: admin and the
password is: admin. The password can contain from 0 to
12 alphanumeric characters and is case sensitive.

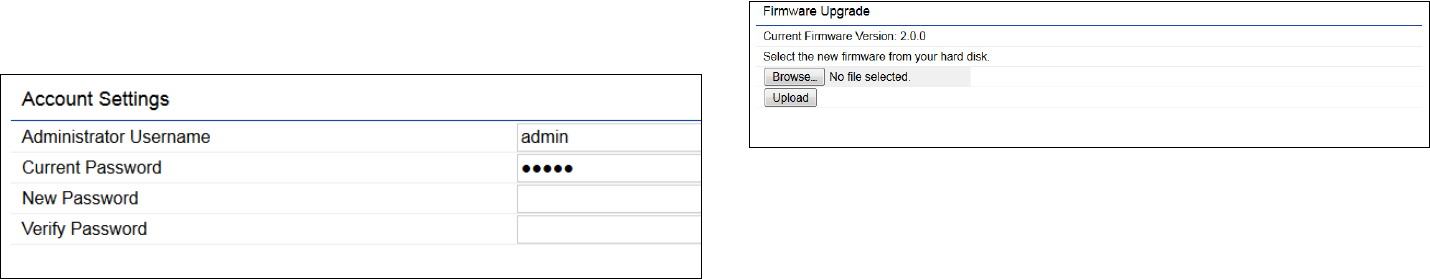

Account Settings
Administrator Username: Enter a new username for
logging in to the New Name entry box.
Current Password: Enter the old password for logging in
to the Old Password entry box.
New Password: Enter the new password for logging in to
the New Password entry box.
Verify Password: Re-enter the new password in the
ConrmPasswordentryboxforconrmation.
Apply: Click Apply to apply the changes.
Firmware Upgrade
This page allows you to upgrade the firmware of the
ENH220EXT.
To Perform the Firmware Upgrade:
1. Click the Choose File buttonandnavigate theOSle
systemtothelocationoftheupgradele.
2. Selecttheupgradele.Thenameofthelewillappear
intheUpgradeFileeld.
3. Click the Upload button to commence the rmware
upgrade.
Note: The device is unavailable during the Firmware
upgrade process and must restart when the upgrade is
completed. Any connections to or through the device
will be lost.
Account Firmware
58
Factory Setting
The function allows you to export the current device
configurations. When you export your configurations,
you also can reload the saved configurations into the
device through the Restore Saved Settings from a file
section. If extreme problems occur, or if you have set
the ENH220EXT incorrectly, you can use the Reset
button in the Revert to Factory Default Settings section
to restore all the configurations of the ENH220EXT to
the original default settings.
Backup Setting: Click Export to save the current
configured settings.
Restore New Setting: To restore settings that have
been previously backed up, click Browse, select the
file, and click Restore.
Restore to Default: Click Reset button to restore the
ENH220EXT to its factory default settings.

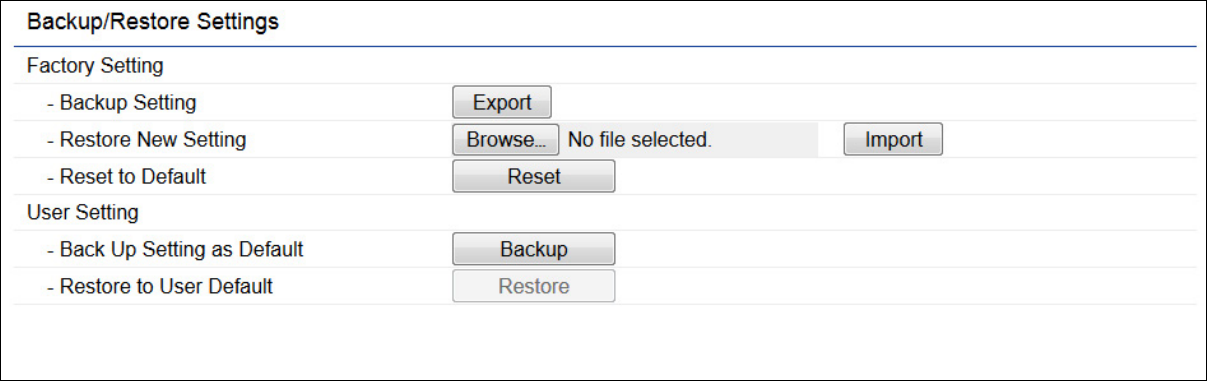

Backup/Restore
59
User Setting
The User Setting section allows you to backup the
current device configurations into the ENH220EXT as
the default value. If extreme problems occur, or if you
have set the ENH220EXT incorrectly, you can push the
Reset button to revert all the configurations of the
ENH220EXT to the user default instead of the factory
default.
Back Up Setting as Default: Click Backup to backup
the user settings you would like to the device’s memory
for the default settings.
Restore to User Default: Click Restore to restore the
user setting to factory default settings.
Note1: After setting the current settings as default, you should click the Restore to Default on the web
interface for reverting the settings into the factory default instead of pushing the reset button.
Note2: Please write down your account and password before saving. The user settings will now become
the new default settings at the next successful login.
60

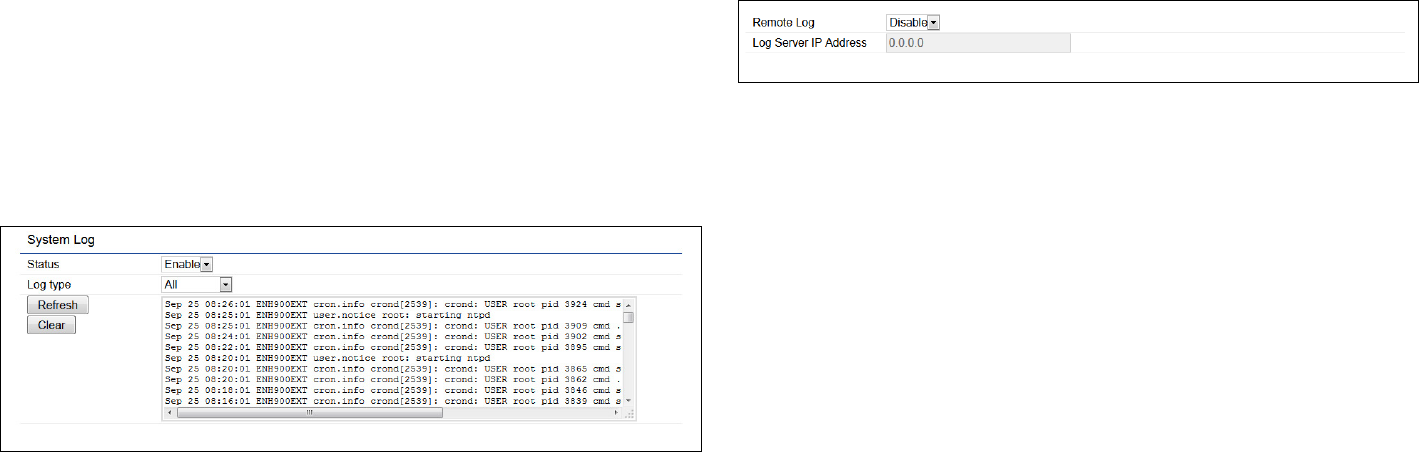

System Log
The ENH220EXT automatically logs (records) events
of possible interest in its internal memory. To view the
logged information, click the Log link under the System
Manager menu. If there is not enough internal memory to
log all events, older events are deleted from the log via
the recycle method.When powered down or rebooted, the
log will be cleared.
Remote Log
This page allows you to setup the Remote Log functions
for the ENH220EXT.
Syslog: Enables or disables the syslog function.
Log Server IP Address: Enter the IP address of the log
server.
Remote Log: Enable or disable the remote log service.
Apply: Click Apply to apply the changes.
Log
61

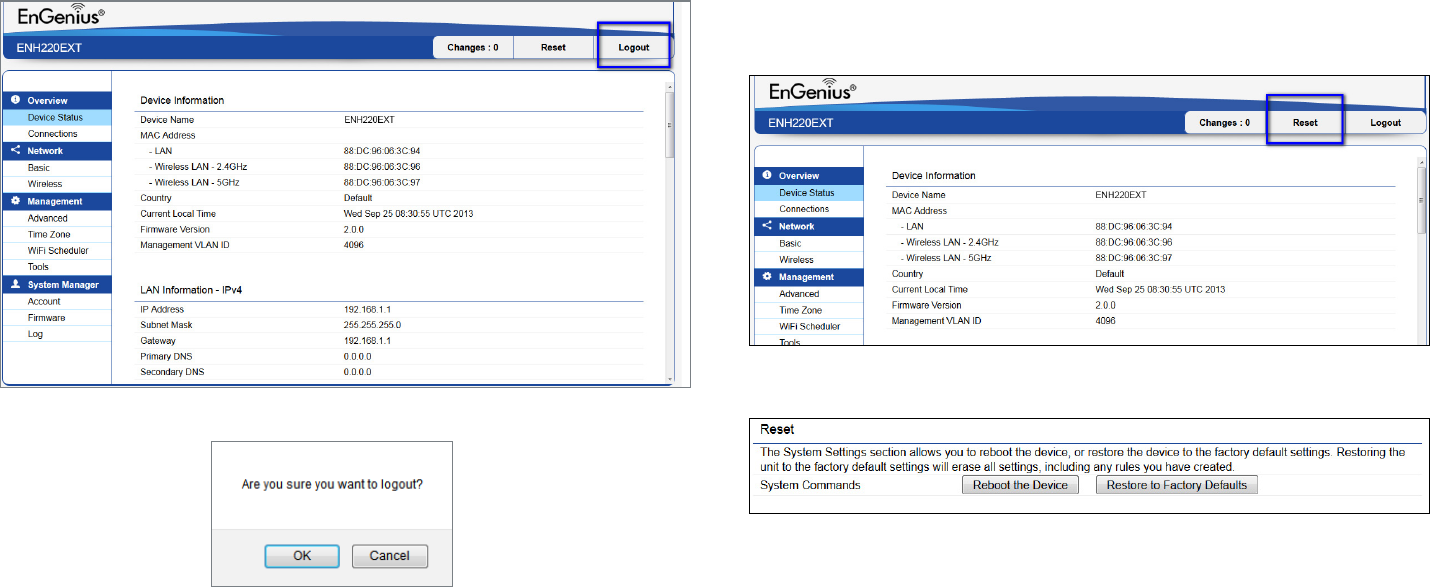

Logout
Click Logout in Management menu to logout.
Reset
In some circumstances, it may be required to force the
device to reboot. Click on Reset to reboot the ENH220EXT.
62
Appendix
63
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one of the following measures:
• Reorient or relocate the receiving antenna.
• IIncrease the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to
operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
IMPORTANT NOTE:
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 23cm between the radiator & your body.
Appendix A
64
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order
to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:
• EN60950-1
Safety of Information Technology Equipment
• EN50385
Generic standard to demonstrate the compliance of electronic and electrical apparatus with the basic restrictions related to human exposure
to electromagnetic elds (0 Hz - 300 GHz)
• EN 300 328
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating
in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article
3.2 of the R&TTE Directive
• EN 301 489-1
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 1: Common technical requirements
• EN 301 489-17
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 17: Specic conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment
Appendix B - CE Interference Statement
65
Česky [Czech] [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES.
Dansk [Danish] Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de
væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch [German] Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG bendet.
Eesti [Estonian] Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust
direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Español [Spanish] Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales y
cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
66
Français [French] Par la présente [nom du fabricant] déclare que l’appareil [type d’appareil] est conforme aux exigences essentielles et aux
autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian] Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai requisiti essenziali ed alle
altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian] Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment / iekārtas tips] atbilst Direktīvas
1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių [Lithuanian] Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Nederlands [Dutch] Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is met de essentiële eisen
en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti
oħrajn relevanti li hemm d-Dirrettiva 1999/5/EC.
Magyar [Hungarian] Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC
irányelv egyéb elõírásainak.
Polski [Polish] Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi wymogami oraz pozostałymi
stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese] [Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Slovensko [Slovenian] [Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive
1999/5/ES.
Slovensky [Slovak] [Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice
1999/5/ES.
Suomi [Finnish] [Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä] tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska [Swedish] Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de väsentliga egenskapskrav och
övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
67
Appendix C - Professional Installation Instruction
Installation Personal
This product is designed for specic application and needs to be installed by a qualied personal who has RF and related rule knowledge. The
general user shall not attempt to install or change the setting.
Installation Location
The product shall be installed at a location where the radiating antenna can be kept 23cm from nearby person in normal operation condition to
meet regulatory RF exposure requirement.
External Antenna
Use only the antennas which have been approved by the applicant. The non-approved antenna(s) may produce unwanted spurious or excessive
RF transmitting power which may lead to the violation of FCC limit and is prohibited.
Installation Procedure
Please refer to user’s manual for the detail.
Warning:
Please carefully select the installation position and make sure that the nal output power does not exceed the limit set force in relevant
rules. The violation of the rule could lead to serious federal penalty.

Navigation menu
