EnGenius Technologies ENH900EXT Wireless Access Point User Manual

EnGenius Technologies Wireless Access Point

User Manual.pdf

User Manual
Business Solutions
Dual Band Long Range Wireless N900 Outdoor Access Point
ENH900EXT
version 1.0
2
IMPORTANT
To install this Access Point please refer to the
Quick Installation Guide included in the product packaging.
3
Chapter 1 Product Overview ........................................... 4
Key Features/Introduction ................................................... 5
System Requirements ............................................................. 6
Package Contents .................................................................... 7
Technical Specications .........................................................  8
Physical Interface ...................................................................... 10
Chapter 2 Before You Begin ............................................... 11
Computer Settings ..................................................................... 12
Hardware Installation ............................................................... 15
Mounting the ENH900EXT .................................................... 16
Chapter 3 Conguring Your Access Point ........................ 18
Default Settings ......................................................................... 19
Chapter 4 Building a Wireless Network ......................... 20
Access Point Mode .................................................................... 21
WDS AP Mode ............................................................................. 23
WDS Bridge Mode ...................................................................... 24
WDS Station Mode ..................................................................... 25
Client Bridge Mode .................................................................... 26
Chapter 5 Status .................................................................. 27
 MainStatus...................................................................................28
Connection .................................................................................... 30
Chapter 6 Network .............................................................. 31
Basic IP Settings ....................................................................... 32
Spanning Tree Protocol Setting .......................................... 33
Chapter 7 2.4GHz/5GHz Wireless ........................................ 34
Wireless Settings ........................................................................... 35
2.4GHz/5GHz Wireless Network .......................................... 36
2.4GHz/5GHz SSID Prole ..................................................... 38
Wireless Security ......................................................................... 39
Wireless MAC Filtering ............................................................. 40
Wireless Advanced ..................................................................... 41
WPS Mixed-Enterprise: AP/WDS AP Mode .......................... 42
WDS Link Settings ....................................................................... 43
Guest Network Settings ............................................................ 44
Chapter 8 Management ........................................................ 45
Management VLAN Settings ................................................. 46
Advanced Settings ...................................................................... 47
 CLI/SSH/HTTPS/EmailAlertSettings..................................48
Time Zone ....................................................................................... 50
Auto Reboot Settings ............................................................ 51
Wi-Fi Scheduler .............................................................................. 52
Tools ................................................................................................. 53
Account/Firmware ....................................................................... 55
Backup/Restore ............................................................................. 56
Log ..................................................................................................... 57
 Logout/Reset................................................................................58
Appendix ................................................................................ 59
FCC Interference Statement .................................................. 60
CE Interference Statement ..................................................... 61
Professional Installation Instruction ................................ 64
Table of Contents
4
Chapter 1
Product Overview
5
Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between
devices, radio interference in the operating environment, and mix of devices in the network. Features and specications subject to change without notice. Trademarks and registered
trademarks are the property of their respective owners. For United States of America: Copyright © 2013 EnGenius Technologies, Inc. All rights reserved.
Key Features
• Upto29dBmtransmitpowerenablinglongrangeconnectivity
• SupportsIEEE802.11a/b/g/nwirelessstandardswithupto450
Mbps data rate on both 2.4GHz and 5GHz bands.
• Threedetachable5dBi2.4GHzomni-directionalantennas
• Threedetachable7dBi5GHzomni-directionalantennas
• CanbemonitoredafterdeploymentwithEnGeniusEZ 
Controller™ software for Windows
(Free online download)
• CanbeusedwithincludedpoweradapterorviaPoEwithPoE
 802.3atcapableswitchesorinjectors
• DualBand/ThreeStream
• BandSteeringshiftsdualbandclientsto5GHzforbetter
throughput performance
• SecuredGuestNetworkoptionavailable
Introduction

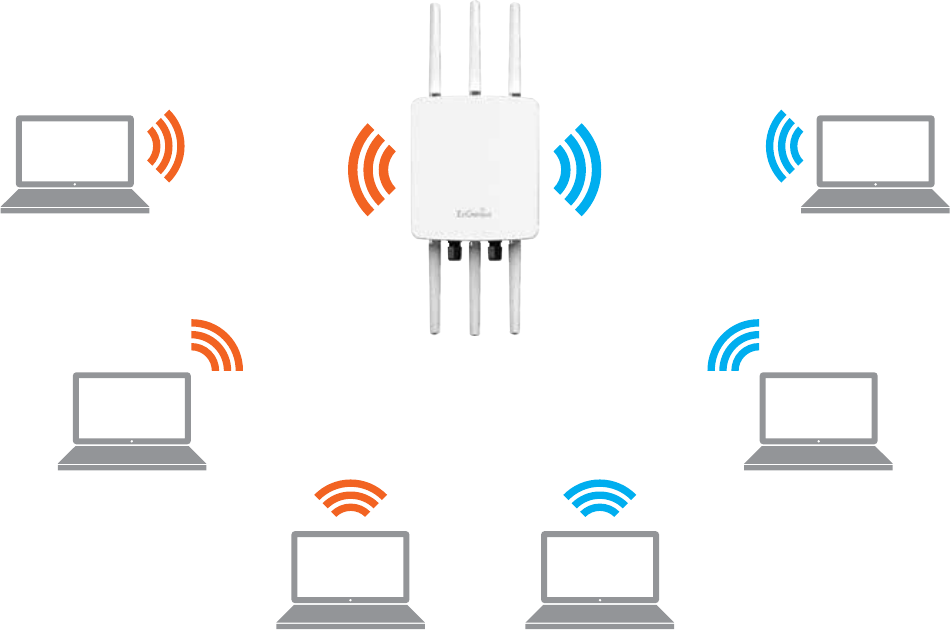

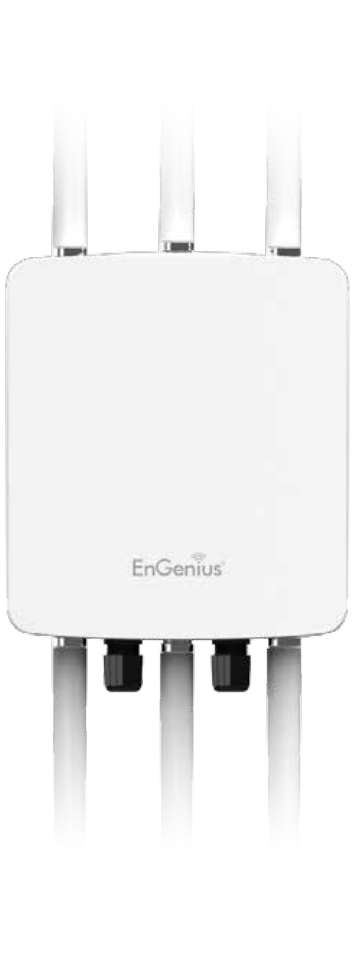

The ENH900EXT is a high-powered, long-range 3x3 Dual-
BandWireless802.11a/b/g/nOutdoorAccessPointwith
speeds up to 450 Mbps on both its high-powered 2.4GHz
and 5GHz radios. It can be congured as an: Access
Point, Client Bridge, or WDS (AP, Station & Bridge). The
ENH900EXT is designed to operate in a variety of outdoor
environments. Its high-powered, long-range characteristics
Introduction
make it a cost-effective alternative to ordinary Access
Points that don’t have the range and reach to connect to a
growing number of wireless users who wish to connect to
a business network. The ENH900EXT supports the 2.4GHz
frequency band under 802.11 b/g/n mode while at the
6
same time providing 5GHz band for communicating to and
from 5GHz capable computers, tablets or smart phones or
transferringles.SeveralENH900EXTscanbedeployedin
a campus setting using the 5GHz band as a backhaul to
provide multiple 2.4GHz wireless cells for computers or
mobile devices in common outdoor areas.
The ENH900EXT is easy to install in virtually any location
with its included PoE (Power over Ethernet) injector for
quick outdoor installation. The ENH900EXT enables
network administrators to control its transmit power
and feature settings for selecting narrow bandwidth and
trafc shaping. The ENH900EXT also supports wireless
encryption including Wi-Fi Protected Access (WPA-PSK/
WPA2-PSK)Encryption,andIEEE802.1xwithRADIUS.
System Requirements
The following are the Minimum System Requirements in
ordertocongurethedevice.
• ComputerwithanEthernetinterfaceorwirelessnetworkcapability
• WindowsOS(XP,Vista,7),MacOS,orLinux-basedoperatingsystems
• Web-Browsing Application (i.e.: Internet Explorer, Firefox, Safari, or
another similar browser application)
7
Package Contents
The ENH900EXT package contains the following items*
• ENH900EXT
• 3Detachable5dBi2.4GHzOmni-directionalAntennas
• 3Detachable7dBi5GHzOmni-directionalAntennas
• PowerAdapter(48V/0.8A)
• PoEInjector(EPE-48GR)
• GroundingCable
• PoleMountBracket
• WallMountBase
• MountingScrewSet
• QuickInstallationGuide
• TechnicalSupportCard
*(All items must be in package to issue a refund):
8
WDS Detail
WDS AP
WDS Bridge
WDS Station
Management
Auto Channel Selection
MultipleSSID:16SSIDs,8SSIDsperRadio
BSSID
SNMP v1/v2c/v3
MIB I/II, Private MIB
VLAN Tag / VLAN Pass-through
Clients Statistics
SaveCongurationasUserDefault
Fast Roaming
E-Mail Alert
RADIUSAccounting
Guest Network
Control
CLI Supported
Distance Control (ACK Timeout)
802.1xSupplicant(CBMode)
Multicast Supported
Auto Reboot
ObeyRegulatoryPower
Standard:
IEEE802.11a/non5GHz
IEEE802.11b/g/non2.4GHz
IEEE802.3at
Antenna
6 External N-type Antennas
3 x detachable 5dBi 2.4GHz omni-directional antennas
3 x detachable 7dBi 5GHz omni-directional antennas
Physical Interface
2 x 10/100/1000 Gigabit Ethernet Ports with PoE support
 LAN1Port:IEEE802.3atPoEInput
 LAN2Port:IEEE802.3afPoEoutput
Both Ethernet Ports support Surge Protection to 1.5KV
LED Indicator
Power
LAN 1
LAN 2
2.4GHz
5GHz
Power Requirements
ExternalPowerAdapter,DCIN,48V/0.8A
IEEE802.3atsupport
Operation Modes
Access Point
WDS
Client Bridge
Technical Specications
9
Security
WEPEncryption-64/128/152bit
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-PSK using TKIP or AES)
Hide SSID in beacons
MACaddressltering,upto50MACs
Wireless STA (Client) connection list
HTTPS Support
SSH Support
QoS (Quality of Service)
CompliantwithIEEE802.11estandard
Physical/Environment Conditions
Operating:
 Temperature:-4°Fto158°F(-20°Cto70°C)
Humidity (non-condensing): 90% or less
Storage:
 Temperature:-22°Fto176°F(-30°Cto80°C)
Humidity (non-condensing): 90% or less
RF Specication (Aggregated Value)
Channel Data Rate Tx Power Rx Sensitivity
802.11b 2.4GHz 1Mbps 29 -96
2Mbps 29 -95
5.5Mbps 29 -93
11Mbps 29 -92
802.11g 2.4GHz 6Mbps 28 -94
54Mbps 25 -75
802.11a 5GHz 6Mbps 29 -94
54Mbps 24 -75
802.11n HT20 2.4GHzx MCS0/ 8 / 16 29 -95
MCS7 / 15 / 23 24 -70
802.11n HT40 2.4GHz MCS0/ 8 / 16 29 -94
MCS7 / 15 / 23 24 -69
802.11n HT20 5GHz MCS0/ 8 / 16 27 -95
MCS7 / 15 / 23 23 -70
802.11n HT40 5GHz MCS0/ 8 / 16 27 -94
MCS7 / 15 / 23 23 -69
802.11ac VHT20
5GHz
MCS0 - -
MCS8 - -
802.11ac VHT40
5GHz
MCS0 - -
MCS9 - -
802.11ac VHT80
5GHz
MCS0 - -
MCS9 - -
10
Physical Interface
Dimensions and Weights
Dimensions: Width x Depth x Height
8.58x2.1x11.22in
(218x55.5x285mm)
Weights:
4.158lbs(1.89kgs)

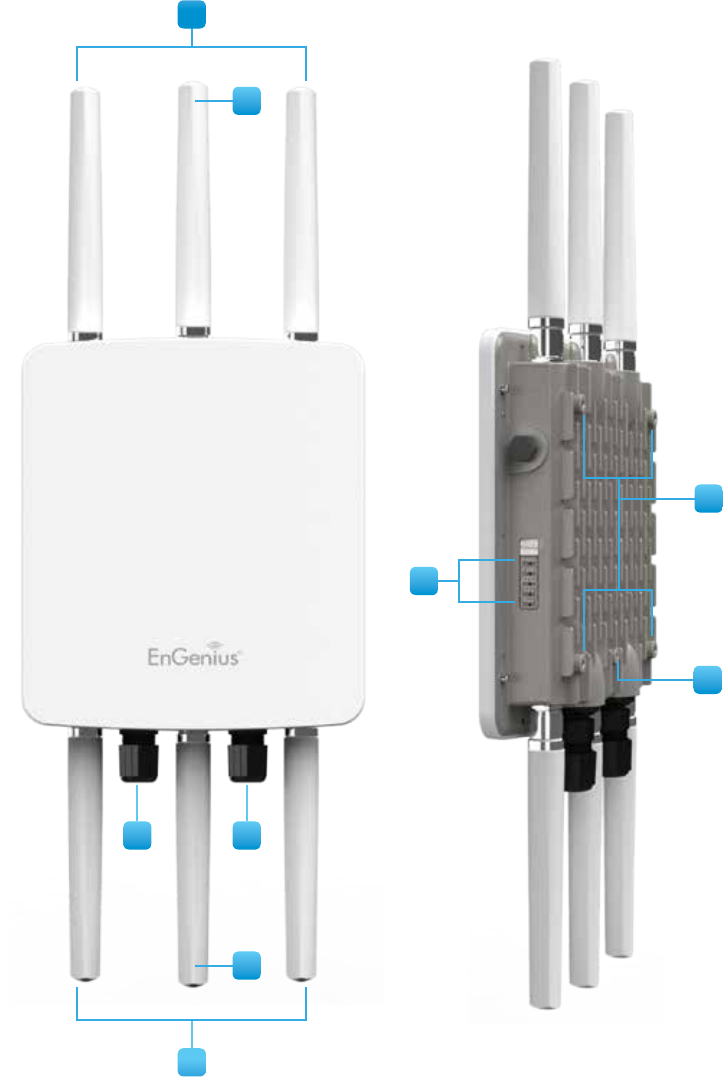

1 2.4GHz Antennas: Detachable 5dBi 2.4GHz omni-directional
2 5GHz Antennas Detachable 7dBi 5GHz omni-directional
3 LAN Port 1 (802.3at PoE Input): Ethernet port for RJ45 cable.
4 LAN Port 2 (802.3af PSE Output): Ethernet port for RJ45 cable.
5 LED Indicators: LED lights for Power, LAN Port 1, LAN Port 2,
2.4GHz Connection and 5GHz Connection.
6 Grounding Hole
7 Mounting Holes: Using the provided mounting parts, the
ENH900EXT can be attached to a wall or a pole.
1
6
7
1
2
2
3 4
5
11
Chapter 2
Before You Begin
12
Windows XP / Windows 7
InordertousetheENH900EXT,youmustrstcongurethe
TCP/IPv4connectionofyourWindowsOScomputersystem.
1. Click the Start button and open the Control Panel.
2a. In Windows XP, click Network Connections.
2b. In Windows 7, click View Network Status and Tasks in
the Network and Internet section, then select Change
adapter settings.
3. Right click on Local Area Connection and select Properties.
Computer Settings
Windows XP Windows 7
13
4. Select Internet Protocol version 4 (TCP/IPv4) and then
select Properties.
5. Select Use the following IP address and enter an IP
address that is different from the ENH900EXT and Subnet
mask, then click OK.
Note: Ensure that the IP address and Subnet mask are
on the same subnet as the device.
Forexample:ENH900EXTIPaddress:192.168.1.1
 PCIPaddress:192.168.1.2–192.168.1.255
PC subnet mask: 255.255.255.0
14

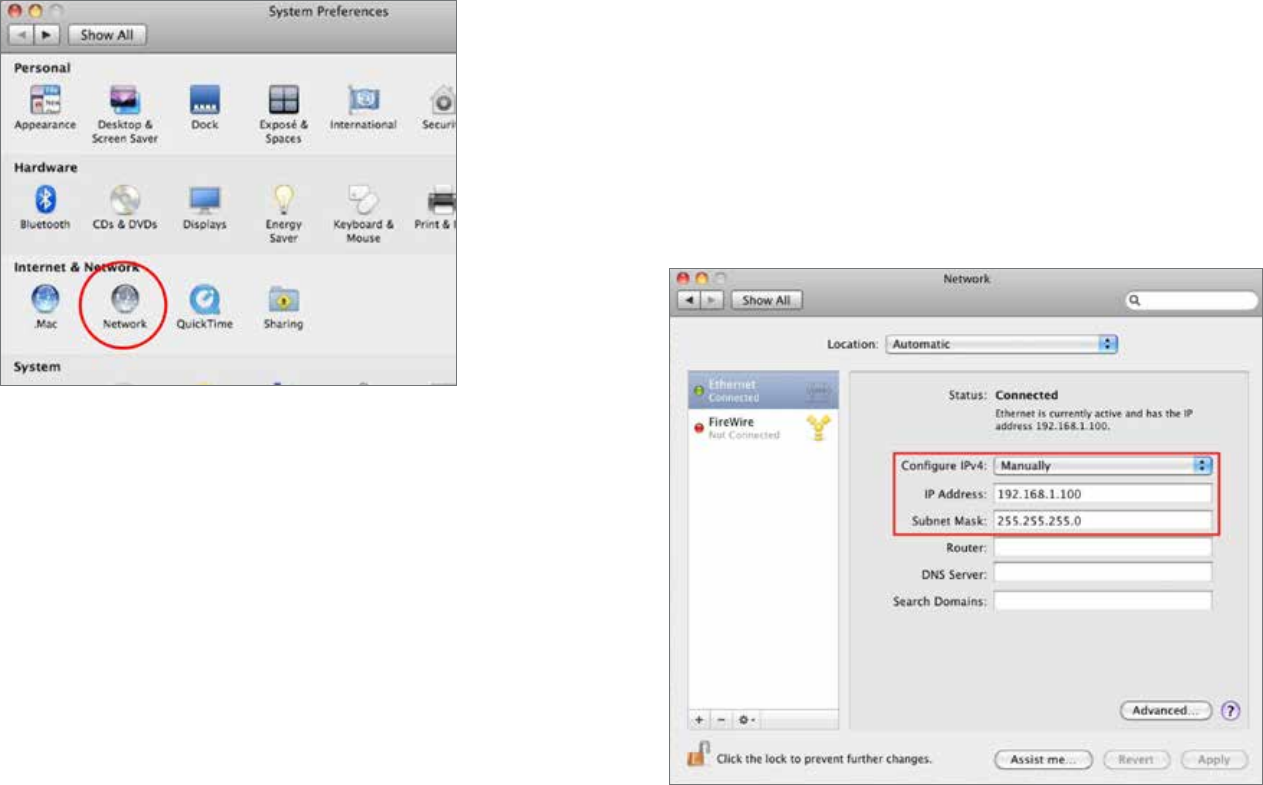

Apple Mac OS X
1. Go to System Preferences (Which can be opened in the
Applications folder or selecting it in the Apple Menu).
2. Select Network in the Internet & Network section.
3. Highlight Ethernet.
4. In Congure IPv4, select Manually.
5. Enter an IP address that is different from the ENH900EXT
and Subnet mask then press OK.
Note: Ensure that the IP address and Subnet mask are
on the same subnet as the device.
Forexample:ENH900EXTIPaddress:192.168.1.1
 PCIPaddress:192.168.1.2–192.168.1.255
PC Subnet mask: 255.255.255.0
6. Click Apply when done.
15
1. Connect one end of the Ethernet cable into the main
LAN port (PoE) of the Access Point and the other end to
theAPEthernetportonthePoEinjector.
2. Connect the Power Adapter to the DC IN port of the
PoEinjectorandplugtheotherend in toanelectrical
outlet.
3. Connect the second Ethernet cable into the LAN port of
thePoEinjectorandtheotherendtotheEthernetport
on the computer.
4. Screw on the provided antennas to the device. Once
both connections are secure, verify the following:
a) Ensure that the POWER light is on (it will be green).
b) Ensure that the 2.4GHz/5GHz WLAN light is on (it will
be green for both 5GHz and 2.4GHz).
c) Ensure that the LAN (Computer/ENH900EXT
Connection) light is on (it will be green).
d)Once all three lights are on, proceed to set up the
Access Point using the computer.
Thisdiagramdepictsthehardwareconguration.
Note: TheAccessPointsupportsbothIEEE802.3atPoE
(Power over Ethernet) or the included power injector.
You may use either one as the power source. Do NOT
use both at the same time.
Hardware Installation
Ethernet
PC
Power
Outlet
PoE Injector/
PoE Swtich
16

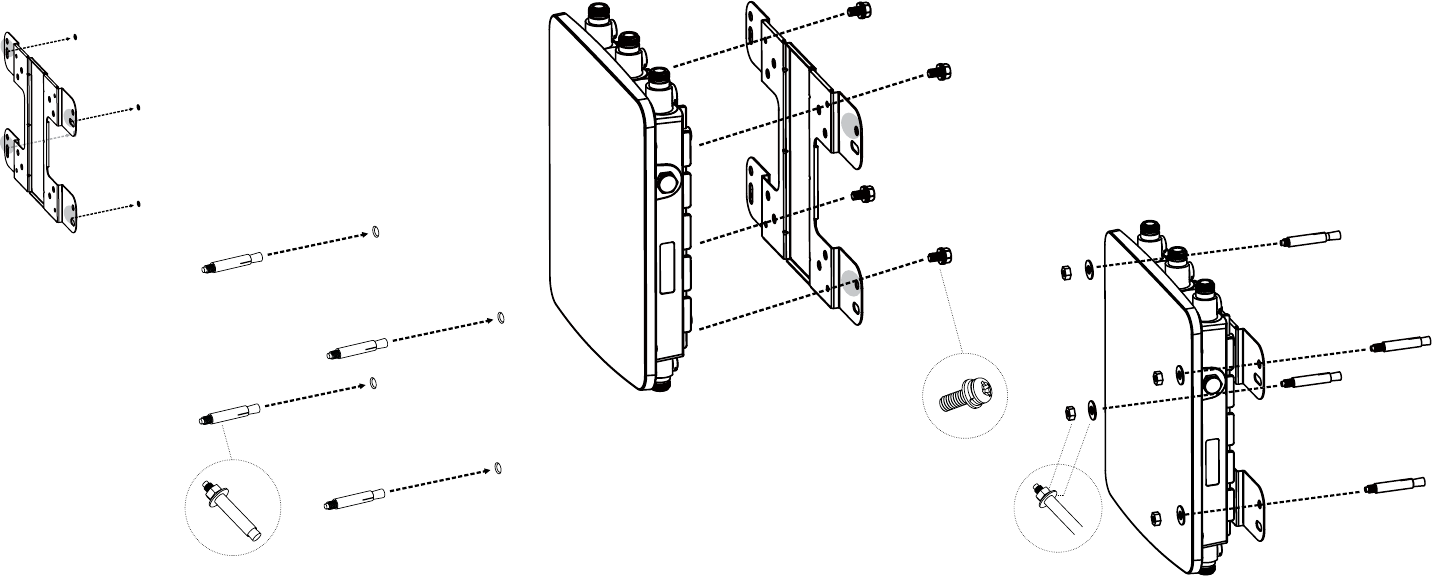

Usingthe provided mountingparts, theENH900EXT can
be attached to a wall or a pole.
To attach the ENH900EXT to a wall using wall
mounting kit.
1. Mark the four locations of the mounting holes on the
atmountingsurface.
2. Drill a 8mm diameter and 37mm depth hole in the
markings and hammer the bolts into the openings.
3. Place the at washers on four screws and drive the
screws to attach the mounting base to the back of the
Access Point.
4. Tightentheat washersandhexcaps to theboltsfor
securing the mounting base to the mounting surface.
Mounting the ENH900EXT
2.
3.
4.
1.
17

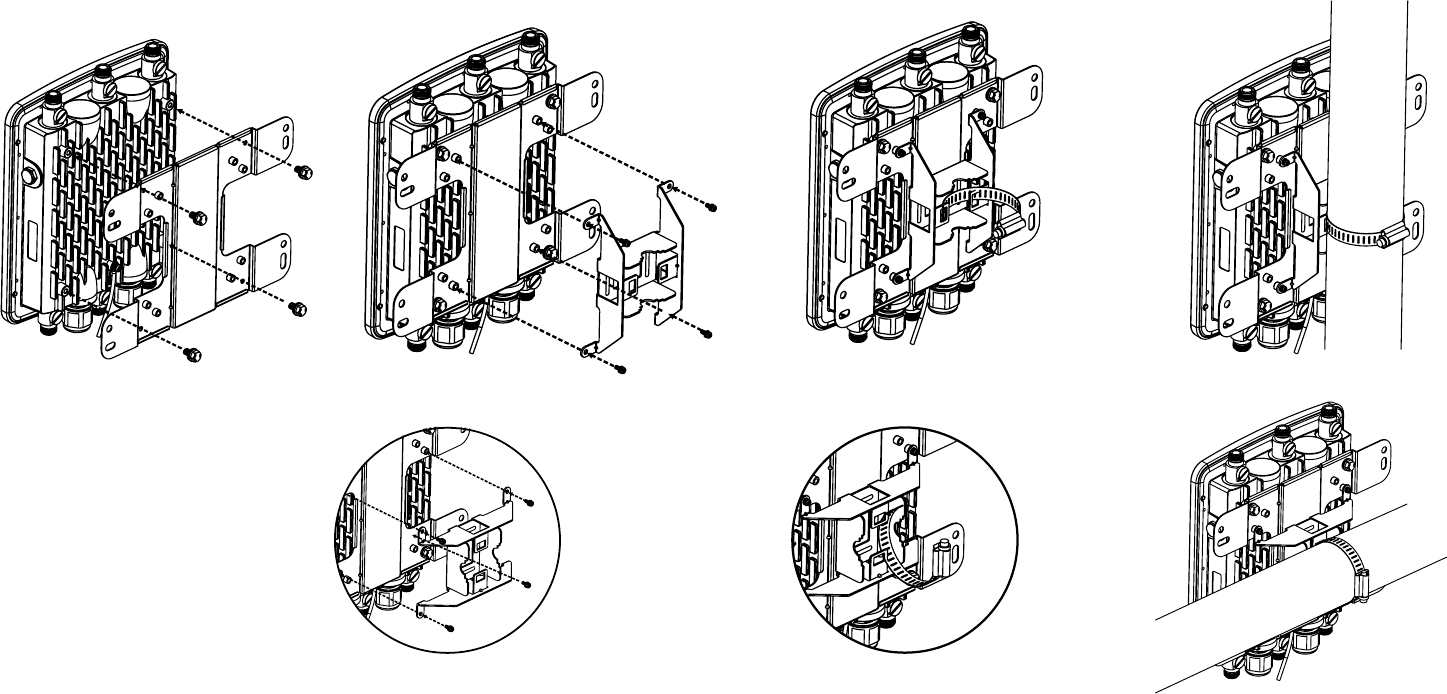

To attach the ENH900EXT to a pole using the
provided pole mounting kit:
1. Place the at washers on four screws and drive the
screws to attach the mounting base to the back of the
Access Point.
2. Drive the four round head screws to attach the Pole
Mount Bracket to the mounting base.
3. Thread the open end of the Pole Strap through the two
tabs on the Pole Mount Bracket .
4. Lock and tighten the Pole Strap to secure the Pole Mount
Bracket to the pole.
Note: See diagrams below for vertical and horizonal
placements.
1. 3.2.
horizontal placement horizontal placement horizontal
placement
4.
18
Chapter 3
Conguring Your
Access Point
19
This section will show you how to congure the device
usingtheweb-basedcongurationinterface.
Default Settings
Please use your Ethernet port or wireless network adapter to
connect the Access Point.
IP Address 192.168.1.1
Username / Password admin / admin
Web Conguration

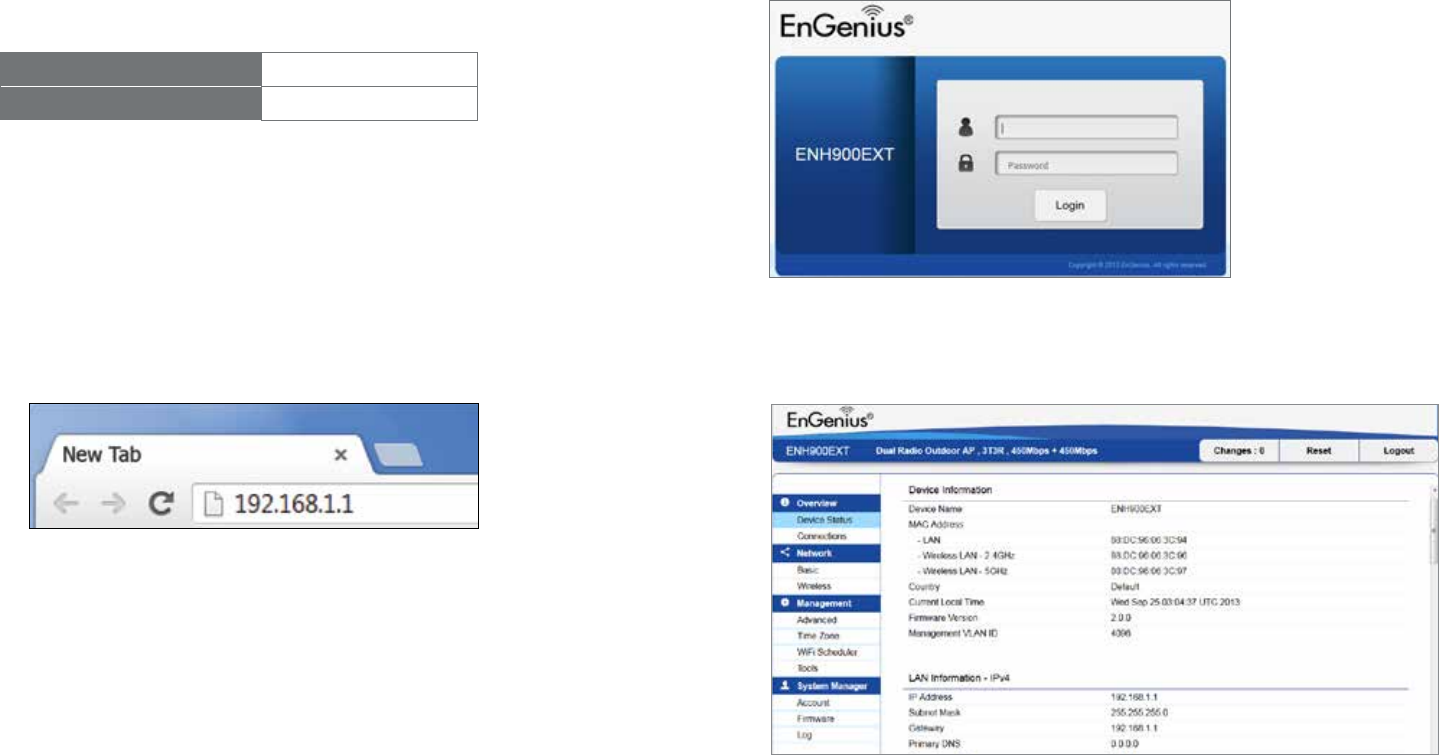

1. Openawebbrowser(InternetExplorer/Firefox/Safari/
Chrome) and enter the IP Address http://192.168.1.1
Note: If you have changed the default LAN IP Address of
the Access Point, ensure you enter the correct IP Address.
2. The default username and password are admin.
Once you have entered the correct username and
password, click the Login button to open the web-base
congurationpage.
3. If successful, you will be logging in and see the
ENH900EXTUserInterface.
Conguring Your Access Point
20
Chapter 4
Building a Wireless
Network
21
The ENH900EXT has the ability to operate in various modes. This chapter describes the operating modes of the
ENH900EXT.

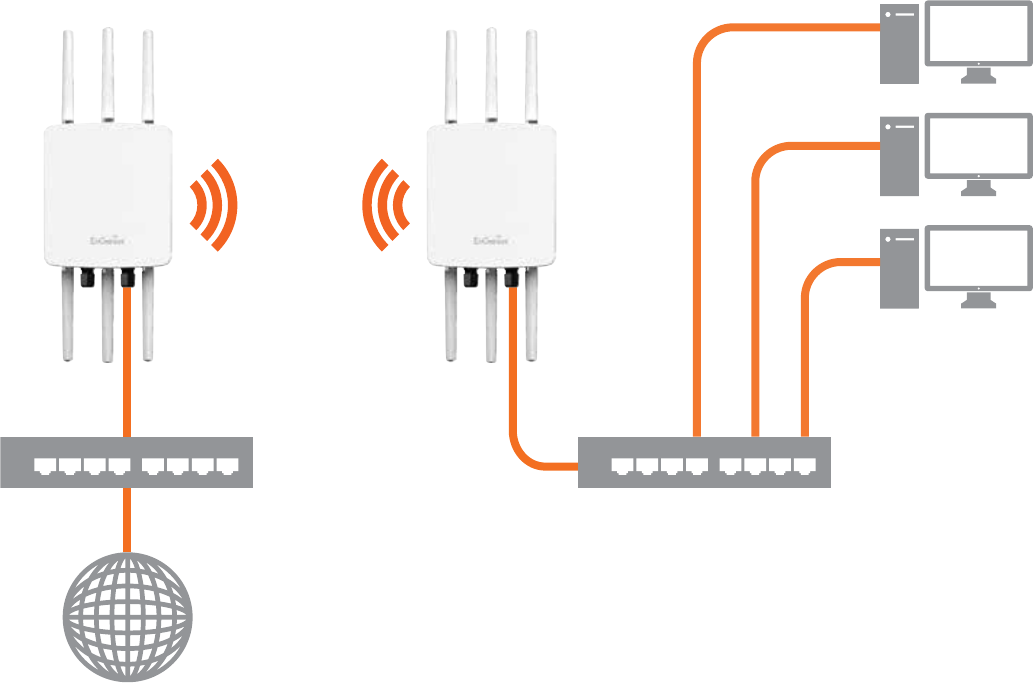

Access Point Mode

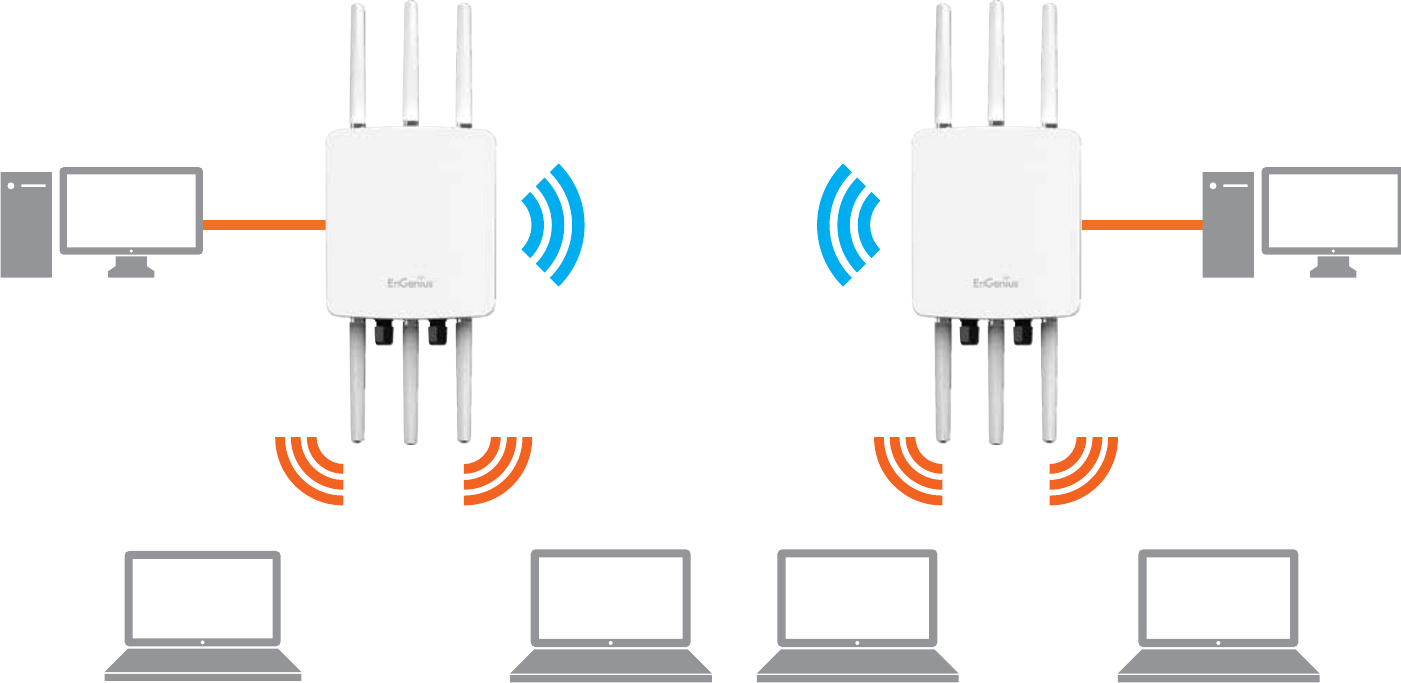

InAccessPointMode,ENH900EXTbehaveslikesacentralconnectionforstationsorclientsthatsupportIEEE802.11a/b/g/n
networks.ThestationsandclientsmustbeconguredtousethesameSSID(ServiceSetIdentier)andsecuritypasswordto
associate with the ENH900EXT. The ENH900EXT supports up to eight SSIDs at the same time for secure access.
ENH900EXT
Access Point
Client
Client Client
Client Client
Client
2.4 GHz 5 GHz
22

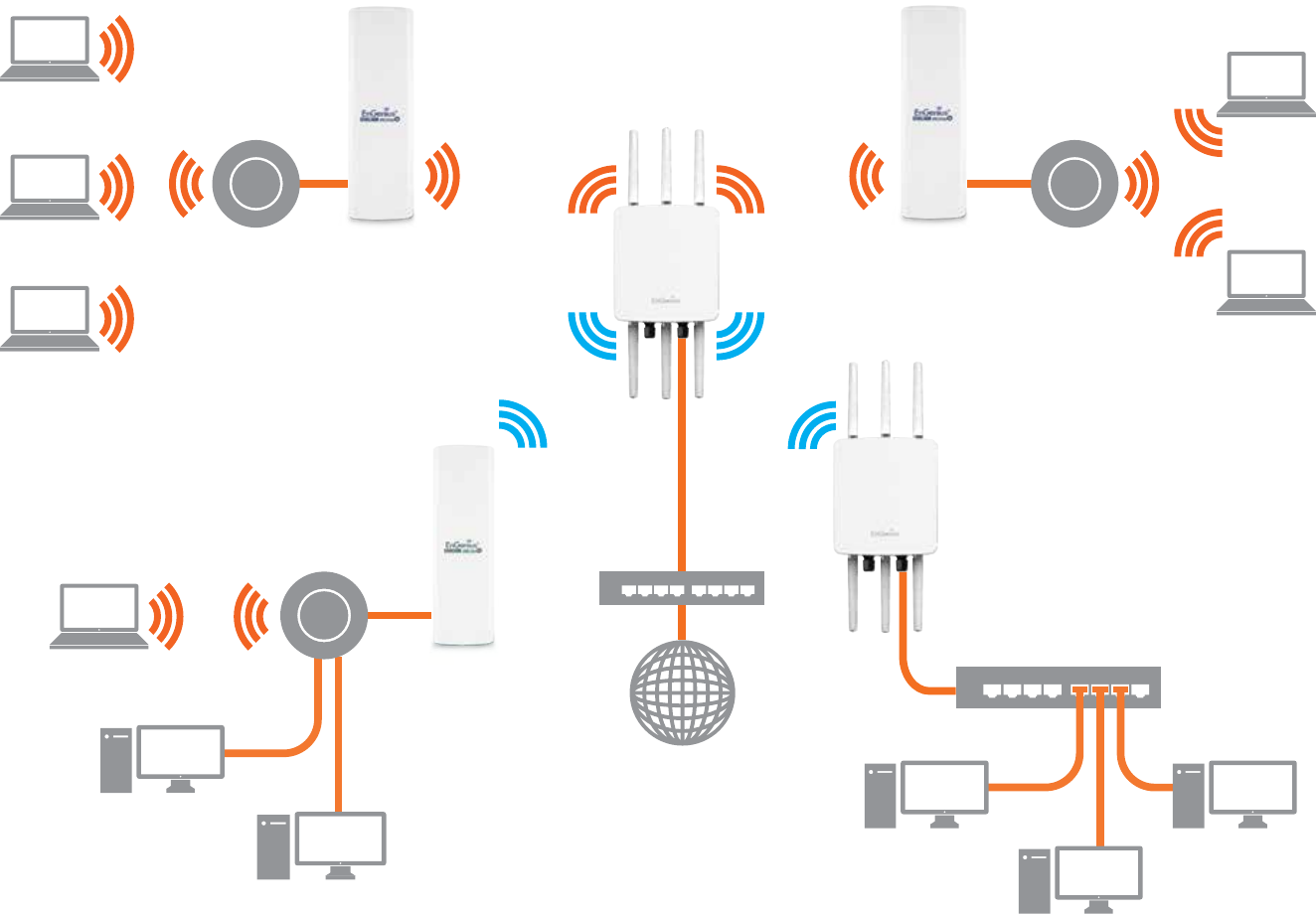

TheENH900EXTcanbeusedasacentralizedOutdoorAccessPointwithwhichotherEnGeniusWirelessN2.4GHzor
5GHzOutdoorClientBridgescanassociate;leveragingthelong-rangecapabilityoftheirinternalhigh-gaindirectional
antennas, resulting in a very cost-effective solution to expand a company network over a multiple building campus.
ENH900EXT
Access Point
ENH900EXT
Client Bridge
ENH202
Client Bridge
ENH202
Client Bridge
ENH500
Client Bridge
Client
Client
Client
Client
Client
Client
Client
Client
Client
Client
Client
2.4 GHz
5 GHz 5 GHz
2.4 GHz
Switch
Switch
Internet
23
WDS AP Mode

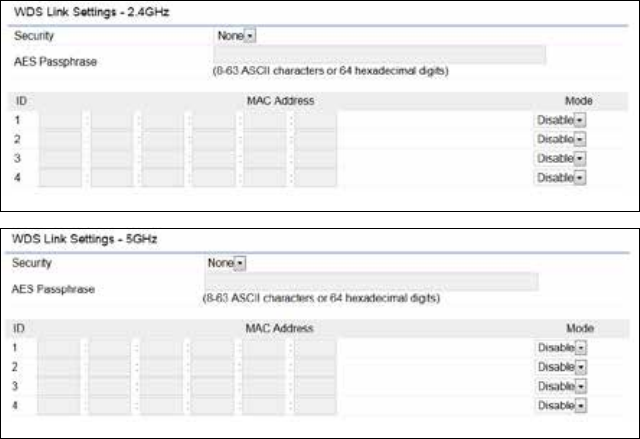

The ENH900EXT also supports WDS AP mode. This operating mode allows wireless connections to the ENH900EXT using
WDStechnology.Inthismode,conguretheMACaddressesinbothAccessPointstoenlargethewirelessareabyenabling
WDS Link settings. WDS supports up to four AP MAC addresses.
ENH900EXT
WDS AP
ENH900EXT
WDS AP
2.4 GHz 2.4 GHz
5 GHz 5 GHz
Client Client Client Client
Client
Computer
Client
Computer
24
WDS Bridge Mode
In WDS Bridge Mode, the ENH900EXT can wirelessly connect different LANs by conguring the MAC address and
securitysettingsofeachENH900EXTdevice.UsethismodewhentwowiredLANslocatedasmalldistanceapartwant
to communicate with each other. The best solution is to use the ENH900EXT to wirelessly connect two wired LANs, as
shown in the following diagram.
WDS Bridge Mode can establish up to four WDS links, creating a star-like network.
Note: WDS Bridge Mode does not act as an Access Point. Access Points linked by WDS are using the same frequency
channel. More Access Points connected together may lower throughput. This conguration can be susceptible to
generate endless network loops in your network, so it is recommended to enable the Spanning Tree function to
prevent this from happening.
ENH900EXT
WDS Bridge
ENH900EXT
WDS Bridge
ENH900EXT
WDS Bridge
Client
Computer
Client
Computer
Client
Computer
25

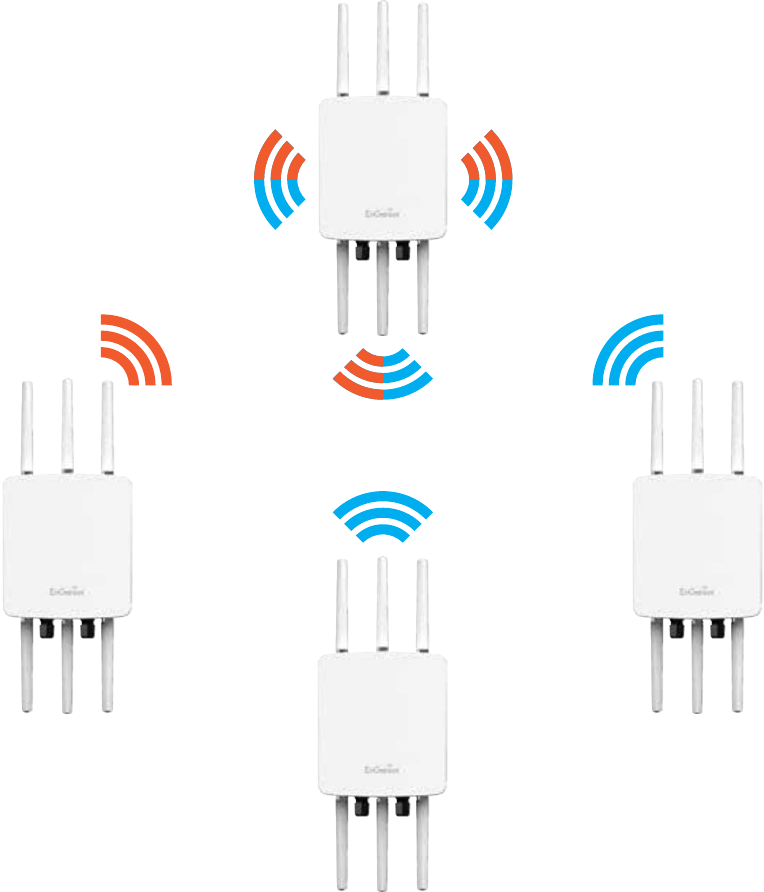

WDS Station Mode
Expands the WDS by receiving a wireless signal/service and sharing through the Ethernet port.
ENH900EXT
WDS AP
on both 5 GHz & 2.4 GHz
ENH900EXT
WDS Station
ENH900EXT
WDS Station
ENH900EXT
WDS Station
26
Client Bridge Mode
In the Client Bridge mode, the ENH900EXT functions like a wireless network adaptor. This allows the ENH900EXT to
share the acquired wireless network access (via another device in Access Point mode) with wired devices connected via
Ethernet to it (typically via a networked switch).
ENH900EXT
Access Point
Switch
Switch
Client Computer
Client Computer
Client Computer
Internet
ENH900EXT
Client Bridge
27
Chapter 5
Status
28

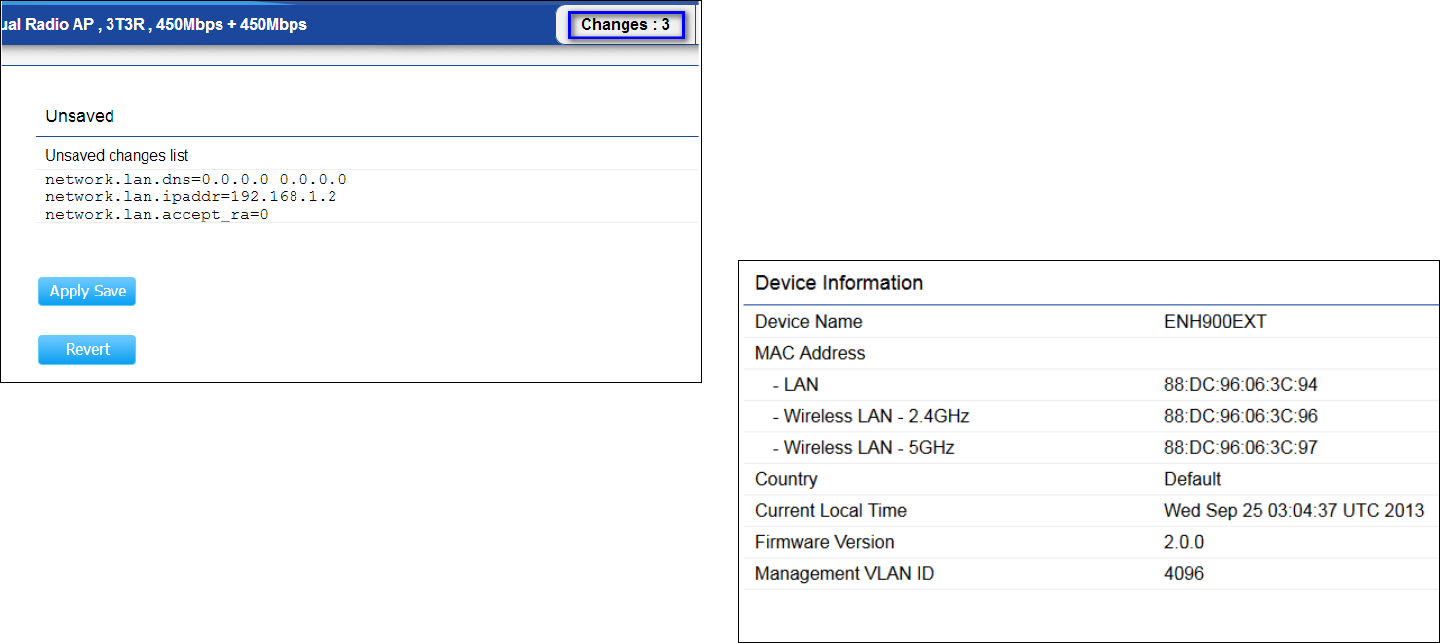

Save Changes
This page lets you save and apply the settings shown under
Unsaved changes list, or cancel the unsaved changes and
revert them to the previous settings that were in effect.

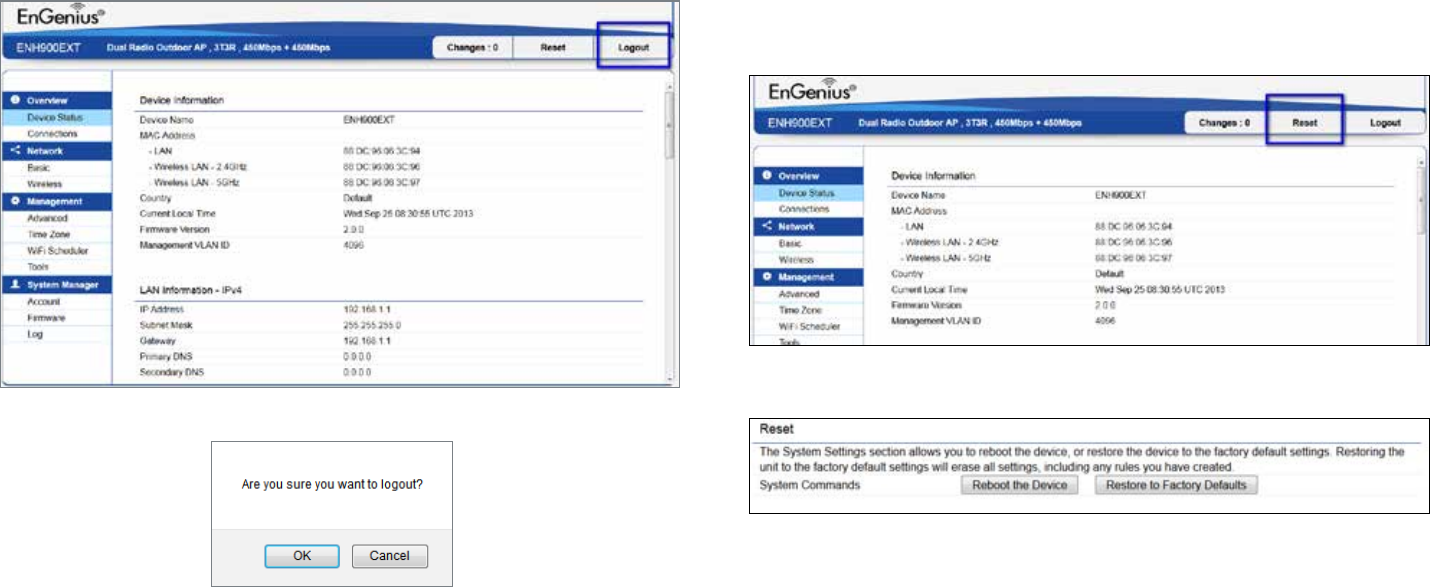

Device Status
Clicking the Device Status link under the Overview menu
shows the status information about the current operating
mode.
•  The Device Information section shows general system
information such as Device Name, MAC Address, Country,
Current Time, Firmware Version, and Management VLAN
ID
Note: VLAN ID is only applicable in Access Point or WDS
AP mode.
Main Status
29

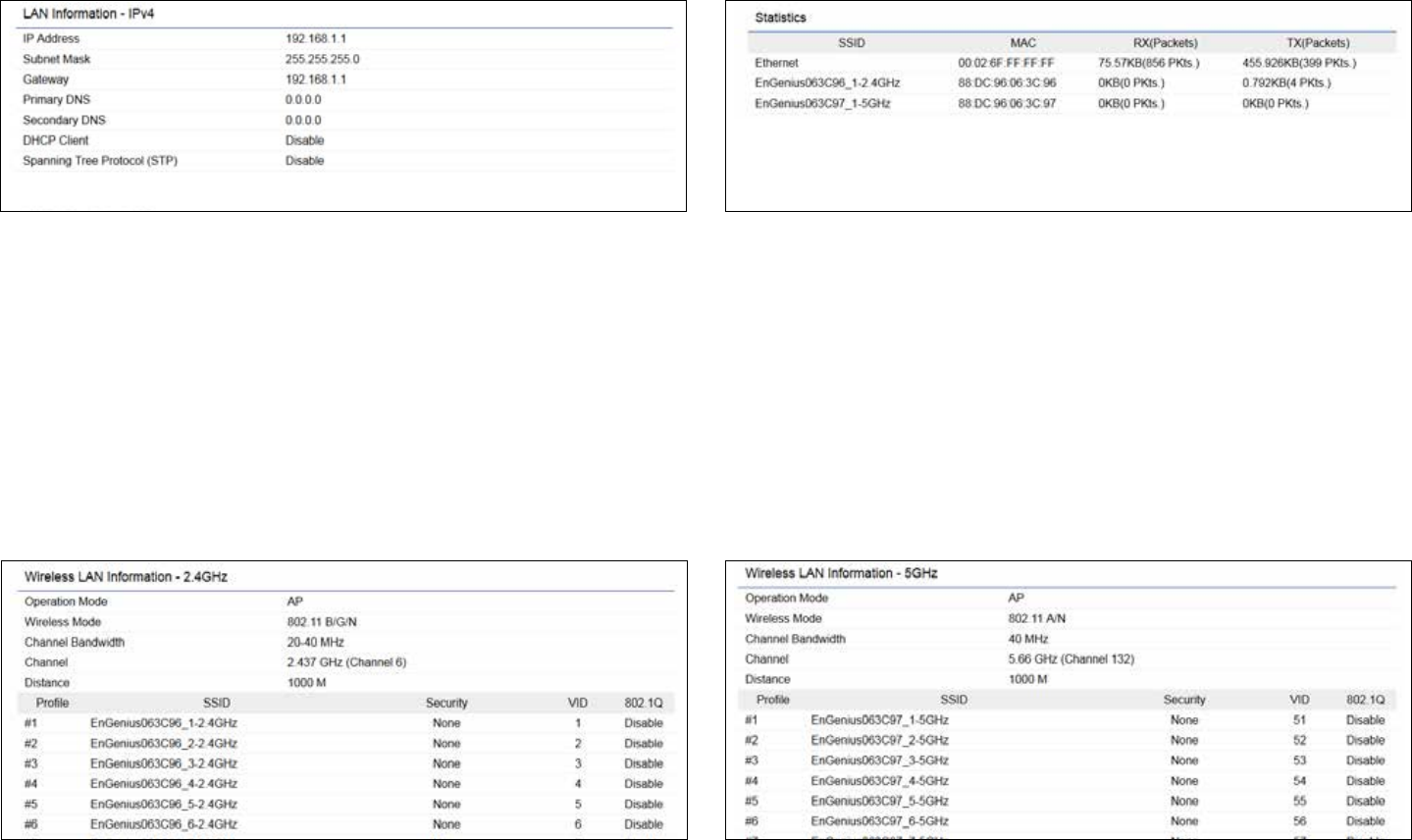

•  The LAN Information section shows the Local Area
Network settings such as the LAN IP Address, Subnet
Mask, and DNS Address.
•  The Wireless LAN Information 2.4GHz/5GHz section
shows wireless information such as Operating Mode,
Frequency, and Channel. Since the ENH900EXT supports
multiple-SSIDs, information about each SSID, the ESSID
and security settings, are displayed
Note: ProleSettingsareonlyapplicableinAccessPoint
and WDS AP modes.
•  TheStatistics section shows MAC information such as
SSID, MAC address, RX and TX.
30

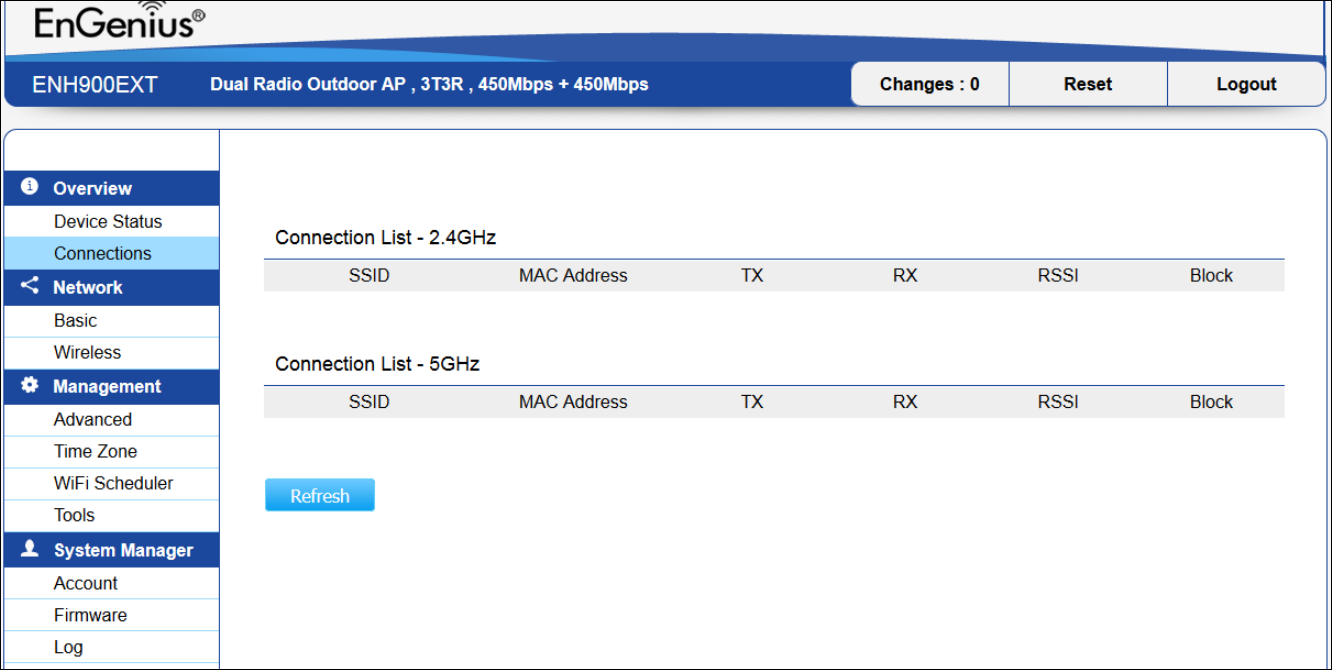

2.4GHz/5GHz Connection List
Clicking the 2.4GHz/5GHz Wireless Client List link under
the Information menu displays the list of clients associated
to the ENH900EXT’s 2.4GHz/5GHz, along with the MAC
addresses and signal strength for each client. Clicking
Refresh updates the client list.
Note: Only applicable in Access Point and WDS AP
modes.
2.4GHz/5GHz WDS Link List
Click on the 2.4GHz /5GHz WDS Link List link under the Status
menu. This page displays the current status of the WDS link,
including WDS Link ID, MAC Address, Link Status and RSSI.
Note: OnlyapplicableinWDSAPandWDSBridgemodes.
Connection
31
Chapter 6
Network
32
IPv4/IPv6 Settings

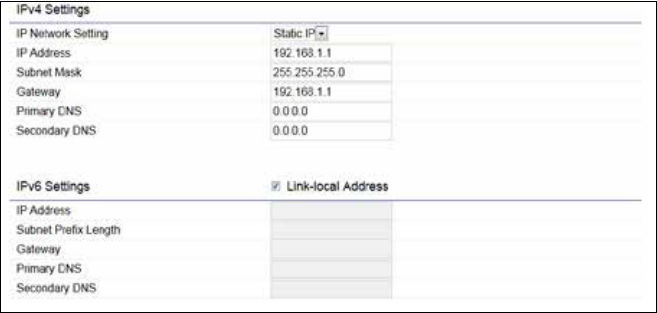

This page allows you to modify the device’s IP settings. IP Network Setting: Select whether the device IP address
willusethestaticIPaddressspeciedintheIPaddresseld
or be obtained automatically when the device connects to
a DHCP server.
IP Address: The IP Address of this device.
Subnet Mask: The IP Subnet mask of this device.
Gateway: The Default Gateway of this device. Leave it
blank if you are unsure of this setting.
Primary/Secondary DNS: The primary/secondary DNS
address for this device.
Save: Click Savetoconrmthechanges.
Basic IP Settings
33

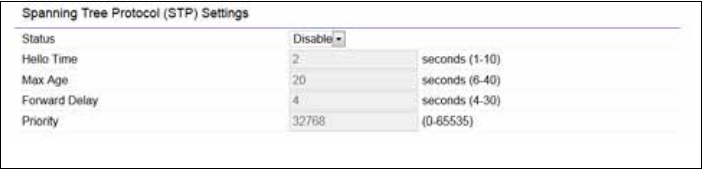

Spanning Tree Protocol (STP) Settings
This page allows you to modify the Spanning Tree settings.
Enabling Spanning Tree protocol will prevent network loops
in your LAN network.
Spanning Tree Status: Enables or disables the Spanning
Tree function.
Hello Time: Species Bridge Hello Time in seconds. This
value determines how often the device sends handshake
packets to communicate information about the topology
throughout the entire Bridged Local Area Network.
Max Age: SpeciesBridgeMaxAgeinseconds.Ifanother
bridge in the spanning tree does not send a hello packet for
a long period of time, it is assumed to be dead.
Forward Delay:SpeciesBridgeForwardDelayinseconds.
Forwarding delay time is the time spent in each of the
Listening and Learning states before the Forwarding state
is entered. This delay is provided so that when a new bridge
comesontoabusynetwork,itanalyzesdatatrafcbefore
participating.
Priority: SpeciesthePriorityNumber.Asmallernumber
has greater priority.
Save: Click Savetoconrmthechanges.
34
Chapter 7
2.4GHz/5GHz
Wireless
35

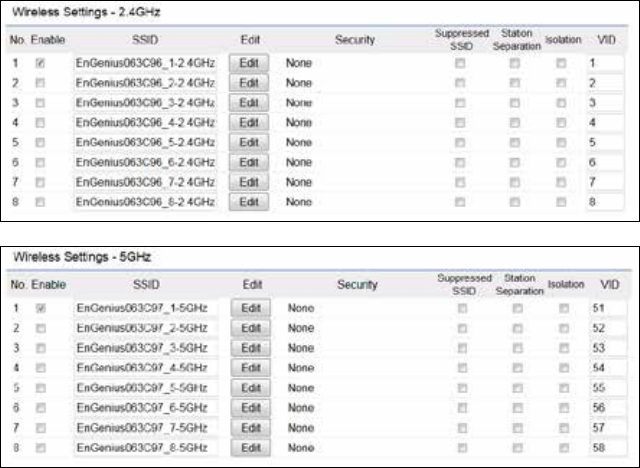

Wireless Settings

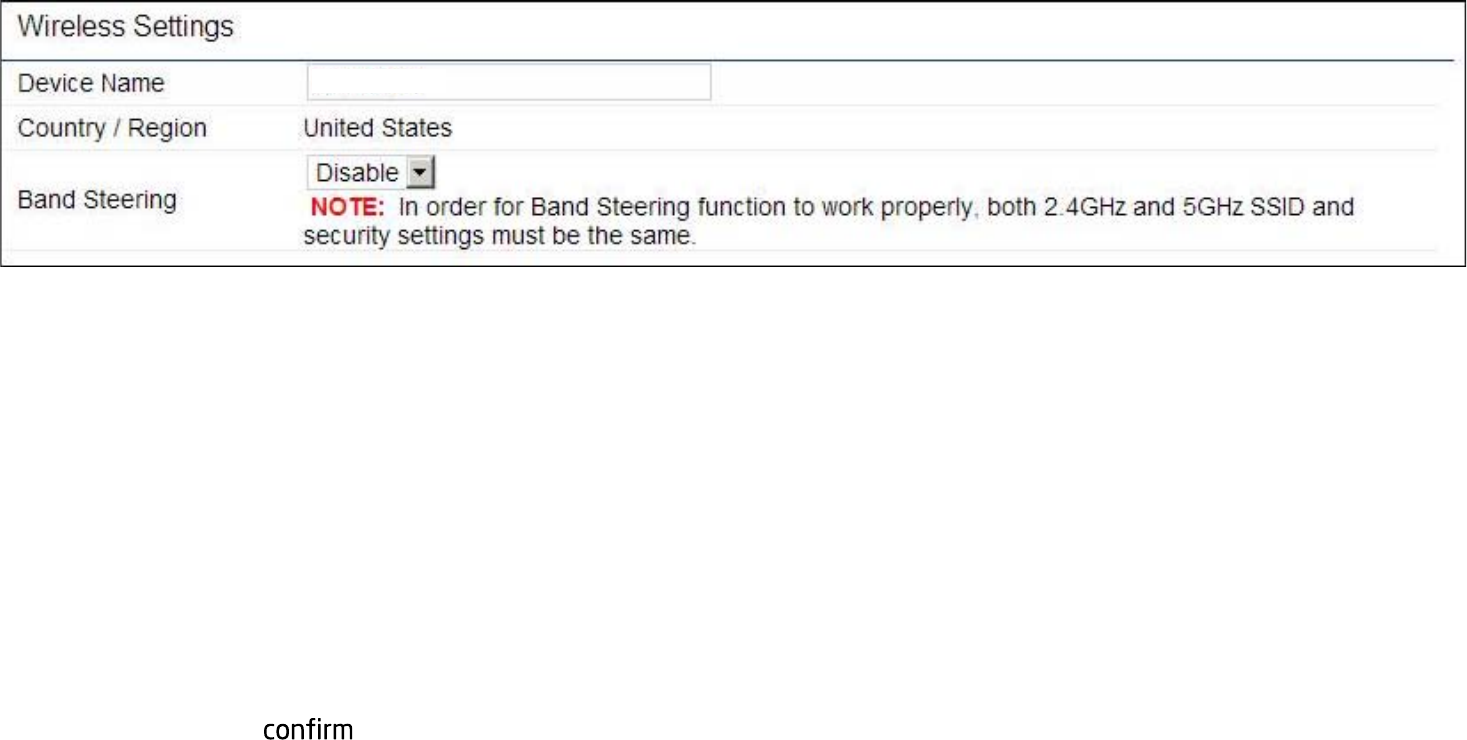

Device Name: Enter a name for the device. The name you
type appears in SNMP management. This name is not the
SSID and is not broadcast to other devices.
Band Steering: Enable Band Steering to send 802.11n
clients to the 5GHz band, where 802.11 b/g clients
cannot go, and leaves the 802.11 b/g clients in 2.4GHz to
operate at their slower rates. Band Steering works within
the Access Point by directing 5GHz capable clients to that
band.
Save: Click Save to the changes.
Wireless
ENH900EXT
36

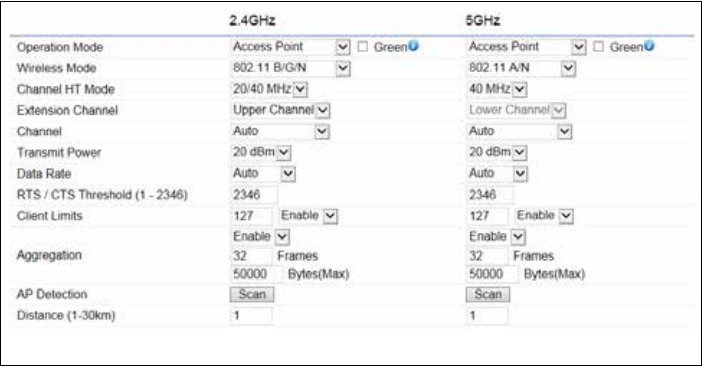

This page displays the current status of the Wireless
settings of the ENH900EXT.
2.4GHz/5GHz Wireless Network
Operation Mode: SelectOperationMode.TheENH900EXT
supportsthreeOperationModes:AccessPoint,ClientBridge
or WDS (WDS AP, WDS Bridge, and WDS Station).
Wireless Mode: Supports 802.11 b/g/n mixed mode in
2.4GHzand802.11a/nmixedmodein5GHz.
Channel HT Mode: The default channel bandwidth is 20/
40MHz. The larger the channel, the greater the transmission
quality and speed.
Extension Channel: Select upper or lower channel. Your
selection may affect the Auto channel function.
Channel: Select the channel and frequency appropriate
for your country’s regulation. Select Auto to enable auto-
channel selection.
Transmit Power: Sets the power output of the wireless
signal.
Data Rate: Select a data rate from the drop-down list. The
data rate affects throughput of data in the ENH900EXT.
Select the best balance for you and your network but note
that the lower the data rate, the lower the throughput,
though transmission distance is also lowered.
37
RTS/CTS Threshold:Speciesthethresholdpackagesize
for RTC/CTS. A small number causes RTS/CTS packets to be
sent more often and consumes more bandwidth.
Client Limits: Limits the total number of clients.
Aggregation: Merges data packets into one packet. This
option reduces the number of packets, but also increases
packet sizes.
AP Detection: AP Detection can select the best channel to
use by scanning nearby areas for Access Points.
Distance: Species the distance between Access Points
and clients. Note that longer distances may drop higher-
speed connections.
Save: Click SavetoconrmthechangesorCancel to cancel
and return to previous settings.
38
2.4GHz/5GHz SSID Prole
Current Prole: You can congure up to eight different
SSIDs (4 in WDS AP mode). If multiple client devices will be
accessing the network, you can arrange the devices into
SSID groups. Click Edittoconguretheproleandcheck
whether you want to enable extra SSID.
SSID:SpeciestheSSIDforthecurrentprole.
Suppressed SSID: Check this option to hide the SSID from
clients. If checked, the SSID will not appear in the site survey.
Station Separation: Click the appropriate radio button to
allow or prevent communication between client devices.
VID:SpeciestheVLANtagforeachprole.Ifyournetowrk
includes VLANs, you can specify a VLAN ID for packets pass
through the Access Point with a tag.
Wireless Security: See the Wireless Security section.
Isolation: Restricted client to communicate with different
VID by selecting the radio button.
Save: Click Save to accept the changes.
39
Wireless Security
The Wireless Security section lets you congure the
ENH900EXT’s security modes: WEP, WPA-PSK, WPA2-PSK,
WPA-PSK Mixed, WPA, WPA2, and WPA Mixed. It is strongly
recommend that you use WPA2-PSK.
Auth Type: Select Open System or Shared Key.
Input Type:
ASCII: Regular Text (recommended)
Hexadecimal Numbers (For advanced users)
Key Length: Select the desired option and ensure that
wireless clients use the same setting. Your choices are 64,
128,and152-bitpasswordlengths.
Default Key: Select the key you wish to be the default.
Transmitted data is ALWAYS encrypted using the Default
Key;theotherKeysarefordecryptiononly.Youmustenter
a Key Value for the Default Key.
Encryption Key Number: Enter the Key Value or values you
wishtouse.OnlytheKeyselectedasDefaultisrequired.
The others are optional.
40
Wireless MAC Filtering

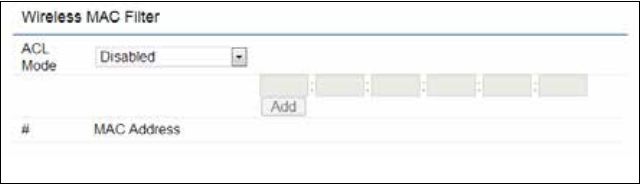

Wireless MAC Filtering is used to allow or deny network
access to wireless clients (computers, tablet PCs, NAS,
smartphones, etc.) according to their MAC addresses. You
can manually add a MAC address to restrict permission to
access the ENH900EXT. The default setting is: Disable
Wireless MAC Filter.
Note:  Only applicable in Access Point and WDS AP
modes.
ACL Mode: Determines whether network access is granted
or denied to clients whose MAC addresses appear in the
MAC address table on this page. Your choices are: Disabled,
Deny MAC in the list, or Allow MAC in the list.
MAC Address: Enter the MAC address of the wireless client.
Add: Click Add to add the MAC address to the MAC address
table.
Delete: Delete the selected entries.
Save: Click Save to apply the changes.
41
Wireless Advanced

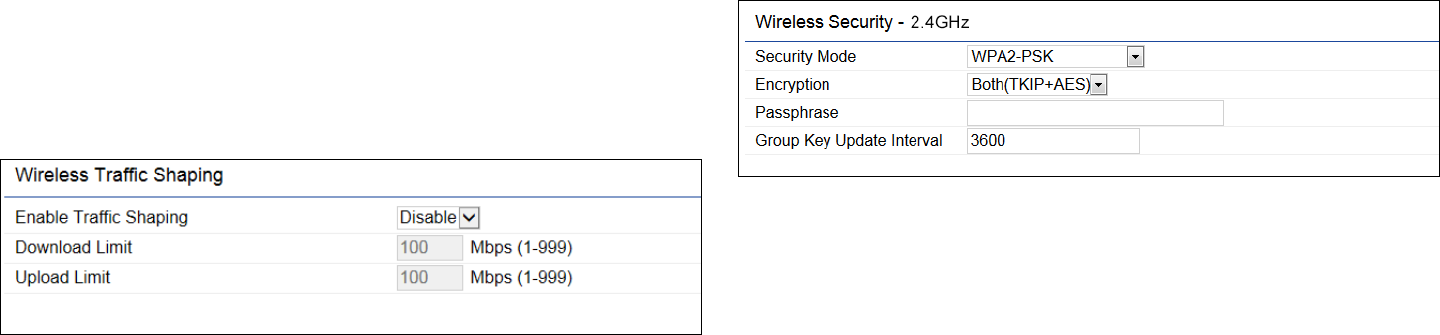

Wireless Trafc Shaping
Trafc shaping regulates the ow of packets leaving an
interfacetodeliverimprovedQualityofService.
Enable Trafc Shaping: Check this option to enable
WirelessTrafcShaping.
Download Limit: Speciesthewirelesstransmissionspeed
used for downloading.
Upload Limit: Species the wireless transmission speed
used for uploading.
Save: Click Savetoconrmthechanges.
WPA-PSK (WPA Pre-Shared Key) Encryption:
Encryption: Select the WPA encryption type you would
like. Please ensure that your wireless clients use the same
settings.
Passphrase: Wireless clients must use the same Key to
associate the device. If using ASCII format, the Key must
befrom8to63charactersinlength.IfusingHEXformat,
the Key must be 64 HEX characters in length.
Group Key Update Interval: Species how often, in
seconds, the Group Key changes.
42
WPA Mixed-Enterprise: Access Point / WDS AP mode
Encryption: Select the WPA encryption type you would like.
Please ensure that your wireless clients use the same settings.
Radius Server: Enter the IP address of the Radius server.
Radius Port: Enter the port number used for connections
to the Radius server.
Radius Secret: Enter the secret required to connect to the
Radius server.
Group Key Update Interval: Species how often, in
seconds, the group key changes.
Radius Accounting: Enable or disable accounting feature.
Radius Accounting Server: Enter the IP address of the
Radius accounting server.
Radius Accounting Port Enter the port number used for
connections to the Radius accounting server.
Radius Accounting Secret: Enter the secret required to
connect to the Radius accounting server.
Interim Accounting Interval: Species how often, in
seconds, the accounting data sends.
Note: 802.11n does not allow WEP/WPA-PSK TKIP/
WPA2-PSK TKIP security mode. The connection mode
willautomaticallychangefrom802.11nto802.11g.
Fast Roaming: Enable Fast Roaming to serve mobile client
devices that roam from Access Point to Access Point. Some
applications running on Client devices require fast re-
association when they roam to a different Access Point.
Voice application, for example, requires seamless roaming
to prevent delays in conversations.
43

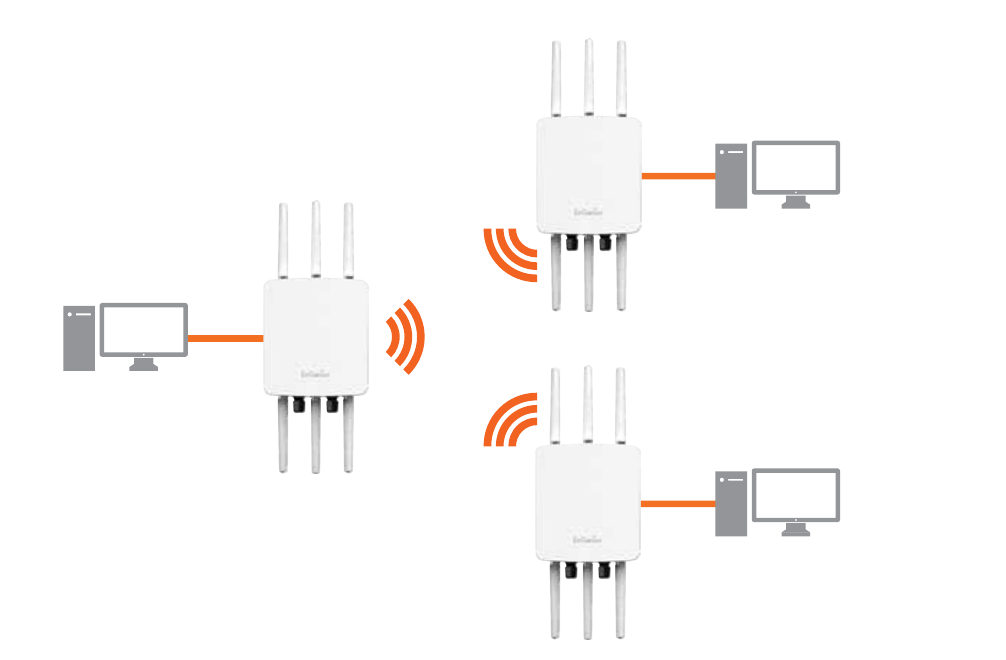

WDS Link Settings
Using WDS (Wireless Distribution System) will allow
a network administrator or installer to connect to
Access Points wirelessly. Doing so will extend the wired
infrastructure to locations where cabling is not possible or
inefcienttoimplement.
Note: Compatibility between different brands and
models of Access Points is not guaranteed. It is
recommended that the WDS network be created using
the same models for maximum compatibility.
Also note: All Access Points in the WDS network need
to use the same Channel and Security settings.
To create a WDS network, please enter the MAC addresses
of the Access Points that you want included in the WDS.
There can be a maximum of four Access Points.
Note: OnlyapplicableinWDSAPandWDSBridgemodes.
2.4GHz/5GHz WDS Link Settings
Security: Select None or AES from drop-down list.
AES Passphrase: Enter the Key Values you wish to use.
OtherAccessPointsmustusethesameKeytoestablisha
WDS link.
MAC Address: Enter the Access Point’s MAC address to
where you want to extend the wireless area.
Mode: Select Disable or Enable from the drop-down list.
Save: Click Save toconrmthechanges.
44

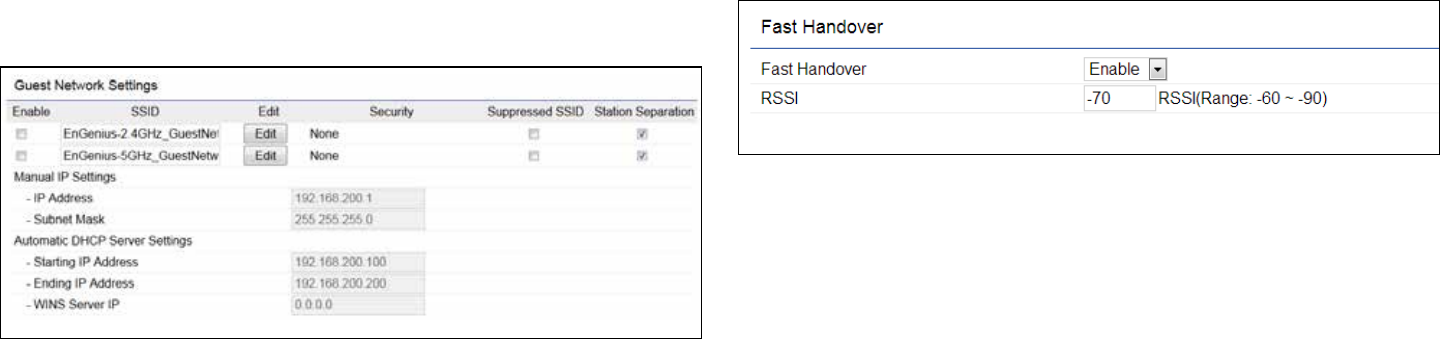

Guest Network Settings
Adding a guest network allows visitors to use the Internet
without giving out your ofce or company wireless
security key. You can add a guest network to each wireless
network in the 2.4GHz b/g/n and 5GHz a/n frequencies.
SSID:SpeciestheSSIDforthecurrentprole.
Suppressed SSID: Check this option to hide the SSID from
clients. If checked, the SSID will not appear in the site survey.
Station Separation: Click the appropriate radio button to
allow or prevent communication between client devices.
IP Address: The IP Address of this device.
Subnet Mask: The IP Subnet mask of this device.
Starting IP Address: TherstIPAddressintherangeof
the addresses by the DHCP server.
Ending IP Address: The last IP Address in the range of
addresses assigned by the DHCP server.
Fast Handover
Fast Handover: Enable Fast Handover by ensuring that
each client is served by at least one access point at any
time. Access Points continuously monitor the connectivity
quality of any client in their range and efciently share
this information with other Access Points in the vincinity
of that client to coordinate which of them should serve the
client best.
RSSI: Enter the RSSI (Received Signal Strength Index) in
order to determine the handover procedure which the
current wireless link will terminate. RSSI is an indication of
the power level being received by the antenna. Therefore,
the higher the RSSI number, the stronger the signal.
45
Chapter8
Management
46

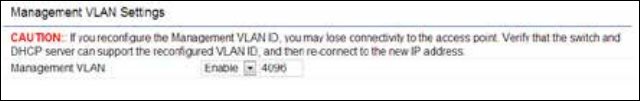

Management VLAN Settings
This page allows you to assign a VLAN tag to the packets. A
VLAN is a group of computers on a network whose software
hasbeenconguredsothattheybehaveasiftheywereon
a separate Local Area Network (LAN). Computers on VLAN
do not have to be physically located next to one another
on the LAN.
Note: Only applicable in Access Point and WDS AP
modes.
Management VLAN: If your network includes VLANs, you
can enable Management VLAN ID for packets passing
through the Access Point with a tag.
Save: Click SavetoconrmthechangesorCancel to cancel
and return to previous settings.
Note: IfyoureconguretheManagementVLANID,you
may lose your connection to the ENH900EXT. Verify
thattheDHCPserversupportsthereconguredVLAN
ID and then reconnect to the ENH900EXT using the
new IP address.
47

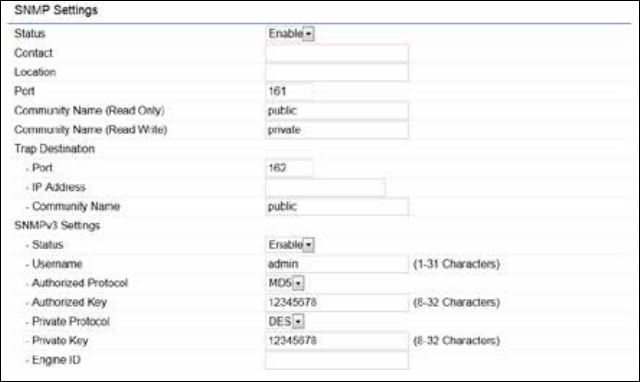

SNMP Settings
This page allows you to assign the Contact Details, Location,
Community Name, and Trap Settings for a Simple Network
Management Protocol (SNMP). SNMP is a networking
management protocol used to monitor network attached
devices. SNMP allows messages (called protocol data units)
tobesenttovariouspartsofthenetwork.Uponreceiving
these messages, SNMP compatible devices (called agents)
returns the data stored in their Management Information
Bases.
SNMP Enable/Disable: Enables or Disables the SNMP
feature.
Contact: Species the contact details of the device.
Location: Speciesthelocationofthedevice.
Community Name (Read Only): Species the password
for the SNMP community for read only access.
Community Name (Read/Write):Species thepassword
for the SNMP community with read/write access.
Trap Destination Address:SpeciestheIPaddressofthe
computer that will receive the SNMP traps.
Trap Destination Community Name: Species the
password for the SNMP trap community.
SNMPv3: Enables or Disables the SNMPv3 feature.
User Name:SpeciestheusernameforSNMPv3.
Auth Protocol: Selects the authentication protocol type:
MDS or SHA.
Auth Key: Speciestheauthenticationkey.
Priv Protocol: Selects the privacy protocol type: DES.
Priv Key: Speciestheprivacykeyforprivacy.
Engine ID: SpeciestheengineIDforSNMPv3.
Apply Save: Click Apply Save to apply the changes.
Advanced Settings
48
CLI Settings
Enable CLI allows you to type commands instead of
choosing them from a menu or selecting an icon.
SSH Settings
Enable SSH to make secure, encrypted connections in the
network. Secure Shell is a network protocol that allows
data to be exchanged using a secure channel between two
network devices.
HTTPS Settings
Enable HTTPS to transfer and display web content securely.
The Hypertext Transfer Protocol over SSL (Secure Socket
Layer) is a TCP/IP protocol used by web servers to transfer
and display web content securely.
Email Alert
You can use the Email Alert Feature to send messages
to the congured email address when particular system
events occur.
Note: Do NOT use your personal email address as it can
unnecessarily expose your personal email login credentials.
Useaseparateemailaccountmadeforthisfeatureinstead
From: Enter the email address to show the sender of the
email.
To: Enter the address to receive email alerts.
Subject: Enter the text to appear in the email subject
line.
49
Username: Enter the username for the email account
that will be used to send emails.
Password: Enter the password for the email account
that will be used to send emails.
SMTP Server: Enter the IP address or hostname of the
outgoing SMTP server.
Port: Enter the SMTP port number to use for outbound
emails.
50

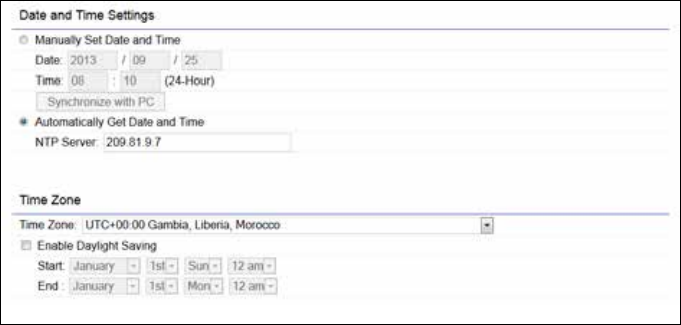

Time Settings
This page allows you to set the internal clock of the
ENH900EXT.
Manually Set Date and Time: Manually specify the
date and time.
Automatically Get Date and Time: Select Automatically
Get Date and Time and check whether you want to
enter the IP address of an NTP server or use the default
NTP server to have the internal clock set automatically.
Enable Daylight Saving: Check whether daylight
savings applies to your area.
Start: Select the day, month, and time when day-
light savings time starts.
End: Select the day, month, and time when day-
light savings times ends.
Time Zone
51

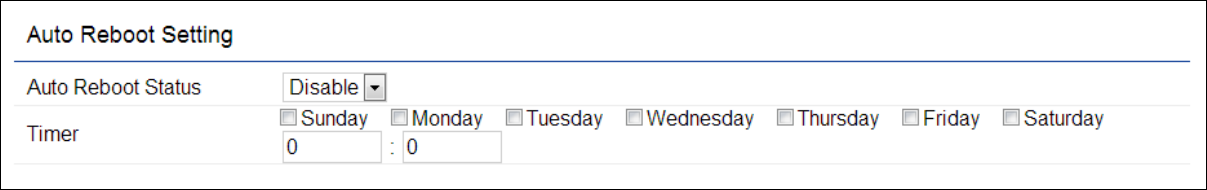

Auto Reboot Settings
You can specify how often you wish to reboot the
ENH900EXT.
Auto Reboot Setting: Enables or Disables the Auto
Reboot function.
Frequency of Auto Reboot: To specify how often you
wish to reboot the ENH900EXT by Min, Hour, Day or
Week.
Timer: Select the day and enter the time you would like
to reboot automatically.
Save: Click Save to apply the changes.
52

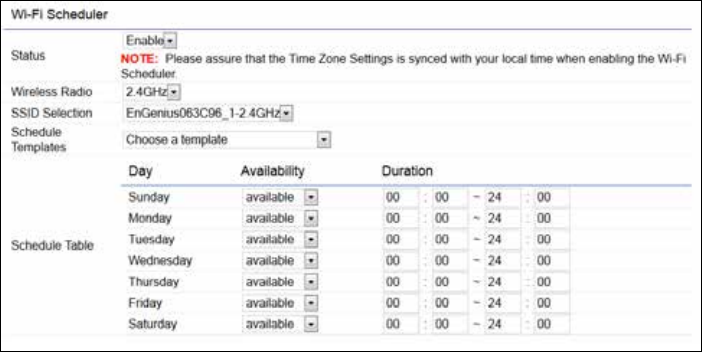

Wi-Fi Scheduler
Wi-Fi Scheduler can be created for use in enforcing rules.
For example, if you wish to restrict web access to Mon-Fri
from3pm to 8pm,you couldcreate a schedule selecting
Mon, Tue, Wed, Thu and Fri while entering a Start time of
3pmandEndTimeof8pmtolimitaccesstothesetimes.
Status: Enables or Disables the Wi-Fi scheduler function.
Wireless Radio: Select 2.4GHz or 5GHz from the drop-
down box for the preferred band type.
SSID Selection: Select a SSID from the drop-down list.
Schedule Templates: Select a schedule template from the
drop-down list.
Day(s): Place a checkmark in the boxes for the desired days
or select the All Week radio button to select all seven days
of the week.
Duration:TheStarttimeisenteredintwoelds.Therst
box is for hours and the second box is for minutes. The End
Time is entered in the same format as the Start time.
53

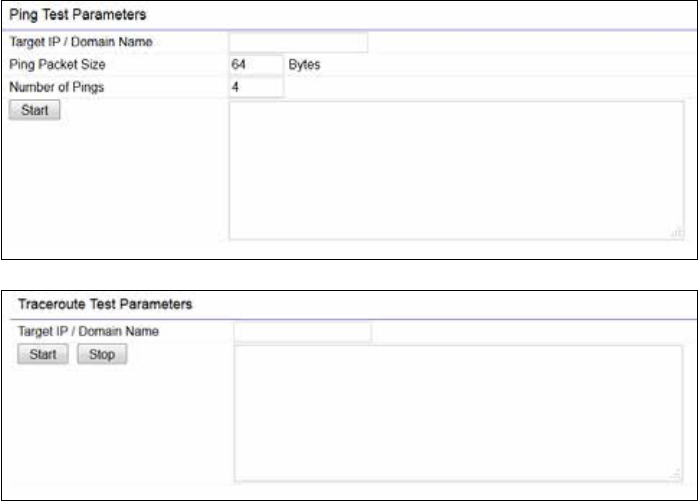

Ping Test Parameters
This page allows you to analyze the connection quality of
the ENH900EXT and trace the routing table to a target in
the network.
Target IP: Enter the IP address you would like to search.
Ping Packet Size: Enter the Packet size of each ping.
Number of Pings: Enter the number of times you want to
ping.
Start Ping: Click Start Ping to begin pinging the target
device (via IP).
Traceroute Target: Enter the IP address or domain name
you wish to trace.
Start Traceroute: Click Start Traceroute to begin the trace
route operation.
Tools
54

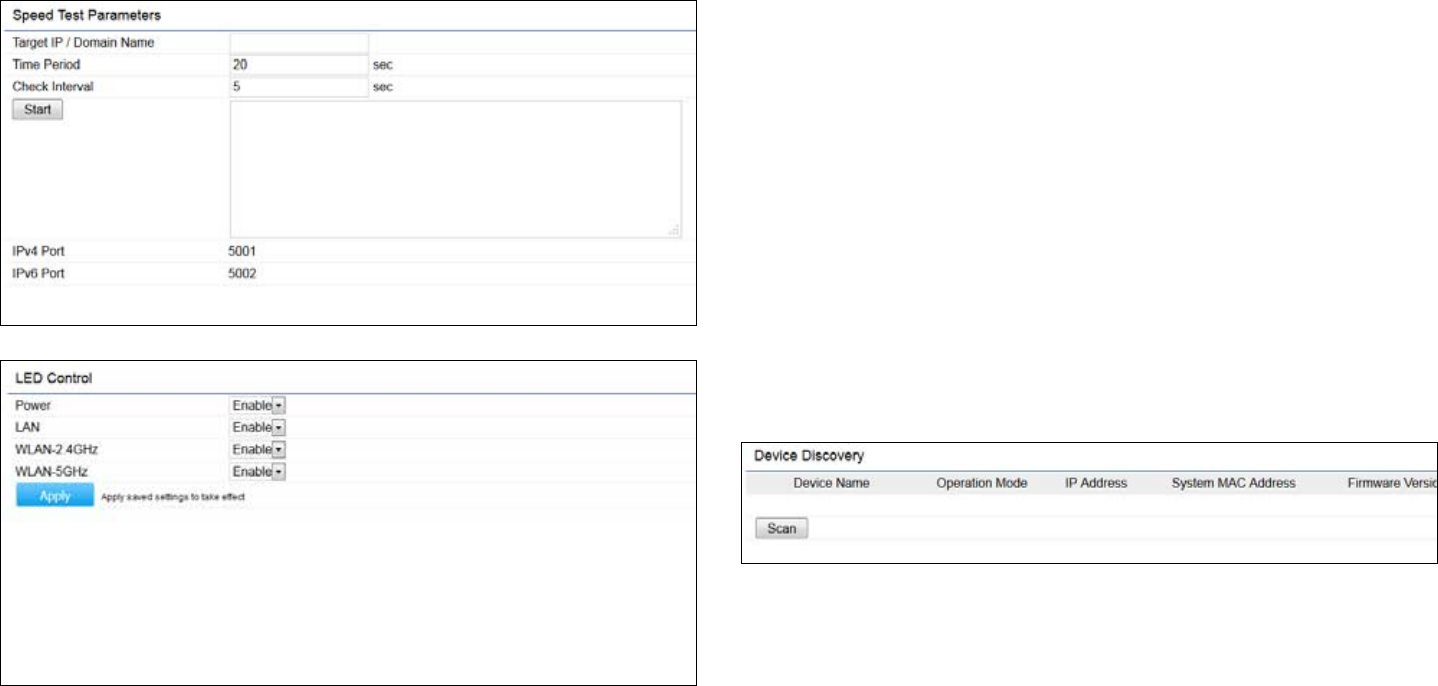

Speed Test Parameters / LED Control
This page allows you to control LED on/off for Power, LAN
interface, 2.4GHz/5GHz WLAN interface.
LED Control
Power: Enables or Disables the Power LED indicator.
LAN: Enables or Disables the LAN LED indicator.
WLAN-2.4GHZ: Enables or Disables the WLAN-2.4GHZ
LED indicator.
WLAN-5GHz: Enables or Disables the WLAN-5GHZ LED
indicator.
Device Discovery
This page allows you to discover devices from network
forOperationMode,IPAddress,SystemMACAddressand
Firmware version.
55
This page allows you to change the ENH900EXT username
and password. By default, the username is: admin and the
password is: admin. The password can contain from 0 to
12 alphanumeric characters and is case sensitive.

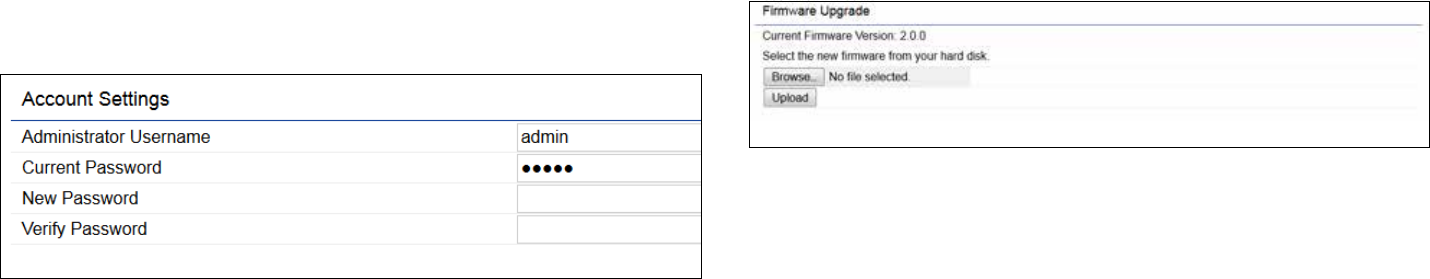

Account Settings
Administrator Username: Enter a new username for
logging in to the New Name entry box.
Current Password: Enter the old password for logging in
totheOldPasswordentrybox.
New Password: Enter the new password for logging in to
the New Password entry box.
Verify Password: Re-enter the new password in the
ConrmPasswordentryboxforconrmation.
Apply: Click Apply to apply the changes.
Firmware Upgrade
This page allows you to upgrade the firmware of the
ENH900EXT.
To Perform the Firmware Upgrade:
1. Click the Choose FilebuttonandnavigatetheOSFile
Systemtothelocationoftheupgradele.
2. Selecttheupgradele.Thenameofthelewillappear
intheUpgradeFileeld.
3. Click the Upload button to commence the rmware
upgrade.
Note: The device is unavailable during the Firmware
upgrade process and must restart when the upgrade is
completed. Any connections to or through the device
will be lost.
Account Firmware
56

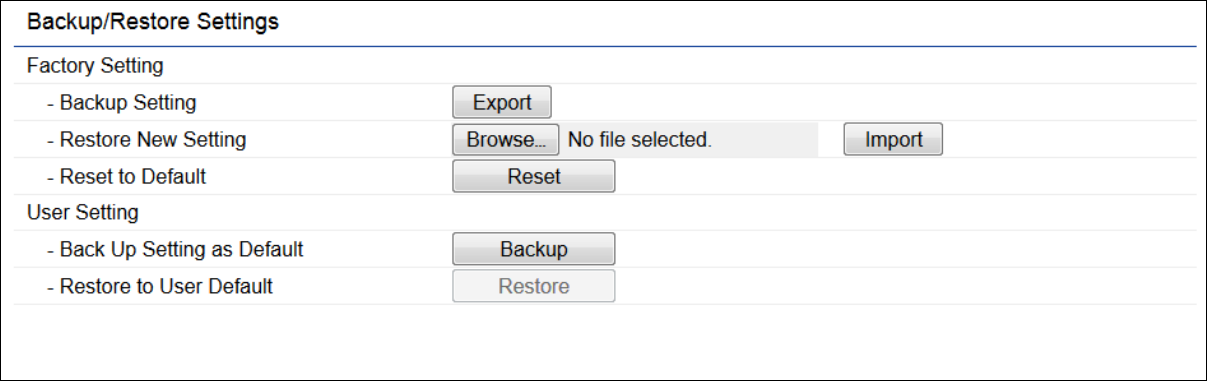

Backup/Restore
This page allows you to save the current device
configurations. When you save the configurations,
you also can reload the saved configurations into the
device through the Restore Saved Settings from a file
section. If extreme problems occur, or if you have set
the ENH900EXT incorrectly, you can use the Reset
button in the Revert to Factory Default Settings section
to restore all the configurations of the ENH900EXT to
the original default settings.
Backup Setting: Click Export to save the current
configured settings.
Restore New Setting: To restore settings that have
been previously backed up, click Browse, select the
file, and click Restore.
Restore to Default: Click Reset button to restore the
ENH900EXT to its factory default settings.
57

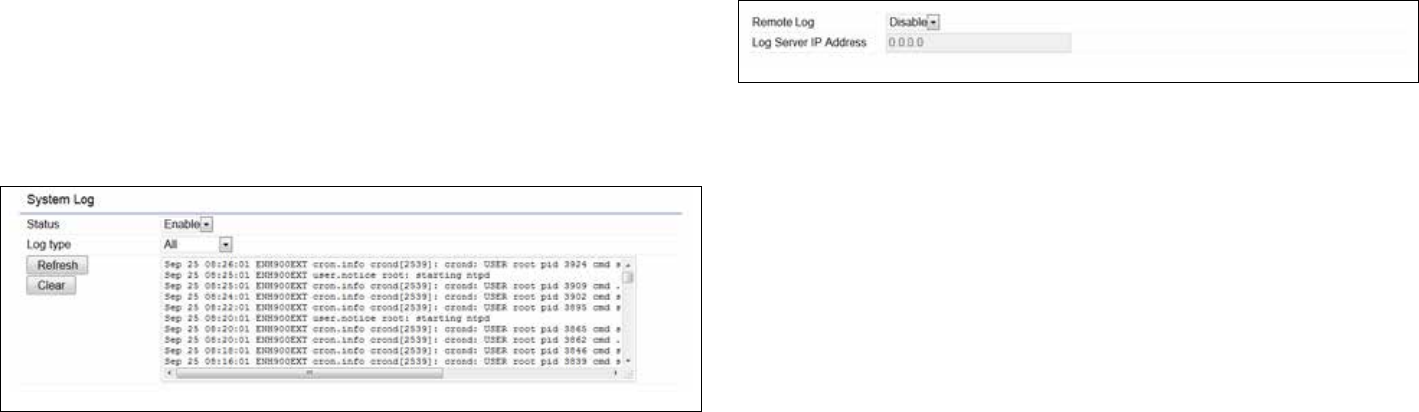

System Log
The ENH900EXT automatically logs (records) events
of possible interest in its internal memory. To view the
logged information, click the Log link under the System
Manager menu. If there is not enough internal memory
to log all events, older events are deleted from the log.
When powered down or rebooted, the log will be cleared.
Remote Log
This page allows you to setup the Remote Log functions
for the ENH900EXT.
Syslog: Enables or disables the syslog function.
Log Server IP Address: Enter the IP address of the log
server.
Remote Log: Enable or Disable the remote log service.
Apply: Click Apply to apply the changes.
Log
58
Logout
Click Logout in Management menu to logout.
Reset
In some circumstances, it may be required to force the
device to reboot. Click on Reset to reboot the ENH900EXT.
59
Appendix
60
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
.snoitacinummoc oidar ot ecnerefretni lufmrah esuac yam ,snoitcurtsni eht htiw ecnadrocca ni desu dna dellatsni ton fi ,dna ygrene ycneuqerf oidar
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio

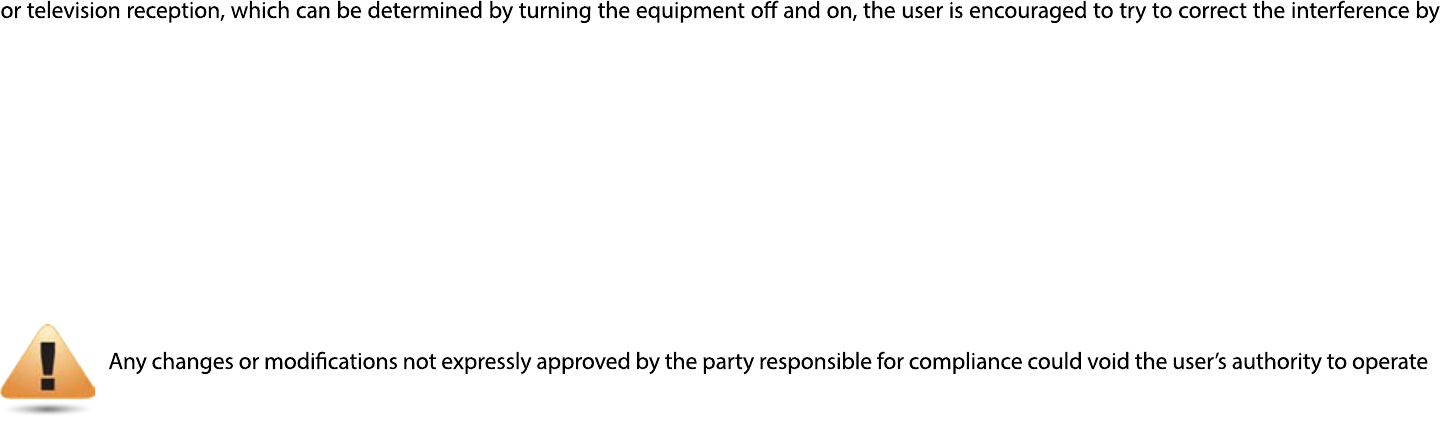

one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band
are restricted to indoor usage only.
IMPORTANT NOTE:
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 24cm between the radiator & your body.
Appendix A - Federal Communication Commission Interference
61
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order
to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:
• EN60950-1
Safety of Information Technology Equipment
• EN50385
Generic standard to demonstrate the compliance of electronic and electrical apparatus with the basic restrictions related to human exposure
to electromagnetic elds (0 Hz - 300 GHz)
• EN300328
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating
in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article
3.2 of the R&TTE Directive
• EN301893
Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN covering essential requirements of article 3.2 of
the R&TTE Directive
• EN301489-1
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 1: Common technical requirements
• EN301489-17
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 17: Specic conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment
Appendix B - CE Interference Statement
62
This device is a 5GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France
and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting
up outdoor radio links and/or for supplying public access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP
in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France.
Česky [Czech] [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES.
Dansk [Danish] Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de
væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch [German] Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG bendet.
Eesti [Estonian] Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust
direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Español [Spanish] Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales
y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
63
Français [French] Par la présente [nom du fabricant] déclare que l’appareil [type d’appareil] est conforme aux exigences essentielles et aux
autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian] Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai requisiti essenziali ed alle
altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian] Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment / iekārtas tips] atbilst Direktīvas
1999/ 5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių [Lithuanian] Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Nederlands [Dutch] Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is met de essentiële eisen
en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti
oħrajn relevanti li hemm d-Dirrettiva 1999/5/EC.
Magyar [Hungarian] Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC
irányelv egyéb elõírásainak.
Polski [Polish] Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi wymogami oraz pozostałymi
stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese] [Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Slovensko [Slovenian] [Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive
1999/5/ES.
Slovensky [Slovak] [Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice
1999/5/ES.
Suomi [Finnish] [Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä] tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska [Swedish] Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de väsentliga egenskapskrav och
övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
64
Appendix C - Professional Installation Instruction
Installation Personal
general user shall not attempt to install or change the setting.
Installation Location
The product shall be installed at a location where the radiating antenna can be kept 24cm from nearby person in normal operation condition to
meet regulatory RF exposure requirement.
External Antenna
Use only the antennas which have been approved by the applicant. The non-approved antenna(s) may produce unwanted spurious or excessive
RF transmitting power which may lead to the violation of FCC/IC limit and is prohibited.
Installation Procedure
Please refer to user’s manual for the detail.
Warning:
rules. The violation of the rule could lead to serious federal penalty.
65
Instructions d’installation professionnelle

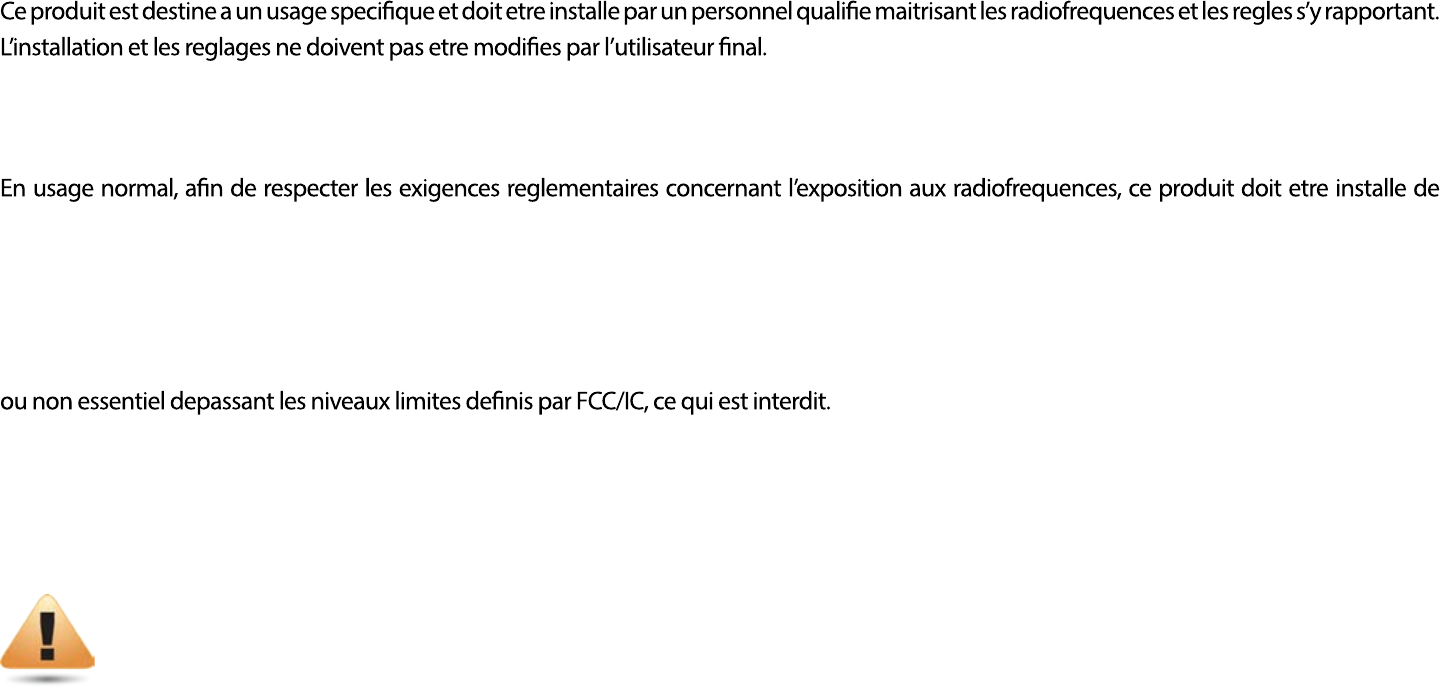

Installation
Emplacement d’installation
facon a respecter une distance de 24cm entre l’antenne emettrice et les personnes.
Antenn externe
Utiliser uniiquement les antennes approuvees par le fabricant. L’utilisation d’autres antennes peut conduire a un niveau de rayonnement essentiel
Procedure d’installation
Consulter le manuel d’utilisation.
Avertissement:
Choisir avec soin la position d’installation et s’assurer que la puissance de sortie ne depasse pas les limites en vigueur. La violation de
cette regle peut conduire a de serieuses penalites federales.

Navigation menu
