EnOcean STM300C Transceiver Module User Manual II

EnOcean GmbH Transceiver Module II

Contents

User Manual II

USER MANUA
L
V0.82
EnOcean GmbH
Kolpingring 18a
82041 Oberhaching
Germany
Phone +49.89.67 34 689-0
Fax +49.89.67 34 689-50
info@enocean.com
www.enocean.com
Subject to modifications
TCM 300 / 300C / 320 / 320C User Manual V0.82
February 11, 2010 6:03 PM
Page 1/43
Patent protected:
WO98/36395, DE 100 25 561, DE 101 50 128,
WO 2004/051591, DE 103 01 678 A1, DE 10309334,
WO 04/109236, WO 05/096482, WO 02/095707,
US 6,747,573, US 7,019,241
Observe precautions! Electrostatic sensitive devices!
Transceiver Module
TCM 300 / TCM 300C
TCM 320 / TCM 320C
February 11, 2010
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 2/43
TCM 300 / 300C / 320 / 320C
REVISION HISTORY
The following major modifications and improvements have been made to the first version of
this document:
No Major Changes
0.6 Chapter 4 modified, Drawing in 1.3 corrected; Chapter 3.6 added.
0.7 Chapter 3.8 added; Operating temperature range limited to -25 °C/+85 °C;
RX sensitivity reduced to -94 dBm; Layout recommendation in 3.5 modified;
Change in 2.2.: Do not connect pins marked as n.c.; Maximum Ratings (non-
operating) modified in 2.3; Maximum Ratings (operating) added in 2.4
0.75 Section 2.2.1 updated; output currents reduced in 2.2
0.8 Receive current increased to typ. 33 mA; Section 3.5 modified; recommended foot
pattern added in 3.6.1;new drawings in 1.3; section 2.7 Repeater Configuration
added; section 2.10 Smart Acknowledge added; section 3.8 Tape&Reel spec.
added; RX sensitivity reduced to -93dBm; section 3.10 added;
0.81 Sections 3.2.x content removed; section 4.2 and 4.3 content removed;
0.82 Max. ripple at VDD reduced to 50 mVpp; Connect external 1 k pull-down to RE-
SET and PROG_EN.
Published by EnOcean GmbH, Kolpingring 18a, 82041 Oberhaching, Germany
www.enocean.com, info@enocean.com, phone +49 (89) 6734 6890
© EnOcean GmbH
All Rights Reserved
Important!
This information describes the type of component and shall not be considered as assured
characteristics. No responsibility is assumed for possible omissions or inaccuracies. Circuitry
and specifications are subject to change without notice. For the latest product specifica-
tions, refer to the EnOcean website: http://www.enocean.com.
As far as patents or other rights of third parties are concerned, liability is only assumed for
modules, not for the described applications, processes and circuits.
EnOcean does not assume responsibility for use of modules described and limits its liability
to the replacement of modules determined to be defective due to workmanship. Devices or
systems containing RF components must meet the essential requirements of the local legal
authorities.
The modules must not be used in any relation with equipment that supports, directly or
indirectly, human health or life or with applications that can result in danger for people,
animals or real value.
Components of the modules are considered and should be disposed of as hazardous waste.
Local government regulations are to be observed.
Packing: Please use the recycling operators known to you. By agreement we will take pack-
ing material back if it is sorted. You must bear the costs of transport. For packing material
that is returned to us unsorted or that we are not obliged to accept, we shall have to in-
voice you for any costs incurred.
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 3/43
TCM 300 / 300C / 320 / 320C
TABLE OF CONTENT
1 GENERAL DESCRIPTION ............................................................................... 5
1.1 Basic functionality ....................................................................................... 5
1.2 Technical data............................................................................................. 5
1.3 Physical dimensions ..................................................................................... 6
1.4 Environmental conditions.............................................................................. 7
1.5 Ordering information.................................................................................... 7
2 FUNCTIONAL DESCRIPTION .......................................................................... 8
2.1 Pin out....................................................................................................... 8
2.2 Pin description and operational characteristics ................................................. 9
2.2.1 Interface supply voltage - IOVDD..............................................................10
2.3 Absolute maximum ratings (non operating)....................................................12
2.4 Maximum ratings (operating) .......................................................................12
2.5 Operating modes........................................................................................13
2.6 Mode selection ...........................................................................................14
2.7 Repeater configuration ................................................................................15
2.8 Teach-in procedure.....................................................................................16
2.8.1 Setting the receiver to learning mode ........................................................16
2.8.2 Confirmation of Learning Mode .................................................................16
2.8.3 Teaching in a transmitter.........................................................................16
2.8.4 Confirmation of correct learning/deletion ...................................................17
2.8.5 Learning of further transmitters................................................................17
2.8.6 Selecting the next channel .......................................................................17
2.8.7 Leaving learning mode ............................................................................17
2.8.8 Deleting a transmitter .............................................................................17
2.9 Remote management..................................................................................18
2.9.1 Remote Management Control Commands (RMCC) .......................................18
2.9.2 Remote Procedure Calls (RPC) ..................................................................18
2.10 Smart Acknowledge ...............................................................................19
2.11 Transmit timing.....................................................................................19
3 APPLICATIONS INFORMATION ......................................................................20
3.1 Transmission range ....................................................................................20
3.2 Antenna options TCM 300 / TCM 300C...........................................................21
3.2.1 Overview...............................................................................................21

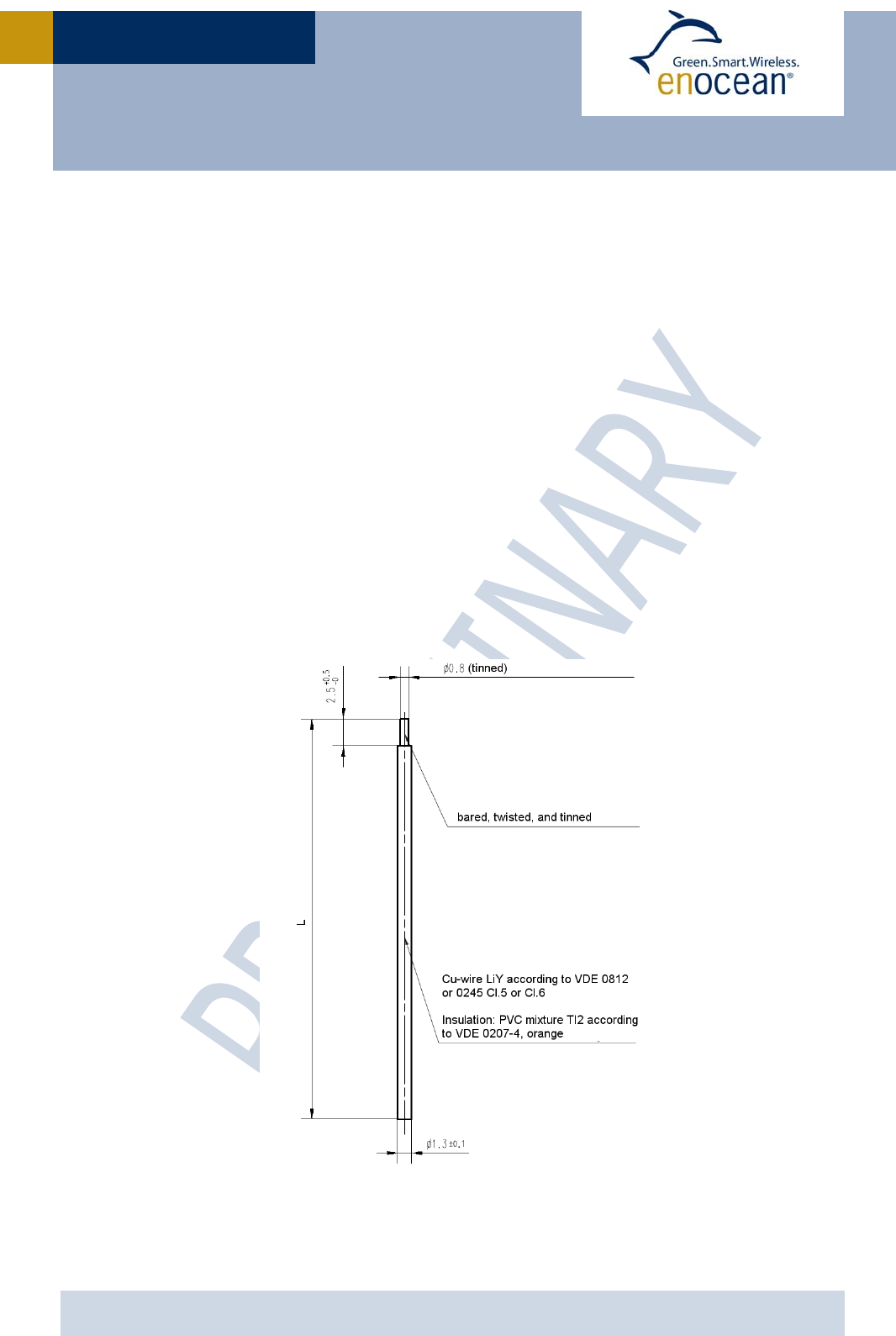

3.2.2 Whip antenna ........................................................................................22
3.2.3 Chip antenna: in preparation....................................................................22
3.2.4 Splatch antenna: in preparation................................................................22
3.2.5 Helical antenna: in preparation.................................................................22
3.3 Antenna options TCM 320 / 320C..................................................................23
3.3.1 Mounting the whip antenna......................................................................23

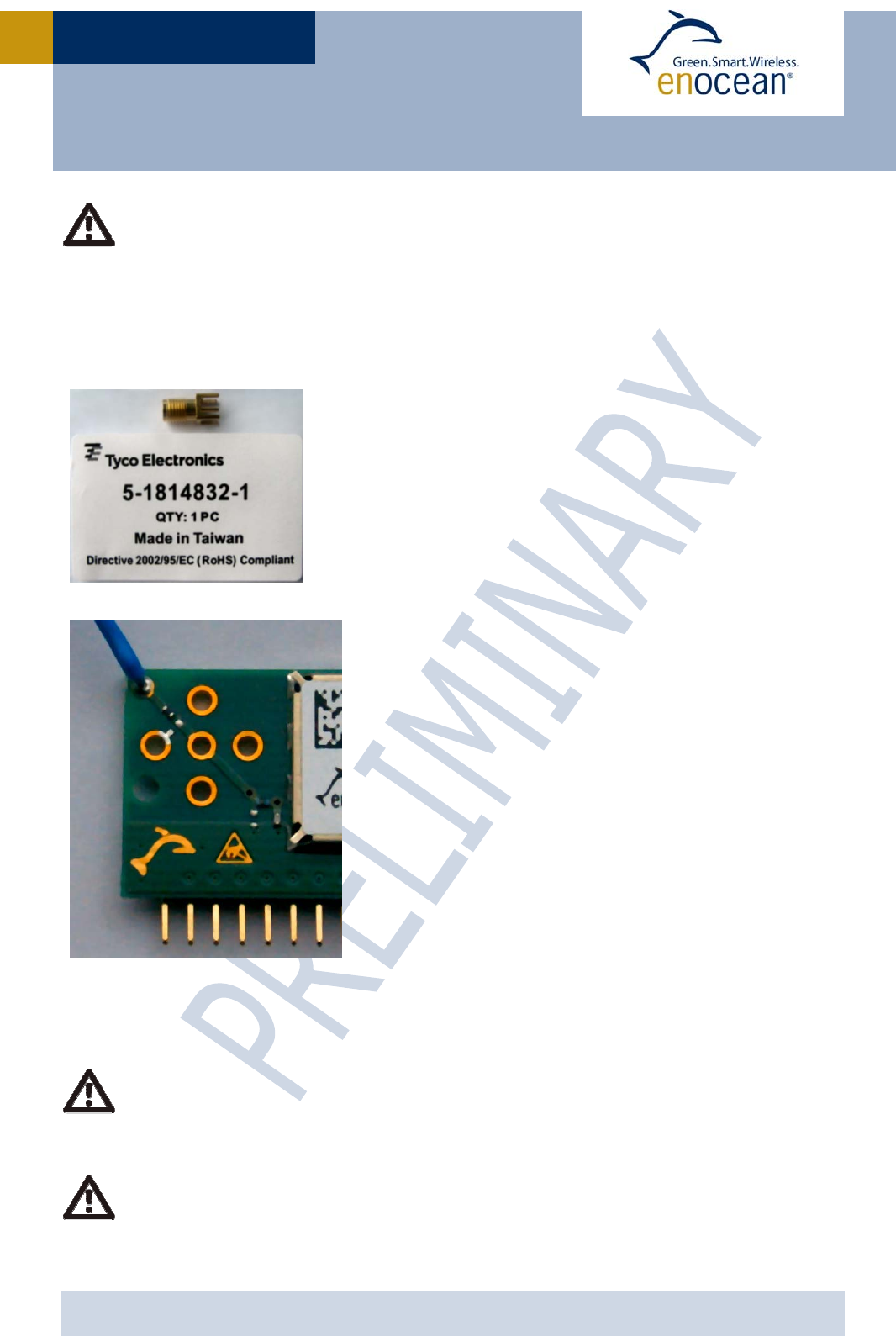

3.3.2 Mounting 50 antennas..........................................................................24

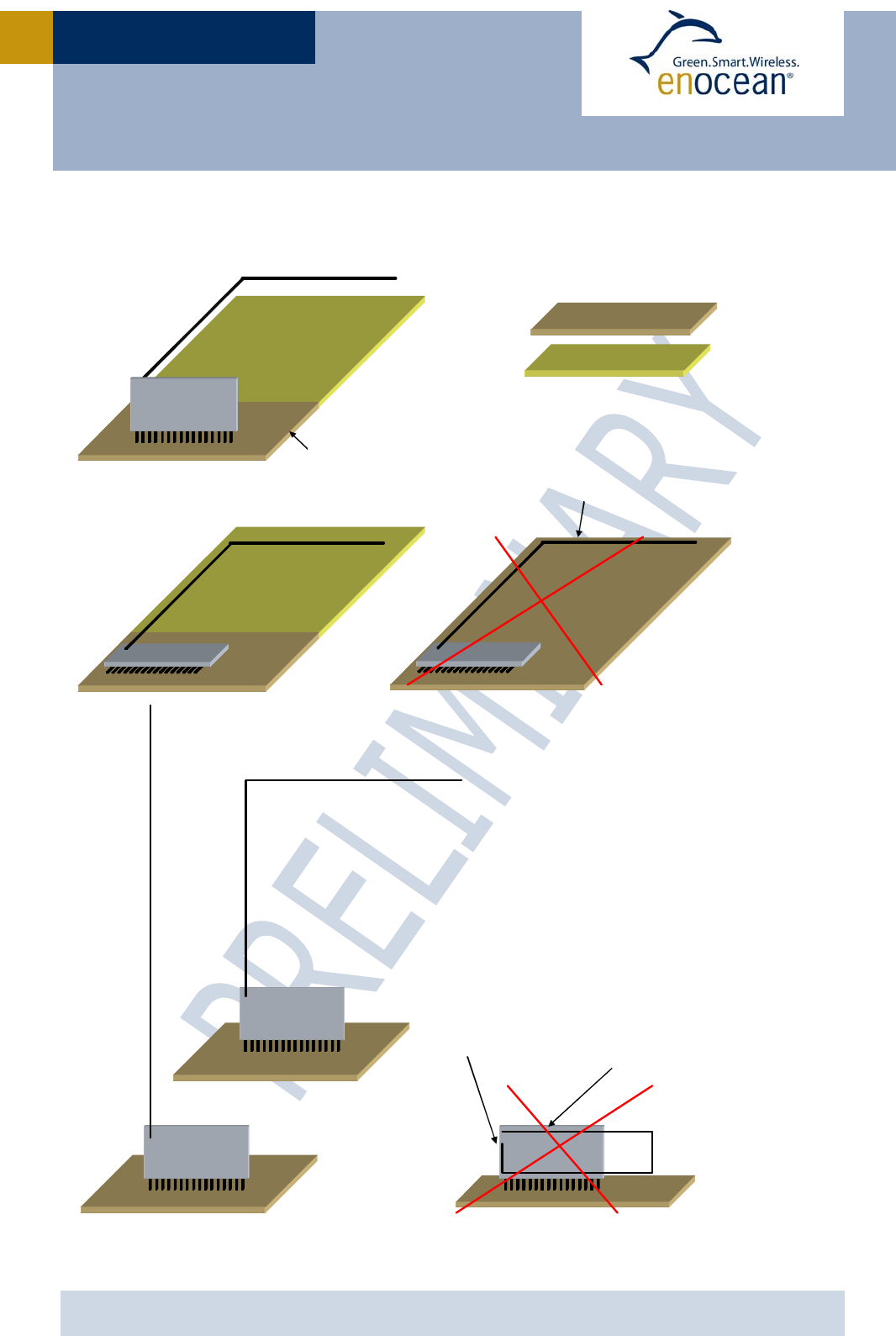

3.4 Recommendations for laying a whip antenna ..................................................25
3.5 Power supply requirements..........................................................................26
3.6 Layout recommendations.............................................................................26

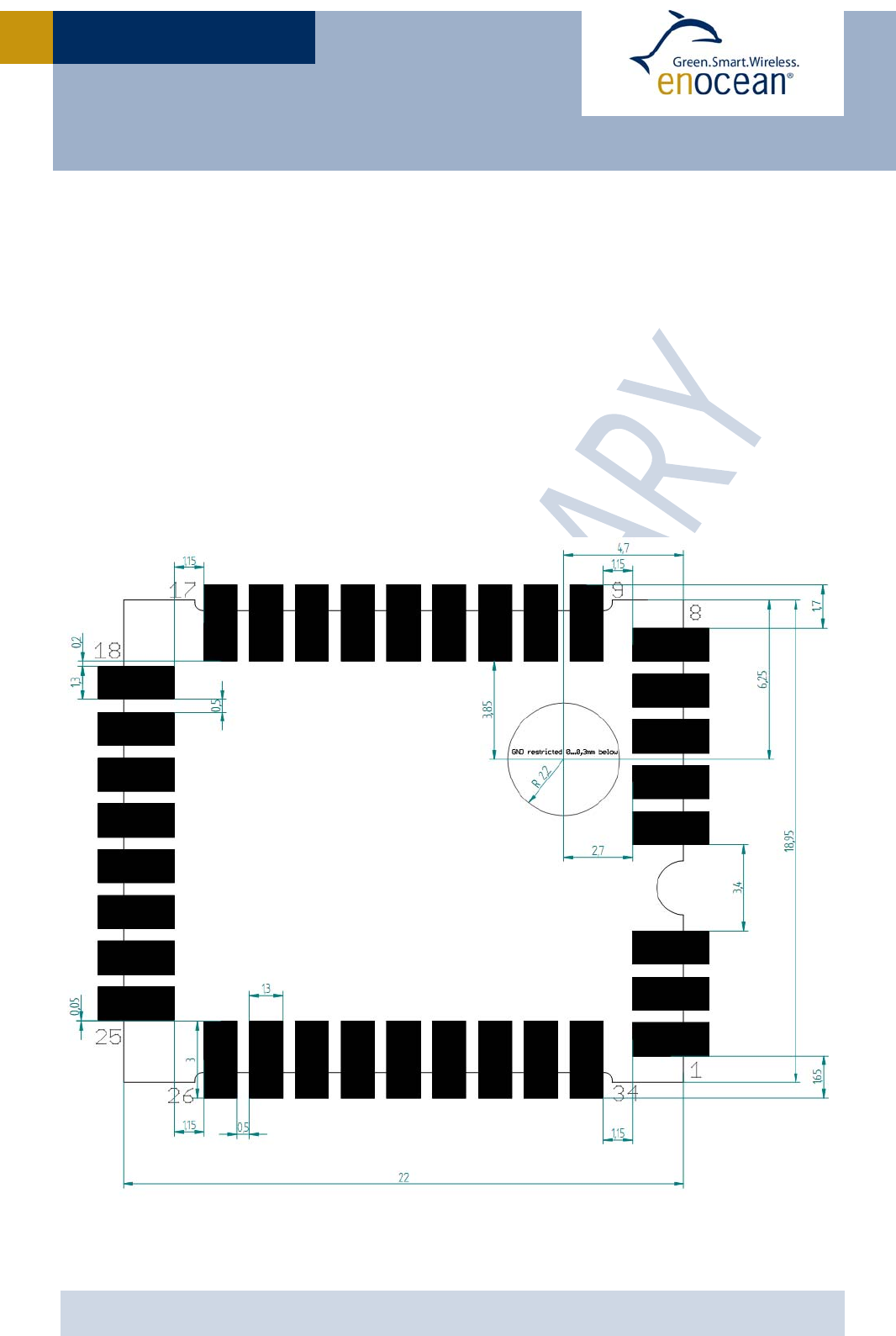

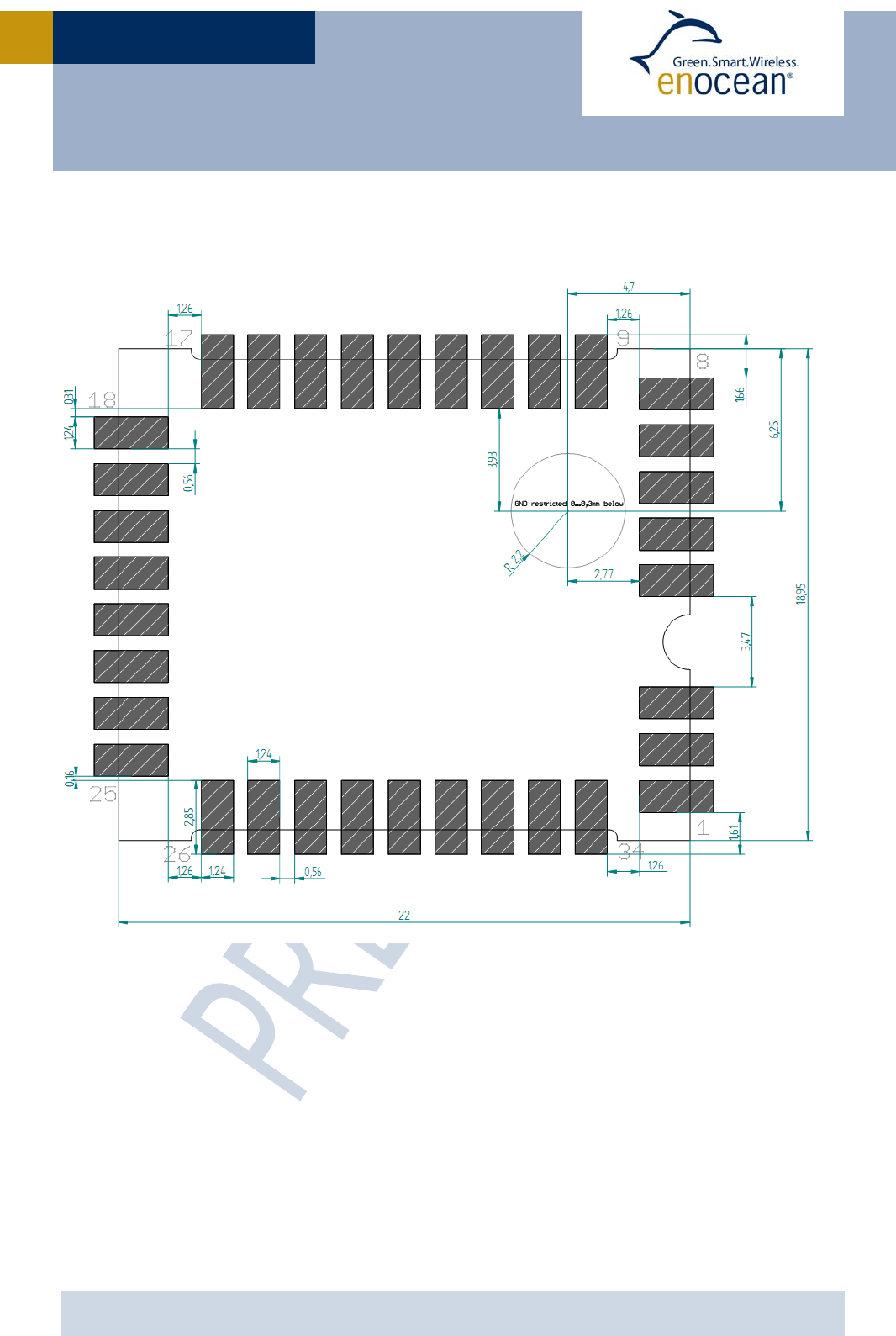

3.6.1 TCM 300/300C recommended foot pattern .................................................26

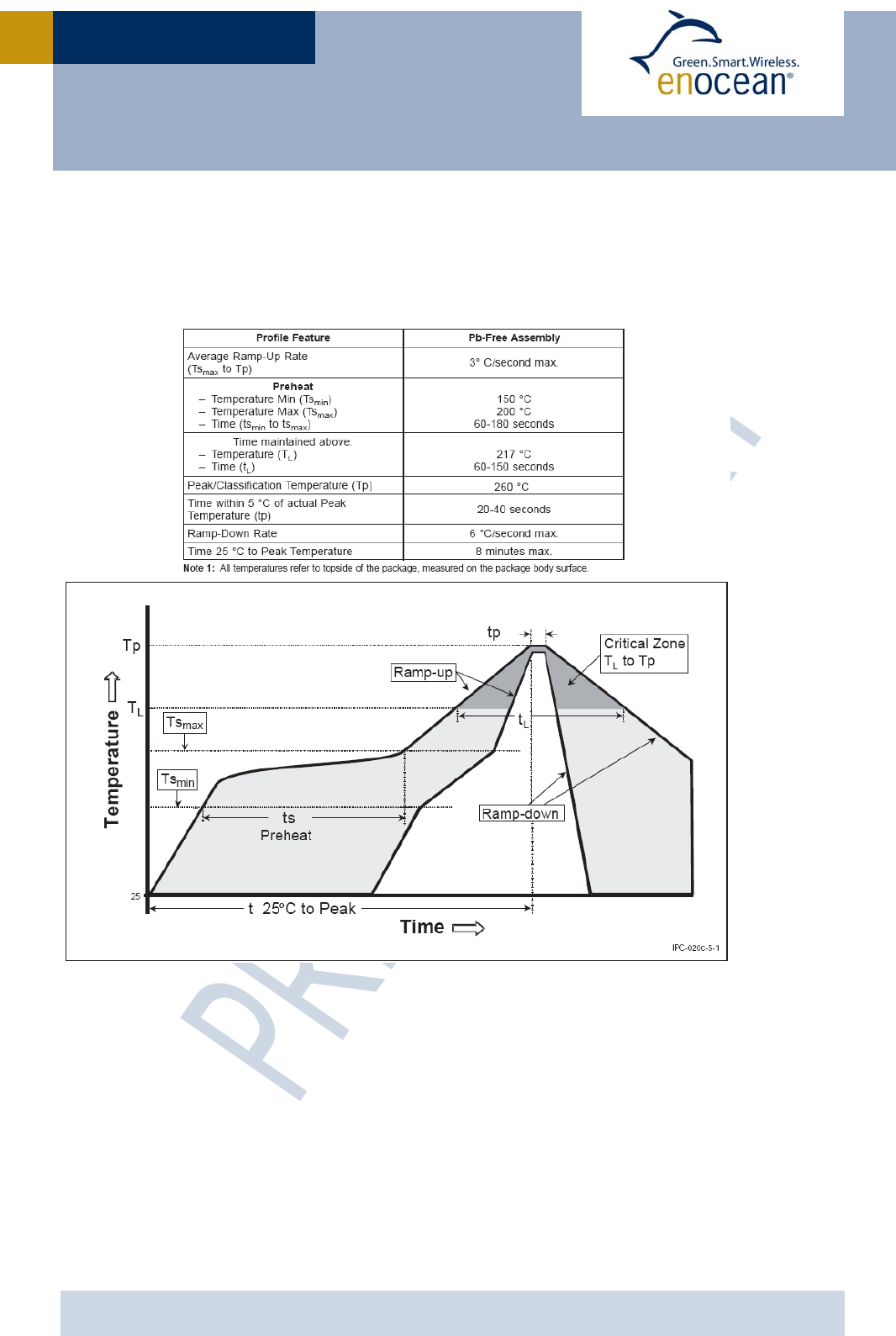

3.7 Soldering information..................................................................................29
3.7.1 TCM 300 / TCM 300C ..............................................................................29
3.7.2 TCM 320 / TCM 320C ..............................................................................30

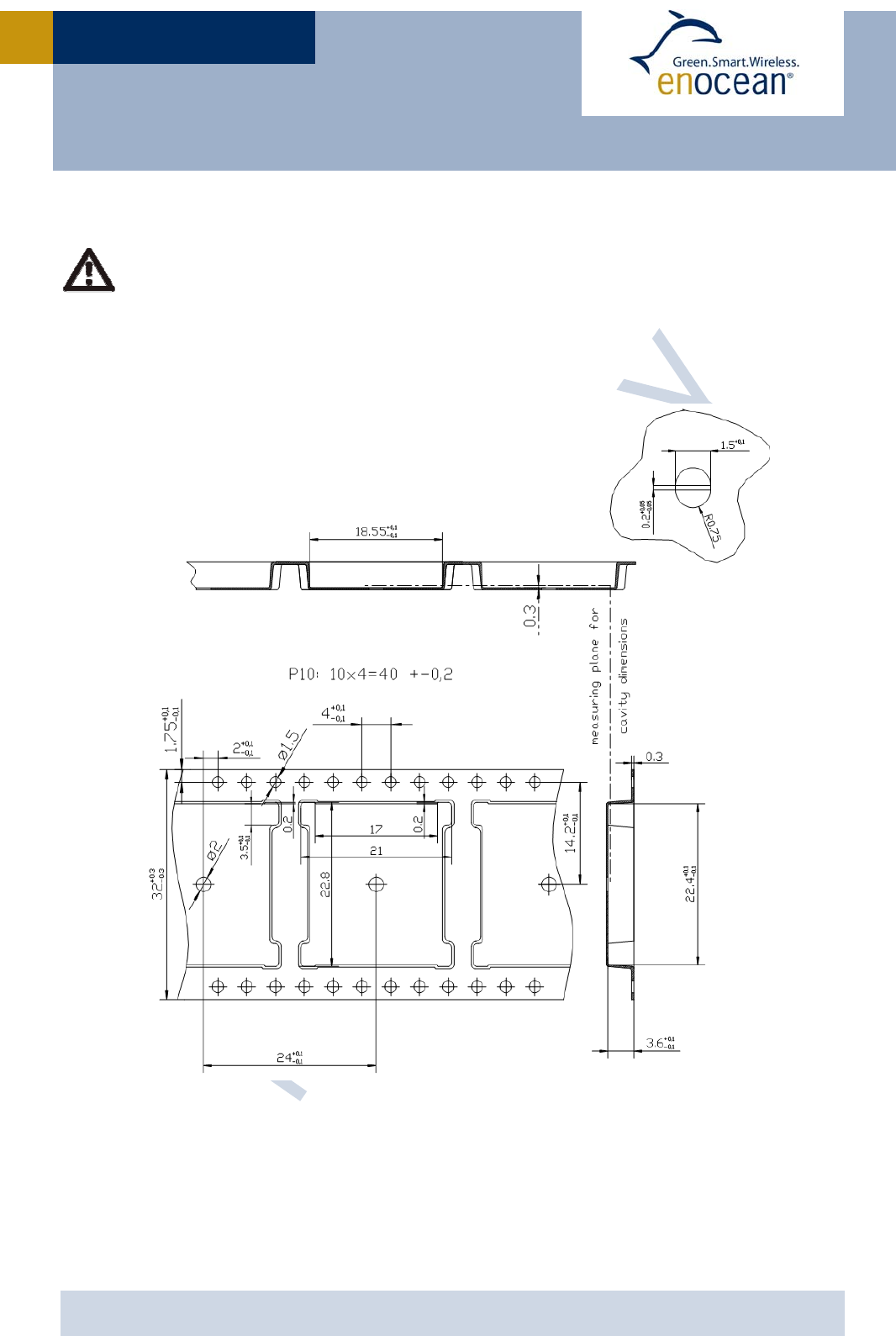

3.8 Tape & Reel specification TCM 300 / TCM 300C...............................................30
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 4/43
TCM 300 / 300C / 320 / 320C
3.9 Backward compatibility to TCM 220C .............................................................31
3.10 Using RVDD ..........................................................................................31
4 AGENCY CERTIFICATIONS ...........................................................................32
4.1 CE approval...............................................................................................32
4.2 FCC (United States) Certification: in preparation .............................................33
4.3 IC (Industry Canada) Certification: in preparation ...........................................34
A APPENDIX .................................................................................................35
A.1 EnOcean serial protocol ...............................................................................35
A.1.1 Message format......................................................................................35

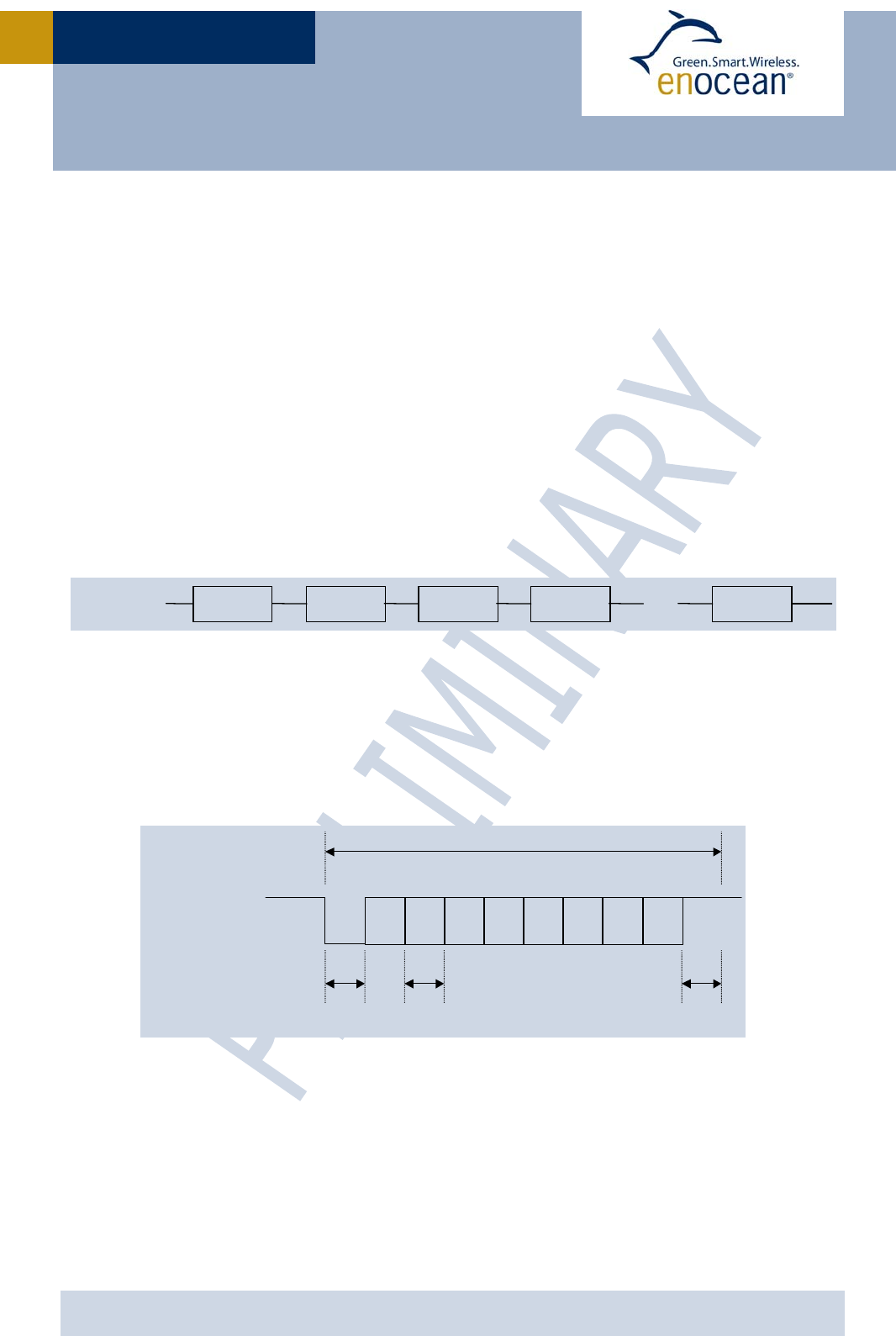

A.1.2 Byte signals and bit order ........................................................................35
A.2 Radio transmission/reception commands .......................................................36
A.2.1 Description of serial data structure............................................................36
A.2.2 Detailed description of ORG field...............................................................37
A.2.3 Detailed description of STATUS field ..........................................................37
A.2.4 Detailed description of DATA_BYTE 3..0 fields .............................................38
A.3 Command telegrams and messages ..............................................................41
A.3.1 ID Range commands...............................................................................41
A.3.2 Receiver sensitivity commands .................................................................41
A.3.3 Reset command .....................................................................................41
A.3.4 SW Version............................................................................................41
A.3.5 Error messages ......................................................................................41
A.3.6 Command Encoding ................................................................................42
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 5/43
TCM 300 / 300C / 320 / 320C
1 GENERAL DESCRIPTION
1.1 Basic functionality
The transceiver modules TCM 300 / 300C
and TCM 320 / 320C enable the realization of
highly efficient RF repeaters and transceivers
for the EnOcean 868 MHz and 315 MHz radio
systems.
The module provides several built-in
operating modes. In addition repeater
functionality (1 or 2 level) can be activated.
Using the Dolphin API library it is possible to
write custom software for the module. All
module variants are in-system programm-
able.
Built-in operating modes
Unidirectional serial communication
Bidirectional serial communication
1-channel relay mode
4-channel relay mode
1-channel dimming mode
Product variants
TCM 300/300C: SMD mountable module for use with external antenna (868/315 MHz)
TCM 320/320C: Variant for vertical mounting with pin connector. Whip antenna.
(868/315 MHz). TCM 320C is backward compatible to TCM 220C
Features accessible via API:
Integrated 16 MHz 8051 CPU with 32 KB FLASH and 2 kB SRAM
Various power down and sleep modes down to 0.2 µA current consumption
(TCM 320/TCM 320C limited to 1.4 mA current consumption!)
Up to 14 configurable I/Os
10 bit ADC, 8 bit DAC
1.2 Technical data
Antenna Pre-installed 8.6 cm/15 cm whip antenna (TCM 320/TCM 320C)
External whip or 50 antenna mountable (TCM 300/TCM 300C)
Frequency 315.0 MHz (TCM 3X0C)/868.3 MHz (TCM 3X0)
Radio Standard EnOcean 868 MHz/315 MHz
Data rate/Modulation type 125 kbps/ASK
Receiver Sensitivity (at 25°C) typ. –93 dBm
Conducted Output Power typ. 5 dBm
Power Supply 2.5 V–3.3 V (TCM 320/320C), 2.5 V–4.5 V (TCM 300/300C)
Current Consumption Receive mode: typ. 33 mA, max. 43 mA (RX)
Transmit mode: typ. 24 mA, max. 33 mA (TX)
Radio Regulations R&TTE EN 300 220 (TCM 300/TCM 320)
FCC CFR-47 Part 15 (TCM 300C/TCM 320C)
TCM300
TCM300C
TCM320
TCM320C
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 6/43
TCM 300 / 300C / 320 / 320C

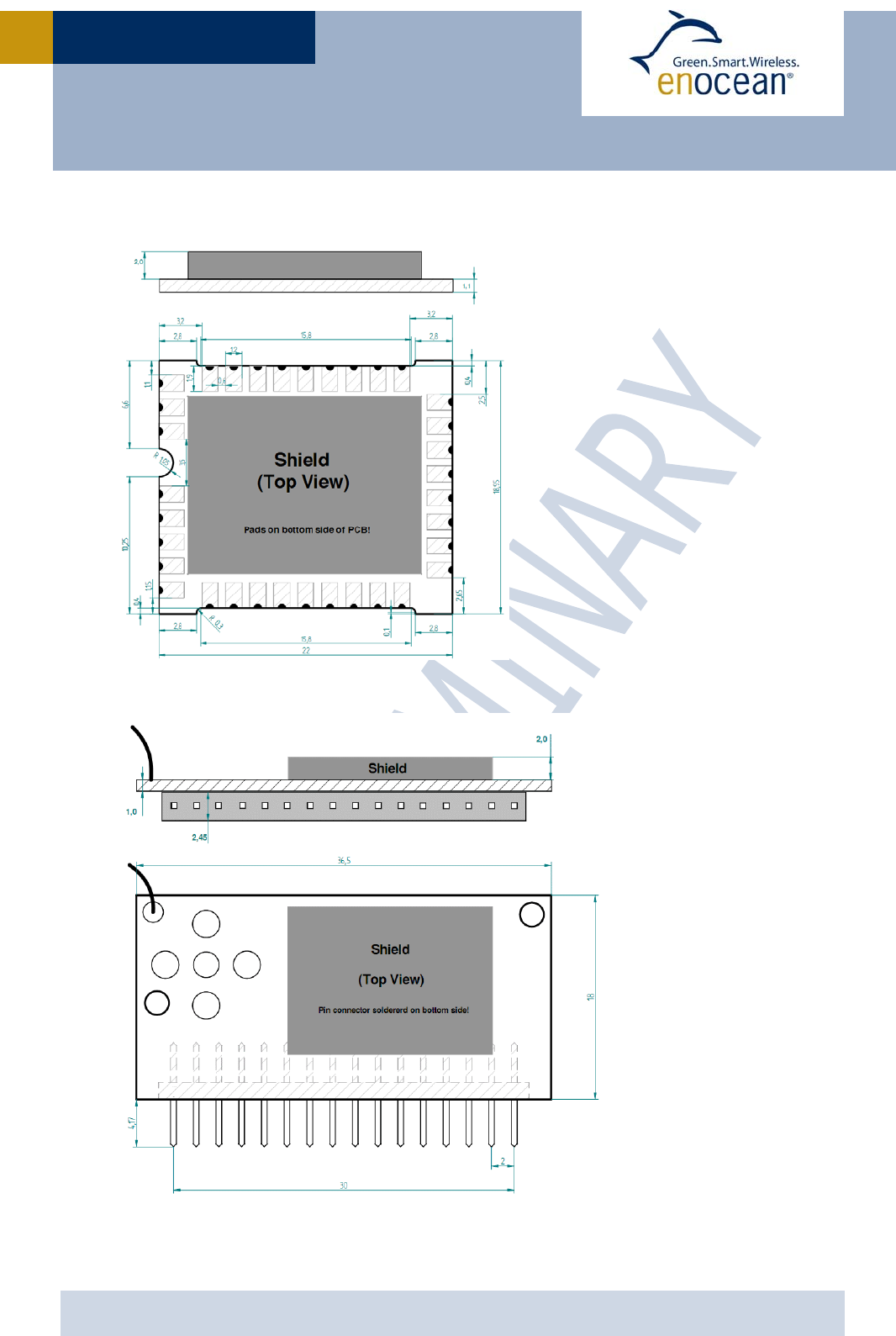

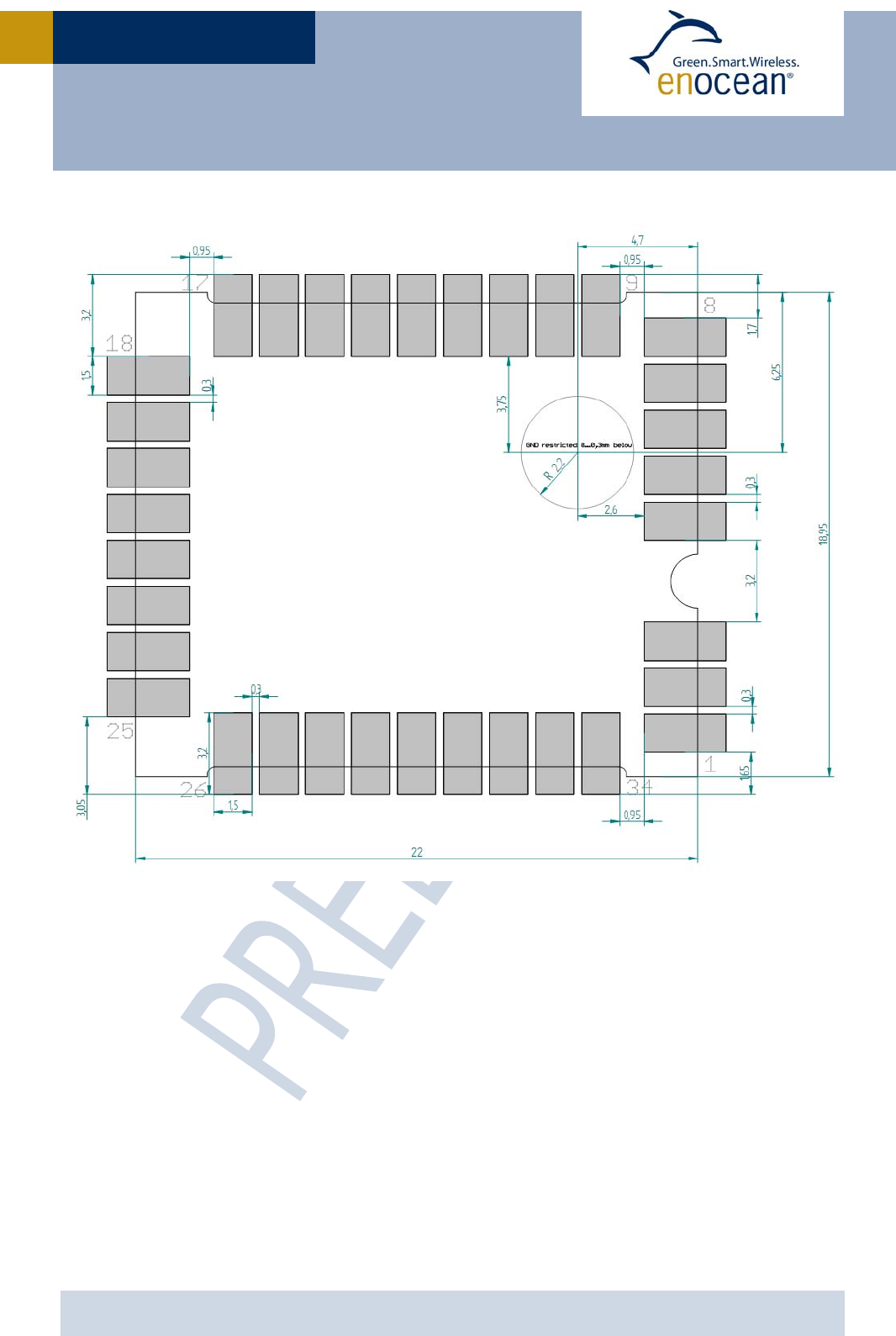

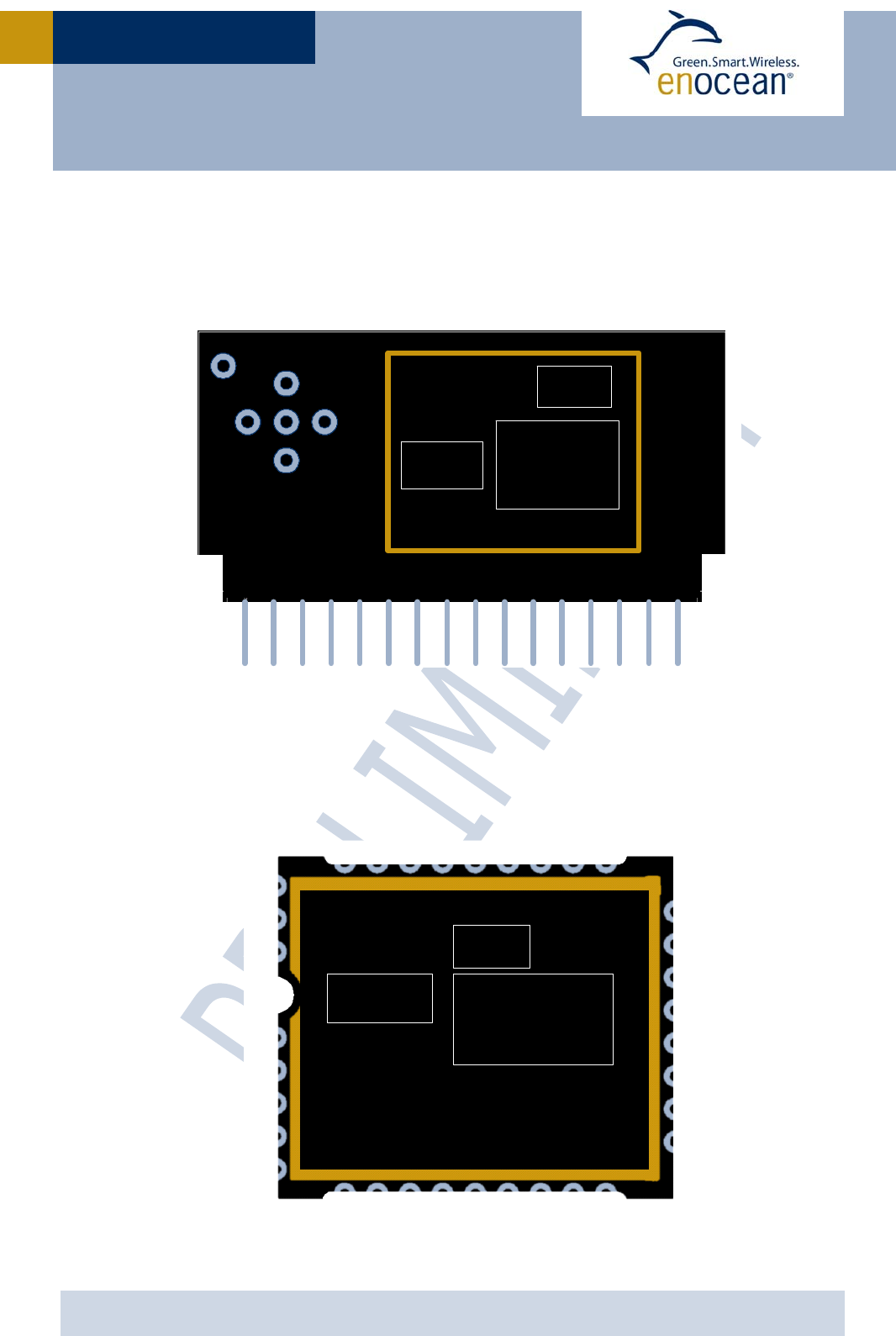

1.3 Physical dimensions
TCM 300 / TCM 300C (pads on bottom side of PCB!)
TCM 320 / TCM 320C
Unless otherwise specified dimensions are in mm.
Tolerances:
PCB outline dimensions ±0.2 mm
All other tolerances ±0.1 mm
Unless otherwise specified dimensions are in mm.
Tolerances:
PCB outline dimensions ±0.2 mm
All other tolerances ±0.1 mm
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 7/43
TCM 300 / 300C / 320 / 320C
PCB dimensions TCM 320/TCM 320C (without pin connector): 36.5 x 19 x 5.5 mm
TCM 300/TCM 300C: 22x19x3.1 mm
Pin connector 16 pins, grid 2.0 mm (4.0 mm in length,  0.5 mm)
1.4 Environmental conditions
Operating temperature -25 °C … +85 °C
Storage temperature -40 °C … +85 °C
Storage temperature in tape & reel package 0 °C … +40 °C
Humidity 0% … 93% r.H., non-condensing
1.5 Ordering information
Type Ordering Code Frequency
TCM 300 S3003-K300 868.3 MHz
TCM 320 S3003-K320 868.3 MHz
TCM 300C S3033-K300 315.0 MHz
TCM 320C S3033-K320 315.0 MHz
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 8/43
TCM 300 / 300C / 320 / 320C
2 FUNCTIONAL DESCRIPTION
2.1 Pin out
EO3000I
Antenna
balun
XTAL
16MHz
TCM300/300C
TOP VIEW
DVDD
RVDD
n.c.
IOVDD
SCSEDIO0
WXIDIO
WXODIO
n.c.
RESET
n.c.
ADIO0
ADIO1
ADIO2
ADIO3
ADIO4
ADIO5
ADIO6
ADIO7
PROG_EN
SCLKDIO1
WSDADIO2
RSDADIO3
GND
GND
GND
RF_50
RF_WHIP
n.c.
VDD
GND
GND
GND
GND
GND
1
9
18
26
ADIO0
ADIO1
ADIO2
ADIO3
ADIO4
ADIO6
ADIO7
GND
SCSEDIO0
SCLKDIO1
WSDADIO2
RSDADIO3
PROG_EN
RESET
VDD
GND
RF_WHIP
EO3000I
Antenna
balun
XTAL
16MHz
116
TCM320/320C
TOP VIEW
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 9/43
TCM 300 / 300C / 320 / 320C
2.2 Pin description and operational characteristics
Symbol Function Characteristics
GND Ground connection Must be connected to GND
VDD Supply voltage TCM 300/300C: 2.5 V – 4.5 V
TCM 320/320C: 2.5 V – 3.3 V
Max. ripple: see 2.4
RVDD
RF supply voltage
regulator output
1.8 V
Output current:
max. 100 µA with built-in firmware (RX on)
max. 10 mA while not in RX/TX mode
DVDD
Digital supply voltage
regulator output
1.8 V
Output current: max. 5 mA
IOVDD
Digital interface supply
voltage
TCM 320/320C: internally connected to VDD
TCM 300/300C: Must be connected to desired
interface supply between 1.8 V and 3.3 V
See also 2.2.1.
RESET Reset input
Programming I/F
Active high reset (1.8 V). External 1 k pull-
down required.
PROG_EN
Programming I/F HIGH: programming mode active
LOW: operating mode
Digital input, external 1 k pull-down required.
ADIO0
MODE_SEL Analog input: At start-up input voltage is
measured and mode is selected. See chapter
2.6
MODE 0: not used
In mode 0 the repeater level is 1 and
cannot be modified.
ADIO1
MODE 1-4: REP_LEVEL Mode 1-4: At start-up the repeater level
is selected:
Repeater level 1: LOW
Repeater level 2: HIGH
Digital input, internal pull-up active
ADIO2 REPEATER At start-up the repeater can be switched on:
Repeater on: LOW
Repeater off: HIGH
Digital input, internal pull-up active
MODE 0: Sensitivity Low sensitivity: LOW
High sensitivity: HIGH
Digital input, internal pull-up active
ADIO3
MODE 1-4: LRN Enter/leave teach-in mode. See chapter 2.8
Digital input, internal pull-up active
MODE 0: not used Internal pull-up active ADIO4
MODE 1-4: CLR Clear ID memory. See chapter 2.8
Digital input, internal pull-up active
ADIO5 Not used Digital output, internally set to LOW
MODE 0-1: SER_RX UART input ADIO6
MODE 2-4: not used Digital input, internal pull-up active
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 10/43
TCM 300 / 300C / 320 / 320C
MODE 0-1: SER_TX UART output
Max. output current:
2 mA @ IOVDD=3.3 V
0.65 mA @ IOVDD=1.8 V
MODE 2-3: CHANNEL0 Digital output channel 0
Max. output current:
2 mA @ IOVDD=3.3 V
0.65 mA @ IOVDD=1.8 V
MODE 4: not used Digital output, internally set to LOW
ADIO7
Programming I/F
MODE 0, 2: not used Digital output, internally set to LOW
MODE 1: LRN_TOGGLE Digital output
Max. output current:
2 mA @ IOVDD=3.3 V
0.65 mA @ IOVDD=1.8 V
MODE 3: CHANNEL1 Digital output channel 1
Max. output current:
2 mA @ IOVDD=3.3 V
0.65 mA @ IOVDD=1.8 V
MODE 4: PWM Dimmer output, 50 kHz
SCSEDIO0
Programming I/F
MODE 0-2: not used Digital output, internally set to LOW
MODE 3: CHANNEL2 Digital output channel 2
Max. output current:
2 mA @ IOVDD=3.3 V
0.65 mA @ IOVDD=1.8 V
MODE 4: PWM_IND Indicating if PWM is active.
Digital output.
Max. output current:
2 mA @ IOVDD=3.3 V
0.65 mA @ IOVDD=1.8 V
SCLKDIO1
Programming I/F
MODE 0-2, 4: not used Digital output, internally set to LOW
MODE 3: CHANNEL3 Digital output channel 3
Max. output current:
2 mA @ IOVDD=3.3 V
0.65 mA @ IOVDD=1.8 V
WSDADIO2
Programming I/F
MODE 0: RMI Normal operation: Digital output, internally set
to LOW
Remote Management: ACTION command indi-
cator (see 2.9.1)
Max. output current:
2 mA @ IOVDD=3.3 V
0.65 mA @ IOVDD=1.8 V
RSDADIO3
MODE 1-4: LMI Normal operation: Learn mode indicator
Remote Management: ACTION command indi-
cator (see 2.9.1)
Digital output
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 11/43
TCM 300 / 300C / 320 / 320C
Max. output current:
2 mA @ IOVDD=3.3 V
0.65 mA @ IOVDD=1.8 V
Programming I/F
WXIDIO Not used Digital output, internally set to LOW
WXODIO Not used Digital output, internally set to LOW
RF_WHIP RF output Output for whip antenna
RF_50 RF output 50 Ohm output for external antenna
n.c. Not connected Do not connect!
2.2.1 Interface supply voltage - IOVDD
For digital communication with other circuitry (peripherals) the digital I/O configured pins
of the mixed signal sensor interface (ADIO0 to ADIO7) and the pins of the serial interface
(SCSEDIO0, SCLKDIO1, WSDADIO2, RSDADIO3) may be operated from supply voltages
different from DVDD. Therefore an interface voltage supply pin IOVDD is available which
can be connected either to DVDD or to an external supply within the tolerated voltage
range of IOVDD.
If DVDD=0 V (e.g. in any sleepmode) and IOVDD is supplied, there may be un-
predictable and varying current from IOVDD caused by internal floating nodes. It
must be taken care that the current into IOVDD does not exceed 10 mA while
DVDD=0.
If DVDD=0 V and IOVDD is not supplied, do not apply voltage to any above men-
tioned pin. This may lead to unpredictable malfunction of the device.
In TCM 320/TCM 320C VDD is internally connected to IOVDD! Therefore the above
mentioned issues have to be considered when writing own firmware based on API.
IOVDD voltage must not exceed VDD voltage! A malfunction of the module may be
caused by such inverse supply!
For I/O pins configured as analog pins the IOVDD voltage level is not relevant!
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 12/43
TCM 300 / 300C / 320 / 320C
2.3 Absolute maximum ratings (non operating)
Symbol Parameter Min Max Units
VDD
Supply voltage at VDD
TCM 300
TCM 320 (limitation due to internal VDD-IOVDD connection)
-0.5
-0.5
5.5
3.6
V
V
IOVDD Supply voltage for mixed signal sensor interface and serial
interface pins
-0.5 3.6 V
GND Ground connection 0 0 V
VINA Voltage at every analog input pin -0.5 2 V
VIND1 Voltage at RESET, and every digital input pin except WXI-
DIO/WXODIO
-0.5 3.6 V
VIND2 Voltage at WXIDIO / WXODIO input pin -0.5 2 V
2.4 Maximum ratings (operating)
Symbol Parameter Min Max Units
VDD
Supply voltage at VDD
TCM 300
TCM 320
VOFF
VOFF
4.5
3.6
V
V
IOVDD Digital interface supply voltage (see also 2.2.1)
1.7 MIN
(3.6;
VDD)
V
GND Ground connection 0 0 V
VINA Voltage at every analog input pin 0 2.0 V
VIND1 Voltage at RESET, and every digital input pin except
WXIDIO / WXODIO
0 3.6 V
VIND2 Voltage at WXIDIO / WXODIO input pin 0 2.0 V
VDDR Ripple at VDD 50 mVpp
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 13/43
TCM 300 / 300C / 320 / 320C
2.5 Operating modes
Mode Function Output signal description No. of
channels
0
Unidirectional serial
interface compatible
with TCM 220C, no
teach-in capability
SER_TX: UART output, supplies standard
data blocks of information from all received
EnOcean radio telegrams (9600 bps; 8 data
bits, no parity bit, one start bit, one stop bit).
For further information see chapter A.1
1
Bidirectional serial
interface, teach-in
capability for up to
30 entries1
SER_RX, SER_TX: Asynchronous bidirectional
Interface, supplies standard data blocks of
information from all received EnOcean radio
telegrams (9600 bps; 8 data bits, no parity
bit, one start bit, one stop bit). For further
information see chapter A.1
LRN_TOGGLE: Learning mode status indica-
tor
2 Rocker Switch - 1
channel, teach-in ca-
pability for up to 30
entries1
Supplies the desired logic switching state
“on/off” at CHANNEL0 when pushing the
switch rockers
1
3 Rocker Switch - 4
channels, teach-in
capability for up to
30 entries2
Same as Mode 2 but operation of 4 receiver
channels (CHANNEL0, CHANNEL1, CHAN-
NEL2, CHANNEL3)
4
4 Dimming - 1 channel,
teach-in capability
for up to 30 entries1
PWM is the PWM output
I-button pressed for shorter than 0.5 s: ON
(Restore duty cycle stored before last
switch-off).
O-button pressed for shorter than 0.5 s:
OFF
O-/I-button pressed longer than 0.5 s:
Duty cycle variation from 10% up to 100%
(O=less, I=more). Duty cycle variation
stops when button is released.
PWM_IND is active as long as duty cycle is
not 0%
1
5 Reserved
1 Each rocker of a PTM transmitter is counted as 1 entry
2 Each rocker is counted as 1 entry. If the same rocker is teached into several channels, 1
entry per channel is needed.
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 14/43
TCM 300 / 300C / 320 / 320C

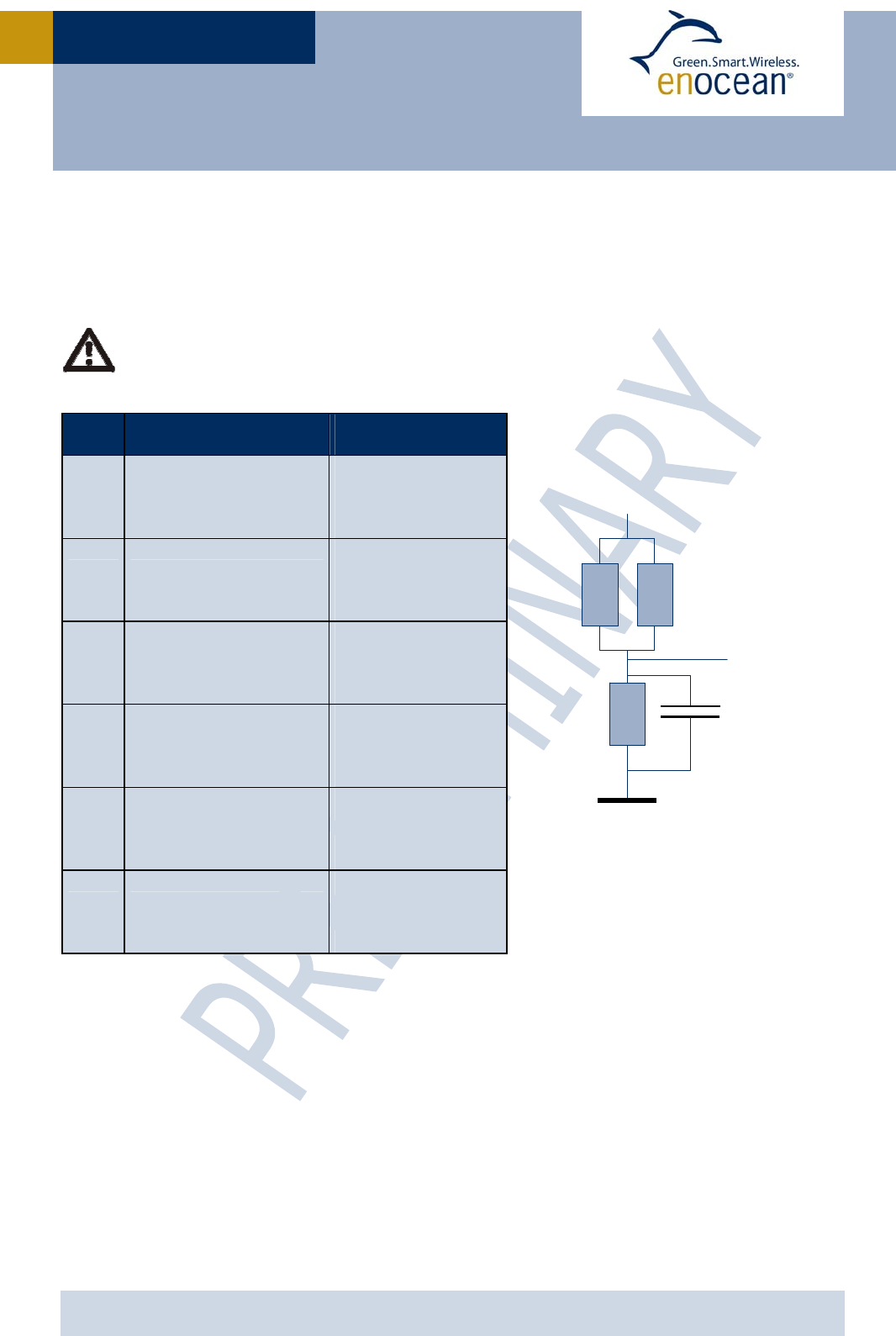

2.6 Mode selection
The operating mode is defined at start-up of the module via a measurement of the voltage
at ADIO0.
Mode ADIO0 (MODE_SEL)
input voltage range Proposed com-
ponent values
0 0% to 3.99% VDD R1: 0 Ohm
R2: leave open
R3: leave open
C1: leave open
1 4% to 11.99% VDD R1: 1k2 ±1%
R2: 15k ±1%
R3: 150k ±1%
C1: 100p
2 12% to 19.99% VDD R1: 2k2 ±1%
R2: 12k ±1%
R3: 270k ±1%
C1: 100p
3 20% to 27.99% VDD R1: 3k9 ±1%
R2: 15k ±1%
R3: 68k ±1%
C1: 100p
4 28% to 35.99% VDD R1: 4k7 ±1%
R2: 12k ±1%
R3: 56k ±1%
C1: 100p
5 36% to 39.99% VDD R1: 5k6 ±1%
R2: 10k ±1%
R3: 56k ±1%
C1: 100p
As long as IDs are stored in ID memory, the operating mode can only be changed
after deleting all IDs from memory, e.g. via CLR!
R2
R1
VDD
GND
ADIO0
R3
C1
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 15/43
TCM 300 / 300C / 320 / 320C
2.7 Repeater configuration
TCM 3x0 provides the option to activate a one or two-level repeater for EnOcean radio tele-
grams.
1-level repeater: If a received telegram is a valid and original (not yet repeated), the tele-
gram is repeated after a random delay.
2-level repeater: If a received telegram is valid and original or repeated once, the telegram
is repeated after a random delay.
The repeated telegram is marked as “repeated” by an increased repeater counter.
Setting the repeater level:
At start-up of the module repeater on/off and repeater level are determined.
Please refer to the table in 2.2 regarding the configuration options.

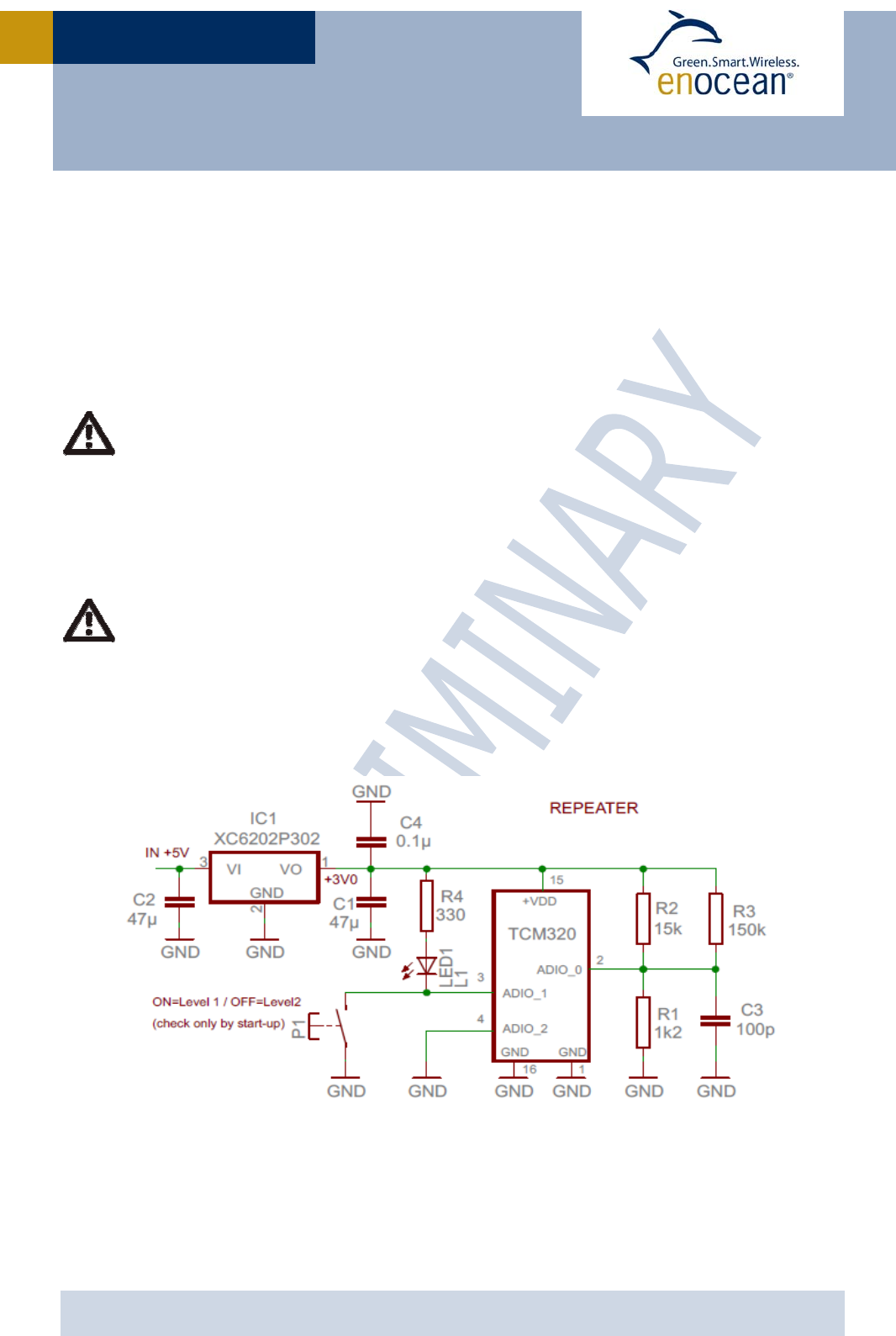

The figure below shows an example circuit for a repeater.
2-level repeating function should only be activated if really needed! Otherwise the
system function can be compromised by collisions of telegrams.
Please note that in Mode 0 2-level repeating is not possible
(for backward compatibility to TCM 220C)!
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 16/43
TCM 300 / 300C / 320 / 320C
2.8 Teach-in procedure
Modes 1 to 4 support teach-in of transmitters.
2.8.1 Setting the receiver to learning mode
Via CLR Pin (ADIO4): Contact to GND longer than t = 2 seconds. Learning Mode LRN
is entered after clearing ID memory.
Via LRN Pin (ADIO3): Contact to GND longer than t = 0.5 seconds. In multi-channel
receiver mode, the pin has to be contacted several times until the desired channel num-
ber is selected (the number of channels is given by the selected operating mode).
Via Remote Config Control: Please refer to documentation of remote management.
2.8.2 Confirmation of Learning Mode
Mode Confirmation
0 No Learn capability
1 LMI HIGH continuously, LRN_TOGGLE toggling every 1 s.
2 LMI HIGH continuously, CHANNEL0 toggling every 1 s.
3 LMI HIGH continuously, current CHANNELx toggling every 1 s.
4 LMI HIGH continuously, DIM IND HIGH, and PWM toggling every 1 s between
10% and 100%
5 Reserved for future use
2.8.3 Teaching in a transmitter
In learning mode LRN, the sensitivity of the module is limited to in-room operations and
learning of repeater powered signals is disabled (to avoid unintentional learning). Therefore
ensure that the associated radio transmitter will be in a distance less than 5 m to the re-
ceiver (not necessary within Remote Learn Mode).
Trigger the telegram of the associated radio transmitter within 30 seconds:
Operate the switch radio transmitter (RPS or HRC) at least once (press I-button or O-
button of the rocker that is to be assigned to the selected receiver channel). If the same
rocker is operated again within 4 seconds it will still be learned. If the same rocker is op-
erated again after more than 4 seconds it will be deleted again. Please note that teach-in
without rocker information is not possible” Please note that scene switches (HRC and last
3 ID bits 0B111) cannot be teach-in!
Or activate the sensor radio transmitter (1BS, 4BS) least once with active LRN bit
(DI_3=0, please refer to “Standardization EnOcean Communication Profiles”). If the
same transmitter is operated again after more than 4 seconds with active LRN bit it will
be deleted again.
Please note that in modes 2, 3, and 4 only RPS or HRC telegrams can be learned!
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 17/43
TCM 300 / 300C / 320 / 320C
2.8.4 Confirmation of correct learning/deletion
The output which is toggling every second while in teach-in mode (see above) will stay
switched high for 4 seconds to signal that a transmitter has been learned. In case a trans-
mitter ID has been deleted it will stay 4 seconds low.
2.8.5 Learning of further transmitters
After confirmation, the receiver changes again to readiness for learning. Further transmit-
ters can be learned immediately. If available the next receiver channel can be entered by
connecting the LRN pin to GND longer than t = 0.5 seconds. A maximum of 30 radio trans-
mitters can be learned (further attempts will be ignored; instead of learning confirmation,
operating mode is entered). Each rocker of a radio transmitter is counted as one transmit-
ter.
2.8.6 Selecting the next channel
By fresh contacting of the LRN pin to GND the next remaining channel is selected. In one-
channel mode or after the last channel, the operating mode is entered again.
2.8.7 Leaving learning mode
LRN mode is left in either one of the following events:
Output of last available channel is toggling and a fresh contacting of the LRN pin to GND
for 0.5 seconds is performed
No ID has been added/deleted during the last 30 seconds.
Memory was full and another ID was sent to be learnt
2.8.8 Deleting a transmitter
Deletion of one specific transmitter: Use the same procedure as learning the associated
transmitter.
As transmitter delete confirmation, the corresponding function outputs remain in inactive
state for 4 seconds while LMI keeps active. After that, a wrongly deleted transmitter can be
learned again immediately.
In order to delete a PTM transmitter the same rocker as during learn has to be
operated. If several rockers of a PTM transmitter have been learned, all have to be
deleted separately.
Deletion of all learned transmitters: Connect the CLR pin longer than 2 seconds to GND
All learned transmitters on all channels are deleted at the same time. After this, the re-
ceiver enters Learning Mode.
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 18/43
TCM 300 / 300C / 320 / 320C
2.9 Remote management
TCM 300 supports the remote management specification which is available from EnOcean
upon request. This allows controlling the teach-in procedure via a Remote Config Control
device.
2.9.1 Remote Management Control Commands (RMCC)
All RMCCs supported.
Mode Reaction to ACTION COMMAND (Function code 0x005)
0 RMI HIGH for 1 s.
1 LMI HIGH, and LRN_TOGGLE on for 1 s.
2 LMI HIGH, and CHANNEL0 invert for 1 s.
3 LMI HIGH, and all CHANNELx inverted for 1 s.
4 LMI HIGH, DIM IND inverted, and PWM inverted for 1 s.
5 Reserved for future use
2.9.2 Remote Procedure Calls (RPC)
Supported RPCs:
Remote learn command, function code 0x201
Smart ACK: Read mailbox settings, function code 0x205, settings type 0x01
Smart ACK: Delete mailbox, function code 0x206, operation type 0x02
REMOTE LEARN COMMAND:
EEP: 0x000000
Mode Flag in command Reaction
0 n.a. No reaction, no Learn Mode available
1 0x01
0x03
Start Remote Learn Mode
Stop Remote Learn Mode
2 0x01
0x03
Start Remote Learn Mode
Stop Remote Learn Mode
3 0x01
0x02
0x03
Start Remote Learn Mode
Next channel
Stop Remote Learn Mode
4 0x01
0x03
Start Remote Learn Mode
Stop Remote Learn Mode
5 n.a. No reaction, reserved for future use
The signalling is the same as described above in 2.8.
Differences between remote learn mode and normal learn mode:
In remote learn mode also repeated telegrams will be accepted
3 transmissions within 2 seconds are required, instead of 1 transmission
For detailed information on remote management please refer to the Remote Management
system specification.
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 19/43
TCM 300 / 300C / 320 / 320C
2.10 Smart Acknowledge
TCM 3x0 provides a post master function with 15 mail boxes for systems using EnOcean
smart acknowledge technology. This functionality is switched on in all operating modes.
For detailed information on smart acknowledge please refer to the Smart Acknowledge sys-
tem specification.
2.11 Transmit timing
The setup of the transmission timing allows avoiding possible collisions with data packages
of other EnOcean transmitters as well as disturbances from the environment. With each
transmission cycle, 3 identical subtelegrams are transmitted within 40 ms. The transmis-
sion of a subtelegram lasts approximately 1.2 ms. The delay between the three transmis-
sion bursts is affected at random.
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 20/43
TCM 300 / 300C / 320 / 320C
3 APPLICATIONS INFORMATION
3.1 Transmission range
The main factors that influence the system transmission range are type and location of the
antennas of the receiver and the transmitter, type of terrain and degree of obstruction of
the link path, sources of interference affecting the receiver, and “dead” spots caused by
signal reflections from nearby conductive objects. Since the expected transmission range
strongly depends on this system conditions, range tests should categorically be performed
before notification of a particular range that will be attainable by a certain application.
The following figures for expected transmission range are considered by using a PTM, a
STM or a TCM radio transmitter device and the TCM radio receiver device with preinstalled
whip antenna and may be used as a rough guide only:
Line-of-sight connections: Typically 30 m range in corridors, up to 100 m in halls
Plasterboard walls / dry wood: Typically 30 m range, through max. 5 walls
Line-of-sight connections: Typically 30 m range in corridors, up to 100 m in halls
Ferro concrete walls / ceilings: Typically 10 m range, through max. 1 ceiling
Fire-safety walls, elevator shafts, staircases and supply areas should be considered as
screening.
The angle at which the transmitted signal hits the wall is very important. The effective wall
thickness – and with it the signal attenuation – varies according to this angle. Signals
should be transmitted as directly as possible through the wall. Wall niches should be
avoided. Other factors restricting transmission range:
Switch mounted on metal surfaces (up to 30% loss of transmission range)
Hollow lightweight walls filled with insulating wool on metal foil
False ceilings with panels of metal or carbon fibre
Lead glass or glass with metal coating, steel furniture
The distance between EnOcean receivers and other transmitting devices such as com-
puters, audio and video equipment that also emit high-frequency signals should be at least
0.5 m
A summarized application note to determine the transmission range within buildings is
available as download from www.enocean.com.
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 21/43
TCM 300 / 300C / 320 / 320C
3.2 Antenna options TCM 300 / TCM 300C
3.2.1 Overview
Several antenna types have been investigated by EnOcean. They all have advantages and
disadvantages as shown in the following table.
Advantages Disadvantages
Whip Antenna (15 cm @ 315 MHz, 8.6 cm @ 868 MHz)
Cheap Automatic placement difficult
Omnidirectional Bending influences performance
Large size
Chip Antenna (AMD1103-ST01 @ 315 MHz/868 MHz)
Omnidirectional Expensive
Small size
Very sensitive to environment (GND plane,
components), minimum distance space to
other components needed
Automatic placement possible
Splatch Antenna (ANT-315-SP1 @ 315 MHz, ANT-868-SP1 @ 868 MHz)
Omnidirectional Expensive
Not very sensitive to environment, low
distance space to other components re-
quired
Large size
Automatic placement possible
Helical Antenna (ANT-315-HE @ 315 MHz)
Omnidirectional Large distance space to other components
required
Cheap Large size (3D)
Through hole component, no SMT
868 MHz modules used in Europe do not need additional approval if the external antenna
fulfils the following requirements:
Antenna type Passive Mandatory for radio approval
Center Frequency 868.3 MHz Mandatory for radio approval
Impedance ~50 Ohm Mandatory for radio approval
Maximum gain 8 dBd Mandatory for radio approval
VSWR 1.5:1 Important for compatibility with EnOcean protocol
Return Loss > 14 dB Important for compatibility with EnOcean protocol
Bandwidth 20 MHz Important if 10V/m EMC required for device
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 22/43
TCM 300 / 300C / 320 / 320C
For 315 MHz modules (STM 300C and TCM 3X0C) please note that a full approval is
needed if modules are used with antennas other than the specified whip antenna.
3.2.2 Whip antenna
315 MHz
Antenna: 150 mm wire, connect to RF_WHIP
Minimum GND plane: 50 mm x 50 mm
Minimum distance space: 10 mm
868 MHz
Antenna: 86 mm wire, connect to RF_WHIP
Minimum GND plane: 38 mm x 18 mm
Minimum distance space: 10 mm
3.2.3 Chip antenna: in preparation
3.2.4 Splatch antenna: in preparation
3.2.5 Helical antenna: in preparation
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 23/43
TCM 300 / 300C / 320 / 320C
3.3 Antenna options TCM 320 / 320C
Positioning and choice of receiver and transmitter antennas are the most important factors
in determining system transmission range.
3.3.1 Mounting the whip antenna
For good receiver performance, great care must be taken about the space immediately
around the antenna since this has a strong influence on screening and detuning the an-
tenna. The antenna should be drawn out as far as possible and must never be cut off.
Mainly the far end of the wire should be mounted as far away as possible (at least 15 mm)
from all metal parts, ground planes, PCB strip lines and fast logic components (e.g. micro-
processors).
Do not roll up or twist the whip antenna!
Radio frequency hash from the motherboard desensitizes the receiver. Therefore:
PCB strip lines on the user board should be designed as short as possible
A PCB ground plane layer with sufficient ground vias is strongly recommended
See also section 3.5 for power supply requirements. Problems may especially occur with
switching power supplies!
Specification of the TCM whip antenna; L=150 mm @ 315 MHz, L=86 mm @ 868 MHz
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 24/43
TCM 300 / 300C / 320 / 320C
Isolation material may brake at temperatures below -15 °C.
Please take care to fix the antenna cable in case vibrations are expected.
3.3.2 Mounting 50 antennas
For mounting the receiver at bad RF locations (e.g. within a metal cabinet), an external 50
antenna may be connected. The whip antenna must be removed in this case!
TCM 320 / 320C provide soldering pads for an SMA connector, e.g. from Tyco Electronics:
Modification procedure:
TCM320: Remove whip antenna and mount SMA connector
TCM320C: Remove whip antenna and 12pF capacitor. Then mount SMA connector
For 315 MHz modules (TCM 300C and TCM 320C) please note that a full approval
is needed if modules are used with external antennas.
When using the SMA connector pads please make sure no mechanical forces are
exerted on the 16-pin connector! It is recommended to use a strain relief for that
purpose.
50
GND
GND
GND
GND
X remove
TCM320C: X remove
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 25/43
TCM 300 / 300C / 320 / 320C
3.4 Recommendations for laying a whip antenna
9
9
Antenna too close
to GND area
Antenna end led
back to foot point
9PCB with GND
PCB without GND
Antenna too close
to GND area
9
The GND plane should
have a size of at least
5cm x 8cm
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 26/43
TCM 300 / 300C / 320 / 320C
3.5 Power supply requirements
In order to provide a good radio performance, great attention must be paid to the power
supply and a correct layout and shielding. It is recommended to place a 22 µF ceramic ca-
pacitor between VDD and GND close to the module (material: X5R, X7R, min 6.3 V to avoid
derating effects). In addition a 470 nH coil shall be inserted (Murata LQW18A, 0603) in the
power supply line.
It is recommended to keep the ripple on the power supply rail below 10 mVpp (see 2.4).
3.6 Layout recommendations
3.6.1 TCM 300/300C recommended foot pattern
Top layer
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 27/43
TCM 300 / 300C / 320 / 320C
Solder resist top layer
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 28/43
TCM 300 / 300C / 320 / 320C
Solder paste top layer
The data above is also available as EAGLE library.
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 29/43
TCM 300 / 300C / 320 / 320C
3.7 Soldering information
3.7.1 TCM 300 / TCM 300C
TCM 300 has to be soldered according to IPC/JEDEC J-STD-020C standard.
TCM 300 shall be handled according to Moisture Sensitivity Level MSL4 which means a floor
time of 72 h. TCM 300 may be soldered only once, since one time is already consumed at
production of the module itself.
Once the dry pack bag is opened, the desired quantity of units should be removed and the
bag resealed within two hours. If the bag is left open longer than 30 minutes the desiccant
should be replaced with dry desiccant. If devices have exceeded the specified floor life time
of 72 h, they may be baked according IPC/JEDEC J-STD-033B.
Devices packaged in moisture-proof packaging should be stored in ambient conditions not
exceeding temperatures of 40 °C or humidity levels of 90% r.H.
TCM 300 modules have to be soldered within 6 months after delivery!
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 30/43
TCM 300 / 300C / 320 / 320C
3.7.2 TCM 320 / TCM 320C
The EO3000I chip inside the module is a moisture sensitive device. In case of
wave soldering the modules should be baked in advance.
3.8 Tape & Reel specification TCM 300 / TCM 300C
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 31/43
TCM 300 / 300C / 320 / 320C
3.9 Backward compatibility to TCM 220C
In Mode 0 TCM 320C is backward compatible to its predecessor TCM 220C.
There are a few minor restrictions of compatibility which are listed here:
Parameter TCM
220C TCM 320C
Maximum current consumption 34 mA 43 mA
Maximum output current of outputs 25 mA 2 mA
(external driver transistor may be needed)
Thickness of module 4.6 mm 5.5 mm
Maximum voltage rating at pin7
(TCM 320C: ADIO6; TCM 220C: IN_5)
6 V 3.6 V
Minimum HIGH voltage level
at input pins
1.55 V 2.0 V
Post master function for systems with
smart acknowledge
No Yes, 15 mail boxes
3.10 Using RVDD
If RVDD is used in an application circuit a serial ferrite bead shall be used and wire length
should be as short as possible (<3 cm). The following ferrite beads have been tested:
74279266 (0603), 74279205 (0805) from Würth. During radio transmission and reception
only small currents may be drawn (I<100 µA).
Pulsed current drawn from RVDD has to be avoided. If pulsed currents are necessary, suffi-
cient blocking has to be provided.
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 32/43
TCM 300 / 300C / 320 / 320C
4 AGENCY CERTIFICATIONS
The modules have been tested to fulfil the approval requirements for CE (TCM 3x0) and
FCC/IC (TCM 3x0C) based on the built-in firmware.
When developing customer specific firmware based on the API for this module,
special care must be taken not to exceed the specified regulatory limits, e.g. the
duty cycle limitations!
4.1 CE approval
The modules bear the EC conformity marking CE and conforms to the R&TTE EU-directive
on radio equipment. The assembly conforms to the European and national requirements of
electromagnetic compatibility. The conformity has been proven and the according docu-
mentation has been deposited at EnOcean. The modules can be operated without notifica-
tion and free of charge in the area of the European Union, and in Switzerland. The following
provisos apply:
EnOcean RF modules must not be modified or used outside their specification
limits.
EnOcean RF modules may only be used to transfer digital or digitized data.
Analog speech and/or music are not permitted.
The final product incorporating EnOcean RF modules must itself meet the es-
sential requirement of the R&TTE Directive and a CE marking must be affixed
on the final product and on the sales packaging each. Operating instructions
containing a Declaration of Conformity has to be attached.
If the transmitter is used according to the regulations of the 868.3 MHz band,
a so-called “Duty Cycle” of 1% per hour must not be exceeded. Permanent
transmitters such as radio earphones are not allowed.
The module must be used with only the following approved antenna(s).
Type Parameter Value
Wire/Monopole at RF_WHIP Maximum gain 1.0 dBi
External antenna at RF_50 Antenna type Passive
Center Frequency 868.3 MHz
Impedance ~50 Ohm
Maximum gain 8 dBd
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 33/43
TCM 300 / 300C / 320 / 320C
4.2 FCC (United States) Certification: in preparation
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 34/43
TCM 300 / 300C / 320 / 320C
4.3 IC (Industry Canada) Certification: in preparation
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 35/43
TCM 300 / 300C / 320 / 320C
A APPENDIX
A.1 EnOcean serial protocol
When the receiver is in “Serial Interface” mode, it transfers out data blocks of information
from the received RF telegrams. As long as no transmitter has been learned, all received
EnOcean telegrams are transferred. As soon as at least one transmitter has been learned
only telegrams of transmitters learned by the receiver are transmitted via the serial inter-
face. The data block format is explained later in this document; it depends on the type of
sensor from which the telegram has been received.
A.1.1 Message format
The following figure shows the message format. A block is composed of 2 synchronization
bytes, 1 byte for the header and N bytes for the message data.
Message format for asynchronous serial communication
A.1.2 Byte signals and bit order
9600 bps; 8 data bits, no parity bit, one start bit, one stop bit
Line idle is binary 1 (standard)
Each character has one start bit (binary 0), 8 information bits (least significant bit first)
and one stop bit (binary 1)
Signals and bit order sending a byte
TxD Sync Header Byte0 ByteN-1
...
Sync
D0
STA D1 D2 D3 D4 D5 D6 D7 STOP
TxD 5V
0V
Bit
Time
Bit
T
ime
Bit
Time
Byte
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 36/43
TCM 300 / 300C / 320 / 320C
A.2 Radio transmission/reception commands
The following commands are used to transmit and receive radio telegrams.
Command Response (RMT)
TX_TELEGRAM (TRT) OK, ERR, ERR_TX_IDRANGE
RX_TELEGRAM (RRT)
The TX_TELEGRAM and RX_TELEGRAM telegrams have the same structure. The only differ-
ence is in the H_SEQ code, TX_TELEGRAM is identified by “3”. RX_Telegrams are identified
by the H_SEQ codes according to table in A.2.1.
A.2.1 Description of serial data structure
Bit 7 Bit 0
SYNC_BYTE1 (A5 Hex)
SYNC_BYTE0 (5A Hex)
H_SEQ LENGTH
ORG
DATA_BYTE3
DATA_BYTE2
DATA_BYTE1
DATA_BYTE0
ID_BYTE3
ID_BYTE2
ID_BYTE1
ID_BYTE0
STATUS
CHECKSUM
SYNC_BYTE 0..1 (8 bit each) Synchronization Bytes
H_SEQ (3 bit) Header identification
H_SEQ Meaning Mode
0b000 Unknown transmitter ID received
(serial telegram only if no ID has been learned so far!)
For RPS also:
o Known transmitter ID and unknown rocker
o U-message from known transmitter ID received
For HRC also:
o Known transmitter ID and unknown rocker
o Scene switch command (last three bits of ID 0b111) from
known transmitter ID (only first 29 bits are compared!)
Operating
Mode
0b001 For 1BS and 4BS: Known transmitter ID received
For RPS: Known transmitter ID and at least 1 known rocker (1
or 2 rockers operated)
For HRC: Known transmitter ID and known rocker
Operating
Mode
0b010 New transmitter learned (If a switch telegram is received (RPS
or HRC), the rocker code (RID) is stored together with the ID.)
Learn Mode
0b110 Transmitter just deleted (If a switch telegram is received (RPS
or HRC), the rocker code (RID) and module ID are checked. The
entry is only deleted if module ID and rocker are known.)
Learn Mode
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 37/43
TCM 300 / 300C / 320 / 320C
LENGTH (5 bit) Number of octets following the header octet (11 dec)
ORG (8 bit) Type of telegram (see detailed description below)
DATA_BYTE 0..3 (8 bit each) Data bytes 0..3 (see detailed description below)
ID_BYTE 0..3 (8 bit each) 32-bit transmitter ID3
For transmission of unique ID enter 0x00000000
STATUS (8 bit) Status field (see detailed description below)
CHECKSUM (8 bit) Checksum (Last LSB from addition of all octets except
sync bytes and checksum)
A.2.2 Detailed description of ORG field
ORG field
(hex) Acronym Description
0x05 RPS
Repeated Switch
Telegram from a PTM switch module received
(e.g. PTM 100 or PTM 200)
0x06 1BS
1 Byte Sensor
1 byte data telegram from a STM sensor mod-
ule (e.g. STM 250)
0x07 4BS
4 Byte Sensor
4 byte data telegram from a STM sensor mod-
ule (e.g. STM 100)
0x08 HRC
Hand Remote Control
Telegram from a CTM module received
0xC5 SYS_EX
System Extended
Remote Management Telegrams
(see separate specification)
Please note that 6DT and MDA telegrams, which were available in TCM1xx /
TCM200C are no longer supported!
A.2.3 Detailed description of STATUS field
If ORG = 5 (Telegram from a PTM switch module):
7 0
Reserved T21 NU RP_COUNTER
Reserved (2 bit) For future use
T21 (1 bit) T21=0 Æ PTM switch module of type 1,
T21=1 Æ PTM switch module of type 2
NU (1 bit) NU=1 Æ N-message, NU=0 Æ U-message.
RP_COUNTER (4 bit) =0..15 Repeater level: 0 is original message (not repeated)
IMPORTANT NOTE FOR SYSTEMS USING AN ENOCEAN RADIO REPEATER:
Within toggle switch applications using the serial receiver mode in combination
with a separate repeater, please ensure that no serial command interpretation
error may occur at the connected control unit. A toggle signal means that the
same telegram is sent for switching something on and off. If e.g. the light is
switched on receiving the I-button telegram from a PTM 200C, the repeated tele-
3 This module allows using a unique ID or one of 128 IDs starting from BaseID. See A.3.1.
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 38/43
TCM 300 / 300C / 320 / 320C
gram (delay <100 ms) may switch off the light again. It is therefore mandatory to
interpret the RP_COUNTER field. If a repeated telegram (RP_COUNTER>0) is re-
ceived it has to be verified if the same telegram with a lower RP_COUNTER state
has already been received in the previous 100 ms. In this case the repeated mes-
sage has to be discarded.
PTM switch modules of Type 2 (e.g. PTM 200) allow interpretation of operating two buttons
simultaneously:
N-message received Æ Only one or two pushbuttons have been pressed.
U-message received Æ No pushbutton was pressed when activating the energy genera-
tor, or more than two pushbuttons have been pressed.
Note for telegrams from PTM transmitters: Due to the mechanical hysteresis of the energy
bow, in most rocker switch device implementations, pressing the rocker sends an N-
message and releasing the rocker sends a U-message!
If ORG = 6, 7 or 8 (all other telegrams):
7 0
Reserved RP_COUNTER
Reserved (4 bit) For future use
RP_COUNTER (4 bit) Repeater level: 0 is original message (not repeated)
Please consider the “IMPORTANT NOTE” above!
A.2.4 Detailed description of DATA_BYTE 3..0 fields
If ORG = 5 and NU = 1 (N-message from a PTM switch module):
DATA_BYTE2..0 always = 0
DATA_BYTE3 as follows:
7 0
RID UD PR SRID SUD SA
RID (2 bit) Rocker ID, from left (A) to right (D): 0, 1, 2 and 3
UD (1 bit) UD=1 Æ O-button, UD=0 Æ I-button
PR (1 bit) PR=1 Æ Energy bow pressed, PR=0 Æ Energy bow re-
leased
SRID (2 bit) Second Rocker ID, from left to right: 0, 1, 2 and 3
SUD (1 bit) (Second) SUD=1 Æ O-button, SUD=0 Æ I-button
SA (1 bit) SA=1 Æ Second action (2 buttons pressed
simultaneously), SA=0 Æ No second action
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 39/43
TCM 300 / 300C / 320 / 320C
If ORG = 5 and NU = 0 (U-message from a PTM switch module):
DATA_BYTE2..0 always = 0
DATA_BYTE3 as follows:
7 0
BUTTONS PR Reserved
BUTTONS (3 bit) Number of simultaneously pressed buttons, as following:
PTM 100 (Type1): PTM200 (Type2):
0 = 0 Buttons 0 = 0 Button
1 = 2 Buttons 1 = not possible
2 = 3 Buttons 2 = not possible
3 = 4 Buttons 3 = 3 or 4 buttons
4 = 5 Buttons 4 = not possible
5 = 6 Buttons 5 = not possible
6 = 7 Buttons 6 = not possible
7 = 8 Buttons 7 = not possible
PR (1 bit) PR = 1 Æ Energy bow pressed,
PR = 0 Æ Energy bow released
Reserved (4 bit) for future use
If ORG = 6 (Telegram from a 1 Byte STM sensor):
DATA_BYTE2..0 always = 0
DATA_BYTE3 Sensor data byte.
If ORG = 7 (Telegram from a 4 Byte STM sensor):
DATA_BYTE3 Value of third sensor analog input (AD_2)
DATA_BYTE2 Value of second sensor analog input (AD_1)
DATA_BYTE1 Value of first sensor analog input (AD_0)
DATA_BYTE0 Sensor digital inputs as follows:
7 0
Reserved DI_3 DI_2 DI_1 DI_0
According to “Standardization EnOcean Communication Profiles” which defines
interoperable communication profiles for devices based on EnOcean Technology
DI_3=0 indicates a teach-in telegram! DI_3 should therefore not be used for other
purposes than signalling a teach-in telegram.
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 40/43
TCM 300 / 300C / 320 / 320C
If ORG = 8 (Telegram from a HRC transmitter):
DATA_BYTE2..0 always = 0
DATA_BYTE3 as follows:
7 0
RID UD PR SR Reserved
RID (2 bit) Rocker ID, from left (A) to right (D): 0, 1, 2 and 3
UD (1 bit) UD=1 Æ O-button, UD=0 Æ I-button
PR (1 bit) PR=1 Æ Button pushed, PR=0 Æ Button released
SR (1 bit) SR=1 Æ Store, SR=0 Æ Recall (see note)
Reserved (3 bit) for future use
Note: The bit SR is used only when the lower 3 Bits from ID_BYTE0 = 0b111 (scene
switch), and RID 0 (indicates that the memory buttons M0-M5 are operated in the hand-
held remote control).
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 41/43
TCM 300 / 300C / 320 / 320C
A.3 Command telegrams and messages
A.3.1 ID Range commands
Every TCM 300 supports a unique 32 bit ID and in addition a range of 128 IDs starting at
an BaseID address. At production, every TCM 300 is programmed with a unique ID and a
BaseID address. The BaseID number can be read via the serial interface. In order to allow a
replacement of one unit with another unit (without having to go through the learning pro-
cedure with every receiver), the ID range can be changed via the serial interface.
The allowed ID range is from 0xFF800000 to 0xFFFFFFFF.
In order to prevent misuse, this feature can only be used 10 times!
Please note: The unique ID cannot be changed.
Command (TCT) Response (RMT)
SET_BASEID OK, ERR, ERR_IDRANGE
RD_BASEID INF_BASEID
A.3.2 Receiver sensitivity commands
The receiver sensitivity can be changed by the following commands. In LOW sensitivity
mode, only transmitters in the vicinity of the module are received.
Command (TCT) Response (RMT)
SET_RX_SENSITIVITY OK
RD_RX_SENSITIVITY INF_RX_SENSITIVITY
A.3.3 Reset command
Command (TCT) Response (RMT)
RESET
A.3.4 SW Version
Command (TCT) Response (RMT)
RD_SW_VER INF_SW_VER
A.3.5 Error messages
Error Messages (RMT)
ERR
ERR_TX_IDRANGE
ERR_IDRANGE
ERR_SYNTAX
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 42/43
TCM 300 / 300C / 320 / 320C
A.3.6 Command Encoding
OK
Bit 7 Bit 0
Standard message used to confirm that an action was performed
correctly by the TCM.
In case of full duplex communication it may happen that serial
telegrams get corrupted and lost. Therefore it is recommended to
check for “OK” where applicable.
ERR
Bit 7 Bit 0
Standard error message response if after a TCT command the
operation could not be carried out successfully by the TCM.
SET_BASEID
Bit 7 Bit 0
With this command the user can rewrite its ID range base num-
ber. The most significant ID byte is BaseIDByte3. The informa-
tion of the 25 most significant bits is stored in FLASH.
The allowed ID range is from 0xFF800000 to 0xFFFFFFFF.
32 0
BaseID
This command can only be used a maximum number of 10 times.
After successfully ID range reprogramming, the TCM answers
with an OK telegram. If reprogramming was not successful, the
TCM answers sending an ERR telegram if the maximum number
of 10 times is exceeded or an ERR_IDRANGE telegram if the
BaseID is not within the allowed range.
0xA5
0x5A
0x8B
0x58
X
X
X
X
X
X
X
X
X
ChkSum
0xA5
0x5A
0x8B
0x19
X
X
X
X
X
X
X
X
X
ChkSum
0xA5
0x5A
0xAB
0x18
BaseIDByte3
BaseIDByte2
BaseIDByte1
BaseIDByte0
X
X
X
X
X
ChkSum
25 most significant bits 0 0 0 0 0 0 0
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 43/43
TCM 300 / 300C / 320 / 320C
RD_BASEID
Bit 7 Bit 0
When this command is sent to the TCM, the base ID range num-
ber is retrieved though an INF_BASEID telegram.
INF_BASEID
Bit 7 Bit 0
This message informs the user about the ID range base number.
BaseIDByte3 is the most significant byte.
SET_RX_SENSITIVITY
Bit 7 Bit 0
This command is used to set the TCM radio sensitivity.
In LOW radio sensitivity, signals from remote transmitters are
not detected by the TCM receiver. This feature is useful when
only information from transmitters in the vicinity should be proc-
essed. An OK confirmation telegram is generated after TCM sen-
sitivity has been changed.
Sensitivity=0x00 Low sensitivity
Sensitivity=0x01 High sensitivity
0xA5
0x5A
0xAB
0x58
X
X
X
X
X
X
X
X
X
ChkSum
0xA5
0x5A
0x8B
0x98
BaseIDByte3
BaseIDByte2
BaseIDByte1
BaseIDByte0
X
X
X
X
X
ChkSum
0xA5
0x5A
0xAB
0x08
Sensitivity
X
X
X
X
X
X
X
X
ChkSum
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 44/43
TCM 300 / 300C / 320 / 320C
RD_RX_SENSITIVITY
Bit 7 Bit 0
This command is sent to the TCM to retrieve the current radio
sensitivity mode (HIGH or LOW).
This information is sent via a INF_RX_SENSITIVITY command.
INF_RX_SENSITIVITY
Bit 7 Bit 0
This message informs the user about the current TCM radio sen-
sitivity.
Sensitivity= 0x00 Low sensitivity
Sensitivity= 0x01 High sensitivity
RESET
Bit 7 Bit 0
Performs a reset of the TCM microcontroller.
0xA5
0x5A
0xAB
0x48
X
X
X
X
X
X
X
X
X
ChkSum
0xA5
0x5A
0x8B
0x88
Sensitivity
X
X
X
X
X
X
X
X
ChkSum
0xA5
0x5A
0xAB
0x0A
X
X
X
X
X
X
X
X
X
ChkSum
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 45/43
TCM 300 / 300C / 320 / 320C
RD_SW_VER
Bit 7 Bit 0
This command requests the TCM to send its current software
version number.
This information is provided via an INF_SW_VER telegram by the
TCM.
INF_SW_VER
Bit 7 Bit 0
Informs the user about the current software version of the TCM.
Example: Version 1.0.1.16
TCM SW Version Pos.1 = 1
TCM SW Version Pos.2 = 0
TCM SW Version Pos.3 = 1
TCM SW Version Pos.4 =16
ERR_SYNTAX
Bit 7 Bit 0
This telegram is sent automatically through the serial port after
the TCM has detected a syntax error in a TCT telegram.
Errors can occur in the H_SEQ, LENGTH, ORG or CHKSUM
fields/bytes.
Field code:
H_SEQ=0x08 ORG=0x0B
LENGTH=0x09 CHKSUM=0x0A
0xA5
0x5A
0xAB
0x4B
X
X
X
X
X
X
X
X
X
ChkSum
0xA5
0x5A
0x8B
0x8C
TCM SW Version Pos.1
TCM SW Version Pos.2
TCM SW Version Pos.3
TCM SW Version Pos.4
API Version Pos.1
API Version Pos.2
API Version Pos.3
API Version Pos.4
X
ChkSum
0xA5
0x5A
0x8B
Field
X
X
X
X
X
X
X
X
X
ChkSum
USER MANUA
L
V0.82
© 2010 EnOcean | www.enocean.com TCM 300 / 300C / 320 / 320C User Manual V0.82 | Page 46/43
TCM 300 / 300C / 320 / 320C
ERR_TX_IDRANGE
Bit 7 Bit 0
When a radio telegram intended to be sent has an ID number
outside the ID range, this error message is generated. The radio
telegram is not delivered.
ERR_ IDRANGE
Bit 7 Bit 0
This message is generated when the user tries to change the ID
range base using the SET_BASEID command to a value outside
the allowed range from 0xFF800000 to 0xFFFFFFFF.
0xA5
0x5A
0x8B
0x22
X
X
X
X
X
X
X
X
X
ChkSum
0xA5
0x5A
0x8B
0x1A
X
X
X
X
X
X
X
X
X
ChkSum

Navigation menu
