Enlighted WS-2-00 Enlighted Wireless Room Control User Manual
Enlighted, Inc. Enlighted Wireless Room Control
User Manual
Page 5 Page 6 Page 1
Copyright © 2014 Enlighted Inc. All rights reserved.
All other brand or product names are trademarks of
their respective companies or organizations.
Technical Support
For questions regarding the installation or operation of
this product, contact Enlighted
Technical Support: support@enlightedinc.com
Company Contact Information
Location: 930 Benecia Ave, Sunnyvale, CA 94085
Phone: +1.650.964.1094
Web: enlightedinc.com
CA Contractor’s License: CCL# 980903
FCC and Industry Canada Compliance Information
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.
USA
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
•this device may not cause harmful interference, AND
•this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by Enlighted Inc.
could void the user's authority to operate the equipment.
Canada
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
•this device may not cause harmful interference, AND
•this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by Enlighted Inc.
could void the user's authority to operate the equipment.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes:
•l'appareil ne doit pas produire de brouillage, ET
•l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
CE
This device complies with the essential requirements and other
relevant requirements of the R&TTE Directive (1999/5/EC). The
product is compliant with the following standards and/or other
normative documents. EN 62479, ETSI EN 301, EN 300
•The equipment is Class 1 radio equipment which can be placed
on the market and be put into service without restrictions in
accordance with article 1(3) of Commission Decision 2000/299/EC
(Version July 2014).
Figure 1: Enlighted Wireless Switch 2 (WS2)
Wireless Switch 2 (WS2)
Model WS-2-00
Installation Instructions
Shipped Components
•Wireless switch version 2 (WS2)
•Usage card
•Back plate (with captive screws in place)
•Cover plate
•2 tapping screws
•2 6-32 machine screws
Tools You May Need
•Phillips screw driver
•Flat head screw driver
94-01140-01 Rev01
Model: WS-2-00
FCC ID: AQQ-WS-2-00
Industry Canada: 10138A-WS200
Troubleshooting
Page 2 Page 3 Page 4
Cautionary Suggestions
•Installation and maintenance must be performed by a
qualified electrician.
•Installations and maintenance must be performed in
accordance with state, local, and national electrical
codes and requirements.

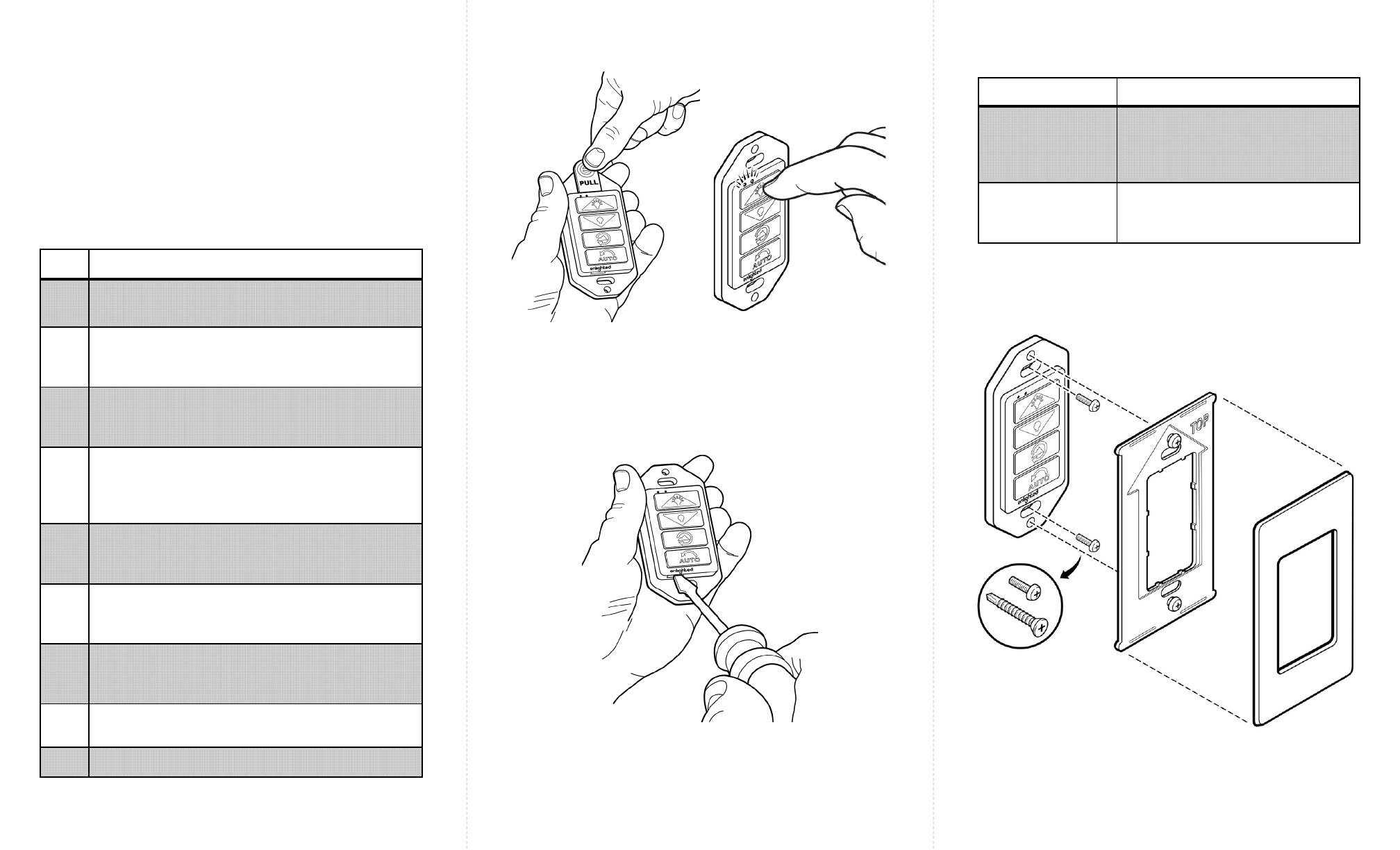

Figure 5: Mounting Sequence
Problem Solution
LEDs do not flash
when a is button
pressed
The energy in the battery may
have drained. Check, and if
needed, replace the battery
(see Figure 4)
Buttons do not
easily move
when pressed
Return unit for replacement
Figure 4: Opening the WS2’s case to access the battery
Step
Description
1 Separate, if needed, the cover and back
plates.
2 Remove the plastic pull tab from the WS2 to
allow the battery to come in contact with the
terminals. (See figure 2)
3 Press each button and verify that both the
green and red LEDs flash and that the button
moves smoothly. (See figure 3)
4 If the LEDs do not flash when a button is
pressed, then check, and if needed, replace
the battery. The battery is accessed after
opening the case as shown in figure 4.
5 Position the WS2 on either the wall or on a
junction box with the LEDs on the top and the
Enlighted logo on the bottom. (See Figure 5)
6 Use the provided tapping screws (or machine
screws for a junction box) to attach the WS2
to the wall.
7 Align the back plate (with the arrow pointing
up) to the WS2. Affix the back plate to the
WS2 by firmly tightening both captive screws.
8 Snap on the cover plate with the arrow (on its
back side) pointing up.
9 Save usage card for room occupants.
Installation Steps
Both Wall and Junction Box Mounting
Figure 2: Remove plastic
tab to allow battery to
power unit
Figure 3: Press each
button to verify operation
and that LEDs flash
