EnSight User Manual
for Version 9.2
Table of Contents
1 Overview
2 Input
3Parts
4 Variables
5 GUI Overview
6 Main Menu
7Features
8 Modes
9 Transformation Control
10 Preference and Setup File Formats
11 EnSight Data Formats
12 Utility Programs
13 Parallel and Distributed Rendering
Index
How To Table of Contents
Computational Engineering International, Inc.
2166 N. Salem Street, Suite 101, Apex, NC 27523
USA • 919-363-0883 • 919-363-0833 FAX
http://www.ceintl.com or http://www.ensight.com
© Copyright 1994–2009, Computational Engineering International, Inc. All rights reserved.
Printed in the United States of America.
EN-UM Revision History
This document has been reviewed and approved in accordance with Computational Engineering
International, Inc. Documentation Review and Approval Procedures.
This document should be used only for Version 9.2 and greater of the EnSight program.
Information in this document is subject to change without notice. This document contains proprietary
information of Computational Engineering International, Inc. The contents of this document may not
be disclosed to third parties, copied, or duplicated in any form, in whole or in part, unless permitted by
contract or by written permission of Computational Engineering International, Inc. Computational
Engineering International, Inc. does not warranty the content or accuracy of any foreign translations of
this document not made by itself. The Computational Engineering International, Inc. Software License
Agreement and Contract for Support and Maintenance Service supersede and take precedence over
any information in this document. EnSight® is a registered trademark of Computational Engineering
International, Inc. All registered trademarks used in this document remain the property of the owners.
CEI’s World Wide Web addresses:
http://www.ceintl.com
or
http://www.ensight.com
Restricted Rights Legend
Use, duplication, or disclosure of the technical data contained in this document by the Government is subject to
restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause
at DFARS 252.227-7013. Unpublished rights reserved under the Copyright Laws of the United States.
Contractor/Manufacturer is Computational Engineering International, Inc., 2166 N. Salem Street, Suite 101,
EN-UM:5.2-1 October 1994
EN-UM:5.2.2-1 January 1995
EN-UM:5.5-1 September 1995
EN-UM:5.5.1-1 December 1995
EN-UM:5.5.2-1 February 1996
EN-UM:6.0-1 June 1997
EN-UM:6.0-2 August 1997
EN-UM:6.0-3 October 1997
EN-UM:6.0-4 October 1997
EN-UM:6.1-1 March 1998
EN-UM:6.2-1 September 1998
EN-UM:6.2.1-1 November 1998
EN-UM:7.0-1 December 1999
EN-UM:7.1-1 April 2000
EN-UM:7.3-1 March 2001
EN-UM:7.4-1 March 2002
EN-UM:7.4-2 October 2002
EN-UM:7.6-1 May 2003
EN-UM:8.0-1 December 2004
EN-UM:8.2-1 August 2006
EN-UM: 9.0.-0 September 2008
EN-UM: 9.1.-0 December 2009
EN-UM: 9.2.-0 December 2010
Apex, NC 27523 USA
Table of Contents
EnSight 9 User Manual v
1 Overview
2 Input
2.1 Reader Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Dataset Format Basics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Reading and Loading Data Basics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2.2 Native EnSight Format Readers . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
EnSight Case Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
EnSight5 Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
2.3 Other Readers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
ABAQUS_FIL Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
ABAQUS_ODB Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
AIRPAK/ICEPAK Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24
Medina BIF-BOF PERMAS Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27
AcuSolve Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-28
ANSYS Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-30
AUTODYN Reader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-34
AVUS Reader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-38
CAD Reader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-39
CFF Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-42
CFX4 Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-43
CFX5 Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-44
CGNS Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-46
CTH Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-47
ESTET Reader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-48
EXODUS II Gold Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-50
FAST UNSTRUCTURED Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-57
FIDAP NEUTRAL Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-58
FLOW3D-MULTIBLOCK Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-59
Table of Contents
Table of Contents
vi EnSight 9 User Manual
FLUENT Direct Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-63
FLUENT UNIVERSAL Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-68
Inventor Reader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-69
LS-DYNA Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-71
Movie.BYU Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-73
MPGS 4.1 Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-74
MSC.DYTRAN Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-75
MSC.MARC Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-76
MSC.NASTRAN Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-78
Nastran Input Deck Reader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-83
N3S Reader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-85
OpenFOAM Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-87
OVERFLOW Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-90
PLOT3D Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-94
RADIOSS Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-96
POLYFLOW Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-97
SDRC Ideas Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-99
SILO Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-102
STAR-CD and STAR-CCM+ Reader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-104
STL Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-107
Tecplot Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-110
Vectis Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-114
XDMF Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-116
2.4 Other External Data Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-118
External Translators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-118
Exported from Analysis Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-118
2.5 Command Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-119
Saving the Default Command File for EnSight Session . . . . . . . . . . . . . . . . . .2-123
Auto recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-124
2.6 Archive Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-125
Saving and Restoring a Full backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-125
2.7 Context Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-128
Table of Contents
EnSight 9 User Manual vii
Saving a Context File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-128
Restoring a Context . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-128
2.8 Session Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-130
Saving a Session File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-130
Restoring a Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-131
2.9 Scenario Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-132
2.10 Saving Geometry and Results Within EnSight. . . . . . . . . . . . . . . 2-135
Saving Geometric Entities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-135
If Rigid Body Transformations in Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-137
2.11 Saving and Restoring View States. . . . . . . . . . . . . . . . . . . . . . . . 2-139
2.12 Saving and Printing Graphic Images . . . . . . . . . . . . . . . . . . . . . . 2-140
Troubleshooting Saving an Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-142
2.13 Saving and Restoring Animation Frames . . . . . . . . . . . . . . . . . . 2-143
2.14 Saving Query Text Information . . . . . . . . . . . . . . . . . . . . . . . . . . 2-144
From Query/Plot Save... Formatted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-144
From Query/Plot Show Text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-144
From EnSight Message Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-145
2.15 Saving Your EnSight Environment. . . . . . . . . . . . . . . . . . . . . . . . 2-146
3 Parts
3.1 Part Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Part Creation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Part Attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
3.2 Part Selection and Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
3.3 Part Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
3.4 Part Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
3.5 Part List Shortcuts (Right-click) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-35
3.6 Part Graphics Window Shortcuts (Right-click) . . . . . . . . . . . . . . . . . 3-36
Table of Contents
viii EnSight 9 User Manual
3.7 Part Shortcuts (Click-and-Go) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-37
5 GUI Overview
GUI Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
4 Variables
General Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
4.1 Variable Selection and Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-5
4.2 Variable Summary & Palette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Palette Editor Items Available on Every Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-8
Palette Editor Simple Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-9
Palette Editor Advanced Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-9
Palette Editor Markers Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-10
Palette Editor Options Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-10
Palette Editor Files Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-11
4.3 Variable Creation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
6 Main Menu
6.1 File Menu Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
6.2 Edit Menu Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
6.3 Query Menu Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-26
6.4 View Menu Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-29
6.5 Tools Menu Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-34
6.6 Window Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-48
6.7 Case Menu Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-49
6.8 Help Menu Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-52
Table of Contents
EnSight 9 User Manual ix
7 Features
7.1 Solution Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
7.2 Flipbook Animation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
7.3 Keyframe Animation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14
7.4 Variable Calculator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-24
7.5 Query/Plot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-25
7.6 Interactive Probe Query. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
7.7 Contour Create/Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-39
7.8 Isosurface Create/Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
7.9 Clip Create/Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-47
7.10 Vector Arrow Create/Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-69
7.11 Particle Trace Create/Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-74
7.12 Subset Parts Create/Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-95
7.13 Profile Create/Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-97
7.14 Elevated/Offset Surface Create/Update. . . . . . . . . . . . . . . . . . . . 7-101
7.15 Vortex Core Create/Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-106
7.16 Shock Surface/Region Create/Update. . . . . . . . . . . . . . . . . . . . . 7-111
7.17 Separation/Attachment Lines Create/Update . . . . . . . . . . . . . . . 7-117
7.18 Boundary Layer Variables Create/Update . . . . . . . . . . . . . . . . . . 7-121
7.19 Material Parts Create/Update . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-126
7.20 Tensor Glyph Parts Create/Update . . . . . . . . . . . . . . . . . . . . . . . 7-130
7.21 Developed Surface Create/Update . . . . . . . . . . . . . . . . . . . . . . . 7-133
7.22 Point Parts Create/Update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-137
7.23 Extrusion Parts Create/Update . . . . . . . . . . . . . . . . . . . . . . . . . . 7-139
Table of Contents
xEnSight 9 User Manual
8 Modes
8.1 Part Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
8.2 Annot Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
8.3 Plot Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-30
8.4 VPort Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-41
8.5 Frame Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-50
8.6 Quick Desktop Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-59
9 Transformation Control
General Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-1
9.1 Global Transform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
9.2 Frame Definition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-9
9.3 Frame Transform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-12
9.4 Tool Transform. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-16
9.5 Center Of Transform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-17
9.6 Z-Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-18
9.7 Look At/Look From. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-20
9.8 Copy/Paste Transformation State . . . . . . . . . . . . . . . . . . . . . . . . . . 9-23
9.9 Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-24
10 Preference and Setup File Formats
10.1 Window Position File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
10.2 Connection Information File Format. . . . . . . . . . . . . . . . . . . . . . . . 10-3
10.3 Palette File Formats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-5
Color Selector Palette File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-5
Function Palette File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-5
Table of Contents
EnSight 9 User Manual xi
Predefined Function Palette. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-6
Default False Color Map File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-7
10.4 Default Part Colors File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-8
10.5 Data Reader Preferences File Format. . . . . . . . . . . . . . . . . . . . . . 10-9
10.6 Data Format Extension Map File Format. . . . . . . . . . . . . . . . . . . 10-10
10.7 Parallel Rendering Configuration File . . . . . . . . . . . . . . . . . . . . . 10-12
10.8 Resource File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-13
11 EnSight Data Formats
11.1 EnSight Gold Casefile Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-4
EnSight Gold General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-4
EnSight Gold Case File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-7
EnSight Gold Geometry File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-19
EnSight Gold Variable File Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-46
EnSight Gold Per_Node Variable File Format . . . . . . . . . . . . . . . . . . . . . . . . . 11-46
EnSight Gold Per_Element Variable File Format. . . . . . . . . . . . . . . . . . . . . . . 11-62
EnSight Gold Undefined Variable Values Format . . . . . . . . . . . . . . . . . . . . . . 11-76
EnSight Gold Partial Variable Values Format . . . . . . . . . . . . . . . . . . . . . . . . . 11-80
EnSight Gold Measured/Particle File Format . . . . . . . . . . . . . . . . . . . . . . . . . 11-85
EnSight Gold Material Files Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-86
11.2 EnSight6 Casefile Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-98
EnSight6 General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-98
EnSight6 Case File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-101
EnSight6 Geometry File Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-109
EnSight6 Variable File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-114
EnSight6 Per_Node Variable File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-114
EnSight6 Per_Element Variable File Format . . . . . . . . . . . . . . . . . . . . . . . . . 11-117
EnSight6 Measured/Particle File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-121
Writing EnSight6 Binary Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-121
11.3 EnSight5 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-126
Table of Contents
xii EnSight 9 User Manual
EnSight5 General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-126
EnSight5 Geometry File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-128
EnSight5 Result File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-132
EnSight5 Variable File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-134
EnSight5 Measured/Particle File Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-135
Writing EnSight5 Binary Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-138
11.4 FAST UNSTRUCTURED Results File Format. . . . . . . . . . . . . . 11-141
11.5 FLUENT UNIVERSAL Results File Format . . . . . . . . . . . . . . . . 11-145
11.6 Movie.BYU Results File Format. . . . . . . . . . . . . . . . . . . . . . . . . 11-147
11.7 PLOT3D Results File Format. . . . . . . . . . . . . . . . . . . . . . . . . . . 11-150
11.8 Server-of-Server Casefile Format . . . . . . . . . . . . . . . . . . . . . . . 11-155
11.9 Periodic Matchfile Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-162
11.10 XY Plot Data Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-165
11.11 EnSight Boundary File Format . . . . . . . . . . . . . . . . . . . . . . . . 11-167
11.12 EnSight Particle Emitter File Format . . . . . . . . . . . . . . . . . . . . 11-171
11.13 EnSight Rigid Body File Format . . . . . . . . . . . . . . . . . . . . . . . 11-173
11.14 Euler Parameter File Format. . . . . . . . . . . . . . . . . . . . . . . . . . 11-177
11.15 Vector Glyph File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-181
General Comments: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-181
File description: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-182
Example: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-184
11.16 Constant Variables File Format . . . . . . . . . . . . . . . . . . . . . . . 11-186
General Comments: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-186
Example: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-187
11.17 Point Part File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-188
11.18 Spline Control Point File Format . . . . . . . . . . . . . . . . . . . . . . . 11-189
11.19 EnSight Embedded Python (EEP) File Format . . . . . . . . . . . . 11-190
The “module” case (“__init__.py”): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-190
Table of Contents
EnSight 9 User Manual xiii
The “installer” case (“autoexec.py”): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-190
Usage notes: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-190
11.20 Camera Orientation File Format . . . . . . . . . . . . . . . . . . . . . . . 11-191
Example: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-191
12 Utility Programs
12.1 EnSight Case Gold Writer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-2
13 Parallel and Distributed Rendering
13.1 Shared-memory parallel rendering . . . . . . . . . . . . . . . . . . . . . . . . 13-2
13.2 Distributed Memory Parallel Rendering . . . . . . . . . . . . . . . . . . . . 13-18
13.3 EnSight Networking Considerations . . . . . . . . . . . . . . . . . . . . . . 13-27
Table of Contents
xiv EnSight 9 User Manual
1 Overview
EnSight 9 User Manual 1-1
1 Overview
EnSight (for Engineering inSight) provides engineers and scientists with an easy-
to-use graphics postprocessing package. EnSight supplies powerful, easy-to-use
tools through a user-friendly interface.
The purpose of this chapter is to give you an overview of the EnSight system and
its documentation. Because of the power and flexibility of EnSight, the synergy
between features provides a great many visualization techniques.
The Overview topics discussed are:
Part Concepts
Data Types
Graphical Environment
Transformations
Frames
Coloration
Created Parts
Queries
Transient Data
Animation
Implementation
Documentation
Contacting CEI
Part Concepts EnSight processing begins with your model. Usually the elements of your model
are grouped into parts. Within EnSight, nearly all information is associated with
parts, and nearly all actions are applied to parts. The current maximum number
of parts is 65000.
Geometry A part consists of nodes and elements (elements are sets of nodes connected in a
particular geometric shape). Each node, which is shared by its adjoining elements,
is defined by its coordinate-location in the model frame of reference.
Variable Values EnSight-compatible data files provide variable values either at each part’s nodes,
element centers, or both. When needed (or requested) EnSight will find any
variable’s value at any point on or within an element by utilizing the element’s
shape function. The current maximun number of variables is 10000.
1 Overview
1-2 EnSight 9 User Manual
Part Attributes Within EnSight, you can specify additional information about each part. These
part attributes tell EnSight how to display each part and how the part responds to
EnSight controls and display options. Part attributes include:
Part Operations Parts can be copied to show, for example, the same part colored by a different
variable. Model parts can be split along an arbitrary plane or any quadric surface,
and merged with other model parts. The geometry of parts can be simplified by
creating a new part by extracting a simpler representation of an existing part.
Part Representation Parts can be represented with simpler geometry, both to enhance visualization
performance and for special effects. Representation modes include:
Full mode, which represents all the part’s elements in the graphics window.
Border mode, which represents 3D elements with their 2D external faces.
Feature angle mode, which represents with 1D elements the “significant”
edges of the part (you control what is “significant”)
Nonvisual, which does not represent any of the part’s elements in the
graphics window (but still loads in memory on the server).
Bounding box, which represents the box bounding the coordinate extremes.
(see Section 3.3, Part Editing, and Section 8.1, Part Mode)
Category Includes attributes that control....
General Attributes Visibility (including visibility per viewport)
Susceptibility to Auxiliary Clipping
Reference frame
Response to changes in time (frozen or active)
Fast display representation
Visual Symmetry options
Coloration (constant, by a palette associated with a variable, or a
2D texture)
Shaded Surface susceptibility
Surface shading (flat, Gouraud, smooth)
Hidden Line susceptibility
Fill density (for transparency)
Lighting (diffuse, shininess, and highlight intensity)
Node, Element, and
Line Attributes
Node visibility
Node type (dot, cross, or sphere)
Node size (constant or variable)
Node detail (for spheres)
Element-line visibility
Element-line width
Element-line style (solid, dotted, or dot-dash)
Element representation on client (full, border,
3D border/2D full, 3D feature/2D full, 3D nonvisual/2D full,
bounding box, feature angle, or nonvisual)
Element-size shrink-factor
Polygon Reduction
Failed element variable and rules
Node and element label visibility
Displacement
Attributes
Displacement variable and scale factor
IJK axis display
attributes
IJK axis visibility and scale factor
1 Overview
EnSight 9 User Manual 1-3
Data Types EnSight supports a number of common data formats as well as interfaces to
various simulation packages. If an interface is not available for your data,
EnSight includes a library of routines to create your own custom User-Defined
Reader. User-Defined Readers have the advantage of not requiring a separate data
translation step and thus reduce user effort and disk storage requirements. A
number of User-Defined Readers are provided with EnSight; complete
documentation and dummy routines may be found in the directory $CEI_HOME/
ensight92/src/readers.
There are four different means to get your data into EnSight.
Type 1 - Included Readers - Are accessed by choosing the desired format in the
Data Reader dialog. These include common data formats as well as a number of
readers for commercial software. These can be internal EnSight readers as well as
User-Defined Readers. If the included reader is a User-Defined Reader there may
be more info in a README file found in $CEI_HOME/ensight92/src/readers.
Type 2 - Not Included User-Defined readers - A number of User-Defined
Readers have been authored by EnSight users, but are not provided with EnSight.
See the Comments column below for more information. Also for more info see
our website, www.ensight.com and go to the Support page.
Type 3 - Stand - Alone Translators - May be written by the user to convert data
into EnSight format files. A complete description of EnSight formats may be
found in Chapter 11 of the EnSight Online User Manual. Several translators are
provided with EnSight. These are found in the directory $CEI_HOME/ensight92/
translators. Translators must first be compiled before they may be used. Some
require links to libraries provided by the vendor of the program in question. See
the README files found in each translator’s directory.
Type 4 - EnSight Format - A growing number of software suppliers support the
EnSight format directly, i.e. an option is provided in their products to output data
in the EnSight format.
The table that follows summarizes all of the data formats and software packages
for which an interface of Type 1-4 exists. As this information changes frequently,
please consult our website (www.ensight.com) or your EnSight support
representative should you have any questions. If your format or program is not
listed here, there is the possibility that an interface does indeed exist. Contact
EnSight support for assistance. Should you create a User-Defined Reader or
Stand-Alone Translator and wish to allow its distribution with EnSight, please
send an email to this effect to support@ensight.com.
Data Format / Program Type Comments
ABAQUS_FIL 1 Direct reader for binary or ascii (.fil) files (ABAQUS STANDARD or
EXPLICIT)
ABAQUS_ODB 1 Direct reader for binary .odb files (ABAQUS STANDARD or
EXPLICIT). Only available for platforms supported by ABAQUS
ACUSOLVE 2 Contact vendor for information
ADAGIO 1 Use Exodus II reader
ADINA 3 Use I-DEAS neutral files and translators
ALEGRA 1 Use Exodus II reader
ANSYS 1 Direct reader for binary .rst, .rth, .rmq, .rfl files. (Internal legacy reader =
Ansys; single part < 2Gb file reader = Ansys Results (v10); largefile
multipart reader = Ansys-Multi-Part)
1 Overview
1-4 EnSight 9 User Manual
AV U S 1, 4 Formerly COBALT. User reader - or - Exports EnSight Case Gold format
Case (EnSight6, EnSight Gold) 1 Native EnSight formats, EnSight6 Case and EnSight Gold Case. (Gold
reader handles SOS auto-distribute.)
CAD 1 Direct Reader for CAD formats as well as STL
CFD++ 4 Exports EnSight Case format
CFD-ACE 2 Contact vendor for DTF reader
CFD-FASTRAN 2 Contact vendor for DTF reader
CFDESIGN 1 Uses Tecplot files and reader
CFF 1 User reader for Common File Format from BOEING (WIND/CFF code).
Source supplied with EnSight install, executable supplied on some
platforms.
CFX4 1, 3 User reader, and translator (useful if results contain massed particles)
CFX5 1, 4 Code exports EnSight Case format, and direct reader available for all
platforms except Macintosh
CFX-TASCflow 3 Converts TASCflow output to EnSight format (or use PLOT3D converter
from vendor)
CGNS 1 User reader
COBALT 1, 4 See AVUS User reader - or - Exports EnSight Case Gold format
CRAFT 4 Exports EnSight Case Gold format
CRUNCH 4 Exports EnSight Case Gold format
CTH 1 User reader. (Handles SOS internally)
DMC 1 Use Exodus II reader
ECLIPSE 3 Contact CEI for details
ENSIGHT (EnSight 5) 1 Original EnSight format (unstructured)
ESTET 1 Direct reader
EXODUS II 1 User reader. (Handles SOS internally)
FAST UNSTRUCTURED 1 Direct reader for NASA FAST unstructured format
FEFLO 3 Contact vendor for information
FEMWATER 2 Use GMS reader
FENSAP 4 Contact vendor for information
FIDAP 1 Direct reader for FIDAP neutral (FDNEUT) files
FIELDVIEW 1 User reader for Fieldview 2.5 unstructured data
FINE/Aero 1 Use PLOT3D or CGNS files/reader
FINE/Turbo 1 Use PLOT3D or CGNS files/reader
FIRE 4 Code exports EnSight format
FLOW-3D 1 User reader for FLOW-3D results (flsgrf) files
FLUENT (particle files) 3 Converts Fluent particle file to EnSight format
FLUENT 1, 4 User reader for .cas and .dat files - or - Fluent exports EnSight Casefile
format
FOAM 2, 4 Contact developer (Imperial College) for interface details
FPRP 1 User reader imports ASCII .gpp files
GASP 4 Exports EnSight Case format
GMS 2 User reader for GMS groundwater modeling framework, contact CEI for
information
GUST 4 Exports EnSight Case format
HDF5 2 Contact CEI for information
HTS 1 LLNL hierarchical triangulated surface format.
INVENTOR 1 User reader for Inventor (.iv) files
I-DEAS 3 Translator for I-DEAS FEA neutral file
IMEX 2 Contact CEI
IO/API 2 User reader for MODELS 3 framework, contact CEI for information
KIVA 2, 3,4 Conversion routines to export EnSight format, contact CEI for info
LS-DYNA 1 User reader for d3plot files
MADYMO 1 Use LS-DYNA reader
MAGMA 2 Contact CEI
Data Format / Program Type Comments
1 Overview
EnSight 9 User Manual 1-5
MAYA ESC 4 Contact vendor for information
MEDINA BIF/BOF 1 User reader for Medina bif/bof files using Konfig file
MODELS 3 2 Use IO/API reader
MOVIE.BYU 1 Direct reader for MOVIE.BYU format files
MPGS 4.1 1 Direct reader for MPGS, EnSight’s predecessor
MSC.ADAMS 4 Plug-in support
MSC.DYTRAN 1 User reader for MSC/Dytran archive (.arc) or data (.dat) files
MSC MARC 1 User reader for t16 and t19 files
MSC.NASTRAN 1 User reader for binary OP2 files
MSC.NASTRAN INPUT 1 User reader for NASTRAN geometry input (.nas, .dat, .bdf) files
MSC.PATRAN 3 Converts PATRAN neutral files to MOVIE.BYU format -or- export to
EnSight using PATRAN macro
MUSES/Prism 2 User reader from Thermoanalytics
NCC 2 User reader interface to National Combustion Code, contact CEI for info
N3S 1 Direct reader for the EDF code N3S
NetCDF 1 User reader, contact CEI for information
NIFTI-1/Analyze 1 Analyze format with NIFTI extensions. (http://nifti.nimh.nih.gov)
NSMB 2 User reader developed by CERFACS and CSCS
NSU2D / NSU3D 4 Contact CEI for information
OVERFLOW 1 User reader (modified PLOT3D reader) for OVERFLOW files
PAM-FLOW 2 User-defined reader from ESI for native PAM-FLOW files
PHOENICS 1 Use PLOT3D file/reader, contact CEI for information
PLOT3D 1 Direct reader for PLOT3D and FAST structured formats
POLY-3D 3 Contact vendor for information
POLYFLOW 4 Outputs EnSight Case format
POWERFLOW 3 Contact CEI for information on interfaces available
PERMAS 1 User-defined BIF/BOF reader (see Medina BIF/BOF). Not available on
Mac
PRESTO 1 Use Exodus II reader
PRONTO 1 Use Exodus II reader
PXI 1 User reader for Parallel Exodus Interface format
RADIOSS 1 User-defined reader
RADTHERM 2 User reader from Thermoanalytics
RESCUE 2 User reader for Schlumberger reservoir modeling framework, contact CEI
for information
SCRYU 1 User reader
SC/TETRA 4 Exports EnSight Casefile format.
SILO 1, 3 Reads various formats supported by SILO API. (Handles SOS
internally)
SPHINX 4 Code exports EnSight format
STAR-CD (Version 3.0.5 & up) 4 Code exports EnSight Casefile format (including particle data)
STL 1 Use the CAD User reader for STL geometry files
SUPERFORGE Contact CEI
TAHOE 4 Contact CEI for information on interfaces available
TECPLOT 1 User reader for TECPLOT 7 structured and unstructured formats
TECPLOT ASCII 1 User reader for TECPLOT 360 ASCII
Telluride 4 Code exports EnSight format
UNCLE 2 User reader, contact CEI for details
UNIC-CFD 3 Contact vendor for details
USM3D 4 From TetrUSS code. Contact CEI for information
VECTIS 1, 3 User reader
Wavefront OBJ 1 Polygonal model file format.
XDMF 2.0 1 User reader for XDMF format files
Data Format / Program Type Comments
1 Overview
1-6 EnSight 9 User Manual
Geometry EnSight reads unstructured and structured geometric data grouped by parts. Data
can be 0D, 1D, 2D or 3D.
Analysis Results EnSight reads scalar, vector, complex scalar, complex vector, and tensor variable
values associated with each node and/or element of the geometry. The loading of
variable values is optional, and variables can be unloaded to free memory.
Measured Data EnSight can read measured or computed particles (referred to as discrete particles
in EnSight). Particles can have the same variables as the model geometry, or their
own variables. Particles can be displayed as points, crosses, or spheres whose size
can vary according to a variable value. Sphere smoothness is also controllable.
Discrete particles can be time dependent with the geometry, or time dependent
with a steady geometry.
(See EnSight Gold Measured/Particle File Format, in Section 11.1)
Cases EnSight provides the capability to read and manipulate up to 16 datasets or
models at a time. Each new “Case” is handled by its own Server process while the
Client appropriately deals with merged variables, solution times, etc. This option
allows both the recombination of models partitioned for parallel analysis and a
number of comparative operations.
Graphical Environment
Parts are visualized in a main Graphics Window. You can create additional
viewports and adjust their size to your needs. Each viewport has its own
transformations (global, local, look-at, look-from, and Z-clip locations). Part
visibility is also controllable in each viewport. The current maximum number of
viewports is 16.
A separate “Show Selected Part(s)” window helps in identifying parts.
Hidden Lines and
Shaded Surfaces
You can choose to shade surfaces and/or hide hidden lines for realistic views of
your model. Visible element edges can be overlaid on shaded solid images.
Clipping In addition to user-control of the front and back visual clipping planes of your
workspace, you can visually cutaway parts or portions of parts along any plane
using Auxiliary Clipping. Individual parts can be made immune to the effect,
enabling you to look at parts inside of other parts.
Annotations EnSight can display text-strings, lines, arrows, logos, entity labels, and color-map
legends. Text annotations (which may include variables) can be made to
automatically update for time-dependent data. The current maximum number of
characters in a given annotation string is 1024.
Image Output Screen images can be saved from within EnSight. Conversion to popular formats
is under user control as the image is saved.
Perspective You have your choice of a perspective view or an orthographic view. The latter is
useful for comparing the position of parts and positioning EnSight tools.
Background Color
or Image
You can specify a constant or blended color background for the main Graphics
Window and independently for any Viewports displayed in the Graphics Window.
You can also use an image as the background.

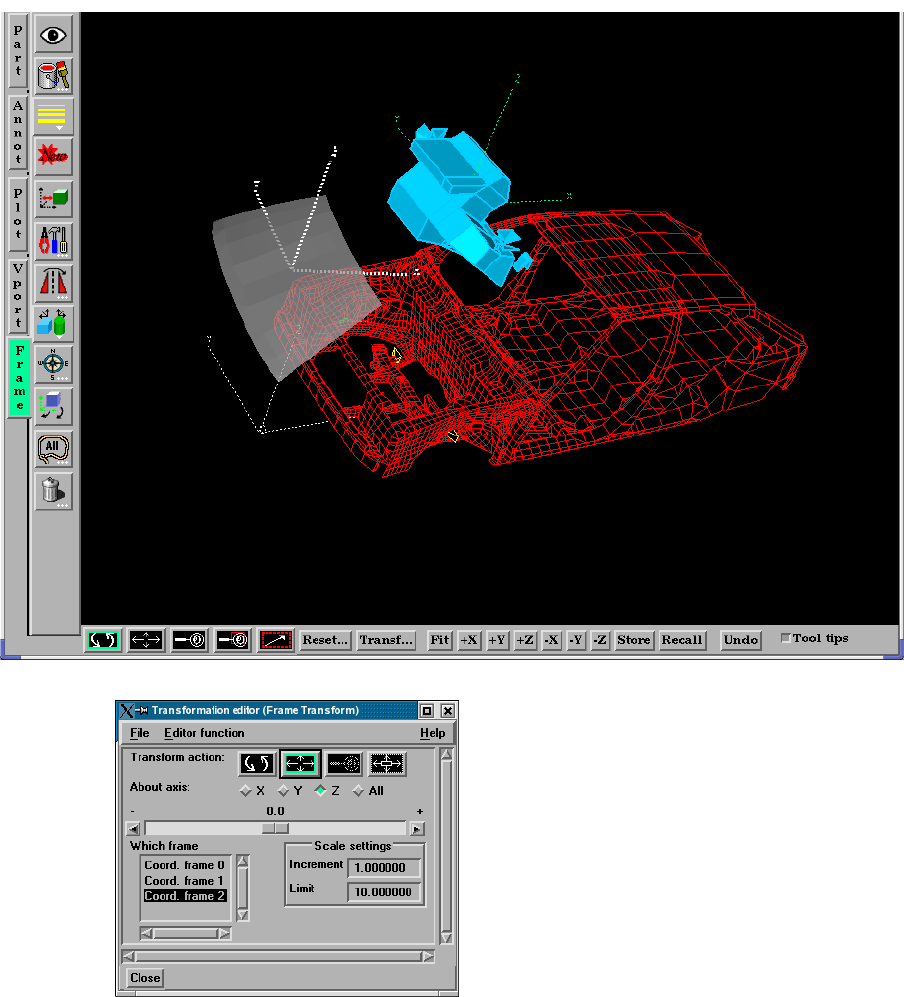

Transformations
The standard transformations of rotate, translate, and scale are available, as well
1 Overview
EnSight 9 User Manual 1-7
as positioning of the Look-At and Look-From points. An automatic zoom control
is available. The transformation-state (the specific view in the Graphics Window
and Viewports) can be saved for later recall and use. Transformations can be
performed with precision in a dialog, or interactively with the mouse. For the
latter case, you can choose to represent the parts with bounding-boxes (or by
points only or reduced elements) all the time or only while they are moving.
Transformations can individually be reset by type.
(see Chapter 9, Transformation Control)
Frames
Transformations actually apply to frames—the parts attached to the frames
transform right along with their frame. You can create new frames and transform
them like parts (in a dialog or with the mouse), and change to which frame a part
is attached. You control whether and how frames are displayed, enabling you to
use them as rulers. Frames can have rectangular, cylindrical, or spherical
coordinates.
Frames, and therefore all parts attached to them, can be “periodic”. Rotational or
translational periodicity (as well as mirror symmetry) attributes are under user
control allowing, for example, an entire pie to be built from one slice of the pie.
(see Section 8.5, Frame Mode and Section 9.3, Frame Transform)
Coloration
Parts can be constant colored, colored according to the value of a variable, or
colored by a texture. This feature works for both lines and surfaces. The
coloration of each part is an attribute of that part.
Variable Palettes You control the value-color correspondence with a palette. A palette’s scale can
be linear, logarithmic, or exponential. Palettes can have a continuous range of
colors, or color bands. Off-the-scale parts or portions of parts can be made
invisible.
(see Section 4.2, Variable Summary & Palette)
Created Parts
In addition to the model parts defined in the dataset, you can (and usually will)
define additional created parts based on both the geometry and variable-values of
existing parent-parts. Model parts and most kinds of created parts can be used as
parent parts. Created parts have their own part attributes, including the creation
attributes that define them, but remain dependent upon their parent-parts. A
created part automatically regenerates if any of its parent-parts are changed in a
way that will affect its representation.
Clips A clip is a plane, line, box, ijk surface, xyz plane, rtz surface, quadric surface
(cylinder, sphere, cone, etc.), or revolution surface passing through specified
parent-parts. A clip can either be limited to a specific area (finite), or clip
infinitely through the model. You control the location of the various clips with an
interactive Tool or appropriate parameter or coefficient input.
A clip line or plane will either be a true clip through the model, or can be made to
be a grid where the grid density is under your control.
Clip surfaces can be animated as well as manipulated interactively.
In most cases you will create a clip which is the intersection of the clip tool and
the parent parts. This clip can either be a true intersection or all elements that
1 Overview
1-8 EnSight 9 User Manual
cross the intersection surface (a “crinkly” surface). You can also choose to cut the
parent parts into half spaces.
(see Section 7.9, Clip Create/Update)
Contours Contours are created by specifying which parts are to be contoured, and which
variable to use. The contour levels can be tied to those of the palette or can be
specified independently by the user.
(see Section 7.7, Contour Create/Update)
Developed Surfaces Developed Surfaces can be created from cylindrical, spherical, conical, or
revolution clip surfaces. You control the seam location and projection method that
will flatten the surface.
(see Section 7.21, Developed Surface Create/Update)
Elevated Surfaces Elevated Surfaces can be displayed using a scalar variable to elevate the displayed
surface of specified parts. The elevated surface can have side walls.
(see Section 7.14, Elevated/Offset Surface Create/Update)
Extrusions Parts can be extruded to their next higher order. Namely a line can be extruded
into a plane, a 2D surface into a 3D volume, etc. The extrusion can be rotational
(such as would be desired for an axi-symmetric part) or translational.
(see Section 7.23, Extrusion Parts Create/Update)
Isosurfaces Isosurfaces can be created using a scalar, vector component, vector magnitude, or
coordinate. Isosurfaces can be manipulated interactively or animated by
incrementing the isovalue.
(see Section 7.8, Isosurface Create/Update)
Particle Traces Particle traces—both streamlines (steady state) and pathlines (transient)—trace
the path of either a massless or massed particle in a vector field. You control
which parts the particle trace will be computed through, the duration of the trace,
which vector variable to use during the integration, and the integration time-step
limits. Like other parts, the resulting particle trace part has nodes at which all of
the variables are known, and thus it can be colored by a different variable than the
one used to create it. Components of the vector field can be eliminated by the user
to force the trace to, for example, lie in a plane. The particle trace can either be
displayed as a line, a ribbon, or a square tube showing the rotational components
of the flow field. Streamlines can be computed upstream, downstream, or both.
Streamline and pathline particle traces originate from emitters, which you create.
An emitter can be a point, rake, net, or can be the nodes of a part. Each emitter has
a particle trace emit time specified which you set, and a re-emit time (if the data
case is transient) can also be specified. Point, rake, and net emitters can be
interactively positioned with the mouse. For streamlines, the particle trace
continues to update as the emitter tool is positioned interactively by the user.
Another form of trace that is available is entitled node tracking. This trace is
constructed by connecting the locations of nodes through time. It is useful for
changing geometry or transient displacement models (including measured
particles) which have node ids.
A further type of trace that is available is a min or max variable track. This trace
is constructed by connecting the min or max of a chosen variable (for the selected
parts) though time. Thus, on transient models, one can follow where the min or
1 Overview
EnSight 9 User Manual 1-9
max variable location occurs.
(see Section 7.11, Particle Trace Create/Update)
Profiles Profile plots can be created by scalar, vector component, or vector magnitude. You
control the orientation of the resulting profile plot.
(see Section 7.13, Profile Create/Update)
Subsets A subset Part can contain node and element ranges of any model Part.
(see Section 7.12, Subset Parts Create/Update)
Ve c to r A r ro w s Vector arrows show the direction and magnitude of a vector field. Vector arrows
originate from element vertices, element nodes (including mid-side nodes), or
from element centers. You specify which parts are to have arrows and which
vector variable to use for the arrows, as well as a scale factor. You can eliminate
components of the vector, and can also filter the arrows to eliminate high, low,
low/high, or banded vector arrow magnitudes. The vector arrows can be either
straight or curved, and can have arrow heads. The arrow heads are either
proportional to the arrow or can be of fixed size.
(see Section 7.10, Vector Arrow Create/Update)
Tensor Glyphs Tensor glyphs show the direction of the principal eigenvectors. You specify which
eigenvectors you wish to view and how you wish to view compression and
tension.
(see Section 7.20, Tensor Glyph Parts Create/Update)
Vortex Cores Vortex cores show the center of swirling flow in a flow field.
(see Section 7.15, Vortex Core Create/Update)
Shock Surfaces/
Regions
Shock surfaces or regions show the location and extent of shock waves in a
3Dflow field.
(see Section 7.16, Shock Surface/Region Create/Update)
Separation/
Attachment Lines
Separation and attachment lines show where flow abruptly leaves or returns to the
2D surface in 3D fields.
(see Section 7.17, Separation/Attachment Lines Create/Update)
Queries
In addition to visualizing information, you can make numerical queries.
You can query on information for a node, point, element, or a part.
You can query on information for a data set (such as size, no. of elements, etc.)
You can query scalar and vector information for a point or node over time.
You can query scalar and vector information along a line. The line can either be a
defined line in space, or a logical line composed of multiple 1D elements for a
part (for example query of a variable on a particle trace).
You can query to find the spatial or temporal mean as well as the min/max
information for a variable.
Where applicable, query information can be in the form of a Fast Fourier
Transform (FFT).
Plotting The plotter plots Y vs. X curves. The user controls line style, axis control, line
1 Overview
1-10 EnSight 9 User Manual
thickness and color. All query operations that result in multiple value output in
EnSight can be sent to the plotter for display. The user can control which curves to
plot. Multiple curve plots are possible. All plotable query information can be
saved to a disk file for use with other plotting packages. The current maximum
number of plotters at one time is 25.
(see Section 7.5, Query/Plot and Section 7.6, Interactive Probe Query)
Variable Creation New information can be computed resulting in a constant, a scalar, or a vector.
EnSight includes useful built-in functions for computing new variables:
Lambda2 Q_criteria
Area udmf_sum
Boundary Layer Cf Edge Boundary Layer Cf Wall
Boundary Layer Cf Wall Shear Stress Boundary Layer Cf Wall Components
Boundary Layer Displ Thickness Boundary Layer Scalar
Boundary Layer Momentum Thickness Boundary Layer Dist to Value fr Wall
Boundary Layer Y1 Plus off Wall Boundary Layer Thickness
Boundary Layer Recovery Thickness Boundary Layer Velocity Mag Gradient
Boundary Layer Velocity at Edge Boundary Layer Shape Parameter
Coefficient Case Map
Complex Argument Complex from real and imaginary
Complex Imaginary Complex Conjugate
Complex Transient Response Complex Modulus
Curl Complex Real
Density, Normalized Density
Density, Normalized Stagnation Density, Stagnation
Distance Between Part Elements Density, Log of Normalized
Distance Between 2 Nodes Divergence
Element to Node Element Size
Energy, Kinetic Energy, Total
Enthalpy, Normalized Enthalpy
Enthalpy, Normalized Stagnation Enthalpy, Stagnation
Flow Entropy
Fluid Shear Stress Flow Rate
Force Fluid Shear Stress Max
Gradient Force1D
Gradient Tensor Gradient Approximation
Helicity Density Gradient Tensor Approximation
Helicity, Relative Filtered Helicity, Relative
Integral, Line Iblanking Values
Integral, Volume Integral, Surface
Line Vectors Length
Mach Number Make Element Scalar
Make Nodal Scalar Make Vector
Mass Flux Average Mass Particle Scalar
Material Species Material Species to Scalar
Max Min
Moment Moment Vector
Momentum Node to Element
1 Overview
EnSight 9 User Manual 1-11
A calculator and built-in math functions also are useful for creating variables. Any
created variable is available throughout EnSight, and is automatically recomputed
if the user changes the current time (in case of transient data).
(see Section 4.3, Variable Creation)
In addition to the built-in general functions and the calculator options, variables
can be derived from user written external functions called User Defined Math
Functions (UDMF). The UDMF’s appear in EnSight’s calculator in the general
function list and can be used just as any calculator function.
Another feature of EnSight facilitates the creation of boundary layer variables.
(see Section 7.18, Boundary Layer Variables Create/Update)
Transient Data
EnSight handles transient (time dependent) data, including changing connectivity
for the geometry. You can easily change between time steps via the user interface.
All parts that are created are updated to reflect the current display time (you can
override this feature for individual parts). You can change to a defined time step,
or change to a time between two defined steps (EnSight will linearly interpolate
between steps), though the “continuous” option is only available for cases without
changing connectivity.
Animation
You can animate your model in four ways: particle trace animation, flipbook
animation, solution time streaming, and keyframe animation.
Normal Normal Constraints
Normalize Vector Offset Field
Offset Variable Pressure
Pressure Coefficient Pressure, Dynamic
Pressure, Normalized Pressure, Log of Normalized
Pressure, Pitot Pressure, Pitot Ratio
Pressure, Stagnation Pressure, Normalized Stagnation
Pressure, Stagnation Coefficient Pressure, Total
Radiograph Grid Radiograph Mesh
Rectangular to Cylindrical Vector Server Number
Shock Plot3d Spatial Mean
Speed Sonic Speed
SoS Constant Statistical Moment
Statistical Regression Statistical Regression 1 or 2 values
Stream Function Swirl
Temperature Temperature, Normalized
Temperature, Stagnation Temperature, Normalized Stagnation
Temperature, Log of Normalized Temporal Mean, Min, or Max
Tensor Component Tensor Determinate
Tensor Eigenvalue Tensor Eigenvector
Tensor Make Tensor Make Asymmetric
Tensor Tresca Tensor Von Mises
Velocity Volume
Vorticity
1 Overview
1-12 EnSight 9 User Manual
Particle Trace
Animation
Particle trace animation sends “tracers” down already created particle traces. You
control the color, line type, speed and length of the animated traces.
If transient data is being animated at the same time, animated traces will
automatically synchronize to the transient data time, unless you specifically
indicate otherwise.
Flipbook Animation A Flipbook animation reads in transient data step by step or moves a part spatially
through a series of increments and stores the animation in memory. Playback is
much faster as it is from memory rather than disk, but the trade-off is that
Flipbook Animation can fill up your client memory. Flipbook animation is
simpler to do than keyframe animation, while allowing four common types of
animation:
Sequential presentation of transient data
Mode shapes based on a nodal displacement variable
EnSight created parts with an animation delta that recreates the part at a new
location (i.e., moving isosurfaces and Clip surfaces).
Sequential displacement by linear interpolation from zero to maximum
vector value.
You can specify the display speed, and can step page-by-page through the
animation in either direction. You can load some, or all the desired data. If you
later load more data, you can choose to keep the already loaded data. With
transient data, you can create pages between defined time steps, with EnSight
linearly interpolating the data.
Flipbooks can be created in two formats: a) Object animation where new objects
are created for each time step. The user can then manipulate the model during
animation play back or b) Image animation where a bitmap of the Main View
image is created and stored off for each animation page. For large models, image
animation can sometimes take less memory - while trading off the capability to
manipulate the model during animation.
(see Section 7.2, Flipbook Animation)
Solution Time
Streaming
Solution time streaming accomplishes the same result as a flipbook animation of
transient data except the data is never loaded into memory: it is streamed directly
from disk. While you don’t see the animation speed of a flipbook, you only need
enough memory to load in one step at a time.
Keyframe
Animation
Keyframe animation performs linearly interpolated transformations between
specified key frames to create animation frames. Command language can be
executed at key frames to script your animation. Some minimal editing is possible
by deleting back to defined key frames. Animation key frames can be saved and
restored from disk. Animation can be done on transient data and can automatically
synchronize with simultaneous flipbook animation and particle trace animation.
“Fly-around”, “rotate-objects”, and “exploded-view” quick animations are
predefined for easy use.
Keyframe animation can be recorded to disk files using a format of your choice.
(see Section 7.3, Keyframe Animation)
1 Overview
EnSight 9 User Manual 1-13
Implementation
Interface EnSight uses the OSF/Motif graphical user interface conventions for the Unix
version and Win32 conventions under the Windows 2000/XP operating system.
Many aspects of the interface can be customized.
Client-Server EnSight is a distributed application—it runs as separate processes that
communicate with each other via a TCP/IP or similar connection. The Server
performs most CPU-intensive and data-handling functions, while the Client
performs the graphics-display and user-interface functions. The Client and Server
can run together on one host workstation in a “stand-alone” installation or on two
host systems with each hardware system performing the functions it does best.
When more than one case is loaded the Client communicates with multiple Server
processes.
Server-of-Servers A special server-of-servers (SOS) can be used in place of a normal server if you
have partitioned data or utilize the auto-decompose feature. This SOS acts like a
normal server to the client, but starts and deals with multiple servers, each of
which handle their portion of the dataset. This provides significant parallel
advantage for large datasets.
(see Section 11.8, Server-of-Server Casefile Format)
Virtual Reality EnSight is fully capable of running multi-pipe display, virtual reality and
distributed rendering modes.
(see Section 13, Parallel and Distributed Rendering)
Command
Language
Each action performed with the graphical user interface has a corresponding
EnSight command. A session file is always being saved to aid in recovery from a
mistake or a program crash. The user will be prompted upon restart, after a crash,
whether or not to use a recovery file to restore the session. The command
language is human-readable and can easily be modified. Command files can be
played all the way through, or you can choose to stop the file and step through it
line-by-line.
Python For more powerful scripting, EnSight supports the Python programming
language. The EnSight Python implementation includes every EnSight command
as well as looping, conditionals, and a large library of standard utilities.
Context Files You can define a “context” and apply it to similar datasets.
Graphics Hardware Many graphics functions of EnSight are performed by your workstation’s graphics
hardware. EnSight uses the OpenGL graphic libraries and is available on a
multitude of hardware platforms.
Parallel
Computation
EnSight supports shared-memory parallel computation via POSIX threads.
Threads are used to accelerate the computation of streamlines, clips, isosurfaces,
and other compute-intensive operations. (See How To Setup for Parallel
Computation for details on using.)
Distributed Memory
Parallel
Computation
EnSight supports distributed memory parallel computations (clusters) via server-
of-server operations. The data decomposition may either be done by you or can be
done “on the fly”.
Macros You can define macros tied to mouse buttons or keyboard keys to automate
actions you frequently perform.
1 Overview
1-14 EnSight 9 User Manual
Saving and
Archiving
You can save the entire current status of EnSight for later use, and can save other
entities as well (including the geometry of created parts for use by your analysis
software).
(see Section 2.6, Archive Files)
Environment
Va r i a b l e s
You can control a number of aspects of EnSight (both client and server) with
environment variables. (See How To Use Environment Variables)
Documentation
The printed EnSight documentation consists of the Installation Guide.
The on-line EnSight documentation consists of the EnSight Getting Started
Manual, How To Manual, User Manual, Interface Manual, and a Command
Language Reference Manual. The online documentation is available via the Help
menu.
User Manual The EnSight User Manual is organized as follows:
User Manual Table of Contents
Chapter 1 - Overview
Chapter 2 - Input/Output. This chapter describes the reading of model data
(with internal or user-defined readers), command files, archive files, context files,
scenario files, and various other input and output operations.
Chapter 3 - Parts. This chapter describes the various types of Parts, selection,
identification, and editing of Parts, and various Part operations,
Chapter 4 - Variables. This chapter describes the selection and activation of
variables, color palettes, and the creation of new variables.
Chapter 5 - GUI Overview. This chapter describes the EnSight Graphic User
Interface.
Chapter 6 - Main Menu. This chapter describes the features and functions
available through the buttons and pull-down menus of the Main Menu of the GUI.
Chapter 7 - Features. This chapter describes the features and functions available
through the Icon buttons of the Feature Icon Bar of the GUI.
Chapter 8 - Modes. This chapter describes the features and functions available
through the Icon Buttons of the Mode Icon Bar in the six different Modes.
Chapter 9 - Transformation Control. This chapter describes the Global
transformation of all Frames and Parts, the transformation of selected Frames and
Parts as well as selected Frames alone, the transformation of the various Tools,
and the adjustment of the Z-Clip planes and the Look At and Look From Points.
Chapter 10 - Preference File Formats. This chapter describes the format of
various preference files which the uses can affect.
Chapter 11 - EnSight Data Formats. This chapter describes in detail the format
of the various EnSight data formats.
Chapter 12 - Utility Programs. This chapter describes a number of unsupported
utility programs distributed with EnSight.
Chapter 13 - Parallel Rendering and Virtual Reality. This chapter describes
how to configure EnSight for various VR configurations and for parallel
rendering.
1 Overview
EnSight 9 User Manual 1-15
User Manual Index
Cross References in the User Manual will appear similar to:
(see Chapter __ or (see Section __
Clicking on these Cross References will automatically take you to the referenced
Chapter or Section.
Command
Language Reference
Manual
This manual describes each command of EnSight’s command language.
How To... The various How To documents available on-line provide step-by-step, click by
click instructions explaining how to perform tasks within EnSight such as creating
an isosurface or reading in data.
Interface... This manual describes the various methods and API’s that exist for interfacing
with EnSight.
Ordering To order printed copies of EnSight documentation, go to our website at
www.ensight.com and click on support and choose documentation and follow the
instructions.
Newsletter CEI periodically publishes an electronic EnSight newsletter. If you would like to
subscribe to the newsletter, see our website:
www.ensight.com.
Contacting CEI
EnSight was created to make your work easier and more productive. If you have
any questions about or problems using EnSight, or have suggestions for
improvements, please contact CEI support:
Phone: (800) 551-4448 (USA)
(919) 363-0883 (Outside-USA)
Fax: (919) 363-0833
Email: support@ensight.com
1 Overview
1-16 EnSight 9 User Manual
EnSight 9 User Manual 2-1
2 Input
This chapter provides information on data input and output for EnSight.
2.1 Reader Basics provides a detailed description of the basics for reading data.
This section is referenced by all formats, in that they all use some or all of these
basic procedures. The quick load, as well as the more flexible two step load
process is discussed for both unstructured and structured data formats.
2.2 Native EnSight Format Readers describes the specifics for reading the
EnSight formats.
2.3 Other Readers describes the specifics for reading many other formats into
Ensight. These can be internal or user-defined readers.
2.4 Other External Data Sources describes other ways in which model data can
be prepared to be read into EnSight.
2.5 Command Files provides a description of the files that can be saved for
operations such as automatic restarting, macro generation, archiving, hardcopy
output, etc.
2.6 Archive Files describes options for saving and restoring the entire current
state of the program.
2.7 Context Files describes the options for saving and restoring context files.
2.8 Session Files describes the options for saving and restoring session files.
2.9 Scenario Files describes the options for saving scenario files that can be
displayed in the EnLiten program.
2.10 Saving Geometry and Results Within EnSight describes how to save
model data, from any format which can be read into EnSight, as EnSight gold
casefile format.
2.11 Saving and Restoring View States describes options for saving and
restoring given view orientations.
2.12 Saving and Printing Graphic Images describes options for saving and
printing graphic images.
2.13 Saving and Restoring Animation Frames describes options for saving and
restoring flipbook and keyframe animation frames.
2.14 Saving Query Text Information describes options for saving query
information to a text file.
2.15 Saving Your EnSight Environment describes options for saving various
environment settings which affect EnSight.
Note: Formats for EnSight related files are described in chapters 10 and 11.
Formats for the various Analysis codes are not described herein.
2.1 Reader Basics
2-2 EnSight 9 User Manual
2.1 Reader Basics
Dataset Format Basics
Reading and Loading Data Basics
Dataset Format Basics
EnSight is designed to be an engineering postprocessor, and supports data formats
for popular engineering simulation codes and generally used data formats. Yet its
many features can be used in other areas as well. EnSight has been used to
visualize and animate results from simulations of diesel combustion,
cardiovascular flow, petroleum reservoir migration, pollution dispersion,
meteorological flow, as well as results from many other disciplines.
EnSight reads node and element definitions from the geometry file and groups
elements into an entity called a Part. A Part is simply a group of nodes and
elements (the Part can contain different element types) which all behave the same
way within EnSight and share common display attributes (such as color, line
width, etc.).
EnSight allows you to read multiple datasets and work with them individually in
the same active session. Each dataset comprises a new “Case” and is handled by
its own Server process and can be added by using EnSight’s main menu Case >
Add... option. Note: if the client and the server are each on different computers,
then the data directory path is that seen from the server. Each server process has
its own console window and the output from the data read is directed to this
console. On Windows it is sometimes helpful to enlarge the default buffer size on
the server window to accomodate the sometimes large amount of output. Right-
click on the top left of the server window (named at top
C:\WINDOWS\System32\cmd.exe) and choose Screen Buffer size to be Width of
120 and Height of 9999, and Window size of Width 120 and Height of 40. Then
when you save it, save it for all windows of this name and every time the server
window is opened it will have these defaults and to see all of the server console
output.
Reading and Loading Data Basics
Reading and then Loading Data into EnSight can be done from “Simple” or
“Advanced” interface.
Simple Interface The simple interface allows you to select a dataset which is read by the EnSight
server and then have all parts loaded and displayed on the Client. This is quick but
it does not allow control of which parts to load, nor does it allow you to control
the visual representation. Also, the simple interface only works for files mapped
in the
ensight_reader_extension.map
file found in the
$CEI_HOME/ensight92/
2.1 Reading and Loading Data Basics
EnSight 9 User Manual 2-3
site_preferences
and/or in the EnSight Defaults Directory which is located
at %HOMEDRIVE%%HOMEPATH%\(username)\.ensight92 commonly located
at C:\Users\username\.ensight92 on Vista and Win7, C:\Documents and
Settings\yourusername\.ensight92 on older Windows, and ~/.ensight92 on Linux,
and in ~/Library/Application Support/EnSight92 on the Mac) directories.
Look in This field specifies the directory (or folder) name that is used to list the files and
directories in the list below.
File type Limits the directory content list to the file type chosen. The default is to show all files.
File/Directory
Manipulation
Buttons
Content List Shows the content of the Look in directory/folder. Single click to select a file. This will
insert the file name with full path as described in the Look in field in to the File field. If
you double click a file name, the file will be inserted into the File field and the Okay
button will execute. If you double click on a directory/folder name, you will change the
Look in filter.
File Specifies the file name that will be read once the Okay button is selected. As some file
formats require more than one file (geometry and results potentially) any associated files
will also be read according to the
ensight_reader_extension.map
file.
Figure 2-1
File Open Dialog - Simple Interface
Changes the Look in directory to the one previously displayed.
Changes the Look in directory to be one up from the current.
Creates a new directory/folder in the current directory. You can rename
the new directory/folder by right clicking on it in the file listing and
selecting Rename.
Show the content of the Look in directory in list view. In this view the
directory and file names are listed in alphabetical order. This is the
default.
Show the content of the Look in directory in detail view. This view will
show all directories and file names in alphabetical order and also show
size, type, date, and read/write attributes.
2.1 Reading and Loading Data Basics
2-4 EnSight 9 User Manual
Okay Click to read the file (and associated files) specified in the File field and close the dialog.
Cancel Click to close the Open... dialog without reading any files.
(For a step-by-step tutorial please see How To Read Data).
2.1 Reading and Loading Data Basics
EnSight 9 User Manual 2-5
Advanced
Interface
The advanced interface allows you to select a dataset which is read by the EnSight
server and then select which parts out of the dataset you wish to load and display
on the Client. You can control the format option, extra user interface options that
may be defined for your data file format and time settings.
Look in This field specifies the directory (or folder) name that is used to list the files and
directories in the list below.
File type Limits the directory content list to the file type chosen. The default is to show all files.
File/Directory
Manipulation
Buttons
Content List Shows the content of the Look in directory/folder. Single click to select a file. This will
insert the file name with full path as described in the Look in field in to the File field. If
you double click a file name, the file will be inserted into the File field and the Okay
Figure 2-2
File Open Dialog - Advanced Interface - Data Tab
Changes the Look in directory to the one previously displayed.
Changes the Look in directory to be one up from the current.
Creates a new directory/folder in the current directory. You can rename
the new directory/folder by right clicking on it in the file listing and
selecting Rename.
Show the content of the Look in directory in list view. In this view the
directory and file names are listed in alphabetical order. This is the
default.
Show the content of the Look in directory in detail view. This view will
show all directories and file names in alphabetical order and also show
size, type, date, and read/write attributes.
2.1 Reading and Loading Data Basics
2-6 EnSight 9 User Manual
button will execute. If you double click on a directory/folder name, you will change the
Look in filter.
Data Tab Contains settings for file format and file names.
Set The name for this field will depend on the file format. For example, for EnSight it is "Set
case" while for CTH it is "Set spcth*". This field describes the file name used to read the
dataset. Depending on the file format, there may be two (or possibly more) Set fields. The
use of the second (or third) set field depends on the file format and is described in the
Comments section of the dialog.
Format Specifies the Format of the dataset. This pulldown will vary depending upon what readers
are installed at your local site, and what readers are made visible in your preferences.
Note: you can start up ensight with the -readerdbg flag to view verbose information on the
readers as they are loaded into EnSight.
Comments Helpful information that is reader-specific will appear here, such as what file types are
entered into what fields.
Format Options
Tab
Contains format specific information.
Binary files are This is typically checked automatically by the reader, and thus usually there is no need to
use this toggle. If the file is binary, sets the byte order to:
Big-Endian - byte order used for HP, IBM, SGI, SUN, NEC, and IEEE Cray.
Little-Endian - byte order used for Intel and alpha based machines.
Native to Server Machine - sets the byte order to the same as the server machine.
Set measured Name of an EnSight 5 format measured results file (typically .mea file). Measured data is
read independently of the reader and is entered here for all readers except Case file format.
For Case file format, this field is not used and the measured data filename is entered into
the Case file. The measured data filename is always optional. Clicking the button inserts
the file name shown in Selection field and also inserts path information into Path field.
File names can alternatively be typed into the field.
Set boundary Name of a boundary file. This field is used only for structured data in Case file, Plot3d, or
Special HDF5, or other user-defined formats with structured data.
Extra GUI The User-Defined Reader API includes routines to add Toggles, Text Fields, and
Pulldown Menus that can allow the user to modify the reader behavior. Only a subset of
Figure 2-3
File Open Dialog - Advanced Interface - Format options Tab
2.1 Reading and Loading Data Basics
EnSight 9 User Manual 2-7
the readers make use of this feature.
Time Options
Tab
Contains Time specific information.
Time Settings Specify starting time step. If not specified, EnSight will load the last step (or whatever
step you have set in your preferences, see Edit>Preferences>Data). This section also
allows you to shift, scale and/or offset the original time values according to the values
entered into the equation.
SOS Options
Tab
If connected to an SOS server, this tab will be available and controls how the servers will
Figure 2-4
File Open Dialog - Advanced Interface - Time options Tab
2.1 Reading and Loading Data Basics
2-8 EnSight 9 User Manual
behave when handling data as well as what resources will be used.
Set resources Sets a filename to be used for SOS and Server resources.
Pass wild cards
to server
This toggle will pass wildcard filenames on to the server as opposed to resolving them on
the SOS. The usefulness of this toggle is entirely dependent on the specific reader in use.
Auto distribute How to decompose and distribute the data to each of the servers.
Don’t Data is already stored on disk decomposed.
Server Use the server to automatically partition the data
Reader Use the reader to automatically partition the data
Load All Click to read and load all of the parts associated with the file names specified and close the
dialog.
Choose Parts Click to read the data files specified, close the dialog and bring up the Data Part Loader.
Cancel Click to close the Open... dialog without reading any files.
(For a step-by-step tutorial please see How To Read Data).
Data Part Loader The Data Part Loader will allow you to select the parts to be loaded on the server,
as well as their new name (if desired) and representation. There are two basic part
loader windows. Details of these windows will be discussed below, and variants
Figure 2-5
File Open Dialog - Advanced Interface - SOS options Tab
2.1 Reading and Loading Data Basics
EnSight 9 User Manual 2-9
from these windows will be discussed under each specific reader format.
All Parts or some of those available on the Server may be loaded to the Client and
their visual representation can be chosen. The Data Part Loader may be reopened
at a later time and additional or duplicate parts loaded as desired.
Unstructured Data This toggle indicates that the Part(s) listed in the Part List is(are) unstructured.
Structured Data This toggle indicates that the Part(s) listed in the Part List is(are) structured.
Parts List Lists all Parts in the data files which may be loaded to the Server (and subsequently to the
Client). Some formats such as EnSight6 or EnSight Gold data can have unstructured,
structured, or both types of Parts.
Element Visual
Rep.
Parts are defined on the server as a collection of 0, 1, 2, and 3D elements. EnSight can
show you all of the faces and edges of all of these elements, but this is usually a little
overwhelming, thus EnSight offers several different Visual Representations to simplify the
view in the graphics window. Note that the Visual Representation only applies to the
Figure 2-6
Typical File Data Part Loader dialogs
Unstructured Part Loader Dialog Structured Part Loader Dialog
2.1 Reading and Loading Data Basics
2-10 EnSight 9 User Manual
EnSight client—it has no affect on the data for the EnSight server.
3D Border, 2D
Full
In this mode, load the designated parts, show all 1D and 2D elements, but show only the
unique (non-shared) faces of 3D elements.
3D Feature, 2D
Full
In this mode, load the designated parts, but show the 3D elements in Feature Angle mode
(see Feature below), and show all of the 1D and 2D elements.
3D nonvisual,
2D full
In this mode load the 3D parts but do not display them in the graphics window (see Non
Visual below) and load all the 1D and 2D elements.
Border In Border mode all 1D elements will be shown. Only the unique (non-shared) edges of 2D
elements and the unique (non-shared) faces of 3D elements will be shown.
Feature Angle When EnSight is asked to display a Part in this mode it first calculates the 3D Border, 2D
Full representation to create a list of 1D and 2D elements. Next it looks at the angle
between neighboring 2D elements. If the angle is above the Angle value specified in the
Feature Angle Field, the shared edge between the two elements is retained, otherwise it is
removed. Only 1D elements remain on the EnSight client after this operation.
Bounding Box All Part elements are replaced with a bounding box surrounding the Cartesian extent of
the elements of the Part.
Full In Full Representation mode all 1D and 2D elements will be shown. In addition, all faces
of all 3D elements will be shown.
Non Visual This specifies that the loaded Part will not be visible in the Graphics Window because it is
only loaded on the Server. Visibility can be turned on later by changing the representation
(at which time the elements of the selected representation will be sent to the client).
Load Points and
normals only
If toggled on, only the vertices of the element representation, with normals, will be loaded
to the client.
Group these parts If more than one part is selected, they can be grouped into a single entity. The name of the
group will be according to the New Part Description filed and the individual parts will
receive the names shown in the part list.
New Part
Description
This allows the user to name the part. If nothing is entered here, then the part is named
from the partlist.
Load Selected Loads Parts selected in the Parts List to the EnSight Server. The Parts are subsequently
loaded to the EnSight Client using the specified Visual Representation. If Non Visual is
specified, the selected Parts will be loaded to the Server, but not to the Client.
Load All Loads all Parts in the Parts List to the EnSight Server. The Parts are subsequently loaded
to the EnSight Client using the specified Visual Representation. If Non Visual is specified,
the selected Parts will be loaded to the Server, but not to the Client.
Figure 2-7
Element Visual Representation pulldown
2.1 Reading and Loading Data Basics
EnSight 9 User Manual 2-11
Structured Data
Domain Specifies the general iblanking option to use when creating a structured Part. If the model
does not have iblanking, InSide will be specified by default.
Inside Iblank value = 1 region
Outside Iblank value = 0 region
All Ignore iblanking and accept all nodes
Using Node Ranges:
From IJK Specifies the beginning I,J,K values to use when extracting the structured Part, or a
portion of it. Must be >= Min value.
To I JK Specifies the ending I,J,K values to use when extracting the structured Part, or a portion of
it. Must be <= Max value.
Valid values for the From and To fields can be positive or negative. Positive numbers are
the natural 1 through Max values. Negative values indicate surfaces back from the max, so
-1 would be the max surface, -2 the next to last surface etc. There are therefore two ways
to indicate any of the range values; the positive number from the min towards the max, or
the negative number from the max toward the min. The negative method is provided for
ease of use because of varying max values per part. (Zero will be treated like a -1, thus it is
another way to get the max surface)
1, 2, 3,... ---> <--- ...-3, -2 ,-1
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
min max
(always 1) (varies per zone)
Step IJK Specifies the step increment through I,J,K. A Step value of 1 extracts all original data. A
Step value of 2 extracts every other node, etc. Thus step values greater than 1 give a
coarser resolution.
Delta IJK Specifies the delta to use when creating more than one surface from the same ijk part.
Only one of the directions may be non-zero. Note that an unstructured part is the result of
any non-zero delta values.
Min IJK Minimum I,J,K values for Part chosen (for reference).
Max IJK Maximum I,J,K values for Part chosen (for reference).
Part Description Text field into which you can enter a description for the Part. If left blank a default will be
used.
Create And Load
from selected
Extracts the data from the data files and creates a Part on the Server (and on the Client
unless NonVisual has been specified for Representation) based on all information
specified in the dialog.
If only one part is highlighted, the values shown in the From and To fields (as well as the
Min and Max fields) are the actual values for the selected part. Using the From and To
fields you can control whether an EnSight part will be created using the entire ijk ranges
or some subset of them. The Step field allows you to sample at a more coarse resolution.
And the Delta field allows for multiple “surfaces” in a given part (like blade rows of a jet
engine). Please note that use of a non-zero delta produces an unstructured part instead of a
structured one.
If more than one Part is highlighted, the values shown in the From and To fields are the
combined bounding maximums of the selected parts. The same basic functionality
described for a single part selection applies for multiple part selection, with one part being
created for each selected part in the dialog. If the specified ranges for the multiple
2.1 Reading and Loading Data Basics
2-12 EnSight 9 User Manual
selection exceed the bounds of a given part, they are modified for that part so that its
bounds are not exceeded.
You use this portion of the Part Loader dialog to further extract iblanked regions from
structured parts which were created either as inside, outside, or all portions of the model.
Structured Part(s)
To Be Parent of
Iblanked Part
Lists all structured parts that have been created thus far in the dialog above.
Iblank Values For
Entire Mesh
Lists all possible iblank values found in the model. This is a global list and may not apply
to all parts.
Iblank Part
description
Text field into which you can enter a part name for the iblanked part.
Create And Load
Iblanked
Unstructured Part
Extracts a new iblanked part from an existing structured part. This new part will actually
be an unstructured part.
(For step-by-step instructions see How To Read Data)
Loading Tips For large datasets, you should try to reduce the amount of information that is being
processed in order to minimize required memory. Here are some suggestions:
• When writing out data from your analysis software, consider what information will
actually be required for postprocessing. Any filtering operation you can do at this step
can greatly reduces the amount of time it takes to perform the postprocessing.
• For each Part you do load to the Client, a representation must be chosen. This visual
representation can be made very simple (through the use of the Bounding Box or
Feature Angle option, for example), or can be made more complex (by using the border
or full elements). The more you can reduce the visual representation, the faster the
graphics processing will occur on the Client (see Node, Element, and Line Attributes in
(see Section 3.3, Part Editing).
• Load to the Client only those Parts that you need to see. For example, if you were
postprocessing the air flow around an aircraft you would normally not need to see the
flow field itself and could load it non-visual, but you would like to see the aircraft
surface and Parts created based on the flow field (which remains available on the
Server).
• If you have multiple variables in your result file, activate only those variables you want
to work with. When you finish using a variable, consider deactivating it to free up
memory and thereby speed processing (see Section 4.1, Variable Selection and
Activation).
Figure 2-8
Iblanked Part Creation Section of Structured Part Loader dialog
2.1 Reading and Loading Data Basics
EnSight 9 User Manual 2-13
Troubleshooting Loading Data
Problem Probable Causes Solutions
Data loads slowly Loading more Parts than needed For some models, especially
external fluid flow cases, there is a
flow field Part which does not need
to be visualized. Try loading this
Part non-visual.
Too many elements Make sure the default element
representation for Model Parts is set
to 3D Border/2D Full before
loading the data. In some cases it is
helpful to set the representation to
Feature Angle or 3D Feature 2D
Full, before loading.
Client is swapping because it does
not have enough memory to hold all
the Parts specified.
Try loading fewer Parts or installing
more memory to handle the dataset
size.
Server is swapping because it does
not have enough memory to hold all
of the Parts contained in the dataset.
Install more memory in your Server
host system, reduce the number of
variables activated, or somehow
reduce the geometry’s size. (If you
can get the data in, you can cut
away any area not now needed.
What is left can then be saved as a
geometric entity and that new
dataset used for future
postprocessing.)
Error reading data Incorrect path or filename Reenter the correct information.
Remember, the Path is on the server.
Incorrect file permissions Change the permissions of the
relevant directories and files to be
readable by you.
Temporary file space is full Temporary files are written to the
default temporary directory or the
directory specified by the
environment variable TMPDIR for
both the Client and Server. Check
file space by using the command
“df” and remove unnecessary files
from the temporary directory or
other full file systems.
Format of the data is incorrect Recheck the data against the data
format definition. (Can use
ens_checker for Ensight6 or
EnSight Gold format checking.)
2.1 Reading and Loading Data Basics
2-14 EnSight 9 User Manual
EnSight format scalar (or vector)
data loads, but appears incorrect.
Often range of values off by some
orders or magnitude.
Scalar (or vector) information not
formatted properly in data file
Format the file according to
examples listed under EnSight
Variable Files (see Chapter 11,
EnSight Data Formats) (Can use
ens_checker for Ensight6 or
EnSight Gold format checking.)
Extra white space appended to one
or more of the records
Check for and remove any extra
white space appended to each
record
Problem Probable Causes Solutions
2.2 Native EnSight Format Readers
EnSight 9 User Manual 2-15
2.2 Native EnSight Format Readers
EnSight’s native data format is useful as a general data format for finite elements
or structured data. EnSight has three native data formats (from oldest to newest,
EnSight5, EnSight6 and EnSight Case Gold) which are well defined and well
documented so that they can be easily interfaced to your analysis code. EnSight 5,
which is now considered a legacy format, used a global coordinate array and
supported unstructured meshes only. EnSight 6 format again used a global
coordinate array but added support for structured meshes. EnSight Case Gold
(often just called Case format) is the most recent (and recommended) format.
Case Gold defines geometry on a part by part basis and uses element index for
connectivity. Case Gold format is tuned to the EnSight internal data structure and
is the fastest and most memory efficient format available for EnSight.
A dramatic speed up in performance can sometimes be realized simply by reading
in data in the given format and saving it back out as Case Gold, then re-reading
the data back in using the native Case Gold reader. However, a number of solvers
now output data directly into the well-documented Case format. (see Chapter 11,
EnSight Data Formats). The application
ens_checker
is included with EnSight to
enable error checking of the Case and EnSight 6 formats output by third-party
software.
Described below is the process for reading the latest (Case & EnSight 6) and the
legacy (EnSight 5) native formats:
EnSight Case Reader
EnSight5 Reader
2.2 EnSight Case Reader
2-16 EnSight 9 User Manual
EnSight Case Reader
In order to use this reader, you must be familiar with the basic data reader and part
loader dialogs discussed previously (see Chapter 2.1, Reader Basics).
EnSight6 and EnSight Gold are input using the exact same process. The data
consists of the following files:
• Case file (required)
• Geometry file (required)
• Variable files (optional)
• Measured/Particle files (optional)
- Measured/Particle geometry files
- Measured/Particle variable files
• Rigid body file (optional)
The Case file is a small ASCII file which points to all other files which pertain to
the model. The Case file names the geometry and variable files and records time
information. The geometry file is a general finite-element format describing nodes
and Parts, each Part being a collection of elements, and/or structured ijk blocks.
The variable file contains scalar (one value), vector (three values) or tensor (six or
9 values) data at each node and/or element. Measured/Particle files contain data
about discrete Particles in space from the simulation code or information directly
from experimental data.
EnSight data is based on Parts. The Parts defined in the data are always available
on the Server. However, all Parts do not have to be loaded to the Client for display.
Large flow fields for CFD problems, for example, are needed for computation by
the Server, but can be loaded non-visual.
EnSight data can be transient. The geometry as well as the variables can change
with each timestep. The casefile contains the filenames or filename patterns for
the transient data.
Simple Interface
Data Load
Load your casefile (typically named with a suffix
.case
) using the Simple Interface
method.
Advanced Interface
Data Load
Load your casefile (typically named with a suffix
.case
) using the Advanced
Interface method.
(see How To Read Data)
Data Tab
Format Use the Case format to read EnSight6 or EnSight Gold data.
Set Case Select the casefile (typically .case) and click this button
2.2 EnSight5 Reader
EnSight 9 User Manual 2-17
EnSight5 Reader
EnSight5 input data consists of the following files:
• Geometry file (required)
• Result file (optional)
• Variable files (optional)
•Measured Particle Files (optional)
- Measured/Particle geometry files
- Measured/Particle results files
- Measured/Particle variable files
The geometry file is a general finite-element format describing nodes and Parts,
each Part being a collection of elements. The result file is a small ASCII file
allowing the user to name variables and provide time information. The result file
points to variable files which contain the scalar or vector information for each
node. Measured/Particle files contain data about discrete Particles in space from
the simulation code or information directly from actual experimental tests.
EnSight5 data is based on Parts. The Parts defined in the data are always available
on the Server. However, all Parts do not have to be loaded to the Client for display.
Large flow fields for CFD problems, for example, are needed for computation by
the Server, but do not generally need to be seen graphically.
EnSight5 data can have changing geometry, in which case the changing geometry
file names pattern is contained in the results file. However, it is still necessary to
specify an initial geometry file name in the (Set) Geometry field.
Simple Interface
Data Load
Load your geometry file (typically named with a suffix
.geo
) using the Simple
Interface method.
Advanced Interface
Data Load
Load your geometry and result files (typically named with a suffix
.geo and .res
)
using the Advanced Interface method.
(see How To Read Data)
Data Tab
Format Use the EnSight 5 format.
Set geometry Select the geometry file (typically .geo) and click this button
Set results Select the results file (typically .res), and click this button.
Format Options Tab
Set measured Select the measured file and click this button.
2.3 Other Readers
2-18 EnSight 9 User Manual
2.3 Other Readers
ABAQUS_FIL Reader
ABAQUS_ODB Reader
AcuSolve Reader
AUTODYN Reader
AIRPAK/ICEPAK Reader
ANSYS Reader
AV U S R e a d e r
CAD Reader
CFF Reader
CFX4 Reader
CFX5 Reader
CGNS Reader
CTH Reader
ESTET Reader
EXODUS II Gold Reader
FAST UNSTRUCTURED Reader
FIDAP NEUTRAL Reader
FLOW3D-MULTIBLOCK Reader
FLUENT Direct Reader
FLUENT UNIVERSAL Reader
Inventor Reader
LS-DYNA Reader
Movie.BYU Reader
MPGS 4.1 Reader
MSC.DYTRAN Reader
MSC.MARC Reader
MSC.NASTRAN Reader
Nastran Input Deck Reader
N3S Reader
OpenFOAM Reader
OVERFLOW Reader
PLOT3D Reader
POLYFLOW Reader
RADIOSS Reader
SDRC Ideas Reader
SILO Reader
2.3 Other Readers
EnSight 9 User Manual 2-19
STAR-CD and STAR-CCM+ Reader
STL Reader
Tec p lot Reader
Vectis Reader
XDMF Reader
EnSight includes a number of readers for non-native (non-EnSight) formats. This
section includes a description of each of these included readers and includes
instruction for their use. Some of the included readers are custom, internal
readers, and some of them are written using the standard, User Defined Reader
interface.
User Defined
Reader
Description
A user defined reader capability is included in EnSight which allows otherwise
unsupported structured or unstructured data to be read. In other words, the user
can create their own data readers. Each user defined reader utilizes a dynamic
shared library produced by the user. Once produced, these readers show up in the
list of data formats in the File Open Dialog just like the included readers.
User Defined
Reader
Implementation
The readers are produced by creating the routines documented in the user-defined
API. Three versions of the user defined API are available The 1.0 API (which has
been available since EnSight version 6) was designed to be friendly to those
producing it, but requires more manipulation internally by EnSight and
accordingly requires more memory and processing time. The 2.0 API (starting
with EnSight 7.2) was designed with efficiency in mind. It requires that all data be
provided on a part basis, and as such lends itself closely to the EnSight Gold type
format. A few of the advantages of the 2.0 API (Now at version 2.08) are:
* Less memory, more efficient, and faster - as indicated above.
* Model extents can be provided directly, such that EnSight need not read all the
coordinate data at load time.
* Tensor and complex variables are supported
* Exit routine provided, for cleanup operations at close of EnSight.
* Geometry and variables can be provided on different time lines (timesets).
* If your data format already provides boundary shell information, you can use it
instead of the “border” representation that EnSight would compute.
* Ghost cells (for both structured and unstructured data) are supported
* User specified node and/or element ids for structured parts are supported
* Material handling is supported
* Nsided and Nfaced elements are supported
* Structured ranges can be specified
* Failed elements is supported
* Material Species is supported
* Rigid Body values can be supplied from the reader.
* Reader can be allowed to deal with block min, max, and stride within itself -
instead of having EnSight deal with it.
A 3.0 reader API is available in EnSight 9. The 3.0 API aims to provide the
2.3 Other Readers
2-20 EnSight 9 User Manual
flexibility of both of the previous versions while simplifying the reader
development processes. Contact CEI for more information on this API.
Creating Your Own
Custom User
Defined Reader
The process for creating and using a user-defined reader is explained in detail in
the Interface Manual. Samples, source code, makefiles, etc can be found in the
following location and it’s subdirectories:
On the CD: /CDROM/ensight92/src/readers
In installation
directory: $CEI_HOME/ensight92/src/readers
Start EnSight (or EnSight server) with the command line option (-readerdbg), for
a step-by-step echo of reader loading progress.
ensight92 -readerdbg
The actual working user defined readers included in the EnSight distribution may
vary by hardware platform.
2.3 ABAQUS_FIL Reader
EnSight 9 User Manual 2-21
ABAQUS_FIL Reader
The ABAQUS .fil reader is available to EnSight users, but the preferred method
of loading ABAQUS data is to use the .odb reader (see Section , ABAQUS_ODB
Reader).
ABAQUS_FIL input data consists of the one file with a .fil extension:
• Geometry/Results file (required). This file (the ABAQUS .fil file)
contains both the geometry and any requested results. It can be either
ASCII or binary.
•EnSight5 Measured/Particle Files (optional). The measured .res file
references the measured geometry and variable files.
EnSight will read ASCII or binary .fil files directly. The element sets in the .fil file
will be used for creating parts.
Simple Interface
Data Load
Load your geometry/results file (typically named with a suffix
.fil
) using the
Simple Interface method.
Advanced Interface
Data Load
Load your geometry/result file (typically named with a suffix
.fil
) using the
Advanced Interface method.
Data Part Loader The Part Loader for this reader is simply an informational message with Okay and
Cancel buttons, as shown below. There is no way to load part by part in this
reader.
Data Tab
Format Use the ABAQUS fil format.
Set results Select the geometry/results file (typically .fil), and click this
button.
Format Options Tab
Set measured Select the measured file and click this button.
Figure 2-9
ABAQUS FIL Reader Part Loader dialog
2.3 ABAQUS_ODB Reader
2-22 EnSight 9 User Manual
ABAQUS_ODB Reader
Overview
Because the reader is dependent upon the ABAQUS libraries, this reader is only
available for platforms supported by ABAQUS. See their website for more
details.
For updated information please see the file in the following directory:
$CEI_HOME/ensight92/src/readers/abaqus/README_67.txt
or
_68.txt
The ABAQUS odb reader is the recommended method of importing ABAQUS
data into EnSight.
Simple Interface
Data Load
Load your geometry/results file (typically named with a suffix
.odb
) using the
Simple Interface method.
Advanced Interface
Data Load
Load your geometry/result files (typically named with a suffix
.odb
) using the
Advanced Interface method.
Data Tab
Format Use the ABAQUS_ODB format.
Set geometry Select the geometry file (typically .odb) and click this button
Set results Not used
Format Options Tab
Set measured Select the measured file and click this button.
Reader GUI User controls as shown below are available:
Load Surface
Sets
Toggle ON (default) to load all Surface Sets
Load Node
Sets
Toggle ON to load all Node Sets (default OFF).
2.3 ABAQUS_ODB Reader
EnSight 9 User Manual 2-23
(see How To Read Data)
Load “All”
Sets
Often, ABAQUS parts that are simply the global element
matrix are redundant (e.g. E_ALL contains all elements).
Toggle OFF (default) to skip loading Parts with “all” in their
name, saving memory and time.
Load Freq
Step
Often, ABAQUS will include multiple steps in an ODB file
and the one desired is the modal analysis. Toggle this ON to
skip all other steps loading only the frequency step (Default
is OFF). If multiple frequencies, then each EnSight timestep
now becomes a different frequency.
Load
Element
Faces
Toggle ON to convert Surface Sets with 3D elements with
Face Sets into 2D elements using face specifications (default
OFF).
Use Section Shell elements include variable data for each section. This
reader allows the use of the First (default) or the Last section.
Integration
Point
Shell elements include variable data for each of several
integration points. Choose max, min or average (default).
Console
Output
Normal - Informational and error output to the console.
Verbose - Detailed informational and error output to the
console.
Debug - Step by step progress through the reader with detail
numerical output for results to the console.
None - No console output
Instance Choose an instance (1 to the number of instances). Default is
to load them all.
Step Choose a step (1 to number of steps). Default is to load all
non-frequency steps.
Shell Section Which shell section to use (1 to number of shell sections).
Starting Part
Number
Which part to begin loading (1 to number of parts). Default is
1 (load all parts).
2.3 AIRPAK/ICEPAK Reader
2-24 EnSight 9 User Manual
AIRPAK/ICEPAK Reader
Overview
The current FLUENT Direct Reader also reads AIRPAK and ICEPAK data. The
Fluent Direct reader typically loads a Fluent Case (.cas) file and the matching data
(.dat) file. However, AIRPAK/ICEPAK writes out a .fdat file which doesn’t
automatically get recognized by the EnSight Fluent reader and some extra
understanding (and sometimes user-intervention) is necessary as described below.
See the following files for latest information on the Fluent reader.
$CEI_HOME/ensight92/src/readers/fluent/README.txt
The comments that follow are for the current Fluent reader. The reader loads
ASCII, binary single precision, or binary double precision. The files can be
uncomrpessed or compressed using gzip.
Data file
description
ICEPAK can generate files:
filename.cas
,
filename.dat
just like Fluent, but also if
the analysis uses a nonconformal mesh (not available in Fluent) then there will be
filename.fdat
, and
filename.nc.cas
files. The
filename.nc.cas
is a nonconformal
mesh geometry and it’s matching results file is the
filename.fdat
file.
Simple Interface
Data Load
Load your geometry file (typically named with a suffix
.cas
) using the Simple
Interface method. EnSight will automatically load the matching
.dat
file.
However, if you want to load the
filename.nc.cas
data file and it’s corresponding
filename.fdat
file, then you will either need to rename it to match exactly and have
the .dat extension (
filename.nc.dat
), or go to the advanced data load.
Advanced Interface
Data Load.
In EnSight if you don’t want to rename your files, then switch to the Advanced
Interface toggle in the data reader dialog and manually choose the *.nc.cas and the
*.fdat files as described below.
Data Tab
Format To use this reader, select the Fluent format.
Set cas Select the geometry file (typically .cas or .cas.gz) and click
this button. For transient data, use *.cas or *.cas.gz .
Set dat Note that the Fluent reader will automatically select the
matching .dat file. If you want to use the .fdat file, then select
the results file (typically .fdat or .fdat.gz), and click this Set
Dat button. For transient data, use *.fdat or *.fdat.gz .
Format Options Tab
Set measured Select the measured file and click this button.
2.3 AIRPAK/ICEPAK Reader
EnSight 9 User Manual 2-25
Other
Options
using the
current
Fluent reader
Load Internal
Parts
Toggle this ON to load the Fluent Internal Parts. This will
show all the the internal walls forming all the cell volumes. If
you do toggle this on, then it is recommended that you click on
the 'Choose Parts' button at the bottom of the data reader
dialog, rather than 'Load all', as you'll only want to load the
interior parts of interest to save memory and time. Default is
OFF.
Use Meta
Files
Meta files are small summary files that contain highlights of
the important locations inside each of the Fluent files.
Allowing the EnSight reader to write out Meta Files that map
the locations of important data can provide a significant speed
up the next time you access that timestep. It is recommended
that you leave this toggle ON. If you have write permission in
the directory where your data is located, three types of binary
Meta Files will be written when you first access each file, with
extensions .EFC for the cas file, .EFD for the .dat file and
.EFG for the time-history data. They are optional, and if you
don't have write permission, the reader will take the extra time
to read the entire .CAS and .DAT file to find the relevant data
each time you come back to that timestep.
Load _M1
_M2 vars
Variables that end in '_M1' and '_M2' occur in Fluent unsteady
flow. They represent the value of the variable at the prior
iteration time and the time prior to that respectively. By
default this toggle is OFF and these variables are not loaded.
Toggle this ON to load these variables.
Load all cell
types
Fluent cells have a boundary condition flag. By default
(toggle OFF) EnSight loads only the cells with a boundary
condition flag equal to 1 (one). Toggle this option ON to load
all cells with a non-zero boundary condition. For example, if
you have a part with cells of boundary condition 32 (inactive),
EnSight will, by default not load this part. Toggle this option
ON and EnSight will load this part. Note: parts containing
cells with a boundary condition of zero are never loaded.
2.3 AIRPAK/ICEPAK Reader
2-26 EnSight 9 User Manual
(see How To Read Data)
Console
Output
Use this flag to determine the amount of output to the console.
Normal - Usually only echo errors to console.
Verbose - Normal output plus an echo of every Fluent part
that is in the dataset, whether it is interior or not, whether it is
skipped, what variables are defined for which parts, and to
echo it's Ensight Part number.
Debug - Verbose output plus more detailed output and
progress through the reader routines often valuable for
understanding and reporting problems.
Time Values Default is 'Calc Const Delta', to read a delta time from one file
and calculate the time values from that. If you choose 'Read
Time Values' then the reader will open each file and find the
exact time value. This will be stored in the EFG file if you've
not disabled Meta Files. Finally, the simplest is to 'Use File
Steps' which will just use the file step number as the time
value. This is quick, but is not a good idea if you need real
time for anything such as particle tracing.
2.3 Medina BIF-BOF PERMAS Reader
EnSight 9 User Manual 2-27
Medina BIF-BOF PERMAS Reader
Overview
Currently this reader is supported only for the following architectures: UNIX 64-
bit, Linux 32-bit, IBM 5.3 64-bit, and Win32.
This reader reads in an ASCII configuration file with a .konfig suffix, which lists
the geometry and results filenames.
To use this reader, you need to set the HDMcat environment variable to point to
the dscat.ds file as described in the README.
$CEI_HOME/ensight92/src/readers/medina_bifbof/README_single_part.txt
Simple Interface
Data Load
Load your geometry/results file (typically named with a suffix
.konfig
) using the
Simple Interface method.
Advanced Interface
Data Load
Load your geometry/result files (typically named with a suffix
.konfig
) using the
Advanced Interface method.
(see How To Read Data)
Data Tab
Format Use the Medina bif/bof format.
Set file Select the geometry/results file (typically .konfig) and click
this button
Format Options Tab
Set measured Select the measured file and click this button.
2.3 AcuSolve Reader
2-28 EnSight 9 User Manual
AcuSolve Reader
Overview
Description This reader from AcuSim will read results from Acusolve. Select the .log file
from the simple or advanced interface.
Data Reader
Main Menu > File > Data (reader)...
The File Selection dialog is used to specify which files you wish to read.
Access: Main Menu > File > Data (Reader)...
Simple Interface
Data Load
Load your AcuSolve .log file using the Simple Interface method.
Advanced Interface
Data Load
Load your AcuSolve .log file using the Advanced Interface method.
Note: there is an older AcuSolve (v10 api) reader available from AcuSim.
(see How To Read Data)
Data Tab
Format Use the AcuSolve format.
Set file This field contains the first file name. For the first file you
should choose a file with extension .log. Clicking button
inserts file name shown into the field. Loading the .log file
will load all both geometry and results.
Format Options Tab
Set measured Select the measured file and click this button.
Other
Options
Reset time When toggle is on, time begins at 0.0 ( default is off).
Extended
output
When toggle is on, console output will be verbose ( default is
off ).
Mesh Motion When toggle is on, moving meshes are visible ( default is on).
Unique parts When toggle is on, a unique set of surfaces is shown in the part
list ( default is off).
Additional
runs
Enter the comma separated list of runs ( 3, 5, 10, 10:20:2), or
_all. ( default is _none).
2.3 AcuSolve Reader
EnSight 9 User Manual 2-29
2.3 ANSYS Reader
2-30 EnSight 9 User Manual
ANSYS Reader
Overview
Four Ansys
Readers
There are four ANSYS readers available in EnSight: three older, unsupported
legacy readers and the supported Ansys Results. Long-term, Ansys Results is the
reader of choice. This reader should read the latest Ansys results as well as older
versions. The other three, legacy readers will not show up in the reader list by
default and will not be documented in this manual.
Legacy Reader
Visibility Flag
The older readers, by default, are not loaded into the list of available readers, and
are not discussed in the remainder of this document. In the unlikely event you
need to enable these readers, go into the Menu, Edit > Preferences and click on
Data and toggle on the reader visibility flag. The legacy reader documentation is
found in
$CEI_HOME/ensight92/src/readers/ansys/README
and is not included here.
Ansys Results
Reader
The Ansys Results reader supports scalar, vector and tensor variables, including
the capability to compute several common scalar variables derived from tensors
(such as the common failure therories) as well as local element result components
(such as axial stress in truss elements) when such element results are available.
Additionally, there is some control over the creation of variables from element-
based results. For example, they can be averaged to the nodes (with or without
geometry weighting) if desired. See the format options below for more details.
Results are always presented in the global coordinate system. Thus, any results in
local coordinate systems, or in non-cartesian coordinate systems are transformed
as needed into the model system.
For shell elements that have multiple layers (sections), the user can choose the
section that will be used. Additionally, the user can choose to have a different
variable be created for each section. See format options below for more details.
The user can control how parts are created. Parts can be created according to the
part id, the property id, or the material id.
Simple Interface
Data Load
Load your geometry/results file (typically named with a suffix
.rst
) using the
Simple Interface method.
Advanced Interface
Data Load
Load your geometry/result files (typically named with a suffix
.rst
) using the
Advanced Interface method.
Data Tab
Format Use the Ansys Results format.
Set file
(or results)
Select the geometry/results file (typically .rst) and click this
button
Format Options Tab
Set measured Select the measured file and click this button.
2.3 ANSYS Reader
EnSight 9 User Manual 2-31
Other
Options
Include
ElemSet
Parts
Include any Element sets defined. These are sets of full
elements which are generally some logical subset of the total
number of elements. Default is on.
Include Face/
Edge Parts
Include any Face or Edge sets defined. These are some logical
set of particular faces and/or edges of full elements. Default is
on.
Include
NodeSet
Parts
Include any Node sets defined. These are generally the subset
of nodes needed for the Element, Face, or Edge sets above. As
such, they are generally not needed as separate parts, but can
be created if desired. Default is off.
Include local
elem res
comps (if
any)
Include the local stresses components, etc that are in the
element's local system.
A simple example is a bar (such as a truss element), which
only has tension or compression in the element's axial
orientation. Such an element would have an axial stress
variable.
Other elements would have appropriate result component
variables. Default is on
2.3 ANSYS Reader
2-32 EnSight 9 User Manual
Include
Tensor
derived
(VonMises,
etc.)
For tensor results, calculate scalars from the following derived
results (principal stress/strains, and common failure theories):
Mean
VonMises
Octahedral
Intensity
Max Shear
Equal Direct
Min Principal
Mid Principal
Max Principal
By default, all 9 of these will be derived. You can control
which are created by this toggle, with an environment
variable. Namely,
setenv ENSIGHT_VKI_DERIVED_FROM_TENSOR_FLAG n
where n = 1for Mean only
2 for VonMises only
4 for Octahedral only
8 for Intensity only
16 for Max Shear only
32 for Equal Direct only
64 for Min Principal only
128 for Mid Principal only
256 for Max Principal only
512 for all
or any legal combination. example: for VonMises and Max
Shear only, use 18. Default is off
Regular Part
Creation
Convention
Parts will be created according to the following:
Use Part Id - Part Id (this is the default)
Use Property Id - Property Id
Use Material Id - Material Id
Var nam in g
convention
Use Content Field (if provided) - Variable names will be what
is in the Content field, if provided. If not provided, they will
be the VKI dataset name. This is the default.
Use VKI dataset nameVariable names will be the VKI variable
dataset name (which are reasonably descriptive).
2.3 ANSYS Reader
EnSight 9 User Manual 2-33
(see How To Read Data)
Element Vars
as
Single element values - Element results (whether centroidal or
element nodal) will be presented as a single value per element.
Thus will be per_elem variables in EnSight.This is the default.
Averaged to node values - Element results (whether centroidal
or element nodal) will be averaged to the nodes without using
geometry weighting. Thus will be per_node variables in
EnSight.
Geom weighted average to node values - Element results
(whether centroidal or element nodal) will be averaged to the
nodes using geometry weighting. Thus will be per_node
variables in EnSight
If Sections,
which:
Which section will be used to create the variable
First - The first section will be used (this is the default)
Last - The last section will be used
Section Num (below) - The section number entered in the field
below will be used
Separate Vars per Section - A separate variable will be created
for each section.
Section Num If the previous option is chosen to be Section Num, then the
value in this field is the 1-based section number to use to
create the variable.
2.3 AUTODYN Reader
2-34 EnSight 9 User Manual
AUTODYN Reader
Overview
Description Reads a series of .adres files as a transient solution. Simply select one of the
.adres files and the sequence will be detected. Requires that the .adres_base files
exists in the same directory.
Data Reader
Main Menu > File > Data (reader)...
The File Selection dialog is used to specify which files you wish to read.
Access: Main Menu > File > Data (Reader)...
Simple Interface
Data Load
Load your AUTODYN .adres file using the Simple Interface method.
Advanced Interface
Data Load
Load your AUTODYN .adres file using the Advanced Interface method.
Data Tab
Format Use the Autodyn format.
Set file This field contains the first file name. For the first file you
should choose a file with extension .adres. Clicking button
inserts file name shown into the field. Loading any .adres file
will load all .adres files in the directory which includes both
geometry and results.
Format Options Tab
Set measured Select the measured file and click this button.
Other
Options
2.3 AUTODYN Reader
EnSight 9 User Manual 2-35
Include
ElemSet
Parts
Include any Element sets defined. These are sets of full
elements which are generally some logical subset of the total
number of elements. Default is on.
Include Face/
Edge Parts
Include any Face or Edge sets defined. These are some logical
set of particular faces and/or edges of full elements. Default is
on.
Include
NodeSet
Parts
Include any Node sets defined. These are generally the subset
of nodes needed for the Element, Face, or Edge sets above. As
such, they are generally not needed as separate parts, but can
be created if desired. Default is off.
Include local
elem res
comps (if
any)
Include the local stresses components, etc that are in the
element's local system.
A simple example is a bar (such as a truss element), which
only has tension or compression in the element's axial
orientation. Such an element would have an axial stress
variable.
Other elements would have appropriate result component
variables. Default is on
2.3 AUTODYN Reader
2-36 EnSight 9 User Manual
Include
Tensor
derived
(VonMises,
etc.)
For tensor results, calculate scalars from the following derived
results (principal stress/strains, and common failure theories):
Mean
VonMises
Octahedral
Intensity
Max Shear
Equal Direct
Min Principal
Mid Principal
Max Principal
By default, all 9 of these will be derived. You can control
which are created by this toggle, with an environment
variable. Namely,
setenv ENSIGHT_VKI_DERIVED_FROM_TENSOR_FLAG n
where n = 1for Mean only
2 for VonMises only
4 for Octahedral only
8 for Intensity only
16 for Max Shear only
32 for Equal Direct only
64 for Min Principal only
128 for Mid Principal only
256 for Max Principal only
512 for all
or any legal combination. example: for VonMises and Max
Shear only, use 18. Default is off
Regular Part
Creation
Convention
Parts will be created according to the following:
Use Part Id - Part Id (this is the default)
Use Property Id - Property Id
Use Material Id - Material Id
Var nam in g
convention
Use Content Field (if provided) - Variable names will be what
is in the Content field, if provided. If not provided, they will
be the VKI dataset name. This is the default.
Use VKI dataset nameVariable names will be the VKI variable
dataset name (which are reasonably descriptive).
2.3 AUTODYN Reader
EnSight 9 User Manual 2-37
(see How To Read Data)
Element Vars
as
Single element values - Element results (whether centroidal or
element nodal) will be presented as a single value per element.
Thus will be per_elem variables in EnSight.This is the default.
Averaged to node values - Element results (whether centroidal
or element nodal) will be averaged to the nodes without using
geometry weighting. Thus will be per_node variables in
EnSight.
Geom weighted average to node values - Element results
(whether centroidal or element nodal) will be averaged to the
nodes using geometry weighting. Thus will be per_node
variables in EnSight
If Sections,
which:
Which section will be used to create the variable
First - The first section will be used (this is the default)
Last - The last section will be used
Section Num (below) - The section number entered in the field
below will be used
Separate Vars per Section - A separate variable will be created
for each section.
Section Num If the previous option is chosen to be Section Num, then the
value in this field is the 1-based section number to use to
create the variable.
2.3 AVUS Reader
2-38 EnSight 9 User Manual
AVUS Reader
Overview
The AVUS reader has been recently renamed, and was formerly called the
COBALT reader.
CEI provides the AVUS user-defined-reader on as "as-is" basis, and does not
warrant nor support its use.
There are two distinct readers for AVUS data (formerly Cobalt60) -- one for static
data, AVUS (formerly Cobalt60), and one for transient solution data, AVUS Case
(formerly Cobalt60 Case).
Both readers will read formatted and unformatted (single or double precision)
Cobalt60 grids, solution files (pix files), and Cobalt60 restart files. The file format
is determined automatically by the reader. The readers also support an enhanced
solution (pix) format that contains additional solution data beyond the normal six
fields.
See the following README file for current information on this reader and
contact the author as listed in the README file for further information.
$CEI_HOME/ensight92/src/readers/avus_cobalt_2/README
Simple Interface
Data Load
Load your geometry file (typically named with a suffix
.grd
) using the Simple
Interface method.
Advanced Interface
Data Load
Load your geometry and restart files (typically named with a suffix
.grd and .pix
)
using the Advanced Interface method.
Limitation This reader does not support restoring EnSight Context Files.
(see How To Read Data)
Data Tab
Format Use the AVUS or AVUS Case format.
Set grid
(or file)
Select the geometry file (typically .grd) and click this button
(or select the .case file for AVUS Case)
Set solution Select the restart file (typically .pix), and click this button.
Format Options Tab
Set measured Select the measured file and click this button.
2.3 CAD Reader
EnSight 9 User Manual 2-39
CAD Reader
Overview
This reader uses an external translation program to get various CAD files into an
STL formatted temporary file which then read into EnSight. With the proper
licensing, the following CAD file formats can be read: IGES (.igs), STEP
(.STEP), CATIA V4 (.model, .dlv, .exp, .session), CATIA V5 (.CATPart,
.CATProduct, or .CATDrawing, on Windows 32/64-bit only), Parasolid (.x_t,
.x_b), Pro/Engineer (.prt, .asm), SolidWorks (.sldprt, .sldasm), Unigraphics (.prt),
and possibly others.To manually convert this ProE data set into an STL using the
CEI CAD translator, run this command:
ConvertSTL -i ./asm0002.asm.15 -o rs.stl
Additional licensing may be required. Please visit http://cad.ensight.com for more
information.
The CAD reader will also load STL files directly (either ASCII or binary) that
consist only of surfaces (triangles) and have no associated variables. See the STL
Reader.
See the following README file for current information on this reader in the
following directory.
$CEI_HOME/ensight92/src/readers/stl
Simple Interface
Data Load
Load your geometry file using the Simple Interface method and trust that the
translator will recognize the file type using the suffix.
Advanced Interface
Data Load
For more options, load your geometry using the Advanced Interface method and
click on the Format Options Tab as described below.
Data Tab
Format Use the CAD format.
Set File Select the CAD geometry file and click this button
Format Options Tab
Set measured Select the measured file and click this button.
2.3 CAD Reader
2-40 EnSight 9 User Manual
Reader GUI
Console
Output
Allows the user control of the amount and detail of the
console output. The allowable choices are as follows
Normal - Typically only error messages displayed (the
default)
Verbose - Normal messages plus informational messages
Debug - Messages indicating progress through the reader and
useful for diagnosing problems
CAD Format A pulldown to specify the format if the file name and
extension are not sufficient for automatic selection of the CAD
format. Allowable selections include CATIA v4, CATIA v5,
IGES, Parasolid, ProE, SolidWorks, STEP, Unigraphics, and
STL
Surface
Tolerance in
degrees
The maximum distance between a facet edge and the true
surface. It is a floating point value between 0 and 360 degrees,
with a default value: 15.0
Normal
Tolerance in
degrees
The maximum angle in degrees between two normals on two
adjacent facet nodes. Default value: 25. It is a floating point
value.
Max edge
length in mm
Maximum length of a side of a cell in world space in
millimeters. It is a floating point value with default of 0 (no
max)
Save
translated
STL file to
The name of the translated STL output file. If this name is
specified, then the STL output file is not automatically deleted
after processing. Default value: determined by system call
tempnam(). Example: /var/tmp/my_data.stl
2.3 CAD Reader
EnSight 9 User Manual 2-41
(see How To Read Data)
STL ASCII
file tolerance
A positive floating point value used to round off coordinate
values read from ASCII STL files to compensate for the fact
that there is often a roundoff error on the last digit which leads
to discontinuity in the triangle facets.
Example: 1.0E-3 - Sets tolerance value to 1.0E-3
For example: If coordinate value is 147.3247 and Tolerance is
1.0E-3 then new coordinate is 147.324 If Tolerance is 1.0E-2
then new coordinate is 147.32
2.3 CFF Reader
2-42 EnSight 9 User Manual
CFF Reader
Overview
The CFF Reader is supplied compiled on Linux platforms on as "as-is" basis, and
CEI does not warrant nor support its use. A README file as well as the source
code is also supplied with the EnSight distribution in the directory below.
$CEI_HOME/ensight92/src/readers/cff
2.3 CFX4 Reader
EnSight 9 User Manual 2-43
CFX4 Reader
Overview
Reads a 3D Static Cbinary dump (.dmp) file.
See the following file for current information on this reader.
$CEI_HOME/ensight92/src/readers/cfx4/README.txt
Simple Interface
Data Load
Load your geometry/results file (typically named with a suffix
.dmp
) using the
Simple Interface method.
Advanced Interface
Data Load
Load your geometry/results file (typically named with a suffix
.dmp
) using the
Advanced Interface method.
(see How To Read Data)
Data Tab
Format Use the CFX-4 format.
Set cfx4 dmp Select the geometry/results file (typically .dmp) and click this
button
Format Options Tab
Set measured Select the measured file and click this button.
2.3 CFX5 Reader
2-44 EnSight 9 User Manual
CFX5 Reader
Overview
Reads a CFX version 10, 11, or 12 results (.res) file.
Simple Interface
Data Load
Load your geometry/results file (typically named with a suffix
.res
) using the
Simple Interface method.
Advanced Interface
Data Load
Load your geometry/results file (typically named with a suffix
.res
) using the
Advanced Interface method to customize the read, for example to read transient
geometry (see below).
Data Tab
Format Use the CFX-5 format.
Set file Select the geometry/results file (.res) and click this button
Format Options Tab
Set measured Select the measured file and click this button.
Reader GUI
Variable User
Level
Allows the user control of number of variables read based on
a call into the CFX API. The allowable choices are as follows:
Level 0 - Read in all variables
Level 1 - (default)
Level 2 -
Level 3 -
2.3 CFX5 Reader
EnSight 9 User Manual 2-45
The CFx solver does export to EnSight Case Gold format.
(see How To Read Data)
Var ia ble
Boundary
Correction
Variable values are corrected using a boundary value
correction if this toggle is Yes.
YES - (default) Variable values adjusted using a boundary
value correction.
No - Variable values are not corrected.
Read
Regions?
No - (default) - Do not read Regions.
YES - Read Regions.
Transient
Geometry?
A flag to the reader if the data is transient. Note: by default, a
transient .res file will fail to load unless this is changed to Yes.
CFx transient data will have a .res file and a series of .trn files
(one for each timestep) located in a subdirectory. The res file
will have the names of the .trn files, the time value and path. If
the data is changing variables only then the .trn will not
contain the mesh. If the mesh is moving, then the user must
turn on the “Include Mesh” in the Transient Result options so
tha tthe solver will write mesh information to each .trn file.
Failure to do this results in a static, unmoving mesh over time.
No - (default).
Yes - Coordinates only.
Particles as
Part?
If this is Yes, then EnSight reads in the particle data as a
separate EnSight point part.
No - (default) Do not read in particles as a separate EnSight
Part.
Yes - Read in the particles as a separate EnSight part
2.3 CGNS Reader
2-46 EnSight 9 User Manual
CGNS Reader
Overview
See the following file for current information on this reader.
$CEI_HOME/ensight92/src/readers/cgns/README.txt
Simple Interface
Data Load
Load your geometry/results file (typically named with a suffix
.cgns
) using the
Simple Interface method.
Advanced Interface
Data Load
Load your geometry/results files (typically named with a suffix
.cgns)
using the
Advanced Interface method.
(see How To Read Data)
Data Tab
Format Use the CGNS format.
Set cgns Select the geometry/results file (typically .cgns) and click this
button
Format Options Tab
Set measured Select the measured file and click this button.
2.3 CTH Reader
EnSight 9 User Manual 2-47
CTH Reader
Overview
Reads a Spymaster .spcth file.
See the following file for current information on this reader.
$CEI_HOME/ensight92/src/readers/cth/README.txt
Simple Interface
Data Load
Load your geometry/results file(s) (typically named with a suffix
.spcth
) using the
Simple Interface method.
Advanced Interface
Data Load
Load your geometry/results files (typically named with a suffix
.spcth
) using the
Advanced Interface method.
(see How To Read Data)
Data Tab
Format Use the CTH format.
Set spcth* To read one Spymaster file, put the CTH Spymaster file
(typically named something filename.spcth) into the (Set)
Geometry field. To read in multiple, related CTH Spymaster
files (for example several files solved in parallel) as follows:
filename.spcth.0
filename.spcth.1
filename.spcth.2
Put an asterisk ‘*’ in the filename (filename.spcth.*).
Format Options Tab
Set measured Select the measured file and click this button.
Reader GUI User controls as shown below are available:
2.3 ESTET Reader
2-48 EnSight 9 User Manual
ESTET Reader
Reader Visibility
Flag
By default, this reader is not loaded into the list of available readers. To enable
this reader go into the Menu, Edit > Preferences and click on Data and toggle on
the reader visibility flag.
Overview
ESTET input data consists of one file that contains all geometry and results
information. Data is loaded in a multi-step process. The ESTET data is a
structured grid. The data file is binary.
Simple Interface
Data Load
Load your geometry/results file (typically named with a suffix
.estet
using the
Simple Interface method.
Advanced Interface
Data Load
Load your geometry/results file (typically named with a suffix
.estet
) using the
Advanced Interface method.
When reading this data into EnSight, the part loader dialog will be essentially the
same as that found in the reader basics for structured data (See Reading and
Loading Data Basics). The data can be in rectangular, cylindrical, or curvilinear
coordinates. EnSight will interpret and convert properly for any of these types.
One difference from the Reader Basics, is that once the desired geometry has been
extracted as Parts, you are presented with a list of the results variables contained
in the file. There is no way to automatically determine which of the results
Data Tab
Format Use the ESTET format.
Set geometry Select the geometry/results file (typically .estet) and click this
button
Format Options Tab
Set measured Select the measured file and click this button.
Figure 2-10
ESTET Vector Builder and Data Part Loader dialogs
2.3 ESTET Reader
EnSight 9 User Manual 2-49
variables are actually vector components, so you are given the opportunity to
build the vectors from the variables. The descriptions usually make this a
straightforward process. All variables not used as components to vectors are
assumed to be scalar variables.
ESTET Vector Builder and Data Part Loader dialogs
You use the File Selection dialog to read ESTET data files, the ESTET Vector Builder
dialog to build vector variables from scalar components for an ESTET dataset, and the
Data Part Loader dialog to extract Parts from an ESTET dataset. The latter two dialogs
open in sequence automatically after you click Okay in the File Selection dialog.
Access: Main Menu > File > Data (Reader)…> ESTET
(see How To Read Data)
Figure 2-11
ESTET Vector Builder and Data Part Loader dialogs
2.3 EXODUS II Gold Reader
2-50 EnSight 9 User Manual
EXODUS II Gold Reader
Overview
Misc Notes The Exodus reader links to the exodus routines in libexoIIc.a and the netcdf
routines in libnetcdf.a. You must have these libraries to compile and run the
ExodusII reader.
Variable names that end in "_x", "_y", "_z" will be treated as components of a
vector. For example, the variables "vel_x", "vel_y", "vel_z" will be treated as a
vector named "vel_vec". Case is ignored in matching variable names.
GUI control of
Reader
Note reader behavior can also be controlled in the Data Reader GUI via
checkboxes and fields. The environment variables, if set, are used to set the
default values for the GUI.
Advanced Multiple
File Naming
This reader supports two extensions to the filename fields. The first supports
Exodus datasets where the geometry changes at some point in time. In this case, a
new Exodus file (or set of files), is used for each set of solution times. To support
this feature, insert wildcard characters (e.g. "*" and "?") in the filename that
expand to the name of the first files in each timeset.
The second extension allows for multiple files to be read as part of the same
timeset (e.g. domain decomposed files). This feature takes the form of a tag
(<X:Y>) appended to the filename. The value of "X" is the number of files in the
timeset and "Y" is the sprintf() format string on the integer (%d) formatting
options) for expanding an integer argument into a string. For example, if a dataset
consists of the following files:
Times 0-10 Times 11-15
foo.e.03.00 foo.e-s0002.03.00
foo.e.03.01 foo.e-s0002.03.01
foo.e.03.02 foo.e-s0002.03.02
Where the "foo.e.*" files contain timesteps 0 through 10 and the "foo.e-s0002.*"
files contain timesteps 11 through 15. Also, each timeset is spatially decomposed
into 3 subfiles, which each contain some portion of the dataset for the given
timesteps. For this dataset, use the file pattern "foo.*.03.<3:%0.2d>" to tell
EnSight there are multiple timesets and to generate the filenames for each timeset
by replacing the "<..>" substring with a number from 0 to 2 as generated using
sprintf() and "%0.2d". Note that the "<...>" marker must be the last part of the
filename. The ‘*’ will wildcard the timeset number and the “<...>” specifies the
spatial decomposition.
When using SoS casefiles, the servers will automatically distribute the subfiles
over all of the specified servers. There can be no more servers than the number of
sub-files however (but fewer servers are legal and in most cases, recommended).
Finally, if there are sub-files, the number and the naming convention must be the
same over all timesets.
Autodetection of
Spatially and
Temporally
Decomposed
Datasets
The Exodus reader includes a ‘Autodetect Spatial Decomp’ option. In the
‘MultiExodusII’ reader, this option is off by default, but in the ‘MultiExodusIIng’
reader, it is enabled by default. When using this option, simply select one of the
files in the dataset and EnSight will attempt to figure out the spatial and temporal
decomposition scheme by parsing the filename and scanning the directory.
If your dataset naming conventions follow the example above, this option is a
2.3 EXODUS II Gold Reader
EnSight 9 User Manual 2-51
much simpler way of opening the entire dataset. In the previous example, the user
need only select to load the file ‘foo.e.03.00’ to load the entire dataset. For must
users who follow the general filenaming guidelines, it is strongly suggested they
use the ‘MultiExodusIIng’ reader (and its dataset autodetection scheme) to load
their decompoased data.
The “autodetection” scheme parses the name, looking for a trailing .X.Y scheme,
where X and Y are zero padded integers, to detect that the file is spatially
decomposed. If the name does not end in this form, it is assumed that the dataset is
not spatially decomposed. The scheme also parses the filename looking for the
string ‘.e’ and checks the current directory for other files in the same directory that
have other text between the ‘.e’ and the spatial ‘.X.Y’ (if it exists). If multiple files
are found (checked using patial chunk 0), then the autodetection assumes that the
dataset is temporally decomposed as well. The reader will load all of the Exodus
II files matching the autotected scheme as a single temporal and/or spatially
decomposed dataset.
Note that the option effectively prevents you from being able to open an
individual Exodus temporal or spatial “chunk”, but for most situations, that is not
an issue.
Environmental
variables
The following Environmental variables can be se to modify the behavior of the
Exodus reader. Many of these are available as well in the reader dialog. When
you choose Exodus reader, under the format options tab, will be a number of
options for controlling the reader behavior. The advantage of setting the
Environmental variables is that you can control the default behavior.
ENSIGHT_EXODUS_SCALE - set to a scaling factor (default 1.0)
ENSIGHT_EPSILON - set to a temporal epsilon (default 1.0)
ENSIGHT_EXODUS_DF (or EXODUS_DF) - if nonzero, support distribution
factors (off by default)
ENSIGHT_EXODUS_NO_SIDESETS - if nonzero, disable sideset support
(enabled by default)
ENSIGHT_EXODUS_NO_NODESETS - if nonzero, disable nodeset support
(enabled by default)
ENSIGHT_EXODUS_VERBOSE - if nonzero, enable verbose mode (off by
default)
ENSIGHT_EXODUS_USE_NODEMAPS - if nonzero, use node maps (default
true)
ENSIGHT_EXODUS_USE_HIGHERORDERELEMENTS - if non-zero, read
element order will be presered in EnSight. if zero, return first order elements for
higher order elements in the file (e.g. convert a HEX20 into a HEX08). (default
true)
ENSIGHT_EXODUS_IGNORE_CONSTANTS - if non-zero, constant variables
will not be read (default false)
ENSIGHT_EXODUS_CHECK_NANS - if non-zero, all read floats will be
checked for IEEE nans and set to zero if nan.
ENSIGHT_EXODUS_CLIP_TIMESTEP_OVERLAP - if non-zero, when
2.3 EXODUS II Gold Reader
2-52 EnSight 9 User Manual
multiple timesets result in overlapping time ranges, the ones in the first file read
are dropped.
ENSIGHT_EXODUS_AUTODETECT_DECOMP - if set and the filename
passed ended in the numbering scheme used in spatial decomposition of the form
.XX.00 the reader will convert the filename to the brace form: .XX.<XX:%0.2d>.
This allows the user to select the first file in the decomposition and have the
proper template automatically generated.
ENSIGHT_EXODUS_USE_UNDEF_VALUE - if non-zero (the default), the
reader will return the server 'Undefined' float value when a variable is not defined
on a part. if set to 0, the value returned is actually 0.0 (this is the behavior for the
reader prior to 2.72).
ENSIGHT_EXODUS_NO_ELEMENT_ATTRS - if non-zero, the reader will not
attempt to read/use any element attribute variables.
ENSIGHT_EXODUS_USE_FULL_NAMES - By default, this option is set off
(0) and names are "reduced" to the original 19 character limits. If this option is
enabled (non-zero), the limit is updated to the current EnSight limit of 49
characters.
ENSIGHT_EXODUS_USE_DTA_FILE - By defualt, if there is a .dta file present,
the reader will pass its contents on the to the client. If this is set to 0, .dta files will
be ignored.
ENSIGHT_EXODUS_AUTOGEN_DTA - if non-zero, and there is no .dta file, a
"stub" .dta file will be automatically generated and passed to the client. This is
disabled by default.
Names file format The .names file can be used to name parts in a Exodus file. Note that the names for
these files are generated by clipping off the input Exodus filename at the
rightmost '.' and adding the suffix ".materials" or ".names". External part names
and materials files have the same syntax.
* File containing block, sideset, nodeset names
* ---------------------------------------------
* (Must have the same root as the .exo file, and reside in the same
* directory, and have a .names extension)
*
* Note: 1. Comments have a # in first column of the line.
*
* 2. Three types of sections (must be exactly as indicated):
*
* blocks
* sidesets
* nodesets
*
* (Presence of any of the sections is optional - for example,
* if you only have blocks, you don't need the sidesets or
* nodesets sections.)
*
* 3. There must be a number, white space, then name
* on lines within the sections.
*
* numbers must be 1-based (relates to the block number)
*
* names must be a single token - no spaces (Underscores or
2.3 EXODUS II Gold Reader
EnSight 9 User Manual 2-53
* dashes are okay.)
*
* 4. Line length must be less than 80 chars - which should be
* plenty since EnSight truncates names at 49 chars.
*
* Thus, general format is:
*
* blocks
* 1 name_for_block_1
* 2 name_for_block_2
* . .
* . .
* . .
* n name_for_block_n
* sidesets
* 1 name_for_sideset_1
* 2 name_for_sideset_2
* . .
* . .
* . .
* m name_for_sideset_m
* nodesets
* 1 name_for_nodeset_1
* 2 name_for_nodeset_2
* . .
* . .
* . .
* p name_for_nodeset_p
*
*
* Here is an Example:
* -------------------
* blocks
* 1 Strongback
* 2 bolt_1
* 3 bolt_2
* 4 bolt_3
* 5 nut_1
* 6 nut_2
* 7 nut_3
* 8 Tab
* 9 screw_1
* 10 screw_2
* 11 screw_3
* 12 Block
* sidesets
* 1 Strongback_end
* 2 Strongback_front
* 3 Strongback_back
* nodesets
* 1 Tab_nodes
For the previous example, the files would be named "foo.1_03.names" and
"foo.1_03.materials". Only one .names and one .materials file is required.
See the following file for current information on this reader.
$CEI_HOME/ensight92/src/readers/exodus_gold/README.exodus
Data Reader
Simple Interface
Data Load
Load your geometry/results file (typically named with suffix .ex, or .ex2, or .exo)
using the Simple Interface method.
Advanced Interface
Data Load
Load your geometry/results file (typically named with suffix .ex, or .ex2, or .exo)
2.3 EXODUS II Gold Reader
2-54 EnSight 9 User Manual
using the Advanced Interface method.
Data Tab
Format Use the MultiExodusII or MultiExodusIIng format.
Set exo Select the geometry/results file (typically .ex, or .ex2, or .exo)
and click this button. If there are multiple Exodus files in the
solution set, you may enter a filename with wildcard characters,
for example, "mydata*.exo2" or "mydata1?.exo2"
Format Options Tab
Set measured Select the measured file and click this button.
Extra GUI
Parameters
These toggles and fields below are customized for the Exodus
reader.
Use
Distribution
Factors
If nonzero, use support distribution factors (off by
default). Node sets and side sets in Exodus can
have distribution factor weights associated with
them. If this option is set, these distribution factors
will be read by EnSight as additional scalar
variables on the node or side set parts. If the
Environment Variable ENSIGHT_EXODUS_DF
(or EXODUS_DF) is set, then the reader will use it
to set the default value.
2.3 EXODUS II Gold Reader
EnSight 9 User Manual 2-55
Ignore Side
Sets
If nonzero, disable sideset support (enabled by
default). If the Environment Variable
ENSIGHT_EXODUS_NO_SIDESETS is set then
the reader will use it to set the default value.
Ignore Node
Sets
If nonzero, disable nodeset support (enabled by
default). If the Environment Variable
ENSIGHT_EXODUS_NO_NODESETS is set then
the reader will use it to set the default value.
Use Node
and Element
Maps
If nonzero, use node maps (default true). Exodus
files may contain element and nodal labels, referred
to as nodemaps. If this option is set, EnSight will
use the labels in the Exodus files. There is no
guarantee (particularly when using spatially
decomposed Exodus files) that these numbers are
unique over all the nodes and elements. If this
option is not set, EnSight will ignore the labels in
the Exodus file and use an internal numbering
scheme guaranteed to generate unique node and
element labels.
If the Environment Variable
ENSIGHT_EXODUS_USE_NODEMAPS is set
then the reader will use it to set the default value.
Verbose
Mode
If nonzero, enable verbose mode (off by default).
See the console for the verbose output. If the
Environment Variable
ENSIGHT_EXODUS_VERBOSE is set then the
reader will use it to set the default value.
Use higher-
order
elements
Higher order elements will be preserved and not
down converted to simpler elements.
Ignore
constant
variables
Does not load single-value variables (called
Constants in EnSight).
NaN filter
input data
Check all floats for validity.
Clip
overlapping
timesteps
Restarts datasets that overlap in time use the later
datasets to construct the timeline
Autodetect
spatial
decomp
Automatically recognize all the files using one of
the files.
Use Undef
value for
missing vars
Use EnSight’s Undef value to indicate missing
variables
Ignore
element
attribute vars
Do not read/use element attribute variables.
2.3 EXODUS II Gold Reader
2-56 EnSight 9 User Manual
(see How To Read Data)
Use detected
DTA XML file
Use a specific XML formatted file to name parts
and assign attributes
Auto generate
DTA XML file
Auto generate this XML file and use it for part
naming.
Use full object
names
Long variable names.
Epsilon Set to a temporal epsilon (default 1.0). This number
is used to adjust non-monotonically increasing
solution times. If the reader detects consecutive
solution times (as floats) that do not progress
forward in time, the later solution time value will
be set to the earlier time plus this value. Note: this
can have a cascading effect shifting other solution
times later as well. This feature is generally useful
when the solution times in the Exodus II file are all
the same value. If the Environment Variable
ENSIGHT_EPSILON is set, then the reader will
use it to set the default value.
Scale Factor Set to a scaling factor (default 1.0). This number is
multiplied by each of the x, y, and z geometry
coordinates in order to scale the geometry. If the
Environment Variable
ENSIGHT_EXODUS_SCALE is set, then the
reader will use it to set the default value.
2.3 FAST UNSTRUCTURED Reader
EnSight 9 User Manual 2-57
FAST UNSTRUCTURED Reader
Overview
FAST UNSTRUCTURED is a format containing triangle and/or tetrahedron
elements. The triangles have tags indicating a grouping for specific purposes.
EnSight will read the unstructured single zone grid format for this data type,
placing all tetrahedral elements into the first Part, and the various triangle element
groupings into their own Parts.
Simple Interface
Data Load
Load your grid file using the Simple Interface method.
Advanced Interface
Data Load
Load your grid and solution files using the Advanced Interface method.
Part Loader The FAST UNSTRUCTURED reader uses a simplified Part Loader as follows:
(see How To Read Data)
Data Tab
Format Use the FAST Unstructured format.
Set grid Select the grid file and click this button. This is the FAST
UNSTRUCTURED single zone grid file. Defines the geometry
as unstructured triangles and/or tetrahedrons.
Set solution Select the solution file and click this button. The Results file
can either be a Modified Result file which utilizes a modified
EnSight results file format, or can be variable files (optional)
which are either a PLOT3D solution file (Q-file) or FAST
function file with I = number of points and J=K=1. The
modified EnSight results file provides access to multiple
solution files that are produced by time dependent simulations.
FAST UNSTRUCTURED data can have changing geometry.
When this is the case, the changing geometry file names are
contained in the results file. However, it is still necessary to
specify an initial geometry file name.
WARNING: Do not use your solution file (e.g. file.q) here. You
must create a special results file to handle FAST variable files.
Format Options Tab
Set measured Select the measured file and click this button.
• All Parts: all parts are loaded to the client in the
default visual representation (typically 3D
Border, 2D Full).
• Part 1 Only: Only the first part is loaded to the
client in the default visual representation. The
other parts will have the NonVisual
representation.
• All But Part 1: All parts other than part 1 are
loaded to the client in the default visual
representation. Part 1 will be NonVisual.
• No Parts: No parts are loaded to the client (i.e.the
representation of all parts is set to NonVisual).
2.3 FIDAP NEUTRAL Reader
2-58 EnSight 9 User Manual
FIDAP NEUTRAL Reader
Overview
A FIDAP Neutral file contains all of the necessary geometry and result
information for use with EnSight.
A neutral file is produced by a separate procedure defined in the FIDAP
documentation. If the data is time dependent this information is also defined here.
Simple Interface
Data Load
Load your geometry/results file (typically named with a suffix
.fdneut
) using the
Simple Interface method.
Advanced Interface
Data Load
Load your geometry/results file (typically named with a suffix
.fdneut
) using the
Advanced Interface method.
Part Loader The FIDAP reader uses a simplified Part Loader as follows:
(see How To Read Data)
Data Tab
Format Use the FIDAP Neutral format.
Set geometry Select the geometry/results file (typically .fdneut) and click
this button
Format Options Tab
Set measured Select the measured file and click this button.
• All Parts: all parts are loaded to the client in the
default visual representation (typically 3D
Border, 2D Full).
• Part 1 Only: Only the first part is loaded to the
client in the default visual representation. The
other parts will have the NonVisual
representation.
• All But Part 1: All parts other than part 1 are
loaded to the client in the default visual
representation. Part 1 will be NonVisual.
• No Parts: No parts are loaded to the client (i.e.the
representation of all parts is set to NonVisual).
2.3 FLOW3D-MULTIBLOCK Reader
EnSight 9 User Manual 2-59
FLOW3D-MULTIBLOCK Reader
Overview
This EnSight reader uses the FLSGRF READER API LIBRARY from
FlowScience in order to read data from a FLOW3D "flsgrf" output data file,
which ends in
.dat
or in
.fgz
if compressed in their API.
Requirements The FLSGRF API requires that the user have write permissions in the directory
where the flsgrf file resides.
THE FLSGRF API is only available for Windows 32-bit, 64-bit, Linux 32-bit, and
Linux 64-bit platforms.
The FLSGRF API is for FLOW3D version 9.2, however the FLSGRF API should
read flsgrf files written by older versions of FLOW3D.
Data Types There are several kinds of data available in a FLOW3D flsgrf output file, each
with it’s own EnSight timeset: Restart, Selected, Fixed, and Particle data.
Restart data By default, there are 11 restart timesteps per solution: t=0 and an additional ten
each spaced at 1/10th of the total simulation time. The user can change this
frequency in FLOW3D using the plotting interval (PLTDT) in the PREPIN input
file.
Selected data This consists of selected variables output at a higher number of timesteps. Restart
and selected data can both be available in the data file.
Fixed time group This data does not change over time. It consists of simulation parameters such as
binary flags used to activate physical models as well as mesh data.
Particle data If particles are present in the simulation they will be present in the Restart data. If
the user requests particle information in the Selected data (from their project file
where anmtyp(i)='part') then particle information will also be available in the
Selected data timesets.
Particle data is not imported into EnSight by default. To import this data, Choose
the Multipart Flow3d reader then click on the Format Options Tab and select the
type of Particle data that you wish to import.
Geometry is STATIC in EnSight unless Particle data is imported and then the
geometry is CHANGING CONNECTIVITY because the number of particles can
change with each timestep.
Technical notes All block part variable data is cell-based (per element data). All particle variable
data is node-based (per node data).
To visualize the fluid in the block try creating an isosurface of the Fluid Fraction
using an isosurface value of 0.51. Now to see the surrounding structure, make
another isosurface with a value of 0.51 using the Cell_Volume_Fraction_Fixed
variable. Click on the paint can icon and change your shading to smooth to
improve the isosurface look. To see the fluid as an isovolume, File>command and
type in ‘test: simple_isovolume_off’ then make an isovolume from 0.5001 to 1.0
using the Fluid Fraction and again change it’s shading to smooth.
To see detailed information about variables, blocks, boundary conditions, etc.
choose Console Output Debug as described below.
This reader makes use of Timesets. Each of the variable types has it's own
Timeset timeline and EnSight merges them all together. For details on using these
2.3 FLOW3D-MULTIBLOCK Reader
2-60 EnSight 9 User Manual
timesets see the advanced section of the Change Time Steps in the How To
Manual.
Ghost cells Ghost cells are invisible elements that help EnSight to interpolate variable values.
For example, Ghost cells between blocks allow for a smooth transition of the
isosurface of the fluid surface at part block boundaries. Ghosts that are not used
have a zero value for the variable, and must be removed: removal of ghosts at a
symmetry surface allows for smooth mirroring of the part(s).
Updated info
$CEI_HOME/ensight92/src/readers/multi_flow3d/README.txt
Simple Interface
Data Load
Load your Flow3d file (typically named
flsgrf.dat
) using the Simple Interface
method.
Advanced Interface
Data Load
Load your Flow3d file (typically named
flsgrf.dat
) using the Advanced Interface
method.
Table 1:
Data Tab
Format Use the Flow3d-Multiblock format.
Set flsgrf This field should be an flsgrf file.
Format Options Tab
Format
Options
Rename
Var iab les
Variables are renamed by default to be easier to interpret for
Flow3D users.
2.3 FLOW3D-MULTIBLOCK Reader
EnSight 9 User Manual 2-61
Include
Symmetry
Ghosts
Flow3d includes the following boundary conditions:
symmetry, wall, continuative, periodic, specified pressure,
specified velocity, grid overlay, outflow and interblock.
Ghost elements are always included in periodic, specified
pressure, and inter-block boundary conditions. Ghosts are
always removed for continuative, specified velocity, grid
overlay and outflow boundary conditions. Ghosts are optional
for symmetry and wall boundary conditions.
By default, symmetry ghosts are removed so that mirroring in
EnSight has no seam.
However toggling ON this flag will include the symmetry
ghosts for example for inviscid flow using the symmetry
condition to simulate a wall.
Include Wall
Ghosts
Flow3d includes the following boundary conditions:
symmetry, wall, continuative, periodic, specified pressure,
specified velocity, grid overlay, outflow and interblock.
Ghosts are always included in periodic, specified pressure, and
inter-block boundary conditions. Ghosts are always removed
for continuative, specified velocity, grid overlay and outflow
boundary conditions. Ghosts are optional for symmetry and
wall boundary conditions.
By default, wall ghosts are removed so that the EnSight fluid/
wall interface does not show up using the isosurface of the
fluid fraction.
However toggling ON this flag will cause the fluid/wall
interface to show up using the isosurface of the fluid fraction.
Particle Data By default, particle data is not read into EnSight. Toggle this
ON to read in the Particle data.
Console
Output
Use this flag to determine the amount of output to the console.
Normal - Usually only echo errors to console.
Verbose - Normal output plus an echo of every Fluent part
that is in the dataset, whether it is interior or not, whether it is
skipped, what variables are defined for which parts, and to
echo it's Ensight Part number.
Debug - Verbose output plus more detailed output and
progress through the reader routines often valuable for
understanding and reporting problems. Also detailed block
information, variable information, boundary condition
information, and timeset information
Table 1:
2.3 FLOW3D-MULTIBLOCK Reader
2-62 EnSight 9 User Manual
(see How To Read Data)
Treat Ghosts Ghost elements are invisible elements that help EnSight to
interpolate variable values. Ghosts can be read in as Ghost
cells, as normal (visible) cells, or they can be not read in at all.
1. Ghosts - include invisible ghost elements according to the
Flow3d boundary conditions (default) and user settings.
2. None - Use NO ghost elements. This will especially be
apparent in the gaps in the isosurface between data blocks due
to the lack of these invisible interpolating elements.
3. Normal - Use ALL ghost elements as NORMAL, visible
elements. This is useful for understanding boundary
conditions around part blocks.
Set measured Select the measured file and click this button.
Table 1:
2.3 FLUENT Direct Reader
EnSight 9 User Manual 2-63
FLUENT Direct Reader
Overview
There are three methods to get Fluent data into EnSight. The first is to use the
current Fluent reader. This loads a Fluent Case (.cas) file and data (.dat) file. The
second method to get data into EnSight is to use Fluent’s EnSight Case Gold
Export option and read it directly into EnSight using the Case reader.The last
method is a little-used legacy reader for Fluent Universal file and is described
later under the FLUENT UNIVERSAL Reader.
See the following files for current information on the Fluent direct reader.
$CEI_HOME/ensight92/src/readers/fluent/README.txt
The comments that follow are for the current Fluent reader. The reader loads
ASCII, binary single precision, or binary double precision. The files can be
uncompressed or compressed using gzip. Note also, this reader is used to load
AIRPAK/ICEPAK .fdat data files (see AIRPAK/ICEPAK Reader) and .cdat (‘lite’
data file, or ‘extra CFD variables’ file).
Simple Interface
Data Load
Load your geometry file (typically named with a suffix
.cas
) using the Simple
Interface method.
Advanced Interface
Data Load
Load your geometry and result files (typically named with a suffix
.cas and .dat
)
using the Advanced Interface method.
Data Tab
Format To use this reader, select the Fluent format.
Set cas Select the geometry file (typically .cas or .cas.gz) and click
this button. For transient data, use *.cas or *.cas.gz. For the
old Fluent reader the asterisk must replace a 4-digit number.
Set dat Select the results file (typically .dat or .dat.gz), and click this
button. For transient data, use *.dat or *.dat.gz . Note that
.cdat files (‘lite’ dat file, or an ‘extra CFD variables’ file) are
also useable in place of the .dat file. Finally .fdat files (see
Airpak / Icepak reader) are also useable in place of the .dat
file. Because the .dat file is the automatic selection, if a .dat
file is colocated with a .cdat or a .fdat file, the user will have to
manually select the .cdat or .fdat file and then click on the Set
dat button to use these .dat file variants.
Format Options Tab
Set measured Select the measured file (typically a .mea suffix) and click this
button. If you have fluent particle data you can translate it into
EnSight’s measured data format and import the particles as
measured data.
2.3 FLUENT Direct Reader
2-64 EnSight 9 User Manual
Other
Options
using the
current
Fluent reader
Load Internal
Parts
Toggle this ON to load the Fluent Internal Parts. This will
show all the the internal walls forming all the cell volumes. If
you do toggle this on, then it is recommended that you click on
the 'Choose Parts' button at the bottom of the data reader
dialog, rather than 'Load all', as you'll only want to load the
interior parts of interest to save memory and time. Default is
OFF.
Use Meta
Files
Meta files are small summary files that contain highlights of
the important locations inside each of the Fluent files.
Allowing the EnSight reader to write out Meta Files that map
the locations of important data can provide a significant speed
up the next time you access that timestep. It is recommended
that you leave this toggle ON. If you have write permission in
the directory where your data is located, three types of binary
Meta Files will be written when you first access each file, with
extensions .EFC for the cas file, .EFD for the .dat file and
.EFG for the time-history data. They are optional, and if you
don't have write permission, the reader will take the extra time
to read the entire .CAS and .DAT file to find the relevant data
each time you come back to that timestep.
Load _M1
_M2 vars
Variables that end in '_M1' and '_M2' occur in Fluent unsteady
flow. They represent the value of the variable at the prior
iteration time and the time prior to that respectively. By
default this toggle is OFF and these variables are not loaded.
Toggle this ON to load these variables.
Load all cell
types
Fluent cells have a boundary condition flag. By default
(toggle OFF) EnSight loads only the cells with a boundary
condition flag equal to 1 (one). Toggle this option ON to load
all cells with a non-zero boundary condition. For example, if
you have a part with cells of boundary condition 32 (inactive),
EnSight will, by default not load this part. Toggle this option
ON and EnSight will load this part. Note: parts containing
cells with a boundary condition of zero are never loaded.
2.3 FLUENT Direct Reader
EnSight 9 User Manual 2-65
Poly to
Regular Cell
Fluent polyhedral cells when composed of the correct kind and
number of regular faces can be converted to regular cells
(tetrahedrons, hexahedrons, pyramids, or wedges) boosting
EnSight speed and decreasing memory requirements. Toggle
ON and reader checks each polyhedron to see if it can be
converted to a regular cell (default) and OFF to not convert
any polyhedral cells. There is very little slowdown during the
read to do this and a big payoff for some datasets with large
numbers of convertible polyhedra. Leave it on.
Poly faced
Hex to Poly
Fluent hex cells that transition to a more refined hex mesh will
sometimes have one or more of the quad4 faces subdivided
into four quad4 faces. For example a hexahedral cell with one
transition face will have the six full faces, and four subdivided
faces for a total of 10 faces. Toggle ON and the the
subdivided faces are kept rather than the full face and the cell
is changed into a polyhedral which will slow down EnSight
performance, and greatly increase memory. The polyhedral
also will have hanging nodes (see the next toggle). Toggle
OFF (default) to convert the hex element to a six-sided hex
which will be adjacent to four smaller cells rather than
completely connected to them slowing down EnSight’s
adjacency searching. The default is thought to be the lesser of
two evils.
Fix Hanging
Nodes
Some Fluent polyhedral cells and all transition hex cells
converted to polyhedrals will have hanging nodes. A hanging
node not shared by at least 3 faces. A polyhedral element with
hanging nodes is not water tight and can cause real problems
in EnSight, so it is best to leave this toggle ON (default) and
only turn it OFF for experimental purposes.
Console
Output
Use this flag to determine the amount of output to the console.
Normal - Usually only echo errors to console.
Verbose - Normal output plus an echo of every Fluent part
that is in the dataset, whether it is interior or not, whether it is
skipped, what variables are defined for which parts, and to
echo it's Ensight Part number.
Debug - Verbose output plus more detailed output and
progress through the reader routines often valuable for
understanding and reporting problems.
Time Values Default is 'Calc Const Delta', to read a delta time from one file
and calculate the time values from that. If you choose 'Read
Time Values' then the reader will open each file and find the
exact time value. This will be stored in the EFG file if you've
not disabled Meta Files. Finally, the simplest is to 'Use File
Steps' which will just use the file step number as the time
value. This is quick, but is not a good idea if you need real
time for anything such as particle tracing.
2.3 FLUENT Direct Reader
2-66 EnSight 9 User Manual
Node and Elem IDs Parts have node and element ids to enable querying your data. Node ids are
created from the coordinate global node. Element ids are created as follows. Face
part elements are uniquely numbered according to their zone index. Cell part
elements are uniquely numbered using their zone index added to the total number
of faces. So a dataset with 100 face elements and 300 cell elements would have
the face elements number 1-100 and the cell elements numbered 101-400. In
Verbose mode, the element id range for each part are written to the console.
Variable Location Variables that are cell-centered remain where they are found in the .dat file, that is
the reader does not interpolate the cell-centered variables to the nodes. Fluent can
export variable data to EnSight’s Case Gold format at either the nodes (default) or
at the elements (same as .dat file). Unfortunately older versions of Fluent export
variables averaged to the nodes leading to flow into and out of walls which causes
particles to stop prematurely and skews mass flow calculations. Later versions of
Fluent consider boundary conditions prior to averaging the data to the nodes,
yielding a much more realistic representation of the physics.
Variables
Undefined
Not all variables exist on all parts. If you select a part and color by a variable and
get undefined, then load the data using Verbose mode and take a look at the
console. Your variable is probably not defined for this part The EnSight reader
does not currently extrapolate data from the cells to faces. Create a clip on the
location of an interior part on a volume part if you want to see a plane with the
values from the volume.
Variable Names Many variables that formerly were named improperly have been fixed. However
if you see a variable that is not named properly, send the variable number and
what it should be named to support@ensight.com and we will ask Fluent the
proper name and fix it.
Extra Variables EnSight will try to calculate extra CFD variables given the existing DAT variables
for your convenience.
CAS Constants Extra CAS Single Value Variables - A number of single value variables are read
from the CAS file(s). These will show up in the EnSight Calculator named as
follows.
'PRESSURE_ABS' - operating pressure (absolute)
'PRESSURE_ABS_INIT'- initial operating pressure (absolute)
'GAMMA_REF' - reference gamma, ratio of specific heats
'VISCOSITY_REF' - reference viscosity
'TEMPERATURE_REF' - reference temperature
'PRESSURE_REF' - reference pressure
'DENSITY_REF' - reference density
'SPEED_SOUND_FAR' - far field speed of sound
'PRESSURE_FAR' - far field relative pressure
'DENSITY_FAR' - far field density
'R_ref' - Calculated reference gas constant = PRESSURE_ABS /
(DENSITY_REF * TEMPERATURE_REF)
'V_def' - Calculated default velocity magnitude from x, y and z-velocity default
values
'M_def' - Calculated from V_def / SPEED_SOUND_FAR
2.3 FLUENT Direct Reader
EnSight 9 User Manual 2-67
UDS, UDM
Variables
UDM and UDS variables now read in as UDM_0, UDM_1, UDM_2... and
UDS_0, UDS_1, .... Fluent differentiates between UDS (User defined scalar) and
UDM (user defined memory) as follows.
A UDS is a scalar variable for which a transport equation can be solved (e.g.
transport of a red color from an injection nozzle into the volume; convective
terms, diffusive terms,..) The single terms of this transport equation are
programmed via UDF (user defined functions) in C and are run time libraries.
A UDM is a node-based value which also is calculated using a UDF (e.g.viscosity
against local temperature and density). For UDMs transport equations are not
solved. Thus they require less memory compared to UDS.
UDMs and UDSs are available for additional physics which are not available in
Fluent (for example one can use a UDM for the calculation of dust concentration
in filter elements.
Polyhedral
elements
There are two methods to import polyhedral elements into EnSight. The first is to
try using the direct reader. This has the advantage that the direct reader will
attempt to convert polyhedral elements back to regular elements, saving memory
and speeding up EnSight. The second is to export EnSight Case Gold from
Fluent. Case Gold has the advantage of currently supporting automatic Server of
Server decomposition, which can distribute the many tasks to multiple servers and
speed up post processing.
Periodic elements The reader now supports rotational symmetry to provide continous boundaries.
Particles Included with EnSight is a Fluent particle file translator to translate the Fluent
.part
file into an EnSight measured (
.mea
) data file. To get help with this
translator, type
$CEI_HOME/ensight92/machines/$CEI_ARCH/flupart -h
where $CEI_ARCH is your hardware/OS architecture (e.g. linux_2.6_64 or
apple_10.5, win32, etc.).
Source code and README for this translator are located
$CEI_HOME/ensight92/translators/fluent/Particles/
This measured data file is entered in the the measured data field under the Format
Options tab of the data reader dialog.
(see How To Read Data)
2.3 FLUENT UNIVERSAL Reader
2-68 EnSight 9 User Manual
FLUENT UNIVERSAL Reader
Reader Visibility
Flag
This is not the preferred reader for Fluent data. Therefore, by default, this reader is
not loaded into the list of available readers. The preferred reader for Fluent data is
the Fluent Direct Reader. If you have Universal file data, you can enable this
reader as follows: go into the Menu, Edit > Preferences and click on Data and
toggle on the reader visibility flag.
The FLUENT Universal file contains all of the necessary geometry and result
information for use with EnSight for a steady-state case. If the case is transient,
EnSight needs a Universal file for each time step of the analysis and a modified
version of the EnSight results file.
Simple Interface
Data Load
Load your geometry/results file (typically named with a suffix
.univ or .fluniv
)
using the Simple Interface method.
Advanced Interface
Data Load
Load your geometry/results file (typically named with a suffix
.univ or .fluniv
)
using the Advanced Interface method.
Part Loader The Fluent Universal reader uses a simplified Part Loader as follows:
(see How To Read Data)
Data Tab
Format Use the Fluent Universal format.
Set universal Select the universal file (typically .univ or .fluniv) and click
this button
Format Options Tab
Set measured Select the measured file and click this button.
• All Parts: all parts are loaded to the client in the
default visual representation (typically 3D
Border, 2D Full).
• Part 1 Only: Only the first part is loaded to the
client in the default visual representation. The
other parts will have the NonVisual
representation.
• All But Part 1: All parts other than part 1 are
loaded to the client in the default visual
representation. Part 1 will be NonVisual.
• No Parts: No parts are loaded to the client (i.e.the
representation of all parts is set to NonVisual).
2.3 Inventor Reader
EnSight 9 User Manual 2-69
Inventor Reader
Overview
Reads inventor (.iv) datasets for which there is a one-to-one correspondence in
Part, coordinate index, geometry index and element record. That is, there is one
set of coordinates, one geometry, one set of elements per inventor node. To read
in one inventor file, enter the .iv filename.
To read in multiple .iv files us a Case Inventor file (.civ). The user has the option
in the reader Format Options Tab to toggle off one part per file option (default on).
The .civ file is an ASCII file with the number of files on the first line, and the
filenames on the remaining. The filenames must be in quotes, and if they don't
include the path, the .civ file must be in the directory where the files are located. A
'.civ' filename cannot be in a '.civ' file: only '.iv' filenames are allowed.
Example Format:
numfiles: 2
"filename1.iv"
"filename2.iv"
For more info, see
$CEI_HOME/ensight92/src/readers/inventor
Data Reader
Main Menu > File > Data (reader)...
The File Selection dialog is used to specify which files you wish to read.
Access: Main Menu > File > Data (Reader)...
Simple Interface
Data Load
Load your geometry/results file (typically named with a suffix
.iv
or
.civ
) using
the Simple Interface method.
Advanced Interface
Data Load
Load your geometry/results file (typically named with a suffix
.iv
or
.civ
) using
the Advanced Interface method.
Data Tab
Format Use the Inventor format.
Set .iv file Select the inventor file (typically .iv or .civ) and click this
button
Format Options Tab
One Part per
file
Makes one part out of each file.
2.3 Inventor Reader
2-70 EnSight 9 User Manual
(see How To Read Data).
Console
Output
Use this flag to determine the amount of output to the console.
Normal - Usually only echo errors echoed to console.
Verbose - Normal plus high level output describing dataset and
progress while reading
Debug - Detailed output and progress through the reader
routines often valuable for understanding and reporting
problems.
Set measured Select the measured file and click this button.
2.3 LS-DYNA Reader
EnSight 9 User Manual 2-71
LS-DYNA Reader
Overview
The LS-DYNA reader reads in a single or multiple unstructured C-binary d3plot files.
It supports bars, quads, bricks and thick shell elements.
Key File for Part
Naming
Can use of Key file to name parts as follows:
a. Works only if Material IDs are in the d3plot file
b. Put key file name into Params field
c. Looks for *PART keyword in keyfile
d. '$' in first column is a comment in keyfile
e. First non-comment line after *PART is used as partname if alpha or digit
f. Second non-comment line after *PART, 3rd integer is Material ID
g. If Mat'l ID in d3plot matches Mat'l ID in keyfile partname from key file is
substituted for Material ID in EnSight name.
Limitations The reader has the following limitations.
Doesn't support PACKED data (3 integers per word)
Skips over Smooth Particle Hydrodynamics Node data
Skips over Rigid Road Surface Data.
Skips over Computational Fluid Dynamics Data.
Does not read in LS-DYNA time-history plots
Coordinate System: Global vs. Local: Beam stresses and strains are always
output in the local r,s,t system. Per LSTC manual, stresses and strains of the other
elements are generally in the global system. However, shells & thick shells have
an option to output in local system (see LS-DYNA 960 keyword users manual
page 9.18. flag CMPFLG). The reader has no way of knowing whether stresses
and strains are output in the global or local system and just shows the values
contained in the files.
See the following file for current information on this reader.
$CEI_HOME/ensight92/src/readers/ls-dyna3d/README
2.3 LS-DYNA Reader
2-72 EnSight 9 User Manual
Data Reader
Simple Interface
Data Load
Load your d3plot file using the Simple Interface method.
Advanced Interface
Data Load
Load your d3plot file using the Advanced Interface method.
(see How To Read Data)
Data Tab
Format Use the LS-DYNA3D format.
Set d3plot This field should have the first d3plot file name. All of the
d3plot files will be loaded starting with this first one
Set key This field can be used to import parameters that modify the
behavior of the reader, or the Extra GUI section can be used to
choose which ids to use for naming and to name the keyfile
respectively.
keyfilename - Type the keyfile name into this field
-mid - use material id in keyfile to name parts in d3plot file.
-pid - use part id in keyfile to name parts in d3plot file.
example:
file.key -mid
This will use the material ids in keyfile named file.key to name
parts.
Format Options Tab
Set measured Select the measured file and click this button.
Format
Options
The following options are customized for the reader:
Remove Failed Elems - Toggle on to remove failed elements
Keyfile IDs - This pulldown provides the choice of either
Material IDs or Part IDs from the keyfile to be used for part
naming. Alternatively, the ID can be specified in the (Set)
Params field as described above.
Console Output - Can control amount of output that comes to
the console. Options are: Normal, Verbose, or Debug
ASCII File Inpt - Can input glstat, abstat, matsum, rcforc,
rwforc, nodout, secforc, sleout, elout xy ascii files.
2.3 Movie.BYU Reader
EnSight 9 User Manual 2-73
Movie.BYU Reader
Reader Visibility
Flag
By default, this reader is not loaded into the list of available readers. To enable
this reader go into the Menu, Edit > Preferences and click on Data and toggle on
the reader visibility flag.
Overview
Movie.BYU has a general n-sided polygon data format. In translating this format
to the element-based EnSight data format, not all elements possible in the
Movie.BYU format can be converted to EnSight format. However, for most
practical cases there are no problems.
Movie.BYU data can have changing geometry. When this is the case, the
changing geometry file name patterns are found in the results file. However, it is
still necessary to specify an initial geometry file name in the (Set) Geometry field.
Simple Interface
Data Load
Load your geometry file (typically named with a suffix
.geo
) using the Simple
Interface method.
Advanced Interface
Data Load
Load your geometry and result files (typically named with a suffix
.geo and .res
)
using the Advanced Interface method.
Part Loader The reader uses a simplified Part Loader as follows:
(see How To Read Data)
Data Tab
Format Use the Movie BYU format.
Set geometry Select the geometry file (typically .geo) and click this button
Set results Select the results file (typically .res), and click this button.
Format Options Tab
Set measured Select the measured file and click this button.
• All Parts: all parts are loaded to the client in the
default visual representation (typically 3D
Border, 2D Full).
• Part 1 Only: Only the first part is loaded to the
client in the default visual representation. The
other parts will have the NonVisual
representation.
• All But Part 1: All parts other than part 1 are
loaded to the client in the default visual
representation. Part 1 will be NonVisual.
• No Parts: No parts are loaded to the client (i.e.the
representation of all parts is set to NonVisual).
2.3 MPGS 4.1 Reader
2-74 EnSight 9 User Manual
MPGS 4.1 Reader
Reader Visibility
Flag
MPGS is considered a legacy format. Therefore, by default, this reader is not
loaded into the list of available readers. To enable this reader go into the Menu,
Edit > Preferences and click on Data and toggle on the reader visibility flag.
Overview
MPGS4.x uses a general n-sided polygon, n-faced polyhedral data format. In
going from this format to the specific element data format of EnSight, you
encounter the problem associated with translating from a general format to a
specific format. Not all elements possible in MPGS4.x can be converted to
EnSight format. However, there will not be a problem in most situations.
MPGS4.x models of modest size can be read directly into EnSight. Size can
become an issue since the amount of memory needed to do the conversion in
EnSight to the internal data format in a reasonable length of time can become
excessive for large models.
MPGS4.x data can have changing geometry. When this is the case, the changing
geometry file name patterns are contained in the results file. However, it is still
necessary to specify an initial geometry file name in the (Set) Geometry field.
Simple Interface
Data Load
Load your geometry file (typically named with a suffix
.geo
) using the Simple
Interface method.
Advanced Interface
Data Load
Load your geometry and result files (typically named with a suffix
.geo and .res
)
using the Advanced Interface method.
Part Loader The MPGS reader uses a simplified Part Loader as follows:
(see How To Read Data)
Data Tab
Format Use the MPGS 4.1 format.
Set geometry Select the geometry file (typically .geo) and click this button.
The MPGS Geometry file defines all geometric model Parts in a
general n-sided polygon format.
Set results Select the results file (typically .res), and click this button.
Format Options Tab
Set measured Select the measured file and click this button.
• All Parts: all parts are loaded to the client in the
default visual representation (typically 3D
Border, 2D Full).
• Part 1 Only: Only the first part is loaded to the
client in the default visual representation. The
other parts will have the NonVisual
representation.
• All But Part 1: All parts other than part 1 are
loaded to the client in the default visual
representation. Part 1 will be NonVisual.
• No Parts: No parts are loaded to the client (i.e.the
representation of all parts is set to NonVisual).
2.3 MSC.DYTRAN Reader
EnSight 9 User Manual 2-75
MSC.DYTRAN Reader
Overview
Reads archive files ".ARC" directly, a modified case file, or a .dat file (which is
the preferred method).
See the following file for current information on this reader.
$CEI_HOME/ensight92/src/readers/dytran/README
Simple Interface
Data Load
Load your dytran file (typically named with a suffix
.dat or .arc
) using the Simple
Interface method.
Advanced Interface
Data Load
Load your dytran file (typically named with a suffix
.dat or .arc
) using the
Advanced Interface method.
(see How To Read Data)
Data Tab
Format Use the MSC/Dytran format.
Set dytran This field should have the .dat or .arc suffix. Selecting any one
file will read only that file. Inserting wild card characters, such
as '*' and '?', will cause all files of a set to be read. For
example, if I enter CONTAINER_EUL_*.ARC, the program
will matches the pattern to all the files below.
Format Options Tab
Set measured Select the measured file and click this button.
2.3 MSC.MARC Reader
2-76 EnSight 9 User Manual
MSC.MARC Reader
Overview
Reads a t16 or t19 file (which is the preferred method).
See the following file for current information on this reader.
$CEI_HOME/ensight92/src/readers/marc/README
Simple Interface
Data Load
Load your marc file (typically named with a suffix
.t16 or .t19
) using the Simple
Interface method.
Advanced Interface
Data Load
Load your marc file (typically named with a suffix
.t16 or .t19
) using the
Advanced Interface method.
Features 1. Can read both t16 binary result files and t19 formatted result files
2. Supports most analysis types (structural, thermal, magnetic, etc.)
3. Supports results for nodes (scalar / vector) and gauss-points (scalar, vector and
tensor). Gauss point results are extrapolated to nodes and averaged at the nodes.
4. Handles remeshing (global and local) and element activation / de-activation.
Table 2:
Data Tab
Format Use the MSC.Marc format.
Set t16/t19 This field should have the .t16 or .t19 suffix file.
Format Options Tab
Format
Options
Analysis data: Transient, Modal, Buckling. Please choose the
type of data to be read. The "Transient" option supports any
time-dependent result types (static, quasi-static and transient).
Gauss to node extrapolation: Shape functions. Currently only
one choice.
Averaging method: Average over all elements. Currently only
one choice.
Set measured Select the measured file and click this button.
2.3 MSC.MARC Reader
EnSight 9 User Manual 2-77
5. Can read results for DMP runs: If the main result file is selected, all domains
are imported. Domain result files can be selected individually
6. Can read static / transient results, modal results and buckling results.
7. Works on all Marc versions from Marc 2000 up to 2005r2.
8. Little-endian and Big-endian results are handled transparently. A message "Not
a native format file. May not work correctly!" will appear if the reader suspects it
is not in the native machine format, and automatic conversion will start.
9. For Buckling and Modal results, a variable called "Load_Factor" or
"Frequency" is created respectively that gives the mode frequency or buckling
load factor.
10. Ensight does not support the ability for the time to move backwards as the
Arc-length methods will make happen. When the reader detects time that moves
backwards at any point in the results file, the times will be reset to be 0., 1., 2. etc.,
and an extra variable "Time" will be created that contains the actual time.
11. Reader supplies Stress as a Tensor (when available in the data)
a. To calculate Principal Stress, use EnSight's TensorEigenvalue calculator
function
b. To calculate VonMises Stress, use EnSight's TensorVonMises calc function
Limitations 1. Cannot read pre Marc 2000 results.
2. Rigid contact bodies and their results are not read.
3. Flow line data is not used.
4. Springs and Tyings are not used.
5. Only time-dependent results (static and / or transient), modal or buckling
results can be read at a time. If more than one of these exist in a single result file,
only the one selected on the options form will be read.
6. No Mentat sets (or Patran groups) are imported.
7. The t19 (formatted) results files read much slower than t16 (binary) result files.
It is faster to convert a t19 file to t16 (by using the "pldump2000" executable that
is always installed with Marc) than read t19 files directly in Ensight.
(see How To Read Data)
2.3 MSC.NASTRAN Reader
2-78 EnSight 9 User Manual
MSC.NASTRAN Reader
Overview
Reads .op2 suffix files including most PDA Patran (PARAM POST = -1) and
SDRC I-DEAS (PARAM POST = -2) files.
Limitations a) Binary format only. (If you need to read ASCII, convert using the Nastran
utility that will do this.)
b) Some non-linear and composite element types have not yet been implemented.
Recent
Enhancements
1. Extra GUI options were added to allow the user control over part creation and
variable extraction.
2. Location and displacement coordinate systems are now recognized and applied.
3. Multiple op2 files can be read by the reader, and thus will appear in the same
EnSight case. This is controlled by a simple ascii file (.mop file).
The format of the .mop file is:
----------------------------------
line 1: The word mop, in quotes
line 2: The number of files
line 3 and up: Each op2 filename, in quotes
example:
----------
mop
3
“boom.op2”
“bucket.op2”
“hframe_side.op2”
NOTE: The .mop file extension has been added to the Nastran reader section
of the ensight_reader_extension.map file (in site_preferences).
4. Rigid Body euler parameters are being read and passed to EnSight. (EnSight
has also been modified to apply these rigid body parameters to the geometry
and vector variables.) The specification of the rigid body file and the
registration of which parameters apply to what - is also done in the .mop
format.
The format of the .mop file, with rigid body information as well, is:
----------------------------------------------------------------------------
line 1: The word mop, in quotes
line 2: The number of files
line 3 and up: Each op2 filename, the euler parameter filename, the title of the
rigid body transformation in the euler parameter file that apply to
this .op2 file, and a unit conversion scale factor (if needed). All
on one line per file, and all in quotes.
example:
----------
mop
3
“boom.op2” “rigid.eet” “BOOM” “1000.0”
“bucket.op2” “rigid.eet” “BUCKET” “1000.0”
2.3 MSC.NASTRAN Reader
EnSight 9 User Manual 2-79
“hframe_side.op2” “motion.eet” “HFRAME” “1000.0”
NOTE: Since an euler parameter file contains the transformation information
for many different “parts”, the same file will generally be indicated for each
.op2 file. However, this can be a different file for each .op2 file.
Also, the last column is not required - but is provided in the case that unit
conversion is needed between the .op2 system and the euler parameter system.
In our example, the .op2 system was in millimeters, while the translations
values in the euler parameter file were given in meters.
NOTE: If there is an additional offset to the CG that is needed (other than that
specified in the euler parameter file), these offsets can also be placed in the
.mop file. Simply add three more columns containing the x, y, z offsets, like the
following:
example:
----------
mop
3
“boom.op2” “rigid.eet” “BOOM” “1000.0” “883.7” “207.4” “0.0”
“bucket.op2” “rigid.eet” “BUCKET” “1000.0” “-10.5” “67.2” “7.89”
“hframe_side.op2” “rigid.eet” “HFRAME” “1000.0” “367.5” “-12.45” “0.0”
5. You can also add a rotation order and yaw, pitch, and roll values on each of the
file lines if the coordinate system needs to be re-oriented. These additional
columns follow the same format as those in the EnSight Rigid Body (.erb) file.
(see Section 11.13, EnSight Rigid Body File Format)
6. The reader deals with timelines and needed interpolations between them.
Generally, EnSight readers need only provide data at the given timesteps of a
model. EnSight takes care of getting both ends of a time span and interpolating
between them if needed. However, if rigid body motion is provided, the
controlling timeline will be the rigid body timeline. Thus, for a given rigid
body timestep, we may fall between timesteps for the nastran model. This
reader can interpolate properly for this situation.
Also, if not using rigid body, but are using multiple files - with different
timelines - a combined timeline will be created and sent to EnSight. This also
can require interpolation within the different files - and this is handled as well.
7. How variables are handled has been completely redone. The old reader simply
presented the values of whatever was in the file. This lead to many different
variables, depending especially on which element types were used. It also did
not assure that some of the standard variables were available.
This reader now presents a standard list of the component and principal
stresses/strains, and the useful failure theories. These values are obtained either
by reading them from the file (if provided), or computing them from the data
that is provided. We believe it is It is much more friendly and useful!.
8. Because of the way that element variable values now may lead to nodal
variables - requiring averaging, and because the way data is stored in a .op2 file
is not always conducive to being used efficiently by EnSight - various caching
schemes have been implemented to attempt to improve the efficiency of the
reader. Hopefully appropriate trade-offs between memory and speed have been
2.3 MSC.NASTRAN Reader
2-80 EnSight 9 User Manual
utilized. As such, it should be pointed out that one can color all parts by a
variable about as quickly as coloring only one.
9. Static models with multiple loadcases use the Solution Time dialog to switch
between loadcases. Thus, a “change of timestep” in EnSight will actually
change between loadcases.
NOTE: The preference within EnSight to have the C o lor P al et te u p da te at e a ch
time step is especially nice to have set for this situation.
README See the following file for current information on this reader.
$CEI_HOME/ensight92/src/readers/nastran/README.txt
Simple Interface
Data Load
Load your geometry/results file (typically named with a suffix
.op2
) using the
Simple Interface method.
Advanced Interface
Data Load
Load your geometry/results file (typically named with a suffix
.op2
) using the
Advanced Interface method.
Data Tab
Format Use the Nastran OP2 format.
Set op2 Enter the .op2 filename if reading a single NASTRAN .op2
file, or a .mop filename if reading multiple .op2 files. The
.mop file is an ASCII file listing .op2 filenames. See the
description above or the README file indicated above for
more details.
Format Options Tab
Set measured Select the measured file and click this button.
Extra GUI The following parameters are available. They are described
below.
2.3 MSC.NASTRAN Reader
EnSight 9 User Manual 2-81
Extra GUI
Parameters
The toggles and fields below are customized for the Nastran OP2 reader. They allow the
user to specify basic options before the data is read. They may not all apply to any given
model.
Include 1D
elements
Toggle on to include any 1D (bar, rod, etc.) elements.
Include 2D
elements
Toggle on to include any 2D (tri, quad, etc.) elements.
Include 3D
elements
Toggle on to include any 3D (tet, hex, etc.) elements.
Rigid Body
Timeline Controls
Toggle on to have the geometry timeline controlled by the rigid body times (if
present). If off, the flex body times in the .op2 file will control.
Convert Modal
Freq to Time
Toggle on to compute solution time from the “frequency” field in the file for eigen
analysis (default is on). The is done with Time = (sqrt(freguency))/(2*PI). Toggle
off to no perform this computation and instead read the “frequency” value as the
time.
Elem Var: This pulldown provides control over the way Nastran element values will be
presented as variables within EnSight.
Elem Var Type: This pulldown provides the choice of extracting either Strain or Stress from
Nastran element values.
GridPt Var Type: This pulldown provides the choice of extracting either Strain or Stress from
Nastran Grid Point values.
1D Bar loc: This pulldown provides the choice of where along the bar (EndA, EndB) or across
the cross-section (Pts 1-4), and what type of stress or strain to extract from
Nastran bar elements.
Centroidal produces per_elem variables from the value at each element centroid
Ave@Nodes produces per_node variables, by averaging all vertex values at a given
node
Max@Nodes produces per_node variables, by taking the maximum vertex value at a
given node
Min@Nodes produces per_node variables, by taking the minimum vertex value at a
given node
Axial
Bend, EndA, Pt1 Combined, EndA, Pt1
Bend, EndA, Pt2 Combined, EndA, Pt2
Bend, EndA, Pt3 Combined, EndA, Pt3
Bend, EndA, Pt4 Combined, EndA, Pt4
Bend, EndB, Pt1 Combined, EndB, Pt1
Bend, EndB, Pt2 Combined, EndB, Pt2
Bend, EndB, Pt3 Combined, EndB, Pt3
Bend, EndB, Pt4 Combined, EndB, Pt4
2.3 MSC.NASTRAN Reader
2-82 EnSight 9 User Manual
2D Shell Fibre: This pulldown provides the choice of which cross-sectional fibre (@Z1 or @Z2)
to extract from Nastran 2D Shell elements.
GridPt Surface loc: This pulldown provides the choice of which cross-sectional fibre (@Z1, @Z2, or
@MID) to extract from Nastran 2D Grid Point surfaces.
Part Creation: This pulldown provides part creation choices (which are most useful when a .mop
file is used to bring in multiple OP2 files together:
NX Nastran
Version:
This pulldown provides the user with some control over the changes that occured
in the element record length at NX Nastran version 4.0. This is needed because
there is not a good way to determine the version used from the .op2 file itself.
2D Composite ply: This field allows the user to specify from which ply number to extract values from
Nastran 2D composite elements
(see How To Read Data)
One Per File One part for each file will be created. If a single OP2 file is being
read, all elements will be placed in a single part. If multiple OP2 files
are being read, one part per file will be produced.
By Property id Parts will be created by property id. According to how property ids
were used in the OP2 file, this will generally create several parts per
file.
Attempt to Detect Attempts to divine the version number, but may not always work
correctly. If it can’t tell, will default to less than version 4.
Declare as >= 4.0 Declares the version to be 4.0 or greater, so doesn’t go through
the detection process.
2.3 Nastran Input Deck Reader
EnSight 9 User Manual 2-83
Nastran Input Deck Reader
Overview
Description This reader will load Nastran input deck or bulk data files (typically .nas, .bdf,
.dat). These files contain the geometry for a Nastran run.
Usefulness Being able to read this format allows for the display of the original Nastran
geometry for verification as well as for use with rigid body motion.
Usage The Nastran input deck reader can read in and individual .nas/.dat/.bdf file, or it
can read in an exec file so that more than one file can be included in the same
case.
Limitations The current reader does not deal with local coordinate systems and only
recognizes the following elements:
Simple Exec file
format
An exec file is used to read in multiple Nastran input deck files into one case. This
exec file is a very simple ascii file that must conform to the following:
1. All lines must begin in column 1
2. No blank or comment lines allowed
3. If the stl filenames begin with a "/", it will be treated as absolute path.
Otherwise, the path for the exec file will be prepended to the name given in the
file. (Thus, relative paths should work).
line 0: numfiles: N (where N is the no. of files)
[line 1: version #] (optional line containing the
version number)
next N lines: nasfilename1
. . .
. . .
nasfilenameN
Example Simple
Exec file (without
version number)
numfiles: 3
CASTLE.DAT
bincastle.bdf
test.nas
1D Elements 2D Elements 3D Elements
CBAR CTRIA CTETRA
CBEAM CTRIAR CPENTA
CROD CTRIA6 CHEXA
CGAP CTRIAX
CTUBE CTRIA6X
CVISC CQUAD
CONROD CQUAD4
PLOTEL CQUADR
RROD CQUAD8
RBAR CQUADX
CELAS1 CSHEAR
CELAS2
2.3 Nastran Input Deck Reader
2-84 EnSight 9 User Manual
Example Simple
Exec file (with
version number)
numfiles: 3
version 1.1
CASTLE.DAT
bincastle.bdf
test.nas
Rigid Body Motion
Exec file
The reader includes the capability to link each input deck file with a rigid body
transformation file to allow the parts in each file to rigidly translate and rotate over time.
The rigid body motion Exec file has additional columns that contain the Euler Parameter
filename (see Section 11.14, Euler Parameter File Format), the transformation title in the
Euler Parameter file, and a units scale factor. The rigid body version of this Exec file
requires quotes as shown around the strings and values of the file lines.
example:
numfiles: 3
"CASTLE.DAT" "motion.dat" "CASTLE" "1000.0"
"bincastle.bdf" "motion.dat" "BCASTLE" "1000.0"
"test.nas" "motion.dat" "TEST" "1000.0"
And if an additional offset is needed to the CG, add these in 3 more columns
example:
numfiles: 3
"CASTLE.DAT" "motion.dat" "CASTLE" "1000.0" "1.35" "2.66" "0.0"
"bincastle.bdf" "motion.dat" "BCASTLE" "1000.0" "-2.45" "1.0" "-2.0"
"test.nas" "motion.dat" "TEST" "1000.0" "60.2" "23.4" "0.0"
You can also add a rotation order and yaw, pitch, and roll values on each of the file lines if
the coordinate system needs to be re-oriented. These additional columns follow the same
format as those in the EnSight Rigid Body (.erb) file.
(see Section 11.13, EnSight Rigid Body File Format)
README See the following file for current information on this reader.
$CEI_HOME/ensight92/src/readers/nas_input/README.txt
Simple Interface
Data Load
Load your geometry file (typically named with a suffix
.nas, .bdf, or .dat
) using
the Simple Interface method.
Advanced Interface
Data Load
Load your geometry file (typically named with a suffix
.nas, .bdf, or .dat
) using
the Advanced Interface method.
(see How To Read Data)
Data Tab
Format Use the Nastran Input Deck format.
Set geometry Select the geometry file (typically .nas, .bdf, or .dat) and
click this button
Format Options Tab
Set measured Select the measured file and click this button.
2.3 N3S Reader
EnSight 9 User Manual 2-85
N3S Reader
Reader Visibility
Flag
By default, this reader is not loaded into the list of available readers. To enable
this reader go into the Menu, Edit > Preferences and click on Data and toggle on
the reader visibility flag.
Overview
Description N3S is a data format developed by Electricité de France (EDF) consisting of a
geometry file and a results file. For this data format, both files are always
required. Versions 3.0 and 3.1 are both supported.
When reading N3S data into EnSight, you extract Parts from the mesh
interactively based on different color numbers or boundary conditions. The
available color numbers and boundary conditions for the model are presented.
Simple Interface
Data Load
Load your geometry file (typically named with a suffix
.geo
) using the Simple
Interface method.
Advanced Interface
Data Load
Load your geometry and result files (typically named with a suffix
.geo and .res
)
using the Advanced Interface method.
N3S Part Creator dialog
You use the File Selection dialog to read in N3S dataset files. You use the N3S Part
Data Tab
Format Use the N3Sformat.
Set geometry Select the geometry file (typically .geo) and click this button
Set results Select the results file (typically .res), and click this button.
Format Options Tab
Set measured Select the measured file and click this button.
Figure 2-12
N3S Part Creator dialog
2.3 N3S Reader
2-86 EnSight 9 User Manual
Creator dialog to extract Parts from a N3S dataset.
Access: Main Menu > File > Data (Reader)...> N3S
Create N3S Parts By
All Elements Selection to create a Part using all of the elements available within the data file.
Color Number Selection to create a Part according to the color number associated with each element.
Boundary
Information
Selection to create a Part according to specified conditions and codes.
Condition Select boundary condition to use for Part creation.
Code Select Code to use for boundary condition.
Part Descript Specify name for Part.
Create Part Click to create a Part. The Part is listed in the main Parts list of the Parts & Frames dialog
and is displayed in the Main View window.
(see How To Read Data)
2.3 OpenFOAM Reader
EnSight 9 User Manual 2-87
OpenFOAM Reader
Overview
Description Reads OpenFOAM controlDict file found in modelname/system/controlDict.
Data Reader
Main Menu > File > Data (reader)...
The File Selection dialog is used to specify which file you wish to read.
Access: Main Menu > File > Data (Reader)...
Handles steady state geometry with either steady state or transient variables. Steady state
variables with multiple iterations will use each iteration as an EnSight timestep.
Not yet supported:
a. Changing coordinates or changing connectivity. Utilize the "foamToEnsight" translation
routine from OpenFOAM to convert the OpenFOAM data into EnSight Case Gold format.
b. Parallel files. Reconstruct the parallel files into a single, serial file using the
OpenFOAM utility 'reconstructPar' OpenFOAM.
c. Ongoing solution. The reader cannot handle newly available timesteps or iterations (for
example from an ongoing OpenFOAM solution) after the model has been read into
EnSight the first time. Should new iteration or timesteps become available after the model
was originally read into EnSight, the user must reload the dataset.
Command Line
Data Load
To automatically start EnSight and load the current directory’s OpenFOAM
dataset from the command line, type ‘ensight92 -Eensfoam’. This will trigger
EnSight to start up, look for the current directory’s “system/controlDict” file, and
automatically load the dataset into EnSight (using the default reader settings).
This reduces the number of steps to load the file into EnSight and thus the real
time required to load the data, and provides a level of integration with this data
format.
Sample Data A sample OpenFOAM dataset is included as a sample session with your install.
To access the welcome screen, at the top menu choose Window>Welcome To...
and load the Dam Break example session. Or, to load the same dataset manually,
find the controlDict file in $CEI_HOME/ensight/other_data/openfoam .
Simple Interface
Data Load
Load your OpenFOAM controlDict file using the Simple Interface method. Or
from the command line, simply run ensfoam.
Advanced Interface
Data Load
Load your OpenFOAM file using the Advanced Interface method.
Data Tab
Format Use the OpenFOAM format.
Set file This field contains the controlDict file. Clicking button inserts
the file name shown into the field.
Format Options Tab
Set measured Select the measured file and click this button.
2.3 OpenFOAM Reader
2-88 EnSight 9 User Manual
Other
Options
Include
ElemSet
Parts
Include any Element sets defined. These are sets of full
elements which are generally some logical subset of the total
number of elements. Default is on.
Include Face/
Edge Parts
Include any Face or Edge sets defined. These are some logical
set of particular faces and/or edges of full elements. Default is
on.
Include
NodeSet
Parts
Include any Node sets defined. These are generally the subset
of nodes needed for the Element, Face, or Edge sets above. As
such, they are generally not needed as separate parts, but can
be created if desired. Default is off.
Include local
elem res
comps (if
any)
Include the local stresses components, etc that are in the
elemen
Default is on
Include
Tensor
derived
(VonMises,
etc.)
For tensor results, calculate scalars from the tensors.
Default is off
Regular Part
Creation
Convention
Parts will be created according to the following:
Use Part Id - Part Id (this is the default)
Use Property Id - Property Id
Use Material Id - Material Id
2.3 OpenFOAM Reader
EnSight 9 User Manual 2-89
(see How To Read Data)
Var nam in g
convention
Use DataSource field - By default variables are named using
the variable filename. For example, "U" is velocity, "p" is
pressure, etc.
Use Content Field (if provided) - Known variables are given
full, meaningful names, for example, "Velocity" or "Pressure".
Use VKI dataset name - Long, hybrid variable name that is
guaranteed to be unique, but perhaps cryptic.
Element Vars
as
Single element values - Element results (whether centroidal or
element nodal) will be presented as a single value per element.
Thus will be per_elem variables in EnSight.This is the default.
Averaged to node values - Element results (whether centroidal
or element nodal) will be averaged to the nodes without using
geometry weighting. Thus will be per_node variables in
EnSight.
Geom weighted average to node values - Element results
(whether centroidal or element nodal) will be averaged to the
nodes using geometry weighting. Thus will be per_node
variables in EnSight
If Sections,
which:
Not used
Section Num Not used
2.3 OVERFLOW Reader
2-90 EnSight 9 User Manual
OVERFLOW Reader
Simple Interface
Data Load
Load your geometry file using the Simple Interface method.
Advanced Interface
Data Load
Load your geometry and result files using the Advanced Interface method.
Extra Information OVERFLOW reader extracts structured parts and iblanked unstructured parts
essentially the same way as PLOT3D, and as described in the basic structured
reader (see Reading and Loading Data Basics).
Additionally to successfully read OVERFLOW data, the following information
must be known about the data:
1. format - Fortran binary
2. whether single or multizone
3. dimension - 3D, 2D, or 1D
4. whether iblanked or not
Data Tab
Format Use the OVERFLOW format.
Set geometry Select the grid file (grid.in or single ‘x.’ file, e.g ‘x.14200’, see
details below) and click this button. This file is a structured
GRID file with FAST enhancements.
Set results Select the results file and click this button. The Results File is
either a modified EnSight Results file (q.res) or standard plot3d
Q-file (q.save or single ‘q.’ file, e.g. ‘q.14200’). The standard
plot3d Q-file is a variable file for a single timestep and is
optional.
The modified EnSight results file directs the reader to handle
multiple grid (x.) files and/or multiple variable (q.) files from
transient simulations. If using a .res file, then enter only the
first ‘x.’ file into the set geometry field, and the ‘.res’ into the
set results field.
Note: The Q-file(s) (and result file) may be located in a
different directory than the grid file.
Format Options Tab
Set bounds The optional boundary file defines boundary portions within
and/or across structured blocks. (Note: this can be EnSight’s
boundary file format or a .fvbnd file.)
Set measured Select the measured file and click this button.
2.3 OVERFLOW Reader
EnSight 9 User Manual 2-91
5. precision - single or double
EnSight attempts to determine these five settings automatically from the grid file.
The settings that were determined (for the first four) are shown in the Part Builder
dialog, where you can override them manually if needed. Note that OVERFLOW
data is restricted to only FORTRAN Binary format.
The precision setting is not reflected in the dialog, but is echoed in the Server shell
window. The q file precision will by default be set the same as that of the grid file.
In the rare case where the automatic detection is wrong for the grid file or the
precision is different for the q file than for the grid file, commands can be entered
into the Command dialog to manually set the precision.
test:
plot3d_grid_single
t
o read grid file as single precision
test:
plot3d_grid_double
to read grid file as double precision
test:
plot3d_qr_single
to read q (or function) file as single precision
test:
plot3d_qr_double
to read q (or function) file as double precision
Limitation In order to automatically recognize the data as Overflow, the files must have the
format ‘
x.
’ and ‘
q.
’ format (For example
x.14000
,
x.14200
,
q.14000
, and
q.14200
would be appropriate filenames).
Note that the overflow reader can read in transient geometry files but these files
must have the same number of zones (EnSight parts) at each timestep. Each zone
can change in size (changing connectivity), but the total number of zones must
remain constant throughout time.
Example .res file For example, if you have files
x.14400
to
x.16000
and
q.14400
to
q.16000
, then an
example
q.res
file would be as follows. Then, put
x.14400
into the set geometry
and
q.res
into set results field and you will have transient geometry and variables.
2 1 1
10
1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0
14400 200
x.*****
q.***** S 1 Density
q.***** S 5 Energy
q.***** S 2 3 4 Momentum
Figure 2-13
Part Data Loader (PLOT3D)
used for OVERFLOW
2.3 OVERFLOW Reader
2-92 EnSight 9 User Manual
OVERFLOW Q FIle
Variables The variables of the flow information read by the OVERFLOW reader basically
conforms to those read by the PLOT3D reader, and includes additional flow
constants as well as additional Q variables such as γ and possible turbulance field
and species densities variables.
The 'Constant Variables' include (where the first 4 are the standard PLOT3D
constants):
The 'Q-Field Scalars' include (where the first 4 are the standard PLOT3D Q-
variables):
FSMACH =freestream Mach number Minf
ALPHA =angle-of-attack α
RE =Reynolds number Re
TIME =iteration (file) number (in OVERFLOW; in PLOT3D, time
value)
GAMinf =freestream gamma γinf
BETA =sideslip angle β
Tinf =freestream temperature Tinf (in degrees Rankine)
IGAM =variable gamma option where:
0 = use constant γ value of GAMinf
1 = Single gas with variation of γ with temperature
computed using LT_A0-4, UT_A0-4 below
2 = Two gases, with variation of γ with temperature
computed using LT_A0-4, UT_A0-4 below all gas 1
below HT1, all gas 2 above HT2, linear mix in
between.
HTinf =freestream stagnation enthalpy h0*inf
RefMACH =reference mach number (Note: in OVERFLOW “restart”
files only)
Tvref =actual simulation time (Note: in OVERFLOW “restart”
files only)
DTvref =delta simulation time (Note: in OVERFLOW “restart”
files only)
RGAS1 =species gas constant 1
RGAS1_SMW =species gas constant 2
Density =Q1-field variable = dimensionless density, ρ*
Momentum =dimensionless momentum vector with:
Momentum[X] = Q2-field variable = x component of
Momentum ρ*u*
Momentum[Y] = Q3-field variable = y component of
Momentum ρ*v*
Momentum[Z] = Q4-field variable = z component of
Momentum ρ*w*
2.3 OVERFLOW Reader
EnSight 9 User Manual 2-93
Assigning
Analysis_Time
By default, the Analysis_Time constant variable value is assigned the time values
listed in the q.res file. (see Section 11.7, PLOT3D Results File Format). In order
to use the TIME (or Tvref - if using an OVERFLOW restart q.file) value located
in the header of the q-file(s), edit the q.res file:
a) change the total number of time steps to a negative value, and
b) remove the list of time values in the q.res file.
(see How To Read Data, and Section 11.7, PLOT3D Results File Format)
Energy =Q5-field variable = dimensionless total energy ρ*e0*
Gamma_Q6_field =Q6-field variable = gamma γ (constant field, unless you
use the gamma option of the code)
And for SA model:
Q7_field =Q7-field variable = turbulence variable
And for k-e model:
Q7_field, Q8_field =Q7-field and Q8-field variables which are the k and
epsilons
2.3 PLOT3D Reader
2-94 EnSight 9 User Manual
PLOT3D Reader
Example Source See the following directory for an example User-defined source code
implementation this reader.
$CEI_HOME/ensight92/src/readers/plot3d/
Simple Interface
Data Load
Load your geometry file using the Simple Interface method.
Advanced Interface
Data Load
Load your geometry and result files using the Advanced Interface method.
Extra Information PLOT3D reader extracts structured parts and iblanked unstructured parts
essentially the same way as described in the basic structured reader (see Reading
and Loading Data Basics).
Additionally to successfully read PLOT3D data, the following information must
be known about the data:
1. format - ASCII, C binary, or Fortran binary
2. whether single or multizone
3. dimension - 3D, 2D, or 1D
4. whether iblanked or not
5. precision - single or double
Data Tab
Format Use the PLOT3D format.
Set geometry Select the grid file and click this button. This file is a structured
GRID file with FAST enhancements.
Set results Select the results file and click this button. The Results File is
either a modified EnSight Results file or standard plot3d Q-file.
Variable files (optional) are solution (PLOT3D Q-files) or
function (FAST) files. The modified EnSight results file
provides access to multiple solution files that are produced by
time dependent simulations.
Format Options Tab
Set bounds The optional boundary file defines boundary portions within
and/or across structured blocks. (Note: this can be EnSight’s
boundary file format or a .fvbnd file.)
Set measured Select the measured file and click this button.
Figure 2-14
Part Data Loader (PLOT3D)
2.3 PLOT3D Reader
EnSight 9 User Manual 2-95
EnSight attempts to determine these five settings automatically from the grid file.
The settings that were determined (for the first four) are shown in the Part Builder
dialog, where you can override them manually if needed.
The precision setting is not reflected in the dialog, but is echoed in the Server shell
window. The q (or function) file precision will by default be set the same as that of
the grid file. In the rare case where the automatic detection is wrong for the grid
file or the precision is different for the q (or function) file than for the grid file,
commands can be entered into the Command dialog to manually set the precision.
test:
plot3d_grid_single
t
o read grid file as single precision
test:
plot3d_grid_double
to read grid file as double precision
test:
plot3d_qr_single
to read q (or function) file as single precision
test:
plot3d_qr_double
to read q (or function) file as double precision
Assigning
Analysis_Time
By default, the Analysis_Time constant variable value is assigned the time values
listed in the q.res file. (see Section 11.7, PLOT3D Results File Format). In order
to use the TIME value located in the header of the q-file(s), edit the q.res file:
a) change the total number of time steps to a negative value, and
b) remove the list of time values in the q.res file.
(see How To Read Data)
2.3 RADIOSS Reader
2-96 EnSight 9 User Manual
RADIOSS Reader
Overview
Description Reads Radioss 4.x ANIM files.
Data Reader
Main Menu > File > Data (reader)...
The File Selection dialog is used to specify which files you wish to read.
Access: Main Menu > File > Data (Reader)...
Simple Interface
Data Load
Load your radioss file using the Simple Interface method.
Advanced Interface
Data Load
Load your radioss file using the Advanced Interface method.
(see How To Read Data)
Data Tab
Format Use the RADIOSS_4.x format.
Set anim This field contains the first Radios file name in the series.
Clicking button inserts file name shown into the field. File
name can then be modified with an asterisk “*” or question
mark “??” to indicate the unique identifiers in the file series.
Format Options Tab
Set measured Select the measured file and click this button.
2.3 POLYFLOW Reader
EnSight 9 User Manual 2-97
POLYFLOW Reader
Overview
Description Reads Polyflow .msh and .res files.
Data Reader
Main Menu > File > Data (reader)...
The File Selection dialog is used to specify which files you wish to read.
Access: Main Menu > File > Data (Reader)...
Simple Interface
Data Load
Load your Polyflow file using the Simple Interface method.
Advanced Interface
Data Load
Load your Polyflow file using the Advanced Interface method.
Data Tab
Format Use the Polyflow format.
Set .msh This field contains the mesh file. Clicking button inserts .msh
file name shown into the field.
Set .res This field contains the result file.
Format Options Tab
Set measured Select the measured file and click this button.
Other
Options
Include
ElemSet
Parts
Include any Element sets defined. These are sets of full
elements which are generally some logical subset of the total
number of elements. Default is on.
2.3 POLYFLOW Reader
2-98 EnSight 9 User Manual
(see How To Read Data)
Include Face/
Edge Parts
Include any Face or Edge sets defined. These are some logical
set of particular faces and/or edges of full elements. Default is
on.
Include
NodeSet
Parts
Include any Node sets defined. These are generally the subset
of nodes needed for the Element, Face, or Edge sets above. As
such, they are generally not needed as separate parts, but can
be created if desired. Default is off.
Include local
elem res
comps (if
any)
Include the local stresses components, etc that are in the
elemen
Default is on
Include
Tensor
derived
(VonMises,
etc.)
For tensor results, calculate scalars from the tensors.
Default is off
Regular Part
Creation
Convention
Parts will be created according to the following:
Use Part Id - Part Id (this is the default)
Use Property Id - Property Id
Use Material Id - Material Id
Var nam in g
convention
Use Content Field (if provided) - Variable names will be what
is in the Content field, if provided. If not provided, they will
be the VKI dataset name. This is the default.
Use VKI dataset name - Variable names will be the VKI
variable dataset name (which are reasonably descriptive).
Element Vars
as
Single element values - Element results (whether centroidal or
element nodal) will be presented as a single value per element.
Thus will be per_elem variables in EnSight.This is the default.
Averaged to node values - Element results (whether centroidal
or element nodal) will be averaged to the nodes without using
geometry weighting. Thus will be per_node variables in
EnSight.
Geom weighted average to node values - Element results
(whether centroidal or element nodal) will be averaged to the
nodes using geometry weighting. Thus will be per_node
variables in EnSight
If Sections,
which:
Not used
Section Num Not used
2.3 SDRC Ideas Reader
EnSight 9 User Manual 2-99
SDRC Ideas Reader
Overview
Description Reads SDRC/Ideas Universal files in Ascii and Binary format. Select the .unv file
and select "SDRC/Ideas" in the format pulldown on the Advanced reader tab.
Data Reader
Main Menu > File > Data (reader)...
The File Selection dialog is used to specify which files you wish to read.
Access: Main Menu > File > Data (Reader)...
Simple Interface
Data Load
You cannot use the Simple Interface method to load your SDRC Ideas data
because the .unv extension is used by other formats.
Advanced Interface
Data Load
You must load your SDRC Ideas .unv file using the Advanced Interface method.
Data Tab
Format Use the SDRC Ideas format.
Set file This field contains the first file name. For the first file you
should choose a file with extension .unv. Clicking button
inserts file name shown into the field. Loading the .unv file
will load both geometry and results.
Format Options Tab
Set measured Select the measured file and click this button.
Other
Options
Include
ElemSet
Parts
Include any Element sets defined. These are sets of full
elements which are generally some logical subset of the total
number of elements. Default is on.
2.3 SDRC Ideas Reader
2-100 EnSight 9 User Manual
Include Face/
Edge Parts
Include any Face or Edge sets defined. These are some logical
set of particular faces and/or edges of full elements. Default is
on.
Include
NodeSet
Parts
Include any Node sets defined. These are generally the subset
of nodes needed for the Element, Face, or Edge sets above. As
such, they are generally not needed as separate parts, but can
be created if desired. Default is off.
Include local
elem res
comps (if
any)
Include the local stresses components, etc that are in the
element's local system.
A simple example is a bar (such as a truss element), which
only has tension or compression in the element's axial
orientation. Such an element would have an axial stress
variable.
Other elements would have appropriate result component
variables. Default is on
Include
Tensor
derived
(VonMises,
etc.)
For tensor results, calculate scalars from the following derived
results (principal stress/strains, and common failure theories):
Mean
VonMises
Octahedral
Intensity
Max Shear
Equal Direct
Min Principal
Mid Principal
Max Principal
By default, all 9 of these will be derived. You can control
which are created by this toggle, with an environment
variable. Namely,
setenv ENSIGHT_VKI_DERIVED_FROM_TENSOR_FLAG n
where n = 1for Mean only
2 for VonMises only
4 for Octahedral only
8 for Intensity only
16 for Max Shear only
32 for Equal Direct only
64 for Min Principal only
128 for Mid Principal only
256 for Max Principal only
512 for all
or any legal combination. example: for VonMises and Max
Shear only, use 18. Default is off
2.3 SDRC Ideas Reader
EnSight 9 User Manual 2-101
(see How To Read Data)
Regular Part
Creation
Convention
Parts will be created according to the following:
Use Part Id - Part Id (this is the default)
Use Property Id - Property Id
Use Material Id - Material Id
Var nam in g
convention
Use Content Field (if provided) - Variable names will be what
is in the Content field, if provided. If not provided, they will
be the VKI dataset name. This is the default.
Use VKI dataset nameVariable names will be the VKI variable
dataset name (which are reasonably descriptive).
Element Vars
as
Single element values - Element results (whether centroidal or
element nodal) will be presented as a single value per element.
Thus will be per_elem variables in EnSight.This is the default.
Averaged to node values - Element results (whether centroidal
or element nodal) will be averaged to the nodes without using
geometry weighting. Thus will be per_node variables in
EnSight.
Geom weighted average to node values - Element results
(whether centroidal or element nodal) will be averaged to the
nodes using geometry weighting. Thus will be per_node
variables in EnSight
If Sections,
which:
Which section will be used to create the variable
First - The first section will be used (this is the default)
Last - The last section will be used
Section Num (below) - The section number entered in the field
below will be used
Separate Vars per Section - A separate variable will be created
for each section.
Section Num If the previous option is chosen to be Section Num, then the
value in this field is the 1-based section number to use to
create the variable.
2.3 SILO Reader
2-102 EnSight 9 User Manual
SILO Reader
Overview
Description The Silo reader can read .silo files directly or can read them using a Casefile
which lists the geometry variable filenames, the timesteps and the constants all in
one ASCII file. The .silo file contains both the geometry and the results.
Library The Silo reader requires the Silo library version 4.2 or later. For information on
Silo please see the following website:
http://www.llnl.gov/bdiv/meshtv/software.html
SILO Casefile
format
The User Defined SILO Reader reads a restricted version of the EnSight Gold
ASCII casefile as described below.
1. FORMAT
type: - "silo" required
2. GEOMETRY
model:
3. VARIABLE
constant per case:
4. TIME (But only one of these!!!!)
number of steps: - required
time values: - required
# Use the following if transient and
# evenly spaced values
filename start number:
filename increment:
# Use the following if transient and
# list all values
filename numbers:
5. All commands and options must start in first
column. However, A space, newline, or # can
be used in first column to indicate a comment
line.
The following examples could be read by the user defined ensight gold reader
Example 1: A static model
-------------------------
FORMAT
type: silo
GEOMETRY
model: example1.silo
VARIABLE
constant per case: Density .5
TIME
number of steps: 1
time values: 0.0
2.3 SILO Reader
EnSight 9 User Manual 2-103
The following files would be needed for Example 1:
example1.silo
Example 2: A transient model
----------------------------
FORMAT
type: silo
GEOMETRY
model: example2.*.silo change_coords_only
VARIABLE
constant per case: Density .5
constant per case: Modifier 1.0 1.01 1.025 1.04
1.055
TIME
number of steps: 5
time values: .1 .2 .3 .4 .5
filename start number: 1
filename increment: 2
The following files would be needed for Example 2:
example2.1.silo
example2.3.silo
example2.5.silo
example2.7.silo
example2.9.silo
README See the following file for current information on this reader.
$CEI_HOME/ensight92/src/readers/silo/README.txt
Simple Interface
Data Load
Load your silo file (typically named with a suffix
.silo or .pdb or .case
) using the
Simple Interface method.
Advanced Interface
Data Load
Load your silo files (typically named with a suffix
.silo or .pdb or .case
) using the
Advanced Interface method.
(see How To Read Data)
Data Tab
Format Use the Silo format.
Set file This field should have the Silo Case file name or the .silo file.
Format Options Tab
Set measured Select the measured file and click this button.
2.3 STAR-CD and STAR-CCM+ Reader
2-104 EnSight 9 User Manual
STAR-CD and STAR-CCM+ Reader
Overview
Description This reader reads
.ccm
,
.ccmg
(static geometry),
.ccmp
(variable),
.ccmt
(transient
variable) data exported from STAR-CD version 4.x or STAR-CCM+.
Export Case Gold STAR-CD version 3.x, STAR-CD version 4.x and STAR-CCM+ all export the
native format of EnSight (EnSight Case Gold). Prostar exports to EnSight Case
Gold Format. Use the 'automatic' export found with the NavCenter to export all
parts and all primary variables. Use the Prostar command line to export separate
parts, and/or any variable or combination of calculated variables. Both Steady
State and Transient Models can be exported in a similar manner, with options of
"automatic", or user controlled. The Case Gold format is likely to be more
efficient, robust and faster in EnSight.
Read .sim file This reader does not support
.sim
files written by STAR-CCM+. The
.sim
file
should be translated using STAR-CCM+ into EnSight Case Gold.
Read Version 3 file This reader does not support output from STAR-CD version 3.x. This data should
be translated using Prostar into EnSight Case Gold.
Transient geometry This reader does not support transient geometry. Transient geometry data must be
exported to EnSight Case Gold.
Particle data (.trk) Particle data is contained in the
.trk
file, which was formerly a
File.33
file. The
EnSight install includes a source file which can be compiled and run to translate
the
.trk
(or
File.33
) file into EnSight’s measured data format, which can be
loaded together with the .ccm file (as described below), or the EnSight
.case
file
can be edited to include the measured file name and it will automatically load.
The source file to the translator is found in the following location:
$CEI_HOME/ensight92/translators/starcd_file33
There is a
README
that guides you through compiling and using the translator. If
you have difficulty with this, contact support@ensight.com and we will supply
you with a compiled version for your hardware/OS. If you are using the translator
and have a case gold format file, the translator will automatically edit the case file
so that input of the measured data is automatic when your case file is loaded into
EnSight. If you are using this reader and a
.ccm
file, then choose the EnSight 5
option and you will get a
.res
file that you can use to load in the measured data
field described below.
Data Reader
Main Menu > File > Data (reader)...
The File Selection dialog is used to specify which files you wish to read.
Access: Main Menu > File > Data (Reader)...
Simple Interface
Data Load
Load your
.ccm
file using the Simple Interface method.
2.3 STAR-CD and STAR-CCM+ Reader
EnSight 9 User Manual 2-105
Advanced Interface
Data Load
Load your STAR-CCM file using the Advanced Interface method.
Data Tab
Format Use the STAR-CD CCM format.
Set file This field contains the first file name. For the first file you
should choose the file with extension
.ccm
,
.ccmg
, or .
ccmp
.
Clicking button inserts file name shown into the field. The
.ccmg
file contains geometry only and the geometry must be
static. Loading a
.ccm
or
.ccmp
file will load both geometry and
results. .
Set .ccmt For a time varying variable data, set the
.ccmt
file using this
field. This is only transient variable data.
Format Options Tab
Set measured Select the measured file and click this button. This can be the
measured file obtained from the
File.33
or the
.trk
file using
the EnSight translator (see above).
Other
Options
Include
ElemSet
Parts
Include any Element sets defined. These are sets of full
elements which are generally some logical subset of the total
number of elements. Default is on.
Include Face/
Edge Parts
Include any Face or Edge sets defined. These are some logical
set of particular faces and/or edges of full elements. Default is
on.
Include
NodeSet
Parts
Include any Node sets defined. These are generally the subset
of nodes needed for the Element, Face, or Edge sets above. As
such, they are generally not needed as separate parts, but can
be created if desired. Default is off.
2.3 STAR-CD and STAR-CCM+ Reader
2-106 EnSight 9 User Manual
(see How To Read Data)
Include local
elem res
comps (if
any)
Include the local stresses components, etc that are in the
elemen
Default is on
Include
Tensor
derived
(VonMises,
etc.)
For tensor results, calculate scalars from the tensors.
Default is off
Regular Part
Creation
Convention
Parts will be created according to the following:
Use Part Id - Part Id (this is the default)
Use Property Id - Property Id
Use Material Id - Material Id
Var nam in g
convention
Use Content Field (if provided) - Variable names will be what
is in the Content field, if provided. If not provided, they will
be the VKI dataset name. This is the default.
Use VKI dataset name - Variable names will be the VKI
variable dataset name (which are reasonably descriptive).
Element Vars
as
Single element values - Element results (whether centroidal or
element nodal) will be presented as a single value per element.
Thus will be per_elem variables in EnSight.This is the default.
Averaged to node values - Element results (whether centroidal
or element nodal) will be averaged to the nodes without using
geometry weighting. Thus will be per_node variables in
EnSight.
Geom weighted average to node values - Element results
(whether centroidal or element nodal) will be averaged to the
nodes using geometry weighting. Thus will be per_node
variables in EnSight
If Sections,
which:
Not used
Section Num Not used
2.3 STL Reader
EnSight 9 User Manual 2-107
STL Reader
Overview
Description Reads .ccm files exported from STAR-CCM and STAR-CCM+.
Note: There is no longer an EnSight STL reader. this format is now read using the
CAD reader.
Overview
Description This reader will load STL files (either ASCII or binary). Note that STL files
consist only of surfaces (triangles) and have no associated variables.
Usefulness STL geometry format is widely compatible with a number of codes. Multiple STL
files geometries can be created to represent scenery or background, then read in
and scaled (using the -scaleg option) as a separate case to add to the presentation
of your existing model results in EnSight.
Usage The STL reader can read in an individual .stl file, or it can read in an exec file so
that more than one stl file can be included in the same case.
Limitations The current reader does not allow the coloring of each facet, nor does it allow
coloring of each part, and just skips over color statements in the file.
STL binary file
format
If the file is a binary STL (.stl) file, then it must contain exactly one part.
STL ASCII file
format
If the file is an ASCII STL (.stl) file, then it can contain one or multiple parts. If
you wish to read in multiple files
Single file multipart ASCII format is as follows:
solid part1
...
endsolid part1
solid part2
...
endsolid part2
Simple Exec file
format
An exec file (.xct) is used to read in multiple STL files into one case. Because
binary STL can contain only one part, if you wish to read in more than one binary
STL file into a single case, then you must use an exec file. ASCII STL files with
one or multiple parts can be read in to a single case using the exec file. An exec
file can read in binary and ASCII files together into a single case. This exec file is
a very simple ascii file that must conform to the following:
1. All lines must begin in column 1
2. No blank or comment lines allowed
3. If the stl filenames begin with a "/", it will be treated as absolute path.
Otherwise, the path for the exec file will be prepended to the name given in the
file. (Thus, relative paths should work).
line 0: numfiles: N (where N is the no. of files)
line 1-n: stlfilename1
. . .
. . .
stlfilenameN
2.3 STL Reader
2-108 EnSight 9 User Manual
Example Simple
Exec file
numfiles: 3
CASTLE.STL
bincastle.stl
test.slp
Rigid Body Motion
Exec file
Release 2.1 of the STL reader includes the added ability to link each STL part with a rigid
body transformation file to allow the STL part to rigidly translate and rotate over time.
The rigid body motion Exec file has additional columns that contain the Euler Parameter
filename (see Section 11.14, Euler Parameter File Format), the transformation title in the
Euler Parameter file, and a units scale factor (This is used to scale the translations, not the
geometry. Scaling of the geometry is accomplished in the Part Feature Detail Editor.). The
rigid body version of this Exec file requires quotes as shown around the strings and values
of the file lines.
example:
numfiles: 3
"CASTLE.STL" "motion.dat" "CASTLE" "1000.0"
"bincastle.stl" "motion.dat" "BCASTLE" "1000.0"
"test.slp" "motion.dat" "TEST" "1000.0"
And if an additional offset is needed to the CG, add these in 3 more columns
example:
numfiles: 3
"CASTLE.STL" "motion.dat" "CASTLE" "1000.0" "1.35" "2.66" "0.0"
"bincastle.stl" "motion.dat" "BCASTLE" "1000.0" "-2.45" "1.0" "-2.0"
"test.slp" "motion.dat" "TEST" "1000.0" "60.2" "23.4" "0.0"
You can also add a rotation order and yaw, pitch, and roll values on each of the file lines if
the coordinate system needs to be re-oriented. These additional columns follow the same
format as those in the EnSight Rigid Body (.erb) file.
(see Section 11.13, EnSight Rigid Body File Format)
README See the following file for current information on this reader.
$CEI_HOME/ensight92/src/readers/stl/README
Simple Interface
Data Load
Load your geometry file (typically named with a suffix
.stl or .xct
) using the
Simple Interface method.
Advanced Interface
Data Load
Load your geometry file (typically named with a suffix
.stl or .xct
) using the
Advanced Interface method.
Data Tab
Format Use the STL format.
Set geometry Select the geometry file (typically .stl or .xct) and click this
button
2.3 STL Reader
EnSight 9 User Manual 2-109
(see How To Read Data)
Set results As of version 8.0.7(h) this field is activated to allow flags to
change reader behavior. In order to truncate the float values
put in a tolerance value and the reader will retain only to the
designated significant digit. This can be used to eliminate
duplicate node problems due to roundoff error. Put in the
keyword
-tol 1e-3
to eliminate the fourth and smaller decimal point values in the
nodal coordinates during data file read. See the README file
for more details.
Format Options Tab
Set measured Select the measured file and click this button.
2.3 Tecplot Reader
2-110 EnSight 9 User Manual
Tecplot Reader
Overview
Description There are two Tecplot readers included with EnSight: Tecplot Binary and
Tecplot_ASCII which read binary and ASCII Tecplot data.
TECPLOT Binary
Reader Usage
The TECPLOT binary file format uses a Tecplot plt file.
Tecplot ASCII
Reader
A subset of the Tecplot 360 ASCII format is read using the Tecplot_ASCII reader.
In the format options tab of the data reader dialog, choose Debug to get extra
output to the console if EnSight fails to read your ASCII file.
README See the following directory for current information on these readers.
$CEI_HOME/ensight92/src/readers/tecplot/
Simple Interface
Data Load
Load your Tecplot file (typically named with a suffix
.plt or .plot or .dat
) using
the Simple Interface method.
Advanced Interface
Data Load
Load your Tecplot file (typically named with a suffix
.plt or .plot or .dat
) using
the Advanced Interface method.
Data Tab
Format Use the or Tecplot_ASCII, Tecplot Binary, or the legacy
TECPLOT 7.x format.
Set plot
(or dat)
This field should have the .dat file name for ASCII data and
the .plt name for binary data.
Format Options Tab
Set measured Select the measured file and click this button.
Tecplot
Binary Other
Options
2.3 Tecplot Reader
EnSight 9 User Manual 2-111
Include
ElemSet
Parts
Include any Element sets defined. These are sets of full
elements which are generally some logical subset of the total
number of elements. Default is on.
Include Face/
Edge Parts
Include any Face or Edge sets defined. These are some logical
set of particular faces and/or edges of full elements. Default is
on.
Include
NodeSet
Parts
Include any Node sets defined. These are generally the subset
of nodes needed for the Element, Face, or Edge sets above. As
such, they are generally not needed as separate parts, but can
be created if desired. Default is off.
Include local
elem res
comps (if
any)
Include the local stresses components, etc that are in the
element's local system.
A simple example is a bar (such as a truss element), which
only has tension or compression in the element's axial
orientation. Such an element would have an axial stress
variable.
Other elements would have appropriate result component
variables. Default is on
2.3 Tecplot Reader
2-112 EnSight 9 User Manual
Include
Tensor
derived
(VonMises,
etc.)
For tensor results, calculate scalars from the following derived
results (principal stress/strains, and common failure theories):
Mean
VonMises
Octahedral
Intensity
Max Shear
Equal Direct
Min Principal
Mid Principal
Max Principal
By default, all 9 of these will be derived. You can control
which are created by this toggle, with an environment
variable. Namely,
setenv ENSIGHT_VKI_DERIVED_FROM_TENSOR_FLAG n
where n = 1for Mean only
2 for VonMises only
4 for Octahedral only
8 for Intensity only
16 for Max Shear only
32 for Equal Direct only
64 for Min Principal only
128 for Mid Principal only
256 for Max Principal only
512 for all
or any legal combination. example: for VonMises and Max
Shear only, use 18. Default is off
Regular Part
Creation
Convention
Parts will be created according to the following:
Use Part Id - Part Id (this is the default)
Use Property Id - Property Id
Use Material Id - Material Id
Var nam in g
convention
Use Content Field (if provided) - Variable names will be what
is in the Content field, if provided. If not provided, they will
be the VKI dataset name. This is the default.
Use VKI dataset nameVariable names will be the VKI variable
dataset name (which are reasonably descriptive).
2.3 Tecplot Reader
EnSight 9 User Manual 2-113
(see How To Read Data)
Element Vars
as
Single element values - Element results (whether centroidal or
element nodal) will be presented as a single value per element.
Thus will be per_elem variables in EnSight.This is the default.
Averaged to node values - Element results (whether centroidal
or element nodal) will be averaged to the nodes without using
geometry weighting. Thus will be per_node variables in
EnSight.
Geom weighted average to node values - Element results
(whether centroidal or element nodal) will be averaged to the
nodes using geometry weighting. Thus will be per_node
variables in EnSight
If Sections,
which:
Which section will be used to create the variable
First - The first section will be used (this is the default)
Last - The last section will be used
Section Num (below) - The section number entered in the field
below will be used
Separate Vars per Section - A separate variable will be created
for each section.
Section Num If the previous option is chosen to be Section Num, then the
value in this field is the 1-based section number to use to
create the variable.
2.3 Vectis Reader
2-114 EnSight 9 User Manual
Vectis Reader
Overview
Reader Visibility
Flag
By default, this reader is not loaded into the list of available readers. To enable
this reader go into the Menu, Edit > Preferences and click on Data and toggle on
the reader visibility flag.
Reader vs.
Translator
This reader is designed for files written before Vectis 3.6. For versions 3.6 or later,
we recommend using the Ricardo v2e translator to convert the Vectis POST file to
the Ensight format (for more details, see our FAQ on our website
www.ensight.com/
FAQ/faq.0024.html
).
Pre-version 3.6
Description
This reader inputs either .TRI or .POS datasets as follows
Single TRI file - Gives the CAD geometry, but no variables (If you must see this
along with your POST data, will have to read it as a second case), for example,
CYLINDER.TRI
Single POST file WITH NO *'s in the name - Gives the geometry and variables in
the post file, including surface patches and particles.
Multiple POST files - Enter a filename WITH *'s in the name
Gives the geometry and variables in the post files, which match the asterisks in a
sequentially increasing pattern (starts at 1, increases by 1). Note: If your naming/
numbering scheme is different than this, we require you to rename/renumber.
ex1) CYLINDER.POS.** matches:
CYLINDER.POS.01 CYLINDER.POS.02 CYLINDER.POS.03
ex2) myfile***.pos matches:
myfile001.pos myfile002.pos
Query over time Query node over time operation within EnSight will only work for cell variables
on the cell part. Patch and drop variables will currently return all zeros.
Cell Variables You may request cell variables on patch or droplet parts. The cell variable will be
mapped onto them. BUT, be aware that any portions of the patches which are
actually in the "external" cells will have zero values, because VECTIS doesn't
contain that info directly. This leads to slightly "streaked" or "blotched" models
which basically show the variable, but are probably not presentation quality. In
order to eliminate this effect, neighboring cell information will need to be
accessed - and at this time that work has not been done. Consider using Ensight's
Offset Variable capability - it might be useful for certain models.
README See the following file for current information on this reader.
$CEI_HOME/ensight92/src/readers/vectis/README.txt
Simple Interface
Data Load
Load your Vectis file (typically named with a suffix
.TRI or .POS
) using the Simple
Interface method.
Advanced Interface
Data Load
Load your Vectis file (typically named with a suffix
.TRI or .POS
) using the
Advanced Interface method.
Data Tab
Format Use the Vectis format.
2.3 Vectis Reader
EnSight 9 User Manual 2-115
(see How To Read Data)
Set tri/pos Select the vectis file (typically .TRI or .POS) and click this
button. This field should written by a Vectis version earlier
than 3.6
Format Options Tab
Set measured Select the measured file and click this button.
2.3 XDMF Reader
2-116 EnSight 9 User Manual
XDMF Reader
Overview
Description Reads eXtensible Data Model and Format files (.xdmf files).
This reader is based on the xdmf library from:
pserver:anonymous@public.kitware.com:/cvsroot/Xdmf
The reader can handle all the element types in Xdmf except:
XDMF_MIXED
XDMF_POLYGON
Structured meshes are converted to unstructured form automatically by the reader.
The reader supports variables of type:
XDMF_ATTRIBUTE_TYPE_SCALAR
XDMF_ATTRIBUTE_TYPE_VECTOR
XDMF_ATTRIBUTE_TYPE_TENSOR
With centering:
XDMF_ATTRIBUTE_CENTER_CELL
XDMF_ATTRIBUTE_CENTER_NODE
The reader can handle 'Tree' grids. The reader does automatically decompose
datasets for server of server mode (SOS) based on 'Tree' grids. The various grid
blocks are distributed round-robin over the servers. Grids that are not 'Tree' grids
will all be read on the first server.
The reader allows the user to pass a filename using a wildcard (* or ?) to select a
collection of .xmf files. The reader assumes that each .xmf file contains a separate
timestep. Some checks are made to verify that each file has the same structure/
variables, but the checks are not complete. Likewise, some basic checks are made
for grids defined by reference. If all but one file has its grids geometry/topology
by reference, the reader will assume that they can be reused for other timesteps.
The reader can also be passed a file in the schema:
<?xml version="1.0" ?>
<Xdmf>
<Dataset>
<File Name=".xmf file" [Time="unknown"]/>
<Template Name="sprintf for .xmf files" [Start="1"] [Step="1"] [Count="1"]
[TimeStart="unknown"] [TimeStep="1.0"]/>
</Dataset>
</Xdmf>
This defines a collection of files by specific names. These can be via individual
names or via an sprintf() filename template and associated start, step and count
values. The file may also contain timestep values for each file (in the case of a
sprintf() template, the values are generated). Note: if a file has an <Information
Time=""/> element, that element will superceed the value specified here.
Simple Interface
Data Load
Load your geometry file (typically named with a suffix
.XDMF
) using the Simple
Interface method.
2.3 XDMF Reader
EnSight 9 User Manual 2-117
Advanced Interface
Data Load
Load your geometry and result files (typically named with a suffix
.XDM and .XDMF
)
using the Advanced Interface method.
(see How To Read Data)
Data Tab
Format Use the XDMF2 format.
Set xmf Select the geometry file (typically .XDMF) and click this
button
Format Options Tab
Ver bo se
mode
Provide more output to the console to track progress and
perhaps understand reader problems.
Enable Data
Freeing
Set measured Select the measured file and click this button.
2.4 Other External Data Sources
2-118 EnSight 9 User Manual
2.4 Other External Data Sources
External Translators
Translators supplied with the EnSight application enable you to use data files
from many popular engineering packages. These translators are found in the
translators directory on the EnSight distribution CD. (Installed translators reside
in the $CEI_HOME/ensight92/translators directory.) A README file is supplied
for each translator to help you understand the operation of each Particular
translator. These translators are not supported by CEI, but are supplied at no-cost
and as source files, where possible, to allow user modification and porting.
Exported from Analysis Codes
Several Analysis codes can export data in EnSight file formats. Examples of these
include Fluent, STAR-CD, CFX and others.
2.5 Command Files
EnSight 9 User Manual 2-119
2.5 Command Files
Command files contain EnSight command language as ASCII text that can be
examined and even edited. They can be saved starting at any point and ending at
any point during an EnSight session. They can be replayed at any point in an
EnSight session. However, some command sequences require a certain state to
exist, such as connection to the Server, the data read, or a Part created with a
Particular Part number.
There are a multitude of applications for command files in EnSight. They include
such things as being able to play back an entire EnSight session, easily returning
to a standard orientation, connecting to a specific host, creating Particle traces,
setting up a keyframe animation, etc. Anything that you will want to be able to
repeatedly do is a candidate for a command file. Further, if it is a task that you
frequently do, you can turn the command file into a macro (see To Use Macros
below).
Saving command
file
The command file which will repeat the entire current session can be saved from
the menu as follows: Main Menu> File > Save > Commands from this session...
This command file can then be replayed at startup of a new EnSight session and
will redo step by step each of the commands.
Documenting Bugs Command files are one of the best ways of documenting any bugs found in the
EnSight system. Hopefully that is a rare occasion, but if it occurs, a command file
provided to CEI will greatly facilitate the correction of the bug.
Nested Command
Files
Command files can be nested, which means that if you have a command file that
does a specific operation, you can play that command file from any other
command file, as long as any prerequisite requirements are completed. This is
done by adding the command
play: <filename>
in the command file.
Default Command
File
EnSight is always saving a command file referred to as the default command file
(unless the you have turned off this feature with a Client command line option).
This command file can be saved (and renamed) when exiting EnSight, as
described later in this section. The default command file is primarily intended to
be a crash recovery aid. If something unforeseen were to prematurely end your
EnSight session, you can recover to the last successfully completed command by
restarting EnSight and running the default command file. Saving the Default
Command File for EnSight Session
2.5 Command Files
2-120 EnSight 9 User Manual
Command dialog
You use the Command dialog to control the execution of EnSight command language. The
language can be entered by hand, or as is most often the case, played from a file. This
dialog also controls the recording of command files.
Access: Main Menu > File > Command...
Execution Tab
History In the History window, commands to be executed will be shown in black below the green
current line indicator. As commands are executed, they will be show in gray above the
current line. Many operations can be preformed on the commands in the History window
by highlighting commands and clicking the right mouse button to bring up an action
menu. From this menu you can:
“VCR” buttons
Figure 2-15
Command dialog - Execution tab
Breakpoint set a breakpoint which will stop command execution at the
selected command.
Disable disable the selected command(s).
Copy copy the selected command(s) to the system clipboard.
Write/append write the selected command(s) to a new file or append them to
an existing file.
Execute execute the selected command(s).
Goto move the current line pointer to the selected command (Press
play or step to resume execution at this command).
Stop Stops command file playing.
Play Starts playing a command file. If you haven’t provided a
command file name (see Load, below), a File Selection dialog
will open for you to Select or enter the file name. Command
play continues as long as there are commands in the file, an
interrupt: command has not been processed, and the Stop button
has not been pressed.
Single Step Executes only the current (next) command, indicated by the
green current line pointer.
2.5 Command Files
EnSight 9 User Manual 2-121
Skip Skips over the current (next) command, indicated by the green current line pointer.
Speed Use the Speed slider to control the speed of command file play.
Command Entry Commands can be typed into this field for execution. Type the command and press return.
Load The name of a command file to be executed can be typed into this field. Press return to
load the file.
Or, you can use the associated Browse button to browse for a command file. A File
Selection dialog will open. Select or enter the file name. The file will be loaded when you
click “Open”.
The “Cd” button associated with the Load field can be used to change Ensight’s current
directory to the directory of the loaded command file. This can be useful for playing
command files that contain path information that assumes you’re starting from the
command file’s directory.
Record Check Record to start recording commands. If you have not typed a record filename in the
text field provided, A File Selection dialog will open for you to Select or enter the file
name. When Record is checked, all actions in EnSight are recorded to the specified file.
As long as the record filename stays the same, the record button may be toggled on and off
at any time, appending more commands to the file. When a new record file is selected, any
existing commands in the file will be overwritten. You can browse for a new record file or
directory at any time by clicking the browse button associated with this field.
Record Part
Selection By
Use this radio button to select the method by which part selection will be recorded in the
command language either by Number (default) or by Name.
Delay Refresh When checked, this will cause the EnSight graphics window to refresh only after the
playfile processing has completed or has been interrupted by the user.
Macros Tab
<filename> This window displays the contents of the currently selected file in the Command files list
(see below).
Macros A three-column table that lists all of the currently defined keystroke macros.
Keystroke macros are defined in a text file, macro9.define. Macros can be defined at a site
or local level, with local macros overriding site macros that might be defined for the same
key. The macro9.define file (if any) that resides in the
%CEI_HOME%/ensight92/
site_preferences/macros
directory defines site-level macros, while the macro9.define file
Figure 2-16
Command dialog - Macros tab
2.5 Command Files
2-122 EnSight 9 User Manual
(if any) under the user’s EnSight Defaults directory (located at
%HOMEDRIVE%%HOMEPATH%\(username)\.ensight92 commonly located at
C:\Users\username\.ensight92 on Vista and Win7, C:\Documents and
Settings\yourusername\.ensight92 on older Windows, and ~/.ensight92 on Linux, and in ~/
Library/Application Support/EnSight92 on the Mac) will define that user’s local macros.
Any command files referenced by macros must be located in these directories as well.
In the Macros table, local macros are shown in black, site macros are shown in blue, and
local overrides of site macros are shown in red.
The table columns are:
The “Edit”, “Delete” and “New” buttons, below, operate on the macro selected in this
table.
Edit Opens The Edit Macro dialog. Change any of the values in this dialog to edit the currently
selected macro, then click “Close”. Your changes will not be written to the macro8.define
file until you either click “Save Changes” (see Below) or close the command dialog and
answer “Yes” to the Save Changes query message.
Delete Deletes the selected macro, provided it is not a site macro.
New Opens The New Macro dialog. Change any of the values in this dialog to define the new
macro, then click “Close”. Your changes will not be written to the macro8.define file until
you either click “Save Changes” (see Below) or close the command dialog and answer
“Yes” to the Save Changes query message.
Save Changes Saves the changes from this Command Dialog session to the local
macro9.define
file.
Command Files This list shows the command files that are associated with the currently selected macro.
New/Edit
Macros Dialog
Key A list of the key symbols supported for defining macros
Repeatable If checked, this causes the macro to be repeated while the specified key is held down.
Modifier 1 An optional modifier key (SHIFT, CTRL, or ALT) to be held down along with the base
key.
Key a symbol representing the keyboard key on which a macro is
based
Modifier a symbol representing one of the modifier keys that may be
pressed along with the base key, (SHIFT, CTRL, or ALT)
Description a brief description of the macro
Figure 2-17
New/Edit Macro dialog
2.5 Saving the Default Command File for EnSight Session
EnSight 9 User Manual 2-123
Modifier 2 A second optional modifier key.
Description A brief text description that allows you to quickly identify the macro.
Command Files Lists the command file(s) associated with a macro. Depending on how it is set up, a macro
can execute command files three different ways:
1. A single file is executed once for each key press.
2. The command file repeatedly executes as long as the key is held down.
3. Multiple command files execute in a cycle for each keystroke.
Add... To add a new command file to the list click “Add...”. A File Selection dialog will open.
Select or enter the desired file and click “Save”.
Remove To remove a command file from the list, select a file in the list, then click “Remove”.
Move up To change the order of execution of the command files listed, select a file, then click
“Move up” to change its position.
Python Tab The Interface Manual (see Chapter 6, EnSight Python Interpreter) contains a description
of this section.
Troubleshooting Command Files
This section describes some common errors when running commands. If an error
is encountered while playing back a command file you can possibly retype the
command or continue without the command.
(see How To Record and Play Command Files)
Saving the Default Command File for EnSight Session
EnSight is always saving a command file referred to as the default command file
(unless the you have turned off this feature with a Client command line option).
This default command file receives a default name starting with “ensigAAA” and
is written to your /usr/tmp directory (unless you set your TMPDIR environment
variable). This command file can be saved (and renamed) when exiting EnSight.
If you do not save this temporary file in the manner explained below, it will be
deleted automatically for you when you Quit normally from EnSight.
Problem Probable Causes Solutions
Error in command category Incorrect spelling in the command
category
Check and fix spelling
Command does not exist Incorrect spelling in the command Check and fix spelling
Error in parameter Incorrect integer, float, range, or
string value parameter
Fix spelling or enter a legal value
Commands do not seem to play Command file was interrupted by an
error or an interrupt command
Click continue in the Command
dialog
2.5 Auto recovery
2-124 EnSight 9 User Manual
Quit Confirmation dialog
You use the Quit Confirmation dialog to save either or both the default command file and
an archive file before exiting the program.
Access: Main Menu > File > Quit...
Save Command
Backup File To:
Toggle-on to save the default command file. Can also specify a new name for the
command file by typing it in or browsing to it. (see Section 2.5, Command Files for
more information on using command files.)
Save Full Backup
Archive File To
Toggle-on and specify a name (by typing it in or browsing to it) to create a Full Backup
archive file.
Yes Click to save the indicated files and terminate the program.
(see How To Record and Play Command Files)
Auto recovery
While EnSight is running, an auto recovery command file, recover.enc, is written
to the EnSight Defaults directory (located at
%HOMEDRIVE%%HOMEPATH%\(username)\.ensight92 commonly located at
C:\Users\username\.ensight92 on Vista and Win7, C:\Documents and
Settings\yourusername\.ensight92 on older Windows, and ~/.ensight92 on Linux,
and in ~/Library/Application Support/EnSight92 on the Mac). If EnSight crashes
for some reason, this temporary file is not deleted. When EnSight is restarted
(without using a play file) the user will be prompted with the option of using the
auto recover command file.
Auto recovery
dialog
Figure 2-18
Quit Confirmation dialog
Figure 2-19
Auto recovery dialog
2.6 Archive Files
EnSight 9 User Manual 2-125
2.6 Archive Files
Saving and Restoring a Full backup
The current state of the EnSight Client and Server host systems may be saved to
files. An EnSight session may then be restored to this saved state after restarting at
a later time. A Full Backup consists of the following files. First, a small archive
information file is created containing the location and name of the Client & Server
files that will be described next. Second, a file is created on the Client host system
containing the entire state of the Client. Third, a file is created on each Server
containing the entire state of that Server. You have control over the name and
location of the first file, but only the directories for the other files.
Restoring EnSight to a previously saved state will leave the system in exactly the
state EnSight was in at the time of the backup. For a restore to be successful, it is
important that EnSight be in a “clean” state. This means that no data can be read
in before performing a restore. During a restore, any auto connections to the
Server(s) will be made for you. If manual connections were originally used, you
will need to once again make them during the restore. (If more than one case was
present when the archive was saved, then connection to all the Servers is
necessary).
An alternative to a Full Backup is to record a command file up to the state the user
wishes to restore at a later date, and then simply replaying the command file.
However, this requires execution of the entire command file to get to the restart
point. A Full Backup returns you right to the restart point without having to
recompute any previous actions.
A Full Backup restores very quickly. If you have very large datasets that take a
significant time to read, consider reading them and then immediately writing a
Full Backup file. Then, use the Full Backup file for subsequent session instead of
reading the data.
Important Note: Archives are intended to facilitate rapid reload of data and
context and are NOT intended for long-term data storage. Therefore, archives are
likely NOT compatible between earlier EnSight versions and the current version
(see Release Notes for details). If EnSight fails to open an archive, it will state that
it failed and will write out a .enc file and echo its location. As command files ARE
often compatible between earlier and later versions, the .enc file can likely be
used to retrace the steps of the dataset.
2.6 Saving and Restoring a Full backup
2-126 EnSight 9 User Manual
Save Full Backup Archive dialog
You use the Save Full Backup Archive dialog to control the files necessary to perform a
full archive on EnSight.
Access: Main Menu > File > Backup > Save Full Backup...
Archive Information
File
Specifies name of Full Backup control file.
Client Directory Specifies the directory for the Client archive file.
Server Directory Specifies the directory for the Server archive file.
Archive information
File...
Click to display the file selection dialog for specifying the Archive Information File.
Client Directory... Click to display the file selection dialog for specifying the Client Directory.
Server Directory... Click to display the file selection dialog for specifying the Server Directory (for the
selected case if there is more than one). Choose a common path if there is more than one.
Okay Click to perform the full backup.
NOTE: This command is written to the command file, but is preceded with a # (the
comment character). To make the archive command occur when you play the command
file back, uncomment the #.
(see How To Save and Restore an Archive)
File Selection for Restarting from an Archive
You use the Restore Full Archive Backup dialog to read and restore a previously stored
archive file.
Access: Main Menu > File > Backup > Restore Full...
Figure 2-20
Save Full Backup Archive dialog
Figure 2-21
File Selection for Restarting from an Archive
2.6 Saving and Restoring a Full backup
EnSight 9 User Manual 2-127
Troubleshooting Full Backup
Problem Probable Causes Solutions
Error message indicating that all
dialogs must be dismissed
When saving and restoring archives,
all EnSight dialogs, except for the
Client GUI, must be dismissed to
free up any temporary tables that are
in use. Temporary tables are not
written to the archive files.
Dismiss all the dialogs except the main
Client GUI.
Backup fails for any reason Ran out of disk space on the Client
or Server host system
Check the file system(s) you where you
are writing (both the Server and the
Client host systems) then remove any
unnecessary files to free up disk space.
Directory specified is not writable Change permissions of destination
directory or specify alternate location.
2.7 Context Files
2-128 EnSight 9 User Manual
2.7 Context Files
EnSight context files can be used to duplicate the current EnSight state with the
same or a different, but similar, dataset. The context file works best if the dataset
it is being applied to contains the same variable names and parts, but can also be
used when this is not the case.
Input and output of context files is described below as well as in How To Save or
Restore a Context File and under Save and Restore of Section 6.1, File Menu
Functions
Saving a Context File
To save the current context, simply entered the desired file name in the dialog
under: Access: File > Save > Context...
(and if you have multiple cases to save, select Save All Cases)
Restoring a Context
If you are restoring a context file containing information for a single case, you can
select the case or cases that you wish to apply the context to. If you are restoring
a context file containing information about multiple cases, the selection list will
be ignored.
Figure 2-22
Saving a Context File
Figure 2-23
Restoring a Context File
2.7 Restoring a Context
EnSight 9 User Manual 2-129
When restoring a context you can 1) read the new dataset and build the new parts
and then restore the context file, or 2) read the new dataset, close the part builder
without building any parts and restore the context file (whereupon the context file
will build the same parts as existed when it was saved) or 3) restore the context
before reading any data (whereupon the previous state with the same dataset will
be restored). The way you decide to do this depends upon whether the same parts
exist in the new dataset.
If the same parts do not exist, you would typically read the new dataset and build
the desired parts in the normal way. Then:
Flipbook animations are not restored using the context file because it is unknown
at the time the context file is created what state existed when the flipbook was
saved.
Context files use EnSight’s command language and other state files (such as
palette, view, and keyframe animation).
Figure 2-24
Restoring a Context
2.8 Session Files
2-130 EnSight 9 User Manual
2.8 Session Files
An EnSight session file records the state of the visualization utilizing the context
file capability along with a thumbnail of your graphics windows and a description
of the session. When you restart EnSight, your recent sessions are displayed in
the 'Welcome to EnSight' screen, complete with the thumbnail and description.
Saving a Session File
To save the current session, simply enter the desired file name in the dialog under:
Access: File > Save > Session...
You will be prompted for a description for the session. The description is shown
on the Welcome screen, so this is a good place to make a note to remind yourself
of the particulars of this visualization.
You can check the toggle to pack the data into your session file. Packing allows
for true session file portability as it packs the original data directories as well as
the context information compressed into one session file. The directories that will
be compressed and saved are listed. The resulting single session file contains
everything EnSight needs to reproduce the exact visualization on any EnSight
installation that has the ability to read your data file. Your session file is a
portable way to share visualizations with other EnSight users. Keep in mind that
for a large data set, your session file can be quite large if you use the data packing
option.
Click 'Save' to open a file browser and choose a location for your session file.
If you have multiple cases, a single session file will be saved that includes all the
cases.
Figure 2-25
Saving a Session File
2.8 Restoring a Session
EnSight 9 User Manual 2-131
Restoring a Session
Restoring a session is simple. First, your most recent session files are available in
the 'Welcome to EnSight' screen on startup. Second, Mac and Windows users can
double click any EnSight session file (ending in .ens) and the file will restore.
Finally, you can browse for a session file from the EnSight menus as follows:
Access: Main Menu > File > Restore > Session...
If you are restoring a session file containing information for multiple cases, all of
the cases will be restored. If you already have data loaded and restore a session,
EnSight will delete all the cases, start anew and then restore the session.
Figure 2-26
Restoring a Context File
2.9 Scenario Files
2-132 EnSight 9 User Manual
2.9 Scenario Files
Scenario files are used by CEI’s EnLiten product which is capable of viewing all
geometry (such as parts, annotation, plots, etc.) that EnSight can display,
including flipbook, keyframe, and particle trace animations.
A “scenario” defines all visible entities you wish to view with EnLiten and
includes any saved views and notes that you want to make available to the
EnLiten user.
When you create a scenario, the following may be saved: (a) EnLiten file
containing geometric display information, saved views, and attached nodes. (b) A
palette file for each visible variable legend. (c) A JPEG image file (not used by
EnLiten). (d) A scenario description file (not used by EnLiten). (e) A EnSight
context file (not used by EnLiten).
When saving a scenario, either the scenario file itself can be saved, or the scenario
project - which includes all of the files in the previous paragraph.
EnLiten is a geometry viewer only. As such it is not capable of creating or
modifying any new/existing information such as variables or parts, or of changing
timesteps.
Since EnLiten is only a geometry viewer, only keyframe transformation
information is stored when saving a scenario file, i.e., no transient data
keyframing is possible (consider loading a flipbook instead).
You use the Save Scenario dialog to control the options of the scenario files to be saved in
EnSight for display in EnLiten.
Access: Main Menu > File > Save > Scenario...
File Tab
Format EnLiten scenario files (.els) or Reveal CEI Scene Files (.csf) may be used.
EnLiten Format Project - will save the scenario file plus files mentioned on the previous page.
Single file - will save only the scenario file.
File Name Enter the file name to be saved or use the Browse... button.
Save scenario Click to actually save the scenario.
Figure 2-27
Save Scenario Dialog - File Tab
2.9 Scenario Files
EnSight 9 User Manual 2-133
Time/Animation
Options Tab
Save keyframe
animation
Only available if keyframe animation is defined. Toggle on to save the keyframe
animation sequence to the scenario file.
Save Flipbook Only available if flipbook is defined and saving to an EnLiten scenario file. Toggle on to
save the flipbook information to the scenario file.
Save particle
trace animation
Only available if animated particle traces exist. Toggle on to save the animated traces to
the scenario file.
Save transient
(including
variables)
Only available if transient data exists and saving to a Reveal scenario file. Toggle on to
save transient data to the .csf file.
Begin step - Beginning step to save.
End step - Ending step to save.
Stride - The step stride between Begin and End step.
Views Tab After the scenario has been saved you may save additional views by setting the desired
view in EnSight.
Name The name of the view as it will appear in the scenario viewer.
Save current view Click to actually save the view to the current scenario file.
Figure 2-28
Save Scenario Dialog - Time/Animation
Options Tab
Figure 2-29
Save Scenario Dialog - Views Tab
2.9 Scenario Files
2-134 EnSight 9 User Manual
Notes Tab After the scenario has been saved you may write notes regarding the scenario.
Subject The subject of the note.
Note Field Any information you wish to enter for the note.
Save note Click to actually save the note to the current scenario file.
(see How To Save Scenario)
Figure 2-30
Save Scenario Dialog - Notes Tab
2.10 Saving Geometry and Results Within EnSight
EnSight 9 User Manual 2-135
2.10 Saving Geometry and Results Within EnSight
Saving Geometric Entities
Sometimes you may wish to output geometric data or variable values from
EnSight to be included in a different analysis code, or to be used in a presentation.
EnSight has three internal writers that allow saving geometric data and variable
values in Brick of Values, Case (EnSight Gold) or . EnSight also allows the user
to create their own writers. Each user-defined writer must be compiled into a
dynamic shared library that is loaded at runtime and listed in the Save Geometric
Entities dialog with the internal writer formats.
Both internal and user-defined writers have access only to the geometry of
selected parts and each of their active variables. For all writers except VRML,
only parts located on the server can be saved. This includes all original model
parts, and the following created parts: 2D-clips, Elevated Surfaces, Developed
Surfaces, and Isosurfaces.
One exception is the VRML internal writer which saves all the parts on the client
in their current visible state except for Parts which have limit fringes set to
transparent. The VRML 2.0 (.wrl file) will be saved on the client. The VRML
output generally contains the same visual features as the Reveal product. The
VRML export supports nodal variable coloring only. Parts colored using element
variables will be displayed in their EnSight constant color. An element variable
can be changed to a nodal variable (so that it can be written out in VRML format)
using the EnSight calculator function ElemToNode. The mechanism for nodal
color export is through texture mapping using an embedded texture map as the
color palette.
The userd-defined writers can call the routines of an EnSight API to retrieve, to
get, for example, nodal coordinates, node ids, element ids of parts selected in the
Parts window to be passed by value to be used, manipulated and/or written out in
any format desired. User-defined writer dialog includes a Parameter field that
allows passing in a text field into the writer from the GUI for extra options.
Several example writers (including source code header files, Makefile and the
corresponding shared library) are included to demonstrate this capability.
The Case (Gold) Lite reader is included to demonstrate how to exercise most of
the API and output a subset of the Case (Gold) format. Complex numbers and
custom Gold format are not supported with this writer. While the writer is not
compiled, the source code of this writer, the required header files, and the
Makefile are included.
The Flatfile user-defined writer is designed to demonstrate the output selected part
nodal data (coordinates & IDs) as well as active variable values (scalar and/or
vector only) data in a comma delimited format easily imported into other
applications. If any of the keywords ‘ANSYS’ or ‘force’ or ‘body’ is entered into
the Parameter field, then Flatfile will output an ANSYS body force file.
The STL user-defined writer is designed to write out the border geometry in the
form of triangular 2D elements of the selected part(s) at the beginning timestep.
The end time and the step time are ignored. The STL format does not support
multiple parts in a single binary file, but does support multiple parts in a single
ASCII file. Therefore, if multiple parts are selected and ascii is checked, the STL
2.10 Saving Geometric Entities
2-136 EnSight 9 User Manual
writer outputs an ascii file with the border of each of the parts. If multiple parts
are selected and binary is checked, the STL writer outputs a binary file containing
a single border of the multiple parts.
More user-defined writers may be distributed with EnSight in the future.
Save Geometric Entities dialog
The Save Geometric Entities dialog is used to save Selected Model, 2D-Clip, Isosurface,
Elevated Surface, and Developed Surface Parts as EnSight Case (Gold) files. Thus
modified model Parts and certain classes of created Parts can become model Parts of a
new dataset.
Access: Main Menu > File > Save > Save Geometric Entities...
Output Format Specify the desired format: Case(EnSight Gold), VRML, Flatfile, HDF5.0, STL, etc.
Parameter Allows passing a text field from the GUI to the writer for extra options. Some writers
make use of this field to modify their behavior (see Flatfile, for example) while others
ignore this field. See the README file(s) in the following directory
$CEI_HOME/ensight92/
src/writers.
[path]/filename
prefix
Specify path and filename prefix name for the saved files. For Case(Gold) the saved
geometry file will be named filename.geo, the casefile will be filename.case, and the
active variables will be filename.variablename. The VRML file will be filename.wrl. The
other writers will vary.
Save As Binary
File(s)
Save as Binary File(s) specifies whether to save the data in ASCII (button toggled off -
default) or binary (button toggled on) format. Writers vary in their handling of this.
Begin Time Step Begin Time Step field specifies the initial time step for which information will be
available to save for all selected Parts and activated variables. Writers may vary in their
usage of this information.
Figure 2-31
Save Geometric Entities dialog
(Showing Case (Gold) internal writer, and STL external writer)
2.10 If Rigid Body Transformations in Model
EnSight 9 User Manual 2-137
End Time Step End Time Step field specifies the final time step for which information will be saved for
all selected Parts and activated variables. Writers may vary in their handling of this.
Step By Step By field specifies the time step increment for which information will be saved for all
selected Parts and activated variables starting with Begin Time Step and finishing with
End Time Step. The Step By value MUST be an integer. Writers may vary in their
handling of this.
Save as a Single
File
Toggle on to have a single file per variable - containing all values for all time steps for that
variable. The default is to have a file per variable per time step. Writers may vary in their
handling of this.
Maximum file Size For Single File option, can specify the maximum file size. Continuation files are created if
the file size would exceed this maximum. Writers may vary in their handling of this.
Okay Click ok to pass the GUI values to the selected writer, and begin executing the writer
routine
If Rigid Body Transformations in Model
Since EnSight does something special with the model timeset when rigid body
information is read (via the rigid_body option in the casefile, or from a user-
defined reader with rigid_body reading capability), you need to be aware of a few
important issues. EnSight assumes that the rigid body timeset encompasses the
normal geometry timeset, and it replaces the normal geometry timeset with the
rigid body timeset - thus the following occurs when using this option.
1. If any created parts are in the list to be saved, EnSight will save as true
changing coordinates. Namely, a geometry file containing the coordinates for each
part will be saved at each time. Upon re-reading this model, you will be able to
duplicate all actions, but it will be done as a true changing coordinate model. In
other words, the original rigid_body file nature will not be duplicated.
2. If the original model had static geometry and rigid body file information - and
you do not have any created parts in the list to be saved - saving will preserve the
single static geometry and rigid_body file nature of the model. However, if the
original model had changing geometry, or if variables have been activated - the
number of geometry/variable files saved will be according to the rigid body
timeset. This timeset often has many more steps than the original timesets - so be
wise about the number of steps you write. It is often important to use the “Step
by” option to control this.
3. Because of the things mentioned in 1 and 2 above - if you want to use the save
geometric entities option in EnSight to “translate” a rigid body model from a
different format into the EnSight format, you may want to consider the following
process. First, read in the model without the rigid body transformations, activate
the desired variables, and save the model. Second, read in the model with the rigid
body transformations, do not activate any variables, and save the model (with a
different name). Edit the Casefile of the first model to use the model: and
rigid_body: lines of the second casefile instead of the first casefile.
2.10 If Rigid Body Transformations in Model
2-138 EnSight 9 User Manual
Troubleshooting Saving Geometric Entities
(see How To Save Geometric Entities)
Problem Probable Causes Solutions
A Part was not saved User attempted to save an
unsupported Part type.
Select only Model, Isosurface, 2D-
Clip, and Elevated Surface Parts.
Variable(s) not saved The variable was not activated or the
variable was a constant.
Activate all scalar and vector
variables you want saved.
Error saving File prefix indicates a directory that
is not writable or disk is out of space.
Re-specify a writable directory and
valid prefix name. Remove
unneeded files.
My custom user-defined writer
doesn’t show up on list of formats
Didn’t load at startup Start Ensight with -writerdbg option
EnSight loads user-defined writers at
startup from shared libraries found in
$CEI_HOME/ensight92/machines/
$CEI_ARCH/lib_writers
If your user-defined writer is not in
the default directory, tell EnSight
where to find it by:
setenv ENSIGHT9_UDW location
2.11 Saving and Restoring View States
EnSight 9 User Manual 2-139
2.11 Saving and Restoring View States
EnSight’s viewports provide a great deal of flexibility in how objects are
displayed in the Graphics Window. Given the complicated transformations that
can be performed, it is imperative that users be able to save and restore
accumulated viewport transforms.
View saving and restoring is accessed from the Transformations dialog.
Access: Desktop > Transformation Edit... > File
When either the Save View... or Restore View... selection is made, the user is
presented with the typical File Selection dialog from which the save or restore can
be accomplished. Save and Restore work on a single viewport.
(see also How To Save and Restore Viewing Parameters)
Figure 2-32
View Saving and Restoring in Transformation Dialog
2.12 Saving and Printing Graphic Images
2-140 EnSight 9 User Manual
2.12 Saving and Printing Graphic Images
EnSight enables you to save an image of the Main View to a disk file or send it
directly to a printer. The choice of save file formats depends on the
implementation, but in all cases it is possible to obtain formats compatible with
printers and plotters. Currently PostScript, AVI, BMP, EnVideo, GIF, JPEG,
MPEG, PNG, PBM, Quicktime, SGI, TIFF, FLV, SWF, and XPM formats are
available.
EnSight also enables you to save images of an animation to disk files. These files
can then be converted and printed or recorded to video equipment (see Section
7.3, Keyframe Animation).
Print/Save Image dialog
You use the Print/Save Image dialog to specify the format and destination of an image to
save. The destination can be a disk file or a printer. You also access the Image Format
Options dialog for the various types from this dialog.
Access: Main Menu > File > Print/Save Image...
Format... Click to select image format.
Color/Black &
White
Color versus Black and White toggle.
Saturation
Factor
At a value of 1.0, no change to the image. At lower values, a proportionate amount of
white is added to each pixel. At a value of 0.0, the image would be all white.
Figure 2-33
Print/Save Image dialog
Figure 2-34
Output format and options dialogs
2.12 Saving and Printing Graphic Images
EnSight 9 User Manual 2-141
Note: Each format can have other options specific to that format.
To F ile Toggle/Field The image will be saved to this disk file name if toggle is on. This is a filename prefix.
An appropriate suffix, according to the file format chosen, will be added.
To Printer Using
Command Toggle/
Field
The command to send a file to the printer if toggle is on. Make sure your printer is setup
for the format you’ve selected.
Convert to default
print colors
Clicking this toggle on will convert all black to white and all white to black but will leave
all other colors as they are.
Show Plotters Only Clicking this toggle will cause the graphics window to only display plotters.
Print Click this button when all options are correctly specified and you are ready to print.
Window Size Specifies the size of the Graphics Window and the resulting image size.
Normal Creates a window which is the size of the current Graphics Window.
Full Creates a window which is the size of the full screen.
User Defined Creates a window which is specified in terms of its width and height in the X and Y fields.
NTSC Creates a window which is specified in terms NTSC standard window size (704 x 480).
PAL Creates a window which is specified in terms of PAL standard window size.
Detached
Display
Uses the detached display (as specified with - dconfig option) as the source for the output.
DVD NTSC Creates a window compatible with NTSC DVD format.
DVD PAL Creates a window compatible with PAL DVD format.
HD 720p Creates a window compatible with HiDef 1280x720 format.
HD 1080p Creates a window compatible with HiDef 1920x1080 format.
Save multiple
images
If using a detached display (as specified with a -dconfig option), you may save an image
from each display or a single image.
Render to
offscreen buffer
Toggle on if the rendering shall occur in an off-screen rendering context. If off, the image
will be “scraped” off the graphics window.
Stereo Specifies the stereo vs. mono capabilities of the resulting image.
Current If the graphics window is mono, save a mono image. If stereo, save a stereo image.
Mono Save a mono image.
Interleaved Save a stereo interleaved image.
Anaglyph Save a stereo color separated image with left/right eye color as specified. (Cyan/Red, Red/
Cyan, Blue/Red, or Red/Blue)
Figure 2-35
Print/Save Image Advanced dialog
2.12 Troubleshooting Saving an Image
2-142 EnSight 9 User Manual
Number of passes The number of rendering passes. The higher the number, the better the quality (but
slower).
Screen tiling The number of images in x and y that will be produced.
(see How To Print/Save an Image)
Troubleshooting Saving an Image
(see How To Print/Save an Image)
Problem Probable Causes Solutions
Image has blotches or ghosts of other
windows in it
A viewport or menu was popped in
front of the Main Graphics Window
as the image was being saved.
Use offscreen rendering when
possible.
Error while saving image file Directory or file specified is not
writable
Rename the file or change the
permissions.
Ran out of disk space Check the file system you are using
then remove any unnecessary files to
free up disk space.
Image format not selected Select an image format before
saving.
Image looks bad when printed Original on-screen image has low
resolution
Select “user defined” size or a pre-
defined size such as “HD 1080p”
Image has been dithered during
processing
Do not enlarge or reduce the image
until it is in your word processor.
Non-integral ratio of printer
resolution to image resolution at
final size
The image is a pixel-map image. For
best results, the number of printer-
dots per image-dot should be an
integer. For example, if the original
image resolution is 72 dpi, reduced
to 48% the final-size resolution is
72/.48 = 150 dpi. On a 600 dpi
printer, each image pixel is exactly 4
printer-dots on a side.
Move/Draw PostScript output
doesn’t look correct.
Primitives in Move/Draw PostScript
output sometimes suffer from sorting
problems.
Use Image Pixel type instead of
Move/Draw.
2.13 Saving and Restoring Animation Frames
EnSight 9 User Manual 2-143
2.13 Saving and Restoring Animation Frames
Both Flipbook and Keyframe Animation processes have save and restore
capability. These are best described in the chapters devoted specifically to these
features.
For Flipbook Animations, see Section 7.2, Flipbook Animation and How To
Create a Flipbook Animation.
For Keyframe Animations, see Section 7.3, Keyframe Animation and How To
Create a Keyframe Animation.
2.14 Saving Query Text Information
2-144 EnSight 9 User Manual
2.14 Saving Query Text Information
The data used for curves in EnSight’s plotter and any other information from a
query or otherwise which is presented in the EnSight Message Window can be
saved to a file suitable for printing.
From Query/Plot Save... Formatted
One place this can occur is in the Query/Plot Quick Interaction area as described
below as well as in Section 7.5, Query/Plot
Access: Desktop > Query/Plot Feature
Once the desired query item (curve) is selected in the list, the user can perform a
Save operation by:
Save... Click this button in the Quick Interaction area of the Query/Plot feature to save the plotter
curve data.
Format Select the Format of the data to save.
Formatted is a table suitable for printing.
XY Data is the xy file format described in Section 11.10, XY Plot Data Format,
which is suitable for re-loading into EnSight.
File Name Enter the desired filename for the xy data file, or click File Select... to be presented with
the typical File Section dialog from which to perform the operation.
From Query/Plot Show Text
Show ... Click this button to see the plotter curve information presented in the EnSight Message
Window.
Figure 2-36
Saving or Loading XY Plot Data
2.14 From EnSight Message Window
EnSight 9 User Manual 2-145
From EnSight Message Window
A file suitable for printing can be saved from any operation which places its
information into the EnSight Message Window, such as Show Information queries
and the Query/Plot Show Text... button described previously.
Save Text To File Brings up the typical File Selection dialog from which the information can be saved in the
file of your choice.
Figure 2-37
EnSight Message Window with Save Text To File Button
2.15 Saving Your EnSight Environment
2-146 EnSight 9 User Manual
2.15 Saving Your EnSight Environment
Every user has different postprocessing needs and personal preferences for how
the EnSight windows should be positioned and sized. EnSight allows you to save
dialog expandable section settings, and dialog size and position information to a
file called
ensight9.winpos.default
. EnSight looks for this file at start up in the
current Client directory and if not there in the EnSight defaults directory (located
at %HOMEDRIVE%%HOMEPATH%\(username)\.ensight92 commonly located
at C:\Users\username\.ensight92 on Vista and Win7, C:\Documents and
Settings\yourusername\.ensight92 on older Windows, and ~/.ensight92 on Linux,
and in ~/Library/Application Support/EnSight92 on the Mac) and will bring the
user interface dialogs up according to your saved settings (if the file is found).
Almost all major dialog windows are saved in the:
ensight9.winpos.default_XRESxYRES
file (where XRES and YRES are the resolution of the monitor when the
preferences were saved). The only exception are minor prompt dialogs. There are
also some dialogs for which you cannot save the size (such as the Tool Positions
dialog).
The ensight9.winpos.default file also contains the size and location for all of the
windows containing graphics.
A number of other settings, such as mouse and keyboard buttons and Icon Bar
settings can also be saved to a user preferences file.
(see Preferences... in Section 6.2, Edit Menu Functions and How to Save GUI
Settings)
EnSight 9 User Manual 3-1
3Parts
The Part is the fundamental visualization entity in EnSight. Virtually every
postprocessing task you perform will involve a Part, thus it is vital to understand
how Parts work.
A Part is a collection of nodes and elements that are grouped together and share
the same attributes. When you start EnSight, you either read directly or
interactively extract Parts from the data files. Parts which come from the original
dataset are referred to as model Parts. Other Parts created within EnSight, are
referred to as created (or dependent) Parts.
In this chapter you will learn how to produce created Parts (parts derived from
other parts) and how to modify the attributes of all Part types.
Section 3.1, Part Overview is extremely important. It defines how Parts work
together to form other Parts and explains the dependencies which may exist
between model Parts and created Parts. Failure to understand the concept of Parts
as explained in this section will limit your ability to use EnSight. Please study this
section carefully.
Figure 3-1
V
arious EnSight Part Types
Clip Plane Contours Elevated Surface
Isosurface
Profile
Vector Arrows
Particle Traces
Model Part
3.1 Part Overview
3-2 EnSight 9 User Manual
Included in this Chapter are:
Section 3.1, Part Overview
Section 3.2, Part Selection and Identification
Section 3.3, Part Editing
Section 3.4, Part Operations
Section 3.5, Part List Shortcuts (Right-click)
Section 3.6, Part Graphics Window Shortcuts (Right-click)
Section 3.7, Part Shortcuts (Click-and-Go)
3.1 Part Overview
In EnSight, a Part is simply a collection of nodes and elements which are grouped
together, will be manipulated together, and which share the same attributes. This
section defines Parts and how they are related. It gives you an overview of the Part
types and Part attributes that are available within EnSight.
Parts that are defined or extracted from your dataset are referred to as model Parts.
Parts that are created within EnSight are referred to as created (or dependent)
Parts. The types of Parts that you create depends on what features within EnSight
you choose to utilize. Any created Part is derived from Parts that already exist,
which is why the created Parts are sometimes called dependent Parts—they
depend on the Parts from which they were created. The Parts that are used to
create a dependent Part are referred to as parent Parts. Any time that a parent Part
changes, its dependent Parts must also change. A parent Part will change when
you change its attributes, or modify the current time in the case of transient data.
The Main Parts List contains all Parts that have been read in from your results data
or created within EnSight. Displayed is the default parts window which lists the
part number and the part name.
“+” Button The “+” button can be used to lengthen the part window to display a larger
number of parts.
“<“ “>” Buttons The “<“ and “>” buttons (in non-windows clients) can be used to expand or
contract the main part list horizontally. This is useful for longer part names and
when displaying part details. In Windows, the GUI has a movable vertical bar for
this purpose.
Figure 3-2
Default Main Parts List
3.1 Part Overview
EnSight 9 User Manual 3-3
Select Button The Select Button can be used to choose Parts using logical operators:
Delete Button The Delete button can be used to delete selected parts.
List Button The List Button can be used to sort and select level of detail of information about
the parts.
Sorting Click on the List button and choose:
Level of Detail Click on the List button and choose:
All Select all parts
Invert Unselect the selected and select the unselected
Invisible Select the parts with visibility toggle off
Visible Select the parts that have the visibility toggle on
Region Select the Parts using the graphical selection tool
(This does not work for vector arrow parts)
Showing Select Parts that are toggled visible, that are within the graphics
viewing region, and within the z-clip. Auxiliary clipping has no
effect on this selection.
(This does not work for vector arrow parts.)
Keyword Select the parts using wildcards
None Unselect all parts
Alphabetical To sort the list of parts alphabetically
Chronological To sort the list of parts by their chronological creation time.
ID To sort the list of parts by part ID (the default)
Show case Toggle off to remove the Case indicator or on (default) to see the Case
designator. The Case of the data indicates the server on which the data
resides. With Case toggled on, all parts in a given Case are indented
underneath the Case number designator.
Show part ID on left Toggle on or off to control the display of part numbers.
Figure 3-3
Select and List Pulldown Menus
3.1 Part Overview
3-4 EnSight 9 User Manual
Show tree Open to display the various hierarchical part display options.
None For the default list of parts - showing only the “P”
next to the parent of the selected part. The “P” is
important because modification of the Parent can
affect the dependent child part.
Parent/child To show the hierarchical relationship between
parent and child parts
Visibility To show parts based on whether they are visible or
not.
Shaded/wireframe To show parts based on their local shaded attribute
setting.
3.1 Part Overview
EnSight 9 User Manual 3-5
Part type To show parts based on their part type.
Element
representation To show parts based on their element
representation.
Node ID visibility To show parts based on their node id visibility.
Element ID
visibility To show parts based on their element id visibility.
3.1 Part Overview
3-6 EnSight 9 User Manual
Show abbreviated details Toggle on and the Part List will contain more information. Displayed
are a case number, ID number, visibility attribute, shaded attribute,
part symbol, representation, node and element id display status, and a
Part description. The figure below of the Parts List shows a number of
different Part types in this display mode
Note that in the illustration above the Clip_plane part is selected and
that there is a “P” in the left column next to the Computational mesh
(model) Part. This indicates that the Computational mesh Part is the
parent Part of the clip_plane Part. All parent Parts of a created Part
will be so noted if that individual created Part is highlighted in the
Main Parts List.
Every Part in the abbreviated view has a Visibility indicator, either
“V” for visible or “I” for invisible.
Every Part has a shaded indicator, either “SHD” for shaded or “WIR”
for wire frame.
Every Part has a representation. Shown below are the symbols used in
the abbreviated view.
B-A = 3D Border 2D Full
F-A = 3D Feature 2D Full
N-A = 3D Nonvisual 2D Full
Brd = Border
Fea = Feature Angle
Box = Bounding Box
All = Full
Non = Nonvisual
Every Part has Node and Element ID display status equal to “Y” if
displayed or “N” if not displayed.
Every Part has a symbol to describe it. Table 3-1 lists all of the
different types of Parts and their associated symbols in the abbreviated
view.
Figure 3-4
Abbreviated Parts List
Case Number
Parent Part
Indicator
Part ID
Number
Part Description
Part Visibility
Part Symbol
Part Representation
Shaded Attribute
Node/Element ID Status
3.1 Part Overview
EnSight 9 User Manual 3-7
Table 3–1 Part Types, Symbols, and Descriptions
Part Type Symbol Description
Clip (2) A surface or line resulting from a clip of
other Parts using the line, plane, or
quadric tools
Contour (C) Lines of constant value on 2D elements
Developed
Surface
(D) A planar surface derived by unrolling a
surface of revolution (i.e., the unrolling of
a cylinder clip Part produced by the
cylinder quadric tool)
Elevated
Surface
(E) Surface created by elevating elements by
a variable
Extrusion Part (U) Translational or Rotational extrusion of
2D part into 3D elements.
Isosurface (I) Surface of constant value through 3D
elements of other Parts
Material Part (A) A Part created according to the
intersection of or domains of material
values
Model Part (M) A Part that originated from the dataset
Particle Trace (T) Path of a massless Particle through a
vector field
Point Part (O) Point part created using point part feature
icon. Conceptually this is like a point clip.
Profile (P) Plot of a variable along a line (Similar to
a 2D elevated surface)
Separation/
Attachment Line
(L) Line where flow separation or attachment
is occurring
Shock Surface/
Region
(K) Surface or region where shock is
occurring
Subset (S) Valid node and/or element label range(s)
from model Part(s)
Tensor Glyph (G) Glyph showing direction of first, second,
and third eigenvectors of a tensor field.
Vector Arrow (V) Arrows showing direction and magnitude
of vector field
Vortex Core (X) Line representing center of a flow vortex
3.1 Part Overview
3-8 EnSight 9 User Manual
:
Note: Several aspects of the Part display (including what is actually displayed in
the table of details or abbreviated details) can be customized by using Edit >
Preferences > Parts.
Reassign Parent Parent Parts of any created Part can be changed by first selecting the created Part
in the Feature Detail Editor, then selecting a new parent Part in the Main Parts
List, and finally by clicking the Update Parent button in the Feature Detail Editor.
You can open the Part Feature Detail Editor by right-clicking in the part list and
choose Advanced.
Show table of details Toggle on to show a table of part details, as shown in the composite
below. While this is more self explanatory than the abbreviated mode,
it also requires horizontal scrolling to see the whole table of
information.
No details Toggle on to omit the details, showing only the part number and the
part description.
Figure 3-5
Composite of Detailed Parts List
3.1 Part Creation
EnSight 9 User Manual 3-9
Part Creation
Part creation occurs on either the server or the client. Since the data that is
available on the client and server are different, it is useful to understand where
Parts are created and where the data structures are stored. By understanding this,
you will understand why some Parts can be created with certain parent Parts and
others cannot. This information can be gained by examining the following table.
Table 3–2 Part Creation and Data Location
(see Introduction to Part Creation)
Part Attributes
Both Model Parts (symbol: M) and Created Parts (multiple symbols) have
Creation Attributes. For example structured Model Parts Creation Attributes
include the I,J,K and step attributes used to create the part, and an Isosurface
Part’s Creation Attributes include the variable that was used to create it, and the
value of the variable.
In addition, all Parts have a set of Display Attributes that are used in visualizing
the Part in the Graphics Window. Display Attributes deal with such things as
color, line width, symmetry operations, etc. Display Attributes do not control how
the Part is created, only how it appears or how it behaves in the Graphics Window.
Both Display and Creation Attributes can be modified using the Feature Detail
Editor which will show attributes grouped together under turndown sections. To
Part Type Where Created Data on
Server Data on Client
Clip Server Yes Depending on Part attributes
Contour Client No Yes
Developed Surface Server Yes Depending on Part Attributes
Discrete Particle Not Applicable Yes Depending on Part attributes
Elevated Surface Server Yes Depending on Part attributes
Isosurface Server Yes Depending on Part attributes
Model Not Applicable Yes Depending on Part attributes
Material Part Server Yes Depending on Part attributes
Particle Trace Server No Yes
Point Part Server Yes Depending on Part attributes
Profile Client No Yes
Separation/
Attachment Line
Server Yes Depending on Part attributes
Shock Surface/
Region
Server Yes Depending on Part attributes
Subset Server Yes Depending on Part attributes
Tensor Glyph Client No Yes
Vector Arrow Client. Server if
necessary.
Maybe Yes
Vortex Core Server Yes Depending on Part attributes
3.1 Part Attributes
3-10 EnSight 9 User Manual
access the Feature Detail Editor for a Part, simply right-click on that part in the
part list, or on the geometry in the graphics window and choose ‘Edit’. The
Feature Detail Editor will display all of a Part’s Display and Creation Attributes
for editing.
Table 3–3 Display Attribute Sections
Section: Includes controls for...
General Attributes
(see Section 3.3, Part Editing)
Visibility in Graphics Window and
individual Viewports
Symmetry options
Susceptibility to Auxiliary Clipping
Reference frame
Response to changes in time (frozen or
active)
Coloration (constant or by a palette
associated with a variable)
Shaded Surface and Hidden Line display
Surface shading (flat, Gouraud, smooth)
Opaqueness and Fill density
Lighting (diffuse, shininess, and highlight
intensity)
Node, Element, and Line Attributes
(see Section 3.3, Part Editing)
General Visibility: Node, Line, and
Element
Label Visibility: Node and Element
Node Representation: Node type (dot,
cross, or sphere), Node Scale, Node Detail
(for spheres), and Node size (constant or
variable)
Line Representation: Line Width and Line
style (solid, dotted, or dot-dash)
Element representation on client (full,
border, 3D border/2D full, feature angle,
or non visual), Element-size, Shrink-
Factor, Element Angle and Polygon
Reduction factor, Failed Elements
Displacement Attributes
(see Section 3.3, Part Editing)
Displacement variable
Displacement scaling factor
3.2 Part Selection and Identification
EnSight 9 User Manual 3-11
3.2 Part Selection and Identification
In the process of creating a Part you will need to be able to select the parent
Part(s). This section describes Part selection and identification
Selecting Parts using the mouse in the Graphics Window
Geometries in the Graphics Window are selected using the left or right mouse
buttons. Edit>Preferences, Mouse and Keyboard if you want to change this
behavior. Selected parts are highlighted in the part list. They are highlighted also
in the graphics window by default unless disabled by clicking on the global
highlighting toggle. For more detail on this method, see How To Select Parts
To:
In the
Graphics
Window
Details
Select a Part Left-click Place the mouse pointer over the
geometry in the graphics window and
click the left mouse button. The part is
highlighted in the graphics window and
in the part list to reflect the “selected”
state.
Select a Part with a
to-do list
Right-click Place the mouse pointer over the
geometry in the graphics window and
click the right mouse button. The part is
highlighted in the graphics window and
in the part list, to reflect the “selected”
state. Also a pull-down menu appears to
allow you to change some of the part
characteristics or to create other parts
using this part.
Keep current
selection and toggle
selection of part
under cursor
Control-Left
click
To add a part to the selected parts, place
the mouse pointer over the geometry in
the graphics window. Press the control
key and click the left mouse button.
This action will extend a selection by
adding the new part and highlighting it
in the graphics window.
To de-select a part, place the mouse
pointer over the geometry in the
graphics window that is selected. Press
the control key and click the left mouse
button.
De-select all parts Left-click Left click on the background in order to
deselect all parts.
3.2 Part Selection and Identification
3-12 EnSight 9 User Manual
Select using ‘p’ key Press ‘p’ key This is considered a legacy mode of
selecting parts. Place the mouse pointer
over the geometry in the graphics
window and press the ‘p’ key, which
will select a previously unselected part,
and the part will become highlighted in
the graphics window and in the part list.
Quick Part To-Do
List
Control
Right-Click
This brings up a context-sensitive, part
to-do list without changing part
selection.
To:
In the
Graphics
Window
Details
3.2 Part Selection and Identification
EnSight 9 User Manual 3-13
Selecting Parts using the mouse in the Part List Window
Items in all Parts Lists are selected using standard Motif/Win32 methods:
To: Do This: Details
Select an item Select (or
single-click)
Place the mouse pointer over the item
and click the left mouse button. The item
is highlighted to reflect the “selected”
state.
Extend a contiguous
selection
Select-drag Place the mouse pointer over the first
item. Click and hold the left mouse
button as you drag over the remaining
items to be selected. Only contiguous
items may be selected in this fashion.
Extend a (possibly
long) contiguous
selection
Shift-click Select the first item. Place the mouse
pointer over the last item in the list to be
selected. Press the shift key and click the
left mouse button. This action will
extend a selection to include all those
items sequentially listed between the
first selection and this one.
Extend a non-
contiguous selection
Control-click Place the mouse pointer over the item.
Press the control key and click the left
mouse button. This action will extend a
selection by adding the new item, but
not those in-between any previously
selected items.
De-select an item Control-click Place the mouse pointer over the
selected item. Press the control key and
click the left mouse button. This action
will de-select the item.
Open the Quick
Interaction Area for a
Part
Double-click Place the mouse pointer over the item
and click the left mouse button twice in
rapid succession.
3.2 Part Selection and Identification
3-14 EnSight 9 User Manual
Selecting Parts using the Select Button
Underneath the Parts list is the Select Button which can be used to select Parts
using logical operators.
All Select all parts
Invert Unselect the selected and select the unselected
Invisible Select the parts with visibility toggle off
Visible Select the parts that have the visibility toggle on
Region Select the Parts using the graphical selection tool
(This does not work for vector arrow parts)
Showing Select Parts that are toggled visible, that are within the graphics
viewing region, and within the z-clip. Auxiliary clipping has no
effect on this selection.
(This does not work for vector arrow parts.)
Keyword Select the parts using wildcards
None Unselect all parts
3.3 Part Editing
EnSight 9 User Manual 3-15
3.3 Part Editing
QIA vs. FDE In EnSight, new Parts can be created and edited in their Quick Interaction Area (QIA) just
below the top list of icons. The Quick Interaction Area contains only the most commonly
used attributes, but not all of the part’s attributes. To get access to a comprehensive list of
attributes, you must open the Feature Detail Editor (FDE) for that part type and select that
Part in the Feature Detail Editor Window and apply your modifications
Accessing FDE There are several ways to access the advanced attributes in Feature Detail Editor for a
particular part. Easiest is to right click on that part in the part list and select Edit. The
FDE Window will pop up with the part selected and all it’s attributes shown. Another way
is to click on the Advanced button in the Quick Interaction Area for that Part type and then
select the part in the FDE window that pops up. Finally, you can just right click on the
part in the graphics window and select ‘Edit’ and the FDE Window for that part will pop
up. The FDE Window will also open up if you double click a Feature Icon at the top of
EnSight. This process is described in Sections 7.2 to 7.9.
Immediate Mode Note that while each individual change made in the Quick interaction Area Editor is
applied to the Part immediately, the Feature Detail Editor allows you to make a number of
changes to various attributes and then apply them all at one time. This is done by toggling
off View > Immediate Modification in the Feature Detail Editor. The default behavior is to
immediately apply a change when you press Return.The Feature Detail Editor for Parts is
opened from the Main Menu
Finally there is a legacy method of accessing the FDE via the EnSight menu: Choose your
FDE using Edit>Part feature detail editors.
Figure 3-6
Menu selection of Feature Detail Editor
Figure 3-7
Easy Opening of the Feature Detail Editor
Right click on a part and
choose Edit as a quick
way of opening the Part
Feature Detail Editor
3.3 Part Editing
3-16 EnSight 9 User Manual
..
Feature Detail Editor Main Menu
File Save/restore selected EnSight Constant values.
Edit Opens a pull down menu.
Select All Selects all Parts in Feature Detail Editor Parts List. (see Section 3.4, Part Operations)
Copy Makes a copy of all selected Parts. (see Section 3.4, Part Operations), also (see How To
Copy a Part)
Delete Deletes selected Parts. (see Section 3.4, Part Operations), also (see How To Delete a Part)
Group... Groups the selected parts into a new part and removes the original parts from the list.
Ungroup Extracts the original parts out of a group and removes the group part.
Immediate Toggles on/off the immediate modification of Parts when individual changes are made to
Modification Toggle Attributes within the Feature Detail Editor. Default is on. By toggling off, you can make
several changes within the Feature Detail Editor and then apply them all at one time by
Figure 3-8
Feature Detail Editor (Isosurfaces)
Part Type Icon Bar
Parts List (of chosen
Description of Selected Part
Editor Main Menu
Creation Attributes Turndown
Display Attributes Turndowns
Part Type)
Editor Title Bar
Figure 3-9
Feature Detail Editor Edit pull-down menu
3.3 Part Editing
EnSight 9 User Manual 3-17
clicking the Apply Changes button.
Help Detail Editor opens up the How To Manual addressing the usage of the Feature Detail
editor.
Selected Entity opens up the How To Manual with an introduction to part creation.
3.3 Part Editing
3-18 EnSight 9 User Manual
Part Type Icon Bar
The Feature Detail Editor is initially opened from EnSight’s Main Menu (or by double
clicking a Part creation icon in the Feature Icon Bar) and the Feature Detail Editor’s Parts
List contains all Parts of the type named in the Editor’s Title Bar. The type of Parts in the
Feature Detail Editor’s Parts List may be changed by clicking on the appropriate icon in
the Feature Detail Editor’s Part Type Icon Bar. The figure below describes the four types
of choices available.
Variable & Legend Color Palette Icon
Click this icon to edit color controls. See Section 4.1 Variable Selection and Activation for
further discussion.
Variable Creation (Calculator) Icon
Click this icon to use the calculator to create new variables for the parts selected in the
Main Parts window.
1. Variable & Legend Color Palette controls
2. Variable Creation (Calculator) controls
3. Model Part attribute controls
4. Created Parts
attribute controls
Figure 3-10
Feature Detail Editor Part Type Selection Icons
3.3 Part Editing
EnSight 9 User Manual 3-19
Creation Attributes
Creation Attributes are “specific” attributes used to create (or modify) model and created
Parts.
Model Parts
Creation Attributes for model parts consist of geometry scaling options (including server-
side displacements) for unstructured and structured parts, and updating of I,J,K ranges for
structured parts. Geometry scaling can be accomplished with a scale factor which will be
applied to the model coordinates and/or a scale factor times a nodal variable. Updating the
I,J,K node range attributes of the selected block structured Model Parts or the geometry
scaling will cause proper updating of all dependent parts and variables.
Access: Main Menu > Edit > Part Feature Detail Editors > Model Parts...
Elements defined by:
Input dataset - This is the normal case where elements are defined in the dataset. No
meshing is done.
Meshing the points to create a 3D mesh - The part’s nodes will be used as input into a
volume mesher. Resulting in 3D elements for a volume, or 2D coplanar elements.
Meshing the points to create a 2D mesh - The part’s nodes will be used as input into a
volume mesher. Resulting in the elements forming the convex hull.
Note: There are a few formats that will not allow you to return to the input dataset
elements once you have meshed the part. Most do. For these few (ABAQUS fil, ansys,
ESTET, FIDAP Neutral, Fluent Universal, and N3S), you can change between the 2D and
3D meshing options, but you need to delete the part and reload it, if you desire the part
back to the input elements.
Adjust part coordinates:
The coordinates of the selected parts will be scaled and translated by the formula shown in
the dialog. It is possible to apply a simple scale factor, and/or to apply a scaled nodal
displacement vector variable (just choose the same vector variable for each pulldown and
it will use the correct component). In fact each coordinate direction can be according to a
different model scalar variable if desired. This works only with model variables, not
computed variables. This is where “server-side” displacements can be used - which has
the advantage of being able to properly query and compute on the displaced geometry of
the model.
Figure 3-11
Feature Detail Editor (Model) Creation
3.3 Part Editing
3-20 EnSight 9 User Manual
If you want to scale the model coordinates visually only, then you can use the transform
editor and choose the scaling option and visually scale the geometry in the three
orthogonal directions, and do this separate for each direction.
(see How To Display Displacements)
Using Node Ranges
IJK From These fields specify the desired minimum interval value in the respective IJK
component direction of the Model Part.
IJK To These fields specify the desired maximum interval value in the respective IJK
component direction of the Model Part.
IJK Step These fields specify the desired interval stride value in the respective IJK
component direction of the Model part.
IJK Min These fields verify the minimum interval limit in the respective IJK component
direction of the Model part.
IJK Max These fields verify the maximum interval limit in the respective IJK component
direction of the Model part.
(see How To Create IJK Clips)
Created Parts
See the appropriate Section in Chapter 7 for a description of the Creation Attributes
section.
• (see Section 7.7, Contour Create/Update)
• (see Section 7.8, Isosurface Create/Update)
• (see Section 7.9, Clip Create/Update)
• (see Section 7.10, Vector Arrow Create/Update)
• (see Section 7.11, Particle Trace Create/Update)
• (see Section 7.12, Subset Parts Create/Update)
• (see Section 7.13, Profile Create/Update)
• (see Section 7.14, Elevated/Offset Surface Create/Update)
Isosurface Clip
Contour Particle Trace Vector Arrow
Elevated Surface Profile Tensor Glyph
Subset Developed Surface
Vortex Core
Shock Surface/Region
Separation/
Attachment
Line
Material Part Point Part
Extruded Surface
3.3 Part Editing
EnSight 9 User Manual 3-21
• (see Section 7.15, Vortex Core Create/Update)
• (see Section 7.16, Shock Surface/Region Create/Update)
• (see Section 7.17, Separation/Attachment Lines Create/Update)
• (see Section 7.21, Developed Surface Create/Update)
• (see Section 7.20, Tensor Glyph Parts Create/Update)
• (see Section 7.21, Developed Surface Create/Update)
• (see Section 7.22, Point Parts Create/Update)
• (see Section 7.23, Extrusion Parts Create/Update)
Part Description Field
The description of model and created parts can be edited in the Desc field of the
Feature Detail Dialgog. The limit for this description is 49 characters.
General Attributes
General Attributes are “general” in that: (a) all Parts have them, and (b) they can’t
be neatly categorized into any other attribute type. Like all Part attributes, they are
set individually for each Part.
Access: Main Menu > Edit > Part Feature Detail Editors > (Isosurfaces..., etc.) > General Attributes
Visible Toggle Toggles-on/off whether Part is visible on a global basis (in the Graphics Window or in all
viewports). (Performs the same function as the Visibility Toggle in the Parts Mode Icon
Bar). Default is ON.
Visible In Viewports This small window allows you to control the visibility of the selected Part(s) on a per
Viewport basis. Each visible viewport is shown. A green Viewport indicates that the
Figure 3-12
Feature Detail Editor General
Attributes Area
3.3 Part Editing
3-22 EnSight 9 User Manual
selected Part(s) will be visible in this Viewport, while a black Viewport indicates that the
selected Part(s) will not be visible. Change the visibility (black to green, green to black)
by selecting a viewport with the mouse.
Fast Display Rep. This button opens a pop-up menu button for the selection of the fast display representation
used to display a part on the client. This attribute helps the display of complex data sets.
The part’s fast display representation displays according to whether the Fast Display
Mode (located in the View Menu or on the desktop) is on or off and on the state of the
Static Fast Display button located under Edit > Preferences..., Performance. For instance,
when the Fast Display Mode is Off (default) the part displays according to its specified
Element Representation. When on, the parts are displayed by the fast display
representation. The fast display representation will only be used while performing
transformations, unless the Static Fast Display option has been selected. The part detail
representations are:
Box a bounding (Cartesian extent) box of all part elements (default).
Off display according to specified Element Representation.
Points point cloud representation of the part.
Reduced poly polygon reduced representation of the part.
Sparse Model display a percentage of the model in each display box (only available
when running in immediate mode, using the -no_display_list startup
option). You control this percentage in the performance preferences.
Note, that it is useful for large models, but should probably not be used
for small models.
(see How To Set Global Viewing)
Visual Symmetry This section contains controls which allow you to produce either rotational or mirror
visually symmetric images of parts. In general, symmetry enables you to reduce the size of
your analysis problem while still visualizing the “whole thing.” Symmetry affects only the
displayed image, not the data, so you cannot query the image or use the image as a parent
Part. However, you can create the same effect by creating dependent Parts with the same
symmetry attributes as the parent Part.
Mirror visual symmetry includes the ability to toggle-on/off the display of a mirror image
of Parts (which are selected in the Feature Detail Editor’s Parts List) in each of the seven
other quadrants of the Part’s local frame. It also allows you to turn on or off the original
(non-symmetric) part representation. It performs the same function as the Visual
Symmetry Pull-down Icon in the Part Mode Icon Bar. You can mirror the Part to more
than one octant. If the Part occupies more than one quadrant, each portion of the Part
mirrors independently. Symmetry works as if the local frame is Rectangular, even if it is
cylindrical or spherical. The images are displayed with the same attributes as the Part. For
each toggle, the Part is displayed as follows. The default for all toggle buttons is OFF,
except for the original representation - which is ON.
Mirror X octant on the other side of the YZ plane.
Mirror Y octant on the other side of the XZ plane.
Figure 3-13
Mirror Visual Symmetry
3.3 Part Editing
EnSight 9 User Manual 3-23
Mirror Z octant on the other side of the XY plane.
Mirror XY diagonally opposite octant on the same side of the XY plane.
Mirror XZ diagonally opposite octant on the same side of the XZ plane.
Mirror YZ diagonally opposite octant on the same side of the YZ plane.
Mirror XYZ octant diagonally opposite through the origin.
Show Original Instance the original part location.
Rotational visual symmetry allows for the display of a complete (or portion of a) “pie”
from one “slice” or instance. You control this option with:
Axis X rotates about the X axis
Y rotates about the Y axis
Z rotates about the Z axis
Angle specifies the angle (in degrees) to rotate each instance from the previous
Instances specifies the number of rotational instances.
Show Original Instance show the original instance or not
(see How To Set Symmetry)
Aux Clip Toggle Toggles-on/off whether Part(s) selected in the Part List of the Feature Detail Editor will be
affected by the Auxiliary Clipping Plane feature, which enables you to make invisible
that portion of each Part on the negative side of the current position of the Plane
Tool. Performs the same function as the Part Mode: Auxiliary Clipping Toggle
Icon. A Part with its Aux Clip attribute toggled-off will not be cut away. Default is
ON. (see Auxiliary Clipping in Section 6.4, View Menu Functions).
Active Toggle Toggles-on/off whether or not display of the Part automatically updates as the solution
time changes. When visualizing transient data, you may wish to “freeze” a Part in time
while other Parts continue to update. For example, you can create two identical vector-
arrow Parts, toggle-off Active for one of them, change the time step of the display, and see
how the vector arrows change from one time step to the other. Only the EnSight client Part
is frozen, the EnSight server Part is kept current. Default is ON.
Ref. Frame This field specifies which frame the Part is assigned to. Default is the frame of the Part’s
parent Part (Frame 0 for original model Parts). Enter a different frame number in the field
to change the assignment. Changing a Part’s frame causes the Part to be drawn in the new
coordinate frame. Once assigned to a different frame, the Part will transform with that
frame. The choice of frame does not affect variable values. The interpolated value of a
variable at point 0,0,0 in Frame 0 is the same as at point 0,0,0 in Frame 1, even though the
points may appear at different locations in the Main View Window.
(see Section 8.5, Frame Mode)
Color By This button opens a pop-up menu for the selection of the variable color palette by which
you wish to color the selected Part(s). Coloring a Part with a palette does not normally
affect graphics performance while in line drawing mode, but Shaded Surface mode
performance can become considerably slower. If you do not color by a palette (Color By >
None), the Part will be displayed according to the color specified in the R, G, B fields. If
you want to color Parts by palettes and want Shaded Surface mode, consider using the
Static Lighting option (see Static Lighting in Section 6.4, View Menu Functions).
R G B These fields allow you to specify a solid color for the selected Part(s) (applicable only if
Figure 3-14
Rotational Visual Symmetry
3.3 Part Editing
3-24 EnSight 9 User Manual
Color By is None). Enter a numerical value from 0 to 1 for each component color (Red,
Green, and Blue).
Mix... Opens the Color Selector dialog for the selection of a solid color for the selected Part(s)
(applicable only if Color By is None). (see Section 8.1, Color Selector)
Surface
Shaded Surface Toggles on/off surface shading for individual Parts. When global Shaded
To gg l e Surface has been toggled on for the Graphics Window display (from Main Menu > View >
Shaded Surface or via the Global Shaded Surface Toggle in the View Mode Icon Bar),
individual Parts can be forced to stay in line drawing mode using this toggle. Default is
ON. (see Section 6.4, View Menu Functions)
Hidden Line Toggles on/off hidden line representation for individual Parts. When global
Toggle Hidden Line has been toggled on for the Graphics Window display (from Main Menu >
View > Hidden Line or via the Global Hidden Line Toggle in the View Mode Icon
Bar), individual Parts can be forced not to appear as Hidden Line representation using this
toggle. (To have lines hidden behind surfaces, Parts must have surfaces, i.e. 2D elements)
Default is ON. (see Section 6.4, View Menu Functions)
Shading Opens a pop-up menu for selection of appearance of Part surface when Shaded Surface is
on. Normally the mode is set to Gouraud, meaning that the color and shading will
interpolate across the polygon in a linear scheme. You can also set the shading type to Flat,
meaning that each polygon will get one color and shade, or Smooth which means that the
surface normals will be averaged to the neighboring elements producing a “smooth”
surface appearance.Not valid for all Part types. Options are:
Flat Color and shading same for entire element
Gouraud Color and shading varies linearly across element
Smooth Normals averaged with neighboring elements to simulate smooth surfaces
Opaqueness This field specifies the opaqueness of the selected Part(s). A value of 1.0 indicates that the
Part is fully opaque, while a value of 0.0 indicates that it is fully transparent. Setting this
attribute to a value other than 1.0 can seriously affect the graphics performance.
Fill Pattern Opens a pop-up menu for selection of a fill pattern which can provide pseudo-
transparency for shaded surfaces. Default is Fill 0 which uses no pattern (produces a
solid surface), while Fill patterns 1 through 3 produce a EnSight defined fill pattern.
Lighting
Diff This field specifies diffusion (minimum brightness or amount of light that a Part reflects).
(Some applications refer to this as ambient light.) The Part will reflect no light if value is
0.0. If value is 1.0, no lighting effects will be imposed and the Part will reflect all light and
be shown at full color intensity at every point. To change, enter a value from 0 to 1.
Shin This field specifies shininess.You can think of the shininess factor in terms of how smooth
the surface is. The larger the shininess factor, the smoother the object. A value of 0
corresponds to a dull finish and a value of 100 corresponds to a highly shiny finish. To
change, enter a value from 0 to 100.
H Int This field specifies highlight intensity (the amount of white light contained in the color of
the Part which is reflected back to the observer). Highlighting gives the Part a more
realistic appearance and reveals the shine of the surface. To change, enter a value from 0 to
1 with larger values representing more white light. Will have no effect if Shin parameter is
zero.
3.3 Part Editing
EnSight 9 User Manual 3-25
(see How To Set Attributes)
Troubleshooting Surface Attributes and Lighting
Problem Probable Causes Solutions
Part not in Shaded Surface mode Global Toggle not on, or if on,
Shaded Surface is turned off for
the Part in the Feature Detail
Editor
Turn on Shaded Surface toggle
from View menu of Main Menu
or turn and make sure Shaded
Surface is turned on for the Part
in the Feature Detail Editor.
Part contains only 1D elements No Solution
Part appears not to have any
lighting.
Diffuse light intensity too high Lower the Diff value.
3.3 Part Editing
3-26 EnSight 9 User Manual
Node, Element, and Line Attributes
Each Part’s Node, Element, and Line attributes control the representation of the
Part on the client, and how nodes, elements, and lines are displayed.
Access: Main Menu > Edit > Part Feature Detail Editors > Node, Element, and Line Attributes
General Visibility
Node Toggle Toggles-on/off display of Part’s nodes whenever the Part is visible. Default is OFF.
Line Toggle Toggles-on/off display of line (1D) elements in the client-representation whenever the Part
is visible. Default is ON.
Element Toggle Toggles-on/off display of 2D elements in the client-representation whenever the Part is
visible. Note that 3D elements are always represented as 2D elements on the client.
Default is ON.
Label Visibility
Node Toggle Toggles-on/off display of Part’s node labels (if they exist) whenever the Part is visible.
Only model Parts may have node labels. Default is OFF.
Element Toggle Toggles-on/off display of Part’s element labels (if they exist) whenever the Part is
displayed in Full visual representation. Only model Parts may have element labels.
Default is OFF.
Node Representation
Type Opens a pop-up menu for the selection of symbol to use when displaying the Part’s nodes.
Default is Dot. Options are:
Dot to display nodes as one-pixel dots.
Cross to display nodes as three-dimensional crosses whose size you specify.
Sphere to display the nodes as spheres whose size and detail you specify.
Figure 3-15
Feature Detail Editor Node, Element, and Line Attributes Area
3.3 Part Editing
EnSight 9 User Manual 3-27
Scale This field is used to specify scaling factor for size of node symbol. Values between 0 and 1
reduce the size, factors greater than one enlarge the size. Not applicable when node-
symbol Type is Dot. Default is 1.0.
Detail This field is used to specify how round to draw the spheres when the node-symbol type is
Sphere. Ranges from 2 to 10, with 10 being the most detailed (e.g., roundest spheres).
Higher values take longer to draw, slowing performance. Default is 2.
Size By Opens a pop-up menu for the selection of variable-type to use to size each node-symbol.
For options other than Constant, the node-symbol size will vary depending on the value of
the selected variable at the node. Not applicable when node-symbol Type is Dot. Default is
Constant. Options are:
Constant sizes node using the Scale factor value.
Scalar sizes node using a scalar variable.
Vector Mag sizes node using magnitude of a vector variable.
Vector X-Comp sizes node using magnitude of X-component of a vector variable.
Vector Y-Comp sizes node using magnitude of Y-component of a vector variable.
Vector Z-Comp sizes node using magnitude of Z-component of a vector variable.
Variable Selection of variable to use to size the nodes. Activated variables of the appropriate Size
By type are listed. Not applicable when node-symbol Type is Dot or Size By is Constant.
Line Representation
Width Specification of width (in pixels) of line elements and edges of 2D elements whenever
they are visible. Range is from 1 to 20. Default is 1. Line widths other than 1 are not
available on all hardware. This performs the same function as the Part Line Width
Pulldown Icon in Part Mode.
Style Selection of style of line when lines are visible. Default is Solid. Options are:
Solid
Dotted
Dot-Dash
Element Representation
Visual Rep.Selection of representation of Part’s elements on the client. Saves memory and time to
download.
3D border, 2D full represents the Part’s 3D elements in Border representation, the
Part’s 1 and 2D elements in Full representation. The result is the outside
surfaces of the Part are displayed along with all bar elements.
3D feature, 2D full represents the Part’s 3D elements in Feature representation, the
Part’s 1 and 2D elements in Full representation. The result is the outside sharp
edges of the Part are displayed along with all bar elements.
3D nonvisual, 2D full represents the Part’s 3D elements in non visual representation, the
Part’s 1 and 2D elements in Full representation. The result is all the 1 and 2D
elements from 2D parts are displayed.
Border represents the Part’s 3D elements with 2D elements corresponding to
unshared element faces, the Part’s 2D elements with 1D elements
corresponding to the unshared edges, and the Part’s 1D elements as 1D
elements. The result is the outside faces and edges of the Part’s elements.
Feature Angle first runs the 3D border, 2D full representation to get a list of 1 and
2D elements. The 1D elements and all non-shared 2D edges will be shown,
but only the shared edges above the Angle value will be shown. The result
consists of 1D elements visualizing the sharp edges of the Part.
Bounding Box represents all Part elements as a bounding box surrounding the Cartesian
extent of the elements of the Part.
3.3 Part Editing
3-28 EnSight 9 User Manual
Full represents all faces of the Part’s 3D elements, and all the 1 and 2D elements.
Non Visual means the Part exists on the server, but is not loaded on the client. Not
Loaded Parts may be used as parent Parts, but do not exist on the client.
Shrink Factor Specification of scaling factor by which to shrink every element toward its centroid. Enter
the fraction to shrink by in range from 0 to 1. Default is 0.0 for no shrinkage.
Angle Specification of lower limit for not displaying shared edges in Feature Angle
Representation. Value is in degrees.
Load Points and Loads only vertex information and normals for the element representation given to the
Normals only client. Useful for very large models.
Reduce Polygons Lower the polygon density used to represent the part. Useful for very large models. Toggle
on, then type in a value to reduce by, or slide the slider.
Failed Elements
Variable Elements are removed from display on the client and from calculation on the server using
the named variable and the threshold operator(s) ( < , > , = , != ) and their relationship
(logical ‘and’ or logical ‘or’). Applies only to model parts.
< , > , = , != Elements are removed from display on the client and from calculation on the server using
the above named variable and the threshold operator(s) ( < , > , = , != ) and their
relationship (logical ‘and’ or logical ‘or’).
(see How To Set Attributes and How To Display Labels)
Troubleshooting Node, Element and Line Attributes
Displacement Attributes
Displacement Attributes specify how to displace the Part nodes based on a nodal
vector variable. Each node of the Part is displaced by a distance and direction
corresponding to the value of a nodal vector variable at the node. The new
coordinate is equal to the old coordinate plus the vector times the specified Factor,
or:
Cnew = Corig + Factor * Vector,
where Cnew is the new coordinate location, Corig is the coordinate location as
defined in the data files, Factor is a scale factor, and Vector is the displacement
vector.
You can greatly exaggerate the displacement vector by specifying a large Factor
value. Though you can use any vector variable for displacements, it certainly
makes the most sense to use a variable calculated for this purpose. Note that the
variable value represents the displacement from the original location, not the
coordinates of the new location.
Problem Probable Causes Solutions
After changing to Feature Angle
representation, the Part is not shown.
Angle value is to large Set Angle to smaller value.
3.3 Part Editing
EnSight 9 User Manual 3-29
Access: Main Menu > Edit > Part Feature Detail Editors > Displacement Attributes
Displace by Opens a pop-up menu for selection of vector variable to use for displacement (or None for
no displacement). Variable must be a nodal vector and be activated.
Factor This field is used to specify a scale factor for the displacement vector. New coordinates are
calculated as: Cnew = Corig + Factor*Vector, where Cnew is the new coordinate location,
Corig is the original coordinate location as defined in the data file, Factor is a scale factor,
and Vector is the displacement vector. Note that a value of 1.0 will give you “true”
displacements.
(see How To Display Displacements)
Troubleshooting Displacement Attributes
IJK Axis Display Attributes
All Model and clip parts will have these attributes shown, but they only apply to
to those model and clip parts which are structured.
Access: Main Menu > Edit > Part Feature Detail Editors > IJK Axis Display
Attributes
IJK Axis Visible Toggle on to display an IJK axis triad for the part. IJK axis triad only visible when part is
visible.
Scale The scale factor for the IJK Axis triad.
(see How To Set Attributes)
Troubleshooting IJK Axis Display Attributes
Problem Probable Causes Solutions
Displacement not visible Displace By attribute set to None
for Part that is not displacing.
Set the Displace By attribute
Factor value too small. Specify a larger Factor.
Using a per-element variable. Make sure in calculator that
variable is a per-node vector.
Problem Probable Causes Solutions
IJK Axis not visible IJK Axis Display toggle not on
for part of interest.
Toggle it on.
Scale value too small. Specify a larger scale.
Figure 3-16
Feature Detail Editor Displacement Attributes Area
Figure 3-17
Feature Detail Editor IJK Axis Display Attributes Area
3.3 Part Editing
3-30 EnSight 9 User Manual
Dialog Action Buttons
Create Clicking this button creates a new Part using attributes currently selected/specified in the
Feature Detail Editor. This performs the same function as the Create button in the Quick
Interaction Area Editor for each type of created Part. Clicking Create updates the Graphics
Window and adds the new Part to the Main Parts List and to the Parts List in the Feature
Detail Editor for this type of Part. Not applicable for model Parts or discrete Particles.
(see Introduction to Part Creation)
Update Parent Clicking this button assigns the Part which is currently selected in the Main Parts List as
the new parent Part of the created Part(s) which is(are) currently selected in the Feature
Detail Editor’s Parts List.
Apply Changes Clicking this button applies all changes that have been made within the Feature Detail
Editor all at once if Immediate Modification has been toggled off above in the Feature
Detail Editor’s Edit pull-down menu. If Creation attributes have been changed, the Part
will be regenerated.
Part is not a structured part. No IJK axis possible for this part.
Part is not visible Toggle on part visibility
Problem Probable Causes Solutions
3.4 Part Operations
EnSight 9 User Manual 3-31
3.4 Part Operations
This section will describe the Part operations accessible through “Edit > Part” in
the Main Menu and “Edit” in the Feature Detail Editor Menu. These include
Select All, Select, Delete, Assign to Single or Multiple Viewports, Group,
Ungroup, Copy, Cut, Extract, and Merge.
Select All Choosing this from the Main Menu > Edit >Part pull-down, selects all Parts in the Main
Parts List. Choosing this from the Edit pull-down in the Feature Detail Editor Menu
selects all Parts in the Feature Detail Editor Parts List.
Access: Main Menu > Edit > Part > Select All
Feature Detail Editor Menu > Edit > Select All
(see How to Select Parts)
Select ... Choosing this from the Main Menu > Edit >Part pull-down, opens the Select Part(s) By
Keyword dialog.
Find What This field is used to specify the keyword or regular expression to compare (match) against
Part names.
Match Whole Word When on, the entire Part name must match the keyword or regular expression.
Only Toggle When off, a Part name will be selected if only a substring of the Part name matches.
Match Case Toggle When on, the comparison is case sensitive. When off, case is ignored.
Use Regular When on, special characters in the keyword will be used to define a regular expression.
Expression Toggle When off, any special characters will be treated as a regular character during comparison.
Special Character Contains a list of special characters available to create a regular expression. Selecting an
Figure 3-18
Part Operation Selection Menus
Figure 3-19
Select Part(s) By Keyword dialog
3.4 Part Operations
3-32 EnSight 9 User Manual
Selection List item from the list will insert the special character into the “Find What” text field at the
cursor location.
* Match any number of characters in the part name
. Match any one character in the part name
~ Match part names that do not match the specified search criteria.
| Separates multiple search keywords or regular expressions. (extra spaces are not
allowed around “|”)
Examples: Find What: abc*xyz Match Whole Word Only: On
Select any Part who’s name starts with “abc” and ends with “xyz”
Find What: tom|jerry Match Whole Word Only: OFF
Select all Part s who’s names contain the string “tom” and/or the
string “jerry”
Add to Current When on, any matching Part names will be added to the list of Part names currently
Selection Toggle selected. When off, only the matching Part names will be selected.
Select Next Match Selects the next Part name which matches the keyword or regular expression.
Select All Matches Selects all Part names which match the keyword or regular expression.
Delete… If chosen from the Main Menu > Edit > Part pull-down, deletes all selected Parts in the
Main Parts List after you have confirmed in a pop-up dialog that you wish to do so. If
chosen from the Edit pull-down in the Feature Detail Editor Menu, deletes all selected
Parts in the Feature Detail Editor Parts List after you have confirmed in a pop-up dialog
that you wish to do so. If model Parts are deleted, they are no longer available for the
current session. Parts dependent upon selected Parts will also be deleted or modified
Access: Main Menu > Edit > Part > Delete...
Feature Detail Editor Menu > Edit > Delete...
(see How to Delete a Part)
Assign to Single Creates a new viewport and assigns all of the selected parts to the new viewport. The new
New Viewport viewport will be 2D if all of the selected parts are 2D and lie on the same plane.
Assign to Multiple Creates a new viewport for each of the selected parts. Each new viewport will show one
New Viewports part only. If the part is 2D, the viewport will be 2D. Further, if the part assigned to the new
viewport is a XYZ or IJK clip or an isosurface, annotation will be created in the lower left
corner of the viewport indicating the value of the clip or iso.
Group/Ungroup The group operation is used to collect any number of parts into a set which can be
modified and utilized as one entity. The operation is non-destructive and reversible, and is
used solely as a convenience to the user in order to organize a large number of parts.
Any attribute modification to a grouped part affects each of the parts in the group.
Similarly, if a grouped part is used as a parent part, each part in the group is used as a
parent in the creation process.
When group is selected, the dialog shown in the figure below will appear. A part name
must be input in order to complete the grouping operation.
Only parts of the same type and case can be grouped together. Further, groups can not
Figure 3-20
Group Parts Dialog
3.4 Part Operations
EnSight 9 User Manual 3-33
contain other part groups.
(see How To Group Parts)
Copy If chosen from the Main Menu > Edit > Part pull-down, makes a copy of selected Part(s)
in the Main Parts List. If chosen from the Edit pull-down in the Feature Detail Editor
Menu, makes a copy of selected Part(s) in the Feature Detail Editor Parts List.
The Copy operation creates a dependent copy of another (original) Part. The Copy is
created on the Client and its existence is not known to the EnSight Server process. A Copy
shares geometric data and variable data with the original Part. (This type of Part is
sometimes called a “shallow copy”.)
relationships The relationship between a Model Part and a Copy made from a Model Part will be one of
original and copy. That is, the Model Part will not be a Parent to the Copy as it is to a
Created Part such as a clip.
The relationship between a Created Part and a copy made from it will also be one of
original and copy since the Copy will initially regard as its Parent the same Part that the
original Created Part regards as its Parent. The Parent of individual Created Parts can of
course be reassigned (using the Update Parent button at the bottom of the Feature Detail
Editor) but the Parent of a Created Part Copy can Not be reassigned.
A copy can be used as a Parent Part for Parts created since the create operation will
operate on the original Part.
attributes The initial attributes assigned to a Copy are the same as those of the original Part at the
time of copying. All attributes for the Copy except Element Representation (3D border,
2D full, border, Feature Angle, etc.) can be changed. The Element Representation of a
Copy cannot be changed independently; a change in Element Representation of the
original changes the copy as well.
description The description of the new Copy will be the same as the original Part with the suffix “-
COPY” added (of course, you can change this description in the Desc field in the Feature
Detail Editor).
frame assignment A new frame is automatically created for each newly created Copy and the Copy is
assigned to the new frame so that it can easily be moved with a local transformation. The
location of the original Part and the Copy will initially coincide as well. Like all Parts,
Figure 3-21
Part Copy Example
Original Clip Part - colored by temperature Copy of Clip Part, assigned to new Frame,
colored by velocitytranslated to right, and
at the same time step
Y
X
Z
Y
X
Z
01
3.4 Part Operations
3-34 EnSight 9 User Manual
Copies of Parts can be reassigned to different frames in the General Attributes Section of
the Feature Detail Editor (for that type of Part).
usefulness One of the most useful purposes for copies is a separation allowing for the side-by-side
display of different attributes (shown in Figure 3-11). Since all attributes except Element
Representation can be different, the original and the copy can be displaying different
variables, different displacements, etc.
(see How To Copy a Part)
Extract Extracts selected Part(s) into a new, true Part, using the Part representation in effect at the
time (full, border, or feature). If more than one Part is selected, then they are joined into a
single Part. If more than one Part is selected when extract is invoked, then all will have
their extracted geometry joined into a single new Part. The new Part is assigned to Frame
0.
description The Extract option is closely tied to Element Representation. It creates a new Part using
the geometry of the current representation (what you see is what you get). Extracted Parts
which are in Full Representation are actual copies of the original, but extracted Parts
which are in Border Representation are only the shell or boundary of the original. Extract
is often used with the Save Geometric Entities feature to save extracted Parts (and not the
originals) into a smaller set of data. It is also used to create hollow Parts from solid Parts to
be able to look inside a solid Part after cutting it open with the Cut feature.
(see How To Extract Part Representations)
Merge If more than one Part is selected, the Merge operation creates a new model Part on the
Server host that is a combination of all selected. If only one Part is selected when Merge is
invoked, then a new Part is created on the Server host that is identical but fully
independent from the original Part (Note that this type of “copy” does not have the
restriction on Element Representation that Part Copy does, - all Attributes can be
reassigned - but it requires considerably more memory because it does not share the
geometry with the original but now has its own copy of the geometry). The merge
operation creates a new Part. The new Part is assigned the default Display Attributes and
is also assigned to Frame 0.
(see How To Merge Parts)
3.5 Part List Shortcuts (Right-click)
EnSight 9 User Manual 3-35
3.5 Part List Shortcuts (Right-click)
This section will describe Part shortcuts available via the right-click in the Main
Part List. These shortcuts operate on the Part(s) that are highlighted in the Main
Part List and not on the Part(s) that are right-clicked.
Color Brings up the “Part color, lighting, and transparency” dialogue. Choices in this dialogue
will affect the Part(s) that are highlighted in the Main Part List and not on the Part(s) that
are right-clicked.
Change Visibility Toggles visibility of the Part(s) that are highlighted in the Main Part List and not on the
Part(s) that are right-clicked.
Copy Makes a “shallow copy” (only on the client) of the Part(s) that are highlighted in the Main
Part List and not on the Part(s) that are right-clicked.
Delete Deletes the Part(s) that are highlighted in the Main Part List not the Part(s) that are right-
clicked.
Group/Ungroup Groups / Ungroups the Part(s) that are highlighted in the Main Part List and not on the
Part(s) that are right-clicked.
Rename Renames the Part(s) that are highlighted in the Main Part List and not on the Part(s) that
are right-clicked. Note that if more than one Part is selected, each part will be given the
name typed in the Rename Dialog, but parts after the first will have the new name
followed by a sequential number to make sure the Part names are unique.
Edit Opens up the Feature Detail Editor for the Part Type of the first highlighted part in the Part
List.
Figure 3-22
Part List Right-Click Options
3.6 Part Graphics Window Shortcuts (Right-click)
3-36 EnSight 9 User Manual
3.6 Part Graphics Window Shortcuts (Right-click)
This section will describe Part shortcuts available via the right-click in the Graphics
window on a Part geometry. The Part geometry will change appearance indicating it is
selected, and the part list will update indicating it is selected. A pulldown list of shortcuts
will appear that is context-sensitive to the part type selected. These shortcuts operate on
the Part(s) that is/are selected. These right-click shortcuts can be disabled by altering the
mouse behavior in EnSight preferences as follows: Edit>Preferences, Mouse and
Keyboard and change the single click settings to None.
The options available in the context sensitive right-click pulldown will depend on the part
type selected, the sitee and user-options installed, and the version of EnSight. The figure
below is for illustrative purposes only.
Edit Brings up the Part Feature Detail Editor Window
Hide Sets the Part visibility to OFF
Delete Deletes the Part without an ‘Are you Sure?’ and cannot be undone
Color By Colors the Part by Variable, Constant Color, Black, White, Grey, or Transparent
Background Change view, modify viewports, select parts, full screen, add text, change background
color, or create an image
Place Tool Place the cursor, line or plane tool
Clips Create clip using selected part(s) as a parent
Contour Create a contour using selected part(s) as a parent
Isosurface Create an isosurface using selected part(s) as a parent
Vector Arrows Create vector arrows using selected part(s) as a parent
Figure 3-23
Part Graphics Window Right-Click Options
3.7 Part Shortcuts (Click-and-Go)
EnSight 9 User Manual 3-37
3.7 Part Shortcuts (Click-and-Go)
If you click on a part and a green cross hair appears, then this part has activated click and
go. Click on the green cross hair and then drag it left and right or up and down to
dynamically cause, for example, the the isosurface value change, or the clip location
change, or the vector arrow scaling change, or the contour density change. Click and Go is
available for any part that you click on and get a click and go indicator (among them
Vector Arrow Parts, Contour Parts, Isosurface parts, Clip Parts). This click-and-go
behavior can be disabled by altering the mouse behavior in EnSight preferences as
follows: Edit>Preferences, Mouse and Keyboard and change the single click settings to
None. You might want to disable this behavior if, for example, you were dealing with very
large datasets with parts whose parameters cannot be changed interactively.
.
Figure 3-24
Click and Go Handle
Click and Go
handle
3.7 Part Shortcuts (Click-and-Go)
3-38 EnSight 9 User Manual
EnSight 9 User Manual 5-1
5 GUI Overview
The purpose of this Chapter is to provide a brief overview of the EnSight 9 GUI.
When EnSight first comes up, the Graphical User Interface should appear approximately as
shown. The different sections of the GUI are used for specific purposes.
Main Menu In addition to providing access to high-level features such as Command File
Creation/Editing/Reading, Results Data Reading, File Printing, Saving/Restoring
a session, and Quitting, the Main Menu provides access to often-used
postprocessing features such as editing, querying variable data, part appearance
adjustment, and tool visibility.
Chapter 6 contains a complete description of each section of the Main Menu.
(see Chapter 6, Main Menu)
Main Menu
Main Parts
List
Mode
Selection
Area
Mode Icon
Bar
Transformation
Control Area
Message
Area
Feature
Icon Bar
Quick
Interaction
Area
Graphics
Window
Figure 5-1
EnSight 9 Start-Up GUI
Quick Desktop
Buttons
Information
Area Button
“Desktop” - refers to the upper level of the GUI. It contains the following areas:
5-2 EnSight 9 User Manual
Main Parts List Default The Default Main Parts List contains the number and names of all parts that have
been read in from your results data (model parts) or created within EnSight
(created parts) nested within their Case description.
Main Parts List Abbrev Shown below is the Main Parts List Window if you click on the List Button
pulldown, toggle “Show abbreviated details”. Notice that the Part List will contain
more information. Displayed are a case number, ID number, visibility attribute,
shaded attribute, part symbol, representation, node and element id status, and a
Part name (description).
You will find sub-sets of this Main Parts List in the Feature Detail Editor for each
type of part. For example, the Feature Detail Editor (Isosurface) will contain a
parts list of only isosurface parts.
For a complete description of the Main Parts List as well as a detailed discussion
about Part selection, editing, and operations thereon:
(see Section 3.1, Part Overview)
Feature Icon Bar This Icon Bar provides rapid access to things such as new part creation, 2D plot
creation, data querying, time step control, flipbook animation and keyframe
animation. Clicking once on an icon opens its associated editor in the Quick
Interaction Area.
Double clicking on a new part creation Icon (contours, isosurfaces, particle traces,
clips, vector arrows, elevated surfaces, profiles, developed surfaces) will open the
Feature Detail Editor for that type of created part.
Chapter 7 contains a detailed explanation of the features in the Quick Interaction
Area which are available through each of the Icons.
Figure 3-2
Default Main Parts List
Figure 3-3
Abbreviated Parts List
Parent Part
Part ID
Part Symbol
Case Number
Part Description
Indicator
Number
Part Visibility
Part Representation
Part Shaded Attribute Part Node & Element ID Status
EnSight 9 User Manual 5-3
(see Chapter 7, Features)
Mode Selection Area The Mode Selection Area contains four to five buttons which allow you to choose
which of the “Modes” you wish to work in. The Mode selected will not only
determine which icons you see in the Mode Icon Bar but also the way in which
you work within the Graphics Window, The five possible Modes are:
•Part Mode for the specification of attributes for specific parts
•Annot Mode for the addition and editing of annotation lines, text, and logos to
the Graphics window as well as the editing of Variable legends
•Plot Mode for the creation and specification of attributes for 2D Variable
plots
•VPort Mode for the creation and control of additional viewports within the
Graphics Window
•Frame Mode for the creation and specification of attributes for additional
frames of reference within EnSight. By default this mode is not
displayed. If needed, this mode can be turned on under Edit >
Preferences... General User Interface - Frame Mode Allowed.
Chapter 8 contains a detailed explanation of the features available and the
differences between the five modes.
(see Chapter 8, Modes)
Mode Icon Bar The vast majority of editing features available in EnSight are divided into five
different groups and are accessible through the Mode Icon Bar. The set of Icons
you see at any time are determined by which Mode has been selected in the Mode
Selection Area.
The various Mode Icon Bars can be customized by the user:
See Preferences... in Section 6.2, Edit Menu Functions)
Chapter 8 contains a detailed explanation of the features available and the
differences between the five modes.
(see Chapter 8, Modes)
Transformation Area This area determines how you will transform Parts within the Graphics Window
and also provides quick access to the Transformations Editor for precise control of
transformations. Buttons are available for quick viewing down any of the major
axes, for Storing/Recalling views and for undoing the last transformation.
Chapter 9 contains a detailed description of the features in the Transformation
Area.
(see Chapter 9, Transformation Control)
Message Area This area provides feedback on what EnSight is doing. If you are using Transient
data, this area will indicate which time step is currently in use.
Information Area This button will bring up a dialog which will display any output that EnSight
Button generates. When no new information is in the area, the button will be the typical
interface color. When new information has been placed in the area, the button will
be green in color. If warning information has been placed in the area, it will be
yellow in color. If error information has been placed in the area, it will be red in
color.
5-4 EnSight 9 User Manual
Quick Interaction Area This area provides quick access to the features associated with each of the Icons in
the Feature Icon Bar.
Chapter 7 contains a detailed explanation of the features in the Quick Interaction
Area which are available through each of the Icons.
(see Chapter 7, Features)
Quick Desktop Buttons This area contains some very commonly used toggles, such as the shading and
tools.
Graphics Window This area shows the model using the current display attributes. You perform all
interactive transformations in the Graphics Window.
GUI Conventions
EnSight 9 User Manual 5-5
GUI Conventions
The EnSight GUI uses menus and dialogs that utilize and expand upon established
OSF/Motif conventions. This section provides some general information on the
operation of EnSight dialogs, menus, lists, buttons, and text fields.
Dialogs A dialog is a window that groups interface components based on function.
Dialogs are typically opened by making selections from a menu. Menu selections
that open dialogs always end with “...”. Most EnSight dialogs can be opened and
closed independently. In order to optimize scarce workstation screen real estate,
you should close dialogs that are not in use.
Dialogs typically consist of buttons, menus, lists, and areas to type in. Many
EnSight dialogs also have expandable sections that let you hide parts of the
interface that you use infrequently. Each expandable section consists of an
indicator button, a section title, and the contents of the section. The indicator
button and the section title are always visible. If the section is open, the contents
are visible as well.
Rectangular
Button
Square Button
Turndown Button
GUI Conventions
5-6 EnSight 9 User Manual
Menus The EnSight documentation uses the following terms to describe various types of menus.
Lists EnSight provides access to the list of Model and Created Parts as well as Original
and Created Variables through the Main Parts List and the Main Variables List as
well as the sub-lists available in the various Feature Detail Editors. These lists are
presented as scrollable sections. Various mechanisms are used to select items from
a list for further action:
Menu Bar A horizontal strip across the top of some dialogs listing menu
titles.
Pull-down menu A pull-down menu is one accessed directly from a menu bar.
Cascade menu or
submenu
A submenu is accessed from another menu selection. Submenu
selections are indicated by a right-pointing arrow.
Pop-up menu A pop-up menu is accessed by pressing the associated rectangular
button. The current selection from the menu always appears as the
button title. (An example is the rectangular button labeled
“PRESSURE” beside the word Variable shown above in the
Feature Detail Editor.)
Select (or
single-click)
Place the mouse cursor over the item and click the left mouse button.
The item is highlighted to reflect the “selected” state.
Select-drag Place the mouse cursor over the first item. Click and hold the left
mouse button as you drag over the remaining items to be selected.
Only contiguous items may be selected in this fashion.
Shift-click Place the mouse cursor over the item. Depress the shift key and click
the left mouse button. This action will extend a selection to include
all those items sequentially listed between the previous selection and
this one.
Menu Bar
Pull-down menu
Cascade menu
Diamond button
group (explained
below)
Scroll Bars
GUI Conventions
EnSight 9 User Manual 5-7
Buttons EnSight uses the following kinds of buttons:
Control-click Place the mouse cursor over the item. Depress the control key and
click the left mouse button. This action will extend a selection by
adding the new item, but not those in-between. Use this mechanism
to build a non-contiguous selection.
Double-click Place the mouse cursor over the item and click the left mouse button
twice in rapid succession.
Right-click Place the mouse cursor over the item and click the right mouse
button. There are a number of shortcuts available using the right-
click in the graphics window, and in the part list window.
Middle-click Place the mouse cursor over the item and click the middle mouse
button.
Rectangular Place the mouse cursor in the button area and click the left mouse
button. Rectangular buttons typically access the function described
in the label. If the label is followed by “...” then the button opens
another dialog. (Example shown above.)
Arrow Place the mouse cursor in the button area and click the left mouse
button. Arrow buttons typically have an associated text field.
Clicking the button increments or decrements the text field value.
(Example shown below.).
Triple Slider Click on the slider above the bar and drag it to change the current
step or value. Click on the left slider below the bar and slide to set
the begin step or begin value. Click on the right slider below the bar
and slide to set the end step or end value.
The buttons above the triple slider are traditional VCR controls.
Diamond Place the mouse cursor in the button area and click the left mouse
button. Diamond buttons (also called radio buttons) are toggles that
select an item from a mutually exclusive list. Exactly one diamond
button of a group can be on at any given time. (Example shown
above.)
Square Place the mouse cursor in the button area and click the left mouse
button. Square buttons are toggles that access the function indicated
by the label (Example shown above.).
GUI Conventions
5-8 EnSight 9 User Manual
Text Fields EnSight utilizes two types of text fields:
Directory conventions
Tear-Off Menus If your window system allows it, the EnSight user interface supports “tear-off”
menus. Judicious use of tear-off menus can provide custom, rapid access to
frequently used functions. To use tear-off menu.
Turndown Place the mouse cursor in the button area and click the left mouse
button. Turndown buttons are toggles for opening and closing a
section. A down pointing arrow button indicates an open section. A
right pointing arrow button indicates a closed section. (Example
shown above.)
Information
Text Fields
These text fields are used to report information and cannot be edited
by the user. Information text fields are surrounded with a single
pixel border.
Editable Text
Fields
Place the mouse cursor in the text field and click to insert a blinking
insertion cursor. Several techniques are available to accelerate text
editing. Select a single word by double-clicking or the entire string
by triple-clicking. Selected text is replaced by subsequent typing.
The left and right arrow keys (on most systems) will move the
insertion cursor.
EnSight does not recognize the change in the text field until you
press Return.
Shown below are shortcut specifications for directory paths in text
fields.
~/ Expands to your home directory
~username/ Expands to the home directory of username
./ Expands to the current working directory
../ Expands to the parent directory of the current working directory
Select (or single-
click)
Place the mouse cursor over a pulldown menu button, then click
and release the left mouse button. This operation will open the
pulldown menu.
Tear off Move the mouse cursor to the dotted lines on the menu, and again
click and release the left mouse button. This will “tear off” the
pulldown into a separate window which can be placed anywhere
on the screen.
GUI Conventions
EnSight 9 User Manual 5-9
Closing a tear-off A tear-off menu can be closed by selecting Close from the tear-off
window’s frame menu which is accessed clicking on the
button in the upper left of the dialog frame.
Dialog Control The window manager will normally allow you to control some
basic functions (Restore, Move, Raise, Lower, Close) by clicking-
holding the right mouse button on a dialog or window border.
GUI Conventions
5-10 EnSight 9 User Manual
General Description
EnSight 9 User Manual 4-1
4 Variables
Included in this chapter:
General Description
Section 4.1, Variable Selection and Activation
Section 4.2, Variable Summary & Palette
Section 4.3, Variable Creation
General Description
Variables are numerical values provided by your analysis software or created
within EnSight. Variables can be dependent on server part-geometry (for example,
the area of a part), and a part’s geometry can be dependent on its parent part’s
variable values (for example, an isosurface).
Va r ia bl e Ty p e s There are four types of variables: tensor, vector, scalar, and constant. Scalars and
vectors can be real or complex. Symmetric tensors are defined by six values,
while asymmetric tensors are defined by nine values. Vectors, such as
displacement and velocity, have three values (the components of the vector) if
real, or six values if complex. Scalars, such as temperature or pressure, have a
single value if real, or two values if complex. Constants have a single value for
the model, such as analysis time or volume. All four types can change over time
for transient models.
Activation Before using a variable, it must be loaded by EnSight, a process called activation.
EnSight normally activates variables as they are needed. Section 4.1 describes
how to select, activate, and deactivate variables to make efficient use of your
system memory.
(see Section 8.1, Color Selector)
Creation In addition to using the variables given by your analysis software, EnSight can
create additional variables based on any existing variables and geometric
properties of server parts. EnSight provides approximately 100 functions to make
this process simpler.(see Section 8.1, Color Selector)
Color Palettes Very often you will wish to color a part according to the values of a variable.
EnSight associates colors to values using a color palette. You have control over
the number of value-levels of the palette and the type of scale, as well as control
over colors and method of color gradation. You also use function palettes to
specify a set of levels for a variable, such as when creating contours.
(see Section 8.1, Color Selector)
Queries You can make numerical queries about variables and geometric characteristics of
Server-based parts. These queries can be at points, nodes, elements, parts, along
lines, and along 1D parts. If you have transient data, you can query at one time
step or over a range of time steps, looking at actual variable values or a Fast
Fourier Transform (FFT) of the values. (see Section 8.1, Color Selector)
Plotting Once you have queried a variable, you can plot the result.
(see Section 8.1, Color Selector)
General Description
4-2 EnSight 9 User Manual
From More than Variables can come from more than one case. If more than one case has a
One Case variable with the same name, this will be treated as one variable. If a variable is
applicable to one case but not another, it will not be applied to the non-applicable
case(s).
Parts When variables are activated or created, all parts except Particle Trace parts are
updated to reflect the new variable state. Particle Trace parts will always show
variables which are activated after the part’s creation as zero values.
The input to all of the predefined functions includes some type of server based
parts. Please be aware that parts which reside only on the client (contours,
particle traces, profiles, vector arrows, and tensor glyphs) will not be used.
Location Variables can be defined at the vertices, at the element centers, or undefined.
User Defined Users can write external variable calculator functions called User Defined Math
Math Functions Functions (UDMF) that can be dynamically loaded by EnSight. These functions
appear in EnSight’s calculator in the general function list and can be used just as
any other calculator function to derive new variables.
Several examples of UDMFs can be found in the directory
$CEI_HOME/ensight92/
src/math_functions/
. Please see these examples if you wish to create your own
UDMFs.
When the EnSight server starts it will look in the following subdirectories for
UDMF dynamic shared libraries:
./libudmf-devel.so (.sl) (.dll)
$ENSIGHT9_UDMF/libudmf-*.so (.sl) (.dll)
$CEI_HOME/ensight92/machines/$ENSIGHT9_ARCH/lib_udmf/libudmf-*.so (.sl)
(.dll)
Depending on the server platform, the dynamic shared library must have the
correct suffix for that platform (e.g. .so, .sl, .dl
l
).
Currently, when a UDMF is used in the EnSight calculator, it is invoked for each
node in the specified part(s) if all the variables operated on for the specified
part(s) are node centered. If all of the variables are element centered, then the
UDMF is invoked for each element in the part(s). If the variables are a mix of
node and element centered values, then the node centered values are automatically
converted to element centered values and then the UDMF is invoked for each
element using element centered variables.
Arguments and the return type for the UDMF can be either scalar or vector
EnSight variables or constants. At this time, only variable quantities and constants
can be passed into UDMFs. There is no mechanism for passing in either part
geometry, neighboring variables, or other information.
4.1 Variable Selection and Activation
EnSight 9 User Manual 4-3
4.1 Variable Selection and Activation
All available variables, both those read in and those created within EnSight, are
shown in the Feature Detail Editor (Variables), whether they have been activated
or not. In addition, a variable list is included in each function requiring a variable.
In this case, only the appropriate variable types are shown.
Feature Detail Editor Double clicking on the Color Icon in the Part Mode Icon Bar (or from the Menu,
Variables Edit > Variables Editor ) opens the Feature Detail Editor (Variables).
Feature Detail Editor This list shows all variables currently available, both those read from data and those you
Variables List have created within EnSight. Each row provides information about a variable.
Available Variable The description or name of the variable.
( ) or (*) Activation status. An asterisk indicates that the variable has been activated.
Type Type of the variable:
Gvn Scalar: real scalars read from the dataset (Given).
Cmp Scalar: real scalars created within EnSight (Computed).
Gvn Complex Scalar: complex scalars read from the dataset (Given).
Cmp Complex Scalar: complex scalars created within EnSight (Computed).
Gvn Vector: real vectors read from the dataset (Given).
Cmp Vector: complex vectors created within EnSight (Computed).
Gvn Complex Vector: complex vectors read from the dataset (Given).
Cmp Complex Vector: complex vectors created within EnSight (Computed).
Gvn Tensor: real tensors read from the dataset (Given).
Cmp Tensor: real tensors created within EnSight (Computed).
Gvn #: constants read from the dataset (Given).
Cmp #: constants created within EnSight (Computed).
Result Current value of a constant variable (is blank for other types of variables). Changing the
Figure 4-1
Feature Detail Editor (Variables)
Feature Detail
Editor Variables
List
Edit Palette
Click here to
4.1 Variable Selection and Activation
4-4 EnSight 9 User Manual
current solution time will update the value in this column to the value for the new time.
Caes(s) Shows which case(s) the variable belongs to, or “All” if available for all cases.
Activate Clicking this button activates the variable(s) selected in the Feature Detail Editor
Variables List. Activation of a variable loads its values into the memory of the EnSight
Server host system. The EnSight Server then passes the necessary data to the Client. One
way you can control EnSight’s memory usage is to only activate the variables you want to
use. Once activated, a variable becomes available in the Main Variables List and, as is
described in Section 4.2, EnSight creates a default color palette for the variable.
Activate All Clicking this button activates all variables listed in the Feature Detail Editor Variables
List, regardless of which are selected.
Deactivate Clicking this button deactivates the variable(s) selected in the Feature Detail Editor
Variables List. Deactivating a variable frees up some memory on both the Client and the
Server. You can activate and deactivate variables as often as you like. For example, you
could activate one variable to color a part, deactivate that variable, then activate a different
variable to re-color the part. Of course, if you have enough memory and a small enough
model, you can simply activate all the variables and leave them activated.
Extended CFD These were intended as a suppliment to the OVERFLOW and PLOT3D readers. Opens
Variables... the Extended CFD Variable Settings dialog. If your data defines variables or constants for
density (SCALAR or CONSTANT), total energy per unit volume (SCALAR), and
momentum (or velocity) (VECTOR), it is possible to show new variables defined by these
basic variables in the Main Variables List of the GUI by utilizing the capabilities of this
dialog. (See Preferences... in Section 6.2, Edit Menu Functions).
WARNING: Modifications to this dialog will not affect extended CFD variables that have
already been activated - only future activated variables are affected. To modify an
existing variable you will need to modify the variable’s working expression in the
calculator and recalculate it.
Figure 4-2
Extended CFD Variable Settings Dialog
4.1 Menus
EnSight 9 User Manual 4-5
WARNING If you deactivate a created variable or any of the variables used to define it, both the
values and the definition of the created variable are deleted. If you deactivate a variable
used to create a part’s geometry, the part will be deleted. If you deactivate a variable
who’s color palette has been used to color a part, the part’s appearance will change.
(see How To Activate Variables)
Menus
File Menu Clicking this button opens a pull-down menu with the following options:
Save Selected Opens the file selection dialog for the specification of a filename in which to save the
Palette(s)... selected color palette(s).
Save All Palettes… Opens the file selection dialog for the specification of a filename in which to save all color
palette(s).
Restore Palette(s)... Opens the file selection dialog for the specification of a filename from which to restore
previously saved color palettes.
Load constants)... Opens the file selection dialog for the specification of a filename which is an EnSight
from file... constant variables formated file (see section 11.16 Constant Variable File Format)
Save Selected Opens the file selection dialog for the specification of a filename in which to save the
Constant(s)... selected constant values.
Save All Opens the file selection dialog for the specification of a filename in which to save all
Constant(s)... constant values.
Edit Menu Clicking this button opens a pulldown menu with the following choice:
Select All Clicking this selects all variables in the Feature Detail Editor Available Variables List.
Immediate Default is On. While on, any modification made in the Editor is immediately implemented
Modification Toggle by EnSight. For large problems, this may be impractical. In such instances, click this
toggle off, make all desired modifications, and then implement them all at once by
clicking the Apply Changes button at the bottom of the Editor dialog.
4.2 Variable Summary & Palette
4-6 EnSight 9 User Manual
4.2 Variable Summary & Palette
You can visualize information about a model by representing variable values with
colors, often called fringes. Fringes are an extremely effective way to visualize
variable variations and levels. A variable color palette associates (or maps)
variable values to colors. Palettes are also used in the creation of contours. The
number of contour levels is based on the number of palette color levels, and the
contour values are based on the palette level values.
EnSight uses a variable’s color palette to convert numbers to colors, while you,
the viewer, use them in the opposite manner—to associate a visible color with a
number. If you wish, EnSight can display a color-value legend in the Main View
window.
Default Palettes At least one color palette—the Coordinate color palette—always exists, even if
your model has no variables. In addition, EnSight creates a color palette for each
real scalar and vector variable that you activate, giving the color palette the same
name as the variable. If the variable is a vector variable, the default color palette
uses the vector’s magnitude. Tensor variables have no palette.
Default color palettes have five color levels. Ranging from low to high, the colors
are blue, cyan, green, yellow, and red (the spectral order). The numerical values
mapped to these five levels are determined by first finding the value-range for the
variable at the current time step when the variable is activated. The value for the
lowest level is set to the minimum value. The value for the highest level is set to
the maximum value. The three middle levels are spaced evenly between the
lowest and highest values. For datasets with only one time step, the scheme just
described works well because the variable’s value range is not changing over
time. However, if you have transient data, the range could vary widely at
different times and since the default was based on one time step, it may not be
appropriate for other time steps. EnSight can show you a histogram of the variable
values over time to assist you in setting a palette for transient cases.
Value Levels A color palette can have up to 21 levels at which the variable value is specified.
Each color palette level’s value must be between the value at the adjoining levels.
You select whether the scale is linear (the default), quadratic (2x), or logarithmic
(log10).
Sometimes you may wish to only visualize areas whose palette-variable values are
in a limited range. You can choose to visualize other areas with a different,
uniform color, or to make those areas invisible.
Management The Feature Detail Editor (Variables) enables you to manage your color palettes.
You can copy, save to a file, and restore from a file existing palettes. You can also
edit the palette. To see the Palette Editor dialog, click on the Edit Palette... button.
4.2 Variable Summary & Palette
EnSight 9 User Manual 4-7
Clicking the Edit Palette... button opens the Palette Editor dialog.
Figure 4-3
Palette Editor: Variables
Change # levels
Quick set of min/max using
Maximum & Minimum
Options
Simple Interface
Tab
Value Sliders
Palette
Select Palette to
Edit
Advanced Interface
Tab
color
Reverse Colors
and values
Interpolate values or
colors between 2 levels
parts, viewport or extrema
Variable Histogram
Tab
Markers
Tab
Color
Number
Location
Variable
Display
Scale and
Select Palette to
Edit
Banded or
Continuous
and fields
Level, value and
Blending Controls
Selection and
Color Channel
Blending Controls
Isovalue Line Markers
Volume Rendering
Opacity Scale
Rescale using transient data
over time range
4.2 Palette Editor Items Available on Every Tab
4-8 EnSight 9 User Manual
Palette Editor Items Available on Every Tab
Palette Select the variable palette to be edited
Color Palette This horizontal color legend shows the color range for the palette selected. The left and
right black vertical lines indicate the current min/max values in use in reference to the
variable extrema and can be clicked/dragged to adjust the minimum and maximum values
in use.
Range Used Specifies the minimum and maximum values to be used for the bottom and top levels in
the palette respectively
Set range to: The minimum and maximum values assocated with the palette can be set to one of the
following
extrema Sets the minimum and maximum palette range values to a static value which is the
variable's minimum and maximum value at the current timestep. This is value can be set
using the variable’s minimum and maximum value over all time under the Options Tab by
toggling on “Use Transient Data for Extrema/Histogram”. The min and max can be reset
each timestep under the Options Tab by toggling on “Reset Palette Range on Time
Change”.
selected parts Does a one-time reset of the minimum and maximum palette range values using the
viewable elements on the screen of the selected parts (blanking and part element
File
Tab
Figure 4-4
Palette Editor: Variables File Tab
Palettes Included
with EnSight
Over 2 dozen
4.2 Palette Editor Simple Tab
EnSight 9 User Manual 4-9
representation affect this range). If you change time you will need to select this opton
again to reset the min and max to the selected parts variable min and max.
current viewport Sets the minimum and maximum palette range values using the currently visible elements
in the current viewport (blanking, part element representation, and transformation will all
affect this range). If you change time you will need to select this opton again to reset the
min and max to the current viewport variable min and max.
Palette Editor Simple Tab
Value/Color matrix You can type new values into each numeric field to adjust the value associated with a
color. If you click on the color swatch for any level a color selector dialog will appear
allowing you to set the color at the level indicated.
# of levels This field specifies the number of value levels for the selected palette. Each level will be
defined as a value and color in the field at the left of the dialog.
Invert colors Reverses the colors for the palette
Invert values Reverses the values for the palette
Interpolate... Brings up a dialog allowing you to interpolate values or colors between two levels.
Palette Editor Advanced Tab
Variable Palette The background of the middle graphic shows the relative number of nodes at which the
Histogram Value of the selected variable is within the range represented by a particular value band.
The small horizontal line at the far left of the graphic can be used to interactively adjust
the vertical scale of the histrogram.
Control Points By default EnSight will create the same number of control points as there are levels in the
palette. Control points can be added or deleted by right clicking on a control point marker.
When adding a control point the point will be added half way between the selected point
and the one immediately to the right. To decouple the number of control points from the
number of palette levels see "Lock levels to control points" under the Options tab. To
adjust the component value at the control point click and drag the control point.
Editor Type The control points can control color by straight line interpolation (Linear) or by creating a
spline.
Component Selects which color channel will be edited via the control points - Red, Green, Blue, or
Alpha, or Hue, Saturation, Value, or Alpha, depending on the state of the RGB/HSVA
toggle below.
Location Indicates the location (the x value) of the selected control point in the range 0 (left side) to
1.
Value Indicates the value of the component of the selected control point in the range 0 (off) to 1
(full value)
RGB/HSVA Toggle between Red/Green/Blue or Hue/Saturation/Value to represent color.
Update Specifies when the update to the scene will occur. Delayed will cause the update to occur
when you select the Apply Changes button at the bottom of the dialog. Mouse up
indicates that as you modify the control points or min/max range markers in the palette
editor that the update will occur when you release the mouse button. And finally,
Immediate will update the scene while you modify the control points.
Node locking By default the control points for the color and alpha channels are locked together, i.e., if a
node is added/deleted it is added to all channels and if the location of a control point is
moved it affects the location of all channels. "Color channels" indicates that only the
color is locked together and the alpha control points are independent. "None" indicates
that all color as well as alpha are independent. Warning - you can not make the node
locking more restrictive than the current setting, i.e., if you set the node locking to None
4.2 Palette Editor Markers Tab
4-10 EnSight 9 User Manual
you will not be able to set it to either of the two other choices.
Lock levels to If turned on (the default), the number of control points for the palette will be the same as
control points the number of levels and they will be uniformly spaced. Turning this off allows you to
decouple the number and location of control points from the number of levels.
Palette Editor Markers Tab
It is possible to modify a texture entry in the color palette to show a particular
color. These inserted colors show up as regions (contours) of constant color in the
graphics window. The width of the resulting contour is a result of the marker
width as well as the number of colors per level (see Options tab).
A marker can be added by directly clicking on the horizontal legend in the dialog.
Marker Color Sets the color for all defined markers
Width Sets the number of texels covered by the marker
Maximum # of Sets the total number of marker objects that will be stored for the palette
markers
Add:
At Value Specify the variable value in the Value field which will be inserted as a marker into the
palette.
Uniformly Specify the number of uniformly spaced markers in the ‘How many’ field that will be
added into the palette
At levels Will add a marker at each level of the palette
Clear last Remove the last marker object created
Clear all Remove all markers from the palette
Palette Editor Options Tab
Type This pulldown allows for the selection of the desired type of color gradation. The options
are:
Continuous Displays graduated color variation across or along each element interpolating the color
across each element based on the value of the variable at the nodes. If the variable tied to
the palette is defined at the element centers the result will be a constant color across the
entire element (see alse "Use continous palette for per element vars" option under Edit-
>Preferences->Color Palettes).
Banded Displays discrete color bands across the elements the number of which is controlled by the
number of levels and the number of Colors per level
Display undefined If the variable is not defined, the element can not be colored acording to the color palette.
In this case the element will be colored by the color assocated with the value of 0. or the
element can be removed (invisible).
Limit fringes This pulldown allows you to select how you wish to display elements with variable values
above or below the minimum and maximum of the color palette. Options are as follows:
No color scalar values that exceed the minimum or maximum of the palette by the same color
as associated with the minium or maximum of the palette. This is the default.
By part color Color scalar values that exceed the minium or maximum of the palette by the part's color.
By invisible Color scalar values that exceed the minimum or maximum of the palette using full
transparency
Scale This pulldown allows you to select the desired type of interpolation in the palette. The
options are:
Linear Interpolation in the palette is linear
Quadratic Interpolation in the palette is quadratic
4.2 Palette Editor Files Tab
EnSight 9 User Manual 4-11
Logarithmic Iinterpoloation in the palette is log base 10
Colors per level Specifies the number of textels that will be used in the texture between each palette level.
Typically used with Banded type palettes to set the number of colors that are viewed or
with markers to create wider/thinner markers.
Alpha volume scale For volume rendered parts this factor will scale the control point alpha value by the factor
indicated.
Use Transient Toggle this on and enter the begin and end time in the Time range (steps) field, to use the
data for extrema variable data over the indicated time range to recalculate the histogram and the palette
histogram extrema.
Reset palette Toggle this on and the palette min and max will be reset each timestep using the currrent
range on time timestep min and max values of the variable.
change
Palette Editor Files Tab
EnSight includes over two-dozen predefined palettes to help you display your
variable variation in a way that communicates your message more quickly and
effectively. Loading a Palette is done using the Restore button.You can create
your own palettes and save them using the Save button.
Restore Select a palette from the list and click the Restore button to set the colors and levels of the
current palette.
Save... Will save the current color and level information to a named palette for future use.
Predefined palettes can enable you to more efficiently communicate your message
from your data.
The human eye is drawn to vibrant colors. There are several predefined rainbow
palettes (EnSightDefaultPalette, ACFD_11_level_contours,
ACFD_21_level_contours, bobs_rainbow and reverse_rainbow ). There are
several pastel and earthtone palettes ( DEM_screen, earth,
saturn_pastelyellow_to_purple and morning_glory_blue_tan ).
In contrast, dull colors such as gray are uninteresting. Several of the predefined
palettes are designed with a dull or uninteresting color in the middle (perhaps
representing a value near zero) with the vibrant colors at the positive and negative
extremes, thus highlighting the important values of your variable
(ACFD_21_Gray_Middle, ACFD_delta_13_level, and ACFD_delta_6_level ).
The human eye sees contrast. Alternating dark and light hues, or alternating colors
with black provides a strong contrast showing the gradation of your data
(lava_waves, rainbow_banded, StarCDpalette15Band,
StarCDpaletteAlt20, and StarCDpaletteAlt20Band).
Finally, colorblindness is quite common. Some of the palettes below are useful for
various kinds of coloblindness (EnSightColorDef, grayscale,
grayscale_banded, grayscale_inverted).
(See How To Create Color Legends, How To Edit Color Palettes)
4.3 Variable Creation
4-12 EnSight 9 User Manual
4.3 Variable Creation
You can create additional variables based on existing data. Typical mathematical
operations, as well as many special built-in functions, enable you to produce
simple or complex equations for new variables. Some built-in functions enable
you to use values based on the geometric characteristics of server parts. In
general, created variables are available for any process, just like given variables.
If you have transient data, a time change will recompute the created variable
values.
Often an analysis program produces a set of basic results from which other results
can be derived. For example, if a computational fluid dynamics analysis gives you
density, momentum and total energy, you can derive pressure, velocity,
temperature, mach number, etc. EnSight provides many of these common
functions for you, or you can enter the equation(s) and build your own.
As another example, suppose you would like to normalize a given scalar or vector
variable according to its maximum value, or according to the value at a particular
node. Variable creation enables you to easily accomplish such a task. The more
familiar you become with this feature, the more uses you will discover.
EnSight allows variables to be defined at vertices (nodes) or element centers. If a
new variable is created from a combination of nodal and element based variables,
such a new variable will always be element based.
Note: Measured Variables are not supported by this functionality
4.3 Variable Creation
EnSight 9 User Manual 4-13
Building Expressions The Feature Detail Editor (Variables) dialog Variable Creation turn-down section
provides function selection lists, calculator buttons, and feedback guidance to aid
you in building the working expression (or equation) for a new variable. You can
use three types of values in an expression: constants, scalars, and vectors.
Constants A constant in a variable expression can be a… for example…
• number 3.56
• constant variable from the Active Variables list Analysis_Time
• scalar variable at a particular node/element temperature[25]
(component and node/element number in brackets)
• vector variable component at a particular node velocity[Z][25]
/element (component and node/element number in brackets)
• coordinate component at a particular node/element coordinate[X][25]
(component and node/element number in brackets)
• any of the previous three at a particular time step temperature{15}[25]
(time step in braces right after the variable name) velocity{15}[Z][25]
(Note: This only works for model variables, not created ones) coordinate{15}[X][25]
• Math function COS(1.5708)
• General function that produces a constant AREA(plist)
Scalars A scalar in a variable expression can be a… for example…
• Scalar variable from the Active Variables list pressure
• vector variable component (component in brackets) velocity[Z]
• coordinate component (component in brackets) coordinate[Y]
• any of the previous three at a particular time step pressure{29}
(time step in braces right after the variable name) velocity{29}[Z]
(Note: This only works for model variables, not created ones) coordinate{29}[Y]
• General function that produces a scalar Divergence(plist,velocity)
Vectors A vector in a variable expression can be a… for example…
• vector variable from the Active Variables list velocity
• coordinate name from the Active Variables list coordinate
• any of the previous two at a particular time step velocity{9}
(time step in braces right after the variable name) coordinate{9}
(Note: This only works for model variables, not created ones)
• General function that produces a vector Vorticity(plist,velocity)
4.3 Variable Creation
4-14 EnSight 9 User Manual
Examples of Expressions and How To Build Them
The following are some example variable expressions, and how they can be built.
These examples assume Analysis_Time, pressure, density, and velocity are all
given variables.
Working
Expression Discussion and How To Build It
-13.5/3.5 A true constant since it does not change over time. To build it,
type on the keyboard or click on the Variable Creation dialog
calculator buttons -13.5/3.5
Analysis_Time/60.0 A simple example of modifying a given constant variable. If
Analysis_Time is in seconds, this expression would give you the
value in minutes. To build it, select Analysis_Time from the
Active variable list and then type or click /60.0.
velocity*density This expression is a vector * scalar, which is momentum, which
is a vector. To build it, select velocity from the Active Variables
list, type or click *, then select density from the Active Variable
list.
SQRT(pressure[73] *
2.5)+ velocity[X][73]
This says, take the pressure at node (or element if pressure is an
element center based variable) number 73, multiply it by 2.5,
take the square root of the product, and then add to that the x-
component of velocity at node (or element) number 73. To build
it, select SQRT from the Math function list, select pressure from
the Active Variables list, type [73]*2.5)+, select velocity from
the Active Variable list, then type [X][73]
velocity^2 You have to be careful here. A vector * vector in EnSight is
performed component-wise (x-component * x-component, y-
component*y-component, and z-component*z-component).
The magnitude of this expression is SQRT(x-component^4 + y-
component^4 + z-component^4) which is NOT the square of the
magnitude.. If you are looking for a scalar result, use
SQRT(DOT(velocity,velocity)), or RMS(velocity) or
SQRT(velocity[x]*velocity[x] +
velocity[y]*velocity[y]+velocity[z]*velocity[z])
pressure{19} This is a scalar, the value of pressure at time step 19. It does not
change with time. To build it, select pressure from the Active
Variables list, then type {19}. (Note: variable must be a model variable,
not a computed variable)
MAX(plist,pressure) MAX is one of the built-in General functions. This expression
calculates the maximum pressure value for all the nodes of the
selected parts. To build it, type or click (, select MAX from the
General function list and follow the interactive instructions that
appear in the Feedback area of this dialog (in this case, to select
the parts, click Okay, and select pressure from the Active
Variable list).
(pressure
/pressure_max)^2
This scalar is essentially the normalized pressure, squared. To
build it, first build the preceding MAX(plist,pressure)
expression and name it “pressure_max”. Then to build this
expression, select pressure from the Active Variables list, type or
click /, select pressure_max from the Active Variables list, then
type or click )^2.
4.3 Variable Creation
EnSight 9 User Manual 4-15
Notice in the last example how a complex equation can be broken down into
several smaller expressions. This is necessary as EnSight can compute only one
variable at a time. Calculator limitations include the following:
1. The variable name cannot be used in the expression.
The following is invalid:
temperature = temperature + 100
Instead use new variable:
temperature2 = temperature + 100
2. The result of a function cannot be used in an expression.
The following is invalid:
norm_press_sqr = (pressure / MAX(plist,pressure) )^2
Instead use two steps:
p_max = MAX(plist,pressure)
then:
norm_press_sqr = (pressure / p_max)^2
3. Neither created parts, changing geometry model parts, computed variables, nor
coordinates can be used with a time calculation (using {}). If one of these is
selected when you use {}, the calculation will fails with an error message.
4. Because calculations occur only on server based parts, client based parts are
ignored when included in the part list of the pre-defined functions, and variable
values may be undefined.
4.3 Variable Creation
4-16 EnSight 9 User Manual
Clicking the Calculator Icon opens the Feature Detail Editor (Calculator) dialog.
Variable Name This field is used to specify the name for the variable being created. Built-in general
functions will provide a default, but they can be modified here. Variable names must not
start with a numeric digit and must not contain any of the following reserved characters:
([{+@ !*$
) ] }–space #^/
Working Expression The expression or equation for the new variable is presented in this area. Interaction with
the expression takes place here, either directly by typing in values and variable names,
etc., or indirectly by selecting built-in functions and clicking calculator buttons.
Clear Clicking this button clears the Variable name field, Working Expression area, Feedback
area, and deselects any built-in function.
Evaluate Clicking this button produces the new variable defined in the working expression area.
Until you click this button, nothing is really created. The selection commands specify to
which parts the new variable should be applied.
Figure 4-5
Feature Detail Editor (Calculator) dialog
4.3 Variable Creation
EnSight 9 User Manual 4-17
Predefined functions Scroll this list of built-in functions provided for your convenience. Click on a function to
Tab insert it into your Variable Name and Working Expression. For some functions, dynamic
instructions and fields will appear to the right of the list.
Area Area (any part(s))
Computes a constant variable whose value is the area of the selected parts. If a part
is composed of 3D elements, the area is of the border representation of the part. The
area of 1D elements is zero.
Boundary Layer BL_aGradOfVelMag(boundary part(s), velocity).
A Gradient Of Computes a vector variable which is the gradient of the magnitude of the specified
Velocity Magnitude velocity variable on the selected boundary part(s) defined as:
GRADBP |V| =
∇
BP |V| =
∂
|V|/
∂
x i +
∂
|V|/
∂
y j +
∂
|V|/
∂
z k
where:
BP = on boundary part
V = V(x,y,z) = velocity vector
|V | = magnitude of velocity vector = SQRT(DOT(V,V))
x, y, z = coordinate directions
i, j, k = unit vectors in coordinate directions
Note1: For each boundary part, this function finds it corresponding field part (pfield),
computes the gradient of the velocity magnitude on the field part (Grad(pfield,velocity),
and then maps these computed values onto the boundary part.
Note2: Node or element ids are used if they exist. Otherwise the coordinate values
between the field part and boundary part are mapped and resolved via a floating-point
hashing scheme.
Note3: This velocity-magnitude gradient variable can be used as an argument for the fol-
lowing boundary-layer functions that require this variable.
Note: See Section 7.18, Boundary Layer Variables Create/Update
Boundary Layer
BL_CfEdge
(boundary part(s), velocity, density, viscosity, ymax, flow comp(0,1,or2), grad)
Edge Skin-Friction Computes a scalar variable which is the edge skin-friction coefficient Cf(e) (that is, using
Coefficient the density ρe and velocity Ue values at the edge of the boundary layer – not the free-
stream density ρ∞ and velocity U∞ values) defined as:
Component: 0 = Total tangential-flow (parallel) to wall:
Cf(e) = 2 τw / (ρe Ue2)
Component: 1 = Stream-wise (flow) component tangent (parallel) to wall:
Cfs(e) = 2 τws / (ρe Ue2)
Component: 2 = Cross-flow component tangent (parallel) to wall:
Cfc(e) = 2 τwc / (ρe Ue2)
where:
Boundary part 2D part
Velocity vector variable
4.3 Variable Creation
4-18 EnSight 9 User Manual
τ
w = fluid shear stress magnitude at the boundary = µ (∂u/∂n)n=0 = √(
τ
ws2 +
τ
wc2)
τ
ws = µ (∂us/∂n)n=0 = stream-wise component of
τ
w
τ
wc = µ (∂uc/∂n)n=0 = cross-flow component of
τ
w
µ = dynamic viscosity of the fluid at the wall
(∂u/∂n)n=0 = magnitude of the velocity-magnitude gradient in the normal direction
at the wall
(∂us/∂n)n=0 = stream-wise component of the velocity-magnitude gradient in the nor-
mal direction at the wall
(∂uc/∂n)n=0 = cross-flow component of the velocity-magnitude gradient in the nor-
mal direction at the wall
ρ
e = density at the edge of the boundary layer
Ue = velocity at the edge of the boundary layer
Provides a measure of the skin-friction coefficient in the tangent (parallel to surface)
direction, and in its tangent’s respective stream-wise and cross-flow directions, respective
to the decomposed velocity parallel to the surface at the edge of the boundary layer.
This is a non-dimensionalized measure of the fluid shear stress at the surface based on the
local density and velocity at the edge of the boundary layer. The following figure
illustrates the derivations of the computed ‘edge’ related velocity values Ue, us, uc &c.
boundary part 2D part
velocity vector variable
density scalar variable (compressible flow),
constant number (incompressible flow)
viscosity scalar variable, constant variable, or constant number
ymax constant number
> 0 = Baldwin-Lomax-Spalart algorithm
0 = convergence algorithm
(See Algorithm Note under Boundary Layer Thickness)
flow comp constant number
0 = tangent flow parallel to surface
1 = stream-wise component tangent (parallel) to wall
2 = cross-flow component tangent (parallel) to wall
grad -1 = flags the computing of the velocity-magnitude gradient via
3-point interpolation.
vector variable = Grad(velocity magnitude), i.e. see BL_aGradOfVelMag
4.3 Variable Creation
EnSight 9 User Manual 4-19
Note: See Section 7.18, Boundary Layer Variables Create/Update
Boundary Layer BL_CfWall(boundary part(s), velocity, viscosity, free density, free velocity, grad).
Wall Skin Friction Computes a scalar variable which is the skin-friction coefficient Cf(∞), defined as:
Coefficient
Cf(∞)
where:
=
fluid shear stress at the wall
=dynamic viscosity of the fluid at the wall
May be spatially and/or temporarily varying quantity (usually a
constant).
=distance profiled normal to the wall
=freestream density
Figure 4-6
Figure Illustrating Derivation of Edge Velocity Related Values and Components
τw
0.5ρ∞U∞
()
2
--------------------------------=
τwµw
u∂
n∂
-----
⎝⎠
⎛⎞
n0=
=
µw
n
ρ∞
4.3 Variable Creation
4-20 EnSight 9 User Manual
This is a non-dimensionalized measure of the fluid shear stress at the surface. An
important aspect of the Skin Friction Coefficient is:
Cf(∞) , indicates boundary layer separation.
Note: See Section 7.18, Boundary Layer Variables Create/Update
Boundary Layer BL_CfWallCmp(boundary part(s), velocity, viscosity, free-stream density, free-stream
velocity-mag., ymax, flow comp(1or2), grad).
Wall Skin-Friction Computes a scalar variable which is a component of the skin-friction coefficient Cf
Coefficient tangent (or parallel) to the wall, either in the stream-wise Cfs(•) or in the cross-flow Cfc(•)
Components direction defined as:
Component 1 = Steam-wise (flow) component tangent (parallel) to wall:
Cfs(∞) = 2 τws / (ρ∞ U2∞)
Component 2 = Cross-flow component tangent (parallel) to wall:
Cfc(∞) = 2 τwc / (ρ∞ U2∞)
where:
τ
ws = µ (∂us/∂n)n=0 = stream-wise component of
τ
w
τ
wc = µ (∂uc/∂n)n=0 = cross-flow component of
τ
w
τ
w = fluid shear stress magnitude at the wall = µ (∂u/∂n)n=0 = √(
τ
ws2 +
τ
wc2)
µ = dynamic viscosity of the fluid at the wall
(∂us/∂n)n=0 = stream-wise component of the velocity-magnitude gradient in the nor-
mal direction at the wall
(∂uc/∂n)n=0 = cross-flow component of the velocity-magnitude gradient in the nor-
mal direction at the wall
ρ
∞
= density at the edge of the boundary layer
U
∞
= velocity at the edge of the boundary layer
=freestream velocity magnitude
= tangent (parallel to surface) component of the velocity-
magnitude gradient in the normal direction under the
“where:” list.
boundary part 2D part
velocity vector variable
viscosity scalar variable, constant variable, or constant number
free density constant number
free velocity constant number
grad -1 = flags the computing of the velocity-magnitude gradient via
3-point interpolation.
vector variable = Grad(velocity magnitude), i.e. see BL_aGradOfVelMag
boundary part 2D part
velocity vector variable
density scalar variable (compressible flow),
constant number (incompressible flow)
viscosity scalar variable, constant variable, or constant number
ymax constant number
> 0 = Baldwin-Lomax-Spalart algorithm
0 = convergence algorithm
(See Algorithm Note under Boundary Layer Thickness)
U∞
w
u∂
n∂
-----
⎝⎠
⎛⎞
n0=
0=
4.3 Variable Creation
EnSight 9 User Manual 4-21
Note: See Section 7.18, Boundary Layer Variables Create/Update
Boundary Layer BL_CfWallTau(boundary part(s), velocity, viscosity, ymax, flow comp(0,1,or 2), grad).
Wall Fluid Computes a scalar variable which is the fluid’s shear-stress at the wall τw or in its
Shear-Stress stream-wise τws , or cross-flow τcs component direction defined as:
Component 0 = Total fluid shear-stress magnitude at the wall:
τ
w = = µ (∂u/∂n)n=0 = √(
τ
ws2 +
τ
wc2)
Component 1 = Steam-wise component of the fluid shear-stress at the wall:
τ
ws = µ (∂us/∂n)n=0
Component 2 = Cross-flow component of the fluid shear-stress at the wall:
τ
wc = µ (∂uc/∂n)n=0
where:
µ = dynamic viscosity of the fluid at the wall
(∂u/∂n)n=0 = magnitude of the velocity-magnitude gradient in the normal direction
at the wall
(∂us/∂n)n=0 = stream-wise component of the velocity-magnitude gradient in the nor-
mal direction at the wall
(∂uc/∂n)n=0 = cross-flow component of the velocity-magnitude gradient in the
normal direction at the wall
Note: See Section 7.18, Boundary Layer Variables Create/Update
Boundary Layer BL_DispThick(boundary part(s), velocity, density, ymax, flow comp(0,1,or 2), grad).
Displacement Computes a scalar variable which is the boundary-layer displacement thickness δ*, δ*s, or
Thickness δ*c defined as:
Component: 0 = Total tangential-flow parallel to the wall
flow comp constant number
1 = stream-wise component tangent (parallel) to wall
2 = cross-flow component tangent (parallel) to wall
grad -1 = flags the computing of the velocity-magnitude gradient via
3-point interpolation.
vector variable = Grad(velocity magnitude), i.e. see BL_aGradOfVelMag
boundary part 2D part
velocity vector variable
viscosity scalar variable, constant variable, or constant number
ymax constant number
> 0 = Baldwin-Lomax-Spalart algorithm
0 = convergence algorithm
(See Algorithm Note under Boundary Layer Thickness)
flow comp constant number
0 = RMS of the stream-wise and cross-flow components
1 = stream-wise component at the wall
2 = cross-flow component at the wall
grad -1 = flags the computing of the velocity-magnitude gradient via
3-point interpolation.
vector variable = Grad(velocity magnitude), i.e. see BL_aGradOfVelMag
δ∗tot 1ρu
ρeUe
------------–
⎝⎠
⎛⎞
nd
0
δ
∫
=
4.3 Variable Creation
4-22 EnSight 9 User Manual
Component: 1 = Stream-wise flow component tangent (parallel) to the wall
Component: 2 = Cross-flow component tangent (parallel) to the wall
where:
Provides a measure for the effect of the boundary layer on the “outside” flow.
The boundary layer causes a displacement of the streamlines around the body.
Note: See Section 7.18, Boundary Layer Variables Create/Update
n=distance profiled normal to the wall
=boundary-layer thickness (distance to edge of boundary
layer)
ρ
=density at given profile location
ρ
e=density at the edge of the boundary layer
u=magnitude of the velocity component parallel to the wall at a
given profile location in the boundary layer
us=stream-wise component of the velocity magnitude parallel to
the wall at a given profile location in the boundary layer
uc=cross-flow component of the velocity magnitude parallel to
the wall at a given profile location in the boundary layer
Ue =u at the edge of the boundary layer
ymax =distance from wall to freestream
comp =flow direction option
grad =flag for gradient of velocity magnitude
boundary part 2D part
velocity vector variable
density scalar variable (compressible flow),
constant number (incompressible flow)
ymax constant number
> 0 = Baldwin-Lomax-Spalart algorithm
0 = convergence algorithm
(See Algorithm Note under Boundary Layer Thickness)
flow comp constant number:
0 = total tangential flow direction parallel to wall
1 = stream-wise flow component direction parallel to wall
2 = cross-flow component direction parallel to wall
grad -1 = flags the computing of the velocity-magnitude gradient via
4-point interpolation.
vector variable = Grad(velocity magnitude), i.e. see BL_aGradOfVelMag
δ∗s1ρus
ρeUe
------------–
⎝⎠
⎛⎞
nd
0
δ
∫
=
δ∗c
ρuc
ρeUe
------------
⎝⎠
⎛⎞
nd
0
δ
∫
=
δ
4.3 Variable Creation
EnSight 9 User Manual 4-23
Boundary Layer BL_DistToValue(boundary part(s), scalar, scalar value).
Distance to Value Computes a scalar variable which is the distance d from the wall to the specified value
from Wall defined as
where:
Note: See Section 7.18, Boundary Layer Variables Create/Update
Boundary Layer BL_MomeThick(boundary part(s), velocity, density, ymax, flow compi(0,1,or2), flow
compj(0,1,or2), grad).
Momentum Computes a scalar variable which is the boundary-layer momentum thickness θtot, θss, θsc,
Thickness θcs, or θcc defined as:
Components: (0,0) = Total tangential-flow parallel to the wall
Components: (1,1) = stream-wise, stream-wise component
Components: (1,2) = Stream-wise, cross-flow component
Components: (2,1) = cross-flow, stream-wise component
Components: (2,2) = cross-flow, cross-flow component
n= distance profile d normal to boundary surface
= scalar field (variable)
= scalar field values
c= scalar value at which to assign d
boundary part 0D, 1D, or 2D part
scalar scalar variable
scalar value constant number
dn
fα() c=
=
f
α()
α
θtot
1
ρeU2e
-------------- Ueu–()ρund
0
δ
∫
=
θss
1
ρeU2e
-------------- Ueus
–()ρusnd
0
δ
∫
=
θsc
1
ρeU2e
-------------- Ueus
–()ρucnd
0
δ
∫
=
θcs
1–
ρeU2e
-------------- ρucusnd
0
δ
∫
=
θcc
1–
ρeU2e
-------------- ρuc
2nd
0
δ
∫
=
4.3 Variable Creation
4-24 EnSight 9 User Manual
where:
Relates to the momentum loss in the boundary layer.
Note: See Section 7.18, Boundary Layer Variables Create/Update
Boundary Layer BL_Scalar(boundary part(s), velocity, scalar, ymax, grad).
Scalar Computes a scalar variable which is the scalar value of the corresponding scalar field at
the edge of the boundary layer. The function extracts the scalar value while computing the
boundary-layer thickness (see Boundary Layer Thickness).
where:
n= distance profiled normal to the wall
= boundary-layer thickness (or distance to edge of boundary layer)
= density at given profile location
= density at the edge of the boundary layer
u= magnitude of the velocity component parallel to the wall at a given
profile location in the boundary layer
us=stream-wise component of the velocity magnitude parallel to
the wall at a given profile location in the boundary layer
uc=cross-flow component of the velocity magnitude parallel to
the wall at a given profile location in the boundary layer
Ue =u at the edge of the boundary layer
ymax = distance from wall to freestream
compi= first flow direction option
compj= secon flow direction option
grad = flag for gradient of velocity magnitude
boundary part 2D part
velocity vector variable
density scalar variable (compressible flow),
constant number (incompressible flow)
ymax constant number
> 0 = Baldwin-Lomax-Spalart algorithm
0 = convergence algorithm
(See Algorithm Note under Boundary Layer Thickness)
compiconstant number
0 = total tangential flow diection parallel to wall
1 = stream-wise flow component direction parallel to wall
2 = cross-flow component direcion parallel to wall
compjconstant number
0 = total tangential flow diection parallel to wall
1 = stream-wise flow component direction parallel to wall
2 = cross-flow component direcion parallel to wall
grad -1 = flags the computing of the velocity-magnitude gradient
via 4-point interpolation.
vector variable = Grad(velocity magnitude), i.e. see BL_aGradfVelMag
ymax = distance from wall to freestream
grad = flag for gradient of velocity magnitude
boundary part 2D part
velocity vector variable
scalar scalar variable
δ
ρ
ρe
4.3 Variable Creation
EnSight 9 User Manual 4-25
Note: See Section 7.18, Boundary Layer Variables Create/Update
Boundary Layer BL_RecoveryThick(boundary part(s), velocity, total pressure, ymax, grad).
Recovery Thickness Computes a scalar variable which is the boundary-layer recovery thickness δrec defined
as:
where::
This quantity does not appear in any physical conservation equations, but is sometimes
used in the evaluation of inlet flows.
Note: See Section 7.18, Boundary Layer Variables Create/Update
Boundary Layer BL_Shape is not explicitly listed in the general function list, but can be computed as a
Shape Parameter scalar variable via the calculator by dividing a displacement thickness by a momentum
thickness, i.e.
where:
Used to characterize boundary-layer flows, especially to indicate potential for separation.
This parameter increases as a separation point is approached, and varies rapidly near a
separation point.
ymax constant number
> 0 = Baldwin-Lomax-Spalart algorithm
0 = convergence algorithm
(See Algorithm Note under Boundary Layer Thickness)
grad -1 = flags the computing of the velocity-magnitude gradient
via 4-point interpolation.
vector variable = Grad(velocity magnitude)
n=distance profiled normal to the wall
=boundary-layer thickness (distance to edge of boundary layer)
pt=total pressure at given profile location
pte =pt at the edge of the boundary layer
ymax =distance from wall to freestream
grad =flag for gradient of velocity magnitude option
boundary part 2D part
velocity vector variable
total pressure scalar variable
ymax constant number
> 0 = Baldwin-Lomax-Spalart algorithm
0 = convergence algorithm
(See Algorithm Note under Boundary Layer Thickness)
grad -1 = flags the computing of the velocity-magnitude gradient
via 4-point interpolation.
vector variable = Grad(velocity magnitude), i.e. see BL_aGradfVelMag
= boundary-layer displacement thickness
= boundary-layer momentum thickness
δrec 1pt
pte
------–
⎝⎠
⎛⎞
nd
0
δ
∫
=
δ
Hδ*/θ=
δ*
θ
4.3 Variable Creation
4-26 EnSight 9 User Manual
Note: Separation has not been observed for H < 1.8, and definitely has been observed for
H = 2.6; therefore, separation is considered in some analytical methods to occur in
turbulent boundary layers for H = 2.0.
In a Blasius Laminar layer (i.e. flat plate boundary layer growth with zero pressure
gradient), H = 2.605. Turbulent boundary layer, H ~= 1.4 to 1.5, with extreme variations
~= 1.2 to 2.5.
Boundary Layer BL_Thick(boundary part(s), velocity, ymax, grad).
Thickness Computes a scalar variable which is the boundary-layer thickness defined as:
The distance normal from the surface to where u/U = 0.995,
where:
.
Note: See Section 7.18, Boundary Layer Variables Create/Update
Algorithm Note: The ymax argument allows the edge of the boundary layer to be
approximated by two different algorithms, i.e. the Baldwin-Lomax-Spalart and
convergence algorithms. Both schemes profile velocity data normal to the boundary
surface, or wall. Specifying ymax > 0 leverages results from both the Baldwin-Lomax and
vorticity functions over the entire profile to produce a fading function that approximates
the edge of the boundary layer. Whereas, specifying ymax = 0 uses velocity and velocity
gradient differences to converge to the edge of the boundary layer.
Please see the following references for more detailed explanations.
P.M. Gerhart, R.J. Gross, & J.I. Hochstein, Fundamentals of Fluid Mechanics, 2nd
Ed.,(Addison-Wesley: New York, 1992)
P. Spalart, A Reasonable Method to Compute Boundary-Layer Parameters from Navier-
Stokes Results, (Unpublished: Boeing, 1992)
u=magnitude of the velocity component parallel to the wall at a
given location in the boundary layer
U=magnitude of the velocity just outside the boundary layer
boundary part 2D part
velocity vector variable
ymax constant number
> 0 = Baldwin-Lomax-Spalart algorithm
0 = convergence algorithm
(See Algorithm Note below)
grad -1 = flags the computing of the velocity-magnitude gradient
via 3-point interpolation.
vector variable = Grad(velocity magnitude), i.e. see BL_aGradfVelMag
δ
δnu/U = 0.995
=
δ*
δ
δ*
U
n
Streamline position without
boundary layer
Shifted streamline
Extra Thickness
Velocity Profile
4.3 Variable Creation
EnSight 9 User Manual 4-27
H. Schlichting & K. Gersten, Boundary Layer Theory, 8th Ed., (Springer-Verlag: Berlin,
2003)
Boundary Layer BL_VelocityAtEdge(boundary part(s), velocity, ymax,comp(0,1,2),grad).
Vel o city At Edg e Extracts a vector variable which is a velocity vector Ve, Vp, or Vn defined as:
Ve = Ve(x,y,z) = velocity vector at the edge of the boundary layer δ
Vn= Dot(Ve,N) = the decomposed velocity vector normal to the wall at the edge of
the boundary layer δ
Vp= Ve – Vn = the decomposed velocity vector parallel to the wall at the edge of the
boundary layer δComputes a scalar variable which is the
boundary-layer thickness defined as:
Note: See Section 7.18, Boundary Layer Variables Create/Update
Boundary Layer BL_Y1Plus(boundary part(s), velocity, density, viscosity, free density, free velocity, grad).
off Wall Computes a scalar variable which is the coefficient off the wall by one element height
defined as
where:
Normally is used to estimate or confirm the required 1st grid spacing
for proper capturing of viscous-layer properties. The values are
dependent on various factors including, what variables at the wall are
sought, the turbulent models used, and whether the law of the wall is
boundary part 2D part
velocity vector variable
density scalar variable (compressible flow),
constant number (incompressible flow)
ymax constant number
> 0 = Baldwin-Lomax-Spalart algorithm
0 = convergence algorithm
(See Algorithm Note under Boundary Layer Thickness)
comp constant number
0 = velocity vector at edge of boundary layer
1 = decomposed velocity vector parallel to wall tangent to surface
2 = decomposed velocity vector normal to wall
grad -1 = flags the computing of the velocity-magnitude gradient
via 4-point interpolation.
vector variable = Grad(velocity magnitude), i.e. see BL_aGradfVelMag
n= distance profiled normal to the wall
= fluid shear stress at wall
= dynamic viscosity of fluid at wall
May be spatially and/or temporally varying quantity (usually a constant)
= freestream density
= freestream velocity magnitude
= density at the wall
= first element height profiled normal to wall
δ
y
1
+y
1
+
y
1
+y
1ρw
µw
---------- τw
ρw
------=
τwµw
dµ
dn
------
⎝⎠
⎛⎞
n0=
=
µw
ρ∞
U∞
ρw
y
1
y+
4.3 Variable Creation
4-28 EnSight 9 User Manual
used or not. Consult a boundary-layer text for correct interpolation of
the values for your application.
Note: See Section 7.18, Boundary Layer Variables Create/Update
Not currently implemented for Nsided boundary part.
Case Map CaseMap (2D or 3D part(s), case to map from, scalar/vector/tensor, 0/1 0=search only
1=if search fails find closest)
Finds the first defined variable value (scalar, vector, or tensor) using 3D parts in the
‘case to map from’ and maps them onto the specified part(s) If no 3D parts in the
‘case to map from’ then will attempt to use 2D parts. .
Note: This function uses EnSight’s search capability to do the mapping. It is critical that
the nodes of the parts being mapped onto, lie within the geometry of all of the parts
of the case being mapped from. Thus mapping onto a volume or plane in one case,
that is enclosed by 3D elements in the other case, will work nicely. Mapping from a
2D surface to a 2D surface will only work reliably if the surfaces are the same (or
very very close, and the flag=1 option is chosen). If the variable in the case to map
from is located at the nodes, then the casemapped variable will be at the nodes, and
if the variable is located at the elements, then the casemapped variable will be at the
elements.
Case Map Image CaseMapImage (2D or 3D part(s), part to map from, scalar, viewport number, Undefined
value limit)
This Function does a projection of a 2D part variable from a different case onto a 3D
geometry taking into account the view orientation from the specified viewport
number, similar to a texture mapping.The function in effect maps 2D results to a 3d
geometry taking into account view orientation and surface visibility.
boundary part 2D part
velocity vector variable
density scalar variable
viscosity scalar variable, constant variable, or constant number
free density constant number (not needed, just enter 1 for this argument)
free velocity constant number (not needed, just enter 1 for this argument)
grad -1 = flags the computing of the velocity-magnitude gradient
via 4-point interpolation.
vector variable = Grad(velocity magnitude), i.e. see BL_aGradfVelMag
case to map from constant number
scalar/vector/tensor scalar, vector, or tensor variable
0 or 1 flag If mapping search is successful, always assigns the exact value found.
If search mapping is not successful, then the following occurs:
If flag is set to 0, an undefined value will be assigned.
If flag is set to 1, the defined variable value at the closest node will
be assigned (so no undefined values). This option will search
3D, then 2D, then 1D and even 0D elements to find the first
defined variable value.
part to map from Part number of the 2D part. This 2D part is usually data from an
infrared camera.
scalar scalar variable
viewport number The viewport number showing part(s) the variable is being
computed on, from the same camera view as part to map from
Undefined value
limit
Values on the 2D part that are under this value are considered
Undefined
4.3 Variable Creation
EnSight 9 User Manual 4-29
Note: If the variable in the part to map from is located at the nodes, then the
casemapped variable will be at the nodes. If the variable is located at the elements
the casemapped variable will be at the elements. This function takes only a scalar
variable.
Coefficient Coeff (any 1D or 2D part(s), scalar, component)
Computes a constant variable whose value is a coefficient Cx , Cy, or Cz such that
where:
f = any scalar variable
S = 1D or 2D domain
= x component of normal
= y component of normal
= z component of normal
Specify [X], [Y], or [Z] to get the corresponding coefficient.
Note: Normal for a 1D part will be parallel to the plane of the plane tool.
Complex Cmplx(any part(s), scalar/vector(real portion), scalar/vector(complex portion), [optional
frequency(Degrees)])
Creates a complex scalar or vector from two scalar or vector variables. The
frequency is optional and is used only for reference.
Z = A + Bi
Complex CmplxArg (any part(s), complex scalar or vector)
Argument Computes the Argument of a complex scalar or vector. The resulting scalar is given
in degrees and will be in the range -180 and 180 degrees.
Arg = atan(Vi/Vr)
Complex CmplxConj (any part(s), complex scalar or vector)
Conjugate Computes the Conjugate of a complex scalar of vector. Returns a complex scalar or
vector where:
Nr = Vr
Ni = -Vi
Complex CmplxImag (any part(s), complex scalar or vector)
Imaginary Extracts imaginary portion of a complex scalar or vector into a real scalar or vector.
N = Vi
Complex CmplxModu (any part(s), complex scalar or vector)
Modulus Returns a real scalar/vector which is the modulus of the given scalar/vector
N = SQRT(Vr*Vr + Vi*Vi)
Complex CmplxReal(any part(s), complex scalar or vector)
Real Extracts the real portion of a complex scalar or vector into a real scalar or vector.
N = Vr
component [X], [Y], or [Z]
real portion scalar or vector variable
complex portion scalar or vector variable (but must be same as real portion)
[frequency] constant number (optional)
CxfnxSd
S
∫
=CyfnySd
S
∫
=CzfnzSd
S
∫
=
nx
ny
nz
4.3 Variable Creation
4-30 EnSight 9 User Manual
Complex CmplxTransResp(any part(s), complex scalar or vector, constant PHI(0.0-360.0 Degrees))
Transient Response Returns a real scalar or vector which is the real transient response:
Re(Vt) = Re(Vc)Cos(phi) - Im(Vc)Sin(phi)
which is a function of the transient phase angle “phi” defined by:
phi = 2 Pi f t
where
t = the harmonic response time parameter
f = frequency of the complex variable “Vc”
and the complex field “Vc”, defined as:
Vc = Vc(x,y,z) = Re(Vc) + i Im(Vc)
where
Vc = the complex variable field
Re(Vc) = the Real portion of Vc
Im(Vc) = the imaginary portion of Vc
i = Sqrt(-1)
Note, the transient complex function, was a composition of Vc and Euler’s
relation, namely:
Vt = Vt(x,y,z,t) = Re(Vt) + i Im(Vt) = Vc * e^(i phi)
where:
e^(i phi) = Cos(phi) + i Sin(phi)
The real portion Re(Vt), is as designated above:
Note: this function is only good for harmonic variations, thus fields with a
defined frequency!
phi angle constant number between 0 and 360 degrees.
Note: A special area becomes available in the Feature Detail Editor (Variables)
and Feature Detail Editor (Calculator) when you highlight a variable of this
type - allowing you to modify the phase angle (phi) easily with a slider.
4.3 Variable Creation
EnSight 9 User Manual 4-31
Curl Curl (any part(s), vector)
Computes a vector variable which is the curl of the input vector
Density Density(any part(s), pressure, temperature, gas constant).
Computes a scalar variable which is the density , defined as:
where: p = pressure
T = temperature
R = gas constant
Log of DensityLogNorm (any part(s), density, freestream density)
Normalized Computes a scalar variable which is the natural log of Normalized Density
Density defined as:
where: = density
= freestream density
Normalized DensityNorm (any part(s), density, freestream density)
Density Computes a scalar variable which is the Normalized Density defined as:
where: = density
= freestream density
Normalized DensityNormStag (any part(s), density, total energy, velocity, ratio of specific heats,
Stagnation freestream density, freestream speed of sound, freestream velocity magnitude)
Density Computes a scalar variable which is the Normalized Stagnation Density
defined as:
where: = stagnation density
where: = freestream stagnation density
pressure scalar variable
temperature scalar variable
gas constant scalar variable, constant variable, or constant number
density scalar variable, constant variable, or constant number
freestream density constant variable or constant number
density scalar variable, constant variable, or constant number
freestream density constant variable or constant number
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
freestream density constant variable or constant number
freestream speed of sound constant variable or constant number
freestream velocity magnitude constant variable or constant number
Curlf∇f×f3
∂
y∂
-------f2
∂
z∂
-------–
⎝⎠
⎛⎞
i
ˆf1
∂
z∂
-------f3
∂
x∂
-------–
⎝⎠
⎛⎞
j
ˆf2
∂
x∂
-------f1
∂
y∂
-------–
⎝⎠
⎛⎞
k
ˆ
++==
ρ
ρp
TR
-------=
ρn
ln ρρ
i
⁄()ln=
ρ
ρi
ρn
ρnρρ
i
⁄=
ρ
ρi
ρon
ρon ρoρoi
⁄=
ρo
ρoi
4.3 Variable Creation
4-32 EnSight 9 User Manual
Stagnation DensityStag (any part(s), density, total energy, velocity, ratio of specific heats)
Density Computes a scalar variable which is the Stagnation Density defined as:
where: = density
γ = ratio of specific heats
= mach number
total energy must be a scalar
velocity must be a vector
Distance Dist2Nodes(any part(s), nodeID1,nodeID2).
Between Nodes Computes a constant, positive variable that is the distance between any two nodes.
Searches down the part list until it finds nodeID1, then searches until it finds nodeID2 and
returns Undef if nodeID1 or nodeID2 cannot be found. Nodes are designated by their node
id’s, so the part must have node ids. (Note that most created parts do not have node ids.)
Note also for transient results, that the geometry type is important for using this function.
There are three geometry types: static, changing coordinate, and changing connectivity.
You can find out your geometry type by doing a Query>Dataset and look in the General
Geometric section of the pop up window. If you have a static geometry with visual
displacement turned on then dis2nodes will not use the displacement in its calculations.
You will need to turn on server-side (computational) displacement (see How To use Server
Side Displacements). If you have changing coordinate geometry, then dist2node should
work fine, and if you have changing connectivity then dist2node should not be used as it
may give nonsensical results because connectivity is redone each timestep and node ids
may move around.
And finally, to find the distance between two nodes on different parts, or between two
nodes if one or both don’t have ids, or the ids are not unique for the model (namely, more
than one part has the same node id) use the line tool. See the Advanced Usage section of
How To Use the Line Tool.
Distance to parts Dist2Part(origin part + field part(s), origin part, origin part normal).
Node to nodes Computes a scalar variable on the origin part and field parts that is the minimum distance
at each node of the origin and field parts to any node in the origin part. This distance is
unsigned by default. The origin part is the origin of a Euclidean distance field. So, by
definition the scalar variable will always be zero at the origin part because the distance to
the origin part will always be zero.
If a nodal vector variable defined at the origin part is supplied then the normal vector is
used to return a signed distance function (with positive being the direction of the normal).
The signed distance is determined using the dot product of the vector from the given field
node and it’s closest node on the origin with the origin node’s normal vector.
Notes: The origin part must be included in the field part list (although, as discussed earlier,
the scalar variable will be zero for all nodes on the origin part). This algorithm has an
execution time on the order of the number of nodes in the field parts times the number of
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
nodeID1 constant number
nodeID2 constant number
ρo
ρoρ1γ1–
2
-----------
⎝⎠
⎛⎞
+M2
⎝⎠
⎛⎞
1γ1–()⁄()
=
ρ
M
4.3 Variable Creation
EnSight 9 User Manual 4-33
nodes in the origin part. While the implementation is both SOS aware and threaded, the
run time is dominated by the number of nodes in the computation.
This function is computed between the nodes of the origin and field parts. As a result, the
accuracy of it’s approximation to the distance field is limited to the density of nodes
(effectively the size of the elements) in the origin part. If a more accurate approximation is
required, use the Dist2PartElem() function. It is slower, but is less dependent on the nodal
distribution in the origin part because it uses the nodes plus the element faces to calculate
the minimum distance.
Usage. A typical usage would be to use an arbitrary 2D part to create a clip in a 3D field.
Use the 2D part as your origin part, and select the orgin part as well as your 3D field parts.
No need to have normal vectors. Create your scalar variable, called say distTo2Dpart,
then create an isosurface=0 in your field using the distTo2Dpart as your variable. See also
the EnSight Tips and Tutorials on our website.
Distance to parts Dist2PartElem(origin part + field part(s), origin part, origin part normal).
Node to elements Computes a scalar variable that is the minimum distance at each node of the origin part
and field parts and the closest point on any element in origin part. This distance is
unsigned by default. If a nodal vector variable is supplied on the origin part, the direction
of the normal is used to return a signed distance function with distances in the direction of
the normal being positive. Once the closest point in the origin part has been found for a
node in an field part, the dot product of the origin node normal and a vector between the
two nodes is used to select the sign of the result.
Notes: The origin part must be included in the field part list (although the output will be
zero for all nodes of the origin part because it is the origin of the Euclidean distance). This
algorithm has an execution time on the order of the number of nodes in the field parts
times the number of elements in the origin part. While the implementation is both SOS
aware and threaded, the run time is dominated by the number of nodes in the computation.
This function is a more accurate estimation of the distance field than Dist2Part() because it
allows for distances between nodes and element surfaces on the origin part. This improved
accuracy results in increased computational complexity and as a result this function can be
several times slower than Dist2Part(). See also the EnSight Tips and Tutorials on our
website.
Divergence Div (2D or 3D part(s), vector)
Computes a scalar variable whose value is the divergence defined as:
where u,v,w = velocity components in x,y,z directions.
Element Size EleSize (any part(s)).
Calculates the Volume/Area/Length for 3D/2D/1D elements respectively, at each
element creating a scalar, element-based variable.
Element to Node ElemToNode (any part(s), element-based scalar or vector).
Averages an element based variable to produce a node-based variable.
origin part part number to compute the distance to
origin part normal a constant for unsigned computation or a nodal vector variable defined
on the origin part for a signed computation
origin part part number to compute the distance to
origin part normal a constant for unsigned computation or a nodal vector variable defined
on the origin part for a signed computation
Div u∂
x∂
----- v∂
y∂
----- w∂
z∂
------++=
4.3 Variable Creation
4-34 EnSight 9 User Manual
Energy:
Tot al Energy EnergyT (any part(s), density, pressure, velocity, ratio of specific heats).
Computes a scalar variable of total energy per unit volume
Kinetic Energy KinEn (any part(s), velocity, density)
Computes a scalar variable whose value is the kinetic energy defined as:
where ρ = density
V = Velocity variable
Enthalpy Enthalpy (any part(s), density, total energy, velocity, ratio of specific heats)
Computes a scalar variable which is Enthalpy defined as:
where: E = total energy per unit volume
ρ = density
V = velocity magnitude
γ = ratio of specific heats
Normalized EnthalpyNorm (any part(s), density, total energy, velocity, ratio of specific
Enthalpy heats, freestream density, freestream speed of sound)
Computes a scalar variable which is Normalized Enthalpy defined as:
where: h = enthalpy
= freestream enthalpy
density scalar variable, constant variable, or constant number
pressure scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
velocity vector variable
density scalar variable, constant variable, or constant number
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
eρei
V2
2
------+
⎝⎠
⎛⎞
=
eie0
V2
2
------–=
e0
e
ρ
---=
Tot al E ne r gy
Internal Energy
Stagnation Energy
where: ρdensity=
VVelocity=
Or based on gamma, pressure and velocity:
ep
γ1–()
----------------ρV2
2
------
+=
Ek
Ek
1
2
---
ρ
V2
=
h
hγE
ρ
--- V2
2
------–
⎝⎠
⎛⎞
=
hn
hnhh
i
⁄=
hi
4.3 Variable Creation
EnSight 9 User Manual 4-35
Stagnation EnthalpyStag (any part(s), density, total energy, velocity, ratio of specific heats)
Enthalpy Computes a scalar variable which is Stagnation Enthalpy defined as:
where: = enthalpy
V = velocity magnitude
Normalized EnthalpyNormStag (any part(s), density, total energy, velocity, ratio of
Stagnation specific heats, freestream density, freestream speed of sound, freestream velocity
Enthalpy magnitude)
Computes a scalar variable which is Normalized Stagnation Enthalpy
defined as:
where: = stagnation enthalpy
= freestream stagnation enthalpy
Entropy Entropy (any part(s), density, total energy, velocity, ratio of specific heats, gas
constant, freestream density, freestream speed of sound)
Computes a scalar variable which is Entropy defined as:
where: R = gas constant
ρ = density
= freestream density
= pressure
= freestream pressure =
= velocity magnitude
γ = ratio of specific heats
freestream density constant variable or constant number
freestream speed of sound constant variable or constant number
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
freestream density constant variable or constant number
freestream speed of sound constant variable or constant number
freestream velocity magnitude constant variable or constant number
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ho
hohV
2
--- 2
+=
h
h
on
hon hohoi
⁄=
ho
hoi
s
s
p
pi
----
ρ
ρi
----
⎝⎠
⎛⎞
γ
------------
⎝⎠
⎜⎟
⎜⎟
⎜⎟
⎛⎞
R
γ1–
-----------
⎝⎠
⎛⎞
ln=
ρi
p
piρici
2
()γ⁄
ci
4.3 Variable Creation
4-36 EnSight 9 User Manual
ratio of specific heats scalar variable, constant variable, or constant number
gas constant constant variable or constant number
freestream density constant variable or constant number
freestream speed of sound constant variable or constant number
4.3 Variable Creation
EnSight 9 User Manual 4-37
Flow Flow (any 1D or 2D part(s), velocity).
Computes a constant variable whose value is the volume flow rate defined as:
where = Velocity vector
= Unit vector normal to surface S
S = 1D or 2D domain
Note: Normal for a 1D part will be parallel to the plane of the plane tool.
Note also: To calculate mass flow rate, multiply Velocity vector by the Density scalar and
then substitute this vector value in for the velocity vector in the above equation.
Flow Rate FlowRate (any 1D or 2D part(s), velocity).
Computes a scalar Vn which is the component of velocity normal to the surface,
defined as:
where V = Velocity
= Unit vector normal to surface S
S = 1D or 2D domain
Note: This function is equivalent to calculating the dot product of the velocity vector and
the surface normal (using the Normal function).
Fluid Shear FluidShear(2D part(s), velocity magnitude gradient, viscosity)
Computes a scalar variable tau whose value is defined as:
tau = µ where tau = shear stress
µ = dynamic viscosity
= Velocity gradient in direction of surface normal
Hints: To compute fluid shear stress:
1. Use Gradient function on velocity to obtain “Velocity Grad” variable in
the 3D part(s) of interest.
2. Create a clip part or extract the outer surface of the part using part
extract (create a 2D part from the 3D part(s) used in 1.) a surface on
which you wish to see the fluid shear stress.
3. Create the surface normal vector using the Normal calculator function
on the 2D part, then make sure the normal faces into the flow.
4. Calculate the DOT product of the Normal and the Velocity magnitude
gradient variable.
5. Compute Fluid Shear variable (on the 2D clip surface of 2 using normal
of velocity gradient magnitude in direction of surface normal from 4).
velocity vector variable
velocity vector variable
velocity gradient vector variable
viscosity scalar variable, constant variable, or constant number
Qc
QcVn
ˆ
⋅()Sd
S
∫
=
V
n
ˆ
VnVn
ˆ
⋅=
n
ˆ
V∂
n∂
------
V∂
n∂
------
4.3 Variable Creation
4-38 EnSight 9 User Manual
Fluid Shear FluidShearMax (2D or 3D part(s), velocity, density, turbulent kinetic energy, turbulent
Stress Max dissipation, laminar viscosity)
Computes a scalar variable defined as:
where F = force
A = unit area
= turbulent (eddy) viscosity
= laminar viscosity (treated as a constant)
E = local strain
The turbulent viscosity is defined as:
where ρ = density
κ = turbulent kinetic energy
ε = turbulent dissipation
A measure of local strain E (i.e. local elongation in 3 directions) is given by
where
given the Euclidean norm defined by
;
and the rate of deformation tensor dij defined by
with = ¹u/¹x
= ¹v/¹y
= ¹w/¹z
= ¹u/¹y + ¹v/¹x =
= ¹u/¹z + ¹w/¹x =
= ¹v/¹z + ¹w/¹y =
given the strain tensor defined by
Force Force(2D part(s), pressure)
Computes a vector variable whose value is the force F defined as:
where p = pressure
A = unit area
Note: The force acts in the surface normal direction.
velocity vector variable
density scalar variable, constant variable, or constant number
turbulent kinetic energy scalar variable
turbulent dissipation scalar variable
laminar viscosity constant variable or constant number
pressure scalar variable
Σ
Σ
FA⁄utul
+()E==
ut
ul
ut
ut
ρ
0.09
κ
2
ε
--------------------=
E2trDD⋅()()=
2tr D D⋅()2d
11
()
2d22
()
2d33
()
2
++()d12
()
2d13
()
2d23
()
2
++()+=
tr D D⋅()d(11 )2d22
()
2d33
()
21
2
---d12
()
2d13
()
2d23
()
2
++()+++=
Dd
ij
[] 1
2
---
2d11 d12 d13
d21 2d22 d23
d31 d32 2d33
==
d11
d22
d33
d12 d21
d13 d31
d23 d32
eij eij
1
2
---dij
=
FpA=
4.3 Variable Creation
EnSight 9 User Manual 4-39
Force 1D Force1D(1D planar part(s), pressure, surface normal)
Computes a vector variable whose value is the force F defined as:
where p = pressure
L = unit length times 1
Note: The force acts in the part’s normal direction (in plane).
Gradient Grad (2D or 3D part(s), scalar or vector(Magnitude will be used))
Computes a vector variable whose value is the gradient defined as:
where f = any scalar variable (or the magnitude of the specified vector)
x, y, z = coordinate directions
i, j, k = unit vectors in coordinate directions
Gradient GradApprox (2D or 3D part(s), scalar or vector(Magnitude will be used))
Approximation Same as Gradient, except all elements are first subdivided into triangles (for 2D) or
tetrahedrons (for 3D) and a closed-form solution is done on the subdivided
element’s nodal values (only applicable for per node variables). This is basically a
quicker, linear approximation of the regular gradient.
Gradient Ten s or GradTensor (2D or 3D part(s), vector)
Computes a tensor variable whose value is the gradient defined as:
where F = any vector variable
x, y, z = coordinate directions
i, j, k = unit vectors in coordinate directions
Gradient Tensor GradTensorApprox (2D or 3D part(s), vector)
Approximation Same as Gradient Tensor, except all elements are first subdivided into triangles (for
2D) or tetrahedrons (for 3D) and a closed-form solution is done on the subdivided
element’s nodal values (only applicable for per node variables). This is basically a
quicker, linear approximation of the regular gradient tensor.
Helicity:
Helicity Density HelicityDensity(any part(s), velocity)
Computes a scalar variable whose value is:
where: V = Velocity
= Vorticity
pressure scalar variable
surface normal vector variable
velocity vector variable
FpL=
GRADf
GRADf
f∂
x∂
----- i
ˆf∂
y∂
----- j
ˆf∂
z∂
-----k
ˆ
++=
GRADF
GRADF
F∂
x∂
------ i
ˆF∂
y∂
------ j
ˆF∂
z∂
------ k
ˆ
++=
Hd
HdVΩ•=
Ω
4.3 Variable Creation
4-40 EnSight 9 User Manual
Relative Helicity HelicityRelative(any part(s), velocity)
Computes a scalar variable whose value is:
where: = the angle between the velocity vector and the vorticity vector.
Filtered Relative HelicityRelFilter(any part(s), velocity, freestream velocity magnitude).
Helicity Computes a scalar variable whose value is:
, if
or , if
where = relative helicity (as described above)
= helicity density (as described above)
Iblanking Values IblankingValues (Any iblanked structured part(s))
Computes a scalar variable whose value is the iblanking flag of selected parts.
Integrals:
Line Integral IntegralLine (1D part(s), scalar or (vector, component))
Computes a constant variable whose value is the integral of the input variable over
the length of the specified 1D part(s).
Surface Integral IntegralSurface (2D part(s), scalar or (vector, component))
Computes a constant variable whose value is the integral of the input variable over
the surface of the specified 2D part(s).
Volume Integral IntegralVolume (3D part(s), scalar or (vector, component))
Computes a constant variable whose value is the integral of the input variable over
the volume of the specified 3D part(s).
Kinetic Energy (See under Energy)
Length Length (any 1D part(s))
Computes a constant variable whose value is the length of selected parts. While any
part can be specified, it will only return a nonzero length if the part has 1D elements.
Line Integral See Line Integral under Integrals.
LineVectors LineVectors (any 1D part(s) )
Computes a nodal, vector variable which is the vector beginning at each node to the next
node in the connectivity of the 1D part. This vector indicates the direction of the line segments.
where:
Veci = Vector with origin at point i, with i from 1 to n-1.
(Pxi,Pyi,Pzi) = Coordinates of Point i of 1D part
n = Number of points in the 1D part
velocity vector variable
velocity vector variable
freestream velocity magnitude constant variable or constant number
Hr
Hr φ = VΩ•
VΩ
--------------
cos=
φ
Hrf
Hrf Hr
=Hdfilter≥
Hrf 0=Hdfilter<
Hr
Hd
filter 0.1 V∞
()
2
=
VeciPxi1+Pxi
–()Pyi1+Pyi
–()Pzi1+Pzi
–()
=
4.3 Variable Creation
EnSight 9 User Manual 4-41
Lambda2 Lambda2 (any part(s), Grad_Vel_x, Grad_Vel_y, Grad_Vel_z)
Computes a scalar variable which is the second eigenvalue, or 82, of the second
invariant (or Q-criterion) of the velocity gradient tensor. Vortex shells may then be
visualized as an iso-surface of 82 = 0.
where
Explicitly calculate the three components of Velocity
Vel_x = Velocity[X] = x-component of the velocity vector
Vel_y = Velocity[Y] = y-component of the velocity vector
Vel_z = Velocity[Z] = z-component of the velocity vector
and then
Grad_Vel_x = Grad(any part(s), Vel_x) = gradient of x component Velocity
Grad_Vel_y = Grad(any part(s), Vel_y) = gradient of y component Velocity
Grad_Vel_z = Grad(any part(s), Vel_z) = gradient of z component Velocity
where
Velocity = velocity vector variable
Note: Common mistake is to try to calculate the Gradient from the component of the
velocity without using the intermediate Vel_x, Vel_y, and Vel_z variables. For
example this is wrong and will use only the velocity magnitude:
Grad_Vel_x = Grad(any part(s), Velocity[X])
Note:
This is a User-Defined Math Function (UDMF) which may be modified and
recompiled by the user. Please see the EnSight Interface Manual for more details
(Help>Interface Manual, Chapter 4 User-Defined Math Functions).
Algorithm
The three gradient vectors of the components of the velocity vector constitute the
velocity gradient tensor. Using the 9 components of this (anti-symmetric) velocity
gradient tensor, Lv, construct both the symmetric, S, and the anti-symmetric, S,
parts of the velocity gradient tensor,
where
then combine to compute the symmetric tensor
Next compute and sort the eigenvalues of Q (using Jacobi eigen analysis), and
v∇SΩ+=
S1
2
---v∇v∇()
T
+[]=
Ω1
2
---v∇v∇()
T
–[]=
QS
2Ω2
+=
4.3 Variable Creation
4-42 EnSight 9 User Manual
assign the 2nd eigenvalue, or 82, as the scalar value at the node.
The vortex is to be visualized as an iso-surface with
See also the Q_criteria calculator function.
References
Haller, G., “An objective definition of a vortex,” Journal of Fluid Mechanics, 2005,
vol. 525, pp. 1-26.
Jeong, J. and Hussain, F., “On the identification of a vortex,” Journal of Fluid
Mechanics, 1995, vol. 285, pp. 69-94.
Mach Number Mach (any part(s), density, total energy, velocity, ratio of specific heats)
Computes a scalar variable whose value is the Mach number M defined as:
where m = momentum
ρ = density
u = speed, computed from velocity input.
γ = ratio of specific heats (1.4 for air)
p = pressure (see Pressure below)
c = speed of sound
See Total Energy in this section for a description.
Make Scalar at MakeScalElem (any part(s), constant number or constant variable)
Elements Assigns the specified constant value to each element, making a scalar variable.
Make Scalar at MakeScalNode (any part(s), constant number or constant variable)
Nodes Assigns the specified constant value to each node, making a scalar variable.
Make Vector MakeVect (any part(s), scalar or zero, scalar or zero, scalar or zero)
Computes a vector variable formed from scalar variables. First scalar becomes the X
component of the vector, second scalar becomes the Y component, and the third
scalar becomes the Z component. A zero can be specified for some of the scalars,
creating a 2D or 1D vector field.
Massed Particle MassedParticle (massed particle trace part(s))
Scalar
This scalar creates a massed-particle per element scalar variable for each of the
parent parts of the massed-particle traces. This per element variable is the mass of
the particle times the sum of the number of times each element is exited by a mass-
particle trace. See Particle-Mass Scalar on Boundaries in Chapter 7
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
λ1λ2λ3
<<
λ20=
Mu
γ
p
ρ
-----
----------u
c
---==
4.3 Variable Creation
EnSight 9 User Manual 4-43
Mass-Flux MassFluxAvg (any 1D or 2D part(s), scalar, velocity, density)
Average Computes a constant variable whose value is the mass flux average bavg defined as:
where b = any scalar variable, i.e. pressure, mach, a vector component, etc.
ρ = density (constant or scalar) variable
V = velocity (vector) variable
dA = area of some 2D domain
N = unit vector normal to dA
scalar any scalar variable, i.e. pressure, mach, a vector component, etc
velocity a vector variable
density scalar variable, constant variable, or constant number
bavg
ρbV N)dA•(
A
∫
°
ρV(N)dA•
A
∫
°
------------------------------------ MassFluxOfScalar
MassFlux
-------------------------------------------------- Flow plist bρV,()
Flow plist ρV,()
--------------------------------------------== =
4.3 Variable Creation
4-44 EnSight 9 User Manual
MatSpecies MatSpecies (any model part(s), any material(s), any specie(s), scalar per element).
Computes a scalar per element variable whose value σ is the sum of all specified
material and species combinations multiplied by the specified element variable on
specified 'model' parts with defined material species.
where
This function only operates on model part(s) with pre-defined species. The
specified material(s) can either be a list of materials or a single material value. The
specified species can either be a list, a single specie, or no specie (i.e. a null species
list which then computes an element value based on only material fraction
contributions). The scalar per element value can either be an active variable, or a
scalar value (i.e. the value 1 would give pure material fraction and/or specie value
extraction).
Both material and specie names are selected from the context sensitive Active
Variables list which changes to a Materials list and then a Species List for their
respective prompts.
For more information on Species see Species under 7.19 Material Parts Create/
Update, and both MATERIAL Section under EnSight Gold Case File Format, and
Example Material Dataset (with Species) in User Manual section 11.1.
MatToScalar MatToScalar (any model part(s), a material).
Computes a scalar per element variable whose value s is the specified material’s
value m of the element on the specified part(s).
s = m
where
s = scalar per element variable value of each element
m = the corresponding material fraction value of each element
This function only operates on model part(s) with pre-defined materials that are given by
sparse mixed material definitions. Only one material may be converted into one per
element scalar variable at a time. The material cannot be the null material.
For more information on Materials,(see Chapter 7.19, Material Parts Create/Update) , and
both MATERIAL Sections under EnSight Gold Case File Format, and Example Material
Dataset in User Manual section 11.1.
σ = es Σ msij
es = scalar per element variable value or value
msij = mi * sj
= The product of the material fraction mi
and its corresponding specie value sj
= 0,
if specie sj does not exist for material mi
= mi, if no species are specified.
4.3 Variable Creation
EnSight 9 User Manual 4-45
Max Max (any part(s), scalar or (vector, component))
Computes a constant variable whose value is the maximum value of the scalar (or
vector component) in the parts selected. The component is not requested if a scalar
is selected.
Min Min (any part(s), scalar or (vector, component))
Computes a constant variable whose value is the minimum value of the scalar (or
vector component) in the parts selected.
Moment Moment (any part(s), vector, component).
Computes a constant variable (the moment about the cursor tool location) whose
value is the x, y, or z component of Moment .
where = force vector component in direction i of vector F(x,y,z)
= (Fx,Fy,Fz)
= signed moment arm (the perpendicular distance from the
line of action of the vector component to the moment axis
(which is the current cursor tool position)).
MomentVector MomentVector (any part(s), force vector).
Computes a nodal vector variable (the moment is computed about each point of the
selected parts) whose value is the x, y, or z component of Moment .
where = force vector component in direction i of vector F(x,y,z)
= (Fx,Fy,Fz)
= signed moment arm (the perpendicular distance from the
line of action of the vector component to the moment axis
(model point position)).
Momentum Momentum(any part(s), velocity, density).
Computes a vector variable m, which is:
where = density
V = velocity
[component] if vector variable, magnitude is the default, or specify [x], [y], or [z]
[component] if vector variable, magnitude is the default, or specify [x], [y], or [z]
vector any vector variable
component [X], [Y], or [Z]
force vector any vector variable (per node or per element)
velocity a vector variable
density scalar variable, constant variable, or constant number
M
M
xΣFydzFzdy
–()=
M
yΣFzdxFxdz
–()=
M
zΣFxdyFydx
–()=
Fi
di
Fi
M
M
xΣFydzFzdy
–()=
M
yΣFzdxFxdz
–()=
M
zΣFxdyFydx
–()=
Fi
di
Fi
mρV=
ρ
4.3 Variable Creation
4-46 EnSight 9 User Manual
Node Count NodeCount (any part(s) )
Produces a constant variable containing the node count of the part(s) specified.
Node to Element NodeToElem (any part(s), node-based scalar or vector).
Averages a node based variable to produce an element based variable.
Normal Normal (2D part(s) or 1D planar part(s))
Computes a vector variable which is the normal to the surface at each element for
2D parts, or for 1D planar parts - lies normal to the 1D elements in the plane of the
part.
Normal NormC (2D or 3D part(s), pressure, velocity, viscosity)
Constraints Computes a constant variable whose value is the Normal Constraints NC defined as:
where p = pressure
V = velocity
µ = dynamic viscosity
n = direction of normal
S = border of a 2D or 3D domain
Normalize Vector NormVect (any part(s), vector)
Computes a vector variable whose value is a unit vector of the given vector .
U =
where: V = vector variable field
=
Offset Field OffsetField (2D or 3D part(s))
Computes a scalar field of offset values. The values will be in model distance units
perpendicular to the boundary of the part. Note that an isosurface created in this
field would mimic the part boundary, but at the offset distance into the field.
Offset Variable OffsetVar(2D or 3D part(s), scalar or vector, constant offset value)
Computes a scalar (or vector) variable defined as the offset value into the field of
that variable that exists in the normal direction from the boundary of the part. This
assigns near surface values of a variable to the surface of 3D parts or to a 2D part
from the neighboring field.
Pressure Pres (any part(s), density, total energy, velocity, ratio of specific heats)
Computes a scalar variable whose value is the pressure p defined as:
where: m = momentum
E = internal energy
ρ = density
V = velocity = m/ρ
γ = ratio of specific heats (1.4 for air)
pressure scalar variable
velocity vector variable
viscosity scalar variable, constant variable, or constant number
constant offset value constant number (constant variable is not valid)
density scalar variable, constant variable, or constant number
NC p–
µ
V∂
n∂
------ n
ˆ
+
⎝⎠
⎛⎞
Sd
S
∫
=
UV
VV
xVy
,Vz
(
,
)
V
------------------------------
V Vx
2Vy
2Vz
2
++
p
γ1–()ρ
E
ρ
--- 1
2
---V2
–
⎝⎠
⎛⎞
=
4.3 Variable Creation
EnSight 9 User Manual 4-47
Pressure PresCoef (any part(s), density, total energy, velocity, ratio of specific heats, freestream
Coefficient density, freestream speed of sound, freestream velocity magnitude)
Computes a scalar variable which is Pressure Coefficient defined as:
where: p = pressure
= freestream pressure
= freestream density
= freestream velocity magnitude
Dynamic PresDynam (any part(s), density, velocity)
Pressure Computes a scalar variable which is Dynamic Pressure defined as:
where: ρ = density
V = velocity magnitude
See also: Kinetic Energy
Normalized PresNorm (any part(s), density, total energy, velocity, ratio of specific heats,
Pressure freestream density, freestream speed of sound)
Computes a scalar variable which is Normalized Pressure defined as:
where: = freestream pressure =
= ratio of specific heats
= pressure
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
freestream density constant variable or constant number
freestream speed of sound constant variable or constant number
freestream velocity magnitude constant variable or constant number
density scalar variable, constant variable, or constant number
velocity vector variable
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
freestream density constant variable or constant number
freestream speed of sound constant variable or constant number
CP
CP
pp
i
–
ρiVi
2
2
-----------
--------------=
pi
ρi
Vi
q
qρV2
2
---------=
p
n
pnpp
i
⁄=
p
i1γ⁄
γ
p
4.3 Variable Creation
4-48 EnSight 9 User Manual
Log of PresLogNorm (any part(s), density, total energy, velocity, ratio of specific
Normalized heats, freestream density, freestream speed of sound)
Pressure Computes a scalar variable which is the natural log of Normalized Pressure
defined as:
where: = freestream pressure =
=ratio of specific heats
= pressure
Stagnation PresStag (any part(s), density, total energy, velocity, ratio of specific heats)
Pressure Computes a scalar variable which is the Stagnation Pressure defined as:
where: = pressure
γ = ratio of specific heats
= mach number
Note: In literature, stagnation pressure is used interchangeably with total pressure.
The stagnation pressure (or total pressure) use two different equations depending upon the
flow regime: compressible or incompressible. EnSight has chosen to define Stagnation
Pressure using the compressible flow equation (above), and Total Pressure using the
incompressible flow equation (see Total Pressure below).
Normalized PresNormStag (any part(s), density, total energy, velocity, ratio of specific heats,
Stagnation freestream density, freestream speed of sound, freestream velocity magnitude)
Pressure Computes a scalar variable which is Normalized Stagnation Pressure
defined as:
where: = stagnation pressure
= freestream stagnation pressure
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
freestream density constant variable or constant number
freestream speed of sound constant variable or constant number
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
freestream density constant variable or constant number
freestream speed of sound constant variable or constant number
freestream velocity magnitude constant variable or constant number
pn
ln p pi
⁄()ln=
pi1γ⁄
γ
p
po
pop1 γ1–
2
-----------
⎝⎠
⎛⎞
+M2
⎝⎠
⎛⎞
γγ1–()⁄()
=
p
M
pon
pon popoi
⁄=
po
poi
4.3 Variable Creation
EnSight 9 User Manual 4-49
Stagnation PresStagCoef (any part(s), density, total energy, velocity, ratio of
Pressure specific heats, freestream density, freestream speed of sound, freestream velocity
Coefficient magnitude)
Computes a scalar variable which is Stagnation Pressure Coefficient
defined as:
where: = stagnation pressure
= freestream pressure =
γ = ratio of specific heats
= freestream density
= velocity magnitude
Pitot PresPitot (any part(s), density, total energy, velocity, ratio of specific heats)
Pressure Computes a scalar variable which is Pitot Pressure defined as:
=
where γ = ratio of specific heats
Ε = total energy per unit volume
ρ = density
V = velocity magnitude
p = pressure
Note: For mach numbers less than 1.0, the Pitot Pressure is the same as the Stagnation
Pressure. For mach numbers greater than or equal to 1.0, the Pitot Pressure is
equivalent to the Stagnation Pressure behind a normal shock.
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
freestream density constant variable or constant number
freestream speed of sound constant variable or constant number
freestream velocity magnitude constant variable or constant number
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
Cpo
Cpopopi
–()
ρiV2
2
-----------
⎝⎠
⎜⎟
⎛⎞
⁄=
po
pi1γ⁄
ρi
V
pp
ppsp=
s
γ1+
2
-----------
⎝⎠
⎛⎞ V2
γγ 1–()
E
ρ
--- V2
2
------–
⎝⎠
⎛⎞
-----------------------------------------
⎝⎠
⎜⎟
⎜⎟
⎜⎟
⎛⎞
⎝
⎜
⎜
⎜
⎛
⎠
⎟
⎟
⎟
⎞γγ1–()⁄()
2γ
γ1+
-----------
⎝⎠
⎛⎞ V2
γγ 1–()
E
ρ
--- V2
2
------–
⎝⎠
⎛⎞
-----------------------------------------
⎝⎠
⎜⎟
⎜⎟
⎜⎟
⎛⎞
⎝⎠
⎜⎟
⎜⎟
⎜⎟
⎛⎞
γ1–
γ1+
-----------
⎝⎠
⎛⎞
–
⎝⎠
⎜⎟
⎜⎟
⎜⎟
⎛⎞
1γ1–()⁄()
-------------------------------------------------------------------------------------------------------------------------
4.3 Variable Creation
4-50 EnSight 9 User Manual
Pitot PresPitotRatio (any part(s), density, total energy, velocity, ratio of specific heats,
Pressure freestream density, freestream speed of sound)
Ratio Computes a scalar variable which is Pitot Pressure Ratio defined as:
where s = (defined above in Pitot Pressure)
γ = ratio of specific heats
Ε = total energy per unit volume
ρ = density
V = velocity magnitude
Tot al PresT (any part(s), pressure, velocity, density)
Pressure Computes a scalar variable whose value is the total pressure defined as:
where ρ = density
V = velocity
p = pressure
Note: In literature, total pressure is used interchangeably with stagnation pressure.
The total pressure (or stagnation pressure) use two different equations depending upon the
flow regime: incompressible or compressible. EnSight has chosen to define Total
Pressure using the incompressible flow equation (above), and Stagnation Pressure using
the compressible flow equation (see Stagnation Pressure above).
Q_criteria Q_criteria (any part(s), Grad_Vel_x, Grad_Vel_y, Grad_Vel_z)
Computes a scalar variable which is the second invariant,or Q-criterion, of the
velocity gradient tensor. Vortex shells may then be visualized as an iso-surface of Q-
criterion > 0.
where
First you must calculate the intermediate variable:
Vel_x = Velocity[X] = x-component of the velocity vector
Vel_y = Velocity[Y] = y-component of the velocity vector
Vel_z = Velocity[Z] = z-component of the velocity vector
then calculate the gradient using the intermediate variable:
Grad_Vel_x = Grad(any part(s), Vel_x) = gradient of x component Velocity
Grad_Vel_y = Grad(any part(s), Vel_y) = gradient of y component Velocity
Grad_Vel_z = Grad(any part(s), Vel_z) = gradient of z component Velocity
with
Velocity = velocity vector variable
Note: A common mistake is to try to calculate the Gradient from the component of
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
freestream density constant variable or constant number
freestream speed of sound constant variable or constant number
pressure scalar variable
velocity vector variable
density scalar variable, constant variable, or constant number
ppr
ppr sγ1–()EρV2
2
---------–
⎝⎠
⎛⎞
=
pt
ptpρV2
2
------
⎝⎠
⎛⎞
+=
4.3 Variable Creation
EnSight 9 User Manual 4-51
the velocity without using the intermediate Vel_x, Vel_y, and Vel_z variables. For
example this is wrong and will use only the velocity magnitude:
Grad_Vel_x = Grad(any part(s), Velocity[X])
Note:
This is a User-Defined Math Function (UDMF) which may be modified and
recompiled by the user. Please see the EnSight Interface Manual for more details
(Help>Interface Manual, Chapter 4 User-Defined Math Functions).
Algorithm
The three gradient vectors of the components of the velocity vector constitute the
velocity gradient tensor. Using the 9 components of this (anti-symmetric) velocity
gradient tensor, Lv, construct both the symmetric, S, and the anti-symmetric, S,
parts of the velocity gradient tensor, the Q criteria is established as follows.
where
solving for Q (hence Q criteria) when
which (in terms of our EnSight variables) literally reduces to
Q = - 0.5 * (DOT(Grad_Vel_x[X],Grad_vel_x[X]) +
DOT(Grad_Vel_y[Y],Grad_vel_y[Y]) + DOT( Grad_Vel_z[Z] , G r a d _ Ve l _ z [ Z ] ) +
2 * (Grad_Vel_x[Y] * Grad_Vel_y[X] + Grad_Vel_x[Z] * Grad_Vel_z[X] +
Grad_Vel_y[Z] * Grad_Vel_z[Y] ) ) > 0
Now, to find the vorticies, create an isosurface where Q is positive (Q > 0). This is
because an isosurface with positive Q isolates areas where the strength of the
rotation overcomes the strain, thus making those surfaces eligible as vortex
envelopes.
See also the Lambda2 calculator function.
References:
Dubief, Y and Delcayre, F., “On coherent-vortex identification in turbulence”,
Journal of Turbulence, (jot.iop.org) 1 (2000) 11, pp.1-22.
Haller, G., “An objective definition of a vortex,” Journal of Fluid Mechanics, 2005,
vol. 525, pp. 1-26.
Jeong, J. and Hussain, F., “On the identification of a vortex,” Journal of Fluid
Mechanics, 1995, vol. 285, pp. 69-94.
Radiograph_grid Radiograph_grid(1D or 2D part(s), dir X, dir Y, dir Z, num_points, variable,
[component]).
Computes a per element scalar variable on the designated 1D or 2D part(s), that is a
directional integration from these parts of a scalar variable or vector component
through the model. Think of rays being cast from the center of each element of the
1D or 2D parents in the direction specified (and long enough to extend through the
∇vSΩ+=
S1
2
---v∇v∇()
T
+[]=
Ω1
2
---v∇v∇()
T
–[]=
Q1
2
---Ω2S2
–[]0>=
4.3 Variable Creation
4-52 EnSight 9 User Manual
model). Along each ray the desired variable is integrated and the integral value is
assigned to the element from which the ray was cast. This function integrates the ray
in a constant delta, grid-like fashion. You control the delta by the number of points
that is specified in the integration direction. (Please note that while this function is
not generally as time consuming as the Radiograph_mesh funtion (and you have
some relsolution control with the num_points argument), it still may take some
computation time. You may want to set the Abort server operations performance
preference to avoid being stuck in a computation loop that exceeds your patience.)
The arguments are:
dir X = Integration direction vector x component
dir Y = Integration direction vector y component
dir Z = Integration direction vector z component
num_points = number of points along ray in the integration direction.
(integration delta wil be ray length divided by num_points)
variable = Variable that is integrated along the ray.
component = If vector variable, component to be integrated.
[X] for x component
[Y] for y component
[Z] for z component
[] for magnitude
Note that this function will not work properly for Server of Servers (SOS). Each
portion will only give its local value.
Radiograph_mesh Radiograph_mesh(1D or 2D part(s), dir X, dir Y, dir Z, variable, [component]).
Computes a per element scalar variable on the designated 1D or 2D part(s), that is a
directional integration from these parts of a scalar variable or vector component
through the model. Think of rays being cast from the center of each element of the
1D or 2D parents in the direction specified (and long enough to extend through the
model). Along each ray the desired variable is integrated and the integral value is
assigned to the element from which the ray was cast. This function integrates the ray
at each domain element face intersection. (Please note that this can be a very time
consuming process. You may want to set the Abort server operations performance
preference to avoid being stuck in a computation loop that exceeds your patience.
The Radiograph_grid function will generally be considerably quicker.)
The arguments are:
dir X = Integration direction vector x component
dir Y = Integration direction vector y component
dir Z = Integration direction vector z component
variable = Variable that is integrated along the ray.
component = If vector variable, component to be integrated.
[X] for x component
[Y] for y component
[Z] for z component
[] for magnitude
dir X constant number
dir Y constant number
dir Z constant number
num_points constant number
component [X], [Y], [Z], or []
dir X constant number
dir Y constant number
dir Z constant number
4.3 Variable Creation
EnSight 9 User Manual 4-53
Note that this function will not work properly for Server of Servers (SOS). Each
portion will only give its local value.
Rectangular To RectToCyl (any part(s), vector)
Cylindrical Vector Produces a vector variable with cylindrical components according to frame 0.
(Intended for calculation purposes)
x = radial component, y = tangential component, z = z component
Server Number ServerNumber (any part(s))
Produces a per-element scalar variable that is the server number which contains
the element. Useful for decomposed models using Server-of-Servers, so the
distribution can be vizualized.
Shock Plot3d ShockPlot3d(2D or 3D part(s), density, total energy, velocity, ratio of specific heats).
computes a scalar variable ShockPlot3d, whose value is:
where V = velocity
c = speed of sound
p = pressure
grad(p) = gradient of pressure
Mesh Smoothing SmoothMesh(any 1D or 2D part(s), number of passes, weight)
Performs a mesh “smoothing” operation. The function returns a vector variable
which, when applied to the mesh as a displacement, will result in a “smoother” mesh
representation. The function computes new node locations resulting from a
“normalization” of the mesh elements. As a tendency it results in a mesh with equal
sized elements. The algorithm applies a form of convolution to the mesh edges
repeatedly (number of passes) using a weighting factor to control how much change
in position is allowed in each pass. In most cases, the weight is supplied as a
constant, but the weight can be specified as a nodal scalar array. This allows for
local control over the region of the mesh to be smoothed. The algorithm is fully
threaded. Note: nodes on the outer boundary of a mesh (or are bounded by ghost
elements) are not allowed to move. A good set of initial parameters might be 50
passes with a weight constant of 0.05.
For each pass, the following formula is applied:
where x = nodal position at pass (i)
w = nodal weight
n = edge connected nodes
component [X], [Y], [Z], or []
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
number of passes the number of smoothing passes to be applied: constant
weight fraction of the length of a node’s edges a nodel is allowed to move
with each pass: nodal scalar variable or constant
ShockPlot3d V
c
--- grad p()
grad p()
-----------------------
•=
xi1+xiwx
jxi
–()
j0=
n
∑
+=
4.3 Variable Creation
4-54 EnSight 9 User Manual
SOS Constant SOSConstant(any part(s), variable, reduction operation (0-3))
(Note: generally this function should not be necessary. The SOSConstant
functionality has been pulled into the server/SOS infrastructure. It remains for
backward compatibility.) Computes a constant variable whose value is the result of
applying a reduction operation on that constant variable over the values on each of
the servers. If there is no SOS involved or only a single server, the result is the same
as the constant variable value on the single server. The selected part is used to select
the case from which the constant variable is used. The constant variable itself is
specified (this can be from the dataset or a omputed value. The actual operation to
be performed is selected as an integer from 0 to 3. The operation can be a simple
summation of the values from each of the servers, an average of the values from the
servers (note that the weight given to each server in the average is the same, so this
is essentially the sum operation divided by the number of servers) or the minimum/
maximum of the values on each of the servers.
Spatial Mean SpaMean(any part(s), scalar or (vector, component))
Computes a constant variable whose value is the volume (or area) weighted mean
value of a scalar (or vector component) at the current time. This value can change
with time. The component is not requested if a scalar variable is used
The spatial mean is computed by summing the product of the volume (3D, or area
2D) of each element by the value of the scalar (or vector component) taken at the
centroid of the element, for each element over the entire part. The final sum is then
divided by the total volume (or area) of the part.
where: = Scalar taken at centroid of element i
= Volume (or Area) of element i
Speed Speed (any part(s), velocity)
Computes a scalar variable whose value is the Speed defined as:
where: u,v,w = velocity components in the x,y,z directions.
variable constant variable (from the data or computed)
reduction operation value from 0 to 3 that selects from the following operations:
0=sum 1=average 2=minimum 3=maximum
[component] if vector variable, magnitude is the default, or specify [x], [y], or [z]
velocity vector variable
SpatialMean
sivoli
∑
voli
∑
---------------------=
si
voli
Speed u2v2w2
++=
4.3 Variable Creation
EnSight 9 User Manual 4-55
Sonic Speed SonicSpeed(any part(s), density, total energy, velocity, ratio of specific heats).
Computes a scalar variable c, whose value is:
where = ratio of specific heats
= density
p = pressure
Statistics StatMoment (any part(s), v, function)
Moments Computes a constant by applying a selected statistical function over all of the nodes
or elements of the selected parts, given the seleted scalar or constant variable. Five
functions are defined as:
If the variable (v) is a constant, the operation will be computed as if the variable
were a nodal variable with the given value at all nodes. If the computation is over an
element variable, the size of the element is not used in the computation. If volume or area
weighting is desired, the variable must be pre-weighted.
Note that StatMoment(plist,scalar,0) should be used in place of the example user-defined
math function, udmf_sum because StatMoment is threaded and properly handles ghost
cells. The function parameters are defined as:
Statistics StatRegSpa (any part(s), y, x0, x1, x2, x3, x4, weight)
Regression Performs classical multivariate linear regression, predictiing y = f(x0,x1,x2,x3,x4).
The regression is performed at the current timestep using all of the nodes/elements of the
selected parts. At each node/element, the input values y, x0, x1, x2, x3, x4 and weight are
evaluated and added as an observation to the regression with the supplied weight (in the
range [0.0-1.0]). If the model does not require 5 inputs, any of them can be specified as the
constant number 0.0 to drop it out. If the constant 1.0 is supplied as an input, an intercept
will be computed. One is cautioned to avoid co-linearity in the inputs (especially easy
when supplying constants as regressors). An example, to model simple linearity: y = Ax0
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
v scalar variable, constant variable, or constant number
function constant number selecting the moment to compute
(0=sum, 1=mean, 2=variance, 3=skewness, 4=kurtosis)
cγp
ρ
-----=
γ
ρ
sum vi
i1=
N
∑
=
mean 1
N
----vi
i1=
N
∑
=
var 1
N1–
-------------vimean–()
2
i1=
N
∑
=
skew 1
N
----vimean–
var
------------------------
⎝⎠
⎛⎞
3
i1=
N
∑
=
kurt 1
N
----vimean–
var
------------------------
⎝⎠
⎛⎞
4
i1=
N
∑
⎩⎭
⎪⎪
⎨⎬
⎪⎪
⎧⎫
3–=
4.3 Variable Creation
4-56 EnSight 9 User Manual
+ B, the function parameters would be: StatRegSpa(plist, yvar, xvar, 1., 0., 0., 0., 1.). The
example specifies that all observations be weighted the same. If weighting by element
volume were desired, compute a field variable of element volume, normalized by the
largest individual element volume and pass that variable as the weight. The function
returns a scalar constant whose value is the R-squared value for the regression.
The function parameters are defined as:
A full set of estimated values and statistical diagnostic output are available, see:
StatRegVal1, StatRegVal2
Statistics StatRegVal1 (any part(s), regression_variable, function)
Regression info This function returns basic statistical diagnostics for a regression computed using
StatRegSpa(). The function is passed the output variable of a previously computed
StatRegSpa() and the function number of a specific statistical quantity to return. The
values include the standard sum of squares values for the regression as well as the R-
squared value.
The function parameters are defined as:
See also: StatRegSpa, StatRegVal2
Statistics StatRegVal2 (any part(s), regression_variable, function, selection)
Regression info This function returns statistical diagnostics specific to individual input coefficients
for a regression computed using StatRegSpa(). The function is passed the output variable
of a previously computed StatRegSpa(), the function number of the specific statistical
quantity to return and the coefficient selected. The values include the sum of squares and
partial sum of squares for the individual coefficients as well as the estimated coefficient
itself and its standard error.
The function parameters are defined as:
See also: StatRegSpa, StatRegVal1
Stream Function Stream (any 2D part(s), velocity, density)
Computes a scalar variable whose value is the Stream Function Ψ defined as:
where: u,v = velocity components in X, Y directions
ρ = density
y scalar variable, constant variable or constant number
x0, x1, x2, x3, x4 scalar variable, constant variable or constant number
weight scalar variable, constant variable or constant number
regression_variable a scalar variable which is the output of an earlier StatRegSpa()
function
function the statistical quantity to return (0=sum of squares error, 1=sum of
squares total, 2=sum of squares model, 3=R-squared)
regression_variable a scalar variable which is the output of an earlier StatRegSpa()
function
function the statistical quantity to return (0=the estimated coefficient, 1=sum
of squares for the variable, 2=partial sum of squares for the
variable, 3=standard error for the coefficient)
selection constant variable or constant number which selects the specific
coefficient for which to retrieve the statistical quantity (0=x0, 1=x1,
2=x2, 3=x3, 4=x4)
velocity vector variable
density scalar variable, constant variable, or constant number
ψdρvdx–ρudy+=
4.3 Variable Creation
EnSight 9 User Manual 4-57
Surface Integral See Surface Integral under Integrals.
Computes a constant variable whose value is the integral of the input variable over
the surface of the specified 2D part(s).
Swirl Swirl (any part(s), density, velocity).
Computes a scalar variable Swirl, whose value is:
where: = vorticity
= density
V = velocity
Temperature Temperature (any part(s), density, total energy, velocity, ratio of specific heats,
gas constant)
Computes a scalar variable whose value is the temperature T defined as:
where: m = momentum
E = total energy per unit volume
ρ = density
V = velocity = m/ρ
γ = ratio of specific heats (1.4 for air)
R = gas constant
Normalized Temp erNo rm (any part(s), density, total energy, velocity, ratio of specific heats,
Temperature freestream density, freestream speed of sound, gas constant)
Computes a scalar variable which is Normalized Temperature defined as:
where: = temperature
= freestream temperature
density scalar variable, constant variable, or constant number
velocity vector variable
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
gas constant constant variable or constant number
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
freestream density constant variable or constant number
freestream speed of sound constant variable or constant number
gas constant constant variable or constant number
Swirl ΩV•
ρV2
--------------=
Ω
ρ
Tγ1–
R
-----------E
ρ
--- 1
2
---V2
–
⎝⎠
⎛⎞
=
Tn
Tn
T
Ti
----=
T
Ti
4.3 Variable Creation
4-58 EnSight 9 User Manual
Log of TemperLogNorm (any part(s), density, total energy, velocity, ratio of specific
Normalized heats, freestream density, freestream speed of sound, gas constant)
Temperature Computes a scalar variable which is the natural log of Normalized Temperature
defined as:
where: = temperature
= freestream temperature
Stagnation TemperStag (any part(s), density, total energy, velocity, ratio of specific heats, gas constant)
Temperature Computes a scalar variable which is the Stagnation Temperature
defined as:
where: = temperature
γ = ratio of specific heats
= mach number
Normalized TemperNormStag (any part(s), density, total energy, velocity, ratio of
Stagnation specific heats, freestream density, freestream speed of sound, freestream velocity
Temperature magnitude, gas constant)
Computes a scalar variable which is Normalized Stagnation Temperature
defined as:
where: = stagnation temperature
= freestream stagnation temperature
Temporal Mean Tem pMea n (any model part(s), scalar or vector, timestep1, timestep2)
Computes a scalar or vector variable, depending on which type was selected, whose
value is the mean value at each location (node or element) of a scalar or vector
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
freestream density constant variable or constant number
freestream speed of sound constant variable or constant number
gas constant constant variable or constant number
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
gas constant constant variable or constant number
density scalar variable, constant variable, or constant number
total energy scalar variable
velocity vector variable
ratio of specific heats scalar variable, constant variable, or constant number
freestream density constant variable or constant number
freestream speed of sound constant variable or constant number
freestream velocity magnitude constant variable or constant number
gas constant constant variable or constant number
Tn
ln T Ti
⁄()ln=
T
Ti
To
ToT1 γ1–
2
-----------
⎝⎠
⎛⎞
+M2
⎝⎠
⎛⎞
=
T
M
Ton
Ton ToToi
⁄=
To
Toi
4.3 Variable Creation
EnSight 9 User Manual 4-59
variable over the interval from timestep1 to timestep2. Thus, the resultant scalar or
vector is independent of time. The temporal mean is the discrete integral of the
variable over time (using the Trapezoidal Rule) divided by the total time interval.
Because any derived parts may vary in size over time, this function is only allowed
on model parts. Model parts with changing connectivity are also not allowed.
Temporal Minmax TempMinmaxField (any model part(s), scalar or vector, timestep1, timestep2, 0 or 1, 0 =
compute minimum, 1 = compute maximum)
Field Computes a scalar or vector variable, depending on which type was selected, whose
value is the minimum or maximum at each location (node or element) of a scalar or
vector variable over the interval from timestep1 to timestep2. Thus, the resultant
scalar or vector is independent of time. If input variable is a vector then the max or
min is the max or min of each component of the vector. Because any derived parts
may vary in size over time, this function is only allowed on model parts. Model
parts with changing connectivity are also not allowed.
Tensor:
Tensor TensorComponent(any part(s), tensor, tensor row(1-3), tensor col(1-3))
Component Creates a scalar variable which is the specified row and column of a tensor variable.
S = Tij
i = given row (1 to 3)
j = given column (1 to 3)
Tensor TensorDeterminant(any part(s), Tensor or 3 Principals or 6 Tensor Components)
Determinate Computes the determinant of a tensor variable, three principal scalar variables, or
six tensor component scalar variables. The function will require either 1 or 6 entries
beyond the parts, as indicated below:
If computing from a tensor variable, a single tensor variable will be needed.
ex) TensorDeterminant(plist, Stress)
If computing from 3 principals, three scalar variables representing sigma_1,
sigma_2, and sigma_3 will be needed. Additionally, you must enter a -1 constant
for the last three entries.
ex) TensorDeterminant(plist, sigma_1, sigms_2, sigma_3, -1, -1, -1)
If computing from 6 tensor components, six scalar variables will be needed. They
must be the following (and must be in the order shown):
T11, T22, T33, T12, T13, T23.
ex) TensorDeterminant(plist, t_11, t_22, t_33, t_12, t_13, t_23)
Tensor TensorEigenvalue(any part(s), tensor, which number(1-3))
Eigenvalue Computes the number (1-3) eigenvalue of the given tensor. The first eigenvalue is
always the largest, while the third eigenvalue is always the smallest.
Tensor TensorEigenvector(any part(s), tensor, which number(1-3))
Eigenvector Computes the number (1-3) eigenvector of the given tensor.
Tensor Make Tenso rM ake(any part(s), T11, T22, T33, T12, T13, T23)
Create a tensor from six scalars.
timestep1 constant number
timestep2 constant number
timestep1 constant number
timestep2 constant number
tensor row constant number (1 to 3)
tensor col constant number (1 to 3)
4.3 Variable Creation
4-60 EnSight 9 User Manual
Tensor Make TensorMakeAsym(any part(s), T11,T12,T13, T21,T22,T23, T31,T32,T33)
Asymmetric Create a tensor from 9 scalars.
Tensor TensorTresca(any part(s), Tensor or 3 Principals or 6 Tensor Components)
Tresca Computes Tresca stress/strain from a tensor variable, three principal scalar
variables, or six tensor component scalar variables. The function will require either
1 or 6 entries beyond the parts, as indicated below:
If computing from a tensor variable, a single tensor variable will be needed.
ex) TensorTresca(plist, Stress)
If computing from 3 principals, three scalar variables representing sigma_1,
sigma_2, and sigma_3 will be needed. Additionally, you must enter a -1 constant
for the last three entries.
ex) TensorTresca(plist, sigma_1, sigms_2, sigma_3, -1, -1, -1)
If computing from 6 tensor components, six scalar variables will be needed. They
must be the following (and must be in the order shown):
T11, T22, T33, T12, T13, T23.
ex) TensorTresca(plist, t_11, t_22, t_33, t_12, t_13, t_23)
The basic equation is shown below. If needed, the principal stresses/strains are first
computed from the tensor or its components.
where: = yield stress
= greatest principal stress/strain
= least principal stress/strain
Tensor TensorVonMises(any part(s), Tensor or 3 Principals or 6 Tensor Components)
Von Mises Computes Von Mises stress/strain from a tensor variable, three principal scalar
variables, or six tensor component scalar variables. The function will require either
1 or 6 entries beyond the parts, as indicated below:
If computing from a tensor variable, a single tensor variable will be needed.
ex) TensorVonMises(plist, Stress)
If computing from 3 principals, three scalar variables representing sigma_1,
sigma_2, and sigma_3 will be needed. Additionally, you must enter a -1 constant
for the last three entries.
ex) TensorVonMises(plist, sigma_1, sigms_2, sigma_3, -1, -1, -1)
If computing from 6 tensor components, six scalar variables will be needed. They
must be the following (and must be in the order shown):
T11, T22, T33, T12, T13, T23.
ex) TensorVonMises(plist, t_11, t_22, t_33, t_12, t_13, t_23)
The basic equation is shown below. If needed, the principal stresses/strains are first
computed from the tensor or its components.
σyp σ1σ3
–=
σyp
σ1
σ3
4.3 Variable Creation
EnSight 9 User Manual 4-61
where: = yield stress
= greatest principal stress/strain
= middle principal stress/strain
= least principal stress/strain
Velocity Ve l o (any part(s), momentum, density)
Computes a vector variable whose value is the velocity V defined as:
where ρ = density
m = momentum
Volume Vo l (3D part(s))
Computes a constant variable whose value is the volume of 3D parts.
Volume Integral See Volume Integral under Integrals.
Vorticity Vo r t (any 2D or 3D part(s), velocity)
Computes a vector variable with components ζx , ζy , ζz defined as:
where u,v,w = velocity components in the X, Y, Z directions.
VorticityGamma VortGamma ( 2D clip part(s), velocity, gamma function number, k (1 or 2), proximity
radius, proximity option)
Computes a dimensionless scalar variable on a 2D clip part, whose value is the
vorticity-gamma function Γk(P), defined at each node (or element centroid for cell
centered data), P as follows:
where Γ1 = (gamma function number k=1) is a (non-Galilean invariant) vortex
center approximation method “...a dimensionless scalar, with |Γ1 |
bounded by 1. It can be shown that this bound is reached at the
location of the vortex centre if the vortex is axisymmmetrical.
Thus, this scalar function provides a way to quantify the
streamline topology of the flow in the vicinity of P and the
rotation sign of the vortex. … Typically, near the vortex centre,
|Γ1| reaches values ranging from 0.9 to 1.0" [ref.2, 1424-5]
Γ2 = (gamma function number k=2) a (Galilean invariant) vortex
boundary approximation method resulting in a dimensionless
scalar, "… a local function depending only on Ω and µ, where Ω
is the rotation rate corresponding to the antisymmetrical part of
momentum vector variable
density scalar variable, constant variable, or constant number
velocity vector variable
σyp
1
2
---σ1σ2
–()
2σ2σ3
–()
2σ3σ1
–()
2
++()=
σyp
σ1
σ2
σ3
Vm
ρ
----=
ζx
w∂
y∂
------ v∂
z∂
-----–= ζy
u∂
z∂
----- w∂
x∂
------–= ζz
v∂
x∂
----- u∂
y∂
-----–=
ΓkP() 1
S
---ΘM
()sin Sd
S
∫1
S
---PM VM
×()n
ˆ
⋅
PM VM
⋅
-----------------------------------
⎝⎠
⎜⎟
⎛⎞
Sd
MS∈()
∫
==
4.3 Variable Creation
4-62 EnSight 9 User Manual
the velocity gradient at P and µ is the eigenvalue of the
symmetrical part of this tensor. (see Note below)" [ref.2, 1425]
k = Gamma function number, 1 or 2 used to determine VM.
P = Base node (or element centroid for per-element data) around which
the proximity area (or zone of influence) is being considered.
S = Proximity area (or zone of influence) surrounding P, determined
by a proximity radius measured from the base P and the proximity
option. The proximity option is used to determine which set of
elements to include in S as follows. If the proximity option is 0,
then S includes all elements with any nodes within the proximity
radius. If the proximity option is 1, then S includes only elements
with every node within the proximity radius. Both options also
include all elements which contain P.
M = A node (or element center) within S.
PM = The vector from the base node P to M.
V(P) = Velocity vector at P.
V(M) = Velocity vector at each M.
VM = If the gamma function number k = 1, then VM = V(M).
If k=2, VM = V(M) - V(P).
n = A unit vector normal to the 2D clip plane parent part.
ΘM = The angle between VM and PM. Since -1 < sin(ΘM) < 1 (and n
is a unit vector), then -1 < Γκ(P) < 1.
velocity vector variable
gamma function
number
single integer (k=1 or k= 2) which determines which value of VM
to use. A value of 1 is useful for finding vortex cores (centers) and
a value of 2 is useful for finding vortex boundaries.
proximity radius (greater than or equal to 0.0) Used to determine the proximity area
around each base node or element P over which the vorticity
gamma is calculated on the 2D clip part.
The larger the proximity radius, the more nodes (or elements) that
are used to calculate Γ and the slower the calculation. A proximity
radius less than or equal to 0.0 will always use a proximity area of
only elements that contain P and is the lower bound of this
parameter resulting in the smallest proximity area around P (and
the fastest calculation). A radius of 0.0 is a good value for the first
run.
WARNING: As the proximity radius approaches the parent plane
size this calculation approaches using every node (or element) in
the calculation for each node (or element) resulting in a n2
operation whose solution may be measured in calendar time rather
than wristwatch time.
The radius should be large enough to sample sufficient elements
for a meaningful average, but a small enough so the vortex result
remains a local calculation reported at each element. Again, a
radius of 0.0 is a good value for the first run, and a radius with a
small scaling of the element size is a good second run.
4.3 Variable Creation
EnSight 9 User Manual 4-63
Note:
Recall that Ω is the rotation rate for the antisymmetrical part of the velocity gradient
and that µ is the eigenvalue of the symmetric part of the tensor. The local character
of the flow may be classified for Γ2 in the following manner (based on figure 4 in
[ref.2, 1425] which plots Γ2 as a function of the ratio of Ω/µ):
| Ω/µ | < 1: flow locally dominated by strain, |Γ2| < 2/π
| Ω/µ | = 1: pure shear, |Γ2| = 2/π
| Ω/µ | > 1: flow locally dominated by rotation, |Γ2| > 2/π.
References:
1. Jeong, J. and Hussain, F., “On the identification of a vortex,” Journal of Fluid
Mechanics, 1995, vol. 285, pp. 69-94.
2. Laurent Graftieaux, Marc Michard, & Nathalie Grosjean "Combining PIV, POD
and vortex identification algorithms for the study of unsteady turbulent swirling
flows", Institute Of Physics Publishing Ltd in UK, Measurement Science &
Technology, 12 (2001) 1422-1429
3. PSA via Distene (personal communication).
Define equations Tab Under this tab, you are provided with a variable list (which you can restrict to desired
types), a calculator pad with math operators, and a list of Math functions. These can be
used to construct your own equations.
proximity option 0 to include all cells with any nodes in the proximity area, 1 to
include only cells entirely located in the proximity area. Use this
option along with the radius to control the number of nodes (or
elements) used in the calculation for each node (or element) P.
Consider using option 0 as the radius gets small relative to element
size, and 1 as the radius is enlarged. At a minimum, the proximity
area will always include elements that contain P.
Show: Can constrain the types of variables shown
in the list.
4.3 Variable Creation
4-64 EnSight 9 User Manual
Math Functions Math functions use the syntax: function (value or expression). All angle arguments are in
radians. For most functions the value can be either a constant, scalar, or vector and the
result of the function will be of corresponding type. When you select a math function from
the list, the function name and the opening “(“ appears in the Working Expression for you.
However, after defining the argument(s) for the function, you have to manually provide
any commas needed and a closing “)”. The Math functions include:
Routines which accept argument(s) of type constant, scalar, or vector and produce the
corresponding type of result: (function works on each component of a vector)
ABS(constant) absolute value = constant
or (scalar) scalar
or (vector) vector
ACOS(constant) arccosine = radian constant
or (scalar) radian scalar
or (vector) radian vector
ASIN(constant) arcsine = radian constant
or (scalar) radian scalar
or (vector) radian vector
ATAN(constant) arctangent = radian constant
or (scalar) radian scalar
or (vector) radian vector
ATAN2(y, x) calculates ATAN(y/x) where the signs of both variables are used to determine the quadrant of the result.
Returns the result in radians which is between -PI and PI (inclusive). So:
ATAN2(constant, constant) = radian constant
or (constant, scalar) = radian scalar
or (constant, vector) = radian vector
or (scalar, scalar) = radian scalar
or (scalar, vector) = radian vector
or (vector, vector) = radian vector where:
ATAN2(vector1,vector2) = (ATAN2(vector1x/vector2x), ATAN2(vector1y/vector2y), ATAN2(vector1z/vector2z) )
COS(radian constant) cosine = constant
or (radian scalar) scalar
or (radian vector) vector
CROSS(vector, vector) cross product = vector
CDF_CHISQU(constant,constant) evaluates the cumulative Chi-Squared distribution at the value v with k degrees
of freedom. The result is a constant.
CDF_CHISQU(v,k) =
CDF_F(constant, constant, constant) evaluates the cumulative F distribution at the value v with j and k degrees of
freedom. The result is a constant.
CDF_F(v, j, k) =
CDF_NORM(constant) evaluates the cumulative normal distribution at the value v. The result is a constant.
CDF_NORM(v) =
CDF_T(constant, constant) evaluates the cumulative Student’s T distribution at the value v with k degrees of
freedom. The result is a constant.
CDF_T(v, k) =
γk
2
---v
2
---
,
⎝⎠
⎛⎞
Γk
2
---
⎝⎠
⎛⎞
-----------------
Ijx
jx k+
-------------
j
2
---k
2
---(,)
1
2
---1erf
v
2
-------
⎝⎠
⎛⎞
+
⎝⎠
⎛⎞
1
2
---vΓk1+
2
------------
⎝⎠
⎛⎞
1
2
---
⎝⎠
⎛⎞
n
k1+
2
------------
⎝⎠
⎛⎞
n
3
2
---
⎝⎠
⎛⎞
n
-------------------------------
⎝⎠
⎜⎟
⎜⎟
⎜⎟
⎛⎞
v2
k
-----–
⎝⎠
⎛⎞
n
n!
----------------
⎝⎠
⎜⎟
⎜⎟
⎜⎟
⎛⎞
n0=
∞
∑
Γk
2
---
⎝⎠
⎛⎞ πk
-----------------------------------------------------------------------
⎝⎠
⎜⎟
⎜⎟
⎜⎟
⎜⎟
⎜⎟
⎜⎟
⎜⎟
⎜⎟
⎜⎟
⎜⎟
⎛⎞
+
4.3 Variable Creation
EnSight 9 User Manual 4-65
DOT(vector, vector) dot product = scalar
Note: DOT(velocity,velocity ) is a scalar not equal to
velocity^2 which is a vector.
EXP(constant) e value = constant
or (scalar) scalar
or (vector) vector
GT(constant,constant) greater of = constant
or (constant,scalar) scalar
or (constant,vector) vector
or (scalar,scalar) scalar
or (scalar,vector) vector
or (vector,vector) vector where:
GT(vector1,vector2) = (GT(vector1x, vector2x), GT(vector1y, vector2y), GT(vector1z, vector2z) )
LOG(constant) ln = constant
or (scalar) scalar
or (vector) vector
LOG10(constant) log10 = constant
or (scalar) scalar
or (vector) vector
LT(constant,constant) lesser of = constant
or (constant,scalar) scalar
or (constant,vector) vector
or (scalar,scalar) scalar
or (scalar,vector) vector
or (vector,vector) vector where:
LT(vector1,vector2) = (LT(vector1x, vector2x), LT(vector1y, vector2y), LT(vector1z, vector2z) )
IF_CMP(constant,constant) compare the two values
and return a constant
return value for IF_COMP(a,b):
(a < b) returns -1, (a = b) returns 0, (a > b) returns 1
IF_EQ(constant,constant)compare the two values and
return a constant
return value for IF_EQ(a,b):
(a = b) returns 1, otherwise returns 0
IF_LT(constant,constant)compare the two values and
return a constant
return value for IF_LT(a,b):
(a < b) returns 1, otherwise returns 0
IF_GT(constant,constant)compare the two values and
return a constant
return value for IF_GT(a,b):
(a > b) returns 1, otherwise returns 0
PDF_CHISQU(constant, constant) evaluates the Chi-Squared probability density at the value v with k degrees of
freedom. The result is a constant.
PDF_CHISQU(v, k) =
PDF_F(constant, constant, constant) evaluates the F probability density at the value v with j and k degrees of
freedom. The result is a constant.
PDF_F(v, j, k) =
PDF_NORM(constant) evaluates the normal probability density at the value v. The result is a constant.
PDF_NORM(v) =
PDF_T(constant, constant) evaluates the Student’s T probability density at the value v with k degrees of freedom.
The result is a constant.
PDF_T(v, k) =
1
2
k
2
---
⎝⎠
⎛⎞
Γk
2
---
⎝⎠
⎛⎞
-----------------------v
k
21–
------------v
2
---–
⎝⎠
⎛⎞
exp
jv()
jkk
jv k+()
jk+()
------------------------------
xB j
2
---k
2
---(,)
-----------------------------------
1
2π
---------- v2
2
-----–
⎝⎠
⎛⎞
exp
⎝⎠
⎛⎞
1
B1
2
---k
2
---
,
⎝⎠
⎛⎞
k
--------------------------1v2
k
-----+
⎝⎠
⎛⎞
k1+
2
------------
⎝⎠
⎛⎞
–
4.3 Variable Creation
4-66 EnSight 9 User Manual
RMS(vector) root-mean-square (magnitude) = scalar.
RMS(vector) is the same as
SQRT(vector[X]*vector[X] +
vector[Y]*vector[Y]+vector[Z]*vector[Z])
and the same as
SQRT(DOT(vector,vector))
but NOT the same as
SQRT(vector^2)
RND(constant) round to nearest = constant
or (scalar) scalar
or (vector) vector
SIN(radian constant) sine = constant
or (radian scalar) scalar
or (radian vector) vector
SQRT(constant) square root = constant
or (scalar) scalar
or (vector) vector
TAN(radian constant) tangent = constant
or (radian scalar) scalar
or (radian vector) vector
4.3 Variable Creation
EnSight 9 User Manual 4-67
Next>>> Click this button when so prompted by the dynamic instructions. It basically signals the
completion of various intermediate tasks for general functions.
Calculator This on-screen calculator can usually be used in place of typing on your keyboard.
Button Function
0 to 9 number digits
. decimal
e e for exponential notation
+ plus operator
– minus operator
* multiplication operator
/ division operator
^ exponentiation operator
PI value for π
( opening parentheses. For function arguments and general grouping
) closing parentheses. For function arguments and general grouping
[ opening brackets. For components and node/element numbers
] closing brackets. For components and node/element numbers
[X] X component
[Y] Y component
[Z] Z component
(see How To Create New Variables)
4.3 Variable Creation
4-68 EnSight 9 User Manual
EnSight 9 User Manual 6-1
6Main Menu
This chapter describes the functions available from the Main Menu.
Section 6.1, File Menu Functions
Section 6.2, Edit Menu Functions
Section 6.3, Query Menu Functions
Section 6.4, View Menu Functions
Section 6.5, Tools Menu Functions
Section 6.6, Window Functions
Section 6.7, Case Menu Functions
Section 6.8, Help Menu Functions
Figure 6-1
EnSight Main Menu
6.1 File Menu Functions
6-2 EnSight 9 User Manual
6.1 File Menu Functions
Clicking the File button in the Main Menu opens a pull-down menu which
provides access to capabilities which enable you to record and play command
files, connect the EnSight Client process to an EnSight Server process, setup or
join collaboration sessions with other users, read data into the EnSight Server,
load or re-load parts, print and save images, record currently running animations,
save and restore various files, archives, and scenarios, and quit from EnSight.
File Pull-down Menu
Command... Opens the Command dialog which is used to record and play Command Files or enter
command language directly
Access: Main Menu > Command...
(see Section 2.5, Command Files and How To Record and Play Command Files)
Open... Opens the Open... dialog for use in the data loading process. Based on the suffix of the
selected file, and the mapping in the ensight_reader_extension.map file, which is
located in the EnSight Defaults Directory (located at
%HOMEDRIVE%%HOMEPATH%\(username)\.ensight92 commonly located at
C:\Users\username\.ensight92 on Vista and Win7, C:\Documents and
Settings\yourusername\.ensight92 on older Windows, and ~/.ensight92 on Linux, and in ~/
Library/Application Support/EnSight92 on the Mac), the correct reader can be invoked
and the data will be loaded. Or you can take more control in the specifying of the data
format, files to read, and parts to load. Note that you can edit the map file to map more
data file suffixes to readers.
Access: Main Menu > Open...
(see Reading and Loading Data Basics, in Section 2.1 and How to Read Data)
Load parts... Opens the Data Part Loader dialog which is used to load parts into EnSight.
Access: Main Menu > Data (part loader)...
(see Reading and Loading Data Basics, in Section 2.1 and How To Read Data)
Print Opens the Print/save image dialog which is used to print or save images from EnSight.
Access: Main Menu > Print/Save image...
(see Section 2.12, Saving and Printing Graphic Images, How To Print/Save an Image, and
How To Output for Povray)
Save Opens a pull-down menu which allows you to choose between the following Save options:
Current Animation, Context, Commands from this session, Full backup, Geometric
entities, or Scenario.
Access: Main Menu > File > Save
Figure 6-2
File pull-down menu
6.1 File Menu Functions
EnSight 9 User Manual 6-3
Context
Session... Opens the Save current session dialog where you can specify the name of a session file to
be created. This file saves information needed to restore EnSight back to the current state.
This is faster than replaying a command file because it skips the intermediate steps and
takes you directly to the end..
Access: Main Menu > File > Save > Session...
(See How To Save or Restore a Context File)
Context... Opens the Save current context dialog where you can specify the name of a context file to
be created. This file saves information needed to reproduce the same basic imagery on a
different set of data. This is faster than replaying a command file because it skips the
intermediate steps and takes you directly to the end, but not all formats restore a context
properly.
Access: Main Menu > File > Save > Context...
(See How To Save or Restore a Context File)
Command from Opens the File selection dialog where you can specify the name of a file into which the
current session... commands used up to this point in the session will be placed.
Access: Main Menu > File > Save > Commands from this session...
(See How To Record and Play Command Files)
Archive
Full backup... Opens the Save full backup archive dialog which is used to save an entire session as an
archive file which can later be used to restore EnSight to the same condition present when
the archive file was made. Note that some formats do not support backup and restoring
archives. Note also that a full backup is a memory dump to disk and is suitable for a fast
restore of the session the next day, but is not a good option for long term archival.
Access: Main Menu > File > Save > Full backup...
(see Section 2.6, Archive Files and How To Save and Restore an Archive)
Export Opens a pull-down menu which allows you to choose between the following Export
options: Current Animation, Scenario, Image, or Geometric entities.
Access: Main Menu > File > Export
Animation... Opens the Export animation dialog which is used to record the running flipbook or
animated trace animation. It will not be available if no animation is currently running.
Access: Main Menu > File > Export > Current Animation...
(See How to Animate Transient Data, How to Create a Flipbook Animation, and How To
Animate Particle Traces.)
Scenario... Opens the Export scenario dialog where you can create a scenario file which can be
viewed by CEI’s EnLiten product. EnLiten can display any scene created with EnSight
and can be run standalone or be embedded in Microsoft applications.
Access: Main Menu > File > Export > Scenario...
(See How To Save Scenario)
Image.... Opens the Export image dialog which is used to save images from EnSight.
Access: Main Menu > Export > Image...
Geometric entities... Opens the Export geometric entities dialog which is used to save selected part geometric
information and active variable values from EnSight. EnSight Gold, VRML 2.0, Brick of
Values, or User-defined writer formats can be selected.
Access: Main Menu > File > Export > Geometric entities...
(see Section 2.10, Saving Geometry and Results Within EnSight and How To Save
Geometric Entities)
Restore Opens a pull-down menu which allows you to choose to restore a context or a full backup
archive file.
Access: Main Menu > File > Restore
Context... Opens the Restore context from file dialog where you can specify the name of a context
6.1 File Menu Functions
6-4 EnSight 9 User Manual
file to be applied and which case to apply it to. First read in your data, then restore the
context. This will do its best to create the same basic imagery (as that when the context file
was saved) to your current model.
Access: Main Menu > File > Restore > Context...
(See How To Save or Restore a Context File)
Full backup... Opens the File selection dialog which is used to specify the archive file to be restored into
EnSight. This should bring EnSight to the same condition present when the archive file
was saved.
Access: Main Menu > File > Restore > Full backup...
(see Section 2.6, Archive Files and How To Save and Restore an Archive)
Open recent data file Provides a pulldown of recently accessed data files. Note Windows just has a list of Most
Recently Used Filenames.
Access: Main Menu > File > Open Recent Data...
Quit... Opens the Quit confirmation dialog which allows you to save a command file or/and an
archive file before exiting EnSight.
Access: Main Menu > Quit...
(see Section 2.6, Archive Files)
6.2 Edit Menu Functions
EnSight 9 User Manual 6-5
6.2 Edit Menu Functions
Clicking the Edit button in the Main Menu opens a pull-down menu which
provides access to the following features:
Part Opens a pull-down menu which allows you to choose between the following part
operations:
• Select All (see Section 3.4, Part Operations and How To Select Parts)
• Select... (see Section 3.4, Part Operations and How To Select Parts)
• Delete... (see Section 3.4, Part Operations and How To Delete a Part)
• Assign to single new viewport (see Section 3.4, Part Operations)
• Assign to multiple new viewports (see Section 3.4, Part Operations)
• Group... & Ungroup (see Section 3.4, Part Operations and How To Group Parts)
• Copy (see Section 3.4, Part Operations and How To Copy a Part)
• Extract (see Section 3.4, Part Operations and How To Extract Part
Representations)
•Merge (see Section 3.4, Part Operations and How To Merge Parts)
Access: Main Menu > Edit > Part
Part feature detail Opens a pull-down menu which allows you to choose between the following options to
editors open the Feature Detail Editor:
• Selected part type... (see Section 3.1, Part Overview and Introduction to Part
Creation)
• Contours... (see Section 3.3, Part Editing, Section 7.7, Contour Create/
Update, and How To Create Contours)
• Clips... (see Section 3.3, Part Editing, Section 7.9, Clip Create/
Update, How To Create Line Clips, How To Create Plane
Clips, How To Create Quadric Clips, and How To Create
IJK Clips)
• Developed surfaces...(see Section 3.3, Part Editing, Section 7.21, Developed
Surface Create/Update, and How to Create Developed
Surfaces)
• Elevated surfaces... (see Section 3.3, Part Editing, Section 7.14, Elevated/Offset
Surface Create/Update, and How to Create Elevated
Surfaces)
• Isosurfaces... (see Section 3.3, Part Editing, Section 7.8, Isosurface
Create/Update, and How to Create Isosurfaces)
Figure 6-3
Edit pull-down menu
6.2 Edit Menu Functions
6-6 EnSight 9 User Manual
• Material Interface... (see Section 3.3, Part Editing, Section 7.19, Material
Parts Create/Update, and How to Create Material
Parts)
• Model parts... (see Section 3.3, Part Editing and Introduction to Part
Creation)
• Particle traces... (see Section 3.3, Part Editing, Section 7.11, Particle
Trace Create/Update, and How to Create Particle
Traces)
• Profiles... (see Section 3.3, Part Editing, Section 7.13, Profile
Create/Update, and How to Create Profile Plots)
• Separation/Attachment lines... (see Section 3.3, Part Editing, Section 7.17,
Separation/Attachment Lines Create/Update, and
How To Extract Separation/Attachment Lines)
• Shock regions/surfaces... (see Section 3.3, Part Editing, Section 7.16, Shock
Surface/Region Create/Update, and How To Extract
Shock Surfaces)
• Subset parts... (see Section 3.3, Part Editing, Section 7.12, Subset
Parts Create/Update, and How to Create Subset Parts)
• Tensor glyphs... (see Section 3.3, Part Editing, Section 7.20, Tensor
Glyph Parts Create/Update, and How to Create
Tensor Glyphs)
• Vector arrows... (see Section 3.3, Part Editing, Section 7.10, Vector
Arrow Create/Update, and How to Create Vector
Arrows)
• Vortex cores... (see Section 3.3, Part Editing, Section 7.15, Vortex
Core Create/Update, and How To Extract Vortex
Cores)
• Point Parts... (see Section 3.3, Part Editing, Section 7.22, Point
Parts Create/Update, How To Use Point Parts)
• Extrusion... (see Section 3.3, Part Editing, Section 7.15, Vortex
Core Create/Update, and How To Extrude Parts)
Access: Main Menu > Edit > Part feature detail editors...
Flipbook animation Opens the Flipbook animation editor in the Quick Interaction Area which is used to
editor... load, run, and modify Flipbook Animation sequences.
Access: Main Menu > Edit > Flipbook animation editor...
(see Section 7.2, Flipbook Animation and How To Create a Flipbook Animation)
Keyframe animation Opens the Keyframe animation editor in the Quick Interaction Area which is used to
editor... create, save, restore, run, and modify Keyframe animation sequences.
Access: Main Menu > Edit > Keyframe animation editor...
(see Section 7.3, Keyframe Animation and How To Create a Keyframe Animation)
Solution time Opens the Solution time editor in the Quick Interaction Area which is used to specify the
editor... currently displayed time step in a transient dataset.
Access: Main Menu > Edit > Solution time editor...
(see Section 7.1, Solution Time and How To Animate Transient Data)
Transformation editor... Opens the Transformation editor dialog which is used to precisely position parts, frames,
and tools in the Graphics Window and to Save and Restore Views.
Access: Main Menu > Edit > Transformation editor...
(see Chapter 9, Transformation Control)
6.2 Edit Menu Functions
EnSight 9 User Manual 6-7
Variables editor... Opens the Feature Detail Editor (Variables) dialog which is used to obtain information
about variables, change the information, and to create new variables.
Access: Main Menu > Edit > Variables editor...
(see Chapter 4, Variables)
Copy Image Puts a copy of the graphics window into the system clipboard for use pasting elsewhere.
Preferences... Opens the Preferences dialog which is used to set or modify preference values for the
various categories within EnSight.
In this area you can set default attributes and preferences which will be used for the
current EnSight session. You may also save any of these to various preference file(s) so
that they will be the defaults for future invocations of EnSight. Each of the preference
categories will now be explained.
Annotation Preferences
3D label size Controls the size of Node and Element label text.
Click here to start Will place you in Annotation mode in EnSight. Perform step 2)
so that you are editing defaults. You can then change any
annotation attributes desired and they will become the defaults
for the session.
Save to preference file Will write the current annotation preferences to the preference
file for future EnSight sessions.
(see How To To Set Annotation Preferences:)
6.2 Edit Menu Functions
6-8 EnSight 9 User Manual
Color Palettes
Preferences
Display legend when Will cause the legend to automatically appear when you color
part is colored a part by a variable.
Auto replace legend Will cause legends to be automatically replaced when the
when part is colored current legend is no longer in use (i.e. no parts are colored by
the variable) and a new variable is in use.
Reset legend ranges Will cause legend ranges to be reset according to variable
when time is changed values at the current time.
Use continuous palette By default the legend for Per Element variables has a “Type”
for per element vars of Constant. Toggle this on to change the default “Type” to
Continuous.
Legend editing interface Can be EnSight’s Simple or Advanced interface.
Use predefined palette Allows you to enter a predefined palette name if you have
predefined color palettes.
Pick predefined palette Allows you to pick from your predefined palette list.
from List...
To set legend defaults (such as the Scale Type):
Click here to start Will allow you to modify legend default attributes.
Save to preference file Will write the current legend and palette preferences to the
preference file for future EnSight sessions.
(see How To To Set Color Palette Defaults:)
6.2 Edit Menu Functions
EnSight 9 User Manual 6-9
Command Line
Parameter Preferences
By selecting arguments from the list and hitting:
Add selected item to You can build customized command line preferences.
current args below
Save to preference file Will save the command line preferences to the preference file
for future invocations of EnSight.
(see How To To Set Command Line Preferences:)
Data Preferences
Default data directory Will allow you to specify a default directory for data files.
6.2 Edit Menu Functions
6-10 EnSight 9 User Manual
Binary files are Allows you to specify the default byte order for binary files.
The allowable settings are Big-endian, Little-endian, or Native
to server machine.
If starting time step is Can be set so that the default starting time step for transient
not specified load data can be either Last step or First step.
When reading data Allows you to have EnSight automatically load All parts,
automatically load First part, Last part, or No parts at startup. If No parts is
specified, the Part Loader dialog will be presented to the user at
startup.
New data notification Options for dealing with notification of a change in the model
dataset while EnSight is running. Please contact CEI support if
you have need of this.
Select below to toggle Allows you to specify which data formats will appear in the
reader visibility “Format” pull-down of the Data Reader dialog.
Default reader Allows you to specify the default data reader format.
Save to preference file Will save the data preferences to the preference file for future
invocations of EnSight.
(see How To To Set Data Preferences:)
General User Interface
Preferences
Tool tips Will cause pop-up help information to appear when the mouse
is placed over certain icons while running EnSight.
Large parts list Will cause the parts list to expand to a larger size down the left
of the desktop.
Frame mode allowed Will display Frame as a managed mode.
Record part selection in Allows you to specify whether the part selections recorded in
command language by command language will be by part Name or by part Number.
Save above items to Will save the preferences above to the preference file for
preference file future invocations of EnSight.
6.2 Edit Menu Functions
EnSight 9 User Manual 6-11
Modify and save icon Opens the Icon bar preferences dialog
layout....
Show help labels When toggled on, the Icon name will appear beneath each
for mode icons icon in the Mode Icon Bar. You can customize the EnSight GUI
by specifying which icons appear and their order in the Feature
and Mode Icon Bars. Do NOT modify the Menu ID for any
function. The other fields for each function may be edited
within the dialog. Customization options are:
Button Name Describes the function of the icon which would be displayed if
EnSight was started with no icons (command line function).
Further, this is the name which will appear below the each
Mode Icon when Show Help Labels For Mode Icons is toggled
on.
Visible Determines the visibility of a feature icon. Must be either ON
or OFF.
Order Determines the order in which the icons appear. A value of 1
will cause the icon to appear leftmost in the Main Feature Icon
Bar and uppermost in the Mode Icon Bars.
Description The text description of the button which will be displayed in
the Message Area when the icon is selected. You must click the
Save As Default button to save any changes you have made.
The Button Name and Order, if modified, will not take effect
until you restart EnSight. Changes to Visibility, Description,
and Show Help Labels however, will be implemented
immediately upon clicking the Save as Default button (and will
control these options in future EnSight sessions as well).
When EnSight is started, the icon preferences are initially read
from the
$CEI_HOME/ensight92/site_preferences
directory and are then overwritten by any information in the
user’s preferences directory.
(see How To Customize Icon Bars)
Figure 6-4
Icon Bar Preferences
6.2 Edit Menu Functions
6-12 EnSight 9 User Manual
Save size and position Will record the location and size of the main GUI, and all
of main windows dialogs that have been opened during the session or are
currently open and will make those locations and sizes the
default for future sessions of EnSight. Be aware also that if you
had a turn-down section open in a dialog (such as General
Attributes in the Feature Detail Editor dialog) when you closed
it earlier in the session or at the time you choose Save window
positions, this will be recorded as well and opening that dialog
in future sessions will also open that turn-down section within
the dialog.
(see How To Save GUI Settings)
(see How To To Set General User Interface Preferences:)
Image Saving and
Printing Preferences
Click here to start Will allow you to modify default attributes for image saving
and printing.
Save to preference file Will write the current print/save preferences to the preference
file for future EnSight sessions.
(see How To To Set Image Saving and Printing Preferences:)
Interactive Probe Query
Preferences
Click here to start Will allow you to modify default attributes for interactive
probe queries.
Save to preference file Will write the current interactive probe query preferences to the
preference file for future EnSight sessions.
(see How To To Set Interactive Probe Query Preferences:)
6.2 Edit Menu Functions
EnSight 9 User Manual 6-13
Mouse and Keyboard
Preferences
Here you can specify the transformation and picking actions of the three mouse buttons
and the keyboard ‘P’ key. Select the option you wish to assign to each button or
combination of buttons. The options are as follows:
Selected transform action When this option is chosen (it is the default for the left
button), depressing the button and moving the mouse will
perform the transformation (rotate, translate, zoom)
currently selected in the Transformation Control Area on
the desktop.
Rotate When this option is chosen, depressing the button and
moving the mouse will perform a rotate transformation
on the model.
Translate When this option is chosen, depressing the button and
moving the mouse will perform a translate
transformation on the model.
Zoom When this option is chosen, depressing the button and
moving the mouse will perform a zoom transformation
on the model.
Rubberband zoom When this option is chosen, depressing the button will
cause the rubberband zoom rectangle to appear and
dragging it will modify the zoom area.
Rubberband selection tool When this option is chosen, depressing the button will
bring up the rubberband selection tool that you can then
manipulate.
Pick Part When this option is chosen, depressing the button will
pick the part in the part list.
Pick cursor tool location When this option is chosen, depressing the button will
pick the location for, and move the cursor tool.
6.2 Edit Menu Functions
6-14 EnSight 9 User Manual
Pick transf. center When this option is chosen, depressing the button will
pick the location for the new center of transformation.
Subsequent rotations, etc. will be about this picked
location.
Pick elements to blank When this option is chosen, depressing the button will
blank the element under the pointer (if element blanking
is enabled).
User defined menu When this function is chosen, a user defined menu will
appear as defined by the user_defined_menus
directory contained in $CEI_HOME/ensight92/
site_preferences or in the user’s EnSight Defaults
Directory (located at
%HOMEDRIVE%%HOMEPATH%\(username)\.ensight
92 commonly located at C:\Users\username\.ensight92
on Vista and Win7, C:\Documents and
Settings\yourusername\.ensight92 on older Windows,
and ~/.ensight92 on Linux, and in ~/Library/Application
Support/EnSight92 on the Mac).
Nothing When this option is chosen, no function is mapped to the
mouse button.
Note: One of the Mouse buttons must be assigned to Selected transform action. Macros
cannot be assigned to a mouse key which has a function assigned to it. (see How To
Customize Mouse Button Actions)
Zoom style Choose method to use for zoom action. For either option,
zooming stops when the mouse button is released.
Manual drag Zoom DISTANCE is based on the distance you move your
mouse when the mouse button is pressed.
Automatic slide Zoom Velocity is based on the distance the mouse is moved
when the mouse button is pressed.
Band zoom expand from Choose method to use for rubber-band area action. For either
option, area modification stops (and zooming will occur) when
the mouse button is released.
Center Zoom area will shrink and expand about the center of the
rectangle.
Corner Zoom area will shrink and expand about the selected corner of
the rectangle. The opposite corner will be fixed.
Save to preference file Will write the current mouse and keyboard preferences to the
preference file for future EnSight sessions.
(see How To To Set Mouse and Keyboard Preferences:)
6.2 Edit Menu Functions
EnSight 9 User Manual 6-15
Parts
Allow editing part In EnSight 8 you can change a default attribute, such as line
defaults width, by making sure there are no parts selected in the main
part list and changing an icon under Part mode. We used to pop
up a message to warn the user that they are changing a default
instead of a particular part if they forgot to select one. This
preference now allows or disallows changing a default
attribute. These default attributes will be used for any part
created or loaded in the future, so that the user doesn’t have to
keep changing each new part.
Generic Attributes:
Click here to start Will allow you to modify default visual part attributes which
apply to all part types.
Save general part Will write the current generic part preferences to the
preferences to file preference file for future EnSight sessions.
Attributes For Specific Part Types:
Edit attributes using Allows you to specify which area to use for default attribute
modification - the Quick interaction area or the Detail editor
dialog.
Start editing for part Allows the user to specify the part type for which default
attributes will be modified.
Save preferences for Will write the current specific part type preferences to the
part type chosen preference file for future EnSight sessions.
to file
Main Part List Display Options:
Large List Allows user to set default part list length to large if toggled on.
Show Case Allows user to set the show case in the part list.
6.2 Edit Menu Functions
6-16 EnSight 9 User Manual
Parent/Child Tree Allows the user to have the part list default to parent/child tree.
Attribute Tree Allows the user to have the part list default to attribute tree.
Sort Allows the user to have the part list sorted alphabetically,
chronologically, or by part id by default.
Details Allows the user to have the part list include abbreviated, full, or
no details by default.
Items to include in Details:Allows the user to select which detail items to display when
details are being displayed. Can chose from Part ID, visibility,
shaded, type, element representation, node ID visibility, and
element ID visibility.
Save part list display Will write the current specific part list preferences to the
preferences to file preference file for future EnSight sessions.
(see How To To Set Part Preferences:)
Performance
Preferences
Minimize redraw events Will use pixel saving and restoring to advantage for window
moves, etc. Useful if graphics card does fast pixel read/writes.
Cull lines Will only draw shared lines between polygons once.
Static fast display Will cause the fast representation to always be displayed. If
this is off (the default), fast display will only be active during a
transformation.
6.2 Edit Menu Functions
EnSight 9 User Manual 6-17
Transparency re-sort “Interactive” causes polygons to be resorted with each
transformation - so the image is always correct. Can be
expensive.
“Delayed”causes the polygons to not be resorted while the
mouse is down during transformations, but will be resorted
when the mouse is released.
“Depth peeling”, which is only available on graphics cards that
support the OpenGL Shading Language, causes sorting to be
done on the graphics card on a per-pixel basis.
Detail Repr. Point Allows specification of fraction of nodes to display in Fast
Resolution Display, point representation. (“1” indicates all nodes, “2”
would be every other node, “3” every third node, etc.)
Detail Repr. Sparse Allows specification of the percentage of the model
Model Resolution geometry that will be displayed. (immediate mode only)
Abort Server Operations Causes a timer to be set which will abort some of EnSight’s
CPU-intensive server operations (for example some calculator
options, clipping, isosurface, isovolume, particle tracing and
cuts) after the set amount of clock seconds have passed.
Save to preference file Will write the current performance preferences to the
preference file for future EnSight sessions.
(see How To To Set Performance Preferences:)
Plotter Preferences
Click here to start Will allow you to modify defaults for the various plotter graph,
axis, and curve attributes.
Save to preference file Will write the current plotter preferences to the preference file
for future EnSight sessions.
(see How To To Set Plotter Preferences:)
Query Preferences
6.2 Edit Menu Functions
6-18 EnSight 9 User Manual
Auto plot queries Automatically plot a newly created query to a plotter. The plot
will go into a new or an existing plotter, depending on the state
of the “Check for Existing Plotters” toggle.
Check for existing Check for plotters of the same type (same X and Y units) as
plotters the new query is being autoplotted. If one exists, plot the query
to the existing plotter.
Click here to start Will allow you to modify defaults for the various query
attributes.
Save to preference file Will write the current query preferences to the preference file
for future EnSight sessions.
(see How To To Set Query Preferences:)
User Defined Input
Preferences
This area provides access to user defined input devices. The input devices include a Macro
Panel Interface (a grid of commands that displays in the Main Graphics window and
executes EnSight command files upon selection), and/or a User Defined Input Device (a
virtual input device designed for - but not limited to - use with VR environments such as
an Immersadesk)
Macro panel interface Toggles on/off the user defined macro panel to the Main
Graphics window. The user defined macro panel is defined in
your EnSight Defaults Directory (located at
%HOMEDRIVE%%HOMEPATH%\(username)\.ensight92
commonly located at C:\Users\username\.ensight92 on Vista
and Win7, C:\Documents and
Settings\yourusername\.ensight92 on older Windows, and ~/
.ensight92 on Linux, and in ~/Library/Application Support/
EnSight92 on the Mac) in the
hum.define
file. (An example
hum.define file is located at
$CEI_HOME/ensight92/src/cvf/udi/HUM/hum.define
on your client system.).
Part panel interface Display a part list in the graphics window. This is helpful when
in full screen mode or in a VR environment, to allow picking of
parts that can be operated on via macros.
User defined input Toggles on/off the User Defined Input Device that is linked
device via a runtime library. (Steps outlining the implementation of
this library and input device are found in the file:
$CEI_HOME/ensight92/src/input/README
on your client system.).
6.2 Edit Menu Functions
EnSight 9 User Manual 6-19
Zoom sensitivity Specifies a positive scalar value that adjusts the Sensitivity of
the zoom input device (i.e. values < 1 are slower, and values >
1 are faster).
Position translational Specifies a positive scalar value that adjusts the Sensitivity of
sensitivity a positional translation input device (i.e. values < 1 are slower,
and values > 1 are faster).
Valuator translational Specifies a positive scalar value that adjusts the Sensitivity of
sensitivity a valuator translation input device (i.e. values < 1 are slower,
and values > 1 are faster).
Rotate using Opens a pull-down menu for selection of the type of input
device used to record rotation transformations.
Mixed mode A device that returns virtual angle values
where the Z rotations correspond to (literal)
movement of the input device about its local
Z (or roll) axis; and where the X and Y
rotations correspond to translational
movements of the input device with respect
to its local X and Y axes.
Direct mode A device that returns virtual angle values that
correspond to (literal) rotational movements
of the input device about its local X, Y, and Z
axes.
Sensitivity Specifies a positive scalar value that adjusts the Sensitivity of
the type of rotation input device selected in Rotate Using (i.e.
values < 1 are slower, and values > 1 are faster).
(see How To Enable User Defined Input Devices)
Save to preference file Will write the current user defined input preferences to the
preference file for future EnSight sessions.
(see How To To Set User Defined Input Preferences:)
Variables Preferences
Notify before activating Will cause you to be notified before a variable, which was
a variable going to be automatically activated, is actually activated.
6.2 Edit Menu Functions
6-20 EnSight 9 User Manual
Select below to toggle Toggle visibility of functions in the General Functions list of
visibility for a general the new variable calculator dialog. There are many general
function functions and this allows you to limit the list to only functions
that you wish to use.
Save to general variable Will write the variable notification preference to the
preferences file preference file for future EnSight sessions.
Modify extended CFD Opens the Extended CFD variable settings dialog. If your
variable settings... data defines variables or constants for density, total energy per
unit volume, and momentum (or velocity), it is possible to
show new variables defined by these basic variables in the
Main Variables List of the GUI by utilizing the capabilities of
this dialog.
Density Permits the selection of the density variable from the list (click
SET after selection) or the specification of a constant value in
the field provided.
Energy (Total) Per Permits the selection of the energy variable from the list.
Unit Volume Click SET after selection.
Ratio of Specific Permits the selection of the ratio of specific heats variable
Heats from the list (click SET after selection) or the specification of a
constant value in the field provided.
Momentum OR Permits the selection of the momentum or velocity variable
Velocity from the list. Click SET after selection.
Figure 6-5
Extended CFD variable settings dialog
6.2 Edit Menu Functions
EnSight 9 User Manual 6-21
Freestream Mach # Permits the specification of the freestream mach number in the
field provided.
Gas Constant Permits the specification of the gas constant in the field
provided.
Freestream Density Permits the specification of the freestream density value in the
field provided.
Freestream Speed Permits the specification of the freestream speed of sound
of Sound value in the field provided.
Show Extended When selected, all of the variables that can be derived from the
CFD Variables information entered will be shown in the Main Variables List
of the GUI. (Will not take effect until the Okay button is
clicked.)
Okay Clicking this button applies the changes made in the dialog.
(See How To Create New Variables)
Save to extended CFD Will write the current extended CFD preferences to the
preference file extended CFD preference file for future EnSight sessions.
(see How To To Set Variable Preferences:)
View Preferences
Plane tool filled Will cause the plane tool to be a filled transparent surface. If it
is off, the plane tool will be in line drawing mode. You can
save this default to the preference file.
6.2 Edit Menu Functions
6-22 EnSight 9 User Manual
Use graphics hardware There are two offsets employed in EnSight. This one,
to offset line objects hardware offset, is perpendicular to the monitor screen, and
done in hardware if this toggle is on. This will allow, for
example, contour lines to appear closer to the viewer than their
parent part so they are visible no matter what orientation the
part is viewed from. The second offset is the display offset.
The display offset can be set in the feature detail editor for line
parts such as contour lines, particle trace lines, vector arrows,
and separation/attachment lines. The display offset is the
distance in the direction of the element normal (perpendicular
to the surface).
Default orientation The default axis for viewing can be selected and set.
Picking Method The default is to utilize the graphics hardware to give
accelerated part pick information. Should the graphics
software drivers be faulty, it may be desirable to instead to use
software picking.
Set hiliting preferences Opens the Highlighting preferences dialog where part selection
and targeting feedback can be adjusted for color and intensity.
To turn off highlighting completely, turn off the part
highlighting toggle located above the graphics window and
then Edit->Preferences->View and select the "Save to
preferences file" button.
.
Object Highlighting If set to Geometry will display selected objects (currently parts)
Mode by displaying the geometry as a cross hatch. This method
requires a redraw of the scene when new parts are selected.
If set to Object highlighting, the following options are
available: Selected Object, Unselected Objects, and Target
Object.
6.2 Edit Menu Functions
EnSight 9 User Manual 6-23
Selected Objects The selected object is displayed by a modified fill color as well
as an outline. Both use the same color specified. When the
Outline transparency slider is set to the left no outline will
appear. When the Outline transparency is set to the right a full
intensity outline of the color specified will appear around the
object. If the Fill transparency slider is set to the left, the color
of the object is not modified while if set to the right the full
intensity of the color specified will be used.
Unselected Objects Unselected objects will be blended with the color specified.
When the slider is set to the left no color modification will
occur. When the slider is set to the right the specified color will
be shown at full intensity on the unselected objects.
Target Objects The target object (the object under the mouse pointer) is
displayed by a modified fill color as well as an outline. Both
use the same color specified. When the Outline transparency
slider is set to the left no outline will appear. When the Outline
transparency is set to the right a full intensity outline of the
color specified will appear around the target object. If the Fill
transparency slider is set to the left, the color of the target
object is not modified while if set to the right the full intensity
of the color specified will be used.
Default Settings Will restore the highlighting preferences to the default values
Save preferences Will save the highlight preferences for the next session of
EnSight.
OK Closes the dialog.
Set anti-aliasing Opens the Anti-aliasing preferences dialog, which is used to
change parameters for on-screen smoothing jagged lines and
edges. These anti-aliasing options apply only to on-screen,
interactive use of EnSight. They do not apply to batch
execution, nor to exporting an image. For example, when
saving an image to file, anti aliasing is invoked separately from
these preferences in the advanced tab using the number of
passes.
6.2 Edit Menu Functions
6-24 EnSight 9 User Manual
antialiasing mode There are three antialiasing modes in decreasing order of speed
and increasing order of on-screen image quality: None,
Filtered, and Multipass. Both Filtered and Multipass work only
on modern graphics cards that support DirectX 10. Therefore,
Anti-aliasing mode is disabled in software rendering mode
(starting EnSight with the -X option). Further, zeroing the
auxilliary buffers environmental variable (setenv
CEI_NUM_AUX_BUFFERS 0) will disable this feature.
None This is the default mode.
Multipass Each time the scene needs to be redrawn, it is drawn multiple
times from slightly different positions. The final image is a
blend of all the images. Rendering performance will slow down
in proportion to the number of samples
Number of Samples Used with the multipass option. Indicates the number of times
to redraw the scene. Rendering performance will slow down in
proportion to the number of samples
Filtered Each time the scene is drawn, an image filter is applied to the
result. The shape of the filter is a gaussian curve. Filtered anti-
aliasing has a very low performance cost, but is usually lower
quality than multipass anti-aliasing
Filter Parameter Used with filtered option. A pulldown that can be Small, Large,
Hybrid
Small Used with filtered option. A symmetric 3x3 filter.
Large Used with filtered option. A symmetric 5x5 filter.
Hybrid Used with filtered option. A 5x5 filter compressed in the
direction perpendicular to the image gradient
Gamma Correction Used with filtered option. Corrects some monitor-dependent
artifacts. For example, without gamma correction, bright lines
against a dark background can appear dimmer after filtering,
but will appear to have the same overall brightness with the
right gamma correction
Smoothness Changes the shape of the gaussian curve. High values make
the curve fall off slowly, making the image smoother and
blurrier
Directional Strength used with the hybrid algorithm to control how much the filter is
compressed, perpendicular to the image gradient
Default Values Restores the anti-aliasing preferences to the default values.
Save Save the anti-aliasing preferences for subsequent EnSight
sessions.
OK Closes the dialog
Save to preference file Will write the current view preferences to the preferences file
for future EnSight sessions.
Set click-n-go preferences Sets preferences for interactive interaction with created parts in
the graphics window using graphical handles.
6.2 Edit Menu Functions
EnSight 9 User Manual 6-25
Annotations, Legends, etc Toggle ON (default) ability to interact with these items in the
graphical user interface.
Default Values Restore selections back to default values.
Save Save settings to preferences file.
OK Close dialog
(see How To To Set View Preferences:)
Viewports Preferences
Click here to start Will allow you to modify default viewport attributes.
Modify any Vport Select Vport along the left side of the main window. The
mode attributes now attributes for viewports will appear in the iconbar for you to
available modify. Attributes as shown above and many others may be
set.
Save defaults to Will write the current viewport default values to a preference
preference file file for future EnSight sessions.
Save current layout Will write out the current viewport screen layout to a file for
to preference file future EnSight sessions.
6.3 Query Menu Functions
6-26 EnSight 9 User Manual
6.3 Query Menu Functions
Clicking the Query button in the Main Menu opens a pull-down menu which
provides access to the following features:
EnSight provides several ways to examine information about variable values. You can, of
course, visualize variable values with fringes, contours, vector arrows, profiles,
isosurfaces, etc. Only parts with data residing on the Server host system may be queried.
Thus, parts that reside exclusively on the Client host system (i.e. contours, particle traces,
profiles, vector arrows) may NOT be queried.
(see Table 3–2 Part Creation and Data Location)
Show information Opens the following pull-down menu:
Access: Main Menu > Query > Show information
(see How To Get Point, Node, Element and Part Information)
Cursor Provides the following information in the Status History Area about a Point inside of the
selected Part(s) who’s position you have specified with the cursor tool:
x,y,z coordinates, Frame assignment of Point, the Part that the Point is found in,
the closest Node to the Point, the element id if it exists, and the active Variable
values at the Point
Access: Main Menu > Query > Show information > Point
(see How To Get Point, Node, Element and Part Information and How To Use the Cursor
(Point) Tool)
Node... Opens the Query prompt dialog which is used to specify Node ID number.
When the Okay button is pressed, the following information about the specified Node is
shown in the Status History Area:
x,y,z coordinates, Frame assignment of Node, the Part that the Node is found in,
the element id if it exists, and all active nodal Variable values at the Node
Figure 6-6
Query pull-down menu
Figure 6-7
Show information pull-down menu
Figure 6-8
Query Prompt dialog
6.3 Query Menu Functions
EnSight 9 User Manual 6-27
Access: Main Menu > Query > Show Information > Node...
(see How To Get Point, Node, Element and Part Information)
IJK... Opens the Query Prompt dialog which is used to specify IJK values.
When Okay button is pressed, the following information about the Node specified by the
IJK values is shown in the Status History Area:
Node ID, Part in which the Node is located, x,y,z coordinates of the Node,
Frame assignment of the Node, and the specified Variable value at the Node.
Access: Main Menu > Query > Show Information > IJK...
(see How To Get Point, Node, Element and Part Information)
Element... Opens the Query Prompt for Element ID.
When Okay button is pressed, the following information about the Element is shown in
the Status History Area:
Part in which Element is located, Type of Element, IJK bounds (if a structured
mesh), Number of Nodes, Node ID numbers, information on neighboring
Elements, and all active elemental Variable values at the Element.
Access: Main Menu > Query > Show Information > Element...
(see How To Get Point, Node, Element and Part Information)
Part Causes the following information about the Part to be shown in the Status History Area:
Part type (structured or unstructured), number of Nodes in Part, minimum and
maximum x,y,z coordinates, Element type, min/max node labels if exist, min/max
element labels if exist, and the number of Elements.
Access: Main Menu > Query > Show Information > Part
(see How To Get Point, Node, Element and Part Information)
Over time/distance... Opens the Query/Plot Editor in the Quick Interaction Area which is used to obtain
information about variables and to create plots of the information.
Access: Main Menu > Query > Over time/distance...
(see Section 7.5, Query/Plot, How To Query/Plot)
Interactive probe... Opens the Interactive Probe Query Editor in the Quick Interaction Area which is used to
obtain information interactively about variables.
Access: Main Menu > Query > Interactive probe...
(see Section 7.6, Interactive Probe Query and How To Probe Interactively)
Figure 6-9
Query Prompt for IJK Values
Figure 6-10
Query Prompt for Element ID
6.3 Query Menu Functions
6-28 EnSight 9 User Manual
Dataset... Opens the Query Dataset dialog which is used to obtain information about datasets for the
selected case. This can be useful to verify the files that you are using, whether the
geometry is static, changing coordinates, or changing connectivity, and the number of
each element type in your dataset.
For the specified file, specific, general and detail information is provided.
Access: Main Menu > Query > Dataset...
(see Section 7.5, Query/Plot and How To Query Datasets)
Figure 6-11
Query Dataset dialog
File details, sizes
and names
Number of each
element type
Dataset geometry type:
1. Static
2. Changing Coordinates
3. Changing Connectivity
One of the following:
6.4 View Menu Functions
EnSight 9 User Manual 6-29
6.4 View Menu Functions
Clicking the View button in the Main Menu opens a pull-down menu which
provides access to the following features many of which can be accessed by the
global toggles just above the graphics screen as indicated below:
Fast display Toggles the Fast display mode.
Access: Main Menu > View > Fast display
Fast Display in this pull-down is the same as the one located on the Desktop.
By default, EnSight displays all of the lines and elements for each part every time the
Main View window redraws. If you have very large models (or if you have slow graphics
hardware), each redraw can take significant time. As a result, interactive transformations
become jerky and lag behind the motion of the mouse. Ironically, the slower the graphics
performance, the harder it is to perform precise interactive transformations. To avoid this
problem, you can tell EnSight to show a lesser detailed part representation, i.e, a bounding
box surrounding each Part, or the Part as a point cloud. You can select to show the detail
representation all the time, or only while you are performing transformations. This
obviously displays much less information, but may be sufficient if you want to rotate a
very large model.
A lesser detail display is also useful when experimenting with keyframe-animation rates.
Using lesser detail, the display rate can be adjusted to approximate the video rate, thus you
can see how your scene will transform on the video tape
The default setting is off, indicating that all lines and elements of all visible parts will be
redrawn. When on, the redraw will show only the part’s Fast Display Representation (by
default a box). The fast display representation is only used while transformations are being
performed. The fast display representation will be continuously displayed if the Static Fast
Display option is turned on in:
Main Menu > Edit > Preferences > Performance > Static fast display.
Shaded Toggle Toggles the Global Shaded mode for parts on and off. EnSight by default displays parts in
line mode. Shaded mode displays parts in a more realistic manner by making hidden
surfaces invisible while shading visible surfaces according to specified lighting
parameters. Parts in Shaded mode require more time to redraw than when in line mode, so
you may wish to first set up the Graphics Window as you want it, then turn on Shaded to
see the final result. Shaded can be toggled on/off for individual parts by using the Shaded
Toggle icon in the Part Mode Icon Bar.
Access: EnSight dialog > View > Shaded
or Desktop > Shaded
Figure 6-12
View pull-down menu
6.4 View Menu Functions
6-30 EnSight 9 User Manual
(see Section 8.6, Quick Desktop Buttons and How To Set Drawing Style)
Troubleshooting Hidden Surfaces and Shading
Hidden line Toggles the global Hidden line display for all parts on/off. This simplifies a line drawing
display by making hidden lines - lines behind surfaces - invisible while continuing to
display other lines. Hidden Line can be combined with Shaded to display both surfaces
and the edges of the visible surface elements. Hidden Line can be toggled on/off for
individual parts by using the Hidden Line Toggle icon in the Part Mode Icon Bar.
To have lines hidden behind surfaces, you must have surfaces (2D elements). If the
representation of the in-front parts consists of 1D elements, the display is the same
whether or not you have Hidden Lines mode toggled on.
Access: Main Menu > View > Hidden line
(see Section 8.6, Quick Desktop Buttons and How To Set Drawing Style)
Hidden line overlay dialog
If you combine Shaded mode with Hidden line mode, the lines overlay the surfaces. The
Hidden line overlay dialog will pop-up on the screen if the Shaded option is currently on
and you then turn the Hidden Line option on. From this dialog you specify a color for the
displayed lines (you do not want to use the same color as the surfaces since they then will
be indistinguishable from the surfaces). The default is the part-color of each part, which
may be appropriate if the surfaces are colored by a color palette instead of their part-color.
Specify line Toggle-on if you want to specify an overlay color. If off, the overlay line color will be the
overlay color same as the part color.
R, G, B The red, green, and blue components of the hidden line overlay. These fields will not be
accessible unless the Specify Overlay option is on.
Mix... Click to interactively specify the constant color used for the hidden line overlay using the
Problem Probable Causes Solutions
Main View shows line drawing after
turning on Shaded.
Shaded is toggled off for each
individual part.
Toggle Shaded on for individual
parts with the Shaded Icon in Part
Mode or in the Feature Detail Editor
dialog.
There are no surfaces to shade—all
parts have only lines.
If parts are currently in Feature
Angle representation, change the
representation. If model only has
lines, you can not display shaded
images.
The element visibility attributes has
been toggled off for the part(s).
Toggle the element visibility on for
individual parts in the Feature Detail
Editor dialog.
Figure 6-13
Hidden line overlay dialog
6.4 View Menu Functions
EnSight 9 User Manual 6-31
Color selector dialog.
(see Section 8.1, Color Selector) and How To Change Color)
Okay Click to accept the hidden line overlay color options.
Perspective Toggles the view within each of the viewports within the Graphics Window between a
(Global)Toggle perspective view (the default) and an orthographic projection. Perspective is what gives
you the sense of depth when viewing a three dimensional scene on a two dimensional
surface. Objects that are far away look smaller and parallel lines seem to meet at infinity.
Orthographic projection removes the sense of depth in a scene. Lines that are parallel will
never meet and objects of the same size all appear the same no matter how far away they
are from you. Orthographic projection mode often helps when you are positioning the
Cursor, Line, and Plane tools using multiple viewports. This is the Global toggle. Each
viewport also has a Perspective Toggle.
Access: Main Menu > View > Perspective
(see Section 8.4, VPort Mode and see How To Set Global Viewing)
Auxiliary clipping Toggles the Auxiliary clipping feature on/off. (Default is Off). Like a Z-Clip plane,
Auxiliary clipping cuts-away a portion of the model. When Auxiliary clipping is On, Parts
(or portions of Parts) located on the back (negative-Z) side of the Plane Tool are removed.
Parts whose Clip attribute you have toggled off (in the General Attributes section of the
Feature Detail Editor dialog or with the Auxiliary clipping Toggle Icon in the Part Mode
Icon Bar) remain unaffected.
Auxiliary clipping is interactive—the view updates in real time as you move the Plane
Tool around
(see Section 6.5, Tools Menu Functions and How To Use the Plane Tool).
Unlike a Z-Clip plane, Auxiliary clipping applies only to the parts you specify, and the
plane can be located anywhere with any orientation though it is always infinite in extent
(see Section 9.6, Z-Clip and How To Set Z Clipping).
Auxiliary clipping is helpful, for example, with internal flow problems since you can
“peel” off the outside parts and look inside. This capability is also often useful in
animation.
The position of the Plane Tool and the status of Auxiliary clipping is the same for all
displayed viewports.
Do not confuse Auxiliary clipping with a 2D-Clip plane, which is a created part whose
geometry lies in a plane cutting through its parent parts or with the Part operation of
cutting a part.
(see Section 3.4, Part Operations, How to Create Plane Clips, and How To Cut a Part).
Troubleshooting Auxiliary Clipping
Problem Probable Causes Solutions
The Plane Tool does not appear to
clip anything
The Auxiliary Clipping toggle is off
for all parts.
Turn the Auxiliary Clipping toggle
on for individual parts in the Feature
Detail Editor (Model) dialog General
Attributes section.
The Plane Tool is not intersecting the
model
Change the position of the Plane
Tool.
The Main View window shows
nothing other than the Plane Tool
after Clipping is toggled-on.
All of the part(s) is(are) on the back
side of the Plane Tool and is(are)
thus clipped
Change the position of the Plane
Tool.
6.4 View Menu Functions
6-32 EnSight 9 User Manual
Hightlight selected part(s)...Highlight the selected parts in the graphics window. This often aids in the
identification of parts.
Axis triad visibility Opens the pull-down menu which allows you to toggle on/off the visibility of the Global
axis triad, the axis triads for all Frames, and the model axis triad.
Frame Toggle Toggles on/off (default is On) the display of all coordinate Frame axis triads. The visibility
of individual coordinate Frame axes can be selectively turned on/off by clicking on the
Frame’s axis triad and then clicking on the Frame Axis Triad Visibility Toggle in the
Frame Mode Icon Bar.
Access: Main Menu > View > Axis triad visibility > Frame
(see Section 8.5, Frame Mode)
Global Toggle Toggles on/off (default is Off) the display of the global coordinate frame axis. The global
coordinate frame axis triad represents the Look-At Point.
Access: Main Menu > View > Axis triad visibility > Global
Model Toggle Toggles on/off the display of the model axis triad in the lower left of the screen. This triad
is not at the origin of frame 0, but is aligned with it.
Access: Main Menu > View > Axis triad visibility > Model
(see Section 8.6, Quick Desktop Buttons)
Bounds visibility Toggles on/off (default is Off) the extents box for all parts.
Label visibility Opens the pull-down menu which allows you to toggle on/off the visibility of labels for
Elements or Nodes.
Element labeling Toggles on/off (default is Off) the global visibility of labels (if they are available in the
To gg l e dataset) for elements in all parts. Visibility of element labels for individual parts can be
controlled via the Node/Element labeling icon of Part Mode.
Access: Main Menu > View > Label Visibility > Element labeling
Node labeling Toggles on/off (default is off) the global visibility of labels (if they are available in the
Toggle dataset) for nodes in all parts. Visibility of node labels for individual parts can be
controlled via the Node/Element labeling icon of Part Mode.
Access: Main Menu > View > Label Visibility > Node labeling
Labeling attributes... Opens the Node/Element labeling dialog from which you can control the labeling visibility,
color, and filtering for selected parts. This same dialog can also be reached from the Node/
Element labeling icon in Part Mode.
Access:Main Menu > View > Label Visibility > Labelling attributes...
Legend Toggle Toggles on/off (default is on) the global visibility of all legends. Visibility of individual
legends can be controlled by using the Edit legends button in Annot Mode.
Access:Main Menu > View > Legend
(see Section 4.2, Variable Summary & Palette, Section 8.2, Annot Mode and How To
Create Color Legends.
Text/Line/Logo Toggle Toggles on/off global visibility for text strings and lines which have been created and
logos which have been imported. Visibility of individual Text strings, Lines, or Logos can
be controlled by selecting the item while in Annotation Mode and clicking the Visibility
Toggle in the Annotation dialog. While in Annot Mode, you will notice that the item does
not disappear, but turns transparent. Such items will not appear in the Graphics Window in
any Mode except Annotation Mode, and then only if global visibility has been turned on.
Access: Main Menu > View > Text/Line/Logo
(see Section 8.2, Annot Mode, How To Create Lines and Arrows, How To Create Text
Annotation, and How To Load Custom Logos.
Detached display This menu item is disabled unless using a detached display. If you have a detached display
then it’s automatically enabled and toggled on, and this menu item allows toggling on/off
this detached display.
6.4 View Menu Functions
EnSight 9 User Manual 6-33
Camera Visibility Toggles on/off the global visibility for cameras. Visiblity of individual cameras can be
controlled by selecting the camera in the Transformation editor (Camera) dialog.
(see Chapter 9.9, Camera)
6.5 Tools Menu Functions
6-34 EnSight 9 User Manual
6.5 Tools Menu Functions
The Region selector, Cursor, Line, Plane, Box, and Quadric (cylinder, sphere,
cone, and revolution) Tools in EnSight are used for a variety of tasks, such as:
positioning of clipping planes and lines, query operations, particle trace emitters,
etc. Collectively these tools are referred to as Positioning Tools. Clicking the
Tools button in the Main Menu opens a pull-down menu which provides access to
these features some of which are also available as global toggles above the
graphics window as indicated below:
Region selector Makes the Selection Tool (region selector) visible/invisible in the Graphics Window.
Toggle The Selection Tool appears as a white rectangle with two symbols at the upper left of the
tool (one is for zooming and the other for element blanking). It may be repositioned
interactively in the Graphics Window by selecting and dragging it or by selecting any
corner and rubber banding the corner. Note that a dotted rectangle, which stays at the same
aspect ratio of the screen, will indicate the actual selection area as it is manipulated.
Alternatively, you can reposition it precisely by specifying X and Y min/max coordinates
in the Transformation Editor dialog (described in Tool Positions...Region Tool below).
Access: Main Menu > Tools > Region selector
or Desktop > Selection tool
(see Section 8.1, Part Mode and How to Use the Selection Tool)
Cursor Tool Makes the Cursor Tool visible/invisible in the Graphics Window. The Cursor Tool appears
Toggle as a three-dimensional cross colored red, green, and blue. The red axis of the cross
corresponds to the X axis direction for the currently selected Frame, while green matches
the Y and blue matches up with the Z. The Cursor Tool is initially located at the Look-At
point and may be repositioned interactively in the Graphics Window by left-clicking and
dragging it or right-clicking on it and choosing ‘Edit’ on the pulldown which opens the
Tranformation Editor. If you have a specific location you want to click on and have the
cursor moved there, then select Pick Cursor Location from the Pick Pull-down Icon menu
in the Quick Desktop Button region.
(see Section 8.1, Part Mode and How to Use the Cursor (Point) Tool)
Line Tool Toggle Makes the Line Tool visible/invisible in the Graphics Window. The Line Tool appears as a
white line with a dotted-line axis system at the center point and an arrowhead on its 2nd
endpoint. The Line Tool is initially centered about the Look-At point and sized so that it
fills approximately 10% of the default view. There are a number of ways to manipulate the
tools either interactively or via the transformation dialog. You can change its length and
orientation interactively in the Graphics Window by selecting one of its end points. You
Figure 6-14
Tools pull-down menu and Pick Part pull-down menu
6.5 Tools Menu Functions
EnSight 9 User Manual 6-35
can rotate the line tool by clicking and dragging on the center axes. You can reposition it
interactively in the Graphics Window by selecting its center and dragging it or by
selecting Pick Line Location from the Pick Pulldown Icon menu in the Quick Desktop
Button region. Alternatively, you can reposition it precisely by rotating, translating, or
specifying coordinates in the Transformation Editor dialog by right-clicking on the line
tool and selecting ‘Edit’. If you have a precise location that you want to locate the line
tool you can select Pick Line Tool Location from the Pick Pull-down Icon menu in the
Quick Desktop Button region.
(see Section 8.1, Part Mode and How to Use the Line Tool)
Plane Tool Makes the Plane Tool visible/invisible in the Graphics Window. (Note: Its appearance
(line or filled) is controlled under Main Menu > Edit > Preferences > View)
The Plane Tool is shown with an X, Y, Z axis system, is initially centered about the Look-
At point, and lies in the X-Y plane. You can reposition it interactively in the Graphics
Window by selecting its center point in the Graphics Window and dragging it. You can
change its orientation interactively in the Graphics Window by selecting the X, Y, or Z
letters at the ends of the axes. You can resize the Plane Tool interactively in the Graphics
Window by selecting any corner of the plane and dragging it. You can rubber-band any of
the corners by holding the Ctrl key while selecting and dragging. You can reposition it
precisely using the Tranformation Editor by right clicking on the plane tool center point
and choosing ‘Edit’. If you have a precise location that you want to locate the plane tool,
you can choose Pick Plane Tool Location from the Pick Pull-down Icon menu in the Quick
Desktop Button region.
(see Section 8.1, Part Mode and How to Use the Plane Tool)
Box Tool Makes the Box Tool visible/invisible in the Graphics Window. The Box Tool is shown
with an X, Y, Z axis system and is initially centered about the Look-At point. You can
resize it interactively in the Graphics Window by selecting any of its corner points and
dragging. You can reposition it interactively in the graphics window by selecting the
origin of the box and dragging. You can reposition it precisely using the Transformation
Editor by right-clicking on the box tool origin and choosing ‘Edit’. You can perform these
types of operations as well as rotations, in the Transformation Editor dialog (described in
Tool Positions... Box Mode below). You can even reposition it precisely by specifying
coordinates in the Transformation Editor dialog.
(see Section 8.1, Part Mode and How to Use the Box Tool)
Quadric Opens a pull-down menu which allows you to choose one of the Quadric Tools and make
it visible.
Access: Main Menu > Tools > Quadric
Cylinder Tool Makes the Cylinder Tool visible/invisible in the Graphics Window. The Cylinder Tool
Toggle appears as thick direction line with center point and center tool axis system, and a circle
around the line at the mid and two end points. Thinner projection lines run parallel to the
direction line through the three circles outlining the surface of the cylinder. The Cylinder
Tool is initially centered about the Look-At point with the direction line pointing in the X
direction. There are a number of ways to manipulate the tools either interactively or via
the transformation dialog. You can change its length and orientation interactively in the
Graphics Window by selecting one of its end points. You can rotate it in the Graphics
Window by selecting the end of one of the tool axes. You can change its diameter by
Figure 6-15
Quadric Tool pull-down menu
6.5 Tools Menu Functions
6-36 EnSight 9 User Manual
selecting the circle about the mid point. You can reposition it interactively in the Graphics
Window by selecting its center. You can reposition it precisely using the Transformation
Editor by right-clicking on the cylinder tool origin and choosing ‘Edit’.
(see How to Use the Cylinder Tool)
Sphere Tool Makes the Sphere Tool visible/invisible in the Graphics Window. The Sphere Tool
Toggle appears as thick direction line with center point and center tool axis system, and with
several circles outlining the sphere. The Sphere Tool is initially centered about the Look-
At point with the direction line pointing in the X direction. There are a number of ways to
manipulate the tools either interactively or via the transformation dialog. You can change
its radius and orientation interactively in the Graphics Window by selecting one of the
thick direction line end points. You can rotate it in the Graphics Window by selecting the
end of one of the tool axes. You can reposition it interactively in the Graphics Window by
selecting its center. You can reposition it precisely using the Transformation Editor by
right-clicking on the sphere tool origin and choosing ‘Edit’.
(see How to Use the Sphere Tool)
Cone Tool Makes the Cone Tool visible/invisible in the Graphics Window. The Cone Tool appears as
Toggle thick direction line with center point and a tool axis system at the apex. It has a circle at
the opposite end point. Thinner projection lines run from the beginning point to the circle
at the end point outlining the surface of the cone. The Cone Tool is initially centered about
the Look-At point with the direction line pointing in the X direction. There are a number
of ways to manipulate the tools either interactively or via the transformation dialog. You
can change its length and orientation interactively in the Graphics Window by selecting
one of the thick direction line end points. You can change its diameter by selecting the
largest circle about the end point. You can rotate it in the Graphics Window by selecting
the end of one of the tool axes. You can reposition it interactively in the Graphics Window
by selecting its center. You can reposition it precisely using the Transformation Editor by
right-clicking on the cone tool origin and choosing ‘Edit’. Note: the cone tool always
operates as if the tool extends infinitely from the origin at the half angle. The half angle of
the cone tool is in degrees.
(see How to Use the Cone Tool)
Revolution Tool Makes the Surface of Revolution Tool visible/invisible in the Graphics Window. The
Toggle Revolution Tool appears as thick direction line with center point and center tool axis
system, and with several circles outlining each user defined point along the tool. Thinner
projection lines run through the circles to outline the revolution surface. The Revolution
Tool is initially centered about the Look-At point with the direction line pointing in the X
direction. There are a number of ways to manipulate the tools either interactively or via
the transformation dialog. You can change its length and orientation interactively in the
Graphics Window by selecting one of the thick direction line end points. You can rotate it
in the Graphics Window by selecting the end of one of the tool axes. You can reposition it
interactively in the Graphics Window by selecting its center or alternatively, you can
reposition it precisely by specifying coordinates in the Transformation Editor dialog
(described in Tool Positions... Quadric below).
Access: Main Menu > Tools > Quadric
(see How to Use the Surface of Revolution Tool)
6.5 Tools Menu Functions
EnSight 9 User Manual 6-37
Tool positions... Opens the Transformation Editor dialog which allows you to precisely position the various
tools within the Graphics Window in reference to the selected Frame.
Access: Main Menu > Tools > Tool Positions...
Region Tool Click on Editor Function in the Transformation Editor dialog and then selecting Tools >
(Selection region) Select region from the pull-down menu configures the dialog as shown below:
To precisely position the Selection tool, enter the desired normalized screen coordinate
values for X and Y minimum and maximum. The coordinates can be between 0.0 and 1.0.
Access: Main Menu > Tools > Tool Positions... > Tools > Select region
Cursor Tool Clicking on Editor Function in the Transformation Editor dialog and then selecting Tools
> Cursor from the pull-down menu configures the dialog as shown below. Even easier and
quicker to get this dialog is to right-click on the cursor tool and choose ‘Edit’.
The Transformation Editor dialog provides three methods for the precise positioning of
the Cursor Tool. First, the Cursor Tool may be positioned within the Graphics Window by
entering coordinates in the X, Y, and Z fields. Pressing return causes the Cursor Tool to
relocate to the specified coordinates in the selected Frame (or, if more than one Frame is
selected, for Frame 0).
It is also possible to reposition the Cursor Tool from its present coordinate position by
specific increments. The Axis Button allows you to choose the axis of translation (X, Y, Z,
or All). The Slider Bar at Top allows you to quickly choose the increment by which to
Figure 6-16
Transformation Editor (Select region)
Figure 6-17
Transformation Editor (Cursor)
6.5 Tools Menu Functions
6-38 EnSight 9 User Manual
move the position of the Cursor Tool. Dragging the slider in the negative (left) or positive
(right) directions and then releasing it will cause the X, Y, and Z coordinate fields to
increment as specified and the Cursor Tool to relocate to the new coordinates. The number
specified in the Limit field of the Scale Settings area determines the negative (-) and
positive (+) range of the slider. If the Limit is set to 1.0 as shown, then the numerical range
of the slider bar will be -1 to +1.
Alternatively, you can specify an increment for translation in the Increment field of the
Scale Settings area. Pressing return while the mouse pointer is in the Increment field will
cause the Cursor Tool to translate along the specified axis (or all axes) by the increment
specified.
Access: Transformation Editor > Editor Function > Tools > Cursor
(see How to Use the Cursor (Point) Tool)
Line Tool From the menu Tools>Line there are three options.
Visible Toggles the line tool visibility
Restrict drag to surface After choosing this option, click on the Pick icon and choose to pick plane tool location
+ normal using surface pick + normal and then put the cursor tool on the part surface and pick using
the ‘p’ key and the line tool will appear aligned with the surface normal at the point picked
with one end attached to the surface at the point of the picking.
Use positive surface Same as above except the line tool will originate at the picked point location, but will be in
normal the direction of the positive normal.
Another way that the line tool can be positioned is using the Transformation Editor. Click
on the Transf button at the bottom of the graphics window. Then click on Editor Function
in the Transformation Editor dialog and then select Tools > Line from the pull-down menu
to see the dialog as shown below. Even easier to get this dialog is to right-click on the
Figure 6-18
Tools>Line Menu Options
Locks line parallel to selected
Line tool visibility
Locks line parallel to selected
part’s surface normal in
part’s surface normal
direction of surface normal
Choose Line tool
Click on Pick icon
Surface Pick + Normal
6.5 Tools Menu Functions
EnSight 9 User Manual 6-39
visible line tool in the graphics area and choose ‘Edit’.
The Transformation Editor can control precisely the position and size of the line tool.
Position The Transformation Editor dialog provides several methods for the precise positioning of
the Line Tool. First, the Line Tool may be positioned within the Graphics Window by
entering coordinates for the two endpoints in the X, Y, and Z fields. Pressing return after
entering each coordinate value causes the Line Tool to relocate to the specified
coordinates in the selected Frame (or if more than one Frame is selected, in Frame 0).
Enter all three X, Y, Z fields for a endpoint and then press return once to cause the line tool
to update it’s position to that endpoint.
You can also specify the node ID labels to use for the line endpoints.
It is also possible to reposition the Line Tool from its present coordinate position by
specific increments. First click on the translate icon. The Axis Button allows you to
choose the axis of translation for the center of the line (X, Y, Z, or All). The Slider Bar at
Top allows you to quickly choose the increment by which to move the position of the
center point of the Line Tool. Dragging the slider in the negative (left) or positive (right)
directions and then releasing it will cause the X, Y, and Z coordinate fields to increment as
specified and the Line Tool to relocate to the new coordinates. The number specified in the
Limit field of the Scale Settings area determines the negative (-) and positive (+) range of
the slider. If the Limit is set to 1.0 as shown, then the numerical range of the slider bar will
be -1 to +1. The transformations are relative to the line tool axis system.
Alternatively, you can specify an increment for translation in the Increment field of the
Scale Settings area. Pressing return while the mouse pointer is in the Increment field will
cause the center point of the Line Tool to translate along the specified axis (or all axes) by
the increment specified.
Orientation First click on the rotate icon. Next, pick an axis about which to rotate. Next pick an
increment and limit (in degrees) and slide the slider to rotate the plane.
Scale First click on the scale icon. Next pick an increment and limit and slide the slider to scale
the line about its center, along its length.
Access: Transformation Editor > Editor Function > Tools > Line
(see How to Use the Line Tool)
Figure 6-19
Transformation Editor (Line Tool)
Translate Icon
Scale Icon
Rotate Icon
6.5 Tools Menu Functions
6-40 EnSight 9 User Manual
Plane Tool Clicking on Editor Function in the Transformation Editor dialog and then selecting Tools
> Plane from the pull-down menu configures the dialog as shown below. Even easier and
quicker to get to this dialog is to right-click on the visible plane tool and choose ‘Edit’.
The Transformation Editor can control precisely the position, orientation, and size of the
plane tool.
Position The Transformation Editor dialog provides several methods for the precise positioning of
the Plane Tool. First, the Plane Tool may be positioned within the Graphics Window by
entering coordinates for the three corners of the plane in the X, Y, and Z fields. Corner 1 is
defined as the -X, -Y corner of the plane, Corner 2 is defined as the +X, -Y corner of the
plane, and Corner 3 is defined as the +X, +Y corner of the plane. Pressing return causes
the Plane Tool to relocate to the specified coordinates in the selected Frame (or if more
than one Frame is selected, in Frame 0). For your convenience, you can enter values into
all 9 fields and then press return once to update the plane tool position.
You can also position the Plane Tool be entering the id for three nodes. The Plane Tool
will then remain tied to these three nodes - even as the nodes move in a transient geometry
model.
You can also position the Plane Tool by entering a plane equation in the form
Ax + By + Cz = D in the four fields and then pressing Return. For convenience, enter in all
four then press return. The coefficients may then be normalized, but the equation of the
plane will be the same as the one you entered. The coefficients of the plane equation are in
reference to the selected Frame (or if more than one Frame is selected, to Frame 0).
As with the Cursor and Line Tools, it is possible to reposition the Plane Tool from its
present coordinate position by specific increments. First click the translate icon at the top
of the Transformation Editor. The Axis Button allows you to choose the axis of
Figure 6-20
Transformation Editor (Plane Tool)
Scale Icon
Rotate Icon
Translate Icon
6.5 Tools Menu Functions
EnSight 9 User Manual 6-41
translation (X, Y, Z, or All) for the origin of the Plane Tool (intersection of the axes). The
Slider Bar at Top allows you to quickly choose the increment by which to move the
position of the origin. Dragging the slider in the negative (left) or positive (right)
directions and then releasing it will cause the X, Y, and Z coordinate fields to increment as
specified and the origin of the Plane Tool to relocate to the new coordinates. The number
specified in the Limit field of the Scale Settings area determines the negative (-) and
positive (+) range of the slider. If the Limit is set to 1.0 as shown, then the numerical range
of the slider bar will be -1 to +1.
Alternatively, you can specify an increment for translation in the Increment field of the
Scale Settings area. Pressing return while the mouse pointer is in the Increment field will
cause the center of the Plane Tool to translate along the specified axis (or all axes) by the
increment specified.
Orientation First click on the rotate icon. Next, pick an axis about which to rotate. Next pick an
increment and limit (in degrees) and slide the slider to rotate the plane.
Scale First click on the scale icon. Next pick an axis direction to scale (X or Y only). Finally
pick an increment and limit and slide the slider to scale the size of the plane.
Access: Transformation Editor > Editor Function > Tools > Plane
(see How to Use the Plane Tool)
Box Tool Clicking on Editor Function in the Transformation Editor dialog and then selecting Tools
> Box from the pull-down menu configures the dialog as shown below. Even easier and
quicker to get to this dialog is to right-click on the visible box tool and choose ‘Edit’.
The Transformation Editor can control precisely the position, orientation, and size of the
box tool.
Position The Transformation Editor dialog provides several methods for the precise positioning of
the Box Tool. First, the Box Tool may be positioned within the Graphics Window by
entering coordinates for the origin of the box in the X, Y, and Z fields and the length of the
each of the X, Y, and Z sides. Pressing return causes the Box Tool to relocate to the
specified location in the selected Frame (or if more than one Frame is selected, in Frame
0). For your convenience, you can enter in all of the fields and then press return once to
update the Box Tool position.
Figure 6-21
Transformation Editor (Box Tool)
Scale Icon
Rotate Icon
Translate Icon
6.5 Tools Menu Functions
6-42 EnSight 9 User Manual
Additionally, you can modify the orientation of the Box Tool by entering the X, Y, and Z
orientation vectors of the box axis in regards to Frame 0.
As with other Tools, it is possible to reposition the Box Tool from its present coordinate
position by specific increments. First click the translate icon at the top of the
Transformation Editor. The Axis Button allows you to choose the axis of translation (X,
Y, Z, or All) for the origin of the Box Tool (intersection of the axes). The Slider Bar at Top
allows you to quickly choose the increment by which to move the position of the origin.
Dragging the slider in the negative (left) or positive (right) directions and then releasing it
will cause the X, Y, and Z coordinate fields to increment as specified and the origin of the
Box Tool to relocate to the new coordinates. The number specified in the Limit field of the
Scale Settings area determines the negative (-) and positive (+) range of the slider. If the
Limit is set to 1.0 as shown, then the numerical range of the slider bar will be -1 to +1.
Alternatively, you can specify an increment for translation in the Increment field of the
Scale Settings area. Pressing return while the mouse pointer is in the Increment field will
cause the origin of the Box Tool to translate along the specified axis (or all axes) by the
increment specified.
Orientation First click on the rotate icon. Next, pick an axis about which to rotate. Next pick an
increment and limit (in degrees) and slide the slider to rotate the Box Tool.
Scale First click on the scale icon. Next pick an axis direction to scale. Finally pick an
increment and limit and slide the slider to scale the size of the Box Tool.
Access: Transformation Editor > Editor Function > Tools > Box
(see How to Use the Box Tool)
Cylinder or Sphere Clicking on Editor Function in the Transformation Editor dialog and then selecting
Too l s Tools and then Cylinder or Sphere from the pull-down menu configures the dialog as
shown below. Even easier and quicker to get to this dialog is to right-click on the visible
tool and choose ‘Edit’.
The Transformation Editor can control precisely the position and size of the cylinder tool.
Position The Transformation Editor dialog enables you to precisely control the coordinates of the
Cylinder or Sphere Tool origin (center point of the thick direction line) by specifying them
in the Orig. X, Y, and Z fields. You control the direction vector for the Cylinder or Sphere
Tool direction axes by specifying the coordinates in the Axis X, Y, and Z fields of the
selected Frame (or if more than one Frame is selected, in Frame 0). The Radius of each
tool may be specified in the Radius Field.
Figure 6-22
Transformation Editor (Cylinder Tool) or
(Sphere Tool)
Translate Icon
Scale Icon
Rotate Icon
6.5 Tools Menu Functions
EnSight 9 User Manual 6-43
It is possible to reposition the Cylinder or Sphere Tool origins by specific increments. First
click on the translate icon. The Axis Button allows you to choose the axis of translation
(X, Y, Z, or All) for the origin of the tool. The Slider Bar at Top allows you to quickly
choose the increment by which to move the position of the origin. Dragging the slider it in
the negative (left) or positive (right) directions and then releasing it will cause the X, Y,
and Z coordinate fields to increment as specified and the origin of the Cylinder or Sphere
Tool to relocate to the new coordinates. The number specified in the Limit field of the
Scale Settings area determines the negative (-) and positive (+) range of the slider. If the
Limit is set to 1.0 as shown, then the numerical range of the slider bar will be -1 to +1.
Alternatively, you can specify an increment for translation in the Increment field of the
Scale Settings area. Pressing return while the mouse pointer is in the Increment field will
cause the origin of the Cylinder or Sphere Tool to translate along the specified axis (or all
axes) by the increment specified.
Orientation First click on the rotate icon. Next, pick an axis about which to rotate. Next pick an
increment and limit (in degrees) and slide the slider to rotate the plane.
Scale First click on the scale icon. Next pick an axis direction to scale. Can only scale in the X
(longitudinal) or Y (radial) directions. Finally pick an increment and limit and slide the
slider to scale the size of the cylinder or sphere Tool.
Access: Transformation Editor > Editor Function > Tools > Cylinder or Sphere
(see How To Use the Cylinder Tool and How To use the Sphere Tool)
Cone Tool Clicking on Editor Function in the Transformation Editor dialog and then selecting Tools
and then Cone from the pull-down menus configures the dialog as shown below.
The Transformation Editor dialog enables you to precisely control the coordinates of the
Cone Tool origin (the point of the cone) by specifying them in the Orig. X, Y, and Z fields.
You control the direction vector for the Cone Tool direction axis by specifying the
coordinates in the Axis X, Y, and Z fields for the selected Frame (or if more than one
Frame is selected, in Frame 0). The conical half angle may be specified in degrees in the
Angle Field.
Position It is possible to reposition the Cone Tool origin by specific increments. The Axis Button
allows you to choose the axis of translation (X, Y, Z, or All) for the origin of the tool. The
Slider Bar at Top allows you to quickly choose the increment by which to move the
position of the origin. Dragging the slider in the negative (left) or positive (right)
directions and then releasing it will cause the X, Y, and Z coordinate fields to increment as
specified and the origin of the Cone Tool to relocate to the new coordinates. The number
Figure 6-23
Transformation Editor (Cone Tool)
Translate Icon
Scale Icon
Rotate Icon
6.5 Tools Menu Functions
6-44 EnSight 9 User Manual
specified in the Limit field of the Scale Settings area determines the negative (-) and
positive (+) range of the slider. If the Limit is set to 1.0 as shown, then the numerical range
of the slider bar will be -1 to +1.
Alternatively, you can specify an increment for translation in the Increment field of the
Scale Settings area. Pressing return while the mouse pointer is in the Increment field will
cause the center of the Cone Tool to translate along the specified axis (or all axes) by the
increment specified.
Orientation First click on the rotate icon. Next, pick an axis about which to rotate. Next pick an
increment and limit (in degrees) and slide the slider to rotate the plane.
Scale First click on the scale icon. Next pick an axis direction to scale. Can only scale in the X
(longitudinal) or Y (half conical angle) directions. Finally pick an increment and limit and
slide the slider to scale the size of the cone tool.
Access: Transformation Editor > Editor Function > Tools > Cone
(see How to Use the Cone Tool)
Revolution Tool Clicking on Editor Function in the Transformation Editor dialog and then selecting Tools
and then Revolution from the pull-down menu configures the dialog as shown below.
For the Revolution Tool, you not only control the origin and direction vector, but the
number of points and positions that are revolved about the axis.The desired coordinates of
the Revolution Tool origin (center point of the thick direction line) are specified in the
Orig. X, Y, and Z fields. The direction vector for the Revolution Tool direction axis is
specified by entering the desired coordinates in the Vect X, Y, and Z fields for the selected
Frame (or if more than one Frame is selected, in Frame 0).
Additional points may be added to the Revolution Tool by clicking on the Add Point(s)
toggle and then clicking at the desired location in the schematic for the tool. There is no
need to be overly precise in its placement since its location can be modified. Once you
have added all of the new points you wish, the Add Point(s) toggle should be turned off.
A point may be deleted by selecting it in the schematic area and then clicking the Delete
Figure 6-24
Transformation Editor (Revolution Tool)
Translate Icon
Scale Icon
Rotate Icon
6.5 Tools Menu Functions
EnSight 9 User Manual 6-45
button.
The position of any point may be modified interactively within the Revolution Tool
schematic window, Simply click on and drag the point to the desired location. The precise
location of any point may be specified by selecting the point in the schematic with the
mouse and then entering the desired Distance (from the Revolution Tool origin) or Radius
(from the axis) for the point in the text entry fields beneath the Distance and Radius Lists.
Pressing return will enter the new value in the list above for the selected point.
The Transformation Editor can control precisely the position and size of the revolution
tool.
Position It is possible to reposition the Revolution Tool origin by specific increments. First click on
the translate icon. The Axis Button allows you to choose the axis of translation (X, Y, Z,
or All) for the origin of the tool. The Slider Bar at Top allows you to quickly choose the
increment by which to move the position of the origin. Dragging the slider in the negative
(left) or positive (right) directions and then releasing it will cause the X, Y, and Z
coordinate fields to increment as specified and the origin of the Revolution Tool to
relocate to the new coordinates. The number specified in the Limit field of the Scale
Settings area determines the negative (-) and positive (+) range of the slider. If the Limit is
set to 1.0 as shown, then the numerical range of the slider bar will be -1 to +1.
Alternatively, you can specify an increment for translation in the Increment field of the
Scale Settings area. Pressing return while the mouse pointer is in the Increment field will
cause the center of the Revolution Tool to translate along the specified axis (or all axes) by
the increment specified.
Orientation First click on the rotate icon. Next, pick an axis about which to rotate. Next pick an
increment and limit (in degrees) and slide the slider to rotate the plane.
Scale First click on the scale icon. Next pick an axis direction to scale. Can only scale in the X
(longitudinal) or Y (radial) directions. Finally pick an increment and limit and slide the
slider to scale the size of the revolution tool.
Redraw This button will cause the Revolution Tool schematic window to re-center to the currently
defined points of the tool.
Access: Transformation Editor > Editor Function > Tools > Revolution
(see How to Use the Surface of Revolution Tool)
6.5 Tools Menu Functions
6-46 EnSight 9 User Manual
Spline Tool Selecting Spline from the Editor function Tools pulldown configures the dialog as shown
below.
The Transformation Editor dialog enables you to create and edit the control points for a
spline. A spline is used for one of three functions (a) path for a camera, (b) the path for a
clip plane, and (c) the path for a distance vs. variable query.
New Creates a new spline
Copy Creates a new spline by copying the selected spline
Invert Inverts the control points for the selected spline
Delete Delete the selected spline(s)
Save to File Save the selected spline(s) to a file
Load from File Load splines from a file
Create from Create a new spline and use all of the coordinates in the selected parts as the control
selected points.
part(s)
Description Description of the spline
Visible Toggles spline visibility
Width Line width for the spline
Figure 6-25
Transformation Editor (Spline Tool)
6.5 Tools Menu Functions
EnSight 9 User Manual 6-47
Color... Brings up the color chooser dialog to set the color for the spline
Show points Toggles the visibility of the control points.
Size The size of the control point markers in model coordinates
Points The list of control points for the spline. Right click operations in this list include New,
Copy, Paste, and Delete
New (at cursor) Inserts a new control point in the selected spline after the selected point (or if no points are
selected or exist at the end of the list) using the cursor tool as the location.
Select All Selects all of the points in the list
Copy Stores the coordinates of the selected points in preperation for a Paste operation
Paste Paste the copied points and insert them immediately after the selected point (or if no
points are selected or exist then at the end of the list).
Offset... Brings up a dialog where a xyz offset value can be specified. The offset is added to the
coordinates of the selected points.
Delete Delete the selected points.
XYZ fields Shows the XYZ values for the selected point. If modified will change the control point
location.
(see How to Use the Spline Tool)
6.6 Window Functions
6-48 EnSight 9 User Manual
6.6 Window Functions
EnSight allows you to work concurrently with up to sixteen different sets of
results data (computational or experimental). Each set of results data is read in as
a “Case”.
Clicking the Case button in the Main Menu opens a pull-down menu which
provides access to the following features:
Welcome Displays the Welcome dialog.
Views manager Displays the Views Manager dialog. Note that you can also click on the Views button
below the graphics screen.
The dialog allows the user to create, save, restore, and apply views interactively. A View
comprises all the viewing parameters and viewport parameters along with a snapshot of
the user’s data. Along the top of the views manager are standard views designed to orient
your model in the main graphics window. To create a new view right click on an empty
area in the User Defined Views area and select New or click on the New button. A new
view will be created in the User Defined Views area from your model viewing parameters
in the main graphics window. To save your views to a folder, click on the Save Views
button. To load (restore) views from a file, click on the Restore button. For more details,
see How to Manage Views
GUI visibility Opens the pull-down menu which allows you to toggle on/off the presence of the Feature
Icons and the Feature quick interaction area in the GUI.
GUI Interfaces Provides alternative Graphical User Interfaces. Two demonstrations are included with
EnSight 9: A Simple Example GUI and CFD.
Figure 6-26
Window pull-down menu
6.7 Case Menu Functions
EnSight 9 User Manual 6-49
6.7 Case Menu Functions
EnSight allows you to work concurrently with up to sixteen different sets of
results data (computational or experimental). Each set of results data is read in as
a “Case”.
Clicking the Case button in the Main Menu opens a pull-down menu which
provides access to the following features:
Add... Opens a dialog which allows you to specify a name and other options for the new Case. .
The name will appear in the list of active Cases at the bottom of the Main Menu: Case
pull-down menu as shown in Figure 6-27 above. Adding a Case actually starts a new
EnSight Server and connects it to the EnSight Client. The Open... dialog will then open
and you can read and load data files for the new Case and the data will be added to the data
already present in the EnSight Client. When adding a case, you have some options as
Figure 6-27
Case pull-down menu
Figure 6-28
Add Case Dialog
6.7 Case Menu Functions
6-50 EnSight 9 User Manual
indicated.
Keep currently The new case can be added to the existing one. This does not unload the current one and
loaded data starts up a new server to load the added dataset
Replace currently This deletes the existing dataset and loads the new data in place of it
loaded data
Case name The name that will appear at the bottom of the Case menu pulldown.
Create new viewport The new dataset can be placed in a new viewport or added to the current.
Apply Context The new dataset can have the context of case1 applied to it, which will cause it to basically
inherit the positioning etc.of case 1.
Clone Current Use the same parameters to start up the new server as the existing server used This can be
Connection useful if you used a complicated set of options to start up the server for the original dataset
and don’t want to have to repeat them for this dataset.
Manual Connection If you would like to start up the EnSight server for your new case manually toggle this
ON.
Server Launch ConfigChoose a launch configuration for the server. You can define server launch
configurations using the Case>Job Launch Settings...
Reflect Model This allows you to load the model in already creating a reflection about the axis at load.
Origin Specify the origin of the data.
Replace... Replacing a Case causes all parts and variables associated with the active Case to be
deleted. The Server will be restarted and assigned the new Case name. Clicking the
Replace... button opens a small dialog which allows you to specify a name for the Case
you wish to use to replace the Case currently selected in the Main Menu: Case pull-down
menu as shown in Figure 6-27 above. The Open... dialog will then open and you can read
and load data for the new Case.
Delete Deleting a Case causes all parts and variables associated with the Case to be deleted and
terminates the Server associated with the Case. Clicking the Delete button opens a
Warning Dialog which asks you to confirm that you wish to delete the Case currently
selected in the Main Menu: Case pull-down menu as shown in Figure 6-27 above.
(see How To Load Multiple Datasets (Cases))
Viewport visibility... Opens the Case visible in which viewport dialog which allows you to specify in which
Viewports (including the Main Graphics Window) you wish to make the parts associated
with the currently selected Case visible. Parts associated with the selected Case will be
visible in the viewports outlined in green and invisible in those outlined in red. Visibility
for specific Parts can of course be toggled on/off using the Part Visibility Icon in the Part
6.7 Case Menu Functions
EnSight 9 User Manual 6-51
Mode Icon Bar.
(see Part Visibility Toggle Icon in Section 8.1, Part Mode)
Job Launch settings... Opens the Connection settings dialog. From this dialog you can perform the various
actions for adding or replacing connections from the client to a server or an SOS on your
favorite machines. You can control whether automatic or manual connections will occur,
and can manage and save this information for future use.
(see How to Connect EnSight Client and Server)
Connection details... Opens the Connection details... dialog which gives information about the connection and
how many bytes have been transmitted.
Finally, at the bottom of the pull-down menu you will find a list of active Cases,
The toggle buttons allow the selection of only one Case at a time. In Figure 6-27
above, Case 1 is the currently selected Case. The current selected Case is the one
which will be affected by the Data Reader, Querys, and many other operations.
6.8 Help Menu Functions
6-52 EnSight 9 User Manual
6.8 Help Menu Functions
Clicking the Help button in the Main Menu opens a pull-down menu which
provides access to the following features:
Local help... Opens a site-specific, optional, local help document (of one exists). Simply place a .pdf
file in your $CEI_HOME/ensight92/site_preferences directory named “LocalHelp.pdf”.
This is a hook for a sites that want to provide site-specific help for their users. This might
include customized preferences, help manuals for local User-Defined Readers,
instructions for using customized macros, etc.
Online Support... Opens the CEI Online Support tool for quick, easy, and comprehensive problem reporting,
key requesting, and EnSight assistance. The tool has four tabs: System Info, Report
Trouble, Key Request, Web Tool.
System Info Click on this tab to review the information that has been collected about your system.
This tab collects the information about the EnSight Application that you are using, your
EnSight license, the graphics card you are using, your System Environment variables, and
a Screen Shot EnSight’s graphics window. This information is useful for more rapid
troubleshooting of your EnSight issue.
Report Trouble Click this tab to send a problem report to your EnSight Distributor. In this Tab, Toggle on
the System Information to send, fill out the form, Select a Destination that is your CEI
distributor (CEI in the U.S.), and click Send Report.
Key Request Click on this tab to request a new or changed license key. Fill in the information and
Select a Destination that is your CEI distributor (CEI in the U.S.), and click Request Key.
Web Tool A web browser pointing to EnSight’s extensive online assistance documents. In the
Bookmarks pulldown, we have Training (information on upcoming training classes),
Interfaces (how to get your data into EnSight) , Documentation (Online Documentation),
Tips and Tutorials (step by step how to do stuff), Feature Requests (ask CEI to enhance
EnSight), Change Logs (what was fixed/added to what version of EnSight?), and
Knowledge Base articles (Frequently Asked Questions). These categories are available on
our website, www.ensight.com and click support category.
Figure 6-29
Help pull-down menu
6.8 Help Menu Functions
EnSight 9 User Manual 6-53
Getting started... Opens the Getting Started Manual on-line. Note that this document is not cross-referenced
within itself or to other documents.
Release notes... Provides an overview of changes made since the last major EnSight release.
Guide to online Provides a guide to the use of the On-Line Documentation.
documentation...
EnSight overview... Provides an overview of EnSight.
Quick icon Provides a quick reference guide to all EnSight GUI icons, many of which have links to
reference... appropriate How To documents
How to manual... Opens the How To Manual on-line.
User manual... Opens the User Manual on-line.
Interface manual... Opens the Interface Manual on-line. The Interface Manual has the
Command manual... Opens the Command Language Manual on-line.
License agreement... Opens up On-Line Documentation to the text of the EnSight End User License Agreement
and the EnSight Support and Maintenance Service Agreement.
Version... Opens up the Version Information dialog which states the version number of the EnSight
software currently running.
CEI information... Opens up the CEI Information display which gives full CEI contact information.
Figure 6-30
Online support tool
6.8 Help Menu Functions
6-54 EnSight 9 User Manual
EnSight 9 User Manual 7-1
7Features
This chapter describes the functions available through the Feature Icon Bar.
Section 7.1, Solution Time
Section 7.2, Flipbook Animation
Section 7.3, Keyframe Animation
Section 7.4, Variable Calculator
Section 7.5, Query/Plot
Section 7.6, Interactive Probe Query
Section 7.7, Contour Create/Update
Section 7.8, Isosurface Create/Update
Section 7.9, Clip Create/Update
Section 7.10, Vector Arrow Create/Update
Section 7.11, Particle Trace Create/Update
Section 7.12, Subset Parts Create/Update
Section 7.13, Profile Create/Update
Section 7.14, Elevated/Offset Surface Create/Update
Section 7.15, Vortex Core Create/Update
Section 7.16, Shock Surface/Region Create/Update
Section 7.17, Separation/Attachment Lines Create/Update
Section 7.18, Boundary Layer Variables Create/Update
Section 7.19, Material Parts Create/Update
Section 7.20, Tensor Glyph Parts Create/Update
Section 7.21, Developed Surface Create/Update
Section 7.22, Point Parts Create/Update
Section 7.23, Extrusion Parts Create/Update
Figure 7-1
EnSight Feature Icon Bar
7.1 Solution Time
7-2 EnSight 9 User Manual
7.1 Solution Time
Many analyses contain time dependent information, such as automobile crash
simulations and unsteady flow problems. The presence of time-dependent data is
indicated to EnSight through an EnSight result file, case file, or is determined
directly from the data files of other formats. EnSight has the capability of
displaying the model and results at any time provided for in the data. Linear
interpolation between given time steps is possible as long as the geometry does
not have changing connectivity over time.
EnSight keeps track of which variables and Parts have been created so that if you
change time steps, variables and Parts will update appropriately. For example,
assume you have created a clip plane through the combustion chamber of an
engine. From this clip plane you have created two constant variables Min
Temperature and Max Temperature and are displaying them in the Main View.
Now change time steps. First, the geometry updates to a new crank angle position.
Second, the clip plane will automatically be recalculated to fit the new geometry.
Third, the Min and Max values displayed in the Graphics Window are
recalculated and updated. This is all performed automatically by EnSight after
you change the current time value.
It is important to distinguish between time step and solution time. An example
will best illustrate this concept.
Consider a model with data for 5 different times:
Time Step Solution Time
01.0125
111.025
211.50
3 13.00
4 21.333
Note that the time steps coincide with the number of transient data files and are
integers. The solution time at each time step comes from the analysis, and does
not have to be at uniform intervals. The solution time can be in any units needed,
but must be consistent with the solution files. That is, if a velocity file was in
terms of meters per second, then the solution time must be in terms of seconds.
Hence it is not possible, for example, to have the solution time reported in degrees
crank angle for a combustion case unless the corresponding solution files were
also in terms of crank angle (otherwise velocity would be reported in the
meaningless units of meters-per-degree-crank-angle).
Important! EnSight will sort the solution time values and, after the sort, they
must be monotonically increasing. An error will occur if any time values
(represented as singe precision floats) are the same.
A special Solution Time dialog gives you control over time and relates time step
to solution time. You can force the time information to conform to the actual time
data given at the steps, or you can allow interpolation to occur between time steps.
You must be aware of the implications of such an interpolation and choose the
method that is appropriate.
Also, you can see the ranges of time dependent data available and the current time
that is set for the Main View. You can change time steps by either entering a new
time to view, or using the Solution Time slider bar.
7.1 Solution Time
EnSight 9 User Manual 7-3
The Solution Time Dialog shows a composite timeline of all timesets from all
cases. For any case, a number of different timesets can exist. Each timeset can be
attached to multiple variables and/or geometry. This makes it possible to, for
example, have one variable defined at t = 1.0, 2.0, 3.5 and another variable
defined at t = 1.5, 2.01, 4.0. For each timeline, controls exist to specify how
EnSight should interpolate the variables when time is set to a value not defined for
a given timeset. Also a convergence time value can be defined to merge timesteps
with time values that are very close, in the above example, 2.0 and 2.01 will be
merged if the master timeline convergence time is set to 0.01.
There are other places within EnSight where time information is requested. These
include, traces, emitters, animated traces, flip book transient data, key frame
animation transient data, and Query/Plot. Each of these use the specified Beg/End
values. For functions which do not explicitly specify the time step the current
display time (as defined in the Solution Time Dialog) is used.
For data that is transient, the Solution Time Icon will be visible. For static data
that does not change over time, there will be no Solution Time Icon on the Feature
Icon Bar. Clicking once on the Solution Time Icon opens the Solution Time Editor
in the Quick Interaction Area which is used to specify time information.
The range of both Time Steps and Simulation Time is shown at the top of the Editor. The
default Quick Interaction Area is the Time tab which is highlighted.
Beg Value for Beginning Time Step or Simulation Time. The left slider below the rail can be
used to select the beginning value.
Cur Value for Current Time Step or Simulation Time. The slider above the rail can be used to
select a value for the Current Time Step field.
End Value for Ending Time Step or Simulation Time. The right slider below the rail can be
used to select the ending value.
Video Controls Click on the Video Playback control buttons to go back on timestep, to play in reverse, to
stop, to play forward and to step forward one timestep, respectively. Note that this form of
playing the animation is a solution time stream of the data. That is, each timestep is read
from the data file without storing the animation in memory.
Record Button Opens a dialog for recording transient animation to a file. This button is only enabled
when an active animation is playing.
Flipbook Animation... Opens the Flipbook Animation Editor.
(see Section 7.2, Flipbook Animation)
Figure 7-2
Solution Time Icon
Figure 7-3
Quick Interaction Area - Solution Time Editor
(Enabled with active
animation playing)
Record Button
7.1 Solution Time
7-4 EnSight 9 User Manual
Display Time Annot Toggles an annotation in the graphics area of the Time value. Click on the Annot Tab to
the left of the graphics area to move, modify, etc. this annotation.
# of Cycles For cyclic transient analysis, the solution is often computed for one cycle only. It is often
desirable to be able to visualize more than one cycle. This is possible only if the first and
last timesteps contain the same information. By default, EnSight assumes one cycle.
Scale Type Opens a pop-up menu to specify use of existing time steps, or allow EnSight to linearly
interpolate to show any time step. Choices are:
Units Opens pop-up menu to specify whether to use and display:
Increment Specifies the incremental time which will be applied to the current time each time the
slider stepper buttons are used.
Discrete Can only change time to defined steps.
Continuous Can change time to any time, including times between steps. Only
available if do not have changing geometry connectivity transient case.
Step which will be an integer showing time as step data. Will show
NOSTEP if in Continuous mode and current time is not at a
given time step. Current time will automatically change to keep
within range Begin/End range. The default beginning and
ending simulation times correspond to the first and last time
steps specified in the results.
Simulation Time which will be a real number showing true simulation time.
Current time will automatically change to keep within the
Begin/End range. The default beginning and ending simulation
times correspond to the first and last times specified in the
results.
Figure 7-4
Quick Interaction Area - Solution Time Editor
7.1 Solution Time
EnSight 9 User Manual 7-5
Timeset Details... will open the Timeset Details dialog.
Master timeline A tolerance value used to determine if two different times should be treated as the same
Convergence time time. For example 2.0 and 2.01 in two different timesets will be treated as the same time if
the convergence time is set to 0.01. Time values in the same timeset are not merged.
Which Timeset(s) Selects the timesets to be viewed.
Modify All Allows modification of all selected timesets.
Selected Timeset(s)
Range which time range to modify.
Update Step Defn. To Choose how to modify the selected Timeset’s Range.
Set Solution Time Will set the Solution Time Beg. and End. time values to correspond to the selected timeset.
To Timeset Range
Show Scale As “Full Time Range” will show the Timeset’s values in relation to the full composite
timeline. “Timeset’s Range” will adjust the beginning and ending boundaries of the
graphic timeset to correspond to the begin and end values for the timeset. The change will
not take effect until the “Update Selected Timeset(s)” button is pressed.
Defined For Lists all of the variables and/or geometry attached to the Timeset.
Figure 7-5
Timeset Details Dialog
7.1 Solution Time
7-6 EnSight 9 User Manual
Left/Right of When the Current time is less than the Timeset’s minimum time, the attached variables
Step Defn. will use the Nearest values or become Undefined.
Between Steps When the Current time is between the Timeset’s minimum and maximum time values, but
Step Defn. not defined, the attached variables will use the Right/ Left, Interpolate, or Nearest values,
or become Undefined.
Update Selected Must be selected in order to update any changed Timeset.
7.2 Flipbook Animation
EnSight 9 User Manual 7-7
7.2 Flipbook Animation
There are four common animation techniques which are easily accomplished with
Flipbook Animation. They are:
• animation of transient data, which can be any combination of scalar/
vector variables, geometry, and discrete Particles
• animation of mode shapes based on a mode-shape displacement variable
• animation of a Part moving or changing value during animation, such as
sweeping a 2D-Clip Plane or changing the value of an isosurface.
• animation applying a linear interpolation of a vector displacement field
value factor from 0 to 1.
You can combine any of these techniques with the animation of Particle traces
discussed in the previous Section 7.4.
The concept of a flipbook is similar to the stick figures you have probably seen in
books where each page contains a picture. When you flip through the pages
quickly you get the sense of motion. Flipbook animation stores a series of “pages”
in Client memory which are then rapidly played back to create the illusion of
motion. Pages can be loaded as graphic images, which may playback faster; or as
graphic objects, which can be transformed after creating the flipbook, even while
the flipbook is running.
For animation to be of interest, something must change from page to page. For
transient-data flipbooks, you must have visualized something about the model
that changes over time. For mode-shape flipbooks, you need to have set the
displacement attributes of the Parts for which you want to see mode shapes (see
Section 7.10 Displacement On Parts). For created-data flipbooks, you need to
have used the Start/Stop utility or specified Animation delta values for the Parts.
The number of pages in the flipbook determines the length and smoothness of the
animation. You directly or indirectly specify how many pages to create. While the
Server performs the calculations, the Client stores the flipbook pages in memory.
Just how many pages you can store depends on the amount of memory installed
on your Client workstation. Your choice to load graphic images or graphic objects
affects memory requirements, but the complexity of the model and the size of the
Graphics Window determine which will use less memory in any particular
situation.
You can control which original model Parts and created Parts will be updated for
each time increment as the user chooses. This feature takes all dependencies into
account. For example if an elevated surface was created from a 2D clip plane, the
clip plane would be updated first and then the elevated surface based on the new
clip. The ability to choose which Parts are or are not updated allows before and
after type comparisons of a Part.
After creating the flipbook, options for displaying it include: running all or only a
portion of it, adjusting the display speed, running under manual control or
automatically, and running from the beginning or cycling back-and-forth between
the two ends.
It is important to know that objects in the flipbook cannot be edited. If you wish to
7.2 Flipbook Animation
7-8 EnSight 9 User Manual
change something in the flipbook, you must reload it. If you decide to regenerate a
flipbook (after changing something), you can choose to discard all the old pages,
or keep any old page with the same page number as a new page.
This is very useful when you first load every tenth frame then decide to load them
all. EnSight will not have to reload every tenth frame that already exists. When
you are done with a flipbook, remember to click Delete All Pages. This will free
up memory for other uses.
Note that alpha transparency works with depth peel not sorted transparency.
Flipbook vs. Keyframe While you can implement any flipbook animation technique with keyframe
animation (described in the next section), flipbook animation has three
advantages. First, graphic-object-type flipbooks allow you to transform the model
interactively to see from many viewpoints. Second, graphic-image-type flipbooks
can be saved to a file and later replayed without having to have the dataset loaded,
or even being connected to the Server. Third, the speed of display can be more
interactive because the flipbook is in memory and can be flipped through
automatically or stepped through manually.
Flipbook animation has a few disadvantages. First, you cannot change any Part
attributes, except visibility and material properties, without regenerating the
flipbook. Second, each page is stored in Client memory, which limits the number
of pages and hence the duration of the animation.
Four Animation Techniques:
1.Transient Data Transient-data flipbooks have pages that correspond to particular solution times;
i.e. step or simulation. You specify at which time value to start and stop the
animation, and the time increment between each page. The time increment can be
more than one solution-time value; this is useful in finding a range of interest or
for a coarse review of the results. The increment can be a fraction, in which case
the data for a page is interpolated from the two adjoining solution-time values.
2. Mode Shapes Mode-shape flipbooks are used to show primary modes of vibration for a
structure. This is done by using a per node displacement, enabling the Part to
vibrate. While you can use any vector variable for a displacement, to see actual
mode shapes you need to have a Results-file vector variable corresponding to each
mode shape you wish to visualize. Note that you can create copies of Parts and
simultaneously display them with different mode-shape variables, or one at its
original state and the other with displacement for comparison.
The first page of a mode-shape flipbook shows the full displacement (as it is
normally shown in the Graphics Window). The last page shows the full
displacement in the opposite direction. The in-between pages show intermediate
displacements in proportion to the cosine of the elapsed-time of the animation.
3. Created Data Created-data flipbooks animate the motion of 2D-Clips and Isosurfaces according
to their animation attributes. This animation allows you to show clipping planes
sweeping through a model or to show a range of Isosurface values. The first page
shows the Part’s location as it appears in the normal Graphics Window. On each
subsequent page, each 2D-Clip is regenerated at the new location found by adding
the animation-delta displacement to the 2D-Clip’s location on the previous page.
Also, each Isosurface is regenerated with a new iso-value found by adding the
animation-delta increment to the iso-value of the previous page.
4.Linear Load Linear-loaded flipbooks are used to animate a displacement field of a part by
7.2 Flipbook Animation
EnSight 9 User Manual 7-9
linearly interpolating the displacement field from its zero to its maximum value.
The variable by which the part is colored also updates according to the linearly
displaced values. Like Mode Shapes, this utilizes a per node displacement. The
function can be applied to any static vector variable.
Clicking once on the Flipbook Animation Icon opens the Flipbook Animation
Editor in the Quick Interaction Area.
Load Type Opens a pop-up menu for the selection of type of flipbook animation to load. Options are:
Load As Opens a pop-up menu for the selection of whether to load flipbook pages as Graphic
Images or Graphic Objects.
Adjust Beg/End Time... Opens the Solution Time Editor in the Quick Interaction Area. To return to the Flipbook
Animation Editor from the Solution Time Editor, click on Animate Over Time... (When
loading Transient data, the flipbook will start and stop at the Beg/End values specified in
the Solution Time Editor.
(see Section 7.2, Flipbook Animation)
Transient animates changes in data information resulting from changes in the
transient data. For example, changes in coloration resulting from
changes in variable values, or changes in displacement of Parts. See
discussion in the introduction section.
Mode Shapes animates the mode shape resulting from a displacement variable. See
discussion in the introduction of this section.
Create Data animates Parts having nonzero animation-delta values or which have
been recorded with the Start/Stop utility. See discussion in the
introduction of this section.
Linear Load animates the Displacement (vector) variable of a part by linearly
interpolating the displacement field from its zero to its maximum
value. The Color variables of the part also update according to the
linearly displaced values.
Graphic Objects flipbooks enable you to transform objects after creating the flipbook.
Playback performance depends on the complexity of the model.
Graphic Images flipbooks may be saved for later recall, but they cannot be
transformed, nor can the window be resized. Playback performance
depends on the Graphics Window size.
Figure 7-6
Flipbook Animation Icon
Figure 7-7
Quick Interaction Area - Flipbook Animation Editor
7.2 Flipbook Animation
7-10 EnSight 9 User Manual
Increment Time By In this field you specify the increment of each transient-data flipbook page which
corresponds to the range type specified in the Solution Time Editor,
Note: If you enter a Begin, End, or Increment value not corresponding exactly to a Step or
Simulation time value, EnSight will interpolate the values, affecting the appearance of
each page (only if geometry connectivity is not changing).
Record Interactive Allows you to define the change (isovalue change or clip plane movement) in an
Iso/Clip isosurface or clip plane which will take place during the Flipbook load. Only isosurfaces
and clip planes which are modified in interactive mode are tracked.
Regen all pages Toggling this on reloads all flipbook pages. Toggling it off saves load time if some pages
have already been loaded, for example if you’ve just canceled the load, the pages already
created during the load remain in memory. Also, you can quickly load by increment of 2
just to see if your animation looks good, then you can change the increment to 1, toggle
off this toggle, and you’ll only load the odd pages that have not yet loaded.
Load Clicking this button starts the loading flipbook pages and opens a pop-up dialog which
reports the progress of the load and then closes to signal load is complete. If you cancel the
load, the pages already created during the load remain in memory.
Run Tab Click on the Run tab at the top of the Flipbook quick interaction area to get the following
dialog.
Display Opens a pop-up menu for selection and clarification of what is being viewed.
original model - This is the original model.
flipbook pages - These are the flipbook pages stored in memory.
Video Controls Click on the Video Playback control buttons to go back on timestep, to play in reverse, to
stop, to play forward and to step forward one timestep, respectively.
Display Speed This field specifies the playback-speed factor. Varies from 1.0 (full speed of your
hardware) to 0.0 (stopped). Change by entering a value or clicking the stepper buttons.
Beg Value for Beginning Time Step or Simulation Time. Type a value in the field, or the left
slider below the rail can be used to select the beginning value.
Cur Value for Current Time Step or Simulation Time. Type a value in the field, or the slider
above the rail can be used to select a value for the Current Time Step field.
End Value for Ending Time Step or Simulation Time. Type a value in the field or the right
slider below the rail can be used to select the ending value.
Delete... Opens a pop-up warning dialog which asks you if you really wish to delete all
loaded pages. Click Okay to delete all loaded flipbook pages and free the memory
for other use.
Record Button In order to save an active flipbook animation, click on the record button found
below the Quick Interaction Area.
Figure 7-8
Quick Interaction Area - Flipbook Animation Editor Record Button
7.2 Flipbook Animation
EnSight 9 User Manual 7-11
.
Record Tab Click on the Record Tab (comes up by default in this mode when you click on the Record
Button).
Set Format... Brings up the Image/Movie Format and Options dialog. The flipbook will be recorded
using the selected format. (see Section 2.12, Saving and Printing Graphic Images and How
to Print/Save an Image)
Number of frames Choose the number of frames to record.
Reset Anim Traces This will reset the animated traces to the beginning prior to starting the record. This toggle
is only active if you have animated traces.
Play the flipbook This will play the flipbook.
Reset Flipbook This will reset the flipbook to the beginning prior to starting the record.
Play solution time This will play through the solution time.
Reset Soln Time This will reset the solution time to the beginning prior to starting the record.
File Prefix The location and filename prefix for the recorded images. The appropriate suffix will be
added automatically.
Figure 7-9
Save Flipbook Pages To dialog
7.2 Flipbook Animation
7-12 EnSight 9 User Manual
Advanced Tab Click on the Advanced Tab.
Window Size Brings up the Image/Movie Format and Options dialog.
NTSC - (704 x 480 pixels) format suitable for older recording media
PAL - (704 x 576 pixels) format suitable for older recording media
Detached display -
DVD NTSC - (720 x 480 pixels)
DVD PAL - (720 x 576 pixels)
HD 720p - (1280 x 720 pixels)
HD 1080p - (1920 x 1080 pixels)
Normal - (current graphics screen size) - machine/graphics/monitor dependent
User Defined - (user entered horizontal x vertical pixels) - not limited to screen size.
The flipbook will be recorded using the selected format. (see Section 2.12, Saving and
Printing Graphic Images and How to Print/Save an Image)
Save multiple images
Render offscreen buffer Render offscreen (if your card supports this feature). Toggle this on to avoid having the
image appear to your screen to be saved. This avoids the risk of saving overlapping
windows onto your image.
Stereo EnSight offers several options for saving stereo files.
Current - Save according to the display settings
Mono - Don’t save in stereo
Interleaved - Left and right stereo saved together.
Anaglyph Cyan/Red - Save two files for anaglyph stereo (colored glasses) using cyan in
the left eye and red in the right eye.
Anaglyph Red/Cyan - Save two files for anaglyph stereo (colored glasses) using red in the
left eye and cyan in the right eye.
Anaglyph Blue/Red - Save two files for anaglyph stereo (colored glasses) using blue in the
left eye and red in the right eye.
Anaglyp Red/Blue - Save two files for anaglyph stereo (colored glasses) using red in the
left eye and blue in the right eye.
Number of passes Number of images to use in antialiasing algorithm. The higher the number, the smoother
that jagged lines will appear but the longer that your image will take to save.
Screen Tiling Graphics images can be saved in multiple sections called Tiles. These can be re-rendered
back onto multiple displays, using, for example, our free EnVideo application.
7.2 Flipbook Animation
EnSight 9 User Manual 7-13
Troubleshooting Flipbook Animation
Problem Probable Causes Solutions
No motion No pages are loaded. Load flipbook pages.
All pages are the same visually. In order to see motion there must be
a difference between one page and
the next. Reload with differing Part
attributes, such as coloring by a
variable, using displacements, etc.
Run Type set to Step or Off Select Run Type to be Auto
Speed too fast Display Speed is set too fast. Change speed.
Speed too slow Display Speed is set too slow. Change speed.
Hardware bottleneck (computer
simply isn’t sufficiently powerful)
Reduce the number of pages.Load
pages as graphic images.
Speed erratic Virtual memory is swapping pages to
and from disk storage.
Only load the no.of pages that fit
into the workstation’s main memory.
Mode Shape(s) not visible Wrong Load Type setting Change Load Type to Mode Shapes
and reload.
Displacement attributes are
incorrect.
Change Displace by and Factor
attributes for the Part to animate.
2D Clip plane(s) not moving Wrong Load Type setting Change Load Type to Create Data
and reload.
Plane was not moved interactively
between Start and Stop.
Isosurface(s) not moving Wrong Load Type setting Change Load Type to Create Data
and reload.
Isosurface was not moved
interactively between Start and Stop.
Transient data ignored Wrong Load type
Solution time step specifications are
incorrect.
Change Load Type to Transient and
set Solution time values according to
available time steps.
Pages lost Show From or Show To pages are
not at ends of flipbook.
Old pages are being regenerated. Toggle-off Regen. All Pages
Delete All Pages is clicked. Recover using the session command
file.
Transformations do not work Flipbook pages are loaded as graphic
images.
Reload flipbook pages as Graphic
Objects
7.3 Keyframe Animation
7-14 EnSight 9 User Manual
7.3 Keyframe Animation
Since its initial release in 1987, EnSight has been used extensively for animation,
due to its easy-to-use keyframe animator and ability to handle transient data. This
mechanism allows you to create your own movie sequence to present your results
more easily. There seems to be two mind sets when it comes to animation. The
first group of people believe animation to be totally trivial—something that can be
completely finished in an hour or two by anyone. The other group of people seem
to believe that animation is something that takes many days, if not weeks to finish
and requires an “animation expert” to get done. Well, neither of these ideas are
correct. While animation is not trivial, it is also not overly complicated. Most
animation produced by EnSight is setup during a day, and recorded the same day
or during the night to be complete by the next morning. Engineers create and
record their own animations. EnSight is intended to be used by end users—this
includes the animation module. We do acknowledge, however, that there is a
difference between animation, and animation done well. The latter comes with
time and experience.
EnSight uses a modified keyframe technique. This technique enables the user to
define what the scene should look like at certain times called Keyframe. Each
keyframe can be different from a previous keyframe by using any combination of
rotate, translate, scale, zoom, look-at, or look-from operations. A given keyframe
can also be the same as the previous frame (the purpose of which will be
explained shortly). The keyframe technique only works on transformations, and is
not used for other items related to what the scene looks like (i.e., when to turn on
Parts, do isosurfaces, shading changes, etc.). EnSight actually keeps track of the
transformation commands performed between keyframes and linearly interpolates
these commands when creating frames between the keyframes. These in-between
frames are referred to as subframes.
Each keyframe includes the following information: (1) a set of transformation
matrix values, specifying each local frame, the global frame and the Look-At and
Look-From Points; (2) the value of all isosurfaces and position of all clip Parts
using the plane tool; (3) the specific keyframe attributes; and (4) the
transformation commands and isosurface values to get the scene and clip Parts to
the next keyframe.
When running keyframe animation, EnSight performs the following actions for
each keyframe: (1) any command language commands associated with the
keyframe are executed, (2) the specified number of subframes are displayed in
sequence, interpolating the transformation commands to get to the next keyframe.
To begin the process of creating an animation sequence, first define the scene you
desire for the first keyframe. Then, turn on keyframe animation and create this
scene as your first keyframe. You can then proceed to modify the orientation of
the model and create your other keyframes.
If you make mistakes during the keyframe definition, click Delete Keyframe...
and enter the number of the last keyframe you were satisfied with. Then, proceed
to define the subsequent keyframes again. As soon as you have at least two
keyframes defined, you may play back the animation to see what it looks like. To
do this, select the Run Animation button in the Quick Interaction Area. The
animation process generally proceeds with some keyframe definitions, running
7.3 Keyframe Animation
EnSight 9 User Manual 7-15
what you have so far after some of those definitions, once in a while a delete back
to operation, more keyframe definitions, etc., until you are satisfied with the entire
animation sequence. You then set up the record information and set the process in
motion to produce the images.
Note, that when playing back the animation, you do not have to always play the
entire sequence. Run From, and To frame capability is provided. You also can
abort an animation run by entering the “a” key in the graphics window.
In order to get the length of animation you want on video, you will need to adjust
the number of sub-frames between keyframes in the Speed/Actions tab of the Run
Attributes dialog. The total number of frames displayed during animation is the
sum of the keyframes plus the sum of the subframes. The NTSC broadcasting
standard calls for 30 frames displayed per second. It can be difficult to get a feel
for how fast the animation will be once recorded. The speed of the playback on
the workstation is related both to its graphics capability and the complexity of the
scene, so reducing the complexity will speed things up. Accordingly, you might
consider options like making all but a representative Part invisible, use the feature
angle option to reduce the visual complexity of the Parts, and/or use the dynamic/
static box drawing modes.
Anything that is currently on will be on during the animation. That is, if contours,
vector arrows, Particle traces, shaded surfaces, flipbook animation, animated
traces, etc. are on, they will be on during animation. If any Parts have an
animation delta set or are dependent on a Part that has the delta set then they will
be regenerated and change through the animation. This enables you to do any of
the flipbook animation techniques within keyframe animation for recording
purposes, including the use of transient data (See Flipbook Animation). The
advantage for doing flipbook techniques within keyframe animation is that they
can be recorded and the amount of memory used is smaller because the whole
flipbook is not loaded into memory. This enables the recording of long sequences
of changing information that would not be able to be shown fully with flipbook
animation because of memory limits of the workstation. Short sequences that you
have already loaded into the flipbook can also be used by making sure that the
Flipbook Run toggle is on before running keyframe animation.
If dealing with transient data, you should set up the keyframes for display of the
model first, play it back, edit, etc. Then, after you are satisfied with the model
presentation, you can start dealing with displaying the transient data on the model.
You should be careful in doing movement of the model while transient data is
being displayed. It can be confusing to have the transient data changing at the
same time that the model in the scene is moving. When dealing with transient
data, we normally introduce the problem first with some keyframes, then run the
transient data without any transformations by defining two successive identical
keyframes. Between these two identical keyframes, we animate the transient data
using one of the several methods available.
We have attempted to create the animation module to be able to run in a set-up-
walk-away mode to create video. In order to do this, you can issue command
language lines at each keyframe (except the last one). For example, if you had a
case where you wanted to first show off some of the model, and then turn on
fringes to show results, you could issue a “view: fringes on” command at the
keyframe. It is also possible to play a command language file using this option.
Care should be taken to not issue an anim_keyframe: run command as Part of
7.3 Keyframe Animation
7-16 EnSight 9 User Manual
this command language (which would cause an infinite loop).
When saving images to disk files, be aware that image files can take a great deal
of disk space. The file system that you are writing images to should be monitored
during the animation run to make sure it doesn’t run out of space.
Clicking once on the Keyframe Animation Icon opens the Keyframe Animation
Editor in the Quick Interaction Area.
Keyframing Toggle Toggles-on/off Keyframe animation feature. WARNING: If you toggle-off Keyframing,
all the keyframes previously created will be lost (see Save... below).
Create Keyframe Click this button to create a keyframe. If Keyframing toggle is not turned on then creating
the first keyframe will turn it on automatically. Keyframes are automatically numbered in
sequence of their creation. As each keyframe is created, a message appears in the Status
History Area.
Quick Animations... Opens the Quick Animations dialog which allows you to add keyframes of predefined
movement to your animation. Currently implemented are "fly around", "rotate objects",
and "exploded view"
Delete Keyframe… Opens the Delete Keyframes pop-up dialog which allows you to specify the number of the
last keyframe you wish to retain and then delete all keyframes back to that frame. The
keyframe whose number you specify is not deleted. To delete all keyframes enter 0 at the
prompt.
Run Animation Click to run the keyframe animation. If you click Run more than once, the animation will
play for the corresponding number of times. To abort the run, press the “a” key in the
Graphics Window.
Run Attributes... Gives the user access to the various controls of the animation, as explained in more detail
below.
Figure 7-10
Keyframe Animation Icon
Figure 7-11
Quick Interaction Area - Keyframe Animation Editor
7.3 Keyframe Animation
EnSight 9 User Manual 7-17
Speed/Actions Opens the Speed(Subframes)/Actions(Commands) portion of the Keyframe Run
attributes dialog.
Use Interactive By turning this toggle on, any clip or isosurface moved interactively during the keyframe
Iso/Clip will animate.
Animate By turning this toggle on, transparency changes to parts during the definition of the
Transparency keyframes will be part of the animation.
Change
Spline the By turning this toggle on, translations and look-at/from transforms will be interpolated
Translations and on a cubic spline.
Look From Points
For KeyframeThis field and the stepper buttons are used to select which keyframe to edit.
Sub-Frames The Sub-Frames field specifies the number of subframes between that keyframe specified
and the next one. More subframes make the transformations to the next keyframe
smoother and slower.
Hold This field specifies the number of frames to hold at the keyframe.
Acceleration By turning on this toggle, acceleration will be used at the keyframe. If on for a previous
keyframe it will decelerate.
Commands to This command text area is used to specify up to 20 commands to execute before
Execute at displaying the keyframe referenced in the For Keyframe field (this can be used for all
Keyframe keyframes except the last one). You may use any command except commands
corresponding to nonpermitted actions, such as loading another dataset. Also, there is no
point in using view_transf commands that transform frames, change the Look At and
Look From points, or move the Plane Tool since the next thing EnSight does is update the
Graphics Window to match the transformation matrix information stored as Part of the
keyframe. You may use anim_keyframe commands, for example, to toggle-on using
transient data, but you should not use the anim_keyframe: run command since then the
animation will enter an infinite loop. Commands frequently used here would be view:
and annotation: commands. You may also play a command file (or a Python script), so
there is really no limit as to how many commands you can execute. The shell:
command is a special command to issue a UNIX command.
Update This button will accept the commands entered above.
Commands
Figure 7-12
Speed(Subframes)/Actions(Commands) portion of the Keyframe Run Attributes dialog
7.3 Keyframe Animation
7-18 EnSight 9 User Manual
Viewing Window Opens the Viewing Window portion of the Keyframe Run Attributes dialog.
Type Selection of image type, including standard video formats. Options are:
Normal type is appropriate for display in the Graphics Window.
Full type is appropriate for a full-screen graphics window.
User Defined type enables you to specify the screen dimensions (see below).
NTSC type is NTSC window size.
PA L type is PAL window size.
Detached Display enables the specification of the detached display as the destination
of the animation rendering.
DVD NTSC type is a DVD standard window size 704 x 480 pixels.
DVD PAL type is a DVD standard window size 704 x 576 pixels.
HD720p type is an HD DVD standard window size 1280 x 720 pixels.
DVD PAL type is an HD DVD window size 1920 x 1080 pixels.
Min X Y If Type: User Defined, these fields allow you to specify the pixel dimensions for user-
Max X Y defined type of screen. Allowed values for X are 0 to 1279 and for Y from 0 to 1023.
Bottom left corner is 0,0. EnSight assumes a horizontal-to-vertical aspect ratio of 5-to-4.
Other aspect ratios will distort the images.
Save Multiple If Type: Detached Display, will save an image per display
Images
Figure 7-13
Viewing Window portion of Keyframe Run Attributes dialog
7.3 Keyframe Animation
EnSight 9 User Manual 7-19
Run From/To Opens the Run From/To portion of the Keyframe Run Attributes dialog.
Run From / Run To These fields specify the numbers of the keyframe to start from and the keyframe to run to
when Run button is pressed. Must be integer numbers of already created keyframes.
Default is Run From 1 and Run To number of keyframes you have created.
Transient Opens the Transient data synchronization portion of the Keyframe Run Attributes dialog.
Use Transient Data Toggles-on/off transient data as defined in the timelines (see below).
Toggle
Transient Timeline Transient data is always used according to the definitions of the transient timelines. In a
timeline you can specify the start and end time, how to increment time, etc.
By default a single timeline exists which spans the total number of keyframes. Only one
timeline can exist for each keyframe.
The timeline shown is the one being edited. The up/down arrows will advance/decrement
to the next/previous timeline if it exists.
New Will create a new timeline. If the previous timeline currently spans all available keyframes
a pop-up dialog will result and no new timeline will be created.
Figure 7-14
Run From/To portion of Keyframe
Run Attributes dialog.
Figure 7-15
Transient Data Synchronization portion of Keyframe Run Attributes dialog.
7.3 Keyframe Animation
7-20 EnSight 9 User Manual
Delete Will delete the timeline indicated.
Start At Keyframe Transient data will start at the keyframe indicated.
End At Keyframe Transient data will end at the keyframe indicated.
Start Time Controls the time step to be shown at the Start Keyframe. The choices are:
Use Begin: Use the Begin time as defined in the Solution Time dialog
Use End: Use the End time as defined in the Solution Time dialog
Use Current: Use the current time value
Specify: Set the time value using the input field
End Time Controls the time step to be shown as the End Keyframe. The choices are the same as Start
Time.
Specify Time If off, EnSight will interpolate time such that the Start/End Time values match up with the
Increment Start/End keyframes specified. If on, you can specify the increment in time which occurs
for each frame during the timeline.
When Arrive At If you have specified a Time increment this option controls what will happen if you arrive
Start/End Time at the Start/End time. The choices are:
Quick Animations... Opens the Quick Animations dialog.
This dialog allows you to add keyframes of predefined movement to your animation.
Currently implemented are "fly around", "rotate objects", and "exploded view". One or a
combination of these can be used.
Total Frames When the Create Keyframes button is pressed one or more keyframes will be created. The
total frames (keyframes plus subframes) will be the number specified here.
Accelerate at If on, transformations will accelerate out of the first keyframe created when Create
first keyframe Keyframes is pressed.
Accelerate at If on, transformations will de-accelerate at the last keyframe created when Create
Loop Jump to the begin/end time
Swing Reverse direction
Figure 7-16
Keyframe Quick Animations dialog
7.3 Keyframe Animation
EnSight 9 User Manual 7-21
last keyframe Keyframes is pressed.
Fly Around If on the look-from point will be revolved around the scene by the number of revolutions
specified. The viewer can either rotate to the Right or the Left. The keyframes will be
added when the Create Keyframes button is pressed.
Rotate Objects If on the objects will be rotated about the x, y, and/or z axis by the number of revolutions
specified. The keyframes will be added when the Create Keyframes button is pressed.
Explode View If on the objects will be assigned local axis systems and animated Distance units in the
Direction given about the origin specified. The global axis direction is used.
About Origin XYZ The origin about which the explode will occur.
Get Transform Sets the About Origin to be at the current transform center.
Center
Direction The direction of the explode transform. The choices are:
For example, if the origin given is 0,0,0 and the explode direction is X, a part with a
centroid at X=1 will translate in the positive X direction while a part with a centroid at
X=-1 will translate in the negative X direction
Distance The total translation to be used.
Create Keyframe Creates the keyframe(s) given the selections in the dialog. If keyframe animation is
currently not on it will turn it on and create an initial keyframe, then add the predefined
transform indicated.
Record... Opens the Keyframe Animation Recorder dialog.
Record To File When on, will record the keyframe animation images to the specified filename(s).
Set Format... Brings up the Image/Movie Format and Options dialog. The flipbook will be recorded
using the selected format. (see Section 2.12, Saving and Printing Graphic Images and How
X Translate in the x direction
Y Translate in the y direction
Z Translate in the z direction
XYZ Translate in all three directions
Radial Translate in the direction defined by a vector from the given origin through
the part centroid.
Figure 7-17
Keyframe Animation Recorder
dialog
7.3 Keyframe Animation
7-22 EnSight 9 User Manual
to Print/Save an Image)
File Prefix Specification of filename prefix to use when saving frames to a disk file. Each frame is
saved in a different file according to the File Numbering. The prefix can also have a
directory path before it, such as /usr/tmp/prefix.
Render to offscreen If checked will render the animation to an offscreeen rendering context. If off will render
buffer to the graphics window and save from there which implies that you might also be saving
popped up windows, screen savers, etc. It’s highly recommended that if recording you
record to the offscreen buffer.
Screen tiling Will create multi-tile movies
Stereo Sets the mono vs. stereo output
Current Use mono if current graphics window is mono, use stereo interleaved if current graphics
window is stereo.
Mono Save the images as mono independent of the current graphics window state
Interleaved Save the images as stereo interleaved independent of the current graphics window state
Anaglyph Save the images as color separated anaglyph stereo images. Various color combinations
available
Number of passes Sets the amount of multi-pass anti-aliasing to use. The higher the number, the better the
quality of the image.
Save… Opens the File Selection dialog to allow you to save the specifications of the current
keyframe into a file. This saves only the keyframe specifications, not the animation
images or Part information. If you perform a Full Backup, the keyframe specifications are
saved as Part of the Backup.
Restore… Opens the File Selection dialog to allow you to restore keyframe specifications from a file.
This restores only the keyframe specifications; you must also load Part data and set the
Part attributes.
(see How To Create a Keyframe Animation)
7.3 Keyframe Animation
EnSight 9 User Manual 7-23
Troubleshooting Keyframe Animation
Problem Probable Causes Solutions
Graphics Window flashes at start of
animation run.
New graphics window is opened to
display the animation.
Hardware specific. Does not affect
frames sent to recorder.
Lines “crawl” across the screen
when I play the animation.
Lines are only 1 pixel wide which
would cause crawling.
Use a line width greater than 1.
During playback the action of the
video starts as soon as the picture
comes up and it’s hard to recognize
what is happening that quickly and
then it goes away.
When creating a video it is best to
have the model come up with a hold
of 3 seconds or more before starting
the animation. The animation should
run for a reasonable length of time
and then it should hold for 3 or more
seconds again at the end. On
complex models the hold may need
to be as much as 10.
Holding a video at the beginning and
the end and showing enough frames
in-between will allow your
audiences eyes to adjust and increase
comprehension of the video. Adding
annotation strings and pointers to
point out areas of interest also helps.
Also, showing the whole model with
a hold and then zooming way in on
the area of interest will help
comprehension.
Video is too fast when played back,
but it looked fine in EnSight.
Video playback speed is independent
of model complexity. Rendering
speed in EnSight is more dependent
on graphics hardware.
Increase the number of frames
recorded by adding more subframes
or use speed controls in video player.
Transformation of my object in the
animation is not smooth.
Not enough subframes. Adding more subframes will cause
more finely interpolated scene
between keyframes. For instance the
model should probably not rotate
more than 3 degrees between frames
being recorded.
Model is being clipped away as the
animation proceeds.
Running into the Z-Clip plane or the
regular plane tool with Clipping on.
Make sure the Z-Clip planes and the
plane tool are far enough away from
the model for the whole animation
sequence. NOTE: The distance
between the Z-Clip planes could
affect the clarity of the image. The
Z-Clip should be kept as close to the
model and as close to each other as
possible for better results.
7.4 Variable Calculator
7-24 EnSight 9 User Manual
7.4 Variable Calculator
While the Variable Calculator is located on the Feature Icon Bar, it’s use is
discussed in Chapter 4, Section 4.3, Variable Creation
Figure 7-18
Variable Calculator Icon
7.5 Query/Plot
EnSight 9 User Manual 7-25
7.5 Query/Plot
EnSight provides several ways to examine information about variable values. You
can, of course, visualize variable values with fringes, contours, vector arrows,
profiles, isosurfaces, etc. This section describes how to query variables
quantitatively:
Over Distance EnSight can query variables at points over distance for the following information:
• variable values inside Parts at evenly spaced points along a straight line
• variable values inside Parts at the nodes of a different 1D Part
Over Time EnSight can query variables over time for the following information:
• minimum and maximum variable values for Parts
• variable values at any number of sample times at any point inside of a Part or at
any labeled node or element.
Over-time queries can report actual variable values, or Fast Fourier Transform
(FFT) spectral values at the positive FFT frequencies.
Variable vs. EnSight can produce a scatter plot of one variable vs. another.
Va r i a b l e
Operations on EnSight can scale query values and/or combine one set of query values with
another set to produce a new set of values.
Importing EnSight can import query values from external files.
Query Candidates Only Parts with data residing on the Server host system may be queried. Thus,
Parts that reside exclusively on the Client host system (i.e. contours, particle
traces, profiles, vector arrows) may NOT be queried.
(see Section 3.1, Part Overview)
Clicking once on the Query/Plot Icon opens the Query/Plot Editor in the Quick
Interaction Area which is used to query about the selected Variable on the selected
Part and, if you wish, assign a query entity to a plotter.
Query Items This is the list of query items that currently exist in EnSight. After creating a query item, it
will show up in this list and can be modified by selecting it in the list and changing the
displayed values. (Note, it is best to deselect any query items in the list when creating a
Figure 7-19
Query/Plot Icon
Figure 7-20
Quick Interaction Area - Query/Plot Editor
7.5 Query/Plot
7-26 EnSight 9 User Manual
new one, otherwise you may accidently modify values for the item with the left mouse
button.)
Sample This menu contains the types of queries that can be created. Selecting one of these changes
the interface to display controls related to the type.
General to Each Type of Query
Marker Visibility Toggles the visibility of the marker showing the location for the query. For distance
queries, a sphere marker will be shown indicating the beginning location for the query.
... Opens the Query Display Attributes dialog for the specification of the display attributes of
the query marker.
Mix... Opens the Color Selector to specify the color of the marker.
RGB The red, green, and blue color for the marker.
Size The size of the sphere marker. The value is a scale factor. Values larger than 1.0 will scale
Please Select A Query Style is displayed until a Sample selection is made.
At Line Tool Over Distance queries at uniform points along the line tool.
At 1D Part Over Distance queries at the nodes of a 1D part.
At Spline Over Distance queries along an existing spline.
At Node Over Time queries at a node over a range of times.
At Element Over Time queries at an element over a range of times.
At IJK Over Time queries at an IJK location over a range of times.
At XYZ Over Time queries at the x, y, z location over a range of times.
At Minimum Over Time queries the minimum of a variable over a range of times.
At Maximum Over Time queries the maximum of a variable over a range of times.
By scalar value queries two variables at a given scalar variable value.
By Operating On Existing Queries forms new query by scaling and/or combining existing
ones.
Read From An External File imports previously saved or externally generated queries.
(This can be EnSight XY data format or MSC Dytran .ths
files.)
Read from server file imports any queries that the server knows about.
Figure 7-21
Query Sample Types
Figure 7-22
Query Marker Display Attributes dialog
7.5 Query/Plot
EnSight 9 User Manual 7-27
the marker up, while values less than 1.0 (but greater than 0.0) will scale the marker down.
Update This button causes the query to be recomputed using any modified attributes or variables.
Save... Opens the Save Entity Query To dialog for the specification of the format, and file name in
which you wish to save the query entity.
Format Opens a pop-up menu to allow specification of the format. Choices are:
File Name This field is used to specify the file name in which you wish to save the query entity.
File Select Opens up the File Selection dialog for specifying the File Name as an alternative to
entering it manually in the File Name field.
Show... This button will display the results of the selected query in the EnSight Message Window.
Save Text To File Opens the File Selection dialog for specification of filename to save to.
Delete... This button will delete the selected query items. You must confirm the deletion before it as
actually done.
Create This button will create the query according to options and variables specified.
Formatted Outputs the query information to the specified file in the same format as
the Show Text button.
XY Data Outputs the query information in a generic format which could be used
to export the information to a different plotting system.
Figure 7-23
Save Query Entity To dialog
Figure 7-24
EnSight Message Window displaying query information
7.5 Query/Plot
7-28 EnSight 9 User Manual
Plot Changes the Quick Interaction Area into the plotting section.
Query Items Shows a list of current query items. As you select these, the plotters of the same type (if
any) will be displayed in the Plotters Of Query’s Type list. And if the query has been
assigned to one of these plotters, it will be highlighted.
Plotters Of Query’s Shows a list of currently defined Plotters which are of the same type as the selected query.
Type The selected query can be plotted on these or on a new plotter. Max is 25 plotters.
Rescale plotter If a query is assigned to an existing plotter by selecting one in the Plotter Of Query’s Type
list, toggling this option will rescale the axis of the Plotter to include all queries that are
assigned to it.
New Plotter Will create a new plotter, add the new plotter to the list, and display the plotter with its
query curve in the graphics window.
Delete... Will delete the selected plotters. You must confirm the deletion before it is actually done.
Query
At Line Tool Over Distance
Variable: 1 A list of variables that can be chosen for the query. Choose one variable. If plotted, this
variable will be plotted along the Y-Axis.
Variable: 2 If you leave this as “None”, DISTANCE will be the default X- Axis variable. If you
choose a variable from the list, a “scatter plot” query will result, and the X-Axis will be
the variable you have chosen.
Distance A menu of choices that control the distance parameter.
Arc Length The distance along the part from the first node to each subsequent
node (i.e. the sum of the 1D element lengths).
X Arc Length The X coordinate value of each node accumulated from the start.
Y Arc Length The Y coordinate value of each node accumulated from the start
Z Arc Length The Z coordinate value of each node accumulated from the start.
From Origin The distance from the origin.
X from Origin The X distance from the origin.
Y from Origin The Y distance from the origin.
Z from Origin The Z distance from the origin.
Figure 7-25
Plot Query Entity To dialog
Figure 7-26
Quick Interaction Area - Query/Plot Editor - At Line Tool Over Distance
7.5 Query/Plot
EnSight 9 User Manual 7-29
Samples For queries over Distance using the Line Tool, this field specifies the number of equally
spaced points to query along the line.
Tool Loc... Brings up the Transformation Editor (Line Tool) dialog for feedback and manipulation of
the location of the line tool.
At 1D Part Over Distance
Note that the 1D part to use for the query must be selected from the Part’s list.
Variable: 1 A list of variables that can be chosen for the query. Choose one variable. If plotted, this
variable will be plotted along the Y-Axis.
Variable: 2 If you leave this as “None”, DISTANCE will be the default X- Axis variable. If you
choose a variable form the list, a “scatter plot” query will result, and the X-Axis will be
the variable you have chosen.
Distance A menu of choices that control the distance parameter.
Multiple Segments By When the selected 1D part contains more than one contiguous segment, these are handled
by:
Accumulation Each segment’s query is appended to the previous. Thus a plot of this
query will be one extended curve, but the extents of individual segment
may not be obvious.
Reset Each Each segment’s query is treated like it is independent. Thus a plot of this
query will appear as several curves.
Query Origin... Brings up the Query Origin dialog for feedback and manipulation of the location of the
query origin.
Arc Length The distance along the part from the first node to each subsequent
node (i.e. the sum of the 1D element lengths).
X Arc Length The X coordinate value of each node accumulated from the start.
Y Arc Length The Y coordinate value of each node accumulated from the start
Z Arc Length The Z coordinate value of each node accumulated from the start.
From Origin The distance from the origin.
X from Origin The X distance from the origin.
Y from Origin The Y distance from the origin.
Z from Origin The Z distance from the origin.
Figure 7-27
Quick Interaction Area - Query/Plot Editor - At 1D Part Over Distance
Figure 7-28
Query Origin dialog
7.5 Query/Plot
7-30 EnSight 9 User Manual
Orig XYZ Coordinates of the location to use for query origin determination. The endpoint closest to
the origin specified will be used as the “origin” of the query, i.e., where distance is zero. If
the 1D part is s closed loop (i.e. there are no end points), the closest point on the loop is
used as the “origin”.
Jump To Next When multiple segments are present, clicking this button jumps to the beginning of the
Endpoint next segment, placing that location in to the Orig XYZ fields.
Get Cursor Tool Places the current cursor tool location into the Orig XYZ fields so that point can be used
Location as the query origin.
At Spline Over Distance
Note that the 1D part to use for the query must be selected from the Part’s list.
Variable: 1 A list of variables that can be chosen for the query. Choose one variable. If plotted, this
variable will be plotted along the Y-Axis.
Variable: 2 If you leave this as “None”, DISTANCE will be the default X- Axis variable. If you
choose a variable form the list, a “scatter plot” query will result, and the X-Axis will be
the variable you have chosen.
Distance A menu of choices that control the distance parameter.
Spline Pick a Spline. See Use the Spline Tool for more information on Spline Tools.
Arc Length The distance along the part from the first node to each subsequent
node (i.e. the sum of the 1D element lengths).
X Arc Length The X coordinate value of each node accumulated from the start.
Y Arc Length The Y coordinate value of each node accumulated from the start
Z Arc Length The Z coordinate value of each node accumulated from the start.
From Origin The distance from the origin.
X from Origin The X distance from the origin.
Y from Origin The Y distance from the origin.
Z from Origin The Z distance from the origin.
Figure 7-29
Quick Interaction Area - Query/Plot Editor - At Spline Over Distance
7.5 Query/Plot
EnSight 9 User Manual 7-31
At Node Over Time
Variable: 1 A list of variables that can be chosen for the query. Pick one variable. If plotted, this
variable will be plotted along the Y-Axis.
Variable: 2 If you leave this as “None”, TIME will be the default X- Axis variable. If you choose a
variable form the list, a “scatter plot” query will result, and the X-Axis will be the variable
you have chosen.
Samples Specifies how many evenly timed moments over the specified range of time steps at which
to query (if left blank, you get a sample point at each time step). If you specify more or
fewer sample points than the number of time steps, EnSight linearly interpolates between
the adjoining time steps. If query is an FFT sampling, the number of frequencies output
will be less than or equal to the number of sample points.
Node ID Specifies a node ID.
Beg/End Time... Opens up the Solution Time Editor in the Quick Interaction Area. Here you can specify
the start and end times for queries Over Time.
(see Section 7.2, Flipbook Animation)
Sample By Opens a pop-up menu for specification of how to report values for Over Time queries.
Options are:
At Element Over Time
Variable: 1 A list of variables that can be chosen for the query. If plotted, this variable will be plotted
along the Y-Axis. (Note: only per_element variables can be used for this query type.)
Variable: 2 If you leave this as “None”, TIME will be the default X- Axis variable. If you choose a
variable form the list, a “scatter plot” query will result, and the X-Axis will be the variable
you have chosen.
Samples Specifies how many evenly timed moments over the specified range of time steps at which
to query (if left blank, you get a sample point at each time step). If you specify more or
fewer sample points than the number of time steps, EnSight linearly interpolates between
the adjoining time steps. If query is an FFT sampling, the number of frequencies output
will be less than or equal to the number of sample points.
Va l u e reports values versus time.
FFT reports FFT spectral values versus FFT positive frequencies.
Figure 7-30
Quick Interaction Area - Query/Plot Editor - At Node Over Time
Figure 7-31
Quick Interaction Area - Query/Plot Editor - At Element Over Time
7.5 Query/Plot
7-32 EnSight 9 User Manual
Element ID Specifies an element ID.
Beg/End Time... Opens up the Solution Time Editor in the Quick Interaction Area. Here you can specify
the start and end times for queries Over Time.
(see Section 7.2, Flipbook Animation)
Sample By Opens a pop-up menu for specification of how to report values for Over Time queries.
Options are:
At IJK Over Time
Variable: 1 A list of variables that can be chosen for the query. If plotted, this variable will be plotted
along the Y-Axis.
Variable: 2 If you leave this as “None”, TIME will be the default X- Axis variable. If you choose a
variable form the list, a “scatter plot” query will result, and the X-Axis will be the variable
you have chosen.
Samples Specifies how many evenly timed moments over the specified range of time steps at which
to query (if left blank, you get a sample point at each time step). If you specify more or
fewer sample points than the number of time steps, EnSight linearly interpolates between
the adjoining time steps. If query is an FFT sampling, the number of frequencies output
will be less than or equal to the number of sample points.
IJK Specifies the IJK planes of the desired location.
Beg/End Time... Opens up the Solution Time Editor in the Quick Interaction Area. Here you can specify
the start and end times for queries Over Time.
(see Section 7.2, Flipbook Animation)
Sample By Opens a pop-up menu for specification of how to report values for Over Time queries.
Options are:
At XYZ Over Time
Variable: 1 A list of variables that can be chosen for the query. Choose one variable. If plotted, this
Va l u e reports values versus time.
FFT reports FFT spectral values versus FFT positive frequencies.
Va l u e reports values versus time.
FFT reports FFT spectral values versus FFT positive frequencies.
Figure 7-32
Quick Interaction Area - Query/Plot Editor - At IJK Over Time
Figure 7-33
Quick Interaction Area - Query/Plot Editor - At Cursor Over Time
7.5 Query/Plot
EnSight 9 User Manual 7-33
variable will be plotted along the Y-Axis.
Variable: 2 If you leave this as “None”, TIME will be the default X- Axis variable. If you choose a
variable form the list, a “scatter plot” query will result, and the X-Axis will be the variable
you have chosen.
Samples Specifies how many evenly timed moments over the specified range of time steps at which
to query (if left blank, you get a sample point at each time step). If you specify more or
fewer sample points than the number of time steps, EnSight linearly interpolates between
the adjoining time steps. If query is an FFT sampling, the number of frequencies output
will be less than or equal to the number of sample points.
Get Set Get will put the current coordinates of the cursor tool into the x, y and z fields. Set will
open up the Transformation Editor (Cursor Tool) dialog for specificationof the cursor
location. You can of course also set this location using interactive or picking methods.
Beg/End Time... Opens up the Solution Time Editor in the Quick Interaction Area. Here you can specify
the start and end times for queries Over Time.
(see Section 7.2, Flipbook Animation)
Sample By Opens a pop-up menu for specification of how to report values for Over Time queries.
Options are:
At Minimum Over Time
Variable: 1 A list of variables that can be chosen for the query. If plotted, this variable will be plotted
along the Y-Axis. Note that you can choose more than one variable in the list which is a
time-saving feature producing multiple queries at once as EnSight marches through time.
Variable: 2 If you leave this as “None”, TIME will be the default X- Axis variable. If you choose a
variable form the list, a “scatter plot” query will result, and the X-Axis will be the variable
you have chosen.
Samples Specifies how many evenly timed moments over the specified range of time steps at which
to query (if left blank, you get a sample point at each time step). If you specify more or
fewer sample points than the number of time steps, EnSight linearly interpolates between
the adjoining time steps. If query is an FFT sampling, the number of frequencies output
will be less than or equal to the number of sample points.
Beg/End Time... Opens up the Solution Time Editor in the Quick Interaction Area. Here you can specify
the start and end times for queries Over Time.
(see Section 7.2, Flipbook Animation)
Sample By Opens a pop-up menu for specification of how to report values for Over Time queries.
Options are:
Va l u e reports values versus time.
FFT reports FFT spectral values versus FFT positive frequencies.
Va l u e reports values versus time.
FFT reports FFT spectral values versus FFT positive frequencies.
Figure 7-34
Quick Interaction Area - Query/Plot Editor - At Minimum Over Time
7.5 Query/Plot
7-34 EnSight 9 User Manual
At Maximum Over Time
Variable: 1 A list of variables that can be chosen for the query. If plotted, this variable will be plotted
along the Y-Axis. Note that you can choose more than one variable in the list which is a
time-saving feature producing multiple queries at once as EnSight marches through time.
Variable: 2 If you leave this as “None”, TIME will be the default X- Axis variable. If you choose a
variable form the list, a “scatter plot” query will result, and the X-Axis will be the variable
you have chosen.
Samples Specifies how many evenly timed moments over the specified range of time steps at which
to query (if left blank, you get a sample point at each time step). If you specify more or
fewer sample points than the number of time steps, EnSight linearly interpolates between
the adjoining time steps. If query is an FFT sampling, the number of frequencies output
will be less than or equal to the number of sample points.
Beg/End Time... Opens up the Solution Time Editor in the Quick Interaction Area. Here you can specify
the start and end times for queries Over Time.
(see Section 7.2, Flipbook Animation)
Sample By Opens a pop-up menu for specification of how to report values for Over Time queries.
Options are:
By scalar value
Variable: 1 A list of variables that can be chosen for the query. Choose one variable. If plotted, this
variable will be plotted along the Y-Axis.
Variable: 2 A list of variables that can be chosen for the query. If plotted, this variable will be plotted
along the X-Axis.
Scalar variable The scalar variable to use.
Value The value of the Scalar variable to use.
Va l u e reports values versus time.
FFT reports FFT spectral values versus FFT positive frequencies.
Figure 7-35
Quick Interaction Area - Query/Plot Editor - At Maximum Over Time
Figure 7-36
Quick Interaction Area - Query/Plot Editor - By scalar value
7.5 Query/Plot
EnSight 9 User Manual 7-35
By Operating On Existing Queries
Scale Factor Scale factor for the Query Item selected. The values of the selected query will be
multiplied by this factor either before it is added to the second query or before the new
query is created (if only operating on a single query).
Query Item The existing query item(s) to operate on. A new query will be create consisting of scaled
values one query, or the scaled, algebraic sum of two queries.
Read From An External File
Load XY Data Opens the File Selection dialog from which a previously saved or externally generated
From File query can be retrieved. EnSight’s XY data format or MSC Dytran .ths files can be read.
Read from server file
When create is hit, any avaiable queries that the server knows about will be placed in the
Query items list.
(See also How To Query/Plot)
Figure 7-37
Quick Interaction Area - Query/Plot Editor - By Operating On Existing Queries
Figure 7-38
Quick Interaction Area - Query/Plot Editor - Read From An External File
Figure 7-39
Quick Interaction Area - Query/Plot Editor - Read from server file
7.6 Interactive Probe Query
7-36 EnSight 9 User Manual
7.6 Interactive Probe Query
EnSight enables you to obtain scalar, vector, or coordinate information for the
model at a point directly under the mouse pointer, at the location of the cursor
tool, or at particular node, element, ijk, or xyz locations. The information is
normally displayed in the Interactive Probe Query section of the Quick Interaction
Area, but it can also be displayed in the Graphics Window. The performance of
Interactive Query operations is dependent on the refresh time of the Graphics
Window. Interactive query values are not echoed to EnSight command language
files.
Clicking once on the Interactive Probe Query Icon opens the Interactive Probe
Query Editor in the Quick Interaction Area which is used to specify parameters
for querying interactively.
Select Variable(s) List of variables and their components (if vector and Show Components is toggles on).
Query Selection of whether interactive query is on, or which method to use to indicate input.
Surface Pick will query the location under the mouse in the Main View. The query
will be performed when the “p” keyboard key is pressed (when “Pick
Use ‘p’ ” is on) or whenever the mouse moves to a new location in the
Main View (when “Continuous” is on).
Cursor will query the location indicated by the Cursor Tool in the Main View.
The query will be performed when the “p” keyboard key is pressed
(when “Pick Use ‘p’ ” is on) or whenever the Cursor Tool moves to a
new location in the Main View (when “Continuous” is on. You can do
a quick query by right-clicking on the cursor and choose ‘Query
Variable over Time’.
Node will query the node as specified in the “Node ID” field.
IJK will query the IJK node as specified in the “I J K” fields.
Element will query the element as specified in the “Element ID” field.
XYZ will query the x, y, z location as specified in the “x y z” fields.
Min will query the min value.
Max will query the max value.
None indicates that interactive query is off.
Figure 7-40
Interactive Probe Query Icon
Figure 7-41
Quick Interaction Area - Interactive Probe Query Editor
7.6 Interactive Probe Query
EnSight 9 User Manual 7-37
Search Selects the location for the query. (Only active for Surface Pick and Cursor queries.)
Pick (Use ‘p’) When the Action is Surface Pick or Cursor, controls whether the query will occur on a
keyboard ‘p’ key press (when on) or will occur continuously - tracking the mouse
location.
Node ID For Node Queries, specify the node id.
Element ID For Element Queries, specify the element id.
# Items Displayed Sets the number of query locations that are kept in memory and displayed to the user.
Clear Selection Clears all the selected variables.
Display Results Table... Opens the Interactive Probe Query Results Table dialog which shows a table of all
selected variables as well as the current query type, the latest xyz coordinates, the latest ijk
values (if applicable), and the latest node or element id (if applicable). Note that the
contents of this dialog can be saved to a file by using the Save... button.
Display Attributes...Opens the Interactive Probe Query Display Attributes dialog.
Display ID Toggle When toggled on, if an ID is appropriate for the type of search, will display the ID in the
query table and in the label on the model.
Display expansion If the model has element labels, this extracts the elements contained by the query
factor locations and creates a subset part from these elements. The factor is how many layers of elements
will be extracted, i.e., 1 is extract the element that contains the query while 2 means take the results
from the elements extracted at level 1 and find all of the neighbors to these elements. If the
interactive Query toggle is turned to None and the subset part has been created via the expansion
factor mechanism you will be prompted if you wish to save the subset part.
Label
Visible Toggle When toggled on, query information will be displayed in the Graphics Window
Exact indicates that the query will occur at the location of the mouse.
Closest Node indicates that the query will “snap” to the node closest to the mouse.
Figure 7-42
Interactive Probe Query Results Table
Figure 7-43
Interactive Probe Query Display Attributes dialog
7.6 Interactive Probe Query
7-38 EnSight 9 User Manual
Always on Top When on, query information in the Graphics Window will not be hidden from view behind
other geometry.
RGB These fields specify color values for the Labels.
Mix Opens the Color Selector dialog
(see Section 8.1, Color Selector)
Marker
Visible When on, query location markers will be displayed in the Graphics Window.
Size The size of the markers.
RGB These fields specify color values for the markers.
Mix Opens the Color Selector dialog
(see Section 8.1, Color Selector)
7.7 Contour Create/Update
EnSight 9 User Manual 7-39
7.7 Contour Create/Update
Contours are lines that trace out constant values of a variable across the surface(s)
of selected Part(s), just like contour lines on a topographical map.
The variable must be a scalar or vector variable. If it is a vector, the magnitude
will be used by default, but one component can be used as well. A Contour Part
can consist of one contour line, or a set of lines corresponding to the value-levels
of the variable palette. A Contour Part has its own attributes independent of those
Parts used to create it (the parent Part(s)).
Contours are drawn across the faces of parent Part elements (one-dimensional
elements are ignored). At each node along the edges of any one element face, the
contour’s variable has a value. If the range of these values includes the contour’s
value-level, the contour line crosses the face. EnSight draws the contour by
dividing the face into triangles each having the face’s centroid as one vertex. For
each triangle the contour crosses, it will cross only two sides. EnSight interpolates
to find the point on each of those two sides where the variable value equals the
contour value-level, then creates a bar element to connect the two points. Note
that a contour line can bend while crossing an element face.
Because Contour Parts are created on the EnSight Client, the Representation
attribute of the parent Part(s) greatly affects the result. Representations that reduce
Part elements to one-dimensional representations (Border applied to two-
dimensional Parts and Feature Angle), or do not download the Part (Not Loaded),
will eliminate those Part elements from the Contour creation process. On the other
hand, Full representation of three-dimensional elements will create contour lines
across hidden surfaces. Usually, you will want the Representation selection to be
3D Border, 2D Full.
Contour Parts are created on the Client, and so cannot be queried or used in
creating new variables. However, Contours can be used as parent Parts for Profiles
and Vector Arrows.
If you change the value-levels in the Feature Detail Editor (Variables) Summary
and Palette section, the Contour automatically regenerates using the new value-
levels.
Figure 7-44
Pressure Contours in a Flow Field around a Circular Obstruction
7.7 Contour Create/Update
7-40 EnSight 9 User Manual
Use care when simultaneously displaying contours based on different function
palettes so that you do not become confused as to which contours are which.
Coloring them differently and adding an on-screen legend can help.
Left-clicking once on the Contour Create/Update Icon opens the Contour Editor in
the Quick Interaction Area which is used to both create and update (make changes
to) contour Parts. Left-clicking on the contour part in the graphics window will
pop up a green handle in the shape of a cross. Drag this cross left and right to
interactively change the contour density. Right-clicking on the contour part will
give you a number of quick options.
Sync To Palette Toggles on/off the contour line synchronization to the legend color palette.
Color by creation If toggled on at Contour part creation, then the Contour Part is colored by the variable.
Range Min This field is activated when Sync to Palette Toggle is Off.
Range Max This field is activated when Sync to Palette Toggle is Off.
Distribution This pop-up menu is activated when Sync to Palette Toggle is Off. Opens a pop-up menu
for the selection of a distribution function for the contour lines. Choices include Linear,
Logarithmic, and Quadratic.
Levels This field is activated when Sync to Palette Toggle is Off. This field determines the
number of contours between the Range Min and Range Max.
Visible Toggles whether the main level contours are visible or not.
Sublevels This field allows you to specify the number of sub-contours you wish to be drawn at
evenly spaced value-levels between the value-levels defined in the Variable Feature Detail
Editor Summary and Palette section. Leaving this field 0 will produce exactly the number
of contour lines for which value levels are specified in the Feature Detail Editor
(Variables) Summary and Palette.
Visible Toggles whether the sublevel contours are visible or not.
Label Attributes... Opens the Contour Label Settings dialog.
Visible Toggle Toggles on/off the visibility of number labels for contour lines.
Spacing Determines the spacing between number labels.
Mix... Opens the Color Selector dialog for the assignment of a color to number labels.
R,G,B Allows the specification of red, green, and blue values for the assignment of a color to
Figure 7-45
Contour Create/Update Icon
Figure 7-46
Quick Interaction Area - Contour Editor
7.7 Contour Create/Update
EnSight 9 User Manual 7-41
number labels.
Format This pop-up menu allows selection of format of number labels. Choices include
Exponential, and Floating Point.
Decimal Places This field allows the specification of the number of decimal places of the number labels.
Create Creates a Contour Part using the selected Part(s) in the Parts List and the color palette
associated with the Variable currently selected in the Main Variables List.
Apply New Variable Will change the Contour Part to show contours based on the color palette associated with
the Variable currently selected in the Variables List.
Advanced Will open the Feature Detail Editor and select the Contours icon for more advance control
of the Contour Part.
Feature Detail Editor Double clicking on the Contour Create/Update Icon opens the Feature Detail
(Contours) Editor (Contours), the Creation Attributes Section of which provides access to the
same functions available in the Quick Interaction Area, as well as one more. For a
detailed discussion of the remaining Feature Detail Editor turn-down sections
(which are the same for all Part types):
Display offset This field specifies the normal distance away from a surface to display the
contours. A positive value moves the contours away from the surface in the
direction of the surface normal. A negative value moves in the negative surface
normal direction.
Please note that there is a hardware offset that will apply to contours, vector arrows,
separation/attachment lines, and surface restricted particle traces that can be turned on
or off in the View portion of Edit->Preferences. This preference (“Use graphics hardware
to offset line objects...”) is on by default and generally gives good images for everything
except move/draw printing. This hardware offset differs from the display offset in that it is
in the direction perpendicular to the computer screen monitor (Z-buffer).
Thus, for viewing, you may generally leave the display offset at zero. But for
printing, a non-zero value may become necessary so the contours print cleanly.
(see Section 3.3, Part Editing and How to Create Contours)
Troubleshooting Contours
Problem Probable Causes Solutions
No contours created. Variable values on element faces are
outside range of palette function
value-levels.
Adjust palette function using the
Feature Detail Editor (Variables)
Summary and Palette section.
Parent Parts do not contain any 2D
elements.
Re-specify Parent Part list.
Parent Parts do not contain the
specified Variable.
Recreate the Variable for the selected
Parent Part(s).
Too many contours. Palette has too many function levels. Change the number of levels for the
palette using the Feature Detail
Editor (Variables) Summary and
Palette.
Specified too many sub-contours. Lower the sub-contour attribute.
Too few contours. The palette levels do not adequately
cover the function value range for
the Parent Parts.
Modify the palette using the Feature
Detail Editor (Variables) Summary
and Palette.
Sub-contour attribute set to 0. Modify the Sub-contour attribute.
7.7 Contour Create/Update
7-42 EnSight 9 User Manual
Contour Part created but (empty) Parent Part is in Feature Angle
representation.
Change Parent Part to 3D border, 2D
full representation.
Contours are fine at first, but later go
away.
Parent Parts representation changed
to Feature Angle, or Not Loaded.
The contours are created from the
Part representation on the EnSight
client. Modifying the representation
affects the Contour Parts.
Contour parts don’t print well See Display Offset above. Enter a display offset (may need to
be less than zero if viewed from
“backside”).
Problem Probable Causes Solutions
7.8 Isosurface Create/Update
EnSight 9 User Manual 7-43
7.8 Isosurface Create/Update
Isosurfaces are surfaces that follow a constant value of a variable through three-
dimensional elements. Hence, isosurfaces are to three-dimensional elements what
contour lines are to two-dimensional elements.
An isosurface may be based on a vector variable (magnitude or components), or a
scalar variable.
At each node of a three-dimensional element, the isosurface’s variable has a value.
If the range of these values includes the isosurface’s isovalue, the isosurface cuts
through the element. EnSight draws the isosurface through that element by first
determining which edges the isosurface crosses, and then interpolating to find the
point on each of those edges corresponding to the isovalue. EnSight connects
these points with triangle elements passing through the parent Part elements. If the
Parent Part(s) contain two-dimensional elements, a line is created across the
elements - just like a contour.
All the triangle elements created inside all the three-dimensional elements of all
the parent Part(s) together with all the lines created across the two-dimensional
elements of all the Parent Part(s) constitute the isosurface. One-dimensional
elements of the parent Part(s) are ignored. Because isosurfaces are generated by
the server, the Representation of the parent Part(s) is not important.
You can interactively manipulate the value of an isosurface with a slider allowing
you to scan through the min/max range of a variable. This scanning can also be
done automatically. The isosurface will change shape as the value is changed.
If you are using animation, you can specify an Animation Delta value by which
the isovalue is incremented for each animation frame or page. The isosurface is
automatically updated to appear as if it had been newly created at the new location
and time.
Left-clicking once on the Isosurface Create/Update Icon opens the Isosurface
Editor in the Quick Interaction Area which is used to both create and update
(make changes to) isosurface Parts.
Left-clicking on the isosurface part in the graphics window will pop up a green
Figure 7-47
Isosurface Illustration
7.8 Isosurface Create/Update
7-44 EnSight 9 User Manual
handle in the shape of a cross. Drag this left and right to change the isosurface
value. Right-clicking on the results in a pull-down menu of quick options for your
isosurface.
Value Specification of numerical isovalue of the isosurface. To avoid an empty Part, this value
must be in the range of the Variable within the Parent Parts. You can find this range using
the Variables dialog or by showing the Legend for the Variable. For vector-variable-based
isosurfaces, the vector magnitude is used.
Set to Mid-Range Clicking this button will put the value that is halfway between the minimum and the
maximum variable value.
# of surfaces If you want more than one isosurface calculated at a Delta offset from each other, enter the
number of surfaces in this field. This number of isosurfaces a1s calculated then grouped
together. This field is only available the first time the isosurface(s) are calculated. It is not
possible to change this value and recalculate the isosurfaces. To change the number or the
Delta, they must be deleted and recalculated.
Delta Offset value to use for creating a number of isosurfaces. The first isosurface is calculated
at the number entered in Value, and the next one is Delta + Value, etc.
Interactive Opens pull-down menu for selection of type of interactive manipulation of the isosurface
value. Options are:
Record Button Opens a dialog for recording Interactive Auto or Interactive Auto Cycle animation to a
Off Interactive isosurfaces are turned off.
Manual Value of the isosurface(s) selected are manipulated via the slider bar and
the isosurface is interactively updated in the Graphics Window to the
new value. For quick interactive control of the isosurface, simply left-
click on the isosurface and grab the resulting green, cross-shaped click
and go handle and drag left and right to see the isosurface value
interactively decrease and increase respectively.
Auto Value of the isosurface is incremented by the Auto Delta value from the
minimum range value to the maximum value when the cursor is moved
into the Main View. When reaching the maximum it starts again from the
minimum.
Auto Cycle Value of the isosurface is incremented by the Auto Increment value from
the minimum range value to the maximum value. When reaching the
maximum it decrements back to the minimum.
Figure 7-48
Isosurface Create/Update Icon
Figure 7-49
Quick Interaction Area - Isosurface Editor (Enabled with active
animation playing)
Record Button
7.8 Isosurface Create/Update
EnSight 9 User Manual 7-45
file. This button is enabled when Auto or Auto cycle animation is actively playing.
Min Specification of the minimum isosurface value for the range used with the “Manual” slider
bar and the “Auto” and “Auto Cycle” options.
Max Specification of the maximum isosurface value for the range used with the “Manual”
slider and the “Auto” and “Auto Cycle” options.
Increment Specification of the increment/decrement the slider will move within the min and max,
each time the stepper buttons are clicked.
Create Creates an isosurface Part at the value specified for the variable selected in the Variables
List and from the Part(s) selected in the Parts List.
Apply New Variable Will recreate the isosurface Part at the value specified for the variable currently selected in
the Variables List.
Advanced Will open the Feature Detail Editor and select the Isosurfaces icon for more advance
control of the Isosurface Part.
Feature Detail Editor Double clicking on the Isosurface Create/Update Icon opens the Feature Detail
(Isosurfaces) Editor (Isosurfaces), the Creation Attributes Section of which provides access to
additional features for isosurface creation and modification:
Variable Opens a pop-up menu for the selection of an active Variable to use to calculate the
isosurface.
X Y Z These fields specify the vector- component coefficients. When the three fields are set to
0.0000, the vector magnitude is used for the isosurface calculation. Otherwise, the sum of:
Figure 7-50
Feature Detail Editor (Isosurfaces) Creation Attributes Area
7.8 Isosurface Create/Update
7-46 EnSight 9 User Manual
(Vectorx * X)+(Vectory *Y) + (Vectorz*Z) is used as the isosurface value.
Type
Isosurface Specification that an Isosurface type part created from the specified Variable and selected
parts will have the isovalue of Value for all its elements.
Value Specification of the numerical isovalue of the Isosurface Part(s) selected in the Feature
Detail Editor's Parts List (or if none is selected, of the isosurface you are about to Create)
Set to Mid-Range Puts the value that is halfway between the minimum and the maximum variable value into
the Value Field.
.
Isovolume Specification that an Isovolume type part created from the specified Variable and selected
parts will consist of elements with isovalues constrained to either below a Min, above a
Max, or within the specified interval of Min and Max. The isosurface and isovolume
algorithms are different. The isosurface algorithm defines the element interesection along
the element surfaces. In contrast, the isovolume algorithm subdivides the 3D volume into
tetrahedral elements and determines the intersections along the edges of each subdivided
basis element resulting in more intersection points. For coarser meshes, the isosurface
algorithm will be a smoother surface, but as the mesh gets finer the two algorithms should
converge.
Constraint Specification restricting the element isovalues of the Isovolume Part to an interval. The
Constraint options are:
Min Specification of the minimum isovalue limit for the Isovolume Part.
Max Specification of the maximum isovalue limit for the Isovolume Part.
Animation Delta This field specifies the incremental change in isovalue for each frame or page of
animation. It can be negative.
(see Section 7.2, Flipbook Animation and Section 7.3, Keyframe Animation)
Create (At the bottom of the Feature Detail Editor) Creates an Isosurface Part at the value
specified for the variable selected in the Variable pop-up menu of the Creation Attributes
section and from the Part(s) selected in the Main Parts List.
The Feature Detail Editor also allows you to make changes in batch; that is, to
make several changes to the menus and fields which do not effect the Graphics
Window until you click in the Apply Changes button. It is sometimes quicker
(with respect to CPU time) to make several changes at once rather than one at a
time as in the Quick Interaction Area.
For a detailed discussion of the remaining Feature Detail Editor turn-down
sections (which are the same for all Parts):
(see Section 3.3, Part Editing and How To Create Isosurfaces
Low all elements of Isovolume Part have isovalues below the specified Min value.
Band all elements of Isovolume Part have isovalues within the specified Min and
Max interval values.
High all elements of Isovolume Part have isovalues above the specified Max value.
Figure 7-51
Feature Detail Editor (Isovolume) Creation Attributes Area
7.9 Clip Create/Update
EnSight 9 User Manual 7-47
7.9 Clip Create/Update
A Clip is a straight line (a Clip Line), a plane (a Clip Plane), a quadric surface
(cylinder, sphere, etc.), a constant x, y, or z plane, a box, or an i, j, or k plane that
passes through selected model Parts (or already created Clips, Isosurface, or
Developed Surface Parts). EnSight calculates the values of variables at the nodes
of the Clip. Clips can be parent Parts. For example, you can create a Clip Line
passing through a vector field, then create vector arrows originating from the
nodes of the Clip Line. Clips are created on the server, and so are not affected by
the selected Representation(s) of the parent Part(s). If you activate or create
variables after creating a Clip, the Clip automatically updates to include them.
You specify the location, orientation, and size of the Clip numerically in the
Transformations Editor dialog, or interactively using the Line, Plane, Box, or
Quadric surface tool. If you wish, EnSight will automatically extend the size of a
Clip Plane to include all the elements of the parent Part(s) that intersect the plane.
For a grid-type Clip Line, which is composed of bar elements, you specify how
many evenly spaced nodes are along the line. For a grid-type Clip Plane, which is
composed of rectangular elements, you specify the number of nodes in each
dimension, resulting in an evenly spaced grid of nodes across the plane.
If you request a mesh-type Clip Line EnSight finds the intersection of the
specified line with the selected parent Part(s) and creates bar elements that
correspond to the mesh of the parent Part(s).
If you request a mesh-type Clip Plane, an xyz clip, or any of the quadric surfaces,
EnSight finds the intersection of the specified plane or surface with the selected
parent Part(s) and creates elements of various dimensions, sizes, and shapes that
together form a cross-section of the parent Part(s). In this cross-section, three-
dimensional parent Part elements result in two-dimensional Clip Plane elements,
and two-dimensional parent Part elements result in one-dimensional Clip Plane
elements. Note that two-dimensional parent Part elements that are coplanar with
the cross-section are not included since they do not intersect the plane.
For line, XYZ, Plane, Quadric and Revolution Clips you can specify the resulting
part to be all elements that intersect the specified value - resulting in a “crinkly”
surface which can help analyze mesh quality.
For each Clip node on or inside an element of the selected parent Part(s), EnSight
calculates the value of each variable by interpolating from the variable’s values at
the surrounding nodes of the parent Part(s).
You can interactively manipulate the location of a clip Part by toggling on the
Interactive Tool button. When this toggle is on, the tool used to create the clip Part
will appear in the Graphics Window. Manipulation of this tool will cause the clip
Part to be recreated at the new location. This feature allows you to interactively
sweep a plane across your model or manipulate the size and location of the
cylinder, sphere, or cone.
You can animate a Clip by specifying an Animation Delta vector that moves the
Clip to a new location for each frame or page of the animation. The Clip updates
to appear as if it had been newly created at the new location and time.
For structured Parts, you can sweep through the Part with any of the i, j, or k
planes.
7.9 Clip Create/Update
7-48 EnSight 9 User Manual
A Box Clip will create a part according to the Box Tool, and that can either be the
intersection of the Box Tool walls with the selected model parts (intersect), the
crinkly intersection of the Box Tool walls with the selected model parts (crinkly),
the portion of the selected model parts that lie within the Box Tool (inside), or the
portion of the selected model parts which lie outside the Box Tool (outside).
Clicking once on the Clip Create/Update Icon opens the Clip Editor in the Quick
interaction Area which is used to both create and update clip Parts.
Use Tool
IJK The IJK clip tool is used with structured mesh results.
Domain Specification to extract the intersection of the specified mesh slice values. For IJK clips,
the only valid selection is “Intersect”.
Interactive Opens pull-down menu for selection of type of interactive manipulation of the IJK clip.
Options are:
Off Interactive IJK clips are turned off.
Manual Value of the IJK clip selected are manipulated via the slider bar and the
IJK clip is interactively updated in the Graphics Window to the new value.
Auto Value of the IJK clip is incremented by the Auto Delta value from the
minimum range value to the maximum value. When reaching the maximum it
starts again from the minimum.
Auto Cycle Value of the IJK clip is incremented by the Auto Increment value from the
minimum range value to the maximum value. When reaching the maximum
it decrements back to the minimum.
Slider Bar For IJK clips, the slider bar is used to increment / decrement the Mesh Slice Value
between its Minimum and Maximum value.
Min Specification of the minimum slice value for the range used with the “Manual” slider bar
and the “Auto” and “Auto Cycle” options.
Max Specification of the maximum slice value for the range used with the “Manual” slider and
the “Auto” and “Auto Cycle” options.
Increment Specification of the increment/decrement the slider will move within the min and max,
each time the stepper buttons are clicked.
Mesh Slice Opens a pull-down menu for selecting which of the IJK dimensions you wish to allow to
Figure 7-52
Clip Create/Update Icon
Figure 7-53
Quick Interaction Area - Clip Editor - IJK tool
(Enabled with active
animation playing)
Record Button
7.9 Clip Create/Update
EnSight 9 User Manual 7-49
change. You will then specify Min, Max and Step limits for the two remaining “fixed”
dimensions.
Value This field specifies the I, J, or K plane desired for the dimension selected in Mesh Slice
Limit IJK Extents Opens the “Limits Extents of Current Slice By” dialog, in which the off dimension ranges
can be limited.
IJK D(2)Min This field specifies the minimum value for the second fixed dimension.
IJK D(2)Max This field specifies the maximum value for the second fixed dimension.
IJK D(2) Step This field specifies the step size through the second fixed dimension.
IJK D(3)Min This field specifies the minimum value for the third fixed dimension.
IJK D(3)Max This field specifies the maximum value for the third fixed dimension.
IJK D(3) Step This field specifies the step size through the third fixed dimension.
Show Parent IJK Will show the second and third dimension Min and Max extents as defined
Part Extents... for the clip parent Part.
# slices If you want more than one clip calculated at a Delta offset from each other, enter the
number of slices in this field. This number of clips is calculated then they are grouped
together. This field is only available at the first time the clip(s) are calculated. It is not
possible to change this value and recalculate the clips. To change the number or the Delta,
they must be deleted and recalculated.
Delta Offset value to use for creating a number of clips. The first clip is calculated at the number
entered in Value, and the next one is Delta + Value, etc. and they are all grouped together
in the Main Part List.
Create Creates the Clip Part in the Graphics Window as specified.
Apply Tool Change Recreates the Clip Part selected in the Main Parts List at the current position of and of the
type specified by Use Tool.
Advanced Will open the Feature Detail Editor and select the Clip icon for more advance control of
the Clip Part.
Record Button Opens a dialog for recording Interactive Auto or Interactive Auto Cycle animation to a
file. This button is enabled when Auto or Auto cycle animation is actively playing.
Feature Detail Editor Double Clicking on the Clip Create/Update Icon brings up the Feature Detail
(Clips) - IJK Editor, the Creation attributes section of which offers the same features for the IJK
tool as the Quick Interaction Area Editor.
(see Section 3.3, Part Editing for a detailed discussion of the remaining Feature
Detail Editor turn-down sections which are the same for all Parts),
(see How To Create IJK Clips)
Use Tool
XYZ The XYZ tool is used to create a planar Part at a constant Cartesian component value that
is referenced according to the local frame of the part.
Figure 7-54
Quick Interaction Area - Clip Editor - XYZ Tool
7.9 Clip Create/Update
7-50 EnSight 9 User Manual
Domain I
Interactive Opens pull-down menu for selection of type of interactive manipulation of the XYZ clip.
Options are:
Off Interactive XYZ clips are turned off.
Manual Value of the XYZ clip selected are manipulated via the slider bar and the
XYZ clip is interactively updated in the Graphics Window to the new value.
For quick interactive control of the isosurface, simply left-click on the isosurface and grab
the resulting green, cross-shaped click and go handle and drag left and right to see the
isosurface value interactively decrease and increase respectively.
Auto Value of the XYZ clip is incremented by the Auto Delta value from the
minimum range value to the maximum value. When reaching the maximum it
starts again from the minimum.
Auto Cycle Value of the XYZ clip is incremented by the Auto Increment value from the
minimum range value to the maximum value. When reaching the maximum
it decrements back to the minimum.
Slider Bar For XYZ clips, the slider bar is used to increment / decrement the Mesh Slice Value
between its Minimum and Maximum value.
Min Specification of the minimum interval value of the interactive XYZ clip.
Max Specification of the maximum interval value of the interactive XYZ clip.
Increment Specification of the interval step of the interactive XYZ clip.
Mesh Slice Opens a pulldown menu for selecting which of the XYZ components you wish to clip, i.e. the X, the
Y, or the Z component.
Value This field specifies the coordinate desired for the Mesh Slice component.
Set to Mid-Range Clicking this button will put the value that is halfway between the minimum and the
maximum variable value.
# slices If you want more than one clip calculated at a Delta offset from each other, enter the
number of slices in this field. This number of clips is calculated then they are grouped
together. This field is only available at the first time the clip(s) are calculated. It is not
possible to change this value and recalculate the clips. To change the number or the Delta,
they must be deleted and recalculated.
Delta Offset value to use for creating a number of clips. The first clip is calculated at the number
entered in Value, and the next one is Delta + Value, etc. and they are all grouped together
in the Main Part List.
Apply Tool Change Recreates the Clip Part selected in the Main Parts List at the current position of and of the
type specified by Use Tool.
Create Creates the Clip Part in the Graphics Window as specified.
Advanced Will open the Feature Detail Editor and select the Clip icon for more advance control of
the Clip Part.
Intersect will create the cross section of the selected parts at the specified X, Y, or Z
plane.
Crinkly will create a new part consisting of the parent part elements that intersect
the X, Y, or Z plane
7.9 Clip Create/Update
EnSight 9 User Manual 7-51
Feature Detail Editor Double Clicking on the Clip Create/Update Icon brings up the Feature Detail
(Clips) - XYZ Editor (Clips), the Creation attributes section of which offers access to the same
interactive clip parameters as found in the Quick Interaction Area Editor, along
with additional animation delta control of clips using the XYZ tool.
Animation Delta These X,Y,Z fields specify the incremental change in position of the clip for each page of
Flipbook or frame of Keyframe animation.
(see Section 3.3, Part Editing for a detailed discussion of the remaining Feature
Detail Editor turn-down sections which are the same for all Parts),
(see How To Create XYZ Clips)
Use Tool
RTZ The RTZ tool is used to create a Part using cylindrical coordinates at a constant radius
about an axis, angle around that axis or height along an axis.
Figure 7-55
Quick Interaction Area - Clip Editor - XYZ Tool - Creation Attributes
Figure 7-56
Quick Interaction Area - Clip Editor - RTZ tool
7.9 Clip Create/Update
7-52 EnSight 9 User Manual
Domain
Intersect Will create a cross section of the selected parts at the specified radius, angle, or distance
along the axis.
Crinkly Will create a new part consisting of the parent part elements that intersect the specified
radius, angle or distance.
Interactive Opens pull-down menu for selection of type of interactive manipulation of the RTZ clip.
Options are:
Off Interactive RTZ clips are turned off.
Manual Value of the RTZ clip selected are manipulated via the slider bar and the
RTZ clip is interactively updated in the Graphics Window to the new value.
Auto Value of the RTZ clip is incremented by the Auto Delta value from the
minimum range value to the maximum value. When reaching the maximum it
starts again from the minimum.
Auto Cycle Value of the RTZ clip is incremented by the Auto Increment value from the
minimum range value to the maximum value. When reaching the maximum
it decrements back to the minimum.
Slider Bar For RTZ clips, the slider bar is used to increment / decrement the Slice Value between its
Minimum and Maximum value.
Min Specification of the minimum slice value for the range used with the “Manual” slider bar
and the “Auto” and “Auto Cycle” options.
Max Specification of the maximum slice value for the range used with the “Manual” slider and
the “Auto” and “Auto Cycle” options.
Increment Specification of the increment/decrement the slider will move within the min and max,
each time the stepper buttons are clicked.
Slice Opens a pull-down menu for selecting which of the RTZ components to clip, i.e. the radial
(R), the angle theta (T) in degrees, or the distance along the longitudinal axis Z, (Z).
Value This field specifies the magnitude desired for the Slice component, (theta in degrees).
Axis The global axis with which to align the longitudinal (Z) RTZ axis.
Create Creates the Clip Part in the Graphics Window as specified.
Advanced Will open the Feature Detail Editor and select the Clip icon for more advance control of
the Clip Part.
Apply Tool Change Recreates the Clip Part selected in the Main Parts List at the current position of and of the
type specified by Use Tool.
Feature Detail Editor Double Clicking on the Clip Create/Update Icon brings up the Feature Detail
(Clips) - RTZ Editor, the Creation attributes section of which offers the same features for the
RTZ tool as the Quick Interaction Area Editor.
(see Section 3.3, Part Editing for a detailed discussion of the remaining Feature
Detail Editor turn-down sections which are the same for all Parts),
(see How To Create RTZ Clips)
7.9 Clip Create/Update
EnSight 9 User Manual 7-53
Use Tool
Line The Line tool is used to create a clip line.
Domain Specification to extract the intersection of the line tool with the selected part(s). For Line
clips, the only valid selections are “Intersect” and “Crinkly”.
Interactive Tool Toggles on/off interactive movement and updating of a clip Part. When toggled on, the
line tool used to create the 2D clip line will appear in the Graphics Window. Movement of
the tool will cause the Clip Part to be recreated at the new position. When manipulation of
the tool stops, the clip Part and any Parts that are dependent on it will be updated. During
movement, the Tool itself will not be visible, so as not to obscure the Line Clip Part. The
Tool will reappear when the mouse button is released.
Type
Mesh Will create a Line Clip showing the intersection of the line tool with the mesh elements of
the parent Part.
Clip Extents Opens a pull down menu for selection of the extent of the Line Clip.
Finite limits the Line Clip to the length specified by the Line Tool endpoints.
Infinite Assumes the line tool defines an infinite line and uses this to intersect the
elements of the selected model Parts.
Grid Will create a Line Clip of evenly spaced bar elements along the line tool.
# of Points on Line Specification of number of evenly spaced points on the line at which to create a node.
Tool Location... Opens the Transformation Editor dialog to permit precise positioning of the Line Tool
within the Graphics Window. (see Tool Positions... Line Tool in Section 6.5, Tools Menu
Functions and How To Use the Line Tool)
Figure 7-57
Quick Interaction Area - Clip Editor - Line Tool
Figure 7-58
Quick Interaction Area - Clip Editor - Line Tool - Mesh Type
Figure 7-59
Quick Interaction Area - Clip Editor - Line Tool - Grid Type
7.9 Clip Create/Update
7-54 EnSight 9 User Manual
Apply Tool Change Recreates the Clip Part selected in the Main Parts List at the current position of and of the
type specified by Use Tool.
Create Creates the Clip Part in the Graphics Window as specified.
Advanced Will open the Feature Detail Editor and select the Clip icon for more advance control of
the Clip Part.
Feature Detail Editor Double Clicking on the Clip Create/Update Icon brings up the Feature Detail
(Clips) - Line Editor (Clips), the Creation attributes section of which offers access to additional
features for the creation and modification of clips using the Line tool.
Domain Specification to extract the intersection of the line tool with the selected part(s). For Line
clips, the only valid selections are “Intersect” and “Crinkly”.
Clip Parameters
Type Opens a pull down menu for selection of the line clip type.
Mesh - will create a Line Clip showing respecting the mesh elements of the parent Part.
Grid - will create a Line Clip of evenly spaced bar elements along the line tool.
Extents Opens a pull down menu for selection of the extent of the Line Clip.
Finite limits the Line Clip to the length specified by the Line Tool endpoints.
Infinite extends the Line Clip to include the intersection of the line with all elements of
the selected model Parts.
Use nodes Allows for specification of the location of two nodes in the model from which to get the
line clip endpoints. If this method is used, the line clip will remain tied to these nodes even
if they move over time.
Pos of Pt1 Specification of XYZ endpoint-coordinates of Line Clip. The position of a Line Clip
Pos of Pt2 Part, if selected in the Feature Detail Editor’s Parts List, can be changed by manually
entering values in the numeric fields and then pressing Return.
Figure 7-60
Feature Detail Editor (Clips) - Line Tool
Creation Attributes
7.9 Clip Create/Update
EnSight 9 User Manual 7-55
Set Tool Coords The position of the Line Clip tool can be changed by entering values in the numeric fields
and then pressing Set Tool Coords.
Get Tool Coords The values in the numeric fields (and the position of a Line Clip Part, if selected in the
Feature Detail Editor’s Parts List) can be updated after moving the Line tool interactively
in the Graphics Window by clicking Get Tool Coords. If a Line Clip Part is selected in the
Feature Detail Editor Parts List, it will be repositioned to the new coordinates after
clicking Get Tool Coords. Coordinates are always in the original model frame (Frame 0).
Animation Delta These X,Y,Z fields specify the incremental change in position of the clip for each page of
Flipbook or frame of Keyframe animation.
The Feature Detail Editor also allows you to make changes in batch; that is, to
make several changes to the menus and fields which do not effect the Graphics
Window until you click in the Apply Changes button. It is sometimes quicker
(with respect to CPU time) to make several changes at once rather than one at a
time as in the Quick Interaction Area.
(see Section 3.3, Part Editing for a detailed discussion of the remaining Feature
Detail Editor turn-down sections which are the same for all Parts),
(see How To Create Line Clips)
7.9 Clip Create/Update
7-56 EnSight 9 User Manual
Use Tool
Plane The Plane Tool is used to create a Plane Clip.
Type
Mesh Will create a Plane Clip showing the cross section of the parent Part.
Clip Extents Opens a pull down menu for selection of the extent of the Plane Clip.
Finite limits the Plane Clip to the area specified by the Plane Tool corner coordinates.
Infinite extends the Plane Clip to include the intersection of the plane with all elements of
the selected model Parts.
Grid Will create a Plane Clip by discrete point sampling.
Grid Pts on:XY These fields specify the number of points on each edge of a Plane Clip at which to create
nodes. Additional nodes are located in the interior of the plane to form an evenly spaced
grid. The values must be positive integers. Applicable only to grid-type Plane Clips. Grid
Pts in X correspond to the x-direction on the Plane tool, while the number of Grid Pts in Y
correspond to the y-direction of the Plane tool.
# slices If you want more than one clip calculated at a Delta offset from each other, enter the
number of slices in this field. This number of clips is calculated then they are grouped
together. This field is only available at the first time the clip(s) are calculated. It is not
possible to change this value and recalculate the clips. To change the number or the Delta,
they must be deleted and recalculated.
Delta Offset value to use for creating a number of clips. The first clip is calculated at the number
entered in Value, and the next one is Delta + Value, etc. and they are all grouped together
in the Main Part List.
Domain Intersect will create the cross section of the selected parts where they intersect the
plane tool.
Crinkly will create a new part consisting of the parent part elements that intersect
the plane tool.
Inside will cut the parent parts and create a new part consisting of the portion on
the positive z side of the plane tool.
Outside will cut the parent parts and create a new part consisting of the portion on
the negative z side of the plane tool.
In/Out will cut the parent parts and create two new parts - namely an Inside and
Outside part.
Figure 7-61
Quick Interaction Area - Clip Editor - Plane Tool - Mesh Type
Figure 7-62
Quick Interaction Area - Clip Editor - Plane Tool - Grid Type
7.9 Clip Create/Update
EnSight 9 User Manual 7-57
Apply Tool Change Recreates the Clip Part selected in the Main Parts List at the current position of and of the
type specified by Use Tool.
Interactive Tool Toggles on/off interactive movement and updating of the clip Part. When toggled on, the
Plane Tool used to create the clip Part will appear in the Graphics Window. Movement of
the Plane Tool will cause the Plane Clip to be recreated at the new position. When
manipulation of the tool stops, the clip Part and any Parts that are dependent on it will be
updated. During movement, the Tool itself will not be visible, so as not to obscure the Line
Clip Part. The Tool will reappear when the mouse button is released.
For quick interactive control of the clip plane, simply left-click on the plane tool origin
and grab the resulting green, cross-shaped click and go handle and drag to see the clip
location value interactively translate in the plane tool Z direction.
Tool Location... Opens the Transformation Editor dialog to permit precise positioning of the Plane Tool.
(see Section 6.5, Tools Menu Functions and How To Use the Plane Tool)
Create Creates the Clip Part in the Graphics Window as specified.
Advanced Will open the Feature Detail Editor and select the Clip icon for more advance control of
the Clip Part.
Feature Detail Editor Double Clicking on the Clip Create/Update Icon brings up the Feature Detail
(Clips) - Plane Editor (Clips), the Creation attributes section of which offers access to additional
features for the creation and modification of clips using the Plane tool.
Clip Parameters
Figure 7-63
Feature Detail Editor (Clips) - Plane Tool Creation Attributes
7.9 Clip Create/Update
7-58 EnSight 9 User Manual
Use Nodes: Specification of three node ids which will be used to specify the plane of the clip. The clip
plane will be tied to these three nodes, even if they move in time.
Pos of C1 Specification of the location, orientation, and size of the Plane Clip using the coordinates
Pos of C2 (in the Parts reference frame) of three corner points, as follows:
Pos of C3 Corner 1 is corner located in negative-X negative-Y quadrant
Corner 2 is corner located in positive-X negative-Y quadrant
Corner 3 is corner located in positive-X positive-Y quadrant
Set Tool Coords Will reposition the Plane Tool to the position specified in C1, C2, and C3.
Get Tool Coords Will update the C1, C2, and C3 fields to reflect the current position of the Plane Tool.
Animation Delta These X,Y,Z fields specify the incremental change in position of the clip for each page of
Flipbook or frame of Keyframe animation.
(see Section 3.3, Part Editing for a detailed discussion of the remaining Feature
Detail Editor turn-down sections which are the same for all Parts),
(see How To Create Plane Clips)
7.9 Clip Create/Update
EnSight 9 User Manual 7-59
Use Tool
Box This Clipping Tool extracts portions of the model that are inside, outside, or that intersect
a specified box.
Be aware that due to the algorithm used, this clip can (and most often does) have
chamfered edges, the size of which depends on the coarseness of the model elements.
.
Apply Tool Change Recreates the Clip Part selected in the Main Parts List at the current position of and of the
type specified by Use Tool.
Tool Location... Opens the Transformation Editor dialog to permit precise positioning of the Box Tool. (see
Section 6.5, Tools Menu Functions and How To Use the Box Tool)
Advanced Will open the Feature Detail Editor and select the Clip icon for more advance control of
the Clip Part.
Create Creates the Clip Part in the Graphics Window as specified.
Feature Detail Editor Double Clicking on the Clip Create/Update Icon brings up the Feature Detail
(Clips) - Box Editor, the Creation attributes section of which offers the same features for the
Box tool as the Quick Interaction Area Editor.
(see Section 3.3, Part Editing for a detailed discussion of the remaining Feature
Detail Editor turn-down sections which are the same for all Parts),
(see How To Create Box Clips)
Domain Intersect will create a new part consisting of the intersection of the box tool sides
and the selected parts.
Crinkly will create a new part consisting of the parent part elements that intersect
the box tool sides.
Inside will extract the volume portion of the parent parts that lie within the box.
Outside will extract the volume portion of the parent parts that do not lie within the
box.
In/Out will create two new parts - namely the Inside and Outside parts.
Figure 7-64
Quick Interaction Area - Clip Editor - Box Tool
7.9 Clip Create/Update
7-60 EnSight 9 User Manual
Use Tool
Cylinder, Sphere, Cone These Tools are used to create a quadric clip surface.
.
Interactive Tool Toggles on/off interactive movement and updating of a clip Part. When toggled on, the
Quadric Tool used to create the Clip Part will appear in the Graphics Window at the
location of the Clip Part. Movement of the Quadric Tool will cause the Clip Part to be
recreated at the new position. When manipulation of the tool stops, the Clip Part and any
Parts that are dependent on it will be updated. During movement, the Tool itself will not
be visible, so as not to obscure the Line Clip Part. The Tool will reappear when the mouse
button is released.
Clip extents Opens a pulldown menu that allows for the selection of Finite or Infinite extents. It is only
present for cylinder and cone clips.
Advanced Will open the Feature Detail Editor and select the Clip icon for more advance control of
the Clip Part.
Tool Location... Opens the Transformation Editor dialog to permit precise positioning of Quadric
Tools.(see Section 6.5, Tools Menu Functions and How To Use the Cylinder Tool, How
To Use the Sphere Tool, and How To Use the Cone Tool)
Apply Tool Change Recreates the Clip Part selected in the Main Parts List at the current position of and of the
type specified by Use Tool.
Create Creates the Clip Part in the Graphics Window as specified.
Domain Intersect will create the cross section of the selected parts where they intersect the
quadric tool.
Crinkly will create a new part consisting of the parent part elements that intersect
the quadric tool.
Inside will cut the parent parts and create a new part consisting of the portion on
the inside of the quadric tool.
Outside will cut the parent parts and create a new part consisting of the portion on
the outside of the quadric tool.
In/Out will cut the parent parts and create two new parts - namely an Inside and
Outside part.
Figure 7-65
Quick Interaction Area - Clip Editor - Cylinder, Sphere, & Cone Tools
7.9 Clip Create/Update
EnSight 9 User Manual 7-61
Feature Detail Editor Double Clicking on the Clip Create/Update Icon brings up the Feature Detail
(Clips) Quadric Tool Editor (Clips), the Creation attributes section of which offers access to additional
features for the creation and modification of clips using the Quadric tools.
Clip Parameters
Cylinder
Orig XYZ Specification of the origin (the center point) of the Cylindrical Clip.
Axis Specification of the longitudinal axis direction of the Cylindrical Clip.
Radius Specification of the radius of the Cylindrical Clip.
Sphere
Orig Specification of the origin (the center point) of the Spherical Clip.
Axis Specification of the axis direction of the Spherical Clip. (Note: Axis is important if
Developed Surface is created from the spherical clip.)
Radius Specification of the radius of the Spherical Clip.
Cone
Orig Specification of the origin (the tip of the cone) of the Conical Clip.
Axis Specification of the axis direction of the Conical Clip. Axis direction goes from tip to
base.
Angle Specification of the conical half angle (in degrees) of the Conical Clip.
Set Tool Coords Will reposition the Quadric Tool to the position specified in the Clip Parameter fields.
Get Tool Coords Will update the Clip Parameter fields to reflect the current position of the Quadric Tool.
Figure 7-66
Feature Detail Editor (Clips) - Quadric Tool Creation Attributes
7.9 Clip Create/Update
7-62 EnSight 9 User Manual
Animation Delta These X,Y,Z fields specify the incremental change in position of the clip for each page of
Flipbook or frame of Keyframe animation.
The Feature Detail Editor also allows you to make changes in batch; that is, to
make several changes to the menus and fields which do not effect the Graphics
Window until you click in the Apply Changes button. It is sometimes quicker
(with respect to CPU time) to make several changes at once rather than one at a
time as in the Quick Interaction Area.
(see Section 3.3, Part Editing for a detailed discussion of the remaining Feature
Detail Editor turn-down sections which are the same for all Parts),
(see How To Create Quadric Clips)
7.9 Clip Create/Update
EnSight 9 User Manual 7-63
Use Tool
Revolution Tool This clipping Tool is used to create custom clip surfaces which are defined by revolving a
set of lines about a defined axis.
Tool Location... Opens the Transformation Editor dialog to permit precise location of the revolution tool
within the Graphics Window. It is here where you also can control the number and
positioning of the set of lines which make up the tool.
(see Section 6.5, Tools Menu Functions and How To Use the Surface of Revolution Tool)
Clip extents Opens a pulldown menu that allows for the selection of Finite or Infinite extents. It is only
present for cylinder and cone clips.
Advanced Will open the Feature Detail Editor and select the Clip icon for more advance control of
the Clip Part.
Apply Tool Change Recreates the Clip Part selected in the Main Parts List at the current position of and of the
type specified by Use Tool.
Create Creates the Clip Part in the Graphics Window as specified.
Domain Intersect will create the cross section of the selected parts where they intersect the
revolved surface.
Crinkly will create a new part consisting of the parent part elements that intersect the
revolved surface.
Inside will cut the parent parts and create a new part consisting of the portion on
the inside of the revolved surface.
Outside will cut the parent parts and create a new part consisting of the portion on
the outside of the revolved surface.
In/Out will cut the parent parts and create two new parts - namely an Inside and
Outside part.
Figure 7-67
Quick Interaction Area - Clip Editor - Revolution Tool
7.9 Clip Create/Update
7-64 EnSight 9 User Manual
Feature Detail Editor Double Clicking on the Clip Create/Update Icon brings up the Feature Detail
(Clips) - Revolution Editor (Clips), the Creation attributes section of which offers access to additional
Tool features for the creation and modification of clips using the Revolution tool.
Revolution Tool Clip Parameters
Orig Specify the XYZ coordinates of the origin (center point) of the Revolution Clip.
Axis These fields specify the XYZ coordinates of the axis direction of the Revolution Clip.
Distance/Radius These lists specify the distance (from the origin) and radius for each point that defines the
Revolution Clip. The points can Not be edited within this dialog. You must edit the
Revolution Tool in the Transformations dialog.
Set Tool Coords Will reposition the Revolution Tool to the position specified in the Clip Parameter fields.
Get Tool Coords Will update the Clip Parameter fields to reflect the current position of the Revolution Tool.
Animation Delta These X,Y,Z fields specify the incremental change in position of the clip for each page of
Flipbook or frame of Keyframe animation.
The Feature Detail Editor also allows you to make changes in batch; that is, to
make several changes to the menus and fields which do not effect the Graphics
Window until you click in the Apply Changes button. It is sometimes quicker
(with respect to CPU time) to make several changes at once rather than one at a
time as in the Quick Interaction Area.
(see Section 3.3, Part Editing for a detailed discussion of the remaining Feature
Detail Editor turn-down sections which are the same for all Parts),
(see Section 6.5, Tools Menu Functions and How To Use the Surface of Revolution Tool)
Figure 7-68
Feature Detail Editor (Clips) - Revolution Tool Creation Attributes
7.9 Clip Create/Update
EnSight 9 User Manual 7-65
Use Tool
Revolve 1D Part This option will create a clip surface by revolving a line, defined by a Part, about an axis.
Revolve Part This field specifies the Part number which will be revolved. The 1D Part must contain
only bar elements and must have only two free ends (i.e., there must be only one “logical”
line contained in the Part).
Orig These fields specify the XYZ coordinates of the axis line origin point.
Axis These fields specify the direction vector of the axis line. The “line” contained in the Part
specified by number in Revolve Part will be revolved about this axis to create the clip
surface Part.
Apply Tool Change Recreates the Clip Part selected in the Main Parts List at the current position of and of the
type specified by Use Tool.
Create Creates the Clip Part in the Graphics Window as specified.
Domain Intersect will create the cross section of the selected parts where they intersect the
revolved surface.
Crinkly will create a new part consisting of the parent part elements that intersect the
revolved surface.
Inside will cut the parent parts and create a new part consisting of the portion on
the inside of the revolved surface.
Outside will cut the parent parts and create a new part consisting of the portion on
the outside of the revolved surface.
In/Out will cut the parent parts and create two new parts - namely an Inside and
Outside part.
Figure 7-69
Quick Interaction Area - Revolve 1D Part Clip Editor
7.9 Clip Create/Update
7-66 EnSight 9 User Manual
Use Tool
Spline This option will create a clip along an existing spline using evenly spaced nodes along the
spline.
Spline This pulldown allows you to choose which spline to use as the clipping tool.
# of points Enter the number of evenly spaced points to use over the spline for the 1D clip creation.
Domain Intersect will create the 1D part composed of bar elements using the selected parts
where they intersect the spline at an evenly spaced number of points.
Figure 7-70
Quick Interaction Area - Revolve 1D Part Clip Editor
7.9 Clip Create/Update
EnSight 9 User Manual 7-67
General Quadric
Feature Detail Editor Double Clicking on the Clip Create/Update Icon brings up the Feature Detail
(Clips) Editor (Clips), the Creation attributes section of which offers access to one type of
clip creation which is not available in the Quick Interaction area. It is possible to
create a 3D Quadric clip using the General Quadric option by directly specifying
the coefficients of a general quadric equation.
The Feature Detail Editor also allows you to make changes in batch; that is, to
make several changes to the menus and fields which do not affect the Graphics
Window until you click in the Apply Changes button. It is sometimes quicker
(with respect to CPU time) to make several changes at once rather than one at a
time as in the Quick Interaction Area.
(see Section 3.3, Part Editing for a detailed discussion of the remaining Feature
Detail Editor turn-down sections which are the same for all Parts)
10 coefficient values These coefficient values represent the general equation of a Quadric surface. They can be
changed by modifying the values. No tool exists corresponding to this equation.
AX2+BY2+CZ2+DXY+EYZ+FXZ+GX+HY+IZ=J
Animation Delta Not available for General Quadric Clips.
The Feature Detail Editor also allows you to make changes in batch; that is, to
make several changes to the menus and fields which do not effect the Graphics
Window until you click in the Apply Changes button. It is sometimes quicker
Figure 7-71
Feature Detail Editor (Clips) - Revolve 1D Part Creation Attributes
7.9 Clip Create/Update
7-68 EnSight 9 User Manual
(with respect to CPU time) to make several changes at once rather than one at a
time as in the Quick Interaction Area.
(see Section 3.3, Part Editing for a detailed discussion of the remaining Feature
Detail Editor turn-down sections which are the same for all Parts),
Troubleshooting Clips
Problem Probable Causes Solutions
Clip does not move during animation Animation deltas are not set, or
are too small.
Change the animation delta
values.
Clip results in an empty Part. Clip was taken outside of the
model.
Change the clip Tool location.
7.10 Vector Arrow Create/Update
EnSight 9 User Manual 7-69
7.10 Vector Arrow Create/Update
Vector Arrows visualize the magnitude and direction of a vector variable at
discrete points (at nodes, element vertices, or at the center of elements).
Other features can visualize magnitude, but Vector Arrows also show direction.
Vector arrow Parts are dependent Parts known only to the client. They cannot be
used as a parent Part for other Part types and cannot be used in queries. As
dependent Parts, they are updated anytime the parent Part and/or the creation
vector variable changes (unless the general attribute Active flag is off).
Vector arrows can be filtered according to low and/or high threshold values.
Vector arrows can emanate from the available nodes of the parent Part(s), the
available element vertex nodes of the parent Part(s), or the available element
centers of the parent Part(s) which pass through the filter successfully. The nodes
and elements available in the parent Part are based on the visual Representation of
the Part. Thus, for a border Representation of a Part, only the border elements and
associated nodes are candidates.
Vector arrows can have straight shafts representing the vector at the originating
location, or be the segment of a streamline emanating from the originating
location (curved). Straight vector arrows are displayed relatively quickly, while
curved vector arrows can be time consuming.
Different tip styles, sizes, and colors can be used to enhance vector arrow display.
To quickly create vector parts, right click in the graphics window on a surface and
drag down to vector arrows, and vector arrows will automatically appear (if
there’s only one vector variable) or you will be prompted for which vector
variable to use to create vector variables and they will automatically appear. Left
click on the arrows and when a green, cross-shaped handle (click and go handle)
appears, drag it left and right to scale the arrows. Left-clicking once on the Vector
Arrow Create/Update Icon opens the Vector Arrow Editor section of the Quick
interaction Area which is used to both create and update (make changes to) vector
7.10 Vector Arrow Create/Update
7-70 EnSight 9 User Manual
arrow Parts.
Scale Factor / Time When Type is “Rectilinear”, this field specifies a scale factor to apply to the vector values
before displaying them. Scaling is usually necessary to control the visual length of the
vector arrows since the vector values may not relate well to the geometric dimensions.
Can be negative, causing the vector arrows to reverse direction.
When Type is “Rect. Fixed”, this field specifies the length of the arrows in units of the
model coordinate system. Can be negative, causing the vector arrows to reverse direction.
When Type is “Curved”, this field specifies the duration time for streamlines forming the
shaft of curved vector arrows. Is an indication of the length of the curved vector arrow.
Set to Default Sets Scale Factor value to a computed reasonable value based on the vector variable
values and the geometry.
Arrow Tips... Opens the Vector Arrow Tip Settings dialog.
Shape Opens a pop-up menu to select tip shape.
None option displays arrows as lines without tips.
Cone arrows have a tip composed of a 3D cone. Good for both 2D and 3D fields.
Normal arrows have two short line tips, similar to the way many people draw
arrows by hand. The tip will lie in the X–Y, X–Z, or Y–Z plane depending
on the relative magnitudes of the X, Y, and Z components of each
individual vector. Suggested for 2D problems.
Triangles arrows have a tip composed of two intersecting triangles in the two
dominant planes. Good for both 2D and 3D fields.
Figure 7-72
Vector Arrow Create/Update Icon
Figure 7-73
Quick Interaction Area - Vector Arrow Editor
Figure 7-74
Vector Arrow Tip Settings dialog
7.10 Vector Arrow Create/Update
EnSight 9 User Manual 7-71
Size Opens a pop-up menu for selecting tip size.
Type Opens a pop-up menu for selection of shaft-type of vector arrows. Options are:
Location Opens a pop-up dialog for the selection of root-location of arrow shafts. The options are:
Density The fraction of the parent’s nodes/elements which will show a vector arrow. A value of
1.0 will result in a vector arrow at each node/element, while a value of 0.0 will result in no
arrows. If between these two values, the arrows will be distributed randomly at the
specified density. There is no check for duplicates in the random distribution of arrows. It
is entirely possible that when you specify a density of 0.25 in a model containing 100
nodes you only get 15 unique locations with 10 duplicates. It will appear that only 15
arrows show up, but there are actually 25 with 10 duplicates.
Filter Selection of pattern for filtering Vector Arrows according to magnitude. Options are:
Tipped arrows display the tip of the arrow in any user specified color. Good for
both 2D and 3D fields. The color may be specified in the RGB fields or
chosen from the Color Selector dialog which is opened by pressing the
Mix... button
Fixed sized arrows have tips for which the length is specified in the data entry
field to the right of the pop-up menu button. Units are in the model
coordinate system.
Proportional sized arrow tips change proportionally to the change in the magnitude of
the vector arrows.
Rectilinear arrows have straight shafts. The arrow points in the direction of the vector
at the originating location. The length of the arrow shaft is determined by
multiplying the vector magnitude by the scale factor.
Rect. Fixed arrows have straight shafts. The arrow points in the direction of the vector
at the originating location. The length of the arrow shaft is determined by
the scale factor. It is independent of the vector variable.
Curved arrows have curved shafts. The arrow is actually a streamline emanating
from the originating location. It represents the path that a massless
Particle would follow if the flow field was steady state. For this option,
the “Scale Factor” changes to “Time”. Time is the amount of time the
streamline is allowed to take and is an indication of how long the arrow
will be. Hint: Since curved arrows can take a significant amount of time
(depending on the number of originating locations), the setting of a
proper “Time” value is critical. The best way to do this is to first do a
single Particle trace at a representative location with the estimated “Time”
value as the Max Time. A quick iteration or two on the value here could
save considerable time for the curved vector arrow computation.
Node arrows originate from each node of the parent Part(s). Note: Discrete
Particles Parts must use Node option.
Ve r t i c e s arrows originate only from those nodes at the vertices of each element
of the parent Part(s) (i.e., arrows are not displayed at free nodes or
mid-side nodes).
Element Center arrows originate from the geometric center of each element of the
parent Part(s).
None displays all the vector arrows. No filtering done.
Low displays only those arrows with magnitude above that specified in the Low
field. Filters low values out.
7.10 Vector Arrow Create/Update
7-72 EnSight 9 User Manual
Apply New Variable Changes the vector Variable used to create the Vector Arrows to that currently selected in
the Variables List.
Advanced Will open the Feature Detail Editor and select the Vector Arrow icon for more advance
control of the Vector Arrow Part.
Feature Detail Editor Double clicking on the Vector Arrow Create/Update Icon opens the Feature Detail
(Vector Arrows) Editor for Vector Arrows, the Creation Attributes Section of which provides
access to the functions available in the Quick Interaction Area plus three more:
Display offset This field specifies the normal distance away from a surface to display the vector
arrows. A positive value moves the vector arrows away from the surface in the
direction of the surface normal.
Please note that there is a hardware offset that will apply to contours, vector arrows,
separation/attachment lines, and surface restricted particle traces that can be turned on
or off in the View portion of Edit->Preferences. This preference (“Use graphics hardware
to offset line objects...”) is on by default and generally gives good images for everything
except move/draw printing. This hardware offset differs from the display offset in that it is
in the direction perpendicular to the computer screen monitor (Z-buffer).
Thus, for viewing, you may generally leave the display offset at zero. But for
printing, a non-zero value may become necessary so the arrows print cleanly.
Projection Opens a pop-up menu to allow selection of which vector components to include when
calculating both the direction and magnitude of the vector arrows. The vector components
at the originating point are always first multiplied by the Projection Components (see
below). Then one of the following options is applied:
Band displays only those arrows with magnitude below that specified in the Low
field and above that specified in the High field. Filters the band out.
High displays only those arrows with magnitude below that specified in the High
field. Filters the high values out.
Low_High displays only those arrows with magnitude between that specified in the
Low field and that specified in the High field. Filters out low and high
values.
All to display a vector arrow composed of the Projection-Component-modified
X, Y, and Z components.
Normal to display a vector which is the projection of the All vector in the direction
of the normal at the originating location.
Figure 7-75
Feature Detail Editor (Vector Arrows)
7.10 Vector Arrow Create/Update
EnSight 9 User Manual 7-73
The All, Normal, and Tangential options produce a single vector per location, while the
Component option produces two vectors per location. If selection is not applicable to a
Particular element, that element’s vector arrow uses the All projection.
Projection These fields specify a scaling factor for each coordinate component of each vector arrow
Components X Y Z used in calculating both the magnitude and direction of the vector arrow. Specify 1 to use
the full value of a component. Specify 0 to ignore the corresponding vector component
(and thus confine all the vector arrows to planes perpendicular to that axis). Values
between 0 and 1 diminish the contribution of the corresponding component, while values
greater than 1 exaggerate them. Negative values reverse the direction of the component.
Always applied before the Projection options above.
The Feature Detail Editor also allows you to make changes in batch; that is, to
make several changes to the menus and fields which do not effect the Graphics
Window until you click in the Apply Changes button. It is sometimes quicker
(with respect to CPU time) to make several changes at once rather than one at a
time as in the Quick Interaction Area.
(see Section 3.3, Part Editing for a detailed discussion of the remaining Feature
Detail Editor turn-down sections which are the same for all Parts),
(see How to Create Vector Arrows)
Troubleshooting Vector Arrows
Tangential to display a vector which is the projection of the All vector into the
tangential plane at the originating location.
Component to display both the Normal and the Tangential vectors.
Problem Probable Causes Solutions
Vector arrows do not match up with
their originating locations on one or
more of the parent Parts.
Displacements are on for some of the
parent Parts, but not others. Or the
parent Parts have been assigned to
different coordinate frames
Create separate vector arrow Parts
for the parents that will be displaced
(or assigned to different frame) and
the ones that will not be displaced
(or assigned to different frames).
You are displaying several different
vector arrow Parts at once and can’t
tell which is which.
Just too much similar information in
the same area.
Use different attributes for the
different vector arrow Parts, or better
yet, display the conflicting vector
arrow Parts on separate Part copies
which have been moved apart.
You are trying to display vector
arrows on a Discrete Particle Part,
but can’t get them to show up
Arrow Location set to Vertices (the
default).
Set the Arrow Location to Nodes.
No vector data provided for the
Discrete Particle dataset, thus values
all set to zero when read into
EnSight.
Provide vector data for the particles.
Specify in the Measured results file.
See Section 3.7.
Vector arrows do not print well See Display Offset discussion above. Enter a non-zero Display Offset.
7.11 Particle Trace Create/Update
7-74 EnSight 9 User Manual
7.11 Particle Trace Create/Update
A streamline or pathline Particle trace visualizes a vector field by displaying the
path that a particle would follow if placed in that field. At each point on the
Particle trace, the direction of the trace is parallel to the vector field at that point
and time.
A streamline is a Particle trace in a steady-state vector field, while a pathline is a
Particle trace in a time-varying vector field. Particle traces can be lines or
“ribbons” (that additionally visualize the rotation of the vector field around the
path of the trace).
EnSight is capable of computing a pathline through a model with changing
coordinates and/or changing connectivity. The variable values are assumed to
behave linearly between the known timesteps.
Node Tracks Another form of trace that is available is entitled node tracking. This trace is
constructed by connecting the locations of nodes through time. It is useful for
changing geometry or transient displacement models (including measured
particles) which have node ids.
Min/Max Variable A further type of trace that is available is a min or max variable track. This trace
Tracks is constructed by connecting the min or max of a chosen variable (for the selected
parts) though time. Thus, on transient models one can follow where the min or
max variable location occurs.
Particle Trace Parts have their own attributes, so you can, for example, trace a
flow field using the velocity variable, and then color the resulting trace using the
temperature variable.
Emitters A streamline or pathline Particle Trace Part consists of one or more Particle traces
originating from points on one or more emitters. Each emitter is capable of
emitting a Particle starting at a specified time and continuing to emit Particles at
given intervals. When pathlines are generated with emitters emitting at multiple
time intervals and these traces are then animated, streaklines are displayed.
Emitters consist of single points, points along a line, points forming a grid in a
plane, or points corresponding to the nodes of a Part. You can define emitters
using the Cursor tool, the Line tool, the Plane tool, or a Part. In fact, if you have a
Figure 7-76
Particle Trace Illustration
7.11 Particle Trace Create/Update
EnSight 9 User Manual 7-75
cursor, line or plane tool visible in a flow field, you can right click on the tool and
choose ‘Particle Trace’ to immediately create a particle trace in the flow field
using all the default settings.
Emitters can be created using the cursor, line, and plane tools, using existing Part
nodes, or can be created in a surface restricted mode where the mouse can be used
to project points, rakes or nets directly onto the displayed surfaces of the model.
Pathlines, of course, must be drawn forward in time, but streamlines can be drawn
forward in time, backward in time, or both. Each Particle trace terminates when
either (1) the Particle trace moves outside the space in which the vector field is
defined, (2) a user-specified time limit is reached, (3) the massless Particle
becomes stationary in a place where the vector field is zero, or (4) the last
transient-data time step is reached. (4 applies only to pathlines)
A Particle trace can pass through any point inside an element of the parent Part(s).
The vector field at any point is calculated from the shape function of the
containing element. Emitter points located outside the elements are ignored when
creating Particle traces.
Surface-Restricted A surface-restricted Particle trace is constrained to the surface of the selected
Traces Part(s) by using only the tangential component of the velocity. The velocity values
for this type of trace can be the velocity at the surface (if nonzero) or at some user
specified offset into the velocity field.
Interactive Traces A streamline Particle trace can be updated interactively by entering interactive
mode and moving the tool used to create the emitter. When a trace is selected and
interactive emitter is turned on, the tool will appear at the location of the emitter.
The user then manipulates the tool interactively in the Graphics Window or using
the transformations dialog. (This option is not available for surface-restricted
Particle traces, traces emitted from a Part nor in Server of Server mode).
Integration Method EnSight creates streamline and pathline Particle traces by integrating the vector
field variable over time using a Fourth Order Runge-Kutta method and utilizing a
time varying integration step. The integration step is lengthened or shortened
depending on the flow field, but you can control the minimum number of
integration steps performed in any element as well as other time step controls.
Normally, EnSight will perform the integration using all of the components of the
vector. However, it is possible to restrict the integration to a plane by specifying
which components of the vector to use. Typical uses of this feature would be to
restrict the Particle traces to a clip plane. Surface-restricted Particle traces provide
even greater flexibility in restricting a trace to planes or other surfaces.
Max # of Segments A trace will continue until it attempts to leave the flow field. However sometimes
a trace will continue indefinitely, for example when the trace is caught in a vortex
or recirculation area. For this situation EnSight has established a maximum
number of segments in each trace. The maximum number of segments in each
massless trace is by default 5000 for surface-restricted traces, and 6000 for all
other massless trace types. This default can be changed by entering a command
line entry (File>Command) into the command dialog.
Surface restrcted: test: max_skin_segments <value>
All other trace types: test: max_ptrace_segments <value>
A value of 0 disables the maximum segment check, and for massed particles the
value entered is automatically doubled.
7.11 Particle Trace Create/Update
7-76 EnSight 9 User Manual
Lines or Ribbons Line-type Particle traces consist of bar elements. Ribbons consist of 4-noded quad
elements and originate with their end-edge parallel to the Z-axis of the global
frame. Then, at each integration step, the leading edge is rotated around the
current direction of the path by the same amount the vector field has rotated
around the path since the previous time step. Ribbons are not available for
surface-restricted Particle traces.
Particle Trace Parts are created on the server, so the Representation-type of the
parent Parts has no effect. The algorithm that creates Particle traces initially sets
up a cross-referencing map of adjoining elements. Hence, the first Particle trace
takes longer to generate than subsequent traces.
If you calculate pathlines, consider calculating as many as possible at a time, since
the process can be very time consuming (most of the time is taken in reading time
step information). However, the data for the Trace Part is sent to and stored on the
Client. Thus, you cannot label nodes or elements, and some query options may be
limited.. In such cases, it may be helpful to perform the labeling or query option
on the Particle Trace’s parent Part(s) instead. Line-type Particle Traces can be
parent Parts for Profiles. You can animate the motion of the massless Particles
along their Particle traces.
Transient Data By default the emission point is always set to emit the Particles at the current time
step. This can be a problem if you have a transient dataset with the current time set
at the last time step available. If you compute pathlines from this location, the
default emission time will be at the current time (last time step), thus no pathlines
will be generated. To solve this problem you will need to either change the current
time, or change the Start Time of the emitter.
The process of creating a streamline or pathline Particle trace is always to specify
an emission point (location and time), specify the Part(s) to trace the Particle
through and specify which vector variable to integrate. There are quick ways of
doing this process which assume that the correct defaults are set, or there are more
deliberate ways which give you more control. Particle trace Parts carry only one
set of attributes for all of the traces in the Part, thus it is not possible, for example,
to trace some of the emission points forward in time and others backward in time.
Particle trace Parts are different from all other created Parts in that when the
parent Parts change (such as at a time step change), the Particle trace Part does not
change. This is due to the fact that the Particle trace has been created at a specified
time (the emission time), making the Part independent of time (after the trace has
been created).
Regular streamline or pathline Particle traces can only be computed through a set
of parent Parts consisting of model Parts. Surface-restricted Particle traces can be
created on model Parts, clip Parts, elevated surface Parts, and developed surface
Parts.
If your dataset contains 3D elements, the Particles for regular traces will be traced
through 3D element fields only. Surface-restricted traces would have to be used to
trace along 2D elements of such a data set.
Massed-Particle Traces A particle trace can be created or updated from a massless-particle trace to a
massed-particle trace, or visa-versa. Massed-particle traces are specified via their
appended section in the Feature Detailed Editor (Traces) dialog. Massed particle
traces use an RK4(5) (Fehlberg) integration algorithm.
7.11 Particle Trace Create/Update
EnSight 9 User Manual 7-77
Definitions
Motion of a particle as a function of its velocity is defined as
d/dt(Xp) = Vp
with initial conditions Vp(t0)=Vp,0 and initial particle position
Xp(t0)=Xp,0 (capital letters denote vectors unless otherwise indicated).
For massless particles, the particle velocity is always identical to the local fluid
velocity, Vp=Vf. For massed particles, additional forces acting on them result in a
different velocity for the Vp than for the fluid, Vp not equal to Vf. This particle
velocity is determined from a momentum balance for the particle by
mp Ap = Fp,
or
mp d/dt(Vp) = Fg + Fb +Fp + Fd + Fe,
where
Ap = particle acceleration vector,
Fp = total (particle) force vector,
Fg = gravitational (body) force vector = mpG,
Fb = buoyancy (body) force vector = - mpG(ρf/ρp),
Fp = pressure (surface) force vector = - vp∇pf,
Fd = drag (surface) force(s) vector = - ½ ρf ap cd |Vr| Vr,
Fe = additional forces vector, here = 0,
given the following definitions (Note: the underlined definitions are user
specified)
mp= spherical particle mass = ρp dp3 π/6,
ρp= particle density,
dp= particle diameter,
ρf= fluid density (scalar or constant),
G= gravitational acceleration vector,
∇pf= fluid pressure gradient vector, (computed from pf = fluid
pressure scalar variable)
ap= particle reference area = dp2 π/4,
Vp= particle velocity vector,
Vf= fluid velocity vector,
Vr= reference velocity vector = Vp – Vf,
cd= drag coefficient, typically given as a function of the local
relative Re, i.e. cd = cd(Re),
Re = Reynolds number = ρf |Vr| dp / µf,
µf= fluid dynamic viscosity (scalar or constant).
7.11 Particle Trace Create/Update
7-78 EnSight 9 User Manual
Thus, the total mass balance equation for massed particles may be defined by:
mp d/dt(Vp) = mpG -mpG(ρf/ρp) -(vp∇pf) -(½ρfapcd|Vr|Vr)
Dividing through by the particle mass mp yields the following acceleration terms:
d/dt(Vp) = G - G(ρf/ρp) - ∇pf/ρp - ½ρf|Vr|Vr(apcd/mp)
Note the following relation in the drag acceleration term:
(apcd/mp) = 1/cb
where: cb = ballistic parameter or coefficient = mp/(apcd) = 2ρpdp/(3cd)
Drag Coefficient
Currently, the following Drag Coefficient (Cd) table is provided as the default.
Re << 1 Cd = 24/Re
1 < Re << 500 Cd = 24/Re0.646
500 < Re << 3e5 Cd = 0.43
3e5 < Re << 2e6 Cd = 3.66E-4 Re.4275
2e6 < Re Cd = 0.18
This table is also coded as an example for your reference and access via the User-
Defined Math Function DragCoefTable1(Re) which is found in
$CEI_HOME/ensight92/src/math_functions/drag_coef_table1/libudmf-drag_coef_table1.c
In addition, two other drag coefficient functions are provided for your selection
via the User-Defined Math Function facility.
DragCoefPoly(Re) = (a + b Re + c Re2 + d/Re )
Where: {a,b,c,d} are polynomial coefficients with default values of {1.,0.,0.,0},
respectively.
DragCoefPower(Re) = (1 + .15 Re0.687) 24 / Re
Both of these functions are located respectively in
$CEI_HOME/ensight92/src/math_functions/drag_coef_poly/libudmf-drag_coef_poly.cf
$CEI_HOME/ensight92/src/math_functions/drag_coef_power/libudmf-drag_coef_power.c
You may also code your own. (See UDMF in EnSight User Manual.)
Rebound Massed Traces (Off a Boundary Wall)
Massed-particle traces can be toggled to rebound off boundary walls. The
rebounding massed traces are based on the following derivation. The derivation
assumes both the massed particle and boundary wall (or boundary) are both rigid
so that there is no deformation of the massed particle or boundary. Also rotational
considerations are ignored.
Starting with the initial impact particle velocity
7.11 Particle Trace Create/Update
EnSight 9 User Manual 7-79
Vp = Vp(VNi,VTi), (R0)
the tangential friction force opposing the massed particle is given by
FT = -mpdVT/dt = -mp(VTr-VTi)/dt, (R1)
and the normal reaction force is given by
FN = mpdVN/dt = mp(VNr-VNi)/dt, (R2)
The tangential friction force is proportional to the normal reaction force by the
coefficient of friction µ given by
FT = µFN. (R3)
Equating R1 to R2, canceling out mp/dt, and taking into account R3 we have
-(VTr-VTi) = µ(VNr-VNi) (R4)
Solving for VTr we have
VTr = VTi-µ(VNr-VNi). (R5)
Now given that in the normal direction the final (reflected) velocity of the massed
particle is proportional to the initial (incident) velocity of the massed particle by
the coefficient of restitution ε, we have
VNr = εVNi (R6)
which is the final normal component of the rebounding massed-particle velocity.
Subbing R6 into R5 and simplifying we have
VTr = VTi+µ(1+ε)VNi (R7)
which yields the final tangential component of the rebounding massed-particle
velocity. Combining these two components (R6 and R7) yield the final
rebounding particle velocity
Vp = Vp(VNr,VTr). (R8)
Where:
mp=the mass of the particle as defined above.
FT=the friction force tangent to the boundary "opposing" the particle
(thus the "-" sign on the right hand side of the equation assuming
the particle is traveling in the positive direction).
FN=the normal force on the boundary "opposing" the particle
(assuming the normal direction back into the field as positive).
VT=the tangential component of the particle velocity Vp.
VTi =The tangential component of the incident Vp impacting onto the
boundary.
VTr =The tangential component of the reflected Vp bouncing off the
boundary.
VN=The normal component of the particle velocity Vp.
7.11 Particle Trace Create/Update
7-80 EnSight 9 User Manual
Particle-Mass Scalar on Boundaries
Information to compute a particle-mass scalar on boundaries (mP = ∑ mPi) is
provided each time massed-particle traces are created. This scalar is found and
computed via the New Computed Variables (NCV) functionality.
Massed Particle Scalar(massed-particle traced part(s))
This scalar creates a massed-particle per element scalar variable for each of the
parent parts of the massed-particle traces. This per element variable is the mass of
the particle times the sum of the number of times each element is exited by a
mass-particle trace.
References
The following references have contributed in part toward the development of the
massed-particle algorithm.
Donley, H. Edward
“The Drag Force on a Sphere”,
http:\\www.ma.iup.edu/projects/CalcDEMma/drag/drag.html
Lund, Christoph
“Vorgaben für die Berechnung und Visualisierung der Bahnlinien
massebehafteter Partikel im Postprozessor EnSight”, Volkswagen AG,
27.07.2001. English translation by Kent Misegades.
Fluid Dynamics International, Inc.
FIDAP 7.0 Theory Manual”, April 1993, pp12-3+
Danby, J.M.A.
“Conputing Applications to Differential Equations”,
Restin Pub. Co., Inc. Restin, VA; 1985
Howard Brady, Rod Cross, Crawford Lindsey
“The Physics and Technology of Tennis”,
Raquet Tech Pub., Solana Beach, CA, 2002
Richard Burden, J. Douglas Faires, Albert C. Reynolds
“Numerical Analysis, 2nd Ed.”,
Prindle, Weber, & Schmidt, Boston, 1978
Paul Tipler
“Physics”,
Worth Pub. Inc.; NY, 1976
VNi =The normal component of the incident Vp impacting onto the
boundary.
VNr =The normal component of the reflected Vp bouncing off the
boundary.
ε=The coefficient of restitution.
µ=The coefficient of friction.
7.11 Particle Trace Create/Update
EnSight 9 User Manual 7-81
Clicking once on the Particle Trace Create/Update Icon opens the Particle Trace
Editor in the Quick Interaction Area which is used to both create and update
(make changes to) Particle trace Parts.
Type Opens a pull-down menu for specification of whether Particle trace calculation uses
steady-state data (streamlines), transient data (pathlines), or one of the tracking options.
Node Track Tracks one (or all) nodes of the selected part(s) through time. Requires node ids and
transient geometry or transient displacements.
Pathline Traces a massless Particle through a time-varying vector field and so is only available
with transient results data. On certain systems, this selection can consume significant
quantities of CPU time to calculate the resulting Particle trace.
Streamline Traces a massless Particle in a steady-sate vector field (for steady-state data or the current
time-step of transient data).
Variable min track Tracks the location of the minimum value of the chosen variable through time.
Variable max track Tracks the location of the maximum value of the chosen variable through time.
Show As Opens a dialog for specification of trace representation for streamline and pathline traces.
Line Depicts the trace as a line.
Ribbon Depicts trace as if it were a ribbon. The ribbon width is a specified fixed value, while the
twisting is determined by the rotation of the flow about the path of the trace at any
particular point on the trace.
Square Tubes Depicts trace as if it were a square tube. The tube width is a specified fixed value, while
the twisting is determined by the rotation of the flow about the path of the trace at any
particular point on the trace.
Figure 7-77
Particle Trace Create/Update Icon
Figure 7-78
Quick Interaction Area - Particle Trace Editor
Record Button
(Enabled with active
trace animation)
7.11 Particle Trace Create/Update
7-82 EnSight 9 User Manual
Animate Toggle Toggles on/off the animation of the motion of the Particles along the traces. In addition to
creating Particle traces based on vector variables, EnSight can also animate the motion of
the Particles along the Particle traces. To distinguish them from discrete Particles, we call
Particles moving along Particle traces “tracers.”
At any instant, each tracer consists of a portion of a Particle trace displayed with attributes
you specify separately from the attributes of the Particle trace. EnSight animates each
tracer by updating which portion of the Particle trace is currently displayed. You specify
the length of each tracer as a time value, so the tracer’s length varies dynamically as it
moves down the Particle trace (faster moving tracers are longer). This option can add
tremendously to the understanding of the flow field since relative speed can be
determined.
EnSight provides control over how the tracer looks and acts. You can animate one, some,
or all of the Particle traces you have created, but they are all animated in the one way you
specify. To help you get started, at the click of a button EnSight will suggest time-
specification values based on the Particle traces you have selected to animate. You can
specify the line width of the tracer, and choose to color it with a constant color or the same
calculated color used to color the Particle trace. If you wish to change the opacity of the
trace in the Color, Lighting and Transparency dialog, you cannot do it with the opacity
slider, but must instead use the “screen door” transparency in the Fill Pattern pulldown.
You can also display a spherical “head” on the leading-end of the tracer, and dynamically
size the head according to any active variable.
You control the speed of the motion and have the option to display multiple tracers on the
same Particle trace separated by a time interval. Hence, you can choose to view rapid-fire
pulses, slow moving “noodles,” or something in between. For steady-state Particle traces
(streamlines), “time” is the integration time with the emitters located at time zero. For
transient Particle traces (pathlines), you have the option to synchronize the animation time
to the solution time. The choice of whether a Particle trace is a streamline or a pathline is
made when you create the Particle trace.
You do not have to animate the entire Particle trace. You can specify where you want the
animation to start with a time value corresponding to a distance down the Particle trace
from the emitter, and where you want the animation to stop with a time value
corresponding to a distance farther down the Particle trace.
Tracers on all animated Particle traces are synchronized. If you combine Particle trace
animation with flipbook animation or keyframe animation, the animation time values are
automatically synchronized if you toggle-on Sync To Transient in the Trace Animation
Settings dialog.
7.11 Particle Trace Create/Update
EnSight 9 User Manual 7-83
Animate... Opens the Trace Animation Settings dialog
Color By Opens a pull-down menu for selection of method by which to color the tracers.
Constant Displays tracers in the constant color specified in this dialog.
Mix… Opens the Color Selector dialog (see Section 8.1, Color Selector).
R,G,B Fields allow specification of constant color.
Trace Color Displays tracers in the same color as the Particle Trace Part from which they originate.
Line Width Specification of displayed width (in pixels) of tracers. Note: Line Width specification may
not be available on some workstation platforms.
Start Time Specification of how far down each Particle trace to begin displaying tracers. A Particle
trace is made up of line segments. Each segment that makes up a Particle trace has an
associated time value. The start time indicates where on the Particle trace the tracers will
begin animation.
Tracer Time (Length) Specification of length of tracers which varies as the tracer speed varies along the Particle
trace. The Particle Time Length parameter scales the length of all tracers at all times.
Tracer Delta (Speed) Specification of how fast tracers move. Longer times result in faster moving tracers. This
parameter is not applicable when using Sync To Transient and displaying transient data
through flipbook or keyframe animation.
Sync to Transient Toggles on/off synchronization of tracer position to solution time of transient data. When
Toggle toggled-on, and transient data is in use (i.e. solution time, flipbook or keyframe
animations), each tracer is displayed with its leading-end at the correct location along the
Particle trace for the current solution time. Traces only move forward in time so cycling
through transient data is not applicable here.
Max Time Toggle Toggles on/off maximum lifetime for all tracers. If toggled-off, tracers continue to end of
Particle trace. If toggled-on, each tracer stops after moving down the Particle trace for a
distance corresponding to the specified Max Time (or until one of the other conditions that
stop a tracer occurs).
Max Time Field specifies lifetime of all tracers when Set Max Time is toggled-on.
Multiple Pulses Toggle Toggles on/off multiple emission of tracers. When toggled-off, a single tracer for each
Particle trace appears at the specified Start Time. When toggled-on, additional tracers
appear after each specified Pulse Interval. Not applicable to pathlines.
Pulse Interval Field specifies time delay between tracers. Not applicable when Multiple Pulses is
toggled-off.
Tracer Head Representation
Type Opens a pull-down menu for selection of type of head for each tracer.
Figure 7-79
Trace Animation Settings dialog
7.11 Particle Trace Create/Update
7-84 EnSight 9 User Manual
None Specifies that no head will appear.
Spheres Specifies that a sphere will appear on the leading end of the tracer.
Scale Specification of scaling factor for head size. Values between 0 and 1 reduce the size,
factors greater than one enlarge the size. Not applicable when Head Type is None.
Detail Specification of detail-level of head in range from 2 to 10, with 10 being the most detailed
(e.g., rounder spheres because more polygons are used to create spheres). Higher values
take longer to draw, slowing performance. Not applicable when Head Type is None.
Size By Opens a pull-down menu for the selection of variable-type to use to size each tracer’s
head. If you select a variable, the head size is determined by multiplying the Scale factor
times the variable value, which will vary depending on the location of the tracer. Not
applicable when Head Type is None.
Constant Sizes head using just the Scale factor value.
Scalar Sizes head using a scalar variable.
Vector Mag Sizes head using magnitude a vector variable.
Vector X Sizes head using X-component of a vector variable.
Vector Y Sizes head using Y-component of a vector variable.
Vector Z Sizes head using Z-component of a vector variable.
Variable Selection of variable to use to size the tracer heads. Not applicable when Type is None or
Size By is Constant.
Get Defaults Click to set time-value specifications in this dialog to values suggested by EnSight based
upon the characteristics of the selected Particle traces.
See Also: How To Animate Particle Traces
Troubleshooting Animated Particle Traces
Problem Probable Causes Solutions
No motion. Can’t see any tracers. No Particle traces selected to
animate.
Select the traces you wish to animate
in the list at the top of the Animated
Trace Setup dialog.
Tracers colored same as Particle
traces and have same line width.
Change Color By or Line Width.
Animate Traces not toggled-on. Toggle Animate on in the Quick
Interaction Area.
Start Time > maximum Particle trace
time for all traces selected.
Change settings in the Trace
Animation Settings dialog.
Delta Time (Speed) set too high. Change settings in the Trace
Animation Settings dialog.
Particle Time (Length) set too small. Change settings in the Trace
Animation Settings dialog.
Motion too fast. Delta Time (Speed) set too high. Change settings in the Trace
Animation Settings dialog.
Can’t get multiple pulses at same
time.
Pulse interval too high. Decrease to have pulses start closer
together.
7.11 Particle Trace Create/Update
EnSight 9 User Manual 7-85
Quick Interaction Area Particle Trace Editor, continued,
Emit From Opens a pull-down menu for the specification of the emitter type.
Cursor Creates Particle trace beginning from the position of the Cursor tool.
Line Creates Particle traces beginning from the position of the Line tool.
# Points This field specifies the number of evenly spaced traces you want to emit from the Line
tool.
Plane Create Particle traces beginning from the position of the Plane tool.
# Points These fields specify the number of traces you want to emit from the Plane tool in the X
and Y axes of the tool.
Part Creates particle traces beginning from nodes of the Part specified by the Part ID Number
field.
Part ID This field specifies the Part you wish to use as an emitter for the creation of a particle
trace. The Part ID number for a Part is found in the Main Parts List.
Number of This field specifies the number of emitters desired. They will be randomly selected from
Emitters the nodes of the part. (see Section 3.1, Part Overview)
File Creates particle traces from the locations specified in an external file.
(see Section 11.12, EnSight Particle Emitter File Format)
Emit... Opens the Emission Detail Attributes dialog.
Direction Trace the Particle in positive time, meaning to trace with the vector field, or trace the
Particle in negative time, meaning to trace the Particle upstream. Option only applies to
streamlines. Pathlines must be traced in + time.
(+) Positive time option traces Particle(s) forward in time. (This is the only option for
pathlines.)
(–) Negative time option traces Particle(s) backward in time.
(+/–) Positive/Negative time option traces Particle(s) both forward and backward in time.
Total Time Limit This field specifies the maximum length of time the Particle trace may continue (it may
terminate sooner for other reasons). For vector fields with recirculation zones, this can be
important to keep from integrating a trace indefinitely.
Set to default This button sets the Total Time Limit field to a reasonable default value using the vector
value and the geometry size.
Emission Time Start This field specifies the simulation time at which to begin Particle emission. Enter value
Have one big tracer, no pulses. Pulse interval too small, pulses start
right after each other with no
separation.
Increase the interval.
Problem Probable Causes Solutions
Figure 7-80
Emission Detail Attributes dialog
7.11 Particle Trace Create/Update
7-86 EnSight 9 User Manual
between beginning and ending time available.
Time Delta This field specifies the time interval between emissions of Particles from the emitters. If
“0”, only one set of emissions will occur at start time
Pick Surface Toggle Toggles on/off the feature which allows you to place the trace emitter at a point on a
surface directly below the mouse pointer by clicking the left mouse button.
Surface-Restrict Toggles on/off surface restricted feature for streamlines. The streamline will be
Toggle constrained to stay on the surface of the selected Part(s) by using only the tangential
component of velocity. Be sure to use the Pick Surface feature in locating the emitter for a
surface restricted particle trace to ensure that the emitter is located on the surface of a Part.
Variable Offset If Surface-Restrict toggled on, this field specifies the distance into the flow field at which
velocity (and other variables) are to be sampled for the surface restricted trace(s). If
velocity values are present at the surface, this offset can be set to zero.
Interactive Emitter Toggles on/off interactive Particle tracing. Manipulation of the Cursor, Line or Plane tool
will cause the Particle trace to be recreated at the new location and updated in the
Graphics Window. When manipulation of the tool stops, the Particle trace and any Parts
that are dependent on it will be updated. (Only available for non-surface-restricted
streamlines).
Tool Location... Opens Transformations Editor dialog which allows you to precisely position the Cursor,
Line or Plane tool.
Adjust beg/end time... Opens the Solution Time area so the beginning and ending times to be used for Node
Tracks or Min/Max Variable tracks can be modified.
Node ID Field for specifying the desired node id of a Node Track. Note that a single node id can be
specified to track a single node, or ALL can be specified to track all nodes of the selected
part(s).
Use ALL nodes Clicking this button sets the value in the Node ID field to ALL.
Create Creates a Particle trace Part using the selected Part(s) in the Main Parts List and the vector
Variable selected in the Main Variables List.
Advanced Will open the Feature Detail Editor and select the Particle Trace icon for more advance
control of the Particle Trace Part.
Record Button Opens a dialog for recording trace animation to a file. This button is only enabled when an
active trace animation is playing.
7.11 Particle Trace Create/Update
EnSight 9 User Manual 7-87
Feature Detail Editor Double clicking on the Particle Trace Create/Update Icon opens the Feature Detail
(Traces) Editor for Particle Traces, the Creation Attributes Section of which provides
access to additional functions for trace creation and modification:
Figure 7-81
Feature Detail Editor (Traces)
Contents of Time Step Determination and
Massed Particle turn-downs. (Drag tab)
Creation Attributes for Node Tracks. For Min/Max
Variable tracks, it is similar but without the Node ID
field.
7.11 Particle Trace Create/Update
7-88 EnSight 9 User Manual
Variable Opens a pop-up menu for the selection of an active variable to use to calculate the trace.
This is not used for Node Tracks.
X Y Z These fields specify the fraction of each vector component to be used in the calculation.
Specify 1 to use the full value of the vector component. Specify 0 to ignore the
corresponding vector component (and thus confine the motion of the Particle to a plane
perpendicular to that axis). Values between 0 and 1 diminish the contribution of the
corresponding component, while values greater than 1 exaggerate them.
Type Opens a pull-down menu for specification of whether Particle trace calculation uses
steady-state data (streamlines), transient data (pathlines), or one of the tracking options.
Node Track Tracks one (or all) nodes of the selected part(s) through time. Requires node ids and
transient geometry or transient displacements.
Pathline Traces a massless Particle through a time-varying vector field and so is only available
with transient results data. On certain systems, this selection can consume significant
quantities of CPU time to calculate the resulting Particle trace.
Streamline Traces a massless Particle in a steady-sate vector field (for steady-state data or the current
time-step of transient data).
Variable min track Tracks the location of the minimum value of the chosen variable through time.
Variable max track Tracks the location of the maximum value of the chosen variable through time.
Show As Opens a dialog for specification of trace representation. Only available for streamlines and
pathlines
Line Depicts the trace as a line.
Ribbon Depicts trace as if it were a ribbon. The ribbon width is a specified fixed value, while the
twisting is determined by the rotation of the flow about the path of the trace at any
particular point on the trace.
Ribbon Width This field only applies when Ribbon representation is chosen. Larger values in this field
produce wider ribbons. Only available for streamlines and pathlines.
Arrows Controls whether the flow direction is indicated with arrows.
# of Arrows Controls density of arrows. The trace with the longest dwell time will have this number of
arrowheads, and the other traces will get a number that corresponds to their dwell time.
Size Scaling size of Arrowheads.
Time step Beg/End Allows for specification of beginning and ending time steps for Node Tracks and Min/
Max Variable Tracks. It is not available for streamline and pathline traces, which are
controlled by emitter information.
Node ID Field for specifying the desired node id of a Node Track. Note that a single node id can be
specified to track a single node, or ALL can be specified to track all nodes of the selected
part(s).
Use ALL nodes Clicking this button sets the value in the Node ID field to ALL.
None option displays arrows as lines without tips.
Cone arrows have a tip composed of a 3D cone. Good for both 2D and 3D fields.
Normal arrows have two short line tips, similar to the way many people draw arrows
by hand. The tip will lie in the X–Y, X–Z, or Y–Z plane depending on the
relative magnitudes of the X, Y, and Z components of each individual vector.
Suggested for 2D problems.
Triangles arrows have a tip composed of two intersecting triangles in the two dominant
planes. Good for both 2D and 3D fields.
7.11 Particle Trace Create/Update
EnSight 9 User Manual 7-89
Emitter Information
Emitters List This section shows a list of all emitters created for the currently selected Particle Trace
Part.
Emit From Opens a pull-down menu for the specification of the emitter type.
Cursor Creates Particle trace beginning from the position of the Cursor tool.
Line Creates Particle traces beginning from the position of the Line tool.
# Points This field specifies the number of traces you want to emit from the Line tool.
Plane Create Particle traces beginning from the position of the Plane tool.
# Points These fields specify the number of traces you want to emit from the Plane tool in the X
and Y axes of the tool.
Part Creates particle traces beginning from each node of the Part specified by the Part ID Number field.
Part ID Number This field specifies the Part you wish to use as an emitter for the creation of a particle
trace. The Part ID Number for a Part is found in the Main Parts List.
(see Section 3.1, Part Overview)
Density If 1.0, will emit from each node of the part. Lass than 1.0 values indicate a subset of nodes
to be used, randomly placed, as emitters.
Interactive Emitter Toggles on/off interactive Particle tracing. Manipulation of the emitter currently selected
in the Emitters List will cause the Particle trace to be recreated at the new location and
updated in the Graphics Window. When manipulation of the tool stops, the Particle trace
and any Parts that are dependent on it will be updated. (Only available for non-surface-
restricted streamlines) (Emitters created by picking a surface or from a Part can not be
made interactive).
Add Emit Adds an emitter of the type specified by Emit From to the currently selected Particle Trace
Part.
Delete Emit Deletes the emitter selected in the Emitters List from the selected Particle Trace Part.
Direction Trace the Particle in positive time, meaning to trace with the vector field, or trace the
Particle in negative time, meaning to trace the Particle upstream. Option only applies to
streamlines. Pathlines must be traced in + time.
(+) Positive time option traces Particle(s) forward in time. (This is the only option for time-
dependent datasets.)
(–) Negative time option traces Particle(s) backward in time.
(+/–) Positive/Negative time option traces Particle(s) both forward and backward in time.
Total Time Limit This field specifies the maximum length of time the Particle trace may continue (it may
terminate sooner for other reasons).
Set to default This button sets the Total Time Limit field to a reasonable default value using the vector
value and the geometry size.
Emission Time Start This field specifies the solution time at which to begin Particle emission. Enter value
between beginning and ending time available.
Time Delta This field specifies the time interval between emissions of Particles from the emitters. If
“0”, only one set of emissions will occur at start time
Surface-Restrict Toggles on/off surface restricted feature for streamlines. The streamline will be
Toggle constrained to stay on the surface of the selected Part(s) by using only the tangential
component of velocity. Be sure to use the Pick Surface feature in locating the emitter for a
surface restricted particle trace to ensure that the emitter is located on the surface of a Part.
Pick Surface Toggle Toggles on/off the feature which allows you to place the trace emitter at a point on a
surface directly below the mouse pointer by clicking the left mouse button. This option is
forced on if the Surface Restricted Toggle is on.
7.11 Particle Trace Create/Update
7-90 EnSight 9 User Manual
Variable Offset This field specifies the distance into the flow field at which velocity (and other variables)
are to be sampled for the surface restricted trace(s). If velocity values are present at the
surface, this offset can be set to zero.
Display offset This field specifies the normal distance away from a surface to display the surface
restricted traces. A positive value moves the traces away from the surface in the
direction of the surface normal.
Please note that there is a hardware offset that will apply to contours, vector arrows,
separation/attachment lines, and surface restricted particle traces that can be turned on
or off in the View portion of Edit->Preferences. This preference (“Use graphics hardware
to offset line objects...”) is on by default and generally gives good images for everything
except move/draw printing. This hardware offset differs from the display offset in that it is
in the direction perpendicular to the computer screen monitor (Z-buffer).
Thus, for viewing, you may generally leave the display offset at zero. But for
printing, a non-zero value may become necessary so the traces print cleanly.
Time Step Opens a turn-down area for the specification of time-step parameters.
Determination
Min Steps This field is used to specify the minimum number of integration steps to perform in each
element.
Min Angle If angle between two successive line segments of the Particle trace is less than this value
EnSight will double the integration step.
Max Angle If angle between two successive line segments of the Particle trace is greater than this
value EnSight will half the integration step.
Rot Angle If the change in rotation angle at two successive points of the Particle trace is greater than
this value, the integration step is halved.
Massed particle Opens a turn-down area for the specification of massed-particle parameters.
Massed particles Toggles on/off the massed-particle traces feature. The default is OFF
Note: Some dependent parameters are duplicated under multiple tabs for reference
convenience, i.e. Gravity under Gravity and Buoyancy tabs. Note that these parameters
are updated under all applicable tabs when changed under a particular tab.
.
Drag term tab Showing dependent parameters for drag acceleration term (default selection)
Use drag in
massed particle
calcuation
Toggles on/off the inclusion of the drag term in the massed-particle computation. The
default is ON
7.11 Particle Trace Create/Update
EnSight 9 User Manual 7-91
.
Particle diameter This field specifies the diameter of all particles. The default is 1.e-3.
Particle density This field specifies the density value of all particles. The default is 1.e+3.
Drag coefficient
function
This field specifies the drag coefficient function to be called each time the drag
coefficient is calculated. This function defaults to “Default” which essentially defaults to
the table described above. Other functions may be accessed via the User-Defined Math
Function facility, i.e. DragCoefTable1(Re) (same as default), DragCoefPoly(Re),
DragCoefPower(Re). All functions must take the Reynolds Number as their only
argument. This parameter only works with the drag term.
Or This field specifies the drag coefficient value to be used in the computation if “None” is
specified as the variable name. The default value is 0. This parameter only works with the
drag term.
Fluid dynamic
viscosity
This field specifies the fluid dynamic viscosity variable to be used in the massed-particle
computation. The default is “None”.
Or This field specifies the fluid dynamic viscosity value to be used in the computation if
“None” is specified as the variable name. The default value is 1.9620e-5. This parameter
only works with the drag term.
Use ballistic
coefficient
Toggles on/off the use of the ballistic coefficient value (mp/(apcd))in place of the
above drag parameters which are greyed-out, i.e. particle diameter and density (used in
mp and ap), and drag coefficient and fluid dynamic viscosity (used in cd). The default
toggle is OFF. When toggled ON, the default value is 1.
Initial particle
velocity
Determines what initial velocity to use for all the particle emitters. The default is Use
fluid ON. This parameter only works with the drag term.
Use fluid Toggles on/off whether all particle emitters should use the fluid velocity at their
corresponding locations. The default is ON.
Or X, Y, Z These fields specify the initial velocity components of all particle emitters. Their default
is <0., 0., 0.>.
Gravity term tab Showing dependent parameters for gravity acceleration term
Use gravity in
massed particle
calcuation
Toggles on/off the inclusion of the gravity term in the massed-particle computation. The
default is ON
Gravity vector These fields specify the gravity vector to be applied in the massed-particle computation.
The default gravity components are <0., -9.81, 0.>. This parameter only works with the
gravity and buoyancy terms.
7.11 Particle Trace Create/Update
7-92 EnSight 9 User Manual
.
.
Buoyancy term
tab
Showing dependent parameters for buoyancy acceleration term
Use buoyancy in
massed particle
calcuation
Toggles on/off the inclusion of the buoyancy term in the massed-particle computation.
The default is ON
Gravity vector These fields specify the gravity vector to be applied in the massed-particle computation.
The default gravity components are <0., -9.81, 0.>. This parameter only works with the
gravity and buoyancy terms.
Particle density This field specifies the density value of all particles. The default is 1.e+3.
Fluid density This field specifies the fluid density variable to be used in the massed-particle
computation. The default is “None”. This parameter only works with the buoyancy term.
Or This field specifies the fluid density value to be used in the computation if “None” is
specified as the variable name. The default value is 1.
Pressure gradient
term tab
Showing dependent parameters for pressure-gradient acceleration term
Use pressure in
massed particle
calcuation
Toggles on/off the inclusion of the pressure-gradient term in the massed-particle
computation. The default is OFF
Particle density This field specifies the density value of all particles. The default is 1.e+3.
Pressure
gradient
This field specifies the fluid pressure gradient variable to be used in the massed-particle
computation. The default is “None”. This parameter only works with the pressure force
term.
7.11 Particle Trace Create/Update
EnSight 9 User Manual 7-93
.
Create (At the bottom of the Feature Detail Editor) Creates the Particle trace Part in the Graphics
Window as specified.
The Feature Detail Editor also allows you to make changes in batch; that is, to
make several changes to the menus and fields which do not effect the Graphics
Window until you click in the Apply Changes button. It is sometimes quicker
(with respect to CPU time) to make several changes at once rather than one at a
time as in the Quick Interaction Area.
(see Section 3.3, Part Editing for a detailed discussion of the remaining Feature
Detail Editor turn-down sections which are the same for all Parts),
(see How to Create Particle Traces)
Troubleshooting Particle Traces
Rebound term tab Showing dependent parameters for allowing rebound of massed traces
Use rebound in
massed particle
calcuation
Toggles on/off the inclusion of rebound parameters to account for coefficient of
restitution and friction effects when massed traces contact boundaries. The default is OFF
Note: Rebound requires an active acceleration term, i.e. Drag, Gravity, Buoyancy, and/or
Pressure.
Coefficient of
restitution
This field specifies the coefficient of restitiution value to be used for all massed trace
computations. The default value is 0. (no restitution - no rebound). The typical range for
this value is 0. to 1. (The value of 1. being full restitution, or a perfect elastic bounce off
the wall where the angle of reflection off the boundary into the field is equal to the angle
of incidence into the wall from the field.) This value is combined with the coefficient of
friction to determine the final rebound of the massed particle off the boundary wall.
Coefficient of
friction
This field specifies the coefficient of friction value of the boundary to be used for all
massed trace computations. The default value is 0. (no friction). The typical range for this
is 0. to <1. This value is combined with the coefficient of restitution to determine the final
rebound of the massed particle off the boundary wall.
Fraction of initial
impact velocity
This field specifies a fraction of the initial impact velocity (magnitude) value to be used
as a stopping criteria for a rebounding massed particle. The default is .01.
Maximum
number of wall
hits
This field specifies the maximum number of wall hits (per massed particle) value to be
used as a stopping criteria for a rebounding massed particle. The default value is 10 hits.
Problem Probable Causes Solutions
Particle Trace Part is empty. Velocity is zero. Change time steps or change
location of emitters.
7.11 Particle Trace Create/Update
7-94 EnSight 9 User Manual
Emitter points are outside of flow
field.
Change location for emitter points.
Dataset is 3D and parent Parts are
2D, or dataset is 2D and parent Parts
are not planar.
Change parent Parts.
The created variable selected does
not exist for the parent Part(s)
Recreate the variable for the parent
Part(s) selected
Streamline is OK, but pathline is
empty.
Creating pathline with the emitter
emitting at the last time step.
Modify emitter time for the emitter
groups.
Particle trace terminates prematurely Velocity has gone to zero. None
Particle has been traced out of the
flow field.
None
Stopping point is at the boundary
between two Parts.
Change the parent Parts for the
Particle trace to include neighbor
Part.
Particle getting lost and EnSight’s
search algorithm failing.
Call CEI hotline support.
Total Time Limit reached. Change Total Time Limit.
Particle trace exists, then is removed
after deleting Parts.
The parent Part for the Particle trace
was deleted.
None
Particle trace creation requested, but
Particles don’t come back.
Requested a large number of Particle
traces and/or doing pathlines in large
transient dataset.
Be patient.
Particles are stuck in a recirculation
area.
Process will finish when Total Time
Limit is reached. Consider
terminating job and starting over
with a smaller Total Time Limit.
Interactive tracing is slow. The size of the model and density of
the mesh will affect the performance
of an interactive trace.
If you can, run on a faster, larger
memory workstation. Also, limit if
possible the area of interest by
cutting the mesh into pieces with the
Cut & Split Part editing operation.
Interactive trace does not enter the
next Part
Interactive tracing is only done
through the Part the emitter resides
in.
When you let go of the emitter the
full trace will be shown
Surface restricted Particle trace does
not appear
Zero velocity at chosen variable
offset
Select a Variable offset distance that
will give nonzero velocity
Display offset causing trace to be on
opposite side of a surface (hidden
surface on)
Change sign of the Display offset
Emitter does not lie on the surface of
selected Parts
Create emitters that lie on the surface
Surface Restricted particle trace does
not print well
See Display Offset discussion above Enter a non-zero display offset.
Problem Probable Causes Solutions
7.12 Subset Parts Create/Update
EnSight 9 User Manual 7-95
7.12 Subset Parts Create/Update
EnSight enables you to create and modify Subset Parts from ranges of node and/or
element labels of model parts. The Subset Parts feature allows you to isolate
contiguous and/or non-contiguous regions of large data sets, and apply the full-
range of feature applications and inspection provided by EnSight.
Subset Parts can only be created from parts that have node and/or element labels.
Therefore, Subset Parts can not be created from any Created Parts, because the
only parts that can have node and element labels are Model Parts such as parts
built from file data, Merged Model Parts, or Computational Mesh Model Parts
(parts created via the periodic computational symmetry Frame attribute). Model
Parts that do not have given or assigned node and/or element labels can not be
used to create Subset Parts.
Subset Parts are created and reside on the server. They are Created Parts that
provide proper updating of all dependent parts and variables.
Subset Parts are created and modified by specifying parent parts, as well as their
node and/or element labels. Node and/or element labels can be displayed and
filtered interactively according to global View Mode and local Part Mode
attributes.
Clicking once on the Subset Parts Create/Update Icon open the Subset Parts
Editor in the Quick Interaction Area which is used to both create and update
Subset Parts.
From Part List reflecting the parent parts that have been added to the list. Selecting a part in this list
displays any corresponding element or node range specifications in the Show List.
Show Opens a pull-down menu for selecting which type of part entity you wish to include (or
have included) in your Subset Part. The Show options are:
Elements show any specified element label ranges
Nodes show any specified node label ranges
Figure 7-82
Subset Parts Create/Update Icon
Figure 7-83
Quick Interaction Area - Subset Parts Editor
7.12 Subset Parts Create/Update
7-96 EnSight 9 User Manual
Show List This field specifies the label ranges of Elements and/or Nodes wanted for the Subset Part
that correspond to the selected part in the From Part list. The Elements or Nodes are
specified as a range as the example indicates, i.e. (Ex. 1,3,8,9,100-250).
Add This field specifies the GUI part number you wish to add to the From Part list.
Delete This button removes any selected entries in the From Part list along with any
corresponding element or node range specifications in the Show List.
Pick elements This toggle enables element picking from the graphics window. Elements will be picked
using the pick selection which by default is the ‘p’ key.
Add Elements from Activate the selection tool, and adjust your selection window then click this button to
Selection Tool select all the elements within the window.
Update Part Recreates the Subset Parts selected in the Main Parts List according to the selections in the
From Part List and the Show List.
Advanced Click on the Subset Parts Create/Update Icon to bring up the Feature Detail
Editor (Subset Parts), which offers the same features under its the Creation Attributes as
offered the Subset Parts as the Quick Interaction Area Editor.
(see Section 3.3, Part Editing for a detailed discussion of the remaining Feature
Detail Editor turn-down sections which are the same for all Parts),
7.13 Profile Create/Update
EnSight 9 User Manual 7-97
7.13 Profile Create/Update
Profiles visualize values of a variable along a line with a plot projecting away
from the line. Projectors are parallel to a plane, but not necessarily in a plane.
Hence, Profile can follow the line.
You can scale and offset projectors. The positive direction is set with the center
point of the Plane Tool (away from center point is positive). Consider a base-line
(not necessarily straight) along which the value of a variable is known. Moving
along this base-line, you can “plot” the value of the variable on an “axis” whose
origin moves along the base-line and whose orientation varies so that it is always
both perpendicular to the base-line and parallel to a specified plane (but not
necessarily parallel to a line, enabling the plot-line to follow the curve of the base-
line in one dimension). A surface joining the base-line to the plot-line is called a
profile.
The parent Part of a Profile-Part can be a 2D-Clip Line, a Contour, a Particle
Trace, or a model Part consisting of a chain of bar elements. From each node of
the parent Part, EnSight draws a “projector” whose length is proportional to the
value of the variable at the node, and whose orientation makes it (1) parallel to a
specified plane, (2) pointing in a direction corresponding to the sign of the
variable’s value at the node (with the negative-direction determined by the
location of a specified point), and (3) perpendicular to the base-line elements
adjoining the node, or, if the base-line bends at the node, oriented so that its
projection into the plane defined by the base-line elements will bisect the angle
formed by the base-line elements. The outer-end of each projector is connected to
those of its neighbors, forming a series of four-sided polygons and hence a
surface.
The appearance of the profile depends greatly on the position of the specified
sign-direction point (From Point) and the orientation of the specified plane, which
you can specify numerically or with the Plane tool. EnSight calculates the
projectors using the vector cross-product of the specified-plane’s normal (the Z-
axis) and each parent Part element, thus you should orient the plane so that its
normal is not parallel to the parent Part elements.
7.13 Profile Create/Update
7-98 EnSight 9 User Manual
The projector length is calculated by adding to the variable’s value an Offset
value, then multiplying the sum by a Scaling value. Adding the Offset enables you
to shift the zero location of the projectors, which might be useful if you wanted to
make all the projectors have the same sign. An offset performs a “shift”, but does
not change the “shape” of the resulting profile. The Scaling factor changes the
displayed size of the profile, a “stretching” type of action. EnSight will provide
default values for both factors based on the variable’s values at the parent Part’s
nodes.
Clicking once on the Profile Create/Update Icon opens the Profile Editor the
Quick Interaction Area which is used to both create and update (make changes to)
profile Parts.
Scale Factor This field specifies the scaling for magnitude of the projector. The Scale Factor is
multiplied times the value of the variable. Values larger than one increase the size and
values smaller than one decrease the size.
Offset The value specified in this field is added to the variable values before the Scale Factor is
applied to change the magnitude of projectors. Default offset is magnitude of most-
negative projector (making them all positive). Has the effect of shifting the plot, but does
not change the plot shape.
Get Default Click to set Scale Factor and Offset values to the calculated defaults based on the variable
values for the parent Part.
Show Orientation Tool Causes the Plane Tool to become visible in the Graphics Window at the location specified
Update Orientation Recreates the Profile Part at the current location and orientation of the Plane Tool.
Apply New Variable Changes the variable the Profile Part is based on to that currently selected in the Variables
List.
Advanced Will open the Feature Detail Editor and select the Profile icon for more advance control of
the Profile Part.
Figure 7-84
Profile Create/Update Icon
Figure 7-85
Quick Interaction Area - Profile Editor
7.13 Profile Create/Update
EnSight 9 User Manual 7-99
Feature Detail Editor Double clicking on the Profile Create/Update Icon opens the Feature Detail Editor
(Profiles) for Profiles, the Creation Attributes Section of which provides access to additional
functions for the creation and modification of Profiles:
X Y Z These fields specify the vector components used in creating the Part for vector based or
coordinate-based Profiles. These fields are not applicable to Scalar-based Profiles. When
all fields are zero, the magnitude of the Variable value is used. If a value other than zero is
entered into a field, the sum of (VectorX*X)+(VectorY*Y)+(VectorZ*Z) is used as the
variable value.
Orientation Plane
Pos of C1 Specification of the location, orientation, and size of the Plane Clip using the coordinates
Pos of C2 (in the Parts reference frame) of three corner points, as follows:
Pos of C3 Corner 1 is corner located in negative-X negative-Y quadrant
Corner 2 is corner located in positive-X negative-Y quadrant
Corner 3 is corner located in positive-X positive-Y quadrant
Set Tool Coords Will reposition the Plane Tool to the position specified in C1, C2, and C3.
Get Tool Coords Will update the C1, C2, and C3 fields to reflect the current position of the Plane Tool.
The Feature Detail Editor also allows you to make changes in batch; that is, to
make several changes to the menus and fields which do not effect the Graphics
Window until you click in the Apply Changes button. It is sometimes quicker
(with respect to CPU time) to make several changes at once rather than one at a
time as in the Quick Interaction Area.
(see Section 3.3, Part Editing for a detailed discussion of the remaining Feature
Detail Editor turn-down sections which are the same for all Parts),
(see How To Create Profile Plots)
Figure 7-86
Feature Detail Editor (Profiles)
7.13 Profile Create/Update
7-100 EnSight 9 User Manual
Troubleshooting Profiles
Problem Probable Causes Solutions
The entire profile is not projected the
direction you want.
The Plane is not oriented correctly. Turn on the Plane tool so you can see
its orientation. The projectors will be
parallel to this plane, so adjust its
orientation.
The From Point is not in a good
location
Turn on the Plane tool so you can see
the location of the center of the
plane. Positive projectors will go
away from this point, negative
towards.
Portions of the profile appear to be
projected in the wrong direction.
The From Point is not in a good
location.
Turn on the Plane tool so you can see
the location of the center of the
plane. Positive projectors will go
away from this point, negative
towards.
The normal to the Plane is parallel to
some of the elements of the parent
Part.
Turn on the Plane tool so you can see
its orientation. Try to make sure the
Z axis of the Plane tool does not lie
parallel to any portions of the parent
Part.
The Parent Part does not contain
elements which are consistently
ordered
None
7.14 Elevated/Offset Surface Create/Update
EnSight 9 User Manual 7-101
7.14 Elevated/Offset Surface Create/Update
Elevated Surfaces visualize the value of a variable by creating a surface projected
away from the 2D elements of the parent Part. An Elevated Surface might be used
to show the pressure on a 2D surface representing the pressure as height above the
2D surface.
An Offset Surface projects a an origin part into a 3D fluid domain using a single,
fixed, translation vector and then interpolates a variables from the 3D domain
onto the offset part. For example, an Offset Surface might be used to slightly
offset the roof of a car in the vertical direction into the flow field to visualize the
flow field velocity just outside of the boundary layer of the curved roof surface.
Or, an Offset Surface might be used to translate an origin part into a 3D parent
domain and ‘clip’ the 3D domain using the origin part.
Elevated Surface First let’s look at the Elevated Surface. It is easiest to describe this feature if you
think of a planar Part as the parent Part. Now warp this surface up out of plane
proportionally to the value of a variable. The resultant surface is an Elevated
Surface. Elevated surfaces are to surfaces what Profiles are to lines. While planar
surfaces are perhaps the most useful parent Parts to use, parents do not have to be
planar. Model Parts containing 2D elements, Clip Planes, Isosurfaces, and even
other elevated surfaces are all valid parent Parts.
The parent Part is not actually changed, a new surface is created. As this new
surface is “raised”, projection (Sidewall) elements can be created stretching from
the parent to the elevated surface around the boundary of the surfaces if desired.
Just the surface, just the sidewalls, or both can be created.
The projection from a node on the parent Part will be in the direction of the
normal at the node. If the node is shared by multiple elements, the average normal
is used.
The projected distance from a parent Part’s node to the corresponding elevated
surface node is calculated by adding to the variable’s value an Offset value, then
multiplying the sum by a Scaling value. Adding the Offset enables you to shift the
zero location of the plane. An Offset performs a “shift”, but does not change the
“shape” of the resulting elevated surface. The Scaling factor changes the distance
between parent and elevated surface, a “stretching” effect. EnSight will provide
default values for both factors based on the variable’s values at the parent Part’s
nodes.
Figure 7-87
Elevated Surface example, with and without Sidewalls
7.14 Elevated/Offset Surface Create/Update
7-102 EnSight 9 User Manual
Offset Surface An offset surface requires two parts: an origin part and a 3D parent part. The
origin part is offset by a single scaled vector into the 3D part and the offset part
inherits the variable values of the 3D part at the intersection with the offset part.
An example will help. Imagine you have the upper surface of an aircraft
composed of 2D elements. The aircraft surface is enclosed within a 3D volume.
The origin surface of the aircraft is shifted by the value of a user-supplied constant
vector (and scale factor) into the 3D flowfield volume and becomes a new, Offset
Part. The new Offset Part now inherits the 3D flowfield volume’s variables at the
new location of the surface. Offset functionality is effectively clipping a 3D
volume using an origin part offset into the volume by a scaled, constant XYZ
vector. You cannot scale, warp, or rotate the origin part. You can only translate it.
To use this function you must change the Elevated Surface default pulldown to
Offset Surface. Then you must make sure you have selected the 3D volume
parent part in the part list, and then enter the origin part in the Quick Interaction
Area just above the graphics window.
.
Clicking once on the Elevated/Offset Surface Create/Update Icon opens the
Elevated/Offset Surface Editor in the Quick Interaction Area which is used to both
create and update (make changes to) elevated surface Parts.
Figure 7-88
Offset Surface example above main model
Figure 7-89
Elevated Surface Create/Update Icon
Figure 7-90
Quick Interaction Area - Elevated Surface Editor
7.14 Elevated/Offset Surface Create/Update
EnSight 9 User Manual 7-103
Surface Type: Elevated This pulldown chooses between Elevated Surface and Offset surface. Shown below are
descriptions of the Elevated Surface options.
Scale Factor This field specifies the scaling for magnitude of distance between the parent Part node and
the corresponding elevated surface node. The Factor is multiplied times the value of the
variable. Values larger than one increase the size and values smaller than one decease the
size. A negative value will have the effect of switching the direction of the projected
surface
.
Set to Default Click to set Scale Factor and Offset values to the calculated defaults based on the variable
values for the parent Part.
Offset Value specified is added to the variable values before the Scale Factor is applied to change
the magnitude of projected distance. Default offset is magnitude of most-negative
projection distance (will cause the surface to be projected positively). Has the effect of
shifting the surface plot, but does not change the surface plot shape.
Surface Toggle Toggles on/off the creation of the actual elevated surface. The sidewalls alone will be
created if this toggle is off.
Sidewalls Toggle Toggles on/off the creation of the sidewalls of the Elevated Surface. Elements will stretch
from the parent Part to the Elevated surface around the boundary of the surfaces. The
Elevated Surface alone will be created if this toggle is off.
Apply New Variable Changes the variable the Elevated Surface Part is based on to that currently selected in the
Variables List.
Advanced Will open the Feature Detail Editor and select the Elevated Surface icon for more advance
control of the Elevated Surface Part.
Feature Detail Editor Double clicking on the Elevated Surfaces Create/Update Icon opens the Feature
(Elevated Surfaces) Detail Editor for Elevated Surfaces, the Creation Attributes Section of which
provides access to all of the functions available in the Quick Interaction Area plus
one more:
X Y Z For vector-based or coordinate-based elevated surfaces, specify vector components used
in creating the elevated surface. Not applicable to scalar-type elevated surfaces. Are
according to the reference frame of the Elevated Surface-Part. Letters labeling dialog data
entry fields depend on type of the reference frame (Rectangular, Spherical, or Cylindrical).
If all components are 0.0, the vector or coordinate magnitude will be used.
The Feature Detail Editor also allows you to make changes in batch; that is, to
make several changes to the menus and fields which do not effect the Graphics
Window until you click in the Apply Changes button. It is sometimes quicker
Figure 7-91
Feature Detail Editor (Elevated Surfaces)
7.14 Elevated/Offset Surface Create/Update
7-104 EnSight 9 User Manual
(with respect to CPU time) to make several changes at once rather than one at a
time as in the Quick Interaction Area.
Surface Type Offset
Alternatively, to use the Offset Surface option, select the 3D volume part(s) in the
main part window and choose the pulldown surface type Offset, then set the
options as described below.
Surface Type: Offset This pulldown chooses between Elevated Surface and Offset surface. Shown below are
descriptions of the Offset Surface options.
Offset Scale Scales the offset vector.
Offset Part This field picks the origin part number that will be used to clip the volume part selected in
the main part list.
Offset Vector These fields are the rigid body translation vector for the entire offset origin part. The
origin part cannot be scaled, warped, or rotated. Note: Letters labeling dialog data entry
fields depend on type of the reference frame (Rectangular, Spherical, or Cylindrical).
Feature Detail Editor Double clicking on the Elevated Surfaces Create/Update Icon opens the Feature
(Offset Surfaces) Detail Editor for Elevated Surfaces, the Creation Attributes Section of which
provides access to all of the functions available in the Quick Interaction Area plus
one more:
(see Section 3.3, Part Editing for a detailed discussion of the remaining Feature Detail
Editor turn-down sections which are the same for all Parts),
(see How to Create Elevated Surfaces)
Figure 7-92
Quick Interaction Area - Offset Surface Editor
Figure 7-93
Feature Detail Editor (Elevated Surfaces)
7.14 Elevated/Offset Surface Create/Update
EnSight 9 User Manual 7-105
Troubleshooting Elevated Surfaces
Problem Probable Causes Solutions
The entire Elevated Surface is not
projected in the direction you
want.
Change the sign of the scale factor.
You have a non-planar parent
Part and the elevated surface
seems to have strange
intersecting elements.
Sidewall elements are not
appropriate
Turn off sidewall toggle.
Scale factor too large. Lower the Scale Factor.
The Elevated Surface projection
appears to be “confused” at
various locations.
Inconsistently ordered elements,
such that the normals are not
“consistent”
Modify element ordering to be
consistent, if possible.
7.15 Vortex Core Create/Update
7-106 EnSight 9 User Manual
7.15 Vortex Core Create/Update
Vortex cores help visualize the centers of swirling flow in a flow field. EnSight
creates vortex core segments from the velocity gradient tensor of 3D flow field
part(s). Core segments can then be used as emitters for ribbon traces to help
visualize the strength and nature of the vortices.
Velocity Gradient EnSight automatically pre-computes the velocity gradient tensor for all 3D model
Tensor parts prior to creating the vortex cores. Since this variable is automatically
created, all subsequent 3D model parts created will also have this tensor
computed.
Note: The velocity gradient tensor variable will continue to be created and
updated for all 3D model parts until it is deactivated.
This tensor variable behaves like any other created tensor variable, and may be
deactivated via the Feature Detail Editor (Variables) dialog.
Thresholding Core segments may be filtered out according to the settings of a threshold
variable, value, and relational operator (see Access Clicking once on the Vortex
Core Create/Update Icon opens the Vortex Core Editor in the Quick Interaction
Area which is used to both create and update (make changes to) the vortex core
parts. below for details). Most active variables can be used as threshold variables.
Thresholding was implemented to help the user filter-out, or view portions of the
core segments according to variable values.
When vortex core parts are Created/Updated, the vorticity magnitude scalar
variable “fx_vortcore_streng” is created to help you threshold unwanted
core segments according to these scalar values. (This is the magnitude (RMS) of
the vorticity as defined in chapter 4.)
Due to the difference in algorithms, some segments produced may not be vortex
cores (see Caveats). Thus, the need for a filtering mechanism that filters out
7.15 Vortex Core Create/Update
EnSight 9 User Manual 7-107
segments according to different variables arose and has been provided via
thresholding options.
Algorithms Currently, vortex cores are calculated according to two algorithms based on
techniques outlined by Sujudi, Haimes, and Kenwright (see References below).
Both techniques are linear and nodal. That is, they are based on decomposing
finite elements into tetrahedrons and then solving closed-form equations to
determine the velocity gradient tensor values at the nodes. Also, any variable with
values at element centers are first averaged to element nodes before processing.
The eigen-analysis algorithm uses classification of eigen-values and vectors to
determine whether the vortex core intersects any faces of the decomposed
tetrahedron. The vorticity based algorithm utilizes the fact of alignment of the
vorticity and velocity vectors to determine core intersection points.
References Please refer to the following references for more detailed explanations of pertinent
concepts and algorithms.
D. Banks, B. Singer, “Vortex Tubes in Turbulent Flows: Identification, Representation,
Reconstruction”, IEEE Visualization ‘94, 1994
D. Sujudi, R. Haimes, “Identification of Swirling Flow in 3-D Vector Fields”,
AIAA-95-1715, Jun. 1995
D. Kenwright, R. Haimes, “Vortex Identification - Applications in Aerodynamics”,
IEEE Visualization ‘97, 1997
M. Roth, R. Peikert, “A Higher-Order Method For Finding Vortex Core Lines”,
IEEE Visualization ‘98, 1998
R. Haimes and D. Kenwright, On the Velocity Gradient Tensor and Fluid Feature Extraction”,
AIAA-99-3288, Jan. 1999
R. Peikert, M. Roth, “The ‘Parallel Vectors’ Operator - a vector field visualization primitive”, IEEE
Visualization ‘99, 1999
D. Kenwright, T. Sandstrom, GEL, NASA Ames Research Center, 1999
R. Haimes, D. Kenwright, The Fluid Extraction Toll Kit,
Massachusetts Institute of Technology, 2000
R. Haimes, K. Jordan, “A Tractable Approach to Understanding the Results from Large-Scale 3D
Transient Simulations”, AIAA-2000-0918, Jan. 2001
Caveats Due to the linear implementation of both the eigen-analysis and vorticity
algorithms, they both have problems finding cores of curved vortices. In addition,
testing has shown that both algorithms usually fail to predict vortex core segments
in regions of weak vortices. Note: for regions of weak vorticies consider using the
Lambda2 or Q-criteria calculator functions (see Section 4.3, Variable Creation).
Since the eigen-analysis method finds patterns of swirling flow, it can also locate
swirling flow features that are not vortices (especially in the formation of
boundary layers). These non-vortex core type segments can be filtered out via
thresholding (see Thresholding). In addition, the eigen-analysis algorithm may
produce incorrect results when the flow is under more than one vortex, and has a
tendency to produce core locations displaced from the actual vortex core.
The vorticity based method does not seem to exhibit the problem of producing
core segments due to boundary layer formations, because the stress components
of the velocity gradient tensor have been removed in the formation of the vorticity
vector. Thus, the vorticity method seems to produce longer and more contiguous
cores - in most cases; and therefore, the reason for including both algorithms.
7.15 Vortex Core Create/Update
7-108 EnSight 9 User Manual
7.15 Vortex Core Create/Update
EnSight 9 User Manual 7-109
Access Clicking once on the Vortex Core Create/Update Icon opens the Vortex Core
Editor in the Quick Interaction Area which is used to both create and update
(make changes to) the vortex core parts.
Define Vortex Opens the Vortex Core Variable Settings dialog which allows the user to identify and set
Variables the dependent variables used in
computing the vortex cores. This dialog
has a list of current accessible variables
from which to choose. Immediately
below is a list of dependent variables
with corresponding text field and SET
button. The variable name in the list is
tied to a dependent variable below by
first highlighting a listed variable, and
then clicking the corresponding
dependent variables’s SET button,
which inserts the listed variable into its
corresponding text field.
All text fields are required, except you
may specify either Density and
Momentum (which permits velocity to
be computed on the fly), or just
Velocity. A default constant value is
supplied for the Ratio of Specific Heats which may be changed or specified by a scalar
variable name.
Clicking Okay activates all specified dependent variables and closes the dialog.
Figure 7-94
Vortex Core Create/Update Icon
Figure 7-95
Quick Interaction Area - Vortex Core Editor (before Create)
Figure 7-95
Quick Interaction Area - Vortex Core Editor (after Create)
7.15 Vortex Core Create/Update
7-110 EnSight 9 User Manual
Method Opens a pop-up dialog for the specification of which type of method to use to compute the
vortex cores in the 3D field. These options are:
Threshold Filter Relational operators used to filter out vortex core segments.
< Filter out any core segments less than the Threshold Value (default).
> Filter out any core segments greater than the Threshold Value.
Threshold Value The value at which to filter the vortex core segments.
Select Threshold A list of possible variables that you may use to help filter out vortex core segments. This
Variable List list includes the vorticity magnitude scalar variable (named fx_vortcore_streng)
which gets created when you Create/Update a vortex core part.
Threshold Slider Bar Used to change the Threshold Value in increments dependent on the Min and Max
settings. The stepper button on the left (and right) of the slide bar is used to decrement
(and increment) the Threshold value.
Create Creates vortex cores that correspond to the selected 3D field in the part list, based on the
respective settings.
Apply New Variable Applies the threshold settings to the vortex core segments based on the threshold variable
that is highlighted in the Select Threshold Variable list.
Advanced Will open the Feature Detail Editor and select the Vortex Core icon for more advance
control of the Vortex Core Part.
Note: Vortex Core feature extraction does not work with multiple cases.
Troubleshooting Vortex Cores
Eigen Analysis Scheme that uses eigen-analysis on the Velocity gradient tensor to
compute the vortex core segments. (See Algorithms above).
Vorticity Scheme that uses the vorticity vector from the anti-symmetric portions
of the velocity gradient tensor to compute the vortex core segments.
(See Algorithms above).
Min The minimum value of the Threshold Variable. The stepper button on the left (and
right) side of the Min text filed is used to decrease (and increase) the order of
magnitude, or the exponent, of the min value.
Max The maximum value of the Threshold Variable. The stepper button on the left (and
right) side of the Max text field is used to decrease (and increase) the order of
magnitude, or the exponent, of the Max value.
Problem Probable Causes Solutions
Error creating vortex cores Non-3D part selected in part list Highlight 3D part
Undefined (colored by part color)
regions on vortex cores
Vortex core line segment node was
not mapped within a corresponding
3D field element
Make sure corresponding 3D field
part is defined.
7.16 Shock Surface/Region Create/Update
EnSight 9 User Manual 7-111
7.16 Shock Surface/Region Create/Update
The Shock Surface/Region feature helps visualize shock waves in a 3D flow field.
Shock waves are characterized by an abrupt increase in density, energy, and
pressure gradients, as well as a simultaneous sudden decrease in the velocity
gradient.
EnSight creates candidate shock surfaces in 3D (trans/super-sonic) flow fields
using a creation scalar variable (i.e. density, pressure) along with the velocity
vector (see Algorithms below).
Thresholding Due to the nature of the shock algorithms, other surfaces with similar
characteristics may be produced besides shock surfaces, i.e. expansion regions,
etc. Therefore, a filtering mechanism is necessary to help filter out these non-
shock regions.
Shock surfaces may be filtered out according to the settings of a threshold
variable, value, and relational operator (see Access Clicking once on the Vortex
Core Create/Update Icon opens the Vortex Core Editor in the Quick Interaction
Area which is used to both create and update (make changes to) the vortex core
parts. below for details). Most active variables can be used as threshold variables,
but gradients of the density and energy related scalar variables in the streamwise
direction seem to work best.
When Shock parts are created via the Surface method, the scalar “SHK_*”
variable (where * is the appended name of the variable, i.e. SHK_Density) is
created to help threshold unwanted areas according to these scalar values. When
Shock parts are created via the Region method, the scalar “SHK_Threshold”
variable is created to help threshold respective unwanted areas.
Currently, these SHK_* variables consist of the gradient of an appropriate
creation variable (i.e. SHK_Density, SHK_Pressure, etc.) in the streamwise
direction. For the Region method, the creation variable is always pressure.
Figure 7-96
Shock Surface (Data Courtesy of Craft Technology)
7.16 Shock Surface/Region Create/Update
7-112 EnSight 9 User Manual
EnSight tries to compute a reasonable default threshold value each time one of
these threshold variables is applied. By default this value is half of one
exponential order less than the maximum value of the threshold variable on the
shock part. This seems to produce a reasonable starting surface for the user to
threshold. By default, the smaller the threshold value, the larger the part.
The default threshold variable for non “SHK_” variables is the minimum of the
specified variable on the shock part.
The default Min/Max slider values try to bound the default threshold value by
appropriate orders of magnitude. Min/Max slider values floor/ceil the min/max
values of the threshold variable of the shock part when these ranges are exceeded
(see Threshold Slider Bar below).
Algorithms Shock parts are calculated according to two algorithms, or methods. The first
algorithm (referred to by EnSight as the Surface method) is based on the work of
Pagendarm et. al., and the second algorithm (referred to by EnSight as the Region
method) is based on the work by Haimes et. al. (See References below.)
The Surface method utilizes the maximal gradient of a quantity like density or
pressure in the streamwise direction. This yields a surface that requires
thresholding to distinguish significant portions of the shock patterns from weak
numerical artefacts.
The Region method utilizes flow physics to define shocks in steady state and
transient solutions. The steady state equation is based on developing a scalar field
based on combining the mach vector with the normalized pressure gradient field.
The transient solution combines this term with appropriate correction terms. The
Region method produces iso-shock surfaces that form regions that bound the
shock wave.
Note: Both methods use dependent variables (See Define Shock Variables below).
If some of the dependent variables do not exist and are required, they will be
temporarily calculated based on other defined dependent variables (as defined in
Section 4.3, Variable Creation). The user has the responsibility to ensure these
variables have consistent units.
Both techniques have been implemented in a linear and nodal fashion. That is,
their gradient calculations are based on decomposing finite elements into
tetrahedrons to approximate the gradient values at the nodes. Also, any variables
with values at element centers are averaged to element nodes before processing.
Other Notes Pre-filtering flow field elements by Mach Number.
The Surface Method allows the user to filter-out any flow field elements less than
a specified mach number, by issuing the following command via the command
line processor (See Section 2.5, Command Files):
test: shock_mach_prefilter #
Where # is the corresponding mach-number value (>=0.0) by which to filter.
(Zero is the default value - which means this option is turned-off until activated by
a value > 0.0.) Ideally this mach-number value would be 1; and thus, would
eliminate any subsonic regions from being processed via the Surface method’s
algorithm. In some transonic cases, this has doubled the efficiency of the
algorithm by eliminating the calculation of the second derivative on many
elements. Unfortunately, other cases have been observed (especially noticed in
regions with normal shack waves) where this option (due to the grid resolution
7.16 Shock Surface/Region Create/Update
EnSight 9 User Manual 7-113
and/or the numerical dissipation inherent in the shock algorithm - see 1999
reference by D. Lovely and R. Haimes) has eliminated some valid shock regions.
Although care is taken to provide an appropriate stencil of elements for the
gradient calculations of values adjacent to these areas, it appears this value may
need to be < 1 to prevent these shock regions from being eliminated. This option
is therefore provided at the discretion and expertise of the user. This option only
takes effect when issued prior to a create or an update in shock method.
Post-filtering shock part elements by Mach Number.
Both methods allow the user to filter-out (prior to thresholding) any shock part
elements less than a specified mach number, by issuing the following command
via the command line processor (see Section 2.5, Command Files):
test: shock_mach_postfilter #
Where # is the corresponding mach-number value (>=0.0) by which to filter.
(Zero is the default value - which means this option is turned-off until activated by
a value > 0.0.) Ideally this mach number value would be 1; and thus, would
eliminate any subsonic regions from being displayed as part of the shock surface.
Unfortunately, some cases have been observed (especially noticed in regions with
normal shock waves) where this options (due to the grid resolution and/or the
numerical dissipation inherent in the shock algorithm - see 1999 reference by D.
Lovely and R. Haimes) has eliminated some valid shock regions. This option is
therefore provided at the discretion and expertise of the user. This option only
takes effect when issued prior to a create or an update in shock method.
Moving Shock.
Both methods compute the stationary shock based on the user specified
parameters. The Region Method has the capability of applying a correction term
to represent moving shocks in transient cases. This capability is toggled ON/OFF
by issuing the following command via the command line processor (see Section
2.5, Command Files).
test: toggle_moving_shock
Issuing the command a second time will toggle this option off. This option is
provided at the discretion and expertise of the user. This option only takes effect
when issued prior to a create or an update in shock method.
References Please refer to the following references for more detailed explanations of pertinent
concepts and algorithms.
H.G. Pagendarm, B. Seitz, S.I. Choudhry, “Visualization of Shock Waves in Hypersonic CFD
Solutions”, DLR, 1996
D. Lovely, R. Haimes, “Shock Detection from Computational Fluid Dynamics Results”,
AIAA-99-3285, 1999, 14th AIAA Computational Fluid Dynamics Conference, Vol 1 technical
papers.
R. Haimes and D. Kenwright, “On the Velocity Gradient Tensor and Fluid Feature Extraction”,
AIAA-99-3288, Jan. 1999, 14th AIAA Computational Fluid Dynamics Conference, Vol 1 technical
papers.
D. Kenwright, T. Sandstrom, GEL, NASA Ames Research Center, 1999
R. Haimes, D. Kenwright, The Fluid Extraction Tool Kit,
Massachusetts Institute of Technology, 2000, 39th Aerospace Sciences Meeting and Exhibit, Reno.
R. Haimes, K. Jordan, “A Tractable Approach to Understanding the Results from Large-Scale 3D
Transient Simulations”, AIAA-2000-0918, Jan. 2001
7.16 Shock Surface/Region Create/Update
7-114 EnSight 9 User Manual
Access Clicking once on the Shock Surface/Region Create/Update Icon opens the Shock
Editor in the Quick Interaction Area which is used to both create and update
(make changes to) the shock part.
Define Shock Opens the Shock Variable Settings dialog which allows the user to identify and set the
Variables... dependent variables used in
computing the shock parts. This
dialog has a list of current accessible
variables from which to choose.
Immediately below is a list of
dependent variables with
corresponding text field and SET
button. The variable name in the list
is tied to a dependent variable below
by first highlighting the listed
variable, and then clicking the
corresponding dependent variable’s
SET button, which inserts the listed
variable into its corresponding text
field.
Not all text fields are required.
Although you must specify either
Density or Pressure, Temperature,
and Gas Constant; either Energy or
Pressure; either Velocity or
Momentum; and the Ratio of
Specific Heats. A default constant
value is supplied for the Ratio of
Specific Heats and the Gas Constant
which may be changed or specified
by a scalar variable name.
Clicking Okay activates all specified dependent variables and closes the dialog.
Figure 7-97
Shock Surfaces/Regions Create/Update Icon
Figure 7-98
Quick Interaction Area - Shock Surfaces/Regions Editor (after Create)
Quick Interaction Area - Shock Surfaces/Regions Editor (before Create)
7.16 Shock Surface/Region Create/Update
EnSight 9 User Manual 7-115
Method Opens a pop-up dialog for the specification of which type of method, to use to compute
the vortex cores in the 3D field. These options are:
Select Creation A list of variables used to create the shock surface via Surface method. These variable are
Variable specified via those SET in the Define Shock Variables list above.
Note: This list is not used for the Region method. The Region method only uses pressure
as the creation variable.
Threshold Filter Relational operators used to filter out shock areas.
< Filter out any areas less than the Threshold Value (default).
> Filter out any areas greater than the Threshold Value.
Threshold Value The value at which to filter the shock areas.
Select Threshold A list of possible variables that you may use to help filter out unwanted areas. This list
Variable List includes the shock threshold variables “SHK_*” which gets created when you Create/
Update a shock part.
Threshold Slider Bar Used to change the Threshold Value in increments dependent on the Min and Max
settings. The stepper button on the left (and right) of the slide bar is used to decrement
(and increment) the Threshold value.
Create Creates shock parts that correspond to the selected 3D field in the part list, based on the
respective settings.
Apply New Variable Applies the threshold settings to shock surfaces based on the threshold variable that is
highlighted in the Select Threshold Variable list.
Advanced Will open the Feature Detail Editor and select the Shock Surface icon for more advance
control of the Shock Surface Part.
Note: Shock Surface feature extraction does not work with multiple cases.
Troubleshooting Shock Surfaces/Regions
Surface Scheme that uses maximal density or pressure gradients in the streamwise
direction to locate candidate shock surfaces. (See Algorithms above).
Region Scheme that uses flow physics based on the mach vector coupled with pressure
gradient to locate candidate shock regions. (See Algorithms above.)
Min The minimum value of the Threshold Variable. The stepper button on the left (and
right) side of the Min text field is used to decrease (and increase) the order of
magnitude, or the exponent, of the Min value.
Max The maximum value of the Threshold Variable. The stepper button on the left (and
right) side of the Max text field is used to decrease (and increase) the order of
magnitude, or the exponent, of the Max value.
Problem Probable Causes Solutions
Error creating shock part Non-3D part selected in part list Highlight 3D flow field part
No shock part created Flow field part subsonic No shock in subsonic regions
7.16 Shock Surface/Region Create/Update
7-116 EnSight 9 User Manual
Shock dependent variables defined
with incorrect units, i.e. since
Region method uses density and
mach, if file variables are pressure,
temperature, and velocity, then
density (and thus mach) is
dependent on gas constant. By
default this value is 287 (Nm/KgK)
Make sure dependent variables have
correct units. i.e. gas constant may
need to be 1716(ft-lb/slugDegR), or
some other value rather than the
default
No to little shock part created Threshold value too large for <
operation
Decrease threshold value
Problem Probable Causes Solutions
7.17 Separation/Attachment Lines Create/Update
EnSight 9 User Manual 7-117
7.17 Separation/Attachment Lines Create/Update
Separation and Attachment Lines exist on 2D surfaces and help visualize areas
where flow abruptly leaves or returns to the 2D surface in 3D flow fields. These
lines are topologically significant curves on the 2D surface where flow converges
and then separates (separation lines) from the surface into the 3D flow field, and
where flow attaches and then diverges (attachment lines) to the surface from the
3D flow field.
These line segments can be used as emitters for ribbon traces to help visualize
flow interaction from the 2D surface into the 3D field, or displayed along with
surface-restricted traces to help visualize the topology of the 2D surface.
EnSight creates separation and attachment lines as two distinct parts so that each
may be assigned their own attributes. Although both are updated computationally
when changes are made to either one via the quick interaction area.
Separation/Attachment lines can be created on any 2D part, whether it is a
boundary surface or internal surface to a 3D flow field. These lines can also be
created on 3D flow field parts. However, computation of the separation/
attachment lines is restricted to only the boundary surfaces of the 3D flow field.
Velocity Gradient Ensight creates separation and attachment lines from the velocity gradient
Tensor tensor of the 3D flow field part. EnSight automatically pre-computes the velocity
gradient tensor for all 3D model parts prior to creating the separation and
attachment lines. These values are then mapped to any corresponding 2D model
part, or inherited by any created part.
Since this variable is automatically created, all subsequent 3D model parts created
will also have this tensor variable computed.
Note: The velocity gradient tensor variable will continue to be created and
updated for all 3D model parts until it is deactivated.
7.17 Separation/Attachment Lines Create/Update
7-118 EnSight 9 User Manual
This tensor variable behaves like any other created tensor variable, and may be
deactivated via the Feature Detail Editor (Variables) dialog.
Thresholding Separation/Attachment lines may be filtered out according to the settings of a
threshold variable, value, and relational operator (see Access Clicking once on the
Vortex Core Create/Update Icon opens the Vortex Core Editor in the Quick
Interaction Area which is used to both create and update (make changes to) the
vortex core parts. below for details). Most active variables can be used as
threshold variables. Thresholding was implemented to help the user to filter-out,
or view portions of the line segments according to variable values.
When separation and attachment line parts are Created/Updated, the scalar
variable “fx_sep_att_strength” is created to help you threshold unwanted
core segments according to these scalar values.
Note: This scalar variable is currently set to the vorticity magnitude scalar, until a
better thresholding variable can be identified.
Since it has been observed that the current implementation of this algorithm may
produce additional lines that are not separation or attachment lines, the need for a
filtering mechanism that filters out segments according to different variables arose
and had been provided via thresholding options.
Algorithms Currently, separation and attachment lines are calculated according to the phase-
plane algorithm presented by Kenwright (see References below). This algorithm
detects both closed and open separation. Closed separation lines originate and
terminate at critical points. Whereas open separation lines do not need to start or
end at critical points.
This technique is linear and nodal. That is, 2D elements are decomposed into
triangles, and then closed-form equations are solved to determine the velocity
gradient tensor values for eigen-analysis at the nodes. Also, any variables with
values at element centers are averaged to element nodes before processing.
References Please refer to the following references for more detailed explanations of pertinent
concepts and algorithms.
J. Helman, L. Hesselink
“Visualizing Vector Field Topology in Fluid Flows”,
IEEE CG&A, May 1991
D. Kenwright, “Automatic Detection of Open and Closed Separation and Attachment Lines”, IEEE
Visualization ‘98, 1998, pp. 151-158
R. Haimes and D. Kenwright, “On the Velocity Gradient Tensor and Fluid Feature Extraction”,
AIAA-99-3288, Jan. 1999, pp. 315-324
S. Kenwright, C. Henze, C. Levit, “Feature Extraction of Separations and Attachment Liens”, IEEE
TVCG, Apr.-Jun. 1999, pp. 135-144
R. Peikert, M. Roth, “The ‘Parallel Vectors’ Operator - a vector field visualization primitive”, IEEE
Visualization ‘ 99, 1999
D. Kenwright, T. Sandstrom, GEL, NASA Ames Research Center, 1999
R. Haimes, D. Kenwright, The Fluid Extraction Tool Kit,
Massachusetts Institute of Technology, 2000
7.17 Separation/Attachment Lines Create/Update
EnSight 9 User Manual 7-119
Access Clicking once on the Separation and Attachment Lines Create/Update Icon opens
the Separation and Attachment Lines Editor in the Quick Interaction Area which
is used to both create and update (make changes to) the separation and attachment
line parts.
Define Sep/Attach Opens the Sep/Attach Line Variable Settings dialog which allows the user to identify and
Variables... set the dependent variables used in
computing separation and attachment
lines. This dialog has a list of current
accessible variables from which to
choose. Immediately below is a list of
dependent variables with corresponding
text field and SET button. The variable
name in the list is tied to a dependent
variable below by first highlighting a
listed variable, and then clicking the
corresponding dependent variable’s
SET button, which inserts the listed
variable into it’s corresponding text
field.
All text fields are required, except you
may specify either Density and
Momentum (which permits velocity to
be computed on the fly), or just
Velocity. A default constant value is supplied for the Ratio of Specific Heats which can be
changed or specified by a scalar variable name.
Clicking Okay activates all specified dependent variables and closes the dialog.
Method Opens a pop-up dialog for the specification of which type of method, to use to compute
the separation and attachment lines on the 2D surface. These options are:
Phase Plane - Scheme that uses eigen-analysis on the velocity gradient tensor along with
phase plane analysis to compute the separation and attachment line segments (see
Algorithms).
Threshold Filter Relational operators used to filter out line segments.
< Filter out any line segments less than the Threshold Value (default).
> Filter out any line segments greater than the Threshold Value.
Threshold Value The value at which to filter the line segments.
Select Threshold A list of possible variables that you may use to help filter out line segments. This
Variable List list includes the vorticity magnitude scalar variable (named fx_sep_att_strength) which
gets created when you Create/Update a separation and attachment part.
Figure 7-99
Separation/Attachment Lines Create/Update Icon
Figure 7-100
Quick Interaction Area - Separation/Attachment Lines Editor
7.17 Separation/Attachment Lines Create/Update
7-120 EnSight 9 User Manual
Threshold Slider Bar Used to change the Threshold Value in increments dependent on the Min and Max
settings. The stepper button on the left (and right) of the slide bar is used to decrement
(and increment) the Threshold value.
Create Creates separation and attachment lines that correspond to the selected 2D part in the part
list, based on the respective settings.
Apply New Variable Applies the threshold settings to the separation and attachment line segments based on the
threshold variable that is highlighted in the Select Threshold Variable list.
Advanced Will open the Feature Detail Editor and select the Separation/Attachment icon for more
advance control of the Separation/Attachment Part.
Feature Detail Editor Double clicking on the Separation/Attachment Lines Icon opens the Feature
(Separation/Attachment)Detail Editor (Separation/Attachment Lines), the Creation Attributes Section of
which provides access to the same functions available in the Quick Interaction
Area, as well as one more.
(see Section 3.3, Part Editing for a detailed discussion of the remaining Feature
Detail Editor turn-down sections which are the same for all Parts),
Display offset This field specifies the normal distance away from a surface to display the
separation/attachment lines. A positive value moves the lines away from the
surface in the direction of the surface normal.
Please note that there is a hardware offset that will apply to contours, vector arrows,
separation/attachment lines, and surface restricted particle traces that can be turned on
or off in the View portion of Edit->Preferences. This preference (“Use graphics hardware
to offset line objects...”) is on by default and generally gives good images for everything
except move/draw printing. This hardware offset differs from the display offset in that it is
in the direction perpendicular to the computer screen monitor (Z-buffer).
Thus, for viewing, you may generally leave the display offset at zero. But for
printing, a non-zero value may become necessary so the lines print cleanly.
Note: Separation and Attachment Line feature extraction does not work with multiple cases.
Troubleshooting Separation/Attachment Lines
Min The minimum value of the Threshold Variable. The stepper button on the left
(and right) side of the Min text filed is used to decrease (and increase) the
order of magnitude, or the exponent, of the min value.
Max The maximum value of the Threshold Variable. The stepper button on the left
(and right) side of the Max text field is used to decrease (and increase) the
order of magnitude, or the exponent, of the Max value.
Problem Probable Causes Solutions
Error creating separation and
attachment lines
Invalid part selected in part list Highlight 2D or 3D part
Undefined (colored by part color)
regions on sep/attach lines
Sep/Attach line segment node was
not mapped within a corresponding
3D field element
Make sure corresponding 3D field
part is defined.
Separation/attachment lines do not
print well.
See Display Offset discussion above Enter a non-zero Display Offset
7.18 Boundary Layer Variables Create/Update
EnSight 9 User Manual 7-121
7.18 Boundary Layer Variables Create/Update
EnSight creates the following Boundary Layer Variables simultaneously on a 2D
boundary part directly from velocity information of its corresponding 3D flow
field part. Their corresponding variable names are included in all appropriate
EnSight variable lists, i.e. Color Parts variable list, etc.
Only nodal (values per node) variables are created. Any dependent elemental
variables (values per element) are averaged to nodal variables before processing.
(See Definitions below.)
Whether these variables are mapped onto the 2D boundary part, or used in
conjunction with other EnSight features (such as Elevated Surfaces of the
boundary layer thickness off the 2D boundary part, Vortex Cores, Separation and
Attachment Lines, Shock, etc.), these variables help provide valuable insight into
the formation and location of possible boundary layers.
Boundary Layer A boundary layer is a relatively thin region that confines viscous diffusion near
the surface of a flow field, where the velocity gradient in the normal direction to
the surface goes through an abrupt change. Although multiple boundary layers
may be considered (especially in areas of flow separation), our current
Variable Name Description Symbol
(N) bl_thickness Boundary layer thickness
(N) bl_disp_thickness Displacement thickness
(N) bl_momen_thickness Momentum thickness
(N) bl_shape_parameter Shape parameter
(N) bl_skin_friction_Cf Skin friction coefficient
δ
δ*
Θ
H
Cf
Figure 7-101
Skin Friction Coefficient
7.18 Boundary Layer Variables Create/Update
7-122 EnSight 9 User Manual
implementation provides boundary layer parameters based on the former concept.
In these thin regions, the thickness of the boundary layer typically increases in the
downstream direction, and the velocity parallel to the surface is much larger than
the velocity normal to the surface.
Boundary Surfaces Boundary parts are typically 2D surface part(s) that correspond to a 3D field.
These surfaces may either be boundary parts defined directly from the data file, or
created parts (i.e. 2D IJK sweeps of a structured part, or an isosurface of zero
velocity of either an unstructured or structured part).
Velocity-Magnitude Changes of the velocity in the normal direction from the surface into the 3D flow
Gradient Vector field are utilized to determine the boundary layer. EnSight automatically creates a
velocity-magnitude gradient vector for all 3D model parts prior to creating the
boundary layer variables. These gradient values are then mapped to all
corresponding 2D model parts, and inherited by all created parts.
Note: The velocity-magnitude gradient vector variable will continue to be created
for all 3D model parts until it is deactivated.
This vector variable behaves like any other created variable, and may be
deactivated via the Feature Editor (Variables) dialog.
Definitions
Boundary Layer Thickness
The distance normal from the surface to where u/U = 0.995,
where: u = magnitude of the velocity at a given location in the boundary layer,
U = magnitude of the velocity just outside the boundary layer.
Displacement Thickness
Provides a measure for the effect of the boundary layer on the “outside” flow. The
boundary layer causes a displacement of the streamlines around the body.
Momentum Thickness
Relates to the loss of momentum in the air in the boundary layer.
δnu/U = 0.995
=
δ*
δ
δ*
U
n
Streamline position without
boundary layer
Shifted streamline
Extra Thickness
δ*1
U
----Uu–()nd
0
δ
∫
=
Θ1
U2
------ Uu–()und
0
δ
∫
=
7.18 Boundary Layer Variables Create/Update
EnSight 9 User Manual 7-123
Shape Parameter
Used to characterize boundary layer flows, especially to indicate potential for
separation.
This parameter increases as a separation point is approached, and varies rapidly
near a separation point.
Note: Separation has not been observed for H < 1.8, and definitely has been
observed for H = 2.6; therefore, separation is considered in some analytical
methods to occur in turbulent boundary layers for H = 2.0.
In a Blasius Laminar layer (i.e. flat plate boundary layer growth with zero
pressure gradient), H = 2.605. Turbulent boundary layer, H ~= 1.4 to 1.5, with
extreme variations ~= 1.2 to 2.5.
Skin Friction Coefficient
where: = fluid shear stress at the wall.
= dynamic viscosity of the fluid.
May be spatially and/or temporarily varying quantity (usually a constant).
= distance normal to the wall.
= freestream density
= freestream velocity magnitude.
This is a non-dimensionalized measure of the fluid shear stress at the surface. An
important aspects of the Skin Friction Coefficient is:
, indicates boundary layer separation.
Other Notes: Factor Determining Velocity at Boundary-Layer Thickness (δ)
The factor (default = 0.995) which determines the velocity magnitude (u) at the
boundary-layer thickness (δ) with respect to the velocity magnitude (U) just
outside the boundary layer (i.e. δ is the distance normal to the surface at which
u = 0.995U), may be changed by issuing the following command via the
command line processor (see Section 2.5, Command Files):
test: blt_factor #
where # is the corresponding factor ( > 0.).
References Please refer to the following texts for more detailed explanations.
P.M. Gerhart, R.J. Gross, & J.I. Hochstein, Fundamentals of Fluid Mechanics, 2nd Ed.,
(Addison-Wesley: New York, 1992),
C.A.J. Fletcher, Computational Techniques for Fluid Dyanmics, Vol. 2, 2nd Ed.,
(Springer: New York, 1997)
δ*/Θ
Cf
τw
0.5ρ∞V∞
()
2
--------------------------------=
τwµu∂
n∂
-----
⎝⎠
⎛⎞
n0=
=
µ
n
ρ∞
V∞
Cf0=
7.18 Boundary Layer Variables Create/Update
7-124 EnSight 9 User Manual
Access Clicking once on the Boundary Layer Variable Create/Update Icon opens the
Boundary Layer Variables Editor in the Quick Interaction Area, which is used to
both create and update (make changes to) the boundary layer variables.
Define Boundary Opens the Boundary Layer Variable Settings dialog which allows the user to identify and
Layer Dependent set the dependent variables used in computing the boundary layer variables (see
Variables... Definitions above). This dialog has a list of current accessible variables to choose from.
Immediately below is a list of dependent variables with corresponding text field and SET
button. The variable name in the list is tied to a dependent variable below by first
highlighting a the listed variable, and then clicking the corresponding dependent variable’s
SET button, which inserts the listed variable into its corresponding text field.
All text fields are required, except you may specify either Density and Momentum (which
permits velocity to be computed on the fly), or Velocity. Default constant values are
provided which may be changed by editing the text field.
Clicking Okay activates all specified dependent variables and closes the dialog.
Freestream Density Constant ‘upstream’ density value (near flow inlet). Only used for skin-friction
coefficient, Cf.
Figure 7-102
Boundary Layer Variables Create/Update Icon
Figure 7-103
Quick Interaction Area - Boundary Layer Variables Editor
Figure 7-104
Boundary Layer Variable Settings Dialog
7.18 Boundary Layer Variables Create/Update
EnSight 9 User Manual 7-125
Freestream Velocity Constant ‘upstream’ velocity magnitude value (near flow inlet). Only used for skin-
friction coefficient, Cf.
Determine Velocity Opens a pop-up dialog for the specification of which type of method to determine the
Outside Boundary constant velocity just outside the boundary layer (U) (see Definitions above). The
Layer By following options determine (U) at each node of the surface in the direction normal from
the surface into the 3D field by:
Convergence Criteria - monitoring the velocity profile until either the velocity magnitude
goes constant or its gradient goes to zero.
Distance From Surface - specifying the Normal Distance from the surface into the field at
which to extract the velocity and assign as U. Then monitor the velocity profile from the
surface into the field until U is obtained.
Normal Distance - Text field that contains the distance normal from the surface into
the 3D field at which to extract the velocity for U.
Velocity Magnitude - specifying the Velocity Magnitude to assign as U. Then monitor the
velocity profile from the surface into the field until U is obtained.
Velocity Magnitude - Text field that contains the specified velocity magnitude to
assign as U.
Note: Boundary Layer Variable feature extraction does not work with multiple cases.
Troubleshooting Boundary Layer Variables
Problem Probable Causes Solutions
Error creating boundary layer
variables.
Non-2D part selected in part list. Highlight 2D part.
Undefined (colored by part color)
regions on boundary surface.
2D boundary surface node was not
mapped to corresponding 3D field
boundary node.
Make sure corresponding 3D field
part is defined.
7.19 Material Parts Create/Update
7-126 EnSight 9 User Manual
7.19 Material Parts Create/Update
EnSight enables you to create and modify Material Parts from material
descriptions defined on model parts. The Material Parts feature allows you to
extract single or combined regions of specified materials, as well as boundary
interfaces between two or more specified materials.
Material Parts can only be created from model parts that have material ids
assigned to them. Therefore, Material Parts can not be created from any
Measured or Created Parts. In addition, material information is not transferred to
Created Parts.
Material Parts are created and reside on the server. They are Created Parts that
provide proper updating of all dependent parts and variables - except they do not
inherit any material data themselves.
Material Parts are created and modified by specifying parent model parts, as well
as selecting material descriptions listed in the Materials List. A Material Part is
extracted from only 2D and 3D elements. A Material Part is created as either a
Domain or an Interface.
Domain A material Domain defines a solid region composed of one or more specified
materials. Parts with 2D elements yield 2D material elements, and parts with 3D
elements yield 3D material elements.
Interface A material Interface defines a boundary region between at least two or more
adjacent specified materials. Parts with 2D elements yield 1D material elements,
and parts with 3D elements yield 2D material elements.
Null Materials Two categories of materials are reflected in the Materials List; namely, given
materials and a “null_material”. All given material descriptions correspond to a
material assigned a positive material number, or id. Any material that has an id
less than or equal zero (<= 0) is grouped under the “null_material” and assigned
the material id of zero (0). This allows the null material to act as a valid material.
The “null_material” description always appears in the Materials List whether or
not there are any null materials.
Figure 7-105
Material Parts Illustration
7.19 Material Parts Create/Update
EnSight 9 User Manual 7-127
Formats Materials may be defined either by the three sparse files (i.e. material ids, mixed
ids, and mixed values), or materials may be designated as a set of per element
scalar variable descriptions; but not by both. See Section 11.1, EnSight Gold
Casefile Format for format details.
Algorithm Two algorithms are implemented to compute the material part: the “smooth”
algorithm and the Young’s algorithm. The “smooth” algorithm is based on a
probability based approach to material interface reconstruction (see reference
below). Essentially volume fractions are averaged for every cell to its nodes,
edges/faces, and center. Each cell is then decomposed and/or subdivided into
subcells. Each subcell is then repeatedly assigned, compared, and appropriately
interpolated with volume fractions for each material. The resulting material cells
reflect the maximum volume fraction portion(s) of the interpolated subcells.
The Young’s algorithm partitions each mixed-material cell into regions which
exactly match the material fractions. The partitioning is based on an orientation
vector that determines the diretion of the lines (or planes) used to subdivide the
cell. Materials are sliced off in the order assigned by the user.
Reference Meredith, Jeremy S. “A Probability Based Approach to Material Interface
Reconstruction for Visualization”, ECS277 Project 4, Spring 2001
D.L. Young, “Time-dependent multi-material flow with large fluid distortion,” in
Numerical Methods for Fluid Dynamics (K. W. Morton and J. J. Baines, eds.), pp.
273-285, Academic Press, 1982.
Caveats Material resolution tends to diminish (and at times distorts) at boundary cells that
lack adjacent ghost cells. The volume fractions at these cells simply lack the
proper weighting. This is remedied by providing material ghost cells.
Thus, materials that contribute half or less of the total portion on a boundary
element, typically do not appear without ghost cells.
Specie(s) Species may also be associated to a material (see MATERIAL Section under
EnSight Gold Case File Format and EnSight Gold Material Files Format ), but are
not involved in any of the computational aspects of creating/updating a material
part. Rather, a material species variable may be created via the new variable
calculator (see MatSpecies under 4.3 Variable Creation ).
Note: Species are only supported with the three sparse material files format, and
are not supported by the materials as scalars per element format.
7.19 Material Parts Create/Update
7-128 EnSight 9 User Manual
Access Clicking once on the Material Parts Create/Update Icon opens the Material Parts
Editor in the Quick Interaction Area which is used to both create and update
(make changes to) the material parts.
Materials List List reflecting the available materials in the model parts. Any material that has an id less
than or equal to zero (<= 0) comprises the “null_material”.
Type Opens a pull-down menu for specification of whether the Material Part results in a
Domain or Interface. Changing the Type of existing Material Parts will automatically
update them to the new specified type.
Method Opens a pull-down menu for specification of the algorithm. Currently, use the Smooth to
compute the material part. Changing the method of existing Material Parts will
automatically update them to the new specified method.
Normal Not available for Smooth algorithm. Opens a pull-down menu to select the method for
computing the orientation vector for Young’s algorithm. The orientation can be computed
using the gradient of the first (non-droplet) material found in the cell (By grad. of the 1st
material), or it can be given an element-centered vector variable (vector)
Since the order of the materials is significant in the Young’s algorithm, it is important to
be able to change the order of the materials. Order of the materials can be changed by
Domain Creates a solid region composed of one or more specified materials.
Parts with 2D elements yield 2D material elements, and parts with 3D
elements yield 3D material elements.
Interface Creates a boundary region between at least two or more specified
materials. Parts with 2D elements yield 1D material elements, and
parts with 3D elements yield 2D material elements.
Smooth Create/update a material part via the smooth algorithm (default)
Young’s Create/update a material part via the Young’s algorithm
Figure 7-106
Material Parts Create/Update Icon
Figure 7-106
Quick Interaction Area - for Material Parts Type Domain/Interface
7.19 Material Parts Create/Update
EnSight 9 User Manual 7-129
right-clicking on the materials in the materials list and selecting Move Up, Move Down,
Move to Top, or Move to Bottom.
Apply New Material(s) Recreates the Material Part selected in the Main Parts List according to the selections in
the material list.
Advanced Will open the Feature Detail Editor and select the Material icon for more advance control
of the Material Part.
Feature Detail Editor (Material Parts)
Double Clicking on the Material Parts Create/Update Icon (or Edit > Part Feature
Detail Editors > Materials Parts...) opens the Feature Detail Editor (Material
Parts), the Creation Attributes of which offers the same options for the Material
Parts as the Quick Interaction Area Editor.
(See: How To Create Material Parts, and under Section 11.1, EnSight Gold
Casefile Format, see EnSight Gold Material Files Format)
Troubleshooting Material Parts
Problem Probable Causes Solutions
No Type Domain Material Part
created for specified material
description(s)
Model part(s) not selected.
Model part(s) void of that material
Select only model part(s).
Nothing wrong.
No Type Interface Material Part
created for specified material
description(s)
Model parts not selected.
Two or more materials not selected.
Select only model part(s).
Select at least two (or more) materials.
Selected materials are not adjacent
across a 3D face or 2D edge.
Nothing wrong.
No “null_material” Material Part
created for a specified
“null_material” selection.
Model parts do not contain any null
materials.
Nothing wrong.
There are no null materials, but
selecting “null_material” produces
a visible region.
Incorrect indexing in the material ids
file.
Material ids file possibly has a
negative index to an incorrect position
into the mixed-material id file.
Increasing the Subdivide level
does not increase the material
fraction detail
Increasing the Subdivide level
typically only increases the element
resolution.
Typically nothing wrong.
Changing the Type and/or Level as
well while simultaneously
changing the material selections
did not update the selected
Material Part to the new material
selections.
Material reselection is only updated
via the Apply New Material(s)
button.
Update the new materials first, then
change the type.
Delete the Material Part. Make new
material(s) selection and Type and/or
Subdivide specification. Then Create
a new Material Part.
Orientation does not appear
correct when using Young’s
algorithm.
Materials were not ordered correctly
prior to creation.
Order materials in list so that first
material gradient gives proper
orientation.
7.20 Tensor Glyph Parts Create/Update
7-130 EnSight 9 User Manual
7.20 Tensor Glyph Parts Create/Update
Tensor glyphs visualize the direction and tension/compression of the eigenvectors
at discrete points (at nodes or at element centers) for a given tensor variable.
Tensor glyph Parts are dependent Parts known only to the client. They cannot be
used as a parent Part for other Part types and cannot be used in queries. As
dependent Parts, they are updated anytime the parent Part and/or the creation
tensor variable changes (unless the general attribute Active flag is off).
Tensor glyphs can be filtered to show just the tensile or compressive eigenvectors.
Further, the visibility for each of the eigenvectors (Major, Middle, and Minor) can
be controlled.
Tensor glyphs will appear for each of the nodes/elements for the Parent part’s
visual Representation. Thus, for a border Representation of a Part, only the border
nodes/elements will be candidates for a tensor glyph.
The tensile and compressive eigenvectors can be visualized by modifying the
tensile/compressive component’s line width and color.
Clicking once on the Tensor Glyph Create/Update Icon opens the Tensor Glyph
Editor section of the Quick Interaction Area which is used to both create and
update (make changes to) tensor glyph Parts.
Scale Factor The size of the tensor glyph.
Display Which Controls which eigenvectors will be displayed
Compression Show the eigenvectors that are in compression
Tension Show the eigenvectors that are in tension
Major Show the major eigenvector
Middle Show the middle eigenvector
Minor Show the minor eigenvector
Figure 7-107
Tensor Glyph Parts Create/Update Icon
Figure 7-108
Quick Interaction Area - Tensor Glyph Parts Editor
7.20 Tensor Glyph Parts Create/Update
EnSight 9 User Manual 7-131
Display Attributes Opens the Tensor Display Attributes dialog.
Tip Shape Opens a pop-up menu to select the tip shape
Tip Size Controls the size of the tips.
Color By The tensor glyphs can be colored according to the part color, or have a separate color for
compression and tension.
Line Width By The tensor glyphs can use the part line width, or have a separate line width for
compression and tension.
Apply New Variable Changes the tensor Variable used to create the Tensor Glyphs to that currently selected in
the “Select a Tensor Variable” list.
Advanced Will open the Feature Detail Editor and select the Vector Arrow icon for more advance
control of the Vector Arrow Part.
Feature Detail Editor Double clicking on the Tensor Glyph Create/Update Icon opens the Feature Detail
(Tensor Glyph) Editor for Tensor Glyphs, the Creation Attributes Section of which provides access to the
same functions available in the Quick Interaction Area. For a detailed discussion of the
remaining Feature Detail Editor turn-down sections (which are the same for all Part types)
(see Section 3.3, Part Editing and How to Create Tensor Glyphs)
None Displays eigenvectors as lines with no tips.
Normal Displays “classical” tips.
Triangles Displays triangle tips.
Compression Color Specify the compressive color
Tension Color Specify the tensile color
Compression Line Width Specify the compressive line width
Tension Line Width Specify the tensile line width
Figure 7-109
Tensor Display Attributes Dialog
7.20 Tensor Glyph Parts Create/Update
7-132 EnSight 9 User Manual
Troubleshooting Tensor Glyphs
Problem Probable Causes Solutions
No tensor glyphs created No real eigenvectors exist. None
Scale Factor too small. Increase Scale Factor.
Parent parts have non-visual
attributes.
Re-specify parent parts or modify
parent part’s Element Representation.
Parent parts do not contain selected
tensor variable.
Re-specify parent parts.
Too many glyphs Parent parts have too many points at
which tensor glyphs are to be
displayed.
Consider using a grid clip as the
parent part.
7.21 Developed Surface Create/Update
EnSight 9 User Manual 7-133
7.21 Developed Surface Create/Update
A Developed Surface is generated by treating any 2D Part (or parent Part) as a
surface of revolution, and mapping specific curvilinear coordinates of the
revolved surface into a planar representation.
A Developed Surface derives its name from the implied process that defines a
developable surface. A surface is considered “developable” if it can be unrolled
onto a plane without distortion. Although every 2D Part in EnSight is not by
definition a developable surface, each 2D Part can nevertheless be developed into
a planar surface which is distorted according to the type of developed projection
specified. For example, a Cylinder Clip Part is by definition a developable
surface, because it can be developed into planar surface without distortion.
Whereas, a Sphere Clip Part is not a developable surface, because it can not be
developed into a planar surface without distortion.
Parent Parts Only 2D Parts are developed. Also, only one Part is developed at a time. While all
2D Parts qualify as candidate parent Parts, only 2D Parts of revolution are
developed coherently. The current developed surface algorithm treats all parent
Parts as surfaces of revolution that are developed according to a local origin and
axis of revolution. These attributes are either inherited from the parent Part, or
must be specified according to the parent Part.
A developed surface permanently inherits the local origin and axis of revolution
information from any parent Part created via the cylinder, cone, sphere, or
revolution Clip tools. Whereas, surfaces developed from non-Clip Parts require
this information to be specified via the Orig. and Axis fields in the Attributes
(Developed Surfaces) dialog. The latter case is the only time the values in these
fields are used. Although default values are provided, it is up to you to make sure
that valid values are specified. In the former case, the Orig and Axis fields only
provide convenient feedback of the selected Clip Part. Note that developed
surfaces resulting from parent Parts of revolution created via the general quadric
Clip tool do not inherit the local origin and axis of revolution attributes from the
General Quadric Clip parent; rather, these attributes must be specified.
Figure 7-110
Developed
Surface
Examples
7.21 Developed Surface Create/Update
7-134 EnSight 9 User Manual
Developed Projections A parent Part is developed by specifying one of three curvilinear mappings called
developed projections; namely, an (r,z), (θ,z), or (m,θ) projection. The curvilinear
coordinates r, θ, z, and m stand for the respective radius, θ, z, and meridian (or
longitude) directional components which are defined relative to the local origin
and axis of revolution of the parent Part. The meridian component is defined as m
= SQRT(r2 + z2).
Seam Line A surface of revolution is developed about its axis, starting at its “seam” line (or
zero meridian) where the surface is to be slit. Surface points along the seam are
duplicated on both ends of the developed Part. The seam line is specified via a
vector that is perpendicular to and originates from the axis of revolution, and
which points toward the seam which is located on the surface at a constant value.
This vector can be specified either manually or interactively. Interactive seam line
display and manipulation is provided via a slider in the Attributes (Developed
Surfaces) dialog.
Figure 7-111
Developed Equiareal Projection
Essentially, each topological projection first
surrounds the parent Part of revolution with a
virtual cylinder of constant radius. The
curvilinear coordinates of the parent Part are
then projected along the normals of (and thus
onto) the virtual cylinder. Finally, the virtual
cylinder is slit along a straight line, or
generator, and unwrapped into a plane. This
process yields an equiareal, or area
preserving, mapping which means that the
area of any enclosed curve on the surface of
the parent Part is equal to the area enclosed
by the image of the enclosed curve on the
developed plane. Although equiareal
mappings provide reduced shape distortion,
they do suffer from angular distortions of
local scale.
Vector fields of the parent Part (for all three
developed projections) are developed such
that a vector’s angle to its surface normal is
preserved. For example, a vector normal to
the parent surface remains normal when
developed onto the planar surface.
7.21 Developed Surface Create/Update
EnSight 9 User Manual 7-135
Clicking once on the Developed Surface Create/Update Icon opens the Developed Surface
Editor in the Quick Interaction Area which is used to both create and update (make
changes to) developed surface Parts.
Projection Opens a pop-up dialog for the specification of which type of (u,v) projection, or mapping,
you wish to use for developing a surface of revolution; where u,v denotes curvilinear
components of the parent Part that are mapped into the xy-plane of reference Frame 0.
The options are:
(m,r) denotes the meridian and radial components of the revolved surface
(m,theta) denotes the meridian and theta components of the revolved surface.
(r,z) denotes the radial and z-directional components of the revolved surface
(theta,z) denotes the theta and z-directional components of the revolved surface.
(m,theta) denotes the meridian and theta components of the revolved surface.
The meridian component is the curvilinear component along a revolved
surface that runs in the direction of its axis of revolution (e.g. the meridonal
and z-directional components along a right cylinder are coincident, and for a
sphere the meridian is the longitude).
Scale Factors (u,v) These fields specify the scaling factors which will be applied to the u and v projections.
Show Cutting Seam Click this button to display the current seam line location about the circumference of the
revolved surface. The seam line is manipulated interactively via the Slider Bar.
Align with Parent Retrieves the Origin and Axis information from the Parent Part. Must be done if Parent
Origin/Axis Part is a quadric clip.
Feature Detail Editor Double clicking on the Developed Surface Create/Update Icon opens the Feature
(Developed Surfaces Detail Editor for Developed Surfaces, the Creation Attributes Section of which
provides access to all of the functions available in the Quick Interaction Area plus
several more:
Figure 7-112
Developed Surface Create/Update Icon
Figure 7-113
Quick Interaction Area - Developed Surface Editor
Figure 7-114
Feature Detail Editor (Developed Surfaces)
7.21 Developed Surface Create/Update
7-136 EnSight 9 User Manual
Vector _|_ To Axis These fields allow you to precisely specify the position of the Cutting Seam Line
Pointing To Seam by specifying the direction of the vector perpendicular to the axis of revolution which
points in the direction of the seam line.
Orig X Y Z These fields specify a point on the axis of revolution.
Axis X Y Z These fields specify a vector, which when used with the Axis Origin defines the axis of
revolution.
The Feature Detail Editor also allows you to make changes in batch; that is, to
make several changes to the menus and fields which do not effect the Graphics
Window until you click in the Apply Changes button. It is sometimes quicker
(with respect to CPU time) to make several changes at once rather than one at a
time as in the Quick Interaction Area.
(see Section 3.3, Part Editing for a detailed discussion of the remaining Feature
Detail Editor turn-down sections which are the same for all Parts),
(see How To Create Developed (Unrolled) Surfaces)
Troubleshooting Developed Surfaces
Problem Probable Causes Solutions
Error message is encountered while
creating a Developed Surface Part.
Parent Part is invalid. Only 2D Parts can be developed.
Developed Surface is created, but is
either not visible, Partially visible, or
obstructed by other Parts which may
be other developed Parts
Since all Developed Surfaces are
projected about the origin on the xy-
plane of the reference frame of the
parent Part, they may map outside
the viewport, intersect other Parts, or
pile up on each other.
Set the Developed Surface to be
viewed in its own viewport and
initialize the viewport.
Use different u/v scaling.
Assign the developed Part to its own
local reference frame and transform
it accordingly.
Developed Surface Part is a line. Wrong Projection type was
specified.
Select a different Projection.
Developed Surface Part does not
update to new Orig and/or Axis
values.
The Orig and Axis values can not be
specified if the Parent Part is created
from either a cylinder, sphere, cone,
or revolution quadric clip. These
values can only be specified if the
2D parent Part is not a quadric
clipped surface.
Since values entered for this
condition are not used, click the Get
Parent Part Defaults button to update
the fields based on the selected
parent Part in the Parts & Frames
list.
7.22 Point Parts Create/Update
EnSight 9 User Manual 7-137
7.22 Point Parts Create/Update
Point parts are composed only of nodes. They can be created by reading an
external file containing the xyz coordinates of the nodes, and/or by placing the
cursor tool at desired locations and adding nodes. This feature can be used to
essentially place probes in the model at particular locations. It can also be used to
create parts that can be meshed with the 2D or 3D meshing capability within
EnSight.
Clicking once on the Point Part Create/Update Icon opens the Point Part Editor
section of the Quick Interaction Area which is used to both create and update
(make changes to) Point Parts.
Points: The list of points that will be used to create a point part, or that are in an already created
point part. When points are added, they will show up in this list. Use this list to select
points for modification or deletion.
Add point (at cursor) Adds a point (at the xyz location of the cursor) to the list of points.
Load points from file... Brings up the file selection dialog, so a file which contains the xyz locations of points, can
be selected. Points in the file will be added to the Points list.
(see Section 11.17, Point Part File Format).
Delete point(s) Deletes any points selected in the Points list.
XYZ Shows the xyz coordinates of a selected point. Allows for editing of the values.
Create Creates a Point part, composed of the points in the Points list. The part will show up in the
Parts list.
Figure 7-115
Point Parts Create/Update Icon
Figure 7-116
Quick Interaction Area - Point Parts Editor
Figure 7-117
File Section Dialog - Point Parts
7.22 Point Parts Create/Update
7-138 EnSight 9 User Manual
Advanced... Opens the Feature Detail Editor for Point Parts, which contains the same basic capabilities
described in the Quick Interaction Area above.
Elements Defined by Points can be used to create 3D, 2D, or 1D elements.
Input dataset Simply use the input dataset as 0D point elements.
Meshing points Several Meshing point options follow:
3D Mesh Create a 3D volume mesh of tetrahedral elements.
2D Mesh Create a 2D surface mesh of triangle elements.
Line Mesh Connect the points together in the order they were created into 1D line elements.
Triangle Mesh Connect the points together in the order they were created in sets of 3 into 2D triangle
elements. Effectively this tesselates the points.
Help... Opens context sensitive help for Point Parts.
See also How To Use Point Parts
Figure 7-118
Feature Detailed Editor - Point Parts
7.23 Extrusion Parts Create/Update
EnSight 9 User Manual 7-139
7.23 Extrusion Parts Create/Update
Extrusion parts are created by “extruding” a part in a directional or rotational
manner to produce a part of next higher order. For example, a 2D axi-symmetric
surface can be extruded rotationally about the proper axis to produce a 3D
representation of the complete model. As another example, a 1D line can be
extruded in a direction to produce a 2D plane.
Clicking once on the Extrusion Create/Update Icon opens the Extrusion Editor
section of the Quick Interaction Area which is used to both create and update
(make changes to) extrusion Parts.
Extrude by Controls the type of extrusion to use.
# of slices Sets the number of elements that will be created in the “extrusion” direction. For rotation,
it would be the number of “slices” around the “pie”. For translation, it would be the
number of elements along the extrusion vector direction.
Total rotation (degrees) For rotation, sets the total number of degrees to rotate. It must be between -360 and +360.
Origin For rotation, sets x,y,z values for the origin of the axis of rotation.
Axis For rotation, sets the direction vector components for the axis of rotation.
Cursor Get/Set Can be used to get the origin values from the current cursor location, or to set the location
of the cursor to be at the origin location.
Total translation For translation, sets the total distance of extrusion travel.
Rotation To extrude the selected parts by revolving about an axis. This is
what you would choose for an axi-symmetric part.
Translation To extrude the selected parts by translating in a given direction.
Figure 7-119
Extrusion Parts Create/Update Icon
Figure 7-120
Quick Interaction Area - Extrusion Parts Editor
7.23 Extrusion Parts Create/Update
7-140 EnSight 9 User Manual
Direction vector For translation, sets the direction vector components for the directional extrusion.
Advanced Will open the Feature Detail Editor and select the Extrusion icon for more advance control
of the Extrusion Part.
Feature Detail Editor Double clicking on the Extrusion Create/Update Icon opens the Feature Detail
(Extrusion Editor for Extrusions, the Creation Attributes Section of which provides access to the
same functions available in the Quick Interaction Area. For a detailed discussion of the
remaining Feature Detail Editor turn-down sections (which are the same for all Part types)
(see Section 3.3, Part Editing and How to Extrude Parts)
Troubleshooting Extrusions
Problem Probable Causes Solutions
No extrusions created Parent Part is not a valid server-side
part.
Don’t try to extrude client-side parts
(particle traces, contours, etc.)
EnSight 9 User Manual 8-1
8 Modes
This chapter describes the five different Modes through which you can work in
the Graphics Window as well as the Quick Desktop Buttons that are located above
the Graphics Window. The “active” Mode determines both the configuration and
what functions are available through the Mode Icon Bar. The Quick Desktop
Buttons are always available regardless of the mode and are useful as quick
shortcuts for often-used tasks.
Section 8.1, Part Mode describes the layout of the Mode Icon Bar and the
functions available when Part is the active Mode.
Section 8.2, Annot Mode describes the layout of the Mode Icon Bar and the
functions available when Annot is the active Mode.
Section 8.3, Plot Mode describes the layout of the Mode Icon Bar and the
functions available when Plot is the active Mode.
Section 8.4, VPort Mode describes the layout of the Mode Icon Bar and the
functions available when VPort is the active Mode.
Section 8.5, Frame Mode describes the layout of the Mode Icon Bar and the
functions available when Frame is the active Mode. By default, this mode is not
available unless it has been enabled under Edit > Preferences... General User
Interface - Frame Mode Allowed
Section 8.6, Quick Desktop Buttons describes the layout of the Quick Desktop
Buttons which are always available.
Figure 8-1
Mode Choices & Quick Desktop Buttons
Quick Desktop Buttons
Modes
8.1 Part Mode
8-2 EnSight 9 User Manual
8.1 Part Mode
Part Mode is used to adjust a number of attributes for individual Parts and to
specify the desired type of Pick operation.
For a complete discussion about Parts:
(see Chapter 3, Parts)
Figure 8-2
Mode Selection Area - Part Selected
Part Visibility Toggle Icon
Part Visibility in Viewport Icon
Part Line Width Pulldown Icon
Element Representation Pulldown Icon
Visual Symmetry Icon
Part Shading Toggle Icon
Part Hidden Line Toggle Icon
Element/Node Label Toggle Icon
Part Auxiliary Clipping Toggle Icon
Node Representation Icon
Fast Display Representation Pulldown Icon
Part Element Blanking/Selection Icon
Part Color, Lighting, Transparency Icon
Part Displacement Element Icon
Part Failed Element Icon
8.1 Part Mode
EnSight 9 User Manual 8-3
Part Visibility Determines the global (in all viewports and in all Modes) visibility of the selected
Toggle Icon Part(s). Note you can just right click on the part and choose ‘Hide’ to make it invisible.
Part Color, Lighting, Clicking once on the Part Color, Lighting, Transparency Icon opens a dialog which allows
Transparency Icon you to assign color, lighting characteristics, and transparency levels to the individual
Part(s) which has(have) been selected in the Parts List. If no Parts are selected,
modifications will affect the default Part color and all Parts subsequently loaded or created
will be assigned the new default color. Note, you can just right click on a part and choose
how to color it..
Shading Opens a pop-up menu for selection of appearance of Part surface when Shaded Surface is
on. Normally the mode is set to Gouraud, meaning that the color and shading will
interpolate across the polygon in a linear scheme. You can also set the shading type to Flat,
meaning that each polygon will get one color and shade, or Smooth which means that the
surface normals will be averaged to the neighboring elements producing a “smooth”
surface appearance. Not valid for all Part types. Options are:
Flat Color and shading same for entire element
Gouraud Color and shading varies linearly across element
Smooth Normals averaged with neighboring elements to simulate smooth surfaces
Shininess Shininess factor. You can think of the shininess factor in terms of how smooth the surface
is. The larger the shininess factor, the smoother the object. A value of 0 corresponds to a
dull finish and larger values correspond to a more shiny finish. To change, use the slider.
Intensity Highlight intensity (the amount of white light contained in the color of the Part which is
reflected back to the observer). Highlighting gives the Part a more realistic appearance and
reveals the shine of the surface. To change, use the slider. Will have no effect if Highlight
Figure 8-3
Part Mode - Part Visibility Toggle ON - OFF Icons
Figure 8-4
Part Color, Lighting, Transparency Icon
Figure 8-5
Part Mode - Part Color, Lighting & Transparency dialog
8.1 Part Mode
8-4 EnSight 9 User Manual
Shininess parameter is zero.
Diffused Light Diffusion (minimum brightness or amount of light that a Part reflects). (Some applications
refer to this as ambient light.) The Part will reflect no light if value is 0.0. If value is 1.0,
no lighting effects will be imposed and the Part will reflect all light and be shown at full
color intensity at every point. To change, use the slider.
Opacity The opaqueness of the selected Part(s). A value of 1.0 indicates that the Part is fully
opaque, while a value of 0.0 indicates that it is fully transparent. Setting this attribute to a
value other than 1.0 will adversely affect the graphics performance. Opacity is disabled for
line parts.
Fill Pattern Opens a pop-up menu for selection of a fill pattern which can provide pseudo-
transparency for shaded surfaces. Default is Solid which uses no pattern (produces a
solid surface), while Fill patterns 1 through 3 produce a EnSight defined fill pattern.
Color By pulldown Allows you to choose whether to color the selected Part(s) by a Constant Color or by the
Variable selected in the pulldown list.
Constant Color The selected Part(s) may be assigned a constant color by selecting it from the pre-defined
matrix of color cells.
More... Alternatively, you can click on the More... area and the Color Selector dialog will open.
You can choose a color by entering RGB or HSV values directly, picking a color from the
matrix, or custom color lists, or by utilizing the color square and slider. Regardless of
which method you use to define a color, it will not be applied to the selected Part(s) until
you click the OK button.
Variables Alternatively, the Part(s) may be colored by a variable selected in the pulldown list. The
color palette for each Variable associates a color with each value of the variable and these
colors are used to color the selected Part(s).
If coloring by a nodal variable, the default coloring will be continuously varying - even
within a given element. If you are coloring by a per-element variable, the coloring will not
vary within a given element. If you desire to see per-element variables in a continuously
varying manner, you can toggle on “Use continuous palette for per element vars” under
Edit->Preferences... Color Palettes.
Show Components If you are coloring by a vector variable, this toggle will expand the list to include the
vector components - thus you can choose to color using the magnitude or a component of
the vector.
Palette... Clicking on Palette... will open the Palette Editor dialog.
Figure 8-6
Color Selector dialog
8.1 Part Mode
EnSight 9 User Manual 8-5
See How To Edit Color Palettes
Texture... Clicking on Texture... will open the Textures dialog.
See How To Map Textures
Part Line Width Opens a pulldown menu for the specification of the desired display width for Part lines.
Pulldown Icon Performs the same function as the Line Representation Width field in the Node, Element,
and Line Attributes section of the Feature Detail Editor (Model).
Access: Part Mode : Part Line Width Pull-down Icon
Part Visibility in Opens the “Part Visible in Which Viewport?” dialog. If the global visibility of a Part is on,
Viewport Icon this dialog can be used to selectively turn on/off visibility of the selected Part(s) in
different viewports simply by clicking on a viewport’s border symbol within the dialog’s
small window. The selected Part(s) will be visible in the green viewports invisible in the
black viewports.
Access: Part Mode: Part Visibility in Viewport Icon
Element Visual Opens a dialog for the specification of the desired representation for elements of
Representation the selected Part(s). Performs the same function as the Element Representation Visual
Pulldown Icon Rep. pulldown menu in the Node, Element, and Line Attributes section of the Feature
Detail Editor (Model).
(see Element Representation in Section 3.3, Part Editing)
Access: Part Mode : Element Representation Pull-down Icon
Figure 8-7
Part Mode - Part Line Width Pulldown Icon
Figure 8-8
Part Mode - Part Visibility in Viewport Icon and Part
Visible in Which Viewport? dialog
Figure 8-9
Part Mode - Element Representation Icon
8.1 Part Mode
8-6 EnSight 9 User Manual
Part Displacement Opens the Part Displacement dialog which allows you to choose the vector variable. The
model geometry is displaced by this variable vector value.
Displacement factor The vector variable can be scaled by this factor.
Each node of a Part is displaced by a distance and direction corresponding to the
value of a vector variable at the node. The new coordinate is equal to the old
coordinate plus the vector times the specified Factor, or:
Cnew = Corig + Factor * Vector,
where Cnew is the new coordinate location, Corig is the coordinate location as
defined in the data files, Factor is a scale factor, and Vector is the displacement
vector.
You can greatly exaggerate the displacement vector by specifying a large Factor
value. Though you can use any vector variable for displacements, it certainly
makes the most sense to use a variable calculated for this purpose. Note that the
variable value represents the displacement from the original location, not the
coordinates of the new location.
Displacement Factor This field specifies a scale factor for the displacement vector. New coordinates are
calculated as: Cnew = Corig + Factor*Vector, where Cnew is the new coordinate location,
Corig is the original coordinate location as defined in the data file, Factor is a scale factor,
and Vector is the displacement vector. Note that a value of 1.0 will give you “true”
displacements.
Visual Symmetry Opens the Part Visual Symmetry dialog which allows you to control the display of mirror
Icon images of the selected Part(s) in each of the seven other quadrants of the Part’s local frame
or the rotationally symmetric instances of the selected parts. This performs the same
function as the Visual Symmetry menu in the General Attributes section of the Feature
Detail Editor (Model).
Symmetry enables you to reduce the size of your analysis problem while still visualizing
the “whole thing.” Symmetry affects only the displayed image, not the data, so you cannot
Figure 8-10
Part Mode - Visual Symmetry Icon
8.1 Part Mode
EnSight 9 User Manual 8-7
query the image or use the image as a parent Part. However, you can create the same
effect by creating dependent Parts with the same symmetry attributes as the parent Part.
You can mirror the Part to more than one quadrant. If the Part occupies more than one
quadrant, each portion of the Part mirrors independently. Symmetry works as if the local
frame is Rectangular, even if it is cylindrical or spherical. The images are displayed with
the same attributes as the Part. For each toggle, the Part is displayed as follows. The
default for all toggle buttons is OFF, except for the original representation - which is ON.
Mirror X quadrant on the other side of the YZ plane.
Mirror Y quadrant on the other side of the XZ plane.
Mirror Z quadrant on the other side of the XY plane.
Mirror XY diagonally opposite quadrant on the same side of the XY plane.
Mirror XZ diagonally opposite quadrant on the same side of the XZ plane.
Mirror YZ diagonally opposite quadrant on the same side of the YZ plane.
Mirror XYZ quadrant diagonally opposite through the origin.
Show Original Instance the original part instance
Rotational visual symmetry allows for the display of a complete (or portion of a) “pie”
from one “slice” or instance. You control this option with:
Axis X rotates about the X axis
Y rotates about the Y axis
Z rotates about the Z axis
Angle specifies the angle (in degrees) to rotate each instance from the previous
Instances specifies the number of rotational instances.
Show Original Instance show the original instance or not
Access: Part Mode : Visual Symmetry Icon
Element -Node Opens the Node/Element labelling attributes dialog. Toggles on/off the visibility of the
Icon element and/or node labels (assuming the result file contains them) for the selected
Part(s). The Global Element Label Toggle (Main Menu>View>Label Visibility) must be
on in order to see any element labels. Likewise, the Global Node Label Toggle (Main
Menu>View>Label Visibility) must be on in order to see any element labels.
Access: Part Mode : Element/Node Label Toggle Icon
.
Access: Part Mode : Node Label Toggle Icon
Figure 8-11
Part Mode - Element/Node Label Toggle Icon
Figure 8-12
Part Mode - Element/Node Label Toggle Dialog
Filter Threshold
Values
8.1 Part Mode
8-8 EnSight 9 User Manual
Element/Node Toggles on/off the visibility of the element or node labels (assuming the result file
Label Visibility contains them) for the selected Part(s). Performs the same function as the Label Visibility
Node toggle in the Node, Element, and Line Attributes section of the Feature Detail Editor
(Model). Default is OFF.
Filter Thresholds A pulldown menu containing the following
Low - All element/node ids below the value in the low field are invisible
Band - All element/node ids between the values in the low and high fields are invisible.
High - All element/node ids above the value in the high field are invisible.
Low/High - All element/node ids below the low and above the high field values are
invisible.
Mix Enter the element/node id label color, or click on the Mix Button and pick your color.
Node Opens the Part Node Representation dialog. Performs the same function as the Node
Representation Icon Representation area in the Node, Element, and Line Attributes section of the Feature
Detail Editor (Model).
Node Visibility Toggle Toggles-on/off display of Part’s nodes whenever the Part is visible. Default is OFF.
Type Opens a pop-up menu for the selection of symbol to use when displaying the Part’s nodes
or point elements. Default is Dot. Options are:
Dot to display nodes as one-pixel dots.
Cross to display nodes as three-dimensional crosses whose size you specify.
Sphere to display the nodes as spheres whose size and detail you specify. Use care when
choosing this option for large numbers of nodes as this will require large amount of
memory per node: 250 MB per million nodes (no display lists) up to 1 GB per million
nodes (display lists on).
Scale This field is used to specify scaling factor for size of node symbol. If Size By is Constant,
this field will specify the size of the marker in model coordinates. If Size By is set to a
variable, this field will be multiplied by the variable value. Not applicable when node-
symbol Type is Dot.
Detail This field is used to specify how round to draw the spheres when the node-symbol type is
Sphere. Ranges from 2 to 10, with 10 being the most detailed (e.g., roundest spheres).
Higher values take longer to draw, slowing performance. Default is 4.
Size By Opens a pop-up menu for the selection of variable-type to use to size each node-symbol.
For options other than Constant, the node-symbol size will vary depending on the value of
the selected variable at the node. Not applicable when node-symbol Type is Dot. Default is
Constant. Options are:
Constant sizes node using the Scale factor value.
Scalar sizes node using a scalar variable.
Vector Mag sizes node using magnitude of a vector variable.
Vector X-Comp sizes node using magnitude of X-component of a vector variable.
Vector Y-Comp sizes node using magnitude of Y-component of a vector variable.
Vector Z-Comp sizes node using magnitude of Z-component of a vector variable.
Figure 8-13
Part Mode - Node Representation Icon and Part Node Representation dialog
8.1 Part Mode
EnSight 9 User Manual 8-9
Variable Selection of variable to use to size the nodes. Activated variables of the appropriate Size
By type are listed. Not applicable when node-symbol Type is Dot or Size By is Constant.
Access: Part Mode : Node Representation Icon
Part Failed Opens the Part Failed Element Settings dialog. Choose a per-element scalar variable.
Element Icon This does a deep element removal of the elements from the selected model part on the
server based on logical operators on the variable.
Failure operator Select a per-element scalar variable. Choose a pulldown threshold (<, >, = or !=).
And / Or If you toggle on a logical operator then choose second threshold.
Set to default To set the threshold values back to the default of 0.0.
Part Element Brings up the Part Element Blanking Attributes Dialog. Element blanking is the visual
Blanking/Selection removal of elements on the graphics screen. The elements still remain on the server and
are still used in calculations, they are just not visible in the graphics window. Note that
blanking is done using element IDs as tags. If the element IDs change each timestep, this
can result in different elements becoming invisible each timestep.
See How To Remove Failed Elements
Element blanking Toggles on/off whether element blanking allowed
Clear Clears blanked elements and restores them to visible for the selected Part(s)
Clear all parts Clears blanked elements and restores them to visible for all Part(s)
See How To Do Element Blanking
Part Shaded Toggles on/off Shaded display of surfaces for the selected Part(s) assuming
Toggle Icon that Global Shaded has been toggled ON in the Main Menu > View > Shaded. Performs
the same function as the Shaded Toggle in the General Attributes section of the Feature
Detail Editor (Model). Default for all Parts is ON.
Access: Part Mode : Part Shaded Toggle Icon
Part Hidden Line Toggles on/off hidden line display of surfaces for the selected Part(s) assuming
Toggle Icon that the Global Hidden Line has been toggled ON in the Main Menu > View > Hidden
Line. Performs the same function as the Hidden Line Toggle in the General Attributes
Figure 8-14
Part Mode - Part Shaded Toggle ON / OFF Icon
8.1 Part Mode
8-10 EnSight 9 User Manual
section of the Feature Detail Editor (Model). Default for all Parts is ON.
Access: Part Mode : Part Hidden Line Toggle Icon
Part Auxiliary Clipping Toggles on/off whether the selected Part(s) will be affected by the Auxiliary
Toggle Icon Clipping Plane feature. Performs the same function as the Aux Clip toggle in the General
Attributes section of the Feature Detail Editor (Model). Default is ON. Auxiliary clipping
is simply a visual clipping that occurs only on the client and does not affect the underlying
model geometry, only it’s view on the screen.
Note: The Global Auxiliary Clipping Toggle (in the View Mode Icon Bar) must be on in
order for any Parts to be affected by the Aux Clip Plane.
Access: Part Mode : Part Auxiliary Clipping Toggle Icon
Fast Display Opens a pull-down menu for the specification of the desired fast display representation in
Toggle Icon which a Part is displayed. The Part fast display representation corresponds to whether the
view Fast Display Mode (located in the View Menu) is on. The Fast Display pull-down
icon performs the same function as the Fast Display pop-up menu button in the General
Attributes section of the Feature Detail Editor (of all parts).
(see General Attributes in Section 3.3, Part Editing, How To Set Global Viewing))
Access: Part Mode : Detail Representation Pull-down Icon
Box causes selected Part(s) to be represented by a bounding box of the
Cartesian extent of all Part elements (default)
Points causes selected Part(s) to be represented by a point cloud
Reduced poly causes selected Part(s) to be represented by reduced number of
polygons
Sparse Model decimates part elements by a factor determined in the Preferences
(Edit>Preferences>Performance and enter in a factor from 1 (sparse) to
100 (full) in the Sparse Model Field. This is only available when
running in immediate mode using the -no_display_list option at startup.
Invisible causes the selected Part(s) to be invisible
Figure 8-15
Part Mode - Part Hidden Line Toggle ON / OFF Icon
Figure 8-16
Part Mode - Part Auxiliary Clipping Toggle ON / OFF Icon
Figure 8-17
Part Mode - Detail Representation Pulldown Icon
Available only when
running with -no_display_list
8.2 Annot Mode
EnSight 9 User Manual 8-11
8.2 Annot Mode
Annot (Annotation) Mode is used to create and edit text strings, lines, 3D
annotation arrows, and import logos into the Graphics Window., and to adjust
their visibility, size, color. and position. It is also used to adjust the type, size,
format, and position of legends.
When in Annot Mode, you are always modifying the objects selected in the
Graphics Window. Selected Annotation objects are outlined in the “selection
color”, while unselected objects are outlined in a white color. To select an object,
click the mouse over it. To select multiple objects, hold the Control key down
while clicking on the objects.
Annotation objects, other than text and 3D annotation arrows, are positioned in
the main Graphics Window; they are not tied to specific viewports.
Figure 8-18
Mode Selection Area - Annot Selected
Text Create / Edit Icon
Line Create / Edit Icon
Logo Import / Edit Icon
Legend Create / Edit Icon
Select All Icon
3D Annotation Arrow Create / Edit Icon
2D Shapes Create / Edit Icon
Dial Create / Edit Icon
Guage Create / Edit Icon
Delete Icon
8.2 Annot Mode
8-12 EnSight 9 User Manual
Text Create / Edit Icon Opens the Annotation Creation dialog with the Text icon highlighted.
Text strings may be created and inserted into the Graphics Window using the Text
Annotation dialog. This dialog provides a list of text items.
Select A pulldown that allows text item(s) to be selected. They can also be selected using the
mouse in the text menu, or in the graphics window by clicking on them. Select options
include any one of the following:
Select all Select all text items.
Select visible Select text whose visible toggle (located below the Select Button) is on.
Select invisible Select text whose visible toggle (located below the Select Button) is off.
Deselect all No text items are selected.
Figure 8-19
Annot Mode - Text Creation Icon and Text Annotation Creation dialog
8.2 Annot Mode
EnSight 9 User Manual 8-13
New / Edit Clicking New or Edit button opens the Text Annotation Editing Dialog allowing the
creation or modification of a text item. If you entered the dialog by way of the New...
button, the text area will be blank and ready for your input. If you entered the dialog by
way of the Edit... button, the text area will contain the selected text string and be ready for
your editing. Note that pressing 'enter' inserts a new line into the annotation. To see the
results of the edit, click on the 'Update text' button or check the 'Dynamic update' box.
When dynamic updates are enabled, the annotations in the main EnSight window are
redrawn with every keystroke. Note that this option causes EnSight to record every
keystroke into the command stream as well. (Note that there is a maximum of 1024
characters per annotation that the GUI will display.)
Normal, These toggles can be used to do superscripting and subscripting in your text string.
Superscript, They place codes in the string (<no> for normal, <up> for superscript, and <dn> for
Subscript subscript) to delineate the desired mode.
Store, Recall These buttons allow the user to insert the <st=1> and <re=1> codes into the text string for
saving and recalling a text position on the screen.
Special String Lists a number of different special strings that can be inserted into the annotation currently
being edited. These include information contained in results data or from other dialogs.
Insert Special Inserts the selected Special String into the text field at position of cursor.
String Choices are:
Figure 8-20
Annot Mode - Text Annotation Editing dialog
8.2 Annot Mode
8-14 EnSight 9 User Manual
Fonts brings up a TrueType font selection dialog allowing control over font selection
inserts.
Symbols brings up a symbol selection dialog allowing selection of symbols to be inserted.
Constant Variable inserts the value of the constant variable selected and displays it in the
selected format
Date inserts the Day of Week, Month, Date, Time, Year
Geometry Header inserts either the first or second header lines of the geometry file
Measured Header inserts the header line of the measured results file
Variable Header inserts the header line of the selected variable data file
Part Value inserts the value used to create the Isosurface or Clip Plane Part. Works
for Isosurface Parts, or some (XYZ, IJK, RTZ, plane aligned with axis, or
attached to a spline) Clip Plane Parts.
Part Description inserts the description of the Part selected in a Parts List which pops up
within the Text Annotation Creation dialog
Version inserts the EnSight version number, including the (letter).
For example, 9.2.0 (b) would be 9.2.0(b)
See How To Manipulate Fonts for additional information on working with fonts.
Delete Allows text item(s) to be deleted.
Visible Toggles Text Visibility ON/OFF.
RGB Color of Text.
Justify Pulldown for Left, Right or Center justification.
Size Field and slide for text size
8.2 Annot Mode
EnSight 9 User Manual 8-15
Rotation/Degrees Field for rotation in degrees (-360 to 360).
Shadow Offset Specifies an offset for a drop shadow.
Shadow Intensity The shadow intensity where 0 is black and 1 is white.
Origin by Screen Coordinates indicates to locate the annotation in normalized screen space. If set to
3D coordinates the annotation is located in world coordinates and thus a X, Y, Z position
must be specified.
Relative to If Origin is by 3D coordinates this specifies which reference frame the X, Y, Z position is
in reference to.
Access: Annot Mode : Text Creation Icon
Line Create /Edit Icon Opens the Annotation Creation dialog with the Line icon selected.
Select Allows line(s) to be selected. They can also be selected using the mouse in the text menu,
or by clicking on them in the Graphics Window.
New Clicking New button creates a new line and places it in the graphics window.
Delete Deletes the selected line(s) and removes the line(s) from the graphics window.
Visible Toggles Line Visibility ON/OFF.
Figure 8-21
Annot Mode - Line Creation Icon
8.2 Annot Mode
8-16 EnSight 9 User Manual
Width Controls the line width in pixels.
Label A text annotation can be used to label the line annotation. The text is aligned with the line
orientation.
Arrows Allows placement of arrow on line.
Origin by Screen Coordinates indicates to locate the end point in normalized screen space. If set to
3D coordinates the end point is located in world coordinates and thus a X, Y, Z position
must be specified.
Relative to viewport For Screen Coordinates the origin can be located by screen coordinates or can be relative
to the viewport specified. For 3D coordinates the end point can be visible in All viewports
or in the viewport specified.
3D origin Ref Frame If either of the end point origins are in 3D coordinates then the reference frame is specified
here.
8.2 Annot Mode
EnSight 9 User Manual 8-17
2D Shapes Clicking on the 2D Shapes Icon opens the Annotation Creation dialog with the
Create / Edit Icon 2D Shapes icon highlighted.
Select Allows 2D shapes to be selected. They can also be selected using the mouse in the text
menu, or by clicking on them in the Graphics Window.
Shape Allows selection of the type of 2D shape that will be created when the New button is
selected.
New Clicking New button creates a new 2D shape (according to the type selected in the Shape
pulldown) and places it in the graphics window.
Delete Deletes the selected 3D arrow(s) and removes the arrow(s) from the graphics window.
Visible Toggles shape visibility ON/OFF.
Mix Allows control of shape color
Fill Toggles whether shape will be filled or just an outline.
Figure 8-22
Annot Mode - 3D Annotation Arrow Creation Icon
8.2 Annot Mode
8-18 EnSight 9 User Manual
Line Width Pull down for line width selection, if not filling the shape.
Origin X Y Fields for setting the center of rectangles and spheres, or tip of arrows in normalized
coordinates - range 0 to 1.
Width/Height Fields for setting the width and height of a rectangle shape in normalized coordinates -
range 0 to 1.
Width/Length Fields for setting the width and length of a shape in normalized coordinates - range 0 to 1.
Diameter Field and slider for setting the diameter of a circle shape in normalized coordinates - range
0 to 1.
Tip: Length/Size Fields and sliders for setting the arrow tip length and size.
Rotation/Degrees Field and slider for rotation in degrees (-360 to 360).
Access: Annot Mode : 2D Shape Creation Icon
8.2 Annot Mode
EnSight 9 User Manual 8-19
3D Annotation Arrow Clicking on the 3D Annotation Arrow Icon opens the Annotation Creation dialog with the
Create / Edit Icon 3D Arrow tab highlighted.
Select Allows 3D Arrow(s) to be selected. They can also be selected using the mouse in the text
menu, or by clicking on them in the Graphics Window.
New Clicking New button creates a new 3D arrow and places it in the graphics window at the
center of the visible parts.
Delete Deletes the selected 3D arrow(s) and removes the arrow(s) from the graphics window.
Visible Toggles arrow visibility ON/OFF.
Mix Allows control of arrow color
Viewport Visibility Toggles the visibility of the 3D arrow(s) in the viewport. Clicking on the viewport toggles
the visibility. Green indicates visible.
Highlight Shininess Shininess factor. You can think of the shininess factor in terms of how smooth the surface
is. The larger the shininess factor, the smoother the object. A value of 0 corresponds to a
dull finish and larger values correspond to a more shiny finish. To change, use the slider.
Highlight Intensity Highlight intensity (the amount of white light contained in the color of the arrow which is
reflected back to the observer). Highlighting gives the arrow a more realistic appearance
and reveals the shine of the surface. To change, use the slider. Will have no effect if
Highlight Shininess parameter is zero.
Figure 8-23
Annot Mode - 3D Annotation
Arrow Creation Icon
8.2 Annot Mode
8-20 EnSight 9 User Manual
Diffused Light Diffusion (minimum brightness or amount of light that the arrow reflects). (Some
applications refer to this as ambient light.) The arrow will reflect no light if value is 0.0. If
value is 1.0, no lighting effects will be imposed and the arrow will reflect all light and be
shown at full color intensity at every point. To change, use the slider.
Arrow:
Size Set the length of the arrow in global units.
Radius Set the radius of the arrow as a percentage of the size.
Tip:
Length Set the length of the arrow tip as a percentage of the arrow size.
Radius Set the radius of the arrow tip as a percentage of the arrow size.
Scale by location probe/force/moment value (depends on which location method is used):
low value if below this value, scale by low scale factor
low scale factor the scale factor to use if below the low value
high value if above this value, scale by high scale factor
high scale factor the scale factor to use if above the high value
Arrow Location
Origin by: Interactive probe query Location set via the probe query capability
XYZ Location set by x,y,z coordinates
One or more forces Location set by external force vector glyph
One or more moments Location set by external moment vector glyph
If by Interactive probe query
Probe # The probe to use.
Offset This field specifies the distance away from the Arrow Location to display the arrow(s). A
positive value moves the arrow(s) in the opposite direction that the arrow is pointing along
the arrow axis.
Orient: X, Y, Z Orients the arrow direction parallel to the X, Y, or Z axis, respectively.
Normal Orients the arrow normal to a surface. This is only available if the Arrow Location has
been picked on a 2D surface (see below).
8.2 Annot Mode
EnSight 9 User Manual 8-21
Flip Flips the arrow 180 degrees.
Normal X, Y, Z Rotates the arrow axis about the X, Y, or Z axis.
If by XYZ:
XX-location of the arrow tip.
YY-location of the arrow tip.
ZZ-location of the arrow tip.
Snap to: Node Enter the Node ID and press Enter and the arrow tip will be located at the coordinates of
this Node. This field will set the Arrow Location X, Y, and Z values and is not used
subsequently. That is, the arrow location is specified by the X, Y, and Z location and
cannot be tied to a particular node number as the node changes location due to transient
data, etc.
Snap to: Element Enter the Element ID and press Return and the arrow tip will be located at the centroid
coordinates of this Element. This field will set the Arrow Location X, Y, and Z values and
is not used subsequently. That is, the arrow location is specified by the X, Y, and Z
location and cannot be tied to a particular node number as the node changes location due
to transient data, etc.
Offset This field specifies the distance away from the Arrow Location to display the arrow(s). A
positive value moves the arrow(s) in the opposite direction that the arrow is pointing along
the arrow axis.
Orient: X, Y, Z Orients the arrow direction parallel to the X, Y, or Z axis, respectively.
Normal Orients the arrow normal to a surface. This is only available if the Arrow Location has
been picked on a 2D surface (see below).
Flip Flips the arrow 180 degrees.
Normal X, Y, Z Rotates the arrow axis about the X, Y, or Z axis.
If by one or more forces:
Offset This field specifies the distance away from the Arrow Location to display the arrow(s). A
positive value moves the arrow(s) in the opposite direction that the arrow is pointing along
the arrow axis.
Selection list Descripton of loaded force vector glyphs from which to choose.
If by one or more moments:
Offset This field specifies the distance away from the Arrow Location to display the arrow(s). A
positive value moves the arrow(s) in the opposite direction that the arrow is pointing along
the arrow axis.
Selection list Descripton of loaded moment vector glyphs from which to choose.
Arrow Label
Tex t Enter the label to be displayed on the 3D arrow. Field is not used if the "Use text
annotation as label" toggle is on.
Append probe If the Origin (Location tab) of the 3D arrow is set to "Interactive probe query" the probe
query value value can be appended onto the label.
8.2 Annot Mode
8-22 EnSight 9 User Manual
Use text annotation A text annotation can be used as the 3D label. Specify the Text ID number in the field.
RGB Color for the label.
Font Pick the font for the label text.
Size Size of the font used as the label
Picking the arrow location is accomplished using the pick icon above the graphics screen.
Figure 8-24
Annot Mode - Pick Menu
Locate arrow tip at cursor
Snap arrow tip to closest node to cursor
Locate arrow tip at cursor & normal to surface
Snap arrow tip to closest node to cursor &
normal to surface
Using ‘p’ key:
8.2 Annot Mode
EnSight 9 User Manual 8-23
Dial Create/ Edit Clicking the Dial Icon opens the Annotation dialog. In order to use this feature, you must
have one or more constant variables.
Access: Annot Mode : Dial Icon
Select Allows Dial(s) to be selected. They can also be selected using the mouse in the text menu,
or by clicking on them in the Graphics Window.
New Clicking New button will create a new dial according to the current attributes. You must
have first selected a constant variable or an error message will be issued.
Delete Deletes the selected Dial(s) and removes the Dial(s) from the graphics window.
Constant Variable List of available constant variables.
Visible Toggles Dial Visibility ON/OFF.
Border Toggles border for the dial ON/OFF.
# tick marks Field to control the number of tick marks around the dial.
Radius Field and slider to control the radius of the dial.
Origin Location of center of the dial in normalized X and Y coordinates.
Big hand Controls color, min, and range of the big hand on the dial.
Little hand Controls color, range and display toggle of the little hand on the dial.
Figure 8-25
Annot Mode - Dial Icon
8.2 Annot Mode
8-24 EnSight 9 User Manual
Value Controls the size (and format) of the displayed value, whether to use value or revolution,
and the display toggle.
Background Controls the color and display toggle of the dial background.
8.2 Annot Mode
EnSight 9 User Manual 8-25
Gauge Create / Edit Clicking the Gauge Icon opens the Annotation dialog. In order to use this feature, you
must have one or more constant variables.
Access: Annot Mode : Gauge Icon
Select Allows Gauge(s) to be selected. They can also be selected using the mouse in the text
menu, or by clicking on them in the Graphics Window.
New Clicking New button will create a new gauge according to the current attributes. You must
have first selected a constant variable or an error message will be issued.
Delete Deletes the selected Gauge(s) and removes the Gauge(s) from the graphics window.
Constant Variable List of available constant variables.
Visible Toggles Gauge Visibility ON/OFF.
Border Toggles border for the gauge ON/OFF.
Orientation Pulldown for setting the gauge to be vertical or horizontal.
Width/Height Fields and sliders to control the size of the gauge.
Variable Min/Max Fields for setting the min and max for the variable.
Origin Location of lower left of the gauge in normalized X and Y coordinates.
Gauge level Controls color of the gauge level indicator.
Value Controls color, size, location, format, and display toggle of the gauge label.
Figure 8-26
Annot Mode - Gauge Icon
8.2 Annot Mode
8-26 EnSight 9 User Manual
Background Controls color and display toggle of the gauge background.
8.2 Annot Mode
EnSight 9 User Manual 8-27
Logo Import / Edit Clicking the Logo Import Icon opens the File Selection dialog for the specification of the
Icon file name containing the desired logo.
Access: Annot Mode : Logo Import Icon
Select Allows Logo(s) to be selected. They can also be selected using the mouse in the text
menu, or by clicking on them in the Graphics Window.
New Clicking New button opens a dialog to load a new Logo.
Delete Deletes the selected Logo(s) and removes the Logo(s) from the graphics window.
Visible Toggles Logo Visibility ON/OFF.
Origin Normalized X and Y location
Scale X and Y scaling
Figure 8-27
Annot Mode - Logo Import Icon
8.2 Annot Mode
8-28 EnSight 9 User Manual
Legend Create / Edit Clicking on this icon opens the Annotation dialog.
Select Allows Legend(s) to be selected. They can also be selected using the mouse in the text
menu, or by clicking on them in the Graphics Window.
Edit Palettes Brings up the Feature Detail Editor for Variables and allows you to edit palette attributes.
Visible Toggles Legend Visibility ON/OFF.
Mix Click on a color to change the legend text color, or click on More to create a color
yourself.
Title Field for entering text for the legend title.
Font Brings up dialog for selecting font for legend title.
Title location Location of the Title: Above, Below or None
Layout Layout of the Legend Bar: Vertical or Horizontal
Values Location of the legend values: Left/Bottom, Right/Top, or None
Type Color distribution: Continuous or Discrete
Font Size Choose a Font Size
Origin Location of Legend can be typed in precisely, or just drag it in the Graphics Window
where you want it located
Width, Height Type in an exact value, or just grab one of the legend bar highlighted corners and drag it.
Value Format Choose a format for the legend numbers.
Figure 8-28
Annot Mode - Legend Create / Edit Icon and Dialog
8.2 Annot Mode
EnSight 9 User Manual 8-29
Select All... Brings up the Annotation Selection Options Dialog which allows selection of the various
annotation types.
Delete Icon Deletes selected text, line or logo Annotation object(s).
You cannot delete legends using the Delete Icon. Once a legend for a specific variable has
been made visible using the Show Legend button, it can be made non-visible using either
the Annot: Visibility Toggle or the Annot: Global Legend Visibility Toggle Icon.
Access: Annot Mode : Delete Icon
Legend... Clicking the Legend... button (located on the Desktop above the graphics window) will
allow the user to control which legends are visible.
Figure 8-29
Annot Mode - Select All... Icon and Annotation Selection Options Dialog
Figure 8-30
Annot Mode - Delete Icon
8.3 Plot Mode
8-30 EnSight 9 User Manual
8.3 Plot Mode
Plot Mode is used to adjust the attributes of 2D graphs and curves that you have
created. You create graphs using the Query/Plot Editor in the Quick Interaction
Area
In Plot Mode, there are two things you can select.
1. You can click the plot window and the whole plot window will have a
highlighted box indicating its selection (green in color by default).
2. You can click on an individual curve to cause the curve line to thicken -
indicating selection.
The plotting capability is limited to simple x versus y data. Most often this data is
in the form variable value versus Time or Distance.
Graph Visibility Toggle Icon - (select plot window)
Graph Attributes Icon - (select plot window)
Axis Attributes Icon - (select plot window)
Curve Attributes Icon - (select plot window and curve)
Delete Icon
Graph/Curve Select All Icon
Figure 8-31
Mode Selection Area - Plot Selected
Show graph(s) in separate window Icon
8.3 Plot Mode
EnSight 9 User Manual 8-31
Graph Visibility Determines the visibility of the selected plotters. The selected plotters for which visibility
Toggle Icon has been toggled off will appear grayed-out in Plot Mode.
Access: Plot Mode : Plotter Visibility Toggle Icon
Show Graph in Opens the Plot detached window options dialog for the specification of the background
Separate Window Icon color, and visibility of the detached window for the selected plot(s).
Figure 8-32
Plot Mode - Plotter Visibility Toggle Icon
Figure 8-33
Plot Mode - Show Graph in Separate Window Icon and Plotter Specific
Attributes dialog
Visibility Toggle controls presence of
8.3 Plot Mode
8-32 EnSight 9 User Manual
Graph Attributes Icon Opens the Plotter Specific Attributes dialog for the specification of attributes for Title,
background, legend, border and position of the selected plotters.
Type Opens a pop-up menu for the specification of plotter background color. Choices are:
None no background (the color of the Graphics Window or the viewport underneath will
show through the Plotter)
Solid allows a solid color to be specified for the Plotter Background
RGB Mix... Color for the Plotter background may be specified using either the RBG fields or the Color
Selector dialog which is opened by clicking the Mix... button.
Visible Toggle Toggles on/off the visibility in the other five Modes of the Border for the selected Plotters.
RGB Mix... Color for the plotter border may be specified using either the RBG fields or the Color
Selector dialog which is opened by clicking the Mix... button. Note that the border color is
not shown while the plotter is selected - while selected the border is shown in green.
See Part Color, Lighting, Transparency
Background
Figure 8-34
Plot Mode - Plotter Attributes Icon and Plotter Specific Attributes dialog
Clicking the Background tab causes the
dialog to configure itself for Plotter
Background editing
Border
Clicking the Border tab causes the dialog to
configure itself for Plotter Border editing
8.3 Plot Mode
EnSight 9 User Manual 8-33
Visible Toggle Toggles on/off the visibility of the legend for the selected Plotters.
Text Size This field specifies the desired size of the Legend text.
Origin X Y These fields specify the location of the Legend within a Plotter’s border. Values range
from 0.0 to 1.0 and resulting distances are measured from the Border origin (lower left
corner). These fields provide an alternative to interactively positioning the plotter Legend.
RGB Mix... Color for the Legend text may be specified using either the RBG fields or the Color
Selector dialog which is opened by clicking the Mix... button.
Origin X Y These fields specify the location of the selected Plotter within the Graphics Window.
Values range from 0.0 to 1.0 and resulting distances are measured from the Graphics
Window origin (lower left corner). These fields provide an alternative to interactively
positioning the plotter which is done simply by clicking within the Plotter and dragging it
to the desired position.
Width, Height These fields specify the width and height of the Plotter. Resulting distances are measured
from the Border origin (lower left corner). These fields provide an alternative to
interactively resizing the plotter which is done simply by clicking on a side or corner and
dragging.
Legend Clicking the Legend tab causes the dialog to configure
itself for Plotter Legend editing. The legend shows a
line of the appropriate color, width, and marker next to
the name of the curve plotted using this line style.
Position
editing.
Clicking the Position tab causes the dialog to
configure itself for Plotter Position.
Time
This tab is enabled only for plots with
transient data.
8.3 Plot Mode
8-34 EnSight 9 User Manual
Animate Curve When the solution time is changed or streamed (data loaded from disk one step after
another) or loaded in the flipbook, toggling this ON will cause the transient curve to plot
the data timestep by timestep.
Display Time The Time Marker is a vertical time indicator line that appears only on a transient plot.
Marker When the solution time is changed or streamed (data loaded from disk one step after
another) or loaded in the flipbook, toggling this ON will cause the vertical line Time
Marker to indicate the current timestep value on the plot. Click on the time indicator line
and drag it while in part mode to change the time, and the time indicator line will jump to
the next time value on your plot.
Line Width Set the line width of the vertical time indicator line on the transient plot.
Line Style Set the line style of the vertical time indicator line on the transient plot.
RGB Set the color (RGB values) of the vertical time indicator line on the transient plot.
Title This field allows you to edit the existing plotter title.
Font... This button brings up a dialog allowing you to pick the desired font. It inserts codes into
the text string at the location of the cursor.
Title
Clicking the Title tab causes the dialog to
configure itself for Graph Title editing.
8.3 Plot Mode
EnSight 9 User Manual 8-35
Symbol... This button brings up a matrix of symbols to pick from to allow you to insert symbols into
the plotter title.
Size This field allows you to specify the title text size.
RGB Mix... Color for the Title text may be specified using either the RBG fields or the Color Selector
dialog which is opened by clicking the Mix... button.
Access: Plot Mode : Plotter Attributes Icon
8.3 Plot Mode
8-36 EnSight 9 User Manual
Axis Attributes Icon Opens the Axis Specific Attributes dialog for the specification of attributes for axes of the
selected Plotters.
Both Axes
Line Width Opens a pop-up menu for the specification of the desired line width (1 to 4 Pixels) for
Plotter axes.
RGB Mix... Color for the axes may be specified using either the RBG fields or the Color Selector
dialog which is opened by clicking the Mix... button
Auto Axis When toggled on, the axis range and number of divisions will be scaled to make nice
Scaling Toggle “round” numbers.
Gradation/Grid
Line Width Opens a pop-up menu for the specification of the desired width (1-4 Pixels) for Gradation
Lines or Ticks.
Line Style Opens a pop-up menu for the specification of the style of line (Solid, Dotted, or Dashed)
desired for gradations. (The lines are normally not visible and so this specification is only
valid if Grad Type has been selected to Grid in the X-Axis and/or Y-Axis configuration of
the Axis Specific Attributes dialog.)
RGB Mix... Color for the Gradation Lines or Ticks may be specified using either the RBG fields or the
Color Selector dialog which is opened by clicking the Mix... button.
Sub-Gradation/Sub-Grid
Line Width Opens a pop-up menu for the specification of the desired line width (1-4 Pixels) for Sub-
Gradation Lines or Ticks (those between the Gradation Lines or Ticks).
Line Style Opens a pop-up menu for the specification of the style of line (Solid, Dotted, or Dashed)
desired for sub-gradations. (The lines are normally not visible and so this specification is
only valid if SubG Type has been selected to Grid in the X-Axis and/or Y-Axis
configuration of the Axis Specific Attributes dialog.)
RGB Mix... Color for the Sub-Gradation Lines or Ticks may be specified using either the RBG fields
or the Color Selector dialog which is opened by clicking the Mix... button
Figure 8-35
Plot Mode - Axis Attributes Icon and Axis Specific Attributes dialog
General
Clicking the General tab causes the dialog
to configure itself for General Plotter Axis
editing.
8.3 Plot Mode
EnSight 9 User Manual 8-37
.
Visible Toggle Toggles on/off the visibility of the X (or Y) Axis line.
Origin This field specifies the location of the X (or Y) Axis origin. Values range from 0.0 to 1.0
and resulting distances are measured from the left side (or bottom) of the Plotter.
Size This field specifies the length of the X (or Y) Axis line. Values range from 0.0 to 1.0 and
resulting distances are measured from the X (or Y) Axis Origin.
Title
Title This field allows you to edit the existing X (or Y) Axis title.
Size This field allows you to specify the title text size.
Font... This button brings up a dialog allowing you to pick the desired font. It inserts codes into
the graph axis title at the location of the cursor.
X-Axis or Y-Axis
Clicking the X-Y Axis tab causes the
dialog to configure itself for editing of
Attributes specific to either the X or the Y
Axis. If X-Axis toggle has been clicked,
the dialog will affect the X-Axis attributes
only. Likewise for Y-Axis.
8.3 Plot Mode
8-38 EnSight 9 User Manual
Symbol... This button brings up a matrix of symbols to pick from to allow you to insert symbols into
the graph axis title.
RGB Mix... Color for the Title text may be specified using either the RBG fields or the Color Selector
dialog which is opened by clicking the Mix... button.
Value Labels
Type Opens a pop-up menu for selection of desired number (None, All, or Beg/End) of X (or Y)
Axis labels.
Size This field allows you to specify the size of X (or Y) Axis labels.
Scale This field allows you to specify a linear or log10 scale for the Axis.
Min This field contains the minimum value of the X (or Y) Axis. If Auto Axis Scaling is on, it
is only an approximation to the value which will be used.
Max This field contains the maximum value of the X (or Y) Axis. If Auto Axis Scaling is on, it
is only an approximation to the value which will be used.
Format This field specifies the format used to display the X (or Y) Axis. Any C language printf
format is valid in this field.
Format... This button will open the Format dialog which allows you to select a pre-defined format.
Gradation/Sub-Grad
Grad Type Opens a pop-up menu for selection of desired marker (None, Grid, or Tick) for major
# of gradations. # of field specifies the number of major gradations you wish along the X (or
Y) Axis. If Auto Axis Scaling is on, it is only an approximation to the value which will be
used.
SubG Type Opens a pop-up menu for selection of desired marker (None, Grid, or Tick) for sub
# of gradations (between the major gradations. # of field specifies the number of sub
gradations you wish between each major gradation along the X (or Y) Axis.
Access: Plot Mode : Axis Attributes Icon
8.3 Plot Mode
EnSight 9 User Manual 8-39
Curve Attributes Icon Opens the Curve Specific Attributes dialog for the specification of attributes for an
individual curve which has been selected in a Plotter. A curve is selected by clicking the
mouse cursor on top of the curve. The selected curve will be drawn by a wider line than is
normally used to display the curve.
Desc. This field initially contains the Legend description of the selected Curve which was
assigned to it when the Curve was created. Edit and press Return to change the
description.
Scale X/Y By Scales the respective X or Y values by the specified factor.
Line Width Opens a pop-up menu for the specification of the desired line width (1-4 Pixels) for the
selected Curve.
Line Style Opens a pop-up menu for the specification of the style of line (Solid, Dotted, or Dashed)
desired for the selected Curve.
Line Type Opens a pop-up menu for the specification of the type of line desired for the selected
Curve. Options are:
None No lines will be drawn between points
Connect Dot Lines will be drawn between the points
Smooth A piece wise spline will connect the points
Smooth Sub-points This field specifies the number of sub-points to use between data points in drawing the
curve when Smooth Line Type is selected.
Marker Type Opens a pop-up menu for the specification of the desired type of data point marker (None,
Dot, Circle, Triangle, Square) on the curve.
Scale This field specifies the size of the data point markers for the selected curve.
RGB Mix... Color for the selected Curve may be specified using either the RBG fields or the Color
Selector dialog which is opened by clicking the Mix... button
Access: Plot Mode : Curve Attributes Icon
Figure 8-36
Plot Mode - Curve Attributes Icon and Curve Specific Attributes dialog
8.3 Plot Mode
8-40 EnSight 9 User Manual
Select All... Brings up the Plot Selection Option Dialog which allows selection of all curves or all
plotters.
Delete Icon Deletes the selected Plotters.
Access: Plot Mode : Delete Icon
Figure 8-37
Plot Mode - Select All... Icon and Plot Selection Options Dialog
Figure 8-38
Plot Mode - Delete Icon
8.4 VPort Mode
EnSight 9 User Manual 8-41
8.4 VPort Mode
VPort Mode is used to create, adjust the attributes of, and delete viewports.
The default EnSight configuration shows one view of your model in the “main”
Graphics Window. This “initial viewport”, which covers the Graphics Window.
cannot be removed and is always used to clear (erase) the Graphics Window prior
to a redraw. Using the VPort Mode, you can create up to fifteen additional
viewports that will overlay the Graphics Window. These viewports can be
interactively resized and relocated within the Graphics Window using the mouse
and the visibility of each Part can be controlled on a per viewport basis.
Transformations, and Z-clip location settings can also be made independently in
each viewport.
Figure 8-39
Mode Selection Area - VPort Selected
New Viewport Icon
Viewport Visibility Icon
Viewport Forward Icon
Viewport Back Icon
Color Icon
Viewport Border Attributes Icon
Viewport Location Attributes Icon
Viewport Special Attributes Icon
Viewport Layouts Icon
Select All Icon
Delete Icon
Viewport Part Bounds Attributes Icon
Viewport Special Lighting Icon
8.4 VPort Mode
8-42 EnSight 9 User Manual
When in VPort Mode, you are always modifying the viewports selected in the
Graphics Window. Selected viewports are outlined in the “selection color”, while
unselected objects are outlined in a white color. To select a viewport, click the
mouse over it. To select multiple viewports, hold the Control key down while
clicking on them.
Multiple viewports are helpful in showing the same object from multiple views,
showing different axes in each viewport, showing the same parts with different
attributes, etc. Max number of viewports is 16.
Viewport Visibility Determines the visibility of the selected viewport(s). The
Toggle Icon border of a viewport which, in the VPort Mode, has its visibility toggled off will still be
visible in the VPort Mode only - and then as a dotted rather than a solid line.
Access: VPort Mode : Viewport Visibility Toggle Icon
Figure 8-40
Viewport Example
Figure 8-41
VPort Mode - Viewport Visibility Toggle Icon ON / OFF
8.4 VPort Mode
EnSight 9 User Manual 8-43
Color Icon Opens the Viewport Background Color Attributes dialog for the specification of the color
you wish to assign to the background of the selected viewport(s).
Type Opens a pull-down menu for the specification of the type of background you wish to
assign to a viewport.
Blended Allows you to specify a background comprised of 2 to 5 blended colors.
# of Levels This field specifies the number of levels (from 2 to 5) at which a color will be specified.
The default is 2.
Edit Level This field specifies which of the levels you wish to edit. You may select the desired level
using the stepper buttons, by entering a value in the field, or interactively by clicking on
its number on the right side of the Viewport Color window.
Position This field specifies the vertical position of the edit level as a fraction (from 0 to 1) of the
vertical height of the Viewport Color window, where 0.0 is at the bottom and 1.0 is at the
top. You may adjust a level to the desired position using the stepper buttons, by entering a
value in the field, or interactively by selecting and dragging a level’s number on the right
side of the Viewport Color window. The position of any level can not be below the
position of the next lower level.
Constant Allows you to specify a constant color using the RGB fields or the Color Selector dialog
which is accessed by clicking the Mix Color... button.
Image Allows you to choose an image as a background for your viewport.
Inherit Causes the viewport to display the same background color attributes as the main Graphics
Window. Only applicable for created viewports, not the main Graphics Window.
Mix Color... Opens the Color Selector dialog. (See Section 8.1, Color Selector)
Refresh Viewport Will redraw the selected viewport(s) with the defined viewport background settings.
Access: VPort Mode : Color Icon
Figure 8-42
VPort Mode - Color Icon
8.4 VPort Mode
8-44 EnSight 9 User Manual
Viewport Layouts Icon This icon opens a pull-down menu of icons which indicate standard viewport layouts.
Access: Vport Mode : Viewport Layouts Icon
New Viewport Icon Clicking this button creates a new Viewport within (and on top of) the “main” Graphics
Window. The location and size of the viewport can be modified interactively in the
Graphics Window by a) clicking and dragging within the viewport to move it of b)
clicking and dragging the edge or corner to resize it. More precise modifications may be
performed using the Location... Icon.
Access: VPort Mode : New Viewport Icon
Viewport Forward Icon Clicking this button moves the selected viewport(s) “forward” in the Graphics Window to
occlude any viewports which it (they) may overlap. Viewport 0 cannot be “popped”.
Access: VPort Mode : Viewport Forward Icon
Viewport Back Icon Clicking this button moves the selected viewport(s) “back” in the Graphics Window to be
occluded by any viewports which may overlap it (them). Viewport 0 cannot be “pushed”.
Access: VPort Mode : Viewport Back Icon
Figure 8-43
Viewport Mode - Viewport Layouts Icon and Menu
Figure 8-44
VPort Mode - New Viewport Icon
Figure 8-45
VPort Mode -Viewport Forward Icon
Figure 8-46
VPort Mode - Viewport Back Icon
8.4 VPort Mode
EnSight 9 User Manual 8-45
Lighting Opens the Viewport Lighting Attributes Dialog.
Position Position of Light source 1 is either absolute or relative to the camera position.
Azimuth Azimuth Angle of Light source 1 (-180 to +180 degrees).
Elevation Elevation of Light source 1 (-90 to +90 degrees).
Convert to Absolute Converts a relative Azimuth and Elevation angle to Absolute Coordinates.
Set to Default Restores Light Source 1 values back to default.
Intensity Intensity of Light source 2 (0 to 1).
Access: VPort Mode : Viewport Lighting Attributes Icon
Viewport Border Opens the Viewport Border Attributes dialog for the specification of a constant color for
Attributes Icon the border of the selected viewports. Be aware that the color assigned will only be visible
in the other five Modes, not in VPort mode.
Visible Toggle Toggles on/off visibility of a viewport’s border in the other five Modes. The border of
each viewport will always be visible in VPort Mode.
RGB These fields specify the RGB values for the color you wish to assign.
Mix... Opens the Color Selector dialog. See Section 7.1 Color
Access: VPort Mode : Viewport Border Attributes Icon
Figure 8-47
VPort Mode - Viewport Border Attributes Icon and Viewport Border Attributes dialog
Figure 8-48
VPort Mode - Viewport Border Attributes Icon and Viewport Border Attributes dialog
8.4 VPort Mode
8-46 EnSight 9 User Manual
Viewport Location Opens the Viewport Location Attributes dialog for the specification of the desired location
Attributes Icon in the main Graphics Window for the selected viewports. This dialog provides a more
precise alternative to moving and resizing the viewports interactively.
Origin X Y These fields specify the location for the X and Y coordinates of the selected viewport’s
origin (lower left corner) in the main Graphics Window. Values range from 0.0 to 1.0.
Width, Height These fields specify the width and height of a selected viewport in X and Y coordinates
from the viewport’s origin. Values range from 0.0 to 1.0.
Access: VPort Mode : Viewport Location Attributes Icon
Viewport Special Opens the Viewport Special Attributes dialog for the specification of whether the global
Attributes Icon settings for Perspective versus Orthographic display, hidden surface display, and hidden
line display will apply in the selected viewport(s). In addition, a viewport can be
designated as 2D, in which case only planar 2D parts can be displayed in the viewport
Note, Once you designate a viewport as a 2D viewport, all 3D parts are no longer visible
in that viewport. To see the 3D parts in that viewport again, you will need to make the
viewport 3D, select the 3D parts in the parts list, and make them visible again using the
visibility per viewport icon.
Track Will do a global translate of the geometry to track the motion with respect to one of the
following:
Node number - Enter the node id in the Node ID field
Part Centroid - The geometric centroid of the part is used for tracking
Part xmin - The minimum x coordinate of the part is used for tracking.
Part xmax - The maximum x coordinate of the part is used for tracking
Part ymin - The minimum y coordinate of the part is used for tracking
Part ymax - The maximum y coordinate of the part is used for tracking
Part zmin - The minimum z coordinate of the part is used for tracking
Part zmax - The maximum z coordinate of the part is used for tracking
Part ID ID number of Part used for camera tracking
Figure 8-49
VPort Mode - Viewport Location Attributes Icon and Viewport Location Attributes dialog
Figure 8-50
VPort Mode - Viewport Special Attributes Icon and Viewport Special Attributes dialog
8.4 VPort Mode
EnSight 9 User Manual 8-47
Node ID Node ID for the Part ID used for tracking if Node number selected in Track pulldown.
Access: VPort Mode : Viewport Special Attributes Icon
Part Bounds Attributes
Opens the Viewport Bounds Attributes dialog for the specification of part bounding box
gradation and labeling.
General Change the dialog to reflect overall extent grid attributes.
XYZ-Axis Change the dialog to reflect XY or Z-Axis extent attributes (see below).
All Axes Section Contains parameters that affect attributes of all axes of the bounding extent.
Visible Toggle Toggles on/off visibility of the viewport 2D/3D extent axes.
Dimension Opens a menu for the specification of the desired dimension (2D or 3D) of the bounding
extent axis. Default is 3D. 2D is only available for 2D viewports and 3D viewports in
orthographic mode.
Line Width Opens a menu for the specification of the desired line width (1 - 4 pixels) of the bounding
extent axis. Default is 2.
RGB These fields specify the RGB values for the color you wish to assign.
Mix Color... Opens the Color Selector dialog. See Part Color, Lighting, Transparency
Transparency Specifies the degree of opaqueness for the axes of the bounding extent. This value may be
adjusted by typing in a value from 0.0 to 1.0 in the field or by using the slider bar whose
current value is reflected in the field. A value of 0. or 1. will render the axes completely
transparent or completely opaque, respectively.
Auto Size Toggle Toggles on/off the scaling of the axis range to nice “round” numbers.
Length Opens a menu for the specification of the desired type of length gradation on the axes of
the bounding extent.
As Specified Divides the gradations evenly along the length of the axis. (default)
Rounded Tries to round to the units of the common order of magnitude.
Gradation/Grid Controls the specification of the gradation/grid of the axes of the bounding extent.
Section
Line Width Opens a menu for the specification of the desired line width (1 - 4 pixels) for the
gradation and grid of the bounding extent axis. Default is 1.
Figure 8-51
VPort Mode - Viewport Part Bounds Icon and Viewport 2D/3D Grid Attributes (General) dialog
8.4 VPort Mode
8-48 EnSight 9 User Manual
Line Style Opens a menu for the specification of the style of line (Solid, Dotted, or Dashed) desired
for the gradation and grid of the bounding extent axis. Default is Solid.
RGB These fields specify the RGB values for the color you wish to assign.
Mix Color... Opens the Color Selector dialog. See Part Color, Lighting, Transparency
Sub-Gradation/ Controls the specification of the subgradation/subgrid of the axes of the bounding extent.
Sub-Grid Section
Line Width Opens a menu for the specification of the desired line width (1 - 4 pixels) for the
subgradation and subgrid of the bounding extent axis. Default is 1.
Line Style Opens a menu for the specification of the style of line (Solid, Dotted, or Dashed) desired
for the subgradation and subgrid of the bounding extent axis. Default is Solid.
RGB These fields specify the RGB values for the color you wish to assign.
Mix Color... Opens the Color Selector dialog. See Part Color, Lighting, Transparency
X-, Y-, Z-Axis These toggles choose the axis.
Axis These fields reflect the Min and Max values of the selected axis.
Value Labels Section Controls attributes of the selected axis.
Axis Location Opens a menu for the specification of the desired location (None, All (default), or Beg/
End) to place the labels of the selected axis.
Extent Location Opens a menu for the specification of the desired extent (Min (default), Max, or Both) on
which to display the labels of the selected axis.
Format This field specifies the format used to display the labels of the selected axis. Any C
language “printf” format is valid in this field.
Figure 8-52
Viewports 2D/3D Grid Attributes (X-Axis or Y-Axis or Z-Axis dialog)
8.4 VPort Mode
EnSight 9 User Manual 8-49
Format... Opens the Viewport Axis Text Format dialog which allows you to select a pre-defined
format.
Format Selection List of pre-defined formats. You can also enter any legal C language format string for
floating point numbers.
List
Format Selection The format specification.
Field
RGB These fields specify the RGB values for the color you wish to assign.
Mix Color... Opens the Color Selector dialog. See Part Color, Lighting, Transparency
Gradation/Sub-Grad Section
Grad Type Opens a menu for the selection of desired marker (None, Grid, or Tick (default)) for major
gradations of the selected axis.
# of Specifies the number of major gradations you wish along the selected axis. If Auto Size is
on, it is only an approximation to the value which will be used.
SubG Type Opens a menu for the selection of desired marker (None, Grid, or Tick (default)) for sub-
gradations (between the major gradations) along the selected axis.
# of Specifies the number of sub-gradations you wish between each major gradation along the
selected extent axis.
Extent Location Opens a menu for the specification of the desired extent (Min (default), Max, or Both) on
which to display the gradation/sub-gradations of the selected axis.
Access: VPort Mode : Viewport Part Bounds Attributes Icon
Select All Selects all of the currently defined viewports.
Delete Icon Deletes individual, selected viewports. (You cannot delete viewport 0).
Access: VPort Mode : Delete Icon
Figure 8-53
Viewport Axis Text Format dialog
Figure 8-54
VPort Mode - Select All Icon
Figure 8-55
VPort Mode - Delete Icon
8.5 Frame Mode
8-50 EnSight 9 User Manual
8.5 Frame Mode
As EnSight reads in model Parts, they are all initially assigned to the same
“Frame” of reference: Frame 0. Frame 0 corresponds to the model coordinate
system (defined when the model was created). Using the Frame Mode, you can
create additional frames, reassign Parts to different Frames, and specify various
attributes of the Frames.
Transformations you make in View or Parts Mode (rotations, translations, etc.) are
performed globally; all Frames, Parts, and Tools are transformed with respect to
the Global Axis origin and orientation. Frame Mode, on the other hand, allows
you to perform transformations on selected Parts. This is useful if you wish, for
example, to create an animation with Parts moving in different directions (such as
a door or hood opening to reveal Parts within) or to move Part copies away from
each other in order to color the Parts by different variables (in fact, if you make a
copy of a Part, a new Frame is automatically created and the Part copy is assigned
to it). Note that the Frame mode coordinate transformations are visual only and
occur only on the client. That is, the transformed coordinates cannot be used in
the EnSight calculator.
In Frame Mode, transformations are always about the selected Frame’s definition,
that is, its origin position (with respect to Frame 0) and the orientation of its axes
(with respect to Frame 0). Since this is the case, the Frame’s orientation must be
adjusted (if necessary) before any transformations are applied. If transformations
are applied first, and the Frame’s definition adjusted at a later time, the
transformations will likely cause unexpected results (since the transformations
originally performed were about a different axis definition than that about which
transformations performed after the Frames definition changed occur). The
necessary order is 1) define frame location and orientation, 2) assign part to frame,
3) perform transformations relative to the frame.
A Part can be assigned to only one Frame at a time. The Part will always be
transformed by the Frame’s transformation. A Part is not affected by a Frame’s
definition (other than transformations will be in reference to the definition). A
Part’s mirror symmetry operation (which can be thought of as a scaling
transformation) is always about the Frame to which the Part is assigned.
The Tools (Cursor, Line, Plane, etc.) are always shown in reference to the selected
Frame and are thus also transformed by the selected Frame’s transformations.
There are two transformation alternatives in Frame Mode: Frame Transform (the
default) and Frame Definition. As pointed out earlier, a frame should first be
defined (if necessary) before it is transformed.
In Frame Mode the axis triads for all Frames will be visible in the Graphics
Window. Invisible Frames will be shown with a dotted frame axis. Selected
Frames are shown in green. A Frame may be selected by clicking on its axis triad
or by selecting its description from the Frame List in the Transformation Editor
dialog (which is opened by clicking the Transf Edit... button in the Transformation
Control Area).
By default, Frame mode is not available unless it has been enabled under Edit >
Preferences... General User Interface - Frame Mode Allowed.
For further discussion concerning the transformation of Frames:
8.5 Frame Mode
EnSight 9 User Manual 8-51
(see Section 9.3, Frame Transform and Section 9.2, Frame Definition)
Three Frames exist in this
example.
Figure 8-56
Frame Mode - Frame Example
8.5 Frame Mode
8-52 EnSight 9 User Manual
When Frame Mode is selected, the Mode Icon Bar appears as follows.:
Frame Axis Triad Determines the visibility of the axis triad(s) of selected Frame(s). Invisible Frames are
Visibility Toggle Icon drawn in dotted lines while in Frame Mode. Default is Off.
Access: Frame Mode : Frame Axis Triad Visibility Toggle Icon
Color Icon Opens the Color Selector dialog for the specification of the color you wish to assign to a
selected Frame’s axis triad A selected Frame will always be shown in the selection color
while in Frame Mode.
Access: Frame Mode : Color Icon
Figure 8-57
Mode Selection Area - Frame Selected
New Frame Icon
Part Assignment Icon
Transform/Definition Icon
Frame Axis Triad Visibility Toggle Icon
Color Icon
Frame Line Width Icon
Axis Triad Attributes Icon
Computational Symmetry Attributes Icon
Coordinate System Pulldown Icon
Frame Location Attributes Icon
Delete Icon
Frame Select All Icon
Figure 8-58
Frame Mode - Frame Axis Triad Visibility Toggle Icon
Figure 8-59
Frame Mode - Color Icon
8.5 Frame Mode
EnSight 9 User Manual 8-53
Frame Line Width Opens a pulldown menu for the specification of the width for Frame axis triad lines for the
Pulldown Icon selected Frame(s).
Access: Frame Mode : Frame Line Width Icon
New Frame Icon Creates a new Frame to which you can assign Parts. Be aware that each time you make a
copy of a Part EnSight creates a new Frame and assigns the copy to the new Frame. If
Parts are selected in the Main Parts List, the new Frame’s origin will be positioned at the
center of the selected Parts.
Access: Frame Mode : Create New Frame Icon
Part Assignment Clicking this icon reassigns Part(s) selected in the Main Parts List to the currently selected
Icon Frame. (An alternative method for reassigning Parts is to edit the Ref. Frame field in the
General Attributes section of the Feature Detail Editor.)
Access: Frame Mode : Part Assignment Icon
Axis Triad Opens the Frame Axis Attributes dialog for the specification of axis triad line length and
Attributes Icon labels for the selected Frame(s).
X Y Z These fields allow you to specify the desired length, in model coordinates, of each of the
three axes of the selected Frame’s axis triad.
Figure 8-60
Frame Mode - Frame Line Width Pulldown Icon
Figure 8-61
Frame Mode - Create New Frame Icon
Figure 8-62
Frame Mode - Part Assignment Icon
Figure 8-63
Frame Mode - Axis Triad Attributes Icon
8.5 Frame Mode
8-54 EnSight 9 User Manual
X Y Z Labels Toggles on/off the display of Labels on the respective line of a selected Frame’s axis triad.
Toggles Labels show distance along each axis.
X Y Z # of These fields specify the number of Labels which will appear on the respective axis.
Access: Frame Mode : Axis Triad Attributes Icon
Computational Opens the Frame Computational Symmetry Attributes dialog for the specification of
Symmetry Attributes the type of periodic conditions which will be applied to all assigned Model Parts of the
Icon selected Frame. (Note, computational symmetry does NOT work on created parts.)
(see How To Set Symmetry)
Type Opens a pop-up menu for the selection of whether you wish the selected Frame to have no
periodicity (None as shown above) or to be mirror, rotational, or translational periodic.
Mirror In Specification of the type of mirror periodicity.
Axis The Frame axis about which to rotate.
Angle This field specifies the rotational angle (in degrees) about the selected Frame’s z-axis for
rotational periodicity.
Instances This field specifies the number of periodic instances for rotational periodicity.
Mirror X face-sharing quadrant on other side of the Y-Z plane
Mirror Y face-sharing quadrant on other side of the X-Z plane
Mirror Z face-sharing quadrant on other side of the X-Y plane
Mirror XY diagonally opposite quadrant on same side of the X-Y plane
Mirror XZ diagonally opposite quadrant on same side of the X-Z plane
Mirror YZ diagonally opposite quadrant on same side of the Y-Z plane
Mirror XYZ quadrant diagonally opposite through origin
Figure 8-64
Frame Mode - Computational Symmetry Attributes Icon
Mirror
Rotational
8.5 Frame Mode
EnSight 9 User Manual 8-55
Use Periodic If toggled On, the periodic match file specified in File Name is used for rotational
symmetry.
File Name This field specifies the name of the periodic match file you wish to use.
Select File... Opens the File Selection dialog for the selection of a periodic match file.
(see Section 11.9, Periodic Matchfile Format)
Update Changes made in the dialog will not be applied until this button is clicked.
X Y Z These fields specify the translational offset in reference to the selected Frame’s
orientation.
Instances This field specifies the number of periodic instances for translational periodicity.
Use Periodic If toggled On, the periodic match file specified in File Name is used for translational
symmetry.
File Name This field specifies the name of the periodic match file you wish to use.
Select File... Opens the File Selection dialog for the selection of a periodic match file.
(see Section 11.9, Periodic Matchfile Format)
Update Changes made in the dialog will not be applied until this button is clicked.
Access: Frame Mode : Computational Symmetry Attributes Icon
Coordinate System Opens a pulldown menu for the selection of the type of coordinate system (rectangular,
Pull-down Icon cylindrical, spherical) you wish to use for a selected Frame. All three are defined in
reference to Frame 0, which is rectangular. Note that each frame’s orientation vectors
(which describe its orientation to Frame 0) are rectangular (as is their on-screen
representation) no matter what the frame’s coordinate system type. However, functions
that access the frame will behave different depending on the frame’s coordinate system
type.
Translational
Figure 8-65
Frame Mode - Coordinate System Pulldown Icon
8.5 Frame Mode
8-56 EnSight 9 User Manual
Rectangular The Figure below shows a rectangular frame. The origin is in reference to the Frame 0
origin, while the orientation is in reference to Frame 0’s orientation.
Cylindrical The figure below shows a cylindrical frame. The origin is in reference to the Frame 0
origin, while the orientation is in reference to Frame 0’s orientation. Any function which
accesses a cylindrical frame will do so in cylindrical coordinates:
r The distance from the origin to projection point in the X–Y plane.
Θ The angle from the X-axis to the projection point in the X–Y plane.
Z The Z-coordinate
Y
3.0
2.0
1.0
1.0 2.0 3.0 4.0
Frame 0
Frame Orientation for Rectangular Frames
Origin: 2.0 1.0 0.0
Orientation Vectors:
X: .707 .707 0
Y: -.707 .707 0
Z: 0 0 1
X
Z
Z
X
Y
Y
3.0
2.0
1.0
1.0 2.0 3.0 4.0Frame 0
Frame Orientation and Coordinate System Key for Cylindrical Frames
r = distance in x-y plane
= angle from x-axis to
projection pt. in x-y
Origin: 2.0 1.0 0.0
Orientation Vectors:
X: 1 0 0
Y: 0 1 0
Z: 0 0 1
X
Z
Z
Z
r
X
Y
P(r, ,z)θ
θ
θ
plane
8.5 Frame Mode
EnSight 9 User Manual 8-57
Spherical The figure below shows a spherical frame. The origin is in reference to the Frame
0 origin, while the orientation is in reference to Frame 0’s orientation. Any
function which accesses a spherical frame will do so in spherical coordinates:
ρ The distance from the origin to the point in question.
Φ The angle measured from the Z-axis towards the projection point in the
X–Z plane.
Θ The angle from the X-axis to the projection point in the X–Y plane.
Access: Frame Mode : Coordinate System Pull-down Icon
Frame Location Opens the Transformations Editor dialog to permit precise definition of the selected
Frame(s).
(see Section 9.3, Frame Transform)
Access: Frame Mode : Frame Location Attributes Icon
O
Frame Orientation and Coordinate System Key for Spherical Frames
= distance from origin
to point P
r = distance in x-y plane
= angle from z-axis to
line OP
= angle from x-axis to
projection point in
x-y plane
Origin: 2.0 1.0 0.0
Orientation Vectors
X: 1 0 0
Y: 0 1 0
Z: 0 0 1
X
Z
r
P
Y
3.0
2.0
1.0
Frame 0
Z
1.0 2.0 3.0 4.0
r
ρ
ρ
Y
X
θ
θ
θ
φ
φ
Figure 8-66
Frame Mode - Frame Location Attributes Icon
8.5 Frame Mode
8-58 EnSight 9 User Manual
Transform/Definition Opens a pop-up menu for selection of desired method of Frame transformation.
Transform - Transformations will cause the Parts assigned to the selected Frame(s)
to be transformed as well as the selected Frame’s axis triad. Translations will
move the Frames’ axis triad(s) and the assigned Parts. Rotations of Parts will
take place about the selected Frame(s) axis origin.
Definition - User interaction in the Graphics Window or Transformation Editor will
modify the selected Frame(s) origin location and/or axis orientation.
Access: Frame Mode : Transform/Definition Pull-down Icon
(see Section 9.3, Frame Transform and Section 9.2, Frame Definition)
Select All Selects all frames.
Delete Icon Deletes the selected Frame(s). (Will be prohibited if currently used by a part).
Access: Frame Mode : Delete Icon
Figure 8-67
Frame Mode - Define / Transform Pulldown Icon
Pulldown Icon
Figure 8-68
Frame Mode - Select All Icon
Figure 8-69
Frame Mode - Delete Icon
8.6 Quick Desktop Buttons
EnSight 9 User Manual 8-59
8.6 Quick Desktop Buttons
Quick Desktop Buttons are always available regardless of the Mode (Part, Annot, Plot,
Vport, or Frame) above the Graphics Window.
.
Pick Pull-down Icon Opens a pull-down menu for the specification of the desired type of Pick operation. The
actual Pick operation is normally assigned to the “P” key on the keyboard, unless it has
been reassigned under Main Menu: Edit > Preferences... Mouse and Keyboard...
Figure 8-70
Mode Selection Area - View Selected
Shaded Toggle
Axis Triad Visibility Toggle
Pick Pulldown
Hidden Line Toggle
Selection Tool Visibility Toggle
Cursor Tool Visibility Toggle
Line Tool Visibility Toggle
Plane Tool Visibility Toggle
Bounding Box Visibility Toggle
Fast Display Toggle
Record Graphics Animation
Legend Visibility Button
Display Information Button
Highlight Selected Parts Toggle
Figure 8-71
Part Mode - Pick Pulldown Icon
8.6 Quick Desktop Buttons
8-60 EnSight 9 User Manual
Pick Part When the Pick operation is performed (by default, pressing the “P” key), the Part directly
under the mouse cursor is selected. To select multiple Parts, hold down the Control Key
during the Pick operation. It is usually helpful to open and use the Selected Parts Window
while Picking Parts. This is done from Main Menu: View > Show Selected Part(s)...
Pick Plane Tool When the Pick operation is performed (by default, pressing the “P” key), the Plane Tool
Location - Using will be positioned at the Picked points. Three points must be Picked to position the Plane
3 points Tool.
Pick Plane Tool When the Pick operation is performed (by default, pressing the “P” key), the Plane Tool
Location - Using will be positioned at the nodes nearest the pick points. Three nodes must be Picked to
3 nodes position the Plane Tool. The plane will continue to be tied to these three nodes.
Pick Plane Tool When the Pick operation is performed (by default, pressing the “P” key), you can click
Location - Using and drag the mouse to define a line. The Plane Tool will be positioned parallel to your
2 points current viewing angle through the defined line. Consider using this option together with
the F5, F6, F7, and F8 keys which will transform the view to a standard orientation.
(see Section 9.1, Global Transform)
Pick Plane Tool When the Pick operation is performed (by default, pressing the “P” key), the location of
Location - Using origin of the plane tool is chosen. Note that the orientation of the plane tool is unchanged
Origin with this option.
Pick Plane Tool When the Pick operation is performed (by default, pressing the “P” key), the origin of
Location - Using the plane tool remains unchanged, but the normal goes from the origin to the picked
Normal point.
Pick Line Tool When the Pick operation is performed (by default, pressing the “P” key), the ends of the
Location - Using Line Tool will be placed at the Picked points. Two points must be picked to position the
2 points Line Tool.
Pick Line Tool When the Pick operation is performed (by default, pressing the “P” key), the ends of the
Location - Using Line Tool will be placed at the nodes closest to the picked points. Two nodes must be
2 nodes Picked to position the Line Tool. The line tool will continue to be tied to these two nodes.
Pick Cursor Tool When the Pick operation is performed (by default, pressing the “P” key), the Cursor Tool
Location will be positioned at the Picked point.
Pick Center of When the Pick operation is performed (by default, pressing the “P” key), the center of
Transformation global transformation is positioned at the Picked point.
Pick Elements to When the Pick operation is performed (by default, pressing the “P” key), the Element that
blank is chosen is visually removed from the graphics screen. The element still remains in the
model and is used for all calculations, just is not rendered on the graphics screen. Use the
Element Blanking Button in Part Mode to enable / disable and restore visibility.
Pick Look At Point When the Pick operation is performed (by default, pressing the “P” key), the Look At
Point is positioned at the Picked point. The Look From Point is also adjusted to preserve
the distance (between the two Points) and vector that existed prior to the Pick operation.
(see Section 9.7, Look At/Look From)
Pick color When the Pick operation is performed (by default, pressing the "P" key) on geometry
palette band colored by a variable or a color palette visible in the graphics window, a color band will
appear. (see Section 6.2, Edit Menu Functions))
Pick spline When the Pick operation is performed (by default, pressing the "P" key) on visible
control point geometry a control point will be added to the currently selected spline at the insertion
point. If no spline is currently selected or one does not exist a new spline will be created.
Element Blanking Button
8.6 Quick Desktop Buttons
EnSight 9 User Manual 8-61
(see Section 6.5, Tools Menu Functions)
Pick camera When the Pick operation is performed (by default, pressing the "P" key) on visible
Origin XYZ geometry the selected camera origin will be updated to the picked position.
Pick camera When the Pick operation is performed (by default, pressing the "P" key) on visible
Origin node geometry the selected camera origin will be updated to the picked node id and it's origin
property will be updated to contrain itself to the node's position.
Pick camera When the Pick operation is performed (by default, pressing the "P" key) on visible
Direction XYZ geometry the selected camera view direction will be udpated to point to the picked
coordinate location and it's direction property will be updated to contrain itself to point to
the given location.
Pick camera When the Pick operation is performed (by default, pressing the "P" key) on visible
Direction node geometry the selected camera view direction will be udpated to point to the picked node id
location and it's direction property will be updated to contrain itself to the node's position.
Access: Part Mode : Pick Pull-down Icon
8.6 Quick Desktop Buttons
8-62 EnSight 9 User Manual
Global Shaded Toggles on/off global Shaded (default is off) which displays all Parts in a more
Toggle Icon realistic manner by making hidden surfaces invisible while shading visible surfaces
according to specified lighting parameters. Performs the same function as Main Menu >
View > Shaded toggle button and the Desktop > Shaded button.
When toggled-off, all visible Parts are shown as line drawings. Shaded may be turned off
for individual Parts using the Shaded toggle in the Parts Mode Icon Bar or the Feature
Detail Editor for each type of Part. It can also be turned off for a Particular viewport in the
Viewport Special Attributes Icon under VPort Mode.
Shaded require more time to redraw than a line-mode display (the default), so you may
wish to first set up the Graphics Window as you want it, then turn on Shaded to see the
final result. It is possible to improve graphics performance when Shaded is on by also
toggling on Static Lighting (Main Menu > View > Static Lighting). To shade surfaces, a
Part’s representation on the Client must include surfaces - (2D elements). Any 1D
elements of Parts displayed with Shaded on will continue to be drawn as lines. Lighting
parameters for brightness and reflectivity are specified independently in the Feature Detail
Editor for each type of Part.
Access: View Mode Icon Bar: Shaded Toggle Icon
or: EnSight dialog > View > Shaded
or: Desktop > Shaded
(see Section 6.4, View Menu Functions and How To Set Drawing Style)
Troubleshooting Hidden Surfaces
Global Hidden Line Toggles on/off global Hidden Line (default is off) which simplifies a line-drawing display
Toggle Icon by making hidden lines—lines behind surfaces—invisible while continuing to display
other lines. Performs the same function as Main Menu > View > Hidden Line Toggle and
Problem Probable Causes Solutions
Graphics Window shows
line drawing after toggling
on Shaded.
Shaded is toggled off for some or all
individual Parts.
Toggle Shaded on for individual Parts with the
Shaded Icon in Part Mode or in the Feature
Detail Editor dialog.
There are no surfaces to shade—all
Parts have only lines.
If Parts are currently in Feature Angle
representation, change the representation. If
model only has lines, you can not display
shaded images.
Element Visibility has been toggled
off for some or all Parts.
Toggle Element Visibility on for individual
Parts in the Feature Detail Editor dialog.
Figure 8-72
View Mode - Shaded Toggle Icon ON / OFF
8.6 Quick Desktop Buttons
EnSight 9 User Manual 8-63
the Desktop > Hidden Line button.
Hidden Line can be combined with Shaded to display both shaded surfaces and the edges
of the visible surface elements. Hidden Line applies to all Parts displayed in the Graphics
Window but it can be toggled-on/off for individual Parts using the Feature Detail Editor or
the Part Mode: Hidden Line Toggle button.
To have lines hidden behind surfaces, you must have surfaces (2D elements). If the
representation of the in-front Parts consists of 1D elements, the display is the same
whether or not you have Hidden Lines mode toggled-on.
During interactive transformations, the display reverts to displaying all lines. When you
release the mouse button, the Main View display automatically resumes Hidden Line
mode (assuming it is toggled on at that time).
The Hidden line option will not be active during playback of flipbook objects animations.
Hidden Line If you toggle Hidden Line on while Shaded is already on, the lines overlay the
Overlay surfaces. EnSight will prompt you to specify a color for the displayed lines (you do not
want to use the same color as the surfaces since they then will be indistinguishable from
the surfaces). The default is the Part-color of each Part, which may be appropriate if the
surfaces are colored by a color palette instead of their Part-color.
Specify Line Toggle-on if you want to specify an overlay color. If off, the overlay line color will be the
Overlay Toggle same as the Part color.
R, G, B The red, green, and blue components of the hidden line overlay. These fields will not be
accessible unless the Specify Overlay option is on.
Mix... Click to interactively specify the constant color used for the hidden line overlay using the
Color Selector dialog. (See Section 8.1, Color Selector) and How To Change Color)
Access: View Mode Icon Bar: Global Hidden Line Toggle Icon
or: Main Menu > View > Hidden Line
or: Desktop > Hidden Line
(See How To Set Attributes)
Figure 8-73
View Mode - Global Hidden Line Toggle Icon ON / OFF
Figure 6-74
Hidden Line Overlay dialog
8.6 Quick Desktop Buttons
8-64 EnSight 9 User Manual
Highlight Selected Toggles on/off the hightlighting in the graphics window of selected parts. Parts selected in
the part list are indicated in the graphics window.
.Parts Toggle
Selection Tool Toggles on/off global visibility of the Selection Tool (default is off)
Visibility Toggle
: Main Menu > Tools > Region Selector
Cursor Tool Toggles on/off global visibility of the Cursor Tool (default is off)
Visibility Toggle
: Main Menu > Tools > Cursor
Line Tool Toggles on/off global visibility of the Line Tool (default is off)
Visibility Toggle
: Main Menu > Tools > Line
Plane Tool Toggles on/off global visibility of the Plane Tool (default is off)
Visibility Toggle
: Main Menu > Tools > Plane
Figure 8-75
View Mode - Hightlight ON / OFF
Figure 8-76
View Mode - Global Selection Tool Visibility Toggle Icon ON / OFF
Figure 8-77
View Mode - Global Cursor Tool Visibility Toggle Icon ON / OFF
Figure 8-78
View Mode - Global Line Tool Visibility Toggle Icon ON / OFF
Figure 8-79
View Mode - Global Plane Tool Visibility Toggle Icon ON / OFF
8.6 Quick Desktop Buttons
EnSight 9 User Manual 8-65
Global Axis Triad Toggles on/off the visibility (default is off) of the Global Axis triad.
The Global Axis triad shows the point and axes around which Global rotations occur.
: Main Menu > View > Axis Triad Visibility
Bounding Box This toggles on and off a 2D or 3D bounding box grid describing the upper and lower
Visibility Toggle Icon coordinates in each of the X-, Y-, and Z-directions.
The Global Axis triad shows the point and axes around which Global rotations occur.
: Main Menu > View > Bounds Visibility
Fast Display This toggles on and off the Fast Display feature. This feature reduces a model to a simple
Tog gle Icon representation prior to doing a transformation such as rotate or translate in order to speed
up the rendering. Simple representations include Box, Points, Reduced Polygon, Invisible,
and Sparse model (if running in immediate mode) which can be chosen from the Fast
Display Representation icon in Part Mode.
Fast Display allows faster model translation or rotation for large models.
: Main Menu > View > Fast Display
Record Animation
Figure 8-80
View Mode - Global Axis Triad Visibility Toggle Icon
Figure 8-81
View Mode - Global Bounding Box Visibility Toggle Icon
Figure 8-82
View Mode - Global Fast Display Toggle Icon ON / OFF
and button and pulldown
Fast Display Representation
Icon
8.6 Quick Desktop Buttons
8-66 EnSight 9 User Manual
Button
The Record Active Animation Toggle will only turn ON if you have an active animation
(flipbook, or streaming transient data via the clock icon, or animated particle traces, or
spin mode where you press F4 and drag the cursor to spin the model, or clip in auto or auto
cycle interactive mode, or an isosurface in auto or auto cycle interactive mode). This
button does not record keyframing, which has it’s own button in the Keyframe Quick
Interaction Area.
Legend Visibility
Tog gle Icon
The Legend Visibility Button will bring up the Legend Visibility Dialog which allows
control of legend visibility for all active variables. The Global Legend Visibility Flag must
be ON to see the legend, see Main Menu > View > Legend.
Display Information Click on this icon to see a message related to the most recent EnSight task that you’ve
Icon completed. This icon is red (error message), yellow (caution message) or green (OK or no
message) depending upon the result of your most recent EnSight task.
Figure 8-83
View Mode - Global Record Animation Toggle Icon ON / OFF
Figure 8-84
View Mode - Legend Visibility Button
Figure 8-85
View Mode - Global Display Information Toggle Icon States
General Description
EnSight 9 User Manual 9-1
9 Transformation Control
Included in this chapter:
General Description
Section 9.1, Global Transform
Section 9.2, Frame Definition
Section 9.3, Frame Transform
Section 9.4, Tool Transform
Section 9.5, Center Of Transform
Section 9.6, Z-Clip
Section 9.7, Look At/Look From
Section 9.8, Copy/Paste Transformation State
Section 9.9, Camera
General Description
An essential feature of postprocessing is the reorientation of the visualized model
in order to see it from a number of different vantage points. Basic transformations
include rotating (about an axis or axis origin point), translating (up, down, left,
right), and zooming (moving the model toward or away from you). When EnSight
reads in a geometry file, it assigns all model parts to the same Frame of reference:
Frame 0. Frame 0 corresponds to the model coordinate system (defined when the
model was created).
Two methods exist to transform a scene. In Global transform mode, the geometry
is transformed. In Camera transform mode, the scene does not move but instead a
camera is moved. A viewport can either use a global transform mode or can be
viewed through a camera.
Using the Frame Mode, it is possible to create additional frames and reassign parts
to them. In fact, when you copy a part, a new Frame is automatically created and
the part copy is assigned to the new Frame. (See Section 8.6 Frame Mode for
further discussion).
Just after all parts of your model have been read in, EnSight centers the model in
the Graphics Window by placing the geometric center of the model at the Look At
Point which is always located in the center of the Graphics Window. Initially -
before any Global translations are made -the origin for the Global Axis is located
at the Look At Point.
There are nine Editor Functions available within the Transformation Editor,
Global Transform, Camera, Frame, Tools, Center of Transform, Z-Clip, Look At/
Look From, Copy Transformation State, and Paste Transformation State. (The
Transformation Editor dialog is opened by clicking the Transf Edit... button)
General Description
9-2 EnSight 9 User Manual
.
Transformations performed within the Editor affect the selected viewports and/or
frames. The transforms from one viewport can be copied to another by selecting
the viewport to be copied, selecting Copy Transformation State, selecting the
viewport(s) to be modified, and selecting Paste Transformation State.
File button Pull-down Menu
File > Save View This opens the Save View dialog which allows you to save in a file the view (orientation)
of the model you have created in the Graphics Window and any Viewports by selecting
Save View and then entering the name of the file.
File > Restore View Opens the Restore View dialog which allows you to specify the name of a file in which
you previously stored a view. Clicking Okay in this dialog restores the view only in the
selected Viewports.
Figure 9-1
Transf Edit... button and Transformation Editor dialog
9.1 Global Transform
EnSight 9 User Manual 9-3
9.1 Global Transform
Transformations you make while in Part Mode (rotations, translations, zoom,
scale) are performed globally. Global transformations affect the entire model as a
unit and move all Frames, parts, and visible tools relative to the Global Axis. If the
viewport is being viewed through a camera, the transformations move the camera.
If the viewport is not viewed through a camera, the geometry is transformed. You
can make the Global Axis triad (which pinpoints the Global Axis Origin) visible
by selecting Axis Visibility > Axis - Global from View in the Main Menu or by
clicking the Global Axis Visibility Toggle Icon on the desktop.
You can also show the global frame orientation by toggling it on from Desktop >
Axis.
Most Global transformations you will make will be done interactively. Interactive
Transformations normally affect only the single, selected viewport (the one which
the mouse pointer is in when you click the left mouse button). The exception to
this is if when you toggle on Link Interactive Transforms, causing the selected
viewports in the Transformation Editor dialog to all transform together. You
choose the type of transformation you wish to perform from among the
Transformation Control Icons.
Rotate Toggle
Interactive Rotation When this toggle is on, clicking the left mouse button and dragging horizontally will rotate
the scene (including any tools that are visible) about the Global Y axis.
Clicking the left mouse button and dragging vertically will rotate the scene (including any
tools that are visible) about the Global X axis.
Holding the Control Key down and then clicking the left mouse button and dragging will
rotate the scene (including any tools that are visible) about the Global Z Axis.
Rotation Using Pressing the F1, F2, or F3 function keys will rotate the scene 45 degrees about the X, Y, or
Function Keys Z axis respectively. Holding the Control Key down while pressing these keys will rotate
the scene by -45 degrees. The mouse must be located in the graphics window for these
keys to work.
Figure 9-2
Global Axis Visibility Toggle Icon and Global Axis triad
Figure 9-3
Transformation Control Area in View or Part Mode
Rotate Toggle Icon
Zoom Toggle Icon
Transformation Editor
Button Icon
Translate Toggle Icon
Band Zoom Icon
Reset Tools and Viewport(s)
Button Icon
Selection Tool Icon
9.1 Global Transform
9-4 EnSight 9 User Manual
Precise Rotation When the Transformation Editor is open under Global Transform and the Rotate toggle is
selected, the dialog will be configured to permit precise Rotation.
You may rotate the entire scene or camera (including any tools that are visible) precisely
about the X, Y, Z, or All axes by clicking on the appropriate axis of rotation toggle and:
entering the desired rotation in (+ or -) degrees in the Increment field and pressing Return,
clicking the stepper buttons at each end of the slider bar (each click will rotate the model
by the number of degrees specified in the Increment field), or
dragging the slider in the positive or negative direction to the desired number of degrees
you wish to rotate the model (the Limit Field specifies the maximum number of
degrees of rotation performed when the slider is pulled to either end of the slider bar).
Translate Toggle
When this toggle is on, you can transform objects interactively in the Global X-Y
Interactive plane (or by holding down the Control key, in Z). Clicking the left mouse button and
Translation dragging will translate the scene (including any tools that are visible) up, down, left or
right (or forward or backward).
Precise Translation When the Transformation Editor is open under Global Transform and the Translate toggle
is selected, the dialog will be configured to permit precise Translation.
Figure 9-4
Transformation Editor for Exact Global
Rotation
Figure 9-5
Transformation Editor for Exact
Global Translation
9.1 Global Transform
EnSight 9 User Manual 9-5
You may translate the entire scene or camera (including any tools that are visible)
precisely along the X, Y, Z, or All axes by clicking on the appropriate direction toggle and:
1. entering the desired translation in (+ or -) model coordinate units in the
Increment field and pressing Return, then
2. clicking the stepper buttons at each end of the slider bar (each click will
translate the model by the number of model coordinate units specified in the
Increment field), or
3. dragging the slider in the positive or negative direction to the desired number
of model coordinate units you wish to translate the model and then releasing
the slider (the Limit Field specifies the maximum number of model
coordinate units that the model is translated when the slider is pulled to either
end of the slider bar).
Zoom Toggle
A Zoom transform while in Global Tranform Mode is really an adjustment of the Look
From Point, which you might also think of as the Camera Position. When this toggle is
on, clicking and dragging to the left or down will zoom-in, that is it will move the Look
From Point closer to the Look At Point. Clicking and dragging to the right or up will
zoom-out, that is it will move the Look From Point farther away from the Look At Point.
If you hold down the Control key while interactively zooming, you will “pan”, i.e. move
both the Look At and Look From Points in the direction of the mouse movement.
(see Section 9.7, Look At/Look From)
A Zoom transform while in Camera Mode is a movement of the camera in the camera Z
direction.
As you Zoom in or out, be aware that you may clip the model with the Front or Back Z-
Clip planes since they move in relationship to the Look From Point, always maintaining
the distance from the Look From Point specified in the Transformation Editor dialog:
Editor Function > Z-Clip.
(see Section 9.6, Z-Clip)
Precise Zooming When the Transformation Editor is open under Global Transform and the Zoom toggle is
selected, the dialog will be configured to permit precise Zoom.
You may precisely adjust the position of the Look From Point (with respect to the Look At
Point) or move the camera in the camera Z-direction by:
1. entering in the Increment Field the desired modification (+ or -) in the
Figure 9-6
Transformation Editor for Exact Global
Zoom
9.1 Global Transform
9-6 EnSight 9 User Manual
distance between the two Points (a value of .5 will increase the distance to be
equal to 1.5 the current distance, a value of 1.0 will double the current
distance), then
2. clicking the stepper buttons at each end of the slider bar (each click will
increase or decrease the distance between the two Points by the factor
specified in the Increment field), or
3. dragging the slider in the positive or negative direction to the desired
modification factor and then releasing the slider (the Limit Field specifies the
maximum modification factor for the distance between the two Points when
the slider is pulled to either end of the slider bar).
Band Zoom Button You specify the area of interest by clicking and dragging the white rectangle (rubber band)
around the area you wish to zoom in on. Immediately after you perform the Band Zoom
operation however, EnSight will switch to the regular Zoom Transformation. So, each
time you click on the Band Zoom button, EnSight allows you to perform one Band Zoom
operation and subsequent clicking/dragging actions you make in the Graphics Window
perform regular Zoom transformations.
Band Zoom combines the functionality of a zoom-in transform as described above with a
panning operation. The effect of performing a Band Zoom is that the area of interest that
you specify will be centered in and will fill the selected viewport. EnSight adjusts the
transformation center to be in the center of the area you specified.
The Transformation Editor is inactive for the Band Zoom Operation.
Scale Toggle Interactive modifications to scale are not permitted. When the Transformation Editor is
open under Global Transform and the Scale toggle is selected, the dialog will be
configured to permit precise adjustments to the scale of the scene. If in Global Transform
Mode the scene will be scaled. If in Camera Transform Mode the size of the camera glyph
will be changed.
You may precisely rescale the scene or camera in the X, Y, Z, or All axes by clicking on
the appropriate scaling direction and:
1. entering in the Increment Field the desired rescale factor and pressing Return (A
value of .5 will reduce the scale of the scene in the chosen axis by half. A value of 2
will double the scale in the chosen axis. Be aware that entering a negative number
will invert the model coordinates in the chosen axis.), then
Figure 9-7
Transformation Editor for Exact Global
Scaling
9.1 Global Transform
EnSight 9 User Manual 9-7
2. clicking the stepper buttons at each end of the slider bar (Clicking the left stepper
button will apply 1/Increment value to the scale. Clicking the right stepper button will
apply the entire Increment value to the scale), or
3. dragging the slider in the positive or negative direction to the desired scale factor and
then releasing the slider. (Dragging the slider to the leftmost position will apply 1/
Limit value to the scale. Dragging the slider to the rightmost position will apply the
entire Limit value to the scale.).
Link Interactive If you have multiple viewports you may link them together such that interactive (those
Transforms performed in the graphics window) transformation that occurs in one of the linked
viewports occurs in the other linked viewports. To link the viewports select all of the
viewports to be linked in the Which viewport(s) window and turn on the Link interactive
transforms button. An "L" will occur in the viewport outlines in the Which viewport(s)
window indicating which viewports are linked.
Tie viewport(s) A viewport may either be in Global Transform Mode or in Camera Mode. In camera
to camera mode the viewport is viewed through a camera. This pulldown makes this choice.
(see How to View a Viewport Through a Camera)
9.1 Global Transform
9-8 EnSight 9 User Manual
Reset Tools & Clicking the Reset Tools and Viewport(s) button in the Transformation Control Area will
Viewports Button open the Reset Tools and Viewport(s) dialog
By Global XYZ When enabled, clicking a Reset button will cause the Cursor, Line, Plane, or Quadric Tool
Space Toggle to reset to its initial default position.
By Selected When enabled, clicking a Reset button will cause the Cursor, Line, Plane, or Quadric Tool
Viewport Toggle to be repositioned in the center of the geometry for the selected viewport.
Reset Cursor Clicking this button will cause the Cursor Tool to reset according to the “By” toggle.
Reset Line Clicking this button will cause the Line Tool to reset according to the “By” toggle.
Reset Plane Clicking this button will cause the Plane Tool to reset according to the “By” toggle.
Reset Quadric Clicking this button will cause the currently selected Quadric Tool to reset according to
the “By” toggle.
Reset Box Clicking this button will cause the Box Tool to reset according to the “By” toggle.
Reset Select region Clicking this button will cause the selection Tool to reset according to the “By” toggle.
Reset By Selected Clicking this button will cause the transformation selected in the Transformation Control
Transform Only Area to reset for the viewports selected in the dialog’s Viewport(s) area.
Reset Rotate/ Clicking this button will cause the rotate, translate, and scale transformations to reset for
Translate/Scale the viewports selected in the dialog’s Viewport(s) area.
Reinitialize Clicking this button will cause the viewports selected in the dialog’s Viewport(s) area to
reset and recenter on the Parts which are visible in the Viewport(s).
Reset using Pressing the F5 button will change the scene in the current viewport to the standard “right
Function Keys side” view. Similarly, pressing F6 will show a “top” view and F7 a “front” view. Pressing
F8 will restore the view to the one which existed before F5, F6, or F7 were pressed. If the
Control Key is pressed at the same time as F5, F6, or F7, then the current view will be
stored to the selected button.
Figure 9-8
Reset Tools and Viewport(s) dialog
9.2 Frame Definition
EnSight 9 User Manual 9-9
9.2 Frame Definition
When Frame Definition has been chosen from the Transform/Definition button
Pulldown menu or from the Editor Function menu in the Transformation Editor
dialog, then actions you make will affect only the definition (origin and
orientation) of the selected Frame(s). Frame 0’s definition however, can not be
changed.
A Frame’s definition should be adjusted before it is transformed under Frame
Transform (as described in the previous pages). Transformations under Frame
Transform are always about the Frame’s origin and orientation. Failure to define
the proper origin position and orientation of a Frame will result in unexpected
transformation behavior.
You choose the type of transformation you wish to perform (rotate or translate)
from the Transformation Control Icons. Note that you cannot perform zoom,
scale, or reset operations under Frame Definition.
Figure 9-9
Two ways to choose Frame Definition
Define Transform
Figure 9-10
Transformation Control Area in Frame Mode
under Frame Definition
9.2 Frame Definition
9-10 EnSight 9 User Manual
Rotate Toggle
Interactive When this toggle is on, clicking the left mouse button and dragging modifies the
Modification of orientation of the selected Frame(s). Clicking on the end of the X axis will limit the
Orientation rotation to be about the Y axis. Similarly, clicking on the end of the Y axis will limit the
rotation to be about the X axis.
Precise Modification When the Transformation Editor is opened under Frame Definition and the Rotate toggle
of Orientation is selected, the dialog will be configured to permit precise rotation (modification of the
orientation) of the selected Frame(s).
You may rotate the selected Frame(s) precisely about their X, Y, Z, or All axes by clicking
on the desired axis and:
1. entering the desired rotation in (+ or -) degrees in the Increment field and pressing
Return, then
2. clicking the stepper buttons at each end of the slider bar (each click will rotate the
selected Frame(s) by the number of degrees specified in the Increment field), or
3. dragging the slider in the positive or negative direction to the desired number of
degrees you wish to rotate the selected Frame(s) (the Limit Field specifies the
maximum number of degrees of rotation performed when the slider is pulled to either
end of the slider bar).
Origin XYZ You may precisely position both the origin and the axis of a selected Frame by entering in
Orientation XYZ the desired coordinates in the Origin and Orientation Vector X Y Z fields and then
pressing Return. These fields can be used regardless of whether the Rotate or the Translate
toggle is selected.
Figure 9-11
Transformation Editor for Exact Rotation for Selected Frame(s) Only
9.2 Frame Definition
EnSight 9 User Manual 9-11
Translate Toggle
Interactive When this toggle is on, clicking the left mouse button and dragging will translate the
Translation of selected Frame(s) (other than Frame 0) up, down, left, or right within the viewport.
Origin Position Holding down the Control key while dragging will translate the selected Frame(s) forward
or backward.
Precise Translation When the Transformation Editor is open under Frame Definition and the Translate toggle
of Origin Position is selected, the dialog will be configured to permit precise Translation (modification of the
origin position) of the selected Frame(s).
You may translate the selected Frame(s) precisely along the X, Y, Z, or All axes by
clicking on the desired axis direction and:
1. entering the desired translation in (+ or -) model coordinate units in the Increment
field and pressing Return, then
2. clicking the stepper buttons at each end of the slider bar (each click will translate the
selected Frame(s) by the number of model coordinate units specified in the Increment
field), or
3. dragging the slider in the positive or negative direction to the desired number of
model coordinate units you wish to translate the selected Frame(s) and then releasing
the slider (the Limit Field specifies the maximum number of model coordinate units
that the Frame is translated when the slider is pulled to either end of the slider bar).
Figure 9-12
Transformation Editor for Exact Translation of Selected Frames
9.3 Frame Transform
9-12 EnSight 9 User Manual
9.3 Frame Transform
When Frame Transform has been chosen from the Transform/Definition button
Pulldown menu or from the Editor Function menu in the Transformation Editor
dialog, transformations you make will affect the selected Frame(s) and the Parts
assigned to them.
Note: Before any transformations are performed on a Frame, its definition should be
modified (if necessary) as described later in this section. Transformations always
occur about a Frame’s origin and orientation. Failure to define the proper
position and orientation of the Frame will result in unexpected transform
behavior. Thus, the order of dealing with things should be 1) define the frame, 2)
assign parts to the frame, 3) transform according to the frame.
You choose the type of transformation you wish to perform from among the
Transformation Control Icons in the Transformation Editor dialog. Note that
under Frame Transform, you cannot perform the zoom operation.
Figure 9-13
Two ways to choose Frame Transform
Figure 9-14
Transformation Control Area in Frame Mode under Frame Transform
9.3 Frame Transform
EnSight 9 User Manual 9-13
Rotate Toggle
Interactive Rotation When this toggle is on, clicking the left mouse button and dragging causes the selected
Frame(s) and all Parts assigned to the Frame(s) to rotate about the Origins of each Frame
Axis. Holding down the Control key while dragging will rotate the selected Frame(s) and
all assigned Parts about a Z axis perpendicular to the screen.
Precise Rotation When the Transformation Editor is open under Frame Transform and the Rotate toggle is
selected, the dialog will be configured to permit precise Rotation.
Figure 9-15
Frame axis triads for Frame 0, Frame 1, and Frame 2
Figure 9-16
Transformation Editor for Precise Rotation under Frame Transform
9.3 Frame Transform
9-14 EnSight 9 User Manual
You may rotate the selected Frame(s) and assigned Part(s) precisely about the X, Y, Z, or
All axes, as the orientation of the axes were defined when the Frame was first created by:
1. entering the desired rotation in (+ or -) degrees in the Increment field and pressing
Return, then
2. clicking the stepper buttons at each end of the slider bar (each click will rotate the
selected Frame(s) and assigned Part(s) by the number of degrees specified in the
Increment field), or
3. dragging the slider in the positive or negative direction to the desired number of
degrees you wish to rotate the selected Frame(s) and assigned Part(s) (the Limit Field
specifies the maximum number of degrees of rotation performed when the slider is
pulled to either end of the slider bar).
Translate Toggle
Interactive When this toggle is on, you can transform objects interactively in the X-Y plane (or by
Translation holding down the Control key, in Z). Clicking the left mouse button and dragging will
translate the selected Frame(s) and all assigned Part(s) up, down, left or right (or forward
or backward) within the selected viewport.
Precise Translation When the Transformation Editor is open under Frame Transform and the Translate toggle
is selected, the dialog will be configured to permit precise Translation.
You may translate the selected Frame(s) and all Parts assigned to them precisely along the
X, Y, Z, or All axes by:
1. entering the desired translation in (+ or -) model coordinate units in the Increment
field and pressing Return, then
2. clicking the stepper buttons at each end of the slider bar (each click will translate the
selected Frame(s) and assigned Part(s) by the number of model coordinate units
specified in the Increment field), or
3. dragging the slider in the positive or negative direction to the desired number of
model coordinate units you wish to translate the selected Frame(s) and assigned
Part(s) and then releasing the slider (the Limit Field specifies the maximum number
of model coordinate units that the model is translated when the slider is pulled to
either end of the slider bar).
Figure 9-17
Transformation Editor for Precise Translation under Frame Transform
9.3 Frame Transform
EnSight 9 User Manual 9-15
Scale Toggle When the Transformation Editor is open under Frame Transform and the Scale toggle is
selected, the dialog will be configured to permit precise scale.
You may precisely rescale the selected Frame(s) and assigned Part(s) in the X, Y, Z, or All
axes by:
1. entering in the Increment Field the desired rescale factor and pressing Return (A
value of .5 will reduce the scale of the selected Frame(s) and assigned Part(s) in the
chosen axis by half. A value of 2 will double the scale in the chosen axis. Be aware
that entering a negative number will invert the model coordinates in the chosen axis.),
then
2. clicking the stepper buttons at each end of the slider bar (Clicking the left stepper
button will apply 1/Increment value to the scale. Clicking the right stepper button will
apply the entire Increment value to the scale), or
3. dragging the slider in the positive or negative direction to the desired scale factor and
then releasing the slider. (Dragging the slider to the leftmost position will apply 1/
Limit value to the scale. Dragging the slider to the rightmost position will apply the
entire Limit value to the scale.)
Figure 9-18
Transformation Editor for Exact Scaling under Frame Transform
9.4 Tool Transform
9-16 EnSight 9 User Manual
9.4 Tool Transform
Transformation of the Cursor, Line, Plane, Box, Selection, and Quadric (cylinder,
sphere, cone, and revolution) Tools is covered in depth in Chapter 6.
(see Tool Positions in Section 6.5, Tools Menu Functions)
Figure 9-19
Transformation Editor Tools Selections
9.5 Center Of Transform
EnSight 9 User Manual 9-17
9.5 Center Of Transform
The point about which global transformations will occur can be specified exactly
if desired. Simply enter the model coordinates for the location of this point.
Alternatively you can click on the pick icon and pull down to ‘Pick center of
transform’, and then move the cursor over the part location (make sure the
EnSight graphics window is active) and pick using the ‘p’ key.
Alternatively, you can click on the Fit button which will reset the center of
tranform to the geometric center of the visible parts.
Figure 9-20
Transformation Editor Center of Transform dialog
Figure 9-21
Pick Center of
Transform pulldown
9.6 Z-Clip
9-18 EnSight 9 User Manual
9.6 Z-Clip
EnSight displays the scene in a three-dimensional, rectangular workspace that has
finite boundaries on all sides. Even if you rotate the model, you are always
looking into the workspace from the front side. The top-to-bottom and side-to-
side boundaries of the workspace are analogous to looking out a real window—
the window frame limits your view. In addition, since the memory of your
computer is finite, your workspace also has limits in the front-and-back direction.
The front boundary is the Front Clipping Plane (or the Near Plane) and the rear
boundary is the Back Clipping Plane (or the Far Plane). Only the portion of the
scene between these two planes is visible—the rest of the model (if any) is clipped
and therefore invisible. By convention, the front-to-back direction of the
workspace is the Z direction. Hence, the front and back clipping planes are
together called the Z-Clip Planes. Note that the Z-direction in the workspace is
always in-and-out of the screen and is completely independent of the Z-direction
of the model Frame (Frame 0).
Z-Clip Positions The position of the Z-Clip planes is specified in terms of their distance from the
Look From Point in the distance units implied by the model-geometry data. By
default, the planes automatically move as the model moves.
Initially, EnSight positions the Z-Clip Planes based on the dimensions of the
model parts read to the Client, with some extra space for you to perform
transformations. You can reposition the planes when doing so becomes necessary
or desirable.
Each viewport has its own independently adjustable set of Z-Clip Planes.
Using Z-Clip Planes You can use Z-Clip planes to deliberately clip-away portions of the model you are
not interested in, or which are getting in the way of what is of interest. For
example, you can clip-away both a front-portion and a back-portion of a model to
reduce the number of node and element labels displayed. Z-Clip Planes and
EnSight uses your workstation’s graphics hardware to perform all graphics
Hidden Surfaces manipulations, including the display of solid surfaces. The appearance of a solid
model is created by not displaying hidden surfaces—surfaces hidden behind
nearer surfaces. The algorithm used by the graphics hardware to do this task— Z-
buffering—is a simple algorithm which compares Z-values to calculate which
surfaces are closest to you and thus visible. Z-buffering is normally performed in
integer arithmetic, and on most graphics systems is confined to 24 bits of
resolution. Hence, the coordinates in Z must be mapped into this 24-bit space. To
achieve the maximum resolution possible in the 24 bits available, the graphics
hardware maps the Z-distance between the Front and Back Clipping Planes into
the 24 bits available. Hence, the larger the distance between the Z-Clip Planes, the
lower the Z resolution, which can affect image quality for solid images. If you see
problems with your solid images, move the front and back clipping planes in as
close as possible.
9.6 Z-Clip
EnSight 9 User Manual 9-19
The Transformation Editor (Z-Clip) is used to adjust the distances of the Front and Back
Clipping Planes from the Look-From Point.
Float Z Clip Planes When on, will automatically adjust the front and back Z-Clip planes away from the model.
With Transform
Minimum Z Value Minimum distance the Front Clipping Plane is allowed to float to from the Look From
Point (model coordinates). Used only if Float Z Clip Planes with Transform toggle is on.
Z-Clip Area Display Displays position of Z-Clip planes relative to model-part Z-range (shown as a rectangle)
and allows interactive positioning (by clicking and dragging) of the Z-Clip planes. If lines
are inside model rectangle, that part of model is clipped from the display. Values update in
data fields as you move sliders. Active viewports of the Main View update automatically
as you move sliders.
Plane Distance
Front Distance of the Front Clipping Plane from Look From Point in model coordinates.
Precisely specify by typing in desired distance and pressing Return. Not used if the Float
Z Clip Planes With Transform toggle is on.
Back Distance of the Back Clipping Plane from the Look From Point in model coordinates.
Precisely specify by typing in desired distance and pressing Return. Not used if the Float Z
Clip Planes With Transform toggle is on.
Redraw The Plane Position Display does not automatically update if you perform transformations
in the active viewport. Click this button to update the Plane Position Display.
Troubleshooting Z-Clip Planes
Problem Probable Causes Solutions
Main View is empty No parts located between Front
and Back Z-Clip Planes.
Adjust Z-Clip plane locations
Model degenerates to irregular
polygons or the front Z-Clip line
is locked in the model extent box
You have moved the front Z-Clip
plane too close to (or on) the
Look From Point.
Move the front Z-Clip plane
away from the Look From Point.
Figure 9-22
Transformation Editor for Z-Clip Plane Positions
9.7 Look At/Look From
9-20 EnSight 9 User Manual
9.7 Look At/Look From
Using the Transformation Editor with Editor Function > Look At/Look From
chosen, you can reposition the point from which you are observing the model (the
Look From Point) and the point at which you are looking (the Look At Point).
Both the Look-From and Look-At points are specified in the coordinates of the
Model Frame (Frame 0).
Initially, the Look At Point is at the geometric center of the initial model parts
read by the EnSight Client. The Look From Point is on the positive Z-axis at a
distance appropriate to display the model in the Main View window.
If you increased only the X position of the Look From Point, in the Graphics
Window (or selected Viewport), it would appear that the model had rotated about
the Global Y axis. In fact, the model has not rotated at all, which is shown by the
visible Global Axis triad in the figure below. What has happened is that you are
now viewing the model from a position farther to the right than previously.
Figure 9-23
Image showing view of model from negative X axis towards positive X axis
Eye Position
Model
Schematic
Plan View
X
Y
X
Z
ZG
(Look From Point)
9.7 Look At/Look From
EnSight 9 User Manual 9-21
If the Y and Z coordinates of the Look From point were made to be the same as
those of the Look At point, but the X coordinate of Look From point was specified
as a much smaller value than that of the Look At point, it would appear in the
Graphics Window (or selected Viewport) that the model had rotated 90 degrees
about the Global Y axis. As before, the model has actually not rotated at all, which
is shown by the visible Global Axis triad in the figure below. What has happened
is that you are now viewing the model from a position on the negative Global X
axis looking in the positive X direction.
The position of the Look-At and Look-From points can be interactively or
precisely specified using the Transformation Editor dialog with Editor Function >
Look At/Look From.
Figure 9-24
Image showing view of model from negative X axis towards positive X axis
Eye Position
Model
Schematic
Plan View
X
Y
X
Z
Z
G
(Look From Point)
Figure 9-25
Transformation Editor for Look At/Look From
Interactive Viewer
Area
Look At Point
Look From Point
9.7 Look At/Look From
9-22 EnSight 9 User Manual
Interactive The position of the Look At and Look From Points may be positioned interactively in the
Interactive Viewer Area by grabbing the Look At or Look From Point and dragging it to
the desired location. These interactive modifications can be made in the X-Z Plane, the X-
Y Plane, or the Y-Z Plane, depending upon which of the three toggles are selected. The
Graphics Window as well as the Look At and Look From coordinate fields updates as you
drag either Point to a new location.
Precise The position of the Look At and Look From Points may be positioned precisely by
specifying the desired coordinate values in the X Y Z fields and pressing Return.
Distance The distance in model coordinates may be precisely specified by entering the desired
value in this field and pressing Return.
Viewer Area Opens a pop-up menu for the selection of how interactive actions taken in the Viewer Area
Control Lock will be limited. Choices are:
None No locks are applied
Distance The distance between the two Points is locked
Together The distance and direction vector between the two Points is locked
Redraw Viewer This button redraws the Viewer Area. This button should be clicked after a transformation
Area Above is performed in the selected viewport while this dialog is active.
9.8 Copy/Paste Transformation State
EnSight 9 User Manual 9-23
9.8 Copy/Paste Transformation State
This transformation option can be used to apply the transformation state of one
viewport to other viewports. Useful if you want multiple viewports to have the
model oriented the same, and you did not link the viewports for transformations
before applying any transformations.
The use of this option consists of:
1. Selecting the viewport (one only) containing the transformation state desired.
(You can do this in Vport mode in the graphics screen, or under Editor Function ->
Global Transform in the Transformation Editor Dialog.)
2. Selecting Copy Transformation State under Editor Function in the
Transformation Editor dialog.
3. Selecting the one or more viewports to receive this transformation state.
(As in 1. above)
4. Selecting Paste Transformation State under Editor Function in the
Transformation Editor dialog.
9.9 Camera
9-24 EnSight 9 User Manual
9.9 Camera
If a Viewport is in Camera Mode (see “Tie Viewports to Camera” in Section 9.1,
Global Transform) the viewport will be viewed through the camera chosen. Any
global transforms that have been created for the viewport are ignored and any
transforms performed will be for the camera selected.
(also see How to View a Viewport Through a Camera)
Rotate Toggle
Interactive Rotation When this toggle is on, clicking the left mouse button and dragging horizontally in a
viewport that is being viewed through a camera will rotate the camera about the Camera Y
axis. Holding the Control Key down and then clicking the left mouse button and dragging
will rotate the camera about the Camera Z axis.
Precise Rotation When the Transformation Editor is open under Camera and the Rotate toggle is selected,
the dialog will be configured to permit precise Rotation of the selected camera(s).
You may rotate the selected camera(s) selected precisely about the X, Y, Z, or All camera
axis by clicking on the appropriate axis of rotation toggle and entering the desired rotation
in (+ or -) degrees in the Increment field and pressing Return, or by clicking the stepper
buttons at each end of the slider bar (each click will rotate the camera by the number of
degrees specified in the Increment field), or by dragging the slider in the positive or
negative drection to the desired number of degrees you wish to rotate (note: the Limit
Field specifies the maximum number of degrees of rotation performed when the slider is
pulled to either end of the slider bar).
Translate Toggle
Interactive Translation When this toggle is on, clicking the left mouse button and dragging in a viewport that is
being viewed through a camera will translate the camera left/right, or up/down (or by
holding the Control key, in/out).
Precise Translation When the Transformation Editor is open under Camera and the Translate toggle is
selected, the dialog will be configured to permit precise Translation of the selected
camera(s).
Figure 9-26
Transformation Editor for Camera Rotation
9.9 Camera
EnSight 9 User Manual 9-25
You may translate the camera(s) selected precisely about the X, Y, Z, or All camera axis
by clicking on the appropriate axis of translation toggle and entering the desired
translation in (+ or -) model coordinate units in the Increment field and pressing Return, or
by clicking the stepper buttons at each end of the slider bar (each click will translate the
camera by the number of units specified in the Increment field), or by dragging the slider
in the positive or negative direction to the desired number of units you wish to translate
(note: the Limit Field specifies the maximum number of units in model coordinates
performed when the slider is pulled to either end of the slider bar).
Zoom Toggle
Interactive Zooming When this toggle is on, clicking the left mouse button and dragging in a viewport that is
being viewed throgh a camera will move the camera in the camera z-direction. The result
is exactly the same as if you translated the camera in the z-direction using the Translate
Toggle.
Precise Zooming When the Transformation Editor is open under the Camera and the Zoom toggle is
selected, the dialog will be configured to permit precise Zoom operations of the selected
camera(s).
You may zoom the camera(s) (moving the camera in the camera z-direction) selected
precisely by entering the desired camera z-axis movement in (+ or -) model coordinate
Figure 9-27
Transformation Editor for Camera Translation
Figure 9-28
Transformation Editor for Camera Zoom
9.9 Camera
9-26 EnSight 9 User Manual
units in the Increment field and pressing Return, or by clicking the stepper buttons at each
end of the slider bar (each click will translate the camera in the z camera axis direction by
the number of units specified in the Increment field), or by dragging the slider in the
postitive or negative direction to the desired number of units you wish to move (the Limit
Field specifies the maximum number of units in model coordinates performed when the
slider is pulled to either end of the slider bar).
Scale Toggle When the Transformation Editor is open under Camera, and the Scale toggle is selected,
the dialog will be configured to permit Scale operations of the selected camera(s).
A Scale operation of a camera does not affect the transformations that are occuring in the
viewport - they affect the size of the camera glyph. You may modify the size of the camera
glyph by selecting the X, Y, Z, or All axis (they will all perform the same camera resize
operation) toggles and then entering the desired camera glyph scale factor in the
Increment field and pressing Return (values < 1 will make the camera glyph smaller while
values > 1. will make it larger), by clicking the stepper buttons at each end of the slider bar
(each click will scale the camera glyph up/down by the factor specified in the Limit field),
or dragging the slider in the postitive or negative direction to scale the camera up or down
(the Limit Field specifes the maximum scale factor performed when the slider is pulled to
either end of the slider bar).
Which camera Selects the camera(s) being modified
Figure 9-29
Transformation Editor for Camera Scale
9.9 Camera
EnSight 9 User Manual 9-27
File Restore Camera This opens the Restore camera dialog which allows you to specify the name of a file in
Position which a camera location and orientation is specified (see Chapter 11.20, Camera
Orientation File Format).
Visible Sets the visiblity of the camera(s) selected
Size Sets the size of the camera glyph for the selected camera(s). Size is in model coordinates.
Desc Description of the camera
Lens View pyramid will show the view contraints if the camera were used to view the viewport.
Classic shows a classical "lens" on the camera with no hint of the view volume.
View Angle The view angle in degrees that will be used with the camera. Small values decrease the
view angle and simulate a telephoto lens while large values increase the view angle and
simulate a wide angle lens. Current limitiation is 5 < view angle < 120
Origin Sets the camera origin
XYZ The model coordinates of the camera
Node Sets the Camera origin at a specific part node id number
Spline Set the Camera origin to lie on a defined spline
Offset If the Origin is set to Node or Spline it is possible to offset the origin from the node or
spline by a XYZ value
Focus Defines the orientation of the camera
Forward If the origin is Spline then focus is "forward" on the spline. If the origin is not Spline then
the focus is defined by the Direction(Z) fields.
Node Set the focus to a specified part and node id
XYZ Set the focus to a specific location
Figure 9-30
Transformation Editor for Camera Scale
9.9 Camera
9-28 EnSight 9 User Manual
Camera up (Y) Sets the vector defining the "tilt" of the camera. Will be adjusted if the Focus is set to
Node or XYZ to form a right handed orthogonal coordinate system.
EnSight 9 User Manual 10-1
10 Preference and Setup File Formats
This chapter provides information about the various file formats associated with
different preference options within EnSight.
Section 10.1, Window Position File Format describes the format of the file
which contains your saved window positions and sizes.
Section 10.2, Connection Information File Format describes the format of the
file which contains your auto-connection information.
Section 10.3, Palette File Formats describes the format of the color selector
palette, saved function palettes, and the default false color function palette.
Section 10.4, Default Part Colors File Format describes the file format for the
default colors for parts.
Section 10.5, Data Reader Preferences File Format describes the format for the
data reader preferences file.
Section 10.6, Data Format Extension Map File Format describes the format of
the ensight_reader_extension.map file.
Section 10.7, Parallel Rendering Configuration File points to the location
where the format of the parallel rendering configuration file is described.
Section 10.8, Resource File Format describes the format of the ensight resources
file and points to the location where samples of its use are given.
10.1 Window Position File Format
10-2 EnSight 9 User Manual
10.1 Window Position File Format
To save a window position file, click Edit >Preferences... from the Main Menu
and select the “General User Interface” option. Then select the Save Size and
Position of Main Windows button. When you select this button, the current
position of major dialog windows is saved to the
ensight9.winpos.default.XRESxYRES
file. In general, this file contains dialog position and size information, along with
information about the states of the expandable sections of dialogs.
This file is normally saved to and read from EnSight Defaults Directory (located
at %HOMEDRIVE%%HOMEPATH%\(username)\.ensight92 commonly located
at C:\Users\username\.ensight92 on Vista and Win7, C:\Documents and
Settings\yourusername\.ensight92 on older Windows, and ~/.ensight92 on Linux,
and in ~/Library/Application Support/EnSight92 on the Mac). If the file is in the
Client working directory it will be read from and saved to that directory instead.
Only major dialogs are affected; the miscellaneous pop-up dialogs are not
specified. You do not have to include every dialog and every section listed.
EnSight will process the ones provided.
Window File Format The format of the EnSight window position file is as follows:
•Line 1: Font Size
Integer specifying font size for dialog labels.
• Lines 2 to N: Dialog Title, Size, & Location
String: [IntegerXInteger+]Integer+Integer
specifying
Dialog title: Width x Height + Xloc + Yloc. The dialog title of each
window can be shortened using the * as a meta character. For example,
the string title Transformation Editor: 0+815 can be shortened to
*Transform*: 0+815. Be careful that your abbreviated name does not
match any other names, or the position of all those names will be
changed.
• Line N+1: List Separator String
Character string
—Section Expansion Information—
to separate dialog size
and location information from section-open information.
• Lines N+2 to End: Section Expansion Toggles
Dialog->Section[->Section]: open|closed
character strings indicating
whether corresponding dialog section is open or closed.
The following is an example window position file:
fontsize: 13
EnSight: 910x984+369+31
Transformation Editor: 390x381+180+368
Command: 300x0+0+682
Connect Server: 137+0
Query Dataset: 0+0
10.2 Connection Information File Format
EnSight 9 User Manual 10-3
10.2 Connection Information File Format
EnSight saves a file on the Client host system, called ensight_comm_settings
which contains the possible pre-configured server and sos connection settings.
The file is saved from the Case->Connection settings... dialog. One of the
connections is always the default for both normal server and sos connections.
The complete ASCII text file contains the following Server and Sos connection
information - there is no limit to the number of possible connections that can be
described but only one of the connections (one each for server and sos) can be
designated the default.
# EnSight Connection Settings Version 1.1
#
ENTRY
SERVER: YES
DEFAULT: YES
USE_RSH: YES
CONN_NAME: "localhost"
HOST_NAME: "localhost"
RSH_CMD: ""
LOGIN_NAME: ""
EXECUTABLE: "ensight92.server"
WORKING_DIR: ""
ENTRY
SERVER: NO
DEFAULT: YES
USE_RSH: YES
CONN_NAME: "localhost"
HOST_NAME: "localhost"
RSH_CMD: ""
LOGIN_NAME: ""
EXECUTABLE: "ensight92.sos"
WORKING_DIR: ""
ENTRY
SERVER: YES
DEFAULT: NO
USE_RSH: YES
CONN_NAME: "mydebug"
HOST_NAME: "localhost"
RSH_CMD: ""
LOGIN_NAME: ""
EXECUTABLE: "/home/metoo/ang/ensight_dev/ensight_92/server/ensight9.server"
WORKING_DIR: ""
Each new connection is designated by the ENTRY key word and is followed by
keywords with appropriate system information. The system variables are shown
in the table below.
Keyword Description
SERVER
YES if this connection is a standard server.
NO if the connection is for SOS.
10.2 Connection Information File Format
10-4 EnSight 9 User Manual
DEFAULT
YES if this is the default connection.
NO otherwise.
USE_RSH
YES if the server will be started with the standard rsh command.
NO otherwise. (see RSH_CMD below)
RSH_CMD
If USE_RSH is NO, then this describes which command to use in it’s
stead.
CONN_NAME
The name of the connection as it will appear in the Connection Settings
dialog list.
HOST_NAME
The id or hostname of the system where the server/sos will be
executed. "localhost" is defined to mean the same machine that
the client is running on.
LOGIN_NAME
Your alternate login id on the server/sos host system. This default to
your Client host system login id.
(This option is only applicable to distributed connections).
EXECUTABLE
The complete path to the executable program to start for the server/sos.
This default to ensight92.server or ensight92.sos (which must be in your
defined UNIX search path). This path is normally defined in your .cshrc
or .login file in your home directory (for C shell users).
WORKING_DIR
The directory where the server/sos will be started (the file browser will
see the files in this directory without having to modify the path).
Keyword Description
10.3 Palette File Formats
EnSight 9 User Manual 10-5
10.3 Palette File Formats
The following palette formats are discussed in this section:
Color Selector Palette File Format
Function Palette File Format
Predefined Function Palette
Default False Color Map File Format
Color Selector Palette File Format
This file defines the colors that are used with the EnSight Color Selector. If
EnSight does not find a definition file it uses a default palette. If, however, it does
find a file (located at %HOMEDRIVE%%HOMEPATH%\(username)\.ensight92
commonly located at C:\Users\username\.ensight92 on Vista and Win7,
C:\Documents and Settings\yourusername\.ensight92 on older Windows, and ~/
.ensight92 on Linux, and in ~/Library/Application Support/EnSight92 on the
Mac) at start-up it will read your colors and show them in the Color Selector.
The format of the
ensight.colpal.default
file is as follows:
• Line 1: “Version 6.0” (Note, this need not match EnSight’s version
number.)
• Line 2 through Line 37
Three integers, one for each color (red, green, blue), ranging from
0 (no intensity) to 255 (full intensity).
Function Palette File Format
A function palette file is saved using the Function Editor when you save (one or
more) function color palettes. The following is an example function palette file:
palette ‘velocity’
variable_type vector
variable ‘velocity’
type continuous
limit_fringes no
scale linear
number_of_levels 5
colors
0.000000 0.000000 1.000000
0.000000 1.000000 1.000000
0.000000 1.000000 0.000000
1.000000 1.000000 0.000000
1.000000 0.000000 0.000000
values
0.100341
0.301022
0.501704
0.702385
0.903067
10.3 Predefined Function Palette
10-6 EnSight 9 User Manual
Many lines of the file consists of a descriptive keyword followed by an
appropriate value. In other areas the keyword is used to start a block of
information. The values are all free format real or integer numbers or string
constants. The palette name must have single quotes around each name. The string
keywords and constant values must match exactly.
Predefined Function Palette
When EnSight starts, it looks for user defined function color palettes located
under $CEI_HOME/ensight92/site_preferences/palettes and in the
palettes subdirectory under the user’s EnSight Defaults Directory (located at
%HOMEDRIVE%%HOMEPATH%\(username)\.ensight92 commonly located at
C:\Users\username\.ensight92 on Vista and Win7, C:\Documents and
Settings\username\.ensight92 on older Windows, and ~/.ensight92 on Linux, and
in ~/Library/Application Support/EnSight92 on the Mac). These files must be
named palette_name.cpal, where the palette_name is the name of the color
palette in the Simple Interface area of the function dialog.
The format of the .cpal file is as follows:
• Line 1: The string “number_of_levels x”, where x is an integer.
• Line 2: The string “colors”
• Line 3 through x + 2: Three float values in range 0.0 to 1.0, indicating
red, green, and blue color components.
An example color palette file:
number_of_levels 5
colors
Keyword Description
palette
Name of the palette when one name is present. Name of the
subpalette when two names are present (ex. palette ‘velocity’
’xcomp’)
variable
Name of the variable used with the palette.
variable_type
Type of the variable, scalar or vector.
type
Type of the palette, continuous or banded.
limit_fringes
Indicates if the palette is set up for limiting fringe. If it is, the
options are
by_Part
or
by_invisible
.
scale
Indicates whether the palette scale is linear, logarithmic, or
quadratic.
number_of_levels Indicates the number of levels defined for the palette.
colors Indicates the start of a block of RGB triplets, 1 triplet per line.
There will be the same number of lines as there are levels.
values Indicates the start of a block of level values. There will be the
same number of values as there are levels.
10.3 Default False Color Map File Format
EnSight 9 User Manual 10-7
.008 0. 0.
.5 0. 0.
1. 0. 0.
1. 1. 0.
1. 0. 1.
Default False Color Map File Format
This file defines the default false-color map color range that is assigned by
EnSight to each palette when variables are activated. If EnSight does not find a
definition file, it uses an internal default list. If, however, EnSight does find a file
at start-up, EnSight will read your colors as the default color palette colors. Note
the file must be called
ensight.false_color.default
and be located in the EnSight
Defaults Directory (located at
%HOMEDRIVE%%HOMEPATH%\(username)\.ensight92 commonly located at
C:\Users\username\.ensight92 on Vista and Win7, C:\Documents and
Settings\yourusername\.ensight92 on older Windows, and ~/.ensight92 on Linux,
and in ~/Library/Application Support/EnSight92 on the Mac) or be located in
$CEI_HOME/ensight92/site_preferences
).
The format of the
ensight.false_color.default
file is as follows:
• Line 1: "Version 6.0" (Note, this need not match EnSight’s version
number.)
• Line 2: One integer, the number default false color map colors
• Line 3 on: three floats (each ranging between 0. and 1.), the (red, green,
blue) color triplet of each color, each listed on separate lines.
An example default file can be found in:
$CEI_HOME/ensight92/site_preferences/ensight.false_color.default
on your client system.
The following is an example default false color map file with 5 colors; blue, cyan,
green, yellow, and red:
Version 6.0
5
0. 0. 1.
0. 1. 1.
0. 1. 0.
1. 1. 0.
1. 0. 0.
10.4 Default Part Colors File Format
10-8 EnSight 9 User Manual
10.4 Default Part Colors File Format
This file defines default Constant Colors that are assigned (and cycled through) by
EnSight when parts are built. If EnSight does not find a definition file it uses an
internal default list. If, however, EnSight does find a file (the file must be called
ensight.part.colors.default
and be located in the EnSight Defaults Directory
(located at %HOMEDRIVE%%HOMEPATH%\(username)\.ensight92
commonly located at C:\Users\username\.ensight92 on Vista and Win7,
C:\Documents and Settings\yourusername\.ensight92 on older Windows, and ~/
.ensight92 on Linux, and in ~/Library/Application Support/EnSight92 on the
Mac) or be located in
$CEI_HOME/ensight92/site_preferences
) at start-up, EnSight
will read your colors as the default Constant Colors.
The format of the
ensight.part.colors.default
file is as follows:
• Line 1: "Version 6.0" (Note, this need not match EnSight’s version
number.)
• Line 2: One integer, the number of default part colors
• Line 3 on: three floats (each ranging between 0. and 1.), the (red, green,
blue) color triplet of each color, each listed on separate lines.
An example default file can be found in:
$CEI_HOME/ensight92/site_preferences/ensight.part.colors.default
on your client system.
The following is an example default part colors file with 6 colors (blue, cyan,
green, yellow, red, and magenta):
Version 6.0
6
0. 0. 1.
0. 1. 1.
0. 1. 0.
1. 1. 0.
1. 0. 0.
1. 0. 1.
10.5 Data Reader Preferences File Format
EnSight 9 User Manual 10-9
10.5 Data Reader Preferences File Format
This is an optional file that will be created when the user saves preferences under
Main Menu > Edit > Preferences... Data. It can contain two basic things: 1) the
reader name desired to be the default Format in the Data Reader dialog, and/or 2)
any reader names that the user does NOT want to appear in the Format list. The
default data Format will be “Case” unless this file exists and overrides it. Also, by
default, all readers will appear in the list of available reader Formats unless
specifically set to be removed in this file. The file must be called
ensight_reader_prefs.def
and be located in the EnSight Defaults Directory (located
at %HOMEDRIVE%%HOMEPATH%\(username)\.ensight92 commonly located
at C:\Users\username\.ensight92 on Vista and Win7, C:\Documents and
Settings\yourusername\.ensight92 on older Windows, and ~/.ensight92 on Linux,
and in ~/Library/Application Support/EnSight92 on the Mac) or be located in
$CEI_HOME/ensight92/site_preferences.
The format of the
ensight_readers_prefs.def
file is as follows:
• Line 1: "Version 7.1" (Note, this need not match EnSight’s version
number.)
• Line 2: “select readername” Where readername is the name of the
reader that will be used as the default
• Line 3 on: “remove readername” Where readername is the name of a
reader that will NOT be shown in the data reader Format list.
The following is an example data reader preferences file which sets EnSight 5 as
the default Format, and causes the Movie, MPGS 4.1, and the SCRYU readers to
NOT be available in the list.
Version 7.1
select Ensight 5
remove Movie
remove MPGS 4.1
remove SCRYU
10.6 Data Format Extension Map File Format
10-10 EnSight 9 User Manual
10.6 Data Format Extension Map File Format
The ensight_reader_extension.map file is used to associate file suffixes with a
reader within EnSight. This association allows EnSight to use the Quick load
method of reading data. See Section 2.1, Reader Basics or How To Read Data
A default version of this file is provided with the EnSight distribution and is
placed in the
$CEI_HOME/ensight92/site_preferences
directory. A user can override
this file by placing his own version of the file in his EnSight Defaults Directory
(located at %HOMEDRIVE%%HOMEPATH%\(username)\.ensight92
commonly located at C:\Users\username\.ensight92 on Vista and Win7,
C:\Documents and Settings\yourusername\.ensight92 on older Windows, and ~/
.ensight92 on Linux, and in ~/Library/Application Support/EnSight92 on the
Mac).
A description of the format is contained in the file itself. A portion of the file is
given below (it contains only a few file formats, but it should be easy to see how
this file is formatted.
EnSight file extension to format association file
Version 1.0
#
# Comment lines start with a #
#
#
# The format of this file is as follows:
#
# READER_NAME: reader name as it appears in the Format chooser in the
# EnSight Data Reader dialog
#
# NUM_FILE_1: the number of file_1_ext lines to follow
#
# FILE_1_EXT: the extension that follows a file name minus the “.”, i.e.,
# “geo”, “case”, etc.
# There should be one definition after the :. Multiple
# FILE_1_EXT lines may exist
#
# NUM_FILE_2: the number of file_2_ext lines to follow
#
# FILE_2_EXT: the extension of a second file that will act as the result
# file. This is only used for formats that require two file
# names. As with FILE_1_EXT, there may be multiple
# FILE_2_EXT lines.
#
# ELEMENT_REP: A key word that describes how the parts will be loaded
# (all parts will be loaded the same way).
# One of the following:
# “3D border, 2D full”
# “3D feature, 2D full”
# “3D nonvisual, 2D full”
# “Border”
# “Feature angle”
# “Bounding Box”
# “Full”
# “Non Visual”
10.6 Data Format Extension Map File Format
EnSight 9 User Manual 10-11
# If option is not set then 3D border, 2D full is used
#
# READ_BEFORE: (optional) The name of a command file to play before reading
# the file(s)
#
# READ_AFTER: (optional) The name of a command file to read after loading
# the parts
# Definition for Case files
READER_NAME: Case
NUM_FILE_1: 2
FILE_1_EXT: case
FILE_1_EXT: encas
ELEMENT_REP: 3D feature, 2D full
# Definition for EnSight5 files
READER_NAME: EnSight 5
NUM_FILE_1: 2
FILE_1_EXT: geo
FILE_1_EXT: GEOM
NUM_FILE_2: 2
FILE_2_EXT: res
FILE_2_EXT: RESULTS
ELEMENT_REP: 3D feature, 2D full
# Definition for STL files
READER_NAME: STL
NUM_FILE_1: 4
FILE_1_EXT: stl
FILE_1_EXT: STL
FILE_1_EXT: xct
FILE_1_EXT: XCT
ELEMENT_REP: 3D feature, 2D full
# Definition for Dytran files
READER_NAME: MSC/Dytran
NUM_FILE_1: 2
FILE_1_EXT: dat
FILE_1_EXT: ARC
ELEMENT_REP: 3D border, 2D full
READ_AFTER: ~/mylinuxpath/read_after_dytran.enc
#READ_AFTER: C:\mywindowspath\read_after_dytran.enc
10.7 Parallel Rendering Configuration File
10-12 EnSight 9 User Manual
10.7 Parallel Rendering Configuration File
The format of the configuration file for parallel rendering is described in detail in
Section 13, Parallel and Distributed Rendering.
10.8 Resource File Format
EnSight 9 User Manual 10-13
10.8 Resource File Format
Resources are used to specify which computers are used for running the various
EnSight components, specifically the Server (ensight92.server), the SOS
(ensight92.sos), the CollabHub (ensight92.collabhub), and the distributed
renderers (ensight92.client). If you are running a single client and server on a
single computer, you may skip this document.
Resources are an alternative way to specify these computers compared to SOS
case files, PRDIST files, Connection Settings, and command line options. While
these other ways are still valid and take precedence for backwards compatibility,
resources greatly simplify specifying computers in a dynamic network
environment. For example, SOS Case files and PRDIST files no longer need to be
edited to reflect the current node allocation from cluster batch schedulers.
Resources coupled with native reader support in the SOS even make SOS Case
files unnecessary.
Resources can be specified via command line arguments and environment
variables. Resources can be specified multiple times; precedence rules determine
which resources ultimately get used. This allows sites to specify defaults while
allowing those to be overridden.
Resources can be specified via a resource file. Here is an example of a resource
file:
#!CEIResourceFile 1.0
SOS:
host: localhost
SERVER:
prologue: “setup_job”
epilogue: “cleanup_job”
host: server1
host: server2
host: server3
host: server4
COLLABHUB:
host: pc0
RENDERER:
prologue: “setenv DISPLAY :0.0”
# epilogue:
host: pc1
host: pc2
host: pc2
Resource files must begin with the ‘#!CEIResourceFile 1.0’ line.
Afterwards, they may have up to four optional sections: SOS, SERVER,
COLLABHUB, and RENDERER. Each of the four sections contains one or more
‘host: hostname’ lines. These lines specify which computers to use for the
corresponding section. ‘hostname’ must be an Internet/intranet routable host
name or IP address. A given host name may appear on multiple lines within a
section or in different sections. If it appears multiple times within a section, then
that host will run multiple instances of the corresponding EnSight component if
needed.
10.8 Resource File Format
10-14 EnSight 9 User Manual
Additionally, each section may have an optional ‘prologue: cmd’ line and/or
an optional ‘epilogue: cmd’ line. These specify a command to execute on
each host before and after the corresponding EnSight component. Note that the
cmd string must be quoted, and may include appropriate job backgrounding
symbols (e.g. ‘&’).
For examples, see How To Use Resource Management.
EnSight 9 User Manual 11-1
11 EnSight Data Formats
This section describes the format for all readable and writable files in EnSight
which you may need access to. The formats described are only for those files that
are specific to EnSight. We do not describe data formats not developed by CEI
(for example, data formats for various analysis codes). For information about
these formats, consult the applicable creator.
Note: If you are using this documentation to produce your own data translator, please make sure
that you follow the instructions exactly as specified. In many cases, EnSight reads data in
blocks to improve performance. If the format is not followed, the calculations of how much
to read for a block will be thrown off. EnSight does little in the way of error checking data
files when they are read. In this respect, EnSight sacrifices robustness for performance.
EnSight Formats
EnSight has three evolutionary file formats listed below from oldest to most
recent:
EnSight 5
- legacy format
- supported unstructured meshes only
- used a global nodal array
- used per node variables only
EnSight 6
- support for case file
- support for both unstructured and structured meshes
- uses a global nodal array
- use per node or per element variables
EnSight Case Gold (recommended format)
- is much faster than EnSight 6 and is more memory efficient (noticeable if you
have a large number of parts or for larger models)
- uses connectivity which can be separate from the node ids
- uses a part basis rather than a global array
Format illustration
Jump to Detailed Description of Formats
Ensight Case Gold EnSight 6
part 1
node coordinates
element connectivity by local node index
part 2
node coordinates
element connectivity by local node index
...
part n
node coordinates
element connectivity by local node index
global nodal ids & coordinates
part 1
element connectivity by global node ids
part 2
element connectivity by global node ids
...
part n
element connectivity by global node ids
11-2 EnSight 9 User Manual
Saving Gold from EnSight
EnSight can export your model into Case Gold format (either ASCII or Binary).
Activate the variables of interest, select the parts in the main part window and
then go to the File menu: File->Save->Geometric Entities.
Tool to Check EnSight Format
There is another advantage to using Case Gold format in that there is a debugging
tool called ens_checker that can help you find mistakes in files as you write a
translator or exporter. Just type ens_checker file.case and the code will echo it’s
progress and the problems it finds to the console. This tool will also check
EnSight 6 format.
Maximums to be Aware of:
There are some maximums that you should be aware of when producing EnSight
data:
Maximum number of parts allowed 65000
Maximum number of variables allowed 10000
Maximum file name length 1024
Maximum part name length visible in the GUI 49
Maximum variable name length visible in the GUI 49
EnSight 9 User Manual 11-3
Detailed Description of Formats
Section 11.1, EnSight Gold Casefile Format describes in detail the EnSight Gold case,
geometry, and variable file formats. This format provides the best performance for
getting data into EnSight. It is readable by both EnSight and EnSight Gold.
Section 11.2, EnSight6 Casefile Format describes in detail the EnSight6 case,
geometry, and variable file formats. This format is still supported, but is a legacy
format. It has most, but not all, of the options of the gold format - and is somewhat
lower in performance.
Section 11.3, EnSight5 Format describes in detail the EnSight5 geometry and variable
file formats. This format is still supported, but is a legacy format. It is for
unstructured data only.
Section 11.4, FAST UNSTRUCTURED Results File Format describes the
“executive” .res file that can be used with FAST unstructured solution and function
files.
Section 11.5, FLUENT UNIVERSAL Results File Format describes the “executive”
.res file used with FLUENT Universal files for transient models.
Section 11.6, Movie.BYU Results File Format describes the “executive” .res file that
can be used with Movie.BYU files.
Section 11.7, PLOT3D Results File Format describes the “executive” .res file that can
be used with PLOT3D solution and function files.
Section 11.8, Server-of-Server Casefile Format describes the format of the casefile
used with the server-of-server capability of EnSight.
Section 11.9, Periodic Matchfile Format describes the file format used to explicitly
specify which nodes match from one periodic instance to the next.
Section 11.10, XY Plot Data Format describes the XY plot dat file format.
Section 11.11, EnSight Boundary File Format describes the format of the file which
can define unstructured boundaries of structured data.
Section 11.12, EnSight Particle Emitter File Format describes the format of the
optional file containing particle trace emitter time and location information.
Section 11.13, EnSight Rigid Body File Format describes the format of the optional
executive file that relates EnSight part names or numbers to rigid body
transformations.
Section 11.14, Euler Parameter File Format describes the format of a file that contains
translations and euler parameters for rigid body transformations.
Section 11.15, Vector Glyph File Format describes the format of the optional file
containing vector information such as forces or moments.
Section 11.16, Constant Variables File Format describes the format of the constant
variable file
Section 11.17, Point Part File Format describes the point part format.
Section 11.18, Spline Control Point File Format describes the spline file format.
Section 11.19, EnSight Embedded Python (EEP) File Format describes a portable
delivery mechanism for data and scripts.
Section 11.20, Camera Orientation File Format describes the file format for
positioning and orienting the Camera.
11.1 EnSight Gold Casefile Format
11-4 EnSight 9 User Manual
11.1 EnSight Gold Casefile Format
Include in this section:
EnSight Gold General Description
EnSight Gold Geometry File Format
EnSight Gold Case File Format
EnSight Gold Wild Card Name Specification
EnSight Gold Variable File Format
EnSight Gold Per_Node Variable File Format
EnSight Gold Per_Element Variable File Format
EnSight Gold Undefined Variable Values Format
EnSight Gold Partial Variable Values Format
EnSight Gold Measured/Particle File Format
EnSight Gold Material Files Format
EnSight Gold General Description
EnSight Gold data consists of the following files:
• Case (required) (points to all other needed files including model
geometry, variables, and possibly measured geometry and variables - as
well as optionally a periodic match file, a structured boundary file, and a
rigid body file)
EnSight makes no assumptions regarding the physical significance of the scalar,
vector, 2nd order symmetric tensor, and complex variables. These files can be
from any discipline. For example, the scalar file can include such things as
pressure, temperature, and stress. The vector file can be velocity, displacement, or
any other vector data, etc.
In addition, EnSight Gold format handles "undefined" as well as "partial" variable
values. (See appropriate subsections later in this chapter for details.)
All variable results for EnSight Gold format are contained in disk files—one
variable per file. Additionally, if there are multiple time steps, there must either be
a set of disk files for each time step (transient multiple-file format), or all time
steps of a particular variable or geometry in one disk file each (transient single-file
format).
Sources of EnSight Gold format data include the following:
• Data that can be translated to conform to the EnSight Gold data format
(including being written from EnSight itself using the Save Geometric
Entities option under File->Save)
• Data that originates from one of the translators supplied with the EnSight
application
The EnSight Gold format supports an unstructured defined element set as shown
11.1 EnSight Gold General Description
EnSight 9 User Manual 11-5
in the figure on a following page. Unstructured data must be defined in this
element set. Elements that do not conform to this set must either be subdivided or
discarded.
The EnSight Gold format also supports the same structured block data format as
EnSight6, which is very similar to the PLOT3D format. Note that for this format,
the standard order of nodes is such that I’s advance quickest, followed by J’s, and
then K’s.
A given EnSight Gold model may have either unstructured data, structured data,
or a mixture of both.
This format is somewhat similar to the EnSight6 format, but differs enough to
allow for more efficient reading of the data. It is intended for 3D, binary, big data
models.
Note: While an ASCII format is available, it is not intended for use with large
models and is in fact subject to limitations such as integer lengths of 10 digits.
Use the binary format if your model will exceed 10 digits for node or element
numbers or labels.
Starting with version 7, EnSight writes out all model and variable files in EnSight
Gold format. Thus, it can be read by all version 7 or 8 EnSight licenses (i.e.
standard, gold, and custom licenses).
ens_checker A program is supplied with EnSight which attempts to verify the integrity of the
format of EnSight 6 and EnSight Gold files. If you are producing EnSight
formatted data, this program can be very helpful, especially in your development
stage, in making sure that you are adhering to the published format. It makes no
attempt to verify the validity of floating point values, such as coordinates, variable
values, etc. This program takes a casefile as input. Thus, it will check the format
of the casefile, and all associated geometry and variable files referenced in the
casefile. See How To Use ens_checker.
11.1 EnSight Gold General Description
11-6 EnSight 9 User Manual
Supported EnSight Gold Elements
The elements that are supported by the EnSight Gold format are:
eight node hexahedron twenty node hexahedron
six node pentahedron
9
10
7
8
12123
12
3
12
3
4
56
1
2
3
4
12
3
45 6
7
8
12
3
4
5
6
1
2
3
4
5
6
910
7
8
1
2
3
4
56
11
12
13 14
15
16
17 18
19
20
two node bar three node bar
three node triangle six node triangle four node quadrangle eight node quadrangle
four node tetrahedron ten node tetrahedron
1
point
12
3
4
1
4
8
2
3
5
6
7
5 node pyramid 13 node pyramid
11
22
33
44
55
6
7
8
9
10
11
12
13
fifteen node pentahedron (wedge)
1
2
3
4
5
6
78
9
10 11
12
13
14
15
(wedge)
Figure 11-1
Supported EnSight Gold Elements
1.
.
.
n
2
n-sided polygon
convex n-faced polyhedron
(described by n, n-sided faces)
11.1 EnSight Gold Case File Format
EnSight 9 User Manual 11-7
EnSight Gold Case File Format
The Case file is an ASCII free format file that contains all the file and name
information for accessing model (and measured) geometry, variable, and time
information. It is comprised of five sections (FORMAT, GEOMETRY, VARIABLE,
TIME, FILE) as described below:
Notes: If the case file name contains spaces it should load fine in the browser, but from
the command line it must be in quotes (e.g. ensight92 -case “file name.case”) or
on linux or mac can also use the backslash character (“\”) as follows:
ensight92 -case file\ name.case).
All lines in the Case file are limited to 1024 characters.
The titles of each section must be in all capital letters.
Anything preceded by a “#” denotes a comment and is ignored. Comments may
append information lines or be placed on their own lines.
Information following “:” may be separated by white spaces or tabs.
Specifications encased in “[]” are optional, as indicated.
Format Section This is a required section which specifies the type of data to be read.
Usage:
FORMAT
type: ensight gold
Geometry Section This is a required section which specifies the geometry information for the model
(as well as measured geometry if present, periodic match file (see Section 11.9,
Periodic Matchfile Format) if present, boundary file (see Section 11.11, EnSight
Boundary File Format) if present, rigid body file (see Section 11.13, EnSight
Rigid Body File Format) if present, and vector glyphs file (see Section 11.15,
Vector Glyph File Format) if present).
Usage:
GEOMETRY
model: [ts] [fs] filename [change_coords_only [cstep]]
measured: [ts] [fs] filename [change_coords_only]
match: filename [add_ghosts]
boundary: filename
rigid_body: filename
Vector_glyphs: filename
where: ts = time set number as specified in TIME section. This is optional.
fs = corresponding file set number as specified in FILE section below.
(Note, if you specify fs, then ts is no longer optional and must also be
specified.)
filename = The filename of the appropriate file.
-> Model or measured filenames for a static geometry case (or single file
format), as well as match, boundary, and rigid_body filenames will not
contain “*” wildcards.
-> Model or measured filenames for a changing geometry case (unless single
file format) will contain “*” wildcards.
-> Model filenames for the structured block continuation option will contain
“%” wildcards.
-> filenames with spaces in them need to be enclosed in quotes.
change_coords_only = The option to indicate that the changing geometry (as
indicated by wildcards in the filename) is coords only.
Otherwise, changing geometry connectivity will be
11.1 EnSight Gold Case File Format
11-8 EnSight 9 User Manual
assumed.
cstep = the zero-based time step which contains the connectivity - only used for
change_coords_only option. This is an optional parameter. If all time steps
have the connectivity, then this is not needed and can be omitted. But if used,
the other time steps do not need to contain the connectivity - the parts need
only contain the coordinates, which can save considerably on file size.
add_ghostsEnSight Case Gold allows the optional [add_ghosts] parameter after the
filename which will produce ghost cells across the match file boundary which
will provide continuity for variable calculations across the boundary, and for
computational symmetry/mirroring, etc. Only use the add_ghosts option if
you can afford the penalty of the additonal ghost cells and you need the
computational continuity that they provide.
Note: It is possible to use EnSight 5 measured data with a casefile. This is done by using
the Measured: line in the GEOMETRY section without any of the optional
portions, and with filename being an EnSight 5 measured results file (which
typically has a .mea extension). Also, since such information is contained in the
.mea file, do not use any measured variable lines in the VARIABLE section.
Variable Section This is an optional section which specifies the files and names of the variables
(max number of variables is 300). Constant variable values can also be set in this
section.
Usage:
VARIABLE
constant per case: [ts] description
const_value(s)
constant per case file: [ts] description
cvfilename
scalar per node: [ts] [fs] description filename
vector per node: [ts] [fs] description filename
tensor symm per node: [ts] [fs] description filename
tensor asym per node: [ts] [fs] description filename
scalar per element: [ts] [fs] description filename
vector per element: [ts] [fs] description filename
tensor symm per element: [ts] [fs] description filename
tensor asym per element: [ts] [fs] description filename
scalar per measured node: [ts] [fs] description filename
vector per measured node: [ts] [fs] description filename
complex scalar per node: [ts] [fs] description
Re_fn Im_fn freq
complex vector per node: [ts] [fs] description
Re_fn Im_fn freq
complex scalar per element: [ts] [fs] description
Re_fn Im_fn freq
complex vector per element: [ts] [fs] description
Re_fn Im_fn freq
where:
ts
= The corresponding time set number (or index) as specified in TIME
section below. This is only required for transient constants and
variables.
fs
= The corresponding file set number (or index) as specified in FILE
section below.
(Note, if you specify fs, then ts is no longer optional and must
also be specified.)
description = The variable (GUI) name (ex. Pressure, Velocity, etc.)If the
variable name contains a space, it must be in quotes, and will be
renamed in EnSight, replacing the spaces with an underscore.
const_value(s) = The constant value. If constants change over time, then ns (see
TIME section below) constant values of ts.
11.1 EnSight Gold Case File Format
EnSight 9 User Manual 11-9
cv
filename
= The filename containing the constant values, one value per time step.
filename
= The filename of the variable file. Note: only transient filenames
contain “*” wildcards. If the filename contains a space, it
must be in quotes.
Re_fn
= The filename for the file containing the real values of the complex
variable.
Im_fn
= The filename for the file containing the imaginary values of the
complex variable.
freq
= The corresponding harmonic frequency of the complex variable.
For complex variables where harmonic frequency is undefined,
simply use the text string: UNDEFINED.
Note: As many variable description lines as needed may be used.
Note: Variable descriptions have the following restrictions:
The maximum variable name length is documented at the beginning of this
chapter.
Duplicate variable descriptions are not allowed.
Leading and trailing white space will be eliminated.
Variable descriptions must not start with a numeric digit.
Variable descriptions must not contain any of the following reserved characters:
( [ + @ ! * $ : ,
) ] - space # ^ / .
Note: scalar or vector per measured node is necessary for EnSight Gold or EnSight 6
measured format data. For EnSight 5 format measured data, only the results file
(typically suffix .mea) is necessary in the geometry section because the EnSight 5
results file describes the geometry and variable files.
Time Section This is an optional section for steady state cases, but is required for transient
cases. It contains time set information. Shown below is information for one time
set. Multiple time sets (up to 16) may be specified for measured data as shown in
Case File Example 3 below.
Usage:
TIME
time set: ts [description]
number of steps: ns
filename start number: fs
filename increment: fi
time values: time_1 time_2 .... time_ns
or
TIME
time set: ts [description]
number of steps: ns
filename numbers: fn
time values: time_1 time_2 .... time_ns
or
TIME
time set: ts [description]
number of steps: ns
11.1 EnSight Gold Case File Format
11-10 EnSight 9 User Manual
filename numbers file: fnfilename
time values file: tvfilename
where:
ts
= timeset number. This is the number referenced in the GEOMETRY
and VARIABLE sections.
description
= optional timeset description which will be shown in user
interface.
ns
= number of transient steps
fs
= the number to replace the “*” wildcards in the filenames, for the first step
fi
= the increment to fs for subsequent steps
time
= the actual time values for each step, each of which must be separated
by a white space and which may continue on the next line if needed
fn
= a list of numbers or indices, to replace the “*” wildcards in the filenames.
fnfilename
= name of file containing ns filename numbers (fn).
tvfilename
= name of file containing the time values(time_1 ... time_ns).
File Section This section is optional for expressing a transient case with single-file formats.
This section contains single-file set information. This information specifies the
number of time steps in each file of each data entity, i.e. each geometry and each
variable (model and/or measured). Each data entity’s corresponding file set might
have multiple continuation files due to system file size limit, i.e. ~2 GB for 32-bit
and ~4 TB for 64-bit architectures. Each file set corresponds to one and only
one time set, but a time set may be referenced by many file sets. The following
information may be specified in each file set. For file sets where all of the time set
data exceeds the maximum file size limit of the system, both
filename index
and
number of steps
are repeated within the file set definition for each continuation
file required. Otherwise
filename index
may be omitted if there is only one file.
File set information is shown in Case File Example 4 below.
Usage:
FILE
file set: fs
filename index: fi # Note: only used when data continues in other files
number of steps: ns
where:
fs
= file set number. This is the number referenced in the GEOMETRY
and VARIABLE sections above.
ns
= number of transient steps
fi
= file index number in the file name (replaces “*” in the filenames)
Material Section This is an optional section for material set information in the material interface
part case. For more details see the description in the Material Parts Create/Update
Feature Detail Editor, or the MatSpecies calculator function in 4.3. Shown below
is the format for one material set. (Note, currently only one material set is
supported.) An example of this material set information is appended below as
EnSight Gold Material Files Format.
Usage:
MATERIAL
material set number: ms [description]
material id count: nm
material id numbers: matno_1 matno_2 ... matno_nm
material id names: matdesc_1 mat_2 ... mat_nm
11.1 EnSight Gold Case File Format
EnSight 9 User Manual 11-11
# Either sparse file specifications:
material id per element [ts] [fs] filename
material mixed ids: [ts] [fs] filename
material mixed values: [ts] [fs] filename
# optional species parameters with sparse file specifications only
species id count:ns
species id numbers: spno_1 spno_2 … spno_ns
species id names: spdesc_1 spdesc_2 … spdesc_ns
species per material counts: spm_1 spm_2 … spm_nm
species per material lists: matno_1_sp_1 matno_1_sp_2 … matno_1_sp_spm_1
matno_2_sp_1 matno_2_sp_2 … matno_2_sp_spm_2
…
matno_nm_sp_1 matno_nm_sp2 … matno_nm_sp_spm_nm
(Note: above concatenated lists do not have to be on
separate lines.)
species element values: [ts] [fs] sp_filename
# Or materials defined by per element scalar variables:
material scalars per element: desc_esv_1 desc_esv_2 ... desc_esv_nm
where:
ts = The corresponding time set number (or index) as specified in TIME section
above. This is only required for transient materials.
fs = The corresponding file set number (or index) as specified in FILE section
above. (Note, if you specify fs, then ts is no longer optional and must also be
specified.)
ms = Material set number. (Note, currently there is only one, and it must be a
positive number.)
description = Optional material set description which will be reflected in the file
names of exported material files.
nm = Number of materials for this set.
matno = Material number used in the material and mixed-material id files. There
should be nm of these. Non-positive numbers are grouped as the “null material”.
See EnSight Gold Material Files Format
matdesc = GUI material description corresponding to the nm matno’s.
filename = The filename of the appropriate material file. Note, only transient
filenames contain “*” wildcards. The three required files are the material id
per element, the mixed-material ids, and the mixed-material values files.
ns = Number of species for this set.
spno = Specie number used in the "species per material lists:" specification. There
should be ns of these positive integers.
spdesc = GUI specie description corresponding to the ns spno's.
spm = Number of species per material number (matno). Enter 0 if no species exist for
a material.
matno_#_sp = Specie id number (spno) list member for this material number id
(matno). If no species for this material, then proceed to next material that
has species.
sp_filename = The filename of the appropriate “species element values:” file. Note,
only transient filenames contain "*" wildcards.
desc_esv = The description of each per element scalar variable to be a material.
The description listed must match the description listed under the VARIABLE
11.1 EnSight Gold Case File Format
11-12 EnSight 9 User Manual
section for the per element scalar variable.
Note: Material and species descriptions are limited to 19 characters in the current
release. Material and species descriptions and file names must not start with a
numeric digit and must not contain any of the following reserved characters:
(
[ + @ ! * $
) ] - # ^ / space
Block Continuation
Section This section is optional for grouping partitioned structured blocks together. The
files containing blocks must conform to some restrictions in order for this to be
possible. Namely, the blocks in the files must be a continuation (in one of the
directions) from the blocks in the previous file. This purpose for this capability is
to be able to read N number of files using M number of cluster nodes, where N >
M. The filenames for the geometry and variables must contain “%” wildcards if
this option is used.
Usage:
BLOCK_CONTINUATION
number of sets: ns
filename start number: fs
filename increment: fi
where:
ns
= The number of contiguous partitioned structured files to use
fs
= the number to replace the “%” wildcards in the geometry and
variable filenames, for the first set
fi
= the increment to
fs
for subsequent sets
Scripts Section This is an optional section which specifies the name of a Python script file or an
XML metadata file. The Python file is read when the dataset is loaded. The script
file contents are transfrerred to the client where they are executed in the running
client Python interpreter. The geometry pathname will be prepended to the Python
script filename before it is read if a fully qualified pathname is not provided.
The XML metadata file is used internal to EnSight.
Usage:
SCRIPTS
python: filename.py
metadata: filename.xml
Case File Example 1 The following is a minimal EnSight Gold case file for a steady state model with some
results.
Note: this (engold.case) file, as well as all of its referenced geometry and variable
files (along with a couple of command files) can be found under your installation directory
(path: $CEI_HOME/ensight92/data/user_manual). The EnSight Gold
Geometry File Example and the Variable File Examples are the contents of these files.
FORMAT
type: ensight gold
GEOMETRY
model: engold.geo
VARIABLE
11.1 EnSight Gold Case File Format
EnSight 9 User Manual 11-13
constant per case: Cden .8
scalar per element: Esca engold.Esca
scalar per node: Nsca engold.Nsca
vector per element: Evec engold.Evec
vector per node: Nvec engold.Nvec
tensor symm per element: Eten engold.Eten
tensor symm per node: Nten engold.Nten
complex scalar per element: Ecmp engold.Ecmp_rengold.Ecmp_i2.
complex scalar per node: Ncmp engold.Ncmp_rengold.Ncmp_i4.
Case File Example 2 The following is a Case file for a transient model. The connectivity of the geometry is also
changing.
FORMAT
type: ensight gold
GEOMETRY
model: 1 exgold2.geo**
VARIABLE
scalar per node: 1 Stress exgold2.scl**
vector per node: 1 Displacement exgold2.dis**
TIME
time set: 1
number of steps: 3
filename start number: 0
filename increment: 1
time values: 1.0 2.0 3.0
The following files would be needed for Example 2:
exgold2.geo00 exgold2.scl00 exgold2.dis00
exgold2.geo01 exgold2.scl01 exgold2.dis01
exgold2.geo02 exgold2.scl02 exgold2.dis02
11.1 EnSight Gold Case File Format
11-14 EnSight 9 User Manual
Case File Example 3 The following is a Case file for a transient model with measured data.
This example has pressure given per element.
FORMAT
type: ensight gold
GEOMETRY
model: 1 exgold3.geo*
measured: 2 exgold3.mgeo**
VARIABLE
constant per case: Gamma 1.4
constant per case: 1 Density .9 .9 .7 .6 .6
scalar per element 1 Pressure exgold3.pre*
vector per node: 1 Velocity exgold3.vel*
scalar per measured node: 2 Temperature exgold3.mtem**
vector per measured node: 2 Velocity exgold3.mvel**
TIME
time set: 1
number of steps: 5
filename start number: 1
filename increment: 2
time values: .1 .2 .3 # This example shows that time
.4 .5 # values can be on multiple lines
time set: 2
number of steps: 6
filename start number: 0
filename increment: 2
time values:
.05 .15 .25 .34 .45 .55
The following files would be needed for Example 3:
exgold3.geo1 exgold3.pre1 exgold3.vel1
exgold3.geo3 exgold3.pre3 exgold3.vel3
exgold3.geo5 exgold3.pre5 exgold3.vel5
exgold3.geo7 exgold3.pre7 exgold3.vel7
exgold3.geo9 exgold3.pre9 exgold3.vel9
exgold3.mgeo00 exgold3.mtem00 exgold3.mvel00
exgold3.mgeo02 exgold3.mtem02 exgold3.mvel02
exgold3.mgeo04 exgold3.mtem04 exgold3.mvel04
exgold3.mgeo06 exgold3.mtem06 exgold3.mvel06
exgold3.mgeo08 exgold3.mtem08 exgold3.mvel08
exgold3.mgeo10 exgold3.mtem10 exgold3.mvel10
11.1 EnSight Gold Case File Format
EnSight 9 User Manual 11-15
Case File Example 4 The following is two Case files for a simple static Block Continuation structured model
containing 5 files (sets). The first uses the first two sets, the second uses the last three sets.
FORMAT
type: ensight gold
GEOMETRY
model: ex_bc_%.geo
VARIABLE
scalar per node: temperature ex_bc_%.scl
BLOCK_CONTINUATION
number of sets: 2
filename start number: 1
filename increment: 1
---------------------------------------------------
FORMAT
type: ensight gold
GEOMETRY
model: ex_bc_%.geo
VARIABLE
scalar per node: temperature ex_bc_%.scl
BLOCK_CONTINUATION
number of sets: 3
filename start number: 3
filename increment: 1
The following files would be needed for Example 4:
ex_bc_1.geo ex_bc_1.scl used by first case
ex_bc_2.geo ex_bc_2.scl used by first case
ex_bc_3.geo ex_bc_3.scl used by second case
ex_bc_4.geo ex_bc_4.scl used by second case
ex_bc_5.geo ex_bc_5.scl used by second case
Case File Example 5 The following is Case File Example 3 expressed in transient single-file formats.
In this example, the transient data for the measured velocity data entity happens
to be greater than the maximum file size limit. Therefore, the first four time steps
fit and are contained in the first file, and the last two time steps are ‘continued’ in
a second file.
FORMAT
type: ensight gold
GEOMETRY
model: 1 1 exgold5.geo
measured: 2 2 exgold5.mgeo
VARIABLE
constant per case: Density .5
scalar per element: 1 1 Pressure exgold5.pre
vector per node: 1 1 Velocity exgold5.vel
scalar per measured node: 2 2 Temperature exgold5.mtem
vector per measured node: 2 3 Velocity exgold5.mvel*
TIME
time set: 1 Model
number of steps: 5
time values: .1 .2 .3 .4 .5
time set: 2 Measured
number of steps: 6
time values: .05 .15 .25 .34 .45 .55
FILE
file set: 1
11.1 EnSight Gold Case File Format
11-16 EnSight 9 User Manual
number of steps: 5
file set: 2
number of steps: 6
file set: 3
filename index: 1
number of steps: 4
filename index: 2
number of steps: 2
The following files would be needed for Example 5:
exgold5.geo exgold5.pre exgold5.vel
exgold5.mgeo exgold5.mtem exgold5.mvel1
exgold5.mvel2
Case File Example 6 The following is a Case file for a transient model. The connectivity of the geometry is not
changing, but the coordinates are. The connectivity is only present in step 1, but is not
present in steps 0, 2, 3, 4, or 5).
FORMAT
type: ensight gold
GEOMETRY
model: 1 aaa_coords.geo** change_coords_only 1
TIME
time set: 1
number of steps: 6
filename start number: 0
filename increment: 1
time values: 0.1 1.2 2.3 3.4 4.5 5.6
The following files would be needed for Example 6:
aaa_coords.geo00
aaa_coords.geo01 (contains the connectivity)
aaa_coords.geo02
aaa_coords.geo03
aaa_coords.geo04
aaa_coords.geo05
Contents of Each file contains transient data that corresponds to the specified number of time steps.
Transient The data for each time step sequentially corresponds to the simulation time values
Single Files
(time values)
found listed in the TIME section. In transient single-file format, the data for
each time step essentially corresponds to a standard EnSight gold geometry or variable
file (model or measured) as expressed in multiple file format. The data for each time step
is enclosed between two wrapper records, i.e. preceded by a BEGIN TIME STEP
record and followed by an END TIME STEP record. Time step data is not split
between files. If there is not enough room to append the data from a time step to the file
without exceeding the maximum file limit of a particular system, then a continuation file
must be created for the time step data and any subsequent time step. Any type of user
comments may be included before and/or after each transient step wrapper.
Note 1: If transient single file format is used, EnSight expects all files of a dataset
to be specified in transient single file format. Thus, even static files must be
enclosed between a BEGIN TIME STEP and an END TIME STEP wrapper.
This includes the condition where you have transient variables with static
geometry. The static geometry file must have the wrapper.
1. Note 2: For binary geometry files, the first BEGIN TIME STEP wrapper
must follow the <C Binary/Fortran Binary> line. Both BEGIN TIME STEP
and END TIME STEP wrappers are written according to type (1) in binary.
11.1 EnSight Gold Case File Format
EnSight 9 User Manual 11-17
Namely: This is a write of 80 characters to the file:
in C: char buffer[80];
strcpy(buffer,”BEGIN TIME STEP”);
fwrite(buffer,sizeof(char),80,file_ptr);
in FORTRAN: character*80 buffer
buffer = ”BEGIN TIME STEP”
Note 3: Efficient reading of each file (especially binary) is facilitated by
appending each file with a file index. A file index contains appropriate
information to access the file byte positions of each time step in the file. (EnSight
automatically appends a file index to each file when exporting in transient single
file format.) If used, the file index must follow the last END TIME STEP
wrapper in each file.
File Index Usage:
* Each file byte location is the first byte that follows the BEGIN TIME STEP record.
Shown below are the contents of each of the above files, using the data files from Case
File Example 3 for reference (without FILE_INDEX for simplicity).
Contents of file exgold4.geo_1:
BEGIN TIME STEP
Contents of file exgold3.geo1
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.geo3
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.geo5
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.geo7
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.geo9
END TIME STEP
Contents of file exgold4.pre_1:
BEGIN TIME STEP
Contents of file exgold3.pre1
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.pre3
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.pre5
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.pre7
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.pre9
END TIME STEP
Contents of file exgold4.vel_1:
BEGIN TIME STEP
Contents of file exgold3.vel1
ASCII Binary Item Description
“%20d\n” sizeof(int) n Total number of data time steps in the file.
“%20d\n” sizeof(long) fb1File byte loc for contents of 1st time step*
“%20d\n” sizeof(long) fb2File byte loc for contents of 2nd time step*
. . . . . . . . . . . .
“%20d\n” sizeof(long) fbnFile byte loc for contents of nth time step*
“%20d\n” sizeof(int) flag Miscellaneous flag (= 0 for now)
“%20d\n” sizeof(long) fb of item n File byte loc for Item n above
“%s\n” sizeof(char)*80 “FILE_INDEX” File index keyword
11.1 EnSight Gold Case File Format
11-18 EnSight 9 User Manual
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.vel3
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.vel5
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.vel7
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.vel9
END TIME STEP
Contents of file exgold4.mgeo_1:
BEGIN TIME STEP
Contents of file exgold3.mgeo00
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.mgeo02
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.mgeo04
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.mgeo06
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.mgeo08
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.mgeo10
END TIME STEP
Contents of file exgold4.mtem_1:
BEGIN TIME STEP
Contents of file exgold3.mtem00
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.mtem02
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.mtem04
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.mtem06
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.mtem08
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.mtem10
END TIME STEP
Contents of file exgold4.mvel1_1:
BEGIN TIME STEP
Contents of file exgold3.mvel00
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.mvel02
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.mvel04
END TIME STEP
BEGIN TIME STEP
Contents of file exgold3.mvel06
END TIME STEP
Contents of file exgold4.mvel2_1:
Comments can precede the beginning wrapper here.
BEGIN TIME STEP
Contents of file exgold3.mvel08
END TIME STEP
Comments can go between time step wrappers here.
BEGIN TIME STEP
Contents of file exgold3.mvel10
END TIME STEP
Comments can follow the ending time step wrapper.
Note: Each of these files could (and should for efficiency reasons) have the FILE_INDEX information following
the last END TIMESTEP. See the previous discussion for its usage.
11.1 EnSight Gold Geometry File Format
EnSight 9 User Manual 11-19
EnSight Gold Wild Card Name Specification
If multiple time steps are involved, the file names must conform to the EnSight
wild-card specification. This specification is as follows:
• File names must include numbers that are in ascending order from
beginning to end.
• Numbers in the files names must be zero filled if there is more than one
significant digit.
• Numbers can be anywhere in the file name.
• When the file name is specified in the EnSight case file, you must replace
the numbers in the file with an asterisk(*). The number of asterisks
specified is the number of significant digits. The asterisk must occupy the
same place as the numbers in the file names.
EnSight Gold Geometry File Format
The EnSight Gold format is part based for both unstructured and structured data.
There is no global coordinate array that each part references, but instead - each
part contains its own local coordinate array. Thus, the node numbers in element
connectivities refer to the coordinate array index, not a node id or label. This is
different than the EnSight6 format!
The EnSight Gold format consists of keywords followed by information. The
following items are important when working with EnSight Gold geometry files:
1. Node ids are optional. In this format they are strictly labels and are not used in
the connectivity definition. The element connectivities are based on the local
implied node number of the coordinate array in each part, which is sequential
starting at one. If you let EnSight assign node IDs, this implied internal
numbering is used. If node IDs are set to off, they are numbered internally,
however, you will not be able to display or query on them. If you have node
IDs given in your data, you can have EnSight ignore them by specifying
“node id ignore.” Using this option may reduce some of the memory taken up
by the Client and Server, but display and query on the nodes will not be
available. Note, prior to EnSight 7.4, node ids could only be specified for
unstructured parts. This restriction has been removed and user specified node
ids are now possible for structured parts.
2. Element ids are optional. If you specify element IDs, or you let EnSight
assign them, you can show them on the screen. If they are set to off, you will
not be able to show or query on them. If you have element IDs given in your
data you can have EnSight ignore them by specifying “element id ignore.”
Using this option will reduce some of the memory taken up by the Client and
Server. This may or may not be a significant amount, and remember that
display and query on the elements will not be available. Note, prior to EnSight
7.4, element ids could only be specified for unstructured parts. This restriction
has been removed and user specified element ids are now possible for
structured parts.
3. Model extents can be defined in the file so EnSight will not have to determine
11.1 EnSight Gold Geometry File Format
11-20 EnSight 9 User Manual
these while reading in data. If they are not included, EnSight will compute
them, but will not actually do so until a dataset query is performed the first
time.
4. The format of integers and real numbers must be followed (See the Geometry
Example below).
5. ASCII Integers are written out using the following integer format:
From C:
10d
format
From FORTRAN:
i10
format
Note: this size of integer format limits the number of nodes as well as node
and element labels to 231 (2 GB) per part which is the same as a 32-bit
integer.
ASCII Real numbers are written out using the following floating-point format:
From C:
12.5e
format
From FORTRAN:
e12.5
format
The number of integers or reals per line must also be followed!
6. By default, a Part is processed to show the outside boundaries. This
representation is loaded to the Client host system when the geometry file is
read (unless other attributes have been set on the workstation, such as feature
angle).
7. Coordinates for unstructured data must be defined within each part. This is
normally done before any elements are defined within a part, but does not
have to be. The different elements can be defined in any order (that is, you can
define a hexa8 before a bar2).
8. A Part containing structured data cannot contain any unstructured element
types or more than one block. Each structured Part is limited to a single
block (or some subset of that block). A structured block is indicated by
following the Part description line with a ‘block’ line. By default, a block will
be curvilinear, non-iblanked, non-ghost, complete range. However, by
suppling one or more of the following options on the ‘block’ line, rectilinear
or uniform blocks can be specified, nodal iblanking for the block can be used,
cells within the block can be flagged as ghosts (used for computations, but not
displayed), subset ranges can be specified (useful for partitioned data). The
options include:
Only one of these can be used on the ‘block’ line
curvilinear
Indicates that coordinates of all ijk locations of the block will be
specified (default)
rectilinear
Indicates that i,j,k delta vectors for a regular block with possible
non-regular spacing will be specified
uniform
Indicates that i,j,k delta values for a regular block with regular
spacing will be specified
Any, none, or all of these can be used
11.1 EnSight Gold Geometry File Format
EnSight 9 User Manual 11-21
iblanked
An “iblanked” block must contain an additional integer array of
values at each node, traditionally called the iblank array. Valid iblank
values for the EnSight Gold format are:
0 for nodes which are exterior to the model, sometimes
called blanked-out nodes
1 for nodes which are interior to the model, thus in the
free stream and to be used
<0 or >1 for any kind of boundary nodes
In EnSight’s structured Part building dialog, the iblank option
selected will control which portion of the structured block is
“created”. Thus, from the same structured block, the interior flow
field part as well as a symmetry boundary part could be “created”.
Note: By default EnSight does not do any “partial” cell iblank
processing. Namely, only complete cells containing no “exterior”
nodes are created. It is possible to obtain partial cell processing by
issuing the “test:partial_cells_on” command in the Command
Dialog before reading the file.
with_ghost
A block with ghosts must contain an additional integer array of flags
for each cell. A flag value of zero indicates a non-ghost cell. A flag
value of non-zero indicates a ghost cell.
11.1 EnSight Gold Geometry File Format
11-22 EnSight 9 User Manual
Note that for structured data, the standard order of nodes is such that I’s advance
quickest, followed by J’s, and then K’s.
9. Maximum number of parts is 65000
Maximum number of variables is 10000
Maximum file name length is 1024
Maximum part name length is 79, but the GUI will only display 49
Maximum variable name length is 79, but the GUI will only display 49
range
A block with ranges will contain an extra line, following the ijk line,
which gives min and max planes for each of the ijk directions.
Thus, normally a 6 x 5 x 1 block part would start something like:
part
1
description
block
6 5 1
0.00000e+00
...
(The coordinate information for the 30 nodes of the block must
follow.)
But if only the top 6 x 3 x 1portion was to be represented in the file,
you can use “range” like:
part
1
description for top only
block range
6 5 1
1 6 3 5 1 1
0.00000e+00
...
(The coordinate information for the 18 nodes of the top portion of
the block must follow. Note that the ijk line following the block line
contains the size of the original block - which is needed to properly
deal with node and element numbering. The next line contains the
imin, imax, jmin, jmax, kmin, kmax defining the subset ranges. The
actual size of the block being defined is thus computed from these
ranges:
size_i = imax - imin + 1
size_j = jmax - jmin + 1
size_k = kmax - kmin + 1
11.1 EnSight Gold Geometry File Format
EnSight 9 User Manual 11-23
Generic Format Usage Notes:
In general an unstructured
part
can contain several different
element type
s.
#
=
a part number (maximum is 65000)
nn
= total number of nodes in a part
ne
= number of elements of a given type
np
= number of nodes per element for a given element type
nf
= number of faces per nfaced element
id_*
= node or element id number
x_*
= x component
y_*
= y component
z_*
= z component
n*_e*
= node number for an element
f*_e*
= face number for an nfaced element
ib_*
= iblanking value
gf_e*
= ghost flag for a structured cell
[ ]
contain optional portions
< >
contain choices
‘
indicates the beginning of an unformatted sequential FORTRAN binary write
’
indicates the end of an unformatted sequential FORTRAN binary write
element type
can be any of:
point g_point
bar2 g_bar2
bar3 g_bar3
tria3 g_tria3
tria6 g_tria6
quad4 g_quad4
quad8 g_quad8
tetra4 g_tetra4
tetra10 g_tetra10
pyramid5 g_pyramid5
pyramid13 g_pyramid13
penta6 g_penta6
penta15 g_penta15
hexa8 g_hexa8
hexa20 g_hexa20
nsided g_nsided
nfaced g_nfaced
11.1 EnSight Gold Geometry File Format
11-24 EnSight 9 User Manual
C Binary form:
C Binary 80 chars
description line 1 80 chars
description line 2 80 chars
node id <off/given/assign/ignore> 80 chars
element id <off/given/assign/ignore> 80 chars
[extents
80 chars
xmin xmax ymin ymax zmin zmax]
6 floats
part 80 chars
# 1 int
description line 80 chars
coordinates
80 chars
nn 1 int
[id_n1 id_n2 ... id_nn] nn ints
x_n1 x_n2 ... x_nn nn floats
y_n1 y_n2 ... y_nn nn floats
z_n1 z_n2 ... z_nn nn floats
element type 80 chars
ne 1 int
[id_e1 id_e2 ... id_ne] ne ints
n1_e1 n2_e1 ... np_e1
n1_e2 n2_e2 ... np_e2
.
.
n1_ne n2_ne ... np_ne ne*np ints
element type 80 chars
.
.
part 80 chars
.
.
part 80 chars
# 1 int
description line 80 chars
block [iblanked] [with_ghost] [range] 80 chars
i j k # nn = i*j*k, ne = (i-1)*(j-1)*(k-1) 3 ints
[imin imax jmin jmax kmin kmax] # if range used: 6 ints
nn =
(imax-imin+1)*
(jmax-jmin+1)* (kmax-kmin+1)
ne = (imax-imin)*(jmax-jmin)*(kmax-kmin)
x_n1 x_n2 ... x_nn nn floats
y_n1 y_n2 ... y_nn nn floats
z_n1 z_n2 ... z_nn nn floats
[ib_n1 ib_n2 ... ib_nn] nn ints
[ghost_flags] 80 chars
[gf_e1 gf_e2 ... gf_ne] ne ints
[node_ids] 80 chars
[id_n1 id_n2 ... id_nn] nn ints
[element_ids] 80 chars
[id_e1 id_e2 ... id_ne] ne ints
part 80 chars
# 1 int
description line 80 chars
block rectilinear [iblanked] [with_ghost] [range] 80 chars
i j k # nn = i*j*k, ne = (i-1)*(j-1)*(k-1) 3 ints
[imin imax jmin jmax kmin kmax] # if range used: 6 ints
nn =
(imax-imin+1)*
(jmax-jmin+1)* (kmax-kmin+1)
ne = (imax-imin)*(jmax-jmin)*(kmax-kmin)
x_1 x_2 ... x_i i floats
y_1 y_2 ... y_j j floats
11.1 EnSight Gold Geometry File Format
EnSight 9 User Manual 11-25
z_1 z_2 ... z_k k floats
[ib_n1 ib_n2 ... ib_nn] nn ints
[ghost_flags] 80 chars
[gf_e1 gf_e2 ... gf_ne] ne ints
[node_ids] 80 chars
[id_n1 id_n2 ... id_nn] nn ints
[element_ids] 80 chars
[id_e1 id_e2 ... id_ne] ne ints
part 80 chars
# 1 int
description line 80 chars
block uniform [iblanked] [with_ghost] [range] 80 chars
i j k # nn = i*j*k, ne = (i-1)*(j-1)*(k-1) 3 ints
[imin imax jmin jmax kmin kmax] # if range used: 6 ints
nn =
(imax-imin+1)*
(jmax-jmin+1)* (kmax-kmin+1)
ne = (imax-imin)*(jmax-jmin)*(kmax-kmin)
x_origin y_origin z_origin 3 floats
x_delta y_delta z_delta 3 floats
[ib_n1 ib_n2 ... ib_nn] nn ints
[ghost_flags] 80 chars
[gf_e1 gf_e2 ... gf_ne] ne ints
[node_ids] 80 chars
[id_n1 id_n2 ... id_nn] nn ints
[element_ids] 80 chars
[id_e1 id_e2 ... id_ne] ne ints
Fortran Binary form:
‘Fortran Binary’ 80 chars
‘description line 1’ 80 chars
‘description line 2’ 80 chars
‘node id <off/given/assign/ignore>’ 80 chars
‘element id <off/given/assign/ignore>’ 80 chars
[‘extents’
80 chars
‘xmin xmax ymin ymax zmin zmax’]
6 floats
‘part’ 80 chars
‘#’ 1 int
‘description line’ 80 chars
‘coordinates’
80 chars
‘nn’ 1 int
[‘id_n1 id_n2 ... id_nn’] nn ints
‘x_n1 x_n2 ... x_nn’ nn floats
‘y_n1 y_n2 ... y_nn’ nn floats
‘z_n1 z_n2 ... z_nn’ nn floats
‘element type’ 80 chars
‘ne’ 1 int
[‘id_e1 id_e2 ... id_ne’] ne ints
‘n1_e1 n2_e1 ... np_e1
n1_e2 n2_e2 ... np_e2
.
.
n1_ne n2_ne ... np_ne’ ne*np ints
‘element type’ 80 chars
.
.
‘part’ 80 chars
.
.
‘part’ 80 chars
11.1 EnSight Gold Geometry File Format
11-26 EnSight 9 User Manual
‘#’ 1 int
‘description line’ 80 chars
‘block [iblanked] [with_ghost] [range]’ 80 chars
‘i j k’ # nn = i*j*k, ne = (i-1)*(j-1)*(k-1) 3 ints
[‘imin imax jmin jmax kmin kmax’] # if range used: 6 ints
nn =
(imax-imin+1)*
(jmax-jmin+1)* (kmax-kmin+1)
ne = (imax-imin)*(jmax-jmin)*(kmax-kmin)
‘x_n1 x_n2 ... x_nn’ nn floats
‘y_n1 y_n2 ... y_nn’ nn floats
‘z_n1 z_n2 ... z_nn‘ nn floats
[‘ib_n1 ib_n2 ... ib_nn’] nn ints
[‘ghost_flags’] 80 chars
[‘gf_e1 gf_e2 ... gf_ne’] ne ints
[‘node_ids’] 80 chars
[‘id_n1 id_n2 ... id_nn’] nn ints
[‘element_ids’] 80 chars
[‘id_e1 id_e2 ... id_ne’] ne ints
‘part’ 80 chars
‘#’ 1 int
‘description line’ 80 chars
‘block rectilinear [iblanked] [with_ghost] [range]’ 80 chars
‘i j k’ # nn = i*j*k, ne = (i-1)*(j-1)*(k-1) 3 ints
[‘imin imax jmin jmax kmin kmax’] # if range used: 6 ints
nn =
(imax-imin+1)*
(jmax-jmin+1)* (kmax-kmin+1)
ne = (imax-imin)*(jmax-jmin)*(kmax-kmin)
‘x_1 x_2 ... x_i’ i floats
‘y_1 y_2 ... y_j’ j floats
‘z_1 z_2 ... z_k’ k floats
[‘ib_n1 ib_n2 ... ib_nn’] nn ints
[‘ghost_flags’] 80 chars
[‘gf_e1 gf_e2 ... gf_ne’] ne ints
[‘node_ids’] 80 chars
[‘id_n1 id_n2 ... id_nn’] nn ints
[‘element_ids’] 80 chars
[‘id_e1 id_e2 ... id_ne’] ne ints
‘part’ 80 chars
‘#’ 1 int
‘description line’ 80 chars
‘block uniform [iblanked] [with_ghost] [range]’ 80 chars
‘i j k’ # nn = i*j*k, ne = (i-1)*(j-1)*(k-1) 3 ints
[‘imin imax jmin jmax kmin kmax’] # if range used: 6 ints
nn =
(imax-imin+1)*
(jmax-jmin+1)* (kmax-kmin+1)
ne = (imax-imin)*(jmax-jmin)*(kmax-kmin)
‘x_origin y_origin z_origin 3 floats
x_delta y_delta z_delta’ 3 floats
[‘ib_n1 ib_n2 ... ib_nn’] nn ints
[‘ghost_flags’] 80 chars
[‘gf_e1 gf_e2 ... gf_ne’] ne ints
[‘node_ids’] 80 chars
[‘id_n1 id_n2 ... id_nn’] nn ints
[‘element_ids’] 80 chars
[‘id_e1 id_e2 ... id_ne’] ne ints
ASCII form:
description line 1 A (max of 79 typ)
description line 2 A
node id <off/given/assign/ignore> A
element id <off/given/assign/ignore> A
11.1 EnSight Gold Geometry File Format
EnSight 9 User Manual 11-27
[extents
A
xmin xmax 2E12.5
ymin ymax 2E12.5
zmin zmax] 2E12.5
part A
# I10
description line A
coordinates
A
nn I10
[id_n1 I10 1/line (nn)
id_n2
.
.
id_nn]
x_n1 E12.5 1/line (nn)
x_n2
.
.
x_nn
y_n1 E12.5 1/line (nn)
y_n2
.
.
y_nn
z_n1 E12.5 1/line (nn)
z_n2
.
.
z_nn
element type A
ne I10
[id_e1 I10 1/line (ne)
id_e2
.
.
id_ne]
n1_e1 n2_e1 ... np_e1 I10 np/line
n1_e2 n2_e2 ... np_e2 (ne lines)
.
.
n1_ne n2_ne ... np_ne
element type A
.
.
part A
.
.
part A
# I10
description line A
block [iblanked] [with_ghost] [range] A
i j k # nn = i*j*k, ne = (i-1)*(j-1)*(k-1) 3I10
[imin imax jmin jmax kmin kmax] # if range used: 6I10
nn =
(imax-imin+1)*
(jmax-jmin+1)* (kmax-kmin+1)
ne = (imax-imin)*(jmax-jmin)*(kmax-kmin)
x_n1 E12.5 1/line (nn)
x_n2
.
.
x_nn
y_n1 E12.5 1/line (nn)
11.1 EnSight Gold Geometry File Format
11-28 EnSight 9 User Manual
y_n2
.
.
y_nn
z_n1 E12.5 1/line (nn)
z_n2
.
.
z_nn
[ib_n1 I10 1/line (nn)
ib_n2
.
.
ib_nn]
[ghost_flags] 80 chars
[gf_e1 I10 1/line (ne)
gf_e2
.
.
gf_ne]
[node_ids] 80 chars
[id_n1 I10 1/line (nn)
id_n2
.
.
id_nn]
[element_ids] 80 chars
[id_e1 I10 1/line (ne)
id_e2
.
.
id_ne]
part A
# I10
description line A
block rectilinear [iblanked] [with_ghost] [range] A
i j k # nn = i*j*k, ne = (i-1)*(j-1)*(k-1) 3I10
[imin imax jmin jmax kmin kmax] # if range used: 6I10
nn =
(imax-imin+1)*
(jmax-jmin+1)* (kmax-kmin+1)
ne = (imax-imin)*(jmax-jmin)*(kmax-kmin)
x_1 E12.5 1/line (i)
x_2
.
.
x_i
y_1 E12.5 1/line (j)
y_2
.
.
y_j
z_1 E12.5 1/line (k)
z_2
.
.
z_k
[ib_n1 I10 1/line (nn)
ib_n2
.
.
ib_nn]
[ghost_flags] 80 chars
11.1 EnSight Gold Geometry File Format
EnSight 9 User Manual 11-29
[gf_e1 I10 1/line (ne)
gf_e2
.
.
gf_ne]
[node_ids] 80 chars
[id_n1 I10 1/line (nn)
id_n2
.
.
id_nn]
[element_ids] 80 chars
[id_e1 I10 1/line (ne)
id_e2
.
.
id_ne]
part A
# I10
description line A
block uniform [iblanked] [with_ghost] [range] A
i j k # nn = i*j*k, ne = (i-1)*(j-1)*(k-1) 3I10
[imin imax jmin jmax kmin kmax] # if range used: 6I10
nn =
(imax-imin+1)*
(jmax-jmin+1)* (kmax-kmin+1)
ne = (imax-imin)*(jmax-jmin)*(kmax-kmin)
x_origin E12/5
y_origin E12/5
z_origin E12/5
x_delta E12.5
y_delta E12.5
z_delta E12.5
[ib_n1 I10 1/line (nn)
ib_n2
.
.
ib_nn]
[ghost_flags] 80 chars
[gf_e1 I10 1/line (ne)
gf_e2
.
.
gf_ne]
[node_ids] 80 chars
[id_n1 I10 1/line (nn)
id_n2
.
.
id_nn]
[element_ids] 80 chars
[id_e1 I10 1/line (ne)
id_e2
.
.
id_ne]
11.1 EnSight Gold Geometry File Format
11-30 EnSight 9 User Manual
Notes:
• If
node id
is
given
or
ignore
, the [id] section must be there for each part.
• If
element id
is
given
or
ignore
, the [id] section must be there for each
element type
of each part
• If
iblanked
is there, the [ib] section must be there for the block.
• x, y, and z coordinates are mandatory, even if a 2D problem.
• If
block rectilinear
, then the x, y, z coordinates change to the x, y, and z
delta vectors.
• If
block uniform
, then the x, y, z coordinates change to the x, y, z
coordinates of the origin and the x, y, and z delta values.
• If
block range
, the ijk min/max range line must follow the ijk line. And the
number of nodes and elements is based on the ranges. The ijk line
indicates the size of the original block.
• If
with_ghost
is on the
block
line, then the
ghost_flag
section must be there
• Ids are just labels, the coordinate (or element) order is implied.
• The minimum needed for unstructured empty parts is the three lines:
part
# (use the actual part number)
description
• The minimum needed for structured empty parts is the five lines:
part
# (use the actual part number)
description
block
0 0 0
• Element blocks for nsided elements contain an additional section - the
number of nodes in each element. See below.
C Binary form of element block, if nsided:
nsided 80 chars
ne 1 int
[id_n1 id_n2 ... id_ne] ne ints
np1 np2 ... npne This data is needed ne ints
e1_n1 e1_n2 ... e1_np1
e2_n1 e2_n2 ... e2_np2
.
.
ne_n1 ne_n2 ... ne_npne np1+np2+...+npne ints
Fortran Binary form of element block, if nsided:
‘nsided’ 80 chars
‘ne’ 1 int
[‘id_n1 id_n2 ... id_ne’] ne ints
‘np1 np2 ... npne’ This data is needed ne ints
‘e1_n1 e1_n2 ... e1_np1
11.1 EnSight Gold Geometry File Format
EnSight 9 User Manual 11-31
e2_n1 e2_n2 ... e2_np2
.
.
ne_n1 ne_n2 ... ne_npne’ np1+np2+...+npne ints
Ascii form of element block, if nsided:
nsided A
ne I10
[id_n1 I10 1/line (ne)
id_n2
.
id_ne]
np1 This data is needed I10 1/line (ne)
np2 .
. .
npne .
e1_n1 e1_n2 ... e1_np1 I10 np*/line
e2_n1 e2_n2 ... e2_np2 (ne lines)
.
ne_n1 ne_n2 ... ne_npne
• Element blocks for nfaced elements are more involved since they are
described by their nsided faces. Thus, there is the optional section for ids
(id_e*), a section for the number of faces per element (nf_e*), a section
for number of nodes per face per element (np(f*_e*)), and a section for
the connectivity of each nsided face of each element (n*(f*_e*)). See
below.
C Binary form of element block, if nfaced:
nfaced 80 chars
ne 1 int
[id_e1 id_e2 ... id_ne] ne ints
nf_e1 nf_e2 ... nf_ne ne ints
np(f1_e1) np(f2_e1) ... np(nf_e1)
np(f1_e2) np(f2_e2) ... np(nf_e2)
.
.
np(f1_ne) np(f2_ne) ... np(nf_ne) nf_e1+nf_e2+...+nf_ne ints
n1(f1_e1) n2(f1_e1) ... n(np(f1_e1))
n1(f2_e1) n2(f2_e1) ... n(np(f2_e1))
.
n1(nf_e1) n2(nf_e1) ... n(np(nf_e1))
n1(f1_e2) n2(f1_e2) ... n(np(f1_e2))
n1(f2_e2) n2(f2_e2) ... n(np(f2_e2))
.
n1(nf_e2) n2(nf_e2) ... n(np(nf_e2))
.
.
n1(f1_ne) n2(f1_ne) ... n(np(f1_ne))
n1(f2_ne) n2(f2_ne) ... n(np(f2_ne))
.
n1(nf_ne) n2(nf_ne) ... n(np(nf_ne)) np(f1_e1)+np(f2_e1)+...+np(nf_ne) ints
Fortran Binary form of element block, if nfaced:
‘nfaced’ 80 chars
‘ne’ 1 int
[‘id_e1 id_e2 ... id_ne’] ne ints
‘nf_e1 nf_e2 ... nf_ne’ ne ints
11.1 EnSight Gold Geometry File Format
11-32 EnSight 9 User Manual
‘np(f1_e1) np(f2_e1) ... np(nf_e1)
np(f1_e2) np(f2_e2) ... np(nf_e2)
.
.
np(f1_ne) np(f2_ne) ... np(nf_ne)’ nf_e1+nf_e2+...+nf_ne ints
‘n1(f1_e1) n2(f1_e1) ... n(np(f1_e1))
n1(f2_e1) n2(f2_e1) ... n(np(f2_e1))
.
n1(nf_e1) n2(nf_e1) ... n(np(nf_e1))
n1(f1_e2) n2(f1_e2) ... n(np(f1_e2))
n1(f2_e2) n2(f2_e2) ... n(np(f2_e2))
.
n1(nf_e2) n2(nf_e2) ... n(np(nf_e2))
.
.
n1(f1_ne) n2(f1_ne) ... n(np(f1_ne))
n1(f2_ne) n2(f2_ne) ... n(np(f2_ne))
.
n1(nf_ne) n2(nf_ne) ... n(np(nf_ne))’ np(f1_e1)+np(f2_e1)+...+np(nf_ne) ints
Ascii form of element block, if nfaced:
nfaced A
ne I10
[id_e1 I10 1/line
id_e2 (ne lines)
.
id_ne]
nf_e1 I10 1/line
nf_e2 (ne lines)
.
nf_ne
np(f1_e1) I10 1/line
np(f2_e1) (nf_e1+nf_e2+...+nf_ne lines)
.
np(nf_e1)
np(f1_e2)
np(f2_e2)
.
np(nf_e2)
.
.
np(f1_ne)
np(f2_ne)
.
np(nf_ne)
n1(f1_e1) n2(f1_e1) ... n(np(f1_e1)) I10 np*/line
n1(f2_e1) n2(f2_e1) ... n(np(f2_e1)) (nf_e1+nf_e2+...+nf_ne lines)
.
n1(nf_e1) n2(nf_e1) ... n(np(nf_e1))
n1(f1_e2) n2(f1_e2) ... n(np(f1_e2))
n1(f2_e2) n2(f2_e2) ... n(np(f2_e2)).
.
n1(nf_e2) n2(nf_e2) ... n(np(nf_e2))
.
.
n1(f1_ne) n2(f1_ne) ... n(np(f1_ne))
n1(f2_ne) n2(f2_ne) ... n(np(f2_ne))
.
n1(nf_ne) n2(nf_ne) ... n(np(nf_ne))
11.1 EnSight Gold Geometry File Format
EnSight 9 User Manual 11-33
EnSight Gold The following is an example of an ASCII EnSight Gold geometry file: This is the
Geometry File Example same example model as given in the EnSight6 geometry file section (only in Gold
format) with 11 defined unstructured nodes from which 2 unstructured parts are
defined, and a 2x3x2 structured part as depicted in the above diagram.
Note: The example file below (engold.geo) and all example variable files in the gold
section (also prefixed with engold) may be found under your EnSight installation
directory (path: $CEI_HOME/ensight92/data/user_manual).
Note: The appended “#” comment lines are for your reference only, and are not valid
format lines within a geometry file as appended below. Do NOT put these #
comments in your file!!!
This is the 1st description line of the EnSight Gold geometry example
This is the 2nd description line of the EnSight Gold geometry example
node id given
element id given
extents
0.00000e+00 6.00000e+00
0.00000e+00 3.00000e+00
0.00000e+00 2.00000e+00
part
1
2D uns-elements (description line for part 1)
coordinates
10 # nn
Do NOT put these # comments in your file!!
15 # node ids
20
40
22
44
55
60
61
62
63
4.00000e+00 # x components
5.00000e+00
6.00000e+00
part 2part 3 part 1
11.1 EnSight Gold Geometry File Format
11-34 EnSight 9 User Manual
5.00000e+00
6.00000e+00
6.00000e+00
5.00000e+00
6.00000e+00
6.00000e+00
5.00000e+00
0.00000e+00 # y components
0.00000e+00
0.00000e+00
1.00000e+00
1.00000e+00
3.00000e+00
0.00000e+00
0.00000e+00
1.00000e+00
1.00000e+00
0.00000e+00 # z components
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
2.00000e+00
2.00000e+00
2.00000e+00
2.00000e+00
tria3 # element type
2 # ne
102 # element ids
103
1 2 4
4 5 6
hexa8
1
104
2 3 5 4 7 8 9 10
part
2
1D uns-elements (description line for part 2)
coordinates
2
15
31
4.00000e+00
3.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
bar2
1
101
2 1
part
3
3D struct-part (description line fro part 3)
block iblanked
2 3 2
0.00000e+00 # i components
2.00000e+00
0.00000e+00
2.00000e+00
0.00000e+00
2.00000e+00
0.00000e+00
2.00000e+00
11.1 EnSight Gold Geometry File Format
EnSight 9 User Manual 11-35
0.00000e+00
2.00000e+00
0.00000e+00
2.00000e+00
0.00000e+00 # j components
0.00000e+00
1.00000e+00
1.00000e+00
3.00000e+00
3.00000e+00
0.00000e+00
0.00000e+00
1.00000e+00
1.00000e+00
3.00000e+00
3.00000e+00
0.00000e+00 # k components
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
2.00000e+00
2.00000e+00
2.00000e+00
2.00000e+00
2.00000e+00
2.00000e+00
1 # iblanking
1
1
1
1
1
1
1
1
1
1
1
11.1 EnSight Gold Geometry File Format
11-36 EnSight 9 User Manual
Simple example The following is an example of an ASCII EnSight Gold geometry file with nsided
using nsided/ and nfaced data. It is a non-realistic, simple model which is intended only to
nfaced elements illustrate the format. Two nsided elements and three nfaced elements are used,
even though the model could have been represented with a single nsided and
single nfaced element.
Note: The appended “#” comment lines are for your reference only, and are not valid
format lines within a geometry file as appended below. Do NOT put these #
comments in your file!!!
simple example for nsided/nfaced
element types in EnSight Gold Format
node id given
element id given
extents
-2.00000e+00 4.00000e+00
0.00000e+00 3.50000e+00
-2.00000e+00 4.00000e+00
part
1
barn
coordinates
18 # nn Do NOT put these # comments in your file!!
10 # node ids
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
0.00000e+00 # x components
2.00000e+00
0.00000e+00
2.00000e+00
11.1 EnSight Gold Geometry File Format
EnSight 9 User Manual 11-37
0.00000e+00
2.00000e+00
0.00000e+00
2.00000e+00
0.00000e+00
2.00000e+00
0.00000e+00
2.00000e+00
0.00000e+00
2.00000e+00
4.00000e+00
4.00000e+00
-2.00000e+00
-2.00000e+00
0.00000e+00 # y components
0.00000e+00
2.00000e+00
2.00000e+00
0.00000e+00
0.00000e+00
2.00000e+00
2.00000e+00
3.50000e+00
3.50000e+00
3.00000e+00
3.00000e+00
3.00000e+00
3.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00 # z components
0.00000e+00
0.00000e+00
0.00000e+00
2.00000e+00
2.00000e+00
2.00000e+00
2.00000e+00
1.00000e+00
1.00000e+00
1.50000e+00
1.50000e+00
0.50000e+00
0.50000e+00
-2.00000e+00
4.00000e+00
4.00000e+00
-2.00000e+00
nsided
2 # 2 nsided elements
101 # element ids
202
4 # 4 nodes in first element
8 # 8 nodes in second element
2 15 18 1 # connectivity of element 1
1 18 17 16 15 2 6 5 # connectivity of element 2
nfaced
3 # 3 nfaced polyhedra elements
1001 # element ids
1002
1003
5 # number of faces in element 1
5 # number of faces in element 2
7 # number of faces in element 3
3 # number of nodes in face 1 of element 1
11.1 EnSight Gold Geometry File Format
11-38 EnSight 9 User Manual
3 # face 2 of element 1
4 # face 3 of element 1
4 # face 4 of element 1
4 # face 5 of element 1
3 # number of nodes in face 1 of element 2
3 # face 2 of element 2
4 # face 3 of element 2
4 # face 4 of element 2
4 # face 5 of element 2
5 # number of nodes in face 1 of element 3
5 # face 2 of element 3
4 # face 3 of element 3
4 # face 4 of element 3
4 # face 5 of element 3
4 # face 6 of element 3
4 # face 7 of element 3
5 6 8 # connectivity of face 1 of element 1
2 1 4 # face 2 of element 1
6 2 4 8 # face 3 of element 1
8 4 1 5 # face 4 of element 1
1 2 6 5 # face 5 of element 1
5 8 7 # connectivity of face 1 of element 2
1 3 4 # face 2 of element 2
7 8 4 3 # face 3 of element 2
7 3 1 5 # face 4 of element 2
5 1 4 8 # face 5 of element 2
8 4 14 10 12 # connectivity of face 1 of element 3
7 11 9 13 3 # face 2 of element 3
7 8 12 11 # face 3 of element 3
11 12 10 9 # face 4 of element 3
9 10 14 13 # face 5 of element 3
13 14 4 3 # face 6 of element 3
7 3 4 8 # face 7 of element 3
Important note concerning use of nsided and nfaced element representations.
It is important to know that the execution time and memory use for nsided or nfaced elements is
significantly increased. It is not advisable to simpy use the nsided/nfaced representations for all
elements, even those that could be represented with the simple basic elements. EnSight has no
problem with different element types begin used within a part.
If, for example, you have a model with triangles, quads and some nsided elements. You will be far
ahead to represent them in the EnSight data format as triangles, quads and the few nsided. Do not
represent them all as nsided.
11.1 EnSight Gold Geometry File Format
EnSight 9 User Manual 11-39
Simple examples The following two ASCII EnSight Gold geometry file examples show use of
using ghost cells ghost cells in unstructured and structured models. First the geometry file for the
total model, composed of four parts, is given without any ghost cells. Then, two of
four separate geometry files – each containing just one of the original parts (and
appropriate ghost cells) will be given. This is supposed to simulate a decomposed
model, such as you might provide for EnSight’s Server-of-Servers.
Note: For unstructured models, ghost cells are simply a new element type. For
structured models, ghost cells are an “iblank”-like flag.
Unstructured model
Total Unstructured Model Geometry File:
EnSight Model Geometry File
EnSight 7.1.0
node id given
element id given
extents
0.00000e+00 4.00000e+00
0.00000e+00 4.00000e+00
0.00000e+00 0.00000e+00
part
1
bottom left
coordinates
9
1
2
3
6
7
8
11
12
13
0.00000e+00
1.00000e+00
2.00000e+00
0.00000e+00
1.00000e+00
2.00000e+00
0.00000e+00
1.00000e+00
2.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
1.00000e+00
1.00000e+00
1.00000e+00
2.00000e+00
2.00000e+00
2.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
quad4
4
1
2
5
6
1 2 5 4
2 3 6 5
4 5 8 7
5 6 9 8
part
2
bottom right
coordinates
9
3
4
5
8
12345
678910
11 12 13 14 15
16 17 18 19 20
21 22 23 24 25
Nodes Elements
part 1 part 2
part 3 part 4
1234
5678
9101112
13 14 15 16
part 3 part 4
part 1 part 2
11.1 EnSight Gold Geometry File Format
11-40 EnSight 9 User Manual
9
10
13
14
15
2.00000e+00
3.00000e+00
4.00000e+00
2.00000e+00
3.00000e+00
4.00000e+00
2.00000e+00
3.00000e+00
4.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
1.00000e+00
1.00000e+00
1.00000e+00
2.00000e+00
2.00000e+00
2.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
quad4
4
3
4
7
8
1 2 5 4
2 3 6 5
4 5 8 7
5 6 9 8
part
3
top left
coordinates
9
11
12
13
16
17
18
21
22
23
0.00000e+00
1.00000e+00
2.00000e+00
0.00000e+00
1.00000e+00
2.00000e+00
0.00000e+00
1.00000e+00
2.00000e+00
2.00000e+00
2.00000e+00
2.00000e+00
3.00000e+00
3.00000e+00
3.00000e+00
4.00000e+00
4.00000e+00
4.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
quad4
4
9
10
13
14
1 2 5 4
2 3 6 5
4 5 8 7
5 6 9 8
part
4
top right
coordinates
9
13
14
15
18
19
20
23
24
25
2.00000e+00
3.00000e+00
4.00000e+00
2.00000e+00
3.00000e+00
4.00000e+00
2.00000e+00
3.00000e+00
4.00000e+00
2.00000e+00
2.00000e+00
2.00000e+00
3.00000e+00
3.00000e+00
3.00000e+00
4.00000e+00
4.00000e+00
4.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
quad4
4
11
12
15
16
1 2 5 4
2 3 6 5
4 5 8 7
5 6 9 8
11.1 EnSight Gold Geometry File Format
EnSight 9 User Manual 11-41
Portion with part 1 containing ghost cells (other parts are empty)
EnSight Model Geometry File
part 1 portion
node id given
element id given
extents
0.00000e+00 4.00000e+00 0.00000e+00
4.00000e+00
0.00000e+00 0.00000e+00
part
1
bottom left
coordinates
16
1
2
3
4
6
7
8
9
11
12
13
14
16
17
18
19
0.00000e+00
1.00000e+00
2.00000e+00
3.00000e+00
0.00000e+00
1.00000e+00
2.00000e+00
3.00000e+00
0.00000e+00
1.00000e+00
2.00000e+00
3.00000e+00
0.00000e+00
1.00000e+00
2.00000e+00
3.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
1.00000e+00
1.00000e+00
1.00000e+00
1.00000e+00
2.00000e+00
2.00000e+00
2.00000e+00
2.00000e+00
3.00000e+00
3.00000e+00
3.00000e+00
3.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
quad4
4
1
2
5
6
1 2 6 5
2 3 7 6
5 6 10 9
6 7 11 10
g_quad4
5
1
1
1
1
1
3 4 8 7
7 8 12 11
9 10 14 13
10 11 15 14
11 12 16 15
part /* Empty part */
2
bottom right
part /* Empty part */
3
top left
part /* Empty part */
4
top right
1234
6789
11 12 13 14
16 17 18 19
Nodes Elements
part 1
123
567
91011
part 1
Ghost Cell
Note, the images are labeled
with node ids - but the
element connectivities are,
and must be, based on local
node indices.
11.1 EnSight Gold Geometry File Format
11-42 EnSight 9 User Manual
Portion with part 2 containing ghost cells (other parts are empty)
EnSight Model Geometry File
part 2 portion
node id given
element id given
extents
0.00000e+00 4.00000e+00
0.00000e+00 4.00000e+00
0.00000e+00 0.00000e+00
part /* Empty part */
1
bottom left
part
2
bottom right
coordinates
16
2
3
4
5
7
8
9
10
12
13
14
15
17
18
19
20
1.00000e+00
2.00000e+00
3.00000e+00
4.00000e+00
1.00000e+00
2.00000e+00
3.00000e+00
4.00000e+00
1.00000e+00
2.00000e+00
3.00000e+00
4.00000e+00
1.00000e+00
2.00000e+00
3.00000e+00
4.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
1.00000e+00
1.00000e+00
1.00000e+00
1.00000e+00
2.00000e+00
2.00000e+00
2.00000e+00
2.00000e+00
3.00000e+00
3.00000e+00
3.00000e+00
3.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
quad4
4
3
4
7
8
2 3 7 6
3 4 8 7
6 7 11 10
7 8 12 11
g_quad4
5
1
1
1
1
1
1 2 6 5
5 6 10 9
9 10 14 13
10 11 15 14
11 12 16 15
part /* Empty part */
3
top left
part /* Empty part */
4
top right
2345
78910
12 13 15
17 18 19 20
Nodes Elements
part 2
1234
5678
9101112
13 14 15 16
Ghost Cell
14
part 2
Note, the images are labeled
with node ids - but the
element connectivities are,
and must be, based on local
node indices.
11.1 EnSight Gold Geometry File Format
EnSight 9 User Manual 11-43
Structured model
(using essentially the same model, but in structured format) :
EnSight Model Geometry File
Total Structured Model
node id assign
element id assign
extents
0.00000e+00 4.00000e+00
0.00000e+00 4.00000e+00
0.00000e+00 0.00000e+00
part
1
left bottom
block uniform range
5 5 1
1 3 1 3 1 1
0.00000e+00
0.00000e+00
0.00000e+00
1.00000e+00
1.00000e+00
0.00000e+00
part
2
bottom right
block uniform range
5 5 1
3 5 1 3 1 1
2.00000e+00
0.00000e+00
0.00000e+00
1.00000e+00
1.00000e+00
0.00000e+00
part
3
top left
block uniform range
5 5 1
1 3 3 5 1 1
0.00000e+00
2.00000e+00
0.00000e+00
1.00000e+00
1.00000e+00
0.00000e+00
part
4
top right
block uniform range
5 5 1
3 5 3 5 1 1
2.00000e+00
2.00000e+00
0.00000e+00
1.00000e+00
1.00000e+00
0.00000e+00
12345
678910
11 12 13 14 15
16 17 18 19 20
21 22 23 24 25
Nodes Elements
part 1 part 2
part 3 part 4
1234
5678
9101112
13 14 15 16
part 3 part 4
part 1 part 2
5 x 5 x 1 Total Structured Model
11.1 EnSight Gold Geometry File Format
11-44 EnSight 9 User Manual
Portion with part 1 containing ghost cells (other parts are empty)
EnSight Model Geometry File
part 1 portion only
node id assign
element id assign
extents
0.00000e+00 4.00000e+00
0.00000e+00 4.00000e+00
0.00000e+00 0.00000e+00
part
1
left bottom
block uniform range with_ghost
4 4 1
1 4 1 4 1 1
0.00000e+00
0.00000e+00
0.00000e+00
1.00000e+00
1.00000e+00
0.00000e+00
ghost_flags
0
0
1
0
0
1
1
1
1
Part /* Empty Part */
2
right bottom
block
0 0 0
part /* Empty Part */
3
left top
block
0 0 0
part /* Empty Part */
4
right top
block
0 0 0
1234
6789
11 12 13 14
16 17 18 19
Nodes Elements
part 1
123
567
91011
part 1
Ghost Cell
11.1 EnSight Gold Geometry File Format
EnSight 9 User Manual 11-45
Portion with part 2 containing ghost cells (other parts are empty)
Note: For both the unstructured and the structured model above, only the first two
files (parts 1 and 2) are given. The portion files for parts 3 and 4 are not given, but
would be similar to those for parts 1 and 2.
EnSight Model Geometry File
part 2 portion only
node id assign
element id assign
extents
0.00000e+00 4.00000e+00
0.00000e+00 4.00000e+00
0.00000e+00 0.00000e+00
part
1
left bottom
block
0 0 0
part
2
right bottom
block uniform range with_ghost
4 4 1
2 5 1 4 1 1
1.00000e+00
0.00000e+00
0.00000e+00
1.00000e+00
1.00000e+00
0.00000e+00
ghost_flags
1
0
0
1
0
0
1
1
1
part /* Empty Part */
3
left top
block
0 0 0
part /* Empty Part */
4
right top
block
0 0 0
2345
78910
12 13 15
17 18 19 20
Nodes Elements
part 2
1234
5678
9101112
13 14 15 16
Ghost Cell
14
part 2
11.1 EnSight Gold Variable File Format
11-46 EnSight 9 User Manual
EnSight Gold Variable File Format
EnSight Gold variable files can either be per_node or per_element. They cannot
be both. However, an EnSight model can have some variables which are per_node
and others which are per_element.
EnSight Gold Per_Node Variable File Format
EnSight Gold variable files for per_node variables contain values for each
unstructured node and for each structured node. First comes a single description
line. Second comes a part line. Third comes a line containing the part number.
Fourth comes a ‘coordinates’ line or a ‘block’ line. If a ‘coordinates’ line, the
value for each unstructured node of the part follows. If it is a scalar file, there is
one value per node, while for vector files there are three values per node (output in
the same component order as the coordinates, namely, all x components, then all y
components, then all z components). If it is a ‘block’ line, the value(s) for each
structured node follows. The values for each node of the structured block are
output in the same IJK order as the coordinates. (The number of nodes in the part
are obtained from the corresponding EnSight Gold geometry file.)
Note: If the geometry of given part is empty, nothing for that part needs to be in
the variable file.
C Binary form:
SCALAR FILE:
description line 1 80 chars
part 80 chars
# 1 int
coordinates
80 chars
s_n1 s_n2 ... s_nn nn floats
part 80 chars
.
.
part 80 chars
# 1 int
block # nn = i*j*k 80 chars
s_n1 s_n2 ... s_nn nn floats
VECTOR FILE:
description line 1 80 chars
part 80 chars
# 1 int
coordinates
80 chars
vx_n1 vx_n2 ... vx_nn nn floats
vy_n1 vy_n2 ... vy_nn nn floats
vz_n1 vz_n2 ... vz_nn nn floats
part 80 chars
.
.
part 80 chars
# 1 int
block # nn = i*j*k 80 chars
vx_n1 vx_n2 ... vx_nn nn floats
11.1 EnSight Gold Per_Node Variable File Format
EnSight 9 User Manual 11-47
vy_n1 vy_n2 ... vy_nn nn floats
vz_n1 vz_n2 ... vz_nn nn floats
TENSOR FILE:
description line 1 80 chars
part 80 chars
# 1 int
coordinates
80 chars
v11_n1 v11_n2 ... v11_nn nn floats
v22_n1 v22_n2 ... v22_nn nn floats
v33_n1 v33_n2 ... v33_nn nn floats
v12_n1 v12_n2 ... v12_nn nn floats
v13_n1 v13_n2 ... v13_nn nn floats
v23_n1 v23_n2 ... v23_nn nn floats
part 80 chars
.
.
part 80 chars
# 1 int
block # nn = i*j*k 80 chars
v11_n1 v11_n2 ... v11_nn nn floats
v22_n1 v22_n2 ... v22_nn nn floats
v33_n1 v33_n2 ... v33_nn nn floats
v12_n1 v12_n2 ... v12_nn nn floats
v13_n1 v13_n2 ... v13_nn nn floats
v23_n1 v23_n2 ... v23_nn nn floats
TENSOR9 FILE:
description line 1 80 chars
part 80 chars
# 1 int
coordinates
80 chars
v11_n1 v11_n2 ... v11_nn nn floats
v12_n1 v12_n2 ... v12_nn nn floats
v13_n1 v13_n2 ... v13_nn nn floats
v21_n1 v21_n2 ... v21_nn nn floats
v22_n1 v22_n2 ... v22_nn nn floats
v23_n1 v23_n2 ... v23_nn nn floats
v31_n1 v31_n2 ... v31_nn nn floats
v32_n1 v32_n2 ... v32_nn nn floats
v33_n1 v33_n2 ... v33_nn nn floats
part 80 chars
.
.
part 80 chars
# 1 int
block # nn = i*j*k 80 chars
v11_n1 v11_n2 ... v11_nn nn floats
v12_n1 v12_n2 ... v12_nn nn floats
v13_n1 v13_n2 ... v13_nn nn floats
v21_n1 v21_n2 ... v21_nn nn floats
v22_n1 v22_n2 ... v22_nn nn floats
v23_n1 v23_n2 ... v23_nn nn floats
v21_n1 v21_n2 ... v21_nn nn floats
v22_n1 v22_n2 ... v22_nn nn floats
v23_n1 v23_n2 ... v23_nn nn floats
COMPLEX SCALAR FILES (Real and/or Imaginary):
11.1 EnSight Gold Per_Node Variable File Format
11-48 EnSight 9 User Manual
description line 1 80 chars
part 80 chars
# 1 int
coordinates
80 chars
s_n1 s_n2 ... s_nn nn floats
part 80 chars
.
.
part 80 chars
# 1 int
block # nn = i*j*k 80 chars
s_n1 s_n2 ... s_nn nn floats
COMPLEX VECTOR FILES (Real and/or Imaginary):
description line 1 80 chars
part 80 chars
# 1 int
coordinates
80 chars
vx_n1 vx_n2 ... vx_nn nn floats
vy_n1 vy_n2 ... vy_nn nn floats
vz_n1 vz_n2 ... vz_nn nn floats
part 80 chars
.
.
part 80 chars
# 1 int
block # nn = i*j*k 80 chars
vx_n1 vx_n2 ... vx_nn nn floats
vy_n1 vy_n2 ... vy_nn nn floats
vz_n1 vz_n2 ... vz_nn nn floats
Fortran Binary form:
SCALAR FILE:
‘description line 1’ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘coordinates’
80 chars
‘s_n1 s_n2 ... s_nn’ nn floats
‘part’ 80 chars
.
.
‘part’ 80 chars
‘#’ 1 int
‘block’ # nn = i*j*k 80 chars
‘s_n1 s_n2 ... s_nn’ nn floats
VECTOR FILE:
‘description line 1’ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘coordinates’
80 chars
‘vx_n1 vx_n2 ... vx_nn’ nn floats
11.1 EnSight Gold Per_Node Variable File Format
EnSight 9 User Manual 11-49
‘vy_n1 vy_n2 ... vy_nn’ nn floats
‘vz_n1 vz_n2 ... vz_nn’ nn floats
‘part’ 80 chars
.
.
‘part’ 80 chars
‘#’ 1 int
‘block’ # nn = i*j*k 80 chars
‘vx_n1 vx_n2 ... vx_nn’ nn floats
‘vy_n1 vy_n2 ... vy_nn’ nn floats
‘vz_n1 vz_n2 ... vz_nn’ nn floats
TENSOR FILE:
‘description line 1‘ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘coordinates‘
80 chars
‘v11_n1 v11_n2 ... v11_nn’ nn floats
‘v22_n1 v22_n2 ... v22_nn’ nn floats
‘v33_n1 v33_n2 ... v33_nn’ nn floats
‘v12_n1 v12_n2 ... v12_nn’ nn floats
‘v13_n1 v13_n2 ... v13_nn’ nn floats
‘v23_n1 v23_n2 ... v23_nn’ nn floats
‘part’ 80 chars
.
.
‘part’ 80 chars
‘#’ 1 int
‘block’ # nn = i*j*k 80 chars
‘v11_n1 v11_n2 ... v11_nn’ nn floats
‘v22_n1 v22_n2 ... v22_nn’ nn floats
‘v33_n1 v33_n2 ... v33_nn’ nn floats
‘v12_n1 v12_n2 ... v12_nn’ nn floats
‘v13_n1 v13_n2 ... v13_nn’ nn floats
‘v23_n1 v23_n2 ... v23_nn’ nn floats
TENSOR9 FILE:
‘description line 1‘ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘coordinates‘
80 chars
‘v11_n1 v11_n2 ... v11_nn’ nn floats
‘v12_n1 v12_n2 ... v12_nn’ nn floats
‘v13_n1 v13_n2 ... v13_nn’ nn floats
‘v21_n1 v21_n2 ... v21_nn’ nn floats
‘v22_n1 v22_n2 ... v22_nn’ nn floats
‘v23_n1 v23_n2 ... v23_nn’ nn floats
‘v31_n1 v31_n2 ... v31_nn’ nn floats
‘v32_n1 v32_n2 ... v32_nn’ nn floats
‘v33_n1 v33_n2 ... v33_nn’ nn floats
‘part’ 80 chars
.
.
‘part’ 80 chars
‘#’ 1 int
‘block’ # nn = i*j*k 80 chars
‘v11_n1 v11_n2 ... v11_nn’ nn floats
‘v12_n1 v12_n2 ... v12_nn’ nn floats
11.1 EnSight Gold Per_Node Variable File Format
11-50 EnSight 9 User Manual
‘v13_n1 v13_n2 ... v13_nn’ nn floats
‘v21_n1 v21_n2 ... v21_nn’ nn floats
‘v22_n1 v22_n2 ... v22_nn’ nn floats
‘v23_n1 v23_n2 ... v23_nn’ nn floats
‘v31_n1 v31_n2 ... v31_nn’ nn floats
‘v32_n1 v32_n2 ... v32_nn’ nn floats
‘v33_n1 v33_n2 ... v33_nn’ nn floats
COMPLEX SCALAR FILES (Real and/or Imaginary):
‘description line 1’ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘coordinates’
80 chars
‘s_n1 s_n2 ... s_nn’ nn floats
‘part’ 80 chars
.
.
‘part’ 80 chars
‘#’ 1 int
‘block’ # nn = i*j*k 80 chars
‘s_n1 s_n2 ... s_nn’ nn floats
COMPLEX VECTOR FILES (Real and/or Imaginary):
‘description line 1’ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘coordinates’
80 chars
‘vx_n1 vx_n2 ... vx_nn’ nn floats
‘vy_n1 vy_n2 ... vy_nn’ nn floats
‘vz_n1 vz_n2 ... vz_nn’ nn floats
‘part’ 80 chars
.
.
‘part’ 80 chars
‘#’ 1 int
‘block’ # nn = i*j*k 80 chars
‘vx_n1 vx_n2 ... vx_nn’ nn floats
‘vy_n1 vy_n2 ... vy_nn’ nn floats
‘vz_n1 vz_n2 ... vz_nn’ nn floats
ASCII form:
SCALAR FILE:
description line 1 A (max of 79 typ)
part A
# I10
coordinates
A
s_n1 E12.5 1/line (nn)
s_n2
.
.
s_nn
part A
.
11.1 EnSight Gold Per_Node Variable File Format
EnSight 9 User Manual 11-51
.
part A
# I10
block # nn = i*j*k A
s_n1 E12.5 1/line (nn)
s_n2
.
.
s_nn
VECTOR FILE:
description line 1 A (max of 79 typ)
part A
# I10
coordinates
A
vx_n1 E12.5 1/line (nn)
vx_n2
.
.
vx_nn
vy_n1 E12.5 1/line (nn)
vy_n2
.
.
vy_nn
vz_n1 E12.5 1/line (nn)
vz_n2
.
.
vz_nn
part A
.
.
part A
# I10
block # nn = i*j*k A
vx_n1 E12.5 1/line (nn)
vx_n2
.
.
vx_nn
vy_n1 E12.5 1/line (nn)
vy_n2
.
.
vy_nn
vz_n1 E12.5 1/line (nn)
vz_n2
.
.
vz_nn
TENSOR FILE:
description line 1 A (max of 79 typ)
part A
# I10
coordinates
A
11.1 EnSight Gold Per_Node Variable File Format
11-52 EnSight 9 User Manual
v11_n1 E12.5 1/line (nn)
v11_n2
.
.
v11_nn
v22_n1 E12.5 1/line (nn)
v22_n2
.
.
v22_nn
v33_n1 E12.5 1/line (nn)
v33_n2
.
.
v33_nn
v12_n1 E12.5 1/line (nn)
v12_n2
.
.
v12_nn
v13_n1 E12.5 1/line (nn)
v13_n2
.
.
v13_nn
v23_n1 E12.5 1/line (nn)
v23_n2
.
.
v23_nn
part A
.
.
part A
# I10
block # nn = i*j*k A
v11_n1 E12.5 1/line (nn)
v11_n2
.
.
v11_nn
v22_n1 E12.5 1/line (nn)
v22_n2
.
.
v22_nn
v33_n1 E12.5 1/line (nn)
v33_n2
.
.
v33_nn
v12_n1 E12.5 1/line (nn)
v12_n2
.
.
v12_nn
v13_n1 E12.5 1/line (nn)
v13_n2
.
.
v13_nn
11.1 EnSight Gold Per_Node Variable File Format
EnSight 9 User Manual 11-53
v23_n1 E12.5 1/line (nn)
v23_n2
.
.
v23_nn
TENSOR9 FILE:
description line 1 A (max of 79 typ)
part A
# I10
coordinates
A
v11_n1 E12.5 1/line (nn)
v11_n2
.
.
v11_nn
v12_n1 E12.5 1/line (nn)
v12_n2
.
.
v12_nn
v13_n1 E12.5 1/line (nn)
v13_n2
.
.
v13_nn
v21_n1 E12.5 1/line (nn)
v21_n2
.
.
v21_nn
v22_n1 E12.5 1/line (nn)
v22_n2
.
.
v22_nn
v23_n1 E12.5 1/line (nn)
v23_n2
.
.
v23_nn
v31_n1 E12.5 1/line (nn)
v31_n2
.
.
v31_nn
v32_n1 E12.5 1/line (nn)
v32_n2
.
.
v32_nn
v33_n1 E12.5 1/line (nn)
v33_n2
.
.
v33_nn
part A
.
.
part A
11.1 EnSight Gold Per_Node Variable File Format
11-54 EnSight 9 User Manual
# I10
block # nn = i*j*k A
v11_n1 E12.5 1/line (nn)
v11_n2
.
.
v11_nn
v12_n1 E12.5 1/line (nn)
v12_n2
.
.
v12_nn
v13_n1 E12.5 1/line (nn)
v13_n2
.
.
v13_nn
v21_n1 E12.5 1/line (nn)
v21_n2
.
.
v21_nn
v22_n1 E12.5 1/line (nn)
v22_n2
.
.
v22_nn
v23_n1 E12.5 1/line (nn)
v23_n2
.
.
v23_nn
v31_n1 E12.5 1/line (nn)
v31_n2
.
.
v31_nn
v32_n1 E12.5 1/line (nn)
v32_n2
.
.
v32_nn
v33_n1 E12.5 1/line (nn)
v33_n2
.
.
v33_nn
COMPLEX SCALAR FILES (Real and/or Imaginary):
description line 1 A (max of 79 typ)
part A
# I10
coordinates
A
s_n1 E12.5 1/line (nn)
s_n2
.
.
s_nn
part A
11.1 EnSight Gold Per_Node Variable File Format
EnSight 9 User Manual 11-55
.
.
part A
# I10
block # nn = i*j*k A
s_n1 E12.5 1/line (nn)
s_n2
.
.
s_nn
COMPLEX VECTOR FILES (Real and/or Imaginary):
description line 1 A (max of 79 typ)
part A
# I10
coordinates
A
vx_n1 E12.5 1/line (nn)
vx_n2
.
.
vx_nn
vy_n1 E12.5 1/line (nn)
vy_n2
.
.
vy_nn
vz_n1 E12.5 1/line (nn)
vz_n2
.
.
vz_nn
part A
.
.
part A
# I10
block # nn = i*j*k A
vx_n1 E12.5 1/line (nn)
vx_n2
.
.
vx_nn
vy_n1 E12.5 1/line (nn)
vy_n2
.
.
vy_nn
vz_n1 E12.5 1/line (nn)
vz_n2
.
.
vz_nn
11.1 EnSight Gold Per_Node Variable File Format
11-56 EnSight 9 User Manual
The following variable file examples reflect scalar, vector, tensor, and complex
variable values per node for the previously defined EnSight6 Gold Geometry File
Example with 11 defined unstructured nodes and a 2x3x2 structured Part (Part
number 3). The values are summarized in the following table.
Note: These are the same values as listed in the EnSight6 per_node variable file section. Subsequently, the
following example files contain the same data as the example files given in the EnSight6 section -
only they are listed in gold format. (No asymmetric tensor example data given)
Per_node (Scalar) Variable Example 1: This shows an ASCII scalar file (engold.Nsca) for the gold
geometry example.
Per_node scalar values for the EnSight Gold geometry example
part
1
coordinates
1.00000E+00
3.00000E+00
4.00000E+00
5.00000E+00
6.00000E+00
7.00000E+00
8.00000E+00
9.00000E+00
1.00000E+01
1.10000E+01
part
2
coordinates
1.00000E+00
2.00000E+00
Complex Scalar
Node Node Scalar Vector Tensor (2nd order symm.) Real Imaginary
Index Id Value Values Values Value Value
Unstructured
1 15 (1.) (1.1, 1.2, 1.3) (1.1, 1.2, 1.3, 1.4, 1.5, 1.6) (1.1) (1.2)
2 31 (2.) (2.1, 2.2, 2.3) (2.1, 2.2, 2.3, 2.4, 2.5, 2.6) (2.1) (2.2)
3 20 (3.) (3.1, 3.2, 3.3) (3.1, 3.2, 3.3, 3.4, 3.5, 3.6) (3.1) (3.2)
4 40 (4.) (4.1, 4.2, 4.3) (4.1, 4.2, 4.3, 4.4, 4.5, 4.6) (4.1) (4.2)
5 22 (5.) (5.1, 5.2, 5.3) (5.1, 5.2, 5.3, 5.4, 5.5, 5.6) (5.1) (5.2)
6 44 (6.) (6.1, 6.2, 6.3) (6.1, 6.2, 6.3, 6.4, 6.5, 6.6) (6.1) (6.2)
7 55 (7.) (7.1, 7.2, 7.3) (7.1, 7.2, 7.3, 7.4, 7.5, 7.6) (7.1) (7.2)
8 60 (8.) (8.1, 8.2, 8.3) (8.1, 8.2, 8.3, 8.4, 8.5, 8.60 (8.1) (8.2)
9 61 (9.) (9.1, 9.2, 9.3) (9.1, 9.2, 9.3, 9.4, 9.5, 9.6) (9.1) (9.2)
10 62 (10.) (10.1,10.2,10.3) (10.1,10.2,10.3,10.4,10.5,10.6) (10.1) (10.2)
11 63 (11.) (11.1,11.2,11.3) (11.1,11.2,11.3,11.4,11.5,11.6) (11.1) (11.2)
Structured
1 1 (1.) (1.1, 1.2, 1.3) (1.1, 1.2, 1.3, 1.4, 1.5, 1.6) (1.1) (1.2)
2 2 (2.) (2.1, 2.2, 2.3) (2.1, 2.2, 2.3, 2.4, 2.5, 2.6) (2.1) (2.2)
3 3 (3.) (3.1, 3.2, 3.3) (3.1, 3.2, 3.3, 3.4, 3.5, 3.6) (3.1) (3.2)
4 4 (4.) (4.1, 4.2, 4.3) (4.1, 4.2, 4.3, 4.4, 4.5, 4.6) (4.1) (4.2)
5 5 (5.) (5.1, 5.2, 5.3) (5.1, 5.2, 5.3, 5.4, 5.5, 5.6) (5.1) (5.2)
6 6 (6.) (6.1, 6.2, 6.3) (6.1, 6.2, 6.3, 6.4, 6.5, 6.6) (6.1) (6.2)
7 7 (7.) (7.1, 7.2, 7.3) (7.1, 7.2, 7.3, 7.4, 7.5, 7.6) (7.1) (7.2)
8 8 (8.) (8.1, 8.2, 8.3) (8.1, 8.2, 8.3, 8.4, 8.5, 8.6) (8.1) (8.2)
9 9 (9.) (9.1, 9.2, 9.3) (9.1, 9.2, 9.3, 9.4, 9.5, 9.6) (9.1) (9.2)
10 10 (10.) (10.1,10.2,10.3) (10.1,10.2,10.3,10.4,10.5,10.6) (10.1) (10.2)
11 11 (11.) (11.1,11.2,11.3) (11.1,11.2,11.3,11.4,11.5,11.6) (11.1) (11.2)
12 12 (12.) (12.1,12.2,12.3) (12.1,12.2,12.3,12.4,12.5,12.6) (12.1) (12.2)
11.1 EnSight Gold Per_Node Variable File Format
EnSight 9 User Manual 11-57
part
3
block
1.00000E+00
2.00000E+00
3.00000E+00
4.00000E+00
5.00000E+00
6.00000E+00
7.00000E+00
8.00000E+00
9.00000E+00
1.00000E+01
1.10000E+01
1.20000E+01
Per_node (Vector) Variable Example 2: This example shows an ASCII vector file (engold.Nvec) for
the gold geometry example.
Per_node vector values for the EnSight Gold geometry example
part
1
coordinates
1.10000E+00
3.10000E+00
4.10000E+00
5.10000E+00
6.10000E+00
7.10000E+00
8.10000E+00
9.10000E+00
1.01000E+01
1.11000E+01
1.20000E+00
3.20000E+00
4.20000E+00
5.20000E+00
6.20000E+00
7.20000E+00
8.20000E+00
9.20000E+00
1.02000E+01
1.12000E+01
1.30000E+00
3.30000E+00
4.30000E+00
5.30000E+00
6.30000E+00
7.30000E+00
8.30000E+00
9.30000E+00
1.03000E+01
1.13000E+01
part
2
coordinates
1.10000E+00
2.10000E+00
1.20000E+00
2.20000E+00
1.30000E+00
2.30000E+00
part
3
block
1.10000E+00
11.1 EnSight Gold Per_Node Variable File Format
11-58 EnSight 9 User Manual
2.10000E+00
3.10000E+00
4.10000E+00
5.10000E+00
6.10000E+00
7.10000E+00
8.10000E+00
9.10000E+00
1.01000E+01
1.11000E+01
1.21000E+01
1.20000E+00
2.20000E+00
3.20000E+00
4.20000E+00
5.20000E+00
6.20000E+00
7.20000E+00
8.20000E+00
9.20000E+00
1.02000E+01
1.12000E+01
1.22000E+01
1.30000E+00
2.30000E+00
3.30000E+00
4.30000E+00
5.30000E+00
6.30000E+00
7.30000E+00
8.30000E+00
9.30000E+00
1.03000E+01
1.13000E+01
1.23000E+01
Per_node (Tensor) Variable Example 3: This example shows an ASCII 2nd order symmetric tensor file
(engold.Nten) for the gold geometry example.
Per_node symmetric tensor values for the EnSight Gold geometry example
part
1
coordinates
1.10000E+00
3.10000E+00
4.10000E+00
5.10000E+00
6.10000E+00
7.10000E+00
8.10000E+00
9.10000E+00
1.01000E+01
1.11000E+01
1.20000E+00
3.20000E+00
4.20000E+00
5.20000E+00
6.20000E+00
7.20000E+00
8.20000E+00
9.20000E+00
1.02000E+01
1.12000E+01
1.30000E+00
3.30000E+00
4.30000E+00
11.1 EnSight Gold Per_Node Variable File Format
EnSight 9 User Manual 11-59
5.30000E+00
6.30000E+00
7.30000E+00
8.30000E+00
9.30000E+00
1.03000E+01
1.13000E+01
1.40000E+00
3.40000E+00
4.40000E+00
5.40000E+00
6.40000E+00
7.40000E+00
8.40000E+00
9.40000E+00
1.04000E+01
1.14000E+01
1.50000E+00
3.50000E+00
4.50000E+00
5.50000E+00
6.50000E+00
7.50000E+00
8.50000E+00
9.50000E+00
1.05000E+01
1.15000E+01
1.60000E+00
3.60000E+00
4.60000E+00
5.60000E+00
6.60000E+00
7.60000E+00
8.60000E+00
9.60000E+00
1.06000E+01
1.16000E+01
part
2
coordinates
1.10000E+00
2.10000E+00
1.20000E+00
2.20000E+00
1.30000E+00
2.30000E+00
1.40000E+00
2.40000E+00
1.50000E+00
2.50000E+00
1.60000E+00
2.60000E+00
part
3
block
1.10000E+00
2.10000E+00
3.10000E+00
4.10000E+00
5.10000E+00
6.10000E+00
7.10000E+00
8.10000E+00
9.10000E+00
1.01000E+01
1.11000E+01
1.21000E+01
11.1 EnSight Gold Per_Node Variable File Format
11-60 EnSight 9 User Manual
1.20000E+00
2.20000E+00
3.20000E+00
4.20000E+00
5.20000E+00
6.20000E+00
7.20000E+00
8.20000E+00
9.20000E+00
1.02000E+01
1.12000E+01
1.22000E+01
1.30000E+00
2.30000E+00
3.30000E+00
4.30000E+00
5.30000E+00
6.30000E+00
7.30000E+00
8.30000E+00
9.30000E+00
1.03000E+01
1.13000E+01
1.23000E+01
1.40000E+00
2.40000E+00
3.40000E+00
4.40000E+00
5.40000E+00
6.40000E+00
7.40000E+00
8.40000E+00
9.40000E+00
1.04000E+01
1.14000E+01
1.24000E+01
1.50000E+00
2.50000E+00
3.50000E+00
4.50000E+00
5.50000E+00
6.50000E+00
7.50000E+00
8.50000E+00
9.50000E+00
1.05000E+01
1.15000E+01
1.25000E+01
1.60000E+00
2.60000E+00
3.60000E+00
4.60000E+00
5.60000E+00
6.60000E+00
7.60000E+00
8.60000E+00
9.60000E+00
1.06000E+01
1.16000E+01
1.26000E+01
11.1 EnSight Gold Per_Node Variable File Format
EnSight 9 User Manual 11-61
Per_node (Complex) Variable Example 4: This example shows ASCII complex real (engold.Ncmp_r)
and imaginary (engold.Ncmp_i) scalar files for the gold geometry example. (The
same methodology would apply for complex real and imaginary vector files.)
Real scalar File:
Per_node complex real scalar values for the EnSight Gold geometry example
part
1
coordinates
1.10000E+00
3.10000E+00
4.10000E+00
5.10000E+00
6.10000E+00
7.10000E+00
8.10000E+00
9.10000E+00
1.01000E+01
1.11000E+01
part
2
coordinates
1.10000E+00
2.10000E+00
part
3
block
1.10000E+00
2.10000E+00
3.10000E+00
4.10000E+00
5.10000E+00
6.10000E+00
7.10000E+00
8.10000E+00
9.10000E+00
1.01000E+01
1.11000E+01
1.21000E+01
Imaginary scalar File:
Per_node complex imaginary scalar values for the EnSight Gold geometry example
part
1
coordinates
1.20000E+00
3.20000E+00
4.20000E+00
5.20000E+00
6.20000E+00
7.20000E+00
8.20000E+00
9.20000E+00
1.02000E+01
1.12000E+01
part
2
coordinates
1.20000E+00
2.20000E+00
part
3
block
11.1 EnSight Gold Per_Element Variable File Format
11-62 EnSight 9 User Manual
1.20000E+00
2.20000E+00
3.20000E+00
4.20000E+00
5.20000E+00
6.20000E+00
7.20000E+00
8.20000E+00
9.20000E+00
1.02000E+01
1.12000E+01
1.22000E+01
EnSight Gold Per_Element Variable File Format
EnSight Gold variable files for per_element variables contain values for each
element of designated types of designated Parts. First comes a single description
line. Second comes a Part line. Third comes a line containing the part number.
Fourth comes an element type line and then comes the value for each element of
that type and part. If it is a scalar variable, there is one value per element, while
for vector variables there are three values per element. (The number of elements
of the given type are obtained from the corresponding EnSight Gold geometry
file.)
Note: If the geometry of given part is empty, nothing for that part needs to be in
the variable file.
C Binary form:
SCALAR FILE:
description line 1 80 chars
part 80 chars
# 1 int
element type
80 chars
s_e1 s_e2 ... s_ne ne floats
element type
80 chars
.
.
part 80 chars
.
.
part 80 chars
# 1 int
block # nn = (i-1)*(j-1)*(k-1) 80 chars
s_n1 s_n2 ... s_nn nn floats
VECTOR FILE:
description line 1 80 chars
part 80 chars
# 1 int
element type
80 chars
vx_e1 vx_e2 ... vx_ne ne floats
vy_e1 vy_e2 ... vy_ne ne floats
vz_e1 vz_e2 ... vz_ne ne floats
11.1 EnSight Gold Per_Element Variable File Format
EnSight 9 User Manual 11-63
element type
80 chars
.
.
part 80 chars
.
.
part 80 chars
# 1 int
block # nn = (i-1)*(j-1)*(k-1) 80 chars
vx_n1 vx_n2 ... vx_nn nn floats
vy_n1 vy_n2 ... vy_nn nn floats
vz_n1 vz_n2 ... vz_nn nn floats
TENSOR FILE:
description line 1 80 chars
part 80 chars
# 1 int
element type
80 chars
v11_e1 v11_e2 ... v11_ne ne floats
v22_e1 v22_e2 ... v22_ne ne floats
v33_e1 v33_e2 ... v33_ne ne floats
v12_e1 v12_e2 ... v12_ne ne floats
v13_e1 v13_e2 ... v13_ne ne floats
v23_e1 v23_e2 ... v23_ne ne floats
element type
80 chars
.
.
part 80 chars
.
.
part 80 chars
# 1 int
block # nn = (i-1)*(j-1)*(k-1) 80 chars
v11_n1 v11_n2 ... v11_nn nn floats
v22_n1 v22_n2 ... v22_nn nn floats
v33_n1 v33_n2 ... v33_nn nn floats
v12_n1 v12_n2 ... v12_nn nn floats
v13_n1 v13_n2 ... v13_nn nn floats
v23_n1 v23_n2 ... v23_nn nn floats
TENSOR9 FILE:
description line 1 80 chars
part 80 chars
# 1 int
element type
80 chars
v11_e1 v11_e2 ... v11_ne ne floats
v12_e1 v12_e2 ... v12_ne ne floats
v13_e1 v13_e2 ... v13_ne ne floats
v21_e1 v21_e2 ... v21_ne ne floats
v22_e1 v22_e2 ... v22_ne ne floats
v23_e1 v23_e2 ... v23_ne ne floats
v31_e1 v31_e2 ... v31_ne ne floats
v32_e1 v32_e2 ... v32_ne ne floats
v33_e1 v33_e2 ... v33_ne ne floats
element type
80 chars
.
.
11.1 EnSight Gold Per_Element Variable File Format
11-64 EnSight 9 User Manual
part 80 chars
.
.
part 80 chars
# 1 int
block # nn = (i-1)*(j-1)*(k-1) 80 chars
v11_n1 v11_n2 ... v11_nn nn floats
v12_n1 v12_n2 ... v12_nn nn floats
v13_n1 v13_n2 ... v13_nn nn floats
v21_n1 v21_n2 ... v21_nn nn floats
v22_n1 v22_n2 ... v22_nn nn floats
v23_n1 v23_n2 ... v23_nn nn floats
v31_n1 v31_n2 ... v31_nn nn floats
v32_n1 v32_n2 ... v32_nn nn floats
v33_n1 v33_n2 ... v33_nn nn floats
COMPLEX SCALAR FILES (Real and/or Imaginary):
description line 1 80 chars
part 80 chars
# 1 int
element type
80 chars
s_e1 s_e2 ... s_ne ne floats
element type
80 chars
.
.
part 80 chars
.
.
part 80 chars
# 1 int
block # nn = (i-1)*(j-1)*(k-1) 80 chars
s_n1 s_n2 ... s_nn nn floats
COMPLEX VECTOR FILES (Real and/or Imaginary):
description line 1 80 chars
part 80 chars
# 1 int
element type
80 chars
vx_e1 vx_e2 ... vx_ne ne floats
vy_e1 vy_e2 ... vy_ne ne floats
vz_e1 vz_e2 ... vz_ne ne floats
element type
80 chars
.
.
part 80 chars
.
.
part 80 chars
# 1 int
block # nn = (i-1)*(j-1)*(k-1) 80 chars
vx_n1 vx_n2 ... vx_nn nn floats
vy_n1 vy_n2 ... vy_nn nn floats
vz_n1 vz_n2 ... vz_nn nn floats
Fortran Binary form:
SCALAR FILE:
11.1 EnSight Gold Per_Element Variable File Format
EnSight 9 User Manual 11-65
‘description line 1’ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘element type’
80 chars
‘s_e1 s_e2 ... s_ne’ ne floats
‘element type’
80 chars
.
.
‘part’ 80 chars
.
.
‘part’ 80 chars
‘#’ 1 int
‘block’ # nn = (i-1)*(j-1)*(k-1) 80 chars
‘s_n1 s_n2 ... s_nn’ nn floats
VECTOR FILE:
‘description line 1’ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘element type‘
80 chars
‘vx_e1 vx_e2 ... vx_ne’ ne floats
‘vy_e1 vy_e2 ... vy_ne’ ne floats
‘vz_e1 vz_e2 ... vz_ne’ ne floats
‘element type’
80 chars
.
.
‘part’ 80 chars
.
.
‘part’ 80 chars
‘#’ 1 int
‘block’ # nn = (i-1)*(j-1)*(k-1) 80 chars
‘vx_n1 vx_n2 ... vx_nn’ nn floats
‘vy_n1 vy_n2 ... vy_nn’ nn floats
‘vz_n1 vz_n2 ... vz_nn’ nn floats
TENSOR FILE:
‘description line 1’ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘element type‘
80 chars
‘v11_e1 v11_e2 ... v11_ne’ ne floats
‘v22_e1 v22_e2 ... v22_ne’ ne floats
‘v33_e1 v33_e2 ... v33_ne’ ne floats
‘v12_e1 v12_e2 ... v12_ne’ ne floats
‘v13_e1 v13_e2 ... v13_ne’ ne floats
‘v23_e1 v23_e2 ... v23_ne’ ne floats
‘element type’
80 chars
.
.
‘part’ 80 chars
.
.
‘part’ 80 chars
‘#’ 1 int
11.1 EnSight Gold Per_Element Variable File Format
11-66 EnSight 9 User Manual
‘block’ # nn = (i-1)*(j-1)*(k-1) 80 chars
‘v11_n1 v11_n2 ... v11_nn’ nn floats
‘v22_n1 v22_n2 ... v22_nn’ nn floats
‘v33_n1 v33_n2 ... v33_nn’ nn floats
‘v12_n1 v12_n2 ... v12_nn’ nn floats
‘v13_n1 v13_n2 ... v13_nn’ nn floats
‘v23_n1 v23_n2 ... v23_nn’ nn floats
TENSOR9 FILE:
‘description line 1’ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘element type‘
80 chars
‘v11_e1 v11_e2 ... v11_ne’ ne floats
‘v12_e1 v12_e2 ... v12_ne’ ne floats
‘v13_e1 v13_e2 ... v13_ne’ ne floats
‘v21_e1 v21_e2 ... v21_ne’ ne floats
‘v22_e1 v22_e2 ... v22_ne’ ne floats
‘v23_e1 v23_e2 ... v23_ne’ ne floats
‘v31_e1 v31_e2 ... v31_ne’ ne floats
‘v32_e1 v32_e2 ... v32_ne’ ne floats
‘v33_e1 v33_e2 ... v33_ne’ ne floats
‘element type’
80 chars
.
.
‘part’ 80 chars
.
.
‘part’ 80 chars
‘#’ 1 int
‘block’ # nn = (i-1)*(j-1)*(k-1) 80 chars
‘v11_n1 v11_n2 ... v11_nn’ nn floats
‘v12_n1 v12_n2 ... v12_nn’ nn floats
‘v13_n1 v13_n2 ... v13_nn’ nn floats
‘v21_n1 v21_n2 ... v21_nn’ nn floats
‘v22_n1 v22_n2 ... v22_nn’ nn floats
‘v23_n1 v23_n2 ... v23_nn’ nn floats
‘v31_n1 v31_n2 ... v31_nn’ nn floats
‘v32_n1 v32_n2 ... v32_nn’ nn floats
‘v33_n1 v33_n2 ... v33_nn’ nn floats
COMPLEX SCALAR FILES (Real and/or Imaginary):
‘description line 1’ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘element type’
80 chars
‘s_e1 s_e2 ... s_ne’ ne floats
‘element type’
80 chars
.
.
‘part’ 80 chars
.
.
‘part’ 80 chars
‘#’ 1 int
‘block’ # nn = (i-1)*(j-1)*(k-1) 80 chars
11.1 EnSight Gold Per_Element Variable File Format
EnSight 9 User Manual 11-67
‘s_n1 s_n2 ... s_nn’ nn floats
COMPLEX VECTOR FILES (Real and/or Imaginary):
‘description line 1’ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘element type‘
80 chars
‘vx_e1 vx_e2 ... vx_ne’ ne floats
‘vy_e1 vy_e2 ... vy_ne’ ne floats
‘vz_e1 vz_e2 ... vz_ne’ ne floats
‘element type’
80 chars
.
.
‘part’ 80 chars
.
.
‘part’ 80 chars
‘#’ 1 int
‘block’ # nn = (i-1)*(j-1)*(k-1) 80 chars
‘vx_n1 vx_n2 ... vx_nn’ nn floats
‘vy_n1 vy_n2 ... vy_nn’ nn floats
‘vz_n1 vz_n2 ... vz_nn’ nn floats
ASCII form:
SCALAR FILE:
description line 1 A (max of 80 typ)
part A
# I10
element type
A
s_e1 12.5 1/line (ne)
s_e2
.
.
s_ne
element type
A
.
.
part A
.
.
part A
# I10
block # nn = (i-1)*(j-1)*(k-1) A
s_n1 E12.5 1/line (nn)
s_n2
.
.
s_nn
VECTOR FILE:
description line 1 A (max of 80 typ)
part A
# I10
element type
A
11.1 EnSight Gold Per_Element Variable File Format
11-68 EnSight 9 User Manual
vx_e1 E12.5 1/line (ne)
vx_e2
.
.
vx_ne
vy_e1 E12.5 1/line (ne)
vy_e2
.
.
vy_ne
vz_e1 E12.5 1/line (ne)
vz_e2
.
.
vz_ne
element type
A
.
.
part A
.
.
part A
# I10
block # nn = (i-1)*(j-1)*(k-1) A
vx_n1 E12.5 1/line (nn)
vx_n2
.
.
vx_nn
vy_n1 E12.5 1/line (nn)
vy_n2
.
.
vy_nn
vz_n1 E12.5 1/line (nn)
vz_n2
.
.
vz_nn
TENSOR FILE:
description line 1 A (max of 80 typ)
part A
# I10
element type
A
v11_e1 E12.5 1/line (ne)
v11_e2
.
.
v11_ne
v22_e1 E12.5 1/line (ne)
v22_e2
.
.
v22_ne
v33_e1 E12.5 1/line (ne)
v33_e2
.
.
v33_ne
11.1 EnSight Gold Per_Element Variable File Format
EnSight 9 User Manual 11-69
v12_e1 E12.5 1/line (ne)
v12_e2
.
.
v12_ne
v13_e1 E12.5 1/line (ne)
v13_e2
.
.
v13_ne
v23_e1 E12.5 1/line (ne)
v23_e2
.
.
v23_ne
element type
A
.
.
part A
.
.
part A
# I10
block # nn = (i-1)*(j-1)*(k-1) A
v11_n1 E12.5 1/line (nn)
v11_n2
.
.
v11_nn
v22_n1 E12.5 1/line (nn)
v22_n2
.
.
v22_nn
v33_n1 E12.5 1/line (nn)
v33_n2
.
.
v33_nn
v12_n1 E12.5 1/line (nn)
v12_n2
.
.
v12_nn
v13_n1 E12.5 1/line (nn)
v13_n2
.
.
v13_nn
v23_n1 E12.5 1/line (nn)
v23_n2
.
.
v23_nn
TENSOR9 FILE:
description line 1 A (max of 80 typ)
part A
# I10
element type
A
11.1 EnSight Gold Per_Element Variable File Format
11-70 EnSight 9 User Manual
v11_e1 E12.5 1/line (ne)
v11_e2
.
.
v11_ne
v12_e1 E12.5 1/line (ne)
v12_e2
.
.
v12_ne
v13_e1 E12.5 1/line (ne)
v13_e2
.
.
v13_ne
v21_e1 E12.5 1/line (ne)
v21_e2
.
.
v21_ne
v22_e1 E12.5 1/line (ne)
v22_e2
.
.
v22_ne
v23_e1 E12.5 1/line (ne)
v23_e2
.
.
v23_ne
v31_e1 E12.5 1/line (ne)
v31_e2
.
.
v31_ne
v32_e1 E12.5 1/line (ne)
v32_e2
.
.
v32_ne
v33_e1 E12.5 1/line (ne)
v33_e2
.
.
v33_ne
element type
A
.
.
part A
.
.
part A
# I10
block # nn = (i-1)*(j-1)*(k-1) A
v11_n1 E12.5 1/line (nn)
v11_n2
.
.
v11_nn
v12_n1 E12.5 1/line (nn)
v12_n2
11.1 EnSight Gold Per_Element Variable File Format
EnSight 9 User Manual 11-71
.
.
v12_nn
v13_n1 E12.5 1/line (nn)
v13_n2
.
.
v13_nn
v21_n1 E12.5 1/line (nn)
v21_n2
.
.
v21_nn
v22_n1 E12.5 1/line (nn)
v22_n2
.
.
v22_nn
v23_n1 E12.5 1/line (nn)
v23_n2
.
.
v23_nn
v31_n1 E12.5 1/line (nn)
v31_n2
.
.
v31_nn
v32_n1 E12.5 1/line (nn)
v32_n2
.
.
v32_nn
v33_n1 E12.5 1/line (nn)
v33_n2
.
.
v33_nn
COMPLEX SCALAR FILES (Real and/or Imaginary):
description line 1 A (max of 80 typ)
part A
# I10
element type
A
s_e1 12.5 1/line (ne)
s_e2
.
.
s_ne
element type
A
.
.
part A
.
.
part A
# I10
block # nn = (i-1)*(j-1)*(k-1) A
11.1 EnSight Gold Per_Element Variable File Format
11-72 EnSight 9 User Manual
s_n1 E12.5 1/line (nn)
s_n2
.
.
s_nn
COMPLEX VECTOR FILES (Real and/or Imaginary):
description line 1 A (max of 80 typ)
part A
# I10
element type
A
vx_e1 E12.5 1/line (ne)
vx_e2
.
.
vx_ne
vy_e1 E12.5 1/line (ne)
vy_e2
.
.
vy_ne
vz_e1 E12.5 1/line (ne)
vz_e2
.
.
vz_ne
element type
A
.
.
part A
.
.
part A
# I10
block # nn = (i-1)*(j-1)*(k-1) A
vx_n1 E12.5 1/line (nn)
vx_n2
.
.
vx_nn
vy_n1 E12.5 1/line (nn)
vy_n2
.
.
vy_nn
vz_n1 E12.5 1/line (nn)
vz_n2
.
.
vz_nn
11.1 EnSight Gold Per_Element Variable File Format
EnSight 9 User Manual 11-73
The following variable file examples reflect scalar, vector, tensor, and complex
variable values per element for the previously defined EnSight Gold Geometry
File Example with 11 defined unstructured nodes and a 2x3x2 structured Part
(Part number 3). The values are summarized in the following table
Note: These are the same values as listed in the EnSight6 per_element variable file section. Subsequently,
the following example files contain the same data as the example files in the EnSight6 section - only
they are listed in gold format. (No asymmetric tensor example data given)
Per_element (Scalar) Variable Example 1: This example shows an ASCII scalar file (engold.Esca) for
the gold geometry example.
Per_elem scalar values for the EnSight Gold geometry example
part
1
tria3
2.00000E+00
3.00000E+00
hexa8
4.00000E+00
part
2
bar2
1.00000E+00
part
3
block
5.00000E+00
6.00000E+00
Per_element (Vector) Variable Example 2: This example shows an ASCII vector file (engold.Evec) for
the gold geometry example.
Per_elem vector values for the EnSight Gold geometry example
part
1
tria3
2.10000E+00
3.10000E+00
2.20000E+00
3.20000E+00
Complex Scalar
Element Element Scalar Vector Tensor (2nd order symm.) Real Imaginary
Index Id Value Values Values Value Value
Unstructured
bar2
1 101 (1.) (1.1, 1.2, 1.3) (1.1, 1.2, 1.3, 1.4, 1.5, 1.6) (1.1) (1.2)
tria3
1 102 (2.) (2.1, 2.2, 2.3) (2.1, 2.2, 2.3, 2.4, 2.5, 2.6) (2.1) (2.2)
2 103 (3.) (3.1, 3.2, 3.3) (3.1, 3.2, 3.3, 3.4, 3.5, 3.6) (3.1) (3.2)
hexa8
1 104 (4.) (4.1, 4.2, 4.3) (4.1, 4.2, 4.3, 4.4, 4.5, 4.6) (4.1) (4.2)
Structured
block 1 1 (5.) (5.1, 5.2, 5.3) (5.1, 5.2, 5.3, 5.4, 5.5, 5.6) (5.1) (5.2)
11.1 EnSight Gold Per_Element Variable File Format
11-74 EnSight 9 User Manual
2.30000E+00
3.30000E+00
hexa8
4.10000E+00
4.20000E+00
4.30000E+00
part
2
bar2
1.10000E+00
1.20000E+00
1.30000E+00
part
3
block
5.10000E+00
6.10000E+00
5.20000E+00
6.20000E+00
5.30000E+00
6.30000E+00
Per_element (Tensor) Variable Example3: This example shows an ASCII 2nd order symmetric tensor
file (engold.Eten) for the gold geometry example.
Per_elem symmetric tensor values for the EnSight Gold geometry example
part
1
tria3
2.10000E+00
3.10000E+00
2.20000E+00
3.20000E+00
2.30000E+00
3.30000E+00
2.40000E+00
3.40000E+00
2.50000E+00
3.50000E+00
2.60000E+00
3.60000E+00
hexa8
4.10000E+00
4.20000E+00
4.30000E+00
4.40000E+00
4.50000E+00
4.60000E+00
part
2
bar2
1.10000E+00
1.20000E+00
1.30000E+00
1.40000E+00
1.50000E+00
1.60000E+00
part
3
block
11.1 EnSight Gold Per_Element Variable File Format
EnSight 9 User Manual 11-75
5.10000E+00
6.10000E+00
5.20000E+00
6.20000E+00
5.30000E+00
6.30000E+00
5.40000E+00
6.40000E+00
5.50000E+00
6.50000E+00
5.60000E+00
6.60000E+00
Per_element (Complex) Variable Example 4: This example shows ASCII complex real (engold.Ecmp_r)
and imaginary (engold.Ecmp_i) scalar files for the gold geometry example. (The
same methodology would apply for complex real and imaginary vector files.)
Real scalar File:
Per_elem complex real scalar values for the EnSight Gold geometry example
part
1
tria3
2.10000E+00
3.10000E+00
hexa8
4.10000E+00
part
2
bar2
1.10000E+00
part
3
block
5.10000E+00
6.10000E+00
Imaginary scalar File:
Per_elem complex imaginary scalar values for the EnSight Gold geometry example
part
1
tria3
2.20000E+00
3.20000E+00
hexa8
4.20000E+00
part
2
bar2
1.20000E+00
part
3
block
5.20000E+00
6.20000E+00
11.1 EnSight Gold Undefined Variable Values Format
11-76 EnSight 9 User Manual
EnSight Gold Undefined Variable Values Format
Undefined variable values are allowed in EnSight Gold scalar, vector, tensor and
complex variable file formats. Undefined values are specified on a “per section”
basis (i.e. coordinates, element_type, or block) in each EnSight Gold variable
file. EnSight first parses any undefined keyword “undef” that may follow the
sectional keyword (i.e. coordinates undef, element_type undef, or block
undef) on its line. This indicates that the next floating point value is the undefined
value used in that section. EnSight reads this undefined value, reads all
subsequent variable values for that section; and then converts any undefined (file
section) values to an internal undefined value (currently -1.2345e-10) recognized
computationally by EnSight (Note: the internal, or computational, undefined
value can be changed by the user via the “test: change_undef_value”
command before any data is read.)
Note: EnSight’s undefined capability is for variables only - not for geometry!
Also, in determining internally whether a vector or tensor variable is undefined at
a node or element, the first component is all that is examined. You cannot have
some components defined and others undefined.
The following per_node and per_element ASCII scalar files contain examples of
undefined values. For your comparison, these two files are the files engold.Nsca
and engold.Esca written with some undefined values specified. Note that the
undefined values per section need not be the same value; rather, it may be any
value - usually outside the interval range of the variable. The same methodology
applies to vector, tensor, and complex files.
C Binary form: (Per_node)
SCALAR FILE:
description line 1 80 chars
part 80 chars
# 1 int
coordinates undef 80 chars
undef_value
1 f
loat
s_n1 s_n2 ... s_nn nn floats
part 80 chars
.
.
part 80 chars
# 1 int
block undef # nn = i*j*k 80 chars
undef_value
1
float
s_n1 s_n2 ... s_nn nn floats
Fortran Binary form: (Per_node)
SCALAR FILE:
‘description line 1’ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘coordinates undef’
80 chars
‘
undef_value
’ 1
float
‘s_n1 s_n2 ... s_nn’ nn floats
‘part’ 80 chars
11.1 EnSight Gold Undefined Variable Values Format
EnSight 9 User Manual 11-77
.
.
‘part’ 80 chars
‘#’ 1 int
‘block undef’ # nn = i*j*k 80 chars
‘
undef_value
’ 1
float
‘s_n1 s_n2 ... s_nn’ nn floats
ASCII form: (Per_node)
SCALAR FILE:
description line 1 A (max of 79 typ)
part A
# I10
coordinates undef
A
undef_value
E12.5
s_n1 E12.5 1/line (nn)
s_n2
.
.
s_nn
part A
.
.
part A
# I10
block undef # nn = i*j*k A
undef_value
E12.5
s_n1 E12.5 1/line (nn)
s_n2
.
.
s_nn
Undefined per_node (Scalar) Variable Example: This example shows undefined data in an ASCII scalar
file (engold.Nsca_u) for the gold geometry example.
Per_node undefined scalar values for the EnSight Gold geometry example
part
1
coordinates undef
-1.00000E+04
-1.00000E+04
3.00000E+00
4.00000E+00
5.00000E+00
6.00000E+00
7.00000E+00
8.00000E+00
9.00000E+00
1.00000E+01
1.10000E+01
part
2
coordinates
1.00000E+00
2.00000E+00
part
3
11.1 EnSight Gold Undefined Variable Values Format
11-78 EnSight 9 User Manual
block undef
-1.23450E-10
1.00000E+00
2.00000E+00
3.00000E+00
4.00000E+00
5.00000E+00
-1.23450E-10
7.00000E+00
8.00000E+00
9.00000E+00
1.00000E+01
1.10000E+01
1.20000E+01
C Binary form: (Per_element)
SCALAR FILE:
description line 1 80 chars
part 80 chars
# 1 int
element type undef
80 chars
undef_value
1
float
s_e1 s_e2 ... s_ne ne floats
element type undef
80 chars
undef_value
1
float
.
.
part 80 chars
.
.
part 80 chars
# 1 int
block undef # nn = (i-1)*(j-1)*(k-1) 80 chars
undef_value
1
float
s_n1 s_n2 ... s_nn nn floats
Fortran Binary form: (Per_element)
SCALAR FILE:
‘description line 1’ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘element type undef’
80 chars
‘undef_value’
1
float
‘s_e1 s_e2 ... s_ne’ ne floats
‘element type undef’
80 chars
‘undef_value’
1
float
.
.
‘part’ 80 chars
.
.
11.1 EnSight Gold Undefined Variable Values Format
EnSight 9 User Manual 11-79
‘part’ 80 chars
‘#’ 1 int
‘block undef’ # nn = (i-1)*(j-1)*(k-1) 80 chars
‘undef_value’
1
float
‘s_n1 s_n2 ... s_nn’ nn floats
ASCII form: (Per_element)
SCALAR FILE:
description line 1 A (max of 80 typ)
part A
# I10
element type undef
A
undef_value
E12.5
s_e1 E12.5 1/line (ne)
s_e2
.
.
s_ne
element type undef
A
undef_value
E12.5
.
.
part A
.
.
part A
# I10
block undef # nn = (i-1)*(j-1)*(k-1) A
undef_value
E12.5
s_n1 E12.5 1/line (nn)
s_n2
.
.
s_nn
Undefined per_element (Scalar) Variable Example: This example shows undefined data in an ASCII
scalar file (engold.Esca_u) for the gold geometry example.
Per_elem undefined scalar values for the EnSight Gold geometry example
part
1
tria3 undef
-1.00000E+02
2.00000E+00
-1.00000E+02
hexa8
4.00000E+00
part
2
bar2
1.00000E+00
part
3
block undef
-1.23450E-10
-1.23450E-10
6.00000E+00
11.1 EnSight Gold Partial Variable Values Format
11-80 EnSight 9 User Manual
EnSight Gold Partial Variable Values Format
Partial variable values are allowed in EnSight Gold scalar, vector, tensor and
complex variable file formats. Partial values are specified on a “per section” basis
(i.e. coordinates, element_type, or block) in each EnSight Gold variable file.
EnSight first parses any partial keyword “partial” that may follow the sectional
keyword (i.e. coordinates partial, element_type partial, or block
partial) on its line. This indicates that the next integer value is the number of
partial values defined in that section. EnSight reads the number of defined partial
values, next reads this number of integer partial indices, and finally reads all
corresponding partial variable values for that section. Afterwords, any variable
value not specified in the list of partial indices is assigned the internal “undefined”
(see previous section) value. Values interpolated between time steps must be
defined for both time steps; otherwise, they are undefined.
The following per_node and per_element ASCII scalar files contain examples of
partial values. For your comparison, these two files are the files engold.Nsca and
engold.Esca written with some partial values specified. The same methodology
applies to vector, tensor, and complex files.
C Binary form: (Per_node)
SCALAR FILE:
description line 1 80 chars
part 80 chars
# 1 int
coordinates partial 80 chars
nn
1 int
i_n1 i_n2 ... i_nn nn ints
s_n1 s_n2 ... s_nn nn floats
part 80 chars
.
.
part 80 chars
# 1 int
block partial # nn = i*j*k 80 chars
nn 1 int
i_n1 i_n2 ... i_nn nn ints
s_n1 s_n2 ... s_nn nn floats
Fortran Binary form: (Per_node)
SCALAR FILE:
‘description line 1’ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘coordinates partial’
80 chars
‘
nn’
1
int
‘
i_n1 i_n2 ... i_nn’ nn ints
‘s_n1 s_n2 ... s_nn’ nn floats
‘part’ 80 chars
.
11.1 EnSight Gold Partial Variable Values Format
EnSight 9 User Manual 11-81
.
‘part’ 80 chars
‘#’ 1 int
‘block partial’ # nn = i*j*k 80 chars
‘
nn’
1
int
‘
i_n1 i_n2 ... i_nn’ nn ints
‘s_n1 s_n2 ... s_nn’ nn floats
ASCII form: (Per_node)
SCALAR FILE:
description line 1 A (max of 79 typ)
part A
# I10
coordinates partial
A
nn I10
i_n1 I10 1/line (nn)
i_n2
.
.
i_nn
s_n1 E12.5 1/line (nn)
s_n2
.
.
s_nn
part A
.
.
part A
# I10
block partial # nn = i*j*k A
nn I10
i_n1 I10 1/line (nn)
i_n2
.
.
i_nn
s_n1 E12.5 1/line (nn)
s_n2
.
.
s_nn
Partial per_node (Scalar) Variable Example: This example shows partial data in an ASCII scalar file
(engold.Nsca_p) for the gold geometry example.
Per_node partial scalar values for the EnSight Gold geometry example
part
1
coordinates partial
9
2
3
4
5
6
7
8
11.1 EnSight Gold Partial Variable Values Format
11-82 EnSight 9 User Manual
9
10
3.00000E+00
4.00000E+00
5.00000E+00
6.00000E+00
7.00000E+00
8.00000E+00
9.00000E+00
1.00000E+01
1.10000E+01
part
2
coordinates
1.00000E+00
2.00000E+00
part
3
block
1.00000E+00
2.00000E+00
3.00000E+00
4.00000E+00
5.00000E+00
6.00000E+00
7.00000E+00
8.00000E+00
9.00000E+00
1.00000E+01
1.10000E+01
1.20000E+01
C Binary form: (Per_element)
SCALAR FILE:
description line 1 80 chars
part 80 chars
# 1 int
element type partial
80 chars
ne
1
int
i_n1 i_n2 ... i_ne ne ints
s_e1 s_e2 ... s_ne ne floats
element type partial
80 chars
ne
1
int
i_n1 i_n2 ... i_ne ne ints
.
.
part 80 chars
.
.
part 80 chars
# 1 int
block partial # me= (i-1)*(j-1)*(k-1) 80 chars
m
e
1
int
i_n1 i_n2 ... i_me me ints
s_n1 s_n2 ... s_me me floats
11.1 EnSight Gold Partial Variable Values Format
EnSight 9 User Manual 11-83
Fortran Binary form: (Per_element)
SCALAR FILE:
‘description line 1’ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘element type partial’
80 chars
‘
ne’
1
int
‘
i_n1 i_n2 ... i_ne’ ne ints
‘s_e1 s_e2 ... s_ne’ ne floats
‘element type partial’
80 chars
‘
ne’
1 int
‘
i_n1 i_n2 ... i_ne’ ne ints
.
.
‘part’ 80 chars
.
.
‘part’ 80 chars
‘#’ 1 int
‘block partial’ # me = (i-1)*(j-1)*(k-1) 80 chars
‘
me’
1
int
‘
i_n1 i_n2 ... i_me’ me ints
‘s_n1 s_n2 ... s_me’ me floats
ASCII form: (Per_element)
SCALAR FILE:
description line 1 A (max of 80 typ)
part A
# I10
element type partial
A
ne I10
i_n1 I10 1/line (ne)
i_n2
.
.
i_ne
s_e1 E12.5 1/line (ne)
s_e2
.
.
s_ne
element type partial
A
ne I10
i_n1 I10 1/line (ne)
i_n2
.
.
i_ne
.
.
part A
.
.
part A
11.1 EnSight Gold Partial Variable Values Format
11-84 EnSight 9 User Manual
# I10
block partial # me = (i-1)*(j-1)*(k-1) A
me I10
i_n1 I10 1/line (me)
i_n2
.
.
i_me
s_n1 E12.5 1/line (me)
s_n2
.
.
s_me
Partial per_element (Scalar) Variable Example: This example shows partial data in an ASCII scalar file
(engold.Esca_p) for the gold geometry example.
Per_elem partial scalar values for the EnSight Gold geometry example
part
1
tria3 partial
1
1
2.00000E+00
hexa8
4.00000E+00
part
2
bar2
1.00000E+00
part
3
block partial
1
2
6.00000E+00
11.1 EnSight Gold Measured/Particle File Format
EnSight 9 User Manual 11-85
EnSight Gold Measured/Particle File Format
Changes Measured/Particle file formats for both geometry and variables have remained
unchanged since EnSight 5. The only change is the contents of EnSight 5 results
file (.mea suffix) containing geometry and variable filenames and time values are
now entered directly into the EnSight Gold Case file.
While the format of a Measured/Particle geometry file is exactly the same as the
EnSight 5& 6 geometry file, it is repeated below for convenience:
•Line 1
This line is a description line.
•Line 2
Indicates that this file contains particle coordinates. The words “particle
coordinates” should be entered on this line without the quotes.
•Line 3
Specifies the number of Particles.
• Line 4 through the end of the file.
Each line contains the ID and the X, Y, and Z coordinates of each Particle.
The format of this line is “integer real real real” written out in the
following format:
From C:
%8d%12.5e%12.5e%12.5e
format
From FORTRAN:
i8, 3e12.5
format
A generic measured/Particle geometry file is as follows:
A description line
particle coordinates
#_of_Particles
id xcoord ycoord zcoord
id xcoord ycoord zcoord
id xcoord ycoord zcoord
.
.
.
Measured Geometry The following illustrates a measured/Particle file with seven points:
Example
This is a simple measured geometry file
particle coordinates
7
101 0.00000E+00 0.00000E+00 0.00000E+00
102 1.00000E+00 0.00000E+00 0.00000E+00
103 1.00000E+00 1.00000E+00 0.00000E+00
104 0.00000E+00 1.00000E+00 0.00000E+00
205 5.00000E-01 0.00000E+00 2.00000E+00
206 5.00000E-01 1.00000E+00 2.00000E+00
307 0.00000E+00 0.00000E+00-1.50000E+00
Measured Variable Measured variable files have remained unchanged since EnSight 5.
Files The particle variable file is also the same as EnSight6 case per_node variable
files.
Please note that they are NOT the same as the EnSight gold per_node variable
files. (see EnSight6 Per_Node Variable File Format, in Section 11.2)
11.1 EnSight Gold Material Files Format
11-86 EnSight 9 User Manual
EnSight Gold Material Files Format
This section contains descriptions of the three EnSight Gold material files; i.e.
material id file, mixed-material id file, and mixed-material values file. A simple
example dataset is also appended for quick reference.
All three EnSight Gold material files correlate to and follow the same syntax of
the other EnSight Gold file formats.
Material Id File
The material id file follows the same syntax as the per_element variable files,
except that its values are integers for each element of designated types of
designated parts. First comes a single description line. Second comes a Part line.
Third comes a line containing the part number. Fourth comes an element type line
(Note, this is the only material file that has an element type line). And then
comes the corresponding integer value for each element of that type and part (and
so on for each part).
The integer value is either positive or negative. A positive integer is the material
number/id for the entire element. A negative integer indicates that this element is
composed of multiple, or mixed, materials. The absolute value of this negative
number is a relative (1-bias) index into the mixed ids file that points to the mixed
material data for each element under its part (see example below).
Mixed (Material) Ids File
The mixed-material id file also contains integer values, and follows EnSight Gold
syntax with exceptions as noted below. First comes a single description line.
Second comes a Part line. Third comes a line containing the part number. Fourth
comes a “mixed ids” keyword line. Fifth comes the size of the total mixed id
array for all the mixed elements of this part. Next comes the mixed id element
data for each of the elements with mixed materials for this part (and so on for each
part).
The mixed id data for each of the “mixed elements” has the following order of
syntax. First comes the number of mixed materials. Second comes a list of
material ids that comprise that element. Next comes a negative number whose
absolute value is a relative (1-bias) index into the mixed values file that points to
the group of mixed-material fraction values that correspond to each listed material
of that element under its part (see example below).
Mixed (Material) Values File
The mixed-material values file contains float values, and also follows EnSight
Gold syntax with exceptions as noted below. First comes a single description line.
Second comes a Part line. Third comes a line containing the part number. Fourth
comes a “mixed values” keyword line. Fifth comes the size of the total mixed
values array for all the mixed elements of this part. Next comes the mixed
material fraction values whose order corresponds to the order of the material ids
listed for that element in the mixed ids file.
Species (Element) Values File
This is the same as the Mixed (Material) Values file except replace “mixed
values” with “species “values” and “mixval” with “spval.”
11.1 EnSight Gold Material Files Format
EnSight 9 User Manual 11-87
Materials via Per Element Scalar Variables
Materials defined by per element scalar variables are specified in the case file
under the MATERIAL section. The per element scalar files are the same format
as defined under the variable files subsection for scalar variable per element.
C Binary form:
MATERIAL ID FILE:
description line 1 80 chars
part 80 chars
# 1 int
element type 80 chars
matid_e1 matid_e2 ... matid_ne ne ints
element type 80 chars
.
.
part 80 chars
.
.
part 80 chars
# 1 int
block # nbe = (i-1)*(j-1)*(k-1) 80 chars
matid_e1 matid_e2 ... matid_nbe nbe ints
MIXED IDS FILE:
description line 1 80 chars
part 80 chars
# 1 int
mixed ids 80 chars
ni 1 int
mixid_1 mixid_2 ... mixid_ni ni ints
.
.
part 80 chars
.
.
part 80 chars
# 1 int
mixed ids 80 chars
ni 1 int
mixid_1 mixid_2 ... mixid_ni ni ints
MIXED VALUES FILE:
description line 1 80 chars
part 80 chars
# 1 int
mixed values 80 chars
nf 1 int
mixval_1 mixval_2 ... mixval_nf nf floats
.
.
part 80 chars
.
.
part 80 chars
# 1 int
mixed values 80 chars
nf 1 int
mixval_1 mixval_2 ... mixval_nf nf floats
SPECIES VALUES FILE:
same as Mixed Vaues File above except...
replace “mixed values” with “species values”
and “mixval” with “spval”
MATERIALS VIA PER ELEMENT SCALAR VARIABLES:
same as under EnSight Gold Per-Element Variable File Format
11.1 EnSight Gold Material Files Format
11-88 EnSight 9 User Manual
Fortran Binary form:
MATERIAL ID FILE:
‘description line 1’ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘element type’ 80 chars
‘matid_e1 matid_e2 ... matid_ne’ ne ints
‘element type’ 80 chars
.
.
‘part’ 80 chars
.
.
‘part’ 80 chars
‘#’ 1 int
‘block’ # nbe = (i-1)*(j-1)*(k-1) 80 chars
‘matid_e1 matid_e2 ... matid_nbe’ nbe ints
MIXED IDS FILE:
‘description line 1’ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘mixed ids’ 80 chars
‘ni’ 1 int
‘mixid_1 mixid_2 ... mixid_ni’ ni ints
.
.
‘part’ 80 chars
.
.
‘part’ 80 chars
‘#’ 1 int
‘mixed ids’ 80 chars
‘ni’ 1 int
‘mixid_1 mixid_2 ... mixid_ni’ ni ints
MIXED VALUES FILE:
‘description line 1’ 80 chars
‘part’ 80 chars
‘#’ 1 int
‘mixed values’ 80 chars
‘nf’ 1 int
‘mixval_1 mixval_2 ... mixval_nf’ nf floats
.
.
‘part’ 80 chars
.
.
‘part’ 80 chars
‘#’ 1 int
‘mixed values’ 80 chars
‘nf’ 1 int
‘mixval_1 mixval_2 ... mixval_nf’ nf floats
SPECIES VALUES FILE:
same as Mixed Vaues File above except...
replace “mixed values” with “species values”
and “mixval” with “spval”
MATERIALS VIA PER ELEMENT SCALAR VARIABLES:
same as under EnSight Gold Per-Element Variable File Format
11.1 EnSight Gold Material Files Format
EnSight 9 User Manual 11-89
ASCII form:
MATERIAL ID FILE:
description line 1 A (max of 79 typ)
part A
# I10
element type A
matid_e1 I10 1/line (ne)
matid_e2
...
matid_ne
element type A
.
.
part A
.
.
part A
# I10
block # nbe = (i-1)*(j-1)*(k-1) A
matid_e1 I10 1/line (nbe)
matid_e2
...
matid_nbe
MIXED IDS FILE:
description line 1 A (max of 79 typ)
part A
# I10
mixed ids A
ni I10
mixid_1 I10 1/line (ni)
mixid_2
...
mixid_ni . .
part A
.
.
part A
# I10
mixed ids A
ni I10
mixid_1 I10 1/line (ni)
mixid_2
...
mixid_ni
MIXED VALUES FILE:
description line 1 A (max of 80 typ)
part A
# I10
mixed values A
nf I10
mixval_1 E12.5 1/line (nf)
mixval_2
...
mixval_nf
.
.
part A
.
.
part A
# I10
mixed values A
nf I10
mixval_1 E12.5 1/line (nf)
mixval_2
...
mixval_nf
11.1 EnSight Gold Material Files Format
11-90 EnSight 9 User Manual
SPECIES VALUES FILE:
same as Mixed Vaues File above except...
replace “mixed values” with “species values”
and “mixval” with “spval”
MATERIALS VIA PER ELEMENT SCALAR VARIABLES:
same as under EnSight Gold Per-Element Variable File Format
11.1 EnSight Gold Material Files Format
EnSight 9 User Manual 11-91
Example Material Dataset (without species)
The following example dataset of ASCII EnSight Gold geometry and material
files show the definition of material fractions for an unstructured model.
Case file
# Sample Case File for 2D Material Dataset
# Created: 03Apr03:mel
#
FORMAT
type: ensight gold
GEOMETRY
model: zmat2d.geo
VARIABLE
scalar per node: scalar zmat2d.sca
MATERIAL
material set number: 1 Mat1
material id count: 2
material id numbers: 3 6
material id names: matl_3 mat1_6 #Air H2O
material id per element: zmat2d.mati
material mixed ids: zmat2d.mixi
material mixed values: zmat2d.mixv
# y
#
# ^
# | Case Material ids = {3,6}
#
# 6. 7-----------8-----------9
# | /|\ |
# | / | \ |
# | e2 / | \ e3 |
# | / | \ |
# | / | \ |
# | q0 | q1 |
# | / | \ |
# | {.5,.5} | {.5,.5} |
# | / | \ |
# | / | \ |
# |/ | \|
# 3. 4-----------5-----------6
# |\ | /|
# | \ {0.,1.} | / |
# | \ | e4 / |
# | \ t1 | / |
# | \ | / |
# | e0 \ e1 | q2 |
# | \ | / |
# | t0 \ | {.5,.5} |
# | \ | / |
# | {1.,0.} \ | / |
# | \|/ |
# 0. 1-----------2-----------3 -> x
#
# 0. 3. 6.
#
Figure 11-2
Geometry for Example Material Dataset
Figure 11-2
Materials for Example Material Dataset
11.1 EnSight Gold Material Files Format
11-92 EnSight 9 User Manual
Geometry File (zmat2d.geo)
Geometry file
Example 2D Material Dataset
node id given
element id given
part
1
2d-mesh
coordinates
9
1
2
3
4
5
6
7
8
9
0.00000e+00
3.00000e+00
6.00000e+00
0.00000e+00
3.00000e+00
6.00000e+00
0.00000e+00
3.00000e+00
6.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
3.00000e+00
3.00000e+00
3.00000e+00
6.00000e+00
6.00000e+00
6.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
0.00000e+00
tria3
2
0
1
1 2 4
2 5 4
quad4
3
2
3
4
4 5 8 7
8 5 6 9
2 3 6 5
11.1 EnSight Gold Material Files Format
EnSight 9 User Manual 11-93
Scalar File (zmat2d.sca)
Scalar File
part
1
coordinates
0.00000e+00
1.00000e+00
2.00000e+00
1.00000e+00
2.00000e+00
3.00000e+00
2.00000e+00
3.00000e+00
4.00000e+00
Material Number/Id File
part
1
tria3
3
6
quad4
-1
-5
-9
Mixed Ids File
part
1
mixed ids
12
2
3
6
-1
2
3
6
-3
2
3
6
-5
Mixed Values File
part
1
mixed values
6
0.50000e+00
0.50000e+00
0.50000e+00
0.50000e+00
0.50000e+00
0.50000e+00
Material Number/ID File
(zmat2d.mati)
Mixed Material Ids File
(zmat2d.mixi)
Mixed Material Values File
(zmat2d.mixv)
11.1 EnSight Gold Material Files Format
11-94 EnSight 9 User Manual
Example Material Dataset (with Species)
Same as previous Material Dataset example except:
-append species information to MATERIAL section in case file, and
-add species element values file
(see example below).
Case file
Note: The following relationships are significant in the above case file.
material id numbers: 3 6
material id names: Air H20
species per material counts: 3 2
----^--- --^--
species per material lists: 12 13 14 11 13
N O Ar H O
where:
Case material ids (w/species) = {3,6} = {Air, H20} = {Air{ N, O, Ar), H20( H, O}}
Note: typical values " {Air(.78,.21.01), H20(.33,.67)}
# Sample Case File for 2D Material Dataset - with Speicies
# Created: 03Apr05:mel
#
FORMAT
type: ensight gold
GEOMETRY
Model: zmat2d.geo
VARIABLE
scalar per node: Nscalarzmat2d.sca
scalar per element: Escalarzmat2d.sca
MATERIAL
material set number: 1 Mat1
material id count: 2
material id numbers: 3 6
material id names: Air H2O
material id per element: zmat2d.mati
material mixed ids: zmat2d.mixi
material mixed values: zmat2d.mixv
# Optional Species data
species id count: 4
species id numbers: 11 12 13 14
species id names: Hydrogen Nitrogen Oxygen Argon
species per material counts: 3 2
species per material lists: 12 13 14 11 13
species element values: zmat2d.spv
11.1 EnSight Gold Material Files Format
EnSight 9 User Manual 11-95
M
a
t S
e p Species Element Values File (zmat2d.spv)
r e Species Element Values File
i c part
a i 1 0-bias Element Element by type in
l e species values Index Label the connectivity list
=== === 20 ===== ======= =====================
Air N 0.78000e+00 <--------------- 0 <---- e0 = t0 = 1st Triangle
" O 0.21000e+00 1
" Ar 0.01000e+00 2
H2O H 0.33000e+00 <--------------- 3 <---- e1 = t1 = 2nd Triangle
" O 0.67000e+00 4
Air N 0.78100e+00 <--------------- 5 <---- e2 = q0 = 1st Quad
" O 0.20900e+00 6
" Ar 0.01000e+00 6
H2O H 0.33300e+00 8
" O 0.66700e+00 9
Air N 0.78010e+00 <--------------- 10 <---- e3 = q1 = 2nd Quad
" O 0.20990e+00 11
" Ar 0.01000e+00 12
H2O H 0.33330e+00 13
" O 0.66670e+00 14
Air N 0.78001e+00 <--------------- 15 <---- e4 = q2 = 3rd Quad
" O 0.20999e+00 16
" Ar 0.01000e+00 17
H2O H 0.33333e+00 18
" O 0.66667e+00 19
Note: The above species element values are accessed via part-element connectivity (
zmat2d.geo
) and
material element data (
zmat2d.mati
and
zmat2d.mixi
) as illustrated above.
For more information on species see Species, located in Material Parts Create/Update, MATERIAL
Section under EnSight Gold Casefile Format, and MatSpecies function under 4.3
Variable Creation.
11.1 EnSight Gold Material Files Format
11-96 EnSight 9 User Manual
Example Material Dataset With Materials Defined By Per Element Scalar Variables
Note: Species are not supported under this format.
The following example dataset of ASCII EnSight Gold geometry and material
files show the definition of material fractions for an unstructured model.
Case file
# Sample Case File for 2D Material Dataset w/materials via per element scalars
# Created: 07Feb20:mel
#
FORMAT
type: ensight gold
GEOMETRY
model: zmat2d.geo
VARIABLE
scalar per node: scalarN zmat2d.sca
scalar per element: scal_E3 zmat2d.se3
scalar per element: scal_E6 zmat2d.se6
MATERIAL
material set number: 1 Mat1
material id count: 2
material id numbers: 3 6
material id names: matl_3 mat1_6 #Air H2O
material scalars per element: scal_E3 scal_E6
# y
#
# ^
# | Case Material ids = {3,6}
#
# 6. 7-----------8-----------9
# | /|\ |
# | / | \ |
# | e2 / | \ e3 |
# | / | \ |
# | / | \ |
# | q0 | q1 |
# | / | \ |
# | {.5,.5} | {.5,.5} |
# | / | \ |
# | / | \ |
# |/ | \|
# 3. 4-----------5-----------6
# |\ | /|
# | \ {0.,1.} | / |
# | \ | e4 / |
# | \ t1 | / |
# | \ | / |
# | e0 \ e1 | q2 |
# | \ | / |
# | t0 \ | {.5,.5} |
# | \ | / |
# | {1.,0.} \ | / |
# | \|/ |
# 0. 1-----------2-----------3 -> x
#
# 0. 3. 6.
Figure 11-3
Geometry for Example Material Dataset
Figure 11-3
Materials for Example Material Dataset
11.1 EnSight Gold Material Files Format
EnSight 9 User Manual 11-97
zmat2d.geo and zmat2d.sca are the same as in the Material Dataset (without species) example above.
zmat2d.se3 file contents:
zmat2d.se6 file contents:
Scalar3 File
part
1
tria3
1.00000e+00
0.00000e+00
quad4
5.00000e-01
5.00000e-01
5.00000e-01
Scalar6 File
part
1
tria3
0.00000e+00
1.00000e+00
quad4
5.00000e-01
5.00000e-01
5.00000e-01
11.2 EnSight6 Casefile Format
11-98 EnSight 9 User Manual
11.2 EnSight6 Casefile Format
Included in this section:
EnSight6 General Description
EnSight6 Geometry File Format
EnSight6 Case File Format
EnSight6 Wild Card Name Specification
EnSight6 Variable File Format
EnSight6 Per_Node Variable File Format
EnSight6 Per_Element Variable File Format
EnSight6 Measured/Particle File Format
Writing EnSight6 Binary Files
EnSight6 General Description
EnSight6 data consists of the following files:
• Case (required) (points to all other needed files including model
geometry, variables, and possibly measured geometry and variables)
EnSight6 supports constant result values as well as scalar, vector, 2nd order
symmetric tensor, and complex variable fields.
EnSight makes no assumptions regarding the physical significance of the variable
values in the files. These files can be from any discipline. For example, the scalar
file can include such things as pressure, temperature, and stress. The vector file
can be velocity, displacement, or any other vector data. And so on.
All variable results for EnSight6 are contained in disk files—one variable per file.
Additionally, if there are multiple time steps, there must either be a set of disk files
for each time step (transient multiple-file format), or all time steps of a particular
variable or geometry in one disk file (transient single-file format). Thus, all
EnSight6 transient geometry and variable files can be expressed in either multiple
file format or single file format.
Sources of EnSight6 data include the following:
• Data that can be translated to conform to the EnSight6 data format
• Data that originates from one of the translators supplied with the EnSight
application
The EnSight6 format supports an unstructured defined element set as shown in the
figure on the following page. Unstructured data must be defined in this element
set. Elements that do not conform to this set must either be subdivided or
discarded. The EnSight6 format also supports a structured block data format
which is very similar to the PLOT3D format. For the structured format, the
standard order of nodes is such that I’s advance quickest, followed by J’s, and then
K’s. A given EnSight6 model may have either unstructured data, structured data,
or a mixture of both.
11.2 EnSight6 General Description
EnSight 9 User Manual 11-99
ens_checker A program is supplied with EnSight which attempts to verify the integrity of the
format of EnSight 6 and EnSight Gold files. If you are producing EnSight
formatted data, this program can be very helpful, especially in your development
stage, in making sure that you are adhering to the published format. It makes no
attempt to verify the validity of floating point values, such as coordinates, variable
values, etc. This program takes a casefile as input. Thus, it will check the format
of the casefile, and all associated geometry and variable files referenced in the
casefile. See How To Use ens_checker.
11.2 EnSight6 General Description
11-100 EnSight 9 User Manual
Supported EnSight Elements
The elements that are supported by the EnSight6 format are:
eight node hexahedron twenty node hexahedron
six node pentahedron
9
10
7
8
12123
12
3
12
3
4
56
1
2
3
4
12
3
45 6
7
8
12
3
4
5
6
1
2
3
4
5
6
910
7
8
1
2
3
4
56
11
12
13 14
15
16
17 18
19
20
two node bar three node bar
three node triangle six node triangle four node quadrangle eight node quadrangle
four node tetrahedron ten node tetrahedron
1
point
12
3
4
1
4
8
2
3
5
6
7
5 node pyramid 13 node pyramid
11
22
33
44
55
6
7
8
9
10
11
12
13
fifteen node pentahedron (wedge)
1
2
3
4
5
6
78
9
10 11
12
13
14
15
(wedge)
Figure 11-4
Supported EnSight6 Elements
11.2 EnSight6 Case File Format
EnSight 9 User Manual 11-101
EnSight6 Case File Format
The Case file is an ASCII free format file that contains all the file and name
information for accessing model (and measured) geometry, variable, and time
information. It is comprised of five sections (FORMAT, GEOMETRY, VARIABLE,
TIME, FILE) as described below:
Notes: All lines in the Case file are limited to 79 characters.
The titles of each section must be in all capital letters.
Anything preceded by a “#” denotes a comment and is ignored. Comments may
append information lines or be placed on their own lines.
Information following “:” may be separated by white spaces or tabs.
Specifications encased in “[]” are optional, as indicated.
Format Section This is a required section which specifies the type of data to be read.
Usage:
FORMAT
type: ensight
Geometry Section This is a required section which specifies the geometry information for the model
(as well as measured geometry if present, and periodic match file (see Section
11.9, Periodic Matchfile Format) if present).
Usage:
GEOMETRY
model: [ts] [fs] filename [change_coords_only]
measured: [ts] [fs] filename [change_coords_only]
match: filename
boundary: filename
where: ts = time set number as specified in TIME section. This is optional.
fs = corresponding file set number as specified in FILE section below.
filename = The filename of the appropriate file.
-> Model or measured filenames for a static geometry case, as well as match
and boundary filenames will not contain “*” wildcards.
-> Model or measured filenames for a changing geometry case will
contain “*” wildcards.
change_coords_only = The option to indicate that the changing geometry (as
indicated by wildcards in the filename) is coords only.
Otherwise, changing geometry connectivity will be
assumed.
Variable Section This is an optional section which specifies the files and names of the variables.
Constant variable values can also be set in this section.
Usage:
VARIABLE
constant per case: [ts] description
const_value(s)
scalar per node: [ts] [fs] description filename
vector per node: [ts] [fs] description filename
tensor symm per node: [ts] [fs] description filename
scalar per element: [ts] [fs] description filename
vector per element: [ts] [fs] description filename
tensor symm per element: [ts] [fs] description filename
scalar per measured node: [ts] [fs] description filename
vector per measured node: [ts] [fs] description filename
complex scalar per node: [ts] [fs] description
Re_fn Im_fn freq
complex vector per node: [ts] [fs] description
Re_fn Im_fn freq
11.2 EnSight6 Case File Format
11-102 EnSight 9 User Manual
complex scalar per element: [ts] [fs] description
Re_fn Im_fn freq
complex vector per element: [ts] [fs] description
Re_fn Im_fn freq
where:
ts
= The corresponding time set number (or index) as specified in TIME
section below. This is only required for transient constants and
variables.
fs
= The corresponding file set number (or index) as specified in FILE
section below.
description = The variable (GUI) name (ex. Pressure, Velocity, etc.)
const_value(s) = The constant value. If constants change over time, then ns (see
TIME section below) constant values of ts.
filename
= The filename of the variable file. Note: only transient filenames
contain “*” wildcards.
Re_fn
= The filename for the file containing the real values of the complex
variable.
Im_fn
= The filename for the file containing the imaginary values of the
complex variable.
freq
= The corresponding harmonic frequency of the complex variable.
For complex variables where harmonic frequency is undefined,
simply use the text string: UNDEFINED.
Note: As many variable description lines as needed may be used.
Note: Variable descriptions have the following restrictions:
The maximum variable name length is documented at the beginning of this
chapter.
Duplicate variable descriptions are not allowed.
Leading and trailing white space will be eliminated.
Variable descriptions must not start with a numeric digit.
Variable descriptions must not contain any of the following reserved characters:
( [ + @ ! * $
) ] - space # ^ /
Time Section This is an optional section for steady state cases, but is required for transient
cases. It contains time set information. Shown below is information for one time
set. Multiple time sets (up to 16) may be specified for measured data as shown in
Case File Example 3 below.
Usage:
TIME
time set: ts [description]
number of steps: ns
filename start number: fs
filename increment: fi
time values: time_1 time_2 .... time_ns
or
TIME
time set: ts [description]
number of steps: ns
filename numbers: fn
time values: time_1 time_2 .... time_ns
where:
ts
= timeset number. This is the number referenced in the GEOMETRY
11.2 EnSight6 Case File Format
EnSight 9 User Manual 11-103
and VARIABLE sections.
description
= optional timeset description which will be shown in user
interface.
ns
= number of transient steps
fs
= the number to replace the “*” wildcards in the filenames, for the first step
fi
= the increment to fs for subsequent steps
time
= the actual time values for each step, each of which must be separated
by a white space and which may continue on the next line if needed
fn
= a list of numbers or indices, to replace the “*” wildcards in the filenames.
File Section This section is optional for expressing a transient case with single-file formats. This
section contains single-file set information. This information specifies the number of time
steps in each file of each data entity, i.e. each geometry and each variable (model and/or
measured). Each data entity’s corresponding file set might have multiple continuation
files due to system file size limit, i.e. ~2 GB for 32-bit and ~4 TB for 64-bit architectures.
Each file set corresponds to one and only one time set, but a time set may be referenced by
many file sets. The following information may be specified in each file set. For file sets
where all of the time set data exceeds the maximum file size limit of the system, both
filename index
and
number of steps
are repeated within the file set definition for each
continuation file required. Otherwise
filename index
may be omitted if there is only one
file. File set information is shown in Case File Example 4 below.
Usage:
FILE
file set: fs
filename index: fi # Note: only used when data continues in other files
number of steps: ns
where:
fs
= file set number. This is the number referenced in the GEOMETRY
and VARIABLE sections above.
ns
= number of transient steps
fi
= file index number in the file name (replaces “*” in the filenames)
Case File Example 1 The following is a minimal EnSight6 case file for a steady state model with some results.
Note: this (en6.case) file, as well as all of its referenced geometry and variable files (along with a
couple of command files) can be found under your installation directory (path: $CEI_HOME/
ensight92/data/user_manual). The EnSight6 Geometry File Example and the Variable File
Examples are the contents of these files.
FORMAT
type: ensight
GEOMETRY
model: en6.geo
VARIABLE
constant per case: Cden .8
scalar per element: Esca en6.Esca
scalar per node: Nsca en6.Nsca
vector per element: Evec en6.Evec
vector per node: Nvec en6.Nvec
tensor symm per element: Eten en6.Eten
tensor symm per node: Nten en6.Nten
complex scalar per element: Ecmp en6.Ecmp_r en6.Ecmp_i 2.
complex scalar per node: Ncmp en6.Ncmp_r en6.Ncmp_i 4.
11.2 EnSight6 Case File Format
11-104 EnSight 9 User Manual
Case File Example 2 The following is a Case file for a transient model. The connectivity of the geometry is also
changing.
FORMAT
type: ensight
GEOMETRY
model: 1 example2.geo**
VARIABLE
scalar per node: 1 Stress example2.scl**
vector per node: 1 Displacement example2.dis**
TIME
time set: 1
number of steps: 3
filename start number: 0
filename increment: 1
time values: 1.0 2.0 3.0
The following files would be needed for Example 2:
example2.geo00 example2.scl00 example2.dis00
example2.geo01 example2.scl01 example2.dis01
example2.geo02 example2.scl02 example2.dis02
Case File Example 3 The following is a Case file for a transient model with measured data.
This example has pressure given per element.
FORMAT
type: ensight
GEOMETRY
model: 1 example3.geo*
measured: 2 example3.mgeo**
VARIABLE
constant per case: Gamma 1.4
constant per case: 1 Density .9 .9 .7 .6 .6
scalar per element 1 Pressure example3.pre*
vector per node: 1 Velocity example3.vel*
scalar per measured node: 2 Temperature example3.mtem**
vector per measured node: 2 Velocity example3.mvel**
TIME
time set: 1
number of steps: 5
filename start number: 1
filename increment: 2
time values: .1 .2 .3 # This example shows that time
.4 .5 # values can be on multiple lines
time set: 2
number of steps: 6
filename start number: 0
filename increment: 2
time values:
.05 .15 .25 .34 .45 .55
11.2 EnSight6 Case File Format
EnSight 9 User Manual 11-105
The following files would be needed for Example 3:
example3.geo1 example3.pre1 example3.vel1
example3.geo3 example3.pre3 example3.vel3
example3.geo5 example3.pre5 example3.vel5
example3.geo7 example3.pre7 example3.vel7
example3.geo9 example3.pre9 example3.vel9
example3.mgeo00 example3.mtem00 example3.mvel00
example3.mgeo02 example3.mtem02 example3.mvel02
example3.mgeo04 example3.mtem04 example3.mvel04
example3.mgeo06 example3.mtem06 example3.mvel06
example3.mgeo08 example3.mtem08 example3.mvel08
example3.mgeo10 example3.mtem10 example3.mvel10
Case File Example 4 The following is Case File Example 3 expressed in transient single-file formats.
In this example, the transient data for the measured velocity data entity happens
to be greater than the maximum file size limit. Therefore, the first four time steps
fit and are contained in the first file, and the last two time steps are ‘continued’ in
a second file.
FORMAT
type: ensight
GEOMETRY
model: 1 example4.geo
measured: 2 example4.mgeo
VARIABLE
constant per case: Density .5
scalar per element: 1 1 Pressure example4.pre
vector per node: 1 1 Velocity example4.vel
scalar per measured node: 2 2 Temperature example4.mtem
vector per measured node: 2 3 Velocity example4.mvel*
TIME
time set: 1 Model
number of steps: 5
time values: .1 .2 .3 .4 .5
time set: 2 Measured
number of steps: 6
time values: .05 .15 .25 .34 .45 .55
FILE
file set: 1
number of steps: 5
file set: 2
number of steps: 6
file set: 3
filename index: 1
number of steps: 4
filename index: 2
number of steps: 2
11.2 EnSight6 Case File Format
11-106 EnSight 9 User Manual
The following files would be needed for Example 4:
example4.geo example4.pre example4.vel
example4.mgeo example4.mtem example4.mvel1
example4.mvel2
Contents of Each file contains transient data that corresponds to the specified number of time steps.
Transient The data for each time step sequentially corresponds to the simulation time values
Single Files
(time values)
found listed in the TIME section. In transient single-file format, the data for
each time step essentially corresponds to a standard EnSight6 geometry or variable file
(model or measured) as expressed in multiple file format. The data for each time step is
enclosed between two wrapper records, i.e. preceded by a BEGIN TIME STEP record
and followed by an END TIME STEP record. Time step data is not split between files.
If there is not enough room to append the data from a time step to the file without
exceeding the maximum file limit of a particular system, then a continuation file must be
created for the time step data and any subsequent time step. Any type of user comments
may be included before and/or after each transient step wrapper.
Note 1: If transient single file format is used, EnSight expects all files of a dataset
to be specified in transient single file format. Thus, even static files must be
enclosed between a BEGIN TIME STEP and an END TIME STEP wrapper.
Note 2: For binary geometry files, the first BEGIN TIME STEP wrapper must
follow the <C Binary/Fortran Binary> line. Both BEGIN TIME STEP and END
TIME STEP wrappers are written according to type (1) in binary. (see Writing
EnSight6 Binary Files, in Section 11.2)
Note 3: Efficient reading of each file (especially binary) is facilitated by
appending each file with a file index. A file index contains appropriate
information to access the file byte positions of each time step in the file. (EnSight
automatically appends a file index to each file when exporting in transient single
file format.) If used, the file index must follow the last END TIME STEP
wrapper in each file.
File Index Usage:
* Each file byte location is the first byte that follows the BEGIN TIME STEP record.
Shown below are the contents of each of the above files, using the data files from Case
File Example 3 for reference (without FILE_INDEX for simplicity).
Contents of file example4.geo_1:
BEGIN TIME STEP
Contents of file example3.geo1
END TIME STEP
BEGIN TIME STEP
Contents of file example3.geo3
END TIME STEP
BEGIN TIME STEP
Contents of file example3.geo5
ASCII Binary Item Description
“%20d\n” sizeof(int) n Total number of data time steps in the file.
“%20d\n” sizeof(long) fb1File byte loc for contents of 1st time step*
“%20d\n” sizeof(long) fb2File byte loc for contents of 2nd time step*
. . . . . . . . . . . .
“%20d\n” sizeof(long) fbnFile byte loc for contents of nth time step*
“%20d\n” sizeof(int) flag Miscellaneous flag (= 0 for now)
“%20d\n” sizeof(long) fb of item n File byte loc for Item n above
“%s\n” sizeof(char)*80 “FILE_INDEX” File index keyword
11.2 EnSight6 Case File Format
EnSight 9 User Manual 11-107
END TIME STEP
BEGIN TIME STEP
Contents of file example3.geo7
END TIME STEP
BEGIN TIME STEP
Contents of file example3.geo9
END TIME STEP
Contents of file example4.pre_1:
BEGIN TIME STEP
Contents of file example3.pre1
END TIME STEP
BEGIN TIME STEP
Contents of file example3.pre3
END TIME STEP
BEGIN TIME STEP
Contents of file example3.pre5
END TIME STEP
BEGIN TIME STEP
Contents of file example3.pre7
END TIME STEP
BEGIN TIME STEP
Contents of file example3.pre9
END TIME STEP
Contents of file example4.vel_1:
BEGIN TIME STEP
Contents of file example3.vel1
END TIME STEP
BEGIN TIME STEP
Contents of file example3.vel3
END TIME STEP
BEGIN TIME STEP
Contents of file example3.vel5
END TIME STEP
BEGIN TIME STEP
Contents of file example3.vel7
END TIME STEP
BEGIN TIME STEP
Contents of file example3.vel9
END TIME STEP
Contents of file example4.mgeo_1:
BEGIN TIME STEP
Contents of file example3.mgeo00
END TIME STEP
BEGIN TIME STEP
Contents of file example3.mgeo02
END TIME STEP
BEGIN TIME STEP
Contents of file example3.mgeo04
END TIME STEP
BEGIN TIME STEP
Contents of file example3.mgeo06
END TIME STEP
BEGIN TIME STEP
Contents of file example3.mgeo08
END TIME STEP
BEGIN TIME STEP
Contents of file example3.mgeo10
END TIME STEP
Contents of file example4.mtem_1:
BEGIN TIME STEP
Contents of file example3.mtem00
END TIME STEP
BEGIN TIME STEP
Contents of file example3.mtem02
END TIME STEP
BEGIN TIME STEP
Contents of file example3.mtem04
END TIME STEP
BEGIN TIME STEP
Contents of file example3.mtem06
END TIME STEP
BEGIN TIME STEP
Contents of file example3.mtem08
END TIME STEP
BEGIN TIME STEP
Contents of file example3.mtem10
END TIME STEP
Contents of file example4.mvel1_1:
BEGIN TIME STEP
Contents of file example3.mvel00
END TIME STEP
11.2 EnSight6 Case File Format
11-108 EnSight 9 User Manual
BEGIN TIME STEP
Contents of file example3.mvel02
END TIME STEP
BEGIN TIME STEP
Contents of file example3.mvel04
END TIME STEP
BEGIN TIME STEP
Contents of file example3.mvel06
END TIME STEP
Contents of file example4.mvel2_1:
Comments can precede the beginning wrapper here.
BEGIN TIME STEP
Contents of file example3.mvel08
END TIME STEP
Comments can go between time step wrappers here.
BEGIN TIME STEP
Contents of file example3.mvel10
END TIME STEP
Comments can follow the ending time step wrapper.
EnSight6 Wild Card Name Specification
For transient data, if multiple time files are involved, the file names must conform
to the EnSight wild-card specification. This specification is as follows:
• File names must include numbers that are in ascending order from
beginning to end.
• Numbers in the files names must be zero filled if there is more than one
significant digit.
• Numbers can be anywhere in the file name.
• When the file name is specified in the EnSight result file, you must
replace the numbers in the file with an asterisk(*). The number of
asterisks specified is the number of significant digits. The asterisk must
occupy the same place as the numbers in the file names.
11.2 EnSight6 Geometry File Format
EnSight 9 User Manual 11-109
EnSight6 Geometry File Format
The EnSight6 format consists of keywords followed by information. The
following seven items are important when working with EnSight6 geometry files:
1. You do not have to assign node IDs. If you do, the element connectivities are
based on the node numbers. If you let EnSight assign the node IDs, the nodes
are considered to be sequential starting at node 1, and element connectivity is
done accordingly. If node IDs are set to off, they are numbered internally;
however, you will not be able to display or query on them. If you have node
IDs in your data, you can have EnSight ignore them by specifying “node id
ignore.” Using this option may reduce some of the memory taken up by the
Client and Server, but display and query on the nodes will not be available.
2. You do not need to specify element IDs. If you specify element IDs, or you let
EnSight assign them, you can show them on the screen. If they are set to off,
you will not be able to show or query on them. If you have element IDs in
your data you can have EnSight ignore them by specifying “element id
ignore.” Using this option will reduce some of the memory taken up by the
Client and Server. This may or may not be a significant amount, and
remember that display and query on the elements will not be available.
3. The format of integers and real numbers must be followed (See the Geometry
Example below).
4. Integers are written out using the following integer format:
From C:
8d
format
From FORTRAN:
i8
format
Real numbers are written out using the following floating-point format:
From C:
12.5e
format
From FORTRAN:
e12.5
format
The number of integers or reals per line must also be followed!
5. By default, a Part is processed to show the outside boundaries. This
representation is loaded to the Client host system when the geometry file is
read (unless other attributes have been set on the workstation, such as feature
angle).
6. Coordinates for unstructured data must be defined before any Parts can be
defined. The different elements can be defined in any order (that is, you can
define a hexa8 before a bar2).
7. A Part containing structured data cannot contain any unstructured element
types or more than one block. Each structured Part is limited to a single
block. A structured block is indicated by following the Part description line
with either the “block” line or the “block iblanked” line. An “iblanked” block
must contain an additional integer array of values at each node, traditionally
called the iblank array. Valid iblank values for the EnSight format are:
0 for nodes which are exterior to the model, sometimes called blanked-out nodes
1 for nodes which are interior to the model, thus in the free stream and to be used
<0 or >1 for any kind of boundary nodes
In EnSight’s structured Part building dialog, the iblank option selected will control
11.2 EnSight6 Geometry File Format
11-110 EnSight 9 User Manual
which portion of the structured block is “created”. Thus, from the same structured
block, the interior flow field part as well as a symmetry boundary part could be
“created”.
Note: By default EnSight does not do any “partial” cell iblank processing.
Namely, only complete cells containing no “exterior” nodes are created. It is
possible to obtain partial cell processing by issuing the “test:partial_cells_on”
command in the Command Dialog before reading the file.
Note also that for the structured format, the standard order of nodes is such that
I’s advance quickest, followed by J’s, and then K’s.
8. Maximum number of parts is 65000
Maximum number of variables is 10000
Maximum file name length is 1024
Maximum part name length is 79, but the GUI will only display 49
Maximum variable name length is 79, but the GUI will only display 49
Generic Format Not all of the lines included in the following generic example file are necessary:
description line 1 |
description line 2 |
node id <off/given/assign/ignore> |
All geometry files mus
t
element id <off/given/assign/ignore> |
contain these first six lines
coordinates |
# of unstructured nodes |
id x y z
id x y z
id x y z
.
.
.
part #
description line
point
number of points
id nd
id nd
id nd
.
.
.
bar2
number of bar2’s
id nd nd
id nd nd
id nd nd
.
.
.
bar3
number of bar3’s
id nd nd nd
id nd nd nd
id nd nd nd
.
.
.
tria3
number of three node triangles
11.2 EnSight6 Geometry File Format
EnSight 9 User Manual 11-111
id nd nd nd
id nd nd nd
id nd nd nd
.
.
.
tria6
number of six node triangles
id nd nd nd nd nd nd
.
.
.
quad4
number of quad 4’s
id nd nd nd nd
id nd nd nd nd
id nd nd nd nd
id nd nd nd nd
.
.
.
quad8
number of quad 8’s
id nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd
.
.
.
tetra4
number of 4 node tetrahedrons
id nd nd nd nd
id nd nd nd nd
id nd nd nd nd
id nd nd nd nd
.
.
.
tetra10
number of 10 node tetrahedrons
id nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd
.
.
.
pyramid5
number of 5 node pyramids
id nd nd nd nd nd
id nd nd nd nd nd
id nd nd nd nd nd
id nd nd nd nd nd
.
.
.
pyramid13
number of 13 node pyramids
id nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd
11.2 EnSight6 Geometry File Format
11-112 EnSight 9 User Manual
id nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd
.
.
.
hexa8
number of 8 node hexahedrons
id nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd
.
.
.
hexa20
number of 20 node hexahedrons
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
.
.
.
penta6
number of 6 node pentahedrons
id nd nd nd nd nd nd
id nd nd nd nd nd nd
id nd nd nd nd nd nd
id nd nd nd nd nd nd
id nd nd nd nd nd nd
.
.
.
penta15
number of 15 node pentahedrons
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
.
.
.
part #
description line
block #nn=i*j*k
i j k
x_n1 x_n2 x_n3 ..... x_nn (6/line)
y_n1 y_n2 y_n3 ..... y_nn “
z_n1 z_n2 z_n3 ..... z_nn “
part #
description line
block iblanked #nn=i*j*k
i j k
x_n1 x_n2 x_n3 ..... x_nn (6/line)
y_n1 y_n2 y_n3 ..... y_nn “
z_n1 z_n2 z_n3 ..... z_nn “
ib_n1 ib_n2 ib_n3 .... ib_nn (10/line)
11.2 EnSight6 Geometry File Format
EnSight 9 User Manual 11-113
EnSight6 Geometry The following is an example of an ASCII EnSight6 geometry file with 11 defined
File Example unstructured nodes from which 2 unstructured parts are defined, and a 2x3x2
structured part as depicted in the above diagram. (See Case File Example 1 for
reference to this file.)
This is the 1st description line of the EnSight6 geometry example
This is the 2nd description line of the EnSight6 geometry example
node id given
element id given
coordinates
11
15 4.00000e+00 0.00000e+00 0.00000e+00
31 3.00000e+00 0.00000e+00 0.00000e+00
20 5.00000e+00 0.00000e+00 0.00000e+00
40 6.00000e+00 0.00000e+00 0.00000e+00
22 5.00000e+00 1.00000e+00 0.00000e+00
44 6.00000e+00 1.00000e+00 0.00000e+00
55 6.00000e+00 3.00000e+00 0.00000e+00
60 5.00000e+00 0.00000e+00 2.00000e+00
61 6.00000e+00 0.00000e+00 2.00000e+00
62 6.00000e+00 1.00000e+00 2.00000e+00
63 5.00000e+00 1.00000e+00 2.00000e+00
part 1
2D uns-elements (description line for part 1)
tria3
2
102 15 20 22
103 22 44 55
hexa8
1
104 20 40 44 22 60 61 62 63
part 2
1D uns-elements (description line for part 2)
bar2
1
101 31 15
part 3
11.2 EnSight6 Variable File Format
11-114 EnSight 9 User Manual
3D struct-part (description line for part 3)
block iblanked
2 3 2
0.00000e+00 2.00000e+00 0.00000e+00 2.00000e+00 0.00000e+00 2.00000e+00
0.00000e+00 2.00000e+00 0.00000e+00 2.00000e+00 0.00000e+00 2.00000e+00
0.00000e+00 0.00000e+00 1.00000e+00 1.00000e+00 3.00000e+00 3.00000e+00
0.00000e+00 0.00000e+00 1.00000e+00 1.00000e+00 3.00000e+00 3.00000e+00
0.00000e+00 0.00000e+00 0.00000e+00 0.00000e+00 0.00000e+00 0.00000e+00
2.00000e+00 2.00000e+00 2.00000e+00 2.00000e+00 2.00000e+00 2.00000e+00
1 1 1 1 1 1 1 1 1 1
1 1
EnSight6 Variable File Format
EnSight6 variable files can either be per_node or per_element. They cannot be
both. However, an EnSight model can have some variables which are per_node
and other variables which are per_element.
EnSight6 Per_Node Variable File Format
EnSight6 variable files for per_node variables contain any values for each
unstructured node followed by any values for each structured node.
First comes a single description line.
Second comes any unstructured node value. The number of values per node
depends on the type of field. An unstructured scalar field has one, a vector field
has three (order: x,y,z), a 2nd order symmetric tensor field has 6 (order: 11, 22, 33,
12, 13, 23), and a 2nd order asymmetric tensor field has 9 values per node (order:
11, 12, 13, 21, 22, 23, 31, 32, 33). An unstructured complex variable in EnSight6
consists of two scalar or vector fields (one real and one imaginary), with scalar
and vector values written to their separate files respectively.
Third comes any structured data information, starting with a part # line, followed
by a line containing the “block”, and then lines containing the values for each
structured node which are output in the same IJK component order as the
coordinates. Briefly, a structured scalar is the same as an unstructured scalar, one
value per node. A structured vector is written one value per node per component,
thus three sequential scalar field blocks. Likewise for a structured 2nd order
symmetric tensor, written as six sequential scalar field blocks, and a 2nd order
tensor, written as nine sequential scalar field blocks. The same methodology
applies for a complex variable only with the real and imaginary fields written to
separate structured scalar or vector files.
The values must be written in the following floating point format (6 per line as
shown in the examples below):
From C:
12.5e
format
From FORTRAN:
e12.5
format
The format of a per_node variable file is as follows:
•Line 1
This line is a description line.
• Line 2 through the end of the file contains the values at each node in the
model.
11.2 EnSight6 Per_Node Variable File Format
EnSight 9 User Manual 11-115
A generic example for per_node variables:
One description line for the entire file
*.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+**
*.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+**
*.*****E+** *.*****E+** *.*****E+** *.*****E+**
part #
block
*.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+**
*.*****E+** *.*****E+**
*.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+**
*.*****E+** *.*****E+**
*.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+**
*.*****E+** *.*****E+**
Note that there is a format difference between the unstructured and structured
(block) portions of the vector and tensor data. For example a multiple component
unstructured vector appears as x y z triplets, while the structured counterpart lists
all x then all y and finally all z.
The following variable file examples reflect scalar, vector, tensor, and complex
variable values per node for the previously defined EnSight6 Geometry File
Example with 11 defined unstructured nodes and a 2x3x2 structured Part (Part
number 3). The values are summarized in the following table.
Complex Scalar
Node Node Scalar Vector Tensor (2nd order symm.) Real Imaginary
Index Id Value Values Values Value Value
Unstructured
1 15 (1.) (1.1, 1.2, 1.3) (1.1, 1.2, 1.3, 1.4, 1.5, 1.6) (1.1) (1.2)
2 31 (2.) (2.1, 2.2, 2.3) (2.1, 2.2, 2.3, 2.4, 2.5, 2.6) (2.1) (2.2)
3 20 (3.) (3.1, 3.2, 3.3) (3.1, 3.2, 3.3, 3.4, 3.5, 3.6) (3.1) (3.2)
4 40 (4.) (4.1, 4.2, 4.3) (4.1, 4.2, 4.3, 4.4, 4.5, 4.6) (4.1) (4.2)
5 22 (5.) (5.1, 5.2, 5.3) (5.1, 5.2, 5.3, 5.4, 5.5, 5.6) (5.1) (5.2)
6 44 (6.) (6.1, 6.2, 6.3) (6.1, 6.2, 6.3, 6.4, 6.5, 6.6) (6.1) (6.2)
7 55 (7.) (7.1, 7.2, 7.3) (7.1, 7.2, 7.3, 7.4, 7.5, 7.6) (7.1) (7.2)
8 60 (8.) (8.1, 8.2, 8.3) (8.1, 8.2, 8.3, 8.4, 8.5, 8.60 (8.1) (8.2)
9 61 (9.) (9.1, 9.2, 9.3) (9.1, 9.2, 9.3, 9.4, 9.5, 9.6) (9.1) (9.2)
10 62 (10.) (10.1,10.2,10.3) (10.1,10.2,10.3,10.4,10.5,10.6) (10.1) (10.2)
11 63 (11.) (11.1,11.2,11.3) (11.1,11.2,11.3,11.4,11.5,11.6) (11.1) (11.2)
Structured
1 1 (1.) (1.1, 1.2, 1.3) (1.1, 1.2, 1.3, 1.4, 1.5, 1.6) (1.1) (1.2)
2 2 (2.) (2.1, 2.2, 2.3) (2.1, 2.2, 2.3, 2.4, 2.5, 2.6) (2.1) (2.2)
3 3 (3.) (3.1, 3.2, 3.3) (3.1, 3.2, 3.3, 3.4, 3.5, 3.6) (3.1) (3.2)
4 4 (4.) (4.1, 4.2, 4.3) (4.1, 4.2, 4.3, 4.4, 4.5, 4.6) (4.1) (4.2)
5 5 (5.) (5.1, 5.2, 5.3) (5.1, 5.2, 5.3, 5.4, 5.5, 5.6) (5.1) (5.2)
6 6 (6.) (6.1, 6.2, 6.3) (6.1, 6.2, 6.3, 6.4, 6.5, 6.6) (6.1) (6.2)
7 7 (7.) (7.1, 7.2, 7.3) (7.1, 7.2, 7.3, 7.4, 7.5, 7.6) (7.1) (7.2)
8 8 (8.) (8.1, 8.2, 8.3) (8.1, 8.2, 8.3, 8.4, 8.5, 8.6) (8.1) (8.2)
9 9 (9.) (9.1, 9.2, 9.3) (9.1, 9.2, 9.3, 9.4, 9.5, 9.6) (9.1) (9.2)
10 10 (10.) (10.1,10.2,10.3) (10.1,10.2,10.3,10.4,10.5,10.6) (10.1) (10.2)
11 11 (11.) (11.1,11.2,11.3) (11.1,11.2,11.3,11.4,11.5,11.6) (11.1) (11.2)
11.2 EnSight6 Per_Node Variable File Format
11-116 EnSight 9 User Manual
Per_node (Scalar) Variable Example 1 This example shows ASCII scalar file (en6.Nsca) for the
geometry example.
Per_node scalar values for the EnSight6 geometry example
1.00000E+00 2.00000E+00 3.00000E+00 4.00000E+00 5.00000E+00 6.00000E+00
7.00000E+00 8.00000E+00 9.00000E+00 1.00000E+01 1.10000E+01
part 3
block
1.00000E+00 2.00000E+00 3.00000E+00 4.00000E+00 5.00000E+00 6.00000E+00
7.00000E+00 8.00000E+00 9.00000E+00 1.00000E+01 1.10000E+01
Per_node (Vector) Variable Example 2 This example shows ASCII vector file (en6.Nvec) for the
geometry example.
Per_node vector values for the EnSight6 geometry example
1.10000E+00 1.20000E+00 1.30000E+00 2.10000E+00 2.20000E+00 2.30000E+00
3.10000E+00 3.20000E+00 3.30000E+00 4.10000E+00 4.20000E+00 4.30000E+00
5.10000E+00 5.20000E+00 5.30000E+00 6.10000E+00 6.20000E+00 6.30000E+00
7.10000E+00 7.20000E+00 7.30000E+00 8.10000E+00 8.20000E+00 8.30000E+00
9.l0000E+00 9.20000E+00 9.30000E+00 1.01000E+01 1.02000E+01 1.03000E+01
1.11000E+01 1.12000E+01 1.13000E+01
part 3
block
1.10000E+00 2.10000E+00 3.10000E+00 4.10000E+00 5.10000E+00 6.10000E+00
7.10000E+00 8.10000E+00 9.10000E+00 1.01000E_01 1.11000E+01
1.20000E+00 2.20000E+00 3.20000E+00 4.20000E+00 5.20000E+00 6.20000E+00
7.20000E+00 8.20000E+00 9.20000E+00 1.02000E+01 1.12000E+01
1.30000E+00 2.30000E+00 3.30000E+00 4.30000E+00 5.30000E+00 6.30000E+00
7.30000E+00 8.30000E+00 9.30000E+00 1.03000E+01 1.13000E+01
Per_node (Tensor) Variable Example 3 This example shows an ASCII 2nd order symmetric tensor file
(en6.Nten) for the geometry example.
Per_node symmetric tensor values for the EnSight6 geometry example
1.10000E+00 1.20000E+00 1.30000E+00 1.40000E+00 1.50000E+00 1.60000E+00
2.10000E+00 2.20000E+00 2.30000E+00 2.40000E+00 2.50000E+00 2.60000E+00
3.10000E+00 3.20000E+00 3.30000E+00 3.40000E+00 3.50000E+00 3.60000E+00
4.10000E+00 4.20000E+00 4.30000E+00 4.40000E+00 4.50000E+00 4.60000E+00
5.10000E+00 5.20000E+00 5.30000E+00 5.40000E+00 5.50000E+00 5.60000E+00
6.10000E+00 6.20000E+00 6.30000E+00 6.40000E+00 6.50000E+00 6.60000E+00
7.10000E+00 7.20000E+00 7.30000E+00 7.40000E+00 7.50000E+00 7.60000E+00
8.10000E+00 8.20000E+00 8.30000E+00 8.40000E+00 8.50000E+00 8.60000E+00
9.10000E+00 9.20000E+00 9.30000E+00 9.40000E+00 9.50000E+00 9.60000E+00
1.01000E+01 1.02000E+01 1.03000E+01 1.04000E+01 1.05000E+01 1.06000E+01
1.11000E+01 1.12000E+01 1.13000E+01 1.14000E+01 1.15000E+01 1.16000E+01
part 3
block
1.10000E+00 2.10000E+00 3.10000E+00 4.10000E+00 5.10000E+00 6.10000E+00
7.10000E+00 8.10000E+00 9.10000E+00 1.01000E+01 1.11000E+01
1.20000E+00 2.20000E+00 3.20000E+00 4.20000E+00 5.20000E+00 6.20000E+00
7.20000E+00 8.20000E+00 9.20000E+00 1.02000E+01 1.12000E+01
1.30000E+00 2.30000E+00 3.30000E+00 4.30000E+00 5.30000E+00 6.30000E+00
7.30000E+00 8.30000E+00 9.30000E+00 1.03000E+01 1.13000E+01
1.40000E+00 2.40000E+00 3.40000E+00 4.40000E+00 5.40000E+00 6.40000E+00
7.40000E+00 8.40000E+00 9.40000E+00 1.04000E+01 1.14000E+01
1.50000E+00 2.50000E+00 3.50000E+00 4.50000E+00 5.50000E+00 6.50000E+00
7.50000E+00 8.50000E+00 9.50000E+00 1.05000E+01 1.15000E+01
1.60000E+00 2.60000E+00 3.60000E+00 4.60000E+00 5.60000E+00 6.60000E+00
7.60000E+00 8.60000E+00 9.60000E+00 1.06000E+01 1.16000E+01
Per_node (Complex) Variable Example 4 This example shows the ASCII complex real (en6.Ncmp_r)
and imaginary (en6.Ncmp_i) scalar files for the geometry example. (The same
methodology would apply for complex real and imaginary vector files.)
11.2 EnSight6 Per_Element Variable File Format
EnSight 9 User Manual 11-117
Real scalar File:
Per_node complex real scalar values for the EnSight6 geometry example
1.10000E+00 2.10000E+00 3.10000E+00 4.10000E+00 5.10000E+00 6.10000E+00
7.10000E+00 8.10000E+00 9.10000E+00 1.01000E+01 1.11000E+01
part 3
block
1.10000E+00 2.10000E+00 3.10000E+00 4.10000E+00 5.10000E+00 6.10000E+00
7.10000E+00 8.10000E+00 9.10000E+00 1.01000E+01 1.11000E+01 1.21000E+00
Imaginary scalar File:
Per_node complex imaginary scalar values for the EnSight6 geometry example
1.20000E+00 2.20000E+00 3.20000E+00 4.20000E+00 5.20000E+00 6.20000E+00
7.20000E+00 8.20000E+00 9.20000E+00 1.02000E+01 1.12000E+01
part 3
block
1.20000E+00 2.20000E+00 3.20000E+00 4.20000E+00 5.20000E+00 6.20000E+00
7.20000E+00 8.20000E+00 9.20000E+00 1.02000E+01 1.12000E+01 1.22000E+00
EnSight6 Per_Element Variable File Format
EnSight variable files for per_element variables contain values for each element
of designated types of designated Parts. First comes a single description line.
Second comes a Part line. Third comes an element type line and fourth comes the
value for each element of that type and part. If it is a scalar variable, there is one
value per element, while for vector variables there are three values per element.
(The number of elements of the given type are obtained from the corresponding
EnSight6 geometry file.)
The values must be written in the following floating point format (6 per line as
shown in the examples below):
From C:
12.5e
format
From FORTRAN:
e12.5
format
The format of a per_element variable file is as follows:
• Line 1 This line is a description line.
• Line 2 Part line, with part number corresponding to the geometry file.
• Line 3 Element type line ( example: tria3, hexa8, ... )
• Line 4 Repeats until next element type line, part line, or end of file is
reached. Lists values for each element of this part and type.
A generic example for per_element variables:
One description line for the entire file
part #
element type
*.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+**
*.*****E+** *.*****E+**
part #
block
*.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+**
*.*****E+** *.*****E+** *.*****E+** *.*****E+**
*.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+**
*.*****E+** *.*****E+** *.*****E+** *.*****E+**
*.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+**
*.*****E+** *.*****E+** *.*****E+** *.*****E+**
11.2 EnSight6 Per_Element Variable File Format
11-118 EnSight 9 User Manual
Note that there is a format difference between the unstructured and structured
(block) portions of the vector and tensor data. For example a multiple component
unstructured vector appears as x y z triplets, while the structured counterpart lists
all x then all y and finally all z.
The following variable file examples reflect scalar, vector, tensor, and complex
variable values per element for the previously defined EnSight6 Geometry File
Example with 11 defined unstructured nodes and a 2x3x2 structured Part (Part
number 3). The values are summarized in the following table.
Per_element (Scalar) Variable Example 1 This example shows an ASCII scalar file (en6.Esca) for the
geometry example.
Per_elem scalar values for the EnSight6 geometry example
part 1
tria3
2.00000E+00 3.00000E+00
hexa8
4.00000E+00
part 2
bar2
1.00000E+00
part 3
block
5.00000E+00 6.00000E+00 7.00000E+00 8.00000E+00 9.00000E+00 1.00000E+01
1.10000E+01 1.20000E+01
Per_element (Vector) Variable Example 2 This example shows an ASCII vector file (en6.Evec) for the
geometry example.
Per_elem vector values for the EnSight6 geometry example
part 1
tria3
2.10000E+00 2.20000E+00 2.30000E+00 3.10000E+00 3.20000E+00 3.30000E+00
hexa8
4.10000E+00 4.20000E+00 4.30000E+00
Complex Scalar
Element Element Scalar Vector Tensor (2nd order symm.) Real Imaginary
Index Id Value Values Values Value Value
Unstructured
bar2
1 101 (1.) (1.1, 1.2, 1.3) (1.1, 1.2, 1.3, 1.4, 1.5, 1.6) (1.1) (1.2)
tria3
1 102 (2.) (2.1, 2.2, 2.3) (2.1, 2.2, 2.3, 2.4, 2.5, 2.6) (2.1) (2.2)
2 103 (3.) (3.1, 3.2, 3.3) (3.1, 3.2, 3.3, 3.4, 3.5, 3.6) (3.1) (3.2)
hexa8
1 104 (4.) (4.1, 4.2, 4.3) (4.1, 4.2, 4.3, 4.4, 4.5, 4.6) (4.1) (4.2)
Structured
block 1 1 (5.) (5.1, 5.2, 5.3) (5.1, 5.2, 5.3, 5.4, 5.5, 5.6) (5.1) (5.2)
2 2 (6.) (6.1, 6.2, 6.3) (6.1, 6.2, 6.3, 6.4, 6.5, 6.6) (6.1) (6.2)
3 3 (7.) (7.1, 7.2, 7.3) (7.1, 7.2, 7.3, 7.4, 7.5, 7.6) (7.1) (7.2)
4 4 (8.) (8.1, 8.2, 8.3) (8.1, 8.2, 8.3, 8.4, 8.5, 8.6) (8.1) (8.2)
5 5 (9.) (9.1, 9.2, 9.3) (9.1, 9.2, 9.3, 9.4, 9.5, 9.6) (9.1) (9.2)
6 6 (10.) (10.1, 10.2, 10.3) (10.1, 10.2, 10.3, 10.4, 10.5, 10.6) (10.1) (10.2)
7 7 (11.) (11.1, 11.2, 11.3) (11.1, 11.2, 11.3, 11.4, 11.5, 11.6) (11.1) (11.2)
8 8 (12.) (12.1, 12.2, 12.3) (12.1, 12.2, 12.3, 12.4, 12.5, 12.6) (12.1) (12.2)
11.2 EnSight6 Per_Element Variable File Format
EnSight 9 User Manual 11-119
part 2
bar2
1.10000E+00 1.20000E+00 1.30000E+00
part 3
block
5.10000E+00 6.10000E+00 7.10000E+00 8.10000E+00 9.10000E+00 1.01000E+01
1.11000E+01 1.21000E+01
5.20000E+00 6.20000E+00 7.20000E+00 8.20000E+00 9.20000E+00 1.02000E+01
1.12000E+01 1.22000E+01
5.30000E+00 6.30000E+00 7.30000E+00 8.30000E+00 9.30000E+00 1.03000E+01
1.13000E+01 1.23000E+01
Per_element (Tensor) Variable Example 3 This example shows the ASCII 2nd order symmetric tensor file
(en6.Eten) for the geometry example.
Per_elem symmetric tensor values for the EnSight6 geometry example
part 1
tria3
2.10000E+00 2.20000E+00 2.30000E+00 2.40000E+00 2.50000E+00 2.60000E+00
3.10000E+00 3.20000E+00 3.30000E+00 3.40000E+00 3.50000E+00 3.60000E+00
hexa8
4.10000E+00 4.20000E+00 4.30000E+00 4.40000E+00 4.50000E+00 4.60000E+00
part 2
bar2
1.10000E+00 1.20000E+00 1.30000E+00 1.40000E+00 1.50000E+00 1.60000E+00
part 3
block
5.10000E+00 6.10000E+00 7.10000E+00 8.10000E+00 9.10000E+00 1.01000E+01
1.11000E+01 1.21000E+01
5.20000E+00 6.20000E+00 7.20000E+00 8.20000E+00 9.20000E+00 1.02000E+01
1.12000E+01 1.22000E+01
5.30000E+00 6.30000E+00 7.30000E+00 8.30000E+00 9.30000E+00 1.03000E+01
1.13000E+01 1.23000E+01
5.40000E+00 6.40000E+00 7.40000E+00 8.40000E+00 9.40000E+00 1.04000E+01
1.14000E+01 1.24000E+01
5.50000E+00 6.50000E+00 7.50000E+00 8.50000E+00 9.50000E+00 1.05000E+01
1.15000E+01 1.25000E+01
5.60000E+00 6.60000E+00 7.60000E+00 8.60000E+00 9.60000E+00 1.06000E+01
1.16000E+01 1.26000E+01
Per_element (Complex) Variable Example 4 This example shows the ASCII complex real (en6.Ecmp_r)
and imaginary (en6.Ecmp_i) scalar files for the geometry example. (The same
methodology would apply for complex real and imaginary vector files).
Real scalar File:
Per_elem complex real scalar values for the EnSight6 geometry example
part 1
tria3
2.10000E+00 3.10000E+00
hexa8
4.10000E+00
part 2
bar2
1.10000E+00
part 3
block
5.10000E+00 6.10000E+00 7.10000E+00 8.10000E+00 9.10000E+00 1.01000E+01
1.11000E+01 1.21000E+01
Imaginary scalar File:
Per_elem complex imaginary scalar values for the EnSight6 geometry example
part 1
tria3
2.20000E+00 3.20000E+00
hexa8
4.20000E+00
part 2
11.2 EnSight6 Per_Element Variable File Format
11-120 EnSight 9 User Manual
bar2
1.20000E+00
part 3
block
5.20000E+00 6.20000E+00 7.20000E+00 8.20000E+00 9.20000E+00 1.02000E+01
1.12000E+01 1.22000E+01
11.2 EnSight6 Measured/Particle File Format
EnSight 9 User Manual 11-121
EnSight6 Measured/Particle File Format
The format of a Measured/Particle geometry file is exactly the same as an EnSight
5 measured/particle geometry file and is repeated below as follows:
•Line 1
This line is a description line.
•Line 2
Indicates that this file contains particle coordinates. The words “particle
coordinates” should be entered on this line without the quotes.
•Line 3
Specifies the number of Particles.
• Line 4 through the end of the file.
Each line contains the ID and the X, Y, and Z coordinates of each Particle.
The format of this line is “integer real real real” written out in the
following format:
From C:
%8d%12.5e%12.5e%12.5e
format
From FORTRAN:
i8, 3e12.5
format
A generic measured/Particle geometry file is as follows:
A description line
particle coordinates
#_of_Particles
id xcoord ycoord zcoord
id xcoord ycoord zcoord
id xcoord ycoord zcoord
.
.
.
Measured Geometry The following illustrates a measured/Particle file with seven points:
Example
This is a simple measured geometry file
particle coordinates
7
101 0.00000E+00 0.00000E+00 0.00000E+00
102 1.00000E+00 0.00000E+00 0.00000E+00
103 1.00000E+00 1.00000E+00 0.00000E+00
104 0.00000E+00 1.00000E+00 0.00000E+00
205 5.00000E-01 0.00000E+00 2.00000E+00
206 5.00000E-01 1.00000E+00 2.00000E+00
307 0.00000E+00 0.00000E+00-1.50000E+00
Measured Variable Measured variable files use the same format as EnSight6 per_node variable files,
Files which is exactly the same as the EnSight 5 measured/particle variable files.
Writing EnSight6 Binary Files
This section describes the EnSight6 binary files. This format is used to increase
the speed of reading data into EnSight.
11.2 Writing EnSight6 Binary Files
11-122 EnSight 9 User Manual
For binary files, there is a header that designates the type of binary file. This
header is: “C Binary” or “Fortran Binary.” This must be the first thing in the
geometry file only. The format for the file is then essentially the same format as
the ASCII format, with the following exceptions:
The ASCII format puts the node and element ids on the same “line” as the
corresponding coordinates. The BINARY format writes all node id’s then
all coordinates.
The ASCII format puts all element id’s of a type within a Part on the same
“line” as the corresponding connectivity. The BINARY format writes all
the element ids for that type, then all the corresponding connectivities of
the elements.
FORTRAN binary files should be created as sequential access
unformatted files.
Float arrays (such as coordinates and variable values) must be single
precision. Double precision is not supported.
In all the descriptions of binary files that follow, the number on the left end of the
line corresponds to the type of write of that line, according to the following code:
1. This is a write of 80 characters to the file:
C example:
char buffer[80];
strcpy(buffer,”C Binary”);
fwrite(buffer,sizeof(char),80,file_ptr);
FORTRAN:
character*80 buffer
buffer = “Fortran Binary”
write(10) buffer
2. This is a write of a single integer:
C example:
fwrite(&num_nodes,sizeof(int),1,file_ptr);
FORTRAN:
write(10) num_nodes
3. This is a write of an integer array:
C example:
fwrite(node_ids,sizeof(int),num_nodes,file_ptr);
FORTRAN:
write(10) (node_ids(i),i=1,num_nodes)
4. This is a write of a float array:
C example:
fwrite(coords,sizeof(float),3*num_nodes,file_ptr);
FORTRAN:
write(10) ((coords(i,j),i=1,3),j=1,num_nodes)
Note: For EnSight6 format, when using Fortran binary, and writing arrays composed of
components, such as coordinates, or vector values, it is very important that they all be
written with a single Fortran write statement. If you instead were to write the coords in the
statement above with a loop per component, such that the write statement is executed three
times, like the following, EnSight will not be able to read it!
FORTRAN: do 200 i=1,3
write(10) (coords(i,j),j=1,num_nodes)
200 continue
11.2 Writing EnSight6 Binary Files
EnSight 9 User Manual 11-123
EnSight6 Binary An EnSight binary geometry file contains information in the following order:
Geometry
(1) <C Binary/Fortran Binary>
(1) description line 1
(1) description line 2
(1) node id <given/off/assign/ignore>
(1) element id <given/off/assign/ignore>
(1) coordinates
(2) #_of_points
(3) [point_ids]
(4) coordinate_array (For FORTRAN make sure only one write statement is used)
(1) part #
(1) description line
(1) element_type
(2) #_of_element_type
(3) [element_ids] for the element_type
(3) connectivities for the element_type
(1) element_type
(2) #_of_element_type
(3) [element_ids] for the element_type
(3) connectivities for the element_type
:
(1) part #
(1) description line
(1) element_type
(2) #_of_element_type
(3) [element_ids] for the element_type
(3) connectivities for the element_type
(1) element_type
(2) #_of_element_type
(3) [element_ids] for the element_type
(3) connectivities for the element_type
(1) part #
(1) description line
(1) block [iblanked]
(3) i j k
(4) all i coords, all j coords, all k coords (For FORTRAN make sure only one write
statement is used)
(3) [iblanking]
:
Per_node Binary Scalar An EnSight6 binary scalar file contains information in the following order:
(1) description line
(4) scalar_array for unstructured nodes
(1) part #
(1) block
(4) scalar_array for part’s structured nodes
Per_node Binary Vector An EnSight6 binary vector file contains information in the following order:
(1) description line
(4) vector_array for unstructured nodes (For FORTRAN make sure only one write
statement is used)
11.2 Writing EnSight6 Binary Files
11-124 EnSight 9 User Manual
(1) part #
(1) block
(4) vector_array for part’s structured nodes (For FORTRAN make sure only one write
statement is used)
Per_node Binary Tensor An EnSight6 binary tensor file contains information in the following order:
(1) description line
(4) tensor_array for unstructured nodes (For FORTRAN make sure only one write
statement is used)
(1) part #
(1) block
(4) tensor_array for part’s structured nodes (For FORTRAN make sure only one
write statement is used)
Per_node Binary Complex An EnSight6 binary complex real and imaginary scalar files contain
information in the following order: (The same methodology applies for the
complex real and imaginary vector files.)
Real scalar file:
(1) description line
(4) real scalar_array for unstructured nodes
(1) part #
(1) block
(4) real scalar_array for part’s structured nodes
Imaginary scalar file:
(1) description line
(4) imaginary scalar_array for unstructured nodes
(1) part #
(1) block
(4) imaginary scalar_array for part’s structured nodes
Per_element Binary Scalar An EnSight6 binary scalar file contains information in the following order:
(1) description line
(1) part #
(1) element type (tria3, quad4, ...)
(4) scalar_array for elements of part and type
(1) part #
(1) block
(4) scalar_array for structured elements of part
Per_element Binary Vector An EnSight6 binary vector file contains information in the following order:
(1) description line
(1) part #
(1) element type (tria3, quad4, ...)
(4) vector_array for elements of part and type (For FORTRAN make sure only one
write statement is used)
(1) part #
(1) block
(4) vector_array for structured elements of part (For FORTRAN make sure only one
write statement is used)
Per_element Binary Tensor An EnSight6 binary tensor file contains information in the following order:
11.2 Writing EnSight6 Binary Files
EnSight 9 User Manual 11-125
(1) description line
(1) part #
(1) element type (tria3, quad4, ...)
(4) tensor_array for unstructured elements of part and type (For FORTRAN make
sure only one write
statement is used)
(1) part #
(1) block
(4) tensor_array for structured elements of part and type (For FORTRAN make sure
only one write statement is
used)
Per_element Binary Complex EnSight6 binary complex real and imaginary scalar files contain
information in the following order: (The same methodology applies for the
complex real and imaginary vector files.)
Real scalar file:
(1) description line
(1) part #
(1) element type (tria3, quad4, ...)
(4) real scalar_array for unstructured elements of part and type
(1) part #
(1) block
(4) real scalar_array for structured elements of part and type
Imaginary scalar file:
(1) description line
(1) part #
(1) element type (tria3, quad4, ...)
(4) imaginary scalar_array for unstructured elements of part and type
(1) part #
(1) block
(4) imaginary scalar_array for structured elements of part and type
Binary Measured An EnSight6 binary measured/particle geometry file contains information in the
Geometry following order:
(1) <C Binary/Fortran Binary>
(1) description line 1
(1) particle coordinates
(2) #_of_points
(3) point_ids
(4) coordinate_array (For FORTRAN make sure only one write statement is used)
Binary Measured EnSight6 binary measured/discrete particle scalar and vector files follow the same
Variable Files binary formats as EnSight6 model per-node scalar and vector files.
11.3 EnSight5 Format
11-126 EnSight 9 User Manual
11.3 EnSight5 Format
Included in this section:
EnSight5 General Description
EnSight5 Geometry File Format
EnSight5 Result File Format
EnSight5 Wild Card Name Specification
EnSight5 Variable File Format
EnSight5 Measured/Particle File Format
Writing EnSight5 Binary Files
EnSight5 General Description
Note: The EnSight6 format replaces and includes all aspects of the older EnSight5 format.
This description is included for completeness but use of the EnSight6 format with
EnSight 6.x and later versions is encouraged!
EnSight5 data consists of the following files:
• Geometry (required)
• Results (optional) (points to other variable files and possibly to changing
geometry files)
• Measured (optional) (points to measured geometry and variable files)
The results file contains information concerning scalar and vector variables.
EnSight makes no assumptions regarding the physical significance of the scalar
and vector variables. These files can be from any discipline. For example, the
scalar file can include such things as pressure, temperature, and stress. The vector
file can be velocity, displacement, or any other vector data.
All variable results for EnSight5 are contained in disk files—one variable per file.
Additionally, if there are multiple time steps, there must be a set of disk files for
each time step.
Sources of EnSight5 data include the following:
• Data that can be translated to conform to the EnSight5 data format
• Data that originates from one of the translators supplied with the EnSight
application
The EnSight5 format supports a defined element set as shown below. The data
must be defined in this element set. Elements that do not conform to this set must
either be subdivided or discarded.
11.3 EnSight5 General Description
EnSight 9 User Manual 11-127
Supported EnSight5 Elements
The elements that are supported by the EnSight5 format are:
eight node hexahedron twenty node hexahedron
six node pentahedron
9
10
7
8
12123
12
3
12
3
4
56
1
2
3
4
12
3
45 6
7
8
12
3
4
5
6
1
2
3
4
5
6
910
7
8
1
2
3
4
56
11
12
13 14
15
16
17 18
19
20
two node bar three node bar
three node triangle six node triangle four node quadrangle eight node quadrangle
four node tetrahedron ten node tetrahedron
1
point
12
3
4
1
4
8
2
3
5
6
7
5 node pyramid 13 node pyramid
11
22
33
44
55
6
7
8
9
10
11
12
13
fifteen node pentahedron (wedge)
1
2
3
4
5
6
78
9
10 11
12
13
14
15
(wedge)
Figure 11-5
Supported EnSight5 Elements
11.3 EnSight5 Geometry File Format
11-128 EnSight 9 User Manual
EnSight5 Geometry File Format
The EnSight5 format consists of keywords followed by information. The
following items are important to remember when working with EnSight5
geometry files:
1. You do not have to assign node IDs. If you do, the element connectivities are
based on the node numbers. If you let EnSight assign the node IDs, the nodes
are considered to be sequential starting at node 1, and element connectivity is
done accordingly. If node IDs are set to off, they are numbered internally;
however, you will not be able to display or query on them. If you have node
IDs in your data, you can have EnSight ignore them by specifying “node id
ignore.” Using this option may reduce some of the memory taken up by the
Client and Server, but remember that display and query on the nodes will not
be available.
2. You do not need to specify element IDs. If you specify element IDs, or you let
EnSight assign them, you can show them on the screen. If they are set to off,
you will not be able to show or query on them. If you have element IDs in
your data you can have EnSight ignore them by specifying “element id
ignore.” Using this option will reduce some of the memory taken up by the
Client and Server. This may or may not be a significant amount, and
remember that display and query on the elements will not be available.
3. The format of integers and real numbers must be followed (See the Geometry
Example below).
4. Integers are written out using the following integer format:
From C:
8d
format
From FORTRAN:
i8
format
Real numbers are written out using the following floating-point format:
From C:
12.5e
format
From FORTRAN:
e12.5
format
The number of integers or reals per line must also be followed!
5. By default, a Part is processed to show the outside boundaries. This
representation is loaded to the Client host system when the geometry file is
read (unless other attributes have been set on the workstation, such as feature
angle).
6. Coordinates must be defined before any Parts can be defined. The different
elements can be defined in any order (that is, you can define a hexa8 before a
bar2).
Generic Format Not all of the lines included in the following generic example file are necessary:
description line 1
description line 2
node id <off/given/assign/ignore>
element id <off/given/assign/ignore>
coordinates
# of points
id x y z
id x y z
11.3 EnSight5 Geometry File Format
EnSight 9 User Manual 11-129
id x y z
.
.
.
part #
description line
point
number of points
id nd
id nd
id nd
.
.
.
bar2
number of bar2’s
id nd nd
id nd nd
id nd nd
.
.
.
bar3
number of bar3’s
id nd nd nd
id nd nd nd
id nd nd nd
.
.
.
tria3
number of three node triangles
id nd nd nd
id nd nd nd
id nd nd nd
.
.
.
tria6
number of six node triangles
id nd nd nd nd nd nd
.
.
.
quad4
number of quad 4’s
id nd nd nd nd
id nd nd nd nd
id nd nd nd nd
id nd nd nd nd
.
.
.
quad8
number of quad 8’s
id nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd
.
.
11.3 EnSight5 Geometry File Format
11-130 EnSight 9 User Manual
.
tetra4
number of 4 node tetrahedrons
id nd nd nd nd
id nd nd nd nd
id nd nd nd nd
id nd nd nd nd
.
.
.
tetra10
number of 10 node tetrahedrons
id nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd
.
.
.
pyramid5
number of 5 node pyramids
id nd nd nd nd nd
id nd nd nd nd nd
id nd nd nd nd nd
id nd nd nd nd nd
.
.
.
pyramid13
number of 13 node pyramids
id nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd
.
.
.
hexa8
number of 8 node hexahedrons
id nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd
.
.
.
hexa20
number of 20 node hexahedrons
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
.
.
.
penta6
number of 6 node pentahedrons
id nd nd nd nd nd nd
id nd nd nd nd nd nd
id nd nd nd nd nd nd
11.3 EnSight5 Geometry File Format
EnSight 9 User Manual 11-131
id nd nd nd nd nd nd
id nd nd nd nd nd nd
.
.
.
penta15
number of 15 node pentahedrons
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
id nd nd nd nd nd nd nd nd nd nd nd nd nd nd nd
.
.
.
EnSight5 Geometry The following is an example of an EnSight geometry file:
Example
this is an example problem
this is the second description line
node id given
element id given
coordinates
10
5 1.00000e+00 0.00000e+00 0.00000e+00
100 0.00000e+00 1.00000e+00 0.00000e+00
200 0.00000e+00 0.00000e+00 1.00000e+00
40 1.00000e+00 1.00000e+00 0.00000e+00
22 1.00000e+00 0.00000e+00 1.00000e+00
1000 2.00000e+00 0.00000e+00 0.00000e+00
55 0.00000e+00 2.00000e+00 0.00000e+00
44 0.00000e+00 0.00000e+00 2.00000e+00
202 2.00000e+00 2.00000e+00 0.00000e+00
101 2.00000e+00 0.00000e+00 2.00000e+00
part 1
This is Part 1, a pretty strange Part
tria3
2
101 100 200 40
201 101 5 1000
tetra4
1
102 100 202 101 1000
part 2
This is Part 2, it’s pretty strange also
bar2
1
103 101 1000
11.3 EnSight5 Result File Format
11-132 EnSight 9 User Manual
EnSight5 Result File Format
The Result file is an ASCII free format file that contains variable and time step
information that pertains to a Particular geometry file. The following information
is included in this file:
• Number of scalar variables
• Number of vector variables
• Number of time steps
• Starting file number extension and skip-by value
• Flag that specifies whether there is changing geometry
• Names of the files that contain the values of scalar and vector variables
• The names of the geometry files that will be used for the changing
geometry.
The format of the EnSight5 result file is as follows:
•Line 1
Contains the number of scalar variables, the number of vector variables
and a geometry-changing flag. (If the geometry-changing flag is 0, the
geometry of the model does not change over time. If it is 1, then there is
connectivity changing geometry. If it is 2, then there is coordinate only
changing geometry.)
•Line 2
Indicates the number of time steps that are available.
•Line 3
Lists the time that is associated with each time step. There must be the
same number of values as are indicated in Line 2. This “line” can actually
span several lines in the file. You do not have to have one very long line.
•Line 4
Specified only if more than one time step is indicated in Line 2. The two
values on this line indicate the file extension value for the first time step
and the offset between files. If the values on this line are 0 5, the first time
step available has a subscript of 0, the second time step available has a
subscript of 5, the third time step has a subscript of 10, and so on.
•Line 5
Contains the names of the geometry files that will be used for changing
geometry. This line exists only if the flag on Line 1 is set to 1 or 2. The
geometry file name must follow the EnSight5 wild card specification.
• Line 6 through Line [5+N] where N is the number of scalar variables
specified in Line 1.
List BOTH the file names AND variable description that correspond to
each scalar variable. There must be a file name for each scalar variable
that is specified in Line 1.
11.3 EnSight5 Result File Format
EnSight 9 User Manual 11-133
If there is more than one time step, the file name must follow the
EnSight5 wild card specification. See Note below.
• Lines that follow the scalar variable files.
List the file names that correspond to each vector variable. There must be
a file name for each vector variable that is specified in Line 1. If there is
more than one time step, the file name must follow the EnSight5 wild
card specification. See Note below.
Note: Variable descriptions have the following restrictions:
The maximum variable name length is documented at the beginning of this
chapter.
Duplicate variable descriptions are not allowed.
Leading and trailing white space will be eliminated.
Variable descriptions must not start with a numeric digit.
Variable descriptions must not contain any of the following reserved characters:
( [ + @ ! * $
) ] - space # ^ /
The generic format of a result file is as follows:
#_of_scalars #_of_vectors geom_chang_flag
#_of_timesteps
time1 time2 time3 .....
start_file_# skip_by_value
geometry_file_name.geo**
scalar0_file_name** description (19 characters max)
scalar1_file_name** description
.
.
.
vector0_file_name** description (19 characters max)
vector1_file_name** description
.
EnSight5 Result
File Example 1 The following example illustrates a result file specified for a non-changing
geometry file with only one time step:
2 1 0
1
0.0
exone.scl0 pressure
exone.scl1 temperature
exone.dis0 velocity
EnSight5 Result
File Example 2 This example illustrates a result file that specifies a connectivity changing
geometry that has multiple time steps.
1 2 1
4
1.0 2.0 2.5 5.0
0 1
extwo.geom**
pres.scl** pressure
vel.dis** velocity
grad.dis** gradient
11.3 EnSight5 Variable File Format
11-134 EnSight 9 User Manual
The following files would be needed for example 2:
extwo.geom00 pres.scl00 vel.dis00 grad.dis00
extwo.geom01 pres.scl01 vel.dis01 grad.dis01
extwo.geom02 pres.scl02 vel.dis02 grad.dis02
extwo.geom03 pres.scl03 vel.dis03 grad.dis03
EnSight5 Wild Card Name Specification
If multiple time steps are involved, the file names must conform to the EnSight5
wild-card specification. This specification is as follows:
• File names must include numbers that are in ascending order from
beginning to end.
• Numbers in the files names must be zero filled if there is more than one
significant digit.
• Numbers can be anywhere in the file name.
• When the file name is specified in the EnSight5 result file, you must
replace the numbers in the file with an asterisk(*). The number of
asterisks specified is the number of significant digits. The asterisk must
occupy the same place as the numbers in the file names.
EnSight5 Variable File Format
Variables files have one description line followed by a value for each node. For a
scalar file there is one value per node, while for vector files there are three values
per node.
The values must be written in the following floating point format (6 per line as
shown in the examples below):
From C:
12.5e
format
From FORTRAN:
e12.5
format
The format of a variables file is as follows:
•Line 1
This line is a description line.
• Line 2 through the end of the file contains the values at each node in the
model. A generic example:
A description line
*.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+**
*.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+**
*.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+** *.*****E+**
EnSight5 Variable
File Example 1 This example shows a scalar file for a geometry with seven defined nodes.
These are the pressure values for a 7 node geometry
1.00000E+00 2.00000E+00 3.00000E+00 4.00000E+00 5.00000E+00 6.00000E+00
7.00000E+00
EnSight5 Variable
File Example 2 This example shows the vector file for a geometry with seven defined nodes.
These are the velocity values for a 7 node geometry
11.3 EnSight5 Measured/Particle File Format
EnSight 9 User Manual 11-135
1.00000E+00 1.00000E+00 1.00000E+00 2.00000E+00 2.00000E+00 2.00000E+00
3.00000E+00 3.00000E+00 3.00000E+00 4.00000E+00 4.00000E+00 4.00000E+00
5.00000E+00 5.00000E+00 5.00000E+00 6.00000E+00 6.00000E+00 6.00000E+00
7.00000E+00 7.00000E+00 7.00000E+00
EnSight5 Measured/Particle File Format
This file allows you to define Particle locations, sizes, etc. to display with the
geometry. Typical uses are fuel droplets for combustion analysis or data derived
from experiments on prototypes.
The measured/Particle files consist of the following:
• Measured/Particle geometry file (referenced by the measured results file)
• Measured/Particle results file (the filename, typically with a .mea suffix,
which is put into the Data Reader’s “(Set) Measured” field)
• Measured/Particle variables file (referenced by the measured results file)
which is the same format as an EnSight 5 variable file.
The format of the EnSight5 Measured/Particle geometry file is described below.
Note that there is only one description line and there must be an ID for each
measured point.
Note also that the number of Particles can be different in each of the geometry file
(if you have transient data), however, the number of values in each of the
corresponding variable files must coincide, and the IDs of the Particles must be
consistent in order to track the Particles at intermediate times or locations.
The format of an EnSight5 Measured/Particle geometry file is as follows:
•Line 1
This line is a description line.
•Line 2
Indicates that this file contains Particle coordinates. The words “particle
coordinates” should be entered on this line without the quotes.
•Line 3
Specifies the number of Particles.
• Line 4 through the end of the file.
Each line contains the ID and the X, Y, and Z coordinates of each Particle.
The format of this line is “integer real real real” written out in the
following format:
From C:
%8d%12.5e%12.5e%12.5e
format
From FORTRAN:
i8, 3e12.5
format
A generic measured/Particle geometry file is as follows:
A description line
particle coordinates
#_of_Particles
11.3 EnSight5 Measured/Particle File Format
11-136 EnSight 9 User Manual
id xcoord ycoord zcoord
id xcoord ycoord zcoord
id xcoord ycoord zcoord
.
.
.
EnSight5 Measured
Geometry/Particle The following illustrates an EnSight5 Measured Geometry/Particle file with seven
File Example points:
This is a simple ensight5 measured geometry/particle file
particle coordinates
7
101 0.00000E+00 0.00000E+00 0.00000E+00
102 1.00000E+00 0.00000E+00 0.00000E+00
103 1.00000E+00 1.00000E+00 0.00000E+00
104 0.00000E+00 1.00000E+00 0.00000E+00
205 5.00000E-01 0.00000E+00 2.00000E+00
206 5.00000E-01 1.00000E+00 2.00000E+00
307 0.00000E+00 0.00000E+00-1.50000E+00
EnSight5 Measured/ The format of the EnSight5 Measured/Particle results file (typically a .mea suffix)
is as follows:
Particle File Format
•Line 1
Contains the number of scalar variables, the number of vector variables,
and a measured geometry changing flag. If the measured geometry
changing flag is 0, only one time step is indicated.
•Line 2
Indicates the number of available time steps.
•Line 3
Lists the time that is associated with each time step. The time step
information does not have to coincide with the model time step
information. This “line” can actually span several lines in the file. You do
not have to have one very long line.
•Line 4
Specified only if Line 2 specifies more than one time step. The line
contains two values; the first value indicates the file extension value for
the first time step, and the second value indicates the offset between files.
If this line contains the values 0 and 5, the first time step has a subscript of
0, the second of 5, the third of 10, and so on.
•Line 5
Contains the name of the measured geometry file. If there is more than
one time step, the file name must follow the EnSight wild card
specification.
• Line 6 through Line [5+N] where N is the number of scalar variables
specified in Line 1.
11.3 EnSight5 Measured/Particle File Format
EnSight 9 User Manual 11-137
List the file names that correspond to each scalar variable. There must be
a file name for each scalar variable that is specified in Line 1. If there is
more than one time step, the file name must follow the EnSight wild card
specification.
• Lines that follow the scalar variable files.
List the names of the files that correspond to each vector variable. There
must be a file name for each vector variable that is specified in Line 1. If
there is more than one time step, the file name must follow the EnSight
wild card specification.
A generic EnSight5 Measured/Particle results file is as follows:
#_of_scalars #_of_vectors geom_chang_flag
#_of_timesteps
time1 time2 time3 .....
start_file_# skip_by_value
measured_geom_file_name**
scalar0_file_name** description
scalar1_file_name** description
.
.
.
vector0_file_name** description
vector1_file_name** description
.
.
.
Measured/Particle
Results File This example illustrates an EnSight5 Measured/Particle result file that specifies a
Example 1 non-changing geometry with only one time step:
2 1 0
1
0.0
exone.geom
exone.scl0 pressure
exone.scl1 temperature
exone.dis0 velocity
Measured/Particle
Results File This example illustrates an EnSight5 Measured/Particle result file that specifies a
Example 2 changing geometry with multiple time steps:
1 2 1
4
1.0 2.0 2.5 5.0
0 1
extwo.geom**
pres.scl** pressure
vel.dis** velocity
grad.dis** gradient
The following files are needed for Example 2:
extwo.geom00pres.scl00vel.dis00 grad.dis00
extwo.geom01pres.scl01vel.dis01 grad.dis01
extwo.geom02pres.scl02vel.dis02 grad.dis02
extwo.geom03pres.scl03vel.dis03 grad.dis03
11.3 Writing EnSight5 Binary Files
11-138 EnSight 9 User Manual
Measured /Particle The EnSight5 Measured/Particle variable files referred to in the measured Results
Results Variable files file follow the same format as EnSight5 Variable files. The number of values in
each of these variable files must correspond properly to the number of Particles in
the corresponding measured geometry files.
Writing EnSight5 Binary Files
This section describes the EnSight5 binary files. This format is used to increase
the speed of reading data into EnSight. A utility exists for converting EnSight5
ASCII files to EnSight5 binary files—it is called asciitobin5 and is found on the
release tape under ensight/server/utilities/asciitobin5.
For binary files, there is a header that designates the type of binary file. This
header is: “C Binary” or “Fortran Binary.” This must be the first thing in the file.
The format for the file is then essentially the same format as the ASCII format,
with the following exceptions:
The ASCII format puts the node and element ids on the same “line” as the
corresponding coordinates. The BINARY format writes all node id’s then
all coordinates.
The ASCII format puts all element id’s of a type within a Part on the same
“line” as the corresponding connectivity. The BINARY format writes all
the element ids for that type, then all the corresponding connectivities of
the elements.
In all the descriptions of binary files that follow, the number on the left end of the
line corresponds to the type of write of that line, according to the following code:
1. This is a write of 80 characters to the file:
C example:
char buffer[80];
strcpy(buffer,”C Binary”);
fwrite(buffer,sizeof(char),80,file_ptr);
FORTRAN:
character*80 buffer
buffer = “Fortran Binary”
write(10) buffer
2. This is a write of a single integer:
C example:
fwrite(&num_nodes,sizeof(int),1,file_ptr);
FORTRAN:
write(10) num_nodes
3. This is a write of an integer array:
C example:
fwrite(node_ids,sizeof(int),num_nodes,file_ptr);
FORTRAN:
write(10) (node_ids(i),i=1,num_nodes)
4. This is a write of a float array:
C example:
fwrite(coords,sizeof(float),3*num_nodes,file_ptr);
11.3 Writing EnSight5 Binary Files
EnSight 9 User Manual 11-139
FORTRAN:
write(10) ((coords(i,j),i=1,3),j=1,num_nodes)
(Note: Coords is a single precision array, double precision will not work!)
EnSight5 Binary
Geometry File Format An EnSight5 binary geometry file contains information in the following order:
(1) <C Binary/Fortran Binary>
(1) description line 1
(1) description line 2
(1) node id <given/off/assign/ignore>
(1) element id <given/off/assign/ignore>
(1) coordinates
(2) #_of_points
(3) [point_ids]
(4) coordinate_array
(1) part #
(1) description line
(1) element_type
(2) #_of_element_type
(3) [element_ids] for the element_type
(3) connectivities for the element_type
(1) element_type
(2) #_of_element_type
(3) [element_ids] for the element_type
(3) connectivities for the element_type
.
.
.
(1) part #
(1) description line
(1) element_type
(2) #_of_element_type
(3) [element_ids] for the element_type
(3) connectivities for the element_type
(1) element_type
(2) #_of_element_type
(3) [element_ids] for the element_type
(3) connectivities for the element_type
.
.
.
Binary Scalar An EnSight5 binary scalar file contains information in the following order:
(1) description line
(4) scalar_array
Binary Vector An EnSight5 binary vector file contains information in the following order:
(1) description line
11.3 Writing EnSight5 Binary Files
11-140 EnSight 9 User Manual
(4) vector_array
Binary Measured An EnSight5 binary measured/Particle geometry file contains information in the
following order:
(1) <C Binary/Fortran Binary>
(1) description line 1
(1) particle coordinates
(2) #_of_points
(3) point_ids
(4) coordinate_array
11.4 FAST UNSTRUCTURED Results File Format
EnSight 9 User Manual 11-141
11.4 FAST UNSTRUCTURED Results File Format
FAST UNSTRUCTURED input data consists of the following:
• Geometry file (required) (GRID file).
• Results file (optional).
•EnSight5 Measured/Particle Files (optional). The measured .res file
references the measured geometry and variable files.
FAST UNSTRUCTURED data files can be read as:
Workstation: ASCII, C Binary, or FORTRAN binary
Cray: ASCII, C Binary, or COS-Blocked FORTRAN binary
Due to the different number of representations on a Cray Research vector system
and workstations, binary files created on a Cray Research vector system can not
be read on the workstation, and visa versa.
EnSight reads the geometry (grid files) directly. However, an EnSight-like results
file is needed in order to read the results unless a “standard” Q-file is provided in
its place. See FAST UNSTRUCTURED Result File below.
FAST UNSTRUCTURED Geometry file notes
Only the single zone format can be read into EnSight. Any tetrahedral elements
will be placed into the first “domain” Part. Triangular elements are placed into
Parts based on their “tag” value.
The FAST UNSTRUCTURED solution file or function file formats can be used
for variable results. The I J K values need to be I=Number of points and J=K=1.
This does require the use of a modified EnSight results file as explained below.
Node and element numbers are assigned sequentially allowing for queries to be
made within EnSight. Tetrahedron elements will be assigned before triangular
elements.
FAST UNSTRUCTURED Result file format
The FAST UNSTRUCTURED result file was defined by CEI and is very similar
to the EnSight results file and contains information needed to relate variable
names to variable files, step information, etc. There is a slight variation from the
normal EnSight results file because of the differences between the solution (Q
file) and function files. The difference lies on the lines which relate variable
filenames to a description. These lines have the following format:
<filename> <type> <number(s)> <description>
See FAST UNSTRUCTURED Result File below for the definition of each.
The following information is included in a FAST UNSTRUCTURED result file:
• Number of scalar variables
• Number of vector variables
• Number of time steps
11.4 FAST UNSTRUCTURED Results File Format
11-142 EnSight 9 User Manual
• Starting file number extension and skip-by value
• Flag that specifies whether there is changing geometry.
• Names of the files that contain the values of scalar and vector variables.
An indication as to the type of the file being used for the variable, which
variable in the file and the name given to that variable.
• The names of the geometry files that will be used for the changing
geometry.
Generic FAST UNSTRUCTURED Result File Format
The format of the Result file is as follows:
•Line 1
Contains the number of scalar variables, the number of vector variables
and a geometry changing flag. If the geometry changing flag is 0, the
geometry of the model does not change over time. If the flag is 1, the
geometry can change connectivity. If the flag is 2, only coordinates can
change.
•Line 2
Indicates the number of time steps that are available. If this number is
positive, then line 3 information must be present. If this number is
negative, then Line 3 information must not be present and the times will
be read from the solution file. Thus, one must have a solution file in one
of the lines from Line 6 on.
•Line 3
Lists the time that is associated with each time step. There must be the
same number of values as are indicated in Line 2. This “line” can actually
span several lines in the file. Specify only if Line 2 value is positive.
•Line 4
Specified only if more than one time step is indicated in Line 2. The two
values on this line indicate the file extension value for the first time step
and the offset between files. If the values on this line are 0 5, the first time
step available has a subscript of 0, the second time step available has a
subscript of 5, the third time step has a subscript of 10, and so on.
•Line 5
This line exists only if the changing geometry flag on Line 1 has been set
to 1 or 2. Line contains name of the FAST UNSTRUCTURED grid file.
The file name must follow the EnSight wild card specification.
• Line 6 through Line [5+N] where N is the number of scalar variables
specified in Line 1.
List the file names that correspond to each scalar variable. There must be
a file name for each scalar variable that is specified in Line 1. If there is
more than one time step, the file name must follow the EnSight wild card
specification.
These lines also contain the type of file being used, solution or function,
and the location of the variable value in the file. The contents are:
11.4 FAST UNSTRUCTURED Results File Format
EnSight 9 User Manual 11-143
<filename> <type> <number> <description>
where filename is the name of solution file or function file containing the
variable; type is “S” for solution file, or “F” for function file; numberis
which variable in the file to use (specify just one number); and
description
is the Description of the variable.
The solution file (“s”) is the traditional .q file in which normally the first
variable is density, the second through fourth variables are the
components of momentum, and the fifth variable is total energy.
• Lines that follow the scalar variable files.
List the file names that correspond to each vector variable. There must be
a file name for each vector variable that is specified in Line 0. If there is
more than one time step, the file name must follow the EnSight wild card
specification.
These lines also contain the type of file being used, solution or function,
and the location(s) of the variable values in the file. The contents are:
<filename> <type> <numbers> <description>
where filename is the name of solution file or function file containing the
variable; type is “S” for solution file, or “F” for function file; numbersare
which variables in the file to use (specify just three numbers); and
description is the Description of the variable.
The generic format of the result file is as follows:
#_of_scalars #_of_vectors geom_chng_flag
#_of_timesteps
time1 time2 time3 .....
start_file_# skip_by_value
geometry_file_name.geo**
scalar0_file_name** type # description
scalar1_file_name** type # description
.
.
.
vector0_file_name** type # # # description
vector1_file_name** type # # # description
.
.
.
FAST UNSTRUCTURED This example illustrates a result file that specifies a non-changing geometry with
Example only one time step.
3 2 0
1
0.0
block.sol S 1 Density
block.sol S 5 Total_Energy
block.scl F 1 Temperature
block.var F 1 2 3 Displacement
block.sol S 2 3 4 Momentum
Thus, this model will get two scalars from the solution file (block.sol). The first is
Density in the first location in the file and the next is Total energy in the fifth
11.4 FAST UNSTRUCTURED Results File Format
11-144 EnSight 9 User Manual
location in the solution file. It will also get a Temperature scalar from the first
location in the function file (block.scl).
It will get a Displacement vector from the function file called block.var. The three
components of this vector are in the 1st, 2nd, and 3rd locations in the file. Finally,
a Momentum vector will be obtained from the 2nd, 3rd, and 4th locations of the
solution file.
Example 2 is somewhat similar, except that it is transient, with coordinate
changing geometry. Note also that the times will come from the solution file.
3 2 2
-10
0 1
block***.grid
block***.sol S 1 Density
block***.sol S 5 Total_Energy
block***.scl F 1 Temperature
block***.var F 1 2 3 Displacement
block***.sol S 2 3 4 Momentum
11.5 FLUENT UNIVERSAL Results File Format
EnSight 9 User Manual 11-145
11.5 FLUENT UNIVERSAL Results File Format
This section describes the FLUENT results file format and provides an example of
this file. For transient cases, you must supply this result file. For static models this
file is not required. The FLUENT result file is a slightly modified EnSight5
results file and provides a way to describe multiple time-step FLUENT Universal
files to EnSight.
When using multiple FLUENT files with this result file definition, you must make
sure that the files contain the same defined variables. In other words, any variable
that exists in one must exist in all.
The Result file is an ASCII free format file that contains time step and universal
file information for each available time step. The following information is
included in this file:
• Number of time steps
• Simulation Time Values
• Starting file number extension and skip-by value
• Name of the universal file with EnSight wild card specification.
The format of the Result file is as follows:
•Line 1
Indicates the number of time steps that are available.
•Line 2
Lists the time that is associated with each time step. There must be the
same number of values as are indicated in Line 1. This “line” can actually
span several lines in the file. You do not have to have one very long line.
•Line 3
Specified only if more than one time step is indicated in Line 1. The two
values on this line indicate the file extension value for the first time step
and the offset between files. If the values on this line are 0 5, the first time
step available has a subscript of 0, the second time step available has a
subscript of 5, the third time step has a subscript of 10, and so on.
•Line 4
Contains the names of the universal file that will be used for the changing
time step information. The universal file name must follow the EnSight5
wild card specification.
The generic format of the result file is as follows:
#_of_timesteps
time1 time2 time3 .....
start_file_# skip_by_value
universal_file_name***
11.5 FLUENT UNIVERSAL Results File Format
11-146 EnSight 9 User Manual
FLUENT Example This example illustrates a FLUENT result file
4
1.0 2.0 3.0 4.0
0 1
extwo**.uni
The following FLUENT universal files will need to exist for the result file:
extwo00.uni
extwo01.uni
extwo02.uni
extwo03.uni
11.6 Movie.BYU Results File Format
EnSight 9 User Manual 11-147
11.6 Movie.BYU Results File Format
For transient cases, you must supply an EnSight result file. The result file for the
Movie.BYU case is exactly the same as for EnSight5 (it is repeated below for
your ease).
The Result file is an ASCII free format file that contains variable and time step
information that pertains to a Particular geometry file. The following information
is included in this file:
• Number of scalar variables
• Number of vector variables
• Number of time steps
• Starting file number extension and skip-by value
• Flag that specifies whether there is changing geometry
• Names of the files that contain the values of scalar and vector variables
• The names of the geometry files that will be used for the changing
geometry.
The format of the Movie.BYU (EnSight5) result file is as follows:
•Line 1
Contains the number of scalar variables, the number of vector variables
and a geometry-changing flag. (If the geometry-changing flag is 0, the
geometry of the model does not change over time. If it is 1, then there is
connectivity changing geometry. If it is 2, then there is coordinate only
changing geometry.)
•Line 2
Indicates the number of time steps that are available.
•Line 3
Lists the time that is associated with each time step. There must be the
same number of values as are indicated in Line 2. This “line” can actually
span several lines in the file. You do not have to have one very long line.
•Line 4
Specified only if more than one time step is indicated in Line 2. The two
values on this line indicate the file extension value for the first time step
and the offset between files. If the values on this line are 0 5, the first time
step available has a subscript of 0, the second time step available has a
subscript of 5, the third time step has a subscript of 10, and so on.
•Line 5
Contains the names of the geometry files that will be used for changing
geometry. This line exists only if the flag on Line 1 is set to 1 or 2. The
geometry file name must follow the EnSight5 wild card specification.
• Line 6 through Line [5+N] where N is the number of scalar variables
specified in Line 1.
11.6 Movie.BYU Results File Format
11-148 EnSight 9 User Manual
List BOTH the file names AND variable description that correspond to
each scalar variable. There must be a file name for each scalar variable
that is specified in Line 1.
If there is more than one time step, the file name must follow the
EnSight5 wild card specification. See Note below.
• Lines that follow the scalar variable files.
List the file names that correspond to each vector variable. There must be
a file name for each vector variable that is specified in Line 1. If there is
more than one time step, the file name must follow the EnSight5 wild
card specification. See Note below.
Note: Variable descriptions have the following restrictions:
The maximum variable name length is documented at the beginning of this
chapter.
Duplicate variable descriptions are not allowed.
Leading and trailing white space will be eliminated.
Variable descriptions must not start with a numeric digit.
Variable descriptions must not contain any of the following reserved characters:
( [ + @ ! * $
) ] - space # ^ /
The generic format of a result file is as follows:
#_of_scalars #_of_vectors geom_chang_flag
#_of_timesteps
time1 time2 time3 .....
start_file_# skip_by_value
geometry_file_name.geo**
scalar0_file_name** description (19 characters max)
scalar1_file_name** description
.
.
.
vector0_file_name** description (19 characters max)
vector1_file_name** description
.
Movie.BYU Result
File Example 1 The following example illustrates a result file specified for a non-changing
geometry file with only one time step:
2 1 0
1
0.0
exone.scl0 pressure
exone.scl1 temperature
exone.dis0 velocity
Movie.BYU Result
File Example 2 This example illustrates a result file that specifies a connectivity changing
geometry that has multiple time steps.
1 2 1
4
1.0 2.0 2.5 5.0
0 1
11.6 Movie.BYU Results File Format
EnSight 9 User Manual 11-149
extwo.geom**
pres.scl** pressure
vel.dis** velocity
grad.dis** gradient
The following files would be needed for example 2:
extwo.geom00 pres.scl00 vel.dis00 grad.dis00
extwo.geom01 pres.scl01 vel.dis01 grad.dis01
extwo.geom02 pres.scl02 vel.dis02 grad.dis02
extwo.geom03 pres.scl03 vel.dis03 grad.dis03
11.7 PLOT3D Results File Format
11-150 EnSight 9 User Manual
11.7 PLOT3D Results File Format
PLOT3D input data consists of the following:
• Geometry file (required) (GRID file).
• Results file (optional).
•EnSight5 Measured/Particle Files (optional). The measured .res file
references the measured geometry and variable files.
PLOT3D data files can be read as:
Workstation: ASCII, C Binary, or FORTRAN binary
Cray: ASCII, C Binary, or COS-Blocked FORTRAN binary
(see PLOT3D Reader, in Section 2.3)
Due to the different number of representations on a Cray Research vector system
and workstations, binary files created on a Cray Research vector system can not
be read on the workstation, and visa versa.
EnSight attempts to ensure that the format of the file being read matches the
format you have selected in the Data Reader dialog. However, if you specify that
the file is C binary, and it is really FORTRAN binary, this will not be detected and
erroneous values will be loaded.
EnSight reads the geometry (xyz files) directly. However, an EnSight-like results
file (described below) is needed in order to read the results, unless a “standard” Q-
file is provided in its place.
PLOT3D Geometry file notes
The following information is required in order to read PLOT3D files correctly:
1. whether there is Iblanking information in the file
2. whether files are in ASCII, C Binary, or FORTRAN binary
3. whether the file is “Single Zone” or Multi-Zoned”
4. whether the model is 1D, 2D, or 3D in nature.
Iblanking can be one of the following:
0 = Outside (Blanked Out)
1 = Inside
2 = Interior boundaries
<0 = zone that neighbors
If single zone with Iblanking, you can build EnSight Parts from the inside
portions, blanked-out portions, or internal boundary portions. If single zone, you
can also specify I, J, K limiting ranges for Parts to be created.
If Multi-zoned with Iblanking, you can additionally build Parts that are the
boundary between two zones. (For boundary you must specify exactly two zones.)
If Multi-zoned and not using the “between boundary” option, a Part can span
several zones.
11.7 PLOT3D Results File Format
EnSight 9 User Manual 11-151
If Multi-zoned, the dimension of the problem is forced to be 3D.
There can be nodes in different zones which have the same coordinates. No
attempt has been made to merge these. Thus, on shared zone boundaries, there
will likely be nodes on top of nodes. One negative effect of this is that node labels
will be on top of each other.
Currently EnSight only prints out the global conditions in the solution file,
fsmach, alpha, re, and time. It does not do anything else with them.
Node and element numbers are assigned in a sequential manner. Queries can be
made on these node and element numbers or on nodes by I, J, and K.
PLOT3D Result file format
The PLOT3D result file was defined by CEI and is very similar to the EnSight
results file and contains information needed to relate variable names to variable
files, step information, etc. There is a slight variation from the normal EnSight
results file because of the differences between the solution (Q file) and function
files. The difference lies on the lines which relate variable filenames to a
description. These lines have the following format:
<filename> <type> <number(s)> <description>
See PLOT3D Result File below for the definition of each.
The following information is included in a PLOT3D result file:
• Number of scalar variables
• Number of vector variables
• Number of time steps
• Starting file number extension and skip-by value
• Flag that specifies whether there is changing geometry.
• Names of the files that contain the values of scalar and vector variables.
An indication as to the type of the file being used for the variable, which
variable in the file and the name given to that variable.
• The names of the geometry files that will be used for the changing
geometry.
Generic PLOT3D Result File Format
The format of the Result file is as follows:
•Line 1
Contains the number of scalar variables, the number of vector variables
and a geometry changing flag. If the geometry changing flag is 0, the
geometry of the model does not change over time. Only the coordinates
can change for a PLOT3D file at present time.
•Line 2
Indicates the number of time steps that are available.
11.7 PLOT3D Results File Format
11-152 EnSight 9 User Manual
Note: if this number is positive, then EnSight will assign the time values
listed in Line 3 to the Analysis_Time constant variable. If this value is
negative, the time values in Line 3 must be removed and EnSight will
assign the TIME (or Tvref for OVERFLOW restart q-file(s) ) value from
the header of the q-file(s) to the Analysis_Time constant variable. This is
noted under PLOT3D and/or OVERFLOW readers (see Section 2.3,
Other Readers).
•Line 3
Lists the time that is associated with each time step. There must be the
same number of values as are indicated in Line 2. This “line” can actually
span several lines in the file. (Exists if Line 2 is a positive, non-zero
value).
•Line 4
Specified only if more than one time step is indicated in Line 2. The two
values on this line indicate the file extension value for the first time step
and the offset between files. If the values on this line are 0 5, the first time
step available has a subscript of 0, the second time step available has a
subscript of 5, the third time step has a subscript of 10, and so on.
•Line 5
This line exists only if the changing geometry flag on Line 1 has been set
to 1. Line contains name of the PLOT3D xyz file. The file name must
follow the EnSight wild card specification.
• Line 6 through Line [5+N] where N is the number of scalar variables
specified in Line 1.
List the file names that correspond to each scalar variable. There must be
a file name for each scalar variable that is specified in Line 1. If there is
more than one time step, the file name must follow the EnSight wild card
specification.
These lines also contain the type of file being used, solution or function,
and the location of the variable value in the file. The contents are:
<filename> <type> <number> <description>
where filename is the name of solution file or function file containing the
variable; type is “S” for solution file, or “F” for function file; numberis
which variable in the file to use (specify just one number); and description
is the Description of the variable.
The solution file (“s”) is the traditional .q file in which normally the first
variable is density, the second through fourth variables are the
components of momentum, and the fifth variable is total energy.
• Lines that follow the scalar variable files.
List the file names that correspond to each vector variable. There must be
a file name for each vector variable that is specified in Line 1. If there is
more than one time step, the file name must follow the EnSight wild card
specification.
These lines also contain the type of file being used, solution or function,
11.7 PLOT3D Results File Format
EnSight 9 User Manual 11-153
and the location(s) of the variable values in the file. The contents are:
<filename> <type> <numbers> <description>
where filename is the name of solution file or function file containing the
variable; type is “S” for solution file, or “F” for function file; numbersare
which variables in the file to use (specify just three numbers); and
description is the Description of the variable.
The generic format of the result file is as follows:
#_of_scalars #_of_vectors geom_chng_flag
#_of_timesteps
time1 time2 time3 .....
start_file_# skip_by_value
geometry_file_name.geo**
scalar0_file_name** type # description
scalar1_file_name** type # description
.
.
.
vector0_file_name** type # # # description
vector1_file_name** type # # # description
.
.
.
PLOT3D Example This example illustrates a result file that specifies a non-changing geometry with
only one time step.
3 2 0
1
0.0
block.sol S 1 Density
block.sol S 5 Total_Energy
block.scl F 1 Temperature
block.var F 1 2 3 Displacement
block.sol S 2 3 4 Momentum
Thus, this model will get two scalars from the solution file (block.sol). The first is
Density in the first location in the file and the next is Total energy in the fifth
location in the solution file. It will also get a Temperature scalar from the first
location in the function file (block.scl).
It will get a Displacement vector from the function file called block.var. The three
components of this vector are in the 1st, 2nd, and 3rd locations in the file. Finally,
a Momentum vector will be obtained from the 2nd, 3rd, and 4th locations of the
solution file.
Vectors can be 1D, 2D, or 3D. For a vector, always provide three numbers, but a
zero will indicate that a component is empty, thus:
block.var F 1 0 3 XZ_Displacement
would be a 2D vector variable with components only in the X–Z plane.
If the above example had transient variables (but not geometry), with 3 time steps,
it would appear as:
11.7 PLOT3D Results File Format
11-154 EnSight 9 User Manual
3 2 0
3
0.0 1.5 4.0
1 1
block.sol** S 1 Density
block.sol** S 5 Total_Energy
block.scl** F 1 Temperature
block.var** F 1 2 3 Displacement
block.sol** S 2 3 4 Momentum
The files needed would then be:
And if the geometry changed as well as the variables, it would appear as:
3 2 1
3
0.0 1.5 4.0
1 1
block.geo**
block.sol** S 1 Density
block.sol** S 5 Total_Energy
block.scl** F 1 Temperature
block.var** F 1 2 3 Displacement
block.sol** S 2 3 4 Momentum
The files needed would then be:
Note: A “standard” Q-file can be substituted for PLOT3D result file format if
desired. A “standard” Q-file has 5 variable components (First is density, then the
three components of momentum, and last is energy).
block.sol01 block.scl01 block.var01
block.sol02 block.scl02 block.var02
block.sol03 block.scl03 block.var03
block.sol01 block.scl01 block.var01 block.geo01
block.sol02 block.scl02 block.var02 block.geo02
block.sol03 block.scl03 block.var03 block.geo03
11.8 Server-of-Server Casefile Format
EnSight 9 User Manual 11-155
11.8 Server-of-Server Casefile Format
EnSight92 (with gold license key) has the capability of dealing with partitioned
data in an efficient distributed manner by utilizing what we call a server-of-servers
(SOS for short). An SOS server resides between a normal client and a number of
normal servers. Thus, it appears as a normal server to the client, and as a normal
client to the various normal servers.
This arrangement allows for distributed parallel processing of the various portions
of a model, and has been shown to scale quite well.
Currently, EnSight SOS capability is only available for EnSight5, EnSight6,
EnSight Gold, Plot3d, and any EnSight User-Defined Reader data. It is not
directly available for Fidap Neutral, Fluent Universal, N3S, Estet, MPGS4,
Movie, Ansys, Abaqus, or FAST Unstructured data.
Please recognize that your data must be partitioned in some manner (hopefully in
a way that will be reasonably load balanced) in order for this approach to be
useful. The exception to this is the use of the auto_distribute capability for
structured or unstructured data. This option can be used if the data are readable by
all servers. It will automatically distribute each portion of the data over the
defined servers - without the user having to partition the data. Please note that
currently only EnSight Gold, Plot3d, and any 2.06 (or greater) user-defined readers
(which have implemented structured reader cinching) should be used for structured
auto_distribute - and that only EnSight Gold and any 2.08 (or greater) user-defined
readers (which have implemented the “*_in_buffers” routines ) should be used for
unstructured auto_distribute. Using an EnSight reader not written for SoS
autodistribute will result in each server loading the entire model.
Included in the EnSight distribution is an unsupported utility that will take most
EnSight Gold binary unstructured datasets and partition it for you. The source for
this utility (called “chopper”) can be found in the $CEI_HOME/ensight92/
unsupported/partitioner directory.
Note: If you do your own partitioning of data into EnSight6 or EnSight Gold
format, please be aware that each part must be in each partition - but, any given
11.8 Server-of-Server Casefile Format
11-156 EnSight 9 User Manual
part can be “empty” in any given partition. All that is required for an empty part is
the “part” line, the part number, and the “description” line.
You should place each partitioned portion of the model on the computer that will
access that portion. Each partitioned portion is actually a self contained set of
EnSight data files, which could typically be read by a normal client - server
session of EnSight. For example, if it were EnSight gold format, there will be a
casefile and associated gold geometry and variable results file(s). On the machine
where the EnSight SOS will be run, you will need to place the SOS casefile. This
is a simple ascii file which informs the SOS about pertinent information need to
run a server on each computer that will compute the various portions.
The format for the SOS casefile is as follows: (Note that [ ] indicates optional
information, and a blank line or a line with # in the first column are comments.)
FORMAT (Required)
type: master_server datatype (Required)
where: datatype is required and is one of the formats of EnSight’s
internal readers (which use the Part builder), namely:
gold ensight6 ensight5 plot3d
or it can be the string used to name any of the user-defined readers.
Note: For user-defined readers, the string must be exactly that which is
defined in the USERD_get_name_of_reader routine of the reader
(which is what is presented in the Format pulldown of the Data Reader
dialog).
If datatype is blank, it will default to EnSight6 data type.
[auto_distribute: server/reader/on/off] (Optional for structured or
unstructured data)
Set this option to “off” if you have moved the decomposed data file(s)
into separate directories or machines. Each server will simply read all
of the data as specified in its data_path and casefile below.
Set this option to “on” or “server” (these two options are the same) if
you want the EnSight server to automatically distribute data to the
servers specified below. This requires that each of the servers have
access to the same data (or identical copies of it). For structured data:
use the “ON” or “Server” option only if the datatype is gold, plot3d
or a 2.06 or greater user-defined reader (which has implemented
structured cinching). For unstructured data: use only if the
datatype is gold, or a 2.* user-defined reader (which has
implemented the “*_in_buffers” routines).
Set this option to “reader” if you want EnSight to allow the readers to do
the decomposition. This option requires that each of the servers have
access to the same data (or identical copies of it). This is prefered over
letting the server do the distribution. However the “reader” option
will only work if the reader has told EnSight that it can do the
distribution by setting the return value to TRUE in the
USERD_prefer_auto_distribute reader routine.
[use_resources: on/off] (Optional, to use the specification of server
machines from EnSight resources; this will
override the machine names used in this file, see
How To Use Resource Management.)
[plot3d_iblanked: true/false] (Required only if datatype is plot3d)
11.8 Server-of-Server Casefile Format
EnSight 9 User Manual 11-157
[plot3d_multi_zone: true/false] (Required only if datatype is plot3d)
[plot3d_dimension: 1d/2d/3d] (Required only if datatype is plot3d)
[plot3d_source: ascii/cbin/fortranbin] (Required only if datatype is plot3d)
[plot3d_grid_double: true/false] (Required only if datatype is plot3d)
[plot3d_results_double: true/false] (Required only if datatype is plot3d)
where: iblanking, multi_zone, dimension, source type, grid file double
precision, and results file double precision information should be
provided. If it is not provided, it will default to the following (which is
likely not to be correct):
plot3d_iblanked: false
plot3d_muti_zone: false
plot3d_dimension: 3d
plot3d_source: cbin
plot3d_grid_double: false
plot3d_results_double: false
[do_ghosts: on/off] (Optional for unstructured auto_distribute - default is on)
Allows user to control whether ghost cells will be produced between the
distributed portions.
[buffer_size: n] (Optional for unstructured auto_distribute and do_ghosts -
default is 100000)
Allows user to modify the default buffer size that is used when reading
node and element information of the model when producing ghost cells.
[want_metric: on/off] (Optional for unstructured auto_distribute and do_ghosts
- default is on)
If set on, a simple metric will be printed in the shell window that can
indicate the quality of the auto_distribution. The unstructured
auto_distribute method relies on some coherence in the element
connectivity - namely, that elements thal lie next to each other are
generally listed close to each other in the data format.
The metric is simply the (#total_nodes / #nodes_needed_if_no_ghosts).
When no ghosts, the value will be 1.0. The more ghosts you must have,
the higher this metric will be. If the number gets much more than 2.0,
you may want to consider partitioning yourself.
NETWORK_INTERFACES (Note: this whole section is optional. It is
needed only when more than one network
interface to the sos host is available and it is
desired to use them. Thus distributing the
servers to sos communication over more than
one network interface)
number of network interfaces: num (Required - if section used)
where: num is the number of network interfaces to be used for the sos
host.
network interface: sos_network_interface_name1(Required - if section is used)
network interface: sos_network_interface_name2(Required - if section is used)
.
.
network interface: sos_network_interface_namenum(Required - if section used)
SERVERS (Required)
number of servers: num (Required)
11.8 Server-of-Server Casefile Format
11-158 EnSight 9 User Manual
where: num is the number of servers that will be started and run
concurrently.
#Server 1 (Comment only)
machine id: mid (Required)
where: mid is the machine id of the server.
executable: /.../ensight92.server (Required, must use full path)
[directory: wd] (Optional)
where: wd is the working directory from which ensight92.server will be
run
[login id: id] (Optional)
where: id is the login id. Only needed if it is different on this machine.
[data_path: /.../dd] (Optional)
where: dd is the data where the data resides. Full path must be provided
if you use this line.
casefile: yourfile.case (Required, but depending on format, may vary
as to whether it is a casefile, geometry file,
neutral file, universal file, etc. Relates to the
first data field of the Data Reader Dialog.)
[resfile: yourfile.res] (Depends on format as to whether required or
not. Relates to the second data field of the Data
Reader Dialog.)
[measfile: yourfile.mea] (Depends on format as to whether required or
not. Relates to the third data field of the Data
Reader Dialog.)
[bndfile: yourfile.bnd] (Depends on format as to whether required or
not. Relates to the fourth data field of the Data
Reader Dialog.)
#Server 2 (Comment only)
--- Repeat pertinent lines for as many servers as declared to be in this file ---
Example This example deals with a EnSight Gold dataset that has been partitioned into 3
portions, each running on a different machine. The machines are named joe, sally,
and bill. The executables for all machines are located in similar locations, but the
data is not. Note that the optional data_path line is used on two of the servers, but
not the third.
FORMAT
type: master_server gold
SERVERS
number of servers: 3
#Server 1
machine id: joe
executable: /usr/local/bin/ensight92/bin/ensight92.server
data_path: /usr/people/john/data
casefile: portion_1.case
#Server 2
11.8 Server-of-Server Casefile Format
EnSight 9 User Manual 11-159
machine id: sally
executable: /usr/local/bin/ensight92/bin/ensight92.server
data_path: /scratch/sally/john/data
casefile: portion_2.case
#Server 3
machine id: bill
executable: /usr/local/bin/ensight92/bin/ensight92.server
casefile: /scratch/temp/john/portion_3.case
If we name this example sos casefile “all.sos”, and we run it on yet another
machine, one named george, the data would be distributed as follows:
On george: all.sos
On joe (in /usr/people/john/data): portion_1.case, and all files referenced by it.
On sally (in /scratch/sally/john/data): portion_2.case, and all files referenced by it.
On bill (in /scratch/temp/john): portion_3.case, and all file referenced by it.
By starting EnSight with the -sos command line option (which will autoconnect
using ensight92.sos instead of ensight92.server), or by manually running
ensight92.sos in place of ensight92.server, and providing all.sos as the casefile to
read in the Data Reader dialog - EnSight will start three servers and compute the
respective portions on them in parallel.
For examples of structured and unstructured auto_distribute, see:
How To Use SOS.
Spatially decomposed Case files
If you choose to read spatially decomposed case files using the same number of
servers as case files, then this section is unnecessary. At some point you may
encounter case files that are spatially decomposed and wish to read them with less
servers than you have case files. At that point you will need to have this section
with a keyword MULTIPLE_CASEFILES. There are several ways to specify the
case files.
List them all by name:
MULTIPLE_CASEFILES
total number of cfiles: n
cfiles global path: global_path Optional
cfiles: partition_1.case
partition_2.case
.
partition_n.case
Specify number, pattern, start and increment
MULTIPLE_CASEFILES
total number of cfiles: n
cfiles global path: global_path Optional
cfiles pattern: partition_*.case
cfiles start number: #
cfiles increment: #
11.8 Server-of-Server Casefile Format
11-160 EnSight 9 User Manual
Use a separate file to containing the case filenames
MULTIPLE_CASEFILES
total number of cfiles: n
cfiles file: all_together_cfilenames.txt
Please see How To Load Spatially Decomposed Case Filesfor detailed usage
instructions.
Configuration using Environment Variables
By default, both the EnSight client and the server start up with an optimum
number of threads (depending on the number of processors available and within
the EnSight user license limits). Each executable of EnSight can be configured
individually to limit the number of threads used. The following environment
variables are used to specify the maximum number of threads that the executable
should use for computation. These environment variables should be set in your
shell startup script on the computers where the various EnSight executables run.
ENSIGHT9_MAX_THREADS
The maximum number of threads to use for each EnSight server. Threads are used
to accelerate the computation of streamlines, clips, isosurfaces, some calculator
functions and other compute-intensive operations.
ENSIGHT9_MAX_CTHREADS
The maximum number of threads to use for each EnSight client. Threads in the
client are used to accelerate sorting of transparent surfaces.
ENSIGHT9_MAX_SOSTHREADS
The maximum number of threads to use on the server of server in order to start up
server processes in parallel rather than serially.
Other Notes
The number of threads is limited to 2 (per client or server) with a Lite license, 4
(per client or server) with a Standard license, while the upper limit for a Gold
license is 128. When setting these parameters it is a good idea to take into account
the number of processors on the system. In general, you will not see benefit from
setting the parameters higher than the number of total processors. Because the
server, server-of-servers and client operate in a pipelined fashion, it is not
necessary to limit one in order to apply more threads to another.
Compute intensive server operations that make use of shared memory parallel
computations include isosurface, clipping, and particle trace computations. Client
threaded operations include transparency resort and display list creation.
If the machine named george had more than one network interface (say it had its
main one named george, but also had one named george2), we could add the
section shown below to our casefile example:
NETWORK_INTERFACES
number of network interfaces: 2
network interface: george
network interface: george2
This would cause machine joe to connect back to george, machine sally to connect
back to george2, and machine bill to connect back to george. This is because the
sos is cycling through its available interfaces as it connects the servers. Remember
that this is an optional section, and most users will probably not use it. Also, the
11.8 Server-of-Server Casefile Format
EnSight 9 User Manual 11-161
contents of this section will be ignored if the -soshostname command line
option is used.
11.9 Periodic Matchfile Format
11-162 EnSight 9 User Manual
11.9 Periodic Matchfile Format
This is an optional file which can be used in conjunction with models which have
rotational or translational computational symmetry (or periodic boundary
conditions). It is invoked in the GEOMETRY section of the EnSight casefile,
using the “match: filename” line. EnSight 6 Case file allows the use of the
periodic matchfile which uses the matchfile in the border process to eliminate the
matched symmetry faces at the shared boundary between the faces. EnSight Case
Gold allows the optional [add_ghosts] parameter after the filename which will
produce ghost cells across the match file boundary which will provide continuity
for variable calculations across the boundary, and for computational symmetry/
mirroring, etc. Only use the add_ghosts option if you can afford the penalty of the
additonal ghost cells and you need the computational continuity that they provide.
When a model piece is created with periodic boundary conditions, there is usually
a built-in correspondence between two faces of the model piece. If you transform
a copy of the model piece properly, face 1 of the copy will be at the same location
as face 2 of the original piece. It is desirable to know the corresponding nodes
between face 1 and face 2 so border elements will not be produced at the matching
faces. This correspondence of nodes can be provided in a periodic match file as
indicated below. (Please note that if a periodic match file is not provided, by
default EnSight will attempt to determine this correspondence using a float
hashing scheme. This scheme has been shown to work quite well, but may not
catch all duplicates. The user has some control over the “capture” accuracy of the
hashing through the use of the command: “test: float_hash_digits”. If this
command is issued from the command dialog, the user can change the number of
digits, in a normalized scheme, to consider in the float hashing. The lower the
number of digits, the larger the “capture” distance, and thus the higher the number
of digits, the smaller the capture distance. The default is 4, with practical limits
between 2 and 7 or 8 in most cases.)
The transformation type and delta value are contained in the file. The periodic
match file is an ASCII free format file. For unstructured data, it can be thought of
as a series of node pairs, where a node pair is the node number of face 1 and its
corresponding node number on face 2. For structured blocks, all that is needed is
an indication of whether the i, j, or k planes contain the periodic face. The min
plane of this “direction” will be treated as face 1, and the max plane will be treated
as face 2.
The file format is as follows:
rotate_x/y/z / translate
The first line is either rotate_x, rotate_y, rotate_z
or translate
theta / dx dy dz
The second line contains rotation angle in degrees
or the three translational delta values.
np
n
11
n
21
n
12
n
22
. .
. .
. .
n
1np
n
2np
If any unstructured pairs, the third line contains
the number of these pairs (np).
And the node ids of each pair follow. (The first
subscript indicates face, the second is pair.)
11.9 Periodic Matchfile Format
EnSight 9 User Manual 11-163
Simple unstructured rotational example:
The periodic match file for a rotation of this model about point 1 would be:
rotate_z
45.0
3
1 1
2 8
3 9
Thus, face 1 of this model is made up of nodes 1, 2, and 3 and face 2 of this model
is made up of nodes 1, 8, and 9. So there are 3 node pairs to define, with node 1
corresponding to node 1 after a copy is rotated, node 2 corresponding to node 8,
and node 3 corresponding to node 9.
blocks b
min
b
max
i/j/k
Last in the file comes as many of these “blocks”
lines as needed. bmin and bmax are a range of
block numbers. For a single block, bmin and bmax
would be the same. Only one of i, j, or k can be
specified for a given block.
2
45
8
3
7
9
6
1
8
6
4
2
Original
face 2
face 1
Figure 11-6
Model Duplication by rotational symmetry
11.9 Periodic Matchfile Format
11-164 EnSight 9 User Manual
Simple structured translational model:
translate
2.0 0.0 0.0
blocks 1 1 i
blocks 2 3 j
Since block 1 is oriented differently than blocks 2 and 3 in terms of ijk space, two
“blocks” lines were needed in the match file.
Special Notes / Limitations:
1. This match file format requires that the unstructured node ids of the model be
unique. This is only an issue with EnSight Gold unstructured format, since it is
possible with that format to have non-unique node ids.
2. The model instance (which will be duplicated periodically) must have more
than one element of thickness in the direction of the duplication. If it has only one
element of thickness, intermediate instances will have all faces removed. If you
have this unusual circumstance, you will need to turn off the shared border
removal process, as explained in note 3.
3. The shared border removal process can be turned off, thereby saving some
memory and processing time, by issuing the “test: rem_shared_bord_off”
command in the command dialog. The effect of turning it off will be that border
elements will be left between each periodic instance on future periodic updates.
4. The matching and hashing processes actually occur together. Thus, matching
information does not have to be specified for all portions of a model. If no
matching information is specified for a given node, the hashing process is used.
By the same token, if matching information is provided, it is used explicitly as
specified - even if it is has been specified incorrectly.
Figure 11-7
Model Duplication by translational symmetry
of structured blocks (3 instances)
block 1
block 2
block 3
J
I
J
I
2.0
11.10 XY Plot Data Format
EnSight 9 User Manual 11-165
11.10XY Plot Data Format
This file is saved using the Save section of the Query Entity dialog. The file can
contain one or more curves. The following is an example XY Data file:
Line Contents of Line
12
2 Distance vs. Temperature for Line Tool
3 Distance
4 Temperature
51
65
7 0.0 4.4
8 1.0 5.8
9 2.0 3.6
10 3.0 4.6
11 4.0 4.8
12 Distance vs. Pressure for Line Tool
13 Distance
14 Pressure
15 2
16 4
17 0.00 1.2
18 0.02 1.1
19 0.04 1.15
20 0.06 1.22
21 3
22 1.10 1.30
23 1.12 1.28
24 1.14 1.25
Line 1 contains the (integer) number of curves in the file.
Line 2 contains the name of the curve.
Line 3 contains the name of the X-Axis.
Line 4 contains the name of the Y-Axis.
Line 5 contains the number of curve segments in this curve.
11.10 XY Plot Data Format
11-166 EnSight 9 User Manual
Line 6 contains the number of points in the curve segment.
Lines 7-11 contain the X-Y information.
Line 12 contains the name of the second curve.
Line 13 contains the name of the X-Axis
Line 14 contains the name of the Y-Axis
Line 15 contains the number of curve segments in this curve. (For the second
curve, the first segment contains 4 points, the second 3 points.)
11.11 EnSight Boundary File Format
EnSight 9 User Manual 11-167
11.11 EnSight Boundary File Format
This file format can be used to represent boundary surfaces of structured data as
unstructured parts. The boundaries defined in this file can come from sections of
several different structured blocks. Thus, inherent in the file format is a grouping
and naming of boundaries across multiple structured blocks.
Additionally, a delta can be applied to any boundary section to achieve the
creation of repeating surfaces (such as blade rows in a jet engine).
Note: There is no requirement that the boundaries actually be on the surface of
blocks, but they must define either 2D surfaces or 1D lines. You may not use this
file to define 3D portions of the block.
The boundary file is read if referenced in the casefile of EnSight data models, or
in the boundary field of the Data Reader Dialog for other data formats. Any
boundaries successfully read will be listed in the Unstructured Data Part List of
the Data Part Loader Dialog.
The format of the EnSight Boundary File is as follows:
Line (1): Required header keyword and version number. ENSBND is required
exactly, but the version number could change in the future.
ENSBND 1.00
Line (2) through Line (NumBoundaries+1): The names of the boundaries to be
defined. (Each name must be no greater than 79 characters.)
For example:
inflow
wall
Chimera Boundary
outflow
Line (NumBoundaries+2): Required keyword indicating the end of the boundary
names and the beginning of the boundary section definitions.
BOUNDARIES
Line (NumBoundaries+3) through the end of the file: The boundary section
definitions. Each line will have the following information:
bnd_num blk_num imin imax jmin jmax kmin kmax [di dj dk n_ins]
where:
bnd_num
is the number of the boundary in the list of names above.
(For example: inflow is 1, wall is 2, Chimera Boundary is 3, etc.)
blk_num
is the parent structured block for this boundary section.
imin,imax, jmin,jmax, kmin,kmax
are the ijk ranges for the boundary section.
At least one of the min,max pairs must refer to the same plane. A wildcard (“$”)
can be used to indicate the maximum i, j, or k value of that block (the far plane).
Additionally, negative numbers can be used to indicate plane values from the far
side toward the near side. (-1 = far plane, -2 = one less than the far plane, etc.)
[di,dj,dk
and
n_ins]
are optional delta information which can be used to extract
repeating planes. The appropriate di, dj, or dk delta value should be set to the
11.11 EnSight Boundary File Format
11-168 EnSight 9 User Manual
repeating plane offset value, and the other two delta values must be zero. The non-
zero delta must correspond to a min,max pair that are equal. The n_ins value is
used to indicate the number of repeating instances desired. A (“$”) wildcard can
be used here to indicate that the maximum number of instances that fit in the block
should be extracted.
All numbers on the line must be separated by spaces.
Finally, comment lines are allowed in the file by placing a “#” in the first column.
Below is a simple example of a boundary file for two structured blocks, the first of
which is a 3 x 3 x 3 block, and the second is a 10 x 10 x 10 block. We will define a
boundary which is the front and back planes of each block(K planes) and one that
is the top and bottom planes of each block(J planes). We will also define some
repeating x planes, namely, planes at i=1 and 3 for block one and at i=1, 4, 7, and
10 for block two. The image below shows the blocks in wire frame and the
boundaries shaded and slightly cut away, so you can see the interior x-planes.
11.11 EnSight Boundary File Format
EnSight 9 User Manual 11-169
The file to accomplish this looks like:
ENSBND 1.00
front_back
top_bottom
x-planes
middle lines
BOUNDARIES
#bnd blk imin imax jmin jmax kmin kmax di dj dk n_ins
#--- --- ---- ---- ---- ---- ---- ---- -- -- -- -----
1 1 1 3 1 3 $ $
1 2 1 $ 1 $ 10 10
2 1 1 $ $ $ 1 $
2 2 1 10 10 10 1 10
1 1 1 3 1 3 1 1
1 2 1 $ 1 $ 1 1
2 1 1 3 1 1 1 $
2 2 1 $ 1 1 1 $
3 1 1 1 1 $ 1 $ 2 0 0 2
3 2 1 1 1 $ 1 $ 3 0 0 $
4 1 2 2 2 2 1 3
4 2 1 10 5 5 5 5
Interpreting the 12 boundary definition lines:
1 1 1 3 1 3 $ $
defines a part of the boundary called front_back, on block 1, where I=1 to 3, J=1
to 3, and K=3. Thus, the far K plane of block 1.
1 2 1 $ 1 $ 10 10
defines another part of the front_back boundary, on block 2, where I=1 to 10, J=1
to 10, and K = 10. Thus, the far K plane of block 2.
2 1 1 $ $ $ 1 $
defines a part of the boundary called top_bottom, on block 1, where I=1 to 3, J=3,
and K=1 to 3. Thus, the far J plane of block 1.
2 2 1 10 10 10 1 10
defines another part of the top_bottom boundary, on block 2, where I=1 to 10,
J=10, and K=1 to 10. Thus, the far J plane of block 2.
1 1 1 3 1 3 1 1
defines another part of the front_back boundary, on block 1, where I=1 to 3, J=1 to
3, and K=1. Thus, the near K plane of block 1.
1 2 1 $ 1 $ 1 1
defines another part of the front_back boundary, on block 2, where I=1 to 10, J=1
to 10, and K=1. Thus the near K plane of block 2.
2 1 1 3 1 1 1 $
defines another part of the top_bottom boundary, on block 1, where I=1 to 3, J=1,
and K=1 to 3. Thus, the near J plane of block 1.
2 2 1 $ 1 1 1 $
defines another part of the top_bottom boundary, on block 2, where I=1 to 10,
J=1,and K=1 to 10. Thus, the near J plane of block 2.
11.11 EnSight Boundary File Format
11-170 EnSight 9 User Manual
3 1 1 1 1 $ 1 $ 2 0 0 2
defines a part of the boundary called x-planes, on block 1, where I=1, J=1 to 3,
K=1 to 3, then again where I=3, J=1 to 3, and K=1 to 3. Thus, both the near and
far I planes of block 1.
3 2 1 1 1 $ 1 $ 3 0 0 $
defines another part of the x-planes boundary, on block 2, where I=1, J=1 to 10,
and K=1 to 10, then again where I=4, J=1 to 10, and K=1 to 10, then again where
I=7, J=1 to 10, and K=1 to 10, then again where I=10, J=1 to 10, and K=1 to 10.
Thus, the I = 1, 4, 7, and 10 planes of block 2.
4 1 2 2 2 2 1 3
defines a part of the boundary called middle lines, on block 1, where I=2, J=2, and
K=1 to 3. Thus, line through the middle of block 1 in the K direction.
4 2 1 10 5 5 5 5
defines another part of the middle lines boundary, on block 2, where I=1 to 10,
J=5, and K=5. Thus a line through the middle of the block2 in the I direction.
Please note that the “$” wildcard was used rather randomly in the example, simply
to illustrate how and where it can be used.
The use of negative numbers for ijk planes is indicated below - again rather
randomly for demonstration purposes. This file will actually produce the same
result as the file above.
ENSBND 1.00
front_back
top_bottom
x-planes
middle lines
BOUNDARIES
#bnd blk imin imax jmin jmax kmin kmax di dj dk n_ins
#--- --- ---- ---- ---- ---- ---- ---- -- -- -- -----
1 1 1 3 1 3 -1 -1
1 2 -3 -1 1 -1 10 10
2 1 1 -1 -1 -1 1 -1
2 2 1 10 10 10 1 10
1 1 1 3 1 3 1 1
1 2 1 -1 1 -1 1 1
2 1 1 3 1 1 1 -1
2 2 1 -1 1 1 1 -1
3 1 1 1 1 -1 1 -1 2 0 0 2
3 2 1 1 1 -1 1 -1 3 0 0 $
4 1 2 -2 -2 2 1 3
4 2 1 10 5 5 -6 -6
11.12 EnSight Particle Emitter File Format
EnSight 9 User Manual 11-171
11.12 EnSight Particle Emitter File Format
This file can be used to specify the location of emitter points. It is most useful
when the user has specific (and many) emit points to use for particle traces.
Rather than type them all in one at a time as a cursor emitter, this file can be used.
Note the following:
1. The first two lines need to be exactly as shown.
Version 1.0
EnSight Particle Emitter File
2. #’s as the first character on a line, are comment lines. Comment lines can be
used anywhere in the file after the first two mandatory lines.
3.
Time
lines contain the emitter release time (simulation time, NOT time step).
4.
Emit
lines contain the coordinates of an emitter. The emitter will be associated
with the previously specified
Time
.
Sample File:
Version 1.0
EnSight Particle Emitter File
#
Time 0.249063
Emit 0.0669737 0.0134195 -0.013926
Emit 0.0669737 0.0131277 -0.0141079
Emit 0.0669737 0.0128642 -0.0143178
Emit 0.0669737 0.0155969 -0.0113572
Emit 0.0669737 0.0150344 -0.0122012
Emit 0.0669737 0.0146967 -0.0123587
#
Time 0.249113
Emit 0.0669737 0.0137097 -0.0136404
Emit 0.0669737 0.0134218 -0.0138284
Emit 0.0669737 0.0131628 -0.0140438
Emit 0.0669737 0.0158325 -0.0110264
Emit 0.0669737 0.0152879 -0.011882
Emit 0.0669737 0.0149536 -0.0120466
#
Time 0.249163
Emit 0.0669737 0.0139938 -0.0133488
Emit 0.0669737 0.01371 -0.0135428
Emit 0.0669737 0.0134555 -0.0137636
Emit 0.0669737 0.0160612 -0.0106906
Emit 0.0669737 0.0155347 -0.0115575
Emit 0.0669737 0.0152039 -0.0117291
#
Time 0.249213
Emit 0.0669737 0.0142718 -0.0130512
Emit 0.0669737 0.013992 -0.0132511
Emit 0.0669737 0.0137423 -0.0134773
Emit 0.0669737 0.0162827 -0.0103501
Emit 0.0669737 0.0157745 -0.0112279
Emit 0.0669737 0.0154475 -0.0114064
#
11.12 EnSight Particle Emitter File Format
11-172 EnSight 9 User Manual
Time 0.249263
Emit 0.0669737 0.0145433 -0.0127479
Emit 0.0669737 0.0142679 -0.0129536
Emit 0.0669737 0.014023 -0.013185
Emit 0.0669737 0.0164969 -0.0100051
Emit 0.0669737 0.0160074 -0.0108933
Emit 0.0669737 0.0156842 -0.0110787
11.13 EnSight Rigid Body File Format
EnSight 9 User Manual 11-173
11.13 EnSight Rigid Body File Format
This file can be used to specify the rigid body Euler Parameter file (see Section
11.14, Euler Parameter File Format) and which transformations within said file to
associate with the parts in EnSight Gold format. It can also be used to specify a
units scaling factor, center of gravity offsets, and initial yaw pitch roll rotations, if
needed. Please note that the order of transformations will be first) the yaw pitch
roll rotations, if any specified, then second) the center of gravity offsets, if any
specified, and third) the euler parameter rotations and translations of the euler
parameter file. While not required,
.erb
is the normal extension given to this file.
It is referenced via the
rigid_body
line in an EnSight Gold Casefile.
Note the following:
1. The first line needs to be exactly as shown.
EnSight Rigid Body
2. The second line must be the .erb version number line. (Version is 1.1, previous
to EnSight 8.2 this line was not present and thus defaulted to version 1.0)
version 1.1
2. The third line must either be exactly
names
or
numbers
This indicates whether part names or part numbers will be used in the
association of ensight parts to the rigid body information in the Euler Parameter
File.
3. The fourth line must be a single integer
n
indicating the number of lines that
follow in the file.
4. The remaining
n
lines contain either 3, 4, 7, or 11 tokens which must each be
enclosed in quotes. When no unit scaling or center of gravity offset is needed
the lines have the form of either
“ens_part_name” “eet_filename” “eet_title”
or
“ens_part_#(s)” “eet_filename” “eet_title”
depending on the state of the second line in the file.
If unit scaling is specified, then the lines have the form of either
“ens_part_name” “eet_filename” “eet_title” “u_scale”
or
“ens_part_#(s)” “eet_filename” “eet_title” “u_scale”
If center of gravity offsets are needed (without rotations), the lines are either
“ens_part_name” “eet_filename” “eet_title” “u_scale” “xoff” “yoff” “zoff”
or
“ens_part_#(s)” “eet_filename” “eet_title” “u_scale” “xoff” “yoff” “zoff”
11.13 EnSight Rigid Body File Format
11-174 EnSight 9 User Manual
If yaw pitch roll rotations are needed (without offsets), the lines are either
“ens_part_name” “eet_filename” “eet_title” “u_scale” “rot_order” “xrot” “yrot” “zrot”
or
“ens_part_#(s)” “eet_filename” “eet_title” “u_scale” “rot_order” “xrot” “yrot” “zrot”
If both offsets and initial yaw pitch roll rotations are needed, the lines are either (note difference in order
of 3 offset offset columns and 4 rotation columns).
“ens_part_name” “eet_filename” “eet_title” “u_scale” “xoff” “yoff” “zoff” “rot_order” “xrot” “yrot” “zrot”
or
“ens_part_name” “eet_filename” “eet_title” “u_scale” “rot_order” “xrot” “yrot” “zrot” “xoff” “yoff” “zoff”
or
“ens_part_#(s)” “eet_filename” “eet_title” “u_scale” “xoff” “yoff” “zoff” “rot_order” “xrot” “yrot” “zrot”
or
“ens_part_#(s)” “eet_filename” “eet_title” “u_scale” “rot_order” “xrot” “yrot” “zrot” “xoff” “yoff” “zoff”
Where:
Simple Sample File (using part numbers):
EnSight Rigid Body
version 1.1
ens_part_name =
the actual part description given in the EnSight geometry file
ens_part_#(s) =
a single number, comma separated list, or list of dash separated
ranges of part numbers given in the EnSight geometry file
eet_filename =
the actual name of the Euler Parameter file
eet_title =
the actual name of the title in the columns of the Euler Parameter
File which correspond to the rigid body euler values to apply to
the ensight parts indicated
u_scale =
the optional units scaling value which can be applied to the
translation values in the Euler Parameter file. This is only needed
if the translations of the Euler Parameter file are not in the same
units as the EnSight geometry. (Note, if you use the xoff, yoff,
zoff offset below, you must use this value as well - but it can be
1.0) Note: this does not scale the geometry. This is used to scale
the translational values in the .eet file only. For example if your
.eet file has units of millimeters but your model is in meters,
putting a 1000 here will scale up all your translations
appropriately. This does not scale values in the .erb file.
xoff,yoff,zoff =
optional additional offsets to the center of gravity that can be
applied. These are applied before the rotation and translations
contained in the Euler Parameters file, and as such are generally
not needed
rot_order =
one of the following, indicating the order in which to apply the
rotation angles. xyz yxz zxy
xzy yzx zyx
xrot,yrot,zrot =
rotation angles (in degrees) about each axis. These will be
applied in the order specified with rot_order.
11.13 EnSight Rigid Body File Format
EnSight 9 User Manual 11-175
numbers
3
“1,5” “my.eet” “BUCKET”
“2-4,6-9,11” “my.eet” “BOOM”
“10” “my.eet” “LINK”
Note, the above file would require that the ensight geometry file contain parts 1 thru 11
and that the my.eet file contain titles BUCKET, BOOM, and LINK.
Sample File (using part names and optional scaling and offsets - no initial
rotations):
EnSight Rigid Body
version 1.1
names
11
“bucket_property_1” “my.eet” “BUCKET” “1000.0” “383.7” “105.23” “0.0”
“bucket_property_2” “my.eet” “BUCKET” “1000.0” “383.7” “105.23” “0.0”
“boom_property_1” “my.eet” “BOOM” “1000.0” “-35.4” “76.85” “45.6”
“boom_property_2” “my.eet” “BOOM” “1000.0” “-35.4” “76.85” “45.6”
“boom_property_3” “my.eet” “BOOM” “1000.0” “-35.4” “76.85” “45.6”
“boom_enda” “my.eet” “BOOM” “1000.0” “-35.4” “76.85” “45.6”
“boom_endb” “my.eet” “BOOM” “1000.0” “-35.4” “76.85” “45.6”
“boom_top” “my.eet” “BOOM” “1000.0” “-35.4” “76.85” “45.6”
“boom_bot” “my.eet” “BOOM” “1000.0” “-35.4” “76.85” “45.6”
“boom_cen” “my.eet” “BOOM” “1000.0” “-35.4” “76.85” “45.6”
“link” “my.eet” “LINK” “1000.0” “102.4” “80.0” “0.0”
Sample File (using part names and optional scaling and initial rotations - no
offsets):
EnSight Rigid Body
version 1.1
names
11
“bucket_property_1” “my.eet” “BUCKET” “1000.0” “yzx” “0.0” “90.0” “0.0”
“bucket_property_2” “my.eet” “BUCKET” “1000.0” “yzx” “0.0” “90.0” “0.0”
“boom_property_1” “my.eet” “BOOM” “1000.0” “yzx” “0.0” “90.0” “0.0”
“boom_property_2” “my.eet” “BOOM” “1000.0” “yzx” “0.0” “90.0” “0.0”
“boom_property_3” “my.eet” “BOOM” “1000.0” “yzx” “0.0” “90.0” “0.0”
“boom_enda” “my.eet” “BOOM” “1000.0” “yzx” “0.0” “90.0” “0.0”
“boom_endb” “my.eet” “BOOM” “1000.0” “yzx” “0.0” “90.0” “0.0”
“boom_top” “my.eet” “BOOM” “1000.0” “yzx” “0.0” “90.0” “0.0”
“boom_bot” “my.eet” “BOOM” “1000.0” “yzx” “0.0” “90.0” “0.0”
“boom_cen” “my.eet” “BOOM” “1000.0” “yzx” “0.0” “90.0” “0.0”
“link” “my.eet” “LINK” “1000.0” “yzx” “0.0” “90.0” “0.0”
Note, the two files above would require that the ensight geometry file contain parts
labeled bucket_property_1, bucket_property_2, boom_property_1, boom_property_2,
boom_property_3, boom_enda, boom_endb, boom_top, boom_bot, boom_cen, and
link, and that the my.eet file contain titles BUCKET, BOOM, and LINK.
Sample File (using part numbers and optional scaling, offsets and rotations - with
the offsets before the rotations. Also has some comments in the file):
# This is the same file as above, but has comments in it
EnSight Rigid Body
version 1.1
numbers
11.13 EnSight Rigid Body File Format
11-176 EnSight 9 User Manual
11
# Here come the parts registered against the labels in the motion file and
# assigned initial rotations and cg offsets
“1” “my.eet” “BUCKET” “1000.0” “383.7” “105.23” “0.0” “yzx” “0.0” “90.0” “0.0”
“2” “my.eet” “BUCKET” “1000.0” “383.7” “105.23” “0.0” “yzx” “0.0” “90.0” “0.0”
“3” “my.eet” “BOOM” “1000.0” “-35.4” “76.85” “45.6” “yzx” “0.0” “90.0” “0.0”
“4” “my.eet” “BOOM” “1000.0” “-35.4” “76.85” “45.6” “yzx” “0.0” “90.0” “0.0”
“5” “my.eet” “BOOM” “1000.0” “-35.4” “76.85” “45.6” “yzx” “0.0” “90.0” “0.0”
“6” “my.eet” “BOOM” “1000.0” “-35.4” “76.85” “45.6” “yzx” “0.0” “90.0” “0.0”
“7” “my.eet” “BOOM” “1000.0” “-35.4” “76.85” “45.6” “yzx” “0.0” “90.0” “0.0”
“8” “my.eet” “BOOM” “1000.0” “-35.4” “76.85” “45.6” “yzx” “0.0” “90.0” “0.0”
“9” “my.eet” “BOOM” “1000.0” “-35.4” “76.85” “45.6” “yzx” “0.0” “90.0” “0.0”
“10” “my.eet” “BOOM” “1000.0” “-35.4” “76.85” “45.6” “yzx” “0.0” “90.0” “0.0”
“11” “my.eet” “LINK” “1000.0” “102.4” “80.0” “0.0” “yzx” “0.0” “90.0” “0.0”
Sample File (using part numbers and optional scaling, offsets and rotations - with
the rotations before the offsets. Also has some comments in the file):
EnSight Rigid Body
version 1.1
numbers
11
“1” “my.eet” “BUCKET” “1000.0” “yzx” “0.0” “90.0” “0.0” “383.7” “105.23” “0.0”
“2” “my.eet” “BUCKET” “1000.0” “yzx” “0.0” “90.0” “0.0” “383.7” “105.23” “0.0”
“3” “my.eet” “BOOM” “1000.0” “yzx” “0.0” “90.0” “0.0”“-35.4” “76.85” “45.6”
“4” “my.eet” “BOOM” “1000.0” “yzx” “0.0” “90.0” “0.0”“-35.4” “76.85” “45.6”
“5” “my.eet” “BOOM” “1000.0” “yzx” “0.0” “90.0” “0.0”“-35.4” “76.85” “45.6”
“6” “my.eet” “BOOM” “1000.0” “yzx” “0.0” “90.0” “0.0”“-35.4” “76.85” “45.6”
“7” “my.eet” “BOOM” “1000.0” “yzx” “0.0” “90.0” “0.0”“-35.4” “76.85” “45.6”
“8” “my.eet” “BOOM” “1000.0” “yzx” “0.0” “90.0” “0.0”“-35.4” “76.85” “45.6”
“9” “my.eet” “BOOM” “1000.0” “yzx” “0.0” “90.0” “0.0”“-35.4” “76.85” “45.6”
“10” “my.eet” “BOOM” “1000.0” “yzx” “0.0” “90.0” “0.0”“-35.4” “76.85” “45.6”
“11” “my.eet” “LINK” “1000.0” “yzx” “0.0” “90.0” “0.0”“102.4” “80.0” “0.0”
Note, the two files above would require that the ensight geometry file contain 11 parts
and that the my.eet file contain titles BUCKET, BOOM, and LINK.
11.14 Euler Parameter File Format
EnSight 9 User Manual 11-177
11.14 Euler Parameter File Format
This contains rigid body transformation values (center of gravity translations and
euler parameters) over time. Please note that these transformations are applied
after any yaw pitch roll rotations and/or any center of gravity offsets specified in
the EnSight Rigid Body file. The order of application of these transformations is
first) the euler parameter rotations, then second) the translations. While not
required,
.eet,
is the normal extension given to this file. It is referenced for
EnSight parts via the EnSight Rigid Body file. It can also be referenced from
readers. The Nastran reader .mop file, and the STL reader .xct are examples of
this.
For a concise description of euler parameters, see the following, some of which is
discussed below.
Eric W. Weisstein. “Euler Parameter.” From MathWorld--A Wolfram Web Resource.
http://mathworld.wolfram.com/EulerParameters.html
Note the following:
1. The first line needs to be exactly as shown.
Ens_Euler
2. The second section consists of two lines. The first of which must be exactly:
NumTimes:
and the second of which must contain one integer indicating the number of
times,
nt
, contained in the file.
3. The third section consists of two lines. The first of which must be exactly:
NumTrans:
and the second of which must contain one integer indicating the number of
transformations,
ntx
, contained in the file.
4. The fourth section must begin with a line that is exactly:
Titles:
and must have
ntx
number of lines - each containing the title associated with a
transformation. These are the titles that .erb, .mob, and .xct files reference as
they associate parts with rigid body transformations.
5. The rest of the file consists of
nt
time step sections with the first line being
exactly:
Time Step:
the next line containing only a single float which represents the time value,
and the next
ntx
lines containing 7 floats representing the 3 translations in x, y,
z and the 4 euler parameters, eo, e1, e2, and e3 which describes a finite rotation
angle of
φ
as follows:
e0
φ
2
---
⎝⎠
⎛⎞
cos=
11.14 Euler Parameter File Format
11-178 EnSight 9 User Manual
and a normalized, scaled unit vector, n, about which the rotation occurs.
and eo, e1, e2, and e3 form a quaternion in scalar-vector representation
and, since, Euler’s rotation theorem states that an arbitrary rotation may be
described by only three parameters, the four quantities must be related
Note: If your four euler parameters don’t satisfy these equations you may get odd
non-linear rotational behavior and scaling of your geometry.
Suppose we want to rotate frame and base in the frame dataset (included in your
EnSight install at $CEI_HOME/ensight92/data/frame) about the Y-axis in several
timesteps. The frame dataset is static, that is, it has no timesteps. But, using the
rigid body rotation files, we will make the parts transient in time.
The frame case file is modified by adding one line after the model line which
indicates the EnSight rigid body (.erb) filename.
model: frame.geo
rigid_body: motion.erb
e
e1
e2
e3
n
ˆφ
2
---
⎝⎠
⎛⎞
sin==
e0e(,) eo
2e1
2i
ˆe3
2j
ˆe3
2k
ˆ
+++=
eo
2ee•+eo
2e1
2e3
2e3
2
+++ 1==
11.14 Euler Parameter File Format
EnSight 9 User Manual 11-179
The motion.erb file might look as follows:
EnSight Rigid Body
version 1.1
names
2
"3d space frame" "simple_euler_y.eet" "Frame" "1.0" "0.0" "0.0" "0.0" "xyz" "0.0" "0.0" "0.0"
"frame base" "simple_euler_y.eet" "Frame" "1.0" "0.0" "0.0" "0.0" "xyz" "0.0" "0.0" "0.0"
This erb file names the euler (.eet) file: simple_euler_y.eet which is as follows:
Ens_Euler
NumTimes:
5
NumTrans:
1
Titles:
Frame
Time Step:
0.0
0.0 0.0 0.0 1.0 0.0 0.0 0.0
Time Step:
0.01
0.0 0.0 0.0 0.92388 0.0 0.38268 0.0
Time Step:
0.02
0.0 0.0 0.0 0.707 0.0 0.707 0.0
Time Step:
0.03
0.0 0.0 0.0 0.3827 0.0 0.92390 0.0
Time Step:
0.04
0.0 0.0 0.0 0.0 0.0 1.0 0.0
Notice that the Euler parameters are for 5 rotations about the Y-axis, 0, 45, 90,
135, and 180 degrees. The four euler parameters are
cos(
φ
/ 2 ), 0.0, 1.0*sin(
φ
/ 2 ), 0.0
In this simple example we now have changed a static dataset into a transient
dataset with 5 timesteps. This is useful for showing the translational and
rotational motion of a rigid body. This is also useful for steady-state flows that
include one solution that may have a rotational part(s) that you wish to animate
over time. You can create an euler file that accurately rotates the part over time as
well as the flow field around it, and then trace pathlines through this rotating
flowfield, because the velocity and other vector variables are rotated along with
the geometry.
Another, more complex sample file might look like the following:
Ens_Euler
NumTimes:
6
NumTrans:
3
Titles:
Boom
Bucket
Link
11.14 Euler Parameter File Format
11-180 EnSight 9 User Manual
Time Step:
0.0000
1600.5009 852.6449 -444.21389 0.9920 -0.0065 -0.05263 0.1144
3111.1418 -355.9743 -282.1282 0.0443 -0.5412 0.8391 -0.0291
-1463.1949 765.1186 -0.7573 0.9999 -0.0001 -0.0001 0.0035
Time Step:
0.1900
1600.6779 852.2065 -444.19329 0.9920 -0.0065 -0.05263 0.1143
3093.7031 -378.0978 -284.0403 0.0454 -0.5085 0.8594 -0.0273
-1463.3661 765.2241 -0.7464 0.9999 -0.0001 -0.0001 0.0035
Time Step:
0.3900
1600.8939 852.2266 -444.23309 0.9920 -0.0065 -0.05268 0.1137
3065.6582 -404.1990 -286.7536 0.0471 -0.4527 0.8900 -0.0245
-1462.6159 765.4865 -1.4728 0.9999 -0.0002 -0.0003 0.0034
Time Step:
0.5900
1621.0400 808.7615 -446.20608 0.9947 -0.0054 -0.05139 0.0881
3053.7280 -510.7401 -292.5969 0.0464 -0.4105 0.9103 -0.0230
-1463.4859 765.3441 -3.0230 0.9999 -0.0003 -0.0002 0.0034
Time Step:
0.7901
1640.6300 771.1768 -500.67977 0.9974 -0.0017 -0.02703 0.0659
3135.5610 -562.3977 -420.8722 0.0245 -0.4325 0.9012 -0.0112
-1464.9549 764.2155 -0.6192 0.9999 -0.0003 -0.0001 0.0037
Time Step:
0.9900
1654.2860 736.9480 -533.92132 0.9988 -0.0004 -0.01302 0.0461
3217.4958 -596.2341 -493.7609 0.0117 -0.4585 0.8885 -0.0057
-1464.9670 761.1839 -1.0681 0.9999 -0.0010 -0.0001 0.0051
11.15 Vector Glyph File Format
EnSight 9 User Manual 11-181
11.15 Vector Glyph File Format
This file contains vector glyph information. Vector glyphs can represent static or
transient forces or moments. These vectors can be located at a node id, an element
id, or an x,y,z location. Transient vector glyphs can change value and/or location
over time.
This file format is referenced from and EnSight Casefile, with a line in the
GEOMETRY
section, as such:
vector_glyphs: filename.vgf
See EnSight Gold Case File Format for more detail on the EnSight Casefile.
General Comments:
1. This is an ascii file.
2. Comment lines are allowed in the file. To be a comment, the line must begin
with a # sign, or be a blank line.
3. Each non-comment line begins with a keyword. When multiple lines are needed
for a given keyword entry, the keyword is repeated on each line.
4. The various tokens on a given line must be separated by spaces. Do NOT allow
the number of space separated tokens to exceed 15 on a line. Note: this restriction
really only applys to the TIMELINE times: line. All others have a set number of
tokens per line.
5. Transient timelines are specified separately, so they can easily be applied to
multiple vector glyphs. Static vector glyphs do not reference a timeline.
11.15 File description:
11-182 EnSight 9 User Manual
File description:
1. The first non-comment line must be exactly:
EnSight Vector Glyphs
2. The second line must be the version number, like:
Currently the only valid version is 1.0
Version 1.0
3. The third line must be the number of Vector Glyphs in the
file, like:
where
int
is the number of vector glyphs
NumVectorGlyphs: int
4. The fourth line should be the number of Transient
timelines in the file, if any. The line should look like:
where
int
is the number of vector glyph timelines.
(If all vector glyphs are static, the line is not needed, or
should indicate that the number is 0).
NumTimeLines: int
5. Each vector glyph will start with a line containing the
single capitalized word,
VECTOR
.
Under each
VECTOR
section, several lines are needed/
possible:
VECTOR
This is a required 2 token line, where
int
is an id
number. (Note: this must be first line of the
section.)
id: int
This is a required 2 (or more) token line.
description: string
This is a required 2 token line.
constant
must be
FORCE
or
MOMENT
type: constant
This is a required 2 token line.
constant
must be
STATIC
or
TRANSIENT
time_condition: constant
This is required if
TRANSIENT
time_condition. It is a 2
token line.
int
will be the id of the associated
timeline.
(Note: the
time_line
must be specified after the
time_condition
, and before any
xyzloc
or
values
lines)
time_line: int
This is a required 2 token line.
int
is the associated
part number
part: int
Use this 2 token line if attaching to a node id.
int
is
the node id to use.
nidloc: int
Use this 2 token line if attaching to an element id.
int
is the element id to use.
eidloc: int
Use this 4 token line(s) if specifying an xyz location
to act at. The three floats are the x,y,z locs. (There
must be one of these lines for each time. Thus, for a
STATIC glyph there will be just one line, but for a
TRANSIENT glyph, there will be multiple -
namely the
numtimes
of the associated timeline.)
xyzloc: float float float
(Note: one of the three location methods must be specified)
11.15 File description:
EnSight 9 User Manual 11-183
This is a required 4 token line(s). The three floats
are the x,y,z components of the vector. (There must
be one of these lines for each time. Thus, for a
STATIC glyph there will be just one line, but for a
TRANSIENT glyph, there will be multiple -
namely the
numtimes
of the associated timeline.)
values: float float float
6. Each vector glyph timeline (if any) will start with a line
containing the single capitalized word,
TIMELINE
.
Under each
TIMELINE
section, several lines are needed/
possible:.
TIMELINE
This is a required 2 token line.
int
is an id number,
and is the number that will be referenced by the
VECTOR
time_line
(Note: Must be first line of the section.)
id: int
This is a required 2 token line.
int
is the number of
time steps in the timeline.
(Note: Must follow the id line, and precede the
times line.)
numtimes: int
This is a required multi-token line. The
floats
are
the time values. We must read in
numtimes
floats,
however the number of these on a given line is
somewhat arbitrary. Just make sure that you do not
do more than 15 times per line.
times: float float ...
This is an optional 2 token line.
constant
is
UNDEF
or
NEAREST
. This controls what will happen if EnSight
specifies a time before the first time in this timeline.
UNDEF
will make the vector undefined.
NEAREST
will
treat it as if it is at the first time.
before: constant
This is an optional 2 token line.
constant
is
NEAREST
or
INTERPOLATE.
This controls what will happen if
EnSight specifies a time between times in this
timeline.
NEAREST
will cause the nearest time to be
used.
INTERPOLATE
will interpolate between the
bounding times.
amidst: constant
This is an optional 2 token line.
constant
is
UNDEF
or
NEAREST.
This controls what will happen if EnSight
specifies a time after the last time in this timeline.
UNDEF
will make the vector undefined.
NEAREST
will
treat it as if it is at the last time.
after: constant
(Note: The defaults for
before
,
amidst
, and
after
are:
before: UNDEF
amidst: INTERPOLATE
after: UNDEF
)
11.15 Example:
11-184 EnSight 9 User Manual
Example:
The following fictitious example shows a few variations for 4 vector glyphs, 2
static and 2 transient. Three are FORCE vectors, and one is a MOMENT vector.
You will note that one vector is located with a node id, one with an element id, and
2 with xyz locations.
We used some blank lines and some lines starting with #, for comments.
Note the use of the appropriate number of xyzloc and/or values lines.
Note that for the example, we did the TIMELINES
times
lines differently. The
first TIMELINE put all times on the same line - which we can easily do without
violating the 15 token limit because there are only 4 times. The second
TIMELINE put each time on its own
times
line.
In this case we did not re-use the transient timelines, but we easily could have
more than one vector glyph reference the same timeline.
EnSight Vector Glyphs
Version 1.0
#--------------------
NumVectorGlyphs: 4
NumTimeLines: 2
#--------------------
VECTOR
id: 1
description: dead load
type: FORCE
time_condition: STATIC
part: 1
nidloc: 173
values: 0.5 1.0 0.75
VECTOR
id: 2
description: wind load
type: FORCE
time_condition: TRANSIENT
time_line: 1
part: 1
eidloc: 13
values: 1.0 2.0 0.0
values: 0.0 2.0 1.0
values: 0.5 7.0 3.0
values: 2.0 5.0 8.0
VECTOR
id: 4
description: snow load
type: FORCE
time_condition: STATIC
part: 1
xyzloc: 1.5 1.5 1.0
values: 0.0 0.0 -5.25
VECTOR
id: 5
description: wrench
type: MOMENT
11.15 Example:
EnSight 9 User Manual 11-185
time_condition: TRANSIENT
time_line: 3
part: 72
xyzloc: 1.0 1.0 0.0
xyzloc: 1.1 1.8 0.2
xyzloc: 1.2 1.7 0.5
values: 10.0 15.0 2.0
values: 20.0 30.0 4.0
values: 100.0 150.0 20.0
#--------------------------
TIMELINE
id: 1
numtimes: 4
before: UNDEF
amidst: INTERPOLATE
after: NEAREST
times: 0.0 1.0 2.0 3.0
TIMELINE
id: 3
numtimes: 3
before: NEAREST
amidst: INTERPOLATE
after: UNDEF
times: 0.5
times: 1.5
times: 2.5
11.16 Constant Variables File Format
11-186 EnSight 9 User Manual
11.16 Constant Variables File Format
This file contains constant variables information. Constant variables
are defined two ways. One way is via the EnSight Gold Case file where
constant variables can be defined per case under the VARIABLE section,
i.e
VARIABLE
constant per case: [ts] Density 0.92
(see subsection EnSight Gold Case File Format under EnSight User Manual
Chapter 11.1).
The other way to define constant variables is by loading them using this Constant
Variables File Format. The advantage of this format is that all the constant
variables defined in this file will be created if they do not exist or updated if they
already exist, each time they are loaded at any stage during the EnSight session.
This file is specified via the Feature Detailed Editor (Calculator) or (Variables)
dialog under File > Load constants from file...
General Comments:
1. This is an ASCII file.
2. The file must start with the following two lines:
#Version 1.0
#EnSight Constant Variables
3. Any following line that begins with a "#" is recognized as a comment
line. Also, text following a "#" symbol is ignored as comments.
4. Each non-comment line has the following syntax
Constant_description1 Constant_value1
Constant_description2 Constant_value2
. . .
Constant_descriptionN Constant_valueN
where:
Constant_description = the variable name of the constant
Constant_value = the value of the constant
5. This file format only supports static and not transient (or changing
time) constant variables. Although this file can be loaded at any
time step.
6. This file may also be loaded at anytime with no regard to data file format.
11.16 Example:
EnSight 9 User Manual 11-187
Example:
#Version 1.0
#EnSight Constant Variables
#
# Comment lines are supported and ignored during loading.
# But, the 1st two lines must be as indicated above.
#
Density .98
Pressure 1.66
Viscosity 1.965e-05 # comment appending text line is permitted
# and ignored during loading
Line 1: Required version line; verbatim as indicated above,
i.e. "#Version 1.0"
Line 2: Required file type line; verbatim as indicated above,
i.e. "EnSight Constant Variables"
Line 3 and on: Variable description, white-space, and variable value
(free format) for each variable.
11.17 Point Part File Format
11-188 EnSight 9 User Manual
11.17Point Part File Format
This file format is for a series of points that can be used to place points in a certain
location to be used as probes within a volume part (see Chapter 7.22, Point Parts
Create/Update). The point data in this file is not loaded into EnSight as geometry.
The format to load points as geometry is a different section (see Chapter 11.1,
EnSight Gold Casefile Format).
Point part points can be loaded from a text file with the following format:
Line 1 is the version number in the form "#Version <version number>", where
version number is a floating point value. The version number is currently 1.0.
Line 2 is a keyword indicating the file type: “#EnSight Point Format”.
lines 3 through n contain the floating point values for the x, y and z coordinates,
respectively, of each point. The values must be separated by commas or spaces
and each line may contain the x, y, and z values of only one point, terminated by a
carriage return. The number can be exponential (2 or 3 exponent values) or
floating. Any lines 3 through n that begin with a “#” are considered comments and
are ignored.
example:
#Version 1.0
#EnSight Point Format
0.00000e+00,0.00000e+00,0.00000e+00
# This is a comment line and is ignored
1.00000e-01,1.00000e-001,3.00000e-001
2.0,3.00000e-01,6.00000e-001
3.00000e+00,3.50000e-01,1.70000e+00
4.20000e+000,5.00000e-001,1.80000e+000
5.40000e+000,6.00000e-001,1.90000e+000
6.50000e+000,8.00000e-001,1.95000e+000
7.00000e+000,1.00000e+000,2.00000e+000
11.18 Spline Control Point File Format
EnSight 9 User Manual 11-189
11.18Spline Control Point File Format
A Spline Control Point file is used to define one or more splines that can be used
in EnSight for positioning entities such as the camera or the plane tool. This file is
a text file with the following format:
Line 1 is the version number in the form "#Version <version number>", where
version number is a floating point value. The version number is currently 1.0.
Line 2 is a keyword indicating file type: “#EnSight Spline Control Points”.
Line 3 is the keyword to start a new spline and provide the text description of the
spline in the form “DESCRIPTION: <spline name text>” where the spline name
text is at most a 49 character text description.
lines 4 through n contain the floating point values for the x, y and z coordinates,
respectively, of each point. The values must be separated by commas and each
line may contain the x, y, and z values of only one point, terminated by a carriage
return. The number can be exponential (2 or 3 exponent values) or floating.
Lines beginning with a “#” are considered comments and ignored.
Multiple splines can be contained in one file. The keyword “DESCRIPTION:
<spline name>” begins a new spline point listing.
example:
#Version 1.0
#EnSight Spline Control Points
DESCRIPTION: First Spline
0.00000e+00,0.00000e+00,0.00000e+00
1.00000e-01,1.00000e-001,3.00000e-001
2.00000e-01,1.00000e-001,3.00000e-001
3.0,3.50000e-01,1.70000e+00
4.20000e+000,5.00000e-001,1.80000e+000
5.40000e+000,6.00000e-001,1.90000e+000
6.50000e+000,8.00000e-001,1.95000e+000
7.00000e+000,1.00000e+000,2.00000e+000
# This is a comment line and is ignored
DESCRIPTION: Second Spline
0.00000e+00,0.00000e+00,0.00000e+00
9.00000e-01,1.00000e-001,3.00000e-001
2.0,3.00000e-01,6.00000e-001
3.00000e+00,3.50000e-01,1.70000e+00
11.19 EnSight Embedded Python (EEP) File Format
11-190 EnSight 9 User Manual
11.19EnSight Embedded Python (EEP) File Format
The EnSight Embedded Python file format is a mechanism that allows a user to
create portable archives of data files and scripts that can be opened and read by
EnSight through its Python interpreter. The file format itself is the standard ZIP
format used by many tools (e.g. WinZip, 7-Zip, PKZIP, zip, built into Windows
and OSX, etc). To change an existing ZIP file into a EEP file, simply change its
name to end in .eep. EnSight will recognize these files when passed on the
command line, dropped on the running application, run by the play: command or
opened via the command dialog. When presented with an EEP file, EnSight scans
its contents looking for the presence of a file named “__init__.py” or
“autoexec.py”. If files by both names are found in the EEP archive, it treats the
file as if only the “autoexec.py” file was found. The two cases are handled as
outlined below:
The “module” case (“__init__.py”):
If EnSight detects a file named “__init__.py”, it treats the contents of the file as an
EnSight module. It will extract all of the files in the EEP archive into a new,
temporary directory located in the same directory as the EEP file. If EnSight
cannot create a directory in that location, the operation will fail. Note: when
EnSight exits, the temporary directory and all of its contents will be deleted. The
directory which contains the temporary will be added to the EnSight Python
interpreter sys.path and the temporary directory will be imported as a module
using the ‘import’ command. As a result, the “__init__.py” file will be executed
by EnSight and the ‘__file__’ variable will point to the ‘__init__.py’ file. If the
same EEP file is opened a second time in a session, the files will not be re-
extracted, but reload() will be called on the module and “__init__.py” executed a
second time.
The “installer” case (“autoexec.py”):
If EnSight detects a file named “autoexec.py”, it will extract the contents of the
file as a string and execute itas Python code (similar to the exec() function). One
special variable will be set up before the string is executed. The Python variable
‘__file__’ will be set to the (string) name of the EEP file. Thus, the Python code in
“autoexec.py” can access the EEP file contents using the name in the ‘__file__’
variable and Python modules such as ‘zipfile’. An advantage of this approach is
that it does not require write access to the filesystem or the space to uncompress
the data. This approach requires a more complex user written Python script, but
should be used when the data in the EEP file is large, the filesystem is read only
(e.g. CDROM) or only a portion of the data in the file is needed.
Usage notes:
The EEP file is a very general mechanism for packaging data and scripts in a
portable fashion and getting EnSight to perform scripted operations. It can be
useful for creating demos, building installers for EnSight enhancements,
performing automated testing and other tasks. The use of the Python interpreter
inside of the EnSight application itself greatly simplifies the run-time
environment for such applications.
11.20 Camera Orientation File Format
EnSight 9 User Manual 11-191
11.20 Camera Orientation File Format
A camera orientation file is used to define the location, orientation, and lens field
of view angles. The orientation file can be restored in the Transformation Editor
(Camera) dialog via the File->Restore camera position option. The restored
values will apply to the camera selected and the aspect ratio information from the
field of view angles will be applied to modify any viewport using the camera.
The file is keyword delimited. The keywords can appear anywhere in the file.
Any line with a # sign in the first column is considered a comment line. Any
blank line is also considered a comment line.
FORMAT: Must be set to CAMERA_SETUP
VERSION: Must be set to 1.0
CAMERA LOCATION: Three space deliminted floating point values indicating
the camera origin
CAMERA LOOK AT: Three space deliminted floating point values indicating a
point along the camera view axis. The combination of the look at and the camera
location creates a camera view vector.
CAMERA ROTATION: Currently (version 1.0) ignored.
CAMERA FOV HORIZONTAL: A floating point value specifying the horizontal
field of view angle of the camera lens
CAMERA FOV VERTICAL: A floating point value specifying the vertical field
of view angle of the camera lens
Example:
FORMAT: CAMERA_SETUP
VERSION: 1.0
#
# camera location is the coordinate location of the camera
#
CAMERA LOCATION: -1500 50 150
#
# camera look at is the 3D coordinate of the center pixel of the IR image
#
CAMERA LOOK AT: 0. 50 150
#
# camera rotation in degrees about the axis from the camera location to the look at
point.
# Right hand rule.
#
CAMERA ROTATION: 0.
#
# field of view values in degrees for the horizontal and vertical axis of the lens
#
CAMERA FOV HORIZONTAL: 21.0
CAMERA FOV VERTICAL: 15.75
11.20 Example:
11-192 EnSight 9 User Manual
EnSight 9 User Manual 12-1
12 Utility Programs
This chapter describes the utility programs that accompany EnSight. The Server
utility programs are located in $CEI_HOME/ensight92/server_utilities and
the Client utility programs are located in $CEI_HOME/ensight92/
client_utilities.
Utility programs are supplied on an “as is” basis and are unsupported. CEI will,
however, try to assist in problem resolution.
Each utility program is presented below and accompanied with a brief overview
that describes the function of the utility.
Section 12.1, EnSight Case Gold Writer
12.1 EnSight Case Gold Writer
12-2 EnSight 9 User Manual
12.1 EnSight Case Gold Writer
EnSight Case Gold Output API
The EnSight Case Gold Output API will allow users to make simple calls to our API to
write out EnSight’s Case Gold format. This is currently under development. If you have a
need to output our format, please contact support@ensight.com for the latest information.
EnSight 9 User Manual 13-1
13 Parallel and Distributed Rendering
EnSight supports several types of parallel rendering for increased performance,
increased display resolution, and virtual reality. EnSight Gold supports shared-
memory parallel rendering, which is limited to a single EnSight client and up to
36 screens. EnSight DR supports distributed-memory parallel rendering, which
allows multiple EnSight clients running on one or more workstations to combine
rendering results to support high-resolution and/or high-performance rendering.
Combined with support for 6 DOF (degree-of-freedom) input devices, EnSight
Gold and DR provide an immersive virtual reality interface. This chapter
describes the configuration file formats and command-line parameters required
for parallel rendering and 6D input. Hardware accelerated parallel rendering is
supported on all platforms, provided that the OpenGL graphics driver is thread-
safe. Six DOF input is supported for all platforms, with pre-compiled trackD
support for Windows (32-bit and 64-bit) and Linux (32-bit and 64-bit).
Configuration File
formats
Proper settings for the various configurations are discussed throughout this
chapter.
Resource File
format
Details for the Resource file format, which is also discussed in this chapter can be
found in How To Use Resource Management.
13.1 Shared-memory parallel rendering
13-2 EnSight 9 User Manual
13.1 Shared-memory parallel rendering
In order to make use of shared-memory parallel rendering with EnSight, the user
must create a configuration file. This file is specified on the command line using
the argument -dconfig <file>. If <file> is not a fully-qualified path
EnSight will search for the file in the following directories:
1. ~/.apex21/dconfig
2. $CEI_HOME/apex21/site_preferences/dconfig
These options allow for user-level and site-level configurations, respectively.
There are two logical displays that can be configured in EnSight. The GUI display
is always active, and consists of the main rendering window embedded in the
user-interface. The detached display is external to the user-interface, and may
consist of 1-36 regions configured to form a large continuous display. The
configuration file contains information about both the GUI display and the
detached display, as well as tracking calibration information and options for using
6D input devices. The following sections will address each of the capabilities
related to parallel rendering and VR. The sample configurations described in this
chapter can be found in the directory $CEI_HOME/ensight92/doc/dconfig.
There are also examples of ‘simulated’ configuration files, which allow you to
simulate display to multiple graphics pipes on a single display.
CONFIGURATION FILE FORMAT
Configuration files are text-based beginning with the line:
CVFd 1.0
# after the first line, anything following a '#' is a comment
The remainder of the file consists of one or more sections describing the displays
and options. In describing the format of the file, portions which are optional will
be surrounded by [].
DISPLAY WALLS
Shared-memory parallel rendering in EnSight allows for the use of multiple
graphics pipes to create large, flat tiled displays. Commonly referred to as display
walls, this is an example of a "detached display" supported by EnSight. Detached
displays are supported on all platforms, including Windows. The advantage of a
display wall configuration is that the file specification is easy to create. The
disadvantage is that display walls cannot be used for tracking and 6d input. In
order to use tracking, it will be necessary to use the more general immersive
configuration format described later.
The specification for a display wall consists of:
display
wallresolution
<x-res> <y-res>
13.1 Shared-memory parallel rendering
EnSight 9 User Manual 13-3
screen
displayid <p1>
resolution <x-res> <y-res>
wallorigin <wall-x> <wall-y>
[ displayorigin <xo> <yo> ]
[ lefteye
or
righteye
]
[ repeat 'screen' section for each additional screen ]
The wallresolution section gives the total pixel resolution of the display
wall. For each graphics pipe, there will be a screen section that describes the size
(resolution) and position (wallorigin) of the region within the global
display. The displayid parameter specifies the X display (i.e. :0.1). This
parameter is ignored on Windows, because there is only a single “screen”
regardless of the number of graphics cards or video ouputs. The
displayorigin is an optional parameter to specify the origin of the window
on the given pipe (default (0,0)). Note that displayorigin is a position
relative to the origin of a given displayid, while wallorigin is a position
relative to the origin of the global display. Changing wallorigin will change
the region of the wall that is visible in a given window, while changes to
displayorigin simply move the window on the screen without changing the
contents. Example 4a will demonstrate a situation when the use of
displayorigin is useful. The lefteye/righteye optional designation
can be used for passive stereo displays, in which separate graphics pipes render
the left and right images. Note that each pipe in a detached display can have one
or more worker pipes configured to accelerate the rendering, just as described in
the previous section.
Example 1
In this example there is one X server with five graphics pipes. The GUI is
displayed on pipe :0.0, with the other four pipes used for the detached display.
Four projectors are configured in a 2x2 array to form a large continuous wall as
illustrated:
:0.3 :0.4
:0.1 :0.2
13.1 Shared-memory parallel rendering
13-4 EnSight 9 User Manual
CVFd 1.0
#
# conference room display wall
#
display
wallresolution
2560 2048
screen # lower-left
displayid :0.1
resolution 1280 1024
wallorigin 0 0
screen # lower-right
displayid :0.2
resolution 1280 1024
wallorigin 1280 0
screen # upper-left
displayid :0.3
resolution 1280 1024
wallorigin 0 1024
screen # upper-right
displayid :0.4
resolution 1280 1024
wallorigin 1280 1024
Example 2
It is not uncommon for displays walls to use overlapping images with edge-
blending to smooth the otherwise sharp transition between projector images. The
edge-blending is performed by the projectors directly. This is easily configured as
a detached display by specifying pipes with overlapping pixel regions. Consider
an example of two pipes at 1280x1024 resolution each, with an overlap of 128
pixels.
CVFd 1.0
#
# edge-blending example
#
display
wallresolution
2432 1024
screen # left
displayid :0.1
resolution 1280 1024
wallorigin 0 0
screen # right
displayid :0.2
resolution 1280 1024
wallorigin 1152 0
13.1 Shared-memory parallel rendering
EnSight 9 User Manual 13-5
Note that in this case the total resolution of the wall in the x direction is decreased
by the amount of overlap.
Example 3
Passive stereo displays achieve stereo by projecting overlapping polarized images
from multiple projectors. This can be achieved using detached displays with a
distinct rendering region for each screen and eye. Consider for this example a
single screen with two projectors. For illustration purposes we will assume that
we have five graphics pipes. One pipe (:0.0) renders the GUI and is not listed.
CVFd 1.0
#
# passive stereo display
#
display
wallresolution
1280 1024
screen # left-eye
displayid :0.1
resolution 1280 1024
wallorigin 0 0
lefteye
screen # right-eye
displayid :0.3
resolution 1280 1024
wallorigin 0 0
righteye
Note that the lefteye/righteye parameters are NOT necessary when using
traditional quad-buffered stereo to drive the projectors. Some systems have a
signal splitter which takes the frame-sequential stereo signal and generates
separate signals for left and right eye. In this case a conventional configuration
file without the “eye” designations will work fine. Passive stereo displays are
always in stereo mode.
IMMERSIVE DISPLAYS
True immersive display requires more information than is present in the display
wall configuration files previously described. The key factors are that (1)
immersive displays are often not flat and (2) the rendered images must be co-
registered with the coordinates of a 6d input tracking system.
The basic syntax of the immersive display configuration is going to look very
similar to the display wall format:
display
screen
displayid <p1>
resolution <x-res> <y-res>
13.1 Shared-memory parallel rendering
13-6 EnSight 9 User Manual
[ displayorigin <xo> <yo> ]
[ bottomleft <x> <y> <z>
bottomright <x> <y> <z>
topleft <x> <y> <z>
]
[ lefteye
or
righteye
]
[ repeat 'screen' section for each additional screen
]
The important difference is that the position of the screen is measured in 3d
physical coordinates, rather than 2d pixel coordinates. Note that all 3d coordinates
given in the file are unit-less, but they must be consistent and in the same frame of
reference, which is referred to as "display coordinate space".
The keywords bottom/top refer to the minimum Y/maximum Y of the region, and
left/right refer to the minimum X/maximum X of the region. In some cases
'bottom' may be near the ceiling, and 'top' may be near the floor, such as when a
projector is mounted in an inverted position.
When determining the proper coordinates to use it is invaluable to sketch out the
display environment, label the corners of each screen, and mark the location of the
origin of the coordinate system. When using 6D input, the display coordinate
system and the tracking coordinate system must be the same.
Example 4
For the purpose of illustration consider the following example. Two projectors are
pointed at screens which form a right angle, as illustrated below. The projected
images are 10 feet wide by 7.5 feet high. The tracking system is calibrated in units
of feet with the origin on the floor in the middle of the room.
CVFd 1.0
display
13.1 Shared-memory parallel rendering
EnSight 9 User Manual 13-7
screen
displayid :0.2
resolution 1024 768
bottomleft -5 0.0 –5
bottomright 5 0.0 –5
topleft -5 7.5 –5
screen
displayid :0.1
resolution 1024 768
bottomleft 5 0.0 –5
bottomright 5 0.0 5
topleft 5 7.5 -5
Without head-tracking, this example is not yet very useful. The default position of
the viewer is at (0,0,0), which is on the floor in the chosen coordinate system.
There is an optional view section that can be inserted before the first screen of
the configuration file to change these defaults:
view
[ origin <x> <y> <z> ]
[ zaxis <nx> <ny> <nz> ]
[ yaxis <nx> <ny> <nz> ]
[ center <x> <y <z> ]
[ scale <factor> ]
[ eyesep <d> ]
The origin specifies the position of the viewer, and is only used if head-
tracking has not been enabled. The zaxis and yaxis are unit vectors that allow
the specification of a default orientation for objects placed in the scene. The
default values are (0,0,-1) for zaxis and (0,1,0) for yaxis. From the origin
vantage point, it is useful to think of zaxis as the direction that the viewer is
looking and yaxis as the 'up' direction.
The center and scale parameters allow you to position and size the scene for
your display. If these parameters are not given, EnSight will compute a bounding
box from the 3d coordinates given in the bottomleft, bottomright, and
topleft parameters for the screens. The default center will be at the center of
this box and the default scale will be computed so that your EnSight scene will fill
the 3d space. Specifying a scale factor of 1.0 may be useful if your display
coordinates were designed to coincide with your model coordinates. This will
allow you to view your models life-sized.
The eyesep parameter allows an exact setting of the stereo separation between
the eyes.
Example 4a
Extending our example, we can position the viewer at the opposite corner of the
room at a height of 5.75 feet:
13.1 Shared-memory parallel rendering
13-8 EnSight 9 User Manual
CVFd 1.0
display
view
origin -5 5.75 5
screen
displayid :0.2
resolution 1024 768
bottomleft -5 0.0 –5
bottomright 5 0.0 –5
topleft -5 7.5 –5
screen
displayid :0.1
resolution 1024 768
bottomleft 5 0.0 –5
bottomright 5 0.0 5
topleft 5 7.5 -5
Example 4a-sim
It is relatively straightforward to test large displays and VR environments on a
smaller system with a different number of graphics pipes. This can be
accomplished by creating a configuration file that maps the pipes to smaller
regions on a single monitor. As an example we will take the immersive
configuration from Example 4a and modify it to run on a single display, with the
modified regions shown in bold text.
CVFd 1.0
display
view
origin -5 5.75 5
screen
displayid :0.0
resolution 320 240
bottomleft -5 0.0 –5
bottomright 5 0.0 –5
topleft -5 7.5 –5
screen
displayid :0.0
displayorigin 320 0
resolution 320 240
bottomleft 5 0.0 –5
bottomright 5 0.0 5
topleft 5 7.5 -5
Note that this method makes use of the displayorigin parameter so that the
resulting windows do not overlap. The default value for displayorigin is
(0,0) for each pipe. In a similar manner it is also possible to simulate large display
walls on a single pipe.
13.1 Shared-memory parallel rendering
EnSight 9 User Manual 13-9
TRACKING
EnSight supports tracking and input with 6 DOF devices through a defined API.
Pre-built libraries are provided to interface with trackd ((C) VRCO, Inc.,
www.vrco.com) on Windows (32-bit and 64-bit) and Linux (32-bit and 64-bit), or
the user may write a custom interface to other devices or libraries. The tracking
library is specified with the CEI_INPUT environment variable. To select trackd,
use:
setenv CEI_INPUT trackd (for csh or equivalent users)
The value of CEI_INPUT can either be a fully-qualified path and filename or
simply the name of the driver, in which case EnSight will load the library
libuserd_input-$(CEI_INPUT).so from directory:
$CEI_HOME/apex21/machines/$CEI_ARCH/udi/
For the trackd interface you will also need to set:
CEI_TRACKER_KEY <num>
CEI_CONTROLLER_KEY <num>
in order to specify the shared-memory keys for the input library to interact with
trackd. You should be able to find these values in your trackd.conf configuration
file. For information on the API which allows you to interface to other tracking
libraries or devices, please see the README file in $CEI_HOME/ensight92/
src/udi.
With the environment variables set, you are ready to activate tracking. There are
two parts to this. First, trackd operates as a daemon that is run independent of
EnSight. If your input interface includes a separate program, you can run it at this
time. For trackd users, it is often useful during configuration to invoke trackd with
the –status option, so that you can see the information on your input devices.
Once any external programs are started, you can enable tracking in EnSight.
From the ‘Preferences->User Defined Input’ menu, there is a toggle
button which turns tracking on and off.
The trackd driver shipped with EnSight also has a debug mode that can be
activated as follows:
setenv CEI_TRACKD_DEBUG 1
This is similar to the trackd -status option, but it reports the input as seen by the
EnSight trackd interface.
Once the EnSight client has been correctly interfaced to a tracking system you can
add a section to the configuration file in order to calibrate the tracking with the
display frame and customize the behavior of various interactions. The syntax for
the section is:
tracker
[ headtracker <i> ]
13.1 Shared-memory parallel rendering
13-10 EnSight 9 User Manual
[ cursortracker <i> ]
[ selectbutton <i> ]
[ rotatebutton <i> ]
[ transbutton <i> ]
[ zoombutton <i> ]
[ xformbutton <i> ]
[ transxval <i> ]
[ transyval <i> ]
[ transzval <i> ]
[ auxbutton <i> <j> ]
[ motionfilter <i> <p> <r> ]
The headtracker and cursortracker parameters allow you to specify
which tracking device is tracking head position and which is tracking the
controller. At this time only two devices can be tracked by EnSight – one for the
head position and one for the position of the controller. All button/valuator input
is interpreted as having come from the controller. Note that the EnSight API for
input devices uses 0-based indices for trackers, buttons, and valuators. Trackd
uses 1-based indices, and other libraries may differ as well.
The remaining options allow you to customize the behavior of buttons and
valuators on the 6D input device. The input device can be used for:
1. Selecting items from the 3D GUI, which includes the heads-up macro (HUM)
panel, the part list, variable list, and value slider.
2. Performing transformations on the geometry in the scene.
3. Manipulating the cursor, line, plane, and quadric tools.
The input device has a local coordinate system which is relevant for some forms
of 6D interaction:
The default mode defines button 0 as the select button. When the 3D GUI is
visible, you can point at the 3D buttons and the item that you are pointing at will
be displayed in a highlight color. When you press the select button you will
activate the current selection. For the HUM panel, this means that you will
activate the macro that is defined for the selected button. See the “User Defined
Input Preferences” found in Section 6.2, Edit Menu Functions for more
13.1 Shared-memory parallel rendering
EnSight 9 User Manual 13-11
instructions on configuring and showing the HUM panel and part panel. Clicking
on an item in the part list will select or unselect the item in the list. Combined with
macros in the HUM, this will allow you to modify visibility or other attributes on
a part or collection of parts. If there are many parts in the part list, you can also
select the scrollbar and move the controller up and down to scroll through the list.
Similarly, the part-value slider can be used to modify part attributes for certain
part types. For isosurfaces you can select the part slider and move left to right to
change the isovalue. When no parts are selected, the part-value slider can be used
to modify the time in a transient simulation.
The rotatebutton, transbutton, and zoombutton allow you to
perform the selected transformations using gestures with the 6d input device. The
xformbutton allows you to link a button to the current transformation mode,
similar to the mouse button configurations for the main GUI interactions. You
may want to add buttons on the heads-up-macro (HUM) panel to switch between
modes. This is useful for 6D input devices with a smaller number of buttons. Note
that it is possible (and encouraged) to re-use the selectbutton for a
transformation. The selectbutton is only used when you are pointing at a
heads-up menu. When you are not pointing at a menu, the same button could be
used as the xformbutton, for example.
All 6d transformations have a ‘sensitivity’ which can be set to control the speed at
which the transformation occurs. These values can be set from the ‘Edit-
>Preferences->User Defined Input’ dialog. There are also two forms of rotation
available. In ‘Mixed Mode’, the 6d device acts similar to a mouse for rotation.
Once you click the rotatebutton, your movement is tracked in the X-Y plane
of the input device. Your translation in this space is mapped to a rotation in the 3D
space. In ‘Direct Mode’ it is the orientation of the device, rather than the position
of the device, which controls the rotation.
The transxval, transyval, and transzval parameters configure the
valuators to allow for translation of the scene by pressing the valuator in a given
direction. The 'x', 'y', and 'z' designations refer to a local coordinate system which
is fixed to the controller input device. As you hold the device in your hand,
positive x is to the right, positive y is up, and positive z is toward the viewer. This
local coordinate system depends on the orientation of the tracking device attached
to the input device. It may be necessary to align the tracking device properly or
modify the trackd (or other tracking library) configuration to achieve the proper
orientation.
The auxbutton parameters configure additional buttons that can be used to control
various options. The first parameter "<i>" is the number of the auxbutton to
define. The second parameter "<j>" is the physical device button to bind to
auxbutton <i>. Currently, auxbutton 0 is used by EnSight as the "Menu" button.
This button can be used to bring up the "User defined menu" at the cursor point on
the annotation plane. Pressing the button a second time will either reposition the
menu or it will pop up to the next level of the menus if a submenu has been
selected.
The motionfilter parameter allows the user to select a filter threshold for each
tracker (head or cursor). If the motion of the tracker exceeds this threshold, and
13.1 Shared-memory parallel rendering
13-12 EnSight 9 User Manual
EnSight has the Fast Display mode global toggle enabled, it will display all the
parts using their fast representation until the motion drops below the threshold.
The <i> parameter selects the tracker to filter. The <p> value specifies a threshold
for the tracker position. This is computed as the variance of the distance between
the current position and the last 10 tracker positions. Similarly, the <r> value
specifies a threshold for the tracker direction vector. This is computed as the
variance of the angles between the current direction and the last 10 directions (in
radians).
Example 5
For the most basic configuration with head-tracking and a 6d input device, there
are only three lines added to Example 4 to create the tracker section:
CVFd 1.0
display
view
origin -5 5.75 5
tracker
headtracker 0
cursortracker 1
screen
displayid :0.2
resolution 1024 768
bottomleft -5 0.0 –5
bottomright 5 0.0 –5
topleft -5 7.5 –5
screen
displayid :0.1
resolution 1024 768
bottomleft 5 0.0 –5
bottomright 5 0.0 5
topleft 5 7.5 -5
Example 6
There are many different input devices available, and some have additional
buttons and valuators that can be used for navigation and selection in immersive
environments. In this example the configuration file is extended to use different
buttons for rotation, translation, zoom, and selection. We also configure a
‘thumbwheel’ input to provide translation in the X-Z plane.
CVFd 1.0
display
view
origin -5 5.75 5
tracker
headtracker 0
cursortracker 1
selectbutton 4
13.1 Shared-memory parallel rendering
EnSight 9 User Manual 13-13
rotatebutton 0
transbutton 1
zoombutton 2
xtransval 0
ztransval 1
screen
displayid :0.2
resolution 1024 768
bottomleft -5 0.0 –5
bottomright 5 0.0 –5
topleft -5 7.5 –5
screen
displayid :0.1
resolution 1024 768
bottomleft 5 0.0 –5
bottomright 5 0.0 5
topleft 5 7.5 -5
OTHER CONTROLLERS
EnSight supports simple rotation and translation of the current view using external
input devices such as joysticks, game controllers and the 3DConnexion
SpaceNavigator ™ (http://www.3dconnexion.com). This is controlled via the
configuration file 'spacedevice.defaults' located in the system site_preferences
directory or users resource directory. EnSight will automatically detect and use
devices like the SpaceNavigator, but the configuration file can be used to fine-
tune the sensitivity of the device. The default file looks something like:
VERSION 1.0
#
# Comments must have the '#' as the first character.
#
# ranges are xmin xmax ymin ymax zmin zmax
#
# these are the values for sensitivity of 50
translate_ranges -400 400 -400 400 -400 400
rotate_ranges -400 400 -400 400 -400 400
The values set the minimum and maximum ranges for the translation and
rotations. Adjusting them can correct for asymmetry in the output values from the
device and set the device's sensitivity. Narrowing the range has the effect of
increasing the sensitivity to smaller motions of the device.
On Windows and Linux platforms, EnSight also supports standard PC joysticks
and game controllers using native joystick APIs on those platforms. To use these
devices, three additional fields can be used: controller_id, controller_config and
single_axis.
single_axis {0|1}
By default, the spacedevice interface only allows transformation by a single axis
13.1 Shared-memory parallel rendering
13-14 EnSight 9 User Manual
at a time. If this value is set to 0, transformations over multiple axes (either
translations or rotations) are allowed at the same time.
controller_id "name"
The presence of this field enables the use of joysticks/game controllers. The value
must be a string in quotes. Under Windows, the value is an integer (as a string)
which is the index of the game controller in the system. The first controller is "0".
Under Linux, this is the device name of the joystick in question. An example is "/
dev/input/jp0". The actual value is dependent on the specific Linux distribution.
control_config "configstring"
This field maps device controls (axes and buttons) to the transformation axes.
The configuration string consists of some number of axis transformation
expressions separated by spaces. Each expression is in the form {transformation
axis}={device axis}{u}{device button number}. The axes of transformation are:
X: translation in screen X, Y: translation in screen Y, Z: translation in screen Z, A:
rotation over the screen X axis, B: rotation over the screen Y axis and C: rotation
about the screen Z axis. The device axes follow the Windows game controller
naming conventions. The legal values are 'X', 'Y', 'Z', 'R', 'U', 'V'. The mapping of
various device controls to these axes varies from controller to controller. Under
Windows, the game controller control properties panel allows the user to see the
layout of the controls and see what buttons are mapped to which button numbers
interactively. The
rumble pad uses the X,
Y, Z and R axes.
Under Linux,
the 'X', 'Y', 'Z',
'R', 'U', 'V' axes
map to the first
though sixth
analog axes
respectively.
13.1 Shared-memory parallel rendering
EnSight 9 User Manual 13-15
If no button number is specified, the game controller always controls the selected
EnSight transformation. Each axis mapping can be qualified by a button state. For
example Y=Z5 means that EnSight translation in Y will be controlled by game
controller Z axis, but only while button 5 is pressed. Putting a lowercase 'u'
between the controller axis and the button number specifies the link is only made
when the named button is not pressed (up state). Thus, B=Ru6 specifies that
rotation over the screen Y axis is controlled by the game controller R axis, but
only when the button 6 is not pressed (up).
An example using a Logitech RumblePad 2 on a Windows system might be:
VERSION 1.0
#
# Comments must have the '#' as the first character.
#
# ranges are xmin xmax ymin ymax zmin zmax
#
# these are the values for sensitivity of 50
translate_ranges -400 400 -400 400 -400 400
rotate_ranges -400 400 -400 400 -400 400
#
controller_id "0"
controller_config "X=X Y=Yu5 Z=Y5 A=Ru6 B=Z C=R6"
single_axis 0
This file selects the first controller in the system (controller_id "0"), sets the
configuration string and enables transformations in multiple axes at the same
time. The configuration string maps translation in the X axis to the left stick
horizontal axis ("X=X"). It maps translation in the Y axis to the left stick vertical
axis, when button 5 is "up" ("Y=Yu5"). Translation in the Z axis is mapped to the
left stick vertical axis when button 5 is "down" ("Y=Y5"). Similarly, the right
stick axes (R and Z) are mapped to the rotation axes (A, B, C) conditioned by the
status of button 6.
Note: the default configuration string maps well to the Xbox style controllers and
amounts to: "X=X Y=Yu5 Z=Y5 A=R B=Uu6 C=U6".
ANNOTATIONS
Annotations in EnSight include the heads-up macro panel, text, lines, logos,
legends, and plots. In the GUI display these items appear as an overlay which is
13.1 Shared-memory parallel rendering
13-16 EnSight 9 User Manual
fixed in screen space. In an immersive display environment it is useful to be able
to specify the locations of these objects. In EnSight, these items continue to
occupy a plane in the 3D world. By default, this plane will coincide with the first
pipe in the configuration file. The user may choose to specify the position and
orientation of this plane with the following addition to the configuration file:
Annot
[ screen <n> ]
OR
[
center <x> <y> <z>
zaxis <x> <y> <z>
yaxis <x> <y> <z>
xscale <float>
yscale <float>
]
Example 6
To continue with Example 5, suppose that the user would prefer for the
annotations to appear on the right wall instead of the left wall. The following
configuration file defines an annot section with the appropriate parameters to do
this:
CVFd 1.0
display
view
origin -5 5.75 5
tracker
headtracker 0
cursortracker 1
selectbutton 4
rotatebutton 0
transbutton 1
zoombutton 2
xtransval 0
xtransval 1
annot
screen 1
screen
displayid :0.2
resolution 1024 768
bottomleft -5 0.0 –5
bottomright 5 0.0 –5
topleft -5 7.5 –5
screen
displayid :0.1
resolution 1024 768
13.1 Shared-memory parallel rendering
EnSight 9 User Manual 13-17
bottomleft 5 0.0 –5
bottomright 5 0.0 5
topleft 5 7.5 -5
Fixing the annotations to a pipe is merely provided as a convenience. Internally
this is identical to using the explicit form:
annot
center 5 3.75 0
zaxis 1 0 0
yaxis 0 1 0
xscale 10
yscale 7.5
STEREO DISPLAY
When using a detached display (either a wall or an immersive configuration) the
created windows will be monoscopic by default. If you want the display to be
initialized in stereo, you can simply add the keyword to the configuration file
between any of the other sections.
stereo
This keyword is not necessary for passive stereo displays, which are always in
stereo.
TIPS FOR SHARED MEMORY PARALLEL RENDERING
1. Use the -bbox command-line option when using a detached display. This will
cause EnSight to draw only bounding boxes in the GUI window, which will
improve performance
2. Make sure that the displays that are in your configuration files are valid. An X
display identifier looks like: <host>:<server>.<screen>. If you have
constructed a valid X display you should be able to set the $DISPLAY
environment variable with the given string and run xterm or another X11
application.
3. Tracking is the most difficult part of configuring a system. Make sure that you
are confident in the display configuration before you activate tracking. It may
be useful to manually position the view origin in several different locations in
order to verify that the display coordinate system is as you expected. In the
examples installed with EnSight example 4 is extended with several different
view origins to demonstrate this technique
13.2 Distributed Memory Parallel Rendering
13-18 EnSight 9 User Manual
13.2 Distributed Memory Parallel Rendering
Distributed-memory parallel rendering allows the user to combine the capability
of multiple high-performance graphics pipes (in either a shared-memory machine
or cluster configuration) in various ways. The following brief descriptions of the
distributed rendering methods will help you decide which approach is best for
your needs. It is quite likely that a user of EnSight DR will decide to use different
parallel rendering configuration in different circumstances.
Compositing
Parallel compositing enables users with an extremely large amount of visible
geometry to distribute the client-side computation and rendering among multiple
CPUs and GPUs in either a shared-memory machine or a cluster of workstations.
The final result is an image in the EnSight rendering window that is
indistinguishable from a standard EnSight client running on a single workstation,
but at much higher performance.
Pros:
• very-high polygon rates (Billions of triangles / sec)
• scalable client memory and computation
• ability to render remotely and view locally
Cons:
• frame-rate upper-bound determined by network bandwidth
• resolution limited to single workstation display
Compositing is for users working in a desktop environment who have large data
which overwhelms the capability of a single workstation, in terms of memory,
processing power, and/or rendering performance. Note that compositing is not an
application for ganging together dozens of old workstations that have no other use
- compositing itself requires fast processors and a fast network in order to achieve
any measure of scalability.
Replication
Replication is a distributed rendering strategy for users with data of moderate size
which can be rendered on a single workstation at acceptable frame-rate, who are
looking to increase display resolution or render to multi-screen virtual reality and/
or stereo displays.
In replication mode each render node loads the full visible geometry, and each
node is configured to render a different portion of the display. Replication has the
absolute highest possible frame rate for distributed rendering, because the
rendering performed by each node is completely independent.
Pros:
• highest frame-rate option
• unlimited resolution for multi-screen walls and VR
Cons:
• not scalable in compute or rendering performance
• aggregate memory requirement are higher than for compositing
13.2 Distributed Memory Parallel Rendering
EnSight 9 User Manual 13-19
Replication with Compositing
Replication can be combined with compositing when the features of replication
and the performance of compositing are required. As in the basic replication
scenario, multiple render nodes are configured to render to multiple screens. For
each 'N' screens, some number of additional render nodes 'M' are designated to
increase performance and lower the per-node memory requirements. The total
amount of replicated data is the same as in the basic replicated case - the data is
replicated N times, but each copy is distributed over M nodes, for an effective
memory requirement of 1/M per node.
Pros:
• high polygon rates
• scalable client memory and computation
Cons:
• higher hardware costs (M x N nodes)
Configuring EnSight DR
Distributed rendering requires the use of the collaboration hub to coordinate the
efforts of multiple EnSight clients, whether they run on one machine or many.
When using a DR mode that requires data decomposition, the SOS (server-of-
servers) is required and performs this service. SOS is not required in 'replicate'
mode because all clients receive all of the data.
While there are many individual processes involved, starting EnSight for parallel
rendering can be achieved automatically using a few configuration files.
Depending on the rendering mode, either a 'prdist' or a 'dconfig' file specifies the
parameters for the individual worker clients, as shown in the following sections.
The example configuration files from this section can be found in $CEI_HOME/
ensight92/doc/ in the prdist and dconfig subdirectories. EnSight resources and
command line options can be used in place of or in conjunction with ‘prdist’ files.
Note that EnSight DR requires that a cluster be configured so that remote
launching works with correct X11 permissions. Before trying any of the examples,
please see the tips at the end of this chapter.
Compositor configuration
The compositor and Chromium modes share a configuration file format, referred
to as the prdist file. The prdist file begins with an identifying string:
ParallelRender EnSight 1.0
This line is followed by configuration information for the collaboration hub and
the rendering nodes:
router [hostname] [options]
where
[hostname]
is either a network routable hostname or IP address, or
hostname
is
‘MANUAL’
which indicates that the user will start the EnSight Collabhub
(
ensight92.collabhub
) manually. Additionally,
hostname
can be left blank
when using resources. In this case the options will apply to the resource host.
13.2 Distributed Memory Parallel Rendering
13-20 EnSight 9 User Manual
And where [options] may include:
Executable=”/path/to/ensight92.collabhub <cmdline>”
Directory=”/start/directory”
AltLoginId=”UserId”
RSH=”rsh”
ConnectBackToHost=””
UsingSSH=”FALSE”
OutputPrefix=”/dev/null”
client [hostname] [options]
where
[hostname]
is either a network routable hostname or IP address, or
hostname
can be left blank when using resources. In this case the options will
apply to the resource hosts. Furthermore, if left blank for resource defaults, only
the first client line will be used. The number of resource hosts specified will
dictate the number of rendering clients used.
And where [options] may include:
Executable="/path/to/ensight92.client"
Directory="/start/directory"
AltLoginId="UserId"
RSH="rsh"
ConnectBackToHost=""
UsingSSH="FALSE"
Display=":0.0"
Example 1
The example file prdist.template contains an annotated example configuration file
for cluster rendering. This is a fallback example - it does not use compositing or
Chromium, it simply illustrates how to start up multiple clients in parallel. The
functional parts of the file are:
ParallelRender EnSight 1.0
router localhost
client localhost
client localhost
To test this configuration run:
ensight92 -prdist prdist.template
This command will start 3 clients, the "Queen Bee" client for user input and
interaction and two "Worker" clients that load data and perform rendering. The
Queen Bee client displays only bounding boxes of the data.
This is a simple test that verifies the installation and user environment. Once this
test is working, you can make a new copy of this file and test the same setup on a
cluster. Simply change the two worker hosts to the names of two hosts in the
cluster, for example:
client node1
client node2
This describes exactly the same configuration, except that the three clients will all
13.2 Distributed Memory Parallel Rendering
EnSight 9 User Manual 13-21
be running on different machines. On each of the worker clients you will see half
of the geometry. This illustrates what EnSight is actually doing - the data
computed by the servers is being load-balanced to the clients for rendering in
parallel. Using EnSight by itself, you see multiple images with partial renderings.
Compositing
Compositing is enabled by adding a line to the prdist file after the router:
pc [options]
where [options] may include:
guicomposite = “NONE” “NOCOMP” “COMP”
compression = “NONE” “LOW” “MED” “HIGH” “AUTO”
guicompression = “{RAW|RLE|GZ} {final quality}
{interactive quality}” example: “RLE 0 2”
offscreen = “TRUE” “FALSE”
host = “hostname”
guicomposite
The parallel compositor (PC) needs to make a full set of TCP/IP connections
between all of the render processes to exchange data between them. The
guicomposite options provide the user some level of control over what machines
require full TCP/IP connectivity. This option might be used to configure DR
around a port firewall or to compensate for asymmetric bandwidth issues specific
to a given site. The master client (often called the GUI-client) is the EnSight client
that actually displays a GUI and with which the user interacts. The guicomposite
option has three possible values that determine the extent to which the master
client participates in the compositing.
• COMP: If the client is physically running on the same cluster as the other
rendering nodes, use guicomposite="COMP". This causes PC to use the
master node as part of the composite and as a side effect, leave the final
image on that node. It is the most efficient way to get an image from PC
to the screen, but the master node needs to be on the same high-
performance network as the other render nodes for this to work well as it
assumes symmetric bandwidth between the renderer clients and the
master client. "TRUE" is the same as "COMP".
• NOCOMP: The next level of performance is guicomposite="NOCOMP".
In this mode, the master still makes TCP/IP connections to each of the
renderer nodes, but it does not participate in the actual compositing. The
various pieces of the final image are sent back to the master node in
parallel over the N sockets to the render nodes. This mode works well if
the master node is not located on the cluster interconnect, but can still
make N connections to the cluster over a fairly high performance
interface. (e.g. the asymmetric bandwidth situation). In practice, few
people use this mode as the number of off-cluster TCP/IP connections to
the master can be a problem for things like firewalls.
• NONE: The last level is guicomposite="NONE". In this mode, the PC
system runs entirely on the cluster and the final image is passed to the first
renderer node. That node can optionally compress the image and then
sends it via TCP/IP to the collabhub which then sends it to the master
13.2 Distributed Memory Parallel Rendering
13-22 EnSight 9 User Manual
client for display. This requires two network hops, but ensures that all of
the TCP/IP connections of PC remain inside the cluster. It is the most
firewall friendly mode as no new ports need to be opened up, but it is also
the slowest mode.
compression
The compression option determines how the render clients communicate
during compositing. If the rendered images are large and the CPUs are fast
enough, enabling compression can increase the frame rate. These compression
methods are all lossless. There are very few situations where the best value us not
“HIGH”.
guicompression
The guicompression option only has an effect when guicomposite is set
to “NONE”. This option allows you to specify a compression level for images
transmitted through the collaboration hub. This option is most useful when the
main client is remote from the rendering cluster, perhaps over a lower-bandwidth
and/or higher-latency network.
There are three compression methods each followed by two numbers: a final
quality number and an interactive quality number. The higher the number, the
lower the image quality. A quality value of 0 is lossless. The final number
represents the quality of the still image when no more transforms are occuring,
and the interactive number represents the quality of the image while undergoing
transforms (e.g. rotation or translation). Often the interactive number is higher
(lower quality) than the final to accelerate transformations.
RAW - uncompressed pixels. In this mode, the final and interactive quality
numbers represent spatial decomposition (elimination of some spatial fraction of
the pixels). The final and interactive quality numbers can range from 0 to 8,
where 0=all pixels, 1=every other pixel, 2=every third pixel, etc. Visually, this
effectively looks like larger pixels.
RLE - the evo RLE scheme, which has a nice balance of speed vs compression.
The final and interactive quality numbers represent the number of lower-order bits
of a color that are set to zero before the RLE scheme is applied. For example, the
value 2 means that the color of a pixel is first reduced to 6 (8-2) bits per pixel
before the compression. Therefore these quality numbers should ranges between 0
(highest quality) and 7 (lowest quality). Visually, this looks like quantized colors/
banding.
GZ - use the "gzip" algorithm is slower, but has good compression. The final and
transition quality numbers work as in the RLE case.
offscreen
The offscreen option specifies that the render workers should create offscreen
(pbuffer) rendering windows. By default they will be onscreen, which is useful for
viewing and confirming the partial results. One advantage of using offscreen
windows is that your render nodes do not have to run at the same resolution as
your main client. Note: if guicompression = “NONE” and offscreen = “FALSE”
then the first renderer node in the prdist file may not display any image. It is
rendering and participating properly, however.
13.2 Distributed Memory Parallel Rendering
EnSight 9 User Manual 13-23
example
If the master client (where the GUI is) is on the cluster, use "COMP". In all other
situations, use "NONE". You can try "NOCOMP", but it is not always a win. In
house, we typically use the following pc line in our prdist files:
pc compression="HIGH" guicomposite="COMP" offscreen="TRUE"
guicompression="RLE 0 2" (all on one line).
If the master client is not on the cluster, change "COMP" to "NONE". For 99% of
the cases, that is the best setup.
Example 2
The example file prdist.pc2 is a sort-last rendering example in which the two
EnSight clients each render their half of the geometry and the result is composited
by the PC compositor and display in the EnSight GUI window. The functional
lines of the file are:
ParallelRender EnSight 1.0
pc
client node1
client node2
.
See How To Use Resource Management for an example using resources
Data replication modes
In replication mode, unlike compositing mode, EnSight itself needs to know about
the screen positions and sizes. The 'dconfig' file format used by EnSight for
shared-memory parallel rendering includes all of this information, and has been
extended to provide additional information for distributed-memory rendering
Replication mode
To modify a shared-memory dconfig file for distributed-memory rendering, it is
only necessary to add a 'hostid' line for each screen in the file. The example
file ‘dconfig1’ describes a on-panel wall:
CVFd 1.0
display
wallresolution
1280 1024
screen
hostid node
displayid :0.0
resolution 1280 1024
wallorigin 0 0
This mode does not necessarily require SoS, because each client will load the
entire visible geometry.
13.2 Distributed Memory Parallel Rendering
13-24 EnSight 9 User Manual
Replication with compositing
As noted earlier, replication sacrifices memory by storing the entire client-side
geometry and variables on each of the clients. For small to moderate sized
geometry, this can result in very fast framerate with tiled display wall capability.
For extremely large geometry, it is possible to be memory-, compute-, or render
constrained on the individual nodes. With additional hardware and one more line
in the dconfig file, it is possible to add a compositing step, very similar to the
single-screen compositing described in the previous section. Example file
‘dconfig2’ extends the previous example to distribute the rendering among four
nodes:
CVFd 1.0
display
wallresolution
1280 1024
screen
hostid node1
displayid :0.0
resolution 1280 1024
wallorigin 0 0
workerhosts “node2 :0.0 node3 :0.0 node4 :0.0”
In a multi-screen configuration, it is required that each display node has an equal
number of “worker” nodes for the compositing step.
TIPS FOR DISTRIBUTED MEMORY RENDERING
1. The rendering nodes must have OpenGL enabled X11 servers running on
them and they must be configured for direct rendering by remotely executed
user processes. To test this, log into a rendering node remotely and run
"glxgears -display :0". If this does not bring up glxgears on the display, the
X11 server will need to be reconfigured.
2. You may need to add options like '-ac' to the /etc/X11/xmd/Xservers file or
otherwise configure X11 authorization mechanisms (we know it will run with
"-ac -s 0", but site security implications must be carefully considered). It may
be useful to check that the rendering is "direct" as well (glxgears should run >
8000 fps on modern graphics cards with proper hardware accelerated OpenGL
drivers). The output of glxinfo on the rendering node can be helpful in
diagnosing issues as well. You may need to modify the permissions of the /
dev/nvidiactl file(s) to allow a non-console app to access the graphics system.
3. All X11 screen savers and blanking functions should be turned off on the
rendering nodes for your PC to work properly.
4. The cluster needs to have passwordless ssh or rsh set up on it.
5. You need to be able to run the command:
ssh <hostname> /usr/X11R6/bin/glxgears -display :0.0
(rsh will work as well as ssh if you have it configured).
6. If your system prompts for a password when launching remote programs via
13.2 Distributed Memory Parallel Rendering
EnSight 9 User Manual 13-25
ssh or rsh, EnSight DR will not run properly.
7. If using ssh, make sure all the interactive prompts for node identification and
authorization between rendering nodes have been suppressed for initial
connections. This should be done for all possible connections between the
rendering nodes. If you have any firewalls set up inside of the cluster (or
between the rendering and interactive nodes), the firewall will need to leave
ports 8739 to 8789 open for EnSight's own internal TCP/IP connections
which do not utilize the rsh/ssh connections.
8. Set the DISPLAY environmental variable to ':0.0', set CEI_HOME to the
proper path and put $CEI_HOME/bin in the search path for remote
connections (rsh or ssh). For example, you should be able to run the following
without any errors or interactive prompts:
ssh <hostname> cei_apex21_arch
9. Many clusters have multiple TPC/IP address and hostnames for each node.
Usually, one for the high-performance interconnect (e.g. InfiniBand) and one
for administration. For the highest performance EnSight needs to use the
TCP/IP addresses associated with the high-performance interconnect.
A cluster configured to use the highest performance interconnect as its default
is the simplest to configure for use with EnSight. For example, since by
default EnSight will use the TCP/IP address resolved by 'hostname', this name
should be the highest performance interconnect.
It is possible to run EnSight DR on a secondary TCP/IP interface. To do this,
add the following option:
ConnectBackToHost="guihostname" to the "router" line
Host="guihostname" to the "pc" line
ConnectBackToHost="collabhubhostname" to each "client" line.
All the other hostnames should also use the higher performance interconnect
names.
Once the above are working on your cluster, contact CEI Support if you run into
any problems running EnSight on it. Please send us your cluster(s) details and the
config files you have tried.
Some general advice:
To simplify debugging, start small and scale up.
For example, we have seen problems with some TCP/IP over IB implementations,
especially at scale, so start small (2-3 nodes) and if you have gigE in addition to
IB, try that as well. Also, implement DR with all the EnSight processes running
on rendering nodes of a single cluster. Configure one rendering node on the
cluster as an "interactive" node (with mouse/keyboard).
Some of these items can be simplified using prologue - epilogue scripts that can
be used to do things like run the X11 servers as the user and with custom configs,
which can eliminate a number of the potential issues in step (2). In step (3), we
13.2 Distributed Memory Parallel Rendering
13-26 EnSight 9 User Manual
can use any script you provide instead of 'ssh' as long as it has the same API/
semantics as rsh/ssh. We only use that system to launch executables on the remote
systems.
13.3 EnSight Networking Considerations
EnSight 9 User Manual 13-27
13.3 EnSight Networking Considerations
The EnSight application suite consists of a number of different applications
(Client, Server, Collabhub, Server of Servers, etc) that communicate over TCP/IP
(socket) connections. The collection of connections are fairly complex and in
secure environments, the specifics of those connections are critical for advanced
client/server usage of EnSight with remote components. In this section, we
document the various connections that can be made by the suite so that specific
firewall and VPN/tunnel configurations can be customized for use with EnSight.
Default TCP/IP Port Usage
The following diagram documents all of the TCP/IP connections that EnSight can
make as well as the default port numbers. In normal EnSight operation, the only
connections are between Slim8 (the license manager), the Master Client and a
single Server (which replaces the Server of Servers box in the diagram). EnSight
uses rsh or ssh to launch the various processes, but it does not use the rsh/ssh
channel for communication. Instead, the various processes make their own TCP/
IP connections after they have been launched. The arrows in the diagram
demonstrate the direction of the connection. The process at the arrow end of the
lines is making the accept() socket call while the other end is making the connect()
socket call. After the connection has been established, all communication is bi-
directional over the various socket connections.
By default, EnSight may use any of the ports in the range 1104 to 1119 (excepting
1105 and 1109) and port 7790 for bi-directional communication. Command line
options exist to change all of the default ports. It should be noted that these
connections may be within the same machine as ports usage has been constructed
to make it possible to run the entire system inside of a single computer.
At least one ‘Client’ and one ‘Server’ are necessary to run EnSight. The ‘Server of
Server’ (SOS) looks to EnSight as a Server (it uses the same protocols and ports
as a Server does to talk to the client). In standard collaboration mode, the “Master
Client” launches a ‘Collabhub’ process and one or more external EnSight Clients
(shown in the diagram as ‘Collab Client’s) can attach to the ‘Collabhub’. In
EnSight DR mode, there is a ‘Collabhub’ and one or more ‘Render Client’s (and
13.3 EnSight Networking Considerations
13-28 EnSight 9 User Manual
there can be no ‘Collab Client’ components). The ‘Command Driver’is a seldom
used component, but is included here for the sake of completeness.
One connection not in this diagram is the connection between a Server and the
Master Client when the Server of Servers (SOS) is not being used. In this
situation, the server connects to the Master client over port 1106, using exactly the
same mechanism as the SOS uses to connect to the Master Client.
Connections between Clients and the Collabhub use two ports as data and control
channels. These connections are always made in the same direction, with the
connection from the Collabhub to the Master Client in the opposite direction than
the other Clients.
When running with the Server of Servers, the Servers may use ports from 1110 to
1117 depending on the number of threads specified for the SOS (up to 8 threads
maximum). For example if ENSIGHT9_MAX_SOSTHREADS is set to 2, then
ports 1110 and 1111 are used. These ports are re-used if more than two Servers are
specified. If ENSIGHT9_MAX_SOSTHREADS is set to 8 then ports 1110 to
1117 are used (and reused if more than 8 Servers is specified). By default, a single
thread and only port 1110 is used to establish all of the SOS to Server connections.
Initially, the Server (or SOS) attaches to the client on port 1106. If a Collabhub is
introduced (in Collaboration Mode or with DR), the SOS or Server moves its
connection to 1106 over to the collabhub.
ENSIGHT ® VERSION 9 END
USER LICENSE AGREEMENT
UNLESS A SEPARATE LICENSE OR TRIAL
AGREEMENT DOCUMENT EXISTS BETWEEN THE
LICENSEE AND CEI OR AN AUTHORIZED CEI
DISTRIBUTOR, THE TERMS AND CONDITIONS OF
THIS AGREEMENT SHALL GOVERN YOUR USE OF
VERSION 9 OF THE EnSight SOFTWARE. READ
THIS LICENSE CAREFULLY BEFORE USING THE
EnSight SOFTWARE. BY USING THE EnSight
SOFTWARE YOU AGREE TO BE BOUND BY THIS
AGREEMENT. IF YOU DO NOT ACCEPT OR AGREE
TO BE BOUND BY THE TERMS OF THIS
AGREEMENT, PROMPTLY RETURN THE EnSight
SOFTWARE UNUSED WITHIN THIRTY (30) DAYS OF
PURCHASE FOR A REFUND.
1. LICENSE GRANT. The Licensee is hereby granted
by Computational Engineering International, Inc.
(“CEI”) a single, non-transferable and non-exclusive
license to use the EnSight Software under the terms
and conditions set forth below, in binary form only,
and at the major release level indicated on the
media used to deliver the licensed EnSight
Software.
2. DEFINITIONS.
“Ancillary Software” includes translators, user
defined data readers, tools, or other software which
may from time to time be delivered with, but
separate from, the “EnSight Software”.
“End User” means one individual running an
EnSight process.
“EnSight Purchase Agreement” means the
document provided by Licensee to CEI which
describes the type of installation Licensee is
authorized to make.
“EnSight Documentation” means manuals, release
or installation notes related to the EnSight Software,
including electronic versions thereof.
"EnSight Product" means the computer program
specified in the EnSight Purchase Agreement
licensed by the user and authorized for installation
named EnSight, EnSight Gold, EnSight DR, EnSight
Lite, EnSight CFD, or any other product which is
now available or may become available from CEI
with the same family name.
"EnSight Software" means all of the CEI computer
programs that constitute the EnSight Product, the
EnSight Documentation, and any backups or other
copies.
“Maximum Seats” means the maximum authorized
number of End Users who may simultaneously use
the licensed copy of the EnSight Software as
identified in the EnSight Purchase Agreement.
“Major Release Level” means all versions of the
EnSight Software which are denoted by the same
integer number to the left of the first decimal point in
the specification of the release. For example, all
versions denoted as EnSight 8.x are regarded as the
same Major Release Level.
3. USAGE LIMITATIONS. Licensee acknowledges that
the EnSight Software is proprietary and shall remain
the property of CEI. This License is not a sale. Title
to and ownership of the EnSight Software and any
copies thereof, any patents, trademarks or
copyrights incorporated therein and to the CEI
Proprietary information shall at all times remain with
CEI. No rights to rent, loan, transfer, relicense,
distribute, or otherwise assign any or all of
Licensee's rights in the EnSight Software are
granted. All rights not specifically granted to
Licensee by this license shall remain in CEI. CEI
may include features in the EnSight Software which
prevent unlicensed use or use after license
expiration. The license granted herein does not
include provision of support and maintenance
service or future releases or versions of the EnSight
Software.
The Ancillary Software may contain technology
licensed to CEI from a technology partner. Licensee
acknowledges that the Ancillary Software is
proprietary and shall remain the property of CEI and
technology partners. Title to and ownership of the
Ancillary Software and any copies thereof, any
patents, trademarks, or copyrights incorporated
therein shall at all times remain with CEI and it's
technology partners as applicable. Licensee is
authorized to use the Ancillary Software only with
CEI products.
4. INSTALLATION. EnSight Software may be installed
and used by the Licensee only in the manner
indicated in the EnSight Purchase Agreement. End
User may use EnSight Software only at his
immediate workplace, unless otherwise authorized
by CEI. Subject to request of and approval by CEI,
Licensee may permanently or temporarily change
the systems and /or networks upon which Licensee
is authorized to use the EnSight Software. In either
case, such change may result in additional charges
to the Licensee. Licensee may duplicate the
EnSight Software for backup, archiving, or security,
provided that each copy includes all of the copyright
or proprietary notices of the original. Licensee shall
not clone, reverse assemble, or reverse compile
any part of the EnSight Software or adopt any part
of the EnSight Software as its own. CEI reserves
the right to charge an upgrade fee for future Major
Release versions of the EnSight Software.
5. PATENTS AND COPYRIGHTS. EnSight Software is
copyrighted under the laws of the United States and
international treaty provisions. Notwithstanding the
copyright, the EnSight Software contains trade
secrets and proprietary information of CEI. Licensee
acknowledges that CEI owns these copyrights and
has the following exclusive rights with regard to the
EnSight Software: to reproduce it; to adapt,
transform or rearrange it; to prepare derivative
works from it; and to control its distribution.
Licensee agrees not to act in contravention of any
of CEI’s intellectual property rights.
6. User defined data readers delivered with the
Ancillary Software may contain licensed software
technology from Visual Kinematics Incorporated
("VKI"). This data reader technology is proprietary
and copyrighted containing confidential trade secret
information which remains the sole property of VKI.
CEI warrants that the End User is authorized to use
these readers together with CEI products without
further license requirements.
7. EnSight DOCUMENTATION. Licensee may use the
EnSight Documentation only in support of its use of
the licensed EnSight Software and may print or
duplicate the Documentation (except any marked as
proprietary), but only for its internal use and
provided that each copy includes all of the copyright
or related notices of the original.
8. WARRANTY; DISCLAIMER. CEI warrants that for a
period of thirty (30) days after delivery of the
EnSight Software, it will substantially conform in all
material respects to the specifications set forth in
CEI’s published EnSight Documentation. If the
EnSight Software does not meet this requirement,
and Licensee notifies CEI within thirty (30) days
after delivery, CEI will, at its option, repair or replace
the effected EnSight Software. This warranty
excludes problems caused by acts of Licensee,
unauthorized use of or causes external to the
EnSight Software, and items which would be
covered under Support and Maintenance service.
CEI specifically does not warrant, guarantee, or
make any representations regarding the use, or the
results of the use, of the EnSight Software or
Documentation in terms of correctness, accuracy,
reliability, currentness, or otherwise. The entire risk
as to the result produced by and the performance of
the EnSight Software is assumed by the End User.
CEI does not warrant that the execution of the
EnSight Software will be uninterrupted or error free.
CEI warrants the ancillary software according to the
terms found in the
LICENSE_AND_WARRANTY_AND_SUPPORT file
of the src directory of the software installation.
THE ABOVE WARRANTIES ARE CEI’S ONLY
WARRANTIES AND ARE IN LIEU OF ALL IMPLIED
WARRANTIES, INCLUDING BUT NOT LIMITED TO
THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, AND THE ABOVE
REMEDIES ARE THE EXCLUSIVE REMEDIES
FOR ANY BREACH OF WARRANTY. NO ORAL OR
WRITTEN INFORMATION OR ADVICE GIVEN BY
CEI OR ITS EMPLOYEES SHALL CREATE A
WARRANTY OR IN ANY WAY INCREASE THE
SCOPE OF THIS WARRANTY, AND LICENSEE
MAY NOT RELY ON SUCH INFORMATION OR
ADVICE. LICENSEE’S SOLE REMEDY AND CEI’S
SOLE OBLIGATION SHALL BE GOVERNED BY
THIS AGREEMENT. LICENSEE EXPRESSLY
AGREES THAT IN NO EVENT SHALL CEI BE
LIABLE FOR ANY CONSEQUENTIAL,
INCIDENTAL, OR SPECIAL DAMAGES ARISING
FROM THE BREACH OF WARRANTY,
NEGLIGENCE, OR ANY OTHER LEGAL THEORY,
WHETHER IN TORT OR CONTRACT, EVEN IF CEI
HAS BEEN APPRISED OF THE LIKELIHOOD OF
SUCH DAMAGES OCCURRING, INCLUDING
WITHOUT LIMITATION DAMAGES FROM
INTERRUPTION OF BUSINESS, LOSS OF
PROFITS OR BUSINESS OPPORTUNITIES, LOSS
OF USE OF SOFTWARE, LOSS OF DATA, COST
OF RECREATING DATA, COST OF CAPITAL,
COST OF ANY SUBSTITUTE PRODUCTS, OR
LOSSES CAUSED BY DELAY. FURTHER, CEI
SHALL NOT BE RESPONSIBLE FOR ANY
DAMAGES OR EXPENSES RESULTING FROM
ALTERATION OR UNAUTHORIZED USE OF THE
EnSight SOFTWARE OR FROM THE
UNINTENDED AND UNFORESEEN RESULTS
OBTAINED BY LICENSEE AND RESULTING
FROM SUCH USE. IN ANY EVENT, CEI’S
MAXIMUM LIABILITY UNDER ANY LICENSE OR
OTHERWISE FOR ANY REASON SHALL NOT
EXCEED THE TOTAL AMOUNT PAID BY
LICENSEE FOR THE CEI EnSight SOFTWARE,
EXCLUSIVE OF ANY SUPPORT AND
MAINTENANCE FEES PAID. THE EXISTENCE OF
MORE THAN ONE CLAIM WILL NOT ENLARGE
OR EXTEND THE LIMIT.
9. LICENSE MANAGER SOFTWARE. If Licensee is
authorized to install and use License Manager
Software to enable the EnSight Software to execute
on multiple computer systems on a network, it will
be so noted in the EnSight Purchase Agreement. All
terms related to the EnSight Software, including and
without limitation, terms related to limitation of
remedies and restrictions on use, apply to the
License Manager Software. Licensees authorized to
use License Manager Software may install multiple
redundant license servers on the same network
subnet node. Installation of multiple redundant
license servers on different subnet nodes requires
Licensee to submit a written request to CEI, stating
that the use of multiple servers will not enable more
than the maximum seats of the software to be used.
Furthermore, Licensee agrees to submit License
Manager log files upon request to CEI for
verification. Use of EnSight on a network is
restricted to one geographic location, unless
otherwise authorized by CEI.
10.U. S. GOVERNMENT RESTRICTED RIGHTS. If the
Licensee is the USA Department of Defense
(“DOD”), the licensed EnSight Software is subject to
“Restricted Rights” as that term is defined in the
DOD Supplement to the Federal Acquisition
Regulations (“DFARS”) section 252.227-7013(c). If
the Licensee is any unit or agency of the U.S.
Government other than the DOD, the Government’s
rights in the EnSight Software will be defined in
paragra ph 52.227-19(c)(2) of the Federal
Acquisition Regulations (“FAR”). Use, duplication,
reproduction, or disclosure by the U.S. Government
is subject to such restrictions. Contractor/
Manufacturer is: Computational Engineering
International, Inc., 2166 N. Salem Street, Suite 101,
Apex, NC 27523, USA.
11. INVOICES; PAYMENT; TAXES. Licensee agrees to
pay the License Fee(s) owed for this Software
License as shown on a separate Invoice(s) from
CEI. All Payments will be in U. S. Dollars. Payment
is due within thirty (30) days after the date of each
Invoice. Payment is considered made when good
funds are received by CEI. To those Licensees
leasing an EnSight Software License, future
Invoices for the EnSight Software Lease Fee will be
issued yearly in the month prior to that in which the
initial payment of the EnSight Software Lease Fee
was made to CEI. Licensees located in the State of
North Carolina, USA are responsible for payment to
CEI of all applicable State and Local sales taxes.
Licensees located in any State other than North
Carolina in the USA are directly responsible for
payment of all State and Local sales taxes
applicable at their location. Licensees located in any
Country other than the USA are directly responsible
for payment of all import and sales taxes to the
responsible government(s) at their location.
Licensees who have obtained a License through an
authorized Distributor of CEI agree to comply with
the Distributor’s payment terms and conditions.
12.SEVERABILITY. If any provision of this Agreement
shall be held by a court of competent jurisdiction to
be contrary to law or not enforceable, the remaining
provisions of this Agreement shall remain in full
force and effect.
13.EXPORT. This License and the rights granted
hereunder are subject to compliance by Licensee
with all laws, regulations, orders, or other
regulations relative to export or redistribution of
Licensed Software that may now or in the future be
imposed by the government of the United States or
any agency thereof or of any other country into
which licensed EnSight Software may be
transported and any act of noncompliance shall
immediately terminate this License. If the Licensee
imports the licensed copy of the EnSight Software
into a country in which CEI has an authorized
Distributor, then if the License was purchased the
Licensee shall pay to CEI a Penalty Fee equal to
one half the cost of the original Purchased License
Fee.
14.TERM. If a License for the EnSight Software was
purchased by Licensee, then this license is valid
upon the date of initial payment of the Purchase
License Fee to CEI by Licensee and shall continue
until an event of Termination. If a License for the
EnSight Software was leased by Licensee, then this
license is valid for twelve (12) months from the date
of initial payment of the Lease License Fee to CEI
by Licensee and shall renew for subsequent twelve
(12) month periods from the date Licensee pays the
amounts indicated on each yearly invoice, according
to Section11, unless an event of Termination occurs.
15.TERMINATION. This Software License Agreement
shall terminate upon occurrence of any of the
following events: (i) the failure of Licensee to
observe or perform any of the material covenants,
terms, and conditions of this Agreement where such
nonperformance is not fully remedied by Licensee
within thirty (30) days after written notice by CEI; (ii)
any breach of Sections 3, 4, 6, 7, 8, 9, or 10 hereof
(effective immediately); (iii) the filing of a petition for
Licensee’s bankruptcy, whether voluntary or
involuntary, or an assignment of Licensee’s assets
made for the benefit of creditors, or the appointment
of a trustee or receiver to take charge of the
business of Licensee for any reason, or Licensee’s
becoming insolvent or voluntarily or involuntarily
being dissolved; or (iv) the use of a license
purchased at an academic discount for purposes
other than teaching or academic research.
Termination of this Agreement under Section 15
shall be in addition to, and not a waiver of, any
remedy at law or in equity. Notwithstanding the
foregoing, the provisions of Sections 4, 6, 7, 8, 9,
and 10 shall survive the termination of this
agreement. Upon termination of this Software
License Agreement, Licensee shall promptly cease
to use and shall return to CEI all copies of the
EnSight Software, the Ancillary Software, and
EnSight Documentation.
16.GENERAL. Licensee may not assign or transfer its
rights or obligations under this Agreement without
the prior written consent of CEI. The parties agree
that this Agreement shall be governed and
construed by the laws of the State of North Carolina,
USA, and that no conflict-of-laws provision shall be
invoked to permit the laws of any other state or
jurisdiction. Any legal action must be filed within one
(1) year after the cause for such action arises with
the court of jurisdiction in the State of North
Carolina, USA. All preprinted additional or different
terms on any purchase order forms or other
documents received from Licensee are deemed
deleted and Licensee agrees that such terms shall
be void even if the Licensee’s documentation
indicates the terms therein take precedence over
other documents. This Software License
Agreement, together with the most recent EnSight
Purchase Agreement delivered to CEI by Licensee,
constitutes the entire agreement of the parties and
supersedes any prior understandings relating to the
subject matter, and may be amended or
supplemented only in a written agreement signed by
both an officer of CEI and the Licensee.
17.RESTRICTION ON USE OF TrackdAPI
SOFTWARE, developed and owned by VRCO Inc.,
an Delaware corporation, with principal place of
business at 192 Ballard Ct. Suite 300, Virginia
Beach, VA 23462; here after referred to as “VRCO”.
Licensee is prohibited from the distribution, transfer,
modification, or alteration of the TrackdAPI software
and associated written materials and/or
documentation (“TrackdAPI Software”) and shall
abide by the following:
I. PROPRIETARY RIGHTS. Licensee agrees that its
use of TrackdAPI Software is a license only and
VRCO owns all right, title, and interest in the
TrackdAPI Software including any patents,
trademarks, trade names, inventions, copyrights,
know-how and trade secrets relating to the design,
manufacture, operation or service of the TrackdAPI
Software. Nothing in this agreement should be
construed as transferring any aspects of such rights
to Licensee or any third party.
II. WARRANTY DISCLAIMER. THE LICENSED
TrackdAPI Software IS PROVIDED “AS IS”
WITHOUT WARRANTY OF ANY KIND, EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO
THE IMPLIED WARRANTIES OR
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THE ENTIRE RISK AS
TO THE QUALITY AND PERFORMANCE OF THE
LICENSED TrackdAPI Software IS ON THE
LICENSEE.
III. LIMITATION OF LIABILITY. IN NO EVENT
SHALL VRCO BE LIABLE FOR COSTS OF
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES OR FOR ANY SPECIAL,
CONSEQUENTIAL, INCIDENTAL, OR INDIRECT
DAMAGES OR LOST PROFITS ARISING OUT OF
THIS AGREEMENT OR USE OF THE TrackdAPI
Software, HOWEVER CAUSED, ON ANY THEORY
OF LIABILITY, AND EVEN IF VRCO HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. LICENSEE AGREES VRCO’S
LIABILITY ARISING OUT OF CONTRACT,
NEGLIGENCE, STRICT LIABILITY IN TORT OR
WARRANTY SHALL NOT EXCEED ANY
AMOUNTS PAID BY LICENSEE FOR THE
TrackdAPI Software IDENTIFIED ABOVE.
18.LICENSED USE OF SIEMENS PARASOLID CAD
READER SOFTWARE
EnSight customers may license CAD READERS
from CEI. Some CAD READERS require Siemens'
Parasolid Communicator product, hereafter
SIEMENS CAD READERS. Siemens requires such
SIEMENS CAD READER customers to be informed
of the license requirements, which are:
I. Authorization for use of Parasolid Products in the
Territory to process only data associated with
Licensee's own business, including providing
professional services for Licensee's customers, but
only while embedded within EnSight.
II. PROPRIETARY RIGHTS. Licensee agrees that
its use of SIEMENS CAD READERS is a license
only and Siemens owns all right, title, and interest in
the SIEMENS CAD READERS including any
patents, trademarks, trade names, inventions,
copyrights, know-how and trade secrets relating to
the design, manufacture, operation or service of the
SPATIAL CAD READERS. Nothing in this
agreement should be construed as transferring any
aspects of such rights to Licensee or any third party.
III. Prohibition against reverse engineering the
SIEMENS CAD READERS and creating any
derivative works, compilations or collective works
thereof;
IV. LIMITATION OF LIABILITY. IN NO EVENT
SHALL SIEMENS BE LIABLE FOR COSTS OF
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES OR FOR ANY SPECIAL,
CONSEQUENTIAL, INCIDENTAL, OR INDIRECT
DAMAGES OR LOST PROFITS ARISING OUT OF
THIS AGREEMENT OR USE OF THE SIEMENS
CAD READERS, HOWEVER CAUSED, ON ANY
THEORY OF LIABILITY, AND EVEN IF SIEMENS
HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. LICENSEE AGREES SIEMENS
LIABILITY ARISING OUT OF CONTRACT,
NEGLIGENCE, STRICT LIABILITY IN TORT OR
WARRANTY SHALL NOT EXCEED ANY
AMOUNTS PAID BY LICENSEE FOR THE
SIEMENS SOFTWARE IDENTIFIED ABOVE.
19.LICENSED USE OF SPATIAL CORP. 3D INTEROP
CAD READER SOFTWARE
EnSight customers may license CAD READERS
from CEI. Such customers are hereby informed that
such software is in part licensed from SPATIAL
Corporation 3D Interopt product hereafter SPATIAL
CAD READERS . Spatial requires SPATIAL CAD
READER customers to be informed of the license
requirements, which are:
Hereafter referred to as "SPATIAL CAD READERS".
Licensee is prohibited from the distribution, transfer,
modification, or alteration of the SPATIAL CAD
READERS software and associated written
materials and/or documentation ("SPATIAL CAD
READERS") and shall abide by the following:
I. PROPRIETARY RIGHTS. Licensee agrees that its
use of SPATIAL CAD READERS is a license only
and SPATIAL Corp owns all right, title, and interest in
the SPATIAL CAD READERS including any patents,
trademarks, trade names, inventions, copyrights,
know-how and trade secrets relating to the design,
manufacture, operation or service of the SPATIAL
CAD READERS. Nothing in this agreement should
be construed as transferring any aspects of such
rights to Licensee or any third party.
II. WARRANTY DISCLAIMER. THE LICENSED
SPATIAL CAD READERS Software IS PROVIDED
"AS IS" WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE IMPLIED WARRANTIES OR
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THE ENTIRE RISK AS
TO THE QUALITY AND PERFORMANCE OF THE
LICENSED SPATIAL CAD READERS IS ON THE
LICENSEE.
III. LIMITATION OF LIABILITY. IN NO EVENT
SHALL SPATIAL BE LIABLE FOR COSTS OF
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES OR FOR ANY SPECIAL,
CONSEQUENTIAL, INCIDENTAL, OR INDIRECT
DAMAGES OR LOST PROFITS ARISING OUT OF
THIS AGREEMENT OR USE OF THE SPATIAL
CAD READERS, HOWEVER CAUSED, ON ANY
THEORY OF LIABILITY, AND EVEN IF SPATIAL
HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. LICENSEE AGREES
SPATIAL'S LIABILITY ARISING OUT OF
CONTRACT, NEGLIGENCE, STRICT LIABILITY IN
TORT OR WARRANTY SHALL NOT EXCEED ANY
AMOUNTS PAID BY LICENSEE FOR THE SPATIAL
SOFTWARE IDENTIFIED ABOVE.
20.LICENSED USE OF JT OPEN
EnSight customers may license the JT Export from
CEI. Such customers are hereby informed that such
software is in part licensed from Siemens
Corporation, hereafter SIEMENS JT EXPORT.
Siemens reserves rights and restrictions to the use
of SIEMENS JT EXPORT software.
I. Authorization for use of SIEMENS JT EXPORT in
the Territory to process only data associated with
Licensee's own business, including providing
professional services for Licensee's customers, but
only while embedded within EnSight.
II. PROPRIETARY RIGHTS. Licensee agrees that
its use of SIEMENS JT EXPORT is a license only
and Siemens owns all right, title, and interest in the
SIEMENS JT EXPORT including any patents,
trademarks, trade names, inventions, copyrights,
know-how and trade secrets relating to the design,
manufacture, operation or service of the SIEMENS
JT EXPORT . Nothing in this agreement should be
construed as transferring any aspects of such rights
to Licensee or any third party.
III. Prohibition against reverse engineering the
SIEMENS JT EXPORT and creating any derivative
works, compilations or collective works thereof;
IV. LIMITATION OF LIABILITY. IN NO EVENT
SHALL SIEMENS BE LIABLE FOR COSTS OF
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES OR FOR ANY SPECIAL,
CONSEQUENTIAL, INCIDENTAL, OR INDIRECT
DAMAGES OR LOST PROFITS ARISING OUT OF
THIS AGREEMENT OR USE OF THE SIEMENS JT
EXPORT , HOWEVER CAUSED, ON ANY
THEORY OF LIABILITY, AND EVEN IF SIEMENS
HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. LICENSEE AGREES SIEMENS
LIABILITY ARISING OUT OF CONTRACT,
NEGLIGENCE, STRICT LIABILITY IN TORT OR
WARRANTY SHALL NOT EXCEED ANY
AMOUNTS PAID BY LICENSEE FOR THE
SIEMENS SOFTWARE IDENTIFIED ABOVE.
ENSIGHT® VERSION 9 SUPPORT
AND MAINTENANCE SERVICE
AGREEMENT
UNLESS A SEPARATE AGREEMENT FOR SUPPORT
AND MAINTENANCE SERVICES EXISTS BETWEEN
THE LICENSEE AND CEI OR AN AUTHORIZED CEI
DISTRIBUTOR, THE TERMS AND CONDITIONS OF
THIS AGREEMENT SHALL GOVERN CEI'S
PROVISION OF AND LICENSEE'S USE OF AND
PAYMENT FOR SUCH SERVICES.
1. GENERAL. The EnSight Software Licensee and
Computational Engineering International, Inc.,
(“CEI”) agree that the following terms and conditions
apply to the provision of Software Support and
Maintenance Service.
2. DEFINITIONS.
“Ancillary Software” includes translators, user
defined data readers, tools, or other software which
may from time to time be delivered with, but
separate from, the “EnSight Software”.
“EnSight Purchase Agreement” means the
document provided by Licensee to CEI which
describes the type of installation Licensee is
authorized to make.
“EnSight Documentation” means manuals, release
or installation notes related to the EnSight Software
including electronic versions thereof.
"EnSight Product" means the computer program
specified in the EnSight Purchase Agreement
licensed by the user and authorized for installation
named EnSight, EnSight Gold, EnSight DR, EnSight
Lite, EnSight CFD, or any other product which is
now available or may become available from CEI
with the same family name.
"EnSight Software" means all of the CEI computer
programs that constitute the EnSight Product, the
EnSight Documentation, and any backups or other
copies.
“Major Release Level” means all versions of the
EnSight Software which are denoted by the same
integer number to the left of the first decimal point in
the specification of the release.
3. SOFTWARE SUPPORT SERVICE. During the term
of this Agreement CEI will provide technical support
as described below to the EnSight Software
Licensee in its use of the EnSight Software,
provided that Licensee has an active License to use
the EnSight Software from CEI.
Exception for Academic Campus Licensees:
Support is provided to 3 named individuals specified
in the license profile. All other software users of the
Campus License will receive support via these
individuals. CEI recommends the campus IT
department or main department users experienced
with EnSight be named as these indivuals. These
named individuals can be updated each semester.
CEI will provide telephone consultation on problems
encountered in using the EnSight Software during
the Prime Time period defined as Monday through
Friday, from 8:00 AM to 5:00 PM, USA Eastern
Standard Time or Eastern Daylight Time, excluding
U. S. Holidays. Licensee is limited to five (5) hours
per month of telephone consultation. Alternatively,
support requests can be made to CEI via FAX or
Electronic mail.
EnSight U.S. Support Telephone Number:(800) 551-4448
Outside U.S. Support Telephone Number:(919) 363-0883
EnSight Support FAX Number: (919) 363-0833
EnSight Support Email address: support@ensight.com
4. SOFTWARE MAINTENANCE SERVICE. During the
term of this Agreement CEI will maintain the
EnSight Software provided that Licensee has an
active License to use the EnSight Software from
CEI. CEI will distribute to Licensee one copy of new
minor releases of the major release listed on the
media used to deliver the EnSight Software
including EnSight Documentation as they become
available, subject to the terms and conditions of this
Agreement. CEI may modify the terms, conditions,
and prices for services applicable to future major
releases.
5. EXCLUDED SOFTWARE. NO SUPPORT OR
MAINTENANCE SERVICE FOR THE ANCILLARY
SOFTWARE IS OFFERED OR PROVIDED BY
THIS AGREEMENT EXCEPT AS NOTED IN THE
LICENSE_AND_WARRANTY_AND_SUPPORT
FILE OF THE src DIRECTORY OF THE
SOFTWARE INSTALLATION.
6. LICENSEE AGREEMENTS FOR SOFTWARE
SUPPORT AND SOFTWARE MAINTENANCE. In
order to permit CEI to supply the Software Support
and Software Maintenance specified above:
(i). If third party graphic libraries accompanied the
EnSight Software delivered to Licensee, as noted in
the EnSight Purchase Agreement, and such third
party issues a new version of such library software
which CEI incorporates into the Software, then
Licensee must comply with any additional licensing
or fee requirements imposed by such third party.
(ii). Licensee agrees to install minor releases, fixes,
circumventions, and corrective code to the EnSight
Software in a reasonable time after receipt thereof.
(iii). Licensee agrees to be responsible for the
installation and administration of the EnSight
Software.
(iv). Upon request by CEI, Licensee will provide the
name, address, telephone and FAX number, and
Email address (if available) of the Licensee’s contact
individual for communicating problems and
solutions.
7. FEES. If Licensee is Leasing EnSight Software,
then the cost of the Software Support and
Maintenance Service is included in the annual
EnSight Software License Lease Fee.
If Licensee has Purchased an EnSight Software
license, then there is no separate fee for Software
Support and Maintenance Service for a period of
twelve (12) months from the date of the initial
payment of the EnSight Software License Purchase
Fee to CEI. Licensee agrees to subsequently pay
the annual EnSight Software Support and
Maintenance Service Fee(s) for subsequent twelve
(12) month periods at the then current rates when
invoiced.
Licensees located in any State other than North
Carolina in the USA are directly responsible for
payment of all State and Local taxes applicable at
their location for this Service. Licensees located in
any Country other than the U.S. are directly
responsible for payment of all taxes to the
government(s) at their location for this Service.
Licensees who have obtained a License through an
authorized Distributor of CEI agree to comply with
the Distributor’s payment terms and conditions.
8. LIMITATION OF REMEDY AND DISCLAIMER. CEI
WILL USE ITS DILIGENT EFFORTS TO PROVIDE
THE SUPPORT AND MAINTENANCE SERVICES
SPECIFIED HEREIN. CEI MAKES NO OTHER
WARRANTY OF ANY KIND OR NATURE WITH
REGARD TO THE SERVICES TO BE
PERFORMED BY CEI UNDER THE TERMS OF
THIS AGREEMENT AND ANY IMPLIED
WARRANTIES, INCLUDING THE IMPLIED
WARRANTIES OF FITNESS FOR A PARTICULAR
PURPOSE AND MERCHANTABILITY, ARE
HEREBY DISCLAIMED. THE REMEDIES SET
FORTH IN THIS AGREEMENT ARE LICENSEE’S
EXCLUSIVE REMEDIES FOR ANY BREACH OF
THE TERMS OF THIS AGREEMENT. CEI WILL
NOT BE LIABLE IN ANY EVENT FOR LOSS OF
OR DAMAGE TO REVENUES, PROFITS, OTHER
ECONOMIC LOSS OR GOODWILL OR OTHER
CONSEQUENTIAL, SPECIAL, INCIDENTAL OR
INDIRECT DAMAGES ARISING OUT OF OR IN
CONNECTION WITH THE PERFORMANCE OF
ITS OBLIGATIONS HEREUNDER, INCLUDING
ANY LIABILITY FOR NEGLIGENCE WITH
RESPECT TO SERVICE PROVIDED UNDER THIS
AGREEMENT EVEN IF CEI HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES. IN
ANY AND ALL CASES, CEI’S MAXIMUM
LIABILITY IN CONNECTION WITH OR ARISING
OUT OF THIS AGREEMENT SHALL NOT EXCEED
THE EQUIVALENT OF ONE (1) YEAR OF
CHARGES FOR THE RELEVANT SERVICE. THE
EXISTENCE OF MORE THAN ONE CLAIM WILL
NOT ENLARGE OR EXTEND THE LIMIT.
9. INVOICES AND PAYMENT. To those Licensees
who have purchased an EnSight Software License,
future Invoices for the EnSight Software Support
and Maintenance Fee(s) will be issued yearly in the
month prior to that in which the initial payment of the
EnSight Software License Purchase Fee was made
to CEI. Invoices shall be due and payable within
thirty (30) days of date of invoice. All payments will
be in U. S. Dollars.
Payment of invoice is considered made when good
funds are received by CEI.
10.OBSOLETE PRODUCTS. CEI will continue to
provide Software Support Service for the release
prior to the most current release for a period of
twelve (12) months after the release date of the
most current release. At that time, the previous
release is designated as Obsolete and Software
Support Service for the Obsolete release shall
thereafter be discontinued.
11. TERM. The Term of this Agreement shall be from
the date payment from Licensee is first received by
CEI for the EnSight Software License Purchase Fee
or the EnSight Software License Lease Fee,
whichever is applicable, until an event of
Termination.
12.TERMINATION. EnSight Software Support and
Software Maintenance Service hereunder may be
terminated as follows: (A) by Licensee or CEI to be
effective during or after the first year of such Service
upon giving ninety (90) days written notice; (B) by
CEI with respect to Obsolete Products; (C) by CEI
immediately and without notice, with respect to the
EnSight Software, the license for which has expired
or been terminated; (D) by CEI after ten (10) days
subsequent to providing notice to Licensee upon
either (i) nonpayment by Licensee of any Invoiced
amount due under this Agreement or the EnSight
End User License Agreement; or (ii)
nonperformance by Licensee of any other material
term or condition of this Agreement.
13.ASSIGNMENTS. The Licensee may not assign or
transfer its rights or obligations under this
Agreement, in whole or in part, without the written
consent of CEI.
14.APPLICABLE LAW. The parties agree that this
Agreement shall be governed and construed by the
laws of the State of North Carolina, USA, and that
no conflict-of-laws provision shall be invoked to
permit the laws of any other state or jurisdiction. Any
legal action must be filed within one (1) year after
the cause for such action arises with the court of
jurisdiction in the State of North Carolina, USA.
15.GENERAL. The terms and conditions stated in this
Agreement constitute the complete and exclusive
statement of the Agreement between Licensee and
CEI and supersede all prior oral and written
statements of any kind whatsoever made by either
party or their representatives.
All preprinted additional or different terms on any
purchase order forms or other documents received
from Licensee are deemed deleted and Licensee
agrees that such terms shall be void even if the
Licensee’s documentation indicates the terms
therein take precedence over other documents.
Any waivers of or amendments to the terms and
conditions of this Agreement, to be effective, must
be in writing and signed by an officer of CEI and
Licensee.
CEI Address:
Computational Engineering International, Incorporated
2166 N. Salem Street, Suite 101, Apex, North Carolina
27523
USA
Symbols
+ button 2
A
ABAQUS_FIL reader 21
animate
function key F4
saving animation 66
animation
clip
saving animation 49
flipbook
advantages 8
created data 8
definition 12, 7
disadvantages 8
graphic image pages 7
graphic object pages 7
linear load 8
mode shapes 8
saving animation 10
transient data 8
troubleshooting 13
Flipbook Animation Editor 9
Flipbook Animation Icon 9
isosurface
saving animation 44
keyframe
definition 12, 14
Keyframe Animation Editor 16
Quick Animations dialog 20
Recorder dialog 21
Run From/To dialog 19
save animation 21
Transient data dialog 19
troubleshooting 23
Viewing Window dialog 18
line clip animation delta 55
particle trace 82
saving animation 86
troubleshooting 84
plane clip animation delta 58
quadric clip animation delta 62
revolution clip animation delta 64
saving 3, 10, 44, 49, 86
saving and restoring frames 143
saving animation 65
solution time streaming 12, 3
transient
saving animation 3
Annot Mode 11
annotation
delete text, line or logo 29
logo importing 27
preferences 7
text creation 12, 15
ANSYS reader 30
Apple Pict output 140
archive files 125
Area variable 17
Autorecovery 124
auxiliary clipping
by part 10
troubleshooting 31
AVI output 140
AVUS reader 38
Axis Specific Attributes dialog 36
Axi-symmetric extrusion 139
axi-symmetric extrusion 139
B
balloon help (Tool Tips) 5
Boundary File
format 167
Boundary Layer
variable
A Gradient Of Velocity Magnitude 17
Displacement Thickness 21
Distance to Value from Wall 23
Edge Skin-Friction Coefficient 17
Momentum Thickness 23
Recovery Thickness 25
Scalar 24
Shape Parameter 25
Thickness 26
Velocity At Edge 27
Wall Fluid Shear-Stress 21
Wall Skin-Friction Coefficient Components 20
Y1Plus off Wall 27
boundary layer thickness 122
Boundary Layer Variables 121
access 124
boundary layer 121
boundary surfaces 122
define dependent variables 124
definitions
boundary layer thickness 122
displacement thickness 122
momentum thickness 122
shape parameter 123
skin friction coefficient 123
method 125
references 123
velocity magnitude gradient 122
Box Clip 59
Box clip part
Feature Detail Editor for 59
box tool
positioning 41
visibility toggle 35
C
Calculator operations in created variables 67
Camera
direction picking 61
lighting 45
on spline 46
origin picking 61
tie viewports to 7
tracking 46
visibility 33
zoom transform 5
case
selecting a 51
viewport visibility specification 50
Case Map variable 28
CEI
email address 15
telephone numbers 15
CFF Reader 42
clip
interactive using Cone Tool 60
interactive using Cylinder Tool 60
interactive using IJK Tool 48, 52
interactive using Line Tool 53
interactive using Plane Tool 57
interactive using Sphere Tool 60
interactive using XYZ Tool 50
clip animation
saving animation 49
Clip Create/Update Icon 48
Clip Editor 48
clip part
creating and updating 48
creation by revolution of 1D part 65, 66
creation troubleshooting 68
creation using Box tool 59
creation using cylinder tool 60
creation using general quadric equation 67
creation using IJK clip tool 48
creation using line tool 53
creation using plane tool 56
creation using quadric tool 60
creation using revolution tool 63
creation using RTZ clip tool 51
creation using sphere tool 60
creation using XYZ clip tool 49
definition 47
Coefficient variable 29
color
by a variable 4
selection of constant 4
Color Editor 4
Color Palette preferences 8
Color Selector Palette File format 5
Command dialog 120
opening 2
command files 119
Command Line Parameter preferences 9
Command Manual
opening 53
Complex
Argument variable 29
Conjugate variable 29
Imaginary variable 29, 55, 56
Modulus variable 29
Real variable 29
Transient Response variable 30
Complex variable 29
Component tensor variable 59
cone tool
positioning 43
visibility toggle 36
Connection Information File format 3
Context Files 128
restoring 128, 131
saving 128, 130
Context files
restoring 3
saving 3
Contour Create/Update Icon 40
Contour Editor 40
contour part
creating & updating 40
creation 41
creation troubleshooting 41
description 39
Feature Detail Editor for 41
sublevels 40
Copy Transformation State 2
Creation Attributes
Adjust part coordinates 19
Created Parts 20
Elements defined by 19
IJK Node Ranges 20
Model Parts 19
cross references in User Manual 15
Curl variable 31
cursor tool
positioning 37
visibility toggle 34
Curve Specific Attributes dialog 39
cylinder tool
positioning 42
visibility toggle 35
D
data
Color Selector Palette file 5
Connection Information file 3
Data Reader Preferences file 9
Default False Color Map file format 7
Default Part Colors file 8
ens_checker
EnSight Gold case file format 7
EnSight Gold geometry file format 19
EnSight Gold variable file format 46
EnSight Gold Wild Card Name Specification 19
EnSight5 binary file writing 138
EnSight5 geometry file format 128
EnSight5 measured/particle file format 135
EnSight5 result file format 132
EnSight5 variable file format 134
EnSight5 wild card specification 134
EnSight6 binary file writing 121
EnSight6 case file format 101
EnSight6 geometry file format 109
EnSight6 measured/particle file format 121
EnSight6 variable file format 114
exported from analysis codes 118
formats 3
Function Palette file format 5
interfaces to 3
palette file formats 5
Parallel Rendering Configuration file 12
Preference file formats 1
reader types 3
reading ABAQUS data 21
reading ABAQUS_FIL data 21
reading ANSYS data 30
reading AVUS data 38
reading CFF data 42
reading data using Translators 118
reading ESTET data 48
reading Exodus data 50
reading FAST UNSTRUCTURED data 57
reading FIDAP data 58
reading Fluent data 63
reading FLUENT UNIVERSAL data 68
reading LS-DYNA data 71
reading Movie BYU data 73
reading Movie.BYU data 73
reading MPGS data 74
reading MPGS4 data 74, 85
reading N3S data 85
reading Nastran Input Deck data 83
reading OVERFLOW data 90
reading PLOT3D data 94
reading Radioss data 96, 104, 107
reading Silo data 102
reading STL data 107
reading Tecplot data 110
reading Vectis data 114
supported elements 6, 100, 127
transient 2
translators 118
troubleshooting loading of 13
Window Position file 2
Data Format
Extension Map File 10
data formats supported 3
Data Part Loader dialog
opening 2
Data preferences 9
Data Reader Preferences File Format 9
dataset query 28
Default False Color Map File format 7
Default Part Colors File format 8
Delete Button 3
Density
Normalized 31
Normalized (log of) 31
Normalized Stagnation 31
Stagnation 32
variable 31, 32, 33
Desktop 1
Determinate tensor variable 59
Developed Surface Create/Update Icon 135
developed surface part
creating and updating 135
definition 133
developed projection definition 134
Feature Detail Editor for 135
open Developed Surface Editor 135
troubleshooting 136
displacment thickness 122
Divergence variable 33
documentation on-line guide 53
E
Eigenvalue tensor variable 59
Eigenvector tensor variable 59
element
global label visability toggle 32
label visibility by part 7
query 27
representation 27
Element to Node variable 33
elements
supported 6, 100, 127
Elevated Surface Create/Update Icon 102
Elevated Surface Editor 102
elevated surface part
creating and updating 102
definition 101
Feature Detail Editor for 103, 104
troubleshooting 105
email address for CEI 15
Empty parts
element variables for 62
nodal variables for 46
structured 30
unstructured 30
EnLiten Output
scenario files 132
ens_checker
EnSight
documentation 14
version in use 53
EnSight Data Formats 1
Boundary File Format 167
EnSight Gold Format 4
casefile 7
geometry file 19
Material Files Format 86
measured/particle file 85
partial variable values format 80
per_element variable file 62
per_node variable file 46
supported elements 6
transient single files 16
undefined variable values format 76
variable files 46
wild card name specification 19
EnSight5 Format 126
geometry file 128
measured/particle files 135
result file 132
supported elements 127
variable files 134
wild card name specification 134
writing binary files 138
EnSight6 Format 98
casefile 101
geometry file 109
measured/particle file 121
per_element variable files 117
per_node variable files 114
supported elements 100
transient single files 106
variable files 114
wild card name specification 108
writing binary files 121
Euler Parameter File Format 177, 186
FAST UNSTRUCTURED Results File Format 141
FLUENT UNIVERSAL Results File Format 145
Material File Format 86
Movie.BYU Results File Format 147
Particle Emitter File Format 171
Periodic Matchfile Format 162
PLOT3D Results File Format 150
Rigid Body File Format 173
Server-of-Servers Casefile Format 155
Vector Glyph File Format 181
XY Plot Data File Format 165
EnSight Environment
saving 146
EnSight Gold Format 4
ensight_reader_extension.map 10
EnSight5 Utility Programs 2
Enthalpy
Normalized 34
Normalized Stagnation 35
Stagnation 35
variable 34
Entropy variable 35
EnVideo output 140
Environment Variables 14
ESTET Data Part Loader dialog 49
ESTET reader 48
ESTET Vector Builder dialog 49
Euler Parameter File
format 177, 186
Exodus reader 50
extrusion part
create/update 139
F
failed elment
by part 9
Fast Display representation 10
FAST UNSTRUCTURED reader 57
FAST UNSTRUCTURED Results File format 141
Feature Detail Editor
for Box clip parts 59
for contour parts 41
for developed surface parts 135
for elevated surface parts 103
for IJK clip parts 49
for isosurface parts 45
for isovolume parts 46
for line clip parts 54
for particle trace parts 87
for parts 5
for plane clip parts 57
for profile parts 99
for quadric equation clip parts 67
for quadric tool clip parts 61
for revolution clip parts 64
for RTZ clip parts 52
for Separation/Attachment Lines 120
for subset parts 95
for vector arrow parts 72
for XYZ clip parts 51
feature extraction
boundary layer variables 121
separation/attachment lines 117
shock surfaces/regions 111
vortex cores 106
Feature Icon Bar 2, 1
FIDAP reader 58
file
archiving 125
Color Selector Palette file 5
command 119
command playback troubleshooting 123
Connection Information file 3
context 128
Data Reader Preferences file 9
default command saving 119, 123
Default False Color Map file 7
Default Part Colors file 8
ensight_reader_extension.map 10
full backup saving 125
full backup troubleshooting 127
Function Palette file 5
Open 2
open
extension mapping 10
palette file formats 5
Parallel Rendering Configuration file 12
scenario 132
Window Position file 2
File name length
maximum 2
Filtered Relative Helicity variable 40
Flipbook Animation Editor 9
created data 8
created load 9
linear load 8, 9
mode shape load 9
mode shapes 8
saving animation 10
transient data 8
transient load 9
Flipbook Animation Icon 9
Flow Rate variable 37
Flow variable 37
Fluent reader 63
FLUENT UNIVERSAL Results File format 145
Fluid Shear Stress Max variable 38
Fluid Shear variable 37
Force and Moment Vector Glyph File Format 181
Force variable 38, 39
frame
axis triad attributes 53
axis triad color 52
axis triad line width 53
axis triad visibility 52
computational symmetry 54
coordinate system 55
creation 53
definition 9
delete 58
description 50
global axis triad visibility toggle 32
part assignment 53
precise positioning 57
transform 12
rotation 13
translation 14
transformation type 58
translation scale 15
Frame Axis Attributes dialog 53
Frame Computational Symmetry Attributes dialog 54
Frame Mode 50
Frame Transform 12
full backup
Restoring Full Backup Archive files 4
Save Full Backup Archive dialog 3
Function Palette File format 5
G
General Attributes Feature Detail Editor 21
General User Interface preferences 10
geometric entities
Save Geometric Entities dialog 3
saving 135
saving troubleshooting 138
Getting Started Manual
opening 53
global axis
triad visibility 65
triad visibility toggle 32
Gradient Approximation variable 39
Gradient Tensor Approximation variable 39
Gradient Tensor variable 39
Gradient variable 39
graphic images 7
graphic objects 7
group operation 32
GUI overview 1
H
Helicity (relative filtered) variable 40
Helicity (relative) variable 40
Helicity Density variable 39
Help
local 52
Main Menu button functions 52
hidden line
by part 9
global toggle 30, 62
overlay 63
Hidden Line Overlay dialog 63
How To Manual
opening 53
I
Iblanking
Values in EnSight Gold 21
Values in EnSight6 109
Values in PLOT3D 150
Iblanking Values variable 40
Icon Bar Preferences dialog 11
IJK clip part
Feature Detail Editor for 49
interactive creation 48, 52
Saving and Printing preferences 12
ouptut formats 140
Print/Save Image dialog 2
printing 140
saving 140
saving troubleshooting 142
Integral
Line 40
Surface 40
Volume 40
Interactive Probe Query
Display dialog 37
Editor 36
Icon 36
IJK 36
Node 36
Point 36
preferences 12
Surface 36
XYZ 36
Interface Manual
opening 53
isosurface animation
saving animation 44
Isosurface Create/Update Icon 43
isosurface part
creating and updating 43
definition 43
interactive creation 44
open Feature Detail Editor for 45
open Isosurface Editor 43
isovolume part 46
J
JPEG output 140
K
Keyframe Animation 14
Keyframe Animation Speed/Actions dialog 17
Kinetic Energy variable 34
L
label
global element visibility toggle 32
global node visibility toggle 32
legend
global visibility toggle 32
Show Legend 29
Length variable 40
License Agreement 53
lighting
special lighting 45
line
representation 27
Line Integral variable 40
line tool
positioning 38
visibility toggle 34
List Button 3
Local help 52
Look At Point 20
Look From Point 20
LS-DYNA reader 71
M
Mach Number variable 42
Main Menu
Case button functions 48, 49
Edit button functions 5
File button functions 2
Help button functions 52
Query button functions 26
Tools button functions 34
View button functions 29
Make Vector variable 42
Massed Particle Scalar variable 42
Massed-Particle Traces 76
Mass-Flux Average variable 43
Material Parts 126
Materials Data
File format 86
Math functions 64
Max variable 45
Maximum
file name length 2
number of parts 2
number of variables 2
part name length 2
variable name length 2
Min variable 45
Min/Max Variable track 74
feature detail editor 88
quick interaction area 81
Mode
Annot 11
Frame 50
Part 2
Plot 30
VPort 41
Mode Icon Bar 3
Moment variable
about a point 45
Vector 45
momentum thickness 122
Momentum variable 45
Mouse and Keyboard preferences 13
Movie BYU reader 73
Movie.BYU Results File format 147
MPEG
output 140
MPGS reader 74
N
N3S Part Creator dialog 85
N3S reader 85
Nastran Input Deck reader 83
node
display type 8
global label visibility toggle 32
label visibility by part 8
query 26
query (IJK) 27
Node to Element variable 46
Node Tracks 74
feature detail editor 88
quick interaction area 81
Normal Constraints variable 46
Normal vector variable 46
Normalize Vector variable 46
Nsided
Additional data for element block 30
O
Offset Field 46
Offset Surface 101
Offset Variable 46
on-line
Command Language Manual 53
documentation guide 53
Getting Started Manual 53
How To Manual 53
icon reference 53
Interface Manual 53
license agreement 53
Local help 52
overview of EnSight 53
Release Notes 53
User Manual 53
orthographic view toggle 31
output formats 140
OVERFLOW reader 90
P
Palette File format 5
Parallel Computation 13
Parallel Rendering 1
Configuration File 12
part
animation
saving animation 3, 65
assign color 3
auxiliary clipping 10
auxiliary clipping global toggle 31
computational symmetry in frame 54
Concepts 1
copy 33
created 2
creation of new 9
Data Part Loader dialog 2
definition 1
delete 32
Diffused Light 4, 20
Displacement Attributes 28
display all in hidden line 30
editing 15
element bounding box representation 27
element label visibility 7
element visual representation 5
empty
element variables 62
nodal variables 46
structured 30
unstructured 30
extract 34
failed element 9
fast display representation 10
Fill Pattern 4
frame assignment 53
General Attributes 21
Group 32
hidden line 9
hidden surface 9
Highlight Intensity 19
Highlight Shininess 19
IJK refinement 19
Lighting 24
line width 5
long list 2
Main Parts List 2
merge 34
mirror symetry in frame 54
model 2
node display type 8
node label visibility 8
Node, Element, and Line Attributes 26
open Feature Detail for 5
operations on 31
overview 2
parent 2
Part Color, Lighting, Transparency Icon 3
preferences 15
query 27
Query/Plot Editor 25
reassign parent 8
rotational symmetry in frame 54
select all 31
select by keyword 31
selection of 11, 13
separation/attachment lines 117
shock surfaces/regions 111
symmetry 6
translational symmetry in frame 55
types, symbols, and descriptions 6, 7
Ungroup 32
visibility by viewport 5
vortex core 106
Part Displacement 6
Part Mode 2
Part Node Representation dialog 8
Part Shortcuts (Right-click) 35, 36, 37
Particle Emitter Data
File format 171
Particle Trace Create/Update Icon 81
Particle Trace Editor 81
particle trace part
animation 82
saving animation 86
troubleshooting 84
creating and updating 81
creation with transient data 76
definition 74
Emission Detail Attributes dialog 85
emitter placement by picking 86
emitters 74
Feature Detail Editor for 87
integration method 75
interactive tracing 86
node tracks 74
surface-restricted definition 75
troubleshooting 93
Parts
Materia 126
maximum 2
maximum name length 2
Paste Transformation State 2
PCL output 140
Performance preferences 16
Periodic Matchfile format 162
perspective view toggle 31
pick
Center of Transformation location 60
Cursor Tool location 60
Elements to blank 60
Line Tool location Using 2 nodes 60
Line Tool location Using 2 points 60
Look At Point 60
part 60
part position 59
Plane Tool location 60
Plane Tool location Using 3 nodes 60
Plane Tool location Using 3 points 60
Plane Tool location Using Normal 60
Plane Tool location Using Origin 60
Pick Center of Transformation 60
plane tool
appearance 35
positioning 40
visibility toggle 35
Plot Mode 30
plot queried data 28
PLOT3D
Results File format 150
PLOT3D reader 94
plotter
axis attributes 36
curve attributes 39
delete 40
preferences 17
Plotter Specific Attributes dialog 32
Point part
create/update 137
point query 26
Postscript ouput 140
Preference File Formats 1
Preference Functions
icon bars 11
Preferences 7
Annotation 7
Color Palettes 8
Command Line Parameters 9
Data 9
General User Interface 10
Image Saving and Printing 12
Interactive Probe Query 12
Mouse and Keyboard 13
Parts 15
Performance 16
Plotter 17
Query 17
User Defined Input 18
Variables 19
View 21
Pressure
Coefficient 47
Dynamic 47
Normalized 47
Normalized (Log of) 48
Normalized Stagnation 48
Pitot 49
Pitot Ratio 50
Stagnation 48
Stagnation Coefficient 49
Total 50
variable 46
Print/Save Image dialog
opening 2, 3
Profile Create/Update Icon 98
Profile Editor 98
profile part
creating and updating 98
definition 97
open Feature Detail Editor for 99
troubleshooting 100
Q
quadric tool
positioning 42, 43
visibility toggle 35
query
At 1D Part Over Distance 29
At Cursor Over Time 32
At Element Over Time 31
At IJK Over Time 32
At Line Tool Over Distance 28
At Maximum Over Time 34
At Minimum Over Time 33
At Node Over Time 31
By Operating On Existing Queries 35
cursor 26
dataset 28
element 27
interactive probe 36
node 26
over distance 25
over time/distance 27
part 27
Read From An External File 35
Save Entity Query To dialog 27
variable data over distance 25
variable data over time 25
Query Dataset dialog 28
Query preferences 17
Query Prompt dialog 26
Query Text Information
from EnSight Message window 145
saving 144
Query/Plot Editor 25
Query/Plot Icon 25
Quick Interaction Area 4
Quit Confirmation dialog 124
opening 4
R
Radiograph_grid variable 51
Radiograph_meshvariable 52
Radioss reader 96, 104, 107
reader
extension mapping file 10
reader types 3
readers
basics 2
data format
ABAQUS_FIL 21
ANSYS 30
AVUS 38
CFF 42
EnSight Gold 16
EnSight5 17
EnSight6 16
ESTET 48
Exodus 50
FAST UNSTRUCTURED 57
FIDAP 58
Fluent 63
LS-DYNA 71
Movie BYU 73
MPGS 74
N3S 85
Nastran Input Deck 83
OVERFLOW 90
PLOT3D 94
Radioss 96, 104, 107
Silo 102
STL 107
supported formats 3
Tecplot 110
Translators 118
Vectis 114
EnSight native data format 15
loading tips 12
overview 2
troubleshooting loading data 13
user defined 18
ens_checker
Record Button 3, 10, 44, 49, 86, 65
Rectangular to Cylindrical Vector variable 53
region selector
visibility toggle 34
Relative Helicity variable 40
Release Notes
opening 53
reset
tools 8
viewports 8
Reset Tools and Viewport(s) dialog 8
Resource file format 13
restoring context files 3
revolution tool
positioning 44
visibility toggle 36
Rigid Body File
format 173
Rigid_body
in casefile 7
rotation
frame 13
global 3
using function keys 3
RTZ clip part
Feature Detail Editor for 52
S
save
animation 3, 10, 44, 49, 86, 65
commands from current session
context files 3
geometric entities in EnSight Gold format 3
geometric information in VRML format 135, 3
keyframe
animation 21
open Print/Save Image dialog 2
queried data 27
Save Full Backup Archive dialog 3
scenario files 3
window positions 12
Saving commands from current session
scale
frame 15
global 6
Scenario Files 132
saving 3
Select Button 3, 14
Separation/Attachement Line part
Feature Detail Editor for 120
Separation/Attachment Lines 117
access 119
algorithms 118
define variables 119
method 119
references 118
thresholding 118, 119
velocity gradient tensor 117
Server Number variable 53
Server-of-Servers
Casefile format 155
overview 13
SGI RGB output 140
shaded surface
by part 9
global 62
global toggle 29
troubleshooting 30, 62
shape parameter 123
Shock Plot3d variable 53
Shock Surfaces/Regions 111
access 114
algorithms 112
define variables 114
method 115
references 113
thresholding 111, 115
Silo reader 102
skin friction coefficient 123
solution time definition 2, 24
Solution Time Editor 3
Solution Time Icon 3
Sonic Speed variable 55
Spatial Mean variable 53, 54
Speed (sonic) variable 55
Speed variable 54
sphere
tool positioning 42
tool visibility toggle 36
Spline
animation along 17
camera origin on 27
curve line type 39
picking control point 60
Spline Tool 46
STL reader 107
Stream Function variable 56
Subset Parts Creation Editor 95
Swirl variable 57
T
TARGA output 140
Tecplot reader 110
telephone numbers for CEI 15
Temperature
Normalized 57
Normalized (log of) 58
Normalized Stagnation 58
Stagnation 58
variable 57
Temporal Mean variable 58, 59
tensor
data location 9
EnSight per node variable files 114
EnSight per-element variable files 73, 118
glyph part
create/update 130
symbol 7
variable
Component 59
Determinate 59
Eigenvalue 59
Eigenvector 59
Make 59, 60
Tresca 60
VonMises 60
variable type 3
Text Annotation Creation dialog 12, 15
thresholding
separation/attachment lines 118
shock surfaces/regions 111
vortex cores 106
TIFF ouput 140
time-dependent data 2
tool
box tool positioning 41
box visibility toggle 35
cone tool positioning 43
cone visibility toggle 36
cursor visibility toggle 34
cylinder tool positioning 42
cylinder visibility toggle 35
line tool positioning 38
line visibility toggle 34
plane tool positioning 40
plane visibility toggle 35
positioning cursor tool 37
quadric tool positioning 42, 43
quadric visibility toggle 35
reset 8
revolution tool positioning 44
revolution visibility toggle 36
sphere tool positioning 42
sphere visibility toggle 36
Tool Tips 5
Trace Animation Settings dialog 83
transformation
frame 12
global band zoom 6
global definition 3
global rotate 3
global scale 6
global translate 4
global zoom 5
Transformation Editor dialog
opening 1
transient data 2
translation
frame 14
global 4
translators 118
Tresca tensor variable 60
Tresca variable 60
U
Undefined variable 76
Ungroup 32
User Defined Input preferences 18
User Defined Readers 18
User Manual
opening 53
Utility Programs 1
V
variable
activation 4
boundary layer variables 121
color palette 6
color palette editing 5
created
Area 17
Boundary Layer
A Gradient Of Velocity Magnitude 17
Displacement Thickness 21
Distance to Value from Wall 23
Edge Skin-Friction Coefficient 17
Momentum Thickness 23
Recovery Thickness 25
Scalar 24
Shape Parameter 25
Thickness 26
Velocity At Edge 27
Wall Fluid Shear-Stress 21
Wall Skin-Friction Coefficient Components 20
Y1Plus off Wall 27
Calculator operations 67
Case Map 28
Coefficient 29
Complex 29
Complex Argument 29
Complex Conjugate 29
Complex Imaginary 29, 55, 56
Complex Modulus 29
Complex Real 29
Complex Transient Response 30
Curl 31
Density 31, 32, 33
Divergence 33
Dynamic Pressure 47
Element to Node 33
Enthalpy 34
Entropy 35
Filter Relative Helicity 40
Flow 37
Flow Rate 37
Fluid Shear 37
Fluid Shear Stress Max 38
Force 38, 39
Gradient 39
Gradient Approximation 39
Gradient Tensor 39
Gradient Tensor Approximation 39
Helicity Density 39
Iblanking Values 40
Kinetic Energy 34
Length 40
Line Integral 40
Log of Normalized Density 31
Log of Normalized Pressure 48
Log of Normalized Temperature 58
Mach Number 42
Make Vector 42
Massed Particle Scalar 42
Mass-Flux Average 43
Math functions 64
Max 45
Min 45
Moment about a point 45
Moment Vector 45
Momentum 45
Node to Element 46
Normal 46
Normal Constraints 46
Normalize Vector 46
Normalized Density 31
Normalized Enthalpy 34
Normalized Pressure 47
Normalized Stagnation Density 31
Normalized Stagnation Enthalpy 35
Normalized Stagnation Pressure 48
Normalized Stagnation Temperature 58
Normalized Temperature 57
Offset Field 46
Offset Variable 46
Pitot Pressure 49
Pitot Pressure Ratio 50
Pressure 46
Pressure Coefficient 47
Radiograph_grid 51, 52
Rectangular To Cylindrical Vector 53
Relative Helicity 40
Server Number 53
Shock Plot3d 53
Sonic Speed 55
Spatial Mean 53, 54
Speed 54
Stagnation Density 32
Stagnation Enthalpy 35
Stagnation Pressure 48
Stagnation Pressure Coefficient 49
Stagnation Temperature 58
Stream Function 56
Surface Integral 40
Swirl 57
Temperature 57
Temporal Mean 58, 59
Tensor Component 59
Tensor Determinate 59
Tensor Eigenvalue 59
Tensor Eigenvector 59
Tensor Make 59, 60
Tensor Tresca 60
Tensor VonMises 60
Total Pressure 50
Velocity 61
Volume 61
Volume Integral 40
Vorticity 61
creation of new 12
Extended CFD Settings dialog 4, 20
query over distance 25
query over time 25
Query/Plot Editor 25
types of 1
Variable Min/Max track 74
feature detail editor 88
quick interaction area 81
Variables
environment 14
maximum 2
maximum name length 2
Variables preferences 19
Vectis reader 114
Vector Arrow Create/Update Icon 69
Vector Arrow Editor 69
vector arrow part
creating and updating 69
definition 69
density 71
open Feature Detail Editor for 72
Tip Settings dialog 70
toubleshooting 73
Vector Glyph
format 181
Vector Glyphs
in casefile 7
velocity gradient tensor
separation/attachment lines 117
vortex cores 106
velocity magnitude gradient vector 122
Velocity variable 61
Version of EnSight in use 53
view
perspective/orthographic toggle 31
View preferences 21
view states
saving/restoring 139
viewport
2D 46
background color 43
border color 45
creation 44
delete 49
description 41
move back 44
move forward 44
precise positioning 46
reset 8
special lighting 45
standard layouts 44
visibility 42
visual attributes 46
Viewport Background Color Attributes dialog 43
Viewport Border Attributes dialog 45
Viewport Location Attributes dialog 46
Viewport Special Attributes dialog 46
Virtual Reality 1
overview 13
Volume Integral variable 40
Volume variable 61
VonMises variable 60
Vortex Cores 106
access 109
algorithms 107
caveats 107
define variables 109
method 110
references 107
thresholding 106, 110
velocity gradient tensor 106
Vorticity variable 61
VPort Mode 41
VR setup 1
VRML format 135, 3
W
Window Position File format 2
X
XY Plot Data
File format 165
XYZ clip part
interactive creation 50
Z
Z-Clip 18
float with transform 19
zoom
band global 6
